Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 1

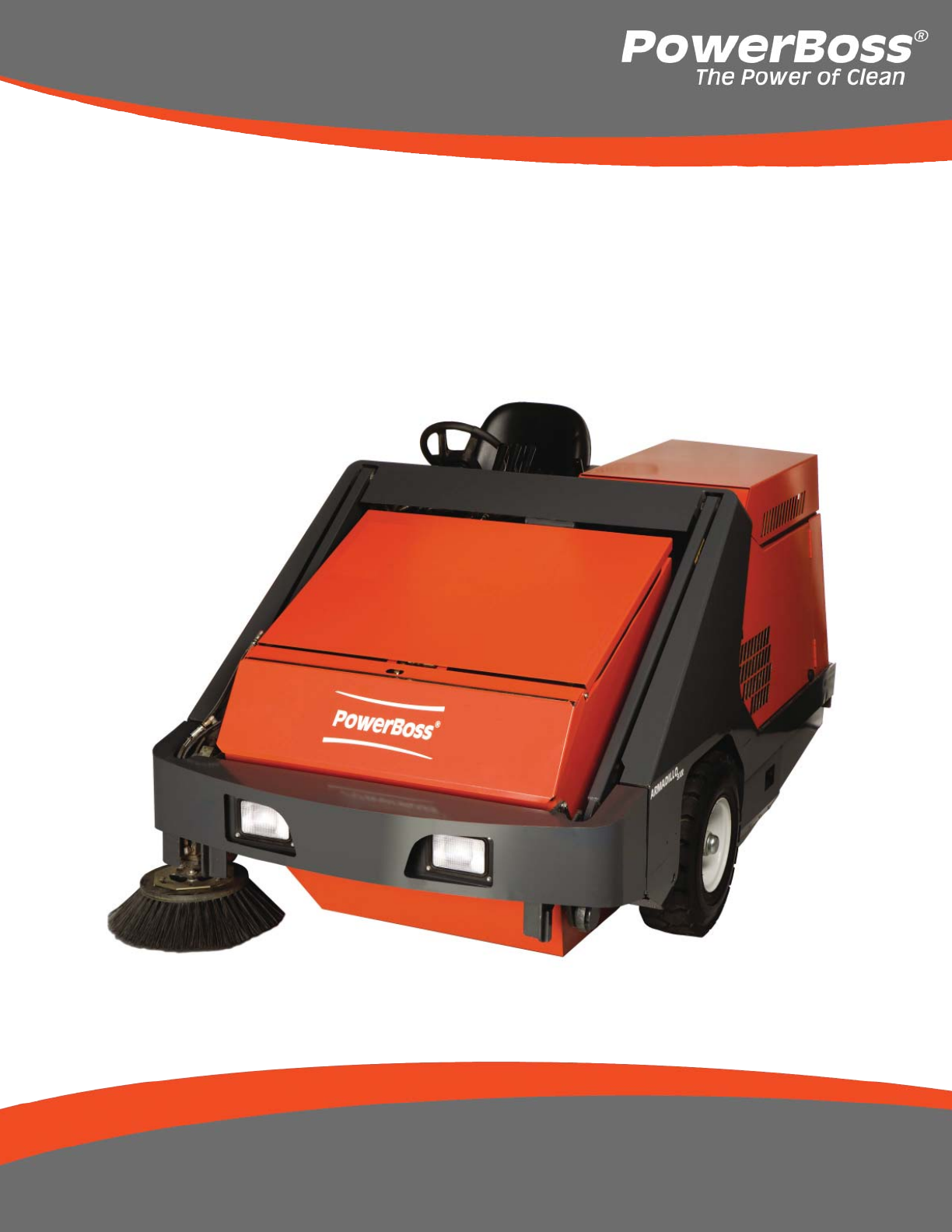

Parts Catalog

Armadillo 9X Sweeper Series

Models: 9X & 9XCE

PowerBoss®, Minuteman International, Inc.

A Member of the Hako Group

#4100000 Rev. G 12/16

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 2

Thank you for your purchase of the new industry standard for sweepers. PowerBoss® takes

great pride in oﬀ ering the most dependable, reliable, and best value in industrial power

sweepers and scrubbers. We set the standard.

Our Customer Service Department would like to hear from you. If you see any errors, omissions

or something that needs clariﬁ cation in this Parts Catalog, please let us know. We are working

hard towards continually improving our processes--to beneﬁ t you, our valued customer.

Please copy the form below, ﬁ ll out and comment on how you found our manual.

Thank you!

The PowerBoss® Team

Name______________________________________________________________________

Title: ______________________________________________________________________

Company Name: _____________________________________________________________

Address: ____________________________________________________________________

Country: ____________________________________________________________________

Type of equipment or model number: ______________________________________________

Comments: __________________________________________________________________

____________________________________________________________________________

Please return to:

Customer Service Manager

PowerBoss®, Minuteman International, Inc.

14N845 U.S. Route 20

Pingree Grove, Illinois 60140 USA

Phone: 800-323-9420

Email: tech@powerboss.com

PREFACE

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 3

This is the Parts Catalog for the PowerBoss® Armadillo 9X & 9XCE Sweeper Series.

This Catalog covers the Armadillo 9X & 9XCE machine variations beginning December 2014.

We believe this machine will provide excellent service for many years.

However, the best results will be obtained if:

• The machine is operated with reasonable care.

• The machine is maintained regularly per the maintenance schedule provided in the User Manual.

• The machine is maintained with PowerBoss® supplied or equivalent parts.

All right side and left side references to the machine (except for engine) are determined by facing

the direction of forward travel. The front of the engine or engine fan faces the rear of the machine.

Some hardware considered to be common or locally available has been omitted from the parts

section to make this manual clear. Be sure to use equivalent hardware when replacement becomes

necessary.

The Model and Serial Number of your machine is shown on the I.D. name plate. This information is

needed when contacting Technical Support or when ordering parts. The I.D. plate is mounted on the

console of the machine, left of the operator and adjacent the main broom adjustment access door.

Example I.D Plates:

Parts may be ordered by phone, fax, or email from any PowerBoss® parts and service center.

Before ordering parts or supplies, be sure to have your machine model number and serial number

handy. For your convenience Fill out the data block on the next page for future reference.

MACHINE DATA

Fill out at installation

Serial Number: ___________________________________

Engine Serial Number: ____________________________

Sales Rep.: ______________________________________

Date of Install: ___________________________________

All information contained in this catalog is current at the time of printing. PowerBoss®, Minuteman

International, Inc. reserves the right to make changes at any time without notice.

PREFACE

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 4

TECHNICAL SPECIFICATIONS

Model Armadillo 9X Series

9X Model No. SW9XKDSL; SW9XKGAS; SW9XKLPG

9X CE Model No. 9XRDSLCE; 9XRLPGCE

DIMENSIONS & WEIGHT

Length . . . . . . . . . . . . . . . . . . 105 in (267 cm)

Width . . . . . . . . . . . . . . . . . . . 60 in (152 cm)

Height (machine) . . . . . . . . . . 52.5 in (133 cm)

Height (with steering wheel) . . 58 in (147 cm)

Height (with Overhead guard) 81 in (206 cm)

Height (with Cab) . . . . . . . . . . 81 in (206 cm)

Weight (Diesel engine) . . . . . 4090 lb (1855 kg)

Weight (Gas & LPG engines) 4070 lb (1846 kg)

Minimum U-turn . . . . . . . . . . . 110 in (280 cm)

SWEEPING SYSTEM

Productivity . . . . . . . . . . . . . . 184,800 ft²/hr (17,168 m²/hr)

Sweep path. . . . . . . . . . . . . . . 62 in (157 cm)

Main broom. . . . . . . . . . . . . . . 48 in (122 cm)

Side broom . . . . . . . . . . . . . . . 24 in (61 cm)

with Dual side broom . . . . . . . optional 72 in path

. . . . . . . . . optional (183 cm) path

Hopper type . . . . . . . . . . . . . . RTR™ high dump

Hopper volume . . . . . . . . . . . . 21.1 ft³ (0,59 m³)

Hopper load capacity . . . . . . . 1100 lb (498 kg)

Dust control . . . . . . . . . . . . . . 110 ft² (10,22 m²)

High dump . . . . . . . . . . . . . . . 64 in (162 cm)

include RTR™(Rotary Trash Relocation)

TECHNICAL SPECIFICATIONS

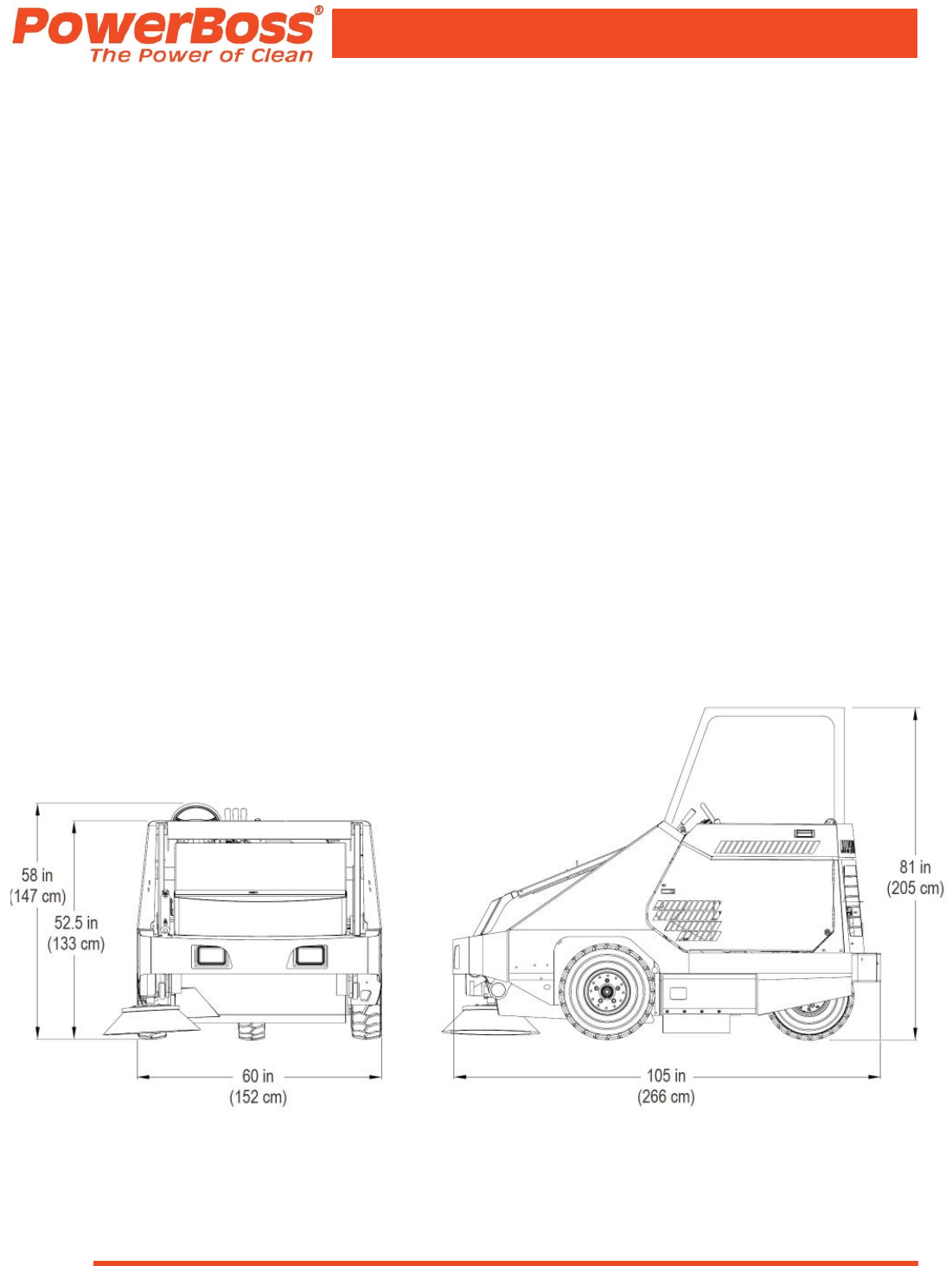

dimensions shown in inches (cm)

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 5

STANDARD ABBREVIATIONS

°C-Degrees Celsius

°F-Degrees Fahrenheit

12V-12 Volts DC

AR-Abrasion Resistant

ASSY-Assembly

ATO-Standard Auto Fuse Type

Also called ATC

BHSCS-Button Head Screw SS

BLK-Black

BLT-Belt

BR-Brass or Broom or Brush

BRM-Broom

BRKT-Bracket

CB-Curb Broom

CCW-Counter Clockwise

CI-Cubic Inch

CW-Clockwise Rotation

CYL-Cylinder

DEG-Degrees

DIA-Diameter

DPDT-Double Pole Double Throw

ELEC-Electric

ES-Elastic Stop, also Nyloc

EXT-Exterior or Extended

FI-Fuel Injection

FS-Full Size

FTG-Fitting

FWD-Forward

REV-Reverse

GAL-US Gallon (3.79 Liters)

GOV-Governor

HD-Head

HD-Heavy Duty

HOP-Hopper

HSS-High Speed Steel

HT-High Temperature

HT-Height

HYD-Hydraulic

ID-Identiﬁ cation

ID-Inside Diameter

IMP-Impeller

INFO-Information

INT-Internal or Interior

LG-Long

LH-Left Hand

LPG-Liqueﬁ ed Petroleum Gas

LP-Liqueﬁ ed Petroleum

M8x1-Indicates Metric threads,

8mm Dia with a 1mm thread pitch

MM-Millimeters

MNT-Mount

MS-MId Size

OD-Outside Diameter

PLTD-Plated

REV-Reverse

RH-Right Hand

ROT-Rotation

RTR-Rotary Trash Relocator

SCR-Screw

SC-Scrubber

SP-Service Part

SPDT-Single Pole Double Throw

SPST-Single Pole Single Throw

SS-Stainless Steel

STR-Straight

ST-Straight

SUB-Sub Assembly

THD-Thread

THK-Thick

THRU-Through

UNC-Uniﬁ ed Nat’l Coarse Threads

UNF-Uniﬁ ed Nat’l Fine Threads

V1505-Kubota Diesel Engine

W/-With

WELD-Weldment

W/O-Without

SP-Zinc Plated

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 6

TABLE OF CONTENTS

PREFACE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

TECHNICAL SPECIFICATIONS

STANDARD ABBREVIATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

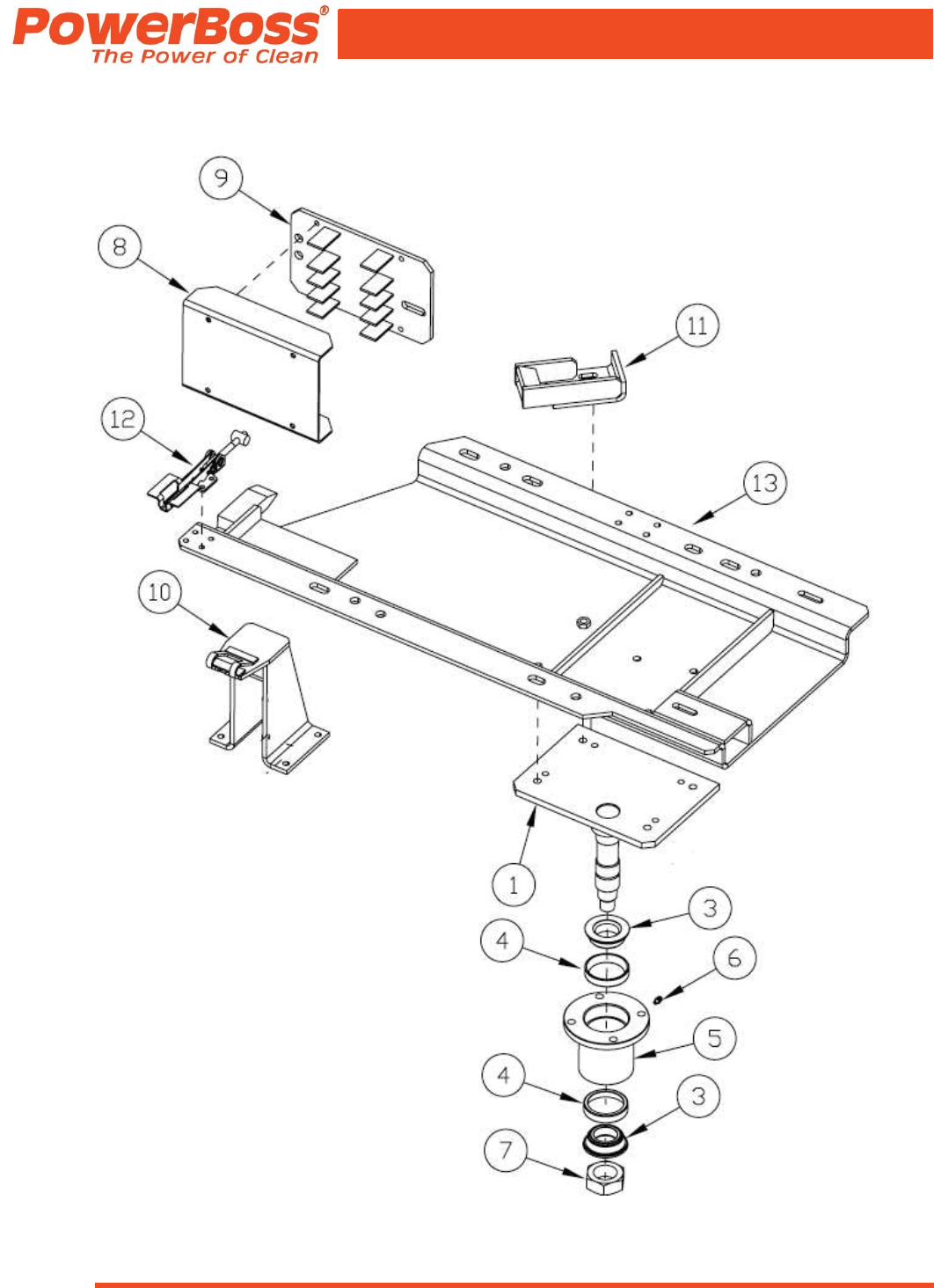

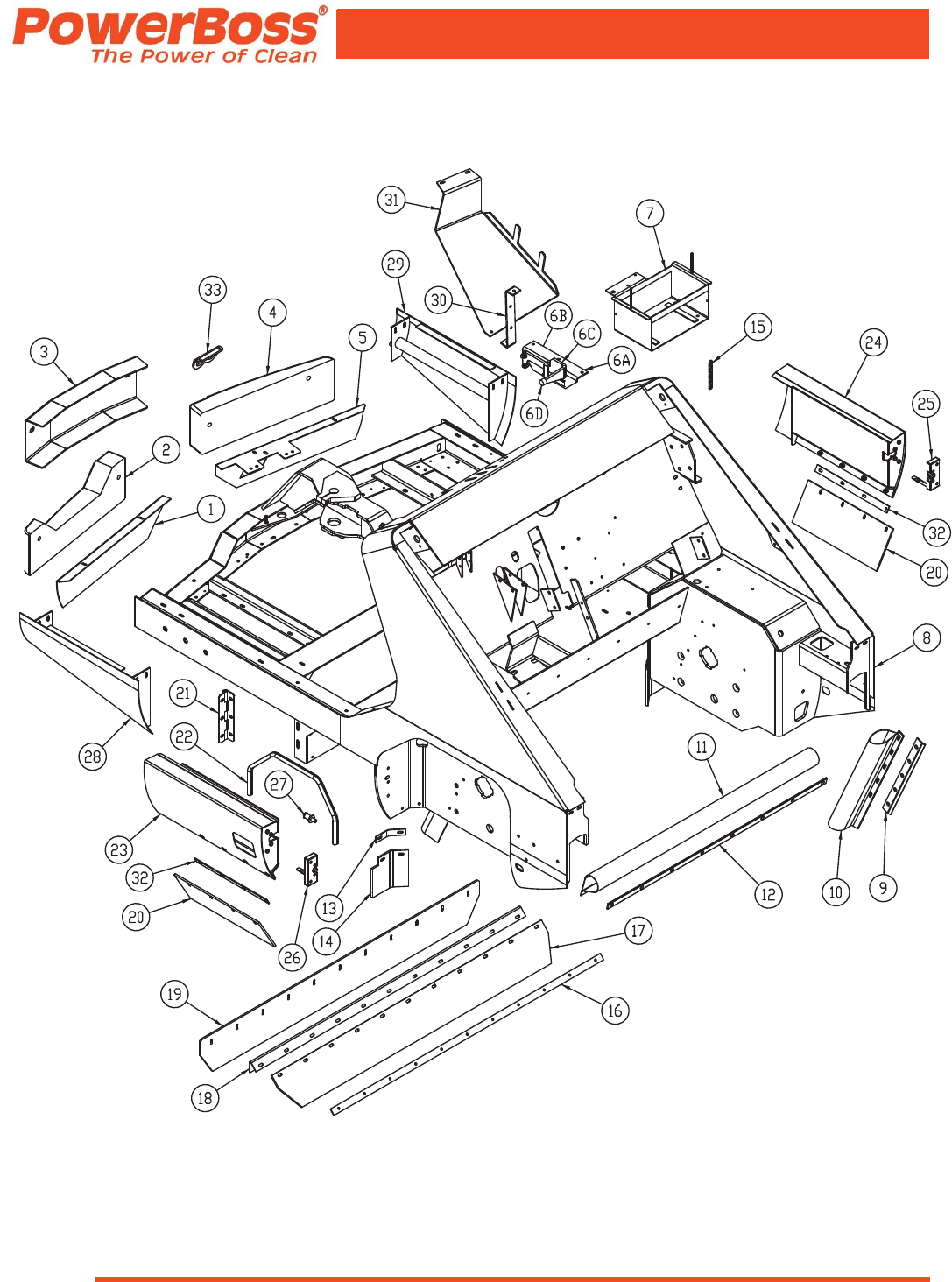

FRAME ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

HYDRAULIC BRAKE ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

HYDRAULIC BRAKE ASSEMBLY - CONTINUED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

BRAKE - 8” ARMA L/H PN-3321450 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

BRAKE - 8” ARMA R/H PN-3321471. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

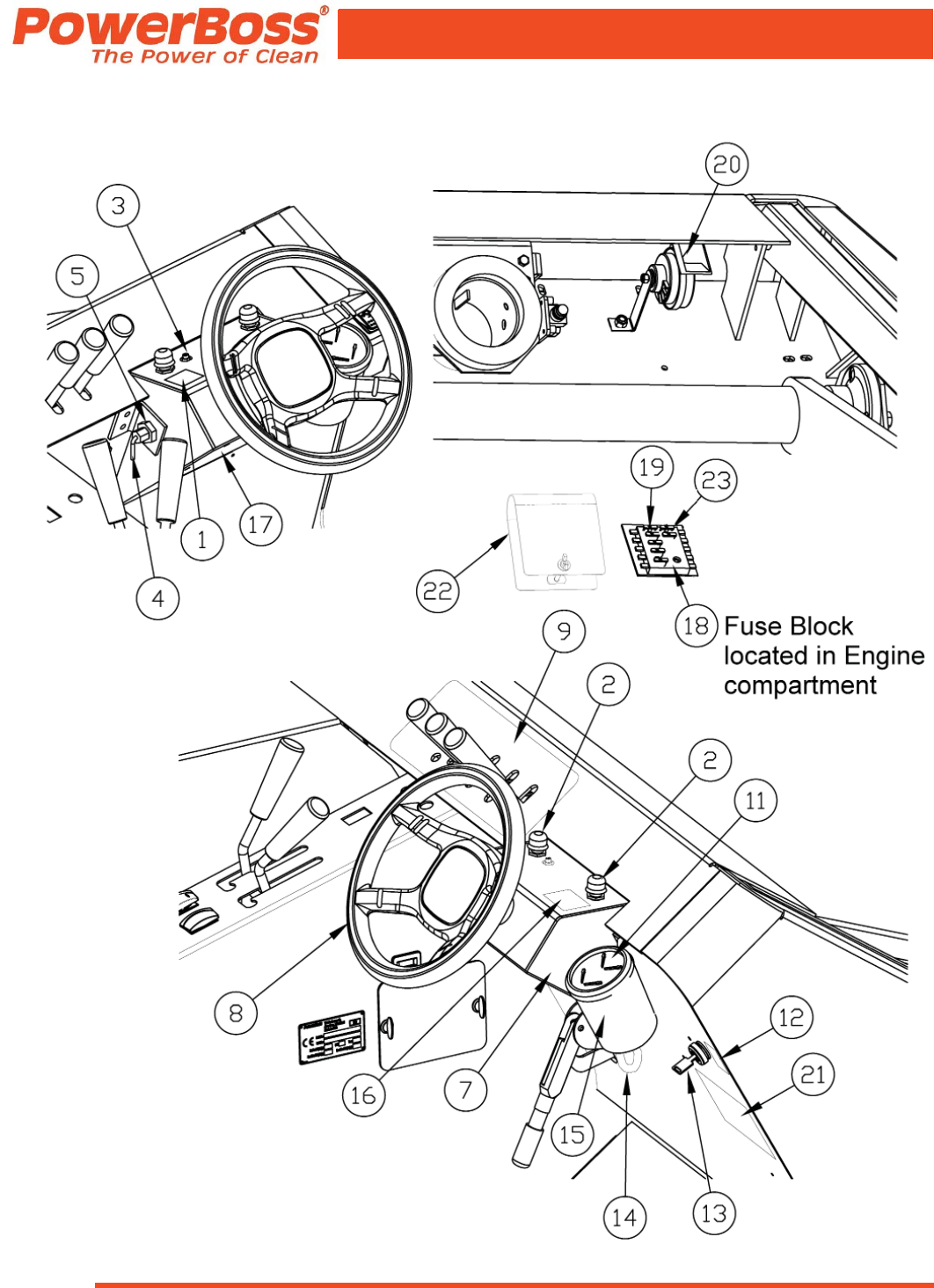

STEERING WHEEL, GAUGES & FUSES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

STEERING COLUMN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

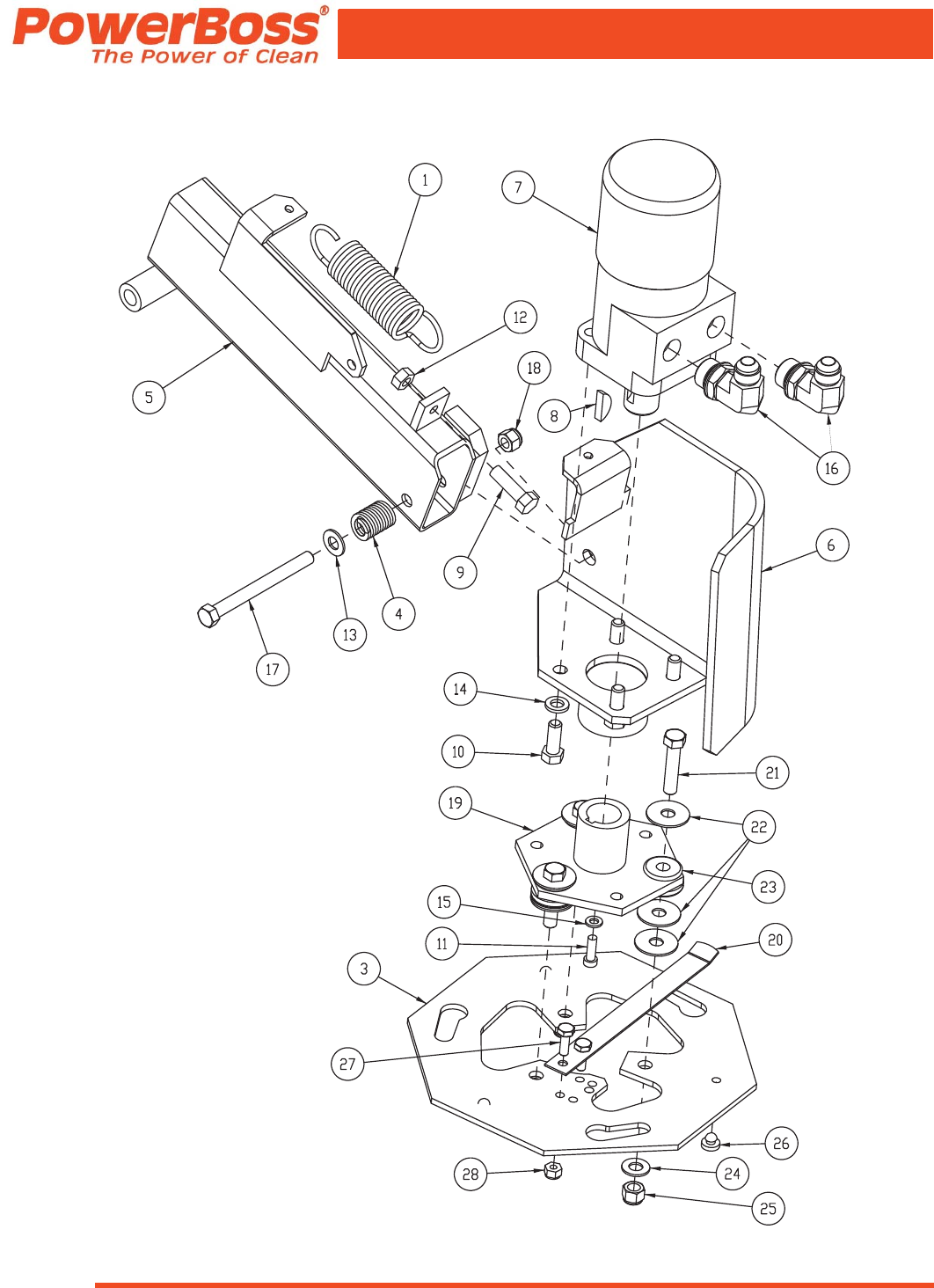

SIDE BROOM ASSEMBLY - DRIVE MOTOR, ARM, AND MOUNTING . . . . . . . . . . . . . . . . . . . . . . . . 20

SIDE BROOM ASSEMBLY - ADJUSTMENT COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

ENGINE COVER, SIDE DOOR, LATCH & REAR GRILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

REAR DRIVE ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

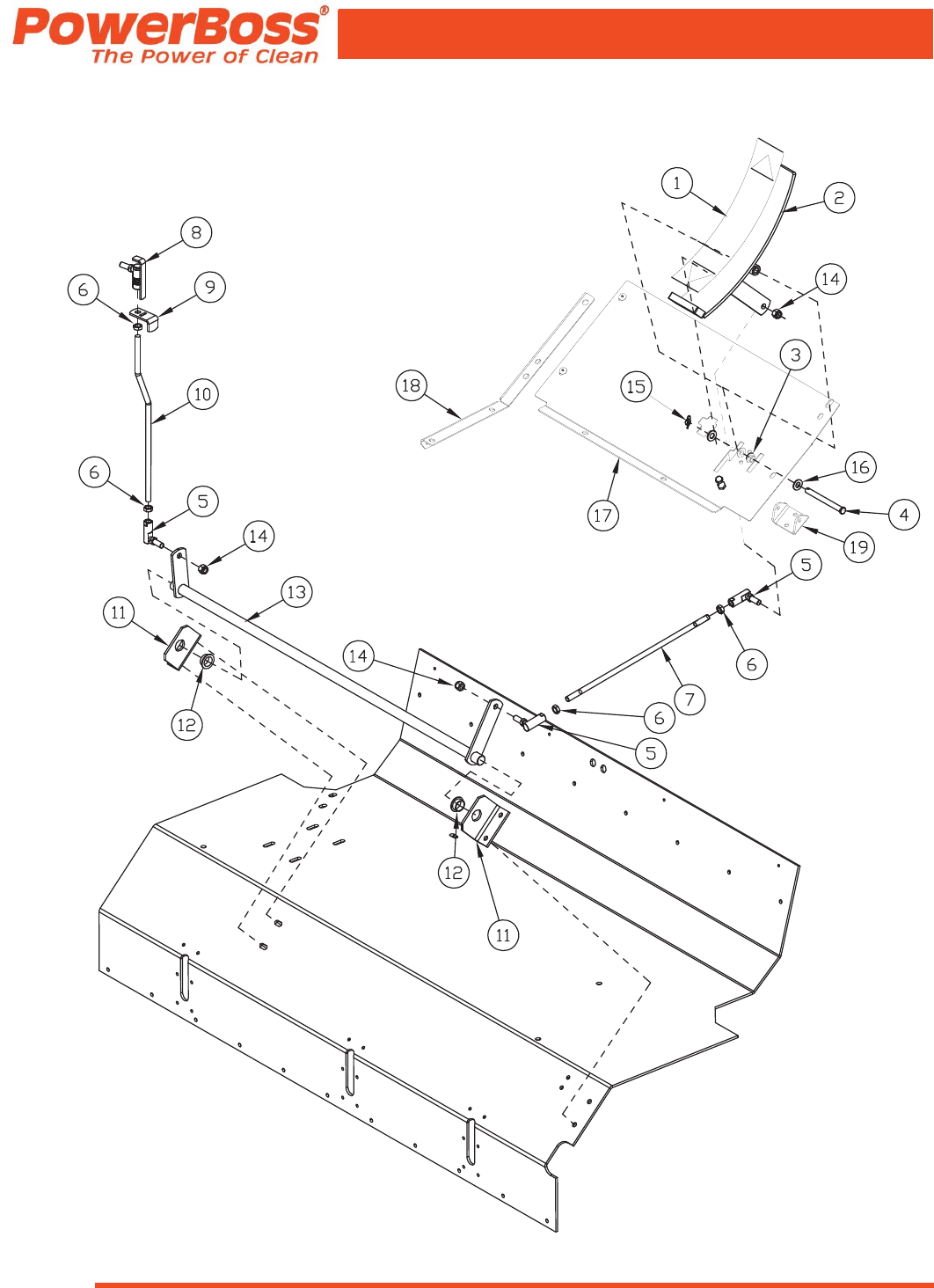

DIRECTIONAL CONTROL LINKAGE ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

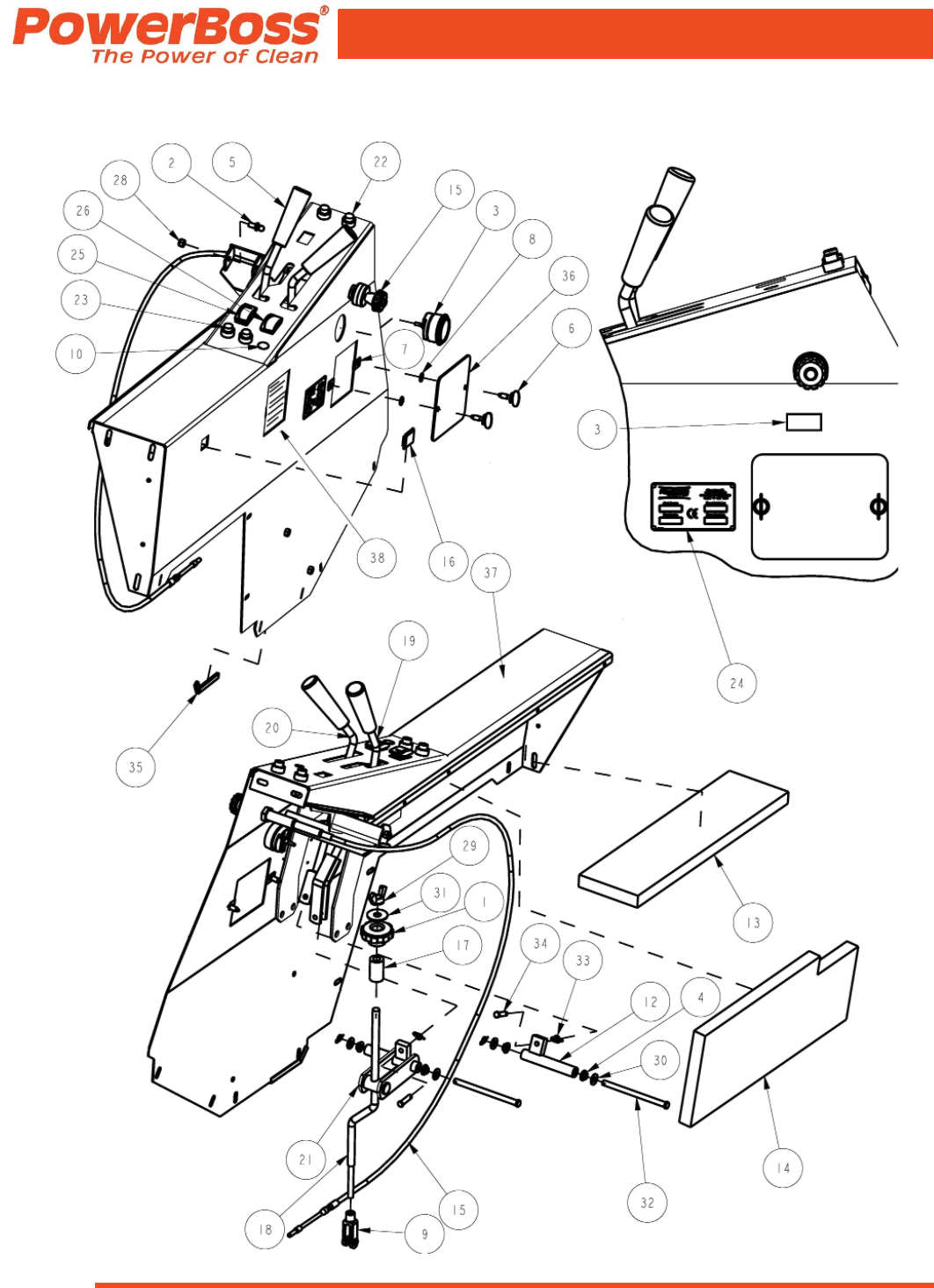

CONSOLE ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

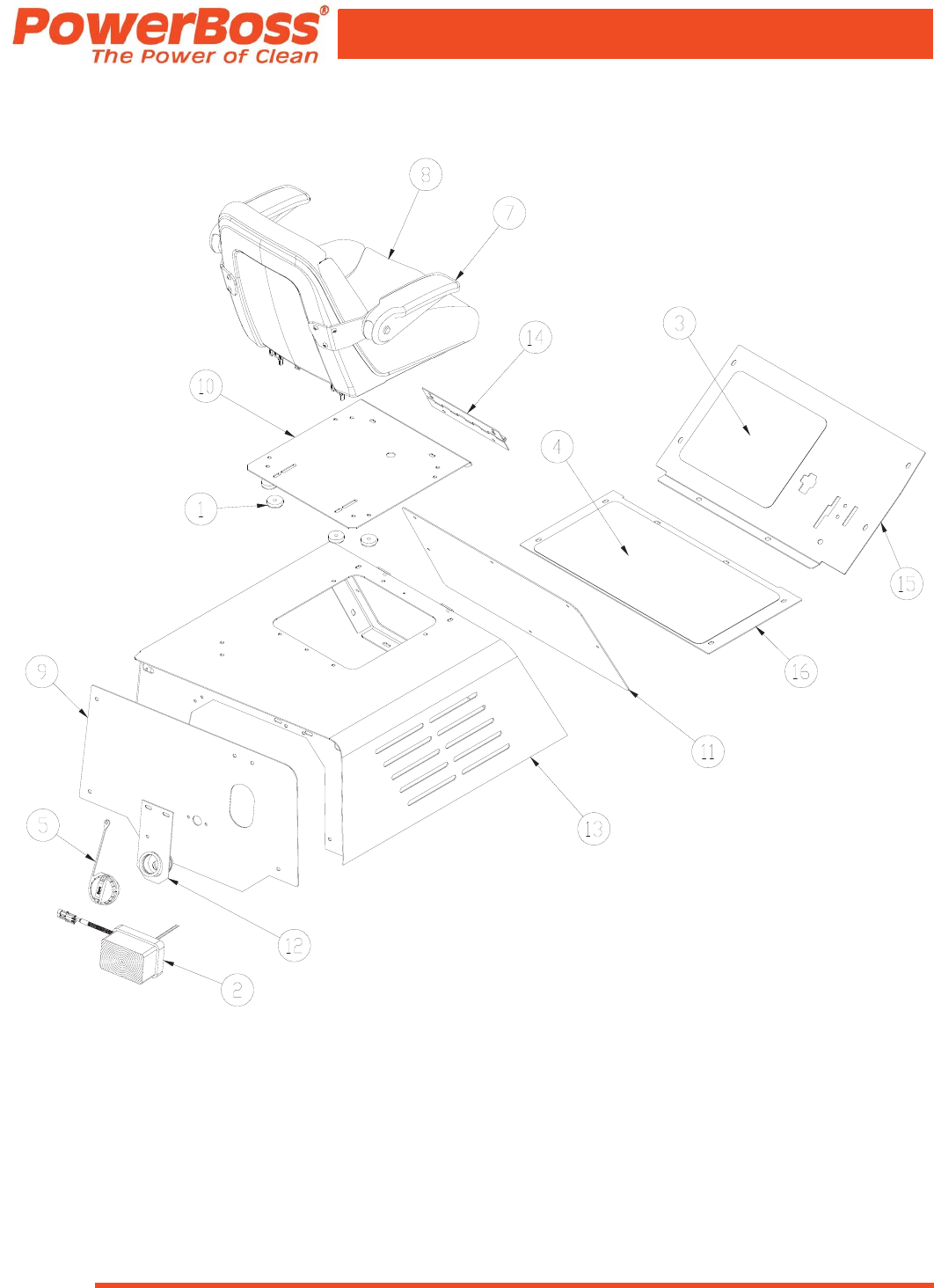

SEAT, FLOOR PAN & TAIL LIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

LIFT & ROTATION CYLINDERS, HYDRAULIC HOSES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

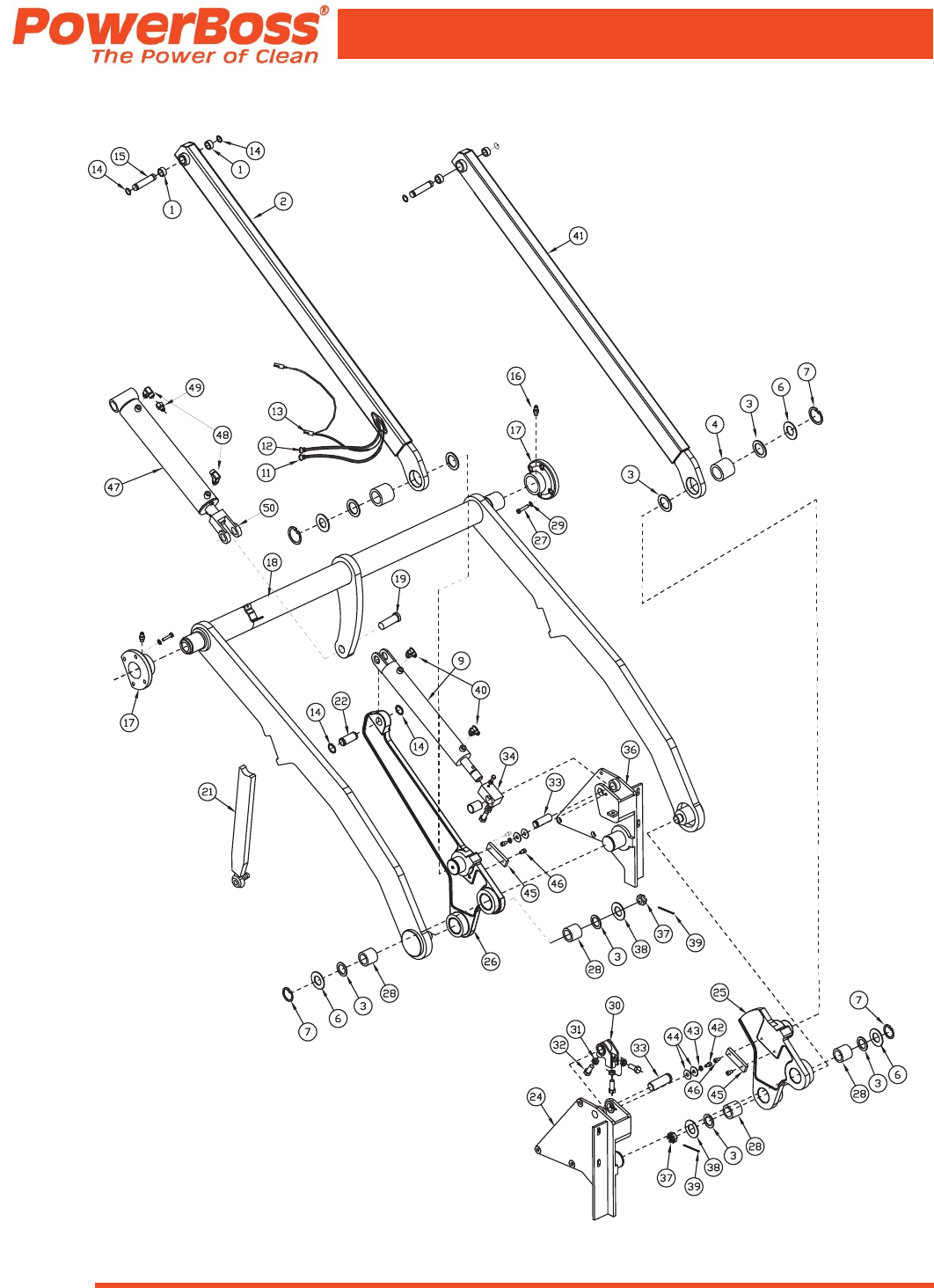

RTR SWITCH DETAIL LIFT ARM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

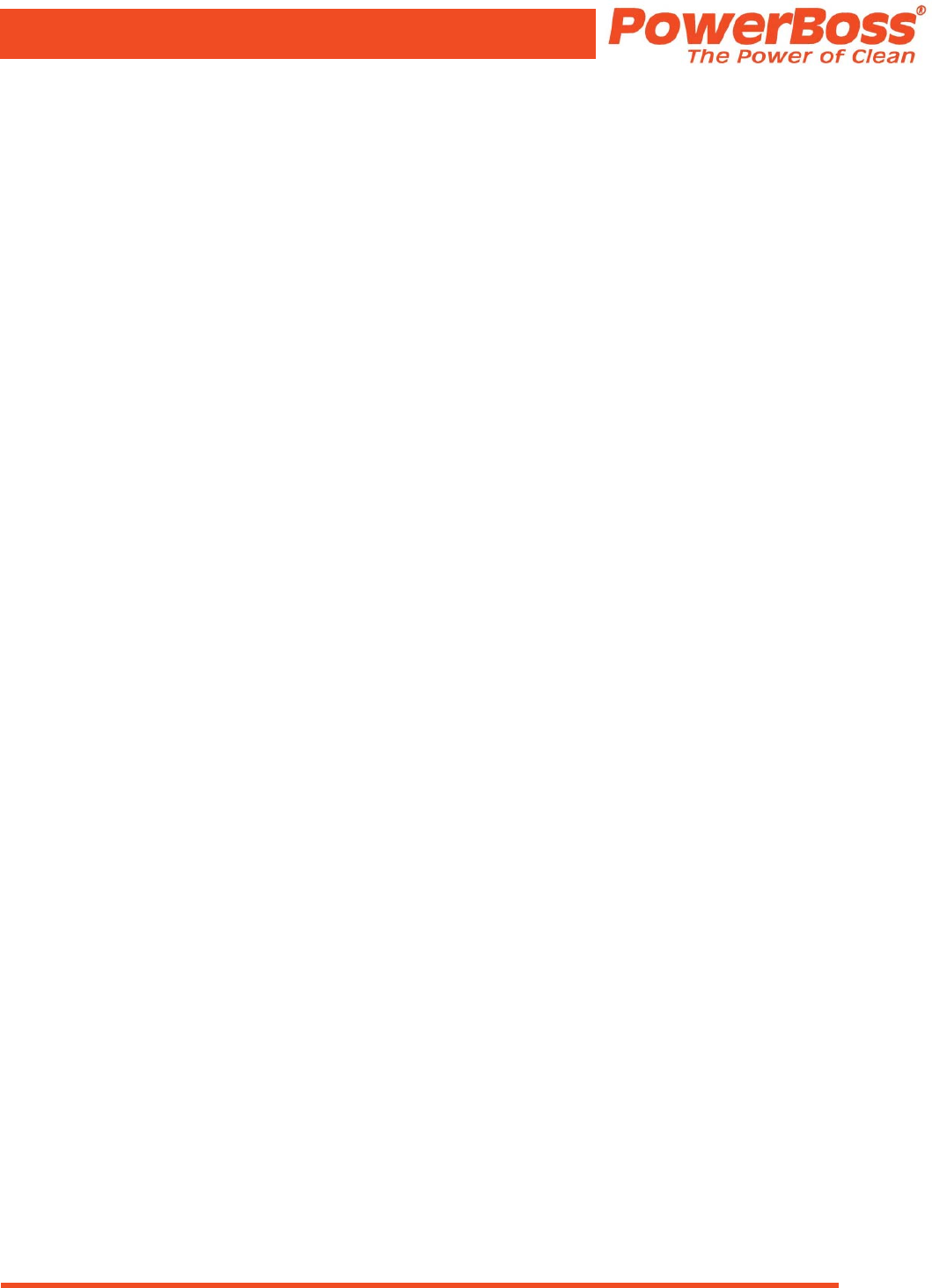

THIS PAGE IS INTENTIONALLY LEFT BLANK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

HOPPER - FILTER AND SHAKER MOTOR COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

HOPPER - COVER AND LATCH COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

FRONT BUMPER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

BATTERY COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

ENGINE PAN, HYDRAULIC HOSE RETAINER & LATCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

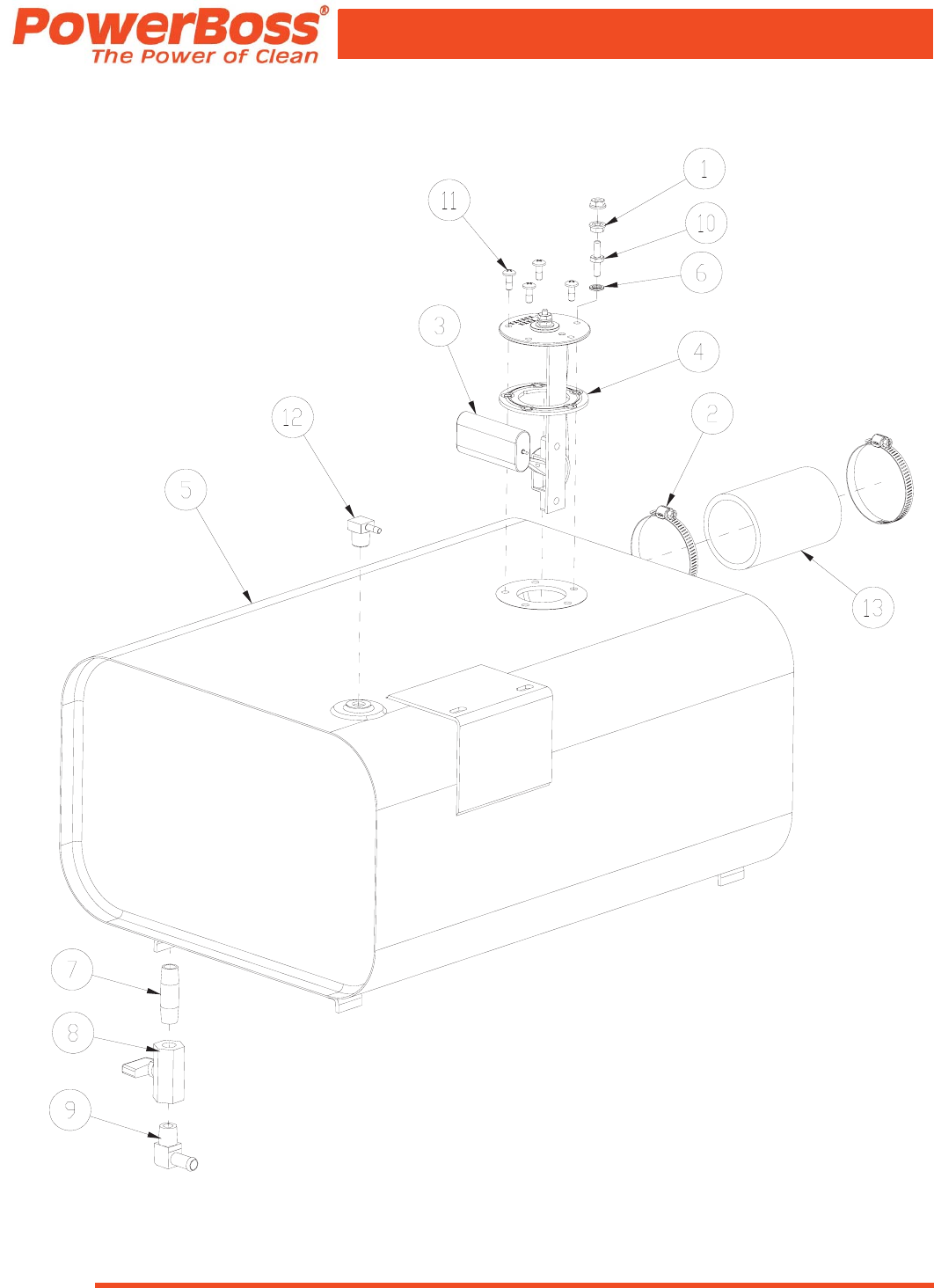

FUEL TANK GASOLINE AND DIESEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

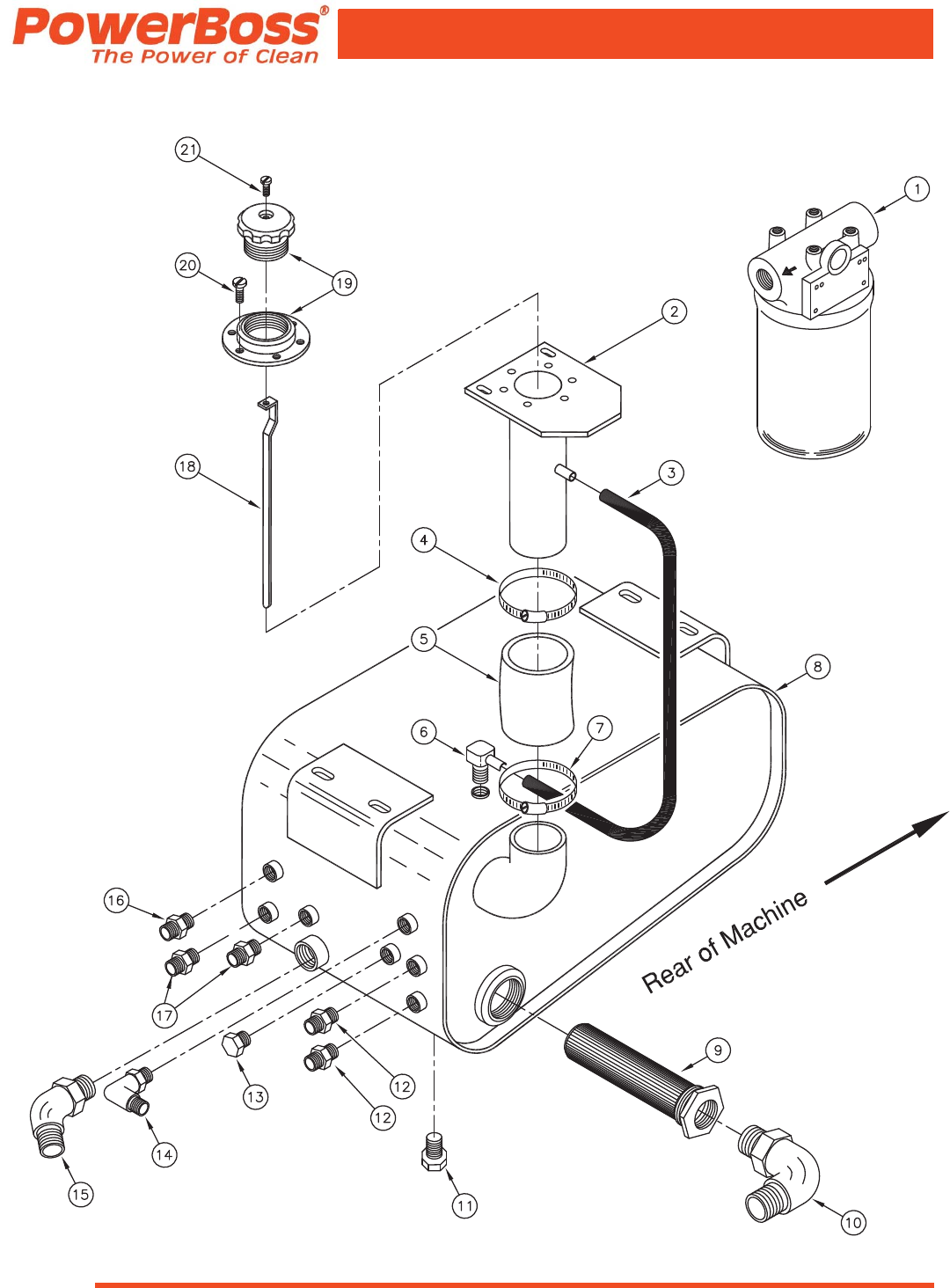

HYDRAULIC RESERVOIR ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

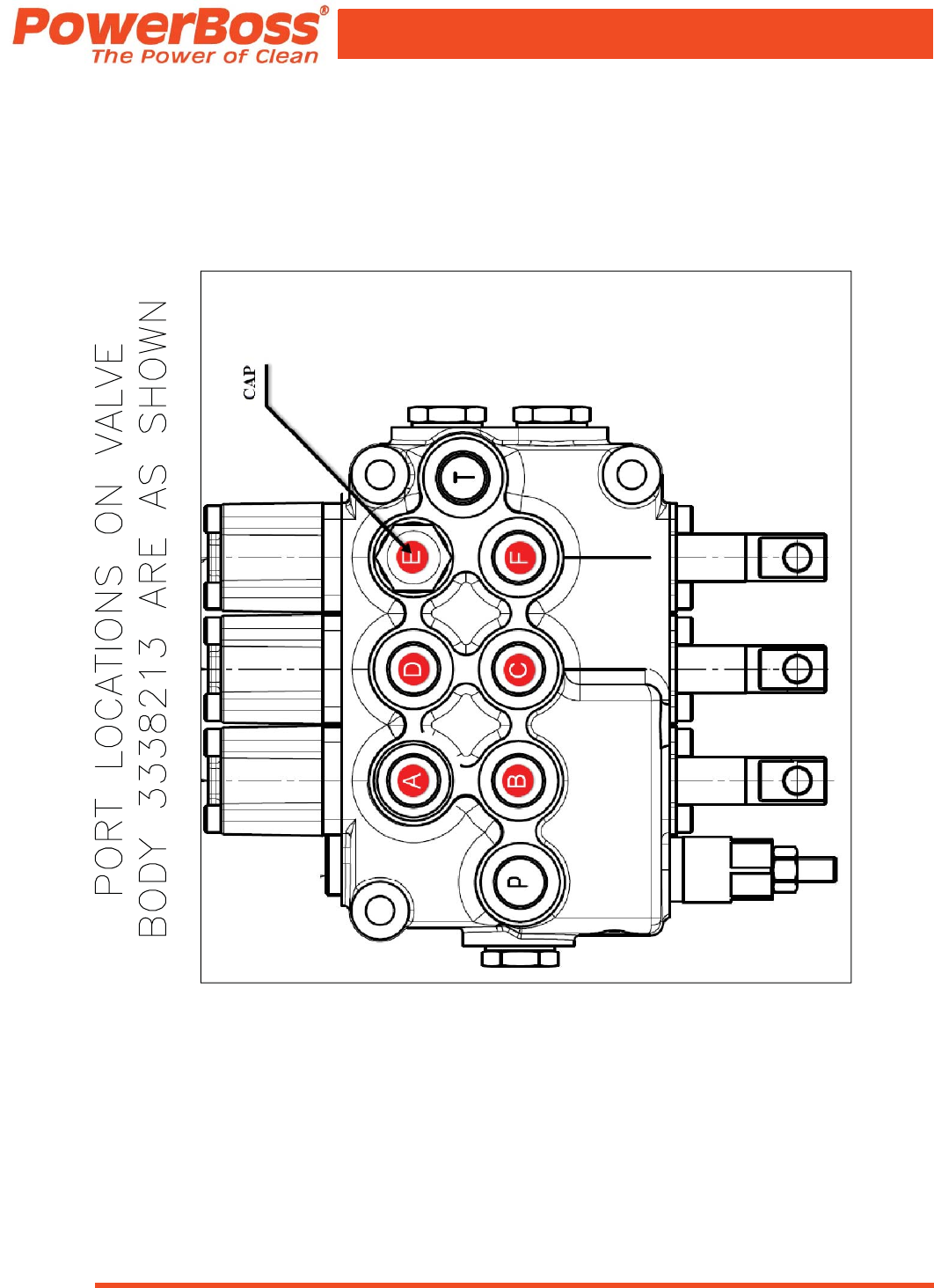

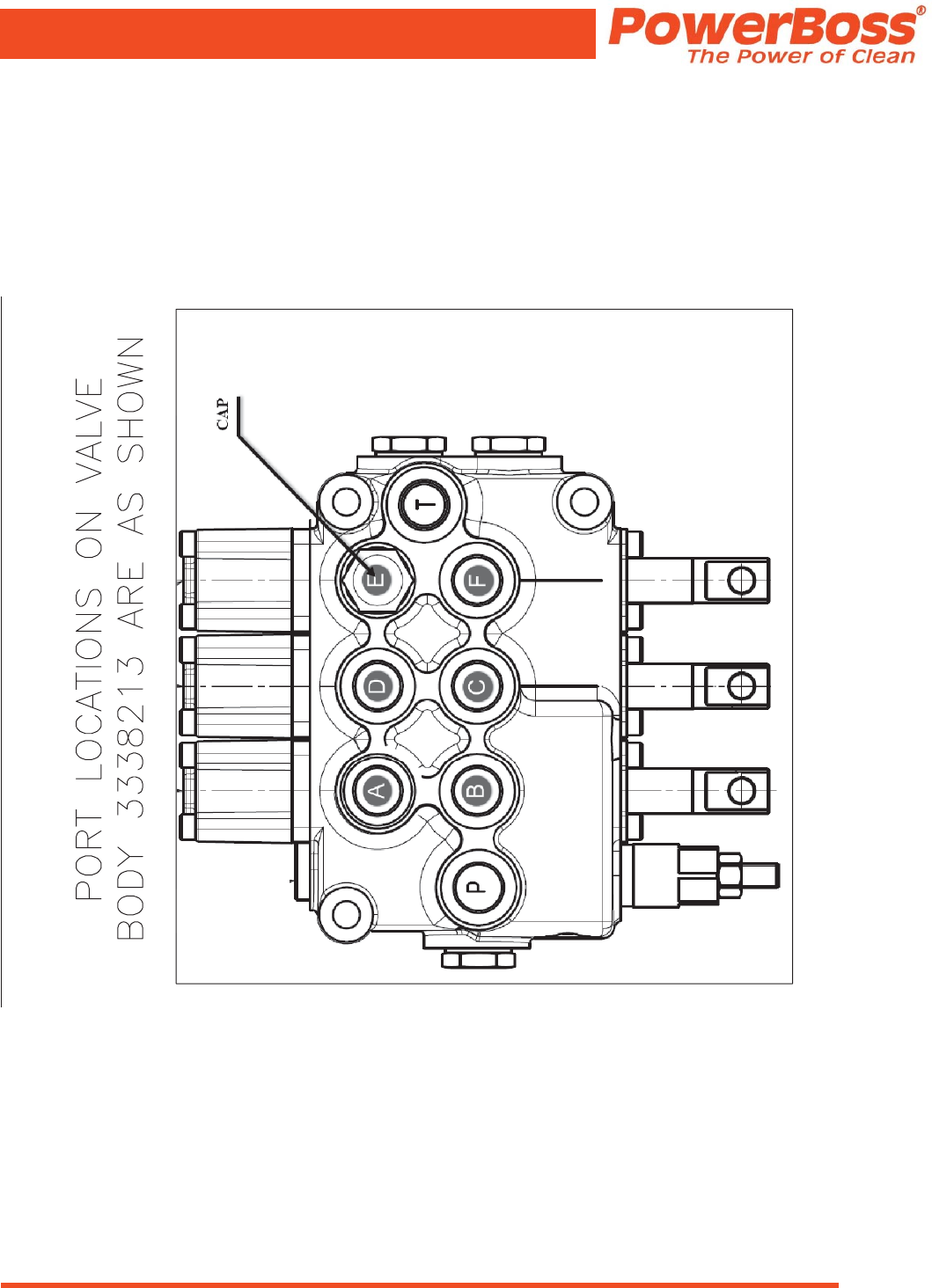

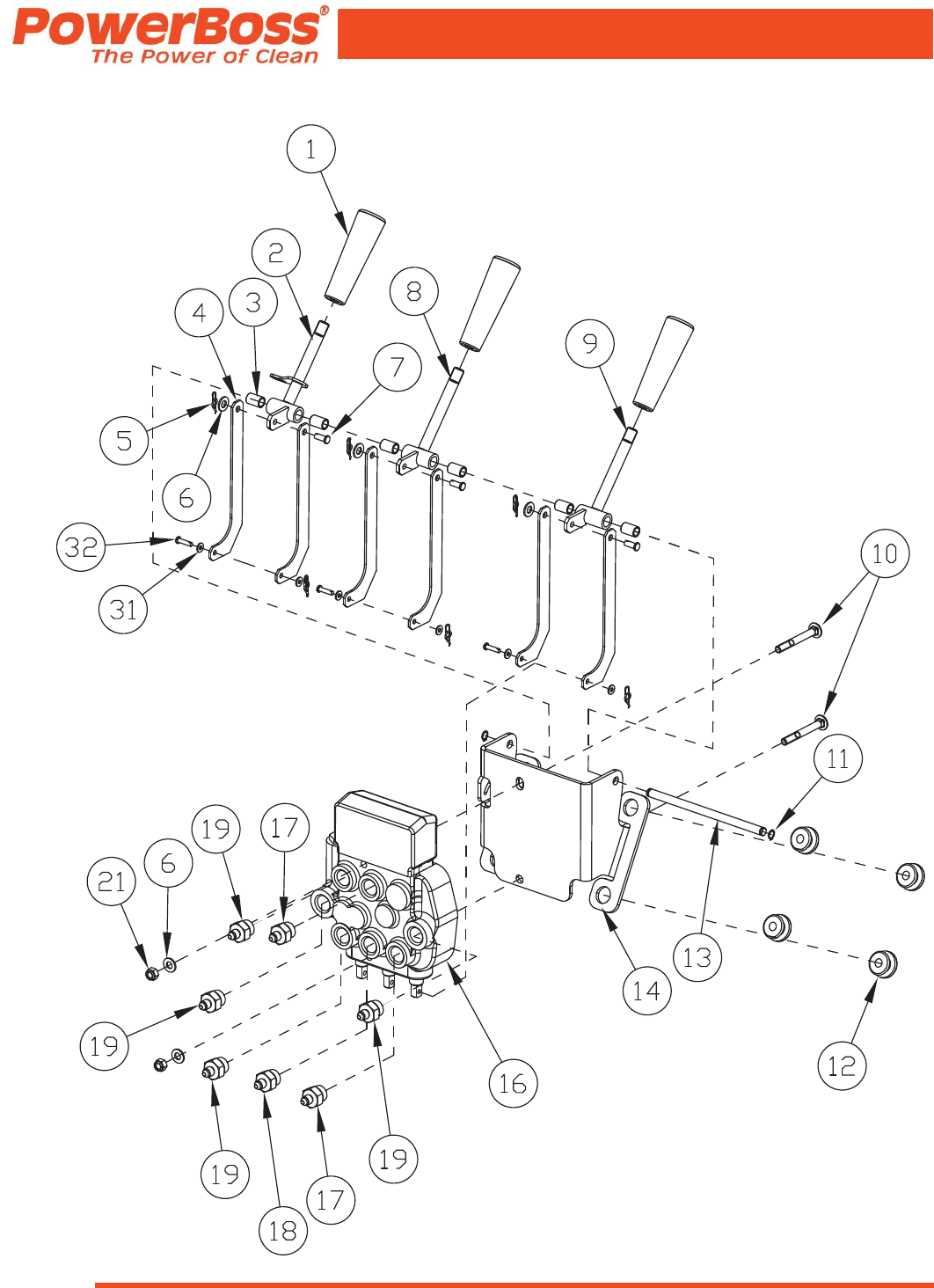

HYDRAULIC CONTROL VALVE DETAIL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

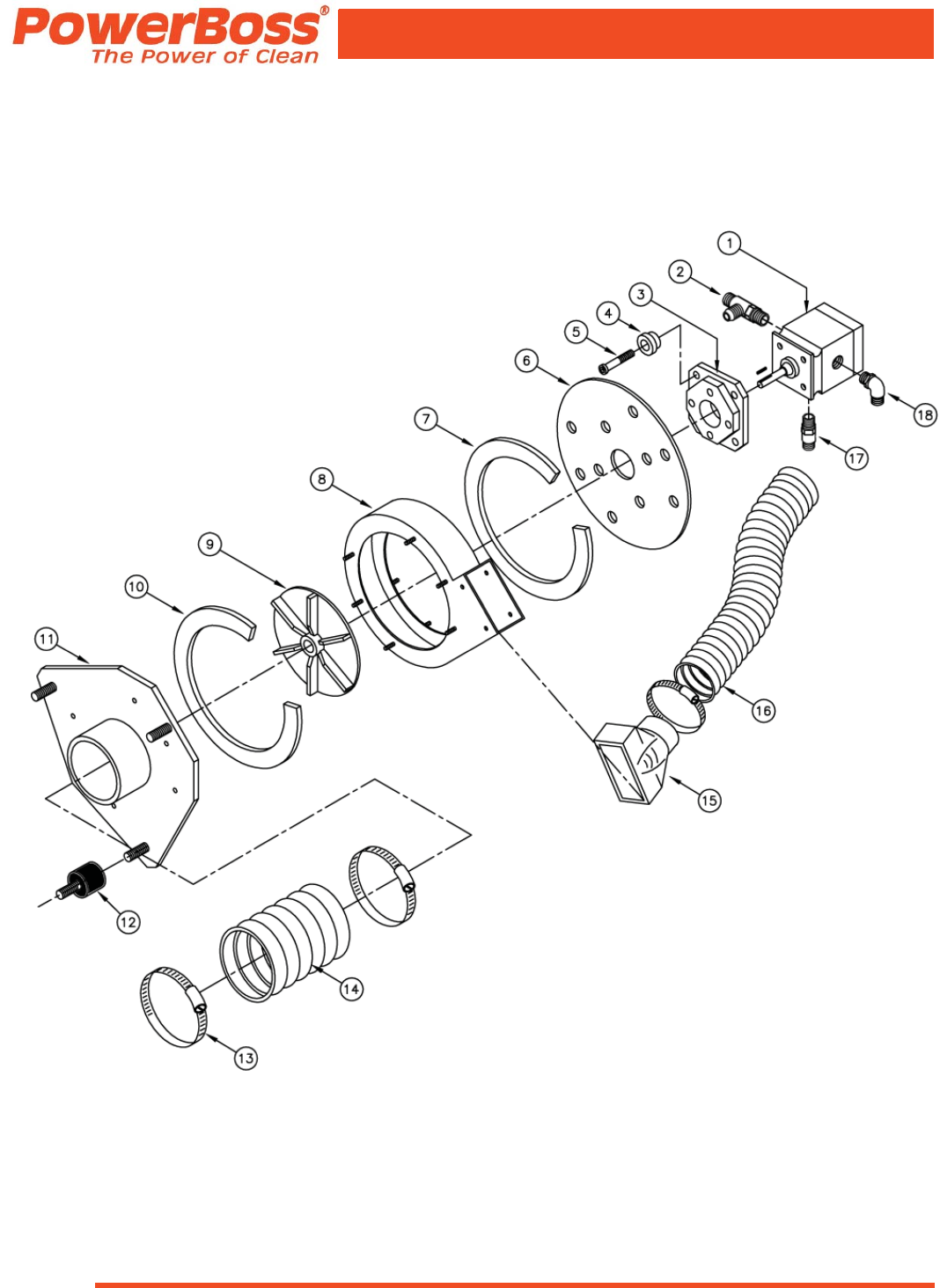

IMPELLER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

MAIN BROOM ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

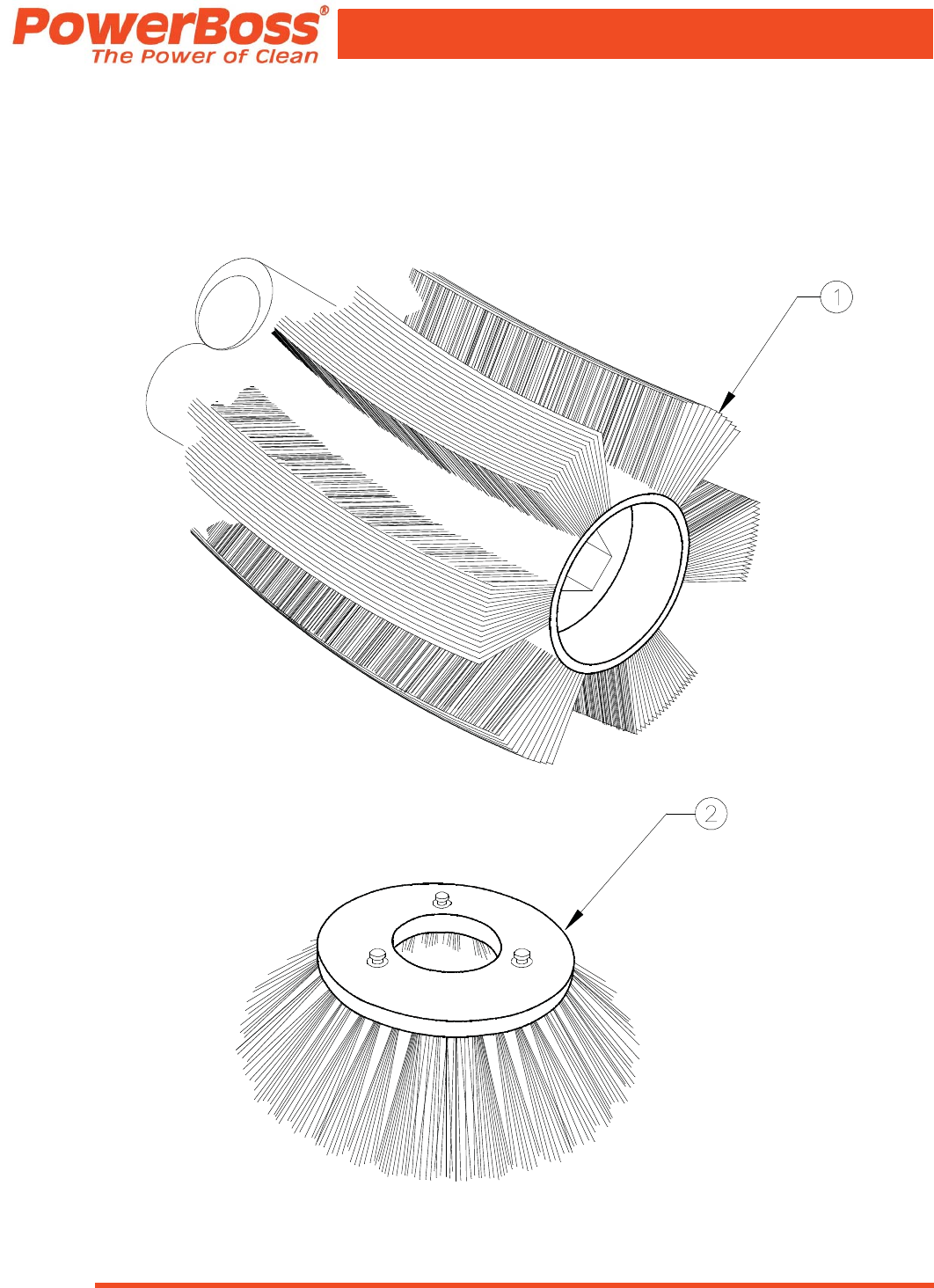

SIDE BROOM & MAIN BROOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

VACUUM SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

TIMER-FILTER SHAKER SEALED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

GASKET MOUNT ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

ENGINE KUBOTA V1505 DIESEL - AIR CLEANER ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

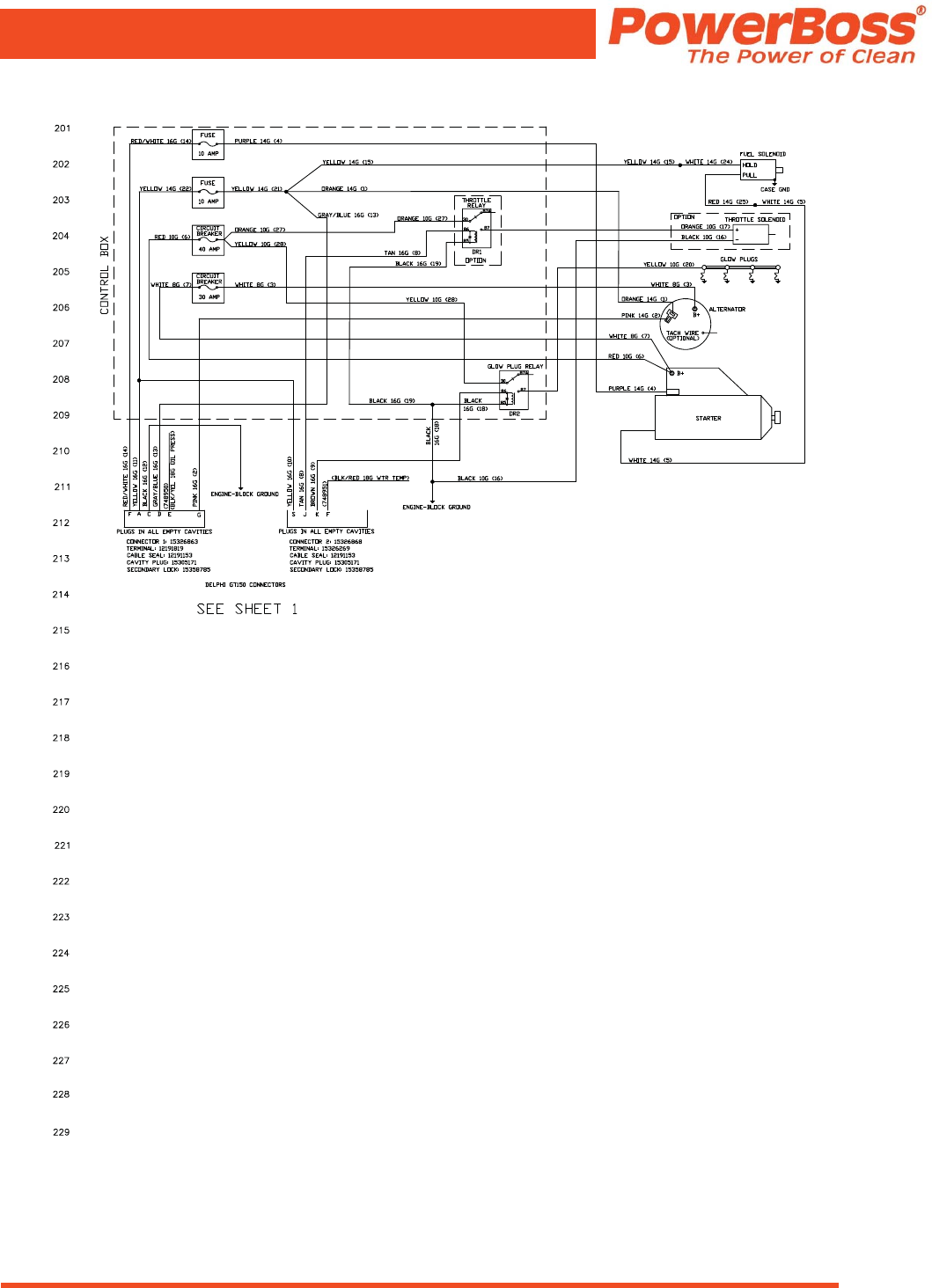

ENGINE KUBOTA V1505 DIESEL - FUSE BOX ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

ENGINE KUBOTA V1505 DIESEL - FUSE BOX DETAILS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

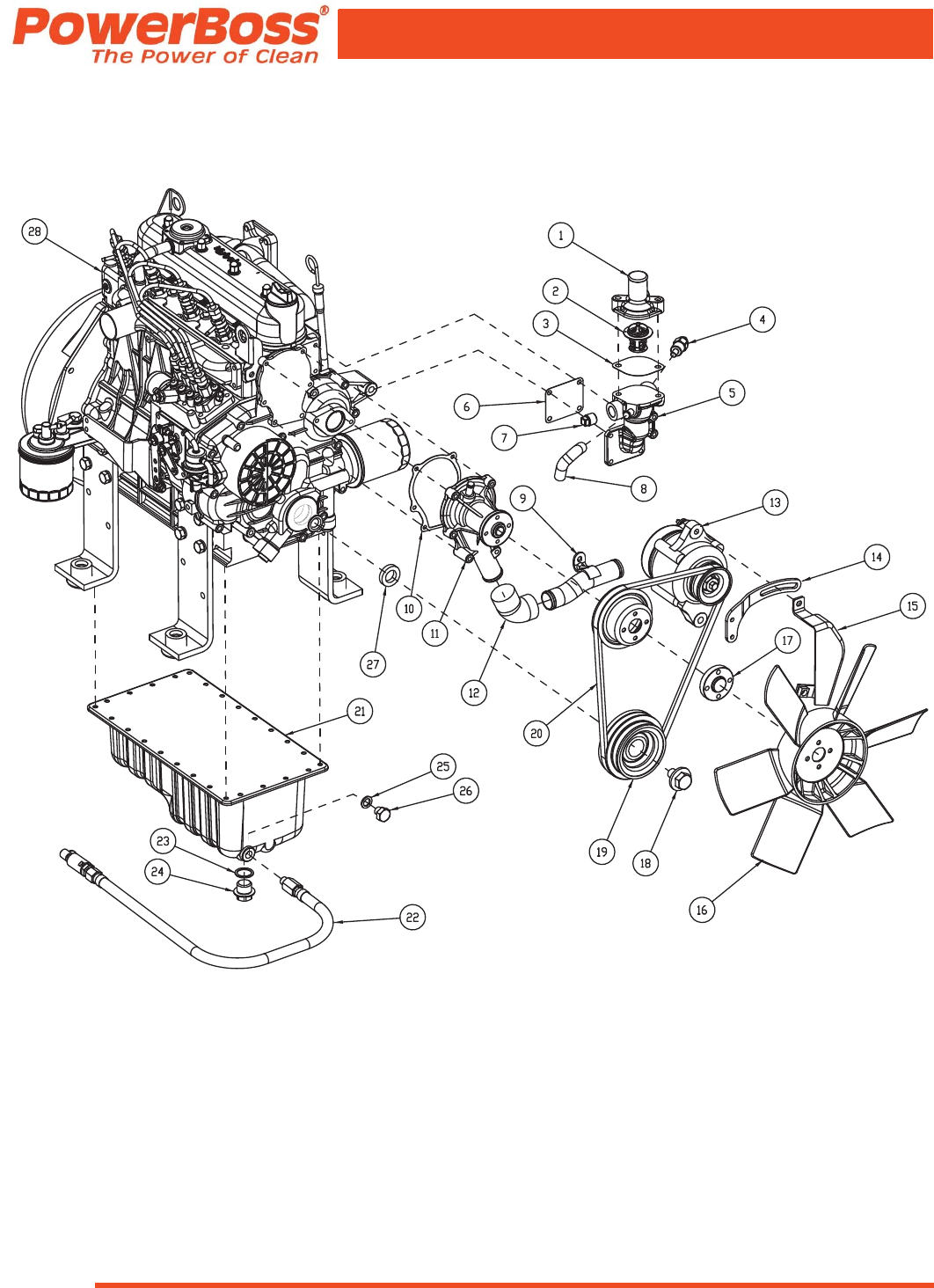

ENGINE KUBOTA V1505 DIESEL - ALTERNATOR, WATER PUMP, FAN, AND OIL PAN. . . . . . . . . . 66

TABLE OF CONTENTS

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 7

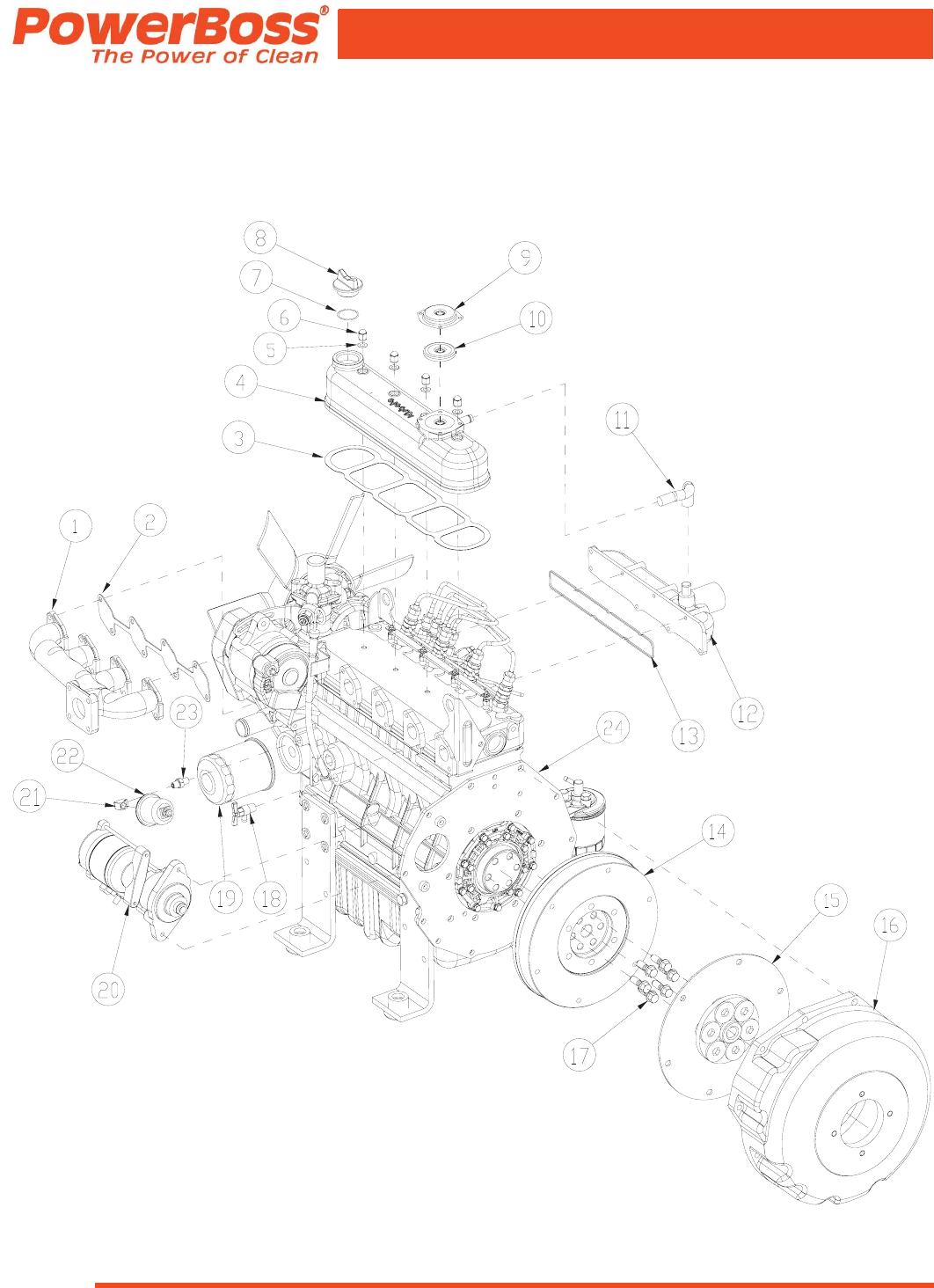

ENGINE KUBOTA V1505 DIESEL - FLYWHEEL, STARTER, HEAD COVER, AND MANIFOLD . . . . 68

ENGINE KUBOTA V1505 DIESEL - FUEL SYSTEM AND SPEED CONTROL . . . . . . . . . . . . . . . . . . . 70

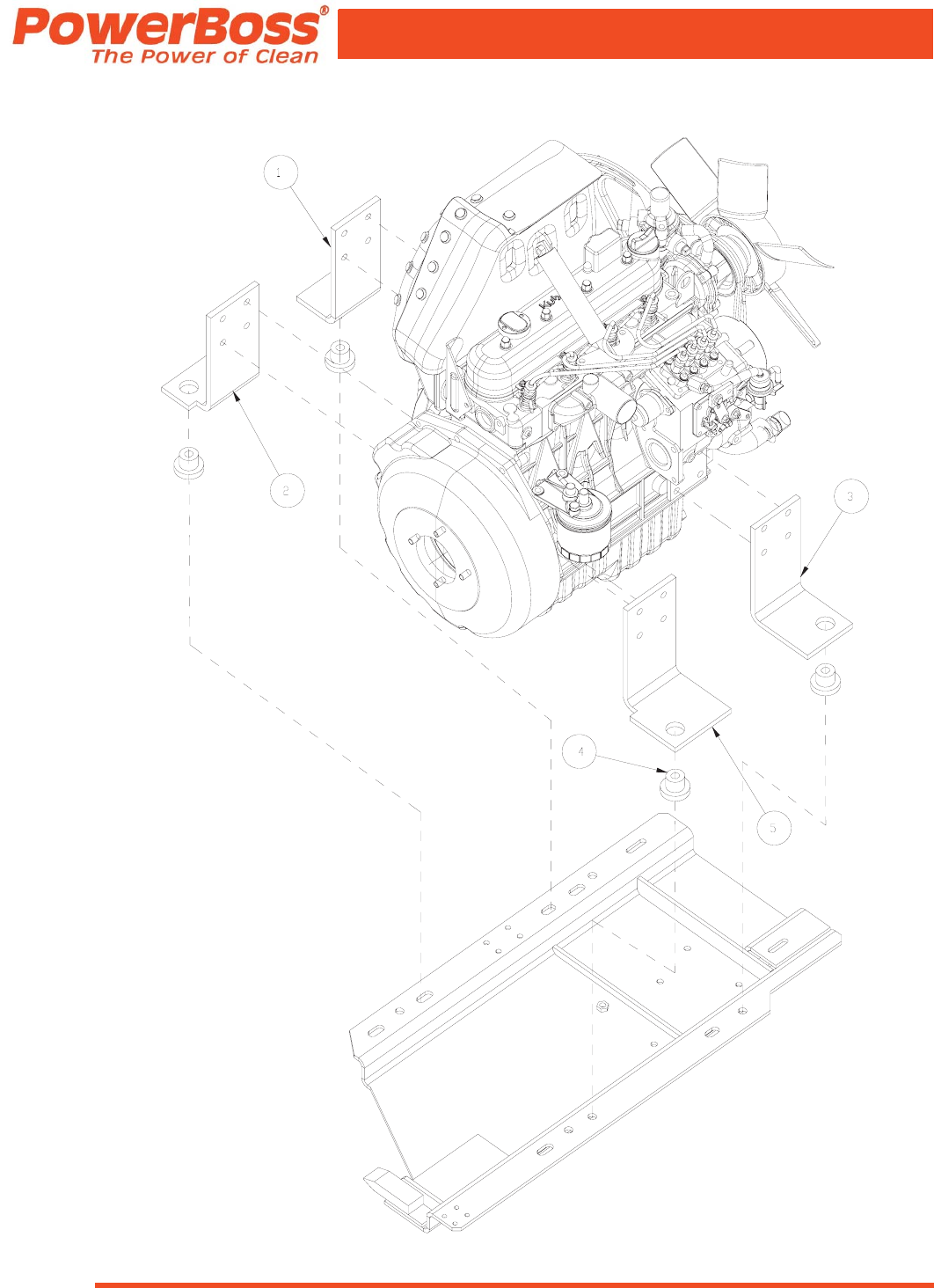

ENGINE KUBOTA V1505 DIESEL - MOTOR MOUNTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

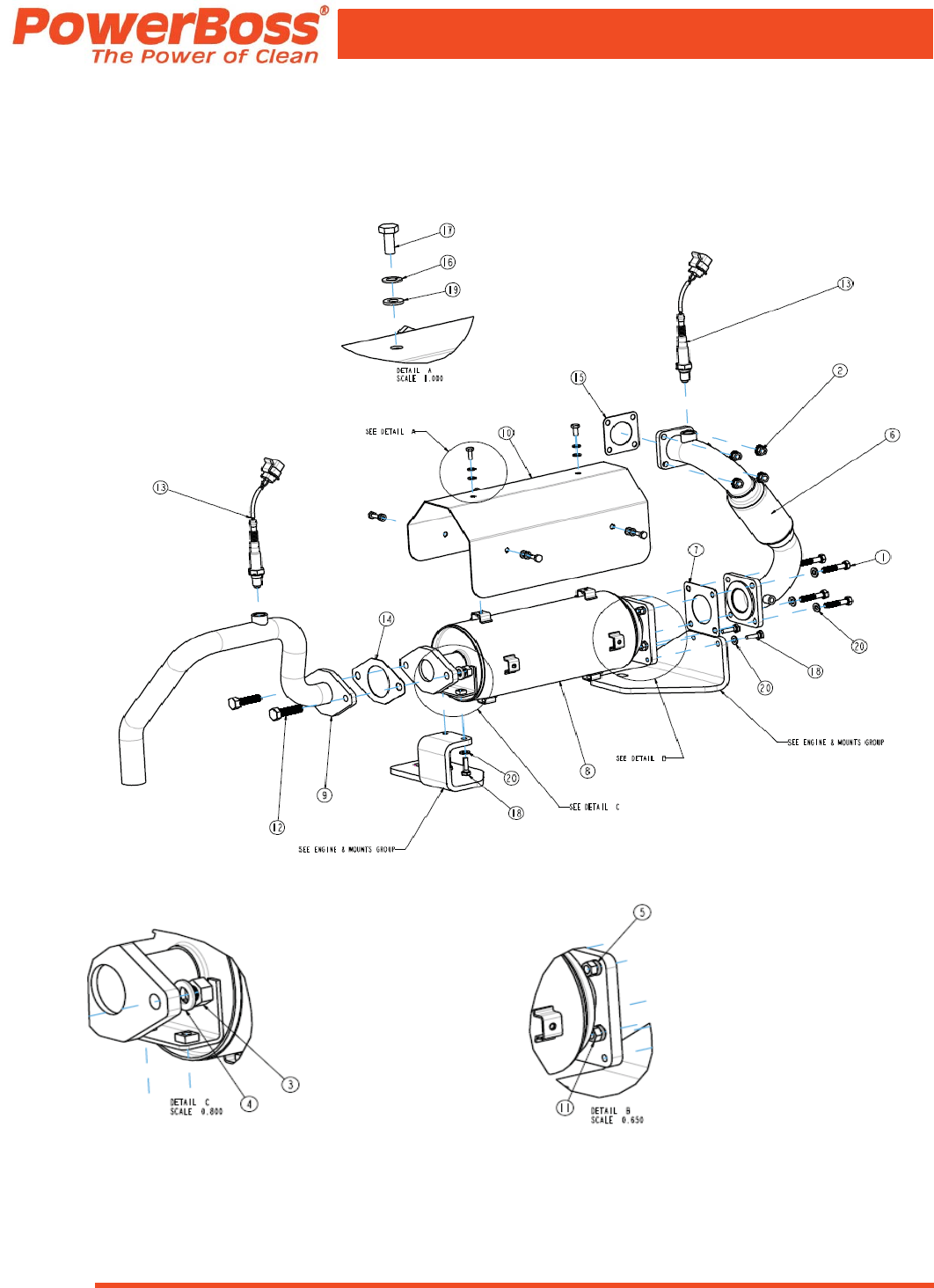

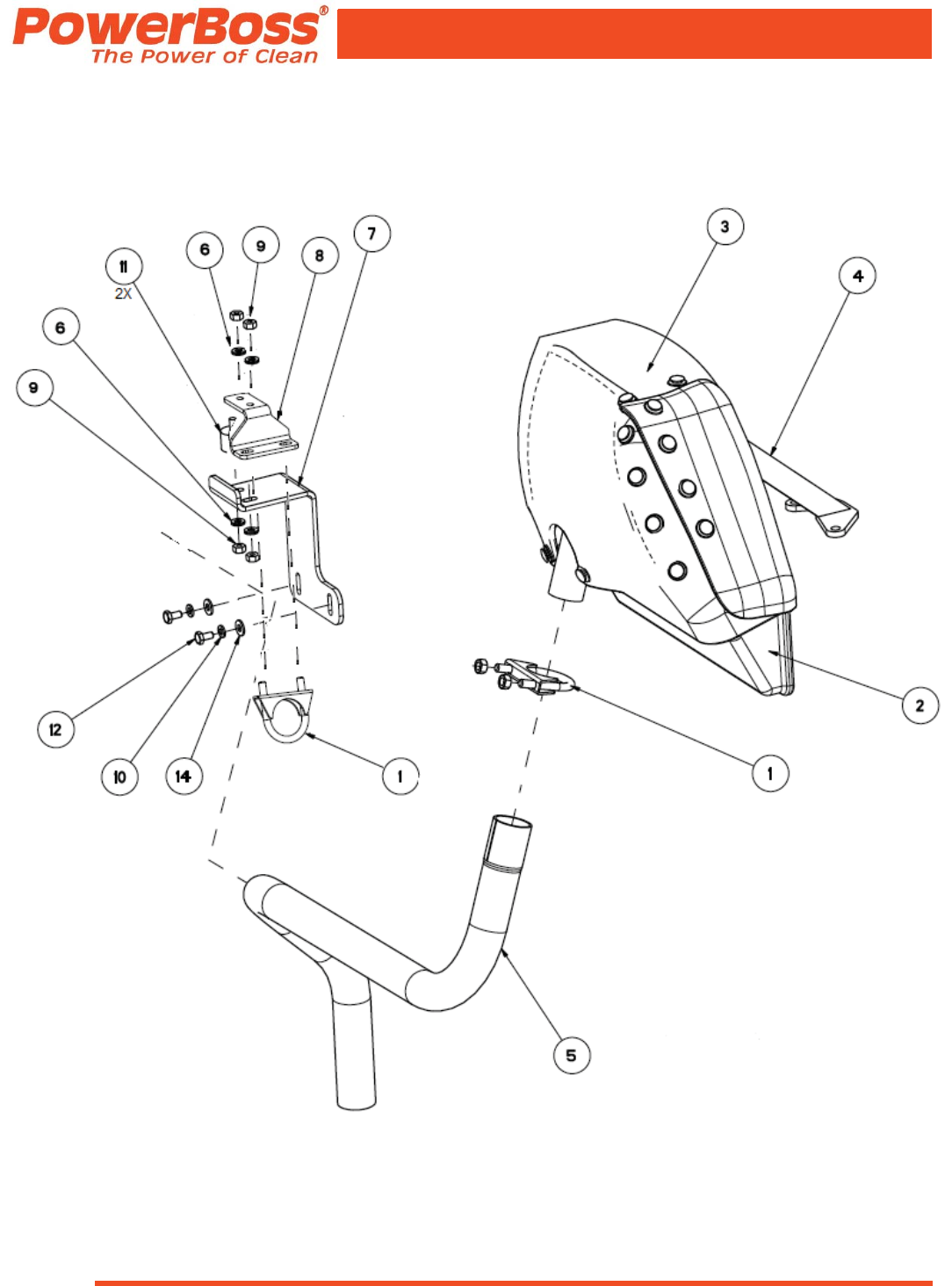

ENGINE KUBOTA V1505 DIESEL - EXHAUST DETAIL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

ENGINE KUBOTA V1505 DIESEL - RADIATOR DETAIL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

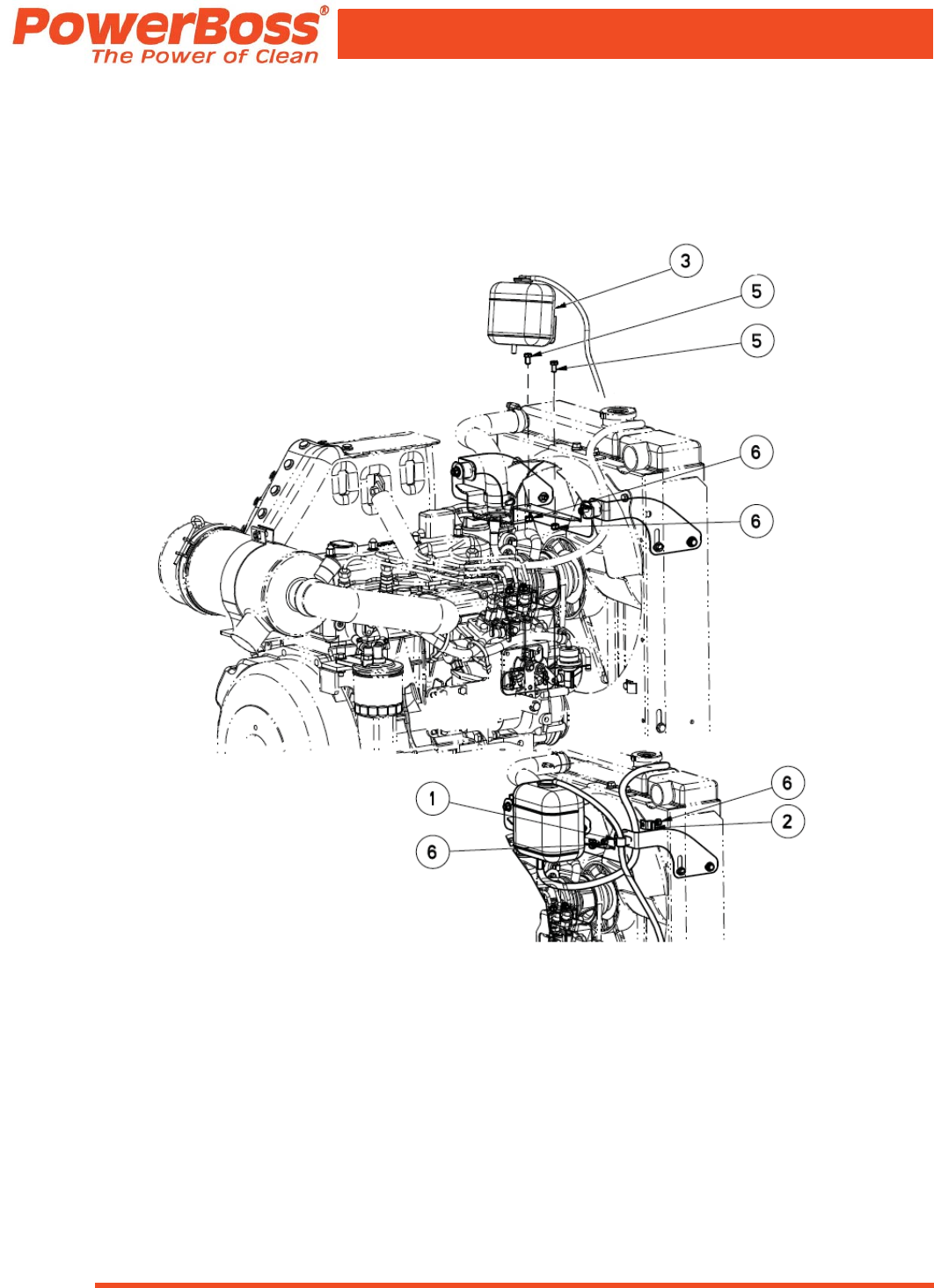

ENGINE KUBOTA V1505 DIESEL - RADIATOR COOLANT TANK & MOUNT . . . . . . . . . . . . . . . . . . . 78

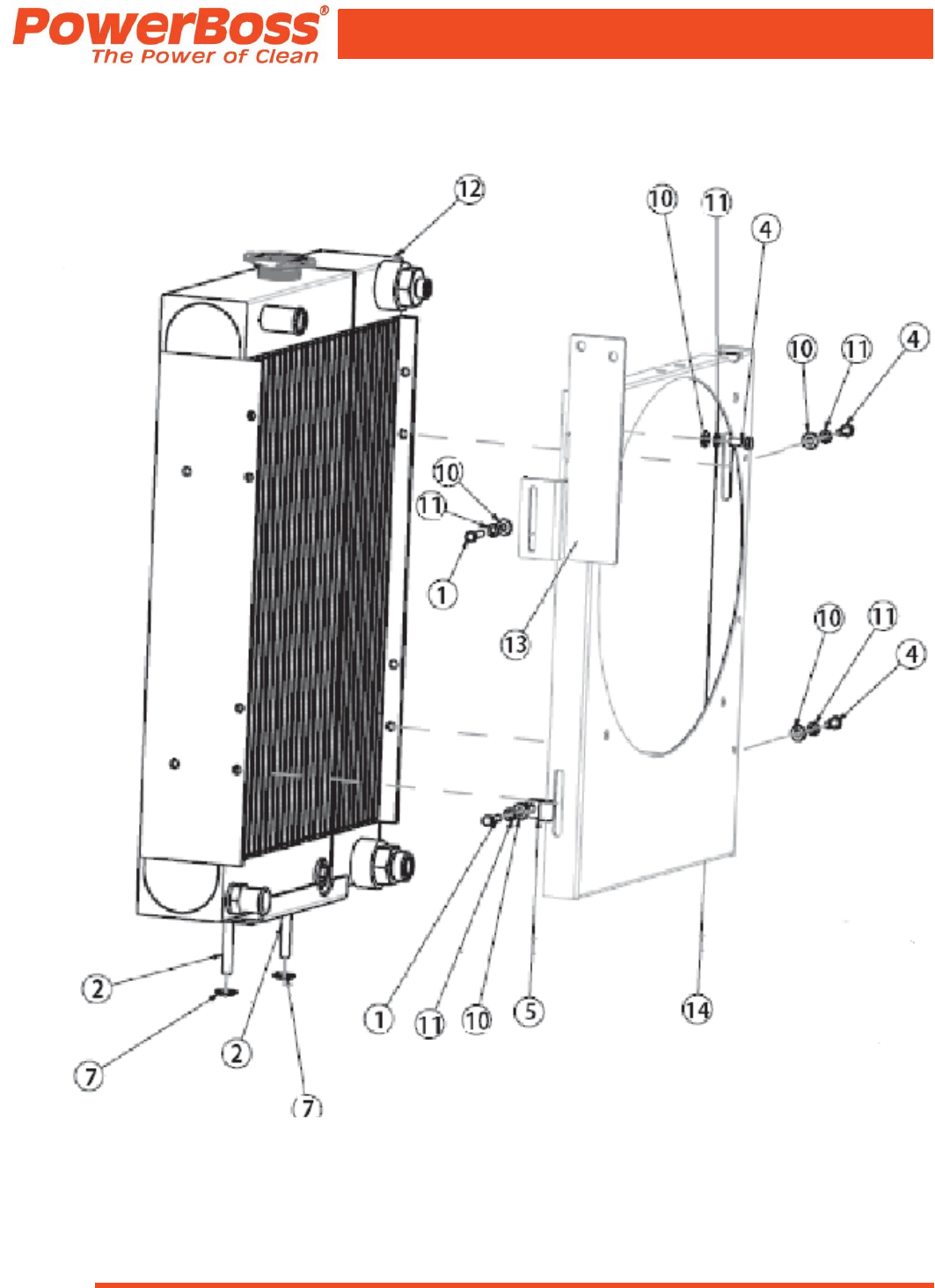

ENGINE KUBOTA V1505 DIESEL - RADIATOR ASSY & MOUNTING BRACKETS . . . . . . . . . . . . . . 80

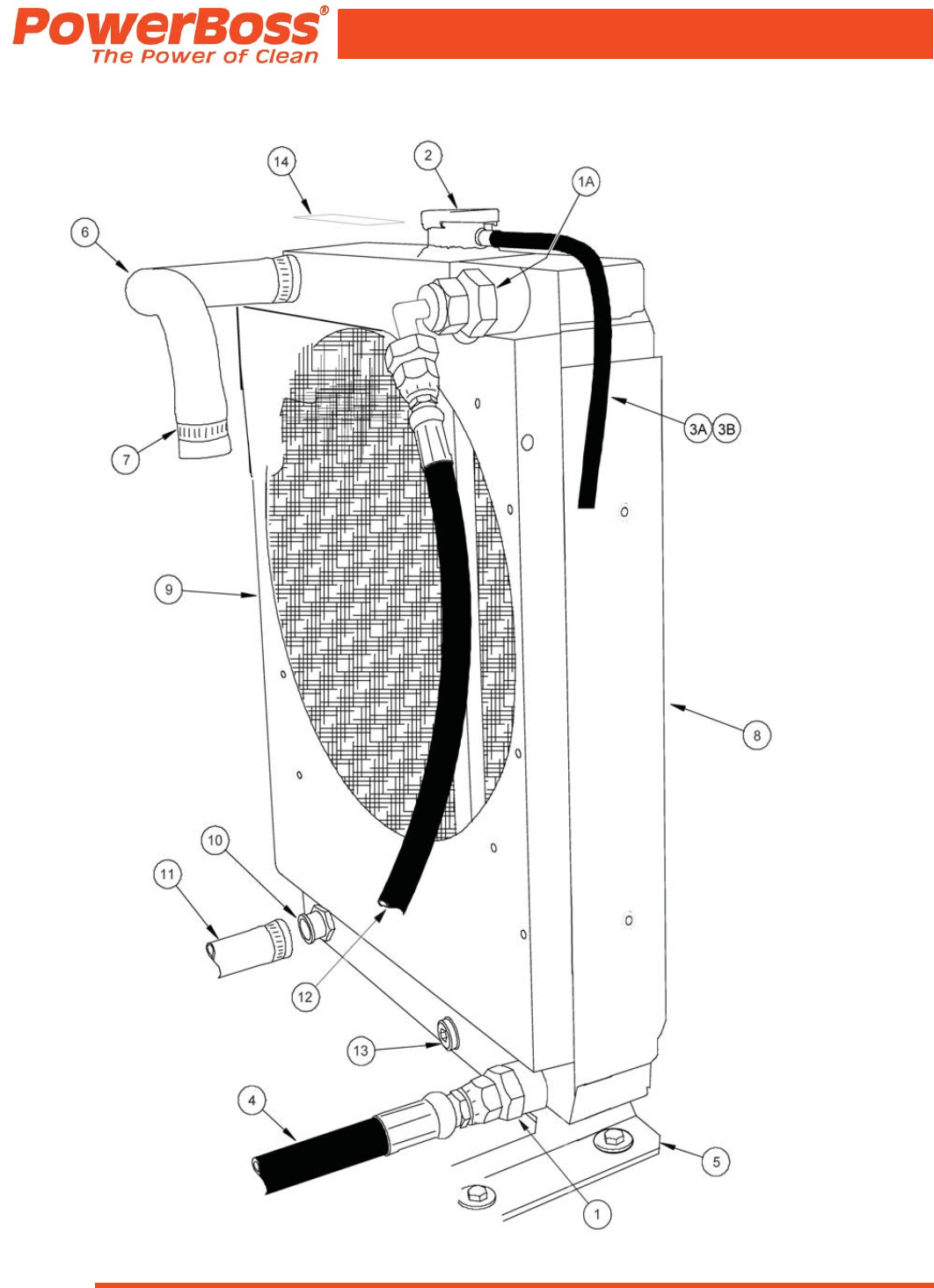

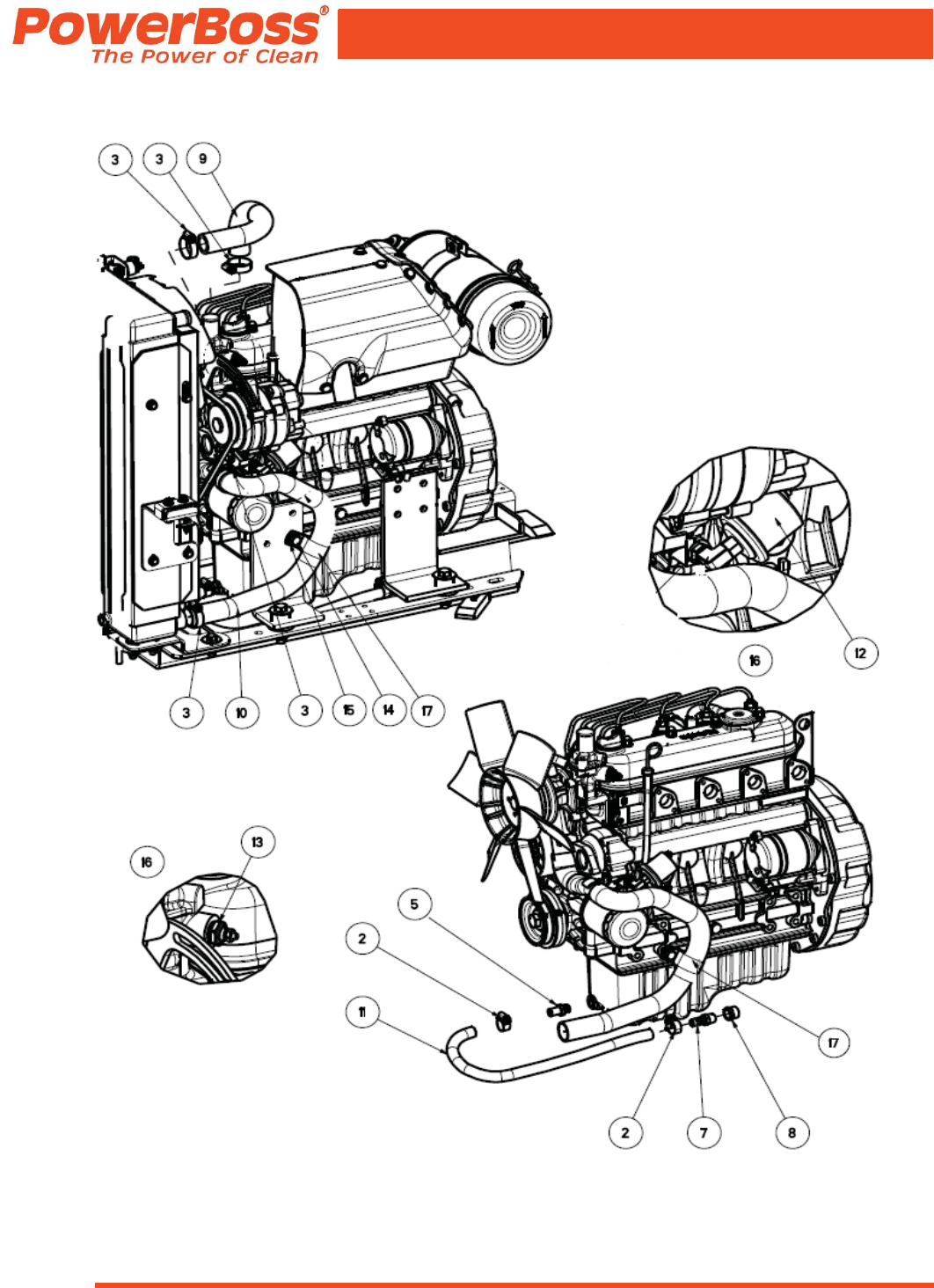

ENGINE KUBOTA V1505 DIESEL - RADIATOR ASSY, CLAMPS, HOSES & SENDERS . . . . . . . . . . 82

ENGINE KUBOTA V1505 DIESEL, WG1605 GAS & LPG - HYDRAULIC PUMP DETAIL . . . . . . . . . . 84

ENGINE KUBOTA WG1605 LPG - AIR CLEANER DETAIL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

ENGINE KUBOTA WG1605 GAS - AIR CLEANER DETAIL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

ENGINE KUBOTA WG1605 GAS & LPG ENGINE ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

ENGINE KUBOTA WG1605 GAS & LPG - MOUNTS-EXHAUST SIDE. . . . . . . . . . . . . . . . . . . . . . . . . 90

ENGINE KUBOTA WG1605 GAS & LPG - MOUNTS-INTAKE SIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

ENGINE KUBOTA WG1605 GAS & LPG - MOUNTING FASTENER DETAIL. . . . . . . . . . . . . . . . . . . . 92

ENGINE KUBOTA WG1605 GAS & LPG - MOUNTING FASTENER DETAIL . . . . . . . . . . . . . . . . . . . 93

ENGINE KUBOTA WG1605 GAS & LPG - MOUNTING AIR CLEANER BRACKET . . . . . . . . . . . . . . . 94

ENGINE KUBOTA WG1605 GAS & LPG - RADIATOR MOUNTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

ENGINE KUBOTA WG1605 GAS & LPG - RADIATOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

ENGINE KUBOTA WG1605 GAS & LPG - EXHAUST DETAIL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

OPTIONS AND STANDARD CE FEATURES

OPTION - LH CURB BROOM KIT ASSEMBLY (3338666) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

OPTION - DUAL CURB BROOM SUB-ASSEMBLY (3319421) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

OPTION - SIDE BROOM LIFT LH (3335420). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

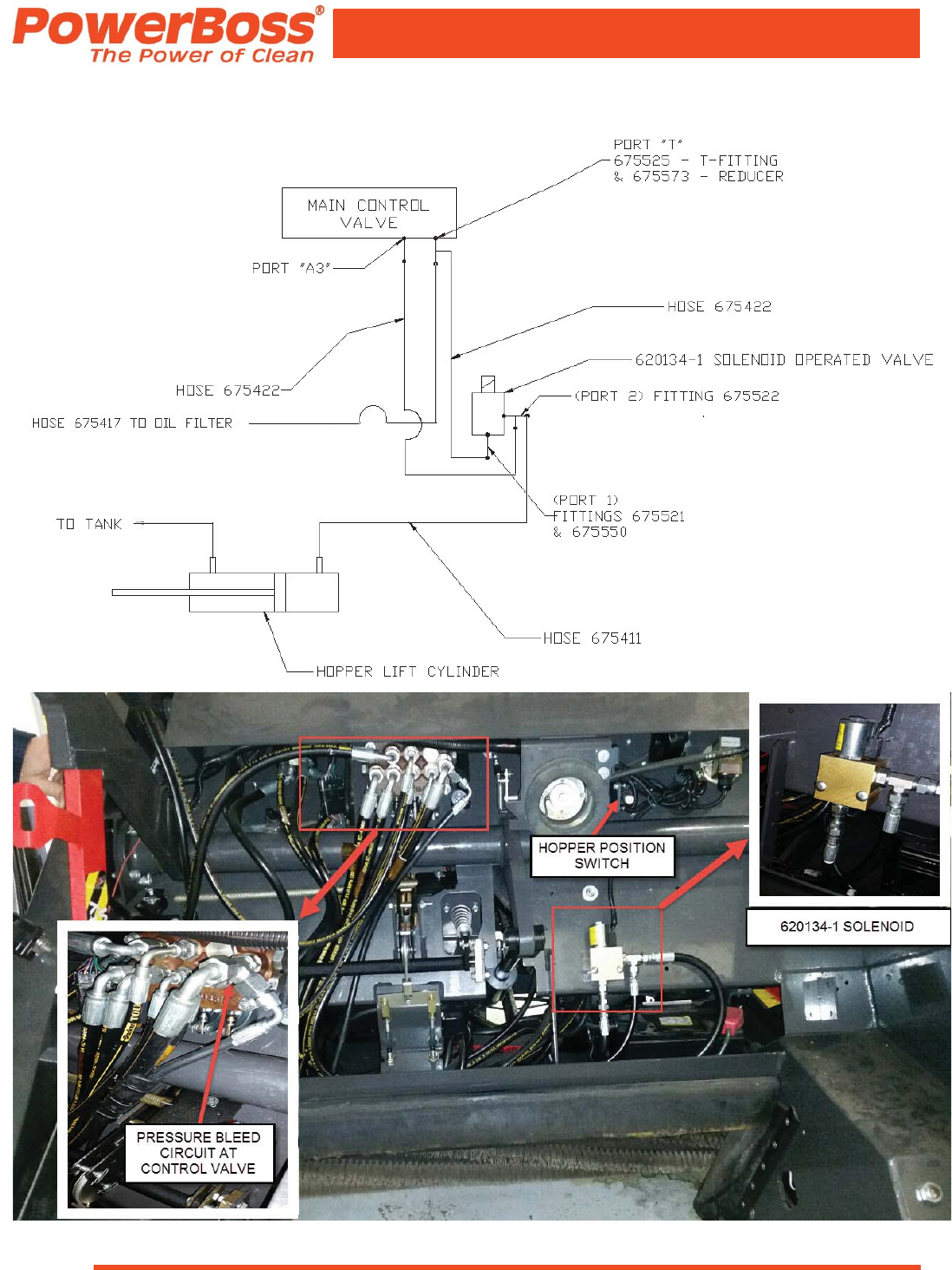

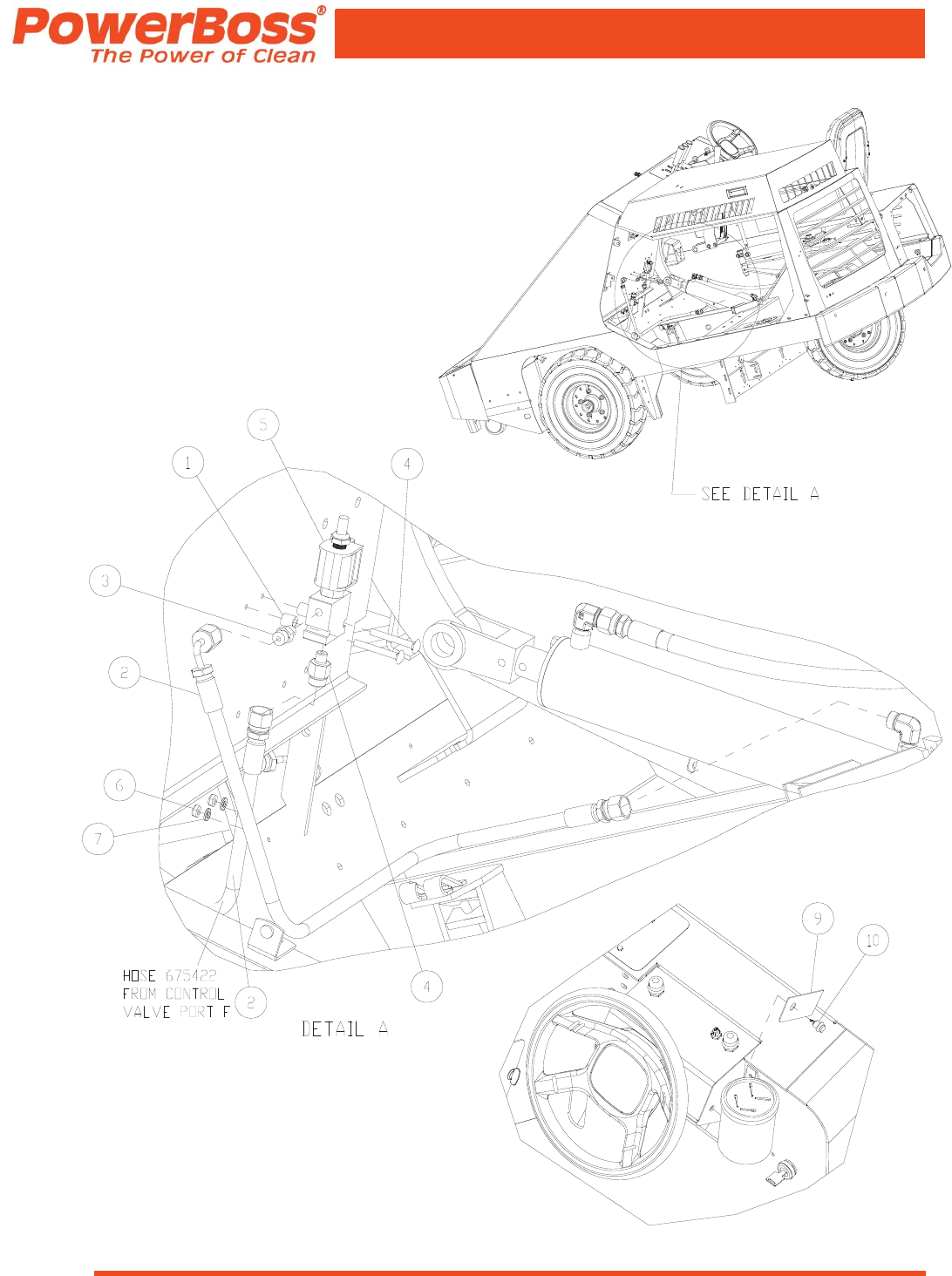

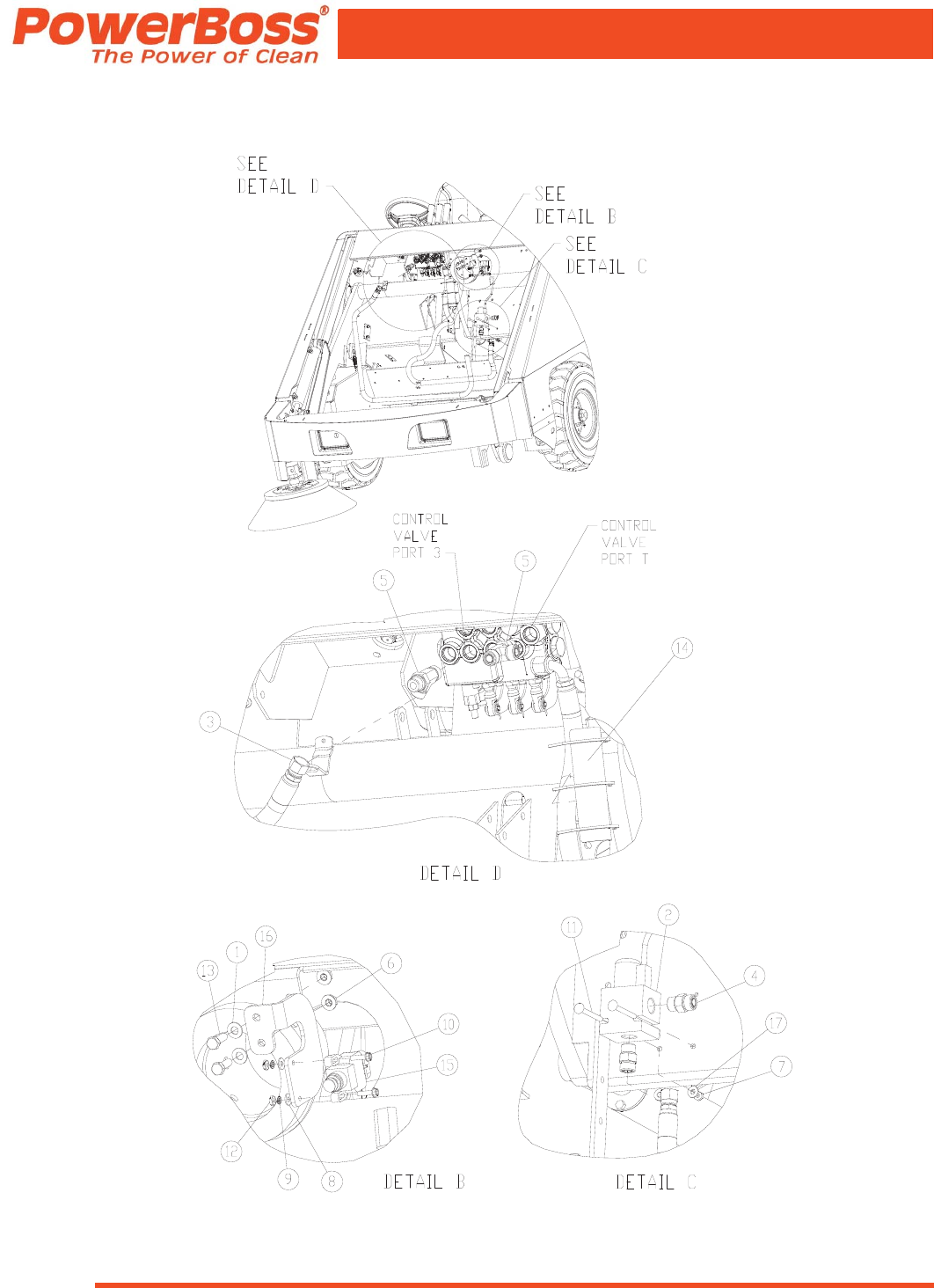

OPTION - RAISE HOPPER, MAIN BROOM SHUT OFF (690100)

CE MODELS STANDARD FEATURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

OPTION - KEY LATCH (690102)

CE MODELS STANDARD FEATURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

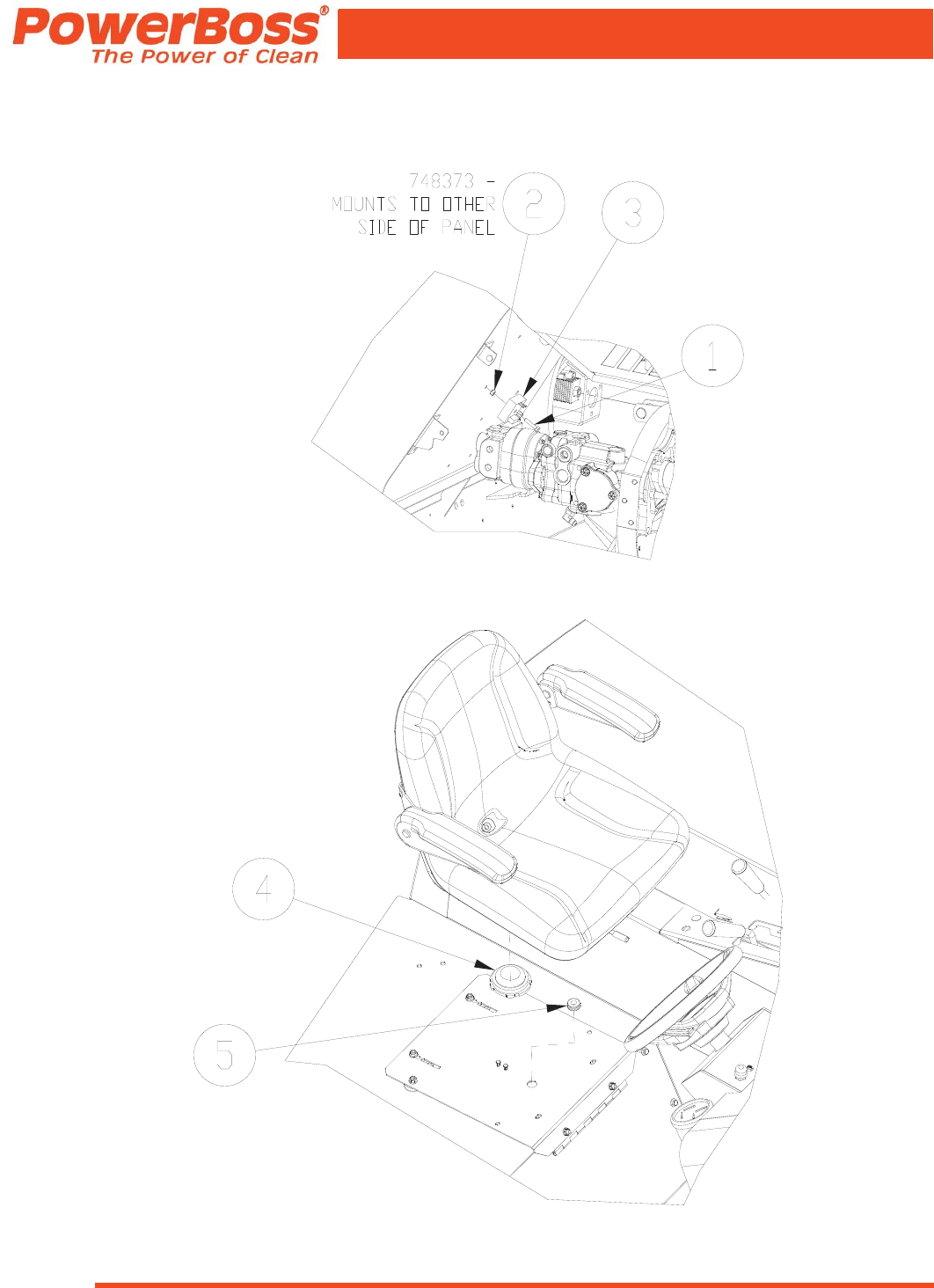

OPTION - SEAT SWITCH ENGINE SHUT OFF (690147)

CE MODELS STANDARD FEATURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

OPTION - LOW LP INDICATOR (690148) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

OPTION - BACKUP ALARM & NEUTRAL SAFETY SWITCH (3317306P) . . . . . . . . . . . . . . . . . . . . . 116

OPTION - HOPPER PRESSURE BYPASS (690231) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

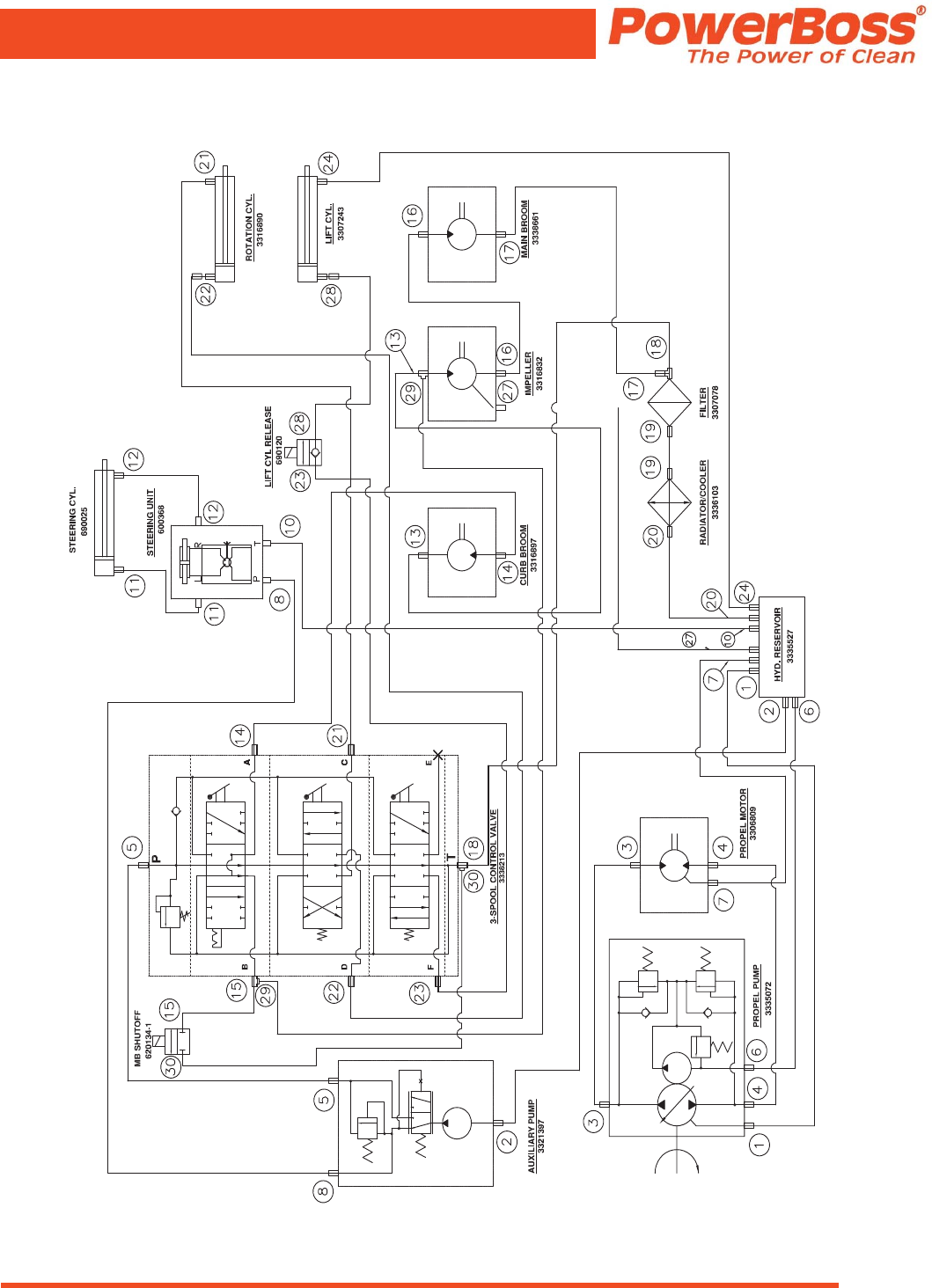

HYDRAULIC SCHEMATIC 9X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

HYDRAULIC SCHEMATIC 9X CE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

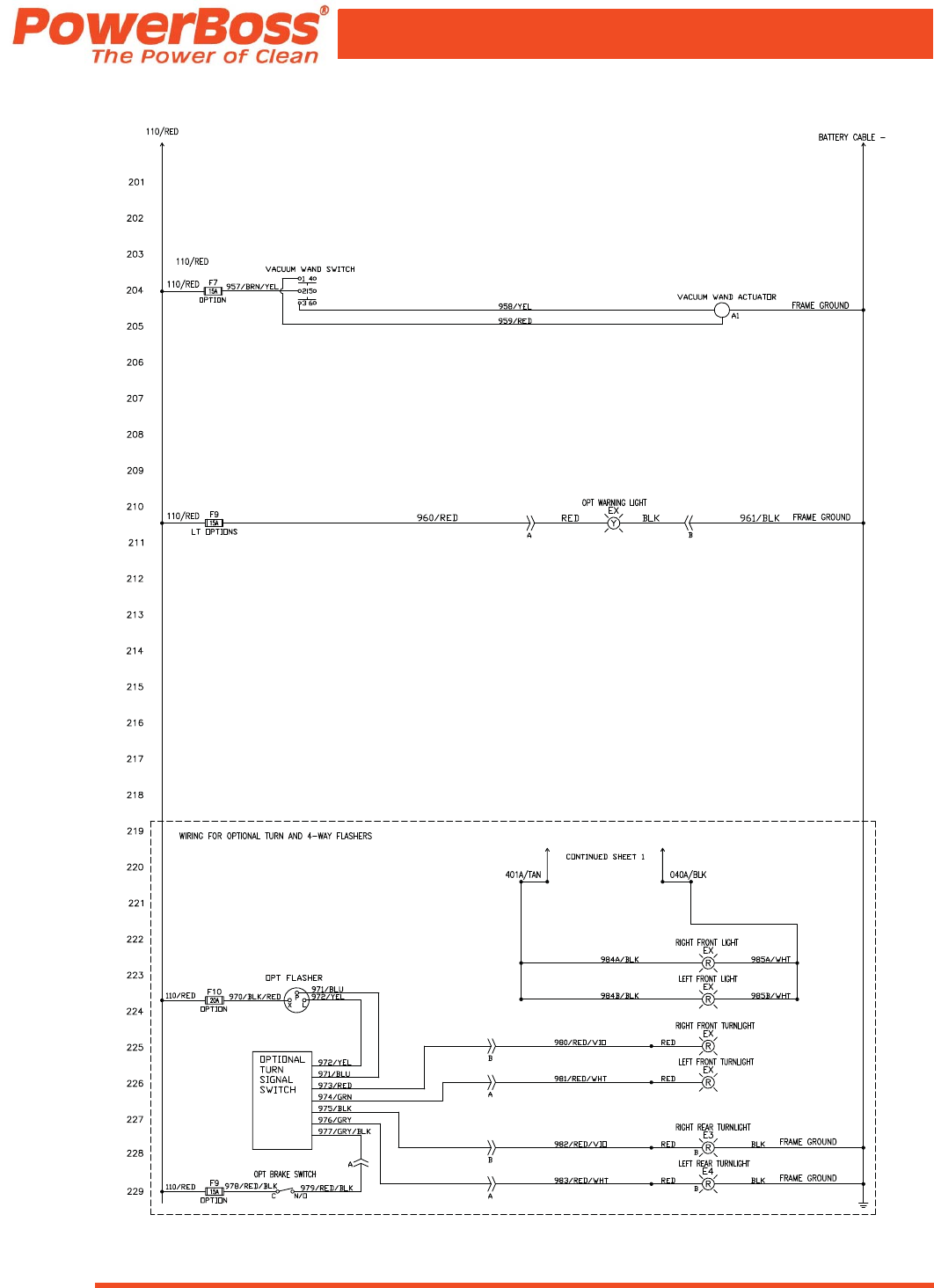

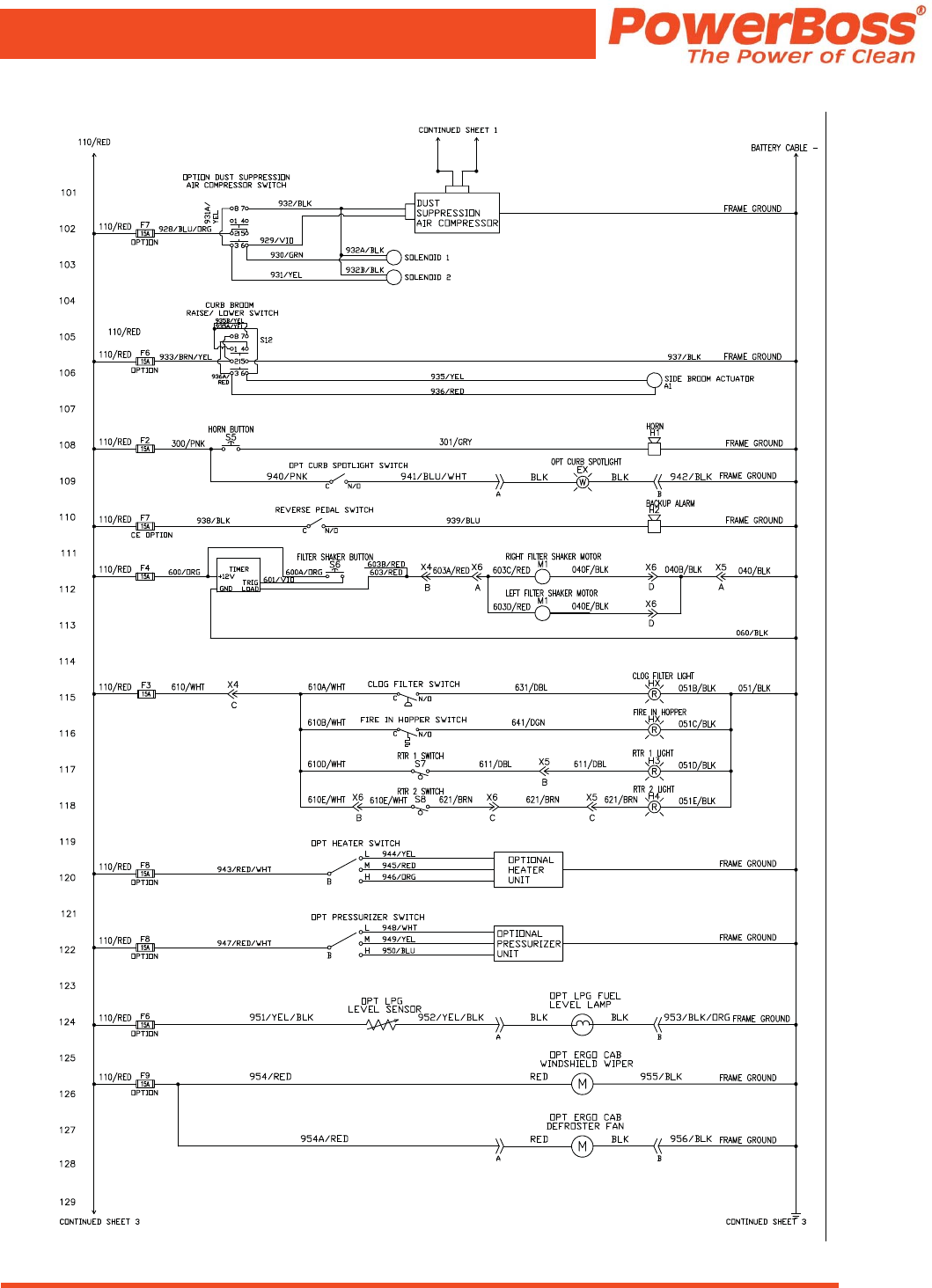

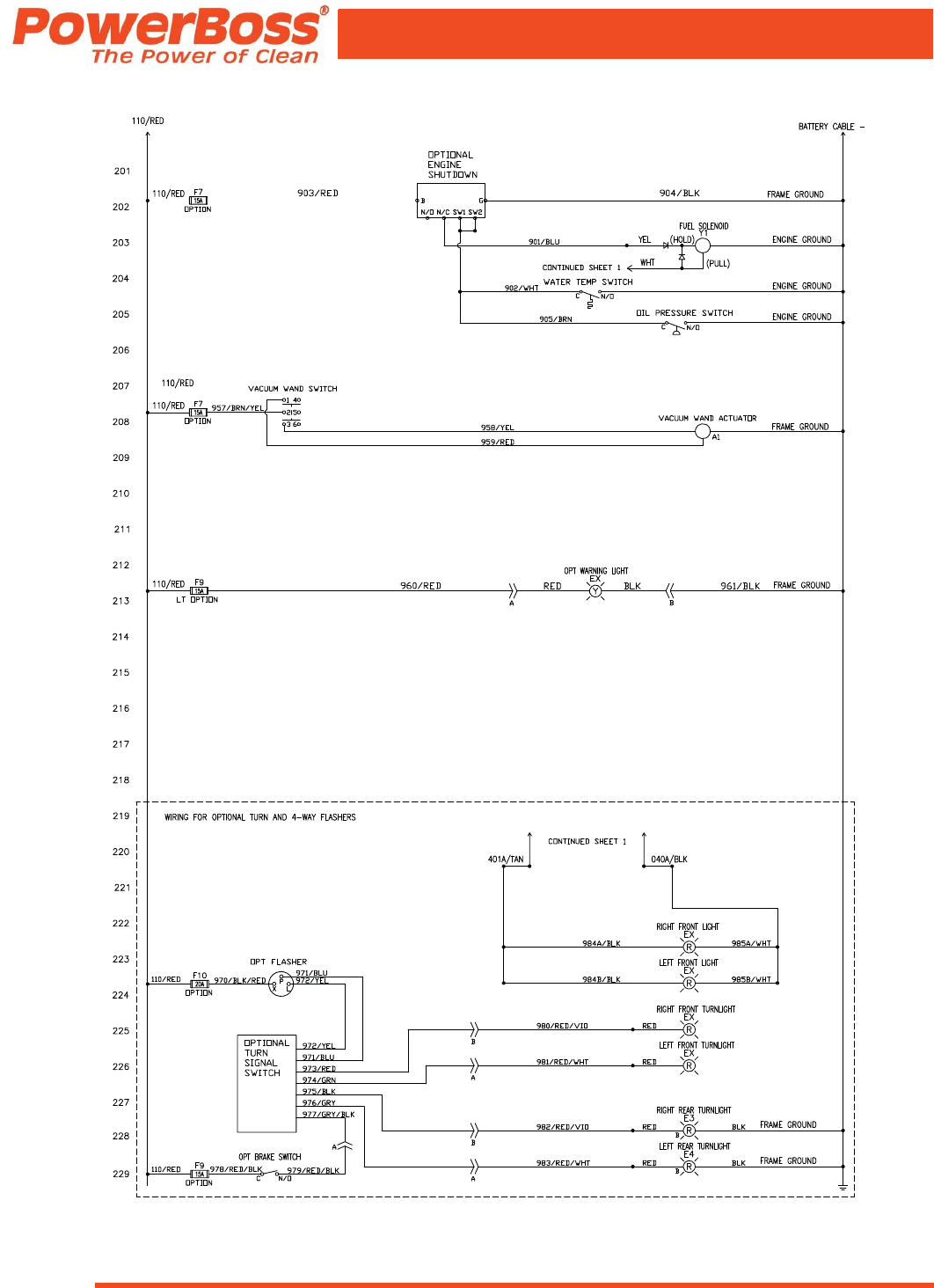

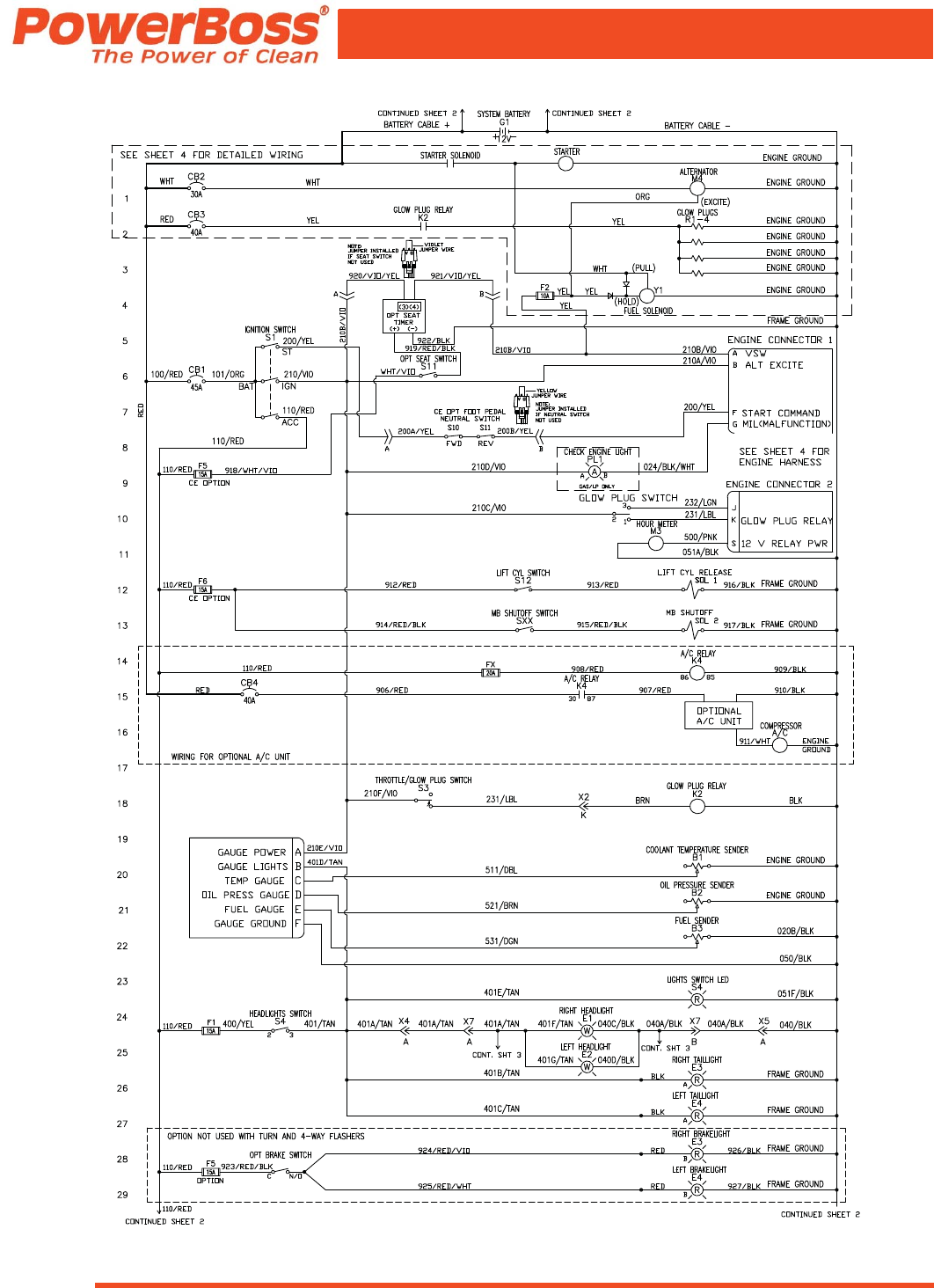

ELECTRICAL SCHEMATIC WITH KUBOTA V1505 - DIESEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

ELECTRICAL SCHEMATIC WITH KUBOTA WG1605 - GAS & LPG . . . . . . . . . . . . . . . . . . . . . . . . . . 130

WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

TABLE OF CONTENTS

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 8

FRAME ASSEMBLY

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 9

PARTS BREAKDOWN

FRAME ASSEMBLY ARMADILLO 9X

ITEM PART NO. REQ’D DESCRIPTION

1 3332182M 1 SKIRT-RT REAR 9X, DARK GRAY

2 3309707 1 COUNTERWEIGHT-RH PAINTED

3 3332147P 1 COVER-COUNTER WEIGHT CENTER

4 3301046P 1 COUNTERWEIGHT-LH PAINTED

5 3335397M 1 SKIRT-LH REAR, 9X, DARK GRAY

6A 3309740 1 MNT-ENG LOCK

6B 3301522 1 SPRING-EXT BRAKE ARM (NOT SHOWN)

6C 3309743 1 ARM-ENG LOCK

6D 430119 1 RUBBER CAP 1/2 ID

7 3321296 1 WELDMENT-BATTERY BOX (MODELS W/ENGINE SWING)

8 3335310M 1 WELD-FRAME, TIER 2,

9 3315203 2 RETAINER-HOPPER SIDE SEAL

10 3318143 2 FLAP-RUBBER HOPPER/FRAME SIDE

11 3307276 1 SEAL-FRAME HOPPER HORIZONTAL

12 3307281 1 STRAP-FRAME HOP FLAP PAINTED

13 3307287 2 STRAP-BROOM CORNER FLAP PAINTED

14 3307286 2 FLAP-BROOM CHAMBER CORNER

15 3307658 1 CHAIN-FRAME GROUNDING

16 3307283 1 STRAP-REAR FEED FLAP PAINTED

17 3307279 1 FLAP-REAR FEED

18 3307282 1 ANGLE-REAR FLAP PAINTED

19 3307278 1 FLAP-REAR HOPPER

20 3307280 2 FLAP-MAIN BROOM DOOR

21 3307275 2 HINGE-BROOM DOOR

22 3318739 2X 3.0' WEATHERSTRIPPING-RUBBER SPONGE

23 3307265M 1 ASSY- BROOM DOOR RH

24 3307266M 1 ASSY- BROOM DOOR LH

25 3307246 1 LATCH-LH BROOM DOOR

26 3307247 1 LATCH-RH BROOM DOOR

27 3307248 2 BOLT-STRIKER BROOM DOOR LATCH

28 3307519M 1 SKIRT-RH SIDE

29 3307520M 1 SKIRT-LH SIDE

30 3307792 1 BAR-HOSE PAN SUPPORT

31 3307791 1 PAN-HOSE

32 3307284 2 STRAP - BROOM DOOR FLAP

33 3343740 1 TIE DOWN-UNIVERSAL, REAR

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 10

HYDRAULIC BRAKE ASSEMBLY

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 11

PARTS BREAKDOWN

Continued On Next Page

HYDRAULIC BRAKE ASSEMBLY

ITEM PART NO. REQ'D DESCRIPTION

1 3303169 1 LEVER-HAND BRAKE

2 3307241 1 SPACER-HAND BRAKE ZP SW/A

3 3307273 2 BAR-HAND BRAKE SPACER, ZP SW/A

4 3307895 1 SPACER-THIN HAND BRAKE, ZP

5 711380 2 NUT-NYLOC 3/8-16

7 3307632 1 CABLE-CENTER BRAKE, SW/A

8 3300367 1 PULLEY-2.50 DIA, BUSHED, BRAKE

9 3400125 1 PIN-COTTER 3/8 RUE-RING

10 3400088 2 WASHER-FLAT 5/16 IDx.688 ODx.065 THK

11 3303552 1 SLEEVE-HAND BRAKE ZP

12 3400185 1 PIN-CLEVIS 5/16x1-1/4 ZP

13 3321452 2 CABLE-8" PARKING BRAKE (HAND)

14 3400473 2 SCR-HEX,3/8-16x3.00 ZP F'THD

15 3400118 1 PIN-CLEVIS 5/16x7/8 ZP

16 3400125 1 PIN-COTTER 3/8 RUE-RING

17 3307232 1 BAR-BRAKE EQUALIZER ZP SW/A

18 3321470 2 CLEVIS-BRAKE 8MM

19 3316717 1 CYLINDER-BRAKE MASTER, ARMA

20 3307638 1 FTG-REDUCER NAPA #7909

21 3400028 3 SCR-HEX,3/8-16x1.50 ZP

22 711380 3 NUT-HEX 3/8-16 ES ZP

23 3307235 1 ROD-BRAKE MASTER CYLINDER, ZP

24 3313109 1 SPRING-PEDAL RETURN

25 3400278 4 WASHER-FENDER 3/8

26 3400075 2 NUT-HEX JAM 3/8-24 ZP

27 3301447 1 CLEVIS-CABLECRAFT AC-218

28 3400125 1 PIN-COTTER 3/8 RUE-RING

29 3332271 1 CLAMP-3/8 DIA INSULATED HALF (STRAP)

30 3400117 1 PIN-CLEVIS 3/8x1-1/8, ZP

31 3337539 1 WELDMENT - BRAKE BAR, HYD.

32 3307637-1 1 ASSEMBLY-BRAKE LINE CENTER SW/A

33 3321457 1 BRAKE LINE-ARMA RH LONG

34 3306307 1 FTG-TEE HYD BRAKE

35 3321459 1 BRAKE LINE-ARMA LH LONG

36 3321455 1 BRAKE LINE-ARMA LH, SHORT

37 3321456 1 BRAKE LINE-ARMA RH, SHORT

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 12

HYDRAULIC BRAKE ASSEMBLY - CONTINUED

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 13

PARTS BREAKDOWN

End of Section

HYDRAULIC BRAKE ASSEMBLY - CONTINUED

ITEM PART NO. REQ'D DESCRIPTION

38 3400969 1 FTG-COUPLING, 3/16" OD HYD BRAKE, BRASS

39 3321450 1 ASSEMBLY-8" HYDRAULIC BRAKE LH

40 3321471 1 ASSEMBLY-8" HYDRAULIC BRAKE RH

41 3307238 1 BEARING-INNER WHEEL SW/A

42 3332483 1 BRAKE-DRUM 8" ARMA PAINTED

43 3307242 10 STUD-WHEEL, 1/2-20x1.75 LG

44 3300369 1 CAP-HUB, 2.44" DIA, ZP

45 3300411 5 NUT-WHEEL LUG, 1/2-20 UNF

46 3307255 1 RIM-FRONT OUTER SW/A PNTD

47 3400066 10 NUT-HEX 7/16-14 ZP

48 3400099 10 WASHER-LOCK 7/16 SPLIT ZP

49 3307253 2 TUBE-TIRE INNER, 650x10

50 3307252 2 TIRE-PNEUMATIC 650x10

51 3307254 1 RIM-FRONT INNER SW/A PNTD

52 3400022 10 SCR-HEX,1/2-13X1.25 GR 5 ZP

53 3400076 1 NUT-HEX JAM SLOTTED, 1-14 ZP

54 3307352 1 WASHER-1.016 IDx1.50 ODx.25 THK

55 3400120 1 PIN-COTTER 5/32 DIAx2.00 LG, ZP

56 3300467 1 BEARING-BALL 2.44 ODx1.18 ID

57 3402030 4 SCR-FLT,5/8-11x1.00, SOC ZP

58 3321453 1 PLT-8" BRAKE MOUNT RH&LH

59 3307220 2 BEARING-.88IDx1.00ODx.50LG

60 3307233 2 MOUNT-.88 DIA BEARING, ZP SW/A

61 711439 1 NUT-FLANGED WIZZ 3/8-16

62 3400385 1 WASHER-CONICAL SPRING 3/8

63 711250 1 BLT-HH 3/8-16 X 1.25 STL ZINC

68 3300413 1 PAD-RUBBER BRAKE PEDAL

69 3337386 1 PLT - BRAKE PEDAL

70 3307861 1 PULLEY MOUNT #3

71 3300368 1 PULLEY-PLASTIC 2” x .25” GROOVE

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 14

BRAKE - 8” ARMA L/H PN-3321450

BRAKE - 8” ARMA R/H PN-3321471

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 15

PARTS BREAKDOWN

BRAKE - 8” ARMA L/H PN-3321450

BRAKE - 8” ARMA R/H PN-3321471

Item Part no. Qty. Description

1 3321462 1 RETAINER-BRAKE 8" PLATE

2 3321465 2 SPRING-TENSION

3 3321461 1 ASSEMBLY-WHEEL CYLINDER, 8" BRAKE

4 3321467 1 BRAKE SHOE SET-8" LH (SHOWN)

4 3334766 1 BRAKE SHOE SET-8" RH (NOT SHOWN)

5 3321466 2 SPRING-HOLD DOWN

6 3321463 1 ASSEMBLY-MANUAL BRAKE ADJUSTER

7 3321464 1 SPRING-RETURN, 8" BRAKE

- 3321450 1 BRAKE-ASSEMBLY, 8" ARMA LH (ALL PARTS)

- 3321471 1 BRAKE-ASSEMBLY, 8" ARMA RH (ALL PARTS)

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 16

STEERING WHEEL, GAUGES & FUSES

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 17

PARTS BREAKDOWN

STEERING WHEEL, GAUGES & FUSES

ITEM PART NO. REQ'D DESCRIPTION

1 3302520 1 DECAL-"FILTER SHAKER"

2 3300441 2 SWITCH MOMENTARY 12V

3 3026924 1 CIRCUIT BREAKER-45 AMP

4 600260 1 KNOB LEVER

5A 3338622 1 WDT - TILT STEERING LOCK

5B 3400192 2 NUT-HEX JAM 5/8-11 ZP

5C 12310058 1 WSR-FLT M10.5 X 20 X 2 STL

7 3338616P 1 WDT - AM9D TILT STEERING BOX

8 3338215 1 WHEEL-STEERING W/COVER SW

9 3307594 1 DECAL-FRONT PANEL SW/A

11 3333721 1 GAUGE-4 IN 1, 3.50" DIA

12 3307599 1 DECAL-IGNITION SW/A

13 3316100 1 SW-IGNITION, 3-POS, W/STARTER LOCKOUT

14 3335096 1 HARNESS-GAUGE

15 3333719P 1 WELDMENT-GAUGE MOUNT

16 3302525 1 DECAL-"HORN"

17 3338621P 1 COVER - PLT, TILT STEERING, AM9D

18 3322599 1 FUSE BLOCK-ATO, 10 POSITON

19 3322601 5 FUSE-15 AMP AUTOMOTIVE PUSH IN

20 3300379 1 HORN-AUTOMOTIVE 12V STANDARD

21 3301854 1 DECAL-CAUTION

22 690104 1 ASSY, RUBBER FUSE BOX COVER

23 3335380 2 FUSE-25 AMP STD, AUTO





EKd͗ ŽEŽƚ&ŽƌŐĞƚƚŽŝŶƐƚĂůůϲϵϬϭϬϯ ƌƵďďĞƌ

ĨůĂƉƚŽƉƌŽƚĞĐƚĨƵƐĞďŽǆ͘

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 18

STEERING COLUMN

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 19

PARTS BREAKDOWN

STEERING COLUMN

ITEM PART NO. REQ'D DESCRIPTION

1 600260 1 KNOB, LEVER

2 600368 1 STEERING UNIT

3 600569 2 RETAINING RING, EXT .50 HD

4 620057 1 NUT, JAM M16-1.50 STL ZP

5 675511 1 FTG-STR THD CONNECTOR -4 ORFS TO -6 SA

6 675515 1 FTG-STR THD CONNECTOR -6 ORFS TO -6 SA

7A 675552 1 FTG-STR THD 45 -6 ORFS TO -6 SAE

7B 675552 1 FTG-STR THD 45 -6 ORFS TO -6 SAE

8 690152 1 DUST RING, STEERING

9 690160 1 DUST RING, STEERING, UPPER

10 711206 4 BLT-HH 1/4-20 X .87 STL ZINC

11 711379 2 NUT-FLANGED WIZZ 5/16-18

12 750075 1 SHAFT - TILT STEERING PIVOT

13 3338215 1 STEERING WHEEL

14 PART OF 3338215 1 COVER, STEERING WHEEL

15 3338622 1 WDT - TILT STEERING LOCK

16 3338625 1 BRKT - TILT STEERING

17 3400035 2 SCR-HEX,5/16-18X1.00 ZP

18 3400383 8 WASHER-CONICAL SPRING 1/4

19 3400384 2 WASHER-CONICAL SPRING 5/16

20 11038072 4 BOLT, M6-100 X 16H

21 12310058 2 WSR-FLT M10.5 X 20 X 2 STL 140HV ZD DIN

23 3338616P 1 WDT - AM9D TILT STEERING BOX

24 3338621P 1 COVER - PLT, TILT STEERING, AM9D

25 675407 1 HYD HOSE - AUX PUMP TO PS UNIT

26 675411 1 HYD HOSE - PS UNIT TO ROT ACT P2

27 675409 1 HYD HOSE - PS UNIT TO RESV

28 675410 1 HYD HOSE - PS UNIT TO ROT ACT P1

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 20

SIDE BROOM ASSEMBLY - DRIVE MOTOR, ARM, AND MOUNTING

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 21

PARTS BREAKDOWN

SIDE BROOM ASSEMBLY - DRIVE MOTOR, ARM, AND MOUNTING

ITEM PART NO. REQ’D DESCRIPTION

1 3335120 1 CABLE-SIDE BROOM

2 3302599 1 SPRING-EXT LOOPS-IN-LINE ZP

3 3401454 1 BOLT-HEX, TAP 3/8-16 X 2 ZP

4 3400087 1 WASHER-FLAT 3/8 STANDARD ZP

5 3400258 1 SCR-HEX,3/8-24X4.00 ZP

6 3307654P 1 RH SIDE BROOM MOUNT, AM9D

7 3307527P 1 O/S WELD-RH CURB BROOM ARM, AM9D

8 3307642 1 CLEVIS-5/16

9 3306179 1 SPRING-COMPRESSION, CURB BROOM

10 3400342 1 NUT-HEX 3/8-24 ES ZP

11 3316897 1 MOTOR-HYD CURB BROOM

12 675528 2 FTG-STR THD ELBOW -8 ORFS TO -10 SAE

13 3330338 1 KEY-SHAFT D-FOSS CB/MB/SC MTRS (REPLACEMENT)

14 3400027 3 SCR-HEX,3/8-16X1.75 ZP

15 3400278 9 WASHER-FENDER 3/8

16 3300465 3 ISOLATOR-RUBBER (.375IDx.81OD)

17 3301262 1 PLATE-GIMBAL SC HD

18 3300526 3 BUMPER-RUBBER 1/4IDx1/8 THK

19 3400087 3 WASHER-FLAT 3/8 STANDARD ZP

20 711380 3 NUT-NYLOC 3/8-16

21 3400049 1 SCR-SOCKET HEAD,1/4-20X0.75 NYLOCK

22 3400103 1 WASHER-LOCK 1/4 SPLIT ZP

23 3302058 1 BAR-CURB BROOM RETAINER

24 3300875 1 DRIVE HUB SC BR

25 711373 2 NUT-NYLOC 1/4-20

26 713002 2 BLT-HH 1/4-20 X .75 #5 ZINC

27 3400030 4 SCR-HEX,3/8-16X1.00, GRADE 5, ZP

28 3400101 4 WASHER-LOCK 3/8 SPLIT ZP

29 3400068 1 NUT-HEX 3/8-16 ZP

30 3400184 1 PIN-CLEVIS 5/16 X 1-1/8 ZP

31 3400087 1 WASHER-FLAT 3/8 STANDARD ZP

32 3400125 1 RING-RUE 3/8 COTTER PIN

33 3400069 1 NUT-HEX 5/16-24 ZP

- 3307033 - SUB-CURB BROOM SUB ASSY (INCLUDES ALL ITEMS, EXCEPT: 1,

4, 8, 13, 30, 31, 33)

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 22

SIDE BROOM ASSEMBLY - ADJUSTMENT COMPONENTS

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 23

PARTS BREAKDOWN

SIDE BROOM ASSEMBLY - ADJUSTMENT COMPONENTS

ITEM PART NO. REQ'D DESCRIPTION

1 3307861 1 WELDMENT-PULLEY MOUNT #3

2 3307865 1 WELDMENT-SAFETY ARM RETAINER/PULLEY MOUNT

3 3300368 3 PULLEY-PLASTIC φ2", φ.25" GROOVE

4 3400404 1 SCR-SET,1/2-20X3.00

5 3400449 1 NUT-HEX JAM 1/2-20 (NOT SHOWN)

6 620027 1 PIN-CLEVIS 1/2 X 4-1/2

7 3400404 1 SCR-SET,1/2-20X3.00

8 3400449 1 NUT-HEX JAM 1/2-20 ZP

9 3400086 1 WASHER-FLAT 1/2 STANDARD ZP

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 24

ENGINE COVER, SIDE DOOR, LATCH & REAR GRILL

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 25

PARTS BREAKDOWN

ENGINE COVER, SIDE DOOR, LATCH & REAR GRILL

ITEM PART NO. REQ'D DESCRIPTION

1 3300376 1 STUD-BALL 10MM

2 3307503 1 HINGE ENGINE COVER

3 3307504 2 SPACER ENGINE COVER HINGE FRAME SIDE

6 3308767 1 GAS SPRING-8" STROKE

7 3335146 1 HANDLE - RECESSED NYLON INSET (.07-.13 WALL)

8 3336780M 1 ENGINE COVER 9X, ORANGE

9 690129 1 INSULATION - ENG COVER BACK

10 690127 1 INSULATION - ENG COVER LH FRONT PANEL

11 690128 1 INSULATION - ENG COVER LH BACK PANEL

12 690130 1 INSULATION - ENG COVER RT 9X

13 690131 1 INSULATION - ENG COVER TOP 9X

14 3330356 1 PLUG-PLASTIC HOLE, 3/4, 7 GA

15 3307719 2 LATCH-RUBBER SOFT

16 711374 1 NUT-HEX 5/16-18 ES

19 3500198 8.5' SEAL-TRIM 90 DEG. MOUNT

20 3336786M 1 SIDE DOOR 9X, ORANGE

21 3335437M 1 RADIATOR GUARD 9X , ORANGE

22 3300380 1 LATCH ASSY-#C2-10-301-50

23 3335015 2 PLATE-STOP, SIDE DOOR, ARMA PLATED

24 3300526 2 BUMPER-RUBBER 1/4IDx1/8 THK

25 3335174 1 SIDE DOOR STRIKE ARMA

26 3307560 - SPACER-METAL, 0.060” SIDE DOOR SW/A

27 3307513 2 HINGE-SIDE DOOR

28 3302482 1 BUMPER-RUBBER, 1.5" DIA, 5/8 THK

29 3303204-1 1 TAIL LIGHT - 12V COMBINATION ASSY

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 26

REAR DRIVE ASSEMBLY

PARTS BREAKDOWN







































































Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 27

PARTS BREAKDOWN

REAR DRIVE ASSEMBLY

ITEM PART NO. REQ'D DESCRIPTION

1 600178 1 ROD END FEM 3/4-16 W/ZERK

2 600939 1 NUT 3/4-16 JAM

3 675501 2 FTG-45 DEG STR ELBOW -10 ORFS TO -12 SAE

4 675508 1 FTG-STR THD CONNECTOR -4 ORFS TO -4 SA

5 675518 2 FTG-STR THD ELBOW -6 ORFS TO -5 SAE

6 690003 1 CYL STEERING FORK

7 690025 1 STEERING CYL

8 710120 2 SCREW, HHCS, 1/2-13 X 2 GRD 8

9 710121 2 WASHER, NORDLOCK (2PC), 1/2 CARBON STEEL

10 710122 2 NUT, 3/4-10, NYLON LOCKING, LOW PROFILE

11 711376 4 NUT-NYLOC 1/2-13

12 711380 2 NUT-NYLOC 3/8-16 NUT

13 712318 2 WSR- FLAT .75 X 1.12 X .12 PL

14 713048 2 BLT-HH 3/8-16 X 2 1/2 #5

15 3300411 5 NUT-WHEEL LUG, 1/2-20 UNF

16 3300470 2 BEARING-TAPERED ROL CUP

17 3300471 2 BEARING-TAPERED ROLCONE W/SEAL

18 3306809 1 MOTOR - HYD, 400 SERIES

19 3307021 1 ASSY-TIRE REAR

20 3307347 1 HUB-REAR SW/A, BLACK

21 3304348 5 STUD - WHEEL, 1/2-20X 1.63 (REAR SW/A)

22 3337860 1 SPACER-STEERING FORK

23 3400020 4 SCR-HEX, 1/2-13 X 2.00 ZP

24 3400120 1 PIN-COTTER 5/32 X 2.00 ZP

25 3400223 1 NUT-SLOTTED, 1-20 UNEF

26 3400422 2 SCR-HEX, 3/4-10 X 5.00 ZP

27 3307349P 1 PIN - REAR FORK

28 3317370P 1 WELDMENT-CYL STEERING MOUNT

29 REF 1 WELDMENT- FRAME, AM9D/9X

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 28

DIRECTIONAL CONTROL LINKAGE ASSEMBLY

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 29

PARTS BREAKDOWN

DIRECTIONAL CONTROL LINKAGE ASSEMBLY

ITEM PART NO. REQ'D DESCRIPTION

1 3335609 1 PAD-FOOT PEDAL, ANTI-SKID, 2” X 9.5”

2 3337390 1 PEDAL - FWD/REV, 1-PC

3 3300414 2 BUSHING-PLASTIC FLANGED, .375IDx.50OD

4 711681 1 PIN-CLEVIS, 3/8x4

5 3300461 2 BALL JOINT-3/8-24

6 3400075 4 NUT-JAM, 3/8-24

7 3307222 1 ROD-DIRECTIONAL CONTROL, DIESEL

8 3307611 1 QUICK RELEASE- FWD/REV

9 3307613 1 HANDLE-QUICK RELEASE

10 3307938 1 ROD-DIRECTIONAL CONTROL DIESEL

11 3307223 2 MOUNT-DIRECTIONAL CONTROL BUSHING

12 3307220 2 BUSHING-PLASTIC FLANGED, .76IDx.88OD

13 3307215 1 DIRECTIONAL TORQUE TUBE

14 3400342 4 NUT-HEX 3/8-24 ES ZP

15 3400125 1 PIN-COTTER 3/8 RUE-RING

16 3400087 1 WASHER-FLAT 3/8 STANDARD ZP

17 3337387P 1 FLOOR BOARD - UPPER, AM9D

18 3337542 1 ASSY - 9XR FLOORBOARD LEDGE

19 3337389 1 MOUNT - FWD/REV PEDAL

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 30

CONSOLE ASSEMBLY

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 31

PARTS BREAKDOWN

CONSOLE ASSEMBLY

ITEM PART NO. REQ'D DESCRIPTION

1 3300352 1 KNOB-MB LIFT ADJ

2 3300376 1 STUD-BALL, GAS SPRING, 5/16-18

3 3336094 1 GAUGE-HOURMETER, DIGITAL, SNAP (AFTER SN-18168059)

4 3300414 4 BUSHING-PLASTIC 3/8IDx1/2OD

5 600264 2 HANDLE CONTURED

6 3301147 2 SCR-5/16 ACME THD, WING HEAD,

7 3301155 2 CLIPNUT-5/16-18

8 711744 2 RETAINER 5/16 PUSH NUT BOLT

9 3301447 1 CLEVIS WITH PIN AND COTTER

10 3301669 1 PLUG-PLASTIC, 11/16 DIA

12 3307614 1 WELD-PIVOT SB LIFT

13 3307846 1 INSULATION-CONSOLE TOP

14 3307847 1 INSULATION-DRIVER COMP SIDE

15 3337966 1 CABLE- THROTTLE

16 3323529 1 PLUG-CARLING CONTURA SWITCH

17 3333672 1 SPACER-MB LIFT ROD

18 3334984 1 ROD-MAIN BROOM, LOWER

19 3338296 1 WELD-ROD,MAIN BROOM, UPPER, ZP

20 3338297 1 WELD-ROD,SIDE BROOM, UPPER, ZP

21 3335112P 1 WELD-LIFT ARM, MAIN BROOM,

22 3342905 1 ASSY- INDICATOR LIGHT RED W/PACKARDTERMS

23 3342905 1 ASSY- INDICATOR LIGHT RED W/PACKARDTERMS

24 715731 1 ID PLATE-SERIAL# INFO

25 3342705 1 SWITCH-BASE, DPST CONTURA ROCKER

26 3343912 1 SW-ROCKER CONTURA DPDT ON-OFF

28 711374 1 NUT-NYLOC 5/16-18

29 3400084 1 NUT-WING 1/2-13

30 3400087 4 WASHER-FLAT 3/8 STANDARD ZP

31 3400091 1 WASHER-FENDER 1/2 ZP

32 3400113 4 PIN-CLEVIS 3/8x5-1/2 ZP

33 3400125 4 PIN-COTTER 3/8 RUE-RING

34 3400185 2 PIN-CLEVIS 5/16x1-1/4

35 3500118 EDGING-VINYL TRIM 1/8” X 250’ (Sold Per Foot)

36 3307554 1 COVER BROOM ADJ, 9X ORANGE

37 3335003M 1 CONSOLE, 9X, ORANGE

38 3301854 1 DECAL-CAUTION, 5x4.50"

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 32

SEAT, FLOOR PAN & TAIL LIGHT

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 33

PARTS BREAKDOWN

SEAT, FLOOR PAN & TAIL LIGHT

ITEM PART NO. REQ'D DESCRIPTION

1 3302482 4 BUMPER-RUBBER, 1.5” DIA, 5/8 THK

2 3303204-1 1 TAIL LIGHT - 12V COMBINATION ASSY

3 3307587 1 FLOOR MAT-SMALL

4 3307588 1 FLOOR MAT-LARGE

5 3343413 1 CAP-FUEL TANK

7 620239 1 ARM-REST

8 620219 1 SEAT STD W SEAT BELT RECEIVERS

9 3309716P 1 PANEL-REAR COVER, 9X

10 3333729P 1 MNT-SEAT 9X DARK GRAY

11 3333733P 1 PLATE-ACCESS SEAT CLIP, 9X

12 3335010P 1 FUEL FILL, 9X

13 3335027M 1 CLIP, SEAT 9X, DARK GRAY

14 3335033P 1 HINGE-UNIVERSAL SEAT MNT, 9X

15 3337387P 1 FLOOR BOARD - UPPER

16 3337388P 1 FLOOR BOARD - LOWER

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 34

LIFT & ROTATION CYLINDERS, HYDRAULIC HOSES

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 35

PARTS BREAKDOWN

LIFT & ROTATION CYLINDERS, HYDRAULIC HOSES

ITEM PART NO. REQ'D DESCRIPTION

1 3300837 4 BEARING-1.12 ODx1.00 IDx.75

2 3334551P 1 LIFT ARM-UPPER RH 9X

3 3400177 8 BEARING-THRUST 2.06 IDx3.25 OD

4 3300836 2 BEARING-2.18 ODx2.00 IDx.75

6 3300882 4 WASHER-HD 3.25 ODx2.00 ID

7 3301709 4 RING-RETAINING, EXT 2.00 DIA

9 3316890 1 CYLINDER-HYD, ROTATION HOPPER LIFT

11 675420 1 HYD HOSE - NEED VALVE TO ROT CYL

12 675421 1 HYD HOSE - ROT CYL TO CONT VALVE

13 3336963P 1 HARNESS - LIFT ARM

14 3301998 6 RING-RETAINING, EXT .940 DIA

15 3307430 2 PIN-UPPER LIFT ARM, .998 DIA,

16 3400012 2 FTG-GREASE 3/16

17 3307605 2 ASSEMBLY-DUMP ARM MOUNT

18 3307305M 1 LIFT ARM-HOPPER 9X DARK GRAY

19 3335285 1 PIN, LIFT CYL, ROD END

21 3343821 1 ASSY- SAFETY ARM W/ BALL JOINT

22 3307607 1 PIN-ROTATION CYL, .998 DIA,

24 3335361 1 PIVOT-HOPPER LH

25 3332416 1 ARM-ROTATION (W/PRESSED BEARINGS #28)

26 3307074 1 ARM-HOPPER ROTATION (W/PRESSED BEARINGS #28)

27 712162 8 SCREW, SHCS 7/16-14 X 1-1/2 STEEL ZINC

28 3300840 4 BEARING-2.18 ODx2.00 IDx1.50

29 3401570-11 8 WASHER-NORD-LOCK, 7/16, ZP

30 3336997 1 WELD - HOPPER ROTATE STOP

31 3400449 3 NUT-HEX JAM 1/2-20 ES

32 3400306 3 SCR-HEX,1/2-20X1.00 ZP

33 3307606 1 PIN-FRONT ROTATION CYL, .998 DIA,

34 3317119 1 ASSY- BLOCK ROTATION RH

36 3317364 1 PIVOT-HOPPER RH

37 3400076 2 NUT-HEX JAM SLOTTED, 1-14

38 3300879 2 WASHER-HD 3.25 ODx1.00 ID

39 3400122 2 PIN-COTTER 1/8 X 2.00 ZP

40 675507 2 FTG-STR THD ELBOW -4 ORFS TO -4 SAE

41 3334454P 1 LIFT ARM-UPPER LH 9X

42 3400219 2 SCR-SOC,5/16-18X0.50 ZP

43 3400102 2 WASHER-LOCK 5/16 SPLIT ZP

44 3400278 4 WASHER-FENDER 3/8 ZP

45 3321377 2 TOP-ROTATION CYL MNT ARMA

46 711239 4 SCR-HEX 3/8-16 X 1.00 GR8 ZP

47 3307243 1 ASSY, CYLINDER-HYD HOPPER LIFT

48 675518 2 FTG-STR THD ELBOW -6 ORFS TO -5 SAE

49 675550 4 FITTING ORIFICE .047 #6

50 3339955 1 CLEVIS-LIFT ARM 1.0 DIA. PIN 1.00-14 TD

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 36

RTR SWITCH DETAIL LIFT ARM

PARTS BREAKDOWN

RTR SWITCH DETAIL LIFT ARM

ITEM PART NO. REQ’D DESCRIPTION

1 3302472 1 MOUNT-WIRE TIE LOW PROFILE

2 3311564 1 GROMMET-RUBBER, 1/2 ID

3 3336963P 1 HARNESS - LIFT ARM, ARMA TIER II

4 828062-B 1 TIE-WIRE BLACK

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 37

THIS PAGE IS INTENTIONALLY LEFT BLANK

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 38

HOPPER - FILTER AND SHAKER MOTOR COMPONENTS

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 39

PARTS BREAKDOWN

HOPPER - FILTER AND SHAKER MOTOR COMPONENTS

ITEM PART NO. REQ'D DESCRIPTION

1 750073 2 BRACKET SHAKER MOTOR

3 748149-1 2 ASSY, SHAKER MOTOR W/CONNECTOR

5 3300917 2 BAR-FILTER RETAINER

6 3334676 8 ROD-5/16-18x4.63, FILTER TIE DOWN

6A 3334678 8 NUT-WING 5/16-18 NYLON INSERT

7 3300919 4 BAR-FILTER SHAKER

8 3307850 8 ISOLATOR-RUBBER, .25IDx1ODx.50THK, SW/A

9 3334070 2 FILTER-POLYESTER HOPPER 9XR (31x24x3.19)

10 711374 8 NUT-NYLOC 5/16-18

11 70-516-16 4 BLT-CARR 5/16-18 X 1 ZINC

12 3400329 4 SCR-FLT,5/16-18X.75,SLT ZP

14 3311564 3 GROMMET-RUBBER, 1/2 ID

15 832829 8 NUT-U TYPE 5/16-18

16 3336778 1 BRACKET- FOR SWITCH BALL (# 2 RTR LIGHT )

17 3307440M 1 HOPPER 9X, DUAL FILTER, ORANGE

18 3400484 1 RIVET-AVDEL 3/16 X .602

20 3336964P 1 HARNESS - HOPPER, ARMA

22 3330356 2 PLUG-PLASTIC HOLE, 3/4, 7 GA

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 40

HOPPER - COVER AND LATCH COMPONENTS

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 41

PARTS BREAKDOWN

HOPPER - COVER AND LATCH COMPONENTS

ITEM PART NO. REQ'D DESCRIPTION

4 3400059 20 SCR-THM 1/4-20 X .75 SS

8 3400052 2 SCR-SHOULDER 5/16 DIA X 1/4 ZP

9 3400355 2 SCR-LEVEL BOLT, 3/8-16x2.50

10 3304624 2 CAP-RUBBER BUMPER, (USED WITH #10 ABOVE)

11 3300376 4 STUD-BALL, GAS SPRING, 5/16-18 THRD, .391 DIA.

12 3305006 2 SPRING-GAS 5" STROKE, 14.5" EXTENDED (100 LBF)

13 3307469 2 HINGE-FILTER COVER, ,

15 3400070 4 NUT-HEX 5/16-18 ZP

16 711439 2 NUT-FLANGED WIZZ 3/8-16

17 3401021 2 NUT-HEX ELASTIC JAM 1/4-20 #8 ZP

18 3307468 1 BAR-FILTER LATCH, ,

19 3307247 1 LATCH-RH BROOM DOOR

20 3316862M 1 LID-HOPPER 9X ORANGE

21 3318739 120” WEATHERSTRIPPING-RUBBER SPONGE

22 3400170 2 SCR-HSS 1/2x.31,

23 3301146 10 CLIPNUT-1/4-20 ZP

24 3400059 4 SCR-THMS 1/4-20 X .75 SS SLOTTED

25 3400384 4 WASHER-CONICAL SPRING 5/16

26 711379 4 NUT-FLANGED WIZZ 5/16-18

27 3307842 2 FLAP-HOPPER SIDE

28 3307843 2 RETAINER-FLAP HOPPER SIDE

29 3307720 5 FLAP-HOPPER FRONT

30 3307721 1 RETAINER-HOPPER FLAP

31 3500198 134” SEAL-TRIM 90 DEG. MOUNT

32 3307460M 1 HOOD-HOPPER 9X, ORANGE

33 3400394 1 NUT-FLANGE LOCK 7/16-14

34 3338592 1 BOLT-STRIKER .675 (17.1mm) DIA.

35 3307743 2 PLATE HOPPER BACKING

36 3334900 1 DECAL-"POWERBOSS" LOGO

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 42

FRONT BUMPER ASSEMBLY

PARTS BREAKDOWN

FRONT BUMPER ASSEMBLY

ITEM PART NO. REQ'D DESCRIPTION

1 3335094 1 HARNESS-FRONT BUMPER HEADLIGHT

2 3315839 2 HEADLIGHT-HALOGEN 12V, FLUSH MOUNT

- 3315869 - BULB-HALOGEN REPLACEMENT (NOT SHOWN)

3 3316865M 1 BUMPER-FRONT, AM9D DARK GRAY

4 3311564 1 GROMMET-1/2" ID RUBBER

5 3316871 2 BUMPER-RUBBER, 1.50" DIA

6 3322186 2 INSERT-3/8-16 UNC

7 3311374 6 SCR-HEX,1/4-14X3/4 SELF TAP

8 711439 8 NUT-FLANGED WIZZ 3/8-16

9 3316981 2 RETAINER, PUSHNUT, 3/8 BOLT, 25/32 OD ZP

10 3400385 8 WASHER-CONICAL SPRING 3/8

11 711250 4 BLT-HH 3/8-16 X 1.25 STL ZINC

12 3400030 4 SCR-HEX,3/8-16X1.00, GRADE 5, ZP

13 3337303P 2 PLT-MOUNT, BUMPER, AM9D

14 828062-B 1 CABLE TIE-LARGE (BLACK)

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 43

BATTERY COMPONENTS

PARTS BREAKDOWN

BATTERY COMPONENTS

ITEM PART NO. REQ'D DESCRIPTION

1 3307939 1 CABLE-BATTERY POSITIVE DIESEL ENGINE

2 3301076 1 HOLD DOWN-BATTERY 2-PIECE

3 3307634 1 CABLE BATTERY NEGATIVE

4 3400085 2 NUT-WING 1/4-20

5 3300440 1 BATTERY-GAS/LP/DIESEL, 12V, 650 CCA, 125 MIN RESERVE

6 3321296 1 WELD-BATTERY BOX

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 44

ENGINE PAN, HYDRAULIC HOSE RETAINER & LATCH

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 45

PARTS BREAKDOWN

ENGINE PAN, HYDRAULIC HOSE RETAINER & LATCH

ITEM PART NO. REQ'D DESCRIPTION

1 3334951 1 WELDMENT-ENGINE PIVOT

3 3300471 1 BEARING-TAPERED ROLCONE W/SEAL

4 3300470 1 BEARING-TAPERED ROL CUP

5 3307326 1 BEARING MOUNT-ENGINE PIVOT

6 3400012 1 FTG-GREASE, φ3/16

7 3400083 1 NUT-HEX JAM, 1 1/4-12 ES

8 3333303 1 COVER-HOSE RETAINER SHORT

9 3333302 1 HOSE RETAINER SW/A

10 3335208 1 WELDMENT-ENGINE CATCH OUTER

11 3335183 1 WELDMENT-ENGINE CATCH INNER

12 3337544 1 LATCH - ENGINE SWING

13 3334994M 1 WELD-ENGINE PAN,

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 46

FUEL TANK GASOLINE AND DIESEL

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 47

PARTS BREAKDOWN

FUEL TANK GASOLINE AND DIESEL

ITEM PART NO. REQ'D DESCRIPTION

1 711427 2 NUT-FLANGED WIZZ 10-32

2 3044112 2 CLAMP-HOSE, SS, 2.50 MAX

3 3300388 1 SENDER-FUEL SHORT (5 INCH)

4 811023 1 GASKET, SENDER

5DSL 3307575 1TANK-FUEL, 7.64 US GAL,

5GAS 3335055 FUEL TANK - GAS ARMA

6 3337019 1 SEAL - #10 BONDED NITRILE WASHER

7 3400498 1 FTG-BRASS NIPPLE, 1/4 NPTx2.0 LG

8 3400499 1 VALVE-MINATURE 1/4 FPT BALL

9DSL 3400793 1FTG-90 3/8 BARBx1/4 NPT

9GAS 3336095 FTG-FUEL HOSE BARB

10 3401579 1 SCR - HEX STANDOFF, 2X 10-32X.50 LG

11 3401636 4 SCR, PPH, 10-32 X .50, W/O-RING 18-8 SS

12DSL 3402022 1FTG-90 1/4 MPT X 1/4 HOSE BARB

12GAS 3401445 FTG-HOSE BARB 90? 5/16 X 1/4 NPT

13 3500221 1 HOSE-2” ID STRAIGHT RAD.

14 3307731 1 FUEL TANK STRAP (NOT SHOWN)

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 48

HYDRAULIC RESERVOIR ASSEMBLY

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 49

PARTS BREAKDOWN

HYDRAULIC RESERVOIR ASSEMBLY

ITEM PART NO. REQ'D DESCRIPTION

1 3300358 1 SUB-HYD FILTER SW/9X (FILTER, MOUNT & FITTINGS)

- 3300359 1 FILTER-HYDRUALIC OIL (FILTER ONLY)

- 3304899 1 FTG-ADAPTER, 3/4-16 TO 1/2 OD TUBE (NOT SHOWN)

- 3400167 1 FTG-ADAPTER, 1 1/6-12 EXT TO (NOT SHOWN)

- 3400632 1 FTG-ADAPTER, RUN TEE 1-1/16-12 (NOT SHOWN)

- 3400636 1 FTG-ADAPTER, SWIVEL NUT 90° ELBOW (NOT SHOWN)

2 3310072 1 WELDMENT-HYD FILL TUBE

3 3500137 1 HOSE-1/8 ID EEC-PCV

4 3044112 1 CLAMP-HOSE, SS, 2.50 MAX WORM

5 3303577 1 HOSE-RUBBER, 2.00IDx3.50 LG

6 3307778 1 FTG-90° 1/8MPTx1/4 BARB

7 3044112 1 CLAMP-HOSE, SS, 2.50 MAX WORM

8 3335527 1 RESERVOIR-HYDRAULIC, 7.5 US GA

9 3343836 1 STRAINER-HYDRAULIC TM-14

10 675506 1 FTG-STR THD ELBOW -16 ORFS TO -20 SAE

11 3400164 1 FTG-PLUG 3/4-16 O RING

12 675524 2 FTG-STR THD CONNECTOR -8 ORFS TO -8 SA

13 3400453 1 FTG-PLUG 9/16-18 O-RING STEEL

14 675510 1 FTG-STR THD CONNECTOR -5 ORFS TO -4 SA

15 675504 1 FTG-45 DEG STR ELBOW -12 ORFS TO -16 SA

16 675519 1 FTG-STR THD CONNECTOR -6 ORFS TO -5 SA

17 675510 2 FTG-STR THD CONNECTOR -5 ORFS TO -4 SA

18 3307580 1 DIPSTICK-HYD RESEVOIR

19 3305576 1 ASSEMBLY-HYD OIL FILTER BREATHER

20 3400044 6 SCR-HEX,#10-32X0.75

21 3400045 1 SCR-PAN,#8-32X0.62,SLT

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 50

HYDRAULIC CONTROL VALVE DETAIL

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 51

PARTS BREAKDOWN

HYDRAULIC CONTROL VALVE DETAIL

ITEM PART NO. REQ'D DESCRIPTION

1 600263 3 KNOB-PLASTIC TAPERED #145 BLACK

2 3338603 1 WELD - HANDLE CONT VLV 3 PLTD

3 3303996 6 BEARING-PLASTIC 1/2X3/8X.75 LG

4 3338456P 6 LINK-HYD VLV SW/A PLTD

5 3400125 6 RUE RING-1/4 HEAVY ZP

6 3400088 5 WASHER-FLAT 5/16 IDx.688 ODx.065 THK

7 3400425 3 PIN-CLEVIS 1/4 X 5/8 ZP

8 3338458 1 HANDLE CONT VLV 2 PLTD

9 3338459 1 HANDLE CONT VLV 1 PLTD

10 3400466 1 SCR-CAR,5/16-18X2.75 ZP

11 711724 2 RING-RET EXT .38

12 3300465 4 ISOLATOR-RUBBER (.375IDx.81OD)

13 3300884 1 ROD-PIVOT CONTROL VALVE PLTD

14 3338455 1 MNT - HYD. SPOOL VALVE ARMA

16 3338213 1 VALVE-HYD CONTROL 3-SPOOL SW/A

17 675513 2 FTG - HYD. TEE #8JIC X #10 ORB X #8JIC

18 690006 1 ORIFICE-BRASS #332, .041” DIA, HYDRAULIC, 3/4-16 THD

19 675524 4 FTG-TEE SWIVEL RUN #4 JIC ARMA

21 711374 2 NUT-NYLOC 5/16-18

31 3400088 6 WASHER-FLAT #8 ZP

32 450034 3 PIN-CLEVIS 3/16 X 3/4 ZP

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 52

IMPELLER ASSEMBLY

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 53

PARTS BREAKDOWN

IMPELLER ASSEMBLY

ITEM PART NO. REQ'D DESCRIPTION

13316832 1 MOTOR-HYDRAULIC, .323CI, CCW ROTATION, IMPELLER

3337905 1 SEAL KIT IMPELLER MOTOR

2 675525 2 FTG-STR THD RUN TEE -8 ORFS TO -8 SAE

3 3307152 1 MOUNT-IMPELLER MOTOR

4 3300465 4 ISOLATOR-RUBBER, .375 IDx.81 OD

5 3400028 4 SCR-HEX 3/8-16x1.50"

6 3322121 1 MOUNT-IMPELLER MOTOR, CIRCULAR

7 3335458 2.5’ GASKET-TOP IMPELLAR, ARMA

8 3307004 1 SHROUD-IMPELLER,

9 3307003 1 IMPELLER-8.88" DIA, ARMA BALANCED

10 3335459 2.5’ GASKET-BOTT IMPELLAR, ARMA

11 3335192 1 IMPELLER MOUNT, ARMA

12 3333915 3 ISOLATOR-RUBBER, φ1.5x1" LG, 3/8-16 THREAD

13 3300351 3 CLAMP-HOSE, 4.5" DIA, SS

14 3307767 1 HOSE-IMPELLER, φ4"x7.5" LONG

15 3315347 1 TRANSITION-PLASTIC IMPELLER EXHAUST

16 3318203 1 HOSE-IMPELLER EXHAUST, 3.5"IDx62" LONG

17 675508 1 FTG-STR THD CONNECTOR -4 ORFS TO -4 SA

18 675523 1 FTG-STR THD ELBOW -8 ORFS TO -8 SAE

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 54

MAIN BROOM ASSEMBLY

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 55

PARTS BREAKDOWN

MAIN BROOM ASSEMBLY

ITEM PART NO. REQ'D DESCRIPTION

1 600263 1 HANDLE GRIP

2 3338296 1 WELD-ROD,MAIN BROOM, UPPER, 9X,ZP

3 3400084 1 NUT-WING 1/2-13

4 3400091 1 WASHER-FENDER 1/2

5 3300352 1 KNOB-MAIN BROOOM LIFT ADJUST

6 3335112P 1 WELDMENT-MAIN BROOM PIVOT LIFT

7 3334984 1 ROD-LIFT MAIN BROOM

8 3301447 1 CLEVIS-CABLECRAFT AC-218

9 3301285 1 RETAINER-MAIN BROOM DRIVER HUB

10 3301050P 1 HUB-MAIN BROOM DRIVE

11 675523 1 FTG-STR THD ELBOW -8 ORFS TO -8 SAE

12 3338661 1 MOTOR-HYD MAIN BROOM

13 3330338 1 KEY-SHAFT D-FOSS CB/MB/SC MOTORS

14 3307337 3' GASKET-MAIN BROOM ARM

15 3307338 3' RETAINER-GASKET MAIN BROOM ARM

16 3307207M 1 MAIN BROOM MNT AM9D-M

17 3307181 1 SPACER-MAIN BROOM

18 3300432 2 BUSHING-FL-52-4

19 690111 2 PIN-DOWEL, .375x1.25, SS

20 3305667 1 BEARING-MAIN BROOM

21 3305642 1 HUB-BROOM IDLER

22 3400047 2 SCR-SOCKET, 5/16-18x0.75

23 3305666 1 RING-RETAINING MAIN BROOM

25 3335220 1 MAIN BROOM PLT

26 3400748 1 KNOB-HAND 1/2-13x1-1/2 DOG POINT

27 3335196 1 PLATE-LIFT ARM, MAIN BROOM, ARMA

28 712305 1 WASHER, FENDER 5/8 X 2 X .125 ZINC

29 712003 1 SCREW, HHCS 5/8-11 X 0.75 ZINC

30 3333672 1 SPACER-MB LIFT ROD

31 712315 1 WASHER SR-HELICAL .64 X 1.26 X .06 ZINC

32 3335908 1 RING-NILOS, 2.55”OD

33 3400086 1 WASHER-FLAT 1/2 STANDARD ZP

34 3400098 1 WASHER-LOCK 1/2 SPLIT ZP

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 56

SIDE BROOM & MAIN BROOM

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 57

PARTS BREAKDOWN

SIDE BROOM & MAIN BROOM

ITEM PART NO. REQ'D DESCRIPTION

MAIN BROOM

1 3305818 1 BROOM-48"HIGH DEN FIBER & WIRE

3305812 1 BROOM-48" NYLON

3305665 1 BROOM-48" HIGH DENSITY NYLON

3305814 1 BROOM-48" NYLON CHEVRON (PATROL)

3315315 1 BROOM-48"STIFF NYLON

3305663 1 BROOM-48" PROEX & WIRE

3333483 * 1 BROOM-48” TRIPLE ROW POLY (CHEVRON PATERN)

SIDE BROOM

2 3300308 * 1 BROOM-SIDE 24" WHITE NYLON

3300306 1 BROOM-SIDE 24" DIA. BLACK POLY

3300309 1 BROOM-SIDE 26" WHITE NYLON

3300307 1 BROOM-SIDE 26" BLACK POLY

3300311 1 BROOM-SIDE 26" WIRE

* - Standard Broom used on the AM9D-III machine.

Main Broom User’s Guide

Proex & Wire - Slightly encrusted soilage & dusty conditions. High heat.

Nylon - General purpose broom with long life bristles.

Poly Proex - All purpose broom that stands up well on rough surfaces.

High Density Nylon - Highly eﬀ ective for small particle soilage. Severe dust environments.

Crinkle Wire - Stiﬀ bristles for compacted grime, oil, grease or mud. Fair to good broom life.

Natural Fiber & Wire - Good all around broom. Good for high heat applications.

Side Broom User’s Guide

Poly - Stiﬀ bristles for aggressive sweeping of mainly heavy litter. Not suited for high heat.

Nylon - Provides longest life. Recommended for tough sweeping jobs.

Wire (ﬂ at) - For areas of heavy grease build up or scarifying action. Used in high heat applications.

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 58

VACUUM SWITCH

PARTS BREAKDOWN

VACUUM SWITCH

ITEM PART NO. REQ'D DESCRIPTION

1 3303105 1 FTG-NIPPLE 1/8"MPT X 2.00 LG

4 3401122 0.1 SEALANT-THREADED PIPE, 565 PST

5 3303327-1 1 CLOG FILTER - PRESSURE SWITCH ASSY

6 3400315 2 SCR-HEX,#10-32X0.50 (Not Shown)

7 3400172 2 NUT-HEX JAM #10-32 ES (Not Shown)

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 59

TIMER-FILTER SHAKER SEALED

PARTS BREAKDOWN

TIMER-FILTER SHAKER SEALED

ITEM PART NO. REQ'D DESCRIPTION

I 690138 I BRACKET, TIMER

2 710230 2 SCR-MC 8-32 X .62 ST PL

3 711373 I NUT - NYLOC 1/4-20

4 711502 2 WSR - FLT, .170 X .38 X .32 STL ZINC

5 748502-1 I ASSY, RELAY - TIMER, W/CONNECTOR

6 3400082 2 NUT - HEX #8-32 ES ZP

DO NOT TIGHTEN 711373 UNTIL ASSY

IS MOUNTED TO THE MACHINE

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 60

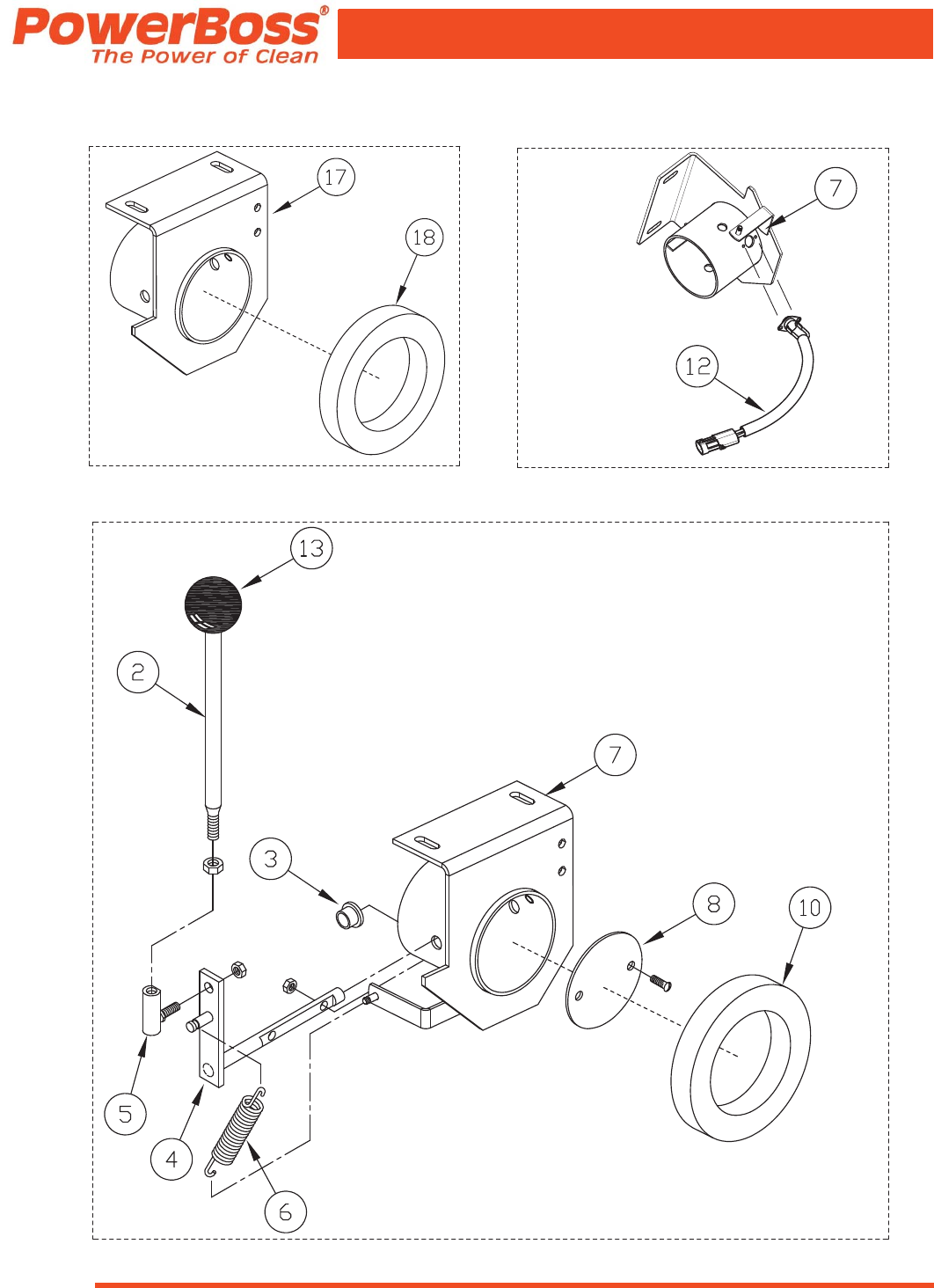

GASKET MOUNT ASSEMBLY

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 61

PARTS BREAKDOWN

GASKET MOUNT ASSEMBLY

ITEM PART NO. REQ'D DESCRIPTION

3307018 1 GASKET MOUNT SUB 9XV (Includes Items 1-13)

2 3307173 1 ROD-IMPELLER BAFFLE

3 3300414 2 BUSHING-PLASTIC, 3/8 ID X 1/2 OD

4 3307155 1 WELDMENT ROD GASKET MOUNT BAFFLE

5 3301199 1 BALL JOINT-1/4-28

6 3304160 1 SPRING-EXTENSION, 2.00 LG

7 3307182 1 WELDMENT-GASKET MOUNT,

8 3301498 1 DAMPER-HOPPER SHUTOFF,

10 3307005 1 GASKET-IMPELLER

12 748504-1 1 THERMOSTAT ASSEMBLY

- 3303729 1 GROMMET-RUBBER, .25IDx.56ODx.12 GROOVE (Not Shown)

13 3300563 1 KNOB-PLASTIC BALL 1" DIA, BLACK

17 3307182 1 WELD-GASKET MNT SW/A/62E

18 3307005 1 GASKET-IMPELLER

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 62

ENGINE KUBOTA V1505 DIESEL - AIR CLEANER ASSEMBLY

PARTS BREAKDOWN

ENGINE KUBOTA V1505 DIESEL - AIR CLEANER ASSEMBLY

ITEM PART NO. REQ'D DESCRIPTION

1 3302842 1 ELEMENT-AIR CLEANER, PRIMARY

2 3302597 1 ELEMENT-AIR CLEANER, SAFETY

3 3303827 1 NUT-WING, DONALDSON AIR CLEANER

4 3303031 1 "ASSEMBLY-DONALDSON HEAVY DUTY AIR CLEANER

(Includes Items 1,2&3)"

5 3303991 1 INDICATOR-AIR CLEANER RESTRICTION

6 3044112 2 CLAMP-HOSE, φ2.5" SS

7 3332643 1 HOSE-RAD UPPER 1505 (COOLER)

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 63

ENGINE KUBOTA V1505 DIESEL - FUSE BOX ASSEMBLY

PARTS BREAKDOWN

ENGINE KUBOTA V1505 DIESEL - FUSE BOX ASSEMBLY

ITEM PART NO. REQ'D DESCRIPTION

1 748769 1 ASSY - DIESEL CONTROL BOX

2 3342109 2 SPACER

3 3400102 2 WASHER

4 3400231 2 SCR-HEX,5/16-18X2.0 ZP

5 690042 1 BRACKET, MTG, WELD, DIESEL CONTROL BOX

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 64

























 

',(6(/&21752/%2;

:,7+723&29(55(029('

ENGINE KUBOTA V1505 DIESEL - FUSE BOX DETAILS

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 65

PARTS BREAKDOWN

ENGINE KUBOTA V1505 - DIESEL CONTROL BOX (748769)

ITEM PART NO. REQ'D DESCRIPTION

1 690042 1 BRACKET, MTG, WELD, DIESEL CONTROL BOX

2 710328 8 SCR-RHMS 8-32 X .37 ZP

3 712540 4 SCR-THMS 10-24 X .37 SS

4 748447 1 WIRING HARNESS, KUBOTA DSL CONTROL BOX

5 748447-1 1 WIRE ASSY, ORANGE

6 748447-2 1 WIRE ASSY, YELLOW

7 748762 1 CIRCUIT BREAKER, 12V 50A

8 748763-MCH 1 MOUNTING PLATE, MACHINED

9 748764 1 ENCLOSURE W/ METRIC KNOCKOUTS

10 748767 2 RELAY, 14 VDC 50/30 A

11 748768 1 CORDGRIP, M25, LIQUID TIGHT

12 748962 1 CIRCUIT BREAKER, 12V 40A

13 748963 2 CIRCUIT BREAKER BOOT

14 748964-1 2 ASSY, FUSE HOLDER

15 748967 2 SOCKET, RELAY

16 3400082 8 NUT-NYLOC 8-32 ZP

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 66

ENGINE KUBOTA V1505 DIESEL - ALTERNATOR, WATER PUMP, FAN, AND OIL PAN

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 67

PARTS BREAKDOWN

ENGINE KUBOTA V1505 DIESEL - ALTERNATOR, WATER PUMP, FAN, AND OIL PAN

ITEM PART NO. QTY DESCRIPTION

1 3336919 1 COVER-THERMOSTAT KUBOTA V1505

2 3350446 1 THERMOSTAT-KUBOTA V1505 & V2203

3 3336918 1 GASKET-THERMOSTAT KUBOTA V1505

4 3341070 1 SENDER-TEMPERATURE 12V KUBOTA V1505

5 3336939 1 HOUSING-THERMOSTAT KUBOTA V1505

6 3336915 1 GASKET-WATER FLANGE KUBOTA V1505

7 3336947 1 PLUG-THERMOSTAT HSG KUBOTA V1505

8 3336931 1 PIPE-WATER RETURN THERMOSTAT HSG

9 3336946 1 PIPE-WATER KUBOTA V1505

10 3330793 1 GASKET - KUBOTA V1505 WATER PUMP

11 3330792 1 PUMP - WATER, KUBOTA V1505

12 3336932 1 PIPE-WATER PUMP KUBOTA V1505

13 3329875 1 ALTERNATOR-KUBOTA V1505

14 3336067 1 STAY-DYNAMO

15 3331935 1 COVER-BELT

16 3330210 1 FAN - KUBOTA V1505 ENGINE (SP) 1

17 3336933 1 SPACER-FAN 10MM KUBOTA V1505

18 3336937 1 BOLT-PULLEY KUBOTA V1505

19 3336934 1 PULLEY-ENGINE KUBOTA V1505

20 3329867 1 BELT-KUBOTA V1505V

21 3336920 1 PAN-OIL KUBOTA V1505

22 661004 1OIL DRAIN ASSY, V1505

23 3344822 1 DRAIN PLUG GASKET, KUBOTA

24 3338327 1 PLUG-DRAIN (BOTTOM)

25 3338328 1 GASKET-OIL PAN (ALTERNATE)

26 3344821 1 PLUG-DRAIN (SIDE) (ALTERNATE)

27 3337571 1 SEAL, OIL KUBOTA V1505

28 690116 1 ENGINE, DSL, DE-RATED - V1505, KUBOTA

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 68

ENGINE KUBOTA V1505 DIESEL - FLYWHEEL, STARTER, HEAD COVER, AND MANIFOLD

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 69

ENGINE KUBOTA V1505 DIESEL - FLYWHEEL, STARTER, HEAD COVER, AND MANIFOLD

ITEM PART NO. QTY DESCRIPTION

1 3334041 1 MANIFOLD-EXHAUST KUBOTA V1505

2 3333964 1 GASKET-EX-MANIFOLD KUBOTA V1505

3 3334278 1 GASKET - VALVE COVER KUBOTA V1505

4 3336910 1 COVER-CYLHEAD KUBOTA V1505

5 3337572 4 GASKET KUBOTA V1505

6 3336916 4 NUT-CYLHEAD COVER KUBOTA V1505

7 3337573 1 O-RING KUBOTA V1505

8 3336926 1 PLUG-OIL FILLER KUBOTA V1505

9 3337574 1 COVER, BREATHER KUBOTA V1505

10 3337575 1 VALVE BREATHER KUBOTA V1505

11 3337576 1 TUBE BREATHER KUBOTA V1505

12 3336911 1 MANIFOLD-INLET KUBOTA 1505

13 3337577 1 GASKET INTAKE MANIFOLD KUBOTA V1505

14 3336935 1 COMP-FLYWHEEL KUBOTA V1505

15 3329956 1 COUPLING-KUBOTA DIESEL V1505/D905

16 3329957 1 BELL HOUSING KUBOTA V1505 DIESEL

17 3336938 6 BOLT-FLYWHEEL KUBOTA V1505

18 3339628 1 ASSY-COCK DRAIN V1505

19 3324129 1 FILTER - OIL, 1505/905 KUBOTA DIE

20 3330402 1 STARTER - KUBOTA V1505, 12V

21 3301720 1 FTG-90 EL 1/8 FPT

22 3341069 1 SENDER-OIL PRESSURE 12V

23 3305640 1 FTG-NIPPLE 1/8BPT-1/8NPT BRASS

24 3336917 1 PLATE-REAR END V1505

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 70

ENGINE KUBOTA V1505 DIESEL - FUEL SYSTEM AND SPEED CONTROL

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 71

ENGINE KUBOTA V1505 DIESEL - FUEL SYSTEM AND SPEED CONTROL

ITEM PART NO. QTY DESCRIPTION

1 3330106 4 INJECTOR-KUBOTA V1505 DIESEL

2 3333567 1 FUEL LINE-KBA 1505 LEAK OFF LINE

3 3334998 1 PIPE INJECTION-KUBOTA V1505

4 3334997 1 PIPE INJECTION-KUBOTA V1505

5 3334996 1 PIPE INJECTION-KUBOTA V1505

6 3334995 1 PIPE INJECTION-KUBOTA V1505

7 3330693 1 KUBOTA 1505-FUEL PUMP GASKET

8 3330692 1 PUMP - FUEL, KUBOTA V1505 DIESEL

9 3336924 1 GASKET-CONTROL PLATE KUBOTA V1505

10 3336943 1 PLATE-SPEED CONTROL KUBOTA V1505

11 3336944 3 BOLT-ADJUSTING SPEED CONTROL KUBOTA

12 3336976 3 HUT-HEX JAM 6MM

13 3336948 1 SHAFT-LEVER STOP SPEED CONTROL KUBOTA

14 3336942 2 LEVER-SPEED CONTROL KUBOTA V1505

15 3336945 1 LEVER-ENGINE STOP KUBOTA V1505

16 3336969 2 WASHER-PLAIN 15MM OD X 6MM ID X 1

17 3336970 2 NUT-HEX LOCK 6MM

18 3336941 1 LEVER-SPEED CONTROL KUBOTA V1505

19 3336949 1 LEVER-GOVERNOR KUBOTA V1505

20 3305882 1 MOUNT, FUEL FILTER KUBOTA PNTD

21 3303324 1 FILTER - FUEL KUBOTA DSL (SP)

22 3400293 5 SCR-HEX 10MMX1.25PX20MM ZP

23 3401458 5 WSH-LOCK, 10 MM ZP

24 3336912 1 BRACKET-FUEL FILTER KUBOTA V1505

25 3400390 1 NUT-FLANGE LOCK 5/16-18

26 3350331 1 MOUNT-THROTTLE KBA 1505 DSL

27 3400384 1 WASHER CONICAL SPRING 5/16

28 3400034 1 SCR-HEX,5/16-18X1.25 ZP

29 3330795 4 GLOW PLUG KUBOTA V1505

30 3337578 1 CORD GLOW PLUG KUBOTA V1505

31 3336927 1 PLUG-ENGINE KUBOTA V1505

32 3334549 1 KIT-SOLENOID FUEL SHUT-OFF W/ JUMPER

33 3336925 1 COVER HYDRAULIC PUMP-ENGINE KUBOTA V1505

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 72

ENGINE KUBOTA V1505 DIESEL - MOTOR MOUNTING

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 73

PARTS BREAKDOWN

ENGINE KUBOTA V1505 DIESEL - MOTOR MOUNTING

ITEM PART NO. REQ'D DESCRIPTION

1 690032 1 ENGINE MOUNT, OUTER, AM9D, KUBOTA V1505

2 690031 1 ENGINE MOUNT, INNER, AM9D, KUBOTA V1505

3 690032 1 ENGINE MOUNT, OUTER, AM9D, KUBOTA V1505

4 3300464 4 ISOLATOR-RUBBER, 1.24 DIAx1.25 LG

5 690031 1 ENGINE MOUNT, INNER, AM9D, KUBOTA V1505

- 3350329 1 BRACKET-HOSE RETAINER, FRONT, KABOTA V1505 DIESEL (NOT

SHOWN)

- 3333301 1 BRACKET-HOSE RETAINER, REAR, KABOTA V1505 DIESEL (NOT

SHOWN)

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 74

ENGINE KUBOTA V1505 DIESEL - EXHAUST DETAIL

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 75

PARTS BREAKDOWN

ENGINE KUBOTA V1505 DIESEL - EXHAUST DETAIL

ITEM PART NO. REQ'D DESCRIPTION

1 3301641 2 CLAMP-EXHAUST 1 1\2

2 3330627 1 MUFFLER-KUBOTA V1505 BOX

3 3330629 1 BLANKET-KUBOTA V1505E BOX EXHAUST

4 EPS2655 1 STAY MUFFLER

5 3335036 1 EXHAUST-KUBOTA V1505 9X

6 3401570-7W 4 WASHER-NORD-LOCK, 1/4, 0.53 OD

7 3336632 1 PLT - EXHAUST MNT BRKT

8 690113 1 BRACKET, UPPER EXHAUST HANGER, 9X/AM9D

9 3400071 4 NUT-HEX 1/4-20

10 3400103 2 WASHER-LOCK 1/4 SPLIT

11 3344112 2 ISO-CYL, 1 DIA X 3/4 X 1/4-20,

12 3400043 2 SCR-HH 1/4-20 X .50 ZINC

14 3400089 2 WASHER-FLAT 1/4 STANDARD

15 3335134 1 EXHAUST FUNNEL, ARMA

16 713002 4 BLT-HH 1/4-20 X .75 #5 ZINC

17 3400383 4 WASHER-CONICAL SPRING 1/4

18 711425 4 NUT-FLANGED WIZZ 1/4-20 STL ZP

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 76

ENGINE KUBOTA V1505 DIESEL - RADIATOR DETAIL

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 77

PARTS BREAKDOWN

ENGINE KUBOTA V1505 DIESEL - RADIATOR DETAIL

ITEM PART NO. REQ'D DESCRIPTION

1 675503 1 FTG-STR THD CONNECTOR -12 ORFS TO -16 S

1A 675530 1 FTG-STR THD CONNECTOR -8 ORFS TO -16 S

2 3336527 1 RADIATOR CAP

3A 690019 24” HOSE, RADIATOR TO OVERFLOW BOTTLE, 21” LENGTH

3B 690019 36” HOSE, OVERFLOW BOTTLE EXIT, 36” LENGTH

4 675419 1 HYD HOSE - RAD OUT TO RESV

5 690033 1 MOUNT-RADIATOR HYD W/COOLER

6 3332643 2 HOSE-UPPER RADIATOR, KUBOTA 1505

7 3303255 4 CLAMP-HOSE 1.75 DIA NOMINAL

8 690125 1 RADIATOR-OIL COOLER, LP/GAS/DSL

9 690150 1 ASSY, FAN SHROUD, DSL/LP/GAS

10 3333489 1 FTG-RADIATOR HOSE

11 690020 1 LOWER RADIATOR HOSE, AM9D

12 675418 1 HYD HOSE - FILTER OUT TO RAD

13 3333488 1 FTG-PLUG, RADIATOR

14 3301733 2 DECAL-WARNING FAN (RAD SHROUD)

-- 690225 4 CLAMP- HOSE .460 (NOT SHOWN - USED WITH ITEMS 3A and 3B

ON EACH END)

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 78

ENGINE KUBOTA V1505 DIESEL - RADIATOR COOLANT TANK & MOUNT

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 79

PARTS BREAKDOWN

ENGINE KUBOTA V1505 DIESEL - RADIATOR COOLANT TANK & MOUNT

ITEM PART NO. REQ'D DESCRIPTION

1 713527 1 P-CLAMP, VINYL COVERED, 1/2 DIA

2 3301158 1 CLAMP-CABLE 11/16” DIA CLAMP-SADDLE TYPE 5/16” DIA.

3 3344101 1 RESERVOIR ASSY

4 3344112 4 ISOLATOR- CYLINDRICAL, 1 DIA X 3/4 X 1/4-20,

5 713002 6 BLT-HH 1/4-20 X .75 #5 ZINC

6 711373 10 NUT-NYLOC 1/4-20

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 80

ENGINE KUBOTA V1505 DIESEL - RADIATOR ASSY & MOUNTING BRACKETS

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 81

PARTS BREAKDOWN

ENGINE KUBOTA V1505 DIESEL - RADIATOR ASSEMBLY & MOUNTING BRACKETS

ITEM PART NO. REQ'D DESCRIPTION

1 3301158 1 CLAMP-SADDLE TYPE 11/16” DIA.

2 3400103 8 WASHER-LOCK 1/4 SPLIT

3 690125 1 RADIATOR-OIL COOLER COMBO

4 690150 1 ASSY, FAN SHROUD, DSL/LP/GAS

5 690033 1 PLATE- BASE, RADIATOR MOUNT, AM9D

6 3336627 1 PLT-RADIATOR MNT, RH TOP

7 3336629 2 PLT - RADIATOR MNT, LH TOP

8 3336632 1 PLT - EXHAUST MNT BRKT

9 690113 1 PLT - EXHAUST MNT, UPPER BRKT

10 3336634 1 PLT - RADIATOR MNT

13 3344110 2 ISOLATOR-BONDED BUSHING BOTTOM RADIATOR

14 3344112 2 ISOLATOR- CYLINDRICAL, 1 DIA X 3/4 X 1/4-20,

15 3400007 4 SCR-CAR,3/8-16X1.25

18 711207 6 BLT-HH 1/4-20 X 1.00 STL ZINC

19 3400071 4 NUT-HEX 1/4-20

20 711380 6 NUT-NYLOC 3/8-16

21 3400089 8 WASHER-FLAT 1/4 ZP

22 3400278 2 WASHER-FENDER 3/8

23 3401570-7W 4 WASHER-NORD-LOCK, 1/4, 0.53 OD

24 661133 1 BRKT, RADIATOR, UPPER

25 3334426 1 ISOLATOR-RAD MNT

26 713527 1 P-CLAMP, VINYL COVERED, 1/2 DIA

27 711374 2 NUT-NYLOC 5/16-18 ZP

28 713001 1 SCR-HH 1/4-20 X .62 PLAIN GR 5

29 713002 1 SCR-HH 1/4-20 X .75 ZP 5

30 82-54-A 1 CLAMP-P .75 I.D. 5/16 DIA.

31 711228 1 SCR-HH 5/16-18 X .75 ZP GR 5

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 82

ENGINE KUBOTA V1505 DIESEL - RADIATOR ASSY, CLAMPS, HOSES & SENDERS

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 83

PARTS BREAKDOWN

ENGINE KUBOTA V1505 DIESEL - RADIATOR ASSEMBLY, CLAMPS, HOSES & SENDERS

ITEM PART NO. REQ'D DESCRIPTION

2 713527 2 CLAMP-HOSE 1/2 NOM

3 3301158 4 CLAMP-HOSE 1.25 NOM

5 3345502 1 ADAPTER, OIL DRAIN - MALE/FEMALE

7 3345503 1 FTG-BRASS,3/8” BARB X 1/4” MALE NPT

8 3345506 1 FTG-BRASS,3/8” BARB X 1/4” FEMALE NPT

9 3332643 1 HOSE-RAD UPPER 1505

10 690020 1 HOSE-RAD LOWER 1505

11 3345505 1 HOSE - 1/2” ID X 24” PCV OIL DRAIN

12 3341069 1 SENDER-OIL PRESSURE 12V

13 3341070 1 SENDER-TEMPERATURE 12V

14 711206 2 SCR-HH 1/4-20 X .87 ZP GR 5

15 3400385 1 WASHER-CONICAL SPRING 3/8

16 3401122 0.100 565 PST. Thrd Slnt 50ml (WHITE LOCTITE 565)

17 3343082 1 CLAMP-PIPE, 9/16 DIA, INSULATED

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 84

ENGINE KUBOTA V1505 DIESEL, WG1605 GAS & LPG - HYDRAULIC PUMP DETAIL

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 85

PARTS BREAKDOWN

ENGINE KUBOTA V1505 DIESEL - HYDRAULIC PUMP DETAIL

ITEM PART NO. REQ'D DESCRIPTION

1 70-516-16 2 BLT-CARR 5/16-18 X 1 ZINC

2 675500 1 FTG-STR ELBOW -10 ORFS TO -12 SAE

3 675502 1 FTG-45 DEG STR ELBOW -12 ORFS TO -12 SAE

4 675505 1 FTG-STR THD CONNECTR -16 ORFS TO -16 SAE

5 675512 1 FTG-STR THD ELBOW -4 ORFS TO -8 SAE

6 675520 1 FTG-STR THD ELBOW -6 ORFS TO -8 SAE

7 675527 1 FTG-45 DEG STR THREAD ELBOW -8 ORFS TO

8 675528 1 FTG-STR THD ELBOW -8 ORFS TO -10 SAE

9 711373 3 NUT-NYLOC 1/4-20

10 711374 6 NUT-NYLOC 5/16-18

11 711380 1 NUT-NYLOC 3/8-16

12 713043 4 BLT-HH 3/8-16 X 1.25 #5

13 3300526 8 BUMPER-RUBBER 1/4 ID X 1/8 THK

14 3300543 6 SPRING-FWD/REV RETURN

15 3301507 1 COUPLING-RUBBER, DIR CONTROL

16 3301544 1 DISC FWD/REV ZP

17 3303711 1 ORING-STATIC SEAL 3.239 ID

18 3303918 2 SPACER-FWD/REV BRACKET ZP

19 3307219 1 PLATE-DIRECTIONAL CONT PLTD SW/A

20 3321397 1 PUMP-AUX HYDRAULIC (9XR, 9XD,10X,AM9D)

21 3335072 1 PUMP-PISTON, VARIABLE, 1.44 CIR, PROPEL

22 3335200 1 PLATE- FWD/REV SPRING MNT V1505

23 3335301 1 BRKT-FWD/REV ZP. 9X

24 3400027 1 SCR-HEX,3/8-16X1.75 ZP

25 3400033 4 SCR-HEX,5/16-18X1.50 ZP

26 3400069 2 NUT-HEX 5/16-24 ZP

27 3400089 4 WASHER-FLAT 1/4 STANDARD ZP

28 3400173 3 SCR-HH, 1/4-20X1.75, PART THRD, GR 5, ZP

29 3400221 2 SCR-HH, 5/16-24X1.00 GR 5, ZP

30 3400385 4 WASHER-CONICAL SPRING 3/8

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 86

ENGINE KUBOTA WG1605 LPG - AIR CLEANER DETAIL

PARTS BREAKDOWN

ENGINE KUBOTA WG1605 LPG - AIR CLEANER DETAIL

ITEM PART NO. REQ'D DESCRIPTION

1 690194 1 COUPLER NECK, THROTTLE BODY - 9X LP

2 690195 1 INDUCTION HOSE, ENGINE SIDE - 9X LP

3 690196 1 COUPLER, REDUCER, 2.5 TO 2.25 - 9X LP

4 690197 1 TUBE, INDUCTION - 9X LP

5 690198 1 HOSE, CRANK CASE VENT - 9X GAS/LP

6 690199 1 INDUCTION HOSE, AIR CLEANER SIDE - 9X

7 829129 2 CLAMP-HOSE WORM-DRV8-22MM HOSE DIA. 5/16

8 3044112 4 CLAMP-HOSE, SS, 2.50 MAX WORM

9 3303991 1 INDICATOR-AIR CLEANER RESTRICTION

10 3303031 1 AIR CLNR- HEAVY DUTY; CAP, MOUNT, HOUSING

11 690008 1 CLAMP, W-FOOT, AIR CLEANER, AM9D

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 87

PARTS BREAKDOWN

ENGINE KUBOTA WG1605 GAS - AIR CLEANER DETAIL

ITEM PART NO. REQ'D DESCRIPTION

1 690195 1 INDUCTION HOSE, ENGINE SIDE - 9X LP

2 690196 2 COUPLER, REDUCER, 2.5 TO 2.25 - 9X LP

3 690197 1 TUBE, INDUCTION - 9X LP

4 690198 1 HOSE, CRANK CASE VENT - 9X GAS/LP

5 690199 1 INDUCTION HOSE, AIR CLEANER SIDE - 9X

6 690223 1 TUBE, INDUCTION, UPPER

7 690224 1 INDUCTION HOSE, UPPER

8 829129 2 CLAMP-HOSE WORM-DRV8-22MM HOSE DIA. 5/16

9 3044112 6 CLAMP-HOSE, SS, 2.50 MAX WORM

10 3303031 1 AIR CLNR- HEAVY DUTY; CAP, MOUNT, HOUSING

11 3303991 1 INDICATOR-AIR CLEANER RESTRICTION

12 690008 1 CLAMP, W-FOOT, AIR CLEANER, AM9D

THIS END TO

THROTTLE BODY

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 88

ENGINE KUBOTA WG1605 GAS & LPG ENGINE ASSEMBLY

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 89

ENGINE KUBOTA WG1605 GAS & LPG ENGINE ASSEMBLY

ITEM PART NO. REQ'D DESCRIPTION

1 600363 2 WASHER-FLAT .39 X 1.12 X .1 ZP

2 600820 1 SCR-HH M8-1.25 X 45 ZP CLASS 8.8

3 600918 1 SCR-HH M8-1.25 X 35 ZP CLASS 8.8

4 600959 2 WASHER-LOCK M8 ZINC SPLIT

5 690020 1 LOWER RADIATOR HOSE, AM9D

6 690161 1 BRKT, RADIATOR UPPER - 9X LP/GAS

7 690125 1 RADIATOR-OIL COOLER, LP/GAS/DSL

8 690204 1 GROUP, AIR CLEANER - 9X

9 711374 2 NUT-NYLOC 5/16-18 ZP

10 711380 2 NUT-NYLOC 3/8-16 ZP

11 713027 4 SCR-HH 5/16-18 X 1 ZP GR 5

12 713043 2 SCR-HH 3/8-16 X 1.25 ZP GR 5

13 731382 2 SCR-FHSCS M6-1.00 X 20 ZP

14 3300465 2 ISOLATOR-RUBBER (.375IDx.81OD)

15 3303255 4 CLAMP-HOSE 1.75 DIA NOMINAL

16 3316981 2 NUT-PUSH RETAINER 3/8 BOLT, 25/32 OD ZP

17 3332643 1 HOSE-RAD UPPER 1505 (COOLER)

18 3338792 1 SUB-HYDRAULIC PUMPS ARMA

19 690176 1 ENGINE, BASE - 9X LP

690221 1 ENGINE, RAW, WG1605, GASOLINE - 9X

20 3400007 2 BLT-CARR 3/8-16 X 1.25 ZP

21 3400233 2 WASHER-FENDER 5/16 X 1.00 ZP

22 3400278 2 WASHER-FENDER 3/8 X 1.25 ZP

23 3400385 2 WASHER-CONICAL SPRING 3/8

24 12040044 2 NUT-NYLOC M6 X 1.0 ZP CLASS 6

25 12347027 2 WASHER-FLAT M6.6 X 22 X 2 ZP

26 3318752 1 RSRVR-COOLANT OVRFLW

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 90



ENGINE KUBOTA WG1605 GAS & LPG - MOUNTS-EXHAUST SIDE

ITEM PART NO. REQ'D DESCRIPTION

1 690030 2 SPACER, ENGINE MOUNT

2 690162 1 BRACKET, CAT CONV. SUPPORT

3 690163 1 BRACKET, CAT CONV. OUTER

4 690165 1 MOUNT - FOOT LEFT REAR

5 690166 1 MOUNT - FOOT LEFT FRONT

9 690175 4 ISOLATOR - ENGINE MOUNT

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 91

ENGINE KUBOTA WG1605 GAS & LPG - MOUNTS-INTAKE SIDE

ITEM PART NO. REQ'D DESCRIPTION

1 690030 2 SPACER, ENGINE MOUNT

2 690162 1 BRACKET, CAT CONV. SUPPORT

6 690167 1 MOUNT - FOOT RIGHT REAR

7 690168 1 MOUNT - FOOT RIGHT FRONT

9 690175 4 ISOLATOR, ENGINE MOUNT

11 690177 1 BRACKET-HOSE HOLDER - REAR

15 3333301P 1 BRACKET - HOSE RETAINER

16 3334994M 1 ENGINE PAN

17 690176 1 ENGINE - LPG

690221 1 ENGINE - GAS

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 92

ENGINE KUBOTA WG1605 GAS & LPG - MOUNTING FASTENER DETAIL

ITEM PART NO. REQ'D DESCRIPTION

1 600945 16 LOCKWASHER M10

2 620082 6 BOLT M10 1.25 x .25 HH STL ZP (CLEAR)

14 713038 6 M10 - 1.25 x 30mm HHCS

15 713534 4 BOLT-HH 7/16 - 14 x 2.5 GRADE 5 ZINC

18 3400091 8 WASHER FENDER 1/2 ZP

20 3401429 4 NUT - 7/16 - 14 ES ZPBRACKET-HOSE RETAINER

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 93

ENGINE KUBOTA WG1605 GAS & LPG - MOUNTING FASTENER DETAIL

ITEM PART NO. REQ'D DESCRIPTION

2 620082 6 BOLT M10 1.25 x .25 HH STL ZP (CLEAR)

14 713038 6 M10 - 1.25 x 30mm HHCS

15 713534 4 BOLT-HH 7/16 - 14 x 2.5 GRADE 5 ZINC

16 713535 4 HHCS M10 - 1.25 x 35mm GR 8.8 ZINC

18 3400091 8 WASHER FENDER 1/2 ZP

20 3401429 4 NUT - 7/16 - 14 ES ZPBRACKET-HOSE RETAINER

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 94



ENGINE KUBOTA WG1605 GAS & LPG - MOUNTING AIR CLEANER BRACKET

ITEM PART NO. REQ'D DESCRIPTION

10 690173 4 BRKT, AIR CLEANER - 9X LP/GAS

17 717024 2 SCR-HH M8-1.25 X 20 ZP GRADE 8.8

19 3400273 1 WASHER-INT LOCK 5/16 ZP

21 12310041 2 WASHER-FLAT M8.4 X 16 X 1.6 ZP

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 95

ENGINE KUBOTA WG1605 GAS & LPG - RADIATOR MOUNTS

ITEM PART NO. REQ'D DESCRIPTION

3 711380 6 NUT-NYLOC 3/8-16 ZP

6 730528 2 WASHER-FENDER M12 X 37 SS

7 3316981 4 NUT-PUSH RETAINER 3/8 BOLT, 25/32 OD ZP

8 3344110 2 ISOLATOR-BONDED BUSHING BOTT RAD

9 3400007 4 BLT-CARR 3/8-16 X 1.25 ZP

12 3400278 8 WASHER-FENDER 3/8 X 1.25 ZP

13 3336634 1 PLATE- RADIATOR MNT

14 690124 1 PLATE BASE - RADIATOR MNT

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 96

ENGINE KUBOTA WG1605 GAS & LPG - RADIATOR

PARTS BREAKDOWN

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 97

PARTS BREAKDOWN

ENGINE KUBOTA WG1605 GAS & LPG - RADIATOR

ITEM PART NO. REQ'D DESCRIPTION

1 711207 2 SCR-HH 1/4-20 X 1.00 ZP GR 5

2 711254-1 2 BLT-CARR 3/8-16 X 2.50 ZP

4 713002 3 SCR-HH 1/4-20 X .75 ZP 5

5 713527 1 P-CLAMP, VINYL COVERED, 1/2 DIA

7 3316981 2 NUT-PUSH RETAINER 3/8 BOLT, 25/32 OD ZP

10 3400089 5 WASHER-FLAT 1/4 ZP

11 3400103 5 WASHER-LOCK 1/4 SPLIT ZP

12 690125 1 RADIATOR-OIL COOLER COMBO

13 690169 1 MOUNT, COOLANT OVERFLOW - 9X LP/GAS

14 690150 1 ASSY, FAN SHROUD, DSL/LP/GAS

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 98

ENGINE KUBOTA WG1605 GAS & LPG - EXHAUST DETAIL

PARTS BREAKDOWN

 

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 99

PARTS BREAKDOWN

ENGINE KUBOTA WG1605 GAS & LPG - EXHAUST DETAIL

ITEM PART NO. REQ'D DESCRIPTION

1 600919 4 SCR-HH M8-1.25 X 40 ZP CLASS 8.8

2 600934 4 NUT-FLANGE WIZZ M8-1.25 ZP

3 600947 2 WASHER-WAVE .313 ID x .69 OD x .031 THIC

4 600950 2 WASHER-FLAT M12 ZP

5 600959 4 WASHER-LOCK M8 ZINC SPLIT

6 690189 1 PIPE, EXHAUST, PRE-CAT - 9XLP/GAS

7 690190 1 GASKET, CATALYST, 4 BOLT - 9X LP/GAS

8 690191 1 CATALYTIC CONVERTER, 9X LP-GAS

9 690192 1 PIPE, EXHAUST, POST CAT - 9X LP/GAS

10 690193 1 HEAT SHIELD, CAT. CONVERTER - 9XLP/GAS

11 717013 4 NUT-HEX M8 X 1.25 ZINC

12 730667 2 SCR-HH M12-1.75 X 45 ZP CLASS 8.8

13 748476 2 SENSOR, OXYGEN - 9X LP/GAS

14 3345028 1 GASKET-CAT 1605 INLET

15 3345082 1 GASKET, FLANGE, EX MANIFOLD, KUBOTA 1605

16 3400103 6 WASHER-LOCK 1/4 SPLIT ZP

17 11038072 6 SCR-HH M6-1.0 X 16 ZP CLASS 8.8

18 11038247 4 SCR-HH M8-1.25 X 25 ZP CLASS 8.8

19 12310033 6 WASHER-FLAT M6.4 X 12 X 1.6 ZP

20 12310041 8 WASHER-FLAT M8.4 X 16 X 1.6 ZP

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 100

OPTIONS

OPTION - LH CURB BROOM KIT ASSEMBLY (3338666)

OPTIONS AND STANDARD CE FEATURES

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 101

OPTIONS

OPTION - LH CURB BROOM KIT ASSEMBLY (3338666)

ITEM PART NO. REQ'D DESCRIPTION

1 711206 1 BLT-HH 1/4-20 X .87 STL ZINC

2 711373 3 NUT-NYLOC 1/4-20

3 711379 1 NUT-FLANGED WIZZ 5/16-18

4 711380 2 NUT-NYLOC 3/8-16

5 711425 1 NUT-FLANGED WIZZ 1/4-20 STL ZP

6 713002 2 BLT-HH 1/4-20 X .75 #5 ZINC

7 713043 2 BLT-HH 3/8-16 X 1.25 #5

8 3300368 1 PULLEY-PLASTIC 2” x .25” GROOVE

9 3307642 1 CLEVIS-5/16 PLTD SW/A

10 3307794 1 PIN-CLEVIS 1/2 X 4-1/2 ZP

11 3317214 1 MNT-DUAL CURB BROOM PNTD

12 3319421 1 ASSY-DUAL CURB BROOM (SEE DETAIL, PAGES 90-91)

13 3332713 1 SWITCH-DOUBLE SCRUB BROOM

14 3334946 1 CABLE-SIDE BROOM, 33” LG, 1/8”D

15 3335420 1 ASSY- SIDE BROOM LIFT LH

16 3335422 1 WELD-PULLEY LH SIDE BROOM

17 3342273 1 COVER-SWITCH, CARLING, BLACK W/LENS

18 3343539 1 CLAMP-P TYPE, 2 DIA

19 3400035 1 SCR-HEX,5/16-18X1.00 ZP

20 3400069 1 NUT-HEX 5/16-24 ZP

21 3400075 1 NUT-HEX JAM 3/8-24 ZP

22 3400086 1 WASHER-FLAT 1/2 STANDARD ZP

23 3400087 1 WASHER-FLAT 3/8 STANDARD ZP

24 3400088 2 WASHER-FLAT 5/16 IDx.688 ODx.065 THK

25 3400089 1 WASHER-FLAT 1/4 STANDARD ZP

26 3400118 1 PIN-CLEVIS 5/16x7/8 ZP

27 3400124 1 PIN-COTTER 5/8 RUE-RING

28 3400125 2 RING-RUE 3/8 COTTER PIN

29 3400184 1 PIN-CLEVIS 5/16 X 1-1/8 ZP

30 3400227 1 SCR-HEX,1/4-20X1.25 ZP

31 3400999 1 CLAMP-HOSE 1-1/8” DIA STEEL VINYL COATE

32 3317219P 1 HARNESS-DUAL CURB BRM, 9X

- 675427 1 HOSE-LH CB MTR IN TO RT CB OUT 170” (NOT SHOWN)

- 675428 1 HOSE-LH CB MTR OUT TO IMP TEE 100” (NOT SHOWN)

- 690262 1 DECAL, LEFT SIDE CURB BROOM - 9X (NOT SHOWN)

- 3338666 - ASSY - DUAL CURB BROOM

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 102

OPTIONS

OPTION - DUAL CURB BROOM SUB-ASSEMBLY (3319421)

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 103

OPTIONS

OPTION - DUAL CURB BROOM SUB-ASSEMBLY (3319421)

ITEM PART NO. REQ'D DESCRIPTION

1 3302599 1 SPRING-EXT LOOPS-IN-LINE ZP

3 3301262 1 PLATE-GIMBAL SC HD

4 3306179 1 SPRING-COMPRESSION, CURB BROOM

5 3309778 1 LH CURB BROOM ARM PNTD

6 3309782 1 LH SIDE BROOM MOUNT PNTD

7 3316897 1 MOTOR-HYD CURB BRM

8 3330338 1 KEY-SHAFT D-FOSS CB/MB/SC MTRS (REPLACEMENT)

9 711250 1 SCR-HH 3/8-16 X 1.25 ZP GR 5

10 3400030 4 SCR-HEX,3/8-16X1.00, GRADE 5, ZP

11 3400049 1 SCR-SOCKET HEAD,1/4-20X0.75 ZP NYLOCK

12 3400068 1 NUT-HEX 3/8-16 ZP

13 3400087 1 WASHER-FLAT 3/8 STANDARD ZP

14 3400101 4 WASHER-LOCK 3/8 SPLIT ZP

15 3400103 1 WASHER-LOCK 1/4 SPLIT ZP

16 675528 2 FTG-STR THD ELBOW -8 ORFS TO -10 SAE

17 3400258 1 SCR-HEX,3/8-24X4.00 ZP

18 3400342 1 NUT-HEX 3/8-24 ES ZP

19 3300875 1 DRIVE HUB SC BR

20 3302058 1 BAR-CURB BROOM RETAINER

21 3400027 3 SCR-HEX,3/8-16X1.75 ZP

22 3400278 9 WASHER-FENDER 3/8

23 3300465 3 ISOLATOR-RUBBER (.375IDx.81OD)

24 3400087 3 WASHER-FLAT 3/8 STANDARD ZP

25 711380 3 NUT-NYLOC 3/8-16

26 3300526 3 BUMPER-RUBBER 1/4IDx1/8 THK

27 713002 2 BLT-HH 1/4-20 X .75 #5 ZINC

28 711373 2 NUT-NYLOC 1/4-20

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 104

OPTIONS

OPTION - SIDE BROOM LIFT LH (3335420)

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 105

OPTIONS

OPTION - SIDE BROOM LIFT LH (3335420)

ITEM PART NO. REQ'D DESCRIPTION

1 711374 1 NUT -NYLOC 5 /16-18

2 711387 1 NUT -NYLOC 1/4-20 112 NUT

3 711569 1 WASHER-FLAT .390 X .880 X .062 NYL

4 712333 1 WASHER-FLAT 5/16 SS

5 713104 1 BUSHING, SLEEVE, 3/8

6 713107 1 GRD 9 ZP

7 3300431 2 BUSHING-.499 ID X . 594 DD C X. 250

8 3300461 1 BALL JOINT

9 3318884 1 ADAPTER -CURB BRM ACTUATOR

10 3318887 1 PIN-CLEVIS 1/4 X 1-1/ 8

11 3335273 2 SPACER -.32 ID X .499 DD x .31 LG

12 3335274 4 SPACER -.28 ID X . 625 DD x . 26 LG

13 3335275 1 PLATE-SUPPORT SB LIFT

14 3335372 1 MOUNT - PIVOT SIDE BROOM

15 3335373 1 PLATE - PIVOT SIDE BROOM

16 3336595 1 ACTUATOR-DUAL BROOM- 12VDC WEATHERPACK

17 3400041 3 SCREW -HHM 1/4-20 X . 875 LG ZP

18 3400081 5 NUT -HE X 1/4-20 ES ZP

19 3400087 2 WASHER-FLAT 3/8 ZP

20 3400088 1 WASHER-FLAT 5/16 X.688 X .065 ZP

21 3400089 9 WASHER-FLAT 1/4 ZP

22 3400173 1 SCREW -HHM 1/4-20 X 1.75 LG ZP

23 3400178 2 BEARING-THRUST .531 ID X 1.00 DD

24 3400342 1 NUT -HEX 3/8-24 ES ZP

25 3400742 1 RUE RING-1/4 HEAVY ZP

26 3401098 1 NUT -HEX JAM 5/16-18 ES ZP

28 3401440 1 5/16-18 X 1.25 LG ZP

29 3401983 2 SCREW BH 1/4-20 X 1.25 LG

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 106

OPTION - RAISE HOPPER, MAIN BROOM SHUT OFF (690100)

CE MODELS STANDARD FEATURE

OPTIONS

(CONTINUED NEXT PAGE)

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 107

OPTIONS

OPTION - RAISE HOPPER, MAIN BROOM SHUT OFF (690100)

ITEM PART NO. REQ'D DESCRIPTION

1 600941 2 WASHER .344 ID x .688 OD x.065 THICK STE

2 620134-1 1 ASSY VALVE, SOLENOID N/C

3 675414 2 HYD HOSE - CONT VALVE TO IMP MOTOR

4 675524 2 FTG-STR THD CONNECTOR -8 ORFS TO -8 SA

5 675525 2 FTG-STR THD RUN TEE -8 ORFS TO -8 SAE

6 711379 2 NUT-FLANGED WIZZ 5/16-18

7 711387 2 NUT-NYLOC 1/4-20 1/2NUT

8 711503 2 WSR-FLT #10 (SPECIAL FLAT WASHER)

9 711543 2 WSR-HELICAL #10

10 712550 2 SCR-IHWH SLOT 10-32X.75 18-8 SS

11 712573 2 BLT-CARR 1/4-20 X 2.50 SS

12 712636 2 NUT-HEX 10-32 SS

13 713027 2 BLT-HH 5/16-18 X 1 #5 ZP

14 730690 1 4" HOSE PROTECTOR (10 PK)

15 3335945 1 SWITCH-COBO W/ AMP CONNECTOR

16 3337340 1 PLT - HOPPER POSITION SWITCH MOUNT

17 3400089 2 WASHER-FLAT 1/4 STANDARD ZP

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 108

OPTION - RAISE HOPPER, MAIN BROOM SHUT OFF (690100) - CONTINUED

127(,125'(572/2:(57+(+233(5,7(00867

5(0$,135(66(':+,/(&21752/9$/9(/(9(5,623(5$7('

OPTIONS

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 109

OPTIONS

OPTION - RAISE HOPPER, MAIN BROOM SHUT OFF (690100)

ITEM PART NO. REQ'D DESCRIPTION

1 600114 2 SPACER, .328 B .498 OD .500 ,SS

2 675422 2 HYD HOSE - LIFT CYL TO CONT VALVE E

3 675508 1 FTG-STR THD CONNECTOR -4 ORFS TO -4 SA

4 675517 1 FTG-STR THD CONNECTOR -6 ORFS TO -4 SA

5 690120 1 ASSY, HOPPER RETURN VALVE, 9X CE

6 711387 2 NUT-NYLOC 1/4-20 1/2NUT

7 711566 2 WSR-FLT .259 X .50 X .065

8 712572 2 BLT-CARR 1/4-20 X 2.00 SS

9 690151 1 DECAL, HOPPER UNLOCK - 9X CE

10 748047 1 SECONDHAND OPERATION PUSH BUTTON

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 110

OPTION - KEY LATCH (690102)

CE MODELS STANDARD FEATURE

OPTIONS

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 111

OPTIONS

OPTION - KEY LATCH (690102)

ITEM PART NO. REQ'D DESCRIPTION

1 3343016 1 KEY-LATCH 7MM SQUIRE

2 3343017 1 LATCH-VISE ACTION LARGE, KEYED

3 3343066 1 PAWL-LATCH, 1800/5550 ENG COVER

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 112

OPTION - SEAT SWITCH ENGINE SHUT OFF (690147)

CE MODELS STANDARD FEATURE

OPTIONS

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 113

OPTIONS

OPTION - SEAT SWITCH ENGINE SHUT OFF (690147)

ITEM PART NO. REQ'D DESCRIPTION

1 711210 1 BLT-HH 1/4-20 X 1.25 STL ZINC FULL THRD

2 711373 1 NUT-NYLOC 1/4-20

3 741036 1 TIMER-RELAY-TRUE OFF 12V 3 SEC

4 748445 1 DELTA SW - N/O TWIST LOCK

5 3311564 1 GROMMET-RUBBER, 1/2 ID

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 114

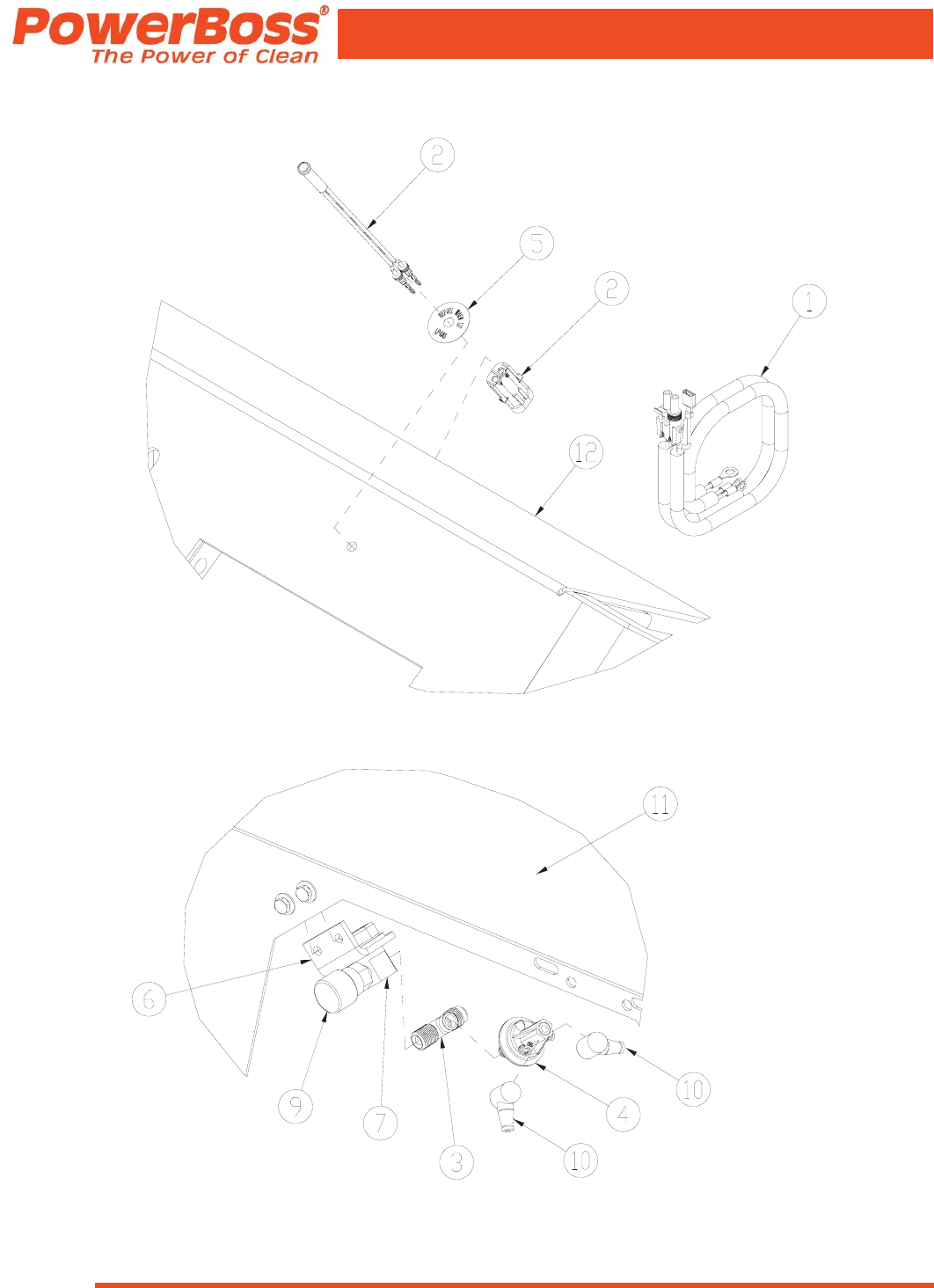

OPTION - LOW LP INDICATOR (690148)

OPTIONS

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 115

OPTIONS

OPTION - LOW LP INDICATOR (690148)

ITEM PART NO. REQ'D DESCRIPTION

1 748453 1 HARNESS, LOW LP INDICATOR

2 748960 1 LIGHT ASSY, INDICATOR LAMP, LOW LP

3 3305535-2 1 TEE, LOW LP INDICATOR

4 3305535-3 1 SENSOR, LOW LP INDICATOR

5 3305535-4 1 LABEL, LOW LP INDICATOR

6 REF - MOUNT - LPG SAFTEY VALVE

7 REF - BULKHEAD - 62 LP

9 REF - VALVE - LP RELIEF

10 90524174 2 COVER, SAFETY CAP WIRE TERMINAL

11 REF - WELDMENT - CLIP SEAT

12 REF - WELDMENT - FRAME 9X

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 116

OPTION - BACKUP ALARM & NEUTRAL SAFETY SWITCH (3317306P)

OPTIONS

^^D>^t/d,^EZ<d^^,KtE>Kt













Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 117

OPTIONS

OPTION - BACKUP ALARM & NEUTRAL SAFETY SWITCH (3317306P)

PART NO. REQ'D DESCRIPTION

3303002 1 HORN-BACK UP, 97 db(A), 12VDC (NOT SHOWN)

3322601 1 FUSE-15 AMP AUTOMOTIVE PUSH IN (NOT SHOWN)

3335222 3 CAM-SWITCH, LOWER THRTL POS (NOT SHOWN)

3335223 3 CAM-SWITCH, UPPER, BACKUP (NOT SHOWN)

749014 1 HARNESS ASSY, NEUTRAL SAFE (NOT SHOWN)

3335047 2 CLAMP-SWITCH

3335526 2 ASSY- SWITCH LIMIT, MALE

3401437 2 NUT-HEX #5-40 ZP

3401510 2 WASHER-MED SPLIT LOCK, #5, ZP

712004 2 SCREW-MACH SLOT ROUND HD 5-40x1-1/4 ZINC

3401433 2 SCR-PHMS 5-40 X 0.75 ZP

3335560 1 MNT-SWITCH POS, FWD/REV, 1900

3337565 1 HARNESS - OPT, BACKUP ALARM, ARMA

747021 1 CONNECTOR-PACKARD 3 PIN MALE

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 118

OPTION - HOPPER PRESSURE BYPASS (690231)

OPTIONS

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 119

OPTION - HOPPER PRESSURE BYPASS (690231)

PART NO. REQ'D DESCRIPTION

3335945 1 SWITCH-COBO W/ AMP CONNECTOR

3337340 1 PLT - HOPPER POSITION SWITCH MOUNT

3400035 2 SCR-HH 5/16-18 X 1.00 ZP GR 5

3400384 2 WASHER-CONICAL SPRING 5/16

620134-1 1 ASSY VALVE, SOLENOID N/C

675411 1 HYD HOSE - PS UNIT TO ROT ACT P2

675422 1 HYD HOSE - LIFT CYL TO CONT VALVE E

675521 1 FTG-STR THD CONNECTOR -6 ORFS TO -8 SA

675522 1 FTG-STR THD RUN TEE -6 ORFS TO -8 ORFS T

675525 1 FTG-STR THD RUN TEE -8 ORFS TO -8 SAE

675550 1 FITTING ORIFICE .047 #6

675573 1 FITTING

711310 2 NUT-HEX 10-32 ZP

711379 2 NUT-FLANGED WIZZ 5/16-18 ZP

711387 2 NUT-JAM 1/4-20 ZP NYLOC

711503 2 WASHER-FLAT #10 X .50 ZP

711505 2 WASHER-FLAT 1/4 ZP

711543 2 WASHER-LOCK #10 SPLIT ZP

712550 2 SCR-HH 10-32 X.75 SS SLOTTED WSH HEAD

712573 2 BLT-CARR 1/4-20 X 2.50 SS

749017 1 HARNESS ASSY, HOPPER SWITCH

OPTIONS

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 120

HYDRAULIC SCHEMATIC 9X

3334846, Sheet 1 of 3, Rev B, 05/2016

WIRING

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 121

3334846, Sheet 2 of 3, Rev B, 05/2016

WIRING

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 122

3334846, Sheet 3 of 3, Rev B, 05/2016

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 123

HYDRAULIC SCHEMATIC

HYDRAULIC SCHEMATIC 9X CE

3334846-CE, Rev A, 05/2016, Sheet 1 of 3

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 124

HYDRAULIC SCHEMATIC

3334846-CE, Rev A, 05/2016, Sheet 2 of 3

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 125

3334846-CE, Rev A, 05/2016, Sheet 1 of 3

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 126

ELECTRICAL SCHEMATIC

ELECTRICAL SCHEMATIC WITH KUBOTA V1505 - DIESEL

3397501, Rev C, 07/28/2015, Sheet 1 of 4

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 127

ELECTRICAL SCHEMATIC

ELECTRICAL SCHEMATIC WITH KUBOTA V1505 - DIESEL

3397501, Rev C, 07/28/2015, Sheet 2 of 4

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 128

ELECTRICAL SCHEMATIC WITH KUBOTA V1505 - DIESEL

3397501, Rev C, 07/28/2015, Sheet 3 of 4

ELECTRICAL SCHEMATIC

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 129

ELECTRICAL SCHEMATIC WITH KUBOTA V1505 - DIESEL

3397501, Rev C, 07/28/2015, Sheet 4 of 4

ELECTRICAL SCHEMATIC

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 130

ELECTRICAL SCHEMATIC WITH KUBOTA WG1605 - GAS & LPG

3397502, Rev A, 07/28/2015, Sheet 1 of 3

ELECTRICAL SCHEMATIC

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 131

ELECTRICAL SCHEMATIC

ELECTRICAL SCHEMATIC WITH KUBOTA WG1605 - GAS & LPG

3397502, Rev A, 07/28/2015, Sheet 2 of 3

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 132

ELECTRICAL SCHEMATIC

ELECTRICAL SCHEMATIC WITH KUBOTA WG1605 - GAS & LPG

3397502, Rev A, 07/28/2015, Sheet 3 of 3

Armadillo 9X Sweeper #4100000 Rev. G 12/16

Page 133

WARRANTY

5HYLVLRQ.

(IIHFWLYH'HFHPEHU

3RZHU%RVV0DGH6LPSOH,QGXVWULDO/LPLWHG:DUUDQW\

Minuteman International owner of PowerBoss warrants to the original purchaser/user that the product is free from defects in workmanship and materials

under normal use. PowerBoss will, at its option, repair or replace without charge, parts that fail under normal use and service when operated and

maintained in accordance with the applicable operation and instruction manuals. All warranty claims must be submitted through and approved by factory

authorized repair stations.

7KLV ZDUUDQW\ GRHV QRW DSSO\ WR QRUPDO ZHDU RU WR LWHPV ZKRVH OLIH LV GHSHQGHQW RQ WKHLU XVH DQG FDUH 3DUWV QRW PDQXIDFWXUHG E\ 3RZHU%RVV DUH FRYHUHG

E\ DQG VXEMHFW WR WKH ZDUUDQWLHV DQGRU JXDUDQWHHV RI WKHLU PDQXIDFWXUHUV 3OHDVH FRQWDFW 0LQXWHPDQ ,QWHUQDWLRQDO IRU SURFHGXUHV LQ ZDUUDQW\ FODLPV

DJDLQVW WKHVH PDQXIDFWXUHUV

Special warning to purchaser -- Use of replacement parts not manufactured by PowerBoss or its designated licensees, will void all warranties

expressed or implied. A potential health hazard exits without original equipment replacement.

All warranted items become the sole property of Minuteman International or PowerBoss or its original manufacturer, whichever the case may be.

PowerBoss disclaims any implied warranty, including the warranty of merchantability and the warranty of fitness for a particular purpose. PowerBoss

assumes no responsibility for any special, incidental or consequential damages.

This limited warranty is applicable only in the U.S.A. and Canada, and is extended only to the original user/purchaser of this product. Customers outside

the U.S.A. and Canada should contact their local distributor for export warranty policies. PowerBoss is not responsible for costs or repairs performed by

persons other than those specifically authorized by PowerBoss. This warranty does not apply to damage from transportation, alterations by unauthorized

persons, misuse or abuse of the equipment, use of non-compatible chemicals, or damage to property, or loss of income due to malfunctions of the

product. If a difficulty develops with this machine, you should contact the dealer from whom it was purchased.

This warranty gives you specific legal rights, and you may have other rights, which vary from state to state. Some states do not allow the exclusion or

limitation of special, incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions and limitations

may not apply to you.

Travel * Labor Parts Engine Extended Warranty Costs

Walk Behind ****

Battery Sweepers 90 Days  months 12 months N/A N/A -

IC Sweepers 90 Days  months 12 months Through Eng. Mfg. N/A -

Battery Scrubbers 90 Days 24 months 36 months N/A N/A -

Riders

Battery Scrubbers 90 Days 24 months 36 months or 2000 hr. N/A 36 months parts + 24 labor (or 3000 Hours) 5%

IC Sweeper/Scrubbers

82 & 90 90 Days 6 months 24 months or 2000 hr. 24 months or 3000 hrs**

36 months parts + 24 months labor (or 3000 Hours) +

180 days travel 5%

I.C. Sweepers 9X, 10X 90 days 6 months 48 months or 3000 hrs. 60 months or 3000 hrs**

48 months parts + 24 months labor (or 3000 Hours) +

180 days travel 5%

NAUTILUS Scrubber 180 Days 24 months 36 months or 2000 hr. 36 months or 2000 hrs**

48 months parts + 24 months labor (or 3000 Hours) +

180 days travel 3%

All Rider, I.C. Bumper to Bumper

(excludingAPEXseries)

5000 hr max. 48 months parts, 48 months labor, 180

days travel

Exceptions

Apex Series Sweeper 90 Days 12 months 12 months or 1000 hr. 12 months or 1000 hrs** 24 months parts + 24 months labor (or 2000 Hours) 5%

6X Sweeper 90 Days 6 months 24 months or 2000 hr. 24 months or 2000 hours**

36 months parts + 24 months labor (or 3000 Hours) +

180 day travel 5%

7DQN%ODGGHUV

3RO\HWK\OHQHSODVWLFWDQNV

%DWWHULHV

&KDUJHUV

$IWHUPDUNHW5HSODFHPHQWSDUWV

(LJKW\HDUVQRDGGLWLRQDOODERU7HQ\HDUVQR

DGGLWLRQDOODERU

ǦPRQWKVIXOOUHSODFHPHQWǦSURUDWHGFUHGLW

2QHǦ\HDUUHSODFHPHQW

1LQHW\GD\VIURPGDWHRISXUFKDVH

*7ZR+RXU&DS3HU6HUYLFH&DOO

7KURXJK(QJLQH0DQXIDFWXUHU6HH6HFWLRQRI:DUUDQW\0DQXDOIRU(QJLQH:DUUDQW\

([FHSWLRQV%DVHG8SRQ'HDOHU¶V&HUWLILFDWLRQ6WDWXV

([WHQGHG:DUUDQW\0867%H6LJQHG8S:LWKLQ'D\VRI'HOLYHU\WR(QG8VHU

'HDOHU+DV<HDU)URP5HFHLYLQJ0DFKLQH7R6LJQ8S)RU([WHQGHG:DUUDQW\

$OODERYHODERUDQGWUDYHOUHLPEXUVHGDWRURIWKHSXEOLVKHGVKRSUDWH

“The Power of Clean”

PowerBoss® Is a Full Line Manufacturer of Sweepers and Scrubbers,

for Industrial Facilities.

PowerBoss®, Minuteman International, Inc. 14N845 U.S. Route 20 Pingree Grove, Illinois 60140

Phone: 800-323-9420 www.PowerBoss.com email: tech@powerboss.com

A Member of the Hako Group

Armadillo 9X Sweeper #4100000 Rev. G 12/16

4100000 9X Parts Catalog REV G Powerboss Armadillo 9xr Ride On Floor Sweeper Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
