4100053 Parts Catalog Atlas Rev C Powerboss Ride On Floor Sweeper Manual
2017-01-16
: Sweepscrub Powerboss-Atlas-Ride-On-Floor-Sweeper-Parts-Manual powerboss-atlas-ride-on-floor-sweeper-parts-manual 2034 file product_file
Open the PDF directly: View PDF
.
Page Count: 238 [warning: Documents this large are best viewed by clicking the View PDF Link!]
PowerBoss®, Minuteman International, Inc.
A Member of the Hako Group
#4100053 Rev. C 12/16
Parts Catalog
Atlas
Models: Diesel, Gasoline, & LPG
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 2
PREFACE
PREFACE
Thank you for your purchase of the new industry standard for sweepers. PowerBoss® takes great
pride in off ering the most dependable, reliable and best value in industrial power sweepers and
sweeper / scrubbers. We set the standard.
Our Customer Service Department would like to hear from you. If you see any errors, omissions
or something that needs clarifi cation in this Parts Catalog please let us know. We are working hard
towards continually improving our processes to bring you the best you deserve. Please copy the form
below, fi ll out and comment on how you found our catalog.
Thank you!
The PowerBoss Team
Name: ______________________________________________________________________
Title: ______________________________________________________________________
Company Name: _____________________________________________________________
Address: ____________________________________________________________________
Country: ____________________________________________________________________
Type of equipment or model number: ______________________________________________
Comments: __________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
Please return to:
Customer Service Manager
PowerBoss®, Minuteman International, Inc.
14N845 U.S. Route 20
Pingree Grove, Illinois 60140 USA
Phone: (800) 323-9420
Email: tech@powerboss.com
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 3
PREFACE
This is the Parts Catalog for the PowerBoss® Atlas Sweeper machine.
This catalog covers all Standard Atlas machine variations beginning February 2015.
We believe this machine will provide excellent service for many years.Best results will be obtained if:
• The machine is operated with reasonable care.
• The machine is maintained regularly per the maintenance schedule provided in the User Manual.
• The machine is maintained with PowerBoss® supplied or equivalent parts.
All right side and left side references to the machine (except for engine) are determined by facing
the direction of forward travel. The front of the engine or engine fan faces the rear of the machine.
Some hardware considered to be common or locally available has been omitted from the parts sec-
tion to make this manual clear. Be sure to use equivalent hardware when replacement becomes
necessary.
The Model and Serial Number of your machine is shown on the I.D. name plate. This information is
needed when contacting Technical Support or when ordering parts. The I.D. plate is mounted on
the left side wall of the operator seating area.

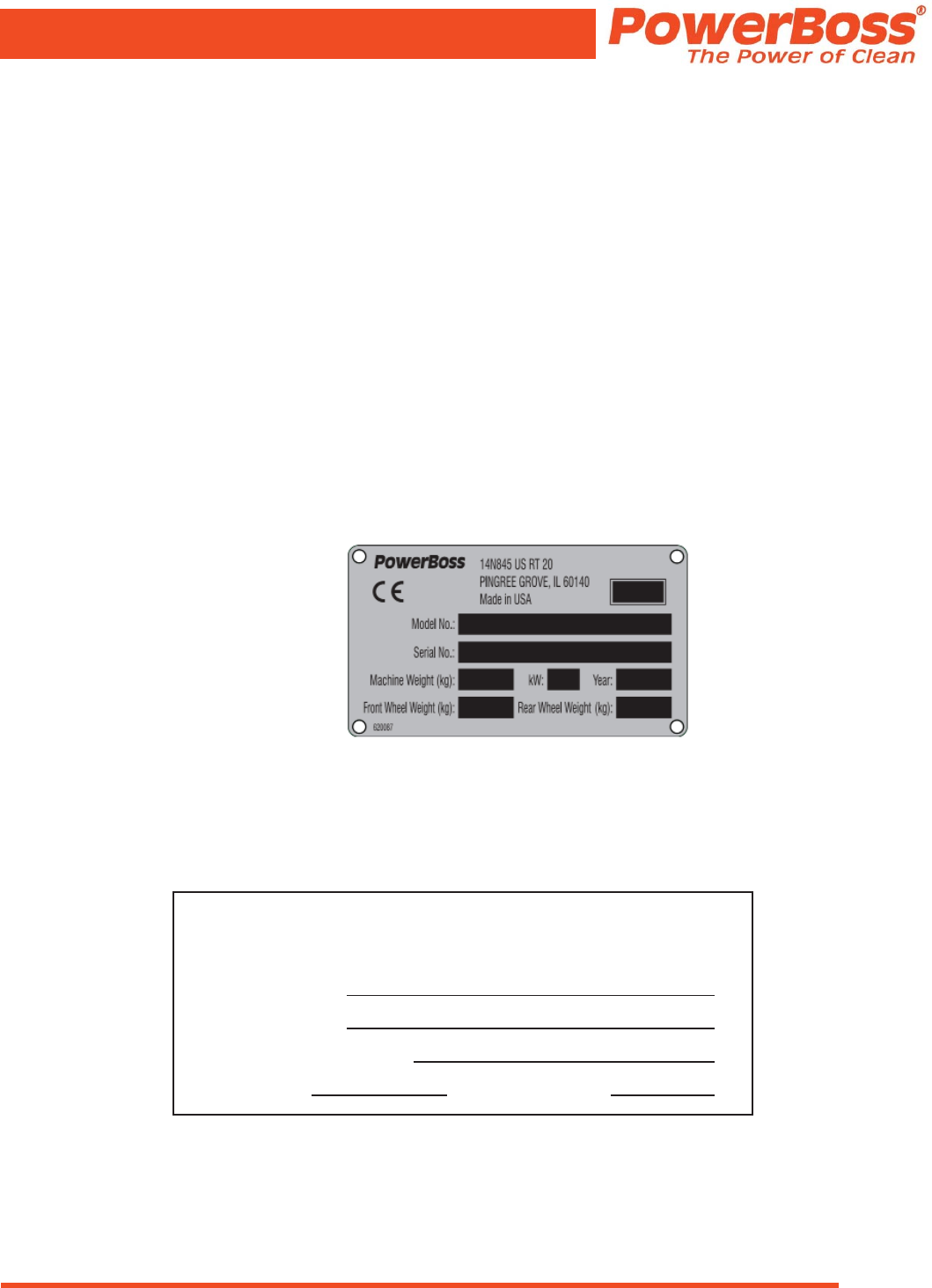

Example ID Plate:
Parts may be ordered by phone, fax or e-mail from any PowerBoss® parts and service center.
Before ordering parts or supplies, be sure to have your machine model number and serial number
handy. For your convenience Fill out the data block below for future reference.
MACHINE DATA
Fill out at installation
Model Number:
Serial Number:
Engine Serial Number:
Sales Rep.: Date of Install:
All information contained in this catalog is current at the time of printing.
Minuteman International, Inc. reserves the right to make changes at any time without notice.
PowerBoss®, Minuteman International, Inc., Copyright 2011-2015, Printed in USA
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 4
TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
Model Atlas Sweeper
Model No. PB620DSL, PB620GAS, PB620LP, PB620DSL-DSB, PB620GAS-DSB, PB620LP-DSB
dimensions shown in inches
GENERAL MACHINE SPECIFICATIONS
Length:. . . . . . . . . . . . . . . . . . . . . . . . . . .99.75 in
Width without side broom . . . . . . . . . . . .63.38 in
Rear frame width: . . . . . . . . . . . . . . . . . .60.00 in
Height to steering wheel . . . . . . . . . . . . .60.38 in
Height w/ overhead guard . . . . . . . . . . . .82.25 in
Height wo/ overhead guard . . . . . . . . . . .60.50 in
Wheelbase: . . . . . . . . . . . . . . . . . . . . . . .47.75 in
Aisle width U-turn: . . . . . . . . . . . . . . . . . .10.0 ft (120 in)
. . . . . . . . (contact clearance = 113 in)
Empty vehicle weight . . . . . . . . . . . . . . .3500 lbs
Gross vehicle weight . . . . . . . . . . . . . . . .4700 lbs
Sound level target:. . . . . . . . . . . . . . . . . .83 dBa
Maximum forward speed: . . . . . . . . . . . .9.8 mph
Maximum reverse speed: . . . . . . . . . . . .3 mph
Maximum climb angle empty hopper: . . .14 degrees
(Maximum climb angle)
SWEEPING SPECIFICATIONS
Main broom diameter: . . . . . . . . . . . . . . .14.0 in
Main broom length: . . . . . . . . . . . . . . . . .48.0 in
Side broom diameter: . . . . . . . . . . . . . . .26.0 in
Sweeping path w/ side broom . . . . . . . . .62.75 in
Optimum main broom pattern width: . . . .2.0 in – 2.5 in
Hopper weight capacity: . . . . . . . . . . . . .1200 lb
Hopper volumetric capacity
(less fi lter box): . . . . . . . . . . . . . . . . . . . .16.0 cu ft
Hopper dump height:. . . . . . . . . . . . . . . .to clear 60 in
. . . . . . . . . . . . . . . .(approx 62 in)
Min. ceiling height
for 60” hopper dump:. . . . . . . . . . . . . . . .8 ft – 6 in
Filter type: . . . . . . . . . . . . . . . . . . . . . . . .Treated synthetic
. . . . . . . . . . . . . . . . . . . . . . . . .panel fi lter
Filter area: . . . . . . . . . . . . . . . . . . . . . . . .95 sq ft
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 5
TABLE OF CONTENTS
PREFACE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
TECHNICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
GENERAL MACHINE SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SWEEPING SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
PARTS BREAKDOWN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
FRAME GROUP 1 (600680) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
FRAME GROUP 2 (600680) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
CLAMP - HOSE GROUP 1 (600860). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
CLAMP - HOSE GROUP 2 (600860). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
BRAKE GROUP (600688) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
FRONT WHEEL GROUP (600687) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
STEERING COLUMN GROUP (600682-1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
STEERING FORK GROUP (600690-1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
REAR WHEEL GROUP (600689) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
INSTRUMENT PANEL GROUP - DIESEL (600611) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
INSTRUMENT PANEL GROUP - GAS (600636) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
INSTRUMENT PANEL GROUP - LPG (600700) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
ELECTRICAL GROUP - DIESEL (600612). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
DIESEL CONTROL BOX (748769) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
ELECTRICAL GROUP (600880) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
DIRECTIONAL CONTROL GROUP (600681) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
PUMP LINKAGE GROUP (600608) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
SPEED RESTRICTION GROUP - 1 (600684) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
SPEED RESTRICTION GROUP - 2 (600684) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
MAIN BROOM LIFT GROUP (600660). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
MAIN BROOM LIFT GROUP (600632-1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
IDLER ARM GROUP (600631) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
MAIN BROOM DOOR GROUP (600640) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
SIDE BROOM LIFT GROUP (600665) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
SIDE BROOM GROUP (600651-1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
HOPPER LIFT GROUP (600691-1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
HOPPER SAFETY ARM GROUP (600686) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
HOPPER SKIRTS SEALS GROUP (600621) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
HOPPER ASSEMBLY GROUP (600623) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
HOPPER DUMP DOOR GROUP (600622-1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
TABLE OF CONTENTS
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 6
TABLE OF CONTENTS
HOPPER COVER GROUP (600625) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
HOPPER FILTER SHAKER GROUP (600624) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
BUMPER GROUP (600626) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
IMPELLER GROUP (600790-1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
HYDRAULIC RESERVOIR GROUP (600683-1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
OIL COOLER GROUP (600609-1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
HYDRAULIC PUMP GROUP (600606-1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
HYDRAULIC VALVE GROUP (600685-1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
MAIN BROOM INTERLOCK GROUP (600644-1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
COVER FRAME GROUP (600780) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
TOP COVER GROUP (600760) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
SIDE DOOR GROUP (600750) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
ENGINE COVER GROUP (600661) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
PUMP COVER GROUP (600610) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
HYDRAULIC HOSE GROUP (600850-1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

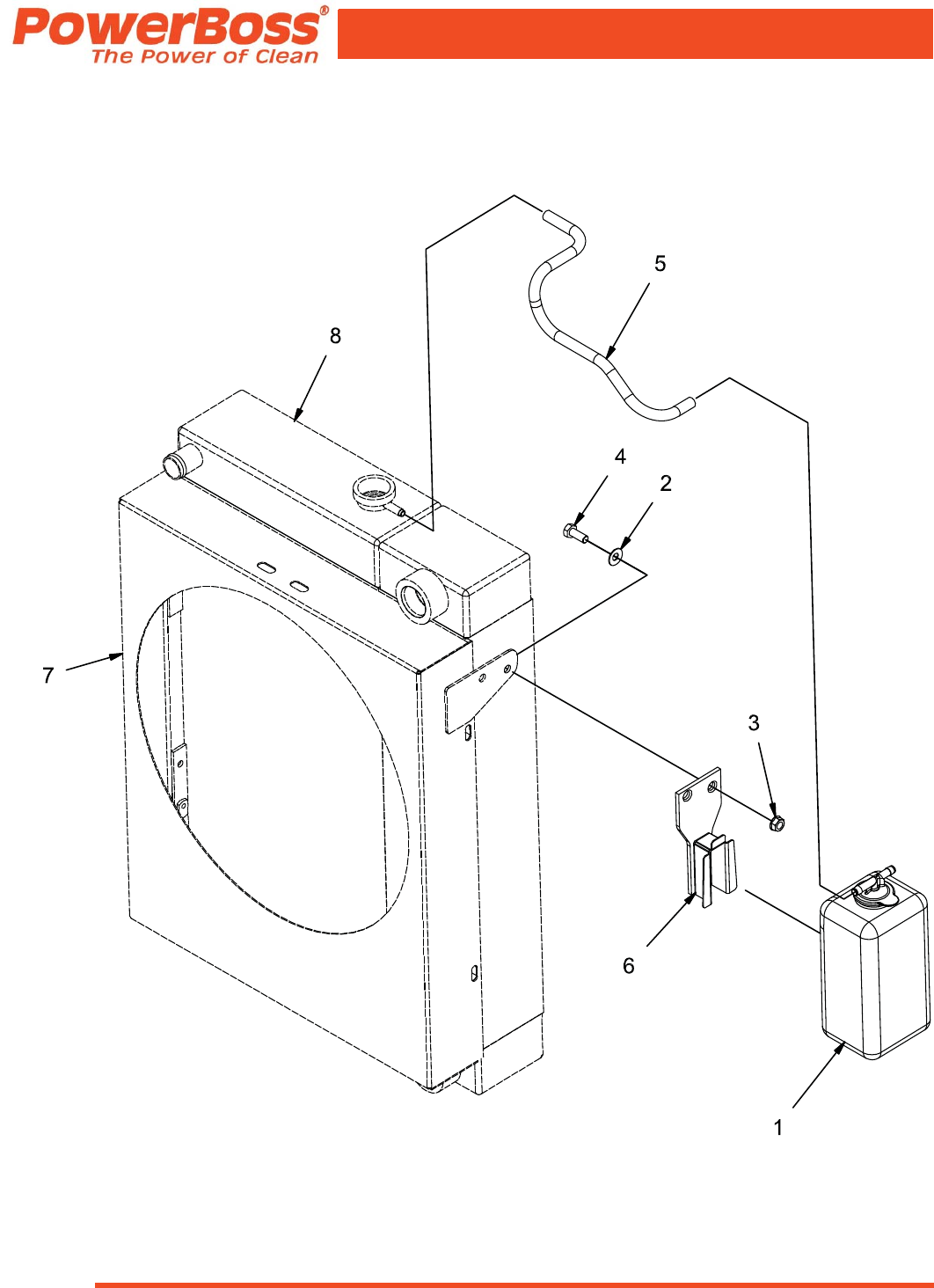

RADIATOR GROUP - DIESEL, GAS, LPG (600615). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
RADIATOR OVERFLOW GROUP (600602). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
BATTERY GROUP (600770) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

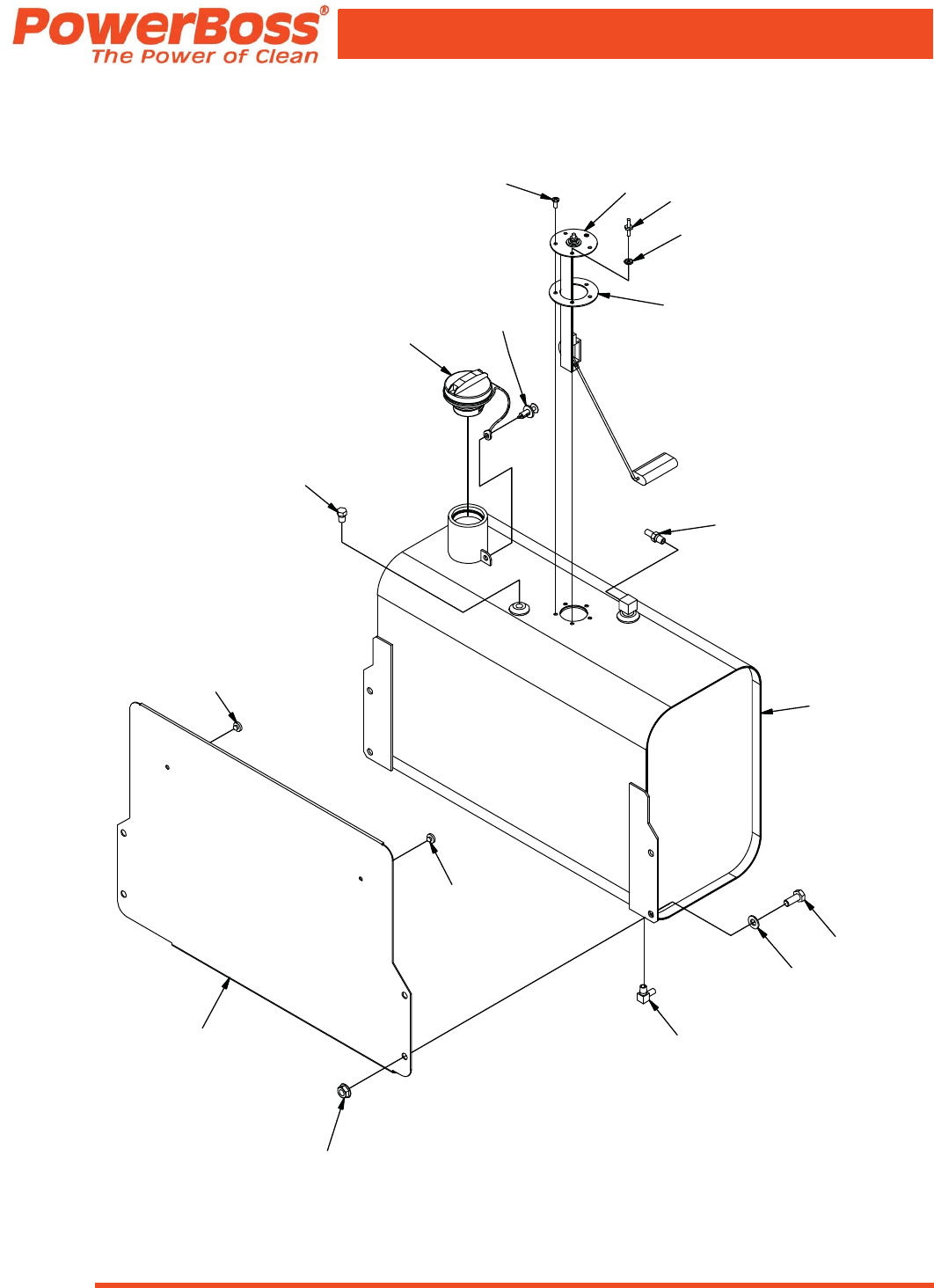

FUEL TANK GROUP - DIESEL (600618) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
FUEL TANK GROUP - GAS (600634). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
LPG TANK GROUP (600710) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
ENGINE MOUNT GROUP - DIESEL (600657). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
ENGINE MOUNT GROUP - GAS (600658) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
ENGINE MOUNT GROUP - LPG (600659) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
AIR CLEANER GROUP - DIESEL (600614). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
AIR CLEANER GROUP - GAS (600629) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
AIR CLEANER GROUP - LPG (600605) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
THROTTLE SOLENOID GROUP - DIESEL (600628) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
FUEL COMPONENT GROUP - GAS (600635) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
EXHAUST GROUP - DIESEL (600671) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
SINGLE EXHAUST GROUP GAS & LPG (620698). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
DECAL GROUP - DIESEL (600643) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
DECAL GROUP - GAS (600641). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

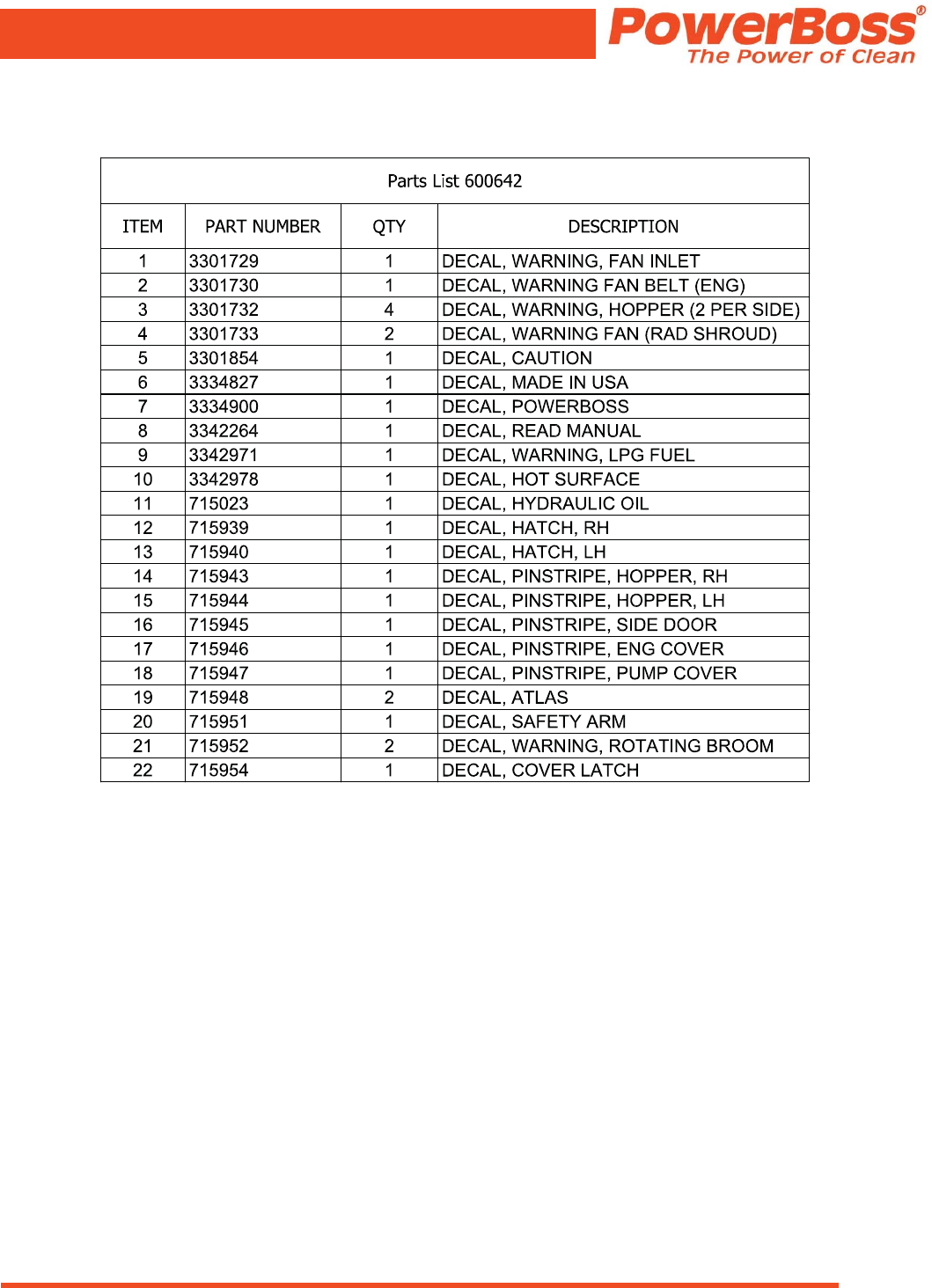

DECAL GROUP - LPG (600642) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
DUAL SIDE BROOM (DSB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
DSB LH SIDE BROOM GROUP (600654-1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
DSB LH SIDE LIFT GROUP (600653-1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
DSB HOPPER SKIRTS SEALS GROUP (600646) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 7
TABLE OF CONTENTS
DSB SWITCH GROUP (600655). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
DSB BUMPER GROUP (600645) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
DSB IMPELLER GROUP (600656-1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
DSB HYDRAULIC HOSE GROUP (600652-1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
DSB HOSE CLAMP GROUP 1 (600647) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
DSB HOSE CLAMP GROUP 2 (600649) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
OPTIONS - PARTS BREAKDOWN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
OPTION - VACUUMIZED SIDE BROOM GROUP - PAGE 1 (600003) . . . . . . . . . . . . . . . . . . . . . 156
OPTION - VACUUMIZED SIDE BROOM GROUP - PAGE 2 (600003) . . . . . . . . . . . . . . . . . . . . . 158
OPTION - DUAL VACUUMIZED SIDE BROOM GROUP - PAGE 1 (600004) . . . . . . . . . . . . . . . . 160
OPTION - DUAL VACUUMIZED SIDE BROOM GROUP - PAGE 2 (600004) . . . . . . . . . . . . . . . . 162

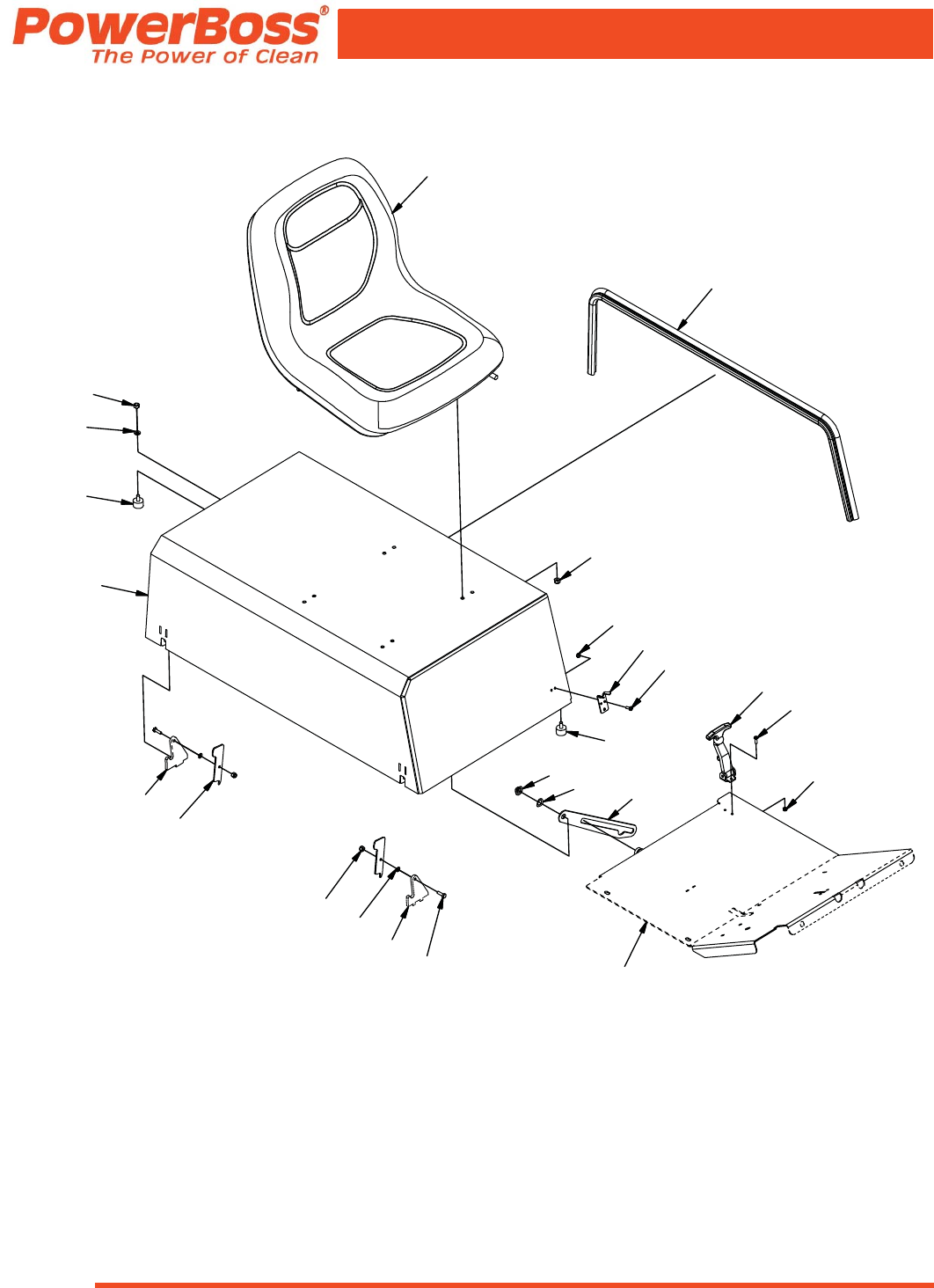

OPTION - SUSPENSION SEAT GROUP (600005) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
OPTION - BACKUP ALARM GROUP (600006) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

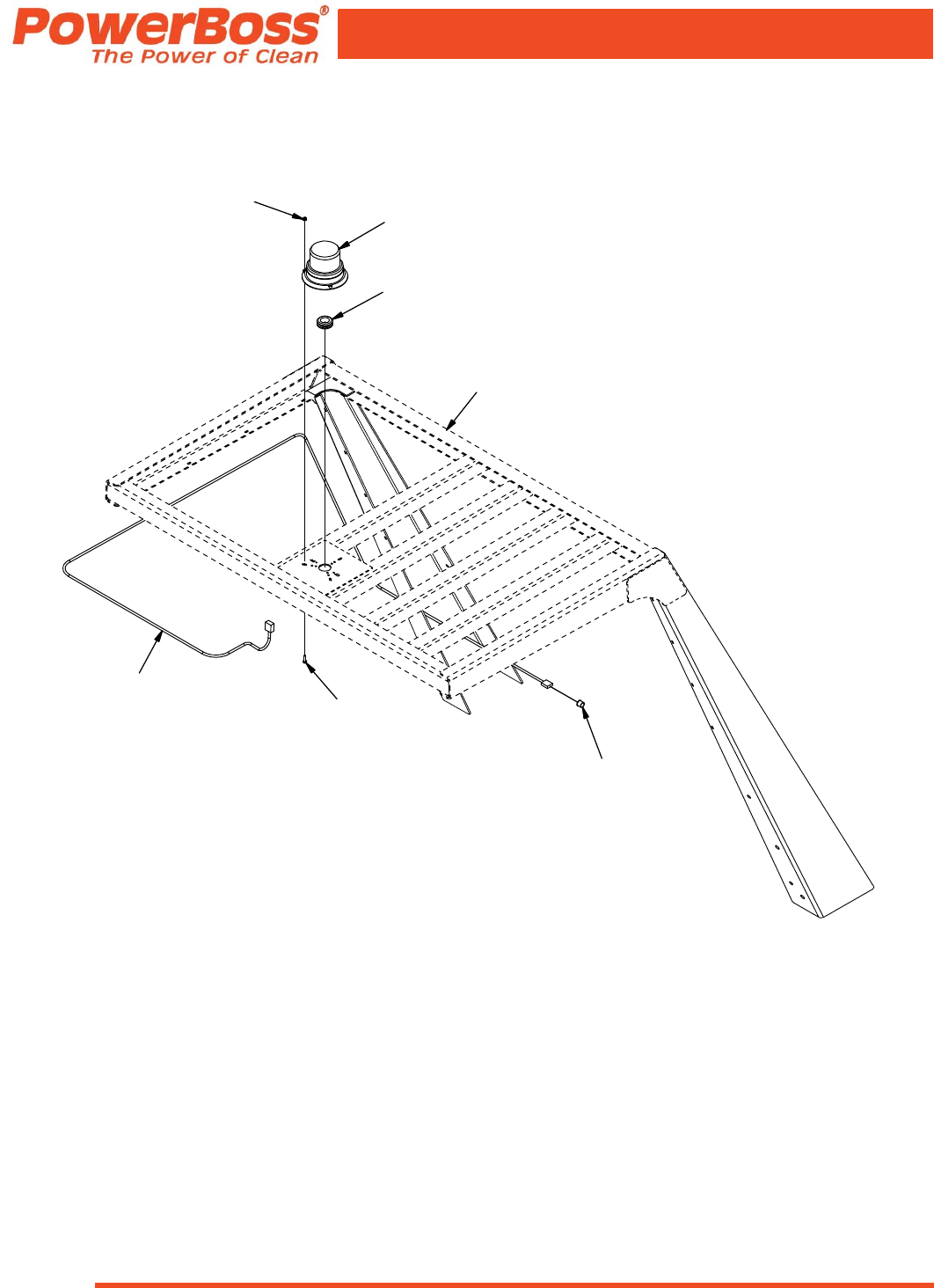

OPTION - SAFETY LIGHT, AMBER STROBE LIGHT OHG GROUP (600007). . . . . . . . . . . . . . . 168
OPTION - SAFETY LIGHT, AMBER ROTATING LIGHT OHG GROUP (600008) . . . . . . . . . . . . . 170
OPTION - SAFETY LIGHT, AMBER FLASHING LIGHT OHG GROUP (600009) . . . . . . . . . . . . . 172
OPTION - SAFETY LIGHT, AMBER STROBE LIGHT ENG CVR GROUP (600010) . . . . . . . . . . 174
OPTION - SAFETY LIGHT, AMBER ROTATING LIGHT ENG CVR GROUP (600011). . . . . . . . . 176
OPTION - SAFETY LIGHT, AMBER FLASHING LIGHT ENG CVR GROUP (600012). . . . . . . . . 178
OPTION - CLOGGED FILTER INDICATOR GROUP (600013) . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
OPTION - FILTER SHAKER TIMER GROUP (600014) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
OPTION - TIRE, ALL SOFT SHOE SOLID GROUP (600015) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
OPTION - TIRE, FRONT SOFT SHOE SOLID, REAR PNEUMATIC GROUP (600016) . . . . . . . 186
OPTION - TIRE, ALL NON-MARKING SOLID GROUP (600017) . . . . . . . . . . . . . . . . . . . . . . . . . . 188
OPTION - OVERHEAD GUARD (OHG) GROUP (600019). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
OPTION - AUTO DIESEL SHUTDOWN GROUP (600020). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
OPTION - VACUUM WAND GROUP - PAGE 1 (600021) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
OPTION - VACUUM WAND GROUP - PAGE 2 (600021) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
OPTION - SEAT BELT, SUSPENSION SEAT GROUP (600022) . . . . . . . . . . . . . . . . . . . . . . . . . . 198
OPTION - LOW LPG INDICATOR GROUP (600023) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
OPTION - HEAVY DUTY AIR CLEANER GROUP - LPG, GAS (600024) . . . . . . . . . . . . . . . . . . . 202
OPTION - SIDE BROOM LIGHT GROUP (600025) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
OPTION - TURN SIGNAL AND 4 WAY FLASHER GROUP - PAGE 1 (600026) . . . . . . . . . . . . . . 206
OPTION - TURN SIGNAL AND 4 WAY FLASHER GROUP - PAGE 2 (600026) . . . . . . . . . . . . . . 208
OPTION - BRAKE LIGHTS GROUP (600027) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
OPTION - FIRE EXTINGUISHER GROUP (600028) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
OPTION - HEAVY DUTY AIR CLEANER GROUP - DIESEL (600029) . . . . . . . . . . . . . . . . . . . . . 214
OPTION - HEAVY DUTY AIR CLEANER GROUP - GAS (600038) . . . . . . . . . . . . . . . . . . . . . . . . 216
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 8
OPTION - HEAVY DUTY AIR CLEANER GROUP - LPG (600039) . . . . . . . . . . . . . . . . . . . . . . . . 218
OPTION - SEAT BELT, STANDARD SEAT GROUP (600030) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
OPTION - AIR TUBE VALVE GROUP (600037). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
OPTION - STANDARD HOPPER WITH RHINO LINING GROUP (600390-R) . . . . . . . . . . . . . . . 224
OPTION - DUAL SIDE BROOM HOPPER WITH RHINO LINING GROUP (600841-R) . . . . . . . . 226
LAYOUTS - ELECTRICAL/HYDRAULIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228

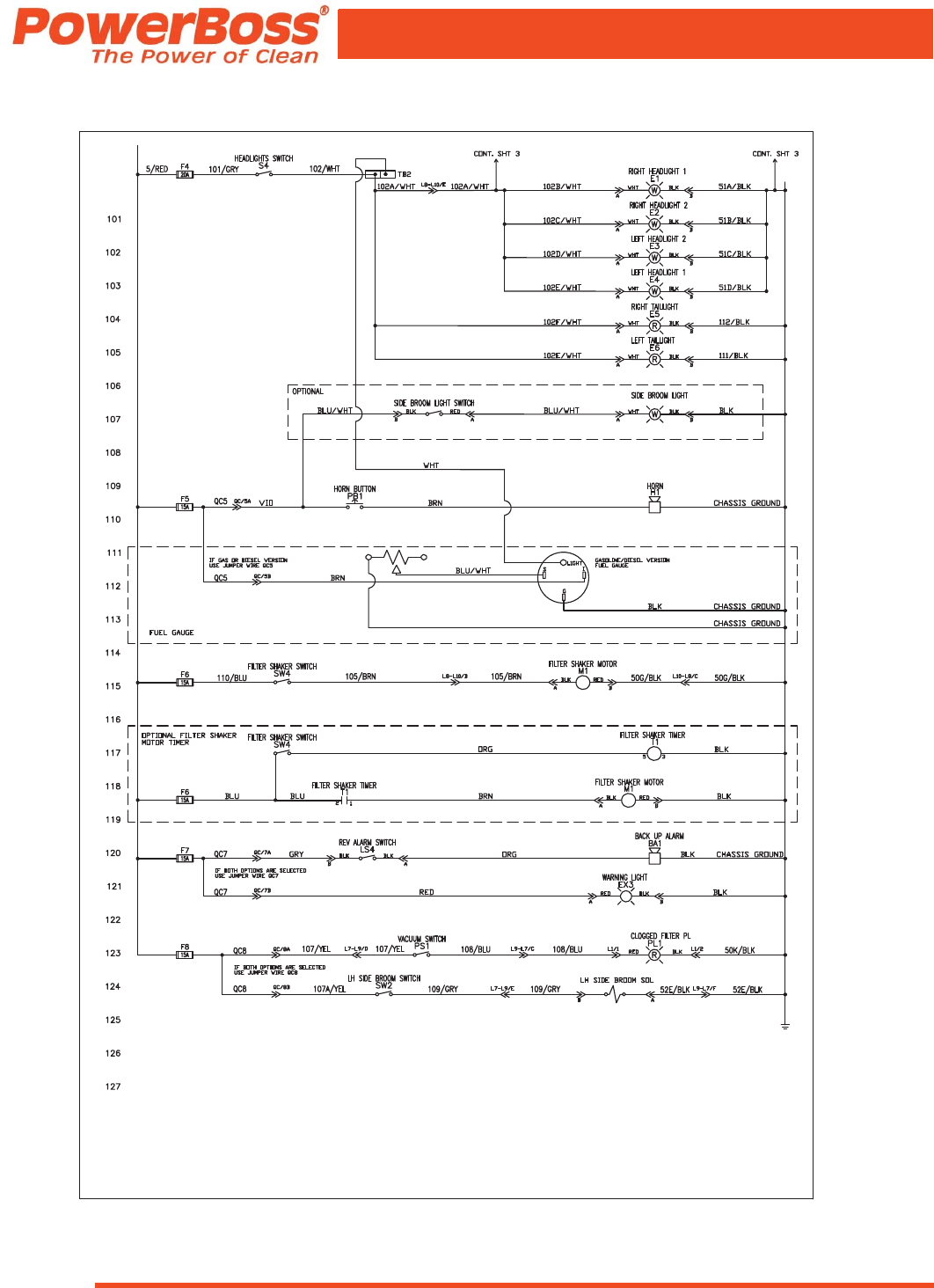

ATLAS ELECTRICAL SCHEMATIC LAYOUT - DIESEL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
ATLAS ELECTRICAL SCHEMATIC LAYOUT - GAS & LPG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
ATLAS HYDRAULIC SYSTEM LAYOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
ATLAS HYDRAULIC SYSTEM LAYOUT WITH DUAL SIDE BROOM . . . . . . . . . . . . . . . . . . . . . . 235
NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
TABLE OF CONTENTS
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 9
THIS PAGE INTENTIONALLY LEFT BLANK
TABLE OF CONTENTS
NOTES
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 10
PARTS BREAKDOWN
PARTS BREAKDOWN
12
19
22
13
10
19
12
17
14
18
4
23 21
15
2
16
20
7
1
3
6
5
2
11
11
9
9
5631
8
23
7
REV C

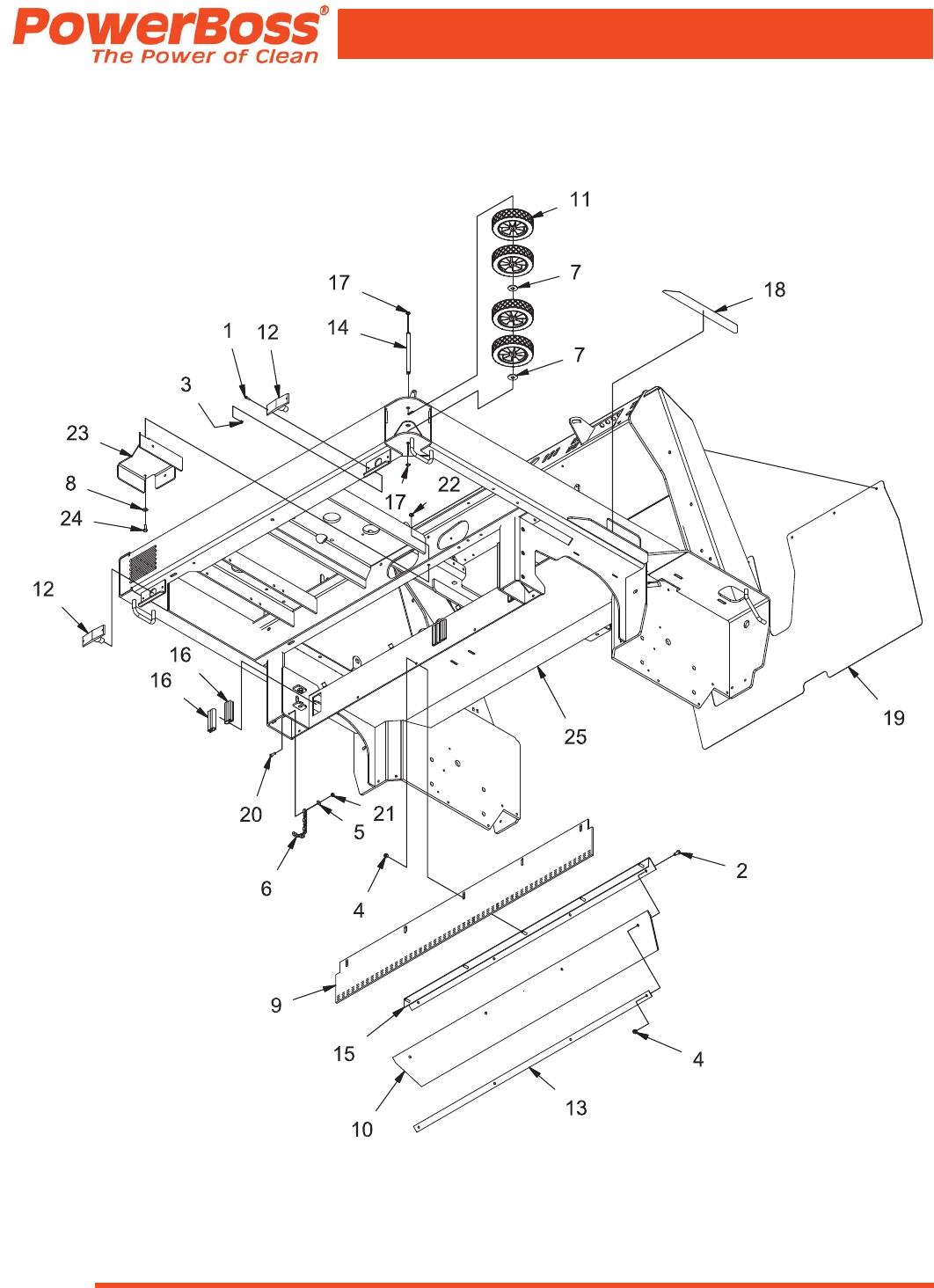

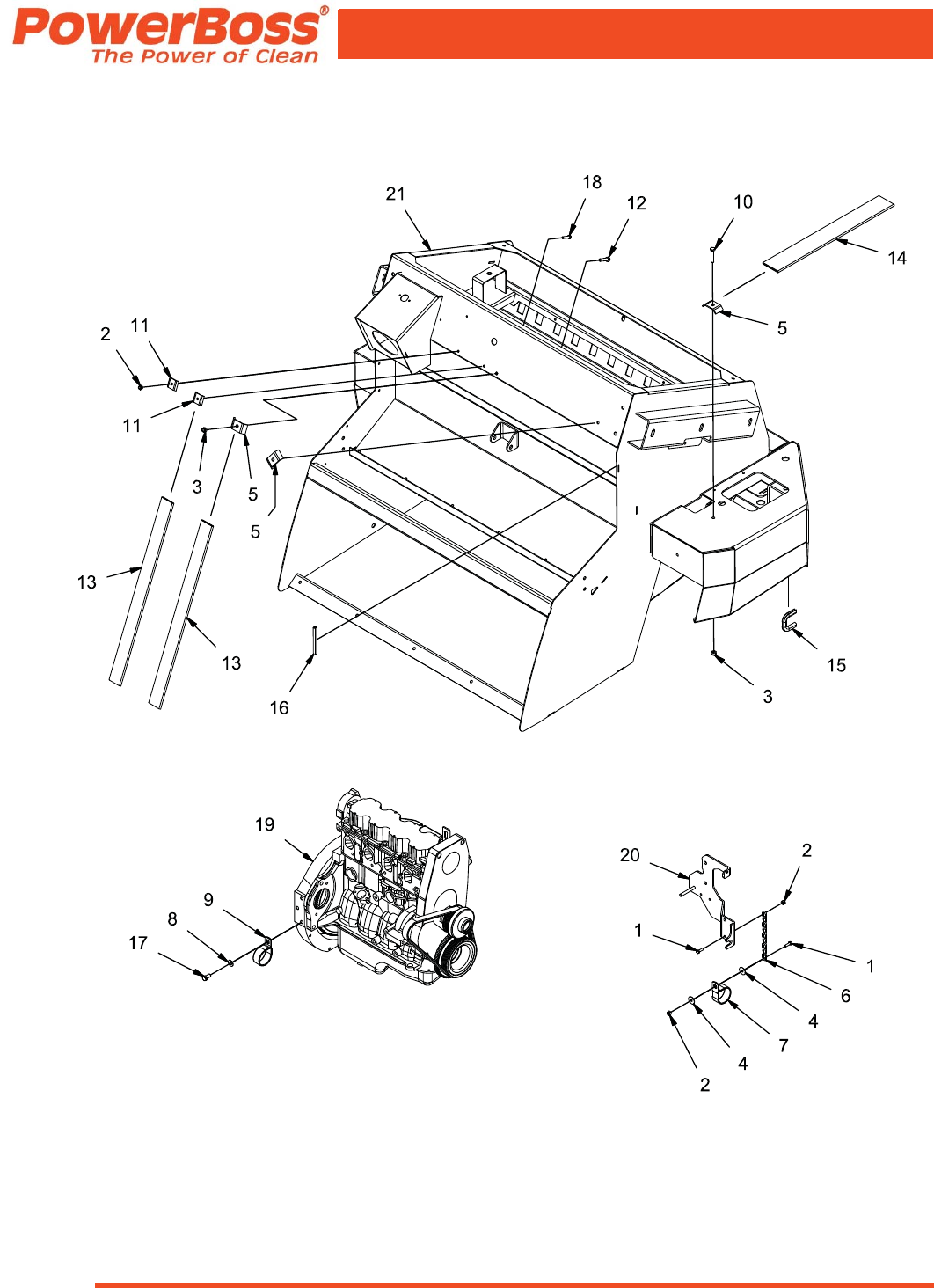

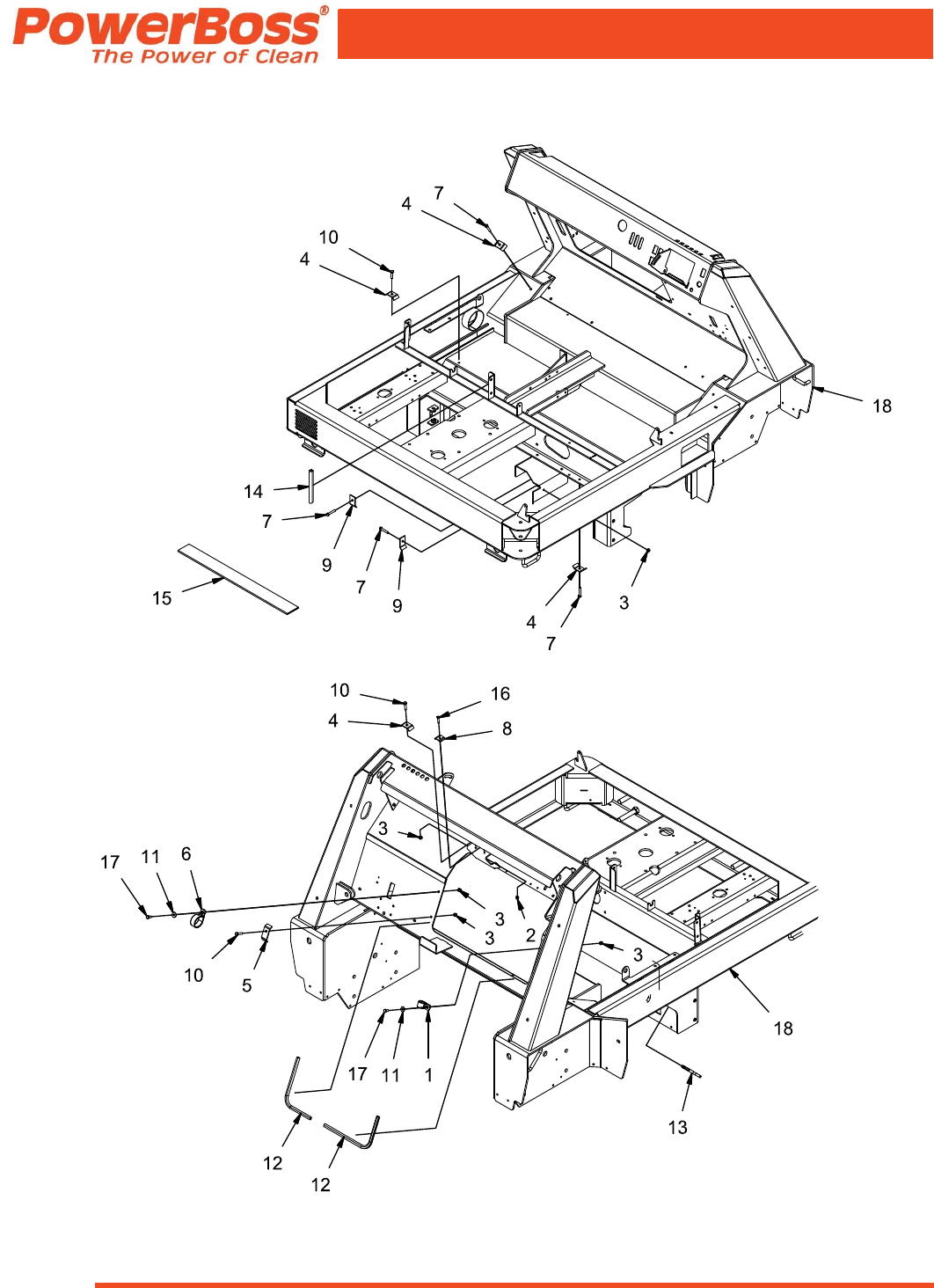

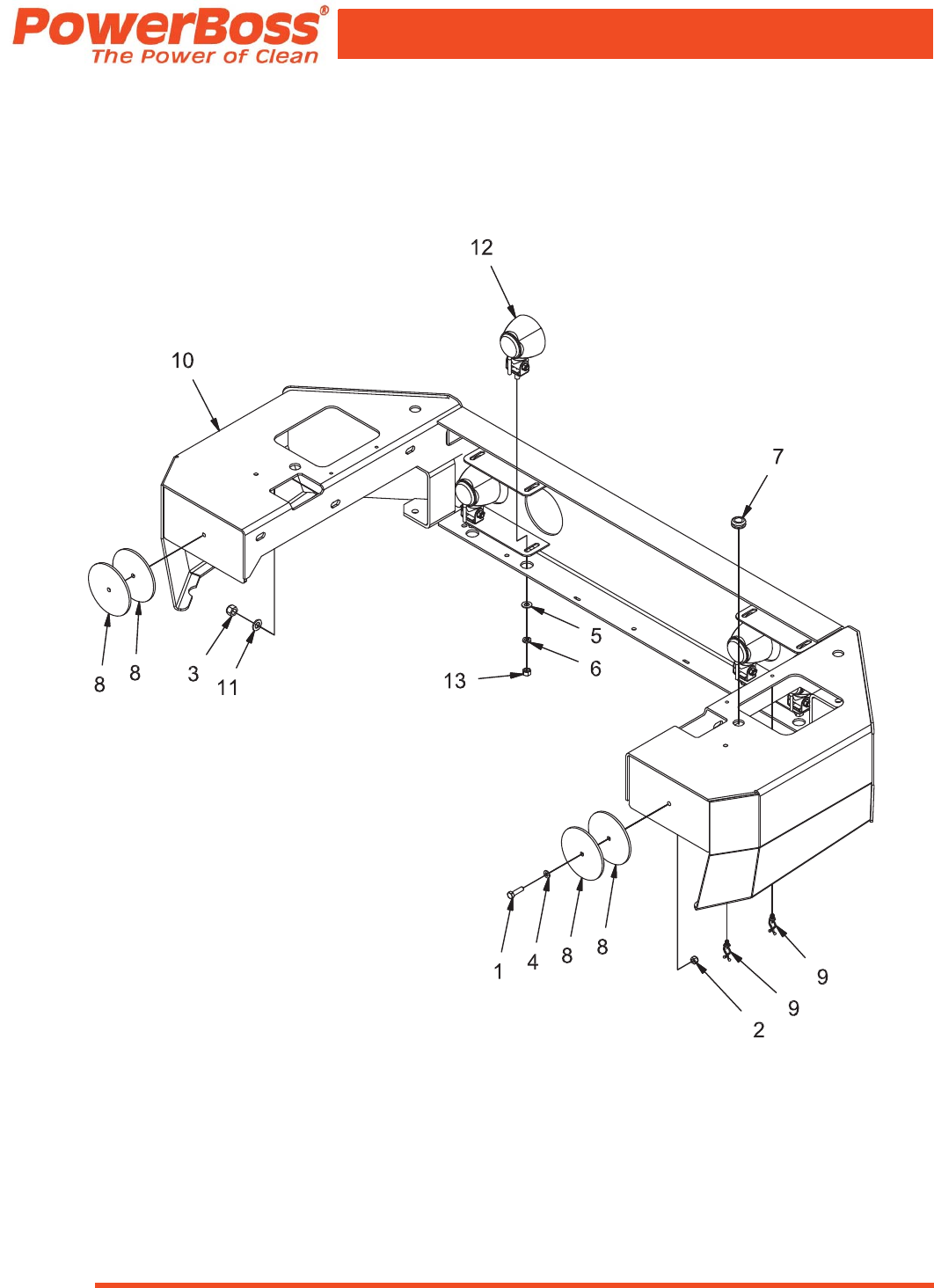

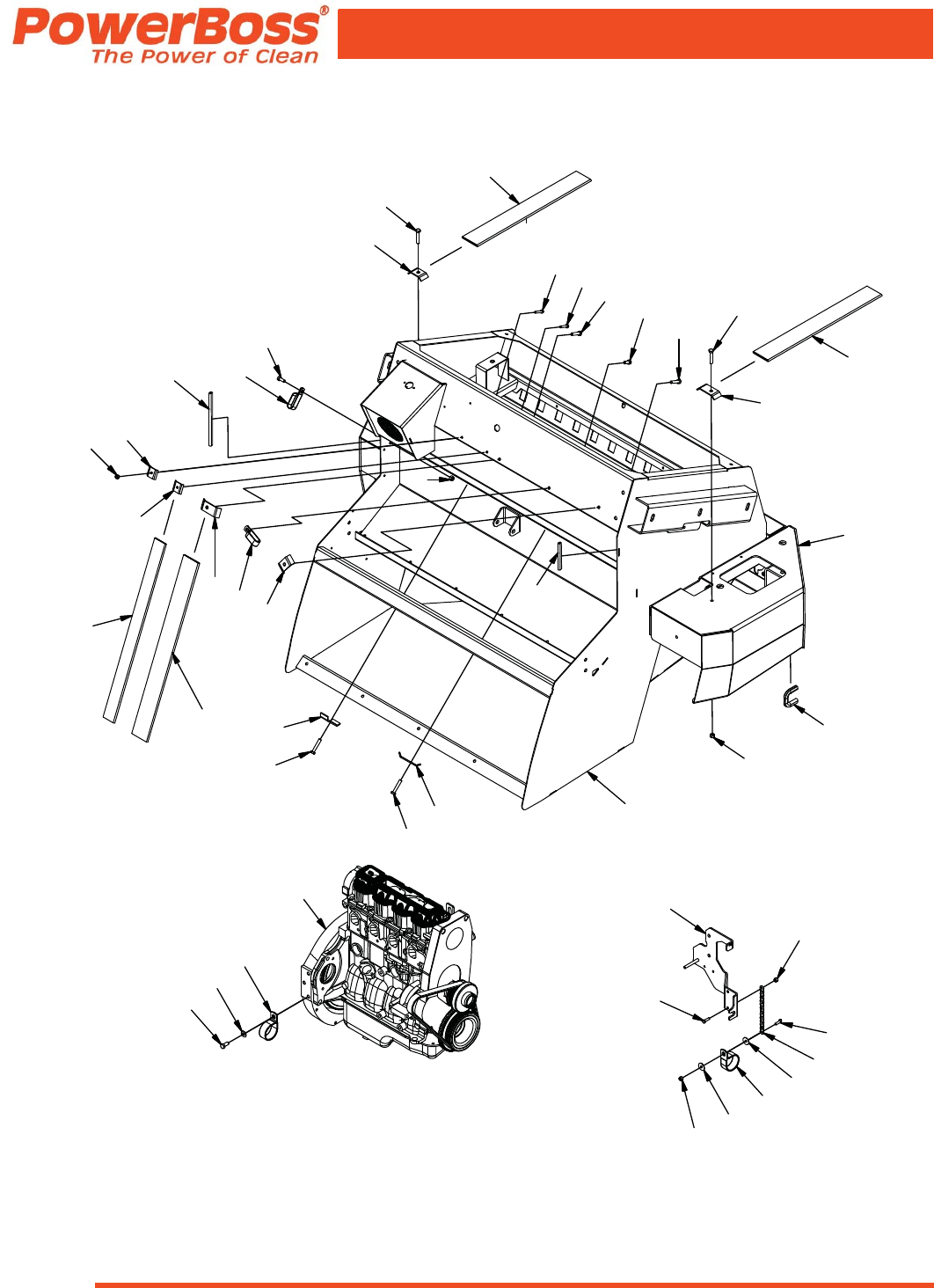

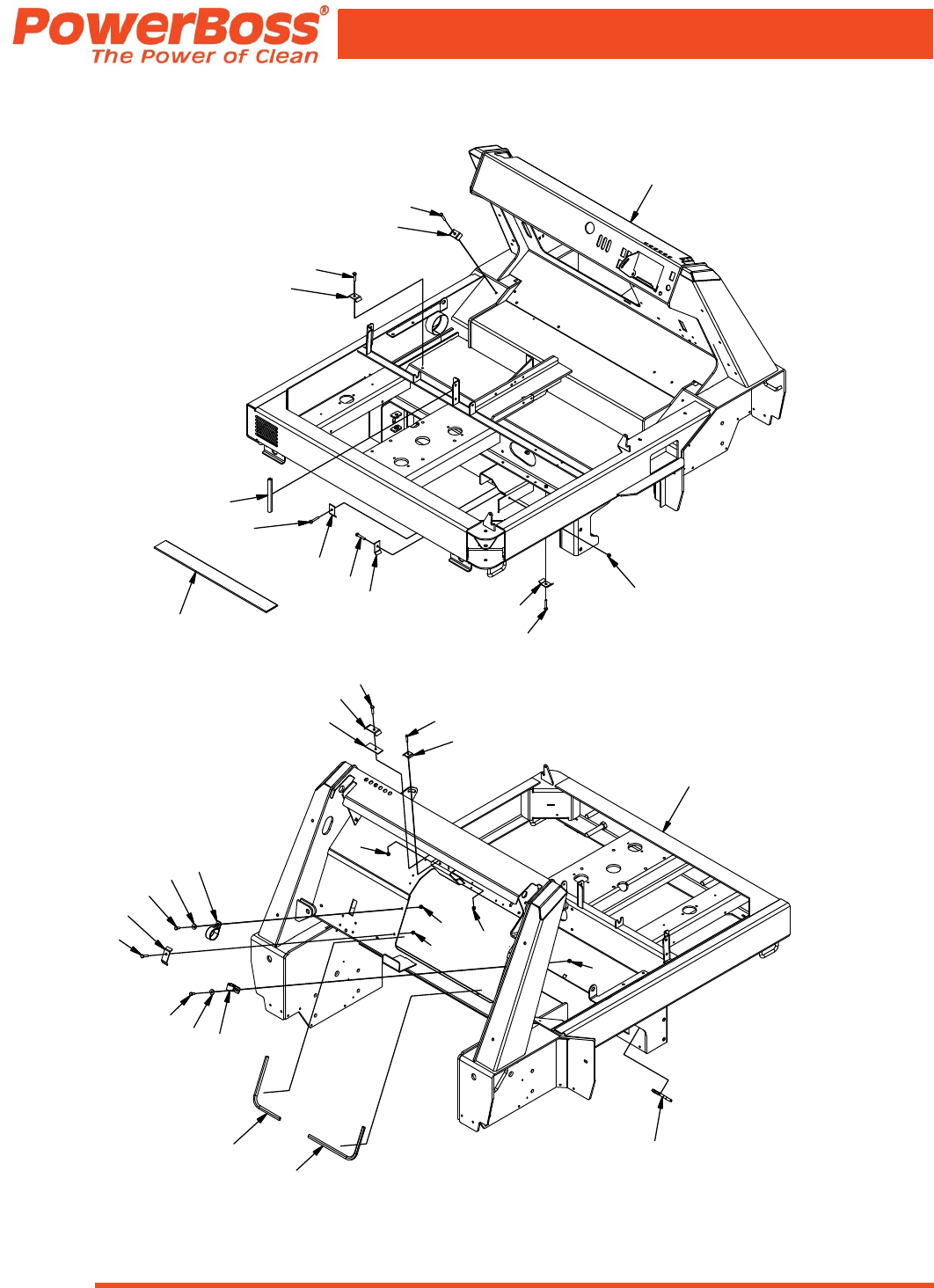

FRAME GROUP 1 (600680)
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 11
PARTS BREAKDOWN

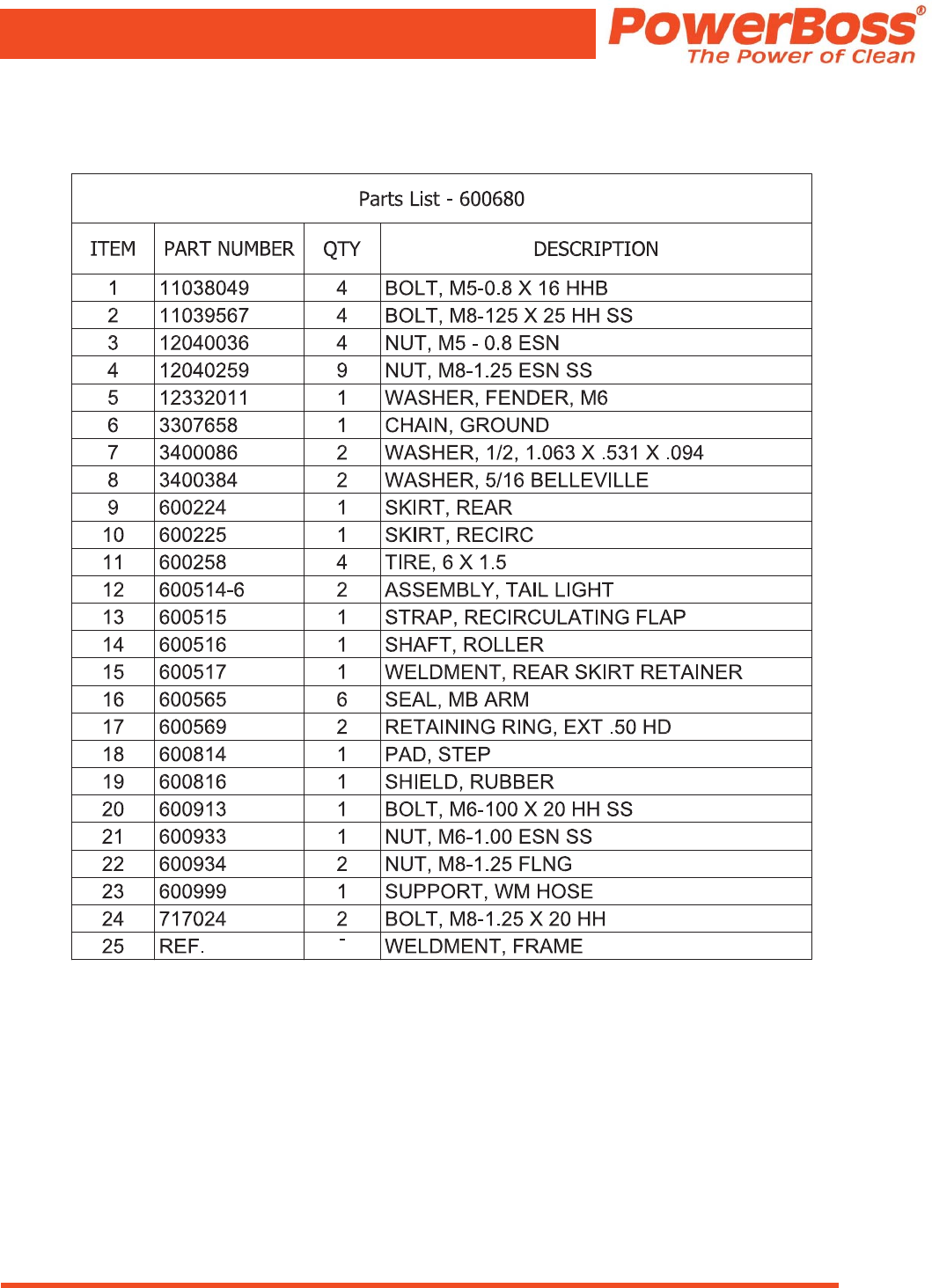

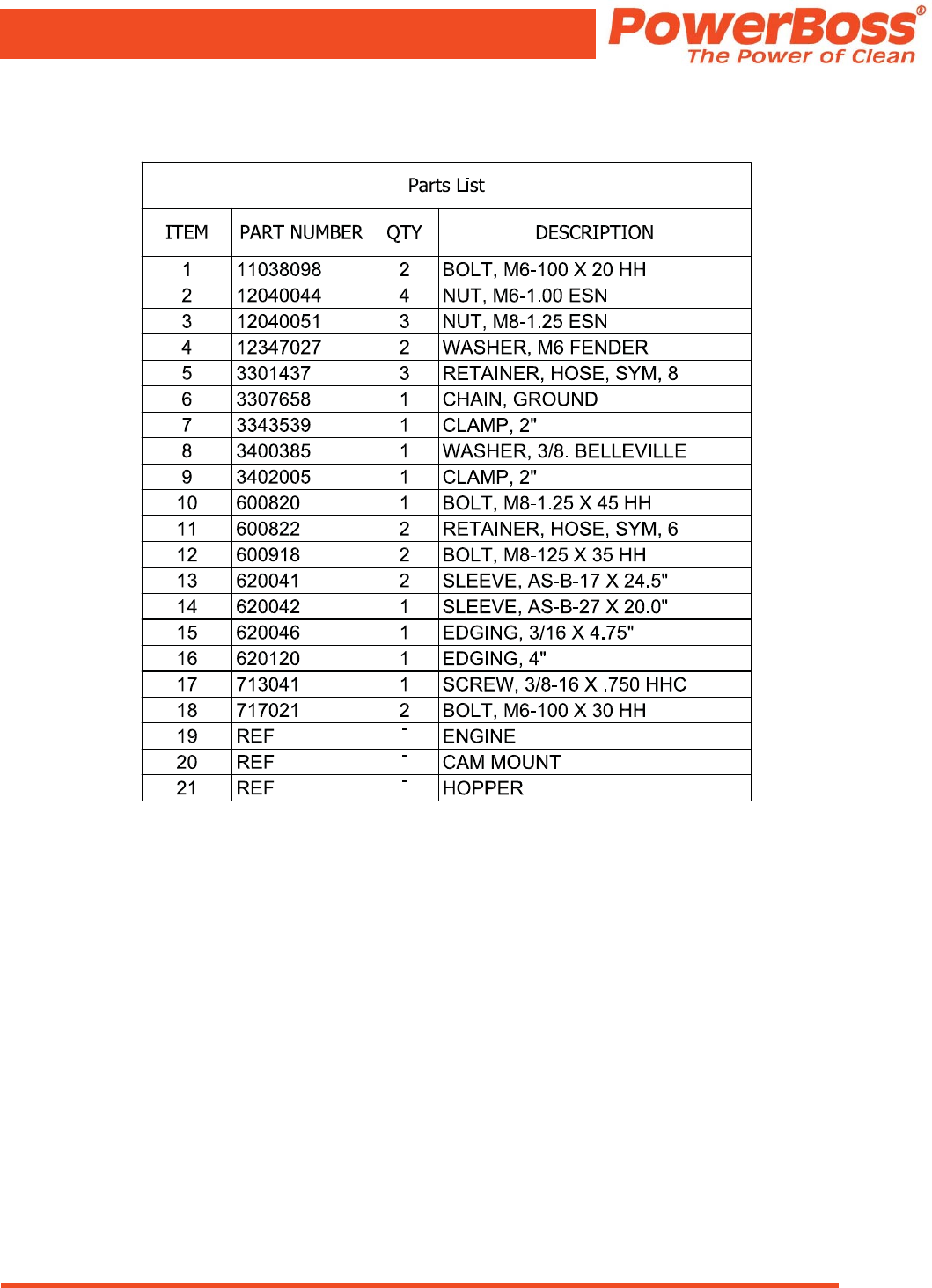

Parts List
DESCRIPTIONQTY
PART NUMBERITEM
BOLT, M8-125 X 30 HH4110382541
NUT, M8-1.25 ESN SS
5
120402592
WASHER, M84123100413
HORN, 12V133003794
FLAP, BROOM CHAMBER CORNER23307286
5
STRAP, BROOM CORNER FLAP233072876
WASHER, STAR, .31, INT. ZP23400273
7
WASHER, 5/16 BELLEVILLE234003848
SKIRT, SUPPORT26002219
SKIRT, MB CHAMBER TOP160022210
SKIRT, WHEEL WELL260022311
RETAINER, WHEEL WELL SKIRT260025112
RETAINER, BC TOP SEAL160028813
WELDMENT, FRAME1600412-114
COUNTERWEIGHT460051115
CHANNEL, CLAMP STAND160082116
SEAL, BROOM DOOR, LH160090117
SEAL, BROOM DOOR, RH160090218
SCREW, M8-1.25 X 16 FHMS SS660091619
NUT, M8-1.25 FLNG260093420
NUT, M20-2.50 ESN460093521
FASTENER, PRESS-IN
5
60096522
BOLT, M8-1.25 X 20 HH371702423
FRAME GROUP 1 (600680)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 12
PARTS BREAKDOWN

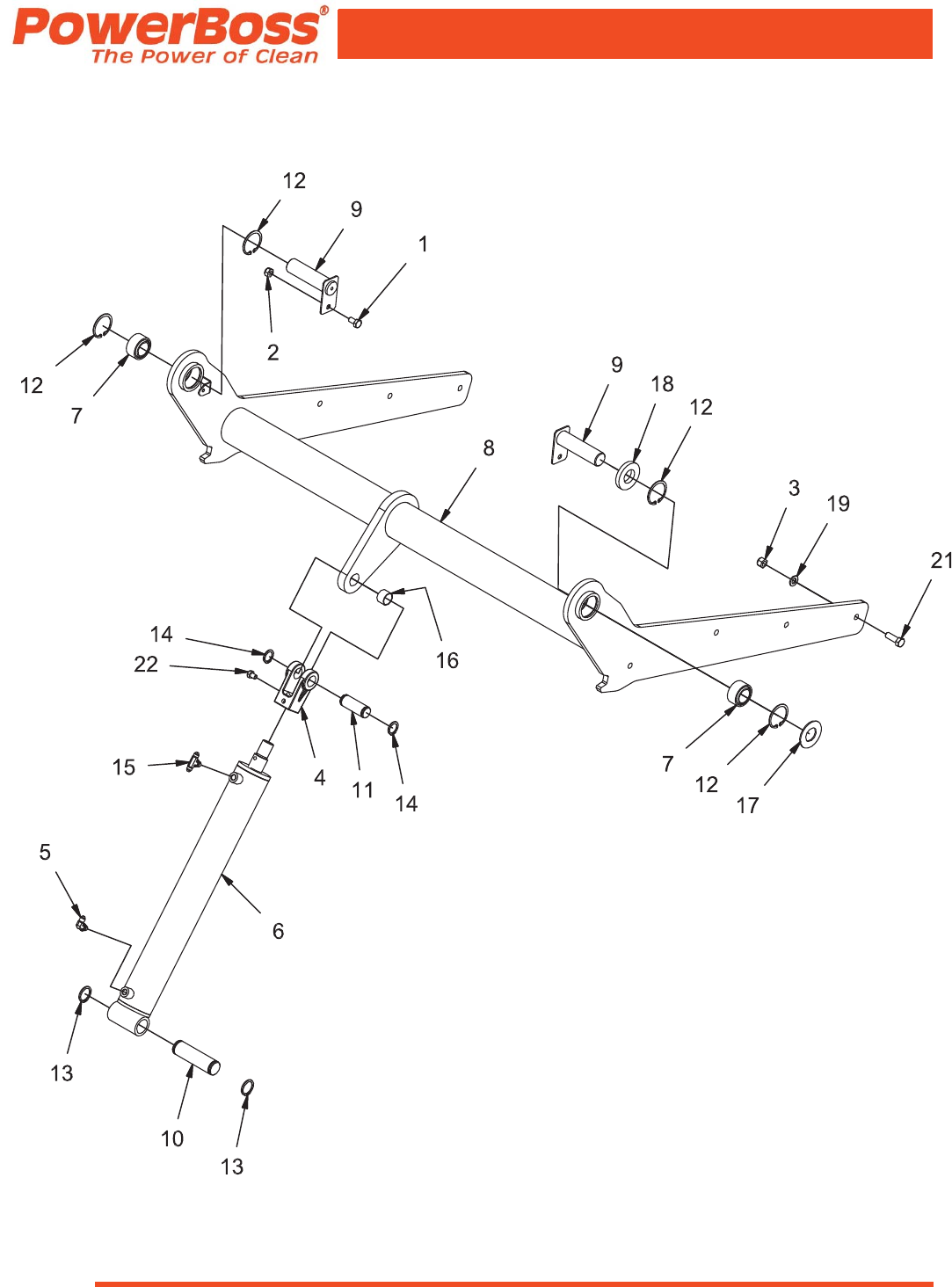

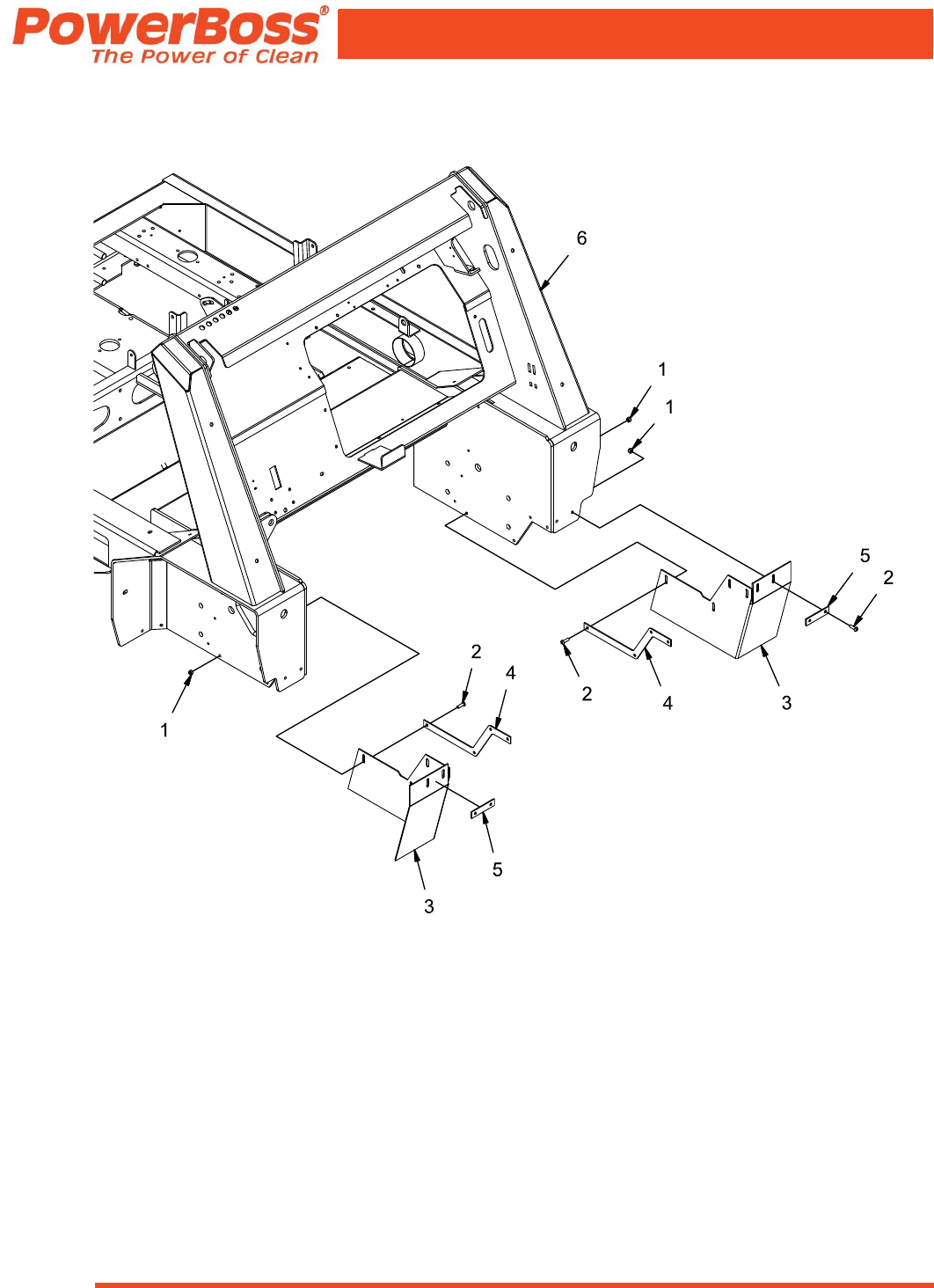

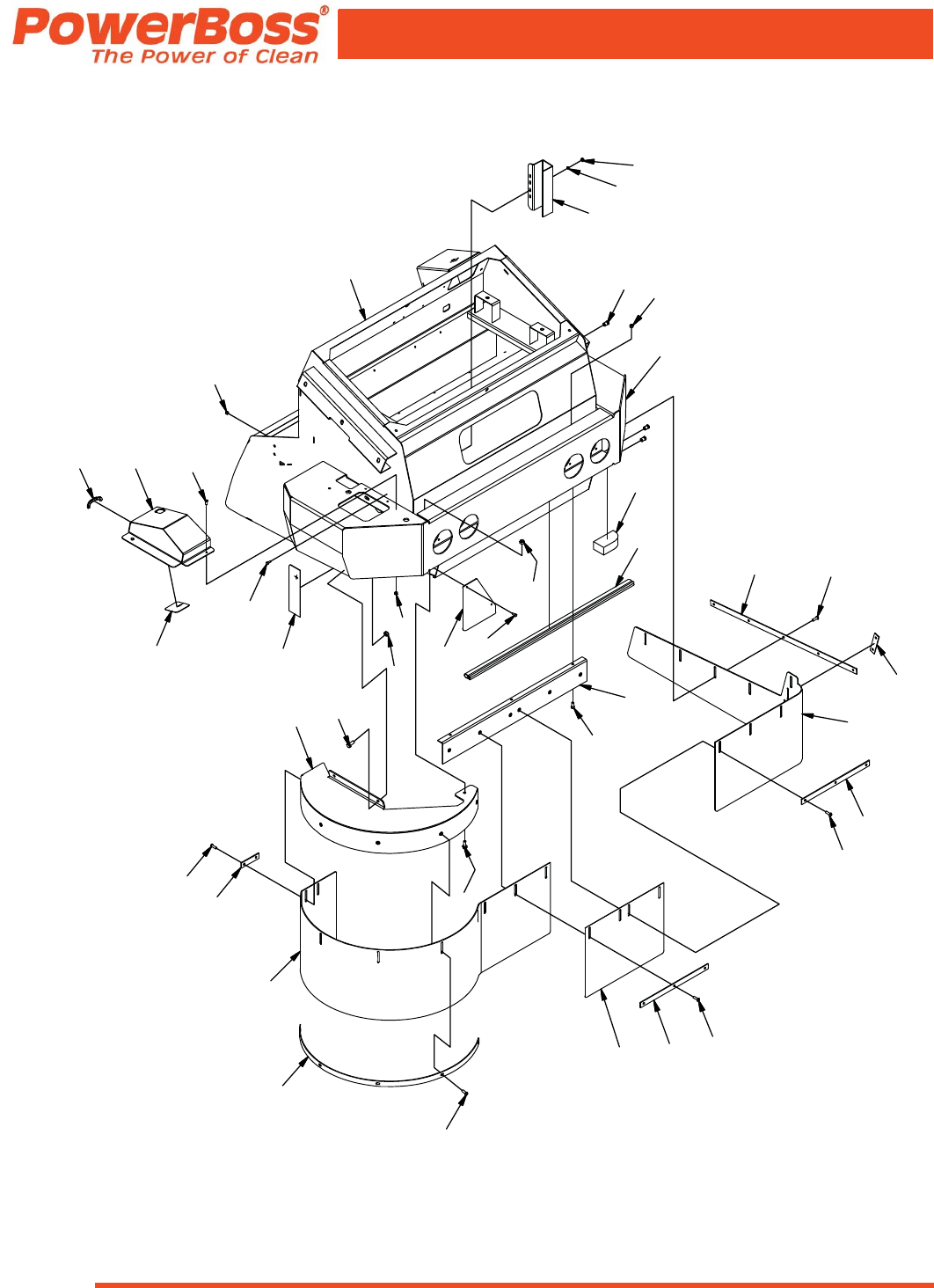

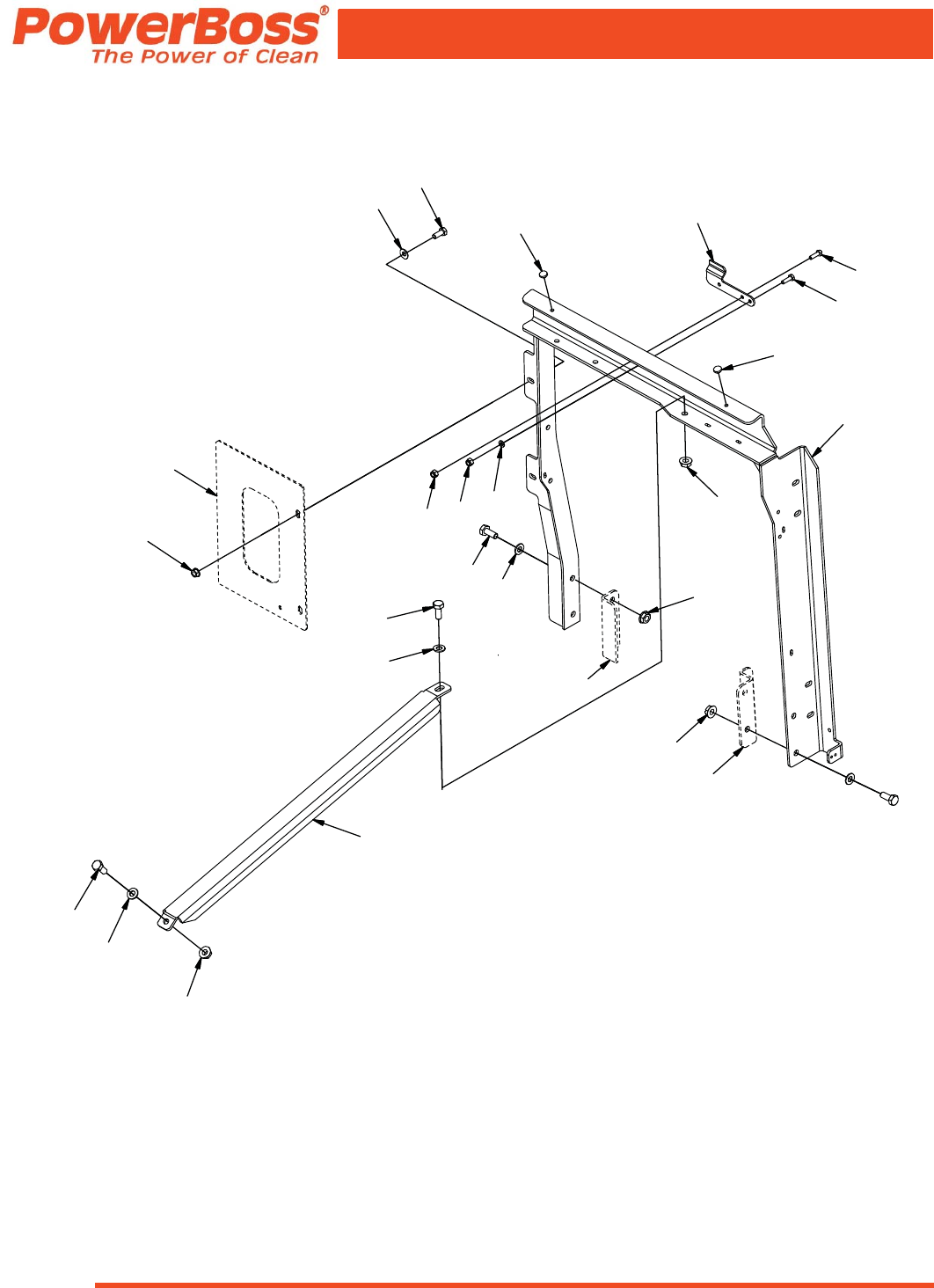

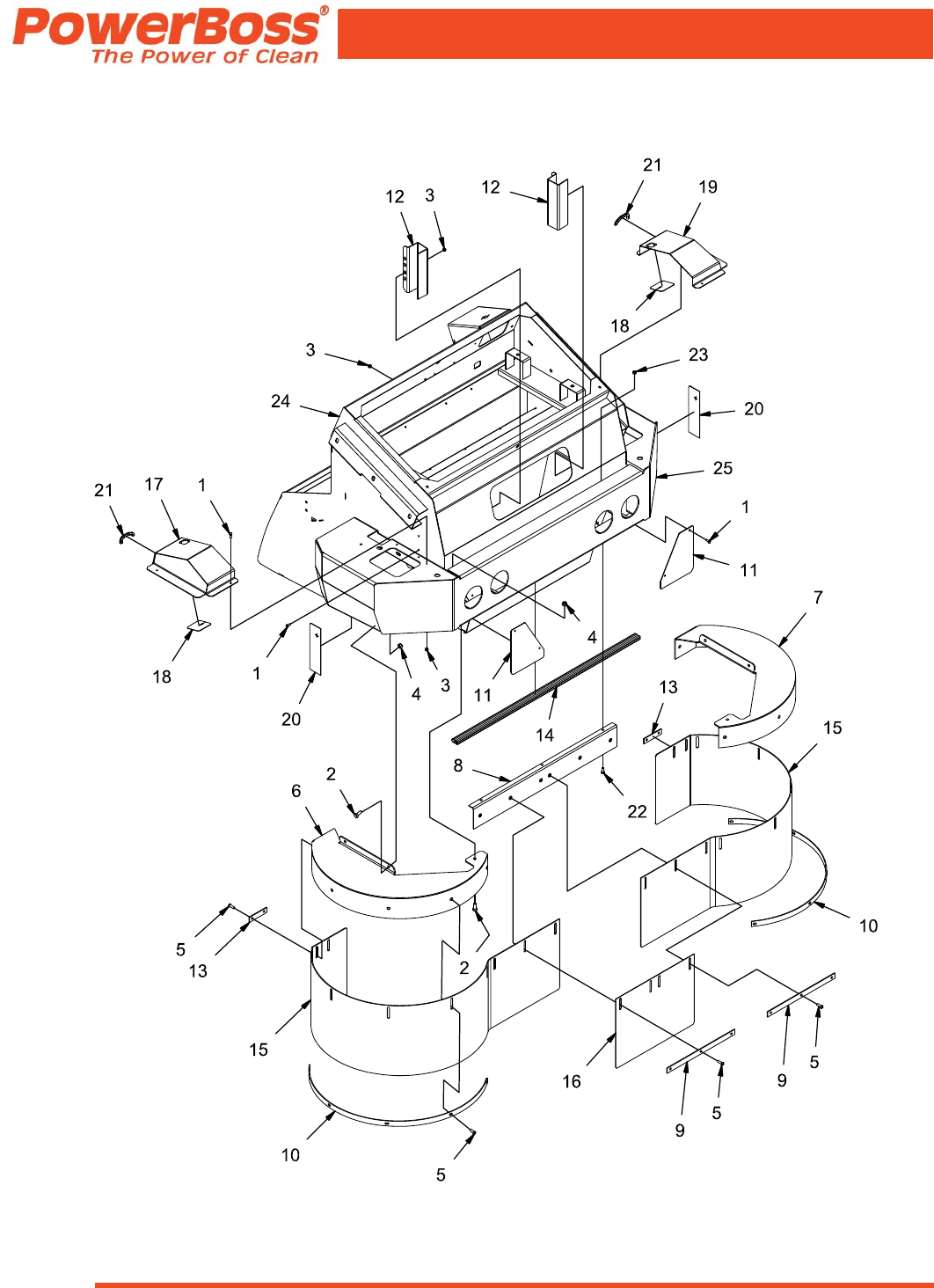

FRAME GROUP 2 (600680)
REV C
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 13
PARTS BREAKDOWN
FRAME GROUP 2 (600680)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 14
PARTS BREAKDOWN
CLAMP - HOSE GROUP 1 (600860)
REV B
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 15
PARTS BREAKDOWN

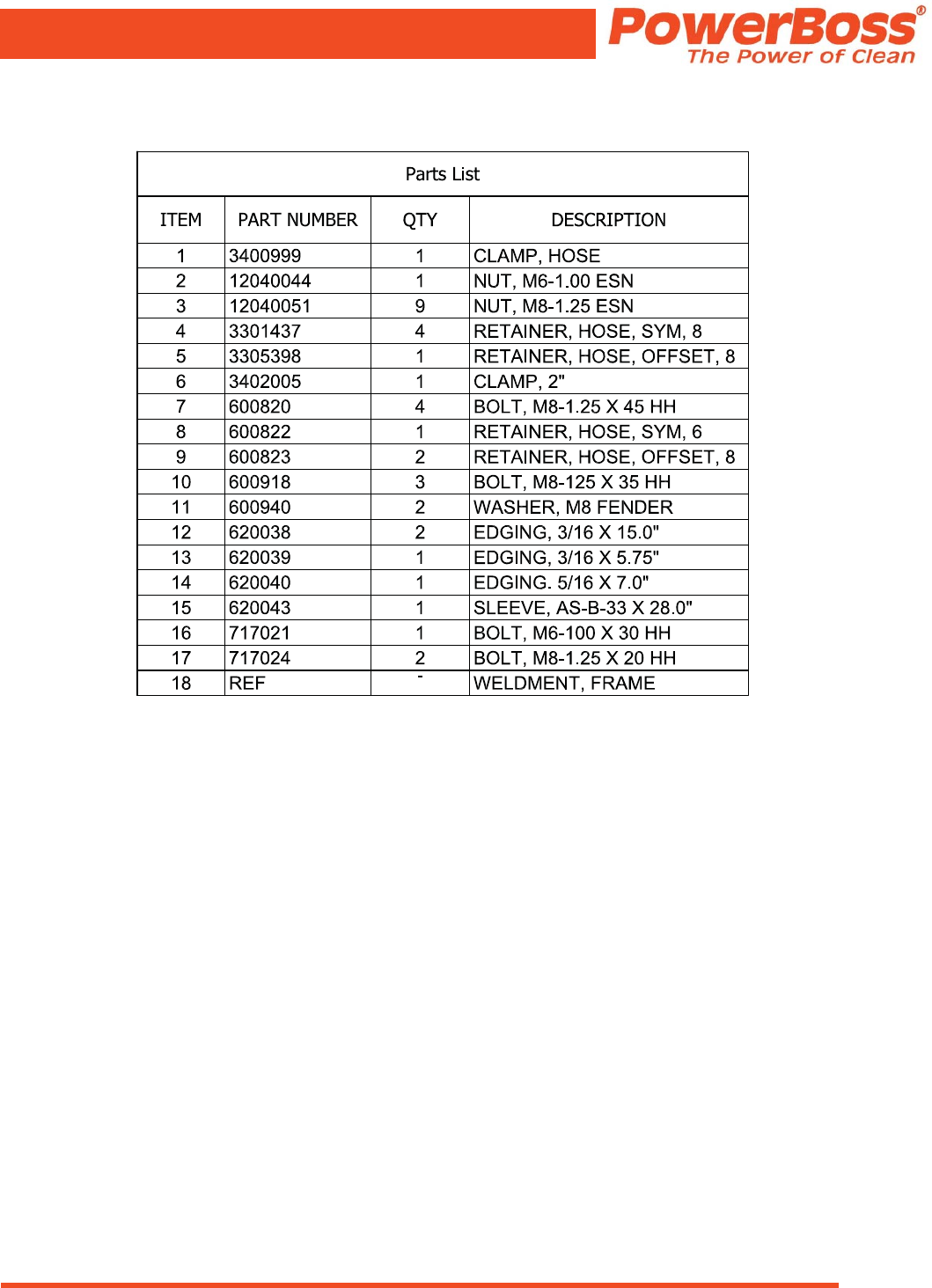

CLAMP - HOSE GROUP 1 (600860)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 16
PARTS BREAKDOWN
CLAMP - HOSE GROUP 2 (600860)
REV B
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 17
PARTS BREAKDOWN
CLAMP - HOSE GROUP 2 (600860)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 18
PARTS BREAKDOWN

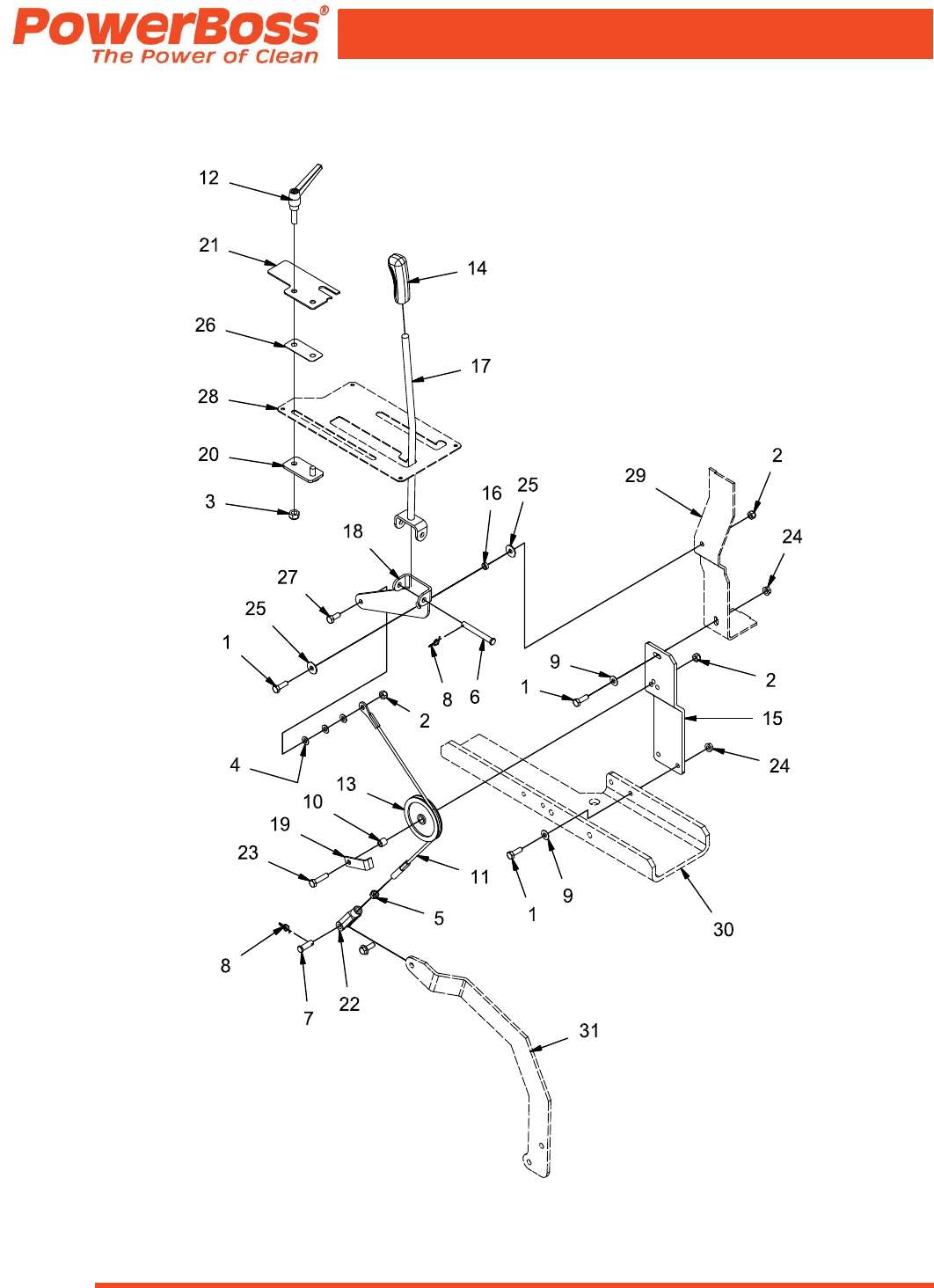

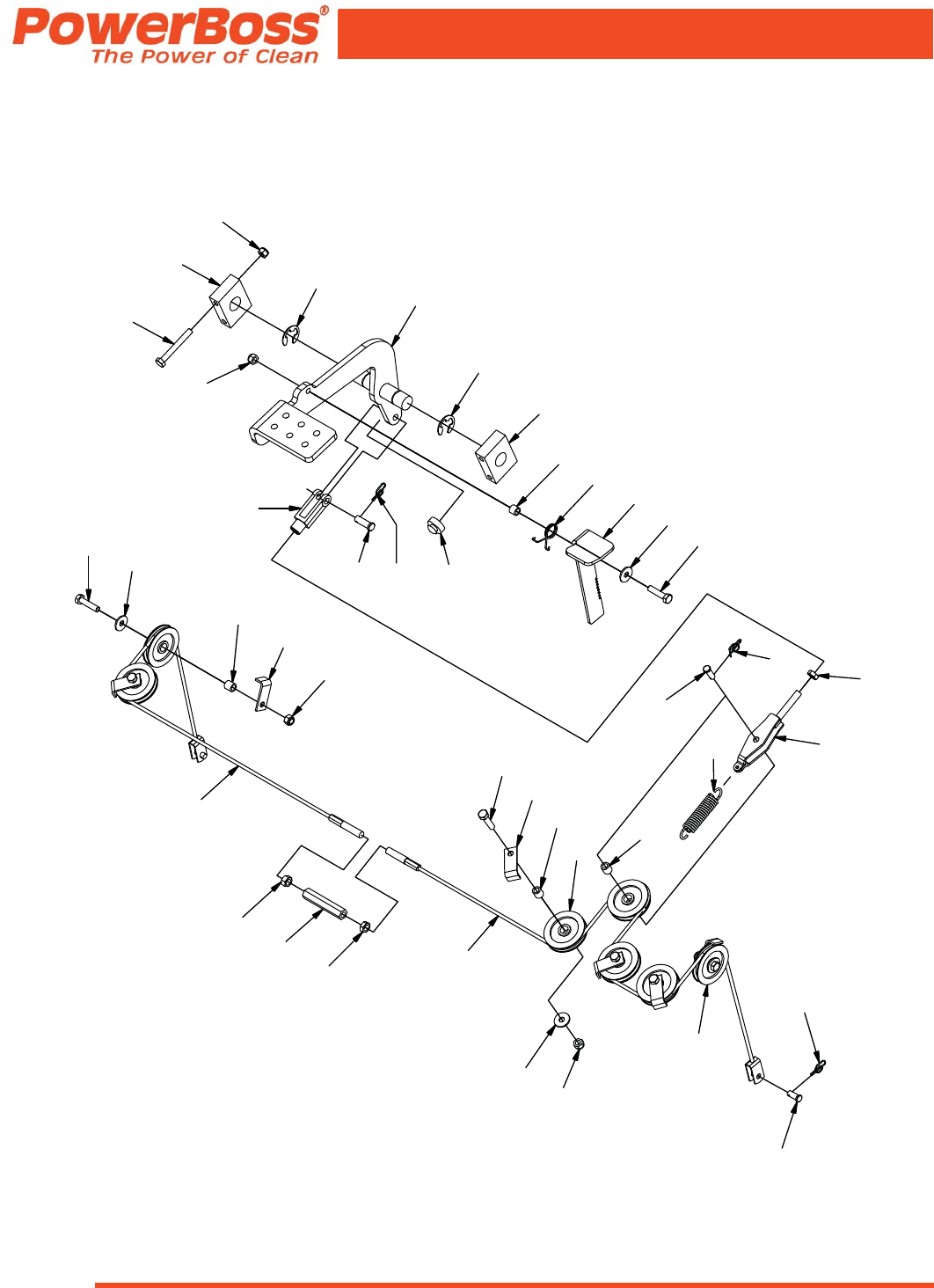

BRAKE GROUP (600688)
REV B
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 19
PARTS BREAKDOWN
BRAKE GROUP (600688)
Parts List
DESCRIPTIONQTYPART NUMBERITEM
1870(61
187+(;-$0
3,1&/(9,6;
3,1&/(9,6;
58(5,1*
3,1&/(9,6;
38//(<%'7
63$&(5%2'7
5(7$,1(5&$%/(
%/2&.%5$.(3,927
%803(5;7
:(/'0(17%5$.(3('$/
&/(9,6%5$.(38//(<
3('$/3$5.,1*%5$.(
&$%/(%5$.(5+
635,1*(;7:2'/
63$&(5%2'7
7851%8&./(
&$%/(%5$.(/+
(5,1*
635,1*7256,21
&/(9,6
%2/70;++
%2/70;++
187/+
:$6+(50)(1'(5
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 20
PARTS BREAKDOWN

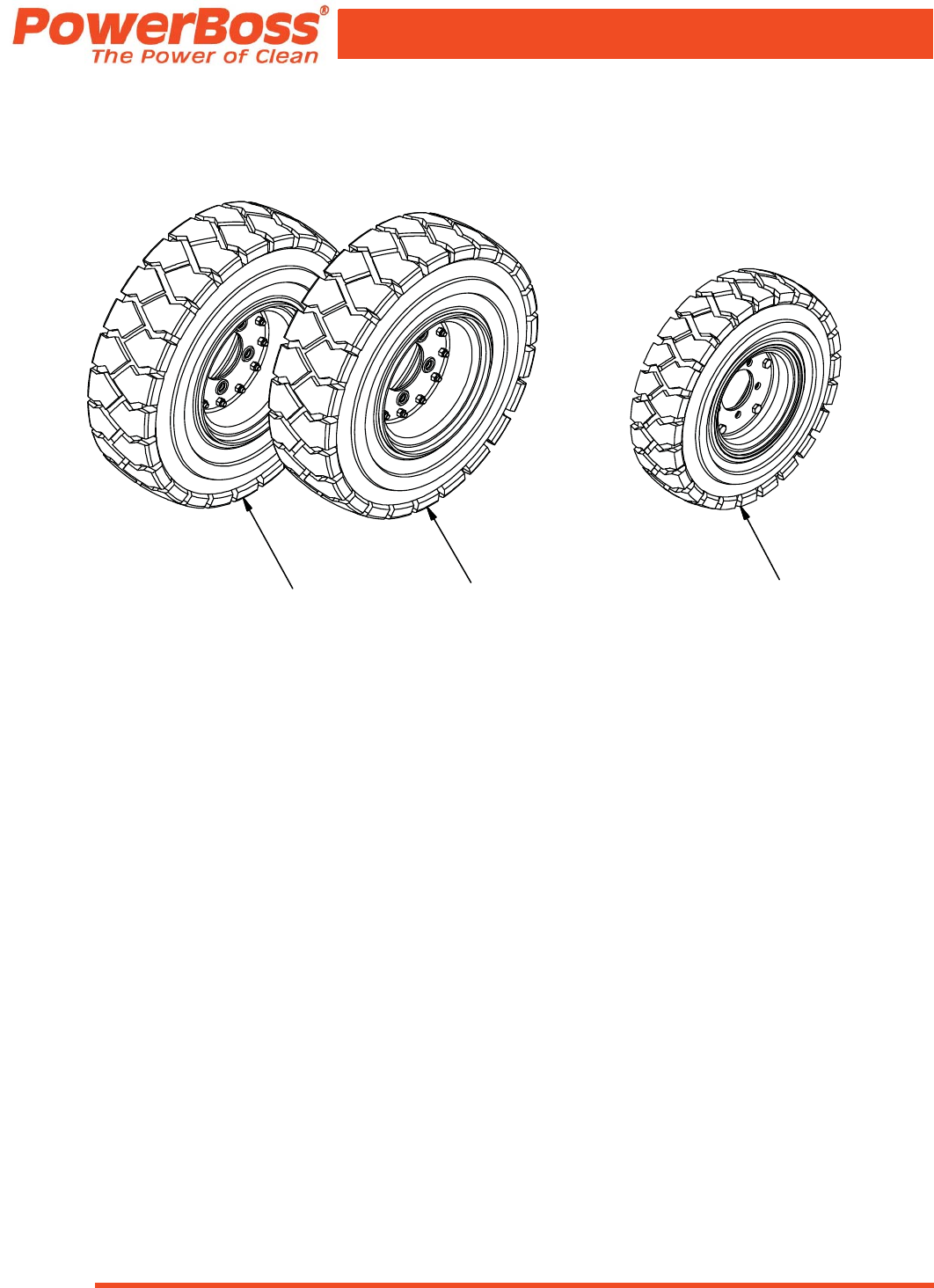

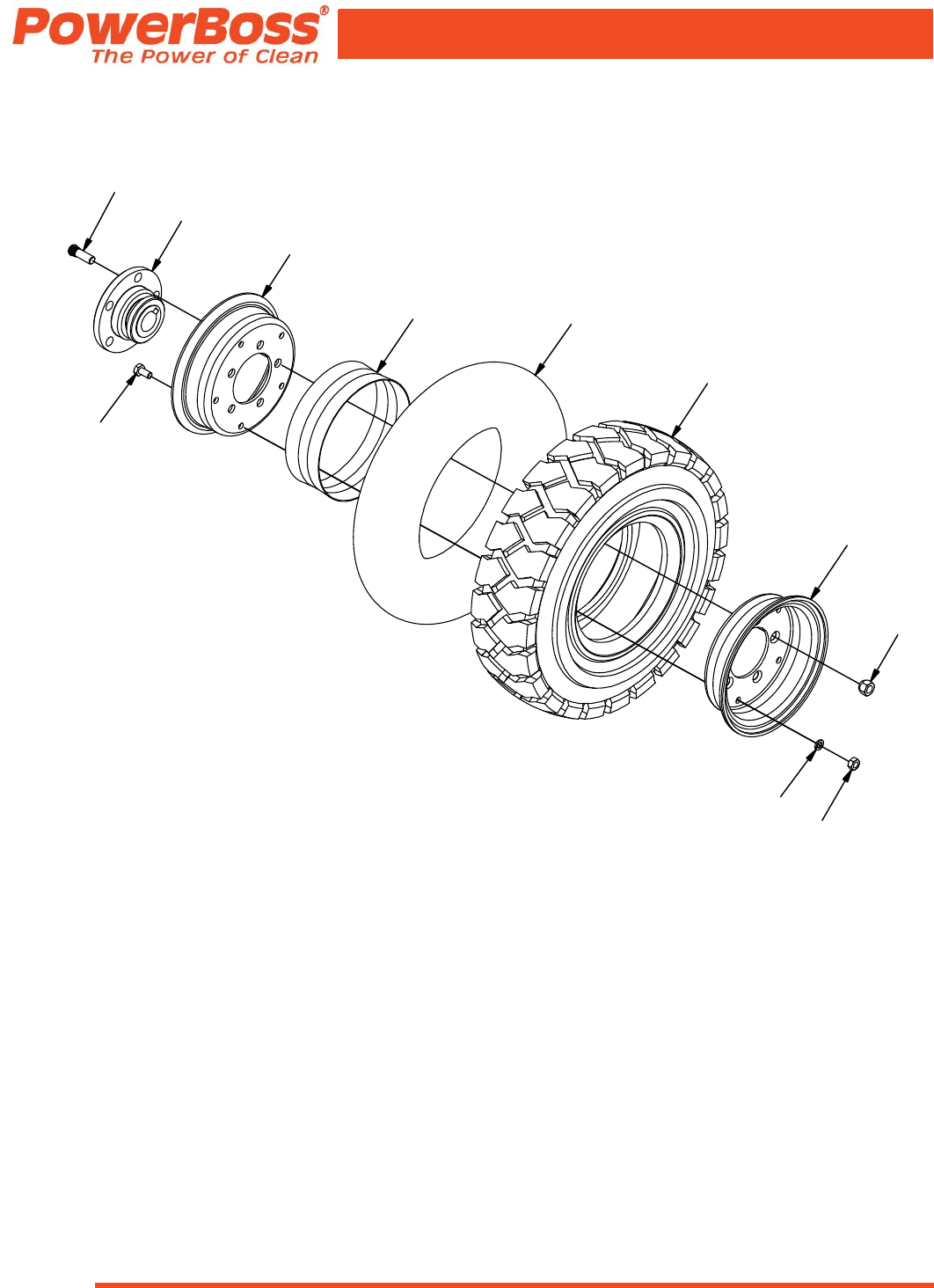

FRONT WHEEL GROUP (600687)
REV A
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 21
PARTS BREAKDOWN

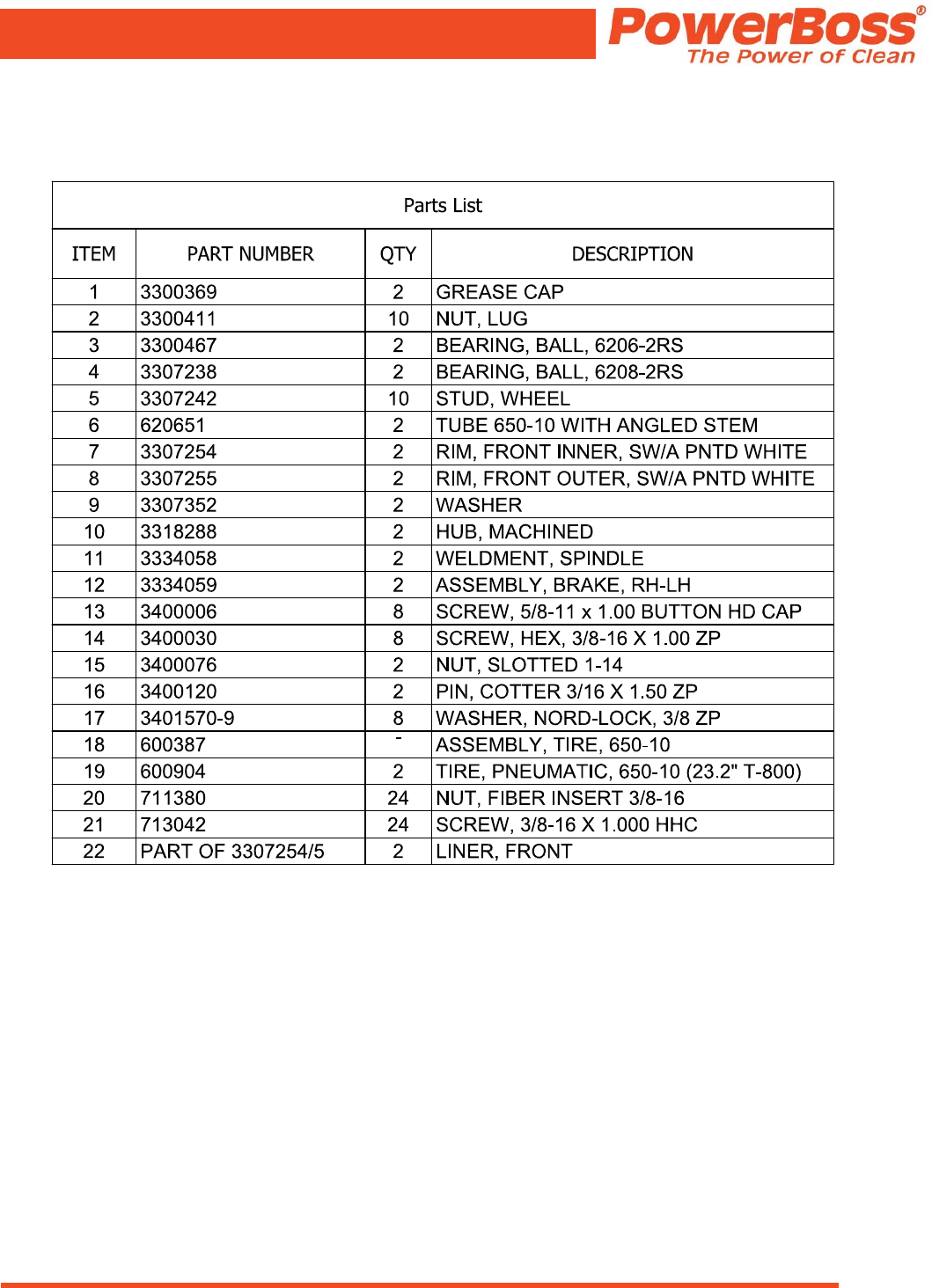

FRONT WHEEL GROUP (600687)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 22
PARTS BREAKDOWN

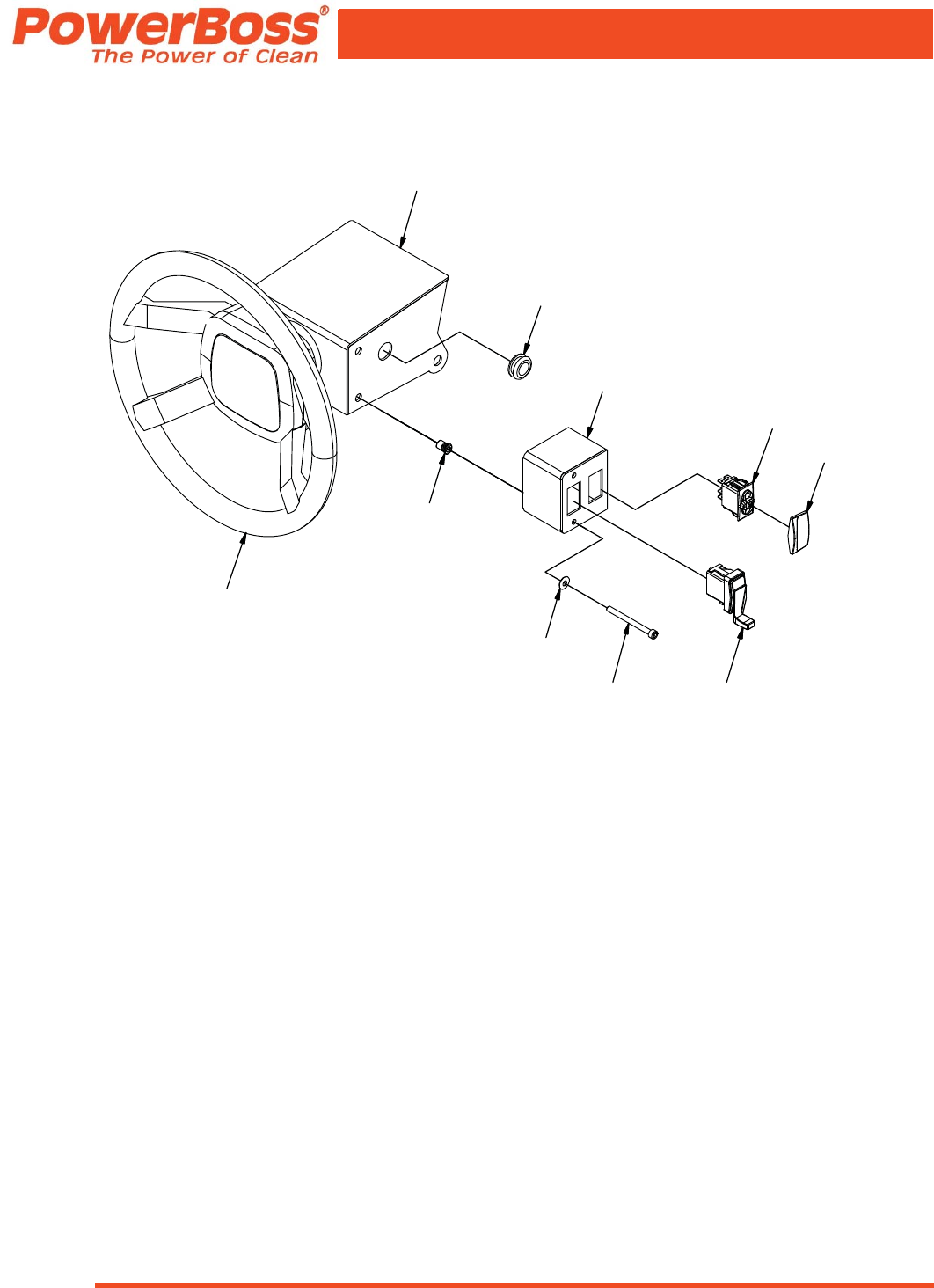

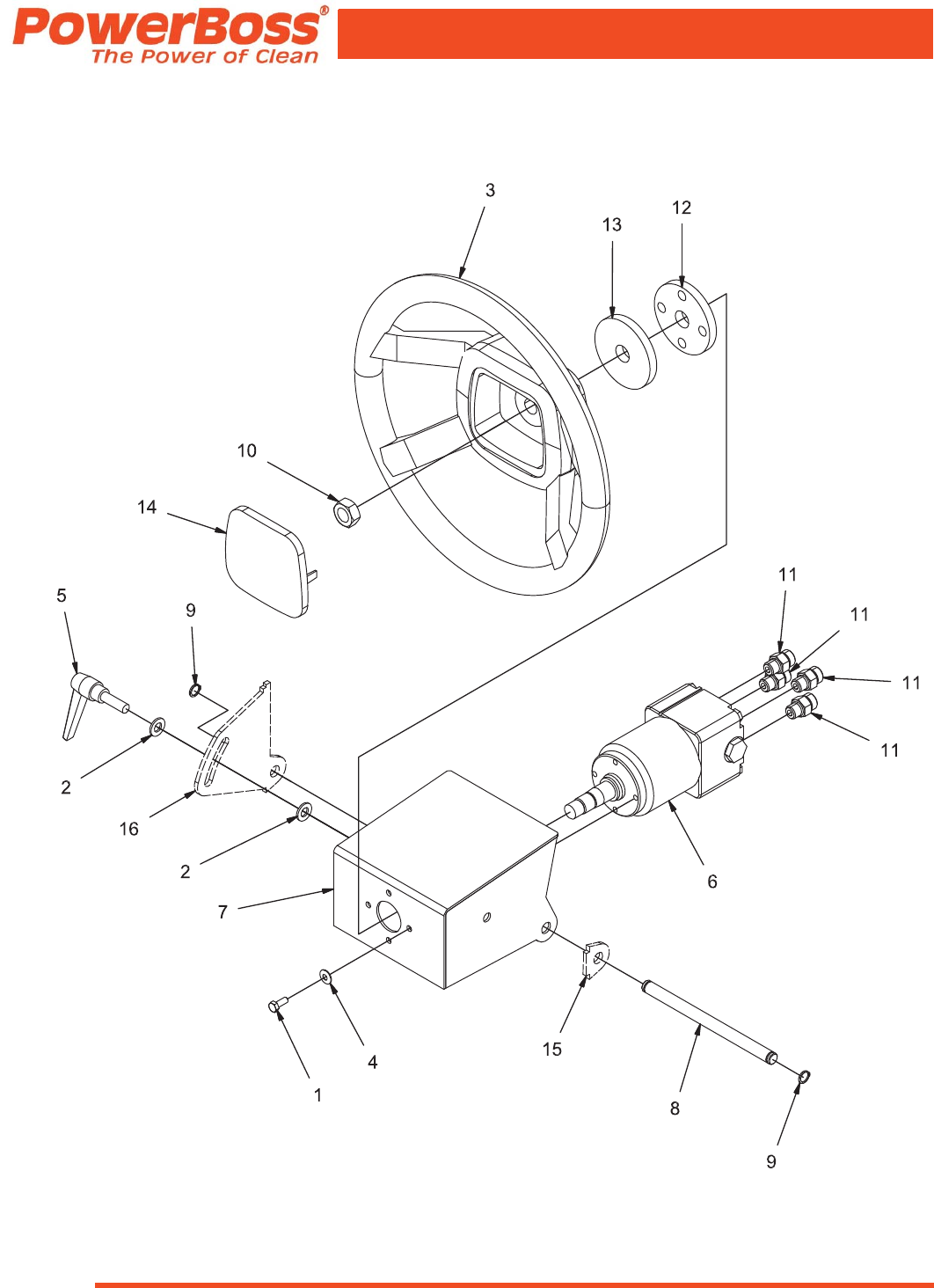

STEERING COLUMN GROUP (600682-1)
REV A
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 23
PARTS BREAKDOWN

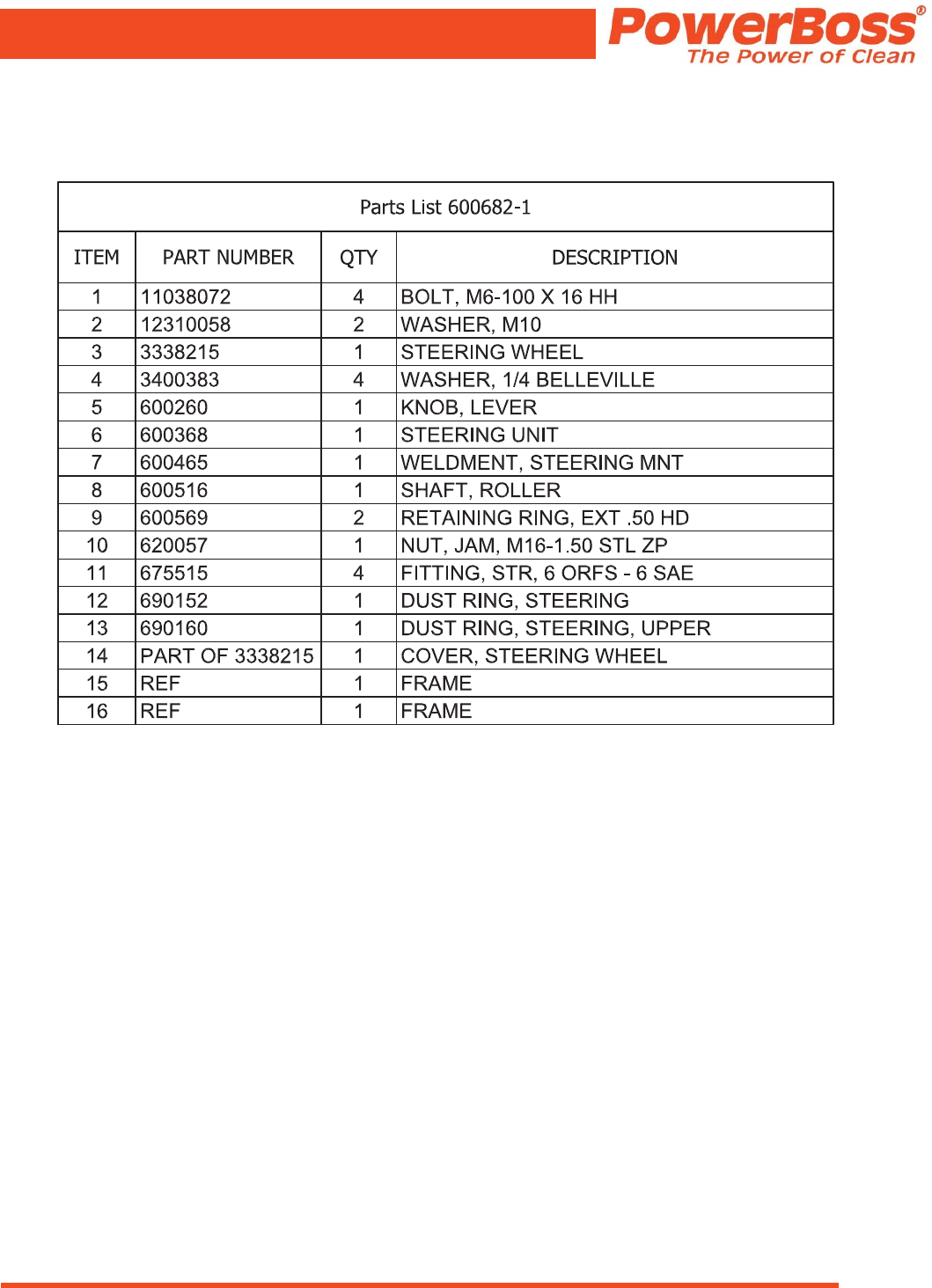

STEERING COLUMN GROUP (600682-1)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 24

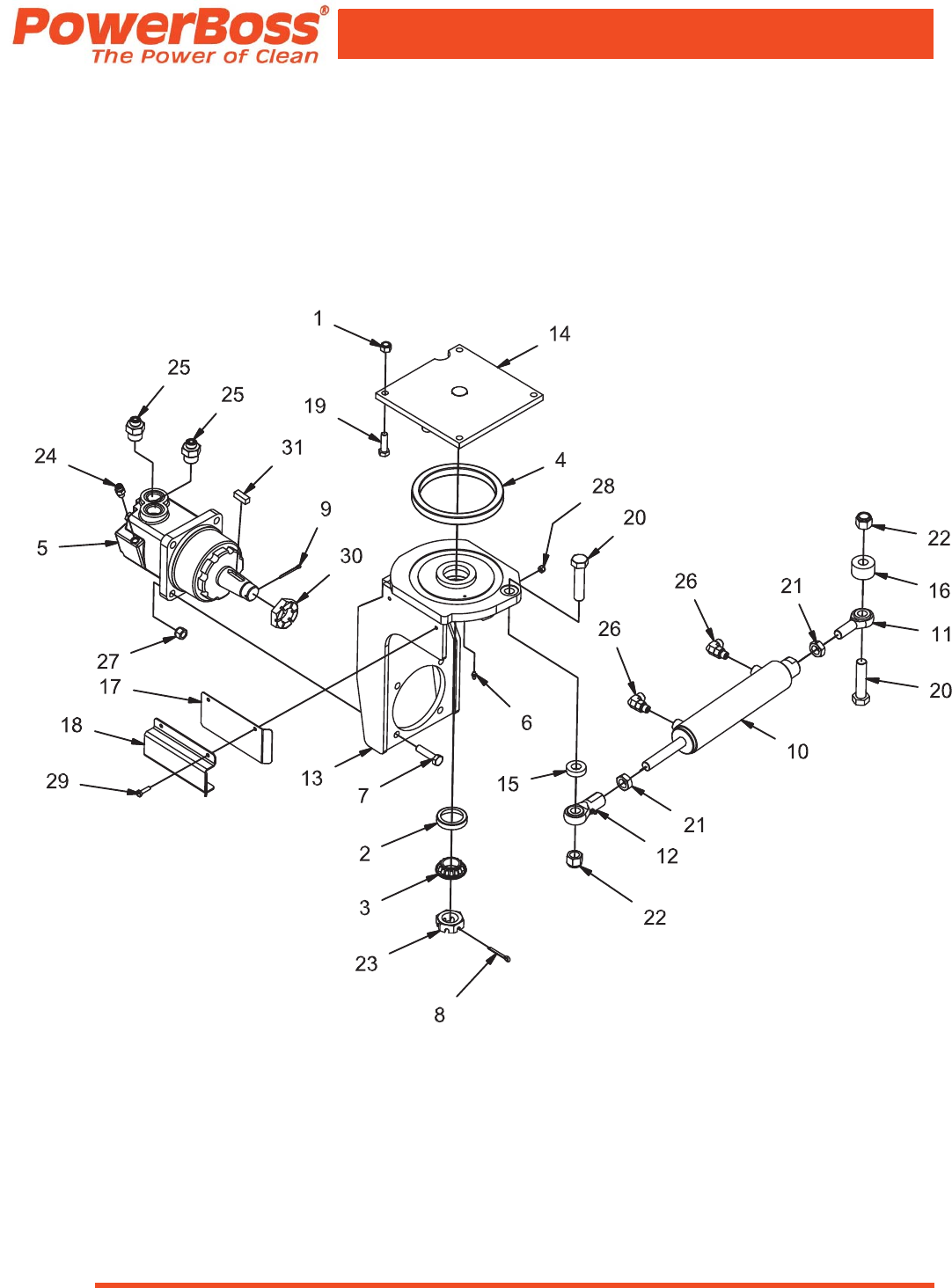

PARTS BREAKDOWN
STEERING FORK GROUP (600690-1)
REV A
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 25
PARTS BREAKDOWN

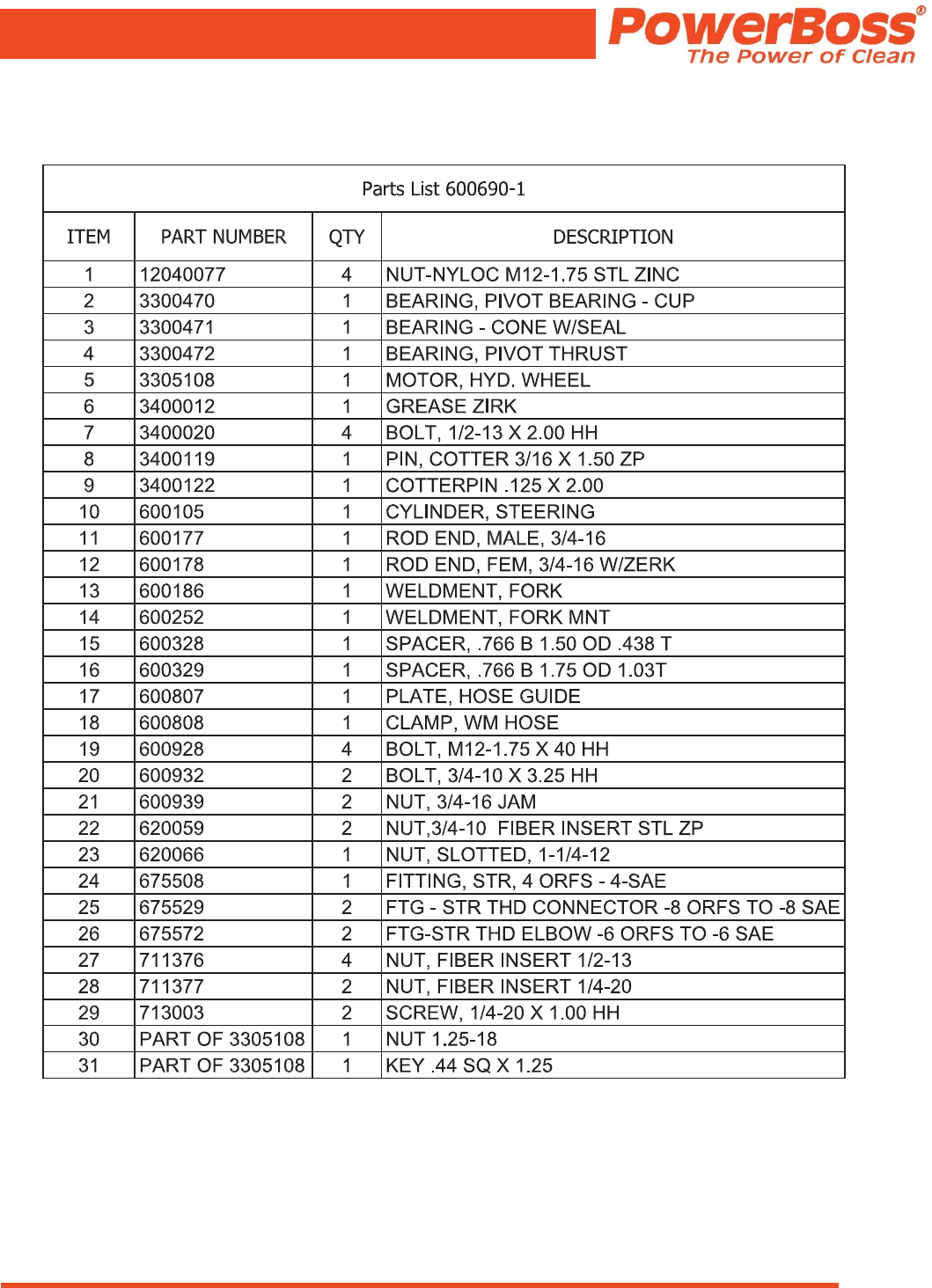

STEERING FORK GROUP (600690-1)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 26
PARTS BREAKDOWN

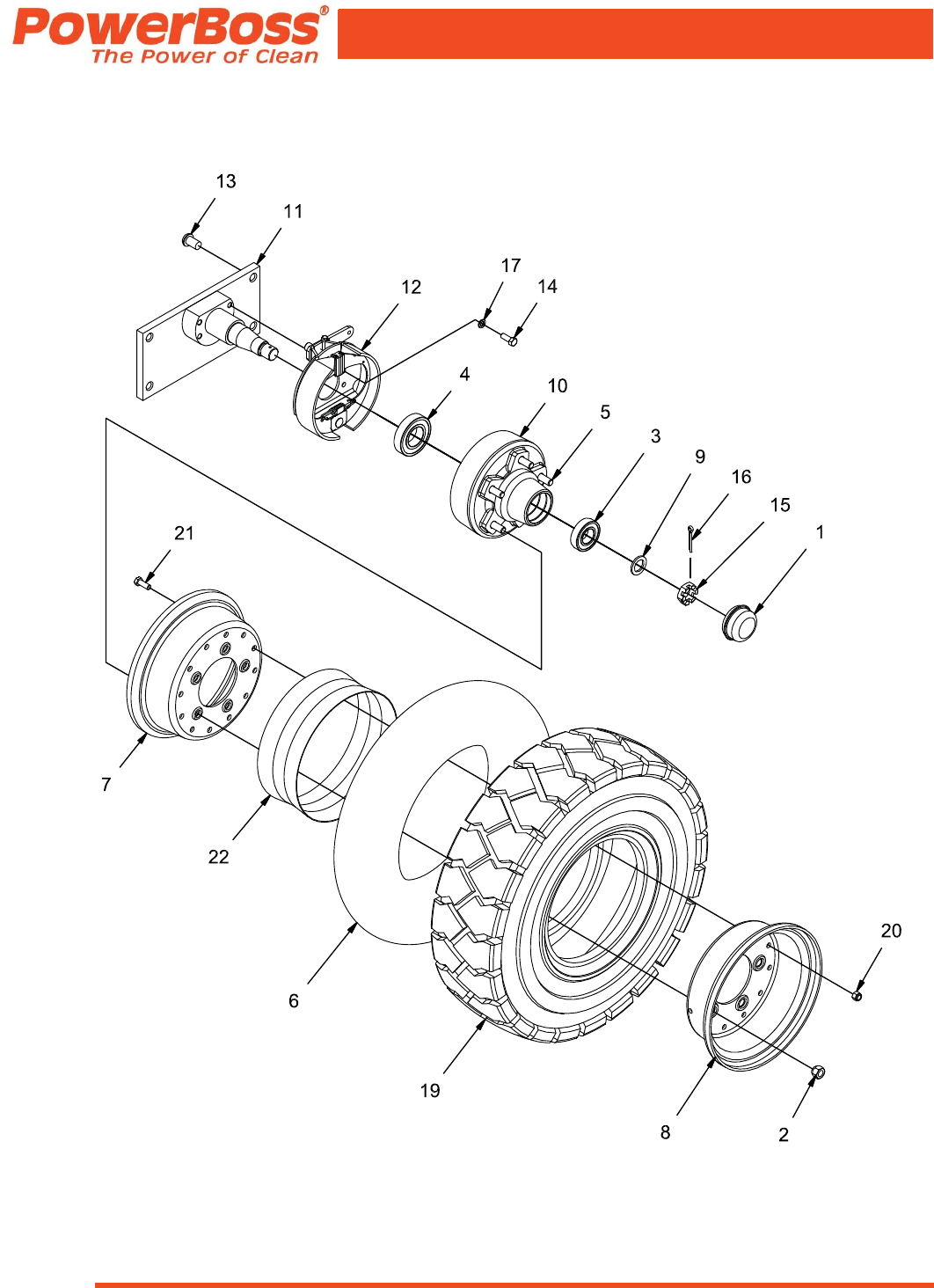

REAR WHEEL GROUP (600689)
REV *
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 27
PARTS BREAKDOWN
REAR WHEEL GROUP (600689)
Parts List
DESCRIPTIONQTY
PART NUMBERITEM
%2/70;++
1870+(;
187/8*
678':+((/
5,0287(5
5,0,11(5
78%(7,5(
+8%5($5:+((/
7,5(31(80$7,&
$66(0%/<7,5(
/2&.:$6+(50
/,1(55($5
3$572)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 28
PARTS BREAKDOWN

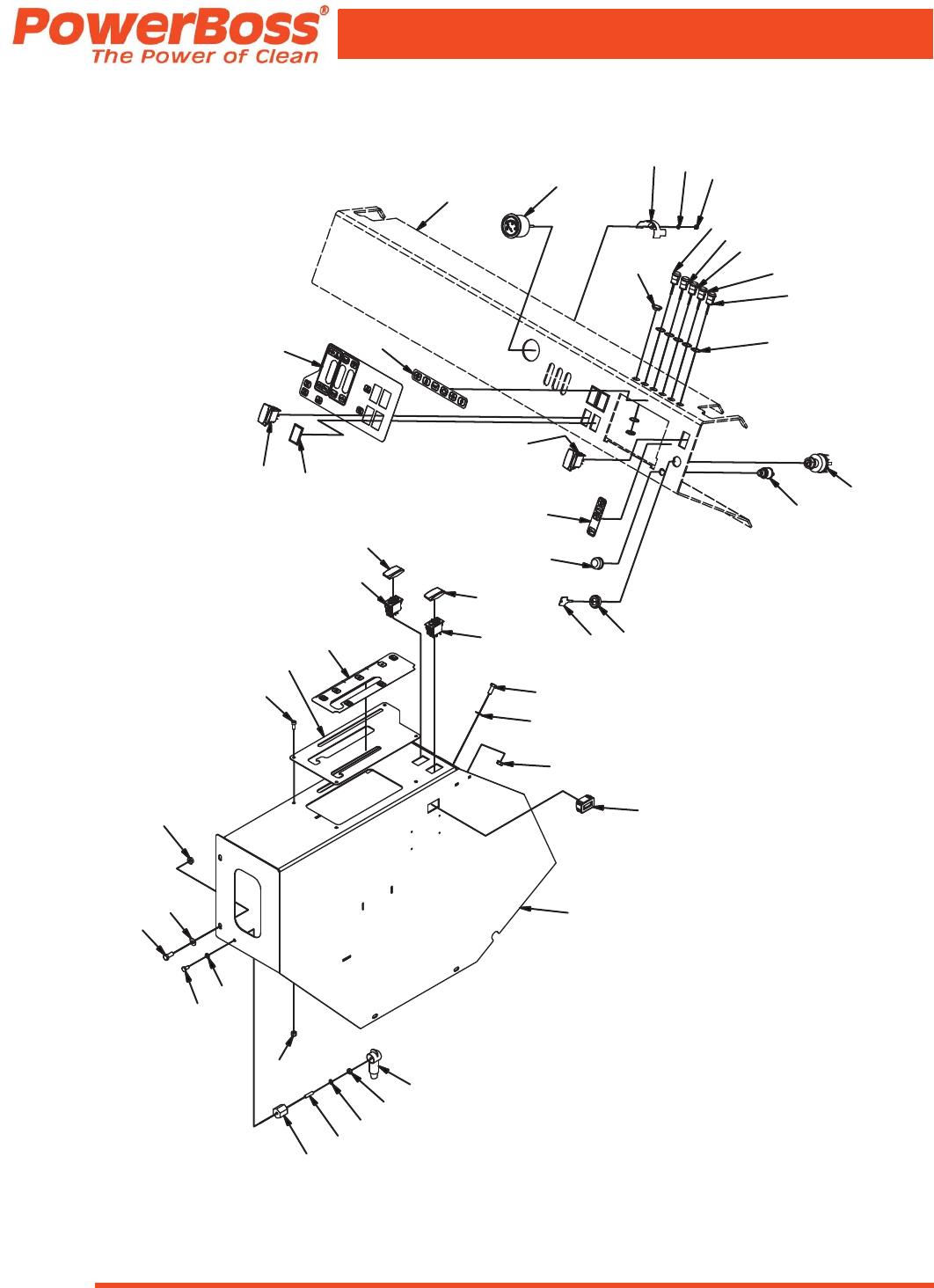

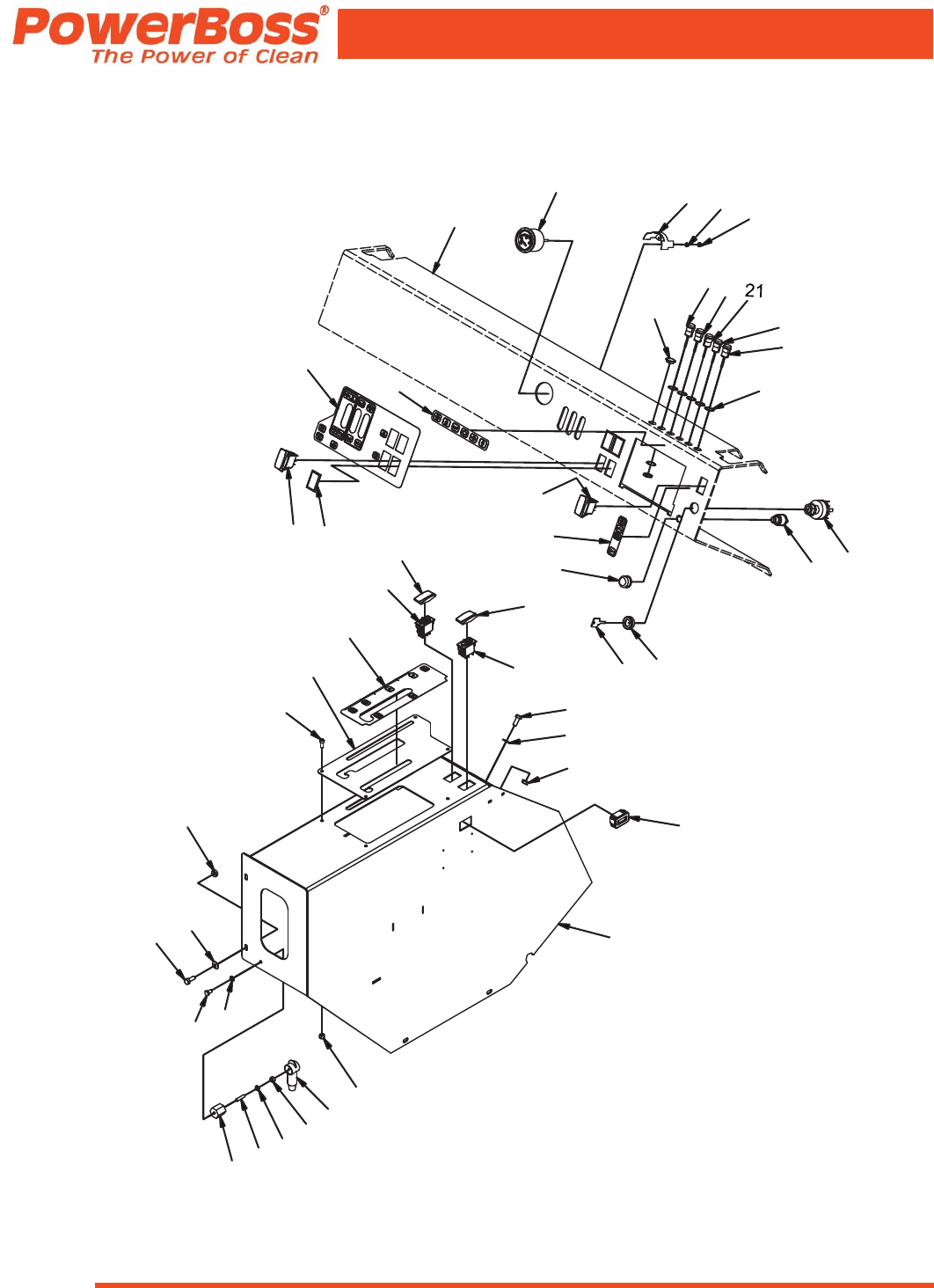

INSTRUMENT PANEL GROUP - DIESEL (600611)
REV F
6
23
25
10
26
30
32
31
234 33 13
20
20
20
4
35
5
3
36
15
27
19
1
16
8
11
9
11
7
27
15
19
18
24
12 14
29 14
28
22
9
17
53
20
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 29
PARTS BREAKDOWN
INSTRUMENT PANEL GROUP - DIESEL (600611)
Parts List
DESCRIPTIONQTY
PART NUMBERITEM
NUT, M6-1.00 ESN
4
120400441
GAUGE, FUEL133003822
SWITCH, MOMENTARY133004413
COVER, HOLE
133016694
KEYSWITCH133161005
COVER
33323529
6
SWITCH, MOMENTARY133351147
HOUR METER133360948
SWITCH, DPST
233427059
SWITCH, DPDT1334391210
SWITCH CAP
2334403811
BOLT, 1/4-20 X .50 HH1340004312
NUT, #8-322340007313
LOCK WASHER, 1/4 HS MED
2340010314
WASHER, 5/16 BELLEVILLE4340038415
WELDMENT, CONSOLE
160047416
PLATE, WEAR160056017
BOLT, M6-1.00 X 16 AHCS460091218
NUT, M8-1.25 FLNG
460093419
LIGHT ASSY, INDICATOR RED - LED474899520
LIGHT ASSY, INDICATOR AMBER - LED
174899621
NUT, HEX 1/4-20 ZINC PL171131622
DECAL, VALVE, ATLAS171592223
DECAL, BROOMS, ATLAS
171593424
DECAL, WARNING LIGHTS, ATLAS171593625
DECAL, DIESEL, ATLAS
171594126
BOLT, M8-1.25 X 20 HH471702427
PLASTIC INSULATOR174013228
1/4-20 STUD, BRASS
183363829
CAP, HORN SWITCH1PART OF30
KEY1
PART OF 3316100
31
NUT, KEYSWITCH1PART OF 331610032
LOCKWASHER, EXT #82PART OF 60054233
RETAINER, GAUGE
1PART OF 60054234
SEAL FOR LED
5
REF35
FRAME
-
REF.36
WIRE ASSY, FUEL GAUGE LIGHT13301345-1
-
HARNESS, FUEL GAUGE1748936
-
TERMINAL INSULATOR, RED174274053
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 30
PARTS BREAKDOWN
INSTRUMENT PANEL GROUP - GAS (600636)
REV G
6
3
25
33 32 34
2
39
23
7
10
36 37
26
35
15
27
19
18
24
11
12
12
8
27
15
19
9
16
1
5
20
21
20
20
38
11
17
31
22
14
28
14
13
29
20
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 31
PARTS BREAKDOWN
INSTRUMENT PANEL GROUP - GAS (600636)
Parts List
DESCRIPTIONQTYPART NUMBERITEM
NUT, M6-1.00 ESN
4120400441
GAUGE, FUEL133003822
SWITCH, MOMENTARY133004413
WIRE ASSY, FUEL GAUGE LIGHT13301345-14
COVER, HOLE13301669
5
KEYSWITCH
133161006
COVER
333235297
SWITCH, MOMENTARY
133351148
HOUR METER133360949
SWITCH, 3-POSITION1334270310
SWITCH, DPST2334270511
SWITCH CAP2334403812
BOLT, 1/4-20 X .50 HH
1340004313
LOCK WASHER, 1/4 HS MED
2340010314
WASHER, 5/16 BELLEVILLE4340038415
WELDMENT, CONSOLE160047416
PLATE, WEAR160056017
BOLT, M6-1.00 X 16 AHCS460091218
NUT, M8-1.25 FLNG
4
60093419
LIGHT ASSY, INDICATOR RED - LED
474899520
LIGHT ASSY, INDICATOR AMBER - LED
174899621
NUT, HEX 1/4-20 ZINC PL171131622
DECAL, VALVE, ATLAS171592223
DECAL, BROOMS, ATLAS171593424
DECAL, WARNING LIGHTS, ATLAS171593625
DECAL, ENGINE, ATLAS1
715937
26
BOLT, M8-1.25 X 20 HH
471702427
PLASTIC INSULATOR
174013228
TERMINAL INSULATOR, RED174274029
HARNESS, FUEL GAUGE174893630
1/4-20 STUD, BRASS183363831
LOCKWASHER, EXT #82PART OF 330038232
RETAINER, GAUGE
1
PART OF 3300382
33
NUT, #8-32
2
PART OF 3300382
34
CAP, HORN SWITCH
1PART OF 330044135
KEY1PART OF 331610036
NUT, KEYSWITCH1PART OF 331610037
SEAL FOR LED INDICATOR LIGHT
5
PART OF LED38
FRAME
-
REF.
39
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 32
PARTS BREAKDOWN
INSTRUMENT PANEL GROUP - LPG (600700)
REV E
32 31
8
7
10
33
5
17
15
11
11
4
18 18
24
23 25
26
30
2
3
9
1
27
14
14
27
19
19
20
19
34
10 6
16
12 13
28
13
21
29
49
19
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 33
PARTS BREAKDOWN
INSTRUMENT PANEL GROUP - LPG (600700)
Parts List 600700
DESCRIPTIONQTYPART NUMBERITEM
NUT, M6-1.00 ESN4120400441
SWITCH, MOMENTARY133004412
COVER, HOLE
133016693
PLUG, PLASTIC, 2.00133018224
KEYSWITCH133161005
COVER
333235296
SWITCH, MOMENTARY1
33351147
HOUR METER133360948
SWITCH, 3-POSITION133427039
SWITCH, DPST
2334270510
SWITCH CAP2334403811
BOLT, 1/4-20 X .50 HH1340004312
LOCK WASHER, 1/4 HS MED
2340010313
WASHER, 5/16 BELLEVILLE
4
340038414
WELDMENT, CONSOLE160047415
PLATE, WEAR160056016
BOLT, M6-1.00 X 16 AHCS
460091217
NUT, M8-1.25 FLNG460093418
LIGHT ASSY, INDICATOR RED - LED474899519
LIGHT ASSY, INDICATOR AMBER - LED
174899620
NUT, HEX 1/4-20 ZINC PL171131621
DECAL, VALVE, ATLAS171592223
DECAL, BROOMS, ATLAS
171593424
DECAL, WARNING LIGHTS, ATLAS1
715936
25
DECAL, ENGINE, ATLAS171593726
BOLT, M8-1.25 X 20 HH471702427
PLASTIC INSULATOR
174013228
1/4-20 STUD, BRASS183363829
CAP, HORN SWITCH1PART OF 330044130
NUT, KEYSWITCH
1
PART OF 3316100
31
KEY1PART OF 331610032
FRAME
-
REF33
SEAL FOR LED INDICATOR LIGHT
5REF34
TERMINAL INSULATOR, RED
174274049
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 34

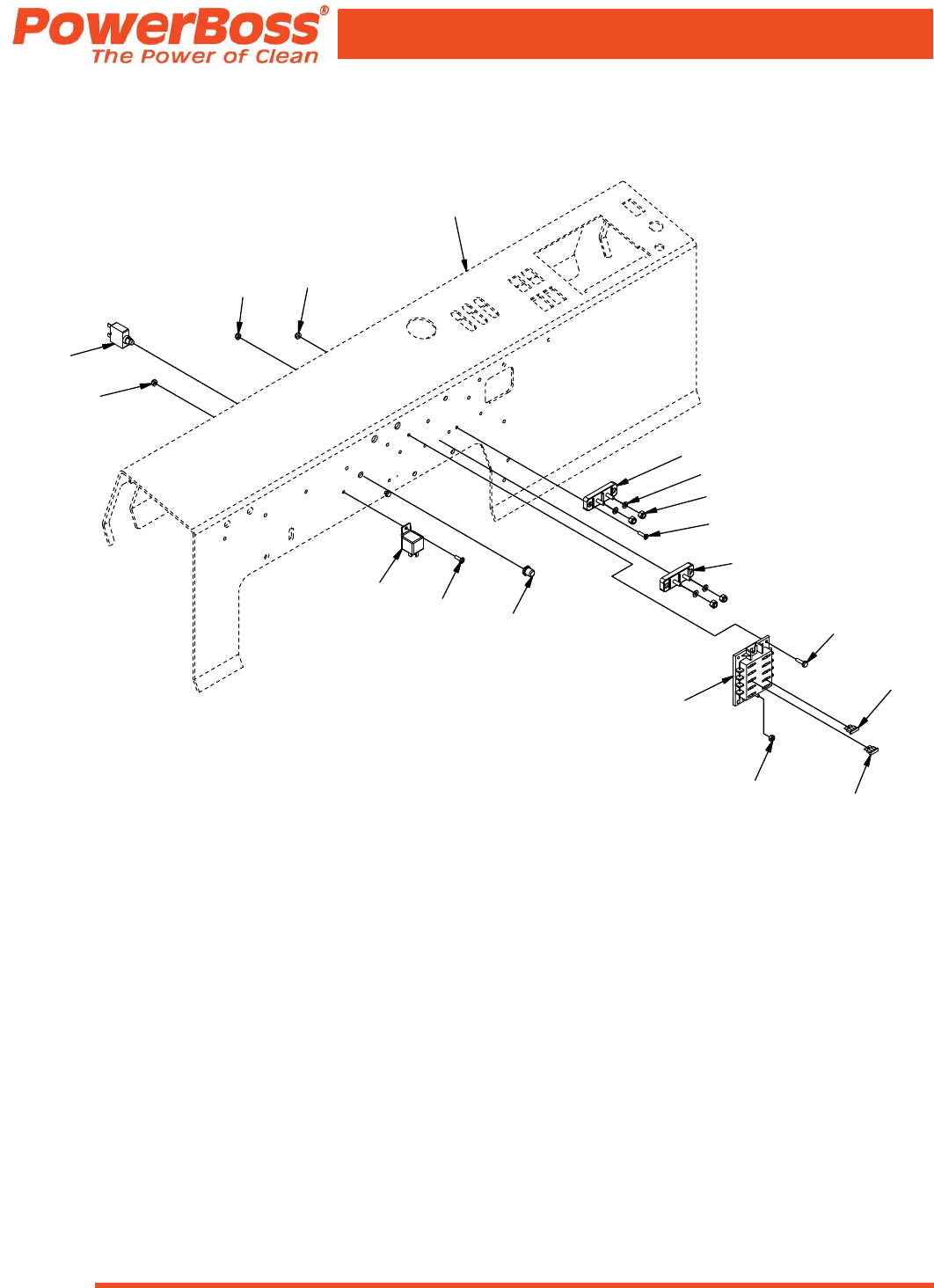

PARTS BREAKDOWN

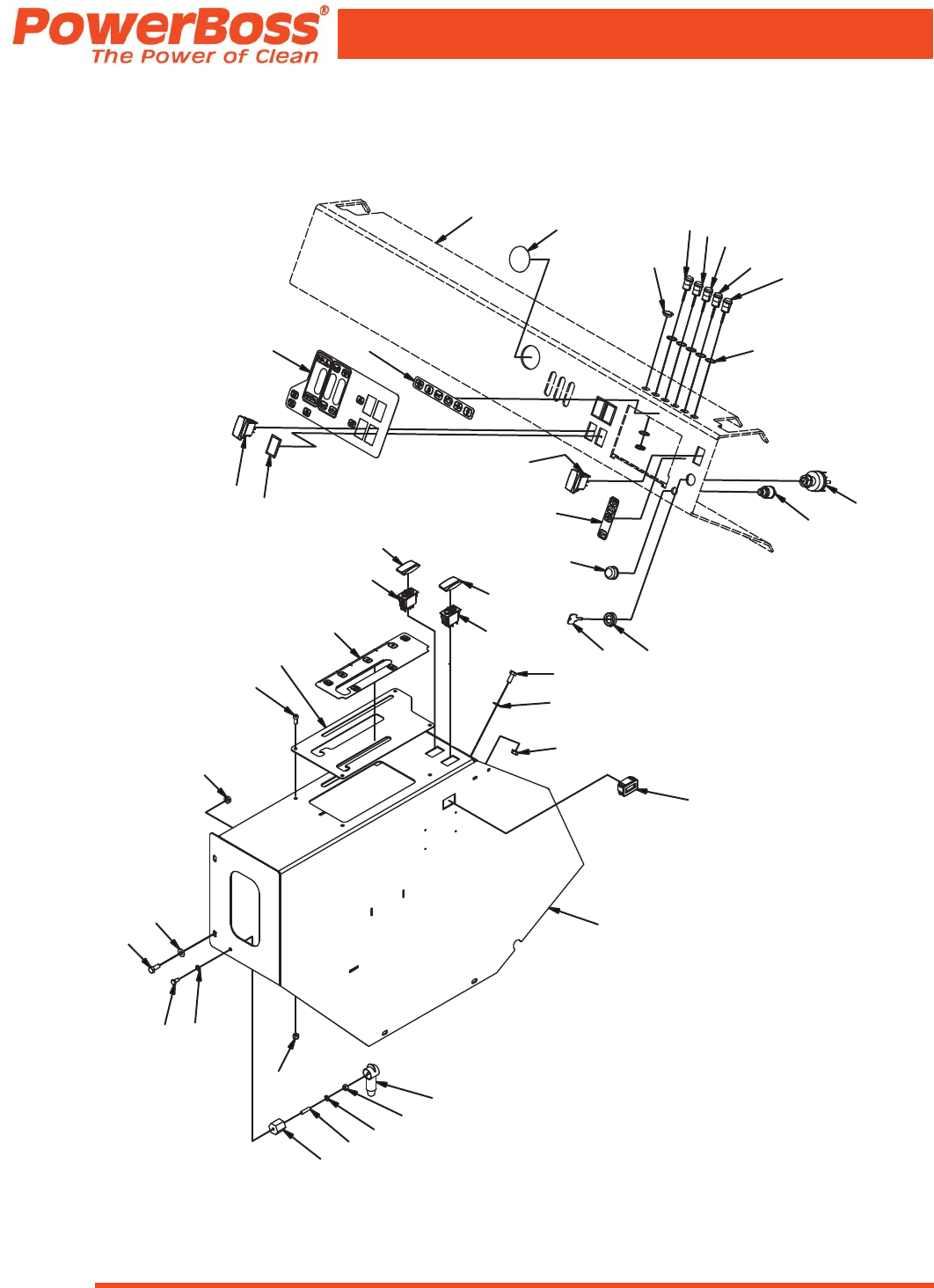

ELECTRICAL GROUP - DIESEL (600612)
REV B
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 35
PARTS BREAKDOWN
ELECTRICAL GROUP - DIESEL (600612)
Parts List
ITEM PART NUMBER QTY DESCRIPTION
1 600356 1 WELDMENT COVER FRAME
2 600934 2 NUT-FLANGE WIZZ M8-1.25 ZP
3 711564 1 WSR-EXTERNAL LOCK 1/4
4 717024 2 SCR-HH M8-1.25 X 20 ZP GRADE 8.8
5 748769 1 DIESEL CONTROL BOX
6 3400384 2 WASHER-CONICAL SPRING 5/16
7 11038072 1 SCR-HH M6-1.0 X 16 ZP CLASS 8.8
8 12040044 1 NUT-NYLOC M6 X 1.0 ZP CLASS 6
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 36

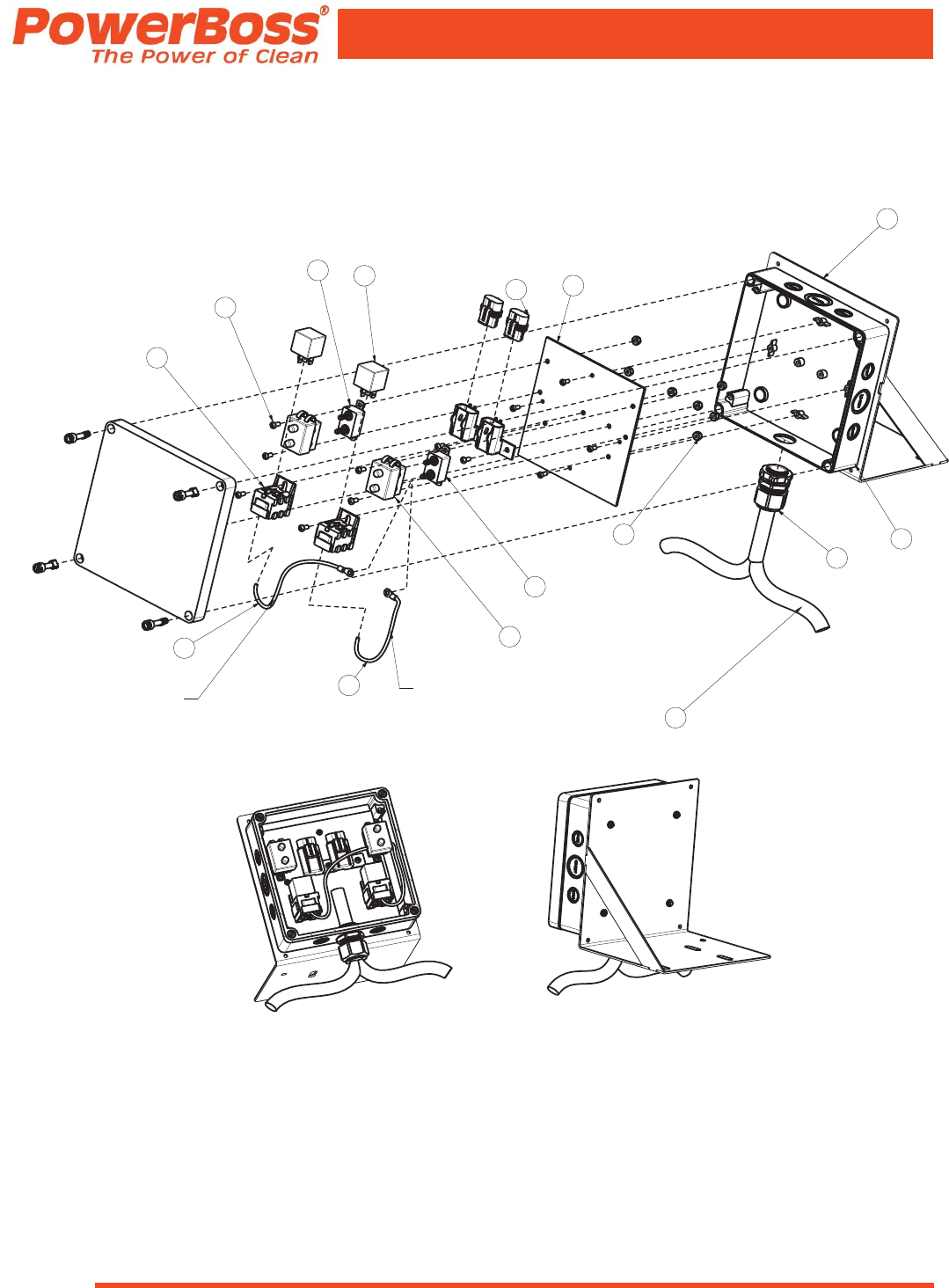

PARTS BREAKDOWN
DIESEL CONTROL BOX (748769)
REV C
6+2:121/<
)255()(5(1&(
6+2:121/<
)255()(5(1&(
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 37
PARTS BREAKDOWN

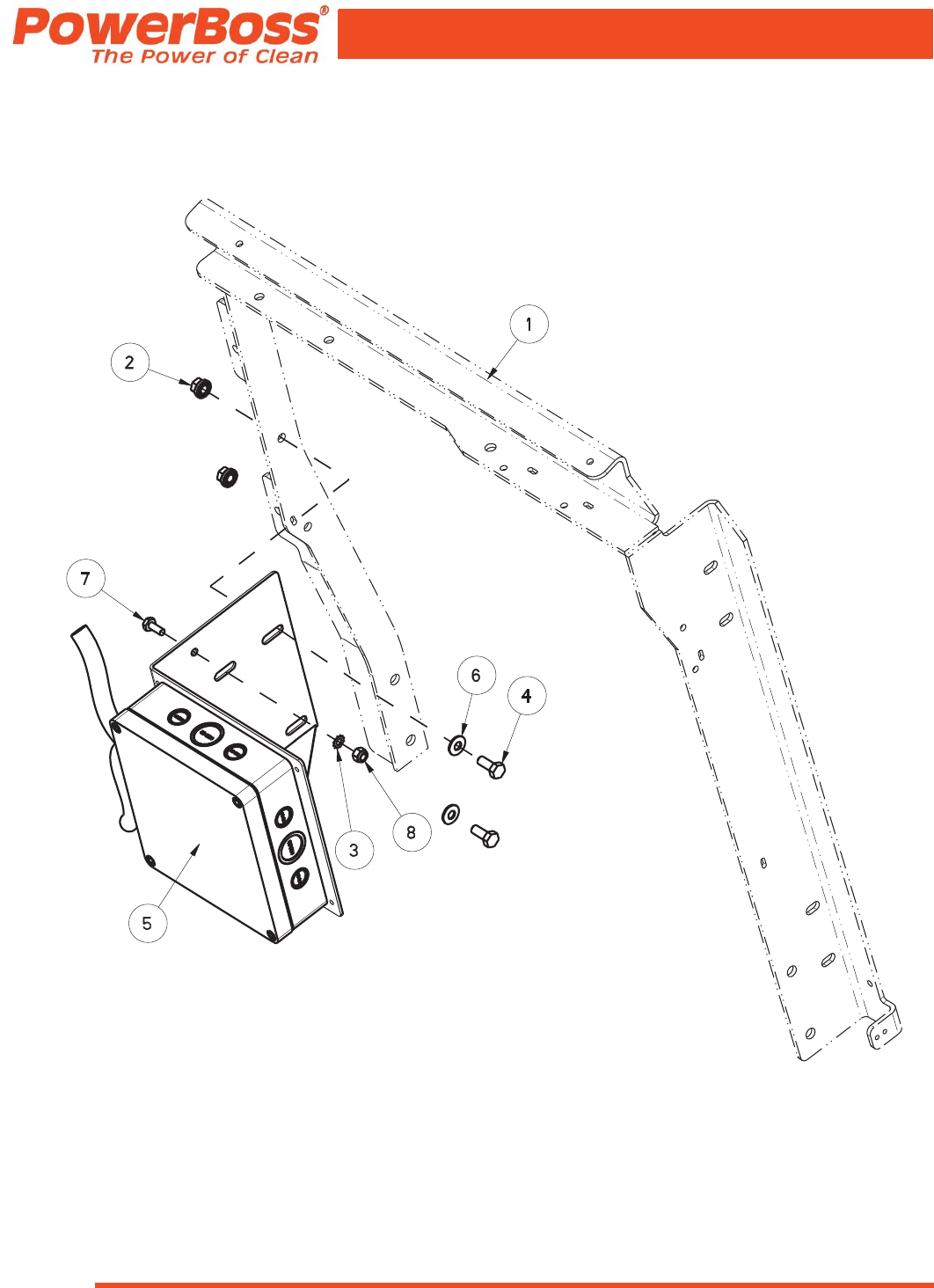

DIESEL CONTROL BOX (748769)
Parts List
ITEM PART NUMBER QTY DESCRIPTION
1 690042 1 BRKT, MTG, WELD, DSL CONTROL BOX
2 710328 8 SCR-RHMS 8-32 X .37 ZP
3 712540 4 SCR-THMS 10-24 X .37 SS
4 748447 1 WIRING HARNESS, DSL CONTROL BOX
5 748447-1 1 WIRE ASSY, ORANGE
6 748447-2 1 WIRE ASSY, YELLOW
7 748762 1 CIRCUIT BREAKER, 12V 50A
8 748763-MCH 1 MOUNTING PLATE, MACHINED
9 748764 1 ENCLOSURE W/ METRIC KNOCKOUTS
10 748767 2 RELAY, 14 VDC 50/30 A
11 748768 1 CORDGRIP, M25, LIQUID TIGHT
12 748962 1 CIRCUIT BREAKER, 12V 40A
13 748963 2 CIRCUIT BREAKER BOOT
14 748964-1 2 ASSY, FUSE HOLDER
15 748967 2 SOCKET, RELAY
16 3400082 8 NUT-NYLOC 8-32 ZP
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 38
PARTS BREAKDOWN
ELECTRICAL GROUP (600880)
REV A
9
12
9
9%
&
10
8
14
14
15
9
7
13
1
2
6
3$
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 39
PARTS BREAKDOWN
ELECTRICAL GROUP (600880)
INSTRUMENT PANEL - FUSES, CIRCUIT BREAKER, AND TERMINAL BLOCK
ITEM PART NO. QTY DESCRIPTION
1 12040044 4 NUT, M6-1.00 ESN
2 12310033 4 WASHER, M6
3 748900 1 HARNESS, MAIN
3A 3322599
PART OF 748900
1 FUSE BLOCK
3B PART OF 748900 6 FUSE, 15A
3C PART OF 748900 4 FUSE, 10A
6 3400045 1 SCR-PHMS 8-32X0.62 ZP SLOT HEAD
7 3400204 2 SCR-PAN,#10-32X0.62,PHL ZP
8 710556 4 SCREW, FHMS, 10-32 X .75 ZP
9 711350 8 NUT, 10-32, ESN
10 742748 1 BOOT, CIRCUIT BREAKER
12 748904 1 CIRCUIT BREAKER, 40A
13 PART OF 748900 1 RELAY
14 90286238 2 TERMINAL BLOCK
15 REF - FRAME
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 40

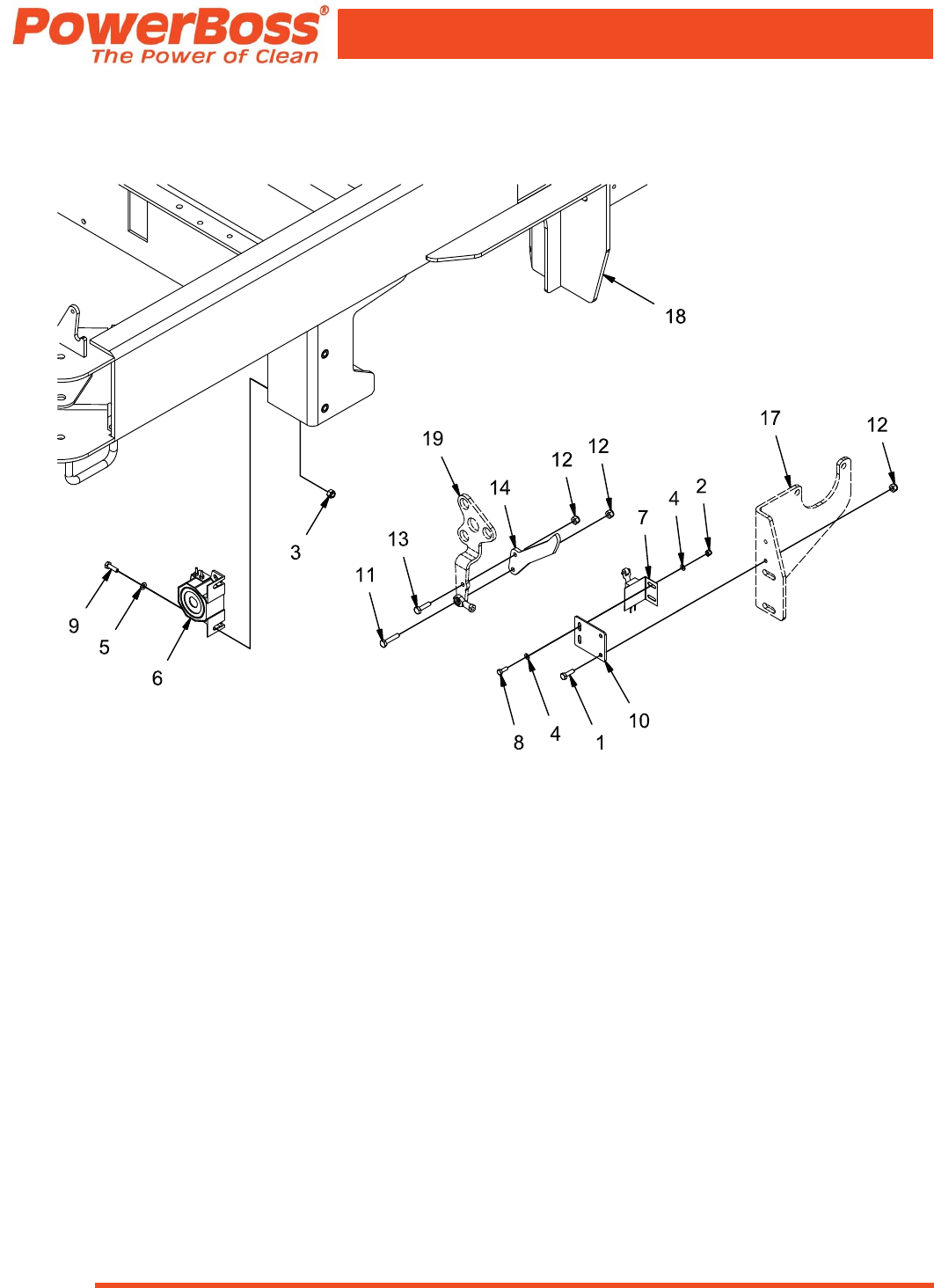

PARTS BREAKDOWN

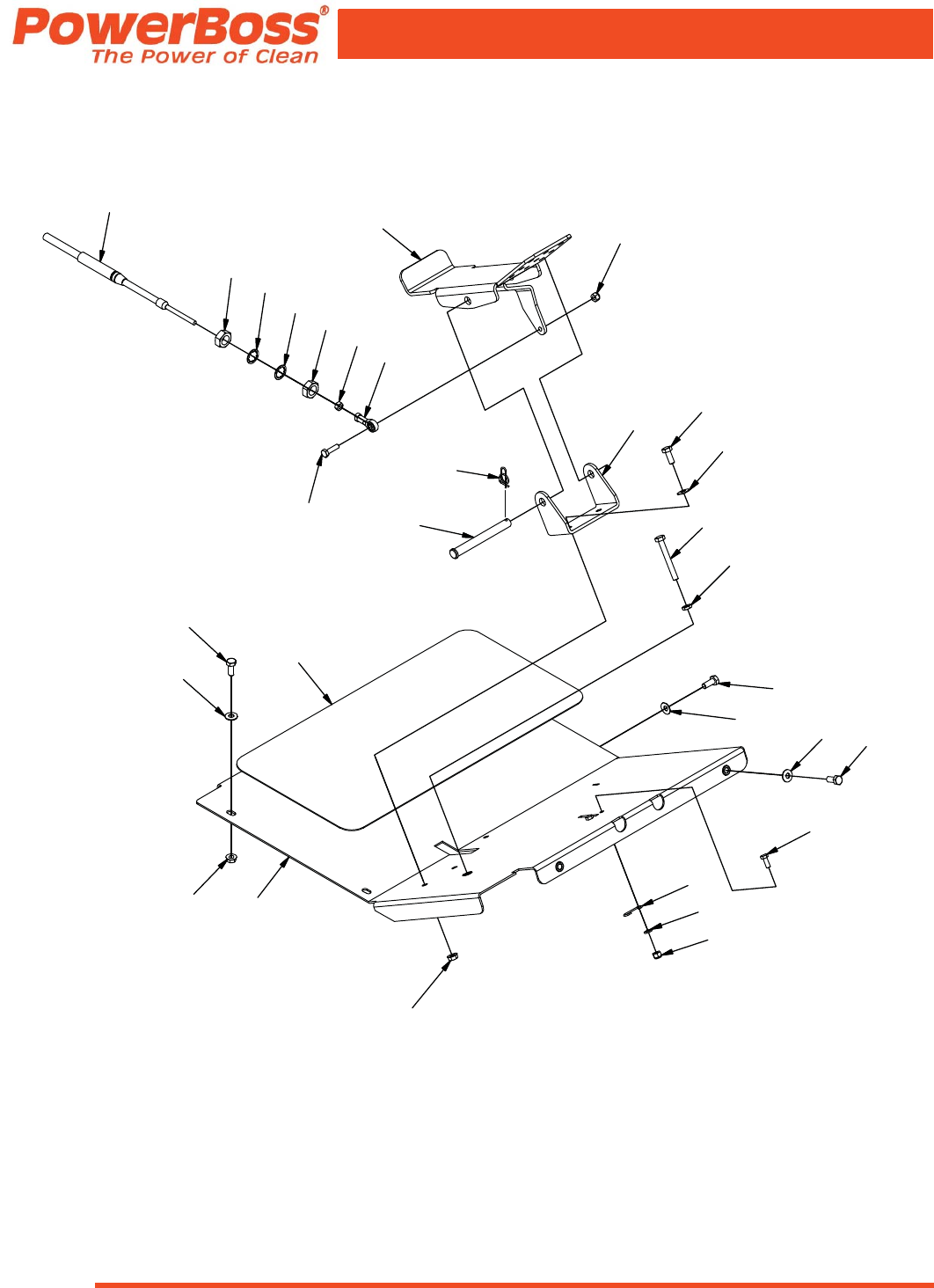

DIRECTIONAL CONTROL GROUP (600681)
REV *
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 41
PARTS BREAKDOWN
DIRECTIONAL CONTROL GROUP (600681)
Parts List
DESCRIPTIONQTYPART NUMBERITEM
%2/70;++
1870-$0
1870(61
:$6+(50
187
:$6+(5%(//(9,//(
&$7&+3$5.,1*%5$.(
:(/'0(17)/225
3$')/225
%5$&.(7)53('$/
3('$/)5
&$%/(',5&21752/
52'(1')(0
58(5,1*
1870)/1*
3,1&/(9,6;
%2/70;++
187),%(5,16(57
6&5(:;++
%2/70;++
187-$0
3$572)
/2&.:$6+(53$572)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 42
PARTS BREAKDOWN

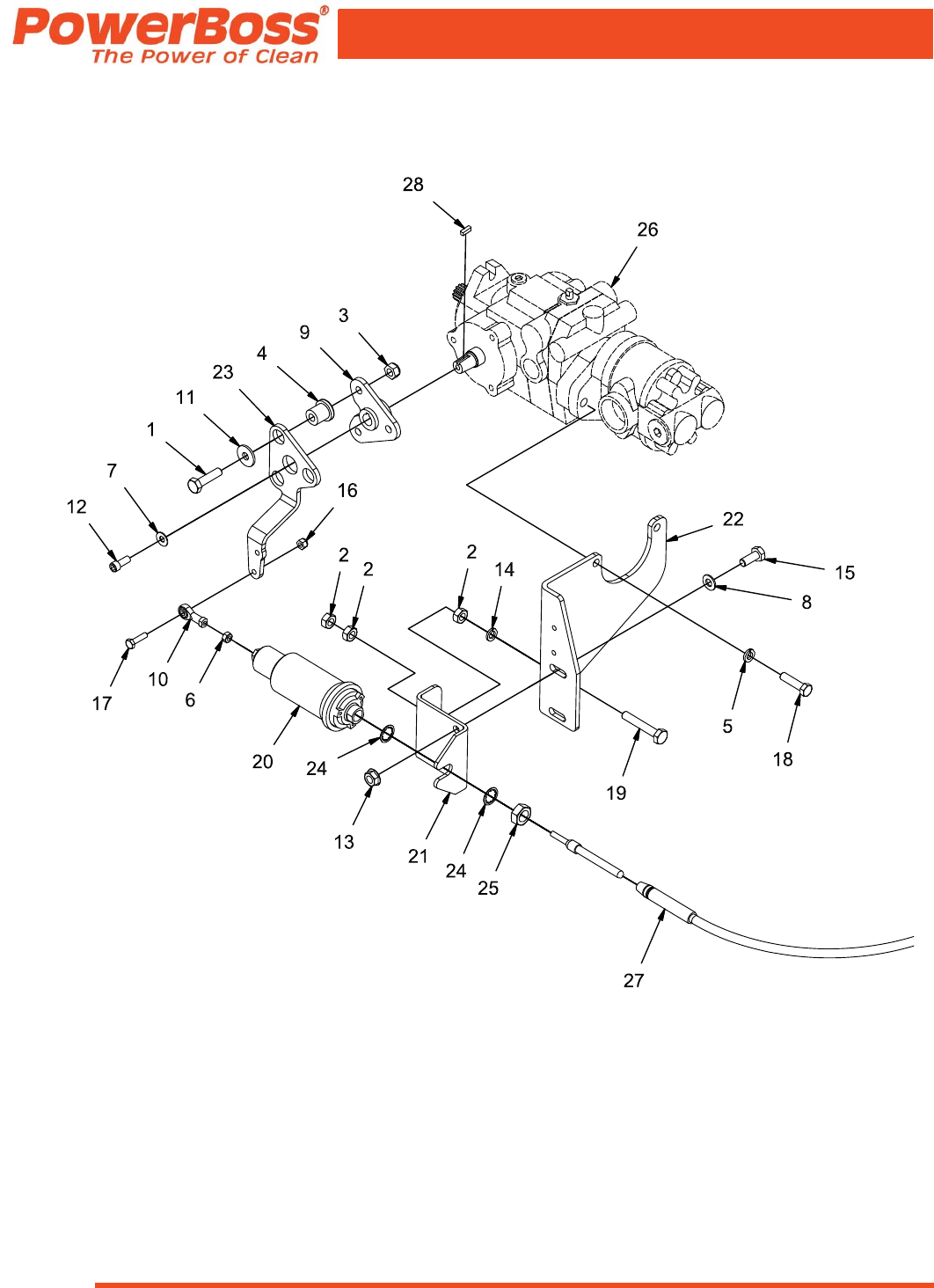

PUMP LINKAGE GROUP (600608)
REV A
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 43
PARTS BREAKDOWN
PUMP LINKAGE GROUP (600608)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 44
PARTS BREAKDOWN
SPEED RESTRICTION GROUP - 1 (600684)
REV *
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 45
PARTS BREAKDOWN
SPEED RESTRICTION GROUP - 1 (600684)
Parts List
DESCRIPTIONQTYPART NUMBERITEM
%/7++0;67/=,1&
1870(61
:$6+(50
187
58(5,1*
3,1&/(9,6;
%5$&.(73('$/6723
63$&(5%2'7
&$%/(63(('/,0,7
&/(9,6)(0
:$6+(50)(1'(5
/2&.:$6+(53$572)
187-$03$572)
)/2253$1(/
5()
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 46
PARTS BREAKDOWN

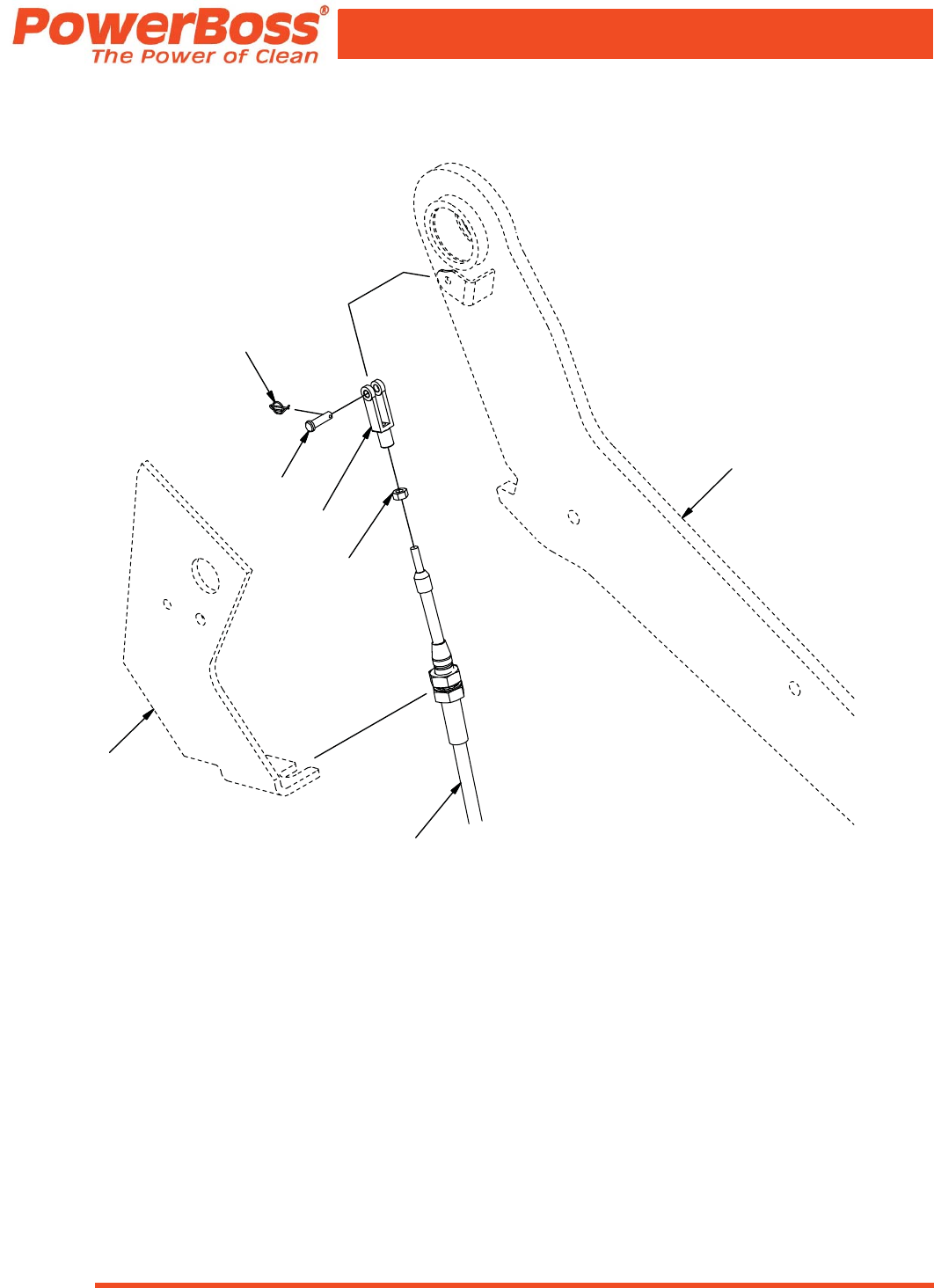

SPEED RESTRICTION GROUP - 2 (600684)
REV *
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 47
PARTS BREAKDOWN
SPEED RESTRICTION GROUP - 2 (600684)
Parts List
DESCRIPTIONQTYPART NUMBERITEM
187
58(5,1*
3,1&/(9,6;
&/(9,6)(0
+233(5/,)7$50
5()
)5$0(
5()
&$%/(63(('/,0,7
5()
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 48
PARTS BREAKDOWN
MAIN BROOM LIFT GROUP (600660)
REV E
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 49
PARTS BREAKDOWN

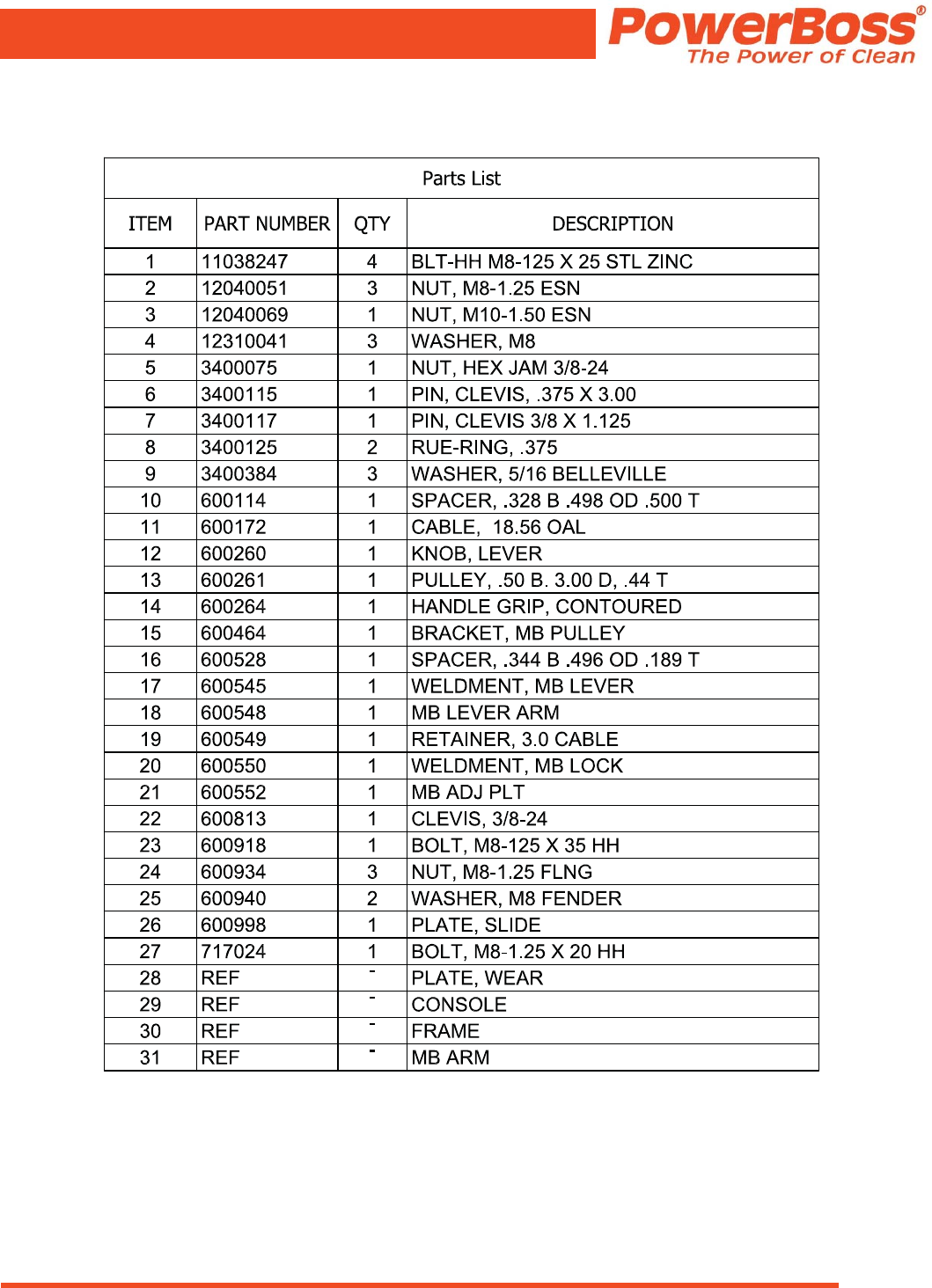

MAIN BROOM LIFT GROUP (600660)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 50
PARTS BREAKDOWN
MAIN BROOM LIFT GROUP (600632-1)
REV *
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 51
PARTS BREAKDOWN

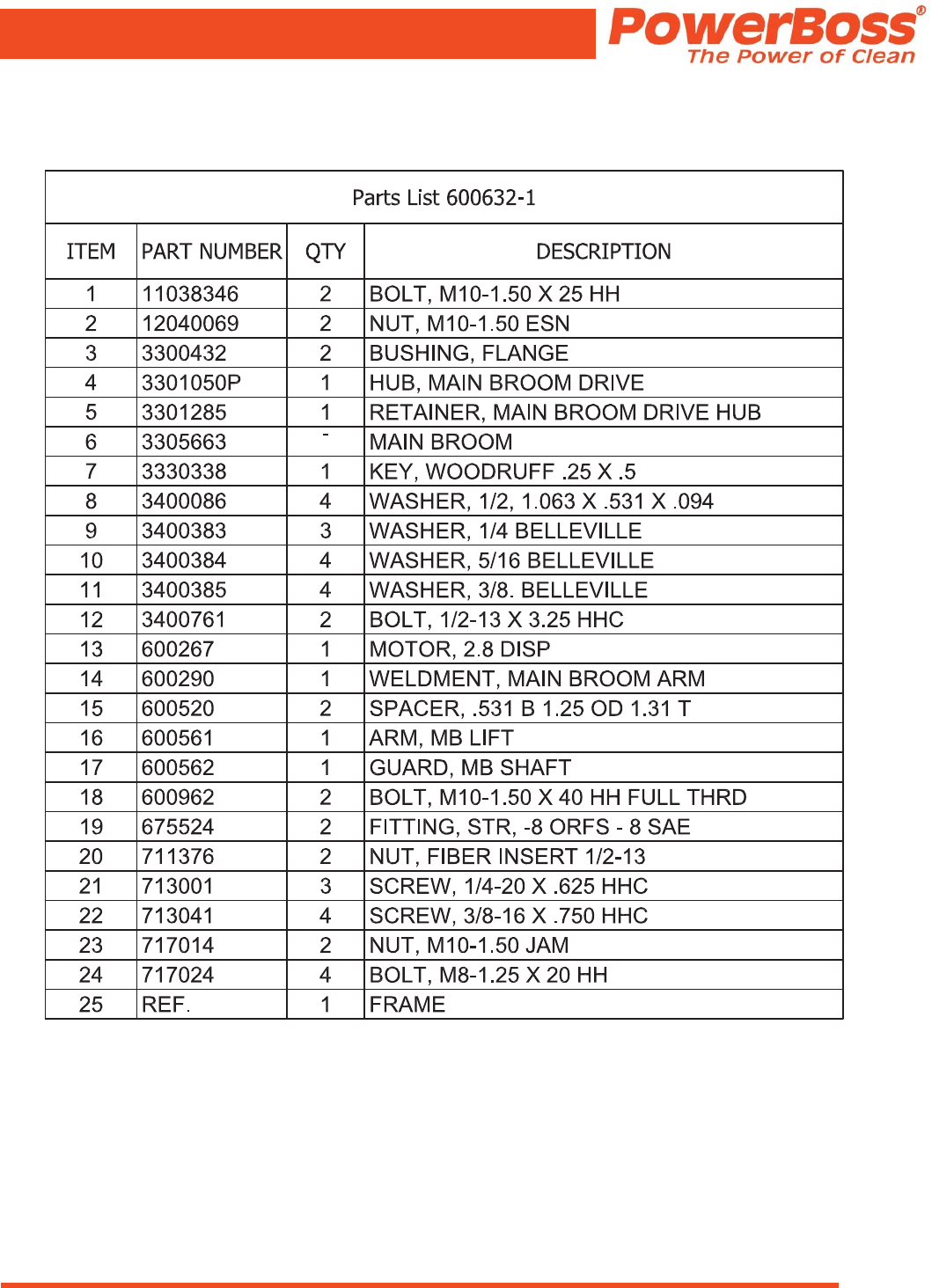

MAIN BROOM LIFT GROUP (600632-1)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 52
PARTS BREAKDOWN

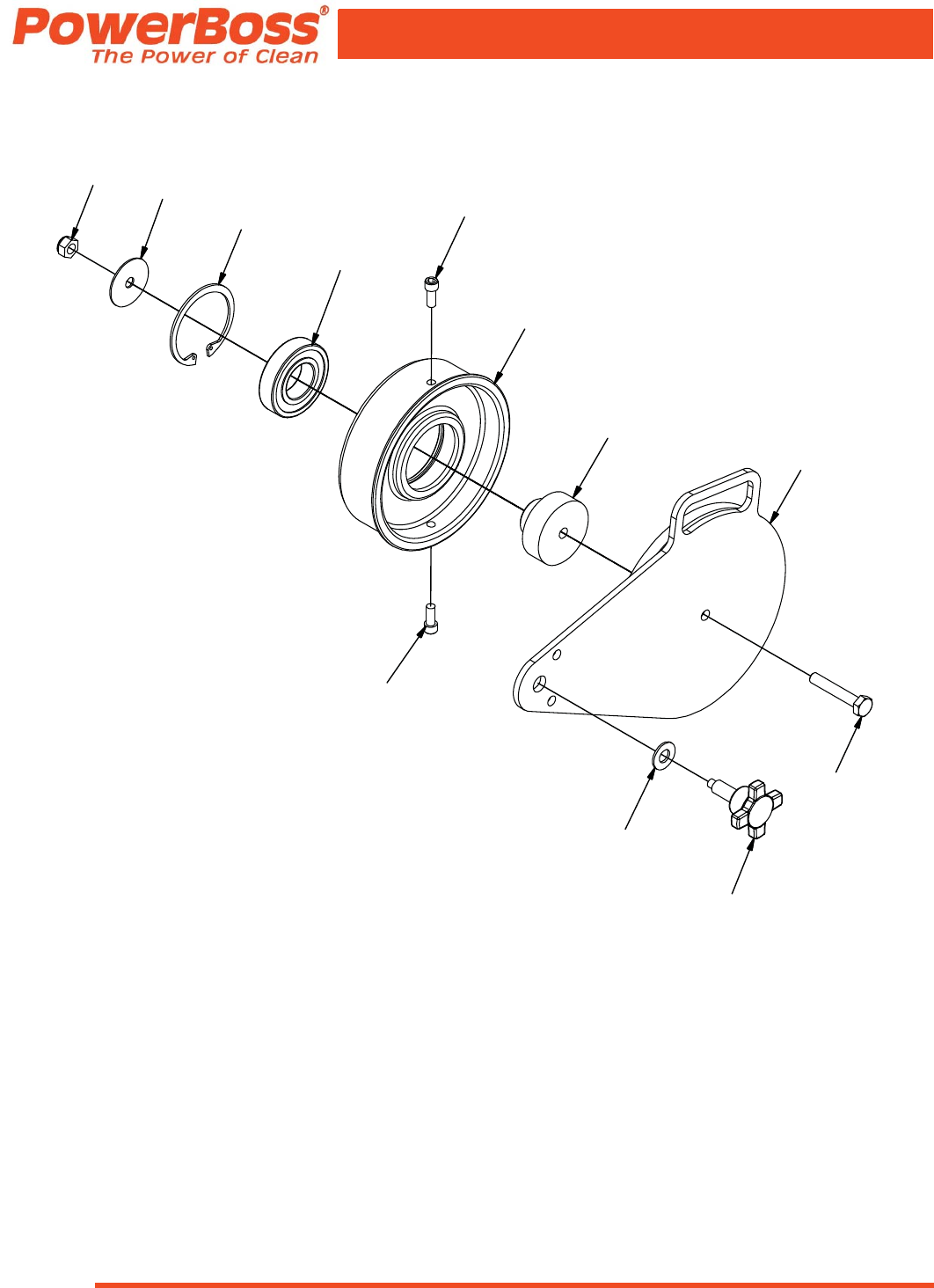

IDLER ARM GROUP (600631)
REV A
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 53
PARTS BREAKDOWN
IDLER ARM GROUP (600631)
Parts List
DESCRIPTIONQTY
PART NUMBERITEM
1870(61
,'/(50$,1%5220
5,1*5(7$,1,1*,17
%($5,1*%$//33
%2/7;6+&6
:$6+(5&21,&$/
.12%
:(/'0(170%,'/(5$50
02817%($5,1*
%2/70;++
:65)/7;66
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 54
PARTS BREAKDOWN

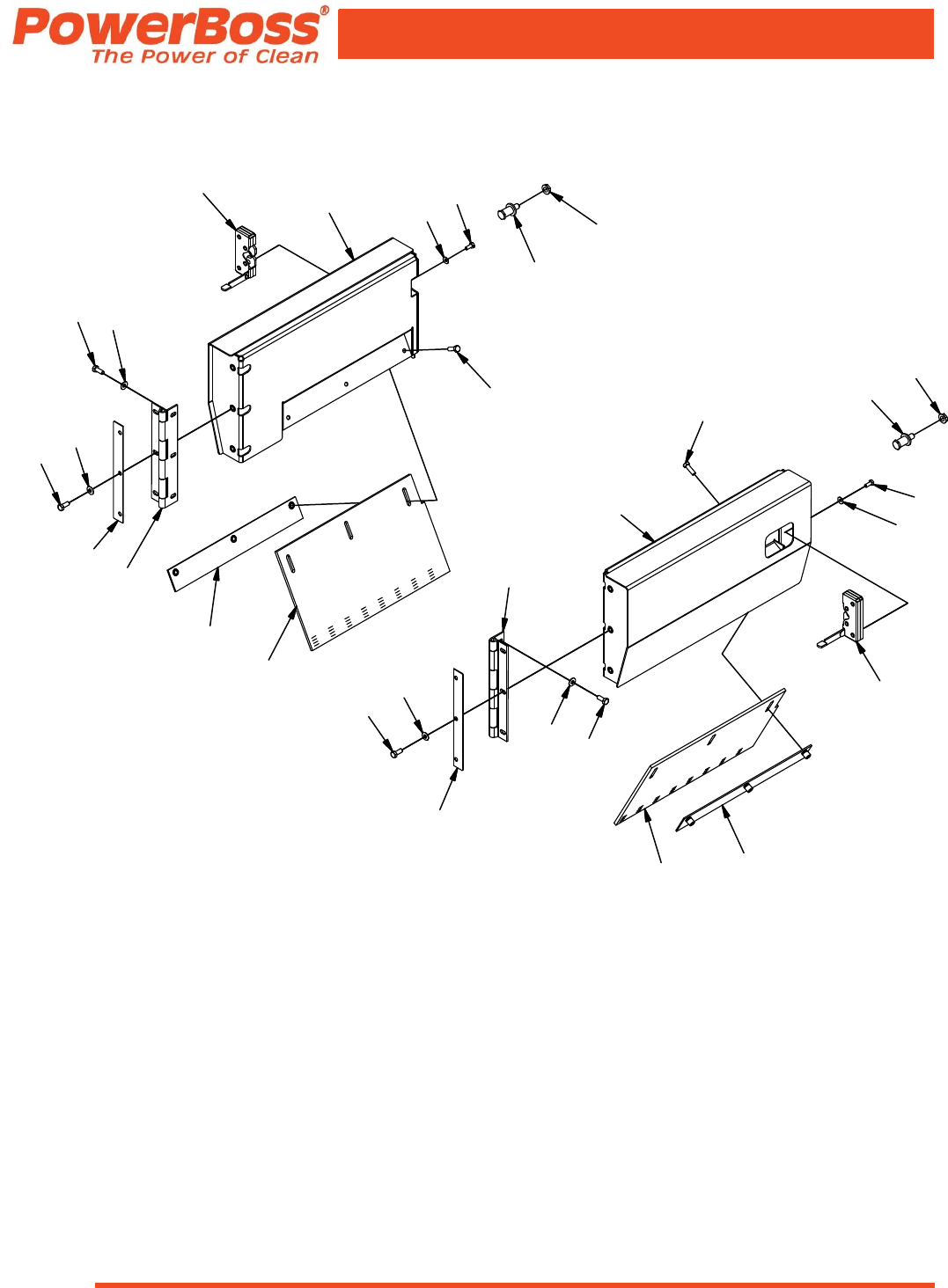

MAIN BROOM DOOR GROUP (600640)
REV *
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 55
PARTS BREAKDOWN
MAIN BROOM DOOR GROUP (600640)
Parts List
DESCRIPTIONQTYPART NUMBERITEM
%/7++0;67/=,1&
/$7&+/+
/$7&+5+
675,.(5/$7&+
:$6+(5%(//(9,//(
:$6+(5%(//(9,//(
187)/1*
6.,576,'('225
+,1*(0%
$66(0%/<0%'2255+
$66(0%/<0%'225/+
%$5&29(5
$66(0%/<'2256.,575(7$,1(5
6&5(:;++&
%2/70;++
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 56
PARTS BREAKDOWN

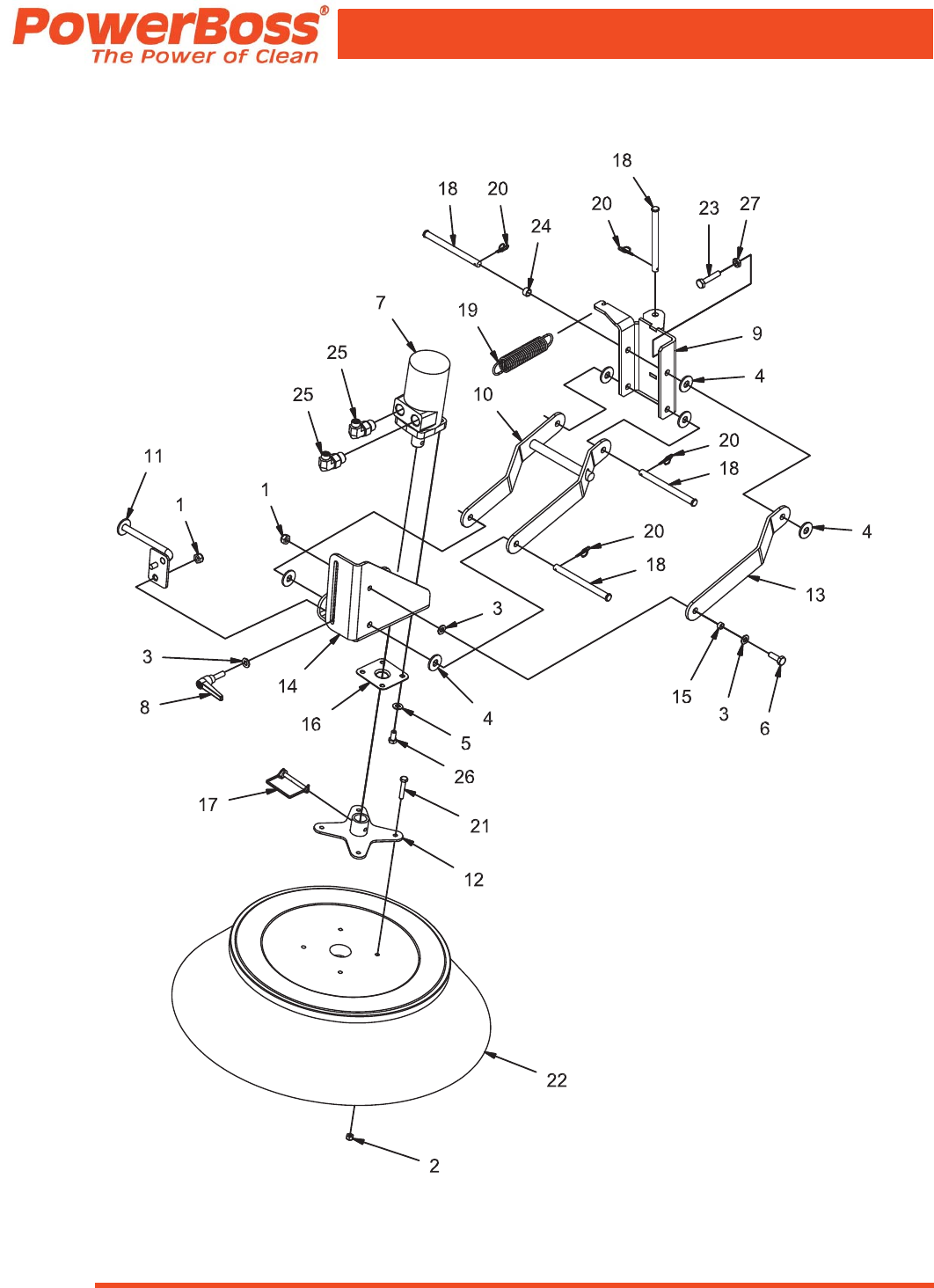

SIDE BROOM LIFT GROUP (600665)
REV A
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 57
PARTS BREAKDOWN
SIDE BROOM LIFT GROUP (600665)
Parts List
DESCRIPTIONQTYPART NUMBERITEM
%2/70;++
%2/70;++
1870-$0
1870(61
1870(61
:$6+(50
187+(;-$0
58(5,1*
38//(<%'7
63$&(5%2'7
5(7$,1(5&$%/(
&$%/(2$/
+$1'/(*5,3&217285('
63$&(5%2'7
:(/'0(176%/(9(5
%5$&.(7
3,1&/(9,6;
&/(9,6
635,1*&203
%2/70;++
:$6+(50)(1'(5
/2&.:$6+(50
%$5:,5(5(7$,1(5
%2/70;++
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 58
PARTS BREAKDOWN

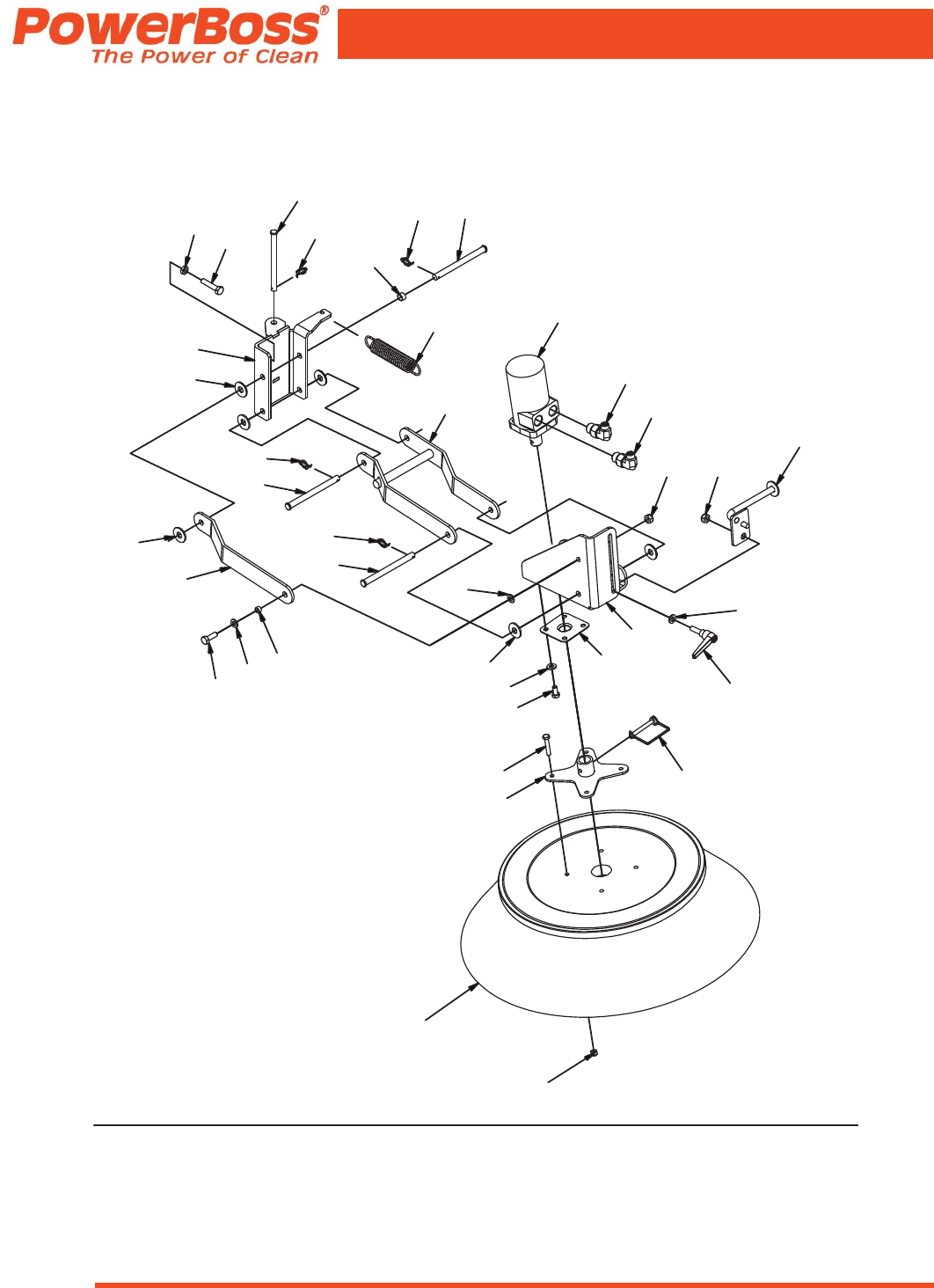

SIDE BROOM GROUP (600651-1)
REV *
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 59
PARTS BREAKDOWN

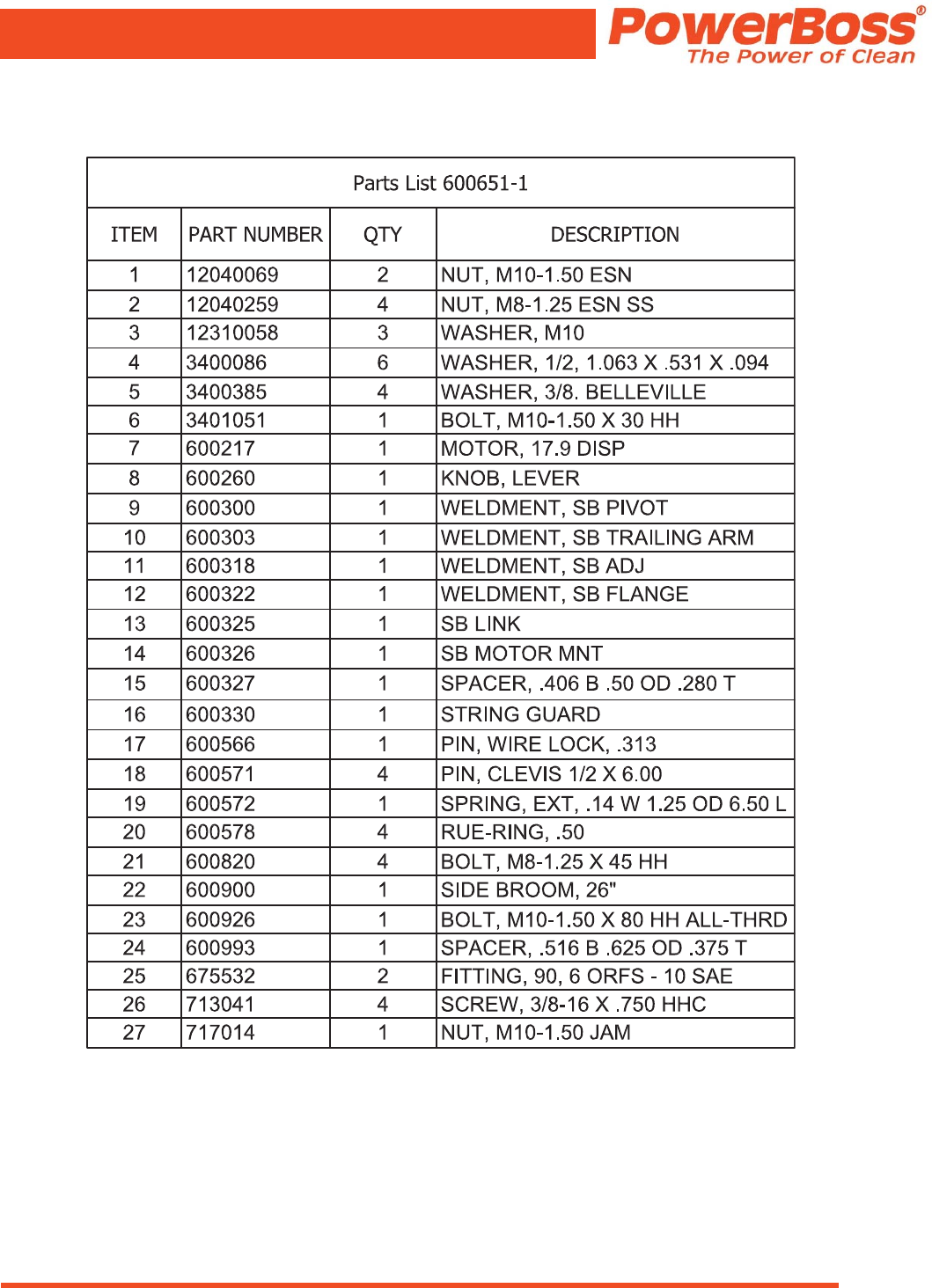

SIDE BROOM GROUP (600651-1)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 60
PARTS BREAKDOWN
HOPPER LIFT GROUP (600691-1)
REV A
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 61
PARTS BREAKDOWN
HOPPER LIFT GROUP (600691-1)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 62
PARTS BREAKDOWN

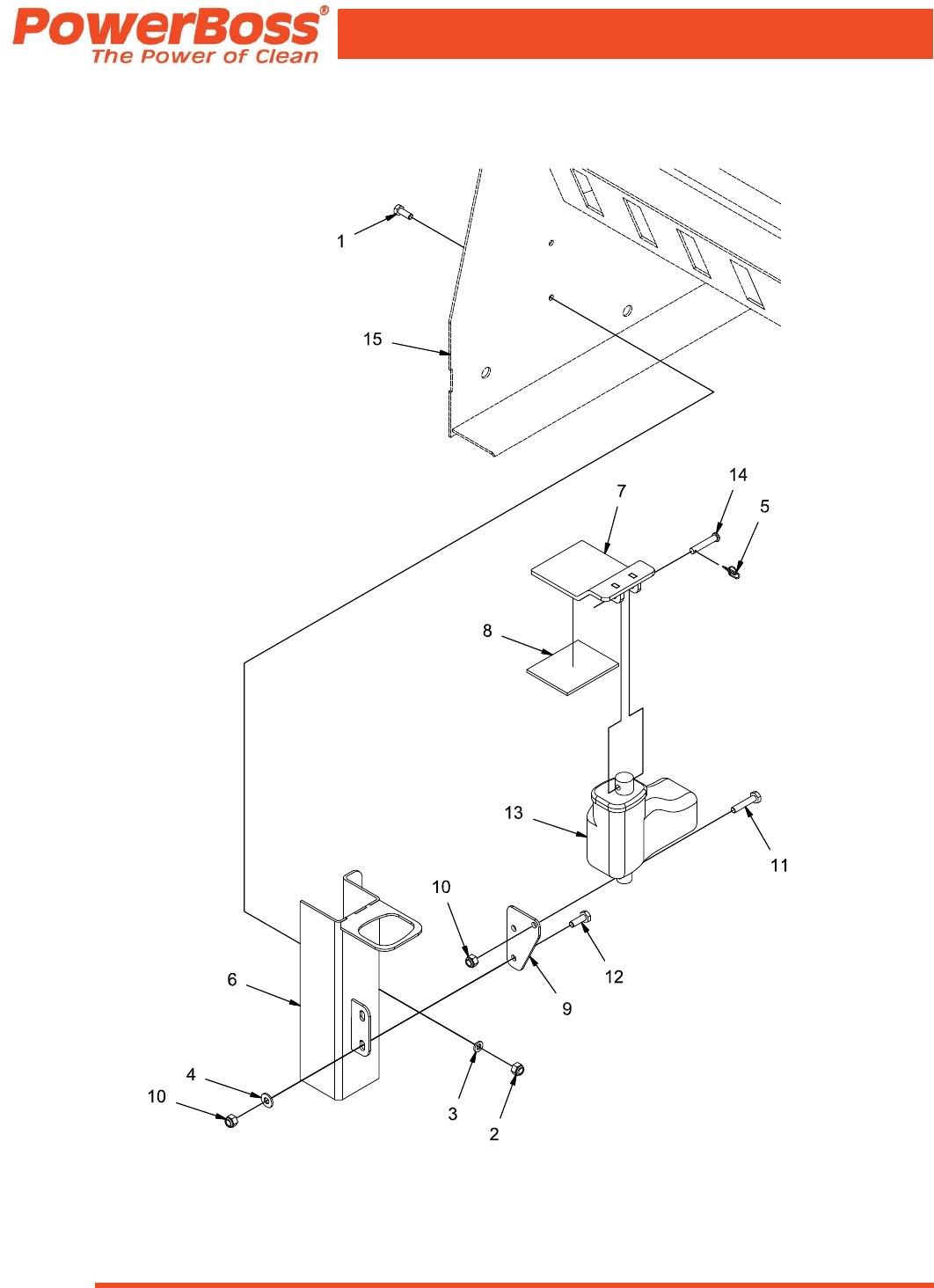

HOPPER SAFETY ARM GROUP (600686)
REV *
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 63
PARTS BREAKDOWN
HOPPER SAFETY ARM GROUP (600686)
Parts List
DESCRIPTIONQTYPART NUMBERITEM
%803(5;7
6$)(7<$50
$;/(&$3187
:(/'0(176$)(7<$50/,)7
&$3
%2/70;++
1870(61
:$6+(5&859('635,1*
)5$0(
5()
)5$0(
5()
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 64
PARTS BREAKDOWN

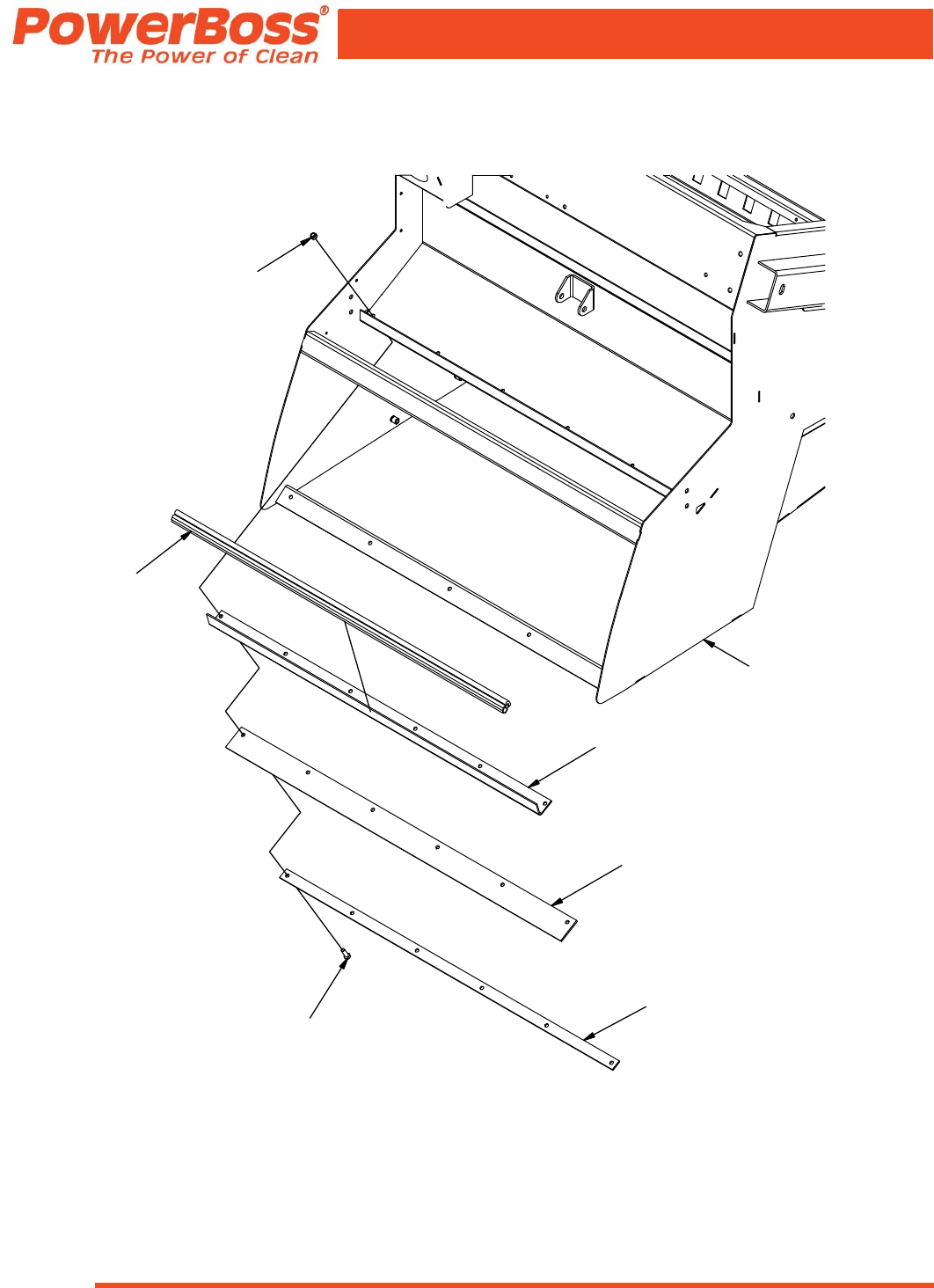

HOPPER SKIRTS SEALS GROUP (600621)
REV A
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 65
PARTS BREAKDOWN
HOPPER SKIRTS SEALS GROUP (600621)

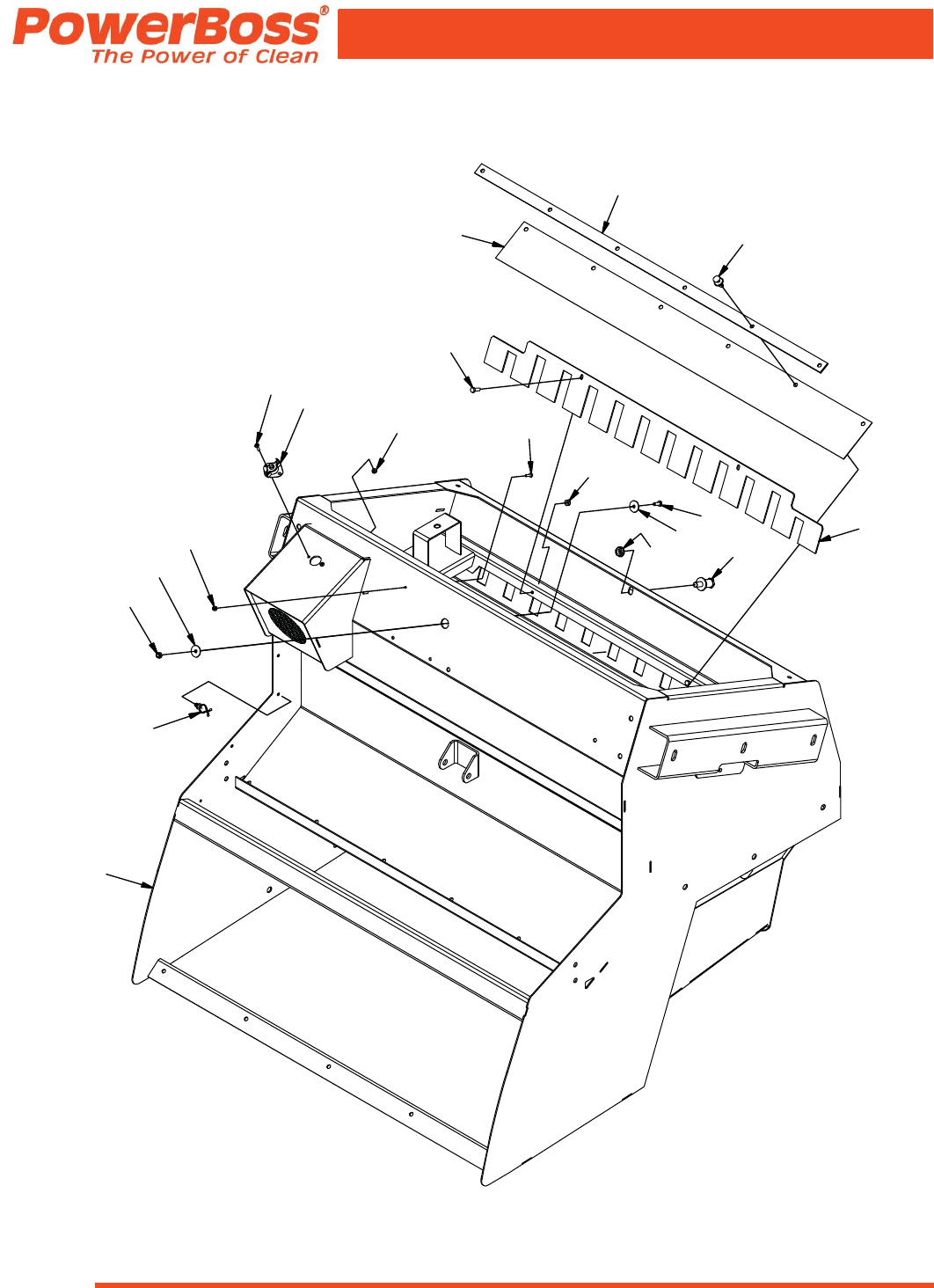

3DUWV /LVW
'(6&5,37,2147<3$57 180%(5,7(0
1870(6166
/2&.:$6+(5+60('
%803(5;7
6.,57+233(5/,3
6.,57+233(56,'(
5(7$,1(5+233(56,'(6.,57
5(7$,1(5+233(5)/$3
$1*/(+233(5/,3
$66(0%/<+233(5
6($/+233(5(;+$867
('*,1*+233(5$&&(66
('*,1*+233(5&29(5
6&5(:0;%87721+'&$366
187+(;
%2/70;++66
$'+(6,9(086('21
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 66
PARTS BREAKDOWN
HOPPER ASSEMBLY GROUP (600623)
REV C
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 67
PARTS BREAKDOWN
HOPPER ASSEMBLY GROUP (600623)
Parts List
DESCRIPTIONQTYPART NUMBERITEM
%2/70;++
675,.(5/$7&+
6&5(:;3$1+'=3
187),%(5,16(57
:$6+(5)(1'(5=3
187)/1*
5(7$,1(5'225%$56($/
)/$3),/7(56($/
6:,7&+7+(50267$7
&/$03:,5(&/,3
35(),/7(53/$7(
%2/70;++66
1870(6166
)$67(1(535(66,1
+233(5
5()
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 68
PARTS BREAKDOWN

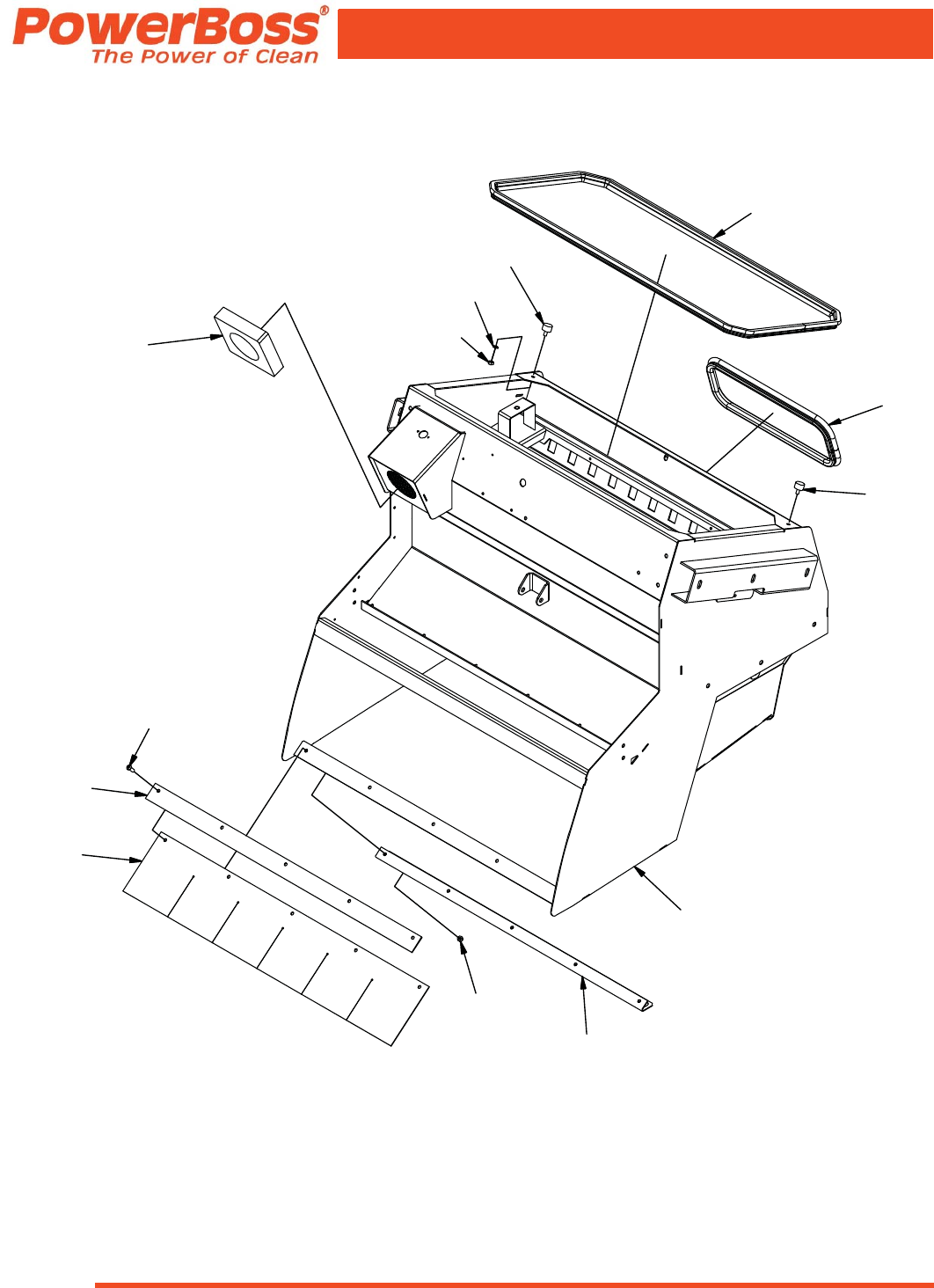

HOPPER DUMP DOOR GROUP (600622-1)
REV *
11
12
18
13
19
22
4
2
24
16
17
10
15
10
15
17 14
20
19
13
26
25
26
26
25
25
21
9
8
23
23
5
28
27
28 30
3
6
29
7
1
7
1
31
31
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 69
PARTS BREAKDOWN
HOPPER DUMP DOOR GROUP (600622-1)
Parts List 600622-1
DESCRIPTIONQTY
PART NUMBERITEM
BOLT, M10-1.50 X 25 HH
4110383461
NUT, M5 - 0.8 ESN2
12040036
2
NUT, M8-1.25 ESN SS6120402593
WASHER, M5
2123100254
PIN, CLEVIS 1/2 X 2.0013308225
5
WASHER, 5/16 BELLEVILLE
434003846
WASHER, 3/8. BELLEVILLE
4
3400385
7
PIN, CLEVIS 1/2 X 3.50134007888
CYLINDER, HOPPER DOOR
16001069
BEARING, FIBERGLIDE 1.00 ID 1.25 T260017410
BULB, HOPPER DOOR
160023311
SEAL, DUMP DOOR LIP160023412
SEAL, DUMP DOOR SIDE260023513
SEAL, DUMP DOOR BAR
160023614
SEAL, LIP260026215
WELDMENT, DOOR, DUMP
160034716
WELDMENT, PIVOT, HOPPER DOOR260035017
RETAINER, DOOR LIP SEAL160035318
RETAINER, DOOR SIDE SEAL
260035419
RETAINER, DOOR BAR SEAL160035520
ARM, CYLINDER
260052921
SWITCH, LIMIT1600530-122
RUE-RING, .50260057823
BOLT, M5-0.8 X 14 HH
260091124
BOLT, M6-100 X 20 HH SS1460091325
NUT, M6-1.00 ESN SS
1460093326
NUT, M8-1.25 FLNG460093427
NUT, M10-1.50 FLNG460093628
BOLT, M8-1.25 X 20 HH
471702429
BOLT, M8-1.25 X 20 HH SS671703030
FITTING, 90, -4 ORFS - 4 SAE
267550731
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 70
PARTS BREAKDOWN

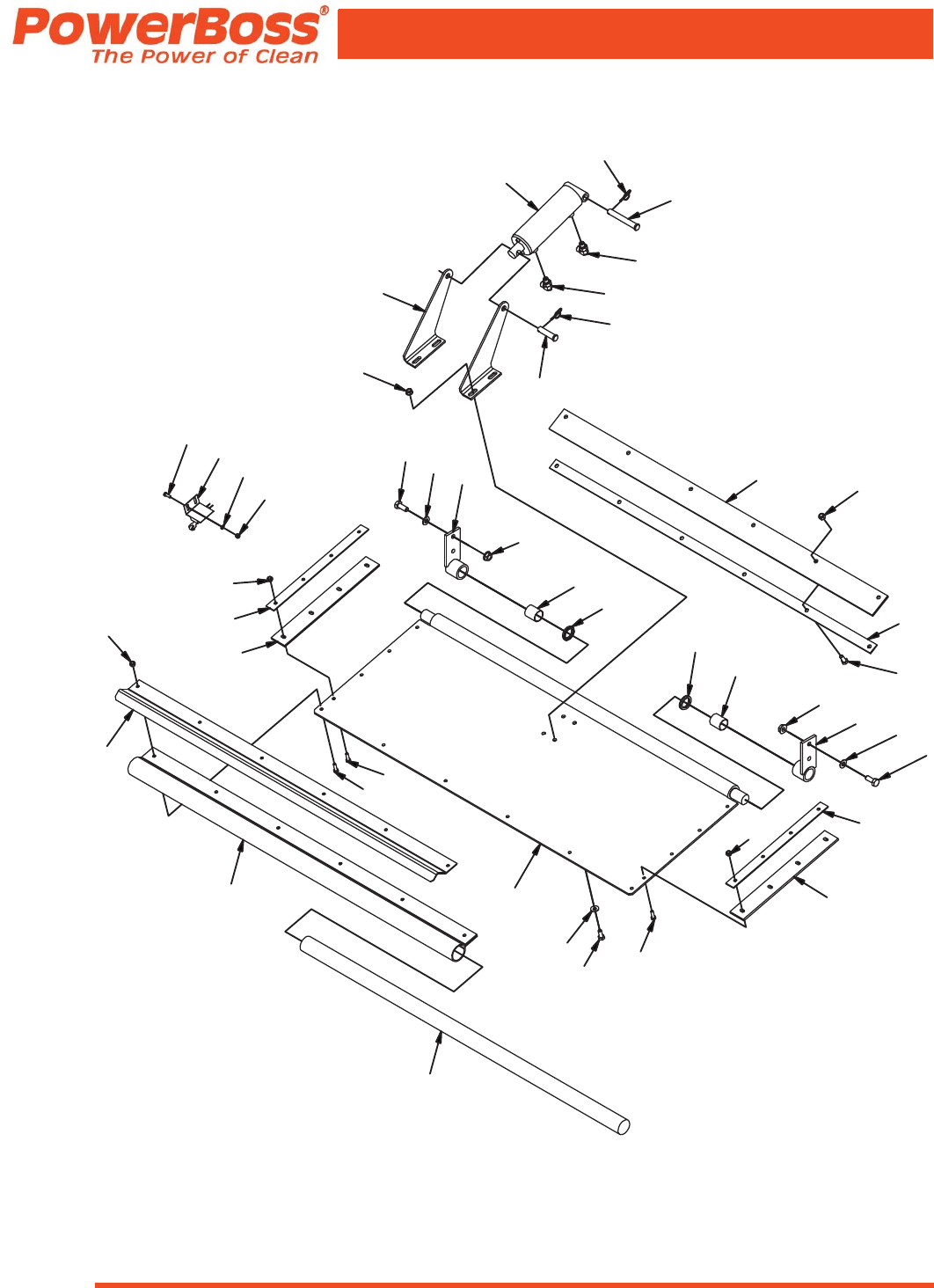

HOPPER COVER GROUP (600625)
REV A
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 71
PARTS BREAKDOWN
HOPPER COVER GROUP (600625)

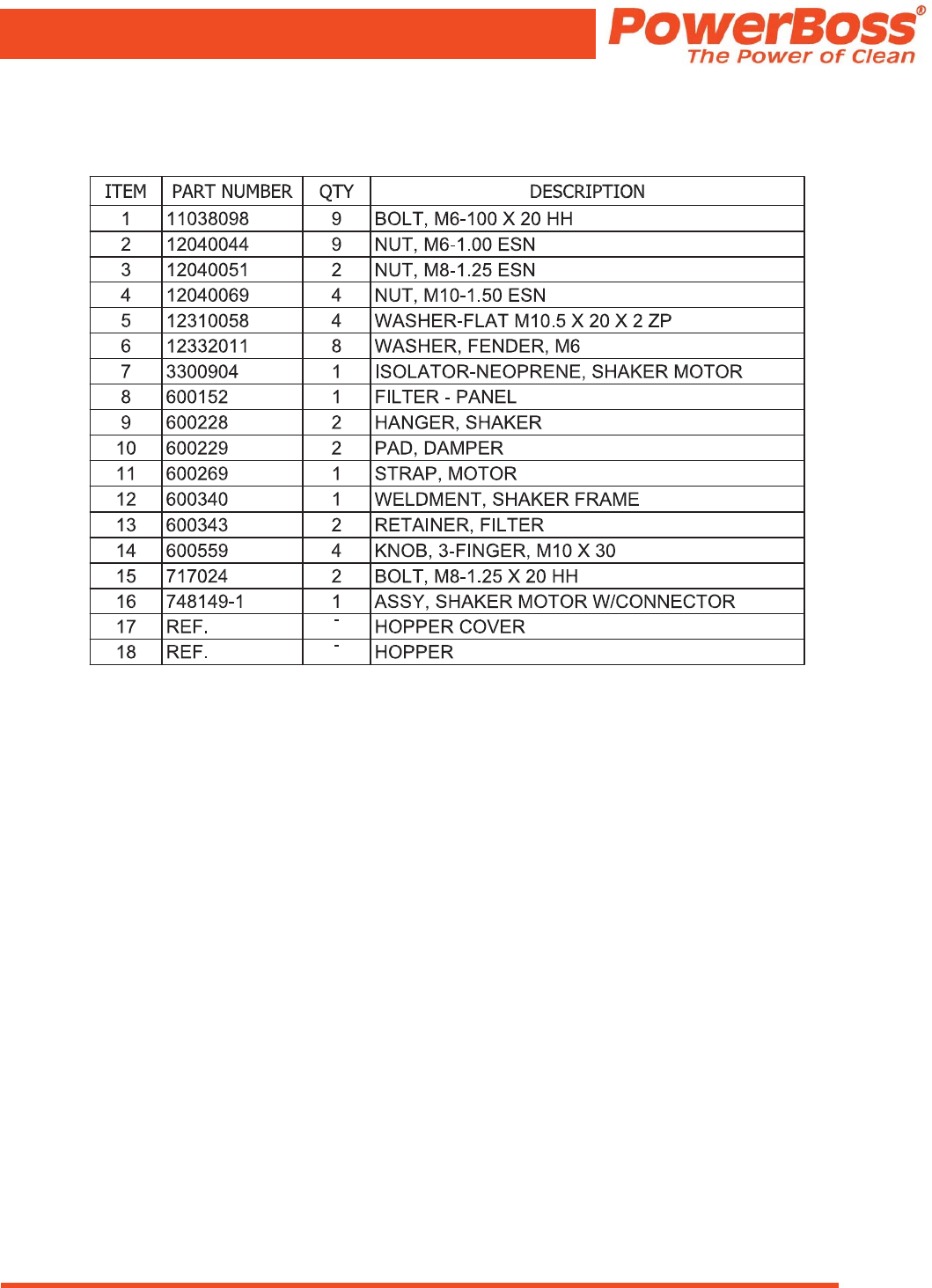

Parts List
DESCRIPTIONQTYPART NUMBERITEM
%2/70;++
1870(61
1870(61
:$6+(50
678'00%$//
/$7&+/+
:$6+(5;;
%2/76+28/'(5;
:$6+(5%(//(9,//(
:$6+(5%(//(9,//(
187),%(5,16(57-$0
6($/+233(5$&&(66'225
:(/'0(17+233(5&29(5
3,927&29(5/+
3,927&29(55+
*$667587(;7;67.
&29(56($/
187),%(5,16(57
6&5(:;++&
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 72
PARTS BREAKDOWN
HOPPER FILTER SHAKER GROUP (600624)
REV D
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 73
PARTS BREAKDOWN
HOPPER FILTER SHAKER GROUP (600624)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 74
PARTS BREAKDOWN

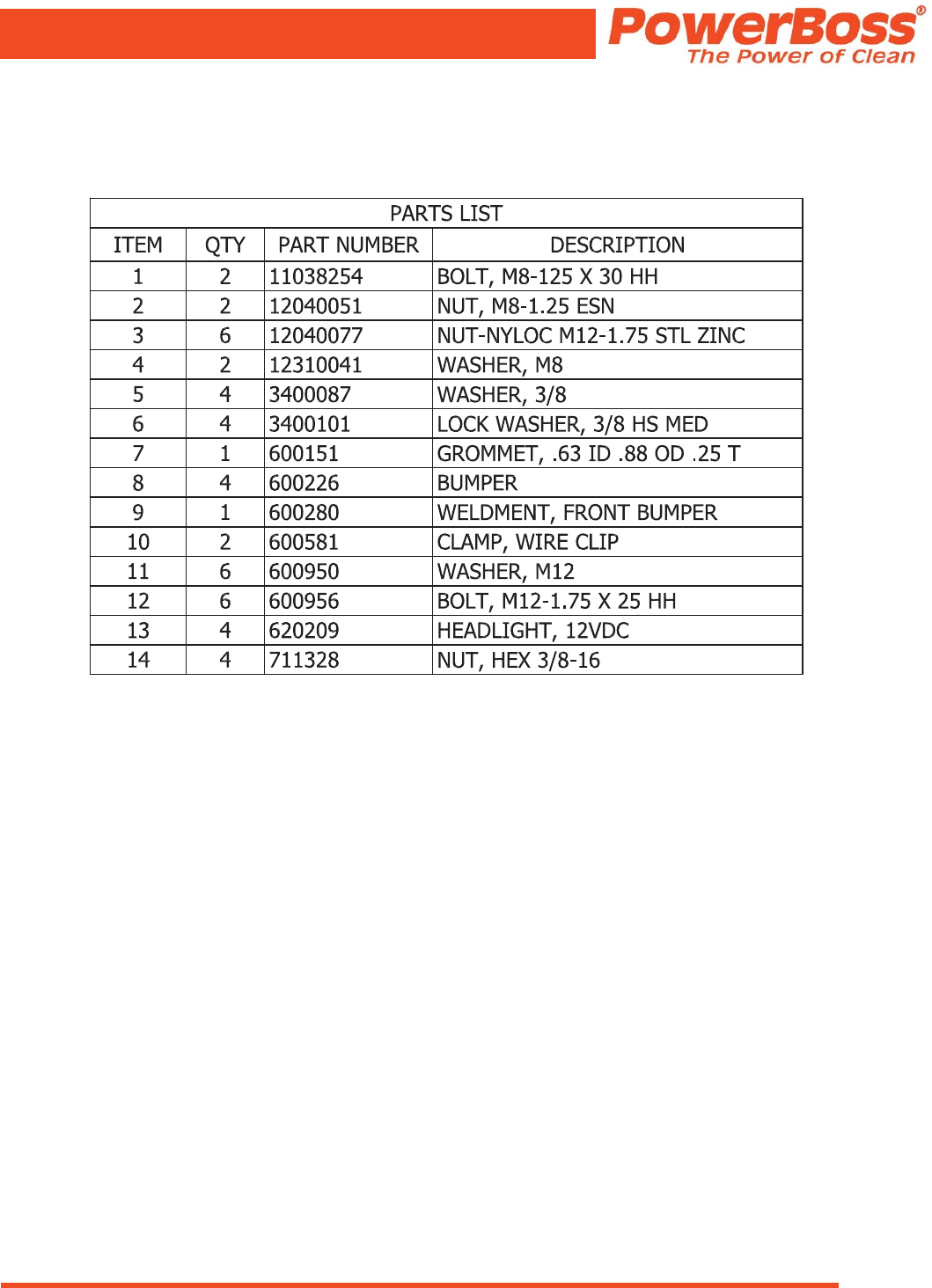

BUMPER GROUP (600626)
REV E
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 75
PARTS BREAKDOWN
BUMPER GROUP (600626)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 76
PARTS BREAKDOWN

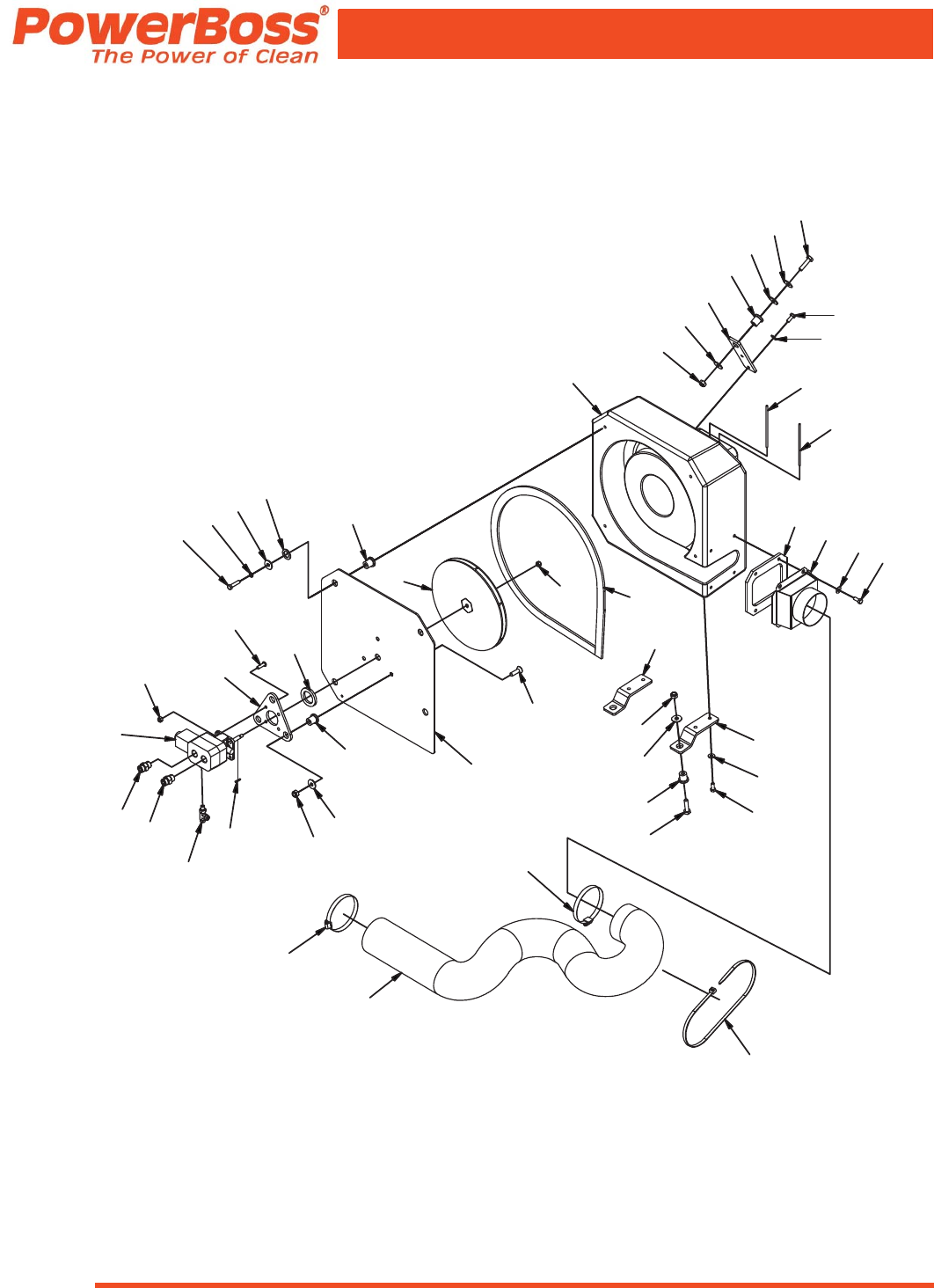

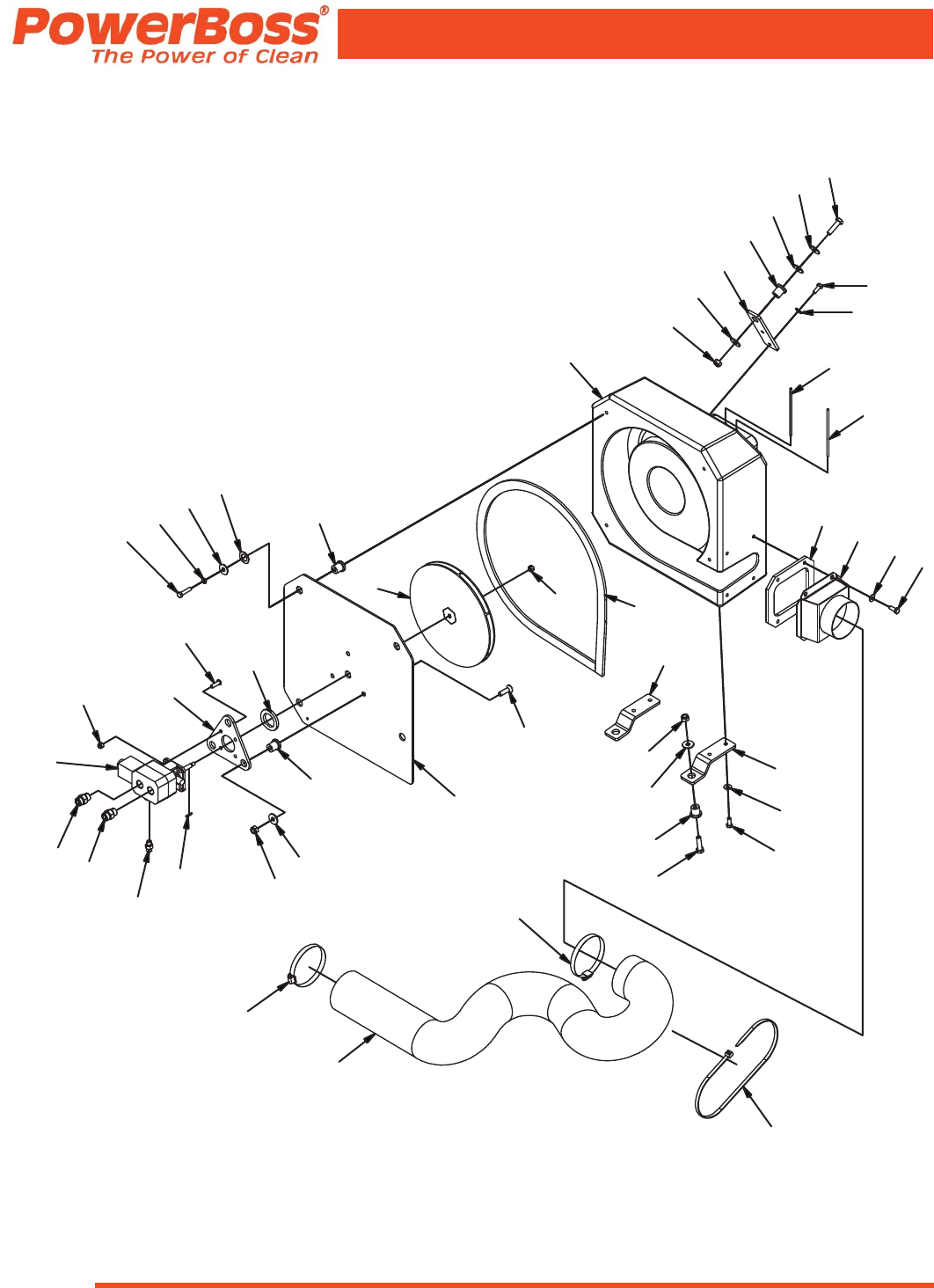

IMPELLER GROUP (600790-1)
REV *
10
15
3
5
15
15 2
8
11
3
15
5
2
21
5
11
19
7
9
12
17
32 3
15
13
4
4
22
16
18
15
20 5
23
27
25
25
26
6
31
6
31
631
14
24
30
29
28
29
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 77
PARTS BREAKDOWN
IMPELLER GROUP (600790-1)
Parts List 600790-1
DESCRIPTIONQTYPART NUMBERITEM
ADHESIVE 3M #847 (USED ON 600903)
-
0007101
BOLT, M10-1.50 X 40 HH3110383952
NUT, M10-1.50 ESN
6120400693
CLAMP, HOSE, 4.5023300351
4
ISOLATOR, VIB1033004655
WASHER, 5/16 BELLEVILLE
1034003846
NUT, 5/16-24 ESN13400420
7
SHROUD, IMPELLER16001008
ASSY, IMPELLER
16001019
BRACKET, SHROUD, UPPER160020210
BRACKET, SHROUD, LOWER260020311
PLATE, SHROUD
160020412
PLATE, MOTOR MNT160020513
WELDMENT, DIFFUSER
160020614
WASHER, ISOLATOR
1260036315
MOTOR, IMPELLER160036616
SEAL, DUST
160046917
HOSE, 4.00 IMPELLER160057418
SEAL, IMPELLER160090319
BOLT, M8-125 X 35 HH
460091820
SCREW, M10-1.50 X 35 FHMS360095421
BOLT, 5/16-18 X 1.00 BUTTON HD CAP460095822
LOCK WASHER, M8
460095923
GASKET, OUTLET162002824
ROD, GUARD262003125
CABLE TIE, .35 X 34
162003726
WASHER, .77 B 1.25 OD .075 T466-431-A27
FITTING, STR, 4 ORFS - 4-SAE167550828
FITTING, STR, -8 ORFS - 8 SAE
267552429
NUT, FIBER INSERT 5/16-18471137430
BOLT, M8-1.25 X 20 HH
1071702431
KEY, .125 SQ X .751PART OF 600366
32
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 78
PARTS BREAKDOWN

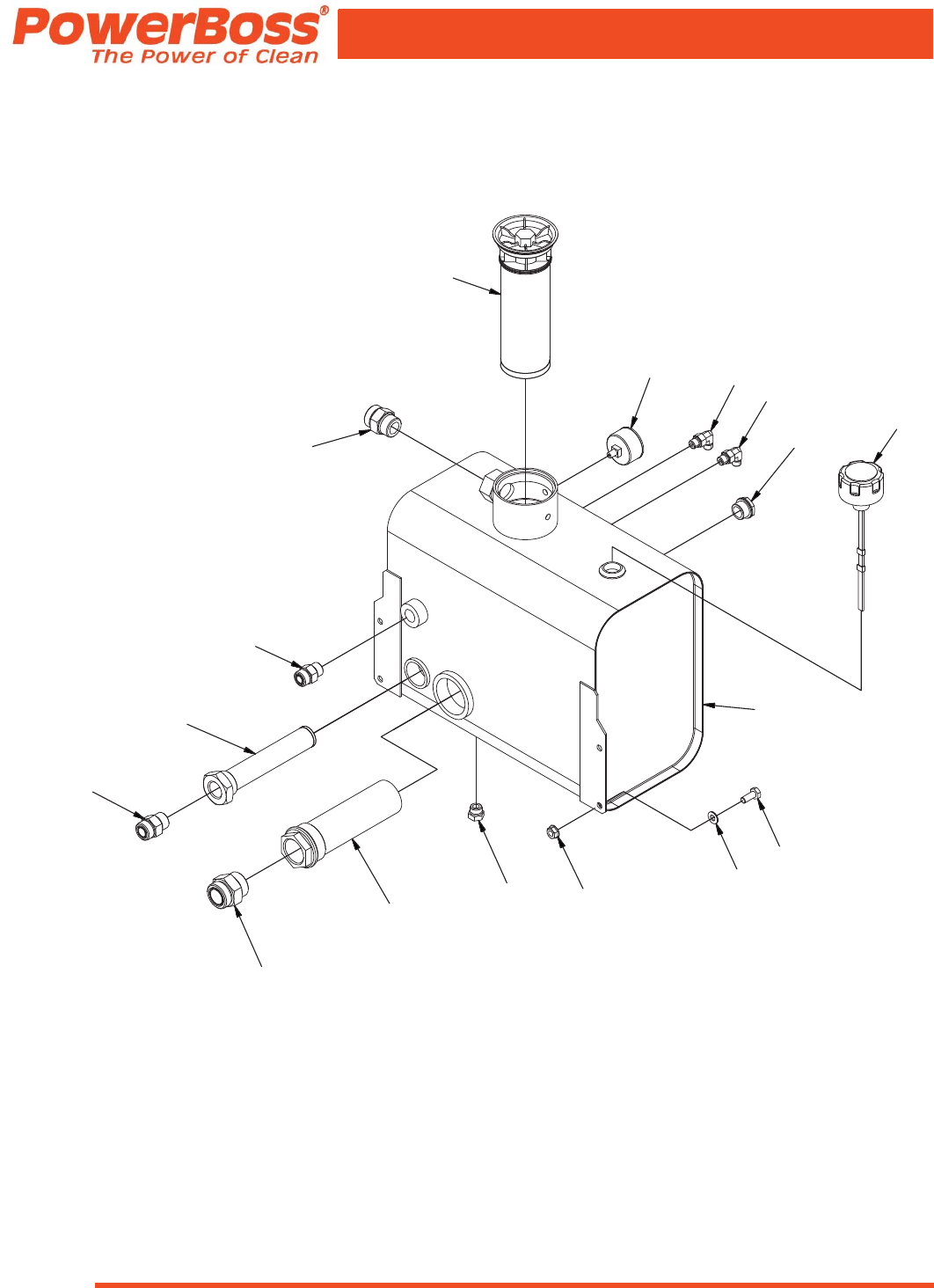

HYDRAULIC RESERVOIR GROUP (600683-1)
REV *
7
8
6
5
9
2
3
10
11
4
1
13
14
12
15 15
16
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 79
PARTS BREAKDOWN
HYDRAULIC RESERVOIR GROUP (600683-1)
Parts List 600683-1
DESCRIPTIONQTYPART NUMBERITEM
BOLT, M10-1.50 X 25 HH4110383461
STRAINER, HYDRAULIC, 20
133438362
FITTING, PLUG, 8 O-RING134001643
WASHER, 3/8. BELLEVILLE
434003854
TANK, HYD RESERVOIR1600180
5
FILTER ELEMENT, 10 MIC
16001826
GAUGE, 0-60 PSI
1600183
7
FILLER-BREATHER, 10 MIC
16001848
STRAINER, 12
16001859
SIGHT GAUGE1
600531
10
NUT, M10-1.50 FLNG
460093611
FTG - STR, 16 ORFS - 16 SAE167550512
FITTING, STR, 12 ORFS - 12 SAE
167553413
FITTING, STR, 20 ORFS - 20 SAE167553914
FITTING, 90, 4 ORFS - 6 SAE
267554615
FTG - STR CONNECTOR -10 ORFS TO -10 SAE167560816
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 80
PARTS BREAKDOWN

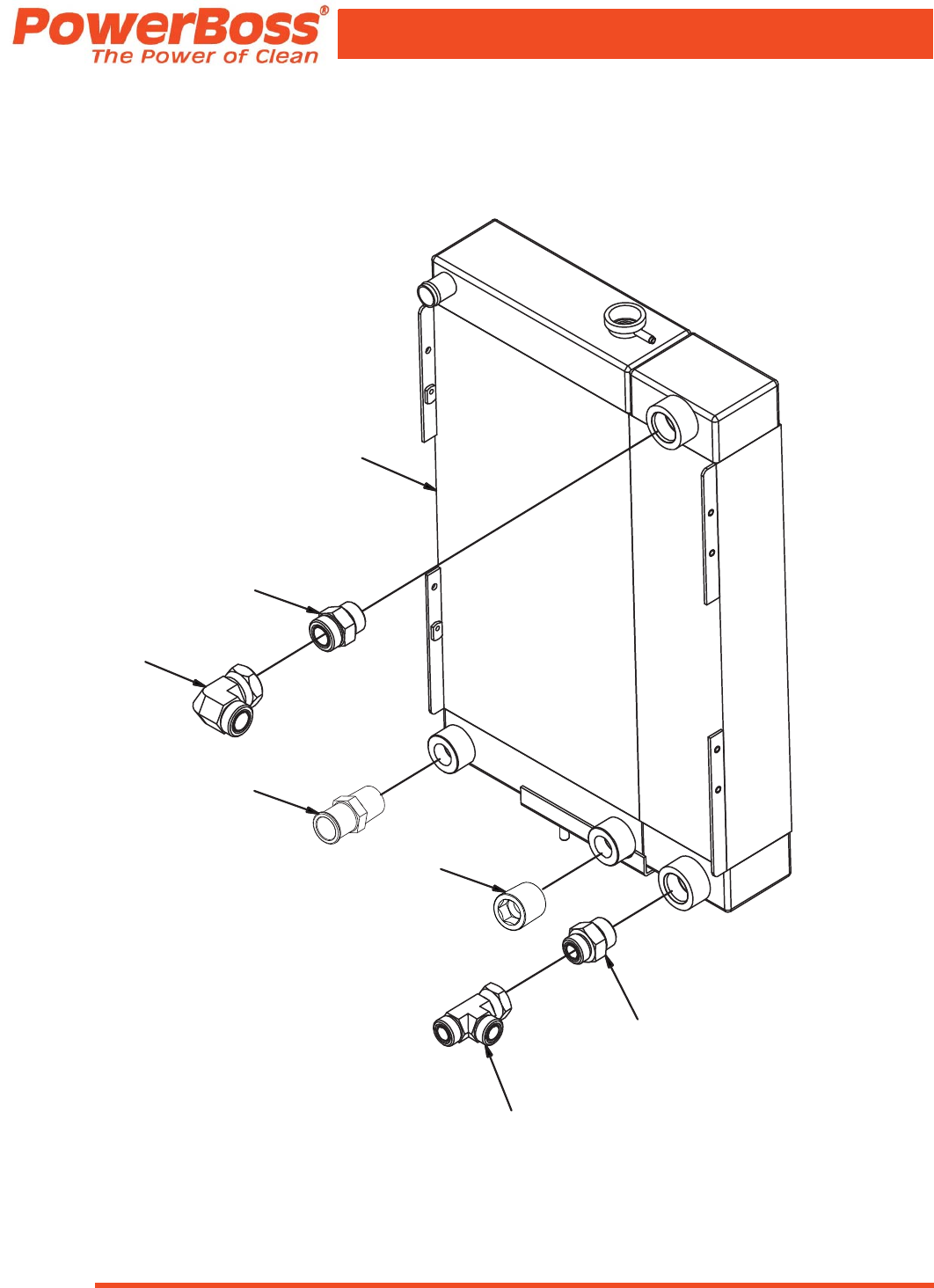

OIL COOLER GROUP (600609-1)
REV A
5
3
4
1
2
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 81
PARTS BREAKDOWN
OIL COOLER GROUP (600609-1)
Parts List 600609-1
DESCRIPTIONQTY
PART NUMBERITEM
FTG - STR THD CONNECTOR -12 ORFS TO -16 SAE
16755031
FTG - TEE -12 ORFS TO -12 ORFS TO -12 ORFS16756202
FTG - STR, 16 ORFS - 16 SAE
16755053
FTG - ELBOW -16 ORFC TO -16 ORFS16756104
RADIATOR - OIL COOLER
-
REF
1
1
)7*3/8*5$',$725+26(3257
)7*5$'+26(3257
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 82
PARTS BREAKDOWN

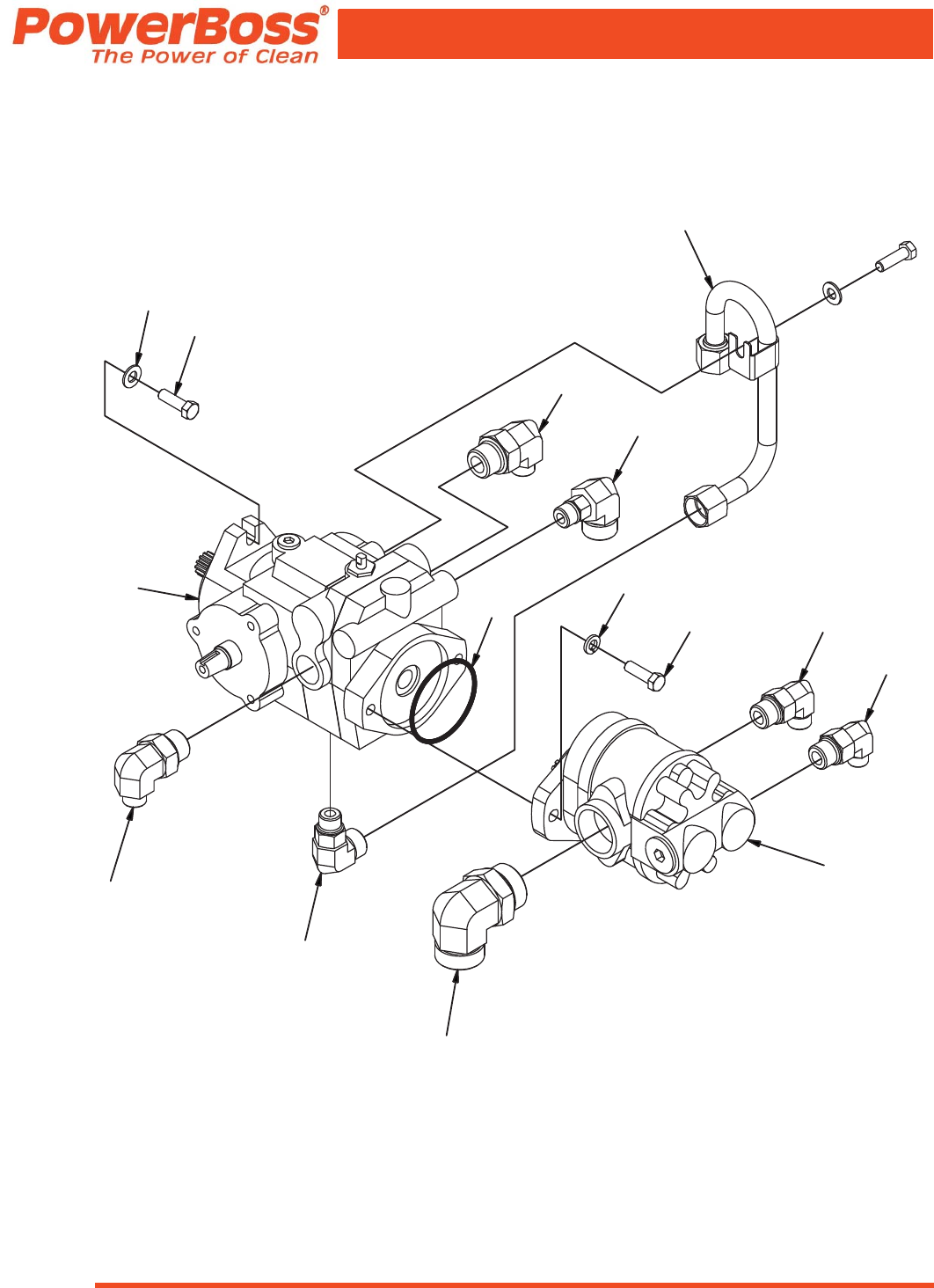

HYDRAULIC PUMP GROUP (600606-1)
REV *
13
2
13
4
6
1
3
5
10
9
11
7
8
10
12
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 83
PARTS BREAKDOWN
HYDRAULIC PUMP GROUP (600606-1)
Parts List
DESCRIPTIONQTYPART NUMBERITEM
O-RING133037111
LOCK WASHER, 3/8 HS MED234001012
WASHER, 3/8. BELLEVILLE
234003853
PUMP, PROPULSION16002154
PUMP, AUX16002165
TUBE, PUMP DRAIN, ORFS1600519-16
FITTING, 90, -8 ORFS - 10 SAE16755287
FITTING, 90, 6 ORFS - 10 SAE
16755328
FITTING, 90, 10 ORFS - 8 SAE16755339
FITTING, 90, 8 ORFS - 12 SAE
267553710
FITTING, 90, 20 ORFS - 20 SAE167553811
FITTING, 90, 12 ORFS - 8 SAE167554312
SCREW, 3/8-16 X 1.25 HH
471304313
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 84
PARTS BREAKDOWN

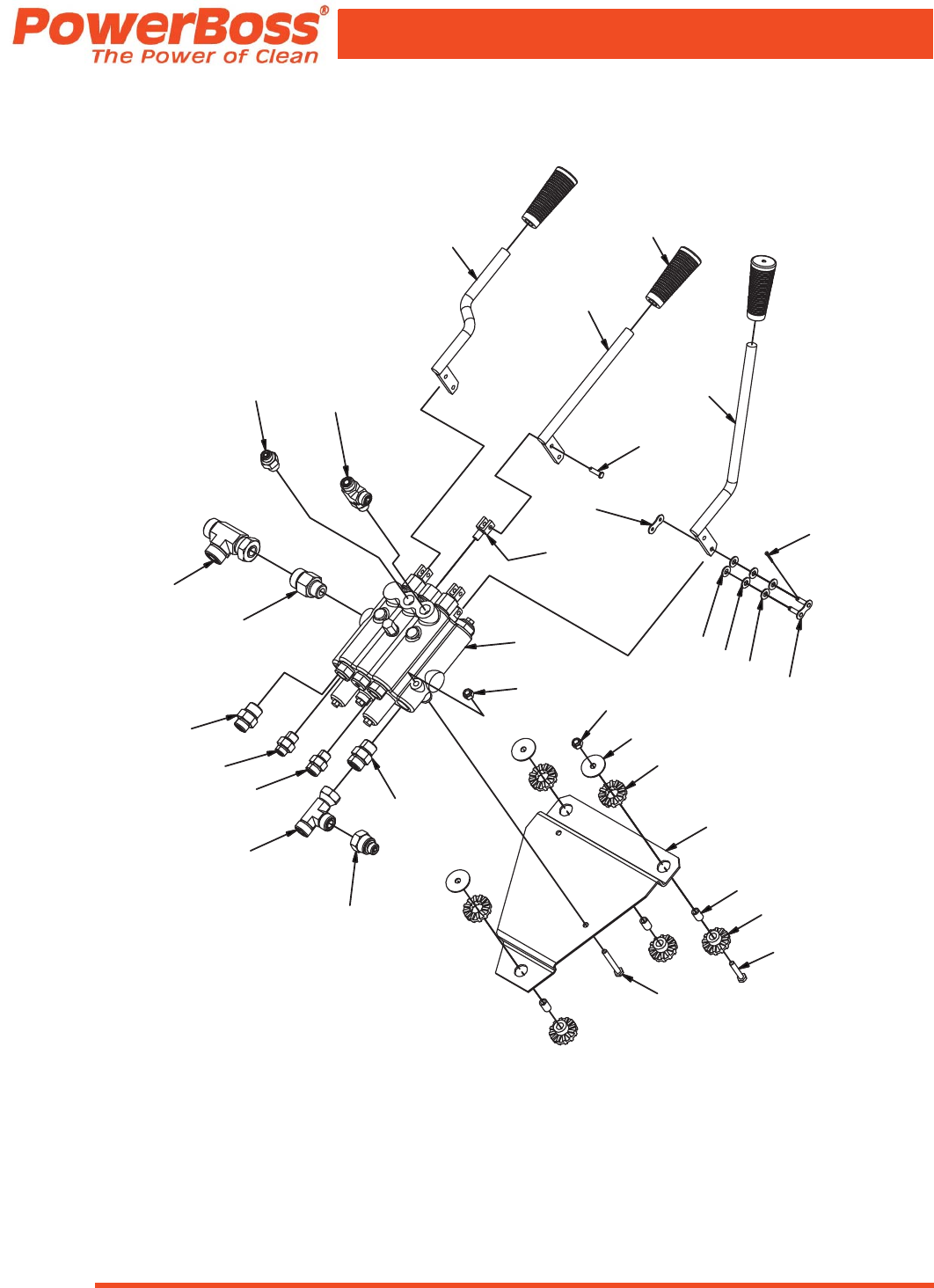

HYDRAULIC VALVE GROUP (600685-1)
REV *
1
10
3
11
13
1
4
9
7
8
6
5
12
15
28
16
2
14
25
25
25
17
26
18
19
27
21
20
23
22
24
18
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 85
PARTS BREAKDOWN
HYDRAULIC VALVE GROUP (600685-1)
Parts List 600685-1
DESCRIPTIONQTY
PART NUMBERITEM
NUT, M6-1.00 ESN
5
120400441
HYDRAULIC VALVE. 3-SPOOL
16002142
ISOLATOR, MALE36002183
ISOLATOR - FEMALE36002194
HANDLE GRIP, .50
36002635
LEVER, SWEEP CONT
16005326
LEVER, HOPPER DOOR1600535
7
LEVER, HOPPER16005378
PLATE, VALVE MNT16005399
SPACER, .245 B .375 OD .625 T360054110
BOLT, M6-1.00 X 35 HH360095211
BOLT, M6-1.00 X 50 HH
260095312
WASHER, .25 ID X 1.25 OD X .063 T
362004513
CLEVIS, STEEL362014014
CLEVIS PIN, 3/16 X 3/4362014115
CHAIN LINK W/SPRING CLIP362014216
COTTERPIN, 5/64 X 1/2
362014317
FITTING, STR, 4 ORFS - 6 O-RING
267551118
FITTING, STR, 6 ORFS - 6 SAE167551519
FITTING, STR, -8 ORFS - 8 SAE167552420
FTG - RUN TEE -8 ORFS TO -8 ORFS TO -8 SAE167552621
FTG - ADAPTER 10 ORFS TO 8 SAE
167556422
FTG - REDUCER -8 ORFS TO -4 ORFS167557323
FTG - RUN TEE -10 ORFS TO -10 ORFS TO -10 SAE167560924
WASHER, .56 OD .253 ID .048 T SS1871150425
FITTING, RUN TEE, 6 ORFS - 6 SAE
167551626
FITTING, STR, 6 ORFS - 8 O-RING167552127
CHAIN LINK PLT3PART OF 62014228
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 86
PARTS BREAKDOWN

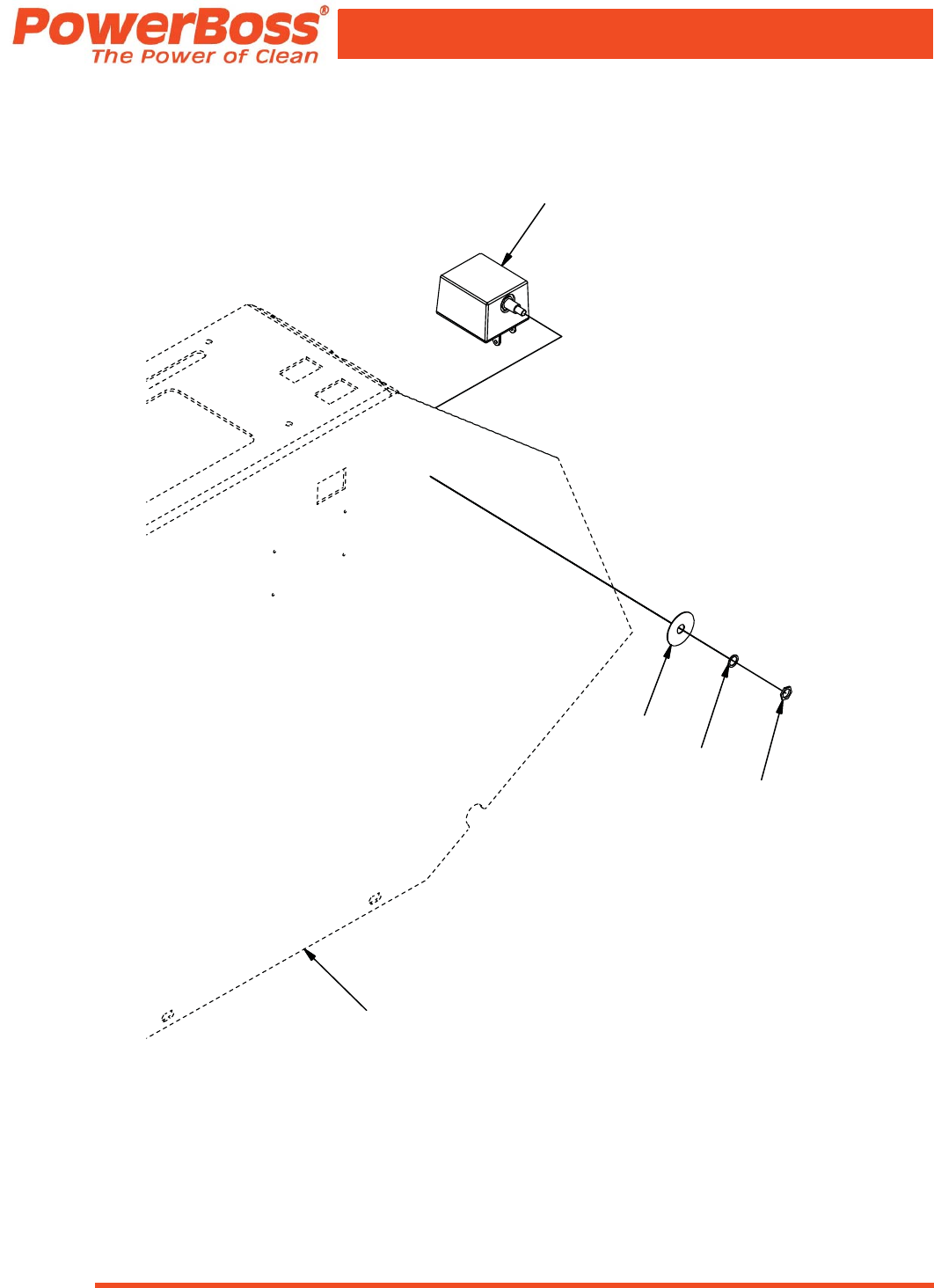

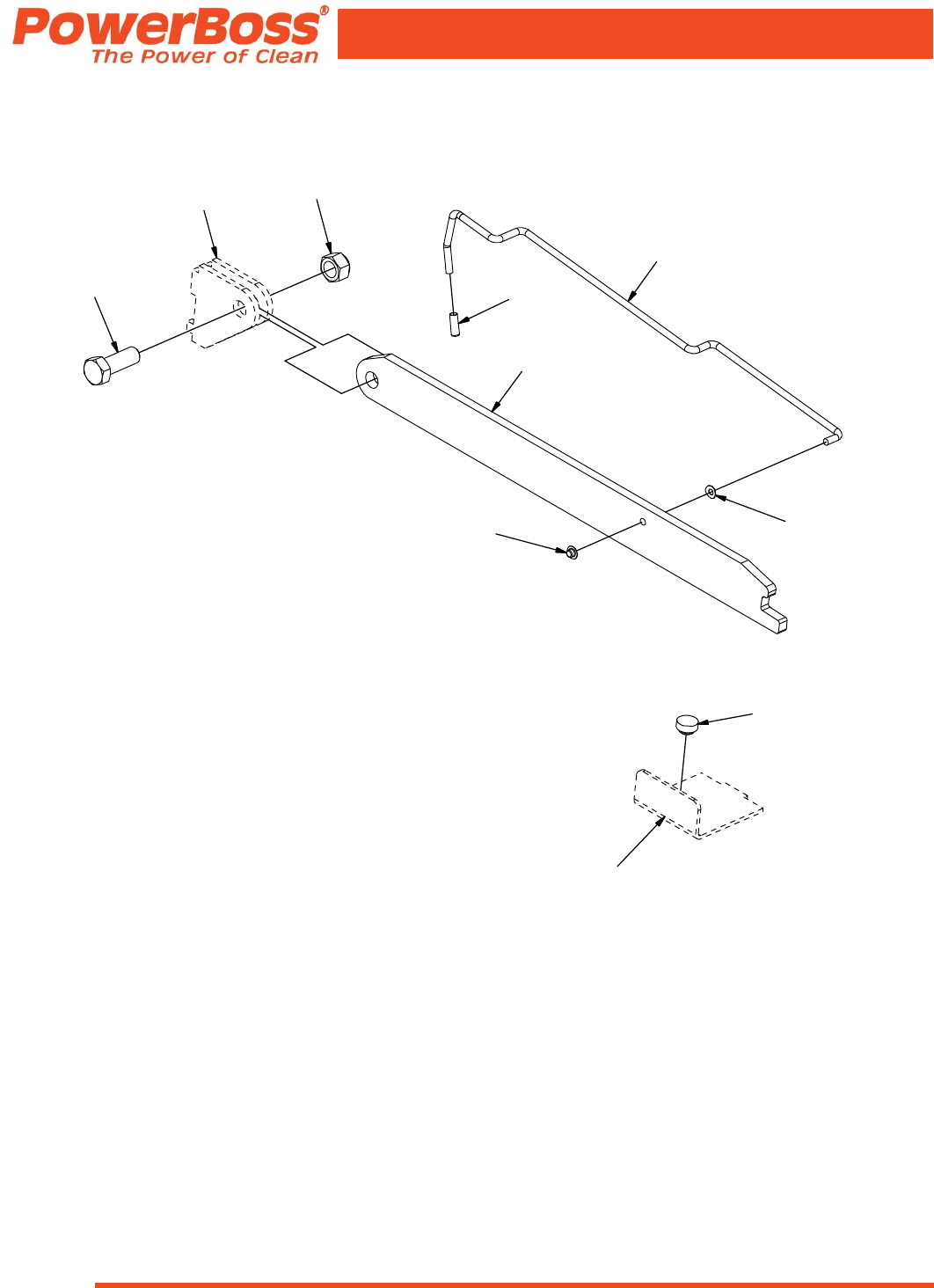

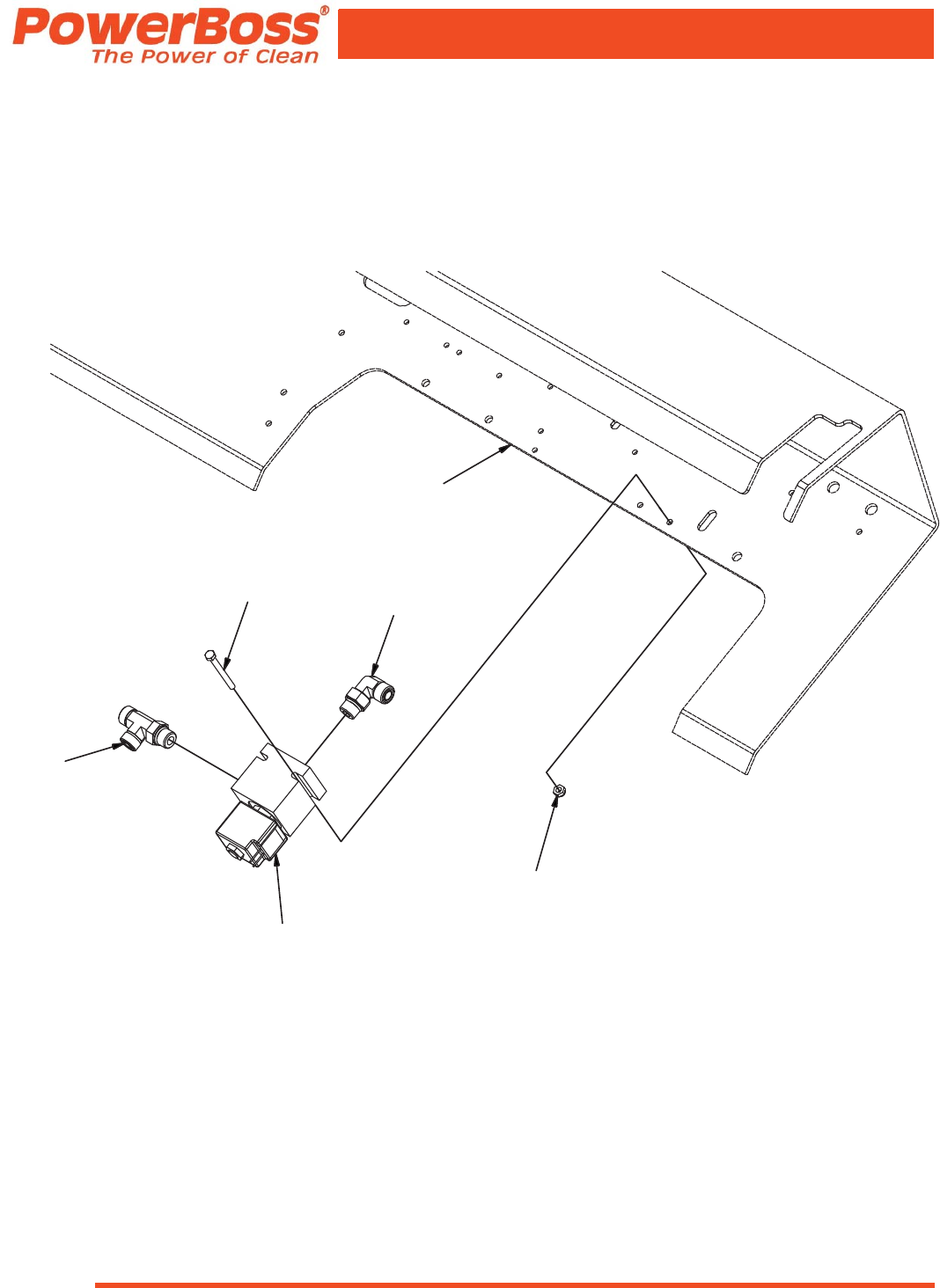

MAIN BROOM INTERLOCK GROUP (600644-1)
REV *
2
3
1
6
4
5
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 87
PARTS BREAKDOWN
MAIN BROOM INTERLOCK GROUP (600644-1)
Parts List 600644-1
DESCRIPTIONQTYPART NUMBERITEM
NUT, M6-1.00 ESN SS26009331
VALVE, SOLENOID, 2-POS 2-WAY, N.C.1620134-12
BOLT, M6-100 X 65 HH ZP
26201353
FITTING, 90, -8 ORFS - 8 SAE16755234
FITTING, RUN TEE, 8 ORFS - 8 ORFS - 8 SAE
16755255
FRAME
-
REF.6
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 88
PARTS BREAKDOWN

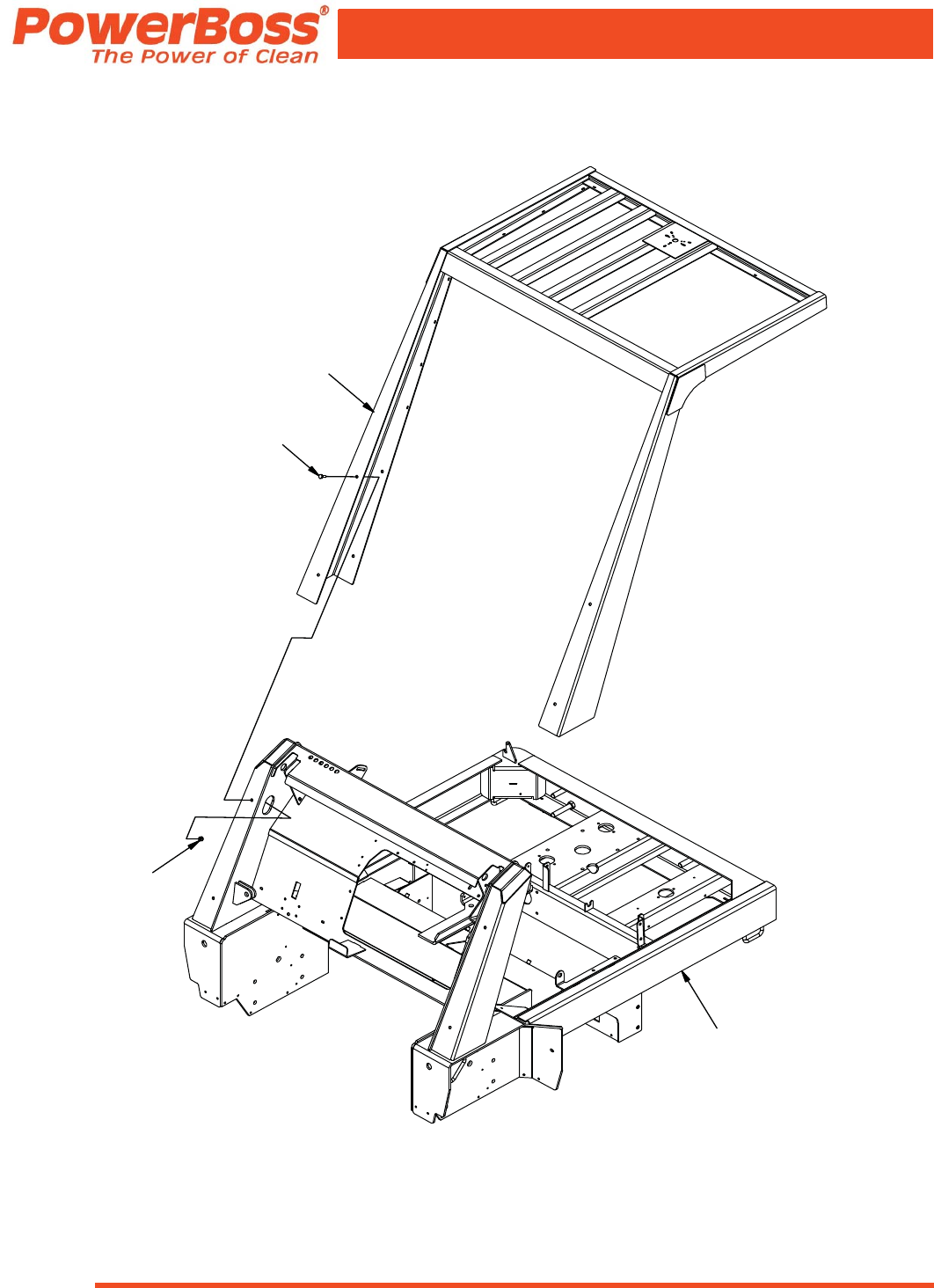

COVER FRAME GROUP (600780)
REV *
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 89
PARTS BREAKDOWN
COVER FRAME GROUP (600780)
Parts List

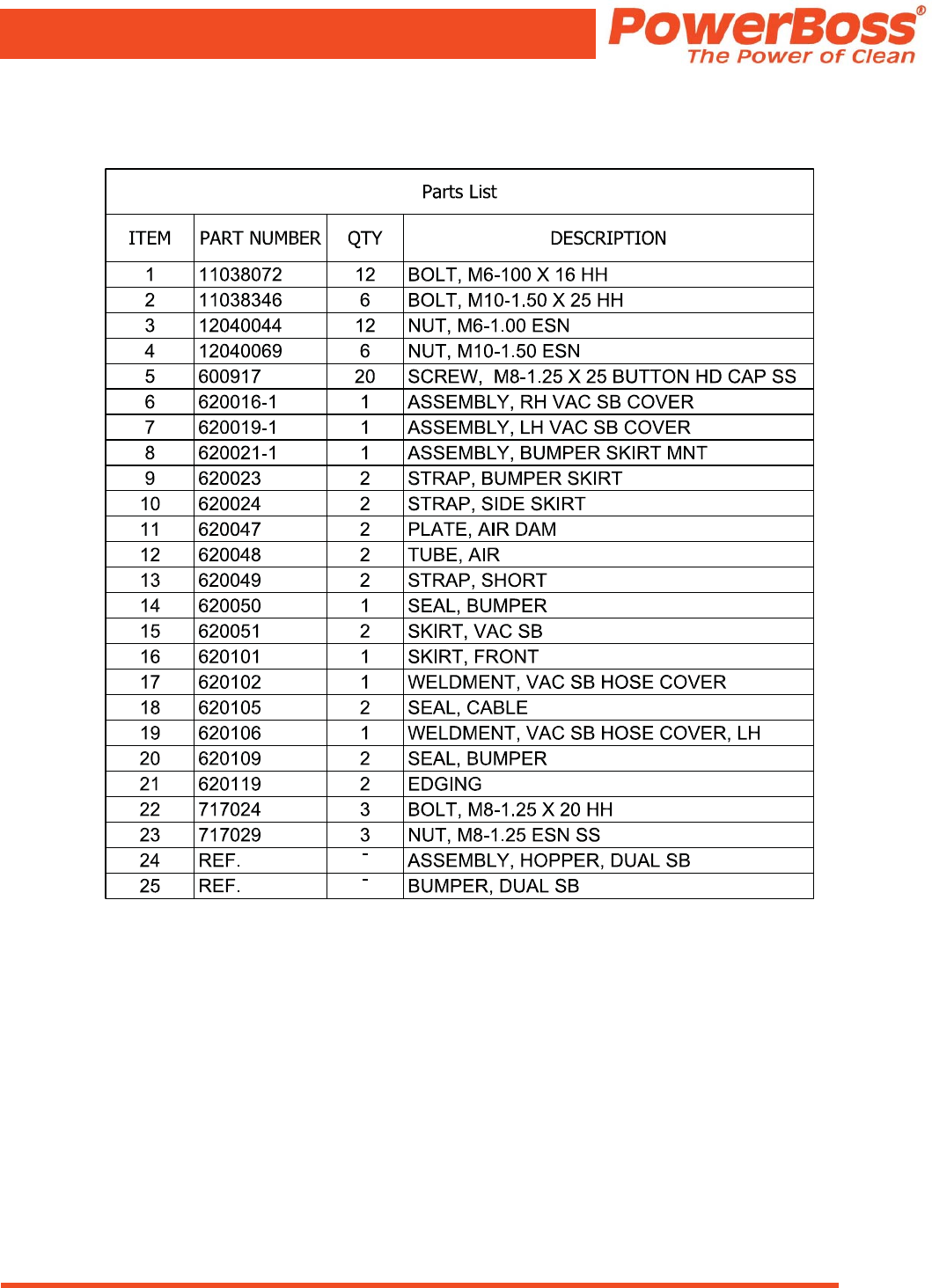

DESCRIPTIONQTYPART NUMBERITEM
%2/70;++
%2/70;++
1870(61
:$6+(50
%803(5,'7
:$6+(5%(//(9,//(
:$6+(5%(//(9,//(
:(/'0(17&29(5)5$0(
+,1*(/2&.
&+$11(/6833257
1870)/1*
1870)/1*
%2/70;++
&2162/(
5()
)5$0(
5()
)5$0(
5()
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 90
PARTS BREAKDOWN

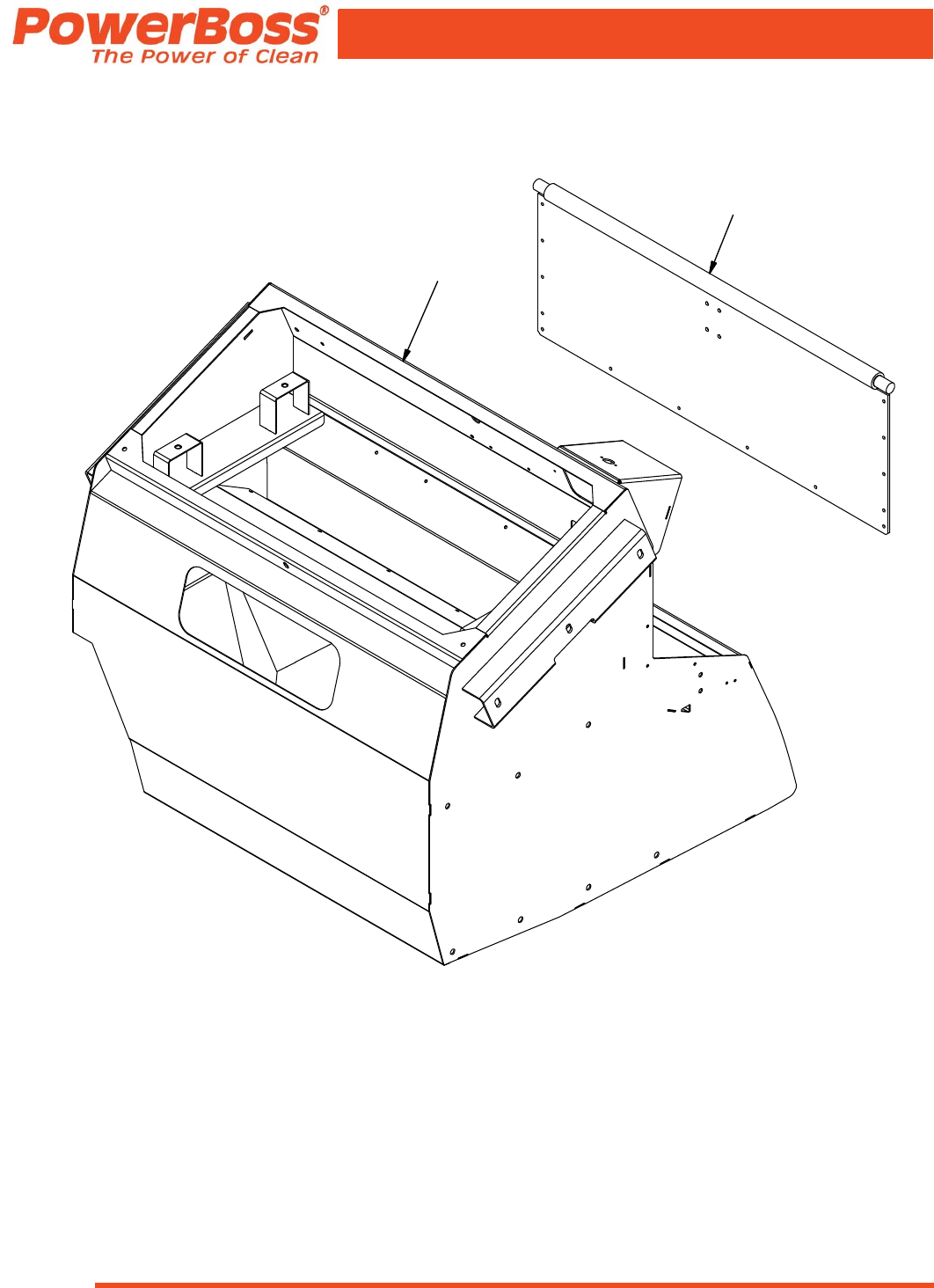

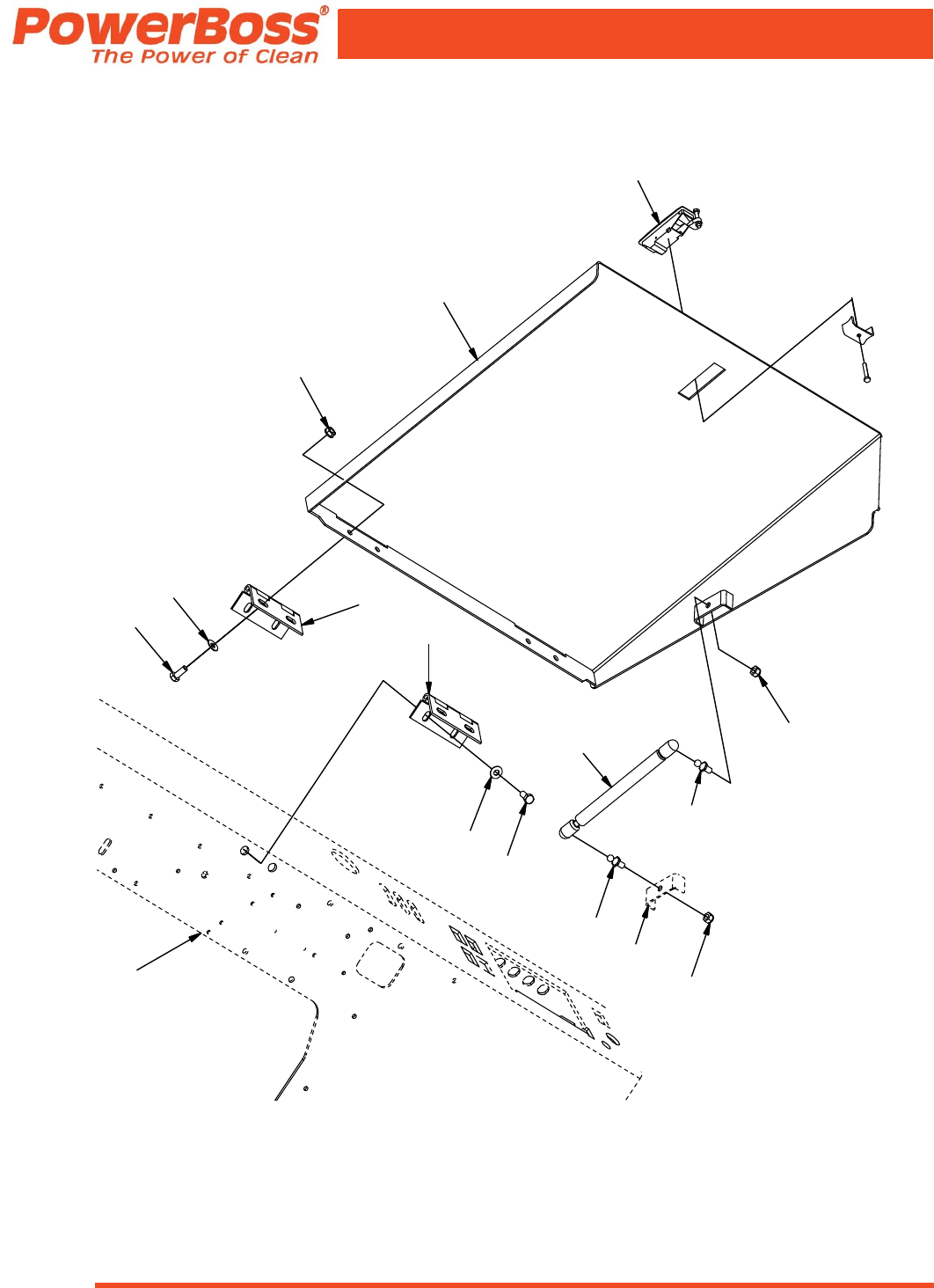

TOP COVER GROUP (600760)
REV A
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 91
PARTS BREAKDOWN
TOP COVER GROUP (600760)
Parts List
DESCRIPTIONQTYPART NUMBERITEM
678'00%$//
/$7&+$66<
:$6+(5%(//(9,//(
:(/'0(17723&29(5
+,1*(
*$667587
1870)/1*
187),%(5,16(57
%2/70;++
&2162/(
5()
)5$0(
5()
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 92

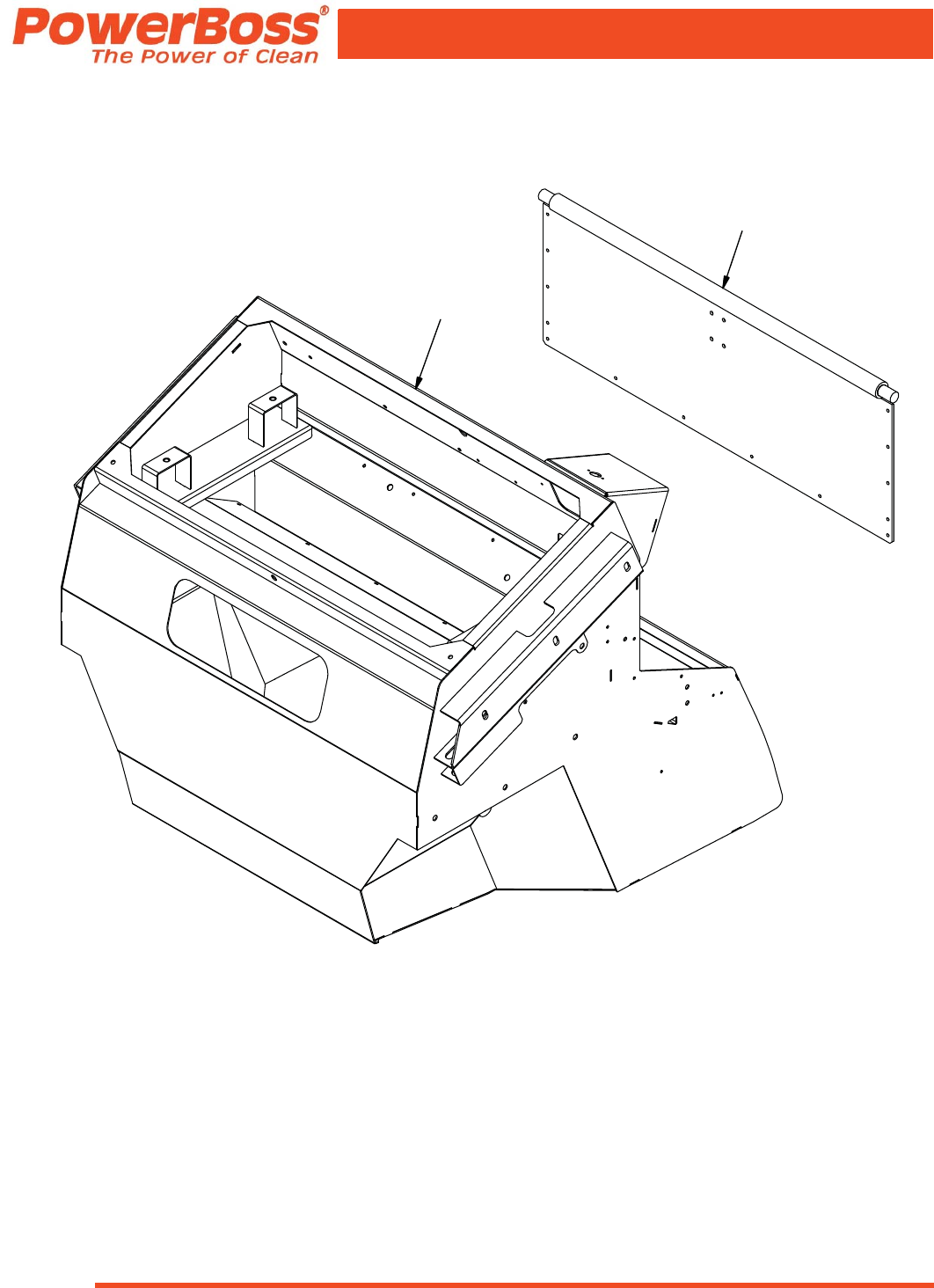

PARTS BREAKDOWN

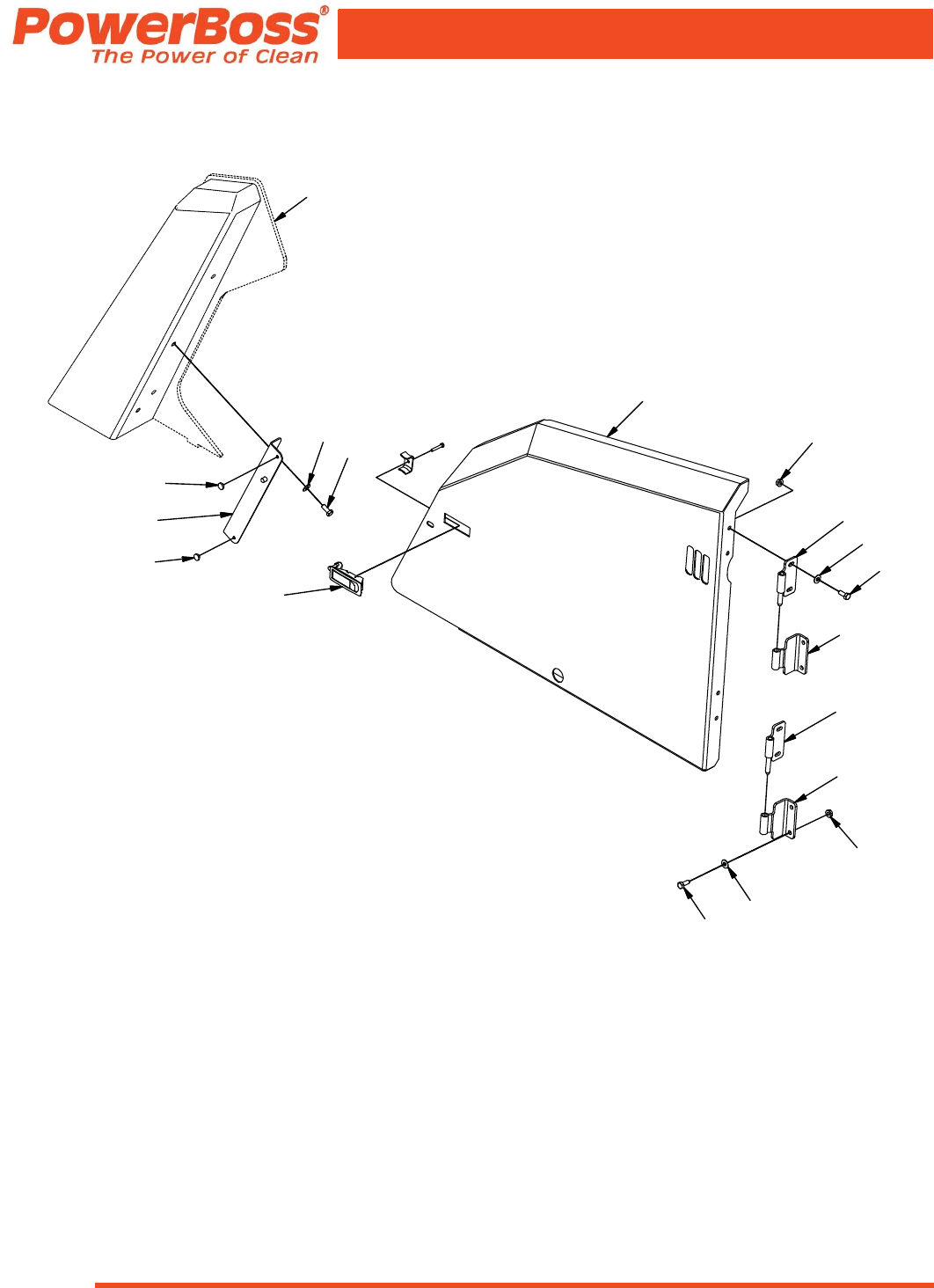

SIDE DOOR GROUP (600750)
REV *
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 93
PARTS BREAKDOWN
SIDE DOOR GROUP (600750)
Parts List
DESCRIPTIONQTYPART NUMBERITEM
/$7&+$66<
%803(5,'7
:$6+(5%(//(9,//(
:(/'0(17'225675,.(5
6,'('225
:(/'0(17+,1*()(0
:(/'0(17+,1*(0$/(
:(/'0(17+,1*(0$/(/*
1870)/1*
%2/70;++
)5$0(
5()
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 94
PARTS BREAKDOWN

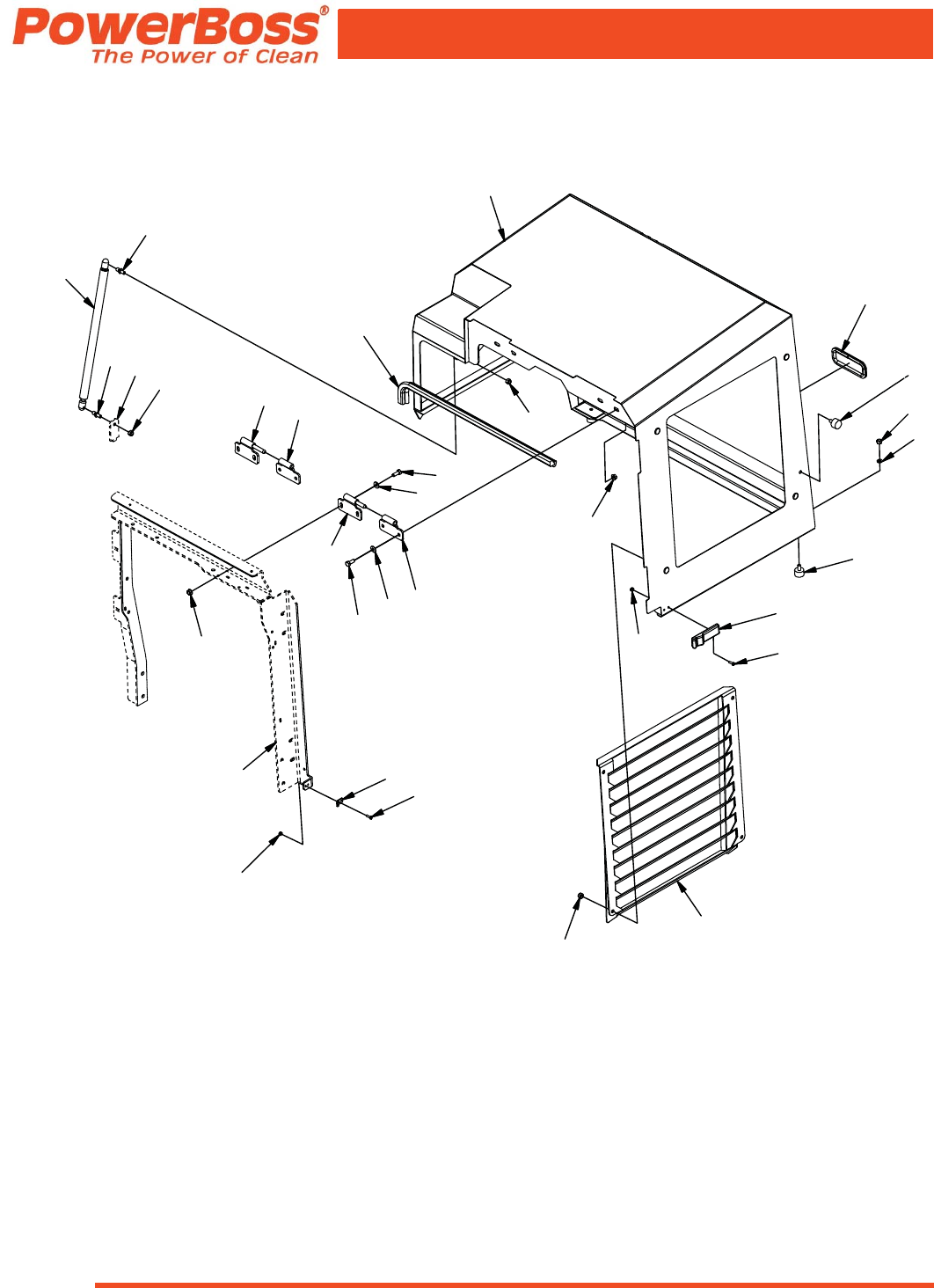

ENGINE COVER GROUP (600661)
REV *
14
23
19
22
2
12
2
911
8
11
16
19
14
10
1
18
5
7
13
4
21
3
4
17
17
15
7
6
20
620
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 95
PARTS BREAKDOWN
ENGINE COVER GROUP (600661)
Parts List 600661
DESCRIPTIONQTYPART NUMBERITEM
NUT, M8-1.25 ESN
4120400511
STUD, 10MM BALL233003762
DRAW LATCH133077193
NUT, FIBER INSERT #8-32434000824
LOCK WASHER, 5/16 HS MED33400102
5
WASHER, 5/16 BELLEVILLE834003846
BUMPER, 1.00 X .625 T3600220
7
WELDMENT, HINGE, MALE16003808
WELDMENT, HINGE, MALE, LG16003839
WELDMENT, GRILL160047010
WELDMENT, HINGE, FEM260048411
GAS STRUT, 30.9 EXT X 13.8 STK160050712
EDGING160058213
NUT, M8-1.25 FLNG860093414
WELDMENT, ENGINE COVER162063615
EDGING, ENG COVER1620642
16
SCREW, #8-32 X .62 PAN HD471023017
NUT, HEX 5/16-18371131918
NUT, FIBER INSERT 5/16-18271137419
BOLT, M8-1.25 X 20 HH871702420
KEEPER1PART OF 330771921
FRAME
-
REF22
COVER FRAME
-
REF23
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 96
PARTS BREAKDOWN
PUMP COVER GROUP (600610)
REV A
14
1
21
2
8
20
11137
9
18
5
4
17
10
5
4
22
16
3
9
6
12
15
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 97
PARTS BREAKDOWN
PUMP COVER GROUP (600610)
Parts List
DESCRIPTIONQTY
PART NUMBERITEM
BOLT, M6-100 X 20 HH2110380981
NUT, M6-1.00 ESN
2120400442
LOCK WASHER, 5/16 HS MED234001023
NUT, 10-32 ESN
434001724
SCREW, #10-32 X .625 PAN HD ZP434002045
WELDMENT, PUMP COVER16001556
RETAINER, COVER
16001937
LATCH, COVER26001948
BUMPER, 1.00 X .625 T26002209
LATCH, T-HANDLE
160026510
AXLE CAP NUT, .500160052411
EDGING, HOPPER ACCESS
160081912
WASHER, .50 CURVED SPRING160094813
WASHER, M6, CURVED SPRING
260096314
SEAT162021915
NUT, HEX 5/16-18271131916
NUT, FIBER INSERT 5/16-18471137417
KEEPER1
PART OF 600265
18
LATCH BASE1PART OF 60026519
FRAME1REF.20
FRAME1REF.21
FLOOR1REF.22
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 98
PARTS BREAKDOWN

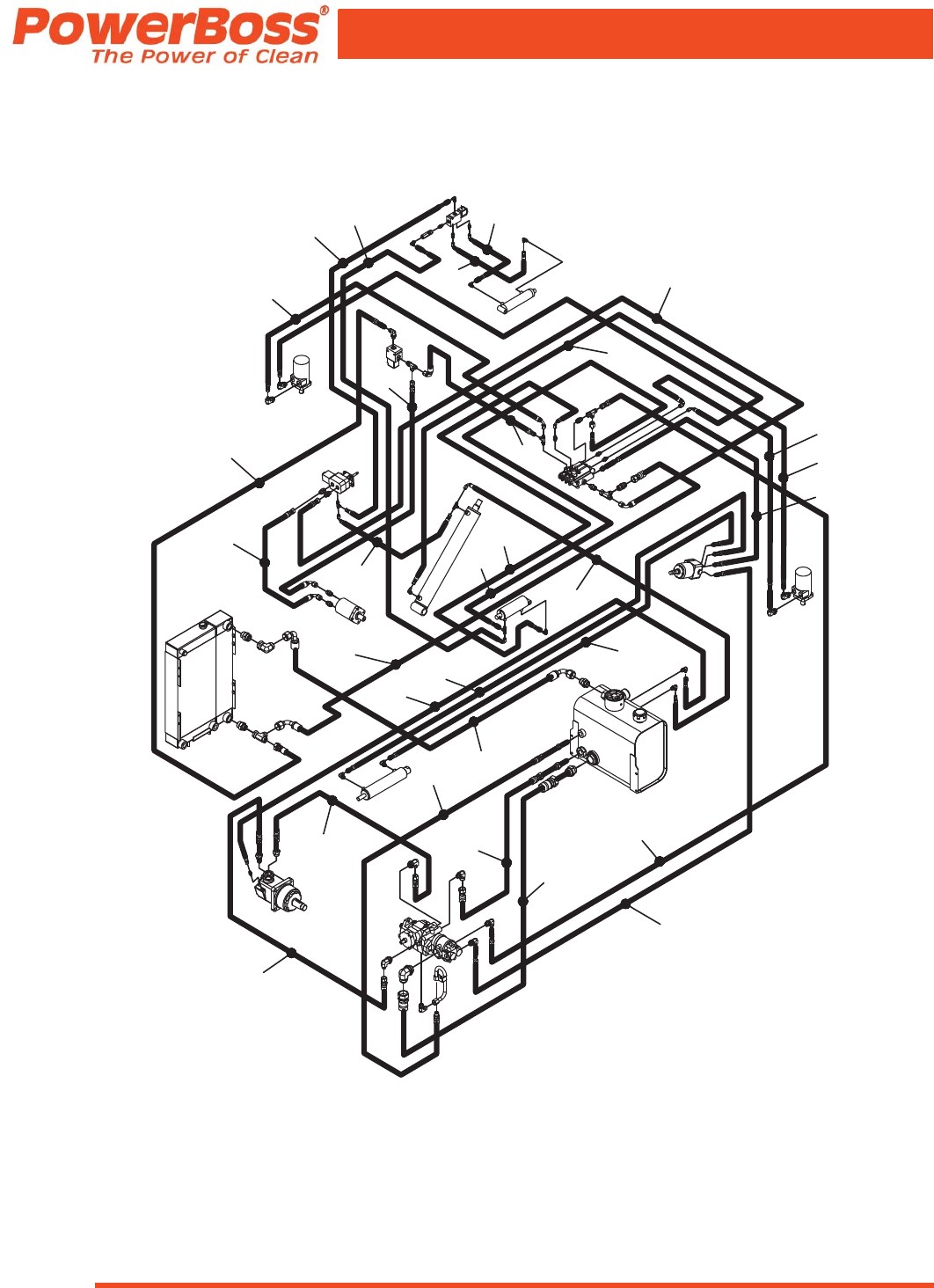

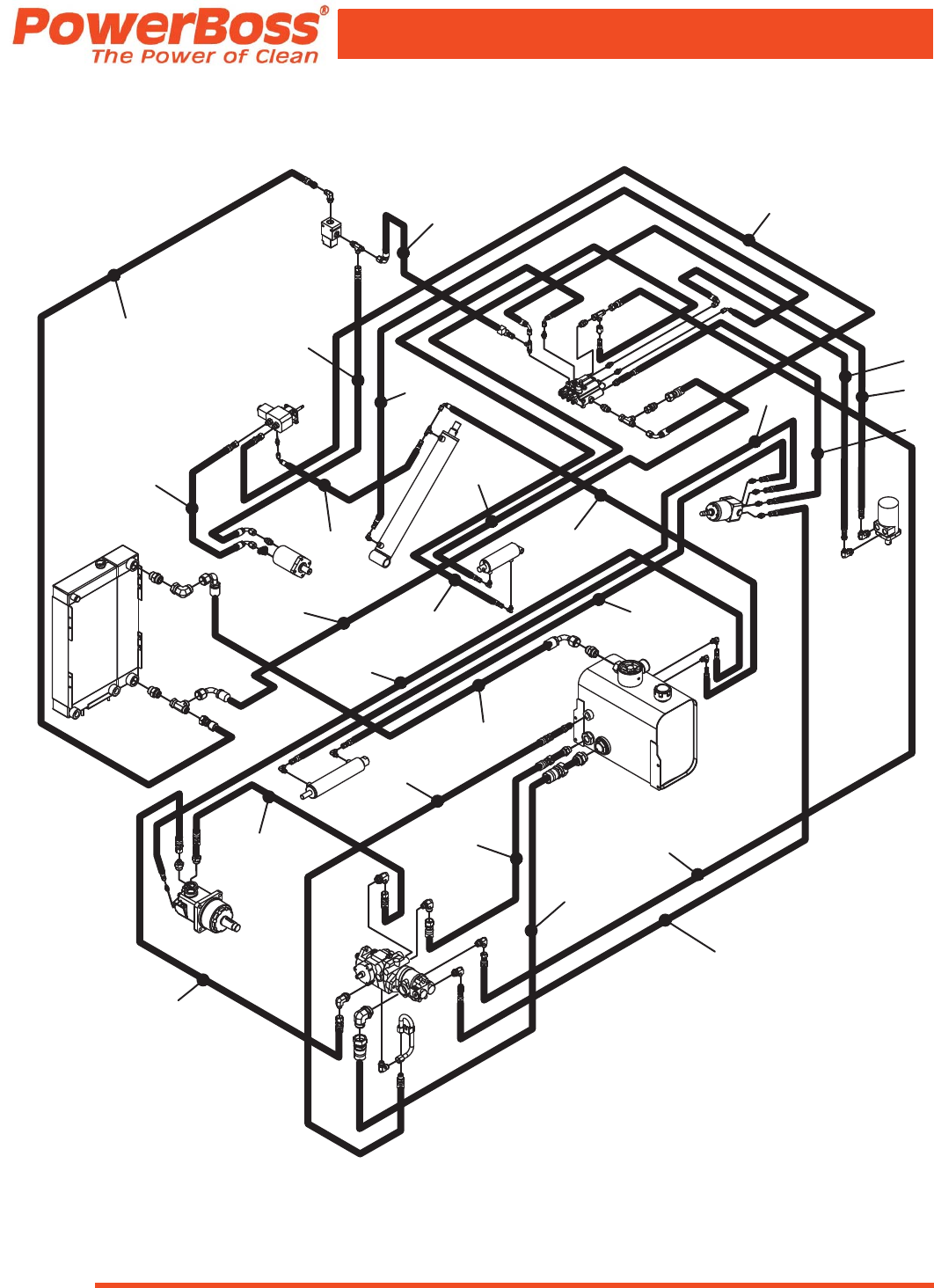

HYDRAULIC HOSE GROUP (600850-1)
REV B
15
14
12
13
11
10
7
8
9
4
23
22
21
5
2
1
6
18
20
17
16
3
19
25
24
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 99
PARTS BREAKDOWN
HYDRAULIC HOSE GROUP (600850-1)
Parts List 600850-1
DESCRIPTION
QTYPART NUMBERITEM
HOSE, 20 STR - 20 STR SUC (RES TO AUX)
1600968-11
HOSE, 12 STR - 12 STR SUC (RES TO CASE)1600969-12
HOSE, 16 90 - 16 90 RET (COOLER TO RES)1620084-13
HOSE, 12 STR - 12 90 RET (VALVE TO COOLER)
1600971-14
HOSE, 10 STR - 10 STR MALE RET (CASE TO RES)1600972-15
HOSE, 8 STR - 8 STR MED (AUX TO VALVE)1600973-16
HOSE, 8 STR - 8 90 MED (MB TO IMP)
1600974-17
HOSE, 8 STR - 8 90 MED (SOLENOID TO MB)1600975-18
HOSE, 8 STR - 10 90 MED (IMP TO VALVE RET)
1600977-19
HOSE, 6 STR - 6 STR MED (AUX TO STR PRESS)1600978-110
HOSE, 6 STR - 6 STR MED (STR TO VALVE RET)1600979-111
HOSE, 6 STR - 6 STR MED (STR TO CYL F)
1600980-112
HOSE, 6 STR - 6 STR MED (STR TO CYL R)1600981-113
HOSE, 6 STR - 6 90 MED (SB TO MB THRU VALVE)1600982-114
HOSE, 6 STR - 6 90 MED (VALVE TO SB)
1600983-115
HOSE, 4 STR - 4 90 MED (VALVE TO DOOR CYL F)1600984-116
HOSE, 4 STR - 4 STR MED (VALVE TO DOOR CYL R)1600985-117
HOSE, 4 STR - 4 90 MED (VALVE TO LIFT CYL L)
1600986-118
HOSE, 4 STR - 4 90 RET (IMP TO LIFT CYL U)1600987-119
HOSE, 4 STR - 4 STR RET (LIFT CYL U TO RES)
1600988-120
HOSE, 4 STR - 4 STR RET (WM CASE TO RES)1600989-121
HOSE, 8 STR - 8 STR SPCL (VDP R TO WM R)1600990-122
HOSE, 8 STR - 8 STR SPCL (VDP F TO WM L)
1600991-123
HOSE, 6 STR - 8 90 MED (VALVE OUT TO SOLENOID)1620121-124
HOSE, 8 STR - 12 STR MED (SOLENOID TO COOLER)1620122-125
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 100
PARTS BREAKDOWN

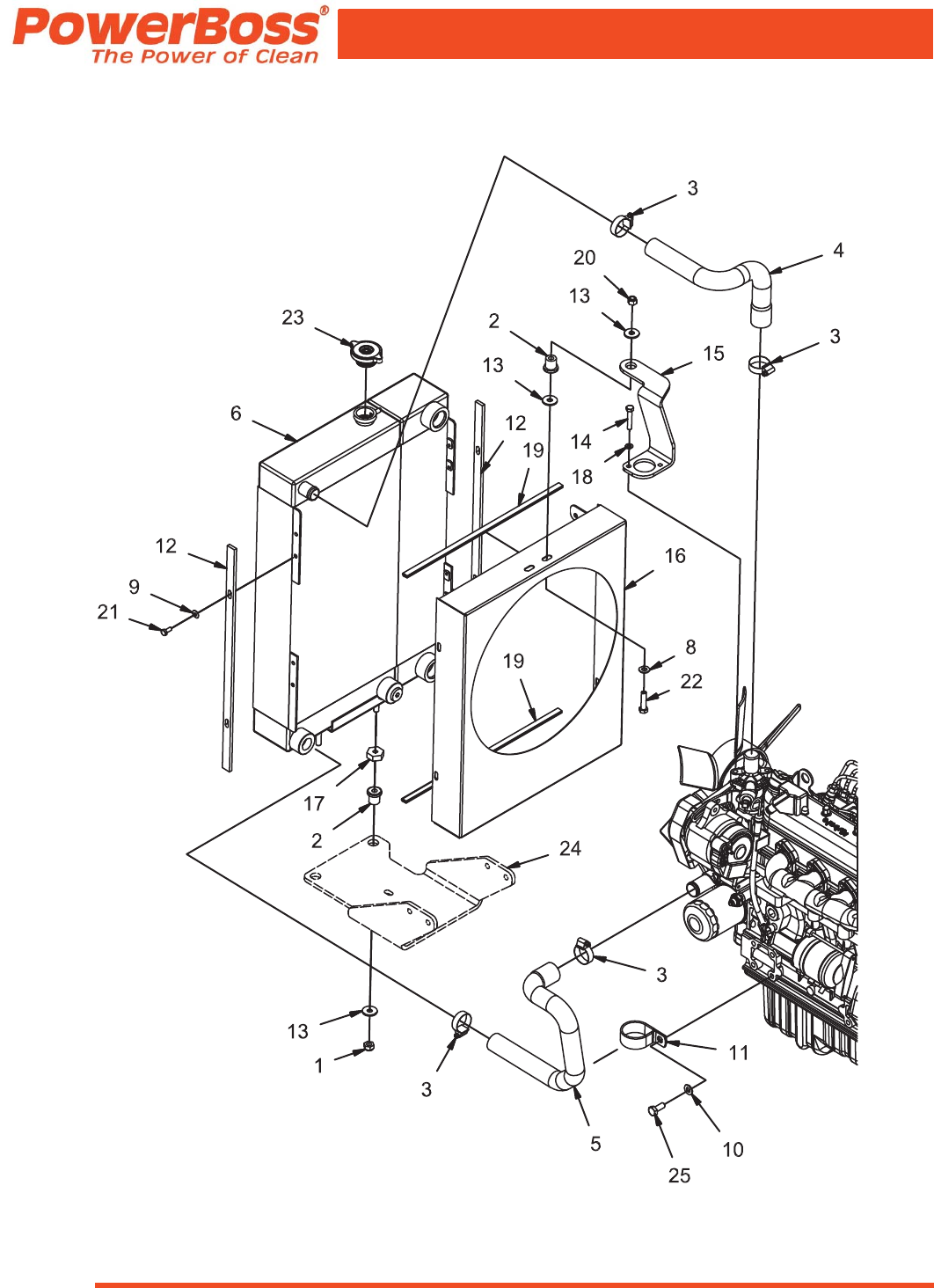

RADIATOR GROUP - DIESEL, GAS, LPG (600615)
REV D
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 101
PARTS BREAKDOWN
RADIATOR GROUP - DIESEL, GAS, LPG (600615)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 102
PARTS BREAKDOWN
RADIATOR OVERFLOW GROUP (600602)
REV A
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 103
PARTS BREAKDOWN

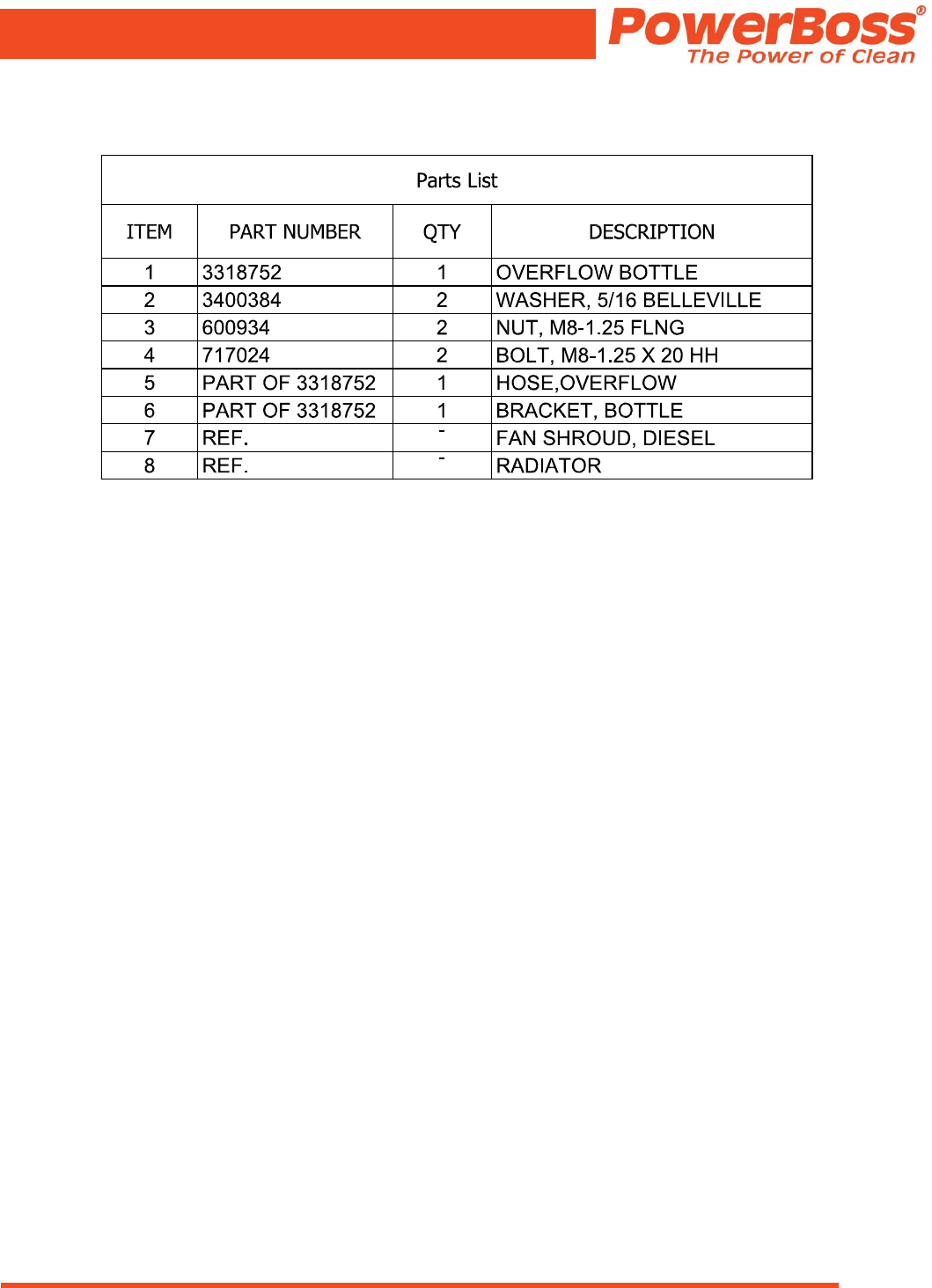

RADIATOR OVERFLOW GROUP (600602)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 104
PARTS BREAKDOWN

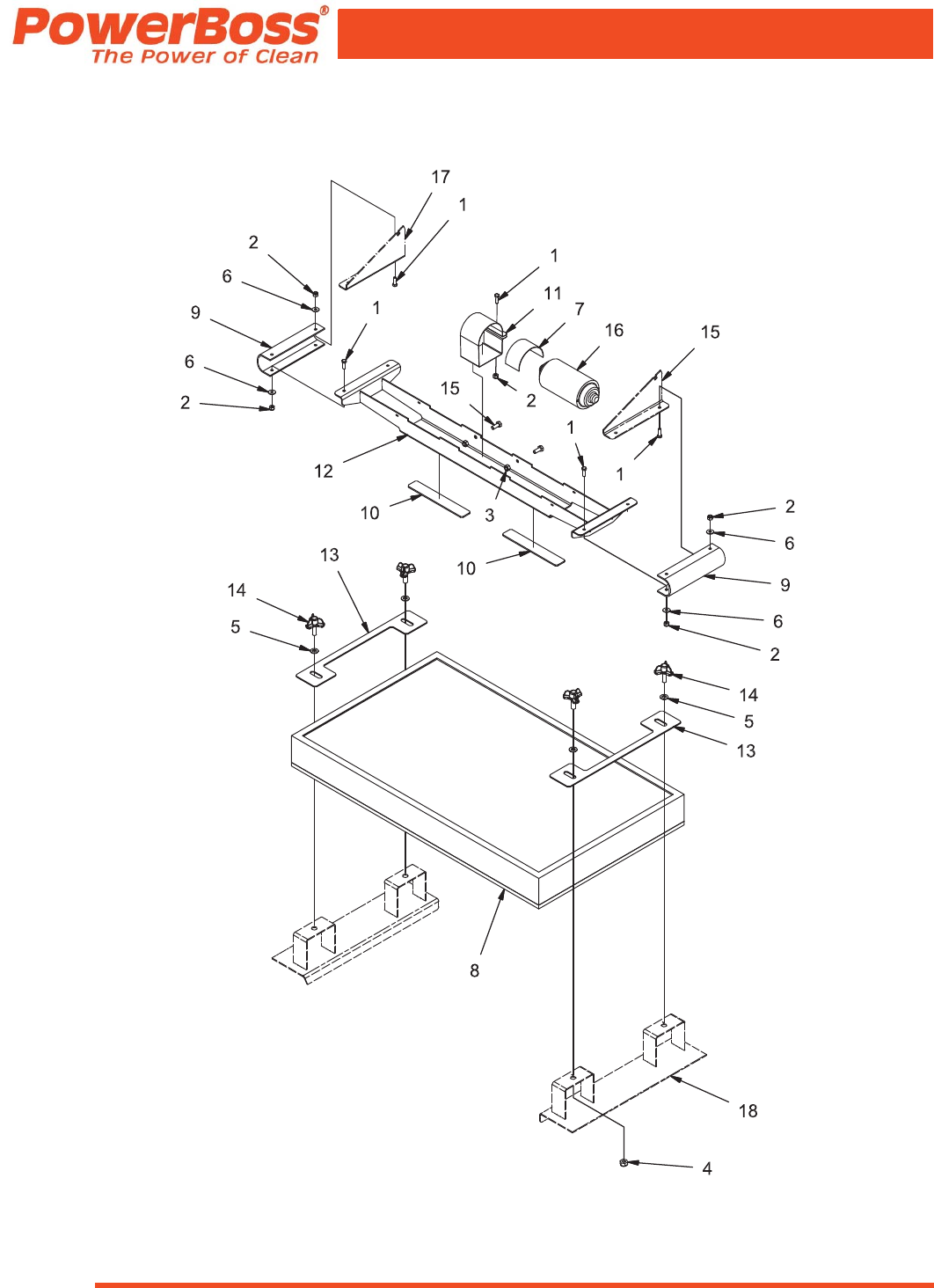

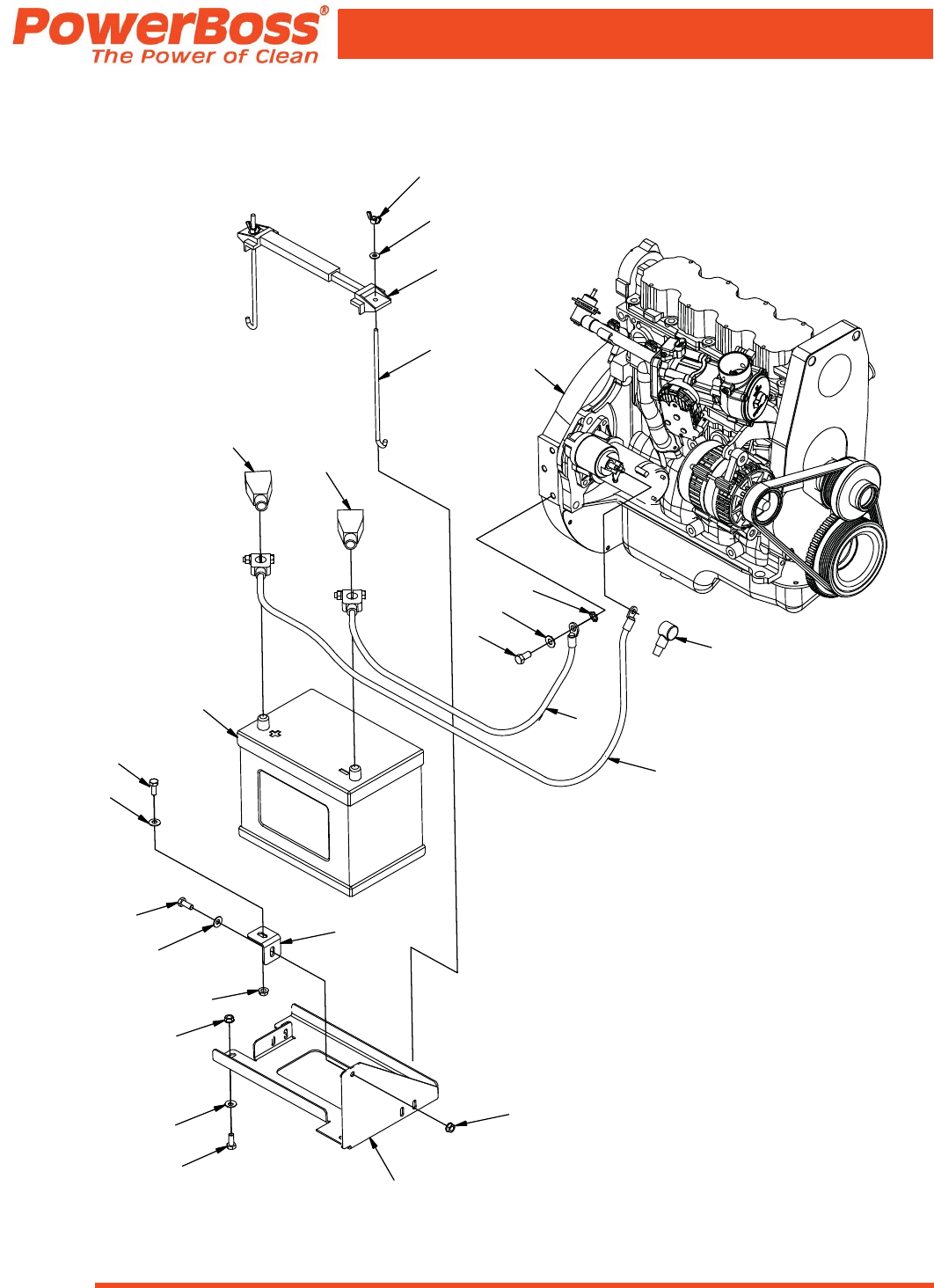

BATTERY GROUP (600770)
REV B
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 105
PARTS BREAKDOWN
BATTERY GROUP (600770)
Parts List
DESCRIPTIONQTY
PART NUMBERITEM
%$77(5<9
+2/''2:1%$77(5<
52'%$77(5<7,('2:1
:,1*187=3
:$6+(5
:$6+(5;;
:$6+(5%(//(9,//(
&/,3
%$77(5<75$<
1870)/1*
/2&.:$6+(5,1767$5
6&5(:;++&
%2/70;++
&$%/(%$77(5<326
&$%/(%$77(5<1(*
%2277(505('3$572)
%227%$77(5<5('3$572)
%227%$77(5<%/$&.3$572)
(1*,1(
5()
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 106
PARTS BREAKDOWN

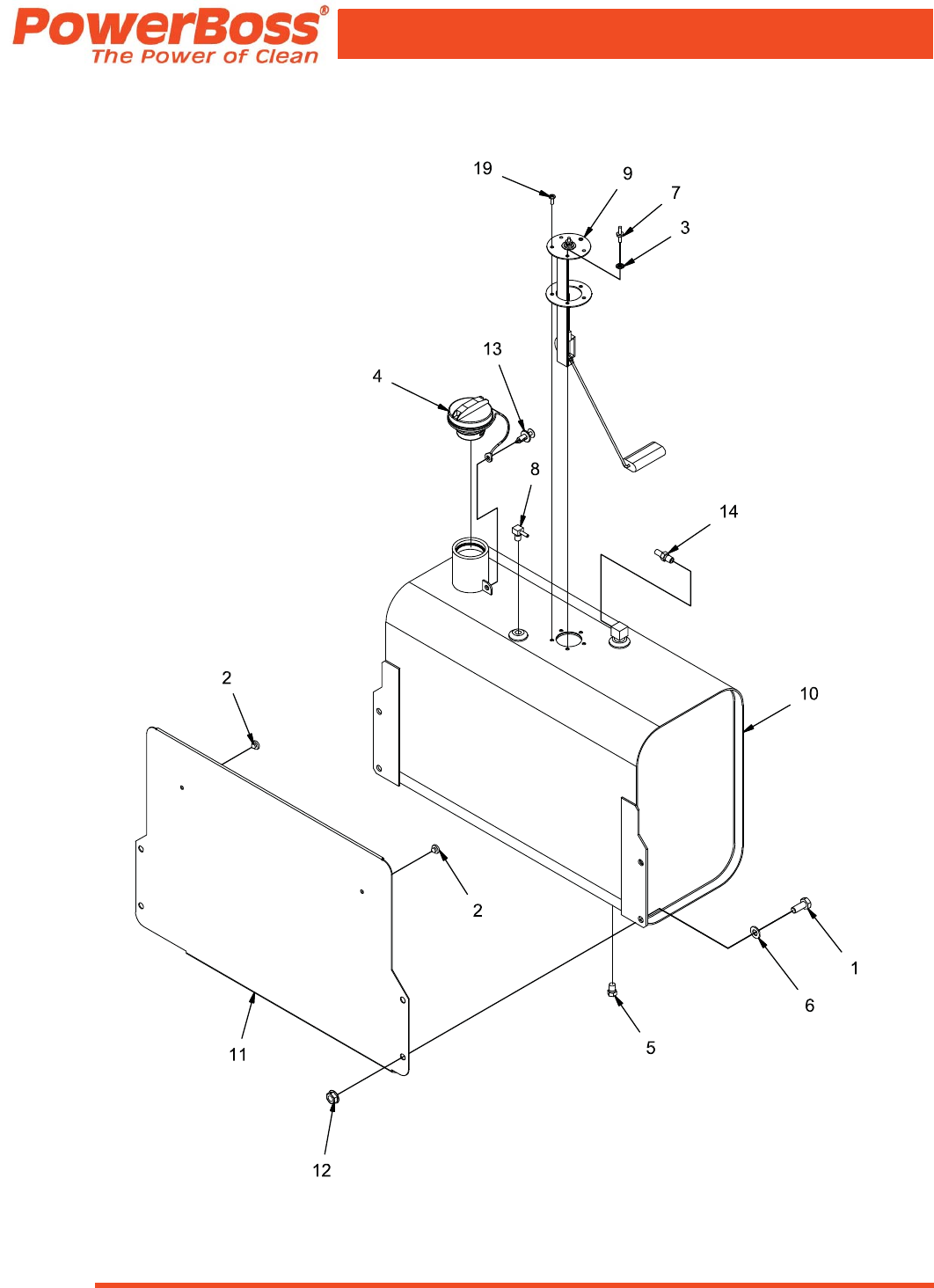

FUEL TANK GROUP - DIESEL (600618)
REV F
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 107
PARTS BREAKDOWN
FUEL TANK GROUP - DIESEL (600618)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 108
PARTS BREAKDOWN
FUEL TANK GROUP - GAS (600634)
REV D
634
VD
16
4
9
10
7
15
14
11
12
2
2
13
5
8
3
6
1
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 109
PARTS BREAKDOWN

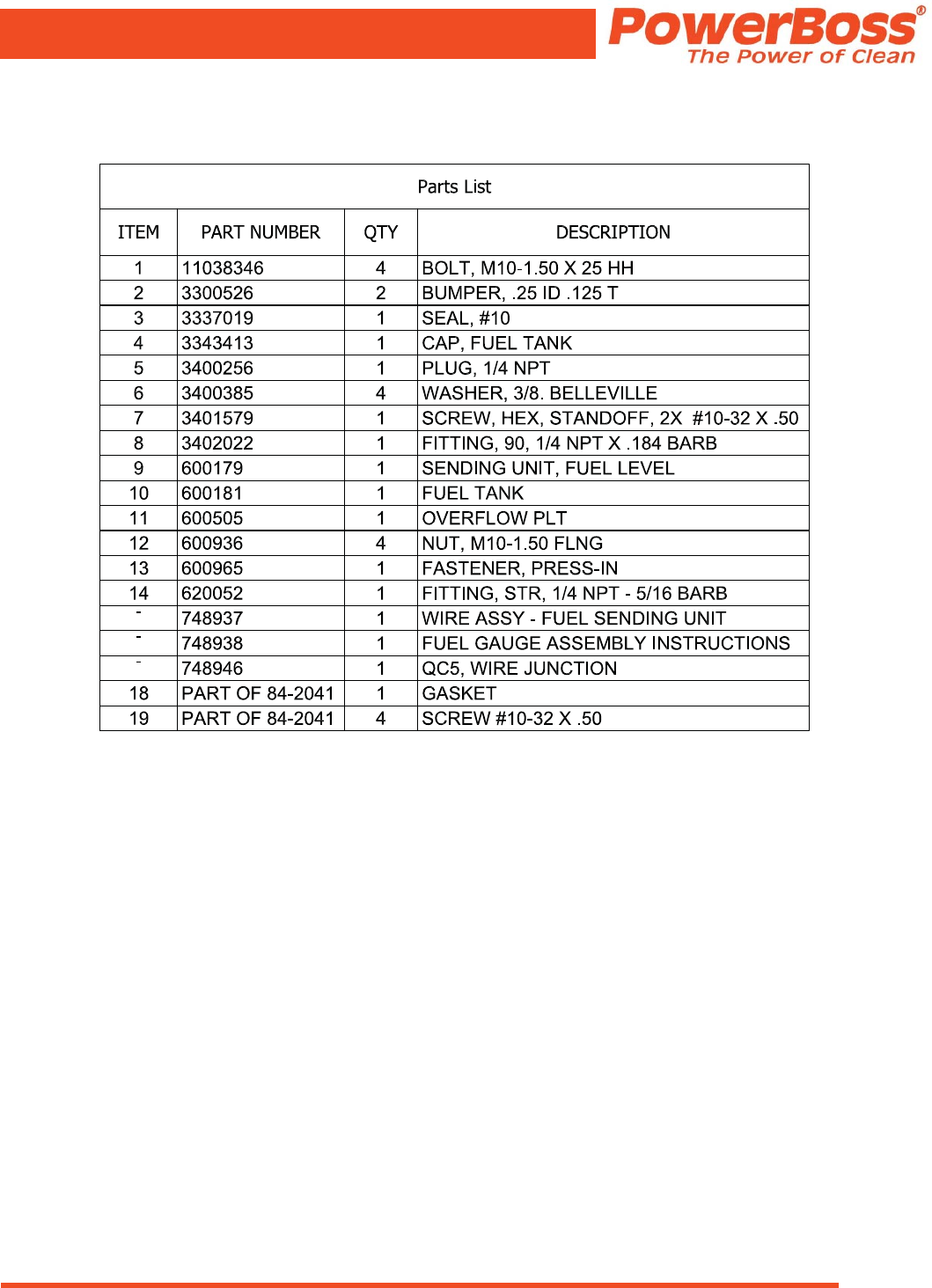

FUEL TANK GROUP - GAS (600634)
Parts List
DESCRIPTIONQTY
PART NUMBERITEM
BOLT, M10-1.50 X 25 HH
4110383461
BUMPER, .25 ID .125 T233005262
SEAL, #10
133370193
CAP, FUEL TANK133434134
PLUG, 1/4 NPT
134002565
WASHER, 3/8. BELLEVILLE434003856
FITTING, 90, 1/4 NPT X 5/16 BARB
134014457
SCREW, HEX, STANDOFF, 2X #10-32 X .50134015798
SENDING UNIT, FUEL LEVEL
16001799
FUEL TANK160018110
OVERFLOW PLT
160050511
NUT, M10-1.50 FLNG460093612
FASTENER, PRESS-IN
160096513
FITTING, STR, 1/4 NPT - 5/16 BARB162005214
GASKET
1
PART OF 84-2041
15
SCREW #10-32 X .504PART OF 84-204116
WIRE ASSY - FUEL SENDING UNIT
1748937
-
FUEL GAUGE ASSEMBLY INSTRUCTIONS1748938
-
QC5, WIRE JUNCTION
1748946
-
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 110
PARTS BREAKDOWN

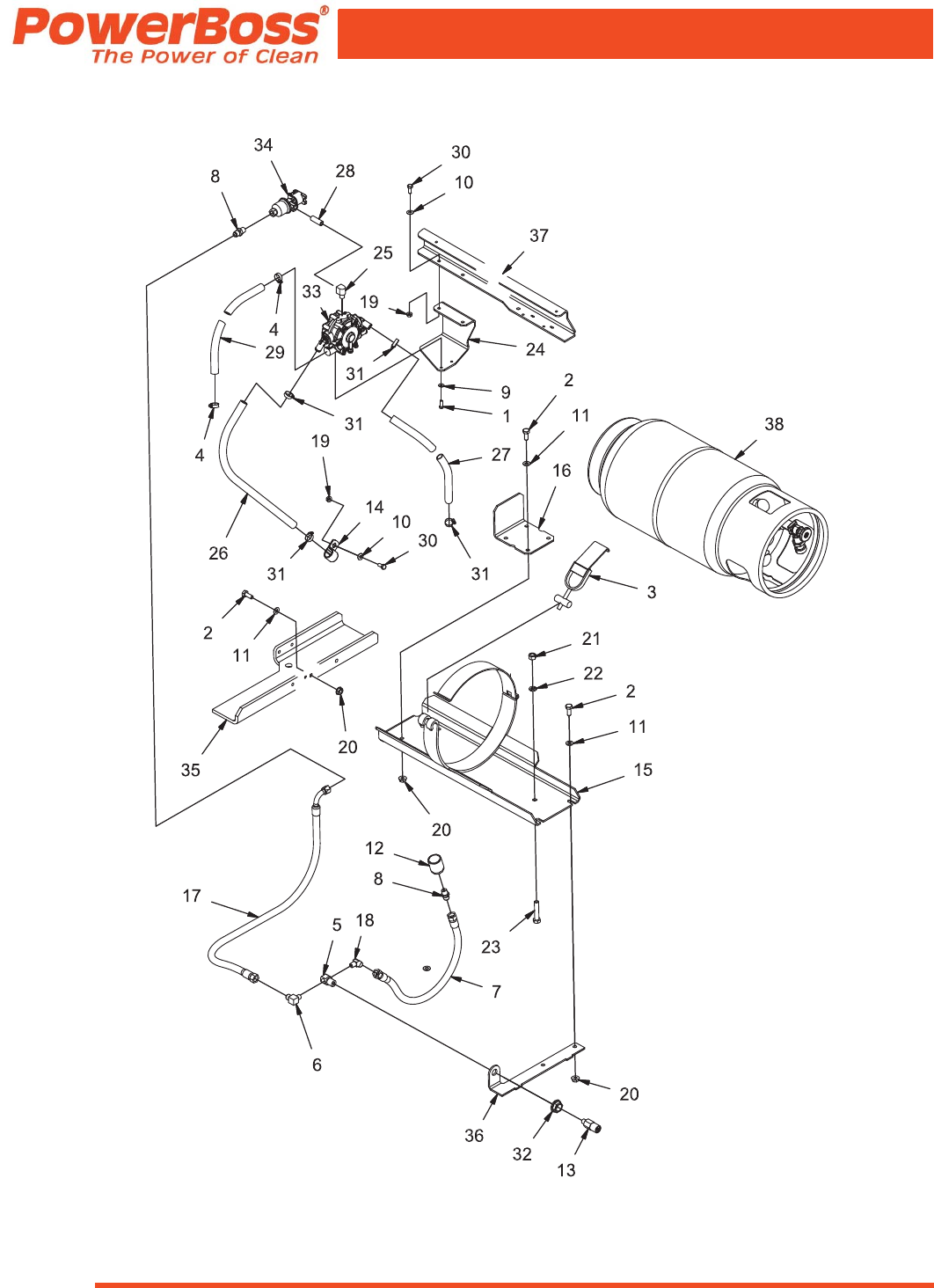

LPG TANK GROUP (600710)
REV G
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 111
PARTS BREAKDOWN

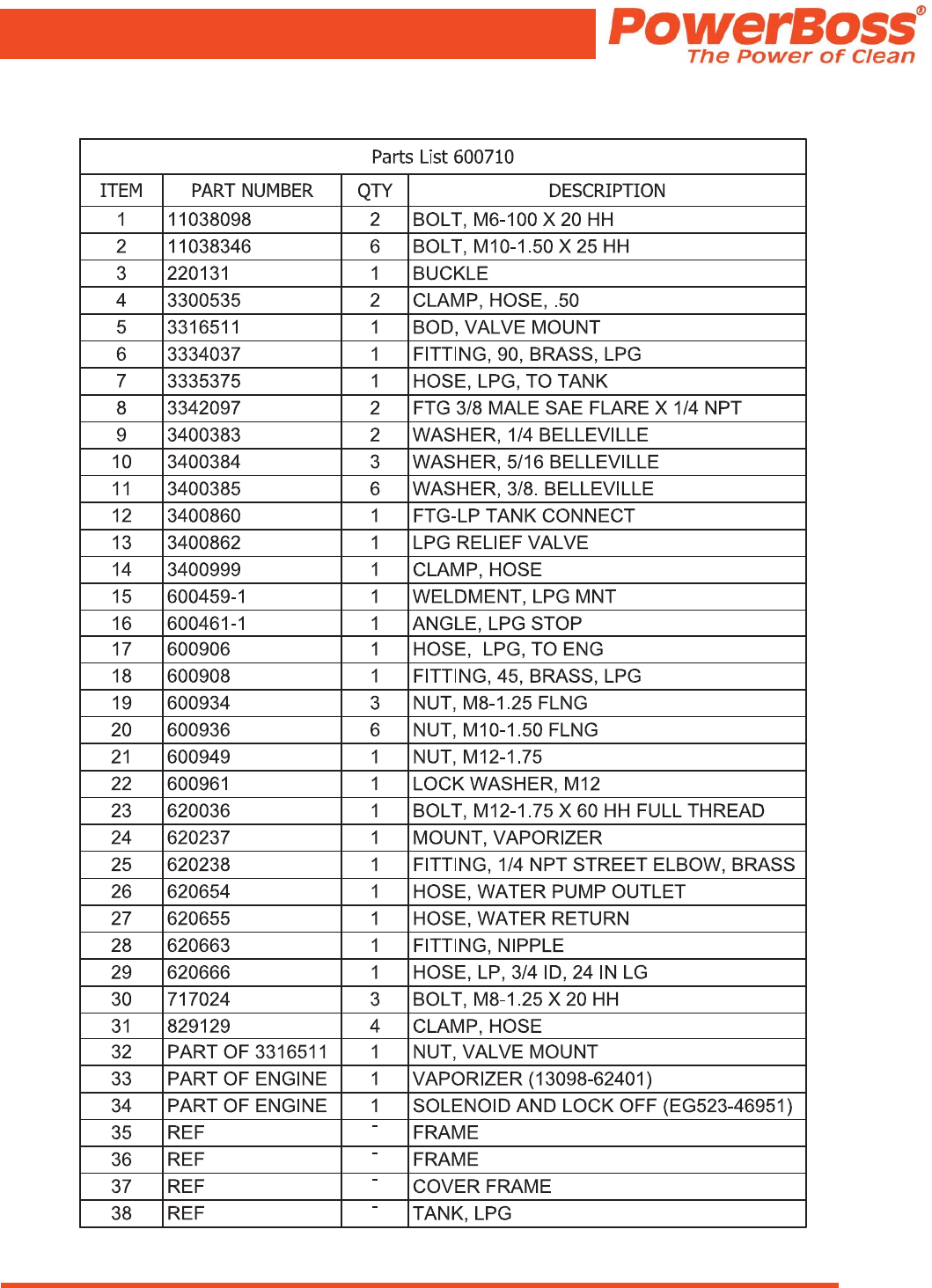

LPG TANK GROUP (600710)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 112
PARTS BREAKDOWN

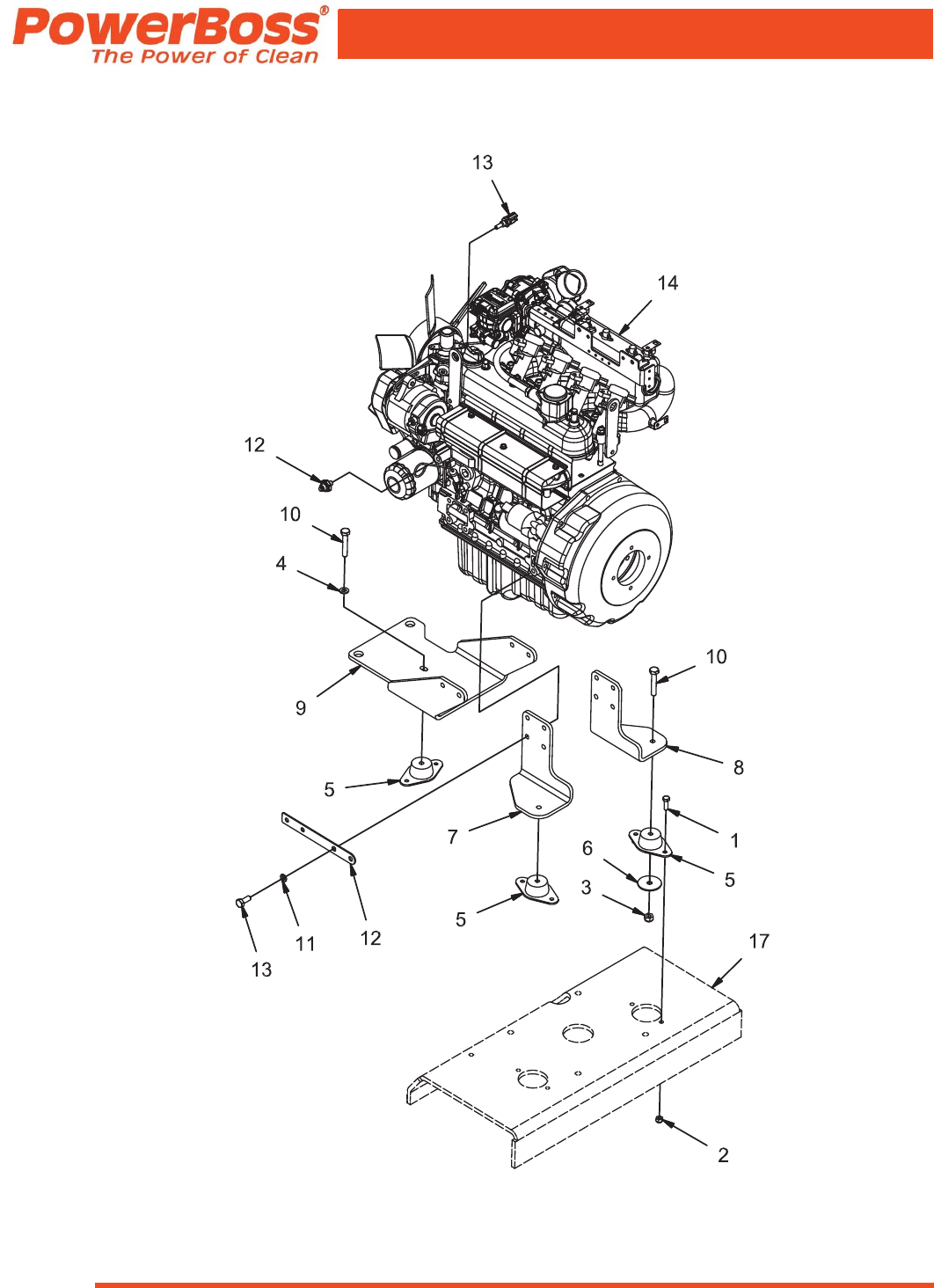

ENGINE MOUNT GROUP - DIESEL (600657)
REV *
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 113
PARTS BREAKDOWN

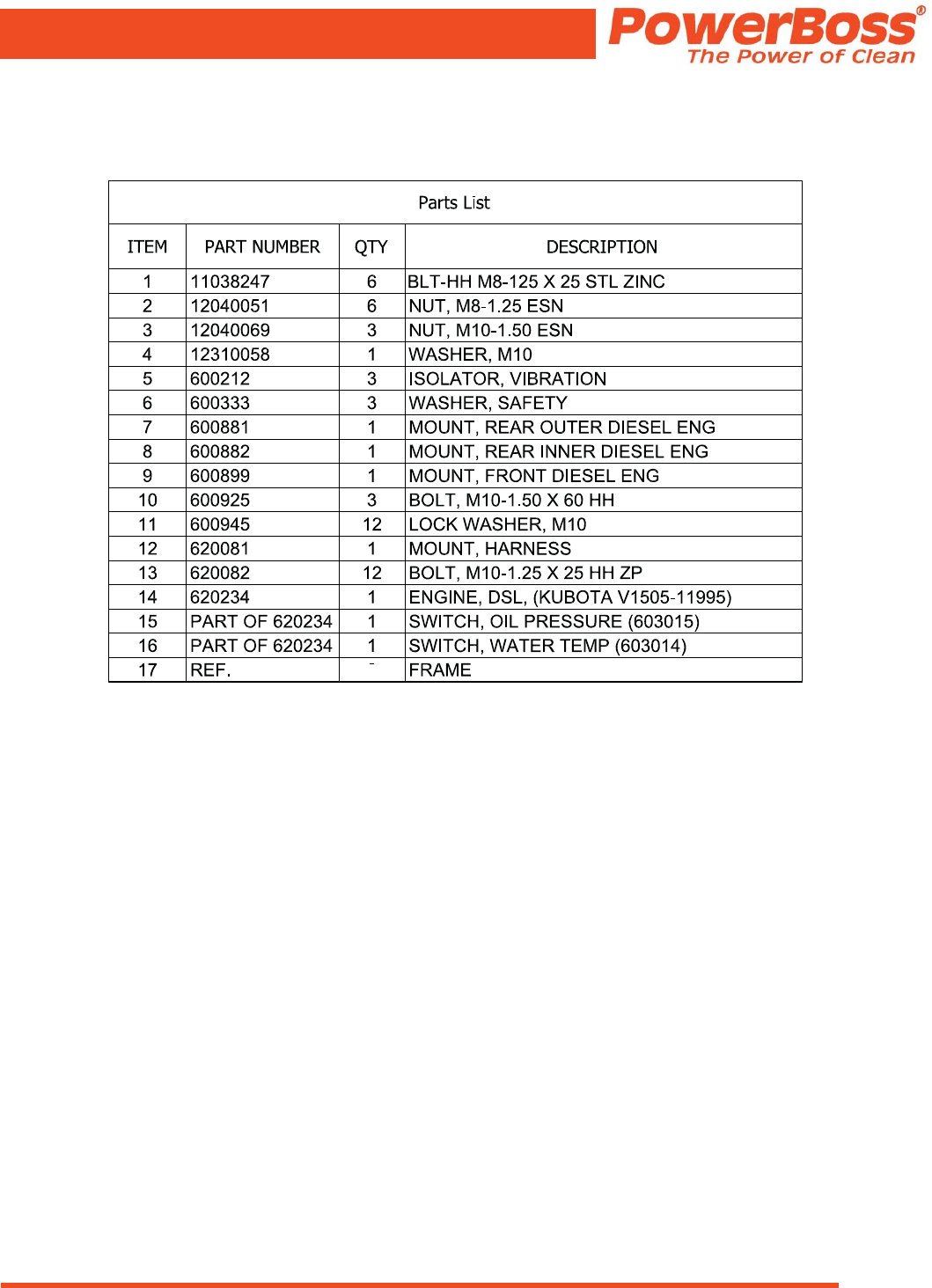

ENGINE MOUNT GROUP - DIESEL (600657)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 114
PARTS BREAKDOWN

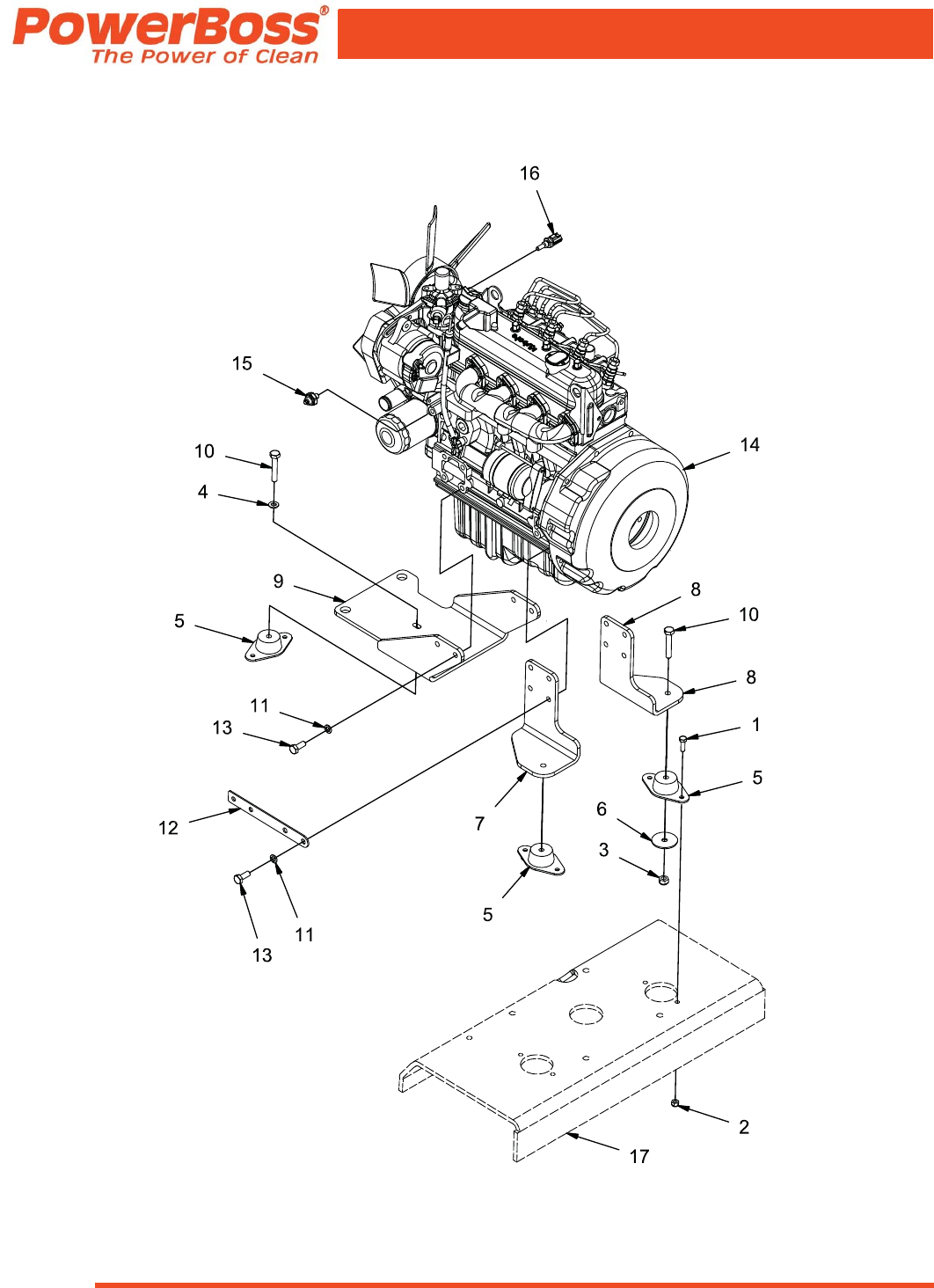

ENGINE MOUNT GROUP - GAS (600658)
REV B
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 115
PARTS BREAKDOWN

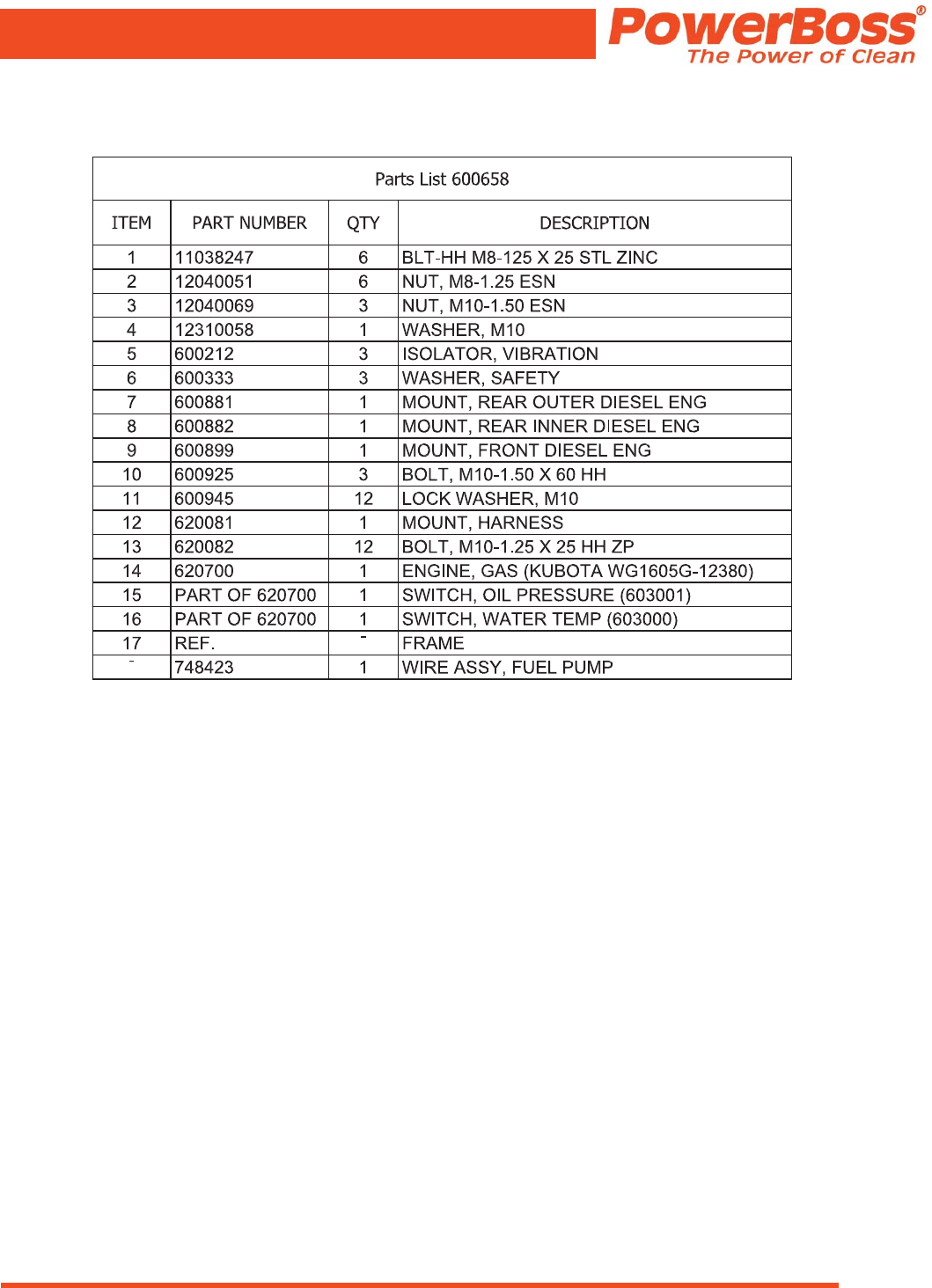

ENGINE MOUNT GROUP - GAS (600658)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 116
PARTS BREAKDOWN

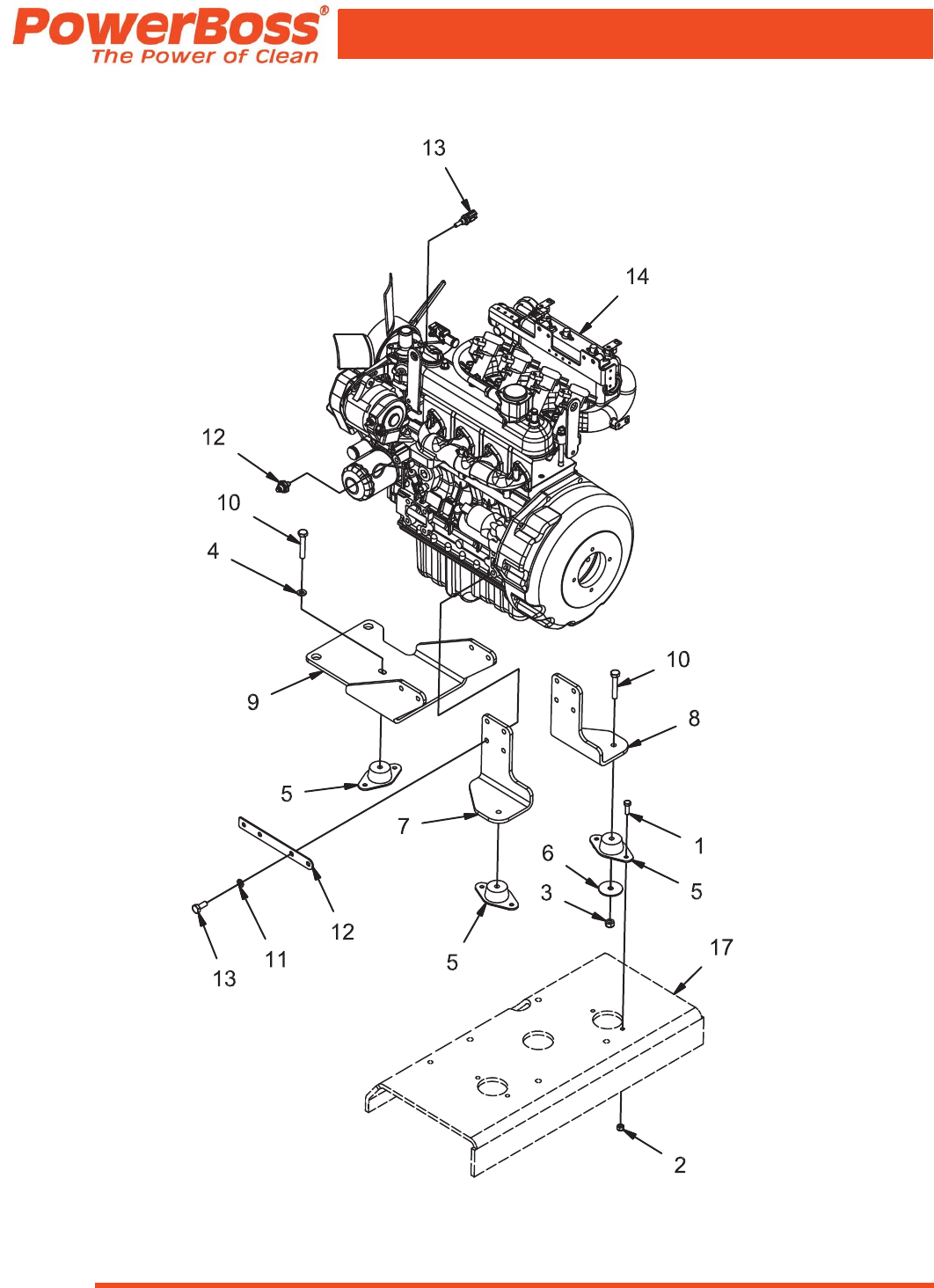

ENGINE MOUNT GROUP - LPG (600659)
REV A
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 117
PARTS BREAKDOWN

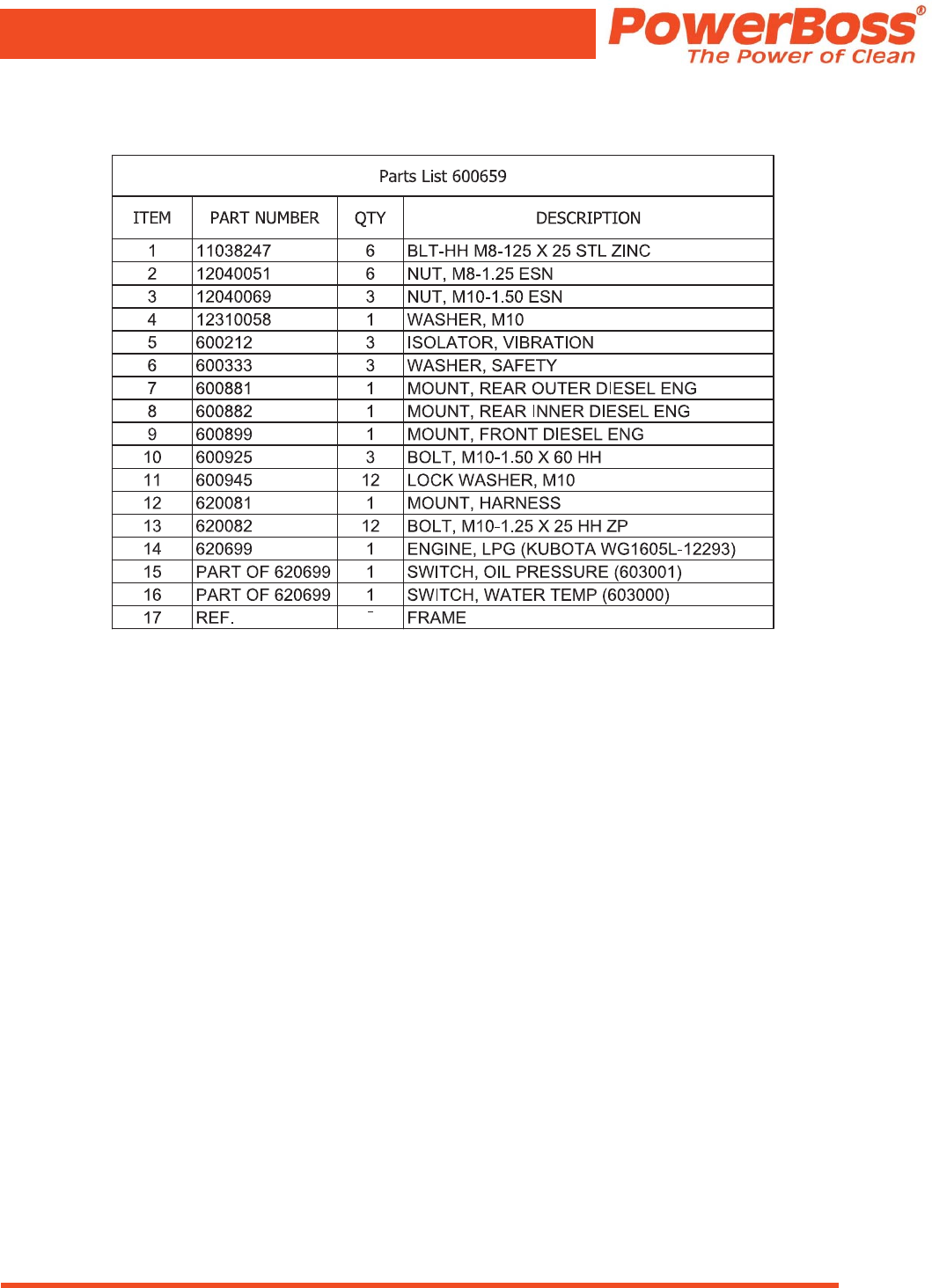

ENGINE MOUNT GROUP - LPG (600659)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 118
PARTS BREAKDOWN

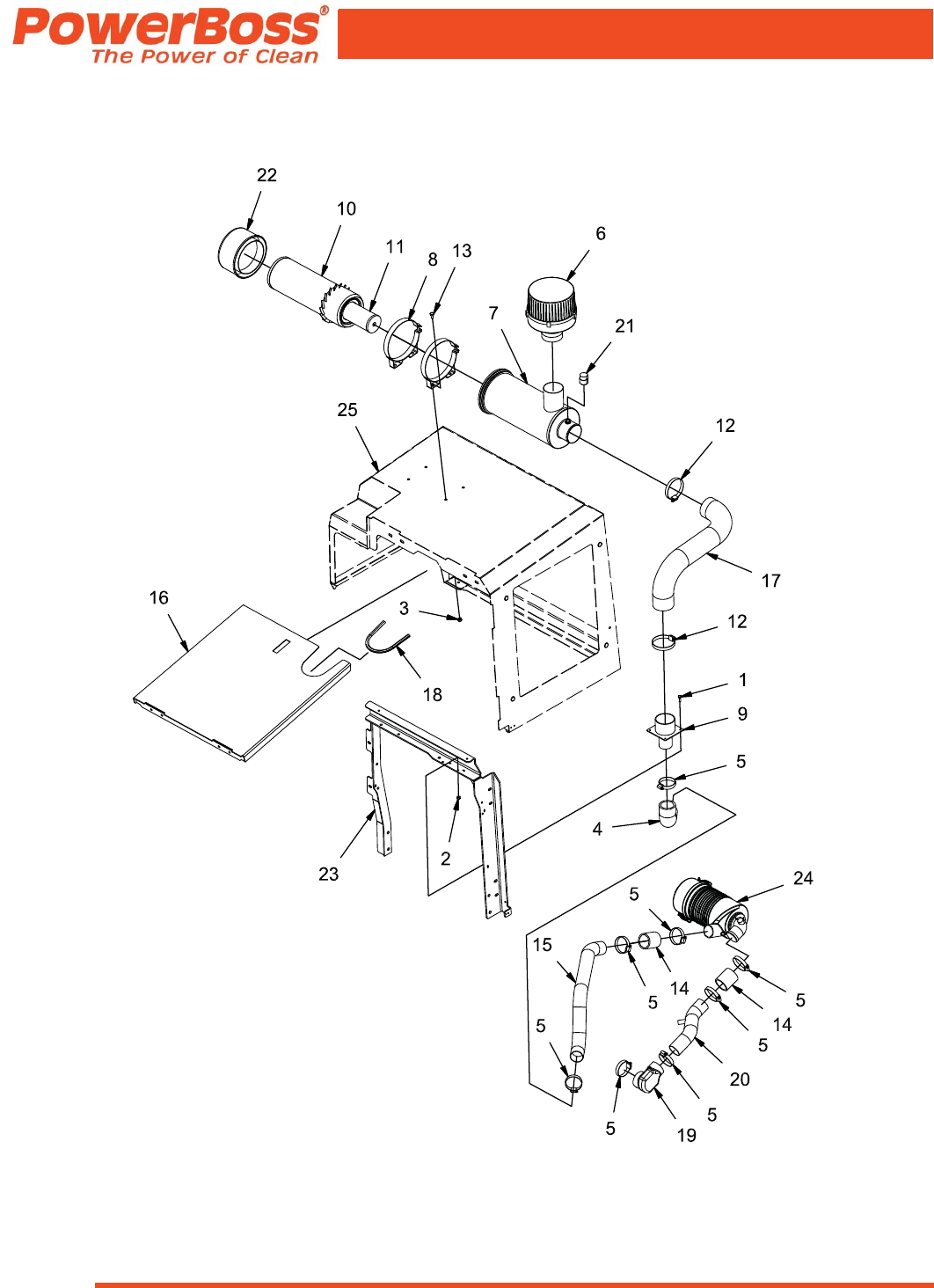

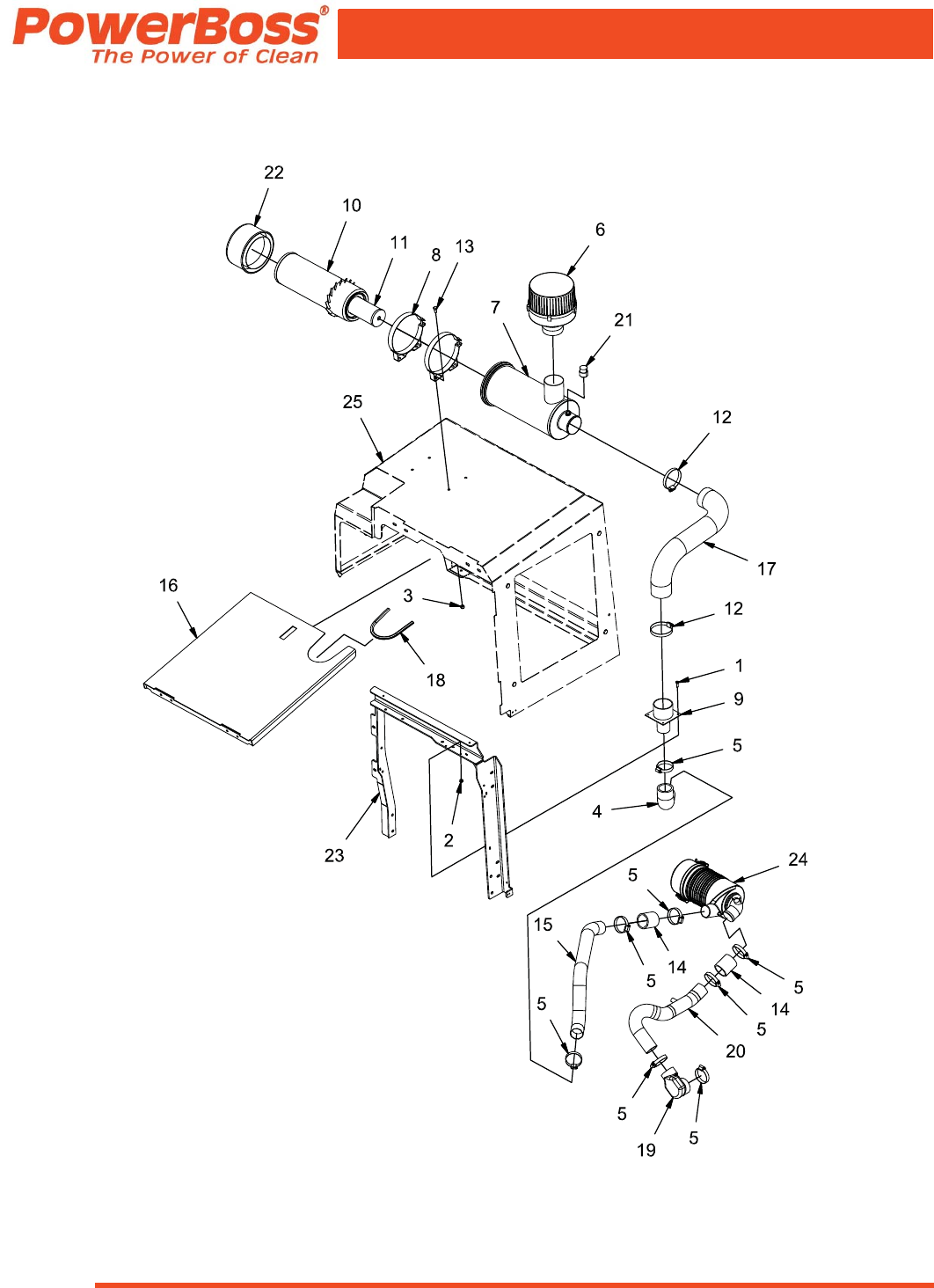

AIR CLEANER GROUP - DIESEL (600614)
REV A
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 119
PARTS BREAKDOWN

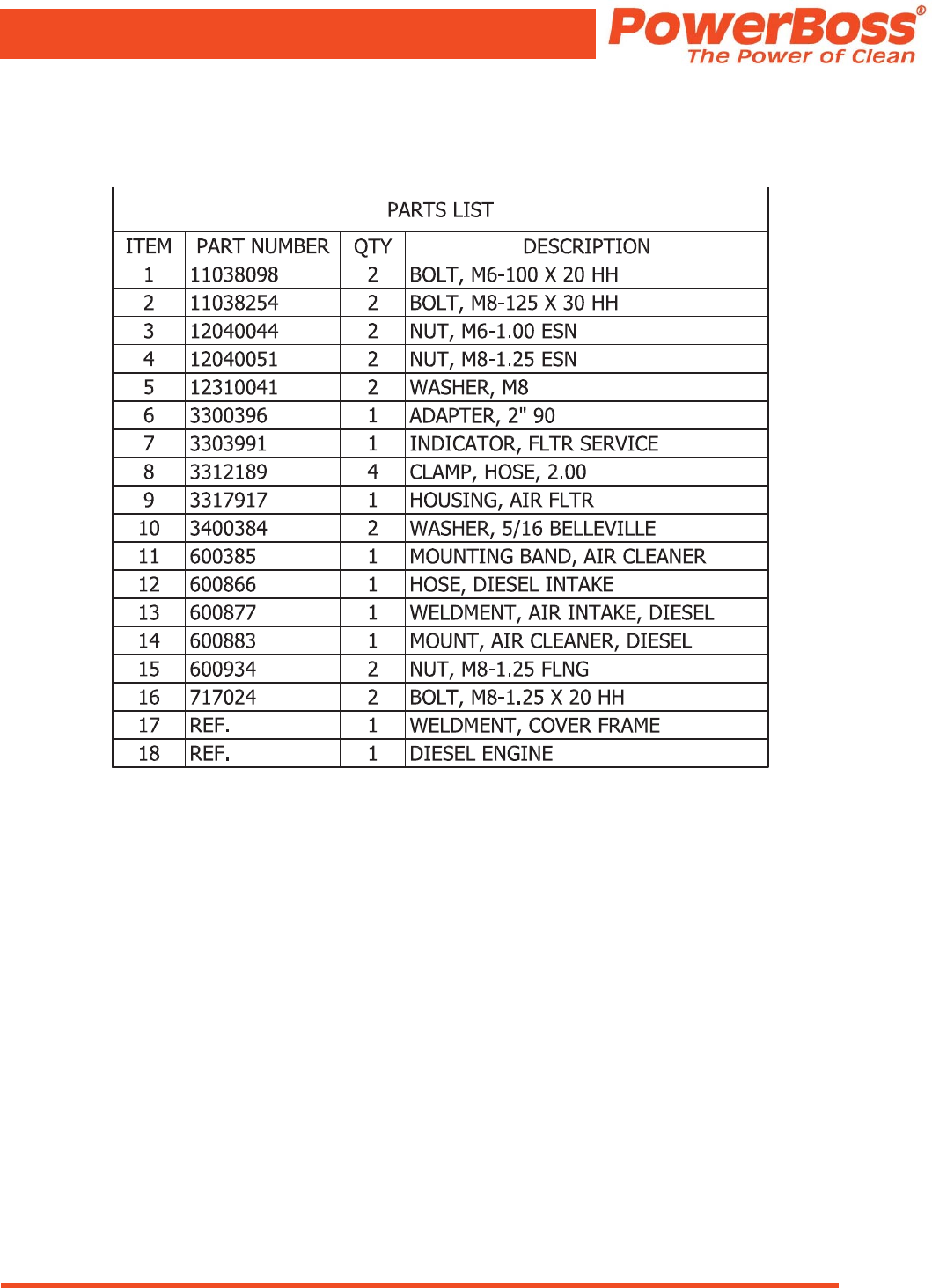

AIR CLEANER GROUP - DIESEL (600614)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 120
PARTS BREAKDOWN

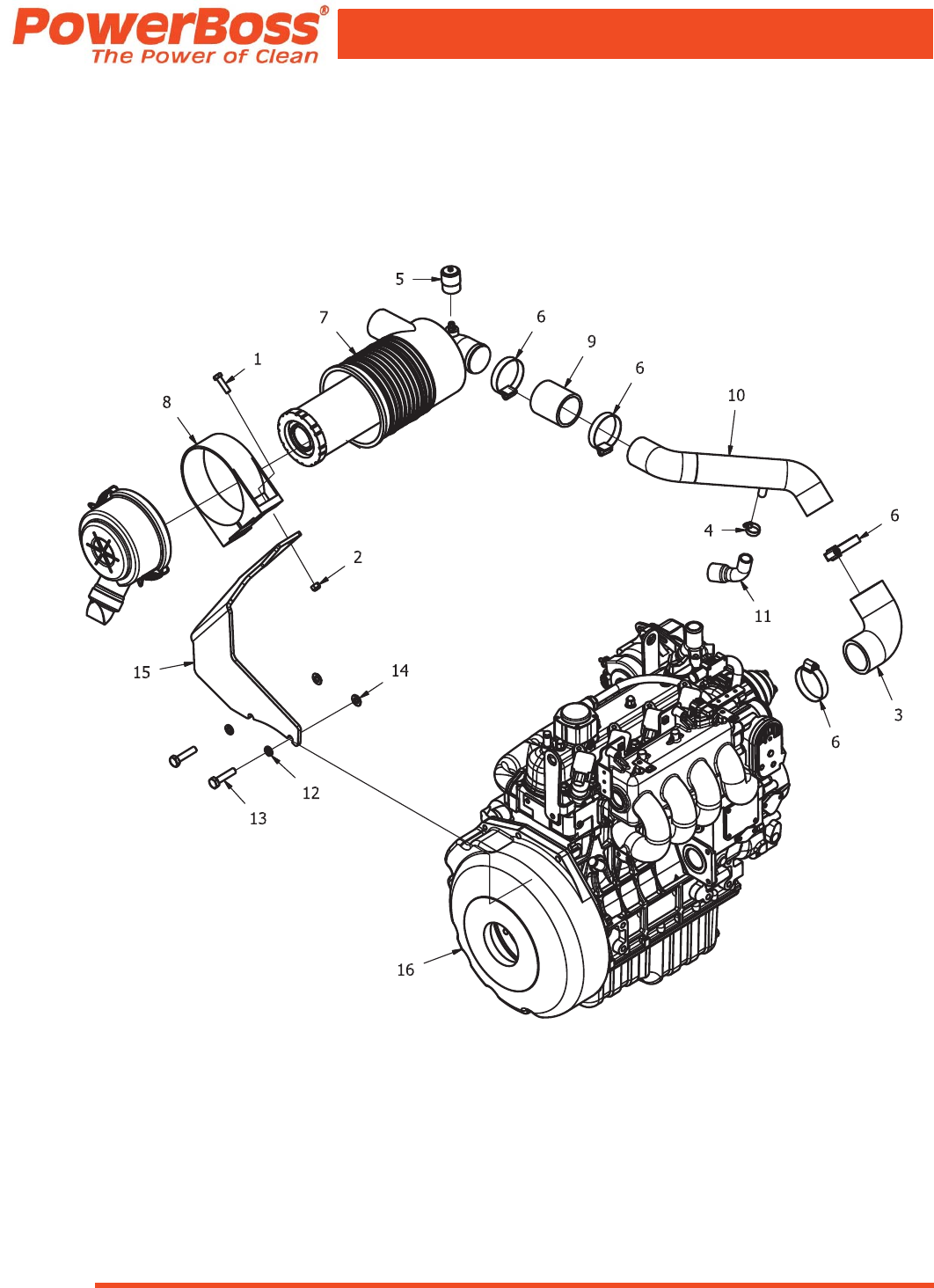

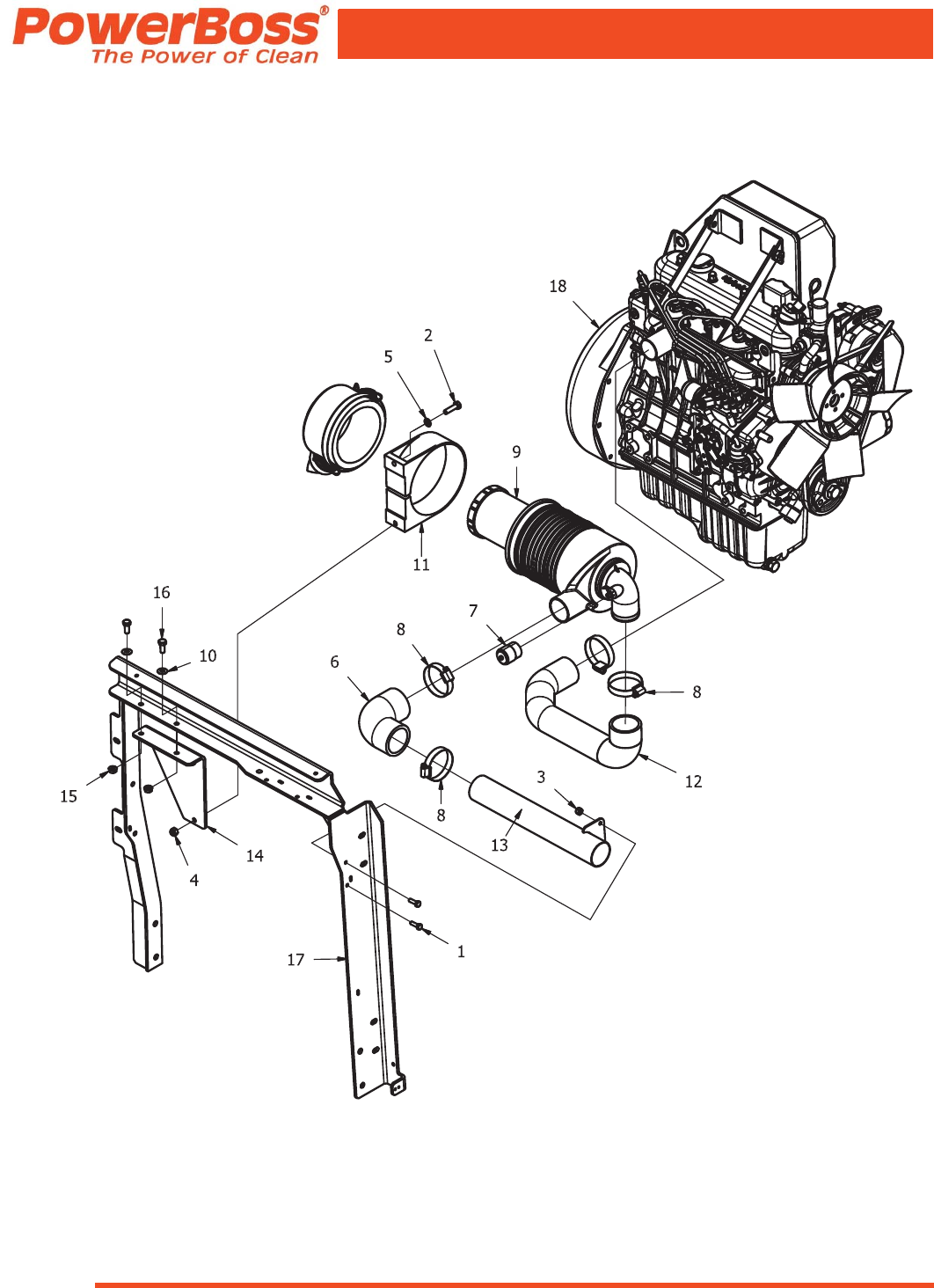

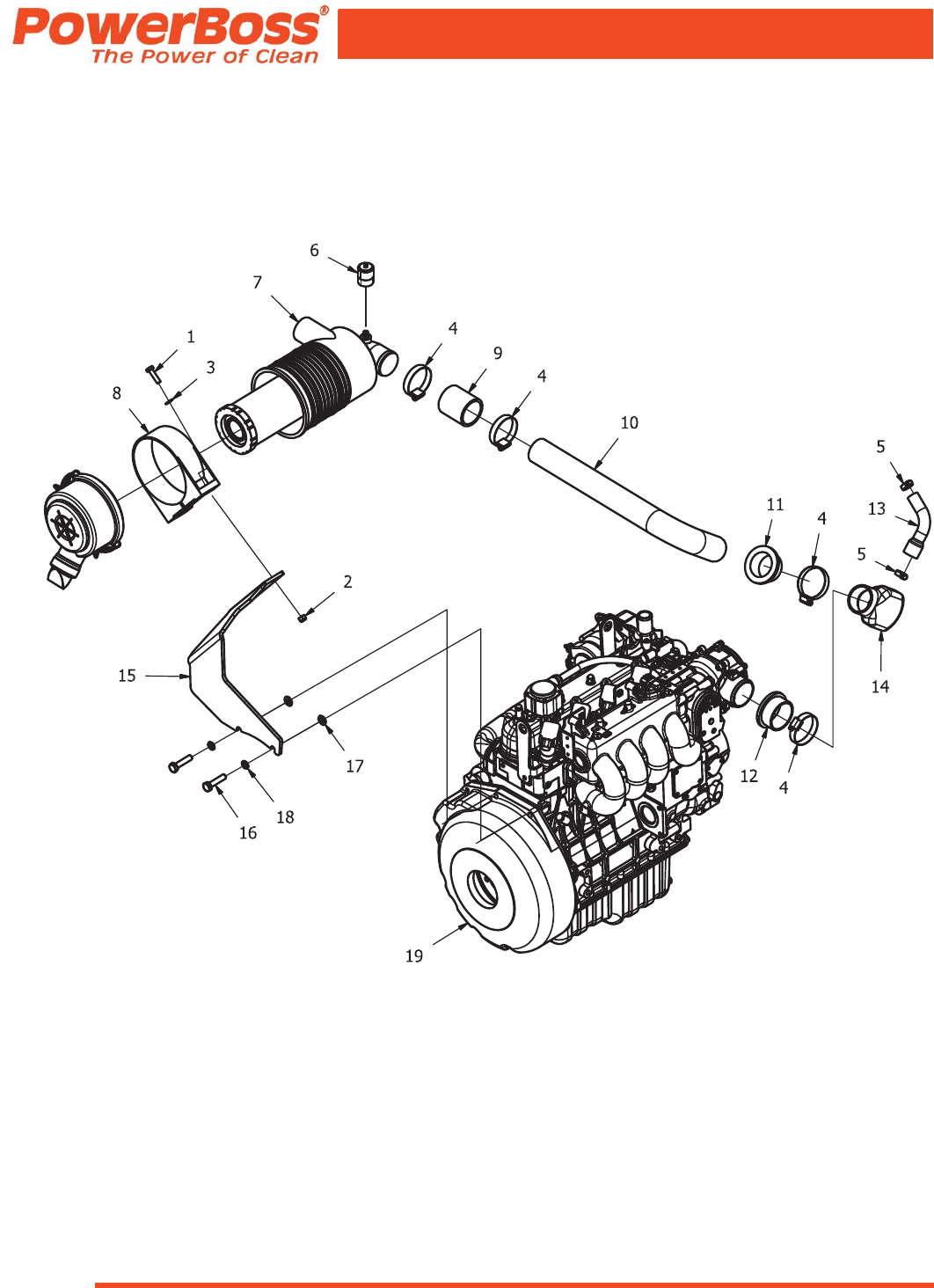

AIR CLEANER GROUP - GAS (600629)
REV C
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 121
PARTS BREAKDOWN

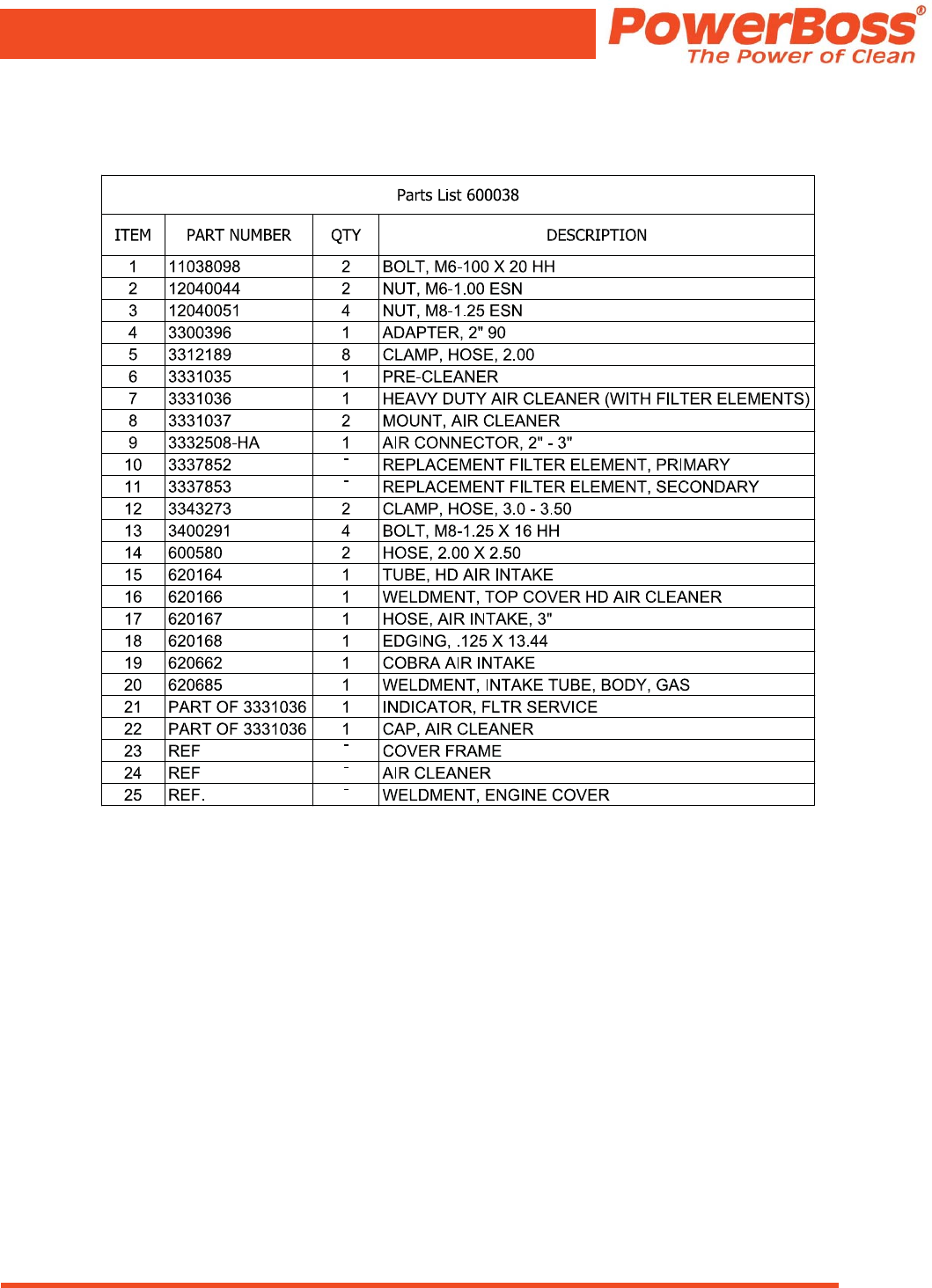

AIR CLEANER GROUP - GAS (600629)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 122
PARTS BREAKDOWN
AIR CLEANER GROUP - LPG (600605)
REV C
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 123

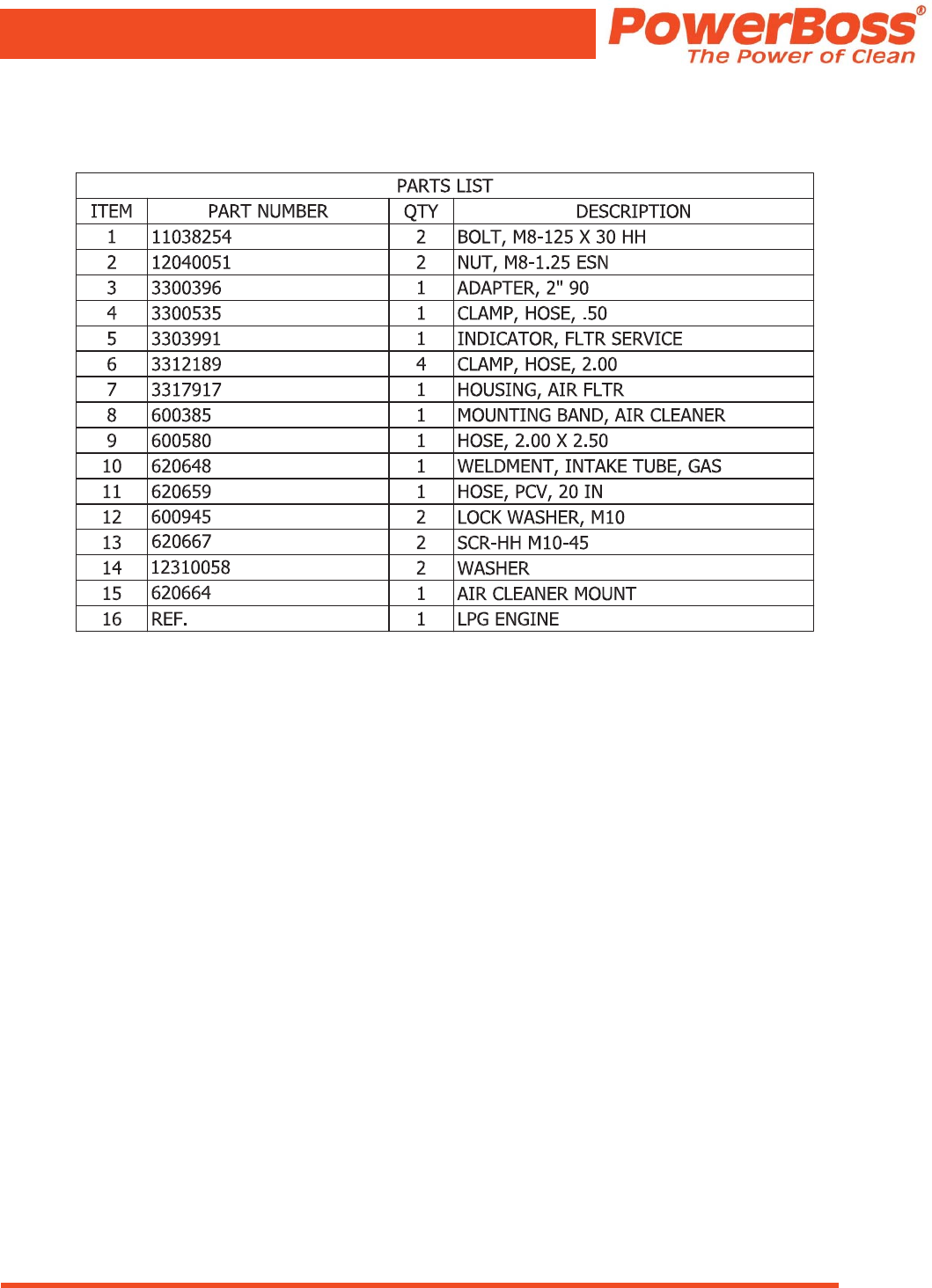

PARTS BREAKDOWN

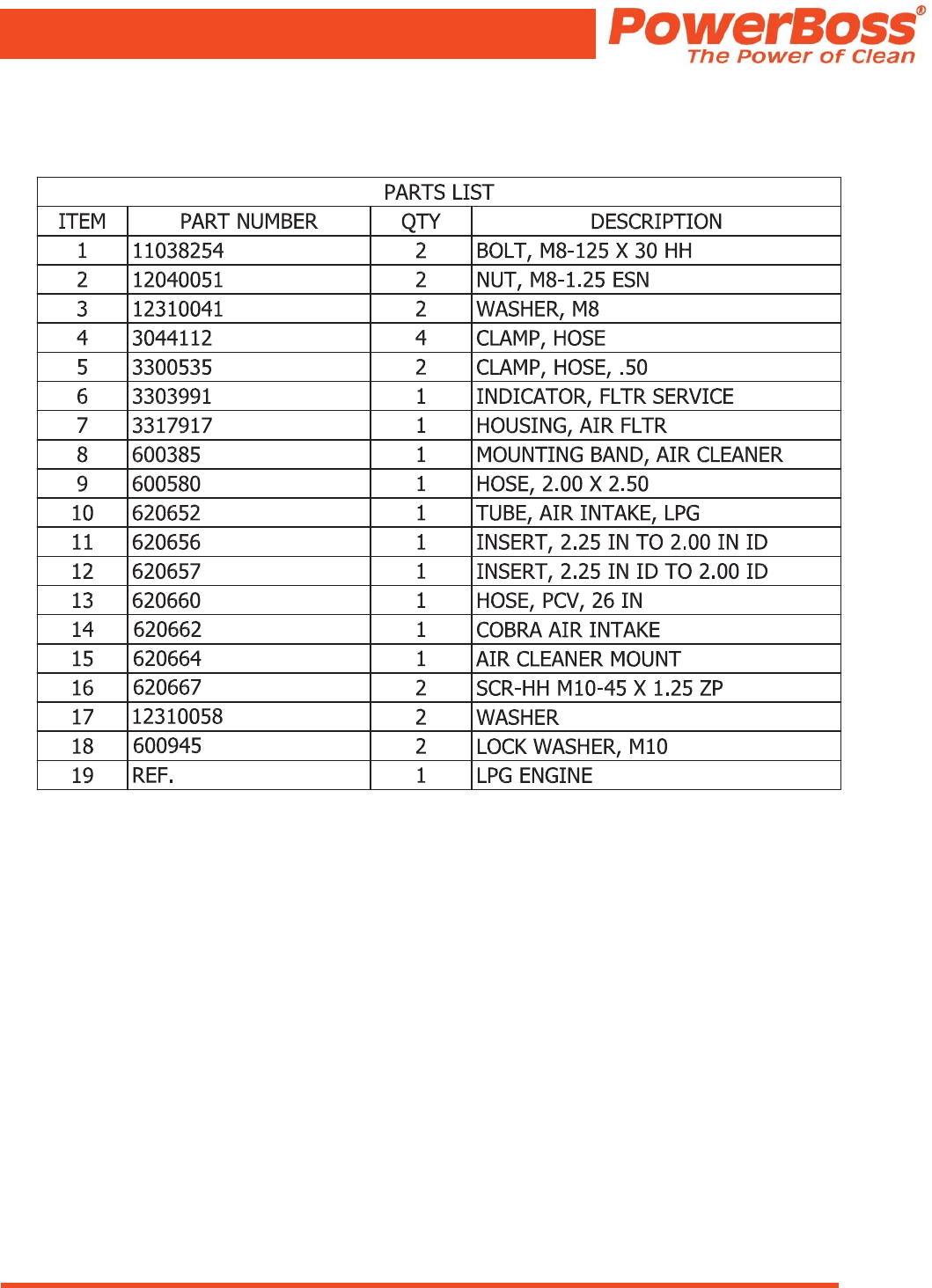

AIR CLEANER GROUP - LPG (600605)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 124
PARTS BREAKDOWN

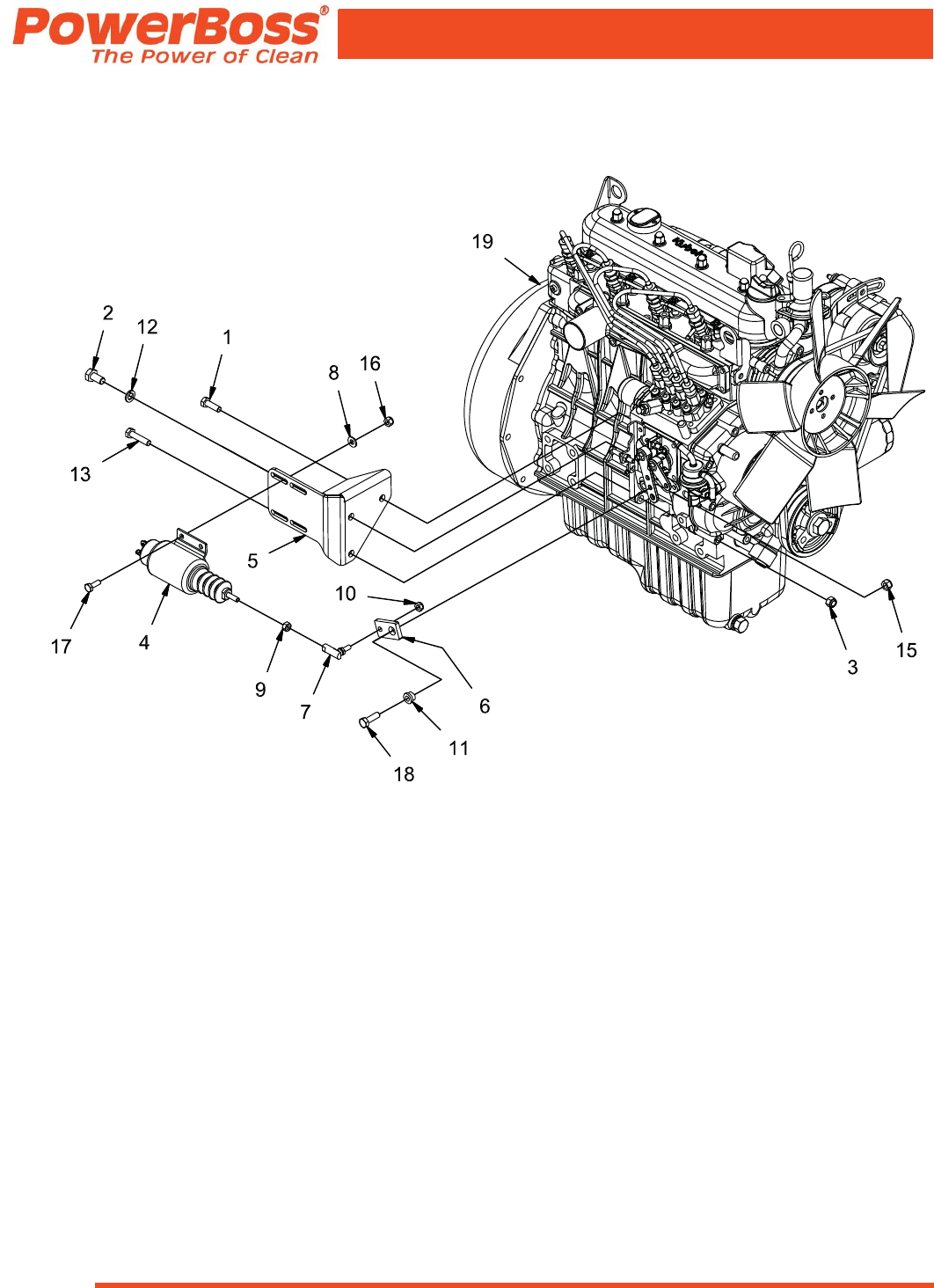

THROTTLE SOLENOID GROUP - DIESEL (600628)
REV B
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 125
PARTS BREAKDOWN
THROTTLE SOLENOID GROUP - DIESEL (600628)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 126
PARTS BREAKDOWN

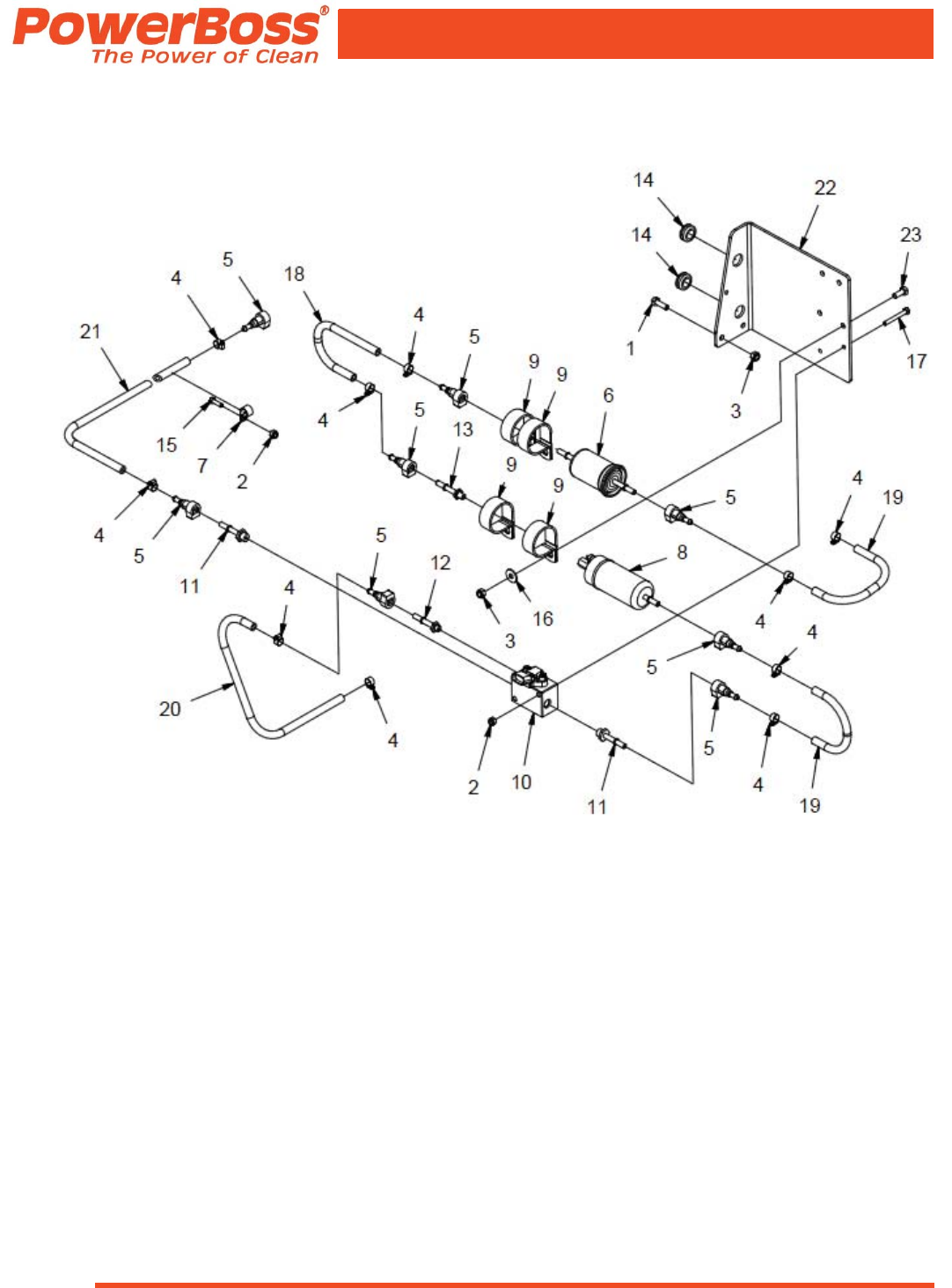

FUEL COMPONENT GROUP - GAS (600635)
REV A
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 127
PARTS BREAKDOWN
FUEL COMPONENT GROUP - GAS (600635)
Parts List
ITEM PART NUMBER QTY DESCRIPTION
1 11038247 2 SCR-HH M8-1.25 X 25 ZP CLASS 8.8
2 12040044 3 NUT-NYLOC M6 X 1.0 ZP CLASS 6
3 12040051 6 NUT-NYLOC M8 X 1.25 ZP CLASS 8
4 3302338 10 CLAMP-HOSE .22 TO .62
5 3342207 8 FTG-FUEL HOSE BARB
6 3342209 1 FILTER-FUEL GM 1.6/3.0
7 3343082 1 CLAMP-PIPE, 9/16 DIA, INSULATED (STRAP)
8 3343536 1 PUMP-FUEL GM1.6L & GM3.0
9 3343539 4 CLAMP-P TYPE, 2 DIA
10 3343617 1 MANIFOLD-FUEL TEMP/RETURN
11 3401088 2 FTG-6 STOR-5/16 SAE J2044
12 3401089 1 FTG-3 STOR-3/8 SAE J2044
13 3401090 1 FTG-ADAPTER, FUEL 3/8-24 NO RING
14 600151 2 GROMMET, .63 ID .88 OD .25 T
15 600913 1 SCR-HH M6-1.00 X 20 SS
16 600940 4 WASHER-FENDER M8 X 24 ZP
17 600953 2 SCR-HH M6-1.00 X 50 SS
18 620001 1 HOSE - FUEL 5/16 ID 12.00 LG, EVAP RATED
19 620002 2 HOSE - FUEL 5/16 ID 10.00 LG, EVAP RATED
20 620003 1 HOSE - FUEL 5/16 ID 17.00, EVAP RATED
21 620004 1 HOSE - FUEL 5/16 ID 36.00 LG, EVAP RATED
22 620643 1 MOUNT, FUEL FILTER
23 717024 4 SCR-HH M8-1.25 X 20 ZP GRADE 8.8
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 128
PARTS BREAKDOWN

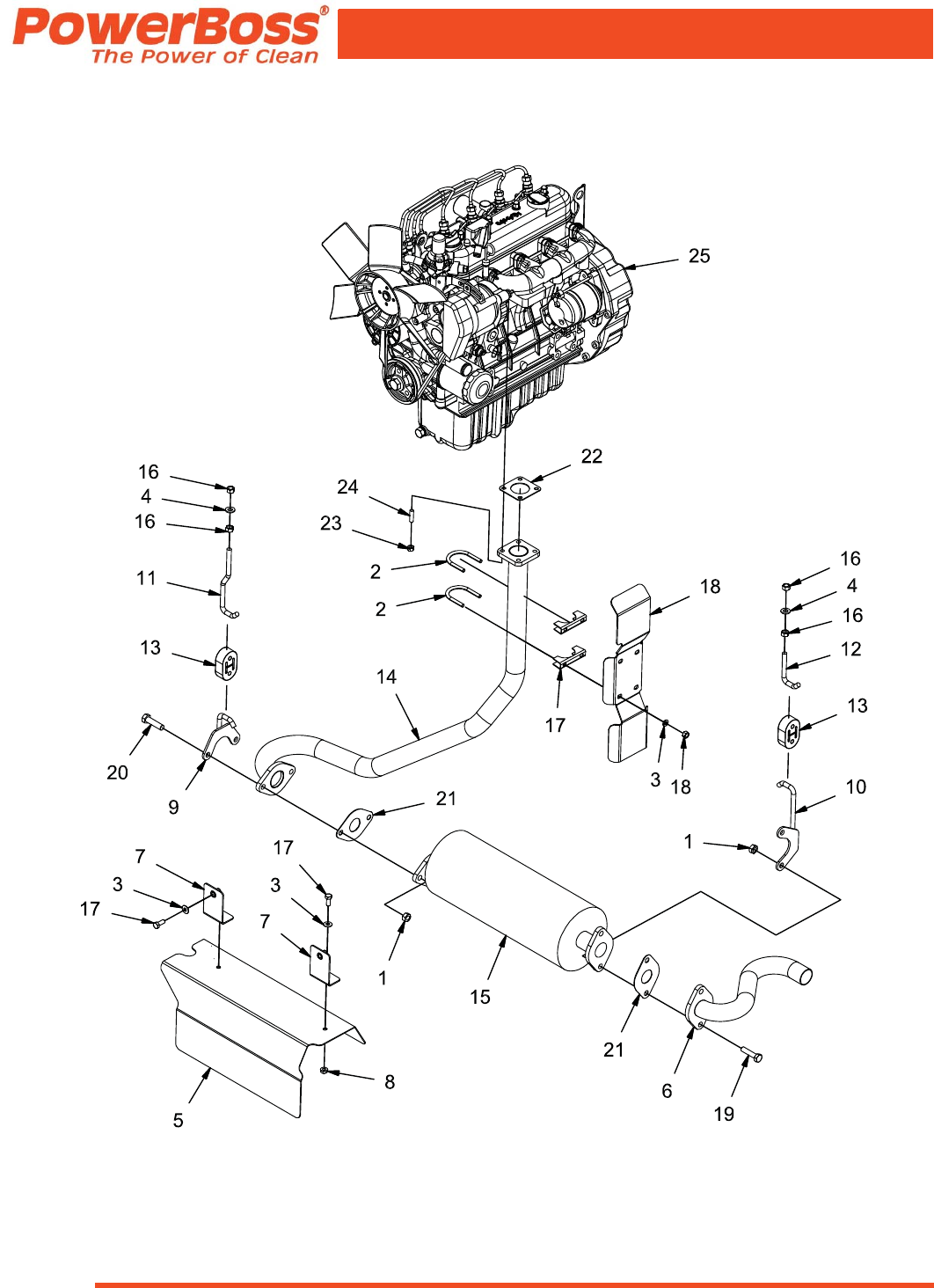

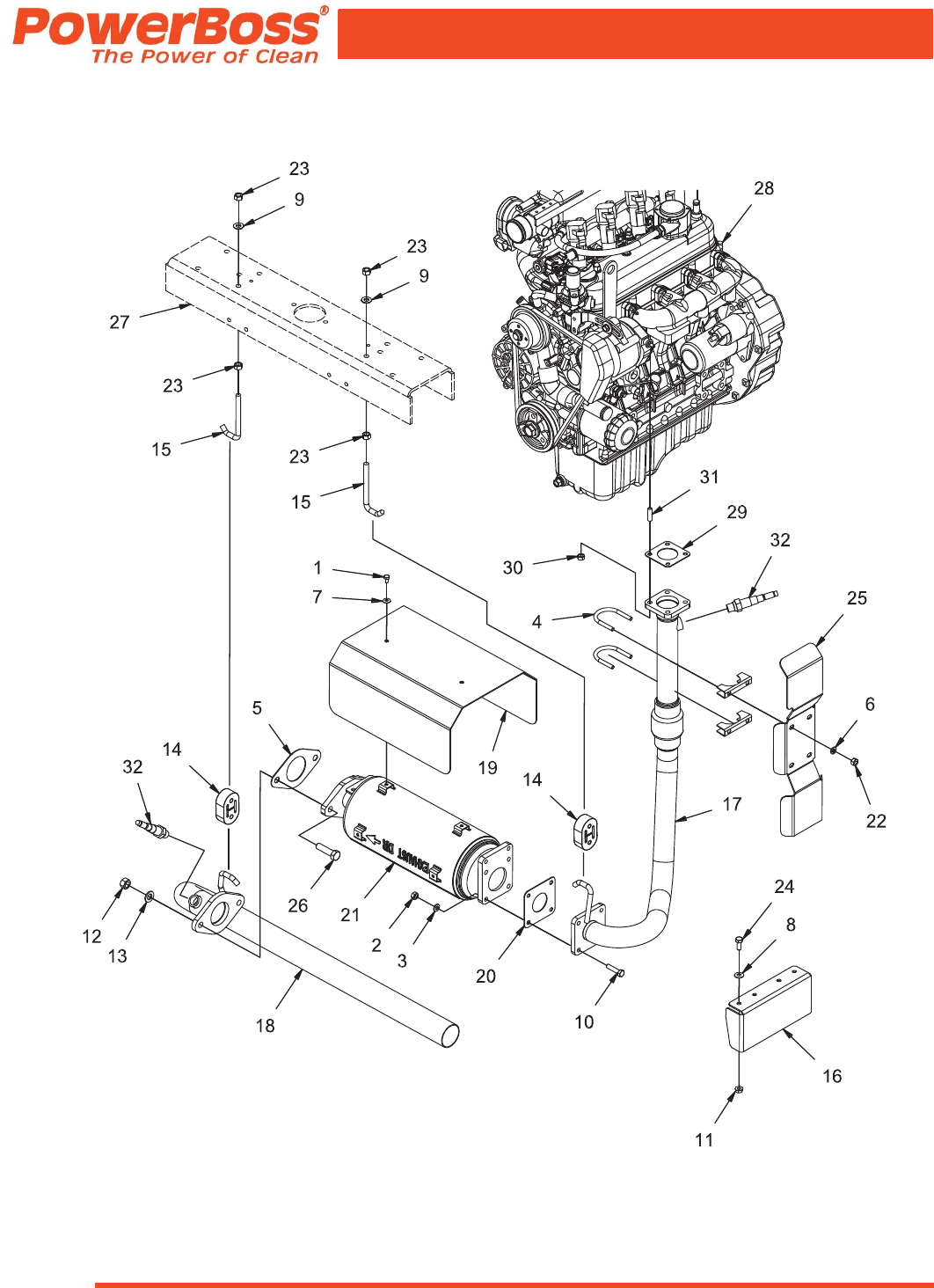

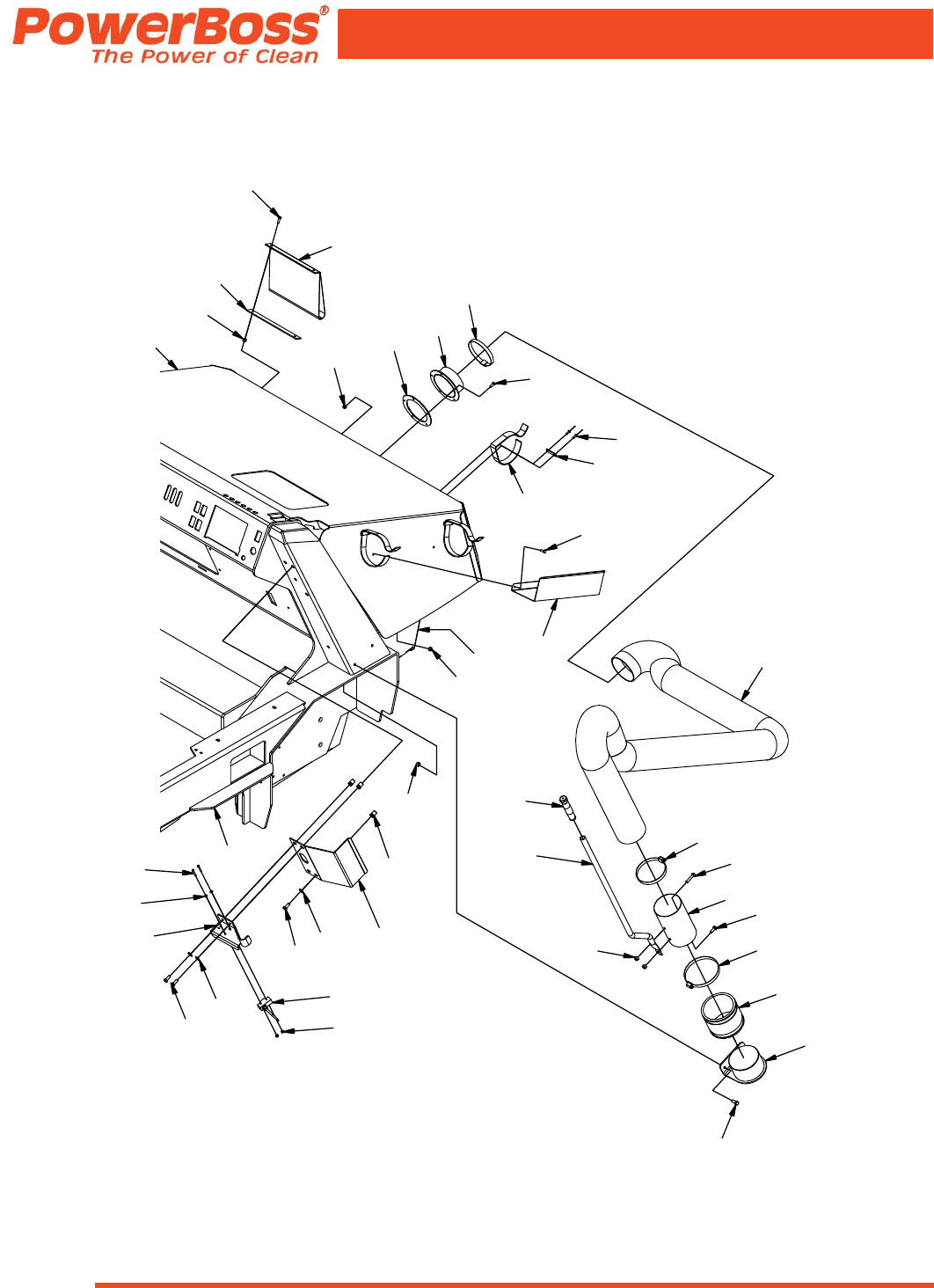

EXHAUST GROUP - DIESEL (600671)
REV A
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 129
PARTS BREAKDOWN

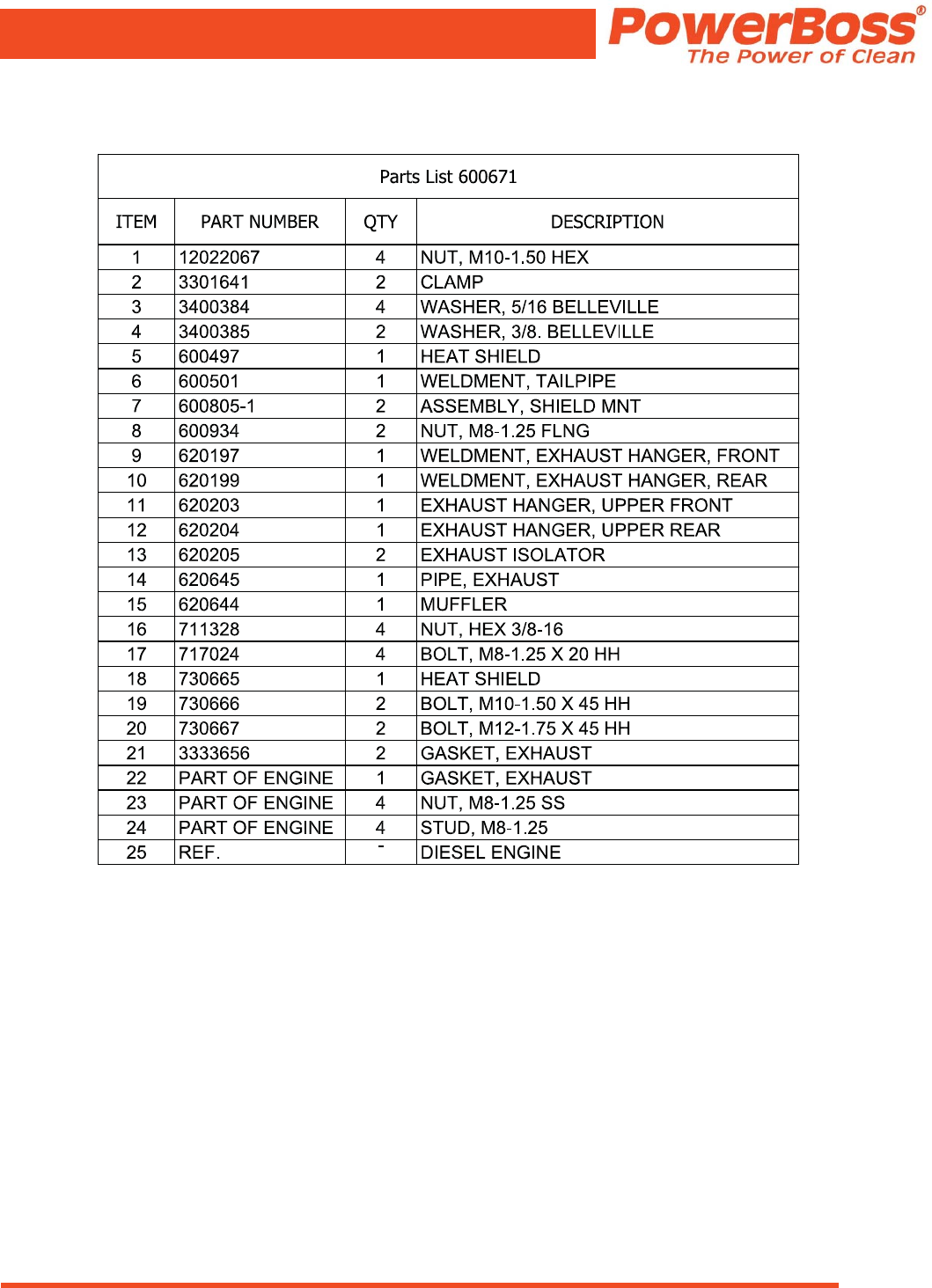

EXHAUST GROUP - DIESEL (600671)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 130
PARTS BREAKDOWN
SINGLE EXHAUST GROUP GAS & LPG (620698)
REV A
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 131
PARTS BREAKDOWN

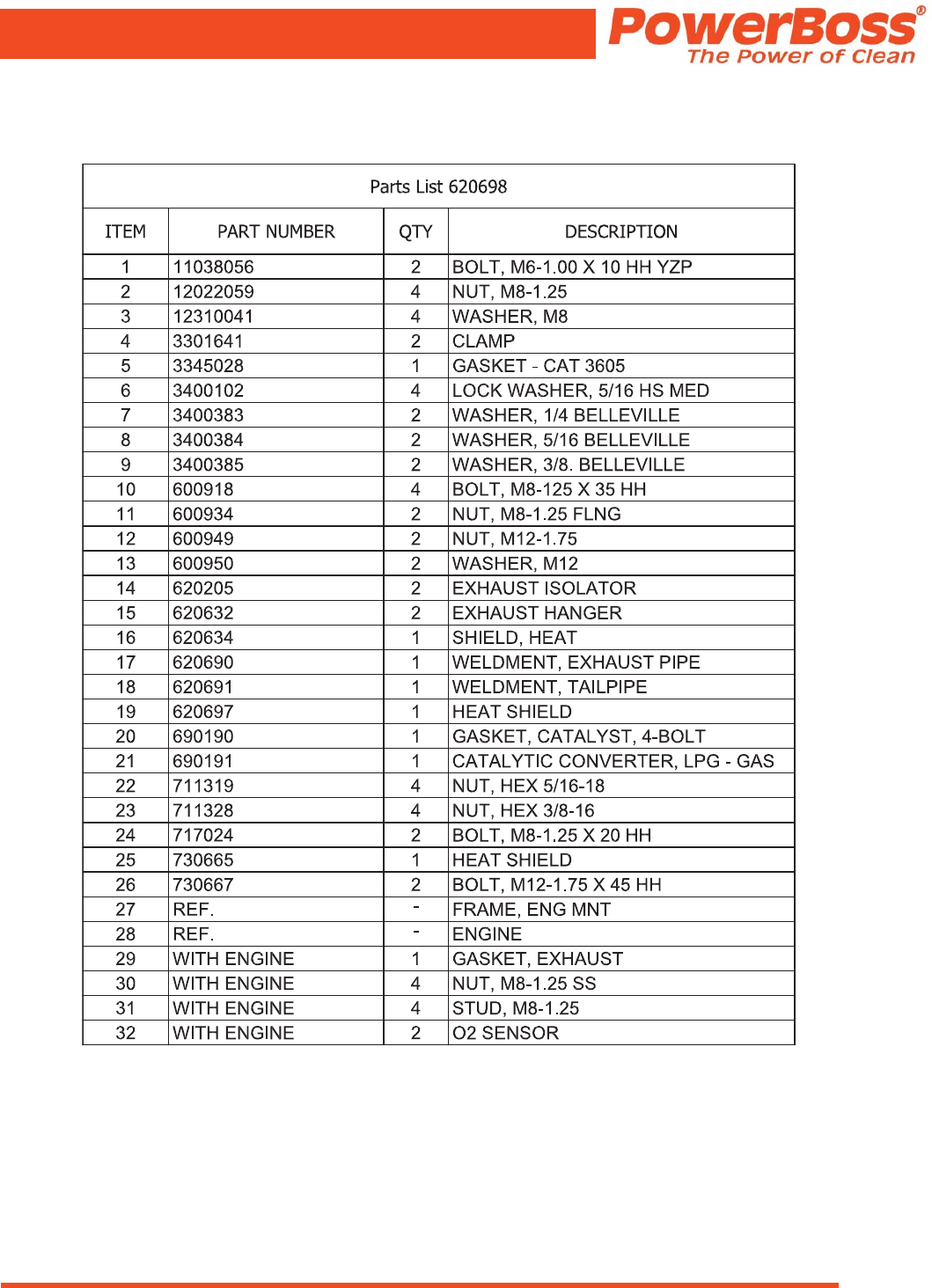

SINGLE EXHAUST GROUP GAS & LPG (620698)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 132
PARTS BREAKDOWN

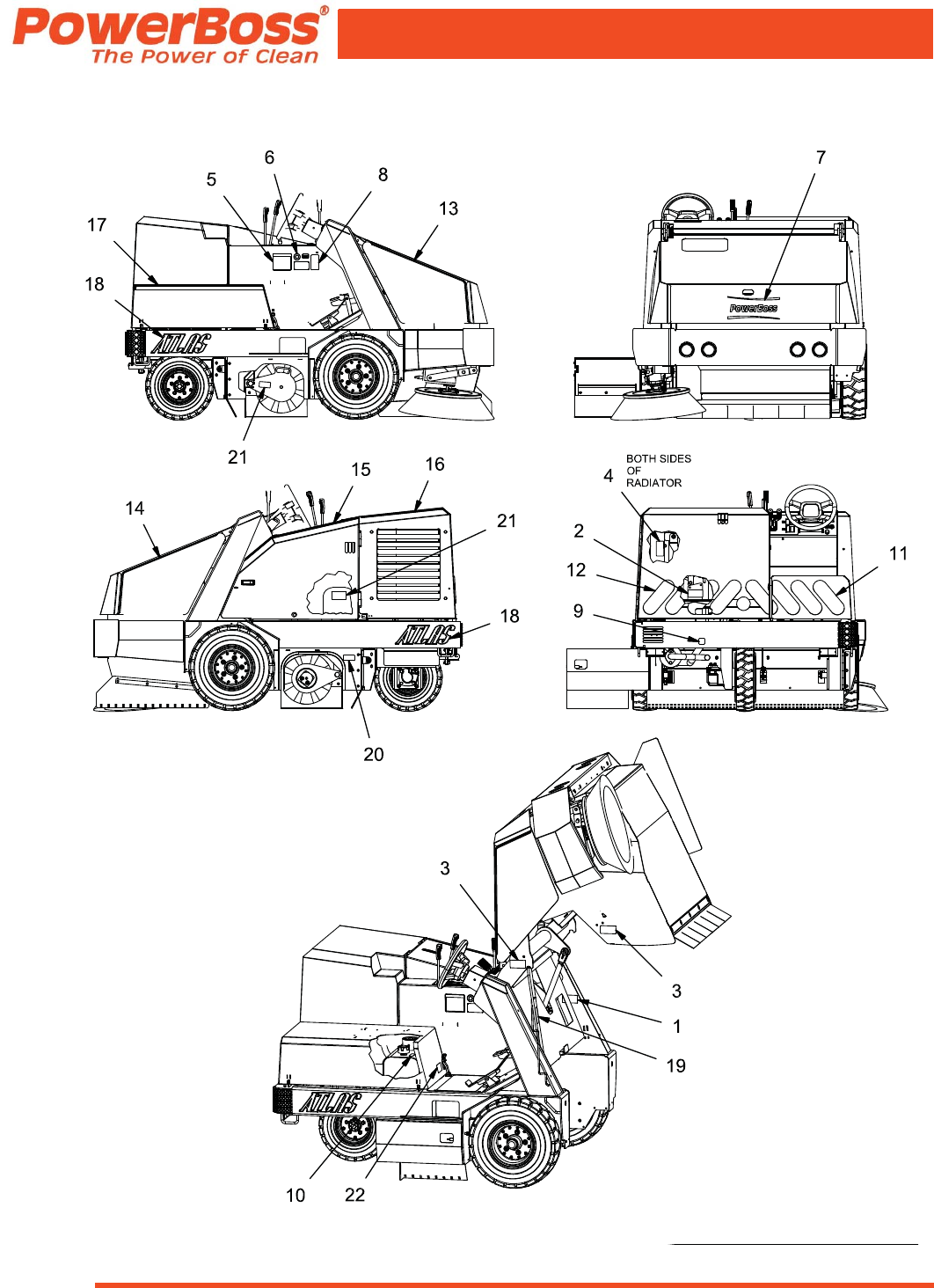

DECAL GROUP - DIESEL (600643)
REV B
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 133
PARTS BREAKDOWN
DECAL GROUP - DIESEL (600643)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 134
PARTS BREAKDOWN
DECAL GROUP - GAS (600641)
REV B
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 135
PARTS BREAKDOWN

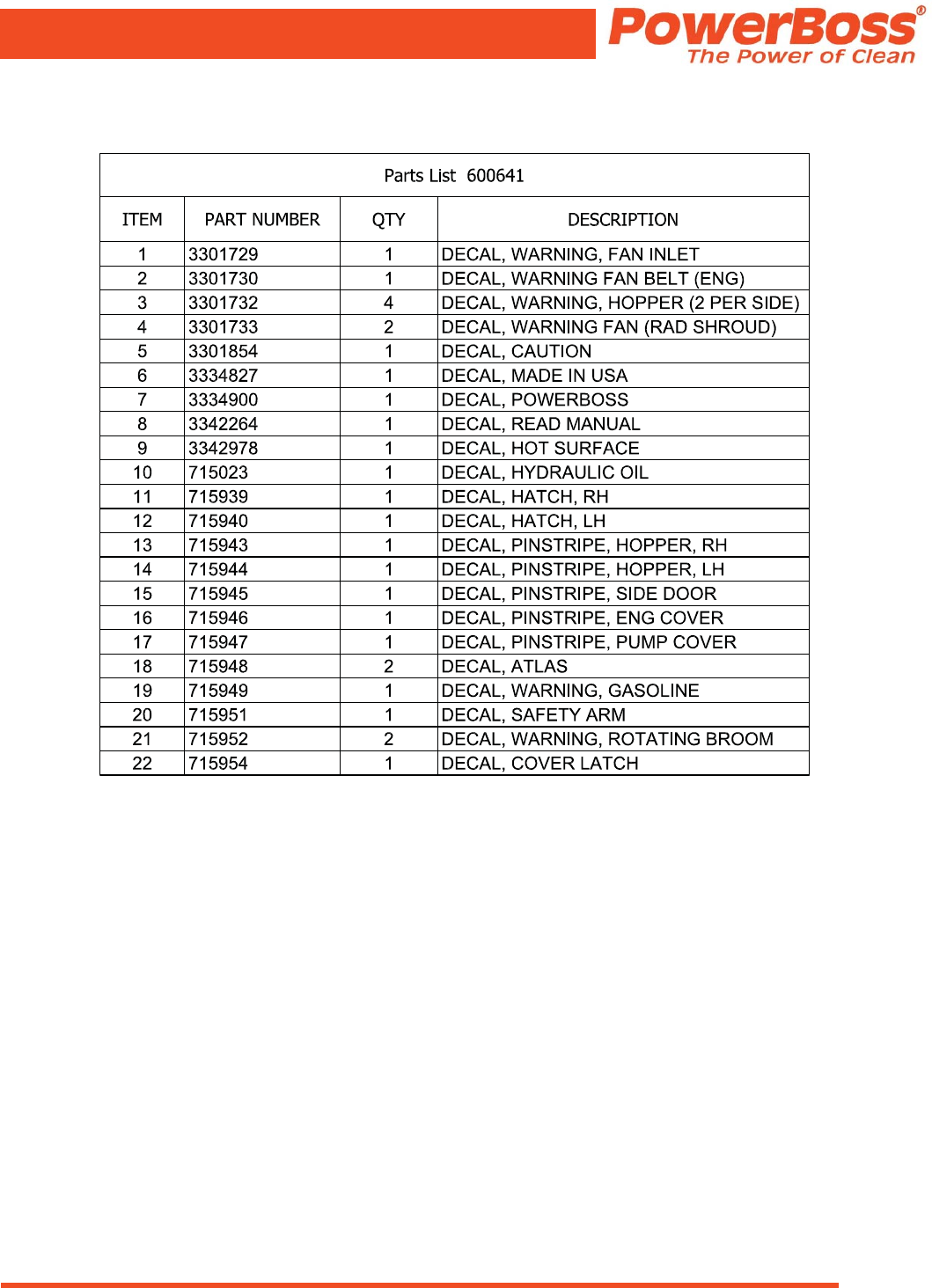

DECAL GROUP - GAS (600641)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 136
PARTS BREAKDOWN

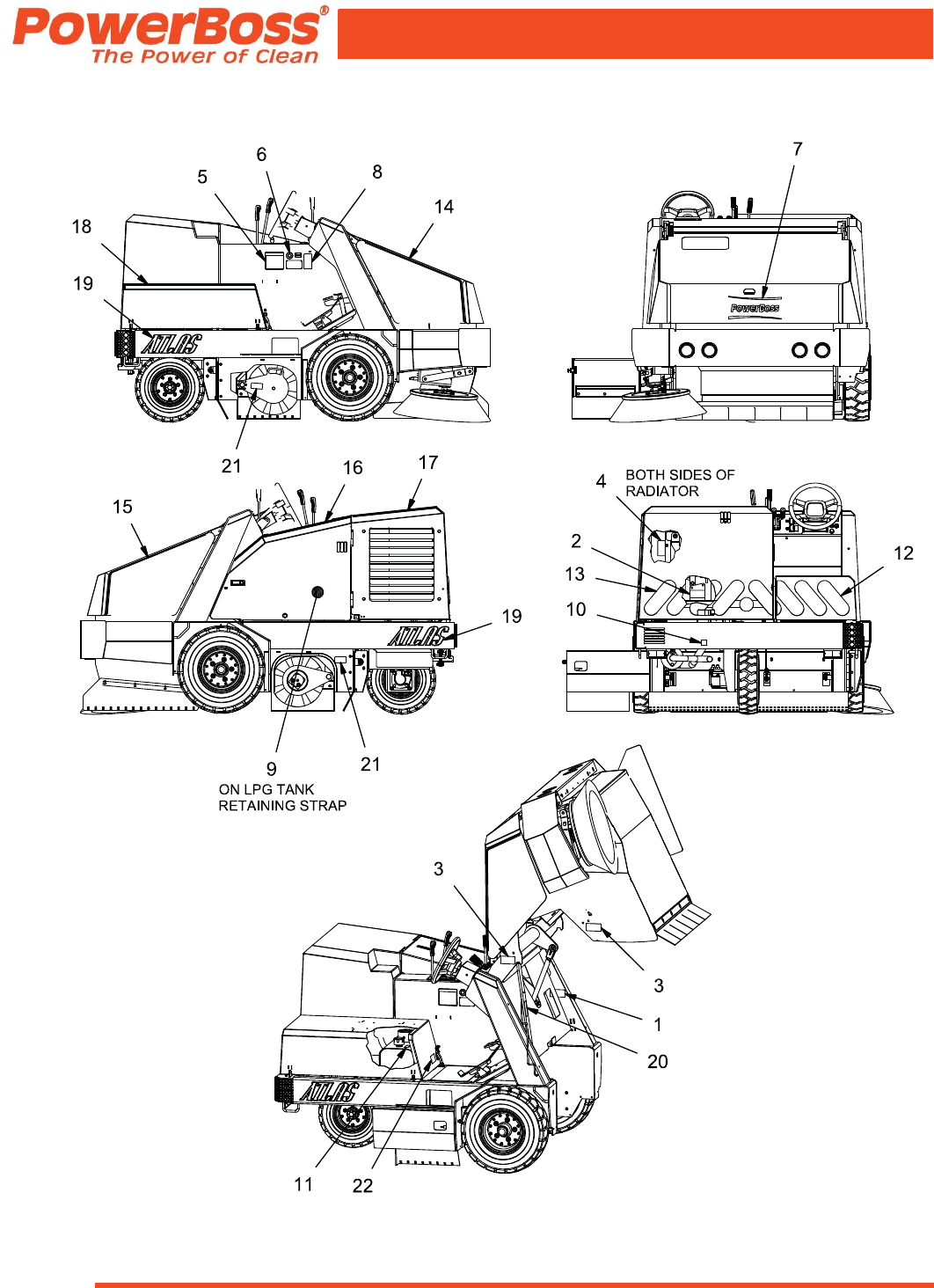

DECAL GROUP - LPG (600642)
REV B
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 137
PARTS BREAKDOWN
DECAL GROUP - LPG (600642)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 138
PARTS BREAKDOWN
DSB LH SIDE BROOM GROUP (600654-1)
REV *
20
1
7
15
17
24
17
15
23
27
19
4
4
11
12
3
6
17
15
17
15
9
16
22
2
10
18 14
8
3
4
3
13
21
1
26
5
25
25
DUAL SIDE BROOM (DSB)
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 139
PARTS BREAKDOWN
DSB LH SIDE BROOM GROUP (600654-1)
Parts List 600654-1
DESCRIPTIONQTY
PART NUMBERITEM
NUT, M10-1.50 ESN2120400691
NUT, M8-1.25 ESN SS
4120402592
WASHER, M103123100583
WASHER, 1/2, 1.063 X .531 X .094
634000864
WASHER, 3/8. BELLEVILLE43400385
5
BOLT, M10-1.50 X 30 HH134010516
MOTOR, 17.9 DISP
16002177
KNOB, LEVER16002608
WELDMENT, SB TRAILING ARM
16003039
WELDMENT, SB FLANGE160032210
SB LINK160032511
SPACER, .406 B .50 OD .280 T1
600327
12
STRING GUARD160033013
PIN, WIRE LOCK, .313
160056614
PIN, CLEVIS 1/2 X 6.00460057115
SPRING, EXT, .14 W 1.25 OD 6.50 L
160057216
RUE-RING, .50
4
60057817
BOLT, M8-1.25 X 45 HH460082018
WELDMENT, LH SB PIVOT
160085619
WELDMENT, SB ADJ, DUAL SB160086420
MOUNT, LH SB MOTOR
160086521
SIDE BROOM, 26"160090022
BOLT, M10-1.50 X 80 HH ALL-THRD160092623
SPACER, .516 B .625 OD .375 T
160099324
FITTING, 90, 6 ORFS - 10 SAE267553225
SCREW, 3/8-16 X .750 HHC
471304126
NUT, M10-1.50 JAM171701427
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 140
PARTS BREAKDOWN
DSB LH SIDE LIFT GROUP (600653-1)
REV *
21
17
8
15
1
14
5
12
11
10
16
2
20
18
18
28
25
19
9
7
27
26
3
30
6
13
4
29
23
23 22
22
22
24
22
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 141
PARTS BREAKDOWN
DSB LH SIDE LIFT GROUP (600653-1)
Parts List 600653-1
DESCRIPTIONQTY
PART NUMBERITEM
BOLT, M8-125 X 50 HH
1110382961
BOLT, M6-100 X 45 HH2110388172
NUT, M8-1.25 ESN
1120400513
WASHER, FENDER, M6212332011
4
NUT, HEX JAM 3/8-24134000755
SCR-HEX 1/2-13 X 3 ZP
134004056
PULLEY, .50 B, 2.00 D, .44 T1600113
7
SPACER, .328 B .498 OD .500 T
16001148
RETAINER, CABLE16001159
BRACKET160055810
PIN, CLEVIS, 3/8 X 1.50160057311
CLEVIS, 3/8-24160081312
CYLINDER, LH SB
160089713
CABLE, 81.88 OAL160089814
WASHER, M8 FENDER
160094015
SOLENOID, 2-POS, 4-WAY, CROSSOVER162000516
CHECK VALVE162000817
SPACER, .391 B .63 OD .250 T262000918
SPACER, .328 B 1.500 OD .680 T162001019
BLOCK, DUAL SB
162001420
ADAPTER, #4 O-RING - #4 O-RING162011021
FITTING, 90, -4 ORFS - 4 SAE
467550722
FITTING, STR, 4 ORFS - 4-SAE267550823
FITTING, RUN TEE -4 ORFS TO -4 SAE
167550924
SCREW, 3/8-16 X 3.50 HHC171128025
NUT, FIBER INSERT 1/2-13171137626
NUT, FIBER INSERT 1/4-20
271137727
NUT, FIBER INSERT 3/8-16171138028
DUAL SIDE BROOM HOPPER
-
REF.29
CYLINDER, HOPPER DOOR
-
REF.30
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 142
PARTS BREAKDOWN
DSB HOPPER SKIRTS SEALS GROUP (600646)
REV *
5
4
6
3
3
9
10
7
2
12
11
1
8
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 143
PARTS BREAKDOWN
DSB HOPPER SKIRT SEALS GROUP (600646)
Parts List
DESCRIPTIONQTYPART NUMBERITEM
NUT, M8-1.25 ESN SS
5120402591
LOCK WASHER, 5/16 HS MED234001022
BUMPER, 1.00 X .625 T26002203
SKIRT, HOPPER LIP16002304
RETAINER, HOPPER FLAP
16003455
ANGLE, HOPPER LIP16003466
ASSEMBLY, DUAL SIDE BROOM HOPPER
1600841-17
SEAL, HOPPER EXHAUST16005218
EDGING, HOPPER ACCESS
16005639
EDGING, HOPPER COVER160056410
SCREW, M8-1.25 X 25 BUTTON HD CAP SS
560091711
NUT, HEX 5/16-18271131912
ADHESIVE 3M #847 (USED ON 600521)
-
00071013
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 144
PARTS BREAKDOWN
DSB SWITCH GROUP (600655)
REV B
7
2
8
6
4
3
10
11 19
5
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 145
PARTS BREAKDOWN
DSB SWITCH GROUP (600655)
Parts List
DESCRIPTIONQTY
PART NUMBERITEM
SWITCH COVER - BLACK, CLEAR LENS
133422731
SWITCH, WHISKER
133425462
NUT, FIBER INSERT #8-322
34000823
FLATWASHER, #8
234000964
BOLT, M6-1.00 X 16 AHCS2600912
5
NUT, M6-1.00 ESN SS
26009336
BRACKET, SB SWITCH1620124
7
BOLT, #8-32 X 1.25 HH ZP
26201368
SWITCH BODY, DPST W/GREEN LAMP16201379
CONSOLE
-
REF.10
FRAME
-
REF.11
DSB HARNESS #1
1748722
-
DSB HARNESS #2
1748723
-
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 146
PARTS BREAKDOWN

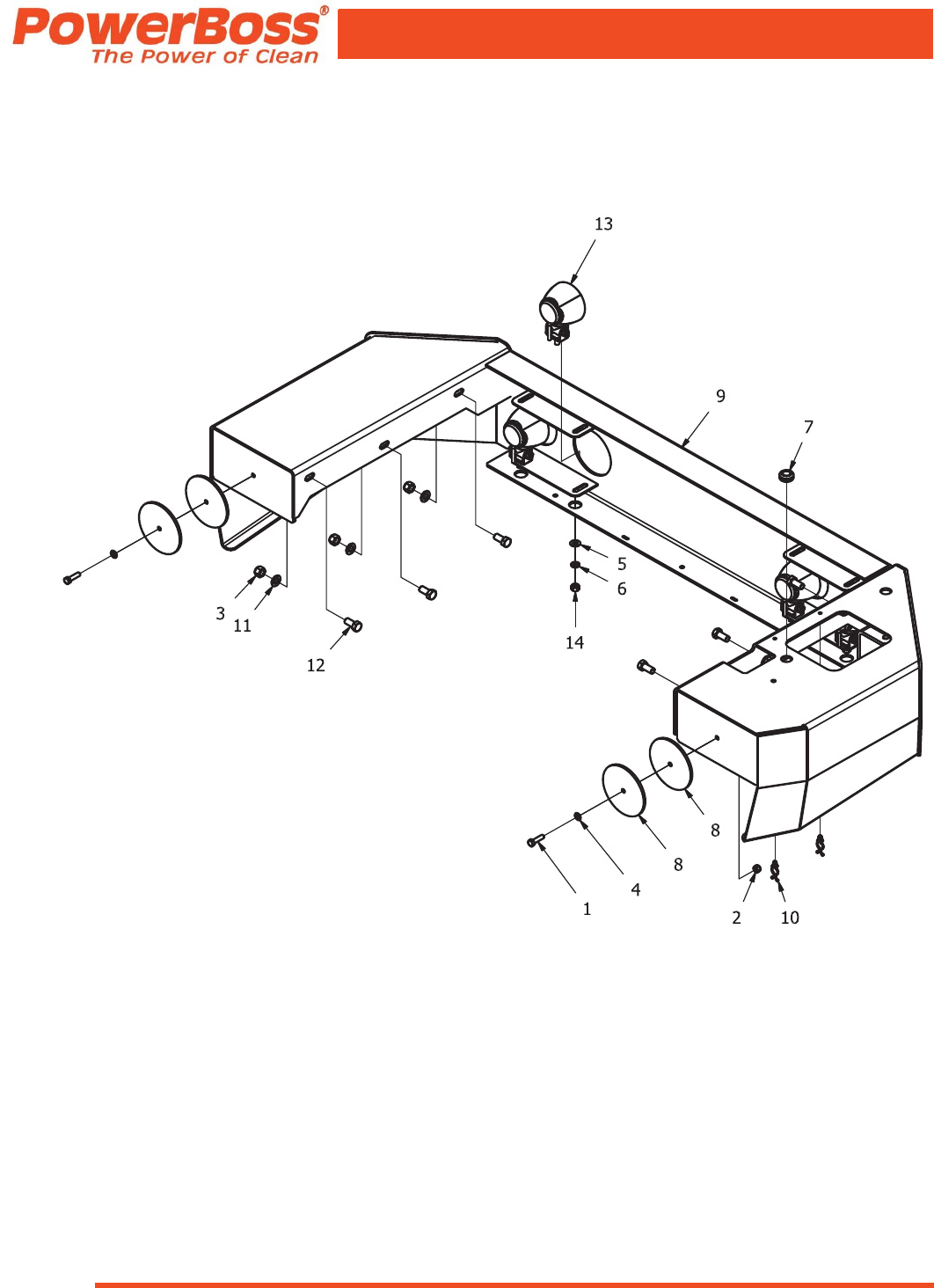

DSB BUMPER GROUP (600645)
REV D
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 147
PARTS BREAKDOWN

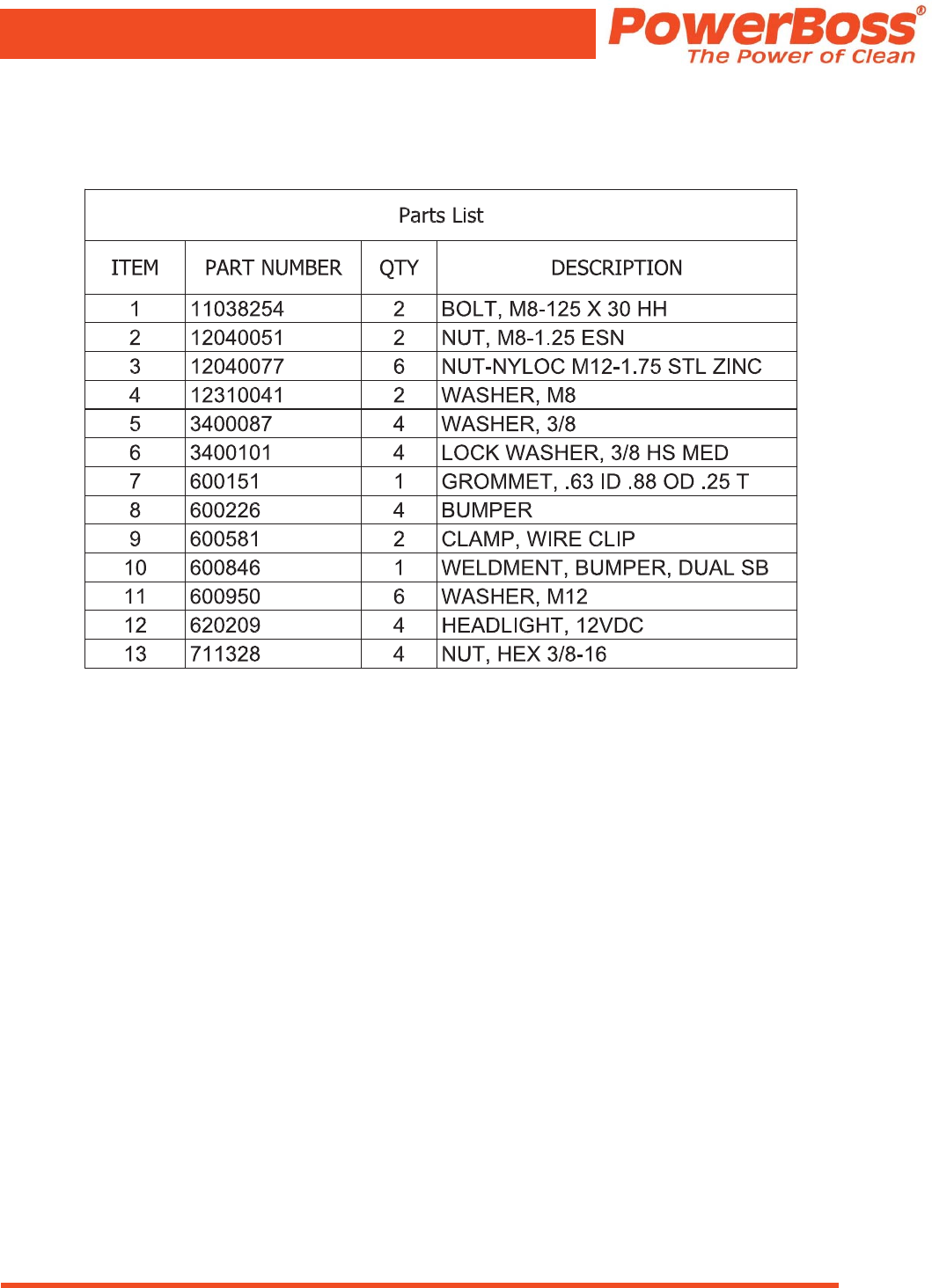

DSB BUMPER GROUP (600645)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 148
PARTS BREAKDOWN
DSB IMPELLER GROUP (600656-1)
REV *
10
15
3
5
15
15 2
8
11
3
15
5
2
21
5
11
19
7
9
12
17
32 3
15
13
4
4
22
16
18
15
20 5
23
27
25
25
26
6
31
6
31
631
14
24
30
29
29
28
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 149
PARTS BREAKDOWN
DSB IMPELLER GROUP (600656-1)
Parts List 600656-1
DESCRIPTIONQTY
PART NUMBERITEM
ADHESIVE 3M #847 (USED ON 600903)
-
0007101
BOLT, M10-1.50 X 40 HH
3110383952
NUT, M10-1.50 ESN6120400693
CLAMP, HOSE, 4.50233003514
ISOLATOR, VIB
1033004655
WASHER, 5/16 BELLEVILLE1034003846
NUT, 5/16-24 ESN
134004207
SHROUD, IMPELLER16001008
ASSY, IMPELLER16001019
BRACKET, SHROUD, UPPER
160020210
BRACKET, SHROUD, LOWER260020311
PLATE, SHROUD160020412
PLATE, MOTOR MNT
160020513
WELDMENT, DIFFUSER160020614
WASHER, ISOLATOR1260036315
MOTOR, IMPELLER
160036616
SEAL, DUST160046917
HOSE, 4.00 IMPELLER160057418
SEAL, IMPELLER
160090319
BOLT, M8-125 X 35 HH460091820
SCREW, M10-1.50 X 35 FHMS360095421
BOLT, 5/16-18 X 1.00 BUTTON HD CAP
460095822
LOCK WASHER, M8460095923
GASKET, OUTLET162002824
ROD, GUARD
262003125
CABLE TIE, .35 X 34162003726
WASHER, .77 B 1.25 OD .075 T
466-431-A27
FITTING, RUN TEE -4 ORFS TO -4 SAE167550928
FITTING, STR, -8 ORFS - 8 SAE267552429
NUT, FIBER INSERT 5/16-18
471137430
BOLT, M8-1.25 X 20 HH1071702431
KEY, .125 SQ X .751PART OF 60036632
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 150
PARTS BREAKDOWN
DSB HYDRAULIC HOSE GROUP (600652-1)
REV *
22
21
23
1
2
53
6
10
17
19
4
7
9
12
11
13
15
14
20
24
16
18
8
30 27 28
29
26
25
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 151
PARTS BREAKDOWN
DSB HYDRAULIC HOSE GROUP (600652-1)
Parts List 600652-1
DESCRIPTIONQTYPART NUMBERITEM
HOSE, 20 STR - 20 STR SUC (RES TO AUX)1600968-11
HOSE, 12 STR - 12 STR SUC (RES TO CASE)
1600969-12
HOSE, 16 90 - 16 90 RET (COOLER TO RES)1620084-13
HOSE, 12 STR - 12 90 RET (VALVE TO COOLER)1600971-14
HOSE, 10 STR - 10 STR MALE RET (CASE TO RES)
1600972-15
HOSE, 8 STR - 8 STR MED (AUX TO VALVE)1600973-16
HOSE, 8 STR - 8 90 MED (MB TO IMP)
1600974-17
HOSE, 8 STR - 8 90 MED (MB SOL TO MB)1600975-18
HOSE, 8-STR - 10 90 MED (IMP TO VALVE RET)1600977-19
HOSE, 6 STR - 6 STR MED (AUX TO STR PRESS)
1600978-110
HOSE, 6 STR - 6 STR MED (STR TO VALVE RET)1600979-111
HOSE, 6 STR - 6 STR MED (STR TO CYL F)1600980-112
HOSE, 6 STR - 6 STR MED (STR TO CYL R)
1600981-113
HOSE, 6 STR - 6 STR MED (RH SB TO LH SB)1620126-114
HOSE, 6 STR - 6 90 MED (VALVE TO RH SB)1600983-115
HOSE, 4 STR - 4 90 MED (VALVE TO DOOR CYL)
1600984-116
HOSE, 4 STR - 4 STR MED (VALVE TO DOOR CYL R)1600985-117
HOSE, 4 STR - 4 90 MED (VALVE TO LIFT CYL L)1600986-118
HOSE, 4 STR - 4 90 RET (IMP TO LIFT CYL U)
1600987-119
HOSE, 4 STR - 4 STR RET (LIFT CYL U TO RES)1600988-120
HOSE, 4 STR - 4 STR RET (WM CASE TO RES)1600989-121
HOSE, 8 STR - 8 STR SPCL (VDP R TO WM R)
1600990-122
HOSE, 8 STR - 8 STR SPCL (VDP F TO WM L1600991-123
HOSE, 6 STR - 8 90 MED (VALVE OUT TO MB SOLENOID1620121-124
HOSE, 8 STR - 12 STR MED (MB SOLENOID TO COOLER)
1620122-125
HOSE, 6 STR - 6 90 MED (LHSB TO MB THRU VALVE)1620125-126
HOSE, 4 STR - 4 90 MED (DOOR CYL R TO SB SOL PRESS)1620127-127
HOSE, 4 STR - 4 45 MED (SB SOL TO SB CYL R)
1620128-128
HOSE, 4 STR - 4 45 MED (SB SOL TO SB CYL F)1620129-129
HOSE, 4 STR - 4 STR MED (SB SOL TO IMP CASE)
1620130-130
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 152
PARTS BREAKDOWN
DSB HOSE CLAMP GROUP 1 (600647)
REV *
600647
14
13
9
79
7
10
3
3
7
3
7
2
18
6
11
17
4
10
5
11
17
12
13
2
1
2
22
16
18
15
410
8
16
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 153
PARTS BREAKDOWN
DSB HOSE CLAMP GROUP 1 (600647)
Parts List
DESCRIPTIONQTY
PART NUMBERITEM
NUT, M6-1.00 ESN1120400441
NUT, M8-1.25 ESN
9120400512
RETAINER, HOSE, SYM, 8333014373
RETAINER, HOSE, OFFSET, 8
233053984
CLAMP, HOSE13400999
5
CLAMP, 2"134020056
BOLT, M8-1.25 X 45 HH
4
600820
7
RETAINER, HOSE, SYM, 616008228
RETAINER, HOSE, OFFSET, 8
26008239
BOLT, M8-125 X 35 HH360091810
WASHER, M8 FENDER
260094011
EDGING, 3/16 X 15.0"262003812
EDGING. 5/16 X 7.0"
162004013
SLEEVE, AS-B-33 X 28.0"162004314
BAR, HOSE RETAINER162012315
BOLT, M6-100 X 30 HH1717021
16
BOLT, M8-1.25 X 20 HH271702417
FRAME
-
REF18
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 154
PARTS BREAKDOWN
DSB HOSE CLAMP GROUP 2 (600649)
REV *
9
4
7
1
4
2
1
27
2
11
10
21
26
13
213
19 8
23
15
20
85
12
5
6
12
6
12
25
3
17
24
22 22 14 23
14
6
12
16
3
18
16
6
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 155
PARTS BREAKDOWN
DSB HOSE CLAMP GROUP 2 (600649)
Parts List
DESCRIPTIONQTY
PART NUMBERITEM
BOLT, M6-100 X 20 HH2110380981
NUT, M6-1.00 ESN
4120400442
NUT, M8-1.25 ESN6120400513
WASHER, M6 FENDER
2123470274
RETAINER, HOSE, SYM, 823301437
5
RETAINER, HOSE, OFFSET, 8
433053986
CHAIN, GROUND133076587
CLAMP, HOSE
233355998
CLAMP, 2"133435399
WASHER, 3/8. BELLEVILLE
1340038510
CLAMP, 2"1340200511
BOLT, M8-1.25 X 45 HH
460082012
RETAINER, HOSE, SYM, 6260082213
BOLT, M8-125 X 35 HH
260091814
SLEEVE, AS-B-17 X 24.5"162004115
SLEEVE, AS-B-27 X 20.0"
2620042
16
EDGING, 3/16 X 4.75"162004617
EDGING, 4"162012018
EDGING, 8"162013819
SLEEVE, AS-B-27 X 24.5"162013920
SCREW, 3/8-16 X .750 HHC171304121
BOLT, M6-100 X 30 HH271702122
BOLT, M8-1.25 X 20 HH271702423
DUAL SIDE BROOM BUMPER
-
REF.
24
DUAL SIDE BROOMHOPPER
-
REF.25
ENGINE
-
REF.
26
CAM MOUNT1-REF.27
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 156
OPTIONS - PARTS BREAKDOWNS
OPTION - VACUUMIZED SIDE BROOM GROUP - PAGE 1 (600003)
REV *
15
11
7
7
10
2
14
7
2
25
10
18 7
14
1
12
4
17
3
1
13
26
28
16
27
4
20
6
7
9
19
1
21
22
3
5
3
8
24
23
OPTIONS - PARTS BREAKDOWN
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 157
OPTIONS - PARTS BREAKDOWN
OPTION - VACUUMIZED SIDE BROOM GROUP - PAGE 1 (600003)
Parts List
DESCRIPTIONQTYPART NUMBERITEM
BOLT, M6-100 X 16 HH
6110380721
BOLT, M10-1.50 X 25 HH3110383462
NUT, M6-1.00 ESN
6120400443
NUT, M10-1.50 ESN3120400694
WASHER, M6
2123100335
M8-1.25 INSERT, .188 GRIP36008526
SCREW, M8-1.25 X 25 BUTTON HD CAP SS
206009177
ASSEMBLY, RH VAC SB COVER1620016-18
ASSEMBLY, BUMPER SKIRT MNT
1620021-19
STRAP, BUMPER SKIRT262002310
STRAP, SIDE SKIRT
162002411
PLATE, AIR DAM162004712
TUBE, AIR162004813
STRAP, SHORT262004914
SKIRT, VAC SB
162005115
SEAL, BUMPER162005316
SEAL, CORNER
162005417
STRAP, VAC SB SKIRT162005518
SKIRT, VAC SB, LH162005619
SKIRT, FRONT162010120
WELDMENT, VAC SB HOSE COVER162010221
SEAL, CABLE162010522
SEAL, BUMPER162010923
EDGING162011924
BOLT, M8-1.25 X 20 HH371702425
NUT, M8-1.25 ESN SS371702926
HOPPER
-
REF
27
FRONT BUMPER
-
REF28
OPTION GROUP (600003) - VACUUMIZED SIDE BROOM GROUP, INCLUDES:
600003 PAGE 1 & 600003 PAGE 2.
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 158
OPTIONS - PARTS BREAKDOWNS
OPTION - VACUUMIZED SIDE BROOM GROUP - PAGE 2 (600003)
REV *
5
2
2
4
3
1
1
6
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 159

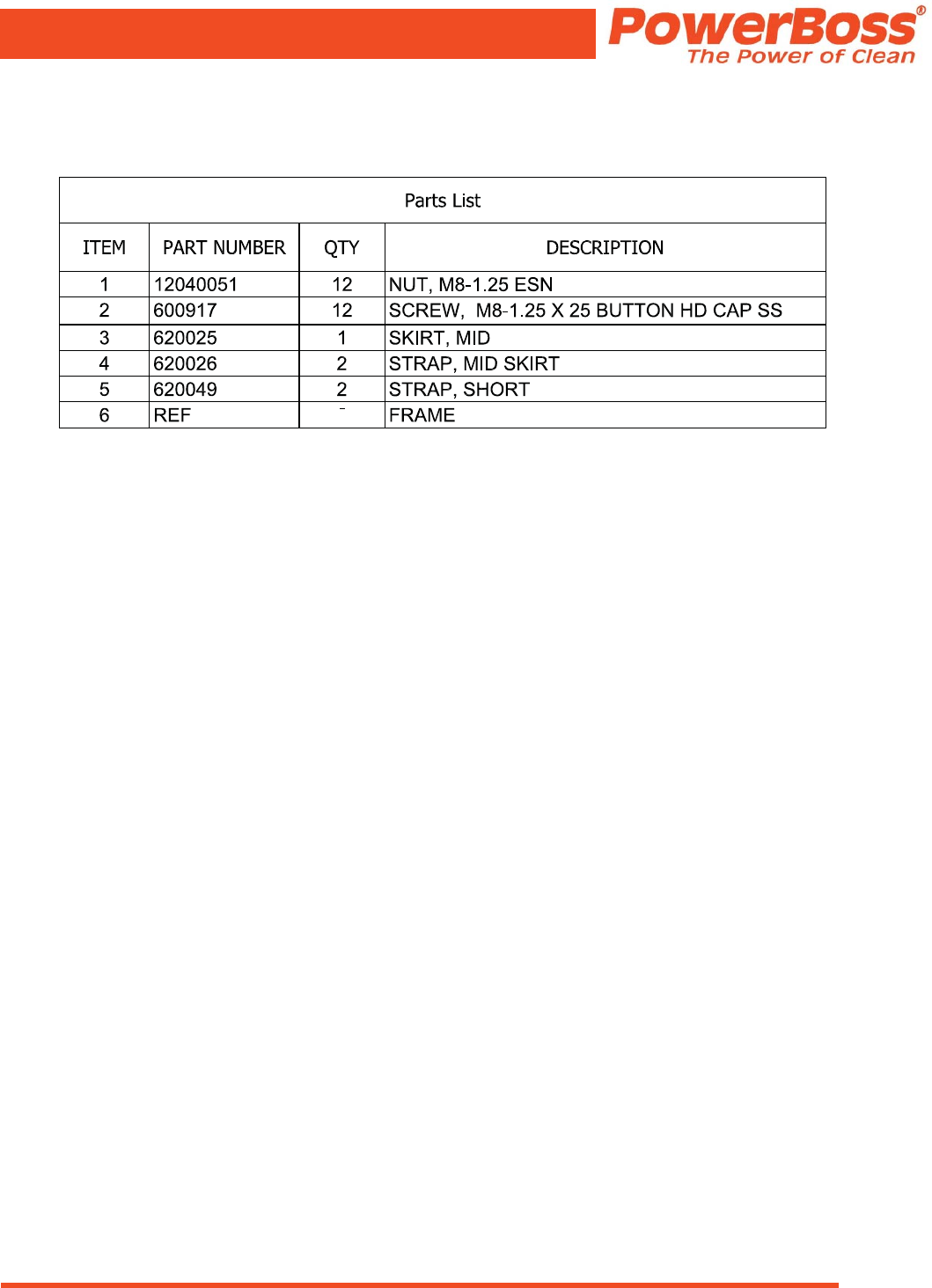

OPTIONS - PARTS BREAKDOWN
OPTION - VACUUMIZED SIDE BROOM GROUP - PAGE 2 (600003)
Parts List
DESCRIPTIONQTY
PART NUMBERITEM
NUT, M8-1.25 ESN6120400511
SCREW, M8-1.25 X 25 BUTTON HD CAP SS
66009172
SKIRT, MID16200253
STRAP, MID SKIRT1620026
4
STRAP, SHORT16200495
FRAME
-
REF
6
OPTION GROUP (600003) - VACUUMIZED SIDE BROOM GROUP, INCLUDES:
600003 PAGE 1 & 600003 PAGE 2.
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 160
OPTIONS - PARTS BREAKDOWNS
OPTION - DUAL VACUUMIZED SIDE BROOM GROUP - PAGE 1 (600004)
REV B
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 161
OPTIONS - PARTS BREAKDOWN
OPTION - DUAL VACUUMIZED SIDE BROOM GROUP - PAGE 1 (600004)
OPTION GROUP (600004) - DUAL VACUUMIZED SIDE BROOM GROUP, INCLUDES:
600004 PAGE 1 & 600004 PAGE 2.
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 162
OPTIONS - PARTS BREAKDOWNS
OPTION - DUAL VACUUMIZED SIDE BROOM GROUP - PAGE 2 (600004)
REV B
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 163
OPTIONS - PARTS BREAKDOWN
OPTION - DUAL VACUUMIZED SIDE BROOM GROUP - PAGE 2 (600004)
OPTION GROUP (600004) - DUAL VACUUMIZED SIDE BROOM GROUP, INCLUDES:
600004 PAGE 1 & 600004 PAGE 2.
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 164
OPTIONS - PARTS BREAKDOWNS

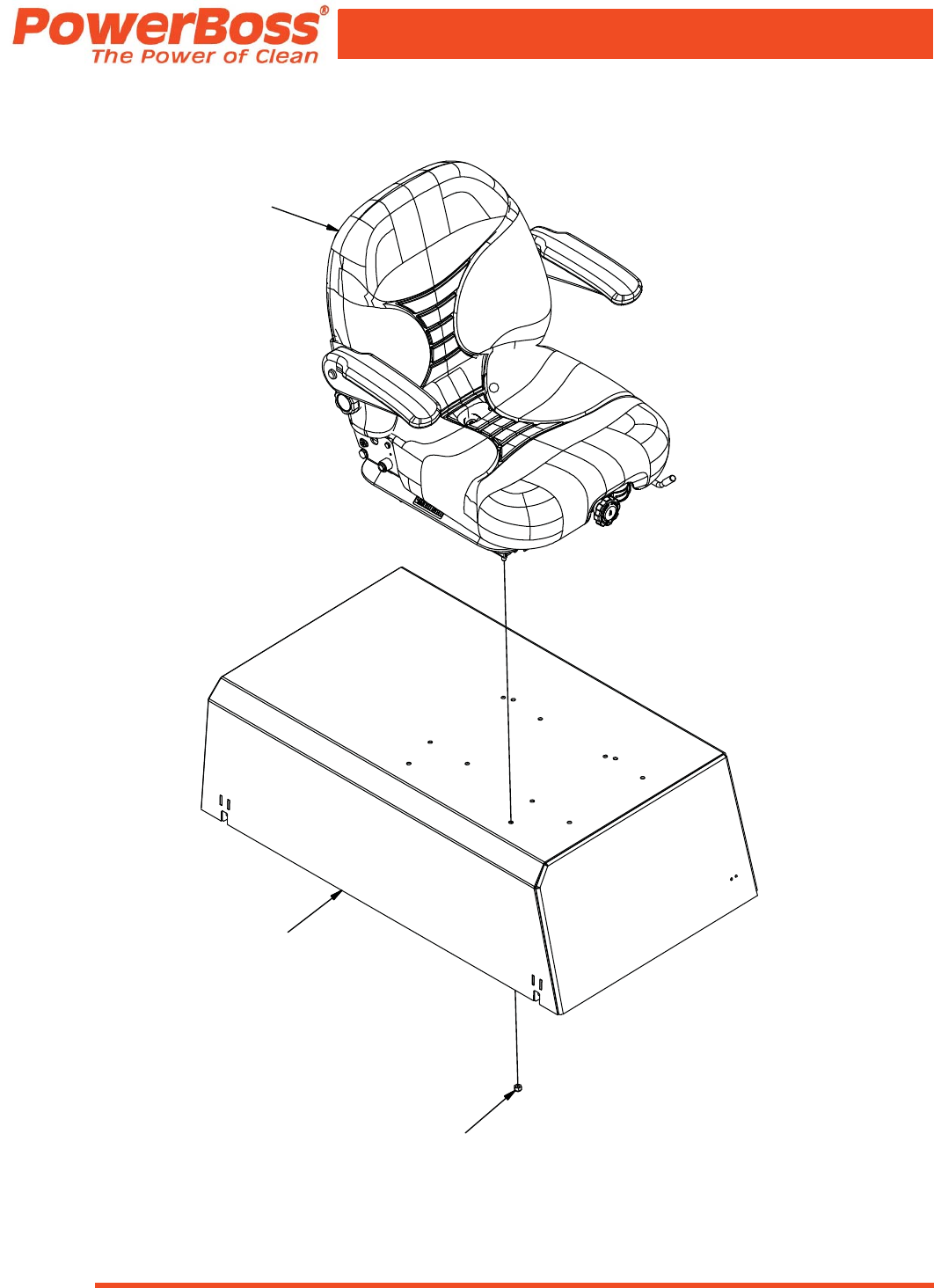

OPTION - SUSPENSION SEAT GROUP (600005)
REV A
3
2
1
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 165
OPTIONS - PARTS BREAKDOWN
OPTION - SUSPENSION SEAT GROUP (600005)
Parts List
DESCRIPTIONQTYPART NUMBERITEM
SEAT, SUSPENSION
16201911
NUT, FIBER INSERT 5/16-1847113742
PUMP COVER
-
REF3
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 166
OPTIONS - PARTS BREAKDOWNS
OPTION - BACKUP ALARM GROUP (600006)
REV B
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 167
OPTIONS - PARTS BREAKDOWN

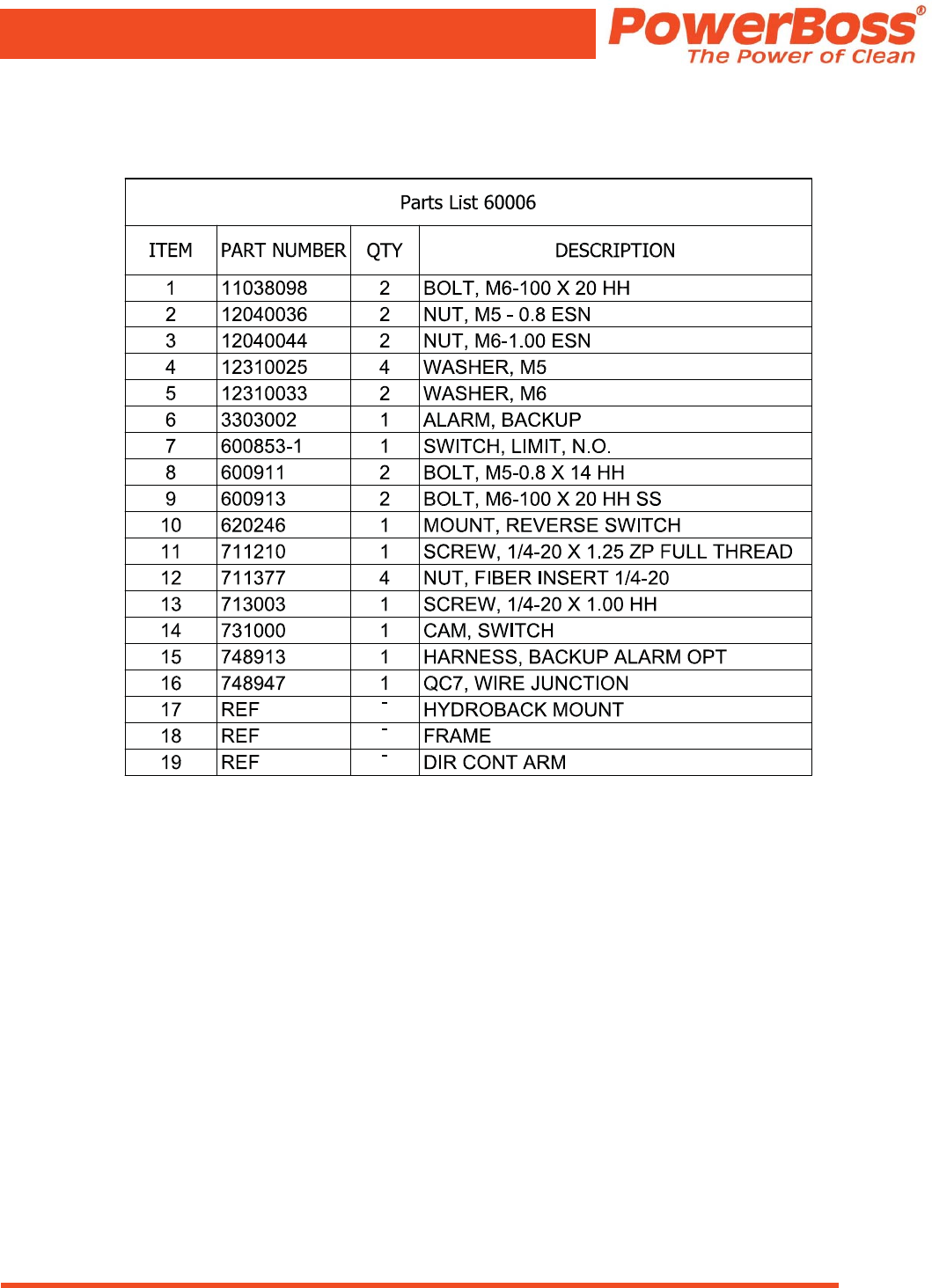

OPTION - BACKUP ALARM GROUP (600006)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 168
OPTIONS - PARTS BREAKDOWNS
OPTION - SAFETY LIGHT, AMBER STROBE LIGHT OHG GROUP (600007)
REV A
2
7
6
4
3
5
1
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 169
OPTIONS - PARTS BREAKDOWN
OPTION - SAFETY LIGHT, AMBER STROBE LIGHT OHG GROUP (600007)
Parts List
DESCRIPTIONQTY
PART NUMBERITEM
HEYCO BUSHING, .50X.625X.5611700331
#10-32 X .75 SERHXFLGSCRZ334000442
NUT, 10-32 ESN334001723
GROMMET, 1.00 ID .1.375 OD .25 T16201604
HARNESS, SAFETY LIGHT, OHG17489165
ASSEMBLY, AMBER STROBE LIGHT17489186
OVERHEAD GUARD
-
REF7
QC7, WIRE JUNCTION1748947
-
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 170
OPTIONS - PARTS BREAKDOWNS

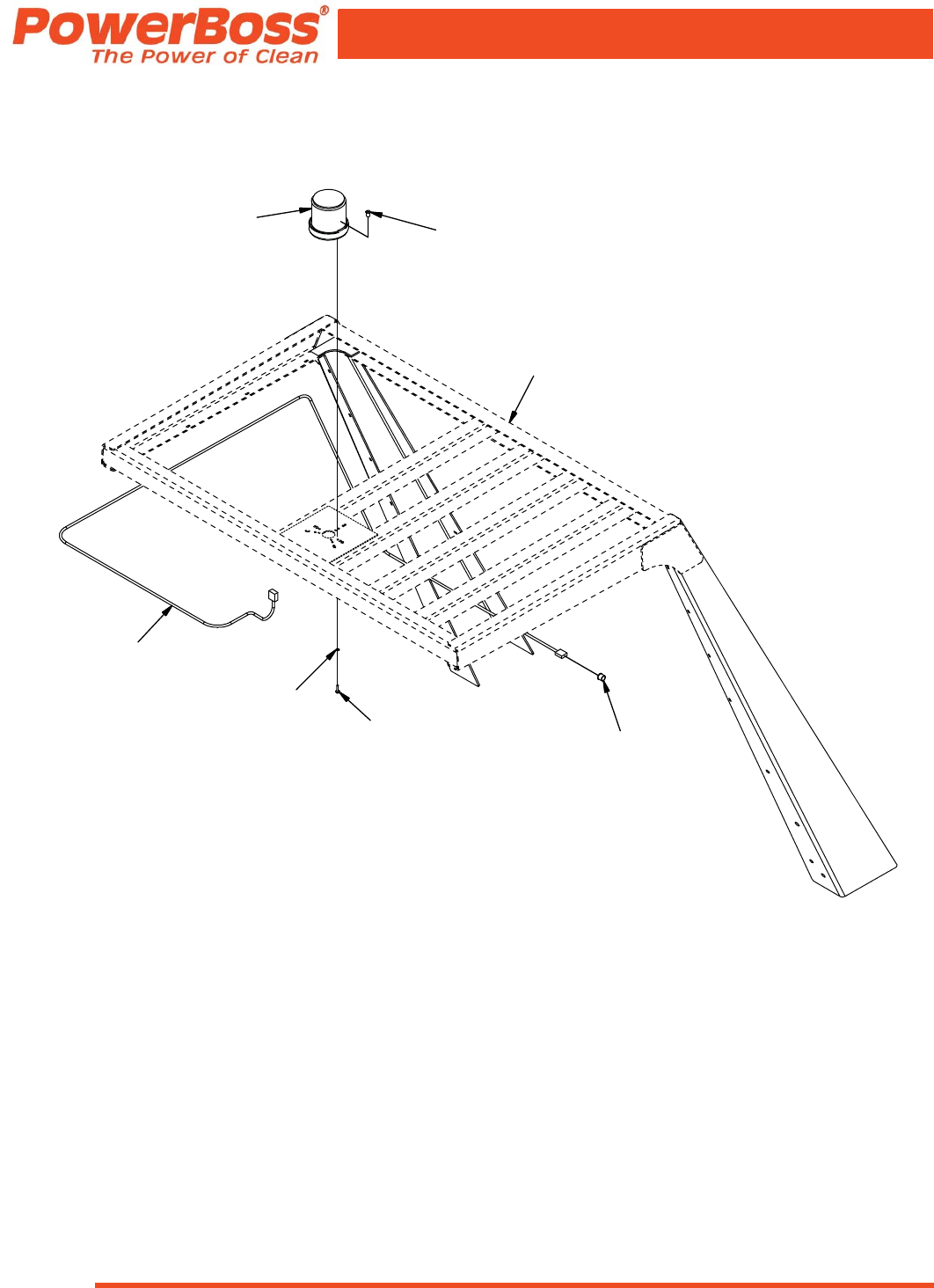

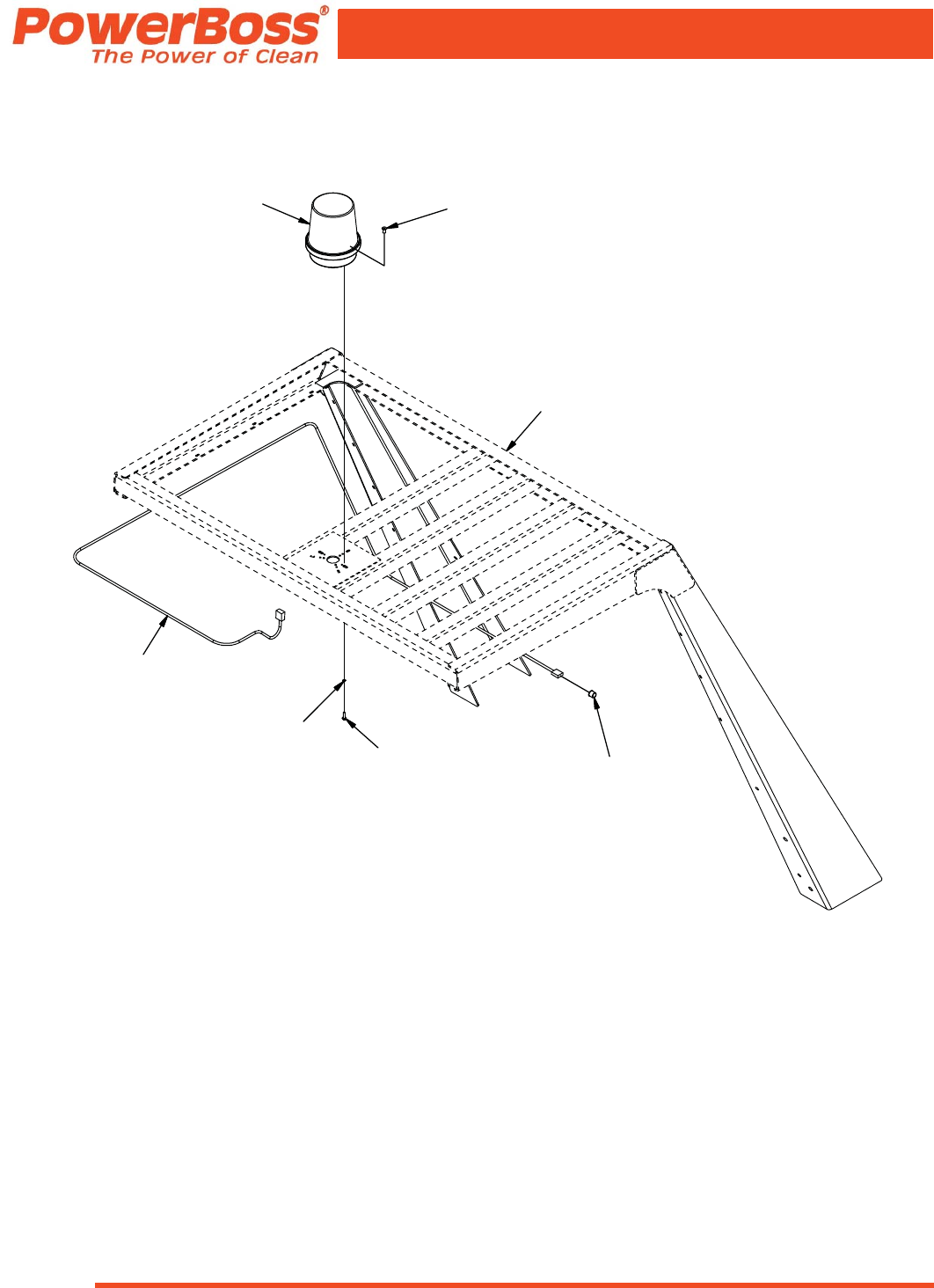

OPTION - SAFETY LIGHT, AMBER ROTATING LIGHT OHG GROUP (600008)
REV A
3
7
6
5
4
2
1
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 171
OPTIONS - PARTS BREAKDOWN
OPTION - SAFETY LIGHT, AMBER ROTATING LIGHT OHG GROUP (600008)
Parts List
DESCRIPTIONQTY
PART NUMBERITEM
HEYCO BUSHING, .50X.625X.5611700331
HARNESS, SAFETY LIGHT, OHG
17489162
ASSEMBLY, AMBER ROTATING LIGHT17489193
NUT, EXPANSION
2
PART OF 748919
4
STAR WASHER2PART OF 748919
5
SCREW
2
PART OF 748919
6
OVERHEAD GUARD
-
REF.7
QC7, WIRE JUNCTION
1748947
-
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 172
OPTIONS - PARTS BREAKDOWNS
OPTION - SAFETY LIGHT, AMBER FLASHING LIGHT OHG GROUP (600009)
REV A
3
6
7
5
4
2
1
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 173
OPTIONS - PARTS BREAKDOWN
OPTION - SAFETY LIGHT, AMBER FLASHING LIGHT OHG GROUP (600009)
Parts List
DESCRIPTIONQTYPART NUMBERITEM
HEYCO BUSHING, .50X.625X.5611700331
HARNESS, SAFETY LIGHT, OHG17489162
ASSEMBLY, AMBER FLASHING LIGHT17489203
STAR WASHER2PART OF 7489204
NUT, EXPANSION2PART OF 748920
5
SCREW2PART OF 7489206
OVERHEAD GUARD
-
REF.7
QC7, WIRE JUNCTION1748947
-
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 174
OPTIONS - PARTS BREAKDOWNS
OPTION - SAFETY LIGHT, AMBER STROBE LIGHT ENG CVR GROUP (600010)
REV A
00 0
4
5
9
6
7
1
7
3
8
2
10
11
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 175
OPTIONS - PARTS BREAKDOWN
OPTION - SAFETY LIGHT, AMBER STROBE LIGHT ENG CVR GROUP (600010)
Parts List
DESCRIPTIONQTY
PART NUMBERITEM
NUT, M6-1.00 ESN2120400441
HEYCO BUSHING, .50X.625X.56
11700332
#10-32 X .75 SERHXFLGSCRZ334000443
NUT, 10-32 ESN
334001724
MOUNT, SAFETY LIGHTS1600896
5
BOLT, M6-100 X 20 HH SS
26009136
GROMMET, 1.00 ID .1.375 OD .25 T2620160
7
HARNESS, SAFETY LIGHT, ENG COV
17489178
ASSEMBLY, AMBER STROBE LIGHT17489189
COVER FRAME
-
REF.10
ENGINE COVER
-
REF.11
QC7, WIRE JUNCTION
1748947
-
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 176
OPTIONS - PARTS BREAKDOWNS

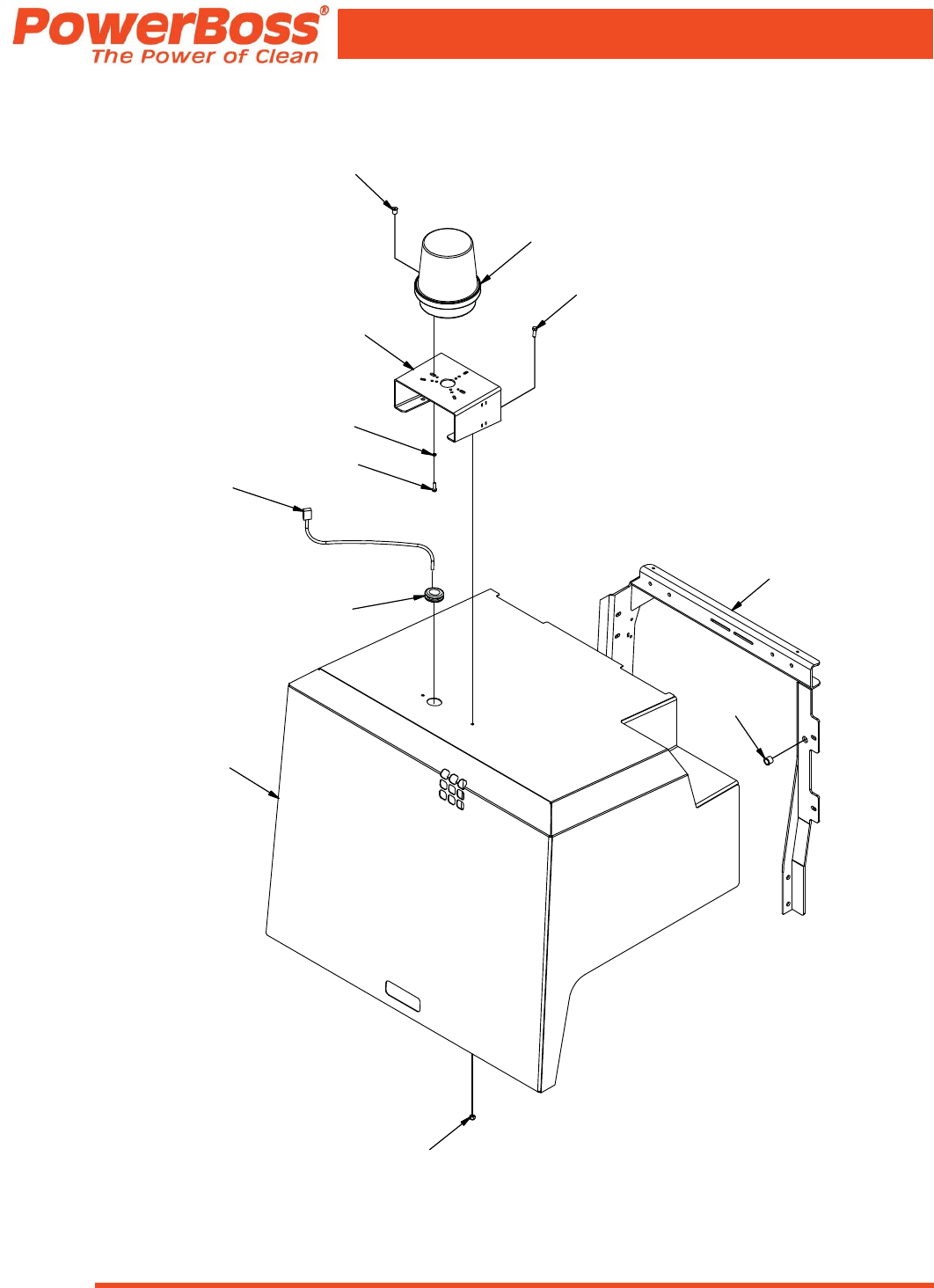

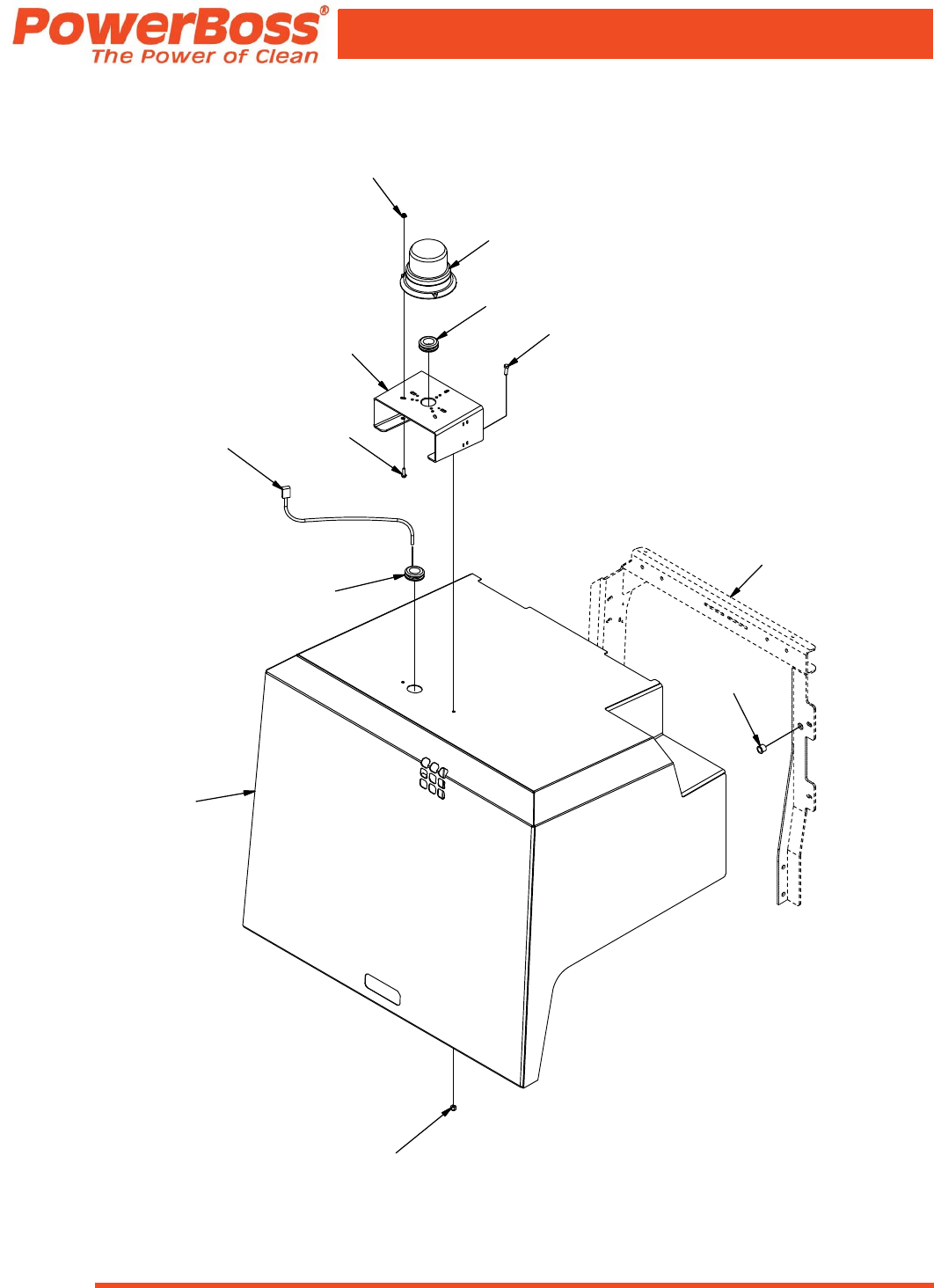

OPTION - SAFETY LIGHT, AMBER ROTATING LIGHT ENG CVR GROUP (600011)
REV A
00011
7
3
5
4
1
12
8
10
9
6
11
2
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 177
OPTIONS - PARTS BREAKDOWN
OPTION - SAFETY LIGHT, AMBER ROTATING LIGHT ENG CVR GROUP (600011)
Parts List
DESCRIPTIONQTYPART NUMBERITEM
NUT, M6-1.00 ESN
2120400441
HEYCO BUSHING, .50X.625X.5611700332
MOUNT, SAFETY LIGHTS
16008963
BOLT, M6-100 X 20 HH SS26009134
GROMMET, 1.00 ID .1.375 OD .25 T
16201605
HARNESS, SAFETY LIGHT, ENG COV17489176
ASSEMBLY, AMBER ROTATING LIGHT
17489197
NUT, EXPANSION2PART OF 7489198
STAR WASHER
2
PART OF 748919
9
SCREW2PART OF 74891910
COVER FRAME
-
REF.11
ENGINE COVER
-
REF.12
QC7, WIRE JUNCTION
1748947
-
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 178
OPTIONS - PARTS BREAKDOWNS
OPTION - SAFETY LIGHT, AMBER FLASHING LIGHT ENG CVR GROUP (600012)
REV A
7
4
5
1
3
11
8
9
10
6
12
2
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 179
OPTIONS - PARTS BREAKDOWN
OPTION - SAFETY LIGHT, AMBER FLASHING LIGHT ENG CVR GROUP (600012)
Parts List
DESCRIPTIONQTY
PART NUMBERITEM
NUT, M6-1.00 ESN2120400441
HEYCO BUSHING, .50X.625X.56
11700332
MOUNT, SAFETY LIGHTS16008963
BOLT, M6-100 X 20 HH SS
26009134
GROMMET, 1.00 ID .1.375 OD .25 T1620160
5
HARNESS, SAFETY LIGHT, ENG COV
17489176
ASSEMBLY, AMBER FLASHING LIGHT17489207
STAR WASHER
2
PARTOF748920
8
NUT, EXPANSION2PARTOF7489209
SCREW
2
PARTOF748920
10
ENGINE COVER
-
REF11
COVER FRAME
-
REF.12
QC7, WIRE JUNCTION1748947
-
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 180
OPTIONS - PARTS BREAKDOWNS

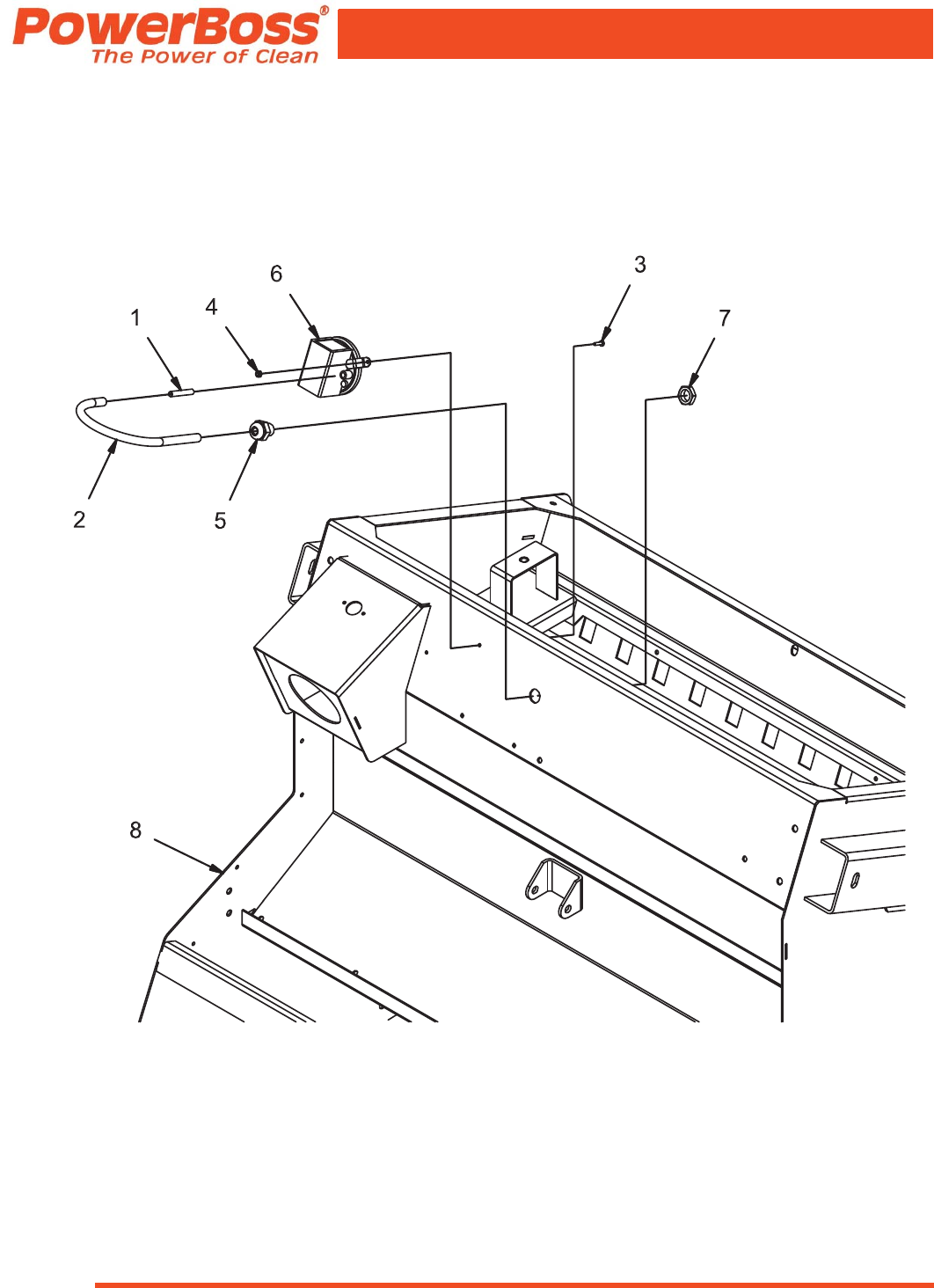

OPTION - CLOGGED FILTER INDICATOR GROUP (600013)
REV B
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 181

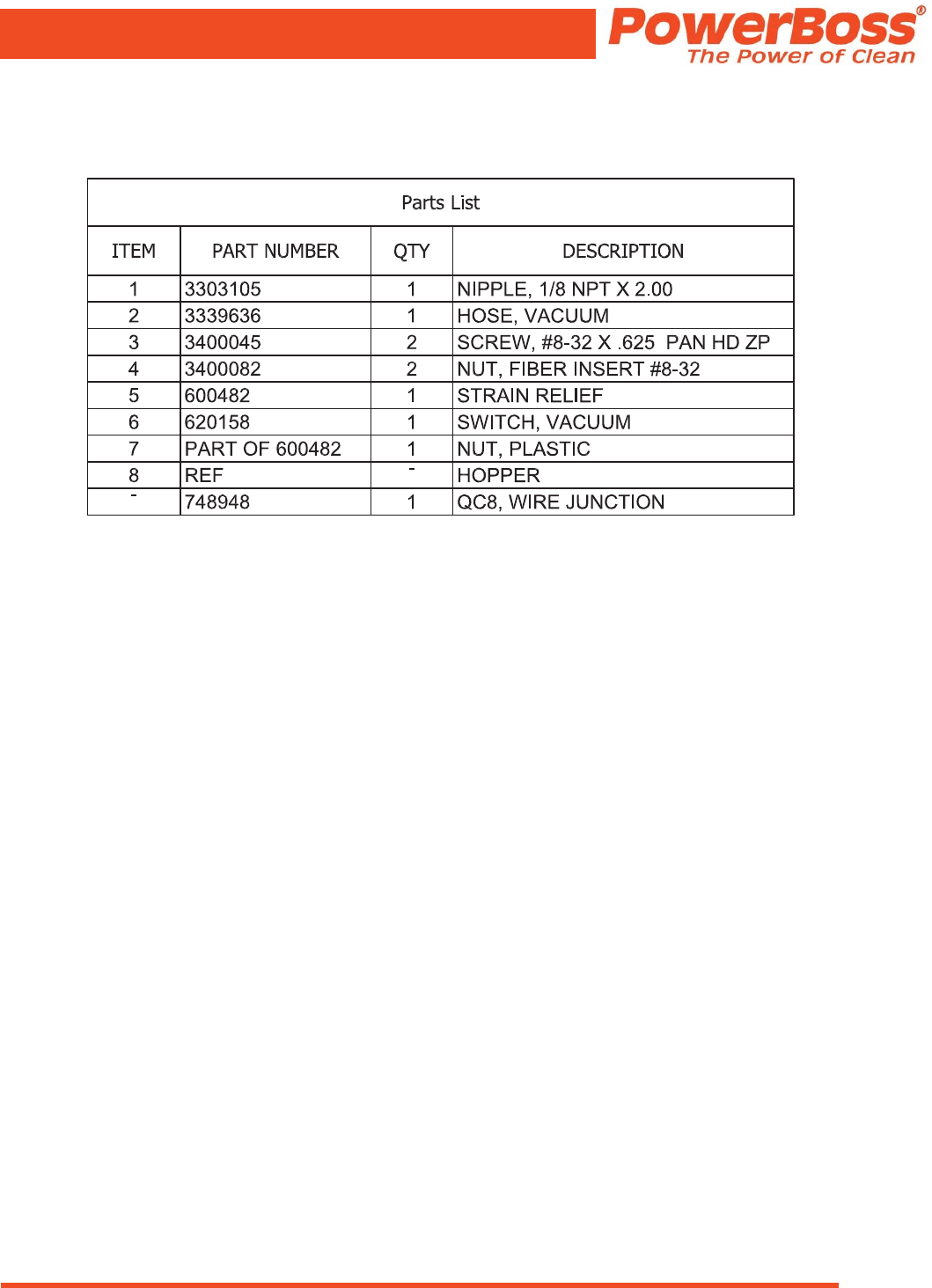

OPTIONS - PARTS BREAKDOWN
OPTION - CLOGGED FILTER INDICATOR GROUP (600013)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 182
OPTIONS - PARTS BREAKDOWNS
OPTION - FILTER SHAKER TIMER GROUP (600014)
REV *
4
2
3
1
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 183
OPTIONS - PARTS BREAKDOWN
OPTION - FILTER SHAKER TIMER GROUP (600014)
Parts List
DESCRIPTIONQTYPART NUMBERITEM
NUT, M6-1.00 ESN
1120400441
BOLT, M6-1.00 X 35 HH16009522
TIMER17489123
WIRE ASSEMBLY, SHAKER TIMER OPTION1748907
-
FRAME
-
REF4
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 184
OPTIONS - PARTS BREAKDOWNS

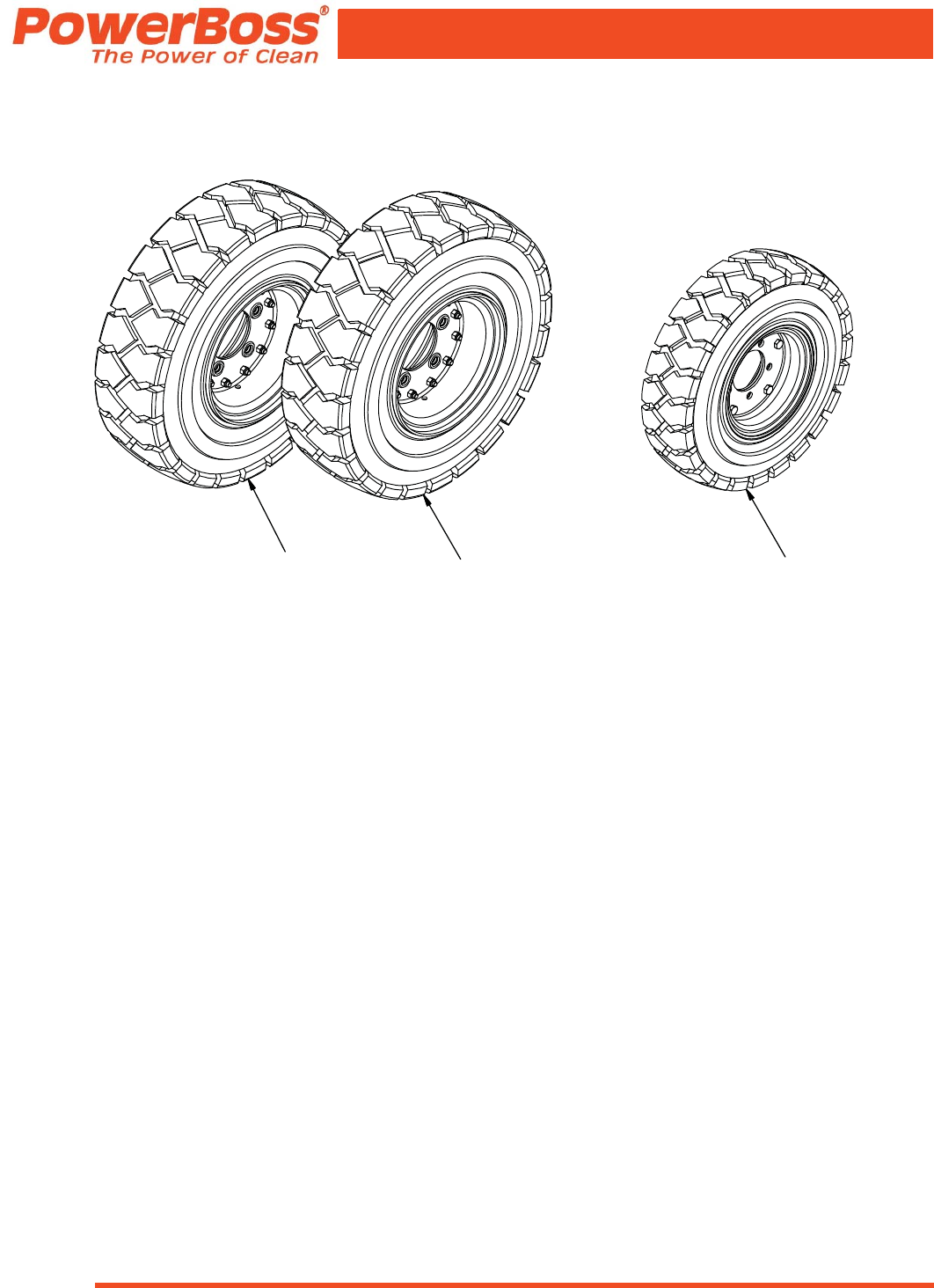

OPTION - TIRE, ALL SOFT SHOE SOLID GROUP (600015)
REV *
112
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 185
OPTIONS - PARTS BREAKDOWN
OPTION - TIRE, ALL SOFT SHOE SOLID GROUP (600015)
Parts List
DESCRIPTIONQTY
PART NUMBERITEM
ASSEMBLY, 650-10 SOFT SHOE SOLID FRONT TIRE26200991
REPLACEMENT TIRE, FRONT, SOFT SHOE SOLID
-
620100
-
ASSEMBLY, 500-8 SOFT SHOE SOLID REAR TIRE16200932
REPLACEMENT TIRE, REAR, SOFT SHOE SOLID
-
620094
-
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 186
OPTIONS - PARTS BREAKDOWNS
OPTION - TIRE, FRONT SOFT SHOE SOLID, REAR PNEUMATIC GROUP (600016)
REV *
112
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 187
OPTIONS - PARTS BREAKDOWN
OPTION - TIRE, FRONT SOFT SHOE SOLID, REAR PNEUMATIC GROUP (600016)
Parts List
DESCRIPTIONQTY
PART NUMBERITEM
ASSEMBLY, 650-10 SOFT SHOE SOLID FRONT TIRE26200991
REPLACEMENT TIRE, FRONT, SOFT SHOE SOLID
-
620100
-
ASSEMBLY, 500-8 PNEUMATIC REAR TIRE16003882
REPLACEMENT TIRE, REAR, PNEUMATIC
-
600336
-
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 188
OPTIONS - PARTS BREAKDOWNS
OPTION - TIRE, ALL NON-MARKING SOLID GROUP (600017)
REV *
112
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 189
OPTIONS - PARTS BREAKDOWN
OPTION - TIRE, ALL NON-MARKING SOLID GROUP (600017)
Parts List
DESCRIPTIONQTY
PART NUMBERITEM
ASSEMBLY, TIRE, 650-10 SOLID NON-MARKING, FRONT26200981
REPLACEMENT TIRE, FRONT, NON-MARKING
-
3307910
-
ASSEMBLY, TIRE, 500-8 SOLID NON-MARKING, REAR16200952
REPLACEMENT TIRE, REAR, NON-MARKING
-
620096
-
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 190
OPTIONS - PARTS BREAKDOWNS
OPTION - OVERHEAD GUARD (OHG) GROUP (600019)
REV *
3
1
2
4
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 191
OPTIONS - PARTS BREAKDOWN
OPTION - OVERHEAD GUARD (OHG) GROUP (600019)
Parts List
DESCRIPTIONQTYPART NUMBERITEM
BOLT, M10-1.50 X 25 HH8110383461
NUT, M10-1.50 ESN8120400692
WELDMENT, OHG16008873
FRAME
-
REF4
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 192
OPTIONS - PARTS BREAKDOWNS
OPTION - AUTO DIESEL SHUTDOWN GROUP (600020)
REV *
1
4
2
3
5
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 193
OPTIONS - PARTS BREAKDOWN
OPTION - AUTO DIESEL SHUTDOWN GROUP (600020)
Parts List 600020
DESCRIPTIONQTY
PART NUMBERITEM
SWITCH, MURPHY SHUTDOWN ARMA133161751
LOCK WASHER
1
PART OF 3316175
2
NUT1PART OF 33161753
DECAL
1
PART OF 3316175
4
HARNESS, AUTO DIESEL SHUTDOWN1748944
-
CONSOLE
-
REF.5
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 194
OPTIONS - PARTS BREAKDOWNS
OPTION - VACUUM WAND GROUP - PAGE 1 (600021)
REV *
18
19
30
28
22
28
4
5
29
25
24
28 9
9
28
11
4
20
14 13
25
3
1
21
10
23
32
31
12
33
2
16
3
15
6
7
26
8
17
3
1
27
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 195
OPTIONS - PARTS BREAKDOWN
OPTION - VACUUM WAND GROUP - PAGE 1 (600021)
Parts List
DESCRIPTIONQTY
PART NUMBERITEM
BOLT, M6-100 X 16 HH7110380721
BOLT, M6-100 X 20 HH2110380982
NUT, M6-1.00 ESN9120400443
NUT, M8-1.25 ESN4120400514
HOSE, VAC WAND133395865
SWITCH, WHISKER133425466
NUT, FIBER INSERT #8-32234000827
FLATWASHER, #8234000968
WASHER, 5/16 BELLEVILLE334003849
RIVET, MULTI-GRIP6340048410
M8-1.25 INSERT, .188 GRIP
360085211
BOLT, M8-125 X 35 HH160091812
WELDMENT, VAC CONNECT
162011313
GASKET, VAC CONNECT162011614
SHIELD, DIRT
162011715
RETAINER, SHIELD1620118
16
BOLT, #8-32 X 1.25 HH ZP
262013617
WELDMENT, WAND MNT162014918
TUBE, WAND END162015319
CRADLE, HOSE162022020
RETAINER,VELCRO
362017221
TUBE, VAC WAND162017322
STRAP, VELCRO
362017423
HOSE, VACUUM, 4"162017524
CLAMP, HOSE, 4"
262017625
WELDMENT, VACUUM WAND RETAINER162018726
CHANNEL, HOSE
162021027
BOLT, M8-1.25 X 20 HH671702428
GRIP, HANDLE, BLACK
178-71-A29
CLAMP, HOSE1PART OF 62015330
HOPPER
-
REF.31
HOPPER COVER
-
REF.32
FRAME
-
REF.33
HARNESS1748945
-
OPTION GROUP (600021) - VACUUM WAND GROUP, INCLUDES:
600021 PAGE 1 & 600021 PAGE 2.
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 196
OPTIONS - PARTS BREAKDOWNS
OPTION - VACUUM WAND GROUP - PAGE 2 (600021)
REV *
7
3
6
1
4
2
5
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 197
OPTIONS - PARTS BREAKDOWN
OPTION - VACUUM WAND GROUP - PAGE 2 (600021)
Parts List
DESCRIPTIONQTYPART NUMBERITEM
BLT-HH M8-125 X 25 STL ZINC6110382471
NUT, M8-1.25 ESN SS
6120402592
ANGLE, SEAL MNT16201853
EDGING, DUMP DOOR
16201864
HOPPER
-
REF.
5
RETAINER, DOOR BAR SEAL
-
REF.6
SEAL, DUMP DOOR BAR
-
REF.7
OPTION GROUP (600021) - VACUUM WAND GROUP, INCLUDES:
600021 PAGE 1 & 600021 PAGE 2.
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 198
OPTIONS - PARTS BREAKDOWNS

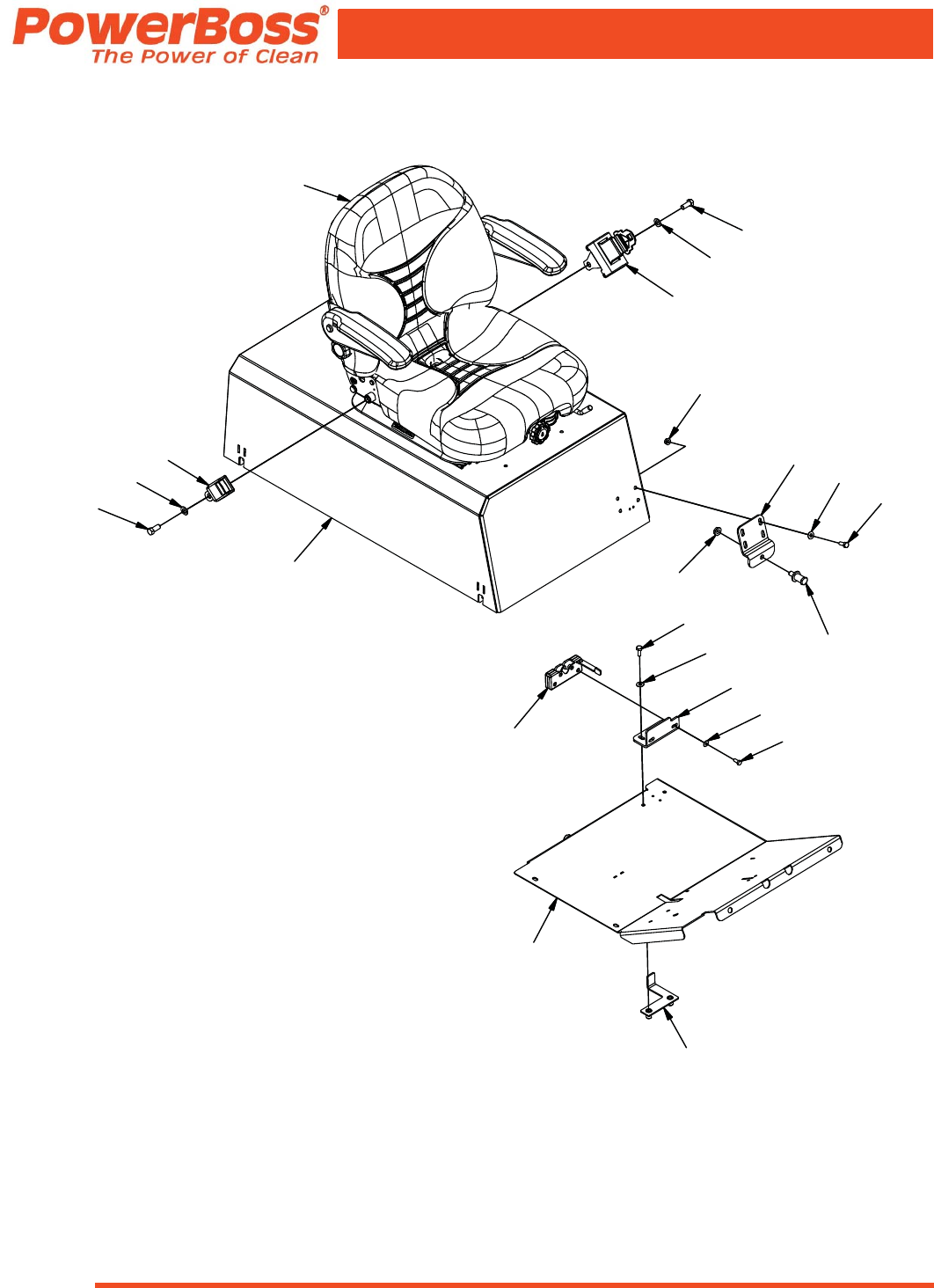

OPTION - SEAT BELT, SUSPENSION SEAT GROUP (600022)
REV *
1
4
11
3
10
7
17
16
4
11
6
5
2
8
15
13
14
12
13
14
18
9
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 199
OPTIONS - PARTS BREAKDOWN
OPTION - SEAT BELT, SUSPENSION SEAT GROUP (600022)
Parts List
DESCRIPTIONQTY
PART NUMBERITEM
LATCH, LH133072461
STRIKER-LATCH133072482
WASHER, 1/4 BELLEVILLE234003833
WASHER, 5/16 BELLEVILLE634003844
NUT, 7/16-14 FLNG134003945
NUT, M8-1.25 FLNG46009346
BRACKET, LATCH16201937
BRACKET, STRIKER16201948
ASSEMBLY, NUT PLATE
1620216-19
SCREW, 1/4-20 X .625 HHC271300110
BOLT, M8-1.25 X 20 HH
671702411
SEAT BELT, RECEIVER1PART OF 62019212
7/16 FLAT WASHER
2
PART OF 620192
13
BOLT, 7/16-20 x 1.002PART OF 62019214
SEAT BELT, RETRACTOR
1
PART OF 620192
15
PUMP COVER1REF.
16
FLOOR
-
REF.17
SEAT, SUSPENSION
-
REF.18
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 200
OPTIONS - PARTS BREAKDOWNS

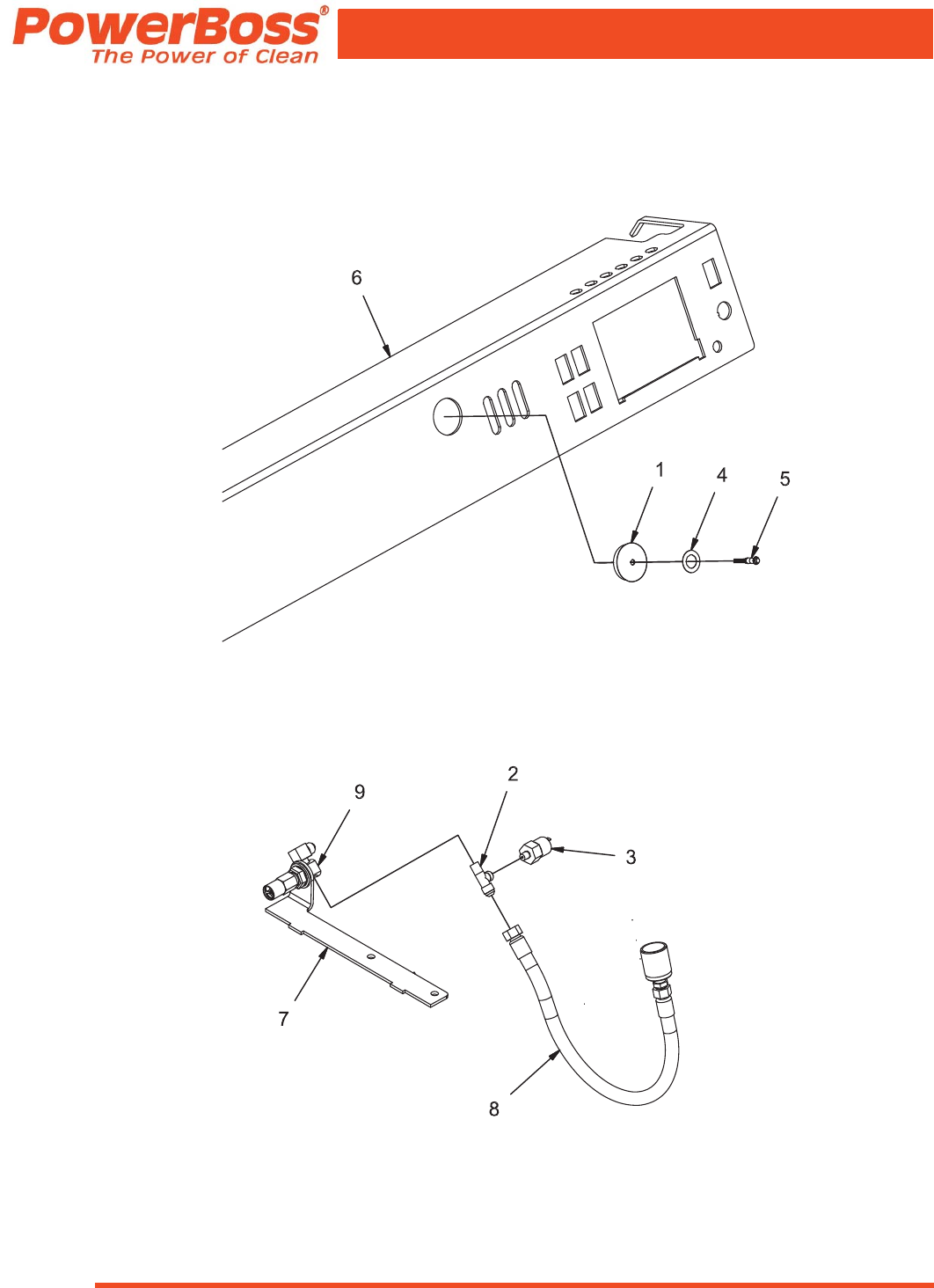

OPTION - LOW LPG INDICATOR GROUP (600023)
REV B
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 201
OPTIONS - PARTS BREAKDOWN
OPTION - LOW LEVEL INDICATOR GROUP (600023)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 202
OPTIONS - PARTS BREAKDOWNS
OPTION - HEAVY DUTY AIR CLEANER GROUP - LPG, GAS (600024)
REV A
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 203

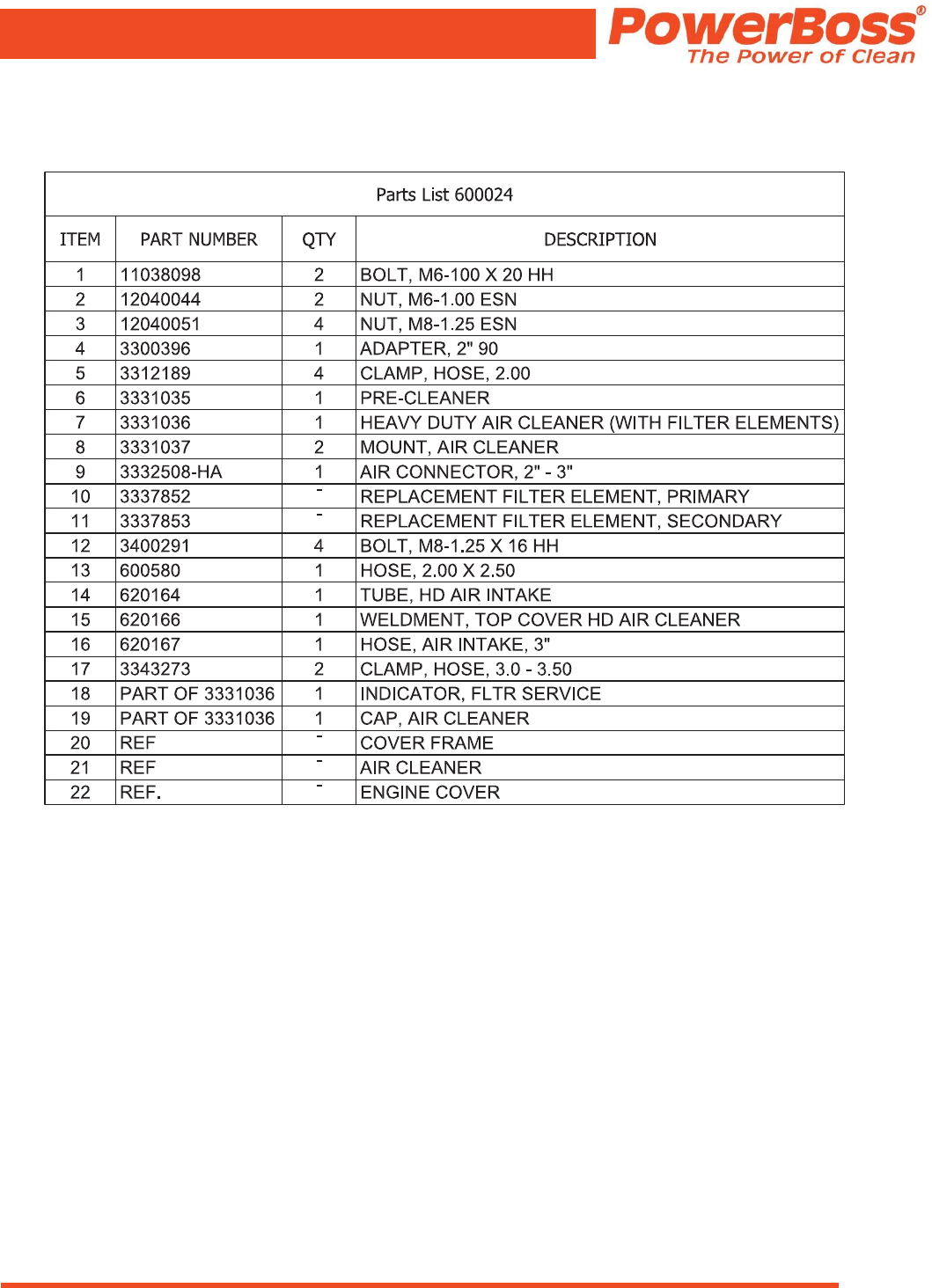

OPTIONS - PARTS BREAKDOWN
OPTION - HEAVY DUTY AIR CLEANER GROUP - LPG, GAS (600024)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 204
OPTIONS - PARTS BREAKDOWNS

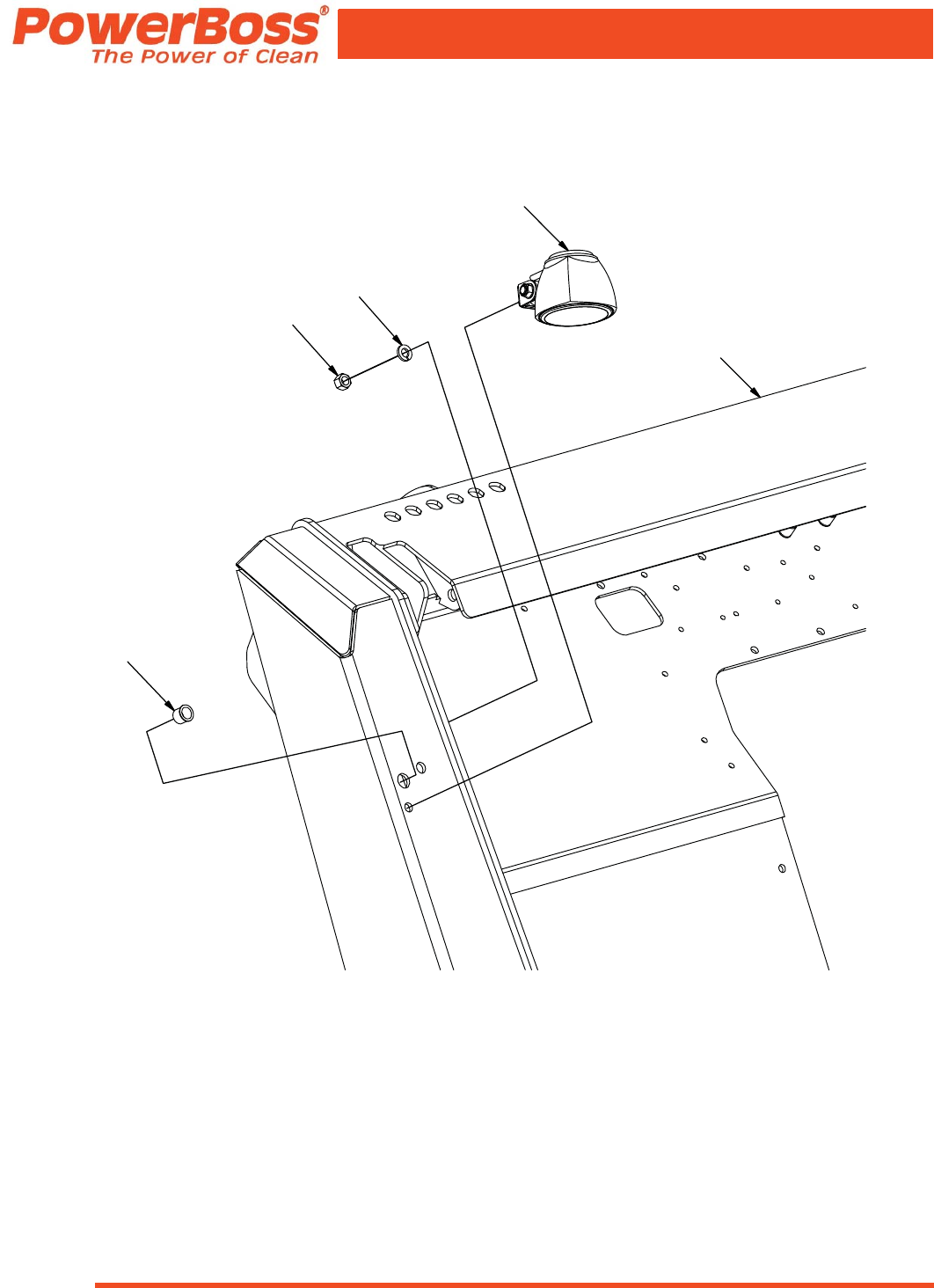

OPTION - SIDE BROOM LIGHT GROUP (600025)
REV A
2
4
3
5
1
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 205
OPTIONS - PARTS BREAKDOWN
OPTION - SIDE BROOM LIGHT GROUP (600025)
Parts List
DESCRIPTIONQTY
PART NUMBERITEM
HEYCO BUSHING, .50X.625X.5611700331
ASSEMBLY, HEADLIGHT,
12VDC
1620209-12
NUT, HEX 3/8-161PART OF 6202093
LOCK WASHER, 3/81PART OF 6202094
FRAME
-
REF.5
HARNESS1748941
-
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 206
OPTIONS - PARTS BREAKDOWNS
OPTION - TURN SIGNAL AND 4 WAY FLASHER GROUP - PAGE 1 (600026)
REV *
1
2
5
4
9
10
7
3
68
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 207
OPTIONS - PARTS BREAKDOWN
OPTION - TURN SIGNAL AND 4 WAY FLASHER GROUP - PAGE 1 (600026)
Parts List
DESCRIPTIONQTY
PART NUMBERITEM
SWITCH, DPST133427051
SWITCH CAP
133440382
WASHER, 1/4 BELLEVILLE234003833
GROMMET, .63 ID .88 OD .25 T
16001514
WELDMENT, TURN SIGNAL SWITCH MNT16201835
BOLT, M6-1.00 X 70 AHCS ZP
26201846
M6-1.00 INSERT, .165 GRIP26201907
SWITCH, TURN SIGNAL
16202088
STEERING MNT
-
REF.9
STEERING WHEEL
-
REF.10
HARNESS1748942
-
OPTION GROUP (600026) - TURN SIGNAL AND 4 WAY FLASHER GROUP, INCLUDES:
600026 PAGE 1 & 600026 PAGE 2.
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 208
OPTIONS - PARTS BREAKDOWNS
OPTION - TURN SIGNAL AND 4 WAY FLASHER GROUP - PAGE 2 (600026)
REV *
3
2
5
11 76
4
16
12
91
4
13
15
14
8
10
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 209
OPTIONS - PARTS BREAKDOWN
OPTION - TURN SIGNAL AND 4 WAY FLASHER GROUP - PAGE 2 (600026)
Parts List
DESCRIPTIONQTYPART NUMBERITEM
BOLT, M5-0.8 X 16 HHB
4
110380491
BOLT, M5-0.8 X 30 HHB4110397652
NUT, HEX, M5 - 0.8
4
120224303
NUT, M5 - 0.8 ESN8120400364
LIGHT, TAIL, 12V, COMBINATION23303204
5
NUT, HEX, 1/4-20 ZP434000716
LOCK WASHER, 1/4 HS MED43400103
7
WASHER, 1/4 BELLEVILLE434003838
TAIL LIGHT26005149
BOLT, M6-100 X 20 HH SS460091310
BRACKET, REAR AUX LIGHT MNT262016111
CHANNEL, FRONT AUX LIGHT MNT262018012
M6-1.00 INSERT, .165 GRIP462019013
TAIL LIGHT
-
REF14
FRONT BUMPER
-
REF.15
FRAME
-
REF.
16
OPTION GROUP (600026) - TURN SIGNAL AND 4 WAY FLASHER GROUP, INCLUDES:
600026 PAGE 1 & 600026 PAGE 2.
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 210
OPTIONS - PARTS BREAKDOWNS
OPTION - BRAKE LIGHTS GROUP (600027)
REV A
810
75
13
2
12
1
13
96
11
4
3
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 211
OPTIONS - PARTS BREAKDOWN
OPTION - BRAKE LIGHTS GROUP (600027)
Parts List
DESCRIPTIONQTY
PART NUMBERITEM
BOLT, M5-0.8 X 30 HHB4110397651
NUT, HEX, M5 - 0.84120224302
NUT,M5-0.8ESN4120400363
LIGHT, TAIL, 12V, COMBINATION
233032044
SWITCH, WHISKER133425465
NUT, HEX, 1/4-20 ZP
434000716
NUT, FIBER INSERT #8-32234000827
FLATWASHER, #8
234000968
LOCK WASHER, 1/4 HS MED434001039
BOLT, #8-32 X 1.25 HH ZP
262013610
BRACKET, REAR AUX LIGHT MNT262016111
TAIL LIGHT
-
REF.12
FRAME
-
REF.13
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 212
OPTIONS - PARTS BREAKDOWNS

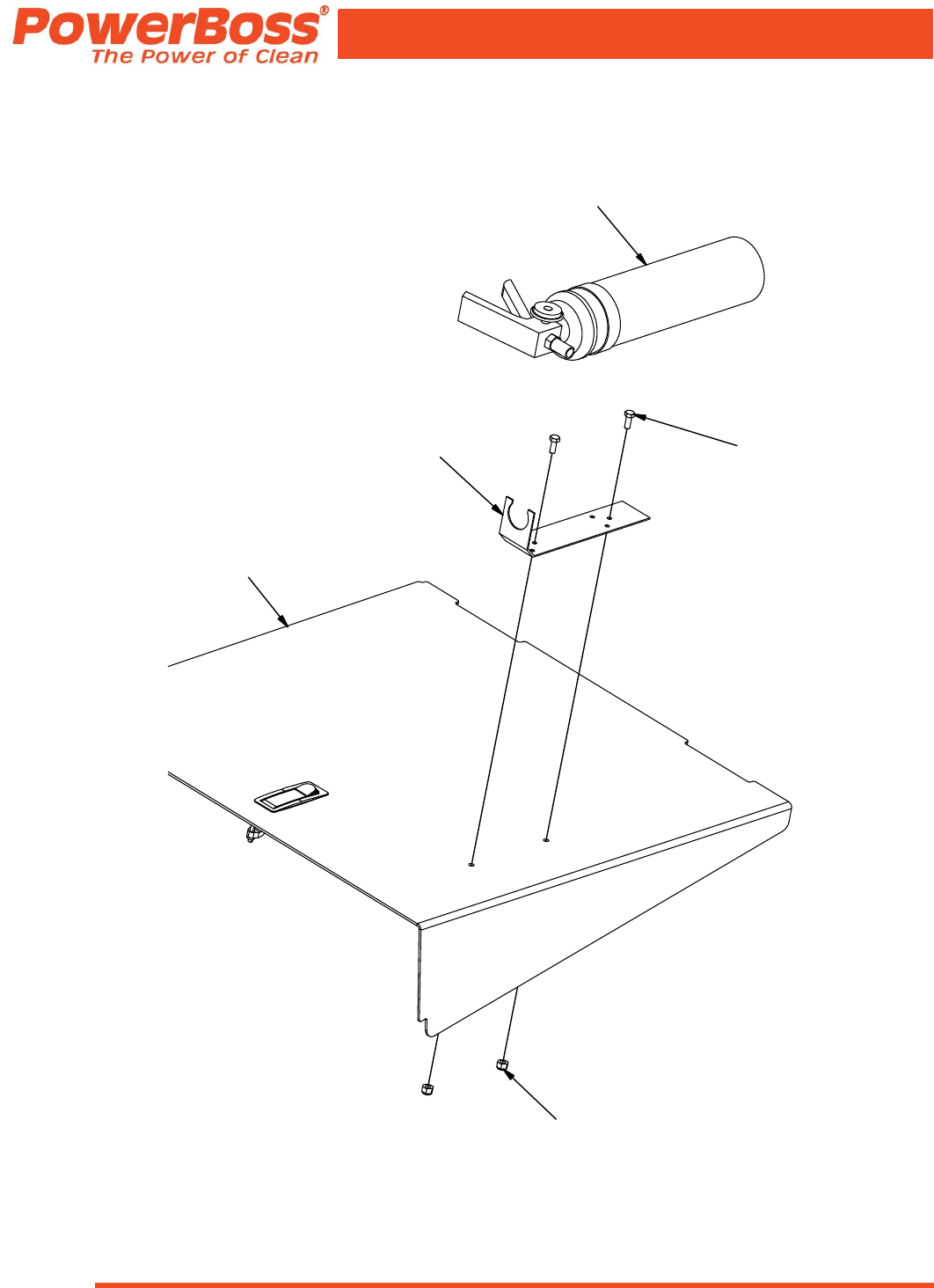

OPTION - FIRE EXTINGUISHER GROUP (600028)
REV *
2
1
4
5
3
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 213
OPTIONS - PARTS BREAKDOWN
OPTION - FIRE EXTINGUISHER GROUP (600028)
Parts List
DESCRIPTIONQTYPART NUMBERITEM
BOLT, M6-100 X 16 HH2111320651
NUT, M6-1.00 ESN2120400442
FIRE EXTINGUISHER
133027693
MOUNT, EXTINGUSHER
-
PART OF 33027694
TOP COVER
-
REF.5
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 214
OPTIONS - PARTS BREAKDOWNS
OPTION - HEAVY DUTY AIR CLEANER GROUP - DIESEL (600029)
REV A
6
13
8
10
11
18
7
12
16
12
1
9
4
5145
5
4
5
20
3
15
19
21
2
17
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 215
OPTIONS - PARTS BREAKDOWN
OPTION - HEAVY DUTY AIR CLEANER GROUP - DIESEL (600029)
Parts List
DESCRIPTIONQTYPART NUMBERITEM
BOLT, M6-100 X 20 HH
2110380981
NUT, M6-1.00 ESN2120400442
NUT, M8-1.25 ESN
4120400513
ADAPTER, 2" 90233003964
CLAMP, HOSE, 2.00
433121895
PRE-CLEANER133310356
HEAVY DUTY AIR CLEANER (WITH FILTER ELEMENT)
133310367
MOUNT, AIR CLEANER233310378
AIR CONNECTOR, 2" - 3"
13332508-HA9
REPLACEMENT FILTER ELEMENT, PRIMARY
-
333785210
REPLACEMENT FILTER ELEMENT, SECONDARY
-
333785311
CLAMP, HOSE, 3.0 - 3.502334327312
BOLT, M8-1.25 X 16 HH
4340029113
TUBE, HD AIR INTAKE, DIESEL162016514
WELDMENT,TOPCOVERHDAIRCLEANER
162016615
HOSE, AIR INTAKE, 3"162016716
INDICATOR, FLTR SERVICE
1
PART OF 3331036
17
CAP, AIR CLEANER1PART OF 333103618
ENGINE COVER
-
REF.19
AIR CLEANER
-
REF.20
COVER FRAME
-
REF.
21
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 216
OPTIONS - PARTS BREAKDOWNS

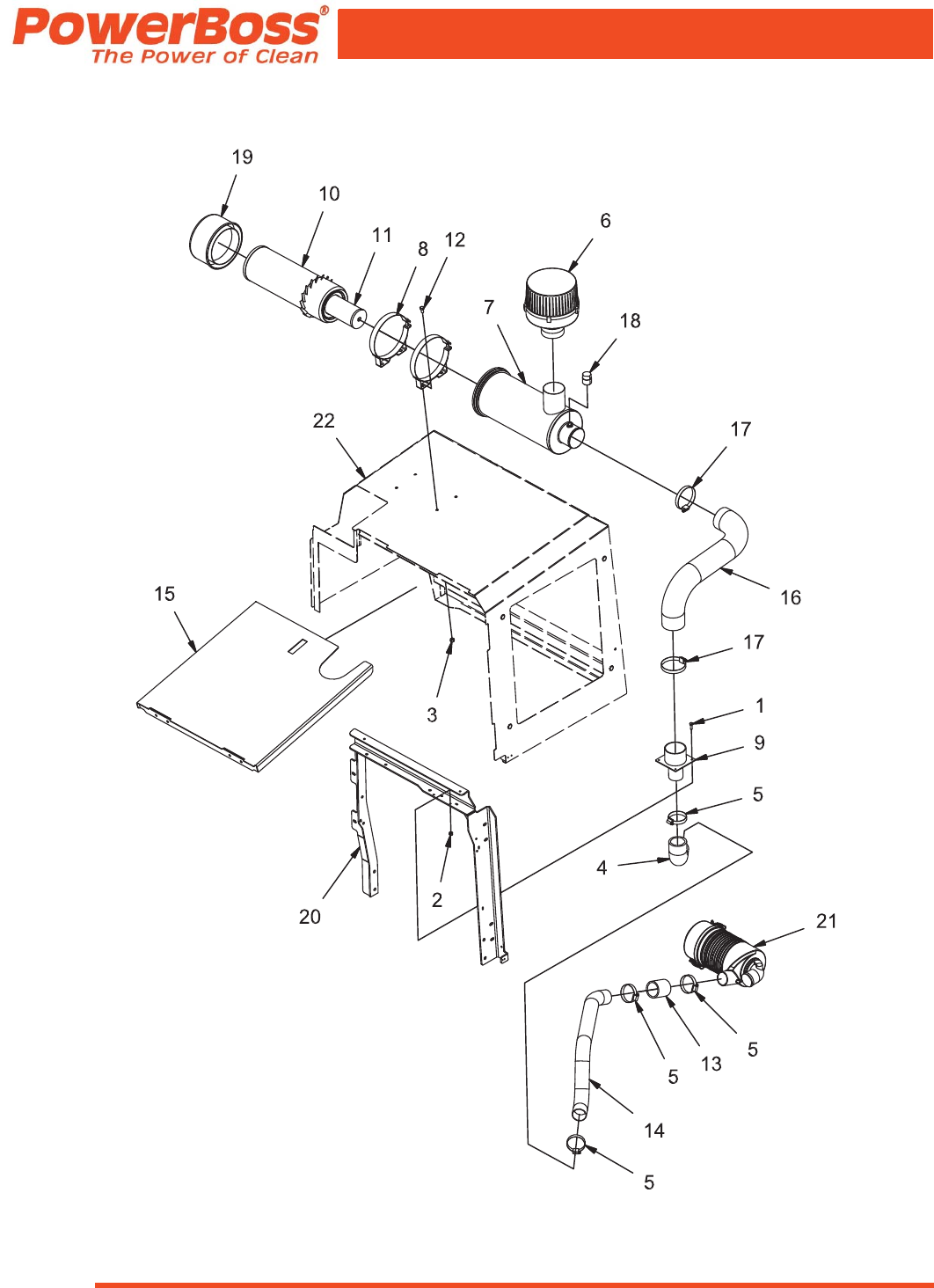

OPTION - HEAVY DUTY AIR CLEANER GROUP - GAS (600038)
REV *
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 217
OPTIONS - PARTS BREAKDOWN
OPTION - HEAVY DUTY AIR CLEANER GROUP - GAS (600038)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 218
OPTIONS - PARTS BREAKDOWNS
OPTION - HEAVY DUTY AIR CLEANER GROUP - LPG (600039)
REV *
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 219

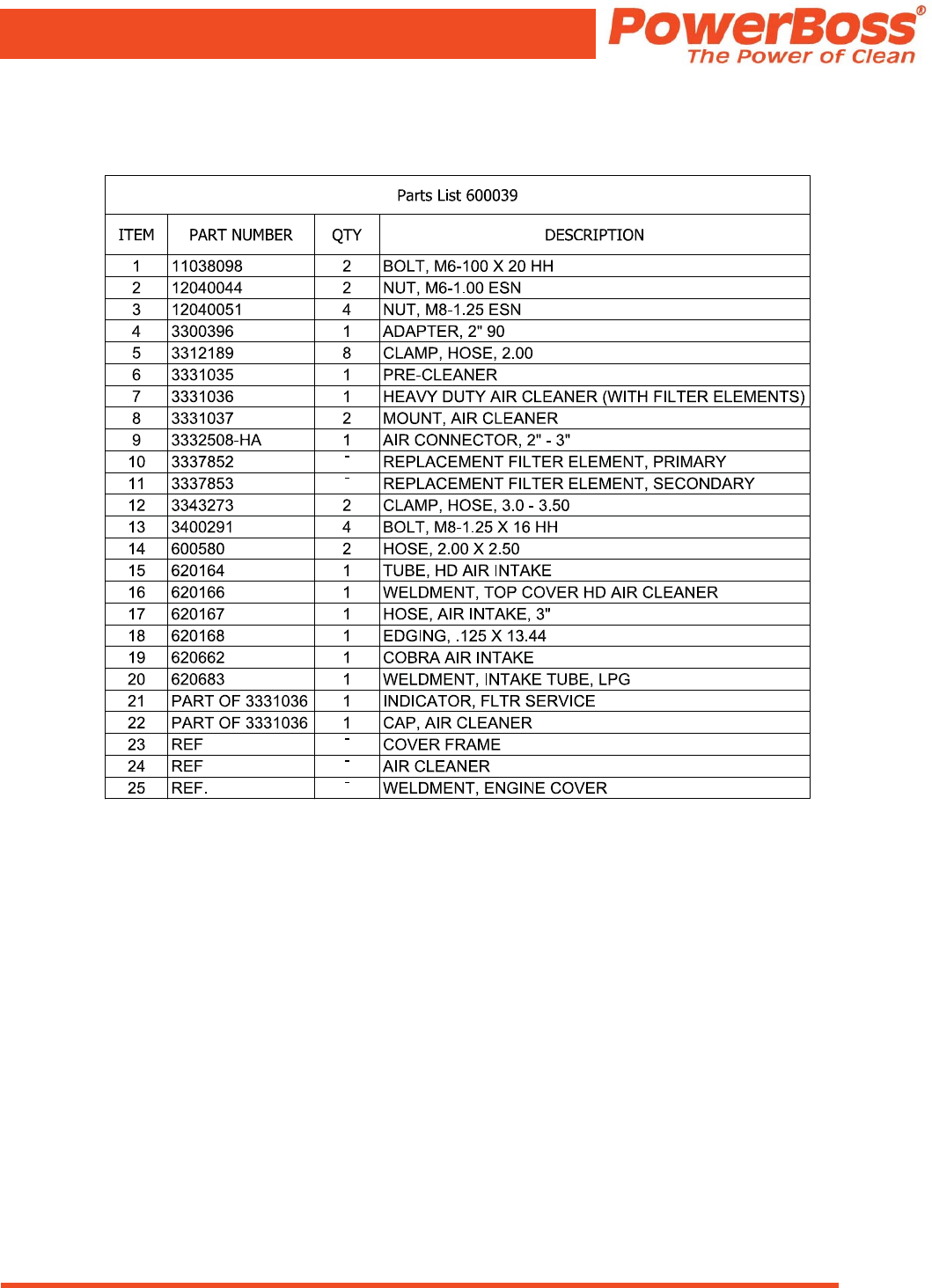

OPTIONS - PARTS BREAKDOWN
OPTION - HEAVY DUTY AIR CLEANER GROUP - LPG (600039)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 220
OPTIONS - PARTS BREAKDOWNS
OPTION - SEAT BELT, STANDARD SEAT GROUP (600030)
REV *
600030
14
13
16
17
9
5
4
4
8
1
6
2
59
5
3
6
11
10
12
7
11
12
15
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 221
OPTIONS - PARTS BREAKDOWN
OPTION - SEAT BELT, STANDARD SEAT GROUP (600030)
Parts List
DESCRIPTIONQTY
PART NUMBERITEM
LATCH, LH133072461
STRIKER-LATCH
133072482
NUT, M8-1.25 FLNG46009343
BRACKET, LATCH
16201934
BRACKET, STRIKER1620194
5
ASSEMBLY, NUT PLATE
1620216-16
BRACKET, SEAT BELT1620222
7
SCREW, 1/4-20 X .625 HHC
27130018
BOLT, M8-1.25 X 20 HH67170249
WASHER
3
PART OF 620192
10
BOLT, 7/16-202PART OF 62019211
NUT, 7/16-20
2
PART OF 620192
12
SEAT BELT, RECEIVER1PART OF 62019213
SEAT BELT, RETRACTOR
1
PART OF 620192
14
SEAT
-
REF.15
PUMP COVER
-
REF.
16
FLOOR
-
REF.17
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 222
OPTIONS - PARTS BREAKDOWNS
OPTION - AIR TUBE VALVE GROUP (600037)
REV *
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 223

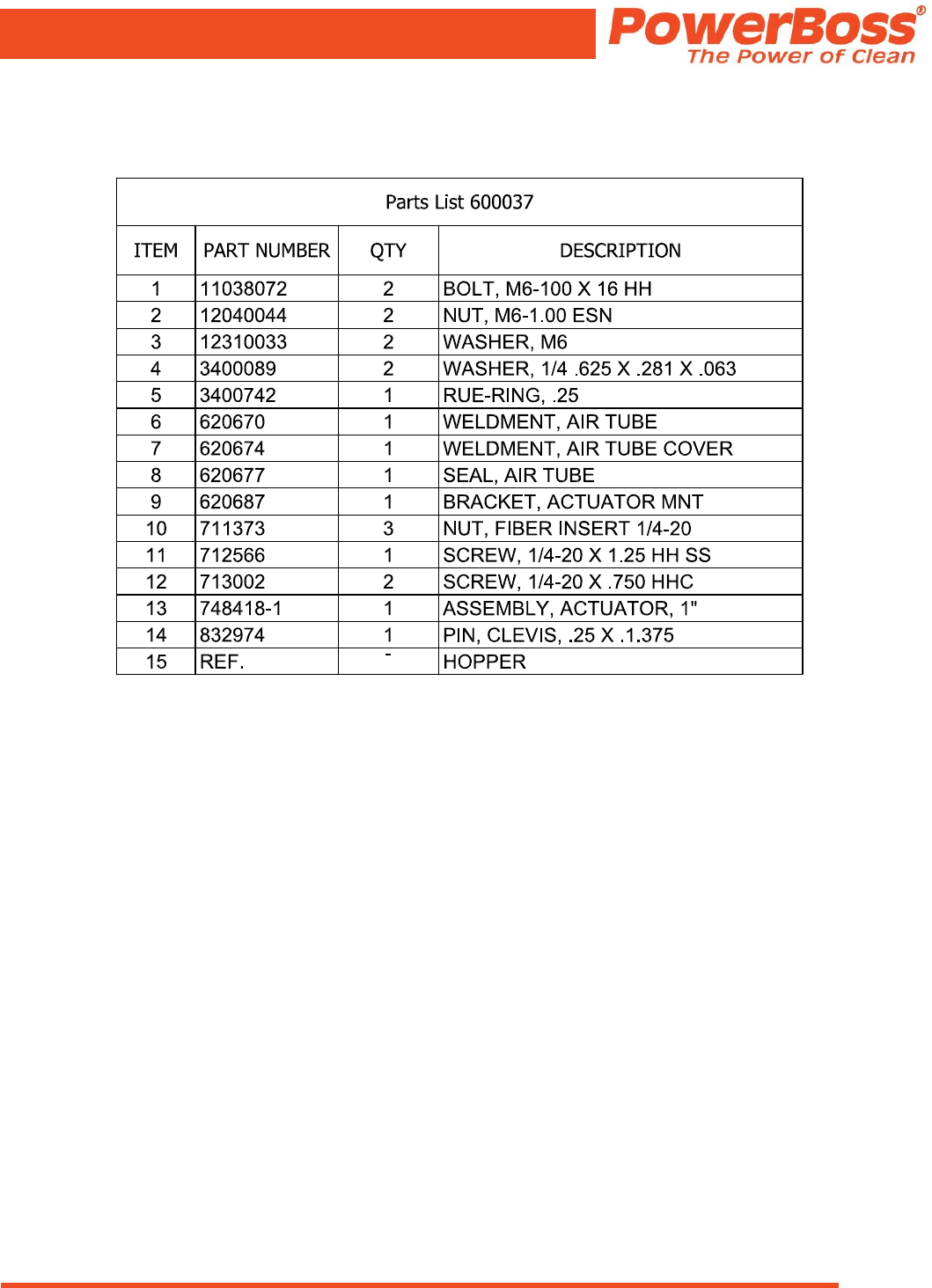

OPTIONS - PARTS BREAKDOWN
OPTION - AIR TUBE VALVE GROUP (600037)
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 224
OPTIONS - PARTS BREAKDOWNS
OPTION - STANDARD HOPPER WITH RHINO LINING GROUP (600390-R)
REV A
1
2
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 225
OPTIONS - PARTS BREAKDOWN
OPTION - STANDARD HOPPER WITH RHINO LINING GROUP (600390-R)
Parts List
DESCRIPTIONQTYPART NUMBERITEM
HOPPER WITH RHINO LINING1600390-R1
DUMP DOOR WITH RHINO LINING1600347-R2
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 226
OPTIONS - PARTS BREAKDOWNS
OPTION - DUAL SIDE BROOM HOPPER WITH RHINO LINING GROUP (600841-R)
REV A
1
2
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 227
OPTIONS - PARTS BREAKDOWN
OPTION - DUAL SIDE BROOM HOPPER WITH RHINO LINING GROUP (600841-R)
Parts List
DESCRIPTIONQTY
PART NUMBERITEM
DUAL SIDE BROOM HOPPER WITH RHINO LINING1600841-R1
DUMP DOOR WITH RHINO LINING1600347-R2
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 228
ELECTRICAL SCHEMATIC LAYOUT

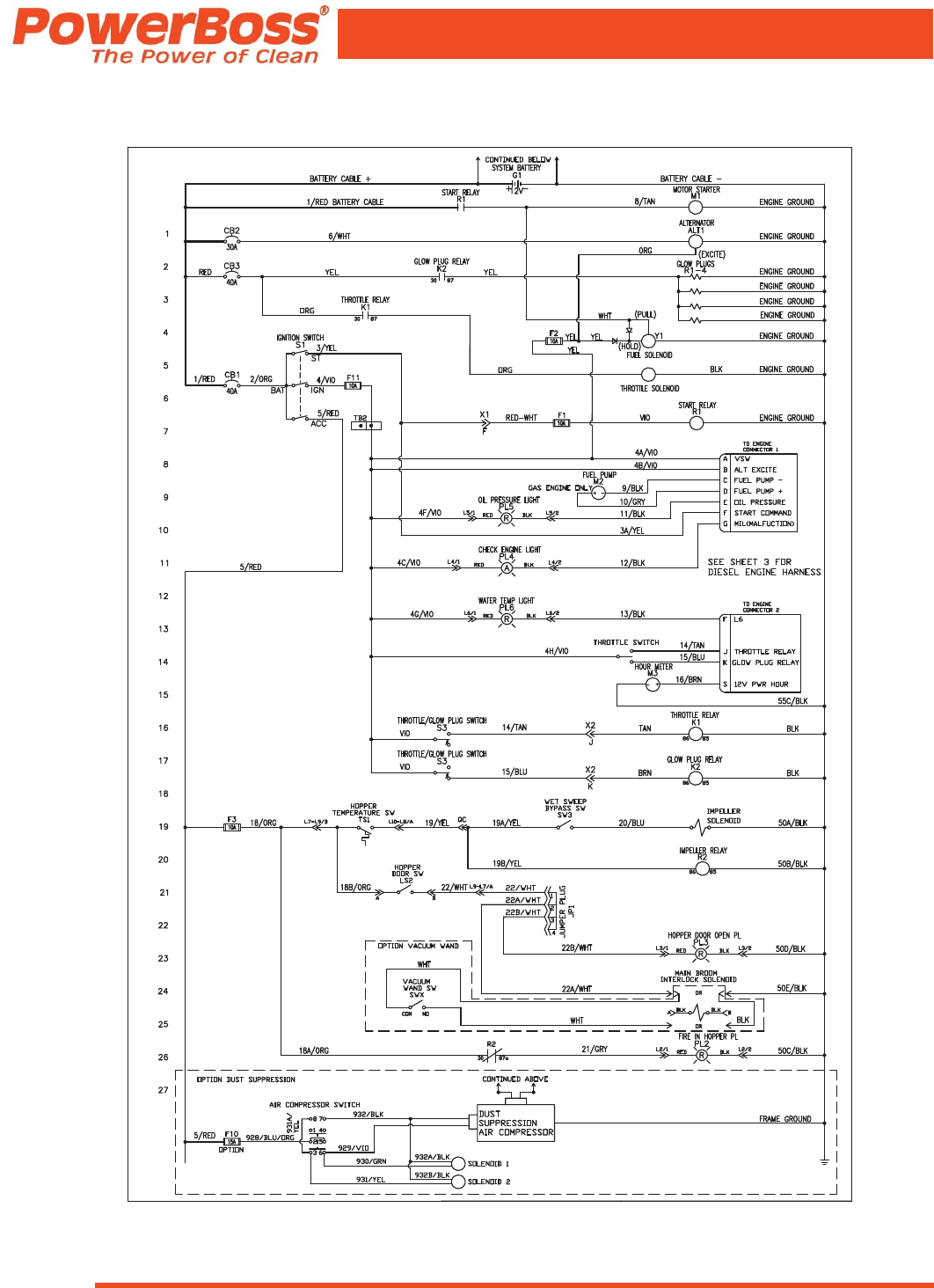

ATLAS ELECTRICAL SCHEMATIC LAYOUT - DIESEL
3397503 P1, REV B
11/11/2016
LAYOUTS - ELECTRICAL/HYDRAULIC
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 229

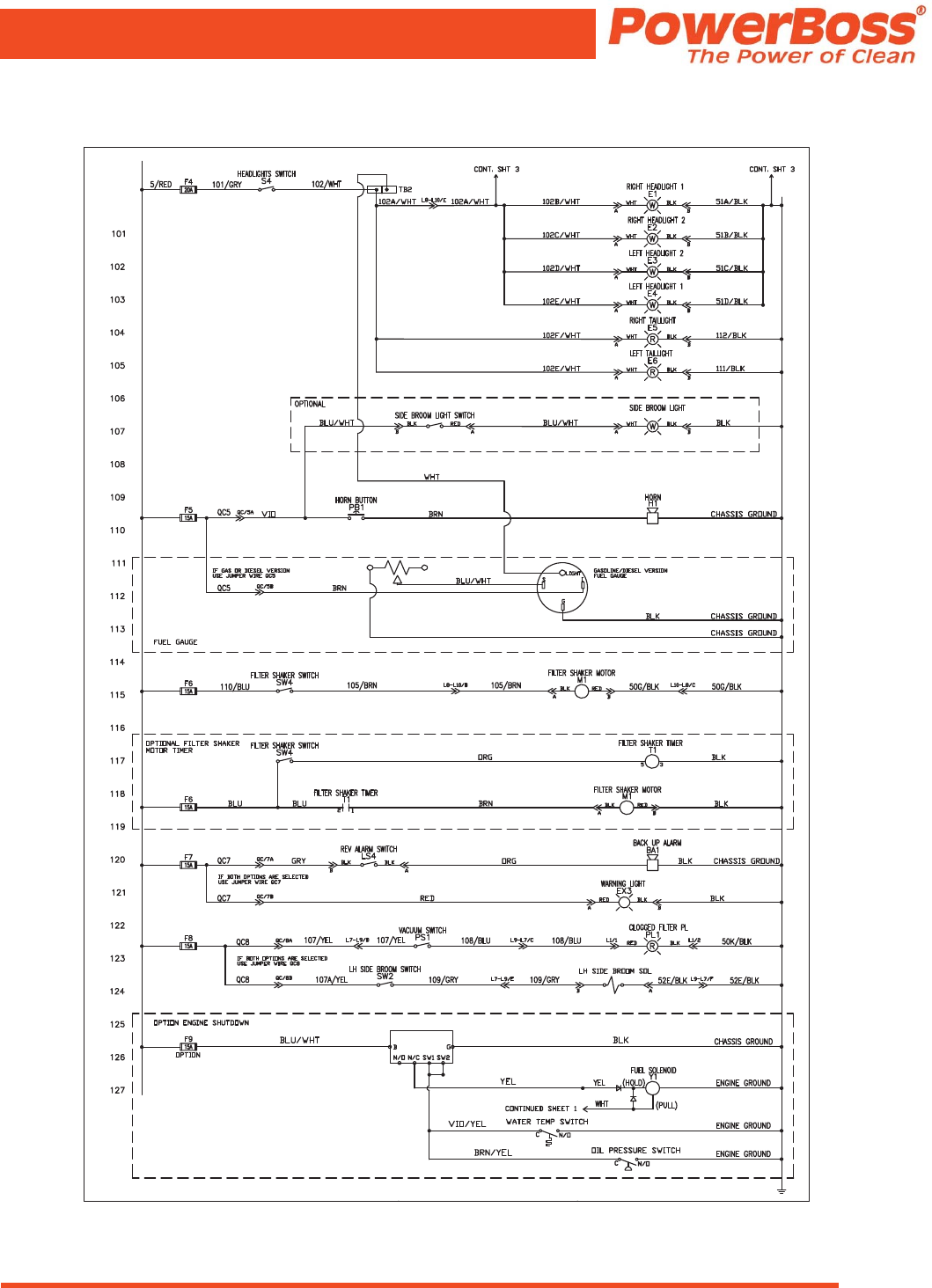

ELECTRICAL SCHEMATIC LAYOUT
ATLAS ELECTRICAL SCHEMATIC LAYOUT - DIESEL
3397503 P2, REV B
11/11/2016
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 230

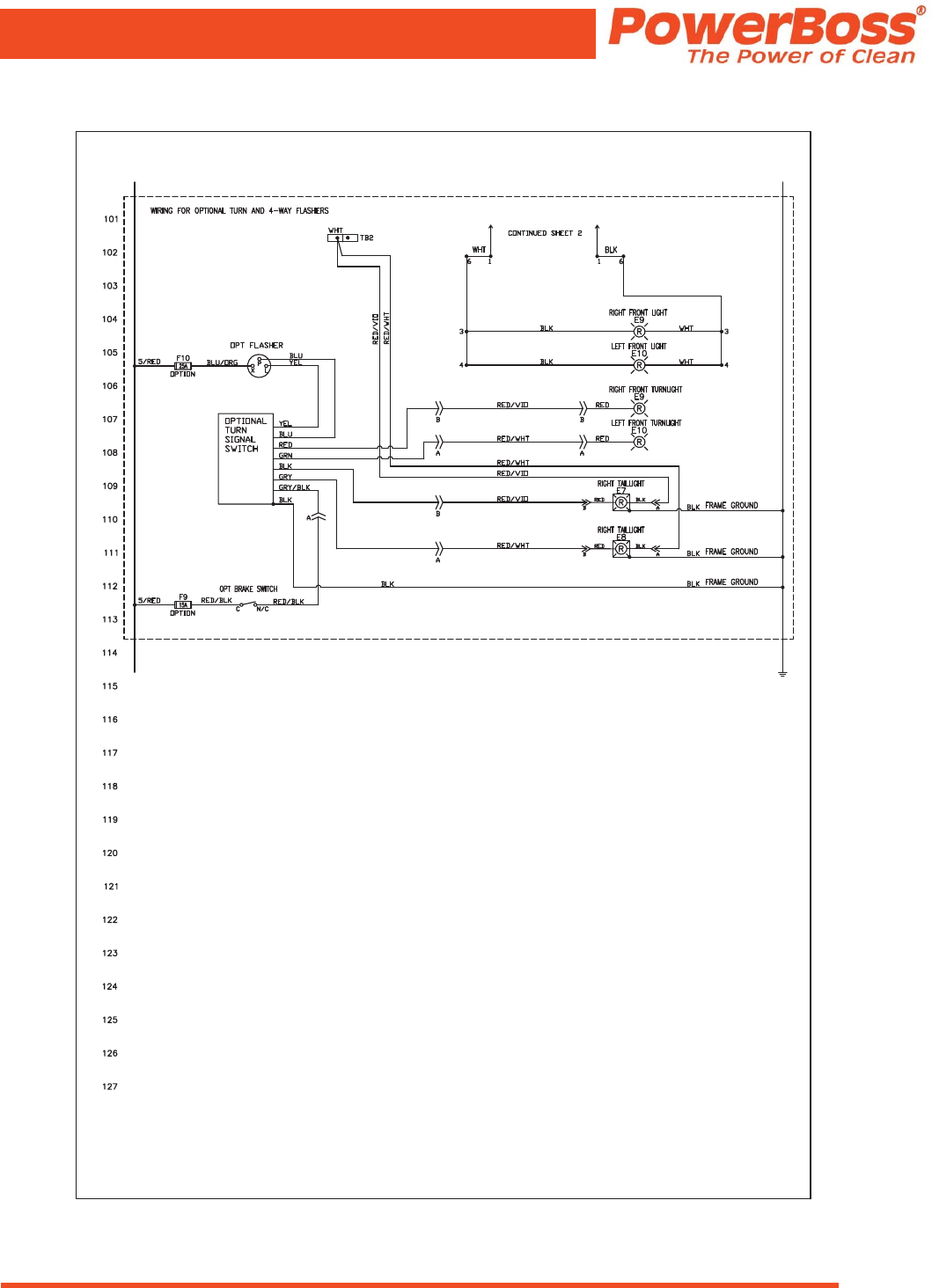

ATLAS ELECTRICAL SCHEMATIC LAYOUT - DIESEL
3397503 P3, REV B
11/11/2016
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 231

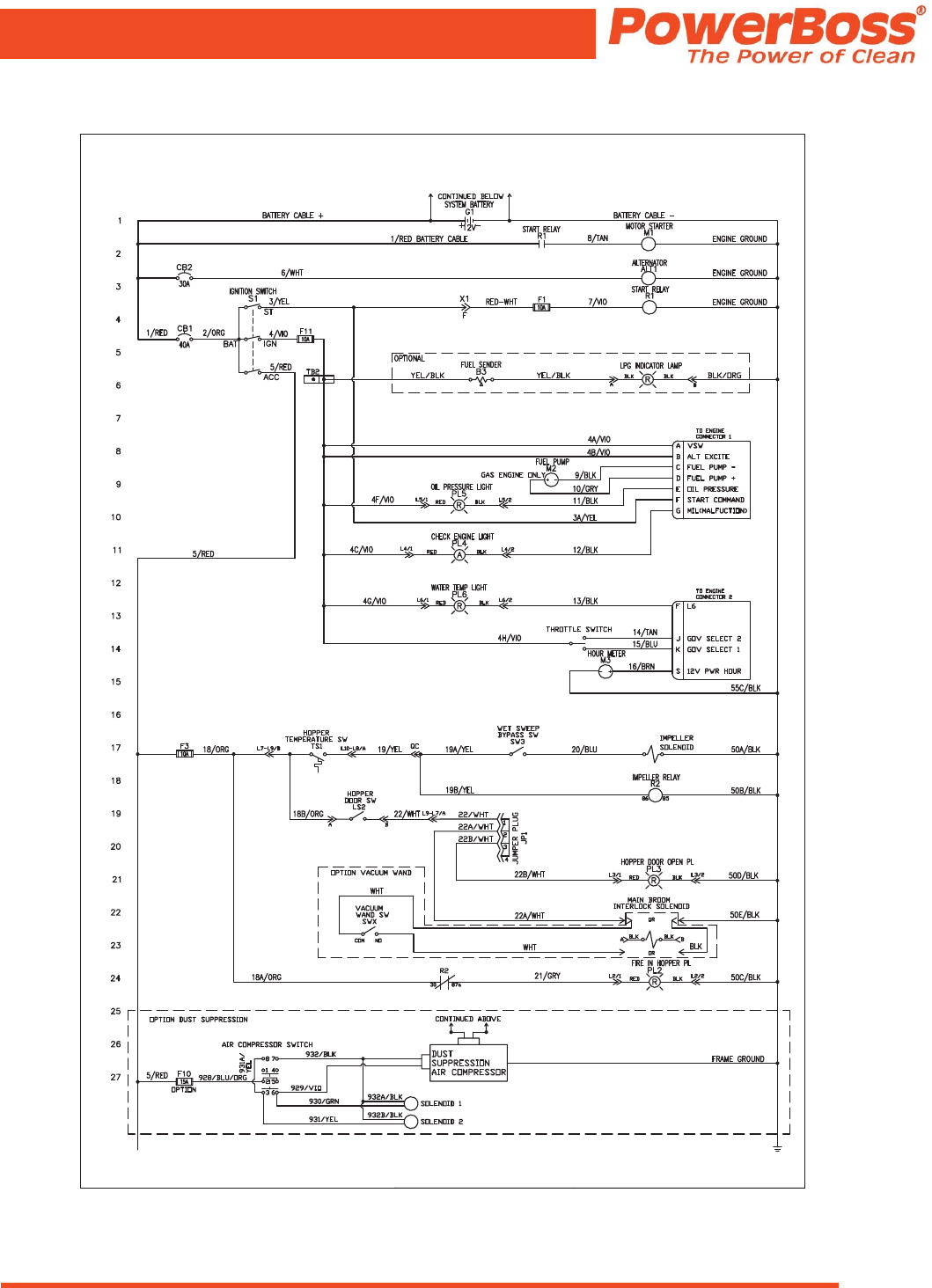

ATLAS ELECTRICAL SCHEMATIC LAYOUT - GAS & LPG
3397500 P1, REV B
11/11/2016
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 232
ATLAS ELECTRICAL SCHEMATIC LAYOUT - GAS & LPG
3397500 P2, REV B
11/11/2016
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 233
3397500 P3, REV B
11/11/2016
ATLAS ELECTRICAL SCHEMATIC LAYOUT - GAS & LPG
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 234
HYDRAULIC SYSTEM LAYOUT
ATLAS HYDRAULIC SYSTEM LAYOUT
&21752/
9$/9(
36,
9$&880)$1
&8,1
67581,7
'225&</
;
;
/,)7&</
;
675$,1(5
&8,1
&8,1
530
0
36,
36,
36,
35233803
&8,1
&8,1
0$,1%5220
6,'(%5220
&8,1
675&</
',$
&8,1
352302725
+<'5$8/,&6<67(032:(5%266$7/$66:((3(5
(;&+$1*(5
+($7
36,
),/7(5
5(6(592,5
36,
675$,1(5
*$8*(
530
3803
5(9,6('
&8,1
620247, REV *
06-21-2011
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 235
+<'5$8/,&6<67(032:(5%266$7/$66:((3(5
&8,1
5(9,6('
3803
530
*$8*(
675$,1(5
36,
5(6(592,5
),/7(5
36,
+($7
(;&+$1*(5
352302725
&8,1
',$
675&</
&8,1
6,'(%5220
0$,1%5220
&8,1
&8,1
35233803
36,
36,36,
0
530
&8,1
&8,1
675$,1(5
;
/,)7&</
;
;
'225&</
67581,7
&8,1
9$&880)$1
36,
9$/9(
&21752/
&+(&.9$/9(
'8$/6,'(%5220
62/(12,'9$/9(
/+6,'(%5220&</
;
6,'(%5220
&8,1

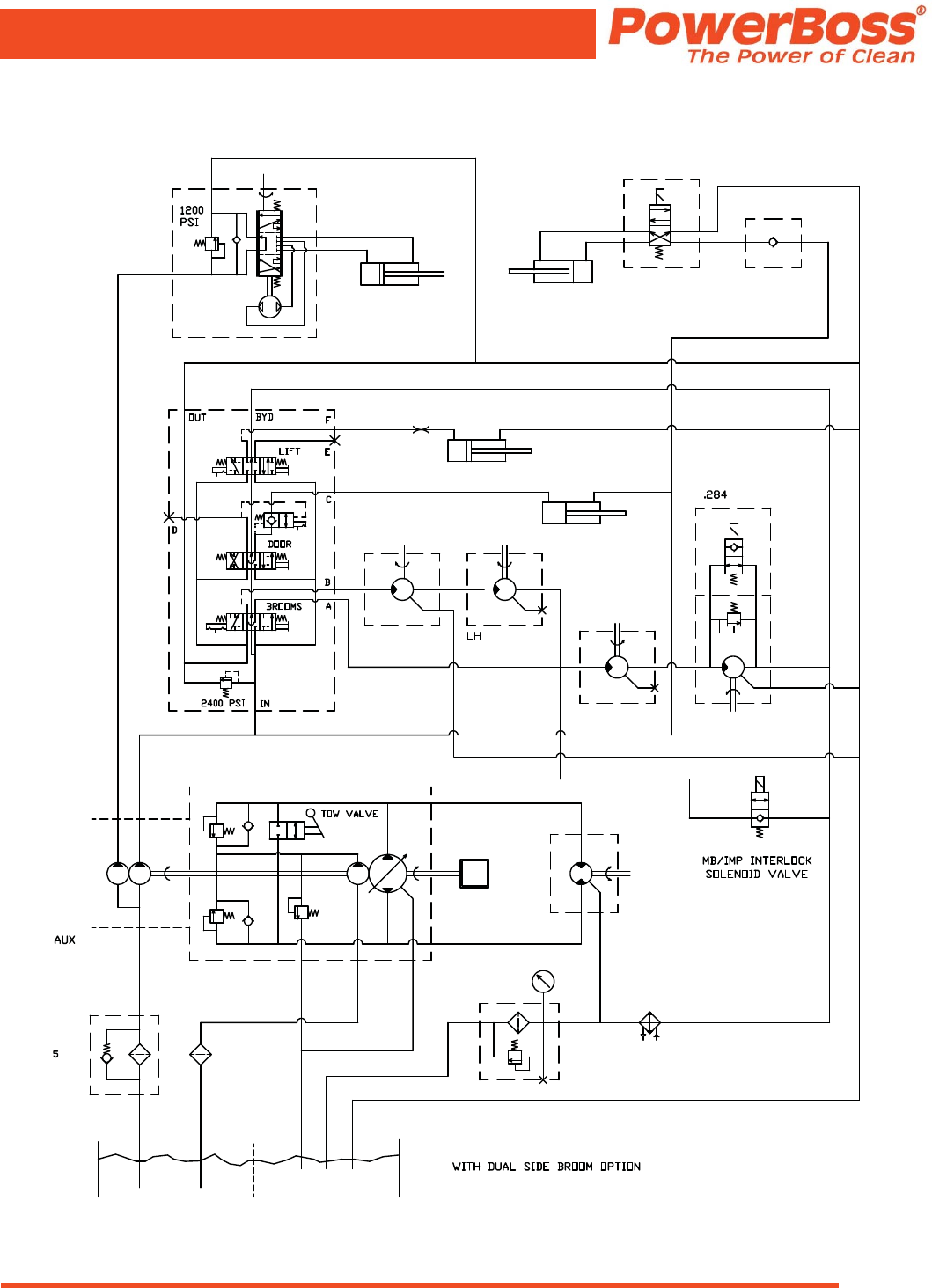

ATLAS HYDRAULIC SYSTEM LAYOUT WITH DUAL SIDE BROOM
HYDRAULIC SYSTEM LAYOUT
620248, REV *
11-04-2011
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
Page 236
NOTES
NOTES
THIS PAGE INTENTIONALLY LEFT BLANK
Atlas Sweeper #4100053 Rev. C 12/16
PowerBoss® Copyright 2011-2015
Page 237
5HYLVLRQ.
(IIHFWLYH'HFHPEHU
3RZHU%RVV0DGH6LPSOH,QGXVWULDO/LPLWHG:DUUDQW\
Minuteman International owner of PowerBoss warrants to the original purchaser/user that the product is free from defects in workmanship and materials
under normal use. PowerBoss will, at its option, repair or replace without charge, parts that fail under normal use and service when operated and
maintained in accordance with the applicable operation and instruction manuals. All warranty claims must be submitted through and approved by factory
authorized repair stations.
7KLV ZDUUDQW\ GRHV QRW DSSO\ WR QRUPDO ZHDU RU WR LWHPV ZKRVH OLIH LV GHSHQGHQW RQ WKHLU XVH DQG FDUH 3DUWV QRW PDQXIDFWXUHG E\ 3RZHU%RVV DUH FRYHUHG
E\ DQG VXEMHFW WR WKH ZDUUDQWLHV DQGRU JXDUDQWHHV RI WKHLU PDQXIDFWXUHUV 3OHDVH FRQWDFW 0LQXWHPDQ ,QWHUQDWLRQDO IRU SURFHGXUHV LQ ZDUUDQW\ FODLPV
DJDLQVW WKHVH PDQXIDFWXUHUV
Special warning to purchaser -- Use of replacement parts not manufactured by PowerBoss or its designated licensees, will void all warranties
expressed or implied. A potential health hazard exits without original equipment replacement.
All warranted items become the sole property of Minuteman International or PowerBoss or its original manufacturer, whichever the case may be.
PowerBoss disclaims any implied warranty, including the warranty of merchantability and the warranty of fitness for a particular purpose. PowerBoss
assumes no responsibility for any special, incidental or consequential damages.
This limited warranty is applicable only in the U.S.A. and Canada, and is extended only to the original user/purchaser of this product. Customers outside
the U.S.A. and Canada should contact their local distributor for export warranty policies. PowerBoss is not responsible for costs or repairs performed by
persons other than those specifically authorized by PowerBoss. This warranty does not apply to damage from transportation, alterations by unauthorized
persons, misuse or abuse of the equipment, use of non-compatible chemicals, or damage to property, or loss of income due to malfunctions of the
product. If a difficulty develops with this machine, you should contact the dealer from whom it was purchased.
This warranty gives you specific legal rights, and you may have other rights, which vary from state to state. Some states do not allow the exclusion or
limitation of special, incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions and limitations
may not apply to you.
Travel * Labor Parts Engine Extended Warranty Costs
Walk Behind ****
Battery Sweepers 90 Days
months
12 months N/A N/A -
IC Sweepers 90 Days
months
12 months Through Eng. Mfg. N/A -
Battery Scrubbers 90 Days 24 months 36 months N/A N/A -
Riders
Battery Scrubbers 90 Days 24 months 36 months or 2000 hr. N/A 36 months parts + 24 labor (or 3000 Hours) 5%
IC Sweeper/Scrubbers
82 & 90 90 Days 6 months 24 months or 2000 hr. 24 months or 3000 hrs**
36 months parts + 24 months labor (or 3000 Hours) +
180 days travel 5%
I.C. Sweepers 9X, 10X 90 days 6 months 48 months or 3000 hrs. 60 months or 3000 hrs**
48 months parts + 24 months labor (or 3000 Hours) +
180 days travel 5%
NAUTILUS Scrubber 180 Days 24 months 36 months or 2000 hr. 36 months or 2000 hrs**
48 months parts + 24 months labor (or 3000 Hours) +
180 days travel 3%
All Rider, I.C. Bumper to Bumper
(excludingAPEXseries)
5000 hr max. 48 months parts, 48 months labor, 180
days travel
Exceptions
Apex Series Sweeper 90 Days 12 months 12 months or 1000 hr. 12 months or 1000 hrs** 24 months parts + 24 months labor (or 2000 Hours) 5%
6X Sweeper 90 Days 6 months 24 months or 2000 hr. 24 months or 2000 hours**
36 months parts + 24 months labor (or 3000 Hours) +
180 day travel 5%
8%
7DQN%ODGGHUV
3RO\HWK\OHQHSODVWLFWDQNV
%DWWHULHV
&KDUJHUV
$IWHUPDUNHW5HSODFHPHQWSDUWV
(LJKW\HDUVQRDGGLWLRQDOODERU7HQ\HDUVQR
DGGLWLRQDOODERU
ǦPRQWKVIXOOUHSODFHPHQWǦSURUDWHGFUHGLW
2QHǦ\HDUUHSODFHPHQW
1LQHW\GD\VIURPGDWHRISXUFKDVH
*7ZR+RXU&DS3HU6HUYLFH&DOO
7KURXJK(QJLQH0DQXIDFWXUHU6HH6HFWLRQRI:DUUDQW\0DQXDOIRU(QJLQH:DUUDQW\
([FHSWLRQV%DVHG8SRQ'HDOHU¶V&HUWLILFDWLRQ6WDWXV
([WHQGHG:DUUDQW\0867%H6LJQHG8S:LWKLQ'D\VRI'HOLYHU\WR(QG8VHU
'HDOHU+DV<HDU)URP5HFHLYLQJ0DFKLQH7R6LJQ8S)RU([WHQGHG:DUUDQW\
$OODERYHODERUDQGWUDYHOUHLPEXUVHGDWRURIWKHSXEOLVKHGVKRSUDWH
WARRANTY
WARRANTY
“The Power of Clean”
PowerBoss®, Minuteman International, Inc. 14N845 U.S. Route 20 Pingree Grove, Illinois 60140
Phone: 800-323-9420 www.PowerBoss.com Email: tech@powerboss.com
A Member of the Hako Group
PowerBoss® is a Full Line Manufacturer of Sweepers and Scrubbers,
for Industrial Facilities.
PowerBoss® Copyright 2011-2015
Atlas Sweeper #4100053 Rev. C 12/16
