Parts Catalog
Collector 34
Model Battery
PB# 4100045 Rev * 05/11
Table of Contents
Side broom cpl. part 1 (97104618-1 6404-20) ....................................................
Side broom cpl. part 2 (97104618-2) ...............................................................
Frame - Wheels (97104566) .........................................................................
Covering B (97104855) ................................................................................
Travel drive, part 1 (97104723-1) ...................................................................
Travel drive, part 2 (97104723-2) ...................................................................
Electric equipment 24V PB collector 34B (97116289) ..........................................
Brake system (97104780).............................................................................
Main sweeper group (97104574 6404-20).........................................................
Filter system E (97104806) ...........................................................................
Hopper H 800 (97104632) ............................................................................
Handle - Control element (97104624) ..............................................................
Labels B (97116248) ...................................................................................
PB# 4100045 Rev * 05/11 Collector 34
Model Battery
2011
4
6
8
10
12
14
16
20
22
28
30
34
36
2

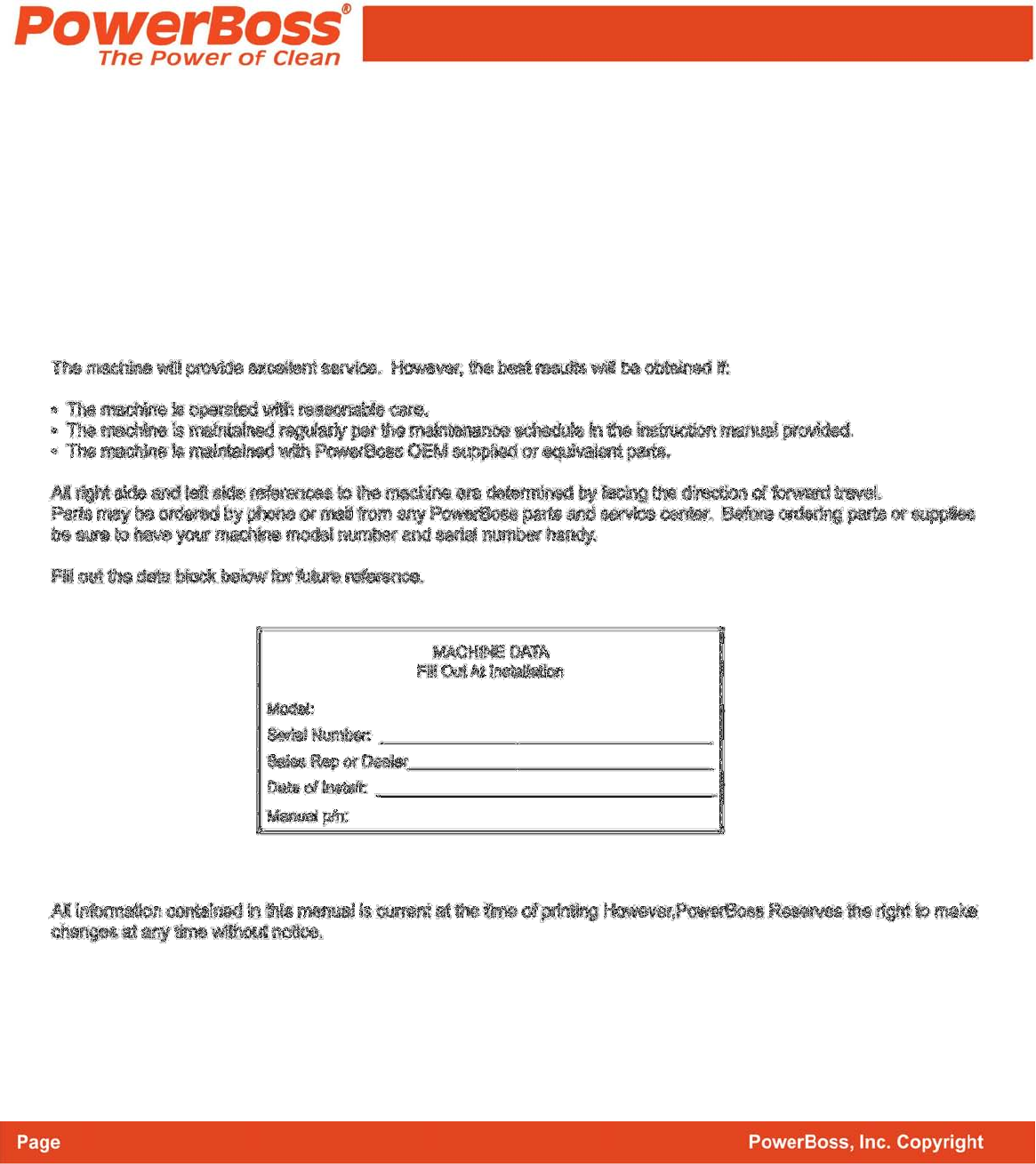

This manual covers all standard Collector 34 models:
Model No.
© 2011, Powerboss, Inc., Printed in USA
All rights reserved. This manual may not be copied or reproduced in any form, without the
written permission of PowerBoss,Inc.
PB# 4100045 Rev * 05/11
2011
Collector 34
4100045
Collector 34
Model Battery
3
PB# 4100045 Rev * 05/11
2011

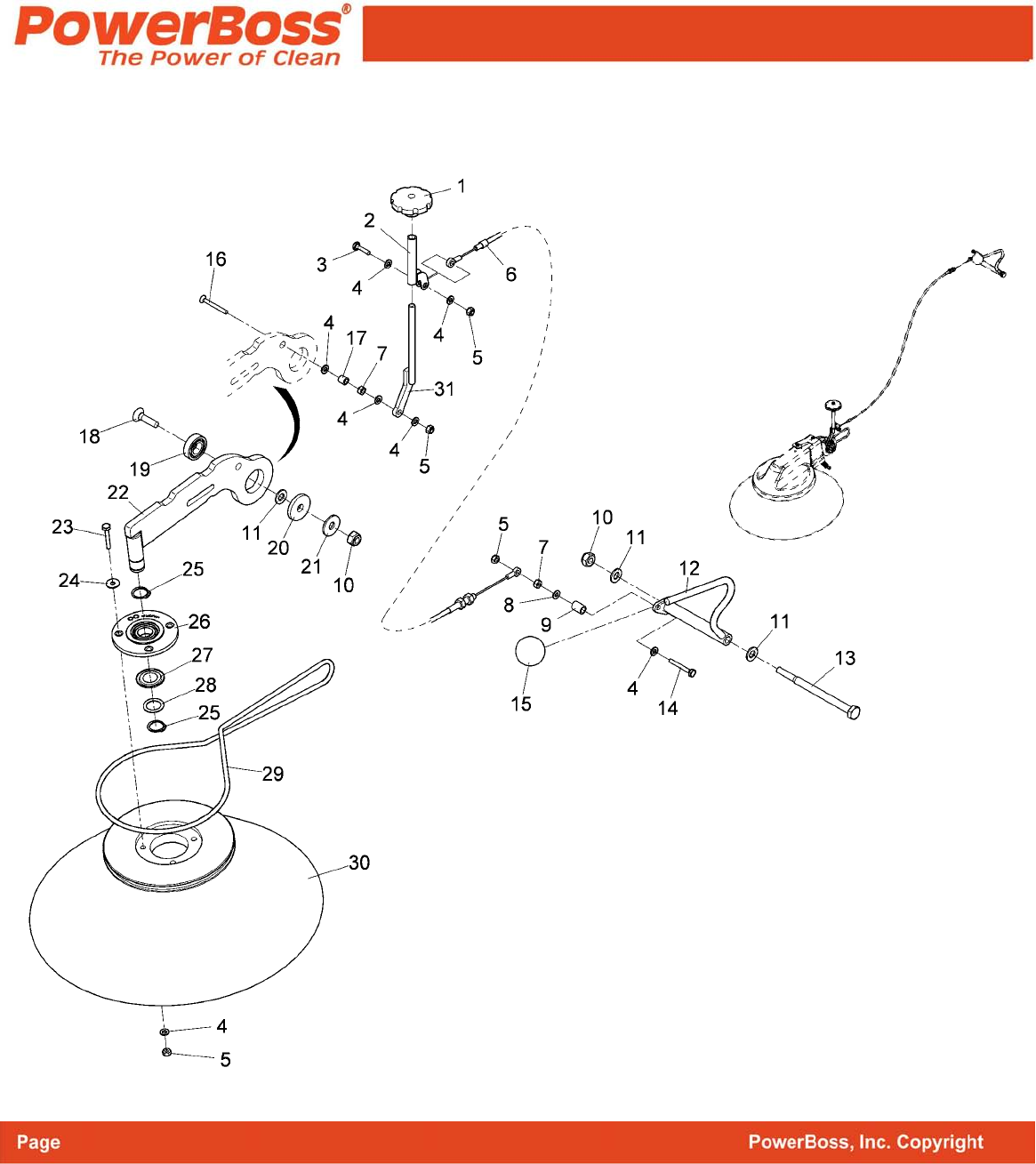

Side broom cpl. part 1 (97104618-1 6404-20)
Collector 34
Model Battery
4
Item Part number Description Qty. Remarks
1 00522330 Hand wheel 1
2 01271280 Adjusting pipe 1
3 00154070 Hex.bolt 1
4 00053730 Washer 8
5 00051520 Hexagon nut 6
6 01179680 Bowden cable 1
7 00053330 Hexagon nut 2
8 00740280 Washer 1
9 01130170 Bush 1
10 00051500 Hexagon nut 2
11 00053760 Washer 3
12 01179640 Operating element 1
13 00504920 Hex.bolt 1
14 00535110 Hex.bolt 1
15 00741150 Ball button 1
16 00109500 Countersunk screw 1
17 01271310 Bushing 1
18 01111700 Countersunk screw 1
19 00106300 Deep groove ball bearing 1
20 00047080 Washer 1
21 00046520 Washer 1
22 01179670 Side broom arm 1
23 00053290 Hexagon screw 3
24 00135120 Washer 3
25 00054310 Retaining ring 2
26 01173010 Flange bearing 1
27 00537310 Ring 1
28 00153700 Adjusting washer 1
29 01179690 Round belt 1
30 01270920 Side broom PES 1
31 01271290 Adjusting rod L.H. 1
PB# 4100045 Rev * 05/11
2011
Side broom cpl. part 1 (97104618-1 6404-20)
Collector 34
Model Battery
5
PB# 4100045 Rev * 05/11
2011
Side broom cpl. part 2 (97104618-2)
Collector 34
Model Battery
6
Item Part number Description Qty. Remarks
1 00053100 Hexagon screw 1
2 00054690 Hexagon screw 1
3 00074230 Washer 2
4 00740090 Detent edged washer 2
5 01015340 Lens flange screw 2
6 01179650 Covering 1
7 01271300 Nut 2
8 01179660 Roll holder 1
9 00051510 Hexagon nut 1
10 00053350 Hexagon nut 1
11 00051520 Hexagon nut 4
12 00053730 Washer 14
13 00136910 Cylinder head screw 1
14 00053030 Hexagon screw 1
15 01131000 Pull spring 1
16 01179700 Deflection roller 2
17 01175800 Grooved ball bearing 2
18 00551160 Countersunk screw 2
19 00053330 Hexagon nut 1
20 00529260 Countersunk screw 1
PB# 4100045 Rev * 05/11
2011
Side broom cpl. part 2 (97104618-2)
Collector 34
Model Battery
7
PB# 4100045 Rev * 05/11
2011

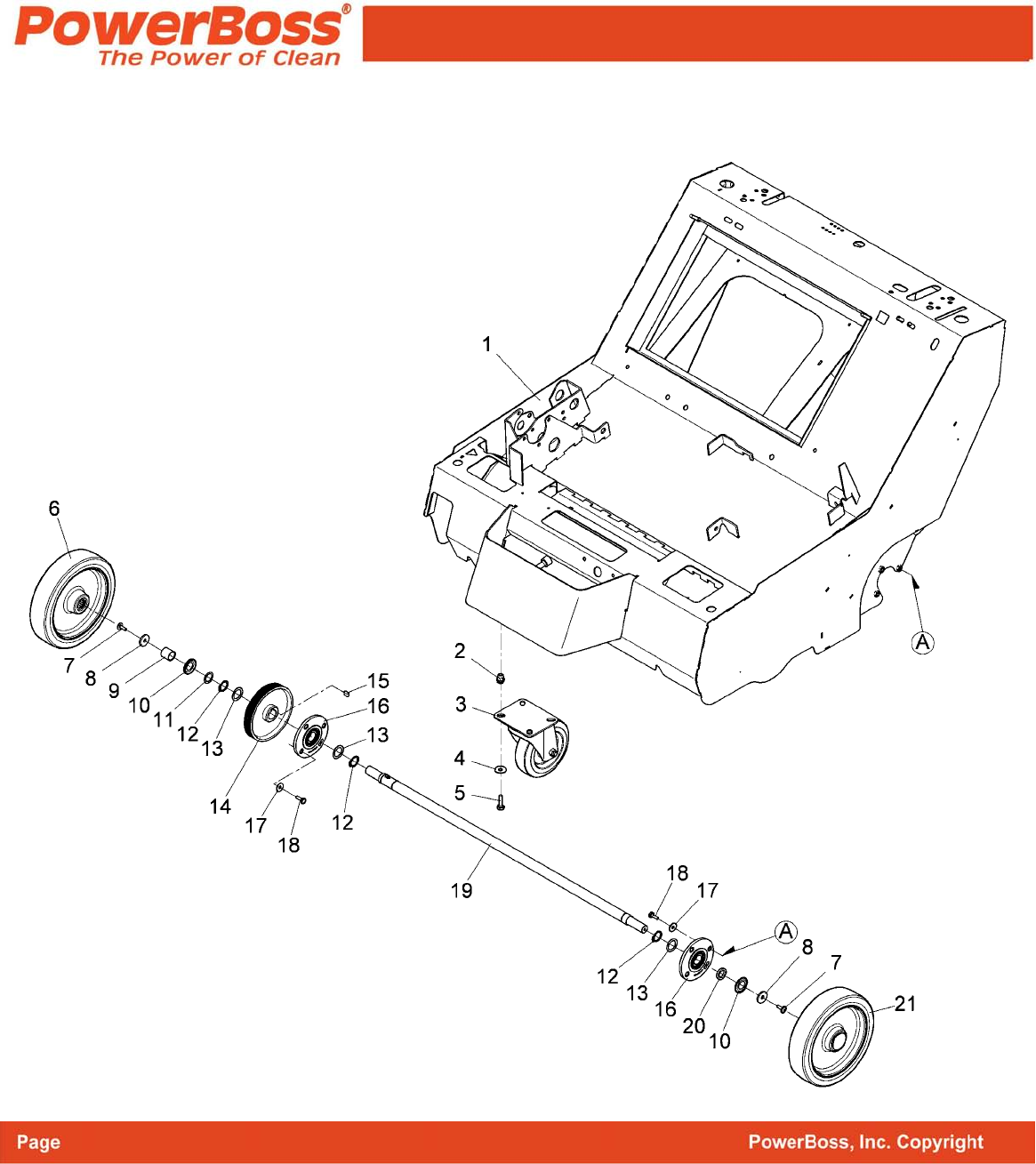

Frame - Wheels (97104566)
Collector 34
Model Battery
8
Item Part number Description Qty. Remarks
1 03009670 Chassis 1
2 01111990 Nut 4
3 00911800 Steering roller 1
4 00740080 Washer 4
5 00053100 Hexagon screw 4
6 01179550 Wheel R.H. 1
7 01015340 Lens flange screw 2
8 00874340 Washer 2
9 00041450 Inner ring 2
10 00102410 Ring 2
11 00125680 Adjusting washer 1
12 00054310 Retaining ring 3
13 00153700 Adjusting washer 3
14 01179560 Belt pulley 1
15 00133060 Fitting key 1
16 01173010 Flange bearing 2
17 00135120 Washer 6
18 00053010 Hex.bolt 6
19 01271950 Shaft 1
20 01271320 Sleeve 1
21 01179540 Wheel L.H. 1
PB# 4100045 Rev * 05/11
2011
Frame - Wheels (97104566)
Collector 34
Model Battery
9
PB# 4100045 Rev * 05/11
2011
Covering B (97104855)
Collector 34
Model Battery
10
Item Part number Description Qty. Remarks
1 01271620 Countersunk screw 8
2 01271020 Hook 1
3 01179820 Hinge 2
4 00740440 Plate 4
5 01270960 Hood 1
6 00721090 Edge protection 440 mm
7 00902030 Cable sleeve 2
8 01179840 Covering rear 1
9 00747160 Tapping screw 7
10 00027190 Cable sleeve 2
11 00053020 Hexagon screw 2
12 01271640 Sheet metal 4
13 00051520 Hexagon nut 2
14 00121730 Sash fastener 1
15 01271010 Sash fastener sheet metal 1
16 01271030 Torsion spring 1
17 00053760 Washer 1
18 00130290 Adjusting washer 1
PB# 4100045 Rev * 05/11
2011
Covering B (97104855)
Collector 34
Model Battery
11
PB# 4100045 Rev * 05/11
2011
Travel drive, part 1 (97104723-1)
Collector 34
Model Battery
12
Item Part number Description Qty. Remarks
1 00051490 Hexagon nut 1
2 00156720 Washer 1
3 01152600 Pulley 1
4 00126330 Deep groove ball bearing 1
5 00053780 Washer 1
6 01179770 Clamping lever 1
7 00734400 Countersunk screw 1
8 00051500 Hexagon nut 1
9 00053760 Washer 2
10 01130130 Pull spring 1
11 00127290 Washer 2
12 01055290 Plain bearing bush 2
13 01271480 Bearing bush 1
14 00157410 Hex.bolt 1
15 00136910 Cylinder head screw 1
16 00135120 Washer 7
17 01176250 Ribbed band 1
18 01179760 Belt pulley 1
19 00136510 Supporting ring 2
20 00153700 Adjusting washer 1
21 00053020 Hexagon screw 6
22 01173010 Flange bearing 2
23 01179750 Belt pulley 1
24 01179730 Ribbed band 1
25 00054310 Retaining ring 1
26 00053730 Washer 6
27 00051520 Hexagon nut 6
28 00121640 Feather key 1
29 01271460 Shaft 1
30 00152530 Adjusting washer 2
31 00101760 Adjusting washer 1
32 00053770 Washer 1
PB# 4100045 Rev * 05/11
2011
Travel drive, part 1 (97104723-1)
Collector 34
Model Battery
13
PB# 4100045 Rev * 05/11
2011
Travel drive, part 2 (97104723-2)
Collector 34
Model Battery
14
Item Part number Description Qty. Remarks
1 01179790 Bowden cable 1
2 00051510 Hexagon nut 1
3 00705310 Tension spring 1
4 00051500 Hexagon nut 1
5 00529260 Countersunk screw 4
6 01179710 Retainer 1
7 00046520 Washer 3
8 01130470 Slide bearing bush 2
9 01271470 Bushing 1
10 00107600 Hex.bolt 1
11 00124830 Deep groove ball bearing 2
12 01179720 Ribbed band 1
13 01179780 Belt pulley 1
14 00911860 Tyre 1
15 00958780 Rim 1
16 00072440 Circlip 1
17 00706170 Eye bolt 1
18 00051510 Hexagon nut 1
19 00870090 Detent edged washer 1
PB# 4100045 Rev * 05/11
2011
Travel drive, part 2 (97104723-2)
Collector 34
Model Battery
15
PB# 4100045 Rev * 05/11
2011
Electric equipment 24V PB collector 34B (97116289)
Collector 34
Model Battery
16
Item Part number Description Qty. Remarks
197104871 Motor group E 24V Page
2 00051510 Hexagon nut 1
3 00074230 Washer 1
4 01271050 Ground strap 1
5 00042900 Washer 1
6 00053090 Hexagon screw 1
7 01271820 Power cable 1
8 00051520 Hexagon nut 6
9 00053730 Washer 11
10 01271710 Angle 1
11 01270990 On-board charger 1
12 00053020 Hexagon screw 5
13 00134200 Socket head screw 1
14 01271720 Retainer 1
15 00021710 Key switch 1
16 01178800 Signal transmitter 12V-24V 1
17 00053720 Washer 2
18 00051340 Hexagon nut 2
19 99742700 Block battery 2
20 00121150 Cable tie 25
21 XXXXXXXX no part-No. til yet 1 97109979 Cable set
22 00748620 Gasket Tesamoll 90 mm
23 01171850 O-ring 1
24 01271730 Tension band 1
25 01031010 Foam rubber self sticking 40 mm
26 01271740 Tapping screw 2
PB# 4100045 Rev * 05/11
2011
Electric equipment 24V PB collector 34B (97116289)
Collector 34
Model Battery
18
17
PB# 4100045 Rev * 05/11
2011
Motor group E 24V (97104871)
Collector 34
Model Battery
18
Item Part number Description Qty. Remarks
1 00025260 Hexagon screw 4
2 00104500 Hexagon screw 1
3 00730940 Detent edged washer 8
4 00135120 Washer 1
5 00661680 Fan wheel 1
6 01270950 Belt pulley 1
7 00020610 Supporting ring 1
8 01135470 pin housing 1
9 00731550 Fillister-head screw 5
10 00053710 Washer 10
11 00903550 Fuse 1
12 00903510 Fuse holder 1
13 00133570 Lens cap 2
14 00733630 Fuse 1
15 00906120 Fuse 1
16 00101580 Fillister-head screw 1
17 00733650 Fuse holder 2
18 00053090 Hexagon screw 2
19 00074230 Washer 6
20 00051510 Hexagon nut 3
21 01271000 Relay 1
22 01271830 Relay base 1
23 01271780 Retainer 1
24 00133830 Hex. Nut 5
25 00553740 Washer 1
26 00022200 Hex. Nut 1
27 00053010 Hex.bolt 4
28 01270930 Motor 24V-600W 1
29 01271790 Retainer 1
30 XXXXXXXX no part-No. til yet 1 97114250 Wiring harness
31 03003420 Mounting kit for solenoid 1
32 01131420 Solenoid 1
33 01000670 Lens flange screw 1
34 01131670 Set carbon brush 1
PB# 4100045 Rev * 05/11
2011
Motor group E 24V (97104871)
Collector 34
Model Battery
19
PB# 4100045 Rev * 05/11
2011

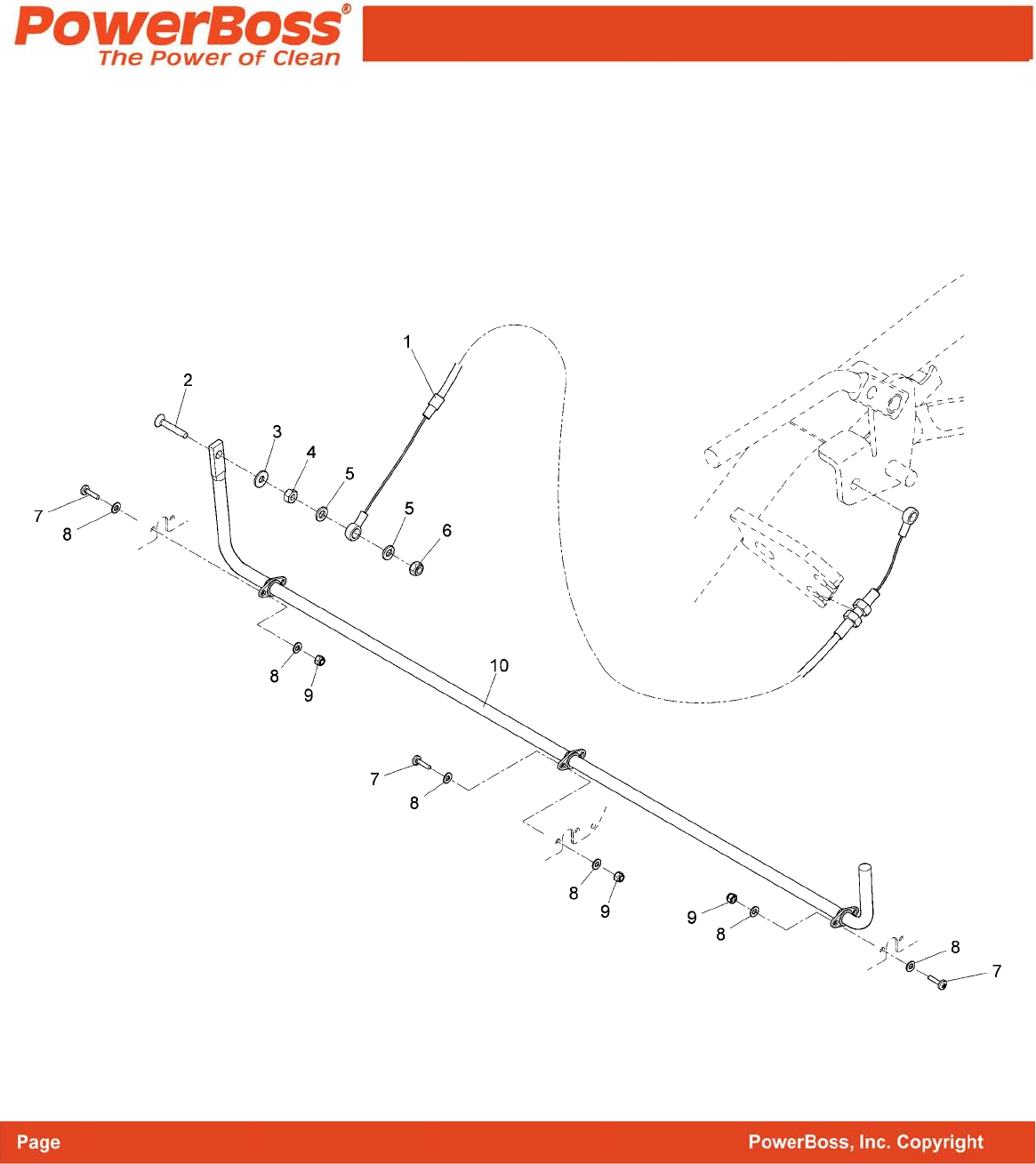

Brake system (97104780)
Collector 34
Model Battery
20
Item Part number Description Qty. Remarks
1 01176740 Bowden cable 1
2 00529260 Countersunk screw 1
3 00730940 Detent edged washer 1
4 00053330 Hexagon nut 1
5 00053730 Washer 2
6 00051520 Hexagon nut 1
7 01072260 Fillister-head screw 6
8 00053710 Washer 12
9 00133830 Hex. Nut 6
10 01179850 Brake 1
PB# 4100045 Rev * 05/11
2011
Brake system (97104780)
Collector 34
Model Battery
21
PB# 4100045 Rev * 05/11
2011

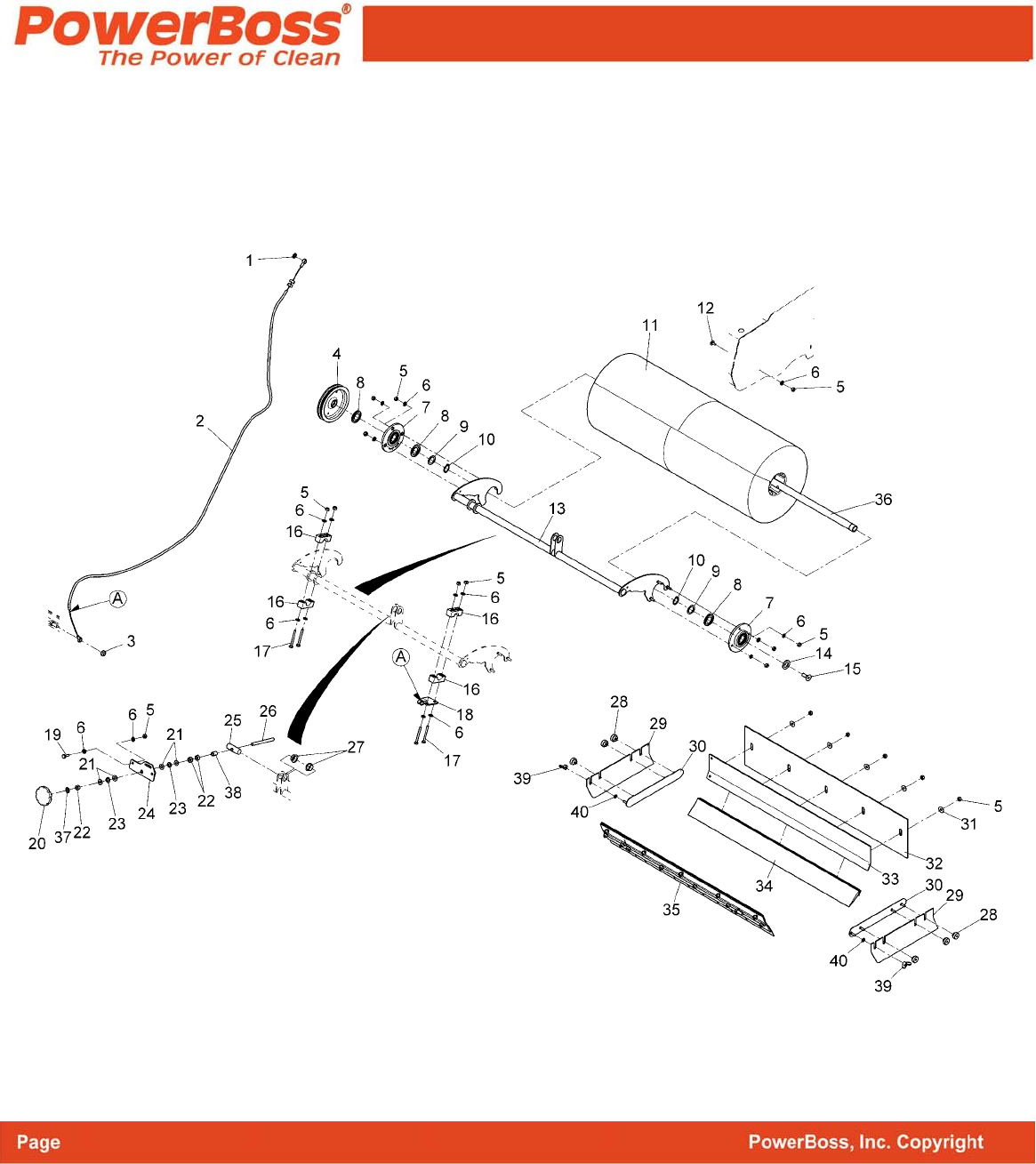

Main sweeper group (97104574 6404-20)
Collector 34
Model Battery
22
Item Part number Description Qty. Remarks
1 00854420 Thrust washer 2
2 01179630 Bowden cable 1
3 00051510 Hexagon nut 1
4 01271040 Belt pulley 1
5 00051520 Hexagon nut 19
6 00053730 Washer 22
7 01173010 Flange bearing 2
8 00537310 Ring 3
9 00153700 Adjusting washer 2
10 00054310 Retaining ring 2
11 01272110 Sweeper roller H800 1
12 01000850 Lens flange screw 2
13 01179600 Broom rocker 1
14 00127290 Washer 1
15 01059150 Countersunk screw 1
16 01271360 Bearing seat 4
17 00053060 Hex.bolt 4
18 01271960 Retainer 1
19 00053020 Hexagon screw 2
20 00480430 Hand wheel 1
21 00074230 Washer 5
22 00053350 Hexagon nut 3
23 00053850 Spring washer 2
24 01271350 Reinforcement 1
25 01271370 Bolt 1
26 01271380 Stud screw 1
27 01055290 Plain bearing bush 2
28 00903210 Knurled nut 8
29 01179610 Sealing strip 2
30 01271340 Sheet metal 2
31 00135120 Washer 5
32 01179620 Broom apron rear 1
33 01271970 Angle plate 1
34 00461460 Edge protection 670 mm
35 97104707 Retractable apron Page
36 01179590 Broom shaft 1
PB# 4100045 Rev * 05/11
2011
Main sweeper group (97104574 6404-20)
Collector 34
Model Battery
26
23
PB# 4100045 Rev * 05/11
2011
Main sweeper group (97104574 6404-20)
Collector 34
Model Battery
24
Item Part number Description Qty. Remarks
37 01144660 toothed locked washer 1
38 01111390 Sleeve 1
39 00054020 Wing nut 2
40 01072030 Toothed washer 2
PB# 4100045 Rev * 05/11
2011
Main sweeper group (97104574 6404-20)
Collector 34
Model Battery
25
PB# 4100045 Rev * 05/11
2011
Retractable apron (97104707)
Collector 34
Model Battery
26
Item Part number Description Qty. Remarks
1 01271980 Sheet metal 1
2 01179570 Broom apron front 1
3 00053730 Washer 12
4 00051520 Hexagon nut 12
5 01271990 Sheet metal 1
6 01179580 Sheet metal 1
7 01272000 Holding plate 1
PB# 4100045 Rev * 05/11
2011
Retractable apron (97104707)
Collector 34
Model Battery
27
PB# 4100045 Rev * 05/11
2011

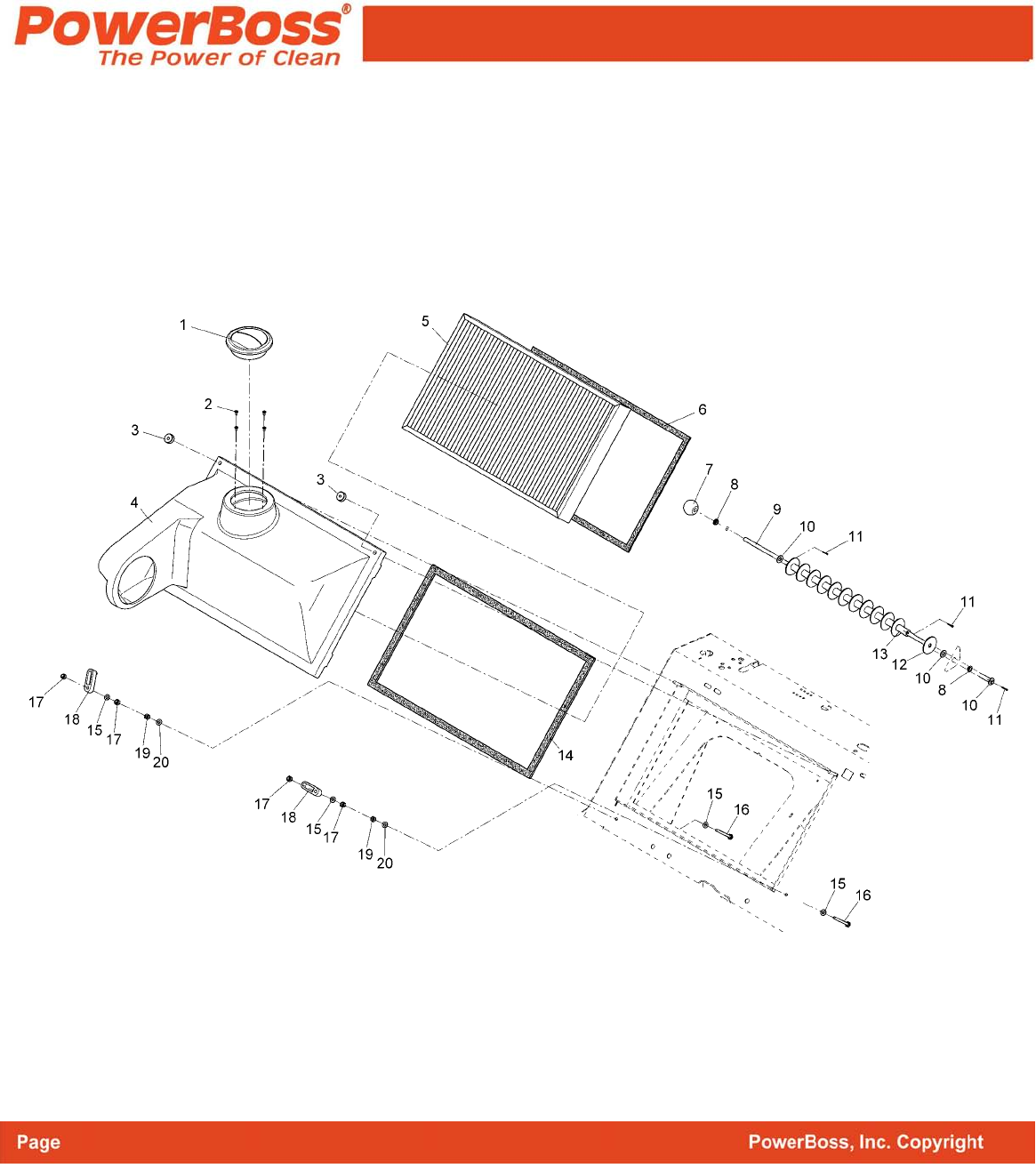

Filter system E (97104806)
Collector 34
Model Battery
28
Item Part number Description Qty. Remarks
1 00391480 Air nozzle 1
2 01073600 Tapping screw 4
3 00903210 Knurled nut 2
4 01270940 Filter cover 1
5 00911850 Plate filter 1
6 00881980 Sealing tape 1580 mm
7 00122230 Ball button 1
8 01271610 Slide bearing bush 2
9 01271690 Rod 1
10 00074230 Washer 3
11 00054860 Cotter pin 3
12 01271680 Washer 13
13 01271700 Bushing 12
14 01130200 Gasket 1580 mm
15 00053730 Washer 4
16 00053060 Hex.bolt 2
17 00051520 Hexagon nut 4
18 00968190 Toggle 2
19 00053330 Hexagon nut 2
20 00740280 Washer 2
PB# 4100045 Rev * 05/11
2011
Filter system E (97104806)
Collector 34
Model Battery
29
PB# 4100045 Rev * 05/11
2011

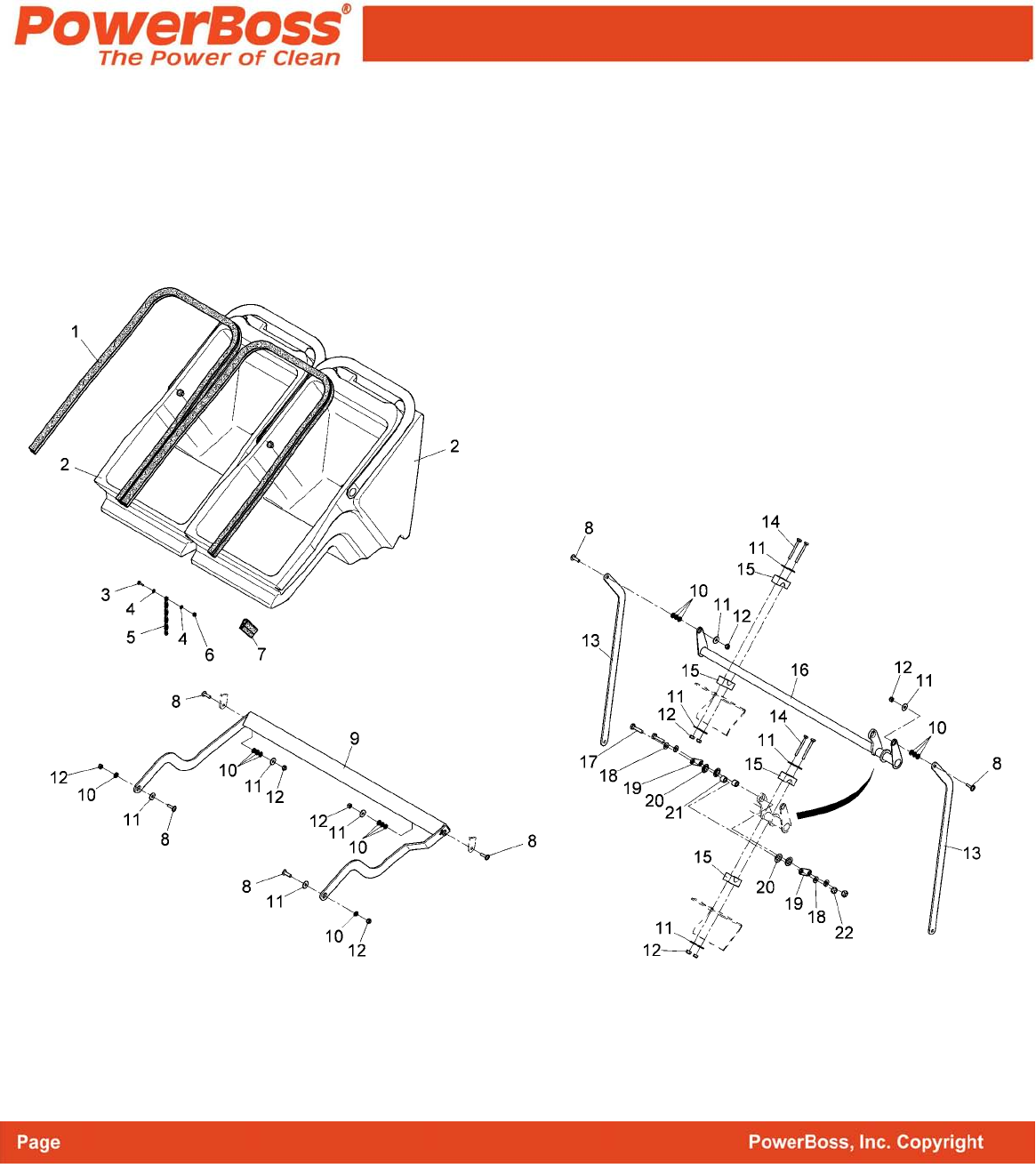

Hopper H 800 (97104632)
Collector 34
Model Battery
30
Item Part number Description Qty. Remarks
1 00750430 Edge protection 2630 mm
297104715 Hopper cpl. Page
3 01072260 Fillister-head screw 1
4 00053710 Washer 2
5 00042830 Grounding chain 1
6 00133830 Hex. Nut 1
7 01052820 Edge protection 60 mm
8 01092780 Lens flange screw 6
9 01179530 Lever 1
10 00053730 Washer 20
11 00135120 Washer 14
12 00051520 Hexagon nut 10
13 01271510 Truss 2
14 00053060 Hex.bolt 4
15 01271360 Bearing seat 4
16 01272010 Shaft 1
17 00053110 Hexagon screw 2
18 00074230 Washer 4
19 01271500 Sheet metal 2
20 01055150 Plain bearing bush 4
21 01271490 Bearing bush 2
22 00051510 Hexagon nut 2
PB# 4100045 Rev * 05/11
2011
Hopper H 800 (97104632)
Collector 34
Model Battery
32
31
PB# 4100045 Rev * 05/11
2011
Hopper cpl. (97104715)
Collector 34
Model Battery
32
Item Part number Description Qty. Remarks
1 01179510 Tube bow 1
2 00078920 Screw 2
3 00053770 Washer 2
4 01179520 Litter hopper 1
5 01130170 Bush 2
6 00042900 Washer 2
7 00051510 Hexagon nut 2
PB# 4100045 Rev * 05/11
2011
Hopper cpl. (97104715)
Collector 34
Model Battery
33
PB# 4100045 Rev * 05/11
2011

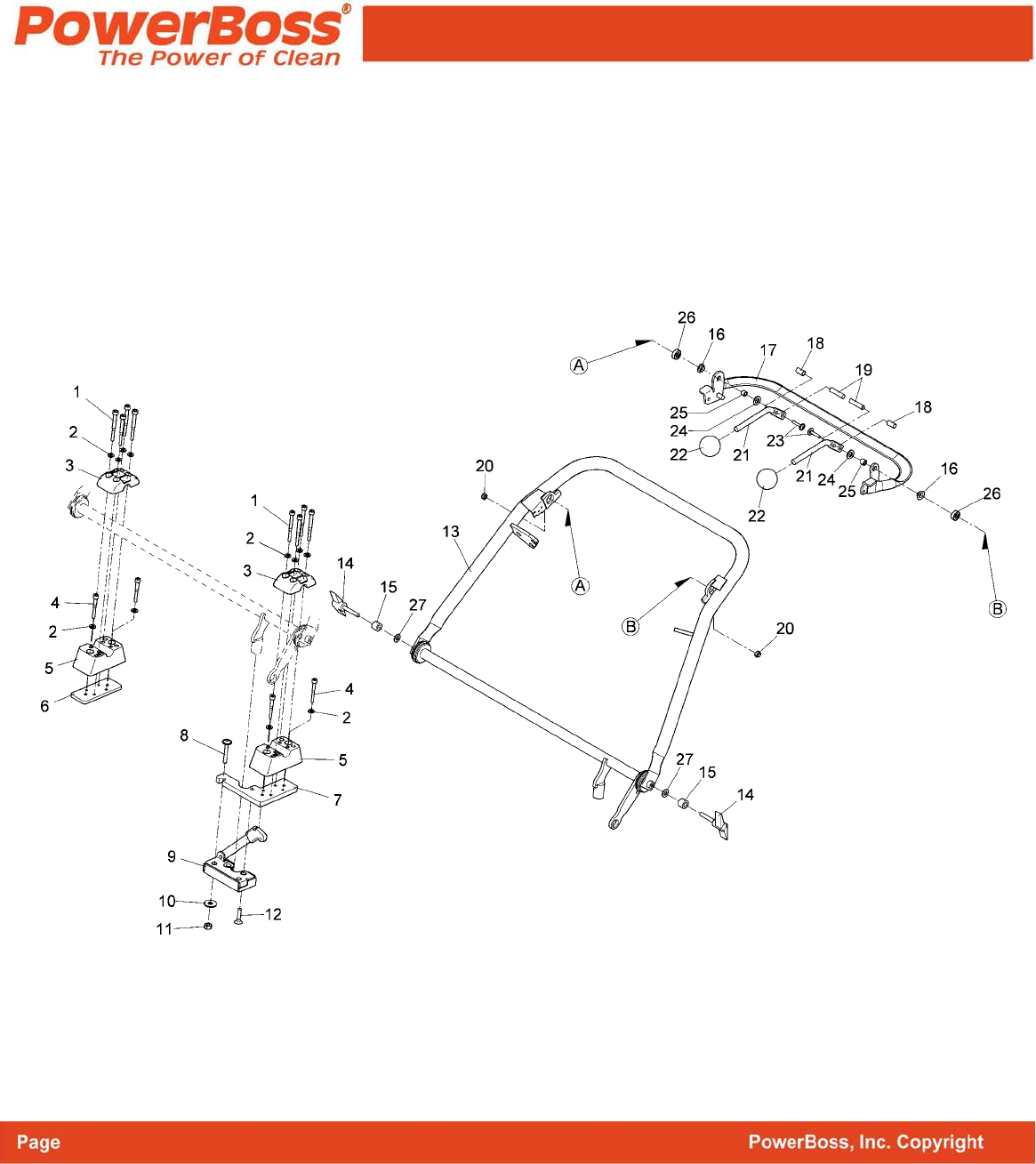

Handle - Control element (97104624)
Collector 34
Model Battery
34
Item Part number Description Qty. Remarks
1 01271540 Socket head screw 8
2 00053730 Washer 12
3 01179450 Retainer upper 2
4 01143070 Socket head screw 4
5 01179460 Retainer lower 2
6 01271550 Retaining plate 1
7 01271560 Thread base plate 1
8 01271570 Lens flange screw 1
9 01179480 Door lock 1
10 01122240
washer
1
11 00051510 Hexagon nut 1
12 01223150 Countersunk screw 1
13 01179440 Arbor 1
14 00905560 Wing 2
15 00974400 Bushing 2
16 01111140 Slide bearing bush 2
17 01179470 Control lever 1
18 01064890 Hose 17 mm
19 01272020 Threaded bolt 2
20 00051520 Hexagon nut 2
21 01179490 Lever 2
22 00741150 Ball button 2
23 01082530 Lens flange screw 2
24 01271590 Starting disk 2
25 01271580 Bushing 2
26 01175800 Grooved ball bearing 2
27 00740310 Washer 2
PB# 4100045 Rev * 05/11
2011
Handle - Control element (97104624)
Collector 34
Model Battery
35
PB# 4100045 Rev * 05/11
2011
Labels B (97116248)
Collector 34
Model Battery
36
Item Part number Description Qty. Remarks
1 01270860 Decal BYPASS-FLAP 1
2 01270880 Decal LITTER HOPPER 1
3 03009790 Decal COLLECTOR 34 1
4 03008790 Backing film 1
5 01271770 Foil 1
6 01270890 Decal SIDE BROOM 1
7 03008510 Decal POWER BOSS 1
8 01270850 Decal BRUSH APRON 1
9 01071710 Decal "Instruction manual" 1
10 01131550 Lable brake 1
11 01270900 Decal SHAKING 1
12 01130650 Decal SIDE BROOM ADJUSTMENT 1
13 00871160 Decal 24V 1
14 01270840 Decal MAINTENANCE FREE BATTERY 1
15 03001180 Decal 1
16 03008410 Type plate POWERBOSS 1
17 00504370 Blind rivet 2
PB# 4100045 Rev * 05/11
2011
Labels B (97116248)
Collector 34
Model Battery
37
PB# 4100045 Rev * 05/11
2011
Collector 34
Model Battery
38
PB# 4100045 Rev * 05/11
2011
Collector 34
Model Battery
39

Navigation menu
