User Manual

PHX26ECO SUPER SPORT Walk-Behind Scrubber

Traction Drive Disc Deck

2

This manual is furnished with each new POWERBOSS PHX26ECO SUPER SPORT. This provides the necessary operating

and preventive maintenance instructions. Operators must read and understand this manual before operating or servicing this

machine.

This machine was designed to give you excellent performance and efficiency. For best results and minimal cost, please follow

the general guidelines below:

· Operate the machine with reasonable care.

· Follow the manufacturer’s suggested maintenance instructions as provided in this booklet.

· Use original PowerBoss supplied parts.

3

Model PHX26ECO SUPER SPORT WALK-BEHIND SCRUBBER TRACTION DRIVE DISC DECK

All Models Beginning with: PHX26ECOSS

40 amps

69 dBA

26 in (65 cm)

38 in (95 cm)

30,500 ft2 /hr (2830 m2/hr)

2.7 mph (4.3 km per hr)

2.7 mph (4.3 km per hr)

24 volts

65 cfm (110 m3/hr)

45 inches (112mbar)

.60 HP (450 W)

Disc

1 HP (750W)

2

180 RPM (LOW) / 380 RPM (HIGH)

12 Gal (45 liters)

13 Gal (49 liters)

2%

370lbs (168 kg)

235 lbs (107 kg)

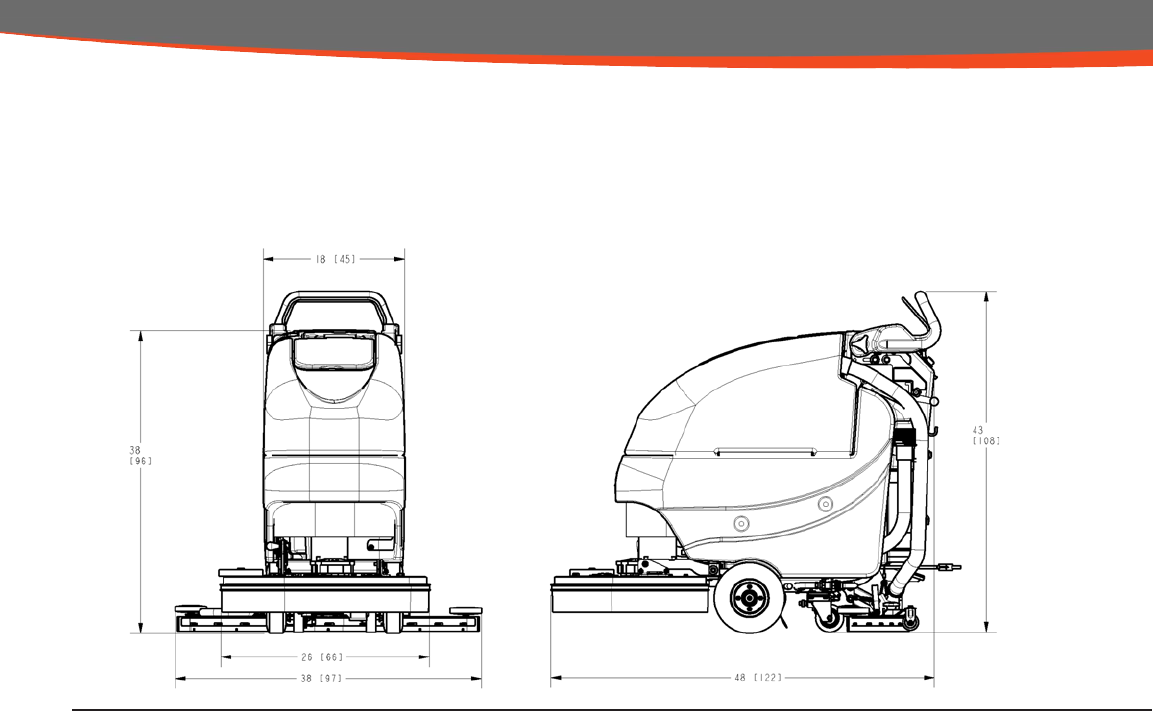

48 x 26.0 x 38.0 (112.8 x 47.8 x 107.4 cm)

1/5 HP (150W)

Current (Max)

Sound Level

Cleaning path width

Squeegee width

Productivity

Working Speed

Transport Speed

Rated voltage

Vacuum flow

Vacuum waterlift

Vacuum power

Brush type

Brush motor(s) power

Number of brushes

Brush RPM

Solution capacity

Recovery capacity

Working Grade

Weight with batteries

Weight without batteries

Dimensions (LxWxH)

Drive Motor Power

Technical Specifications

Ah @ hrs

956140 Lead Acid Crown 140 20

956135 Sealed Crown 135 20

956753 Lead Acid Trojan 130 20

Battery Options

Capacity

TypePart Number Mfg'r

4

Safety Instruction

Unpacking Instru

Inspection ...........

Electrical .............

Batteries .............

Operator Respons

Machine Overvie

Controls ..............

Bail Handle .

Handle Adjus

Key Switch .

Direction Sw

Squeegee Li

Battery / Fau

Speed Contro

Charge Statu

Optional Hour Met

Vacuum Hose Rou

Circuit Breakers ..

Battery Compartm

Diagnostic Code G

Machine Overview

Handle Adjustmen

Angle Adjust

Horizontal Ad

Solution Tank Dra

Solution Level Ind

Solution Fill Filter

Recovery Tank Dr

Screened Float ...

Screened Flo

5

Table Of Contents

Safety Instructions ...................................................................................... 6

Unpacking Instructions .............................................................................. 7

Inspection ...................................................................................................... 7

Electrical ........................................................................................................ 7

Batteries ........................................................................................................ 7

Operator Responsibility ................................................................................. 7

Machine Overview ....................................................................................... 8

Controls ....................................................................................................... 10

Bail Handle .......................................................................................... 11

Handle Adjustment Knobs ................................................................... 11

Key Switch .......................................................................................... 11

Direction Switch .................................................................................. 11

Squeegee Lift Lever ............................................................................ 11

Battery / Fault Gauge .......................................................................... 11

Speed Control ..................................................................................... 11

Charge Status Indicator ...................................................................... 11

Optional Hour Meter .................................................................................... 12

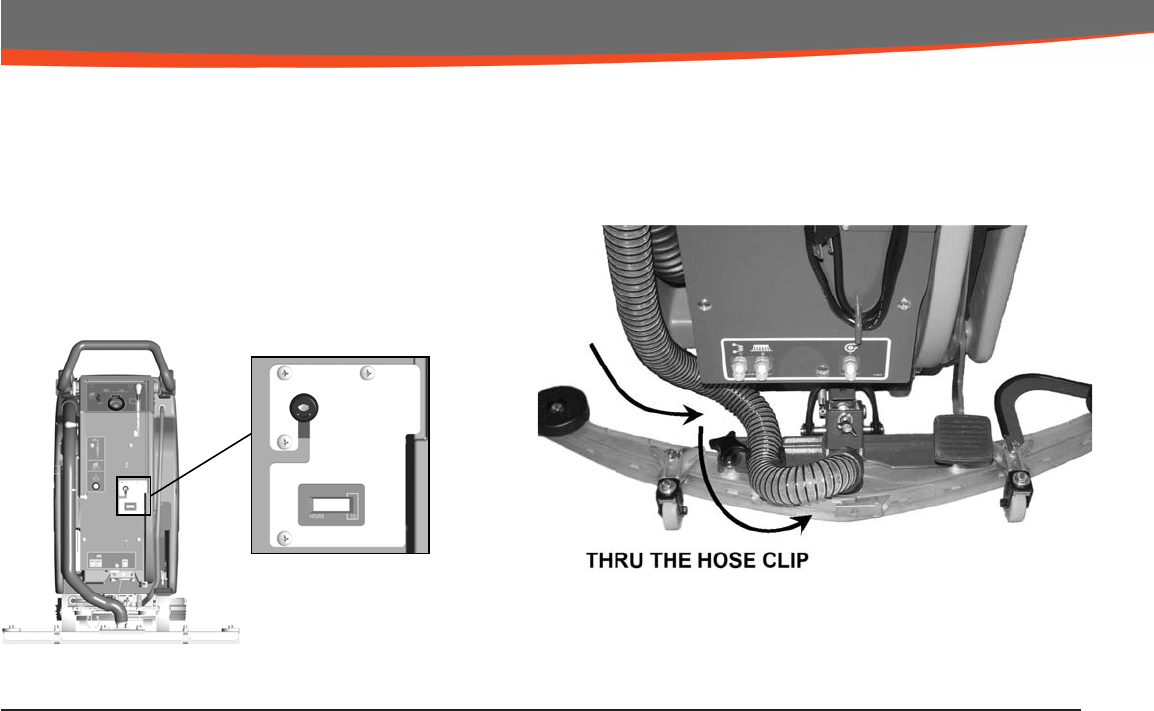

Vacuum Hose Routing ................................................................................. 13

Circuit Breakers ........................................................................................... 13

Battery Compartment .................................................................................. 14

Diagnostic Code Guide ............................................................................... 15

Machine Overview ....................................................................................... 15

Handle Adjustment ...................................................................................... 16

Angle Adjustment ................................................................................ 16

Horizontal Adjustment ......................................................................... 17

Solution Tank Drain Hose ............................................................................ 18

Solution Level Indicator ............................................................................... 18

Solution Fill Filter ......................................................................................... 19

Recovery Tank Drain Hose .......................................................................... 19

Screened Float ............................................................................................ 20

Screened Float Removal .................................................................... 21

In-Line Solution Filter Assembly .................................................................. 22

Rear Squeegee ........................................................................................... 23

Cleaning the Squeegee ............................................................................... 23

Changing the Squeegee Blades ................................................................. 23

Squeegee Blades ................................................................................ 24

Angle Adjustment ................................................................................ 24

Squeegee Blades ................................................................................ 25

Height Adjustment ............................................................................... 25

Brush Deck .................................................................................................. 26

Brush Loading / Unloading .......................................................................... 26

Aquastop Solution Control .......................................................................... 27

The PHX26ECO SUPER SPORT ............................................................... 28

Machine Operation .................................................................................... 30

To Turn ON Machine: .................................................................................. 30

To Turn ON Vacuum: ................................................................................... 30

To Turn ON Brush Motor: ............................................................................ 30

To Turn on Cleaning Solution: ..................................................................... 30

Direction Switch:.......................................................................................... 30

Speed control: ............................................................................................. 30

Driving: ........................................................................................................ 30

To Charge Batteries:.................................................................................... 31

Hour Meter (Optional): ................................................................................ 31

After Use..................................................................................................... 32

Maintenance ............................................................................................... 33

Troubleshooting ........................................................................................... 36

Warranty ..................................................................................................... 38

6

Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS

Operators must read and understand this manual before operating or maintaining this machine.

Do not operate this machine in flammable or explosive areas.

This machine is designed solely for scrubbing dirt and dust in an indoor environment. Minuteman does not recommend using this machine

in any other capacity.

The following information below may cause a potential hazard to the operator and equipment. Read this manual carefully and be aware

when these conditions can exist. Take necessary steps to locate all safety devices on the machine and train the personnel operating the

machine. Report any machine damage or faulty operation immediately. Do not use machine if it is not in proper operating condition.

FOR SAFETY DURING OPERATION

Keep hands and feet clear of moving parts while machine is in operation.

Make sure all safety devices are in place and operate properly. All covers, doors and latches must be closed and fastened before use.

During operation, attention should be paid to other persons in the work area and especially if small children are present.

Electric motors and components can cause an explosion when operated near explosive materials or vapor. Do not operate this machine

near flammable materials such as solvents, thinners, fuels, grain dust, etc.

Store or park this machine on a level surface only. To prevent unauthorized use, machine should be stored or parked with the key removed.

This machine is designed for level operation only. Do not operate on ramps or inclines greater than 2%.

This machine is not suitable for picking up hazardous dusts.

Use caution when moving this machine into areas that are below freezing temperatures. Any water in the tanks or hoses can cause damage

to the machine.

FOR SAFETY WHEN SERVICING or MAINTAINING MACHINE

Stop on level surface.

Disconnect the power to the machine by unplugging the red Battery connector located under the recovery tank near the batteries.

Avoid moving parts. Do not wear loose jackets, shirts, or sleeves when working on machine.

Avoid contact with battery acid. Battery acid can cause burns. When working on or around batteries, wear protective clothing and safety

glasses. Remove metal jewelry. Do not lay tools or metal objects on top of batteries.

Charging batteries generates explosive gasses.

Do not charge batteries when open flames or sparks are present. Do not smoke.

Make sure the charger is turned off before disconnecting it from the machine.

Charge the batteries in a well-ventilated area with the battery cover removed completely.

Do not clean machine with a pressure washer.

Authorized personnel must perform repairs and maintenance. Use Minuteman supplied replacement parts.

SAVE THESE INSTRUCTIONS

7

Inspection

Carefully unpack and inspect your PHX26ECO SUPER SPORT Walk-Behind Scrubber for shipping damage. Follow unpacking

instructions on shipping pallet. Each unit has been tested and thoroughly inspected before shipment. Any damage is the

responsibility of the delivery carrier who should be notified immediately.

Electrical

This machine is battery operated and designed to operate on 24 volts DC (2) 12-volt batteries.

Batteries

We do not recommend mixing AMP hour capacities. Alternate battery sets can be used if they equal physical size and

capacity. If alternate battery sets are used please contact Minuteman for on board charger settings.

Operator Responsibility

Read this manual carefully before operating this machine.

The operator is responsible for taking care of the daily maintenance and check ups of the machine to keep it in good

working condition. The operator must inform the service mechanic or supervisor when the scheduled maintenance intervals

are required as stated in the MAINTENANCE section of this manual.

Before starting familiarize yourself with the machine and its controls (see “Machine Overview, Front”, “Machine Overview,

Rear”, “Control Console” diagrams).

Unpacking Instructions

8

Machine Overview

Machine Overview

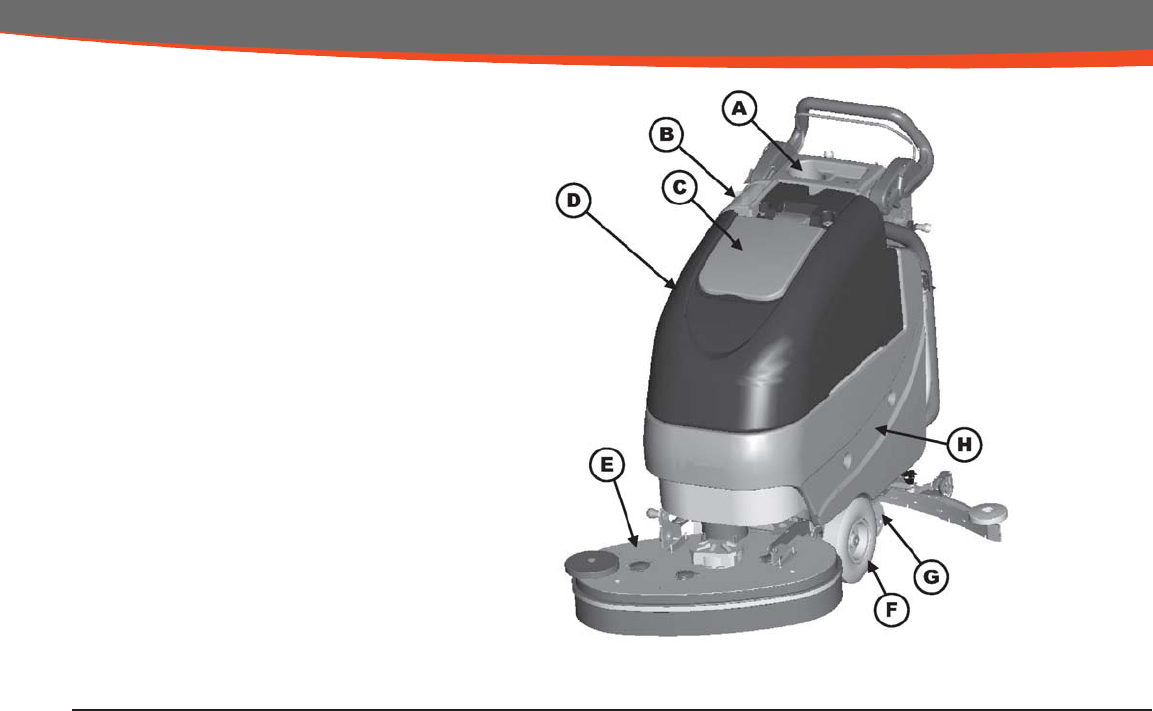

A SPRAY BOTTLE / CUP HOLDER

B SOLUTION FILL PORT

C RECOVERY TANK LID

D RECOVERY TANK

E BRUSH DECK

F FRONT WHEEL

G REAR CASTER

H SOLUTION TANK

- Front

9

Machine Overview

G

A

M

B

N

H

D

F

C

D

E

L

J

K

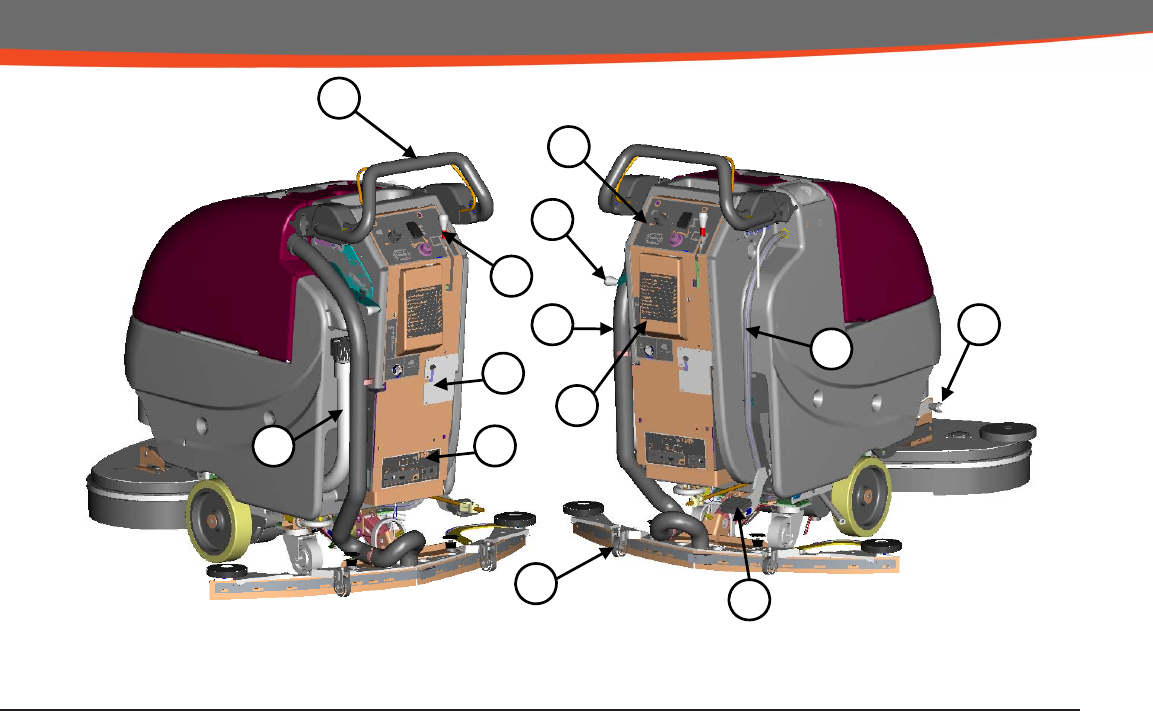

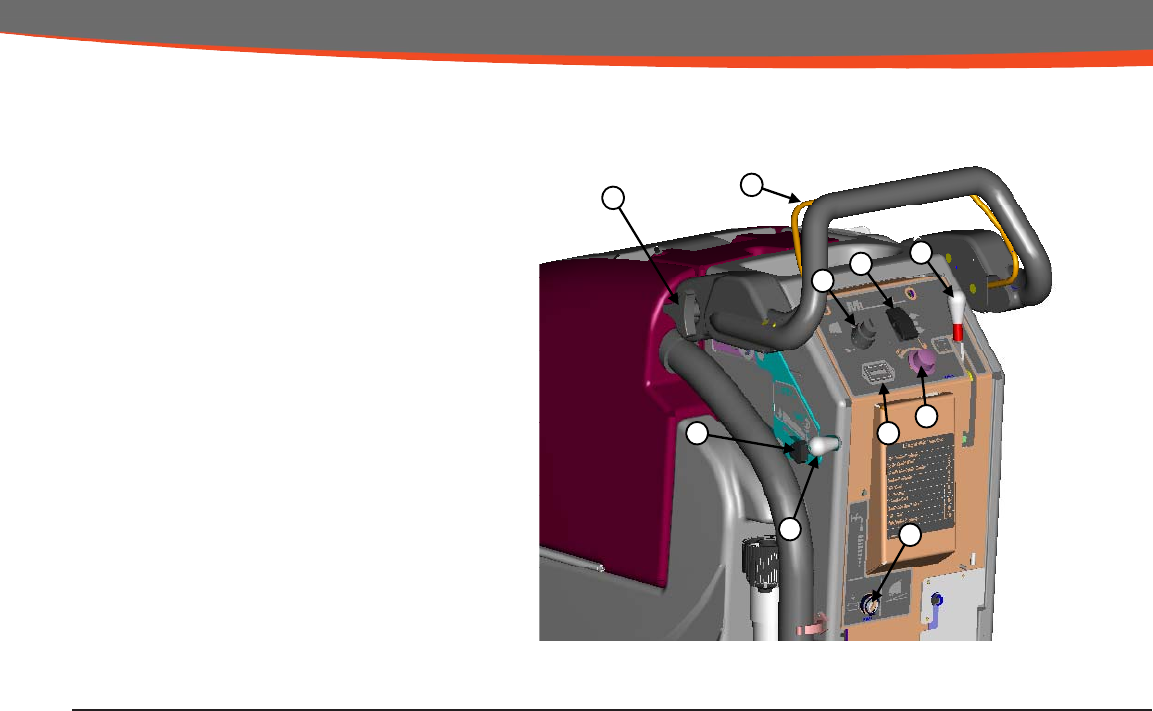

Machine Overview - Rear

A BAIL HANDLE

B SQUEEGEE LIFT LEVER

C RECOVERY TANK DRAIN HOSE

D ONBOARD CHARGER CORD

E CIRCUIT BREAKERS

F RECOVERY HOSE

G CONTROL PANEL

H SOLUTION TANK DRAIN HOSE / LEVEL INDICATOR

J BRUSH DECK LIFT PEDAL

K REAR SQUEEGEE

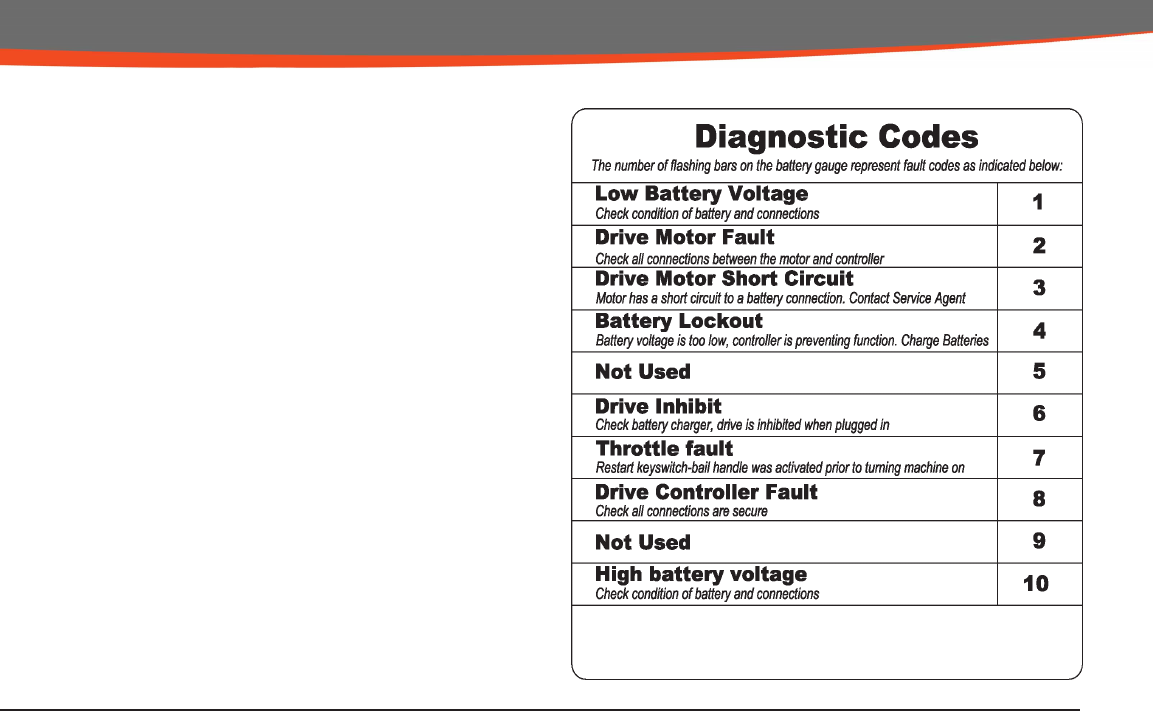

L DIAGNOSTIC CODE GUIDE

M SOLUTION CONTROL LEVER

N DECK TILT HANDLE

10

Machine Overview

A BAIL HANDLE

B HANDLE ADJUSTMENT KNOB

C KEY SWITCH

D DIRECTION SWITCH

E SQUEEGEE LIFT LEVER

F BATTERY / FAULT GAUGE

G SPEED CONTROL

H CHARGE STATUS INDICATOR

J SOLUTION CONTROL LEVER

K AQUASTOP SOLUTION SETTING

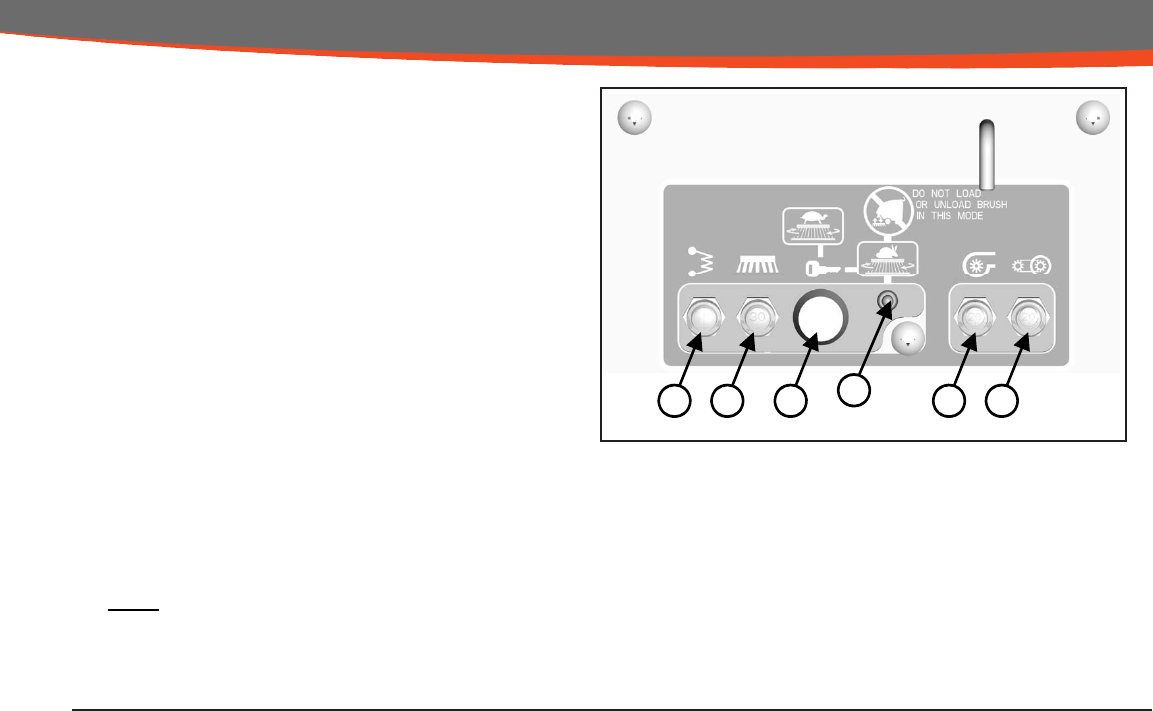

Controls

A

B

C

D

E

C

G

FK

H

J

11

Machine Overview

Bail Handle

(A) When the scrub deck is lowered to the floor, the bail handle enables the brush and vacuum motors and moves the machine forward once depressed.

Handle Adjustment Knobs

(B) Allows the handle position to be raised or lowered.

Key Switch

(C) Controls the machine’s power (Off/On) with a key for safety. When it is turned to the on position, the machine will operate (after 5 second diagnostic

check, see battery gauge).

Direction Switch

(D) This 3 position switch sets the direction the machine will move when the bail handle is pulled. The middle position is neutral - brushes & vacuum will

operate but machine will not move.

Squeegee Lift Lever

(E) When moved to the top position, the squeegee is lowered and the vacuum motor will turn on when bail handle is depressd. When locked in the bottom

position, the squeegee is raised and the vacuum motor shuts off (after a 10 second delay).

Battery / Fault Gauge

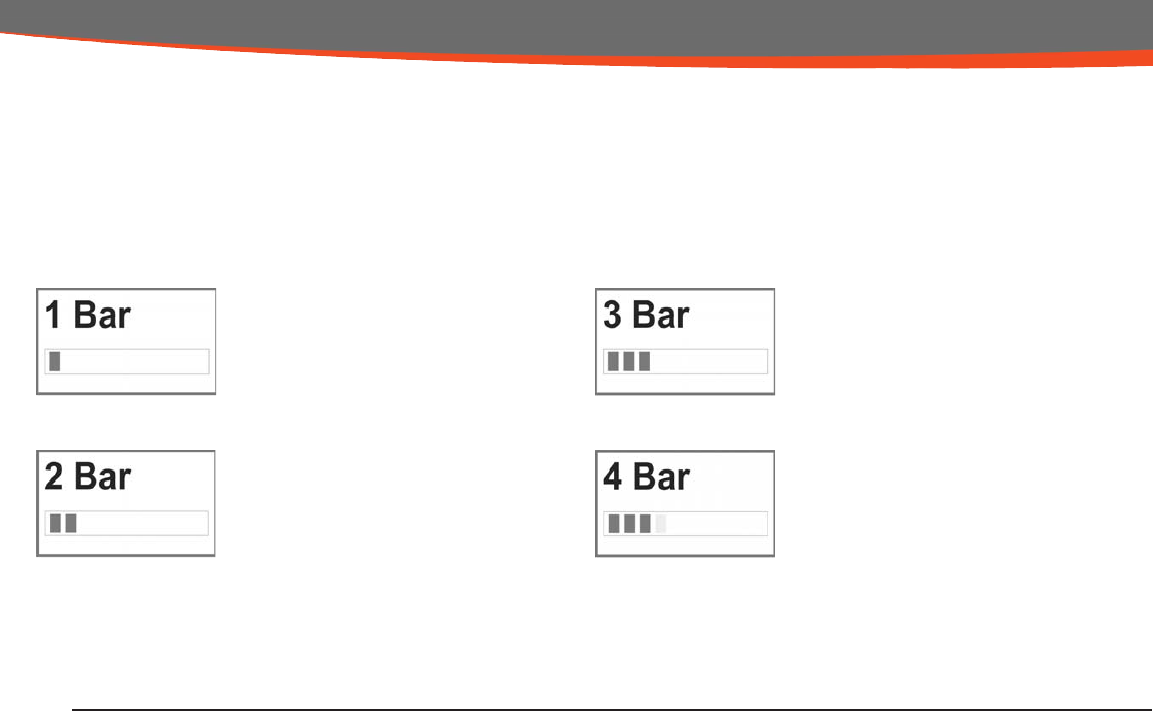

(F) This gauge displays the remaining battery charge. This gauge also displays any fault codes that might occur with the Drive Motor Controller (see

Diagnostic Codes). Gauge will blink for 5 seconds when key is first turned on, to run diagnostic check before machine can be used.

Speed Control

(G) This control sets the speed at which the machine will move.

Charge Status Indicator

(H) This gauge displays the status of the batteries during charging. The gauge has a readout of 3 LEDs. 1 Green, 1 Yellow, 1 Red. Green indicating a full

charge, Yellow indicating 80% charged, Red indicating the batteries are charging.

Solution Control Lever

(J) This lever controls the rate at which solution is dispensed. Moving the lever up will increase the amount of solution. Moving the lever down will decrease

the amount. Moving the lever all the way down shuts off solution flow.

Aquastop Solution Setting

(K) This bracket is a guide to limit the amount of solution dispensed for consistent performance.

12

Machine Overview

A

B C DE F

Brush Speed Keyswitch & Circuit Breakers

A Main Control Circuit Breaker - 4A

B Brush Motor Circuit Breaker - 50A

C Vacuum Motor Circuit Breaker - 20A

D Drive Motor Circuit Breaker - 20A

The circuit breakers are located at the bottom of the back

panel of the machine.

If any of the functions above are not operating, check if the

circuit breaker buttons have tripped. Press to reset.

E Brush Speed Keyswitch

F High RPM LED Indicator

When the key is turned to the right, the brush will rotate at

high speed and the LED will illuminate.

The low speed is for standard cleaning with or without the brush deck weights.

The high speed is for stripping, polishing and special cleanning processes.

NOTE: DO NOT LOAD OR UNLOAD BRUSH FROM MACHINE WITH LED LIT.

DAMAGE TO BRUSH OR BRUSH MOTOR HUB MAY OCCUR.

13

Machine Overview

PowerBoss offers an optional hour meter for this

machine. The optional kit replaces the power cord

mounting bracket at the rear of the machine with

one that contains an hour meter, which records

the brush motor operating time.

Optional Hour Meter Vacuum Hose Routing

For best results, route the vacuum hose as shown below:

Kit# K-E1720HM

14

Machine Overview

The battery compartment is located under the recovery tank. The

Battery compartment can be accessed for servicing and mainte-

nance by tilting the recovery tank (make sure recovery tank has

been drained before tilting). The battery compartment contains

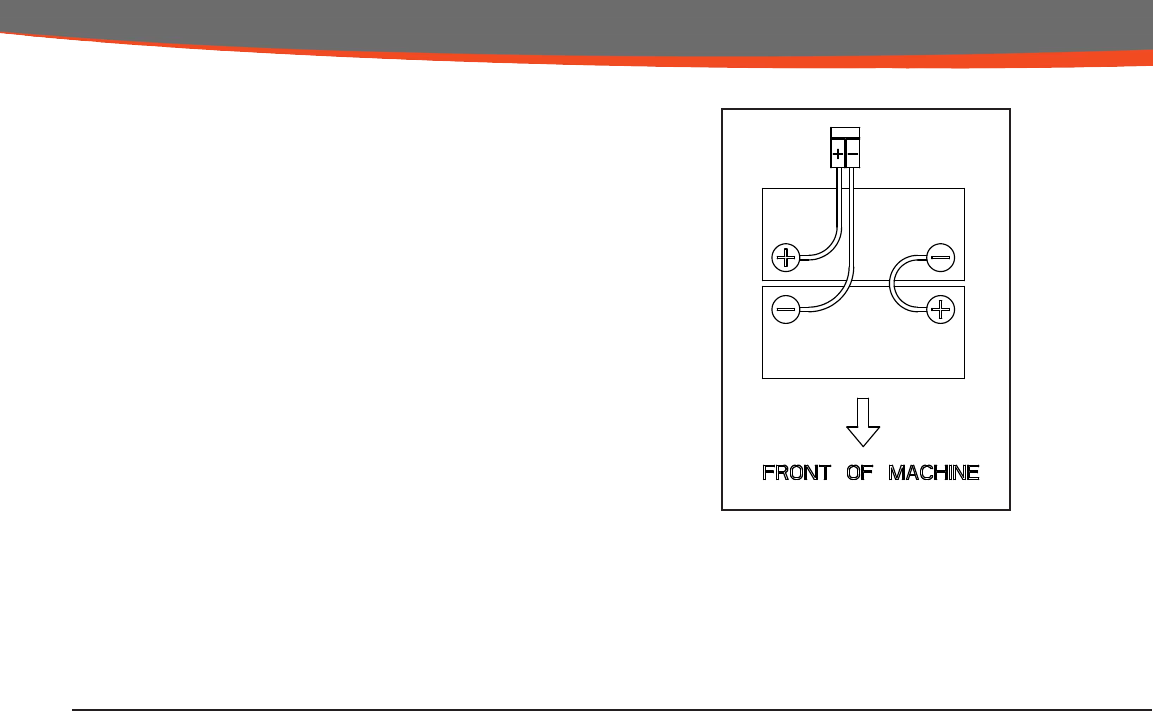

two 12-volt batteries connected in series. Connect the batteries

according to the battery connection diagram (see diagram). The

battery tray may be drained if necessary using the orange drain

hose located above the rear caster on the right side of the ma-

chine.

Battery Compartment

15

Machine Overview

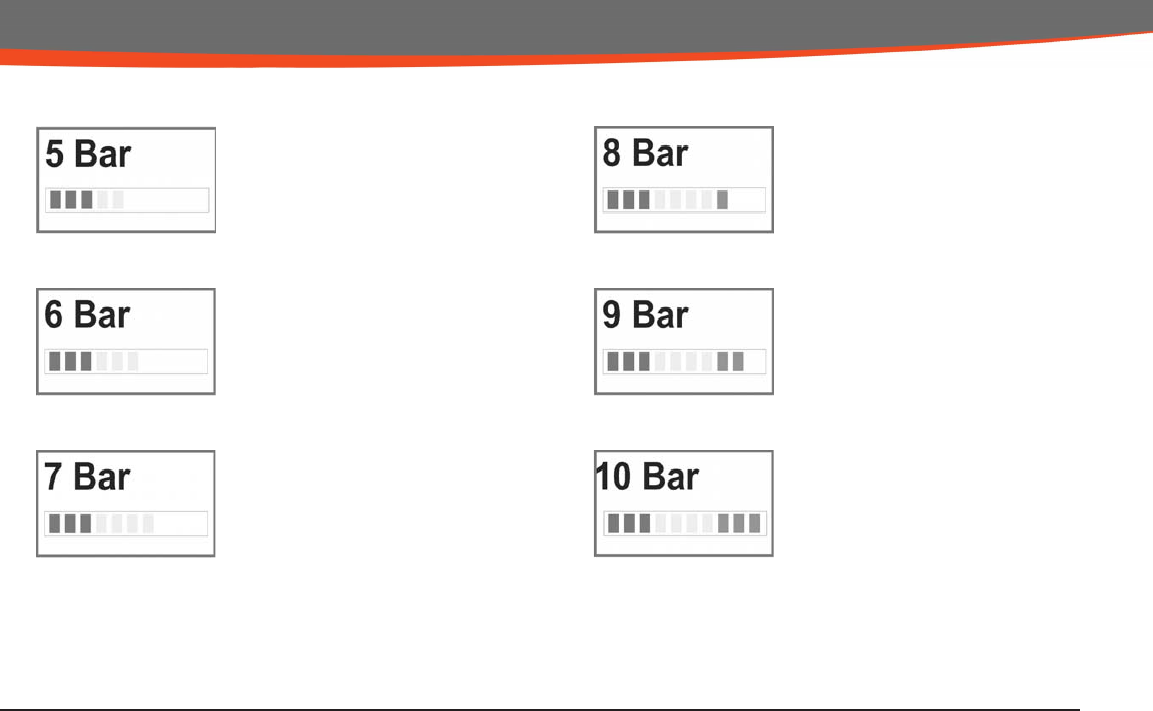

When an error or fault occurs within the machine, a fault

code will appear on the battery gauge represented by a

specified number of flashing LEDs. (See “Troubleshooting”

for further information)

Diagnostic Code Guide

16

Machine Overview

Handle Adjustment

This handle was designed with operator comfort in mind. The angle

and horizontal position of the handle can be adjusted to suit the needs

of the operator.

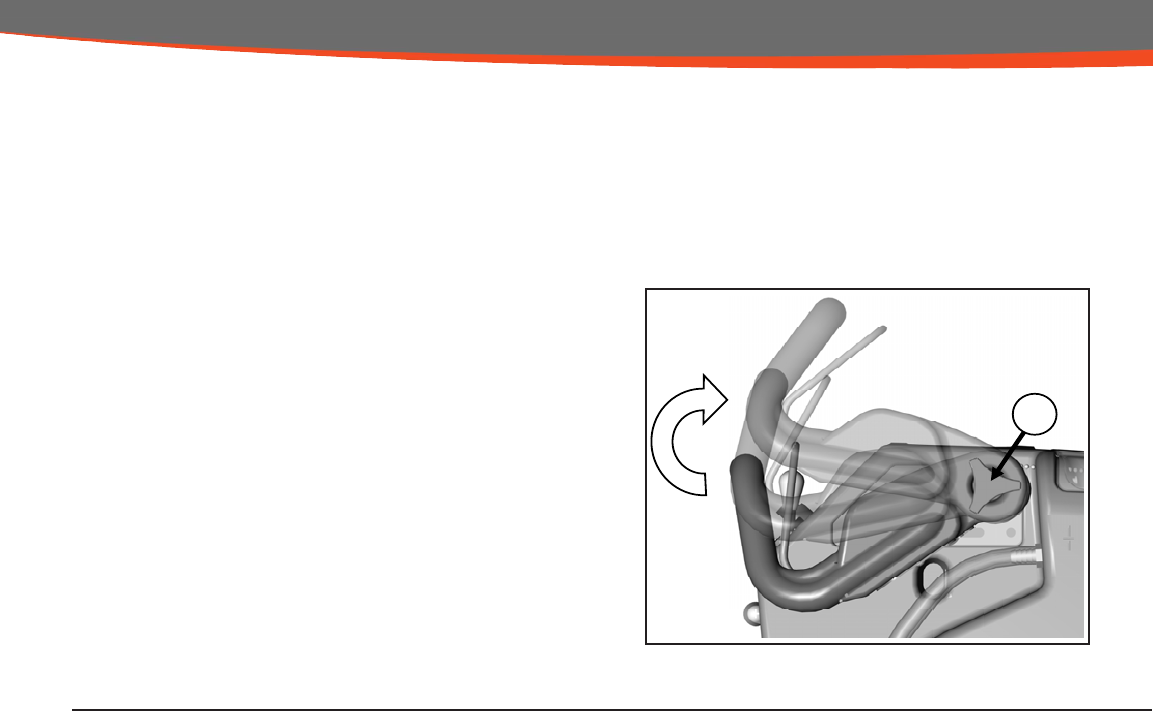

Angle Adjustment

The handle angle can be adjusted without tools by loosening the

Angle Adjustment Knob (A) on each side and rotating the handle

to the desired position. There are 5 angular positions 11.25° apart

for a total of 45° between the minimum and maximum position.

A

17

Machine Overview

12

3

Plate Position 1

(Shipping Position)

Plate Position 2

Plate Position 3

(Fully Extended)

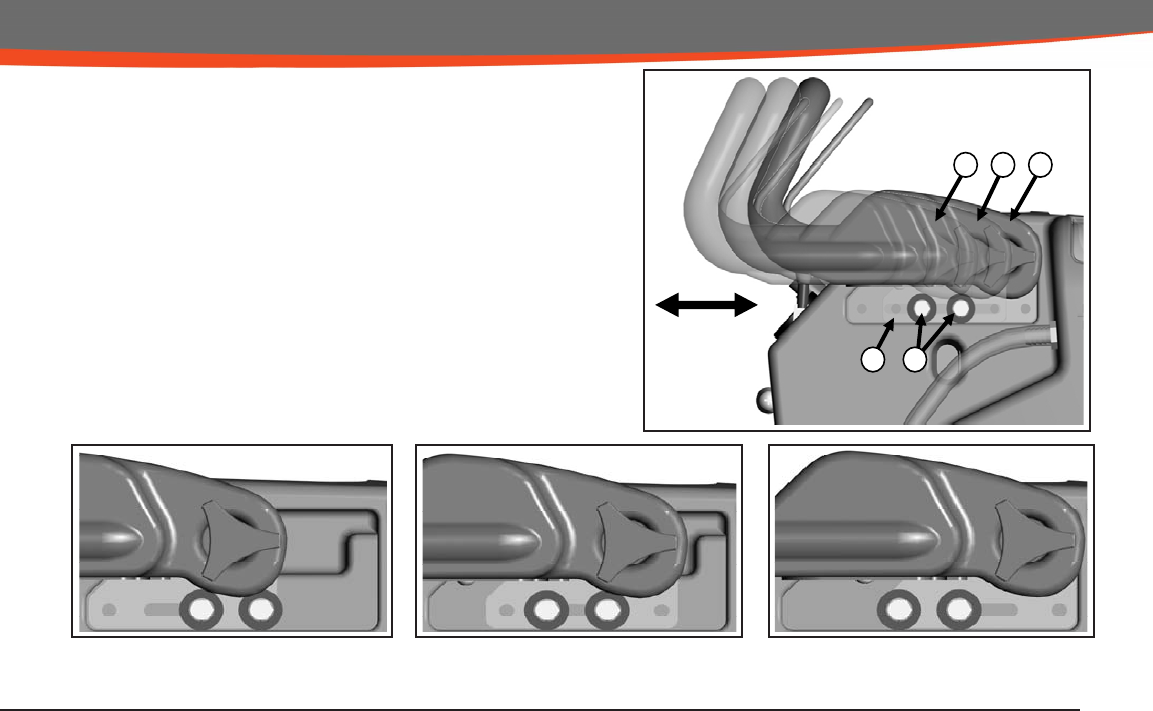

Horizontal Adjustment

The horizontal position can be adjusted by removing the 4 Mounting

Bolts (B) (2 each side) with a 9/16” socket and sliding the Mounting

Plate (P) to one of the 3 available positions. The machine is shipped

from the factory in position 1.

PB

18

Machine Overview

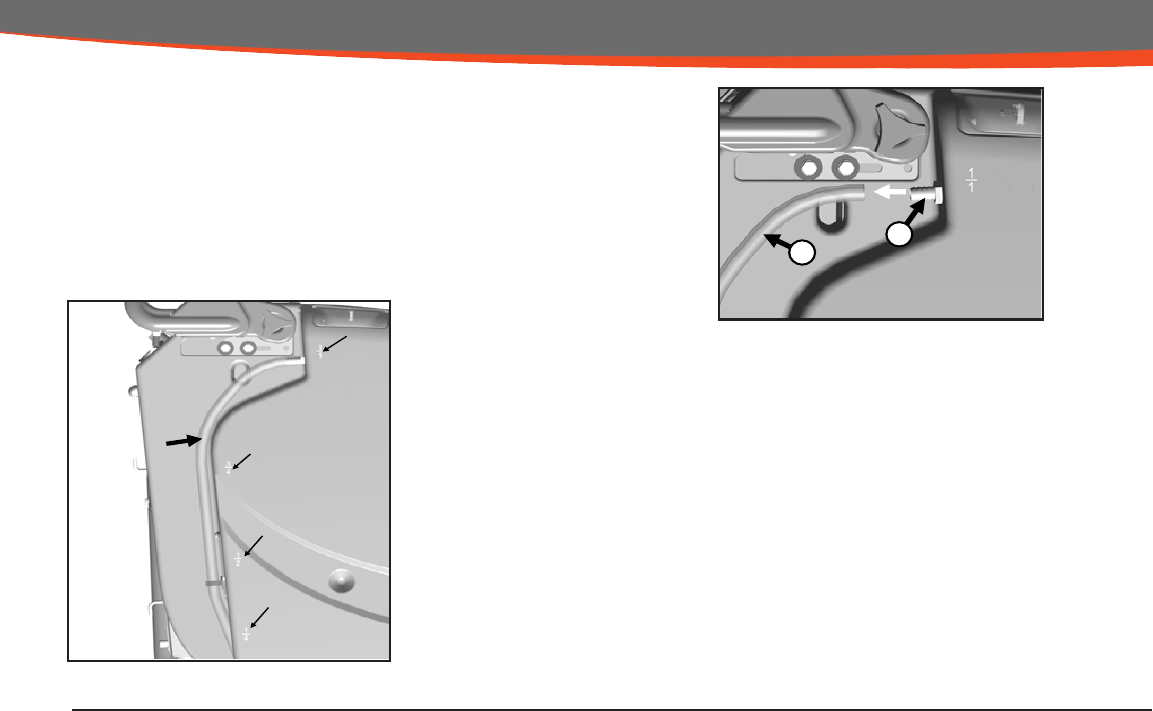

Solution Tank Drain Hose

The solution tank may be drained by removing the Solution Tank Drain

Hose (A) from the Hose Barb (B) and routing the hose to a floor drain.

AB

Solution Level Indicator

The Solution Tank Drain Hose also serves as a water level indicator for

the solution tank. The amount of water remaining in the solution tank

can be seen through the clear drain hose. Level markers molded into

the solution tank are positioned at 1/4, 1/2, 3/4, and full levels.

19

Machine Overview

The Solution Fill Filter (B) should be cleaned regularly.

To remove, simply open the Solution Tank Lid (A) and

pull the filter out.

Solution Fill Filter A

B

Recovery Tank Drain Hose

Twist Cap to Open and Drain Twist & Lift cap to clean out debris

Note: Debris left on the o-ring will cause a vacuum leak.

20

Machine Overview

Screened Float

If the recovery tank (C) is overfilled or a large amount of foaming is

present, the screened float (B) blocks the vacuum intake inside the

tank protecting the vacuum motor and internal electronics from water

damage. It is essential to keep the float in working order through

regular maintenance.

The float should be cleaned daily by thoroughly rinsing with a hose.

Removal of the screened float is not necessary for daily maintenance.

At least once a month the screened float should be completely

removed, cleaned, and checked for any damage to the seal or metal

screen.

WARNING: Damage to the machine may occur if operated

without the screened float properly in place.

C

B

A

21

Machine Overview

Screened Float Removal

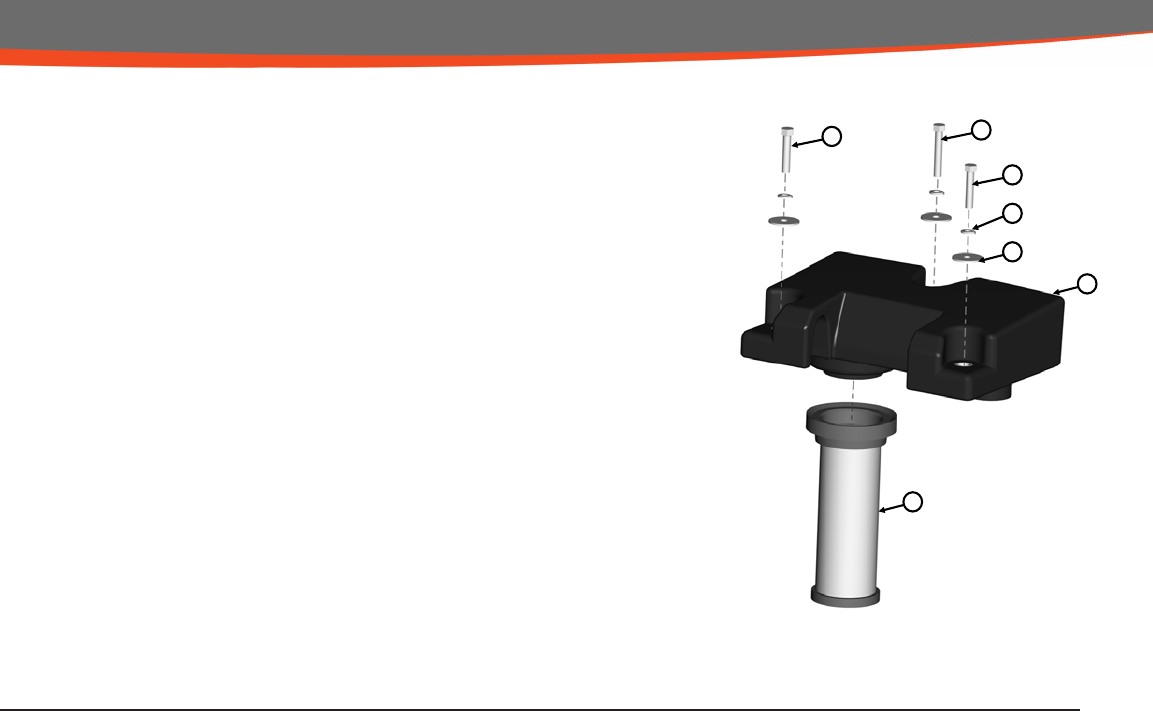

The screened float is positioned between the vacuum manifold (A)

and recovery tank (C). The screened float (B) can be accessed by

removing the 1.5” bolt (D) and two 1.25” bolts (E) that attach the

manifold to the recovery tank using a 7/16” socket.

A

F

B

D

E

A Vacuum Manifold

B Screened Float

C Recovery Tank

D 1.5” Bolt

E 1.25” Bolt (2)

F Helical Washer (3)

G Flat Washer (3)

G

E

22

Machine Overview

ABD

C

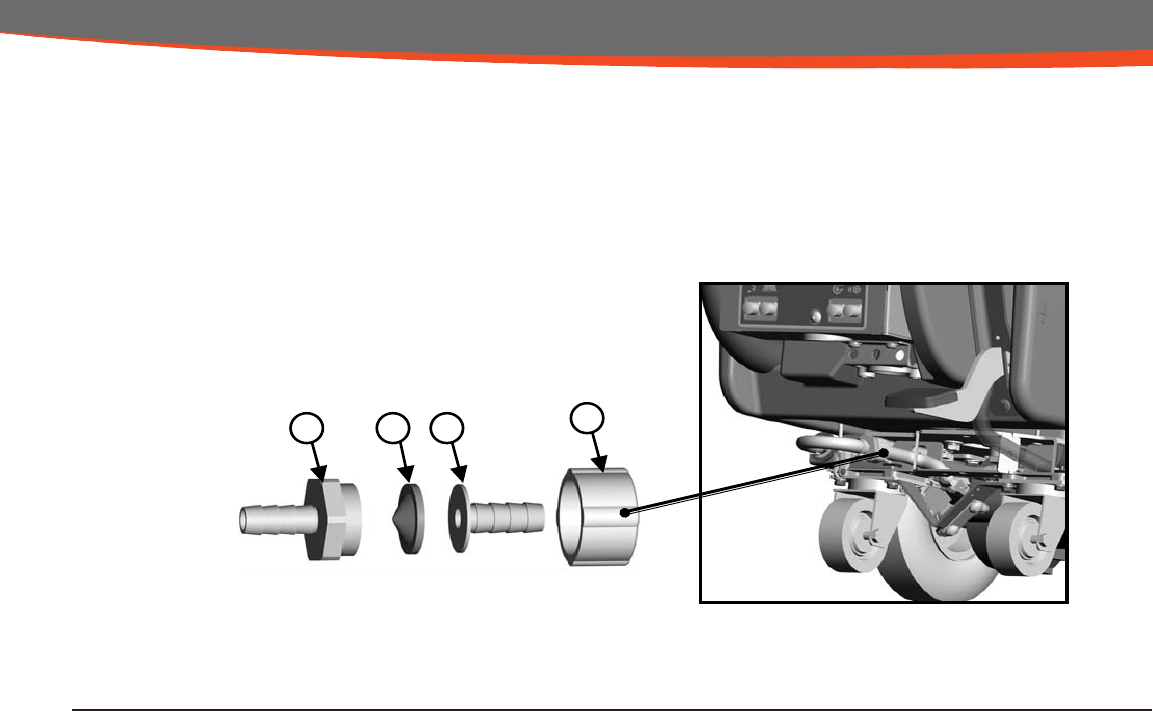

The solution solenoid, which shuts off solution flow when the bail handle is released, is protected from debris by the in-line filter assembly. The

filter assembly is located at the rear of the machine on the left hand side, just under the solution tank. It is important to check and clean the

screened washer inside the assembly regularly to ensure proper solution flow. To open, unscrew the assembly (Note that the cone of the

washer is facing out toward the rear of the machine). Remove washer and rinse, reinsert and screw assembly together, tightening by hand.

Overtightening with tools may damage the plastic threads.

A Fitting, MGHT

B Screened Washer

C Hose Barb Insert

D Fitting, FGHT

In-Line Solution Filter Assembly

23

Machine Overview

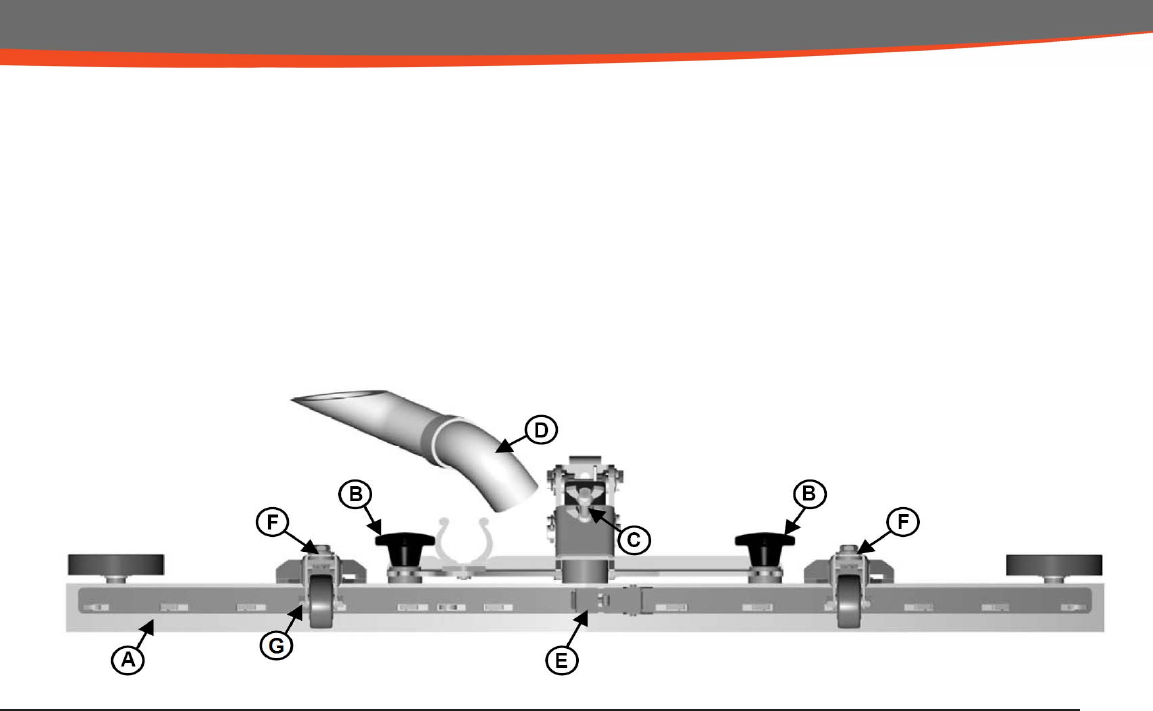

Rear Squeegee

A Squeegee

B Star-shaped knob

C Adjusting screw for angle adjustment

D Suction hose

E Blade fastening latch

F Washers for caster height adjustment

G Caster Wheel Axle

Cleaning the Squeegee

Check the squeegee (A) daily and clean as

necessary.

1. Pull off the suction hose (D).

2. loosen the two star-shaped knobs (B).

3. Remove the squeegee (A).

Changing the Squeegee Blades

Check the inner and outer squeegee blades on

the squeegee (A) weekly for signs of wear. The

squeegee blades can be reused by turning them

(can be turned for 4 total uses).

1. Pull off the suction hose (D), loosen the two star-

shaped knobs (B) and remove the squeegee.

2. Unlock the fastening device (E) and remove the

outer squeegee blade. Turn the squeegee blade

or install a new one, as necessary. Change the

inner squeegee blade in the same way.

24

Machine Overview

The angle adjustment is the decisive factor in

ensuring that the squeegee blades on the

squeegee lie evenly on the floor.

1. Park the machine on a level surface and lower

the squeegee.

2. Loosen the lower wing nut (B) on the adjust-

ing screw (A) and adjust the squeegee using

the adjusting screw so that the ends of the

squeegee blades still have contact with the

floor. By turning the adjusting screw (A) coun-

terclockwise, the clearance between squeegee

blade and floor is increased in the center (Fig.

1). When turning the adjusting screw (A) clock-

wise, the clearance between squeegee blade

and floor is reduced in the center (Fig. 2).

3. Switch the machine on and check the suction

pattern. When the machine is in operation, the

entire surface of the squeegee blades (center

and outer areas) must be applied as evenly as

possible.

4. Tighten the lower wing nut (B) on the adjust-

ing screw (A) against the metal bracket to lock

in the pitch setting.

A

B

B

A

2

1

Squeegee Blades

Angle Adjustment

25

Machine Overview

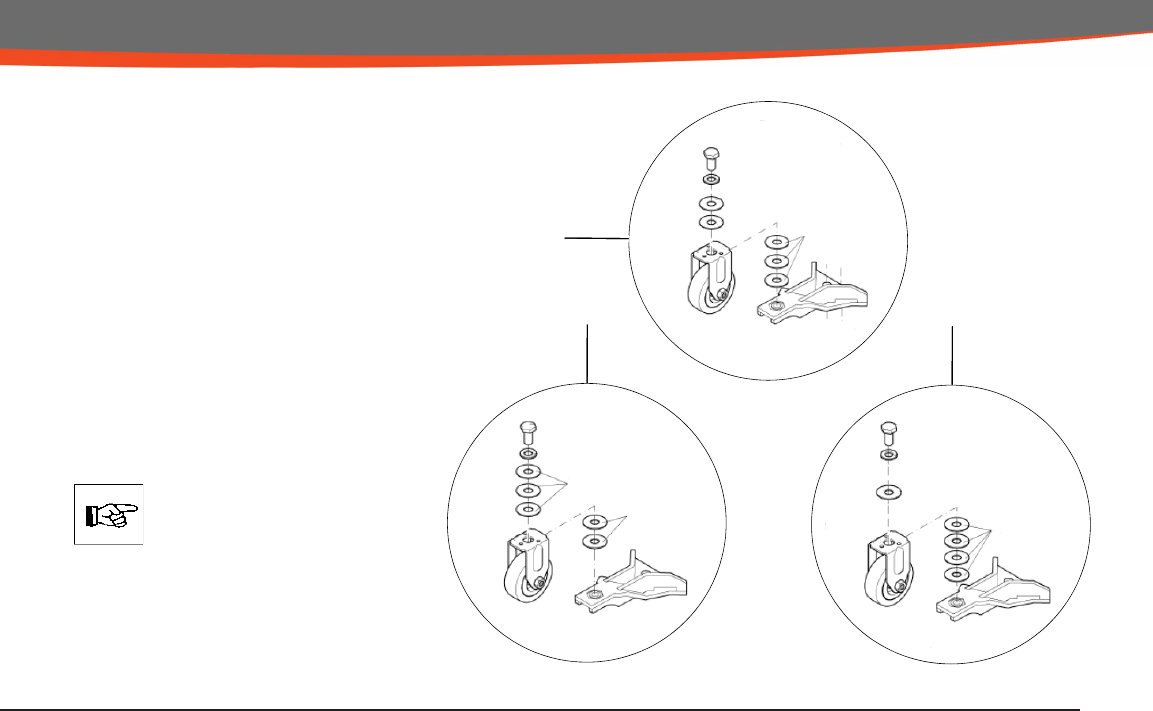

If streaks are present, despite an optimum

angle adjustment, the clearance between the

caster wheels and floor must be adjusted by

changing the number of washers underneath

the bracket that holds the wheel. The

squeegee height is preset at the factory to

2mm.

In cases of very uneven floors, e.g. grouted

tile, etc., try 3mm illustration for washer

configuration.

In cases of very uneven floors, e.g. poorly laid

tiles (water does not run off), configure as

shown in 4mm illustration.

Keep the extra washers by

installing them above the bracket

as shown.

Squeegee Blades

Height Adjustment

3 mm

2 mm 4 mm

26

Machine Overview

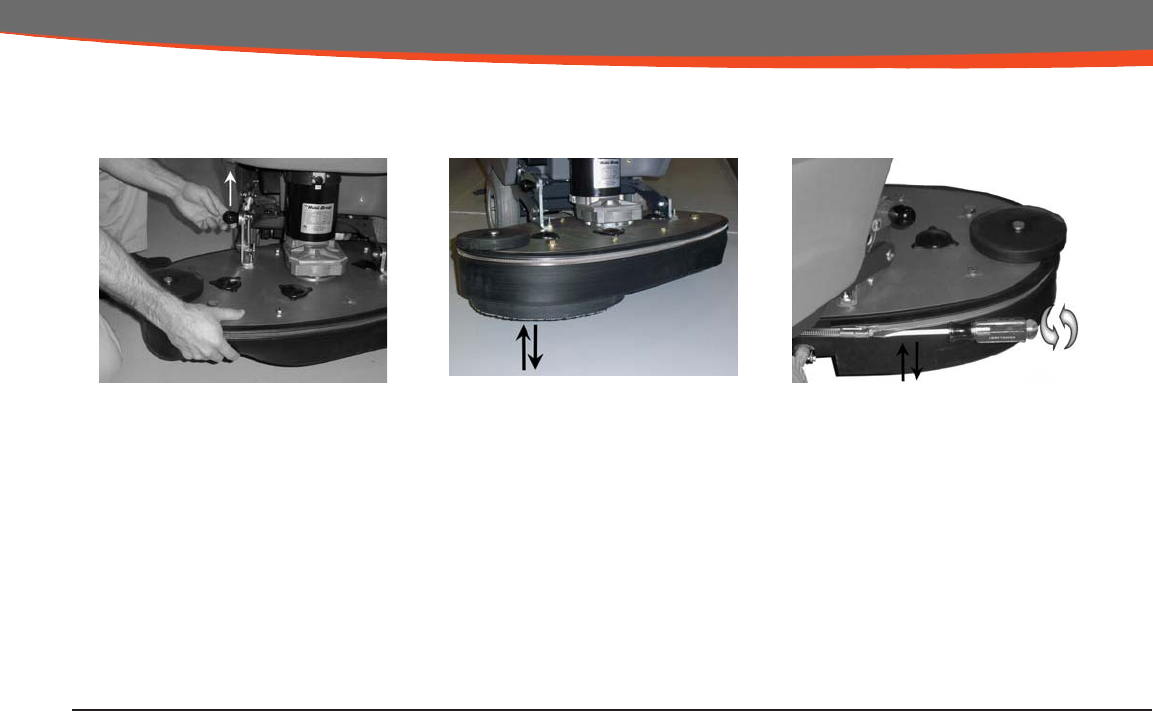

1. Brush Deck may be tilted up for easier

brush installation/removal & to clear

steep ramps. Lift the handle on the

upper lever which connects the brush

deck to the machine, tilt the deck up,

release the handle & the lever will lock

into place. Lift the handle again to move

the deck back to horizontal.

2. Brushes are installed/removed by hand.

Push each brush up onto the hub until

it “clicks”. To remove, pull down on the

edge of each brush.

3. The splash guard may be moved up or

down as the brush/pad wears by loos-

ening the clamp on the back side of the

deck with a flathead screwdriver or 9/

32” (7mm) socket, then slide the splash

guard to the desired height & retighten

the clamp.

Brush Loading / Unloading

Brush Deck

27

Machine Overview

In order to consistently conserve water when using Aquastop brushes, the guide will stop the solution control lever at a

low rate setting. This setting may be adjusted by loosening the knob, adjusting the lever, and retightening the knob. Slide

the knob all the way forward to dispense maximum solution.

Aqua-Saver Solution Control

28

This machine was designed with total operator comfort and ease of use in mind. All machine components have been designed

as a total system to efficiently clean dirty floors. Please contact your PowerBoss representative for specific recommendations

for the correct brush type and chemical applications.

Before using the machine, always perform the following steps to ensure proper machine operation:

• Check under the machine for leaks.

• Check the rear squeegee for wear and damage.

• Check the solution and recovery tank levels.

After using the machine, always perform the following steps:

• Check the battery charge level. Charge batteries if necessary. When charging batteries, extra precaution is required:

- Battery acid can cause burns.

- When working on or around batteries, always wear protective clothing and safety glasses.

- Remove metal jewelry. Do not lay tools or metal objects on top of the batteries.

- Charging batteries generate explosive gasses.

DO NOT CHARGE BATTERIES WHEN OPEN FLAMES OR SPARKS ARE PRESENT. DO NOT SMOKE.

- Charge the batteries in a well-ventilated area.

- Fluid levels should be checked before and after charging and maintained at the proper levels. If low, add distilled water until

the metal plates are covered.

- If the machine is not used for an extended period of time, batteries should be kept fully charged with a boost charge once a

week.

• Check for wire, string, or twine wrapped around the scrub brushes.

• Check the rear squeegee for wear and damage.

• Check the rear squeegee suction hose for obstructions.

• Drain and rinse the recovery tank.

• Check under the machine for leaks.

• Check the service records to determine maintenance requirements.

The PHX26ECO SUPER SPORT

29

WARNING!

• BE SURE YOU UNDERSTAND THE MACHINE CONTROLS AND THEIR FUNCTIONS.

• WHILE ON RAMPS OR INCLINES, AVOID SUDDEN STOPS WHEN TANKS ARE FILLED.

• AVOID ABRUPT SHARP TURNS. SLOW DOWN DRIVING SPEED WHEN GOING DOWNHILL.

30

Machine Operation

To Turn ON Machine:

Turn key to operate position ( I ). Wait for battery gauge to stop flashing, approximately 5 seconds. (If flashing continues, see

troubleshooting guide)

To Turn ON Vacuum:

Lower squeegee into operating position, vacuum motor will turn ON when bail handle is depressed.

To Turn ON Brush Motor:

Lower the scrub deck to the floor by moving the brush lift pedal from the “home” (down) position to the operating position (up).

Depress the operator bail handle. Brush motor will turn ON.

To Turn on Cleaning Solution:

Move solution lever from closed (down) position up to the desired flow position. With the scrub deck on the floor, depress the

bail handle, solution will begin to flow.

Note: An electronic solution solenoid valve will stop solution flow whenever the bail handle is released.

Direction Switch:

Select direction of machine by moving the directional rocker switch from the neutral position to the forward or reverse position.

The direction of the machine movement is shown on the operator panel with forward and reverse arrows.

Speed control:

Move the speed dial to the desired position. Turning the dial clockwise increases the speed. Turning the dial counterclockwise

decreases the speed.

Driving:

Depress the operator bail handle, the machine will move in the direction selected.

31

Machine Operation

To Charge Batteries:

When the battery / fault gauge reaches the red zone the batteries need to be recharged. Take the machine to a well ventilated

area, unwind the battery charger power cord from the electrical box cover and plug into an appropriate power source. After

approximately 10 seconds the battery charge status indicator will turn on.

For Wet batteries only: Check the battery water levels before each use, refill as needed with distilled water.

Caution: DO NOT OVERFILL. Fill water 1/4 “ - 1/2” above the separators. Failure to maintain the batteries may result

in battery failures.

WARNING: Charging batteries generates explosive gasses. Do not charge batteries when open flames or sparks are

present. Do not smoke. Charge the batteries in a well-ventilated area .

Solution Solenoid

Water solenoid will operate when the brush motor is turned on. The solution lever must be moved to the desired operating

position, but does not need to be moved to the closed position when stopping for brief periods.

Hour Meter (Optional):

Hour meter will automatically record operating time of the brush motor.

32

After Use

After Use

1. When finished scrubbing, lift the scrub deck. Lift the rear squeegee (the vacuum motor will turn off after 10 seconds).

Move the machine to a service area for daily maintenance and review items that may need service.

2. Empty the solution tank by disconnecting the solution tank drain hose from the barb fitting and routing hose to a

drain. Rinse the tank with clean water to prevent any buildup of dried chemicals that could clog the plumbing.

3. Empty and clean the recovery tank by flushing with a hose. Be sure to also clean the float shut off screen.

4. Remove the brushes or pad holders and rinse them in warm water and hang to dry.

5. Remove the rear squeegee and recovery hose, rinse with warm water and reinstall after cleaning (see page 13 for

correct hose installation).

6. Check the maintenance schedule in the next section and perform any required maintenance before storing the

machine.

7. Store the machine indoors in a clean dry place. Keep from freezing. Leave solution and recovery tank lids open for

ventilation to prevent odor buildup.

8. Turn Key switch OFF (O) and remove key.

33

Maintenance

Have a qualified service technician check the vacuum motor carbon motor brushes once a year or after 300 operating hours.

The brush motor and transaxle motor carbon brushes should be checked every 500 hours or once a year.

NOTE: Refer to the Service Manual for more detail on maintenance and service repairs.

Regularly scheduled lubrication of certain machine parts should be performed to insure trouble-free operation of the

machine. Apply a generous amount of grease into the fittings on the machine until grease seeps out around the bearings.

The grease points are listed below:

• Rear caster swivel (2)

Apply lubricant or light machine oil to lubricate the:

• Pivot mounting point of the squeegee lift mechanism to the chassis (1)

• Rear squeegee caster wheel axle (2)

Daily Weekly Monthly Yearly

Charge Batteries

Inspect Brush

Deck Splash

Guard for Debris

Lubrication –

Grease Fittings Check Carbon

Brushes

Check/Clean Tanks &

Hoses Inspect and

Clean In-Line

Solution Filter

Check/Clean/Rotate

the Brushes

Rinse off the

underside of

brush deck

Check/Clean the

Squeegee Check Each

Battery Cell(s)

Water Level

Check/Clean Vacuum

Shut-Off Float in

Recovery Tank

34

Troubleshooting

Problem Possible Cause Remed

y

Poor water pick-up

Worn or torn squeegee blades Rotate or replace blades

Recovery tank full Empty recovery tank

Recover

y

tank drain hose leak Secure drain hose ca

p

or re

p

lace

Recovery tank lid gasket leak Replace gasket lid cover properly

Debris cau

g

ht in s

q

uee

g

ee Clean s

q

uee

g

ee

Recovery hose clogged Remove debris and flush hose

Recovery hose to squeegee or tank

disconnected or damaged Reconnect or replace recovery hose

Poor scrubbing performance

Worn brushes Rotate or replace brushes

Wron

g

brush or cleanin

g

chemical Consult PowerBoss

Debris caught on scrub brushes Remove debris

Moving machine too fast Use appropriate speed

Low batter

y

char

g

e Rechar

g

e batteries

Not using enough solution Adjust solution flow setting

Inadequate solution flow or

no solution to the floor

Solution tank empty Fill solution tank

Solution lines or filter clo

gg

ed Flush lines and clean solution filter

Solution Lever in down position Raise lever up

Machine does not move

Squeegee is down and directional

switch is in reverse position Raise squeegee when in reverse

mode

Traction drive circuit breaker has tripped Reset circuit breaker

Batteries lost power Recharge batteries

Directional switch in neutral position Activate FWD or REV position

35

Troubleshooting

Problem Possible Cause Remed

y

Machine does not

operate

Tripped Control Power circuit breaker Reset circuit breaker

Batteries have low charge Recharge batteries

Batter

y

char

g

er o

p

eratin

g

Un

p

lu

g

batter

y

char

g

er when char

g

e is com

p

lete

Key switch off Turn key on

Bail handle depressed too quickly after

turning key on Turn key off, turn on, wait until battery gauge lights

up without flashing

Vacuum motor does not

turn on

Recover

y

tank full Em

p

t

y

recover

y

tank

Excessive foaming in recovery tank.

Empty recovery tank.

Rinse off the screened float inside recovery tank.

Use less or change chemical.

Use de-foaming agent.

Squeegee in raised position Lower squeegee

Tri

pp

ed vacuum motor circuit breaker Reset breaker

Broken vacuum limit switch Replace switch

Carbon Brushes worn Re

p

lace carbon brushes

Vacuum switch disconnected Connect wirin

g

Batteries do not charge

Charger not plugged to wall outlet Plug into wall outlet

Circuit breaker tri

pp

ed in wall outle

t

Reset breaker

Battery disconnected from machine Connect battery to machine

Charger malfunction Call service

Charger Warning Indicators

LED Status Descri

p

tion

Warning

RED LED lamp blink once Output open circuit or short circuit or reverse polarity connection of charger to

battery. Battery voltage is too high (may be connected to wrong voltage battery).

RED LED lamp blink twice Abnormal cycle (may be weak or bad battery)

Char

g

in

g

time has safet

y

timed out due to batter

y

p

roblem.

36

Troubleshooting

The battery needs charging, there is a bad

connection to the battery or dependent on

programming, may indicate that the battery

lockout function is active and the controller is

in a restricted mode of operation. Check the

connections to the battery. If the connections

are good, try charging the battery.

There is a bad connection to the motor. Check

all connections between the drive motor and

the controller.

The drive motor has a short circuit to a battery

connection. Contact your service agent.

The battery charge level has fallen below the

Battery Lockout level and the controller is

inhibiting certain machine functions. Charge

the battery.

Fault / Diagnostic Codes

The Battery / Fault gauge will flash when a fault is detected. A decal labeled “Diagnostic Codes” is located below the battery gauge as an abbreviated

and convenient guide to determine the cause of the fault and the remedy (refer to machine or see “Diagnostic Code Guide” section of this manual). The

flashing codes are for the following:

37

Troubleshooting

Not used.

The controller is being inhibited from driving,

this may be because the battery charger is

connected.

The bail handle was activated prior to turning

the machine on. Make sure that the bail handle

is in the rest position. Restart the key switch.

A controller fault is indicated. Make sure that

all connections are secure.

Not used.

An excessive voltage has been applied to the

controller. This is usually caused by a poor

battery connection. Check the battery

connections.

38

Revision F

Effictive November 1, 2008

Powerboss made Simple Industrial Limited Warranty

Minuteman International owner of PowerBoss warrants to the original purchaser/user that the product is free from defects in workmanship

and materials under normal use. PowerBoss will, at its option, repair or replace without charge, parts that fail under normal use and service

when operated and maintained in accordance with the applicable operation and instruction manuals. All warranty claims must be submitted

through and approved by factory authorized repair stations.

This warranty does not apply to normal wear, or to items whose life is dependent on their use and care. Parts not manufactured by

PowerBoss are covered by and subject to the warranties and/or guarantees of their manufacturers. Please contact Minuteman International

for procedures in warranty claims against these manufacturers.

Special warning to purchaser — Use of replacement parts not manufactured by PowerBoss or its designated licensees, will void all

warranties expressed or implied. A potential health hazard exits without original equipment replacement.

All warranted items become the sole property of Minuteman International or PowerBoss or its original manufacturer, whichever the case

may be.

PowerBoss disclaims any implied warranty, including the warranty of merchantability and the warranty of fitness for a particular purpose.

PowerBoss assumes no responsibility for any special, incidental or consequential damages.

This limited warranty is applicable only in the U.S.A. and Canada, and is extended only to the original user/purchaser of this product.

Customers outside the U.S.A. and Canada should contact their local distributor for export warranty policies. PowerBoss is not responsible

for costs or repairs performed by persons other than those specifically authorized by PowerBoss. This warranty does not apply to damage

from transportation, alterations by unauthorized persons, misuse or abuse of the equipment, use of non-compatible chemicals, or damage

to property, or loss of income due to malfunctions of the product. If a difficulty develops with this machine, you should contact the dealer

from whom it was purchased.

This warranty gives you specific legal rights, and you may have other rights, which vary from state to state. Some states do not allow the

exclusion or limitation of special, incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above

exclusions and limitations may not apply to you.

PowerBoss Incorporated Made Simple Commercial Limited Warranty

WARRANTY

39

Travel* Labor Parts Engine Extended Warranty Costs

Walk behinds

Battery sw eepers Ninety days One year One year N/A 2 years Parts + Labor (or 2000 Hours) 2%

IC sweepers Ninety days One year One year Through manufacturer 2 years Parts + Labor (or 2000 Hours) 2%

Battery scrubbers Ninety days Two years Three years N/A 3 Years Parts + Labor (or 3000 Hours) 2%

Ride r s

Battery scrubbers Ninety days Two years Three years/2000 hrs N/A 3 Years Parts + Labor (or 3000 Hours) 2%

IC sweeper/scrubbers Ninety days Six months Tw o years/2000 hrs Two years/3000 hrs** 2 years Parts + Labor (or 2000 Hours) 3%

IC sweepers Ninety days Six months Four years/3000 hrs Five years/3000 hrs**

Exceptions

Apex series sweeper Ninety days One year One year/1000 hrs One year/1000 hrs** 2 years Parts + Labor (or 2000 Hours) 3%

6X sweeper Ninety days Six months Two years/2000 hrs Two years/2000 hours** 2 years Parts + Labor (or 2000 Hours) 3%

4 Years Parts + 2 Years Labor (or 4000

Hour s ) 3%

Eight years / no additional labor

Polypropylene plastic tanksTen years / no additional labor

Batteries 0-3 months full replacement, 4-12 prorated credit

Chargers One-year replacement

Replacement parts Ninety days

*Two-hour cap

**Through engine manufacturer. See section 3 of warranty manual for engine warranty exceptions

*** Based upon dealer’s certification status

Extended Warranty MUST be signed up within 30 days of delivery to End User (Dealer has 1 Year from Receiving

Machine to Sign up for extended Warranty)

Extended Warranty Cost is based on Invoice Price multiplied by the Percentage listed in the Extended Warranty Column

PowerBoss Incorporated · 175 Anderson Street P.O. Box 1227 · Aberdeen, North Carolina 28315

Phone: 1-800-982-7141 · Fax: 1-800-277-7141 · Local: 1-910-944-7409

www.powerboss.com

A Member of the Hako Group 988737UMPBS

Rev * 04/13
