1

Call toll free 800.880.2913 • Order online at Powr-Flite.com/partsnow

Model PFMW14 PARTS Automatic Scrubbers

ref # item # description

1 90-0258-0000 csk screw m4x10

2 90-0001-0000 crph screw m3x6

7 90-0143-0000 csk screw m6x14

9 90-0293-0000 allen screw m6x10

10 90-0144-0000 allen screw m6x16

11 90-0005-0000 allen screw m6x20

13 90-0007-0000 washer 4.2x12x1.6

19 CAS88 bearing 6003 2rs

20 90-0121-0000 bearing 608 2z

24 90-0011-0000 belt 500 5 m

25 90-0012-0000 belt 425 5 m

28 90-0152-0000 washer

32 90-0154-0000 bumper front

34 90-0156-0000 bumper

42 90-0024-0000 brush slider

43 90-0025-0000 slider housing

46 90-0027-0000 seal

49 90-0029-0000 pinion

53 90-0031-0000 drum sprocket

59 90-0035-0000 pin

62 90-0176-0000 o-ring

63 90-0040-0000 shield

73 90-0183-0000 self tapping screw

ref # item # description

77 90-0020-0000 cap

80 90-0285-0000 gear housing

83 CAS117 housing sprocket

84 90-0264-0000 seal

87 90-0286-0000 gear – lh

88 90-0287-0000 gear - rh

92 90-0267-0000 shield

93 90-0294-0000 roller

105 90-0390-0000 bumper sleeve

111 CAS93 brush sprocket

114 90-0063-0000 gear sprocket

115 90-0065-0000 idler assembly

115a 90-0169-0000 sprocket

115b 90-0161-0000 hub

116 90-0197-0000 idler assembly

116a 90-0166-0000 sleeve

212 90-0392-0000 stub axle

V8 552580180 cover

HOUSING-DRIVE SIDE

*call for pricing and availability of all referenced parts

2Call toll free 800.880.2913 • Order online at Powr-Flite.com/partsnow

ref # item # description

1 90-0258-0000 csk screw m4x10

2 90-0001-0000 crph screw m3x6

6 90-0261-0000 csk screw m5x25

9 90-0293-0000 allen screw m6x10

10 90-0144-0000 allen screw m6x16

13 90-0007-0000 washer 4.2x12x1.6

15 90-0147-0000 washer 6.4x12x1.6

16 90-0395-0000 washer 9x17x1.6

17 90-0298-0000 spring washer m6

18 90-0148-0000 toothed washer m6

19 CAS88 bearing 6003 2rs

21 90-0149-0000 wire tie

32 90-0154-0000 bumper

33 90-0155-0000 bush

34 90-0156-0000 bumper

39 90-0123-0000 stub axle

43 90-0025-0000 slider housing

46 90-0027-0000 seal

58 90-0033-0000 slider transport

59 90-0035-0000 pin

62 90-0176-0000 o' ring

63 90-0040-0000 shield

68 90-0179-0000 fan cover

72 90-0045-0000 grommet

73 90-0183-0000 self tapping screw

75 90-0048-0000 cap

77 90-0020-0000 cap

79 90-0188-0000 stopper

81 90-0259-0000 pedal

ref # item # description

86 90-0297-0000 nut

89 90-0269-0000 connector

92 90-0267-0000 shield

93 90-0294-0000 roller

94 90-0290-0000 socket assembly

94a 90-0291-0000 socket

94b 90-0292-0000 terminal

95 90-0278-0000 cable

96 90-0279-0000 cable

97 90-0280-0000 cable

98 90-0281-0000 cable

100 90-0260-0000 spring-pedal

105 90-0390-0000 bumper sleeve

106 90-0396-0000 csk screw m4x8

129 90-0265-0000 lever switch act

131 90-0262-0000 insulation top

132 90-0263-0000 insulation bottom

133 90-0295-0000 nut

188 90-0397-0000 sleeve tie rod

212 90-0392-0000 stub axle

242 33864 clamp wire

248 33865 cable assembly

252 33866 switch 21a

313 552580189 electrical assembly - 34t-110v

V3 90-0056-0000 circuit breaker (10a)

V5 552580172 idle housing-blue

V8 552580180 cover-blue

V11 552580174 housing assembly complete

V 552580182 cover assembly complete

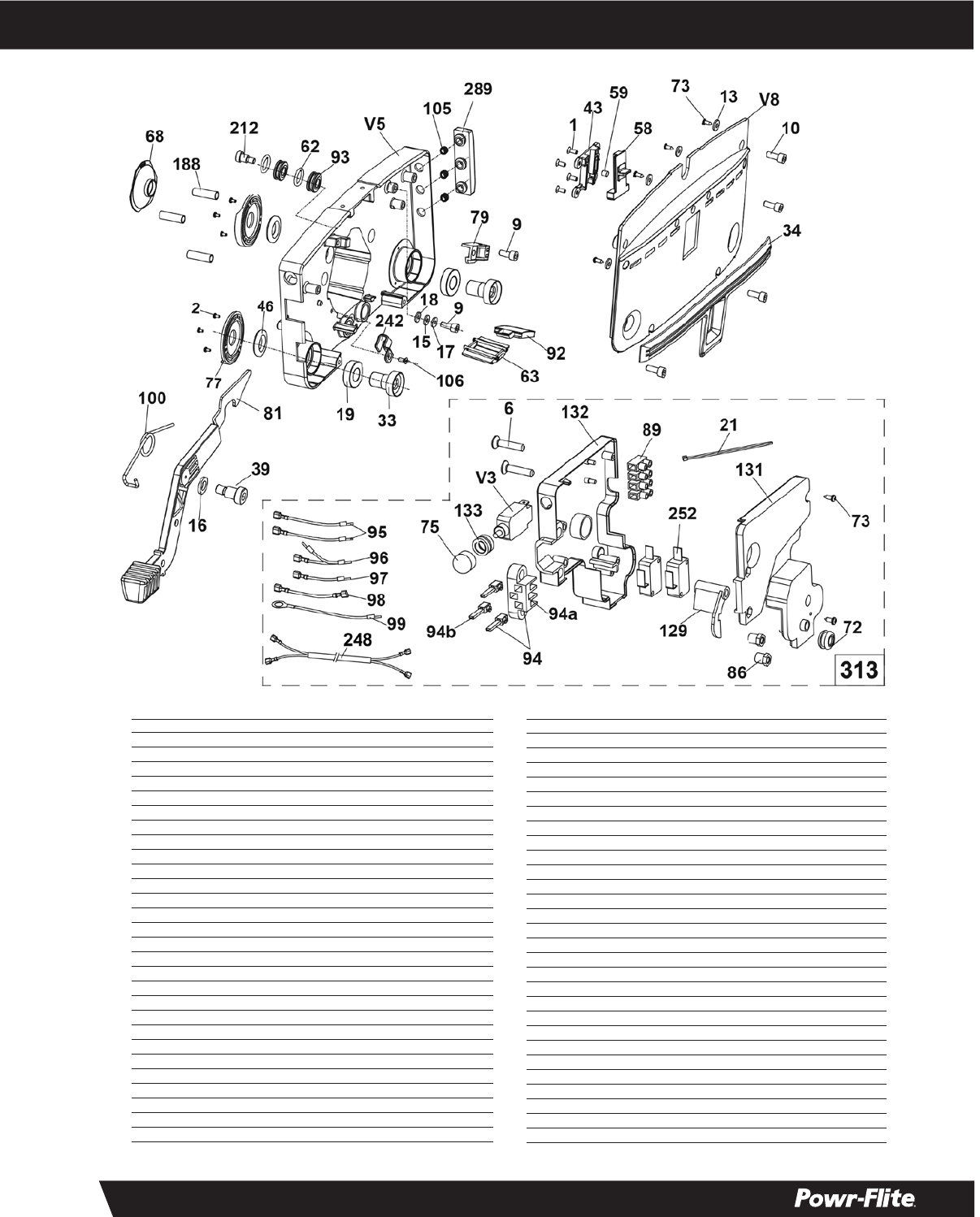

HOUSING-IDLE SIDE

*call for pricing and availability of all referenced parts

Automatic Scrubbers Model PFMW14 PARTS

Model PFMW14

3

Call toll free 800.880.2913 • Order online at Powr-Flite.com/partsnow

ref # item # description

13 90-0007-0000 washer

40 90-0001-0000 gasket

72 90-0045-0000 grommet

102 90-0113-0000 lter

103 90-0192-0000 body-valve-34t

107 90-0224-0000 seal-w34t

121 90-0072-0000 dirty water tank

122b 90-0055-0000 lid pad

123 90-0075-0000 lid assembly-dirty water

123 90-0184-0000 lid-dirty water

154 90-0104-0000 hose-275

165 90-0141-0000 hex nut m4

168 90-0349-0000 strip lid

170 90-0403-0000 hose-165

173 90-0404-0000 hose connector

174 90-0405-0000 boot-lid

249 33879 capacitor-63.5mfd

270 33874 washer m4x12x0.5

271 33875 csk screw m4x15

277 818106 crph screw m4x16

278 90-0074-00 lid tank

279 552530028 cap valve-34t-110v

280 90-0409-000 tank assembly w/label

ref # item # description

4 90-0046-0000 crph screw m4x12

26 90-0151-0000 clevis pin

29 90-0153-0000 clevis pin

41 90-0159-0000 link

45 90-0286-0000 shield

47 90-0163-0000 lever

64 90-0177-0000 lever button

76 90-0051-0000 circlip

78 90-0186-0000 link guide

82 90-0284-0000 spring

91 90-0257-0000 bush

113 90-0196-0000 wheel

118 90-0068-0000 lever assembly

118a 90-0173-0000 lever

119 90-0069-0000 lever assembly

119a 90-0174-0000 lever

120 90-0070-0000 lever assembly

120a 90-0175-0000 lever

128 90-0266-0000 lever switch

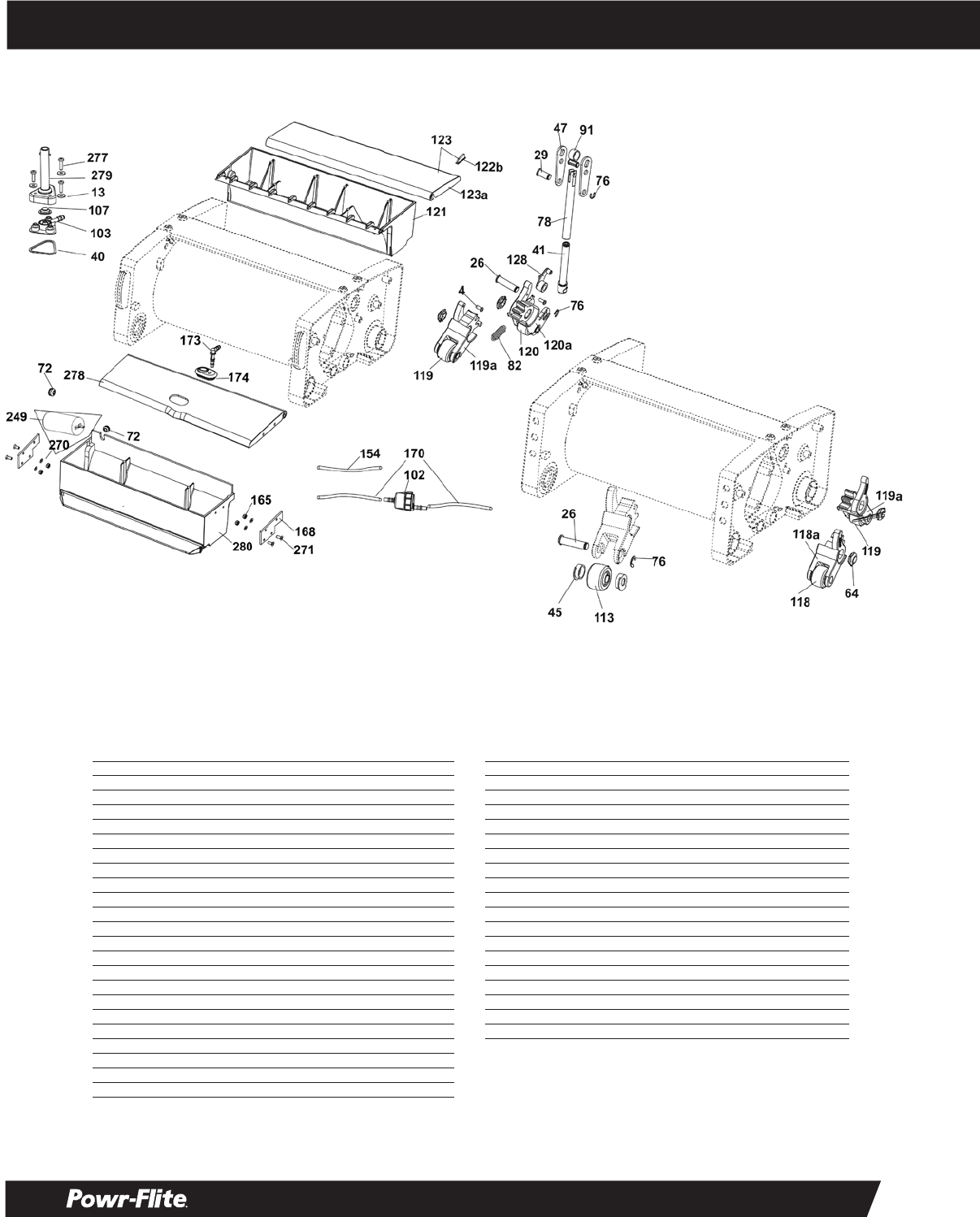

PUMP HOUSING

LEVER AND GUIDE LINK MECHANISM

*call for pricing and availability of all referenced parts

Model PFMW14

Model PFMW14 PARTS Automatic Scrubbers

Automatic Scrubbers Model PFMW14 PARTS

4Call toll free 800.880.2913 • Order online at Powr-Flite.com/partsnow

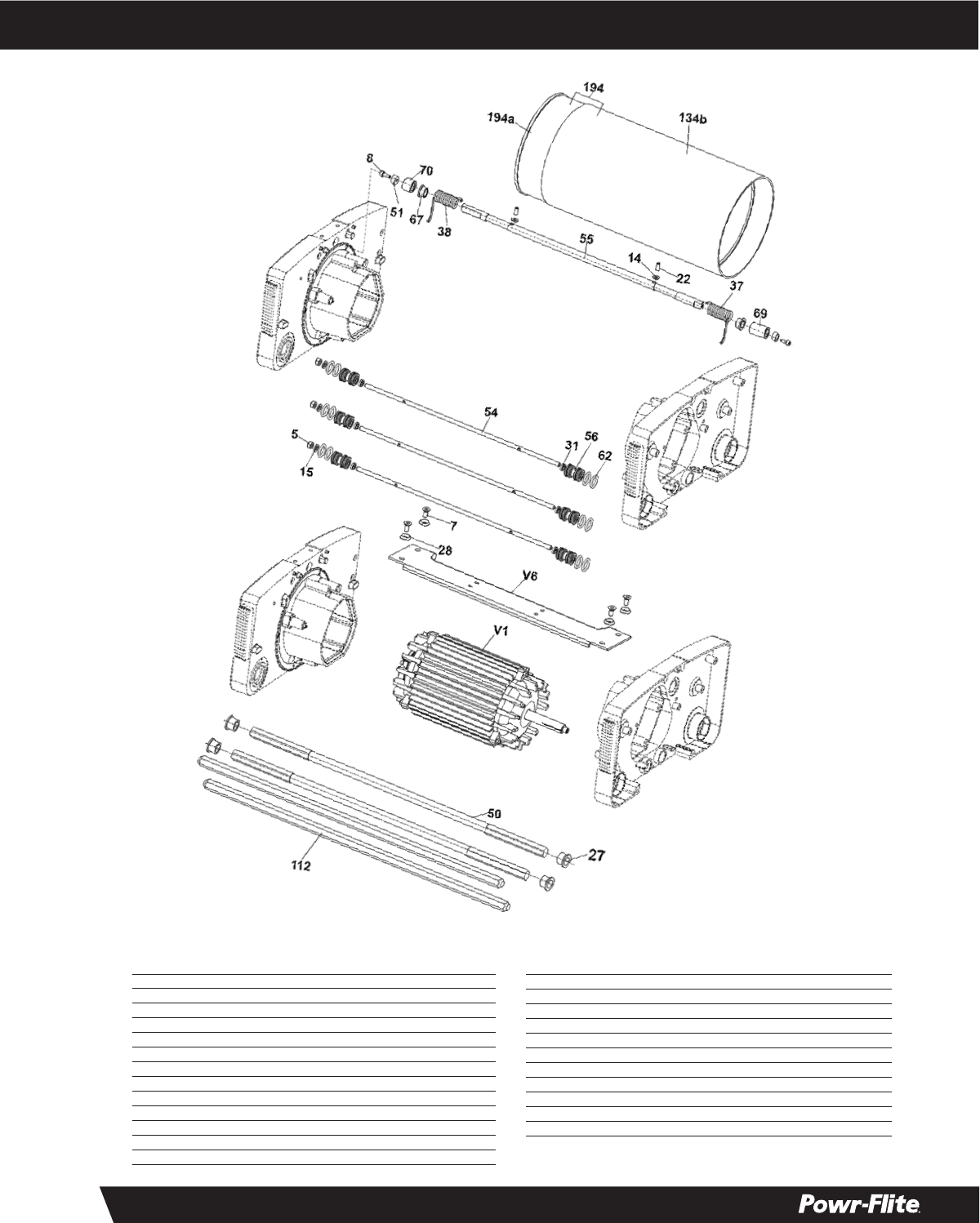

MOTOR, DRUM AND

BRIDGE ASSEMBLY

*call for pricing and availability of all referenced parts

ref # item # description

5 90-0142-0000 hex nut m6

7 90-0143-0000 csk screw m6x14

8 90-0004-0000 allen screw m4x10

14 90-0146-0000 washer 5.2x10x1.6

15 90-0147-0000 washer 6.4x12x1.6

22 90-0150-0000 grub screw m5x12

27 90-0015-0000 bush

28 90-0152-0000 washer

31 90-0017-0000 washer

37 90-0157-0000 spring

38 90-0158-0000 spring

50 90-0167-0000 hex shaft

51 90-0030-0000 washer

ref # item # description

54 90-0170-0000 tie rod

55 90-0171-0000 shaft

56 90-0172-0000 roller

67 90-0178-0000 bush

69 90-0180-0000 bush

70 90-0181-0000 bush

112 90-0062-0000 brush shaft

134 90-0306-0000 drum assembly

134b 90-0304-0000 drum sleeve

V1 90-0193-0000 motor (110v//60hz)

V6 552580186 bridge assembly-blue

Automatic Scrubbers Model PFMW14 PARTS

Model PFMW14

5

Call toll free 800.880.2913 • Order online at Powr-Flite.com/partsnow

ref # item # description

3 90-0002-0000 crph screw

4 90-0046-0000 crph screw

11 90-0005-0000 allen screw

12 90-0006-0000 washer

23 90-0010-0000 cable retainer

35 90-0018-0000 clamp

44 90-0026-0000 pull handle

48 90-0165-0000 cap

52 90-0168-0000 base-cable holder

57 90-0032-0000 clamp

60 90-0038-0000 nut

65 90-0041-0000 spring

66 90-0042-0000 washer

71 90-0044-0000 plug

73 90-0183-0000 self tapping screw

117 90-0067-0000 top handle

126 90-0296-0000 knob

135 90-0235-0000 bottom handle

152 90-0101-0000 gasket

153 90-0103-0000 tank-4l

ref # item # description

160 90-0110-0000 base valve

160a 90-0202-0000 base

160b 90-0206-0000 seal

160c 90-0210-0000 cap-valve

161 90-0111-0000 valve

161a 90-0203-0000 body-valve

161b 90-0341-0000 seal

161c 90-0229-0000 spring

161d 90-0204-0000 cap-spring

179 90-0092-0000 nut

189 33881 sleeve

224 90-0402-0000 knob-cable holder-ii

225 90-0429-0000 knob-cable holder-i

226 90-0443-0000 knob-tank holder-lh

227 90-0444-0000 knob-tank holder-rh

228 90-0445-0000 base-cable and tank holder

229 33882 guide-110v

230 90-0451-0000 pipe-lh

231 90-0452-0000 pipe-rh

281 552580183 pull cable assembly

v4 33883 power cord-yellow

*call for pricing and availability of all referenced parts

Model PFMW14

Model PFMW14 PARTS Automatic Scrubbers

HANDLE ASSEMBLY

Automatic Scrubbers Model PFMW14 PARTS
