WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY

BEFORE OPERATING THIS EQUIPMENT.

Self-Contained Carpet Extractor

OPERATORS MANUAL AND PARTS LIST

Model PFX900S

X8686 1/06

ATacony Company

3101 Wichita Court • Fort Worth,TX 76140

1.800.880.2913

OPERATING INSTRUCTIONS

COMMERCIAL AND HOUSEHOLD

SELF CONTAINED EXTRACTOR

CONGRATULATIONS

YOU HAVE JUST ACQUIRED A HIGH QUALITY SELF

CONTAINED EXTRACTOR. PLEASE READ THIS MANUAL

CAREFULLY, BEFORE OPERATING YOUR NEW SELF

CONTAINED EXTRACTOR. KEEP MANUAL ON HAND

FOR FURTHER REFERENCES.

–2–

READ ALL INSTRUCTIONS BEFORE USING!

CARE OF THIS SELF-CONTAINED EXTRACTOR

Treat this unit as you would any other high grade precision

made product. Dropping, unreasonable bumping across

thresholds and other misuses may result in a damaged

unit which will not be covered by warranty. When not in

use, power cord should be wrapped around handle for

storage.

Read this manual completely before operating this extrac-

tor. It is important to follow instructions in this manual to

prevent the possibility of injury or damage to the user

and/or machine.

Congratulations on purchasing a Powr-Flite self-contained

extractor. Given proper care, this product will afford you

many years of trouble-free operation. All parts have

passed rigid quality control standards before being assem-

bled to produce the finished product.

Prior to packaging, the extractor is again inspected for

assurance of flawless assembly. This unit is protectively

packed to prevent damage in shipment. We recommend

removal and inspection of unit upon delivery for possible

damage in transit. Only a visual examination will reveal

damage that may have occurred.

If damage is discovered, immediately notify the transporta-

tion company that delivered your extractor. As a shipper,

we are unable to report claims for concealed damage.

You must originate any claim within 5 days of delivery.

This manual is for your protection and information.

PLEASE READ CAREFULLY since failure to follow

precautions could result in discomfort or injury. When

using electrical equipment, basic safety precautions should

always be followed.

TABLE OF CONTENTS

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

SAFETY PRECAUTIONS (English) ...................3

GROUNDING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . 4

SAFETY PRECAUTIONS (Spanish) (French). . . . . . . . . . . 5

GENERAL INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . 6,7

Machine Components . . . . . . . . . . . . . . . . . . . . 6

Machine Operation. . . . . . . . . . . . . . . . . . . . . . . 6

Pre-operation Checks .....................6

Cleaning Procedure (accessories) . . . . . . . . . . 7

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Routine Care & Maintenance . . . . . . . . . . . . . . 7

ILLUSTRATED PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . 8-11

MAINTENANCE GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . 12

–3–

GROUNDING INSTRUCTIONS

DANGER:Improper use of the grounding plug can result

in a risk of electric shock.

GROUNDING INSTRUCTIONS

GROUNDING METHODS

NOTE: In Canada, the use of a temporaryadapter is not permitted

bythe Canadian Electrical Code.

This extractor must be properly grounded. If it should malfunction or breakdown, grounding provides a path of least resis-

tance for electrical current to reduce the risk of electric shock. This machine is equipped with 1 or 2 pigtail cords having

an equipment-grounding conductor and grounding plug. The pigtails must be inserted into an appropriate 12 gauge 3

prong extension cord.

This unit is for use on a nominal 120 volt circuit and has a

grounded plug that looks like the plug illustrated in (Fig. A).

WARNING!

Improper connection of the equipment-grounding conductor can result in a risk of electric shock.

Check with a qualified electrician or service person if you are in doubt as to whether the outlet is

properly grounded. DO NOT modify the plug provided with the appliance. If it will not fit the out-

let, have a proper outlet installed by a qualified electrician.

–4–

IMPORTANT SAFETY PRECAUTIONS

WARNING!: To reduce the risk of fire, electric shock, or injury

When using this self contained extractor,basic precautions

should always be followed, including the following:

1) DO NOT leave unit when plugged in. Unplug from

outlet when not in use and before servicing.

2) DO NOT allow unit to be used as a toy.Close

attention is necessary when used around or near

children.

3) Use only as described in this manual. Use only

manufacturer’srecommended attachments.

4) DO NOT use with damaged cord or plug. If unit is

not working properly because it has been dropped,

dropped into water, left outdoors, or damaged in any

way, contact a service center of Powr-Flite®.

5) DO NOT pull or carry by cord, use cord as a handle,

close door on cord, or pull cord around sharp edges

or corners. DO NOT run unit over cord. Keep cord

away from heated surfaces.

6) DO NOT unplug by pulling on cord. Tounplug, grasp

the plug, not the cord.

7) DO NOT handle plug or appliance with wet hands.

8) DO NOT put any objects into openings. DO NOT use

with any opening blocked: keep free of dust, lint,

hair,or anything that may reduce air flow.

9) Keep hair, loose clothing, fingers, and all parts of

body away from openings and moving parts.

10) DO NOT pick up anything that is smoking or

burning such as cigarettes, matches, or hot ashes.

11) DO NOT use to pick up hazardous chemicals.

12) Turn off all controls before unplugging.

13) Turn unit offimmediately if foam or liquid comes from

machine exhaust. Empty and clean out recovery

(dirty) tank and use defoamer to correct the problem.

14) DO NOT use to pick up flammable or combustible

liquids such as gasoline or use in areas where they

may be present.

15) DO NOT use where oxygen or anesthetics are used.

16) Extension cord must be a three-wire type, 14 guage

or larger,to ensure grounding protection.

17) Replace damaged or worn parts immediately with

genuine original equipment parts to maintain safety.

18) This unit must be connected to a properly grounded

outlet only. See grounding instruction.

WARNING

To avoid fire, DO NOT use

with a flammable or

combustible liquid to

clean floor.

WARNING

To avoid electric

shock, DO NOT

expose to rain.

Store Indoors.

–5–

–6–

GENERAL INSTRUCTIONS

1) Fill the solution tank with 9 gallons of warm water.

WARNING: DO NOT overfill.

2) Measure carpet cleaning solution per manufactur-

ers recommended ratio into the clean water tank.

DO NOT use the waste tank to fill the solution

tank as debris could damage the pump or block

the jet. WARNING: DO NOT exceed 150° (65° C)

3) Add defoamer solution per manufacturer’s instruc-

tions as needed.

PRE-OPERATION INSTRUCTIONS for PFX900S

OPERATION OF SELF-CONTAINED CARPET CLEANER

NOTE: (color fastness) Before using carpet cleaning chemicals, test on an inconspicuous part of the carpet for color fastness.

Place the solution on a small piece of clean white material or tissue, then rub the carpet vigorously. Excessive amounts of dye showing

onthe material would indicate that the colors are not fast, and should not be wet cleaned.

1) Plug main power cable into outlet.

WARNING: This machine must be properly

grounded.

2) Press the Vac switch to the ON position. Then

press the pump switch ON and the brush switch to

the ON position.

3) Lower carpet brush. Push brush lowering pedal

forward to lower brush. Push down and back to

raise bush.

4) Press and hold the solution switch to apply the

cleaning solution. Pull the machine backwards at

the same time to clean the carpet. Stop the solu-

tion spray about 12” (30cm) before the end so all of

the solution is vacuumed up. Slightly overlap the

next cleaning pass to prevent streaking. Atwo (2)

wet pass maximum is recommended to avoid over-

wetting. After a few passes, check the waste tank to

see that no foam is present. Add extra defoamer if

necessary.

5) Make sure to empty the recovery (top) tank when it

is approximately 3/4 full. Do not refill the solution

tank without emptying all the contents of the recov-

ery tank first.

Solution switch

Solution tank

Recovery tank

Vac shoe

Brush and spray

Brush lowering

pedal

–7–

DAILY/INTERVAL

1) Check the spray jet for blockage and a uniform spray pattern. Remove jet and blow through to clean. Do not use a

pin as this may cause damage to the jet.

2) Check and remove any debris or lint build-up from the vacuum head, brush, and brush housing.

3) Always wash out the tanks with clean water after use. To do this, pour clean water into the solution tank and spray

through spray tip to clear chemical residue from the pump, lines, and spray tip. Allow the vacuum to run for a few

minutes after use to aid the machine in drying out and to help prevent bacteria and odors.

WEEKLY

1) Inspect hoses (unseen blockages sometimes occur), hose cuffs, and the rubber seal on the recovery tank lid. The

main cable, plug, and switches should also be examined for damage.

NOTE: It is advisable to store the unit with the recovery tank lid removed.

CAUTION: THIS UNIT MUST BE PROTECTED FROM FREEZING.Damage from freezing could cause machine to

malfunction.

GENERAL INSTRUCTIONS

STORAGE

WHEN CLEANING IS FINISHED:

1) Connect the drain solution hose (gray hose with

brass connector) to the solution fitting at the front of

the machine and place the other end at drain. Turn

on the PUMP switch. This will pump the remaining

solution into the waste tank for easy drainage.

2) To disconnect the solution hose, push in on the ring

of the solution filling. Switch off the machine,

remove power plug from the socket, and empty the

waste tank. Leave waste tank open when storing.

3) Leave brush raised for storage.

ACCESSORIES / TOOLS (OPTIONAL)

For upholstery cleaning and inaccessible areas.

Attach recovery hose to recovery hose position of vac-

uum shoe. Connect the accessory solution hose to the

solution fitting at the front of the machine by pushing

back the locking ring to fit. Turn on vacuum and pump.

ROUTINE MAINTENANCE INSTRUCTIONS

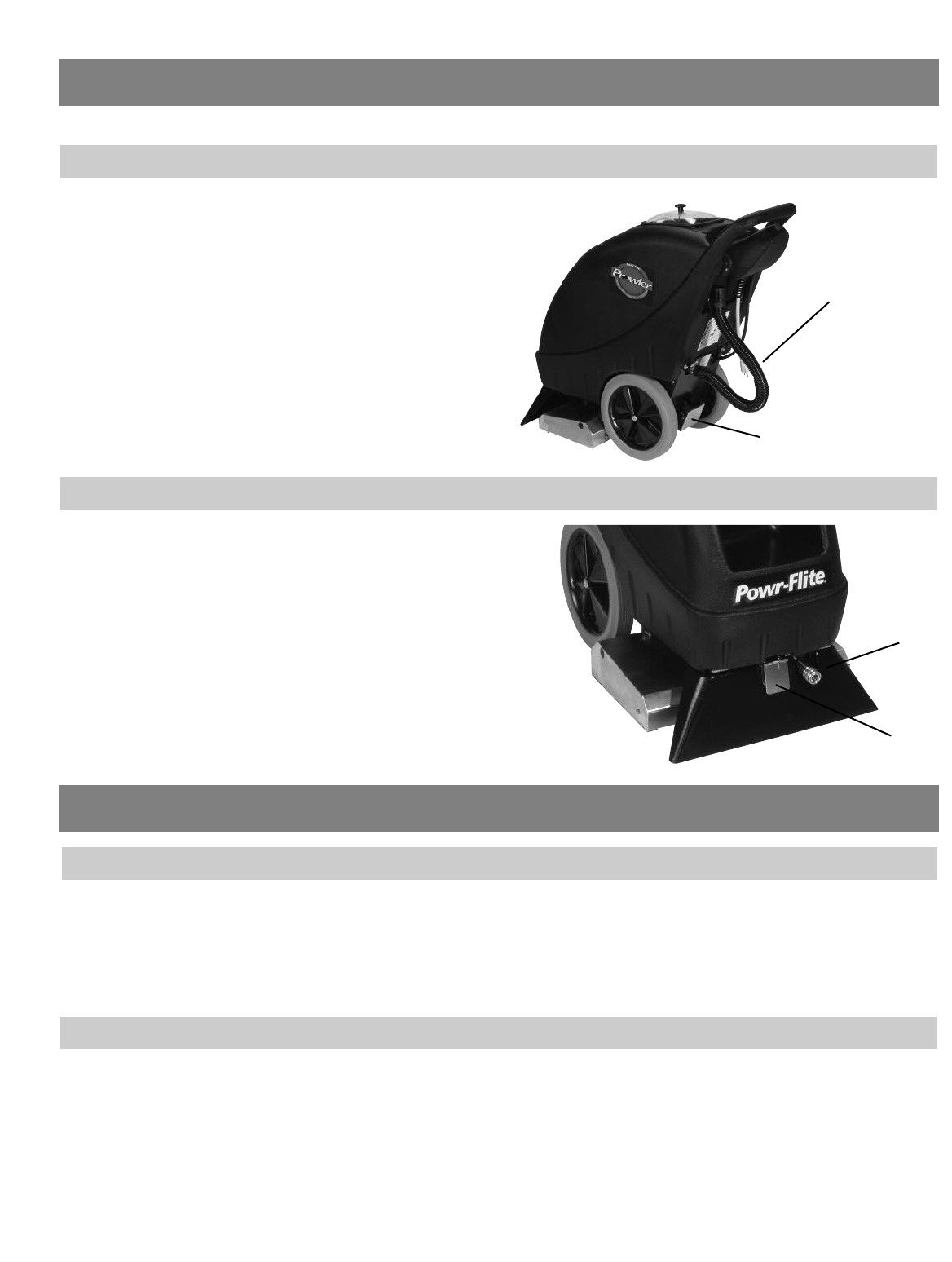

Tank drain hose

Brush adjustment pedal

Solution hose

connection

Vacuum hose

connection

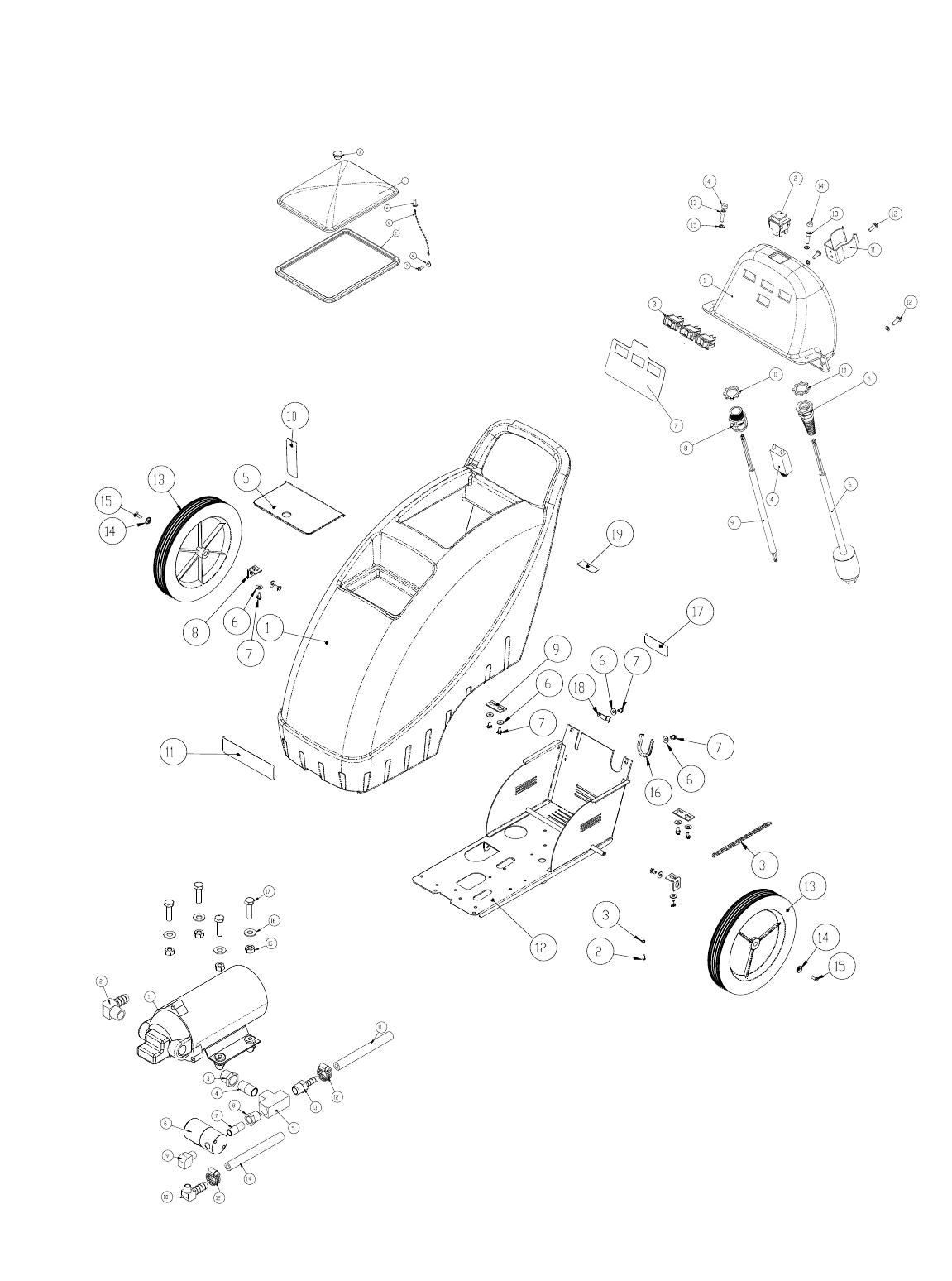

SELF-CONTAINED EXTRACTOR PFX900S PARTS

–8–

Pump

Control Panel

Recovery Dome

Solution Tank

–9–

Brush Housing Recovery Tank

Solution Fitting

Brush Motor Base

Manifold

Brush

Vacuum Shoe

ref# order# description

BRUSH HOUSING :

1X9015 brush housing weldment

27BF008 nut

3X9004 brush drive belt

4X9003 bridge rectifier

5X8055 strain relief

6X9107 brush lift bracket

7X8256 nut

872142A plug, 7/8" black nylon

9X9030 foot pedal pin

10X9026 brush lift pedal

11X9122 safety walk tape, 1" wide, black

12 72241A washer

13X9114 e-ring

14X9128 label

15 7BS002 screw

16 7CY001 washer

1771651A screw

18 7CW003 screw

19 X8237 nut

207BR005 screw

21X8830 nut

22 7BH004 screw

BRUSH MOTOR BASE:

1X8830 nut

2X9002 motor, 120V DC

X9119 motor, 220V DC - for 220v model only

3X9099 spacer

4X9116 drive pulley

5X9118 screw

6X9015 motor cover

7X9126 gasket, brush motor cove

8X9015B belt cove

BRUSH:

1X9017 brush axle

2X9070 brush, 3” diameter x 18” chevron

3X9001 brush bearing

4X9117 brush driven pulle

5X9018 brush bearing spacer,nylon

6X9019 brush bearing shield

7X9020 brush thread guard

8X9118 screw

9X9115 washer

CONTROL PANEL:

1X9043 housing, cover, blue

2X9008 push button switch

3X9007 rocker switch

472086A circuit breaker, 2.5 amp

5X8008P strain relief, plastic

672315A power cord

7X9093 label, 3-hole switch panel

X9094 label, 3-hole switch panel - models w/heater

8PD8 strain relief

9M1409 14/8, 600 volts cord

10 X8008N nut, lock

11 72049A spring clip

12 71651A screw

13 X9135 screw

14 7DN004 nut cap

15 7CM003 washer

MANIFOLD:

1X9021 spray manifold

2X9141 miniature nozzle bod

3X9139 miniature nozzle tip

47AK003 elbow, union

5PC66 fitting, brass, 1/8 nptm x 1/4 hose bar

6X8542 hose, solution

77DL003 clamp

8X8293 washer, nylon

97CM007 washer

PUMP, 100 PSI:

1SF814 100 p.s.i. Shurflo pump, 115V

FJ2002 100 p.s.i. Shurflo pump - for 220V models only

271507A elbow, 1/2h - 3/8 mpt, 90°

3PC20 reducer,3/8” male x 1/4" female

4PX32 fitting, brass, 1/4" close nipple

57AV001 1/4 female tee

6SW132 solenoid, 120V,250 p.s.i.

SW132-5 solenoid, 220V, 400 p.s.i. - for 220v models

7PC45 1/8" close nipple

87AG002 bushing

9SW139 1/8” street elbow, 90°

10 7AT006 barb, elbow, 90

1171817A hose, 1/4" braide

ref# order# description

12 7DL003 clamp

137AT003 hose barb

14X8542 hose, solution

15 X8237 nu

16X8858 washer

17X8211 bolt

RECOVERY DOME:

1X9034 recovery tank dome

2X9124 recovery dome gasket

3X9110 knob, large dome li

4X9098 screw

5X9068 chain

67CM003 washe

7X8849 screw

RECOVERY TANK:

1X9041 recovery tank housing, blue

2X9129 vacuum stack assembl

3PX14A gasket

4X9075 bushing

572173A spring cli

6X9053 float cage

77DL005 clam

8X9120-1 vacuum motor gasket

972365A 3-stage vacuum moto

10 PX65 fitting, plastic

11X9092 vac hose w/cuff

12PX11A fitting, plastic elbow, 90°

13 X8222 screw

14 X8212 washe

15 X8213 nu

16 72605A space

17 X8289 screw

18 PAS37 drain hose

19 PAS36 plug, drain hose

20 X8262 screw

21 X9071 gasket

22 X9033 small dome

23 X9084 cover gasket

24 X9080 recovery tank float cover

25 PX46 nut, lock

26 X9142 screw

27 X9143 screw

SOLUTION FITTING:

1PX48 fitting, brass bulkhead

272274A washer

371495A pump protection filter

47AT017 barb, beaded

570079C hose, 1/2" wire reinforced

67DL008 clamp, 1/2" worm gear

VACUUM SHOE:

1X9009 vacuum shoe, aluminum

2X9013 vacuum shoe tub

3X9014 hinge

4X8222 scre

57CM007 washer

6PX6 1/4 x 1/4 female quick disconnect brass fitting

77AT003 hosebarb fitting

87DL003 clamp, 1/4" worm gear

9X9096 flip door hinge w/ spring assembly

10 X9097 gasket, flip door

117BH004 screw

12 7CL002 washer

13 X8282 bolt

14 X8209 screw

15 7CY002 washer

16 7CN001 nut

SOLUTION TANK:

1X9042 housing, solution, blue

27BS002 screw

3X8256 nut

4X9144 28" chain

5X9081 lid, solution tank

6X8235 washer

7X8209 screw

8X9086 bracket, tank mount

9X9085 bracket, tank mountin

10 X9125 label, tank capacit

11X8400A Powr-Flite label

weldment

12 X9012 main chassis

13 X9066 wheel, blac

14 X8020 washer, countersunk axle

15 X8265 screw

16 X9109 grommet

ating instruction

17 X9057 label, oper

18 X9111 cord clamp

19 X9134 brush warning label

SELF-CONTAINED EXTRACTOR PFX900S PARTS

–10 –

SAVE THESE INSTRUCTIONS

MAINTENANCE GUIDE

WARRANTY

The manufacturer warrants to the original purchaser that products manufactured are free

from defects of workmanship and material, provided such goods are installed, operated

and maintained in accordance with written manuals or other instructions for a period of

1year from date of purchase on parts and workmanship. In case you as our customer,

meet any trouble with your machine, contact your Powr-Flite® representative who will be

happy to be of service to you and will take care of the warranty settlement.

NOTE: Alterations and changes made to the machine without written approval of the

manufacturer and use of unapproved spare parts will not be covered by warranty.

Motors not running

CAUSE: SOLUTION:

1) Power not reaching main switch. 1) Check power supply. Check fuses/circuit

breaker. Contact service center.

2) Defective power cord. 2) Replace with 14 guage cord.

3) Faulty switches or wiring. 3) Contact manufacturer or service center.

4) Blown fuse or tripped circuit breaker 4) Reset circuit breaker according to operating

instructions or replace fuse if qualified..

5) Problem with brushes, field windings,

or armatures. (vacuum or brush motor) 5) Contact manufacturer or service center.

Loss of vacuum suction

CAUSE: SOLUTION:

1) Vacuum head blocked. 1) Visually inspect and clear blockage.

2) Hoses blocked. 2) Visually inspect and clear blockage.

3) Recovery tank not sealed properly. 3) Check tank for damage or adjust lid

for proper fit.

Brush not functioning properly

CAUSE: SOLUTION:

1) Belt broken. 1) Replace belt.

2) Brush jammed. 2) Visually inspect and clear blockage.

3) Clutch bearing seized. 3) Contact manufacturer or service center.

Spray jet not functioning properly

CAUSE: SOLUTION:

1) Jet blocked. 1) Visually inspect and clean according to

operating instructions.

2) Solution filter blocked. 2) Visually inspect and clean according to

operating instructions.

3) Pump head, valves or diaphram blocked 3) Contact manufacturer or service center.

or damaged.

4) Solenoid valve inoperative 4) Contact manufacturer or service center.

5

YEARS on 

One Piece 

Housing

2

YEARS on 

Brush Motor



1

YEAR on 

Parts & Our 

Workmanship
