Razor 17B 20B 20BT Parts Manual

Razor 17B - 20B - 20Bt Parts Manual Razor_17B_-_20B_-_20BT_parts_manual Razor_17B_-_20B_-_20BT_parts_manual 1231 file product_file sweepscrub

2016-03-09

: Sweepscrub Razor 17B - 20B - 20Bt Parts Manual Razor_17B_-_20B_-_20BT_parts_manual 1230 file product_file

Open the PDF directly: View PDF PDF.
Page Count: 38

Razor 17B - 20B - 20BT
Razor 17B - 20B - 20BT
PARTS LIST
908 7010 020 - 908 7011 020 - 908 7025 020
KENT/Euroclean MODELS:
L08812947(4)2006-12
RAZOR 17B/ RAZOR 20B/ RAZOR 20BT
TABLE OF CONTENTS
1
2003-09
GENERAL VIEW
TANK SYSTEM
HANDLE ASSEMBLY
CHASSIS SYSTEM
CHASSIS SYSTEM RAZOR 20BT

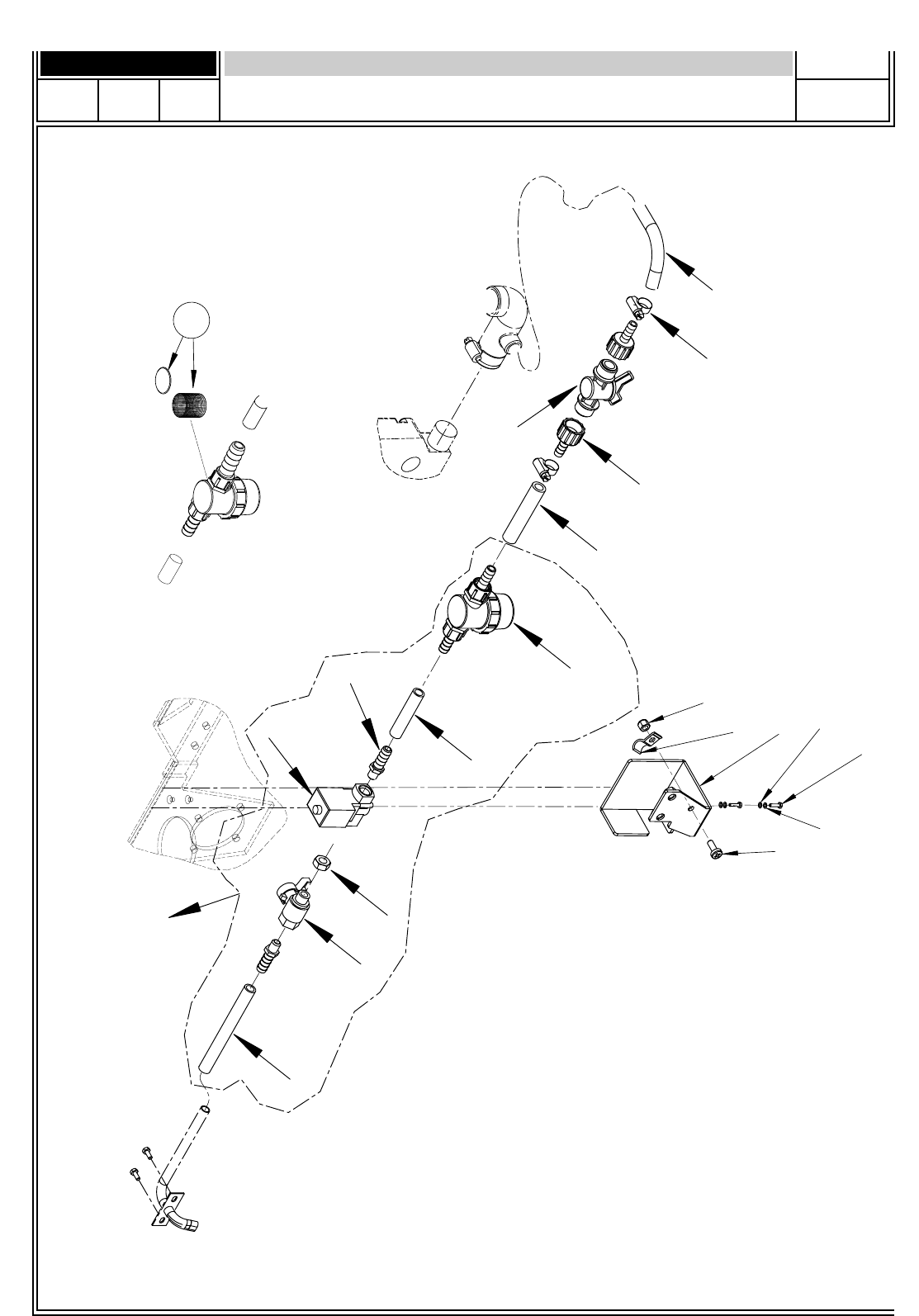

SOLUTION SYSTEM
SOLUTION SYSTEM
SOLUTION SYSTEM RAZOR 20BT

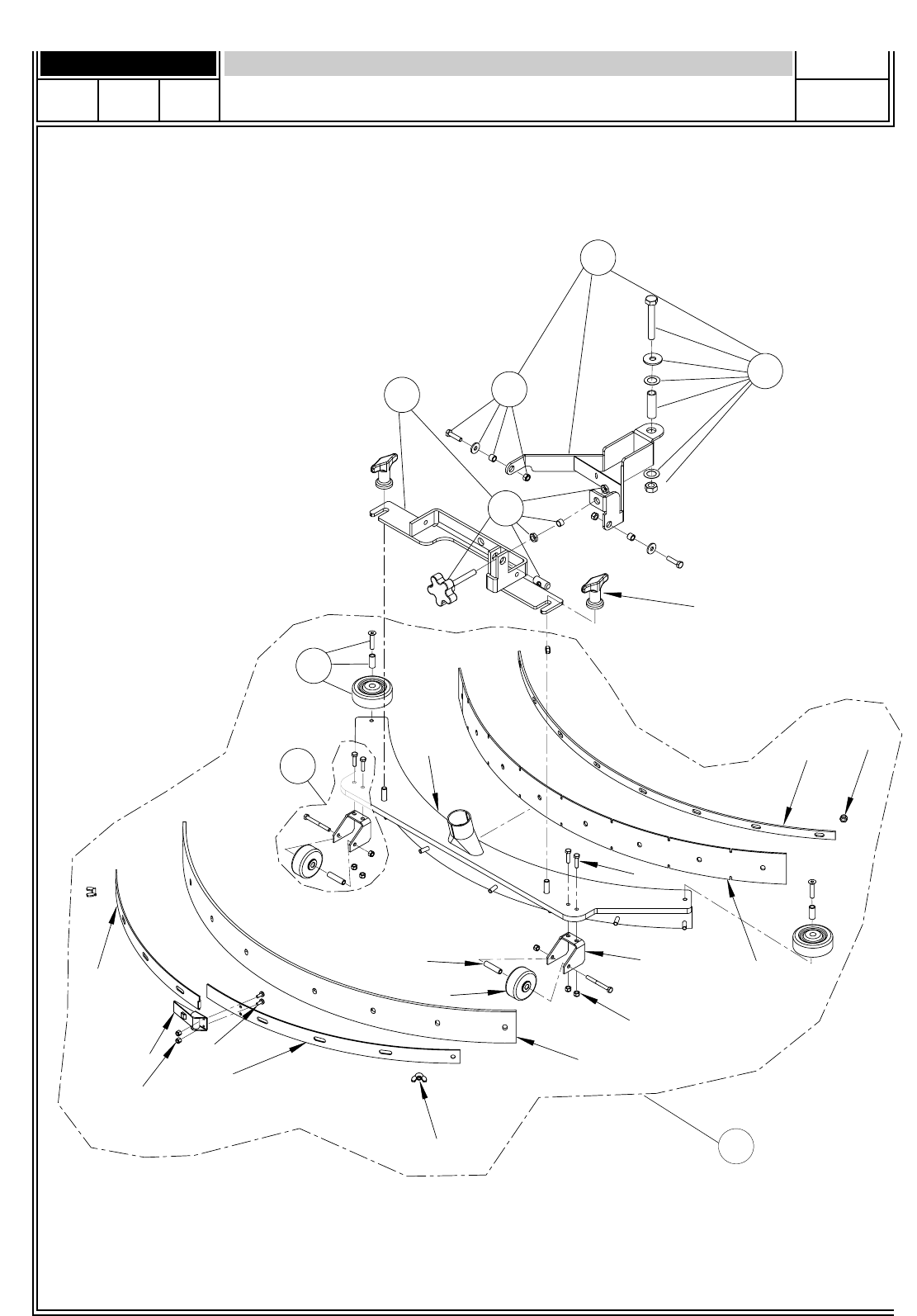

SQUEEGEE ASSEMBLY

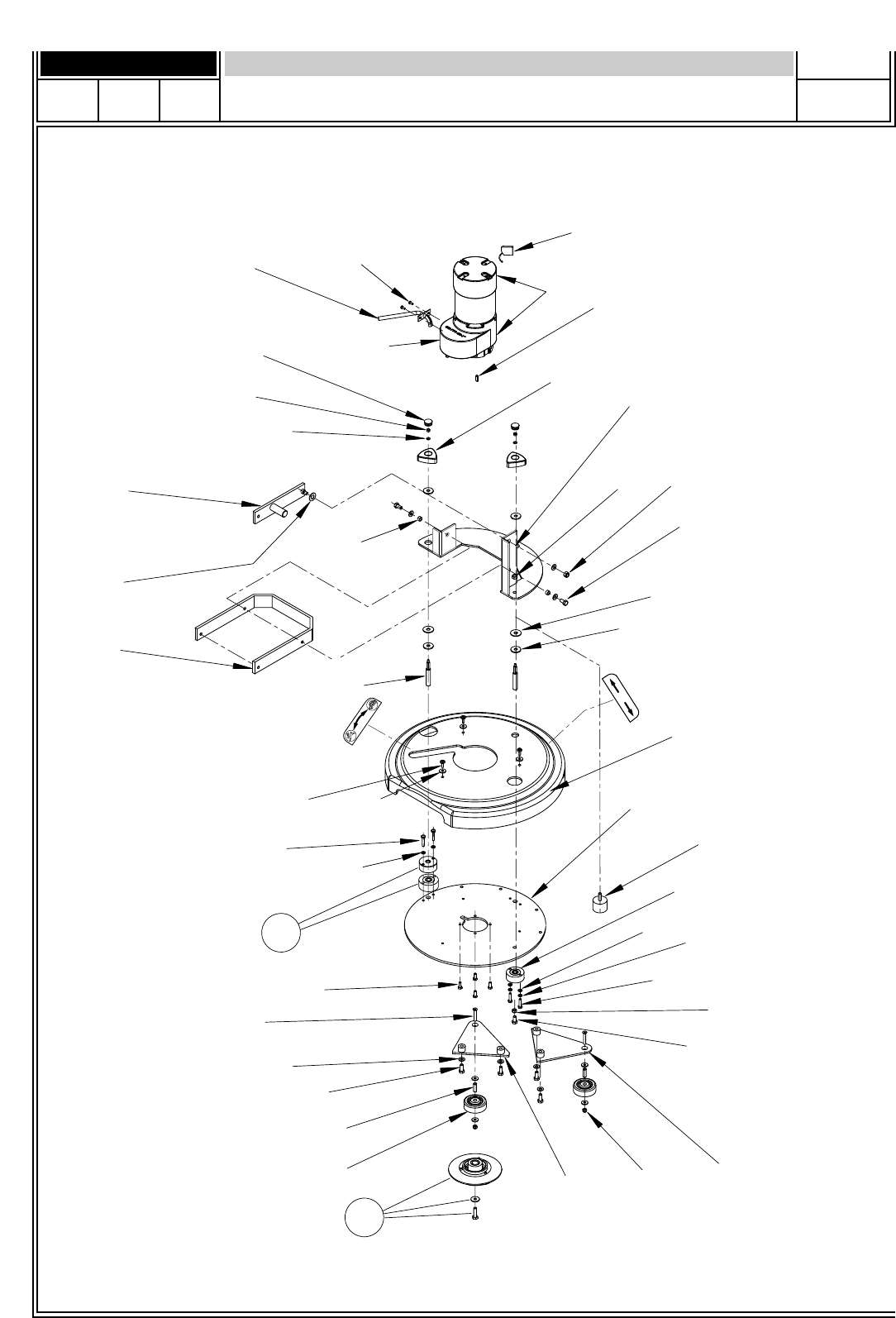

BRUSH SYSTEM RAZOR 17B

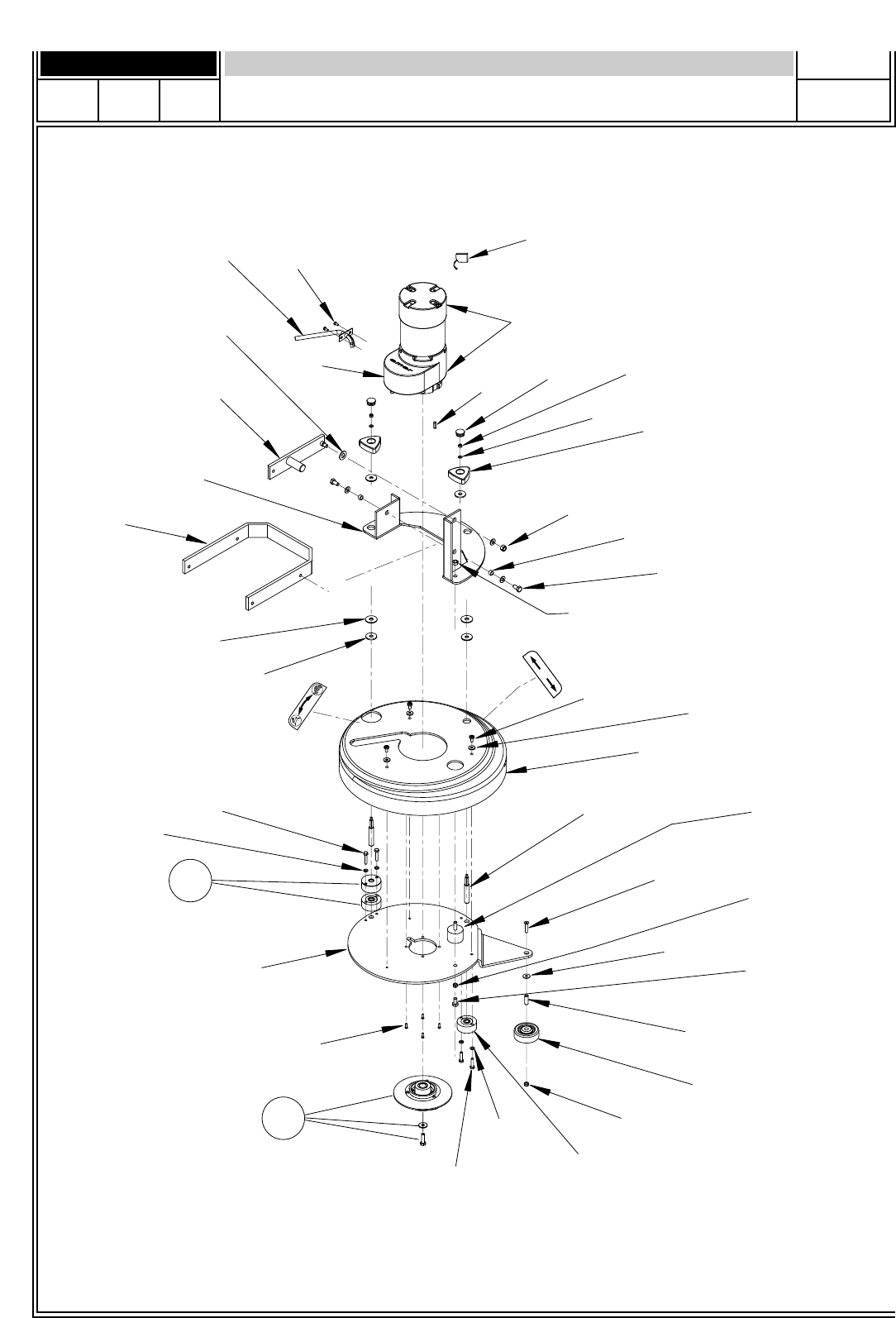

BRUSH SYSTEM RAZOR 20B
BRUSH SYSTEM RAZOR 20BT OFF SET

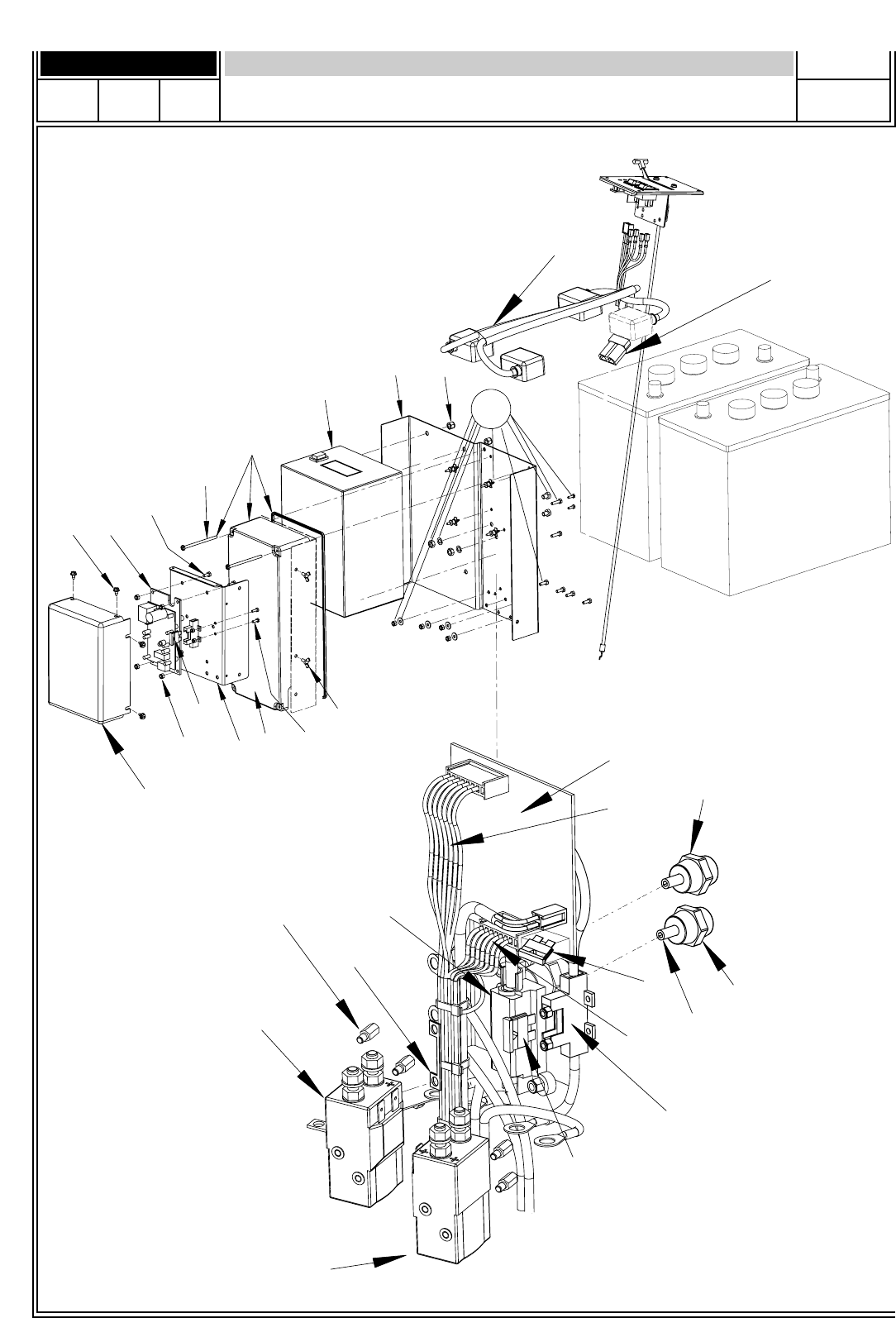

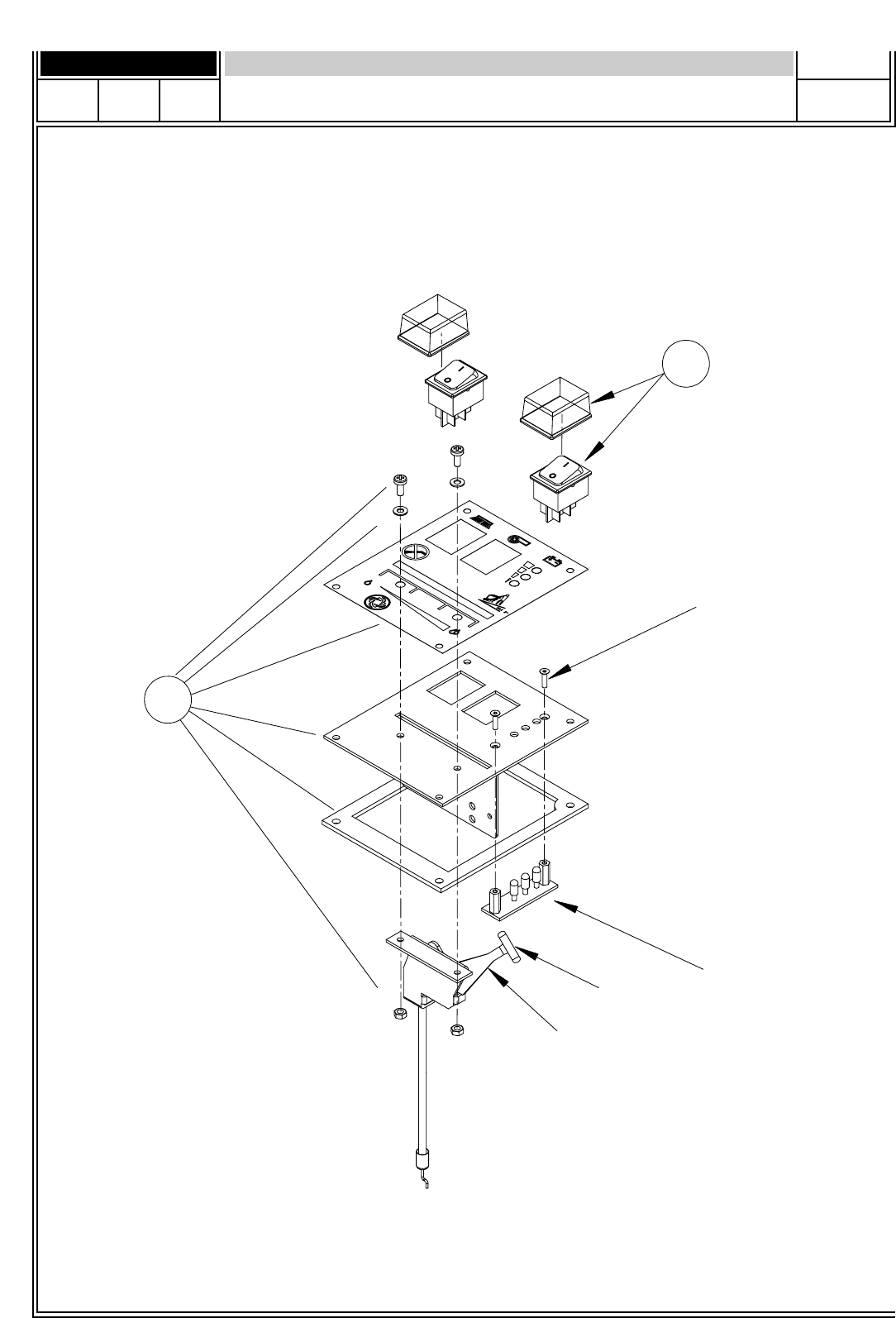

CONTROL PANEL SYSTEM

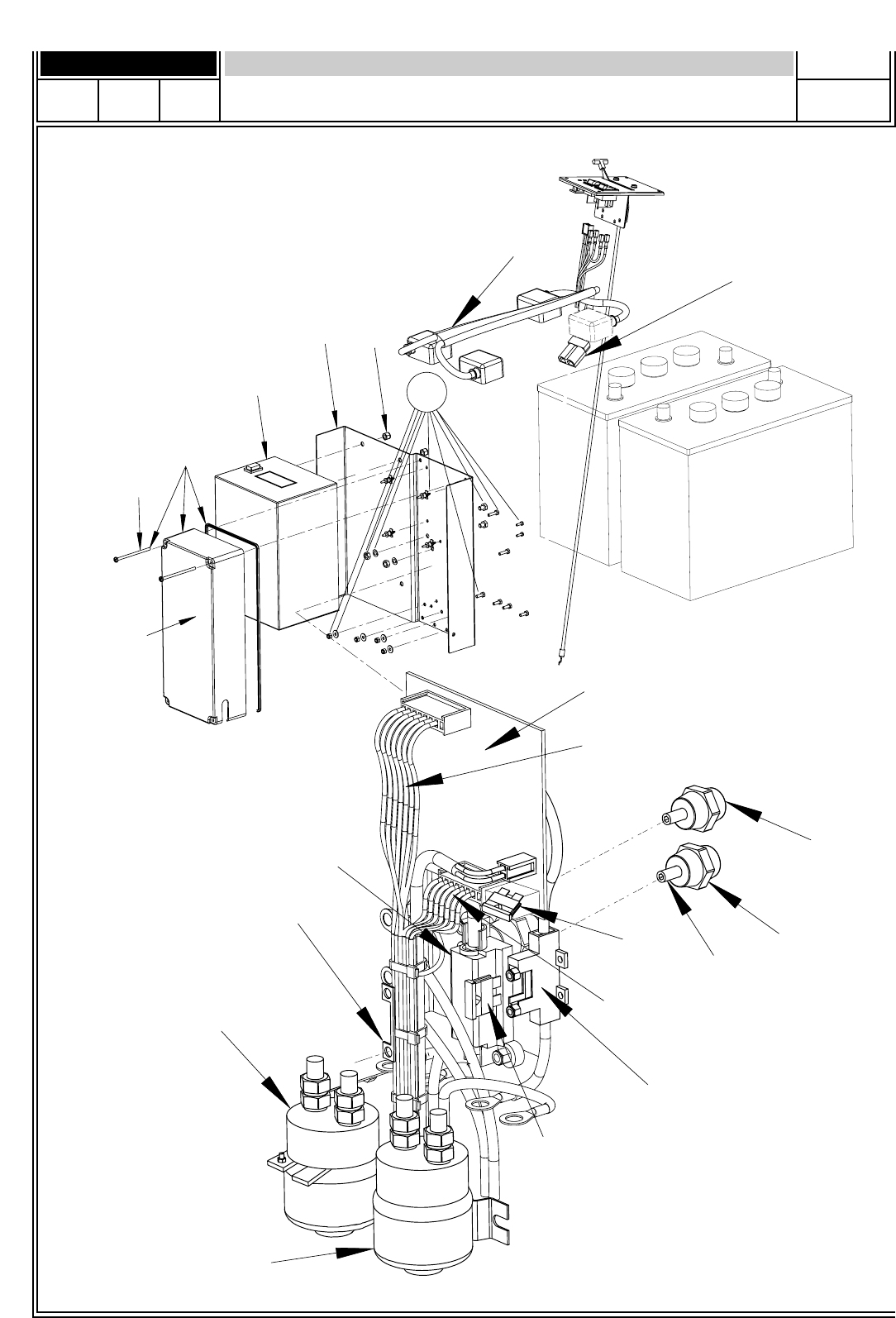

WIRING SYSTEM
WIRING SYSTEM RAZOR 20BT

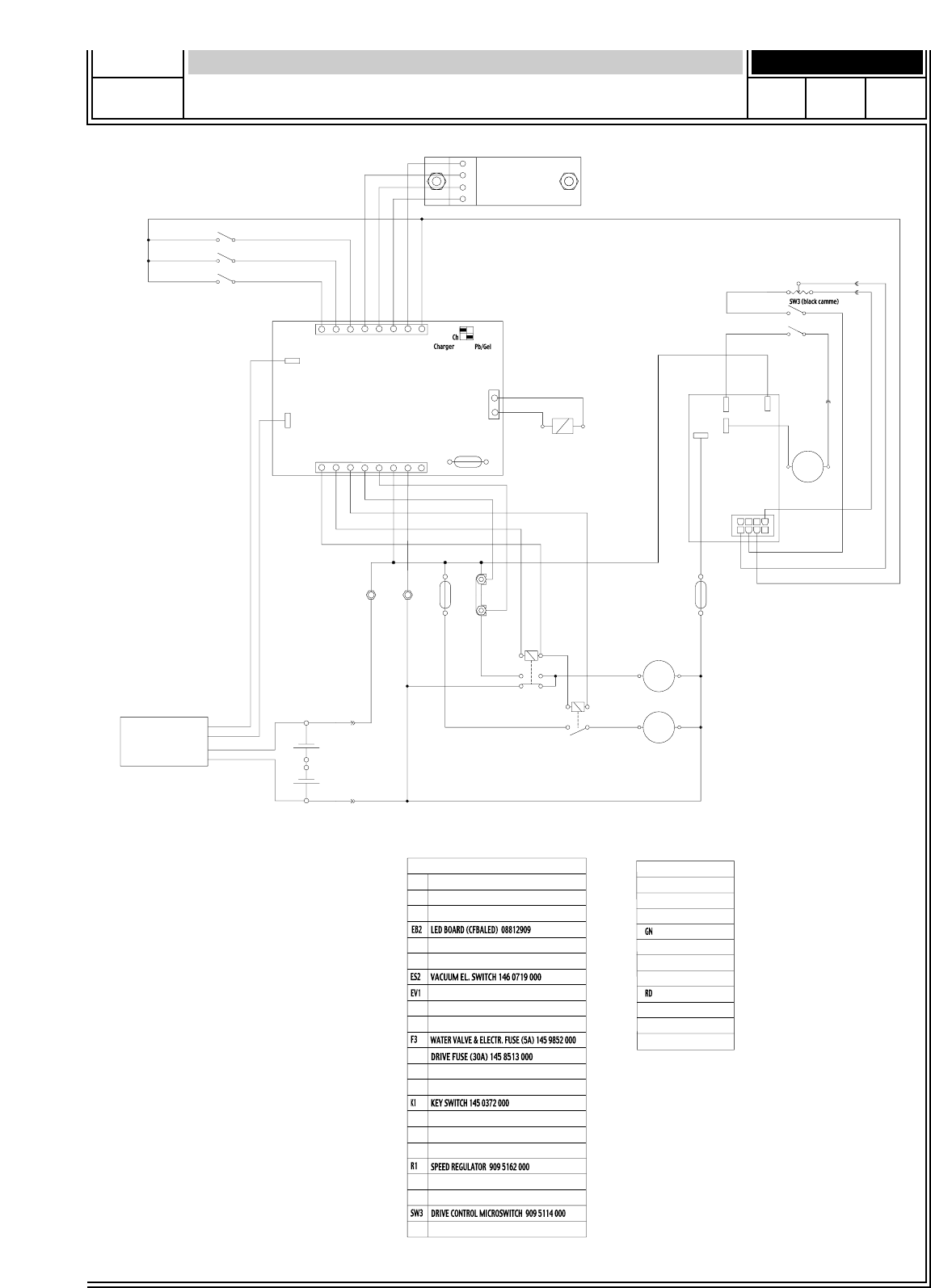

WIRING DIAGRAM
WIRING DIAGRAM RAZOR 20BT
RECOMMENDED SPARE PARTS
DESCRIPTION PLAN
WHEN ORDERING PARTS
* Use the 8,9 or 10 digit part numbers from the “Ref. No.” columns
in this parts list.
* Specify the model and serial number of the machine.
* Use the space below to record the model and the serial number
for future reference.
Model___________________ Serial No.____________________
FORM NO. L08812947
**= Optional
# = New Item no.
[ ] = Not shown
2 - 3
4 - 7
8 - 9
10 - 11
12 - 13
14 - 15
16 - 17
18 - 19
20 - 21
22 - 23
24 - 25
26 - 27
28 - 29
30 - 31
32 - 33
34
35
36
RAZOR 17B/ RAZOR 20B/ RAZOR 20BT
GENERAL VIEW
2
2003-09
1
5
9
7
8
6
See Squeegee Assy
4
3
See Tank System
See Brush System See Wiring System
See Chassis System
10
7
11
FORM NO. L08812947
RAZOR 17B/ RAZOR 20B/ RAZOR 20BT
GENERAL VIEW
3
2003-09
Item
no.
1
3
4
5
6
7
8#
9
10#
10#
11#
[12]#
Ref. No.
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
L08812758
xxxxxxxx
L08603908
L08603909
L08603930
L08603955
Description
Spacer (General Hardware Kit)
Spacer for tank (General Hardware Kit)
Screw M8x14 (General Hardware Kit)
Screw hex hd M8x16 (General Hardware Kit)
Washer flat nylon (General Hardware Kit)
Washer flat nylon (General Hardware Kit)
Battery container
Washer flat M8x17(General Hardware Kit)
Kit decals Kent Razor 17B
Kit decals Kent Razor 20B
Weight
General Hardware Kit
Qty
3
2
2
3
1
1
1
3
1
1
1
1

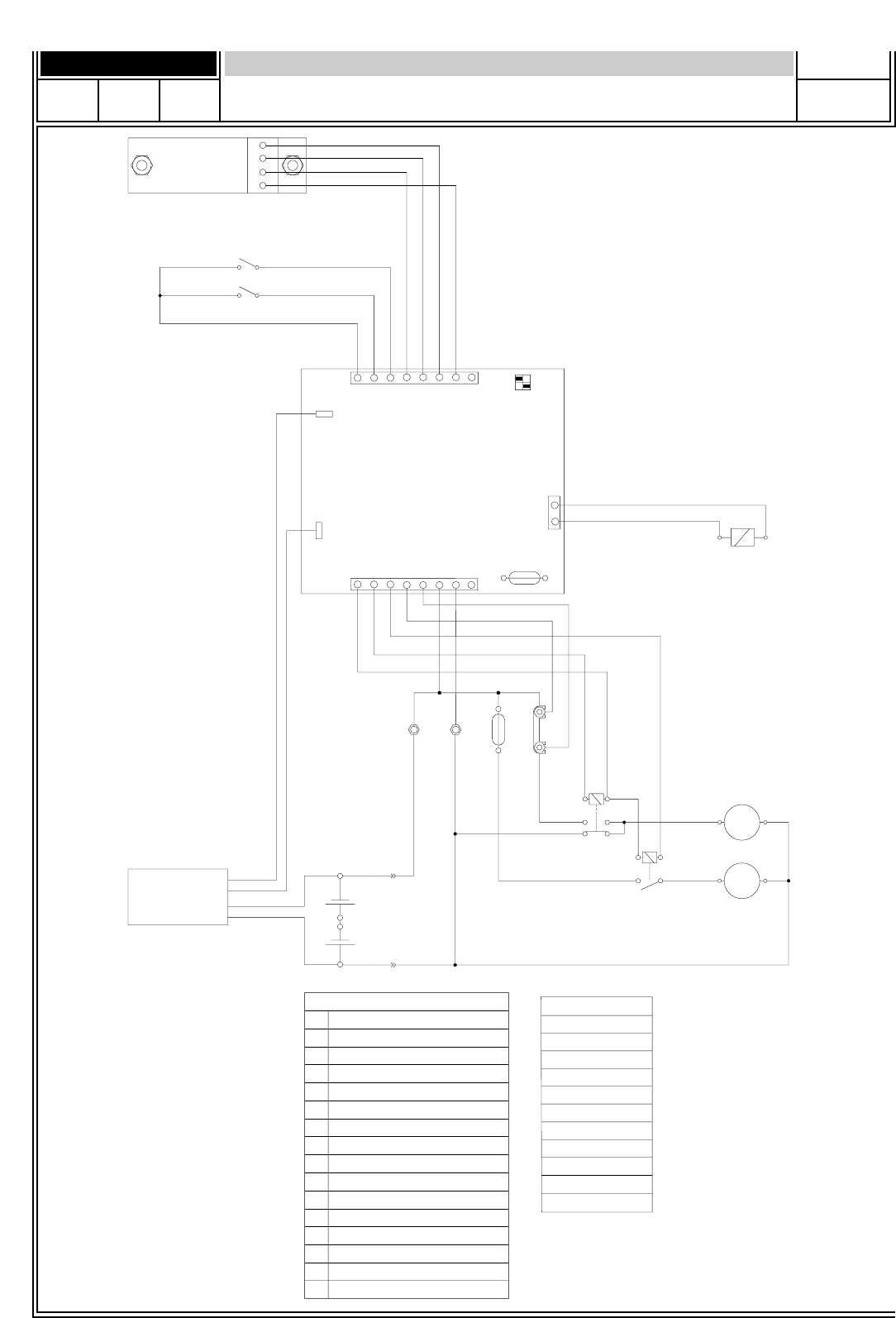

FORM NO. L08812947
2006-12
RAZOR 17B/ RAZOR 20B/ RAZOR 20BT

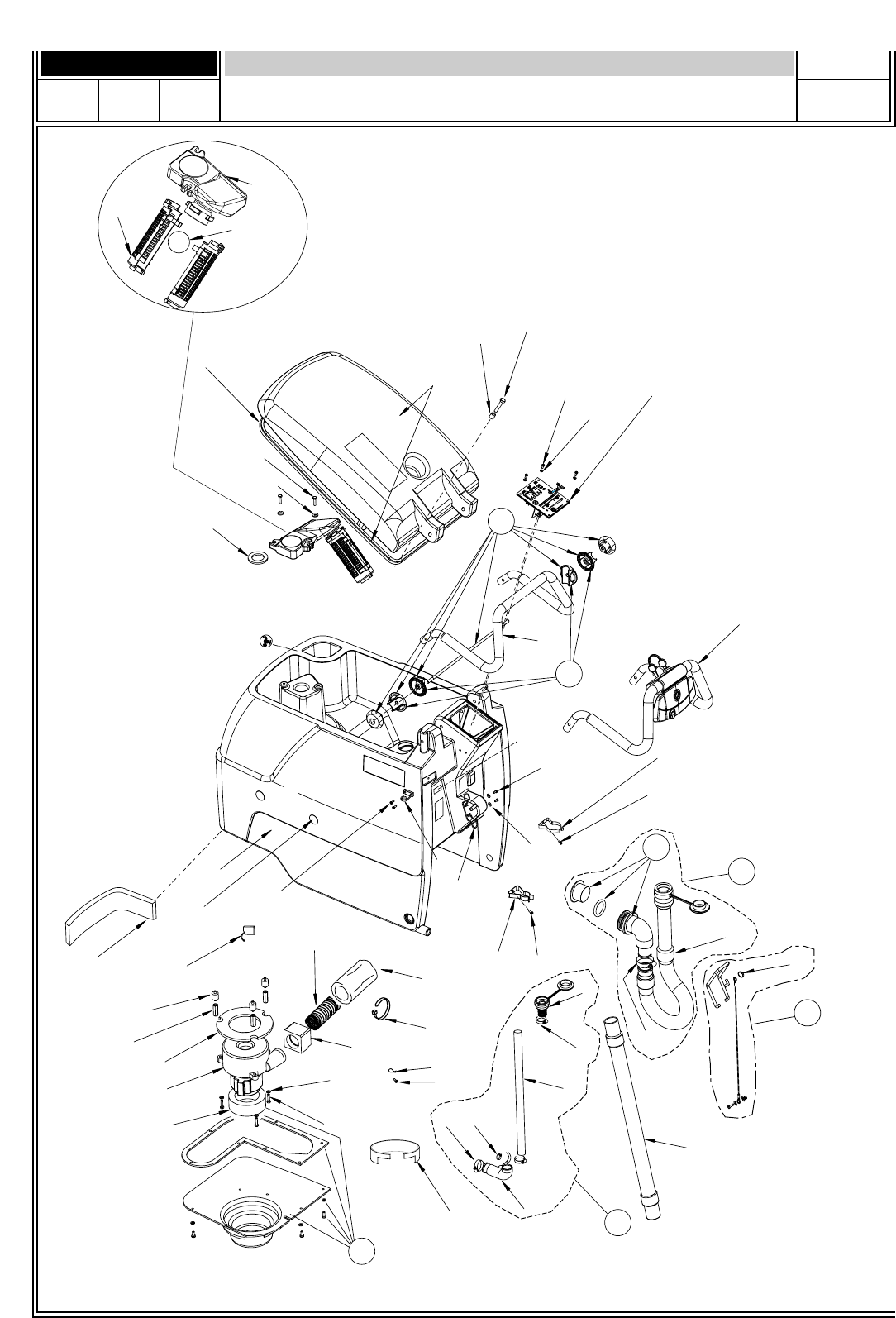

TANK SYSTEM
4
2003-09
34
1
See control panel System
37
25
32
8
3
20
33
26
27
name plate
40
40
16
6
41
36
46
5
35
43
42
44
21
2
28
12
15
47
45
39
29
2331
4
14
22
11
13
18
30
9
24 17
38
49
50
48
51
52
53 19
10
Handle Assembly
Razor 20BT
58
55
56
57
FORM NO. L08812947
RAZOR 17B/ RAZOR 20B/ RAZOR 20BT
TANK SYSTEM
5
2003-09
Item
no.
1#
1
2#
3#
4#
5
6
8#
9#
10#
11#
12#
13#
14#
15#
16#
17
18#
19
20#
21#
22#
23
24
25
26
27
28#
29#
30#
31
32#
33#
34#
35#
36
37
38
39
40
41
42#
43#
44#
45
46
47
48
49
Ref. No.
L08812887
909 5074 000
L08812462
L08812082
L08603868
xxxxxxxx
xxxxxxxx
L08603836
L08603858
L08603970
L08812901
L08603888
L08603860
L08603951
L08812977
L08812869
xxxxxxxx
L08812873
xxxxxxxx
L08812365
L08812468
L08603952
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
L08602410
L08812968
L08812874
xxxxxxxx
L08812991
L08812990
L08812318
L08812930
145 8589 000
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
145 1712 000
L08812259
L08812373
L08812992
xxxxxxxx
xxxxxxxx
909 5042 000
xxxxxxxx
xxxxxxxx
Description
Carbon brush (c)
Carbon brush set (d)
Buffer
Hose guide
Closure clean water hose
Clamp (Tank System Hardware Kit)
Clamp (Tank System Hardware Kit)
Gasket, tank cover
Kit acoustic cover cpl
Squeegee lift.lever kit
Handle bar
Kit vacuum motor w/ connector TSB IT 2003-005 (serial no.1665510)
Handle adjuster kit
Hose fresh water
Acoustic insulation
Drain hose
Clamp (Tank System Hardware Kit)
Solution drain hose complete
Shaft retainer ø8 (Tank System Hardware Kit)
Cap, tank locking
Spacer
Elbow
Clamp (Tank System Hardware Kit)
Screw M6x25 (Tank System Hardware Kit)
Screw 4x14 thd forming SS (Tank System Hardware Kit)
Clamp ø25 SS (Tank System Hardware Kit)
Clamp ø50 SS (Tank System Hardware Kit)
Gasket suction motor
Gasket
Kit elbow
Screw (Tank System Hardware Kit)
Tank lid cpl. with gasket
Tank
Acoustic insulation
Suction Hose
Acoustic ins. hose
Washer, flat (Tank System Hardware Kit)
Washer, flat (Tank System Hardware Kit)
Washer, flat (Tank System Hardware Kit)
Screw M5x12 SS (Tank System Hardware Kit)
Flexible hose
Float cage
Floating ball
Support, float cage
Screw pan hd phil 6x25 SS (Tank System Hardware Kit)
Clamp (Tank System Hardware Kit)
Acoustic insulation
Screw 5x20 (Tank System Hardware Kit)
Screw, tank fixing (Tank System Hardware Kit)
Qty
2
1
3
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
3
1
3
3
4
1
1
1
1
1
3
1
1
1
1
1
4
3
2
2
1
2
1
1
2
1
1
2
1
FORM NO. L08812947
(c) L08812887 for Fise vacuum motor L08602437 (d) 909 5074 000 for Ametek vacuum motor 909 5021 000
2006-12
RAZOR 17B/ RAZOR 20B/ RAZOR 20BT
TANK SYSTEM
6
2003-09
34
1
See control panel System
37
25
32
8
3
20
33
26
27
name plate
40
40
16
6
41
36
46
5
35
43
42
44
21
2
28
12
15
47
45
39
29
2331
4
14
22
11
13
18
30
9
24 17
38
49
50
48
51
52
53 19
10
Handle Assembly
Razor 20BT
58
55
56
57
FORM NO. L08812947
RAZOR 17B/ RAZOR 20B/ RAZOR 20BT
TANK SYSTEM
7
2003-09
Item
no.
50#
51#
52#
53#
[54]#
55
56
57
58
Ref. No.
L08812449
L08603916
L08603969
L08603910
L08603956
909 5149 000
909 5009 000
145 8280 000
909 5099 000
Description
Spacer
Clamp
Kit fresh water hose
Insulation gasket
Tank System Hardware Kit
Battery cable support
Screw cyl hd M5x12
Washer flat 5x15 SS
Ratchet handle adjuster kit
Qty
1
2
1
1
1
1
2
2
1
FORM NO. L08812947
2006-12
RAZOR 20BT

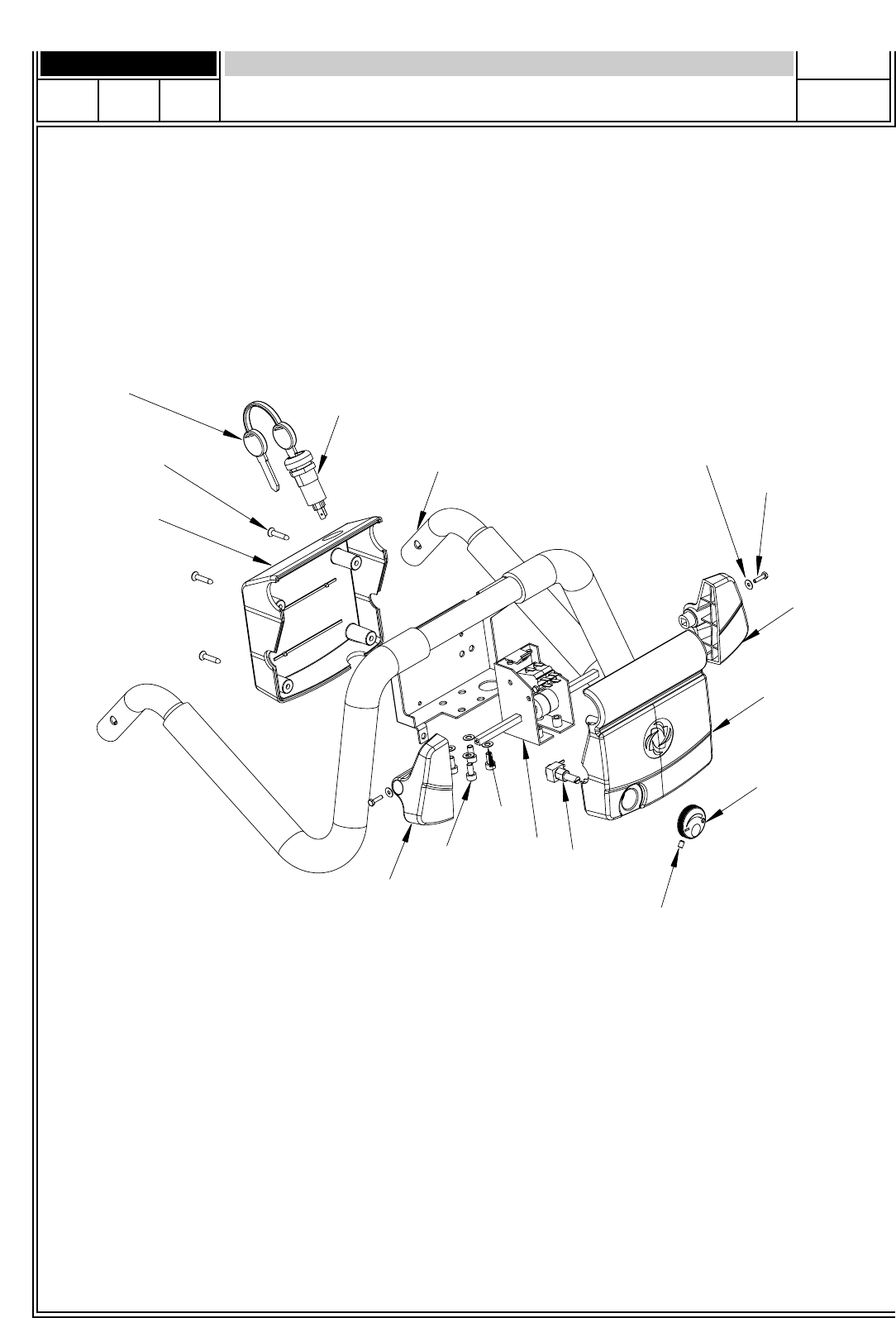

HANDLE ASSEMBLY
8
2003-09
7
13
4
6
2
5
11
9
8
12 10
31
14
15
16
FORM NO. L08812947
RAZOR 20BT
HANDLE ASSEMBLY
9
2003-09
Item
no.
1
2
3
4
5
6
7
8
9#
10#
11
12
13
14
15
16
17
Ref. No.
909 5162 000
909 5118 000
909 5114 000
145 0372 000
909 5119 000
909 5113 000
909 5117 000
909 5120 000
L08812097
L08040400
145 9117 000
145 1238 000
145 5871 000
909 5116 000
146 0621 000
146 0806 000
909 5281 000
Description
Harness, potentiometer
Switch housing front (Handle System Hardware kit)
Drive/motor microswitch
Key switch
Lever right (Handle System Hardware kit)
Handle bar
Switch housing rear (Handle System Hardware kit)
Lever left (Handle System Hardware kit)
Washer flat 3x9 SS (Handle System Hardware kit)
Washer flat 5x10 (Handle System Hardware kit)
Screw hex hd M3x12 (Handle System Hardware kit)
Screw hex hd M5x10 (Handle System Hardware kit)
Screw 4,2x23 thd form (Handle System Hardware kit)
Potentiometer knob (Handle System Hardware kit)
Dowel M4x6 (Handle System Hardware kit)
Key (2 pcs)
Handle System Hardware kit ( 2,5,7,8,9,10,11,12,13,14,15)
Qty
1
1
1
1
1
1
1
1
2
4
2
4
4
1
1
1
1
FORM NO. L08812947
2006-12
RAZOR 17B/ RAZOR 20B

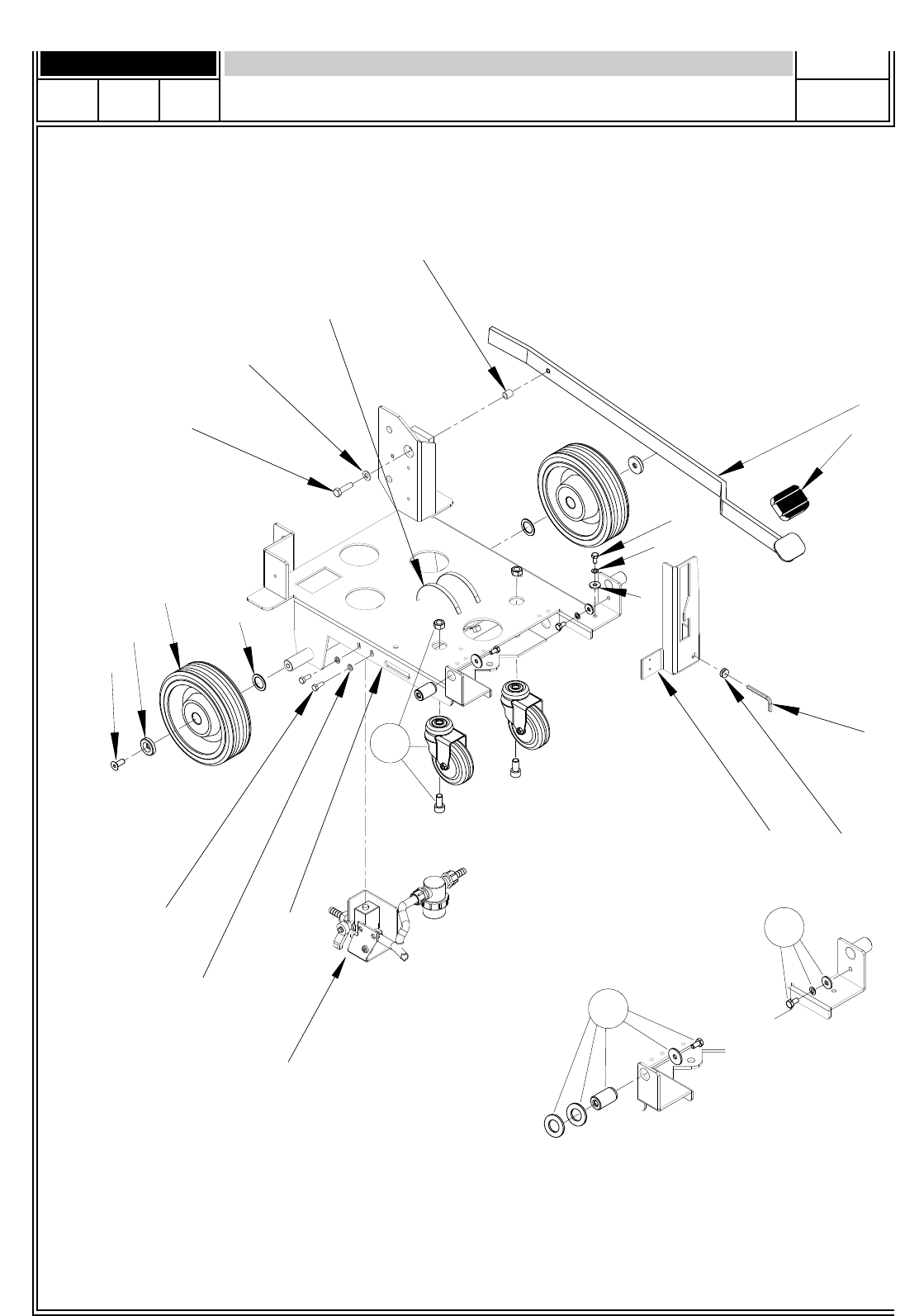

CHASSIS SYSTEM
10
2003-09
96
4
5
14
11
20
19
22
8
See Solution System
3
12
7
16
1
18
13
21
2
10
17
15
FORM NO. L08812947
RAZOR 17B/ RAZOR 20B
CHASSIS SYSTEM
11
2003-09
Item
no.
1
2#
3#
4#
5#
6#
7#
8#
9#
10#
11
12#
13
14
15#
16
17#
18
19
20
21
22
[23]#
Ref. No.
xxxxxxxx
L08812925
L08812936
L08063800
L08812324
L08812388
L08812392
L08812888
L08812893
L08603861
xxxxxxxx
L08812939
xxxxxxxx
xxxxxxxx
L08603862
xxxxxxxx
L08603863
145 9228 000
xxxxxxxx
xxxxxxxx
145 8478 000
xxxxxxxx
L08603957
Description
Washer flat (Chassis System Hardware Kit)
Pedal, brush lifting
Spacer
Key
Spacer
Cable guide
Spacer
Chassis
Guide
Kit castor wheel rear
Washer flat (Chassis System Hardware Kit)
Wheel front
Screw hex hd M6x12 (Chassis System Hardware Kit)
Clamp (Chassis System Hardware Kit)
Kit tank support right
Screw M8x20 (Chassis System Hardware Kit)
Kit tank support left
Washer
Screw hex hd M6x16 (Chassis System Hardware Kit)
Screw hex hd M8x30 (Chassis System Hardware Kit)
Pedal cover
Washer flat (Chassis System Hardware Kit)
Chassis System Hardware Kit
Qty
2
1
2
1
2
1
2
1
1
1
3
2
3
2
1
2
1
2
2
1
1
2
1
FORM NO. L08812947
2006-12
RAZOR 20BT

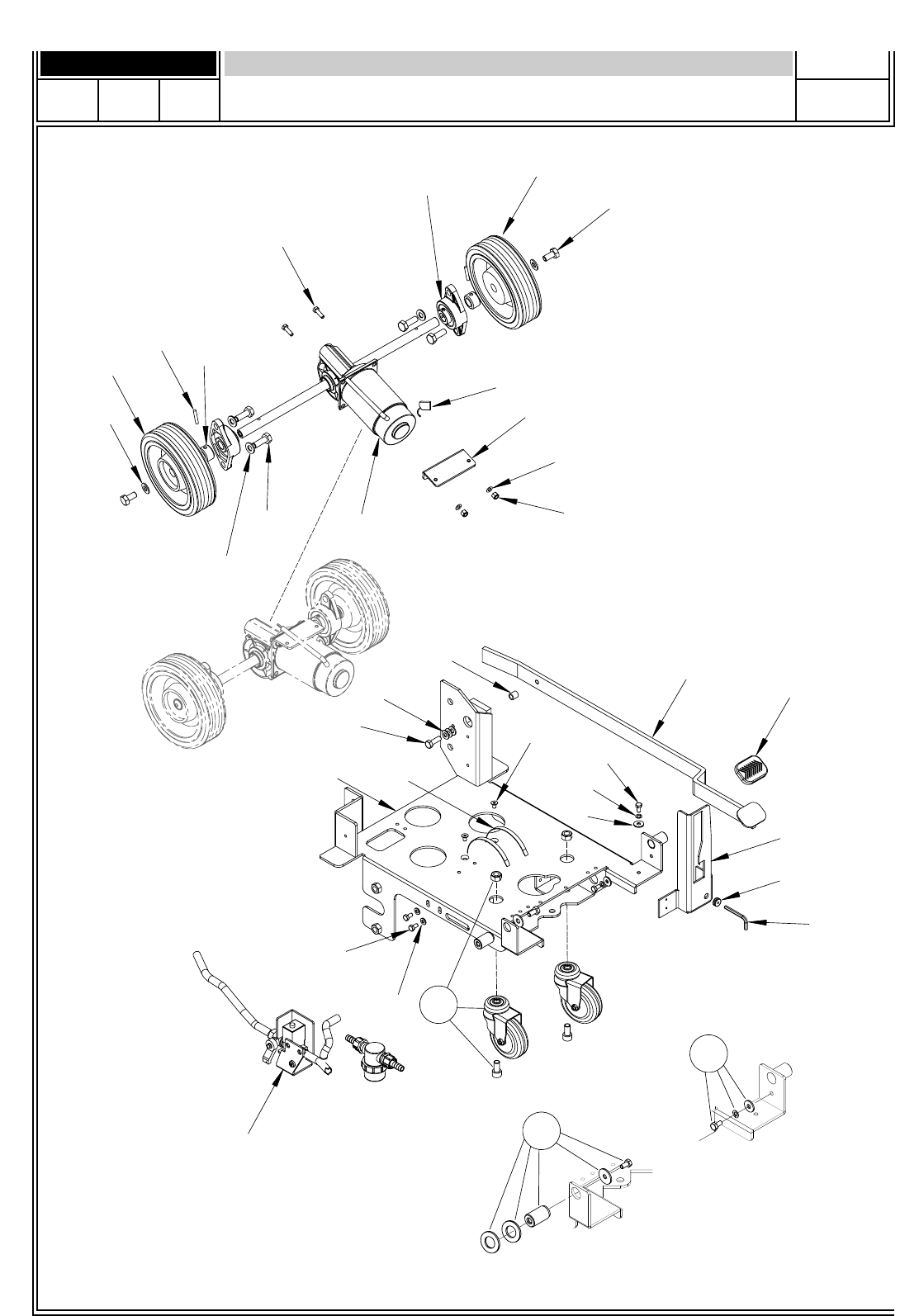

CHASSIS SYSTEM
12
2003-09
11
20
8
23
5
13
18
1
221
9
6
4
See Electrovalve System D version
19
22
33
30
32
26
25
28
37
27
31
24
16
12 29
10
17
15
14
FORM NO. L08812947
RAZOR 20BT
CHASSIS SYSTEM
13
2003-09
Item
no.
1#
2#
3
4#
5#
6#
7
8
9#
10#
11#
12
13#
14
15#
16
17#
18
19
20#
21
22
23
24
25
26
27
28
29
30#
31
32#
33
Ref. No.
L08228600
L08812925
145 4546 000
L08063800
L08812324
L08812388
909 5272 000
909 5128 000
L08812893
L08603861
L08085700
909 5112 000
L08326100
145 0541 000
L08603862
145 4473 000
L08603863
145 9228 000
145 9261 000
L08367300
145 8478 000
145 9128 000
146 0765 000
909 5111 000
145 9320 000
145 9874 000
909 5131 000
909 5273 000
909 5157 000
L08602395
145 9227 000
L08251000
909 5129 000
Description
Washer flat
Pedal, brush lifting
Retaining ring (Reductiongear motor kit)
Key
Spacer
Cable guide
Spacer (Reductiongear motor kit)
Chassis
Guide
Kit castor wheel rear
Washer flat
Wheel
Screw hex hd M6x12
Clamp
Kit tank support right
Screw hex hd M10x20
Kit tank support left
Washer
Screw hex hd M6x16
Screw hex hd M8x25
Pedal cover
Washer flat
Screw M61x10
Wheel, front right
Washer flat 10x21
Screw hex hd M10x30
Flange
Reductiongear motor kit (3,7)
Carbon brush
for reductiongear motor 909 5271 000 (Reductiongear motor kit)
Washer flat
Screw hex hd M6x20
Nut hex selflock.M6
Bracket
Qty
2
1
2
1
2
1
2
1
1
1
3
1
2
2
1
2
1
2
2
1
1
2
2
1
6
4
2
1
2
2
2
2
1
FORM NO. L08812947
2006-12
RAZOR 17B/ RAZOR 20B
SOLUTION SYSTEM before serial number 1665510
14
2003-09
576
2
8
4
1
10
9
3
12
14
13
11
16
18
19
FORM NO. L08812947
RAZOR 17B/ RAZOR 20B
SOLUTION SYSTEM before serial number 1665510
15
2003-09
Item
no.
1
2#
3
4
5#
6#
7#
8#
9
10
11#
12#
13#
14
16#
18#
19
[20]#
Ref. No.
xxxxxxxx
L08601624
xxxxxxxx
xxxxxxxx
L08812427
L08812960
L08812257
L08812974
xxxxxxxx
xxxxxxxx
L08603854
L08603855
L08603853
909 5151 000
L08603893
L08603898
xxxxxxxx
L08603958
Description
Nut hex M6 selflock. (Solution System Hardware Kit)
Pipe holder
Screw M6x16 (Solution System Hardware Kit)
Clamp (Solution System Hardware Kit)
Ball grip thread
Solenoid valve 24V
Nut
Solenoid valve bracket
Washer (Solution System Hardware Kit)
Screw hex hd M3x12 SS (Solution System Hardware Kit)
Hose 270 mm length
Hose 560 mm length
Hose 150 mm length
Water filter
Kit net filter with gasket
Solenoid valve kit compl.
Washer flat (Solution System Hardware Kit)
Solution System Hardware Kit
Qty
1
2
1
1
1
1
1
1
2
2
1
1
1
1
1
1
2
1
FORM NO. L08812947
2006-12
RAZOR 17B/ RAZOR 20B

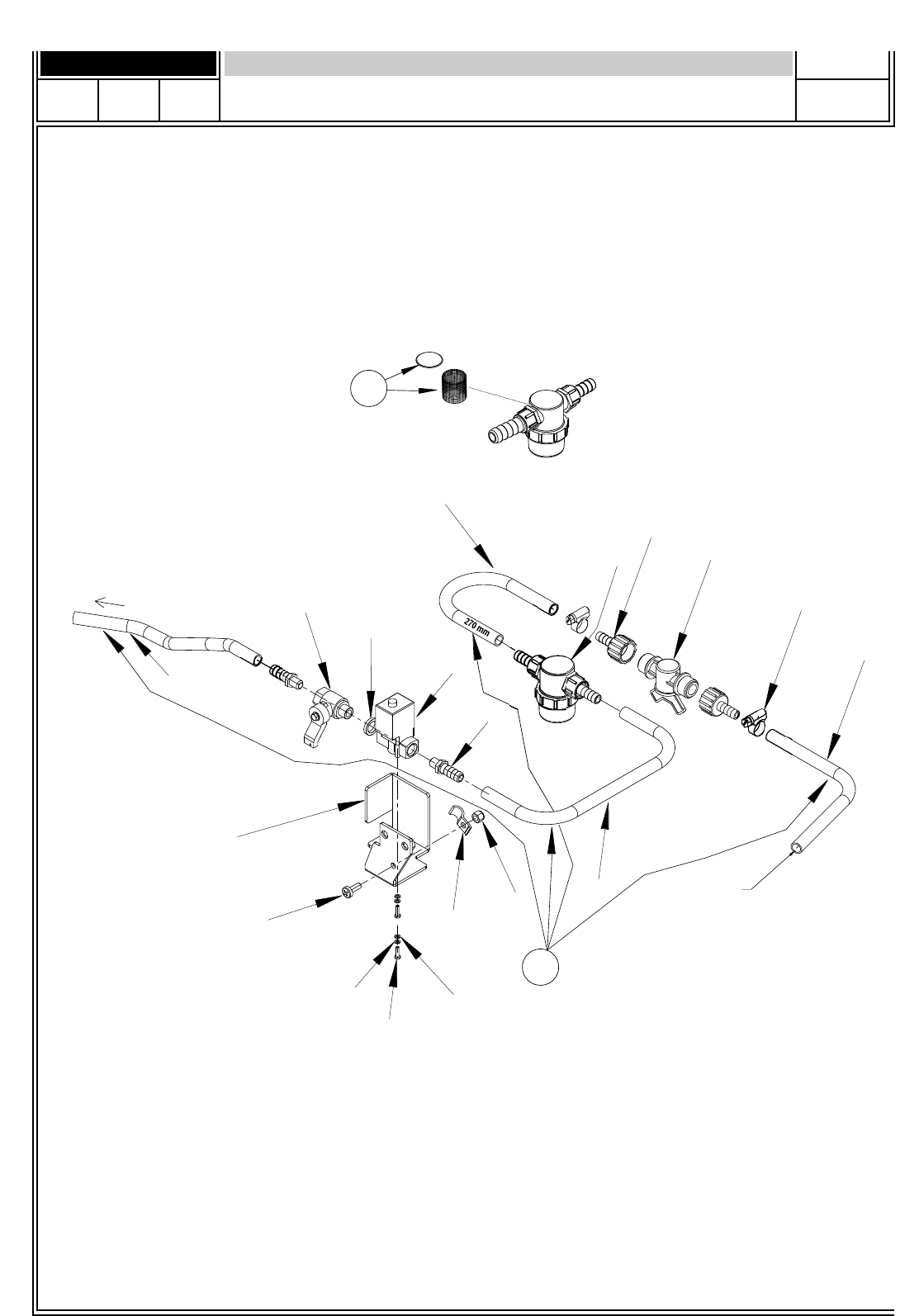

SOLUTION SYSTEM from serial number 1665510
16
2003-09
16
11
18
5
7
6
2
270 mm 100 mm 300 mm
480 mm
14
13
21
22
23
3
19
10
9
8
4
1
12
24
FORM NO. L08812947
RAZOR 17B/ RAZOR 20B
SOLUTION SYSTEM from serial number 1665510
17
2003-09
Item
no.
1
2#
3
4
5#
6#
7#
8#
9
10
11
12
13
14
16#
18
18#
19
[20]#
21
22
23
24
Ref. No.
xxxxxxxx
L08601624
xxxxxxxx
xxxxxxxx
L08812427
L08812960
L08812257
L08812974
xxxxxxxx
xxxxxxxx
L08603854
909 5026 000
909 5025 000
909 5151 000
L08603893
909 5032 00
L08603898
xxxxxxxx
L08603958
909 5022 000
909 5023 000
145 8582 000
909 5024 000
Description
Nut hex M6 selflock. (Solution System Hardware Kit)
Pipe holder
Screw m6x16 (Solution System Hardware Kit)
Clamp (Solution System Hardware Kit)
Ball grip thread
Solenoid valve 24V
Nut
Solenoid valve bracket
Washer (Solution System Hardware Kit)
Screw hex hd M3x12 SS (Solution System Hardware Kit)
Hose 270 mm length
Hose 100 mm length
Hose 300 mm length
Water filter
Kit net filter with gasket
Solenoid valve kit compl.TSB IT 2003-007 (a)
Solenoid valve kit compl.TSB IT 2003-007 (b)
Washer flat (Solution System Hardware Kit)
Solution System Hardware Kit
Holder pipe ø11
Water valve
Clamp
Hose 480 mm length
Qty
1
2
1
1
1
1
1
1
2
2
1
1
1
1
1
1
1
2
1
2
1
2
1
FORM NO. L08812947
(a) kit to be kept for scrubbers before serial number 032004955 (b) kit to be used for scrubbers after serial number 1665510
TSB IT 2003-007
2006-12

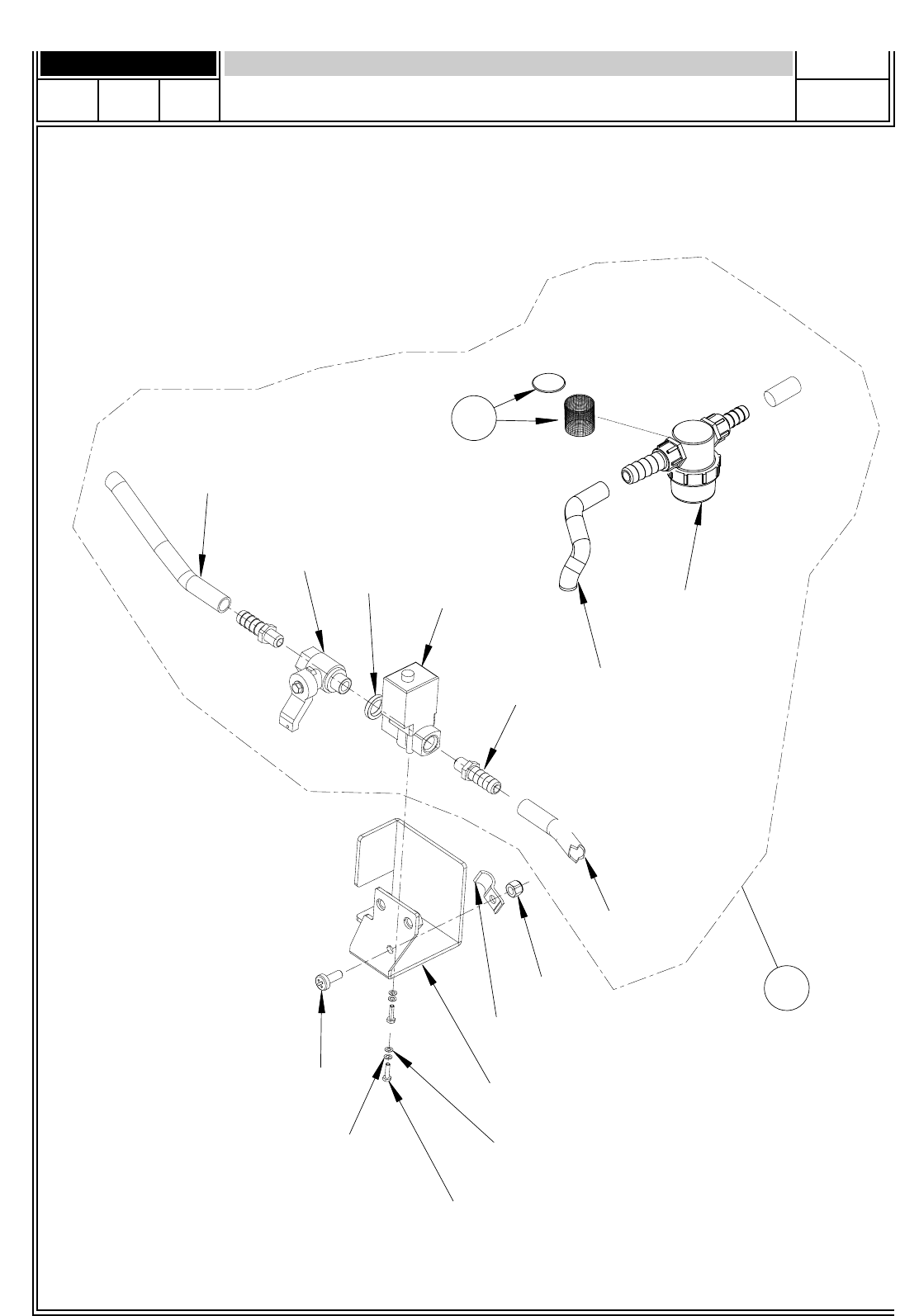

RAZOR 20BT
SOLUTION SYSTEM
18
2003-09
SERBATOIO
/
TANK
TESTATA / BRUSH DECK
14
21 22
23
5
1
4
2
6
9
10
7
8
3
19
12
13
20
16
250 mm
320 mm
480 mm
11
18
FORM NO. L08812947
RAZOR 20BT
SOLUTION SYSTEM
19
2003-09
Item
no.
1#
2#
3
4#
5#
6#
7#
8#
9#
10#
11
12
13#
14
16#
18
19#
20
21
22
23
Ref. No.
L08361400
L08601624
145 9261 000
L08812352
L08812427
L08812960
L08812257
L08812974
L08812986
L08603895
xxx xxxx xxx
xxx xxxx xxx
L08603854
909 5151 000
L08603893
909 5158 000
L08812097
xxx xxxx xxx
909 5022 000
909 5023 000
145 8582 000
Description
Nut hex M6 selflock.
Pipe holder
Screw M6x16
Clamp
Ball grip thread
Solenoid valve 24V
Nut
Solenoid valve bracket
Washer
Screw hex hd M3x12
Hose 250 mm length (Hoses, Solenoid Valve Kit)
Hose 320 mm length (Hoses, Solenoid Valve Kit)
Hose 270 mm length (Hoses, Solenoid Valve Kit)
Water filter
Kit net filter with gasket
Hoses solenoidvalve kit (11,12,13,20)
Washer flat SS
Hose 480 mm length (Hoses, Solenoid Valve Kit)
Holder pipe ø11
Water valve
Clamp
Qty
1
2
1
1
1
1
1
1
2
2
1
1
1
1
1
1
2
1
2
1
2
FORM NO. L08812947
2006-12
RAZOR 17B/ RAZOR 20B/ RAZOR 20BT
SQUEEGEE ASSEMBLY
20
2003-09
35
25
7
6
19
32
12
8
14
18
3
4
17 22
24 29
21
23
5
34
15
30 20
28
13
9
10
11
16
36
1
2
26
37
38
40
39
33
31
27
FORM NO. L08812947
RAZOR 17B/ RAZOR 20B/ RAZOR 20BT
SQUEEGEE ASSEMBLY
21
2003-09
Item
no.
1#
2#
3#
4#
5#
6
7
8
9
10#
11#
12#
13#
14#
15#
16#
17#
18#
19#
20#
21
22
23
24
25
26#
27#
28#
29#
30#
31#
32
33#
34
35
36
37#
38#
39#
40#
[41]#
Ref. No.
L08812937
L08603676
L08812948
L08603670
L08603666
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
L08601509
L08601574
L08601854
L08602422
L08602460
L08602463
L08602468
L08603664
L08603665
L08603675
L08603682
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
L08603877
L08603878
L08812935
L08603669
L08603672
L08603879
xxxxxxxx
L08603880
xxxxxxxx
xxxxxxxx
xxxxxxxx
L08812516
L08812521
L08812518
L08603876
L08603959
Description
Spacer
Squeegee Tool
Spacer
Rear strap for latch left
Support squeegee wheel
Nut (Squeegee Assembly Hardware Kit)
Washer flat (Squeegee Assembly Hardware Kit)
Nut (Squeegee Assembly Hardware Kit)
Nut (Squeegee Assembly Hardware Kit)
Pin
Knob
Spacer
Spacer
Bumper roller
Squeegee blade front
Squeegee blade rear
Latch for squeegee
Rubber wheel
Thumb nut
Nut
Wing nut (Squeegee Assembly Hardware Kit)
Screw (Squeegee Assembly Hardware Kit)
Nut (Squeegee Assembly Hardware Kit)
Nut (Squeegee Assembly Hardware Kit)
Washer, flat 10x30
Kit squeegee sup. bracket
Kit squeegee complete
Bracket
Rear strap for hook right
Strap, front
Kit squeegee wheel
Screw
Kit squ.bumper roller
Screw (Squeegee Assembly Hardware Kit)
Screw (Squeegee Assembly Hardware Kit)
Washer flat (Squeegee Assembly Hardware Kit)
Fixture kit
Fixt.nozzle holder left / right kit
Adjustment screw kit
Kit squeegee holder
Squeegee Assembly Hardware Kit
Qty
2
1
2
1
2
1
2
2
2
1
1
2
1
2
1
1
1
2
2
8
2
2
6
2
1
1
1
1
1
1
1
2
1
4
1
2
1
1
1
1
1
FORM NO. L08812947
2006-12
RAZOR 17B

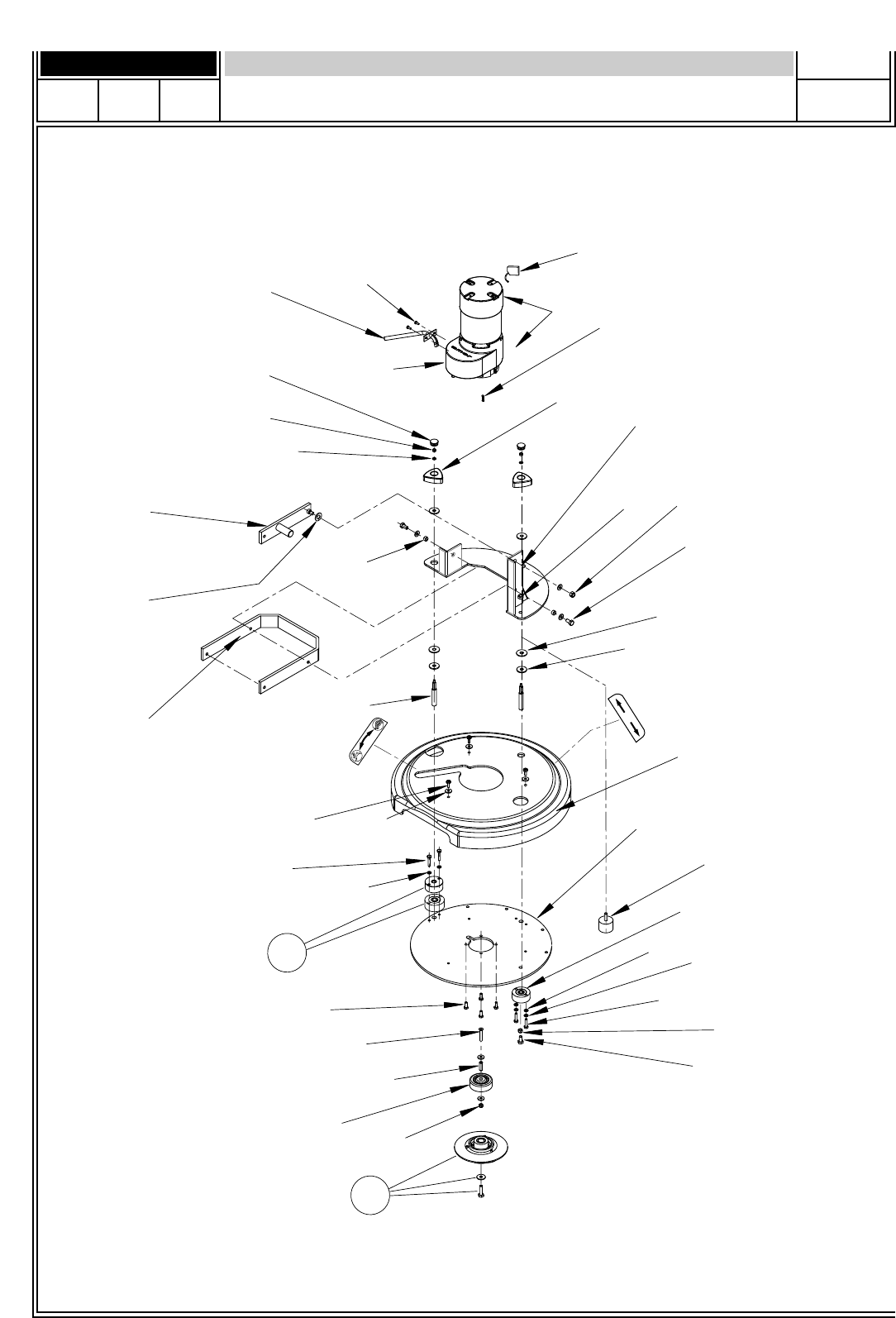

BRUSH SYSTEM RAZOR 17B
22
2003-09
28
21 22 15
34 17
919
6
16
4
24
32
14
36
12
31
11
13
18
38
8
7
33
3
20
29
2
5
25
26
30
27
1
10
23
Razor 17B
37
31
39
35
40
FORM NO. L08812947
RAZOR 17B
BRUSH SYSTEM RAZOR 17B
23
2003-09
Item
no.
1#
2#
3#
4#
5#
6
7
8
9
10
11#
12#
13
14
15
16
17#
18#
19#
20
21
22#
23#
24#
25#
26
27#
28#
29#
30
31
32
33
34
35
36
37#
38
39
40#
[41]#
Ref. No.
L08812889
L08812892
L08812921
L08812922
L08812924
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
L08602460
L08602461
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
L08812203
L08812213
L08812325
xxxxxxxx
145 9774 000
L08812426
L08812589
L08812706
L08812718
xxxxxxxx
L08812780
L08812919
L08812929
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
L08603850
xxxxxxxx
xxxxxxxx
L08603849
L08603960
Description
Plate, brush holder
Plate
Hose copper
Brush cover Razor 17B
Frame brush lifting
Nut hex M8 (Brush System Hardware Kit)
Vibration damping M8 (Brush System Hardware Kit)
Screw hex hd M6x25 (Brush System Hardware Kit)
Nut selflocking M8 (Brush System Hardware Kit)
Screw hex hd M6x16 SS (Brush System Hardware Kit)
Bumper roller
Bushing
Nut hex selflocking M6 (Brush System Hardware Kit)
Washer flat 6x18 (Brush System Hardware Kit)
Nut hex selflocking M5 (Brush System Hardware Kit)
Screw 6x16 (Brush System Hardware Kit)
Knob for brush plate
Buffer for brush plate
Bushing
Washer (Brush System Hardware Kit)
Key
Cap for knob
Polygonal holder kit
Dowel broom plate fixing
Washer rubber
Washer flat 7x18 (Brush System Hardware Kit)
Brush plate fixing kit
Reduction gearmotor
Brush lifting lever
Screw hex hd M6x30 (Brush System Hardware Kit)
Screw hex hd M8x16 (Brush System Hardware Kit)
Screw M6x40 (Brush System Hardware Kit)
Screw hex hd M4x8 (Brush System Hardware Kit)
Washer flat 5x10 (Brush System Hardware Kit)
Washer flat 6x12,5 (Brush System Hardware Kit)
Washer flat 8x17 (Brush System Hardware Kit)
Carbon brush set
Washer hex. (Brush System Hardware Kit)
Washer flat 6x18 (Brush System Hardware Kit)
Reduction gear
Brush System Hardware Kit
Qty
1
1
1
1
1
1
1
2
1
4
1
1
1
1
2
3
2
1
2
1
1
2
1
2
2
4
1
1
1
2
3
1
2
2
2
3
1
2
3
1
1
FORM NO. L08812947
2006-12
RAZOR 20B
BRUSH SYSTEM RAZOR 20B
24
2003-09
Razor 20B
23
11
12
14
27
30
24
5
20
29
19
34
22
333
28 21
17
69
25
26
7
18
35
8
31
13
2
15
16
10
32
1
4
35
42
39
38
40
41
37
31
36
43
FORM NO. L08812947
RAZOR 20B
BRUSH SYSTEM RAZOR 20B
25
2003-09
Item
no.
1#
2#
3#
4#
5#
6
7
8
9
10
11#
12#
13
14
15
16
17#
18#
19#
20
21
22#
23#
24#
25#
26
27#
28#
29#
30
31
32
33
34
35
36
37#
38
39
40#
41#
42
43#
[44]#
Ref. No.
L08812981
L08812980
L08812921
L08812979
L08812924
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
L08602460
L08602461
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
L08812203
L08812213
L08812325
xxxxxxxx
145 9774 000
L08812426
L08812589
L08812706
L08812718
xxxxxxxx
L08812780
L08812919
L08812929
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
L08603850
xxxxxxxx
xxxxxxxx
L08812982
L08812983
xxxxxxxx
L08603849
L08603960
Description
Plate brush holder
Plate
Hose copper
Brush cover Razor 20B
Frame brush lifting
Nut hex M8 (Brush System Hardware Kit)
Vibration damping M8 (Brush System Hardware Kit)
Screw hex hd M6x25 (Brush System Hardware Kit)
Nut hex selflocking M8 (Brush System Hardware Kit)
Screw hex hd M6x16 SS (Brush System Hardware Kit)
Bumper roller
Bushing
Nut hex selflocking M6 (Brush System Hardware Kit)
Washer flat 6x18 (Brush System Hardware Kit)
Nut hex selflocking M5 (Brush System Hardware Kit)
Screw M6x16 (Brush System Hardware Kit)
Knob for brush plate
Buffer for brush plate
Bushing
Washer (Brush System Hardware Kit)
Key
Cap for knob
Polygonal holder kit
Dowel brush plate fixing
Washer rubber
Washer flat 7x18 (Brush System Hardware Kit)
Brush plate fixing kit
Reduction gearmotor
Brush lifting lever
Screw hex hd M6x30 (Brush System Hardware Kit)
Screw hex hd M8x16 (Brush System Hardware Kit)
Screw M6x40 (Brush System Hardware Kit)
Screw hex hd M4x8 (Brush System Hardware Kit)
Washer flat 5x10 (Brush System Hardware Kit)
Washer flat 6x12,5 (Brush System Hardware Kit)
Washer flat 8x17 (Brush System Hardware Kit)
Carbon brush set
Washer hex. (Brush System Hardware Kit)
Washer flat 6x18 (Brush System Hardware Kit)
Bumper roll. support right
Bumper roll. support left
Screw hex hd M8x25 SS (Brush System Hardware Kit)
Reduction gear
Brush System Hardware Kit
Qty
1
1
1
1
1
1
1
2
1
4
2
2
2
2
2
3
2
1
2
1
1
2
1
2
2
4
1
1
1
2
3
2
2
2
2
6
1
2
3
1
1
4
1
1
FORM NO. L08812947
2006-12
RAZOR 20BT
OFF SET BRUSH SYSTEM RAZOR 20BT
26
2003-09
23
11
12
27
30
24
5
20
29
19
34
22
333
28 21
17
69
25
26
7
18
35
8
31
13
2
15
16
10
32
1
4
35
39
38
37
31
36
43
FORM NO. L08812947
RAZOR 20BT
OFF SET BRUSH SYSTEM RAZOR 20BT
27
2003-09
Item
no.
1
2
3#
4
5#
6
7
8
9
10
11#
12#
13
15
16
17#
18#
19#
20
21
22#
23#
24#
25#
26
27#
28#
29#
30
31
32
33
34
35
36
37#
38
39
43#
Ref. No.
909 5135 000
909 5136 000
L08812921
909 5134 000
L08812924
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
L08602460
L08602461
xxxxxxxx
xxxxxxxx
xxxxxxxx
L08812203
L08812213
L08812325
xxxxxxxx
145 9774 000
L08812426
L08812589
L08812706
L08812718
xxxxxxxx
L08812780
L08812919
L08812929
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
L08603850
xxxxxxxx
xxxxxxxx
L08603849
Description
Plate brush holder
Plate
Hose copper
Brush cover Razor 20B
Frame brush lifting
Nut hex M8 (Brush System Hardware Kit)
Vibration damping M8 (Brush System Hardware Kit)
Screw hex hd M6x25 (Brush System Hardware Kit)
Nut hex selflocking M8 (Brush System Hardware Kit)
Screw hex hd M6x16 SS (Brush System Hardware Kit)
Bumper roller
Bushing
Nut hex selflocking M6 (Brush System Hardware Kit)
Nut hex selflocking M5 (Brush System Hardware Kit)
Screw M6x16 (Brush System Hardware Kit)
Knob for brush plate
Buffer for brush plate
Bushing
Washer (Brush System Hardware Kit)
Key
Cap for knob
Polygonal holder kit
Dowel brush plate fixing
Washer rubber
Washer flat 7x18 (Brush System Hardware Kit)
Brush plate fixing kit
Reduction gearmotor
Brush lifting lever
Screw hex hd M6x30 (Brush System Hardware Kit)
Screw hex hd M8x16 (Brush System Hardware Kit)
Screw M6x40 (Brush System Hardware Kit)
Screw hex hd M4x8 (Brush System Hardware Kit)
Washer flat 5x10 (Brush System Hardware Kit)
Washer flat 6x12,5 (Brush System Hardware Kit)
Washer flat 8x17 (Brush System Hardware Kit)
Carbon brush set
Washer hex. (Brush System Hardware Kit)
Washer flat 6x18 (Brush System Hardware Kit)
Reduction gear
Qty
1
1
1
1
1
1
1
2
1
4
2
2
2
2
3
2
1
2
1
1
2
1
2
2
4
1
1
1
2
3
2
2
2
2
6
1
2
3
1
FORM NO. L08812947
2006-12
RAZOR 17B/ RAZOR 20B/ RAZOR 20BT
CONTROL PANEL SYSTEM
28
2003-09
7
1
3
4
5
6
2
8
9
FORM NO. L08812947
RAZOR 17B/ RAZOR 20B/ RAZOR 20BT
CONTROL PANEL SYSTEM
29
2003-09
Item
no.
1
2
3
4
5#
6#
7#
8#
9#
[10]#
Ref. No.
xxxxxxxx
xxxxxxxx
xxxxxxxx
xxxxxxxx
L08812909
L08812938
L08812562
L08603866
L08603790
L08603961
Description
Screw M4x10 (Control Panel System Hardware Kit)
Nut hex M4 (Control Panel System Hardware Kit)
Washer falt (Control Panel System Hardware Kit)
Screw 3x8 (Control Panel System Hardware Kit)
Led board
Lever
Kit switch complete
Kit control panel w/decal
Handle for lever
Control Panel System Hardware Kit
Qty
2
2
2
2
1
1
1
1
1
1
FORM NO. L08812947
2006-12
RAZOR 17B/ RAZOR 20B
WIRING SYSTEM
30
2003-09
8
6
7
9
12
11
14
15
22
10
1
2
3
4
5
17
13
18
19
20
21
16
FORM NO. L08812947
RAZOR 17B/ RAZOR 20B
WIRING SYSTEM
31
2003-09
Item
no.
1#
2#
3#
4#
5#
6#
6
7#
8
9
10
11#
12
13
14
15
16
17#
18
19#
20
21
22#
Ref. No.
L08812284
L08812444
L08812625
L08812996
L08812890
L08812910
909 5098 000
L08812961
146 0708 000
146 0566 000
146 0759 000
L08812962
146 0660 000
145 9852 000
145 0227 000
145 9854 000
145 0300 000
L08603867
145 8046 000
L08603890
145 6062 000
145 9132 000
L08603934
Description
Cover
Screw
Kit electronic card covering
Battery charger 24V
Support
Electronic card for machines without drive only
Electronic card for machine with /without drive
Machine harness
Insulator
Insulator
Dowel
Electronic card harness
Fuse holder
Fuse 5A
Fuse 40A
Fuse 50A
Electromagnetic switch
Kit electronic card fixing
Fuse holder
Battery harness
Battery connector
Nut selflocking
Electromagnetic switch
Qty
1
2
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
4
1
FORM NO. L08812947
2006-12
RAZOR 20BT
WIRING SYSTEM
32
2003-09
8
6
7
9
12
11
14
15
10
1
2
3
4
5
17
13
18
19
20
21
16
22
23
24
25
26
27
28
29
30
31
32
FORM NO. L08812947
RAZOR 20BT
WIRING SYSTEM
33
2003-09
Item
no.
1#
2#
3#
4#
5#
6
7
8
9
10
11
12
13
14
15
16
17#
18
19#
20
21
22
23
24
25
26
27
28#
29
30
31
32
Ref. No.
L08812284
L08812444
L08812625
L08812996
L08812890
909 5098 000
909 5163 000
146 0708 000
146 0566 000
146 0759 000
909 5161 000
146 0660 000
145 9852 000
145 0227 000
145 9854 000
146 0719 000
L08603867
145 8046 000
L08603890
145 6062 000
145 9132 000
909 5127 000
146 0627 000
145 8513 000
909 5110 000
909 5124 000
909 5126 000
L08812964
909 5125 000
145 9211 000
145 1773 000
145 5743 000
Description
Cover
Screw
Kit card covering w/screw
Battery charger 24 V 13A 115V
Support
Electronic card
Machine harness
Negative insulator
Positive insulator
Dowel
Electronic card harness
Fuse holder
Fuse 5A
Vacuum fuse 40A
Brush fuse 50A
Vacuum electromagnetic switch
Kit electr.card fixing
Fuse holder
Battery harness
Battery connector
Nut selflocking M6
Brush electromagnetic switch
Spacer
Drive fuse 30A
Drive electronic card
Electronic card support
Cover
Screw hex hd M3x10
Screw wing M4x10
Screw 3,9x9,5 thd form
Screw hex hd M4x10
Nut ex.selflock.low M4
Qty
1
2
1
1
1
1
1
1
1
2
1
2
1
1
1
1
1
1
1
1
4
1
4
1
1
1
1
4
2
4
4
4
FORM NO. L08812947
2006-12
RAZOR 17B/ RAZOR 20B
WIRING DIAGRAM
34
2003-09
V
A
C
UUM SWIT
C
H
088
12
562
NE
G
ATIVE INSULAT
O
R 14
6
0
7
08
000
BRUSH SWIT
C
H
088
12
562
S
O
LEN
O
ID VALVE
088
129
60
L
E
G
END
A
LED BOARD
(
CFBALED
)
08812909
BATTERY
CO
NNE
C
T
O
R 14
5
606
2
000
ELECTRONIC CARD
(
CFBA430
)
#909 5068 00
0
BRUSH ELE
C
TR
O
MA
G
NETI
C
SWIT
C
H
08603
9
34
VACUUM FUSE
(
40A
)
145 0227 00
0
VA
C
UUM M
O
T
O
R
08603888
BRUSH M
O
T
O
R
088
12919
SOLENOID VALVE & ELECTR. FUSE (5A) 145 9852 00
0
BRUSH FUSE
(
50A
)
145 9854 00
0
BATTERY
C
HAR
G
ER
088
1299
6
VA
C
UUM ELE
C
TR
O
MA
G
N.SWIT
C
H 14
5
0300
000
PO
SITIVE INSULAT
O
R 14
6
0566
000
g
ri
g
io
GY
YE
VT
WH
g
iall
o
vi
o
la
bian
co
PK
RD
OG
r
os
a
r
osso
aran
c
i
o
GN
BN
B
U
v
e
rd
e
marr
o
n
e
a
zz
u
rr
o
CO
L
O
RS
CO
DE
S
BK
n
e
r
o
G
RE
Y
V
I
O
LE
T
WHITE
YELL
OW
PINK
O
RAN
GE
RED
BL
UE
BR
O
W
N
G
REE
N
BLA
CK
EV1
I
S
1
S
W2
S
W1
F
3
M1
M2
F2
F1
EB1
E
S
1
EB2
C
1
C
H1
E
S2
I
S
2
F
3
C
H1
C
1
B
U
BN
C
1
BK
RD
BN
V-
V+
I
S
1I
S2
F2
YE
C
FBA4
30
BK
B
U
BN
RD
BK
Char
g
e
r
EB1
SWIT
CH
PK
WH
OG
BN
B
U
G
Y
EB2
S
W1
S
W
2
RD
E
S
1
RD
B
U
E
S2
F1
YE
BN
M2
BK
M1
RD
RD
OR
WH
EV1
GY
Pb
/
Ge
l
SWIT
CH
Kent
/
Euroclean RAZOR 17B
/
20
B
+
-
+
-
CT
1
BL
S-
BT
VT
S+
V-
BL
V+
8
CH
1
S
C
LR
S
V
SB
LY
L
G
V-
LC
8
Ch
N
O
Ch
W-
W+
Gel
P
b
FORM NO. L08812947
V
A
C
UUM SWIT
C
H
088
12
56
2
NE
G
ATIVE INSULAT
O
R 14
6
0
7
08
000
BRUSH SWIT
C
H
088
12
56
2
S
O
LEN
O
ID VALVE
088
129
60
LE
G
END
A
BATTERY
CO
NNE
C
T
O
R 14
5
606
2
000
ELECTRONIC CARD (CFBA430) 909 5098 000
B
RUSH ELE
C
TR
O
M
G
NETI
C
SWIT
C
H 9
0
9
5
127
000
VACUUM FUSE
(
40A
)
145 0227 000
VA
C
UUM M
O
T
O
R
08603888
BRUSH M
O
T
O
R
088
1291
9
BRUSH FUSE
(
50A
)
145 9854 000
BATTERY
C
HAR
G
ER
08
1299
6
P
O
SITIVE INSULAT
O
R 14
6
0566
000
DRIVE ELE
C
TR
O
NI
C
C
ARD 9
0
9
5
11
0
000
D
RIVE M
O
T
O
R MI
C
R
O
SWIT
C
H 9
0
9
5
114
000
DRIVE M
0
T
O
R 9
0
9
5
271
000
g
ri
g
i
o
GY
YE
VT
WH
g
iall
o
vi
o
la
bian
co
PK
OG
r
os
a
r
osso
aran
c
i
o
BN
B
U
v
e
rd
e
marr
o
n
e
azz
u
rr
o
CO
L
O
RS
CO
DE
S
BK
n
e
r
o
G
RE
Y
VI
O
LE
T
WHITE
YELL
OW
PINK
O
RAN
GE
RED
B
LU
E
BR
O
W
N
G
REE
N
B
LA
CK
F
3
C
H1
C
1
B
U
BN
C
1
BK
RD
BN
V-
V+
I
S
1I
S2
F2
YE
C
FBA4
30
BK
B
U
BN
RD
RD
EB1
SWIT
CH
PK
WH
OG
BN
B
U
GY
EB2
SW1
S
W
2
RD
E
S
1
RD
B
U
ES
2
F1
Y
E
BN
M2
BK
M1
RD
RD
OR
WH
EV1
GY
SWIT
CH
F4
M
3
SW4
(
white camme
)
K1
VT
M
-
M+
B-
B+
R1
1
5
8
4
E
B
3
VT
VT
VT
VT
YE
B
U
WH
BN
BN
WH
BU
BK
R
D
RD
VT
Kent
/
Euroclean RAZOR 20 B
T
I
S
1
S
W
2
S
W1
M1
M2
F2
F1
EB1
E
S
1
C
1
C
H1
I
S2
+
-
+
-
F4
EB
3
M
3
S
W4
CT
1
BL
S
-
BT
V
T
S+
V-
BL
V+
8
C
H
8
S
C
LR
S
V
S
B
LY
L
G
KY
L
C
1
N
O
Ch
W-
W+
Gel
Pb
RAZOR 20BT
WIRING DIAGRAM
35
2003-09
FORM NO. L08812947
Item
no. Ref. No. DescriptionQty
#
#
#
L08603898
L08603808
L08603662
L08603864
L08601624
L08812960
L08603958
L08603836
L08812869
L08812873
L08603888
L08603970
L08603868
L08603951
L08812930
909 5042 000
L08812977
L08603860
L08603956
L08812919
L08219000
L08812213
L08812203
L08812706
L08603960
L08603861
145 8478 000
L08603862
L08603863
L08603957
L08603878
L08602468
L08602463
L08812518
L08603879
L08812562
L08603961
909 5098 000
L08812996
145 0300 000
L08603934
145 9854 000
145 0227 000
145 9852 000
Solution System
Solenoid valve kit complete
Water filter
Hose connection straight
Kit rubber holder w/filter
Pipe holder
Solenoid valve 24V
Solution System Hardware Kit
Tank System
Gasket, tank cover
Drain hose
Solution drain hose complete
Kit vacuum motor w/ connector
Squeegee lift lever kit
Closure clean water hose
Hose fresh water
Suction hose
Acoustic insulation
Acoustic insulation
Handle ajuster kit
Tank System Hardware Kit
Brush System
Reduction gear motor
Vibration damping M8
Buffer for brush plate
Knob for brush plate
Dowel broom plate fixing
Brush System Hardware Kit
Chassis System
Kit castor wheel rear
Pedal cover
Kit tank support right
Kit tank support left
Chassis System Hardware Kit
Squeegee Assembly
Kit squeegee complete
Squeegee blade rear
Squeegee balde front
Adjustment screw kit
Kit squeegee wheel
Control Panel System
Kit switch complete
Control Panel System Hardware Kit
Wiring system
Electronic card
Battery charger 24V
Electromagnetic switch
Electromagnetic switch
Fuse 50A
Fuse 40A
Fuse 5A
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
RAZOR 17B/ RAZOR 20B/ RAZOR 20BT
RECOMMENDED SPARE PARTS
36
2003-09
FORM NO. L08812947
2006-12

Navigation menu
