S20 Battery NA Parts Manual
2012-03-17
: Sweepscrub S20 Battery Parts Manual S20_battery_parts_manual 462 file product_file
Open the PDF directly: View PDF
.
Page Count: 150 [warning: Documents this large are best viewed by clicking the View PDF Link!]
- S20 Battery NA Parts Manual
- GENERAL RECOMMENDED MAINTENANCE
- STANDARD PARTS
- Fig. 1 -- Brushes, Replacement

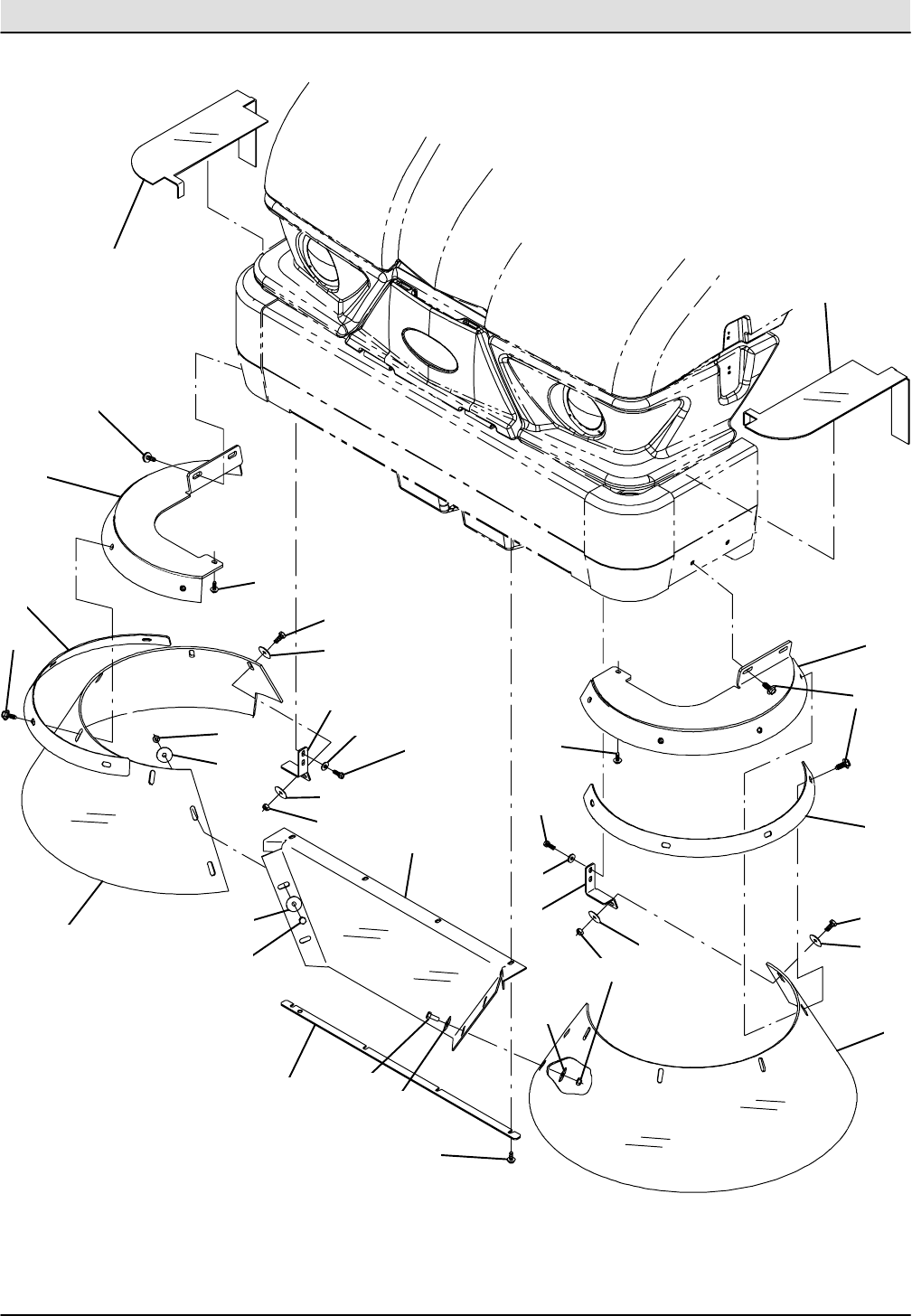

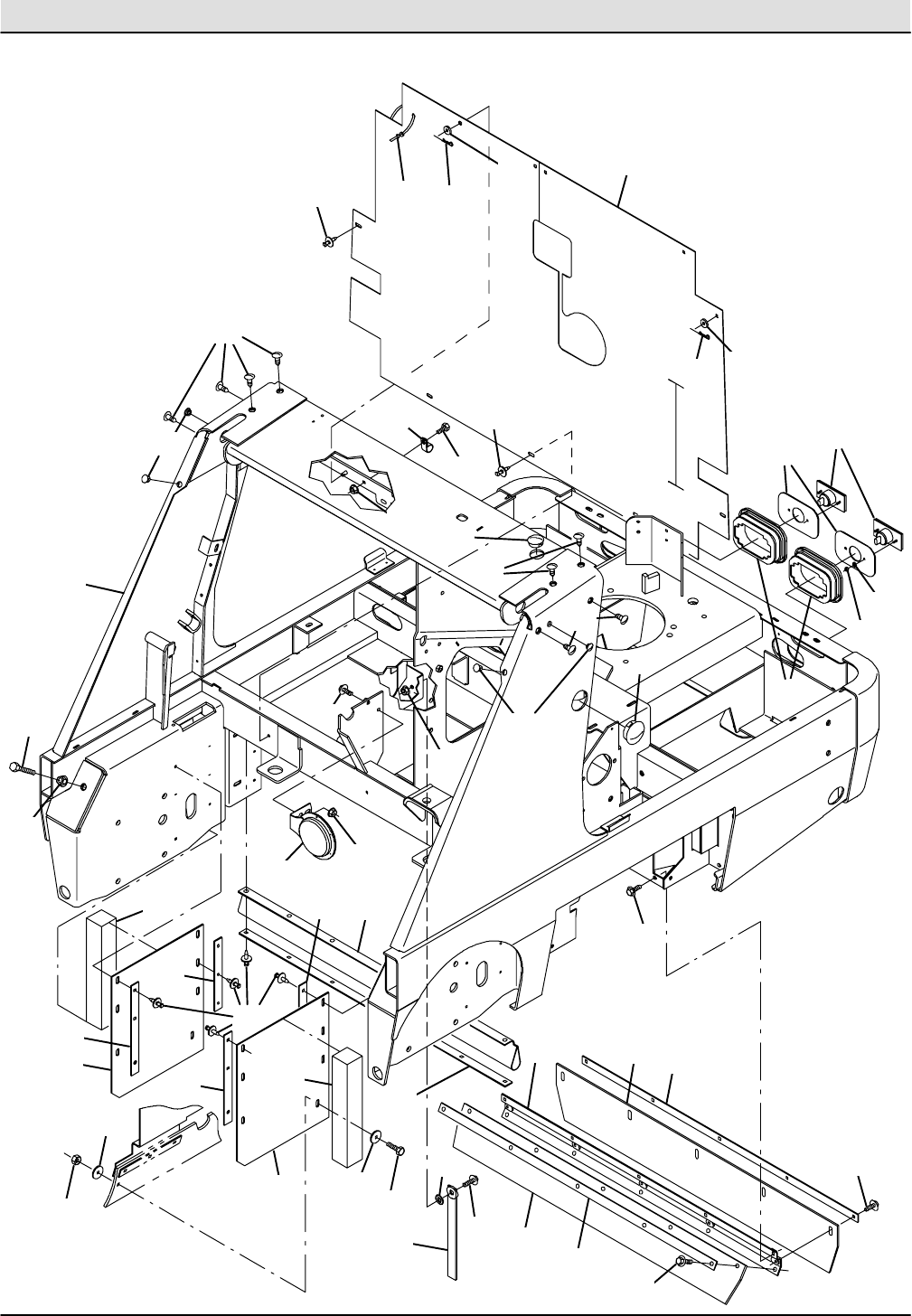

- Fig. 2 -- Main Frame and Skirts Group

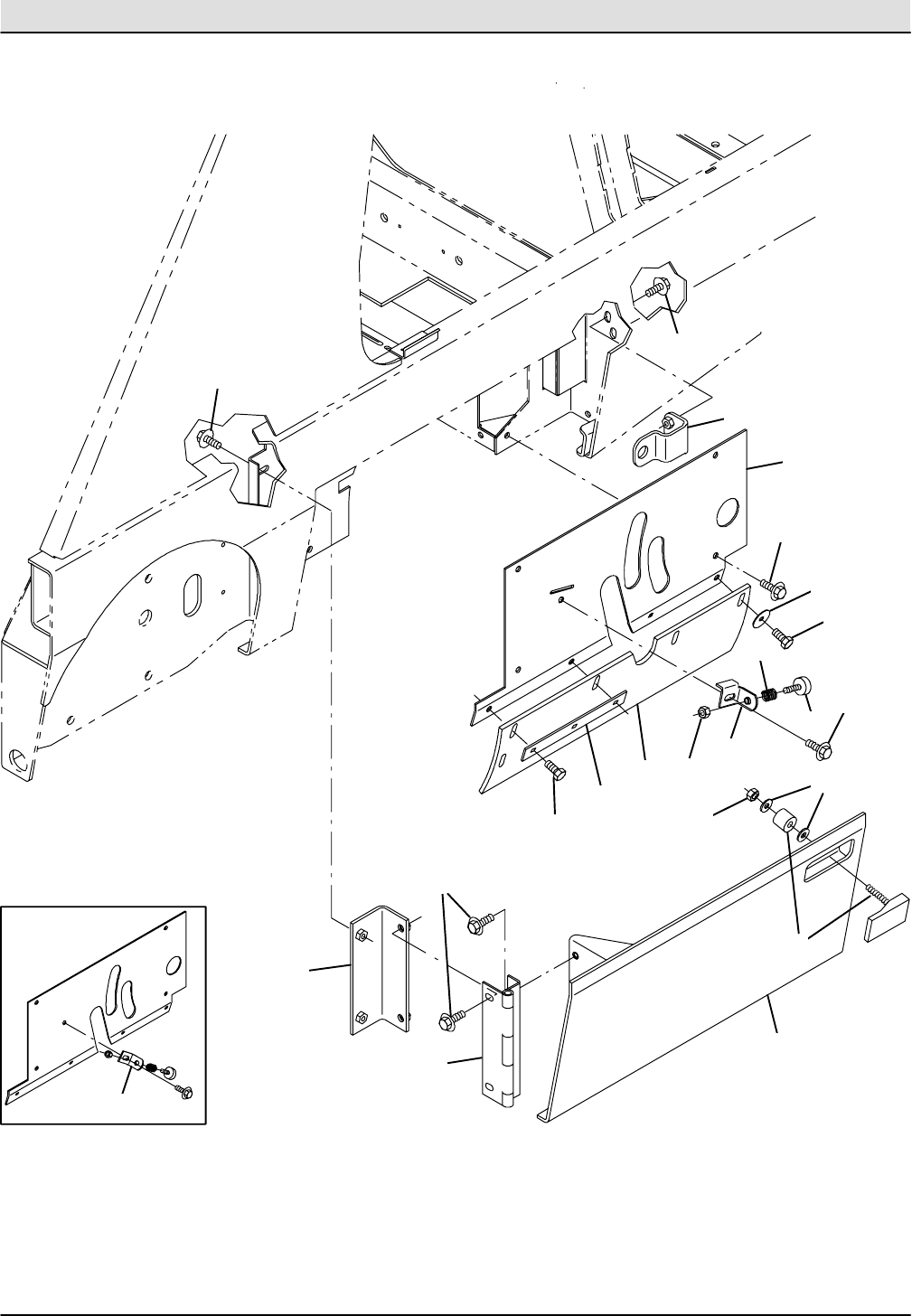

- Fig. 3 -- Brush Door Group, Right Side
- Fig. 4 -- Brush Door Group, Left Side

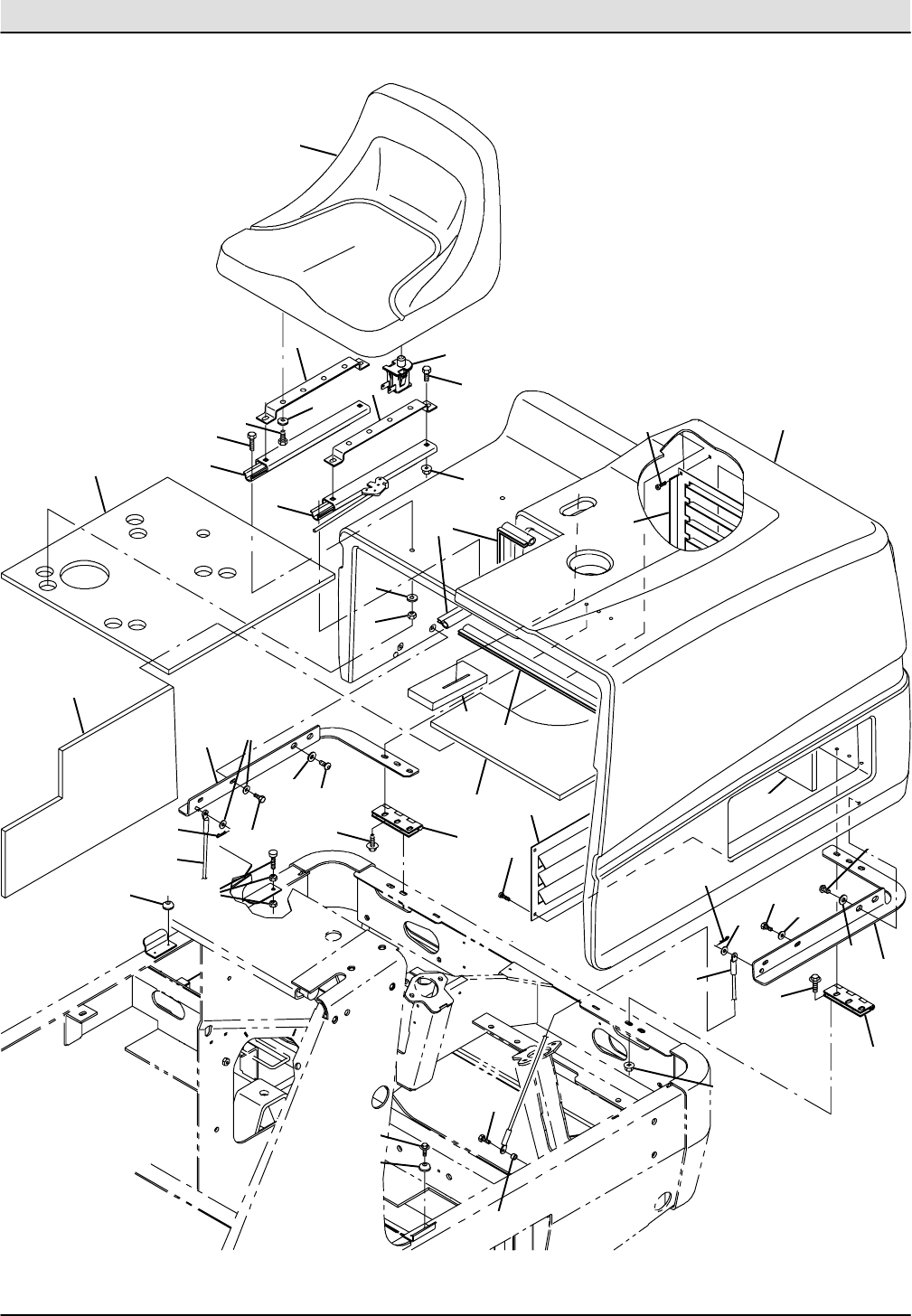

- Fig. 5 -- Seat and Cover Group
- Fig. 6 -- Rear Cover Latch Group

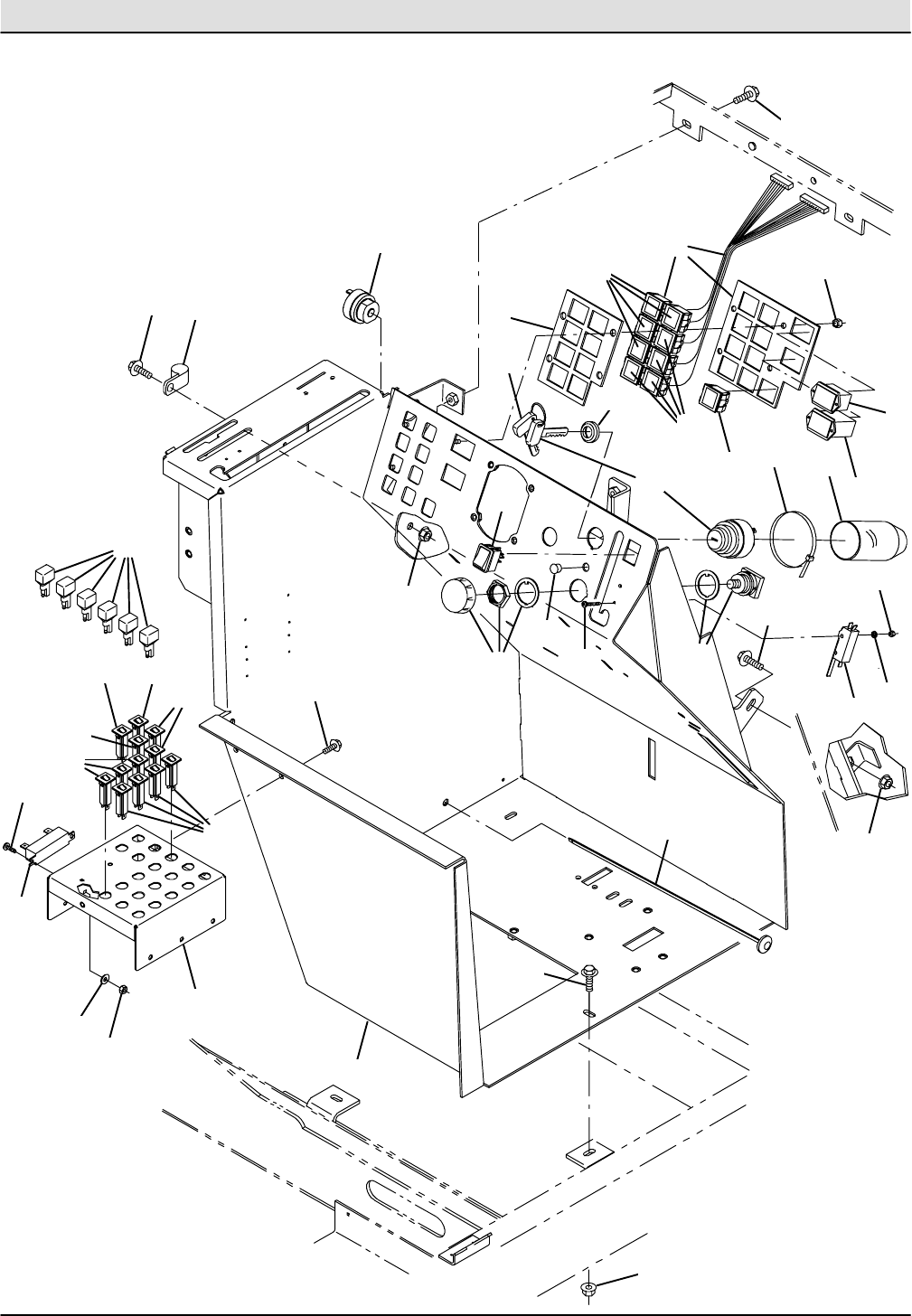

- Fig. 7 -- Operator Station Group
- Fig. 8 -- Steering Wheel Group

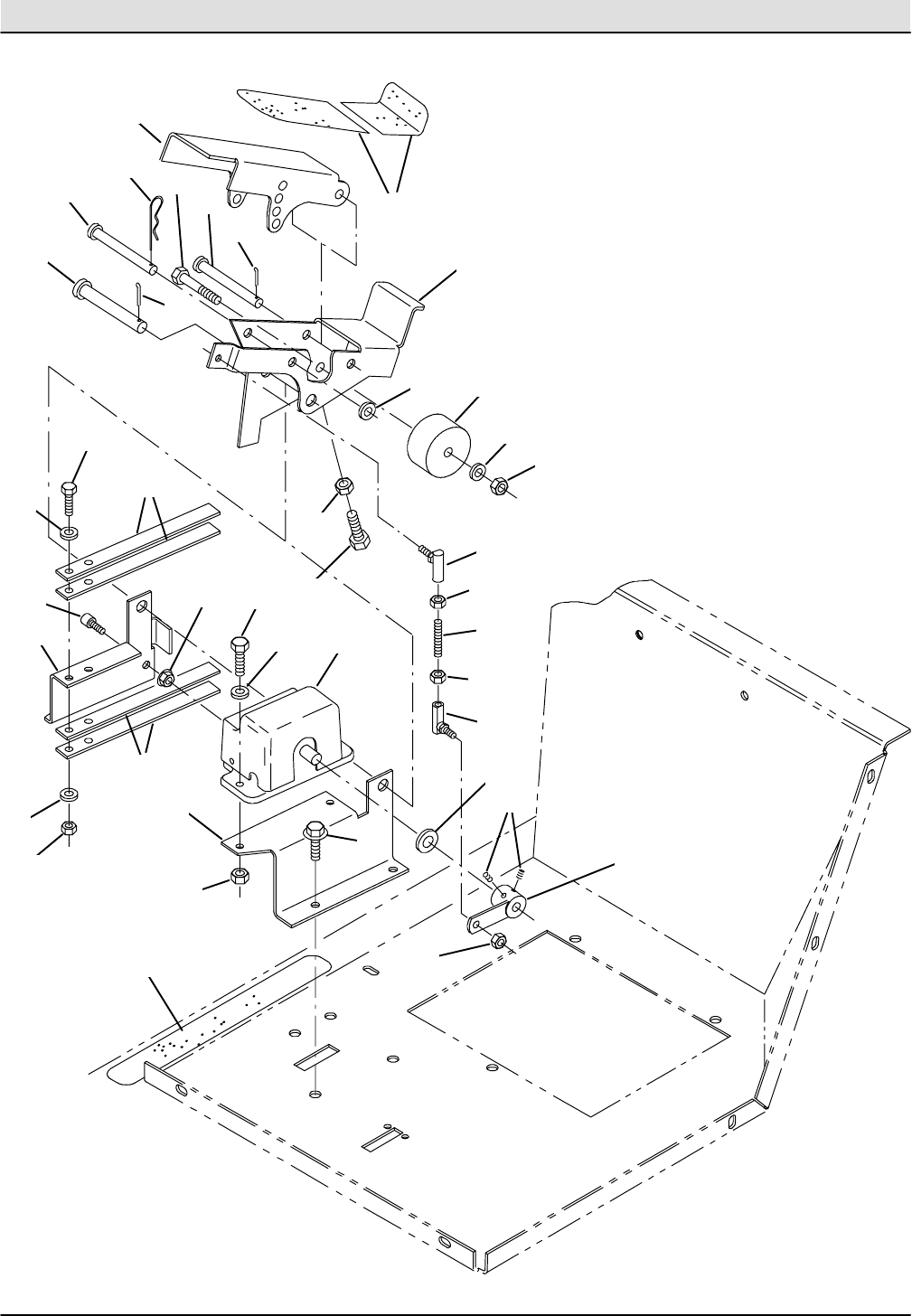

- Fig. 9 -- Directional Pedal Group

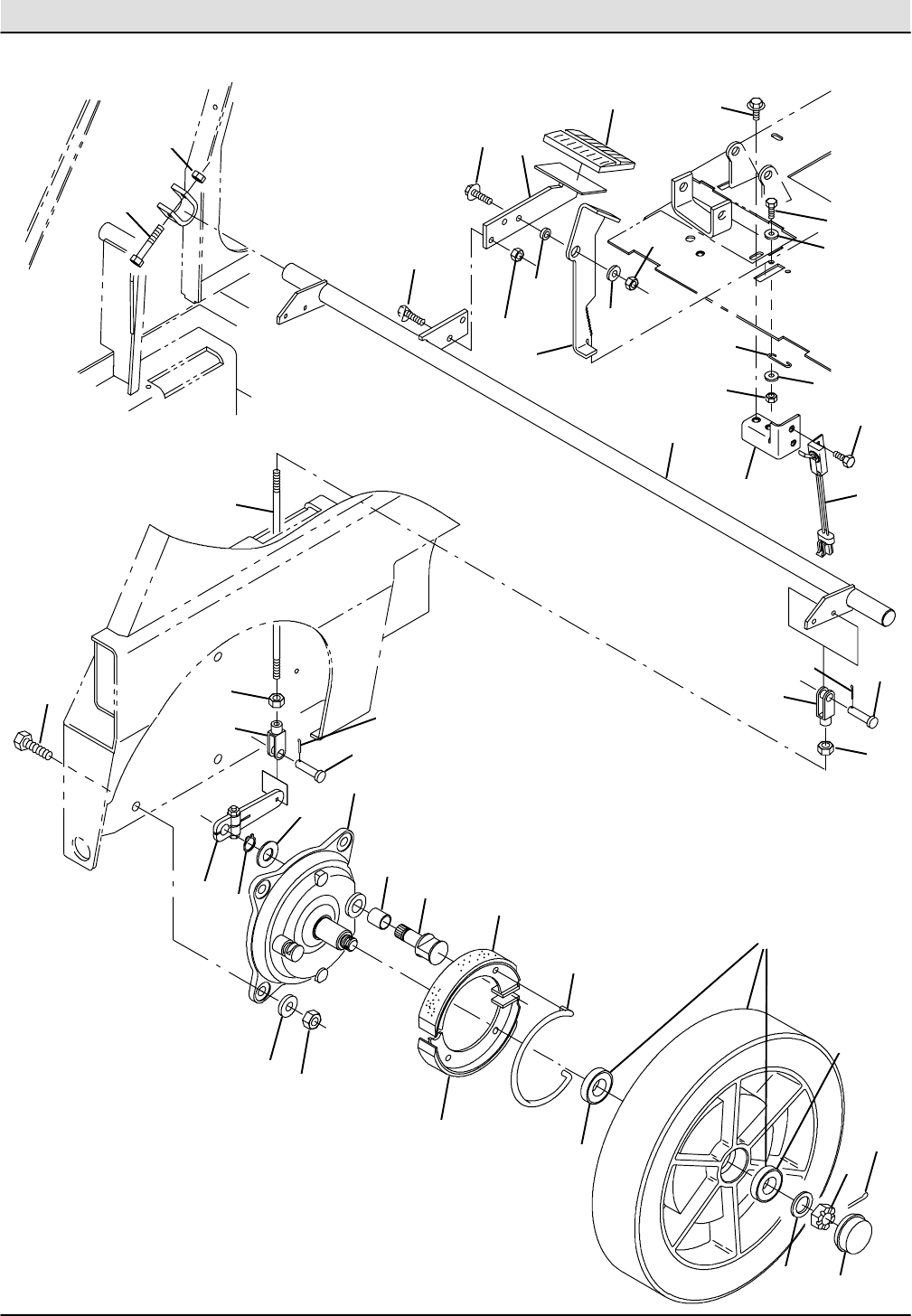

- Fig. 10 -- Wheel and Brake Group, Front
- Fig. 11 -- Steering Cylinder Group

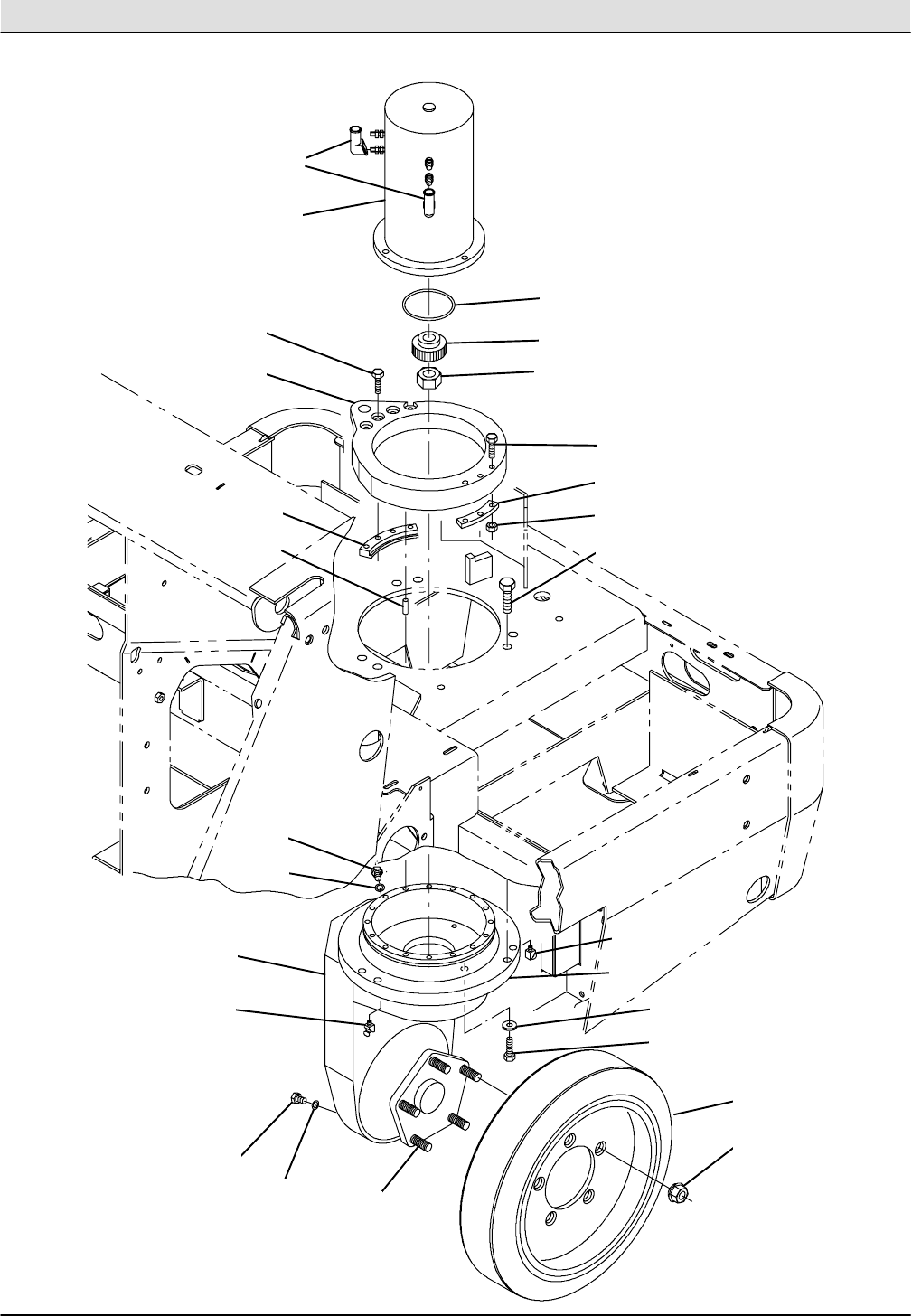

- Fig. 12 -- Wheel Group, Rear Drive
- Fig. 13 -- Brush Lift Group, Main
- Fig. 14 -- Brush Cable Lift Group, Main

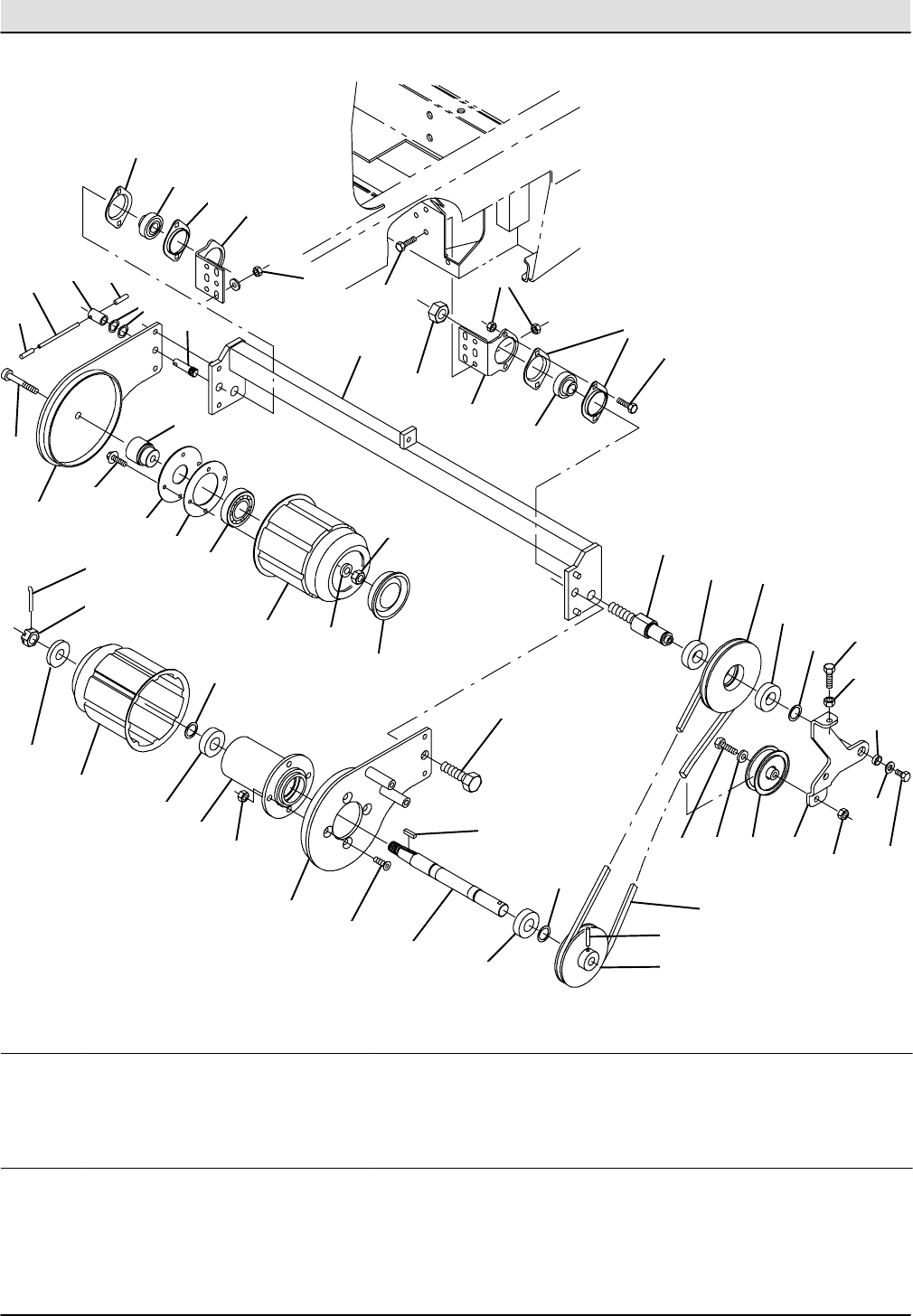

- Fig. 15 -- Brush Drive Group, Main
- Fig. 16 -- Brush Drive Motor Group, Main
- Fig. 17 -- Brush Lift Group, Side
- Fig. 18 -- Brush Motor and Pivot Group, Side
- Fig. 19 -- Vacuum Fan Control Group
- Fig. 20 -- Vacuum Fan Group

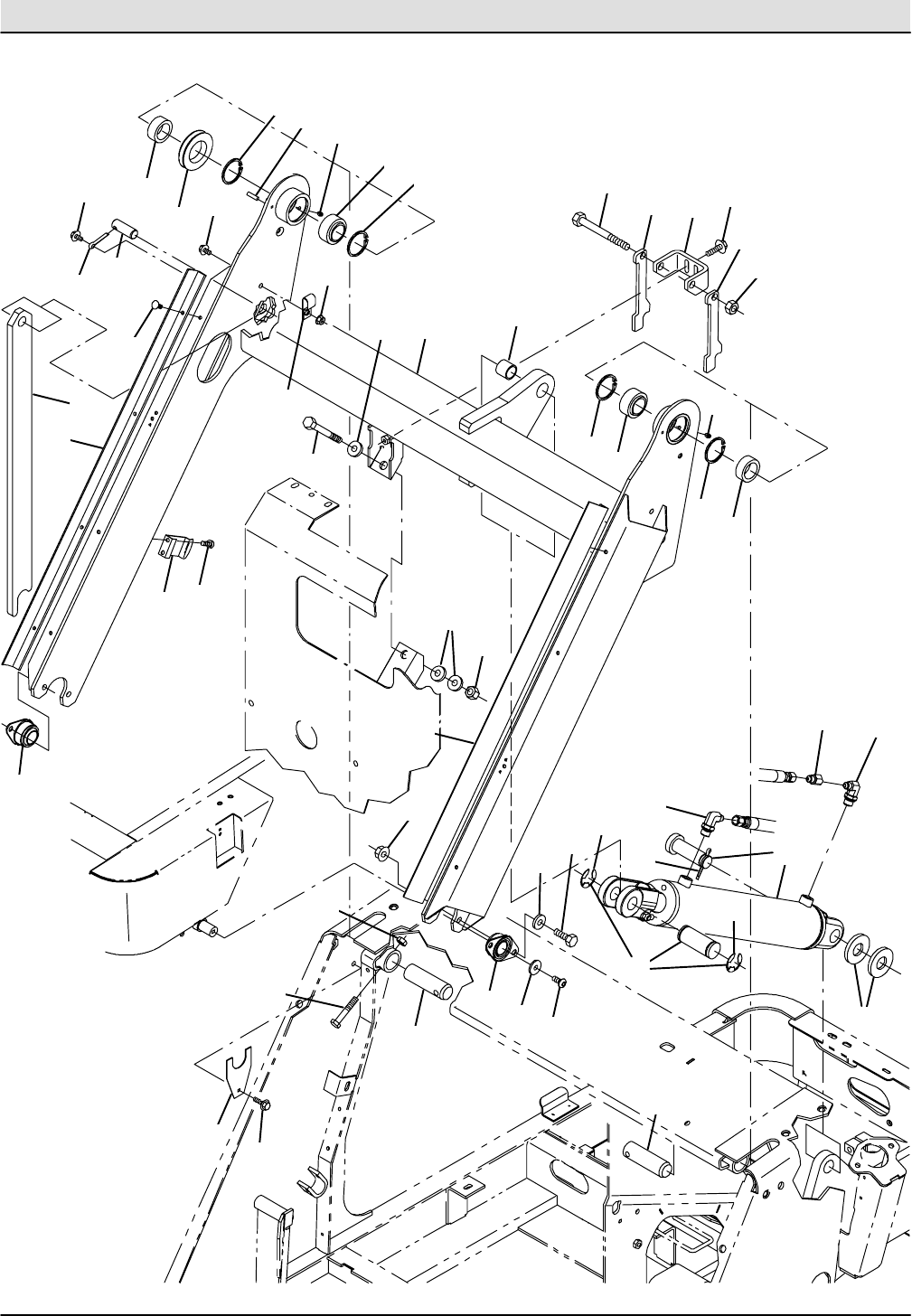

- Fig. 21 -- Hopper Lift Arms Group

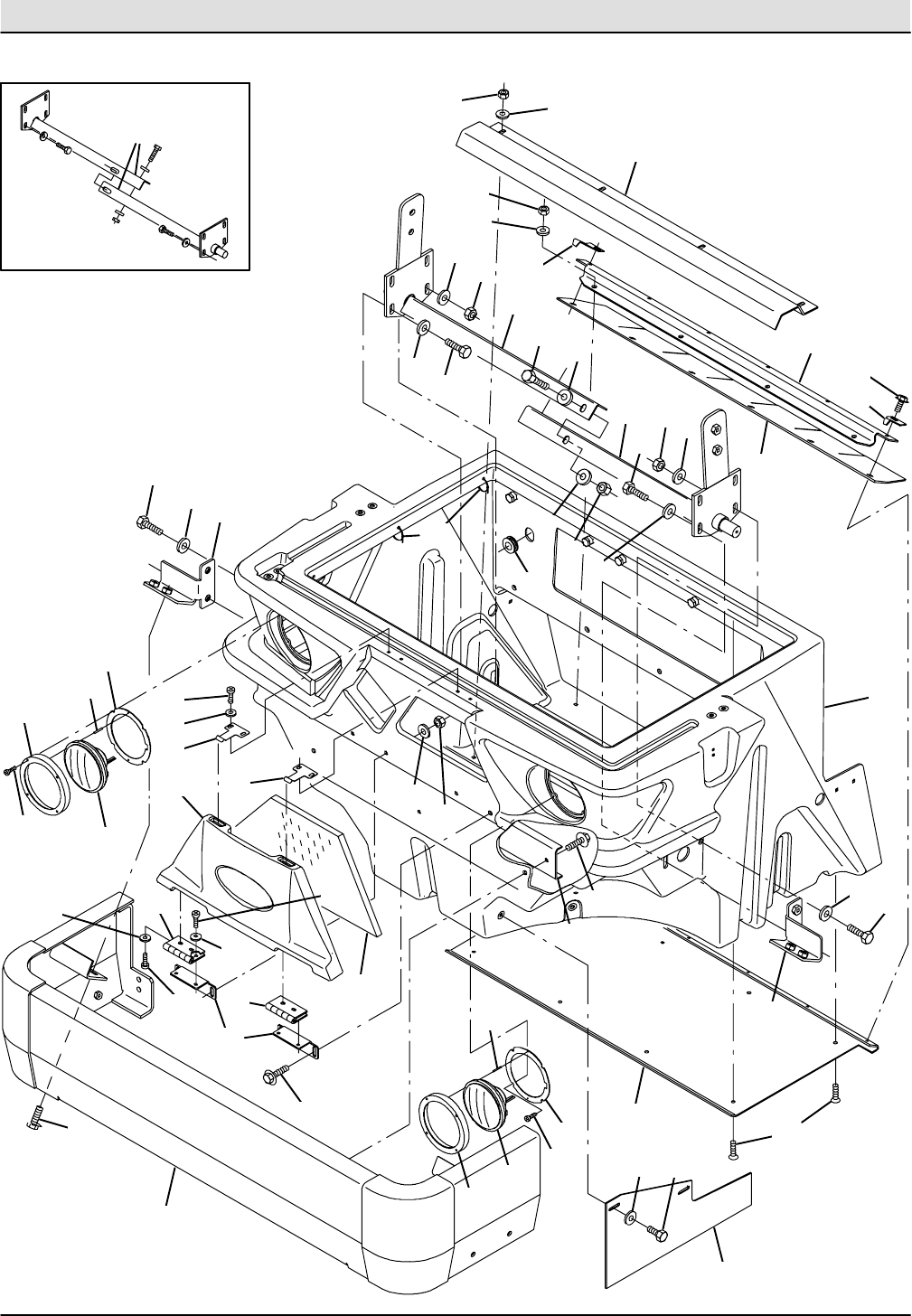

- Fig. 22 -- Hopper Group, Plastic

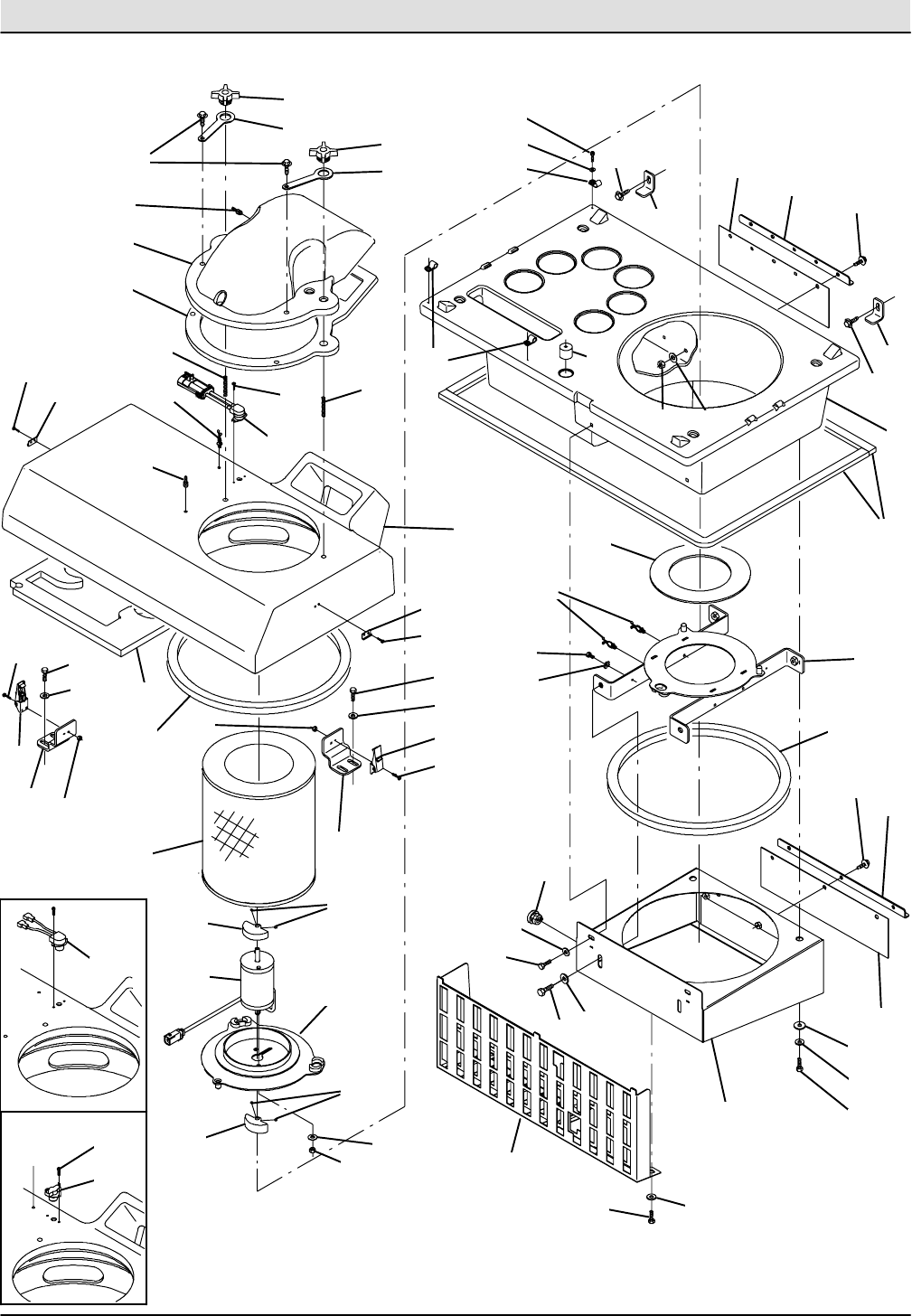

- Fig. 23 -- Hopper Cover Group

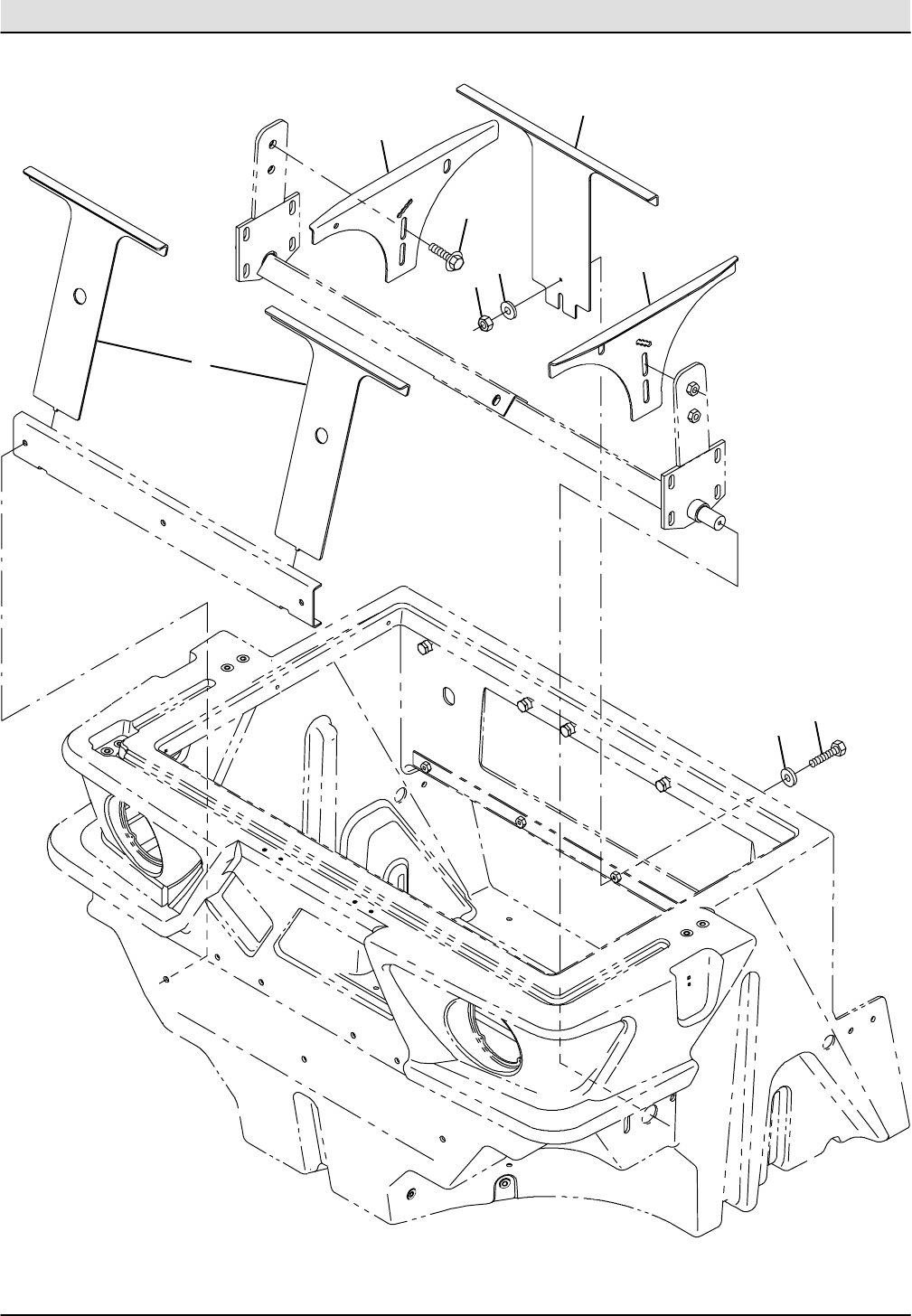

- Fig. 24 -- Hopper Support Group (001071-- )
- Fig. 25 -- Hopper Dump Door Group
- Fig. 26 -- Hopper Filter Shaker Group

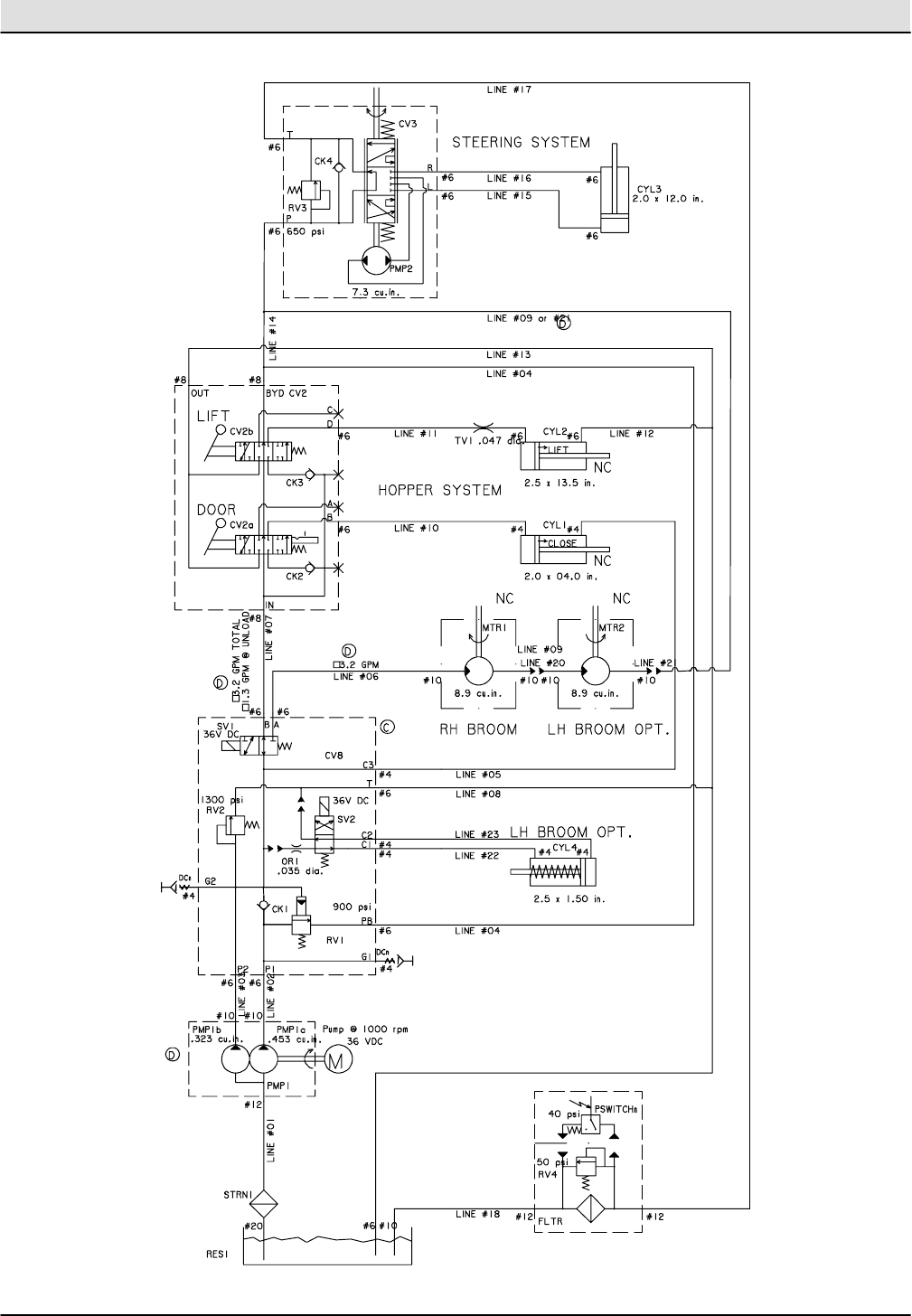

- Fig. 27 -- Hydraulic Schematic
- Fig. 28 -- Hydraulic Hose Group

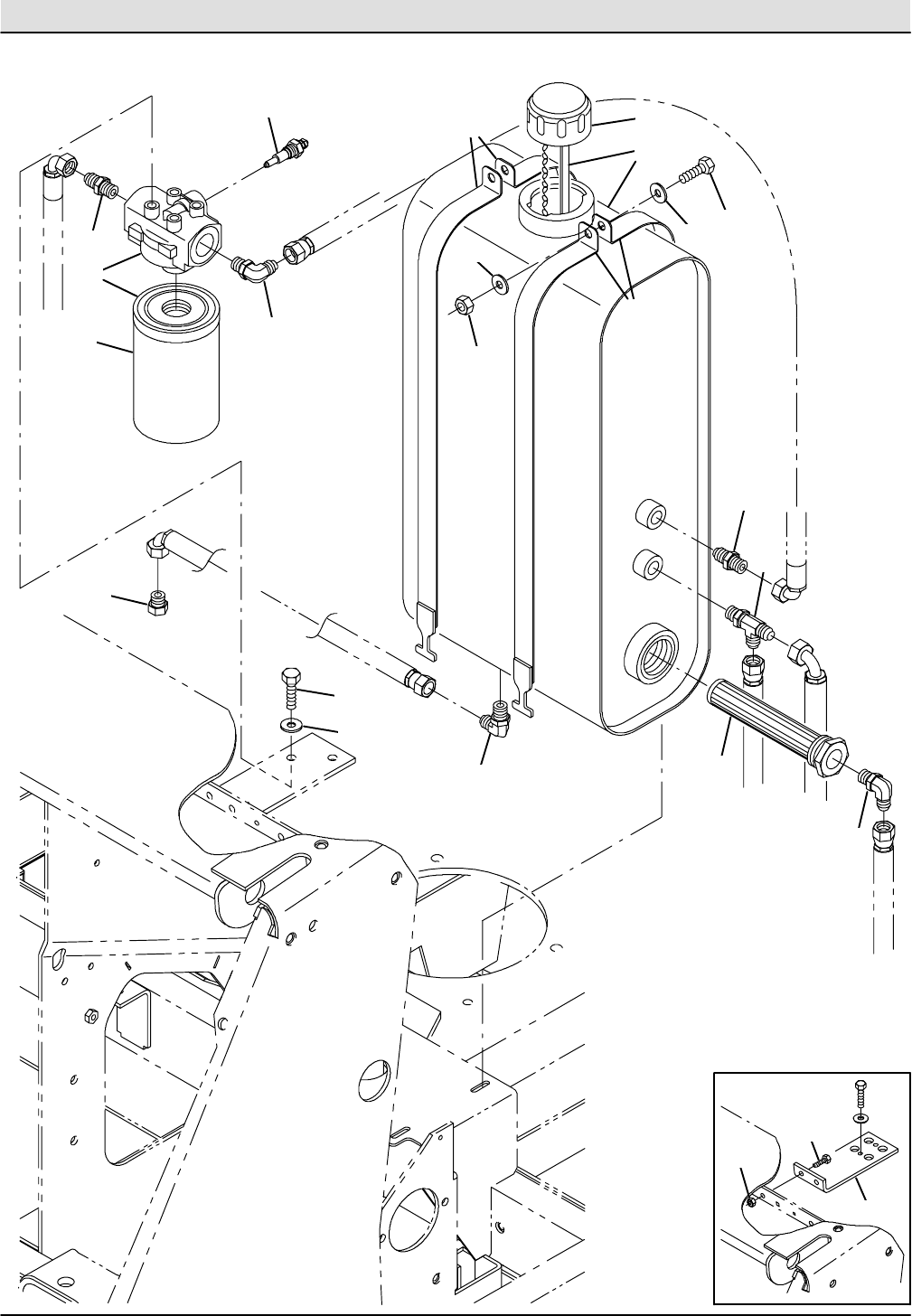

- Fig. 29 -- Hydraulic Reservoir Group
- Fig. 30 -- Hydraulic Control Valve Group
- Fig. 31 -- Hydraulic Solenoid Valve Group

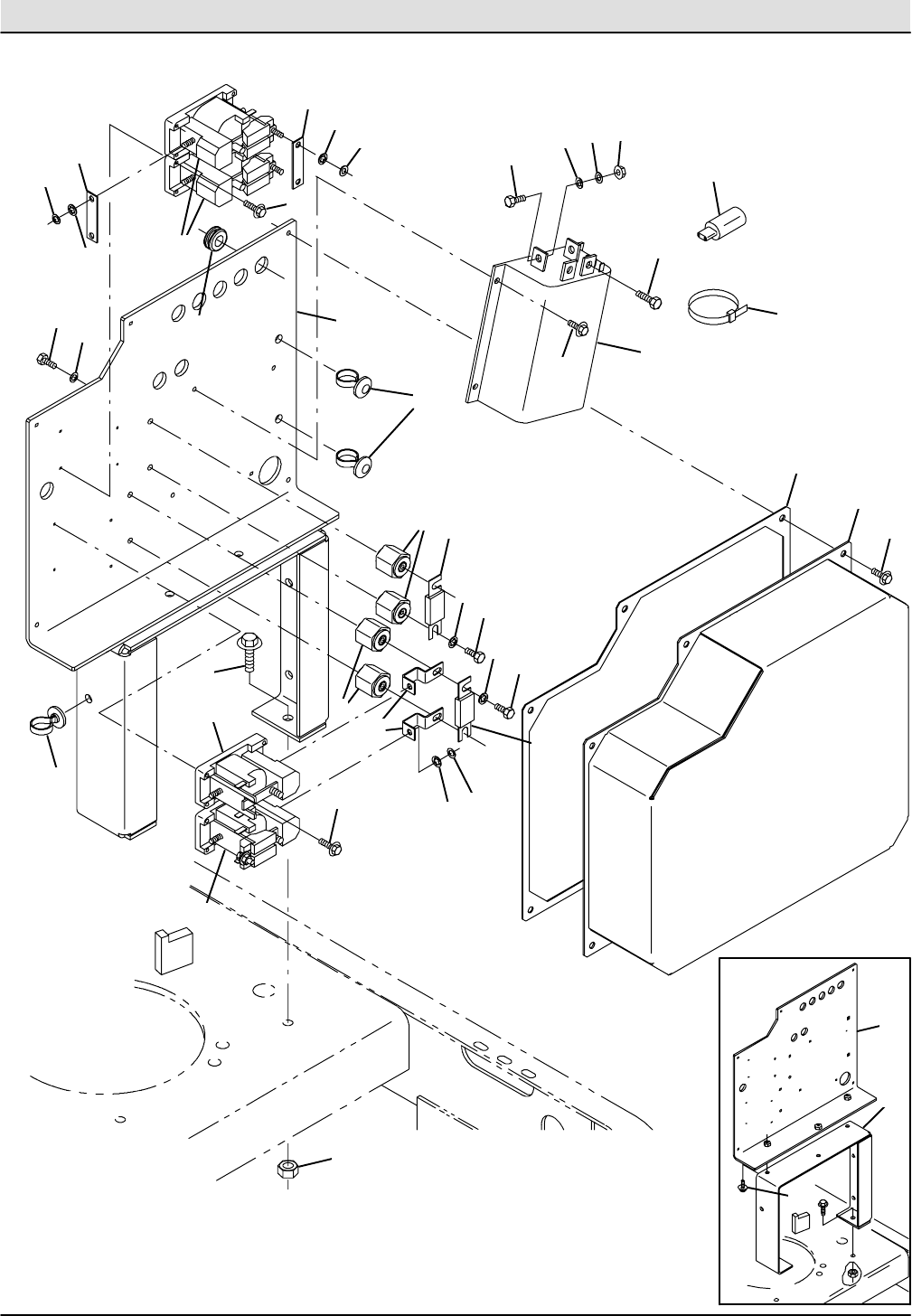

- Fig. 32 -- Electrical Control Box Group

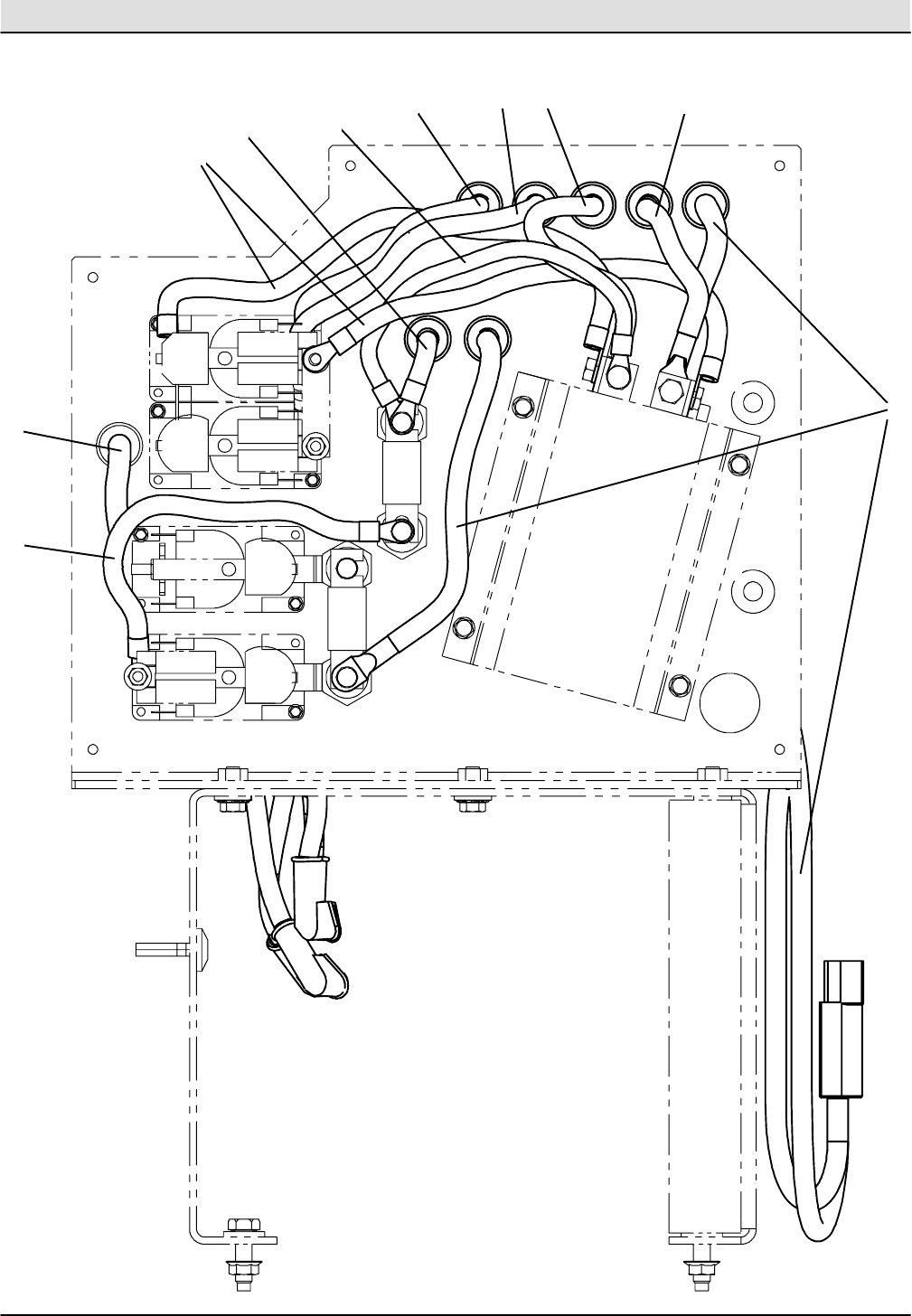

- Fig. 33 -- Electrical Control Box Wire Connection Group

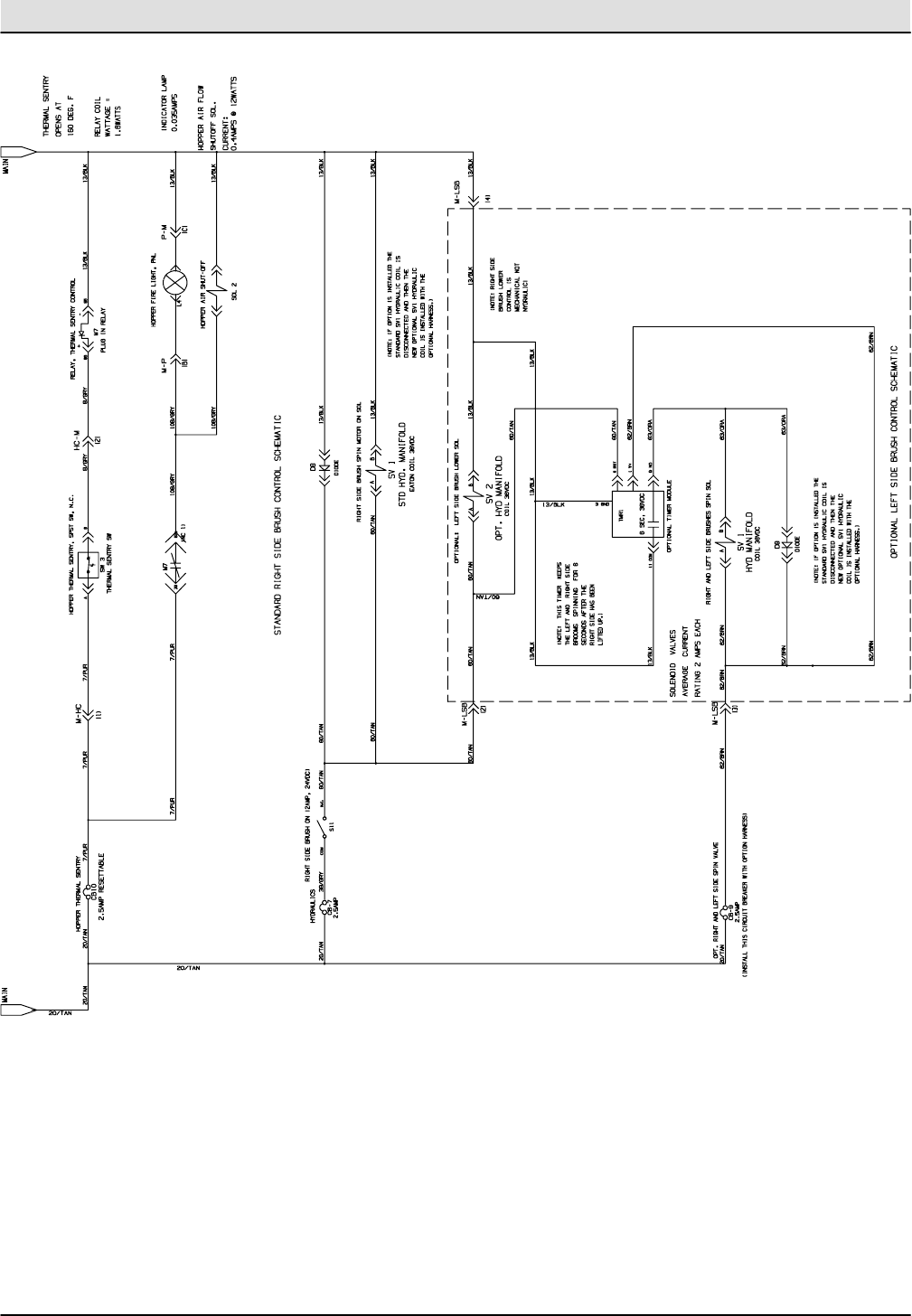

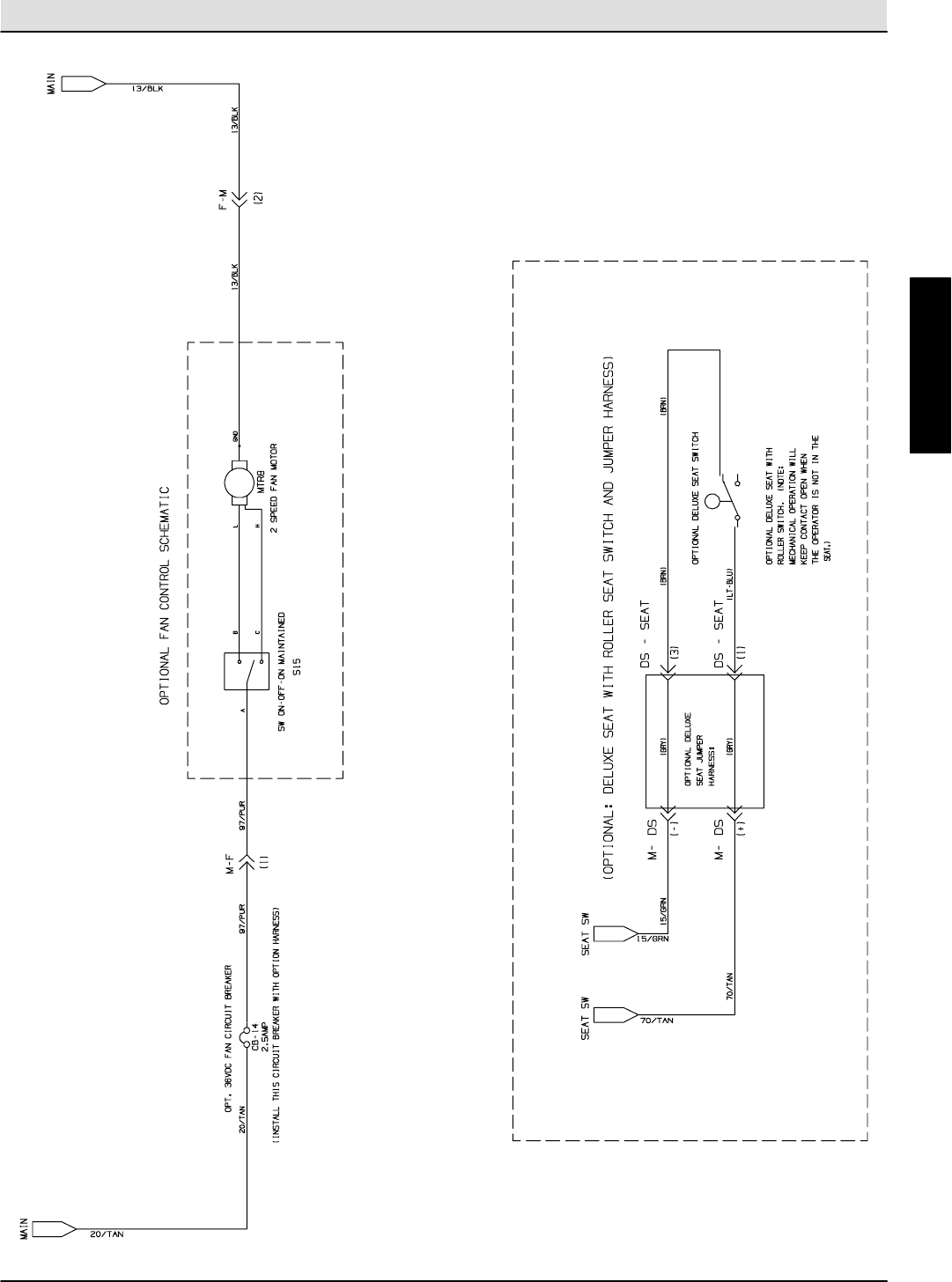

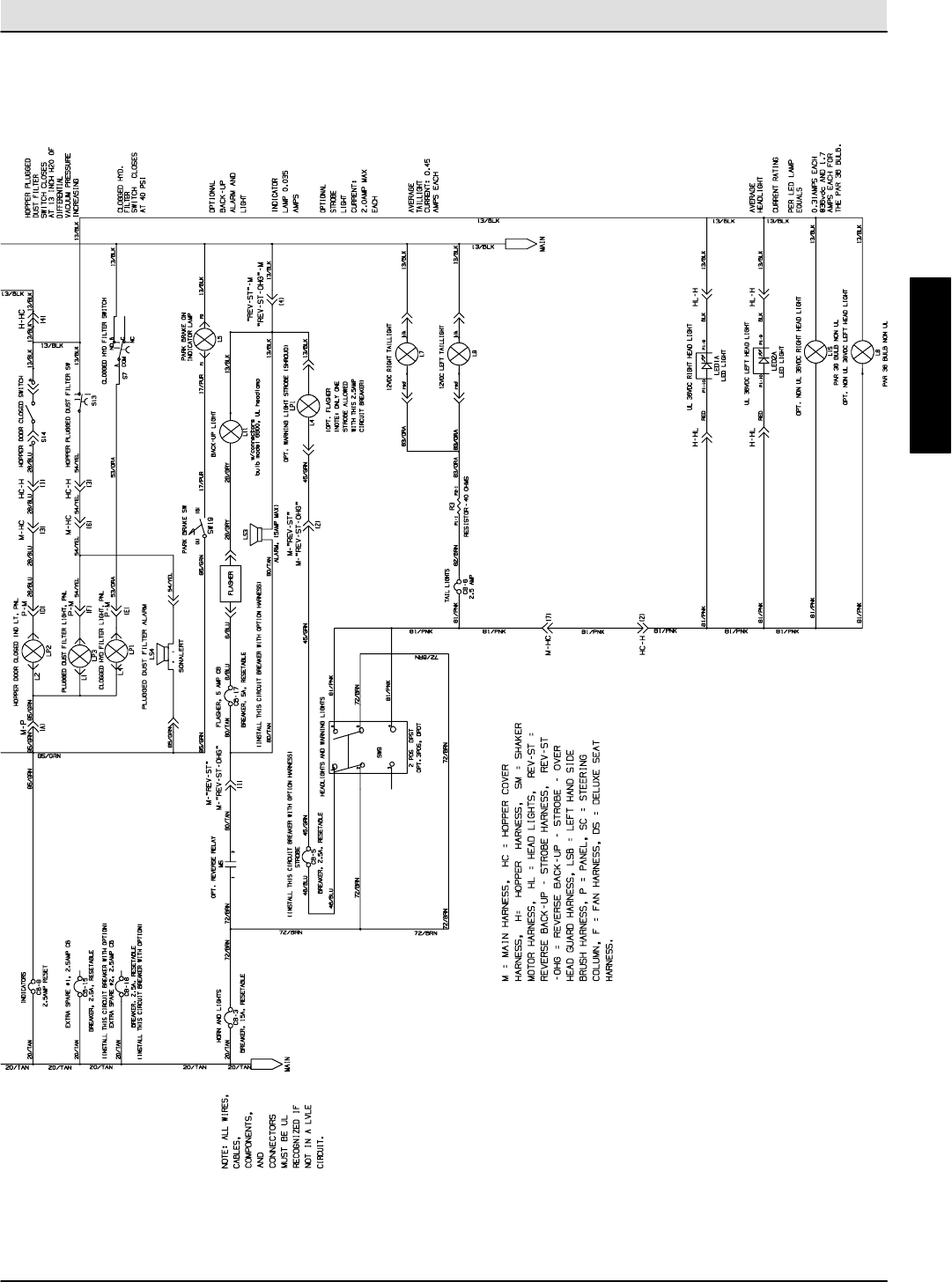

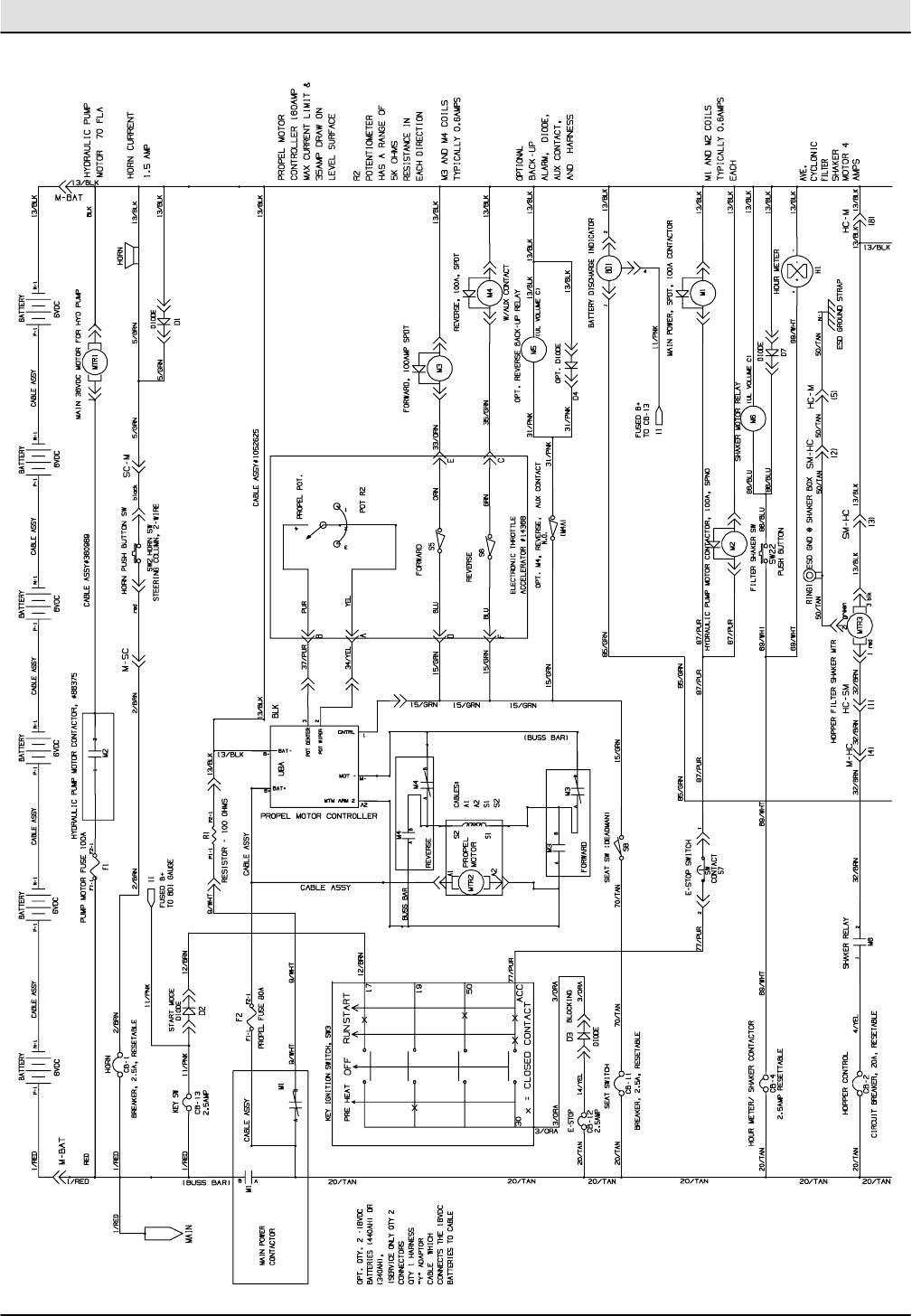

- Fig. 34 -- Electrical Schematic

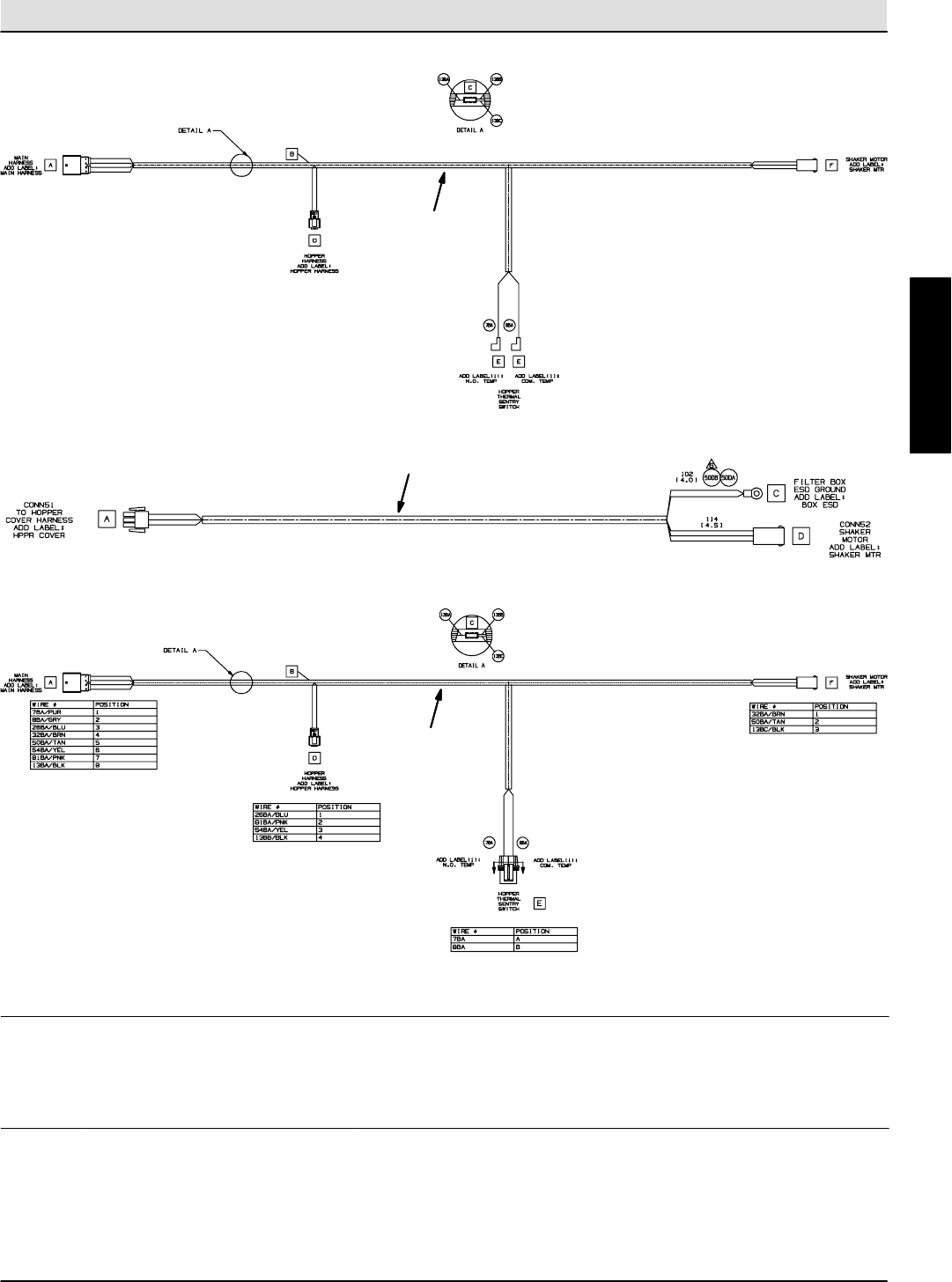

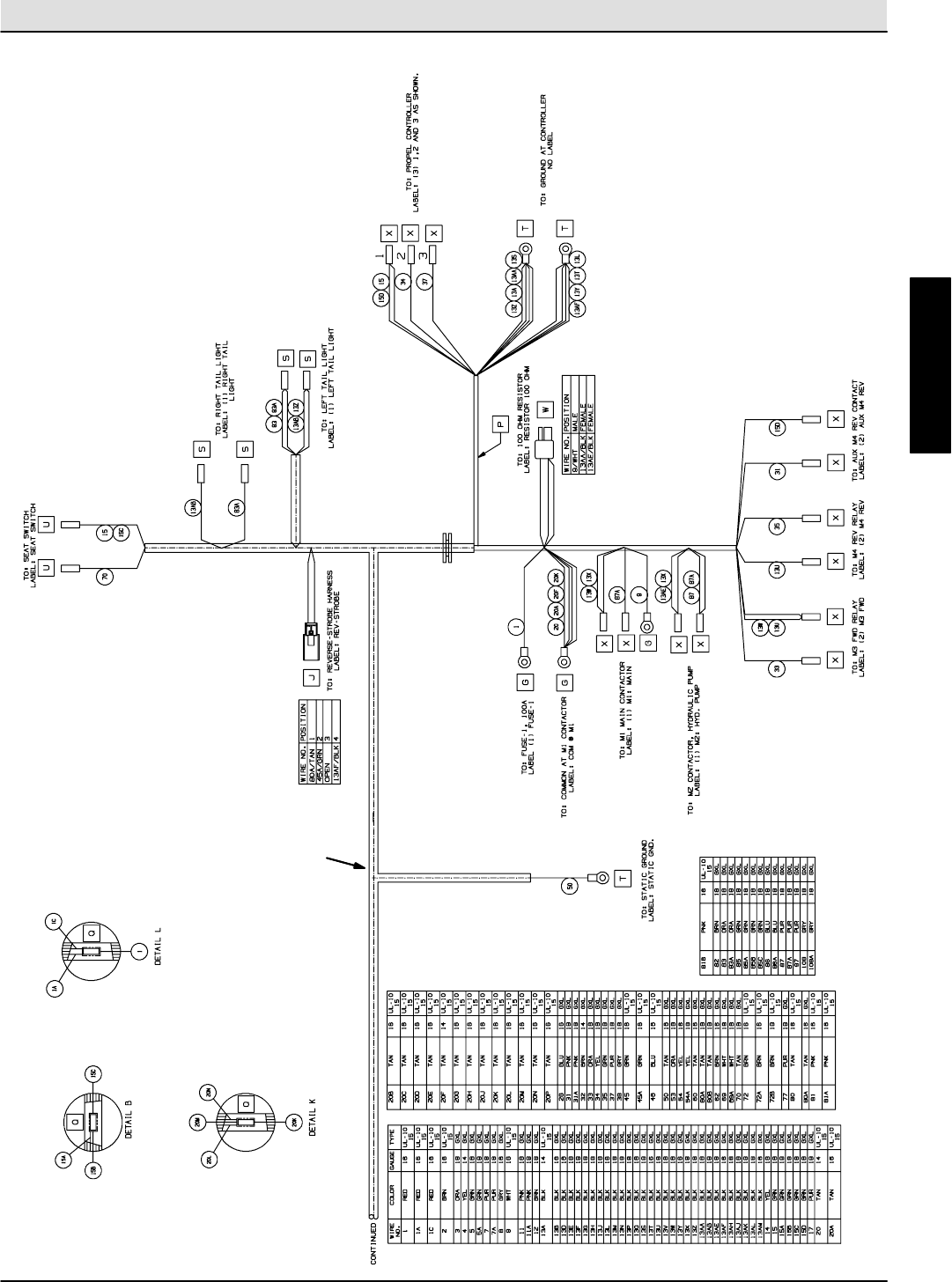

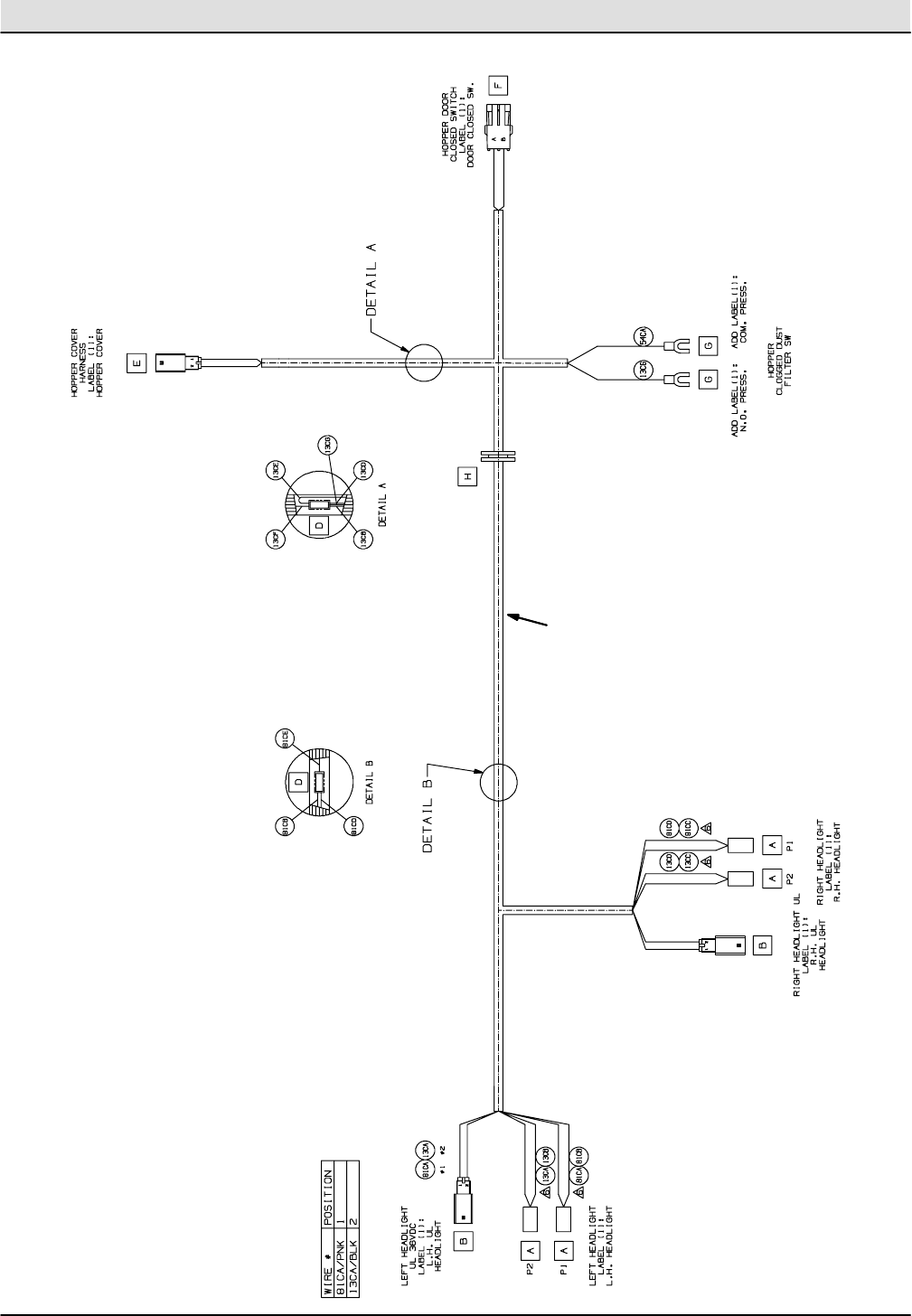

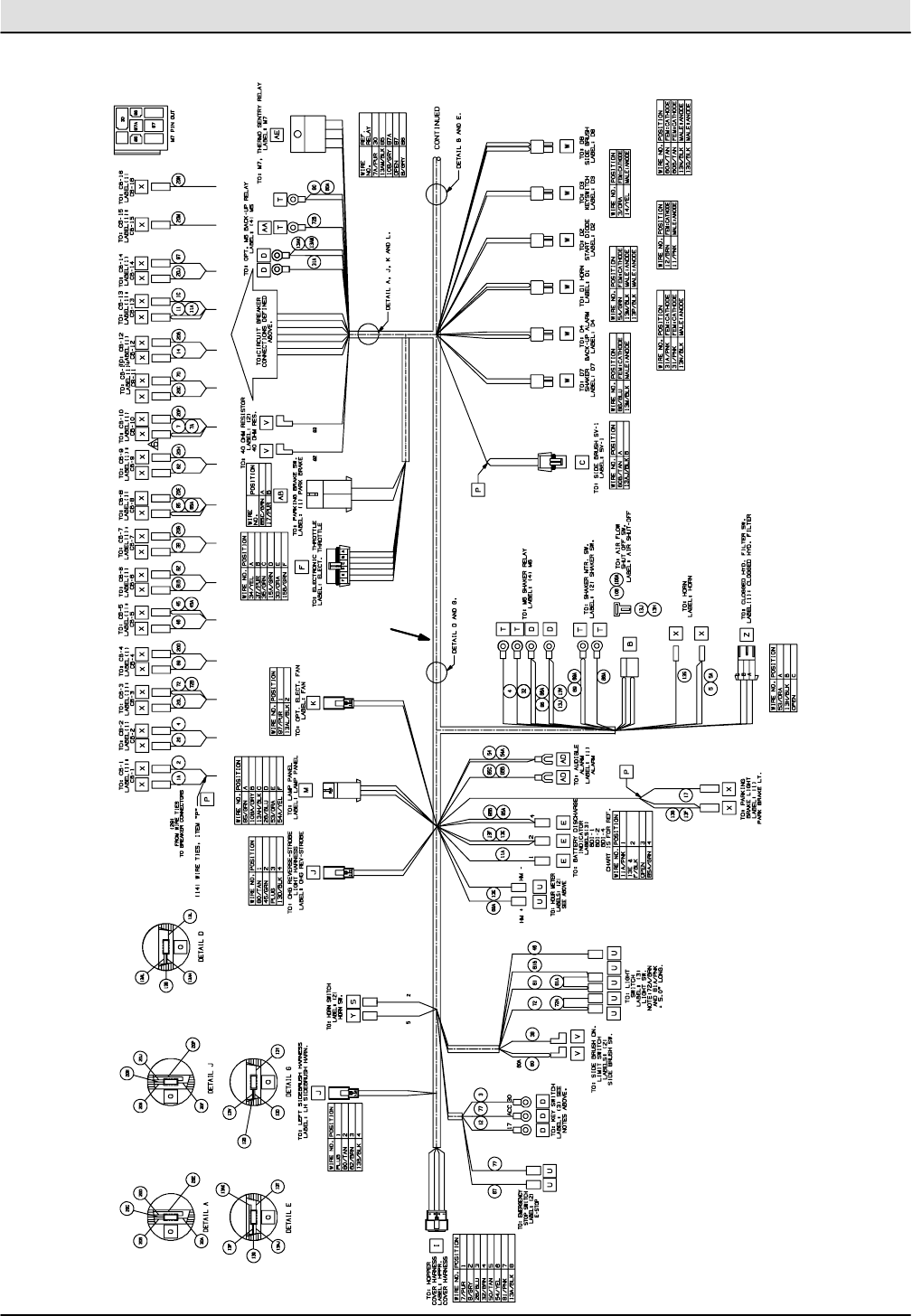

- Fig. 35 -- Electrical Wire Harnesses Group
- Fig. 36 -- Label Group
- OPTIONS
- Fig. 1 -- Backup Alarm and Flashing Light Kit, Rear
- Fig. 2 -- Backup Alarm and Strobe Light Kit, Rear

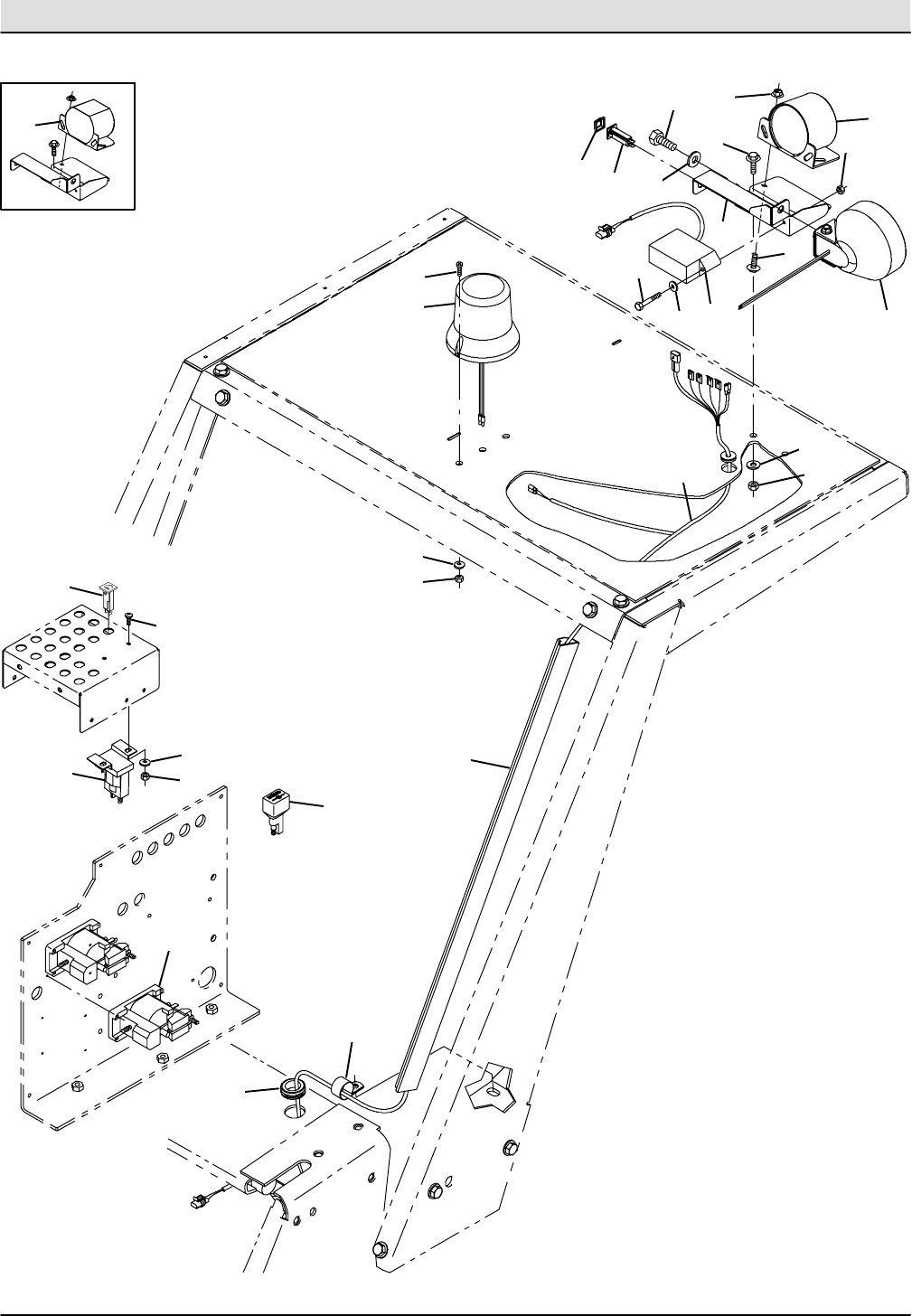

- Fig. 3 -- Backup Alarm and Flashing Light Kit, Overhead Guard
- Fig. 4 -- Backup Alarm and Strobe Light Kit, Overhead Guard

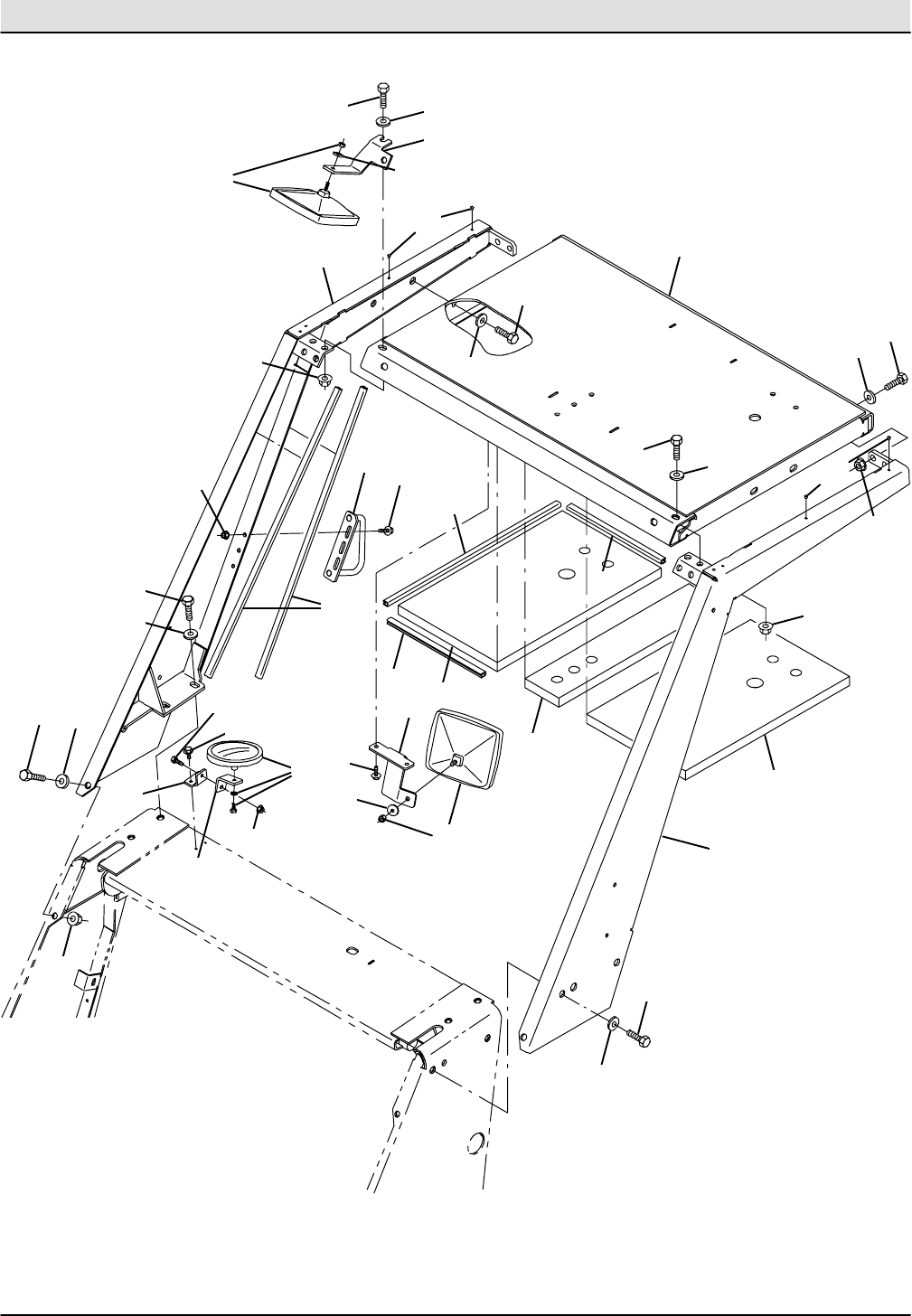

- Fig. 5 -- Overhead Guard Kit

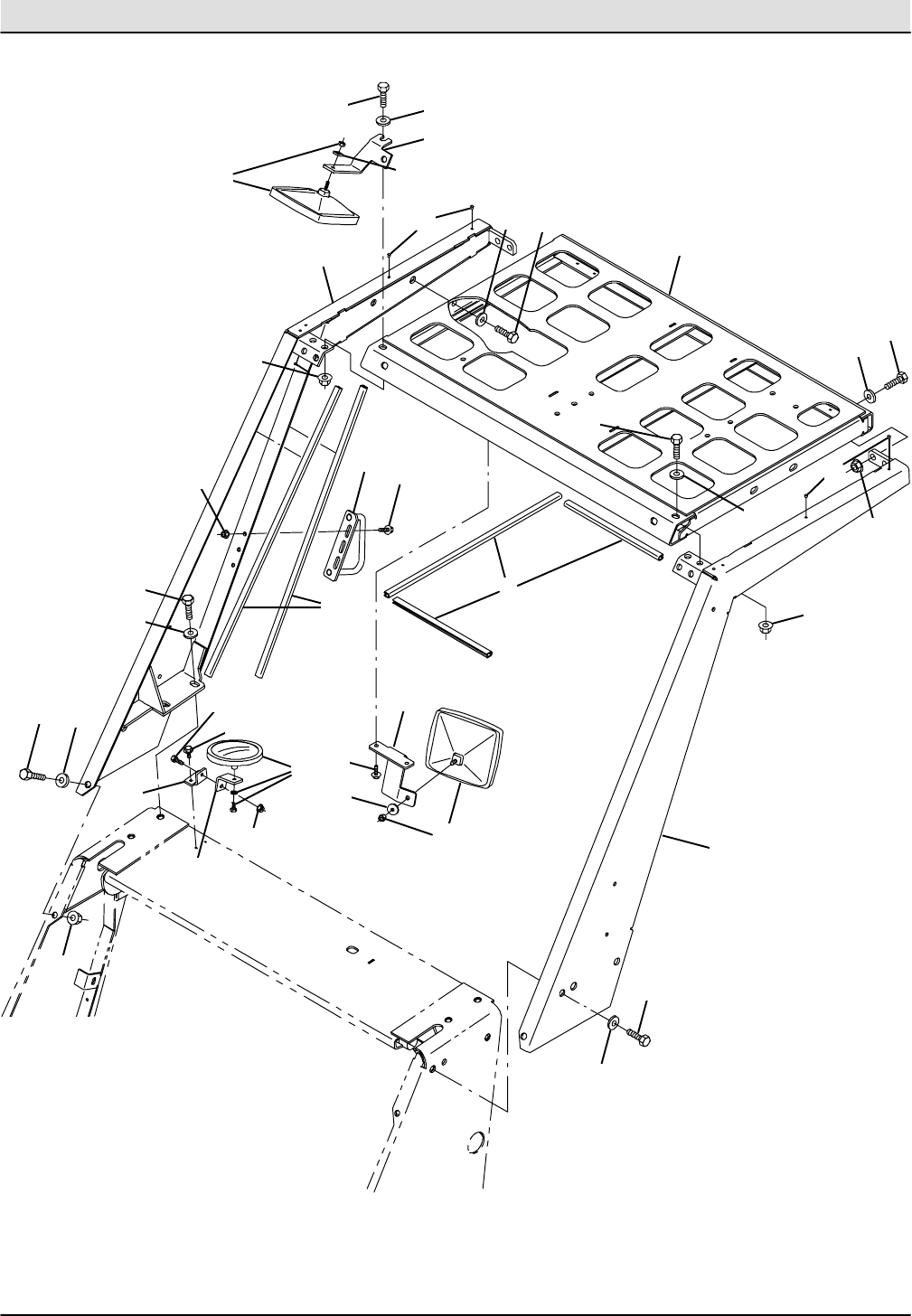

- Fig. 6 -- Cab Overhead Guard Group
- Fig. 7 -- Cab Frame and Windows Group

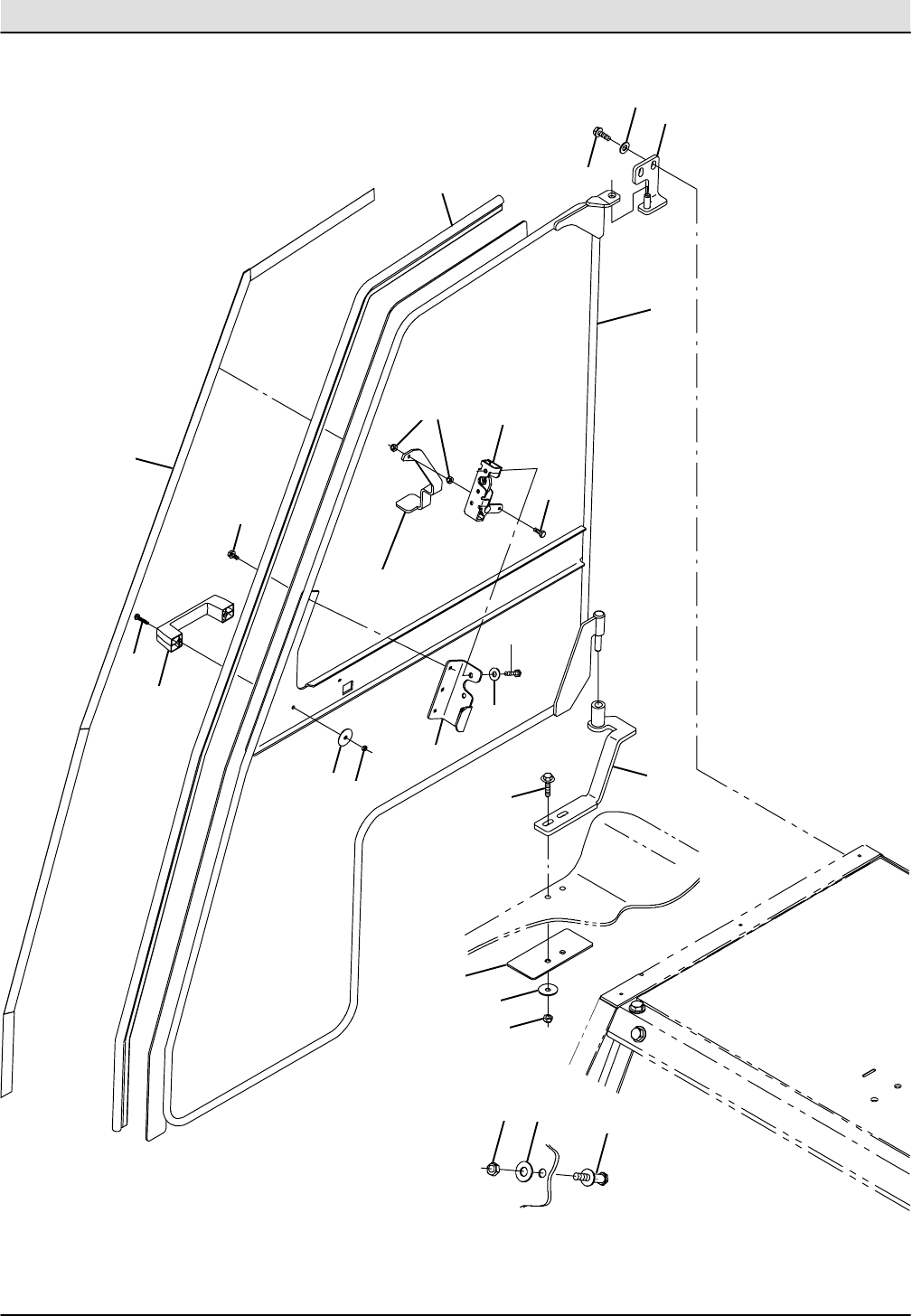

- Fig. 8 -- Cab Door Group

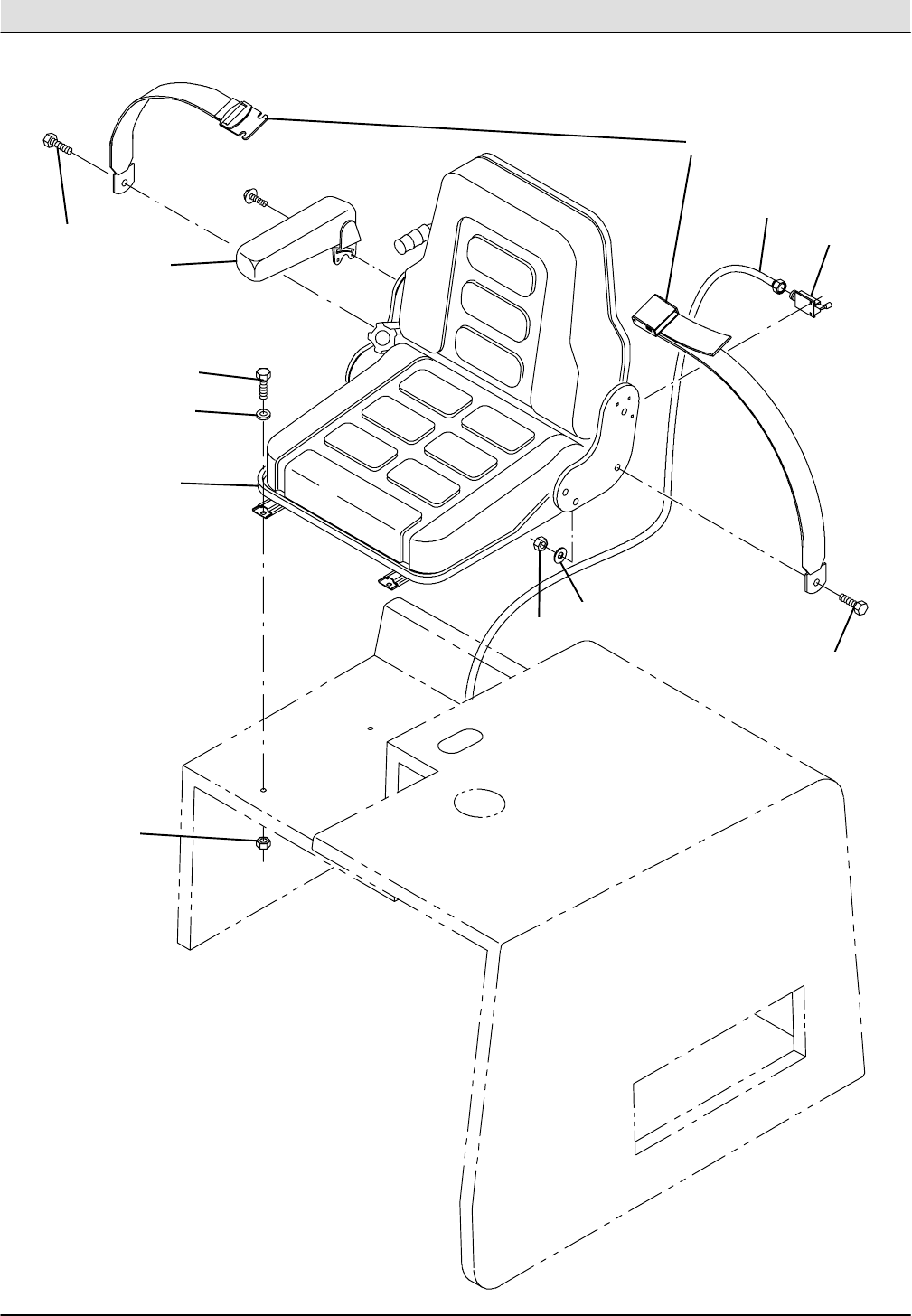

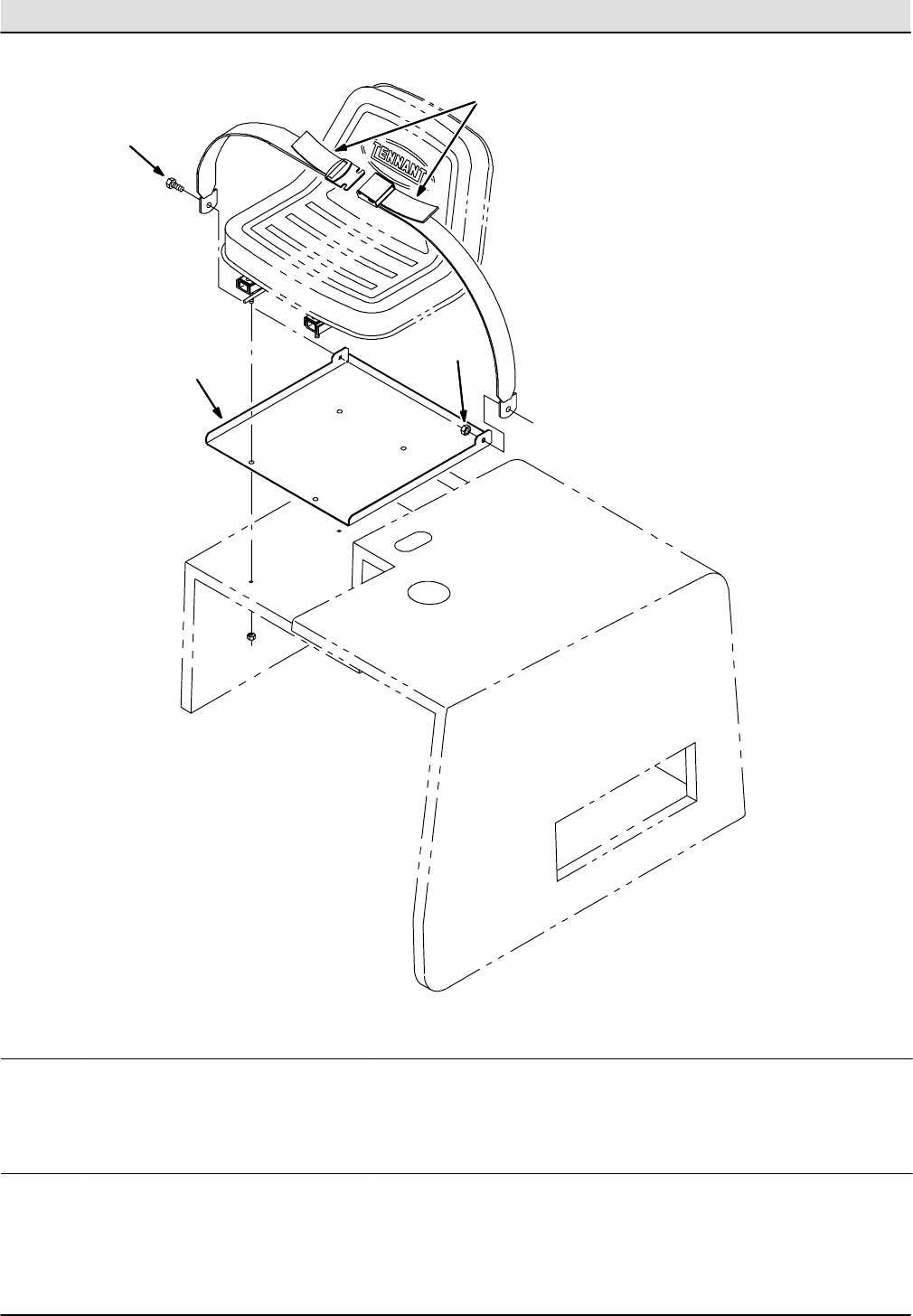

- Fig. 9 -- Deluxe Suspension Seat Kit
- Fig. 10 -- Seat Belt Kit

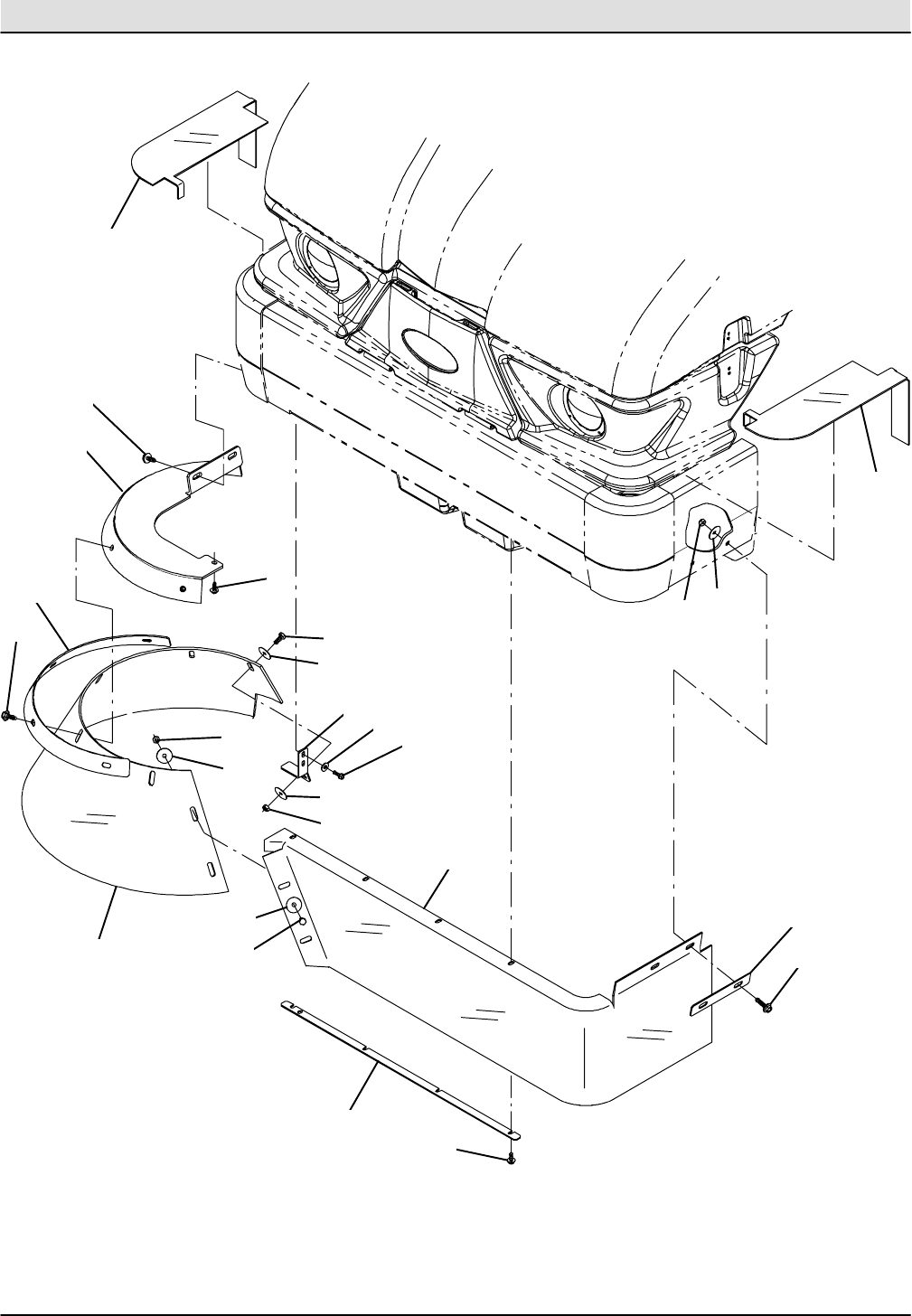

- Fig. 11 -- Corner Bumper Kit
- Fig. 12 -- Dual Side Brush Lift Group, LH

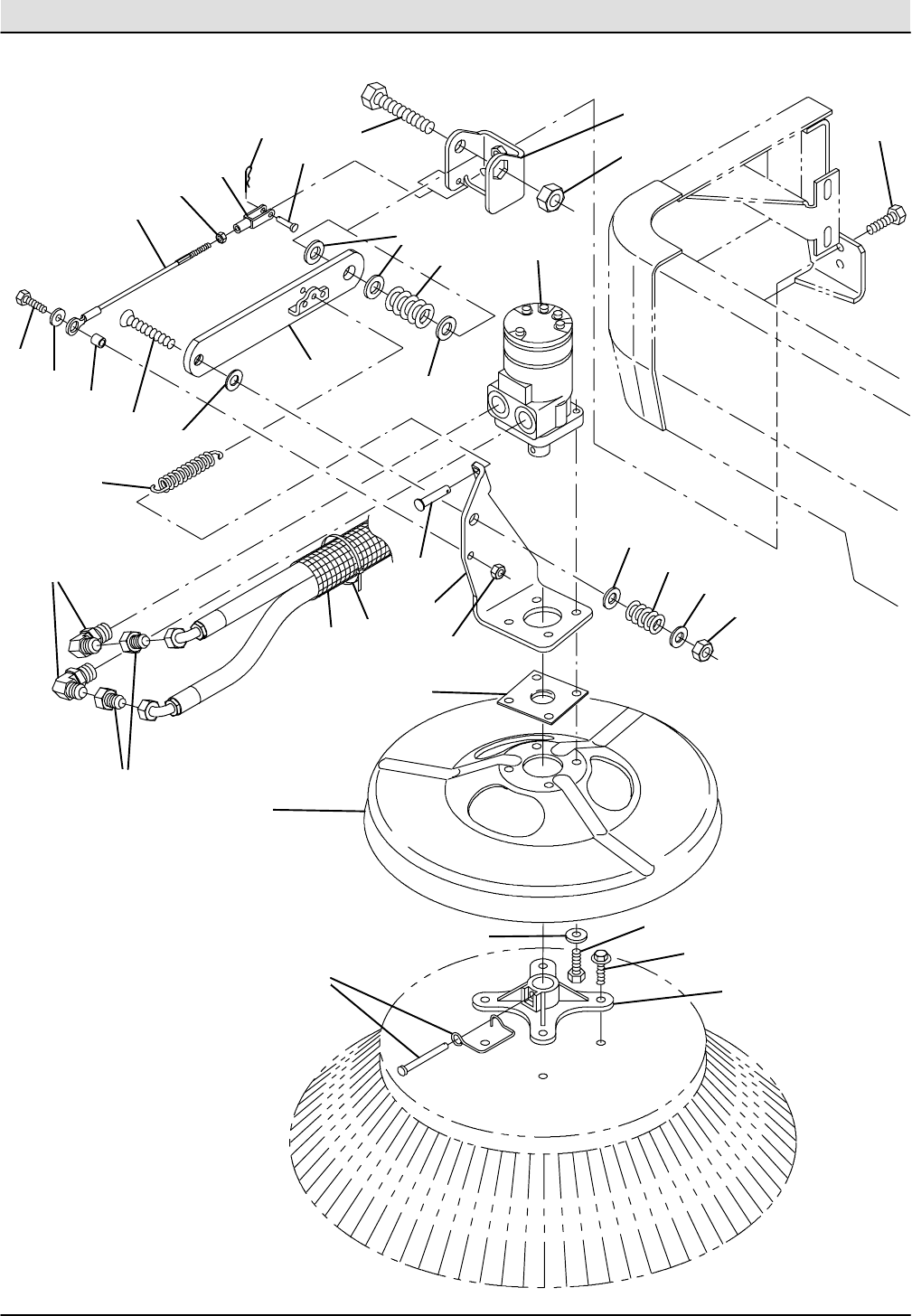

- Fig. 13 -- Dual Side Brush Motor and Pivot Group, LH

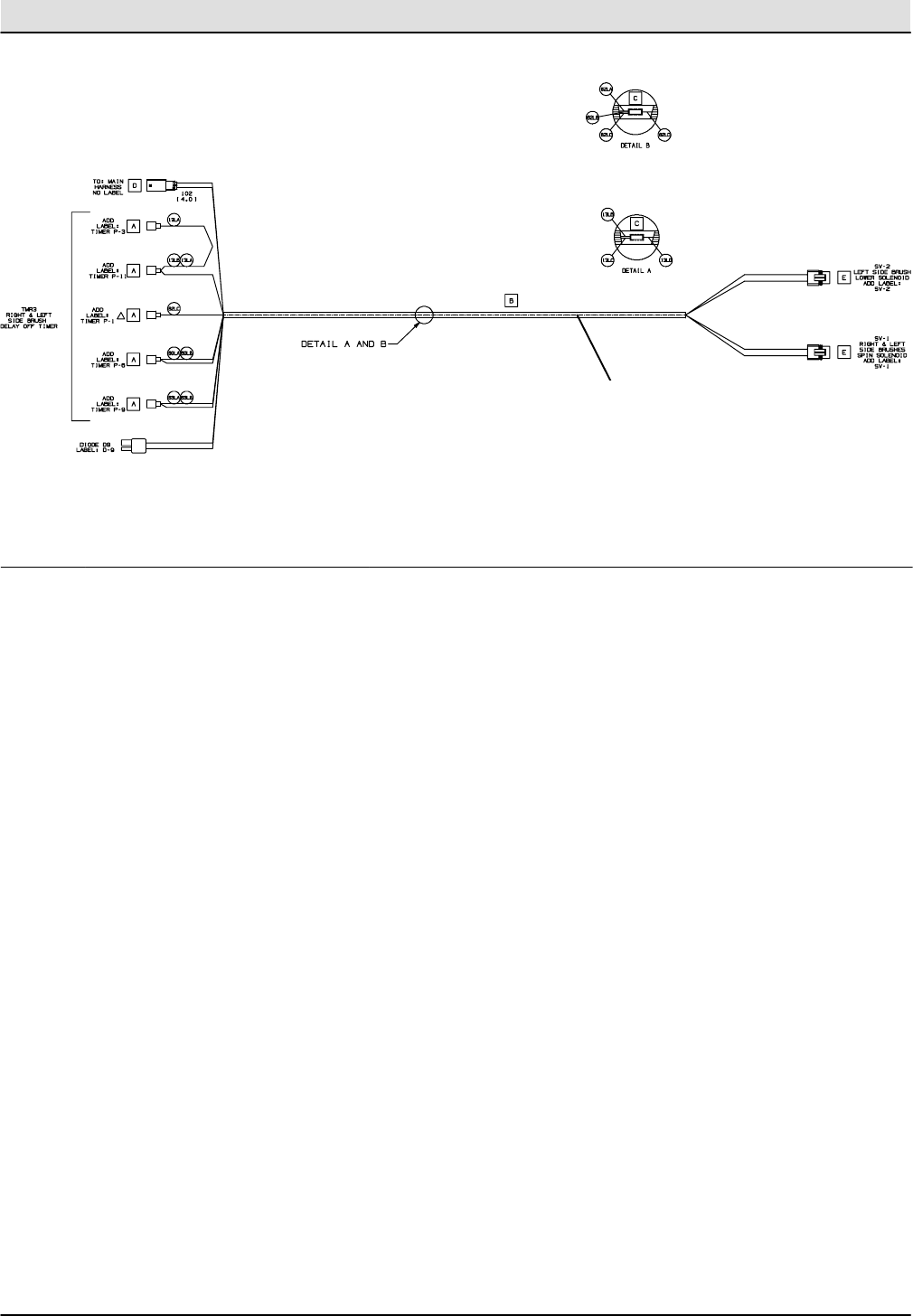

- Fig. 14 -- Dual Side Brush Wire Harness Group

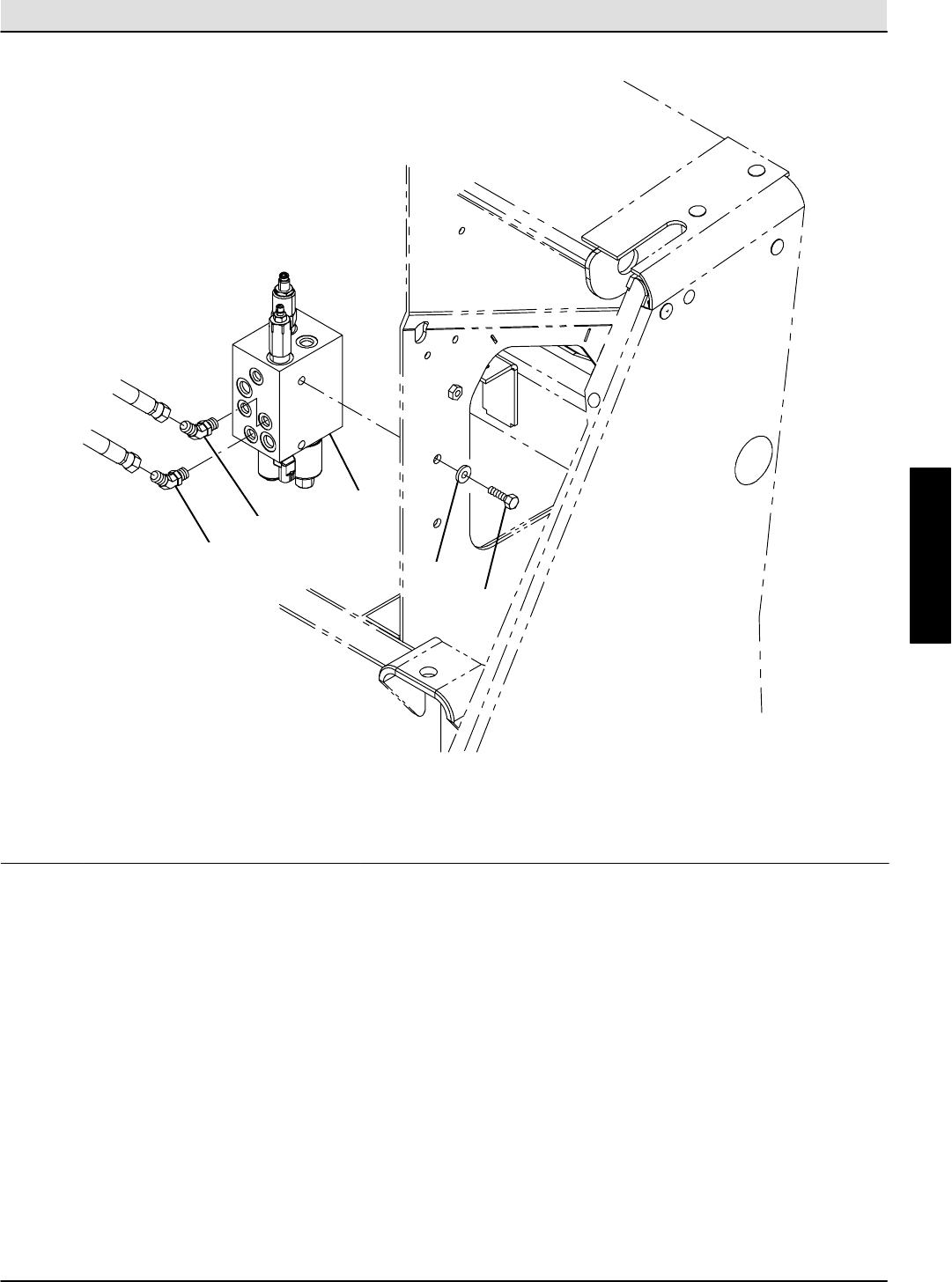

- Fig. 15 -- Dual Side Brush Hydraulic Valve Group

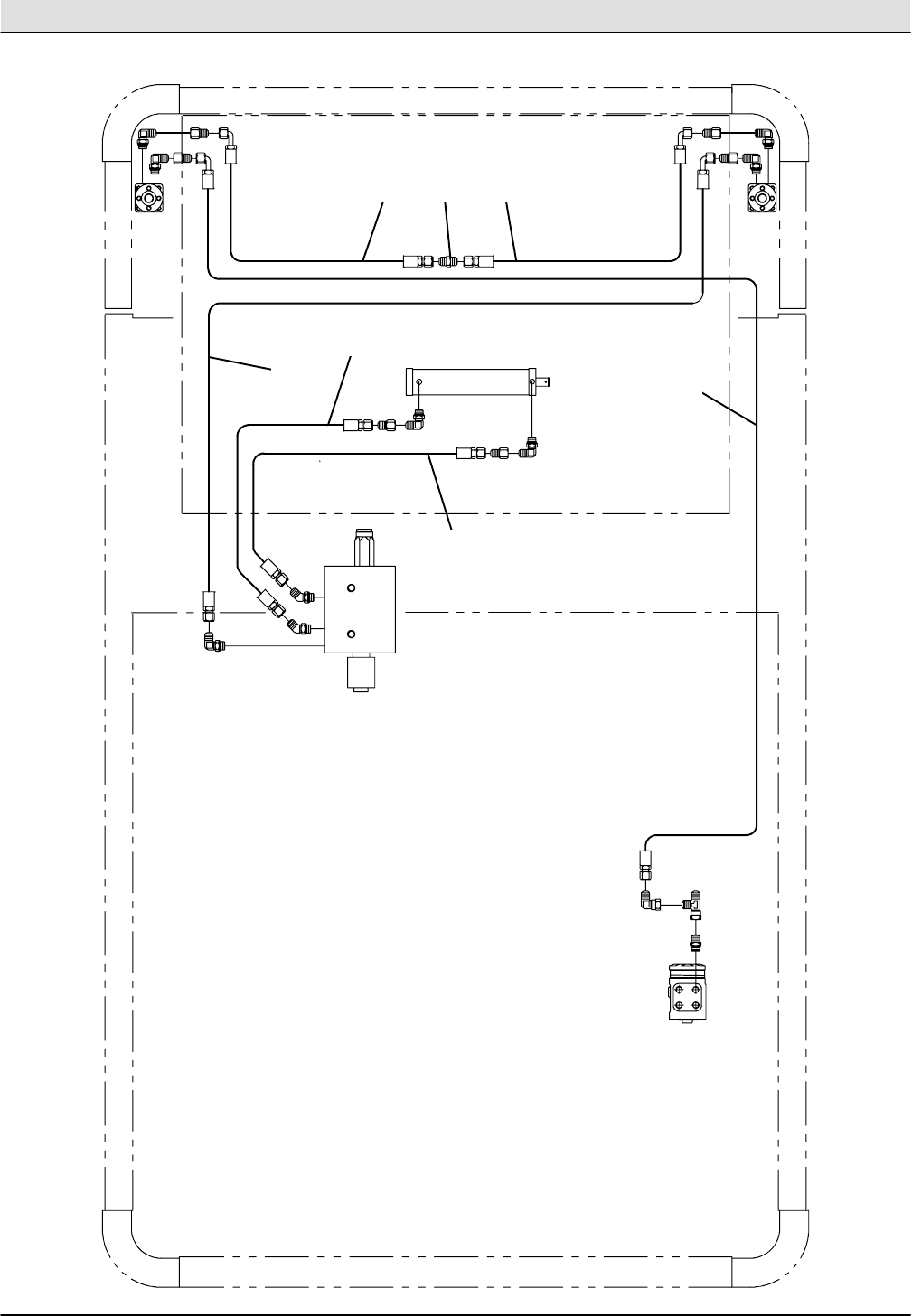

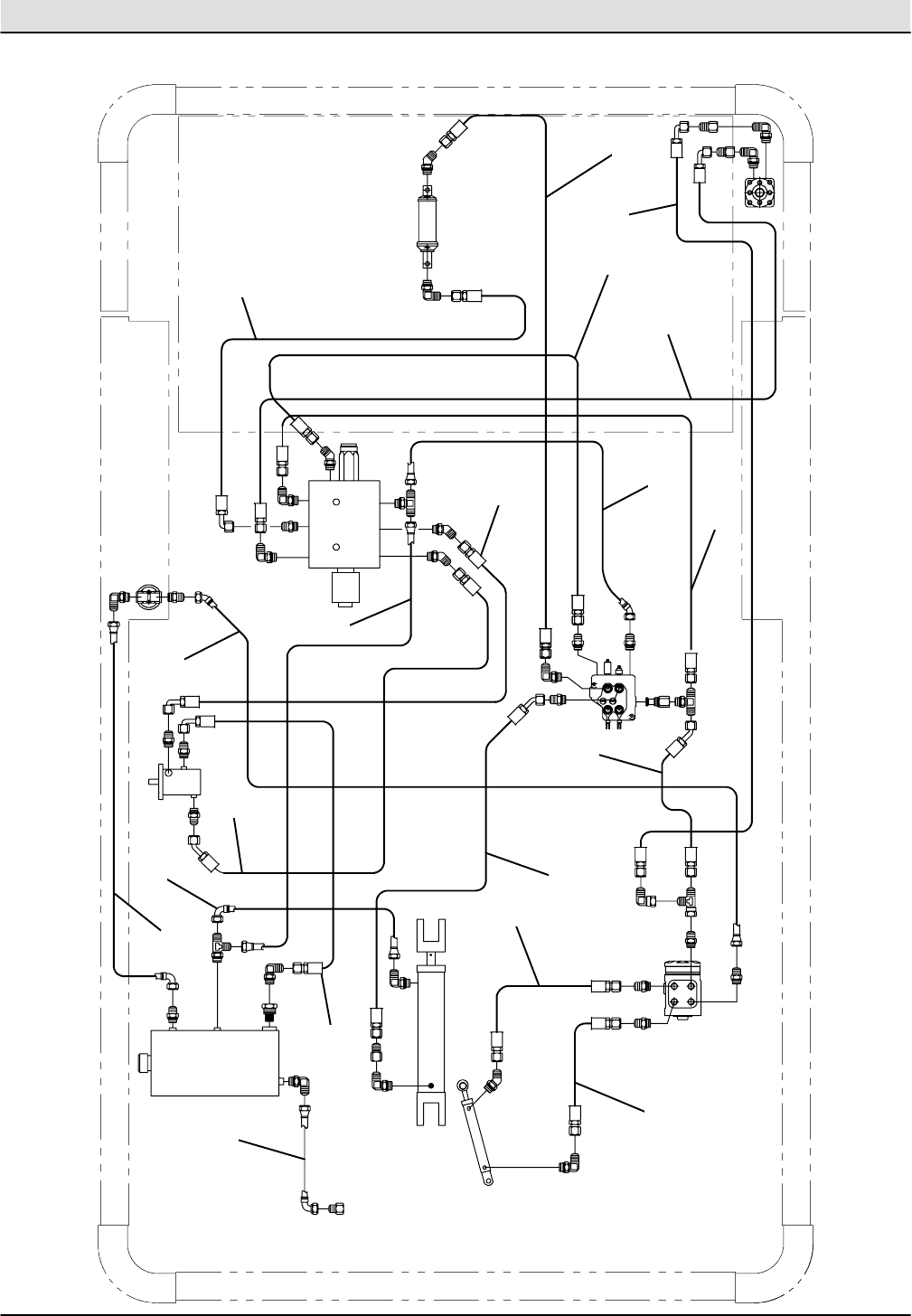

- Fig. 16 -- Dual Side Brush Hydraulic Hose Diagram
- Fig. 17 -- Side Brush Dust Control Kit
- Fig. 18 -- Dual Side Brush Dust Control Kit

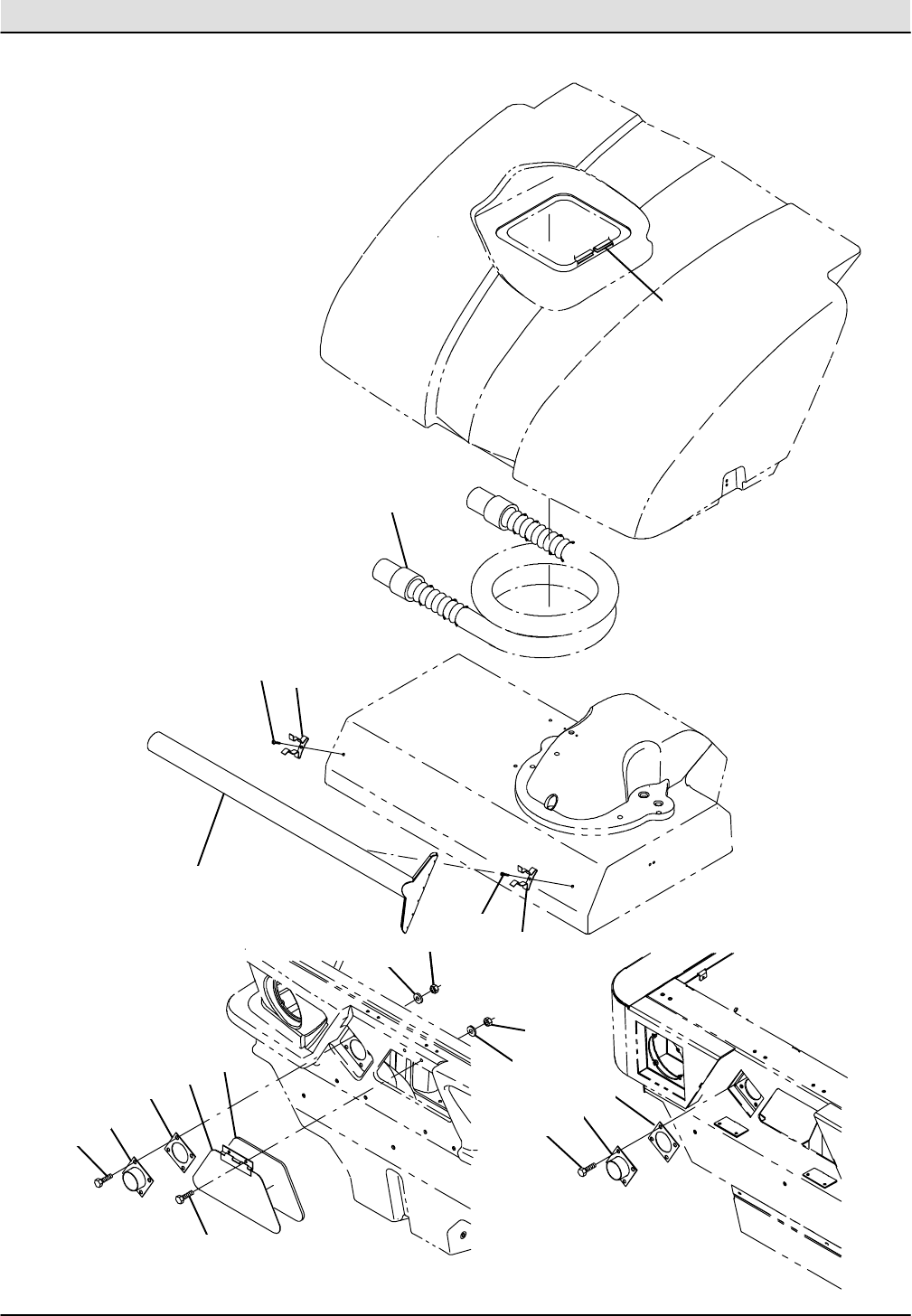

- Fig. 19 -- Vacuum Wand Kit
- Fig. 20 -- Fire Extinguisher Kit

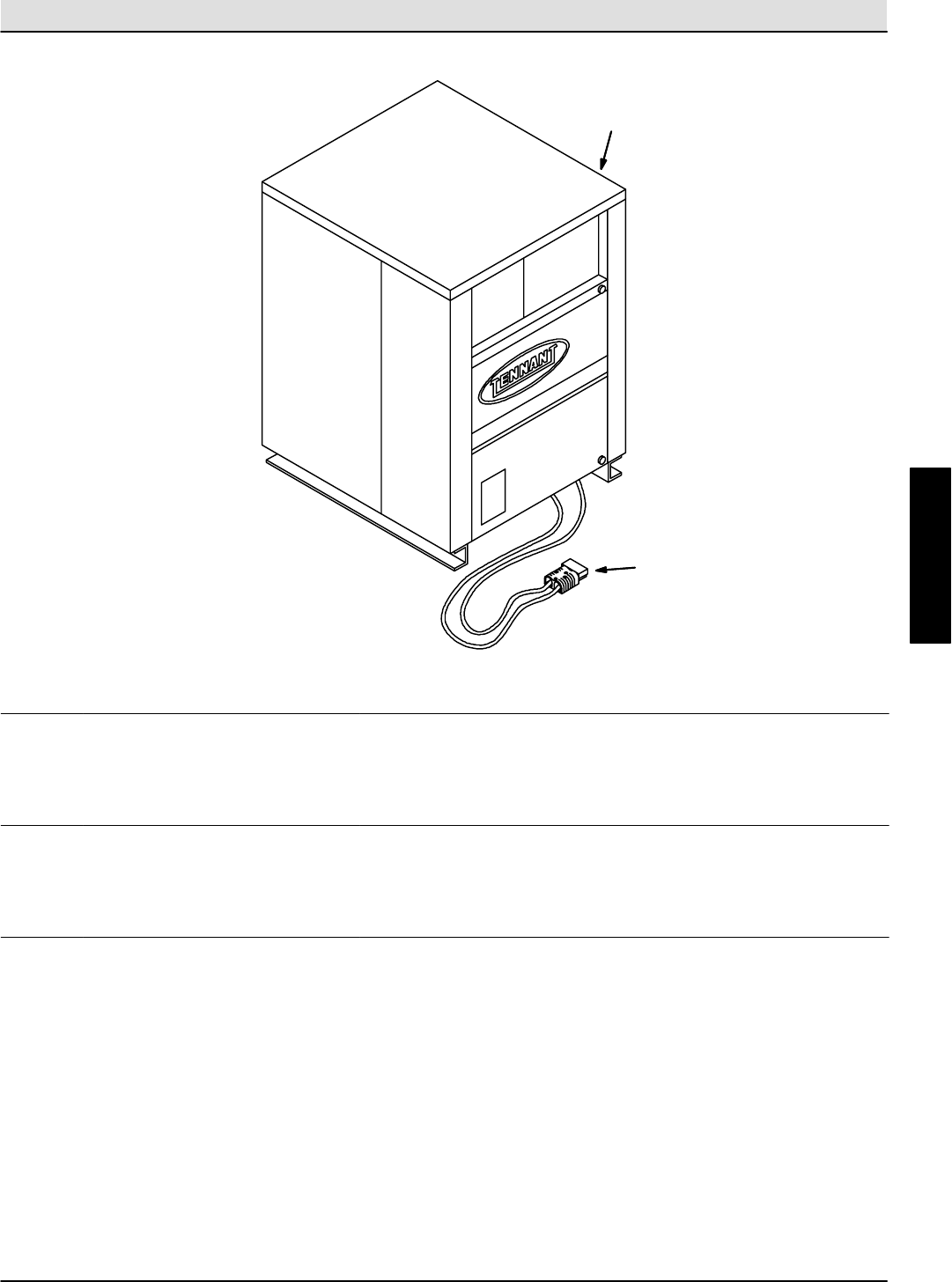

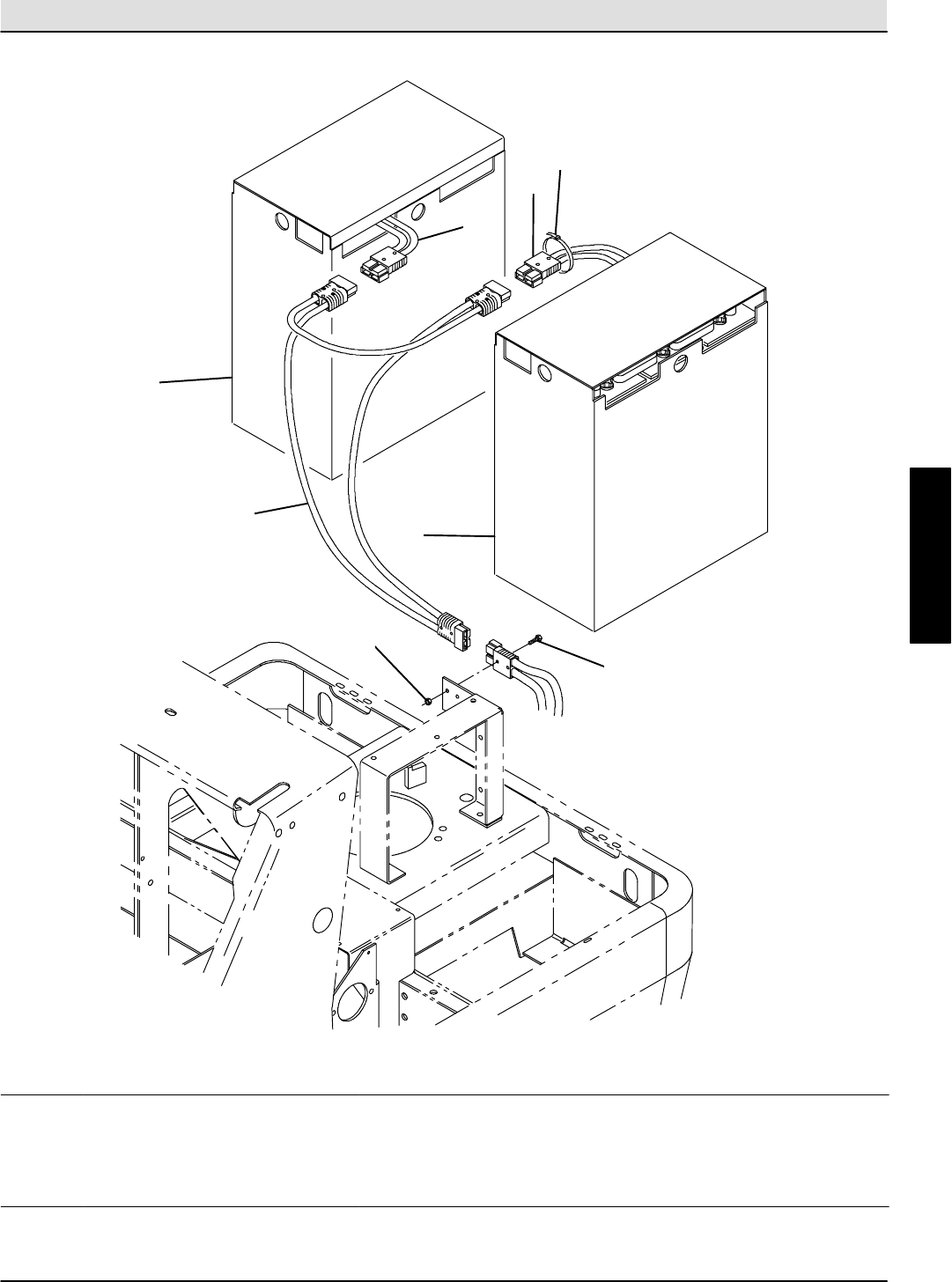

- Fig. 21 -- Battery Charger Group

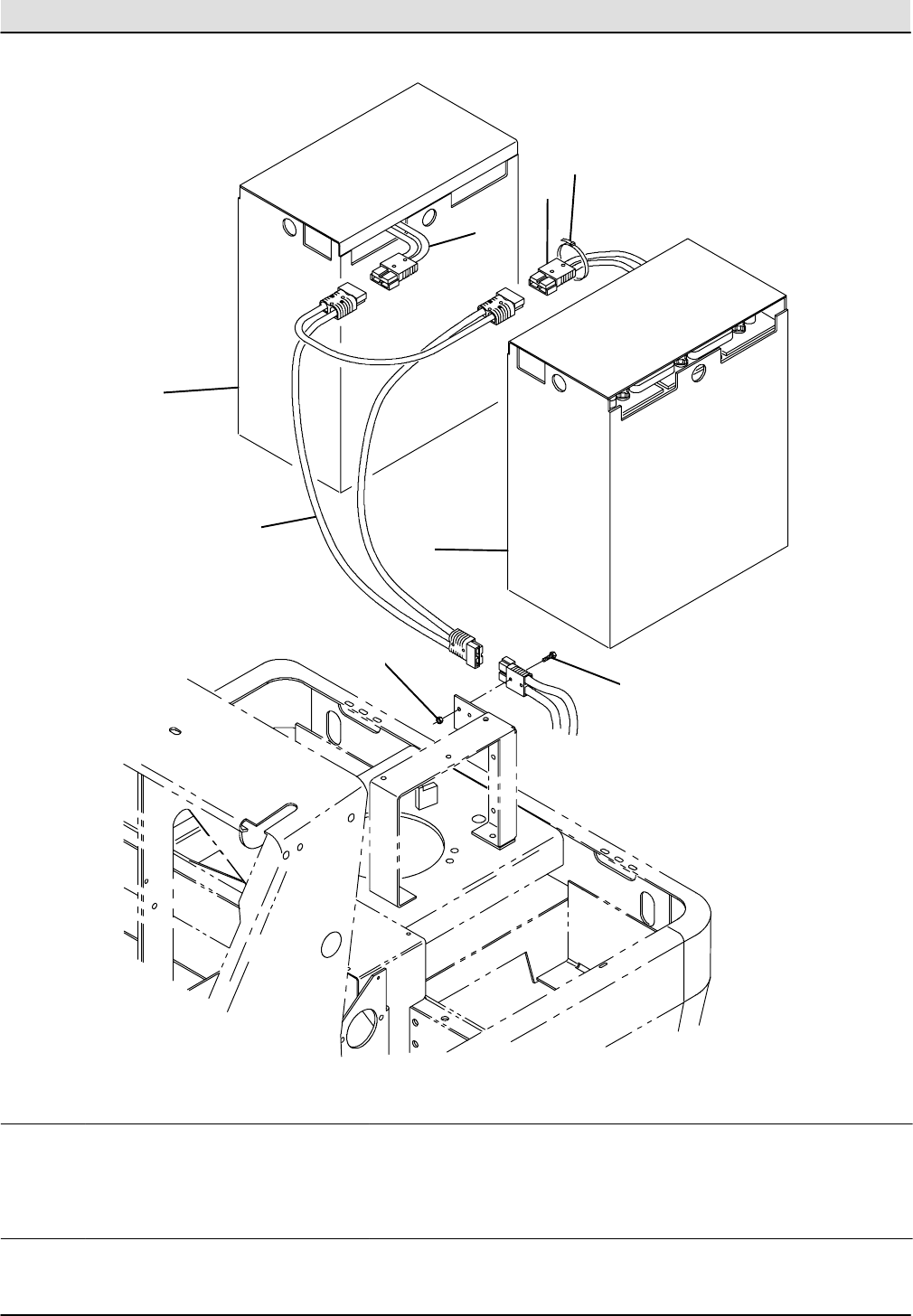

- Fig. 22 -- Battery Group, 36V 315Ah Wet
- Fig. 23 -- Battery Group 36V 440Ah Wet
- Fig. 24 -- Battery Kit 36V 340Ah Wet
- Fig. 25 -- Documentation Group
- BREAKDOWNS

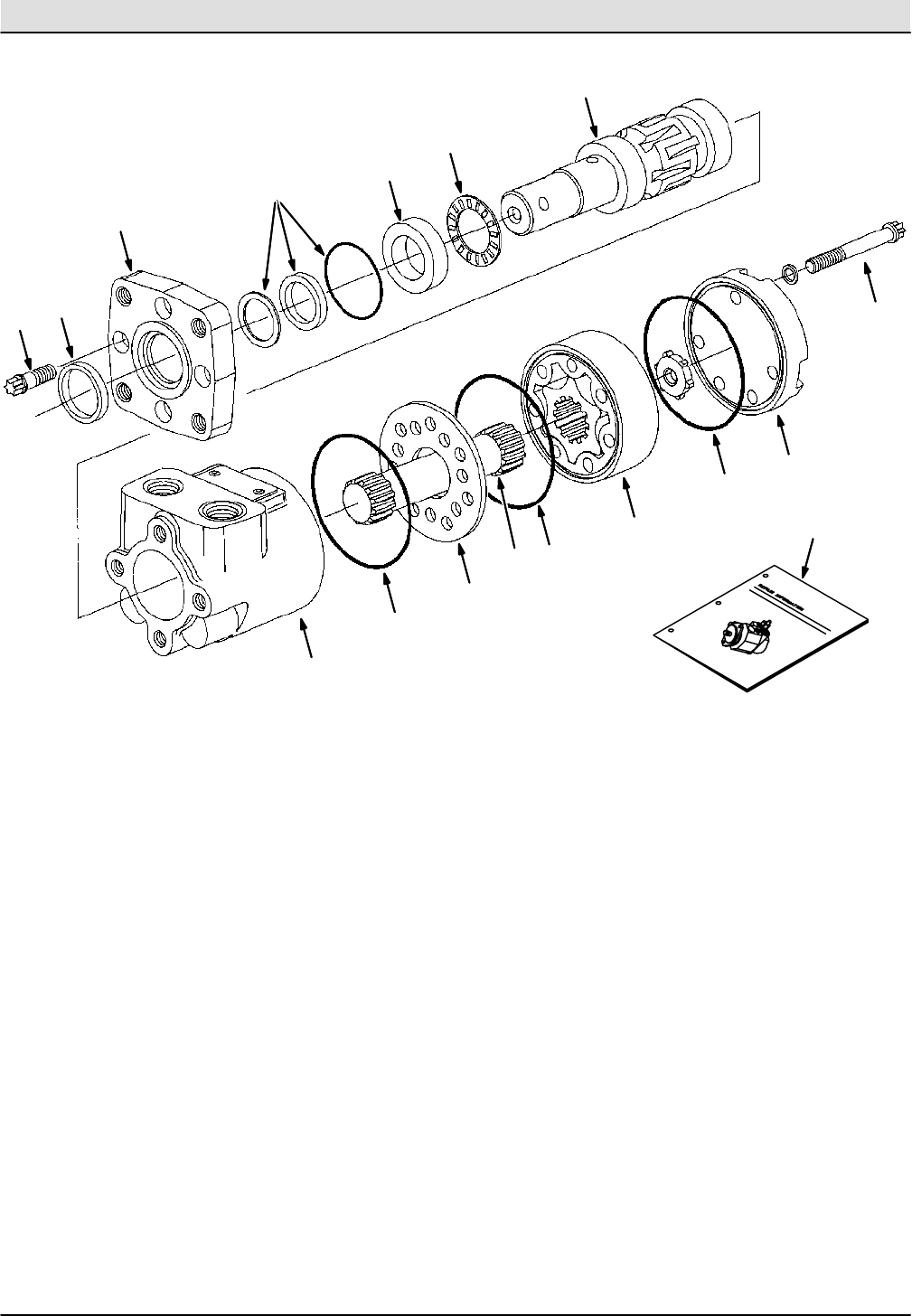

- Fig. 1 -- Hydraulic Gear Motor Breakdown, 361026

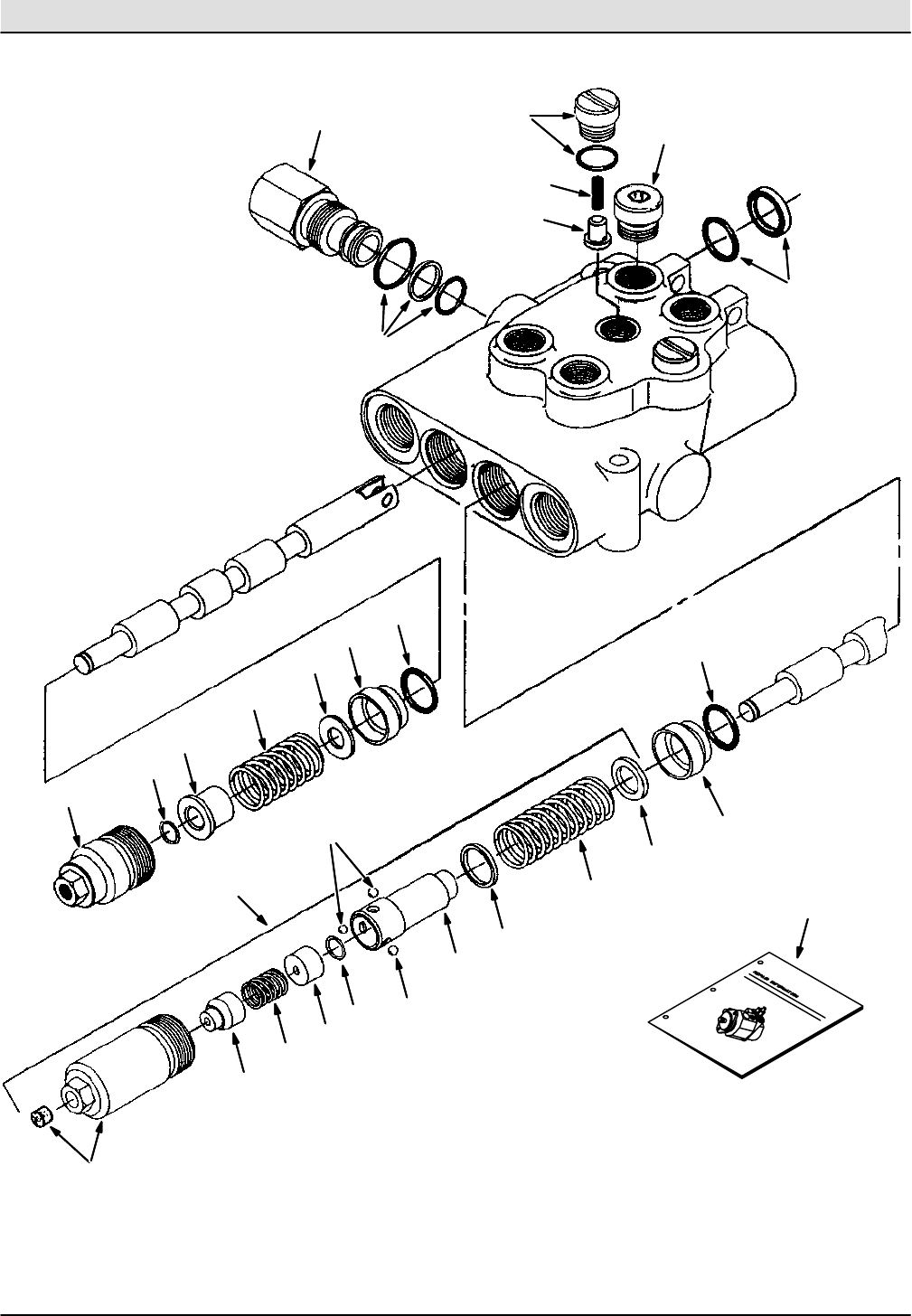

- Fig. 2 -- Hydraulic Control Valve Breakdown, 361012

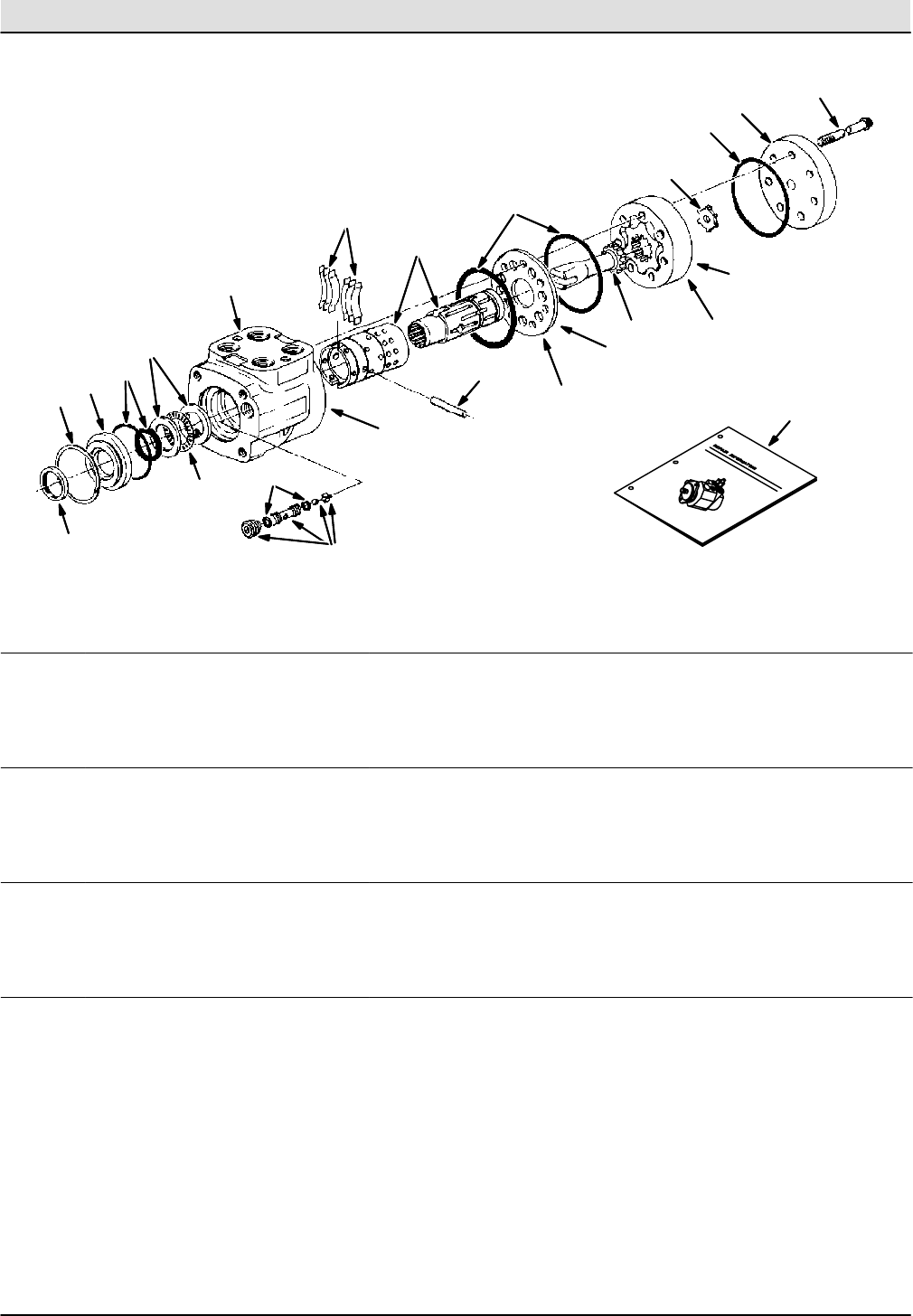

- Fig. 3 -- Hydraulic Steering Valve Breakdown, 74173

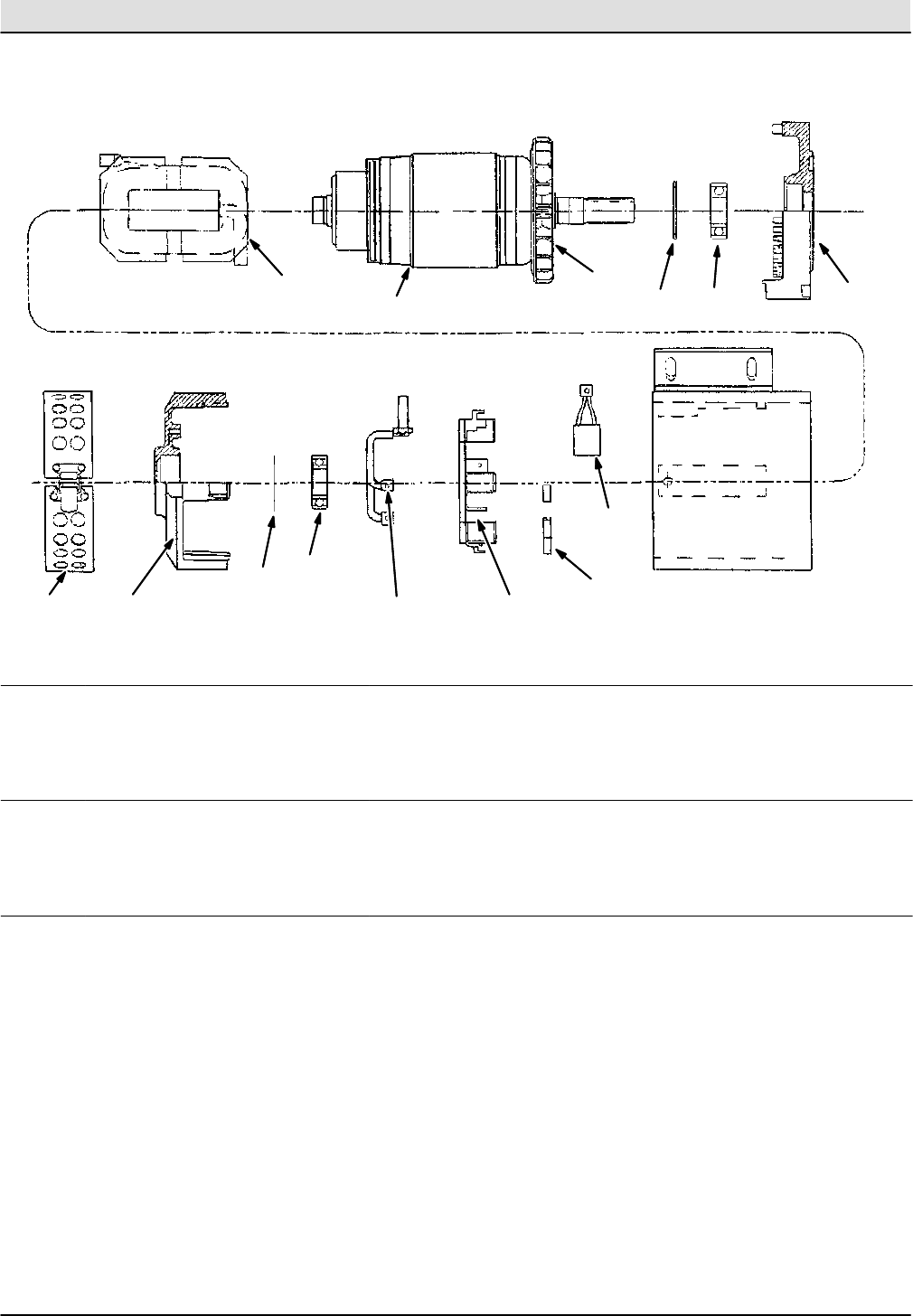

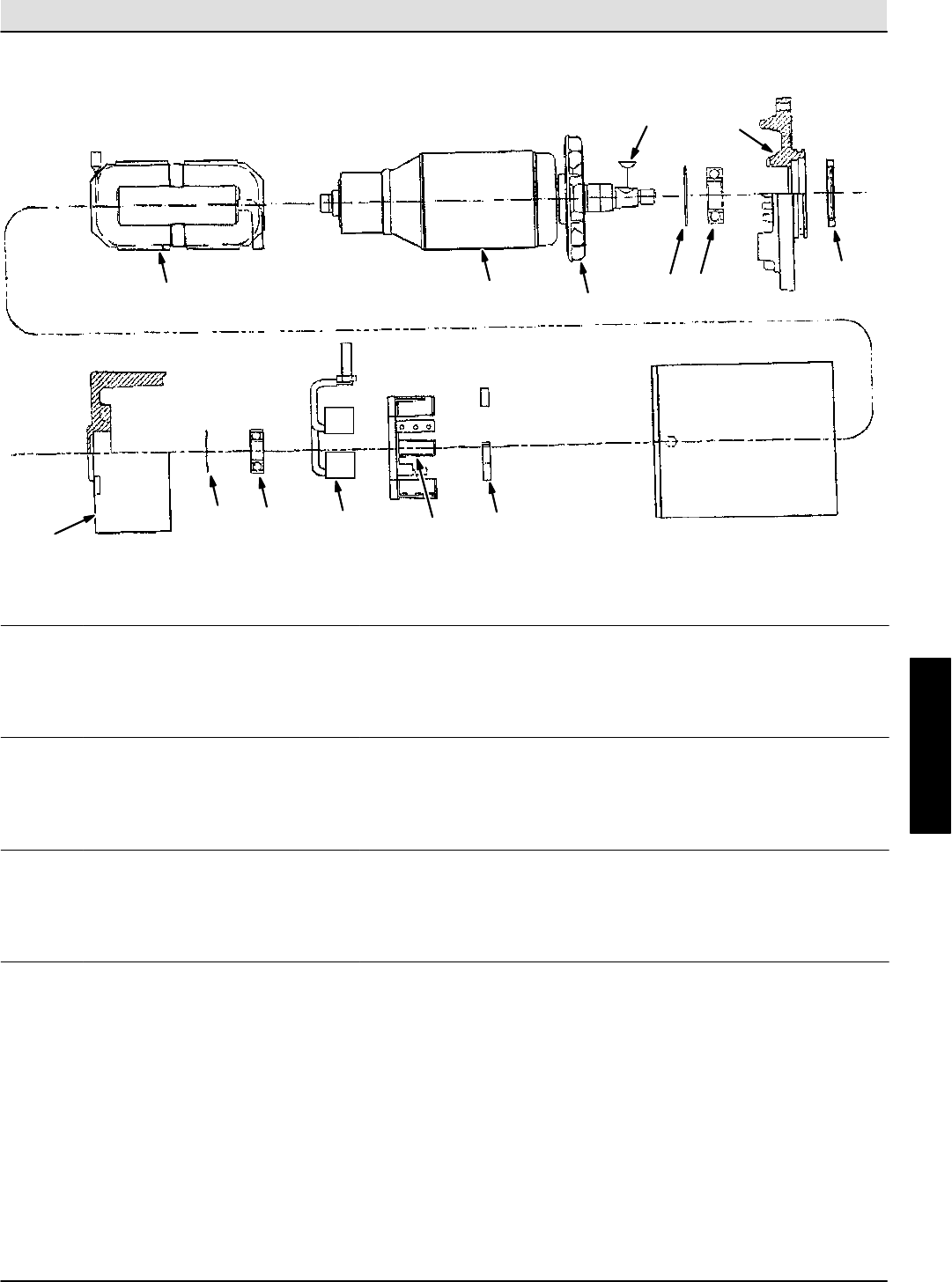

- Fig. 4 -- Electric Motor Breakdown, 360065
- Fig. 5 -- Electric Motor Breakdown, 360175
- Fig. 6 -- Hydraulic Solenoid Valve Breakdown, 1046688
- Fig. 7 -- Hydraulic Solenoid Valve Breakdown, 1045994
- CROSS REFERENCE
S20
(Battery)
*9006708*
www.tennantco.com
Sweeper
Parts Manual
9006708
Rev. 03 (08-2011)
North America / International
SweepMax
t
System
ShakeMax
t
360
TennantTruetParts and Supplies
Home
Find...
Go To..
Ref Part No. Serial Number Description Qty.
1 82681 (000000--- ) Bracket Wldt, Lpg Mount 1
o2 63810 (000000--- ) Latch Assy, Lpg Tank Mtg, W/Nut 4
Y3 51839 (000000--- ) Nut Adjustable, Lpg Tank Mtg 2
4 49263 (000000--- ) Tie, Cable 3
5 82556 (000000---001039 ) Bracket, Vaporizer 1
6 54930 (000000--- ) Vaporizer, LPG 1
C
D
AB

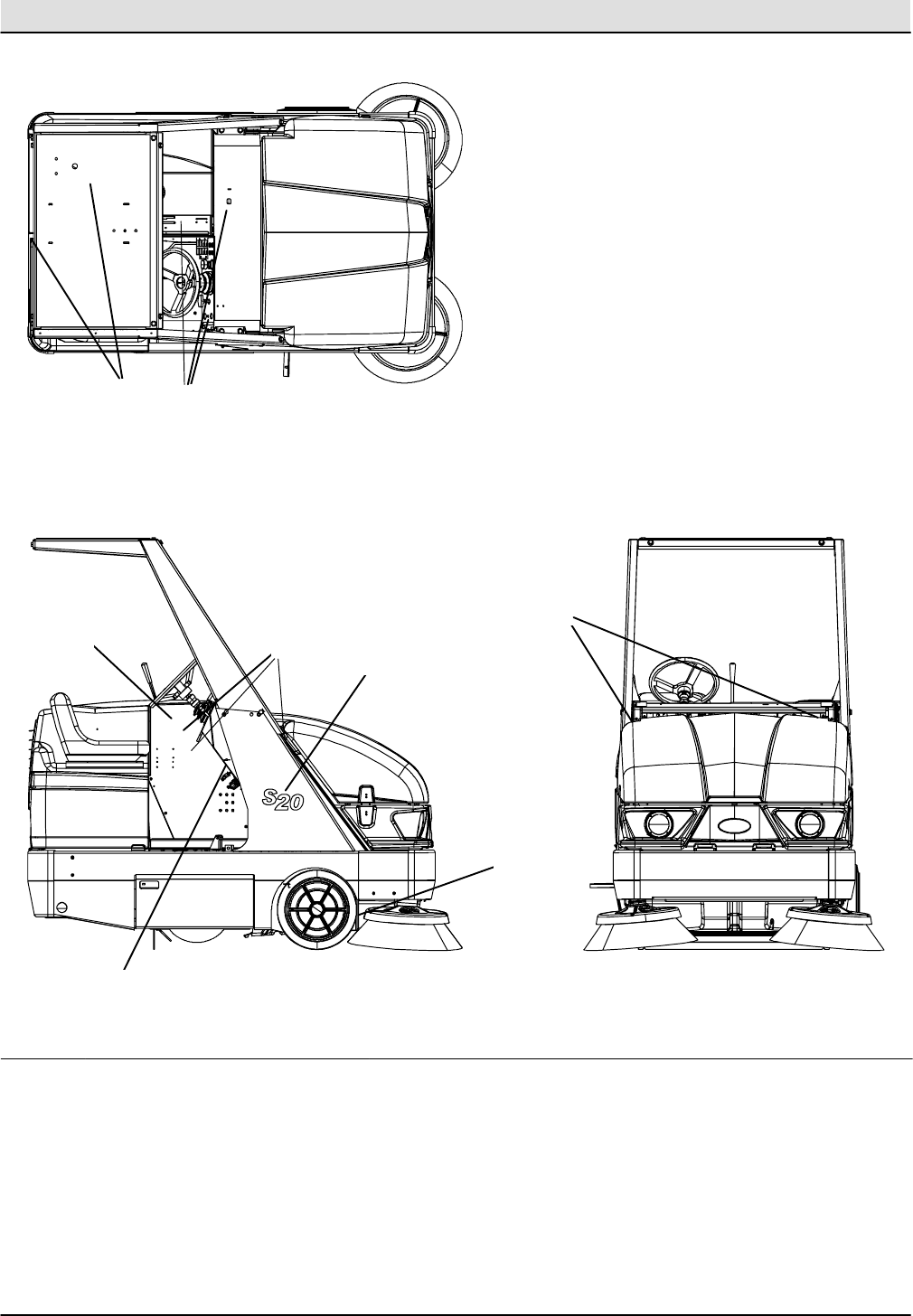

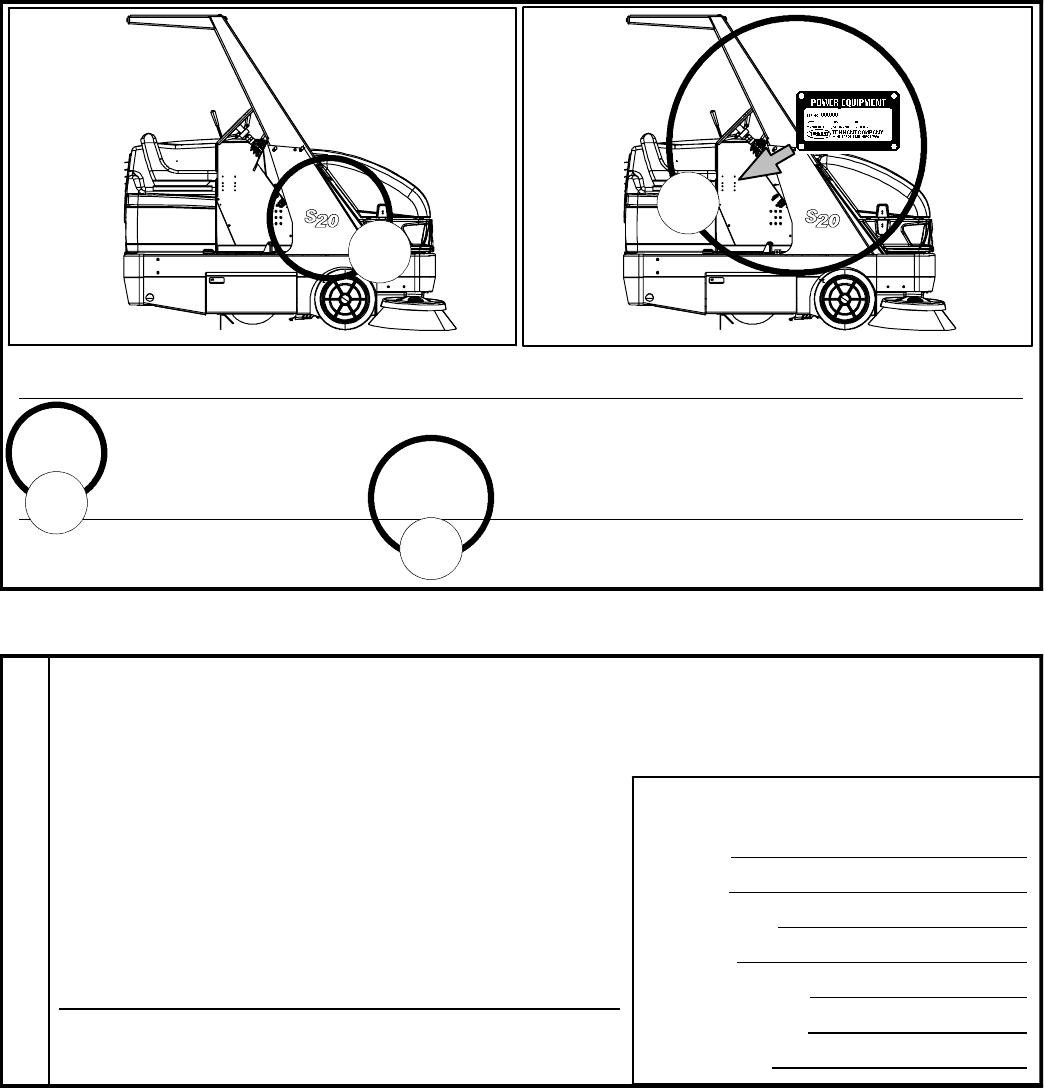

HOW TO ORDER PARTS -- See diagram above
Only use TENNANT Company supplied or equivalent parts. Parts and supplies may be ordered online,
by phone, by fax or by mail.
Follow the steps below to ensure prompt delivery.
1. (A) Identify the machine model.
2. (B) Identify the machine serial number from the data plate.
3. (C) Ensure the proper serial number is used from
the parts list.
4. Identify the part number and quantity.
Do not order by page or reference numbers.
5. Provide your name, company name, customer ID number,
billing and shipping address, phone number and
purchase order number.
6. Provide detail shipping instructions.
(D) o-- Identifies an assembly
Y-- Identifies parts included in assembly
EN
Please fill out at time of installation for
future reference.
Model No. --
Serial No. --
Machine Options --
Sales Rep. --
Sales Rep. phone no. --
Customer ID Number --
Installation Date --
Tennant Company
PO Box 1452
Minneapolis, MN 55440
Phone: (800) 553--8033 or (763) 513--2850
www.tennantco.com
Thermo--Sentry, Perma--Filter, InstantAccess, Lower total Cost of Ownership, and Duramer are US registered and unregistered trademarks of
Tennant Company.
Specifications and parts are subject to change without notice.
Original instructions, Copyright E2009, 2010, 2011 TENNANT Company, Printed in U.S.A.
Home
Find...
Go To..
CN
o
Y
CÓMO SOLICITAR PIEZAS -- Consulte el diagrama anterior.
Utilice sólo las piezas suministradas por TENNANT Company o piezas equivalentes. Puede solicitar las piezas a través de internet,
por teléfono, por fax o por correo.
Siga los siguientes pasos para que la entrega sea rápida.
1. (A) Indique el modelo de máquina.
2. (B) Indique el número de serie de la etiqueta de datos.
3. (C) Asegúrese de que indica el número de serie correcto de la lista de piezas.
4. Indique la cantidad y el número de la pieza.
No realice el pedidoindicando el número de página o el de referencia.
5. Incluya su nombre, el nombre de la empresa, el ID de cliente,
las direcciones de envío y facturación, el número de teléfono y el número del pedido de compra.
6. Facilite instrucciones de envío.
(D) o-- identifica un conjunto
Y-- identifica piezas de un conjunto
ES
Rellene estos datos cuando realice la instalación para utilizarlos
como referencia en el futuro.
Nº modelo --
Nº serie --
Opciones de la máquina --
Vendedor --
Nº teléfono vendedor --
Nº cliente --
Fecha de instalación --
COMMENT COMMANDER DES PIÈCES DÉTACHÉES --Voirleschémaci--dessus.
Utilisez uniquement des pièces fournies par la société TENNANT ou équivalentes. Les pièces et fournitures peuvent être commandées en ligne, par téléphone, fax, ou par
courrier.
Suivez les étapes ci--dessous pour assurer une livraison rapide.
1. (A) Identifiez le modèle de la machine.
2. (B) Identifiez le numéro de série de la machine, à partir de l’étiquette signalétique.
3. (C) Assurez--vous que le numéro de série correct est utilisé à partir de la liste de pièces détachées.
4. Identifiez le numéro de pièce et la quantité. Ne commandez pas par page ou numéros de référence.
5. Fournissez votre nom, le nom de votre société, votre numéro d’identification de client, l’adresse
de facturation et d’expédition, le numéro de téléphone et le numéro du bon de commande.
6. Fournissez des instructions d’expédition détaillées.
(D) o-- identifie un assemblage
Y-- identifie les pièces composant l’assemblage
FR
A remplir au moment de l’installation à titre de référence.
Nº du modèle --
Nº de série --
Optionsdelamachine--
Agent commercial --
Nº tél. de l’agent commercial --
Numéro d’identification client --
Date d’installation --
JP
o
Y
Home
Find...
Go To..
Home
Find...
Go To..
GENERAL RECOMMENDED MAINTENANCE
1--1
S20 Electric 9006708 (9--10)
E
General Recommended Maintenance Items
Ref. Part No. Serial Number Description Qty.
o9006388 (000000-- )Maint Kit, 400hr [S20 Ele] 1
Y360686 (000000-- ) Belt, V, 33.5l [3v] 1
Y03670 (000000-- ) Belt, V, 54.0l [3vl] 1
Y1059569 (001249-- ) Belt, V, 31.5l [3v] 1
360320 (000000--001248 ) Belt, V, 31.5l [3v] 1
o9006392 (000000-- )Maint Kit, 800Hr [S20 Ele] 1
Y360686 (000000-- ) Belt, V, 33.5l [3v] 1
Y03670 (000000-- ) Belt, V, 54.0l [3vl] 1
Y1059569 (001249-- ) Belt, V, 31.5l [3v] 1
Y65221 (000000-- ) Element, Fltr, Oil, Spin--On 1
Y9006534 (000000-- )Cap, Breather, Hyd 1
Y361023 (000000-- ) Strainer, Hyd, 010gpm 100mesh 1
Y1057707 (000000-- ) Oil, Hyd [El, Iso 32, 01Gal] 4
Y1045900 (000000-- ) Filter, Cyl, 11.09d, 13.31l, 6.724 Id 1
Y1044356 (000000-- ) Gasket, Cover 1
Y360134 (000000-- )Seal 1
Y360136 (000000-- ) Flap, Recirculation 1
Y360761 (000000-- ) Seal 1
Y360784 (000000-- ) Seal 1
Y1047575 (000000-- ) Skirt, Neo, .12 2ply, Dust--Cntrl 1
Y360603 (000000-- )Seal, Rbr, .13 6.34w 36.3l, 12/.28h, Red 1
Y87689 (000000-- ) Cord, Sponge, Neo, 1.0d 36.3l 1
Y360844 (000000-- ) Seal, Door, Dump, Side 2
Y360627 (000000-- ) Bracket, Mtg, Angle, Air Fltr 1
Y360336 (000000-- ) Seal 1
Y87181 (000000-- )Seal, Hppr, .06 12.5w 36.6l Neo 1
Y1057602 (000000-- ) Skirt, Neo, .12, 12.26w 14.50l, 07/ Sl 2
Y1047637 (000000-- ) Hose, Flex, Vacuum, 04.0d, 21.0l 1
Y1044357 (000000-- ) Seal, Inlet, Vacuum 1
360320 (000000--001248 ) Belt, V, 31.5l [3v] 1
16411 (000000-- )Paint, Airdry, Off--White, 12oz 1
16412 (000000-- ) Paint, Airdry, Teal, 12oz, Solid 1
377540 (000000-- ) Paint, Airdry, Blk, 12oz 1
377538 (000000-- ) Paint, Airdry, Gray, 12oz [Enamel] 1
377537 (000000-- )Paint, Airdry, Iron Gray,12oz[Pwdr Coat] 1
Home
Find...
Go To..
GENERAL RECOMMENDED MAINTENANCE
S20 Electric 9006708 (8--09)
1--2
Home
Find...
Go To..
STANDARD PARTS
2--1
S20 Electric 9006708 (9--10)
SECTION 2
Contents Page
Fig. 1 -- Brushes, Replacement 2--2..............
Fig. 2 -- Main Frame and Skirts Group 2--4.......
Fig. 3 -- Brush Door Group, Right Side 2--6.......
Fig. 4 -- Brush Door Group, Left Side 2--8........
Fig. 5 -- Seat and Cover Group 2--10.............
Fig. 6 -- Rear Cover Latch Group 2--12...........
Fig. 7 -- Operator Station Group 2--14............
Fig. 8 -- Steering Wheel Group 2--16.............
Fig. 9 -- Directional Pedal Group 2--18............
Fig. 10 -- Wheel and Brake Group, Front 2--20......
Fig. 11 -- Steering Cylinder Group 2--22............
Fig. 12 -- Wheel Group, Rear Drive 2--24..........
Fig. 13 -- Brush Lift Group, Main 2--26.............
Fig. 14 -- Brush Cable Lift Group, Main 2--28.......
Fig. 15 -- Brush Drive Group, Main 2--30...........
Fig. 16 -- Brush Drive Motor Group, Main 2--32.....
Fig. 17 -- Brush Lift Group, Side 2--34.............
Fig. 18 -- Brush Motor and Pivot Group, Side 2--36..
Fig. 19 -- Vacuum Fan Control Group 2--38........
Fig. 20 -- Vacuum Fan Group 2--40...............
Fig. 21 -- Hopper Lift Arms Group 2--42............
Fig. 22 -- Hopper Group, Plastic 2--44.............
Fig. 23 -- Hopper Cover Group 2--46..............
Fig. 24 -- Hopper Support Group
(001071-- ) 2--48.................
Fig. 25 -- Hopper Dump Door Group 2--50.........
Fig. 26 -- Hopper Filter Shaker Group 2--52........
Fig. 27 -- Hydraulic Schematic 2--54...............
Fig. 28 -- Hydraulic Hose Group 2--56.............
Fig. 29 -- Hydraulic Reservoir Group 2--58.........
Fig. 30 -- Hydraulic Control Valve Group 2--60......
Fig. 31 -- Hydraulic Solenoid Valve Group 2--61.....
Fig. 32 -- Electrical Control Box Group 2--62........
Fig. 33 -- Electrical Control Box Wire
Connection Group 2--64...............
Fig. 34 -- Electrical Schematic 2--66...............
Fig. 35 -- Electrical Wire Harnesses Group 2--70....
Fig. 36 -- Label Group 2--74......................
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (8--09)
2--2

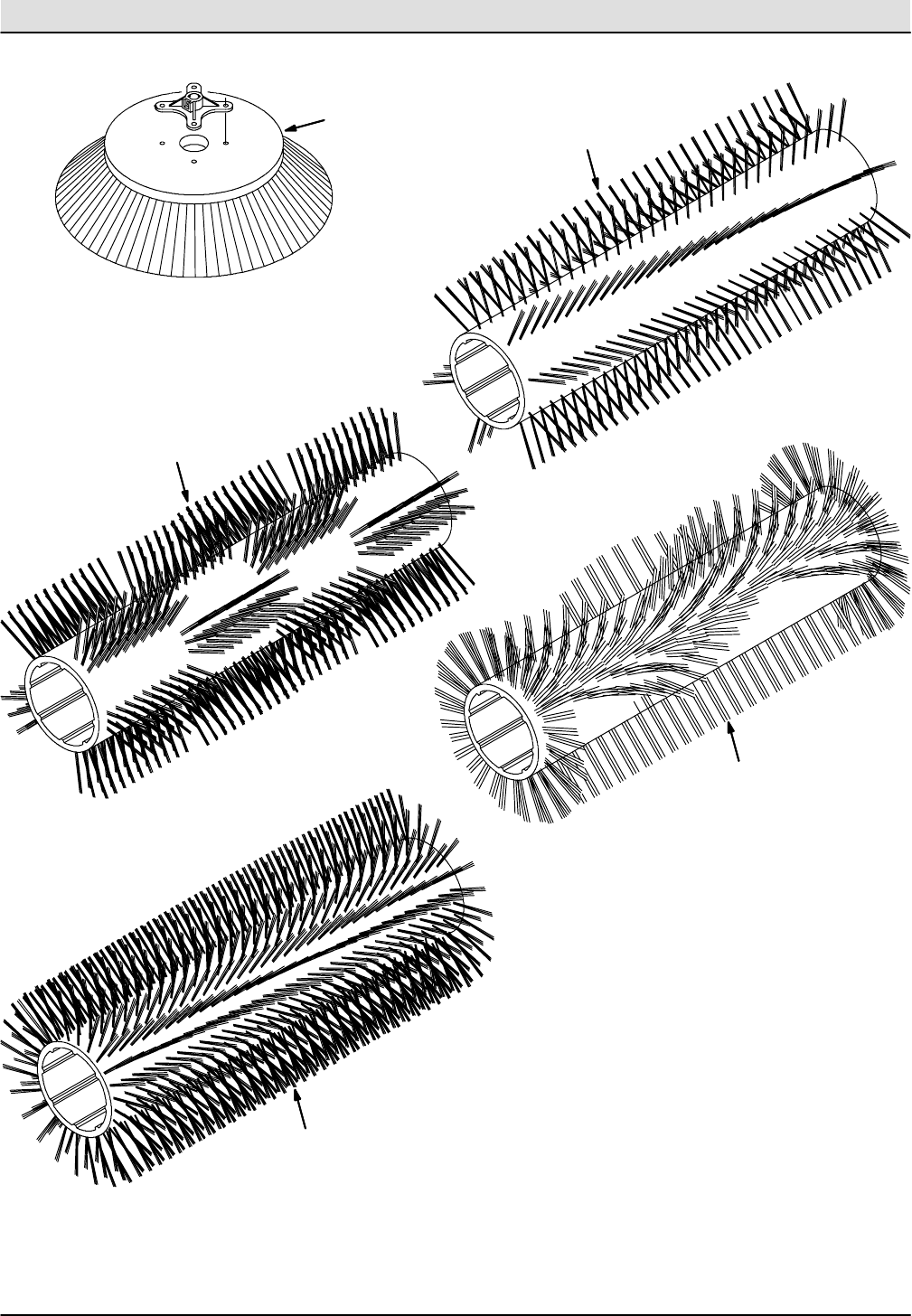

Fig. 1 -- Brushes, Replacement
1
2
5
4
3
Home
Find...
Go To..
STANDARD PARTS
2--3
S20 Electric 9006708 (9--10)
355043 -- NA
Fig. 1 -- Brushes, Replacement
Ref. Part No. Serial Number Description Qty.
187334 (000000-- )Brush--Sweep, Polyester 8 Dr 1
1 87099 (000000-- ) Brush--Sweep, Polypropylene 1
1 87097 (000000-- ) Brush--Sweep, Polypropylene and Wire 1
1 385947 (000000-- ) Brush--Sweep, Natural Fiber 1
2 87333 (000000-- ) Brush--Sweep, Polyester 24 Dr 1
3370010 (000000-- )Brush--Sweep, Window, Polypropylene 1
4 370025 (000000-- ) Brush--Sweep, Wedge, Polypropylene 1
5 08013N (000000-- ) Brush--Side Swp, Soft Nylon 1
5 59431 (000000-- ) Brush--Side Swp, Polypropylene 1
559432 (000000-- )Brush--Side Swp, Flatwire 1
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (9--10)
2--4
Fig. 2 -- Main Frame and Skirts Group
1
23
45
5
6
6
7
8
6
9
10
11
12
13
14
15
15
16 17
16
18
19
20
21
22
23
24
24
19
25
26 27
27
28
13
13 29 30
31
30 31
32
33
34
7
35
38
36
36
14
37
37
27
24
Home
Find...
Go To..
STANDARD PARTS
2--5
S20 Electric 9006708 (9--10)
356001-- E
Fig. 2 -- Main Frame and Skirts Group
Ref. Part No. Serial Number Description Qty.
11042849 (000000-- )Frame Wldt, Ele [S20] 1
2 360138 (000000-- ) Channel, Recirculation Flap 1
3 360134 (000000-- ) Seal 1
4 360136 (000000-- ) Flap, Recirculation 1
5 360137 (000000-- ) Strip, Retainer, Flap 2
61037346 (000000-- )Screw, Hex, M8 X 1.25 X 25, 9.8, Sems 15
7 1037354 (000000-- ) Screw, Hex, M8 X 1.25 X 30, 9.8, Sems 2
8 71579 (000000-- ) Strap, Static, W/Grommet, .19 1.1w 25.0l 1
9 1012529 (000000-- ) Plug, Hole, Rnd, 2.13h 0.6l, Blk Nyl 1
10 1054566 (000000-- ) Plate, Grommet, Taillight, Ele 2
11 87180 (000000-- )Retainer, Seal, Hppr, Top 1
12 87181 (000000-- ) Seal, Hppr, .06 12.5w 36.6l Neo 1
13 72968 (000000-- ) Rivet, Plstc, .250d X 0.90 27
14 1057602 (000000-- ) Skirt, Neo, .12, 12.26w 14.50l, 07/ Sl 2
15 360781 (000000-- ) Retainer, Skirt, .12, 1.0w X 08.1l, Pl 2
16 30013 (000000-- )Washer, Flat, 0.31, Fendr 2
17 09740 (000000-- ) Screw, Hex, M8 X 1.25 X 20, Ss 1
18 1051250 (000000-- ) Seal, Firewall 1
19 02431 (000000-- ) Plug, Hole, Rnd, 0.56h .03--.12, Blk Nyl 4
20 67767 (000000-- ) Clamp, Cable, Stl, 0.69d X 0.62w, 1hole 2
21 01689 (000000-- )Nut, Hex, Std, #10--32, Ss 4
22 87277 (000000-- ) Taillight, 12vdc, 3.6 X 1.9 2
23 1054619 (000000-- ) Grommet, Taillight, 5.44 X 3.56 2
24 1055605 (000000-- ) Plug, Hole, Rnd, 0.38h .4--.7, Blk Nyl 8
25 08709 (000000-- ) Nut, Hex, Lock, M8 X 1.25, Nl 1
26 369702 (000000-- )Horn, 36vdc, 115 Dba 1
27 07791 (000000-- ) Nut, Hex, Flng, M8 X 1.25 3
28 39277 (000000-- ) Screw, Hex, M8 X 1.25 X 25, 8.8 1
29 44961 (000000-- ) Tie, Cable, Nyl, 14.5l .30w 4.0 Max D 1
30 86866 (000000-- ) Pin, Cotter, Hair, 0.38d .072 Wir 4
31 32491 (000000-- )Washer, Flat, 0.31, Std 4
32 41141 (000000-- ) Washer, Lock, Int--Ext, 0.31 1
33 06969 (000000-- ) Screw, Hex, M12 X 1.75 X 40, 8.8 2
34 07793 (000000-- ) Nut, Hex, Flng, M12 X 1.75 2
35 32980 (000000-- ) Washer, Lock, Int, 10 4
36 1057684 (000000-- )Retainer, Skirt, .12, 1.0w X 10.4l, Pl 2
37 1042791 (000000-- ) Insulation, Acstc, 2.0, 02.0 X 12.0 2
38 1061216 (001292-- ) Plug, Hole, Rnd, 1.37h 0.45l, Blk Nyl 1
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (8--09)
2--6
Fig. 3 -- Brush Door Group, Right Side
1
2
3
3
3
3
3
4
56
7
8
9
10
11
11 12
Home
Find...
Go To..
STANDARD PARTS
2--7
S20 Electric 9006708 (8--09)
354937 -- ALL
Fig. 3 -- Brush Door Group, Right Side
Ref. Part No. Serial Number Description Qty.
11044844 (000000-- )Door Wldt, Brush, Rh 1
2 360388 (000000-- ) Latch, Swell 1
3 1020341 (000000-- ) Screw, Hex, M8 X 1.25 X 20, Ss, Sems 12
4 1048746 (000000-- ) Bracket, Stop, Brush Door 1
5 360283 (000000-- ) Hinge, .38pin .12 3.5w 07.8l, 4/0.38h 1
61048750 (000000-- )Bracket, Hinge, Door 1
7 360319 (000000-- ) Seal, Rbr, Open, 0.38, 1.25w 25.5l 1
8 360784 (000000-- ) Seal 1
9 361306 (000000-- ) Retainer, Skirt, .12, 1.0w X 19.3l, Pl 1
10 363502 (000000-- ) Seal, Bulb, Str, 0.50d .13grip 009.4l 4
11 39349 (000000-- )Washer, Flat, 0.31, Sae 2
12 32960 (000000-- ) Nut, Hex, Lock, .31--24, Nl 1
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (8--11)
2--8
Fig. 4 -- Brush Door Group, Left Side
13
1
2
3
3
3
4
5
6
7
8
9
10
11
12 17
14
15
3
10
16
3
12
Home
Find...
Go To..
STANDARD PARTS
2--9
S20 Electric 9006708 (8--11)
356002-- E
Fig. 4 -- Brush Door Group, Left Side
Ref. Part No. Serial Number Description Qty.
11044845 (000000-- )Door Wldt, Brush, Lh 1
2 360388 (000000-- ) Latch, Swell 1
3 1037346 (000000-- ) Screw, Hex, M8 X 1.25 X 25, 9.8, Sems 13
4 1048746 (000000-- ) Bracket, Stop, Brush Door 1
5 360283 (000000-- ) Hinge, .38pin .12 3.5w 07.8l, 4/0.38h 1
61048750 (000000-- )Bracket, Hinge, Door 1
7 360761 (000000-- ) Seal 1
8 360781 (000000-- ) Retainer, Skirt, .12, 1.0w X 08.1l, Pl 1
9 30013 (000000-- ) Washer, Flat, 0.31, Fendr 1
10 49826 (000000-- ) Screw, Hex, M8 X 1.25 X 16, Nl, Ss 4
11 1049199 (000000-- )Plate, Seal 1
12 41169 (000000-- ) Nut, Hex, Lock, .25--20, Nl, Ss 1
13 1049208 (000000--001531 ) Bracket Wldt, Stop, Brush 1
14 86444 (000000-- ) Spring, Cmpr, 0.60od .07wir 00.8l 1
15 20802 (000000-- ) Bumper, Rbr, 1.0d 0.38th .25--20 1
16 39349 (000000-- )Washer, Flat, 0.31, Sae 2
17 1063616 (001532-- ) Bracket Wldt, Stop, Brush 1
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (8--11)
2--10
Fig. 5 -- Seat and Cover Group
1
2
34
5
6
26
8
9
10
11
12
13
14
15
16
17
18
19 20
21
22
23
24
25
26
27
28
29
30
2
4
7
12
13
22
9
31
32
33
34
35
36
37
36
35
34
33
36
37
29
Home
Find...
Go To..
STANDARD PARTS
2--11
S20 Electric 9006708 (8--11)
354925 -- NA
Fig. 5 -- Seat and Cover Group
Ref. Part No. Serial Number Description Qty.
11048932 (000000-- )Seat, Std [Michigan, Model V--2505] 1
2 1045229 (000000-- ) Bracket, Adj, Seat 2
3 54395 (000000-- ) Screw, Hex, .31--18 X 0.62, G5 4
4 32490 (000000-- ) Washer, Flat, 0.25, Std 8
5 1047447 (000000-- ) Track, Slide, Seat Adj, 12.5l 1
61048198 (000000-- )Track, Slide, Seat Adj, 12.5l, W/ Latch 1
7 08709 (000000-- ) Nut, Hex, Lock, M8 X 1.25, Nl 4
8 1060541 (000000-- ) Shroud, Rear, Trimmed 1
9 360704 (000000-- ) Hinge, .25pin .12 3.0w 04.5l, 6/0.38sl 2
10 1049988 (000000-- ) Panel, Louver 1
11 1049987 (000000-- )Panel, Louver 1
12 360973 (000000-- ) Screw, Pan, 12--16 X 0.50, F/ Plstc 8
13 1056045 (000000-- ) Cable, Glv .13d 024.2l .25eye /.25eye 2
14 222516 (000000-- ) Sleeve, P/M, 0.32b 0.50d 0.3l [430ss] 2
15 391803 (000000-- ) Seal, Bulb, 90, 1.33 .06--.09grip 032.5l 1
16 1048955 (000000-- )Switch, Seat, No [Delta 6440--04] 1
17 75128 (000000-- ) Spindle, Adjustment 1
18 361345 (000000-- ) Insulation, Acstc, 0.5, 21.4 X 20.6 C--O 1
19 361342 (000000-- ) Insulation, Acstc, 0.5, 32.0 X 21.6 Ntch 1
20 361344 (000000-- ) Insulation, Acstc, 0.5, 31.6 X 14.1 Ntch 1
21 361343 (000000-- )Insulation, Acstc, 0.5, 21.5 X 12.2 Ntch 1
22 361554 (000000-- ) Bumper, Rbr, 0.90d 0.38th 0.18h 2
23 361951 (000000-- ) Insulation, Acstc, 0.8, 06.6 X 03.0 Slit 1
24 11329 (000000-- ) Screw, Hex, M6 X 1.00 X 16, Nl, Ss 2
25 10576 (000000-- ) Seal, Bulb, 90, 0.50d .06--.09grip 022.5l 1
26 1037346 (000000-- )Screw, Hex, M8 X 1.25 X 25, 9.8, Sems 8
27 06955 (000000-- ) Screw, Hex, M8 X 1.25 X 35, 8.8 4
28 16735 (000000-- ) Screw, Hex, M8 X 1.25 X 16, 8.8 4
29 07791 (000000-- ) Nut, Hex, Flng, M8 X 1.25 8
30 223198 (000000-- ) Screw, Hex, M5 X 0.80 X 10, Fmg 2
31 1058717 (001518-- )Plate Wldt, Lh 1
32 1058722 (001518-- ) Plate Wldt, Rh 1
33 17284 (001518-- ) Screw, Btn, M8 X 1.25 X 16, Ss 4
34 32491 (001518-- ) Washer, Flat, 0.31, Std 4
35 11329 (001518-- ) Screw, Hex, M6 X 1.00 X 16, Nl, Ss 6
36 32490 (001518-- )Washer, Flat, 0.25, Std 2
37 08085 (001518-- ) Pin, Cotter, Hair, 0.31d .058 Wir 2
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (8--09)
2--12

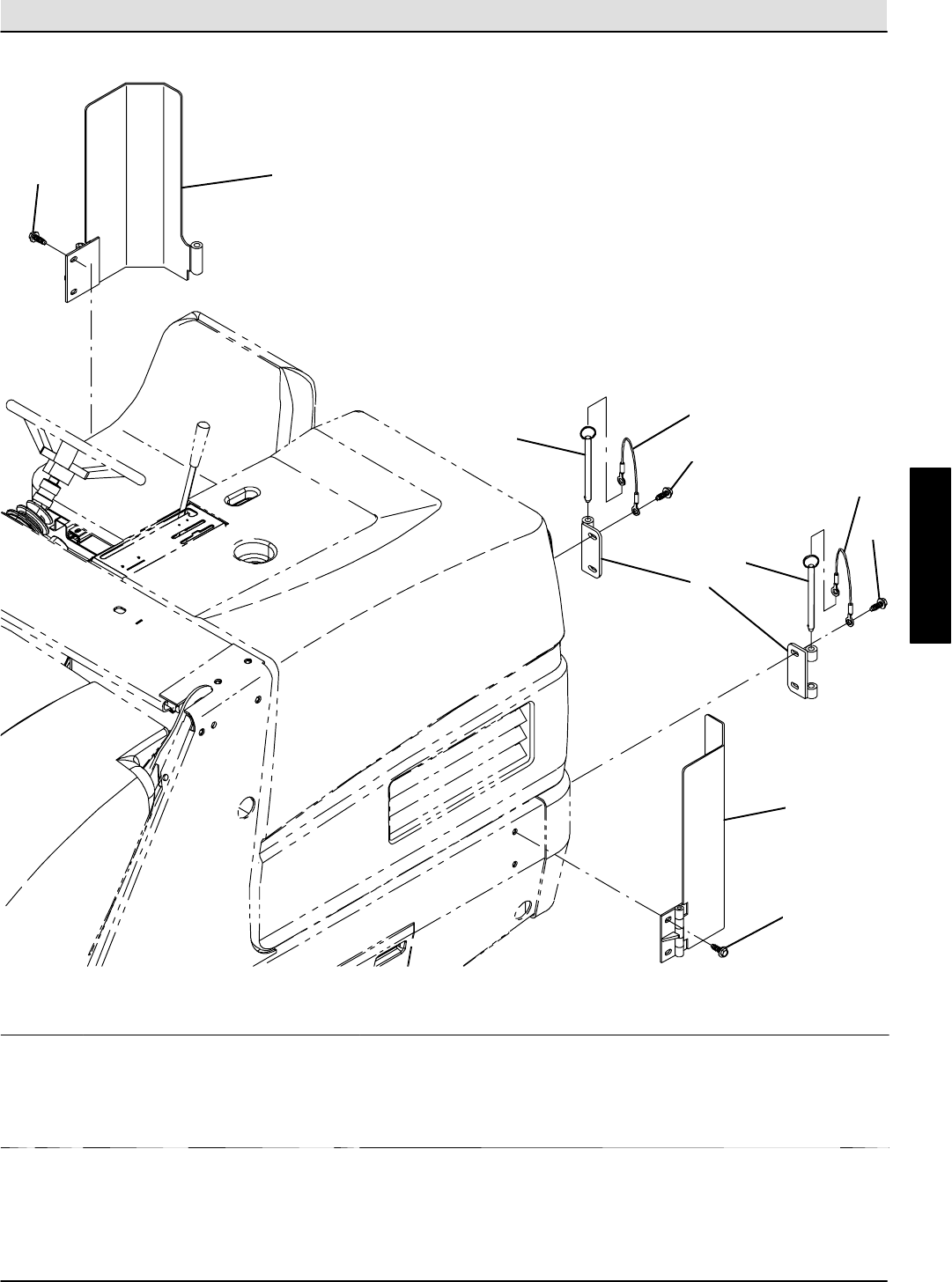

Fig. 6 -- Rear Cover Latch Group
1
2
34
5
6
6
7
8
9
10
11
12
13
14 15
16
17
18
19
17
19
20
Home
Find...
Go To..
STANDARD PARTS
2--13
S20 Electric 9006708 (8--09)
354924 -- ALL
Fig. 6 -- Rear Cover Latch Group
Ref. Part No. Serial Number Description Qty.
11052805 (000000-- ) Bracket Wldt, Latch 1
2 1052817 (000000-- ) Handle Wldt, Latch, Shrd 1
3 1052804 (000000-- ) Channel, Latch 1
4 361165 (000000-- ) Spring, Flat, .06, 0.75w X 01.8l, 2/.28h 1
5 87581 (000000-- ) Spring, Tors, 0.81id .12wir 08.0coil 1
643454 (000000-- )Washer, Flat, 0.34b 0.69d .06, Nyl 2
7 72439 (000000-- ) Latch 1
8 16949 (000000-- ) Screw, Hex, .25--20 X 0.75, Sems 2
9 1052803 (000000-- ) Bracket, Angle, Mtg, Pin, Latch 1
10 15675 (000000-- ) Screw, Hex, M8 X 1.25 X 16, Ss 4
11 76960 (000000-- )Screw, Hex, .31--18 X 2.25, G5 1
12 32491 (000000-- ) Washer, Flat, 0.31, Std 1
13 32983 (000000-- ) Nut, Hex, Lock, .31--18, Nl 1
14 08708 (000000-- ) Nut, Hex, Lock, M6 X 1.00, Nl 2
15 87308 (000000-- ) Screw, Hex, M6 X 1.00 X 12, 8.8 2
16 1037346 (000000-- )Screw, Hex, M8 X 1.25 X 25, 9.8, Sems 2
17 32486 (000000-- ) Washer Flat,0.50,Sae 2
18 27985 (000000-- ) Screw, Hex, .50--13 X 2.50, G5 1
19 32523 (000000-- ) Nut, Hex, Jam, .50--13 2
20 32491 (000000-- )Washer, Flat, 0.31, Std 4
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (8--11)
2--14
Fig. 7 -- Operator Station Group
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33 34
35
36
3
15
32
23
23
23
32
33
33
Home
Find...
Go To..
STANDARD PARTS
2--15
S20 Electric 9006708 (8--11)
354931 -- E
Fig. 7 -- Operator Station Group
Ref. Part No. Serial Number Description Qty.
19006980 (000000-- )Panel, Oprtr Station, W/ Label, Na [S20e] 1
1 9006981 (000000-- ) Panel, Oprtr Station, W/ Label, Jp [S20e] 1
o2 1051135 (000000-- ) Panel Assy, Indicator Light, Ele 1
Y3 361074 (000000-- ) Light, Panl, 36vdc, 1.1 X 1.0 8
4 1045211 (000000-- ) Seal, Rbr, Clsd, 0.38, Instmt Panl 1
508708 (000000-- )Nut, Hex, Lock, M6 X 1.00, Nl 4
6 361074 (000000-- ) Light, Panl, 36vdc, 1.1 X 1.0 1
7 377433 (000000-- ) Gauge, Hourmeter, 12--60vdc, Analog [10k] 1
8 1038957 (000000-- ) Gauge, Discharge, Battery, 36vdc, Led 1
9 386346 (000000-- ) Alarm, Audio, 10--48vdc [Mallory] 1
10 1008142 (000000-- )Switch, Snap, 25a Spdt 1
11 1054872 (000000-- ) Screw, Pan, Phl, M3 X 0.5 X 25, Blk 2
12 39658 (000000-- ) Washer, Lock, Int, 04 2
13 01754 (000000-- ) Nut, Hex, Std, M3 X 0.50, 8 2
14 1048456 (000000-- ) Switch, Rocker, 3 Position 1
15 1053842 (000000-- )Switch, Safety, Shutoff 1
16 383165 (000000-- ) Boot, Switch, Ignition 1
o17 87536 (000000-- ) Switch, Ignition [Ku] 1
Y18 87866 (000000-- ) Key, Ignition [Set Of 2] 1
19 49263 (000000-- ) Tie, Cable, Nyl, 11.4l .19w 3.0 Max D 1
20 382516 (000000-- )Boot, .63id .29l .90w 1
21 33807 (000000-- ) Plug, Hole, Rnd, 0.44h .03--.12, Blk Nyl 1
22 1057040 (000000-- ) Bracket, Mtg, Circuitbreaker, Ele 1
23 1064184 (000000-- ) Circuitbreaker, 2.5a, Resetable 10
24 1064188 (000000-- ) Circuitbreaker, 15a, Resetable 1
25 1064189 (000000-- )Circuitbreaker, 20a, Resetable 1
26 87349 (000000-- ) Resistor, 040.000hm, 0040watt 1
27 09200 (000000-- ) Screw, Pan, Phl, M5 X 0.80 X 12, Ss 2
28 19066 (000000-- ) Washer, Flat, 10 2
29 06549 (000000-- ) Nut, Hex, Lock, M5 X 0.80, Nl 2
30 222290 (000000-- )Diode, Ele, Plug 6
31 1037354 (000000-- ) Screw, Hex, M8 X 1.25 X 30, 9.8, Sems 1
32 07791 (000000-- ) Nut, Hex, Flng, M8 X 1.25 5
33 1037346 (000000-- ) Screw, Hex, M8 X 1.25 X 25, 9.8, Sems 6
34 58366 (000000-- ) Clamp, Cable, Stl, 1.25d X 1.00w, 1hole 1
35 1041873 (000000-- )Fastener, Wire, Tie [Button Head] 3
36 1040467 (000000-- ) Screw, Hex, M6 X 1.00 X 20, 9.8, Sems 2
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (8--09)
2--16
Fig. 8 -- Steering Wheel Group
1
2
3
4
5
5
6
7
7
8
910
15
16
17
18
19
20
6
6
6
6
7
21
22
22
11
11
12
13
14
23
24
25
Home
Find...
Go To..
STANDARD PARTS
2--17
S20 Electric 9006708 (1--10)
354988 -- E
Fig. 8 -- Steering Wheel Group
Ref. Part No. Serial Number Description Qty.
1360711 (000000-- )Rod, Latch, Tilt, Steering 1
2 70717 (000000-- ) Ring, Retaining, Ext, 0.50d, Hd 1
3 22290 (000000-- ) Spring, Cmpr, 0.72od .06wir 02.3l 1
4 1045222 (000000-- ) Channel, Mtg, Steering Latch 1
5 70709 (000000-- ) Bearing, Flng, 2hole, 0.50b 2
61036892 (000000-- )Screw, Hex, M6 X 1.00 X 25, 9.8 Sems 16
7 47585 (000000-- ) Bearing, Flng, 2hole, 0.50b [Nyl] 3
8 04706 (000000-- ) Knob, Tee, 0.38--16, 2.5 X 1.0 1.1l,Plstc 1
9 1051510 (000000-- ) Bracket Wldt, Steering, Tilt 1
10 1048351 (000000-- ) Column, Steering, 09.9l 0.86d 36tooth 1
11 56690 (000000-- )Fitting, Hyd, Str, Jm06/Om06 3
12 56835 (000000-- ) Fitting, Hyd, Str, Jm08/Om06 1
13 42215 (000000-- ) Fitting, Hyd, Tee, Jf06/Jm06/Jm06, Run 1
14 74173 (000000-- ) Steer--Control, Hyd04, 07.3 0600 (See Breakdowns) 1
15 1058996 (000000-- ) Wheel, Steering, 14.0D 0.81B 36Tooth 1
16 1050349 (000000-- )Button, Cntrl, Horn [Isolated] 1
17 56185 (000000-- ) Nut, Hex, Jam, M20 X 1.5 1
18 70622 (000000-- ) Boot, Bellows, 3.1l 4.4w 2.8h 1hole, Neo 1
19 360867 (000000-- ) Plate, Mtg 1
20 75968 (000000-- ) Insulation, Acstc, Rnd, 0.8, 02.5d 0.5h 1
21 21195 (000000-- )Screw, Hex, .38--16 X 0.75, G5 4
22 08708 (000000-- ) Nut, Hex, Lock, M6 X 1.00, Nl 4
23 82833 (000000-- ) Sleeve, Nyl, 1.22id 35.0l 1
24 49263 (000000-- ) Tie, Cable, Nyl, 11.4l .19w 3.0 Max D 1
25 47504 (000000-- )Fitting, Hyd, E90, Jf06/Jm06 1
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (8--09)
2--18
Fig. 9 -- Directional Pedal Group
20 12
1
2
3
4
5
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
21 22 23
24
25
25
26
27
28
29
30
30
31
31
32
32
25
23
Home
Find...
Go To..
STANDARD PARTS
2--19
S20 Electric 9006708 (8--09)
354989 -- E
Fig. 9 -- Directional Pedal Group
Ref. Part No. Serial Number Description Qty.
11050955 (000000-- )Arm Wldt, Cntrl, Dir 1
2 43611 (000000-- ) Washer, Flat, 0.39b 0.75d .06, Nyl 1
3 17186 (000000-- ) Screw, Set, Soc, M5 X 0.80 X 8, Pl [45h] 2
4 14397 (000000-- ) Rod, Thrd, 2 End, M06 X 1.0 02.2l 1
5 12263 (000000-- ) Balljoint, M6 X 1.0 Fem, M6 X 1.0 Mal 2
614368 (000000-- )Throttle, Electronic, 0000/5000 Ohm 1
7 1050957 (000000-- ) Bracket, Mtg, Pedal, Lh 1
8 1052531 (000000-- ) Bracket, Mtg, Pedal, Rh 1
9 49681 (000000-- ) Spring, Flat, .06, 0.75w X 07.8l 4
10 1052540 (000000-- ) Pedal, Propel, Adj, Upper 1
11 1052541 (000000-- )Pedal Wldt, Propel, Lower, Adj 1
12 72084 (000000-- ) Pin, Clevis, 0.37d X 3.50l 2
13 44906 (000000-- ) Pin, Cotter, Hair, 0.38d .093 Wir 1
14 87725 (000000-- ) Spacer, Plstc, 0.41b 2.25d 1.30l, Nyl 1
15 36801 (000000-- ) Screw, Hex, .38--16 X 1.50, Fl 1
16 75430 (000000-- )Tread, Non--Skid, 02.2w 15.5l 1
17 86798 (000000-- ) Tread, Non--Skid, 01.4w 12.0l 1
18 06474A (000000-- ) Pin, Clevis, 0.50d X 3.50l 1
19 1037346 (000000-- ) Screw, Hex, M8 X 1.25 X 25, 9.8, Sems 4
20 06963 (000000-- ) Screw, Hex, M10 X 1.50 X 60, 8.8 1
21 39308 (000000-- )Screw, Soc, M8 X 1.25 X 25, 12.9 1
22 07791 (000000-- ) Nut, Hex, Flng, M8 X 1.25 1
23 06943 (000000-- ) Screw, Hex, M6 X 1.00 X 20, 8.8 5
24 32483 (000000-- ) Washer, Flat, 0.25, Sae 2
25 08708 (000000-- ) Nut, Hex, Lock, M6 X 1.00, Nl 5
26 41430 (000000-- )Nut, Hex, Lock, M10 X 1.5, Nl 1
27 32485 (000000-- ) Washer, Flat, 0.38, Sae 1
28 25014 (000000-- ) Nut, Hex, Std, .38--16 1
29 32486 (000000-- ) Washer Flat,0.50,Sae 1
30 41359 (000000-- ) Nut, Hex, Std, M6 X 1.00, 8 2
31 08182 (000000-- )Pin, Cotter, .125 X 1.00 2
32 32490 (000000-- ) Washer, Flat, 0.25, Std 4
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (8--11)
2--20
Fig. 10 -- Wheel and Brake Group, Front
1
2
2
3
4
56
7
89
10
11 12
13
12
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
27
28
29
29
30
31
32
33
34
34
35
36
18 19
36
37 38
39
40
Home
Find...
Go To..
This page does not match the printed manual,
printed manuals will be updated the next revision.
STANDARD PARTS
2--21
S20 Electric 9006708 (8--11)
356003 -- E
Fig. 10 -- Wheel and Brake Group, Front
Ref. Part No. Serial Number Description Qty.
o11063238 (000000-- )Tire Assy, Idler, Swpr, Blk, 16.0x3.5 2
Y2 360074 (000000-- ) Bearing, Ball, 1.18b 2.44d 0.63w 2
3 08182 (000000-- ) Pin, Cotter, .125 X 1.00 2
4 86659 (000000-- ) Nut, Hex, Sltd, .75--16 2
5 49145 (000000-- ) Washer, Flat, 0.76b 1.50d .06, Ss 2
654390 (000000-- )Cap, Hub, Dust, 2.57d 0.77l 2
o360023 (000000-- ) Brake Assy 2
Y7 360270 (000000-- ) Plate, Backing, Brake 1
Y8 360271 (000000-- ) Bushing, Sleeve, 0.78b 0.86d 0.93l, Bnz 1
Y9 360272 (000000-- ) Cam, Plt, Brake [Nickel] 1
Y10 360273 (000000-- )Washer, Flat, M21.0b X 37d X 3 1
Y11 360274 (000000-- ) Retainer, Ring, Brake 1
Y12 360275 (000000-- ) Shoe, Brake, 180 X 30mm 2
Y13 360276 (000000-- ) Spring, Wir, 0.25d, Brake Return 1
14 360802 (000000-- ) Arm, Lever, Brake, 4.1 [Knott] 2
15 1052114 (000000-- )Shaft Wldt, Brush 1
16 1052113 (000000-- ) Pedal Wldt, Brake 1
17 51109 (000000-- ) Pad, Pedal, Brake, 3.96l 2.36w 0.75 1
18 14595--1 (000000-- ) Clevis, Adj, 0.25pin, 0.25--28 Rh, Pl 4
19 14605 (000000-- ) Pin, Clevis, 0.25d X 0.75l 4
20 32899 (000000-- )Nut, Hex, Jam, .25--28 4
21 360935 (000000-- ) Rod 2
22 1046553 (000000-- ) Lever, Stop, Brake 1
23 1052263 (000000-- ) Tube, 0.34id 0.62od 00.2l, Stl 1
24 71367 (000000-- ) Spring, Wir, 0.08d, Parking Brake 1
25 06949 (000000-- )Screw, Hex, M6 X 1.00 X 50, 8.8 2
26 08708 (000000-- ) Nut, Hex, Lock, M6 X 1.00, Nl 2
27 1037355 (000000-- ) Screw, Hex, M8 X 1.25 X 35, 9.8, Sems 3
28 32491 (000000-- ) Washer, Flat, 0.31, Std 1
29 08709 (000000-- ) Nut, Hex, Lock, M8 X 1.25, Nl 3
30 06968 (000000-- )Screw, Hex, M12 X 1.75 X 35, 8.8 8
31 08711 (000000-- ) Nut, Hex, Lock, M12 X 1.75, Nl 8
32 32486 (000000-- ) Washer Flat,0.50,Sae 8
33 1054875 (000000-- ) Screw, Hex, M5 X 1.0 X 16, Blk 2
34 19066 (000000-- ) Washer, Flat, 10 4
35 06549 (000000-- )Nut, Hex, Lock, M5 X 0.80, Nl 2
36 08170 (000000-- ) Pin, Cotter, .062 X 0.50 2
37 1048142 (000000-- ) Bracket, Switch, Brake 1
38 1039735 (000000-- ) Switch, Snap, 15a No 1
39 87308 (000000-- ) Screw, Hex, M6 X 1.00 X 12, 8.8 2
40 1020341 (000000-- )Screw, Hex, M8 X 1.25 X 20, Ss, Sems 2
Home
Find...
Go To..
This page does not match the printed manual, printed manuals will be updated the next revision.
STANDARD PARTS
S20 Electric 9006708 (8--09)
2--22
Fig. 11 -- Steering Cylinder Group
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
4
19
Home
Find...
Go To..
STANDARD PARTS
2--23
S20 Electric 9006708 (8--09)
356004-- E
Fig. 11 -- Steering Cylinder Group
Ref. Part No. Serial Number Description Qty.
11036631 (000000-- )Cylinder, Hyd, 2.0b 19.0l 12.00strk 1500 1
2 47522 (000000-- ) Fitting, Hyd, E45, Jm06/Om06 1
3 56820 (000000-- ) Fitting, Hyd, E90, Jm06/Om06 1
4 69928 (000000-- ) Tube, 0.77id 1.13od 00.6l, Stl, Pl 2
5 64886 (000000-- ) Rod--End, 0.75--16rh Mal 0.75b [Teflon] 1
642120--4 (000000-- )Bearing, Self Align, 1.00b 1.63d 1
7 69925 (000000-- ) Ring, Retaining, Int, 1.63d 1
8 69924 (000000-- ) Shaft, Pivot, Steering 1
9 39527 (000000-- ) Nut, Hex, Sltd, .75--16 1
10 1052560 (000000-- ) Arm, Steering 1
11 07259 (000000-- )Fitting, Grease, Str Pm04 .47l 1
12 1052561 (000000-- ) Spacer 1
13 69926 (000000-- ) Pad, Wear, Pye, 1.25d 1.0l 1
14 82833 (000000-- ) Sleeve, Nyl, 1.22id 35.0l 1
15 49263 (000000-- ) Tie, Cable, Nyl, 11.4l .19w 3.0 Max D 3
16 58056 (000000-- )Screw, Hex, .75--10 X 3.00, G5 1
17 32987 (000000-- ) Nut, Hex, Lock, .75--10, Nl 1
18 39350 (000000-- ) Washer, Flat, 0.75, Sae 1
19 43958 (000000-- ) Nut, Hex, Std, .75--16 2
20 09037 (000000-- ) Screw, Soc, M8 X 1.25 X 70, 12.9 1
21 08175 (000000-- )Pin, Cotter, .125 X 1.25 1
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (8--11)
2--24
Fig. 12 -- Wheel Group, Rear Drive
1
2
3
4
3
4
5
6
7
2
8
9
10
11
12
14
15
16
17
18
19
20
21
22
23
13
Home
Find...
Go To..
STANDARD PARTS
2--25
S20 Electric 9006708 (8--11)
356005 -- E
Fig. 12 -- Wheel Group, Rear Drive
Ref. Part No. Serial Number Description Qty.
o187355 (000000-- )Gearbox, 90, Drive Wheel, Rear [Hu] 1
Y2 87839 (000000-- ) Fitting, Grease 2
Y3 87840 (000000-- ) Seal, Org 2
Y4 87841 (000000-- ) Plug, Gearbox, Drive Wheel 2
Y5 87849 (000000-- ) Gear, Drive 1
Y612540 (000000-- )Bolt, Gearbox, Drive Wheel 5
Y7 61791 (000000-- ) Housing, Upper, Gearbox, Drive Wheel 1
8 360065 (000000-- ) Motor, Ele, 36vdc 2130rpm 2.10hp (See Breakdowns) 1
9 360980 (000000-- ) Seal, Org, .139 X 02.98id 1
10 360680 (000000-- ) Nut, Hex, Lock, M14 X 1.50, Nl 1
11 02076 (000000-- )Boot, 90deg .50id .57id X .84id 1.0l,Blk 4
12 1063246 (000000-- ) Tire, Drive, Swpr, Blk, 16.0x4.0 1
12 1063248 (000000-- ) Tire, Drive, Swpr, Grey, 16.0x4.0 (Optional non--Marking) 1
13 32984 (000000-- ) Washer, Lock, Int, 0.31 2
14 08713 (000000-- ) Nut, Hex, Lock, M8 X 1.25, Nl, Ss 3
15 87750 (000000-- )Nut, Wheel, M14--1.5 5
16 1052562 (000000-- ) Ring, Steering 1
17 87749 (000000-- ) Pin, Dowel, 0.3127d X 1.00l 8
18 55808 (000000-- ) Clamp, Steering 1
19 72040 (000000-- ) Screw, Hex, M8 X 1.25 X 45, 10.9 4
20 1052563 (000000-- )Clamp, Steering 1
21 39278 (000000-- ) Screw, Hex, M8 X 1.25 X 50, 8.8 3
22 41346 (000000-- ) Screw, Hex, M12 X 1.75 X 30, 8.8 6
23 06958 (000000-- ) Screw, Hex, M8 X 1.25 X 80, 8.8 2
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (8--09)
2--26

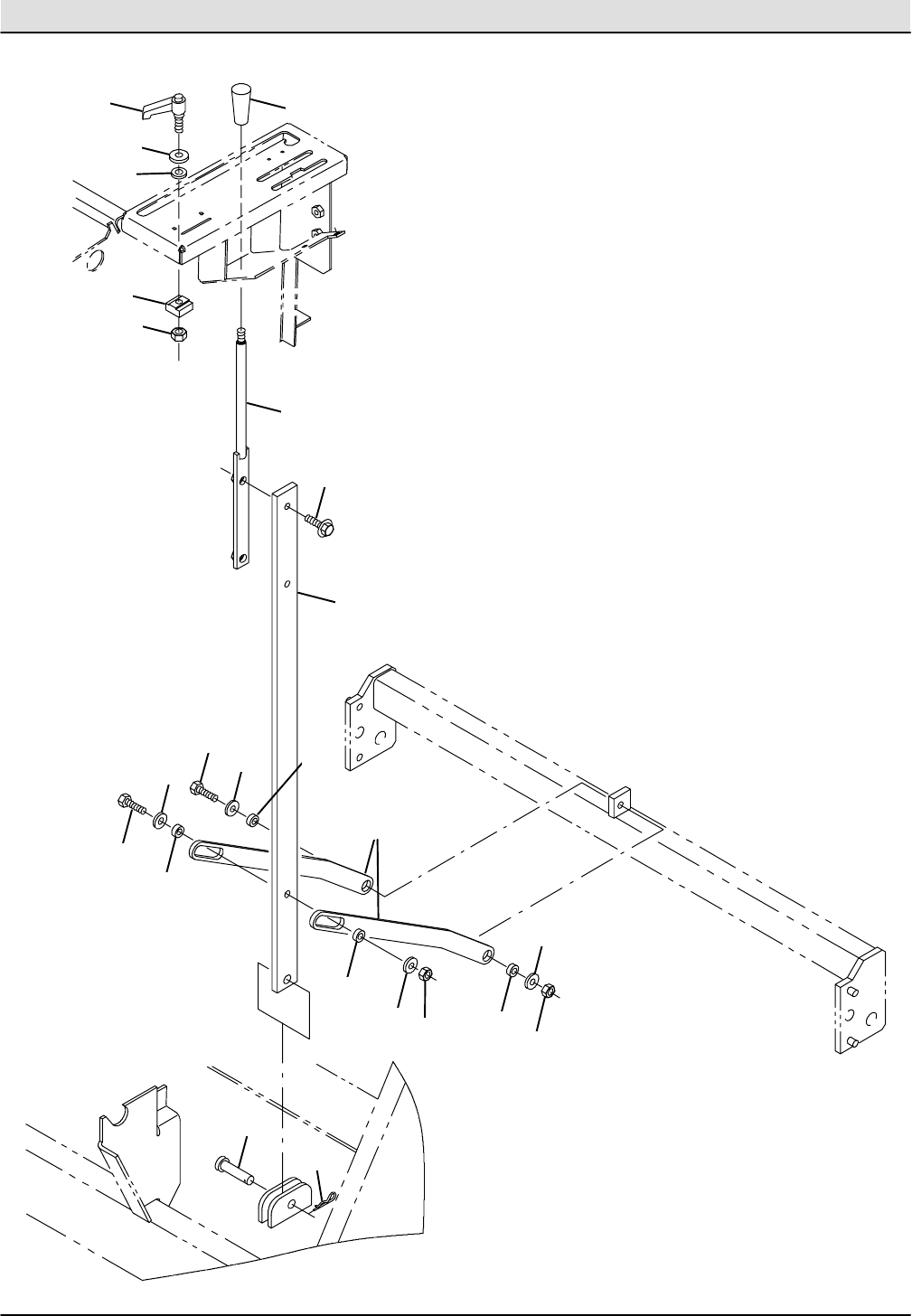

Fig. 13 -- Brush Lift Group, Main
1
2
3
4
5
6
7
7
7
7
8
9
10
11
10
10
10 10
11
11
12
13
14
14
Home
Find...
Go To..
STANDARD PARTS
2--27
S20 Electric 9006708 (8--09)
354957 -- ALL
Fig. 13 -- Brush Lift Group, Main
Ref. Part No. Serial Number Description Qty.
11048801 (000000-- )Lever, Brush Lift 1
2 1055049 (000000-- ) Handle Wldt, Lift, Brush 1
3 54995 (000000-- ) Knob, 1.12d 3.86l M10 X 1.5, Plstc Tpr] 1
4 360774 (000000-- ) Block, Adj 1
5 375020 (000000-- ) Lever, Adj, Plstc 1
61048802 (000000-- )Link, Lift, Main Brush 2
7 360460 (000000-- ) Sleeve, P/M, 0.34b 0.63d 0.4l, Ss / Oil 4
8 51529 (000000-- ) Pin, Clevis, 0.50d X 1.25l 1
9 1055074 (000000-- ) Washer, Sealing, M8 1
10 32491 (000000-- ) Washer, Flat, 0.31, Std 5
11 08709 (000000-- )Nut, Hex, Lock, M8 X 1.25, Nl 3
12 1037354 (000000-- ) Screw, Hex, M8 X 1.25 X 30, 9.8, Sems 2
13 44906 (000000-- ) Pin, Cotter, Hair, 0.38d .093 Wir 1
14 06956 (000000-- ) Screw, Hex, M8 X 1.25 X 45, 8.8 2
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (8--09)
2--28

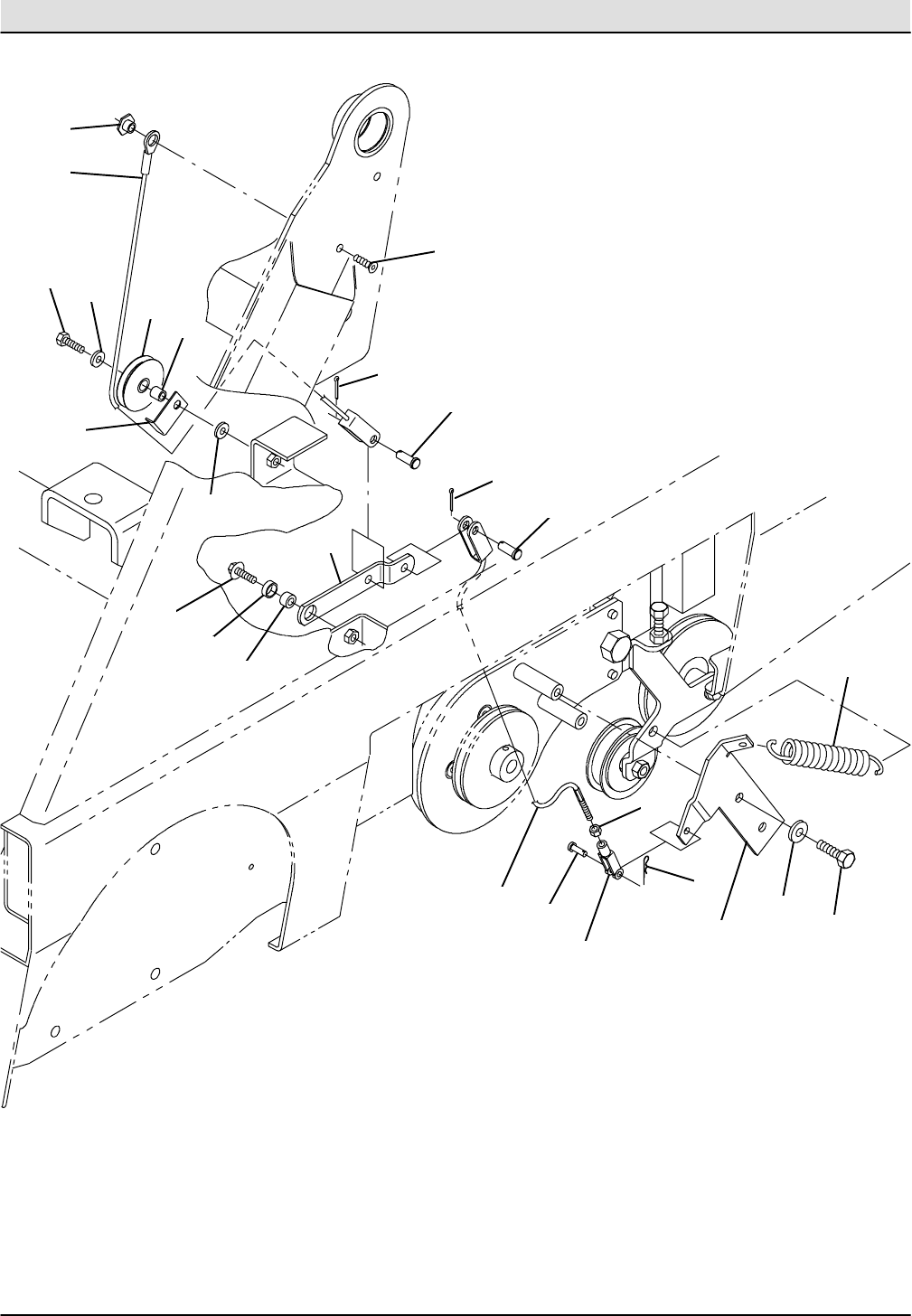

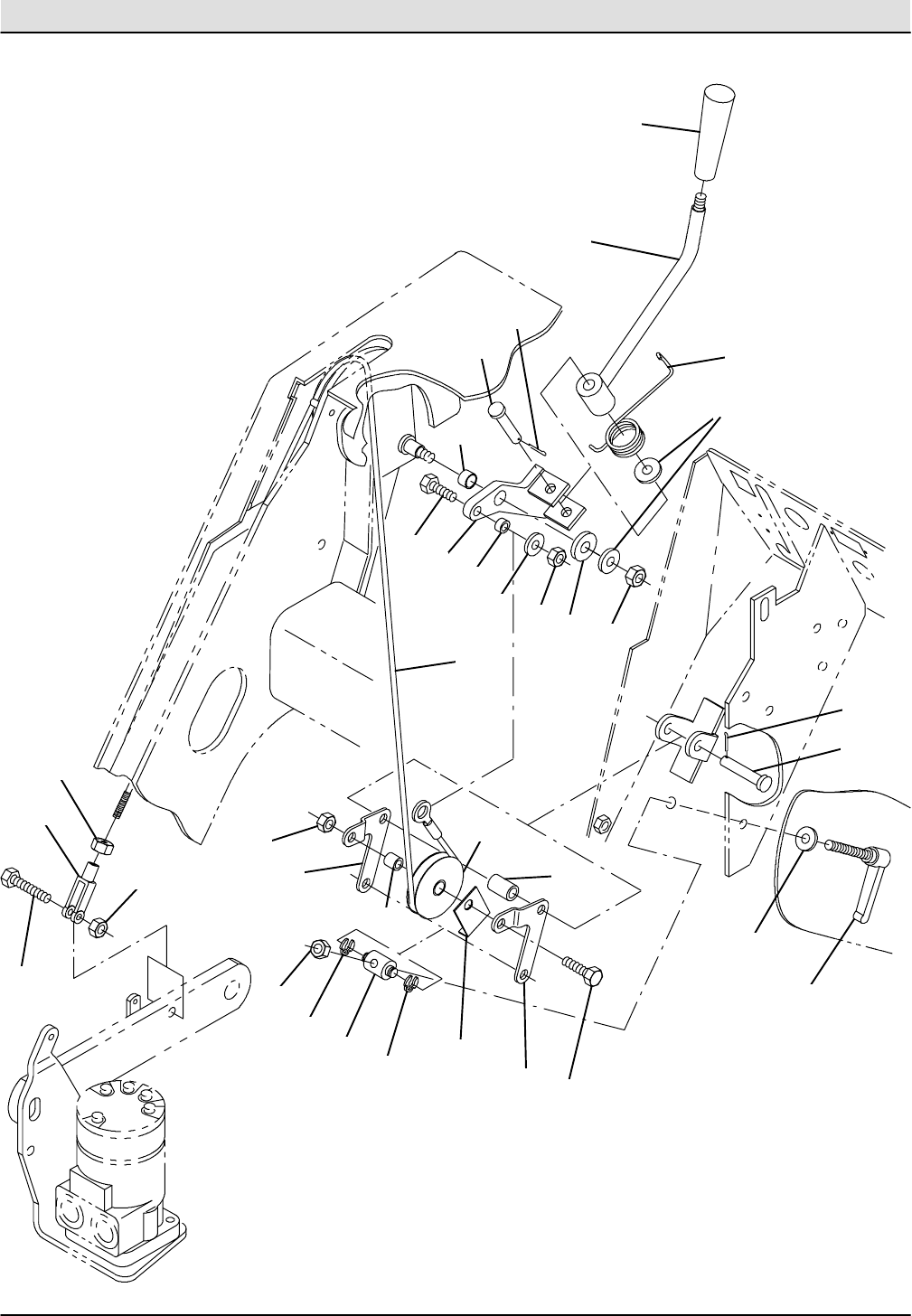

Fig. 14 -- Brush Cable Lift Group, Main
1
2
3
4
5
6
7
8
9
10
11
12
12
13 14
15
16
17
18 19
19
20
21
21
22
23
Home
Find...
Go To..
STANDARD PARTS
2--29
S20 Electric 9006708 (8--09)
356006-- E
Fig. 14 -- Brush Cable Lift Group, Main
Ref. Part No. Serial Number Description Qty.
11049220 (000000-- )Bracket, Lift, Brush, Auto 1
2 360488 (000000-- ) Spring, Extn 1
3 09291 (000000-- ) Screw, Hex, M10 X 1.50 X 20, Ss 2
4 361096 (000000-- ) Cable, Glv .13d 010.3l .4clevis /.25--28 1
5 14595--1 (000000-- ) Clevis, Adj, 0.25pin, 0.25--28 Rh, Pl 1
601714 (000000-- )Nut, Hex, Std, .25--28 1
7 14605 (000000-- ) Pin, Clevis, 0.25d X 0.75l 1
8 08085 (000000-- ) Pin, Cotter, Hair, 0.31d .058 Wir 1
9 1049224 (000000-- ) Plate, Pivot, Lift, Auto 1
10 360491 (000000-- ) Bushing, Sleeve, 0.63b 0.72d 0.25l 1
11 360460 (000000-- )Sleeve, P/M, 0.34b 0.63d 0.4l, Ss / Oil 1
12 09088 (000000-- ) Pin, Clevis, 0.37d X 1.00l 2
13 360454 (000000-- ) Pulley, Cable, 2.5d 0.50b, .22d Cable 1
14 222460 (000000-- ) Sleeve, P/M, 0.32b 0.50d 0.5l [430ss] 1
15 360413 (000000-- ) Angle, Keeper, Cable 1
16 361097 (000000-- )Cable, Glv .13d 031.0l .4clevis /.55eye 1
17 361114 (000000-- ) Spacer 1
18 06955 (000000-- ) Screw, Hex, M8 X 1.25 X 35, 8.8 1
19 32491 (000000-- ) Washer, Flat, 0.31, Std 2
20 1037354 (000000-- ) Screw, Hex, M8 X 1.25 X 30, 9.8, Sems 1
21 39005 (000000-- )Pin, Cotter, .094 X 0.75 2
22 32492 (000000-- ) Washer, Flat, 0.38, Std 2
23 360821 (000000-- ) Screw, Flt, Soc, M8 X 1.25 X 16, 10.9 1
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (9--10)
2--30
Fig. 15 -- Brush Drive Group, Main
1
2
3
34
5
3
2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23 24 25
26
27
28
29
30
31
32
33
25
25
34
35
36
37
38
39
40
41
42
43 43
44
45
25
33
46
33
47
48 49 50
51
356007-- E
Ref. Part No. Serial Number Description Qty.
11048800 (000000-- )Tube Wldt, Torque 1
2 25887 (000000-- ) Bearing, W/ Collar, 0.75b 1.85d 1.06w 2
3 35973 (000000-- ) Flange, Brg, 1.9id 2h 4
4 1048744 (000000-- ) Bracket, Angle, Mtg, Brg 2
5 09740 (000000-- ) Screw, Hex, M8 X 1.25 X 20, Ss 10
61054045 (000000-- )Arm Wldt, Brush, Main, Idler 1
7 55779 (000000-- ) Plug Wldt, Idler, Brush 1
8 24899 (000000-- ) Bearing, Ball, 1.38b 2.83d 0.67w 1
9 30252 (000000-- ) Disc, 0.08, 04.39d 02.56b, 4/.28h 3.8bc 1
Home
Find...
Go To..
STANDARD PARTS
2--31
S20 Electric 9006708 (9--10)
Fig. 15 -- Brush Drive Group, Main
Ref. Part No. Serial Number Description Qty.
10 30253 (000000-- )Disc, 0.06, 04.39d 01.67b, 4/.30h 3.8bc 1
11 1036892 (000000-- ) Screw, Hex, M6 X 1.00 X 25, 9.8 Sems 4
12 30251 (000000-- ) Shaft, Idler, Plug, Brush 1
13 361555 (000000-- ) Screw, Flt, M12 X 1.75 X 80, 10.9 1
14 51564 (000000-- ) Washer, Flat, 0.53b 1.75d .12, Stl, Pl 1
15 30255 (000000-- )Cap, Vinyl, 3.28d 0.45l 1
16 360110 (000000-- ) Stud, Spcl 1
17 52508 (000000-- ) Washer, Wavy, 0.53b 0.81d .09 2
18 360109 (000000-- ) Bar, Hex, Stl 0.75, 01.6l .50h Thru 1
19 11631 (000000-- ) Pin, Roll, .250d X 3.50l, .250/.256 1
20 360492 (000000-- )Cap, Vinyl, 0.23id, 1.50l 2
21 360108 (000000-- ) Arm Wldt, Brush, Main, Drive, Lh 1
22 360104 (000000-- ) Housing, Brg, Drive,Brush, 2.5d 2.0b 5.0 1
23 360347 (000000-- ) Screw, Flt, Soc, M10 X 1.50 X 25, Ss 4
24 360113 (000000-- ) Shaft 1
25 13534 (000000-- )Bearing, Ball, 0.98b 2.05d 0.59w 4
26 360320 (000000--001248 ) Belt, V, 31.5l [3v] 1
26 1059569 (001249-- ) Belt, V, 31.5l [3v] 1
27 00928 (000000-- ) Key, Sq, 0.25 X 0.25, 1.00l 1
28 87631 (000000-- ) Plug Wldt, Drive, Brush 1
29 39527 (000000-- )Nut, Hex, Sltd, .75--16 1
30 360116 (000000-- ) Shaft, Pivot, Arm, Brush Drive 1
31 1055674 (000000-- ) Sheave, 02grv, 05.6/2.9pd 2.0b [3v] 1
32 12273 (000000-- ) Screw, Hex, M8 X 1.25 X 20, Nl, Ss 1
33 13766 (000000-- ) Ring, Retaining, Ext, 0.98d, Basic 1
34 1049293 (000000-- )Arm, Idler 3
35 06419 (000000-- ) Screw, Hex, M10 X 1.50 X 70, Fl, Ss 1
36 07787 (000000-- ) Nut, Hex, Std, M10 X 1.50, Ss 1
37 360491 (000000-- ) Bushing, Sleeve, 0.63b 0.72d 0.25l 1
38 04186 (000000-- ) Sheave, Flat, 3.0d 0.75w 0.67brg 1
39 360115 (000000-- )Sheave, 01grv, 04.7pd 0.97b [3v] 1
40 11398 (000000-- ) Pin, Roll, .250d X 2.00l, .250/.256 1
41 08175 (000000-- ) Pin, Cotter, .125 X 1.25 4
42 08711 (000000-- ) Nut, Hex, Lock, M12 X 1.75, Nl 1
43 08709 (000000-- ) Nut, Hex, Lock, M8 X 1.25, Nl 10
44 32987 (000000-- )Nut, Hex, Lock, .75--10, Nl 2
45 41430 (000000-- ) Nut, Hex, Lock, M10 X 1.5, Nl 4
46 06977 (000000-- ) Screw, Hex, M16 X 2.00 X 20, 8.8 1
47 32491 (000000-- ) Washer, Flat, 0.31, Std 4
48 27988 (000000-- ) Screw, Hex, .38--16 X 1.50, G5 1
49 32485 (000000-- )Washer, Flat, 0.38, Sae 1
50 36643 (000000-- ) Nut, Hex, Lock, .38--16, Nl, Thin 1
51 39350 (000000-- ) Washer, Flat, 0.75, Sae 1
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (8--07)
2--32

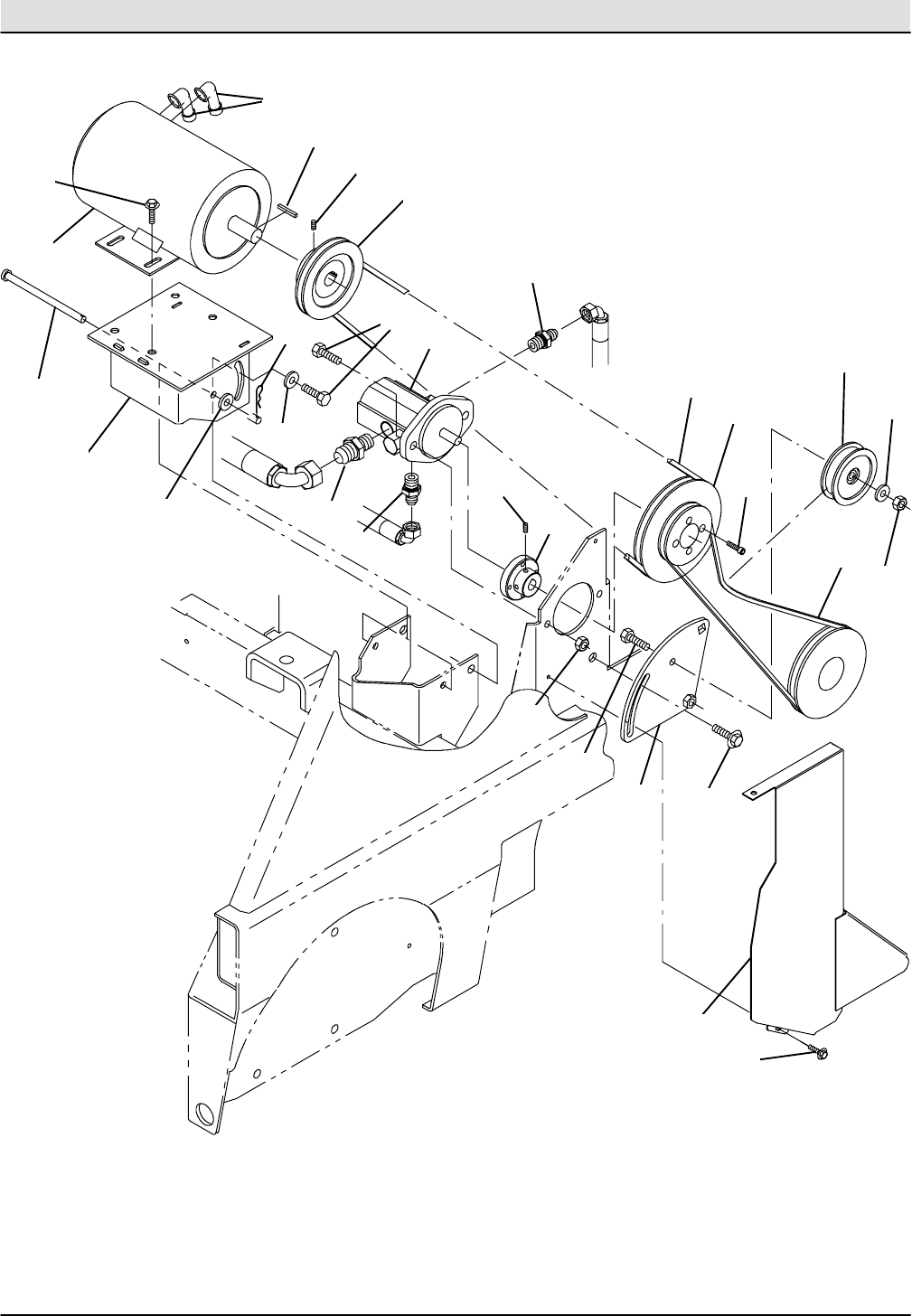

Fig. 16 -- Brush Drive Motor Group, Main
1
2
3
4
5
6
7
7
8
910
5
11
12
13
14
15
16
17
29
19
20
21
22
23
24
25
26
27
28
18
Home
Find...
Go To..
STANDARD PARTS
2--33
S20 Electric 9006708 (1--10)
356008-- E
Fig. 16 -- Brush Drive Motor Group, Main
Ref. Part No. Serial Number Description Qty.
11049336 (000000-- )Bracket Wldt, Mtg, Motor 1
2 49924 (000000-- ) Pin, Clevis, 0.37d X 6.12l 1
3 360175 (000000-- ) Motor, Ele, 36vdc 2300rpm 4.00hp (See Breakdowns) 1
4 361191 (000000-- ) Sheave, Step [3V/7M.877] 1
5 57496 (000000-- ) Screw, Set, .25--20 X 0.31, Nl 4
o61054588 (000000-- )Pump, Hyd, Gear, Ext, 2, 00.45 3000, Cw 1
Y373730 (000000-- ) Seal Kit, Pump, Hyd 1
7 52402 (000000-- ) Fitting, Hyd, Str, Jm06/Om08 2
8 74455 (000000-- ) Screw, Hex, M6 X 1.00 X 12, Fmg 3
9 06750 (000000-- ) Fitting, Hyd, Str, Jm12/Om10 1
10 360180 (000000-- )Hub, Guide, End, Actuator 1
11 9006984 (000000-- ) Guard, Belt, Brush Drive, W/ Label, Na 1
11 9006983 (000000-- ) Guard, Belt, Brush Drive, W/ Label, Jp 1
12 360179 (000000-- ) Sheave, 02grv, 06.5/3.7pd 1.50b [3v] 1
13 360686 (000000-- ) Belt, V, 33.5l [3v] 1
14 03670 (000000-- )Belt, V, 54.0l [3vl] 1
15 1049302 (000000-- ) Plate, Idler, Adjmt 1
16 02356 (000000-- ) Pulley, Idler W/ Bearing, Plstc 1
17 08085 (000000-- ) Pin, Cotter, Hair, 0.31d .058 Wir 1
18 01682 (000000-- ) Screw, Soc, .25--20 X 1.00, Al 4
19 00915 (000000-- )Key, Sq, 0.19 X 0.19, 1.38l 1
20 02076 (000000-- ) Boot, 90deg .50id .57id X .84id 1.0l,Blk 2
21 1037354 (000000-- ) Screw, Hex, M8 X 1.25 X 30, 9.8, Sems 4
22 1037358 (000000-- ) Screw, Hex, M10 X 1.50 X 35, 9.8, Sems 2
23 39283 (000000-- ) Screw, Hex, M10 X 1.50 X 25, 8.8 6
24 41430 (000000-- )Nut, Hex, Lock, M10 X 1.5, Nl 2
25 32492 (000000-- ) Washer, Flat, 0.38, Std 1
26 27990 (000000-- ) Screw, Hex, .38--16 X 2.00, G5 1
27 32485 (000000-- ) Washer, Flat, 0.38, Sae 1
28 50902 (000000-- ) Nut, Hex, Lock, .38--16, Nl 1
29 41187 (000000-- )Washer, Flat, Belleville, .38 2
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (8--09)
2--34

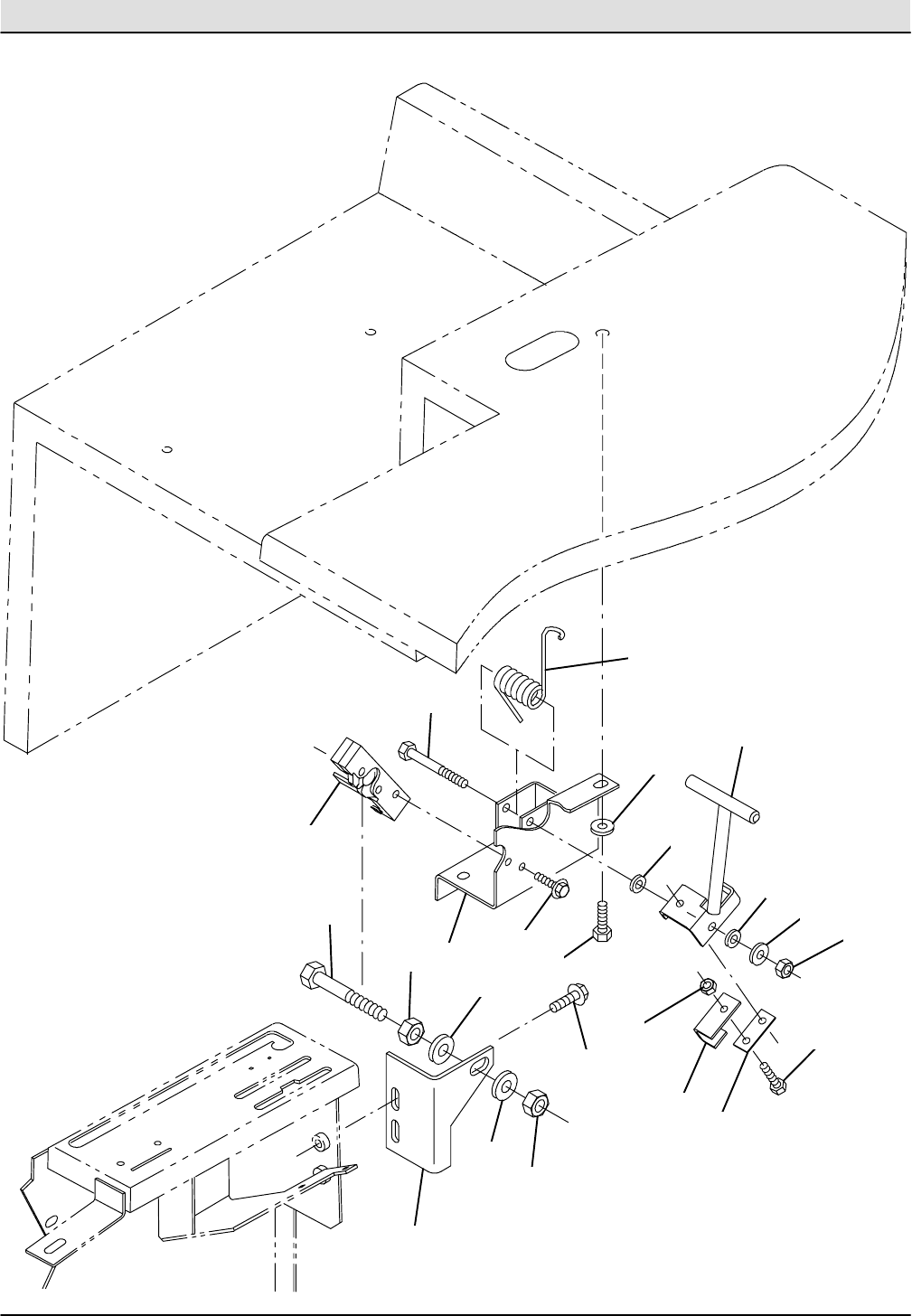

Fig. 17 -- Brush Lift Group, Side
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20 21
21
22
23
24
25
25
26
27
28
28
23
24
24
24
Home
Find...
Go To..
STANDARD PARTS
2--35
S20 Electric 9006708 (8--09)
354932 -- ALL
Fig. 17 -- Brush Lift Group, Side
Ref. Part No. Serial Number Description Qty.
1360449 (000000-- )Handle Wldt, Brush, Side 1
2 360417 (000000-- ) Arm Wldt, Lift, Brush 1
3 360961 (000000-- ) Spring, Tors, 1.03id .11wir 03.0coil 1
4 54995 (000000-- ) Knob, 1.12d 3.86l M10 X 1.5, Plstc Tpr] 1
5 51813 (000000-- ) Pin, Clevis, 0.37d X 2.12l 1
664173 (000000-- )Bushing, Sleeve, 0.50b 0.59d 0.38l, Stl 1
7 39346 (000000-- ) Washer, Flat, 0.44, Std 1
8 1047878 (000000-- ) Cable, Ss .12d 60.25l .55eye / M6--1.0 1
9 1035826 (000000-- ) Clevis, Adj, M6 Pin, M6 X 1.0 Rh, Pl 1
10 41359 (000000-- ) Nut, Hex, Std, M6 X 1.00, 8 1
11 06957 (000000-- )Screw, Hex, M8 X 1.25 X 60, 8.8 1
12 360801 (000000-- ) Sleeve, 0.32b 0.50d 0.3l, 2cham, Ss 1
13 360410 (000000-- ) Bellcrank, Lift, Brush, Side, Rh 1
14 360411 (000000-- ) Bellcrank, Lift, Brush, Side, Lh 1
15 369781 (000000-- ) Pulley, Cable, 1.5d Nyl 1
16 222460 (000000-- )Sleeve, P/M, 0.32b 0.50d 0.5l [430ss] 1
17 54400 (000000-- ) Bracket, Angle, Keeper, Cable 1
18 360451 (000000-- ) Tube, 0.42id 0.62od 01.0l, Stl, Pl 1
19 29584 (000000-- ) Pin, Clevis, 0.37d X 2.00l 1
20 71126 (000000-- ) Block, Adj, Pivot 1
21 12364 (000000-- )Ring, Retaining, Ext, 0.38d, [Klipring] 2
22 360414 (000000-- ) Lever, Adj, Metal 1
23 76570 (000000-- ) Screw, Hex, M8 X 1.25 X 30, 8.8 2
24 08709 (000000-- ) Nut, Hex, Lock, M8 X 1.25, Nl 4
25 32491 (000000-- ) Washer, Flat, 0.31, Std 2
26 32492 (000000-- )Washer, Flat, 0.38, Std 2
27 41430 (000000-- ) Nut, Hex, Lock, M10 X 1.5, Nl 1
28 44906 (000000-- ) Pin, Cotter, Hair, 0.38d .093 Wir 2
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (8--09)
2--36

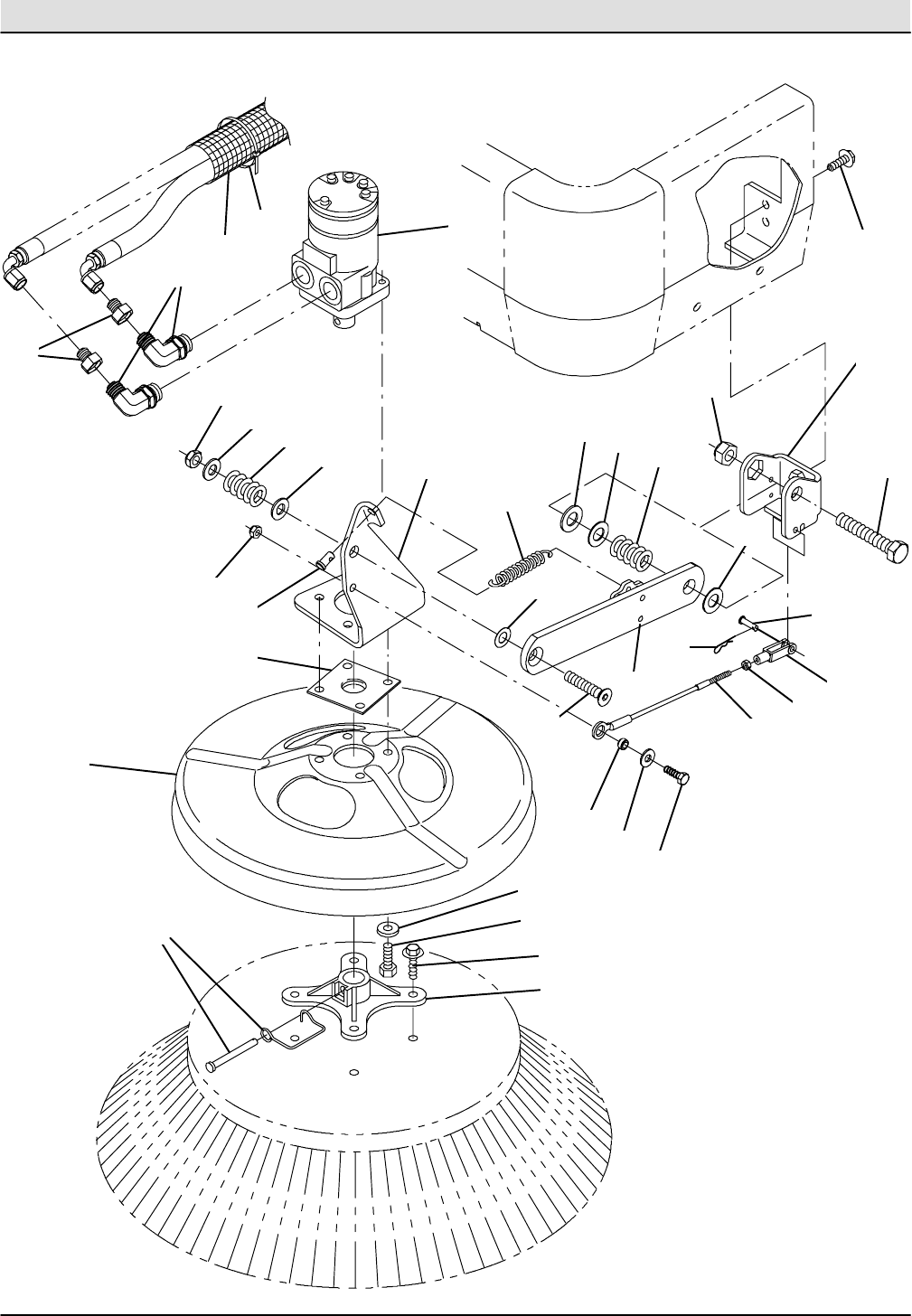

Fig. 18 -- Brush Motor and Pivot Group, Side
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24 25
26
27
28
29 30
31
32
33
34
35
36
37
Home
Find...
Go To..
STANDARD PARTS
2--37
S20 Electric 9006708 (8--09)
354933 -- E
Fig. 18 -- Brush Motor and Pivot Group, Side
Ref. Part No. Serial Number Description Qty.
1361026 (000000-- )Motor, Hyd, Gear, Int 08.9 Bi--Dir 1500 (See Break-
downs)
1
2 56821 (000000-- ) Fitting, Hyd, E90, Jm08/Om10 2
3 47753 (000000-- ) Fitting, Hyd, Str, Jf08/Jm06 2
4 1046246 (000000-- ) Bracket, Mtg, Motor, Rh 1
5 16082 (000000-- ) Guard, String, Motor, Brush 1
61054256 (000000-- )Guard, Brush 1
7 46559 (000000-- ) Screw, Hex, .38--16 X 1.25, Nl 4
8 47501 (000000-- ) Hub, Adapter, Brush, 1.00b 1
9 39396 (000000-- ) Screw, Hex, .31--12 X 1.50, Fmg [Ab] 4
10 84581 (000000-- ) Pin Assy, Side Brush W/ Clip 1
11 1037427 (000000-- ) Bracket, Arm, Side Brush 1
12 1037485 (000000-- ) Arm Wldt, Lift, Rh 1
13 360357 (000000-- ) Spring, Dsl, 1.00od 0.50id 1.25l 1
14 59633 (000000-- ) Washer, Thrust, 0.53b 1.00d 0.03w[Fbrgl] 1
15 15331 (000000-- ) Washer, Flat, 0.62, Sae 1
16 32486 (000000-- )Washer Flat,0.50,Sae 2
17 86029 (000000-- ) Nut, Hex, Flexlock, .50--13, Thin 1
18 360081 (000000-- ) Spring, Dsl, 1.25od 0.62id 1.80l 1
19 64425 (000000-- ) Washer, Thrust, 0.61b 1.25d .06, Fgl 2
20 33342 (000000-- ) Nut, Hex, Lock, M16 X 2.00, Nl 1
21 1048311 (000000-- )Cable, Ss .19d 008.5l .55eye / M6--1.0 1
22 360801 (000000-- ) Sleeve, 0.32b 0.50d 0.3l, 2cham, Ss 1
23 09010 (000000-- ) Screw, Hex, M8 X 1.25 X 25, Ss 1
24 1035826 (000000-- ) Clevis, Adj, M6 Pin, M6 X 1.0 Rh, Pl 1
25 14605 (000000-- ) Pin, Clevis, 0.25d X 0.75l 1
26 08085 (000000-- )Pin, Cotter, Hair, 0.31d .058 Wir 1
27 07785 (000000-- ) Nut, Hex, Std, M6 X 1.00, Ss 1
28 29499 (000000-- ) Spring, Extn, 0.75od 0.11wir 04.5l 1
29 31646 (000000-- ) Sleeve, Nyl, 1.63id 25.0l 1
30 49266 (000000-- ) Tie, Cable, Nyl, 07.3l .19w 1.8 Max D 2
31 06988 (000000-- )Screw, Hex, M16 X 2.00 X 90, 8.8 1
32 27108 (000000-- ) Screw, Flt, Soc, .50--13 X 2.50, Al 1
33 32492 (000000-- ) Washer, Flat, 0.38, Std 4
34 01685 (000000-- ) Washer, Flat, 0.38b 0.88d .08, Ss 1
35 08713 (000000-- ) Nut, Hex, Lock, M8 X 1.25, Nl, Ss 1
36 09028 (000000-- )Screw, Hex, M10 X 1.50 X 25, Ss 2
37 41305 (000000-- ) Pin, Clevis, 0.37d X 0.75l 1
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (9--10)
2--38
Fig. 19 -- Vacuum Fan Control Group
1
2
5
20
4
31
23
33
34
3
35
6
12
13
18
19
36
10
32
7
910
11
21
8
14
15
16
17 22
10
21
24
25 26 27
28 29
30
18
9
37 38
Home
Find...
Go To..
STANDARD PARTS
2--39
S20 Electric 9006708 (9--10)
356009-- E
Fig. 19 -- Vacuum Fan Control Group
Ref. Part No. Serial Number Description Qty.
11057734 (000000--001286 )Bracket, Switch, Shaker 1
2 375019 (000000--001286 ) Lever, Vacfan 1
3 44078 (000000-- ) Switch, Push, Spst, No 1
4 9007391 (000000--001286 ) Solenoid Kit, 36vdc, Replmt [Thrmsentry] 1
5 87707 (000000--001286 ) Bellows, Solenoid, .75--16, 1.5l 1
606943 (000000-- )Screw, Hex, M6 X 1.00 X 20, 8.8 3
7 1048565 (000000-- ) Tube, Transition, Valve, Ev 1
8 1045627 (000000-- ) Bracket, Inlet, Vacfan 1
9 32483 (000000-- ) Washer, Flat, 0.25, Sae 6
10 08708 (000000-- ) Nut, Hex, Lock, M6 X 1.00, Nl 7
11 1044357 (000000-- )Seal, Inlet, Vacuum 1
12 1046590 (000000-- ) Rod Wldt, Damper 1
13 360981 (000000-- ) Grip, Vyl 1
14 1052653 (000000-- ) Plate Wldt, Damper 1
15 1052652 (000000-- ) Damper, Inlet 1
16 87983 (000000-- )Seal, Rbr, Damper, 0.06th, 04.1d 1
17 75939 (000000-- ) Nut, Hex, Lock, #06--32, Nl 2
18 09087 (000000-- ) Spring, Extn, 0.96od 0.05wir 01.4l 2
19 07791 (000000-- ) Nut, Hex, Flng, M8 X 1.25 2
20 08346 (000000--001286 ) Pin, Cotter, .125 X 0.75 1
21 1037354 (000000-- )Screw, Hex, M8 X 1.25 X 30, 9.8, Sems 7
22 25005 (000000-- ) Screw, Pan, Phl, 06--32 X 1.00, G1 2
23 1057735 (000000--001291 ) Bracket, Switch, Shaker 1
24 386810 (000000-- ) Contactor, 36Vdc, 100A, Sp, No 1
25 32984 (000000-- ) Washer, Lock, Int, 0.31 2
26 32490 (000000-- )Washer, Flat, 0.25, Std 2
27 20170 (000000-- ) Nut, Hex, Jam, .31--24 2
28 07514 (000000-- ) Washer, Lock, Int, 10, Ss 2
29 01713 (000000-- ) Nut, Hex, Std, 10--32, 2 2
30 1036892 (000000-- ) Screw, Hex, M6 X 1.00 X 25, 9.8, Sems 2
31 1037354 (000000--001291 )Screw, Hex, M8 X 1.25 X 30, 9.8, Sems 2
32 1060444 (001287-- ) Solenoid Assy, Pull, 36vdc 1
33 1060334 (001287-- ) Bracket Wldt, Switch, Shakr 1
34 1060331 (001287-- ) Lever, Vacfan 1
35 140147 (001287-- ) Sleeve, P/M, 0.25b 0.44d 0.2l, Pl 1
36 08179 (001287-- )Pin, Cotter, .094 X 1.00 1
37 32515 (001287-- ) Screw, Pan, Phl, 08--32 X 0.38, G1 2
38 19065 (001287-- ) Washer, Flat, 08 2
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (9--10)
2--40
Fig. 20 -- Vacuum Fan Group
3
1
2
4
5
6
7
8
910
11
12
36
14
15
15
16
17
18
19
20
21
22
22
23
24
25
25
25
26
27
28
29
30
31
32
33
34
35
25
13
37
38
39
32
33
40
Home
Find...
Go To..
STANDARD PARTS
2--41
S20 Electric 9006708 (8--09)
356013 -- E
Fig. 20 -- Vacuum Fan Group
Ref. Part No. Serial Number Description Qty.
11052763 (000000-- )Housing, Fan, Rear, Impeller 1
2 00954 (000000-- ) Key, Sq, 0.12 X 0.12, 1.00l 1
3 10362 (000000--001456 ) Tube, 0.38id 0.81od 00.4l, Stl 1
4 74454 (000000-- ) Impeller, 9.00d X 1.40w X 0.376b 1
5 87299 (000000--001456 ) Nut, Hex, Flexlock, .31--24, Thin 1
571244 (001457-- )Nut, Hex, Flexlock, .38--24 1
6 1052644 (000000-- ) Housing Wldt, Fan 1
7 360406 (000000-- ) Sheave, 01grv, 01.9pd 0.62b [07m] 1
8 39332 (000000-- ) Screw, Set, Soc, .25--20 X 0.75, Al 2
9 1052646 (000000-- ) Channel, .19, 2.8w 2.0 04.0l, 2/ M10 1
10 23683 (000000-- )Pin, Clevis, 0.50d X 3.00l 1
11 11843 (000000-- ) Bolt, Eye, .38--16 X 3.22, 0.28 Eye 1
12 33372 (000000-- ) Spring, Extn, 1.25od 0.15wir 06.0l 1
13 06943 (000000-- ) Screw, Hex, M6 X 1.00 X 20, 8.8 4
14 360765 (000000-- ) Hose, Flex, Vacuum, 04.0d, 017.0l 1
15 23498 (000000-- )Clamp, Hose, Wormdrive, 3.56--4.50d, .50w 2
16 360917 (000000-- ) Bushing, Flng, 0.50b 0.59d 0.38l 2
17 360753 (000000-- ) Belt, V, 32.2l [07m] 1
18 1052647 (000000-- ) Bracket Wldt, Mtg, Fan 1
o19 387387 (000000-- ) Shaft Assy, Brg 1
Y20 41561 (000000-- )Housing, Flng, Brg 1
Y21 387376 (000000-- ) Shaft, Impeller 1
Y22 32525 (000000-- ) Bearing, Ball, 0.67b 1.57d 0.47w 2
23 00500--10 (000000-- ) Key, Woodruff, 0.19 0.75 [Asa0606] 1
24 74455 (000000-- ) Screw, Hex, M6 X 1.00 X 12, Fmg 2
25 87838 (000000-- )Screw, Hex, 06--20 X 0.50, Fmg/Ab, Pl 27
26 08708 (000000-- ) Nut, Hex, Lock, M6 X 1.00, Nl 4
27 32492 (000000-- ) Washer, Flat, 0.38, Std 1
28 08175 (000000-- ) Pin, Cotter, .125 X 1.25 1
29 361327 (000000-- ) Seal, Ure, 0.50, 0.75w 04.0l Adh 1
30 1037358 (000000-- )Screw, Hex, M10 X 1.50 X 35, 9.8, Sems 2
31 1053393 (000000-- ) Angle, Mtg, Muffler, Vacfan 1
32 1052650 (000000-- ) Panel, Muffler, Fan 2
33 361993 (000000-- ) Insulation, Acstc, 0.5, 04.6 X 04.4 2
34 1052651 (000000-- ) Plate, Cover, Muffler 1
35 361937 (000000-- )Insulation, Acstc, 0.5, 08.6 X 03.6 1
36 1052649 (000000-- ) Muffler Wldt, Fan 1
37 361995 (000000-- ) Insulation, Acstc, 0.5, 08.6 X 04.6 Ntch 1
38 361936 (000000-- ) Insulation, Acstc, 0.5, 08.6 X 04.2 Ntch 1
39 361994 (000000-- ) Insulation, Acstc, 0.5, 08.7 X 04.2 Ntch 1
40 50902 (000000-- )Nut, Hex, Lock, .38--16, Nl 1
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (9--10)
2--42
Fig. 21 -- Hopper Lift Arms Group
1
3
3
3
3
2
2
4
4
5
6
7
8
8
9
10
11
12
13
13
14
15
16
17
17
18
19
20
21 22
23
23
24
46
29
30
31
32
33
7
39
40
41
42
43
34
35
36
36
37 38
25
26
27
28
28
44
45
Home
Find...
Go To..
STANDARD PARTS
2--43
S20 Electric 9006708 (9--10)
356012 -- E
Fig. 21 -- Hopper Lift Arms Group
Ref. Part No. Serial Number Description Qty.
19006900 (000000-- )Arm, Lift, Hppr, W/ Label [S20] Na 1
1 9006902 (000000-- ) Arm, Lift, Hppr, W/ Label [S20] Jp 1
2 42120--1 (000000-- ) Bearing, Self Align, 1.25b 2.00d 2
3 59542 (000000-- ) Ring, Retaining, Int, 2.00d 4
4 360455 (000000-- ) Sleeve, P/M, 1.25b 1.75d 0.7l [430ss] 2
5360077 (000000-- )Pulley, Cable, 3.0d 1.76b, .25d Cable 1
6 17404 (000000-- ) Pin, Roll, .250d X 0.75l, .250/.256 1
7 360064 (000000-- ) Pin, 1.25d 04.0l, 1/.34h, Stl 2
8 07259 (000000-- ) Fitting, Grease, Str Pm04 .47l 2
9 360768 (000000-- ) Plate, Spacer, Lift Arm 8
10 1020341 (000000-- )Screw, Hex, M8 X 1.25 X 20, Ss, Sems 1
o11 361295 (000000-- ) Pin Assy, Clevis, Hppr Lift 1
Y12 35529 (000000-- ) Bushing, Sleeve, 1.00b 1.13d 0.99l, Fgl 1
Y13 23788 (000000-- ) Ring, Retaining, Ext, 0.98d, [E--Ring] 2
14 16455 (000000-- ) Fitting, Hyd, Rst, Jf04/Jm04, .047 1
15 07791 (000000-- )Nut, Hex, Flng, M8 X 1.25 1
16 47638 (000000-- ) Fitting, Hyd, E90, Jm04/Om06 1
17 87216 (000000-- ) Bearing, Flng, 2hole, 1.00b 2
18 09028 (000000-- ) Screw, Hex, M10 X 1.50 X 25, Ss 4
19 9007372 (000000-- ) Arm, Safety, Hppr, W/ Label [S20] 1
19 9007374 (000000-- )Arm, Safety, Hppr, W/ Label, Tj [S20] 1
20 360386 (000000-- ) Pin, 0.75d 02.0l, 1/.31h, Stl 1
21 87244 (000000-- ) Clip, Spring, Prop Arm 1
22 48732 (000000-- ) Screw, Pan, Phl, M6 X 1.00 X 10, Ss 2
23 36328 (000000-- ) Washer, Flat, Belleville, .50 3
24 12459 (000000-- )Screw, Hex, M6 X 1.00 X 20, Fmg 2
25 12138 (000000-- ) Screw, Hex, M12 X 1.75 X 120, 8.8 1
26 08711 (000000-- ) Nut, Hex, Lock, M12 X 1.75, Nl 1
27 21168 (000000-- ) Plug, Hole, Rnd, 0.25h 0.8l, Brb, Nyl 8
28 1053746 (000000-- ) Seal, Cover 2
29 67366 (000000-- )Clamp, Cable, Stl, 1.0x2.0x0.62w, 1hole 1
30 56820 (000000-- ) Fitting, Hyd, E90, Jm06/Om06 1
31 1026362 (000000-- ) Cylinder, Hyd, 2.5b 24.8l 13.50strk 3000 1
32 06957 (000000-- ) Screw, Hex, M8 X 1.25 X 60, 8.8 2
33 08709 (000000-- ) Nut, Hex, Lock, M8 X 1.25, Nl 2
34 32598 (000000-- )Washer, Flat, 1.02b 1.75d .12, Stl 2
35 08361 (000000-- ) Pin, Cotter, .250 X 1.25 1
36 1052203 (000000-- ) Plate, Mtg, Pin 2
37 1052231 (000000-- ) Channel, Mtg, Lock 1
38 1037355 (000000-- ) Screw, Hex, M8 X 1.25 X 35, 9.8, Sems 2
39 32492 (000000-- )Washer, Flat, 0.38, Std 4
40 07792 (000000-- ) Nut, Hex, Flng, M10 X 1.50 4
41 34877 (000000-- ) Screw, Hex, M10 X 1.50 X 100, 8.8 1
42 41430 (000000-- ) Nut, Hex, Lock, M10 X 1.5, Nl 1
43 08298 (000000-- ) Pin, Cotter, .187 X 1.75 1
44 17284 (001071-- ) Screw, Btn, M8 X 1.25 X 16, Ss 2
45 30013 (001071-- ) Washer, Flat, 0.31, Fendr 2
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (9--10)
2--44
Fig. 22 -- Hopper Group, Plastic
2
1
42
35
5
6
3
4
3
5
6
42
56
3
5
3
410
12
13
11
15
16
17
18
19
20
21
13
11
23
24
25
26
23
24
25
26
27
28
29
30
32
33
34
35
36 37
32
33
40
40
41
7
8
9
14
22
38 39
31
33
32
5
31
43
43
Home
Find...
Go To..
STANDARD PARTS
2--45
S20 Electric 9006708 (9--10)
354921-- E
Fig. 22 --Hopper Group, Plastic
Ref. Part No. Serial Number Description Qty.
11043490 (000000-- )Hopper [S20] 1
2 1048990 (000000--001070 ) Plate Wldt, Pivot 2
3 12317 (000000-- ) Screw, Hex, M10 X 1.50 X 30, Ss 10
4 1014563 (000000-- ) Washer, Flat, 0.40b 1.12d .12, Ss 4
5 32492 (000000-- ) Washer, Flat, 0.38, Std 12
641430 (000000-- )Nut, Hex, Lock, M10 X 1.5, Nl 6
7 360602 (000000-- ) Plate, Sppt, Bmpr 1
8 1037358 (000000-- ) Screw, Hex, M10 X 1.50 X 35, 9.8, Sems 4
9 1037355 (000000-- ) Screw, Hex, M8 X 1.25 X 35, 9.8, Sems 4
10 1049253 (000000-- ) Bracket, Mtg, Bmpr, Front, Rh 1
11 08708 (000000-- )Nut, Hex, Lock, M6 X 1.00, Nl 8
12 1052452 (000000-- ) Strip, Retainer, Hppr Lip 1
13 06415 (000000-- ) Screw, Flt, Soc, M6 X 1.00 X 25, 10.9 12
14 1049263 (000000-- ) Bracket, Mtg, Bmpr, Front, Lh 1
15 32490 (000000-- ) Washer, Flat, 0.25, Std 4
16 360327 (000000-- )Skirt, Neo, .12, 05.20w 36.10l, 06/ Sl 1
17 360893 (000000-- ) Deflector, Hppr, Lh 1
18 360894 (000000-- ) Deflector, Hppr, Rh 2
19 361339 (000000-- ) Screw, Hex, M6 X 1.00 X 16, Fmg 6
20 1052454 (000000-- ) Plate, Wear 1
21 1048732 (000000-- )Bracket, Angle, Hppr Bottom Stiffener 1
22 1047575 (000000-- ) Skirt, Neo, .12 2ply, Dust--Cntrl 1
23 1048488 (000000-- ) Headlight , 36v 2
23 1048096 (000000-- ) Headlight, 36vdc, Led, UL 2
24 1048116 (000000-- ) Plate, Retainer, Headlight 2
25 1049015 (000000-- )Plate, Sppt, Headlight 2
26 46029 (000000-- ) Pin, Roll, .094d X 0.87l, .094/.097 8
27 10632--18 (000000-- ) Grommet, Rbr, 0.69id, F/1.0h, .25 Matl 1
28 49266 (000000-- ) Tie, Cable, Nyl, 07.3l .19w 1.8 Max D 8
29 1044254 (000000-- ) Door, Access, Hppr 1
30 1045365 (000000-- )Seal, Door, Access 1
31 1049102 (000000-- ) Hinge, .25pin .12 3.0w 03.0l, 4/0.28sl 2
32 09200 (000000-- ) Screw, Pan, Phl, M5 X 0.80 X 12, Ss 12
33 19066 (000000-- ) Washer, Flat, 10 12
34 1044907 (000000-- ) Bracket, Mtg, Hinge 2
35 1037354 (000000-- )Screw, Hex, M8 X 1.25 X 30, 9.8, Sems 4
36 32491 (000000-- ) Washer, Flat, 0.31, Std 4
37 08709 (000000-- ) Nut, Hex, Lock, M8 X 1.25, Nl 4
38 30013 (000000-- ) Washer, Flat, 0.31, Fendr 2
39 49826 (000000-- ) Screw, Hex, M8 X 1.25 X 16, Nl, Ss 2
40 1044900 (000000-- )Latch, Door 2
41 1042875 (000000-- ) Bumper Wldt, Front 1
42 1058662 (001071-- ) Plate Wldt, Pivot 2
43 1053318 (000000-- ) Screw, Pan, Phl, 08--16 X 1.00, F/ Plstc 8
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (9--10)
2--46
Fig. 23 -- Hopper Cover Group
1
2
2
3
4
3
4
6
5
5
6
7
8
7
8
8
8
7
9
10 3
11
12
Home
Find...
Go To..
STANDARD PARTS
2--47
S20 Electric 9006708 (9--10)
354920 -- ALL
Fig. 23 -- Hopper Cover Group
Ref. Part No. Serial Number Description Qty.
11043938 (000000-- )Cover, Hppr 1
2 1044214 (000000-- ) Hinge, .38pin .12 3.5w 4.0l [Oal] 2
3 16735 (000000-- ) Screw, Hex, M8 X 1.25 X 16, 8.8 6
4 32491 (000000-- ) Washer, Flat, 0.31, Std 8
5 1037346 (000000-- ) Screw, Hex, M8 X 1.25 X 25, 9.8, Sems 4
607791 (000000-- )Nut, Hex, Flng, M8 X 1.25 4
7 360824 (000000-- ) Latch 2
8 09200 (000000-- ) Screw, Pan, Phl, M5 X 0.80 X 12, Ss 8
9 1045434 (000000-- ) Rod Wldt, Safety, Hppr Cover 1
10 1045423 (000000-- ) Bracket, Rod, Safety 1
11 1036892 (000000-- )Screw, Hex, M6 X 1.00 X 25, 9.8, Sems 1
12 08708 (000000-- ) Nut, Hex, Lock, M6 X 1.00, Nl 1
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (9--10)
2--48
Fig. 24 -- Hopper Support Group (001071-- )
1
1
2
3
4
5
6
6
7
Home
Find...
Go To..
STANDARD PARTS
2--49
S20 Electric 9006708 (9--10)
356082 -- ALL
Fig. 24 -- Hopper Support Group (001071-- )
Ref. Part No. Serial Number Description Qty.
11060278 (001071-- )Support, Hppr, Lip, Side 2
2 1037358 (001071-- ) Screw, Hex, M10 X 1.50 X 35, 9.8, Sems 4
3 1059119 (001071-- ) Support, Hppr, Lip, Front 2
4 1059158 (001071-- ) Support, Hppr, Lip, Back 1
5 04375 (001071-- ) Screw, Hex, M8 X 1.25 X 40, 8.8, Fl 1
632491 (001071-- )Washer, Flat, 0.31, Std 2
7 08709 (001071-- ) Nut, Hex, Lock, M8 X 1.25, Nl 1
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (1--10)
2--50

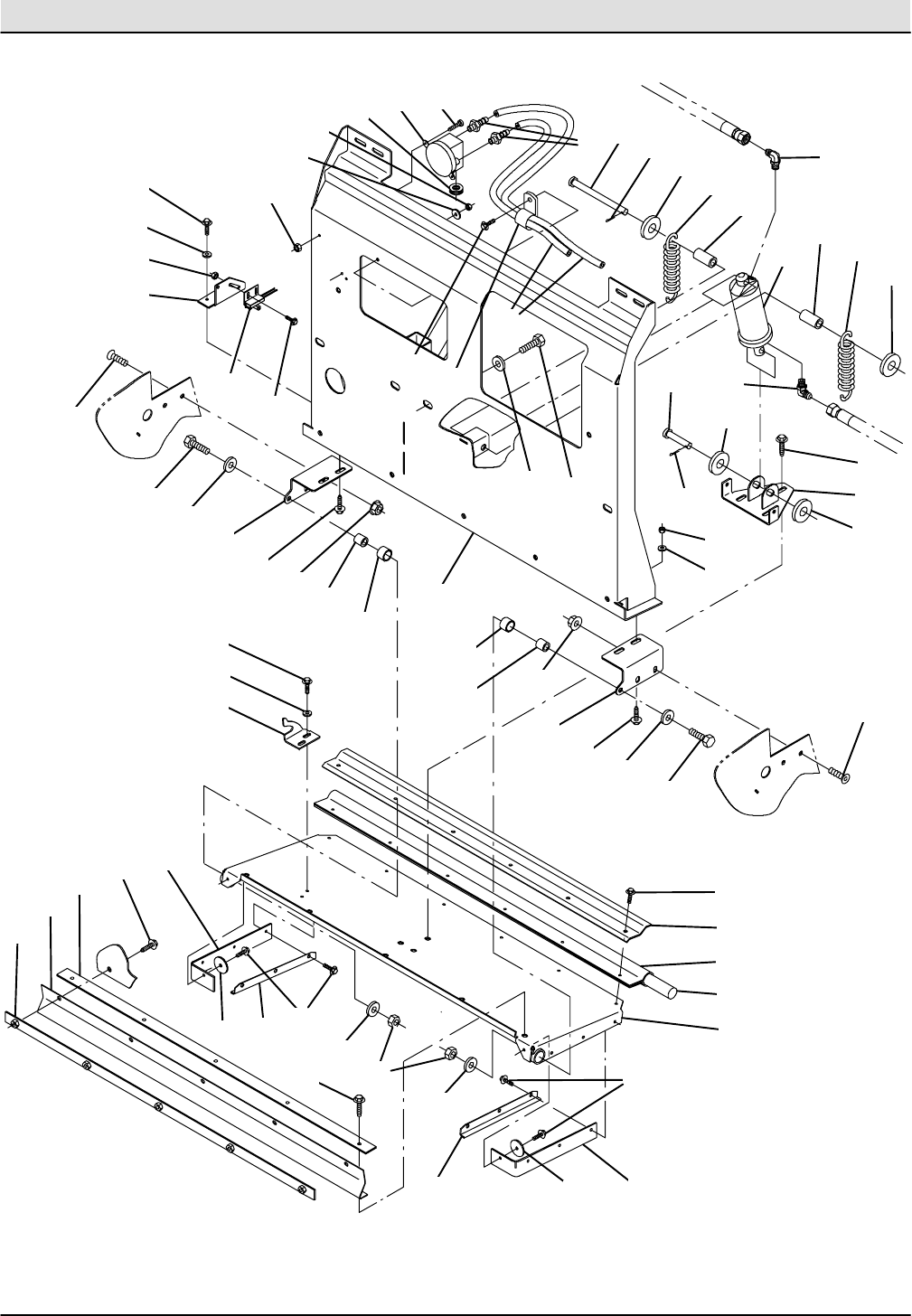

Fig. 25 -- Hopper Dump Door Group
1
2
34
5
6
7
8
9
10
11
12
13
14
13
12
14
11
15
16
17
18
4
15
16
4
18
17
19 20
19
21
22
23
24
24
23
18
20
25
5
26
27
28
29
30
31
29
30
32
30
31
30
33
33
27
34
35
36
13
37
38
39
36
13
40 41
42
43
44
45
46
47
48
49
50
51
52
Home
Find...
Go To..
STANDARD PARTS
2--51
S20 Electric 9006708 (1--10)
354922-- E
Fig. 25 -- Hopper Dump Door Group
Ref. Part No. Serial Number Description Qty.
1360336 (000000-- )Seal 1
2 1047280 (000000-- ) Strip Wldt, Seal, Door 1
3 1051115 (000000-- ) Strip, Retainer 1
4 1037354 (000000-- ) Screw, Hex, M8 X 1.25 X 30, 9.8, Sems 9
5 1037346 (000000-- ) Screw, Hex, M8 X 1.25 X 25, 9.8, Sems 8
61051045 (000000-- )Door Wldt, Dump, Hppr 1
7 87689 (000000-- ) Cord, Sponge, Neo, 1.0d 36.3l 1
8 360603 (000000-- ) Seal, Rbr, .13 6.34w 36.3l, 12/.28h, Red 1
9 1052446 (000000-- ) Strip, Retainer, Dump Door 1
10 12459 (000000-- ) Screw, Hex, M6 X 1.00 X 20, Fmg 6
11 1055583 (000000-- )Seal, Rbr, Clsd, 0.13, Door, Dump, Side 2
12 360424 (000000-- ) Retainer, Seal, Hppr Door, Side 2
13 74455 (000000-- ) Screw, Hex, M6 X 1.00 X 12, Fmg 12
14 41178 (000000-- ) Washer, Flat, 0.25, Fendr 2
15 64379 (000000-- ) Bushing, Sleeve, 0.75b 0.88d 0.75l, Tef 2
16 87104 (000000-- )Tube, 0.38id 0.75od 00.9l, Stl 2
17 09026 (000000-- ) Screw, Hex, M8 X 1.25 X 40, Ss 2
18 32491 (000000-- ) Washer, Flat, 0.31, Std 6
19 32492 (000000-- ) Washer, Flat, 0.38, Std 2
20 08709 (000000-- ) Nut, Hex, Lock, M8 X 1.25, Nl 6
21 1050243 (000000-- )Bracket, Angle, Pivot, Door, Dump, Lh 1
22 1050242 (000000-- ) Bracket, Angle, Pivot, Door, Dump, Rh 1
23 79246 (000000-- ) Screw, Flt, Soc, M8 X 1.25 X 20, 18--8,Ss 4
24 07791 (000000-- ) Nut, Hex, Flng, M8 X 1.25 4
25 1051049 (000000-- ) Bracket, Mtg, Cyl 1
26 1038176 (000000-- )Cylinder, Hyd, 2.0b 08.0l 04.00strk 2500 1
27 77097 (000000-- ) Fitting, Hyd, E90, Jm04/Om04 2
28 51225--1 (000000-- ) Pin, Clevis, 0.50d X 6.00l 1
29 360848 (000000-- ) Spacer, 0.56b 0.88d 1.82l, Pl 2
30 32486 (000000-- ) Washer Flat,0.50,Sae 4
31 08182 (000000-- )Pin, Cotter, .125 X 1.00 2
32 11211 (000000-- ) Pin, Clevis, 0.50d X 2.25l 1
33 360606 (000000-- ) Spring, Tens 2
34 1051773 (000000-- ) Bracket, Door, Indicator 1
35 1051766 (000000-- ) Bracket, Door, Indicator 1
36 32490 (000000-- )Washer, Flat, 0.25, Std 4
37 59965 (000000-- ) Switch, Snap, 15a No, Rlr 1
38 09244 (000000-- ) Screw, Hex, M5 X 0.80 X 16, 8.8 2
39 06549 (000000-- ) Nut, Hex, Lock, M5 X 0.80, Nl 2
40 1051800 (000000-- ) Switch, Press 1
41 06927 (000000-- )Screw, Pan, Phl, M4 X 0.70 X 16, 4.8 2
42 02850 (000000-- ) Nut, Hex, Lock, M4 X 0.70, Nl 2
43 67767 (000000-- ) Clamp, Cable, Stl, 0.69d X 0.62w, 1hole 1
44 1036892 (000000-- ) Screw, Hex, M6 X 1.00 X 25, 9.8 Sems 1
45 32490 (000000-- ) Washer, Flat, 0.25, Std 1
46 08708 (000000-- )Nut, Hex, Lock, M6 X 1.00, Nl 1
47 15675 (000000-- ) Screw, Hex, M8 X 1.25 X 16, Ss 5
48 1014563 (000000-- ) Washer, Flat, 0.40b 1.12d .12, Ss 5
49 379719 (000000-- ) Hose, Vacuum, 0.16id X 060.0l 1
50 40607 (000000-- ) Fitting, Brs, Str, Bm03/Pm02 2
51 10632--4 (000000-- )Grommet, Rbr, 0.62id, F/0.9h, .06 Matl 1
52 1044273 (000000-- ) Plate Wldt, Back, Hppr 1
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (9--10)
2--52
Fig. 26 -- Hopper Filter Shaker Group
53
28
29
1
2
3
4
5
67
8
9
10
11
13
10 11
14
15
16
17
18
19
20
20
21 11
22
23
24
22
25
26
9
27 55
54
30
30
31
32
31
32 33
33
34
35
36
36
37
38
39
40
41
42
44
43
45
46 45
46
47
27
48
49
50 10
11
51
48
51
10
11
49
50
52
52
47
47
12
11
10
Home
Find...
Go To..
STANDARD PARTS
2--53
S20 Electric 9006708 (9--10)
354916 -- E
Fig. 26 -- Hopper Filter Shaker Group
Ref. Part No. Serial Number Description Qty.
11043815 (000000-- )Tray, Mold 1
2 1044285 (000000-- ) Tray, Dust, Shakr 1
3 74455 (000000-- ) Screw, Hex, M6 X 1.00 X 12, Fmg 1
4 41140 (000000-- ) Washer, Lock, Int--Ext, 0.25 1
5 1043383 (000000-- ) Tray Wldt, Dust [Cyclone] 1
606961 (000000-- )Screw, Hex, M10 X 1.50 X 20, 8.8 4
7 32492 (000000-- ) Washer, Flat, 0.38, Std 6
8 1051199 (000000-- ) Strainrelief 1
9 1057960 (000000-- ) Gasket, Tray 2
10 16735 (000000-- ) Screw, Hex, M8 X 1.25 X 16, 8.8 11
11 32491 (000000-- )Washer, Flat, 0.31, Std 16
12 30013 (000000-- ) Washer, Flat, 0.31, Fendr 2
13 1039250 (000000-- ) Plate Wldt, Perma--Filter 1
14 1049982 (000000-- ) Seal, Foam 1
15 1050106 (000000-- ) Gasket, Tray 2
16 1042282 (000000-- )Retainer, Seal, Dust, .12 X 0.8w X 33.6l 1
17 1042285 (000000-- ) Seal Assy, Pre--Filter 1
18 1049408 (000000-- ) Retainer, Seal, Dust, .12 X 0.8w X 33.6l 1
19 1049409 (000000-- ) Seal Assy, Pre--Filter 1
20 1037355 (000000-- ) Screw, Hex, M8 X 1.25 X 35, 9.8, Sems 8
21 08709 (000000-- )Nut, Hex, Lock, M8 X 1.25, Nl 5
22 67767 (000000-- ) Clamp, Cable, Stl, 0.69d X 0.62w, 1hole 3
23 360943 (000000-- ) Screw, Pan, Phl, 10--14 X 0.75, F/ Plstc 1
24 19066 (000000-- ) Washer, Flat, 10 1
25 1043817 (000000-- ) Cover, Mold 1
26 1057959 (000000-- )Gasket, Tray 1
27 40607 (000000-- ) Fitting, Brs, Str, Bm03/Pm02 2
28 87546 (000000--001070 ) Sensor, Thermal, 140deg, No, Spst 1
29 360973 (000000--001070 ) Screw, Pan, 12--16 X 0.50, F/ Plstc 2
30 30406 (000000-- ) Clip, Keeper 3
31 384419 (000000-- )Bracket, Latch, Keeper [Southco] 2
32 49697 (000000-- ) Screw, Pan, Phl, M4 X 0.70 X 10, Ss 4
33 1049860 (000000-- ) Stud, M8 X 1.25 [55.0] 2
34 1044352 (000000-- ) Bracket Wldt, Fltr 1
35 1047349 (000000-- ) Motor, Ele, 36Vdc 2315Rpm 0.10Hp 08.9A 1
36 39322 (000000-- )Screw, Set, Soc, 10--24 X 0.38, Al 4
37 1053321 (000000-- ) Weight, Eccentric, Pntd 1
38 1053291 (000000-- ) Weight, Eccentric, Pntd 1
39 86618 (000000-- ) Nut, Hex, Lock, #10--32, Nl 2
40 07514 (000000-- ) Washer, Lock, Int, 10, Ss 2
41 1044351 (000000-- )Spacer, Fltr 1
42 1045900 (000000-- ) Filter, Cyl, 11.09d, 13.31l, 6.724 Id 1
43 1043819 (000000-- ) Elbow, Mold 1
44 1044356 (000000-- ) Gasket, Cover 1
45 1048335 (000000-- ) Knob, Star, 2.75d 4ear 1.1l M8x1.25 2
46 1048353 (000000-- )Strap, Rbr 2
47 1037346 (000000-- ) Screw, Hex, M8 X 1.25 X 25, 9.8, Sems 4
48 1044146 (000000-- ) Bar, Cover 1
49 384418 (000000-- ) Latch, Door [Southco 91--562--07] 2
50 24265 (000000-- ) Screw, Pan, Phl, M4 X 0.70 X 16, Ss 4
51 02850 (000000-- )Nut, Hex, Lock, M4 X 0.70, Nl 4
52 1052919 (000000-- ) Bracket, Tray 2
53 1056298 (001071--001361 ) Switch, Temp, Sealed, Nc 1
54 763149 (001071-- ) Screw, Pan, 06-- X 0.38, F/ Plstc 2
55 1061575 (001362-- ) 1
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (8--09)
2--54
Fig. 27 -- Hydraulic Schematic
354980 -- 1048769
Home
Find...
Go To..
STANDARD PARTS
2--55
S20 Electric 9006708 (8--09)
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (8--09)
2--56
Fig. 28 -- Hydraulic Hose Group
B
PB
C3
A
T
P1
P2
R
L
T
BYD
C
DB
AIN
OUT
P
IN
OUT
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Home
Find...
Go To..
STANDARD PARTS
2--57
S20 Electric 9006708 (8--07)
356017-- E
Fig. 28 -- Hydraulic Hose Group
Ref. Part No. Serial Number Description Qty.
1361038 (000000-- )Hose, Hyd, Suc12, Jf12e90/Jf12str, 024.0 1
2 387282 (000000-- ) Hose, Hyd, Tc06, Jf06e90/Jf06str, 024.0 2
3 361040 (000000-- ) Hose, Hyd, Tc06, Jf06e90/Jf06str, 034.0 1
4 82819 (000000-- ) Hose, Hyd, Med04, Jf04e90/Jf04str, 088.0 1
5 1055376 (000000-- ) Hose, Hyd, Tc06, Jf06str/Jf06str, 020.0 1
676762 (000000-- )Hose, Hyd, Low06, Jf06str/Jf06str, 026.0 1
7 1027321 (000000-- ) Hose, Hyd, Tc04, Jf04str/Jf04e90, 070.0 1
8 57972 (000000-- ) Hose, Hyd, Med04, Jf04e45/Jf04str, 018.0 1
9 31603 (000000-- ) Hose, Hyd, Low06, Jf06e90/Jf06str, 052.0 1
10 361031 (000000-- ) Hose, Hyd, Low06, Jf06e45/Jf06str, 022.0 1
11 361045 (000000-- )Hose, Hyd, Med06, Jf06e45/Jf06str, 021.0 1
12 361053 (000000-- ) Hose, Hyd, Med06, Jf06str/Jf06str, 030.0 1
13 71556 (000000-- ) Hose, Hyd, Med06, Jf06str/Jf06str, 042.0 1
14 361032 (000000-- ) Hose, Hyd, Low08, Jf08e45/Jf08str, 024.0 1
15 71557 (000000-- ) Hose, Hyd, Low08, Jf08e90/Jf08str, 032.0 1
16 57974 (000000-- )Hose, Hyd, Low08, Jf08e90/Jf08str, 024.0 1
17 02469 (000000-- ) Hose, Hyd, Med06, Jf06e90/Jf06str, 100.0 1
18 31597 (000000-- ) Hose, Hyd, Med06, Jf06e90/Jf06str, 068.0 1
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (9--10)
2--58
Fig. 29 -- Hydraulic Reservoir Group
14
22
20
IN
OUT
1
2
10
11 12
13
15
16
9
9
17
19
19
18
3
4
5
6
7
8
21
Home
Find...
Go To..
STANDARD PARTS
2--59
S20 Electric 9006708 (9--10)
356014 -- E
Fig. 29 -- Hydraulic Reservoir Group
Ref. Part No. Serial Number Description Qty.
o1361271 (000000-- )Reservoir, 02.8gal, W/ Label [6400e] 1
Y2 360991 (000000-- ) Cap, Breather, Hyd, 5.2 Ds 1
Y70006 (000000-- ) Gasket, Cap, Breather, Hyd 1
3 361023 (000000-- ) Strainer, Hyd, 010gpm 100mesh 1
4 46481 (000000-- ) Fitting, Hyd, E90, Jm12/Om12 1
576316 (000000-- )Fitting, Hyd, Tee, Jm06/Jm06/Om06, Run 1
6 56692 (000000-- ) Fitting, Hyd, Str, Jm08/Om10 1
7 56821 (000000-- ) Fitting, Hyd, E90, Jm08/Om10 1
8 16376 (000000-- ) Fitting, Hyd, Plug, Jm08 1
9 1051866 (000000-- ) Strap Wldt, Tank, Hyd 4
o10 10664 (000000-- )Filter Assy, Hyd, 10mic 035gpm, Spin--On 1
Y11 65221 (000000-- ) Element, Fltr, Oil, Spin--On 1
12 47655 (000000-- ) Fitting, Hyd, E90, Jm08/Om12 1
13 42227 (000000-- ) Fitting, Hyd, Str, Jm08/Om12 1
14 1051892 (000000--001291 ) Bracket, Mtg, Fltr, Hyd 1
15 34195 (000000-- )Screw, Hex, .38--16 X 1.00, Nl 2
16 32485 (000000-- ) Washer, Flat, 0.38, Sae 2
17 1037354 (000000-- ) Screw, Hex, M8 X 1.25 X 30, 9.8, Sems 2
18 08709 (000000-- ) Nut, Hex, Lock, M8 X 1.25, Nl 2
19 32490 (000000-- ) Washer, Flat, 0.25, Std 4
20 07791 (000000--001291 )Nut, Hex, Flng, M8 X 1.25 2
21 361198 (000000-- ) Switch Assy, Press, No/Nc 0040Psi 1
22 1037354 (000000--001291 ) Screw, Hex, M8 X 1.25 X 30, 9.8, Sems 2
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (8--09)
2--60

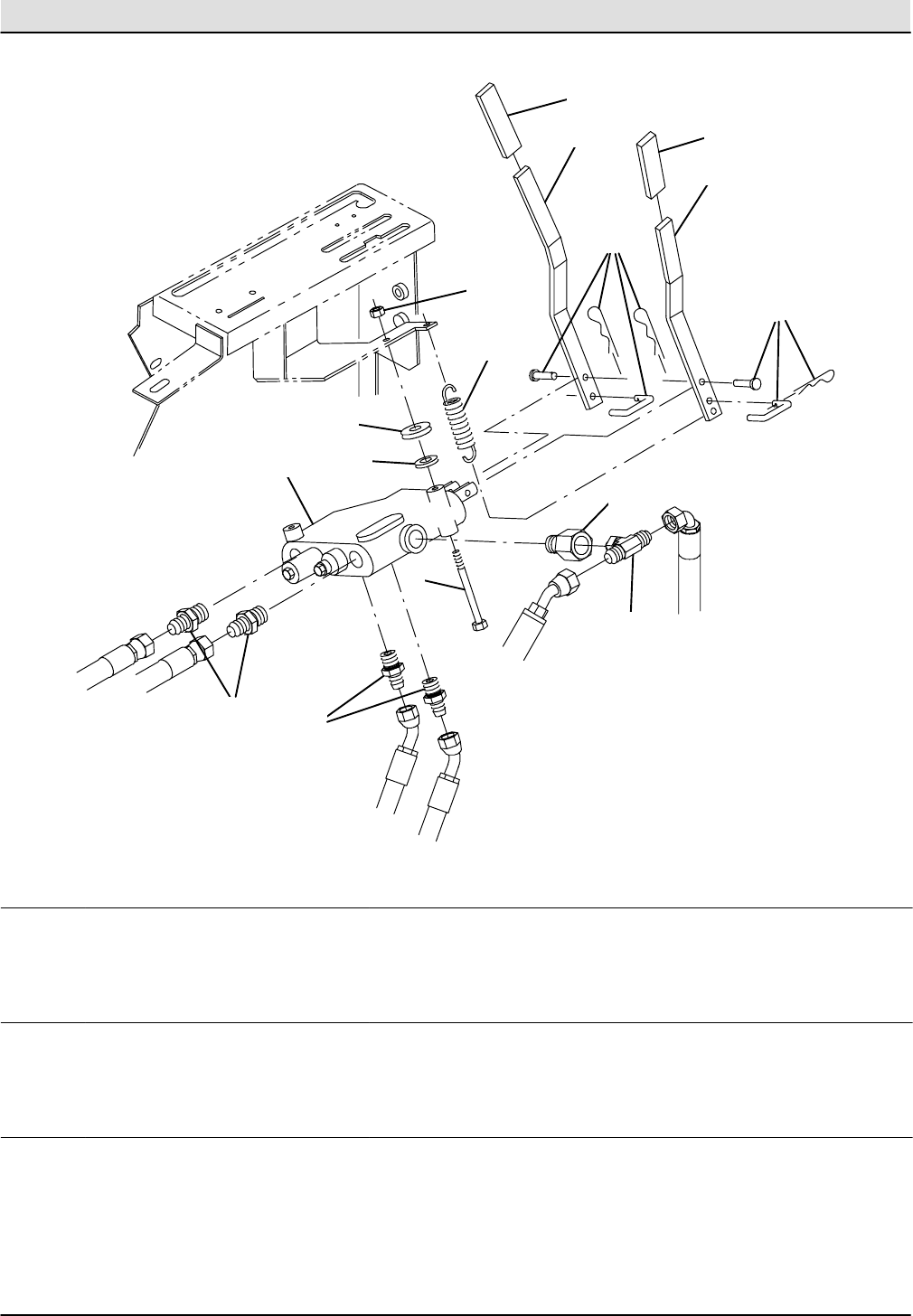

Fig. 30 -- Hydraulic Control Valve Group
OUT
IN BYD
BD
1
8
3
4
2
5
6
7
9
10
11
12
12
13
13
14
356016-- E
Ref. Part No. Serial Number Description Qty.
1361012 (000000-- )Valve, Hyd, Mnl, 2spool 0100psi 10gpm (See Breakdowns) 1
2 06949 (000000-- ) Screw, Hex, M6 X 1.00 X 50, 8.8 2
3 63416 (000000-- ) Washer, Flat, 0.31b 0.88d .12, Rbr 2
4 32491 (000000-- ) Washer, Flat, 0.31, Std 2
5 08708 (000000-- ) Nut, Hex, Lock, M6 X 1.00, Nl 2
655685 (000000-- )Fitting, Hyd, Str, Jm04/Om06 2
7 67683 (000000-- ) Fitting, Hyd, Tee, Jm06/Jm06/Om06, Br 1
8 361028 (000000-- ) Plug Assy, Hyd 1
9 52402 (000000-- ) Fitting, Hyd, Str, Jm06/Om08 2
10 360062 (000000-- ) Handle, Cntrl, Valve 1
11 360063 (000000-- )Handle, Cntrl, Valve 1
12 361299 (000000-- ) Link Assy, Valve Handle 1
13 360467 (000000-- ) Grip, Vyl 2
14 59870 (000000-- ) Spring, Extn, 0.38od 0.05wir 02.5l 1
Home
Find...
Go To..
STANDARD PARTS
2--61
S20 Electric 9006708 (9--10)

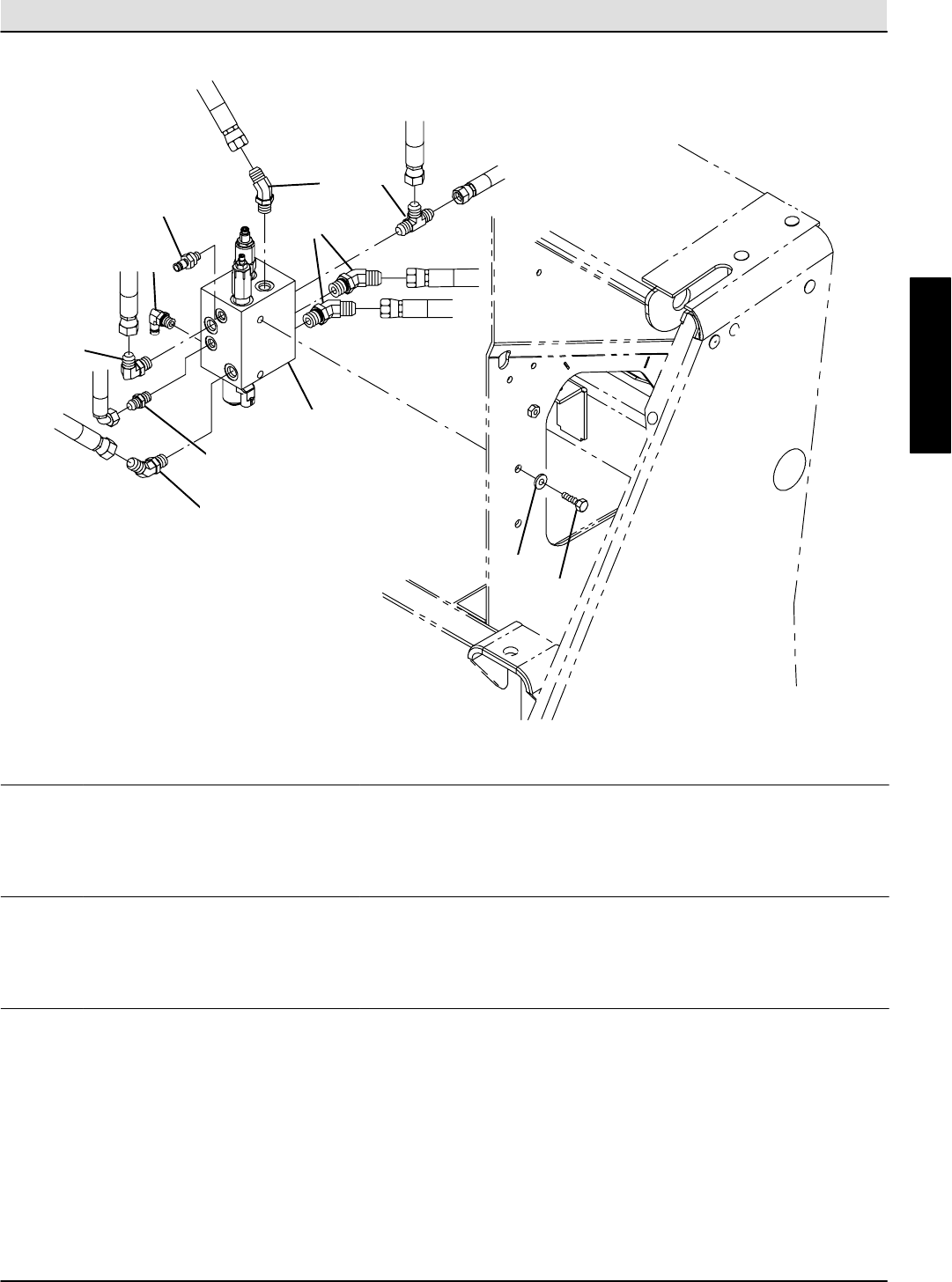

Fig. 31 -- Hydraulic Solenoid Valve Group
A
C3
PB
G2
G1 B
P1
P2
T
1
2
3
4
5
6
7
8
4
9
10
356016-- E
Ref. Part No. Serial Number Description Qty.
11046688 (000000-- )Valve, Hyd, Solenoid, 36vdc (See Breakdowns) 1
2 06961 (000000-- ) Screw, Hex, M10 X 1.50 X 20, 8.8 2
3 32492 (000000-- ) Washer, Flat, 0.38, Std 2
4 47522 (000000-- ) Fitting, Hyd, E45, Jm06/Om06 2
5 395973 (000000-- ) Fitting, Hyd, Str, Om04/Qm04 1
656820 (000000-- )Fitting, Hyd, E90, Jm06/Om06 1
7 395974 (000000-- ) Fitting, Hyd, E90, Om04/Qm04 1
8 55586 (000000-- ) Fitting, Hyd, Str, Jm04/Om04 1
9 47522 (000000-- ) Fitting, Hyd, E45, Jm06/Om06 2
10 76316 (000000-- )Fitting, Hyd, Tee, Jm06/Jm06/Om06, Run 1
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (9--10)
2--62
Fig. 32 -- Electrical Control Box Group
1
26
29
M1
M2
M3
M4
30
2
3
4
5
67
8
9
10
11
13
14 713
9
10
14
7
13
15
17
7
6
18
19
20
21
22
23
24
4
27
28
12
16
16
25
7
6
7
5
Home
Find...
Go To..
STANDARD PARTS
2--63
S20 Electric 9006708 (9--10)
356010-- E
Fig. 32 -- Electrical Control Box Group
Ref. Part No. Serial Number Description Qty.
19006977 (000000--001286 )Plate, Component, Ele, W/Label [S20] Na 1
1 9006976 (000000--001286 ) Plate, Component, Ele, W/Label [S20] Jp 1
2 10632--15 (000000-- ) Grommet, Rbr, 0.50id, F/0.8h, .09 Matl 8
3 15008 (000000-- ) Controller, 36vdc [Only F/ Tnv] 1
4 74455 (000000-- ) Screw, Hex, M6 X 1.00 X 12, Fmg 9
576062 (000000-- )Stand--Off, Wir, M6, Insulator, Panel 4
6 19315 (000000-- ) Screw, Hex, .25--20 X 0.50, G5 10
7 32982 (000000-- ) Washer, Lock, Int, 0.25 16
8 86375 (000000-- ) Contactor, 36vdc [Spno] 1
9 87482 (000000-- ) Relay, 36vdc, 100a, Spdt No [Cabelform] 3
10 86417 (000000-- )Screw, Hex, 06--32 X 0.75, Fmg, Pl 8
11 87507 (000000-- ) Busbar, Fuse, .6 0.6w 0.8h 2.0l 2
12 360516 (000000-- ) Resistor, Ele, Plug 1
13 32483 (000000-- ) Washer, Flat, 0.25, Sae 6
14 87483 (000000-- ) Busbar, .06 0.6w 2.5l 2/.28h 2
15 86379 (000000-- )Fuse, 100a, 0.88 2.4l, 125volt 1
16 1041873 (000000-- ) Fastener, Wire, Tie [Button Head] 3
17 87318 (000000-- ) Fuse, 080a, 0.88 2.4l, 125volt,Slow--Blow 1
18 16931 (000000-- ) Screw, Hex, M8 X 1.25 X 20, 8.8 3
19 07791 (000000-- ) Nut, Hex, Flng, M8 X 1.25 4
20 32490 (000000-- )Washer, Flat, 0.25, Std 4
21 32984 (000000-- ) Washer, Lock, Int, 0.31 4
22 39277 (000000-- ) Screw, Hex, M8 X 1.25 X 25, 8.8 1
23 9006985 (000000-- ) Cover, Wldt, Component, Ele, W/Label [S20] Na 1
23 9006986 (000000-- ) Cover, Wldt, Component, Ele, W/Label [S20] Jp 1
24 1053395 (000000-- ) Gasket, Cover 1
25 49266 (000000-- ) Tie, Cable, Nyl, 07.3l .19w 1.8 Max D 5
26 1050158 (000000--001286 ) Bracket, Sppt, Ele Panl 1
27 1037358 (000000-- ) Screw, Hex, M10 X 1.50 X 35, 9.8, Sems 2
28 07792 (000000-- ) Nut, Hex, Flng, M10 X 1.50 2
29 1020341 (000000--001286 )Screw, Hex, M8 X 1.25 X 20, Ss, Sems 3
30 9007176 (001287-- ) 1
30 9007175 (001287-- ) 1
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (8--09)
2--64
Fig. 33 -- Electrical Control Box Wire Connection Group
M3 M4 A2 B-- B--
M3
M4
M1
M2
100
80
80 100
B--
B+
A2
M--
M2
12 1
3
4
5
6
7
8
9
Home
Find...
Go To..
STANDARD PARTS
2--65
S20 Electric 9006708 (8--09)
356011-- E
Fig. 33 -- Electrical Control Box Wire Connection Group
Ref. Part No. Serial Number Description Qty.
187496 (000000-- )Cable, 04ga 30.0l Blk .34ring /.34ring 2
2 71529 (000000-- ) Cable, 04ga 32.0l Blk .34ring /.34ring 1
3 87558 (000000-- ) Cable, 04ga 21.0l Blk .28ring /.34ring 1
4 1052625 (000000-- ) Harness, Wire, Controller 1
5 86398 (000000-- ) Cable, 04ga 60.0l Blk .34ring /.34ring 1
6360989 (000000-- )Cable, 04ga 48.0l Blk .28ring /.34ring 1
7 15846 (000000-- ) Cable, 06ga 11.0l Blk .28ring /.34ring 1
8 223356 (000000-- ) Cable, 04ga 12.0l Blk .34ring /.34ring 1
9 87495 (000000-- ) Cable, 04ga 15.0l Blk .28ring /.34ring 2
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (8--11)
2--66
Fig. 34 -- Electrical Schematic
1
2
3
4
354987, 1048610 -- E
Home
Find...
Go To..
STANDARD PARTS
2--67
S20 Electric 9006708 (8--11)
Fig. 34 -- Electrical Schematic
1
2
3
4
354987, 1048610 -- E
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (8--11)
2--68
Fig. 34 -- Electrical Schematic
354987, 1048610 -- E
Home
Find...
Go To..
STANDARD PARTS
2--69
S20 Electric 9006708 (8--11)
Fig. 34 -- Electrical Schematic
354987, 1048610 -- E
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (9--10)
2--70
Fig. 35 -- Electrical Wire Harnesses Group
1
Home
Find...
Go To..
STANDARD PARTS
2--71
S20 Electric 9006708 (9--10)
Fig. 35 -- Electrical Wire Harnesses Group
1
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (9--10)
2--72
Fig. 35 -- Electrical Wire Harnesses Group
2
Home
Find...
Go To..
STANDARD PARTS
2--73
S20 Electric 9006708 (9--10)
Fig. 35 -- Electrical Wire Harnesses Group
3
4
5
354990 -- E
Ref. Part No. Serial Number Description Qty.
19006699 (000000--001070 )Harness Kit, Main, Ele, Replmt [S20] 1
1 1056624 (001071-- ) Harness, Main, Ele [S20] 1
2 1048529 (000000-- ) Harness, Hppr, 36vdc [S20] 1
3 1048504 (000000--001361 ) Harness, Hppr, Cover [S20] 1
4 1047717 (000000-- ) Harness, Shakr, Motor [S20] 1
51061582 (001362-- )Harness, Hppr, Cover [S20] 1
Home
Find...
Go To..
STANDARD PARTS
S20 Electric 9006708 (1--10)
2--74
Fig. 36 -- Label Group
1
1
2
3
31
3
3
354978 -- E
Ref. Part No. Serial Number Description Qty.
11050727 (000000-- )Label Set, Opertnl [S20 Ele] 1
2 1050170 (000000-- ) Label, Model [S20] 1
3 1058333 (000000-- ) Label Set, Info/Hzrd [S20] 1
Home
Find...
Go To..
OPTIONS
3--1
S20 Electric 9006708 (9--10)
SECTION 3
Contents Page
Fig. 1 -- Backup Alarm and Flashing
Light Kit, Rear 3--2....................
Fig. 2 -- Backup Alarm and Strobe
Light Kit, Rear 3--4....................
Fig. 3 -- Backup Alarm and Flashing Light Kit,
Overhead Guard 3--6..................
Fig. 4 -- Backup Alarm and Strobe Light Kit,
Overhead Guard 3--8..................
Fig. 5 -- Overhead Guard Kit 3--10...............
Fig. 6 -- Cab Overhead Guard Group 3--12........
Fig. 7 -- Cab Frame and Windows Group 3--14....
Fig. 8 -- Cab Door Group 3--16..................
Fig. 9 -- Deluxe Suspension Seat Kit 3--18........
Fig. 10 -- Seat Belt Kit 3--20......................
Fig. 11 -- Corner Bumper Kit 3--21................
Fig. 12 -- Dual Side Brush Lift Group, LH 3--22.....
Fig. 13 -- Dual Side Brush Motor and
Pivot Group, LH 3--24..................
Fig. 14 -- Dual Side Brush Wire Harness Group 3--26
Fig. 15 -- Dual Side Brush Hydraulic
Valve Group 3--27.....................
Fig. 16 -- Dual Side Brush Hydraulic
Hose Diagram 3--28...................
Fig. 17 -- Side Brush Dust Control Kit 3--30........
Fig. 18 -- Dual Side Brush Dust Control Kit 3--32....
Fig. 19 -- Vacuum Wand Kit 3--34.................
Fig. 20 -- Fire Extinguisher Kit 3--36...............
Fig. 21 -- Battery Charger Group 3--37.............
Fig. 22 -- Battery Group, 36V 315Ah Wet 3--38.....
Fig. 23 -- Battery Group 36V 440Ah Wet 3--40......
Fig. 24 -- Battery Kit 36V 340Ah Wet 3--41.........
Fig. 25 -- Documentation Group 3--42.............
Home
Find...
Go To..
OPTIONS
S20 Electric 9006708 (8--11)
3--2
Fig. 1 -- Backup Alarm and Flashing Light Kit, Rear
27
M3
M4
1
2
3
4
5
6
7
8
9
10
11
17
14
13
15
18
2
19
20
21
22
23 13
14
24
25
26
12
16
Home
Find...
Go To..
OPTIONS
3--3
S20 Electric 9006708 (8--11)
354996-- E
Fig. 1 -- Backup Alarm and Flashing Light Kit, Rear
Ref. Part No. Serial Number Description Qty.
o9006315 (000000-- )Alarm Kit, Backup, Flsh, Rear, Ev, Ci 1
Y1 9007131 (001490-- ) Alarm Assy, Backup, 12/48vdc 1
Y2 1037346 (000000-- ) Screw, Hex, M8 X 1.25 X 25, 9.8, Sems 4
Y3 07791 (000000-- ) Nut, Hex, Flng, M8 X 1.25 2
Y4 72164 (000000-- ) Flasher, 12/48vdc 5a [6309/12--48v] 1
Y506949 (000000-- )Screw, Hex, M6 X 1.00 X 50, 8.8 2
Y6 32483 (000000-- ) Washer, Flat, 0.25, Sae 2
Y7 08708 (000000-- ) Nut, Hex, Lock, M6 X 1.00, Nl 2
Y8 72173 (000000-- ) Light, Spot, 36vdc, 60watt . A 4.8d 1
Y9 39807 (000000-- ) Screw, Hex, .50--13 X 0.75, G5 1
Y10 32486 (000000-- )Washer Flat,0.50,Sae 1
Yo11 1017248 (000000-- ) Light, Flsh, Amb, 12--48vdc 1
YY 9000846 (000000-- ) Lamp, Bulb 1
YY 9000879 (000000-- ) Lens, Amb, F/ Revl / Flasher 1
Y12 06933 (000000-- ) Screw, Pan, Phl, M5 X 0.80 X 16, 4.8 2
Y13 06549 (000000-- )Nut, Hex, Lock, M5 X 0.80, Nl 4
Y14 19066 (000000-- ) Washer, Flat, 10 4
Y15 1049554 (000000-- ) Angle, Mtg, Alarm 1
Y16 32491 (000000-- ) Washer, Flat, 0.31, Std 2
Y17 08709 (000000-- ) Nut, Hex, Lock, M8 X 1.25, Nl 2
Y18 1049553 (000000-- )Plate, Mtg, Light 1
Y19 1052474 (000000-- ) Harness, Alarm / Strobe, 36vdc [S20] 1
Y20 1064185 (000000-- ) Circuitbreaker, 05.0a, Resetable 1
Y21 1064191 (000000-- ) Boot, Circuitbreaker 1
Y22 1064184 (000000-- ) Circuitbreaker, 2.5a, Resetable 1
Y23 386810 (000000-- )Contactor, 36vdc, 100a, Sp, No 1
Y24 09200 (000000-- ) Screw, Pan, Phl, M5 X 0.80 X 12, Ss 2
Y25 86377 (000000-- ) Contactor, 36vdc [Spco] 1
Y26 222290 (000000-- ) Diode, Ele, Plug 1
27 72171 (000000--001489 ) Alarm Assy, Backup, 12--48vdc 82--102dba 1
1027798 (000000-- )Lens, Red, F/ Revl / Flasher 1
1027800 (000000-- ) Lens, Blu, F/ Revl / Flasher 1
Home
Find...
Go To..
OPTIONS
S20 Electric 9006708 (8--11)
3--4
Fig. 2 -- Backup Alarm and Strobe Light Kit, Rear
27
M3
M4
1
2
3
4
5
6
7
8
9
10
11
17
14
13
15
18
2
19
20
21
22
23 13
14
24
25
26
12
16
Home
Find...
Go To..
OPTIONS
3--5
S20 Electric 9006708 (8--11)
354996-- E
Fig. 2 -- Backup Alarm and Strobe Light Kit, Rear
Ref. Part No. Serial Number Description Qty.
o9006317 (000000-- )Alarm Kit, Backup, Strb, Rear, Ev, Ci 1
Y1 9007131 (001490-- ) Alarm Assy, Backup, 12/48vdc 1
Y2 1037346 (000000-- ) Screw, Hex, M8 X 1.25 X 25, 9.8, Sems 6
Y3 07791 (000000-- ) Nut, Hex, Flng, M8 X 1.25 2
Y4 72164 (000000-- ) Flasher, 12/48vdc 5a [6309/12--48v] 1
Y506949 (000000-- )Screw, Hex, M6 X 1.00 X 50, 8.8 2
Y6 32483 (000000-- ) Washer, Flat, 0.25, Sae 2
Y7 08708 (000000-- ) Nut, Hex, Lock, M6 X 1.00, Nl 2
Y8 72173 (000000-- ) Light, Spot, 36vdc, 60watt . A 4.8d 1
Y9 39807 (000000-- ) Screw, Hex, .50--13 X 0.75, G5 1
Y10 32486 (000000-- )Washer Flat,0.50,Sae 1
Yo11 1017250 (000000-- ) Light, Strobe, Amb, 12--48vdc 1
YY 9000846 (000000-- ) Lamp, Bulb 1
YY 9000879 (000000-- ) Lens, Amb, F/ Revl / Flasher 1
Y12 06933 (000000-- ) Screw, Pan, Phl, M5 X 0.80 X 16, 4.8 2
Y13 06549 (000000-- )Nut, Hex, Lock, M5 X 0.80, Nl 4
Y14 19066 (000000-- ) Washer, Flat, 10 4
Y15 1049554 (000000-- ) Angle, Mtg, Alarm 1
Y16 32491 (000000-- ) Washer, Flat, 0.31, Std 2
Y17 08709 (000000-- ) Nut, Hex, Lock, M8 X 1.25, Nl 2
Y18 1049553 (000000-- )Plate, Mtg, Light 1
Y19 1052474 (000000-- ) Harness, Alarm / Strobe, 36vdc [S20] 1
Y20 1064185 (000000-- ) Circuitbreaker, 05.0a, Resetable 1
Y21 1064191 (000000-- ) Boot, Circuitbreaker 1
Y22 1064184 (000000-- ) Circuitbreaker, 2.5a, Resetable 1
Y23 386810 (000000-- )Contactor, 36vdc, 100a, Sp, No 1
Y24 09200 (000000-- ) Screw, Pan, Phl, M5 X 0.80 X 12, Ss 2
Y25 86377 (000000-- ) Contactor, 36vdc [Spco] 1
Y26 222290 (000000-- ) Diode, Ele, Plug 1
27 72171 (000000--001489 ) Alarm Assy, Backup, 12--48vdc 82--102dba 1
1027798 (000000-- )Lens, Red, F/ Revl / Flasher 1
1027800 (000000-- ) Lens, Blu, F/ Revl / Flasher 1
Home
Find...
Go To..
OPTIONS
S20 Electric 9006708 (8--11)
3--6
Fig. 3 -- Backup Alarm and Flashing Light Kit, Overhead Guard
M3
M4
1
2
3
11
12
14
13
15
16
18
17
19
27
24
23 14
13
22
26
4
5
6
7
8
9
10
20
21
28
29
25
30
Home
Find...
Go To..
OPTIONS
3--7
S20 Electric 9006708 (8--11)
354997 -- E
Fig. 3 -- Backup Alarm and Flashing Light Kit, Overhead Guard
Ref. Part No. Serial Number Description Qty.
o9006316 (000000-- )Alarm Kit, Backup, Flsh, Ohg, Ev, Ci 1
Y1 9007131 (001490-- ) Alarm Assy, Backup, 12/48vdc 1
Y2 1037346 (000000-- ) Screw, Hex, M8 X 1.25 X 25, 9.8, Sems 2
Y3 07791 (000000-- ) Nut, Hex, Flng, M8 X 1.25 2
Y4 72164 (000000-- ) Flasher, 12/48vdc 5a [6309/12--48v] 1
Y506949 (000000-- )Screw, Hex, M6 X 1.00 X 50, 8.8 2
Y6 32483 (000000-- ) Washer, Flat, 0.25, Sae 2
Y7 08708 (000000-- ) Nut, Hex, Lock, M6 X 1.00, Nl 2
Y8 72173 (000000-- ) Light, Spot, 36vdc, 60watt . A 4.8d 1
Y9 39807 (000000-- ) Screw, Hex, .50--13 X 0.75, G5 1
Y10 32486 (000000-- )Washer Flat,0.50,Sae 1
Yo11 1017248 (000000-- ) Light, Flsh, Amb, 12--48vdc 1
YY 9000846 (000000-- ) Lamp, Bulb 1
YY 9000879 (000000-- ) Lens, Amb, F/ Revl / Flasher 1
Y12 06933 (000000-- ) Screw, Pan, Phl, M5 X 0.80 X 16, 4.8 2
Y13 19066 (000000-- )Washer, Flat, 10 4
Y14 06549 (000000-- ) Nut, Hex, Lock, M5 X 0.80, Nl 4
Y15 1050046 (000000-- ) Bracket, Mtg, Horn 1
Y16 1020341 (000000-- ) Screw, Hex, M8 X 1.25 X 20, Ss, Sems 2
Y17 32491 (000000-- ) Washer, Flat, 0.31, Std 2
Y18 08709 (000000-- )Nut, Hex, Lock, M8 X 1.25, Nl 2
Y19 1052475 (000000-- ) Harness, Alarm / Strobe, Ohg, 36vdc[S20] 1
Y20 1064185 (000000-- ) Circuitbreaker, 05.0a, Resetable 1
Y21 1064191 (000000-- ) Boot, Circuitbreaker 1
Y22 1064184 (000000-- ) Circuitbreaker, 2.5a, Resetable 1
Y23 386810 (000000-- )Contactor, 36vdc, 100a, Sp, No 1
Y24 09200 (000000-- ) Screw, Pan, Phl, M5 X 0.80 X 12, Ss 2
Y25 86377 (000000-- ) Contactor, 36vdc [Spco] 1
Y26 222290 (000000-- ) Diode, Ele, Plug 1
Y27 55034 (000000-- ) Duct, Vyl, 0.74 X 1.50 .75d Max 48.0l 1
Y28 10632--1 (001292-- )Grommet, Rbr, 1.06id, F/1.4h, .19 Matl 1
Y29 58366 (001292-- ) Clamp, Cable, Stl, 1.25d X 1.00w, 1hole 1
30 72171 (000000--001489 ) Alarm Assy, Backup, 12--48vdc 82--102dba 1
1027798 (000000-- ) Lens, Red, F/ Revl / Flasher 1
1027800 (000000-- )Lens, Blu, F/ Revl / Flasher 1
Home
Find...
Go To..
OPTIONS
S20 Electric 9006708 (8--11)
3--8
Fig. 4 -- Backup Alarm and Strobe Light Kit, Overhead Guard
M3
M4
1
2
3
11
12
14
13
15
16
18
17
19
27
24
23 14
13
22
26
4
5
6
7
8
9
10
20
21
28
29
25
30
Home
Find...
Go To..
OPTIONS
3--9
S20 Electric 9006708 (8--11)
354997 -- E
Fig. 4 -- Backup Alarm and Strobe Light Kit, Overhead Guard
Ref. Part No. Serial Number Description Qty.
o9006318 (000000-- )Alarm Kit, Backup, Strobe, Ohg, Ev, Ci 1
Y1 9007131 (001490-- ) Alarm Assy, Backup, 12/48vdc 1
Y2 1037346 (000000-- ) Screw, Hex, M8 X 1.25 X 25, 9.8, Sems 2
Y3 07791 (000000-- ) Nut, Hex, Flng, M8 X 1.25 2
Y4 72164 (000000-- ) Flasher, 12/48vdc 5a [6309/12--48v] 1
Y506949 (000000-- )Screw, Hex, M6 X 1.00 X 50, 8.8 2
Y6 32483 (000000-- ) Washer, Flat, 0.25, Sae 2
Y7 08708 (000000-- ) Nut, Hex, Lock, M6 X 1.00, Nl 2
Y8 72173 (000000-- ) Light, Spot, 36vdc, 60watt . A 4.8d 1
Y9 39807 (000000-- ) Screw, Hex, .50--13 X 0.75, G5 1
Y10 32486 (000000-- )Washer Flat,0.50,Sae 1
Yo11 1017250 (000000-- ) Light, Strobe, Amb, 12--48vdc 1
YY 9000846 (000000-- ) Lamp, Bulb 1
YY 9000879 (000000-- ) Lens, Amb, F/ Revl / Flasher 1
Y12 06933 (000000-- ) Screw, Pan, Phl, M5 X 0.80 X 16, 4.8 2
Y13 19066 (000000-- )Washer, Flat, 10 4
Y14 06549 (000000-- ) Nut, Hex, Lock, M5 X 0.80, Nl 4
Y15 1050046 (000000-- ) Bracket, Mtg, Horn 1
Y16 1020341 (000000-- ) Screw, Hex, M8 X 1.25 X 20, Ss, Sems 2
Y17 32491 (000000-- ) Washer, Flat, 0.31, Std 2
Y18 08709 (000000-- )Nut, Hex, Lock, M8 X 1.25, Nl 2
Y19 1052475 (000000-- ) Harness, Alarm / Strobe, Ohg, 36vdc[S20] 1
Y20 1064185 (000000-- ) Circuitbreaker, 05.0a, Resetable 1
Y21 1064191 (000000-- ) Boot, Circuitbreaker 1
Y22 1064184 (000000-- ) Circuitbreaker, 2.5a, Resetable 1
Y23 386810 (000000-- )Contactor, 36vdc, 100a, Sp, No 1
Y24 09200 (000000-- ) Screw, Pan, Phl, M5 X 0.80 X 12, Ss 2
Y25 86377 (000000-- ) Contactor, 36vdc [Spco] 1
Y26 222290 (000000-- ) Diode, Ele, Plug 1
Y27 55034 (000000-- ) Duct, Vyl, 0.74 X 1.50 .75d Max 48.0l 1
Y28 10632--1 (001292-- )Grommet, Rbr, 1.06id, F/1.4h, .19 Matl 1
Y29 58366 (001292-- ) Clamp, Cable, Stl, 1.25d X 1.00w, 1hole 1
30 72171 (000000--001489 ) Alarm Assy, Backup, 12--48vdc 82--102dba 1
1027798 (000000-- ) Lens, Red, F/ Revl / Flasher 1
1027800 (000000-- )Lens, Blu, F/ Revl / Flasher 1
Home
Find...
Go To..
OPTIONS
S20 Electric 9006708 (8--11)
3--10
Fig. 5 -- Overhead Guard Kit
1
2
3
4
5
6
45
6
4
5
4
5
6
4
5
45
6
4
5
9
10
10
11
12
13
14 15
16
17
18
19
20
21
22
7
8
7
8
9
Home
Find...
Go To..
OPTIONS
3--11
S20 Electric 9006708 (9--10)
356023 -- ALL
Fig. 5 -- Overhead Guard Kit
Ref. Part No. Serial Number Description Qty.
o9006015 (000000-- )Ohg Kit, Ci [S20] 1
Y1 1057585 (000000-- ) Panel Wldt, Top, Ohg 1
Y2 1047704 (000000-- ) Channel Wldt, Ohg, Lh 1
Y3 1047705 (000000-- ) Channel Wldt, Ohg, Rh 1
Y4 41346 (000000-- ) Screw, Hex, M12 X 1.75 X 30, 8.8 22
Y532486 (000000-- )Washer Flat,0.50,Sae 22
Y6 07793 (000000-- ) Nut, Hex, Flng, M12 X 1.75 10
Y7 32491 (000000-- ) Washer, Flat, 0.31, Std 2
Y8 379000 (000000-- ) Plug, Hole, Rnd, 0.22H .00--.06, Blk Nyl 4
Y9 1046406 (000000-- ) Molding, Afmkt, Trim, Pvc, .18 .31, 08Ft 1
Y10 49034 (000000-- )Mirror, Convex, 06.7 X 06.2 2
Y11 1047480 (000000-- ) Bracket, Mtg, Mirror 1
Y12 763045 (000000-- ) Screw, Hex, M8 X 1.25 X 20, Fmg 2
Y13 1049992 (000000-- ) Bracket, Mtg, Mirror, Top 1
Y14 1055757 (000000-- ) Handle Wldt, Door 1
Y15 1037354 (000000-- )Screw, Hex, M8 X 1.25 X 30, 9.8, Sems 3
Y16 07791 (000000-- ) Nut, Hex, Flng, M8 X 1.25 3
Y17 1053233 (000000-- ) Mirror, Flat, 05.0d 1
Y18 1049990 (000000-- ) Bracket, Mtg, Mirror, Brush 1
Y19 361339 (000000-- ) Screw, Hex, M6 X 1.00 X 16, Fmg 2
Y20 1049991 (000000-- )Bracket, Mtg, Mirror, Brush 1
Y21 06943 (000000-- ) Screw, Hex, M6 X 1.00 X 20, 8.8 1
Y22 08708 (000000-- ) Nut, Hex, Lock, M6 X 1.00, Nl 1
Home
Find...
Go To..
OPTIONS
S20 Electric 9006708 (8--11)
3--12
Fig. 6 -- Cab Overhead Guard Group
1
2
3
4
5
6
45
6
4
5
45
6
4
5
45
6
4
5
9
10
10
11
12
13
14 15
16
17
18
19
20
21
22
23
24
23
24
9
8
7
7
9
9
Home
Find...
Go To..
OPTIONS
3--13
S20 Electric 9006708 (9--10)
354974 -- ALL
Fig. 6 -- Cab Overhead Guard Group
NOTE: Cab Kit (including OHG), Tennant Part Number 9006304, includes; Fig. 6, Fig. 7 and Fig. 8.
Ref. Part No. Serial Number Description Qty.
11044075 (000000-- )Panel Wldt, Top, Ohg 1
2 1047704 (000000-- ) Channel Wldt, Ohg, Lh 1
3 1047705 (000000-- ) Channel Wldt, Ohg, Rh 1
4 41346 (000000-- ) Screw, Hex, M12 X 1.75 X 30, 8.8 22
5 32486 (000000-- ) Washer Flat,0.50,Sae 22
607793 (000000-- )Nut, Hex, Flng, M12 X 1.75 10
7 1049937 (000000-- ) Insulation, Acstc 2
8 1049938 (000000-- ) Insulation, Acstc 1
9 1046406 (000000-- ) Molding, Afmkt, Trim, Pvc, .18 .31, 08Ft 1
10 49034 (000000-- ) Mirror, Convex, 06.7 X 06.2 2
11 1047480 (000000-- )Bracket, Mtg, Mirror 1
12 763045 (000000-- ) Screw, Hex, M8 X 1.25 X 20, Fmg 2
13 1049992 (000000-- ) Bracket, Mtg, Mirror, Top 1
14 1055757 (000000-- ) Handle Wldt, Door 1
15 1037354 (000000-- ) Screw, Hex, M8 X 1.25 X 30, 9.8, Sems 3
16 07791 (000000-- )Nut, Hex, Flng, M8 X 1.25 3
17 1053233 (000000-- ) Mirror, Flat, 05.0d 1
18 1049990 (000000-- ) Bracket, Mtg, Mirror, Brush 1
19 361339 (000000-- ) Screw, Hex, M6 X 1.00 X 16, Fmg 2
20 1049991 (000000-- ) Bracket, Mtg, Mirror, Brush 1
21 06943 (000000-- )Screw, Hex, M6 X 1.00 X 20, 8.8 1
22 08708 (000000-- ) Nut, Hex, Lock, M6 X 1.00, Nl 1
23 32491 (000000-- ) Washer, Flat, 0.31, Std 2
24 379000 (000000-- ) Plug, Hole, Rnd, 0.22H .00--.06, Blk Nyl 4
Home
Find...
Go To..
OPTIONS
S20 Electric 9006708 (8--11)
3--14
Fig. 7 -- Cab Frame and Windows Group
1
6
7
8
9
10
11
10
11
10
11
10
12
13 11
13 11
14
15
16
17
18
19
19
20 21
8
9
23
5
27
25
25
26
24
28 29
24
22
22
19
3
Home
Find...
Go To..
OPTIONS
3--15
S20 Electric 9006708 (8--11)
354998 -- E
Fig. 7 -- Cab Frame and Windows Group
NOTE: Cab Kit (For machines equipped with OHG), Tennant Part Number 9006308, includes; Fig. 7 and Fig. 8.
NOTE: Cab Kit (including OHG), Tennant Part Number 9006306, includes; Fig. 6, Fig. 7 and Fig. 8.
Ref. Part No. Serial Number Description Qty.
11049702 (000000-- )Panel Assy, Cab 1
2 1064550 (00xxxx-- ) Angle, Cab, Rear [Drip Ledge, S20] 1
3 1064551 (00xxxx-- ) Angle, Cab, Side [Drip Ledge, S20] 1
4 31254 (00xxxx-- ) Seal, Lip [76038ddur] 1
5 763045 (000000-- ) Screw, Hex, M8 X 1.25 X 20, Fmg 2
61047690 (000000-- )Panel Wldt, Frame, Rear 1
7 1047592 (000000-- ) Clip, Grip, Pipe, 0.50, Plstc 1
8 06927 (000000-- ) Screw, Pan, Phl, M4 X 0.70 X 16, 4.8 5
9 02850 (000000-- ) Nut, Hex, Lock, M4 X 0.70, Nl 4
10 1047653 (000000-- ) Bracket, Mtg, Panel, Cab 4
11 361339 (000000-- )Screw, Hex, M6 X 1.00 X 16, Fmg 14
12 1047456 (000000-- ) Panel Wldt, Frame, Cab 1
13 1047706 (000000-- ) Plate, Shield, Top 2
14 1048849 (000000-- ) Pane Assy, Windshield 1
15 1055606 (000000-- ) Seal, .19, .25w 39.2l, Adh 1
16 1031617 (000000-- )Seal, Afmkt, Bulb, Str, .75d F/07ga 08ft 1
17 1045567 (000000-- ) Angle, Mtg, Wndw, Lh 1
18 1045569 (000000-- ) Angle, Mtg, Wndw, Rh 1
19 1037346 (000000-- ) Screw, Hex, M8 X 1.25 X 25, 9.8, Sems 16
20 314012 (000000-- ) Tape, Hook, 1.0w [Velcro] 1
21 1050255 (000000-- )Fan, Defroster, 36vdc, 07.9d 1
22 361339 (00xxxx-- ) Screw, Hex, M6 X 1.00 X 16, Fmg 4
23 1050266 (000000-- ) Bracket, Mtg, Fan, Ev 1
24 55034 (000000-- ) Duct, Vyl, 0.74 X 1.50 .75d Max 48.0l 1
25 361346 (000000-- ) Plug, Hole, Rnd, 0.38h .3l, Plstc 5
26 1053385 (000000-- )Plug, Hole, Rnd, 1.00h .14--.25, Blk Nyl 1
27 1064184 (000000-- ) Circuitbreaker, 2.5a, Resetable 1
28 75428 (000000-- ) Plug, Hole, Rnd, 0.75h .03--.12, Blk Nyl 1
29 1054368 (000000-- ) Plug, Hole, Rnd, 0.25h .03--.12, Blk Nyl 1
Home
Find...
Go To..
OPTIONS
S20 Electric 9006708 (8--11)
3--16
Fig. 8 -- Cab Door Group
1
2
3
4
5
6
7
8
10
12
11
13
14
15
16
9
17
18
19
20
21
22
23
24
25 26
Home
Find...
Go To..
OPTIONS
3--17
S20 Electric 9006708 (8--11)
354983 -- ALL
Fig. 8 -- Cab Door Group
NOTE: Cab Kit (For machines equipped with OHG), Tennant Part Number 9006308, includes; Fig. 7 and Fig. 8.
NOTE: Cab Kit (including OHG), Tennant Part Number 9006306, includes; Fig. 6, Fig. 7 and Fig. 8.
Ref. Part No. Serial Number Description Qty.
11045404 (000000-- )Door Wldt, Cab 1
2 1048166 (000000-- ) Seal, Afmkt, Bulb, Str, 0.58D 08Ft 1
3 1023920 (000000-- ) Handle, Door 1
4 06935 (000000-- ) Screw, Pan, Phl, M5 X 0.80 X 25, 4.8 2
5 06549 (000000-- ) Nut, Hex, Lock, M5 X 0.80, Nl 2
641178 (000000-- )Washer, Flat, 0.25, Fendr 4
7 1052808 (000000-- ) Angle, Mtg, Latch 1
8 74455 (000000-- ) Screw, Hex, M6 X 1.00 X 12, Fmg 3
9 32485 (000000-- ) Washer, Flat, 0.38, Sae 3
10 59661 (000000-- ) Latch 1
11 41186 (000000-- )Washer, Flat, Belleville, .31 2
12 25046 (000000-- ) Screw, Hex, .25--20 X 1.00, G5 2
13 1053068 (000000-- ) Bracket, Latch, Door 1
14 06942 (000000-- ) Screw, Hex, M6 X 1.00 X 16, 8.8 1
15 08708 (000000-- ) Nut, Hex, Lock, M6 X 1.00, Nl 2
16 1049687 (000000-- )Angle Wldt, Mtg, Door 1
17 763045 (000000-- ) Screw, Hex, M8 X 1.25 X 20, Fmg 2
18 1047728 (000000-- ) Bracket Wldt, Mtg, Door 1
19 1037355 (000000-- ) Screw, Hex, M8 X 1.25 X 35, 9.8, Sems 2
20 30013 (000000-- ) Washer, Flat, 0.31, Fendr 2
21 08709 (000000-- )Nut, Hex, Lock, M8 X 1.25, Nl 2
22 1048161 (000000-- ) Plate, Sppt, Hinge 1
23 314012 (000000-- ) Tape, Hook, 1.0w [Velcro] 1
24 72154 (000000-- ) Latch, Bolt, Eng Side Door 1
25 41430 (000000-- ) Nut, Hex, Lock, M10 X 1.5, Nl 1
26 32485 (000000-- )Washer, Flat, 0.38, Sae 1
Home
Find...
Go To..
OPTIONS
S20 Electric 9006708 (8--09)
3--18
Fig. 9 -- Deluxe Suspension Seat Kit
1
2
3
4
5
6
7
8
9
10 11
9
Home
Find...
Go To..
OPTIONS
3--19
S20 Electric 9006708 (8--09)
354970 -- ALL
Fig. 9 -- Deluxe Suspension Seat Kit
Ref. Part No. Serial Number Description Qty.
o9006029 (000000-- )Seat Kit, Dlx, Ci [S20] 1
Y1 1056543 (000000-- ) Seat, Suspension [Grammer Gs12] 1
Y2 69971 (000000-- ) Switch, Seat 1
Y3 71477 (000000-- ) Armrest Assy, Rh, F/53845 [Grammer] 1
Y4 41342 (000000-- ) Screw, Hex, M8 X 1.25 X 40, 8.8 4
Y532490 (000000-- )Washer, Flat, 0.25, Std 4
Y6 08709 (000000-- ) Nut, Hex, Lock, M8 X 1.25, Nl 4
Y7 1056539 (000000-- ) Harness, Seat [S20] 1
Y8 30533 (000000-- ) Seatbelt, 60.0l 1
Y9 39283 (000000-- ) Screw, Hex, M10 X 1.50 X 25, 8.8 2
Y10 41430 (000000-- )Nut, Hex, Lock, M10 X 1.5, Nl 2
Y11 32490 (000000-- ) Washer, Flat, 0.25, Std 2
Home
Find...
Go To..
OPTIONS
S20 Electric 9006708 (8--09)
3--20
Fig. 10 -- Seat Belt Kit
1
2
3
4
350033 --ALL
Ref. Part No. Serial Number Description Qty.
o360932 (000000-- )Seatbelt Kit, Ci [6400] 1
Y1 30533 (000000-- ) Seatbelt, 60.0l 1
Y2 360630 (000000-- ) Plate, Mtg, Seatbelt 1
Y3 06961 (000000-- ) Screw, Hex, M10 X 1.50 X 20, 8.8 2
Y441430 (000000-- )Nut, Hex, Lock, M10 X 1.5, Nl 2
Home
Find...
Go To..
OPTIONS
3--21
S20 Electric 9006708 (8--09)
Fig. 11 -- Corner Bumper Kit
1
2
3
4
4
5
5
5
5
6
6
354973 -- ALL
Ref. Part No. Serial Number Description Qty.
o9006021 (000000-- )Bumper Kit, Corner, Rear, Ci [S20] 1
Y1 1047115 (000000-- ) Angle Wldt, Bmpr, Tower, Rh 1
Y2 1047116 (000000-- ) Angle Wldt, Bmpr, Tower, Lh 1
Y3 1048408 (000000-- ) Bracket Wldt, Mtg, Bmpr 2
Y4 1043176 (000000-- ) Pin, Hitch, .500d X 6.00l, Pl 2
Y51037358 (000000-- )Screw, Hex, M10 X 1.50 X 35, 9.8, Sems 8
Y6 87172 (000000-- ) Cable, Glv .13d 010.0l .52eye /.52eye 2
Home
Find...
Go To..
OPTIONS
S20 Electric 9006708 (8--09)
3--22
Fig. 12 -- Dual Side Brush Lift Group, LH
34
1
2
3
4
3
4
5
6
7
8
910
10 11
11
12
12
12
13
12 13
14 8
14
8
8
14
15
8
16
17
18
19
4
20
21
22
23 24
25
26
27
28
29
14
8
16
30
31
32 33
Home
Find...
Go To..
OPTIONS
3--23
S20 Electric 9006708 (8--09)
354991 -- E
Fig. 12 -- Dual Side Brush Lift Group, LH
NOTE: Dual Side Brush Kit, Tennant Part Number 9006041, includes; Fig. 12, Fig. 13, Fig. 14, Fig. 15 and
Fig. 16.
Ref. Part No. Serial Number Description Qty.
11048556 (000000-- )Cyl, Hyd, 2.5b 9.0l 01.50strk, 2500 1
2 77097 (000000-- ) Fitting, Hyd, E90, Jm04/Om04 2
3 29558 (000000-- ) Pin, Clevis, 0.37d X 1.50l 2
4 08175 (000000-- ) Pin, Cotter, .125 X 1.25 3
5 1045647 (000000-- ) Pivot Wldt 1
651562 (000000-- )Tube, 0.33id 0.51od 00.8l, Stl, Pl 1
7 06955 (000000-- ) Screw, Hex, M8 X 1.25 X 35, 8.8 1
8 32491 (000000-- ) Washer, Flat, 0.31, Std 7
9 1045563 (000000-- ) Plate Wldt 1
10 1037346 (000000-- ) Screw, Hex, M8 X 1.25 X 25, 9.8, Sems 3
11 369781 (000000-- )Pulley, Cable, 1.5d Nyl 4
12 222460 (000000-- ) Sleeve, P/M, 0.32b 0.50d 0.5l [430ss] 4
13 54400 (000000-- ) Bracket, Angle, Keeper, Cable 4
14 76570 (000000-- ) Screw, Hex, M8 X 1.25 X 30, 8.8 5
15 360414 (000000-- ) Lever, Adj, Metal 1
16 08709 (000000-- )Nut, Hex, Lock, M8 X 1.25, Nl 2
17 71126 (000000-- ) Block, Adj, Pivot 1
18 1045571 (000000-- ) Pivot Wldt, Sba 1
19 397249 (000000-- ) Pin, Clevis, 0.31d X 1.62l 1
20 1045475 (000000-- ) Angle, Bottom 1
21 06941 (000000-- )Screw, Hex, M6 X 1.00 X 10, 8.8 1
22 32490 (000000-- ) Washer, Flat, 0.25, Std 1
23 360077 (000000-- ) Pulley, Cable, 3.0d 1.76b, .25d Cable 1
24 1046498 (000000-- ) Cable, Ss .12d 89.0l .55eye / M6--1.0 1
25 1035826 (000000-- ) Clevis, Adj, M6 Pin, M6 X 1.0 Rh, Pl 1
26 14605 (000000-- )Pin, Clevis, 0.25d X 0.75l 1
27 07785 (000000-- ) Nut, Hex, Std, M6 X 1.00, Ss 1
28 08085 (000000-- ) Pin, Cotter, Hair, 0.31D .058 Wir 1
29 360801 (000000-- ) Sleeve, 0.32b 0.50d 0.3l, 2cham, Ss 1
30 1046038 (000000-- ) Timer, 36vdc, 10a [Left Hand Side Brush] 1
31 32747 (000000-- )Screw, Pan, Phl, M6 X 1.00 X 40, Ss 1
32 08708 (000000-- ) Nut, Hex, Lock, M6 X 1.00, Nl 1
33 32483 (000000-- ) Washer, Flat, 0.25, Sae 1
34 222290 (000000-- ) Diode, Ele, Plug 2
Home
Find...
Go To..
OPTIONS
S20 Electric 9006708 (8--09)
3--24
Fig. 13 -- Dual Side Brush Motor and Pivot Group, LH
1
2
3
4
5
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
Home
Find...
Go To..
OPTIONS
3--25
S20 Electric 9006708 (8--09)
354992 -- E
Fig. 13 -- Dual Side Brush Motor and Pivot Group, LH
NOTE: Dual Side Brush Kit, Tennant Part Number 9006041, includes; Fig. 12, Fig. 13, Fig. 14, Fig. 15 and
Fig. 16.
Ref. Part No. Serial Number Description Qty.
11042727 (000000-- )Bracket, Sidebrush, Lh 1
2 1037358 (000000-- ) Screw, Hex, M10 X 1.50 X 35, 9.8, Sems 2
3 1042730 (000000-- ) Arm Wldt, Lift, Lh 1
4 360081 (000000-- ) Spring, Dsl, 1.25od 0.62id 1.80l 1
5 64425 (000000-- ) Washer, Thrust, 0.61b 1.25d .06, Fgl 2
615331 (000000-- )Washer, Flat, 0.62, Sae 1
7 06988 (000000-- ) Screw, Hex, M16 X 2.00 X 90, 8.8 1
8 33342 (000000-- ) Nut, Hex, Lock, M16 X 2.00, Nl 1
9 1046248 (000000-- ) Bracket, Mtg, Motor, Lh 1
10 360357 (000000-- ) Spring, Dsl, 1.00od 0.50id 1.25l 1
11 59633 (000000-- )Washer, Thrust, 0.53b 1.00d 0.03w[Fbrgl] 1
12 32486 (000000-- ) Washer Flat,0.50,Sae 2
13 27108 (000000-- ) Screw, Flt, Soc, .50--13 X 2.50, Al 1
14 86029 (000000-- ) Nut, Hex, Flexlock, .50--13, Thin 1
15 1048311 (000000-- ) Cable, Ss .19d 008.5l .55eye / M6--1.0 1
16 360801 (000000-- )Sleeve, 0.32b 0.50d 0.3l, 2cham, Ss 1
17 09010 (000000-- ) Screw, Hex, M8 X 1.25 X 25, Ss 1
18 08713 (000000-- ) Nut, Hex, Lock, M8 X 1.25, Nl, Ss 1
19 01685 (000000-- ) Washer, Flat, 0.38b 0.88d .08, Ss 1
20 1035826 (000000-- ) Clevis, Adj, M6 Pin, M6 X 1.0 Rh, Pl 1
21 07785 (000000-- )Nut, Hex, Std, M6 X 1.00, Ss 1
22 14605 (000000-- ) Pin, Clevis, 0.25d X 0.75l 1
23 08085 (000000-- ) Pin, Cotter, Hair, 0.31d .058 Wir 1
24 29499 (000000-- ) Spring, Extn, 0.75od 0.11wir 04.5l 1
25 41305 (000000-- ) Pin, Clevis, 0.37d X 0.75l 1
26 16082 (000000-- )Guard, String, Motor, Brush 1
27 1054256 (000000-- ) Guard, Brush 1
28 46559 (000000-- ) Screw, Hex, .38--16 X 1.25, Nl 4
29 32492 (000000-- ) Washer, Flat, 0.38, Std 4
30 47501 (000000-- ) Hub, Adapter, Brush, 1.00b 1
31 39396 (000000-- )Screw, Hex, .31--12 X 1.50, Fmg [Ab] 4
32 84581 (000000-- ) Pin Assy, Side Brush W/ Clip 1
33 361026 (000000-- ) Motor, Hyd, Gear, Int 08.9 Bi--Dir 1500 (See Breakdown) 2
34 47753 (000000-- ) Fitting, Hyd, Str, Jf08/Jm06 2
35 56821 (000000-- ) Fitting, Hyd, E90, Jm08/Om10 2
36 31646 (000000-- )Sleeve, Nyl, 1.63id 25.0l 1
37 49266 (000000-- ) Tie, Cable, Nyl, 07.3l .19w 1.8 Max D 1
Home
Find...
Go To..
OPTIONS
S20 Electric 9006708 (8--09)
3--26
Fig. 14 -- Dual Side Brush Wire Harness Group
1
354993 -- IC
NOTE: Dual Side Brush Kit, Tennant Part Number 9006041, includes; Fig. 12, Fig. 13, Fig. 14, Fig. 15 and
Fig. 16.
Ref. Part No. Serial Number Description Qty.
11050070 (000000-- )Harness, Brush, Side, Lh, 36Vdc [S20] 1
Home
Find...
Go To..
OPTIONS
3--27
S20 Electric 9006708 (9--10)
Fig. 15 -- Dual Side Brush Hydraulic Valve Group
C1
C2
4
1
2
3
4
356018 -- E
NOTE: Dual Side Brush Kit, Tennant Part Number 9006041, includes; Fig. 12, Fig. 13, Fig. 14, Fig. 15 and
Fig. 16.
Ref. Part No. Serial Number Description Qty.
11045994 (000000-- )Valve, Hyd, Solenoid, 36Vdc (See Breakdowns) 1
2 06961 (000000-- ) Screw, Hex, M10 X 1.50 X 20, 8.8 2
3 32492 (000000-- ) Washer, Flat, 0.38, Std 2
4 34359 (000000-- ) Fitting, Hyd, E45, Jm04/Om04 2
Home
Find...
Go To..
OPTIONS
S20 Electric 9006708 (8--09)
3--28
Fig. 16 -- Dual Side Brush Hydraulic Hose Diagram
Right Hand
Side Brush
Motor
Left Hand
Side Brush
Motor
Side Brush
Lift Cylinder
B
PB
C3
A
T
P1
P2
C1
C2
P
1
2
3
4
5
6
7
Home
Find...
Go To..
OPTIONS
3--29
S20 Electric 9006708 (8--09)
356019 -- E
Fig. 16 -- Dual Side Brush Hydraulic Hose Diagram
NOTE: Dual Side Brush Kit, Tennant Part Number 9006041, includes; Fig. 12, Fig. 13, Fig. 14, Fig. 15 and
Fig. 16.
Ref. Part No. Serial Number Description Qty.
102469 (000000-- )Hose, Hyd, Med06, Jf06e90/Jf06str, 100.0 1
2 31597 (000000-- ) Hose, Hyd, Med06, Jf06e90/Jf06str, 068.0 1
3 15803 (000000-- ) Fitting, Hyd, Str, Jm06/Jm06 1
4 1041941 (000000-- ) Hose, Hyd, Tc06, Jf06e90/Jf06str, 086.0 1
5 1052533 (000000-- ) Hose, Hyd, Tc06, Jf06e90/Jf06str, 096.0 1
61052534 (000000-- )Hose, Hyd, Tc04, Jf04str/Jf04str, 028.0 1
7 1025992 (000000-- ) Hose, Hyd, Tc04, Jf04str/Jf04str, 020.0 1
Home
Find...
Go To..
OPTIONS
S20 Electric 9006708 (8--09)
3--30
Fig. 17 -- Side Brush Dust Control Kit
1
2
3
4
5
2
6
7
8
9
10
10
11
12
13
3
9
10
10
11
14
15
10
11
16
17
Home
Find...
Go To..
OPTIONS
3--31
S20 Electric 9006708 (8--09)
354969 -- ALL
Fig. 17 -- Side Brush Dust Control Kit
Ref. Part No. Serial Number Description Qty.
o9006013 (000000-- )Sbdc Kit, W/O Lh Side Brush, Ci [S20] 1
Y1 1054371 (000000-- ) Support Wldt, Rh, Sbdc 1
Y2 1037346 (000000-- ) Screw, Hex, M8 X 1.25 X 25, 9.8, Sems 6
Y3 1040467 (000000-- ) Screw, Hex, M6 X 1.00 X 20, 9.8, Sems 5
Y4 1054391 (000000-- ) Skirt, Brush, Side, Sbdc 1
Y51054567 (000000-- )Retainer, Skirt 1
Y6 1047696 (000000-- ) Bracket, Sbdc, Rh 1
Y7 12459 (000000-- ) Screw, Hex, M6 X 1.00 X 20, Fmg 2
Y8 32490 (000000-- ) Washer, Flat, 0.25, Std 2
Y9 09740 (000000-- ) Screw, Hex, M8 X 1.25 X 20, Ss 3
Y10 30013 (000000-- )Washer, Flat, 0.31, Fendr 8
Y11 08709 (000000-- ) Nut, Hex, Lock, M8 X 1.25, Nl 5
Y12 1054625 (000000-- ) Skirt, Brush, Side, Sbdc [W/O Lhsb] 1
Y13 1048720 (000000-- ) Retainer, Skirt 1
Y14 1048883 (000000-- ) Retainer, Skirt 1
Y15 1037355 (000000-- )Screw, Hex, M8 X 1.25 X 35, 9.8, Sems 2
Y16 1047773 (000000-- ) Seal, Top, Sbdc 1
Y17 1054369 (000000-- ) Seal, Top, Lh, Sbdc 1
Home
Find...
Go To..
OPTIONS
S20 Electric 9006708 (8--09)
3--32
Fig. 18 -- Dual Side Brush Dust Control Kit
1
2
3
4
3
4
5
6
5
6
3
7
8
9
10
9
10
11
12
12
13
13 12 12
11
14
15
4
11 12
12
11
12
12
13
16
17
Home
Find...
Go To..
OPTIONS
3--33
S20 Electric 9006708 (8--09)
354971 -- E
Fig. 18 -- Dual Side Brush Dust Control Kit
Ref. Part No. Serial Number Description Qty.
o9006041 (000000-- )Brush Kit, Side, Dual, Ele,Ci[S20 Affil] 1
Y1 1054374 (000000-- ) Support Wldt, Lh, Sbdc 1
Y2 1054371 (000000-- ) Support Wldt, Rh, Sbdc 1
Y3 1037346 (000000-- ) Screw, Hex, M8 X 1.25 X 25, 9.8, Sems 12
Y4 1040467 (000000-- ) Screw, Hex, M6 X 1.00 X 20, 9.8, Sems 6
Y51054391 (000000-- )Skirt, Brush, Side, Sbdc 2
Y6 1054567 (000000-- ) Retainer, Skirt 2
Y7 1047696 (000000-- ) Bracket, Sbdc, Rh 1
Y8 1048785 (000000-- ) Bracket, Sbdc, Lh 1
Y9 12459 (000000-- ) Screw, Hex, M6 X 1.00 X 20, Fmg 4
Y10 32490 (000000-- )Washer, Flat, 0.25, Std 4
Y11 09740 (000000-- ) Screw, Hex, M8 X 1.25 X 20, Ss 6
Y12 30013 (000000-- ) Washer, Flat, 0.31, Fendr 12
Y13 08709 (000000-- ) Nut, Hex, Lock, M8 X 1.25, Nl 6
Y14 1048718 (000000-- ) Skirt, Sbdc, Sba, Lh 1
Y15 1048720 (000000-- )Retainer, Skirt 1
Y16 1054369 (000000-- ) Seal, Top, Lh, Sbdc 1
Y17 1047773 (000000-- ) Seal, Top, Sbdc 1
Home
Find...
Go To..
OPTIONS
S20 Electric 9006708 (8--09)
3--34
Fig. 19 -- Vacuum Wand Kit
Plastic Hopper
Steel Hopper
11
22
34
5
6
7
6
7
8
9
10 10
10
11
11
12
1212
Home
Find...
Go To..
OPTIONS
3--35
S20 Electric 9006708 (1--10)
354972 -- ALL
Fig. 19 -- Vacuum Wand Kit
Ref. Part No. Serial Number Description Qty.
o9006023 (000000-- )Wand Kit, Vacuum, Ci [S20] 1
Y1 1052620 (000000-- ) Adapter Wldt, Wand, Vacuum 1
Y2 55965 (000000-- ) Seal, Rbr, 0.06, Tube, Vacuum Wand 1
Y3 1047632 (000000-- ) Door Wldt, Wand, Vacuum 1
Y4 1047635 (000000-- ) Gasket, Door, Wand, Vacuum 1
Y59006909 (000000-- )Wand, Vacuum, W/ Label, Na [S20 ] 1
Y5 9006911 (000000-- ) Wand, Vacuum, W/ Label, JP [S20 ] 1
Y6 67004 (000000-- ) Clip, Grip, Finger, 1.00--1.88d,White Vyl 2
Y7 360973 (000000-- ) Screw, Pan, 12--16 X 0.50, F/ Plstc 2
Y8 07887 (000000-- ) Molding, Trim, Pvc, .08--.11 39.2l 1
Y954009 (000000-- )Hose Assy, W/2cuff, 2.0d 120l 2.0/2.0 1
Y10 08716 (000000-- ) Screw, Hex, M6 X 1.00 X 20, Ss 6
Y11 32490 (000000-- ) Washer, Flat, 0.25, Std 6
Y12 08708 (000000-- ) Nut, Hex, Lock, M6 X 1.00, Nl 6
Home
Find...
Go To..
OPTIONS
S20 Electric 9006708 (8--09)
3--36
Fig. 20 -- Fire Extinguisher Kit
1
2
3
4
350035 -- ALL
Ref. Part No. Serial Number Description Qty.
o9006025 (000000-- )Extinguisher Kit, Fire, Ci [S20] 1
Y1 25312 (000000-- ) Extinguisher, Fire, 2.5 Lb Dry 1
Y2 1052806 (000000-- ) Plate, Mtg, Fire Extinguisher 1
Y3 360973 (000000-- ) Screw, Pan, 12--16 X 0.50, F/ Plstc 6
Y402863 (000000-- )Screw, Pan, Phl, 10--16 X 0.75, Fmg/Ab 2
Home
Find...
Go To..
OPTIONS
3--37
S20 Electric 9006708 (6--00)
Fig. 21 -- Battery Charger Group
1
2
07528 -- E
Ref. Part No. Serial Number Description Qty.
o165780 (000000-- )Charger, 50A/60H/1Ph, 1
Y2 22892 (000000-- ) Connector, Gray 1
o1 65781 (000000-- ) Charger, 75A /60H/1Ph 1
Y2 22892 (000000-- ) Connector, Gray 1
o1 65782 (000000-- ) Charger, 75A/60H/3Ph 1
Y222892 (000000-- )Connector, Gray 1
o1 364080 (000000-- ) Charger, 50A / 50H/1Ph 1
Y2 22892 (000000-- ) Connector, Gray 1
o1 364081 (000000-- ) Charger, 75A / 50H/3Ph 1
Y2 22892 (000000-- ) Connector, Gray 1
o1364082 (000000-- )Charger, 45A / 50--60H/1Ph 1
Y2 22892 (000000-- ) Connector, Gray 1
Home
Find...
Go To..
OPTIONS
S20 Electric 9006708 (9--05)
3--38
Fig. 22 -- Battery Group, 36V 315Ah Wet
1
1
2
2
3
4
3
4
5
5
6
6
7
7
8
8
9
10
11
12
Home
Find...
Go To..
OPTIONS
3--39
S20 Electric 9006708 (9--05)
354999-- E
Fig. 22 -- Battery Group, 36V 315Ah Wet
Ref. Part No. Serial Number Description Qty.
11054267 (000000-- )Bracket, Sppt, Battery 2
2 1054266 (000000-- ) Channel, Sppt, Battery 2
3 39283 (000000-- ) Screw, Hex, M10 X 1.50 X 25, 8.8 4
4 32492 (000000-- ) Washer, Flat, 0.38, Std 4
5 361168 (000000-- ) Spacer, Plywood 2
6361169 (000000-- )Spacer, Plywood 2
7 10157 (000000-- ) Battery, Wet, 06vdc 0360ah 6
8 50480 (000000-- ) Cable, Battery, 04ga 13.5l Blk, 2clamp 4
9 36555--1 (000000-- ) Cable, Battery, 04ga 40.0l Blk, 2clamp 1
10 1050665 (000000-- ) Cable Assy, Battery, 04ga, 2clamp, 175a 1
11 06946 (000000-- )Screw, Hex, M6 X 1.00 X 35, 8.8 2
12 08708 (000000-- ) Nut, Hex, Lock, M6 X 1.00, Nl 2
Home
Find...
Go To..
OPTIONS
S20 Electric 9006708 (8--07)
3--40
Fig. 23 -- Battery Group 36V 440Ah Wet
1
1
2
3
2
4
5
6
356000-- E
Ref. Part No. Serial Number Description Qty.
o11049973 (000000-- )Battery, Wet, 18vdc 0440ah 2
Y2 47985 (000000-- ) Connector, Anderson, 175a, Orange 1
3 44961 (000000-- ) Tie, Cable, Nyl, 14.5l .30w 4.0 Max D 3
4 1050077 (000000-- ) Harness, Wire, Battery 1
5 06946 (000000-- ) Screw, Hex, M6 X 1.00 X 35, 8.8 4
608708 (000000-- )Nut, Hex, Lock, M6 X 1.00, Nl 4
Home
Find...
Go To..
OPTIONS
3--41
S20 Electric 9006708 (8--07)
Fig. 24 -- Battery Kit 36V 340Ah Wet
1
1
2
3
2
4
5
6
356000-- E
Ref. Part No. Serial Number Description Qty.
o11049972 (000000-- )Battery, Wet, 18vdc 0340ah 2
Y2 47985 (000000-- ) Connector, Anderson, 175a, Orange 1
3 44961 (000000-- ) Tie, Cable, Nyl, 14.5l .30w 4.0 Max D 3
4 1050077 (000000-- ) Harness, Wire, Battery 1
5 06946 (000000-- ) Screw, Hex, M6 X 1.00 X 35, 8.8 4
608708 (000000-- )Nut, Hex, Lock, M6 X 1.00, Nl 4
Home
Find...
Go To..
OPTIONS
S20 Electric 9006708 (8--09)
3--42
Fig. 25 -- Documentation Group
E
Ref. Part No. Serial Number Description Qty.
9006704 (000000-- )Manual, Oprtr [S20 Elec, En] 1
9006705 (000000-- ) Manual, Oprtr [S20 Elec, Es] 1
9006706 (000000-- ) Manual, Oprtr [S20 Elec, Fr] 1
9006707 (000000-- ) Manual, Oprtr [S20 Elec, Jp] 1
9006708 (000000-- ) Manual, Parts [S20 Ele, En] 1
9006710 (000000-- )Manual, Oprtr [S20 Ele, Cn] 1
9006711 (000000-- ) Manual, Oprtr [S20 Ele, Ptb] 1
9006727 (000000-- ) Video, Oprtr, Dvd [S20 En, Es, Fr] 1
9006724 (000000-- ) Manual, Service [S20 Gas/Lpg/Dsl, En] 1
Home
Find...
Go To..
BREAKDOWNS
4--1
S20 Electric 9006708 (9--10)
SECTION 4
Contents Page
Fig. 1 -- Hydraulic Gear Motor Breakdown,
361026 4--2..........................
Fig. 2 -- Hydraulic Control Valve Breakdown,
361012 4--4..........................
Fig. 3 -- Hydraulic Steering Valve Breakdown,
74173 4--6............................
Fig. 4 -- Electric Motor Breakdown, 360065 4--7....
Fig. 5 -- Electric Motor Breakdown, 360175 4--8....
Fig. 6 -- Hydraulic Solenoid Valve Breakdown,
1046688 4--9.........................
Fig. 7 -- Hydraulic Solenoid Valve Breakdown,
1045994 4--10........................
Home
Find...
Go To..
BREAKDOWNS
S20 Electric 9006708 (8--09)
4--2
Fig. 1 -- Hydraulic Gear Motor Breakdown, 361026
1
2
3
4
5
6
7
8
9
10
11
12
12
12
12
12
13
Home
Find...
Go To..
BREAKDOWNS
4--3
S20 Electric 9006708 (8--09)
350288 -- 09670 -- E
Fig. 1 -- Hydraulic Gear Motor Breakdown, 361026
Ref. Part No. Serial Number Description Qty.
o361026 (000000-- )Motor, Hyd Gear In 08.9 B 1500 1
Y1 37555 (000000-- ) Screw 4
Y2 31354 (000000-- ) Flange Mounting 1
Y3 16695 (000000-- ) Race Thrust 1
Y4 45628 (000000-- ) Thrust Bearing 1
Y531373 (000000-- )Shaft, Output 1
Y6 74100 (000000-- ) Housing 1
Y7 21955 (000000-- ) Drive 1
Y8 74094 (000000-- ) Spacer Plate 1
Y9 21956 (000000-- ) Gerotor Set 1
Y10 65230 (000000-- )Cap, End 1
Y11 21958 (000000-- ) Cap Screw 5
Y12 28835 (000000-- ) Seal Kit, Motor A/H--Stnd 1
13 74250 (000000-- ) Instr. Repair Info, Motor 1
Home
Find...
Go To..
BREAKDOWNS
S20 Electric 9006708 (8--09)
4--4
Fig. 2 -- Hydraulic Control Valve Breakdown, 361012
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
24
21
23
21
21
4
14
22
Home
Find...
Go To..
BREAKDOWNS
4--5
S20 Electric 9006708 (8--09)
350284 -- 09670 -- ALL
Fig. 2 -- Hydraulic Control Valve Breakdown, 361012
Ref. Part No. Serial Number Description Qty.
o361012 (000000-- )Valve, Hyd Control Man 1
Y1 79785 (000000-- ) Spacer 1
Y2 79786 (000000-- ) Plunger 2
Y3 79787 (000000-- ) Spring 2
Y4 79788 (000000-- ) Bushing 2
Y579789 (000000-- )Cap Assembly 1
Y6 79792 (000000-- ) Ring, Retaining 1
Y7 79794 (000000-- ) Washer 1
Y8 79795 (000000-- ) Plug & O--Ring 2
Y9 79796 (000000-- ) Spring 1
Yo10 79814 (000000-- )Kit, Detent In 1
YY 11 79801 (000000-- ) Spacer 1
YY 12 79802 (000000-- ) Detent Adaptr 1
YY 13 21961 (000000-- ) Cap Assembly 1
YY 14 79804 (000000-- ) Ball 3
YY 15 79805 (000000-- )Washer 1
YY 16 79806 (000000-- ) Washer 1
YY 17 79807 (000000-- ) Spring 1
YY 18 79808 (000000-- ) Spring 1
YY 19 79792 (000000-- ) Ring, Retaining 1
YY 20 79800 (000000-- )Cone 1
Y21 79812 (000000-- ) Seal Kit, Vlv 1
Y22 13904 (000000-- ) Plug Gage #6 2
23 361028 (000000-- ) Plug Assy,Byd 1
24 79820 (000000-- )Instr. Valve Repair Info 1
Home
Find...
Go To..
BREAKDOWNS
S20 Electric 9006708 (8--09)
4--6
Fig. 3 -- Hydraulic Steering Valve Breakdown, 74173
1
2
3
4
5
6
7
8
13
13
13
13
O--ring
Groove
Back Side
10 9
13
Not Sold
Separately
14
O--ring
Groove
Back Side
O--ring
Groove
Back Side
12
11
Not Sold
Separately
Not Sold
Separately
09670 -- E
Ref. Part No. Serial Number Description Qty.
o74173 (000000-- )Valve, Hydraulic Steering 07.3 0600 1
Y1 74191 (000000-- ) Cap, Screw 7
Y2 74181 (000000-- ) Cap, End 1
Y3 71574 (000000-- ) Gerotor Set 1
Y4 74182 (000000-- ) Plate, Wear 1
Y558596 (000000-- )Drive 1
Y6 74218 (000000-- ) Pin 1
Y7 74109 (000000-- ) Race, Bearing 2
Y8 74110 (000000-- ) Bearing, Needle 1
Y9 74112 (000000-- ) Retainer, Front 1
Y10 74111 (000000-- )Ring, Retaining 1
Y11 74140 (000000-- ) Spacer 1
Y12 74195 (000000-- ) Spring Kit 1
Y13 74190 (000000-- ) Seal Kit 1
14 74251 (000000-- )Repair Info 1
Home
Find...
Go To..
BREAKDOWNS
4--7
S20 Electric 9006708 (8--09)
Fig. 4 -- Electric Motor Breakdown, 360065
2
3
4
5
6
7
1
8
9
10
11
12
13
14
350403 -- E
Ref. Part No. Serial Number Description Qty.
o360065 (000000-- )Motor, Electric, 36VDC 2.1 HP 1
Y1 361952 (000000-- ) Seal 1
Y2 361953 (000000-- ) Drive Endhead 1
Y3 48758 (000000-- ) Bearing 1
Y4 361954 (000000-- ) Snap--Ring 1
Y5361955 (000000-- )Fan 1
Y6 361956 (000000-- ) Armature and Fan Assembly 1
Y7 361957 (000000-- ) Field Coil Kit 1
Y8 00500--7 (000000-- ) Key--Wdruff 0.16 0.662 Asa#0505 1
Y9 361959 (000000-- ) Brush Spring 4
Y10 361960 (000000-- )Brush Box and Plate Assembly 1
Y11 361961 (000000-- ) Lead Assembly Kit 1
Y12 361962 (000000-- ) Bearing 1
Y13 361963 (000000-- ) Wavy Washer 1
Y14 361964 (000000-- )Commutator Endhead 1
Home
Find...
Go To..
BREAKDOWNS
S20 Electric 9006708 (8--09)
4--8
Fig. 5 -- Electric Motor Breakdown, 360175
23
4
5
6
7
1
8
910
11
1213
2
350405 -- E
Ref. Part No. Serial Number Description Qty.
o360175 (000000-- )Motor, Electric, 36VDC 4.0 HP 1
Y1 361965 (000000-- ) Drive Endhead 1
Y2 48758 (000000-- ) Bearing 1
Y3 361954 (000000-- ) Snap--Ring 1
Y4 361966 (000000-- ) Armature Fan 1
Y5361967 (000000-- )Armature and Fan Assembly 1
Y6 361968 (000000-- ) Field Coil Kit 1
Y7 385742 (000000-- ) Brush, Motor, Ele [Av#a91--112e] 4
Y8 48755 (000000-- ) Brush Spring 4
Y9 361969 (000000-- ) Brush Box and Plate Assembly 1
Y10 361970 (000000-- )Lead Assembly Kit 1
Y11 361971 (000000-- ) Wavy Washer 1
Y12 361972 (000000-- ) Commutator Endhead 1
Y13 361973 (000000-- ) Headband 1
Home
Find...
Go To..
BREAKDOWNS
4--9
S20 Electric 9006708 (9--10)

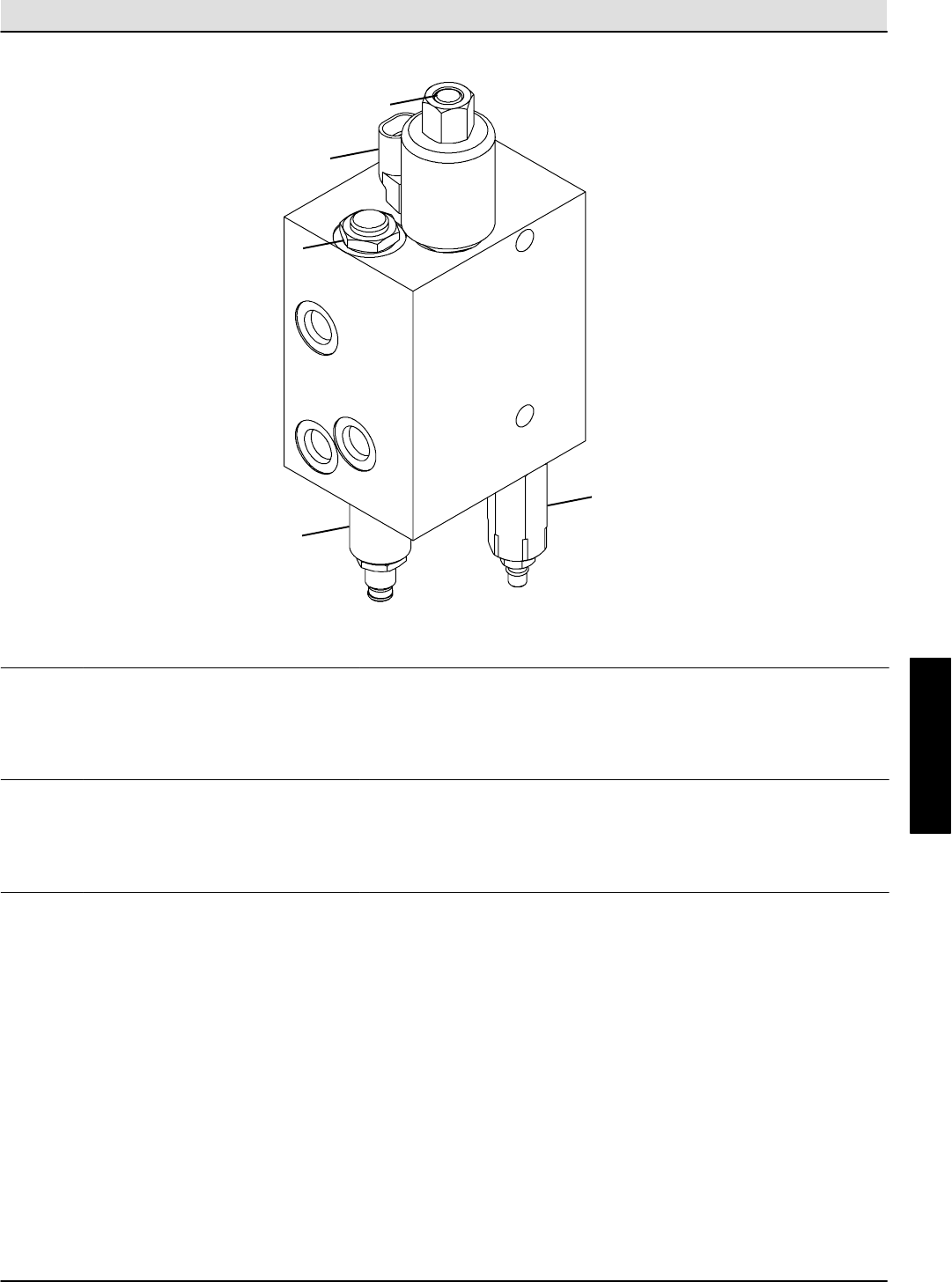

Fig. 6 -- Hydraulic Solenoid Valve Breakdown, 1046688
1
2
3
4
5
SV1
RV1
RV2
CK1
356086 -- E
Ref. Part No. Serial Number Description Qty.
o1046688 (000000-- )Valve, Hyd, Solenoid, 36vdc 1
Yo1 373740 (000000-- ) Valve, Relief 1
YY 373745 (000000-- ) Seal Kit, Valve, Hyd 1
Yo2 373738 (000000-- ) Valve, Cntrl, Logic 1
YY 373582 (000000-- ) Seal Kit, Hsng 1
Yo3373741 (000000-- )Valve, Check 1
YY 373745 (000000-- ) Seal Kit, Valve, Hyd 1
Yo4 373739 (000000-- ) Valve, Stem, Hyd 1
YY 373584 (000000-- ) Nut, Short 1
YY 373582 (000000-- ) Seal Kit, Hsng 1
Y5373744 (000000-- )Solenoid, #10, 36vdc 1
Home
Find...
Go To..
BREAKDOWNS
S20 Electric 9006708 (9--10)
4--10

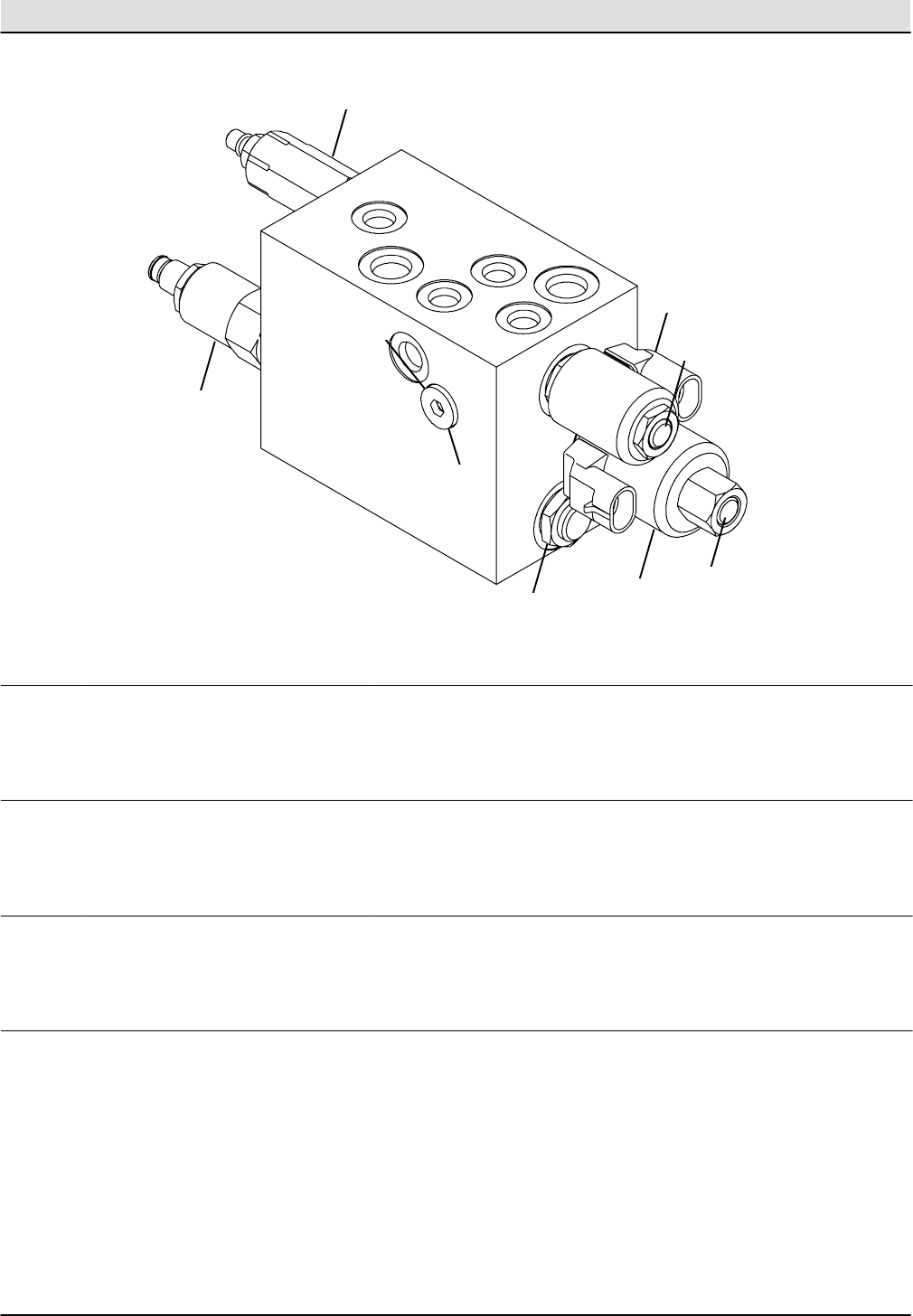

Fig. 7 -- Hydraulic Solenoid Valve Breakdown, 1045994
SV2
SV1
CK1
RV1
RV2
OR1
1
2
3
4
5
6
7
8
9
356088 -- E
Ref. Part No. Serial Number Description Qty.
o1045994 (000000-- )Valve, Hyd, Solenoid, 36vdc 1
Yo1 373738 (000000-- ) Valve, Cntrl, Logic 1
YY 373582 (000000-- ) Seal Kit, Hsng 1
Yo2 373739 (000000-- ) Valve, Stem, Hyd 1
YY 373584 (000000-- ) Nut, Short 1
YY 373582 (000000-- )Seal Kit, Hsng 1
Yo3 373734 (000000-- ) Solenoid, Cntrl 1
YY 373584 (000000-- ) Nut, Short 1
YY 1058233 (000000-- ) Seal Kit, Cartridge 1
Yo4 373740 (000000-- ) Valve, Relief 1
YY 373745 (000000-- )Seal Kit, Valve, Hyd 1
Yo5 373741 (000000-- ) Valve, Check 1
YY 373745 (000000-- ) Seal Kit, Valve, Hyd 1
Yo6 13904 (000000-- ) Fitting, Plug, Org, #6, Valve [Cec] 1
YY 77005 (000000-- ) Seal, Org, .078 X 00.47id 06 1
Y7373742 (000000-- )Plug, Orifice, Valve, Hyd, .035 1
Y8 373743 (000000-- ) Solenoid, #8, 36vdc 1
Y9 373744 (000000-- ) Solenoid, #10, 36vdc 1
Home
Find...
Go To..
CROSS REFERENCE
5--1
S20 Electric 9006708 (8--11)
SECTION 5
CONTENTS PAGE
PART NUMBER TO PAGE NUMBER CROSS REFERENCE LIST 5-2......................................
PART DESCRIPTION TO PAGE NUMBER CROSS REFERENCE LIST 5-8.................................
Home
Find...
Go To..
CROSS REFERENCE
S20 Electric 9006708(8--11)
5--2
PART NUMBER TO PAGE NUMBER CROSS REFERENCE LIST
Part Page
Number Number
00500--10 2--41......
00500--7 4--7.......
00915 2--33........
00928 2--31........
00954 2--41........
01682 2--33........
01685 2--37, 3--25........
01689 2--5........
01713 2--39........
01714 2--29........
01754 2--15........
02076 2--25, 2--33........
02356 2--33........
02431 2--5........
02469 2--57, 3--29........
02850 2--51, 2--53, 3--15........
02863 3--36........
03670 1--1, 2--33........
04186 2--31........
04375 2--49........
04706 2--17........
06415 2--45........
06419 2--31........
06474A 2--19.......
06549 2--15, 2--21, 2--51,........
3--3, 3--5, 3--7, 3--9,
3--17
06750 2--33........
06927 2--51, 3--15........
06933 3--3, 3--5, 3--7, 3--9........
06935 3--17........
06941 3--23........
06942 3--17........
06943 2--19, 2--39, 2--41,........
3--11, 3--13
06944 2--11........
06946 3--39, 3--40, 3--41........
06949 2--21, 2--60, 3--3, 3--5,........
3--7, 3--9
06955 2--11, 2--29, 3--23........
06956 2--27........
06957 2--35, 2--43........
06958 2--25........
06961 2--53, 2--61, 3--20,........
3--27
06963 2--19........
06968 2--21........
06969 2--5........
06977 2--31........
06988 2--37, 3--25........
07259 2--23, 2--43........
07514 2--39, 2--53........
07785 2--37, 3--23, 3--25........
07787 2--31
........
Part Page
Number Number
07791 2--5, 2--11, 2--15,........
2--19, 2--39, 2--43,
2--47, 2--51, 2--59,
2--63, 3--3, 3--5, 3--7,
3--9,3--11,3--13
07792 2--43, 2--63........
07793 2--5, 3--11, 3--13........
07887 3--35........
08013N 2--3.......
08085 2--11, 2--29, 2--33,........
2--37, 3--23, 3--25
08170 2--21........
08175 2--23, 2--31, 2--41,........
3--23
08179 2--39........
08182 2--19, 2--21, 2--51........
08298 2--43........
08346 2--39........
08361 2--43........
08708 2--13, 2--15, 2--17,........
2--19, 2--21, 2--39,
2--41, 2--45, 2--47,
2--51, 2--60, 3--3, 3--5,
3--7, 3--9, 3--11, 3--13,
3--17, 3--23, 3--35,
3--39, 3--40, 3--41
08709 2--5, 2--11, 2--21,........
2--27, 2--31, 2--35,
2--43, 2--45, 2--49,
2--51, 2--53, 2--59, 3--3,
3--5, 3--7, 3--9, 3--17,
3--19, 3--23, 3--31,
3--33
08711 2--21, 2--31, 2--43.........
08713 2--25, 2--37, 3--25........
08716 3--35........
09010 2--37, 3--25........
09026 2--51........
09028 2--37, 2--43........
09037 2--23........
09087 2--39........
09088 2--29........
09200 2--15, 2--45, 2--47,........
3--3, 3--5, 3--7, 3--9
09244 2--51........
09291 2--29........
09740 2--5, 2--30, 3--31, 3--33........
1008142 2--15.......
1012529 2--5.......
1014563 2--45, 2--51.......
10157 3--39........
1017248 3--3, 3--7.......
1017250 3--5, 3--9.......
1020341 2--7, 2--43, 2--63, 3--7,.......
3--9
1023920 3--17.......
1025992 3--29.......
1026362 2--43.......
Part Page
Number Number
1027321 2--57.......
1027798 3--3, 3--5, 3--7, 3--9.......
1027800 3--3, 3--5, 3--7, 3--9.......
1031617 3--15.......
1035826 2--35, 2--37, 3--23,.......
3--25
10362 2--41........
1036631 2--23.......
1036892 2--17, 2--31, 2--39,.......
2--47, 2--51
1037346 2--5, 2--9, 2--11, 2--13,.......
2--15, 2--19, 2--47,
2--51, 2--53, 3--3, 3--5,
3--7, 3--9, 3--15, 3--23,
3--31, 3--33
1037354 2--5, 2--15, 2--27,.......
2--29, 2--33, 2--39,
2--45, 2--51, 2--59,
3--11, 3--13
1037355 2--21, 2--43, 2--45,.......
2--53, 3--17, 3--31
1037358 2--33, 2--41, 2--45,.......
2--49, 2--63, 3--21,
3--25
1037427 2--37.......
1037485 2--37.......
1038176 2--51.......
1038957 2--15.......
1039250 2--53.......
1040467 2--15, 3--31, 3--33.......
1041873 2--15, 2--63.......
1041941 3--29.......
1042282 2--53.......
1042285 2--53.......
1042727 3--25.......
1042730 3--25.......
1042791 2--5.......
1042849 2--5.......
1042875 2--45.......
1043176 3--21.......
1043383 2--53.......
1043490 2--45.......
1043815 2--53.......
1043817 2--53.......
1043819 2--53.......
1043938 2--47.......
1044075 3--13.......
1044146 2--53.......
1044214 2--47.......
1044254 2--45.......
1044273 2--51.......
1044285 2--53.......
1044351 2--53.......
1044352 2--53.......
1044356 1--1, 2--53.......
1044357 1--1, 2--39.......
1044844 2--7.......
1044845 2--9.......
Home
Find...
Go To..
CROSS REFERENCE
5--3
S20 Electric 9006708 (8--11)
Part Page
Number Number
1044900 2--45.......
1044907 2--45.......
1045211 2--15.......
1045222 2--17.......
1045229 2--11.......
1045365 2--45.......
1045404 3--17.......
1045423 2--47.......
1045434 2--47.......
1045475 3--23.......
1045563 3--23.......
1045567 3--15.......
1045569 3--15.......
1045571 3--23.......
1045627 2--39.......
1045647 3--23.......
1045900 1--1, 2--53.......
1045994 3--27, 4--10.......
1046038 3--23.......
1046246 2--37.......
1046248 3--25.......
1046406 3--11, 3--13.......
1046498 3--23.......
1046553 2--21.......
1046590 2--39.......
1046688 2--61, 4--9.......
1047115 3--21.......
1047116 3--21.......
1047280 2--51.......
1047349 2--53.......
1047447 2--11.......
1047456 3--15.......
1047480 3--11, 3--13.......
1047575 1--1, 2--45.......
1047592 3--15.......
1047632 3--35.......
1047635 3--35.......
1047637 1--1.......
1047653 3--15.......
1047690 3--15.......
1047696 3--31, 3--33.......
1047704 3--11, 3--13.......
1047705 3--11, 3--13.......
1047706 3--15.......
1047717 2--73.......
1047728 3--17.......
1047773 3--31, 3--33.......
1047878 2--35.......
1048096 2--45.......
1048116 2--45.......
1048161 3--17
.......
1048166 3--17.......
1048198 2--11.......
1048311 2--37, 3--25.......
1048335 2--53.......
1048351 2--17.......
1048353 2--53.......
1048408 3--21.......
1048456 2--15.......
1048488 2--45.......
Part Page
Number Number
1048504 2--73.......
1048529 2--73.......
1048556 3--23.......
1048565 2--39.......
1048718 3--33.......
1048720 3--31, 3--33.......
1048732 2--45.......
1048744 2--30.......
1048746 2--7, 2--9.......
1048750 2--7, 2--9.......
1048785 3--33.......
1048800 2--30.......
1048801 2--27.......
1048802 2--27.......
1048849 3--15.......
1048883 3--31.......
1048932 2--11.......
1048955 2--11.......
1048990 2--45.......
1049015 2--45.......
1049102 2--45.......
1049199 2--9.......
1049208 2--9.......
1049220 2--29.......
1049224 2--29.......
1049253 2--45.......
1049263 2--45.......
1049293 2--31.......
1049302 2--33.......
1049336 2--33.......
1049408 2--53.......
1049409 2--53.......
1049553 3--3, 3--5.......
1049554 3--3, 3--5.......
1049687 3--17.......
1049702 3--15.......
1049860 2--53.......
1049937 3--13.......
1049938 3--13.......
1049972 3--41.......
1049973 3--40.......
1049982 2--53.......
1049987 2--11.......
1049988 2--11.......
1049990 3--11, 3--13.......
1049991 3--11, 3--13.......
1049992 3--11, 3--13.......
1050046 3--7, 3--9.......
1050070 3--26.......
1050077 3--40, 3--41.......
1050106 2--53
.......
1050158 2--63.......
1050170 2--74.......
1050242 2--51.......
1050243 2--51.......
1050255 3--15.......
1050266 3--15.......
1050349 2--17.......
1050665 3--39.......
1050727 2--74.......
Part Page
Number Number
1050955 2--19.......
1050957 2--19.......
1051045 2--51.......
1051049 2--51.......
1051115 2--51.......
1051135 2--15.......
1051199 2--53.......
1051250 2--5.......
1051510 2--17.......
1051766 2--51.......
1051773 2--51.......
1051800 2--51.......
1051866 2--59.......
1051892 2--59.......
1052113 2--21.......
1052114 2--21.......
1052203 2--43.......
1052231 2--43.......
1052263 2--21.......
1052446 2--51.......
1052452 2--45.......
1052454 2--45.......
1052474 3--3, 3--5.......
1052475 3--7, 3--9.......
1052531 2--19.......
1052533 3--29.......
1052534 3--29.......
1052540 2--19.......
1052541 2--19.......
1052560 2--23.......
1052561 2--23.......
1052562 2--25.......
1052563 2--25.......
1052620 3--35.......
1052625 2--65.......
1052644 2--41.......
1052646 2--41.......
1052647 2--41.......
1052649 2--41.......
1052650 2--41.......
1052651 2--41.......
1052652 2--39.......
1052653 2--39.......
1052763 2--41.......
1052803 2--13.......
1052804 2--13.......
1052805 2--13.......
1052806 3--36.......
1052808 3--17.......
1052817 2--13.......
1052919 2--53
.......
1053068 3--17.......
1053233 3--11, 3--13.......
1053291 2--53.......
1053318 2--45.......
1053321 2--53.......
1053385 3--15.......
1053393 2--41.......
1053395 2--63.......
1053746 2--43.......
Home
Find...
Go To..
CROSS REFERENCE
S20 Electric 9006708(8--11)
5--4
Part Page
Number Number
1053842 2--15.......
1054045 2--30.......
1054256 2--37, 3--25.......
1054266 3--39.......
1054267 3--39.......
1054368 3--15.......
1054369 3--31, 3--33.......
1054371 3--31, 3--33.......
1054374 3--33.......
1054391 3--31, 3--33.......
1054566 2--5.......
1054567 3--31, 3--33.......
1054588 2--33.......
1054619 2--5.......
1054625 3--31.......
1054872 2--15.......
1054875 2--21.......
1055049 2--27.......
1055074 2--27.......
1055376 2--57.......
1055583 2--51.......
1055605 2--5.......
1055606 3--15.......
1055674 2--31.......
1055757 3--11, 3--13.......
1056045 2--11.......
1056298 2--53.......
1056539 3--19.......
1056543 3--19.......
1056624 2--73.......
1057040 2--15.......
1057585 3--11.......
10576 2--11........
1057602 1--1, 2--5.......
1057684 2--5.......
1057707 1--1.......
1057734 2--39.......
1057735 2--39.......
1057959 2--53.......
1057960 2--53.......
1058233 4--10.......
1058333 2--74.......
1058662 2--45.......
1058717 2--11.......
1058722 2--11.......
1058996 2--17.......
1059119 2--49.......
1059158 2--49.......
1059569 1--1, 2--31.......
1060278 2--49.......
1060331 2--39
.......
1060334 2--39.......
1060444 2--39.......
1060541 2--11.......
1061216 2--5.......
1061575 2--53.......
1061582 2--73.......
10632--1 3--7, 3--9.......
10632--15 2--63......
10632--18 2--45......
Part Page
Number Number
10632--4 2--51.......
1063238 2--21.......
1063246 2--25.......
1063248 2--25.......
1063616 2--9.......
1064184 2--15, 3--3, 3--5, 3--7,.......
3--9, 3--15
1064185 3--3, 3--5, 3--7, 3--9.......
1064188 2--15.......
1064189 2--15.......
1064191 3--3, 3--5, 3--7, 3--9.......
1064550 3--15.......
1064551 3--15.......
10664 2--59........
11211 2--51.........
11329 2--11.........
11398 2--31.........
11631 2--31.........
11843 2--41.........
12138 2--43........
12263 2--19........
12273 2--31........
12317 2--45........
12364 2--35........
12459 2--43, 2--51, 3--31,........
3--33
12540 2--25........
13534 2--31........
13766 2--31........
13904 4--5, 4--10........
140147 2--39........
14368 2--19........
14397 2--19........
14595--1 2--21, 2--29.......
14605 2--21, 2--29, 2--37,........
3--23, 3--25
15008 2--63........
15331 2--37, 3--25........
15675 2--13, 2--51........
15803 3--29........
15846 2--65........
16082 2--37, 3--25........
16376 2--59........
16411 1--1.........
16412 1--1........
16455 2--43........
16695 4--3........
16735 2--11, 2--47, 2--53........
16931 2--63........
16949 2--13........
17186 2--19........
17284 2--11, 2--43........
17404 2--43........
19065 2--39........
19066 2--15, 2--21, 2--45,........
2--53, 3--3, 3--5, 3--7,
3--9
19315 2--63........
20170 2--39........
20802 2--9........
Part Page
Number Number
21168 2--43.........
21195 2--17.........
21955 4--3........
21956 4--3........
21958 4--3........
21961 4--5........
222290 2--15, 3--3, 3--5, 3--7,........
3--9, 3--23
222460 2--29, 2--35, 3--23........
222516 2--11........
22290 2--17........
223356 2--65........
22892 3--37........
23498 2--41........
23683 2--41........
23788 2--43........
24265 2--53........
24899 2--30........
25005 2--39........
25014 2--19........
25046 3--17........
25312 3--36........
25887 2--30........
27108 2--37, 3--25........
27985 2--13........
27988 2--31........
27990 2--33........
28835 4--3........
29499 2--37, 3--25........
29558 3--23........
29584 2--35........
30013 2--5, 2--9, 2--43, 2--45,........
2--53, 3--17, 3--31,
3--33
30251 2--31........
30252 2--30........
30253 2--31........
30255 2--31........
30406 2--53........
30533 3--19, 3--20........
31254 3--15........
31354 4--3........
31373 4--3........
314012 3--15, 3--17........
31597 2--57, 3--29........
31603 2--57........
31646 2--37, 3--25........
32483 2--19, 2--39, 2--63,........
3--3, 3--5, 3--7, 3--9,
3--23
32485 2--19, 2--31, 2--33,........
2--59, 3--17
32486 2--13, 2--19, 2--21,........
2--37, 2--51, 3--3, 3--5,
3--7, 3--9, 3--11, 3--13,
3--25
32490 2--11, 2--19, 2--39,
........
2--45, 2--51, 2--59,
2--63, 3--19, 3--23,
3--31, 3--33, 3--35
Home
Find...
Go To..
CROSS REFERENCE
5--5
S20 Electric 9006708 (8--11)
Part Page
Number Number
32491 2--5, 2--11, 2--13,........
2--21, 2--27, 2--29,
2--31, 2--35, 2--45,
2--47, 2--49, 2--51,
2--53, 2--60, 3--3, 3--5,
3--7, 3--9, 3--11, 3--13,
3--23
32492 2--29, 2--33, 2--35,........
2--37, 2--41, 2--43,
2--45, 2--51, 2--53,
2--61, 3--25, 3--27,
3--39
32515 2--39........
32523 2--13........
32525 2--41........
32598 2--43........
32747 3--23........
32899 2--21........
32960 2--7........
32980 2--5........
32982 2--63........
32983 2--13........
32984 2--25, 2--39, 2--63........
32987 2--23, 2--31........
33342 2--37, 3--25........
33372 2--41........
33807 2--15........
34195 2--59........
34359 3--27........
34877 2--43........
35529 2--43........
35973 2--30........
360023 2--21........
360062 2--60........
360063 2--60........
360064 2--43........
360065 2--25, 4--7........
360074 2--21........
360077 2--43, 3--23........
360081 2--37, 3--25........
360104 2--31........
360108 2--31........
360109 2--31........
360110 2--31........
360113 2--31........
360115 2--31........
360116 2--31........
360134 1--1, 2--5........
360136 1--1, 2--5........
360137 2--5........
360138 2--5........
360175 2--33, 4--8........
360179 2--33........
360180 2--33........
360270 2--21........
360271 2--21........
360272 2--21........
360273 2--21........
360274 2--21........
360275 2--21........
Part Page
Number Number
360276 2--21........
360283 2--7, 2--9........
360319 2--7........
360320 1--1, 2--31........
360327 2--45........
360336 1--1, 2--51........
360347 2--31........
360357 2--37, 3--25........
360386 2--43........
360388 2--7, 2--9........
360406 2--41........
360410 2--35........
360411 2--35........
360413 2--29........
360414 2--35, 3--23........
360417 2--35........
360424 2--51........
360449 2--35........
360451 2--35........
360454 2--29........
360455 2--43........
360460 2--27, 2--29........
360467 2--60........
360488 2--29........
360491 2--29, 2--31........
360492 2--31........
360516 2--63........
360602 2--45........
360603 1--1, 2--51........
360606 2--51........
360627 1--1........
360630 3--20........
360680 2--25........
360686 1--1, 2--33........
360704 2--11........
360711 2--17........
360753 2--41........
360761 1--1, 2--9........
360765 2--41........
360768 2--43........
360774 2--27........
360781 2--5, 2--9........
360784 1--1, 2--7........
360801 2--35, 2--37, 3--23,........
3--25
360802 2--21........
360821 2--29........
360824 2--47........
360844 1--1........
360848 2--51........
360867 2--17........
360893 2--45........
360894 2--45........
360917 2--41........
360932 3--20........
360935 2--21........
360943 2--53........
360961 2--35........
360973 2--11, 2--53, 3--35,........
3--36
Part Page
Number Number
360980 2--25........
360981 2--39........
360989 2--65........
360991 2--59........
361012 2--60, 4--5........
361023 1--1, 2--59........
361026 2--37, 3--25, 4--3........
361028 2--60, 4--5........
361031 2--57........
361032 2--57........
361038 2--57........
361040 2--57........
361045 2--57........
361053 2--57........
361074 2--15........
361096 2--29........
361097 2--29........
361114 2--29........
361165 2--13........
361168 3--39........
361169 3--39........
361191 2--33........
361198 2--59........
361271 2--59........
361295 2--43........
361299 2--60........
361306 2--7........
361327 2--41........
361339 2--45, 3--11, 3--13,........
3--15
361342 2--11........
361343 2--11........
361344 2--11........
361345 2--11........
361346 3--15........
361554 2--11........
361555 2--31........
361936 2--41........
361937 2--41........
361951 2--11........
361952 4--7........
361953 4--7........
361954 4--7, 4--8........
361955 4--7........
361956 4--7........
361957 4--7........
361959 4--7........
361960 4--7........
361961 4--7........
361962 4--7........
361963 4--7........
361964 4--7........
361965 4--8........
361966 4--8........
361967 4--8........
361968 4--8........
361969 4--8........
361970 4--8........
361971 4--8........
361972 4--8........
Home
Find...
Go To..
CROSS REFERENCE
S20 Electric 9006708(8--11)
5--6
Part Page
Number Number
361973 4--8........
361993 2--41........
361994 2--41........
361995 2--41........
36328 2--43........
363502 2--7........
364080 3--37........
364081 3--37........
364082 3--37........
36555--1 3--39.......
36643 2--31........
36801 2--19........
369702 2--5........
369781 2--35, 3--23........
370010 2--3........
370025 2--3........
373582 4--9, 4--10........
373584 4--9, 4--10........
373730 2--33........
373734 4--10........
373738 4--9, 4--10........
373739 4--9, 4--10........
373740 4--9, 4--10........
373741 4--9, 4--10........
373742 4--10........
373743 4--10........
373744 4--9, 4--10........
373745 4--9, 4--10........
375019 2--39........
375020 2--27........
37555 4--3........
377433 2--15........
377537 1--1........
377538 1--1........
377540 1--1........
379000 3--11, 3--13........
379719 2--51........
382516 2--15........
383165 2--15........
384418 2--53........
384419 2--53........
385742 4--8........
385947 2--3........
386346 2--15........
386810 2--39, 3--3, 3--5, 3--7,........
3--9
387282 2--57........
387376 2--41........
387387 2--41........
39005 2--29........
391803 2--11........
39277 2--5, 2--63........
39278 2--25........
39283 2--33, 3--19, 3--39........
39308 2--19........
39322 2--53........
39332 2--41........
39346 2--35........
39349 2--7, 2--9........
39350 2--23, 2--31........
Part Page
Number Number
39396 2--37, 3--25........
39527 2--23, 2--31........
395973 2--61........
395974 2--61........
39658 2--15........
397249 3--23........
39807 3--3, 3--5, 3--7, 3--9........
40607 2--51, 2--53........
41140 2--53.........
41141 2--5.........
41169 2--9.........
41178 2--51, 3--17.........
41186 3--17.........
41187 2--33.........
41305 2--37, 3--25........
41342 3--19........
41346 2--25, 3--11, 3--13........
41359 2--19, 2--35........
41430 2--19, 2--31, 2--33,........
2--35, 2--43, 2--45,
3--17, 3--19, 3--20
41561 2--41........
42120--1 2--43.......
42120--4 2--23.......
42215 2--17........
42227 2--59........
43454 2--13........
43611 2--19.........
43958 2--23........
44078 2--39........
44906 2--19, 2--27, 2--35........
44961 2--5, 3--40, 3--41........
45628 4--3........
46029 2--45........
46481 2--59........
46559 2--37, 3--25........
47501 2--37, 3--25........
47504 2--17........
47522 2--23, 2--61........
47585 2--17........
47638 2--43........
47655 2--59........
47753 2--37, 3--25........
47985 3--40, 3--41........
48732 2--43........
48755 4--8........
48758 4--7, 4--8........
49034 3--11, 3--13........
49145 2--21........
49263 2--15, 2--17, 2--23........
49266 2--37, 2--45, 2--63,........
3--25
49681 2--19
........
49697 2--53........
49826 2--9, 2--45........
49924 2--33........
50480 3--39........
50902 2--33, 2--41........
51109 2--21.........
51225--1 2--51.......
Part Page
Number Number
51529 2--27........
51562 3--23........
51564 2--31........
51813 2--35........
52402 2--33, 2--60........
52508 2--31........
54009 3--35........
54390 2--21........
54395 2--11........
54400 2--35, 3--23........
54995 2--27, 2--35........
55034 3--7, 3--9, 3--15........
55586 2--61........
55685 2--60........
55779 2--30........
55808 2--25........
55965 3--35........
56185 2--17........
56690 2--17........
56692 2--59........
56820 2--23, 2--43, 2--61........
56821 2--37, 2--59, 3--25........
56835 2--17........
57496 2--33........
57972 2--57........
57974 2--57........
58056 2--23........
58366 2--15, 3--7, 3--9........
58596 4--6........
59431 2--3........
59432 2--3........
59542 2--43........
59633 2--37, 3--25........
59661 3--17........
59870 2--60........
59965 2--51........
61791 2--25........
63416 2--60........
64173 2--35........
64379 2--51........
64425 2--37, 3--25........
64886 2--23........
65221 1--1, 2--59........
65230 4--3........
65780 3--37........
65781 3--37........
65782 3--37........
67004 3--35........
67366 2--43........
67683 2--60........
67767 2--5, 2--51, 2--53
........
69924 2--23........
69925 2--23........
69926 2--23........
69928 2--23........
69971 3--19........
70006 2--59........
70622 2--17........
70709 2--17........
70717 2--17........
Home
Find...
Go To..
CROSS REFERENCE
5--7
S20 Electric 9006708 (8--11)
Part Page
Number Number
71126 2--35, 3--23.........
71244 2--41........
71367 2--21........
71477 3--19........
71529 2--65........
71556 2--57........
71557 2--57........
71574 4--6........
71579 2--5........
72040 2--25........
72084 2--19........
72154 3--17........
72164 3--3, 3--5, 3--7, 3--9........
72171 3--3, 3--5, 3--7, 3--9........
72173 3--3, 3--5, 3--7, 3--9........
72439 2--13........
72968 2--5........
74094 4--3........
74100 4--3........
74109 4--6........
74110 4--6.........
74111 4 --6.........
74112 4--6.........
74140 4--6........
74173 2--17, 4--6........
74181 4--6........
74182 4--6........
74190 4--6........
74191 4--6........
74195 4--6........
74218 4--6........
74250 4--3........
74251 4--6........
74454 2--41........
74455 2--33, 2--41, 2--51,........
2--53, 2--63, 3--17
75128 2--11........
75428 3--15........
75430 2--19........
75939 2--39........
75968 2--17........
76062 2--63........
763045 3--11, 3--13, 3--15,........
3--17
763149 2--53........
76316 2--59, 2--61........
76570 2--35, 3--23........
76762 2--57........
76960 2--13........
77005 4--10........
77097 2--51, 3--23........
79246 2--51
........
79785 4--5........
79786 4--5........
79787 4--5........
79788 4--5........
79789 4--5........
79792 4--5........
79794 4--5........
79795 4--5........
Part Page
Number Number
79796 4--5........
79800 4--5........
79801 4--5........
79802 4--5........
79804 4--5........
79805 4--5........
79806 4--5........
79807 4--5........
79808 4--5........
79812 4--5........
79814 4--5........
79820 4--5........
82819 2--57........
82833 2--17, 2--23........
84581 2--37, 3--25........
86029 2--37, 3--25........
86375 2--63........
86377 3--3, 3--5, 3--7, 3--9........
86379 2--63........
86398 2--65........
86417 2--63........
86444 2--9........
86618 2--53........
86659 2--21........
86798 2--19........
86866 2--5........
87097 2--3........
87099 2--3........
87104 2--51........
87172 3--21........
87180 2--5........
87181 1--1, 2--5........
87216 2--43........
87244 2--43........
87277 2--5........
87299 2--41........
87308 2--13........
87318 2--63........
87333 2--3........
87334 2--3........
87349 2--15........
87355 2--25........
87482 2--63........
87483 2--63........
87495 2--65........
87496 2--65........
87507 2--63........
87536 2--15........
87546 2--53........
87558 2--65........
87581 2--13
........
87631 2--31........
87689 1--1, 2--51........
87707 2--39........
87725 2--19........
87749 2--25........
87750 2--25........
87838 2--41........
87839 2--25........
87840 2--25........
Part Page
Number Number
87841 2--25........
87849 2--25........
87866 2--15........
87983 2--39........
9000846 3--3, 3--5, 3--7, 3--9.......
9000879 3--3, 3--5, 3--7, 3--9.......
9006013 3--31.......
9006015 3--11.......
9006021 3--21.......
9006023 3--35.......
9006025 3--36.......
9006029 3--19.......
9006041 3--33.......
9006315 3--3.......
9006316 3--7.......
9006317 3--5.......
9006318 3--9.......
9006388 1--1.......
9006392 1--1.......
9006534 1--1.......
9006699 2--73.......
9006704 3--42.......
9006705 3--42.......
9006706 3--42.......
9006707 3--42.......
9006708 3--42.......
9006710 3--42.......
9006711 3--42.......
9006724 3--42.......
9006727 3--42.......
9006900 2--43.......
9006902 2--43.......
9006909 3--35.......
9006911 3--35.......
9006976 2--63.......
9006977 2--63.......
9006980 2--15.......
9006981 2--15.......
9006983 2--33.......
9006984 2--33.......
9006985 2--63.......
9006986 2--63.......
9007131 3--3, 3--5, 3--7, 3--9.......
9007175 2--63.......
9007176 2--63.......
9007372 2--43.......
9007374 2--43.......
9007391 2--39.......
Home
Find...
Go To..
CROSS REFERENCE
S20 Electric 9006708(8--11)
5--8
PART DESCRIPTION TO PAGE NUMBER CROSS REFERENCE LIST
A
Adapter Wldt, Wand, Vacuum, 3--35
Alarm Assy, Backup, 12--48vdc
82--102dba, 3--3, 3--5, 3--7, 3--9
Alarm Assy, Backup, 12/48vdc, 3--3, 3--5,
3--7, 3--9
Alarm Kit, Backup, Flsh, Ohg, Ev, Ci, 3--7
Alarm Kit, Backup, Flsh, Rear, Ev, Ci, 3--3
Alarm Kit, Backup, Strb, Rear, Ev, Ci, 3--5
Alarm Kit, Backup, Strobe, Ohg, Ev, Ci,
3--9
Alarm, Audio, 10--48vdc [Mallory], 2--15
Angle Wldt, Bmpr, Tower, Lh, 3--21
Angle Wldt, Bmpr, Tower, Rh, 3--21
Angle Wldt, Mtg, Door, 3--17
Angle, Bottom, 3--23
Angle, Cab, Rear [Drip Ledge, S20], 3--15
Angle, Cab, Side [Drip Ledge, S20], 3--15
Angle, Keeper, Cable, 2--29
Angle, Mtg, Alarm, 3--3, 3--5
Angle, Mtg, Latch, 3--17
Angle, Mtg, Muffler, Vacfan, 2--41
Angle, Mtg, Wndw, Lh, 3--15
Angle, Mtg, Wndw, Rh, 3--15
Arm Wldt, Brush, Main, Drive, Lh, 2--31
Arm Wldt, Brush, Main, Idler, 2--30
Arm Wldt, Cntrl, Dir, 2--19
Arm Wldt, Lift, Brush, 2--35
Arm Wldt, Lift, Lh, 3--25
Arm Wldt, Lift, Rh, 2--37
Arm, Idler, 2--31
Arm, Lever, Brake, 4.1 [Knott], 2--21
Arm, Lift, Hppr, W/ Label [S20] Jp, 2--43
Arm, Lift, Hppr, W/ Label [S20] Na, 2--43
Arm, Safety, Hppr, W/ Label [S20], 2--43
Arm, Safety, Hppr, W/ Label, Tj [S20],
2--43
Arm, Steering, 2--23
Armature and Fan Assembly, 4--7, 4--8
Armature Fan, 4--8
Armrest Assy, Rh, F/53845 [Grammer],
3--19
B
Ball, 4--5
Balljoint, M6 X 1.0 Fem, M6 X 1.0 Mal,
2--19
Bar, Cover, 2 --53
Bar, Hex, Stl 0.75, 01.6l .50h Thru, 2--31
Battery, Wet, 06vdc 0360ah, 3--39
Battery, Wet, 18vdc 0340ah, 3--41
Battery, Wet, 18vdc 0440ah, 3--40
Bearing, Ball, 0.67b 1.57d 0.47w, 2--41
Bearing, Ball, 0.98b 2.05d 0.59w, 2--31
Bearing, Ball, 1.18b 2.44d 0.63w, 2--21
Bearing, Ball, 1.38b 2.83d 0.67w, 2--30
Bearing, Flng, 2hole, 0.50b [Nyl], 2--17
Bearing, Flng, 2hole, 0.50b, 2--17
Bearing, Flng, 2hole, 1.00b, 2--43
Bearing, Needle, 4--6
Bearing, Self Align, 1.00b 1.63d, 2--23
Bearing, Self Align, 1.25b 2.00d, 2--43
Bearing, W/ Collar, 0.75b 1.85d 1.06w,
2--30
Bearing, 4--7, 4--8
Bellcrank, Lift, Brush, Side, Lh, 2--35
Bellcrank, Lift, Brush, Side, Rh, 2--35
Bellows, Solenoid, .75--16, 1.5l, 2--39
Belt, V, 31.5l [3v], 1--1, 2--31
Belt, V, 32.2l [07m], 2--41
Belt, V, 33.5l [3v], 1--1, 2--33
Belt, V, 54.0l [3vl], 1--1, 2--33
Block, Adj, Pivot, 2--35, 3--23
Block, Adj, 2--27
Bolt, Eye, .38--16 X 3.22, 0.28 Eye, 2--41
Bolt, Gearbox, Drive Wheel, 2--25
Boot, .63id .29l .90w, 2--15
Boot, 90deg .50id .57id X .84id 1.0l,Blk,
2--25, 2--33
Boot, Bellows, 3.1l 4.4w 2.8h 1hole, Neo,
2--17
Boot, Circuitbreaker, 3--3, 3--5, 3--7, 3--9
Boot, Switch, Ignition, 2--15
Bracket Wldt, Fltr, 2--53
Bracket Wldt, Latch, 2--13
Bracket Wldt, Mtg, Bmpr, 3--21
Bracket Wldt, Mtg, Door, 3--17
Bracket Wldt, Mtg, Fan, 2--41
Bracket Wldt, Mtg, Motor, 2--33
Bracket Wldt, Steering, Tilt, 2--17
Bracket Wldt, Stop, Brush, 2--9
Bracket Wldt, Switch, Shakr, 2--39
Bracket, Adj, Seat, 2--11
Bracket, Angle, Hppr Bottom Stiffener,
2--45
Bracket, Angle, Keeper, Cable, 2--35, 3--23
Bracket, Angle, Mtg, Brg, 2--30
Bracket, Angle, Mtg, Pin, Latch, 2--13
Bracket, Angle, Pivot, Door, Dump, Lh,
2--51
Bracket, Angle, Pivot, Door, Dump, Rh,
2--51
Bracket, Arm, Side Brush, 2--37
Bracket, Door, Indicator, 2--51
Bracket, Hinge, Door, 2--7, 2--9
Bracket, Inlet, Vacfan, 2--39
Bracket, Latch, Door, 3--17
Bracket, Latch, Keeper [Southco], 2--53
Bracket, Lift, Brush, Auto, 2--29
Bracket, Mtg, Angle, Air Fltr, 1--1
Bracket, Mtg, Bmpr, Front, Lh, 2--45
Bracket, Mtg, Bmpr, Front, Rh, 2--45
Bracket, Mtg, Circuitbreaker, Ele, 2--15
Bracket, Mtg, Cyl, 2--51
Bracket, Mtg, Fan, Ev, 3--15
Bracket, Mtg, Fltr, Hyd, 2--59
Bracket, Mtg, Hinge, 2--45
Bracket, Mtg, Horn, 3--7, 3--9
Bracket, Mtg, Mirror, Brush, 3--11, 3--13
Bracket, Mtg, Mirror, Top, 3--11, 3--13
Bracket, Mtg, Mirror, 3--11, 3--13
Bracket, Mtg, Motor, Lh, 3--25
Bracket, Mtg, Motor, Rh, 2--37
Bracket, Mtg, Panel, Cab, 3--15
Bracket, Mtg, Pedal, Lh, 2--19
Bracket, Mtg, Pedal, Rh, 2--19
Bracket, Rod, Safety, 2--47
Bracket, Sbdc, Lh, 3--33
Bracket, Sbdc, Rh, 3--31, 3--33
Bracket, Sidebrush, Lh, 3--25
Bracket, Sppt, Battery, 3--39
Bracket, Sppt, Ele Panl, 2--63
Bracket, Stop, Brush Door, 2--7, 2--9
Bracket, Switch, Shaker, 2--39
Bracket, Tray, 2--53
Brake Assy, 2--21
Brush Box and Plate Assembly, 4--7, 4--8
Brush Kit, Side, Dual, Ele,Ci[S20 Affil],
3--33
Brush Spring, 4--7, 4--8
Brush, Motor, Ele [Av#a91--112e], 4--8
Brush--Side Swp, Flatwire, 2--3
Brush--Side Swp, Polypropylene, 2--3
Brush--Side Swp, Soft Nylon, 2--3
Brush--Sweep, Natural Fiber, 2--3
Brush--Sweep, Polyester 24 Dr, 2--3
Brush--Sweep, Polyester 8 Dr, 2--3
Brush--Sweep, Polypropylene and Wire,
2--3
Brush--Sweep, Polypropylene, 2--3
Brush--Sweep, Wedge, Polypropylene, 2--3
Brush--Sweep, Window, Polypropylene,
2--3
Bumper Kit, Corner, Rear, Ci [S20], 3--21
Bumper Wldt, Front, 2--45
Bumper, Rbr, 0.90d 0.38th 0.18h, 2--11
Bumper, Rbr, 1.0d 0.38th .25--20, 2--9
Busbar, .06 0.6w 2.5l 2/.28h, 2--63
Busbar, Fuse, .6 0.6w 0.8h 2.0l, 2--63
Bushing, Flng, 0.50b 0.59d 0.38l, 2--41
Bushing, Sleeve, 0.50b 0.59d 0.38l, Stl,
2--35
Bushing, Sleeve, 0.63b 0.72d 0.25l, 2--29,
2--31
Bushing, Sleeve, 0.75b 0.88d 0.75l, Tef,
2--51
Bushing, Sleeve, 0.78b 0.86d 0.93l, Bnz,
2--21
Bushing, Sleeve, 1.00b 1.13d 0.99l, Fgl,
2--43
Bushing, 4--5
Button, Cntrl, Horn [Isolated], 2--17
C
Cable Assy, Battery, 04ga, 2clamp, 175a,
3--39
Cable, 04ga 12.0l Blk .34ring /.34ring,
2--65
Cable, 04ga 15.0l Blk .28ring /.34ring,
2--65
Home
Find...
Go To..
CROSS REFERENCE
5--9
S20 Electric 9006708 (8--11)
Cable, 04ga 21.0l Blk .28ring /.34ring,
2--65
Cable, 04ga 30.0l Blk .34ring /.34ring,
2--65
Cable, 04ga 32.0l Blk .34ring /.34ring,
2--65
Cable, 04ga 48.0l Blk .28ring /.34ring,
2--65
Cable, 04ga 60.0l Blk .34ring /.34ring,
2--65
Cable, 06ga 11.0l Blk .28ring /.34ring,
2--65
Cable, Battery, 04ga 13.5l Blk, 2clamp,
3--39
Cable, Battery, 04ga 40.0l Blk, 2clamp,
3--39
Cable, Glv .13d 010.0l .52eye /.52eye,
3--21
Cable, Glv .13d 010.3l .4clevis /.25--28,
2--29
Cable, Glv .13d 024.2l .25eye /.25eye,
2--11
Cable, Glv .13d 031.0l .4clevis /.55eye,
2--29
Cable, Ss .12d 60.25l .55eye / M6--1.0,
2--35
Cable, Ss .12d 89.0l .55eye / M6--1.0,
3--23
Cable, Ss .19d 008.5l .55eye / M6--1.0,
2--37, 3--25
Cam, Plt, Brake [Nickel], 2--21
Cap Assembly, 4--5
Cap Screw, 4--3
Cap, Breather, Hyd, 5.2 Ds, 2--59
Cap, Breather, Hyd, 1--1
Cap, End, 4--3, 4--6
Cap, Hub, Dust, 2.57d 0.77l, 2--21
Cap, Screw, 4--6
Cap, Vinyl, 0.23id, 1.50l, 2--31
Cap, Vinyl, 3.28d 0.45l, 2--31
Channel Wldt, Ohg, Lh, 3--11, 3--13
Channel Wldt, Ohg, Rh, 3--11, 3--13
Channel, .19, 2.8w 2.0 04.0l, 2/ M10, 2--41
Channel, Latch, 2--13
Channel, Mtg, Lock, 2--43
Channel, Mtg, Steering Latch, 2--17
Channel, Recirculation Flap, 2--5
Channel, Sppt, Battery, 3--39
Charger, 45A / 50--60H/1Ph, 3--37
Charger, 50A / 50H/1Ph, 3--37
Charger, 50A/60H/1Ph,, 3--37
Charger, 75A / 50H/3Ph, 3--37
Charger, 75A /60H/1Ph, 3--37
Charger, 75A/60H/3Ph, 3--37
Circuitbreaker, 05.0a, Resetable, 3--3, 3--5,
3--7, 3--9
Circuitbreaker, 15a, Resetable, 2--15
Circuitbreaker, 2.5a, Resetable, 2--15, 3--3,
3--5, 3--7, 3--9, 3--15
Circuitbreaker, 20a, Resetable, 2--15
Clamp, Cable, Stl, 0.69d X 0.62w, 1hole,
2--5, 2--51, 2--53
Clamp, Cable, Stl, 1.0x2.0x0.62w, 1hole,
2--43
Clamp, Cable, Stl, 1.25d X 1.00w, 1hole,
2--15, 3--7, 3--9
Clamp, Hose, Wormdrive, 3.56--4.50d,
.50w, 2--41
Clamp, Steering, 2--25
Clevis, Adj, 0.25pin, 0.25--28 Rh, Pl, 2--21,
2--29
Clevis, Adj, M6 Pin, M6 X 1.0 Rh, Pl,
2--35, 2--37, 3--23, 3--25
Clip, Grip, Finger, 1.00--1.88d,White Vyl,
3--35
Clip, Grip, Pipe, 0.50, Plstc, 3--15
Clip, Keeper, 2--53
Clip, Spring, Prop Arm, 2--43
Column, Steering, 09.9l 0.86d 36tooth,
2--17
Commutator Endhead, 4--7, 4--8
Cone, 4--5
Connector, Gray, 3--37
Connector, Anderson, 175a, Orange, 3--40,
3--41
Contactor, 36vdc [Spco], 3--3, 3--5, 3--7,
3--9
Contactor, 36vdc [Spno], 2--63
Contactor, 36Vdc, 100A, Sp, No, 2--39
Contactor, 36vdc, 100a, Sp, No, 3--3, 3--5,
3--7, 3--9
Controller, 36vdc [Only F/ Tnv], 2--63
Cord, Sponge, Neo, 1.0d 36.3l, 1--1, 2--51
Cover, Hppr, 2--47
Cover, Mold, 2--53
Cover, Wldt, Component, Ele, W/Label
[S20] Jp, 2--63
Cover, Wldt, Component, Ele, W/Label
[S20] Na, 2--63
Cs, Tape, Hook, 1.0w [Velcro], 3--15, 3--17
Cyl, Hyd, 2.5b 9.0l 01.50strk, 2500, 3--23
Cylinder, Hyd, 2.0b 08.0l 04.00strk 2500,
2--51
Cylinder, Hyd, 2.0b 19.0l 12.00strk 1500,
2--23
Cylinder, Hyd, 2.5b 24.8l 13.50strk 3000,
2--43
D
Damper, Inlet, 2--39
Deflector, Hppr, Lh, 2--45
Deflector, Hppr, Rh, 2--45
Detent Adaptr, 4--5
Diode, Ele, Plug, 2--15, 3--3, 3--5, 3--7,
3--9, 3--23
Disc, 0.06, 04.39d 01.67b, 4/.30h 3.8bc,
2--31
Disc, 0.08, 04.39d 02.56b, 4/.28h 3.8bc,
2--30
Door Wldt, Brush, Lh, 2--9
Door Wldt, Brush, Rh, 2--7
Door Wldt, Cab, 3--17
Door Wldt, Dump, Hppr, 2--51
Door Wldt, Wand, Vacuum, 3--35
Door, Access, Hppr, 2--45
Drive Endhead, 4--7, 4--8
Drive, 4--3, 4--6
Duct, Vyl, 0.74 X 1.50 .75d Max 48.0l, 3--7,
3--9, 3--15
E
Elbow, Mold, 2--53
Element, Fltr, Oil, Spin--On, 1--1, 2--59
Extinguisher Kit, Fire, Ci [S20], 3--36
Extinguisher, Fire, 2.5 Lb Dry, 3--36
F
Fan, Defroster, 36vdc, 07.9d, 3--15
Fan, 4--7
Fastener, Wire, Tie [Button Head], 2--15,
2--63
Field Coil Kit, 4--7, 4--8
Filter Assy, Hyd, 10mic 035gpm, Spin--On,
2--59
Filter, Cyl, 11.09d, 13.31l, 6.724 Id, 1--1,
2--53
Fitting, Brs, Str, Bm03/Pm02, 2--51, 2--53
Fitting, Grease, Str Pm04 .47l, 2--23, 2--43
Fitting, Grease, 2--25
Fitting, Hyd, E45, Jm04/Om04, 3--27
Fitting, Hyd, E45, Jm06/Om06, 2--23, 2--61
Fitting, Hyd, E90, Jf06/Jm06, 2--17
Fitting, Hyd, E90, Jm04/Om04, 2--51, 3--23
Fitting, Hyd, E90, Jm04/Om06, 2--43
Fitting, Hyd, E90, Jm06/Om06, 2--23,
2--43, 2--61
Fitting, Hyd, E90, Jm08/Om10, 2--37,
2--59, 3--25
Fitting, Hyd, E90, Jm08/Om12, 2--59
Fitting, Hyd, E90, Jm12/Om12, 2--59
Fitting, Hyd, E90, Om04/Qm04, 2--61
Fitting, Hyd, Plug, Jm08, 2--59
Fitting, Hyd, Rst, Jf04/Jm04, .047, 2--43
Fitting, Hyd, Str, Jf08/Jm06, 2--37, 3--25
Fitting, Hyd, Str, Jm04/Om04, 2--61
Fitting, Hyd, Str, Jm04/Om06, 2--60
Fitting, Hyd, Str, Jm06/Jm06, 3--29
Fitting, Hyd, Str, Jm06/Om06, 2--17
Fitting, Hyd, Str, Jm06/Om08, 2--33, 2--60
Fitting, Hyd, Str, Jm08/Om06, 2--17
Fitting, Hyd, Str, Jm08/Om10, 2--59
Fitting, Hyd, Str, Jm08/Om12, 2--59
Fitting, Hyd, Str, Jm12/Om10, 2--33
Fitting, Hyd, Str, Om04/Qm04, 2--61
Fitting, Hyd, Tee, Jf06/Jm06/Jm06, Run,
2--17
Fitting, Hyd, Tee, Jm06/Jm06/Om06, Br,
2--60
Fitting, Hyd, Tee, Jm06/Jm06/Om06, Run,
2--59, 2--61
Fitting, Plug, Org, #6, Valve [Cec], 4--10
Flange Mounting, 4--3
Flange, Brg, 1.9id 2h, 2--30
Flap, Recirculation, 1--1, 2--5
Home
Find...
Go To..
CROSS REFERENCE
S20 Electric 9006708(8--11)
5--10
Flasher, 12/48vdc 5a [6309/12--48v], 3--3,
3--5, 3--7, 3--9
Frame Wldt, Ele [S20], 2--5
Fuse, 080a, 0.88 2.4l, 125volt,Slow--Blow,
2--63
Fuse, 100a, 0.88 2.4l, 125volt, 2--63
G
Gasket, Cap, Breather, Hyd, 2--59
Gasket, Cover, 1--1, 2--53, 2--63
Gasket, Door, Wand, Vacuum, 3--35
Gasket, Tray, 2--53
Gauge, Discharge, Battery, 36vdc, Led,
2--15
Gauge, Hourmeter, 12--60vdc, Analog
[10k], 2--15
Gear, Drive, 2--25
Gearbox, 90, Drive Wheel, Rear [Hu],
2--25
Gerotor Set, 4--3, 4--6
Grip,Vyl,2--39,2--60
Grommet, Rbr, 0.50id, F/0.8h, .09 Matl,
2--63
Grommet, Rbr, 0.62id, F/0.9h, .06 Matl,
2--51
Grommet, Rbr, 0.69id, F/1.0h, .25 Matl,
2--45
Grommet, Rbr, 1.06id, F/1.4h, .19 Matl,
3--7, 3--9
Grommet, Taillight, 5.44 X 3.56, 2--5
Guard, Belt, Brush Drive, W/ Label, Jp,
2--33
Guard, Belt, Brush Drive, W/ Label, Na,
2--33
Guard, Brush, 2--37, 3--25
Guard, String, Motor, Brush, 2--37, 3--25
H
Handle Wldt, Brush, Side, 2--35
Handle Wldt, Door, 3--11, 3--13
Handle Wldt, Latch, Shrd, 2--13
Handle Wldt, Lift, Brush, 2--27
Handle, Cntrl, Valve, 2--60
Handle, Door, 3--17
Harness Kit, Main, Ele, Replmt [S20], 2--73
Harness, Alarm / Strobe, 36vdc [S20], 3--3,
3--5
Harness, Alarm / Strobe, Ohg, 36vdc[S20],
3--7, 3--9
Harness, Brush, Side, Lh, 36Vdc [S20],
3--26
Harness, Hppr, 36vdc [S20], 2--73
Harness, Hppr, Cover [S20], 2--73
Harness, Main, Ele [S20], 2--73
Harness, Seat [S20], 3--19
Harness, Shakr, Motor [S20], 2--73
Harness, Wire, Battery, 3--40, 3--41
Harness, Wire, Controller, 2--65
Headband, 4--8
Headlight , 36v, 2--45
Headlight, 36vdc, Led, UL, 2--45
Hinge, .25pin .12 3.0w 03.0l, 4/0.28sl,
2--45
Hinge, .25pin .12 3.0w 04.5l, 6/0.38sl,
2--11
Hinge, .38pin .12 3.5w 07.8l, 4/0.38h, 2--7,
2--9
Hinge, .38pin .12 3.5w 4.0l [Oal], 2--47
Hopper [S20], 2--45
Horn, 36vdc, 115 Dba, 2--5
Hose Assy, W/2cuff, 2.0d 120l 2.0/2.0,
3--35
Hose, Flex, Vacuum, 04.0d, 017.0l, 2--41
Hose, Flex, Vacuum, 04.0d, 21.0l, 1--1
Hose, Hyd, Low06, Jf06e45/Jf06str, 022.0,
2--57
Hose, Hyd, Low06, Jf06e90/Jf06str, 052.0,
2--57
Hose, Hyd, Low06, Jf06str/Jf06str, 026.0,
2--57
Hose, Hyd, Low08, Jf08e45/Jf08str, 024.0,
2--57
Hose, Hyd, Low08, Jf08e90/Jf08str, 024.0,
2--57
Hose, Hyd, Low08, Jf08e90/Jf08str, 032.0,
2--57
Hose, Hyd, Med04, Jf04e45/Jf04str, 018.0,
2--57
Hose, Hyd, Med04, Jf04e90/Jf04str, 088.0,
2--57
Hose, Hyd, Med06, Jf06e45/Jf06str, 021.0,
2--57
Hose, Hyd, Med06, Jf06e90/Jf06str, 068.0,
2--57, 3--29
Hose, Hyd, Med06, Jf06e90/Jf06str, 100.0,
2--57, 3--29
Hose, Hyd, Med06, Jf06str/Jf06str, 030.0,
2--57
Hose, Hyd, Med06, Jf06str/Jf06str, 042.0,
2--57
Hose, Hyd, Suc12, Jf12e90/Jf12str, 024.0,
2--57
Hose, Hyd, Tc04, Jf04str/Jf04e90, 070.0,
2--57
Hose, Hyd, Tc04, Jf04str/Jf04str, 020.0,
3--29
Hose, Hyd, Tc04, Jf04str/Jf04str, 028.0,
3--29
Hose, Hyd, Tc06, Jf06e90/Jf06str, 024.0,
2--57
Hose, Hyd, Tc06, Jf06e90/Jf06str, 034.0,
2--57
Hose, Hyd, Tc06, Jf06e90/Jf06str, 086.0,
3--29
Hose, Hyd, Tc06, Jf06e90/Jf06str, 096.0,
3--29
Hose, Hyd, Tc06, Jf06str/Jf06str, 020.0,
2--57
Hose, Vacuum, 0.16id X 060.0l, 2--51
Housing Wldt, Fan, 2--41
Housing, Brg, Drive,Brush, 2.5d 2.0b 5.0,
2--31
Housing, Fan, Rear, Impeller, 2--41
Housing, Flng, Brg, 2--41
Housing, Upper, Gearbox, Drive Wheel,
2--25
Housing, 4--3
Hub, Adapter, Brush, 1.00b, 2--37, 3--25
Hub, Guide, End, Actuator, 2--33
I
Impeller, 9.00d X 1.40w X 0.376b, 2--41
Instr. Repair Info, Motor, 4--3
Instr. Valve Repair Info, 4--5
Insulation, Acstc, 0.5, 04.6 X 04.4, 2--41
Insulation, Acstc, 0.5, 08.6 X 03.6, 2--41
Insulation, Acstc, 0.5, 08.6 X 04.2 Ntch,
2--41
Insulation, Acstc, 0.5, 08.6 X 04.6 Ntch,
2--41
Insulation, Acstc, 0.5, 08.7 X 04.2 Ntch,
2--41
Insulation, Acstc, 0.5, 21.4 X 20.6 C--O,
2--11
Insulation, Acstc, 0.5, 21.5 X 12.2 Ntch,
2--11
Insulation, Acstc, 0.5, 31.6 X 14.1 Ntch,
2--11
Insulation, Acstc, 0.5, 32.0 X 21.6 Ntch,
2--11
Insulation, Acstc, 0.8, 06.6 X 03.0 Slit,
2--11
Insulation, Acstc, 2.0, 02.0 X 12.0, 2--5
Insulation, Acstc, Rnd, 0.8, 02.5d 0.5h,
2--17
Insulation, Acstc, 3--13
K
Key, Ignition [Set Of 2], 2--15
Key, Sq, 0.12 X 0.12, 1.00l, 2--41
Key, Sq, 0.19 X 0.19, 1.38l, 2--33
Key, Sq, 0.25 X 0.25, 1.00l, 2--31
Key, Woodruff, 0.19 0.75 [Asa0606], 2--41
Key--Wdruff 0.16 0.662 Asa#0505, 4--7
Kit, Detent In, 4--5
Knob, 1.12d 3.86l M10 X 1.5, Plstc Tpr],
2--27, 2--35
Knob, Star, 2.75d 4ear 1.1l M8x1.25, 2--53
Knob, Tee, 0.38--16, 2.5 X 1.0 1.1l,Plstc,
2--17
L
Label Set, Opertnl [S20 Ele], 2--74
Label Set, Info/Hzrd [S20], 2--74
Label, Model [S20], 2--74
Lamp, Bulb, 3--3, 3--5, 3--7, 3--9
Latch, Bolt, Eng Side Door, 3--17
Latch, Door [Southco 91--562--07], 2--53
Latch, Door, 2--45
Latch,Swell,2--7,2--9
Latch, 2--13, 2--47, 3--17
Lead Assembly Kit, 4--7, 4--8
Home
Find...
Go To..
CROSS REFERENCE
5--11
S20 Electric 9006708 (8--11)
Lens, Amb, F/ Revl / Flasher, 3--3, 3--5,
3--7, 3--9
Lens, Blu, F/ Revl / Flasher, 3--3, 3--5, 3--7,
3--9
Lens, Red, F/ Revl / Flasher, 3--3, 3--5,
3--7, 3--9
Lever, Adj, Metal, 2--35, 3--23
Lever, Adj, Plstc, 2--27
Lever, Brush Lift, 2--27
Lever, Stop, Brake, 2--21
Lever, Vacfan, 2--39
Light, Flsh, Amb, 12--48vdc, 3--3, 3--7
Light, Panl, 36vdc, 1.1 X 1.0, 2--15
Light, Spot, 36vdc, 60watt . A 4.8d, 3--3,
3--5, 3--7, 3--9
Light, Strobe, Amb, 12--48vdc, 3--5, 3--9
Link Assy, Valve Handle, 2--60
Link, Lift, Main Brush, 2--27
M
Maint Kit, 400hr [S20 Ele], 1--1
Maint Kit, 800Hr [S20 Ele], 1--1
Manual, Oprtr [S20 Ele, Cn], 3--42
Manual, Oprtr [S20 Ele, Ptb], 3--42
Manual, Oprtr [S20 Elec, En], 3--42
Manual, Oprtr [S20 Elec, Es], 3--42
Manual, Oprtr [S20 Elec, Fr], 3--42
Manual, Oprtr [S20 Elec, Jp], 3--42
Manual, Parts [S20 Ele, En], 3--42
Manual, Service [S20 Gas/Lpg/Dsl, En],
3--42
Mirror, Convex, 06.7 X 06.2, 3--11, 3--13
Mirror, Flat, 05.0d, 3--11, 3--13
Molding, Afmkt, Trim, Pvc, .18 .31, 08Ft,
3--11, 3--13
Molding, Trim, Pvc, .08--.11 39.2l, 3--35
Motor, Ele, 36vdc 2130rpm 2.10hp (See
Breakdowns), 2--25
Motor, Ele, 36vdc 2300rpm 4.00hp (See
Breakdowns), 2--33
Motor, Ele, 36Vdc 2315Rpm 0.10Hp
08.9A, 2--53
Motor, Electric, 36VDC 2.1 HP, 4--7
Motor, Electric, 36VDC 4.0 HP, 4--8
Motor, Hyd Gear In 08.9 B 1500, 4--3
Motor, Hyd, Gear, Int 08.9 Bi--Dir 1500
(See Breakdown), 3--25
Motor, Hyd, Gear, Int 08.9 Bi--Dir 1500
(See Breakdowns), 2--37
Muffler Wldt, Fan, 2--41
N
Nut, Hex, Flexlock, .31--24, Thin, 2--41
Nut, Hex, Flexlock, .38--24, 2--41
Nut, Hex, Flexlock, .50--13, Thin, 2--37,
3--25
Nut, Hex, Flng, M10 X 1.50, 2--43, 2--63
Nut, Hex, Flng, M12 X 1.75, 2--5, 3--11,
3--13
Nut, Hex, Flng, M8 X 1.25, 2--5, 2--11,
2--15, 2--19, 2--39, 2--43, 2--47, 2--51,
2--59, 2--63, 3--3, 3--5, 3--7, 3--9, 3--11,
3--13
Nut, Hex, Jam, .25--28, 2--21
Nut, Hex, Jam, .31--24, 2--39
Nut, Hex, Jam, .50--13, 2--13
Nut, Hex, Jam, M20 X 1.5, 2--17
Nut, Hex, Lock, .25--20, Nl, Ss, 2--9
Nut, Hex, Lock, .31--18, Nl, 2--13
Nut, Hex, Lock, .31--24, Nl, 2--7
Nut, Hex, Lock, .38--16, Nl, Thin, 2--31
Nut, Hex, Lock, .38--16, Nl, 2--33, 2--41
Nut, Hex, Lock, .75--10, Nl, 2--23, 2--31
Nut, Hex, Lock, #06--32, Nl, 2--39
Nut, Hex, Lock, #10--32, Nl, 2--53
Nut, Hex, Lock, M10 X 1.5, Nl, 2--19, 2--31,
2--33, 2--35, 2--43, 2--45, 3--17, 3--19,
3--20
Nut, Hex, Lock, M12 X 1.75, Nl, 2--21,
2--31, 2--43
Nut, Hex, Lock, M14 X 1.50, Nl, 2--25
Nut, Hex, Lock, M16 X 2.00, Nl, 2--37,
3--25
Nut, Hex, Lock, M4 X 0.70, Nl, 2--51, 2--53,
3--15
Nut, Hex, Lock, M5 X 0.80, Nl, 2--15, 2--21,
2--51, 3--3, 3--5, 3--7, 3--9, 3--17
Nut, Hex, Lock, M6 X 1.00, Nl, 2--13, 2--15,
2--17, 2--19, 2--21, 2--39, 2--41, 2--45,
2--47, 2--51, 2--60, 3--3, 3--5, 3--7,
3--9, 3--11, 3--13, 3--17, 3--23, 3--35,
3--39, 3--40, 3--41
Nut, Hex, Lock, M8 X 1.25, Nl, Ss, 2--25,
2--37, 3--25
Nut, Hex, Lock, M8 X 1.25, Nl, 2--5, 2--11,
2--21, 2--27, 2--31, 2--35, 2--43, 2--45,
2--49, 2--51, 2--53, 2--59, 3--3, 3--5,
3--7, 3--9, 3--17, 3--19, 3--23, 3--31,
3--33
Nut, Hex, Sltd, .75--16, 2--21, 2--23, 2--31
Nut, Hex, Std, .25--28, 2--29
Nut, Hex, Std, .38--16, 2--19
Nut, Hex, Std, .75--16, 2--23
Nut, Hex, Std, #10--32, Ss, 2--5
Nut, Hex, Std, 10--32, 2, 2--39
Nut, Hex, Std, M10 X 1.50, Ss, 2--31
Nut, Hex, Std, M3 X 0.50, 8, 2--15
Nut, Hex, Std, M6 X 1.00, 8, 2--19, 2--35
Nut, Hex, Std, M6 X 1.00, Ss, 2--37, 3--23,
3--25
Nut, Short, 4--9, 4--10
Nut, Wheel, M14--1.5, 2--25
O
OhgKit,Ci[S20],3--11
Oil, Hyd [El, Iso 32, 01Gal], 1--1
P
Pad, Pedal, Brake, 3.96l 2.36w 0.75, 2--21
Pad, Wear, Pye, 1.25d 1.0l, 2--23
Paint, Airdry, Blk, 12oz, 1--1
Paint, Airdry, Gray, 12oz [Enamel], 1--1
Paint, Airdry, Iron Gray,12oz[Pwdr Coat],
1--1
Paint, Airdry, Off--White, 12oz, 1--1
Paint, Airdry, Teal, 12oz, Solid, 1--1
Pane Assy, Windshield, 3--15
Panel Assy, Cab, 3--15
Panel Assy, Indicator Light, Ele, 2--15
Panel Wldt, Frame, Cab, 3--15
Panel Wldt, Frame, Rear, 3--15
Panel Wldt, Top, Ohg, 3--11, 3--13
Panel, Louver, 2--11
Panel, Muffler, Fan, 2--41
Panel, Oprtr Station, W/ Label, Jp [S20e],
2--15
Panel, Oprtr Station, W/ Label, Na [S20e],
2--15
Pedal Wldt, Brake, 2--21
Pedal Wldt, Propel, Lower, Adj, 2--19
Pedal, Propel, Adj, Upper, 2--19
Pin Assy, Clevis, Hppr Lift, 2--43
Pin Assy, Side Brush W/ Clip, 2--37, 3--25
Pin, 0.75d 02.0l, 1/.31h, Stl, 2--43
Pin, 1.25d 04.0l, 1/.34h, Stl, 2--43
Pin, Clevis, 0.25d X 0.75l, 2--21, 2--29,
2--37, 3--23, 3--25
Pin, Clevis, 0.31d X 1.62l, 3--23
Pin, Clevis, 0.37d X 0.75l, 2--37, 3--25
Pin, Clevis, 0.37d X 1.00l, 2--29
Pin, Clevis, 0.37d X 1.50l, 3--23
Pin, Clevis, 0.37d X 2.00l, 2--35
Pin, Clevis, 0.37d X 2.12l, 2--35
Pin, Clevis, 0.37d X 3.50l, 2--19
Pin, Clevis, 0.37d X 6.12l, 2--33
Pin, Clevis, 0.50d X 1.25l, 2--27
Pin, Clevis, 0.50d X 2.25l, 2--51
Pin, Clevis, 0.50d X 3.00l, 2--41
Pin, Clevis, 0.50d X 3.50l, 2--19
Pin, Clevis, 0.50d X 6.00l, 2--51
Pin, Cotter, .062 X 0.50, 2--21
Pin, Cotter, .094 X 0.75, 2--29
Pin, Cotter, .094 X 1.00, 2--39
Pin, Cotter, .125 X 0.75, 2--39
Pin, Cotter, .125 X 1.00, 2--19, 2--21, 2--51
Pin, Cotter, .125 X 1.25, 2--23, 2--31, 2--41,
3--23
Pin, Cotter, .187 X 1.75, 2--43
Pin, Cotter, .250 X 1.25, 2--43
Pin, Cotter, Hair, 0.31D .058 Wir, 3--23
Pin, Cotter, Hair, 0.31d .058 Wir, 2--11,
2--29, 2--33, 2--37, 3--25
Pin, Cotter, Hair, 0.38d .072 Wir, 2--5
Pin, Cotter, Hair, 0.38d .093 Wir, 2--19,
2--27, 2--35
Pin, Dowel, 0.3127d X 1.00l, 2--25
Pin, Hitch, .500d X 6.00l, Pl, 3--21
Pin, Roll, .094d X 0.87l, .094/.097, 2--45
Pin, Roll, .250d X 0.75l, .250/.256, 2--43
Pin, Roll, .250d X 2.00l, .250/.256, 2--31
Pin, Roll, .250d X 3.50l, .250/.256, 2--31
Pin, 4--6
Home
Find...
Go To..
CROSS REFERENCE
S20 Electric 9006708(8--11)
5--12
Pivot Wldt, Sba, 3--23
Pivot Wldt, 3--23
Plate Wldt, Back, Hppr, 2--51
Plate Wldt, Damper, 2--39
Plate Wldt, Lh, 2--11
Plate Wldt, Perma--Filter, 2--53
Plate Wldt, Pivot, 2--45
Plate Wldt, Rh, 2--11
Plate Wldt, 3--23
Plate, Backing, Brake, 2--21
Plate, Component, Ele, W/Label [S20] Jp,
2--63
Plate, Component, Ele, W/Label [S20] Na,
2--63
Plate, Cover, Muffler, 2--41
Plate, Grommet, Taillight, Ele, 2--5
Plate, Idler, Adjmt, 2--33
Plate, Mtg, Fire Extinguisher, 3--36
Plate, Mtg, Light, 3--3, 3--5
Plate, Mtg, Pin, 2--43
Plate, Mtg, Seatbelt, 3--20
Plate, Mtg, 2--17
Plate, Pivot, Lift, Auto, 2--29
Plate, Retainer, Headlight, 2--45
Plate, Seal, 2--9
Plate, Shield, Top, 3--15
Plate, Spacer, Lift Arm, 2--43
Plate, Sppt, Bmpr, 2--45
Plate, Sppt, Headlight, 2--45
Plate, Sppt, Hinge, 3--17
Plate, Wear, 2--45, 4--6
Plug & O--Ring, 4--5
Plug Assy, Hyd, 2--60
Plug Assy,Byd, 4--5
Plug Gage #6, 4--5
PlugWldt,Drive,Brush,2--31
Plug Wldt, Idler, Brush, 2--30
Plug, Gearbox, Drive Wheel, 2--25
Plug, Hole, Rnd, 0.22H .00--.06, Blk Nyl,
3--11, 3--13
Plug, Hole, Rnd, 0.25h .03--.12, Blk Nyl,
3--15
Plug, Hole, Rnd, 0.25h 0.8l, Brb, Nyl, 2--43
Plug, Hole, Rnd, 0.38h .3l, Plstc, 3--15
Plug, Hole, Rnd, 0.38h .4--.7, Blk Nyl, 2--5
Plug, Hole, Rnd, 0.44h .03--.12, Blk Nyl,
2--15
Plug, Hole, Rnd, 0.56h .03--.12, Blk Nyl,
2--5
Plug, Hole, Rnd, 0.75h .03--.12, Blk Nyl,
3--15
Plug, Hole, Rnd, 1.00h .14--.25, Blk Nyl,
3--15
Plug, Hole, Rnd, 1.37h 0.45l, Blk Nyl, 2--5
Plug, Hole, Rnd, 2.13h 0.6l, Blk Nyl, 2--5
Plug, Orifice, Valve, Hyd, .035, 4--10
Plunger, 4--5
Pulley, Cable, 1.5d Nyl, 2--35, 3--23
Pulley, Cable, 2.5d 0.50b, .22d Cable,
2--29
Pulley, Cable, 3.0d 1.76b, .25d Cable,
2--43, 3--23
Pulley, Idler W/ Bearing, Plstc, 2--33
Pump, Hyd, Gear, Ext, 2, 00.45 3000, Cw,
2--33
R
Race Thrust, 4--3
Race, Bearing, 4--6
Relay, 36vdc, 100a, Spdt No [Cabelform],
2--63
Repair Info, 4--6
Reservoir, 02.8gal, W/ Label [6400e],
2--59
Resistor, 040.000hm, 0040watt, 2--15
Resistor, Ele, Plug, 2--63
Retainer, Front, 4--6
Retainer, Ring, Brake, 2--21
Retainer, Seal, Dust, .12 X 0.8w X 33.6l,
2--53
Retainer, Seal, Hppr Door, Side, 2--51
Retainer, Seal, Hppr, Top, 2--5
Retainer, Skirt, .12, 1.0w X 08.1l, Pl, 2--5,
2--9
Retainer, Skirt, .12, 1.0w X 10.4l, Pl, 2--5
Retainer, Skirt, .12, 1.0w X 19.3l, Pl, 2--7
Retainer, Skirt, 3--31, 3--33
Ring, Retaining, Ext, 0.38d, [Klipring],
2--35
Ring, Retaining, Ext, 0.50d, Hd, 2--17
Ring, Retaining, Ext, 0.98d, [E--Ring],
2--43
Ring, Retaining, Ext, 0.98d, Basic, 2--31
Ring, Retaining, Int, 1.63d, 2--23
Ring, Retaining, Int, 2.00d, 2--43
Ring, Retaining, 4--5, 4--6
Ring, Steering, 2--25
Rivet, Plstc, .250d X 0.90, 2--5
Rod Wldt, Damper, 2--39
Rod Wldt, Safety, Hppr Cover, 2--47
Rod, Latch, Tilt, Steering, 2--17
Rod, Thrd, 2 End, M06 X 1.0 02.2l, 2--19
Rod--End, 0.75--16rh Mal 0.75b [Teflon],
2--23
Rod, 2--21
S
Sbdc Kit, W/O Lh Side Brush, Ci [S20],
3--31
Screw, Btn, M8 X 1.25 X 16, Ss, 2--11,
2--43
Screw, Flt, M12 X 1.75 X 80, 10.9, 2--31
Screw, Flt, Soc, .50--13 X 2.50, Al, 2--37,
3--25
Screw, Flt, Soc, M10 X 1.50 X 25, Ss,
2--31
Screw, Flt, Soc, M6 X 1.00 X 25, 10.9,
2--45
Screw, Flt, Soc, M8 X 1.25 X 16, 10.9,
2--29
Screw, Flt, Soc, M8 X 1.25 X 20, 18--8,Ss,
2--51
Screw, Hex, .25--20 X 0.50, G5, 2--63
Screw, Hex, .25--20 X 0.75, Sems, 2--13
Screw, Hex, .25--20 X 1.00, G5, 3--17
Screw, Hex, .31--12 X 1.50, Fmg [Ab],
2--37, 3--25
Screw, Hex, .31--18 X 0.62, G5, 2--11
Screw, Hex, .31--18 X 2.25, G5, 2--13
Screw, Hex, .38--16 X 0.75, G5, 2--17
Screw, Hex, .38--16 X 1.00, Nl, 2--59
Screw, Hex, .38--16 X 1.25, Nl, 2--37, 3--25
Screw, Hex, .38--16 X 1.50, Fl, 2--19
Screw, Hex, .38--16 X 1.50, G5, 2--31
Screw, Hex, .38--16 X 2.00, G5, 2--33
Screw, Hex, .50--13 X 0.75, G5, 3--3, 3--5,
3--7, 3--9
Screw, Hex, .50--13 X 2.50, G5, 2--13
Screw, Hex, .75--10 X 3.00, G5, 2--23
Screw, Hex, 06--20 X 0.50, Fmg/Ab, Pl,
2--41
Screw, Hex, 06--32 X 0.75, Fmg, Pl, 2--63
Screw, Hex, M10 X 1.50 X 100, 8.8, 2--43
Screw, Hex, M10 X 1.50 X 20, 8.8, 2--53,
2--61, 3--20, 3--27
Screw, Hex, M10 X 1.50 X 20, Ss, 2--29
Screw, Hex, M10 X 1.50 X 25, 8.8, 2--33,
3--19, 3--39
Screw, Hex, M10 X 1.50 X 25, Ss, 2--37,
2--43
Screw, Hex, M10 X 1.50 X 30, Ss, 2--45
Screw, Hex, M10 X 1.50 X 35, 9.8, Sems,
2--33, 2--41, 2--45, 2--49, 2--63, 3--21,
3--25
Screw, Hex, M10 X 1.50 X 60, 8.8, 2--19
Screw, Hex, M10 X 1.50 X 70, Fl, Ss, 2--31
Screw, Hex, M12 X 1.75 X 120, 8.8, 2--43
Screw, Hex, M12 X 1.75 X 30, 8.8, 2--25,
3--11, 3--13
Screw, Hex, M12 X 1.75 X 35, 8.8, 2--21
Screw, Hex, M12 X 1.75 X 40, 8.8, 2--5
Screw, Hex, M16 X 2.00 X 20, 8.8, 2--31
Screw, Hex, M16 X 2.00 X 90, 8.8, 2--37,
3--25
Screw, Hex, M5 X 0.80 X 16, 8.8, 2--51
Screw, Hex, M5 X 1.0 X 16, Blk, 2--21
Screw, Hex, M6 X 1.00 X 10, 8.8, 3--23
Screw, Hex, M6 X 1.00 X 12, 8.8, 2--13
Screw, Hex, M6 X 1.00 X 12, Fmg, 2--33,
2--41, 2--51, 2--53, 2--63, 3--17
Screw, Hex, M6 X 1.00 X 16, 8.8, 3--17
Screw, Hex, M6 X 1.00 X 16, Fmg, 2--45,
3--11, 3--13, 3--15
Screw, Hex, M6 X 1.00 X 16, Nl, Ss, 2--11
Screw, Hex, M6 X 1.00 X 20, 8.8, 2--19,
2--39, 2--41, 3--11, 3--13
Screw, Hex, M6 X 1.00 X 20, 9.8, Sems,
2--15, 3--31, 3--33
Screw, Hex, M6 X 1.00 X 20, Fmg, 2--43,
2--51, 3--31, 3--33
Screw, Hex, M6 X 1.00 X 20, Ss, 3--35
Screw, Hex, M6 X 1.00 X 25, 8.8, 2--11
Screw, Hex, M6 X 1.00 X 25, 9.8 Sems,
2--17, 2--31, 2--51
Screw, Hex, M6 X 1.00 X 25, 9.8, Sems,
2--39, 2--47
Home
Find...
Go To..
CROSS REFERENCE
5--13
S20 Electric 9006708 (8--11)
Screw, Hex, M6 X 1.00 X 35, 8.8, 3--39,
3--40, 3--41
Screw, Hex, M6 X 1.00 X 50, 8.8, 2--21,
2--60, 3--3, 3--5, 3--7, 3--9
Screw, Hex, M8 X 1.25 X 16, 8.8, 2--11,
2--47, 2--53
Screw, Hex, M8 X 1.25 X 16, Nl, Ss, 2--9,
2--45
Screw, Hex, M8 X 1.25 X 16, Ss, 2--13,
2--51
Screw, Hex, M8 X 1.25 X 20, 8.8, 2--63
Screw, Hex, M8 X 1.25 X 20, Fmg, 3--11,
3--13, 3--15, 3--17
Screw, Hex, M8 X 1.25 X 20, Nl, Ss, 2--31
Screw, Hex, M8 X 1.25 X 20, Ss, Sems,
2--7, 2--43, 2--63, 3--7, 3--9
Screw, Hex, M8 X 1.25 X 20, Ss, 2--5,
2--30, 3--31, 3--33
Screw, Hex, M8 X 1.25 X 25, 8.8, 2--5,
2--63
Screw, Hex, M8 X 1.25 X 25, 9.8, Sems,
2--5, 2--9, 2--11, 2--13, 2--15, 2--19,
2--47, 2--51, 2--53, 3--3, 3--5, 3--7,
3--9, 3--15, 3--23, 3--31, 3--33
Screw, Hex, M8 X 1.25 X 25, Ss, 2--37,
3--25
Screw, Hex, M8 X 1.25 X 30, 8.8, 2--35,
3--23
Screw, Hex, M8 X 1.25 X 30, 9.8, Sems,
2--5, 2--15, 2--27, 2--29, 2--33, 2--39,
2--45, 2--51, 2--59, 3--11, 3--13
Screw, Hex, M8 X 1.25 X 35, 8.8, 2--11,
2--29, 3--23
Screw, Hex, M8 X 1.25 X 35, 9.8, Sems,
2--21, 2--43, 2--45, 2--53, 3--17, 3--31
Screw, Hex, M8 X 1.25 X 40, 8.8, Fl, 2--49
Screw, Hex, M8 X 1.25 X 40, 8.8, 3--19
Screw, Hex, M8 X 1.25 X 40, Ss, 2--51
Screw, Hex, M8 X 1.25 X 45, 10.9, 2--25
Screw, Hex, M8 X 1.25 X 45, 8.8, 2--27
Screw, Hex, M8 X 1.25 X 50, 8.8, 2--25
Screw, Hex, M8 X 1.25 X 60, 8.8, 2--35,
2--43
Screw, Hex, M8 X 1.25 X 80, 8.8, 2--25
Screw, Pan, 06-- X 0.38, F/ Plstc, 2--53
Screw, Pan, 12--16 X 0.50, F/ Plstc, 2--11,
2--53, 3--35, 3--36
Screw, Pan, Phl, 06--32 X 1.00, G1, 2--39
Screw, Pan, Phl, 08--16 X 1.00, F/ Plstc,
2--45
Screw, Pan, Phl, 08--32 X 0.38, G1, 2--39
Screw, Pan, Phl, 10--14 X 0.75, F/ Plstc,
2--53
Screw, Pan, Phl, 10--16 X 0.75, Fmg/Ab,
3--36
Screw, Pan, Phl, M3 X 0.5 X 25, Blk, 2--15
Screw, Pan, Phl, M4 X 0.70 X 10, Ss, 2--53
Screw, Pan, Phl, M4 X 0.70 X 16, 4.8,
2--51, 3--15
Screw, Pan, Phl, M4 X 0.70 X 16, Ss, 2--53
Screw, Pan, Phl, M5 X 0.80 X 12, Ss,
2--15, 2--45, 2--47, 3--3, 3--5, 3--7, 3--9
Screw, Pan, Phl, M5 X 0.80 X 16, 4.8, 3--3,
3--5, 3--7, 3--9
Screw, Pan, Phl, M5 X 0.80 X 25, 4.8,
3--17
Screw, Pan, Phl, M6 X 1.00 X 10, Ss, 2--43
Screw, Pan, Phl, M6 X 1.00 X 40, Ss, 3--23
Screw, Set, .25--20 X 0.31, Nl, 2--33
Screw, Set, Soc, .25--20 X 0.75, Al, 2--41
Screw, Set, Soc, 10--24 X 0.38, Al, 2--53
Screw, Set, Soc, M5 X 0.80 X 8, Pl [45h],
2--19
Screw, Soc, .25--20 X 1.00, Al, 2--33
Screw, Soc, M8 X 1.25 X 25, 12.9, 2--19
Screw, Soc, M8 X 1.25 X 70, 12.9, 2--23
Screw, 4--3
Seal Assy, Pre--Filter, 2--53
Seal Kit, Cartridge, 4--10
Seal Kit, Hsng, 4--9, 4--10
Seal Kit, Motor A/H--Stnd, 4--3
Seal Kit, Pump, Hyd, 2--33
Seal Kit, Valve, Hyd, 4--9, 4--10
Seal Kit, Vlv, 4--5
Seal Kit, 4--6
Seal, .19, .25w 39.2l, Adh, 3--15
Seal, Afmkt, Bulb, Str, .75d F/07ga 08ft,
3--15
Seal, Afmkt, Bulb, Str, 0.58D 08Ft, 3--17
Seal, Bulb, 90, 0.50d .06--.09grip 022.5l,
2--11
Seal, Bulb, 90, 1.33 .06--.09grip 032.5l,
2--11
Seal, Bulb, Str, 0.50d .13grip 009.4l, 2--7
Seal, Cover, 2--43
Seal, Door, Access, 2--45
Seal, Door, Dump, Side, 1--1
Seal, Firewall, 2--5
Seal, Foam, 2--53
Seal, Hppr, .06 12.5w 36.6l Neo, 1--1, 2--5
Seal, Inlet, Vacuum, 1--1, 2--39
Seal, Lip [76038ddur], 3--15
Seal, Org, .078 X 00.47id 06, 4--10
Seal, Org, .139 X 02.98id, 2--25
Seal, Org, 2--25
Seal, Rbr, .13 6.34w 36.3l, 12/.28h, Red,
1--1, 2--51
Seal, Rbr, 0.06, Tube, Vacuum Wand,
3--35
Seal, Rbr, Clsd, 0.13, Door, Dump, Side,
2--51
Seal, Rbr, Clsd, 0.38, Instmt Panl, 2--15
Seal, Rbr, Damper, 0.06th, 04.1d, 2--39
Seal, Rbr, Open, 0.38, 1.25w 25.5l, 2--7
Seal, Top, Lh, Sbdc, 3--31, 3--33
Seal, Top, Sbdc, 3--31, 3--33
Seal, Ure, 0.50, 0.75w 04.0l Adh, 2--41
Seal, 1--1, 2--5, 2--7, 2--9, 2--51, 4--7
Seat Kit, Dlx, Ci [S20], 3--19
Seat, Std [Michigan, Model V--2505], 2--11
Seat, Suspension [Grammer Gs12], 3--19
Seatbelt Kit, Ci [6400], 3--20
Seatbelt, 60.0l, 3--19, 3--20
Sensor, Thermal, 140deg, No, Spst, 2--53
ShaftAssy,Brg,2--41
Shaft Wldt, Brush, 2--21
Shaft, Idler, Plug, Brush, 2--31
Shaft, Impeller, 2--41
Shaft, Output, 4--3
Shaft, Pivot, Arm, Brush Drive, 2--31
Shaft, Pivot, Steering, 2--23
Shaft, 2--31
Sheave, 01grv, 01.9pd 0.62b [07m], 2--41
Sheave, 01grv, 04.7pd 0.97b [3v], 2--31
Sheave, 02grv, 05.6/2.9pd 2.0b [3v], 2--31
Sheave, 02grv, 06.5/3.7pd 1.50b [3v], 2--33
Sheave, Flat, 3.0d 0.75w 0.67brg, 2--31
Sheave, Step [3V/7M.877], 2--33
Shoe, Brake, 180 X 30mm, 2--21
Shroud, Rear, Trimmed, 2--11
Skirt, Brush, Side, Sbdc [W/O Lhsb], 3--31
Skirt, Brush, Side, Sbdc, 3--31, 3--33
Skirt, Neo, .12 2ply, Dust--Cntrl, 1--1, 2--45
Skirt, Neo, .12, 05.20w 36.10l, 06/ Sl, 2--45
Skirt, Neo, .12, 12.26w 14.50l, 07/ Sl, 1--1,
2--5
Skirt, Sbdc, Sba, Lh, 3--33
Sleeve, 0.32b 0.50d 0.3l, 2cham, Ss,
2--35, 2--37, 3--23, 3--25
Sleeve, Nyl, 1.22id 35.0l, 2--17, 2--23
Sleeve, Nyl, 1.63id 25.0l, 2--37, 3--25
Sleeve, P/M, 0.25b 0.44d 0.2l, Pl, 2--39
Sleeve, P/M, 0.32b 0.50d 0.3l [430ss],
2--11
Sleeve, P/M, 0.32b 0.50d 0.5l [430ss],
2--29, 2--35, 3--23
Sleeve, P/M, 0.34b 0.63d 0.4l, Ss / Oil,
2--27, 2--29
Sleeve, P/M, 1.25b 1.75d 0.7l [430ss],
2--43
Snap--Ring, 4--7, 4--8
Solenoid Assy, Pull, 36vdc, 2--39
Solenoid Kit, 36vdc, Replmt [Thrmsentry],
2--39
Solenoid, #10, 36vdc, 4--9, 4--10
Solenoid, #8, 36vdc, 4--10
Solenoid, Cntrl, 4--10
Spacer Plate, 4--3
Spacer, 0.56b 0.88d 1.82l, Pl, 2--51
Spacer, Fltr, 2--53
Spacer, Plstc, 0.41b 2.25d 1.30l, Nyl, 2--19
Spacer, Plywood, 3--39
Spacer, 2--23, 2--29, 4--5, 4--6
Spindle, Adjustment, 2--11
Spring Kit, 4--6
Spring, Cmpr, 0.60od .07wir 00.8l, 2--9
Spring, Cmpr, 0.72od .06wir 02.3l, 2--17
Spring, Dsl, 1.00od 0.50id 1.25l, 2--37,
3--25
Spring, Dsl, 1.25od 0.62id 1.80l, 2--37,
3--25
Spring, Extn, 0.38od 0.05wir 02.5l, 2--60
Spring, Extn, 0.75od 0.11wir 04.5l, 2--37,
3--25
Spring, Extn, 0.96od 0.05wir 01.4l, 2--39
Spring, Extn, 1.25od 0.15wir 06.0l, 2--41
Spring, Extn, 2--29
Home
Find...
Go To..
CROSS REFERENCE
S20 Electric 9006708(8--11)
5--14
Spring, Flat, .06, 0.75w X 01.8l, 2/.28h,
2--13
Spring, Flat, .06, 0.75w X 07.8l, 2--19
Spring, Tens, 2--51
Spring, Tors, 0.81id .12wir 08.0coil, 2--13
Spring, Tors, 1.03id .11wir 03.0coil, 2--35
Spring, Wir, 0.08d, Parking Brake, 2--21
Spring, Wir, 0.25d, Brake Return, 2--21
Spring, 4--5
Stand--Off, Wir, M6, Insulator, Panel, 2--63
Steer--Control, Hyd04, 07.3 0600 (See
Breakdowns), 2--17
Strainer, Hyd, 010gpm 100mesh, 1--1,
2--59
Strainrelief, 2--53
Strap Wldt, Tank, Hyd, 2--59
Strap, Rbr, 2--53
Strap, Static, W/Grommet, .19 1.1w 25.0l,
2--5
Strip Wldt, Seal, Door, 2--51
Strip, Retainer, Dump Door, 2--51
Strip, Retainer, Flap, 2--5
Strip, Retainer, Hppr Lip, 2--45
Strip, Retainer, 2--51
Stud, M8 X 1.25 [55.0], 2--53
Stud, Spcl, 2--31
Support Wldt, Rh, Sbdc, 3--31, 3--33
Support Wldt, Lh, Sbdc, 3--33
Support, Hppr, Lip, Back, 2--49
Support, Hppr, Lip, Front, 2--49
Support, Hppr, Lip, Side, 2--49
Switch Assy, Press, No/Nc 0040Psi, 2--59
Switch, Ignition [Ku], 2--15
Switch, Press, 2--51
Switch, Push, Spst, No, 2--39
Switch, Rocker, 3 Position, 2--15
Switch, Safety, Shutoff, 2--15
Switch, Seat, No [Delta 6440--04], 2--11
Switch, Seat, 3--19
Switch, Snap, 15a No, Rlr, 2--51
Switch, Snap, 25a Spdt, 2--15
Switch, Temp, Sealed, Nc, 2--53
T
Taillight, 12vdc, 3.6 X 1.9, 2--5
Throttle, Electronic, 0000/5000 Ohm, 2--19
Thrust Bearing, 4--3
Tie, Cable, Nyl, 07.3l .19w 1.8 Max D,
2--37, 2--45, 2--63, 3--25
Tie, Cable, Nyl, 11.4l .19w 3.0 Max D,
2--15, 2--17, 2--23
Tie, Cable, Nyl, 14.5l .30w 4.0 Max D, 2--5,
3--40, 3--41
Timer, 36vdc, 10a [Left Hand Side Brush],
3--23
Tire Assy, Idler, Swpr, Blk, 16.0x3.5, 2--21
Tire, Drive, Swpr, Blk, 16.0x4.0, 2--25
Tire, Drive, Swpr, Grey, 16.0x4.0 (Optional
non--Marking), 2--25
Track, Slide, Seat Adj, 12.5l, W/ Latch,
2--11
Track, Slide, Seat Adj, 12.5l, 2--11
Tray Wldt, Dust [Cyclone], 2--53
Tray, Dust, Shakr, 2--53
Tray, Mold, 2--53
Tread, Non--Skid, 01.4w 12.0l, 2--19
Tread, Non--Skid, 02.2w 15.5l, 2--19
Tube Wldt, Torque, 2--30
Tube, 0.33id 0.51od 00.8l, Stl, Pl, 3--23
Tube, 0.34id 0.62od 00.2l, Stl, 2--21
Tube, 0.38id 0.75od 00.9l, Stl, 2--51
Tube, 0.38id 0.81od 00.4l, Stl, 2--41
Tube, 0.42id 0.62od 01.0l, Stl, Pl, 2--35
Tube, 0.77id 1.13od 00.6l, Stl, Pl, 2--23
Tube, Transition, Valve, Ev, 2--39
V
Valve, Check, 4--9, 4--10
Valve, Cntrl, Logic, 4--9, 4--10
Valve, Hyd Control Man, 4--5
Valve, Hyd, Mnl, 2spool 0100psi 10gpm
(See Breakdowns), 2--60
Valve, Hyd, Solenoid, 36Vdc (See
Breakdowns), 3--27
Valve, Hyd, Solenoid, 36vdc (See
Breakdowns), 2--61
Valve, Hyd, Solenoid, 36vdc, 4--9, 4--10
Valve, Hydraulic Steering 07.3 0600, 4--6
Valve, Relief, 4--9, 4--10
Valve, Stem, Hyd, 4--9, 4--10
Video, Oprtr, Dvd [S20 En, Es, Fr], 3--42
W
Wand Kit, Vacuum, Ci [S20], 3--35
Wand, Vacuum, W/ Label, JP [S20 ], 3--35
Wand, Vacuum, W/ Label, Na [S20 ], 3--35
Washer Flat,0.50,Sae, 2--13, 2--19, 2--21,
2--37, 2--51, 3--3, 3--5, 3--7, 3--9, 3--11,
3--13, 3--25
Washer, Flat, 0.25, Fendr, 2--51, 3--17
Washer, Flat, 0.25, Sae, 2--19, 2--39, 2--63,
3--3, 3--5, 3--7, 3--9, 3--23
Washer, Flat, 0.25, Std, 2--11, 2--19, 2--39,
2--45, 2--51, 2--59, 2--63, 3--19, 3--23,
3--31, 3--33, 3--35
Washer, Flat, 0.31, Fendr, 2--5, 2--9, 2--43,
2--45, 2--53, 3--17, 3--31, 3--33
Washer, Flat, 0.31, Sae, 2--7, 2--9
Washer, Flat, 0.31, Std, 2--5, 2--11, 2--13,
2--21, 2--27, 2--29, 2--31, 2--35, 2--45,
2--47, 2--49, 2--51, 2--53, 2--60, 3--3,
3--5,3--7,3--9,3--11,3--13,3--23
Washer, Flat, 0.31b 0.88d .12, Rbr, 2--60
Washer, Flat, 0.34b 0.69d .06, Nyl, 2--13
Washer, Flat, 0.38, Sae, 2--19, 2--31, 2--33,
2--59, 3--17
Washer, Flat, 0.38, Std, 2--29, 2--33, 2--35,
2--37, 2--41, 2--43, 2--45, 2--51, 2--53,
2--61, 3--25, 3--27, 3--39
Washer, Flat, 0.38b 0.88d .08, Ss, 2--37,
3--25
Washer, Flat, 0.39b 0.75d .06, Nyl, 2--19
Washer, Flat, 0.40b 1.12d .12, Ss, 2--45,
2--51
Washer, Flat, 0.44, Std, 2--35
Washer, Flat, 0.53b 1.75d .12, Stl, Pl,
2--31
Washer, Flat, 0.62, Sae, 2--37, 3--25
Washer, Flat, 0.75, Sae, 2--23, 2--31
Washer, Flat, 0.76b 1.50d .06, Ss, 2--21
Washer, Flat, 08, 2--39
Washer, Flat, 1.02b 1.75d .12, Stl, 2--43
Washer, Flat, 10, 2--15, 2--21, 2--45, 2--53,
3--3, 3--5, 3--7, 3--9
Washer, Flat, Belleville, .31, 3--17
Washer, Flat, Belleville, .38, 2--33
Washer, Flat, Belleville, .50, 2--43
Washer, Flat, M21.0b X 37d X 3, 2--21
Washer, Lock, Int, 0.25, 2--63
Washer, Lock, Int, 0.31, 2--25, 2--39, 2--63
Washer, Lock, Int, 04, 2--15
Washer, Lock, Int, 10, Ss, 2--39, 2--53
Washer, Lock, Int, 10, 2--5
Washer, Lock, Int--Ext, 0.25, 2--53
Washer, Lock, Int--Ext, 0.31, 2--5
Washer, Sealing, M8, 2--27
Washer, Thrust, 0.53b 1.00d 0.03w[Fbrgl],
2--37, 3--25
Washer, Thrust, 0.61b 1.25d .06, Fgl,
2--37, 3--25
Washer, Wavy, 0.53b 0.81d .09, 2--31
Washer, 4--5
Wavy Washer, 4--7, 4--8
Weight, Eccentric, Pntd, 2--53
Wheel, Steering, 14.0D 0.81B 36Tooth,
2--17
Home
Find...
Go To..
We Need Your Help...
As part of Tennant’s Zero Defects Program, we want to know about errors you have
found or suggestions you may have regarding our machine manuals. If you find an
error or have a suggestion, please complete this postage-paid form and mail it to us.
Thank you for helping us make zero defects a way of life at Tennant.
Manual No. Rev. No. Publish Date Page
Machine -Report Error -Suggestion
Name Date
Customer Number
Company
Address
City/State/Zip Code
Home
Find...
Go To..
Tape hereFold along dotted lines
NO POSTAGE
NECESSARY
IF MAILED
IN THE
UNITED SATES
BUSINESS REPLY MAIL
FIRST CLASS MAIL PERMIT NO. 94 MINNEAPOLIS, MN
POSTAGE WILL BE PAID BY ADDRESSEE
Technical Publications #15
701 North Lilac Drive
P.O. Box 1452
Minneapolis, MN 55440--9947
TENNANT COMPANY
Home
Find...
Go To..
We Need Your Help...
As part of Tennant’s Zero Defects Program, we want to know about errors you have
found or suggestions you may have regarding our machine manuals. If you find an
error or have a suggestion, please complete this postage-paid form and mail it to us.
Thank you for helping us make zero defects a way of life at Tennant.
Manual No. Rev. No. Publish Date Page
Machine -Report Error -Suggestion
Name Date
Customer Number
Company
Address
City/State/Zip Code
Home
Find...
Go To..
Tape hereFold along dotted lines
NO POSTAGE
NECESSARY
IF MAILED
IN THE
UNITED SATES
BUSINESS REPLY MAIL
FIRST CLASS MAIL PERMIT NO. 94 MINNEAPOLIS, MN
POSTAGE WILL BE PAID BY ADDRESSEE
Technical Publications #15
701 North Lilac Drive
P.O. Box 1452
Minneapolis, MN 55440--9947
TENNANT COMPANY
Home
Find...
Go To..
