SC100

PARTS LIST

Model: 107408120 - 107408121 - 107416213

11/2015 (1)

003 - DeltaUP ADVANCE (1).indd 1 24/11/2015 09:29:31

003 - DeltaUP ADVANCE (1).indd 2 24/11/2015 09:29:31

PARTS LIST

11/2015 SC100 1

TABLE OF CONTENTS

GENERAL VIEW ......................................................................................................................................................... 2

NOZZLE HEAD ........................................................................................................................................................... 4

BODY .......................................................................................................................................................................... 6

RECOVERY TANK ...................................................................................................................................................... 8

SOLUTION TANK ..................................................................................................................................................... 10

HANDLE .................................................................................................................................................................... 12

WIRING DIAGRAM ................................................................................................................................................... 14

RECOMMENDED PARTS - ACCESSORIES/OPTIONAL ......................................................................................... 15

WHEN ORDERING PARTS

– Use the part numbers from the “REF. NO.” columns in this parts list. If the “REF. NO.” column is

blank; look under the “KIT” column to identify which kit contains the part in question, then use the kit

callout, for example “K1”, to  nd the “REF. NO.” for that kit.

– Specify the model and serial number of the machine.

– Use the space below to record the model and serial number for future reference.

Model Serial No.

* = Optional

#= Modied item No. or New item No.

[ ] = Not shown

003 - DeltaUP ADVANCE (1).indd 1 24/11/2015 09:29:31

PARTS LIST

2SC100 11/2015

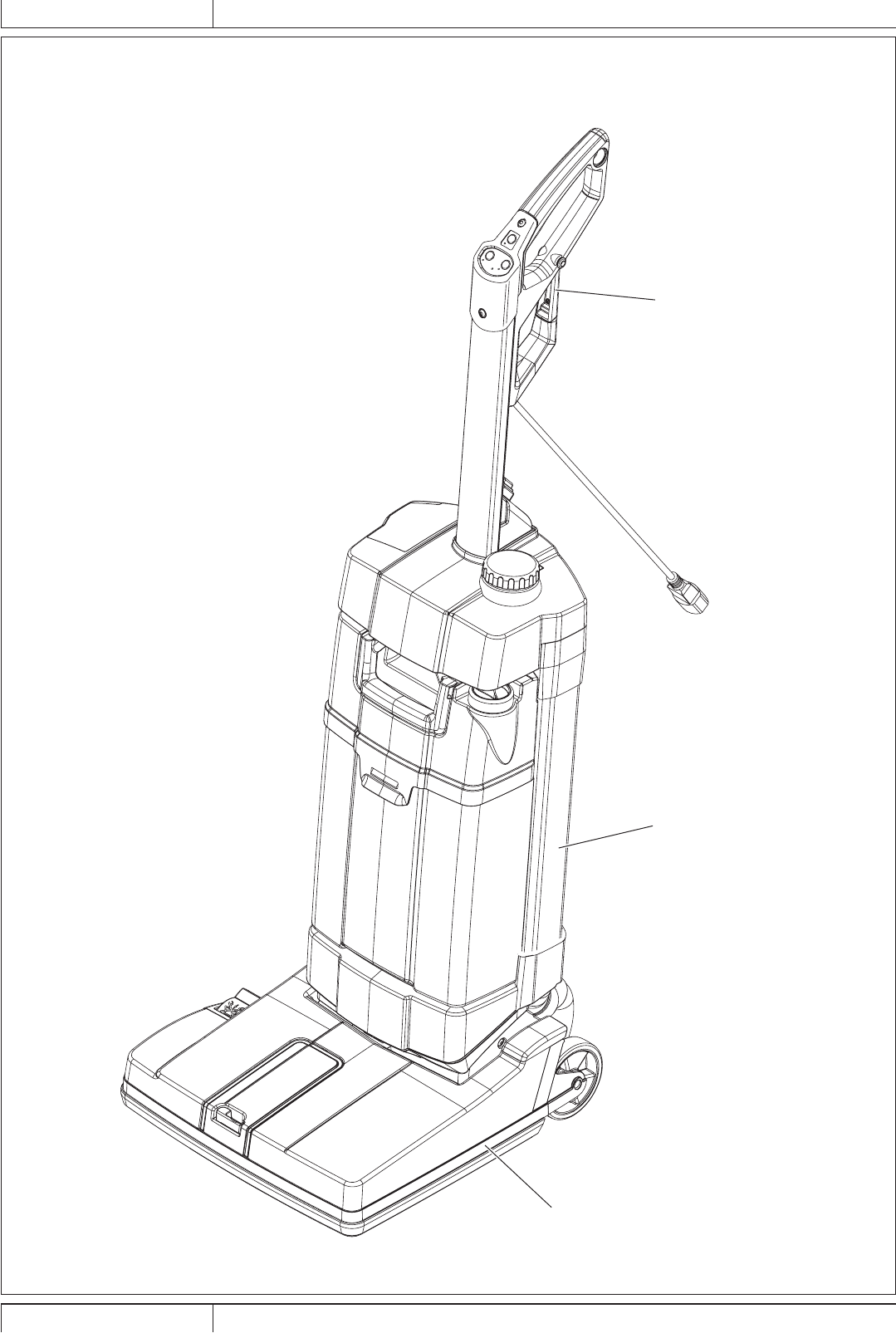

GENERAL VIEW

1

2

3

003 - DeltaUP ADVANCE (1).indd 2 24/11/2015 09:29:33

PARTS LIST

11/2015 SC100 3

GENERAL VIEW

KIT ITEM REF. NO. QTY DESCRIPTION

1 1 NOZZLE HEAD CPL

2 1 BODY CPL. NILFISK 230V

3 1 HANDLE CPL. NILFISK

[4] 107411864 1 MANUAL SUCTION HOSE KIT

[5] 107411865 1 CARPET COMPLETE KIT

[6] 107414568 1 ACCESSORY BAG KIT

[7] 107416424 1 DETACHABLE CORD 15M US

003 - DeltaUP ADVANCE (1).indd 3 24/11/2015 09:29:33

PARTS LIST

4SC100 11/2015

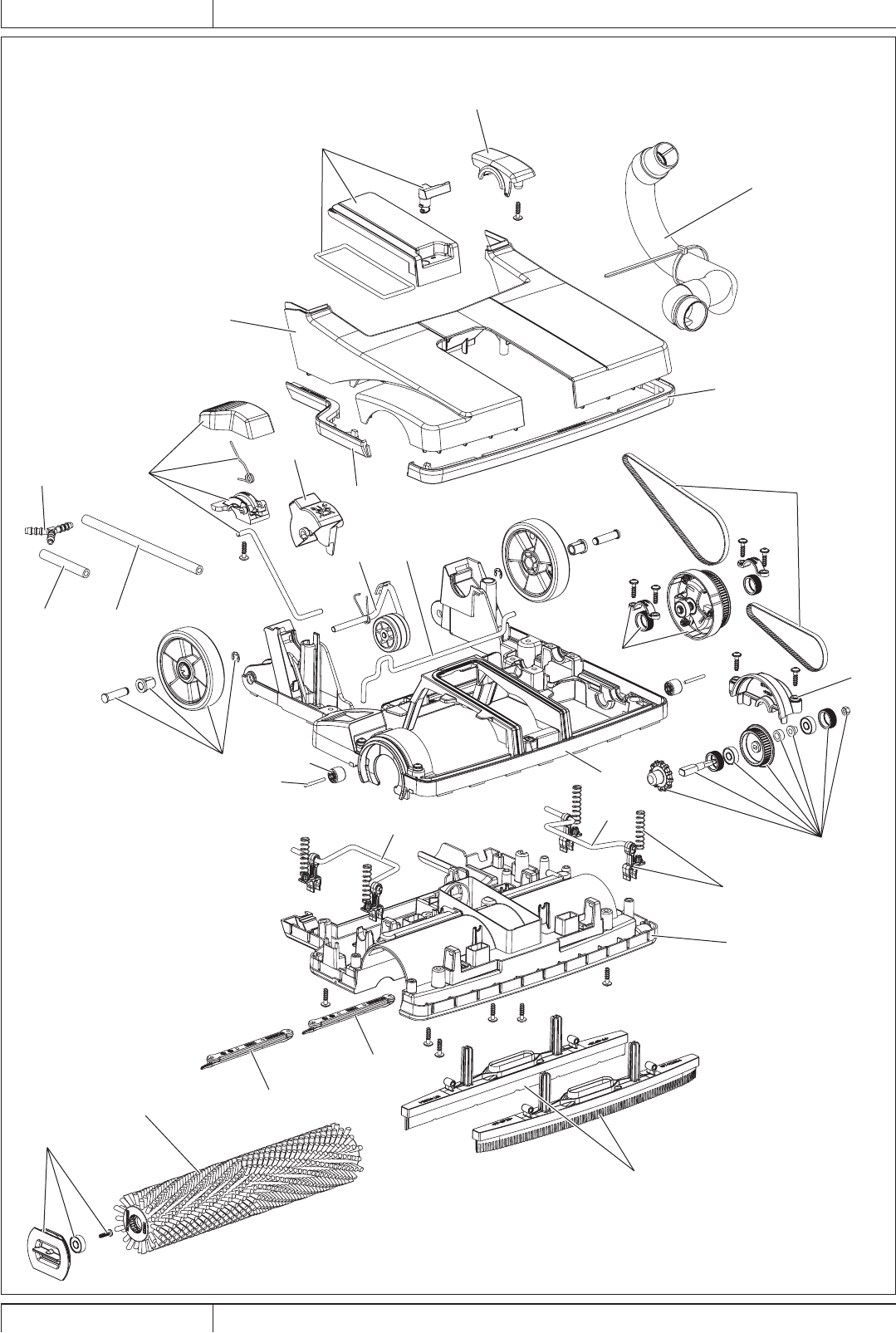

NOZZLE HEAD

1

12

4

5

14

9

27

211

3

6

21

11

18

11

22

16

25

7

20

10

13

24 23

26

15

17

8

19

4

003 - DeltaUP ADVANCE (1).indd 4 24/11/2015 09:30:05

PARTS LIST

11/2015 SC100 5

NOZZLE HEAD

KIT ITEM REF. NO. QTY DESCRIPTION

1 107413503 1 KEY LOCK BRUSH JET BLACK

2 107413471 1 AXLE HIGHT ADJUSTMENT ROLLER

3 107413495 1 BRUSH MOUNTING

4 107413493 2 DOSING BRIDGE

5 107411867 1 SQUEEGEE 321MM 13 KIT

5 107411868 1 SQUEEGEE 321MM 13 CARPET KIT

K1 6 1 NOZZLE HEAD CHASSIS

7 107413522 1 SQUEEGEE PEDAL JET BLACK

8 107413487 1 CLUTCH OVERLOAD CPL

9 107413515 1 REAR WHEEL Ø90 WITH AXLE CPL.

K2 10 1 TOP COVER CHASSIS RAL 7001

11 107413520 1 SQUEEGEE LIFTER

12 107411860 1 BRUSH CYL 310MM 12.5 MEDIUM PPL WHITE

12 107411861 1 BRUSH CYL 310MM 12.5 HARD PPL BLACK

12 107411862 1 BRUSH CYL 310MM 12.5 MICROFIBRE

12 107411863 1 BRUSH CYL 310MM 12.5 CARPET

K2 13 1 Y-CONNECTOR FOR Ø6/Ø10 TUBE

14 107414818 1 BEARING COVER LEFT JET BLACK

15 107413476 1 BRUSH BEARING COVER

K1 16 2 AXLE FOR SUPPORT ROLLER

17 107413477 1 BANDO BELT (BRUSH)

K1 18 1 FRAME FOR CHASSIS

19 107413478 1 HOSE AIRCHANNEL

20 107413512 1 PARKING PEDAL ORANGE

21 107413521 4 SQUEEGEE LIFTER, BODY

K1 22 2 SUPPORT ROLLOR

K2 23 1 SILICONE HOSE 10X6

K2 24 1 SILICONE HOSE 10X6

K1 25 1 BUMPER RIGHT

K1 26 1 BUMPER, LEFT

27 107413488 1 COVER FOR SQUEEGEE CHANNEL JET BLACK

[K1] 107413509 1 NOZZLE HEAD

[K2] 107413525 1 TOP COVER CHASSIS GREY

003 - DeltaUP ADVANCE (1).indd 5 24/11/2015 09:30:06

PARTS LIST

6SC100 11/2015

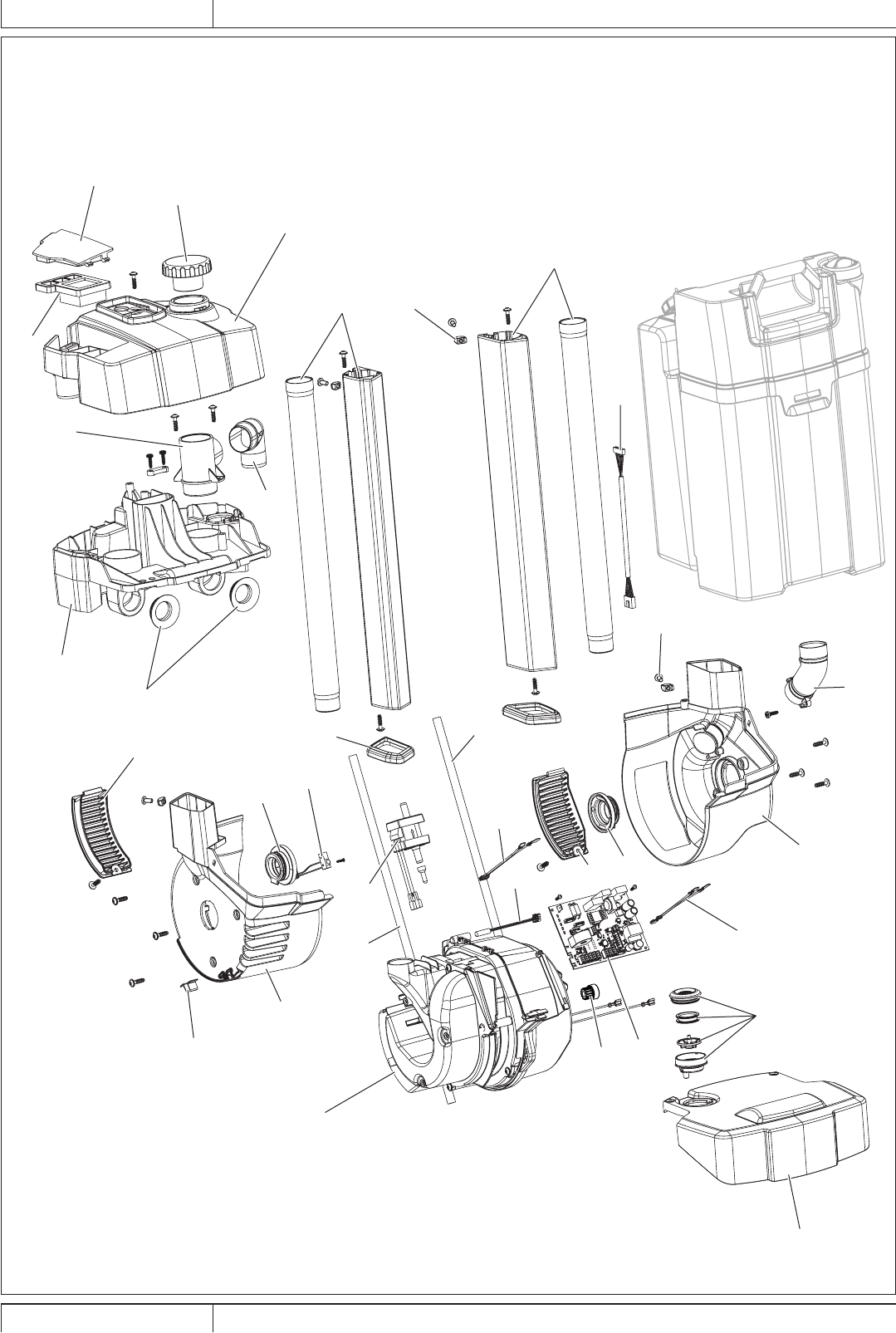

BODY

27

31

18

13

14

17

28

9

26

32

6

6

10

8

8

11

15 29

30 7

5

23

19

22

12

16

20

2

24

3

1

25

21

4

003 - DeltaUP ADVANCE (1).indd 6 24/11/2015 09:30:18

PARTS LIST

11/2015 SC100 7

BODY

KIT ITEM REF. NO. QTY DESCRIPTION

1 107414819 1 WIRE FOR PUMP

2 107413511 1 PCBA DELTA UP 220-240V

3 107414814 1 WIRE W. FASTONS

4 107414820 2 SEALING F. PROFILE, LEFT RIGHT

K2 5 107413479 1 BEND FOR SUCTION HOSE

6 107414816 2 PROFIL ALUMINIUM WITH TUBES

7 107414815 1 PARKING SWITCH

8 107413523 1 SILICONE HOSE 10X6

K3 9 1 TOPCOVER, NILFISK SC100

10 107413492 1 DOSING PUMP, NILFISK

K1 11 1 P-CLIP

12 107416434 1 MOTOR HOUSING US

13 107413499 1 GASKET IN/OUT

K3 14 1 FLOW BASE RAL 7016

K2 15 1 LID FOR OUTLET, MOTOR

K1 16 1 LID FOR OUTLET, TURBINE

K3 17 1 ADAPTER TOP COVER

18 107413496 1 FILTER

19 107413508 1 M5X10 BOLT

20 107413497 1 SOLUTION FILTER

21 107416439 1 TOP COVER BASE ADVANCE

K1 22 1 BODY RIGHT RAL 7016

K2 23 1 BODY LEFT RAL 7016

24 107413533 1 WIRE W. JST3POL

25 107413535 1 COG WHEEL M3 14 T

26 107413481 1 CABLE F. USER-INTERFACE

27 107413486 1 CAP FOR SPOT CLEANING BLACK

K3 28 1 ADAPTER TUBE 90°

K2 29 1 POM BEARING LEFT

K1 30 1 POM BEARING RIGHT

31 107413504 1 LID FOR FILTER GREY

32 107413529 1 T-NUT, M5

[K1] 107416425 1 BODY RIGHT RAL 7016

[K2] 107416426 1 BODY LEFT RAL 7016

[K3] 107416431 1 FLOW BASE RAL 7016 US

003 - DeltaUP ADVANCE (1).indd 7 24/11/2015 09:30:19

PARTS LIST

8SC100 11/2015

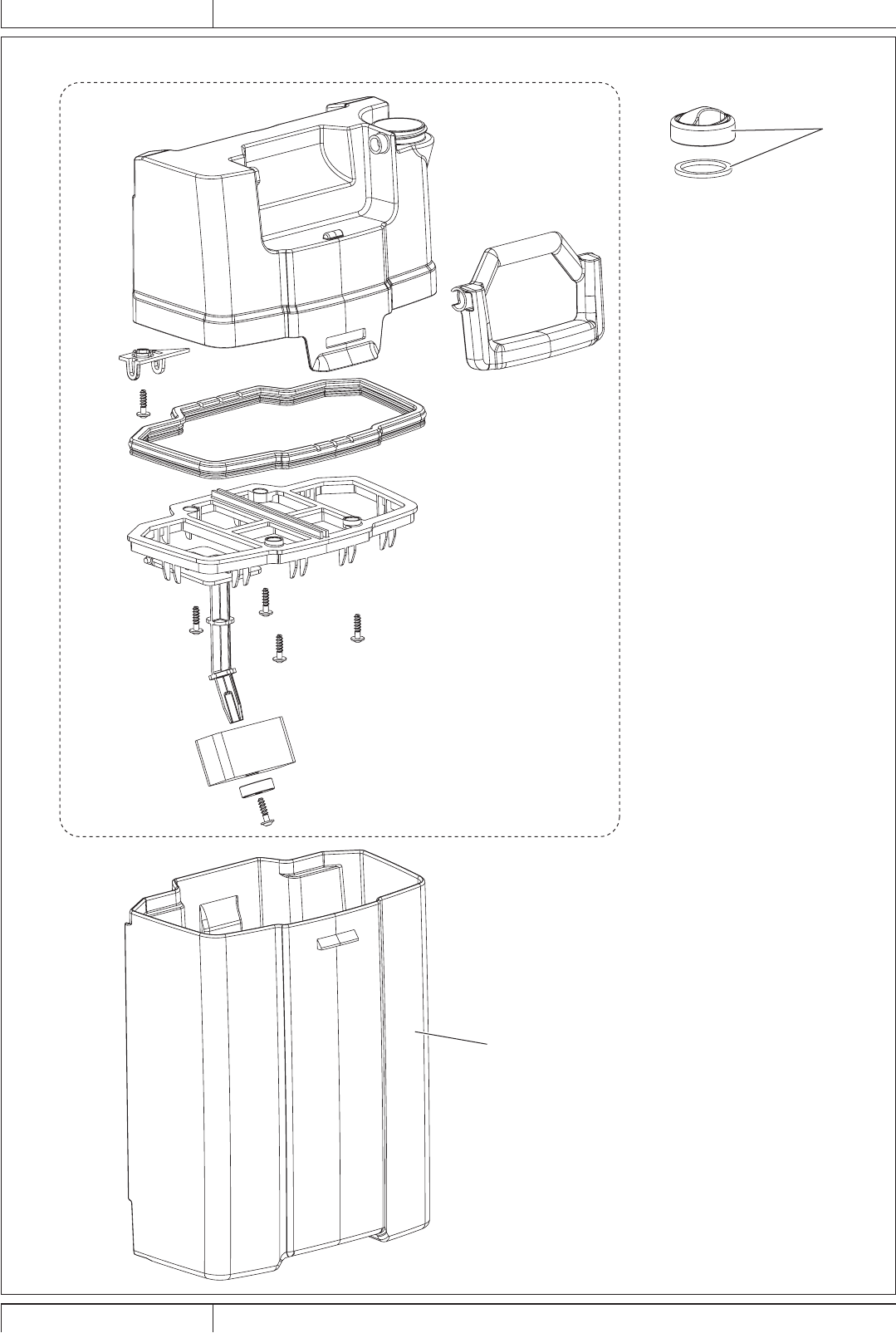

RECOVERY TANK

2

1

3

003 - DeltaUP ADVANCE (1).indd 8 24/11/2015 09:30:20

PARTS LIST

11/2015 SC100 9

RECOVERY TANK

KIT ITEM REF. NO. QTY DESCRIPTION

1 107413527 1 TOP RECOVERY TANK GREY

2 107413484 1 CAP FOR RECOVERY TANK

3 107413513 1 RECOVERY TANK GREY

003 - DeltaUP ADVANCE (1).indd 9 24/11/2015 09:30:20

PARTS LIST

10 SC100 11/2015

SOLUTION TANK

2

1

4

3

003 - DeltaUP ADVANCE (1).indd 10 24/11/2015 09:30:21

PARTS LIST

11/2015 SC100 11

SOLUTION TANK

KIT ITEM REF. NO. QTY DESCRIPTION

1 107413519 1 SOLUTION TANK NATURAL

2 107413485 1 CAP SOLUTION TANK JET BLACK

3 107413532 1 VALVE FOR SOLUTION TANK CPL.

4 107413506 1 LEVEL INDICATION

003 - DeltaUP ADVANCE (1).indd 11 24/11/2015 09:30:21

PARTS LIST

12 SC100 11/2015

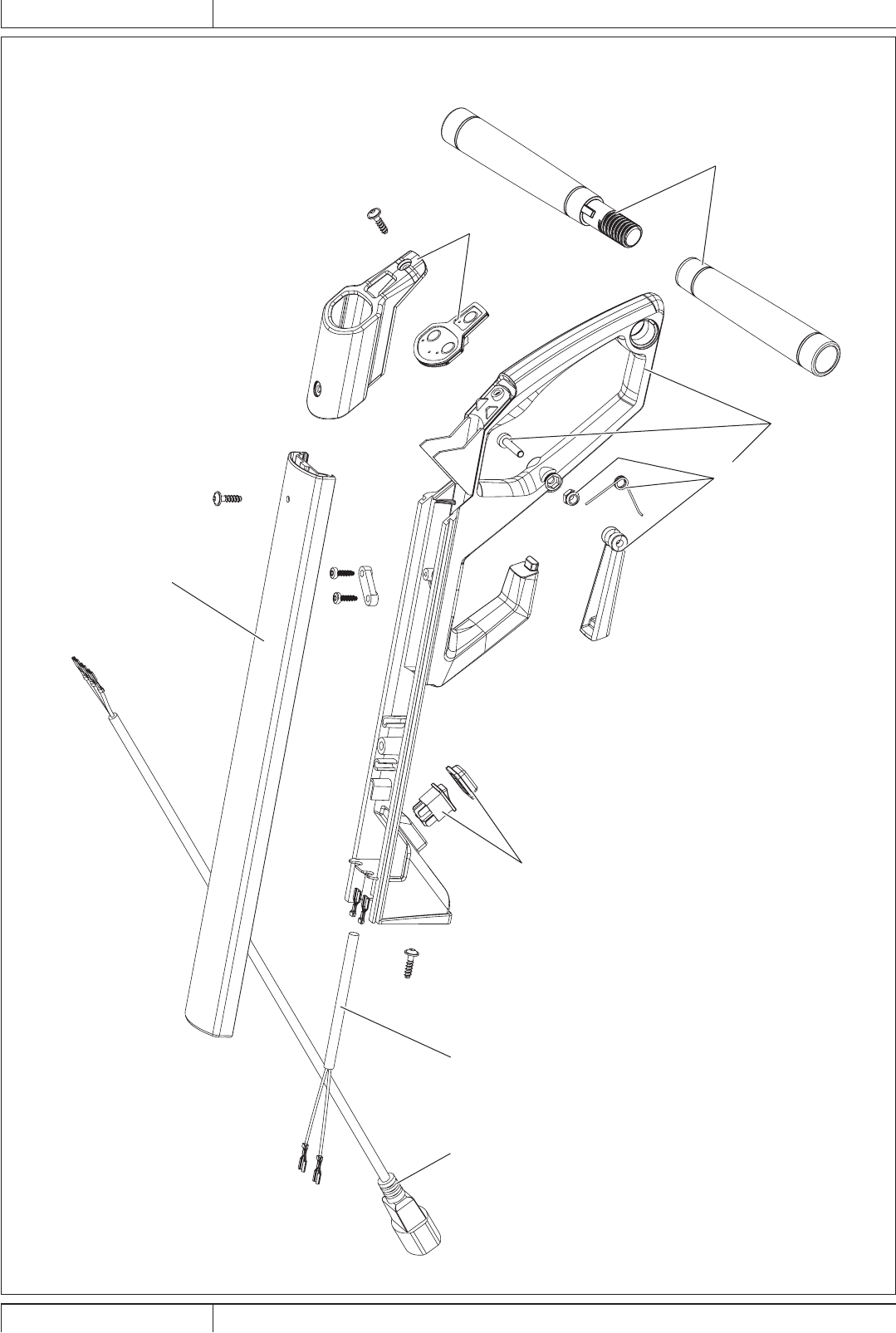

HANDLE

1

5

4

7

8

3

2

6

003 - DeltaUP ADVANCE (1).indd 12 24/11/2015 09:30:23

PARTS LIST

11/2015 SC100 13

HANDLE

KIT ITEM REF. NO. QTY DESCRIPTION

1 107413470 1 2-HAND HANDLE

2 107416435 1 NILFISK USER INTERFACE

3 107416438 1 WIRE, MAIN SWITCH US

4 107413480 1 CARABINA AND SPRING FOR HANDLE

5 107416427 1 DETACHABLE CORD MALE PLUG US

6 107413472 1 ALUMINUM TUBE (HANDRAIL)

7 107416433 1 HANDLE SCRUBBER ADVANCE

8 107413516 1 SWITCH, MAIN

003 - DeltaUP ADVANCE (1).indd 13 24/11/2015 09:30:23

PARTS LIST

14 SC100 11/2015

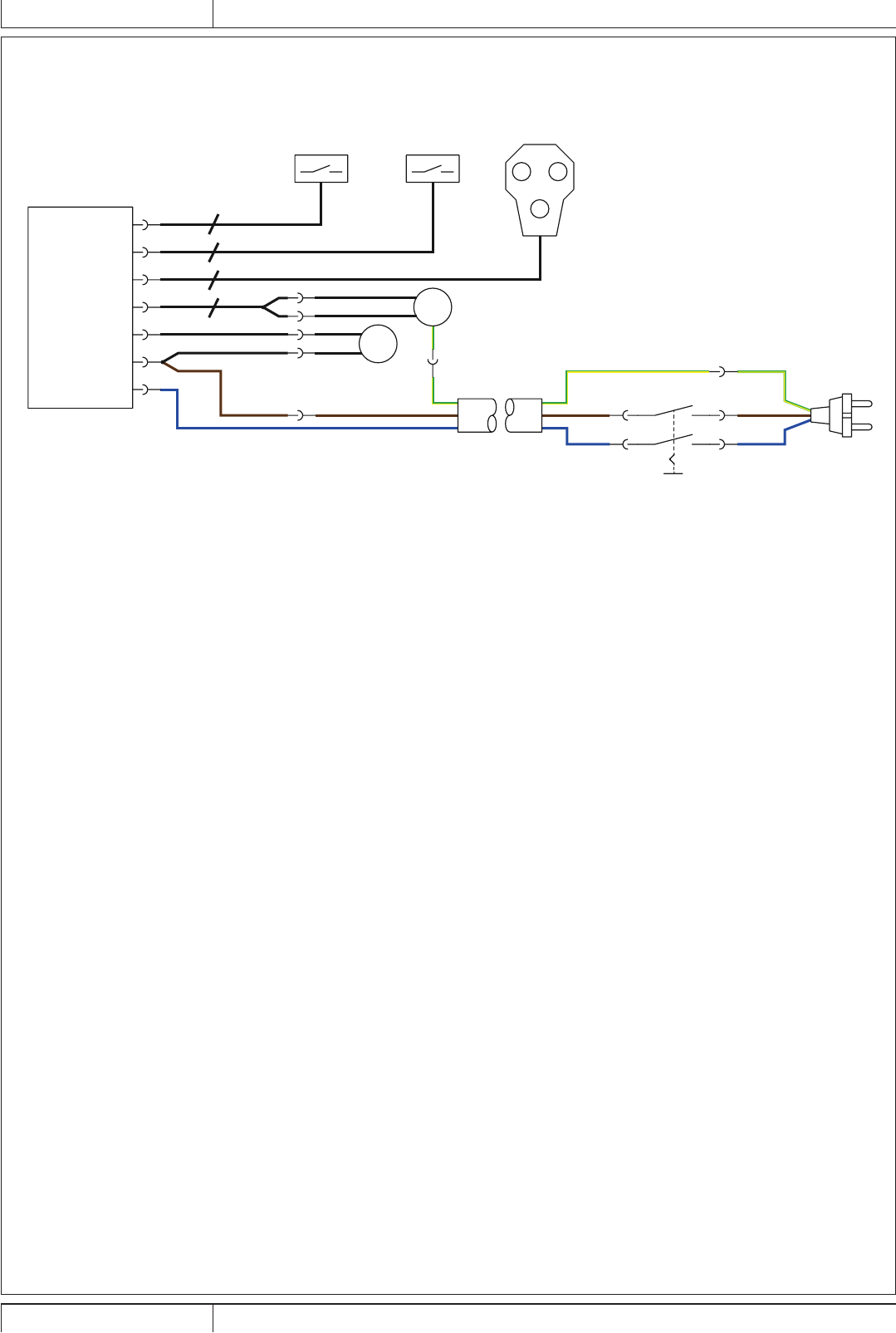

WIRING DIAGRAM

P

Motor

Cable

M

Switch

(Main)

Power

Supply

Solution

Pump

User Interface

Parking position

(Microswitch)

PCBA

NEO P2 A

P

EXT

SOLENOID 230V

MOTOR

L

N

Solution Tank Level

(Reedswitch)

2

2

9

2

003 - DeltaUP ADVANCE (1).indd 14 24/11/2015 09:30:24

PARTS LIST

11/2015 SC100 15

REF. NO. QTY DESCRIPTION

NORMAL WEAR

107411867 1 SQUEEGEE 321MM 13 KIT

107411860 1 BRUSH CYL 310MM 12.5 MEDIUM PPL WHITE

ORDINARY MAINTENANCE

107413503 1 KEY LOCK BRUSH JET BLACK

107413471 1 AXLE HIGHT ADJUSTMENT ROLLER

107413515 1 REAR WHEEL Ø90 WITH AXLE CPL.

107413477 1 BANDO BELT (BRUSH)

107413478 1 HOSE, AIRCHANNEL

107416434 1 MOTOR HOUSING US

107413496 1 FILTER

107416427 1 DETACHABLE CORD MALE PLUG US

107413532 1 VALVE FOR SOLUTION TANK CPL.

EXTRAORDINARY MAINTENANCE

107413493 2 DOSING BRIDGE

107413509 1 NOZZLE HEAD

107413525 1 TOP COVER CHASSIS GREY

107413487 1 CLUTCH OVERLOAD CPL

107413488 1 COVER FOR SQUEEGEE CHANNEL JET BLACK

107413511 1 PCBA DELTA UP 220-240V

107413535 1 COG WHEEL M3 14 T

107413504 1 LID FOR FILTER GREY

107416426 1 BODY LEFT RAL 7016

107416425 1 BODY RIGHT RAL 7016

107413492 1 DOSING PUMP, NILFISK

107413499 1 GASKET IN/OUT

107413497 1 SOLUTION FILTER

107413486 1 CAP FOR SPOT CLEANING BLACK

107413525 1 TOP COVER CHASSIS GREY

107413484 1 CAP FOR RECOVERY TANK

107413513 1 RECOVERY TANK GREY

107413527 1 TOP RECOVERY TANK GREY

107416433 1 HANDLE SCRUBBER ADVANCE

107416435 1 NILFISK USER INTERFACE

107413519 1 SOLUTION TANK NATURAL

REF. NO. QTY DESCRIPTION

107411864 1 MANUAL SUCTION HOSE KIT

107411865 1 CARPET COMPLETE KIT

107414568 1 ACCESSORY BAG KIT

107416424 1 DETACHABLE CORD 15M US

107411867 1 SQUEEGEE 321MM 13 KIT

107411868 1 SQUEEGEE 321MM 13 CARPET KIT

107411860 1 BRUSH CYL 310MM 12.5 MEDIUM PPL WHITE

107411861 1 BRUSH CYL 310MM 12.5 HARD PPL BLACK

107411862 1 BRUSH CYL 310MM 12.5 MICROFIBRE

107411863 1 BRUSH CYL 310MM 12.5 CARPET

107413489 1 DETACHABLE CORD MALE PLUG

RECOMMENDED PARTS

ACCESSORIES/ OPTIONAL
