SC450
PARTS LIST
Advance models: 9087331020
9099603000(1)2012-08
ADVANCE_D9_(1)_BATT definitivo.indd 1 03-Aug-12 14:04:46
ADVANCE_D9_(1)_BATT definitivo.indd 2 03-Aug-12 14:04:46
PARTS LIST
08/2012 9099603000 - SC450 1
WHEN ORDERING PARTS
* Use the part numbers from the “Ref. No.” columns in this parts list.
* Specify the model and serial number of the machine.
* Use the space below to record the model and serial number for future reference.
Model Serial No.
* = Optional
#= Modied item No. or New item No.
[ ] = Not shown
TABLE OF CONTENTS
ENG PAGE
GENERAL VIEW 2 - 3
SOLUTION TANK 4 - 5
RECOVERY TANK 6 - 7
HANDLE BAR AND WHEELS 8 - 9
SOLUTION SYSTEM 10 - 11
SQUEEGEE SYSTEMS 12 - 13
BRUSH DECK 14 - 15
COVER PANEL 16 - 17

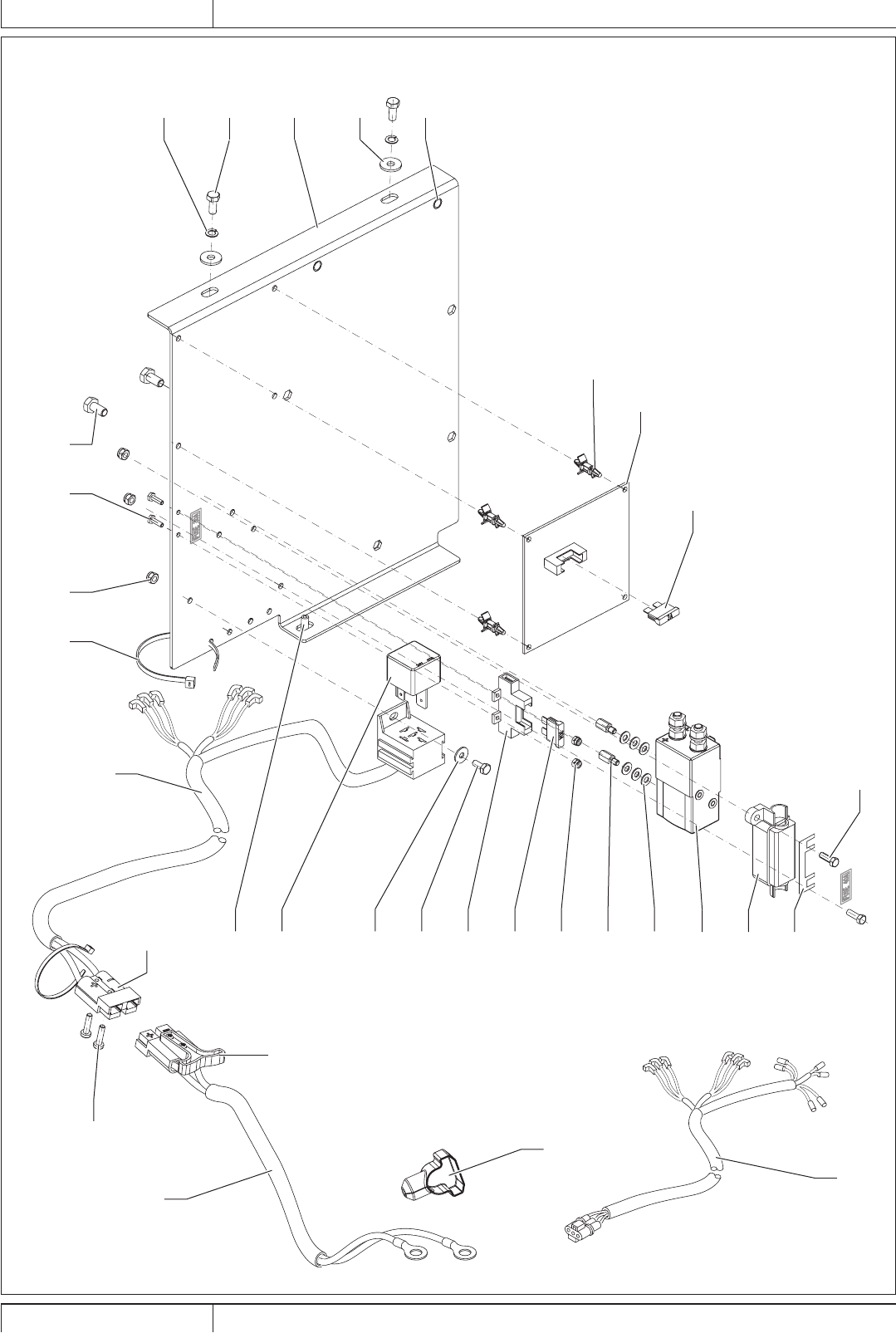

ELECTRICAL COMPONENTS 18 - 19

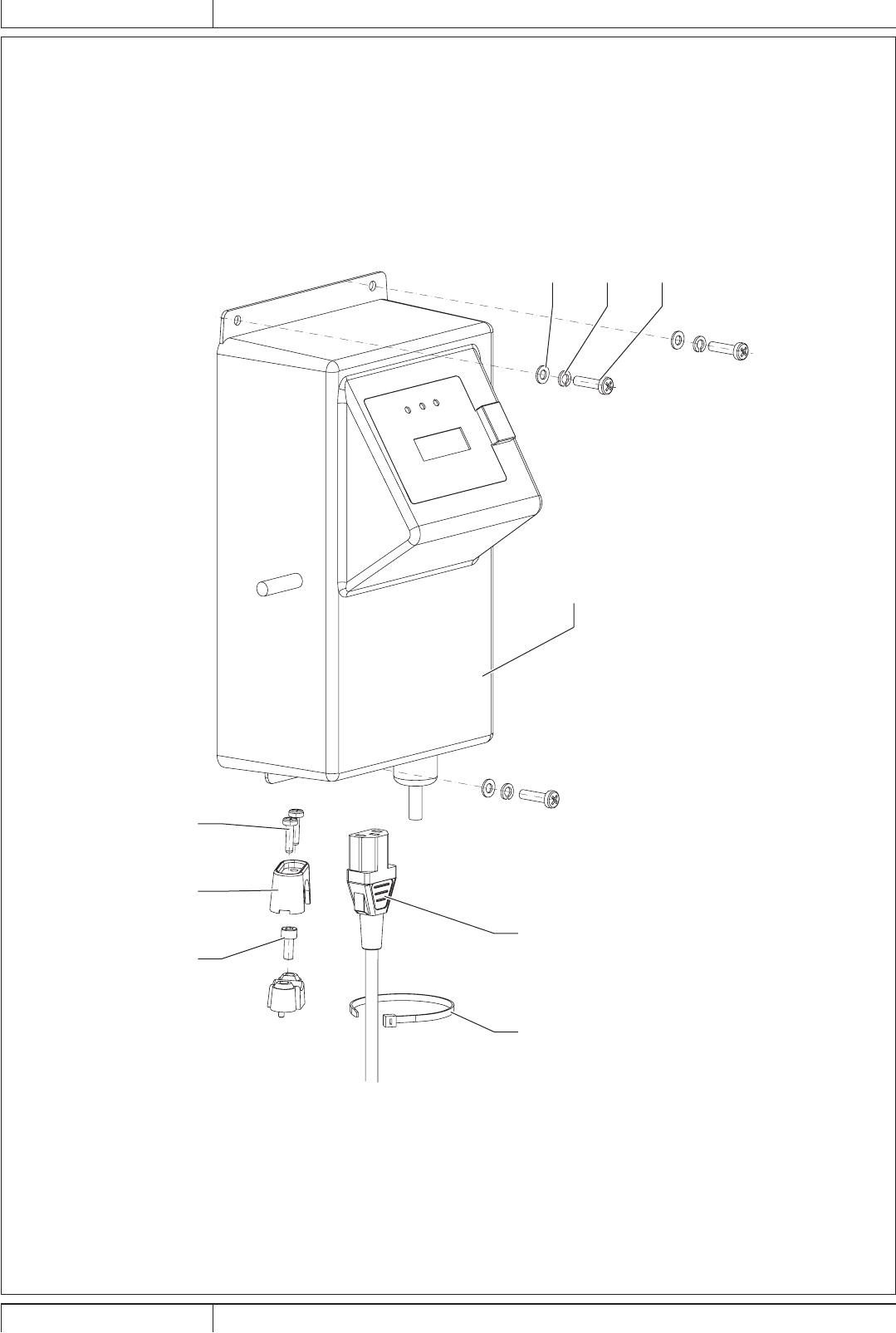

BATTERY CHARGER 20 - 21

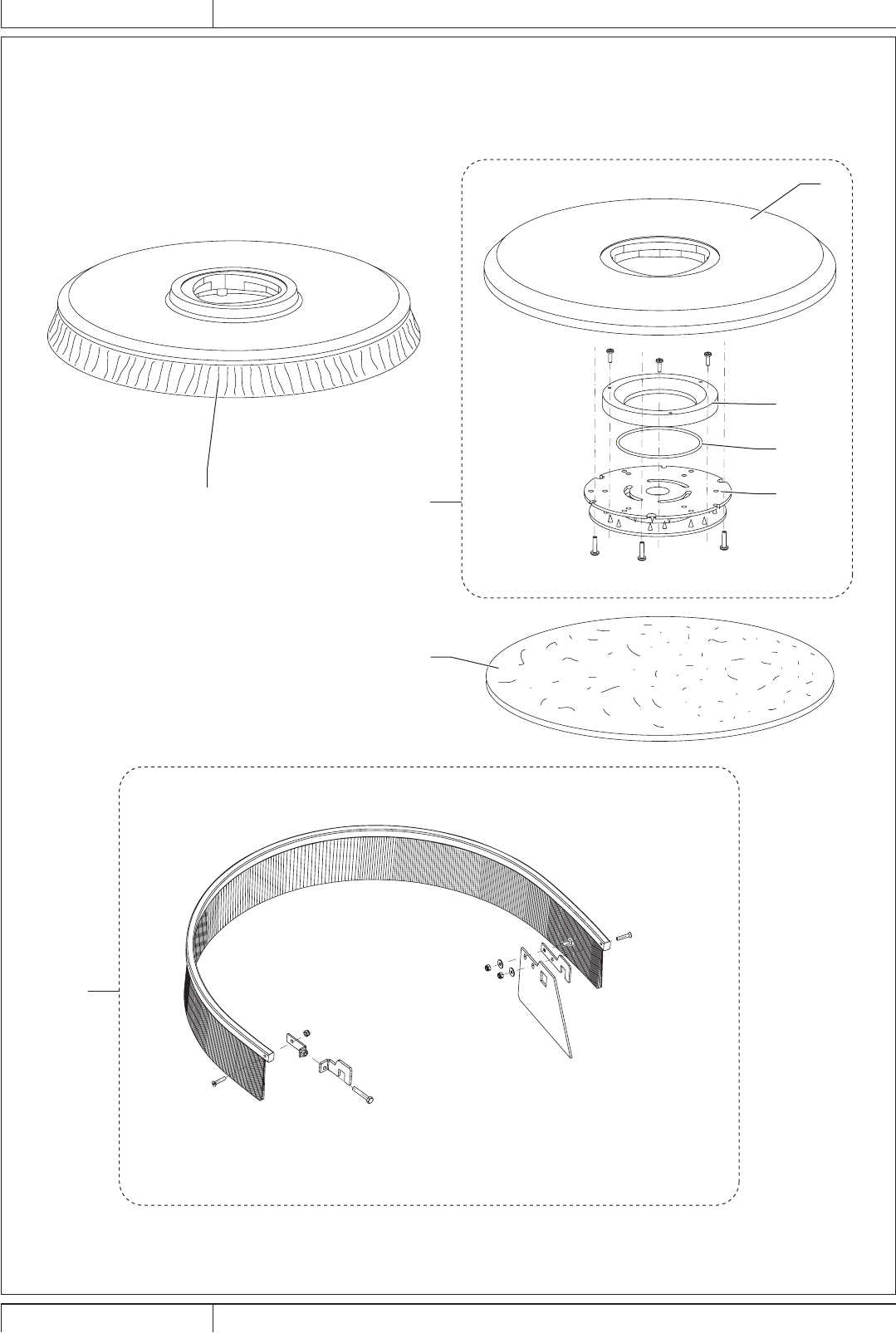

ACCESSORIES 22 - 23

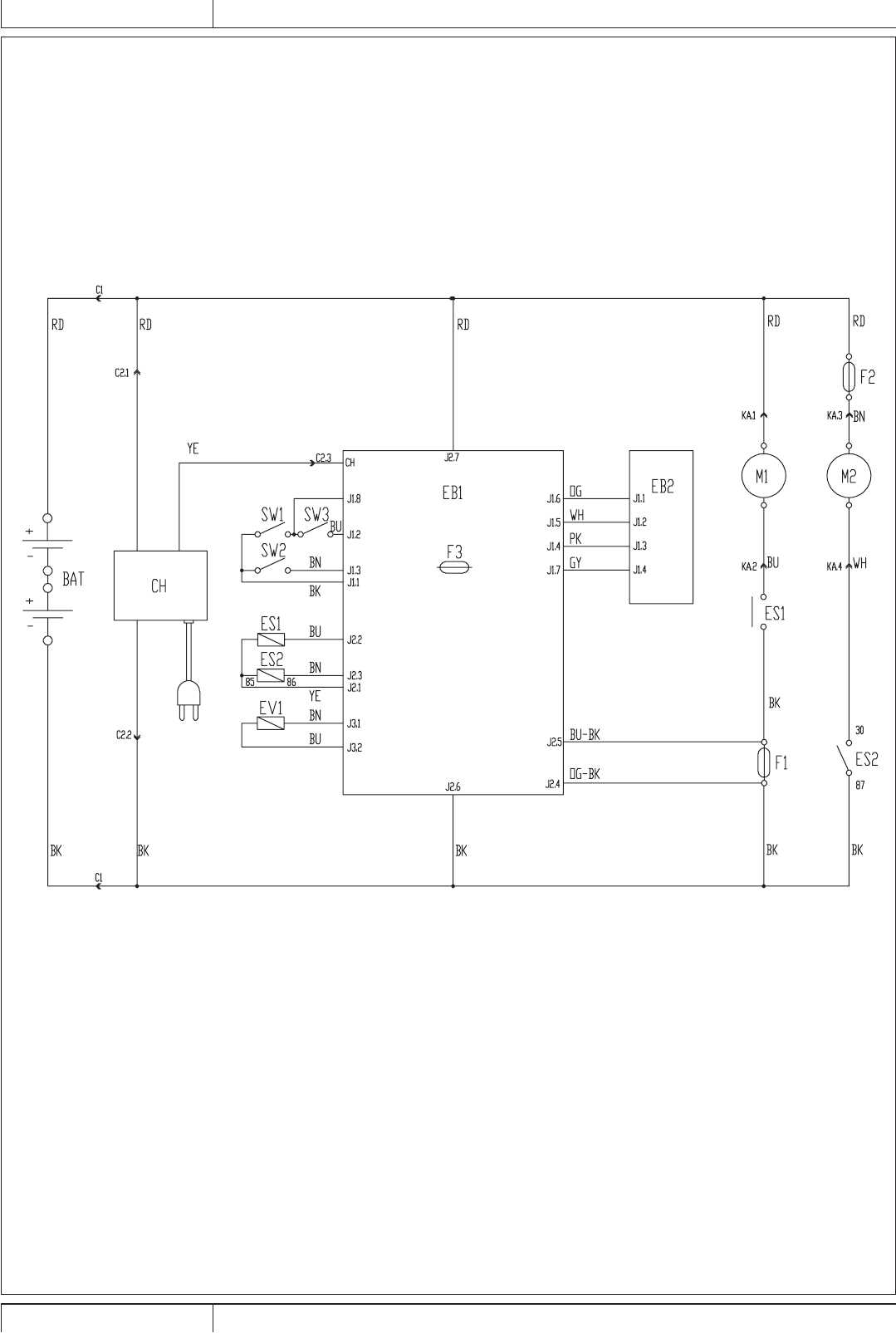

WIRING DIAGRAM 24 - 25
RECOMMENDED SPARE PARTS LIST 26
OPTIONAL LIST 27
ADVANCE_D9_(1)_BATT definitivo.indd 1 03-Aug-12 14:04:46
PARTS LIST
2SC450 - 9099603000 08/2012
1
2
3
9
13
12
6
78
11
4
14
10
5
15

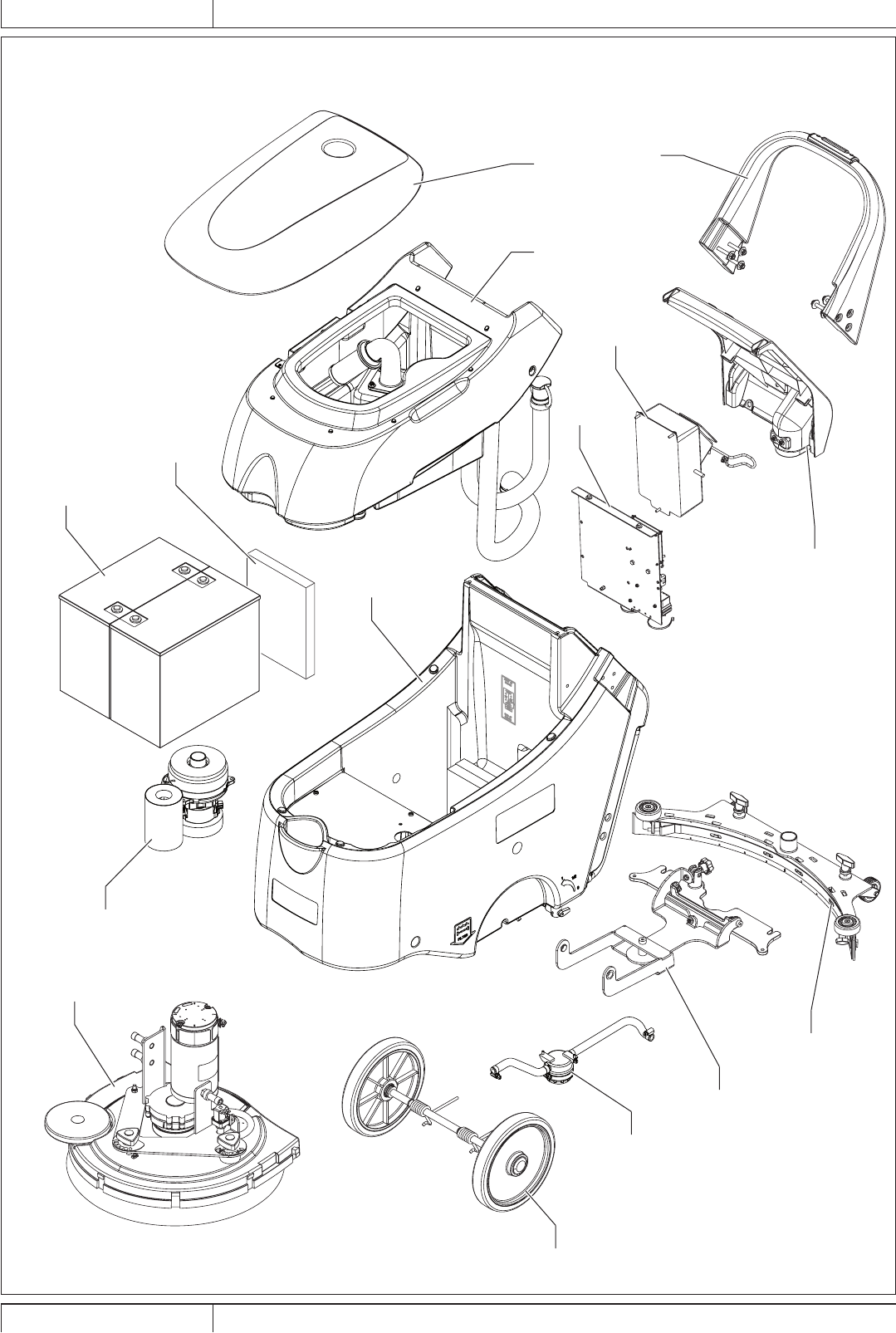

GENERAL SYSTEM
ADVANCE_D9_(1)_BATT definitivo.indd 2 03-Aug-12 14:04:50
PARTS LIST
08/2012 9099603000 - SC450 3
GENERAL SYSTEM
ITEM REF. NO. QTY DESCRIPTION
11WHEELS ASSEMBLY
2 1 SOLUTION SYSTEM ASSEMBLY
3 1 SQUEEGEE HOLDER ASSEMBLY
41ELECTRONIC BOX ASSEMBLY
5 1 FRESH TANK ASSEMBLY
6 1 RECOVERY TANK ASSEMBLY
7 1 COVER TANK ASSEMBLY
8 1 HANDLE BAR ASSEMBLY
91SQUEEGEE ASSEMBLY
10 1 VACUUM ASSEMBLY
11 1CHARGER ASSEMBLY
12 1 BATTERIES
13 1 BRUSH DECK ASSEMBLY
14 1 COVER PANEL ASSEMBLY
15 145 6094 000 1 ISOLANT PANEL
ADVANCE_D9_(1)_BATT definitivo.indd 3 03-Aug-12 14:04:51
PARTS LIST
4SC450 - 9099603000 08/2012
5
22
19
45
34
32
23
61315
11
18 21
17
12
263533
16 8
37
28
7
1
14
2
4
K3
3
40
41
42
39
38
K2
43
24
27
10
29
9
25
31
44
K1
K1
20
30
46
36

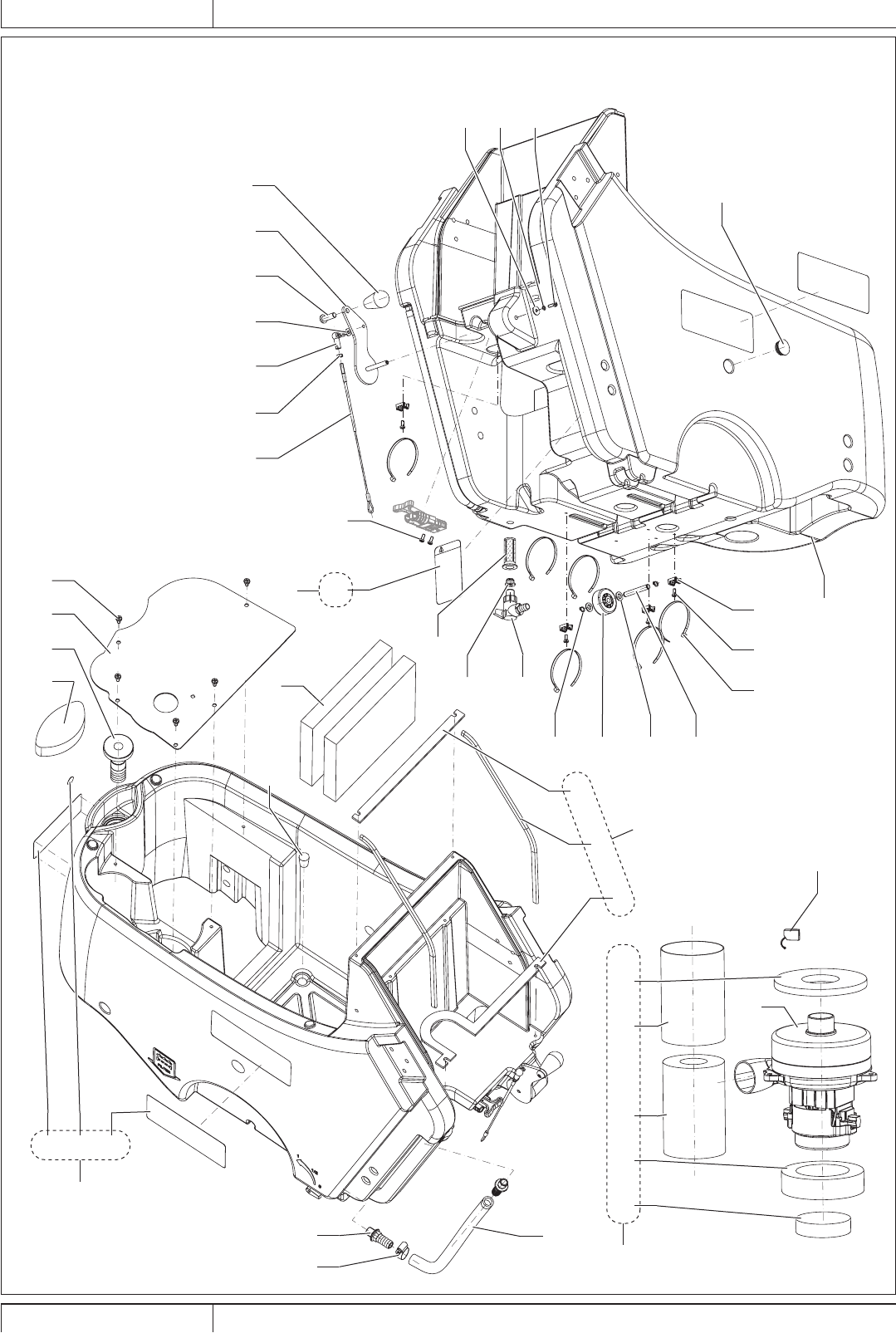

SOLUTION TANK
ADVANCE_D9_(1)_BATT definitivo.indd 4 03-Aug-12 14:04:51
PARTS LIST
08/2012 9099603000 - SC450 5
SOLUTION TANK
ITEM REF. NO. QTY DESCRIPTION
K4 1 1CAP BLACK
K3 2 1 GASKET
K3 3 1 GASKET
K3 4 2GASKET L=960
K4 5 1 KNOB
K4 6 1 WASHER 6X18 UNI6592
K4 7 5 SCREW M6X12 UNI7687
K1 8 1 DECAL WATER FAUCET
K1 9 1WARNING LABEL
K4 10 1 CLAMP 12/ 16-27
K4 11 2 CAP BLACK,TANK LOCKING
K4 12 4 CLAMP BLACK 4,8X200
K4 13 1 WASHER M5 UNI1751B
14 146 0668 000 2 PANEL INSULATING H=30
K4 15 1 SCREW M5X16 UNI7687
K1 16 1 DECAL ADVANCE RECTANGULAR
K4 17 4SCREW, PAN PHIL M5x12 SS
K4 18 4 HOLDER,FLAT TIE
K4 19 1 SCREW M10X30 ISO7380
20 909 5286 000 GASKET
21 9099251000 1 FRESH WATER TANK
K4 22 1 SQUEEGEE LIFT LEVER
23 9099258000 1 SQUEEGEE LIFT ROPE
24 9099261000 1 SOLUTION HOSE ØI=16
25 9099513000 1 VALVE ELBOW 90°
K4 26 1 PIN FOR TRANSPORT WHEEL
K4 27 2 HOSE BARB G3/8” ØI11.5
28 9099275000 1 VACUUM-MOTOR PLATE
K1 29 2 DECAL “MACHINE NAME”
30* 9096916000 1 FILTER SOLUTION TANK
K4 31 2SCREW M3X20 UNI7687
K4 32 1 NUT HEX M6 UNI5588
K4 33 2 RING D 9 UNI7435
K4 34 1BALL JOINT M6 DIN 71802
35 9099560000 1 WHEEL 2”
36 9099561000 1 SPONGE FOR WATER
37* 9097290000 1 HOSE FILLING
K2 38 909 6672 000 1 VACUUM FUN FILTER
K2 39 1 VACUUM MOTOR GASKET
K2 40 1 SHEATH D.48
K2 41 1 VACUUM MOTOR GASKET
K2 42 1 ACOUSTIC INSULATION PIPE
43 9099922000 1 VACUUM MOTOR 330W 24V KIT (M2)
44 909 5371 000 2 CARBON BRUSH
K4 45 1 WASHER, SPLIT LOCK D.6
K4 46 2 WASHER NYLON 10x21x1
K1 9099856000 1 DECAL KIT SC450
K2 9099310000 1 SPONGE KIT
K3 9099311000 1 GASKET KIT
[K4] 9099312000 1 SOLUTION TANK HW KIT
ADVANCE_D9_(1)_BATT definitivo.indd 5 03-Aug-12 14:04:52
PARTS LIST
6SC450 - 9099603000 08/2012
15
16
13
8
3
4
5
6
11
7
10
12
9
14 2
1

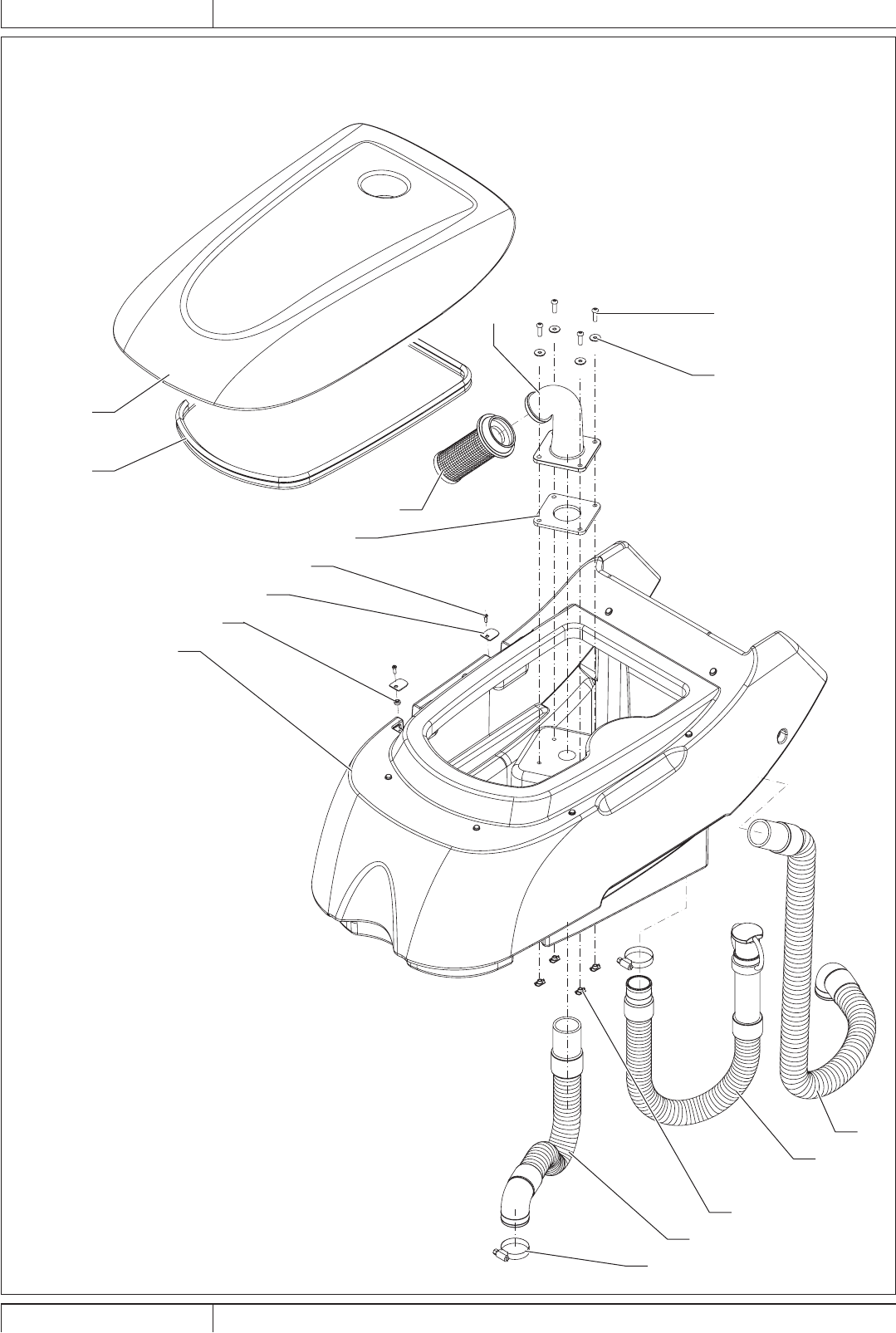

RECOVERY TANK
ADVANCE_D9_(1)_BATT definitivo.indd 6 03-Aug-12 14:04:52
PARTS LIST
08/2012 9099603000 - SC450 7
RECOVERY TANK
ITEM REF. NO. QTY DESCRIPTION
K1 14 WASHER 6.4X12x1 NYLON
K1 2 4 SCREW, BUTTON SOC M6x20
K1 3 2 SCREW CYL HD SELFL 3,9X12
K1 4 2 PLATE, TANK COVER
K1 5 1 BUSH FLANGED
6 9099252000 1 RECOVERY TANK
7 9099255000 1 VACUUM MOTOR HOSE
8 9099276000 1 GASKET FLOAT CAGE HOLDER
9 9099281000 1 SQUEEGEE HOSE
K1 10 4 NUT DRIVIN 6x6 SS
K1 11 2 CLAMP HOSE 10/25-45 SERFLEX
12 9099692000 1 HOSE DRAIN KIT
13 9099559000 1 FLOAT SHUT OFF
14 9099558000 1 ELBOW ADAPTOR FLOAT
15 9099253000 1 TANK COVER
16 9099342000 1 GASKET
[K1] 9099313000 1 RECOVERY TANK HW KIT
ADVANCE_D9_(1)_BATT definitivo.indd 7 03-Aug-12 14:04:52
PARTS LIST
8SC450 - 9099603000 08/2012
1
6
4
3
2
5
9
12
14
13
7
10
8
11
15

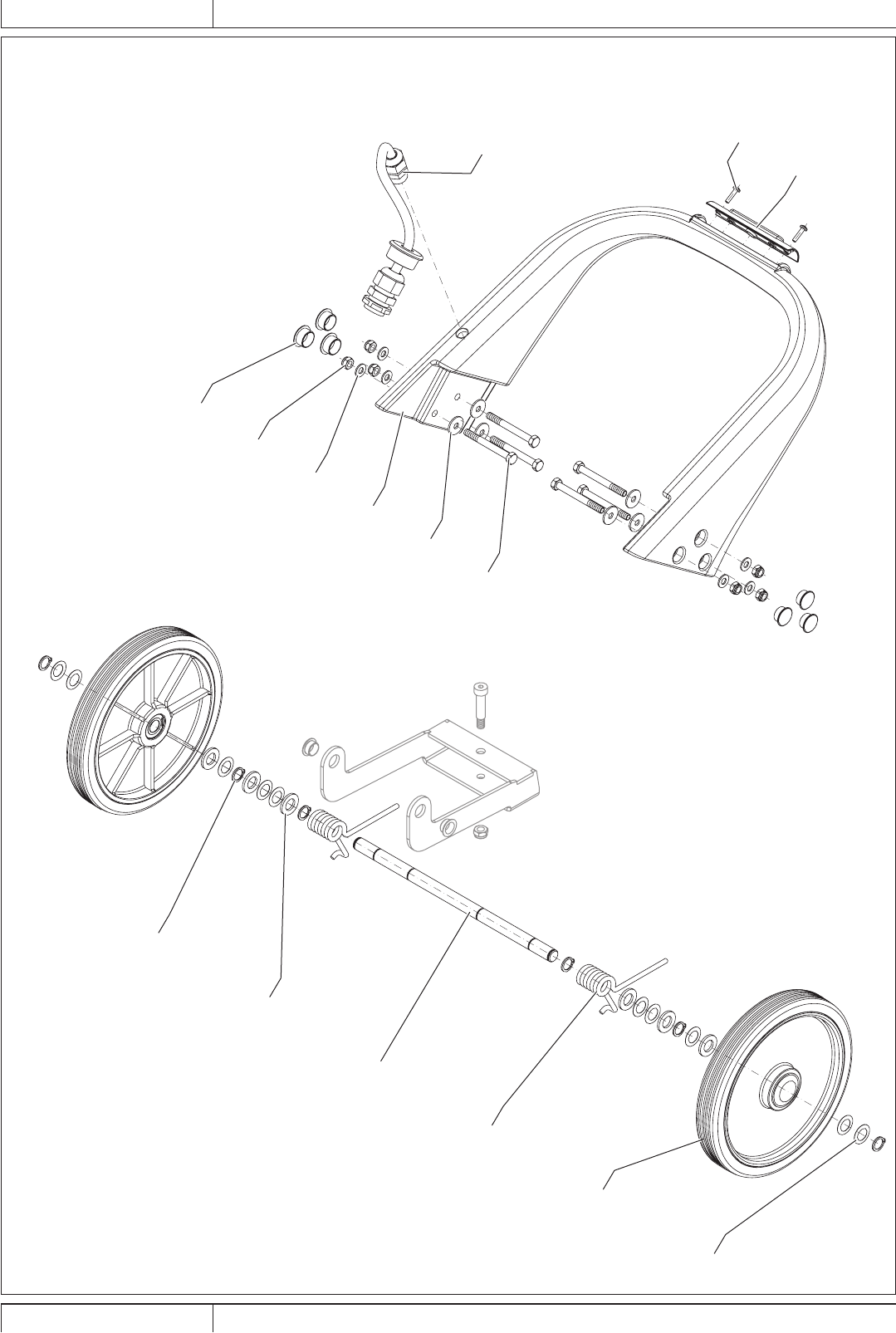

HANDLE BAR AND WHEELS
ADVANCE_D9_(1)_BATT definitivo.indd 8 03-Aug-12 14:04:53
PARTS LIST
08/2012 9099603000 - SC450 9
HANDLE BAR AND WHEELS
ITEM REF. NO. QTY DESCRIPTION
K1 1 10 BELLEVILLE WASHER 17.3X27.7X0.4
K1 2 6 WASHER M16 UNI6592
3 9099256000 1 WHEEL SHAFT
K1 4 2 PUSH SQUEEGEE SPRING
K1 5 6 RING D 17 UNI7436
6 9099270000 2 WHEEL Ø10”X33
K1 7 6 WASHER 8X24 UNI6592
K1 8 6 BELLEVILLE WASHER 15,8 X 8,2 X 0,35
K1 9 6 SCREW, HEX THD TO HD M8x75
10 9099254000 1 HANDLE BAR
K1 11 6 NUT SELF L. M8 UNI7474
12 9099286000 1 HARNESS HANDLEBAR
K1 13 2 SCREW CYL HD 4X16 SELF L. PLAS
14 11178A 1 SWITCH (SW3)
K1 15 6 BLACK CAP D.18,5/24
[K1] 9099315000 1 HANDLE BAR AND WHEELS HW KIT
ADVANCE_D9_(1)_BATT definitivo.indd 9 03-Aug-12 14:04:53
PARTS LIST
10 SC450 - 9099603000 08/2012
13
54
3
2

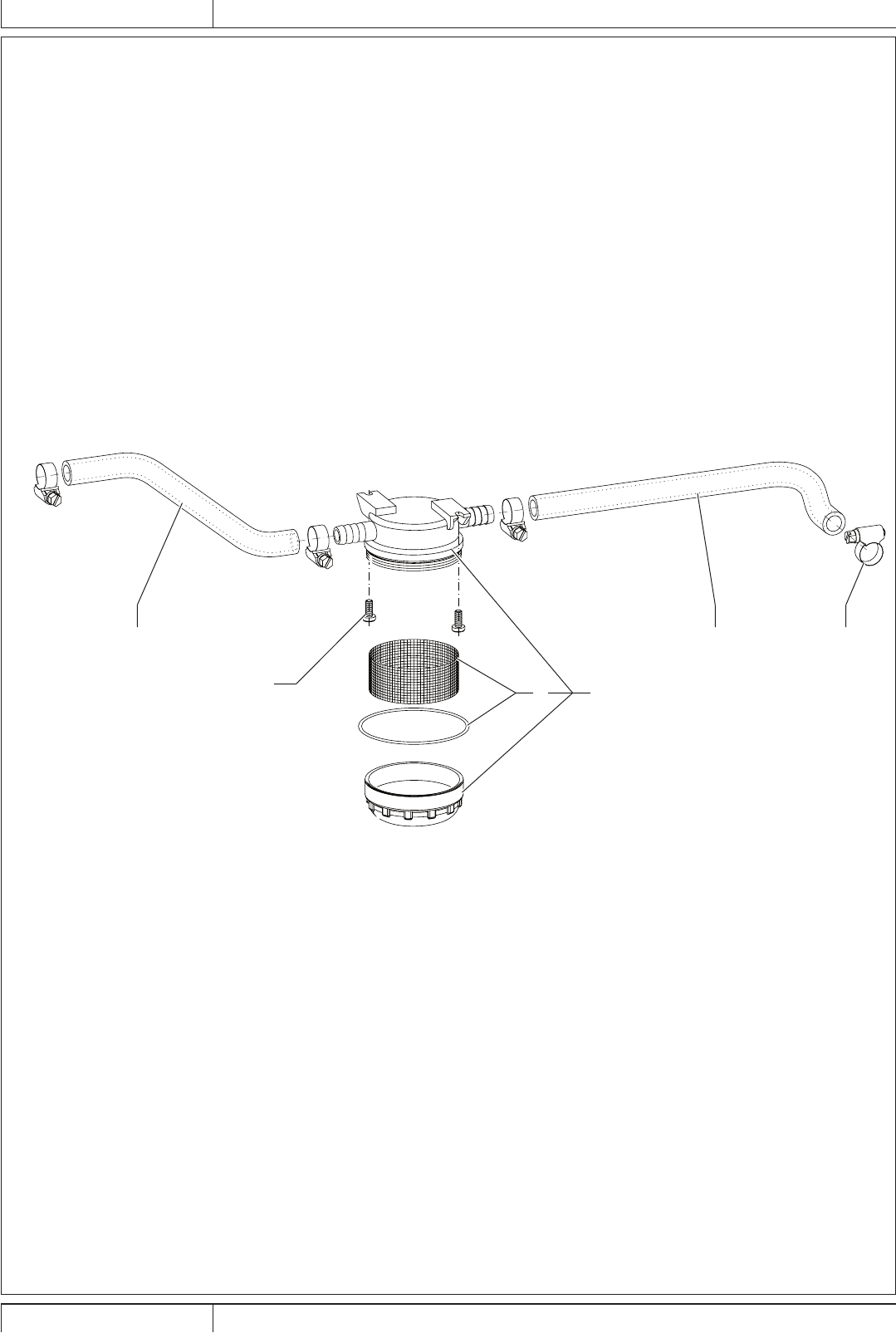

SOLUTION SYSTEM
ADVANCE_D9_(1)_BATT definitivo.indd 10 03-Aug-12 14:04:53
PARTS LIST
08/2012 9099603000 - SC450 11
SOLUTION SYSTEM
ITEM REF. NO. QTY DESCRIPTION
1 33003496 4 CLAMP, HOSE 09/12-22
3 909 5009 000 2 SCREW M5X12 SS UNI7687
4 9099337000 2 HOSE DI.12 KIT
5 9097404000 1 FILTER WATER
6 909 5215 000 1 NET & GASKET WATER FILTER
ADVANCE_D9_(1)_BATT definitivo.indd 11 03-Aug-12 14:04:53
PARTS LIST
12 SC450 - 9099603000 08/2012
1
28 18
34
21
24
37
33 36
K1
20 25 27 35
3822
29
23
382223
31 26 32 37 30 19
16
14
4
11
5
9
7
3
13
6
12
K2
K3
K4
K5
K7
10
15
8
21739

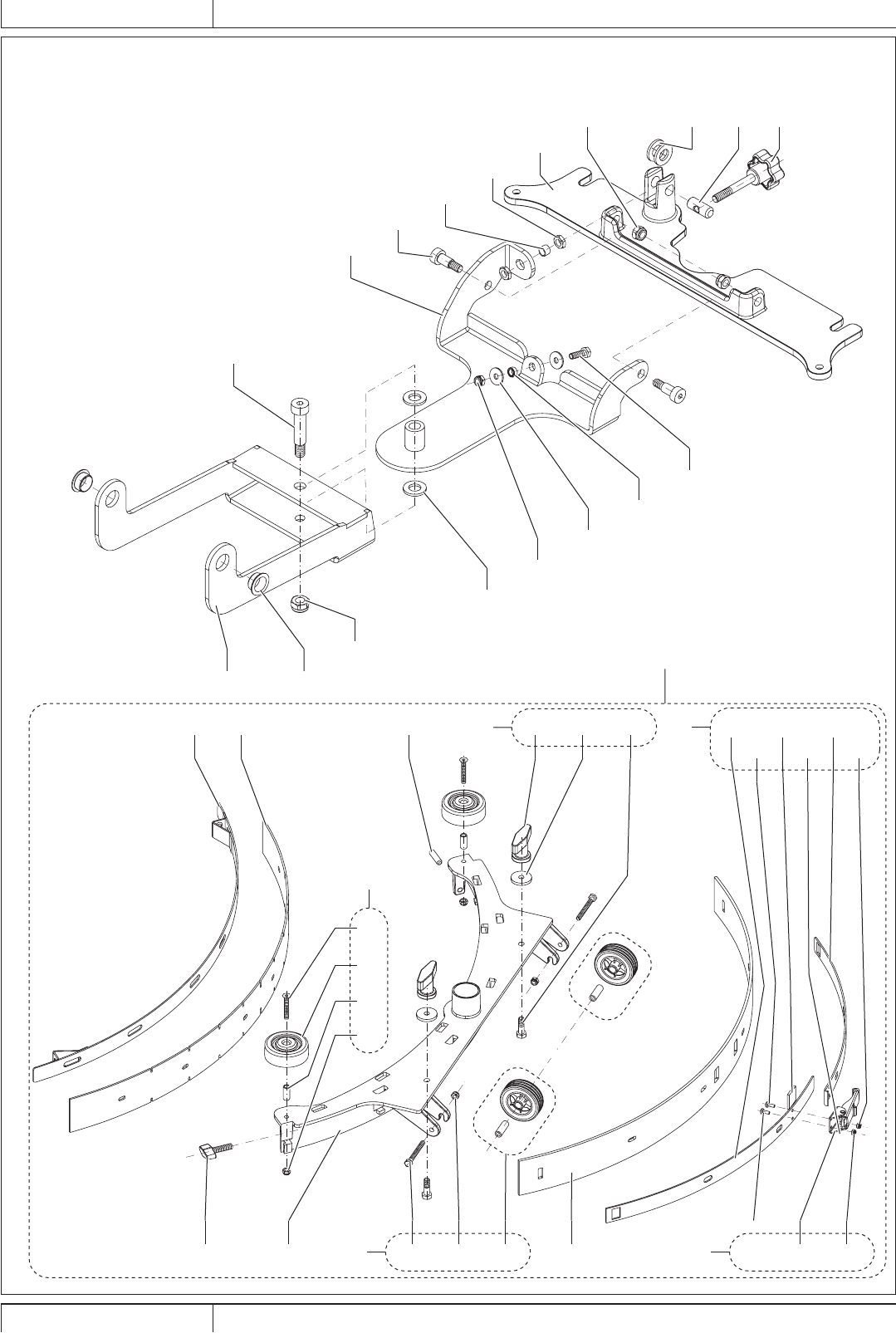

SQUEEGEE SYSTEM
ADVANCE_D9_(1)_BATT definitivo.indd 12 03-Aug-12 14:04:54
PARTS LIST
08/2012 9099603000 - SC450 13
SQUEEGEE SYSTEM
ITEM REF. NO. QTY DESCRIPTION
K8 1 1 SCREW,SHOULDER Ø12X40 M10 ISO7379
K8 2 1 SQUEEGEE SUPPORT PIN
K8 3 1 SPACER 8X10X7
K8 4 2 WASHER 6X18X1,5 UNI6593
K8 5 1 SCREW M6X20 UNI5739
6 909 6045 000 1 SQUEEGEE SUPPORT
K8 7 2 SCREW,SHOULDER Ø10X16 M8
8 9099249000 1 FRONT SQUEEGEE SUPPORT
9 9099250000 1 REAR SQUEEGEE SUPPORT
K8 10 2 BEARING WITH FLANGE
K8 11 1 SPACER 6,5X10X4,5
K8 12 2 NUT, HEX NYL LOC THIN M8
K8 13 2 NUT HEX LOW M8
K8 14 1 NUT SELF L. M6 UNI7474
K8 15 1 NUT SELF L. M10 UNI7473
K8 16 4 WASHER NYLON 13X24
K8 17 1 HANDWHEEL M8X55
K6 18 1FRONT BLADE SQUEEGEE
K6 19 1 REAR BLADE SQUEEGEE
K7 20 2 RUBBER WASHER
K2 21 2 WHEEL 2,5”
K4-K5 22 1 SQUEEGEE LATCH
K4-K5 23 2 SCREW M4X10 UNI7687
K2 24 2 SPACER 6,3X9,5X21
K7 25 2 SCREW 5/16"X1" UNC
K1 26 1 SQUEEGEE
K4 27 1 SQUEEGEE LEFT REAR STRAP
K1 28 1SQUEEGEE FRONT STRAP
K4 29 1 SQUEEGEE RIGHT REAR STRAP
K3 30 2 WHEEL 60X20 (WITH SPACER)
K1 31 1 KNOB M8X30 SS
K3 32 2 SCREW M6X55 UNI5739
K1 33 1 SCREW GRUB M8X30 UNI5929
K2 34 2 SCREW M6X40 UNI5933
K4 35 1 RUBBER SPACER
K7 36 2 NUT THUMB,SQUEEGEE FIXING
K2-K3 37 4 NUT SELF L. M6 UNI7474
K4-K5 38 2 NUT SELF L. M4 UNI7474
K8 39 1 WASHER FLAT 15x25 NYLON
K1 909 6851 000 1 KIT SQUEEGEE
K1 K2 909 6884 000 1 KIT SQUEEGEE BUMPER ROLLER
K1 K3 909 6883 000 1 KIT SQUEEGEE WHEEL
K1 K4 909 6882 000 1 KIT FIXING SQUEEGEE
K1 K5 909 6394 000 1 KIT LATCH FOR SQUEEGEE
K1 [K6] 909 6860 000 1 BLADE RUBBER KIT 740MM/29”
[K6]* 909 6858 000 1 BLADE PU KIT 740MM/29”
K1 K7 9097637000 1 SQUEEGEE FIXING KIT
[K8] 9099322000 1 SQUEEGEE SUPPORT HW KIT
ADVANCE_D9_(1)_BATT definitivo.indd 13 03-Aug-12 14:04:54
PARTS LIST
14 SC450 - 9099603000 08/2012

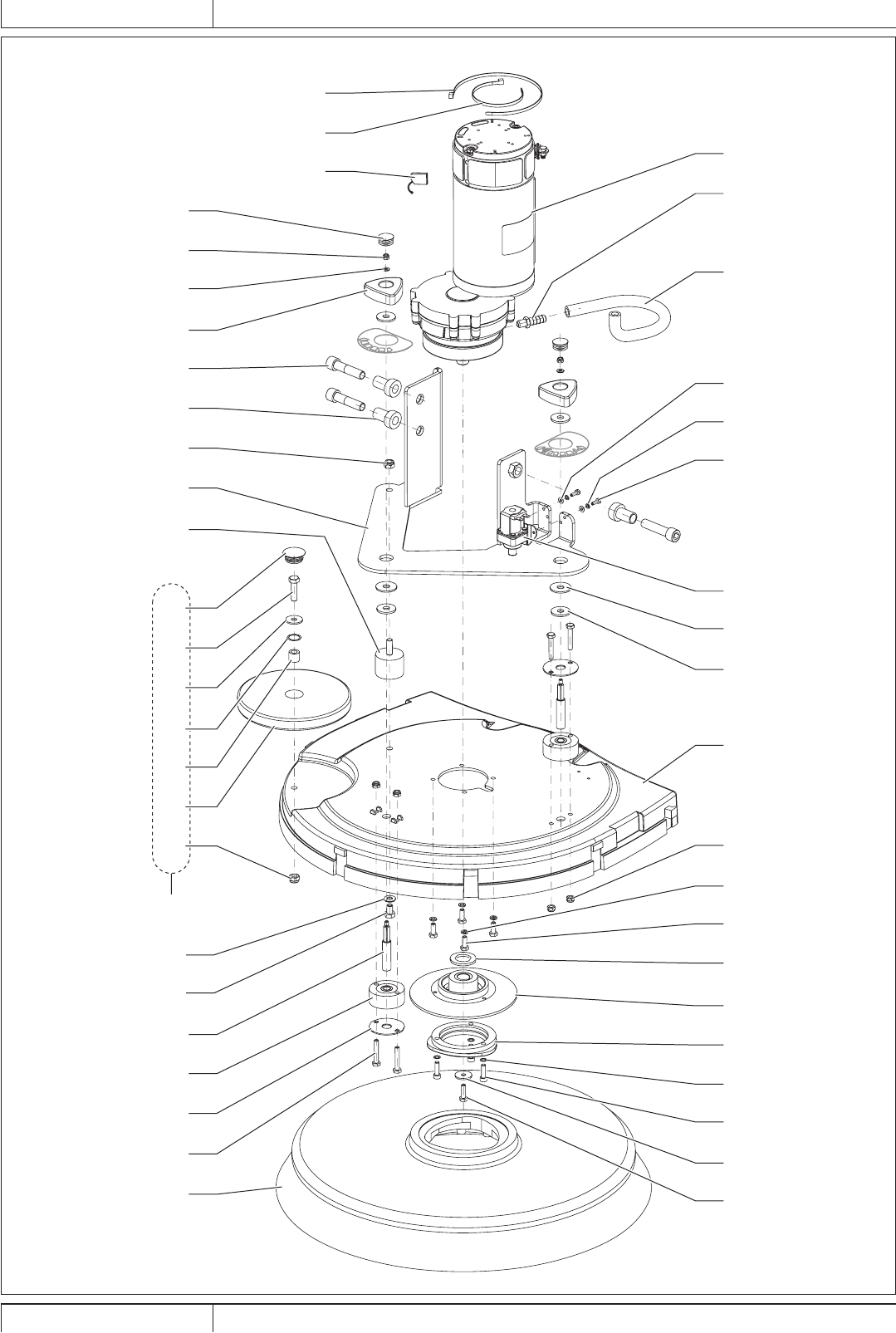

BRUSH DECK
K1
3
39
15
43
18
21
19
12
26
6
4
13
42
38
28
41
36
14
33
7
31
27
24
5
32
44
45
20
34
38
1
37
40
16
17
30
35
2
8
29
22
9
10
11
25
23
ADVANCE_D9_(1)_BATT definitivo.indd 14 03-Aug-12 14:04:55
PARTS LIST
08/2012 9099603000 - SC450 15
BRUSH DECK
ITEM REF. NO. QTY DESCRIPTION
1 9099259000 1 PLATE,DECK BRUSH HOLDER
K2 2 1 WASHER, FLAT 17x30
K2 3 2 WASHER, EXT.
K1 4 1 WASHER
K2 5 2 WASHER M4 SS UNI6592
K1 6 1 WASHER 8X24X2
K2 7 1 HOLDER RUBBER 1/4” TUBO D.10
8 L08812306 1 HUB,BRUSH RIGHT
9 L08812480 1 BRUSH HUB
K2 10 3 WASHER M6
K2 11 3 SCREW M6X20 UNI5931
K1 12 1 BLACK CAP
K1 13 1 SPACER 9X15X13
K2 14 2 CAP FOR KNOB
K2 15 2 PLATE FIXING PIN
K2 16 2 RUBBER WASHER10X30X2
K2 17 4 WASHER 9,5X27X2,5
K2 18 2 VIBRATION DAMPING PLATE
19 L08837025 1 BRUSH 530 PROLENE
K2 20 3 SCREW M12X50 UNI5931
K2 21 4 SCREW M6X35 UNI5739
K2 22 4 WASHER M6 UNI8842A
23 145 0492 000 1 SCREW M6X25 UNI5931
K2 24 2 SCREW, PAN PHIL M4x10 SS
25 145 0493 000 1 WASHER 6.6X24X2 UNI6593
K1 26 1SCREW HEX HD M8X30 SS
K2 27 2 WASHER, SPLIT LOCK D.4
K2 28 1 WASHER, FLAT 5.3x10x1 SS
K2 29 4 SCREW M6X16 UNI5739
30 909 6042 000 1 BRUSH DECK 530
31 909 6546 000 1 REDUCTION GEARMOTOR 480W 24V (M1)
32 909 5380 000 1 KIT CARBON BRUSH (4PCS)
33 9099341000 1 HOSE DI.10 L=250 MM
K2 34 3 FLANGED BUSHING
K2 35 4 NUT SELF L. M6 UNI7474 SS
K2 36 2NUT SELFLOCKING LOW M5 SS
37 9097184000 1 VIBRATION DAMPING M8 60SH
K1-K2 38 2 NUT SELFLOCKING LOW M8 SS
K2 39 1 SCREW M8X12 UNI5739
40 9099563000 1 SOLENOID VALVE 24V (EV1)
41 L08812203 2 KNOB
K1 42 1 BUMPER ROLLER
K2 43 2 BUFFER
K2 44 1 TIE, CABLE 4,8X200
K2 45 1 TIE, CABLE 4,8X430
K1 909 6887 000 1 BUMPER ROLLER KIT
[K2] 9099326000 1 BRUSH DECK HW KIT
ADVANCE_D9_(1)_BATT definitivo.indd 15 03-Aug-12 14:04:55
PARTS LIST
16 SC450 - 9099603000 08/2012
11 12
9
4
2
5
13
31714
15
19
18
6
10
21
8
17 20
16 16

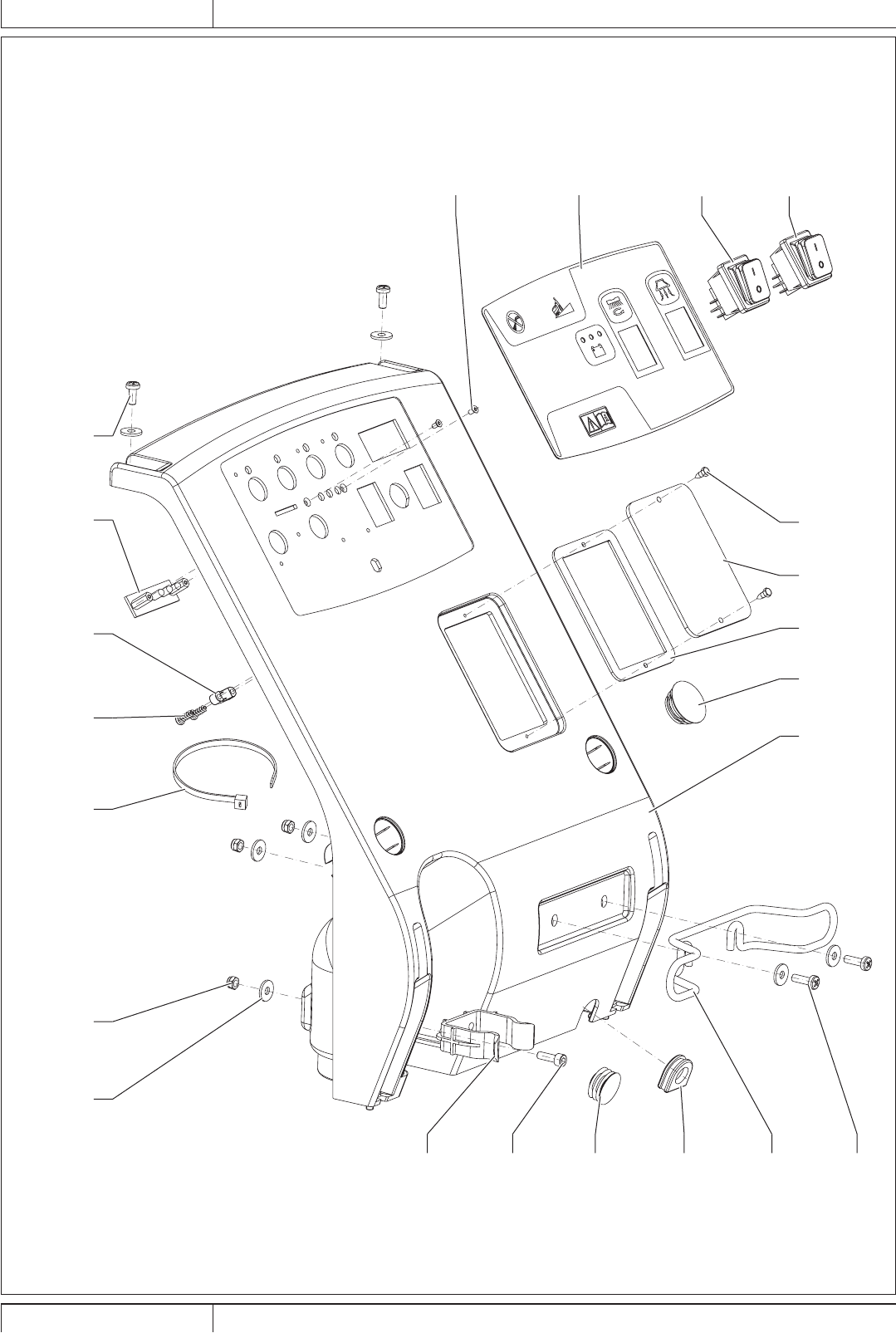

COVER PANEL
ADVANCE_D9_(1)_BATT definitivo.indd 16 03-Aug-12 14:04:56
PARTS LIST
08/2012 9099603000 - SC450 17
COVER PANEL
ITEM REF. NO. QTY DESCRIPTION
K1 1 1 GROMMET
K1 2 1 GASKET
3909 5149 000 1 CABLE SUPPORT
4 909 5313 000 1 PLATE INSPECTION TRANSP.
K1 5 1 PLUG Ø25
6 L08812909 1 LED BOARD (EB2)
K1 7 1 SCREW M5X16 SS
K1 8 9WASHER 5X15 SS
K1 9 2 SCREW HEX THD FORM
K1 10 4 SCREW M5X12 SS
K1 11 2 SCREW M3X6 UNI7688
12 9099271000 1 CONTROL PANEL DECAL
13 9099279000 1 ELECTRONIC COMPONENTS COVER
K1 14 1 HOSE CLAMP
K1 15 3 NUT, HEX NYL LOC THIN M5
16 909 5584 000 2 SWITCH (SW1-2)
K1 17 1 CAP
K1 18 1 CLAMP, PLASTIC CABLE
K1 19 2 SCREW,PAN PHIL THD FORM
K1 20 2SCREW M5X16 UNI7687
K1 21 1TIE, CABLE 3,6X140
[K1] 9099327000 1 COVER PANEL HW KIT
ADVANCE_D9_(1)_BATT definitivo.indd 17 03-Aug-12 14:04:56
PARTS LIST
18 SC450 - 9099603000 08/2012
81118249
26
16
3
125
29
15
28
6
21
2
4
23
27
7
30 5201910143121713
22
31
ELECTRICAL COMPONENTS
ADVANCE_D9_(1)_BATT definitivo.indd 18 03-Aug-12 14:04:56
PARTS LIST
08/2012 9099603000 - SC450 19
ELECTRICAL COMPONENTS
ITEM REF. NO. QTY DESCRIPTION
1 145 8046 000 1 HOLDER FUSE
K1 2 2 SCREW M3X10 UNI5739
K1 3 3 SCREW, HEX THD TO HD M4X12
K1 4 2 SCREW, HEX THD TO HD M4x8
K1 5 6 WASHER, FLAT 4,3x9
K1 6 2 CLAMP 3,6X140
7 9099268000 1 HARNESS MACHINE
K1 8 2 WASHER M5 UNI1751B
K1 9 3 HEX INSERT M5
10 145 8513 000 1 BLADE FUSE 30A (F1)
K1 11 2SCREW M5X12 UNI5739
K1 12 1 WASHER 4X12 UNI6593
K1 13 1 SCREW GRUB M5X12 UNI5929
14 146 0660 000 1 HOLDER FUSE
15 1464116000 1 HANDLE RED PLASTIC FOR CONNECTOR
16 909 5098 000 1 ELECTRONIC CARD (EB1)
17 909 6622 000 1 RELAY, 24V 40A (ES2)
18 909 6498 000 1 ELECTRONIC SUPPORT
K1 19 2 NUT SELF L. M3 UNI7474
K1 20 2 STANDOFF, HEX MALE/FEMALE
K1 21 3 NUT SELF L. M4 UNI7474
K1 22 2SCREW PAN PHIL M5x20
23 145 9852 000 1 FUSE BLADE 5A
K1 24 2 WASHER 5X15X1,5 UNI6593
25 146 0719 000 1 CONTACTOR 24V (ES1)
K1 26 4 PLASTIC SPACER
27 145 3824 000 1 FUSE 40A (F2)
28 9099291000 1 HARNESS ELECTRIC BOX
29 909 5955 000 1 HARNESS BATTERY
30 9098761000 2 CONNECTOR (C1)
31 L08812093 1 BOOT.BATTERY CLAMPS BLACK
[K1] 9099328000 1 ELEC. COMPONENTS HW KIT
ADVANCE_D9_(1)_BATT definitivo.indd 19 03-Aug-12 14:04:56
PARTS LIST
20 SC450 - 9099603000 08/2012
523
1
4
6
9
8
7
BATTERY CHARGER
ADVANCE_D9_(1)_BATT definitivo.indd 20 03-Aug-12 14:04:57
PARTS LIST
08/2012 9099603000 - SC450 21
BATTERY CHARGER
ITEM REF. NO. QTY DESCRIPTION
1 9098296000 1 BATTERY CHARGER 24V 13A (CH)
2 3 WASHER M5 UNI1751B
33SCREW M5X20 UNI7687
49096914000 1 CABLE EXTENSION US (C2)
5 3 WASHER M5 UNI6592
6 1 TIE, CABLE 3,6X140
7 2 SCREW CYL HD 4X16 SELF L. PLASTOFAST2
8 L08338600 1 CAP BRACKET
9 1 VITI TCEI/SCR, SOC HD
ADVANCE_D9_(1)_BATT definitivo.indd 21 03-Aug-12 14:04:57
PARTS LIST
22 SC450 - 9099603000 08/2012
ACCESSORIES
8
2
1
4
3
5
6
7
ADVANCE_D9_(1)_BATT definitivo.indd 22 03-Aug-12 14:04:57
PARTS LIST
08/2012 9099603000 - SC450 23
ACCESSORIES
ITEM REF. NO. QTY DESCRIPTION
1 L08837025 1 BRUSH PROLENE
1* L08837026 1 BRUSH PROLITE
1* L08837027 1 BRUSH UNION MIX
1* L08837065 1 BRUSH MAGNA GRIT 46
1* L08837066 1 BRUSH DYNA GRIT 80
2* L08837018 1 PAD HOLDER KIT
3 L08812466 1 PAD HOLDER
3 9099671000 1 PAD HOLDER GRIP 21”
4 L08603966 1 RING NYLON
5L08603965 1 SEAL O-RING
6 L08837030 1 RETAINER PAD
7* 10001961 1 PAD 21 530MM ECO BLACK5PCS
7* 10001962 1 PAD 21 530MM ECO BLUE 5PCS
7* 10001963 1 PAD 21 530MM ECO BROWN 5PCS
7* 10001964 1 PAD 21 530MM ECO GREEN 5PCS
7* 10001965 1 PAD 21 530MM ECO RED 5PCS
7* 10001966 1 PAD 21 530MM ECO WHITE 5PCS
7* 10002352 1 PAD 21 533MM DIAMOND LINE RED 2PCS
7* 10002354 1 PAD 21 533MM DIAMOND LINE YELLOW 2PCS
7* 10002355 1 PAD 21 533MM DIAMOND LINE GREEN 2PCS
8* 909 6736 000 1 SPLASH GUARD 20” KIT
909 6745 000 1 INSTRUCTIONS INSTALLATION
ADVANCE_D9_(1)_BATT definitivo.indd 23 03-Aug-12 14:04:57
PARTS LIST
24 SC450 - 9099603000 08/2012
WIRING DIAGRAM
ADVANCE_D9_(1)_BATT definitivo.indd 24 03-Aug-12 14:04:58
PARTS LIST
08/2012 9099603000 - SC450 25
WIRING DIAGRAM
KEY REF. NO. DESCRIPTION
BAT -24V BATTERIES
C1 9098761000 BATTERY CONNECTOR
C2 909 5633 000 MAIN CHARGER CONNECTOR
CH 9098297000 BATTERY CHARGER (OPT)
EB1 909 5098 000 MAIN ELECTRONIC BOARD
EB2 L08812909 LED BOARD
ES1 146 0719 000 BRUSH MOTOR ELECTROM. SWITCH
ES2 909 6622 000 VACUUM MOTOR ELECTROM. SWITCH
EV1 9099921000 ELECTROVALVE WATER
F1 145 8513 000 BRUSH DECK FUSE 30A
F2 145 3824 000 VACUUM MOTOR FUSE 40A
F3 145 9852 000 LOW POWER CIRCUIT FUSE 5A
M1 909 6546 000 DISC BRUSH MOTOR
M2 9099922000 VACUUM MOTOR
SW1 909 5584 000 BRUSH SWITCH
SW2 909 5584 000 VACUUM SWITCH
SW3 11178A HANDLE BAR SWITCH
KEY COLOUR
BK BLACK
BU LIGHT BLUE
BN BROWN
GN GREEN
GY GREY
OG ORANGE
KEY COLOUR
PK PINK
RD RED
VT VIOLET
WH WHITE
YE YELLOW
ADVANCE_D9_(1)_BATT definitivo.indd 25 03-Aug-12 14:04:58
PARTS LIST
26 SC450 - 9099603000 08/2012
RECOMMENDED PARTS
REF. NO. QTY DESCRIPTION
NORMAL WEAR
909 5371 000 1 CARBON BRUSH KIT
909 6860 000 1 BLADE SQUEEGEE KIT
L08837025 1 BRUSH 530 PROLENE
909 5380 000 1 KIT CARBON BRUSH (4PCS)
909 6736 000 1 SPLASH GUARD 20” KIT
ORDINARY MAINTENANCE
9099258000 1 SQUEEGEE LIFT ROPE
9099560000 1 WHEEL 2”
9099922000 1 VACUUM MOTOR 330W 24V KIT (M2)
9099255000 1 VACUUM MOTOR HOSE
9099281000 1 SQUEEGEE HOSE
9099692000 1 DRAIN HOSE KIT
9099342000 1 GASKET RECOVERY TANK COVER
9099270000 2 WHEEL Ø10”X33
9097404000 1 FILTER WATER
909 5215 000 1 NET & GASKET WATER FILTER
909 6546 000 1 REDUCTION GEARMOTOR 480W 24V (M1)
9099563000 1 SOLENOID VALVE 24V (EV1)
9097184000 1 VIBRATION DAMPING M8 60SH
L08837018 1 PAD HOLDER KIT
9099310000 1 GASKET VACUUM MOTOR KIT
9099311000 1 GASKET ELECTRICAL COVER KIT
EXTRA-ORDINARY MAINTENANCE
11178A 1 SWITCH (SW3)
9099271000 1 CONTROL PANEL DECAL
909 5584 000 2 SWITCH (SW1-SW2)
145 8513 000 1 BLADE FUSE 30A (F1)
909 5098 000 1 ELECTRONIC CARD (EB1)
909 6622 000 1 RELAY, 24V 40A (ES2)
146 0719 000 1 CONTACTOR 24V (ES1)
145 3824 000 1 FUSE 40A (F2)
9099291000 1 HARNESS ELECTRIC BOX
9098761000 2 CONNECTOR SB50 RED (C1)
9099268000 1 HARNESS MACHINE
145 9852 000 1 FUSE BLADE 5A
9098297000 1 BATTERY CHARGER 24V 13A (CH)
909 6887 000 1 BUMPER ROLLER KIT
ADVANCE_D9_(1)_BATT definitivo.indd 26 03-Aug-12 14:04:58
PARTS LIST
08/2012 9099603000 - SC450 27
OPTIONAL
REF. NO. QTY DESCRIPTION
9096916000 1 FILTER SOLUTION TANK
9097290000 1 HOSE FILLING
909 6858 000 1 BLADE PU KIT 740MM/29”
L08837026 1 BRUSH PROLITE
L08837027 1 BRUSH UNION MIX
L08837028 1 BRUSH MIDLITE GRIT
L08837029 1 BRUSH MID GRIT 240
L08837065 1 BRUSH MAGNA GRIT 46
L08837066 1 BRUSH DYNA GRIT 80
L08837067 1 BRUSH AGLITE GRIT 500
L08837018 1 PAD HOLDER KIT
ADVANCE_D9_(1)_BATT definitivo.indd 27 03-Aug-12 14:04:58
14600 21st Avenue North
Plymouth, MN 55447-3408
www.advance-us.com
Phone: 800-989-2235
Fax: 800-989-6566
©2012 Nilfisk-Advance, Inc.
A Nilfisk-Advance Brand
ADVANCE_D9_(1)_BATT definitivo.indd 28 03-Aug-12 14:04:58
