High-speed single disc machine –

for cost-efficient, high-speed cleaning

Key features

• Ergonomics

• Safety

• Simplicity

• Versatility

The ergodisc 400 is especially suited for spray cleaning and buffing.

Ergonomics

Better working conditions improve productivity through:

• Anatomically formed grip

• Adjustable handle bar height

• Low vibration level

• Low noise level

• Soft start characteristics

Safety

Creates a safer working environment through:

• Hand protection due to closed handle

• High electrical safety due to double insulation

• Double safety lock

Simplicity

Ease of use results in improved efficiency through ease of:

• Training and operation

• Attachment of accessories, no tools required

• Storage and transportation, enabled by a foldable handle

and moveable weight

Versatility

Multi-purpose, cost-efficient machine:

• Adaptable to many different cleaning tasks

• Full range of accessories available

TASKI®

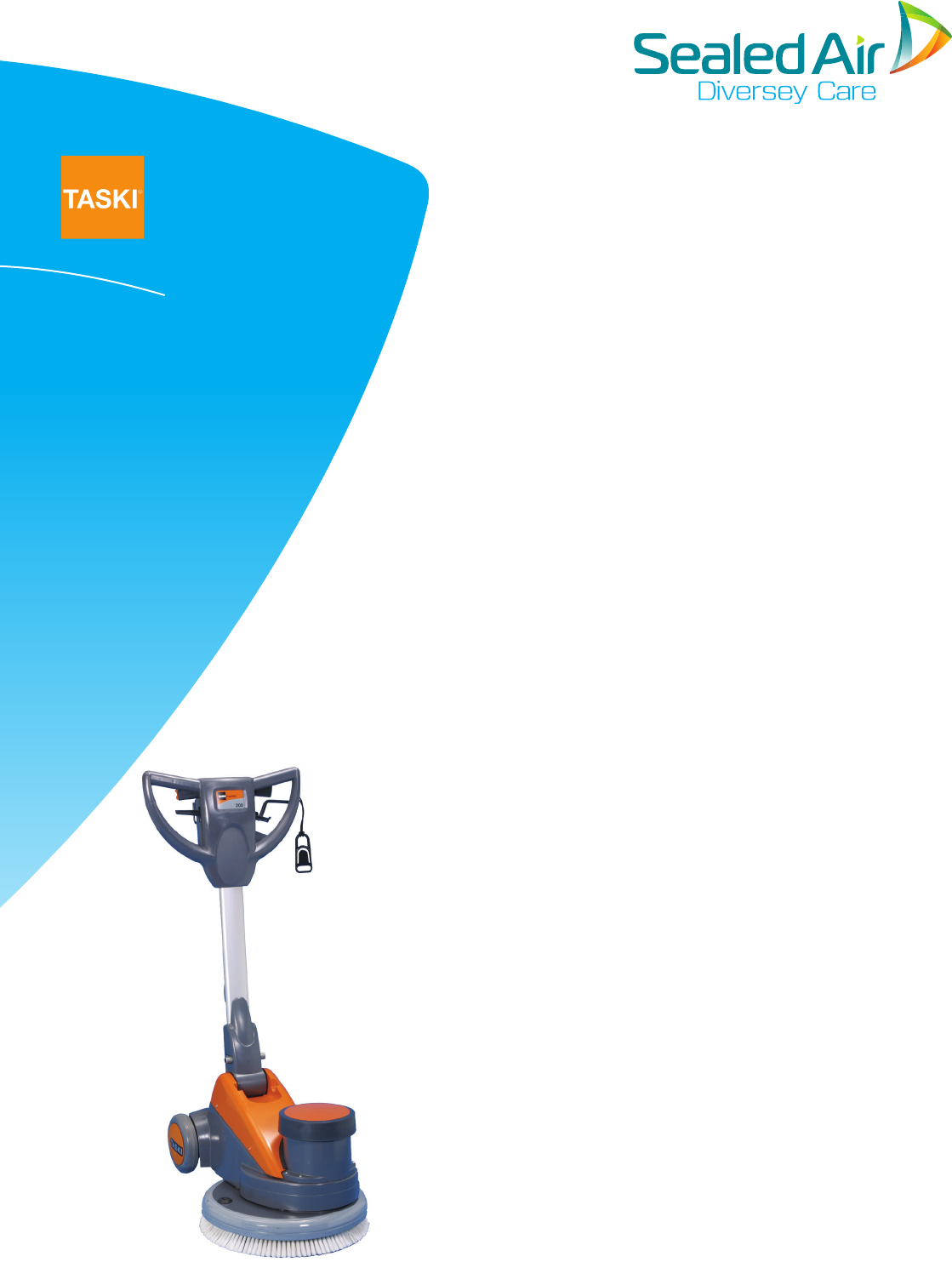

ergodisc 400

www.sealedair.com

Technical data

Working width 43 cm Voltages available 230 V / 50 Hz

Speed 400 rpm Cable length 15 m

Weight 34 kg Noise level 57 dB(A)

Motor height 38 cm Protection class II

Nominal consumption 1100 W Approvals CE/CB Test cert / ÖVE/SEV

The above data is typical of normal production and should not be taken as a specification.

Model SKU number

TASKI ergodisc 400 8003860

Accessories SKU number

High speed driving disc 43 cm 6010452

Water tank 8504390

Dispensing unit mechanical 8504370

Suction skirt / splash protection 6001350

Suction unit 230 V 6010460

Double filter paper bags (10-pack) / HEPA filter 6076768 / 6040965

An overview of other accessories, brushes, pad drives and pads is available on request.

Additional features

Vacuum unit and suction skirt: The combination of vacuum unit and suction skirt is an ideal solution to prevent dust emission into the air.

During spray cleaning, the skirt also acts as a splash protector.

Direct solution distribution: The cleaning solution is distributed through the centre of the pad, using the whole surface of the pad.

An electrical spray unit is fitted as standard.

Full pad contact: The floating pad drive gives a constant working pressure and enables the machine to be used on uneven floors.

Robustness: TASKI ergodisc 400 machines are part of an innovative range of single disc machines. The use of high-tech materials creates

robust, shock absorbing machines with an extended lifetime and low service costs.

All TASKI ergodisc machines come with 2 years warranty.

© 2015 Sealed Air Corporation. All Rights Reserved. 29257F MASTER 03/15

TASKI ergodisc 400
