I Mop XXL Parts Manual 9017613 Rev01 NA/INTL Tennant Walk Behind Floor Scrubber

2018-11-14

: Sweepscrub Tennant-I-Mop-Xxl-Walk-Behind-Floor-Scrubber-Parts-Manual tennant-i-mop-xxl-walk-behind-floor-scrubber-parts-manual 2842 file product_file

Open the PDF directly: View PDF PDF.
Page Count: 35

For the latest Parts manuals and other
language Operator manuals, visit:
www.tennantco.com/manuals
i-mop XXL
*9017613*
www.tennantco.com
Parts Manual
9017613
Rev. 01 (08-2018)
North America / International
SCRUBBER
(S/N 300000- )
Model Part No.:
1237770 - Machine w/Battery & Charger, Blue Brushes
1232547 - Battery Charger
®
B
A
Ref Part No. Serial Number Description Qty.
1 82681 (000000- ) Bracket Wldt, Lpg Mount 1
o2 63810 (000000- ) Latch Assy, Lpg Tank Mtg, W/Nut 4
Y3 51839 (000000- ) Nut Adjustable, Lpg Tank Mtg 2
4 49263 (000000- ) Tie, Cable 3
5 82556 (000000- 001039) Bracket, Vaporizer 1
6 54930 (000000- ) Vaporizer, LPG 1
C
D

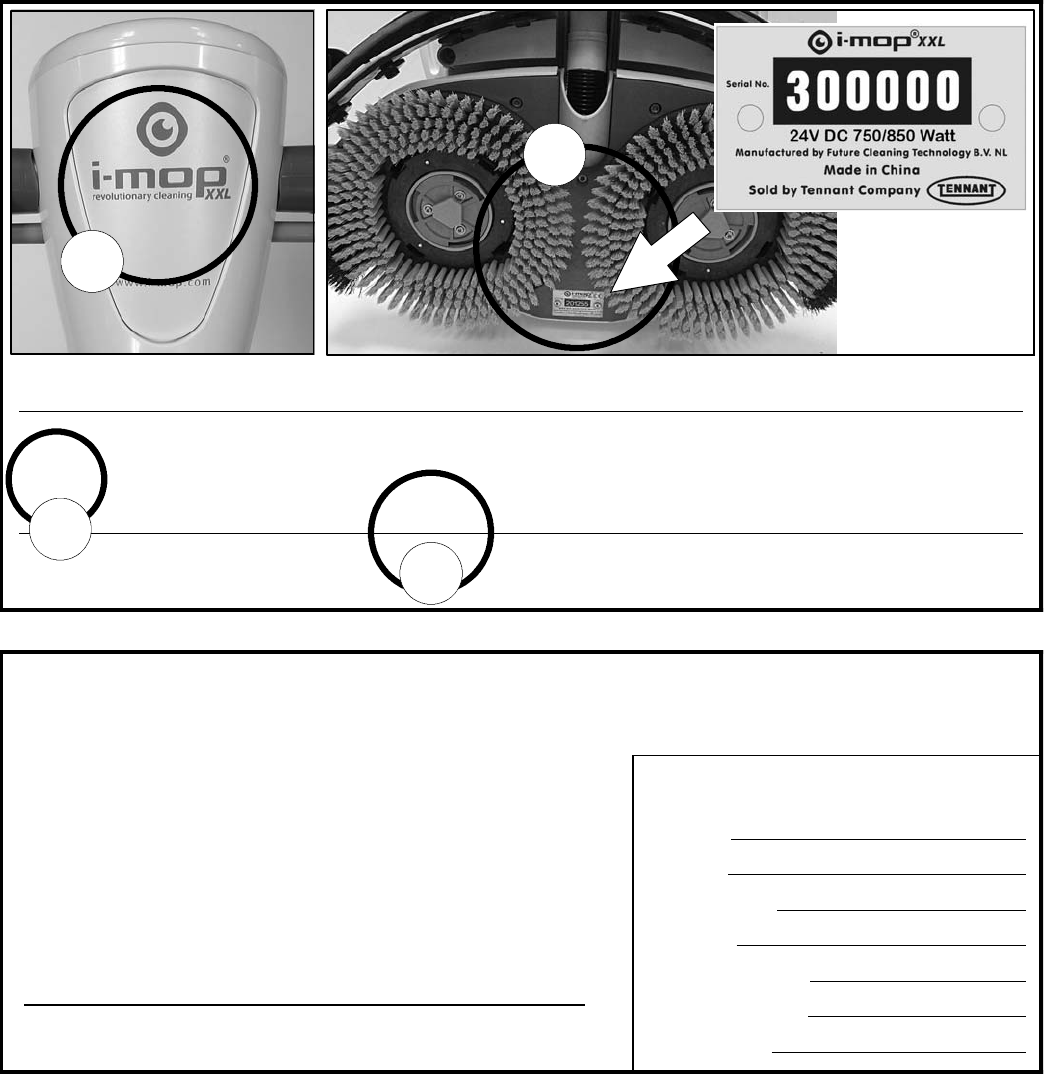

HOW TO ORDER PARTS - See diagram above
Only use TENNANT Company supplied or equivalent parts. Parts and supplies may be ordered online,
by phone, by fax or by mail.
Follow the steps below to ensure prompt delivery.
1. (A) Identify the machine model.
2. (B) Identify the machine serial number from the data label.
3. (C) Ensure the proper serial number is used from
the parts list.
4. Identify the part number and quantity.
Do not order by page or reference numbers.
5. Provide your name, company name, customer ID number,
billing and shipping address, phone number and
purchase order number.
6. Provide detail shipping instructions.
(D) - identifies an assembly
Y- identifies parts included in assembly
Please fill out at time of installation for
future reference.
Model No. -
Serial No. -
Machine Options -
Sales Rep. -
Sales Rep. phone no. -
Customer ID Number -
Installation Date -
Tennant Company
PO Box 1452
Minneapolis, MN 55440 USA
Phone: (800) 553- 8033
www.tennantco.com
Specifications and parts are subject to change without notice.
Copyright E2018 TENNANT Company, Printed in U.S.A.
TABLE OF CONTENTS
Tennant i- mop XXL (02- 2018) 3
STANDARD PARTS
GENERAL RECOMMENDED MAINTENANCE
ITEMS 5...................................
HANDLE ASSEMBLY 6........................
HANDLE ASSEMBLY - CONT’D 8..............
CONTROL CONSOLE ASSEMBLY 10............

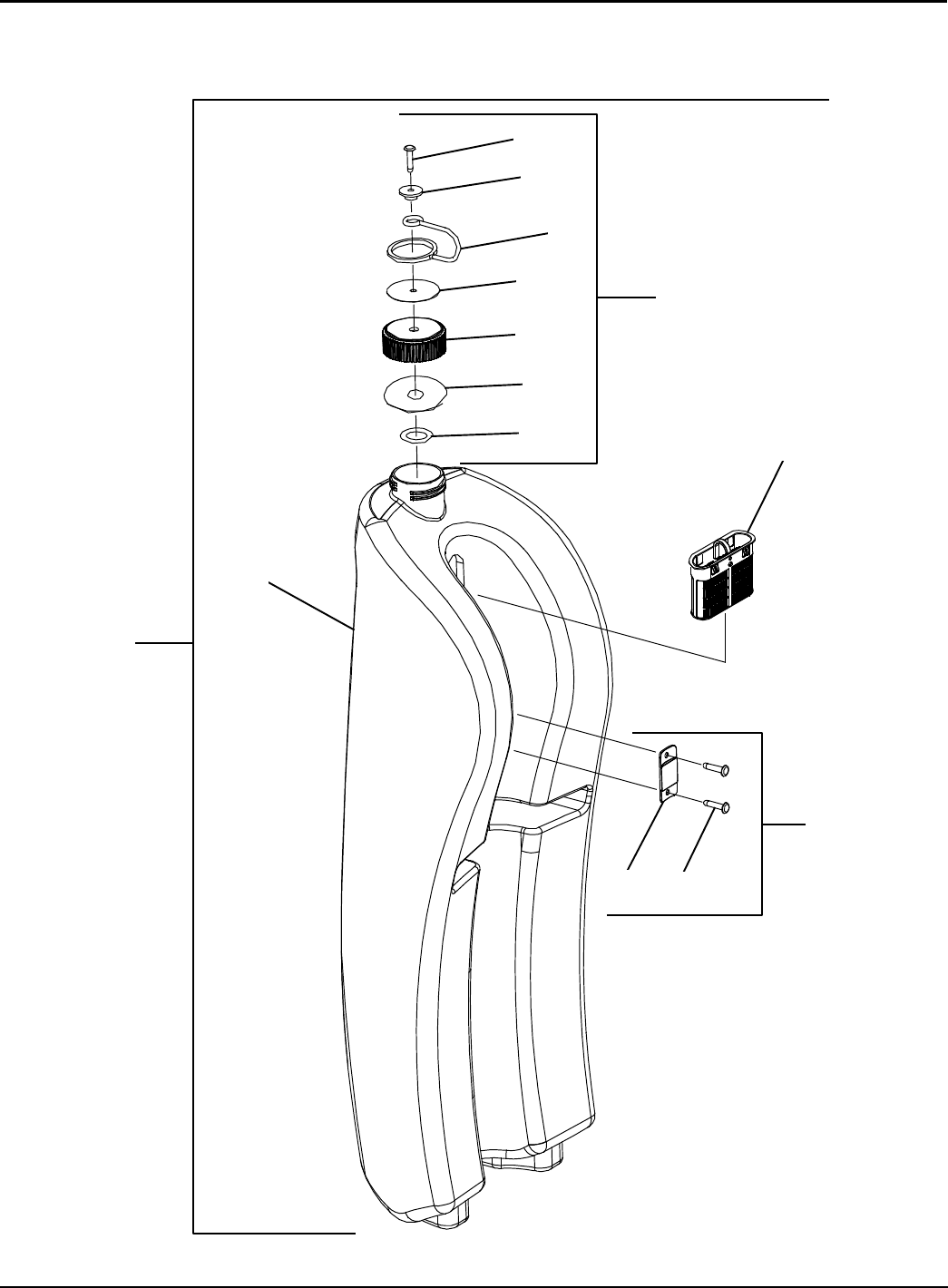

CLEAN WATER TANK ASSEMBLY 12............
DIRTY WATER TANK ASSEMBLY 14.............

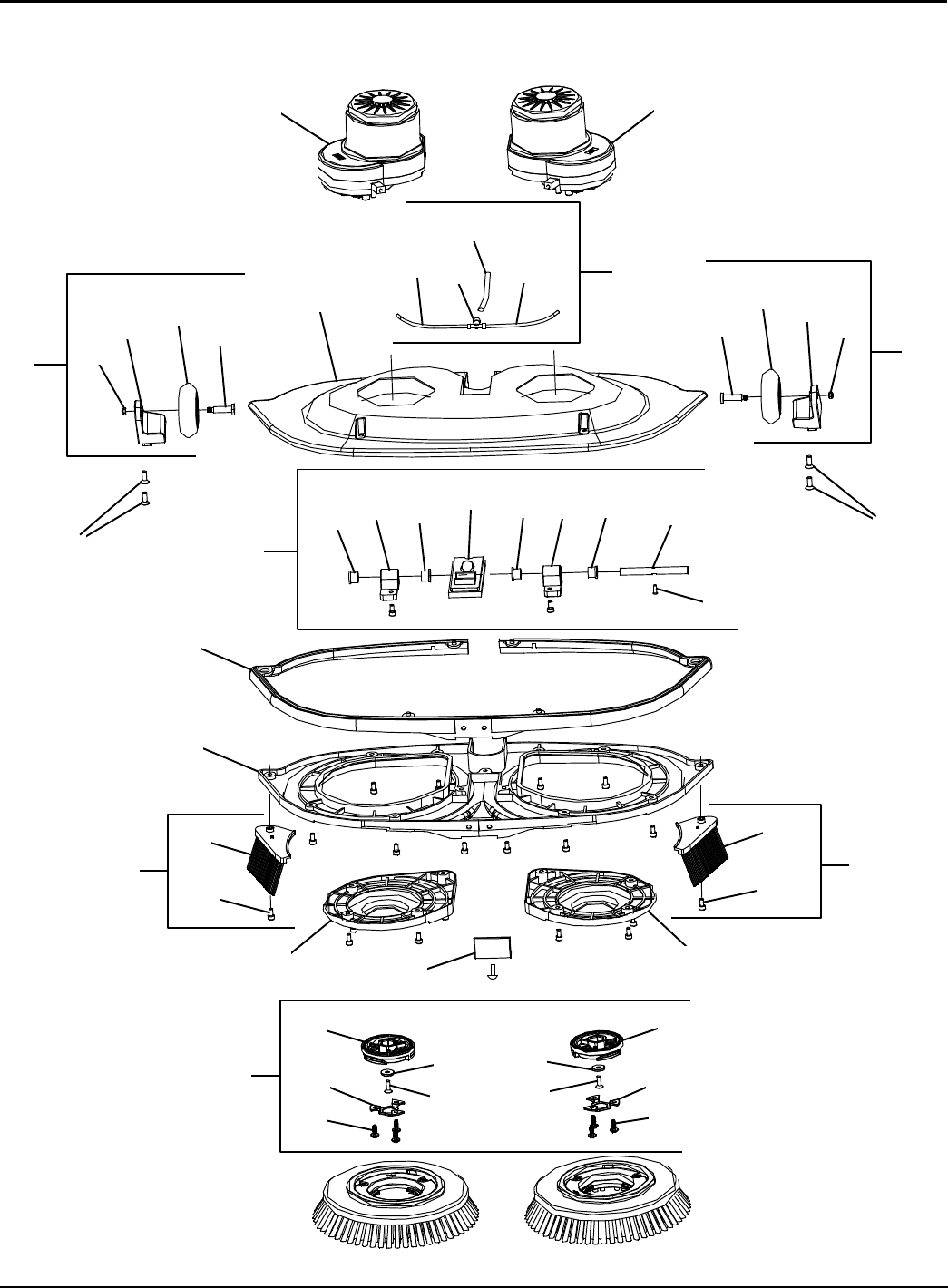

SCRUB HEAD ASSEMBLY 16...................

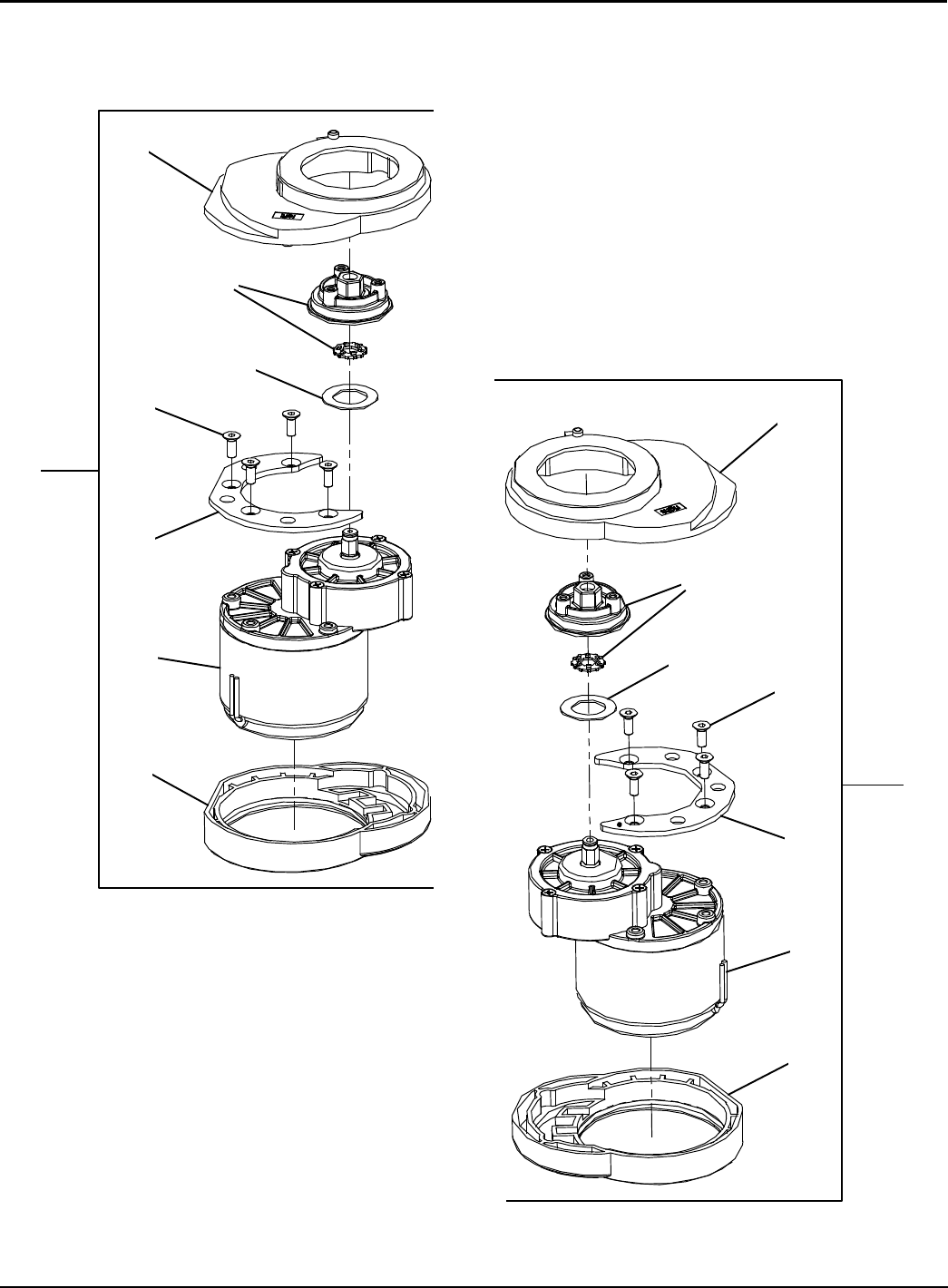

BRUSH MOTOR ASSEMBLY 18.................

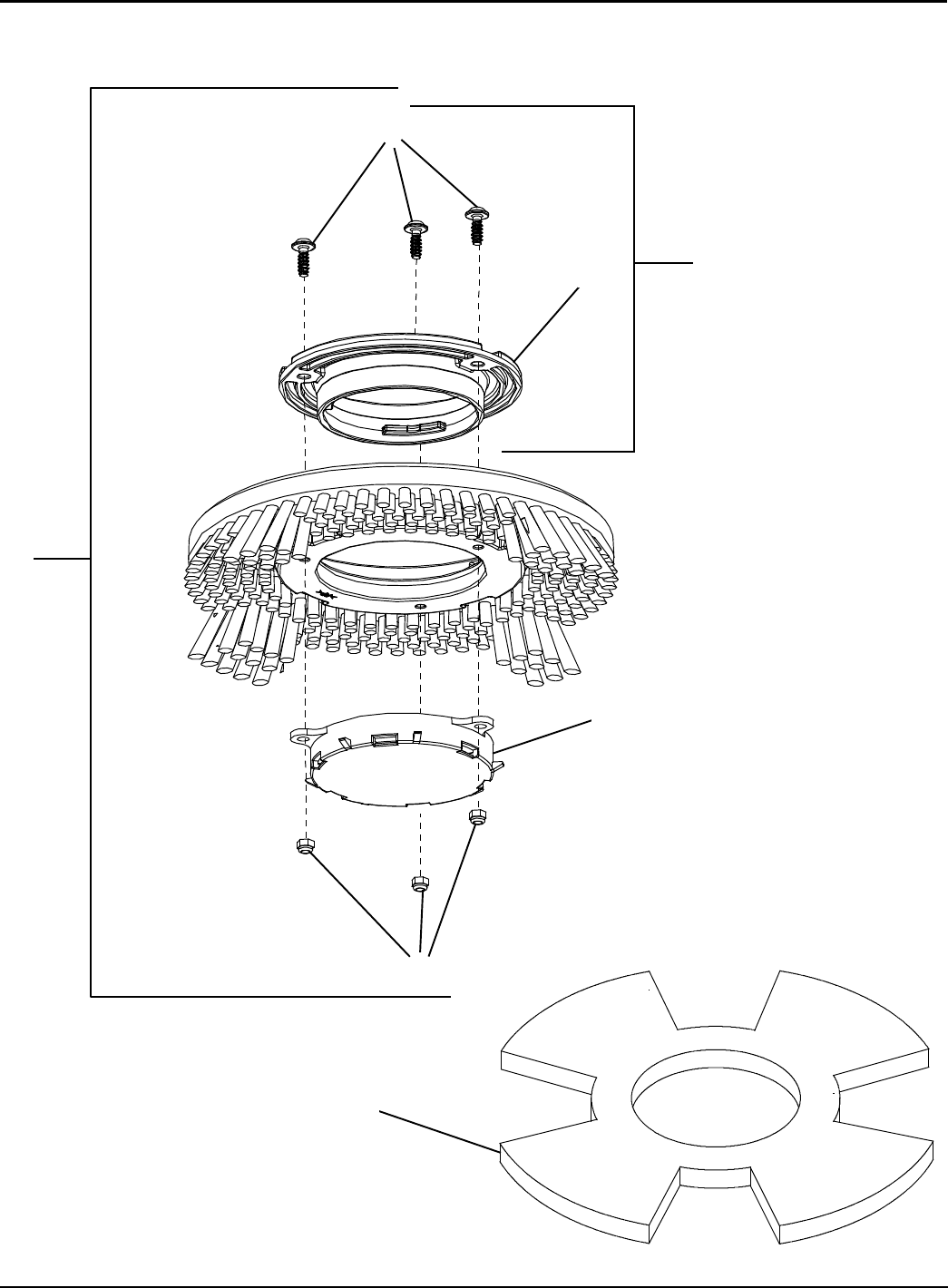

BRUSH DRIVER ASSEMBLY 20.................
PAD DRIVER ASSEMBLY 22....................
SQUEEGEE ASSEMBLY 24.....................

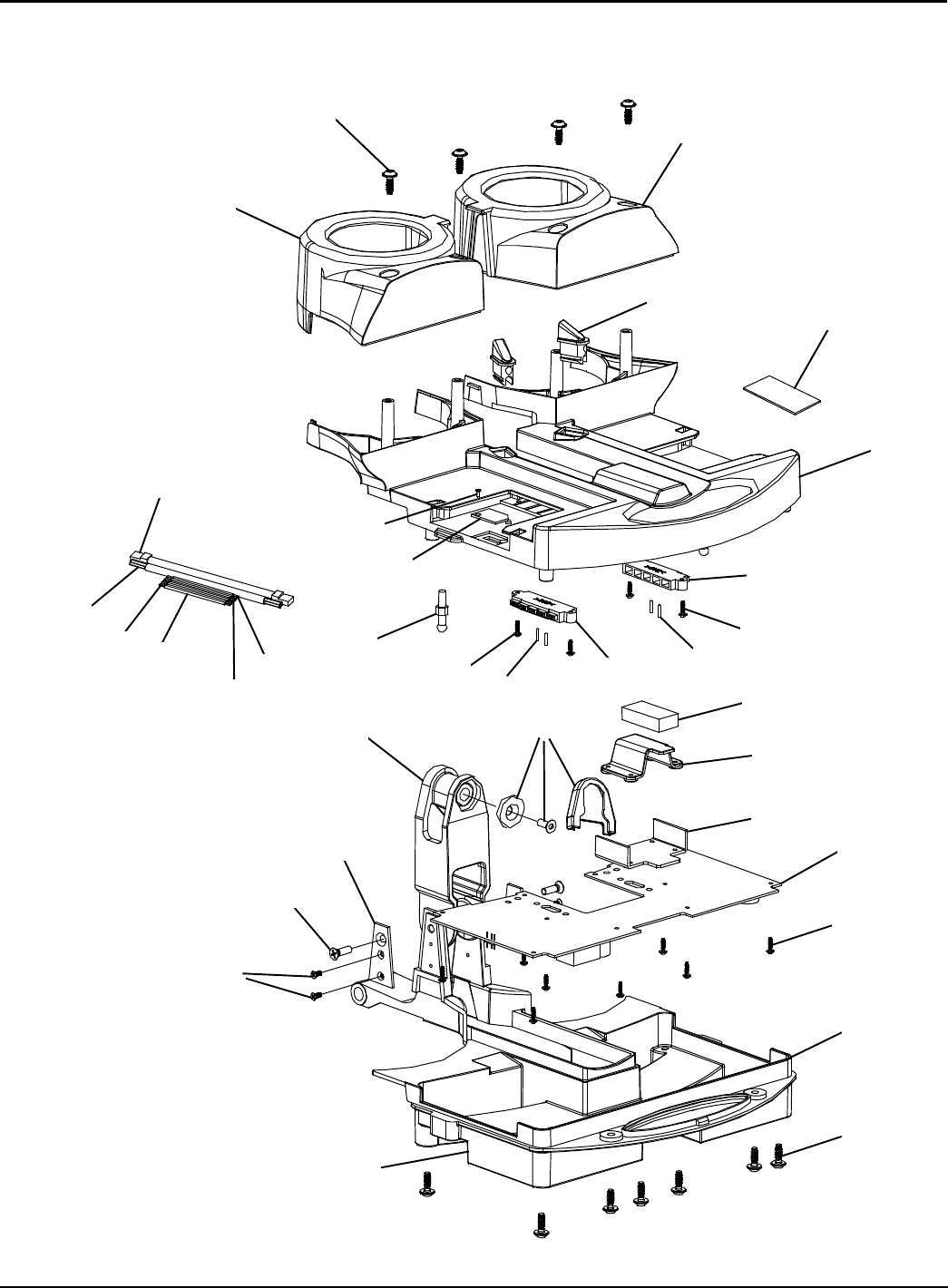

MAIN LEVER ASSEMBLY 26....................
BATTERY PACK ASSEMBLY 28.................

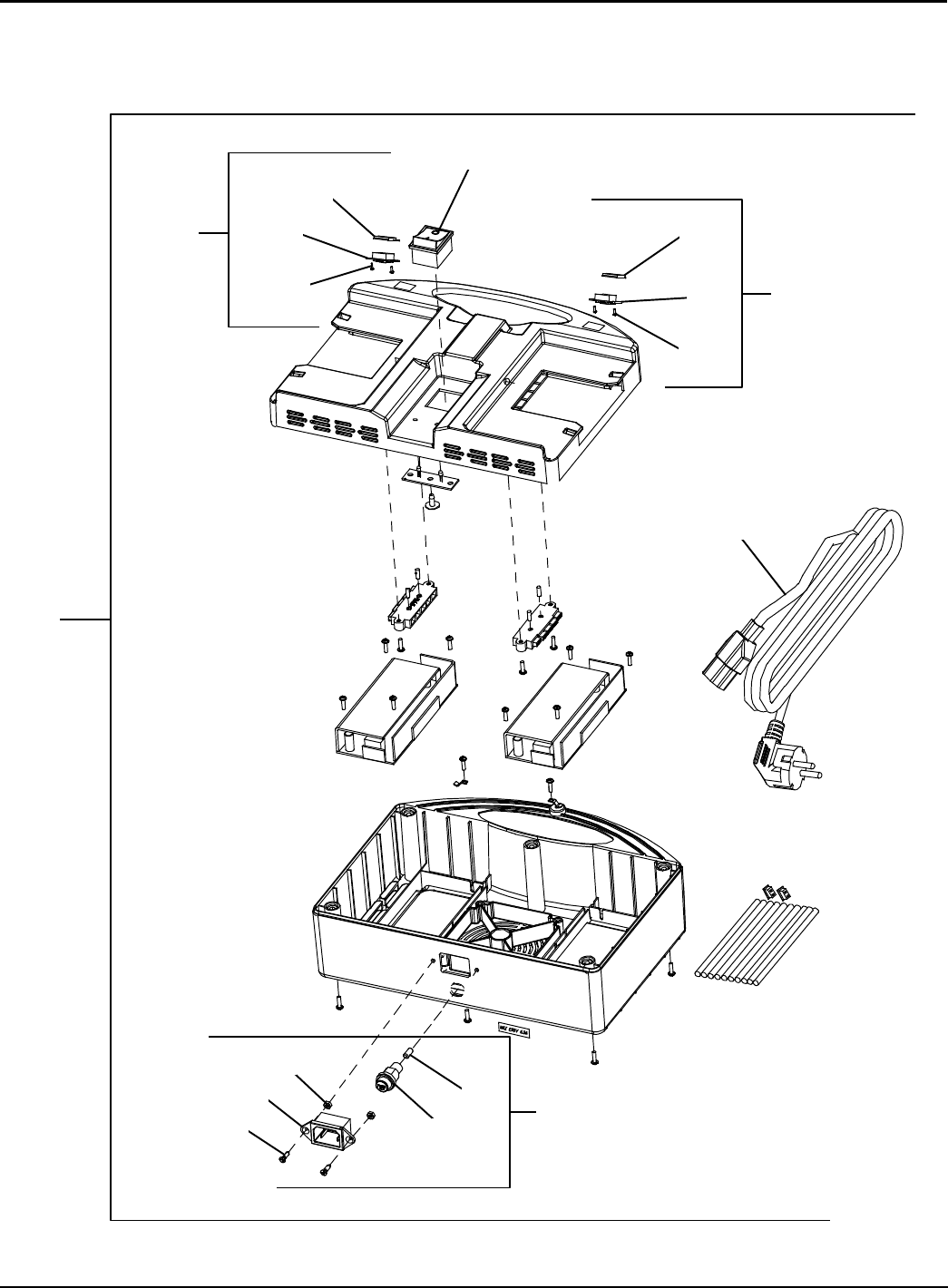

BATTERY CHARGER ASSEMBLY 30............
WALL CHARGERS (OPTION) 32................

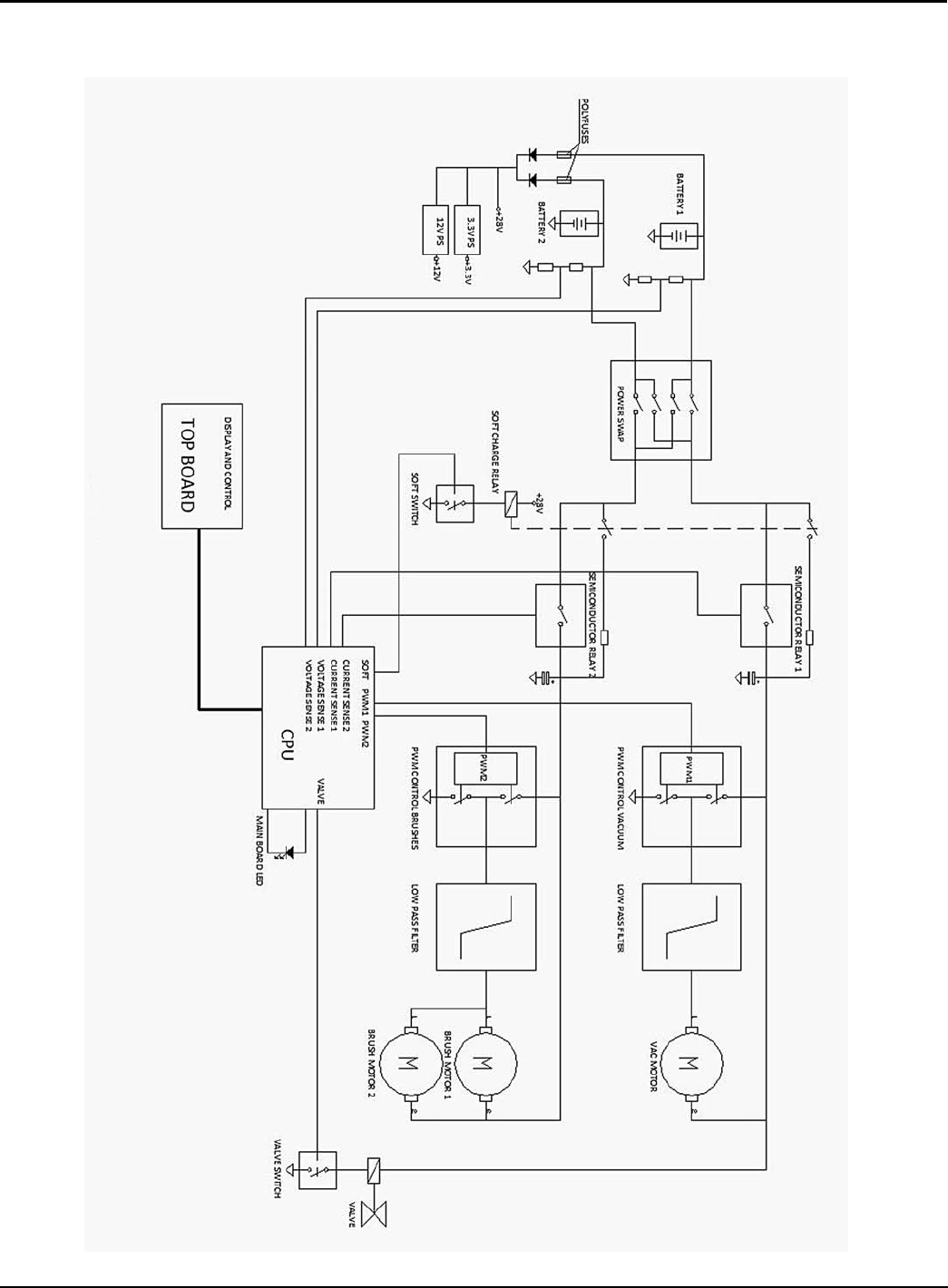

ELECTRICAL DIAGRAM 34.....................
TABLE OF CONTENTS
4Tennant i- mop XXL (02- 2018)
RECOMMENDED MAINTENANCE ITEMS
Tennant i- mop XXL (02- 2018) 5
GENERAL RECOMMENDED MAINTENANCE ITEMS
Part No. Serial Number Description Qty.
1237713 (300000- )Brush, Med, Blu, 11.8 [Xxl Qty 2]
(Standard - Medium Duty Daily Scrubbing)
1
1237714 (300000- )Brush, Soft, Lt Blu, 11.8 [Xxl Qty 2]
(Option - Soft Light Duty Cleaning)
1
1237715 (300000- )Brush, Hard, Red, 11.8 [Xxl Qty 2]
(Option - Heavy Duty Deep Cleaning & Grout)
1
1237718 (300000- )Pad, Red, 10.6 [Xxl Box Of 10] (Cleaning) 1
1237717 (300000- )Pad, White, 10.6 [Xxl Box Of 10] (Buffing) 1
1237719 (300000- )Pad, Green, 10.6 [Xxl Box Of 10] (Scrubbing) 1
1237720 (300000- )Pad, Blu, 10.6 [Xxl Box Of 10] (Scrubbing) 1
1237721 (300000- )Pad, Black, 10.6 [Xxl Box Of 10] (Light Stripping) 1
1237725 (300000- )Pad, Green, 10.6 [Xxl Twister Qty 2]
(Diamond Polishing Pad - Daily Cleaning)
1
1237722 (300000- )Pad, Yellow, 10.6 [Xxl Twister Qty 2]
(Diamond Polishing Pad - Periodic Cleaning)
1
1237726 (300000- )Pad, White, 10.6 [Xxl Twister Qty 2]
(Diamond Polishing Pad - Deep Cleaning)
1
1237727 (300000- )Pad, Red, 10.6 [Xxl Twister Qty 2]
(Diamond Polishing Pad - Deep Cleaning Aggressive)
1
1237723 (300000- )Pad, Orange, 10.6 [Xxl Twister Qty 2]
(Diamond Polishing Pad - Ceramic Tiles)
1
1237724 (300000- )Pad, Blu, 10.6 [Xxl Twister Qty 2]
(Diamond Polishing Pad - High Traffic Areas)
1
1237729 (300000- )Blade, Sqge, Front 27.3 [Xxl Lina] (Standard) 1
1237731 (300000- )Blade, Sqge, Frnt, 27.3 [Xxl Ure] (Option) 1
1237730 (300000- )Blade, Sqge, Rear, 28.7 [Xxl Lina] (Standard) 1
1237732 (300000- )Blade, Sqge, Rear, 28.7 [Xxl Ure] (Option) 1
1237747 (300000- )Motor, Brush, Rh [Xxl] 1
1237746 (300000- )Motor, Brush, Lh [Xxl] 1
1237752 (300000- )Circuitboard, Cntrl [Xxl] 1
1237751 (300000- )Circuitboard, Cntrl, Bat [Xxl] 1
1232482 (300000- )Valve Assy, Copper, W/ Connectors
(Includes Fixation Plate and Mounting Screws)
1
1232481 (300000- )Connector Assy, Upt, Sigar
(Includes Clip and Mounting Screw)
1
1232673 (300000- )Caster Assy, Sqge (Includes Qty 3 Caster Assemblies
And Retaining Assemblies)
3
1232674 (300000- )Fan, Vac (Complete Assembly - Includes Seals) 1
1232675 (300000- )Cover, Brush, Motor (Includes Qty 2 Cover Assemblies) 1
1237750 (300000- )Hinge Kit, [Xxl] 1
1237742 (300000- )Transport Kit, Caster, Rh [Xxl] 1
1237741 (300000- )Transport Kit, Caster, Lh [Xxl] 1
1232676 (300000- )Clip, Retaining, Tank (Includes Qty 2 Clip Assemblies) 1
1232519 (300000- )Coupling, Water 1
1237793 (300000- )Connector Kit, Hose, Sqge [Xxl] 1
1237790 (300000- )Knob Kit, Housing, Top [Xxl] 1
1232587 (300000- ) Hose Assy, Stretch 1
1237769 (300000- )Filter, Recovery Tank, Cassette [Xxl] 1
STANDARD PARTS
Tennant i- mop XXL (02- 2018)
6
HANDLE ASSEMBLY
355678
3
4
5
6
7
8
9
10
11
12
13
11
14 15
16
17
18
19
21
22
23
24
25
26
36
31
30
34
32
33
29
35
37
28
1
2
20
29
27
STANDARD PARTS
Tennant i- mop XXL (02- 2018) 7
HANDLE ASSEMBLY
Ref. Part No. Serial Number Description Qty.
11237758 (300000- )Tube Assy, Inlet [Xxl] 1
Y21237792 (300000- )Tube Kit, Inlet [Xxl] (Includes Items #2- 19 Only) 1
YY 31237800 (300000- )Handle Wldt, Tube [Xxl] 1
YY 4N/A (300000- )Tank Holder Rear 1
YY 5N/A (300000- )Screw Wn 5451 50x25 Ejot Delta Pt 10
YY 6N/A (300000- )Screw Wn 5451 25x10 Ejot Delta Pt 2
YY 71234958 (300000- )Connector, Hose, Squeegee [Imop] 1
YY 8N/A (300000- )Gasket For Hose Connector 1
YY 91232494 (300000- )Cable, Connector, Cntrl [Utp] 1
YY 10 N/A (300000- )Power Cable Guiding Rubber 1
YY 11 N/A (300000- )Rivet With Dia. 5mm & Length 10mm 4
YY 12 N/A (300000- ) Sealing Pressure Plate 1
YY 13 N/A (300000- )Sealing Rubber Sheet Al Tube 1
YY 14 N/A (300000- )End Cap Inlet Tube 1
YY 15 1234957 (300000- )Seal, Tank, Recvy [Imop] 1
YY 16 N/A (300000- )O- ring Wire Dia. 3mm, Od 46mm 1
YY 17 N/A (300000- )Magnet Top Unit Small 20x20x10mm 1
YY 18 N/A (300000- )Tank Holder Front 1
YY 19 1234953 (300000- )Deflector, Tank, Recvy [Imop] 1
Y20 1232710 (300000- )Motor Kit, Top (Includes Items #22- 34 Only) 1
YY 21 N/A (300000- )Motor Unit Top 1
YY 22 N/A (300000- )Angle Metal Connector 1
YY 23 N/A (300000- )Motor Unit Frame Rubber 1
YY 24 N/A (300000- )187 Terminal + Wire 14awg Red, L=280mm 250 Terminal 1
YY 25 N/A (300000- )187 Terminal + Wire 14awg Blk, L=280mm 250 Terminal 1
YY 26 N/A (300000- )Motor Unit Frame 1
YY 27 N/A (300000- )Center Sealing Gasket Top Vacuum Motor 1
YY 28 N/A (300000- )Vacuum Motor Sealing Top 1
YY 29 N/A (300000- )Screw M3x12 Crosshead Selftapping Bl- ni Sst 2
YY 30 1234975 (300000- )Screw, Flt, Soc, M4 X 10 Ss [10x, Imop] 2
YY 31 N/A (300000- )Megnetic Ventil Fixation Plate Stainless Steel 1
YY 32 N/A (300000- )Sealing Gasket Eva 3x1.5x593mm 1
YY 33 N/A (300000- )Sealing Gasket Eva 4x2.5x150mm 1
YY 34 N/A (300000- )Water Channel Dia. 6mm L:225mm 1
Y35 1232486 (300000- )Circuitboard, Valve (Includes Items #29) 1
Y36 1232482 (300000- )Valve Assy, Copper, W/ Connectors
(Includes Items #30 & 31 Only)
1
Y37 1232481 (300000- )Connector Assy, Upt, Sigar
(Includes Clip and Mounting Screw)
1
ASSEMBLY
YINCLUDED IN ASSEMBLY
N/A = NOT AVAILABLE SEPARATELY - MUST ORDER ASSEMBLY ()
STANDARD PARTS
Tennant i- mop XXL (02- 2018)
8

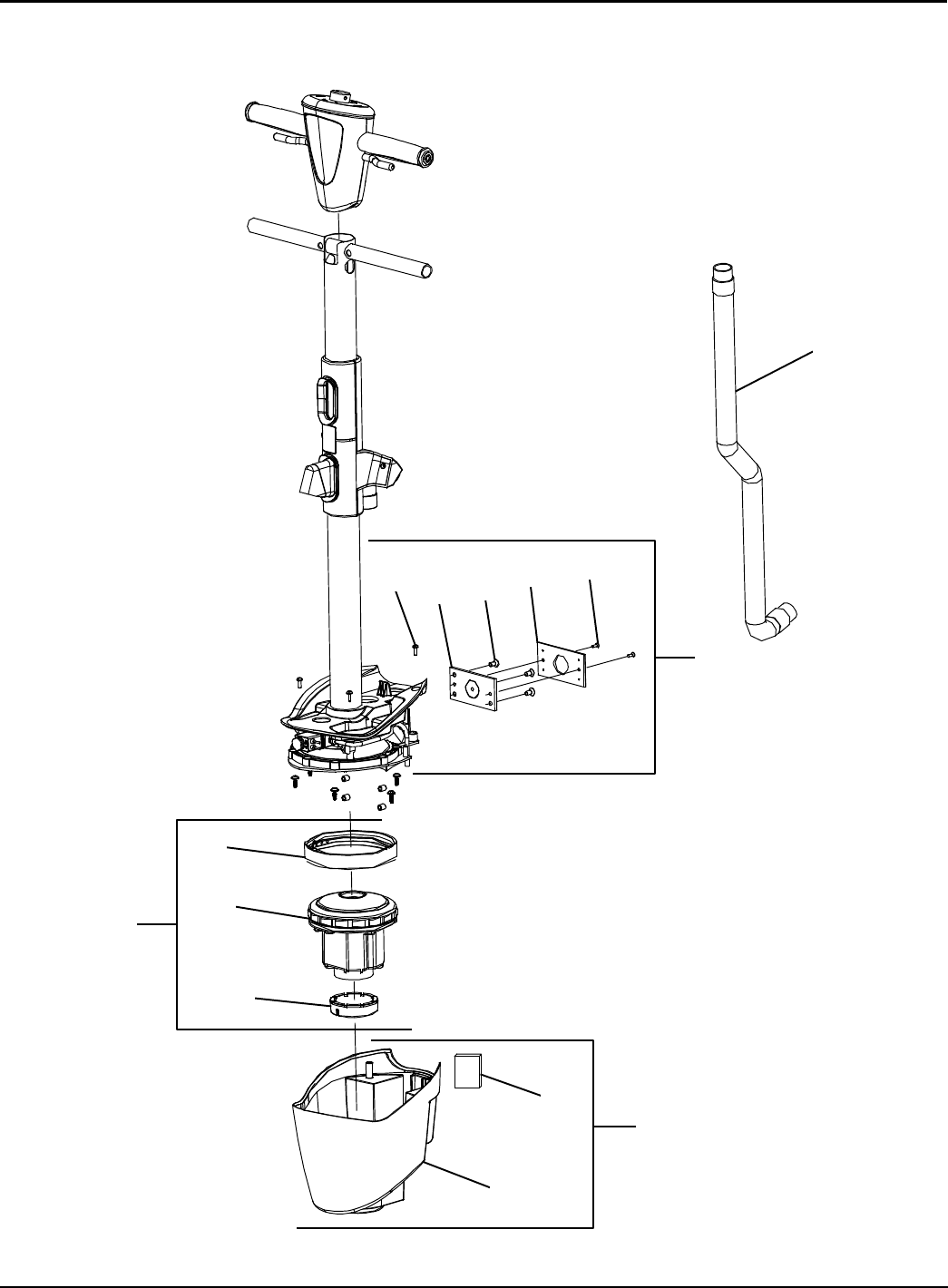

HANDLE ASSEMBLY - CONT’D
355679
62
3
4
5
14
8
9
10
12
13
1
7
11
STANDARD PARTS
Tennant i- mop XXL (02- 2018) 9
HANDLE ASSEMBLY - CONT’D
Ref. Part No. Serial Number Description Qty.
11232694 (300000- )Hinge Kit, Lever 1
Y2 N/A (300000- ) Count Sunk Screw N3.5x13 Philips Head 2
Y3 N/A (300000- ) Plastic Plate For Hinge Welding Assy 1
Y41234974 (300000- )Screw, Flt, Soc, M6 X 12 Nl [10x, Imop] 4
Y5N/A (300000- )Hinge Welding Assy Top Unit 1
Y6N/A (300000- )Screw M4x12 4
71232674 (300000- )Fan, Vac (Complete Assembly - Includes Seals) 1
Y8N/A (300000- )Domel Vacuum Cleaner Motor 1
Y9N/A (300000- )Vac Motor Sealing Support 1
Y10 N/A (300000- )Vac Motor Sealing Bottom 1
11 1232711 (300000- )Cover Kit, Fan 1
Y12 N/A (300000- )Magnet Top Unit 1
Y13 N/A (300000- )Motor Unit Cover 1
14 1232587 (300000- ) Hose Assy, Stretch 1
ASSEMBLY
YINCLUDED IN ASSEMBLY
N/A = NOT AVAILABLE SEPARATELY - MUST ORDER ASSEMBLY ()
STANDARD PARTS
Tennant i- mop XXL (02- 2018)
10

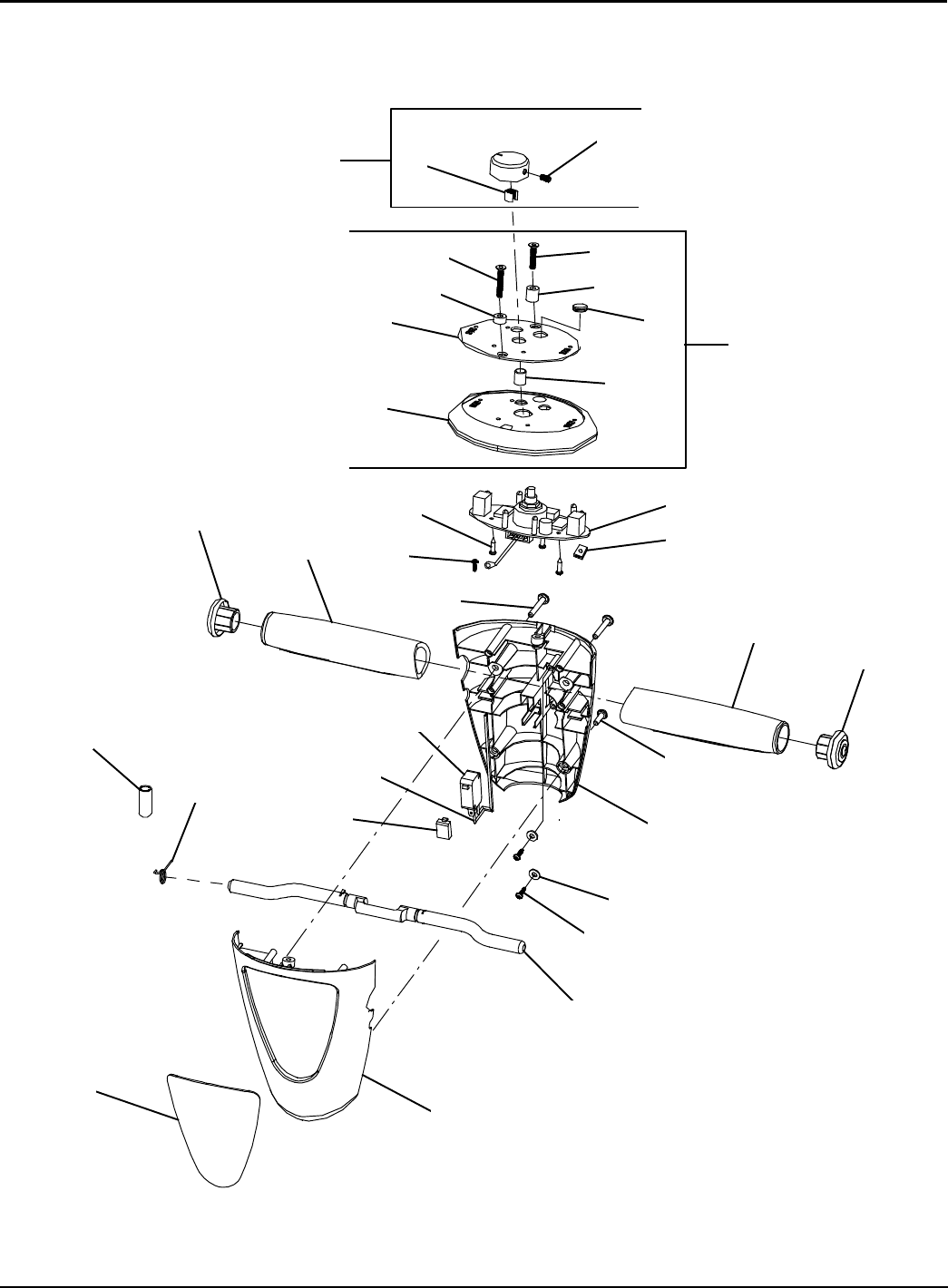

CONTROL CONSOLE ASSEMBLY
355672
2
3
5
6
7
8
9
4
10
11
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
18
19
12
STANDARD PARTS
Tennant i- mop XXL (02- 2018) 11
CONTROL CONSOLE ASSEMBLY
Ref. Part No. Serial Number Description Qty.
11237790 (300000- )Knob Kit, Housing, Top [Xxl] 1
Y2N/A (300000- )Hexagon Socket Set Screw M4 x 8 1
Y3N/A (300000- )Fixation Insert Turning Button 1
41237791 (300000- )Housing Kit, Control, Top [Xxl] 1
Y5N/A (300000- )M4x25 Countersunk Screw Stainless Steel 1
Y6N/A (300000- )Support Plastic Bush Top Al Sticker Long 1
Y7N/A (300000- )Rubber Block Water Save Adjustment Hole[A] 1
Y8N/A (300000- )M4x20 Countersunk Screw Stainless Steel 1
Y9N/A (300000- )Support Plastic Bush Top Al Sticker Short 1
Y10 N/A (300000- )Water Save Button 1
Y11 1234960 (300000- )Housing, Cotrol, Top [White, Imop] 1
Y12 1237766 (300000- )Decal Kit, Instr, Dash [Xxl] 1
13 1237752 (300000- )Circuitboard, Cntrl [Xxl] 1
14 N/A (300000- )Switch Wire Clamp, Color: Black 1
15 N/A (300000- )Screw M3x12 Crosshead Selftapping Bl- ni Sst 3
16 N/A (300000- )Screw 4x10 1
17 N/A (300000- )Screw M4x35 Crosshead, Standard Thread Sst 2
18 1237759 (300000- )Grip, Handle [Xxl I- Mop Set Of 2] 1
19 N/A (300000- )End Cap Grip, Color: Blue (P312C) 2
20 N/A (300000- )Screw M4x12 Crosshead, Standard Thread Sst 2
21 1234959 (300000- )Housing, Control, Rear [White,Imop] 1
22 N/A (300000- )Power Switch Control Unit Omoron 1
23 N/A (300000- )Rubber Block 15x10x5mm Injected 1
24 1234961 (300000- )Handle, Control [Blue, Imop] 1
25 1234962 (300000- )Housing, Control, Front [White, Imop] 1
26 1237767 (300000- )Plate, Label, Handle [Al, I- Mop Xxl] 1
27 N/A (300000- )Spring Switch Lever Dia 0.8mm 1
28 N/A (300000- )Magnet Ring Easy Scrub 1
29 N/A (300000- )Screw Wn 5451 25x10 Ejot Delta Pt 2
30 N/A (300000- )Plastic Washer 9x4x1mm 2
31 N/A (300000- )On/Off Switch Wires / L=250mm 1
ASSEMBLY
YINCLUDED IN ASSEMBLY
N/A = NOT AVAILABLE SEPARATELY - MUST ORDER ASSEMBLY ()
STANDARD PARTS
Tennant i- mop XXL (02- 2018)
12
CLEAN WATER TANK ASSEMBLY
355673
2
4
5
6
12
1
3
8910 11
7
13
8910 11
STANDARD PARTS
Tennant i- mop XXL (02- 2018) 13
CLEAN WATER TANK ASSEMBLY
Ref. Part No. Serial Number Description Qty.
11237699 (300000- )Tank Assy, Sol, Std [Blue Cap Xxl] 1
11237702 (300000- )Tank Assy, Sol, Opt [Red Cap Xxl] 1
11237700 (300000- )Tank Assy, Sol, Opt [Yellow Cap Xxl] 1
11237701 (300000- )Tank Assy, Sol, Opt [Green Cap Xxl] 1
Y2N/A (300000- )Clean Water Compartment 1
Y31232663 (300000- )Cap Kit, Tank, Sol [Blue] (Standard) 1
Y31232665 (300000- )Cap Kit, Tank, Sol [Red] (Option) 1
Y31232666 (300000- )Cap Kit, Tank, Sol [Yellow] (Option) 1
Y31232667 (300000- )Cap Kit, Tank, Sol [Green] (Option) 1
YY 4N/A (300000- )Sleeve Cap Holder Clean Tank 1
YY 5N/A (300000- )Cap With Hole 1
YY 6N/A (300000- )Cap Holder 1
Y71232676 (300000- )Clip, Retaining, Tank (Includes Qty 2 Clip Assemblies) 1
YY 8N/A (300000- )Holder Plate Clip Clean Tank 2
YY 9N/A (300000- )Rubber Cushion For Metal Clip 2
YY 10 N/A (300000- )Clip, Retaining, Tank 2
YY 11 N/A (300000- )Nut M4 Nylon Stainless 4
Y12 1232519 (300000- )Coupling, Water 1
Y13 N/A (300000- )Hose Assy, Filling (Located Inside of Tank Assembly) 1
ASSEMBLY
YINCLUDED IN ASSEMBLY
N/A = NOT AVAILABLE SEPARATELY - MUST ORDER ASSEMBLY ()
STANDARD PARTS
Tennant i- mop XXL (02- 2018)
14
DIRTY WATER TANK ASSEMBLY
355674
2
4
5
6
7
8
9
10
12 13
1
3
11
14
STANDARD PARTS
Tennant i- mop XXL (02- 2018) 15
DIRTY WATER TANK ASSEMBLY
Ref. Part No. Serial Number Description Qty.
11237712 (300000- )Tank Assy, Rec [Xxl] 1
Y2N/A (300000- )Dirty Water Compartment 1
Y31232661 (300000- )Cap Kit, Tank, Rec 1
YY 4N/A (300000- )Blind Rivet Nail 4 X 15 Mmg 1
YY 5N/A (300000- )Sleeve Cap Holder 1
YY 6N/A (300000- )Cap Holder 1
YY 7N/A (300000- )Warning Plate On Dirty Tank Round Stainless 4.5mm 1
YY 8N/A (300000- )Cap Without Hole 1
YY 9N/A (300000- )Sealing Gasket Cap Dirty Tank 1
YY 10 N/A (300000- )Plastic Washer 9x4x1mm 1
Y11 1232600 (300000- )Plate, Mtg, Tank 1
YY 12 N/A (300000- )Fixation Plate Dirt Compartment 1
YY 13 N/A (300000- )Blind Rivet Nail 4 X 15 Mmg 2
Y14 1237769 (300000- )Filter, Recovery Tank, Cassette [Xxl] 1
ASSEMBLY
YINCLUDED IN ASSEMBLY
N/A = NOT AVAILABLE SEPARATELY - MUST ORDER ASSEMBLY ()
STANDARD PARTS
Tennant i- mop XXL (02- 2018)
16
SCRUB HEAD ASSEMBLY
355675
12
4
55
6
8
9
10
11
12
14
15 16 17
19
20
21
21 22
23
24
25
26
28
30
38
32
33 34
35
32
36
35
34
37
30
29
3
713
18
27
27
31
39
40
41 42
21 21
39
STANDARD PARTS
Tennant i- mop XXL (02- 2018) 17
SCRUB HEAD ASSEMBLY
Ref. Part No. Serial Number Description Qty.
11237747 (300000- )Motor, Brush, Rh [Xxl] (See Brush Motor Assembly) 1
21237746 (300000- )Motor, Brush, Lh [Xxl] (See Brush Motor Assembly) 1
31232693 (300000- )Fitting Assy, Water Channel [Imop] 1
Y4N/A (300000- )Water Channel Dia. 6mm L:690mm 1
Y5N/A (300000- )Water Channel Dia. 4mm L:110mm 2
Y6N/A (300000- )Water Coupling Brush Motor 1
71237742 (300000- )Transport Kit, Caster, Rh [Xxl] 1
Y8N/A (300000- )Shaft Transport Caster 1
Y9N/A (300000- )Transport Caster 1
Y10 N/A (300000- )Transport Wheel Pilar Right 1
Y11 N/A (300000- )Nut M5 Nylon 1
12 1237739 (300000- )Cover, Motor, Cover [Xxl] 1
13 1237741 (300000- )Transport Kit, Caster, Lh [Xxl] 1
Y14 N/A (300000- )Shaft Transport Caster 1
Y15 N/A (300000- )Transport Caster 1
Y16 N/A (300000- )Transport Wheel Pilar Left 1
Y17 N/A (300000- )Nut M5 Nylon 1
18 1232714 (300000- )Hinge Kit, Hd, Brush 1
Y19 N/A (300000- )Chassis Hinge 1
Y20 N/A (300000- )Nylok Screw Counter Sunk Bolt M4x12 1
Y21 N/A (300000- )Bushing Axis 10 4
Y22 N/A (300000- )Brush Unit Hinge Support Left 1
Y23 N/A (300000- )Construction Cover Seal 1
Y24 N/A (300000- )Brush Unit Hinge Support Right 1
25 1237743 (300000- ) Bumper, Brush [Xxl] 1
26 1237745 (300000- )Cover, Brush, Bottom [Xxl] 1
27 1237988 (300000- )Splash Kit, Guards [Xxl Lh & Rh] 1
Y28 N/A (300000- )Splashing Guard Imop Left 1
Y29 N/A (300000- )Splashing Guard Imop Right 1
Y30 N/A (300000- )Nylok Hexagon Socket Head Cap Screw M5x20 2
31 1232675 (300000- )Cover, Brush, Motor (Includes Qty 2 Cover Assemblies) 1
Y32 N/A (300000- )Support Disk Driving Wheel Side Hole Dia 5mm 2
Y33 1234973 (300000- )Screw, Flt, Soc, M5 X 18.5 Lh Nl [ Imop] 1
Y34 N/A (300000- )Cover Brush Motor Screw Color: Blue 2
Y35 N/A (300000- )Screw Wn 5451 50x14 Ejot Delta Pt 6
Y36 1234972 (300000- )Screw, Flt, Soc, M5 X 18.5 Nl [10x,Imop] 1
Y37 N/A (300000- )Driving Wheel Bottom Right Color: Gray 1
Y38 N/A (300000- )Driving Wheel Bottom Left Color: Gray 1
39 1234969 (300000- )Screw, Flt, Soc, M6 X 16 Nl [10x,Imop] 4
40 1237736 (300000- )Bumper, [Xxl] 1
41 1237738 (300000- )Plate, Mount, Motor, Rh [Xxl] 1
42 1237737 (300000- )Plate, Mount, Motor, Lh [Xxl] 1
ASSEMBLY
YINCLUDED IN ASSEMBLY
N/A = NOT AVAILABLE SEPARATELY - MUST ORDER ASSEMBLY ()
STANDARD PARTS
Tennant i- mop XXL (02- 2018)
18
BRUSH MOTOR ASSEMBLY
355680
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
STANDARD PARTS
Tennant i- mop XXL (02- 2018) 19
BRUSH MOTOR ASSEMBLY
Ref. Part No. Serial Number Description Qty.
11237746 (300000- )Motor, Brush, Lh [Xxl] 1
Y2N/A (300000- )Brush Motor Support Rubber Left 1
Y31237826 (300000- )Wheel, Driving, W/Metal Insert [Xxl] 1
Y4N/A (300000- )Felt Brush Motor 1
Y5N/A (300000- )Nylock Screw Counter Sunk Bolt M6 x 16 4
Y6N/A (300000- )Brush Motor Construction Ring Left 1
Y7N/A (300000- )Brush Motor Helical Gears Left 1
Y8N/A (300000- )Brush Motor Fixation Conductive Rubber Left 1
91237747 (300000- )Motor, Brush, Rh [Xxl] 1
Y10 N/A (300000- )Brush Motor Support Rubber Right 1
Y11 1237826 (300000- )Wheel, Driving, W/Metal Insert [Xxl] 1
Y12 N/A (300000- )Felt Brush Motor 1
Y13 N/A (300000- )Nylock Screw Counter Sunk Bolt M6 x 16 4
Y14 N/A (300000- )Brush Motor Construction Ring Right 1
Y15 N/A (300000- )Brush Motor Helical Gears Right 1
Y16 N/A (300000- )Brush Motor Fixation Conductive Rubber Right 1
ASSEMBLY
YINCLUDED IN ASSEMBLY
N/A = NOT AVAILABLE SEPARATELY - MUST ORDER ASSEMBLY ()
STANDARD PARTS
Tennant i- mop XXL (02- 2018)
20
BRUSH DRIVER ASSEMBLY
355681
1
4
3
2
STANDARD PARTS
Tennant i- mop XXL (02- 2018) 21
BRUSH DRIVER ASSEMBLY
Ref. Part No. Serial Number Description Qty.
11237713 (300000- )Brush, Med, Blu, 11.8 [Xxl Qty 2]
(Standard - Medium Duty Daily Scrubbing)
1
11237714 (300000- )Brush, Soft, Lt Blu, 11.8 [Xxl Qty 2]
(Option - Soft Light Duty Cleaning)
1
11237715 (300000- )Brush, Hard, Red, 11.8 [Xxl Qty 2]
(Option - Heavy Duty Deep Cleaning & Grout)
1
Y2 1232620 (300000- ) Driver Kit, Brush [Blue] (Set of 2) (Standard) 1
Y2 1232622 (300000- ) Driver Kit, Brush [Red] (Set of 2) (Option) 1
Y21232624 (300000- )Driver Kit, Brush [Yellow] (Set of 2) (Option) 1
Y2 1232626 (300000- ) Driver Kit, Brush [Green] (Set of 2) (Option) 1
YY 3 N/A (300000- ) Brush Locker Blue (Standard) 2
YY 3 N/A (300000- ) Brush Locker Red (Option) 2
YY 3 N/A (300000- ) Brush Locker Yellow (Option) 2
YY 3N/A (300000- )Brush Locker Green (Option) 2
YY 4 N/A (300000- ) Screw Wn 5451 50x14 Ejot Delta Pt 6
ASSEMBLY
YINCLUDED IN ASSEMBLY
N/A = NOT AVAILABLE SEPARATELY - MUST ORDER ASSEMBLY ()
STANDARD PARTS
Tennant i- mop XXL (02- 2018)
22
PAD DRIVER ASSEMBLY
355586
1
4
32
5
6
7
STANDARD PARTS
Tennant i- mop XXL (02- 2018) 23
PAD DRIVER ASSEMBLY
Ref. Part No. Serial Number Description Qty.
11237716 (300000- )Driver Assy, Pad, Blu, 11.7 [Xxl Qty 2] 1
Y21232620 (300000- )Driver Kit, Brush [Blue] (Standard) 2
Y21232622 (300000- )Driver Kit, Brush [Red] (Option) 2
Y21232624 (300000- )Driver Kit, Brush [Yellow] (Option) 2
Y21232626 (300000- )Driver Kit, Brush [Green] (Option) 2
YY 3N/A (300000- )Brush Locker Blue (Standard) 2
YY 3N/A (300000- )Brush Locker Red (Option) 2
YY 3N/A (300000- )Brush Locker Yellow (Option) 2
YY 3N/A (300000- )Brush Locker Green (Option) 2
YY 4N/A (300000- )Screw Wn 5451 50x14 Ejot Delta Pt 6
Y5N/A (300000- )Assy Pad Holder Imop 2
Y6N/A (300000- )Nut M4 Nylon Stainless 6
71237718 (300000- )Pad, Red, 10.6 [Xxl Box Of 10] (Cleaning) 1
71237717 (300000- )Pad, White, 10.6 [Xxl Box Of 10] (Buffing) 1
71237719 (300000- )Pad, Green, 10.6 [Xxl Box Of 10] (Scrubbing) 1
71237720 (300000- )Pad, Blu, 10.6 [Xxl Box Of 10] (Scrubbing) 1
71237721 (300000- )Pad, Black, 10.6 [Xxl Box Of 10] (Light Stripping) 1
71237725 (300000- )Pad, Green, 10.6 [Xxl Twister Qty 2]
(Diamond Polishing Pad - Daily Cleaning)
1
71237722 (300000- )Pad, Yellow, 10.6 [Xxl Twister Qty 2]
(Diamond Polishing Pad - Periodic Cleaning)
1
71237726 (300000- )Pad, White, 10.6 [Xxl Twister Qty 2]
(Diamond Polishing Pad - Deep Cleaning)
1
71237727 (300000- )Pad, Red, 10.6 [Xxl Twister Qty 2]
(Diamond Polishing Pad - Deep Cleaning Aggressive)
1
71237723 (300000- )Pad, Orange, 10.6 [Xxl Twister Qty 2]
(Diamond Polishing Pad - Ceramic Tiles)
1
71237724 (300000- )Pad, Blu, 10.6 [Xxl Twister Qty 2]
(Diamond Polishing Pad - High Traffic Areas)
1
ASSEMBLY
YINCLUDED IN ASSEMBLY
N/A = NOT AVAILABLE SEPARATELY - MUST ORDER ASSEMBLY ()
STANDARD PARTS
Tennant i- mop XXL (02- 2018)
24
SQUEEGEE ASSEMBLY
355579
14
2
3
5
6
7
9
10
11 12
13
15
16
17
18
19
16
15
21
22
21
24
23
8
4
14
1
20
20
8
14
STANDARD PARTS
Tennant i- mop XXL (02- 2018) 25
SQUEEGEE ASSEMBLY
Ref. Part No. Serial Number Description Qty.
11237728 (300000- )Squeege Assy, 26.0 [Xxl] 1
Y21237756 (300000- )Plate, Rear, Sqge [Xxl I- Mop] 1
Y31237729 (300000- )Blade, Sqge, Front 27.3 [Xxl Lina] (Standard) 1
31237731 (300000- )Blade, Sqge, Frnt, 27.3 [Xxl Ure] (Option) 1
Y41237793 (300000- )Connector Kit, Hose, Sqge [Xxl] 1
YY 51237799 (300000- )Screw, 50 X 14 Ejot, W/Hex Head [Xxl] 2
YY 6N/A (300000- )Squeegee Hose Connector- Up Yellow 1
YY 71234956 (300000- )Gasket, Hose, Squeegee [Imop] 1
Y81232696 (300000- )Retaining Kit, Sqge
(Includes Qty 2 Retaining Assemblies)
1
YY 9N/A (300000- )M3x10 Countersunk Self Tap Screw 4
YY 10 1234947 (300000- )Plate, Mtg, Sqge [Blue, Imop] (Qty 1) 2
YY 11 1233871 (300000- )Washer, Rbr, Sqge [Black, Imop] (Qty 1) 2
11 1234948 (300000- )Washer, Rbr, Sqge [Black, Imop, Qty 100] 1
Y12 1237757 (300000- )Plate, Top, Sqge [Xxl I- Mop] 1
Y13 1237730 (300000- )Blade, Sqge, Rear, 28.7 [Xxl Lina] (Standard) 1
13 1237732 (300000- )Blade, Sqge, Rear, 28.7 [Xxl Ure] (Option) 1
Y14 1232673 (300000- )Caster Assy, Sqge (Includes Qty 3 Caster Assemblies
And Item #8 Retaining Assemblies)
1
YY 15 N/A (300000- )Nut M5 Nylon 6
YY 16 N/A (300000- )M5 Washer Stainless Steel 5x15x1mm 6
YY 17 N/A (300000- )Squeegee Castor Gray Dia 8mm 3
YY 18 N/A (300000- )Shaft Squeegee Castor Dia 8mm 3
YY 19 N/A (300000- )Height Adjustment Plate 3
Y20 1232688 (300000- )Knob Kit, Retainer, Sqge 1
YY 21 N/A (300000- )M5 Screw Bolt, Thread Length 30 4
YY 22 N/A (300000- )M5 Screw Bolt, Thread Length 35 4
YY 23 N/A (300000- )Plastic Nut Squeegee 8
Y24 1237755 (300000- )Plate, Rear, Sqge [Wheel Side Xxl I- Mop] 1
ASSEMBLY
YINCLUDED IN ASSEMBLY
N/A = NOT AVAILABLE SEPARATELY - MUST ORDER ASSEMBLY ()
STANDARD PARTS
Tennant i- mop XXL (02- 2018)
26
MAIN LEVER ASSEMBLY
355676
1
2
3
4
5
6
7
8
9
10
8
911
12
13
14
15
3
8
16
17
30
19
29 21
22
23
24
25
26
27
28
18
20
STANDARD PARTS
Tennant i- mop XXL (02- 2018) 27
MAIN LEVER ASSEMBLY
Ref. Part No. Serial Number Description Qty.
11237797 (300000- )Cover, Cooling, Motor, Rh [Xxl] 1
21237796 (300000- )Cover, Cooling, Motor, Lh [Xxl] 1
3N/A (300000- )Screw Wn 5451 50x14 Ejot Delta Pt 12
4N/A (300000- )Pcb Machine Seal 2
5N/A (300000- )Sticker Imop [Strong Magnets] 1
61237754 (300000- )Cover, Main, White [Xxl] 1
7N/A (300000- )Battery Connector Male Right Color: Gray 1
8N/A (300000- )Screw Wn 5451 25x10 Ejot Delta Pt 16
9N/A (300000- )Alignment Pin Longer Version 4
10 N/A (300000- )Battery Connector Male Left Color: Blue 1
11 N/A (300000- )Magnet Top Unit 40x20x10mm 1
12 N/A (300000- )Magnet Top Unit Holder Color: Gray 1
13 N/A (300000- )Steel Cover Isolation Magnet T=3mm 1
14 1237751 (300000- )Circuitboard, Cntrl, Bat [Xxl] 1
15 1234954 (300000- )Housing, Lever, Main [Imop] 1
16 N/A (300000- )Bottom Name Plate + Laser Print Tennant 1
17 1234971 (300000- ) Screw, Flt, Soc, M3 X 8 Ss Nl [10x,Imop] 4
18 N/A (300000- )Power Cable 3 Wires [1.5mm 2 L=630mm] 1
19 1234955 (300000- )Plate, Sppt, Lever (2pc) [Imop] 2
20 1237768 (300000- )Cable, Utp, 100cm L [I- Mop Xxl] 1
21 1237828 (300000- )Hardware Kit, Disk, Screw, Cover [Imop] 1
22 1237798 (300000- )Cover, Slot, Usb [Xxl] 1
23 N/A (300000- )Screw Counter Sunk M1.7x6 1
24 1237795 (300000- )Pin, Retainer, Sque [Xxl] 2
25 N/A (300000- )Male Connector + Wires 14awg Red 150mm 2
26 N/A (300000- )Male Connector + Connector Wires 14awg Black 150mm 2
27 N/A (300000- )Wires For Brush Unit 14awg Black L=280mm 2
28 N/A (300000- )Wires For Brush Unit 14awg Red L=280mm 2
29 1237750 (300000- )Hinge Kit, [Xxl] 1
Y30 1234976 (300000- )Screw, Flt, Soc, M5 X 16 Nl [10x, Imop] 2
ASSEMBLY
YINCLUDED IN ASSEMBLY
N/A = NOT AVAILABLE SEPARATELY - MUST ORDER ASSEMBLY ()
STANDARD PARTS
Tennant i- mop XXL (02- 2018)
28
BATTERY PACK ASSEMBLY
355682
3
4
6
7
5
2
1
STANDARD PARTS
Tennant i- mop XXL (08- 2018) 29
BATTERY PACK ASSEMBLY
Ref. Part No. Serial Number Description Qty.
19017896 (300000- )Battery Kit, [Xxl Imop Lh & Rh Pac] 1
Y21237735 (300000- )Battery, Pack, Rh [Xxl] 1
YY 3N/A (300000- )Battery Pack Gray [Right] 1
YY 41232598 (300000- )Connector, Bat, Fem, Rh (Color: Gray) 1
Y51237734 (300000- )Battery, Pack, Lh [Xxl] 1
YY 6N/A (300000- )Battery Pack Blue [Left] 1
YY 7 1232545 (300000- ) Connector, Bat, Fem, Lh (Color: Blue) 1
ASSEMBLY
YINCLUDED IN ASSEMBLY
N/A = NOT AVAILABLE SEPARATELY - MUST ORDER ASSEMBLY ()
STANDARD PARTS
Tennant i- mop XXL (02- 2018)
30
BATTERY CHARGER ASSEMBLY
355580
2
4
5
6
7
5
6
9
10
11
12
13
14
1
3
3
8
STANDARD PARTS
Tennant i- mop XXL (02- 2018) 31
BATTERY CHARGER ASSEMBLY
Ref. Part No. Serial Number Description Qty.
11232547 (300000- )Charger, Bat (3pin) 1
Y2 1232564 (300000- ) Switch, Chrgr 1
Y3 1232712 (300000- ) Light, Voltage 1
YY 4 N/A (300000- ) Transparent Cover Voltage Display Right 1
YY 5 N/A (300000- ) Voltage Display With Percentage 2
YY 6N/A (300000- )Screw M2x5 Cross Head Self Tapping 4
YY 7 N/A (300000- ) Transparent Cover Voltage Display Left 1
Y8 1232713 (300000- ) Receptacle Kit, Chrgr 1
YY 9 N/A (300000- ) Fuse 6.3a 1
YY 10 N/A (300000- ) Fuse 6.3a Base 1
YY 11 N/A (300000- )Countersunk Screw M3x15 2
YY 12 N/A (300000- ) Recept Inlet 3p + Two Screw Holes Cb 3pin 1
YY 13 N/A (300000- ) Nut M3 Nylon 2
Y14 1232546 (300000- ) Cord, Power (Ul 3 Pin) (Standard) 1
14 1233924 (300000- )Cord, Power [Ul 3 Pin, 11 Meters Lg] (Optional) 1
ASSEMBLY
YINCLUDED IN ASSEMBLY
N/A = NOT AVAILABLE SEPARATELY - MUST ORDER ASSEMBLY ()
STANDARD PARTS
Tennant i- mop XXL (02- 2018)
32

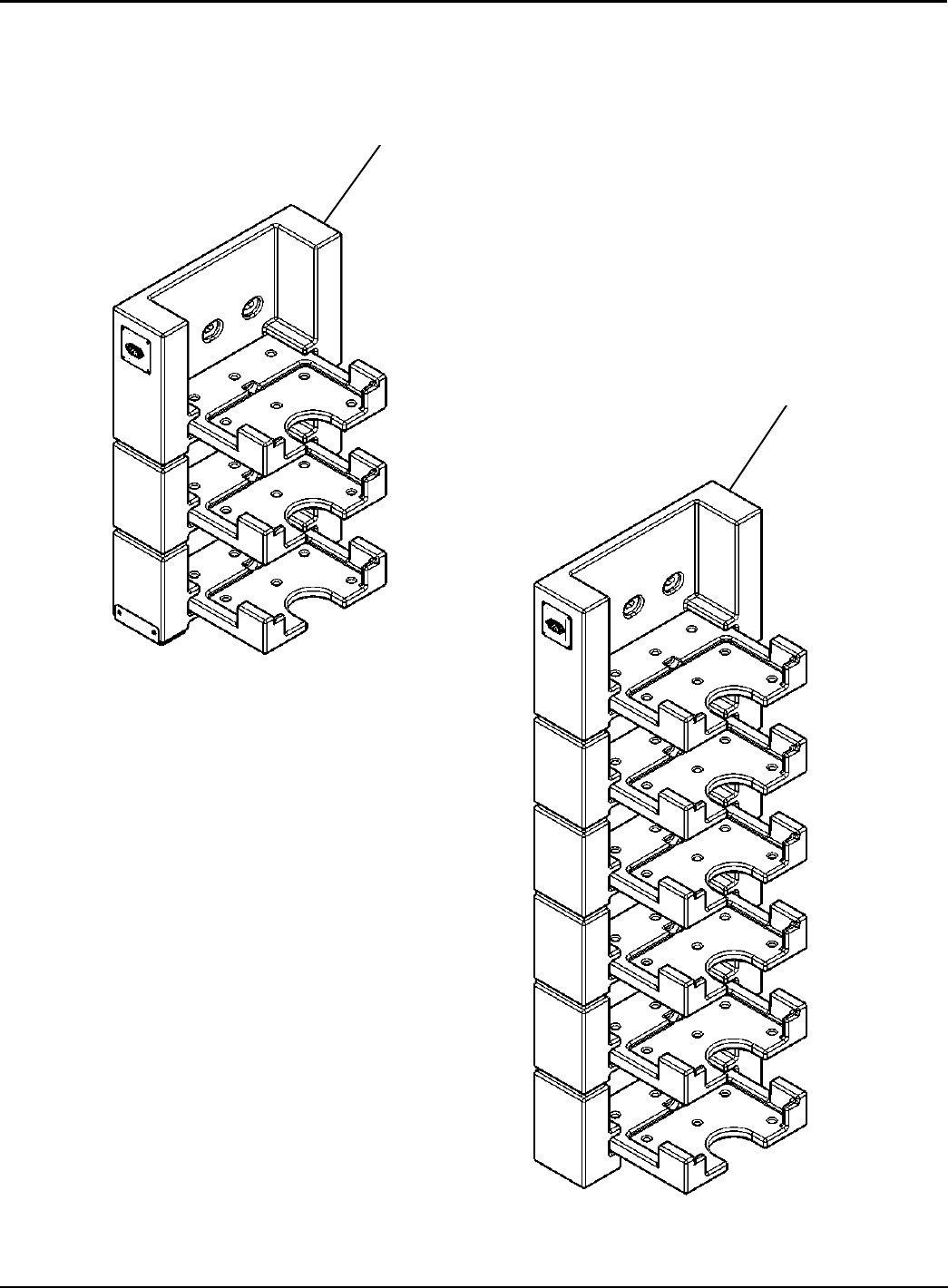

WALL CHARGERS (OPTION)
355683
1
2
STANDARD PARTS
Tennant i- mop XXL (02- 2018) 33
WALL CHARGERS (OPTION)
Ref. Part No. Serial Number Description Qty.
11232094 (300000- )Charger, Wall [I- Mop 3 Layer] 1
21232058 (300000- )Charger, Wall [I- Mop 6 Layer] 1
STANDARD PARTS
Tennant i- mop XXL (02- 2018)
34
ELECTRICAL DIAGRAM
STANDARD PARTS
Tennant i- mop XXL (02- 2018) 35

Navigation menu
