Tomcat Nano Edge Orbital Floor Scrubber Parts Manual

: Sweepscrub Tomcat-Nano-Edge-Orbital-Floor-Scrubber-Parts-Manual tomcat-nano-edge-orbital-floor-scrubber-parts-manual 1949 file product_file

Open the PDF directly: View PDF .
Page Count: 16

Operating Instructions (EN)

& Parts Manual

MODELS:

9'' NANO EDGE

www.tomcatequip.com VERSION 16.126

© 2016 RPS Corporation TC-NANOEDGE-OP-EN

Read these Instructions before

using the machine.

Read these Safety Messages

before using the machine.

COMMERCIAL CLEANING EQUIPMENT

BLANK

THIS PAGE WAS INTENTIONALLY LEFT BLANK

TC-NANOEDGE-OP-EN - 3 -

TABLE OF CONTENTS

Table of Contents 3

Safety 4

Maintenance 6

Transportation 8

Operation 9

Handle Attachment 11

Maintenance Records 12

Common Wear Parts 13

NANO EDGE Pads: 13

SPARE PARTS & KITS: 13

Parts 14

- 4 - TC-NANOEDGE-OP-EN

SAFETY

You will see four kinds of safety reminders in this manual:

WARNING

WARNING indicates a potentially hazardous situation

which, if not avoided, could result in death or serious

injury.

CAUTION

CAUTION indicates a potentially hazardous situation

which, if not avoided, could result in minor or moderate

injury or damage to this machine or nearby objects.

CAUTION also can be used to alert against unsafe

practices.

NOTICE

NOTICE indicates information considered important, but

not hazard-related. This safety message may be related

to property damage or warranty warnings.

Your safety, and that of others, is very important. Operating this machine safely is an important responsibility.

DO NOT OPERATE THIS MACHINE:

• Unless you are trained and authorized to do so by an RPS authorized and certifi ed distributor

• Unless you have read and understood this complete Operator’s Manual

• On surfaces with greater than an 2% / 3.49° grade at any time

• In water depth more than 0.125'' (3.175mm)

• On carpeting - Only for use on fl at, smooth, hard fl oor surfaces

WHEN OPERATING THIS MACHINE:

• Remove loose objects from the fl oor that could be projected from the oscillating pad

• Keep your hands and feet away from the oscillating pad

• Do not operate this machine where fl ammable liquids are present

• Use caution when maneuvering close to walls

• Use PPE (Personal Protective Equipment)

BEFORE LEAVING THE MACHINE:

• Turn the machine OFF and unplug the power cord from wall AC power

TC-NANOEDGE-OP-EN - 5 -

WARNING

Do not operate this machine around any fl ammable

materials. Work areas should be well ventilated.

WARNING

Always wear safety goggles when operating this

machine to avoid eye injury from debris projected from

the oscillating pad.

WARNING

To avoid electrical shock, do not use this machine if the

handle has gotten wet or if water has penetrated past

the plastic shell.

WARNING

To avoid electrical shock, unplug the power cord before

adjusting the handlebar height or replacing the pad.

WARNING

Always turn off this machine and unplug the power

cord before leaving it unattended. Do not allow

untrained persons to operate this machine.

WARNING

Always wear a dust mask when operating this machine

to avoid inhaling dust created by the oscillating pad.

Inhaling dust created by this machine can cause

serious respiratory injury.

WARNING

To avoid electrical shock, do not pull on the power cord

to move the machine or unplug the power cord from

the electrical outlet.

WARNING

Do not remove, paint over or destroy warning decals. If

warning decals become damaged, call 1-262-681-3583

for free replacements.

WARNING

To avoid electrical shock, do not operate this machine

over electrical fl oor outlets.

WARNING

Dress safely. Keep hands, feet and loose clothing away

from moving parts on this machine.

WARNING

To avoid electrical shock, always keep the power cord

clear of the oscillating pad and in good condition.

Always lift the power cord over the machine.

WARNING

Never operate this machine under the infl uence of

alcohol or drugs. Do not allow anyone under the age of

18 to operate this machine.

WARNING

Never sand wood decks. Due to uneven surfaces

this could lead to damage to the machine as well as

some pressure treated wood found in decking contains

arsenic, which, when sanded, will create hazardous

dust.

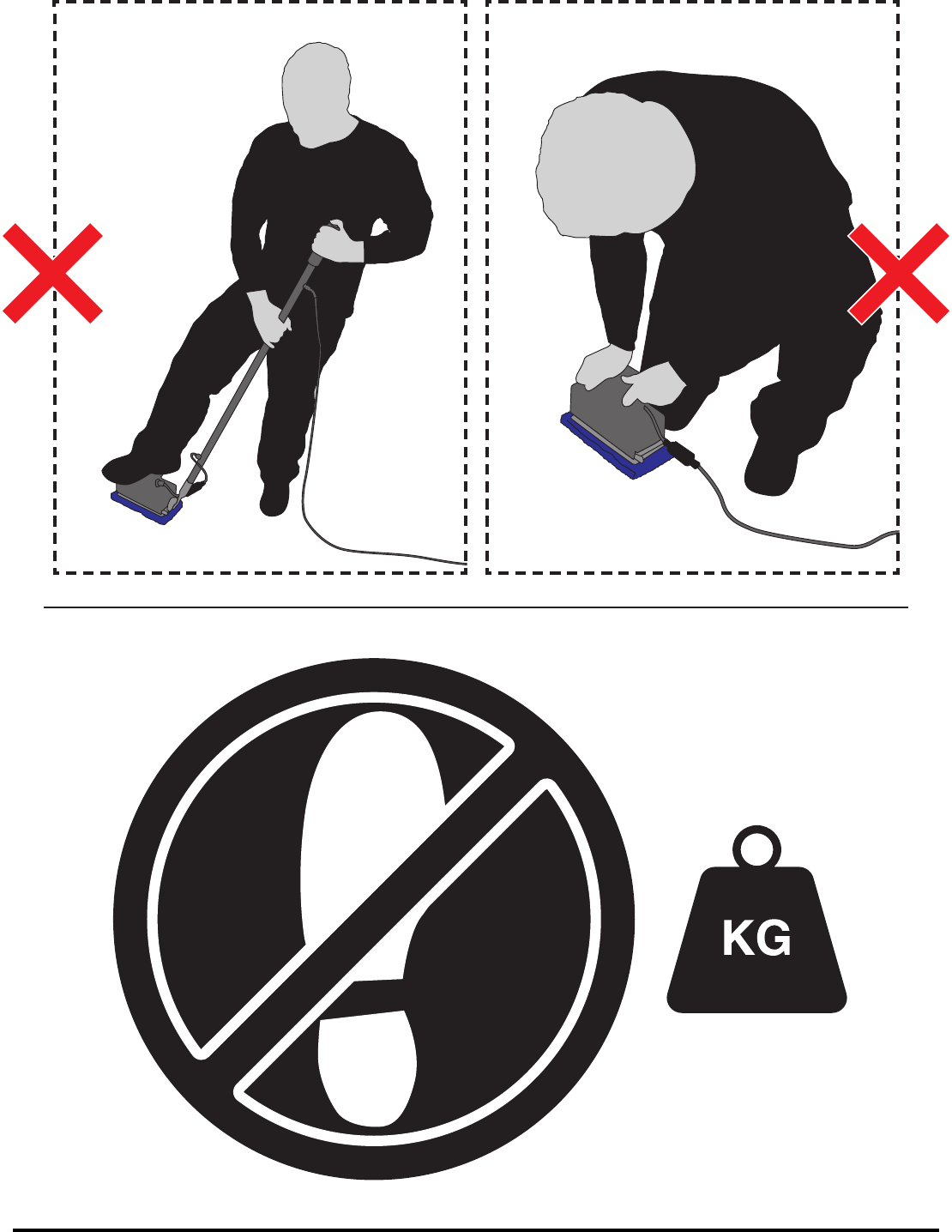

CAUTION

To avoid personal injury and/or damage to this

machine, the persons lifting the machine should carry

the machine by the base. Do not attempt to lift the

machine by the handlebar only.

CAUTION

Always unplug the power cord before attempting to

transport this machine.

CAUTION

Always leave the pad on the machine when transporting

to avoid damage to the grip face.

CAUTION

Do not operate this machine if any parts have been

damaged or removed.

CAUTION

Alterations to this machine may result in personal injury

or property damage, and voids the warranty.

CAUTION

Always unplug the power cord before changing the pad.

- 6 - TC-NANOEDGE-OP-EN

MAINTENANCE

TC-NANOEDGE-OP-EN - 7 -

- 8 - TC-NANOEDGE-OP-EN

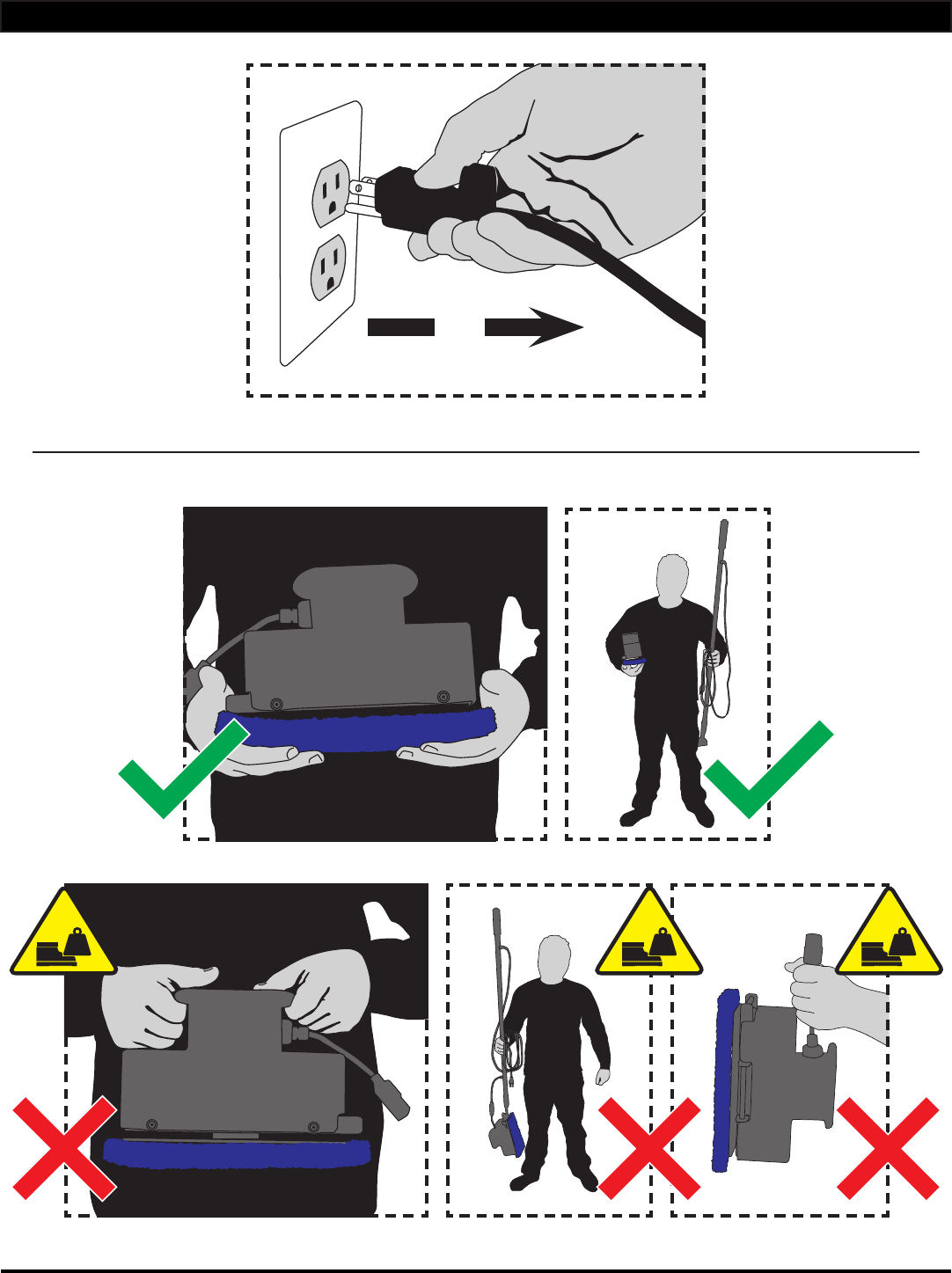

TRANSPORTATION

lb/kglb/kglb/kg

TC-NANOEDGE-OP-EN - 9 -

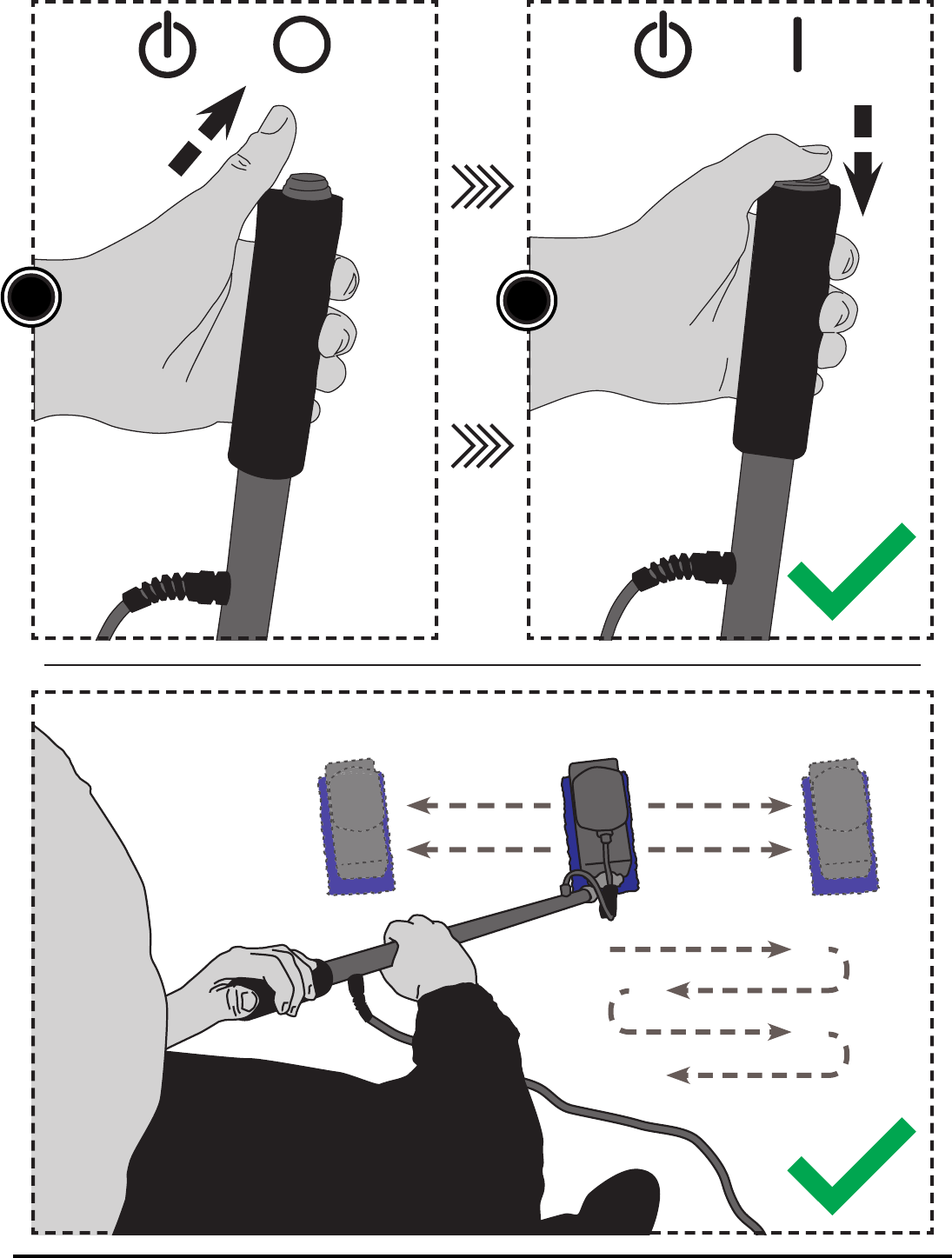

OPERATION

AA

BB

AA

BB

1

2

- 10 - TC-NANOEDGE-OP-EN

12

==

TC-NANOEDGE-OP-EN - 11 -

- 12 - TC-NANOEDGE-OP-EN

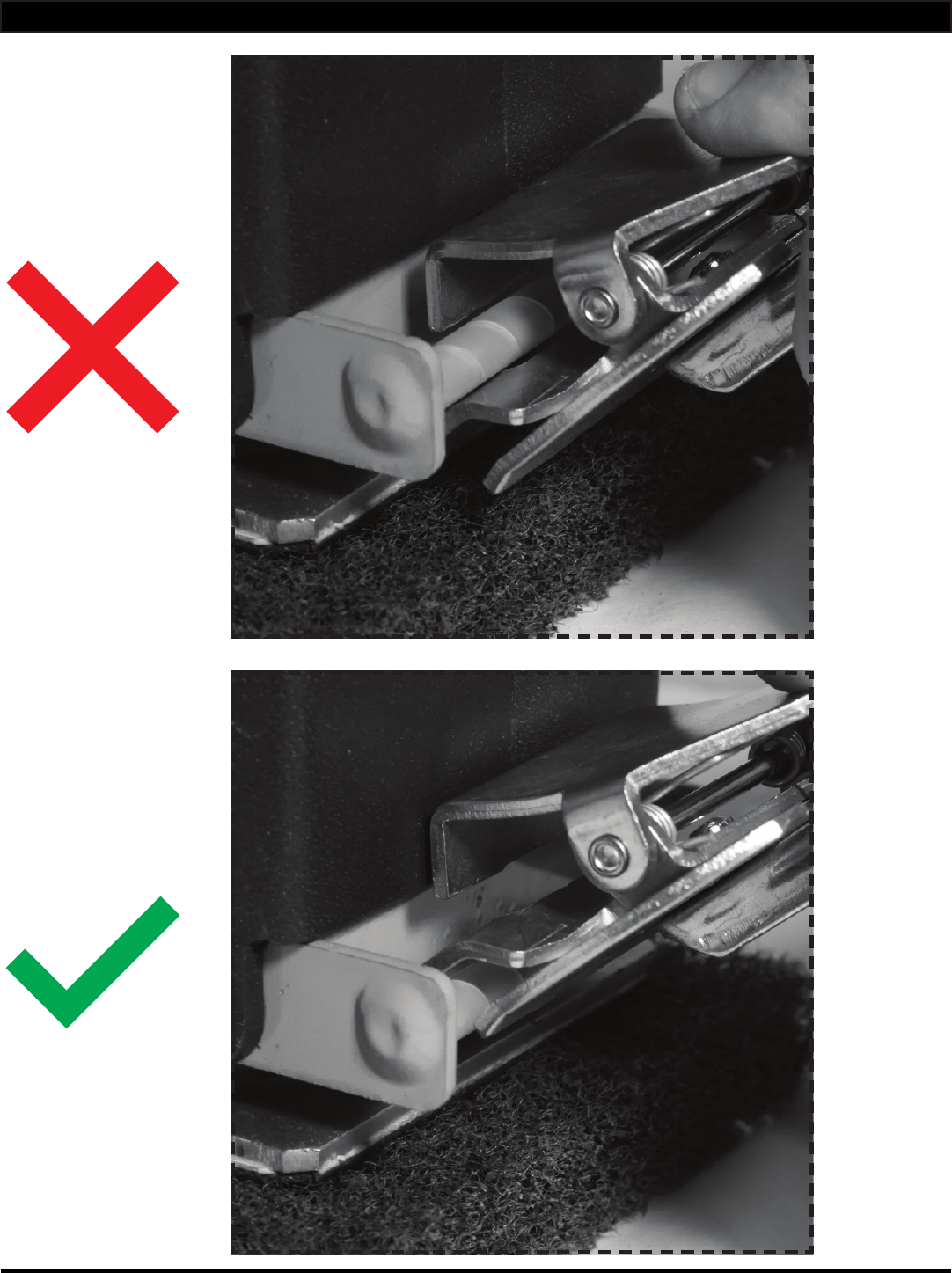

HANDLE ATTACHMENT

TC-NANOEDGE-OP-EN - 13 -

COMMON WEAR PARTS

NANO EDGE PADS:

PART NUMBER DESCRIPTION

EDGE-7001 Black Strip Pad (20/cs)

EDGE-7003 Blue Scrub Pad (18/cs)

EDGE-7005 White Polish Pad (16/cs)

EDGE-7006 HD Dominator Strip Pad (20/cs)

EDGE-7007 ECO EPP Prep Pad (60/cs)

EDGE-7018 Tile/Grout Pad (1ea)

EDGE-7025 White Driver Pad (48/cs)

EDGE-7027 White Magic Eraser Pad (20/cs)

SPARE PARTS & KITS:

PART NUMBER DESCRIPTION

900-1037 9'' Plastic Grip Face

- 14 - TC-NANOEDGE-OP-EN

PARTS

1

2

Item Part No. Part Description Qty.

1 900-1001 NANO Handle Assembly 1

2 900-1037 NANO Grip Face 1

BLANK

THIS PAGE WAS INTENTIONALLY LEFT BLANK

© RPS Corporation 2016

COMMERCIAL CLEANING EQUIPMENT

1711 South Street

Racine, WI 53404

www.tomcatequip.com

Tel. US: 800-634-4060

Tel. Int: (001) 262-681-3583
