VR10035 REV.01

PARTS LIST

www.vipercleaning.com

TABLE OOO0F CO0NTENTS

WHEN ORDERING PARTS

* Use the 7, 8 or 9 sign from the “Part No.” columns in this parts list.

* Specify the model and serial number of the machine.

* Use the space below to record the model and serial number for future reference.

Model ___________________ Serial No. ___________________

1

Description

DescriptionDescription

Description Page

PagePage

Page

COMPLETE ASSEMBLY 2--3

DRIVE MOTOR AND CHASSIS ASSEMBLY 4--5

DIRECTION CONTROL ASSEMBLY 6--7

FRONT MAIN FRAME ASSEMBLY 8--9

BRUSH ASSEMBLY 10--11

ELECTRIC PARTS ASSEMBLY 12--13

CONTROL HOUSING ASSEMBLY 14--15

SQUEEGEE BRACKET ASSEMBLY 16--17

SQUEEGEE ASSEMBLY 18--19

SOLUTION TANK ASSEMBLY 20--21

RECOVERY TANK ASSEMBLY 22--23

SEAT ASSEMBLY 24--25

BUMPER ASSEMBLY 26--27

ELECTRIC PARTS 28--29

OTHER ELECTRIC PARTS ASSEMBLY 30--31

MAIN CONNECTING WIRE-VR13440 32

WEAR AND TEAR PARTS 33

2

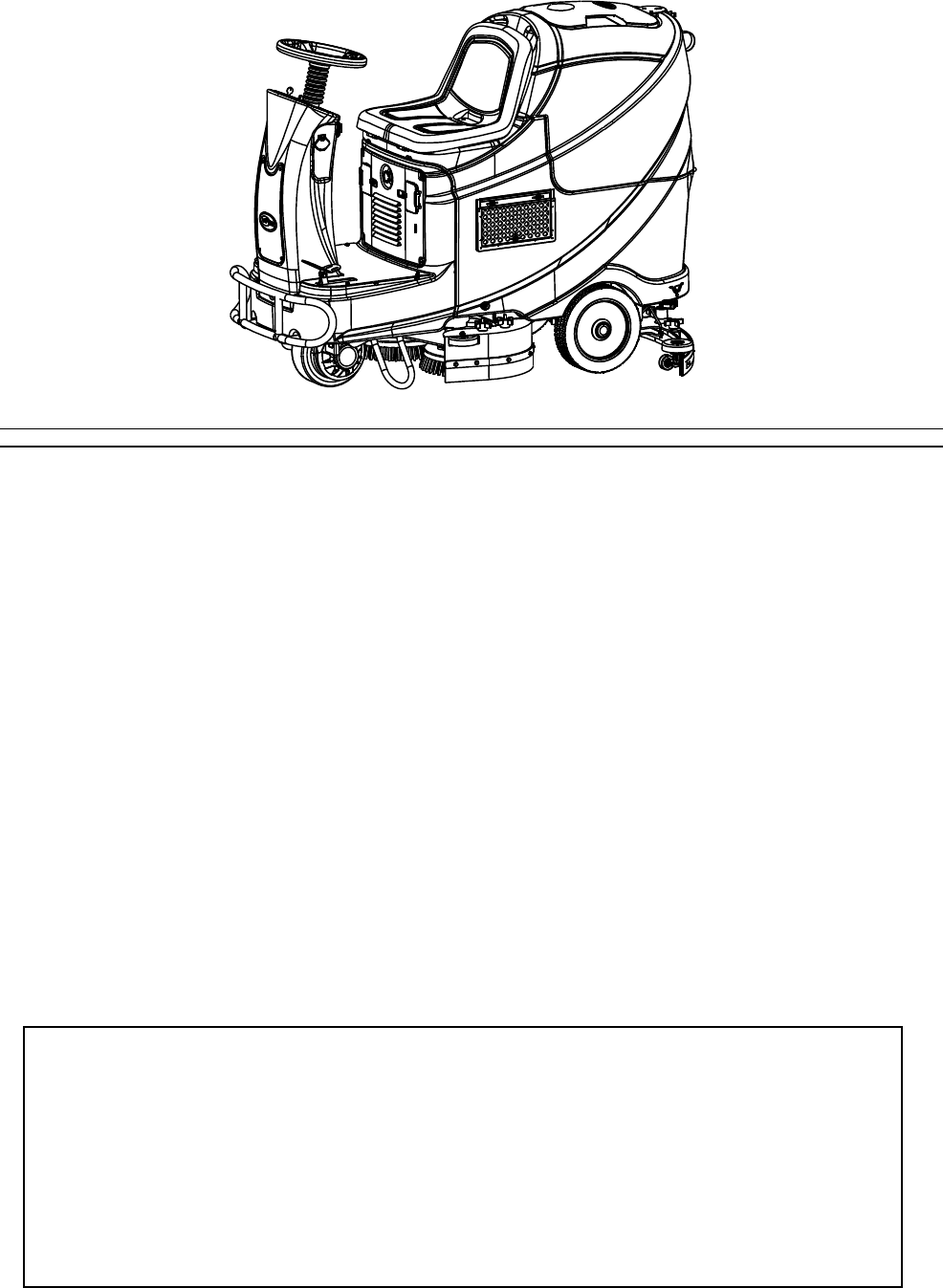

COMPLETE ASSEMBLY

PARTS LIST

3

Item

ItemItem

Item Description

DescriptionDescription

Description Qty

QtyQty

Qty

1 DRIVER ASSY AND MAIN FRAME 1

2 SQUEEGEE BRACKET ASSEMBLY 1

3 FRONT MAIN FRAME ASSEMBLY 1

4 ELECTRI PARTS ASSEMBLY 1

5 DIRECTION CONTROL ASSEMBLY 1

6 LIFT BRUSH PEDAL ASSEMBLY 1

7LEFT CRUSH-PROTECT ASSEMBLY 1

RIGHT CRUSH-PROTECT ASSEMBLY 1

9KIT FRONT CRUSH-PROTECT 1

10 FRONT HOUSING ASSEMBLY 1

11 SOLUTION TANK ASSEMBLY 1

12 RECVOERY TANK ASSEMBLY 1

13 RECOVERY TANK LOCK ASSEMBLY 1

14 SEAT ASSEMBLY 1

15 RECOVERY TANK COVER ASSEMBLY 1

16 BRUSH ASSEMBLY 1

17 SQUEEGEE ASSEMBLY 1

18 BATTERIES 6V 245AH 4

COMPLETE ASSEMBLY

COMPLETE ASSEMBLYCOMPLETE ASSEMBLY

COMPLETE ASSEMBLY

8

4

PARTS LIST

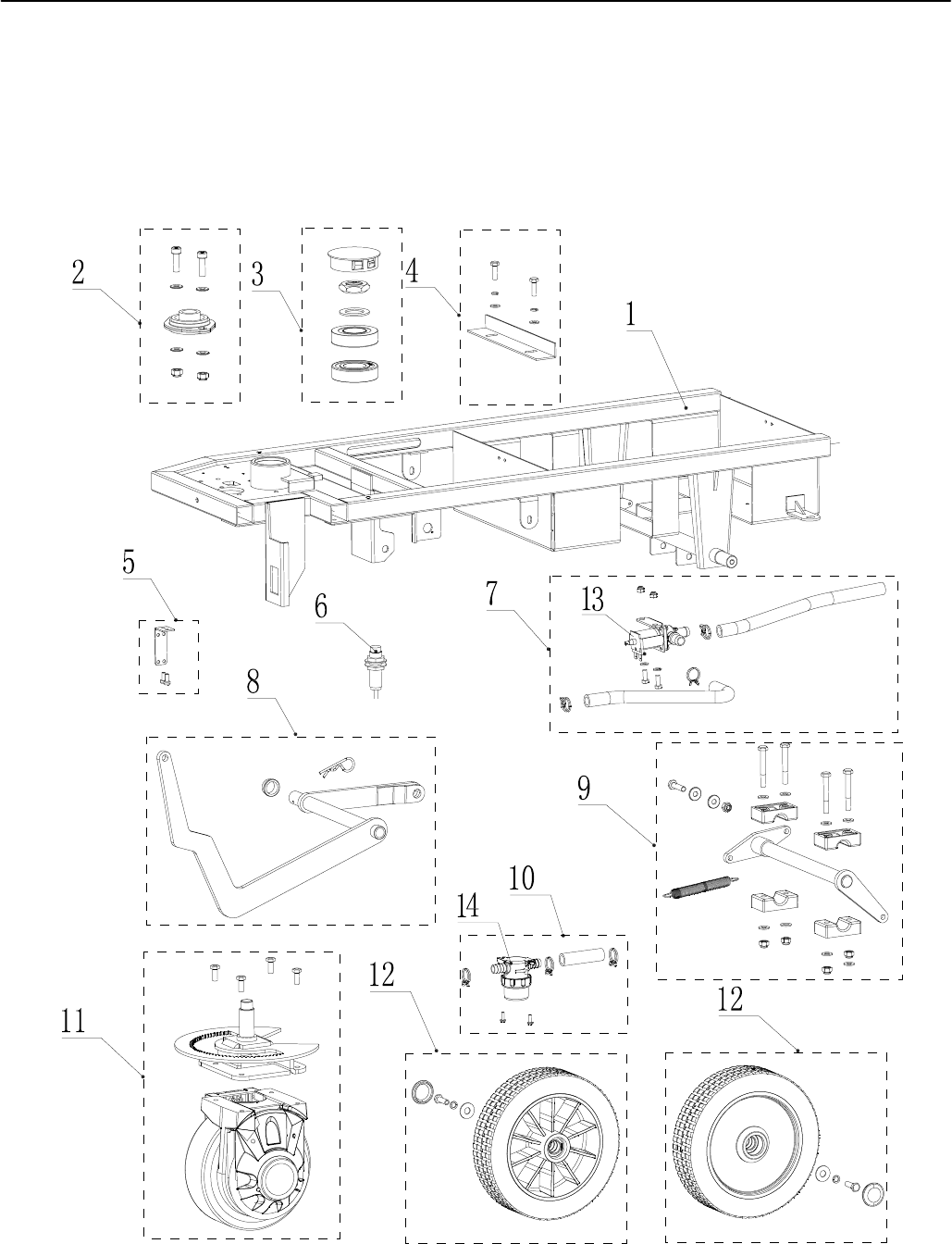

DRIVE MOTOR AND CHASSIS ASSEMBLY

PARTS LIST

5

Item

ItemItem

Item Part No

Part NoPart No

Part No Description

DescriptionDescription

Description Qty

QtyQty

Qty

1 VR11100 CHASSIS 1

2 VR11016 KIT BEARING WITH BRACKET 1

3 VR11501 KIT DRIVE MOTOR BEARING 1

4 VR11502 KIT BATTERY BRACKET 1

5 VR11503 KIT DRIVE MOTOR BRACKET 1

6 VR13435 SENSOR SWITCH 1

7 VR11506 KIT SOLENOID VALVE 1

8 VR11505 BRACKET KIT BRUSH LIFT 1

9 VR11507 BRACKET KIT SQUEEGEE LIFT 1

10 VR11508 KIT FILTER 1

11 VR11200 KIT DRIVE MOTOR 1

12 VR11504 KIT REAR WHEEL 2

13 VR11600 VALVE 1

14 VF90621 FILTER 1

DRIVE MOTOR AND CHASSIS ASSEMBLY

DRIVE MOTOR AND CHASSIS ASSEMBLYDRIVE MOTOR AND CHASSIS ASSEMBLY

DRIVE MOTOR AND CHASSIS ASSEMBLY

6

PARTS LIST

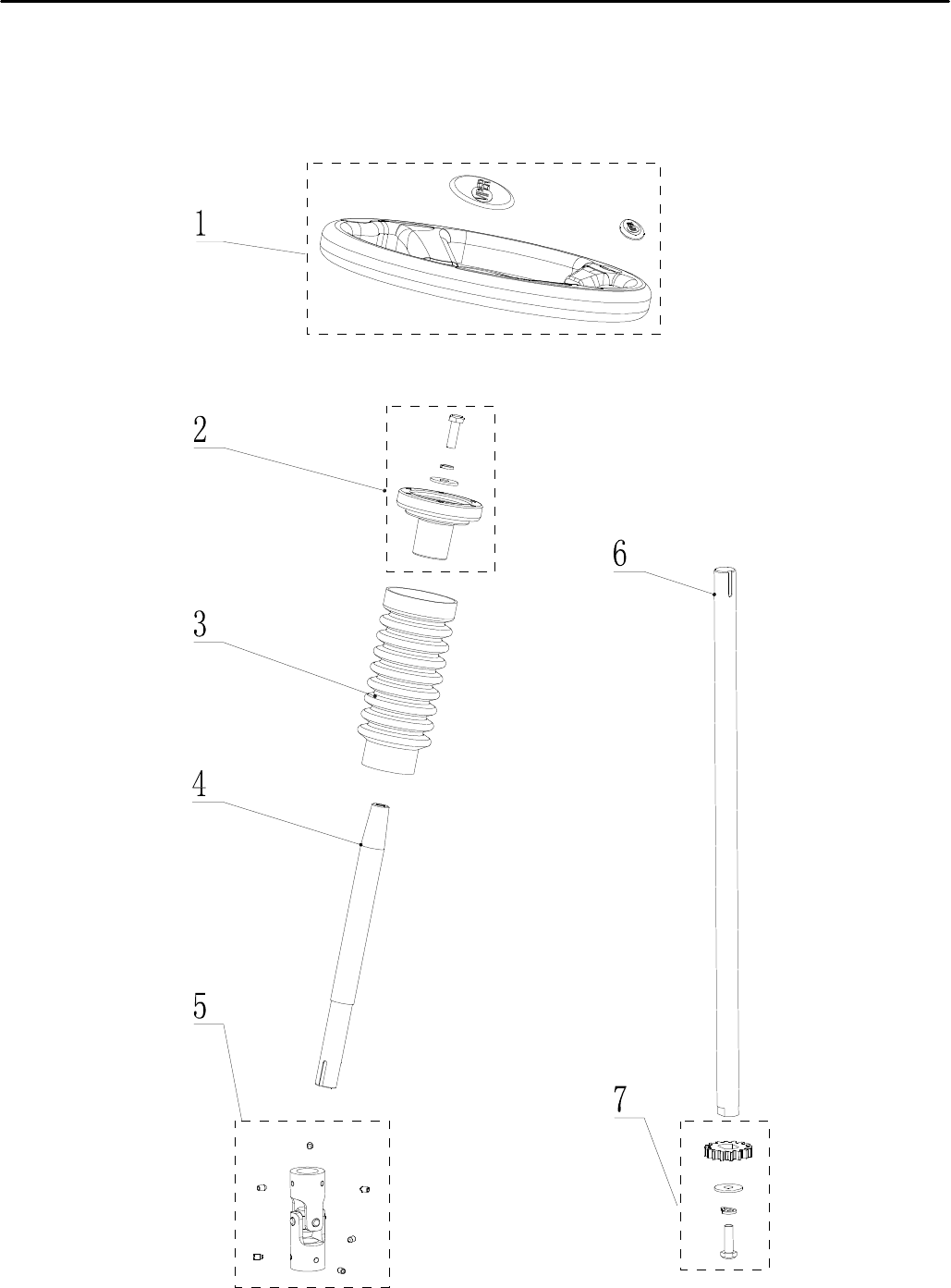

DIRECTION CONTROL ASSEMBLY

PARTS LIST

7

Item

ItemItem

Item Part No

Part NoPart No

Part No Description

DescriptionDescription

Description Qty

QtyQty

Qty

1 VR10033 STEERING WHEEL 1

2 VR10039 RUBBER SLEEVE STEERING WHEEL 1

3 VR10014 KIT STEERING WHEEL LOCK 1

4 VR10001 UP SHAFT STEERING WHEEL 1

5 VR10040 KIT UNIVERSAL JOINT 1

6 VR11301 DOWN SHAFT STEERING WHEEL 1

7 VR11303 KIT GEAR 1

DIRECTION CONTROL ASSEMBLY

DIRECTION CONTROL ASSEMBLYDIRECTION CONTROL ASSEMBLY

DIRECTION CONTROL ASSEMBLY

8

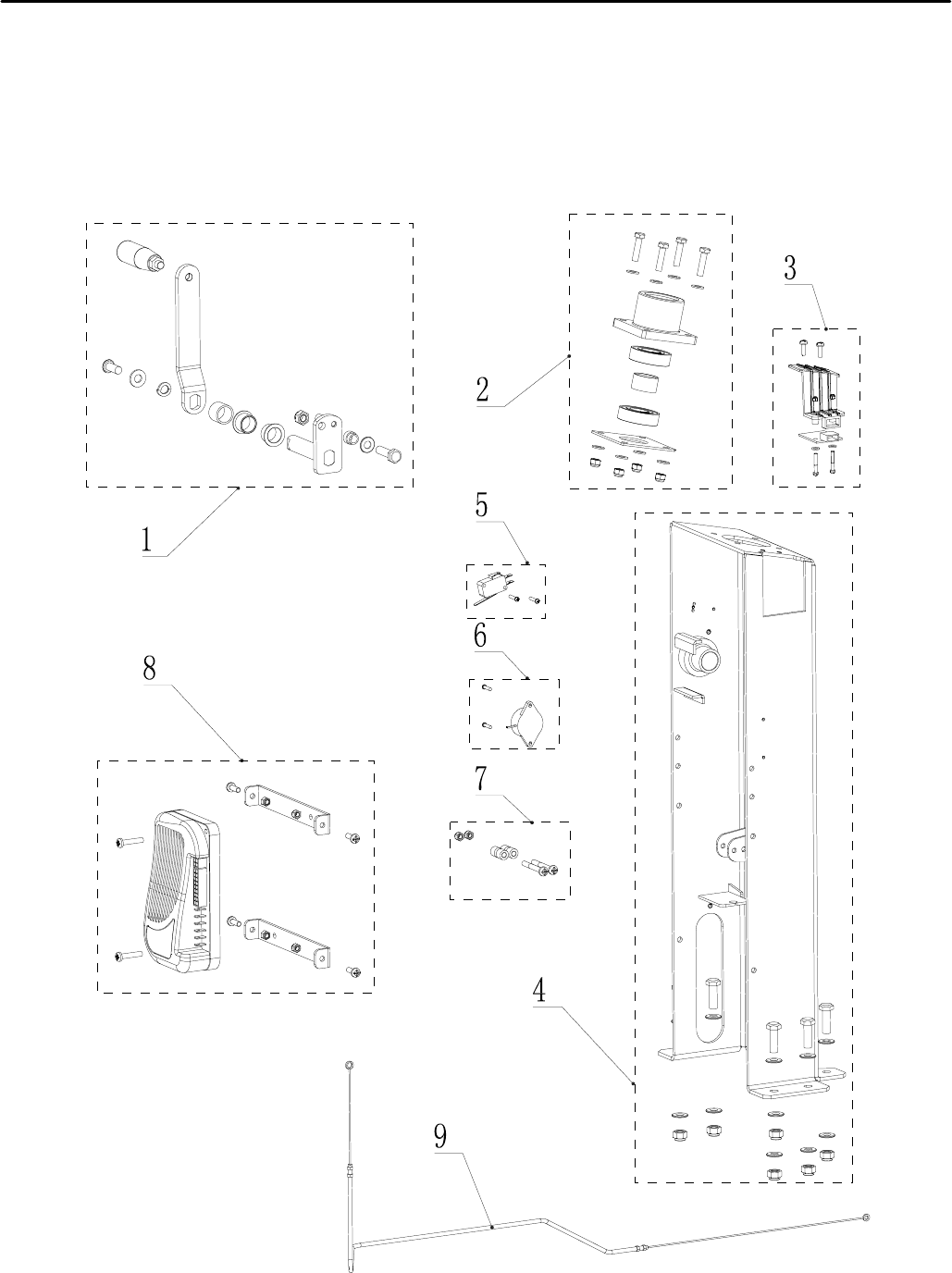

FRONT MAIN FRAME ASSEMBLY

PARTS LIST

PARTS LIST

9

Item

ItemItem

Item Part No

Part NoPart No

Part No Description

DescriptionDescription

Description Qty

QtyQty

Qty

1 VR12100 HANDLE KIT SQUEEGEE LIFT 1

2 VR12200 KIT BEARING BASE 1

3 VR12300 KIT USB 1

4 VR12401 KIT FRONT FRAME 1

5 VR12403 KIT SQUEEGEE SWITCH 1

6 VR12013 KIT HORN 1

7 VR12402 KIT CABLE GUIDE WHEEL SQUEEGEE LIFT 1

8 VR12404 KIT DRIVE MOTOR CONTROL 1

9 VR12004 CABLE SQUEEGEE LIFT 1

FRONT MAIN FRAME ASSEMBLY

FRONT MAIN FRAME ASSEMBLYFRONT MAIN FRAME ASSEMBLY

FRONT MAIN FRAME ASSEMBLY

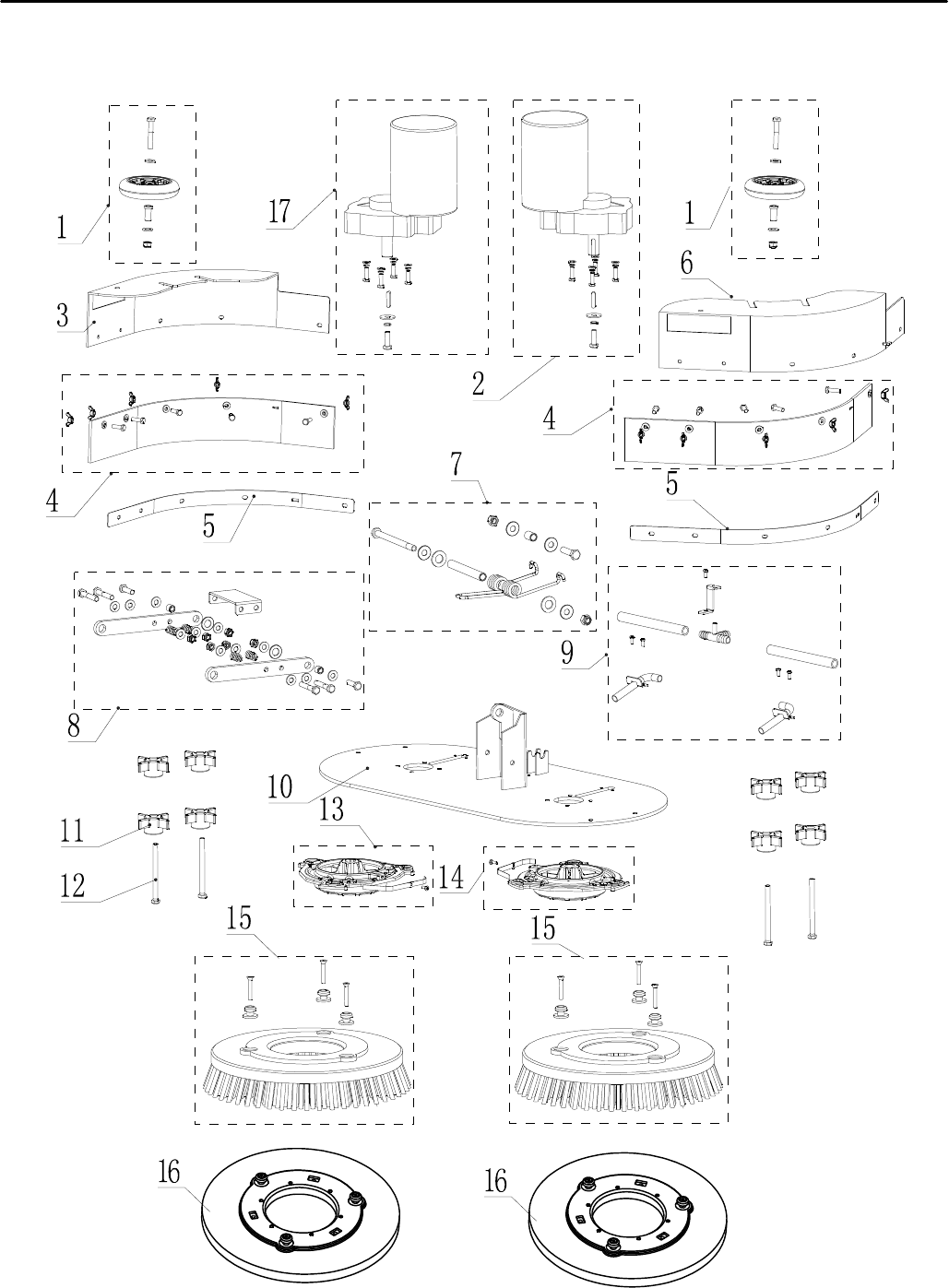

BRUSH ASSEMBLY

10

PARTS LIST

PARTS LIST

11

Item

ItemItem

Item Part No

Part NoPart No

Part No Description

DescriptionDescription

Description Qty

QtyQty

Qty

1 VR14016 KIT BUMPER WHEEL 2

2 VR14013 KIT BRUSH MOTOR LEFT 1

3 VR14501 BRUSH SKIRT MOUNT RIGHT 1

4 VR14015 KIT BRUSH SKIRT 2

5 VR14403 STRAP KIT SKIRT 2

6 VR14401 BRUSH SKIRT MOUNT LEFT 1

7 VR14017 KIT BRUSH TORSION SPRING 1

8 VR14012 KIT BRUSH LIFT ARM 1

9 VR14014 KIT BRUSH WATER OUTLET 1

10 VR14001 BRUSH MOUNTING FARAME 1

11 VF81210 TUMB NUT 8

12 VR14005 BOLT M8X100 HEX 4

13 VR14100 KIT LEFT BRUSH HUB 1

14 VR14200 KIT RIGHT BRUSH HUB 1

15 VR14300 KIT BRUSH 2

16 VR14303 PAD DRIVER 14" 2

17 VR14023 KIT BRUSH MOTOR RIGHT 1

BRUSH ASSEMBLY

BRUSH ASSEMBLY BRUSH ASSEMBLY

BRUSH ASSEMBLY

12

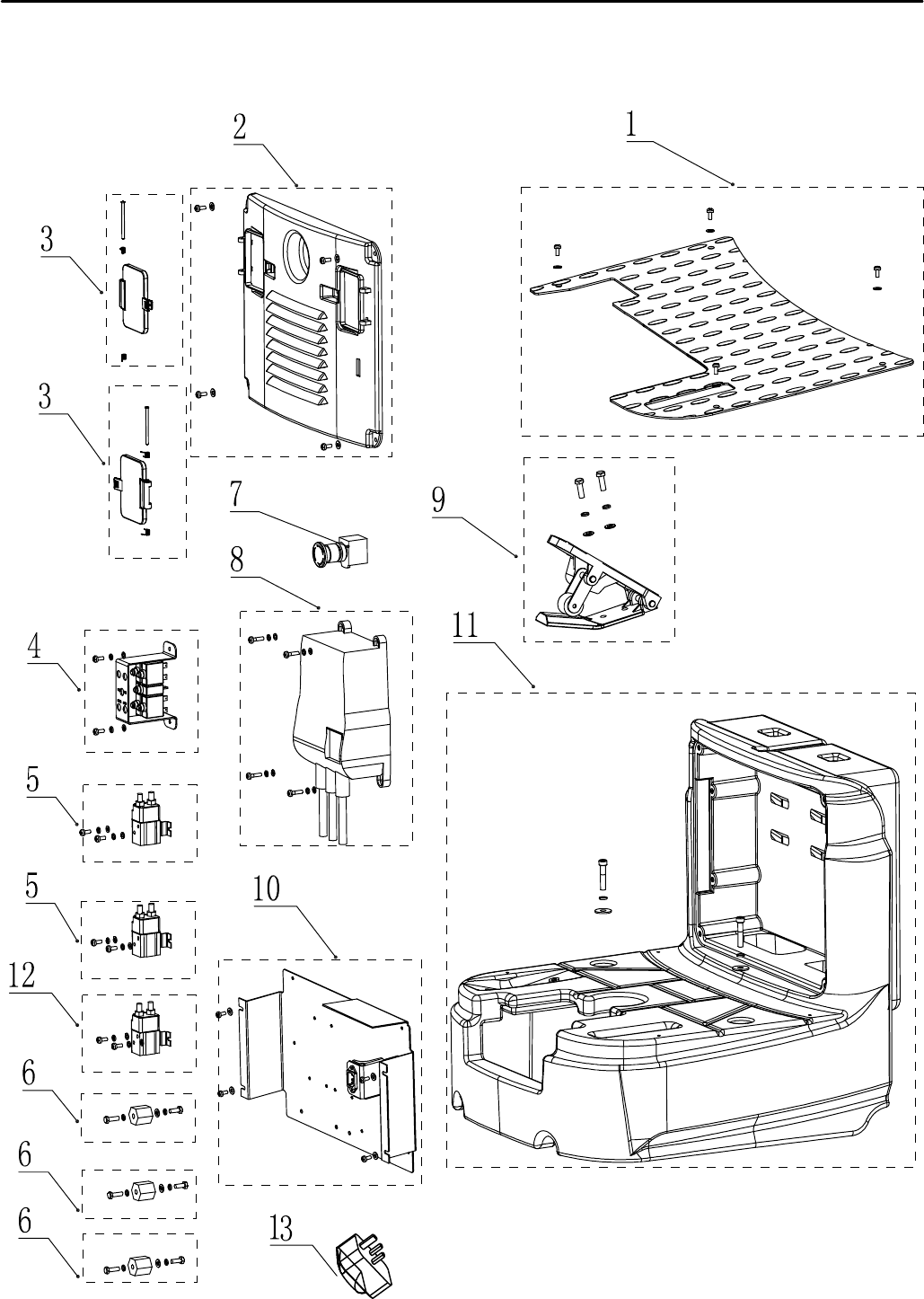

ELECTRIC PARTS ASSEMBLY

PARTS LIST

3

*------------OPTIONAL

PARTS LIST

13

Item

ItemItem

Item Part No

Part NoPart No

Part No Description

DescriptionDescription

Description Qty

QtyQty

Qty

1 VR13003 KIT ANTI-SKID PLATE 1

2 VR13110 LID KIT ELECTRIC BOX 1

3 VR13120 KIT TRANSPARENT LID 2

4 VR13220 KIT BREAKER 1

5 VR13230 KIT CONTACTOR 2

6 VR13250 KIT CONNECT WIRE POLE

7 VR13132 EMERGENCY-STOP BUTTON 1

VR13240 KIT CHARGER EU VERSION 1

VR13445 KIT CHARGER CN VERSION 1

VR13442 KIT CHARGER US VERSION 1

9 VR13300 KIT SPEED CONTROL PEDAL 1

10 VR13210 KIT ELECTRIC PARTS MOUNTING PLATE 1

11 VR13004 KIT ELECTRIC BOX 1

12 VR13260 KIT RELAY 1

13* VF82178 UK CONVERTER 1

ELECTRIC PARTS ASSEMBLY

ELECTRIC PARTS ASSEMBLYELECTRIC PARTS ASSEMBLY

ELECTRIC PARTS ASSEMBLY

8

9

7

14

PARTS LIST

6

8

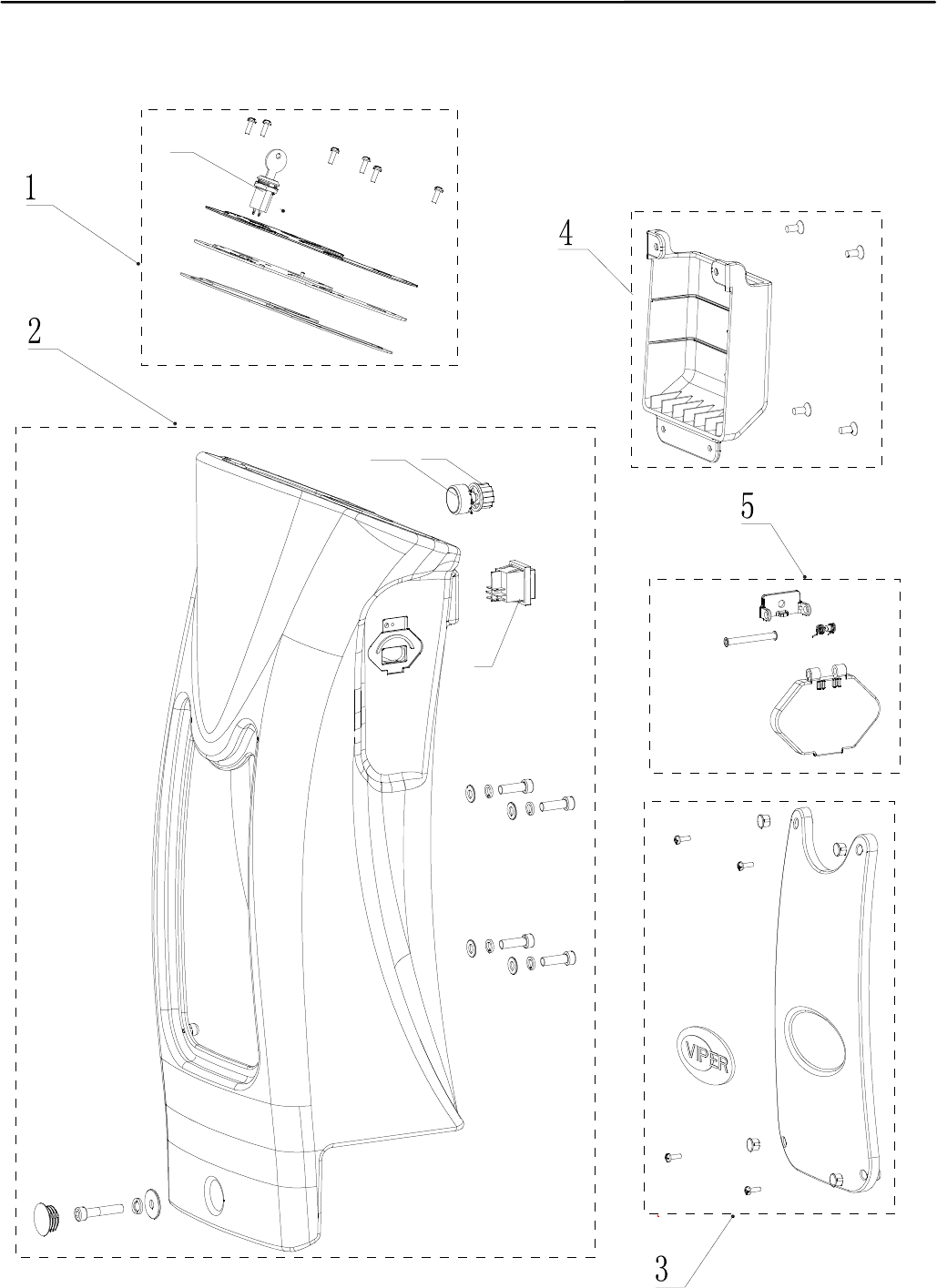

CONTROL HOUSING ASSEMBLY

PARTS LIST

15

Item

ItemItem

Item Part No

Part NoPart No

Part No Description

DescriptionDescription

Description Qty

QtyQty

Qty

1 VR15100 KIT CONTROL PANEL 1

2 VR15008 KIT CONTROL HOUSING 1

3 VR15009 LID KIT DRIVE MOTOR CONTROL 1

4 VR15011 KIT PHONE STORAGE 1

5 VR15200 KIT USB COVER 1

6 VR13436 KEY SWITCH 1

7 VR13441 SPEED POTENTIOMETER 1

8 VF81730 POTENTIOMETER KNOB 1

9 VR15110 FORWARD OR REVERSE BUTTON 1

CONTROL HOUSING ASSEMBLY

CONTROL HOUSING ASSEMBLYCONTROL HOUSING ASSEMBLY

CONTROL HOUSING ASSEMBLY

16

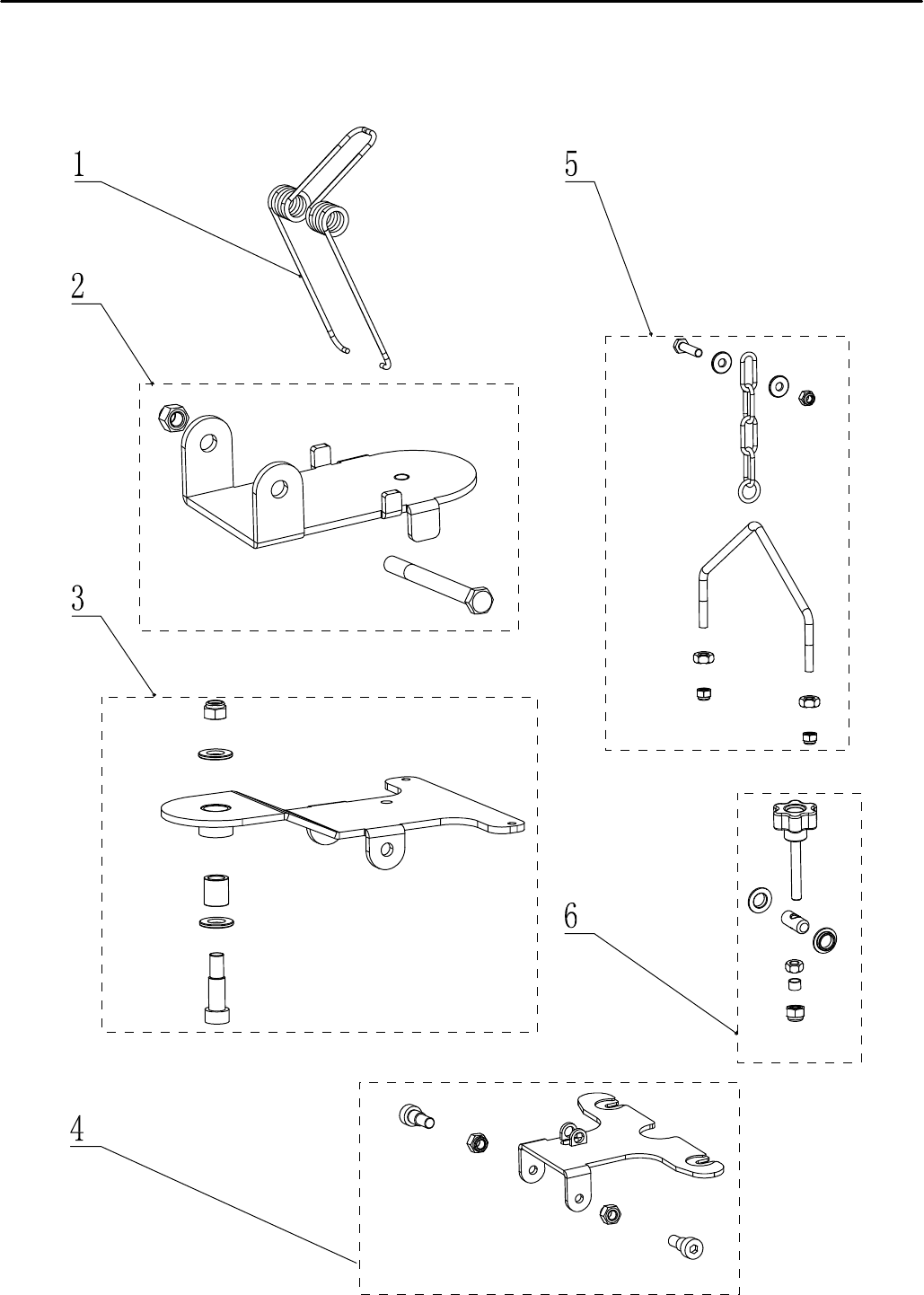

SQUEEGEE BRACKET ASSEMBLY

PARTS LIST

PARTS LIST

17

Item

ItemItem

Item Part No

Part NoPart No

Part No Description

DescriptionDescription

Description Qty

QtyQty

Qty

1 VR11402 TORSION SPRING SQUEEGEE 1

2 VR11408 KIT SQUEEGEE BRACKET 1

3 VR11409 KIT SQUEEGEE MOUNTING PIVOT 1

4 VR11410 KIT SQUEEGEE ADJUSTMENT BRACKET 1

5 VR11411 KIT SQUEEGEE LIFT CHAIN 1

6 VR11412 KIT SQUEGEE ADJUSTMENT HANDLE 1

SQUEEGEE BRACKET ASSEMBLY

SQUEEGEE BRACKET ASSEMBLYSQUEEGEE BRACKET ASSEMBLY

SQUEEGEE BRACKET ASSEMBLY

18

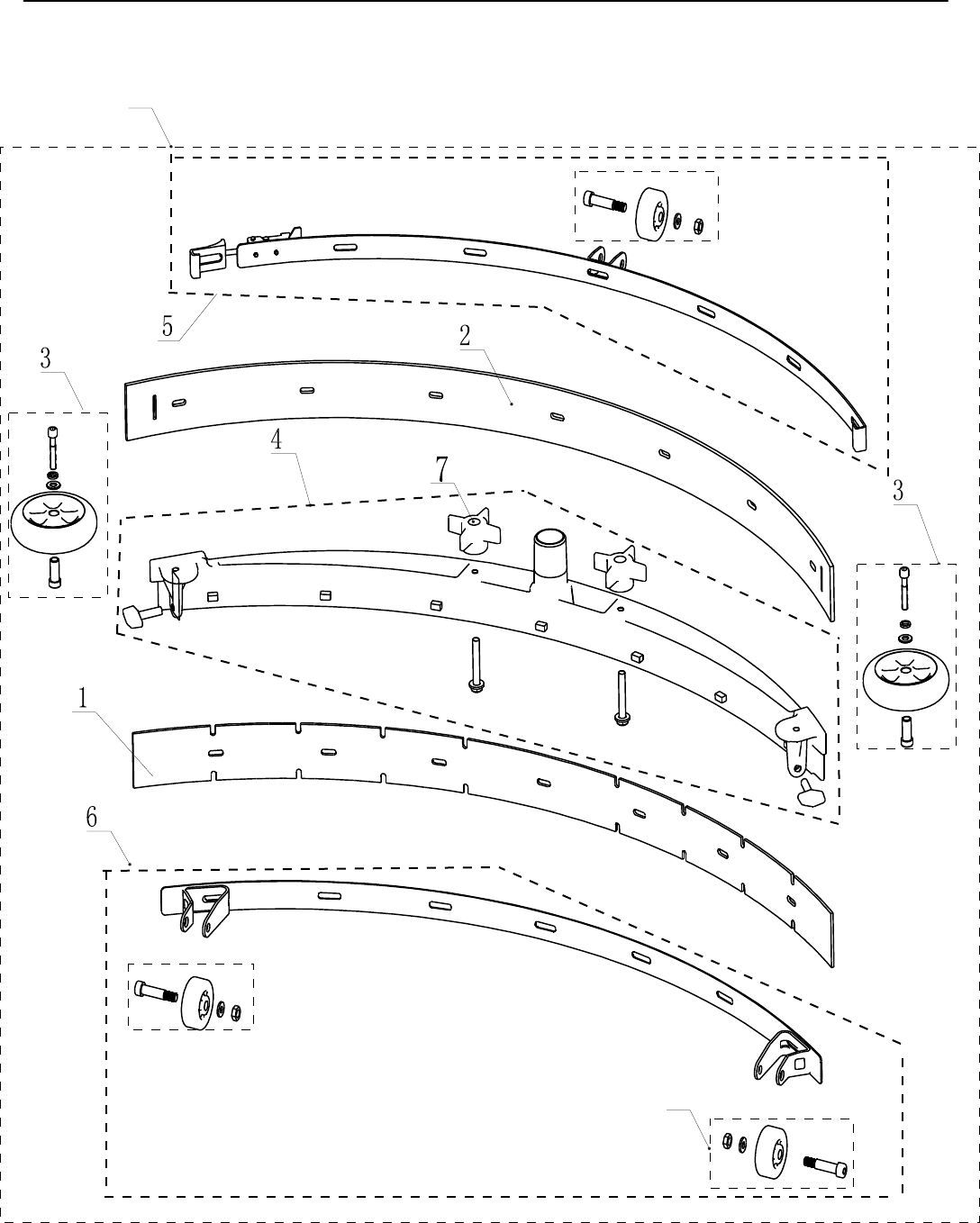

SQUEEGEE ASSEMBLY

PARTS LIST

9

8

8 VF90136 SQUEEGEE GUIDE WHEEL 3

PARTS LIST

19

Item

ItemItem

Item Part No

Part NoPart No

Part No Description

DescriptionDescription

Description Qty

QtyQty

Qty

1 VR16002 SQUEEGEE BLADE FRONT 1

2 VR16003 SQUEEGEE BLADE REAR 1

3 VR16007 WHEEL KIT BUMPER 1

4 VR16008 SQUEEGEE ALUMINUM BODY 1

5 VR16200 STRAP KIT REAR SQUEEGEE 1

6 VR16100 STRAP KIT FRONT SQUEEGEE 1

7 VF81210 TUMB NUT 2

9 VR16000 SQUEEGEE ASSEMBLY 1

SQUEEGEE ASSEMBLY

SQUEEGEE ASSEMBLYSQUEEGEE ASSEMBLY

SQUEEGEE ASSEMBLY

20

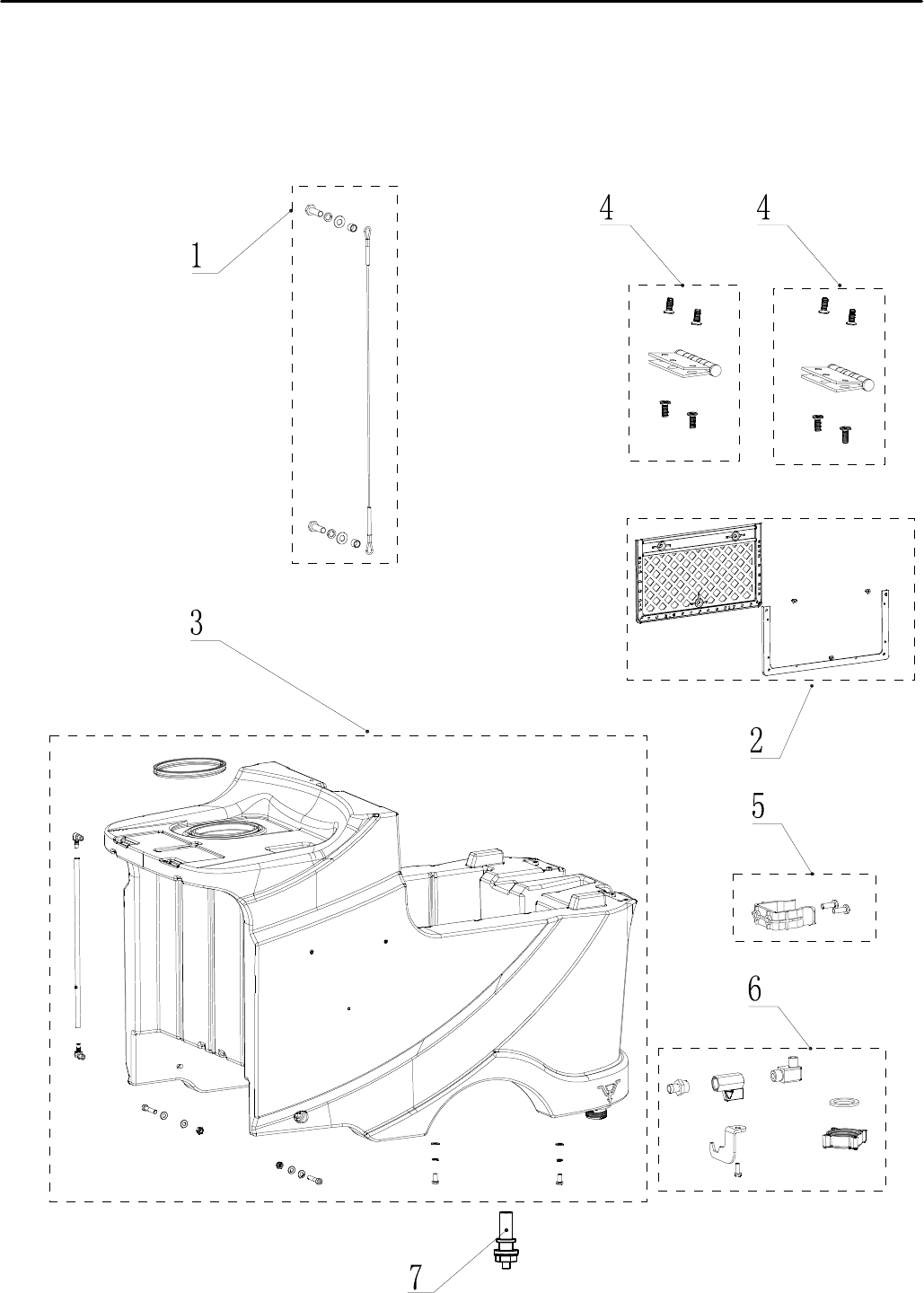

SOLUTION TANK ASSEMBLY

PARTS LIST

1

5 GV70034 HOSE CLAMP

PARTS LIST

21

Item

ItemItem

Item Part No

Part NoPart No

Part No Description

DescriptionDescription

Description Qty

QtyQty

Qty

1 VR17170 PULL CABLE RECOVERY TANK 1

2 VR17300 KIT NET BAG

3 VR17601 KIT SOLUTION TANK 1

4 VR17602 HINGE KIT RECOVEY TANK 2

6 VR17604 KIT WATER ADJUSTMENT 1

7 VR13430 SWITCH SOLUTION TANK WATER LEVEL 1

SOLUTION TANK ASSEMBLY

SOLUTION TANK ASSEMBLYSOLUTION TANK ASSEMBLY

SOLUTION TANK ASSEMBLY

2

22

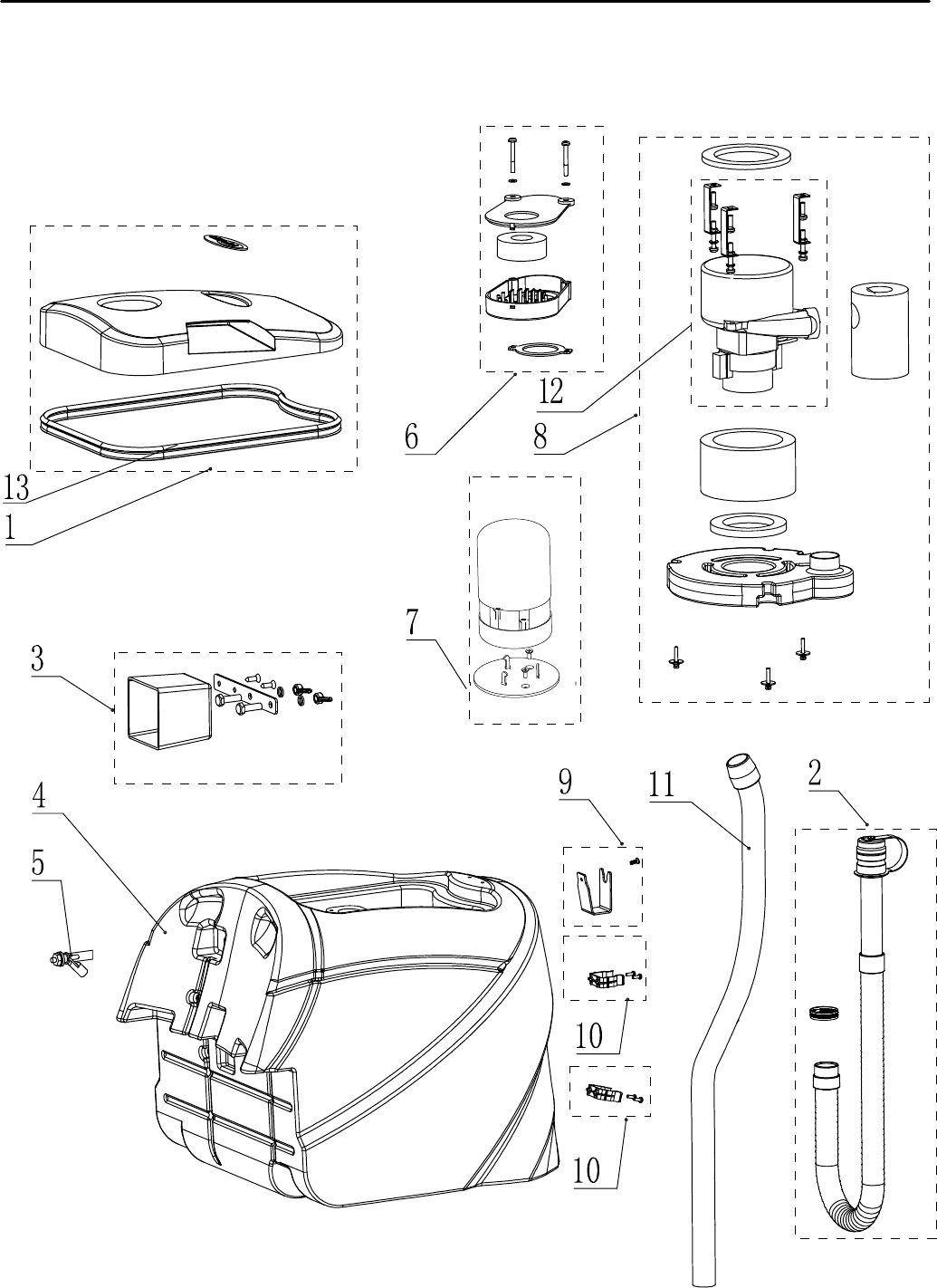

RECOVERY TANK ASSEMBLY

PARTS LIST

KIT WARNING LIGHT

7* VR17160

*------------OPTIONAL

2

PARTS LIST

23

Item

ItemItem

Item Part No

Part NoPart No

Part No Description

DescriptionDescription

Description Qty

QtyQty

Qty

1 VR17140 LID KIT RECOVERY TANK 1

2 VR17606 KIT DRAIN HOSE 1

3 VR17107 LID KIT WATER LEVEL SWITCH RECOVERT TANK 1

4 VR17101 RECOVERY TANK 1

5 VR13431 SWITCH WATER LEVEL RECOVERY TANK 1

6 VR17130 KIT VACUUM HOLE 1

1

8 VR17120 KIT VACUUM MOTOR AND FIXING 1

9 VR17605 KIT SQUEEGEE HOOK 1

10 VR17603 KIT HOSE CLAMP

11 VR17006 SQUEEGEE HOSE 1

12 VR17119 KIT VACUUM MOTOR 1

13 VR17109 SEALING 1

RECOVERY TANK ASSEMBLY

RECOVERY TANK ASSEMBLY RECOVERY TANK ASSEMBLY

RECOVERY TANK ASSEMBLY

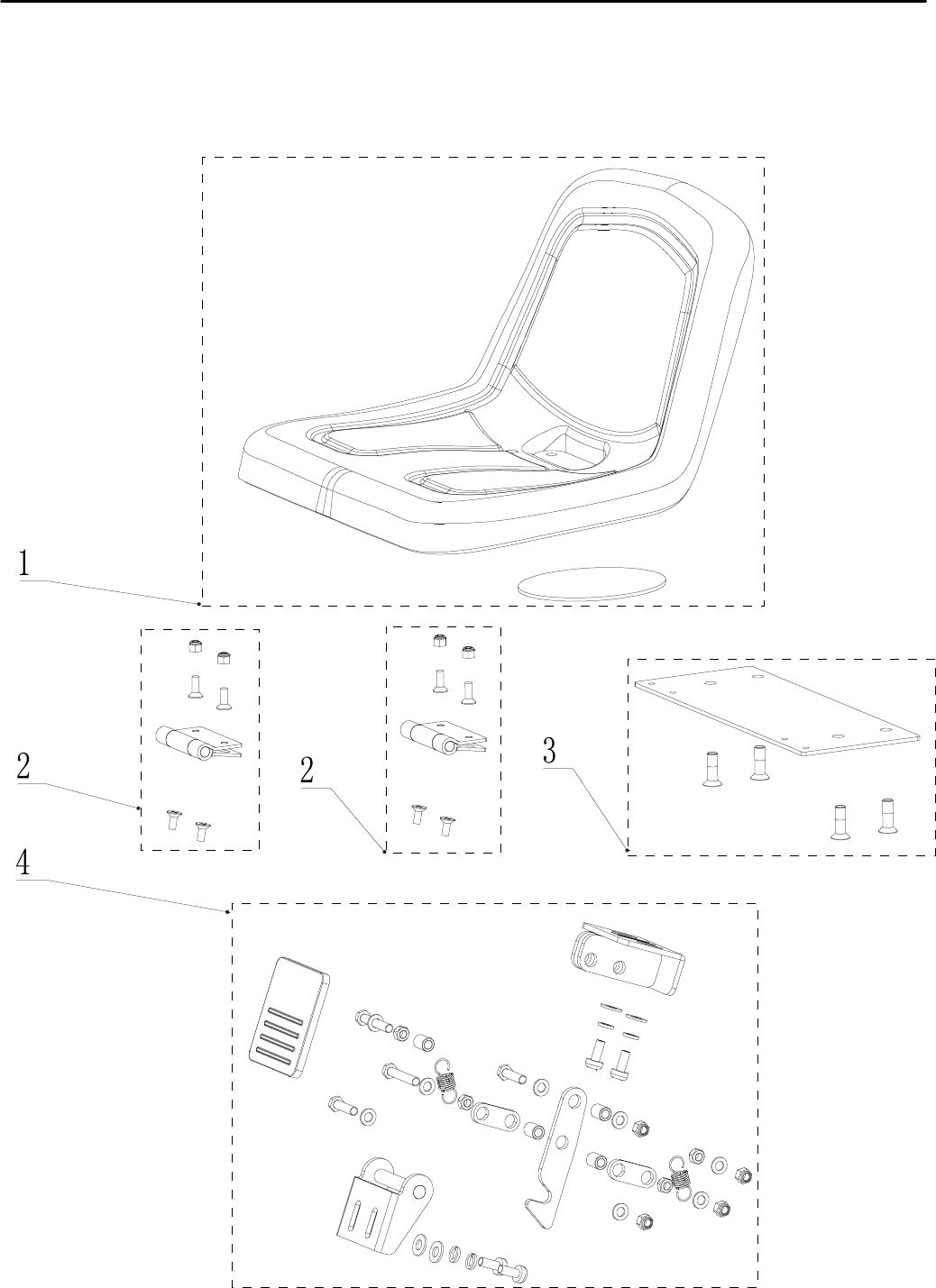

SEAT ASSEMBLY

24

PARTS LIST

PARTS LIST

25

Item

ItemItem

Item Part No

Part NoPart No

Part No Description

DescriptionDescription

Description Qty

QtyQty

Qty

1 VR17405 KIT SEAT 1

2 VR17406 HINGE KIT SEAT 2

3 VR17407 KIT SEAT MOUNTING PLATE 1

4 VR17200 KIT RECOVERY TANK LATCH 1

SEAT ASSEMBLY

SEAT ASSEMBLY SEAT ASSEMBLY

SEAT ASSEMBLY

26

PARTS LIST

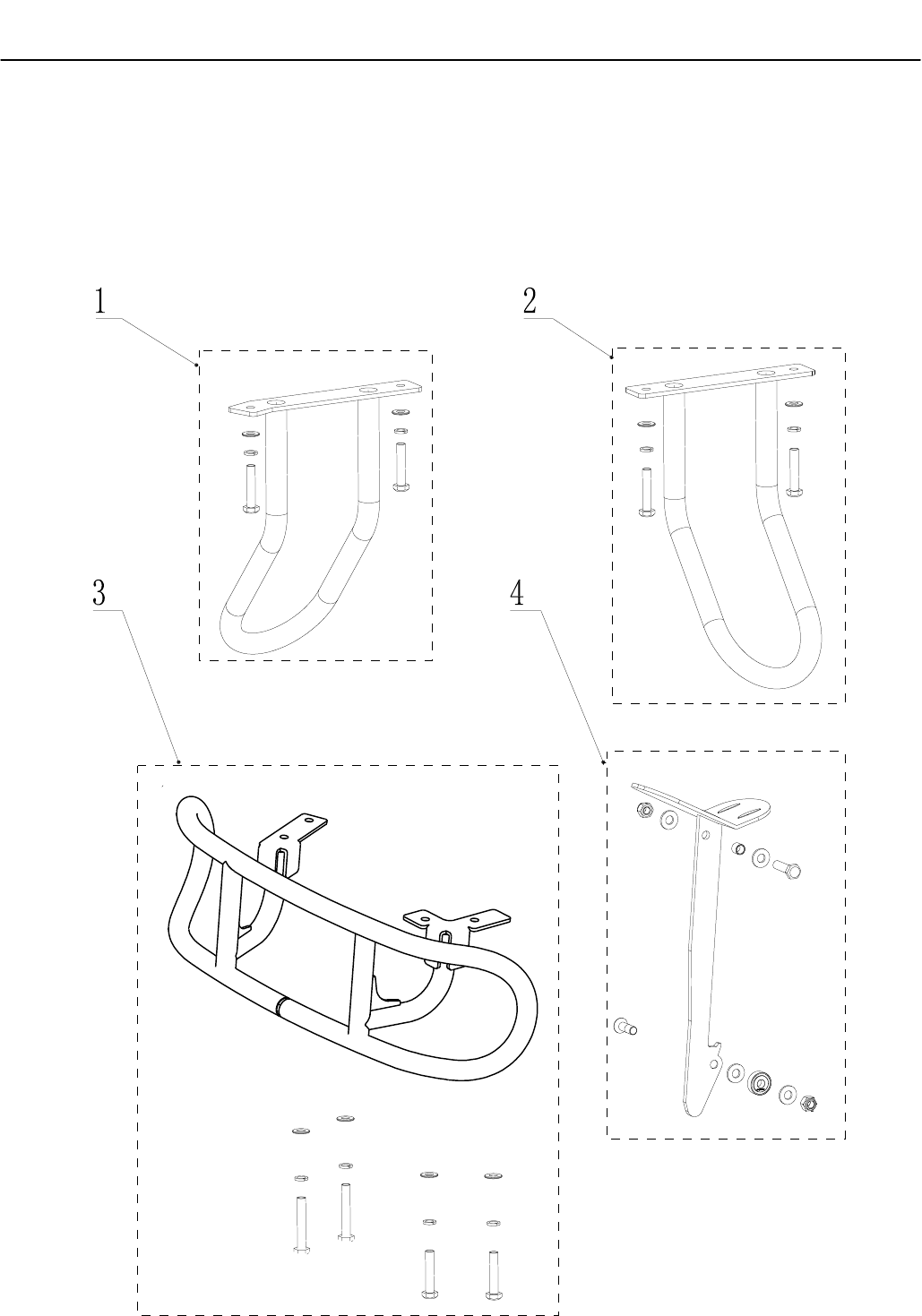

BUMPER ASSEMBLY

27

PARTS LIST

Item

ItemItem

Item Part No

Part NoPart No

Part No Description

DescriptionDescription

Description Qty

QtyQty

Qty

1 VR10028 KIT RIGHT BUMPER 1

2 VR10026 KIT LEFT BUMPER 1

3 VR10027 KIT FRONT BUMPER 1

4 VR10012 PEDAL KIT BRUSH LIFT 1

BUMPER ASSEMBLY

BUMPER ASSEMBLY BUMPER ASSEMBLY

BUMPER ASSEMBLY

6

1

28

5

3

2

4

7

8

9

10

11

PARTS LIST

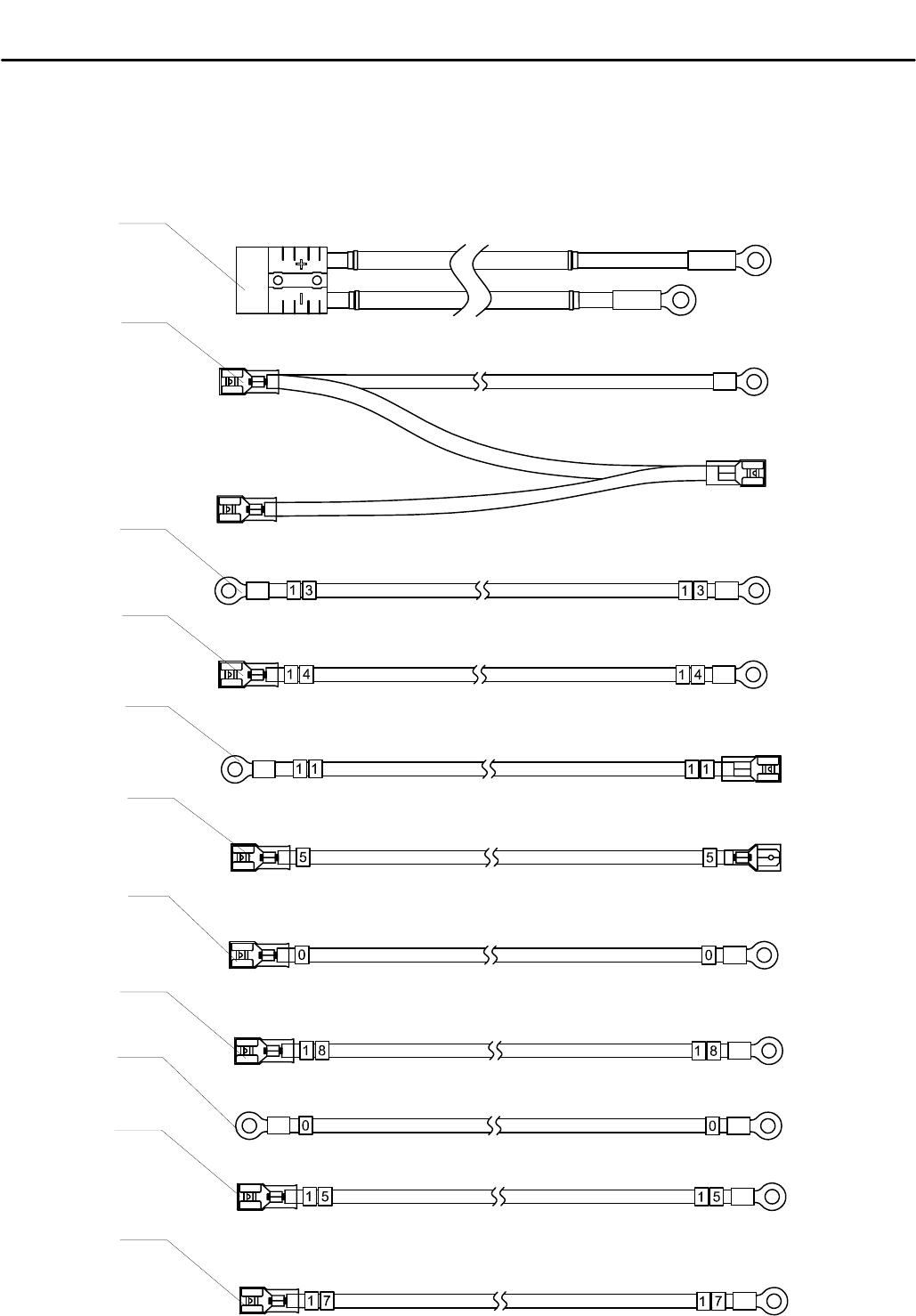

ELECTRIC PARTS

29

Item

ItemItem

Item Part No

Part NoPart No

Part No Description

DescriptionDescription

Description Qty

QtyQty

Qty

1 VR13414 KIT BATTERIES 24V WIRE 1

2 VR13418 KIT CONTACTOR WIRE 1

3 VR13424 MAIN CONTACTOR TO BRUSH MOTOR

CONTACTOR WIRE 1

4 VR13422 VACUUM MOTOR BREAKER TO VACUUM

MOTOR BREAKER WIRE 1

5 VR13425 BRUSH MOTOR CONTACTOR TO BRUSH

MOTOR BREAKER WIRE 1

6 VR13421 MAIN BREAKER TO EMERGENCY-STOP

BUTTON WIRE 1

7 VR13417 MAIN CONTACTOR TO NEGATIVE CONNECT

POLE WIRE 1

8 VR13419 MAIN CONTACTOR TO MAIN BREAKER

WIRE 1

9 VR13416 NEGATIVE CONNECT POLE WIRE 1

10 VR13420 MAIN CONTACTOR TO VACUUM MOTOR

BREAKER WIRE 1

11 VR13437 MAIN CONTACTOR TO DRIVE MOTOR

BREAKER WIRE 1

ELECTRIC PARTS

ELECTRIC PARTS ELECTRIC PARTS

ELECTRIC PARTS

PARTS LIST

1

30

5

3

2

4

6

7

8

9

PARTS LIST

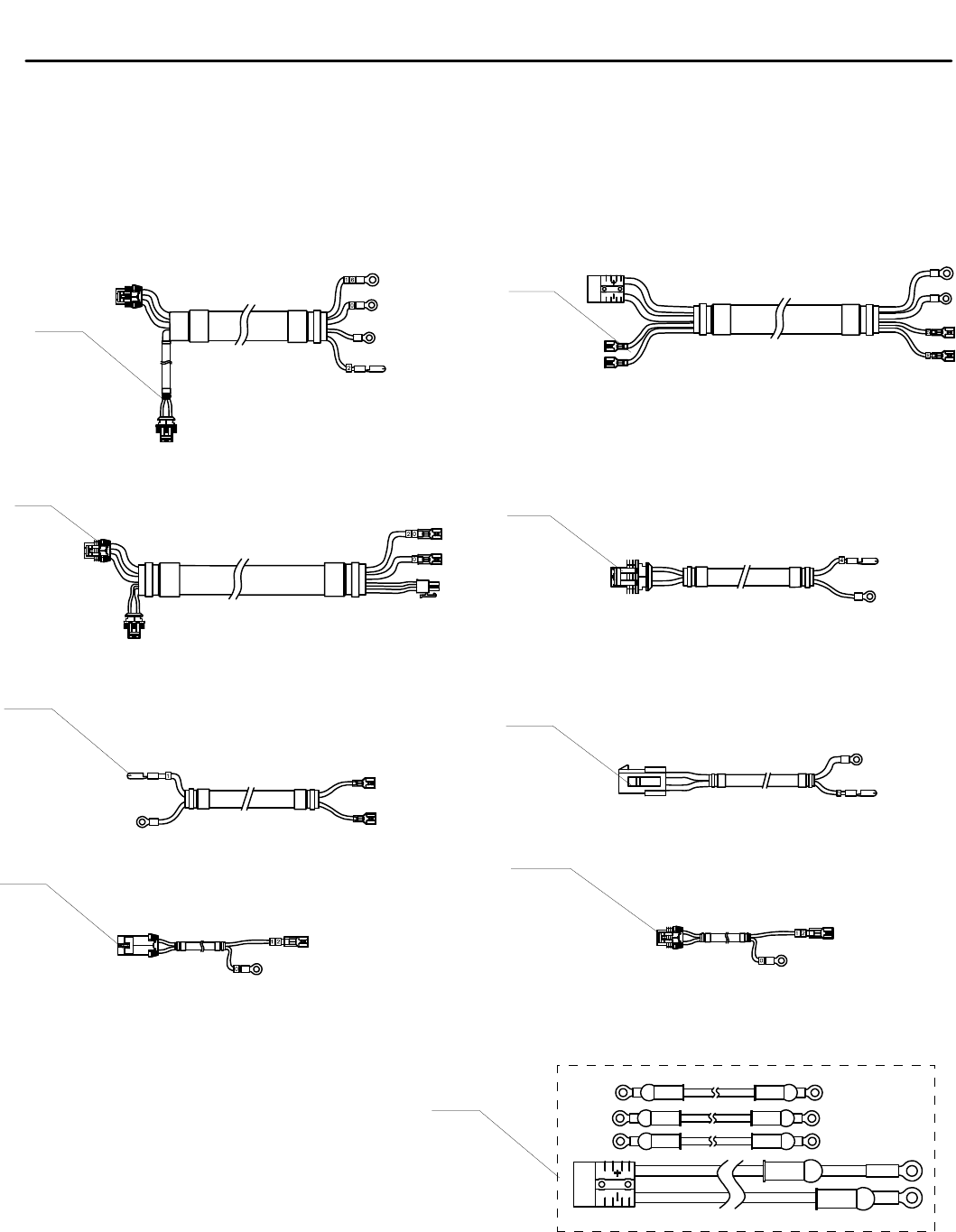

OTHER ELECTRIC PARTS ASSEMBLY

VR13443 KIT VACUUM MOTOR WIRE CN/US VERSION

31

PARTS LIST

Item

ItemItem

Item Part No

Part NoPart No

Part No Description

DescriptionDescription

Description Qty

QtyQty

Qty

VR13423 KIT VACUUM MOTOR WIRE EU VERSION 1

1

2 VR13438 KIT DRIVE MOTOR WIRE 1

3 VR13428 KIT WATER ELETRO VALVE WIRE 1

4 VR13426 KIT RIGHT BRUSH MOTOR WIRE 1

5 VR13413 KIT OUTWITH CHARGER WIRE 1

6 VR13429 SWITCH SOLUTION TANK WATER LEVEL WIRE 1

7 VR13433 KIT SEAT SWITCH WIRE 1

8 VR13427 KIT LEFT BRUSH MOTOR WIRE 1

9 VR13412 KIT BATTERIES 6V 245AH WIRE 1

OTHER ELECTRIC PARTS ASSEMBLY

OTHER ELECTRIC PARTS ASSEMBLYOTHER ELECTRIC PARTS ASSEMBLY

OTHER ELECTRIC PARTS ASSEMBLY

1

32

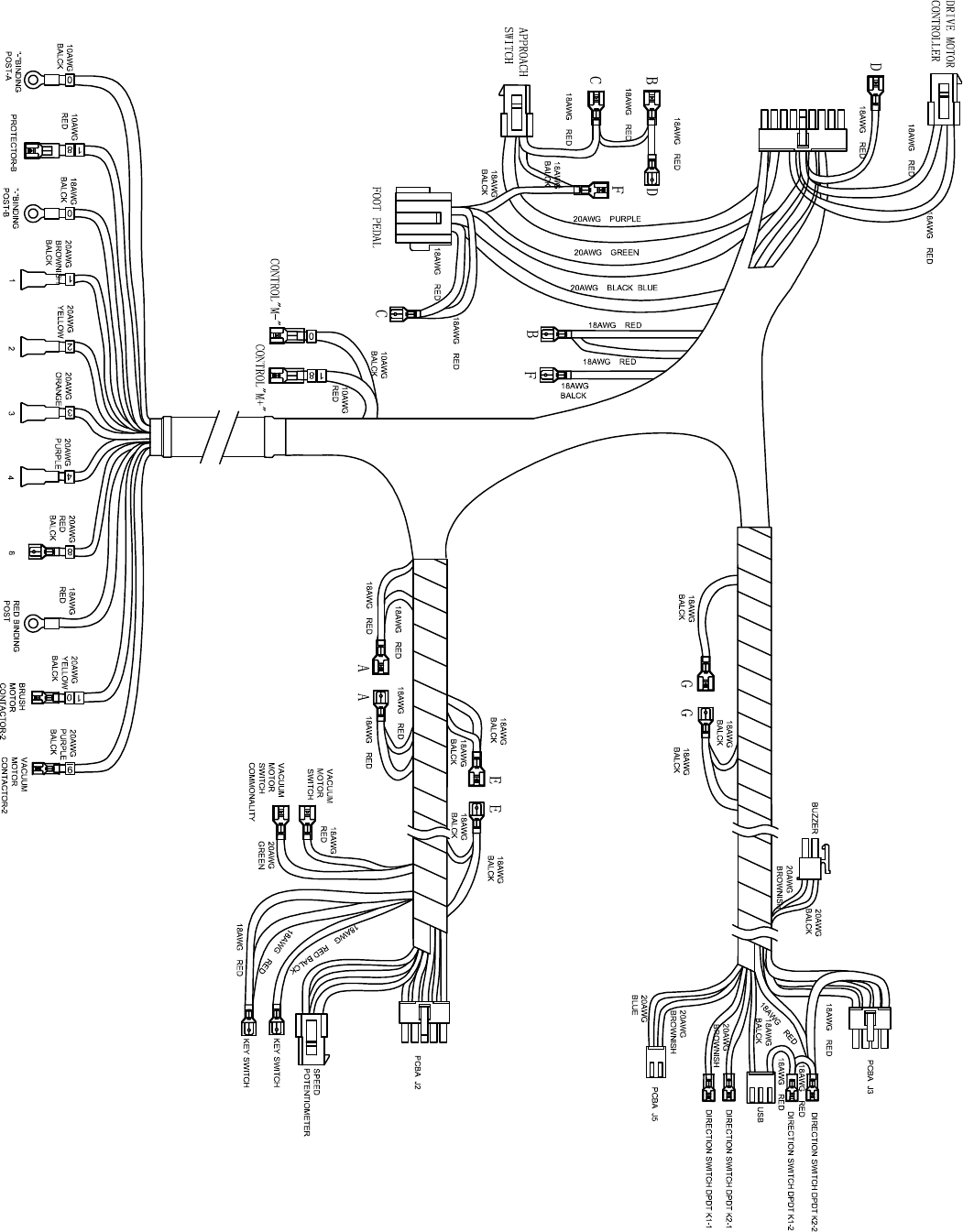

MAIN CONNECTING WIRE-VR13440

33

Item

ItemItem

Item Part No

Part NoPart No

Part No Description

DescriptionDescription

Description Qty

QtyQty

Qty

1VR11506 KIT SOLENOID VALVE 1

2VR12403 KIT SQUEEGEE SWITCH 1

3VR12013 KIT HORN 1

4VR14016 KIT BUMPER WHEEL 2

5VR14015 KIT BRUSH SKIRT 2

6VR14300 KIT BRUSH 2

7 VR13220 KIT BREAKER 1

8 VR13132 EMERGENCY-STOP BUTTON 1

9 VR15100 KIT CONTROL PANEL 1

10 VR16002 SQUEEGEE BLADE FRONT 1

11 VR16003 SQUEEGEE BLADE REAR 1

12 VR17300 KIT NET BAG 1

13 VR17603 KIT HOSE CLAMP 3

14 VR13431 SWITCH WATER LEVEL RECOVERY TANK 1

15 VR17006 SQUEEGEE HOSE 1

16 VR17606 KIT DRAIN HOSE 1

17 VR11600 VALVE 1

18 VF90621 FILTER 1

19 VR13436 KEY SWITCH 1

20 VR13441 SPEED POTENTIOMETER 1

21 VF81730 POTENTIOMETER KNOB 1

22 VR15110 FORWARD OR REVERSE BUTTON 1

23 VF81210 TUMB NUT 2

24 VF90136 SQUEEGGEE GUIDE WHEEL 3

25 VR17109 SEALING 1

26 VR14303 PAD DRIVER 13" 2

WEAR AND TEAR PARTS

WEAR AND TEAR PARTSWEAR AND TEAR PARTS

WEAR AND TEAR PARTS

www.vipercleaning.com
