( CEX410 EU.US.CN Spare Parts\243\2502018.05.04\243\251) Viper Walk Behind Carpet Extractor Parts Manual

: Sweepscrub Viper-Cex410-Walk-Behind-Carpet-Extractor-Parts-Manual viper-cex410-walk-behind-carpet-extractor-parts-manual 2835 file product_file

Open the PDF directly: View PDF .
Page Count: 20

1 / 20

Rev.B 2018.06.28

CEX410

CEX410CEX410

CEX410-

--

-EU/US/CN

EU/US/CN EU/US/CN

EU/US/CN 16

1616

16

INCH

INCH INCH

INCH /406mm

/406mm /406mm

/406mm

CARPET EXTRACTOR

CARPET EXTRACTORCARPET EXTRACTOR

CARPET EXTRACTOR

PART LISTS

PART LISTSPART LISTS

PART LISTS

2

/

20

HANDLE ASSEMBLY PARTS........................................................................3-4

WATER TANK ASSEMBLY PARTS...............................................................5-6

BOTTOM BASE ASSEMBLY PART 1............................................................7-8

BOTTOM BASE ASSEMBLY PARTS 2........................................................9-10

BOTTOM BASE ASSEMBLY PARTS 3........................................................11-12

BOTTOM BASE ASSEMBLY PARTS 4........................................................13-14

HANDLE TOOL ASSEMBLY PARTS............................................................15-16

BIG TRIANGLE SUCTION TOOL ASSEMBLY PARTS................................17-18

WEAR AND TEAR PARTS...........................................................................18-19

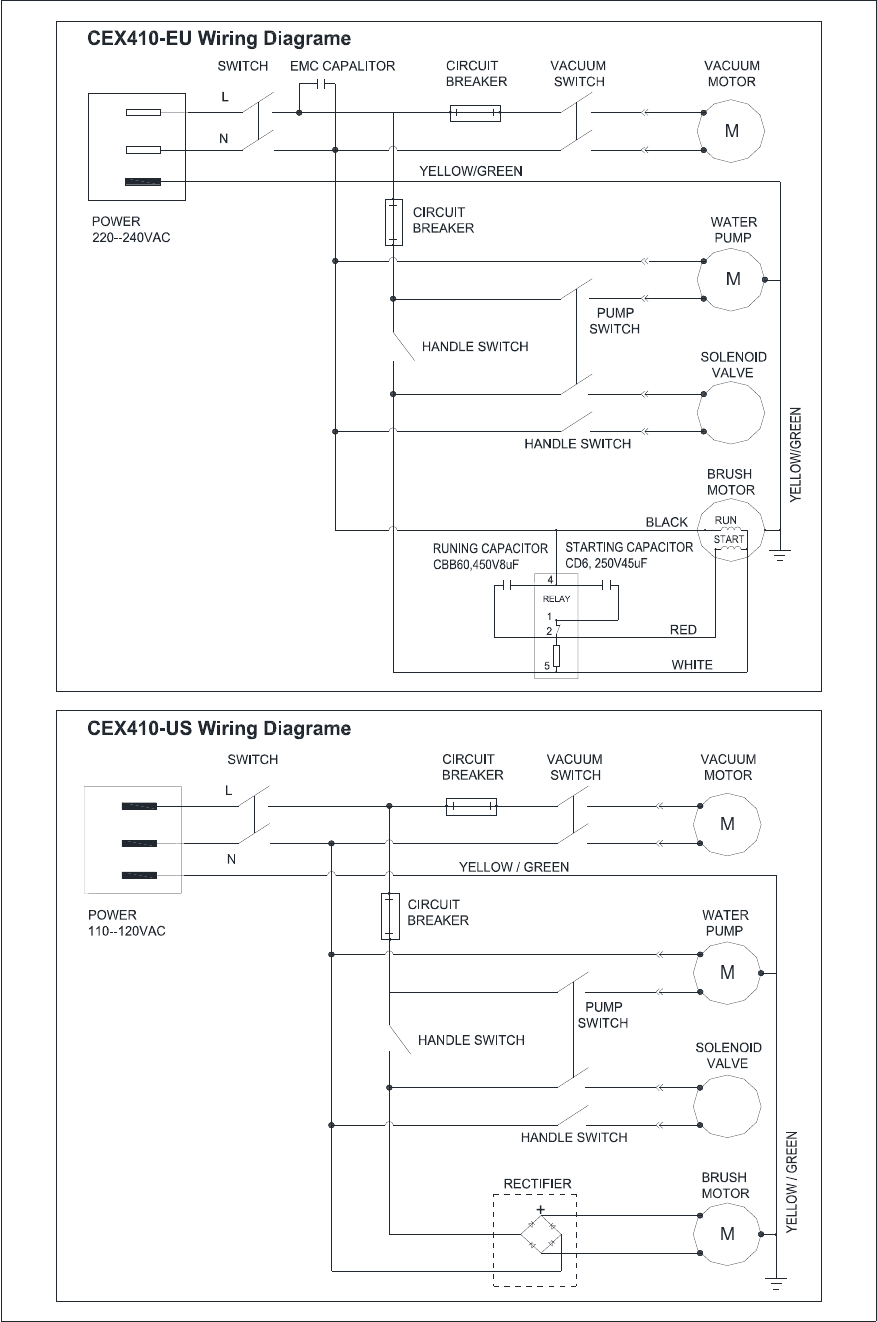

WIRING DIAGRAM.......................................................................................20

TABLE OF CONTENTS

WHEN ORDERING PARTS

WHEN ORDERING PARTSWHEN ORDERING PARTS

WHEN ORDERING PARTS

*Use the part numbers from the "Part. No." columns in this parts list.

*Specify the model and serial number of the machine.

*Use the space below to record the model and serial number for future reference.

Model

Serial No.

* = Optional

# = Modified item No. or New item No.

[ ] = Not shown

3

/

20

Handle Assembly Parts

Handle Assembly PartsHandle Assembly Parts

Handle Assembly Parts

4 / 20

Handle Assembly Parts

ITEM

PART NUMBER DESCRIPTION QTY.

1 VV81063 Micro switch for roller brush and pump Kit 2

2 VA81940 Rocker power switch 3

3 VV81065 12A Circuit breaker US 1

VV81064 6A Circuit breaker EU 1

4 VV81064 6A Circuit breaker US 1

VV81342 4A Circuit breaker EU 1

#5 VV81201-1 Control panel label

1

6 VV81066 Plastic button kit 1

7 VV81101 Handle front cover 1

8 VA80705 Emc capacitor kit 1

9 VV81074 Wire clip kit 1

10

VV81069 1

11 VV81070 US pig tail cord kit

12

VV81428-1 15m EU cord kit 1

VV67116 US extension cord 50 feet 1

VV81430-1 15m CN cord kit 1

13 VV81071 Power cord connection plate kit US 1

14 56382008 Belt clips EU CN 1

15 VV81072 Handle iron pipe kit 2

16 VV81073 Cord hook kit 1

17 VV81067 Hand rear cover kit 1

1

Main cable kit

5

/

20

Water Tank Assembly Parts

Water Tank Assembly PartsWater Tank Assembly Parts

Water Tank Assembly Parts

6 / 20

Water Tank Assembly Parts

ITEM PART NUMBER

DESCRIPTION QTY.

1 VV81054 Recovery tank lid kit 1

2 VV81210 Float ball Cage filter sponge 1

3 VV81075 Float ball cage kit 1

4 VV81076 Float mounting bracket kit 1

#5VV81359

Recovery tank lid gasket 1

6 VV81077 Handle adjusting parts kit 2

7 VV81078 Solution tank lid kit 1

8

VV81051 US version handle assembly kit 1

VV81048 EU version handle assembly kit 1

VV81050 CN version handle assembly kit 1

9 VV81079 Hose clip kit 1

10 VV81080 Solution tank water level hose kit 1

11 VV81081 Main cord sleeve kit 1

12 VV81141 Water tank 1

13 VV81014 Viper logo Label 1

14 VV81324 Exhaust Hose kit 1

15 VV81326 PVC hose with spring kit 1

16 VA82183 Water tank EVA sealing mat kit 1

17 VV81158 Vacuum hose 1

18 VV81159 Drain hose 1

19 VA20304 CLAMP,HOSE 7/4" 3

20 VV81082 Drain hose connector kit 1

21 VF85105 Water level hose connector 1

22 VV81250 Handle tool kit(Optional part) 1

23 VV81116 Solution lid 1

24 VV81352 Plastic quick connector kit 1

7

/

20

8

/

20

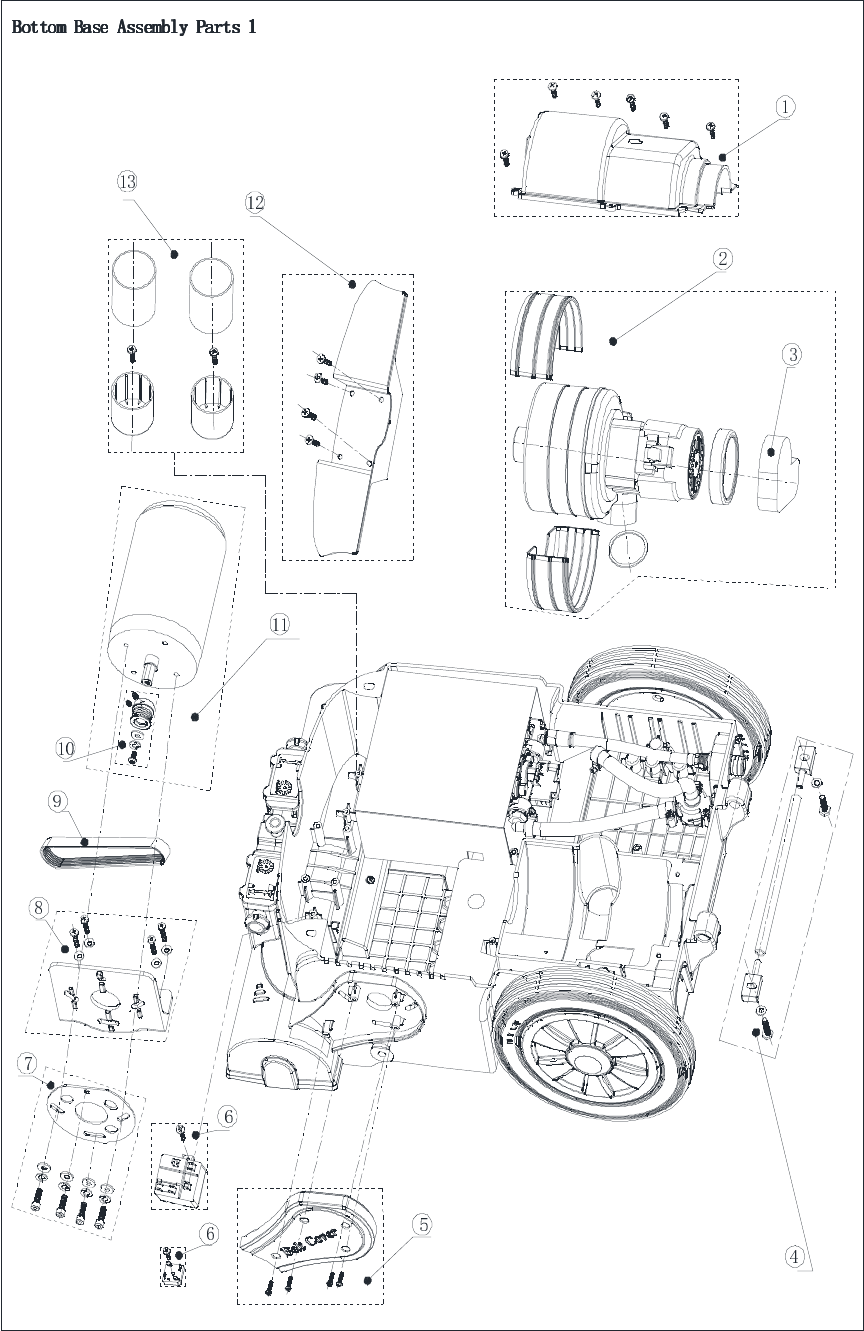

Bottom Base Assembly Parts 1

ITEM

PART NUMBER DESCRIPTION QTY.

1 VV81083 Vacuum motor cover kit 1

2 VV81327 120V vacuum motor kit 1

VV81328 220~240 vacuum motor kit 1

3 VV81215 Motor suction gate sponge 1

4 VV81085 Water tank rotation shaft kit 1

5 VV81086 Belt cover kit 1

6 VV81330 US Rectifier kit 1

VV81329 EU Rectifier kit 1

7 VV81088 Brush motor attachment kit 1

8 VV81089 Brush mounting base kit 1

9 VV81042 V belt 1

10 VV81090 Main Sheave kit 1

11 VV81331 120V brush motor kit 1

VV81332 230~240V brush motor kit 1

12 VV81091 Waterproof baffle kit 1

13 VV81321 Capacity holder kit EU 1

9

/

20

10

/

20

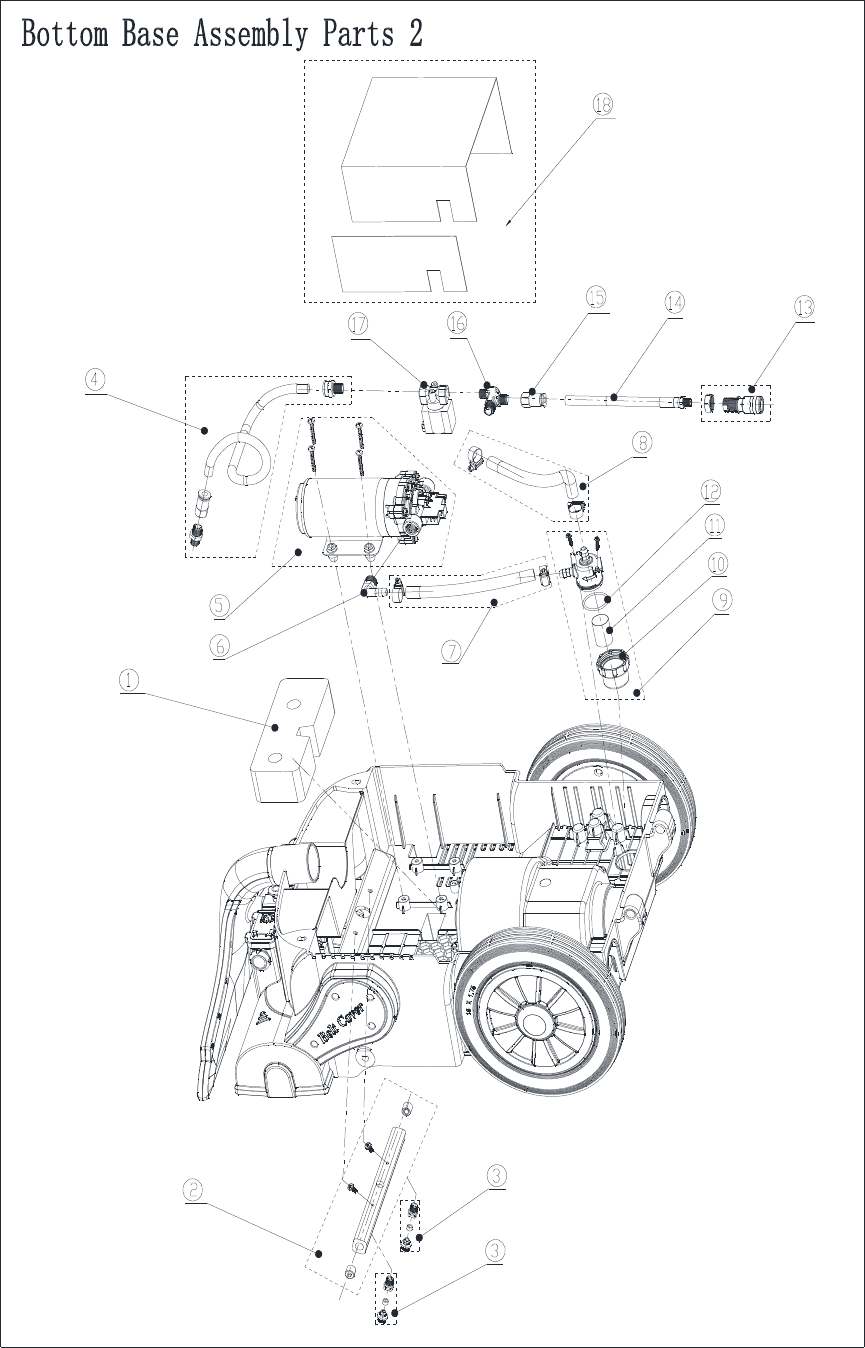

Bottom Base Assembly Parts 2

ITEM

PART NUMBER

DESCRIPTION QTY.

1 VV81214 Sponge for exhaust hose 1

2 VV81100 Spray tube kit 1

3 VV81099 Spray nozzle kit 2

4 VV81335 Hi pressure water hose kit 1

5 VV81336 120V pump kit 1

VV81337 230V~240V pump kit 1

6 VV81229 90 degree plastic connector 1

7 VV81338 Low pressure PVC hose kit 1

8 VV81339 Water hose with spring kit 1

9 VV81302 Solution filter kit 1

10 VF90603 Filter lid 1

11 VF90608 Filter 1

12 VF90607 O gasket ring 1

13 VV81303 Female quick connector kit 1

14 VV81224 Water hose with connector kit 1

15 VV81220 1/4”NPT quick connector 1

16 VA82108 Three-way connector 1

17 VV81427 120V solution solenoid 1

VV81426 230V solution solenoid 1

18 VV81304 Pump water proof parts kit 1

11

/

20

12

/

20

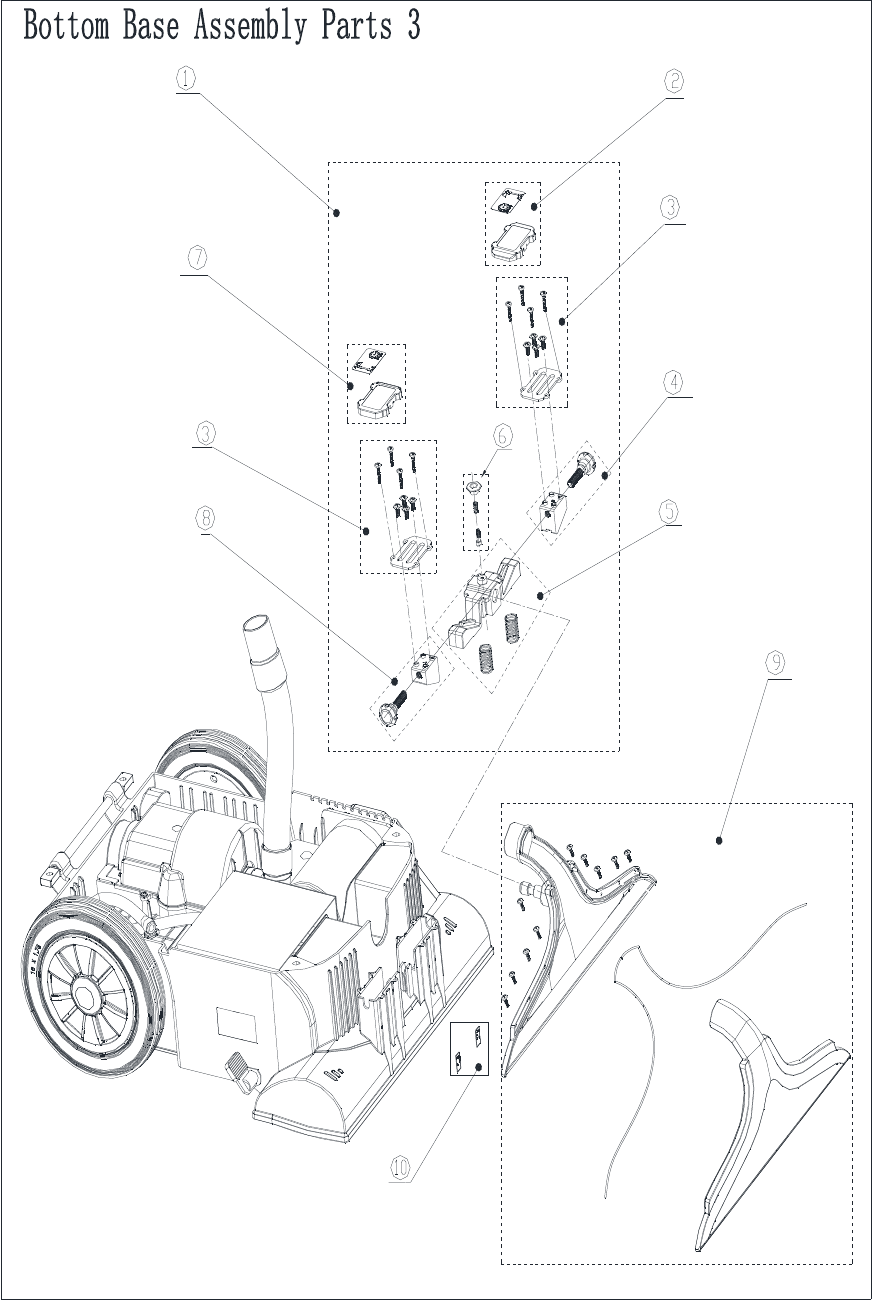

Bottom Base Assembly Parts 3

ITEM

PART NUMBER

DESCRIPTION QTY.

1 VV81333 Vacuum shoe holder kit 1

2 VV81093 Right adjusting cover kit 1

3 VV81094 Adjusting pressing plate kit 2

4 VV81095 Right adjusting rotary knob kit 1

5 VV81343 Vacuum shoe bracket kit 1

6 VV81096 Vacuum shoe releasing knob kit 1

7 VV81097 Left adjusting cover kit 1

8 VV81098 Left adjusting rotary knob kit 1

9 VV81249 Vacuum shoe kit 1

10 VV81334 Scale label kit 1

13

/

20

Bottom Base Assembly Parts 4

Bottom Base Assembly Parts 4Bottom Base Assembly Parts 4

Bottom Base Assembly Parts 4

14

/

20

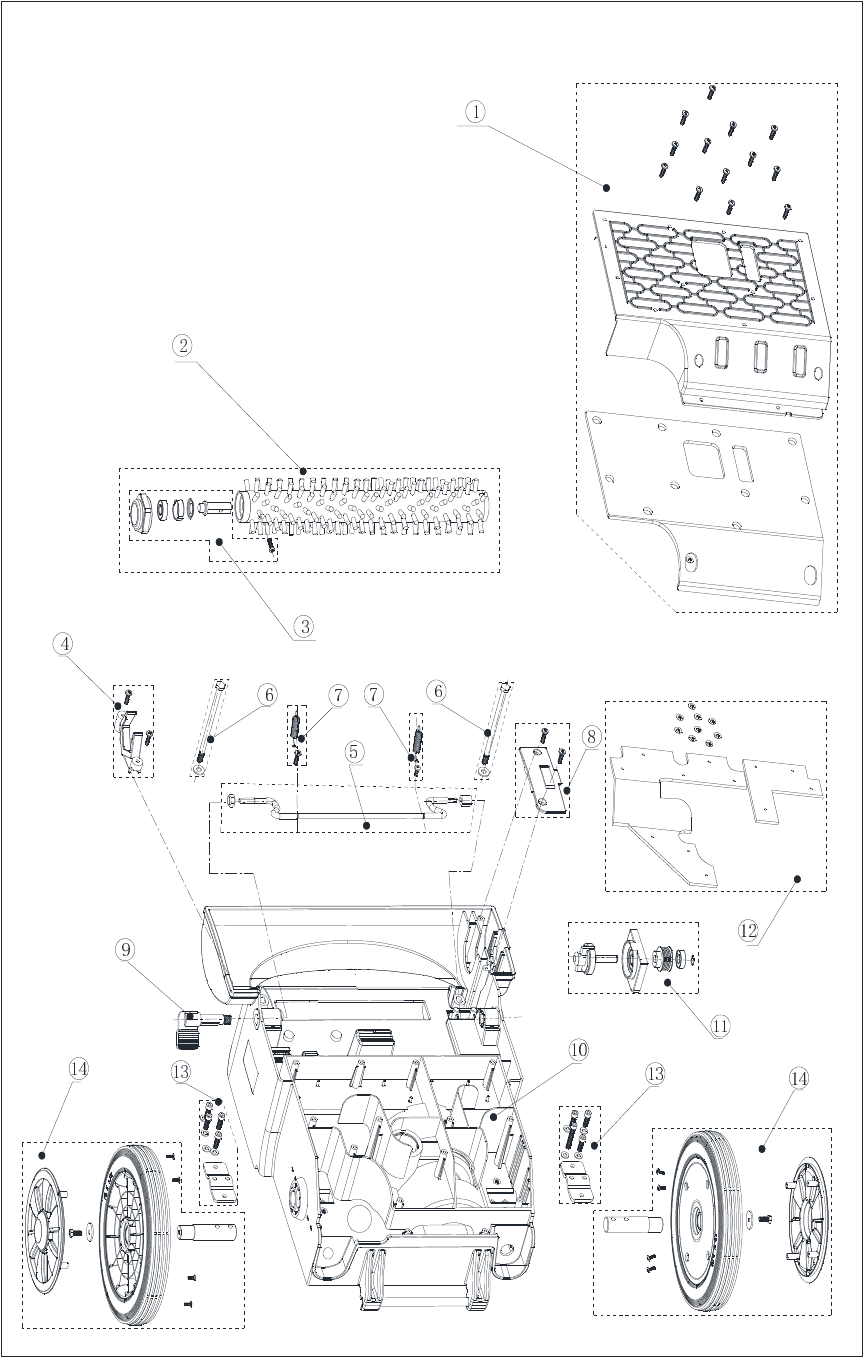

Bottom Base Assembly Parts 4

ITEM

PART NUMBER

DESCRIPTION QTY.

1 VV81305 Bellows cover plate kit 1

2 VV81059 Roller brush assembly kit 1

3 VV81340 Roller brush shaft assembly kit 1

4 VV81306 Roller brush mounting clip kit 1

5 VV81348 Storage base kit 1

6 VV81307 Locking water tank screw kit 2

7 VV81310 Storage stand spring kit 2

8 VV81308 Roller brush Cover kit 1

9 VV81135 Foot pedal 1

10 VV81130 Bottom Base 1

11 VV81060 Driven pulley kit 1

12 VV81311 Bottom mute sponge kit 1

13 VV81309 Shaft pressing plate kit 2

14 VV81056 Wheel assembly kit 2

15

/

20

Handle Tool Assembly Parts

Handle Tool Assembly PartsHandle Tool Assembly Parts

Handle Tool Assembly Parts

16

/

20

Handle Tool Assembly Parts (optional parts)

ITEM

PART NUMBER DESCRIPTION QTY.

1 VV81250 Handle tool kit (Optional part) 1

2 VV81314 Handle tool assembly 1 1

3 VV81161

Handle tool vacuum hose

1

4 VV81252 Handle tool solution hose kit

1

5 VV81347 Hand tool stainless tube and triangle part kit 1

6 VA80924 Female stainless quick connector 1

7 VA81192 Control valve kit 1

8 VV81349 Handle tool spray kit 1

9 VA80895 Bend tube fixing nut M10x1.0 1

10 VA81291 Stainless bent tube of handle tool 1

11 VV81341 Handle tool Spray jet kit 1

17

/

20

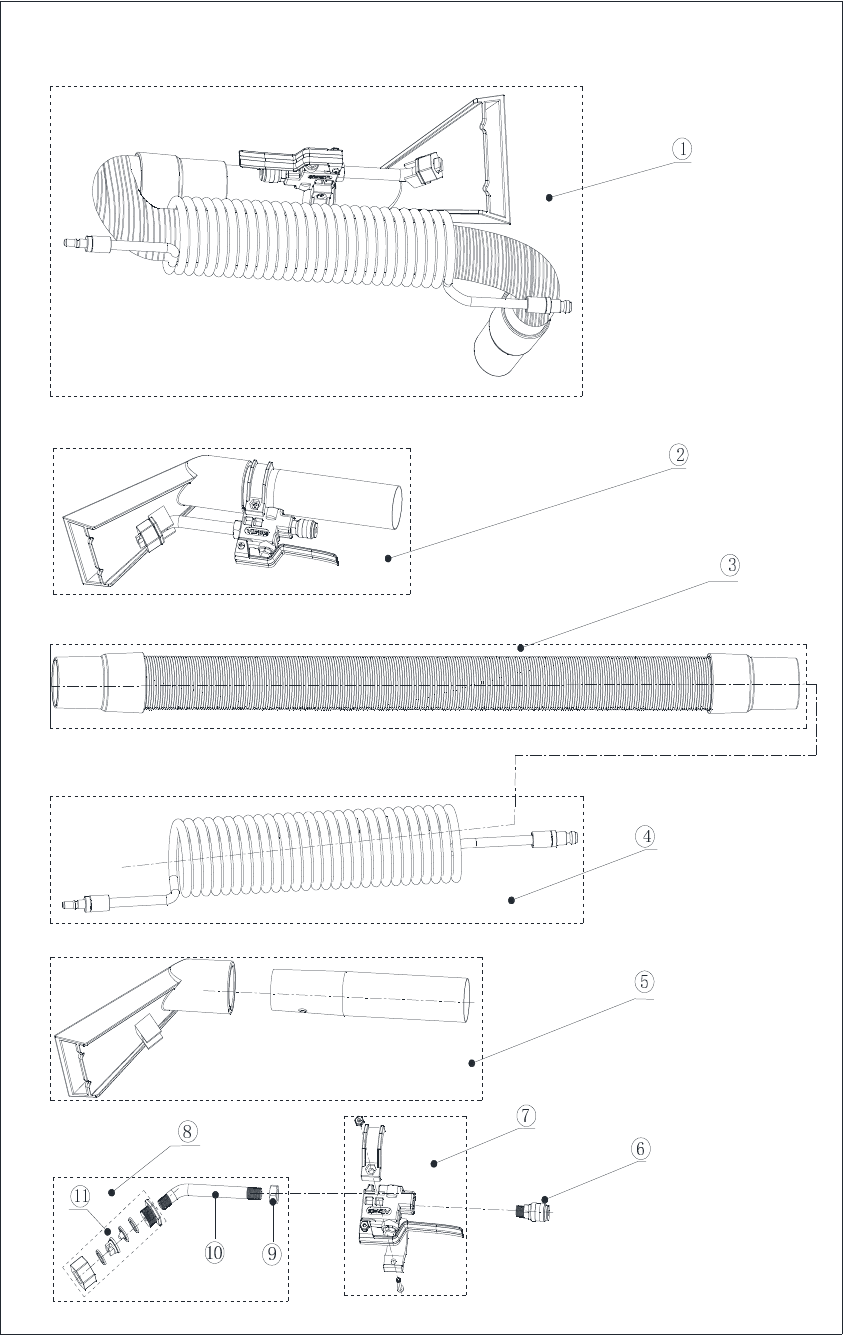

Big triangle suction tool assembly parts

Big triangle suction tool assembly partsBig triangle suction tool assembly parts

Big triangle suction tool assembly parts

18

/

20

Big triangle suction tool assembly parts (optional parts)

ITEM

PART NUMBER

DESCRIPTION QTY.

1 VV81316 Floor tool kit 1

2 VV81317 2.5m floor tool hose kit 1

3 VA81099 Floor tool solution hose kit 1

4 VV81320 Solution clip kit 1

5 VV81318 Spray jet kit of floor tool 2

6 VV81319 Stainless tube and control valve kit 1

7 VA81100 Stainless bend tube kit 1

8 VA81192 Control valve kit 1

9 VA80924

Female stainless quick connector

1

10 VA81102 Floor tool head kit 1

CEX410 Carpet Extractor Wear and Tear Parts

ITEM

PART NUMBER

DESCRIPTION QTY.

1 VV81063 Micro switch for roller brush and pump Kit 2

2 VA81940 Rocker power switch 3

3 VV81065 12A Circuit breaker US 1

4 VV81064 6A Circuit breaker EU 1

5 VV81064 6A Circuit breaker US 1

6 VV81342 4A Circuit breaker EU 1

7 VV81428-1 15m EU cord kit 1

8 VV67116 US extension cord 50 feet 1

9 VV81430-1 15m CN cord kit 1

10 VV81070 US version pig tail cord kit 1

11 VV81022 Recovery tank lid gasket 1

12 VV81324 Exhaust Hose kit 1

13 VV81158 Vacuum hose 1

14 VV81159 Drain hose 1

15 VV81080 Solution tank water level hose kit 1

19

/

20

CEX410 Carpet Extractor Wear and Tear Parts

ITEM

PART NUMBER

DESCRIPTION QTY.

16 VV81250 Handle tool kit (Optional part) 1

17 VV81331 120V brush motor kit 1

18 VV81332 230~240V brush motor kit 1

19 VV81327 120V vacuum motor kit 1

20 VV81328 230~240 vacuum motor kit 1

21 VV81249 Vacuum shoe kit 1

22 VV81337 230V~240V pump kit 1

23 VV81336 120V pump kit 1

24 VV81099 Spray nozzle kit 2

25 VV81303 Female quick connector kit 1

26 VV81427 120V solution solenoid 1

27 VV81426 230V solution solenoid 1

28 VV81059 Roller brush assembly kit 1

29 VV81056 Wheel assembly kit 1

30 VV81060 Driven pulley kit 1

31 VV81090 Main Sheave kit 1

32 VV81161 Handle tool vacuum hose 1

33 VV81252

Handle tool solution hose kit

1

34 VA80924

Female stainless quick connector

1

35 VA81192 Control valve kit 1

36 VV81341

Handle tool Spray jet kit

1

37 VV81316 Floor tool kit 1

38 VV81317 2.5m floor tool hose kit 1

39 VV81318 Spray jet kit of floor tool 2

20

/

20

4A

6A

6A

12A

AC
