86398220-D 04/16/16
Chariot 2 iScrub 20
Scrubber
MODELS: CS20
1.006-125.0
CSC20
1.006-133.0
.CSX20
1006-137.0
CSXC20
1.006-138.0
CS22SP
1.006-130.0
CSC22SP
1.006-134.0
CSXM20
1.006-170.0
CSXCM20
1.006-171.0
CSM22SP
1.006-172.0
CSCM22SP
1.006-173.0
Operating Instructions (ENG)
CSXBCM20
1.006-181.0
CSXBC20
1.006-182.0
CSXBM20
1.006-183.0
CSXB20
1.006-184.0
From Serial Number (Ref No. 1*)
* See Serial Number page in Spare
Parts List or call manufacturer.
286398220 Operators Manual - Chariot-2 iScrub 20

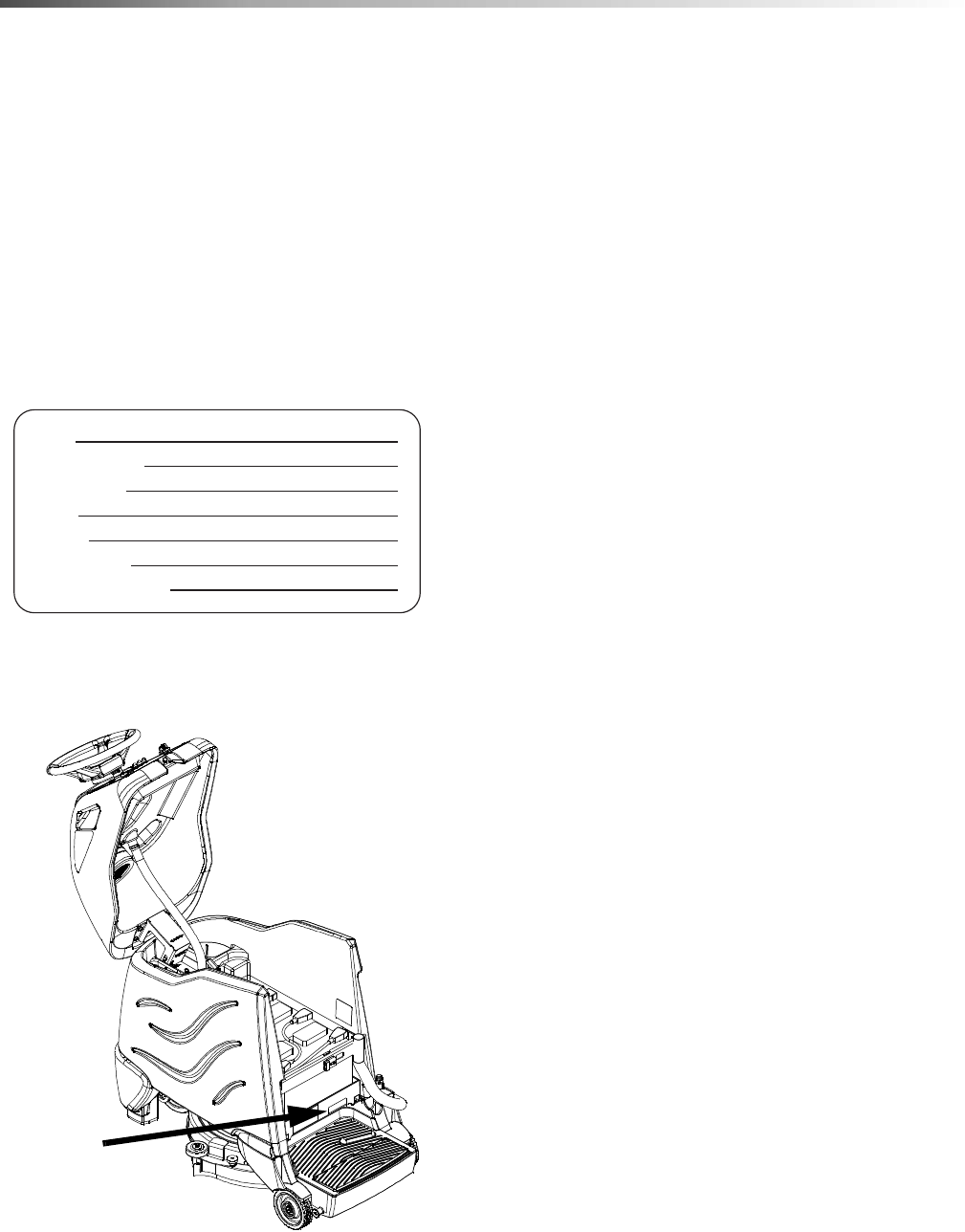

Machine Data Label
Overview
The Chariot Scrubber is a battery powered, stand-on, hard floor scrubber intended for commercial use. The
appliance applies a cleaning solution onto a hard floor, scrubs the floor with brush or pad, and then vacuums the
soiled water back into the recovery tank.
Warranty Registration
Thank you for purchasing a Kärcher North America product. Warranty registration is quick
and easy. Your registration will allow us to serve you better over the lifetime of the product.
To register your product go to :
http://warranty.karcherna.com/
For customer assistance:
1-800-444-7654
3
Table of Contents
Machine Data Label. . . . . . . . . . . . . . . . . . . . . . . . . .2
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . .3
How To Use This Manual . . . . . . . . . . . . . . . . . . . . .4
Safety
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . .5
HAZARD INTENSITY LEVEL . . . . . . . . . . . . . . . . . .7
SAFETY LABEL LOCATIONS . . . . . . . . . . . . . . . . .9
Operations
Technical Specifications . . . . . . . . . . . . . . . . . . . . .10
How This Machine Works . . . . . . . . . . . . . . . . . . . .12

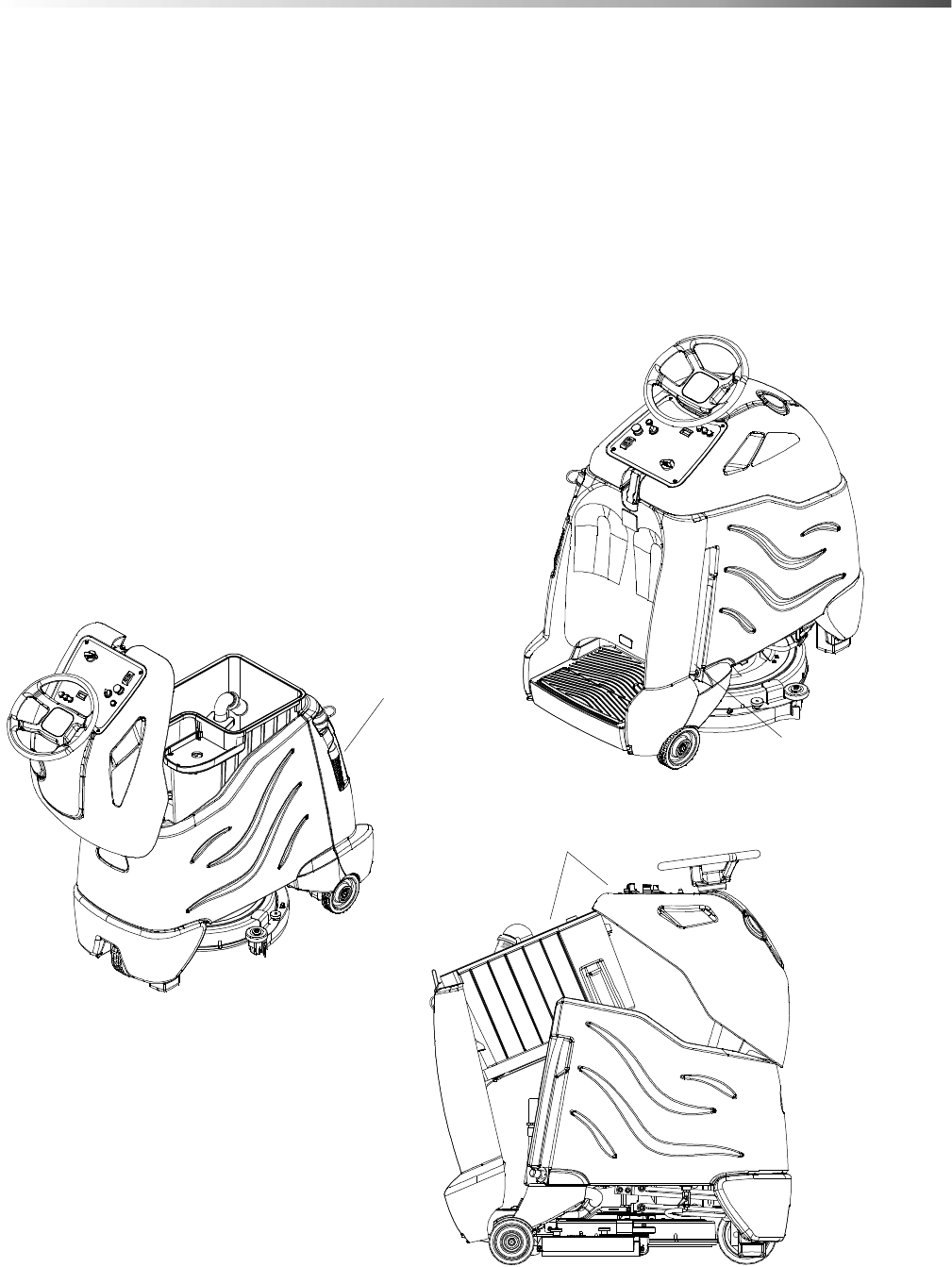

Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Drive Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

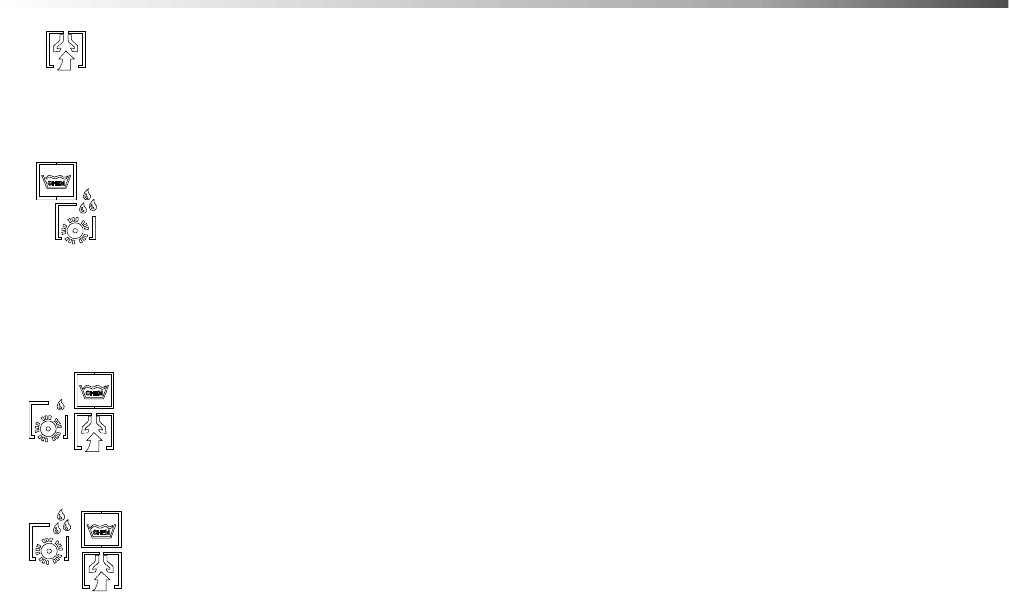

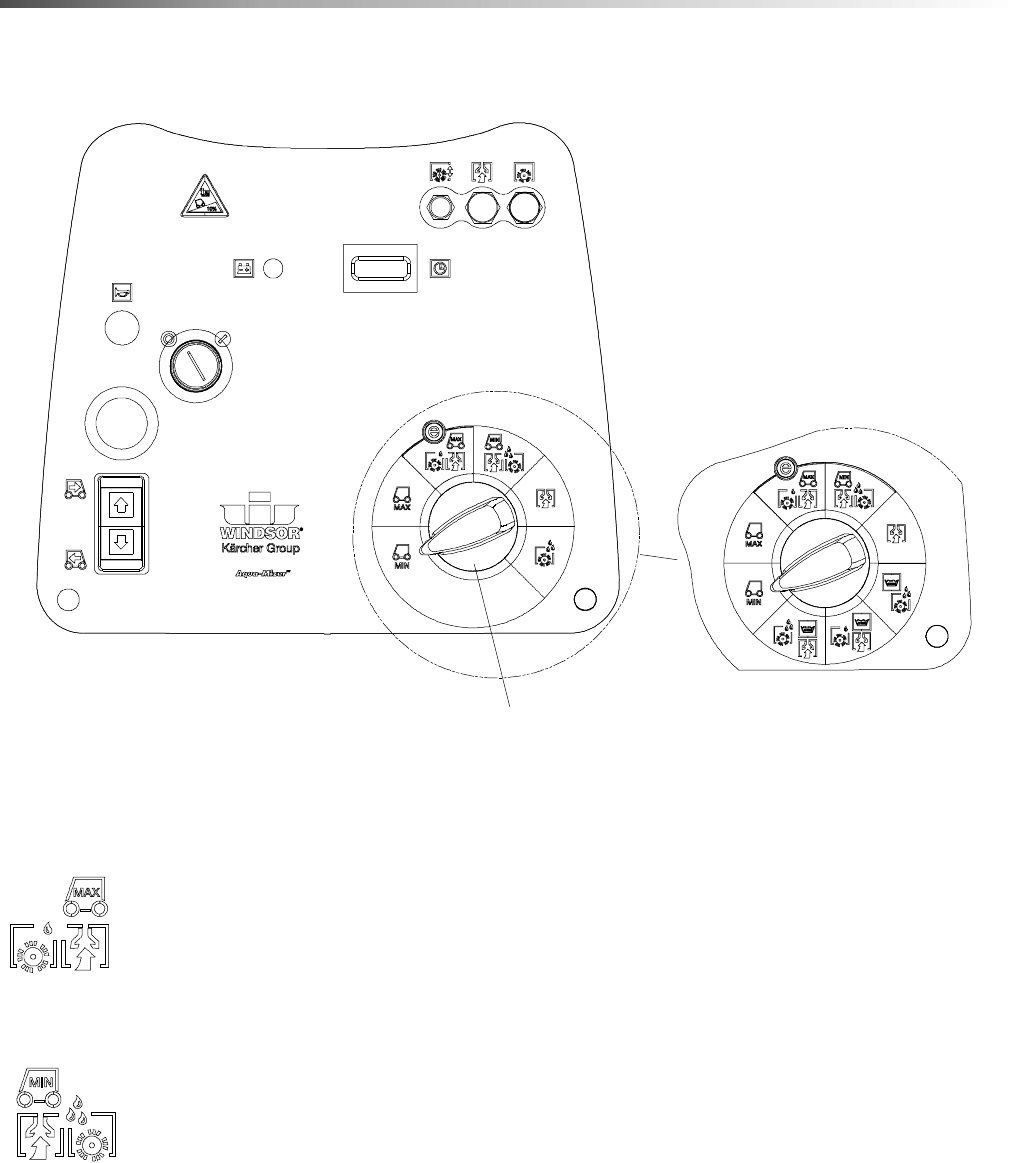

Scrub Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Scrub Controls-Squeegee. . . . . . . . . . . . . . . . . . . .20
Pre-Run Machine Inspection. . . . . . . . . . . . . . . . . .22
Starting Machine. . . . . . . . . . . . . . . . . . . . . . . . . . .22
Emergency Stop Procedure . . . . . . . . . . . . . . . . . .22

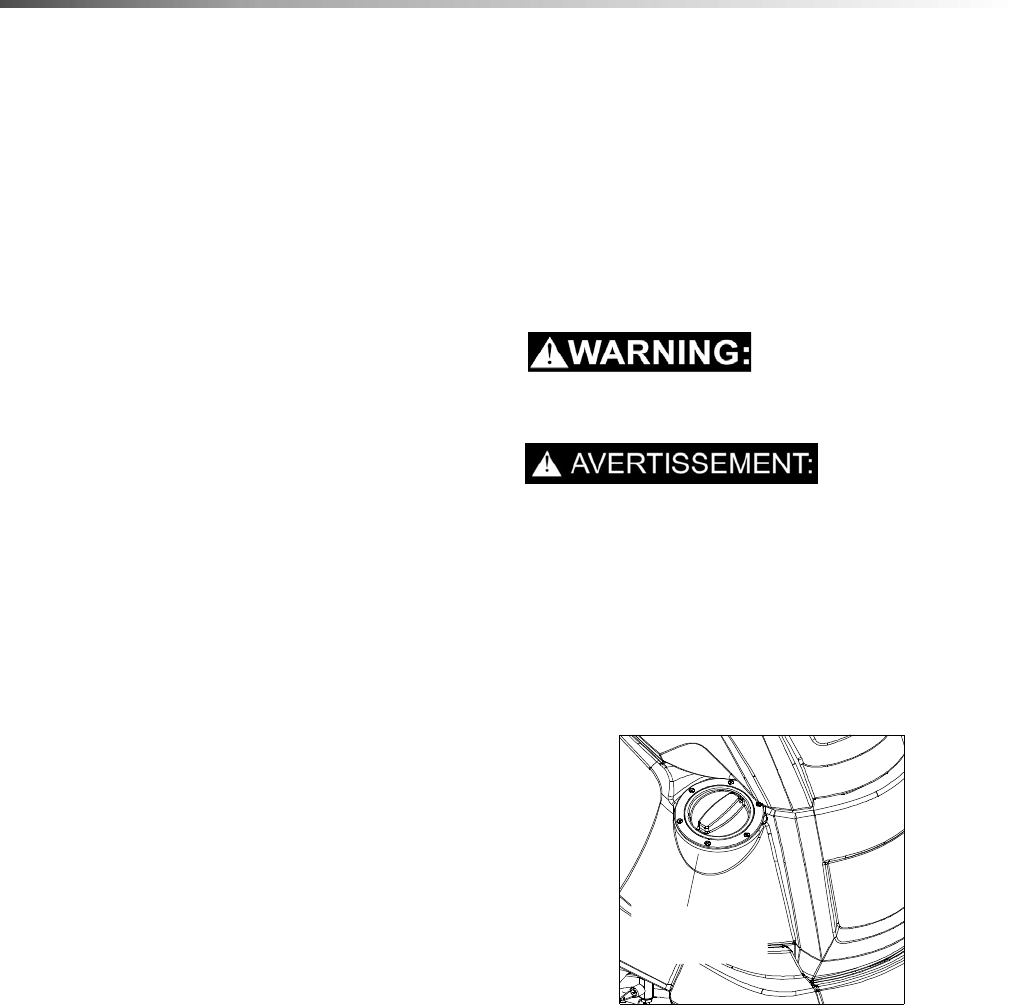

Filling Solution Tank . . . . . . . . . . . . . . . . . . . . . . . .22

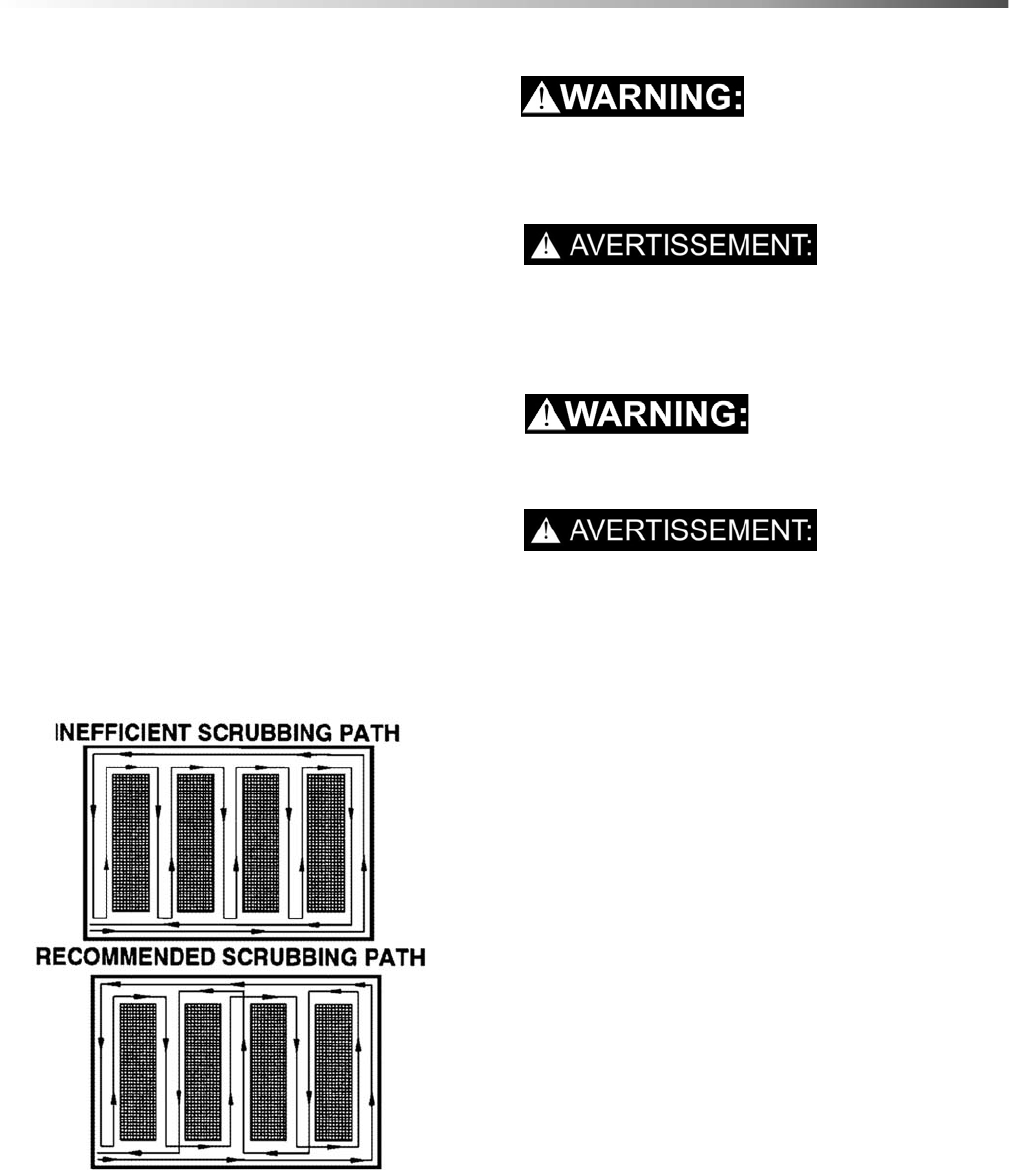

Normal Scrubbing . . . . . . . . . . . . . . . . . . . . . . . . . .23
To Begin Scrubbing . . . . . . . . . . . . . . . . . . . . . . . .23
Double Scrub . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Emptying and Cleaning Tanks . . . . . . . . . . . . . . . .25
Models with Chemical Metering System. . . . . . . . .26
Maintenance
Service Schedule . . . . . . . . . . . . . . . . . . . . . . . . . .28

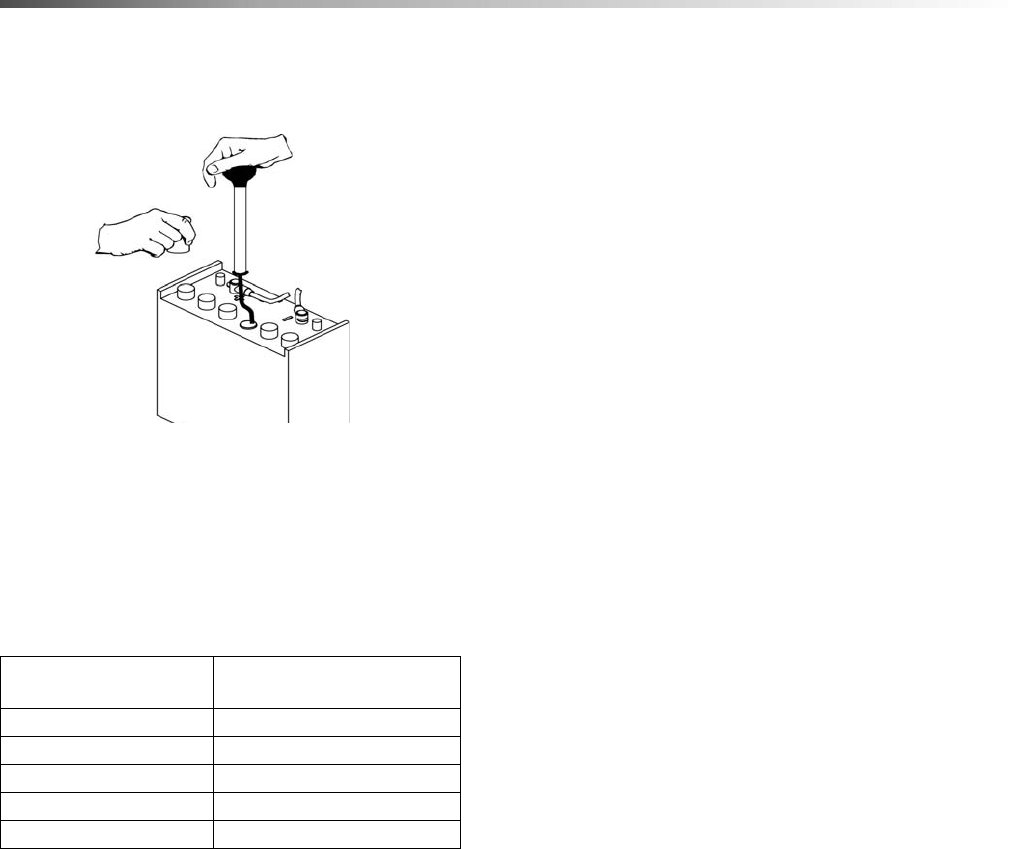

Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

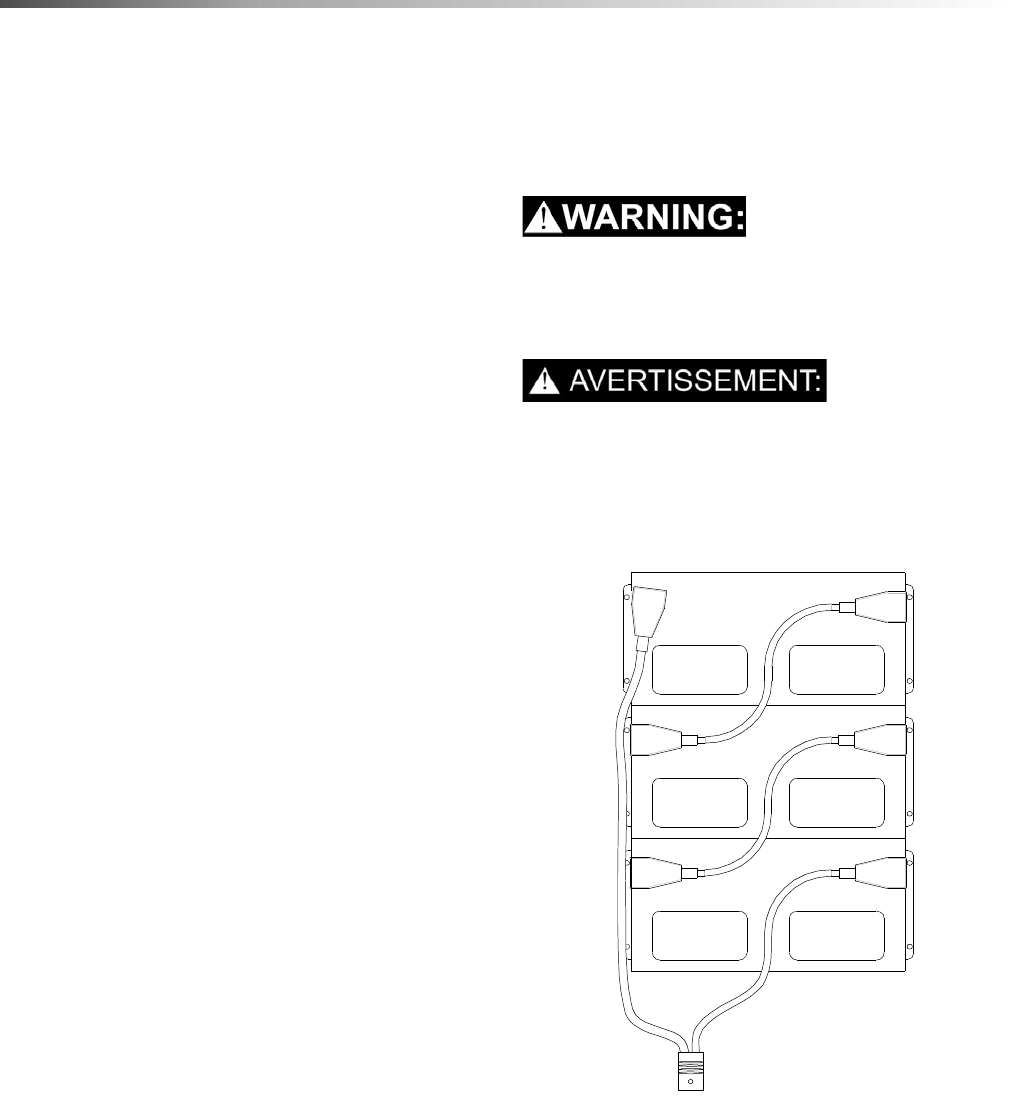

Changing Batteries . . . . . . . . . . . . . . . . . . . . . . . . .34

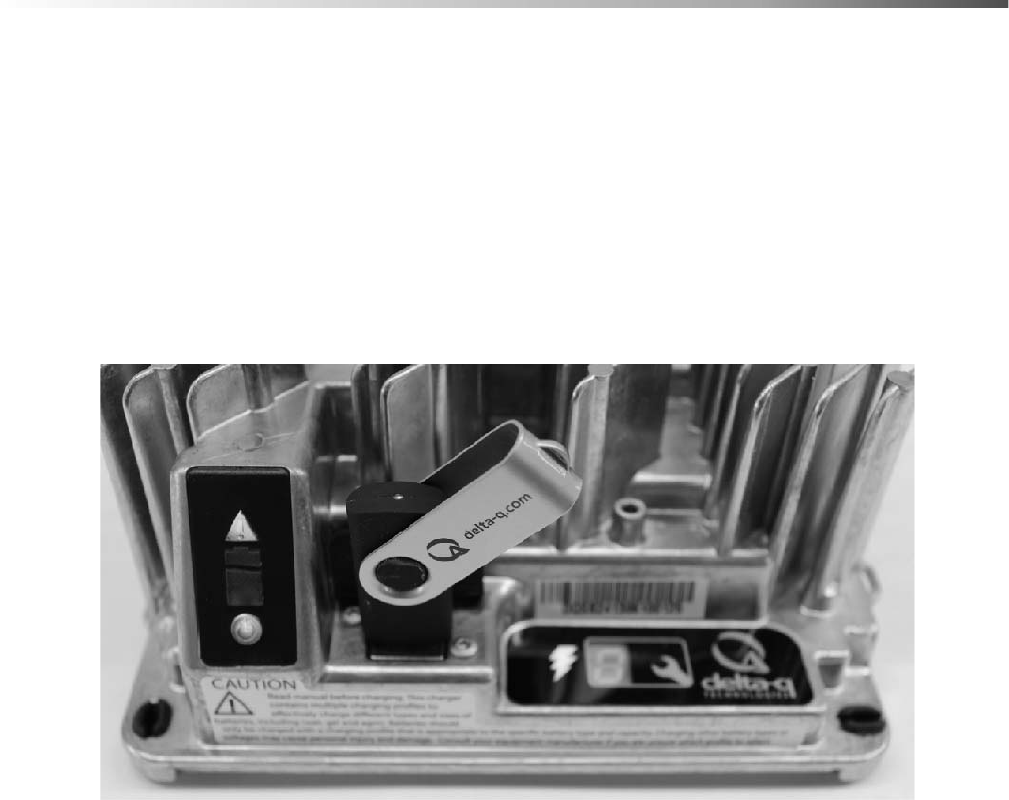

Delta Q IC650 Charger Maintenance Instructions .35

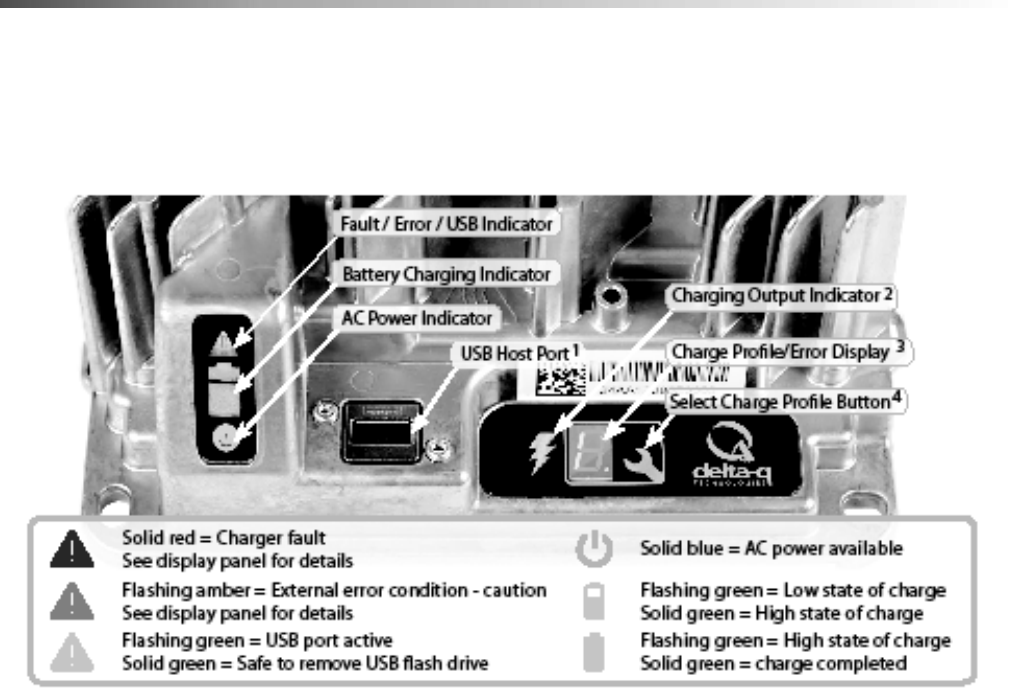

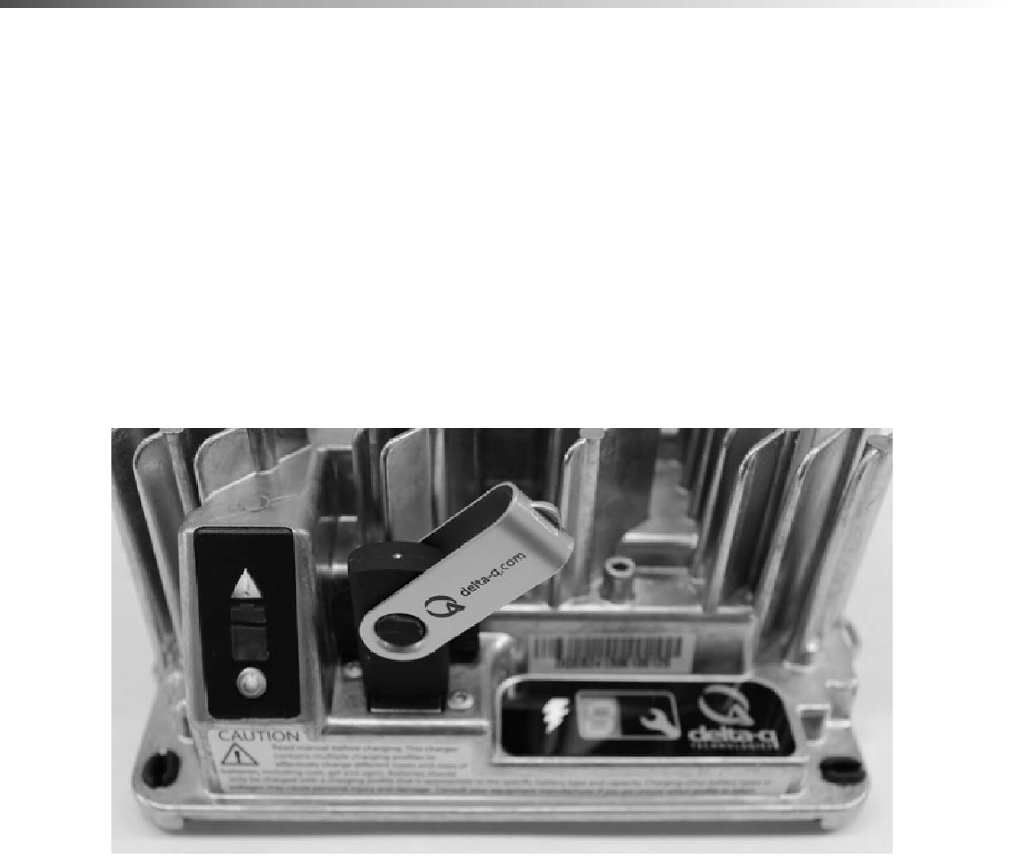

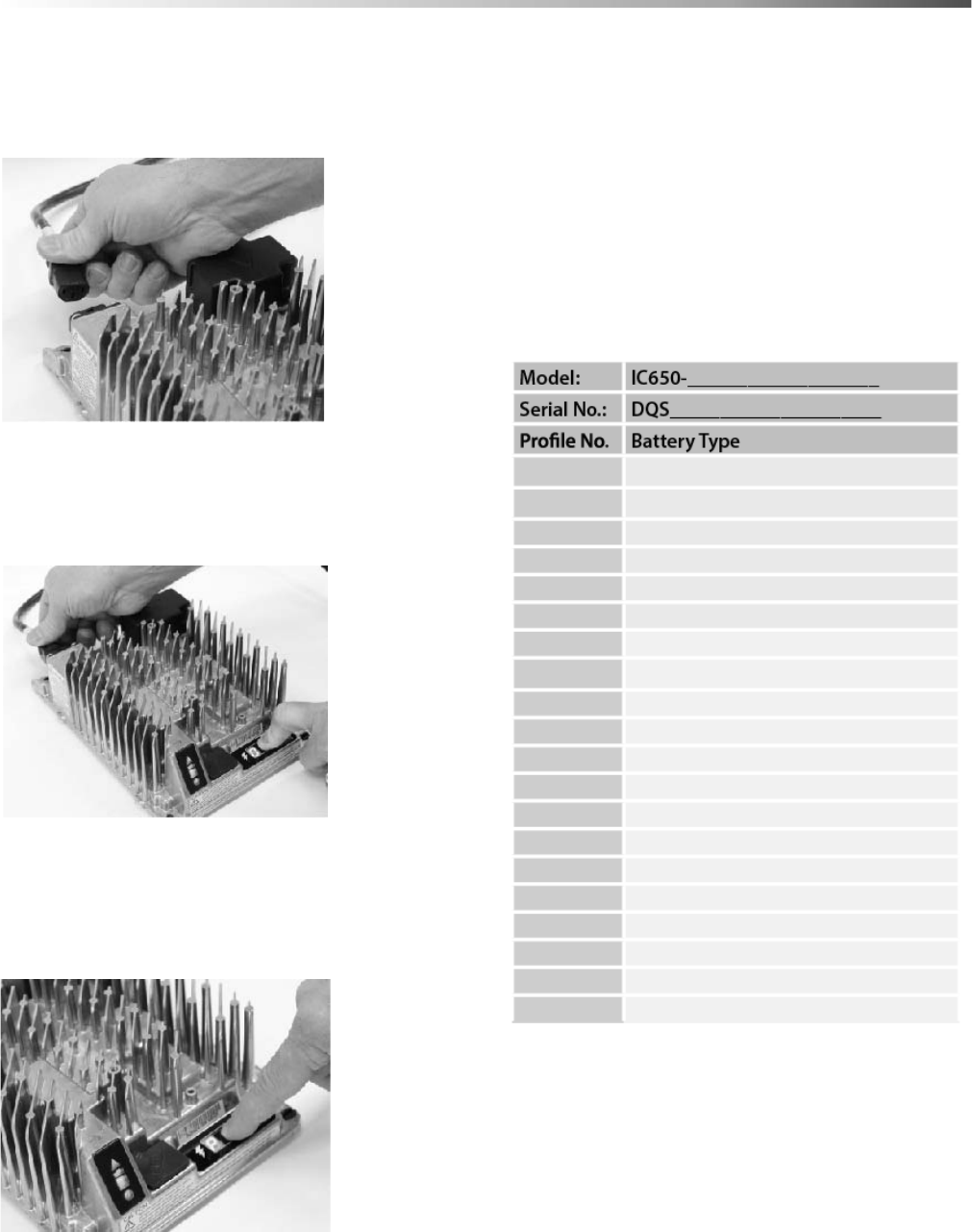

Delta Q IC650 Charger Operating Instructions . . . .36
Charge Tracking Data. . . . . . . . . . . . . . . . . . . . . . .39
To Remove Squeegee Assembly . . . . . . . . . . . . . .40
Squeegee Blades-Cylindrical . . . . . . . . . . . . . . . . .41
Scrub Brush-Disk . . . . . . . . . . . . . . . . . . . . . . . . . .43
Scrub Brush-Orbital . . . . . . . . . . . . . . . . . . . . . . . .43
Finished Floors . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

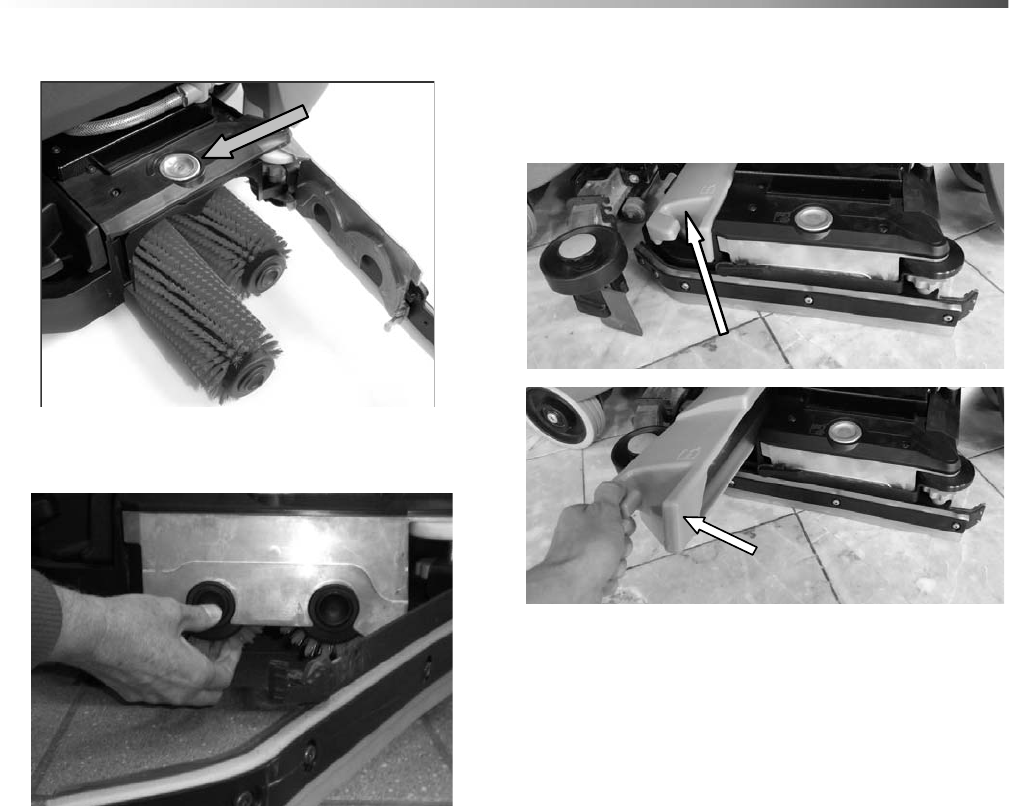

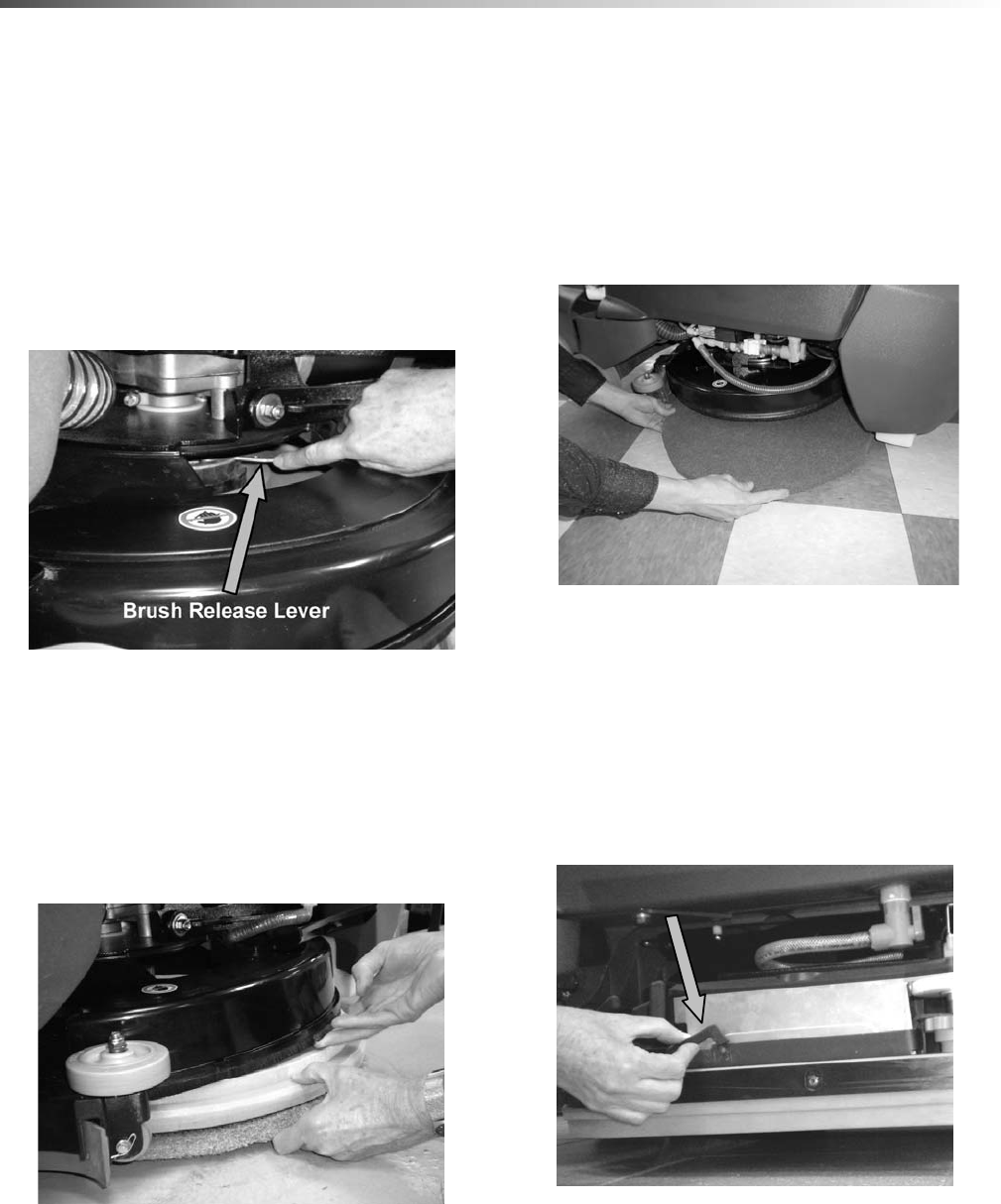

Replacing or Installing Scrub Brushes (Disk) . . . . .44
Replacing or Installing Scrub Pad (Orbital). . . . . . .44
Replacing or Installing Scrub Brushes (Cylindrical) 44
Removal or Installation of Debris Bin (Cylindrical) .45
To Replace Scrub Brush Motor - Disk . . . . . . . . . .46
To Replace Scrub Brush Motor - Orbital. . . . . . . . .46
Scrub Deck Actuator Removal / Replacement . . . .48
Circuit Protection. . . . . . . . . . . . . . . . . . . . . . . . . . .49
Solution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Tank Assembly Removal . . . . . . . . . . . . . . . . . . . .52
Drive Unit Removal . . . . . . . . . . . . . . . . . . . . . . . . .53
Vacuum & Float Shutoff . . . . . . . . . . . . . . . . . . . . .54
Vacuum Motor Carbon Brush Replacement . . . . . .55
Drive Motor-From Serial Number (4*). . . . . . . . . . .56
Drive Motor Carbon Brush Replacement . . . . . . . .56
Drive Chain Tension . . . . . . . . . . . . . . . . . . . . . . .56
Transporting Machine . . . . . . . . . . . . . . . . . . . . . . .56

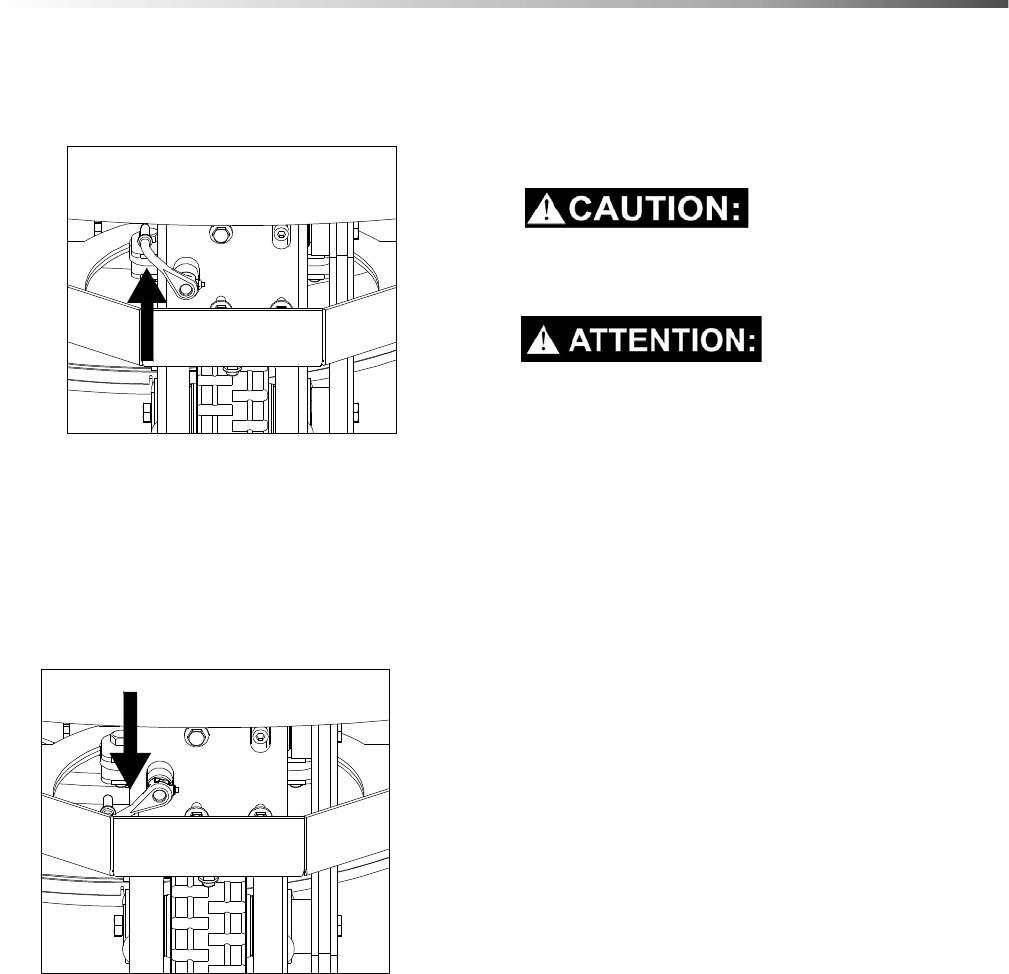

Brake Override . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Inclines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Drive Motor-Prior to Serial Number(4*). . . . . . . . . .58
Drive Chain Tension . . . . . . . . . . . . . . . . . . . . . . . .58
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Inclines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

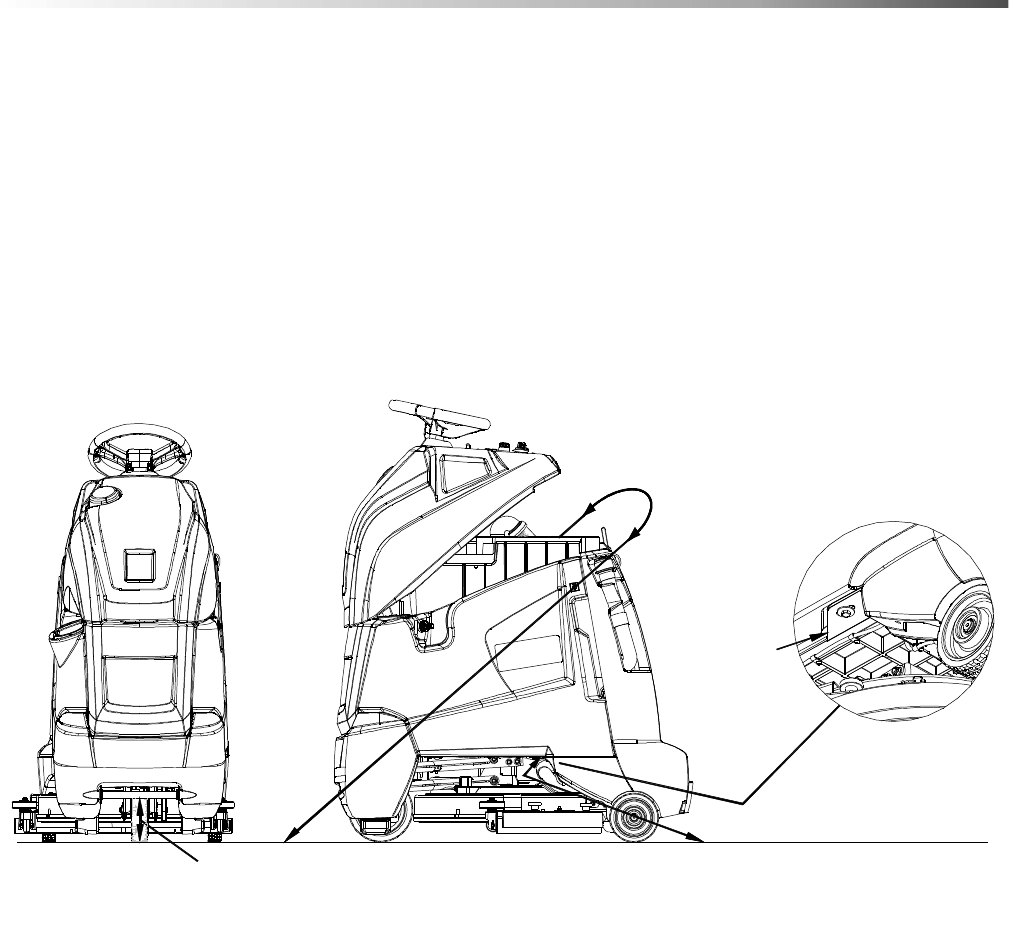

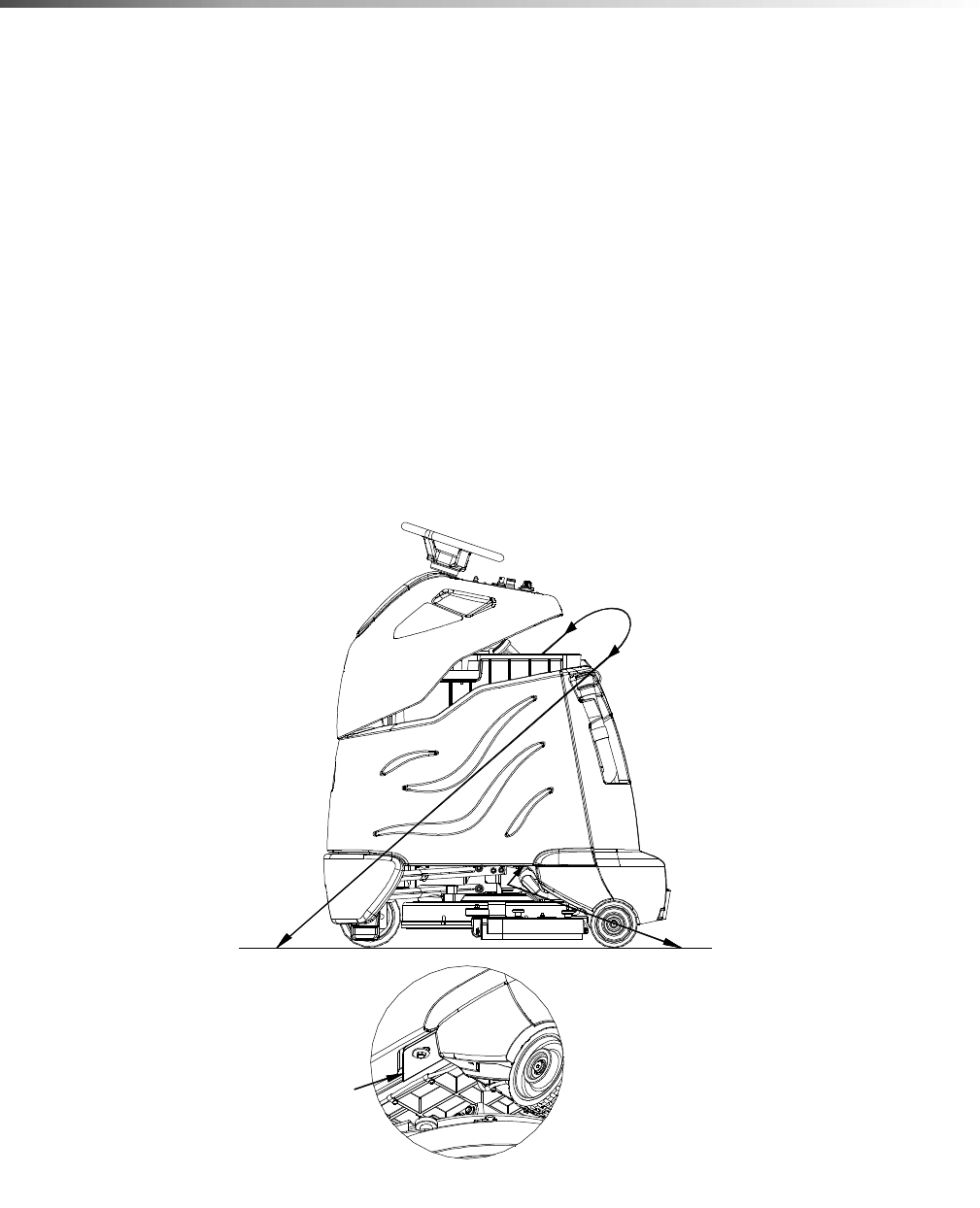

Machine Tie-Downs . . . . . . . . . . . . . . . . . . . . . . . .60
Machine Tie-Downs (Deluxe) . . . . . . . . . . . . . . . . .61
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Battery Discharge Indicator Troubleshooting . . . . .64
Suggested Spare Parts - Disk. . . . . . . . . . . . . . . . 66
Suggested Spare Parts - Orbital. . . . . . . . . . . . . . 67
Suggested Spare Parts - Cylindrical . . . . . . . . . . . 68
Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
86398220 Operators Manual - Chariot-2 iScrub 20
4
How To Use This Manual
This manual contains the following sections:
• HOW TO USE THIS MANUAL
•SAFETY
• OPERATIONS
• MAINTENANCE
The HOW TO USE THIS MANUAL section will tell you
how to find important information for ordering correct
repair parts.
Parts may be ordered from authorized dealers. When
placing an order for parts, the machine model and
machine serial number are important. Refer to the
MACHINE DATA box which is filled out during the
installation of your machine. The MACHINE DATA box
is located on the inside of the front cover of this manual.
The model and serial number of your machine is
located on the back of the machine.
The SAFETY section contains important information
regarding hazardous or unsafe practices of the
machine. Levels of hazards are identified that could
result in product damage, personal injury, or severe
injury resulting in death.
The OPERATIONS section is to familiarize the operator
with the operation and function of the machine.
The MAINTENANCE section contains preventive main-
tenance to keep the machine and its components in
good working condition. They are listed in this general
order:
• Batteries
• Scrub Brush
• Squeegee
• Service Schedule
• Machine Troubleshooting
NOTE: The manual part number is located on the
lower right corner of the front cover.
Model:
Date of Purchase:
Serial Number:
Dealer:
Address:
Phone Number:
Sales Representative:
86398220 Operators Manual - Chariot-2 iScrub 20
5
Safety
IMPORTANT SAFETY INSTRUCTIONS
When using this machine, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
To reduce the risk of fire, electric shock, or injury:
Use only indoors. Do not use outdoors or expose to rain.
Use only as described in this manual. Use only manufacturer's recommended components and attachments.
If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into water, return it to
an authorized service center.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.
This machine is not suitable for picking up hazardous dust.
Machine can cause a fire when operating near flammable vapors or materials. Do not operate this machine near
flammable fluids, dust or vapors.
This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offices
for more than normal housekeeping purposes.
Maintenance and repairs must be done by qualified personnel.
If foam or liquid comes out of machine, switch off immediately.
Disconnect battery before cleaning or servicing.
Before the machine is discarded, the batteries must be removed and properly disposed of.
Make sure all warning and caution labels are legible and properly attached to the machine.
During operation, attention shall be paid to other persons, especially children.
Before use all covers and doors shall be put in the positions specified in the instructions.
When leaving unattended, secure against unintentional movement.
The machine shall only be operated by instructed and authorized persons.
When leaving unattended, switch off or lock the main power switch to prevent unauthorized use.
Only chemicals recommended by the manufacturer shall be used.
This appliance has been designed for use with the brushes specified by the manufacturer. The fitting of other
brushes may affect its safety.
Do not use on surfaces having a gradient of over 10% (6 degrees).
READ AND SAVE THESE INSTRUCTIONS
86398220 Operators Manual - Chariot-2 iScrub 20
6
Safety
MESURES DE SÉCURITÉ IMPORTANTES
Lors de l'utilisation d'un appareil à batteries, il est nécessaire de respecter
systématiquement des mesures de sécurité de base, comme suit :
PRENEZ NOTE DE TOUTES CES MESURES AVANT D'UTILISER CETTE MACHINE.
Pour réduire les risques d'incendie, de chocs électriques, ou de blessures :
N'utiliser cette machine qu'en intérieur. Ne jamais l'utiliser à l'extérieur ou dans la pluie.
N'utiliser cette machine que comme décrit dans le présent manuel. N'utiliser que les composants et les accessoires
conseillés par le fabricant.
Lorsque la machine ne fonctionnant pas correctement, a fait l'objet d'une chute ou d'une détérioration, a été laissée
à l'extérieur, est tombée dans l'eau, la retourner au centre de service agréé.
Ne pas opérer la machine lorsque les conduits de ventilation sont bloquées. Débarrasser les débris des conduits,
car ils peuvent réduire l'écoulement d'air.
Cette machine n'est pas adaptée au ramassage de poussières dangereuses
Cette machine peut provoquer un incendie lorsqu'elle est utilisée près de vapeurs ou de matériaux inflammables.
Ne pas l'utiliser près de liquides, de poussières ou de vapeurs inflammables.
Cette machine est destinée à un usage commercial. Elle est recommandée davantage pour les domaines hôtelier,
scolaire, hospitalier, industriel ou pour les bureaux, les chaînes de magasin, que pour un usage domestique
normal.
L'entretien et les réparations de la machine doivent être effectuées par un personnel qualifié.
Si de la mousse ou du liquide sort de la machine, la mettre hors tension immédiatement.
Déconnecter les batteries avant de nettoyer la machine ou de la soumettre à un entretien.
Avant de se débarrasser de la machine, il est nécessaire de retirer les batteries et de les jeter correctement.
S'assurer que toutes les plaques d'avertissement ou de précaution sont lisibles et fixées correctement sur la
machine.
Durant la manoeuvre de la machine, prendre garde aux personnes environnantes et notamment aux enfants.
Avant l'utilisation de la machine, veiller à positionner tous les couvercles et portes comme indiqué dans les instruc-
tions.
Lorsque la machine est laissée sans surveillance, s'assurer qu'elle ne se déplace pas de manière accidentelle.
Cette machine ne doit être manoeuvrée que par un personnel expérimenté et qualifié.
Lorsque la machine est laissée sans surveillance, la mettre hors tension ou verrouiller l'interrupteur principal afin
d'empêcher un emploi non autorisé.
Seuls les produits chimiques recommandés par le fabricant doivent être utilisés.
Cette machine a été conçue pour être utilisée avec des brosses spécifiées par le fabricant.
L'utilisation d'autres brosses peut affecter sa sûreté.
N'employez pas sur des surfaces ayant un gradient de plus de 10% (6 degrés).
CONSERVER CES INSTRUCTIONS
86398220 Operators Manual - Chariot-2 iScrub 20
7
Safety
The following symbols are used throughout this guide as indicated in their descriptions:
HAZARD INTENSITY LEVEL
There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY.
The level of hazard intensity is determined by the following definitions:
WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property damage.
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper operating
condition. Following is information that signals some potentially dangerous conditions to the operator or the equip-
ment. Read this information carefully. Know when these conditions can exist. Locate all safety devices on the
machine. Please take the necessary steps to train the machine operating personnel.
FOR SAFETY:
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects.
WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use
approved replacement parts.
Batteries emit hydrogen gas. Explosion or fire can result. Keep sparks and open flame away. Keep battery
compartment open during charging. Keep sparks and flames away from the batteries. Do not smoke
around batteries.
Disconnect batteries before working on machine. Only qualified personnel should work inside machine.
Always wear eye protection and protective clothing when working on or near batteries. Avoid skin contact
with the acid contained in the batteries.
Never allow metal to lie across battery tops.
86398220 Operators Manual - Chariot-2 iScrub 20
8
Safety
Les symboles ci-dessous sont utilisés à travers ce manuel comme illustré dans leurs descriptions :
DEGRÉS DE RISQUES EN CAS DE DANGER
Il existe trois degrés de risques identifiés par les termes signalétiques -AVERTISSEMENT et ATTENTION et POUR
VOTRE SÉCURITÉ. Le degré de risque est défini de la manière suivante:
AVERTISSEMENT - Dangers ou méthodes dangereuses qui POURRAIENT provoquer de graves blessures ou
entraîner la mort.
ATTENTION - Dangers ou méthodes dangereuses qui pourraient provoquer des blessures légères ou une détério-
ration du produit ou des biens immobiliers.
POUR VOTRE SÉCURITÉ: ce signe permet d'identifier les mesures de précaution à prendre pour assurer un bon
fonctionnement du matériel.
Rendre compte immédiatement d'une défaillance ou d'une détérioration de la machine. Ne pas utiliser la machine
si celle-ci ne fonctionne pas correctement. Lire soigneusement les informations ci-dessous signalant certains
dangers potentiels pour l'opérateur de la machine. L'opérateur doit être absolument au courant de ces dangers
potentiels. Localiser tous les dispositifs de sécurité sur la machine. Il est conseillé de prendre les mesures néces-
saires pour former le personnel opérateur.
POUR VOTRE SÉCURITÉ:
NE PAS MANOEUVRER LA MACHINE:
Lorsqu'on n'est pas expérimenté ou qualifié.
Lorsque le guide d'utilisation n'est pas été lu ou compris.
Dans des zones inflammables ou explosives.
Dans des zones où des objets peuvent tomber.
LORS DE L'ENTRETIEN DE LA MACHINE:
Éviter les parties amovibles. Ne pas porter de vêtements amples, tels que des vestes, des chemises ou des
vêtements avec manches lors de l'utilisation de la machine. Utiliser les pièces détachées homologuées.
Les batteries émettent le gaz d'hydrogène. L'explosion ou le feu peut résulter. Étincelles de subsistance et
flamme nue loin. Compartiment de batterie de subsistance ouvert en chargeant. Étincelles et flammes de
subsistance loin des batteries. Ne fumez pas autour des batteries.
Déconnecter les batteries avant de travailler sur la machine. La machine ne doit être confiée qu'à un
personnel qualifié. Porter systématiquement des lunettes et des vêtements de protection lors d'une inter-
vention sur les batteries ou aux alentours. Éviter tout contact de la peau avec l'acide contenu dans les
batteries.
Ne jamais placer d'objets métalliques sur le dessus des batteries.
86398220 Operators Manual - Chariot-2 iScrub 20
9
Safety

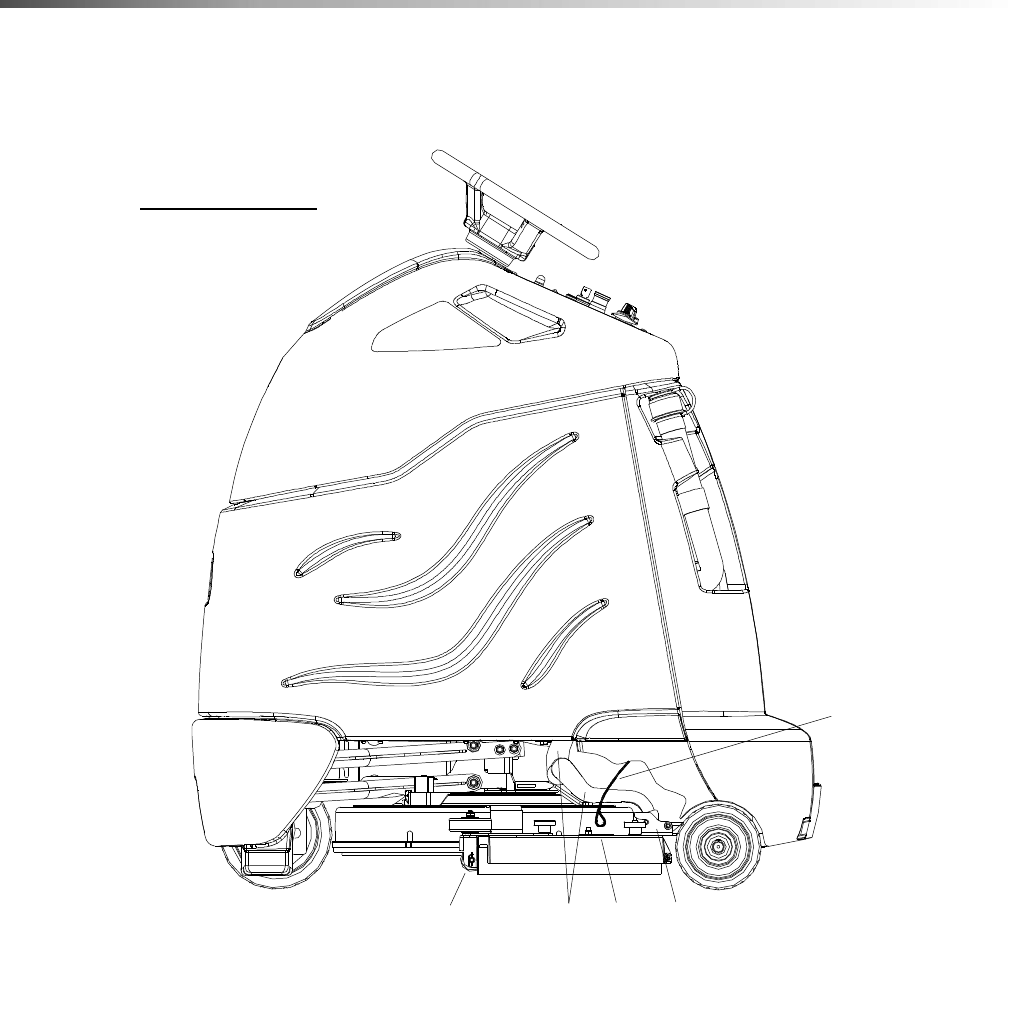

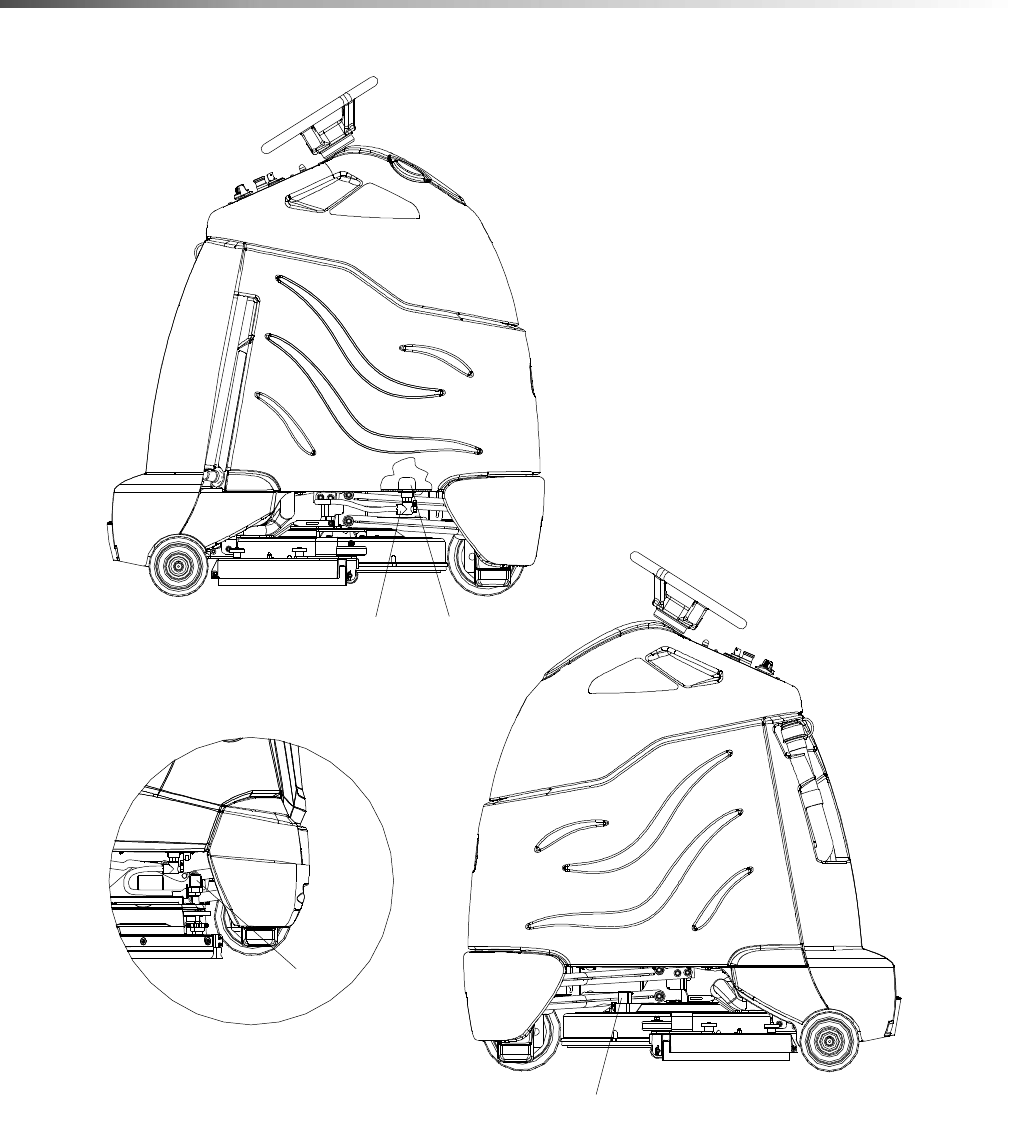

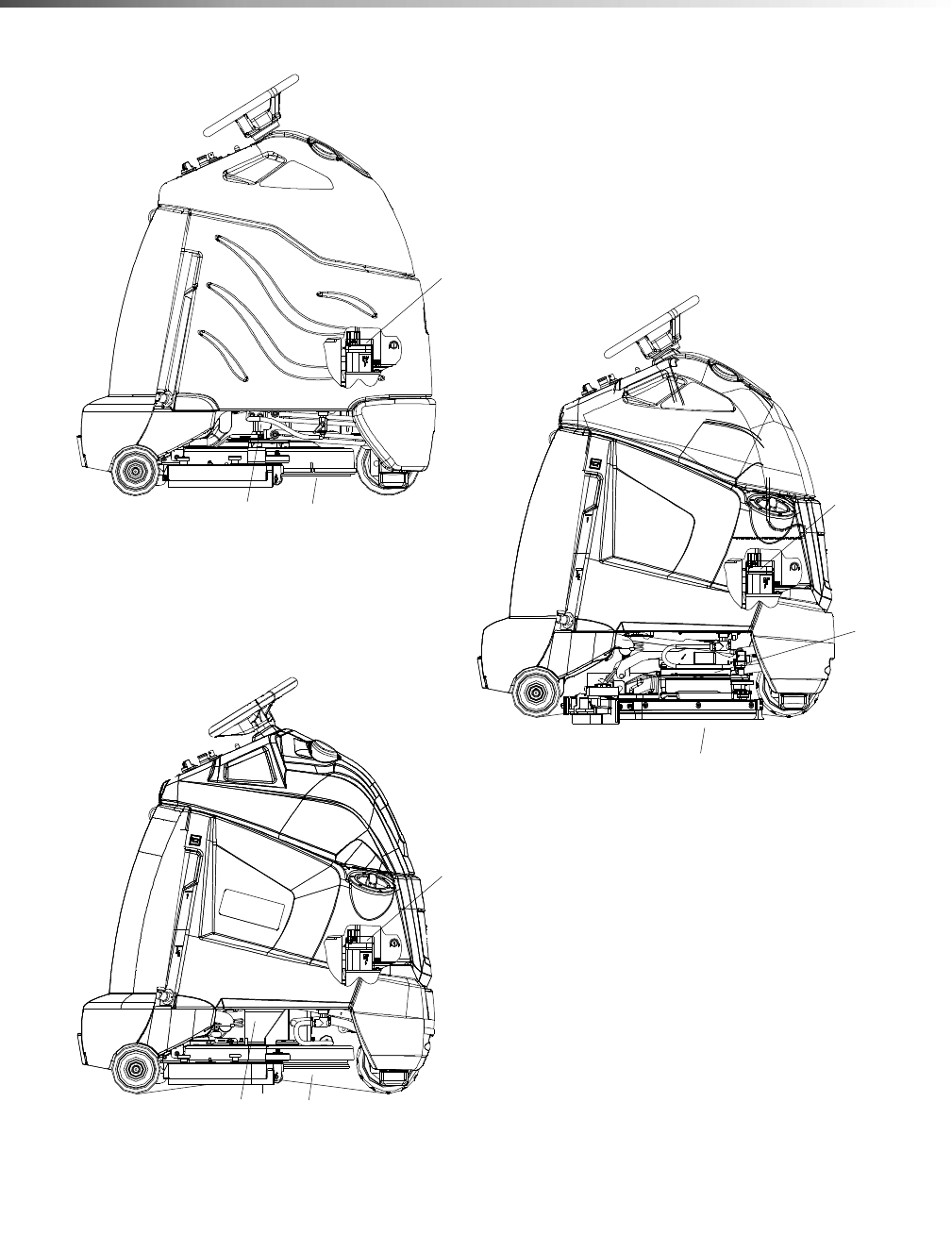

SAFETY LABEL LOCATIONS
These drawings indicate the location of safety labels on the machine. If at any time the labels become illegible,
promptly replace them.
EMPLACEMENT DE L'ÉTIQUETTE DE SÉCURITÉ
REMARQUE : Ces dessins indiquent l'emplacement des étiquettes de sécurité sur la machine. Si, à tout moment,
les étiquettes deviennent illisibles, contactez votre représentant autorisé pour un remplacement rapide.
CAUTION
BATTERY
86252520
WARNING LABEL
86244300
CAUTION
CAUTION LABEL
86244310
CAUTION LABEL
86335010 (2X)
LABEL
WARNING
86385070
86398220 Operators Manual - Chariot-2 iScrub 20
10
Operations
Technical Specifications
ITEM DIMENSION/CAPACITY
Nominal Power-Disk 1080 W
Nominal Power-Orbital 936 W
Nominal Power-Cylindrical 1512 W
Rated Voltage 36 Volts DC
Rated Amperage -Disk 30 amps
Rated Amperage -Orbital 26 amps
Rated Amperage -Cylindrical 42 amps
Batteries 3 X12 Volt 130 AH @ 20 hr. rate
Battery Compartment Dimensions 20-1/2 in. x 13 in. x 10 in. tall (330mm x 521mm x 254mm)
Scrub Brush Motor - Disk Machine 1 x .28 HP (209 W)
Scrub Brush Motor - Orbital Machine 1 x .5 HP (373 W)
Scrub Brush Motor - Cylindrical Machine 1 x .8 HP (600 W)
Vacuum Motor .63 HP (470 W)
Maximum flow rate of vacuum motor 72 cfm (33.98 liters per second)
Maximum suction of vacuum motor 47.3 inches of water (11.7 kPa)
Propelling Motor .38 HP (280 W)
Mass (GVW) 827 lbs (375 kg)
Weight empty without batteries - Disk 209 lbs (96 kg)
Weight empty without batteries - Orbital 271 lbs (123 kg)
Weight empty without batteries - Cylindrical 255 lbs (116 kg)
Solution Control Gravity, 1/3 GPM average
Solution capacity 10 gal (38 L)
Recovery capacity 10 gal (38 L)
Scrub brush diameter - Disk 20 inch (508 mm)
Scrub brush length - Cylindrical 22 inch (559 mm)
Scrub brush pressure - Disk / Orbital 50 lbs (222N)
Scrub brush pressure - Cylindrical 46 lbs (21 kg)
Scrub brush speed - Disk 180 rpm
Scrub brush speed - Cylindrical 1500 rpm
Tires 8 in. (203mm) drive, 6 in. (156mm) rear, polyurethane
Maximum Speed 2.4 mph (3.7 kph)
Brake Electrical parking brake,sets automatically whenever operator stops.
Minimum aisle u-turn width 51in. (1295 mm)
Maximum rated climb and descent angle 10% (6 degrees)
Vibration, hands - Disk 1.6 m/s²
Vibration, feet - Disk 0.54 m/s²
Uncertainty - Disk 0.5 m/s²
Sound pressure level - Disk 68.0 dBA
Sound power level - Disk 81.1 dBA
Uncertainty - Disk 3.0 dBA
Vibration, hands - Cylindrical 1.5 m/s²
Vibration, feet - Cylindrical 0.9 m/s²
Uncertainty - Cylindrical 0.5 m/s²
Sound pressure level - Cylindrical 71.5 dBA
Sound pressure level - Cylindrical 84.7 dBA
Uncertainty - Cylindrical 3.0 dBA
86398220 Operators Manual - Chariot-2 iScrub 20
11
Operations
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.
Cet appareil n'est pas prévu à l'usage des personnes (enfants y compris) avec des possibilités physiques, sensori-
elles ou mentales réduites, ou le manque d'expérience et de connaissance, à moins qu'ils aient été donnés la
surveillance ou l'instruction au sujet de l'utilisation de l'appareil par une personne chargée de leur sûreté. Des
enfants devraient être dirigés pour s'assurer qu'ils ne jouent pas avec l'appareil.
ITEM MEASURE
Height 51.8 in (1316mm)
Length 44.0 in (1118mm)
Width without squeegee - Disk / Orbital 23.4 in (594mm)
Width without squeegee - Cylindrical 25.4 in (645mm)
Width of squeegee - Disk / Orbital 27.2 in (691mm)
Width of squeegee - Cylindrical 29.3 in (744mm)
Width of scrub path - Disk / Orbital 20 in (508mm)
Width of scrub path - Cylindrical 22 in (559mm)
WIDTH LENGTH
HEIGHT
86398220 Operators Manual - Chariot-2 iScrub 20
12
Operations
How This Machine Works
The Chariot® is a battery powered, self-propelled, hard
floor scrubber intended for commercial use. The
appliance applies a cleaning solution onto a hard floor,
scrubs the floor with a brush, and then vacuums the
soiled water back into the recovery tank.
The machine's primary systems are the solution
system, scrub system, recovery system, and operator
control system.
The function of the solution system is to store cleaning
solution and deliver it to the scrub system. The solution
system consists of the solution tank, strainer, metering
valve and solenoid valve. The solution tank stores
cleaning solution (water and detergent) until it is
delivered to the scrub system. The strainer protects the
valves from debris. The solenoid valve automatically
prevents solution flow unless the scrub brush is turned
on and the machine is being propelled.
The function of the scrub system is to scrub the floor.
The disk scrub system consists of one rotary type disk
scrub brush, motor, scrub deck skirt and lift actuator.
The brush scrubs the floor as the motor drives the
brush. The brush drive hub allows the scrub brush to
follow irregularities and changes in the floor without
loosing contact with the floor. The scrub deck skirt
controls the cleaning solution on the floor so that the
squeegee can pick it up.
The cylindrical scrub system consists of two cylindrical
brushes, motor, side squeegees, and lift actuator. The
two counter rotating brushes scrub the floor, driven by a
single motor. The brush deck “floats” with constant
brush pressure. The side squeegees keep the cleaning
solution within the brush deck width, allowing the main
squeegee to pick the solution up.
The function of the recovery system is to vacuum the
soiled water back into the recovery tank. The recovery
system consists of the squeegee, vacuum motor, float
ball, recovery tank. The squeegee wipes the dirty
solution off the floor as the machine moves forward.
The vacuum motor provides suction to draw the dirty
solution off the floor and into the recovery tank. The
float ball filter protects the vacuum fan from debris and
foam. The recovery tank stores the dirty solution.
The function of the operator control system is to control
the direction and speed of the machine. The directional
control system consists of the direction control drive
reset switch, throttle pedal, emergency stop/brake
switch, steering wheel, propel controller, and drive
wheel. The directional control drive reset switch signals
forward or reverse direction and makes sure the
operator is on the platform before machine will propel.
The controller interprets signals from the throttle pedal
to command the drive wheel to propel or slow the
machine. The steering wheel points the drive wheel in
the direction desired by the operator. The parking brake
automatically engages when the operator stop the
machine. The emergency stop/brake can be used to
hold the machine on slopes.
86398220 Operators Manual - Chariot-2 iScrub 20
13
Operations

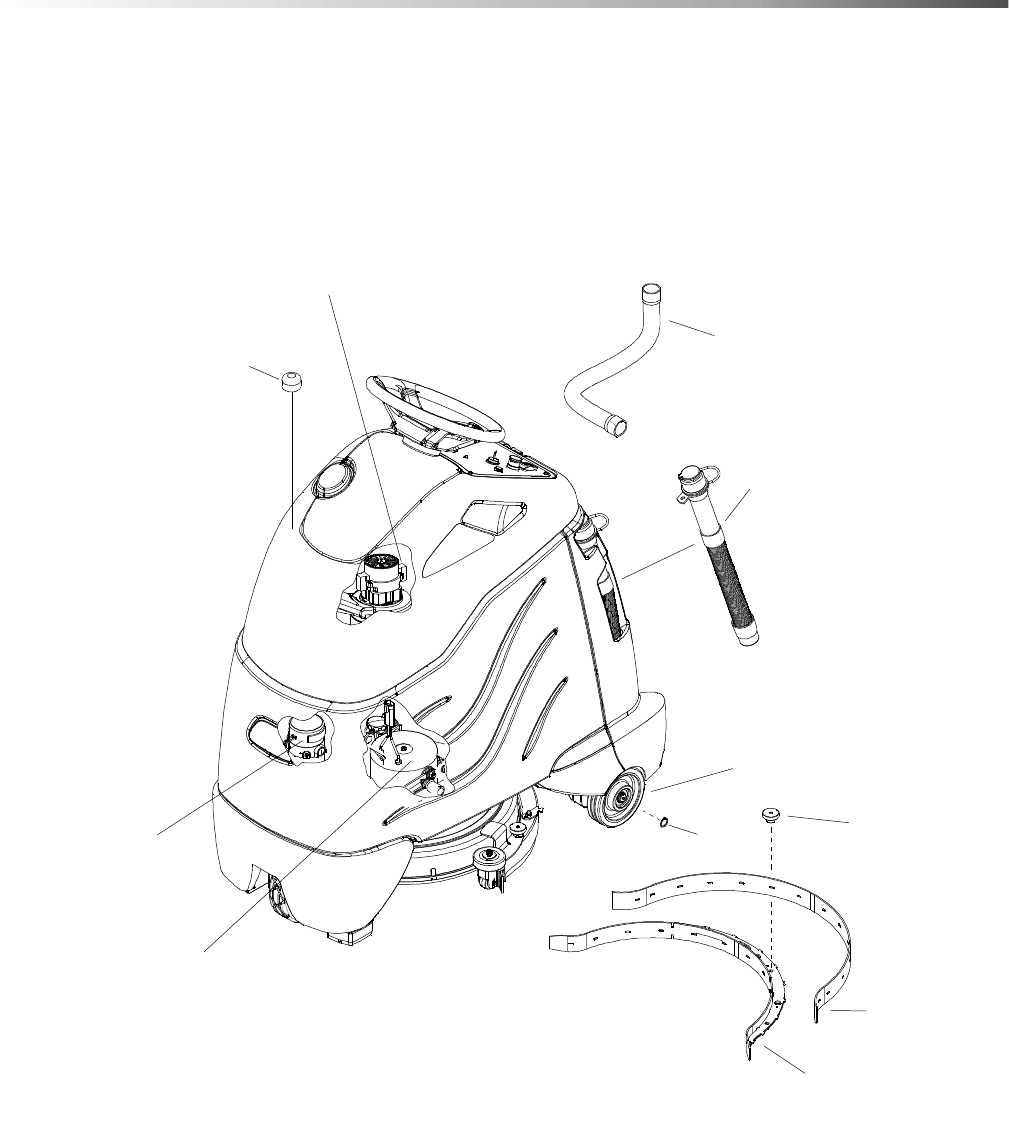

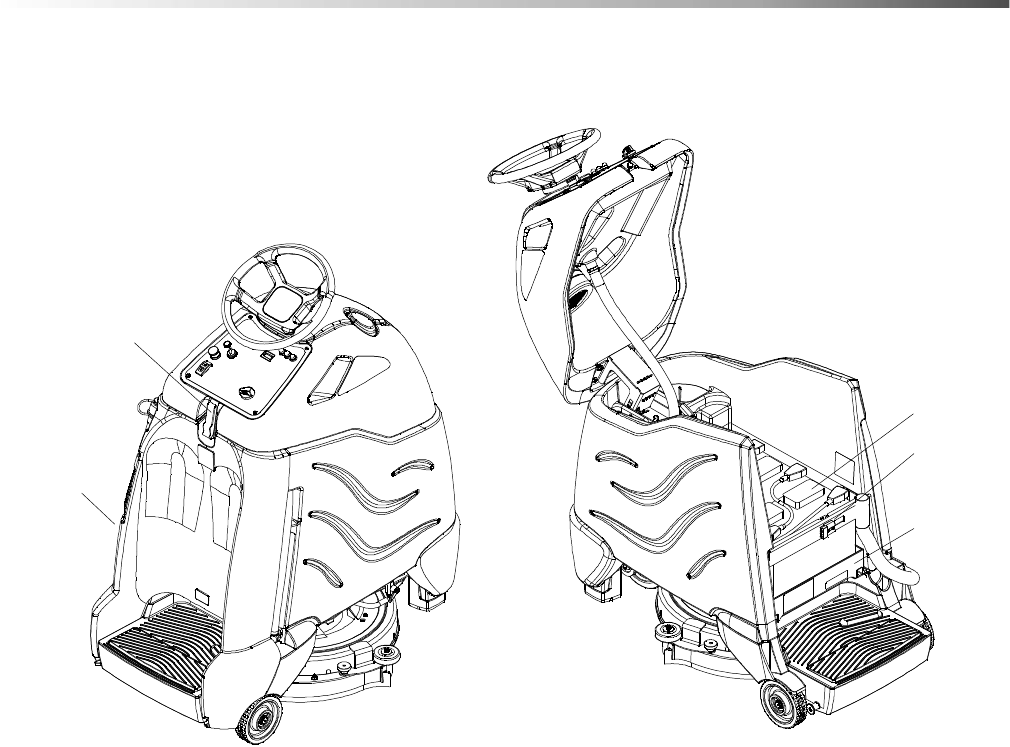

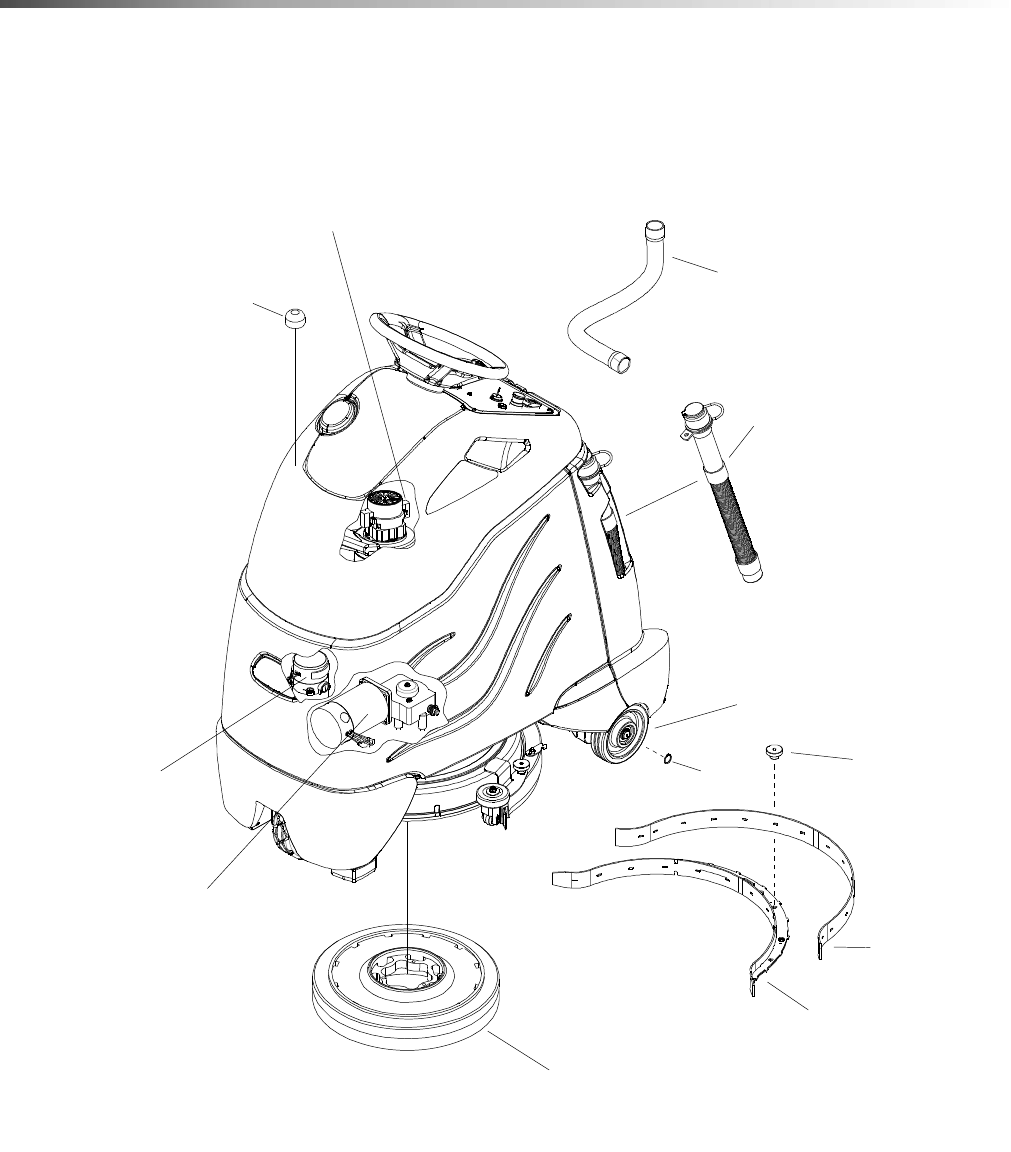

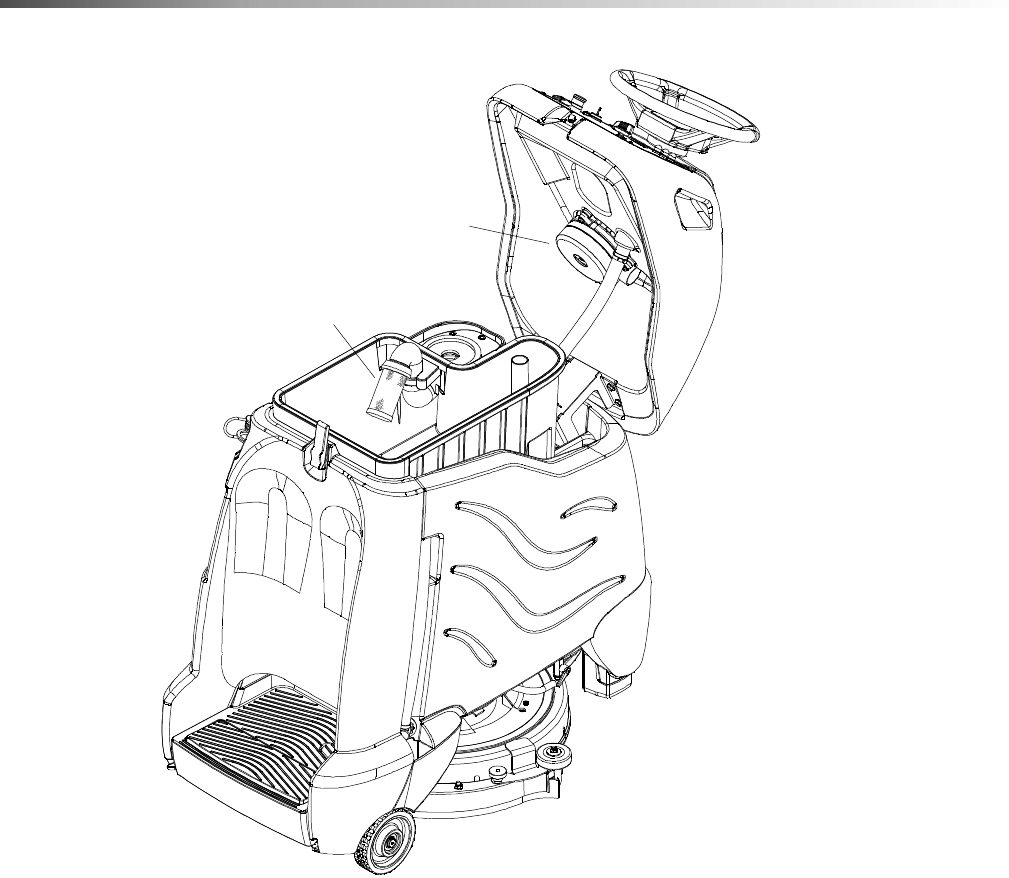

Components
1. Drive Control
2. Scrub Controls
3. Control Console
4. Pedal Platform
5. Solution Tank
6. Recovery Tank
7. Recovery Sight Dome
8. Recovery Drain Hose
9. Scrub Deck Skirt
10. Solution Cover
11. Solution Drain Hose/Solution Level Indicator
12. Squeegee
86398220 Operators Manual - Chariot-2 iScrub 20
Cylindrical
Deluxe Disk & Cylindrical
12
10
9
10
12
1
2
3
4
5
6
7
8
9
11
14
Operations
Drive Controls
1
2
3
4
5
6
7
89
10
86398220 Operators Manual - Chariot-2 iScrub 20
15
Operations
1. Key Switch
2. Emergency Stop/Brake Switch
3. Directional Control / Drive Reset Switch
4. Throttle Pedal
5. Horn Button
6. Steering Wheel
7. Speed Control
8. Battery Discharge Indicator
9. Hour Meter
10. Operator Presence Switch
1. KEY SWITCH
Controls the power for machine functions.
To turn the machine power on, rotate key clock-
wise.
To turn the machine off, rotate key counterclock-
wise.
When the key is turned on the battery symbol will
flash once and stay on continuously.
2. EMERGENCY STOP/BRAKE SWITCH
This safety feature is designed to cut all power to
the machine at any time and apply parking brake.
To shut the machine power off, push the
Emergency Stop Switch, this will also engage the
parking brake and cause the machine to stop
immediately.
To reset the machine, rotate the switch clockwise.
3. DIRECTIONAL CONTROL / DRIVE RESET
SWITCH
This safety feature is designed to ensure safe
engagement of propel drive. Each time the
machine power is turned on, or each time an
operator steps on to the platform, the Drive Reset
Switch must be pushed before machine will propel.
The switch controls the direction of travel of the
vehicle. The lighted arrow on the switch indicates
direction of travel.
To travel forward, press the top of the switch.
To travel in reverse, press the bottom of the switch.
86398220 Operators Manual - Chariot-2 iScrub 20
16
Operations
4. THROTTLE PEDAL
Controls the speed of the vehicle within the speed control setting selected. Pressing the pedal causes the
machine to travel in the direction selected by the Directional Control Switch.
To increase speed, increase pressure on the pedal.
To decrease speed, decrease pressure on the pedal.
5. HORN BUTTON
The horn is activated by pressing the horn button.
6. STEERING WHEEL
The steering wheel turns the front wheel causing the machine to change direction.
7. SPEED CONTROL
Controls the maximum speed of the machine. There are two settings, slow and fast.
To change speed, rotate the dial to either slow or fast position. The slow position is to the left (counterclock-
wise), fast to the right (top position).
The throttle pedal will always regulate the speed between 0 and maximum.
86398220 Operators Manual - Chariot-2 iScrub 20
17
Operations
8. BATTERY DISCHARGE INDICATOR
Indicates the charge level of the batteries.
The indicator will be illuminated if the batteries have a sufficient charge. A slow, continuous flash indicates the
batteries require charging.
The Battery Lockout function will activate when the batteries are low.
Once active, the LED status indicator will begin to flash slowly and the controller will inhibit the scrub motor and
water solenoid. The vacuum and drive remain functional. The “vacuum only” selection (position ‘B’) can be
used to vacuum up any remaining water. Return the unit to the charging station and charge the batteries.
NOTE: Continuing usage may damage the batteries.
When the machine is left overnight with less than a full charge, the display may initially indicate a full charge. It
will also indicate a full charge if the batteries are disconnected, then reconnected. After a few minutes of
operation the indicator will give the correct charge level.
9. HOUR METER
Records the number of hours the machine has been in scrubbing operation. This information is useful in deter-
mining when to service the machine.
86398220 Operators Manual - Chariot-2 iScrub 20
18
Operations
Scrub Controls
1. FUNCTION MODE SWITCH
The first two positions are for transport only. See drive controls section.
Light cleaning
This mode is used for light cleaning. In this mode the machine will propel at fast speed. The
‘floating’ scrub deck and squeegee is in the down position. The water will flow. Water will auto-
matically shut off in neutral and restarts when scrubbing is resumed. The vacuum will draw the
water into the recovery tank.
Deep cleaning
This mode is used for deep cleaning. In this mode the machine will propel at a low speed. The
‘floating’ scrub deck and squeegee is in the down position. The water will flow. Water will auto-
matically shut off in neutral and restarts when scrubbing is resumed. The vacuum will draw the
water into the recovery tank.
1
LABEL WITH CHEMICAL METERING OPTION.
86398220 Operators Manual - Chariot-2 iScrub 20
19
Operations
Vacuum only mode
This mode is used for picking up solution only. The brush and water will both be up and off. In
this mode the machine will propel at fast speed. The squeegee is lowered and the vacuum
will come on.
Double Scrub cleaning (with chemical metering on equipped models)
This mode is used for putting down solution and scrubbing without picking it back up. The
squeegee is set manually by connecting the two double scrub support cables. In this mode
the machine will propel at a slow speed. The scrub deck will lower. The solution will flow. The
brush and water will shut off when the machine is in neutral. They will resume when propelling
is resumed.
Light cleaning with chemical metering
Chemical dilution rate to be set by chemical metering selection switch.
Deep cleaning with chemical metering
Chemical dilution rate to be set by chemical metering selection switch.
86398220 Operators Manual - Chariot-2 iScrub 20
20
Operations

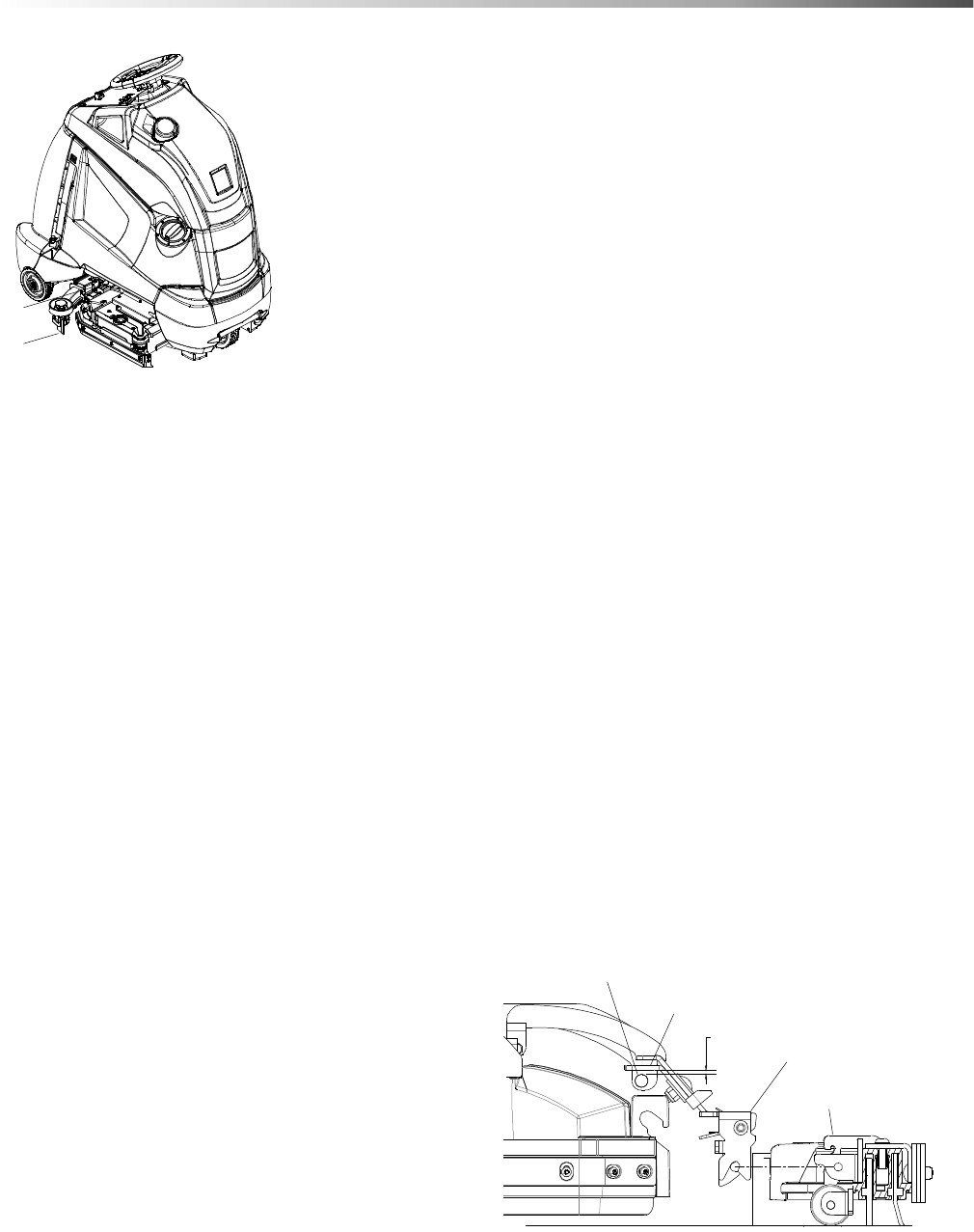

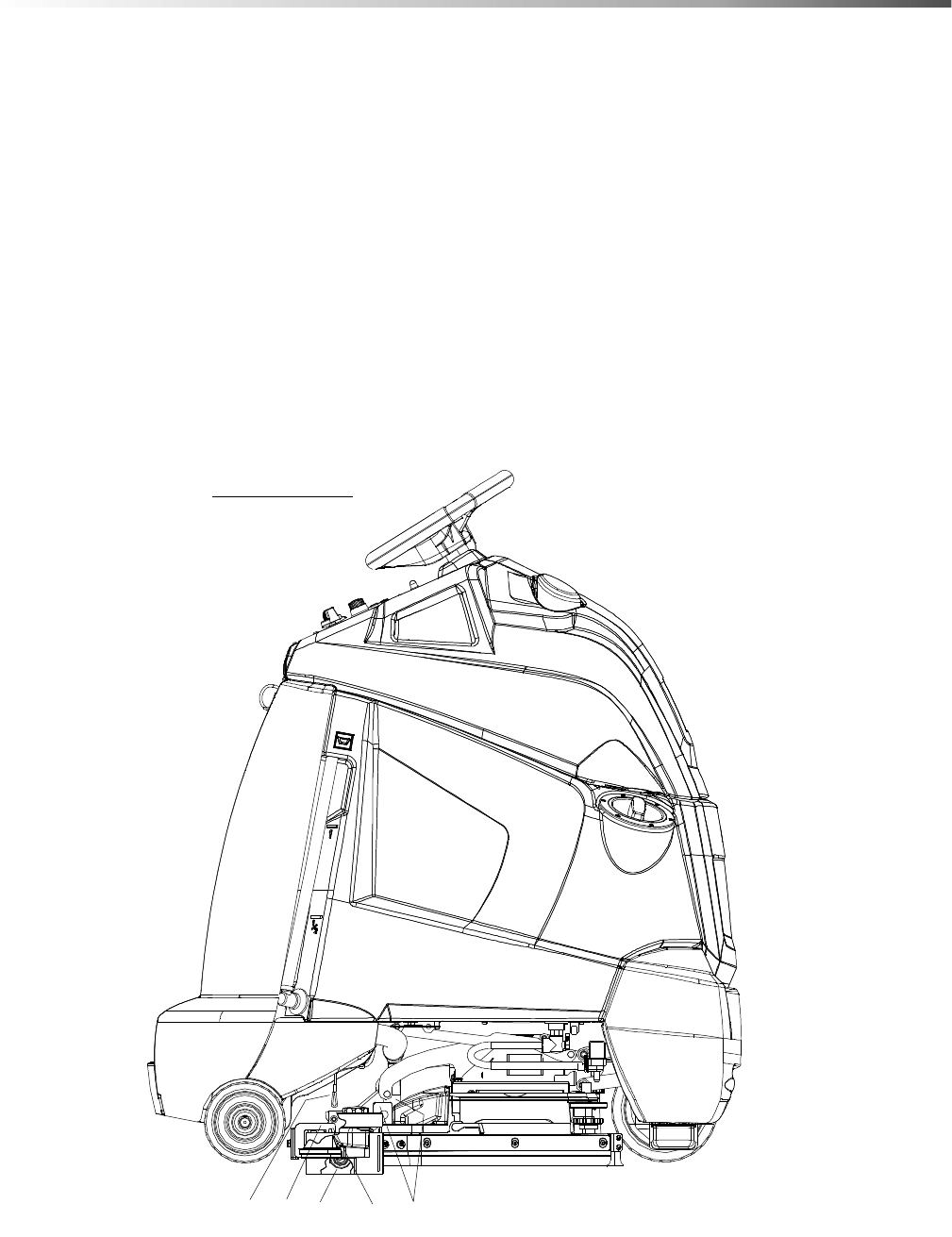

Scrub Controls-Squeegee
1. Squeegee Latch
2. Squeegee Hose and Tube
3. Squeegee Wheels (3)
4. Double Scrub Support Cable
5. Double Scrub Cable Hook
1
2
35
4
DISK / ORBITAL
86398220 Operators Manual - Chariot-2 iScrub 20
21
Operations
1. Squeegee Latch
The squeegee latch holds the squeegee in place.
2. Squeegee Hose and Tube
The squeegee hose and tube carry the recovered solution to the recovery tank.
3. Squeegee Wheels
The squeegee wheels support the squeegee at the correct height and angle to automatically obtain optimum
suction.
4. Double Scrub Support Cable
The double scrub support cables retain the deck in the double scrub position.
5. Double Scrub Cable Hook
The double scrub cable hook is the connection point for the double scrub support cable.
Since the squeegee is raised and lowered by the scrub deck, the double scrub position is set manually.
86398220 Operators Manual - Chariot-2 iScrub 20
4
CYLINDRICAL
132
5
22
Operations
Machine Operation
Pre-Run Machine Inspection
Do a pre-run inspection to find possible problems that
could cause poor performance or lost time from break-
down. Follow the same procedure each time to avoid
missing steps.
NOTE: See maintenance section for pre-run machine
inspection checklist items.
Starting Machine
NOTE: Perform pre-run machine check before
operating machine.
FOR SAFETY: Before starting machine, make sure
that all safety devices are in place and operating
properly.
1. The operator should be on the pedal platform. The
throttle pedal must be in the neutral position.
2. Turn the machine power on by turning key switch
clockwise to the “ON” position.
3. Press the Drive Reset Directional Control Switch to
reset and set the intended direction for travel.
4. Press lightly on the throttle pedal with right foot.
Emergency Stop Procedure
Push in emergency stop button. This will also engage
the parking brake and cause the machine to stop imme-
diately.
Filling Solution Tank
FOR SAFETY: Before leaving or servicing machine;
stop on level surface, turn off machine and remove
key.
1. Turn the machine power off.
2. Tilt console forward. Push left or right fill port cover
down.Fill the solution tank with clean water, leaving
enough room for the required amount of cleaning
solution. The solution tank capacity filled to fill inlet
is 10 gallons (38 liters). The water must not be hot-
ter than 140° F (60°C) to prevent damage to the
tank.
3. Measure the chemical into the solution tank. Liquid
chemicals should be added to the solution tank
after filling with water. Dry chemicals should be
thoroughly mixed before being added into solution
tank. Commercially available, high alkaline floor
cleaners, are suitable for use in the solution sys-
tem.
NOTE: Read the chemical manufacturers
recommended proportion instructions.
4. Close console and latch rear cover.
Flammable materials can cause an explosion or
fire. Do not use flammable materials in the tanks.
Les matières inflammables peuvent provoquer une
explosion ou un incendie. Ne pas utiliser de
matériaux inflammables dans les réservoirs.
Filling Solution Tank (Deluxe)
FOR SAFETY: Before leaving or servicing machine;
stop on level surface, turn off machine and remove
key.
1. Turn the machine power off.
2. Using fill port, fill the solution tank with clean water,
leaving enough room for the required amount of
cleaning solution. The solution tank capacity filled
to fill inlet is 10 gallons (38 liters). The water must
not be hotter than 140° F (60°C) to prevent dam-
age to the tank.
FILL PORT
WITH SCREW CAP
86398220 Operators Manual - Chariot-2 iScrub 20
23
Operations
3. Measure the chemical into the solution tank. Liquid
chemicals should be added to the solution tank
after filling with water. Dry chemicals should be
thoroughly mixed before being added into solution
tank. Commercially available, high alkaline floor
cleaners, are suitable for use in the solution sys-
tem.
Normal Scrubbing
Plan the scrubbing pattern in advance. The longest
track is around the perimeter of the area to be cleaned.
For efficient operation, the runs should be the longest
possible without turning, stopping, or raising or
lowering scrub deck/squeegee.
In order to achieve the best possible results, the area
which is to be cleaned should be swept before scrub-
bing. Large debris, strings and wire must be removed to
prevent being caught in brushes or squeegee.
If the machine is allowed to stand in neutral with the
scrub deck down, the solutions flow stops and brush
motor stops. If either forward or reverse travel is
selected, the solution flow will continue in the same
setting and the scrub brush motor will continue once
movement of machine begins. Overlap the brush path
and avoid transporting over previously cleaned areas.
To Begin Scrubbing
When operating the machine around people, pay
close attention for unexpected movement. Use
extra caution around children.
Lorsque vous utilisez la machine en présence de
gens, portez une attention particulière aux mouve-
ments inattendus. Soyez plus prudent, surtout en
présence d’enfants.
Flammable liquids and/or reactive metals can
cause explosions or fire! Do not pick up.
Les liquides inflammables et / ou les métaux
réactifs peuvent provoquer des explosions ou un
incendie ! Ne les ramassez pas.
1. Stand on the operator platform. Throttle pedal must
be in neutral position.
2. Turn machine power on.
3. Press the Drive Reset / Directional Control Switch,
selecting the desired travel direction.
4. Position the function control knob to the desired
operation. The scrub deck and squeegee will
lower, and the vacuum will turn on.
5. Drive machine forward to begin scrubbing.The
scrub brush motor will run and solution will flow
when the throttle is depressed.
NOTE: Shut machine off immediately if water or foam
is expelled from the machine. Solution flow is
automatically shut off when brush motor stops. When
brush motor is activated, flow automatically resumes.
86398220 Operators Manual - Chariot-2 iScrub 20
24
Operations
To Stop Scrubbing
1. Rotate the function knob to either transport posi-
tion. The brush motor and vacuum will stop and the
scrub deck will rise to the park position, after a pre-
programmed delay.
2. Allow the throttle pedal to return to neutral.
3. Turn machine power off.
FOR SAFETY: Before leaving or servicing
machine: stop on level surface, turn off machine
and remove key.

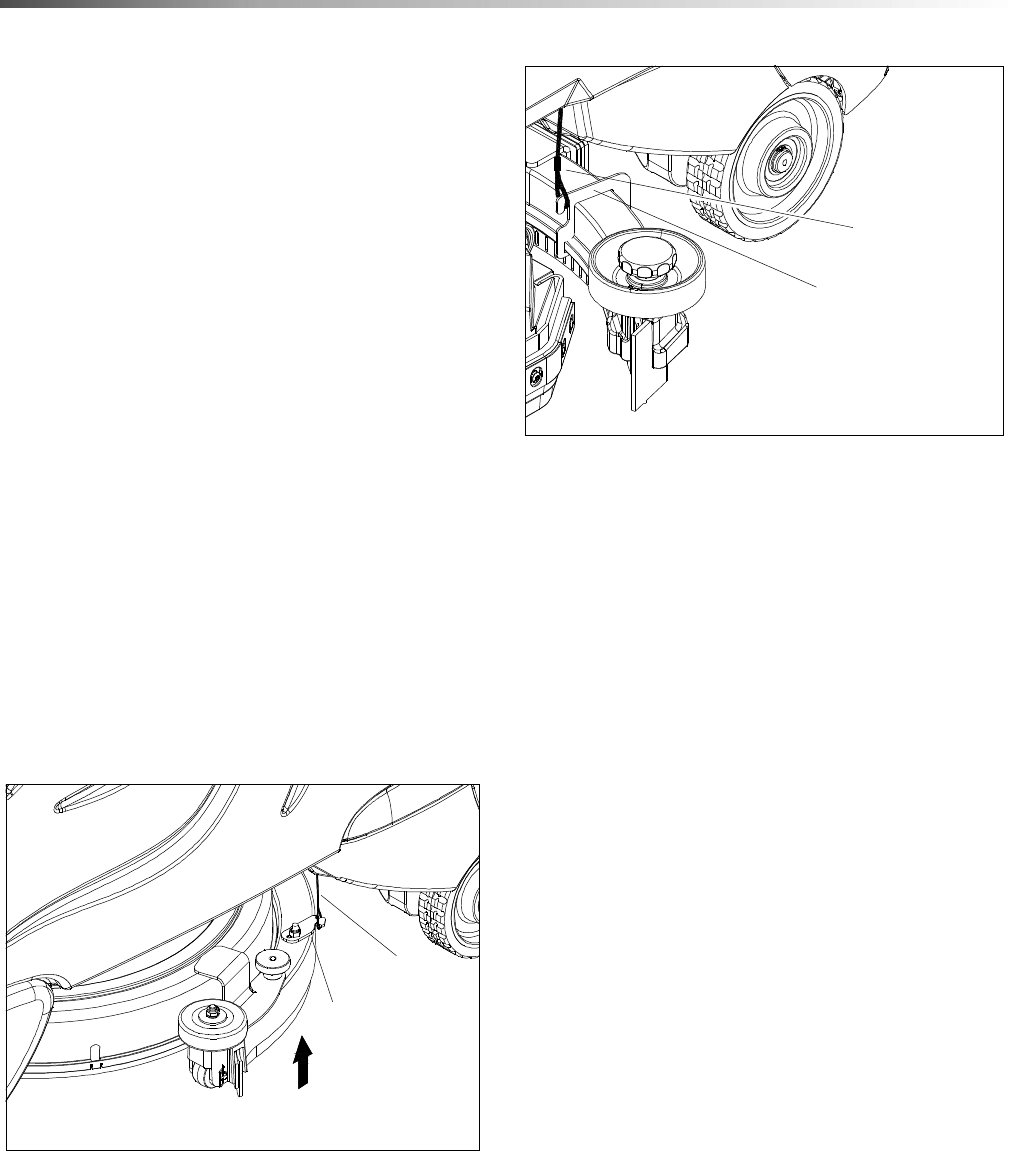

Double Scrub
Floors which are heavily soiled or have thick accumula-
tions of floor finish may not clean sufficiently with one
pass. In these cases it will be necessary to double
scrub.
Connect the Double Scrub Cables to the squeegee.
Rotate the knob to the double scrub position.
To support the squeegee off the floor for double scrub,
pull the support cables down, one side at a time, and
connect to the hook on the squeegee while lifting and
tilting the squeegee upward.
To collect the solution and complete the Double Scrub
operation, release both squeegee cable and turn the
function knob to one of the normal scrubbing modes.
Disk Machine
Cylindrical Machine
NOTE: The deck and squeegee must be in the up
position to hook the cables.
CABLE
DOUBLE SCRUB HOOK
DOUBLE SCRUB
DOUBLE SCRUB
CABLE
DOUBLE SCRUB
HOOK
86398220 Operators Manual - Chariot-2 iScrub 20
25
Operations

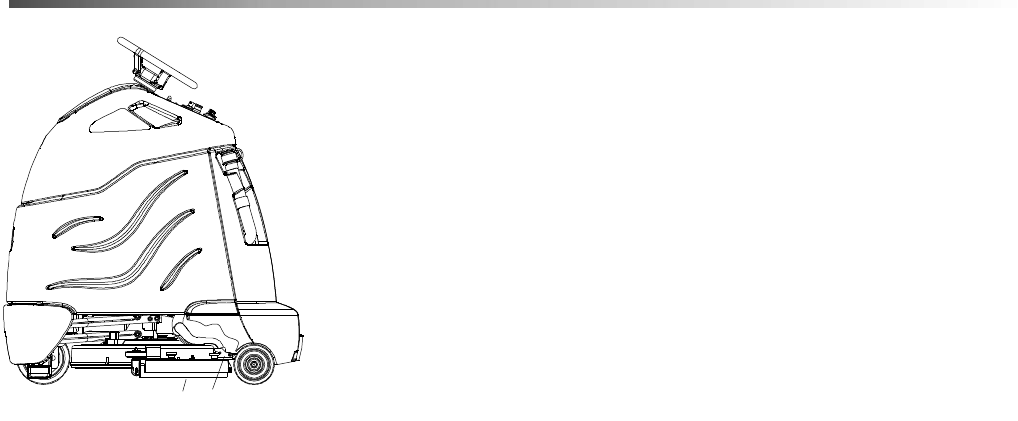

Emptying and Cleaning Tanks
1. Park the machine next to a floor drain. Drain hoses
are at the rear of the machine.
2. Turn the machine power off.
Recovery Tank
1. Pull the recovery drain hose from the mounting
pocket. Lift cap, pinch hose then lower hose in
direction of the drain. Do not stand in front of end of
hose. Recovered solution will come out with force.
2. To flush the recovery tank, lift the control console to
access the recovery tank. Do not use water hotter
than 140°F (60°C) to clean tank. Damage may
occur.
3. Clean debris from sight dome and cover surface.
4. Clean off the float shut-off screen and inspect for
free movement of float.
5. Replace the drain cap and secure drain hose.
6. If machine is to be stored, tilt the recovery tank
back and prop the console up, partially opening
each.
Solution Tank
1. Pull the solution drain hose from its mounting
pocket. Lower hose in direction of drain.
2. Open the control console.
3. Flush the solution tank out with clean water and
run several gallons of clean water through sys-
tems. Do not use water hotter than 140°F (60°C) to
clean tank. Damage may occur.
NOTE: Never allow solution to remain in tank.
Damage to tank, seals and valves could occur.
DRAIN HOSE
SOLUTION
86398220 Operators Manual - Chariot-2 iScrub 20
RECOVERY
DRAIN HOSE
STORAGE POSITION
26
Operations
Models with Chemical Metering System
1. Remove chemical bottle at fill port as needed using quick disconnect fitting at base of chemical bottle.
2. Flush chemical system when not in use. Empty chemical bottle and refill bottle half way with clean water. Run
machine on the 4oz / gal dilution rate to purge chemical through the system until the chemical bottle is empty.
Set dilution rate for next cleaning.
Chemical Metering Controls
1. CHEMICAL METERING SELECTION SWITCH (OPTIONAL)
Three position switch controls dilution rates of 1, 2, and 4 oz/gal. Chemical metering is activated from the main
c o n t r o l p a n e l w i t h t h e r o t a r y s w i t c h , p o s i t i o n s m a r k e d w i t h :
86398220 Operators Manual - Chariot-2 iScrub 20
CHEMICAL SWITCH
ROTARY SWITCH
27
Notes:
86398220 Operators Manual - Chariot-2 iScrub 20
28
Maintenance
Service Schedule
MAINTENANCE BEFORE EACH
WORK PERIOD AFTER EACH
WORK PERIOD 50
HRS 100
HRS 200
HRS
Check water level of batteries after charging; add
distilled water if necessary. (Wet cell only) *
Visually check for damaged or worn tires. *
Check brush or pad for proper installation. *
Check vacuum hose connections. *
Check that squeegee is securely attached. *
Check for securely attached drain hoses, plug and cap. *
Check pedal, brake and steering for proper operation. *
Clean out recovery tank. *
Clean and inspect float shutoff. *
Clean out solution tank. *
Clean and inspect solution filter strainer. *
Run vacuum motor to dry. *
Clean brush or pad and check wear. *
Clean squeegee blades and check wear. *
Clean outside of tanks, check for damage. *
Store with console cover propped open. *
Charge batteries if needed. *
Empty and clean out debris bin. *
Clean off top of batteries. *
Check battery cells with hydrometer. (Wet cell only) *
Inspect scrub deck skirt. *
Clean solution strainer inside tank. *
Check battery connections are tight. *
Clean battery cases and battery compartment. *
Check parking brake. *
Clean pivot points on squeegee and scrub deck. *
Check all motors for carbon brush wear. *
Check motor commutators. *
Check steering chain tension. *
Check drive chain tension. *
86398220 Operators Manual - Chariot-2 iScrub 20
29
Maintenance
Batteries
1. Cover Retainer Latch
2. Rear Cover
3. Battery Connector-Machine
4. Batteries
5. Battery Tray
1
3
4
5
2
86398220 Operators Manual - Chariot-2 iScrub 20
30
Maintenance
Batteries (Wet Cell)
The batteries provide the power to operate the
machine. The batteries require regular maintenance to
keep them operating at peak efficiency.
The machine batteries will hold their charge for long
periods of time, but they can only be charged a certain
number of times. To get the greatest life from the
batteries, charge them when their charge level reaches
25% of a full charge. Use a hydrometer to check the
charge level.
Do not allow the batteries to remain in a discharged
condition for any length of time. Never expose a
discharged battery to temperatures below freezing.
Discharged batteries will freeze causing cracked
cases. Do not operate the machine if the batteries are
in poor condition or if they have a charge level below
25% (specific gravity below 1.155).
Keep all metallic objects off the top of the batteries, as
they may cause a short circuit. Replace worn or
damaged cables and terminals.
Check the electrolyte level in each battery cell before
and after charging the batteries. Never add acid to the
batteries, use distilled water. Do not allow water level to
fall below the battery plates. Portions of plates exposed
to air will be destroyed. Do not overfill. Keep plugs
firmly in place at all times.
Not all batteries require maintenance. AGM
batteries are maintenance free. Do not attempt to
remove sealed caps from AGM batteries. Warranty
is void if caps are removed from AGM battery.
L’entretien n’est pas nécessaire pour toutes les
batteries. Les batteries AGM ne nécessitent pas
d’entretien. N'essayez pas d'enlever les bouchons
scellés des batteries AGM. La garantie est annulée
si les bouchons sont retirés des batteries AGM.
86398220 Operators Manual - Chariot-2 iScrub 20
31
Maintenance
When servicing machine, avoid contact with
battery acid.
Lors de l'entretien de la machine, évitez tout
contact avec l'acide de batterie.
Batteries emit hydrogen gas. Explosion or fire can
result. Keep sparks and open flame away. Keep
covers open when charging.
Les batteries émettent du gaz hydrogène. Une
explosion ou un incendie peut en résulter.
Maintenez les étincelles et les flammes nues à
l’écart. Gardez les carters ouverts lors du charge-
ment.
Wear eye protection and protective clothing when
working with batteries.
Portez des lunettes de protection et des vêtements
de protection lorsque vous travaillez avec des
batteries.
Charge batteries in a well ventilated area.
Chargez les batteries dans un endroit bien ventilé.
Battery Maintenance
1. When cleaning the batteries, use a solution of
baking soda and water. Do not allow the cleaning
fluid to enter the battery cells, electrolyte will be
neutralized.
2. Maintain the proper electrolyte level in each battery
cell. If a cell should accidentally overflow, clean
immediately.
3. Wipe off the top of the batteries at least once a
week.
4. Test battery condition with a hydrometer at least
once a week.
5. Ensure that all connections are tight and all
corrosion removed.
6. Every 4 to 6 months, remove the batteries from the
machine and clean the battery cases and battery
compartment.
86398220 Operators Manual - Chariot-2 iScrub 20
32
Maintenance
Checking Battery Specific Gravity
Use a hydrometer to check the battery specific gravity.
CHECKING GRAVITY
a. Hydrometer Battery
b. Battery
NOTE: Do not take readings immediately after adding
distilled water, if the water and acid are not thoroughly
mixed, the reading may not be accurate.
Check the hydrometer readings against this chart.
NOTE: If the readings are taken when the battery
electrolyte is any temperature other than 80°F (27°C),
the reading must be temperature corrected.
To find the corrected specific gravity reading when the
temperature of the battery electrolyte is other than 80°F
(27°C): Add (+) to the specific gravity reading 0.004 (4
points), for each 10°F (6°C) above 80° (27°C). Subtract
(-) from the specific reading 0.004 (4 points), for each
10°F (6°C) below 80°F (27°C).
SPECIFIC GRAVITY
@ 80
°
F (27
°
C) BATTERY CONDITION
1.265 100% CHARGED
1.225 75% CHARGED
1.190 50% CHARGED
1.155 25% CHARGED
1.120 DISCHARGED
86398220 Operators Manual - Chariot-2 iScrub 20
33
Maintenance
Charging Batteries
When servicing machine, avoid contact with
battery acid.
Lors de l'entretien de la machine, évitez tout
contact avec l'acide de batterie.
Batteries emit hydrogen gas. Explosion or fire can
result. Keep sparks and open flame away. Keep
covers open when charging.
Les batteries émettent du gaz hydrogène. Une
explosion ou un incendie peut en résulter.
Maintenez les étincelles et les flammes nues à
l’écart. Gardez les carters ouverts lors du charge-
ment.
Wear eye protection and protective clothing when
working with batteries.
Portez des lunettes de protection et des vêtements
de protection lorsque vous travaillez avec des
batteries.
Charge batteries in a well ventilated area.
Chargez les batteries dans un endroit bien ventilé.
Use a 36 volt, 20 amp maximum output DC charger
which will automatically shut off when the batteries are
fully charged.
1. Stop the machine in a clean, well ventilated area
next to the charger.
2. Turn “OFF” machine.
FOR SAFETY: Before leaving or servicing machine;
stop on level surface, turn off machine and remove
key.
3. Open rear cover to expose batteries, unplug
batteries from machine.
Batteries emit hydrogen gas. Explosion or fire can
result. Keep sparks and open flame away. Keep
covers open when charging.
Les batteries émettent du gaz hydrogène. Une
explosion ou un incendie peut en résulter.
Maintenez les étincelles et les flammes nues à
l’écart. Gardez les carters ouverts lors du charge-
ment.
4. Check the electrolyte level in each battery cell.
Before charging, add just enough distilled water to
cover the plates. After charging is complete, add
just enough distilled water to bring up the level to
the indicator ring. If the water level is too high
before charging, normal expansion rate of the elec-
trolyte may cause an overflow resulting in a loss of
battery acid balance and damage the machine.
86398220 Operators Manual - Chariot-2 iScrub 20
34
Maintenance
5. Replace the battery caps, and leave them in place
while charging.
6. Unplug the battery connector from the machine.
FOR SAFETY: When charging, connect the
charger to the batteries before connecting the
charger to the AC wall outlet. Never connect the
charger to the AC wall outlet first. Hazardous
sparks may result.
7. Plug the charger connector into the battery
connector. Connect the charger AC plug to a wall
outlet. The charger gauge should indicate that the
batteries are charging.
8. When the batteries are fully charged, disconnect
the charger from the AC wall outlet, then discon-
nect the charger from the batteries.
9. Connect the batteries to the machine connector.
10. Check the electrolyte level. It should be up to the
indicator ring. If necessary, add distilled water.
11. Install the rear cover.
Changing Batteries
Stop the machine in a clean area next to the charger.
Turn off machine.
FOR SAFETY: Before leaving or servicing the
machine; stop on level surface, turn off machine
and remove key.
1. Open the console cover.
2. Tilt the rear cover/recovery tank back. The rear
cover/recovery tank can also be removed for better
access.
3. If equipped with optional on board charger, tilt
charger mount to rear of machine.
4. Disconnect battery pack from machine.
5. Use the proper size open end wrench to discon-
nect main ground wire first and secure cable
terminal away from batteries.
6. Disconnect main positive lead and secure cable
terminals away from batteries.
7. Loosen both terminals on each jumper cable and
remove one at a time.
8. Prepare a suitable site to place the batteries.
Attach suitable battery lifting device and lift
batteries from the machine. Batteries are a
potential environmental hazard. Consult your
battery suppler for safe disposal methods.
Fixez le dispositif de levage de batterie approprié et
levez les batteries de la machine. Les batteries
constituent un danger potentiel pour l'environne-
ment. Consultez le fournisseur de votre batterie
pour connaître les méthodes d'élimination sûres.
REDBLACK
RED
BLACK
RED
BLACK
REAR OF MACHINE
86398220 Operators Manual - Chariot-2 iScrub 20
35
Maintenance
Delta Q IC650 Charger Maintenance
Instructions
1. Do not expose charger to oil, dirt, mud or direct
heavy water spray when cleaning the vehicle or
machine.
2. The enclosure of the charger meets IP66, making it
dust-tight and protected against powerful water
jets. The AC inlet connection itself, when mated, is
rated to IP20, which is not protected against water.
Protect the AC connection if used in wet or dusty
environments.
3. If the detachable input power supply cord set is
damaged, replace with a cord that is appropriate
for your region:
- North America: UL or CSA listed / approved
detachable cord at least 1.8m in length (≥ 6 feet), 3
conductor, 16AWG minimum and rated SJT; termi-
nated in a grounding type IEC 60320 C14 plug
rated 250V, 13A minimum.
- All other regions: Safety approved detachable
cord, 3 conductor, 1.5mm² minimum, rated appro-
priately for industrial use. The cord set must be
terminated on one end with a grounding type input
connector appropriate for use in the country of
destination and, on the other end, an output
grounding type IEC 60320 C14 plug.
86398220 Operators Manual - Chariot-2 iScrub 20
36
Maintenance
Delta Q IC650 Charger Operating Instructions
- The charger may become hot during charging. Use hand protection to safely handle the charger during
charging.
- Extension cords must be a 3-wire cord no longer than 30m (100') at 10 AWG or 7.5m (25') at 16 AWG, per UL
guidelines.
1. The USB Host Port allows data to be transferred to and from the charger using a standard USB flash drive,
including the downloading of charge tracking data and updating of the charger’s software and / or charge
profiles.
2. The Charging Output Indicator means that the charger output is active, and there is a potential risk of electric
shock.
3. The Charge Profile / Error Display shows one of four possible codes to indicate different conditions:
- ‘F’ codes meaning that an internal fault condition has caused charging to stop.
- ‘E’ codes meaning that an external error condition has caused charging to stop.
- ‘P’ code meaning that the charger programming mode is active.
- ‘USB’ code meaning that the USB interface is active, and the USB flash drive should not be removed.
The ‘E,’ ‘F’ and ‘P’ codes will appear, then are followed by three numbers and a period to indicate different
conditions (e.g. E-0-0-4). “See the Charger Fault Codes” or “Charger Error Codes” sections for details on
these conditions and their solutions.
4. The Select Charge Profile Button is used to select a charge profile from those stored on the charger. Up to 25
charge profiles can be stored. See the “Selecting A Charge Profile” section for instructions.
86398220 Operators Manual - Chariot-2 iScrub 20
37
Maintenance
Selecting a Charge Profile
1. Disconnect AC input from the charger, or from the
wall outlet. Wait 30 seconds for the input relay to
open.
Figure 1:
Disconnect AC
input from the
charger.
2. While reconnecting AC input, press and hold
Select Charge Profile button. Hold the button until
Error Indicator is on and Battery Charging Indicator
starts flashing.
Figure 2:
Reconnect AC
input while
holding the
Select Charge
Profile Button.
3. Press and release the Select charger Profile
Button to advance through charging profiles loaded
on the charger. The selected charging profile will
be displayed up to three times (e.g. “P-0-1-1” for
Profile 11).*
Figure 3:
Press the
Select Charge
Profile Button
to advance
through the
charge
profiles. Hold
the button for
10 seconds to
confirm your
selection.
*Process will time out and profile will remain
unchanged if there is 15 seconds of inactivity, a profile
number is allowed to display three times, or if AC power
is cycled.
4. Once desired charging profile is displayed, press
and hold button for 10 seconds (see Figure 3) to
confirm selection and exit Profile Selection Mode.
5. Press the Select Charge Profile Button to check
that the desired profile is selected.
Use this table to record the charging profiles on
your charger.
Profile Logic
Profiles #42, 62 and 73 are programmed to automati-
cally restart a charge cycle after 14 days or 1.8V/cell
have been reached by the batteries if the charger
remains connected to AC power.
NOTE: Each profile is programmed to optimize the
life and performance of their corresponding battery,
contact the manufacturer before changing battery
charger profiles.
86398220 Operators Manual - Chariot-2 iScrub 20
38
Maintenance
Configuring the IC650 Charger Using a USB Flash Drive
Using the Delta Q software, USB storage drives can be pre-programmed to certain charger configuration.
To use the USB port, follow these steps:
1. Insert the USB flash drive at any time, except during a charge cycle. Stop the charge cycle by removing AC
power or the DC connection to the batteries. The charger will power the USB port from the remaining AC
connection.
2. If there is enough disk space, the charger will write charge tracking data to the drive. The Fault/Error/USB
Indicator will flash green during reading and writing.
3. If the drive contains compatible configuration files, the charger will load them.
4. The IC650 Charger will briefly reset.
5. Remove the drive when the Fault/Error/USB Indicator is solid green.

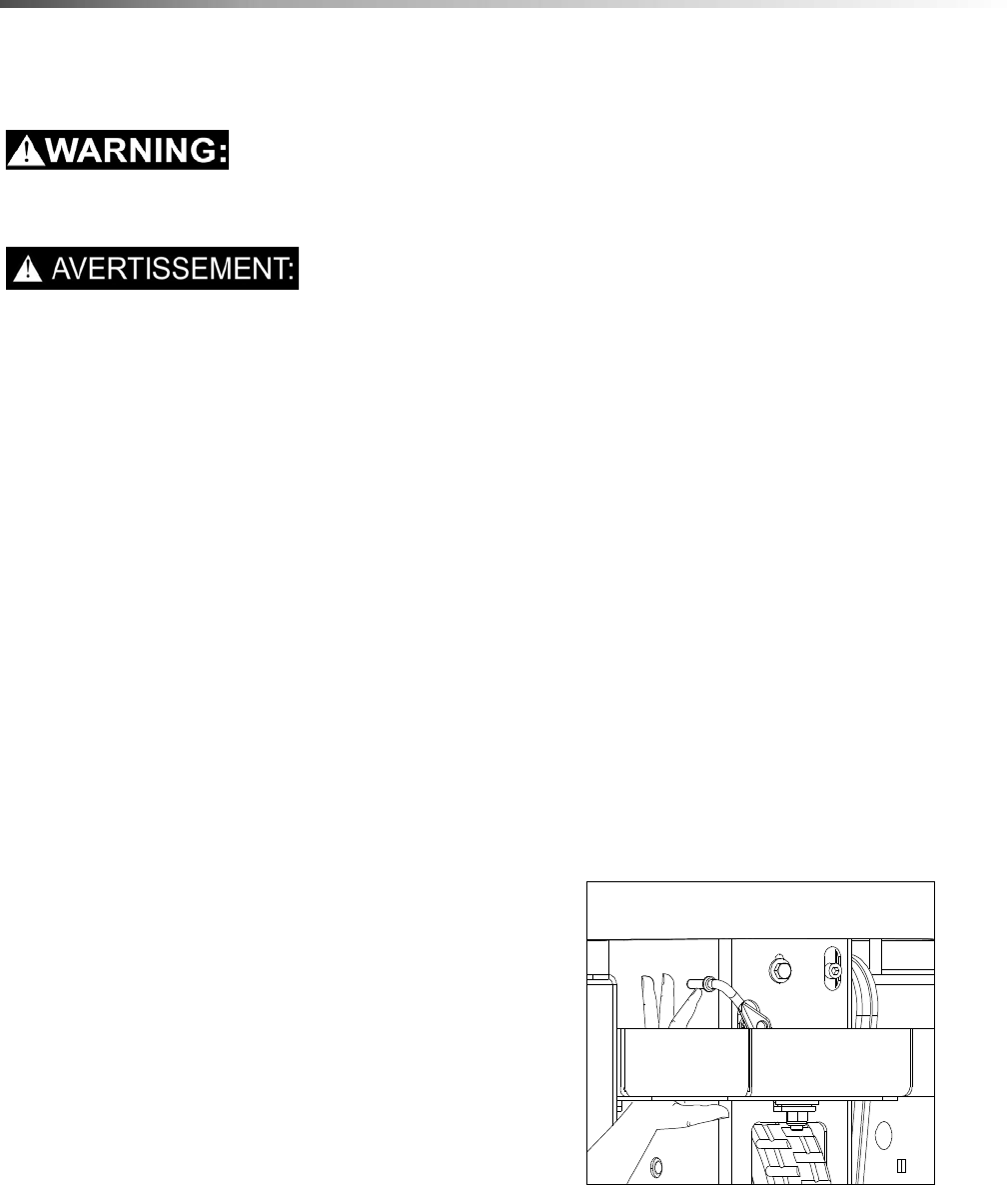

Figure 4, Insert the USB flash drive to begin the reprogramming process. When complete, the Fault/Error/USB
Indicator will be solid green as shown.
Troubleshooting
If the alarm indicator flashes amber, note the error code and retry the update. If there is no response to inserting
the USB drive when the charger is being used off-board, check that AC power is available and connected. If the
charger is installed on-board, ensure that the charger either has AC power and / or batteries are connected.
Confirming a Software Update
After using a USB flash drive to update the charger firmware, the update can be confirmed by reviewing the .txt file
written to the flash drive by the charger. It will be located in the folder labelled ‘syslog’ (e.g.
F:\CHARGER\RESP\serialno\syslog\00000000.txt).
Open this file using a text editing program such as Notepad or Microsoft Word. If the update has been successful,
near the end of the text you will see a description resembling “SM Task: Successful upgrade at
Major[001].Minor[991].Build[000]variant[008].”
86398220 Operators Manual - Chariot-2 iScrub 20
39
Maintenance
Charge Tracking Data
All IC650 Chargers record data such as amp hours returned, charge cycle completion or interruption, and the
charge profile being used. This data can be very useful in vehicle or machine diagnostics.
To retrieve this data, follow these steps:
1. After a charge cycle is complete, or the charger is disconnected from the battery pack, insert a USB flash drive
with at least 2MB of free space into the IC650 Charger’s USB hose port. The charger will automatically begin
to downlad the data, shown on the Fault/Error/USB Indicator with a flashing green light.
If you plan to download data from a large number of chargers, having more free space on your USB flash drive is
recommended. If you want to update the software on only some of your chargers, it is recommended that you use
separate USB flash drives for updating and downloading charge tracking data.
Figure 5, Insert the USB flash drive to begin the charge data download process. This step can be completed using
the same USB flash drive programmed to update the charger’s software. The process is completed when the USB
indicator is solid green, and no longer flashing.
2. The downloading process is complete when the Fault/Error/USB Indicator is solid green. The USB flash drive
can be removed from the charger.
86398220 Operators Manual - Chariot-2 iScrub 20
40
Maintenance
1. Squeegee
Retainer Latch
2. Squeegee
Squeegee Blades - Disk / Orbital
The front squeegee blade allows solution to pass
through channels in the blade into the squeegee
assembly while maintaining vacuum to provide lift. The
front blade has four wear surfaces and can be rotated
for extended life. The front blade should not require
regular replacement under normal use.
The rear blade wipes the floor to a near dry condition. It
is important the rear blade be in good condition to
properly do its job. As with the front, each squeegee
blade assembly has four wear surfaces for extended
service.
Check both the front and rear squeegee blades for
damage and wear each day in the pre-run check.
Change the front blade if it is torn or has an uneven
edge. Change the rear blade if it is less than half the
original thickness.
To Remove Squeegee Assembly
1. With the squeegee in the up position, turn key
switch “OFF”.
2. Disconnect vacuum hose from squeegee and
squeeze the squeegee retaining latch.
3. Pull squeegee assembly from the squeegee arm.
4. Inspect or repair as necessary and reinstall.

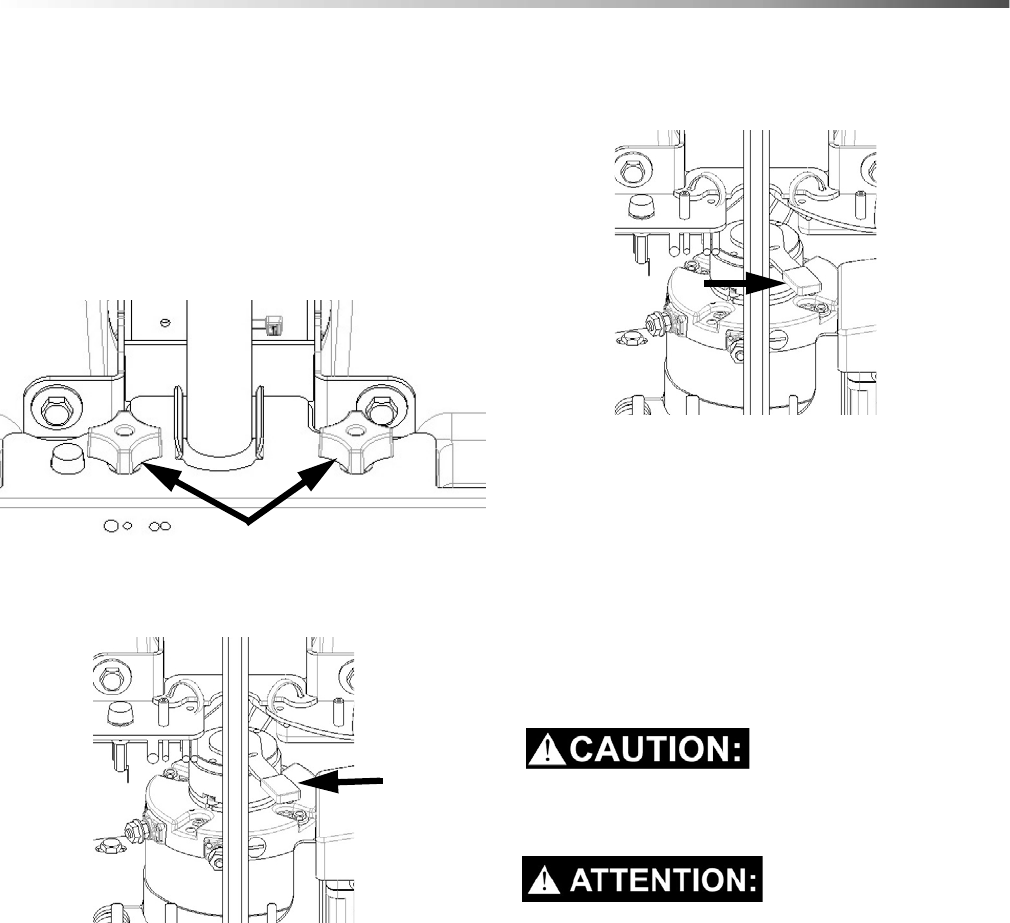

To Replace or Rotate Squeegee Blades
1. With the squeegee in the up position, turn key
switch “OFF”.
FOR SAFETY: Before leaving or servicing machine;
stop on level surface, turn off machine and remove
key.
2. Remove the squeegee assembly from the
machine.
3. Unscrew each of the four (4) knobs until they are
nearly removed from the squeegee assembly.
Grasp the squeegee assembly and push on the
knobs to remove the blade retainer.
Remove the knobs and pull the blade retainer out.
Rotate the squeegee blade to new edge position or
replace as required. Each blade has four (4) new
edge positions.
4. Pull the blades off the retainer.
To reinstall the blades, hook the blades over the
pins on the retainer plate.
5. Lower the retainer with blades back in position in
the squeegee assembly and install the knobs.
86398220 Operators Manual - Chariot-2 iScrub 20
1
2
DISK
41
Maintenance
Squeegee Blades-Cylindrical
The front squeegee blade allows solution to pass
through channels in the blade into the squeegee
assembly while maintaining vacuum to provide lift. The
front blade has two (2) wear surfaces and can be
rotated for extended life. The front blade should not
require regular replacement under normal use.
The rear blade wipes the floor to a near dry condition. It
is important the rear blade be in good condition to
properly do its job. As with the front, each squeegee
blade assembly has two (2) wear surfaces for extended
service.
Check both the front and rear squeegee blades for
damage and wear each day in the pre-run check.
Change the front blade if it is torn or has an uneven
edge. Change the rear blade if it is less than half the
original thickness.
To Remove Squeegee Assembly
1. With the squeegee in the up position, turn key
switch “OFF”.
2. Disconnect vacuum hose from squeegee and
squeeze the squeegee retaining latch.
3. Pull squeegee assembly from the squeegee arm.
4. Inspect or repair as necessary and reinstall.
To Replace or Rotate Squeegee Blades
1. With the squeegee in the up position, turn key
switch “OFF”.
FOR SAFETY: Before leaving or servicing machine;
stop on level surface, turn off machine and remove
key.
2. Remove the squeegee assembly from the
machine.
3. Unscrew two yellow thumb screws. Remove
bumper wheels and plastic end caps.
4. Slide squeegee blade(s) out the end of the
squeegee.
5. Reverse procedure to install new blades.
Squeegee Adjustment
Adjust squeegees to improve contact between
squeegees and floor during cleaning modes, and
ensure clearance when in transport mode.
1. Turn machine on and put rotary switch into function
mode B (Vacuum only mode). Let deck position
itself.
2. Turn machine off.
3. Loosen nut that secures the Deck Adjustment
Bracket to the Squeegee Mount Bracket, to allow
the squeegee assembly to rest its wheels on the
floor.
4. Position deck adjustment bracket so that there is
approximately 1/8” of gap between the deck adjust-
ment bracket and the deck lift bar and tighten nut.
5. Turn machine on and assure squeegee lifts off of
ground when in transport mode, and is on the
ground in vacuum only mode.
1/8"
Deck Lift Bar
Deck Adjustment Bracket
Squeegee Mount
Squeegee Assembly
Floor
Bracket
86398220 Operators Manual - Chariot-2 iScrub 20
1
2
CYLINDRICAL
1. Squeegee
Retainer Latch
2. Squeegee
42
Maintenance
1. Scrub Deck Side
3. Scrub Deck Lift Actuator
2. Scrub Brush Motor
SCRUB DECK ORBITAL
1. Scrub Deck Side
3. Scrub Deck Lift Actuator
2. Scrub Pad Motor
1. Scrub Deck Side
3. Scrub Deck Lift Actuator
2. Scrub Brush Motor
21
3
2
3
1
2
1
3
SCRUB DECK DISK
SCRUB DECK CYLINDRICAL
86398220 Operators Manual - Chariot-2 iScrub 20
43
Maintenance
Scrub Brush-Disk
There are different types of brushes available to cover
applications from cleaning heavily soiled floors to
polishing. A pad driver is also available to take
advantage of the many cleaning pads on the market.
Please refer to the following to assist in selecting the
proper brush or pad for the work at hand.
Scrub Brush-Orbital
The orbital machine is designed for use on finished
floors. The pad driver is fixed to the machine and
accepts various pad types depending on the work to be
performed.
NOTE: Do not attach aggressive (stripping) pads
directly to pad driver. Damage to pad driver may
result.
Scrub Brush-Cylindrical
There are different types of brushes available to cover
applications from cleaning heavily soiled floors to
polishing.
White (Soft)
Orange (Hi/Lo)
Red (Medium)
Green (Hard)
Finished Floors
Polypropylene is a general-purpose scrub brush with
stiff bristles. Polypropylene works well for maintaining
routed tile floors.
Nylon bristles are used in a variety of applications on
coated or uncoated surfaces.
White Pads (Polishing) are used for dry polishing to
achieve a high-gloss appearance, or surface washing
on highly polished or burnished floors.
Red Pads (Buffing) are used for light-duty scrubbing.
When used with a mild detergent they will provide
surface cleaning without removing the finish.
Blue Pads (scrubbing) are used for heavy scrubbing
and light top scrubbing. The blue pads remove black
marks, stains and dirt. The blue pad may also remove
some floor finish.
Black pads (top scrubbing) are used to remove ground
in soil and the top layers of floor finish to prepare for re-
coating.
The scrub brushes should be checked before each
days work for wire, string, wear and damage.
86398220 Operators Manual - Chariot-2 iScrub 2086398220 Operators Manual - Chariot-2 iScrub 20
44
Maintenance
Replacing or Installing Scrub Brushes
(Disk)
FOR SAFETY: Before leaving or servicing the
machine; stop on level surface, turn OFF machine
and remove key.
1. Turn machine power off.
2. Open access cover on deck shroud.
3. Locate release lever, press release lever towards
front of machine to release brush pad. The pad will
drop down when released. Lift deck shroud up and
slide brush/pad assembly out.
4. Remove brush/pad from holder and replace with
new brush/pad.
5. To reinstall, lift deck shroud upward as shown.
Center the brush/pad driver under the brush drive
hub.
Raise brush/pad until it contacts brush driver
assembly. Turn clockwise until release lever plate
locks into position.
6. Check that release lever/plate is completely closed
and pad/brush is securely attached.
NOTE: Damage to driver or brush could occur if not
securely attached.
Replacing or Installing Scrub Pad (Orbital)
FOR SAFETY: Before leaving or servicing the
machine; stop on level surface, turn OFF machine
and remove key.
1. Turn machine power off.
2. Slide pad under machine deck. Center pad on pad
driver and press together.
Replacing or Installing Scrub Brushes
(Cylindrical)
FOR SAFETY: Before leaving or servicing the
machine; stop on level surface, turn OFF machine
and remove key.
1. Turn machine power off.
2. From right side of machine, lift squeegee latch and
swing side squeegee outward to access brushes.
Squeegee Latch
86398220 Operators Manual - Chariot-2 iScrub 20
45
Maintenance
3. Press brush release. Brushes will drop downward.
Remove old brushes.
4. Slide new brushes into receptacle at far side of
deck, lift upward and snap into position. Ensure
brushes are secure.
5. Close side squeegee and latch securely.
Removal or Installation of Debris Bin
(Cylindrical)
NOTE: On models with chemical metering system,
scrub deck needs to be lowered to remove debris bin.
1. From right side of machine, lift debris bin and sllde
out.
2. Re-install in reverse order.
Brush
Release
86398220 Operators Manual - Chariot-2 iScrub 20
Debris Bin
Slide out
46
Maintenance
Do not use a pressure washer to clean around the brush motors. Use tap pressure only.
N’utilisez pas de nettoyeur haute pression pour nettoyer autour des moteurs des brosses. Utilisez
seulement la pression du robinet.
To Replace Scrub Brush Motor - Disk
With the scrub deck in the lowered position, disconnect brush motor wiring connector from harness.
1. Disconnect the two(2) connectors from solenoid valve.
2. Remove squeegee.
3. Remove front bumper.
4. Remove four (4) front bolts connecting deck lifting arms to front of machine.
5. Lift deck and side deck lift brackets off actuator lifting pin.
6. Slide deck out from under machine on right side, orientation is determined from operators view.
7. Remove brush/pad.
8. Remove driver.
9. Remove three (3) screws securing brush motor to deck.
10. Remove brush motor.
11. Reverse steps to install.
To Replace Scrub Brush Motor - Orbital
With the scrub deck in the lowered position, disconnect brush motor wiring connector from harness.
1. Disconnect electrical connections.
2. Remove squeegee.
3. Remove front bumper.
4. Remove four (4) front bolts connecting deck lifting arms to front of machine.
5. Lift deck and side deck lift brackets off actuator lifting pin.
6. Slide deck out from under machine on right side, orientation is determined from operators view.
7. Remove pad driver.
8. Remove counterweight and orbital mechanism.
9. Remove four (4) bolts mounting motor to deck frame.
10. Remove motor.
11. Reverse steps to install.
86398220 Operators Manual - Chariot-2 iScrub 20
47
Maintenance
Do not use a pressure washer to clean around the brush motors. Use tap pressure only.
N’utilisez pas de nettoyeur haute pression pour nettoyer autour des moteurs des brosses. Utilisez
seulement la pression du robinet.
To Replace Scrub Brush Motor-Cylindrical
1. Lower scrub deck using selector knob. Turn off key in down position.
2. Disconnect the two connectors from solenoid valve.
3. Remove squeegee assembly.
4. Remove front bumper, 2 bolts.
5. Remove four front bolts connecting deck lifting arms to front of machine.
6. Remove actuator lifting pin and washers.
7. Remove solenoid valve and cover, 2 screws.
8. Disconnect motor plug from harness.
9. Slide deck out from under machine on right side, orientation is determined from operators view.
10. Remove metal cover over motor by removing 10 screws mounting to deck.
11. Remove screws mounting motor to drive housing and remove motor.
12. Reverse steps to install.
86398220 Operators Manual - Chariot-2 iScrub 20
48
Maintenance
Scrub Deck Actuator Removal / Replacement
FOR SAFETY: Before leaving or servicing machine, stop on a level surface. Turn off machine.
1. Support deck under pad driver so that actuator pins can be removed.
2. Remove bumper screws (2).
3. Remove front battery.
4. Pull steering shaft.
5. Disconnect actuator from wiring harness.
6. From the underside of the machine, remove lower lifting pin from actuator.
7. Remove clevis pin from actuator upper bracket.
8. Lift actuator upward and free from machine.
9. Reverse steps to install.
86398220 Operators Manual - Chariot-2 iScrub 20
49
Maintenance
Circuit Protection
Circuit Breakers
Circuit breakers interrupt the flow of power in the event of an electrical overload. When a circuit breaker is tripped,
reset it by pressing the exposed button. If a circuit breaker continues to trip, the cause of the electrical overload
should be found and corrected.
1.5 Amp protects the brush deck lift actuator, horn & controller.
18 Amp protects the vacuum motor.
12 Amp protects the brush motor - Disk / Orbital.
25 Amp protects the brush motor - Cylindrical.
CIRCUIT BREAKERS
86398220 Operators Manual - Chariot-2 iScrub 20
50
Maintenance
Solution
1. Solution Strainer-Coarse
2. Shut-off Valve
3. Solenoid Valve
1
3
2
CYLINDRICAL
3
86398220 Operators Manual - Chariot-2 iScrub 20
51
Maintenance
1. SOLUTION STRAINER
Located in bottom of tank. The strainer protects the ball valve and solenoid valve from debris. If the ball valve
and solenoid valve are not working, then check the strainer for debris.
Drain the solution tank.
Reach down to the strainer and remove debris. If the strainer can not be cleaned in place remove strainer.
To remove the strainer, rotate the strainer counterclockwise.
Clean out the debris from wire mesh and re-assemble.
2. SHUT-OFF FLOW VALVE
Located below the solution tank on the right side. If no flow, check lever position.
Horizontal is no flow.
Up is maximum flow.
If clogged, in the maximum position, unscrew fittings, inspect and clean if needed.
3. SOLENOID VALVE
The solenoid valve shuts off solution flow to scrub deck whenever scrubbing stops.
The solenoid valve is mounted on the front of the scrub deck, on left side.
Shut off manual water supply valve on right side of machine.
Disconnect the two (2) spade connections.
The solenoid valve snaps into place, rock the solenoid valve back and forth while lifting to free it.
Remove valve from supply hose.
86398220 Operators Manual - Chariot-2 iScrub 20
52
Maintenance
Tank Assembly Removal
In order to access the frame or drive components, the
entire tank/console cover assembly can be removed as
a single unit.
Tank Removal:
1. Open the console cover.
2. Tilt the recovery tank back until it stops on the
lanyard.
3. Remove the recovery tank vacuum hose from its
connection at the rear cross member.
4. Tilt the recover tank slightly forward and disconnect
the lanyard. Lean the recovery tank back until it
contacts the floor. Lift the tank and back panel from
the hinge pin and set aside.
5. Disconnect the squeegee vacuum hose from the
connection at the rear cross member.
6. Grasp the lower end of the flexible steering shaft
and pull it straight up until it is disengaged with the
hex steering shaft. Place the loose end into one of
the fill ports.
7. Remove the cover and gasket at the steering shaft
area.
8. Disconnect the electrical plugs located just forward
of the battery tray. To disconnect, lift the plugs off of
their mounting plate, locate and depress the lock
tab and pull the connectors apart. Replace the
lower half of the connectors on to the support plate
after the tank assembly has been removed.
9. Remove the battery cable connection from the rear
cross member.
10. Close the console cover.
11. Locate the solution solenoid valve on the left side
of the scrub deck. Remove two electrical wires
from the valve. The wires are interchangeable. Lift
the valve out of its mount pocket and move the
valve and connected hose over to the right side of
the machine. It is not necessary to remove the
valve or hose from the solution tank.
12. Remove the bumper. One mounting bolt per side is
located just above the tip pads on the inside.
13. Remove 5 bolts holding the tank in place.
14. The tank assembly can now be lifted off the
chassis and set aside.
15. Support the tank assembly so that the weight of it
is not resting on the solution valve plumbing.
16. The lower half of the electrical connectors can now
be easily placed on to their support plate.
17. Reverse the process for reassembly. Refer to the
electrical diagrams for connections.
86398220 Operators Manual - Chariot-2 iScrub 20
53
Maintenance
Drive Unit Removal
1. Remove tank assembly.
2. Pull the brake and drive electrical connectors off of
their support plate.
3. Remove the P-clamp holding the cable.
4. Lift the chain cover plate off of the motor.
5. Support the chassis on the tip pads so that the
front wheel is 10 inches off the floor.
6. Locate and remove two mounting nuts and remove
the drive unit from below.
7. To reinstall, reverse the process.
8. Note the small tab at the front of the drive unit
frame should line-up with the notch in the mating
plate.
86398220 Operators Manual - Chariot-2 iScrub 20
54
Maintenance
Vacuum & Float Shutoff
1. Recovery Tank Float Shut-off
2. Vacuum Motor
1
2
86398220 Operators Manual - Chariot-2 iScrub 20
55
Maintenance
Recovery Tank Float Shut-off
When water is no longer being vacuumed from the floor
and the vacuum fan is operating, the ball float has
engaged. The vacuum motor will not vacuum water
with recovery tank full. The recovery tank must be
drained.
1. The float shut-off screen can be cleaned in or out
of the machine.
2. To clean the float shut-off while it is inside the
machine wipe material off screen then rinse. Check
that the ball is also clean and moves freely.
3. To remove the float shut-off, grasp the screen with
one hand and the connected tube with the other.
Tilt and pull the float screen assembly to pull it off
the barb on the tube.
4. To install, place one hand on the tube, and then tilt
and push the float screen assembly over the barb
on the tube.
Vacuum Motor Carbon Brush Replacement
FOR SAFETY: Before leaving or servicing
machine, stop on a level surface, turn off machine
and disconnect power.
To Repair or Replace Vacuum Motor
1. Remove four (4) screws from top of control panel.
2. Tip control panel back from console to expose
vacuum motor wires.
3. Disconnect electrical connector from the vacuum
motor.
4. Replace control panel, attach with one (1) screw to
secure in place.
5. Open console.
6. Remove three (3) screws that secure vacuum
motor.
7. Reverse steps to install.
NOTE: If vacuum motor is not mounted as shown,
vacuum may not seal properly, resulting in poor
performance.
MOUNT .80" FROM SEALING SURFACE OF
CONSOLE TO THE TOP OF THE MOUNTING
TABS (3).
VACUUM
CONSOLE SEALING
.80"
MOUNTING TAB
SURFACE
86398220 Operators Manual - Chariot-2 iScrub 20
3
8 [9.5mm]
Vacuum Motor Carbon Brushes
Carbon
Brushes
End Cap
If armature commutator is grooved, extremely pitted or not
concentric, the motor will need to be replaced or sent to a
qualified service center.
Inportant:
These brushes wear quicker as the length shortens due to
increased heat. Spring inside brush housing will damage
motor if brushes are allowed to wear away completely.
Periodically check the length of the carbon brushes. Replace
both carbon brushes when either is less tan 3/8" (9.5mm)
long.
56
Maintenance
Drive Motor-From Serial Number (4*)
Drive Motor Carbon Brush Replacement
Do not use a pressure washer to clean around the
brush motors. Use tap pressure only.
N’utilisez pas de nettoyeur haute pression pour
nettoyer autour des moteurs des brosses. Utilisez
seulement la pression du robinet.
FOR SAFETY: Before leaving or servicing machine,
stop on a level surface, turn off machine and remove
motor carbon brushes.
1. Open the console cover.
2. Tilt the rear panel back until it stops on the lanyard.
3. Grasp the lower end of the flexible steering shaft
and pull it straight up until it is disengaged with the
hex steering shaft.
4. Remove the cover and gasket at the steering shaft
area.
5. Grasp the drive wheel by reaching under the front
bumper and turn it to near the left steering stop.
6. The drive motor carbon brushes are located under
the metal band. Remove the band to access the 4
brushes.
7. Remove the phillips screw that holds each lead.
Remove the brushes.
8. Install the new brushes and reinstall the band.
9. Replace the gasket and cover, set the drive wheel
straight ahead, set the steering wheel straight
ahead, and gently align the steering shaft coupling
and slide onto the lower shaft.
10. Slowly close the cover and make sure the shaft
slides without binding.
Drive Chain Tension
The drive chain should deflect about 1/4 inch on either
side of the loop when the opposite side is tight.
To adjust chain tension:
1. Remove bumper.
2. Loosen the 1/4” nut behind the idler sprocket.
3. Tighten the front screw to increase chain tension.
4. re-tighten the 1/4” nut behind the idler.
5. Reinstall the bumper.
Transporting Machine
This machine is equipped with a drive gear engage-
ment/disengagement lever.
The brake automatically engages and keeps the
machine from moving whenever the operator stops the
machine.
The drive gear can be disengaged so the machine can
be pushed or towed (slowly).
When the drive gear is disengaged the machine cannot
be driven.
Lever access
Turn wheel to the right and remove internal cover plate.
86398220 Operators Manual - Chariot-2 iScrub 20
57
Maintenance
Brake Override
1. Disconnect battery to prevent injury.
2. Turn wheel slightly to the right.
3. Remove the knobs that hold the access panel in
place. Then remove the access panel.
NOTE: The access panel is located near the
batteries.)
4. Push the lever as indicated to disengage the
brake.
5. Push the machine slowly. Take care as voltage is
generated while pushing the machine and may
cause the controller to temporarily stop the
machine.
6. To re-engage the brake, push the lever as indi-
cated.
7. Reinstall the access panel and reconnect the
batteries.
Inclines
When navigating an incline the machine may come to a
stop. Turn the machine off. Wait 5 minutes and start the
machine and proceed up the incline.
Overheating may occur if you do not wait the full 5
minutes.
Une surchauffe peut se produire si vous n'attendez
pas les 5 minutes complètes.
Knobs
86398220 Operators Manual - Chariot-2 iScrub 20
58
Maintenance
Drive Motor-Prior to Serial Number(4*)
Drive Motor Carbon Brush Replacement
Do not use a pressure washer to clean around the
motors. Use tap pressure only.
N’utilisez pas de nettoyeur haute pression pour
nettoyer autour des moteurs des brosses. Utilisez
seulement la pression du robinet.
FOR SAFETY: Before leaving or servicing
machine, stop on a level surface, turn off machine
and remove motor carbon brushes.
1. Open the console cover.
2. Tilt the recovery tank back until it stops on the
lanyard.
3. Grasp the lower end of the flexible steering shaft
and pull it straight up until it is disengaged with the
hex steering shaft. Place the loose end into one of
the fill ports.
4. Remove the cover and gasket at the steering shaft
area.
5. Grasp the drive wheel by reaching under the front
bumper and turn it to near the left steering stop.
6. The drive motor carbon brushes are located under
screw caps. The caps are accessible by gently
moving the harness aside.
7. Rotate the drive wheel to near the right hand stop
to access the right side carbon brush.
8. Replace the gasket and cover, set the drive wheel
straight ahead, set the steering wheel straight
ahead, and gently align the steering shaft coupling
and slide onto the lower shaft.
9. Slowly close the cover and make sure the shaft
slides without binding.
Drive Chain Tension
The drive chain should deflect about 1/4 inch on either
side of the loop when the opposite side is tight.
To adjust chain tension:
1. Remove bumper.
2. Loosen five (5) 10mm screws that hold the drive
gear motor and slide the gear motor up until the
chain tension is correct. Retighten the five (5)
mounting bolts.
3. Reinstall the bumper.
Transporting
Pushing Machine
This machine is equipped with a drive gear engage-
ment/disengagement lever.
The brake automatically engages and keeps the
machine from moving whenever the operator stops the
machine.
The drive gear can be disengaged so the machine can
be pushed or towed (slowly).
When the drive gear is disengaged the machine cannot
be driven.
NOTE: Front bumper removed for clarity and to show
access to lever.
Lever access
Turn wheel to left and reach up under bumper and steel
bracket.
86398220 Operators Manual - Chariot-2 iScrub 20
59
Maintenance
Drive gear engaged
Machine can be driven.
Rotate lever firmly in direction of arrow.
Drive gear disengaged
Machine can be pushed or towed (slowly).
When disengaged the machine rolls easily. Disengage
on a level surface.
Rotate lever firmly in direction of arrow.
Inclines
When navigating an incline the machine may come to a
stop. Turn the machine off. Wait 5 minutes and start the
machine and proceed up the incline.
Overheating may occur if you do not wait the full 5
minutes.
Une surchauffe peut se produire si vous n'attendez
pas les 5 minutes complètes.
86398220 Operators Manual - Chariot-2 iScrub 20
60
Maintenance
Preparation for Loading/Unloading Trailer
Before loading or unloading machine from trailer, remove squeegee and scrub brush (pad) to eliminate interference
with ramp.
Scrub head must be in the up position before loading.
When transporting the machine on a trailer or in a truck, in addition to using tie-downs, be sure to block the tires to
prevent the machine from rolling.
Machine Tie-Downs
There are two tie points located in front of the rear wheels on the frame, and a Tie-down wrap point on the recovery
tank. Tie-down devices must be of the proper type and strength. The combined strength of all tie-downs must be
strong enough to lift two times the weight of the machine. Tie-downs must be positioned to prevent the machine
from moving forward, backward, or either side to side. Use all four corners of the machine with the tie-downs
running out opposite directions. Tie-downs must be attached to the transporting vehicle securely.
86398220 Operators Manual - Chariot-2 iScrub 20
CONNECT
AT
FRAME
VIEW FROM
BOTTOM
Recommended Tie-Down Points
61
Maintenance
Machine Tie-Downs (Deluxe)
There are two tie points located in front of the rear wheels on the frame, one on the front bumper tie-down bar, and
a Tie-down wrap point on the recovery tank. Tie-down devices must be of the proper type and strength. The
combined strength of all tie-downs must be strong enough to lift two times the weight of the machine. Tie-downs
must be positioned to prevent the machine from moving forward, backward, or either side to side. Use all four
corners of the machine with the tie-downs running out opposite directions. Tie-downs must be attached to the trans-
porting vehicle securely.
86398220 Operators Manual - Chariot-2 iScrub 20
CONNECT
AT
BUMPER
Recommended Tie-Down Points
CONNECT
AT
FRAME
VIEW FROM
BOTTOM
62
Maintenance
Troubleshooting
PROBLEM CAUSE SOLUTION
No machine function Console lid is open Close console lid
No power to machine Battery disconnected Check all battery cable connections
Emergency shut-off activated Reset
Battery cables corroded Clean connections
Faulty key switch Replace switch
Batteries not plugged in Plug batteries in
On Board charger plugged in Un-plug and stow cord
Little or no propel Low battery charge Charge batteries
Tripped circuit breaker Reset controller circuit breaker
Controller protecting motor from overload Controller limits motor amperage. Allow
unit to cool down for several minutes.
Machine is stalled against an obstacle
(threshold, curb, etc.)
Remove obstacle or push machine away
from obstacle
Controller overheated Allow cool down period
Loose motor connection Check wires and connections from
controller to motor
Faulty throttle circuit or potentiometer Check wires and connections from and
potentiometer resistance
Drive Lever disengaged Engage drive
Machine does not
change speeds Faulty speed control circuit or switch Check wires & connections
Forward speed only
Reverse speed only Faulty forward/reverse circuit Check wires & connections
Poor or no water pickup Debris caught on squeegee Remove debris
Worn squeegee blades Rotate or replace squeegee blades
Vacuum hose clogged Clear obstruction from hose
Vacuum hose disconnected from squeegee
or recovery tank Reconnect vacuum hose
Recovery tank float system dirty Clean float system
Recovery tank not sealed Latch console cover
Check or replace damaged gasket
Vacuum circuit breaker tripped Reset circuit breaker
Float-ball shut-off engaged tank full Empty recovery tank
Foam filling recovery tank Empty recovery tank. Use less or different
detergent. Use defoamer
Battery indicator light
flashing Battery needs charged Charge Battery
Controller is indicating a fault code See fault code table
86398220 Operators Manual - Chariot-2 iScrub 20
63
Maintenance
PROBLEM CAUSE SOLUTION
Vacuum motor does not run, or
runs slowly Faulty vacuum circuit or switch Check wires & connections
Worn vacuum motor brushes Replace brushes, check commutator
Vacuum circuit breaker tripped Reset circuit breaker
Poor scrubbing performance Debris caught in scrub brush Remove debris
Worn brush or pad Replace brushes or pads
Improper detergent, brush or pad used Contact equipment or application
specialists
Low battery charge Charge batteries
Little or no solution flow to the
floor Solution tank empty Fill solution tank
Solution strainer plugged Clean solution strainer
Solution system plumbing obstructed Clear obstruction from plumbing
Solution solenoid valve obstructed or
stuck
Solution solenoid valve obstructed or
stuck
Solution metering valve is closed Open metering valve
Faulty solenoid Check solenoid valve
Brush motor does not run, or
runs slowly Circuit breaker tripped Reset circuit beaker
Low battery charge Charge battery
Faulty brush circuit or motor Check wires, connections and motor
Worn brush motor brushes Replace brushes, check commutator
Squeegee won’t go down Squeegee in double scrub mode Release squeegee from double scrub
mode
Deck won’t go down Actuator circuit breaker tripped Reset actuator circuit breaker
86398220 Operators Manual - Chariot-2 iScrub 20
64
Maintenance
Battery Discharge Indicator Troubleshooting
The battery indicator flashes when a problem occurs. The table below list solutions for the indicated problems.
Number of
flashes Problem Solution
1
The battery needs charging, there is a bad connection to
the battery or dependent on the programming, may
indicate that the battery lockout function is active and the
controller is in a restricted mode of operation. Check the
connections to the battery.
If the connections are good, try
charging the battery.
2There is a bad connection to the drive motor. Check all connections between the
motor and the controller.
3The drive motor has a short circuit to a battery connection. Contact your service agent.
4
The battery charge level has fallen below the battery
Lockout Level and the controller is inhibiting scrub motor
function.
Charge the battery.
5Not used. -
6
The controller is being inhibited from driving, this may be
because the battery charger is connected (on board
charger only).
Disconnect battery charger.
7
A throttle fault is indicated. Make sure that the throttle is in the
rest position before switching on the
machine.
8A controller fault is indicated. Make sure that all connections are
secure.
9
The parking brake has a bad connection. Check the parking brake and motor
connections. Make sure the
controller connections are secure.
10 An excessive voltage has been applied to the controller.
This is usually caused by a poor battery connection.
Check the battery connections.
