Windsor Radius 28 Walk Behind Floor Sweeper Parts Manual
2017-01-03
: Sweepscrub Windsor-Radius-28-Walk-Behind-Floor-Sweeper-Parts-Manual windsor-radius-28-walk-behind-floor-sweeper-parts-manual 1857 file product_file
Open the PDF directly: View PDF
.
Page Count: 16
Spare parts list
(5.970-735.0) Spare parts list Radius 28
2011-06-17 EN
www.kaercher.com
Page 2
Page 3
Page 4
Table of contents
Spare parts list Radius 28 (5.970-735.0) ...................................................................................................................................................................................................................... 6
10 Individual parts (0.208-748.0)
...................................................................................................................................................................................................................................... 7
20 Transmission (0.208-749.0) ...................................................................................................................................................................................................................................... 11
30 Side broom (0.207-872.0)
......................................................................................................................................................................................................................................... 15
Page 5
Spare parts list Radius 28 (5.970-735.0)
Pos Material # Name
10 0.208-748.0 Individual parts
20 0.208-749.0 Transmission
30 0.207-872.0 Side broom
Page 6

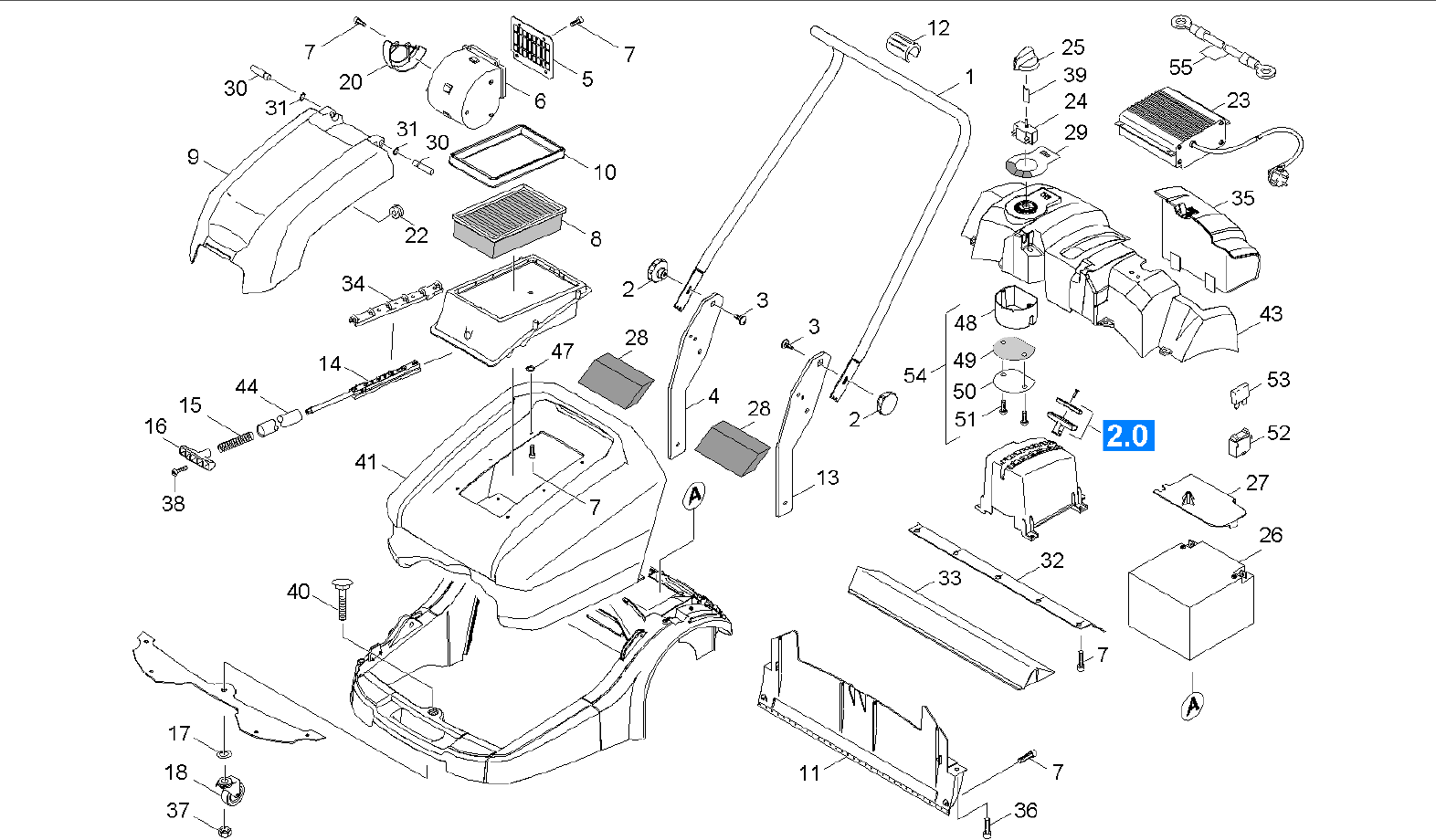

10 Individual parts (0.208-748.0)
Page 7
10 Individual parts (0.208-748.0)
ET/VT (spare/wear parts) Pos Material # Name Qty. Unit from ser.nr. up to ser.nr. var. information
1 5.128-775.0 Tube shearing shackle 1.000 ST 0000000000 0000000000
2 6.321-177.0 Turning knob D55mm 2.000 ST 0000000000 0000000000
X 3 7.303-194.0 Saucer-head screw M8x25-St-A0P DIN 603 2.000 ST 0000000000 0000000000
4 5.057-790.0 Sheet metal component right 1.000 ST 0000000000 0000000000
5 5.394-776.0 Protection part blower 1.000 ST 0000000000 0000000000
Position text: 1.517-206
X 6 6.484-328.0 Blower completely 1.000 ST 0000000000 0000000000
Position text: 1.517-206
X-X 7 7.303-107.0 Screw 5x16 -10.9-P2R (K-In6Rd) 11.000 ST 0000000000 0000000000
X-X 8 6.904-367.0 Flat filter only for replacement Kaerche 1.000 ST 0000000000 0000000000
Position text: 1.517-206
9 4.070-643.0 Sweep tank flap 1.000 ST 0000000000 0000000000 1.517-206
10 6.365-514.0 Seal 1.000 M 0000000000 0000000000
Position text: 1.517-206
X 11 5.032-641.0 Rear skirting 1.000 ST 0000000000 0000000000
12 6.373-867.0 Clamp 1.000 ST 0000000000 0000000000
13 5.057-855.0 Sheet metal component left 1.000 ST 0000000000 0000000000
X-X 14 5.032-907.0 Filter vibrator 1.000 ST 0000000000 0000000000
Position text: 1.517-206
X-X 15 5.332-231.0 Helical spring 1.000 ST 0000000000 0000000000
Position text: 1.517-206
X-X 16 5.321-794.0 Handhold filter vibrator 1.000 ST 0000000000 0000000000
Position text: 1.517-206
X-X 17 7.312-005.0 Washer 10-200HV-A3E ISO 7090 2.000 ST 0000000000 0000000000
X 18 6.435-111.0 Castor D 75 1.000 ST 0000000000 0000000000
Page 8
8.635-244.0 Battery, 12V 26AH VRLA
10 Individual parts (0.208-748.0)
ET/VT (spare/wear parts) Pos Material # Name Qty. Unit from ser.nr. up to ser.nr. var. information
40 7.303-222.0 Saucer-head screw M10x80 -St-A0P DIN 60 1.000 ST 0000000000 0000000000
41 4.070-641.0 Sweep tank complete blue 1.000 ST 0000000000 0000000000 1.517-205
41 4.070-647.0 Sweep tank complete replacement 1.000 ST 1.517-206
43 5.068-000.0 Cover with hinge 1.000 ST
43 5.068-183.0 Cover without hinge 1.000 ST
X-X 44 5.027-291.0 Tube filter vibrator 1.000 ST
Position text: 1.517-206
47 6.472-969.0 Joint ring 6.000 ST
Position text: 1.517-206
48 5.010-108.0 Tin dust protection 1.000 ST
49 6.640-271.0 Seal 1.000 ST
50 5.010-109.0 Cover 1.000 ST
X-X 51 7.303-129.0 Screw 4x16 -10.9-R2R (K-In6Rd) 2.000 ST
52 6.644-216.0 Fuse holder 1.000 ST
X-X 53 7.644-018.0 Fuse insert C15 DIN 72581-3 1.000 ST
X-X 54 2.641-769.0 Conversion kit dust protection switch 1.000 ST
55 4.041-025.0 Cable complete 500 mm 1.000 ST

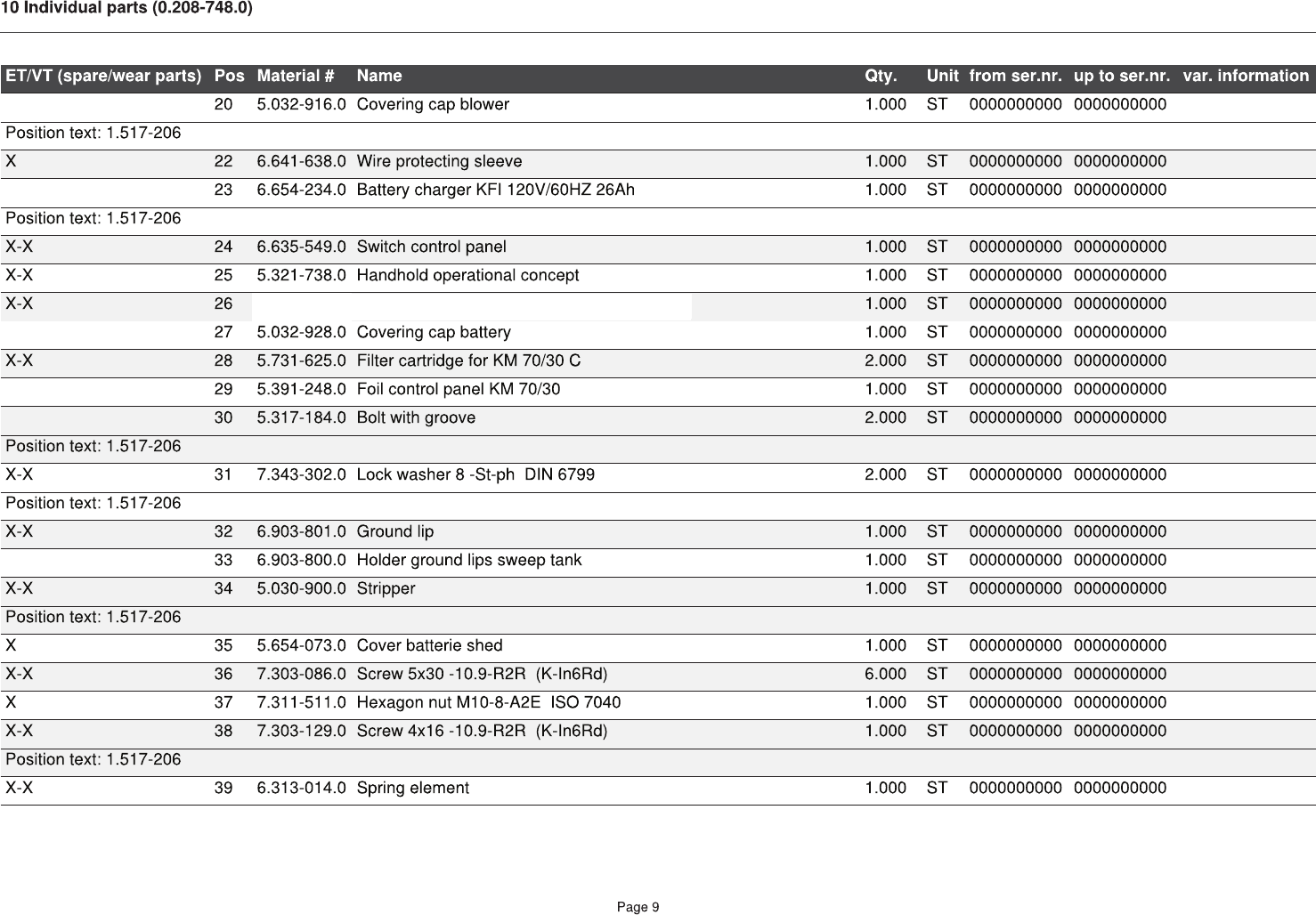

Page 10

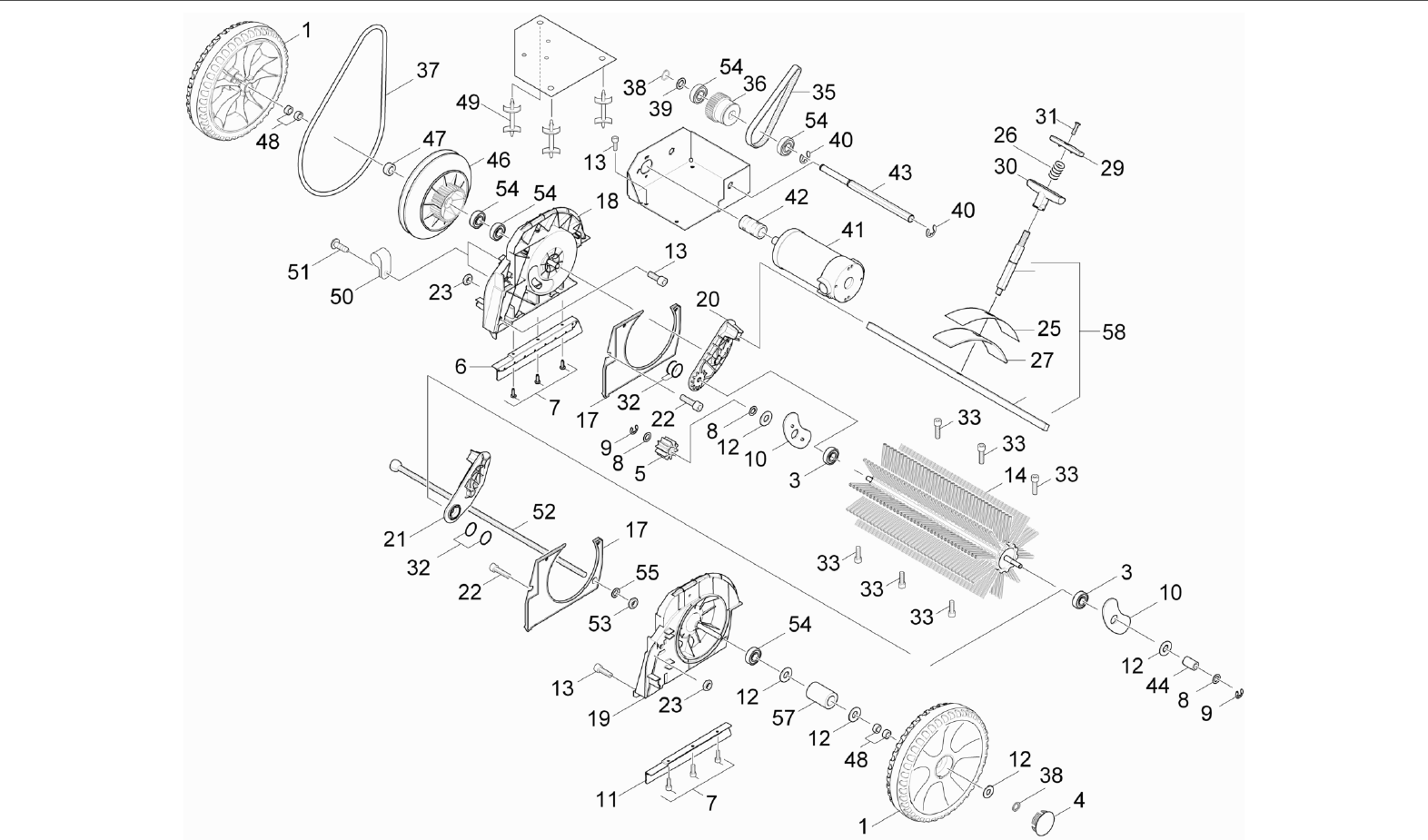

20 Transmission (0.208-749.0)
Page 11
20 Transmission (0.208-749.0)
ET/VT (spare/wear parts) Pos Material # Name Qty. Unit from ser.nr. up to ser.nr. Footnote text
X 1 4.515-280.0 Wheel complete 2.000 ST 0000000000 0000000000
3 7.401-008.0 Ball bearing 6001-2RS-EDELSTAHL DIN 625 2.000 ST 0000000000 0000000000
X-X 4 5.392-038.0 Wheel cab 2.000 ST 0000000000 0000000000
5 4.352-012.0 Pinion with sprag clutch 1.000 ST 0000000000 0000000000
X-X 6 5.394-802.0 Skirting right 1.000 ST 0000000000 0000000000
X-X 7 7.303-107.0 Screw 5x16 -10.9-P2R (K-In6Rd) 14.000 ST 0000000000 0000000000
8 7.343-216.0 Shim ring 10x16x0,5-St2K50 DIN988 4.000 ST 0000000000 0000000000
X-X 9 7.343-302.0 Lock washer 8 -St-ph DIN 6799 2.000 ST 0000000000 0000000000
10 6.365-360.0 Gasket disc 2.000 ST 0000000000 0000000000
X-X 11 5.394-803.0 Skirting left 1.000 ST 0000000000 0000000000
12 5.115-628.0 Washer 4.000 ST 0000000000 0000000000
X-X 13 7.303-113.0 Screw 6x25 -10.9-A2R (In6Rd) 6.000 ST 0000000000 0000000000
14 6.907-023.0 Reversing rolling mill antistatic 1.000 ST OPTION
X-X 14 6.906-041.0 Reversing rolling mill 1.000 ST 0000000000 0000000000
X-X 16 7.343-003.0 Locking ring 12x1-Rf-St DIN 471 1.000 ST
17 5.032-653.0 Covering cap 2.000 ST 0000000000 0000000000
X 18 5.032-906.0 Axle drum right 1.000 ST 0000000000 0000000000
19 5.032-917.0 Axle drum left 1.000 ST 0000000000 0000000000
20 5.032-640.0 Stub axle right 1.000 ST 0000000000 0000000000
21 5.032-643.0 Stub axle left 1.000 ST 0000000000 0000000000
X-X 22 7.306-118.0 Screw M 6x35 -8.8-R3R (In6Rd) 4.000 ST 0000000000 0000000000
23 7.311-200.0 Hexagon nut M6 -04-A2E ISO 4035 4.000 ST 0000000000 0000000000
25 5.008-926.0 Plate spring steel 1.000 ST 0000000000 0000000000
26 5.332-481.0 Helical spring 1.000 ST 0000000000 0000000000
27 5.363-630.0 Seal 1.000 ST 0000000000 0000000000
Page 12
20 Transmission (0.208-749.0)
ET/VT (spare/wear parts) Pos Material # Name Qty. Unit from ser.nr. up to ser.nr. Footnote text
29 5.326-028.0 Button 1.000 ST 0000000000 0000000000
30 5.321-736.0 Handhold 1.000 ST 0000000000 0000000000
31 7.305-050.0 Countersunk screw M5x20 -A2-70-s (In6Rd 1.000 ST 0000000000 0000000000
X-X 32 6.362-366.0 O-Ring seal 4,0 X 2,0 4.000 ST 0000000000 0000000000
33 7.303-210.0 Screw 5x30 -10.9-A2R (In6Rd) 6.000 ST 0000000000 0000000000
X-X 35 6.348-432.0 Toothed belt HTD 330-3M-15 1.000 ST 0000000000 0000000000
36 5.625-466.0 Belt pulley 1.000 ST 0000000000 0000000000
X-X 37 6.348-428.0 Round belt D 8 1.000 ST 0000000000 0000000000
X-X 38 7.343-003.0 Locking ring 12x1-Rf-St DIN 471 1.000 ST 0000000000 0000000000
39 7.312-008.0 Washer 12-200HV-A3E ISO 7090 1.000 ST 0000000000 0000000000
40 7.343-306.0 Lock washer 12-St-A2E DIN 6799 2.000 ST 0000000000 0000000000
41 6.613-099.0 Electric motor 12 V 150 W 1.000 ST 0000000000 0000000000
X-X 42 5.625-471.0 Toothed belt pulley 15 Z 1.000 ST 0000000000 0000000000
43 5.100-499.0 Shaft hexagon 1.000 ST 0000000000 0000000000
44 5.110-514.0 Spacer sleeve 1.000 ST 0000000000 0000000000
X-X 46 5.625-467.0 Belt pulley 1.000 ST 0000000000 0000000000
X 47 5.116-202.0 Spacer sleeve 1.000 ST 0000000000 0000000000
X-X 48 6.403-055.0 Plain bearing 4.000 ST 0000000000 0000000000
49 6.646-698.0 Distance holder 3.000 ST 0000000000 0000000000
50 6.641-460.0 Cable clamp 2.000 ST
X-X 51 7.303-129.0 Screw 4x16 -10.9-R2R (K-In6Rd) 2.000 ST
52 5.309-152.0 Threaded rod 1.000 ST
X-X 53 7.311-425.0 Hexagon nut M6 -04-A2E ISO 10511 1.000 ST
X-X 54 6.401-363.0 Ball bearing 5.000 ST
X-X 55 7.312-003.0 Washer 6 -200HV-A3E ISO 7090 1.000 ST
Page 13
20 Transmission (0.208-749.0)
ET/VT (spare/wear parts) Pos Material # Name Qty. Unit from ser.nr. up to ser.nr. Footnote text
57 5.112-814.0 Spacer sleeve 1.000 ST
58 4.021-179.0 Angle complete 1.000 ST
Page 14

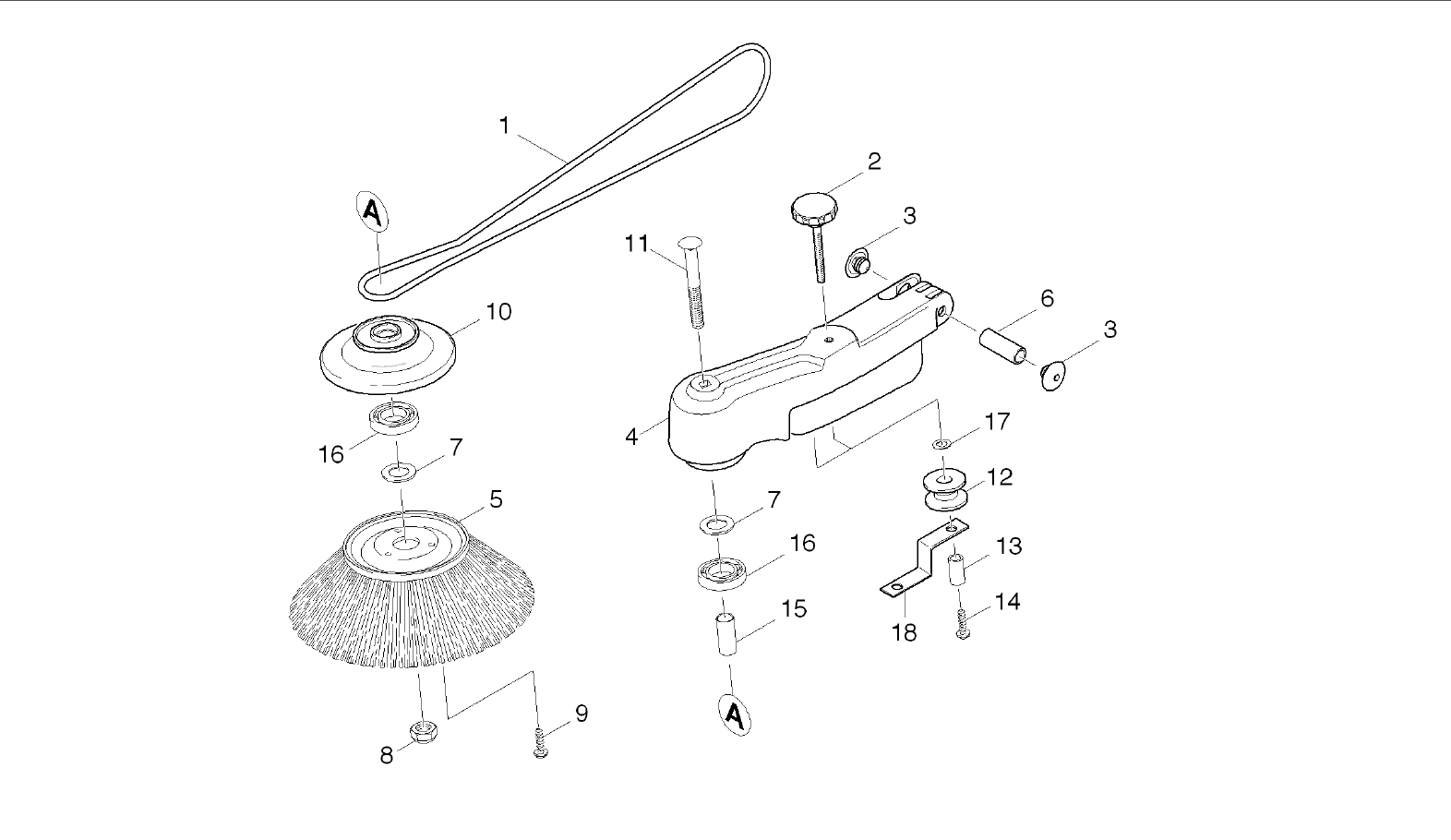

30 Side broom (0.207-872.0)
Page 15
30 Side broom (0.207-872.0)
ET/VT (spare/wear parts) Pos Material # Name Qty. Unit from ser.nr. up to ser.nr.
X-X 1 6.348-229.0 Round belt 1.000 ST 0000000000 0000000000
2 6.321-176.0 Turning knob D55mm 1.000 ST 0000000000 0000000000
X 3 6.385-935.0 Plug 2.000 ST 0000000000 0000000000
X 4 5.032-638.0 Arm side broom 1.000 ST 0000000000 0000000000
X-X 5 6.966-005.0 Side broom 1.000 ST 0000000000 0000000000
6 5.116-119.0 Sleeve 1.000 ST 0000000000 0000000000
7 7.312-153.0 Washer 10 -160HV-A3E EN28738 2.000 ST 0000000000 0000000000
X 8 7.311-511.0 Hexagon nut M10-8-A2E ISO 7040 1.000 ST 0000000000 0000000000
X-X 9 7.303-112.0 Screw 6x20 -10.9-R2R (In6Rd) 3.000 ST 0000000000 0000000000
10 6.966-002.0 Flange 1.000 ST 0000000000 0000000000
11 7.303-208.0 Saucer-head screw M10x130-St-A0P DIN 60 1.000 ST 0000000000 0000000000
12 6.997-422.0 Deflection pulley 2.000 ST 0000000000 0000000000
13 6.966-009.0 Tube 10x1,5x16 2.000 ST 0000000000 0000000000
X 14 7.303-114.0 Screw 6 x 35-ST-10.9-A2R (IN6RD) 2.000 ST 0000000000 0000000000
15 6.966-020.0 Spacer sleeve 12x0,8x31 1.000 ST 0000000000 0000000000
16 7.401-008.0 Ball bearing 6001-2RS-EDELSTAHL DIN 625 2.000 ST 0000000000 0000000000
X-X 17 7.312-276.0 Washer 6 -200HV-A2E ISO7093-1 2.000 ST 0000000000 0000000000
18 5.061-356.0 Sheet metal component belt side broom 1.000 ST
Powered by TCPDF (www.tcpdf.org)
