Spare parts list
(5.970-760.0) Spare parts list Radius Mini
02.11.2011 EN
www.kaercher.com

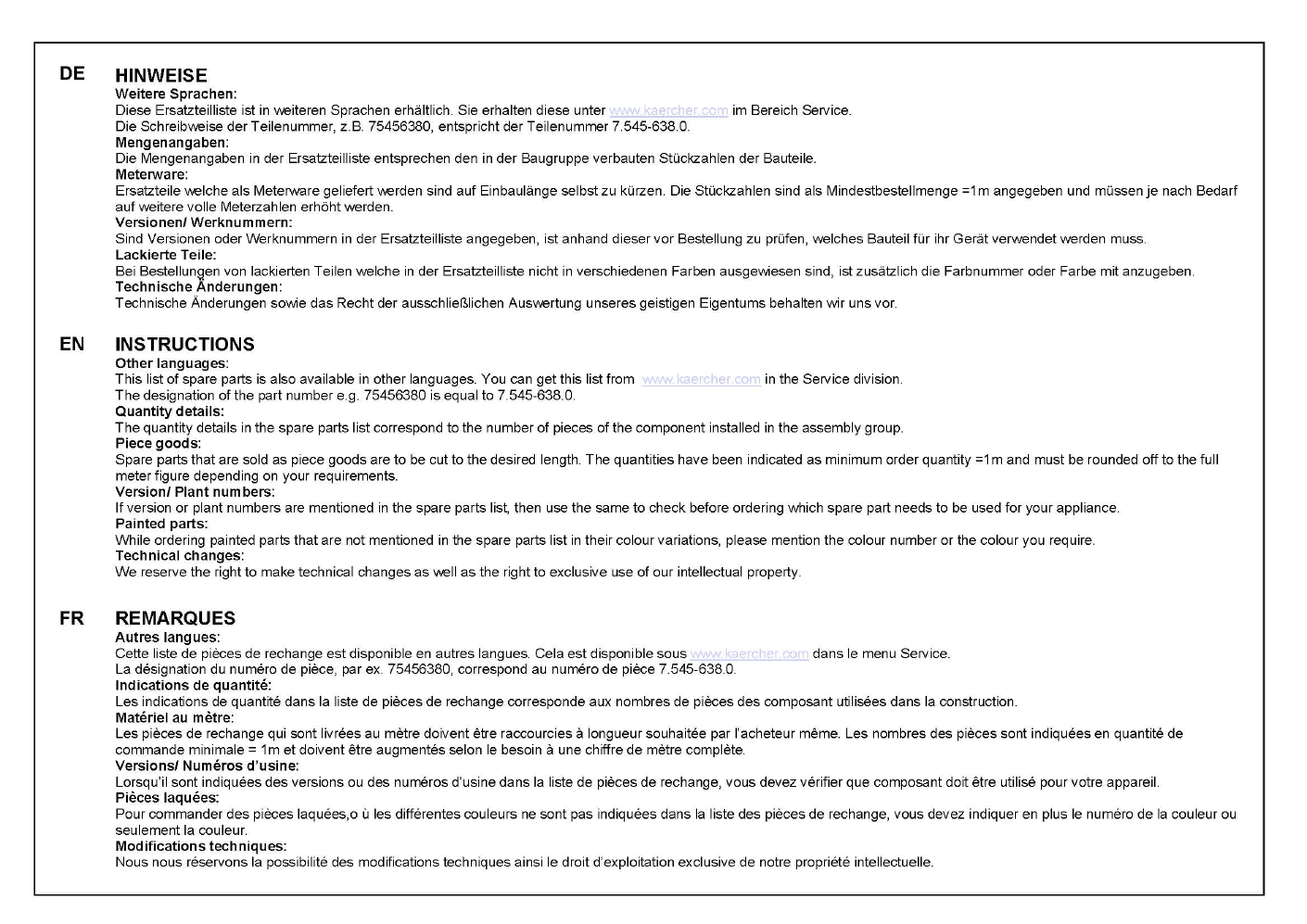

Page 2

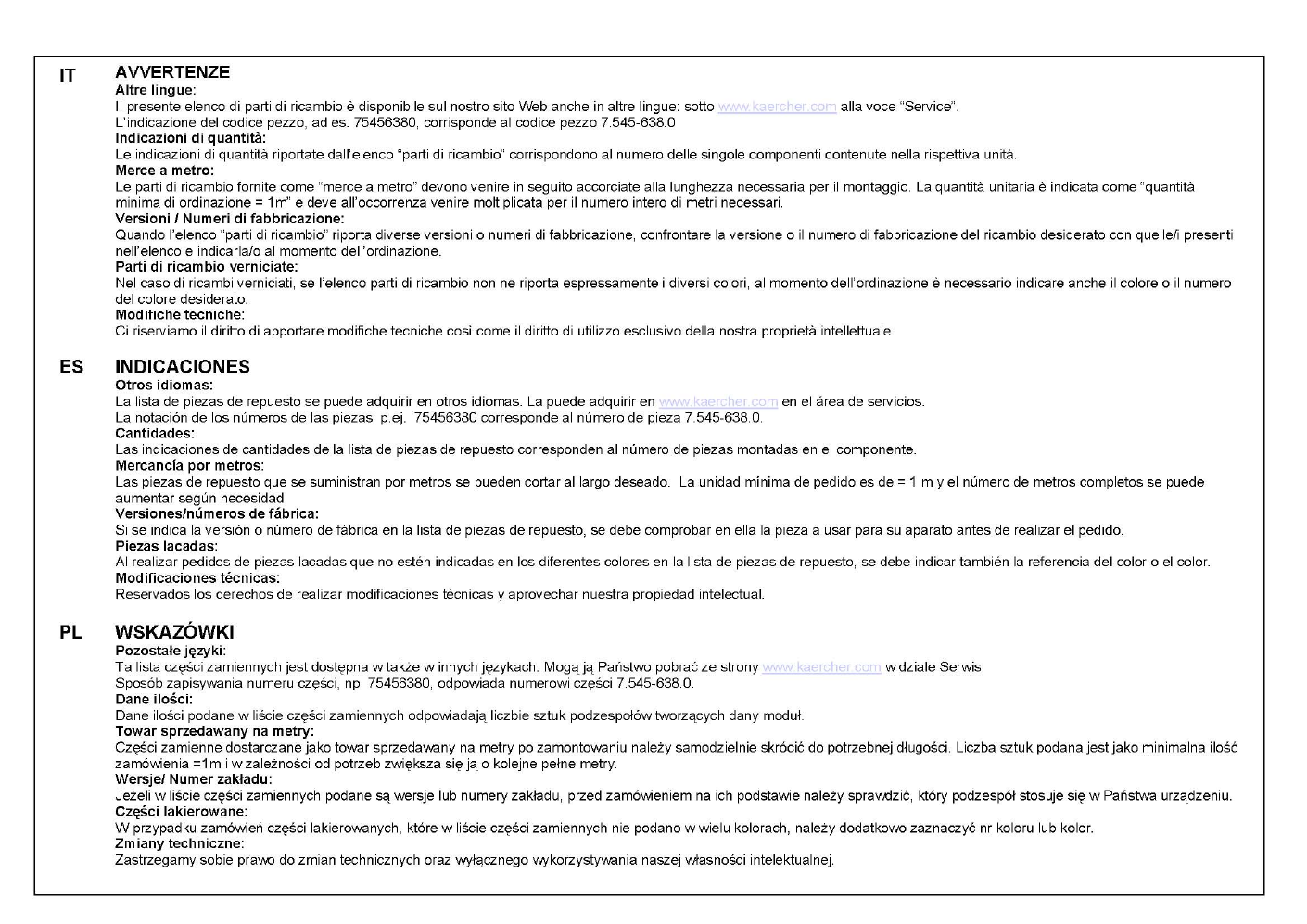

Page 3

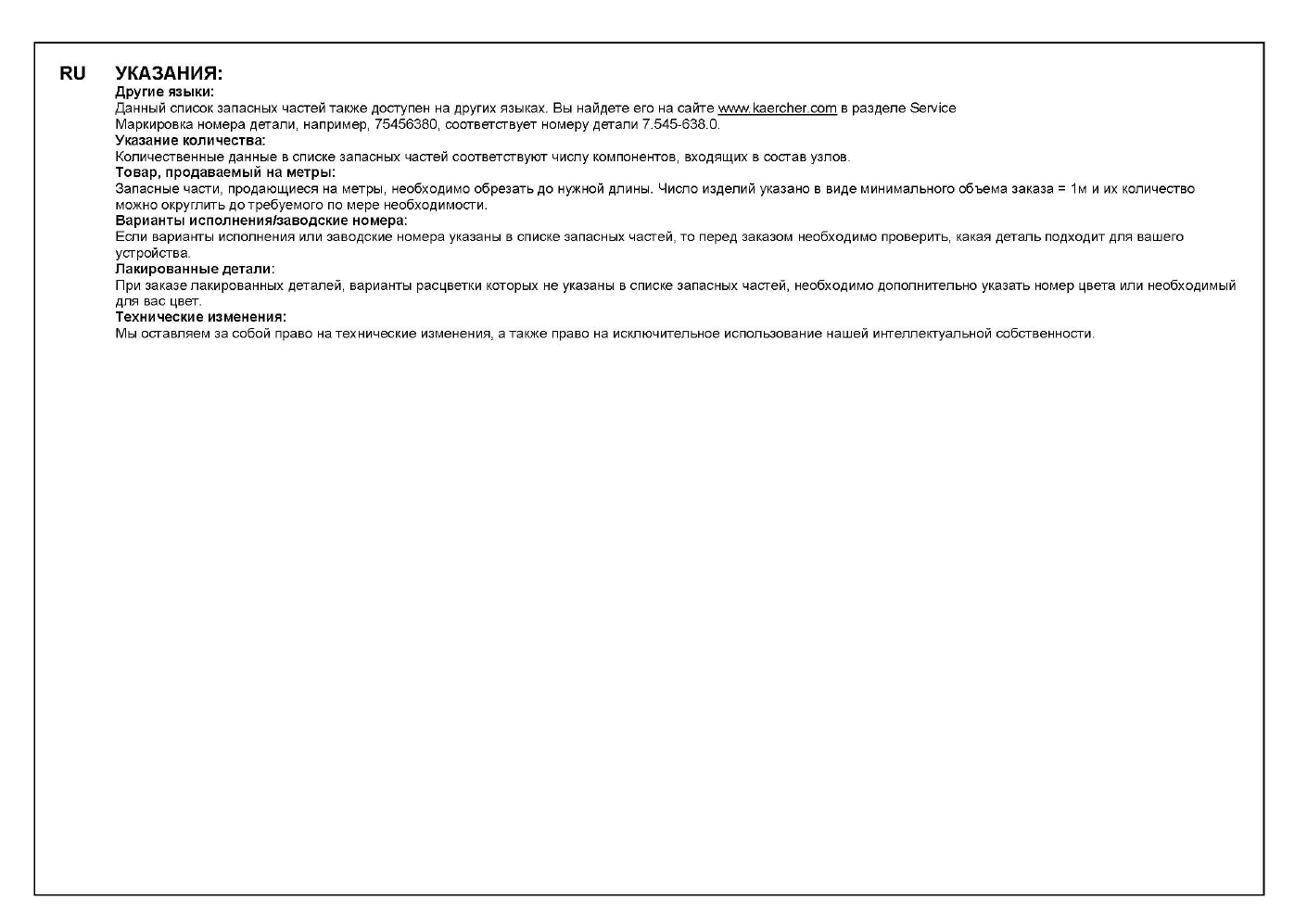

Page 4
Table of contents
Spare parts list Radius Mini (5.970-760.0) .................................................................................................................................................................................................................. 6
10 Individual parts (0.208-680.0)
...................................................................................................................................................................................................................................... 7
20 Locking part completely (0.210-349.0) ......................................................................................................................................................................................................................... 9
Page 5
Spare parts list Radius Mini (5.970-760.0)
Pos Material # Name
10 0.208-680.0 Individual parts
20 0.210-349.0 Locking part completely
Page 6

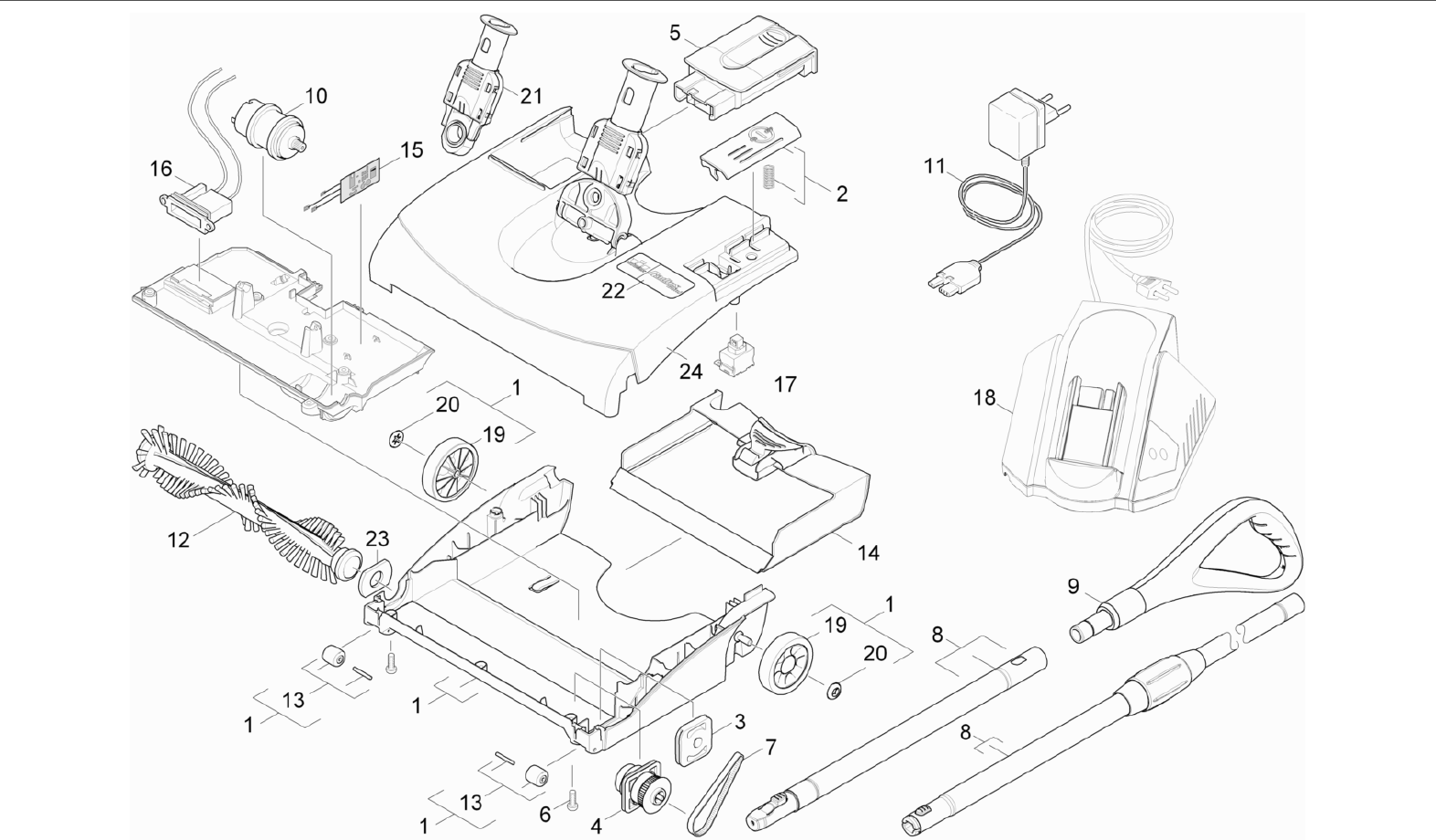

10 Individual parts (0.208-680.0)
Page 7
10 Individual parts (0.208-680.0)
ET/VT (spare/wear parts) Pos Material # Name Qty. Unit from ser.nr. up to ser.nr. Footnote text
1 4.081-003.0 Bottom part complete 1.000 ST 0000000000 0000000000
2 4.324-024.0 Pushbutton with spring 1.000 ST 0000000000 0000000000
X 3 5.250-147.0 Bearing right EB30/1 1.000 ST 0000000000 0000000000
X-X 4 4.454-001.0 Transmission 1.000 ST 0000000000 0000000000
X-X 5 4.654-259.0 Accumulator packaged 1.000 ST 0000000000 0000000000
6 7.303-129.0 Screw 4x16 -10.9-R2R (K-In6Rd) 11.000 ST 0000000000 0000000000
X-X 7 6.348-427.0 Toothed belt 1.000 ST 0000000000 0000000000
8 4.070-598.0 Tube complete 1.000 ST 0000000000 0000000000
9 4.070-606.0 Hand grip complete 1.000 ST 0000000000 0000000000
10 4.623-750.0 Motor complete 1.000 ST 0000000000 0000000000
11 6.646-670.0 Mains-adapter 120V 1.000 ST 0000000000 0000000000
12 4.762-401.0 Roller brush red packaged 1.000 ST 0000000000 0000000000 RED
X 12 4.762-400.0 Roller brush packaged 1.000 ST 0000000000 0000000000 BLACK
13 4.880-058.0 Roller set 1.000 ST 0000000000 0000000000
14 4.070-588.0 Sweep tank complete 1.000 ST 0000000000 0000000000
15 4.682-092.0 Electronics complete 1.000 ST 0000000000 0000000000
16 4.822-434.0 Electrical small parts complete 1.000 ST 0000000000 0000000000
X 17 6.630-413.0 Switch 1.000 ST 0000000000 0000000000
18 6.654-197.0 Rechargeable battery changer carton four 1.000 ST 0000000000 0000000000
19 5.515-318.0 Wheel black 2.000 ST 0000000000 0000000000
X-X 20 6.343-187.0 Lock washer 2.000 ST 0000000000 0000000000
21 4.672-181.0 Locking part complete 1.000 ST
22 5.392-080.0 Label Radius Mini 1.000 ST
23 5.008-775.0 Bearing plate left 1.000 ST
X 24 5.080-023.0 Top part blue 1.000 ST
Page 8
20 Locking part completely (0.210-349.0)
Page 7
20 Locking part completely (0.210-349.0)
Pos Material # Name Qty. Unit
1 5.100-497.0 Bolt bearing 2.000 ST
2 5.332-543.0 Pressure spring 2.000 ST
3 6.303-492.0 Screw M6x12-St-gal Zn 1.000 ST
4 6.311-016.0 Nut M 6-St-gal Ni 1.000 ST
5 4.110-013.0 Thrust piece springy 1.000 ST
6 5.605-314.0 Joint 1.000 ST
7 5.332-551.0 Pressure spring 1.000 ST
8 5.112-774.0 Ball bushing 1.000 ST
9 7.401-916.0 Sphere 8,0 G10 -1.4034 DIN 5401 1.000 ST
10 5.112-773.0 Spacer sleeve 1.000 ST
11 4.672-181.0 Locking part complete 1.000 ST
12 6.303-318.0 Screw 3,5x12-10.9-R2R (IN6RD) 2.000 ST
