Windsor Taz With Orb Technology Floor Machine Service Parts Manual

: Sweepscrub Windsor-Taz-With-Orb-Technology-Floor-Machine-Service-Parts-Manual windsor-taz-with-orb-technology-floor-machine-service-parts-manual 1925 file product_file

Open the PDF directly: View PDF .
Page Count: 53

Read these instructions before using the machine.

86375030-G

11/25/14

Operating instructions (ENG)

MODELS:

1.005.293.0

1.005-294.0

2 86375030 Manual

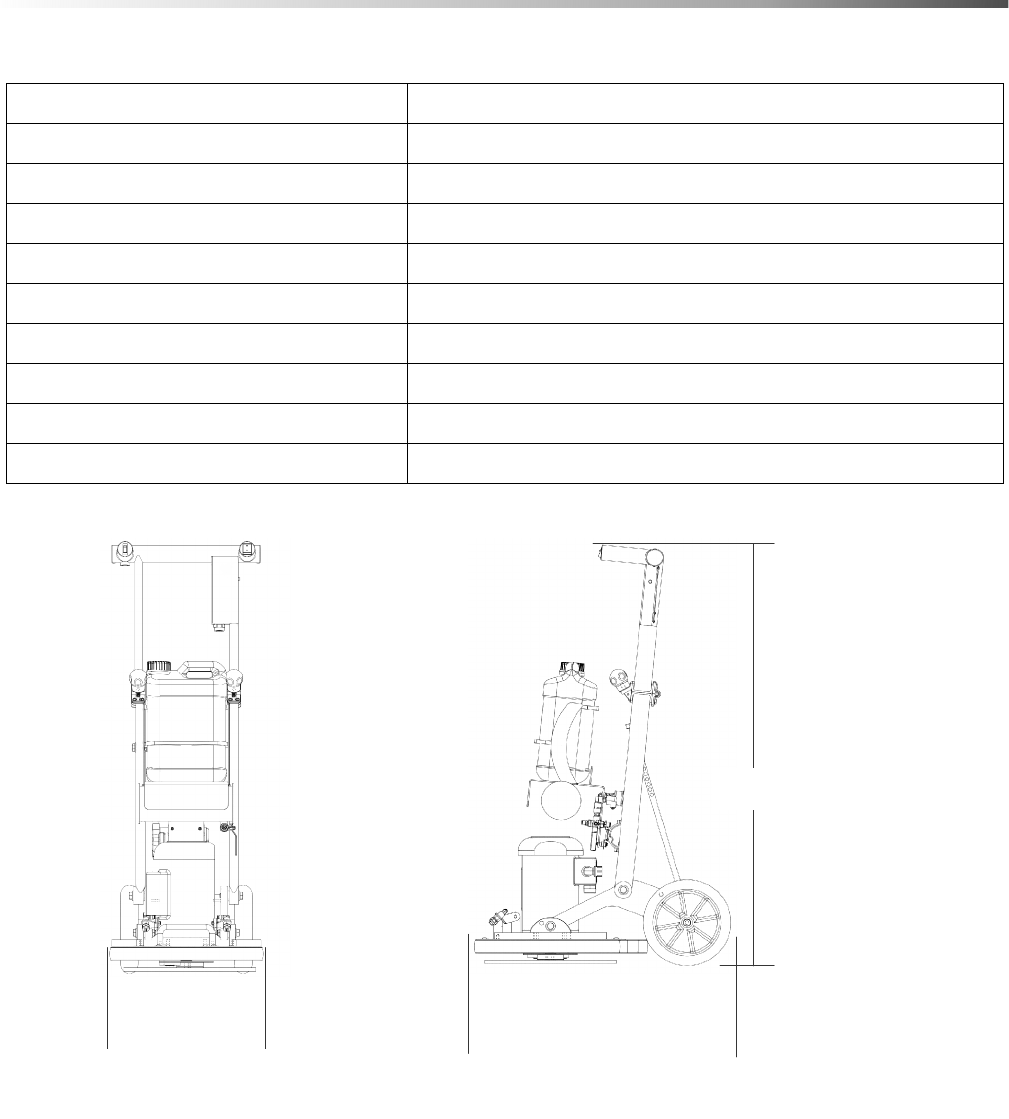

Machine Data Label

Overview

The Floor Machine is a mains powered, portable floor scrubber intended for commercial use. The appliance can be

fitted with a variety of pads to perform various floor care functions.

Warranty Registration

Thank you for choosing our product. Warranty registration is quick and easy.

Your registration will allow us to serve you better over the lifetime of the product.

To register your product go to:

http://warranty.karcherna.com/warrantyregistration.aspx

3

Table of Contents

Machine Data Label . . . . . . . . . . . . . . . . . . . . . . . . . .2

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . .3

How To Use This Manual . . . . . . . . . . . . . . . . . . . . .4

Safety

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . .5

HAZARD INTENSITY LEVEL . . . . . . . . . . . . . . . . . .7

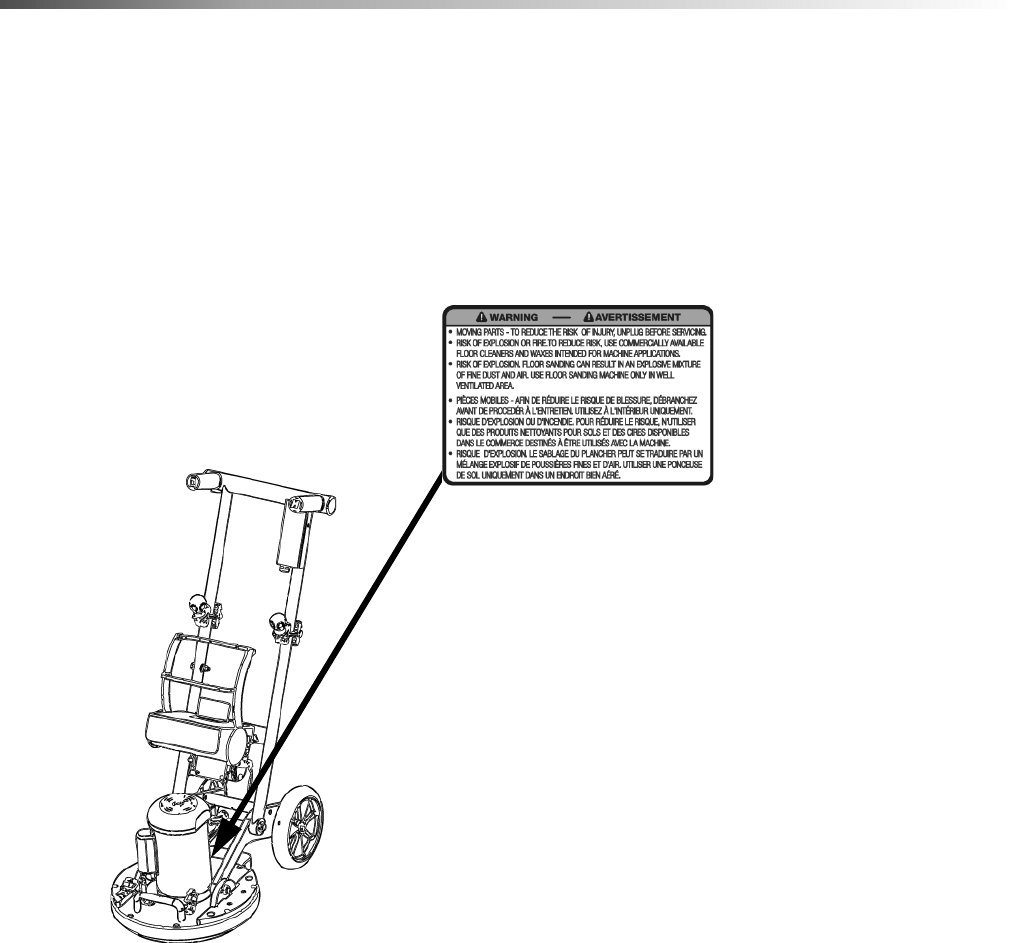

SAFETY LABEL LOCATION . . . . . . . . . . . . . . . . .10

Operation

Unpacking and Initial Operations . . . . . . . . . . . . . .13

Pre-Run Inspection . . . . . . . . . . . . . . . . . . . . . . . . .14

Pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Process of Cleaning . . . . . . . . . . . . . . . . . . . . . . . .18

End of the Application . . . . . . . . . . . . . . . . . . . . . . .18

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

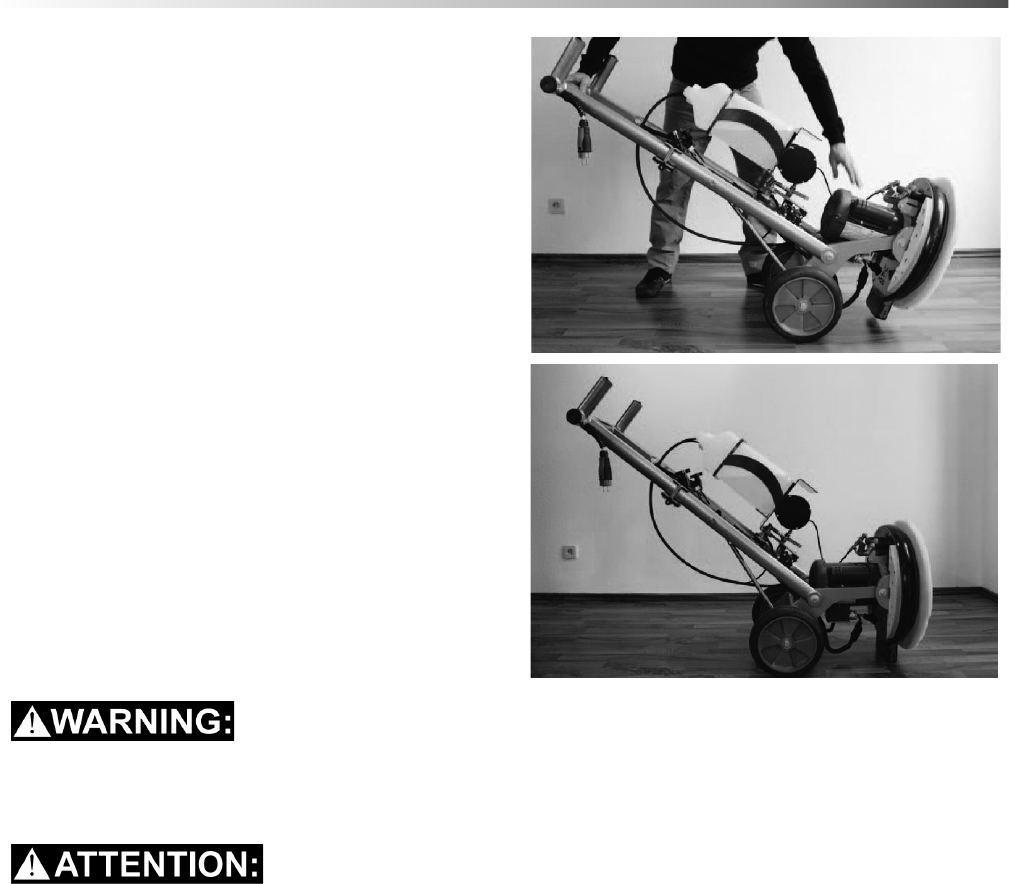

Lifting and Carrying. . . . . . . . . . . . . . . . . . . . . . . . .20

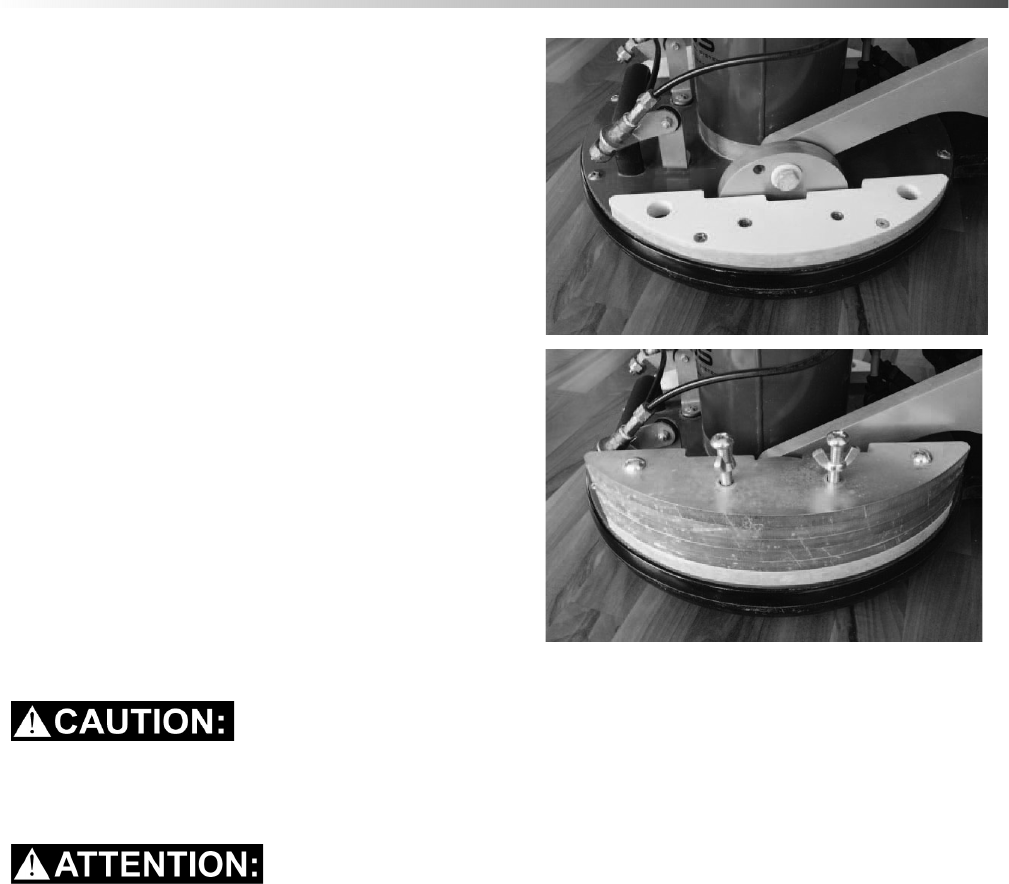

Weight Kit Installation . . . . . . . . . . . . . . . . . . . . . . .21

Brush Installation . . . . . . . . . . . . . . . . . . . . . . . . . .22

Changing the Water Bottle . . . . . . . . . . . . . . . . . . .22

Attaching and Removing the Driver Plates . . . . . . .23

Accessories And Applications. . . . . . . . . . . . . . . . .24

Driver Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Standard Driver Plate . . . . . . . . . . . . . . . . . . . . . . .24

Pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Absorbent Pads . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Glider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Carpet Pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Chemical Free Stripping Pad . . . . . . . . . . . . . . . . .26

Multi-Purpose Brush . . . . . . . . . . . . . . . . . . . . . . . .27

Application on different Floor Types . . . . . . . . . . . .28

Carpet Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Cleaning Hard Floors . . . . . . . . . . . . . . . . . . . . . . .28

Maintenance

Cleaning the machine: . . . . . . . . . . . . . . . . . . . . . .29

Cleaning the spray system:. . . . . . . . . . . . . . . . . . .29

Changing the Velcro driver discs . . . . . . . . . . . . . .29

Changing the filters . . . . . . . . . . . . . . . . . . . . . . . . .30

Parts

Bottle Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

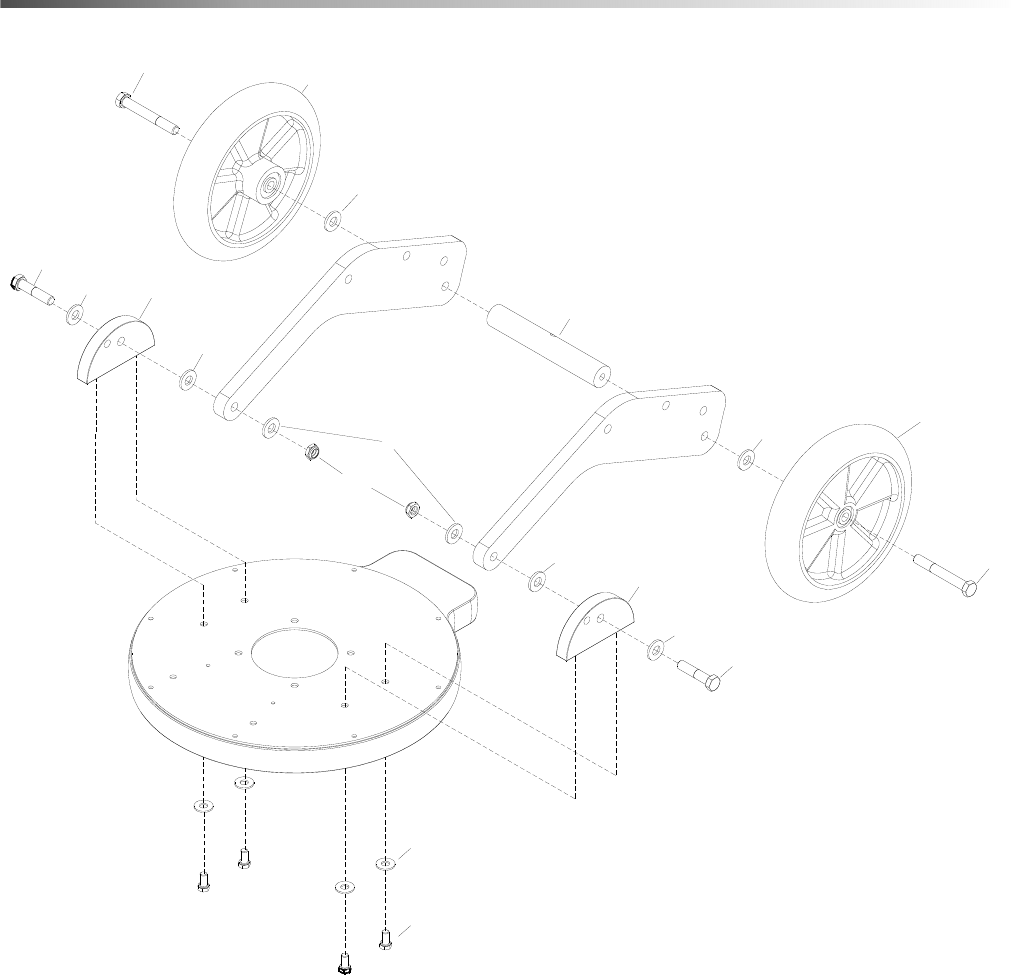

Deck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

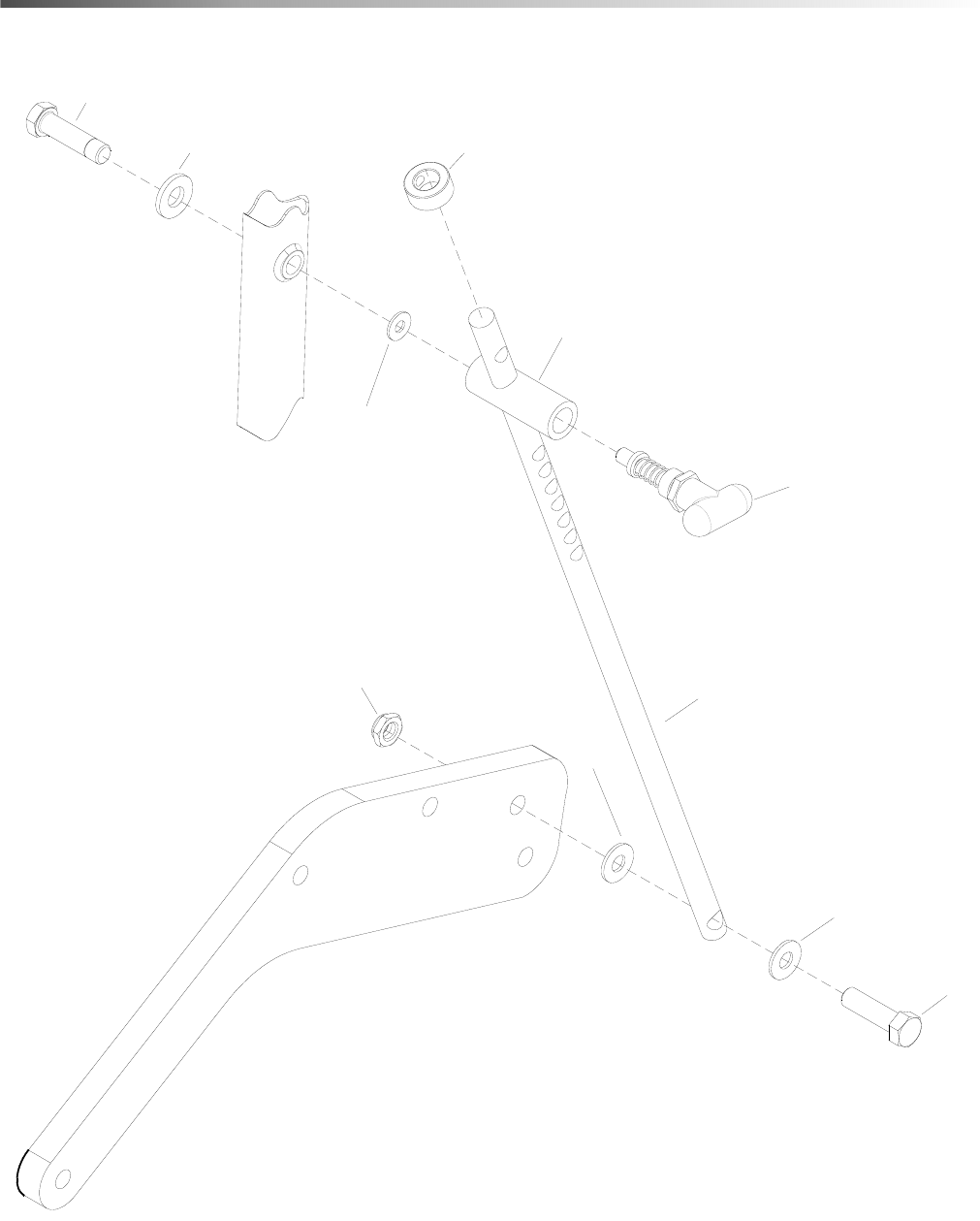

Handle - Latch. . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Handle - Lower . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Handle - Middle. . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Handle - Upper . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

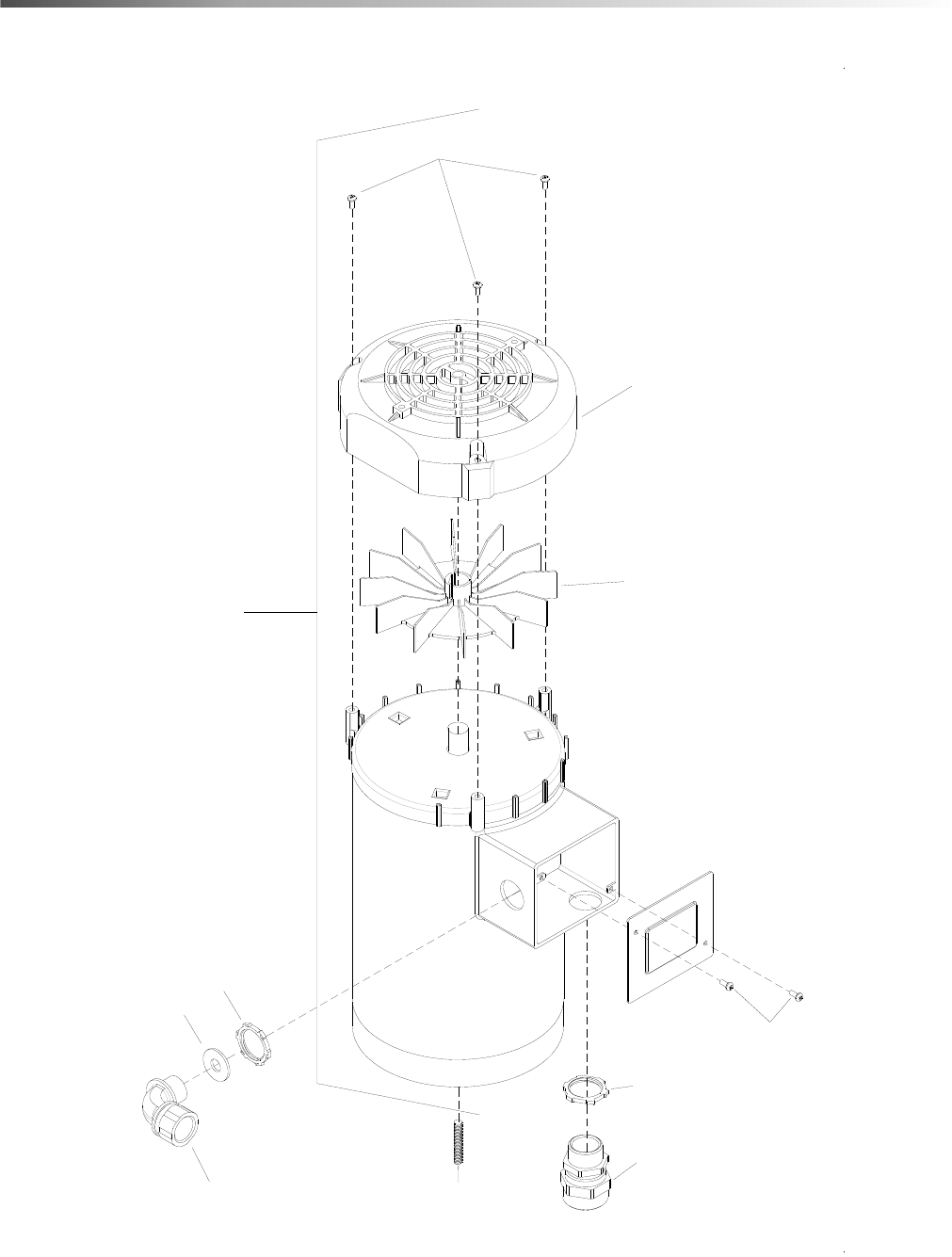

Motor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Nozzle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

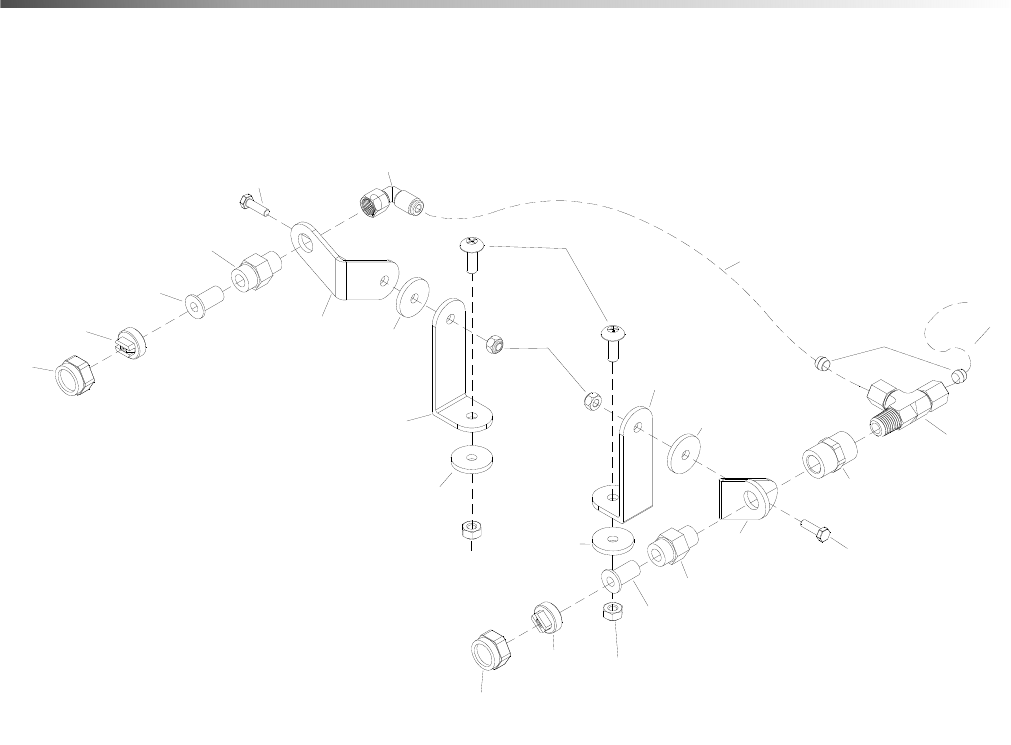

Solution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Suggested Spare Parts. . . . . . . . . . . . . . . . . . . . . 52

Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

86375030 Manual

4

How To Use This Manual

This manual contains the following sections:

• How to Use This Manual

•Safety

• Operations

• Maintenance

•Parts List

The HOW TO USE THIS MANUAL section will tell you

how to find important information for ordering correct

repair parts.

Parts may be ordered from authorized dealers. When

placing an order for parts, the machine model and

machine serial number are important. Refer to the

MACHINE DATA box which is filled out during the

installation of your machine. The MACHINE DATA box

is located on the inside of the front cover of this manual.

The model and serial number of your machine is

located on the left side of the handle, from the

operators perspective

The SAFETY section contains important information

regarding hazardous or unsafe practices of the

machine. Levels of hazards are identified that could

result in product damage, personal injury, or severe

injury resulting in death.

The OPERATIONS section is to familiarize the operator

with the operation and function of the machine.

The MAINTENANCE section contains preventive main-

tenance to keep the machine and its components in

good working condition. They are listed in this general

order:

• Storage

• Maintenance

• Troubleshooting

The PARTS LIST section contains assembled parts

illustrations and corresponding parts list. The parts lists

include a number of columns of information:

•REF – column refers to the reference number

on the parts illustration.

•PART NO. – column lists the part number for

the part.

•PRV NO. – reference number.

•QTY – column lists the quantity of the part used

in that area of the machine.

•DESCRIPTION – column is a brief description

of the part.

•SERIAL NO. FROM – If this column has an (*)

and a Reference number, see the SERIAL

NUMBERS page in the back of your manual. If

column has two asterisk (**), call manufacturer

for serial number. The serial number indicates

the first machine the part number is applicable

to. The main illustration shows the most current

design of the machine. When a boxed illustra-

tion is shown, it displays the older design.

•NOTES – column for information not noted by

the other columns.

NOTE: If a service or option kit is installed on your

machine, be sure to keep the KIT INSTRUCTIONS

which came with the kit. It contains replacement parts

numbers needed for ordering future parts.

NOTE: The manual part number is located on the

lower left corner of the front cover.

Model:

Date of Purchase:

Serial Number:

Dealer:

Address:

Phone Number:

Sales Representative:

86375030 Manual

5

Safety

IMPORTANT SAFETY INSTRUCTIONS

When using this machine, basic precaution

must always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.

To reduce the risk of fire, electric shock, or injury:

Use only indoors. Do not use outdoors or expose to rain.

Use only as described in this manual. Use only manufacturer's recommended components and attachments.

If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into water, return it to

an authorized service center.

Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.

Machine can cause a fire when operating near flammable vapors or materials. Do not operate this machine near

flammable fluids, dust or vapors.

This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offices

for more than normal housekeeping purposes.

Maintenance and repairs must be done by qualified personnel.

During operation, attention shall be paid to other persons, especially children.

The machine shall only be operated by instructed and authorized persons.

When leaving unattended, unplug the machine.

Do not handle the plug or machine with wet hands.

Do not unplug machine by pulling on cord. To unplug, grasp the plug, not the cord.

Do not use with damaged cord or plug. Follow all instructions in this manual concerning grounding the machine.

Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners.

Do not pull/run machine over cord. Keep cord away from heated surfaces.

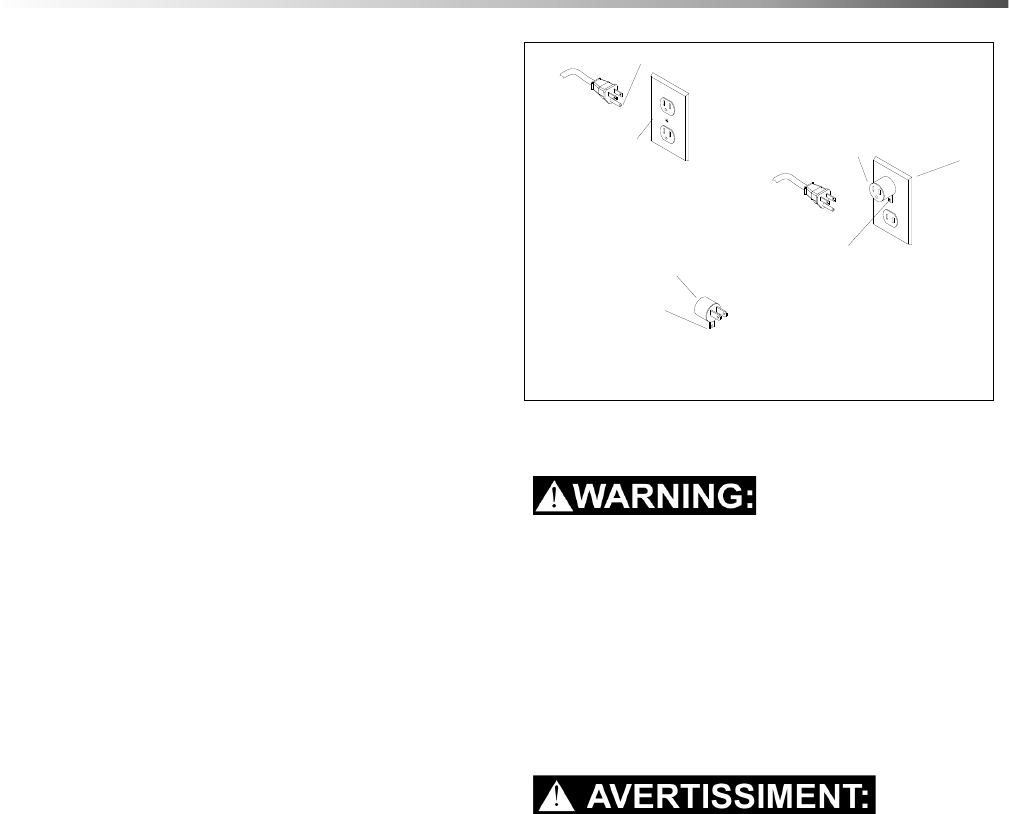

Connect to a properly grounded outlet. See Grounding Instructions.

If the supply cord is damaged it must be replaced by a special cord from an authorized service agent.

Unplug before cleaning or servicing.

Operational hazard may occur when running the machine over the supply cord.

This appliance has been designed for use with pads specified by the manufacturer. The fitting of other pads may

affect its safety.

This machine is for dry use only and shall not be used or stored outdoors in wet conditions

Moving Parts - To reduce the risk of injury, unplug before servicing.

READ AND SAVE THESE INSTRUCTIONS

86375030 Manual

6

Safety

IMPORTANTES MESURES DE SÉCURITÉ

L'utilisation d'un appareil électrique demande certaines précautions:

LIRE TOUTES LES INSTRUCTIONS AVANT DE FAIRE FONCTIONNER (CET

APPAREIL).

Pour réduire les risques d'incendie, de chocs électriques, ou de blessures.

N'utiliser cette machine qu'en intérieur. Ne jamais l'utiliser à l'extérieur ou dans la pluie.

N'utiliser cette machine que comme décrit dans le présent manuel. N'utiliser que les composants et les accessoires

conseillés par le fabricant.

Lorsque la machine ne fonctionnant pas correctement, a fait l'objet d'une chute ou d'une détérioration, a été laissée

à l'extérieur, est tombée dans l'eau, la retourner au centre de service agréé.

Ne pas opérer la machine lorsque les conduits de ventilation sont bloquées. Débarrasser les débris des conduits,

car ils peuvent réduire l'écoulement d'air.

Cette machine peut provoquer un incendie lorsqu'elle est utilisée près de vapeurs ou de matériaux inflammables.

Ne pas l'utiliser près de liquides, de poussières ou de vapeurs inflammables.

Cette machine est destinée à un usage commercial. Elle est recommandée davantage pour les domaines hôtelier,

scolaire, hospitalier, industriel ou pour les bureaux, les chaînes de magasin, que pour un usage domestique

normal.

L'entretien et les réparations de la machine doivent être effectuées par un personnel qualifié.

Durant la manoeuvre de la machine, prendre garde aux personnes environnantes et notamment aux enfants.

Cette machine ne doit être manoeuvrée que par un personnel expérimenté et qualifié.

Lorsque vous laissez la machine sans surveillance, débranchez-la.

Ne pas toucher la fiche ou l'appareil lorsque vos mains sont humides.

Ne pas débrancher en tirant sur le cordon. Tirer plutôt la fiche.

Ne pas utiliser si le cordon ou la fiche est endommagé

Ne pas tirer soulever ou traîner l'appareil par le cordon. Ne pas utiliser le cordon comme une poignée, le coincer

dans l'embrasure d'unée porte ou l'appuyer contre des arêtes vives ou des coins.

Ne pas faire rouler l'appareil sur le cordon. Garder le cordon à l'écart des surfaces chaudes.

Cet appareil ne doit être connecter qu a des prises ayant une sortie de terre. Se reporter aux instructions de mise

à la terre.

Si le cordon d'alimentation est endommagé, il doit être remplacé par un cordon spécial d'un agent d'entretien

autorisé.

Débranchez la machine avant de la nettoyer ou la réparer.

Un risque opérationnel est probable lors du fonctionnement de la machine avec une surcharge du cordon d'alimen-

tation.

Cet appareil a été conçu pour être utilisé avec des coussins protecteurs spécifiés par le fabricant. L'utilisation

d'autres coussins protecteurs peut affecter sa securité.

Cette machine est faite pour un usage à sec seulement et ne doit pas être utilisée ou rangée à l'extérieur dans des

conditions humides.

Pièces Mobiles - Afin de réduire le risqué de blessure, débranchez avant de procedér á l'entretien. Utilisez á l'inté-

rieur uniquement.

CONSERVER CES INSTRUCTIONS

86375030 Manual

7

Safety

The following symbols are used throughout this guide as indicated in their descriptions:

HAZARD INTENSITY LEVEL

There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR

SAFETY. The level of hazard intensity is determined by the following definitions:

WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.

CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property damage.

FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.

Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper operating

condition. Following is information that signals some potentially dangerous conditions to the operator or the equip-

ment. Read this information carefully. Know when these conditions can exist. Locate all safety devices on the

machine. Please take the necessary steps to train the machine operating personnel.

FOR SAFETY:

DO NOT OPERATE MACHINE:

Unless Trained and Authorized.

Unless Operation Guide is Read and understood.

In Flammable or Explosive areas.

In areas with possible falling objects.

WHEN SERVICING MACHINE:

Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use only

manufacturer approved replacement parts

86375030 Manual

8

Safety

Les symboles ci-dessous sont utilisés à travers ce manuel comme illustré dans leurs descriptions :

DEGRÉS DE RISQUES EN CAS DE DANGER

Il existe trois degrés de risques identifiés par les termes signalétiques -AVERTISSEMENT et ATTENTION et POUR

VOTRE SÉCURITÉ. Le degré de risque est défini de la manière suivante :

Dangers ou méthodes dangereuses qui POURRAIENT provoquer de graves blessures ou entraîner la mort.

Dangers ou méthodes dangereuses qui pourraient provoquer des blessures légères ou une détérioration du produit

ou des biens immobiliers.

POUR VOTRE SÉCURITÉ : ce signe permet d'identifier les mesures de précaution à prendre pour assurer un bon

fonctionnement du matériel.

Rendre compte immédiatement d'une défaillance ou d'une détérioration de la machine. Ne pas utiliser la machine

si celle-ci ne fonctionne pas correctement. Lire soigneusement les informations ci-dessous signalant certains

dangers potentiels pour l'opérateur de la machine. L'opérateur doit être absolument au courant de ces dangers

potentiels. Localiser tous les dispositifs de sécurité sur la machine. Il est conseillé de prendre les mesures néces-

saires pour former le personnel opérateur.

POUR VOTRE SÉCURITÉ :

NE PAS MANOEUVRER LA MACHINE :

Lorsqu'on n'est pas expérimenté ou qualifié.

Lorsque le guide d'utilisation n'est pas été lu ou compris.

Dans des zones inflammables ou explosives.

Dans des zones où des objets peuvent tomber.

LORS DE L'ENTRETIEN DE LA MACHINE :

Éviter les parties amovibles. Ne pas porter de vêtements amples, tels que des vestes, des chemises ou des

vêtements avec manches lors de l'utilisation de la machine. Utiliser les pièces détachées homologuées.

86375030 Manual

9

Safety

GROUNDING INSTRUCTIONS 120V

THIS PRODUCT IS FOR COMMERCIAL USE ONLY

ELECTRICAL:

In the USA this machine operates on a 15 amp nominal

120V, 60 hz, A.C. power circuit. The amp, hertz, and

voltage are listed on the data label found on each

machine. Using voltages above or below those

indicated on the data label will cause serious damage

to the motors.

GROUNDING INSTRUCTIONS:

This appliance must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of

electric shock. This appliance is equipped with a cord

having an equipment-grounding conductor and

grounding plug. The plug must be inserted into an

appropriate outlet that is properly installed and

grounded in accordance with all local codes and ordi-

nances.

This appliance is for use on a nominal 120-volt circuit,

and has a grounded plug that looks like the plug in "Fig.

A". A temporary adaptor that looks like the adaptor in

"Fig . C" may be used to connect this plug to a 2-pole

receptacle as shown in "Fig. B", if a properly grounded

outlet is not available. The temporary adaptor should

be used only until a properly grounded outlet (Fig. A)

can be installed by a qualified electrician. The green

colored rigid ear, lug, or the like extending from the

adaptor must be connected to a permanent ground

such as a properly grounded outlet box cover.

Whenever the adaptor is used, it must be held in place

by a metal screw.

Improper connection of the equipment-grounding

conductor can result in a risk of electric shock. Check

with a qualified electrician or service person if you are

in doubt as to whether the outlet is properly grounded.

Do not modify the plug provided with the appliance - if it

will not fit the outlet, have a proper outlet installed by a

qualified electrician.

Le raccordement incorrect du conducteur de terre

d'équipement peut entraîner des risques d'électrocu-

tion. Vérifiez auprès d'un électricien qualifié ou d'un

responsable de l'entretien si vous avez quelque doute

que ce soit quant au raccordement à la terre de votre

prise murale. Ne modifiez pas la fiche fournie avec

l'appareil: si elle ne correspond pas à la prise murale,

faites installer une prise adéquate par un électricien

qualifié.

86375030 Manual

USING AN ADAPTOR

GROUNDING CONNECTION

Note: Adaptors are not allowed in Canada.

Outlet

Tab for Grounding

Outlet Box

FIGURE C

Grounded

FIGURE A

Adaptor

Screw

FIGURE B

Adaptor

Metal Screw

Grounded

Grounding Pin

10

Safety Labels

SAFETY LABEL LOCATION

These drawings indicate the location of safety labels on the Machine. If, at any time, the labels become illegible

contact your authorized representative for prompt replacement.

EMPLACEMENT DE L'ÉTIQUETTE DE SÉCURITÉ

REMARQUE : Ces dessins indiquent l'emplacement des étiquettes de sécurité sur la machine. Si, à tout

moment,les étiquettes deviennent illisibles, contactez votre représentant autorisé pour un remplacement rapide.

86375030 Manual

WARNING LABEL

PN/86375150

11

Technical Details

ITEM MEASURE

Motor 1HP, 100-240V/50-60Hz, 6 amps (50Hz)/11amp (60Hz)

RPM 1725 (60Hz)/1400 (50Hz)

Base diameter 17“/43 cm

Orbital diameter 3/8” (9.5 mm)

Weight 82 Lbs./37 kg Basic /102 Lbs./46 kg Deluxe

Height 48” (122 cm)

Compact size for transport and storage 30” (76 cm)

Wheels 10”/25 cm Diameter, resistant to chemicals

Length 29”

86375030 Manual

Height

Base Diameter

Length

12

Notes

86375030 Manual

13

Operation

Unpacking and Initial Operations

Open the shipping box on both sides, remove the

packaging material and roll the machine out of the box.

Put the handle in an upright position.

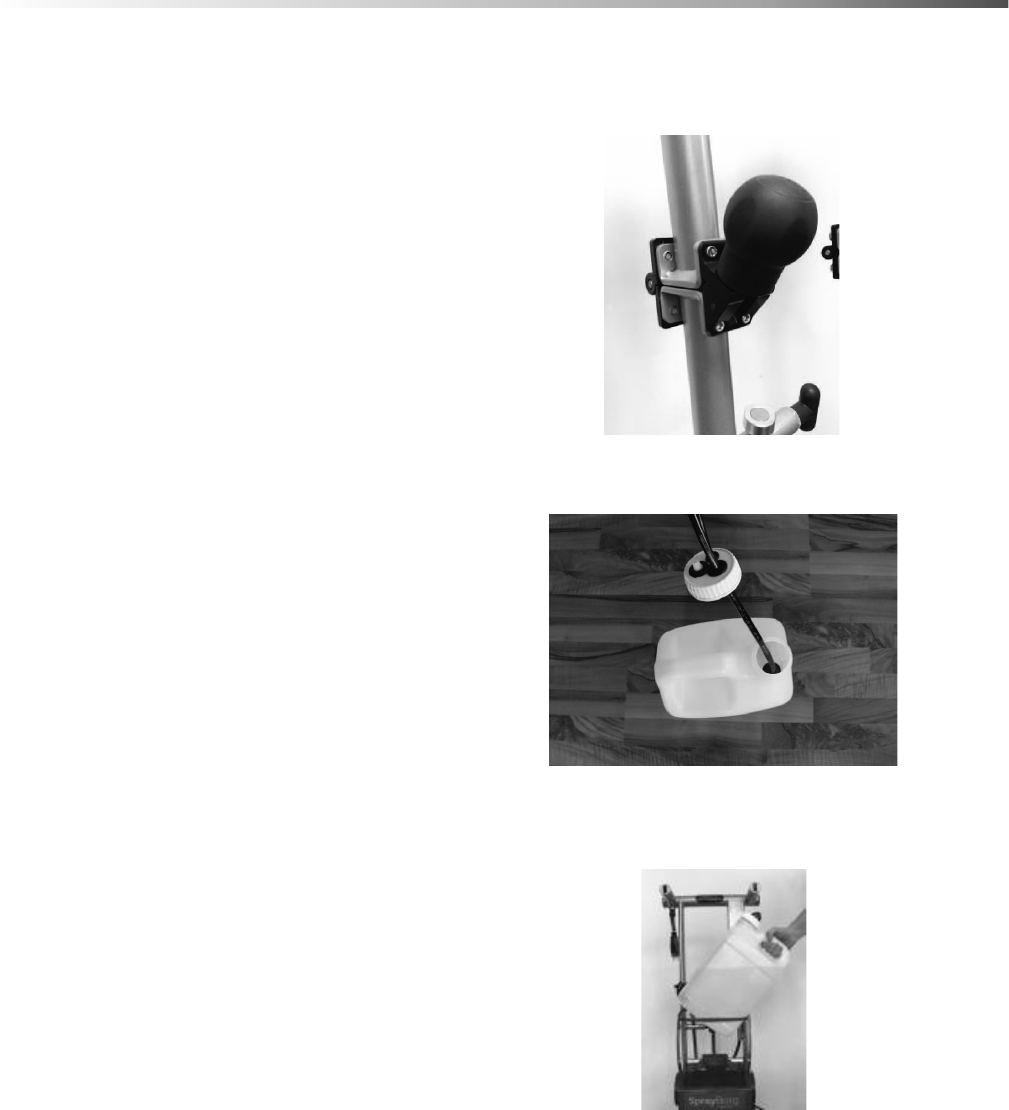

Lift the round screw knobs up and over the top latch

bracket and turn clockwise to lock properly.

Fill the water bottle with water. You can add a cleaning

solution of your choice in the prescribed mixing ratio.

Place the filled water bottle close to the machine on the

floor. Insert the filter into the water tank.

Make sure that the filter reaches the bottom of the

bottle.

To insert and remove the water bottle in and out of the

cage holder, insert or remove at an angle on the top

hoop of the cage holder.

86375030 Manual

14

Operation

Pre-Run Inspection

Before each use inspect the accessory such as the pad

driver for cracks, tears or excess wear. If the machine

or accessory is dropped, inspect for damage to install

an undamaged accessory.

Repair the damaged machine before the next applica-

tion.

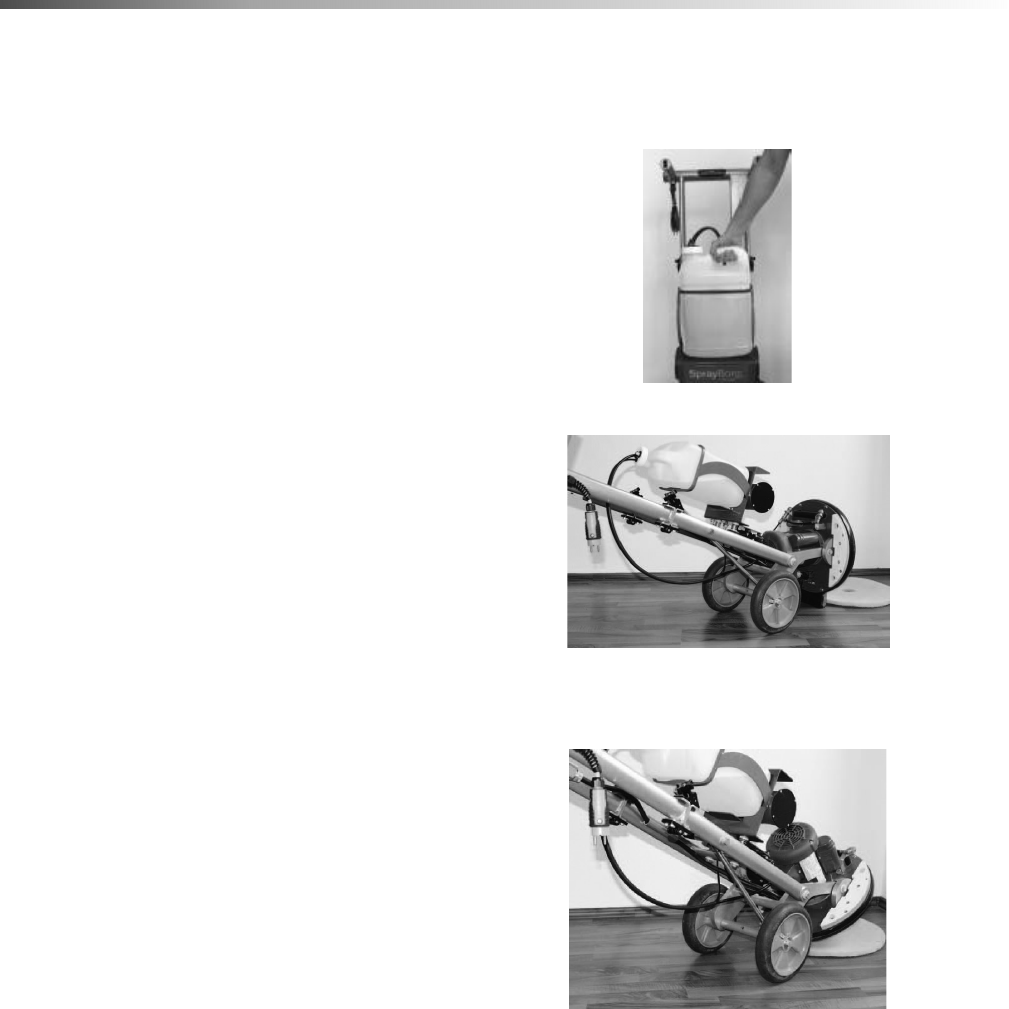

When inserting the bottle, push the container down until

it rests firmly.

Choose a pad for the appropriate application. Place the

pad in front of the machine on the floor and center the

driver plate on the pad.

To place the driver plate on the pad, position the handle

in a lower position.

Lift the machine until the wheels slightly come off the

ground and push slowly forward until the machine base

tilts towards the ground.

86375030 Manual

15

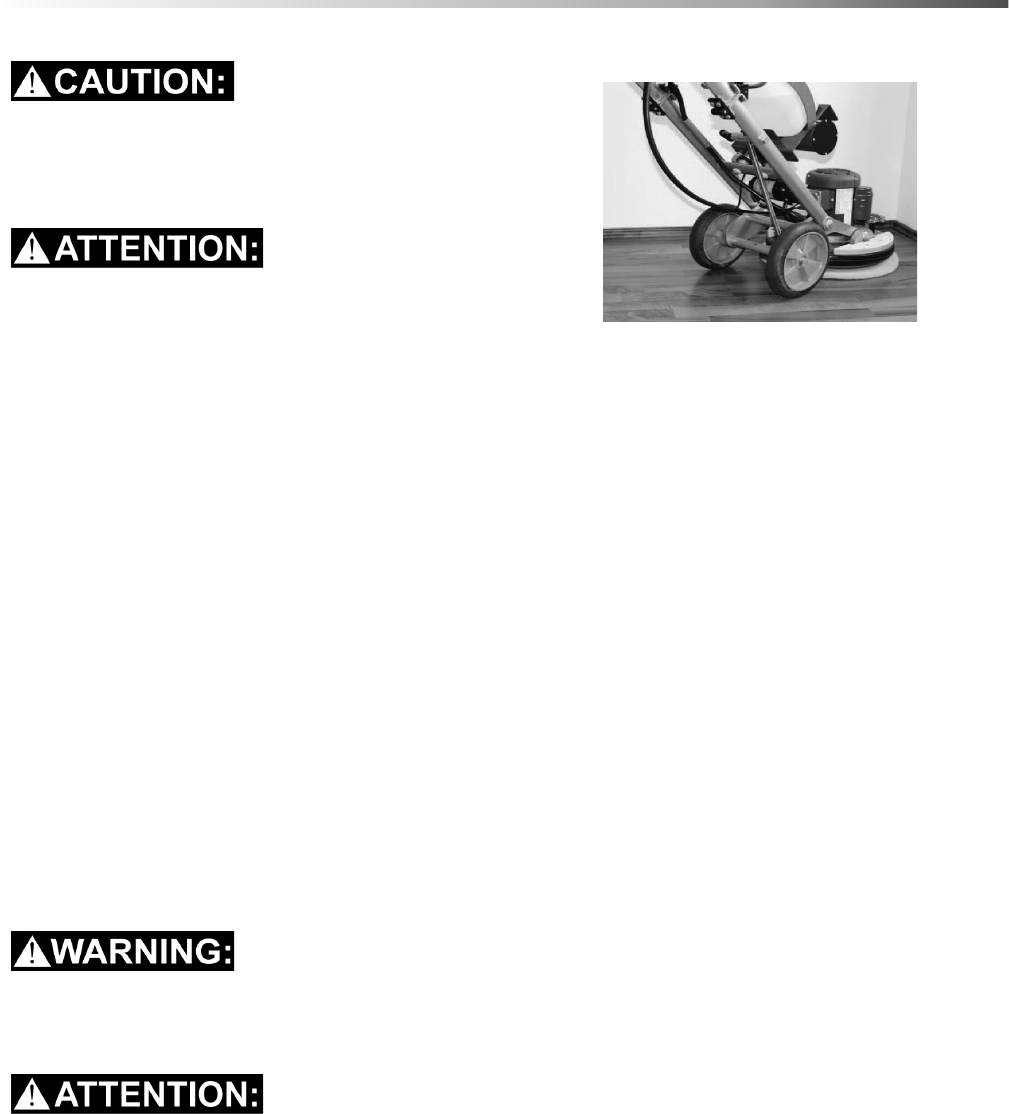

Operation

Make sure you put the wheels back on the ground in

time, to avoid the base from falling on the ground. This

might cause damage!

Assurez-vous de toujours garder les roues arrière sur

le sol, pour éviter que la base ne tombe sur le sol. Cela

pourrait causer des dommages!

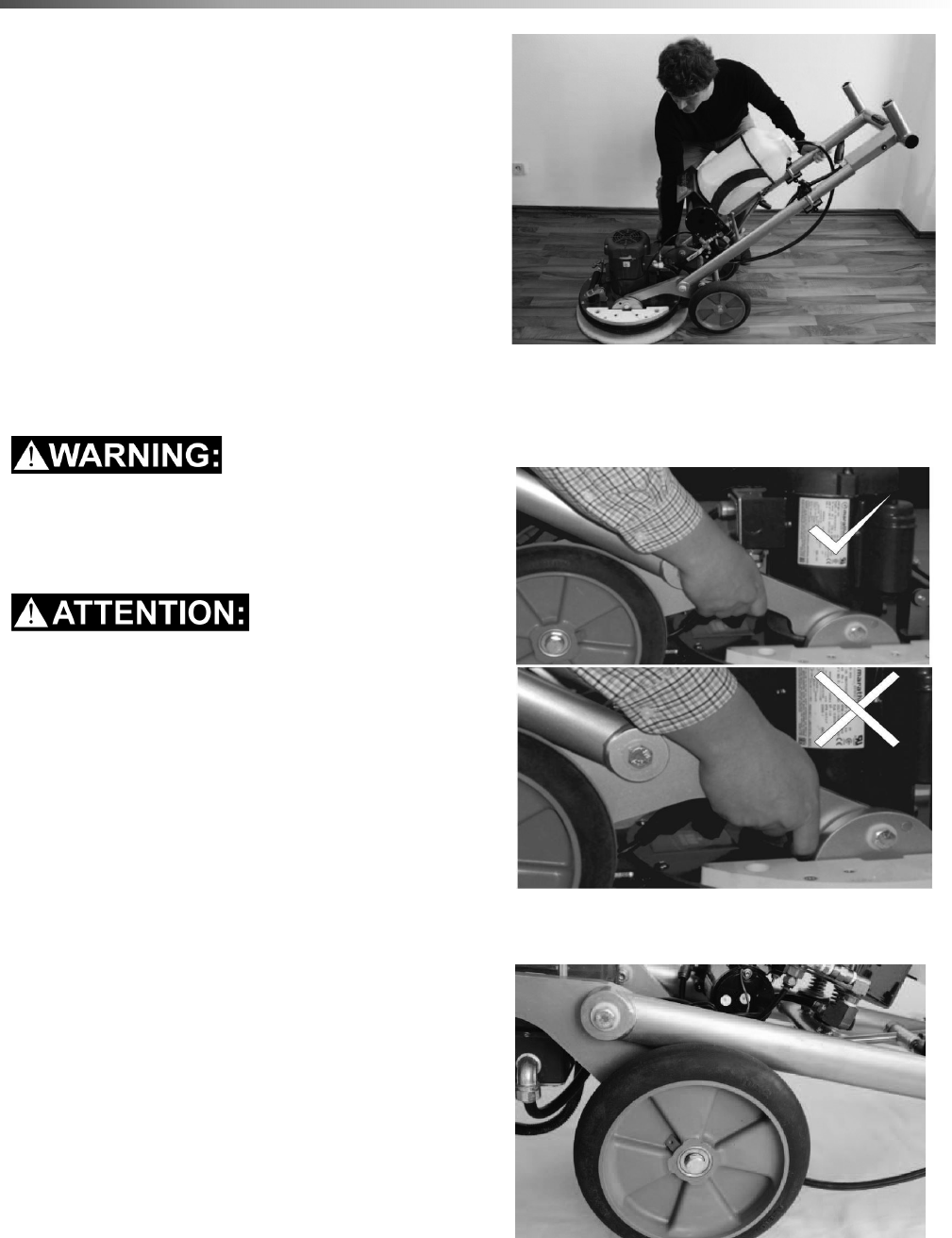

Now you are able to control the base and place it

carefully on the pad

It’s not necessary to center the pad exactly. Visual

judgment is enough.

Take the power cable that comes with the machine,

connect it to its counterpart which is located on the

upper handle.

Simply push and twist lock power cables together,

clockwise.

Firmly insert so that the black rubber ring disappears

into the female coupler.

You can now plug the power cord plug into the outlet.

Never plug the power cord into the outlet before you

plug the power cable to the machine!

Ne jamais brancher le cordon d'alimentation dans la

prise avant de brancher le câble d'alimentation de

l'appareil!

86375030 Manual

16

Operation

Pump

For priming the pump system for the first time, put the

yellow lever, which is located on the left side of the

machine in a vertical position

Hold down the black spray button on the right end of

the handle for about 30 seconds until the pump is

working at its full capacity.

This priming procedure should be repeated after every

change of the water tank. For standard priming 10

seconds is usually sufficient.

By adjusting the yellow lever you can vary the spray

pressure. The further you move the lever counter-

clockwise upwards, the higher the water pressure. A

horizontal position means maximum water output at

maximum pressure.

Adjust the spray jets on the machine base to the

desired position. For most floor cleaning applications

adjust the spray jets so that they spray about 6 inches

(15 cm) in front of the base.

86375030 Manual

17

Operation

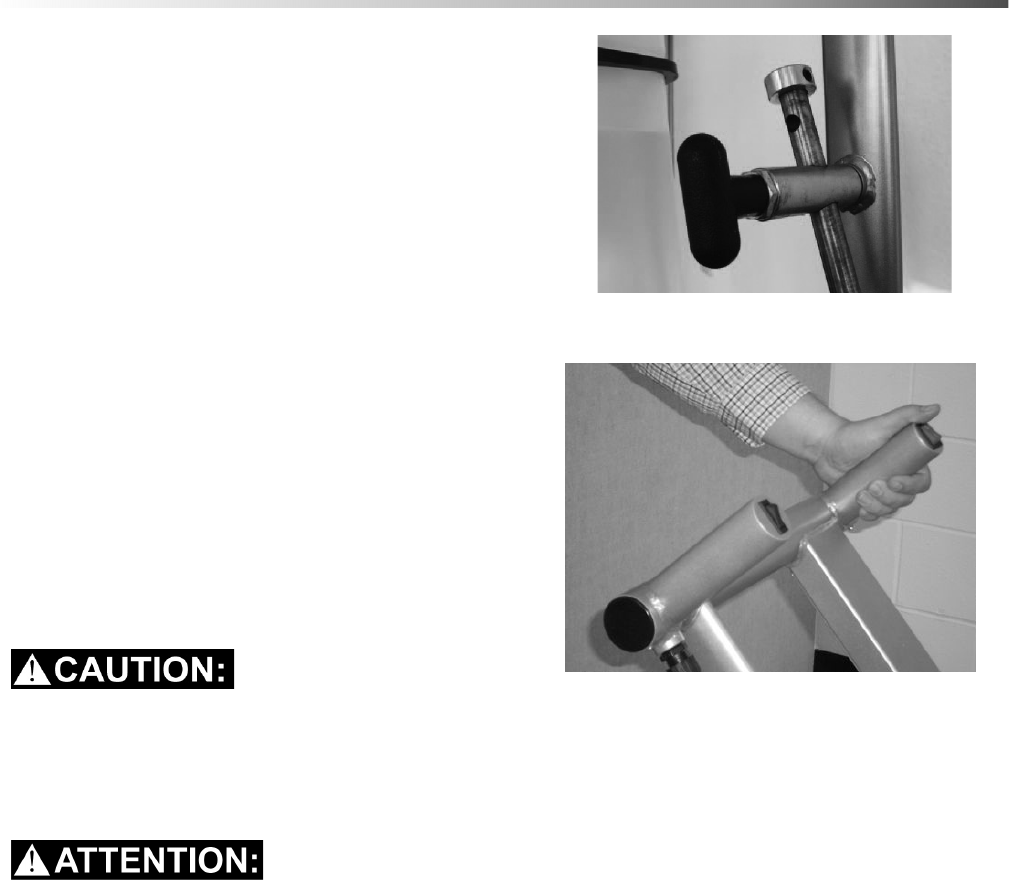

Set the handle position to the desired height by pulling

and releasing the black knob with the left hand.

While holding the black knob out, raise or lower the

handle frame with your right hand.

To fix the handle frame into place, release the black

knob so that it locks firmly into one of the holes

provided.

To turn the machine on, press the power button on the

end of the left handle.

Position “0” is off and position “I” is on.

Make sure a suitable pad or brush is mounted before

starting the machine. The immediate contact of the

floor and driver plate without a pad can lead to serious

damage of the floor and/or the machine.

Assurez-vous qu'une brosse ou un tampon adéquat est

installé avant de démarrer l'appareil. Le contact

immédiat avec la chaussée et la plaque d'entraînement

sans tampon peut provoquer de graves dommages au

sol ou à l'appareil.

86375030 Manual

18

Operation

Process of Cleaning

For effective floor cleaning, move the machine forward and backwards.

We recommend you to wet the floor as you move the machine forward, releasing the spray button when you move

the machine backwards.

To increase the pressure and cleaning effect on certain floors like tile and grout, you can lift the machine frame up,

raising the wheels off the ground. When lifting the wheels off the ground the full weight of the machine lies on the

machine base.

Make sure the surface to be cleaned is not damaged by the increase in pressure.

Assurez-vous que la surface à nettoyer n'est pas endommagée par l'augmentation de la pression.

Omit this measure on very sensitive floors.

End of the Application

Turn off the machine by putting the on/off switch to “O”.

If you used a cleaning solution, rinse the pump system with clear water. Install a bottle filled with clear water in the

cage holder. If you do not have an open area to spray and rinse the pump, we recommend placing an absorbent

pad on the floor in front of the spray jets and directly spray onto it. Press and hold down the spray button until the

water is totally clear.

Omitting this rinsing process can lead to internal hose, filter, and/or pump damage.

Omettre cette opération de rinçage peut se traduire par des dommages au tuyau interne, au filtre ou à la pompe.

86375030 Manual

19

Operation

Storage

To store the base in the upright position, press down

the handle frame with the right hand and lift up the base

with the left hand by grabbing the base handle.

The machine base should now rest on the black

bumper foot, located at the back of the bumper. To

avoid damage to the handle frame, DO NOT lay the

machine frame on the floor as done with other tradi-

tional cleaning equipment.

Remove the pad from the driver plate by pulling it down

firmly.

Put the machine frame in an upright position by pulling

the black knob with the left hand and move the handle

frame upwards with the right hand. The black knob

should lock firmly in the top hole.

Always remove the power cord from the electrical outlet

before disconnecting it from the machine

!Retirez toujours le cordon d'alimentation de la prise

électrique avant de déconnecter l'appareil!

To allow an easy transportation of the machine, remove

the water bottle and the weight kit if used.

To easily roll the machine, create a leverage effect by

pushing your foot on the back wheel axle and pull the

handle towards your body. The machine can be moved

similar to a dolly now.

Always store with the base in the upright position.

For storing in tight spaces, we recommend that you fold

down the handle frame. Open the round screw knobs

on the upper latch brackets by turning them counter-

clockwise.

Fold down the loosened screw caps. The handle can

now be folded down

86375030 Manual

20

Operation

Lifting and Carrying

If you do not have a ramp, we recommend that you lift

the machine at all times with two people in and out of a

vehicle.

Put the firmly locked handle into a lowered position.

Make sure that the machine base rests on a pad, so

that the Velcro surface of the driver plate does not get

damaged or hooked onto a carpeted surface.

Grip the machine from each side as shown.

When lifting the machine in or out of the vehicle, set the

wheels down first and then the machine base.

Make sure not to grip too close to the machine base. If

the base should flip upwards it can cause serious hand

injuries.

Veillez à ne pas serrer trop près de la base de l'appa-

reil, car si la base se retournait vers le haut, cela

pourrait causer des graves blessures à la main.

Make sure you lift the machine with a back-friendly

posture.

To save space, remove the star-shaped screw caps

and fold down the handle and place the frame in an

upright position.

To eliminate the machine from rolling or sliding during

transport, lower the frame as far down as possible until

it touches the wheels. The frame acts as a brake,

preventing uncontrolled movements. This form of trans-

portation requires sufficient space in a vehicle.

86375030 Manual

21

Operation

Weight Kit Installation

The total weight of the weight kit is 40 lbs.

Put the weights on top of the white mounting plates

located on the sides of the machine base.

Put the four screws into the holes provided on the

weight plates and fasten by turning clockwise.

Once the screws have threaded at least 5 full turns,

tighten the wing nuts by turning them clockwise, until

the weights fit securely to the base.

Make sure that the weights are securely attached to the

base. Loose weights can cause serious damage.

Assurez-vous que tous les poids sont solidement

attachés à la base. Les poids lâches peuvent causer de

graves dommages.

For storage and transport we recommend removing the

weight kit. The machine can be transported more easily

without the weights.

86375030 Manual

22

Operation

Brush Installation

Put the machine base in an upright position, sitting on the foot of the bumper.

Remove the driver plate by removing the four countersink screws in the center of the plate using an electric screw-

driver.

It is important to only use a Number 3 Phillips head screwdriver bit. Smaller bit sizes can damage the screw heads

and leave sharp edges, which can tear or snag the pads.

Il est important de n'utiliser qu'un embout de tournevis Phillips numéro 3. Des embouts de tailles inférieures

peuvent endommager les têtes de vis et laisser des arêtes vives, qui peuvent se déchirer ou accrocher les

tampons.

Mount the brush with the same countersink screws used for mounting the driver plates.

NOTE: Tighten the screws sufficiently to avoid disengagement of the brush from the machine during operation

NOTE: Serrez les vis suffisamment pour éviter le désengagement de la brosse pendant le fonctionnement

l'appareil..

To avoid stripping the screws do not over tighten. An electric screwdriver with a clutch will ensure that stripping will

not occur.

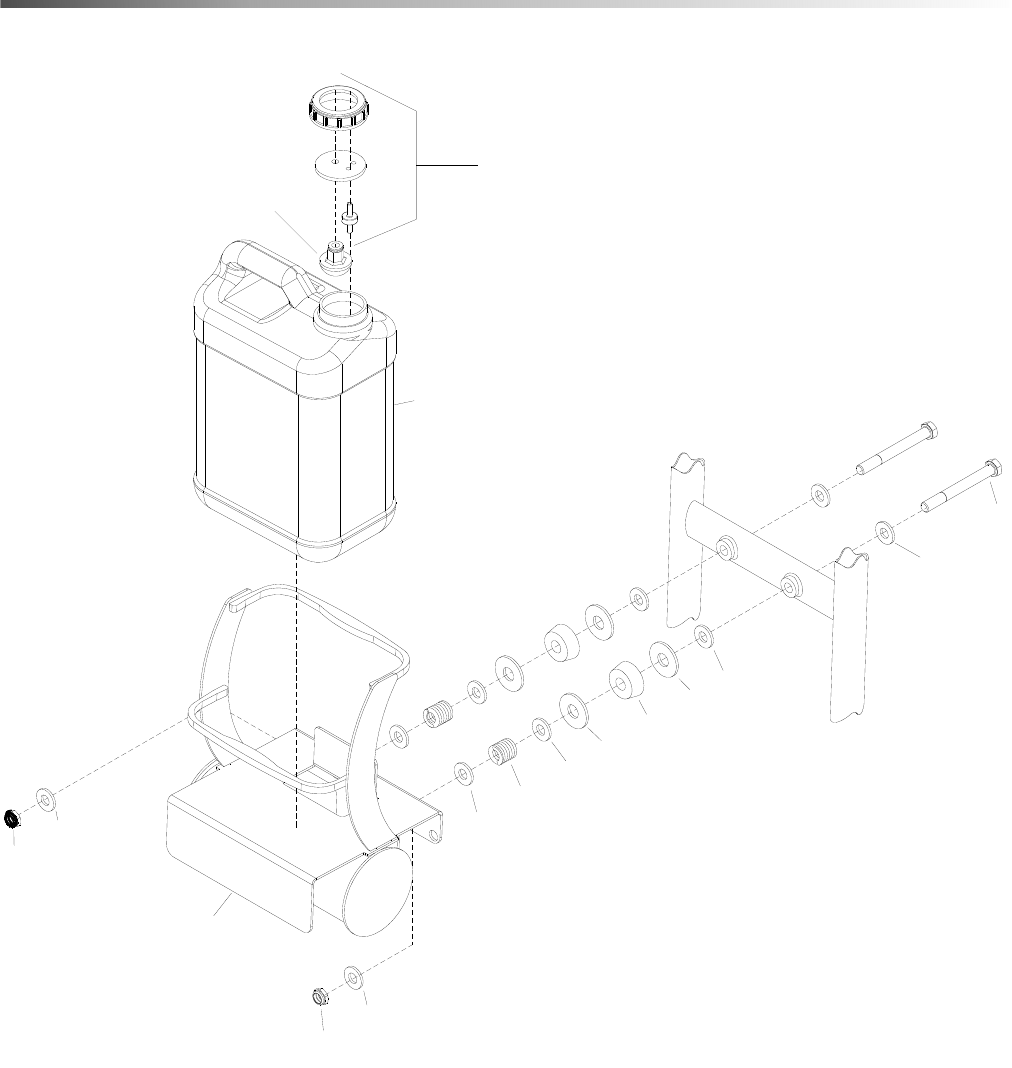

Changing the Water Bottle

To put the water bottle in the cage holder, place the bottle at an angle over the cage hoop. Push the bottle into the

cage hoop so that you can push it without much effort into the cage hoop holder.

Push the bottle down until it rests firmly

To remove the water bottle from the cage holder, proceed in reverse order:

Pull the water bottle out of the holder, as soon as the bottom of the bottle hits the cage hoop, tilt the bottle and pull

it up and out at an angle. Remove the bottle from the cage holder and place it next to the machine on the floor

To remove the cap and spray hose from the water bottle, unscrew the bottle cap counter clockwise. Remove the

hose and the filter from the water bottle. Seal the water bottle with a separate cap provided if needed for storage.

To connect the cap and spray hose to the water bottle, proceed in reverse order.

Secure cap to bottle until firmly sealed.

86375030 Manual

23

Operation

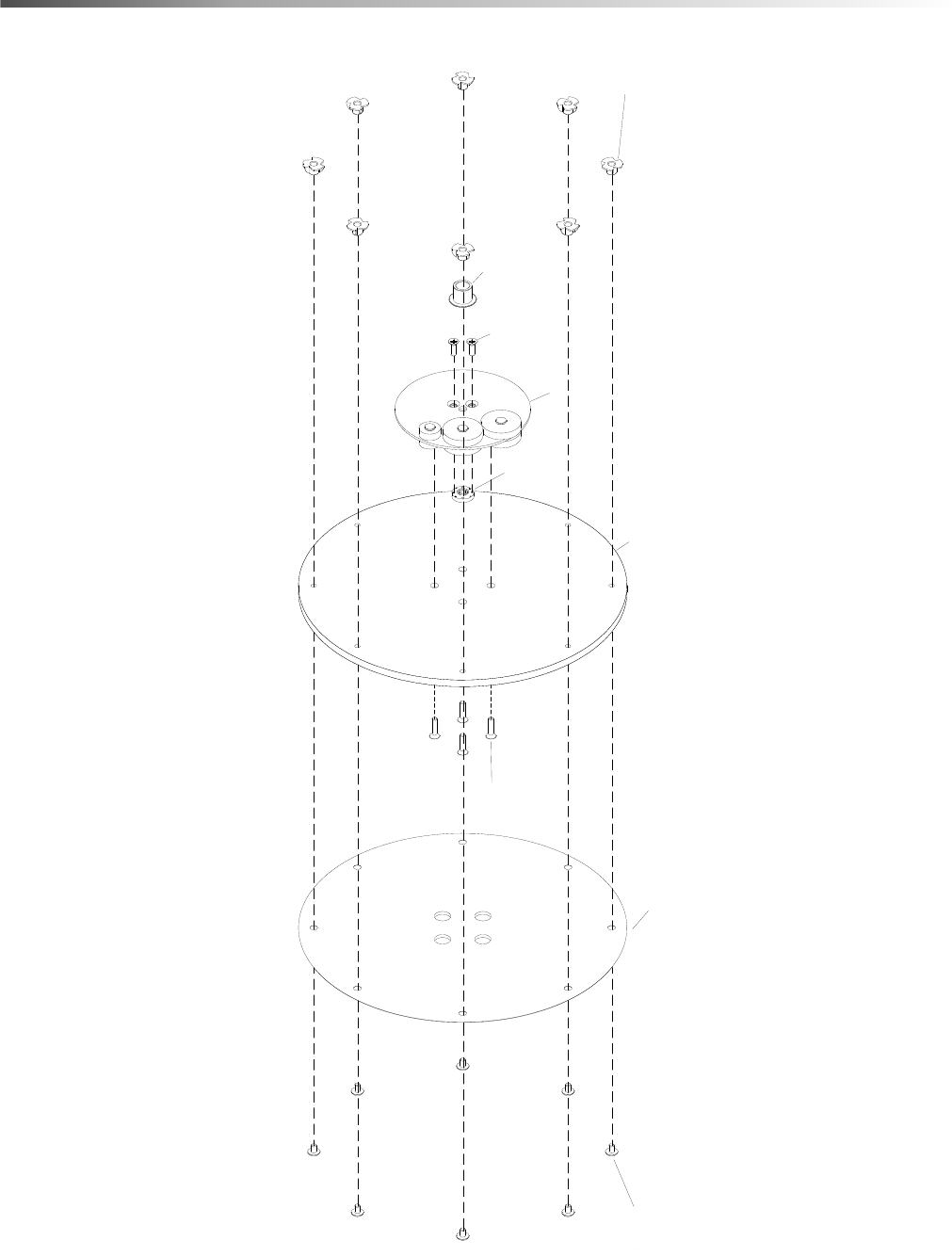

Attaching and Removing the Driver Plates

Put the machine base in an upright position, sitting on

the foot of the bumper. Remove the driver plate by

removing the four countersink screws in the center of

the plate using an electric screwdriver.

It is important to only use a Number 3 Phillips head

screwdriver bit as smaller bit sizes can damage the

screw heads. Damaged screws can cause further

damage.

Il est important de n'utiliser qu'un embout de tournevis

Phillips numéro 3, car des tailles d'embouts inférieurs

peuvent endommager les têtes de vis. Les vis endom-

magées peuvent causer d'autres dommages.

Attach a driver plate to the machine base by lining up

the holes of the driver plate with the appropriate

threads of the bearing retainer ring. It is recommended

to align the threads of the bearing horizontally to the

ground.

Put the four countersink screws through the holes of

the driver plate and first screw them into the bearing

retainer ring threads manually.

Then, tighten the screws with an electric screwdriver

NOTE: Tighten the screws sufficiently to avoid

disengagement of the driver plate from the machine

base during operation.To avoid stripping the screws

do not over tighten. An electric screwdriver with a

clutch will ensure that stripping will not occur.

NOTE: Serrez les vis suffisamment pour éviter le

désengagement de la plaque d'entraînement pendant

le fonctionnement l'appareil. Pour éviter

d'endommager les vis, ne les serrez pas trop. Un

tournevis électrique avec embrayage veillera à ce

qu'il y ait aucun endommagement.

86375030 Manual

24

Operation

Accessories And Applications

Never store the accessories in wet conditions. Keep the accessories away from extreme heat and from chemicals.

N'entreposez jamais les accessoires dans des endroits humides. Gardez les accessoires hors de la chaleur

extrême et de produits chimiques.

Driver Plates

Exclusively use designed driver plates only. The use of other driver plates will damage the machine and its mechan-

ical action.

Utilisez exclusivement des plaques d'entraînement de fabricant. L'utilisation d'autres plaques d'entraînement

endommagerait l'appareil et son action mécanique.

The driver plates are fastened on the machine base with four countersink screws.

Standard Driver Plate

The standard driver plate (15” in diameter/38 cm) is supplied as standard. It is suitable for the use with all pads for

textile and hard floor applications.

The pads can be easily attached and removed from the Velcro driver disc.

After frequent use, lint will stick to the Velcro surface of the driver plate, which hinders a secure attachment of the

cleaning pads and will increase wear and tear to the pads.

Change the Velcro driver disc often as needed to avoid problems.

86375030 Manual

25

Operation

Pads

Absorbent Pads

The Absorbent pads are made of a cotton-polyester microfiber fabric. Because of their high percentage and quality

of cotton, they are highly absorbent and are ideal for cleaning carpets as well as cleaning and drying wet or damp

hard floors.

Wash the Absorbent pads before their first usage with regular laundry detergent and bleach in a washing machine.

NOTE: Never dry the pads in a dryer.

To clean the floor, center the driver plate on the Absorbent pad. Eye judgment is sufficient.

With a diameter of 21”, the Absorbent pads are much larger than the driver base. This is intended and allows the

cleaning of furniture legs, edges, and baseboards.

Wash the pads after each use in a washing machine. After the wash cycle, stack the pads in the moist condition.

They are now ready for use. Don’t dry the pads, as this might trap the dirt.

An Absorbent pad, used on both sides, cleans 100-1000 sq. ft (10-100 m²), depending on the level of soil.

The Absorbent pads can be washed and reused, if cared for appropriately, up to 100 times.

Glider

The Gliders reduce the friction on textile surfaces. They are used to clean sensitive and long fiber carpets gently or

to facilitate the handling of the machine on very rough carpets.

There are two types of gliders in different widths. The thin black glider is used on short-pile carpet, while the slightly

thicker white glider is used for cleaning medium-length to long-fiber carpets.

The gliders are suitable for use with the Absorbent pads. Due to the Velcro surface, the gliders stick to the pads.

Attach the glider on the pad so that it is located between the floor and the pad. Place the glider on the floor, with the

Velcro side facing up. Center the pad on top of the glider and place the driver plate on the pad.

Make sure to always have the flat surface of the glider facing the floor. Never put the Velcro side on the carpet, as

this might cause serious damage to the floor.

Assurez-vous toujours que la surface plane du patin fait face au sol. Ne mettez jamais le côté Velcro sur le tapis,

car cela pourrait causer de graves dommages au plancher.

86375030 Manual

26

Operation

Carpet Pads

The beige Carpet pads are made of a special blend of fibers and latex that allows the gentle cleaning of heavily

soiled short-pile carpets as well as the scrubbing of hard floors.

Attach the Carpet pads by centering them onto the driver plate.

A Carpet pad, used on both sides, cleans an approximate area of 1000 -2000 sq. ft (100 to 200m²), depending on

the floor type and the level of soil.

Rinse the Carpet pads after each use with clean water.

Chemical Free Stripping Pad

Chemical Free Stripping Pads are made of a unique material impregnated with diamonds. They can be used for

deep cleaning and to remove wax off of vinyl, VCT, linoleum, wood, safety tiles and more.

A Chemical Free Stripping Pad, used on both sides, cleans an approximate area of 1000-2000 sq. ft (100 to

200m²), depending on the floor type and the level of wax and soil.

Make sure to thoroughly rinse the Chemical Free Stripping Pad with clean water after each use.

86375030 Manual

27

Operation

Multi-Purpose Brush

The bristles of the brush are made of high quality nylon. This unique brush design is ideal for cleaning tile and grout,

concrete, rubber flooring and micro-porous surfaces such as porcelain and safety tiles, but can also be used for any

other hard surfaces.

The use of the multi-purpose brush may splash in certain applications. Take appropriate measures or use a splash

guard if necessary to prevent the wetting of walls and other obstacles.

Dans le cadre de certaines applications, l'utilisation de la brosse à usages multiples peut éclabousser. Prenez les

mesures appropriées ou utilisez le pare-éclaboussures si nécessaire pour empêcher de mouiller les murs et

d'autres obstacles.

Rinse the brush as needed with clean water after each use.

Depending on usage and care, you can use the multi-purpose brush for many years.

NOTE ON STORAGE: Never store the multi-purpose brush with the bristles down. This can deform the bristles,

damage the brush and reduce the cleaning performance.

You can bring deformed bristles back into their original form by heating them with a heat gun.

86375030 Manual

28

Operation

Application on different Floor Types

Carpet Cleaning

Vacuum the carpet thoroughly before cleaning. Large dirt particles are removed, allowing the application to be

more effective.

Depending on the level of soil and the nature of the carpet, select a suitable textile cleaning pad. Absorbent pads

are suitable for all types of carpets, while Carpet pads are suitable in particular for the cleaning of heavily soiled

commercial carpets.

Attach a Absorbent pad on the driver plate by laying the pad on the floor and centering the machine base over the

pad.

For gentle cleaning on sensitive long-fiber carpets and for easy handling on rough carpets, use the Gliders.

Each section of the carpet should be moistened first by using the spray button when you move forward. The carpet

should be cleaned by going forward and backwards two to three times, while only spraying on the first pass in order

to keep the drying time low. Depending on the level of soil and the nature of the carpet, this process can be

shortened or extended.

As required, carpets can be vacuumed again after cleaning.

Cleaning Hard Floors

Remove dust and coarse dirt from the surface before cleaning

Choose a suitable pad according to the application.

Place the driver plate on the pad by putting the pad on the floor and centering the machine base over it.

Each section of the surface should be cleaned by moving two to three times forward and backwards and adding

water and cleaning solution as needed. Depending on the soil contamination and the floor type this process can be

shortened or extended.

86375030 Manual

29

Maintenance

Cleaning the machine:

Clean the machine with a soft cloth and a neutral pH cleaner.

Cleaning the spray system:

Rinse the spray system after each application to prevent clogging of the hoses, filters and the pump system.

To rinse the spray system, install a bottle filled with clear water and place a Absorbent pad in front of the spray jets.

Rinse the system by holding down the black spray button on the machine’s handle for at least 30 seconds.

If the spray nozzles get clogged, remove the caps and soak the brass parts of the spray nozzles and filters in a

degreasing solution (like acetone) for about 15 minutes.

If the spray nozzles are leaking, replace the filters

When assembling the nozzles, make sure that the nozzle holes are aligned horizontally to achieve a uniform spray

pattern

Changing the Velcro driver discs

Remove the eight outer screws that fasten the Velcro disc on the driver plate. To save time, use an electric screw-

driver with a #3 Phillips Head bit.

The Number #3 Phillips head bit is slightly larger than standard size. It is important that you are using a #3 Phillips

Head bit, as smaller bits can damage the screw heads and produce sharp edges which can damage the cleaning

pads.

L'embout de tournevis Phillips numéro 3 est légèrement plus grand que la taille standard. Il est important que vous

utilisiez un embout de tournevis Phillips numéro 3, puisque des embouts de taille inférieure peuvent endommager

les têtes de vis et laisser des arêtes vives, qui peuvent endommager les tampons de nettoyage.

Attach a new Velcro disc to the driver plate using the eight screws.

Make sure that the screws are very tight, not loose. If the screws are the slightest loose it can cause damage to the

Velcro disc.

Assurez-vous que les vis sont bien serrées. Si les vis sont moindrement lâches, elles peuvent causer des

dommages au disque Velcro.

Ensure that the four holes in the middle of the Velcro disc are aligned with the screws located on the driver plate.

An exact alignment allows an easy removal and installation of the driver plate.

86375030 Manual

30

Maintenance

Changing the filters

If the spray jets become clogged or should leak, this is a sign that the filters must be changed.

To change the filters, open the spray jet caps by turning the caps with a suitable wrench counterclockwise. Fix the

spray jet body with a wrench using the other hand for stabilization.

Remove the spray jet caps. The spray tip and the check ball valve filter can now be removed easily from the spray

jet body.

Insert the new filter in the spray jet body housing, place the spray tip inside the cap, put the cap on the thread and

turn clockwise to seal.

Seal the cap firmly by using the appropriate wrenches. The spray jets can now be operated as usual.

Make sure to align the slits of the spray jet tips in a horizontal plane to the floor to allow for an even spray pattern.

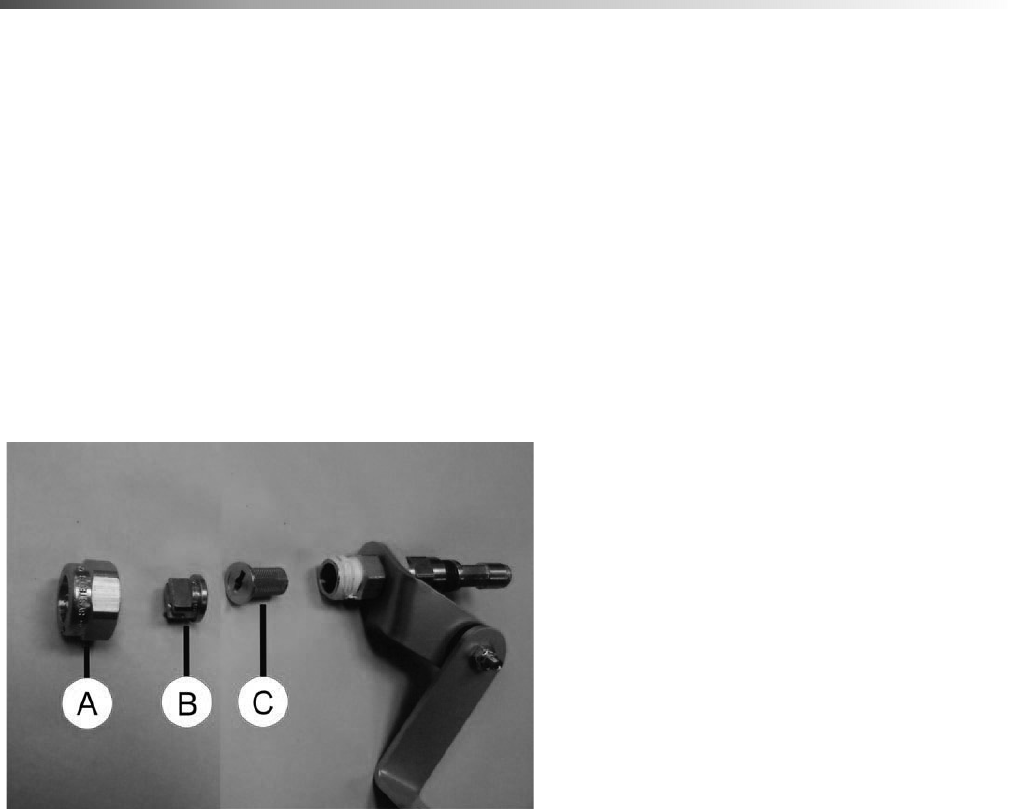

A: Cap

B: Spray Tip

C: Check Ball Valve Filter

NOTE: Use all manufacturer accessories and recommended parts only for operating.

The use of inappropriate driver plates, pads, brushes or weights can damage the machine and the floor.

Use only manufacturer recommended parts and pads or the warranty will be voided.

86375030 Manual

31

Parts

PARTS

86375030 Manual

32

Bottle Holder

86375030 Manual

5

10

4

6

7

7

8

3

8

7

2

7

7

9

7

9

1

3386375030 Manual

Bottle Holder

REF PART NO. QTY DESCRIPTION SERIAL NO.

FROM NOTES

1 86376430 1 CAGE ASSY, BOTTLE HOLDER

2 86376440 2 SPRING, BOTTLE HOLDER

3 86376450 2 DAMPNER, RUBBER

4 86374720 1 BOTTLE, CARTRIDGE, 3 GAL

5 86376460 1 BOTTLE CAP, ASSY

6 86377010 2 SCREW, 1/2-13 X 4.38 HH STL ZNPLT

7 86377020 10 WASHER, NYLON, CAGE

8 86377030 4 WASHER, 5/8 X 1.75 X .134 FLT ZNPLT

9 86005790 2 NUT, 1/2-13 HEXTHIN NYLOCK STL ZNPLT

10 86377540 1 STRAINER, SOLUTION BOTTLE

34

Deck

12

3

6

5

1

2

10

9

8

7

5

4

3

12

8

11

86375030 Manual

3586375030 Manual

Deck

REF PART NO. QTY DESCRIPTION SERIAL NO.

FROM NOTES

1 86376500 1 PLATE, MOTOR MOUNT

2 86376510 1 BUMPER SET

3 86376520 2 PLATE, BASE, WEIGHT

4 86376530 1 HANDLE, BASE

5 86377290 4 SCREW, 1/4-20 x 1.5 PHTRH SS

6 86377070 4 NUT 1/4-20 X .313 TEE 4 PRONG ZNPLT

7 86377280 4 SCREW, 3/8-16 X .75 HH STL GRD8 YL

ZNPLTT

8 86279510 6 WASHER, 3/8 FLT

9 86377100 8 NUT, 1/4-20 HEX LK STL ZNPLT

10 86270330 8 WASHER, 1/4 X .625 STL ZNPLT

11 86377120 2 SCREW, 5/16-18 X .75 HH STL ZNPLT

12 86377060 4 SCREW, 1/4-20 X 2.25 PHFLH ZNPLT

36

Handle - Latch

8

94

2

3

5

6

6

7

9

1

86375030 Manual

3786375030 Manual

Handle - Latch

REF PART NO. QTY DESCRIPTION SERIAL NO.

FROM NOTES

1 86376390 1 ROD, HANDLE

2 86376400 1 LATCH BODY PULL

3 86376410 1 LATCH, PULL

4 86376420 1 COLLAR, HANDLE LATCH

5 86376960 1 SCREW, 1/2-13 X 1.75 HH STL ZNPLT

6 86376970 2 WASHER, 1/2 LATCH NYL

7 86005790 1 NUT, 1/2-13 HEXTHIN NYLOCK STL ZNPLT

8 86376920 1 SCREW, 1/2-13 X 2 HH STL ZNPLT

9 86377000 2 WASHER, 1/2 LATCH MOUNT NYL

38

Handle - Lower

86375030 Manual

41

5

2

51

4

8

9

3

9

10

9

9

3

9

8

7

6

3986375030 Manual

Handle - Lower

REF PART NO. QTY DESCRIPTION SERIAL NO.

FROM NOTES

1 86376360 2 WHEEL, 10”

2 86376370 1 ROD, WHEEL

3 86376380 2 EARS, HANDLE, BASE PLATE

4 86376940 2 SCREW 1/2-13 X 3.75 HH STL ZNPLT

5 86376950 2 WASHER, NYLON, WHEEL

6 86377280 4 SCREW, 3/8-16 X .75 HH STL GRD8 YL

ZNPLT

7 86279510 4 WASHER, 3/8 FLT

8 86377300 2 SCREW, 1/2-13 X 2.25 HH STL ZNPLT

9 86377310 6 WASHER, NYLON, ARMS TO EAR

10 86005790 2 NUT, 1/2-13 HEXTHIN NYLOCK STL ZNPLT

40

Handle - Middle

3

12

12

7

6

6

5

11

12

8

9

10

12

11

5

6

4

86375030 Manual

4186375030 Manual

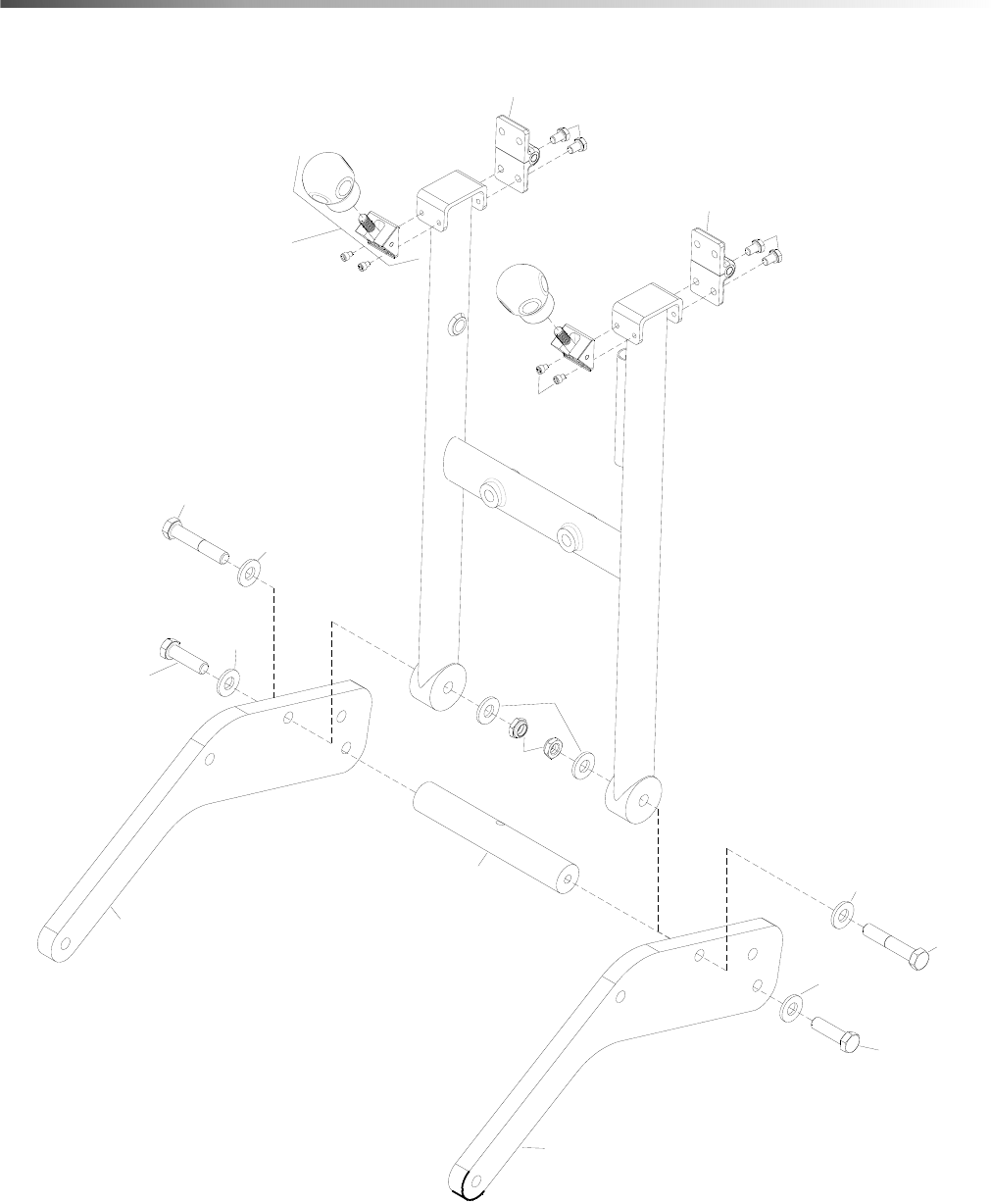

Handle - Middle

REF PART NO. QTY DESCRIPTION SERIAL NO.

FROM NOTES

1 86376280 2 HINGE, HANDLE

2 86376350 8 SCREW, 5/16-24 X 1/2",HHMS, STL, ZNPLT

3 86376290 2 LATCH, LOWER ASM, HANDLE

4 86376870 4 SCREW, 10-32 X .25 SCHCS STL ZNPLT

5 86376890 2 SCREW, 1/2-13 X 2.38 HH STL ZNPLT

6 86376900 4 WASHER, NYLON

7 86005790 2 NUT, 1/2-13 HEXTHIN NYLOCK STL ZNPLT

8 86376310 1 PLATE, ARMS, LIFT, LH

9 86376320 1 PLATE, ARMS, LIFT RH

10 86376330 1 ROD, BRACE

11 86376920 2 SCREW, 1/2-13 X 2 HH STL ZNPLT

12 86376930 2 WASHER, NYLON, ARM SUPPORT

42

Handle - Upper

86375030 Manual

8

5

14

13 17

4

1

10

10

12

2

7

6

9

16

3

15

11

4386375030 Manual

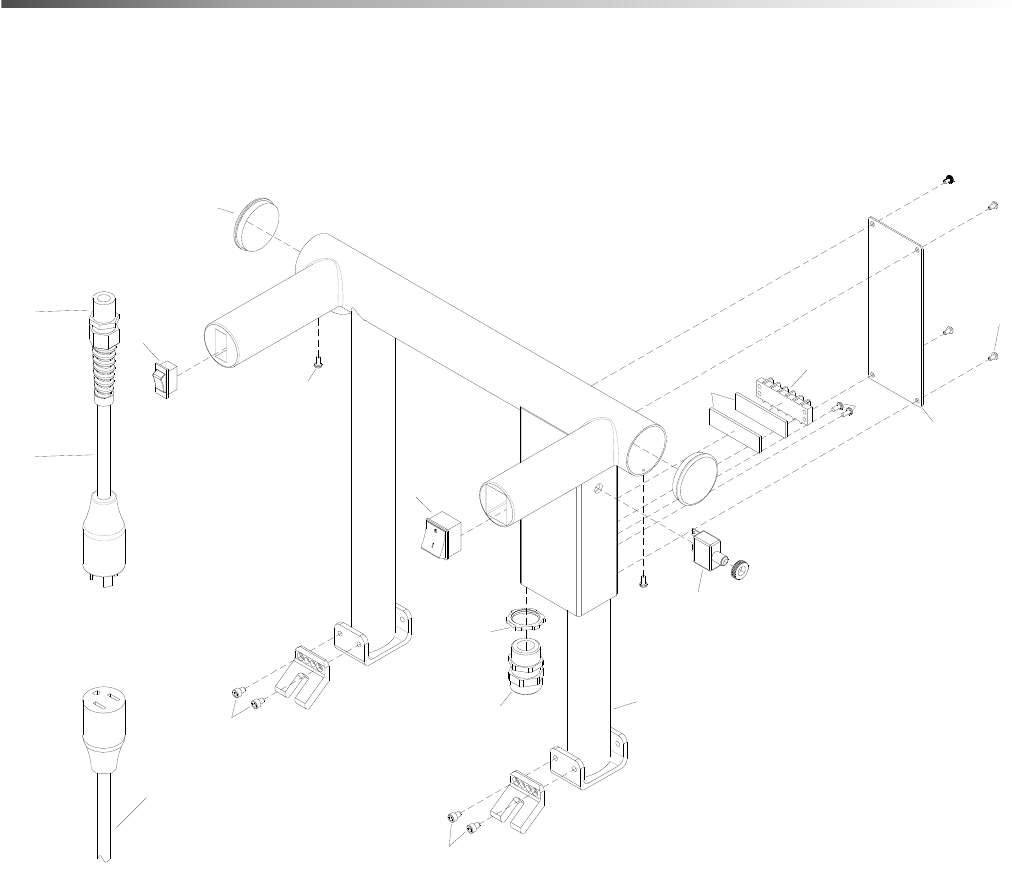

Handle - Upper

REF PART NO. QTY DESCRIPTION SERIAL NO.

FROM NOTES

1 86376150 1 HANDLE ASM, UPPER, W/ELEC BOX

- 86377370 1 HARNESS, MAIN HANDLE NOT SHOWN

2 86375130 1 SWITCH, DP, 2POS, ROCKER SPR

- 86376250 1 HARNESS, SPRAYER SWITCH NOT SHOWN

3 86375120 1 SWITCH, DP POS, ROCKER

- 86376260 1 HARNESS, ON/OFF SWITCH NOT SHOWN

4 86375140 1 BREAKER, 20A 125/250VAC 32VDC

5 86376160 1 PLATE, COVER, ELECTRICAL BOX

6 86376180 2 COVER, TUBE, HANDLE

7 86376850 2 SCREW, 6-20 X .375 PHPNH STL ZNPLT

8 86376860 4 SCREW, ELECT BOX

9 86376190 1 STRAIN RELIEF, ELEC BOX

10 86376870 4 SCREW, 10-32 X .25 SCHCS STL ZNPLT

11 86376200 1 STRAIN RELIEF, POWER CORD

12 86376210 1 POWER CORD, HANDLE

13 86376230 1 VELCRO, TERMINAL SWITCH

14 86376240 1 TERMINAL SWITCH

15 86376220 1 POWER CORD, 50’ 110V

16 86377360 1 NUT, 1/2 CORD GRIP

17 86377480 2 SCREW, 8-32 X .375 SLTDHH SS

44

Motor

12

1

2

3

5

4

4

11

910

8

86375030 Manual

4586375030 Manual

Motor

REF PART NO. QTY DESCRIPTION SERIAL NO.

FROM NOTES

1 86377400 3 SCREW, 10-32 X .25 SLTD HH STL ZNPLT

2 86377410 1 COVER, FAN MOTOR

3 86377420 1 FAN, MOTOR

4 86377430 2 NUT, 3/4 CONDUIT

5 86377440 2 SCREW, MOTOR LID

6 86377450 1 CORD, BLUE PLUG, 100-120V NOT SHOWN

7 86377460 1 CORD, BLACK PLUG, 100-120V NOT SHOWN

8 86376540 1 CORD GRIP, 3/4", MOTOR

9 86376550 1 CORD GRIP, 90 DEG, MOTOR

10 86377510 1 SCREW, 3/8-24 X 1-1/2" SCH, SET, BLKOX

11 86376490 1 MOTOR, 110/220V, 1750RPM

12 86377500 1 WASHER, 7/8 X 1.25 DSP BLKOX

46

Nozzle

14

13

5

12

1

16

11

6

7

8

15

9

10

12

15

5

12

6

10

9

8

7

11 2

12

3

4

17

86375030 Manual

4786375030 Manual

Nozzle

REF PART NO. QTY DESCRIPTION SERIAL NO.

FROM NOTES

1 86376750 1 FITTING, TEE, SPRAY NOZZLES

2 86376760 1 FITTING, 90, SPRAY NOZZLES

3 86376770 1 HOSE, SPRAY NOZZLES

4 86376780 1 HOSE, SPRAY NOZZLES CAGE

5 86376790 2 PLATE, ANGLE, NOZZLE BASE

6 86376800 2 PLATE, ANGLE, NOZZLE

7 86376810 1 COUPLER, FILTER

8 86375100 2 STRAINER, CHECK VALVE

9 86376820 2 NOZZLE, SPRAYER

10 86376830 2 NOZZLE RETAINER

11 86377220 2 SCREW, 10-32 X 3/4", HXUNS, ZNPLT

12 86377230 2 WASHER, SPRAY JET ARM

13 86005640 2 NUT, 10-32 HEX NYLOCK STL GR2 ZNPLT

14 86277640 2 SCREW, 1/4-20 X .75 PHTRH SS

15 86005640 2 NUT, 10-32 HEX NYLOCK STL GR2 ZNPLT

16 86376840 1 COUPLER, NOZZLE BASE PLATE

17 86377390 2 SLEEVE, COMPRESSION, CON

48

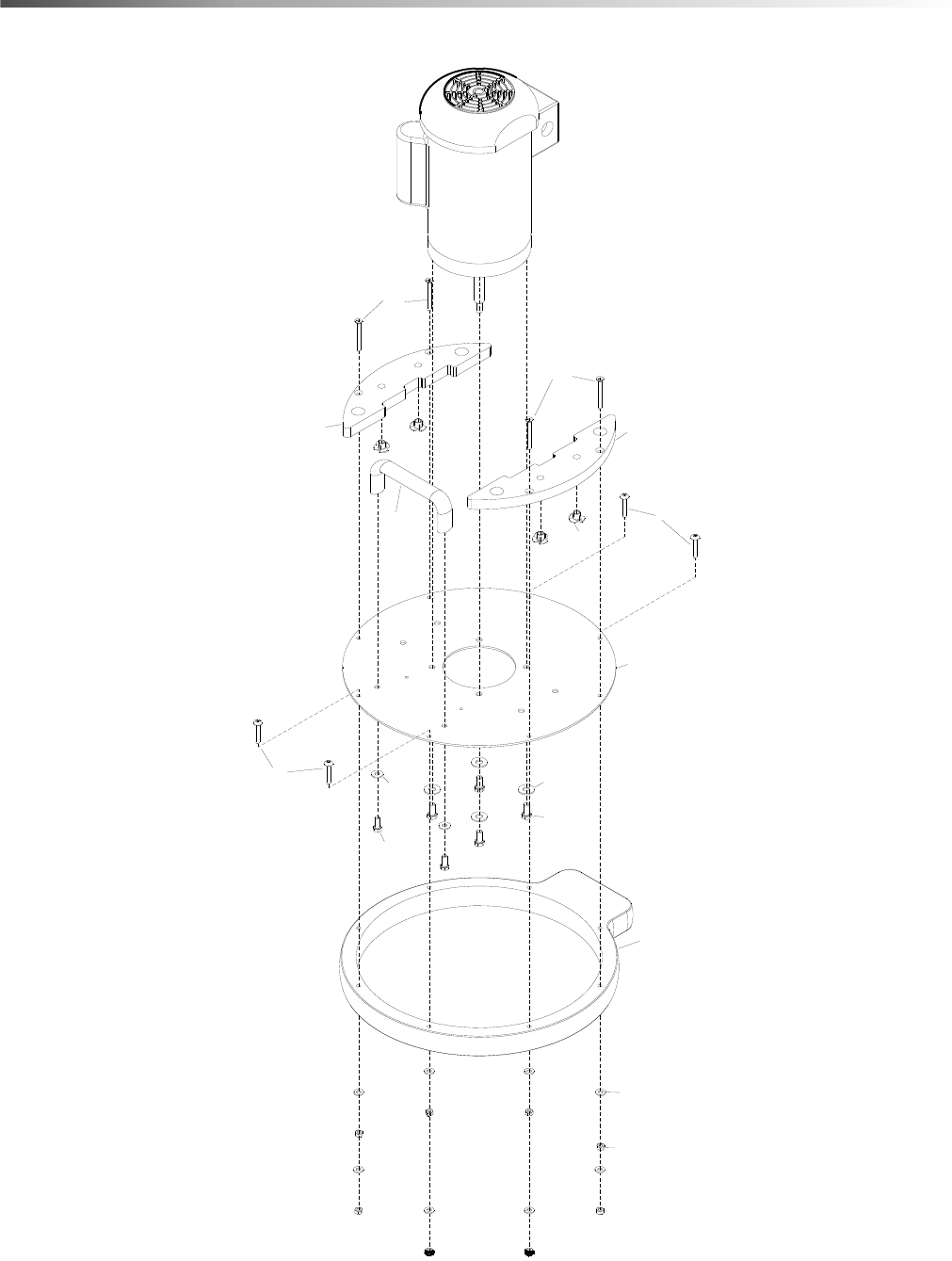

Pad

4

5

3

1

6

2

8

7

9

86375030 Manual

4986375030 Manual

Pad

REF PART NO. QTY DESCRIPTION SERIAL NO.

FROM NOTES

1 86376570 1 DRIVER, DISK, 15”

2 86376580 1 DRIVER, VELCRO PLATE, 15”

3 86397750 1 ASSY, COUNTERWEIGHT, 17 DISK INCLUDES #9

4 86377330 1 SHAFT SUPPORT

5 86377160 2 SCREW, 1/4-20 X .75 PHFLHMS SS

6 86377170 4 SCREW, 1/4-20 X 1 PHFLH SS

7 86377070 8 NUT 1/4-20 X .313 TEE 4 PRONG ZNPLT

8 86377470 8 SCREW, 1/4-20 X .375 PHTRH SS

9 86375110 1 ASSY, BEARING, 17 DISK

50

Solution

86375030 Manual

14

15

1

10

9

8

4

7

7

6

5

4

3

2

3

17

10

16

11

12

13

18

5186375030 Manual

Solution

REF PART NO. QTY DESCRIPTION SERIAL NO.

FROM NOTES

1 86376610 1 PUMP, 90PSI, 120V

2 86376620 1 VALVE, FLOW CONTROL, 3-WAY

3 86376630 2 COUPLER, QD, FLOW CONTROL

4 86376640 2 NIPPLE, 1/4”, HEX

5 86376650 1 COUPLER, FLOW CONTROL

6 86376660 1 ELBOW, 1/4”, 90

7 86377180 2 WASHER, 1/2 X .75 DSP ZNPLT

8 86376670 1 FITTING, ELBOW, 1/4”, 90

9 86376680 1 FITTING, GUEST, STRAIGHT

10 86376690 2 FITTING, GUEST, 90

11 86376700 1 HOSE, 1/4”, BOTTLE CARTRIDGE

12 86376710 1 HOSE, 3/8”, BOTTLE CARTRIDGE

13 86376720 1 HOSE, BOTTLE CARTRIDGE ASSY

14 86377190 4 SCREW, 6-32 X 1.25 HEXFLGH ZNPLT

15 86377200 4 WASHER, PUMP MOUNT

16 86376730 4 GROMMET, DAMPNER, PUMP

17 86377210 4 NUT, 6-32, HEX NYLOCK STL ZNPLT

18 86376740 1 HOSE, 1/4”, PUMP CAGE

52

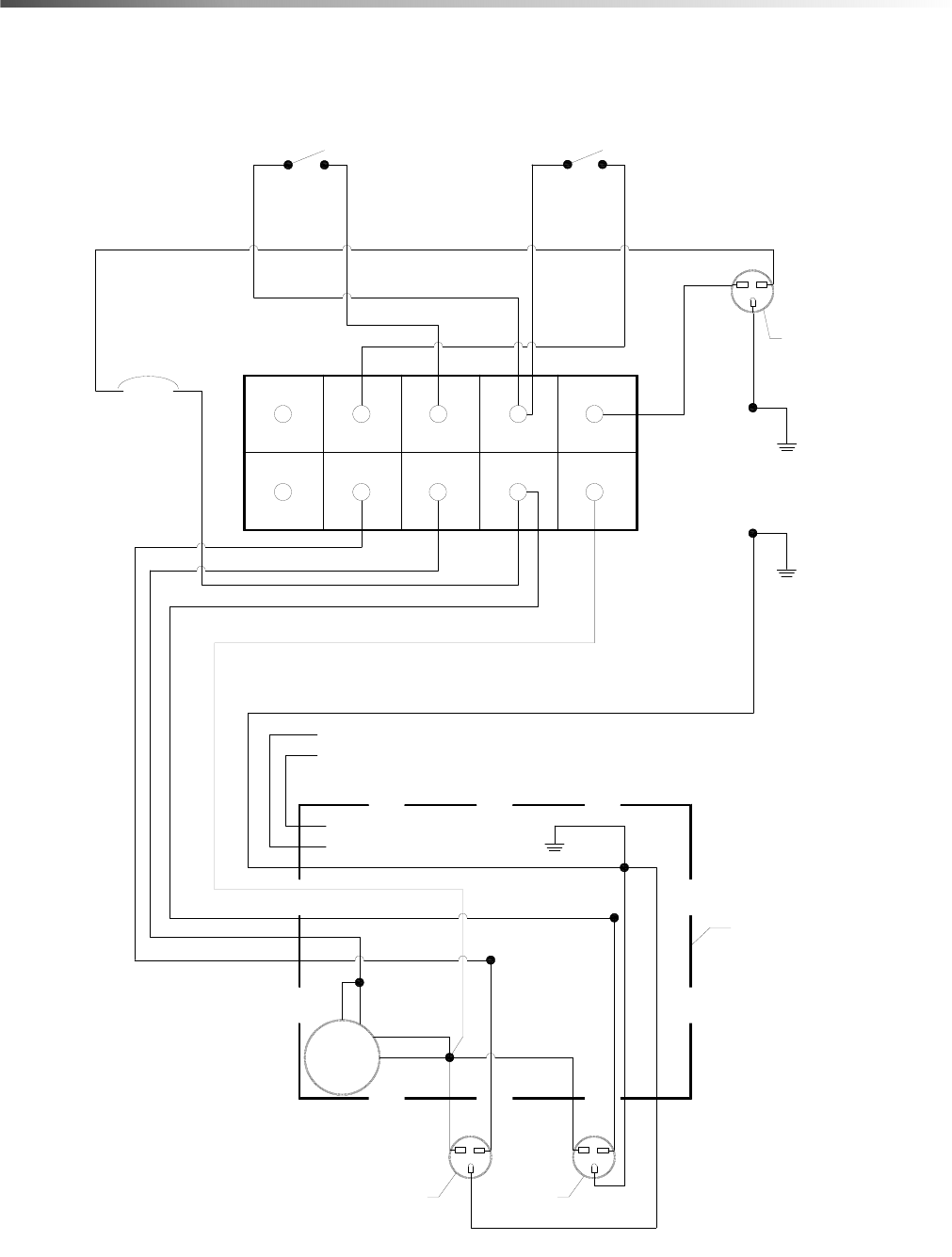

Wiring Diagram

1 (BLK)

WHT

2 (WHT) 1 (BLK) 2 (WHT)

BLK

BLK

BLK

BLU

ORG

BLK

4 (RED)

1 (BLK)

3 (BLU)

2 (WHT)

WHT WHT

BLK

YLW

Ground

Ground

Ground

Ground

Ground

Ground

Motor

Housing

Wires

Pump Plug Extra Plug

Motor Wiring Box

SPRAY SWITCHON/OFF SWITCH

Circuit Breaker

Power Cord

from Wall

Terminal Strip

inside handle

wiring box

5(YLW) No Connection (Insulated)

6 (BRN) No Connection (Insulated)

86375030 Manual

53

PART NO. DESCRIPTION SERIAL NO.

FROM NOTES

86374640 PAD, ABSORBENT, 21"

86374690 REPLACEMENT DRIVER PLATE PACK

86374660 PAD, CARPET, 19"

86374700 ASSY, GLIDER SET

86374710 ASSY, WEIGHT KIT

86374680 BRUSH, SCRUB

86374670 PAD, STRIPPING, CHEMICAL FREE, 18"

86374720 BOTTLE CARTRIDGE, 2.5 GAL

PART NO. DESCRIPTION SERIAL NO.

FROM NOTES

86375100 STRAINER, CHECK VALVE

86375110 ASSY, BEARING, 17 DISC

86375120 SWITCH, DP, 2 POS, ROCKER

86375130 SWITCH, DP, 2 POS, ROCKER SPR

86375140 BREAKER, 20A 125/250VAC 32VDC

Accessories

86375030 Manual

Suggested Spare Parts
