SystemDescription
The SwipeSense System combines point‐of‐care hand hygiene with real‐time usage data to eliminate
dependencyonmanualobservationsandincreasecompliancewithinfectioncontrolprocedures.
Ourfullyintegratedsystemseamlesslyprovidesreal‐timehandhygienedatafromacrosstheenterprise
withexceptionalclarity.TheSwipeSenseSystemcreatesa“meshnetwork”thatprovidesflexibilityfor
compilingandcommunicatinghygienepracticesofemployeeswithinyourfacility.Themeshnetworkis
composed of badges worn on individual employees, hygiene sensors mounted to hygiene dispensers
tracks employee hand sanitation frequency, location hubs monitoran employee’spresence in patient
roomsandacommunicationhublocatedineachnursescollectsthedatageneratedwithinthenetwork
andtransmitstothecloud.Oncethedataisuploadedtothecloud,itisaccessibletoalladministrators.
Cloud Communication
Hub
LH=LocationHub
HS=HygieneSensor
B=Badges
LH
LH
B
B
B
B
B
HS
HS
LH
B
HS
LH
B
B
LH
SwipeSense,Inc.
4619NRavenswoodAve.
Suite202
Chicago,IL.60640
(847)440‐6215
CommunicationHubModel:
620.0
Confidential Page5of5
May2016
ProductDescription
Thisisawall‐mounteddevicethatisplacedatanurse’sstation.Thisdevicereceivesinformationfromthe
LocationHubs,HygieneSensorsandBadges.Italsotransmitssoftwareupdates to theLocation Hubs,

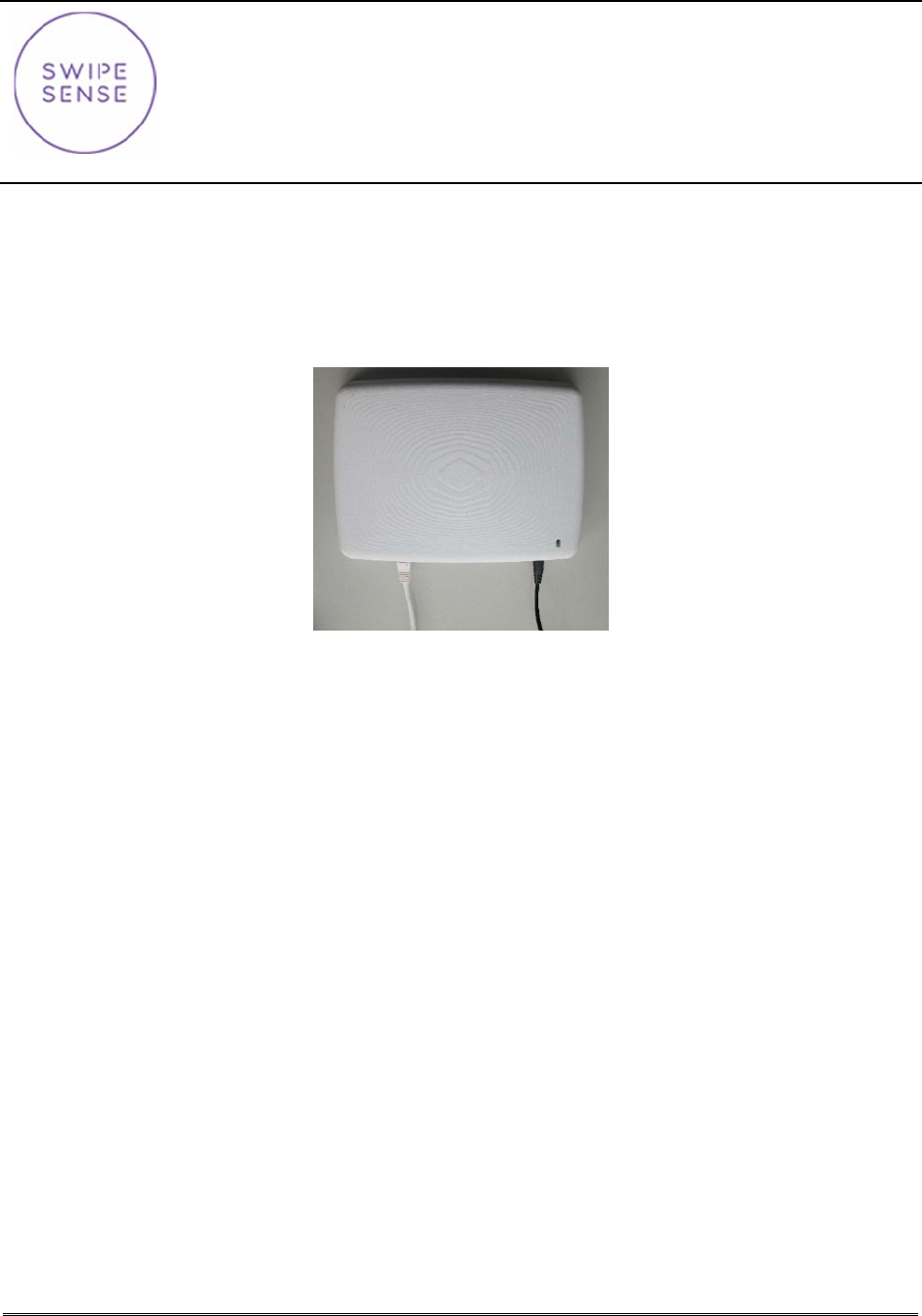

HygieneSensorsandBadgesasnecessary.ApictureofaninstalledCommunicationHubisprovidedin
Figure1.
Figure1:InstalledCommunicationHub
InstallationProcedures
1. SelectalocationnearapoweroutletandEthernetconnection.
2. Wipedownthewallandletdrytoremovedebris.
3. ScanandrecordtheserialnumberoftheCommunicationHubusingtheSwipeSenseMobileApp.
4. Enterall‐assignmentrelatedinformationfortheCommunicationHub using the SwipeSense
MobileApp.
5. ApplymountingadhesivetothebackoftheCommunicationHub.
6. PositiontheCommunicationHubonthewall.
7. ConnecttheEthernetcabletotheCommunicationHub.
8. ConnectthepowercabletotheCommunicationHub.Asteadylightdesignatesthedeviceisfully
operational.
