SwipeSense SEN420 Hygiene Sensor User Manual

SwipeSense Hygiene Sensor

User Manual

SwipeSense,Inc.
4619NRavenswoodAve.
Suite202
Chicago,IL.60640
(847)440‐6215
HygieneSensorModel:420.0 Confidential Page1of6
May2016
HygieneSensor
UserManual

SwipeSense,Inc.
4619NRavenswoodAve.
Suite202
Chicago,IL.60640
(847)440‐6215
HygieneSensorModel:420.0 Confidential Page2of6
May2016
SafetyandRegulatoryInformation
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuant
topart15oftheFCCRules.
This device complies with Part 15 of the FCC rules and with Industry Canada license‐exempt RSS
standard(s).Operationissubjecttothefollowingtwoconditions:
(1)Thisdevicemaynotcauseharmfulinterference,and
(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesired
operation.
LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareilsradioexemptsde
licence.L'exploitationestautoriséeauxdeuxconditionssuivantes:
(1)l'appareilnedoitpasproduiredebrouillage,et
(2)l'appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesilebrouillageestsusceptibled'en
compromettrelefonctionnement.
Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedin
accordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,
thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoes
cause harmful interference to radio or television reception, which can be determined by turning the
equipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe
followingmeasures:
Reorientorrelocatethereceivingantenna.
Increasetheseparationbetweentheequipmentandreceiver.
Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris
connected.
Consultthedealeroranexperiencedradio/TVtechnicianforhelp
Yourdeviceisaradiotransmitterandreceiver.Itisdesignedandmanufacturednottoexceedtheemission
limitsforexposuretoradiofrequency(RF)energysetbytheFederalCommunicationsCommissionofthe
U.S. Government. The FCC has established criteria for the amount of radio frequency energy various
productsmayproducedependingontheirintendedusage.Thisproducthasbeenevaluatedandfoundto
complywiththeFCC’sexposurecriteria.Forbodywornoperation,theFCCRFexposureguidelineswere
alsometwhenusedwiththeaccessoriessuppliedordesignedforthisproduct.Useofotheraccessories
maynotensurecompliancewithFCCRFexposureguidelinesandshouldbeavoided.
Thisdevicemustnotbeco‐locatedwithothertransmitters.
SwipeSense,Inc.
4619NRavenswoodAve.
Suite202
Chicago,IL.60640
(847)440‐6215
HygieneSensorModel:420.0 Confidential Page3of6
May2016
Theinstallerofthisradioequipmentmustensurethattheantennaislocatedorpointedsuchthatitdoes
not emit RF field in excess of Health Canada limits for the generalpopulation;consultSafetyCode6,
obtainablefromHealthCanada’swebsitewww.hc‐sc.gc.ca/rpb
IMPORTANTNOTE
InordertocomplywithFCCRFExposurerequirements,theantennasusedforthetransmittermustbe
installedtoprovideaseparationdistanceofatleast20cmfromallpersonsandmustnotbelocatedor
operatinginconjunctionwithanyotherantennaortransmitter.
Lesantennesutiliséespourcetransmetteurdoiventêtreinstalléenconsidérantunedistancede
séparationdetoutepersonnesd’aumoins20cmetnedoiventpasêtrelocaliséouutiliséenconflitavec
toutautreantenneoutransmetteur.
Warnings ThisDeviceisforindooruseonly.
ThisDeviceisonlytobeinstalledbytrainedSwipeSensepersonnel.
DonotopentheDeviceastherearenouserserviceablepartsinside
andthisproductispoweredatalltimes.
Donotuseifthecaseiscrackedorworn.
Caution Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser’sauthoritytooperatetheequipment.

SwipeSense,Inc.
4619NRavenswoodAve.
Suite202
Chicago,IL.60640
(847)440‐6215
HygieneSensorModel:420.0 Confidential Page4of6
May2016
SystemDescription
The SwipeSense System combines point‐of‐care hand hygiene with real‐time usage data to eliminate
dependencyonmanualobservationsandincreasecompliancewithinfectioncontrolprocedures.
Ourfullyintegratedsystemseamlesslyprovidesreal‐timehandhygienedatafromacrosstheenterprise
withexceptionalclarity.TheSwipeSenseSystemcreatesa“meshnetwork”thatprovidesflexibilityfor
compilingandcommunicatinghygienepracticesofemployeeswithinyourfacility.Themeshnetworkis
composed of badges worn on individual employees, hygiene sensors mounted to hygiene dispensers’
tracks employee hand sanitation frequency, location hubs monitoran employee’spresence in patient
roomsandacommunicationhublocatedineachnursescollectsthedatageneratedwithinthenetwork
andtransmitstothecloud.Oncethedataisuploadedtothecloud,itisaccessibletoalladministrators.
Cloud Communication
Hub
LH=LocationHub
HS=HygieneSensor
B=Badges
LH
LH
B
B
B
B
B
HS
HS
LH
B
HS
LH
B
B
LH
SwipeSense,Inc.
4619NRavenswoodAve.
Suite202
Chicago,IL.60640
(847)440‐6215
HygieneSensorModel:420.0 Confidential Page5of6
May2016
ProductDescription
Thisisa wall‐mounted devicethatis placed underexistinghygienedispensersthroughoutthefacility.
When activated this device measures signal strength of badges locatednearitandtransmitsthe
information to the nearest Location Hub for processing. A pictureofaninstalledHygieneSensoris
providedinFigure1.

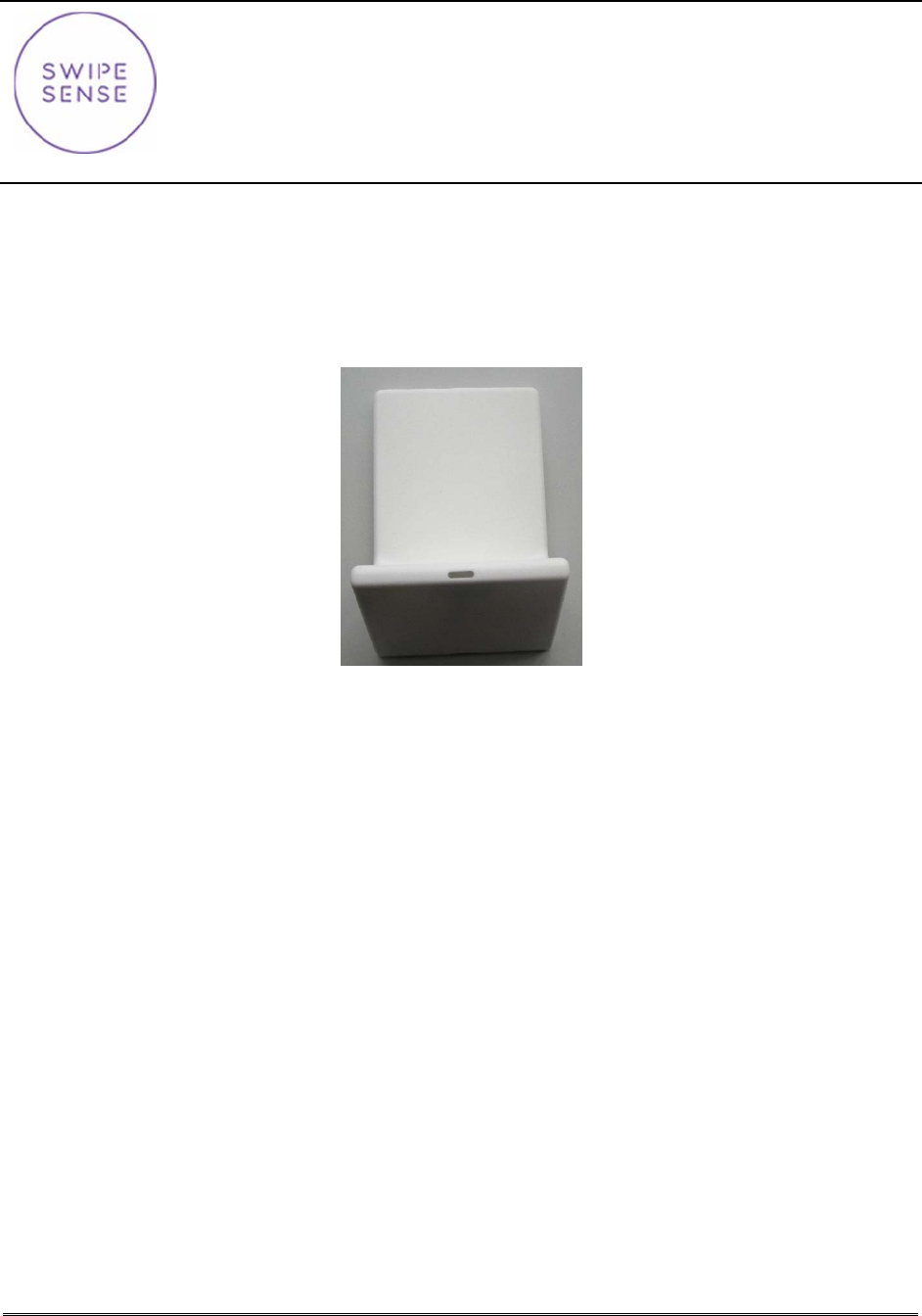

Figure1:InstalledHygieneSensor
InstallationProcedures
TheHygieneSensorrequiresaminimumclearanceof8.5inchesbelowthehygienedispenserforproper
installation.Ifthisisnotavailable,theexistingdispenserwillneedtoberemovedandre‐installedtoallow
fortheHygieneSensor.
1. InstalltheHygieneSensorMountingBrackettothewall.
a. UsetheSwipeSenseInstallationTemplatetomarkthespaceunderthehygienedispenser
forthewallanchorsusedtomounttheHygieneSensortothewall.
NOTE:Centerthetemplatehorizontallysoitiscenteredunderthehygienedispenser.
b. RemovetheSwipeSenseInstallationTemplate.
c. Drilla3/16”pilotholeintothewallsurfaceforeachdesignatedhole.
d. Installwallanchors.
e. Wipedownthewallandletdrytoremovedebris.
f. ApplymountingadhesivetothebackoftheMountingBracket.
g. PositionMountingBracketontowallusingmountingadhesiveandscrews.
NOTE:Thereleaseclipshouldbepointingtowardsthefloor.
h. AttachtheSwipeSenseInstallationTemplatetotheMountingBracket.
2. ScanandrecordtheserialnumberoftheHygieneSensorusingtheSwipeSenseMobileApp.
SwipeSense,Inc.
4619NRavenswoodAve.
Suite202
Chicago,IL.60640
(847)440‐6215
HygieneSensorModel:420.0 Confidential Page6of6
May2016
3. Enterallassignment‐relatedinformationfortheHygieneSensortotheSwipeSenseMobileApp.
4. UsingthetoggleswitchonthebackoftheHygieneSensorsetittothe“A”positionforalcohol‐
basedhygienedispensers,or“S”forhandwashorsoapdispensers.
5. SnaptheHygieneSensorontotheMountingBracketandconfirmthelightsareon,indicatingthe
deviceisfullyoperational.
