SM-900
USER GUIDE
SWR • CORONA, CA • USA
![](asset-2.png)
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: TO REDUCE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER OR BACK.
NO USER-SERVICEABLE PARTS INSIDE. PLEASE REFER TO A QUALIFIED SERVICE TECHNICIAN.
A. Read Instructions: All safety and operation instructions should be read before the product is operated.
B. Retain Instructions: The safety and operating instructions should be retained for future reference.
C. Heed Warnings: All of the warnings on this product and in the operating instructions should be adhered to.
D. Follow Instructions: All operating and use instructions should be followed.
E. Cleaning: Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
slightly damp cloth for cleaning.
F. Water and Moisture: Do not use this product near water; for example, near a swimming pool, wet basement, and the like.
G. Accessories: Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing
serious injury to a child or adult, and serious damage to the product.
H. Ventilation: Slots and openings in the unit are provided for ventilation and to ensure reliable operation of the product, to pro-
tect it from overheating, thus these openings must not be blocked or covered. This product should not be placed in a built-in
installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been
adhered to.
I. Grounding: This product is equipped with a three-wire grounding-type plug, a plug having a third (grounding) pin. This plug will
only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact
your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.
J. Power Cord Protection: Power supply cords should be routed so that they are not likely to be walked on or pinched by items
placed upon them, paying particular attention to cords at plugs and the point where they exit the product.
K. Lightning: For added protection of this product during a lightning storm or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet. This will prevent damage to the product due to lightning and power-line surges.
L. Overloading: Do not overload wall outlets or extension cords as this can result in a risk of fire or electric shock.
M. Object and Liquid Entry: Never push objects of any kind into this product through the openings as they may touch dangerous
voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
N. Servicing: Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
O. Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to qualified service personnel under
the following conditions:
1) When the power supply cord has been damaged
2) If liquid has been spilled or objects have fallen into the product
3) If the product has been exposed to rain, water, or other conductive liquids
4) If the product does not operate normally by following the operating instructions
5) If the product has been dropped or damaged in any way
6) When the product exhibits a distinct change in performance.
P. Replacement Parts: When replacement parts are required, be sure the service technician has used replacement parts speci-
fied by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire,
electric shock, or other hazards.
Q. Safety Check: Upon completion of any service or repairs to this product, ask the service technician to perform safety checks
to determine that the product is in proper operating condition.
R. Heat: The product should be situated away from heat sources such as radiators, heat registers, stoves or other products that
produce heat.
![](asset-3.png)
INTRODUCTION
The SM-900 is truly the “State of SWR’s Art” in bass amplification electronics. The SM-900 is only
slightly deeper and heavier than the SM-500, yet delivers twice the power and includes new fea-
tures such as our very flexible tone section. Along with shelving-type Bass and Treble controls, the
equalization section consists of two independent 3-band semi-parametric EQs. This provides the
user with two analog presets via a silent footswitch, or three presets (EQ 1, EQ 2, or EQ 1+2)
using the manual slide switch located on the front panel. You can now go from a solid groove

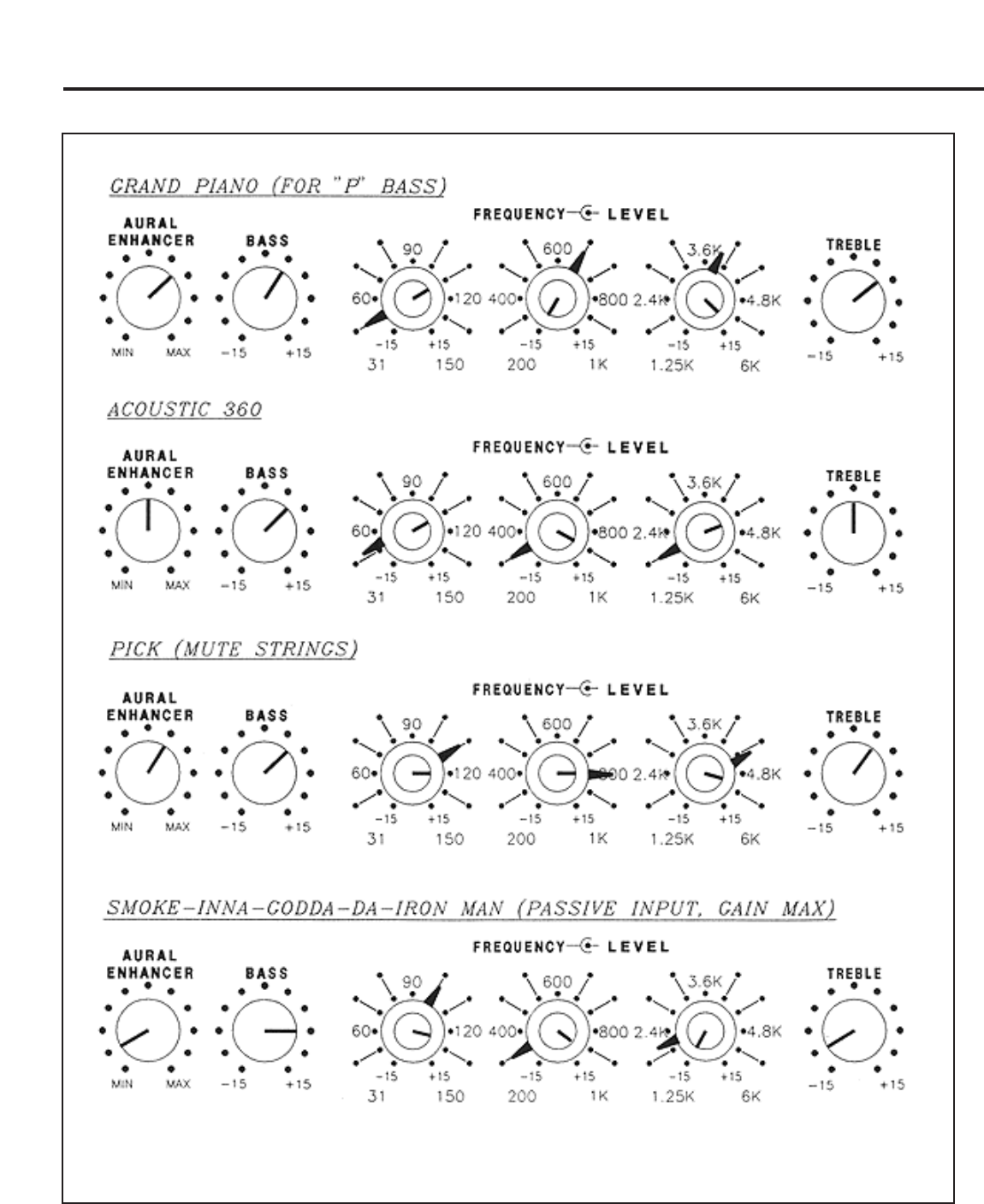

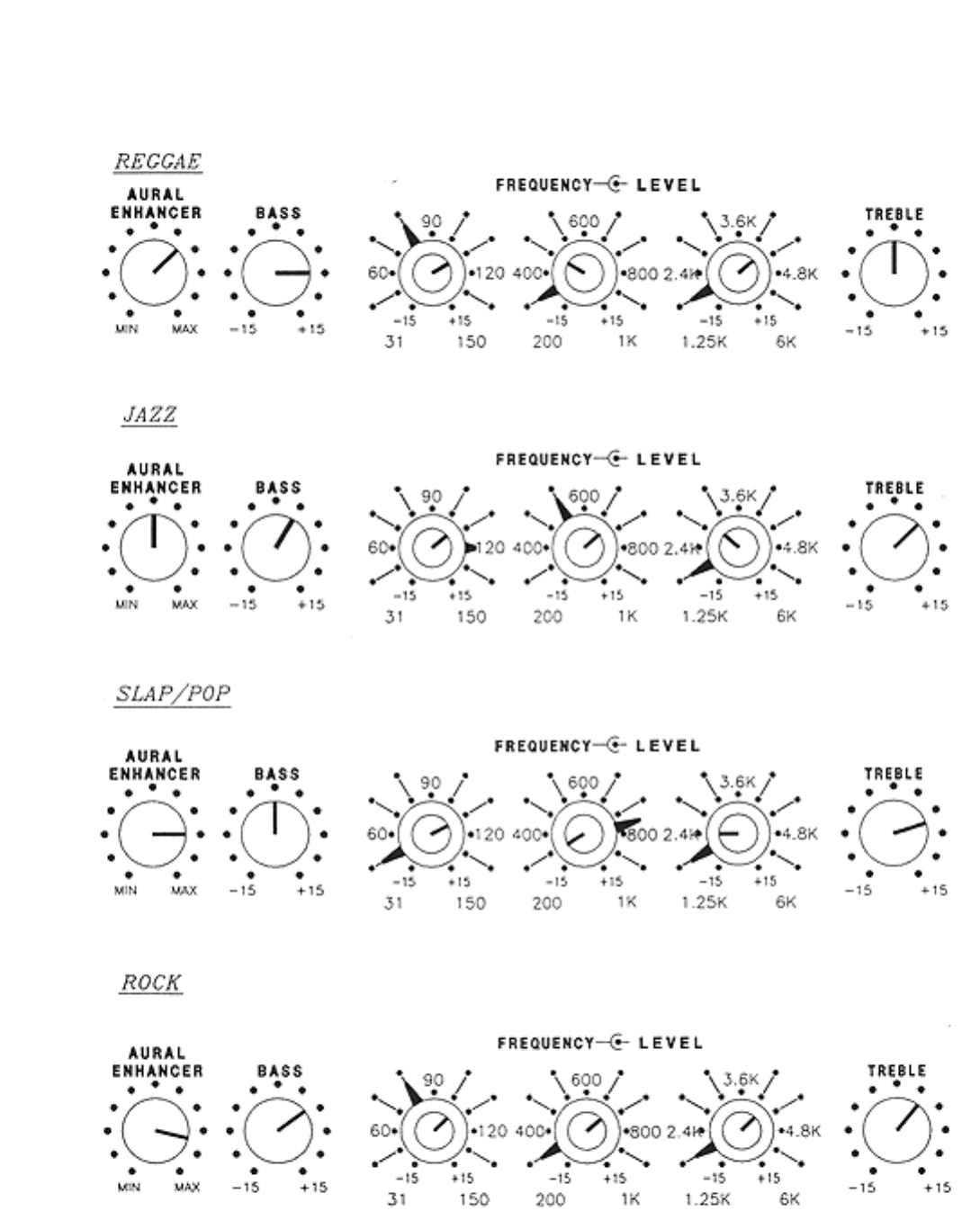

sound to soloing with just the tap of your foot. Several suggested EQ settings are included in the
tone section of this manual.
The SM-900 also boasts a studio-oriented “side chain” effects loop allowing the user the diversity
of an effects unit while maintaining the constant clarity and natural tone of the instrument. SWR’s
exclusive “To Tuner” jack is also on a side chain. Remember when you had to unplug your bass
from your amp and hook into your tuner and frantically tune up between songs? Or patch the tuner
between your instrument and amp, thus degrading sound quality? Those times are history.
Add to the above both stereo and mono effects loops, stereo/mono operation of the power amps,
biamp capabilities, up to 900 watts RMS of power, an extremely quiet preamp, a “non-pumping”
limiter, complete recording ability, and SWR’s proven reliability and sound quality, and you have
what we feel is the best bass amplifier made anywhere in the world.
Every Professional Series product from SWR Sound Corporation is manufactured and hand-built in
Sun Valley, California, USA.
SM-900 USER GUIDE
SM-900 USER GUIDE • 1
![](asset-4.png)
2• SM-900 USER GUIDE
SM-900 SPECIFICATIONS
Note: All measurements were taken with a line voltage of 120VAC. All noise specifications are
“unweighted.” All voltages and watts are “RMS.”
POWER (minimum):
Bridge/Mono Mode
900 Watts @ 4 Ohms
650 Watts @ 8 Ohms
440 Watts @ 16 Ohms
(minimum load = 4 Ohms)
Stereo Mode (per side)
400 watts @ 4 Ohms
240 watts @ 8 Ohms
144 watts @ 16 ohms
(minimum load = 2 Ohms)
FREQUENCY RESPONSE (power amplifiers): –3dB @ 20 Hz and 40kHz
SENSITIVITY (full output, 8 ohm load, 100 Hz):
Passive Input Jack: 50 millivolts
Active Input Jack: 200 millivolts
Power Amplifier (Effects Return Jack “in”): 1.6 volts
INPUT IMPEDANCE
Passive/Active Input: 800kohms
Active Input: 60kohms
Effects Return: 27kohms
OUTPUT IMPEDANCE
Effects Send: 100 ohms
Tuner Send: 100 ohms
XLR Balanced Out: 750 ohms
Crossover High and Low Outs: 100 ohms
SIGNAL TO NOISE RATIO: –75 dB (< 8 millivolts typical)
EQUIVALENT INPUT NOISE: 8.9 microvolts
DISTORTION:
Power Amplifiers (Effects Return jack “in”): 0.03% THD
I.M. Distortion: 0.06 %
System Distortion (gain & master volume full, Aural Enhancer at min., tone controls flat): 0.4 %
THD
![](asset-5.png)
SM-900 USER GUIDE • 3
THERMAL PROTECTION:
Both natural convection and thermostatically controled forced air (cooling fan). The internal fan is
set to operate when the heatsink reaches 50 degrees centigrade and will automatically shut off
upon cooling. This allows silent operation in the studio or other low volume conditions.
COUPLING CAPACITORS IN SIGNAL PATH (input to output jacks):
Quantity: 5
Type: High-grade metallized polyester, made in Germany
TUBE COMPLEMENT: One (1) specially-selected 12AX7 vacuum tube (valve).
CHASSIS MATERIAL: All aluminum for light weight and purity. Steel-reinforced rack corners.
ASSEMBLY: Virtually every step of the assembly procedure of the SM-900 is done by hand, in-
house, at SWR Sound in Sun Valley, California, USA.
CUSTOM PARTS: The chassis, extruded heatsinks, printed circuit boards, power transformer, own-
ers manual and shipping cartons are all manufactured in California. Our custom rotary potentiome-
ters are made by Noble, Japan.
SIZE (measured from the rack ears back): 19" W x 3.45" H x 13.75" D (482.6 x 37.63 x 349.25
mm)
WEIGHT: 22 lbs. (9.98 kg)
FRONT PANEL FEATURES & OPERATING PROCEDURES
EQ FOOTSWITCH JACK
For remote selection of the equalizers, insert the footswitch that came with your SM-900 into this
jack. Installing the footswitch will automatically DISCONNECT the manual EQ slide switch located
directly above the Aural Enhancer.
Depressing the footswitch will silently select the settings you have decided upon on either EQ
bank 1 (bottom row, white knobs) or EQ bank 2 (top row, black knobs). Each bank consists of 3
bands of semi-parametric equalization featuring dual concentric knobs. The INNER knob adjusts cut
and boost, and the OUTER knob is for selection of frequency. When you have selected EQ 2 (top
three bands), the RED LED located just to the left of these will light. When this LED is OFF, EQ 1
is active. This LED lets you distinguish which band of EQ you are currently using from a distance.
EQ 1+2 is NOT obtainable with the footswitch.
The BASS and TREBLE controls are INDEPENDENT of either the footswitch or the manual EQ slide
switch. (See “Tone Controls” for further details.)
Disconnecting the footswitch will automatically re-activate the manual slide switch.
INPUT JACKS
Passive/Active Input
A “passive” instrument has no built-in preamp and does not use a battery. An “active” bass, on
the other hand, utilizes a battery operated preamp, either for gain, tone controls, or both. Although
labeled “Passive,” the Passive input jack will work with all instruments that have a maximum out-
put of less than 1 volt RMS.
Generally speaking, try the Passive input jack first. If you hear a small amount of distortion and
![](asset-6.png)
4• SM-900 USER GUIDE
neither the preamp clip LED or the power amp clip LED are activated, try using the Active input
jack.
Note: If you would like to overdrive the first TUBE stage, this can be accomplished by using an
external preamp between your instrument and the Passive input. To obtain optimum sound when
trying this, make sure the preamp clip LED is not activated. If this occurs, turn down your Gain
control. The first preamp tube stage is NOT monitored by the preamp clip circuit for this reason.
Active Input
The Active input jack should be used with instruments having a built-in (on board) preamp that will
produce signals over 1 volt RMS. Basses with really “hot” pickups may be more compatible with
the Active input. Let your ears be the judge.
If you are using a KEYBOARD or BASS PEDAL, etc., with the SM-900, we have found the best
choice to be the Active input.
Note: Using the Active input with passive basses may result in a loss of high end transients.
Players who roll off their high end starting at about 2kHz or prefer a “darker” sound, may find
this input more to their liking.
If you hear some distortion with your active bass and are using the Active input jack, check your
battery. Also, make sure none of the overload indicators are lit. This will save you or your service
technician time and aggravation.
GAIN CONTROL
The Gain control adjusts the volume of the preamp section. Since the Gain control is similar to a
“pad,” a small amount of signal will be heard even with the Gain rotated fully counter-clockwise
(with the Master Volume up).
After all EQ settings and the Aural Enhancer are set, the Gain control should be raised until the
preamp clip LED barely flashes upon striking your loudest note. This will insure maximum signal-to-
noise ratio and prevent unwanted clipping of the preamp section.
Note: The Gain control serves as an effects send level adjustment. If your effect is being over-
driven, turn down the Gain control and re-adjust your Master Volume for correct, overall loudness.
This control also drives the Limiter circuit. If you are not getting enough effect from your limiter,
turn up the Gain control, but be sure to keep an eye on the preamp clip LED.
PREAMP CLIP LED
The preamp clip LED will light whenever the preamp, tone section or output buffer reach clipping
(run out of headroom). This function does NOT monitor the first tube stage of the Passive input
(see “Passive Input” above for more info). In the event the clip indicator lights, turn down the Gain
control. Since this circuit monitors all three tone sections (bass, treble, EQ 1 and EQ 2) indepen-
dently, boosting any one of these controls can cause the LED to activate. (In the case of EQ 1 or
EQ 2, even with the unselected EQ bank.) So, for instance, if you notice the preamp clip indicator
lighting, but hear no distortion and are using EQ 1, switch to EQ 2 to see if it is the culprit (or
vice-versa).
Naturally, if you want to overdrive the preamp section for a distorted tone, ignore the preamp clip
LED, but, be very cautious of the POWER AMP CLIP LED as any clipping at this power level can
damage your speaker system.
AURAL ENHANCER
SWR's Aural Enhancer Control was developed to bring out the fundamental low notes of the bass
![](asset-7.png)
SM-900 USER GUIDE • 5
guitar, reduce certain frequencies that help mask the fundamentals, and enhance the high end
transients. Basically a tone-shaping control, the Aural Enhancer is a passive R/C network that
alters the frequency response throughout the bass spectrum. This pre-shaping is "blended" into
the original signal via the Aural Enhancer Control. Exact frequencies affected are dependent on
the characteristics of the instrument used.
TONE CONTROLS AND EQUALIZATION: A BASIC PRIMER
The flexibility of the tone and EQ sections of the SM-900 is one of the most elaborate we have
developed. They have the ability to correct “dead” and “hot” spots that may be inherent in your
instrument, poor room acoustics, and can bring life to old strings, correct peaks or dips in speaker
systems, and best of all, bring out the sonic qualities of your instrument and YOUR playing tech-
nique. Although at first glance the number of controls and variables may seem fairly complicated,
once you get acquainted with how to use and apply them, they will open doors you never thought
possible.
First, let’s put everything into three groups: the Aural Enhancer; Bass and Treble; and one section
of the 3 band semi-parametric EQ. Start with the Enhancer at minimum and the Bass, Treble and
EQs set flat (mid “click” position). (The INNER knob of the 3-band parametric sets “flat” position.)
At a comfortable listening level, run through scales using different positions on the neck—prefer-
ably one near the headstock, at about the 5th fret, and up near the twelfth. Were all the notes
even? Did some notes seem alive and others dead? Does your open E string and the octave on the
twelfth fret sound too similar?
Play and sustain an open “E” note, then play the octave on the twelfth fret. Now repeat this
process with the Aural Enhancer shifted from minimum to maximum. You should now hear a dis-
cernible difference between these two notes with probably a little more brilliance. You should also
be able to “feel” the open “E” better, too.
Repeat the process once again. After playing the octave on the 12th fret, rotate the Enhancer
from maximum to 12 o’clock. As you rotate the Enhancer counter-clockwise, you will hear a
midrange “growl” added to the sound. For your info, this growl is at about 160Hz and 320Hz.
With this one adjustment, you have added dynamic range and clarity for slapping, and added
midrange for finger style playing. The best setting of the Enhancer for optimum results while slap-
ping and playing finger style will depend on your fingers, instrument and speakers.
Listening to these settings may lead you to wanting a little more “bite” in the slap sound. Rotate
the Treble control clockwise from its center click position until you’re satisfied. The Treble control
should not have as much effect on the finger sound. Go from lows to highs with the slap tech-
nique. If the lows don’t have quite the “punch” or “body” to round out the desired dynamics, boost
the Bass control from its center click position until it is well-balanced. Of course, if you have too
many highs or lows, reverse this process.
Listen closely once again, both to the slap and finger sounds. The bite of the highs in the slap is
good, but there may be an irritating sharpness. One area that may be particularly irksome is at
about 1.5k to 2kHz. Go to the third band on EQ 1. Make sure the EQ slide switch is in the EQ 1
position (far left). If your footswitch is plugged in, make sure the LED next to EQ 2 is not lit. Turn
the frequency knob (the one on the outside) on the third band so that the pointer is set at about 2
kHz (8 o’clock). Turn the level control (the one in the middle) from mid position to approximately
–6 dB (9 o’clock). If the irritation is gone but the presence is still there, you may need to boost
the Treble slightly to maintain crispness.
OK, you’ve got the high end of your slap sound perfect. The lows and mids still could use some
work. Being a perfectionist, you want the impact of a hard-hit snare riding on the wave of a kettle
![](asset-8.png)
6• SM-900 USER GUIDE
drum! You want to wake up the guitar player who’s been drilling your ears with his Marshall all
night!
Turn to the FIRST band of the semi-parametric EQ. Set the frequency knob to approximately 60Hz
(9 o’clock). Boost the Level control to about +6 dB (3 o’clock). This should provide the air and
impact to carry the notes. To clean up the midrange, adjust the frequency control of the middle
band on EQ 1 to 800 Hz (3 o’clock). Adjust the Level control to –8 dB (8:30). All things being fair-
ly equal, you should have a great slap sound, with dynamics, impact, and clarity.
Go back to finger-style. It may be too thin-sounding and the notes are not “even,” with some being
quite loud and others hardly audible. Flick the EQ select switch to EQ 2 (far right). The LED to the
left of the first band should now be lit. Your original finger tone set with the Enhancer, Bass and
Treble should still be intact, for the most part.
Since finger styles are so vastly different from player to player, as opposed to a slap style, it is
fairly hard to direct the user to specific frequencies with cut and boost parameters. Instead, we
will give you several tones (frequencies) for you to experiment with as suggested by some of our
noted professional users:
Jimmy Haslip: 80 Hz (first band), +10 dB; 200 Hz & 400 Hz (2nd band), + 2 dB; 1kHz (3rd
band), +8 dB
Ricky Minor & Neil Stubenhaus: 40 Hz, +3 dB; 250 Hz, + 4 dB; 1kHz, +3 dB
Charles Frichtel: 100 Hz, +6 dB; 600 Hz, +5 dB; 2.5kHz, –4 dB
Michael Manring: 120 Hz, –2 dB; 1kHz, –6 dB; 6kHz, +2 dB
Dean Cortez: 120 Hz, +5 dB; 600 Hz, +3 dB; 1kHz, +5 dB
Try using each group by itself. As you try them, make a note of the frequencies that are pleasing
to your ear and the ones that aren’t. Then, make up your own group. Once you’re finished, plug in
your footswitch, stand a few feet from your speakers, turn it up a little, and play a few slap licks
with EQ 1 activated. Then switch to EQ 2 and play a groove.
TONE CONTROLS AND EQUALIZATION
EQ SELECT SLIDE SWITCH
This switch allows you to manually select either EQ 1 (far left position), EQ 2 (far right position),
or EQ 1+2 (middle position).
To activate the bottom 3 bands of semi-parametric EQ, select the EQ 1 position. To activate the
top three bands, select the EQ 2 position. The LED will light at this position, indicating it is active.
We did not provide an LED for EQ 1 as this could confuse you from a distance. So, if the LED is lit,
you’re using EQ 2. If it is not, you’re using EQ 1 or EQ 1+2. Remember, you cannot select EQ 1+2
with the footswitch, just one or the other.
When EQ 1+2 is chosen with the slide switch, all 6 bands of equalization are active. Because the
two bands are in parallel with each other, there are two conditions to be aware of in the EQ 1+2
mode: there will be a +4dB boost in overall gain; and cut and boost will be ±7 dB, as opposed to
±15 dB. Normally, if two bands were both set to the same frequency, and both boosted +15 dB for
a total of +30 dB, “motorboating” (low frequency oscillation) or feedback (high frequency oscilla-
tion) could occur and damage speakers. For this reason, and the fact that more than 15 dB of
boost or cut is rarely required, we chose this configuration. If you should require more than the 7
dB offered for any one band in the EQ 1+2 mode, set two bands at the same frequency and boost
or cut both of them for a total of 15 dB.
![](asset-9.png)
SM-900 USER GUIDE • 7
BASS AND TREBLE CONTROLS
The Bass control cuts or boosts the lower or bass frequencies. Starting at mid-position, turning
the control counter-clockwise cuts the bass response and turning the control clockwise boosts the
bass response. The Bass control is a “shelving” type tone control, with the shelving point set at
about 120Hz.
The Treble control is also a shelving tone control whose shelving point is about 2.5kHz. Starting
from mid-position, turning the control counter-clockwise cuts the highs and turning the control
clockwise boosts the high frequencies.
A center “click” position on both the Bass and Treble controls indicates flat frequency response,
which means NO cut or boost is being heard on that control.
3-BAND SEMI-PARAMETRIC EQUALIZERS
There are two 3-band semi-parametric EQs in the SM-900. They can be thought of as adjustable
bass, midrange and treble knobs. The bottom 3 are designated “EQ 1” and the top three and des-
ignated “EQ 2.” These may be selected by either the footswitch or the manual slide switch located
on the front panel.
The term “semi-parametric” in this case means that it has a cut and boost function and a frequen-
cy select function. If a bandwidth (Q) control was added, it would become a fully parametric equal-
izer. A graphic EQ is similar to tone controls such as the Bass and Treble controls, except that it
uses slide controls or “faders.” The semi-parametric has the advantage of allowing you to select
which frequency is cut or boosted by the level control. A regular equalizer has fixed center frequen-
cies and cannot be altered by the user.
On each band of the semi-parametric EQ there are two concentric knobs. The inner knob is the
LEVEL control. It cuts or boosts the frequency set by the FREQUENCY control, which is the outer
knob. If the LEVEL control is in its flat, center-click position, that band will be essentially off.
Moving the frequency (outer) knob with the level control in the flat position will have NO AFFECT on
the sound or tonal structure. The level control MUST be in a cut or boost (off center) for any
change in tone to be audible.
FEEDBACK AND/OR SUSTAIN:
The low mid to hi midrange areas (80 Hz to 1 kHz) found on the semi-parametric EQ can be
extremely useful in correcting feedback in acoustic bass guitars or upright basses. If you are get-
ting a slight amount of feedback from your instrument, try the following:
Set your volume to a point where the feedback is just occurring, but not out of control; raise the
Level control of the first or second band of the parametric EQ that is activated to about +7 dB;
slowly rotate the Frequency control from left to right. At some point on either the first or second
band during the rotation of the Frequency control, the feedback should get more intense. This is
the frequency area that needs attention. Leave the Frequency control at the position the feedback
gets louder; now adjust the Level control in the CUT mode until the feedback disappears. You may
find that as you raise the volume, you may need to further cut the Level control to achieve the
desired playing volume. In this example, when the feedback becomes more intense, make sure it
is the same “pitch” as the original feedback. Feedback can be induced at different frequencies by
boosting them and you certainly don’t need two problem areas.
By reversing the technique above, you can achieve greater sustain in certain areas or on certain
notes. You can also use these guidelines to correct hot or dead spots on the neck of your instru-
ment or inherent in your speaker system.
![](asset-a.png)
8• SM-900 USER GUIDE
TONE CHARTS AND SUGGESTIONS
![](asset-b.png)
SM-900 USER GUIDE • 9
![](asset-c.png)
10 • SM-900 USER GUIDE
TONE CHARTS AND SUGGESTIONS
The following two pages include suggested settings to get you acquainted with the limitless vari-
ety of tones possible with the SM-900. By setting EQ 1 to the “Acoustic 360” and EQ 2 to the
“Grand Piano” settings, for example, you can switch back and forth with the footswitch and see
the variety of diverse sounds available to you on the SM-900.
CROSSOVER FREQUENCY
This function sets the crossover point or dividing point of the sound spectrum and sends the lower
notes to the LOW output jack on the back panel and the higher, treble notes to the HI output jack
on the back panel. For example, if the Frequency is set at mid-position or 500Hz, all frequencies
BELOW 500 Hz will appear at the LOW output jack. All frequencies ABOVE 500Hz will be present
at the HI output jack.
If you are still confused on how to set the crossover point, you can refer to the owners manual
that came with your speakers. It will probably recommend a crossover point. Another reference,
which is probably the best, is your own ears. Once you have set up your system, rotate the
Crossover Frequency control until the sound seems balanced or, simply, sounds the best.
The crossover slope is 12 dB per octave.
Note: Nearly all of SWR’s speaker systems are desinged to be run FULL RANGE and bi-amping
is not recommended for all situations. Bi-amping causes a natural “suck out” at the crossover
point and some phase problems can occur.
BALANCE
The Balance control works only when biamping (refer to page 19). The Balance control sets the lev-
els of the highs and lows with respect to each other. Since this circuit is passive, rotating the
Balance control towards the low position cuts the highs. Likewise, rotating the control towards the
hi position cuts the lows. Therefore, if you need more lows and less highs, rotate the control
counter-clockwise from mid-position. If you need more highs and less lows, rotate the control clock-
wise from mid-position.
LIMITER
The Limiter control is actually a Threshold adjustment for the Limiter circuit. In the fully counter-
clockwise position, the limiter circuit is disengaged. As you rotate the control clockwise, the
threshold (point at which the Limiter circuit is engaged) is lowered. The LED to the right of this
control will light when the limiter is working. The farther the control is rotated, the more drastic
the limiting becomes and a “fatter” sound is achieved.
The Limiter circuit in the SM-900 adds NO noise and very little distortion. You should also notice
that there is little “pumping” or “drop off” as experienced in lesser-quality units. The design of the
limiter circuit has what is known as a “soft knee.” This essentially means that you can get a com-
pression effect as the limiter threshold is just engaged.
The Limiter circuit is driven by the Gain control and the amount of cut and boost in the tone sec-
tion. If you desire more limiting than is achievable with the Limiter control at maximum, turn up
the Gain control (but keep an eye on the preamp clip LED).
We put the Limiter circuit just before the Effects Loop. If, on some of the peaks, you are overdriv-
ing your effects, you can correct the problem using the Limiter. Any undesired loss in volume
caused by the Limiter can be made up by raising the Master Volume.
EFFECTS BLEND
This function blends the signal from your instrument with that coming from your effects unit. With
the Effects Blend fully counter-clockwise (“dry”), no signal from your effect will be heard. As you
![](asset-d.png)
SM-900 USER GUIDE • 11
turn this control clockwise, more of the effect can be heard in the overall sound. When the Blend
knob is fully clockwise (“wet”), no true or unaffected signal is heard other than what your effects
unit provides.
The Effects Blend circuit is similar to that used on recording consoles with the effects loop on a
“side chain” to the normal circuit. Unless the control is set to the fully “wet” position, you will
always get the full sound of your instrument and get the diversity that an effects unit offers. This
circuit is also effective in reducing noise caused by effects units because it is located after the
gain stages. When not using an effect, the Blend control should be in the fully counter-clockwise
(“dry”) position.
Note: See the “Effects Loop” section of the Rear Panel and the diagrams beginning on page 20
for further information and patching instructions.
DUAL MASTER VOLUME
The inner knob adjusts the level of the left power amp; the outer knob adjusts the level of the right
amp. They do NOT affect the level of the record XLR output in the “line” position. This configura-
tion allows the user added flexibility when using the SM-900 in Stereo mode. For example: You are
using the left channel for your monitoring and the right channel is across the stage next to the
drummer. The independent Master Volume controls allow you to set a different level for each situa-
tion.
Losses caused by effects units can be recovered by raising the Master Volume.
If the power amp clip LED lights more than occasionally, turn down the Master Volume to correct
this condition.
Note: When using one channel only in stereo mode, use the LEFT side.
POWER AMP CLIP LED
The power amp clip LED will light when the internal power amps reach clipping or run out of head-
room. If this LED lights more than occasionally, the Master Volume should be turned down. Constant
clipping of a power amplifier will not harm the electronics, but can harm your speaker system!
Speakers that have failed due to continuous clipping of a power amplifier are generally not covered
under warranty. Once again, to correct this situation, turn down the Master Volume or adjust your
Limiter.
POWER LED
The Power LED will light when the power switch (on the rear panel) is turned to the “on” position.
REAR PANEL FEATURES
XLR BALANCED OUTPUT
The XLR Balanced output is a true electronically balanced output; the output level is set by the
XLR pad control. The signal appearing at this output is determined by the position of the
Line/Direct switch (directly below).
When using the XLR Balanced output for recording, optimum results can be achieved by driving the
tape deck direct. Always use the XLR pad control to adjust working levels or attain the drive need-
ed in studio situations. The use of input pads on consoles can deteriorate sound quality.
Wiring for the XLR connector is as follows:
Pin 1 = ground, Pin 2 = + (hot), Pin 3 = – (American Standard)*
* Please take note of this if your are using this connector outside of the United States.
![](asset-e.png)
12 • SM-900 USER GUIDE
SM-900 models with a serial number of 2706 and greater are compatible with Phantom Power-
equipped mixing consoles.
LINE/DIRECT SWITCH
In the “Direct” position of this switch, the XLR is essentially an active tube direct box, and the
signal is taken directly from the input jacks. Controls on the front panel DO NOT affect the sound,
volume or content of the signal. In the “Line” position, ALL controls on the front panel (except the
Effects Blend and Master Volume), affect the signal. Output level in this position is determined by
both the Gain and XLR pad controls.
Make sure this switch is set all the way to one side or the other (not positioned somewhere in
between, which could result in no output).
XLR PAD AND GROUND LIFT
The XLR Pad control adjusts the signal level appearing at the XLR Balanced Output in both the
Line and Direct modes. The level is increased as the control is turned clockwise.
If you are in the “Line” position and change the Gain control on the front panel, the level will also
change at the balanced output. The XLR pad can be readjusted without affecting any other func-
tion.
A ground lift is provided for the XLR Balanced Output; it is built into the XLR Pad. When the knob
on the XLR pad is in the “In” position, the ground to pin 1 is engaged. Pulling the knob to the
“Ground Lift” position (out) will interrupt or defeat the ground to pin 1. If a persistent hum exists
after trying both positions of the Ground Lift function, there may be a problem with the AC voltage
or possibly a dirty AC line.
TO TUNER INPUT
The “To Tuner” input jack allows the user to connect an instrument tuner and tune up without hav-
ing to unplug and go back and forth from amp to tuner. This feature is totally isolated from the
rest of the preamp and will function regardless of the settings of any control on the front panel.
Being isolated on a side chain avoids loading down of the instrument, which can cause a loss in
dynamic range.
To use this feature, connect a shielded patch cable from the “To Tuner” input to the INPUT on your
tuner. Turn the amplifier on and you’re ready to go. If you don’t want to monitor your sound while
tuning up, turn down the Master Volume.
CROSSOVER HI AND LOW OUT JACKS
These jacks provide a LINE LEVEL output that can be sent to either an external power amp or the
internal power amps of the SM-900 via shielded patch cables. You cannot connect speakers direct-
ly to these outputs (see diagram on page 19).
Present at the Low jack are all frequencies below the point set by the Crossover Frequency con-
trol on the front panel. Present at the High jack are all frequencies above the point set by the
Crossover Frequency control. ALWAYS use a high-quality shielded patch cable that is as short as
possible for bi-amp connections.
BI-AMPING WITH THE SM-900
Bi-amping is the process of driving two separate cabinets, one for high frequencies and one for low
frequencies, with separate power amplifiers. We have found bi-amping to be most useful in situa-
tions where the user wants to run effects on the high frequencies while keeping the low frequen-
cies “dry.” This allows the user to utilize effects without sacrificing a solid bottom end.

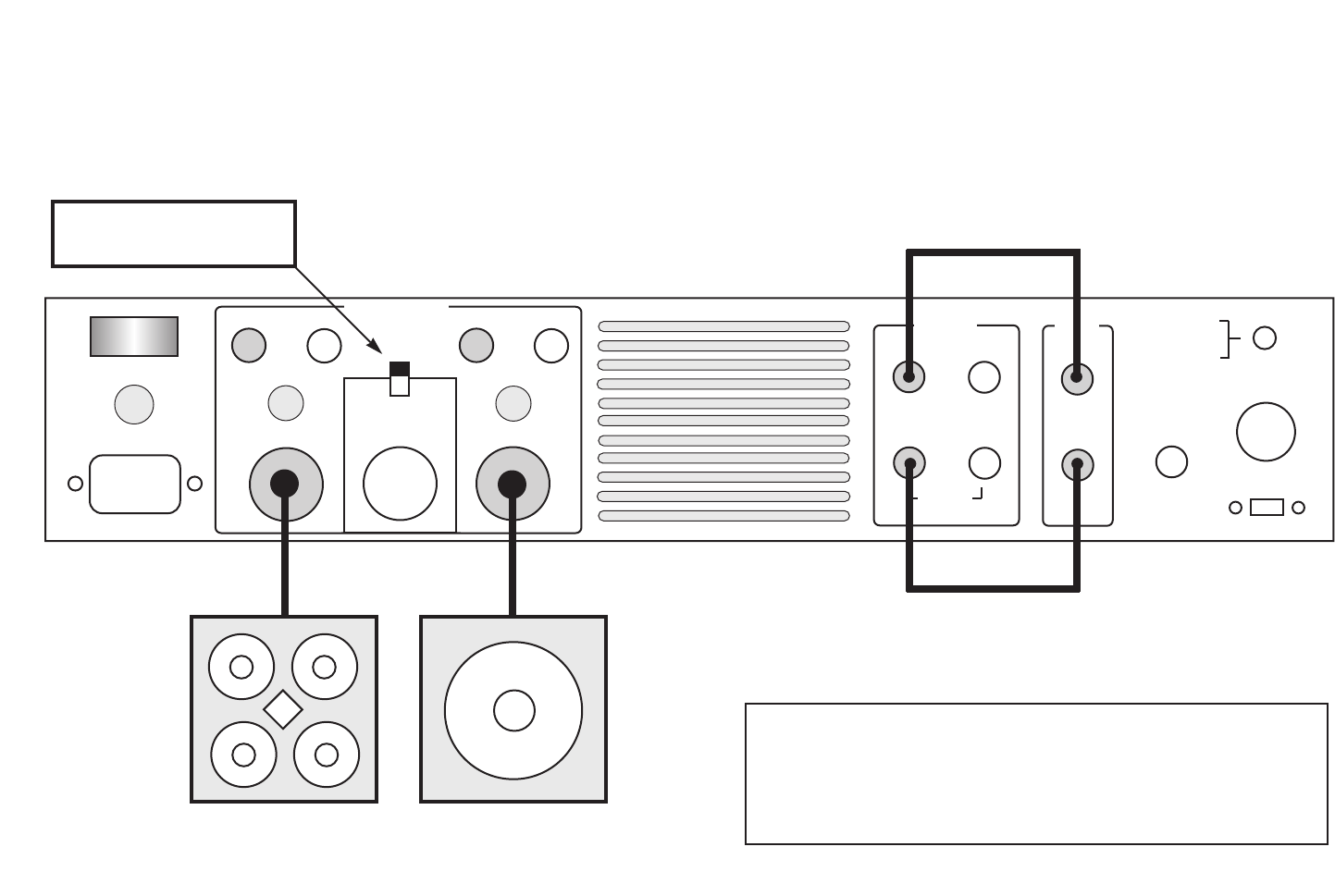

To bi-amp with the SM-900, run patch cables from the Crossover Outs to each of the Stereo
![](asset-f.png)
SM-900 USER GUIDE • 13
effects returns (i.e., one cable from the “High” out jack to the Left stereo effects return, and one
cable from the “Low” out to the Right stereo effects return). In this configuration, connect your
low end speakers (woofers) to the Right speaker output jacks, and your high end speakers
(midrange/tweeters) to the Left speaker output jacks. Use the Balance control on the front panel
to even out the highs and lows (see diagram on page 19).
Note: The Effects Blend control must be in the fully “wet” position. If not, you will be getting
full- range signals sent to your power amps and NOT the signals sent by the electronic
crossover. Similarly, the Power Amp Assign switch MUST be in the “Stereo” position.
An effects unit may be placed in between each of the Crossover Out jacks and the Stereo Effects
Return jacks. This allows you to run an effect for just the lows or highs (or both) using multiple
stereo effects units. The MONO effects return is BEFORE (PRE) the electronic crossover circuit.
This allows the user to insert a mono effects unit that will be sent to both the Low and High out-
put jacks.
A diagram showing proper connections for bi-amp operation appears on page 19.
EFFECTS LOOP
Both Mono and Stereo Effects Loops are provided on the SM-900, though it should be noted that
both cannot be used simultaneously. Always use high quality shielded patch cables for all connec-
tions between the amplifier and your effects units. We recommend that the cables be as short as
possible.
The amount of signal present at the Effects Send jack is determined by the setting of the Gain
control on the front panel. If your effects unit is overloading and it does not provide for compensat-
ing incoming signals (such as an input volume, or switches marked +4 or –10), you may turn down
the Gain control to avoid this condition. If your effects unit has input level adjustments, they
should be set for either 0dB or +4dB.
The Master Volume may be used to recover losses in gain caused by some effects units.
Use the Blend control to adjust the amount of “effects” with the natural signal from your instru-
ment.
Note: You will not hear any sound from your effects if the Effects Blend control is in the fully
counter-clockwise (“dry”) position.
To use the mono Effects Loop, run a shielded patch cable from the “Send” jack of the SM-900 to
the input of your effects unit. Run a second patch cable from the output of your effects unit to the
mono effects return jack. Now adjust the Effects Blend control for the mix you desire.

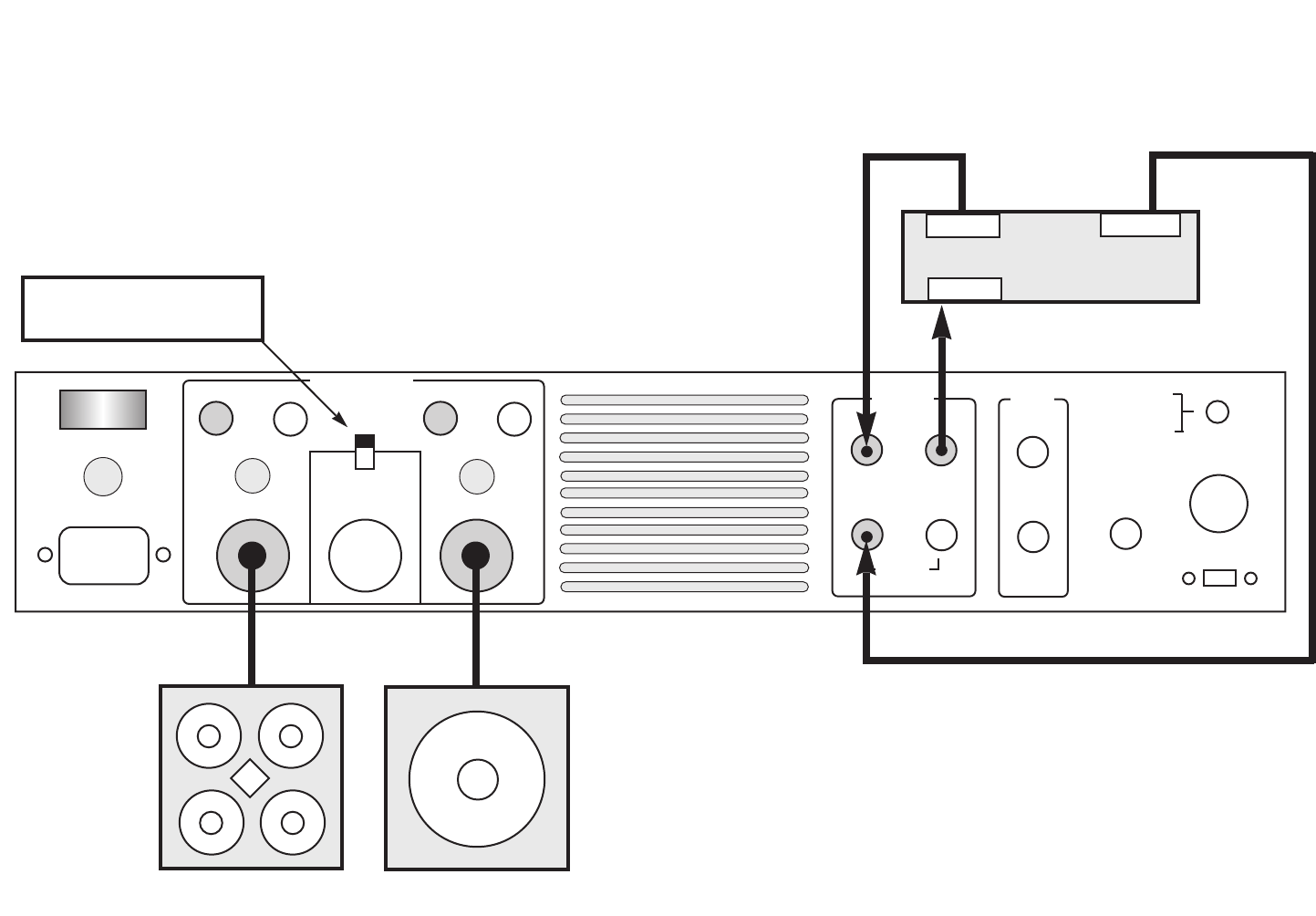

To use the stereo Effects Loop, run a patch cable from the “Send” jack of the SM-900 to the mono
input of your stereo effects unit (either the left or right input—check the effects unit and/or its
owners manual). If your effects unit does not provide a mono input, get a “Y” mono cord from your
local music or electronics store. Plug the common end in the effects Send jack and the other two
ends in the left and right inputs of your effect (see diagram, page 20).
If you wish to use just the internal power amps in the SM-900, the Effects Return jacks will serve
as the “inputs.” Insert your MONO signal source in the MONO Effects Return jack. This will send
the source to both power amps. If you have a stereo source, plug the left and right outputs into
the corresponding Effects Return Jacks. If you want to use just one side of the amp, use the LEFT
CHANNEL ONLY (the thermostat that regulates the fan is located on the left side).
STEREO/BRIDGE POWER AMP ASSIGN SWITCH

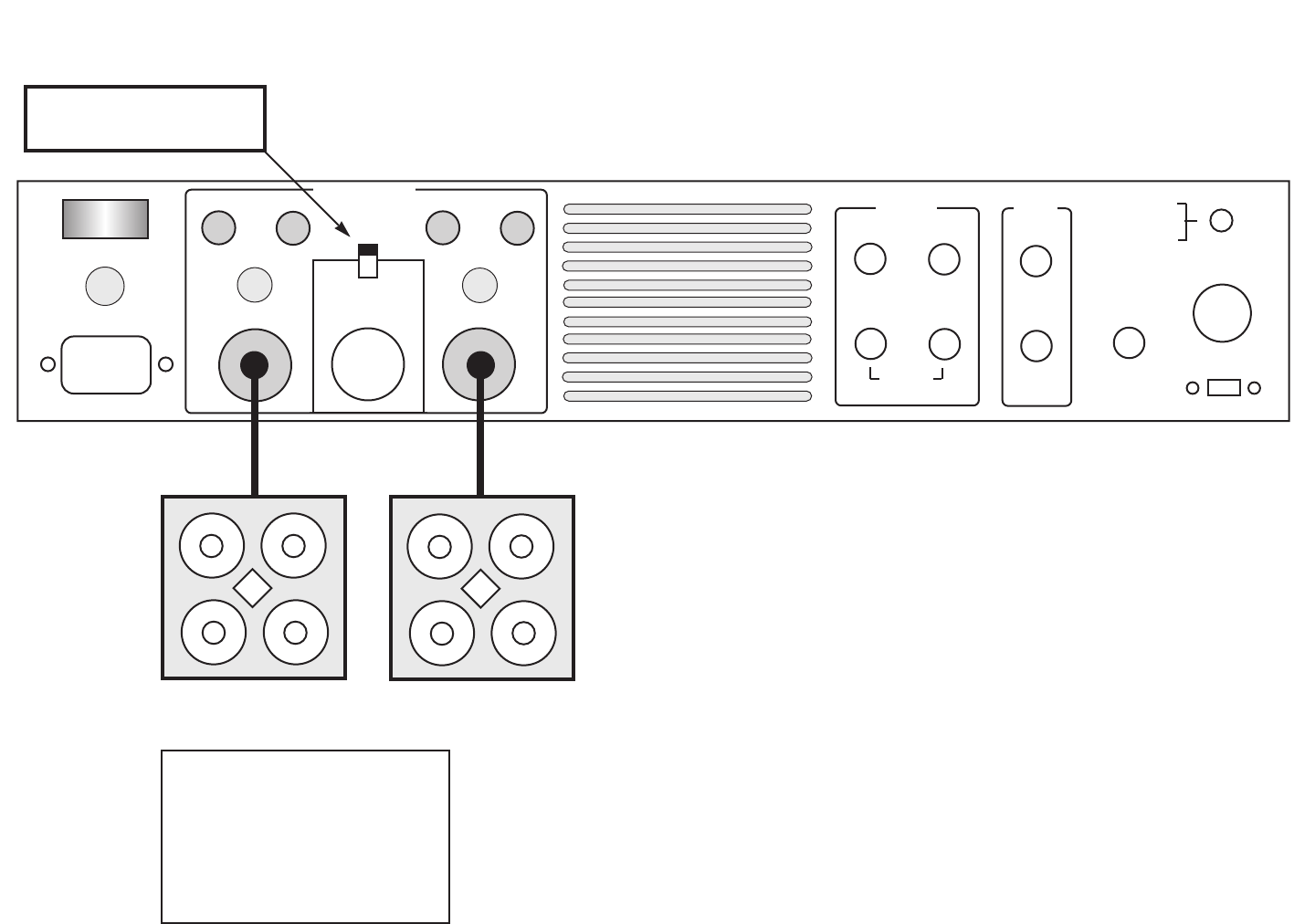

To run your amplifier in the stereo mode, move the Power Amp Assign Switch to the “Stereo” (top)
position. You will need to use the speaker outputs marked “Left” and “Right.” To run the SM-900
![](asset-10.png)
in mono, move the switch to the bottom “Bridge/Mono” position. Your speakers must then be
plugged into the Speakon®jack marked “Bridge” (see diagram, page 17).
We recommend using caution when connecting your system in “Bridge/Mono” mode. Because the
SM-900 delivers 650 watts RMS minimum into 8 ohms and 900 watts minimum into 4 ohms,
damage can result very quickly to speakers not capable of handling this much power. If you have
or need to use a single enclosure with a power handling capacity of less than 650 watts (8
ohms), or 900 watts (4 ohms), run the amp in Stereo and use just the LEFT speaker output. No
harm will come to your amplifier by leaving the Right speaker output disconnected.
Minimum Load in the Bridge/Mono mode is 4 ohms.
Minimum Load in the Stereo mode is 2 ohms per channel.
SPEAKER FUSES
Speaker fuses are provided to protect your speakers in the unlikely event of a power amp failure,
incorrect connection procedures, or impedances below recommended ratings. Size and rating of
the fuses are 3AG, 10 amp, fast-blo. Do not defeat the purpose of this feature by using a higher
rated fuse as it could further damage your amp and void your warranty.
The fuses can open if there is a fault in the speaker cable or the speakers themselves. Therefore,
it is wise to carry extra fuses at ALL TIMES.
SPEAKER OUTPUT JACKS
Unlike most amplifiers on the market, all SWR amplifiers can be used for recording purposes using
only the XLR Balanced out, and without speakers connected to the speaker output jacks.
Note: If you are using only one channel (in stereo mode), use the left channel speaker output
as the thermal sensor for the fan is located on the left heat sink.
When used in the stereo mode, the internal power amplifiers of the SM-900 will deliver 500 watts
per side into 2 ohms, 400 watts per side into 4 ohms, and 240 watts per side into 8 ohms. For
optimum performance, we recommend using a total of 4 ohms per channel. When using 2 ohm
loads, the amplifier will run hotter than normal and the internal fan will be running most of the
time. Minimum speaker load in the stereo mode is 2 ohms per side.
When used in Bridge Mode, the SM-900 will deliver 440 watts into 16 ohms, 650 watts into 8
ohms and 900 watts into 4 ohm loads. Please make sure the speakers you use in this mode can
handle the power. Minimum load in Bridge Mode is 4 ohms.
LEFT & RIGHT SPEAKER JACKS
There are two 1/4" jacks and one Speakon®jack provided for each side of the SM-900’s output
section. The Left and Right speaker jacks are provided for use in the Stereo Mode only. DO NOT
use these jacks when the SM-900 is switched to the Bridge Mode. Balance between left and right
channels can be obtained by using the Stereo Master Volume control located on the front panel.
Make sure all speakers are connected BEFORE turning on the SM-900. Never plug or unplug your
speakers while the unit is on.
SPEAKER CABLE
Speaker cable should be made of 18-gauge, or heavier, wire. (The thicker the wire, the lower the
gauge, so 18-gauge is heavier than 20-gauge and so on.) Do not use instrument cables to hook
up your speakers. This can result in intermittent power loss, cause your power amp to oscillate
14 • SM-900 USER GUIDE
![](asset-11.png)
and damage itself (and/or your speakers), and render the cables useless for any purpose.

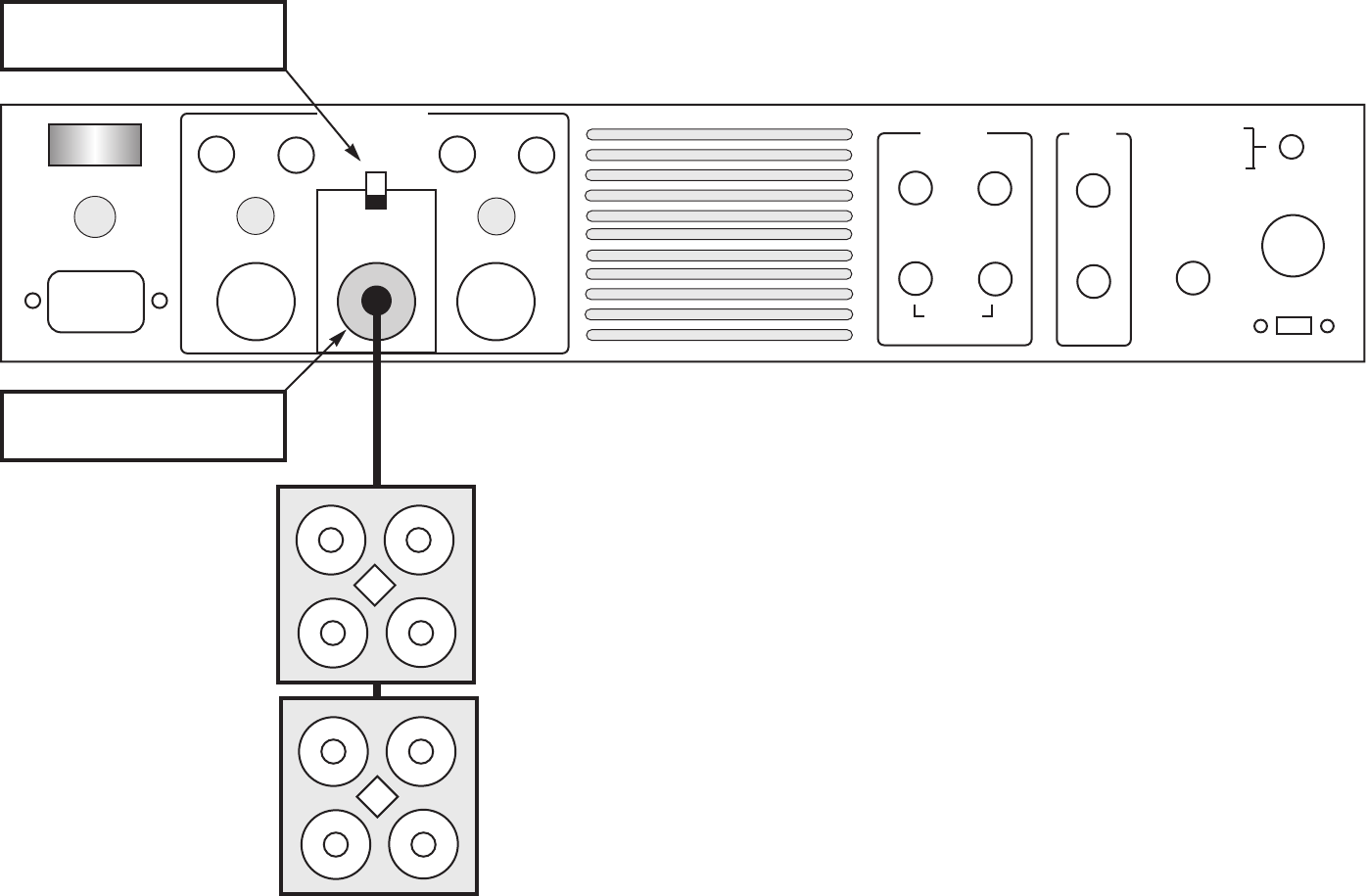

BRIDGE MODE SPEAKON®JACK
The Speakon®jack located directly below the Power Amp Assign switch (in the center of the
Speaker Output Section) is provided for use in the Bridge Mode only. A six foot speaker cable
(Speakon-to- Speakon) is provided with the SM-900 for your convenience. Please make sure that
all connections are complete before turning the SM-900’s power switch to the “On” position.
GENERAL AMP & SPEAKER TIPS
Make sure your speakers can handle the power provided by the SM-900 in Bridge/Mono mode.
Speakers that have been overdriven are easy to detect and generally do not fall under a manufac-
turer’s warranty.
In order to give bassists the same punch and clarity found in the studio or in concert PA systems,
the SWR SM-900 was designed with a frequency response far greater (20Hz to 40kHz) than that
generally found in musical instrument amplifiers.
If you notice the fan is still engaged after playing through your SM-900, let it run for a couple of
minutes to cool itself off. This will help extend the life of the internal components.
Upon powering up the SM-900, you will notice an initial turn-on transient heard as a “thud” in your
speakers. This will not harm speakers made by SWR, however, if you’d rather not hear this tran-
sient, turn on the SM-900 first, and then attach your speakers. Just be sure you aren’t playing
when you connect the speakers, as it may cause a speaker fuse to blow.
POWER SWITCH
Setting the power switch to the right “On” position activates the electronics in your SM-900 as
indicated by the power LED lighting on the front panel.
AC LINE (MAINS) FUSE
This fuse is provided to protect the internal electronics against power surges, etc. It also protects
the unit against itself should one of the internal components fail. If this fuse should open, replace
it with the same type of fuse and rating. Do not defeat the purpose of this feature by replacing
this fuse with a fuse of a higher value. It will void your warranty.
Proper size of the AC fuse for all countries is 3AG. Proper rating of the fuse is as follows:
United States: 8 amp, slo-blo
Japan: 9 amp, slo-blo
Europe (240V): 4 amp, slo-blo
AC CORD RECEPTACLE
The AC Cord receptacle accepts a standard AC power cable (supplied with the SM-900). If your
AC cord is lost, a replacement can be purchased at almost any electronics, computer or pro audio
store.
Note: The rating for this cable is 3 conductor, 10 amperes MINIMUM. If replacement is neces-
sary, or if you wish to buy a longer cable, look for the rating on the cable and be sure it is at
least 10 amps.
Make sure the AC cord is plugged all the way into both the amplifier and the wall socket. If your
cord ever becomes frayed or split, replace it immediately.
SM-900 USER GUIDE • 15
![](asset-12.png)
16 • SM-900 USER GUIDE
RACK MOUNTING YOUR SM-900
SWR’s SM-900 is rackmountable, requiring no additional parts or accessories, other than rack
screws and the rack case itself. By installing your SM-900 in a rack case, you will help preserve
its beauty and protect the amp from accidental physical damage.
The SM-900 should be mounted as close to the bottom of the rack case as possible. The height of
the rubber feet was chosen so that when you slide the unit in the bottom of the rack case, the
rack mounting holes on the front panel should line up with the mounting holes of the rack rail.
This prevents the unit from flexing downward if the rack case is dropped. If you need to remove
the rubber feet from the bottom of the SM-900, be sure to replace the screws, as they reinforce
the chassis.
If you must mount the SM-900 in the middle of the rack, a piece of wood or similar material
should be installed between the bottom of the rack case and the bottom of the SM-900. This will
help prevent flexing of the chassis. Although we have installed an additional steel bracket for
strength, severe or constant flexing of the chassis can cause the main chassis to weaken or
crack and can void your warranty.
Make sure there is adequate space between the sides of the SM-900 and the sides of the rack
case for proper ventilation.
Don’t neglect your amp after it has been installed in a rack case. Occassionaly check the screws
holding the amp into the rack, making sure they are tight. Continuous transportation and vibration
can cause screws to become loose, both on the unit and with your rack case rails. At least once
a month, remove the SM-900 from the case and tighten all outside screws, especially on the front
panel, and wipe off the outside of the chassis with a damp cloth. Then check all the connections
in your rack case and reinstall your unit.
![](asset-13.png)
OFF ON
A/C LINE FUSE
SLO BLO 8 AMP
120 VOLTS
50/60 HZ
960 WATTS
LEFT SPEAKER RIGHT SPEAKER
L SPKR
FUSE
10 AMP
R SPKR
FUSE
10 AMP
SPEAKER OUTPUTS
350W X2
STEREO
1212
EFFECTS
BALANCED
OUT
STEREO
TO
TUNER
INPUT
X OVER
OUT
RETURNS
LEFT
XLR PAD
SEND
RIGHT MONO
HI
LOW
PULL GND LIFT
MIN
LINE
MAX
DIRECT
BRIDGE MONO
800W
FUSE FUSE FUSE
SM-900 Bridge Mode Operation Diagram
Power Amp Assign Switch
set to “Bridge Mono” position.
Center Bridge/Mono Speakon
Output Jack must be used.
Note: When the power amp assign switch is set to the Bridge/Mono position, only the center Speakon output
jack may be used. The SM-900 delivers a minimum of 900 Watts RMS into a 4 ohm load, and 650 Watts RMS
into an 8 ohm load. Please make sure that your speaker system is capable of handling this amount of power.
Speaker 1 = 8 Ohms
Speaker 2 = 8 Ohms
This example shows two 8 ohm speaker enclosures connected in parallel for a total load of 4
ohms. This is the minimum impedance that the SM-900 is designed to drive safely in the Bridge
Mode. Connecting multiple enclosures that have a combined total impedance of less
than 4 ohms may result in damage to your amplifier.
The following cabinet configurations may be used:
• one 4 ohm enclosure
• one 8 ohm enclosure
• two 8 ohm enclosures
• four 16 ohm enclosures
SM-900 Power Output Ratings
Bridge/Mono Mode
900 Watts @ 4 Ohms
650 Watts @ 8 Ohms
440 Watts @ 16 Ohms
(minimum load = 4 Ohms)
SM-900 USER GUIDE • 17
![](asset-14.png)
OFF ON
A/C LINE FUSE
SLO BLO 8 AMP
120 VOLTS
50/60 HZ
960 WATTS
LEFT SPEAKER RIGHT SPEAKER
L SPKR
FUSE
10 AMP
R SPKR
FUSE
10 AMP
SPEAKER OUTPUTS
350W X2
STEREO
1212
EFFECTS
BALANCED
OUT
STEREO
TO
TUNER
INPUT
X OVER
OUT
RETURNS
LEFT
XLR PAD
SEND
RIGHT MONO
HI
LOW
PULL GND LIFT
MIN
LINE
MAX
DIRECT
BRIDGE MONO
800W
FUSE FUSE FUSE
SM-900 Stereo Mode Operation Diagram
Power Amp Assign Switch
set to “Stereo” position.
Note: When the power amp assign switch is set to the “Stereo” position, only the right and left Speakon
output jacks or left and right 1/4” output jacks may be used. Do not use the center Speakon jack as it is
provided for Bridge/Mono operation only.
SM-900 Power Output Ratings
Stereo Mode (per side)
400 watts @ 4 Ohms
240 watts @ 8 Ohms
144 watts @ 16 Ohms
(minimum load = 2 Ohms)
Speaker 1 = 8 Ohms
This example shows two 8 ohm speaker enclosures, each connected
to one side of the stereo power amp for a total load of 8 ohms per
side. Although the minimum impedance that the SM-900 is designed
to drive safely in the Stereo Mode is 2 ohms (per side), 4 ohms per
side or greater is recommended. Connecting multiple enclosures that
have a combined total impedance of less than 2 ohms per side may
result in damage to your amplifier.
The following cabinet configurations can be used:
• one 2 ohm enclosure (per side)
• one 4 ohm enclosure (per side)
• one 8 ohm enclosure (per side)
• two 4 ohm enclosures (per side)
• two 8 ohm enclosures (per side)
Speaker 2 = 8 Ohms
18 • SM-900 USER GUIDE
![](asset-15.png)
OFF ON
A/C LINE FUSE
SLO BLO 8 AMP
120 VOLTS
50/60 HZ
960 WATTS
LEFT SPEAKER RIGHT SPEAKER
L SPKR
FUSE
10 AMP
R SPKR
FUSE
10 AMP
SPEAKER OUTPUTS
350W X2
STEREO
1212
EFFECTS
BALANCED
OUT
STEREO
TO
TUNER
INPUT
X OVER
OUT
RETURNS
LEFT
XLR PAD
SEND
RIGHT MONO
HI
LOW
PULL GND LIFT
MIN
LINE
MAX
DIRECT
BRIDGE MONO
800W
FUSE FUSE FUSE
SM-900 Bi-Amp Operation Diagram
Power Amp Assign Switch
set to “Stereo” position.
For Bi-Amp operation, the power amp assign switch must be set to the “Stereo” position,
only the right and left Speakon output jacks or left and right 1/4” output jacks may be used.
Speaker 1
Midrange/Tweeters
(High Frequencies)
Speaker 2
Woofers
(Low Frequencies)
Shielded Patch Cable from Low X-Over Output
to Right Stereo Effects Return
Shielded Patch Cable from High X-Over Output
to Left Stereo Effects Return
Note: An effects unit may be inserted between the X-Over Outputs and the
Effects Return Jacks. For instance, it is a popular practice to insert a
Chorus unit between the Hi X-Over Output and the Left Stereo Effects
Return, so that only the high frequencies are chorused while the low
frequencies remain tight and dry. In this manner, the player can get the
desired special effect without “muddying up” his/her tone.
SM-900 USER GUIDE • 19
![](asset-16.png)
OFF ON
A/C LINE FUSE
SLO BLO 8 AMP
120 VOLTS
50/60 HZ
960 WATTS
LEFT SPEAKER RIGHT SPEAKER
L SPKR
FUSE
10 AMP
R SPKR
FUSE
10 AMP
SPEAKER OUTPUTS
350W X2
STEREO
1212
EFFECTS
BALANCED
OUT
STEREO
TO
TUNER
INPUT
X OVER
OUT
RETURNS
LEFT
XLR PAD
SEND
RIGHT MONO
HI
LOW
PULL GND LIFT
MIN
LINE
MAX
DIRECT
BRIDGE MONO
800W
FUSE FUSE FUSE
Shielded Patch Cable from Left Effects Out of
Effects Unit to Left Stereo Effects Return
SM-900 Stereo Effects Patching Diagram
Power Amp Assign Switch
set to “Stereo” position.
Speaker 1 Speaker 2
Shielded Patch Cable from Effects Send
to Mono Input of Effects Unit
Shielded Patch Cable from Right Effects Out of
Effects Unit to Right Stereo Effects Return
Stereo Effects Unit
Left Out
Mono In
Right Out
20 • SM-900 USER GUIDE
![](asset-17.png)
SM-900 LIMITED WARRANTY
The SM-900 from SWR is warranted to the original consumer purchaser for TWO YEARS from the
date of purchase against defects in materials and workmanship, provided that it is purchased
from an Authorized SWR dealer. This warranty applies only to products purchased in the USA or
Canada.
This warranty is VOID if the unit has been damaged due to accident, improper handling, installa-
tion or operation, shipping damage, abuse or misuse, unauthorized repair or attempted repair, or if
the serial number has been defaced or removed. FMIC reserves the right to make such determi-
nation on the basis of inspection by an Authorized FMIC Service Center.
All liability for any incidental or consequential damages for breach of any expressed or implied
warranties is disclaimed and excluded herefrom.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or
limitation of incidental or consequential damages, so that the above exclusion may not apply to
you. This warranty gives you specific legal rights and you may also have other rights which vary
from state to state.
For a complete list of Authorized FMIC
Service Centers, and the latest SWR
news, interviews, and more, check out
our website:
SWR
8860 E Chaparral Rd, Suite 100
Scottsdale, AZ 85250-2618 USA
PHONE: (480) 596-9690
FAX: (480) 367-5262
EMAIL: custserve@fenderusa.com
WEB: swrsound.com
swrsound.com
SM-900 OWNER’S MANUAL • Part # 0066577000 • 09/03
Copyright © 2003 SWR
SHOULD YOUR SWR AMPLIFIER REQUIRE SERVICE OR REPAIR, PLEASE USE THE
FOLLOWING PROCEDURE:
Locate your original receipt showing date of purchase, model and serial number.
Determine the closest Authorized FMIC Service Center to your location. The fastest way to get a complete list of Authorized FMIC Service
Centers is on the web at:
http://www.mrgearhead.com/faq/allservice.html
You can also get this information by calling FMIC Consumer Relations at (480) 596-7195
To receive warranty service, return the complete product to an Authorized FMIC Electronics Service Center, with proof of purchase, during
the applicable warranty period. Transportation costs are not included in this Limited Warranty.
Defective products that qualify for coverage under this warranty will be repaired or replaced, at FMIC’s discretion, with a like or comparable
product, without charge.
1
2
3
4
![](asset-18.png)
