Owner's Manual

6842PE

Before you can view a picture on the plasma display, you

must first connect the unit to an external video source. See

page 18 of the owner's manual.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLI-

ANCE TO RAIN OR MOISTURE.

CAUTION

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK) NO USER SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The important note is located on the rear of the cabinet.

THIS SYMBOL INDICATES THAT DAN-

GEROUS VOLTAGE CONSTITUTING A

RISK OF ELECTRIC SHOCK IS PRE-

SENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE

ARE IMPORTANT OPERATING AND

MAINTENANCE INSTRUCTIONS IN THE

LITERATURE ACCOMPANYING THE

APPLIANCE.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with

the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat reg-

isters, stoves, or other apparatus (including amplifiers) that pro-

duce heat.

9. Do not defeat the safety purpose of the polarized or grounding-

type plug. A polarized plug has two blades with one wider than

the other. A grounding-type plug has two blades and a third

grounding prong. The wide blade or the third prong are provided

for your safety. If the provided plug does not fit into your outlet,

consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particu-

larly at plugs, convenience receptacles, and the point where they

exit from the apparatus.

RADIO-TV INTERFERENCE

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with

the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to

avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or

when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way,

such as power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate normal-

ly, or has been dropped.

15. Apparatus shall not be exposed to dripping or splashing and no

objects filled with liquids, such as vases, shall be placed on the

apparatus.

To reduce the risk of fire or electric shock, do not expose this

appliance to rain or moisture.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruc-

tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be deter-

mined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the fol-

lowing measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numerique de la classe B est conforme ala norme NMB-003 du Canada.

FCC WARNING- This equipment may generate or use radio frequency energy.Changes or rnodifications to this equipment may cause

harmful interference unless the modifications are expressly approved in the instruction manual.The user could losethe authority to operate

this equipment if an unauthorized change or modification is made,

The serial number of this product may be found on the back of this unit. No others have the same serial number as yours.You

should record the number and other vital information here and retain this book as a permanent record of your purchase to aid

identification in case of theft.

Date of Purchase Dealer Phone No.

Dealer Model No.

Dealer Address Serial No.

Thank you for purchasing this plasma display.

Please make sure to read this manual before using the plasma display and pay particular

attention to the Safety Instructions enclosed within.

When you have finished reading this manual, store it in a safe place for easy access in the

future.

When moving the plasma display.

Due to the weight of this plasma display, two peo-

ple should be used when moving it. Both people

should make sure to grasp the top of the display

with one hand and the base of the display with

the other hand, as in the following illustration.

Optional Accessories

To mount the plasma display on a wall, the follow-

ing accessory is available:

VISIONMOUNT TM Flat Panel TV Wall Mount from

SANUS SYSTEMS, for large flat panel televisions

(32" to 60"). Refer to page 21 for mounting the

plasma display.

NOTE:

The waft mounts are not suppfied with the plasma dis-

plajz

Regarding This Manual

•Product and company names appearing within

this manual are trademarks or registered trade-

marks of their respective owners.

• Although special care has been taken to ensure

that all information contained within this manual

is correct at time of writing, the information is

subject to change without notice.

• Make sure to read the manual carefully and fol-

low all instructions contained within. We will not

be held responsible for any damages caused by

improper use or handling of this product.

• Reproducing this manual by any means, in

whole or in part, is prohibited.

_, CAUTION

• This PDP 6842PE is for use only with the

Sanus Systems Model VMPL. Wall Mount.

Use with other wall mounts is capable of

resulting in instability, causing possible injury.

• When mounting the plasma display with the

Sanus Systems wall mount, make sure to

mount it on the wood studs inside the wall, as

failure to do so may result in instability, caus-

ing possible injury.

• Refer to the instruction manual included with

the wall mount for details when securing the

plasma display to the wall.

NTENTS

IMPORTANT SAFETY INSTRUCTIONS ............................... 2

SUPPLIED ACCESSORIES ........................................ 5

INSERTING THE REMOTE CONTROL BATTERIES ...................... 5

REMOTE CONTROL RANGE ....................................... 5

COMPONENT NAMES ............................................ 6

MAIN UNIT ......................................................... 6

REMOTE CONTROL .................................................. 7

OPERATING THE PLASMA DISPLAY ................................ 8

BASIC OPERATIONS ................................................. 8

SELECTING THE INPUT SIGNAL ........................................ 9

CHANGING THE ASPECT RATIO (SCREEN MODE) ......................... 10

STILL ............................................................. 11

SLEEP ............................................................ 11

NAVIGATING THE SET UP MENU ....................................... 12

Layout of the Setup Menu ........................................... 12

ENTERING THE MAIN MENU .......................................... 13

PICTURE SELECT .................................................. 13

Automatically Adjusting the Picture Settings ............................. 14

Manually Adjusting the Picture Settings ................................ 14

Initializing the Adjustments .......................................... 14

WINDOW SETTING .................................................. 15

SWITCHING THE DISPLAY LANGUAGE .................................. 15

SETTING THE SCREEN SAVER AND THE BACKGROUND COLOR ............. 16

Setting the Screen Saver ........................................... 16

Setting the Background Color ........................................ 16

EXTERNAL INPUT TERMINALS .................................... 17

CONNECTING DEVICES TO THE AV INPUT TERMINALS .................... 18

VIDEO Signal Connection (Basic Signal Transfer) ......................... 18

S-VIDEO Signal Connection (Better Signal Transfer) ....................... 18

CONNECTING DEVICES TO THE COMPONENT INPUT TERMINALS ........... 19

Component 1 Signal (Y, Cb, Cr) Connection (Best Signal Transfer) ............ 19

Component 2 Signal (Y, Pb, Pr) Connection (Best Signal Transfer) ............ 19

CONNECTING PLASMA DISPLAY TO AUDIO SYSTEM ...................... 20

AUDIO Signal Connection ........................................... 20

CONNECTING THE POWER CABLE ................................ 20

ATTACHING A WALL MOUNT BRACKET (SOLD SEPARATELY) .......... 21

MAINTENANCE ................................................ 22

CLEANING THE PLASMA DISPLAY ..................................... 22

WARNING .................................................... 22

TROUBLESHOOTING GUIDE ..................................... 23

SPECIFICATIONS ............................................... 25

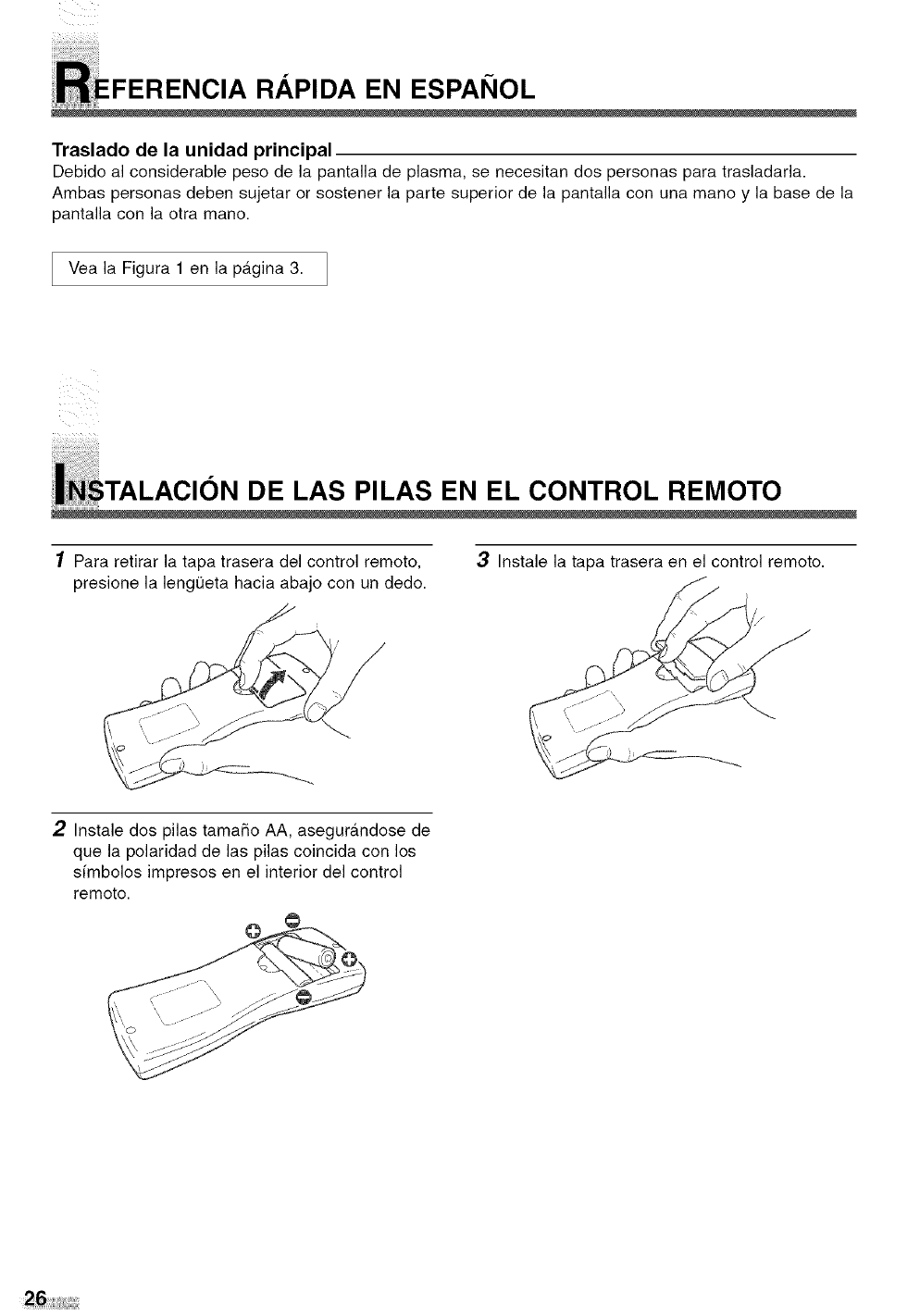

REFERENClA R,,_PIDA EN ESPAI_IOL ............................... 26

INSTALAClON DE LAS PILAS EN EL CONTROL REMOTO .............. 26

NOMBRES DE LOS COMPONENTES ............................... 27

UNIDAD PRINCIPAL ................................................. 27

CONTROL REMOTO ................................................. 27

S PPLIED ACCESSORIES

This product comes with the following accessories:

Please confirm that they are included.

[] Owner's Manual

(1EMN20088) (NE801UD)

NOTE:

If any of these accessories are missing, please contact your dealer.

[] Remote Control [] AA batteries x 2 [] Set Up Guide

(1EMN20118)

;ERTING THE REMOTE CONTROL BATTERIES

1Remove the back cover of the remote control

while pressing the tab on the back cover down

with your finger.

<_A-- Ss;; ,,,

,,_1

[] Power cable O

(WBC0202H0001) Z

LI,I

I--

1,1.1

IT"

2Insert two AA size batteries, making sure that

the polarities of the batteries match the sym-

bols inside the remote control.

3Replace the back cover of the remote control.

CONTROL RANGE

NOTE:

•Do not insert a mix of old and new batteries.

• Do not insert a mix of different brands of battedes

or different types of batteries.

• Always use new, fresh batteries as replacement.

• Never attempt to charge, heat, burn or take apart

batteries.

Operate the remote control within a 30 degree angle on both sides of the infrared sensor on the main

unit. You can operate the remote control from a distance of several yards away from the main unit.

!_ NOTE:

Other devices which use infrared beams, sunlight,

fluorescent lights, etc., may affect the range and

effectiveness of the remote control. Make sure the

plasma display is positioned in a place which mini-

mizes interference from them.

With in 30 degrees With in 30 degrees

Approximately 55 yds 5 m /,_ _\Approximately 55 yds _ m

_!!_!_ii_iii_i_ii_!_!_ii_!_iii_!_i_!;iii!_i_!_ii_i_i_!_i_i_i!_

_MPONENT NAMES

i_A|i_!i!;_2i_!|!!T!i_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_;ii_ii_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i_i!_i:i_

Front Rear

Input Terminals

InputTerminals

7 8 9

POWER button: Turns the power ON or in

STANDBY.

ON indicator: Lights up when the power is

ON.

STANDBY indicator: Lights up when the

power is in the standby mode. Disappears

when the power is ON.

INPUT SELECT button: Selects input termi-

nals.

VOLUME A(up) /'v(down) button:

Increases or decreases the volume.

AC IN terminal: Connect the supplied power

cable for a standard AC outlet.

AUDIONIDEO/S-VIDEO: Input terminals for

an audio and video signal. You can select

either VIDEO or S-VIDEO.

COMPONENT: Input terminals for a compo-

nent signal. You can make a Y-Cb-Cr inter-

laced connection to component 1 or Y-Pb-Pr

progressive or interlaced connection to com-

ponent 2.

AUDIO OUT: Output terminals for audio.

[ Figure 4 ]

I-

1POWER button: Turns the main power ON

or in STANDBY.

2 VOL A(up) /_(down) button: Increases or

decreases the volume.

3MUTE button: Turns the audio off or on.

4SCREEN MODE button: Selects aspect

ratios available for the screen.

5 STILL button: Pauses the image shown on

the screen.

6INPUT SELECT button: Selects input termi-

nals.

7DISPLAY button: Displays the name of the

selected input terminal on the screen.

8SLEEP button: Sets the sleep timer.

t_ MENU button: Accesses the setup menu,

allowing you to access various settings.

10PREVIOUS button: Moves up one level in

the setup menu.

11 ,,(up)/v(down) button: Selects the various

modes in the setup menu.

_l(left) /I_(right) button: Selects and

adjusts levels for the various settings.

I_(enter) button: Also used as the enter

button.

3 THE PLASMA DISPLAY

POWER _HHJ,,

INPUT SELECT_'J'J'J'J'J'_

POWER

ML_TE

DISPLAY

3Adjust the volume and screen size according

to your requirements.

Perform adjustments to the volume (VOL • /•

button), screen aspect ratio (SCREEN MODE

button), and picture settings (MENU button)

NOTE:

•When you adjust the volume with the VOL •/_"

button, a message such as the following is dis-

played on the screen. This message disappears

approximately 4 seconds after performing adjust-

ments.

The following is a simple explanation of the pro-

cedure for turning the power of the display ON or

in STANDBY, and the procedure for selecting the

input signal.

The procedure described here is for the remote

control, however the POWER, INPUT SELECT

and VOLUME buttons on the plasma display can

also be used in the same way.

1Press the POWER button.

Confirm that the STANDBY indicator is lit

before pressing the POWER button.

The power turns ON and the ON indicator on

the main unit lights up. The STANDBY indica-

tor on the main unit disappears.

NOTE:

• It takes approximately 8 seconds for the screen to

display after turning the power ON, but this is not

a malfunction.

2Select the input signal by pressing the INPUT

SELECT button.

Each time you switch the input, the name of

the selected input terminal is displayed on the

screen for approximately 4 seconds.

NOTE:

•"No signal" is displayed on the screen if there is

no input from the selected terminal and there is

no message currently displayed on the screen for

volume adjustment or the setup menu, etc.

• If there is no video signal and there has been no

operation from the remote control or the buttons

on the main unit for more than 15 minutes, the

auto shut-off function activates and the display

switches to standby mode.

• If you turn the audio mute on, a message slowly

flashes on the screen. At this time, if you press

another button, this flashing stops.

• To turn the audio mute off, either press the MUTE

button again or press the VOL •/_" button.

• If you press either the PREVIOUS, •, _', I_ or _1

button in a mode apart from the image adjustment

mode. A message such as the following is dis-

played.

4Press the POWER button to turn the power

STANDBY.

The ON indicator on the main unit disappears

and the STANDBY indicator lights up.

NOTE:

• You cannot turn the power ON for approximately 3

seconds after the power enters the standby mode.

Do not turn the power STANDBY and then ON

again in a short time interval

• Even if the power is turned STANDBY, the main

unit is in the standby mode. In order to shut the

main power of the display OFF, it is necessary to

remove the AC cord from the power outlet.

INPUT SELECT _jjjjjj*

DISPLAY_zHH_

POWER

The procedure for selecting the input signal

described here is for use with the remote control.

However, the INPUT SELECT button on the plas-

ma display can also be used in the same way.

Disp!aying the £urrent Input Signal

1Press the DISPLAY button.

The name of the current input terminal is dis-

played on the screen.

2To clear the name of the current input terminal,

press the DISPLAY button again or wait for

approximately 4 seconds.

NOTE:

•Toredisplay the name of the input terminal, press

the DISPLAY button again.

Selecting the Input Signal

Press the INPUT SELECT button to select the

input signal.

Each time you switch the input signal, the

name of the selected input terminal is dis-

played on the display for approximately 4 sec-

onds.

The INPUT SELECT button cycles through the

input terminals in the following pattern:

Video1 L_[ Video2 L_[ h

_ (S-Video 1)J[(S-Video 2) J LComponent 1 /

[ Component 2 ],

NOTE:

• When switching the input signal, audio mute turns

ON temporarily.

• S-WDE01 takes preference over the WDEO 1 jack,

as does S-WDEO 2 over the WDEO 2jack.

Therefore, if there is input to the WDEO and S-

VIDEO terminals at the same time, the S-WDEO

signal is displayed on the screen. If the S-VIDEO

cable is not connected to the plasma display, the

WDEO signal will be displayed on the screen.

• 480i (interlaced) signals can be connected to the

COMPONENT 1 and 2 terminals. Any of the follow-

ing display formats: 480i, 480p (progressive), 1080i

and 720p (progressive) signals can be connected to

the COMPONENT 2 terminal If one of these video

signals is detected, the format of the input signal is

displayed after the name of the current input termi-

nal, as in the following manner.

• A "No signal" message appears if there is no video

signal and there is no message currently displayed

on the screen for volume adjustment or the setup

menu, etc. If there continues to be no video signal

for more than !0 seconds, "No signal" slowly moves

around the screen.

• If there is no video signal and there has been no

operation from the remote control or the buttons on

the main unit for more than 15 minutes, the auto

shut-off function activates and the display switches

to standby mode.

OPERATING THE PLASMA DISPLAY

SCREEN MODE _z,,

By changing the aspect ratio of the screen you

can select the manner in which you wish to view

the picture.

1Press the SCREEN MODE button to display

the current screen mode.

2Press the SCREEN MODE button a second

time to change the screen mode.

Each time you change the screen mode, the

name of the selected mode is displayed on the

screen for approximately 4 seconds.

The SCREEN MODE button switches between

the screen modes in the following pattern.

NOTE:

•When switching the input signal, the audio mute

turns ON temporarily

• Youcan only select the "Normal" and "Zoom"

screen modes for 1080i and 720p video signals

connected to the COMPONENT 2 terminal

Mode Picture Explanation

Normal

Full

Wide

Zoom

Normal will display a 4:3 picture at its standard 4:3

size. For 1080i and 720p video signals, a picture will

be displayed at 16:9 size.

Full will display a 4:3 picture at a 16:9 size, with

horizontal elongation necessary to fill the screen.

Wide will display a 4:3 picture at a 16:9 size, with less

horizontal elongation necessary to fill the screen

because a little bit of the top and bottom will be cut off.

Zoom will magnify the entire 4:3 picture to fill the

screen, with no horizontal elongation to fill the screen,

as more of the top and bottom are cut off. Use this

mode to view letterboxed 4:3 picture content to get a

widescreen picture. A 16:9 picture will be magnified

similarly, but to a lesser extent.

STILL'_JJJJJ*

POWER

NNN

' iNPUT SELEOT

i 01SPL_

You can freeze the image displayed on the

screen.

/Press the STILL button.

The still mode turns on, and the image dis-

played on the screen is frozen.

NOTE:

•When the sill/mode is on, the message "Still"

slowly flashes on the screen.

• When the sill/mode is on, the audio is muted.

• You cannot turn the sill/mode on when there is no

video signal or when switching between video sig-

nals.

2Press the STILL button again to turn the still

mode off.

NOTE:

• Youcan also press the INPUT SELECT,

DISPLAY, SLEEP, VOL A(up) /_'(down), MUTE,

SCREEN MODE or MENU buttons to turn thesill/

mode off.

IN£UT SELEOT

DISPLA't

SLEEP

You can select the sleep timer.

1Press the SLEEP button.

The sleep timer is displayed on the screen.

NOTE:

• If the sleep timer is activated, the remaining time

is displayed on the screen.

If not activated, "0 minutes" is displayed.

2Press the SLEEP button to set the time.

The SLEEP button switches between the

times.

F[ 0 minutes ]-_1 10minutes]........ I90minutes 1

The timer starts counting down after the mes-

sage displaying the set time disappears (after

approximately 4 seconds).

NOTE:

• Theremaining time displayed for the sleep timer

changes in steps of 1 minute.

• Tochange the set time, repeat the above proce-

dure.

OPERATING THE PLASMA DISPLAY

N AVIGATI N G E T UPMEN U

In the setup menu, you can specify settings for picture adjustment, picture position, language, screen

saver and background.

NOTE:

•If you do not press any buttons for approximately 20 seconds, the display automatically exits the menu mode.

• We recommend to set to the initialized setting of "Manual"in the picture mode.

The various functions in the setup menu are outlined below:

E Brightness_

E oootrastj

[ oolo_j

[ Sharone_Lj

rtemp }

€

[ Reset]

---[ Norma

L Window setting

_g°_go 1

Translucent ]

ENTEBING _HE :MAIN MENU

INPUT SELEOT

DISPLAY

RICTURESE EC

INPUT SELEOT

DISPLAY

1Press the MENU button.

The display enters the main menu and the

MAIN MENU is displayed on the screen.

NOTE:

•If you press the PREVIOUS button or the MENU

button on the MAIN MENU, the menu is cancelled.

• For procedures which use the ENTER button, use

the I_ button as the ENTER button.

1Enter the main menu with the MENU button.

"Picture select" is selected on the MAIN

MENU.

2Press the I_ (ENTER) button.

The PICTURE SELECT menu is displayed on

the screen.

NOTE:

• Press the PREVIOUS button to return to the MAIN

MENU. Pressing the MENU button cancels the

menu.

• Picture select display will disappear from the TV

screen automatically after about 20 seconds if you

de net press any buttons.

OPERATING THE PLASMA DISPLAY

Automatically Adjusting the Picture

Settings

1Select "Picture mode" on the PICTURE

SELECT screen with the • /• buttons.

2Select the automatic adjustment mode accord-

ing to the type of picture displayed on the

screen with the -,11/I_ buttons.

NOTE:

•There are 3 modes for automatically adjusting the

picture settings; "News", "Movie" and "Dynamic".

•MANUAL refers to manual picture settings adjust-

ment.

3Press the PREVIOUS button to return to the

MAIN MENU.

NOTE:

• Pressing the MENU button cancels the menu.

Manually Adjusting the Picture Settings

1Select "Picture mode" on the PICTURE

SELECT screen with the • /• buttons.

2Select "Manual" with the -,11/I_ buttons.

The display enters the manual mode, and you

can specify individual adjustments.

3Select the mode to adjust with the • /• but-

tons.

The modes rotate in the following order:

"Picture mode" - "Brightness" - "Contrast" - ..

...- "Reset" -"Picture mode"

4Adjust the selected mode using the -,11/I_ but-

tons.

NOTE:

• If you have selected Brightness, Contrast, Color,

Tint, or Sharpness, the menu display disappears,

and a bar for adjusting the selected mode

appears in the center of the bottom of the screen.

• You can select "Color temp." from among three

modes: "Normal", "Warm" and "Cool".

• If you select "Reset" and press the I_ (ENTER)

button, the adjusted values return to their initial

settings.

5To adjust a different mode, repeat steps 3 and 4.

6Press the PREVIOUS button to return to the

Picture mode.

NOTE:

• Pressing the MENU button cancels the menu.

Initializing the Adjustments

1Select "Reset" on the PICTURE SELECT

screen with the • /• buttons.

2Press the I_ (ENTER) button.

The settings you specified individually are ini-

tialized.

NOTE:

• The initialized setting of "Manual" are as follows:

BRIGHTNESS: 50/100

CONTRA S 72 70/100

COLOR: 50/100

TINT: 50/100

SHARPNESS: 1/2

COLOR TEMR: Normal

WIN DOW SE_IN G::::::::::::::::::::::::::::::::

MENU _o

INPUT SELEOT

r)JSpL_y

_ .... j

You can move the picture displayed on the screen

up, down, left or right.

Select the mode to adjust with the • /• but-

ton.

Select "H-Position" to move the picture hori-

zontally (left or right) and select "V-Position" to

move the screen vertically (up or down).

Adjust with the _1 /I_ buttons.

The _1 /I_ buttons are also used for moving

the picture vertically.

Press the PREVIOUS button to return to the

MAIN MENU.

NOTE:

•Pressing the MENU button cancels the menu.

1Enter the main menu with the MENU button.

2Select "Window setting" on the MAIN MENU

screen with the • /• buttons.

If there is no input from a video signal, "Window

setting" is grayed out and you cannot select it.

SWITCHING,,,,THEDISPLAY LANGUAGE

INPUT SELECT

DISPLAY

You can select the language displayed on the

screen from English, French and Spanish.

3Press the I_ (ENTER) button.

The "WINDOW SETTING" menu is displayed

on the screen.

1Enter the main menu with the MENU button.

2Select "Language" on the MAIN MENU screen

with the • /• buttons.

3Select the language with the _1 /I_ buttons.

4Press the PREVIOUS button to return to the

MAIN MENU.

NOTE:

• Pressing the MENU button cancels the menu.

I,LI

OPERATING THE PLASMA DISPLAY

INPUT SELECT

DISPLAY

,,_*PREVIOUS

You can specify settings for the screen saver and

the background color.

1Enter the main menu with the MENU button.

2Select "Detail" on the MAIN MENU screen

with the • /• buttons.

3Press the I_ (ENTER) button.

The "DETAIL" menu is displayed on the

screen.

NOTE:

• Press the PREVIOUS button to return to the

MAIN MENU. Pressing the MENU button cancels

the menu.

1Select "Screen saver" on the DETAIL screen

with the • /• buttons.

2Select the mode with the _1 /I_ buttons.

NOTE:

• There are 3 modes for the screen saver; "Off",

"Slow", and "Fast".

"Slow" moves 1 pixel every 30 minutes and "Fast"

moves 1 pixel every 10 minutes. This prevents

images burning into the screen.

• When a 480i or 1080i input signal connected to

the COMPONENT 2 terminal is displayed, the ver-

tical movement is different.

"Slow" moves 2 pixe/s every 60 minutes and

"Fast" moves 2 pixele every 20 minutes.

3Press the PREVIOUS button to return to the

MAIN MENU screen.

NOTE:

• Pressing the MENU button cancels the menu.

setting the Ba£kgr£und €9!9[

1Select "Background" on the DETAIL screen

with the • /• buttons.

2Select the mode with the _1 /I_ buttons.

Select "Opaque" or "Translucent" for the back-

ground color.

3 Press the PREVIOUS button to return to the

MAIN MENU screen.

NOTE:

• Pressing the MENU button cancels the menu.

E_TERNAL INPUT TERMINALS

The following input terminals are available.

In order to view television, it is necessary to connect a tuner device (example: cable box, satellite box,

DTV, etc.) to the plasma display.

AV_lnput Terminals

I VIDEO 2

I S-VIDEO 2

I See page 18.

AUDIOOUT

Audio Output Terminals I I VIDEO1 I

I S-VIDE01 I

See page 20. I See page 18. I

,,f

Component Input Terminals

COMPONENT 1

COMPONENT 2

See page 19.

ILl

I--

I-

--I

,,=,

I,LI

--I

I,LI

'1-

I--

EXTERNAL INPUT TERMINALS

Connect the output of the device to the input terminals of plasma display as shown in the following illus-

trations.

NOTE:

•You will select TV channels with the VCRs or Cable/Satellite set top box that will be viewed on the plasma display.

•Cables shown here are not included with the plasma display.

V!DEO Signal €#nne£ti#n (Basic Signal Trans!er)

Example of input signal source

(DVD Player)

(VCR)

(Cable/Sat STB)

(Camcorder)

Antenna or

cable signal

satellite signal

Audb Video SWde_

R OUT L OUT OUT

@@@©

Audio input to --

L/R sockets @1

Video input to

RCA socket @1

i AUDIO-VIDEO

3xRCA audio

video cables

Audio input to

L/R sockets Video input to

RCA socket

S-Y!DEO Signal €#nnecti#n (Better Signal Trans!er)

Example of input signal source

(DVD Player)

I il

(VCR)

(Cable/Sat STB)

(Camcorder)

Antenna or

cable signal

Antenna, cable,

satellite signal

.... ........

Audio Video s video

R oUT L OUT oUT

©©©©

2×RCA

audio cables

Audio input to

.........

S_vVid_)inpUtte_ ._

S-VIDEO

.....,,£,ii

ii_!i_ii_!i!!l!

Video input to

S-VIDEO socket

!! !

Connect the output of the device to the input terminals of the plasma display as shown in the following

illustrations.

NOTE:

•When connecting a 480i input signal, connect it to COMPONENT 1.

• Cables shown here are not included with the plasma display.

• You can use COMPONENT2 for 480i, 1080i (interlaced), 480p, 720p (progressive) video signals.

480i (interlaced) signals can be connected to Component 1.

(Example: DVD Player)

Y OB OR

3×RCA

video cables

Y, Cb, Cr

AUDIO

2xRCA

audio cables

t, !. t, ,t

480i, 480p (progressive), 1080i and 720p (progressive) signals can be connected to Component 2.

NOTE:

You will select TV channels with the box that will be seen on the plasma display.

(Example: Set Top Box for DTV) Antenna,cable,

satellite signal

....

AUDIO

2xRCA audio cables

_AUDIO_L Y cb Cr

........................ R Y J pb I ] #r ..........

t t t t t

EXTERNAL INPUT TERMINALS

NOTE:

Cables shown here are not included with the plasma display.

AUDIO Signal €£nne£ti£n

(Example: Amplifier/Receiver)

2xRCA

audio cables to L/R sockets

Connect the AUDIO OUT from the plasma display to the AUDIO IN ORthe amplifier/receiver.

THE POWER CABLE

Connect the power cable to the plasma display after connecting the input terminals.

1Connect the power cable to the plasma display

first.

2Connect the power cable to an AC outlet.

CAUTION

• Do not connect the power cable to a power

supply outside the indicated voltage of the

plasma display (AC 120V). Connecting the

power cable to a power supply outside of this

range may result in fire or electrical shocks.

• Always use the power cable included with the

plasma display. Do not use any other cable.

For safety, make sure to always connect the

power cable to a three pronged AC outlet.

A WALL MOUNT BRACKET (SOLD SEPARATELY)

The following is a description of the method for attaching a wall mount to the plasma display.

When performing this operation, refer to the instruction manual included with the wall mount

kit.

_. CAUTION

• Any damage caused by incorrectly attempting to mount the plasma display is not covered under the

terms of the manufacturers warranty.

Stand

1Turn the plasma display over and place it

screen-first onto a table which has a soft cloth

draped over it.

Place the plasma display in a way so that the

stands hang over the edge of the table.

NOTE:

• Make sure to use a table which can support the

weight of the plasma display and is larger than the

plasma display.

• Make sure the table is in a stable location.

2Remove the stands from the plasma display.

Unscrew the M5 screws indicated by djr", and

remove the left and right stands.

NOTE:

• The screws and stands you have removed are nec-

essary for reattachment at a later date. Make sure

to keep them in a safe place.

3Attach the left and right TV rails to the plasma

display using the M8 screws included with the

wall mount kit.

_2_indicates the position of the screw holes on

the plasma display

NOTE:

• Only use the screw holes indicated by _2_for

mounting the plasma display

• For instructions on how to attach the TV rails, refer

to the instruction manual included with the mount

waft kit.

4Attach the plasma display to the wall.

NOTE:

• Refer to the instruction manual included with the

wall mount when securing the plasma display to

the wall.

W--

Always unplug the plasma display from the AC

outlet before cleaning.

Clean the case of the plasma display with a soft

cloth which has been wet and wrung dry.

If the screen of the plasma display is dirty or

dusty, wipe it clean with a soft cloth.

NOTE:

Never use a solvent, alcohol or any other abrasive liq-

uid to clean the plasma display.

Always make sure the area around vents on the plas-

ma display is clear and clean. Failure to do this may

result in fire or cause the plasma display to fail prema-

turely.

Preventing Image Burn on the plasma display

Fixed images displayed on the plasma display for an extended period of several hours may cause

uneven pixel aging causing damage to the plasma display. The screensaver mode helps reduce this

phenomenon, but in general you should to try avoid displaying fixed images for extended periods on

the plasma display.

Images of high luminance displayed on the plasma display for more than 60 seconds may cause lin-

gering images to remain on the screen. These images will automatically disappear, but may take

time depending on the luminance of the images and how long they were displayed on the screen.

IOUBLESHOOTING GUIDE

:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::"IGNITION NOISE:

iiiiiii iiiii ii i iiiiiiiiiiiiiiiiiiiiii ,,, ,, , ,,B,ackspotsorhor,zonta,streaksmayappear,p,cturemayf,utterordr,ft

ili Usually caused by interference from automobile ignition systems, neon

lamps, electrical drills and other electrical appliances.

,,GHOSTS:

Ghosts are caused by the television signal following two paths. One is the

direct path and the other is reflected from tall buildings, hills or some

other objects. Changing the direction or position of the antenna may

improve reception. Ghosting may also be caused by defects in the

antenna system such as unshielded leads or connecting several sets to

the same antenna without using multiple antenna couplers.

Ghosting occurring when the plasma display is connected to a cable TV

system may indicate a bad cable wire or loose connection. Confirm that

the cable wire is properly connected.

' ,,SNOW:

......... If your receiver is located in the fringe area of a television station where

i the signal is weak, your picture may be marred by the appearance ofsmall dots. When the signal is extremely weak, it may be necessary to

........... install a special antenna to improve the picture.

Snowing occurring when the plasma display is connected to a cable TV

system may indicate a bad cable wire or loose connection. Confirm that

the cable wire is properly connected.

"RADIO FREQUENCY INTERFERENCE:

The interference produces moving ripples or diagonal streaks, and in

some cases, causes Ioss of contrast in the picture.

"PREVENTION OF AN OBSTACLE TO RADIO RECEIVERS

This monitor has been designed pursuant to the FCC class B Rules. This

is to prevent a problem to Radio receivers. If this monitor causes a

problem to Radio receivers, then take the following steps:

-Keep the monitor away from Radio.

-Adjust Radio antennas in order for the monitor not to receive

interference.

-The antenna cable of Radio should be kept away from the monitor.

-Use a coaxial cable for antenna.

You can check if this monitor influences Radio receivers by turning off all

other equipment other than the monitor.

If you find a problem receiving Radio when using the monitor, check the

instructions mentioned above.

Vertical stripes appear, ,,The plasma display panel is lighting the phosphors by the discharge of

depending on the screen internal radiation. Depending on the screen contents, in rare cases this

contents, may cause vertical stripes to appear because of failure to light. Please

note that this is not a malfunction.

TROUBLESHOOTING GUIDE

CHECK THESE ITEMS AND

TRY THESE CORRECTIONS

Be sure external connections are correct.

Be sure power cable is plugged in.

Be sure PANEL is power switched "ON"

Check for local interference

Adjust Contrast control

// _/_ /'_ _ _ _ _ _ -._ _. -_

Adjust Bright control

Adjust Color control

Adjust Tint control

Adjust Volume control

Check batteries in Remote control

It is a characteristic of a Plasma Display.

About Interference to Infrared Devices

Please note in advance that using other infrared devices (such as infrared cordless headphones)

near the plasma display may cause infrared interference to occur.

About Pixel Defects

A plasma display is created by using a collection of miniature pixels. It is possible to display more

than 99.99% of valid pixels, however a small fraction of pixels over the life of the product may not

illuminate or may constantly be illuminated.

This is not to be considered a defect in the plasma panel.

)ECIFICATIONS

Type

Screen Size

Pixel Resolution

Output Colors

Screen Aspect Ratio

Viewing Angle

Contrast Ratio

Brightness

Comb Filter Type

Available Input Format

Audio Features

Plasma panel

42 in. Wide VGA panel

852 (H) x 480 (V)

16.7 million

16:9

160 deqrees

1000:1

470 cd/m 2(PEAK)

3-Dimensional Y/C Separation

720p/1080i/480p/480i (720p/lOS0i/480p: Component 2 only)

Additional Features

Screen Saver Off/Slow/Fast

Trilingual OSD

Color Temperature Select

AV Memory

Widescreen Modes

Sleep Timer

Wall Mount Kit Ready

English/Spanish/French

Cool/Normal/Warm

Dynamic/Manual/News/Movie

4:3 Standard, Full, Wide, Zoom

90 minutes

For VMPLs, SANUS SYSTEMS

Connectors

Component AV Input (1) SD component video/Y, Cb, Cr (RCA x 3) - rear

audio L/R (RCA x 2) - rear

Component AV Input (2) HD component video/Y, Pb, Pr (RCA x 3) - rear

audio L/R (RCA x 2) - rear

Composite AV Input (1) Composite video ( RCA x 1 ) - rear

S-Video (1) S-Video (4 pin DIN ) - rear

audio L/R (RCA x 2) - rear

Composite AV Input (2) Composite video ( RCA x 1 ) - side

S-Video (2) S-Video (4 pin DIN ) - side

audio L/R (RCA x 2) - side

Analog Audio output audio L/R (RCA x 2) - rear

General

Power In 120V +10%, 60Hz/AC

Power Consumption 350 W (Standby: 0.8W)

Exterior Color Silver & Black

Dimension (Incl.stand) (Width x Height x Depth) 41 1/2 x 28 3/4 x 13 in. (1054 x 730 x 330 mm)

Weight 94.8 Ibs (43 kg)

NOTE:

The specifications and design of this product are subject to change without notice.

_._ As ENERGY STAR ® Partner, has determined that this meets

an our company product

_,E_o_,_ the ENERGY STAR ® guidelines for energy efficiency. ENERGY STAR ® is a U.S. registered mark.

C-

'l-

,_1

I-

;IA RAPIDA EN ESPANOL

Traslado de la unidad principal

Debido al considerable peso de la pantalla de plasma, se necesitan dos personas para trasladarla.

Ambas personas deben sujetar or sostener la parte superior de la pantalla con una mano y la base de la

pantalla con la otra mano.

Vea la Figura 1 en la pa.gina 3.

iTi_711_TiiiiiiiiiiiiiTiiiiiiiiiiiiiiiiiiiiiiiT!i

|_TALACION DE LAS PILAS EN EL CONTROL REMOTO

1Para retirar la tapa trasera del control remoto,

presione la lengOeta hacia abajo con un dedo.

3Instale la tapa trasera en el control remoto.

• j

2Instale dos pilas tamaRo AA, asegura.ndose de

que la polaridad de las pilas coincida con los

sfmbolos impresos en el interior del control

remoto.

i!i!!_!ii!i_i!i!!i!_!_!_!i_!i:_i_!i_!i_!!i_:!i_ii_i_ii!:_i_i_i;_!ii!_i_i

NOMBRES DE LOS COMPONENTES

Vea las Figura 2 y Figura 3 en la pagina 6.

1 Botbn POWER: Para encender (ON) o dejar

en modo de espera (STANDBY).

2 Indicador ON: Se ilumina cuando la ali-

mentacion esta encendida. [

3Indicador STANDBY: Se ilumina cuando la 8

pantalla se encuentra en modo de espera.

Se apaga cuando se enciende la ali-

mentacion.

Botbn INPUT SELECT: Para seleccionar

los terminales de entrada.

Botbn VOLUME A(aumento) /-(disminu-

cibn): Para aumentar o disminuir el nivel de

volumen.

Terminal AC IN: Conecte el cable de ali-

mentacion suministrado entre este terminal

y una toma de corriente de CA estandar.

AUDIO OUT: Terminal de salida para audio.

AUDIO/VIDEO/S-VIDEO: Terminal de entra-

da para seSales de audio y video. Se puede

seleccionar VIDEO o S-VIDEO.

COMPONENT: Terminal de entrada para

se_ales de componente. Es posible realizar

una conexion entrelazada para componente

1 o Y-Pb-Pr progresivo o una conexion

entrelazada para componente 2.

Vea la Figura 4 en la pagina 7.

1 Botbn POWER: Para encender (ON) o dejar

en modo de espera (STANDBY).

2Botbn VOL A(aumento)/'_(disminucibn):

Para aumentar o disminuir el nivel de volu-

men.

Botbn MUTE: Para activar o desactivar la

funci6n de silenciamiento de audio.

Botbn SCREEN MODE: Se utiliza para

seleccionar uno de los formatos disponibles

para la pantalla.

Botbn STILL: Para congelar la imagen

mostrada en la pantalla.

Botbn INPUT SELECT: Para seleccionar

los terminales de entrada.

Botbn DISPLAY: Muestra el nombre del ter-

minal de entrada seleccionado en la pan-

talla.

Botbn SLEEP: Para programar el tempo-

rizador de apagado automatico.

Botbn MENU: Para acceder al menu de

configuracion, donde se pueden hacer diver-

sos ajustes.

Botbn PREVIOUS: Para subir un nivel en el

ment_ de configuracion.

Botbn A(arriba) /_'(abajo): Para selec-

cionar diversos modos en el ment_ de con-

figuracion.

Botbn <(izquierda) /I_(derecha): Para

seleccionar y ajustar niveles para las diver-

sas opciones de ajuste.

Botbn I_(introduccibn): Tambien se utiliza

como bot6n de introduccion.

SYLVANmA

UMmTED WARRANTY

FUNAI CORE will repair this SYLVANIA product free of charge in the USA in the event of defect in materials or

workmanship as follows:

DURATION:

PARTS: FUNAI CORP. will provide parts to replace defective parts ,without charge for one (!) year

from the date of original retail purchase. Three (3) years for Plasma Panel Certain parts

and Plasma image bum-in are not covered under this warranty.

LABOR: FUNAI CORR will provide the labor without charge for a period of ninety (90) days from

the date of original retail purchase.

LII£41TSAND EXCLUSIONS:

THIS WARRANTY IS EXTENDED ONLY TO THE ORIGINAL RETAIL PURCHASER. A PURCHASE

RECEIPT OR OTHER PROOF OF ORIGINAL RETAIL PURCHASE WILL BE REQUIRED TOGETHER

WITH THE PRODUCTTO OBTAIN SERVICE UNDER THIS WARRANTY.

This warranty shall not be extended to any other person or transferee.

This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced,

missing or if service was attempted by an unauthorized service center. This SYLVANIA Limited warranty

does not apply to any the product not purchased and used in the United States.

This warranty only covers failures due to defects in material or workmanship which occurs during normal

use. It does not cover damage which occurs in shipment, or failures which are caused by repairs, alterations

or product not supplied by FUNAI CORR, or damage which results from accident, misuse, abuse, mishan-

dling, misapplication, alteration, faulty installation, improper maintenance, commercia! use such as hotel,

rental or office use of this product or damage which results from fire, flood, lightning or other acts of God.

THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE

CONTROL), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.

FUNAI CORR AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY

GENERAL, INDIRECT QR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE

USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS VVARRANTY IS MADE IN LIEU OF ALL

OTHER WARRANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF

FUNA!, ALL OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY AND FIT-

NESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED BY FUNAI AND ITS REPRESEN-

TATIVES IN THE UNITED STATES.

ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY A FUNAI AUTHORIZED

SERVICE CENTER. THIS WARRANTY IS ONLY VALID WHEN THE UNIT IS CARRIED-IN TO A FUNAI

AUTHORIZED SERVICE FACILITY.

THE PRODUCT MUST BE ACCOMPANIED BY A COPY OF THE ORIGINAL RETAIL PURCHASE

RECEIPT. IF NO PROOF OF PURCHASE IS ATTACHED, THE WARRANTY WILL NOT BE HONORED

AND REPAIRS COSTS WtLL BE CHARGED.

IMPORTANT:

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS THAT

VARY FROM STATE TO STATE. IF,AT ANY TIME DURING THE WARRANTY PERIOD, YOU ARE UNABLE TO

OBTAIN SATISFACTION WITH THE REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNA! CORE

FUNAI CORR RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THiS PROD-

UCT WITHOUT PRIOR NOTICE.

To ocate ,your nearest SYLVANIA Authorized Service Center or general service pro-

cedure, p ease call 1-800-605-8453 or write to the [ollowing

FUNAI CORPORATION, IND.

SERVICE CENTER

19900 Van Ness Avenue, Torrance, CA 90501

Tel :1-800-605°8453

http:Hwww,funaFcorp,com

Head Office: 100 North Street, Teterboro, NJ 07608

PLEASE DO NOT SHIP YOUR UNIT TO THE TETERBORO ADDRESS.

Printed in Malaysia 1EMN20088

L0601 UB_-*_

Sylvania 6842PE User Manual PLASMA TELEVISION Manuals And Guides L0522653

SYLVANIA Plasma Television Manual L0522653 SYLVANIA Plasma Television Owner's Manual, SYLVANIA Plasma Television installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
