Before you can view a picture on the plasma display, you

must first connect the unit to an external video source.

See page 18 of the owner's manual.

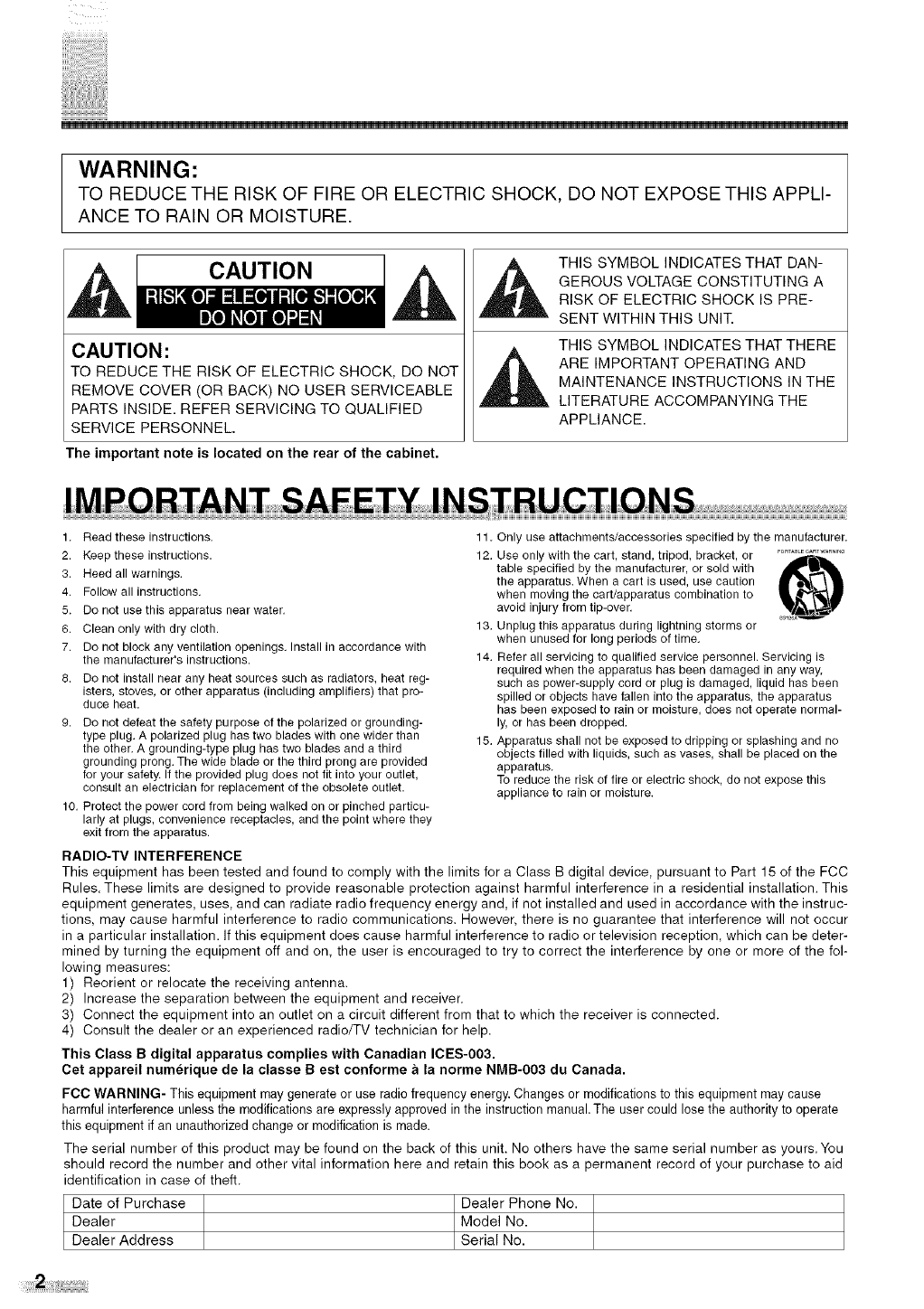

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLI-

ANCE TO RAIN OR MOISTURE.

CAUTION

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK) NO USER SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DAN-

GEROUS VOLTAGE CONSTITUTING A

RISK OF ELECTRIC SHOCK IS PRE-

SENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE

ARE IMPORTANT OPERATING AND

MAINTENANCE INSTRUCTIONS IN THE

LITERATURE ACCOMPANYING THE

APPLIANCE.

The important note is located on the rear of the cabinet.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with

the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat reg-

isters, stoves, or other apparatus (including amplifiers) that pro-

duce heat.

9. Do not defeat the safety purpose of the polarized or grounding-

type plug. A polarized plug has two blades with one wider than

the other. A grounding-type plug has two blades and a third

grounding prong. The wide blade or the third prong are provided

for your safety. If the provided plug does not fit into your outlet,

consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particu-

larly at plugs, convenience receptacles, and the point where they

exit from the apparatus.

RADIO-TV INTERFERENCE

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or ....................

table specified by the manufacturer, or sold with

the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to

avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or

when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way,

such as power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate normal-

ly, or has been dropped.

15. Apparatus shall not be exposed to dripping or splashing and no

objects filled with liquids, such as vases, shall be placed on the

apparatus.

To reduce the risk of fire or electric shock, do not expose this

appliance to rain or moisture.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruc-

tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be deter-

mined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the fol-

lowing measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil num_rique de la classe B est conforme ala norme NMB-003 du Canada.

FCC WARNING- This equipment may generate or use radio frequency energy.Changes or modifications to this equipment may cause

harmful interference unless the modifications are expressly approved in the instruction manual,The user could lose the authority to operate

this equipment if an unauthorized change or modification is made.

The serial number of this product may be found on the back of this unit. No others have the same serial number as yours. You

should record the number and other vital information here and retain this book as a permanent record of your purchase to aid

identification in case of theft.

Date of Purchase Dealer Phone No.

Dealer Model No.

Dealer Address Serial No.

Thank you for purchasing this plasma display.

Please make sure to read this manual before using the plasma display and pay particular

attention to the Safety Instructions enclosed within.

When you have finished reading this manual, store it in a safe place for easy access in the

future.

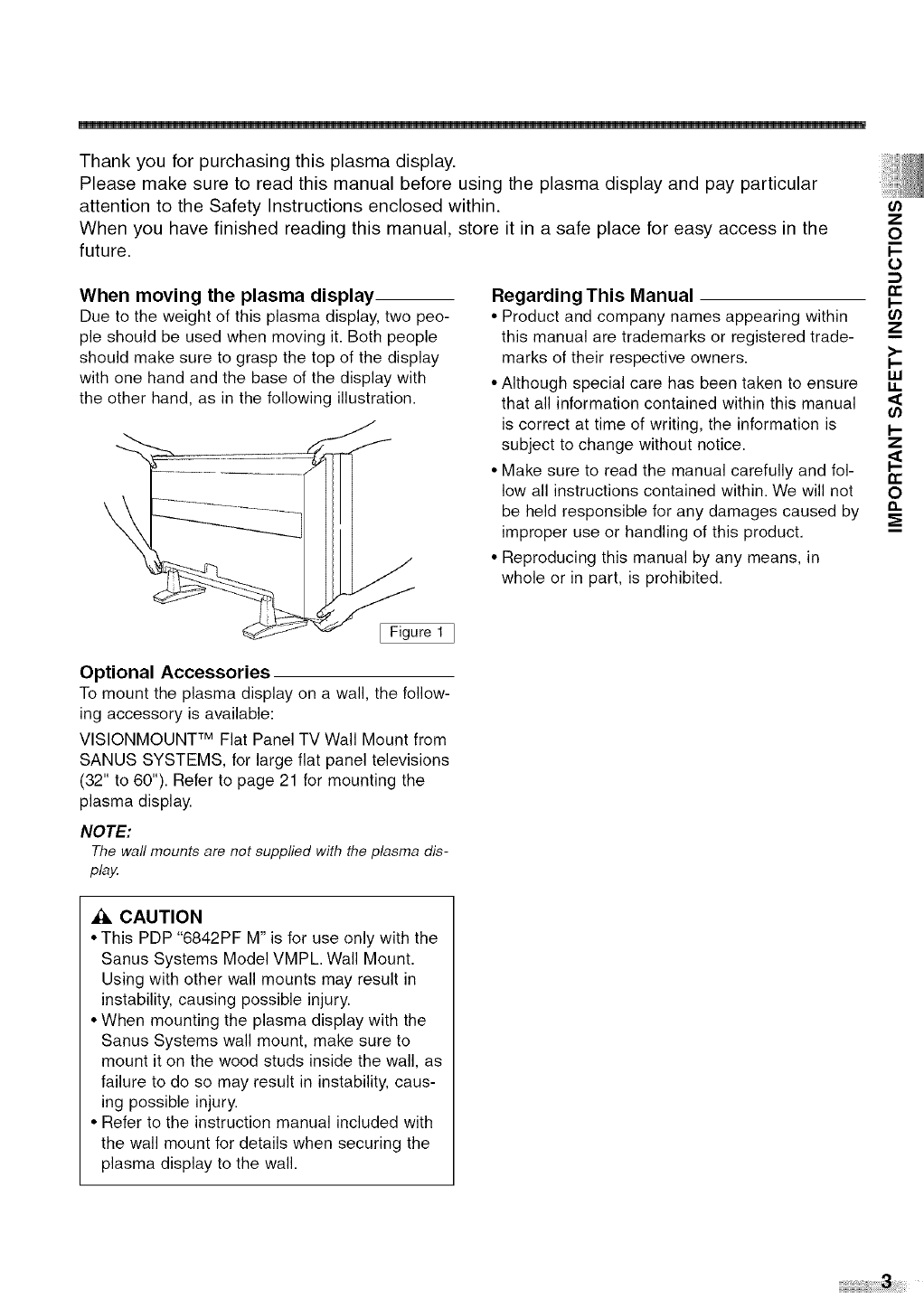

When moving the plasma display

Due to the weight of this plasma display, two peo-

ple should be used when moving it. Both people

should make sure to grasp the top of the display

with one hand and the base of the display with

the other hand, as in the following illustration.

Regarding This Manual

•Product and company names appearing within

this manual are trademarks or registered trade-

marks of their respective owners.

• Although special care has been taken to ensure

that all information contained within this manual

is correct at time of writing, the information is

subject to change without notice.

• Make sure to read the manual carefully and fol-

low all instructions contained within. We will not

be held responsible for any damages caused by

improper use or handling of this product.

• Reproducing this manual by any means, in

whole or in part, is prohibited.

I-

IJJ

IJ.

Optional Accessories

To mount the plasma display on a wall, the follow-

ing accessory is available:

VISIONMOUNT TM Flat Panel TV Wall Mount from

SANUS SYSTEMS, for large flat panel televisions

(32" to 60"). Refer to page 21 for mounting the

plasma display.

NOTE:

The wall mounts are not supplied with the plasma dis-

play.

CAUTION

• This PDP "6842PF M" is for use only with the

Sanus Systems Model VMPL. Wall Mount.

Using with other wall mounts may result in

instability, causing possible injury.

• When mounting the plasma display with the

Sanus Systems wall mount, make sure to

mount it on the wood studs inside the wall, as

failure to do so may result in instability, caus-

ing possible injury.

• Refer to the instruction manual included with

the wall mount for details when securing the

plasma display to the wall.

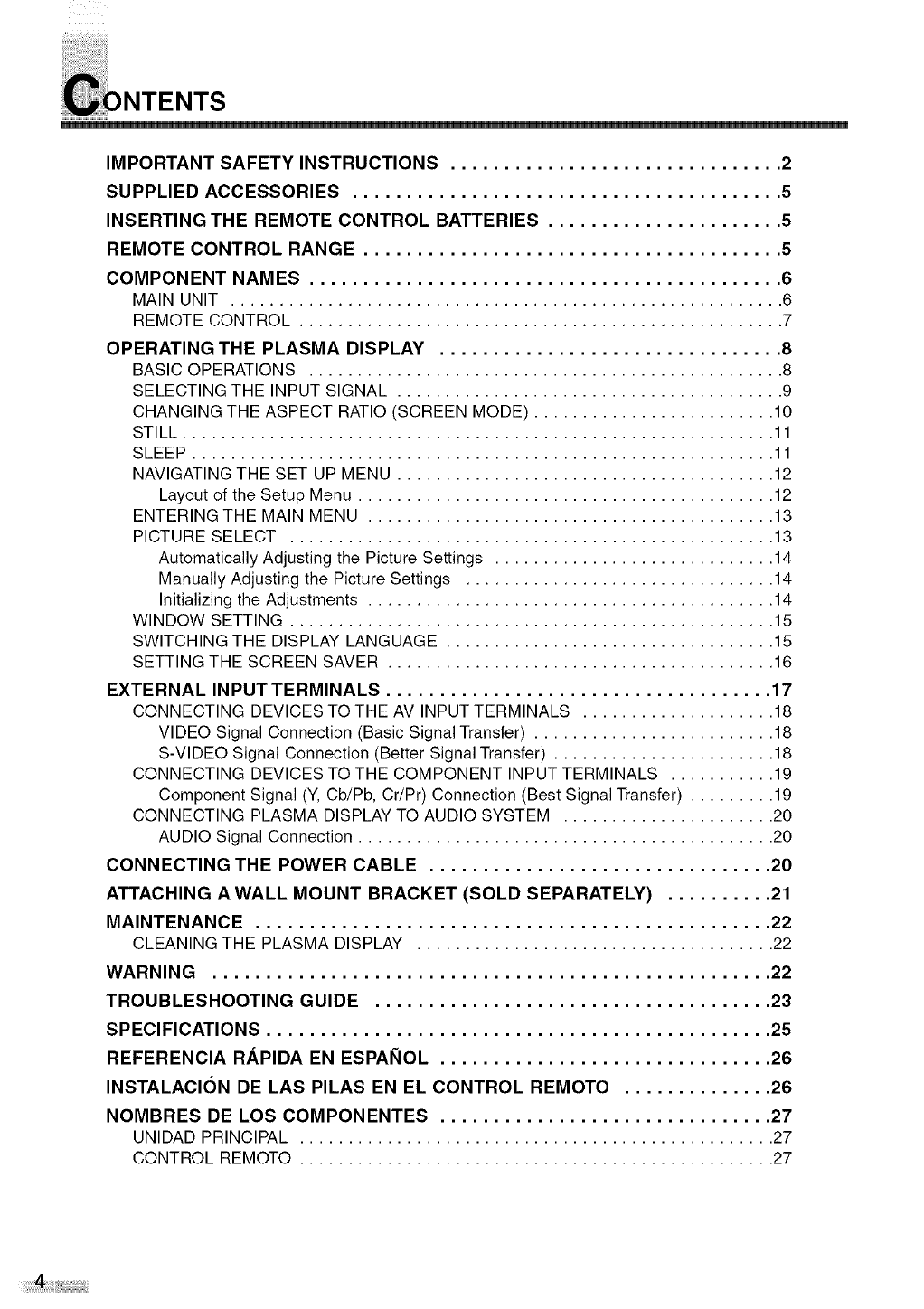

INTENTS

IMPORTANT SAFETY INSTRUCTIONS ............................... 2

SUPPLIED ACCESSORIES ........................................ 5

INSERTING THE REMOTE CONTROL BATTERIES ...................... 5

REMOTE CONTROL RANGE ....................................... 5

COMPONENT NAMES ............................................ 6

MAIN UNIT ......................................................... 6

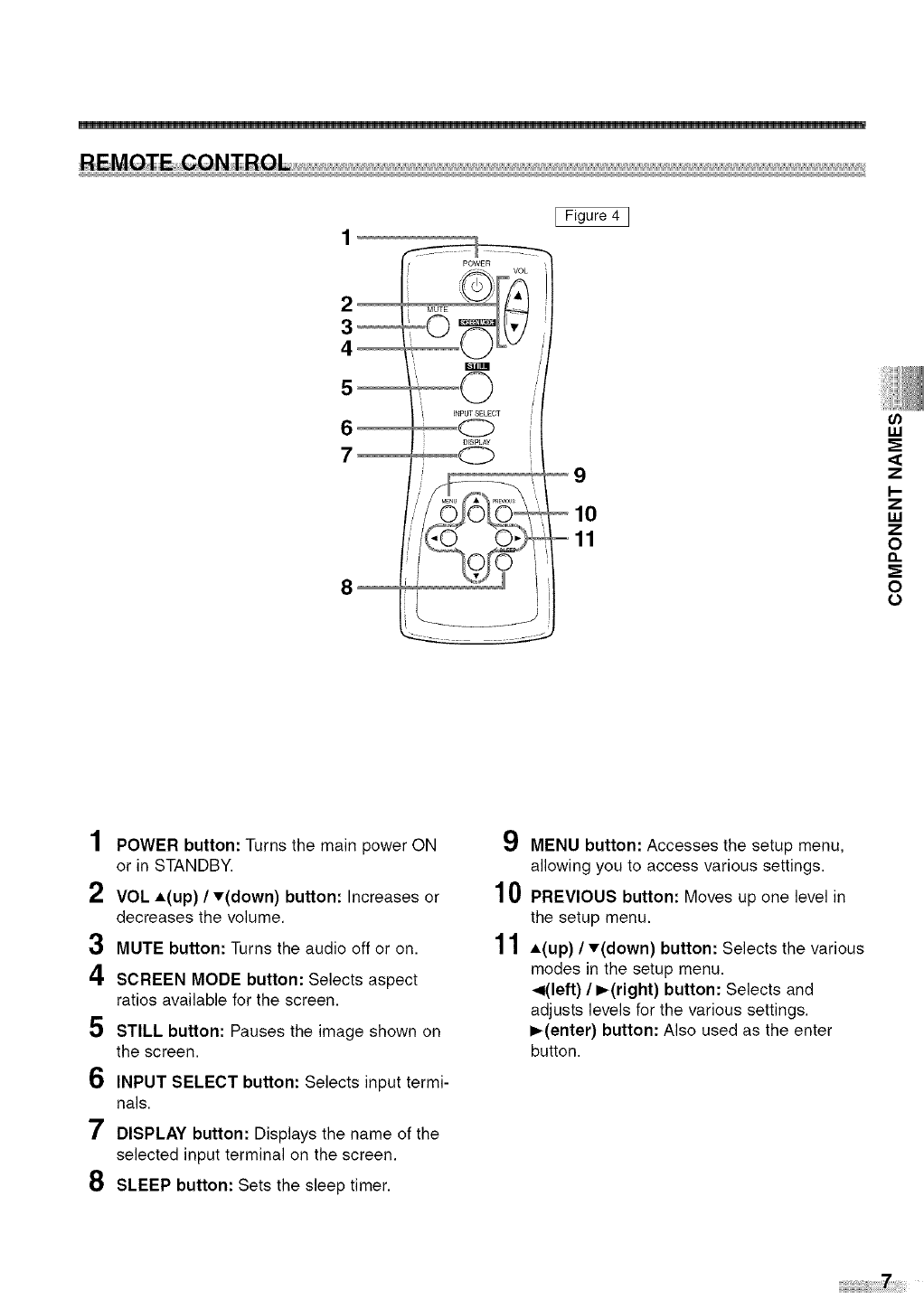

REMOTE CONTROL .................................................. 7

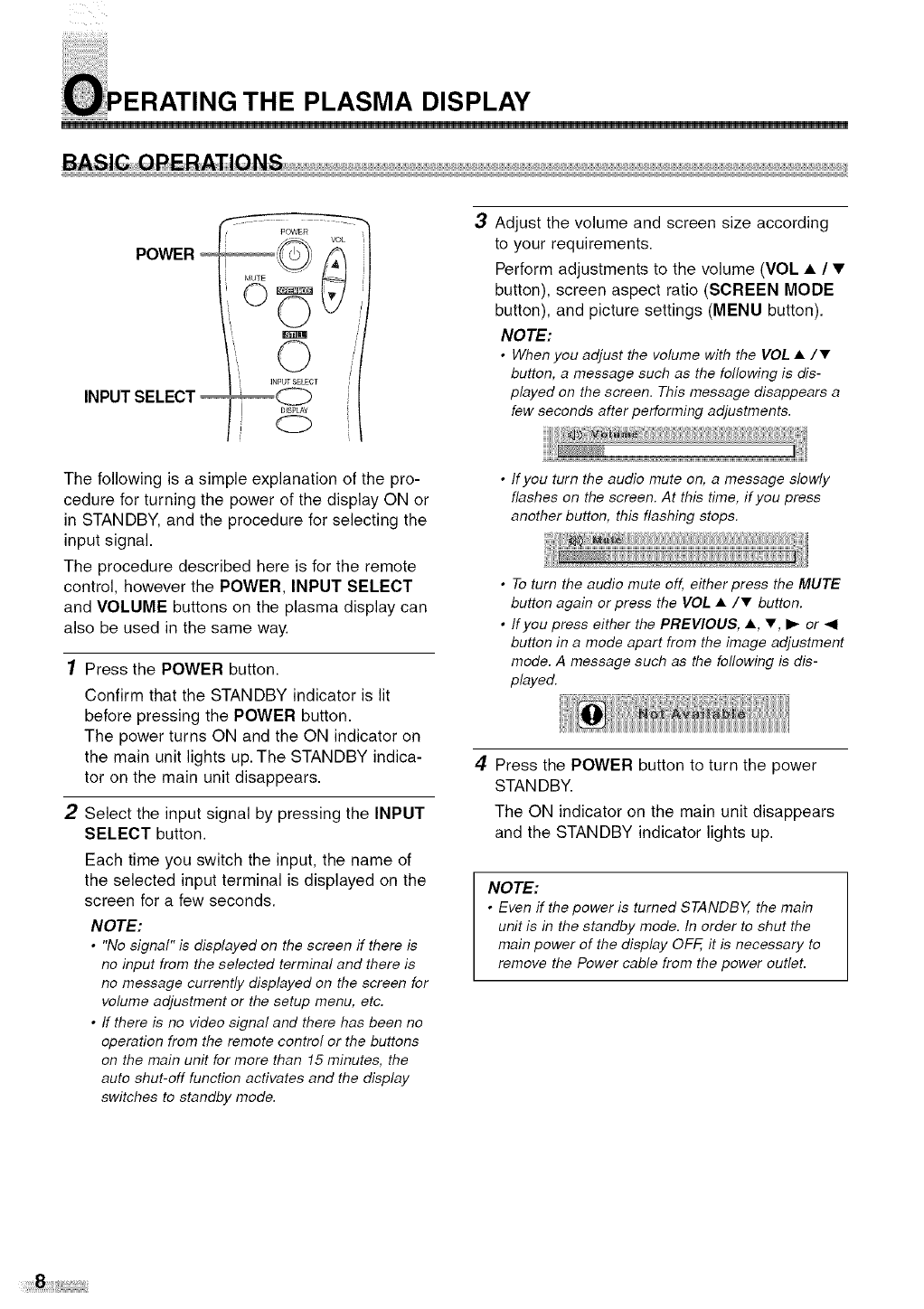

OPERATING THE PLASMA DISPLAY ................................ 8

BASIC OPERATIONS ................................................. 8

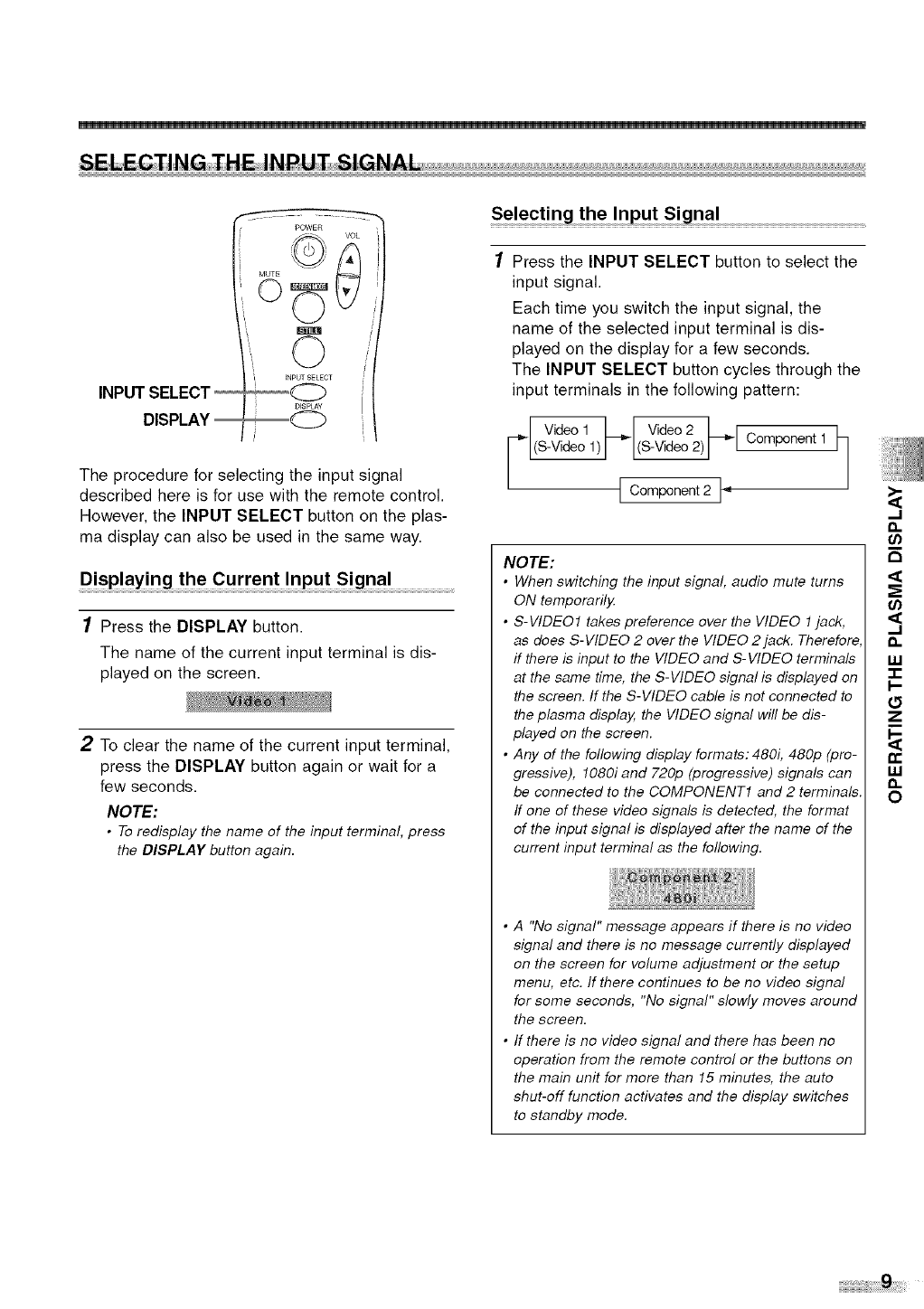

SELECTING THE INPUT SIGNAL ........................................ 9

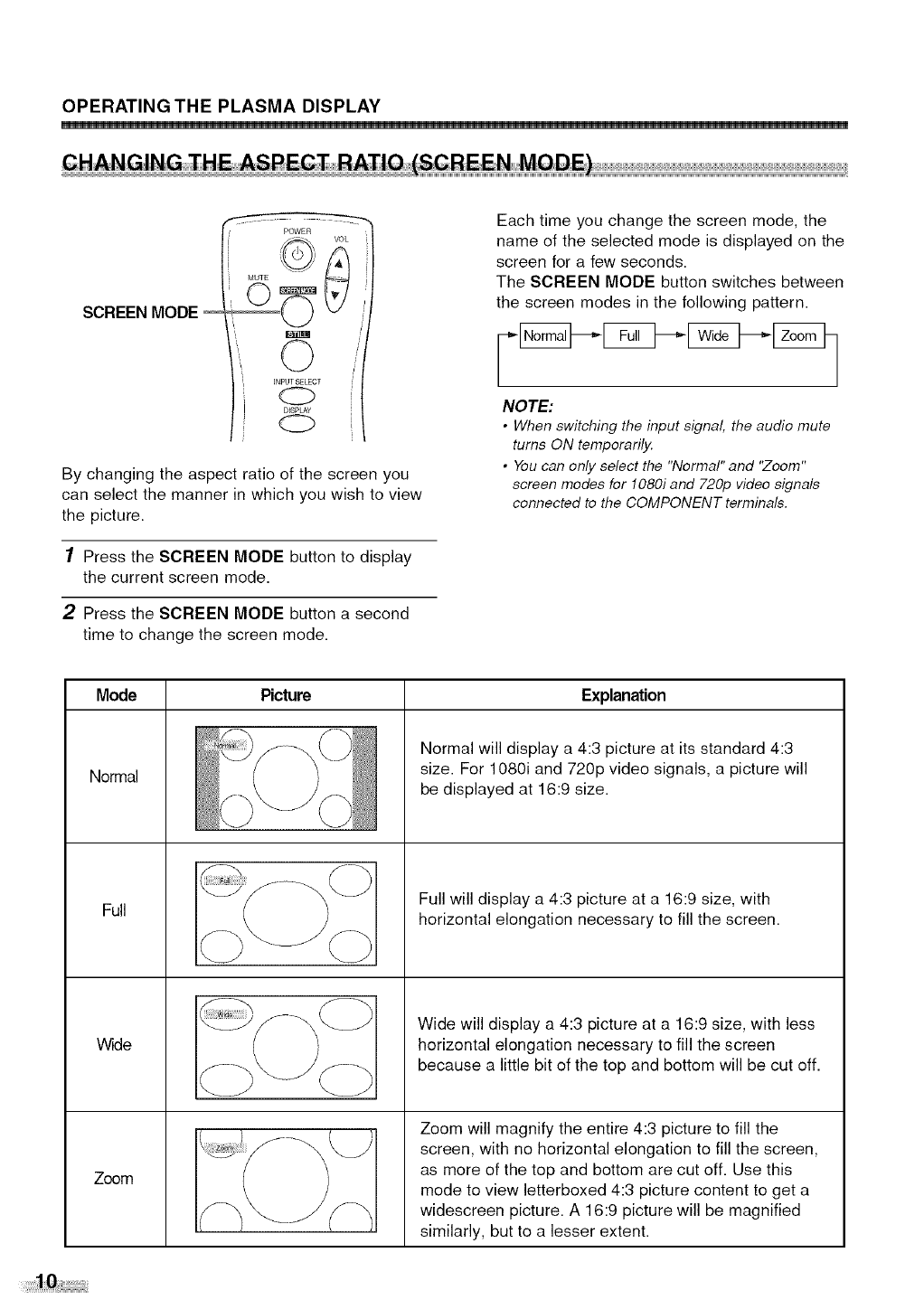

CHANGING THE ASPECT RATIO (SCREEN MODE) ......................... 10

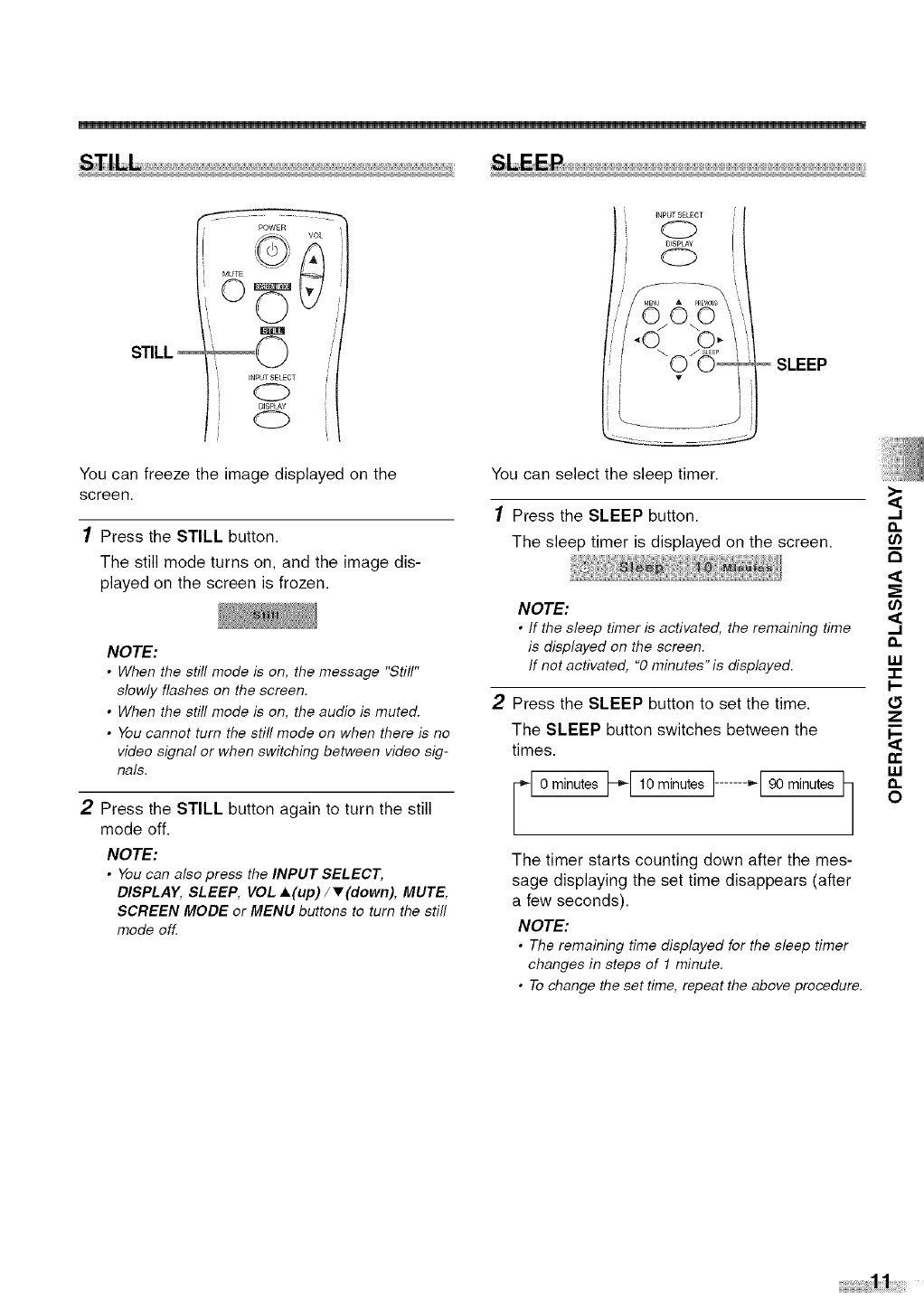

STILL ............................................................. 11

SLEEP ............................................................ 11

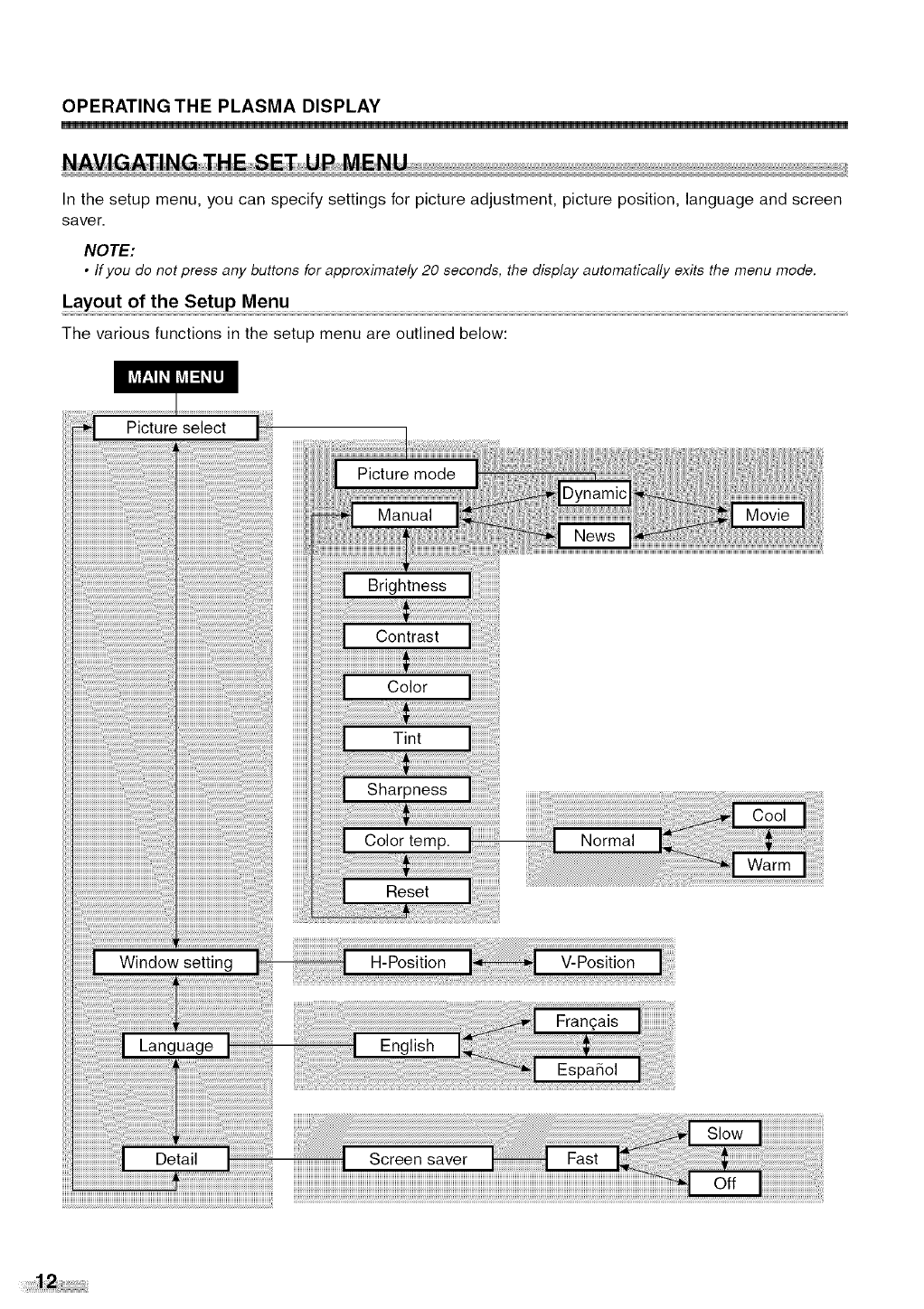

NAVIGATING THE SET UP MENU ....................................... 12

Layout of the Setup Menu ........................................... 12

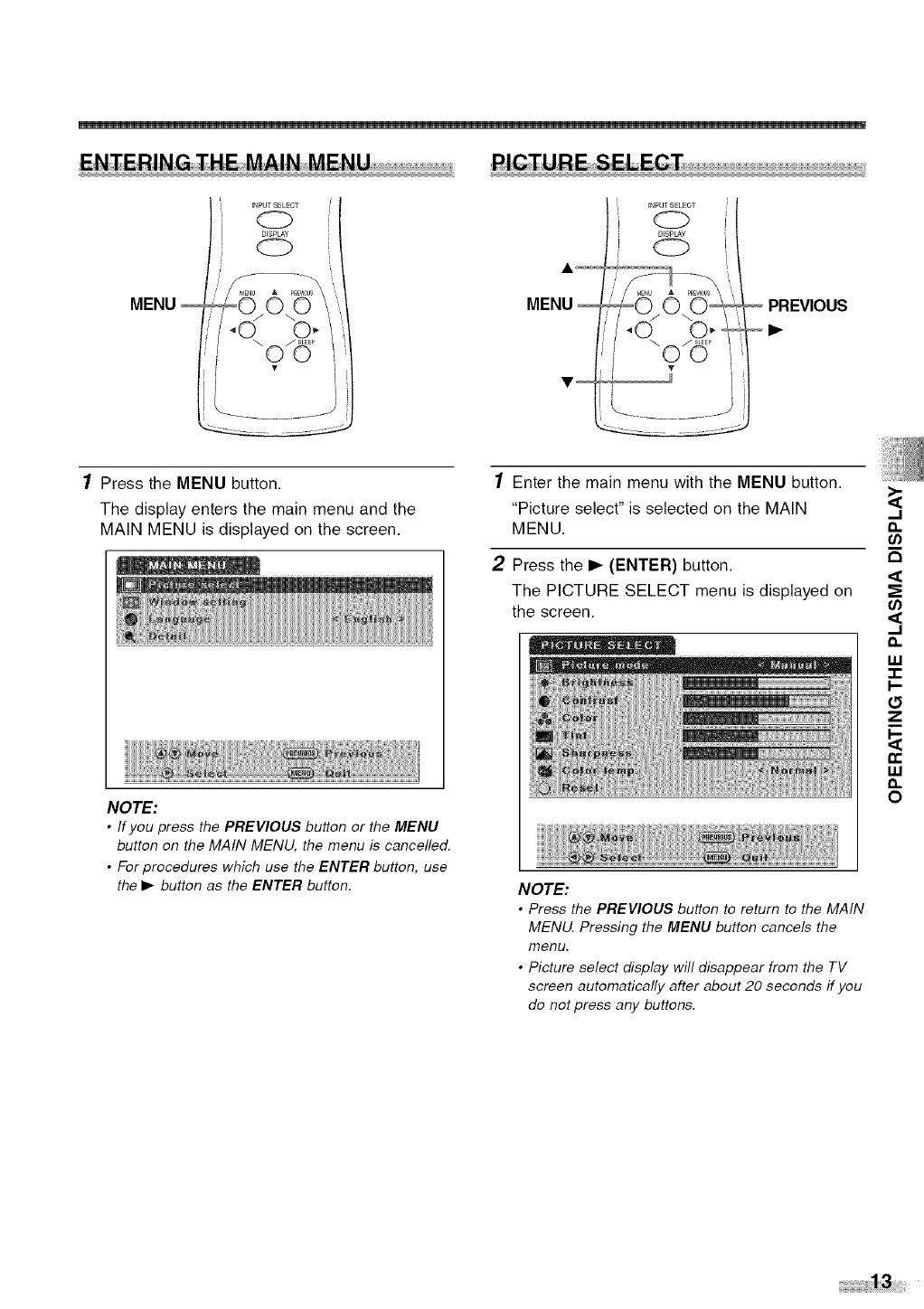

ENTERING THE MAIN MENU .......................................... 13

PICTURE SELECT .................................................. 13

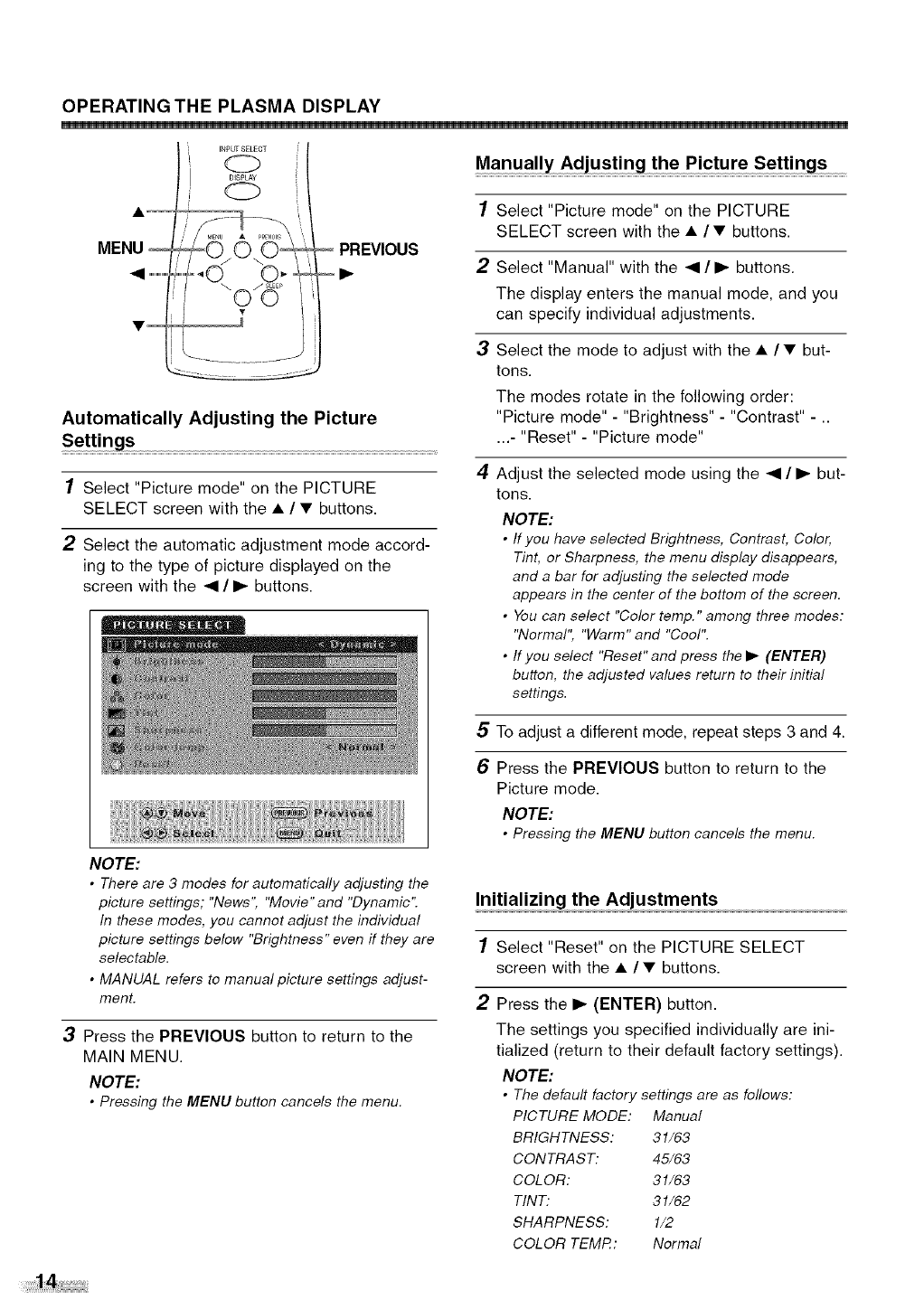

Automatically Adjusting the Picture Settings ............................. 14

Manually Adjusting the Picture Settings ................................ 14

Initializing the Adjustments .......................................... 14

WINDOW SETTING .................................................. 15

SWITCHING THE DISPLAY LANGUAGE .................................. 15

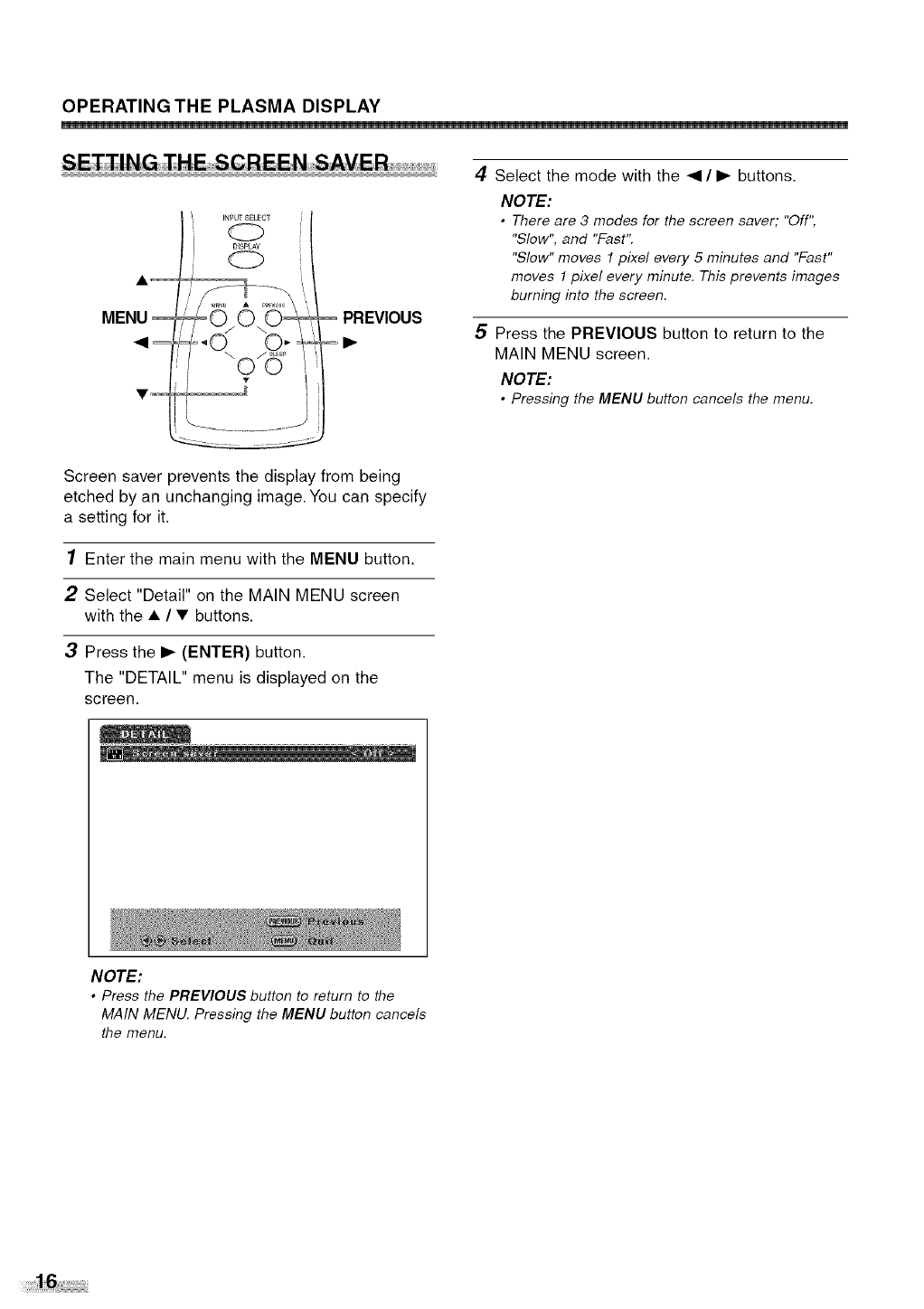

SETTING THE SCREEN SAVER ........................................ 16

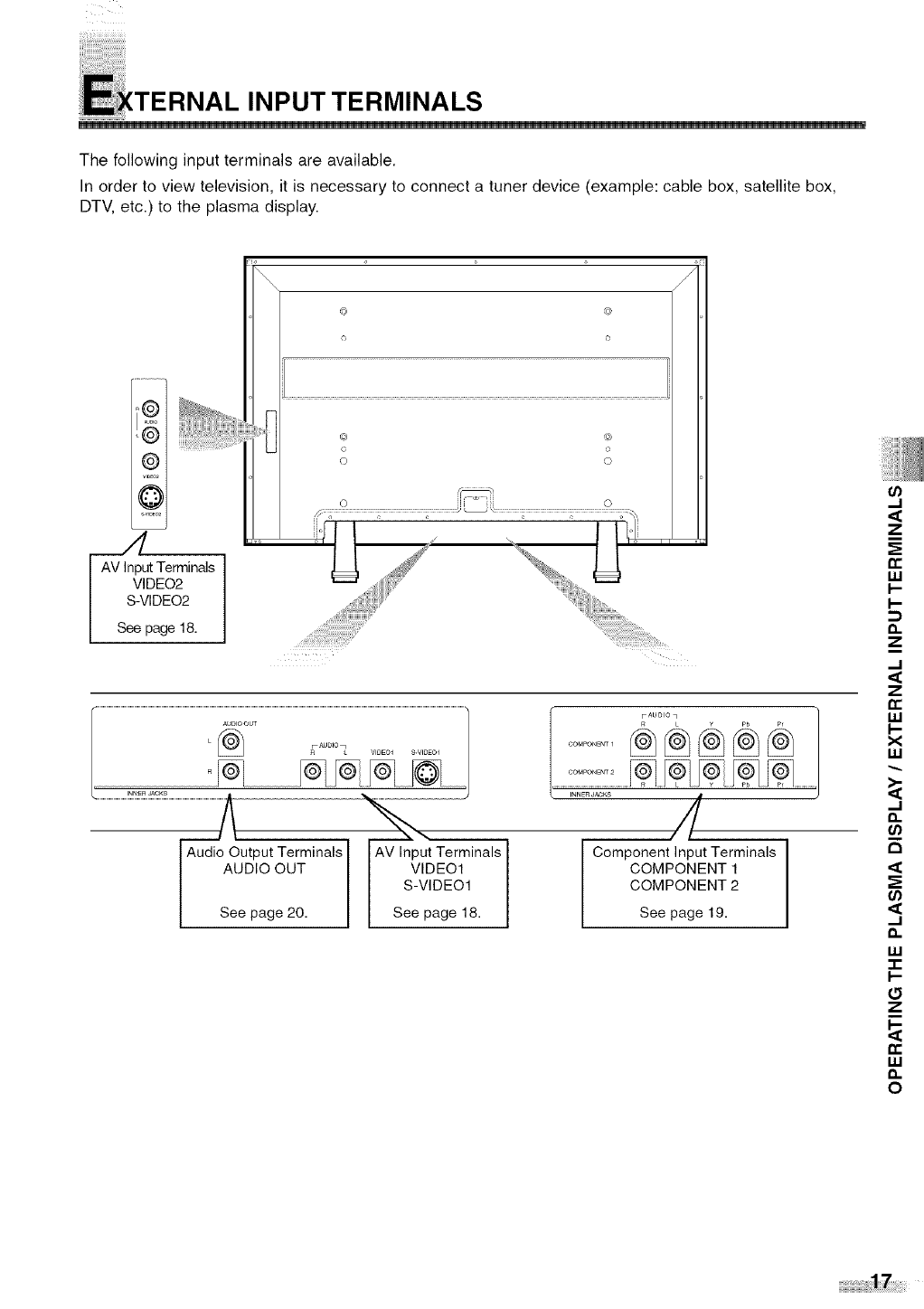

EXTERNAL INPUT TERMINALS .................................... 17

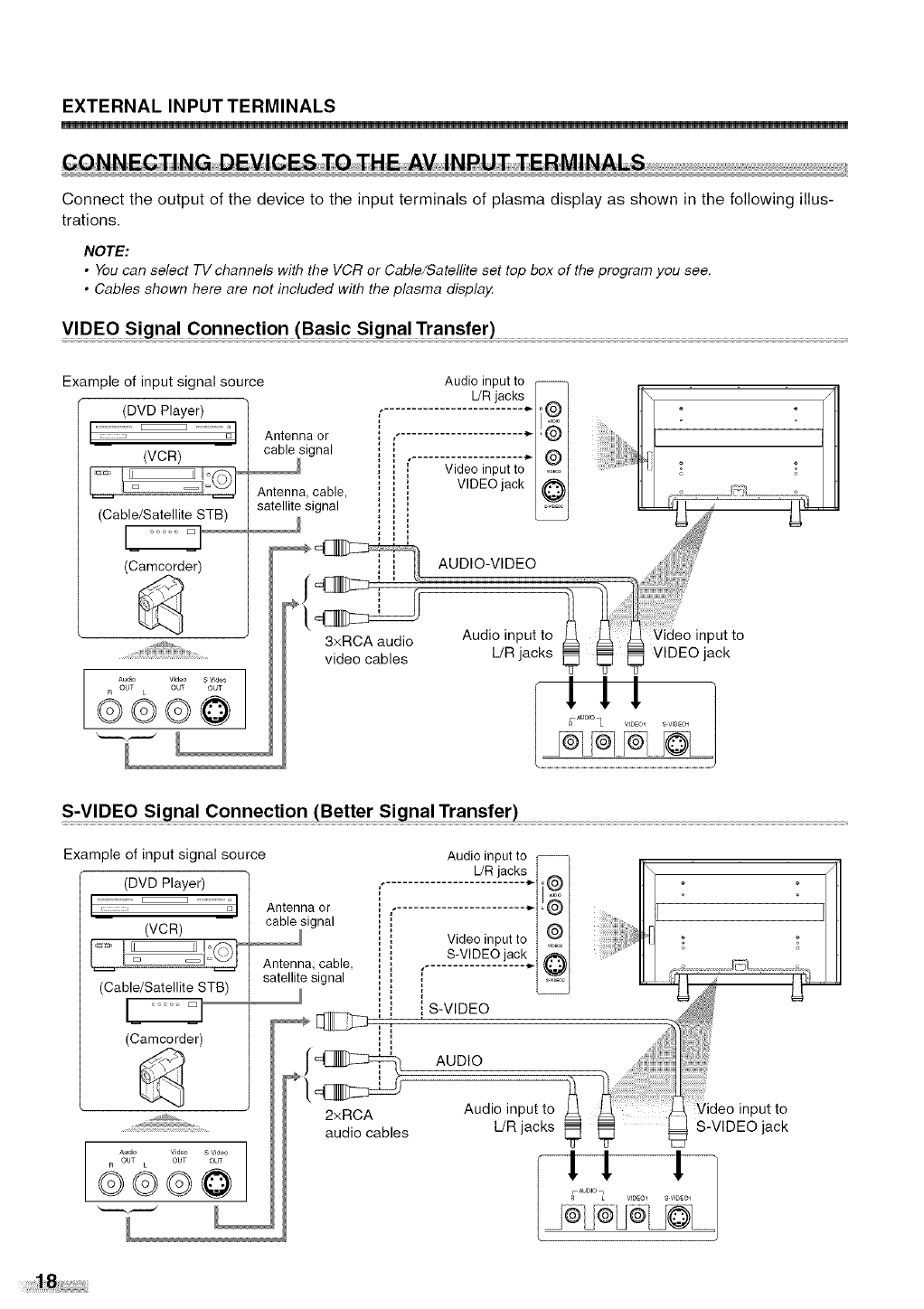

CONNECTING DEVICES TO THE AV INPUT TERMINALS .................... 18

VIDEO Signal Connection (Basic Signal Transfer) ......................... 18

S-VIDEO Signal Connection (Better Signal Transfer) ....................... 18

CONNECTING DEVICES TO THE COMPONENT INPUT TERMINALS ........... 19

Component Signal (Y, Cb/Pb, Cr/Pr) Connection (Best Signal Transfer) ......... 19

CONNECTING PLASMA DISPLAY TO AUDIO SYSTEM ...................... 20

AUDIO Signal Connection ........................................... 20

CONNECTING THE POWER CABLE ................................ 20

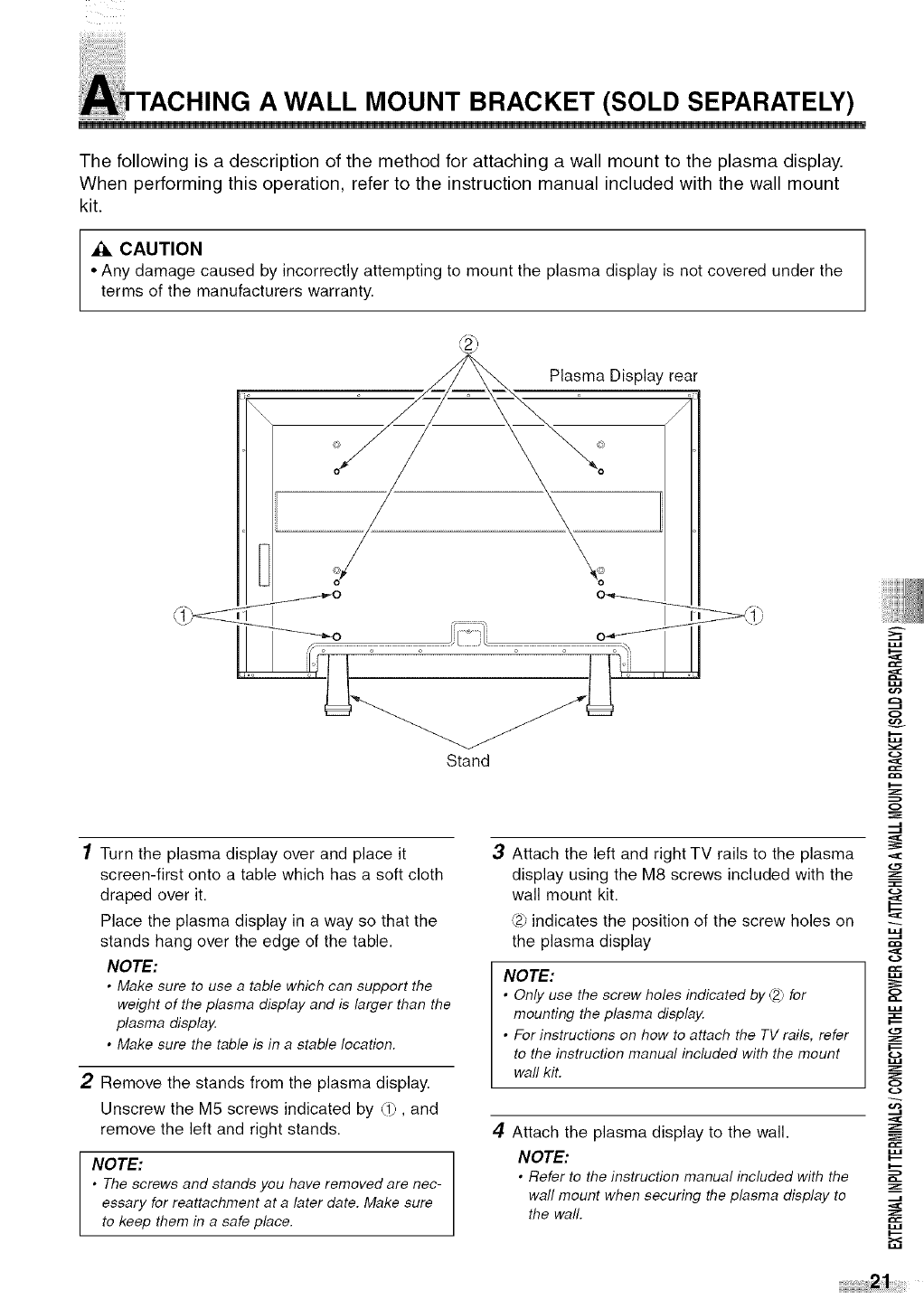

ATTACHING A WALL MOUNT BRACKET (SOLD SEPARATELY) .......... 21

MAINTENANCE ................................................ 22

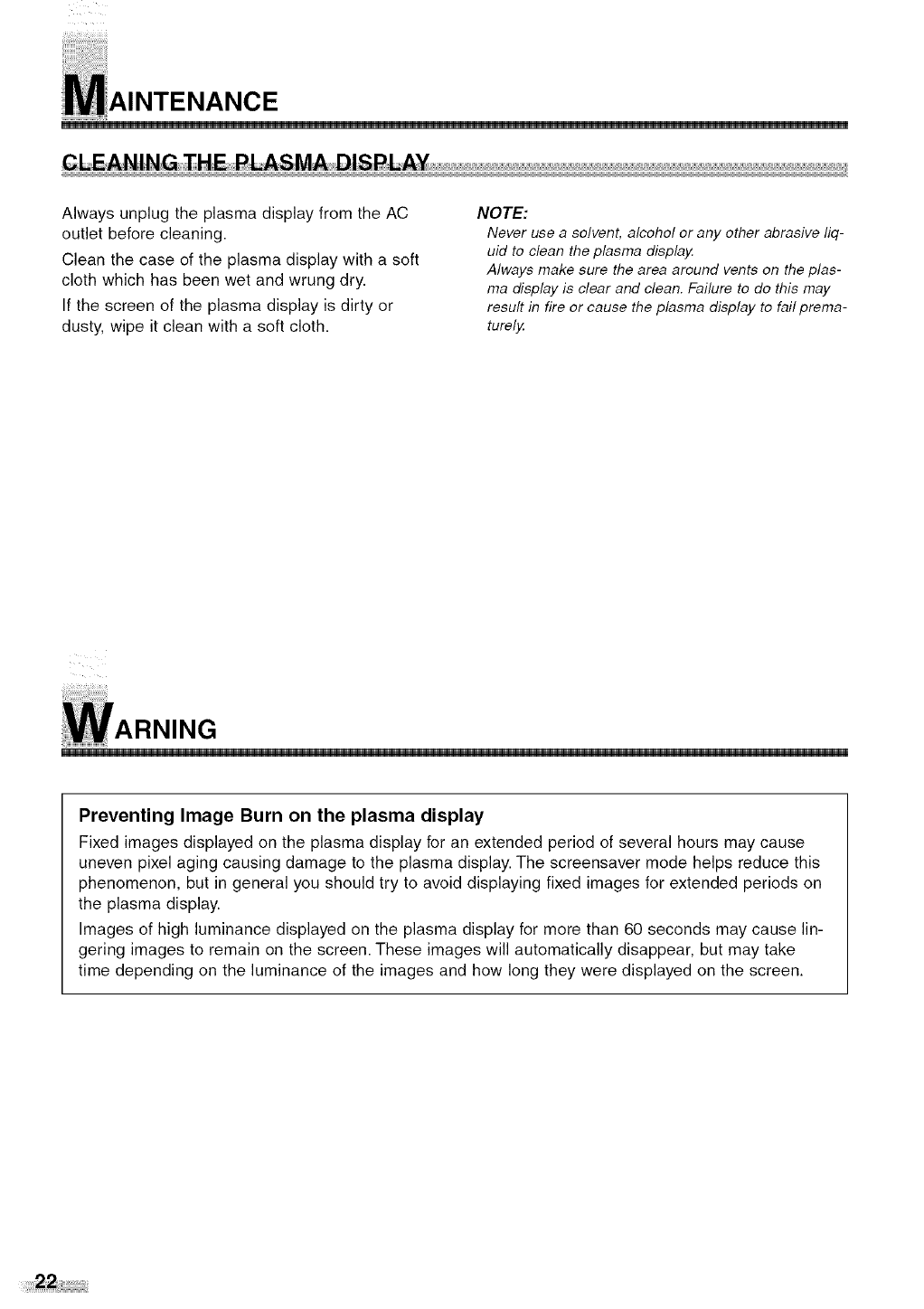

CLEANING THE PLASMA DISPLAY ..................................... 22

WARNING .................................................... 22

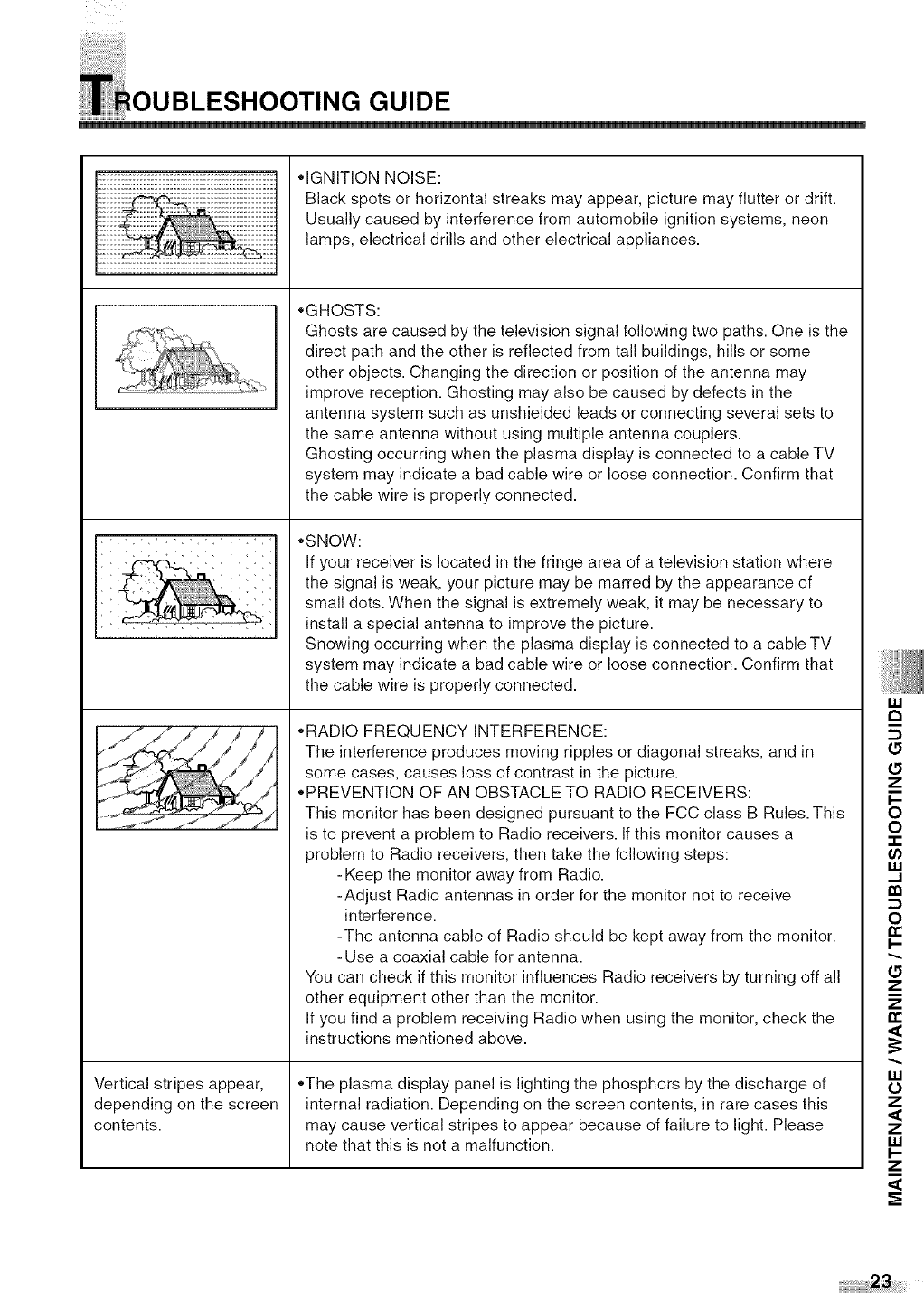

TROUBLESHOOTING GUIDE ..................................... 23

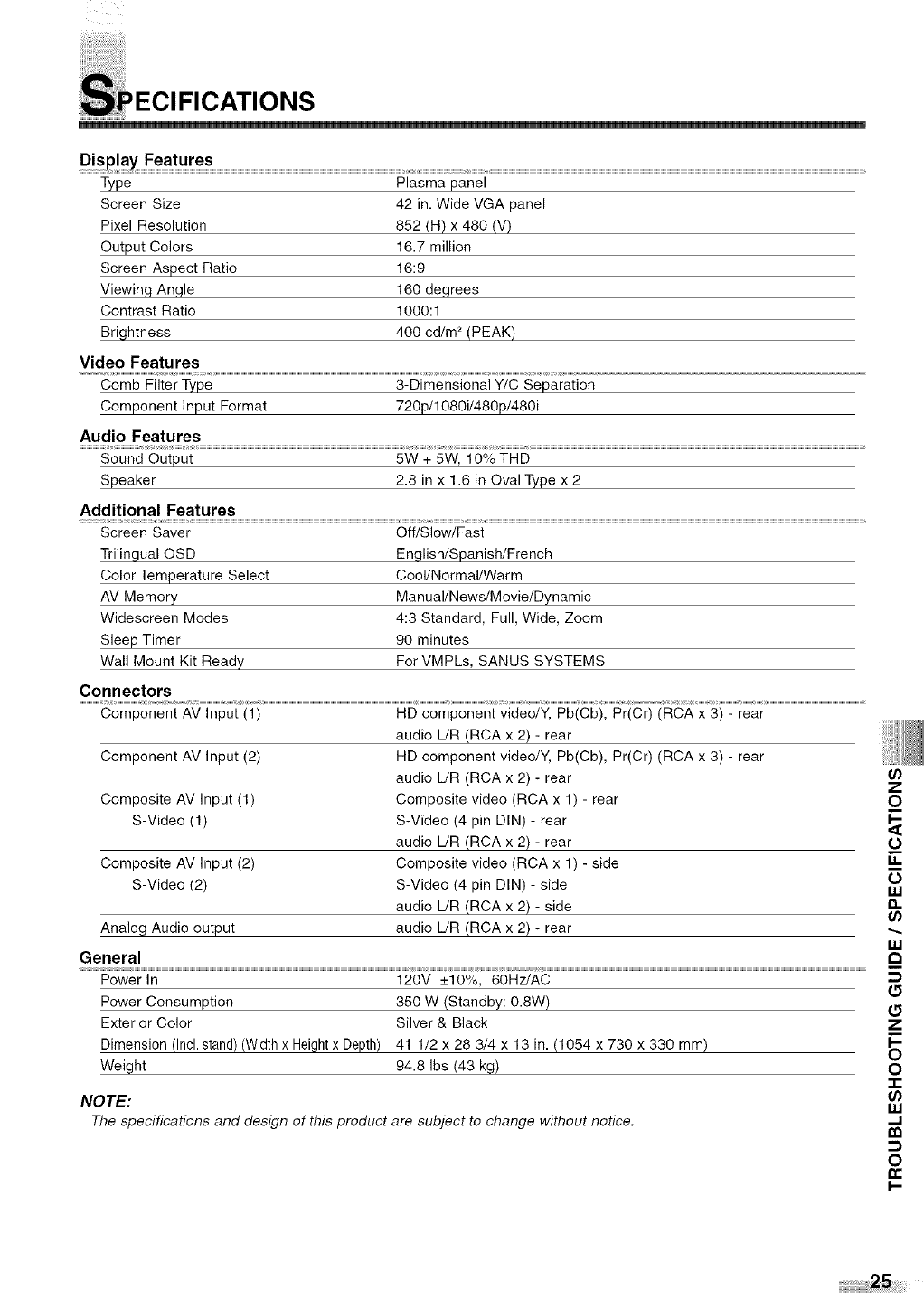

SPECIFICATIONS ............................................... 25

REFERENCIA RAPIDA EN ESPAI_IOL ............................... 26

INSTALACION DE LAS PILAS EN EL CONTROL REMOTO .............. 26

NOMBRES DE LOS COMPONENTES ............................... 27

UNIDAD PRINCIPAL ................................................. 27

CONTROL REMOTO ................................................. 27

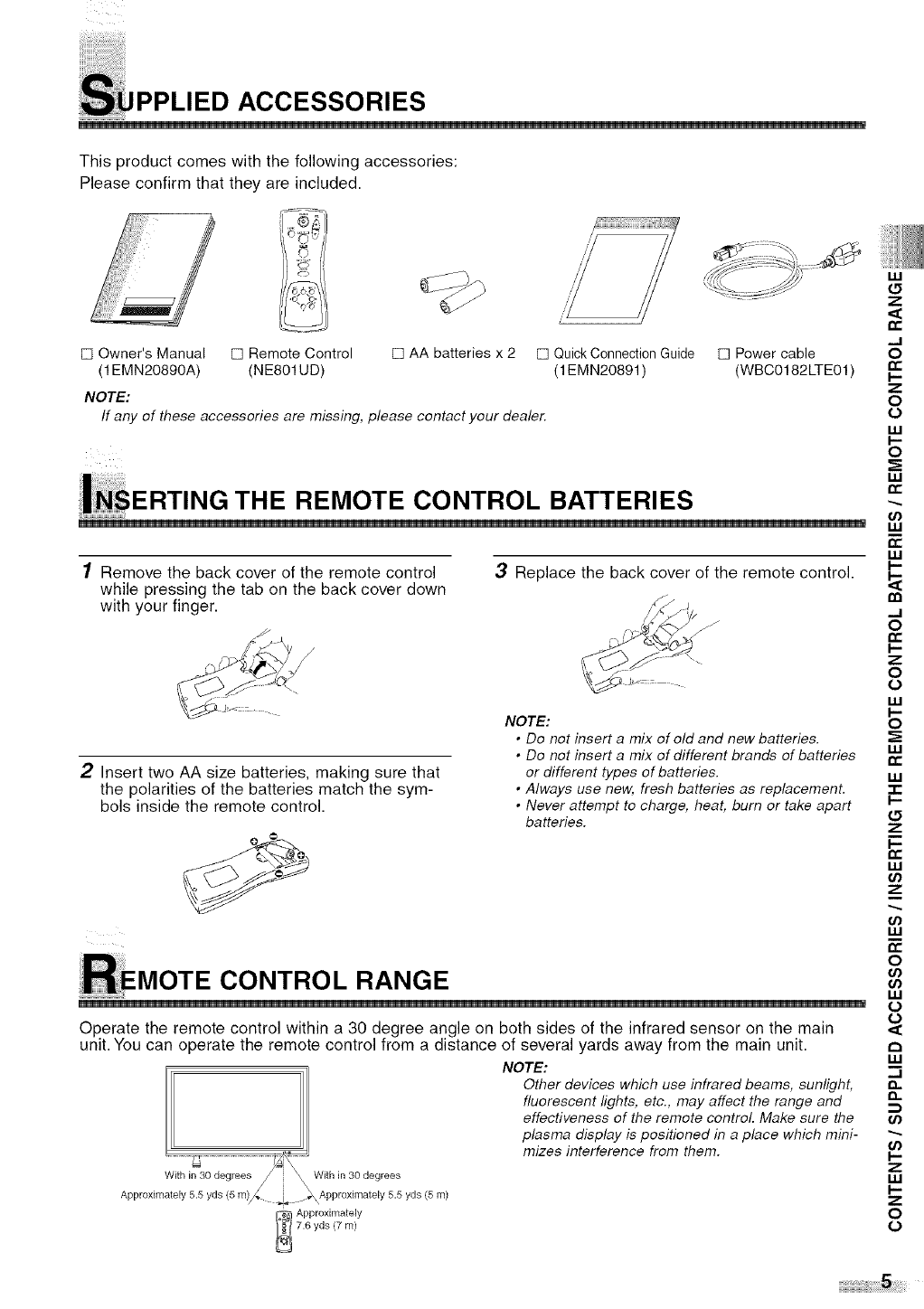

UPPLIEDACCESSORIES

This product comes with the following accessories:

Please confirm that they are included.

[] Owner's Manual [] Remote Control [] AA batteries x 2 [] Quick Connection Guide

(1EMN20890A) (NE801UD) (1EMN20891)

NOTE:

If any of these accessories are missing, please contact your dealer.

ERTING THE REMOTE CONTROL BATTERIES

[] Power cable

(WBCO182LTE01)

1Remove the back cover of the remote control

while pressing the tab on the back cover down

with your finger.

3Replace the back cover of the remote control.

2Insert two AA size batteries, making sure that

the polarities of the batteries match the sym-

bols inside the remote control.

NOTE:

•Do not insert a mix of old and new batteries.

• Do not insert a mix of different brands of batteries

or different types of batteries.

• Always use new, fresh batteries as replacement.

• Never attempt to charge, heat, burn or take apart

batteries.

CONTROLRANGE

Operate the remote control within a 30 degree angle on both sides of the infrared sensor on the main

unit. You can operate the remote control from a distance of several yards away from the main unit.

NOTE:

Other devices which use infrared beams, sunlight,

fluorescent lights, etc., may affect the range and

effectiveness of the remote control Make sure the

plasma display is positioned in a place which mini-

mizes interference from them.

With in 30 degrees With in 30 degrees

Approximately 5.5 yds (5 m) Approximately 5.5 yds (5 m)

I,,]J

I-

II1

..I

ILl

Or)

I--

ILl

I--

)NENT NAMES

Front Rear IFigure3]

Input Terminals

Output /Input Terminals

POWER button: Turns the power ON or in

STANDBY.

ON indicator: Lights up when the power is

ON.

STANDBY indicator: Lights up when the

power is in the standby mode. Disappears

when the power is ON.

INPUT SELECT button: Selects input termi-

nals.

VOLUME A(up) /T(down) button:

Increases or decreases the volume.

8 9

AUDIO OUT: Output terminals for audio.

AUDIONIDEO/S-VlDEO: Input terminals for

an audio and video signal. You can select

either VIDEO or S-VIDEO.

COMPONENT: Input terminals for a compo-

nent signal. You can make Y-Pb-Pr progres-

sive or interlaced connection.

AC IN terminal: Connect the supplied power

cable for a standard AC outlet.

I.-

o..

1POWER button: Turns the main power ON

or in STANDBY.

2VOL A(up)/-(down) button: Increases or

decreases the volume.

3MUTE button: Turns the audio off or on.

4 SCREEN MODE button: Selects aspect

ratios available for the screen.

5 STILL button: Pauses the image shown on

the screen.

6INPUT SELECT button: Selects input termi-

nals.

7 DISPLAY button: Displays the name of the

selected input terminal on the screen.

8 SLEEP button: Sets the sleep timer.

MENU button: Accesses the setup menu,

allowing you to access various settings.

10 PREVIOUS button: Moves up one level in

the setup menu.

11 .{up)/-(down)button: Selects the various

modes in the setup menu.

<(left)/I_(right) button: Selects and

adjusts levels for the various settings.

I_(enter) button: Also used as the enter

button.

3 THE PLASMA DISPLAY

POWER

POWER _ _=_

MUTE

INPUTS£LECT [INPUT SELECT _Q O

The following is a simple explanation of the pro-

cedure for turning the power of the display ON or

in STANDBY, and the procedure for selecting the

input signal.

The procedure described here is for the remote

control, however the POWER, INPUT SELECT

and VOLUME buttons on the plasma display can

also be used in the same way.

1Press the POWER button.

Confirm that the STANDBY indicator is lit

before pressing the POWER button.

The power turns ON and the ON indicator on

the main unit lights up. The STANDBY indica-

tor on the main unit disappears.

2Select the input signal by pressing the INPUT

SELECT button.

Each time you switch the input, the name of

the selected input terminal is displayed on the

screen for a few seconds.

NOTE:

• "No signal" is displayed on the screen if there is

no input from the selected terminal and there is

no message currently displayed on the screen for

volume adjustment or the setup menu, etc.

• ff there is no video signal and there has been no

operation from the remote control or the buttons

on the main unit for more than 15 minutes, the

auto shut-off function activates and the display

switches to standby mode.

Adjust the volume and screen size according

to your requirements.

Perform adjustments to the volume (VOL • /•

button), screen aspect ratio (SCREEN MODE

button), and picture settings (MENU button).

NOTE:

• When you adjust the volume with the VOL •/v

button, a message such as the following is dis-

played on the screen. This message disappears a

few seconds after performing adjustments.

• If you turn the audio mute on, a message slowly

flashes on the screen. At this time, if you press

another button, this flashing stops.

• To turn the audio mute oK either press the MUTE

button again or press the VOL •/v button.

• If you press either the PREVIOUS, •, v, I_ or _1

button in a mode apart from the image adjustment

mode. A message such as the following is dis-

played.

4Press the POWER button to turn the power

STANDBY.

The ON indicator on the main unit disappears

and the STANDBY indicator lights up.

NOTE:

• Even if the power is turned STANDBY, the main

unit is in the standby mode. In order to shut the

main power of the display OFF, it is necessary to

remove the Power cable from the power outlet.

INPUT SELECT

DISPLAY

POWER

-% voL

MUTE @} S

""__ I/

The procedure for selecting the input signal

described here is for use with the remote control.

However, the INPUT SELECT button on the plas-

ma display can also be used in the same way.

Disp!aying the £urrent Input Signal

1Press the DISPLAY button.

The name of the current input terminal is dis-

played on the screen.

2To clear the name of the current input terminal,

press the DISPLAY button again or wait for a

few seconds.

NOTE:

•Toredisplay the name of the input terminal, press

the DISPLAY button again.

Selecting the Input Signal

1Press the INPUT SELECT button to select the

input signal.

Each time you switch the input signal, the

name of the selected input terminal is dis-

played on the display for a few seconds.

The INPUT SELECT button cycles through the

input terminals in the following pattern:

Vd I Vde° 1

"[(S-Video1)JL(S-Video 2) I Component1

I CompOnent2 I"

NOTE:

• When switching the input signal, audio mute turns

ON temporarily,

• S-VIDE01 takes preference over the WDEO 1jack,

as does S-WDEO 2 over the WDEO 2jack. Therefore,

if there is input to the VIDEO and S-VIDEO terminals

at the same time, the S-VIDEO signal is displayed on

the screen. If the S-VIDEO cable is not connected to

the plasma display, the VIDEO signal will be dis-

played on the screen.

• Any of the following display formats: 480i, 480p (pro-

gressive), 1080i and 720p (progressive) signals can

be connected to the COMPONENT1 and 2 terminals.

ff one of these video signals is detected, the format

of the input signal is displayed after the name of the

current input termina! as the following.

• A "No signal" message appears if there is no video

signal and there is no message currently displayed

on the screen for volume adjustment or the setup

menu, etc. If there continues to be no video signa!

for some seconds, "No signal" slowly moves around

the screen.

• If there is no video signal and there has been no

operation from the remote control or the buttons on

the main unit for more than 15 minutes, the auto

shut-off function activates and the display switches

to standby mode.

.-I

OPERATING THE PLASMA DISPLAY

SCREEN MODE

POWER

MUTE\"_ /

INPUT SELECT

D_SPL_

By changing the aspect ratio of the screen you

can select the manner in which you wish to view

the picture.

1Press the SCREEN MODE button to display

the current screen mode.

2Press the SCREEN MODE button a second

time to change the screen mode.

Each time you change the screen mode, the

name of the selected mode is displayed on the

screen for a few seconds.

The SCREEN MODE button switches between

the screen modes in the following pattern.

NOTE:

•When switching the input signal, the audio mute

turns ON temporarily.

• Youcan only select the "Normal" and "Zoom"

screen modes for 1080i and 720p video signals

connected to the COMPONENT temTinals.

Mode Picture Explanation

Normal

Full

Wide

Zoom

db\/C-b

Normal will display a 4:3 picture at its standard 4:3

size. For 1080i and 720p video signals, a picture will

be displayed at 16:9 size.

Full will display a 4:3 picture at a 16:9 size, with

horizontal elongation necessary to fill the screen.

Wide will display a 4:3 picture at a 16:9 size, with less

horizontal elongation necessary to fill the screen

because a little bit of the top and bottom will be cut off.

Zoom will magnify the entire 4:3 picture to fill the

screen, with no horizontal elongation to fill the screen,

as more of the top and bottom are cut off. Use this

mode to view letterboxed 4:3 picture content to get a

widescreen picture. A 16:9 picture will be magnified

similarly, but to a lesser extent.

STILL

POWER

MUTE

_NpLrrSELECT

You can freeze the image displayed on the

screen.

1Press the STILL button.

The still mode turns on, and the image dis-

played on the screen is frozen.

NOTE:

•When the still mode is on, the message "Still"

slowly flashes on the screen.

• When the still mode is on, the audio is muted.

• You cannot turn the still mode on when there is no

video signal or when switching between video sig-

nals.

2Press the STILL button again to turn the still

mode off.

NOTE:

• Youcan also press the INPUT SELECT,

DISPLAY, SLEEP, VOLA(up) /_"(down), MUTE,

SCREEN MODE or MENU buttons to turn the still

mode off.

INPUT SELECT

DBPL_

SLEEP

You can select the sleep timer.

1Press the SLEEP button.

The sleep timer is displayed on the screen.

NOTE:

• If the sleep timer is activated, the remaining time

is displayed on the screen.

If not activated, "0 minutes" is displayed.

2Press the SLEEP button to set the time.

The SLEEP button switches between the

times.

r[0m,nu es10minutes]........[90m,

The timer starts counting down after the mes-

sage displaying the set time disappears (after

a few seconds).

NOTE:

• The remaining time displayed for the sleep timer

changes in steps of 1 minute.

• Tochange the set time, repeat the above procedure.

I.LI

t--

OPERATING THE PLASMA DISPLAY

In the setup menu, you can specify settings for picture adjustment, picture position, language and screen

saver.

NOTE:

•If you do not press any buttons for approximately 20 seconds, the display automatically exits the menu mode.

Layout of the Setup Menu

The various functions in the setup menu are outlined below:

Picture select

Normal

Window setting H-Position V-Position

Language English

Franqais

Espa5ol

Detail Screen saver

1Press the MENU button.

The display enters the main menu and the

MAIN MENU is displayed on the screen.

NOTE:

•If you press the PREVIOUS button or the MENU

button on the MAIN MENU, the menu is cancelled.

• For procedures which use the ENTER button, use

the I_ button as the ENTER button.

1Enter the main menu with the MENU button.

"Picture select" is selected on the MAIN

MENU.

2Press the I_ (ENTER) button.

The PICTURE SELECT menu is displayed on

the screen.

NOTE:

• Press the PREVIOUS button to return to the MAIN

MENU. Pressing the MENU button cancels the

menu.

• Picture select display will disappear from the TV

screen automatically after about 20 seconds if you

do not press any buttons.

--I

IJJ

"1-

€5

OPERATING THE PLASMA DISPLAY

_N#UT SELECT

(Cb

DISPLAY

Automatically Adjusting the Picture

Manually Adjusting the Picture Settings

1Select "Picture mode" on the PICTURE

SELECT screen with the • /• buttons.

2Select "Manual" with the _1/I_ buttons.

The display enters the manual mode, and you

can specify individual adjustments.

3Select the mode to adjust with the • /• but-

tons.

The modes rotate in the following order:

"Picture mode"- "Brightness"- "Contrast" - ..

...-"Reset"- "Picture mode"

1Select "Picture mode" on the PICTURE

SELECT screen with the • /• buttons.

2Select the automatic adjustment mode accord-

ing to the type of picture displayed on the

screen with the _1 /I_ buttons.

NOTE:

•There are 3modes for automatically adjusting the

picture settings; "News" "Movie" and "Dynamic"

In these modes, you cannot adjust the individual

picture settings below "Brightness" even if they are

selectable.

• MANUAL refers to manual picture settings adjust-

ment.

3Press the PREVIOUS button to return to the

MAIN MENU.

NOTE:

• Pressing the MENU button cancels the menu.

4Adjust the selected mode using the _1 /I_ but-

tons.

NOTE:

• If you have selected Brightness, Contrast, Color,

Tint, or Sharpness, the menu display disappears,

and a bar for adjusting the selected mode

appears in the center of the bottom of the screen.

• You can select "Color temp." among three modes:

"Normal", "Warm" and "Cool".

• If you select "Reset" and press the I_ (ENTER)

button, the adjusted values return to their initial

settings.

5To adjust a different mode, repeat steps 3 and 4.

6Press the PREVIOUS button to return to the

Picture mode.

NOTE:

• Pressing the MENU button cancels the menu.

Initializing the Adjustments

1Select "Reset" on the PICTURE SELECT

screen with the • /• buttons.

2Press the I_ (ENTER) button.

The settings you specified individually are ini-

tialized (return to their default factory settings).

NOTE:

• The default factory settings are as follows:

PICTURE MODE: Manual

BRIGHTNESS: 31/63

CONTRAST: 45/63

COLOR: 31/63

TINT: 31/62

SHARPNESS: 1/2

COLOR TEMR: Normal

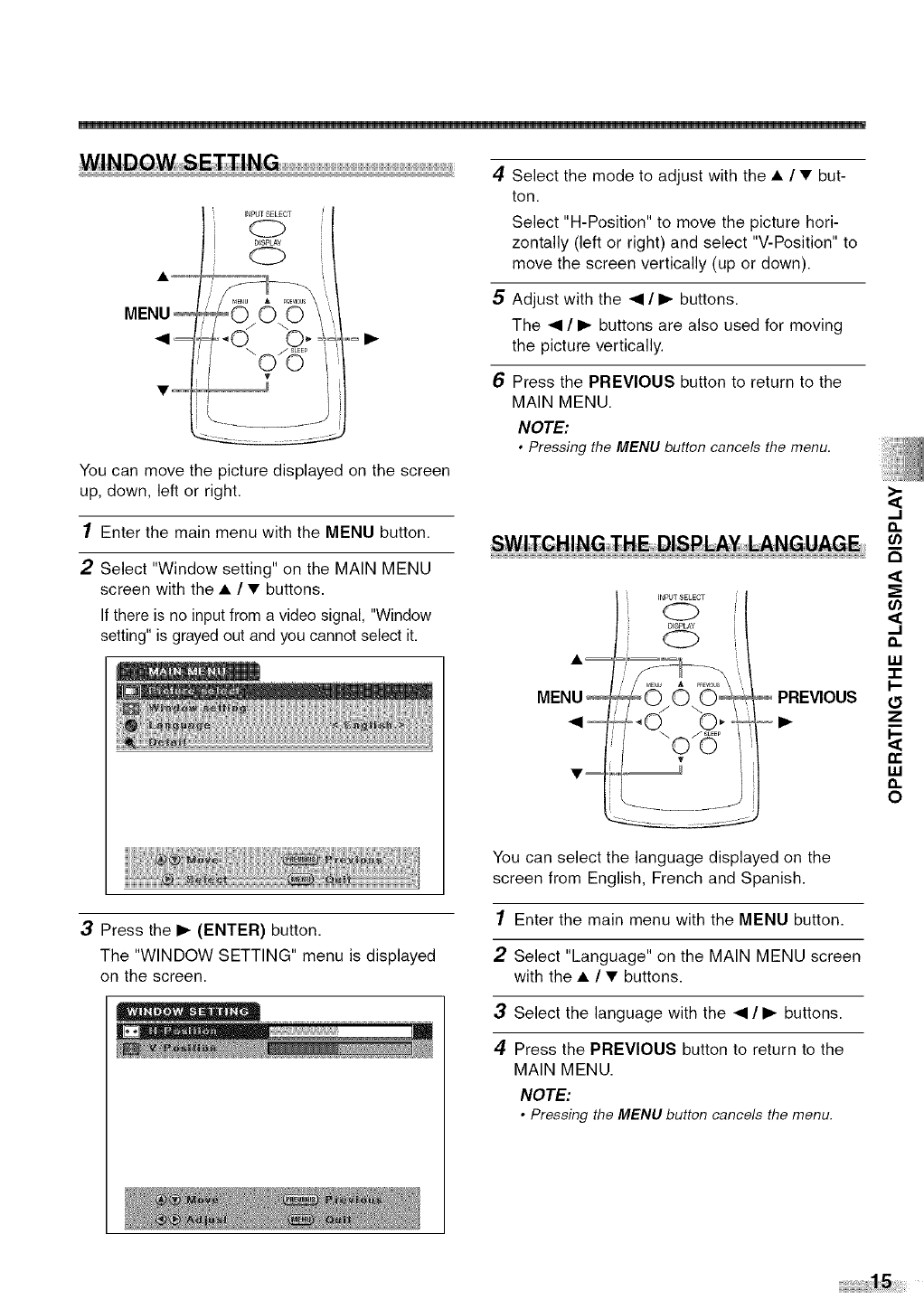

You can move the picture displayed on the screen

up, down, left or right.

1Enter the main menu with the MENU button.

2Select "Window setting" on the MAIN MENU

screen with the • /•buttons.

If there is no input from a video signal, "Window

setting" is grayed out and you cannot select it.

3 Press the I_ (ENTER) button.

The "WINDOW SETTING" menu is displayed

on the screen.

Select the mode to adjust with the • /• but-

ton.

Select "H-Position" to move the picture hori-

zontally (left or right) and select "V-Position" to

move the screen vertically (up or down).

5Adjust with the _1 /I_ buttons.

The _1 /I_ buttons are also used for moving

the picture vertically.

6Press the PREVIOUS button to return to the

MAIN MENU.

NOTE:

•Pressing the MENU button cancels the menu.

SWITCHING TH E DISPLAY _N_ UAG E

_1--

INPUT SELECT

D_SPLAY

PRE_OUS

You can select the language displayed on the

screen from English, French and Spanish.

1Enter the main menu with the MENU button.

2Select "Language" on the MAIN MENU screen

with the • /• buttons.

3Select the language with the _1 /I_ buttons.

4Press the PREVIOUS button to return to the

MAIN MENU.

NOTE:

• Pressing the MENU button cancels the menu.

--I

LI.I

"1-

1--

€5

OPERATING THE PLASMA DISPLAY

_NpUT SELECT

D_SPL_

4Select the mode with the _1 /I_ buttons.

NOTE:

•There are 3 modes for the screen saver; "Off",

"Slow", and "Fast".

"Slow" moves 1 pixel every 5 minutes and "Fast"

moves 1 pixel every minute. This prevents images

burning into the screen.

5Press the PREVIOUS button to return to the

MAIN MENU screen.

NOTE:

• Pressing the MENU button cancels the menu.

Screen saver prevents the display from being

etched by an unchanging image. You can specify

a setting for it.

1Enter the main menu with the MENU button.

2Select "Detail" on the MAIN MENU screen

with the • /• buttons.

3Press the I_ (ENTER) button.

The "DETAIL" menu is displayed on the

screen.

NOTE:

• Press the PREVIOUS button to return to the

MAIN MENU. Pressing the MENU button cancels

the menu.

INPUT TERMINALS

The following input terminals are available.

In order to view television, it is necessary to connect a tuner device (example: cable box, satellite box,

DTV, etc.) to the plasma display.

_JDio OL_T

L _ _AUDIO _ Wl}E01 S-WDE01

INNEAJACKS ut Terminals I

IAUDIO OUT VIDE01 I

IS-VIDE01 I

ISee page 20. See page 18. I

FAUDIO q

rNNE_JACKS }

I Component Input Terminals I

COMPONENT 1

COMPONENT 2

See page 19.

I,]J

I--

,-I

I-

I,]J

,-I

f,/)

,-I

I,]J

'1-

I--

I,]J

EXTERNAL INPUT TERMINALS

Connect the output of the device to the input terminals of plasma display as shown in the following illus-

trations.

NOTE:

•You can select TV channels with the VCR or Cable/Satellite set top box of the program you see.

• Cables shown here are not included with the plasma display.

Example of input signal source

(DVD Player)

[_..........._

(VCR)

(Cable/Satellite STB)

(Camcorder)

Audio Video S Video

R OUT L OUT OUT

@©cO

Audio input to --

UR jacks I)_

..........................¢ H:

Antenna or i ,-........................ @ : U[ =

cable signal i I _, _dl, L _

l = i Video input to g

_' i i VIDEO jack ......

Antenna cable ,(_ II 2

satellite signal' i I _ _.... _1 ,s....

i E It AUDOVDEO

3xRCA audio udio input to L}, ViSeo input to

video cables L/R jacks [_ [_ [_ VlDEOlack

!!!

_aUDIO_ VIDEO1 S VI_EOI

S-VIDEO Signal €£nne£ti£n (Bette r Signal Trans!e r)

Example of input signal source

(DVD Player)

(VCR)

(Cable/Satellite STB)

(Camcorder)

a,Jdio Wde_ S Wde_

A OUT L OUT OUT

©©©O

Audio input to

,,......................'f'I "i'

Antenna or ........................... @ .... H

cable signal i _ I , II _ - - _HI

_ Video Input to ,,,,_}] _ t H

' i S-VIDEO jack .... .... ° _'

Antenna cable ', .................. (_l It _ HI

satellite signal , ...... IJ J ;t

_ I ; S-VIDEO _

audio cables UR jacks {_ _ _ S-VIDEO jack

!! !

_aUDIO_ VIDEO1 S WDEOI

CONNE C_INGDE _ICES _O P :INPUT _EBMINALS

Connect the output of the device to the input terminals of the plasma display as shown in the following

illustrations.

NOTE:

•Cables shown here are not included with the plasma display.

480i, 480p (progressive), 1080i and 720p (progressive) signals can be connected.

(Example: DVD Player)

Y, Cb/Pb, Cr/Pr

AUDIO

audio cables

(Example: Set Top Box for DTV) Antenna,cable,

satellite signal

_°°'°_ .....

.....'_"_ tttt t..........

NOTE:

• TV Channels can be selected only with the set top box of the broadcaetyou see.

EXTERNAL INPUT TERMINALS

NOTE:

Cables shown here are not included with the plasma display.

AUDIO Signal €£nne£ti£n

(Example: Amplifier/Receiver)

WDEO TV AUX

AUDIO

2xRCA

audio cables to L/R jacks

Connect the AUDIO OUT from the plasma display to the AUDIO IN ORthe amplifier/receiver.

THE POWER CABLE

Connect the power cable to the plasma display after connecting the input terminals.

1Connect the power cable to the plasma display

first.

2Connect the power cable to an AC outlet.

_)_ CAUTION

• Do not connect the power cable to a power

supply outside the indicated voltage of the

plasma display (AC 120V). Connecting the

power cable to a power supply outside of this

range may result in fire or electrical shocks.

• Always use the power cable included with the

plasma display. Do Rot use any other cable.

For safety, make sure to always connect the

power cable to a three pronged AC outlet.

TACHING A WALL MOUNT BRACKET (SOLD SEPARATELY)

The following is a description of the method for attaching a wall mount to the plasma display.

When performing this operation, refer to the instruction manual included with the wall mount

kit.

CAUTION

• Any damage caused by incorrectly attempting to mount the plasma display is not covered under the

terms of the manufacturers warranty.

Plasm Display rear

Stand

1Turn the plasma display over and place it

screen-first onto a table which has a soft cloth

draped over it.

Place the plasma display in a way so that the

stands hang over the edge of the table.

NOTE:

•Make sure to use a table which can support the

weight of the plasma display and is larger than the

plasma display.

• Make sure the table is in a stable location.

2Remove the stands from the plasma display.

Unscrew the M5 screws indicated by _C', and

remove the left and right stands.

NOTE:

• The screws and stands you have removed are nec-

essary for reattachment at a later date. Make sure

to keep them in a safe place.

3Attach the left and right TV rails to the plasma

display using the M8 screws included with the

wall mount kit.

(2hindicates the position of the screw holes on

the plasma display

NOTE:

• Only use the screw holes indicated by _2_for

mounting the plasma display.

• For instructions on how to attach the TV rails, refer

to the instruction manual included with the mount

wall kit.

4Attach the plasma display to the wall.

NOTE:

• Refer to the instruction manual included with the

wall mount when securing the plasma display to

the wall.

'-'4

AINTENANCE

Always unplug the plasma display from the AC

outlet before cleaning.

Clean the case of the plasma display with a soft

cloth which has been wet and wrung dry.

If the screen of the plasma display is dirty or

dusty, wipe it clean with a soft cloth.

NOTE:

Never use a solvent, alcohol or any other abrasive liq-

uid to clean the plasma display.

Always make sure the area around vents on the plas-

ma display is clear and clean. Failure to do this may

result in fire or cause the plasma display to fail prema-

tureljz

Preventing Image Burn on the plasma display

Fixed images displayed on the plasma display for an extended period of several hours may cause

uneven pixel aging causing damage to the plasma display. The screensaver mode helps reduce this

phenomenon, but in general you should try to avoid displaying fixed images for extended periods on

the plasma display.

Images of high luminance displayed on the plasma display for more than 60 seconds may cause lin-

gering images to remain on the screen. These images will automatically disappear, but may take

time depending on the luminance of the images and how long they were displayed on the screen.

i!ii!iiiili!i

T OUB'ES"OOT'"GGU'OE

:::::::::::::::::::::::::::::::::::::::::::::::: "IGNITION NOISE:

Black spots or horizontal streaks may appear, picture may flutter or drift,

Usually caused by interference from automobile ignition systems, neon

lamps, electrical drills and other electrical appliances,

Vertical stripes appear,

depending on the screen

contents.

,,GHOSTS:

Ghosts are caused by the television signal following two paths. One is the

direct path and the other is reflected from tall buildings, hills or some

other objects. Changing the direction or position of the antenna may

improve reception. Ghosting may also be caused by defects in the

antenna system such as unshielded leads or connecting several sets to

the same antenna without using multiple antenna couplers.

Ghosting occurring when the plasma display is connected to a cable TV

system may indicate a bad cable wire or loose connection. Confirm that

the cable wire is properly connected.

`'SNOW:

If your receiver is located in the fringe area of a television station where

the signal is weak, your picture may be marred by the appearance of

small dots. When the signal is extremely weak, it may be necessary to

install a special antenna to improve the picture.

Snowing occurring when the plasma display is connected to a cable TV

system may indicate a bad cable wire or loose connection. Confirm that

the cable wire is properly connected.

,,RADIO FREQUENCY INTERFERENCE:

The interference produces moving ripples or diagonal streaks, and in

some cases, causes loss of contrast in the picture.

`'PREVENTION OF AN OBSTACLE TO RADIO RECEIVERS:

This monitor has been designed pursuant to the FCC class B Rules. This

is to prevent a problem to Radio receivers. If this monitor causes a

problem to Radio receivers, then take the following steps:

- Keep the monitor away from Radio.

-Adjust Radio antennas in order for the monitor not to receive

interference.

-The antenna cable of Radio should be kept away from the monitor.

- Use a coaxial cable for antenna.

You can check if this monitor influences Radio receivers by turning off all

other equipment other than the monitor.

If you find a problem receiving Radio when using the monitor, check the

instructions mentioned above.

`'The plasma display panel is lighting the phosphors by the discharge of

internal radiation. Depending on the screen contents, in rare cases this

may cause vertical stripes to appear because of failure to light. Please

note that this is not a malfunction.

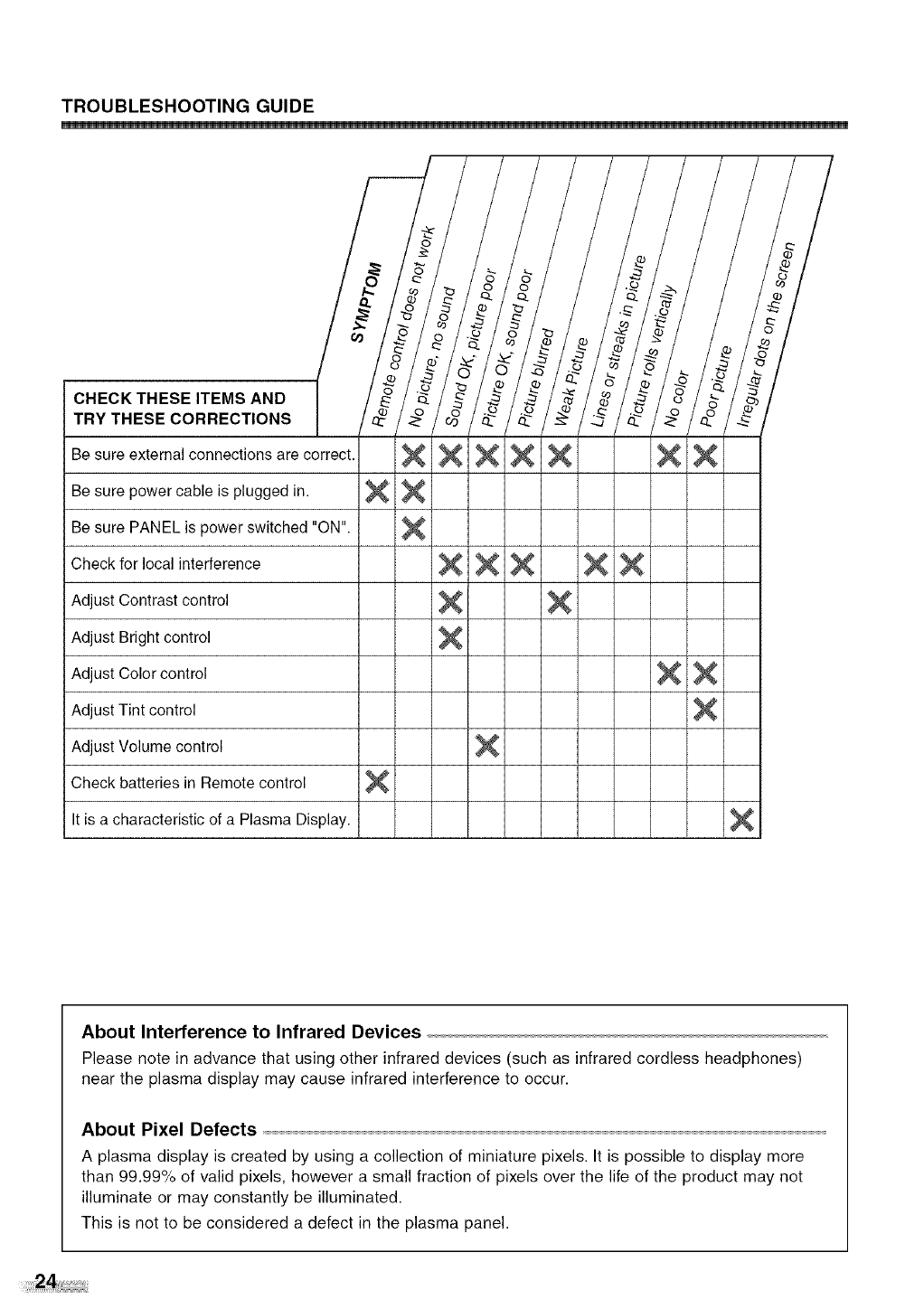

TROUBLESHOOTING GUIDE

CHECK THESE ITEMS AND

TRY THESE CORRECTIONS

Be sure external connections are correct.

Be sure power cable is plugged in.

Be sure PANEL is power switched "ON".

Check for local interference

Adjust Contrast control

Adjust Bright control

Adjust Color control

Adjust Tint control

Adjust Volume control

Check batteries in Remote control

It is a characteristic of a Plasma Display.

About Interference to Infrared Devices

Please note in advance that using other infrared devices (such as infrared cordless headphones)

near the plasma display may cause infrared interference to occur.

About Pixel Defects

A plasma display is created by using a collection of miniature pixels. It is possible to display more

than 99.99% of valid pixels, however a small fraction of pixels over the life of the product may not

illuminate or may constantly be illuminated.

This is not to be considered a defect in the plasma panel.

iiliif!iiiiill

S EO,F.OAT.O.S

OispayFeatures

Type Plasma panel

Screen Size 42 in. Wide VGA panel

Pixel Resolution 852 (H) x 480 (V)

Output Colors 16.7 million

Screen Aspect Ratio 16:9

Viewinq Angle 160 degrees

Contrast Ratio 1000:1

Brightness 400 cd/m _ (PEAK)

Video Features

Comb Filter Type 3-Dimensional Y/C Separation

Component Input Format 720p/lO80i/480p/480i

Audio Features

Sound Output 5W + 5W, 10% THD

Speaker 2.8 in x 1.6 in Oval Type x 2

Additional Features

Screen Saver

Trilingual OSD

Color Temperature Select

AV Memory

Widescreen Modes

Sleep Timer

Wall Mount Kit Ready

Off/Slow/Fast

English/Spanish/French

Cool/Normal/Warm

Manual/News/Movie/Dynamic

4:3 Standard, Full, Wide, Zoom

90 minutes

For VMPLs, SANUS SYSTEMS

Connectors

Component AV Input (1)

Component AV Input (2)

Composite AV Input (1)

S-Video (1)

Composite AV Input (2)

S-Video (2)

Analog Audio output

General

audio L/R (RCA x 2) - rear

HD component video/Y, Pb(Cb), Pr(Cr) (RCA x 3) - rear

audio L/R (RCA x 2) - rear

Composite video (RCA x 1) - rear

S-Video (4 pin DIN) - rear

audio L/R (RCA x 2) - rear

Composite video (RCA x 1) - side

S-Video (4 pin DIN) - side

audio L/R (RCA x 2) - side

audio L/R (RCA x 2) - rear

iii

Power In 120V +10%, 60Hz/AC

350 W (Standby: 0.8W)

Silver & Black

41 1/2 x 28 3/4 x 13 in. (1054 x 730 x 330 mm)

94.8 Ibs (43 kg)

Power Consumption

Exterior Color

Dimension (Incl. stand) (Width x Height x Depth)

Weight

NOTE:

The specifications and design of this product are subject to change without notice.

"1-

r¢

iiii!!!!!!!!!! !i!i ! !i!i!i!i !i !i !ii!iiiiiili!i iiiiiiiiiiiiiiiiii i i i

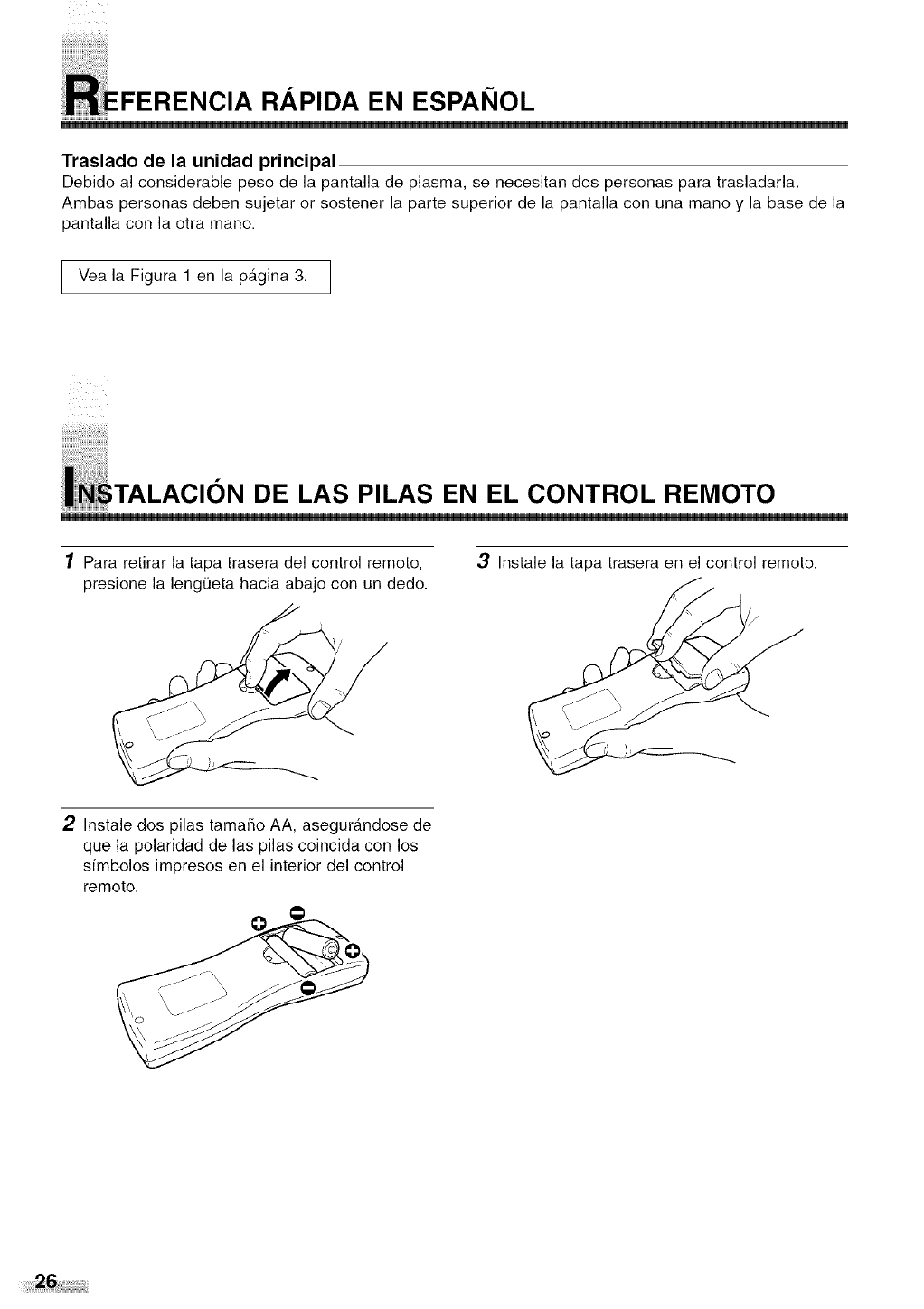

R FERENCtA RAPIDA EN ESPANOL

Traslado de la unidad principal

Debido al considerable peso de la pantalla de plasma, se necesitan dos personas para trasladarla.

Ambas personas deben sujetar or sostener la parte superior de la pantalla con una mano y la base de la

pantalla con la otra mano.

Vea la Figura 1 en la pagina 3.

i! i_ii

;TALACION DE LAS PILAS EN EL CONTROL REMOTO

1Para retirar la tapa trasera del control remoto,

presione la lengOeta hacia abajo con un dedo.

2Instale dos pilas tama_o AA, asegura.ndose de

que la polaridad de las pilas coincida con los

simbolos impresos en el interior del control

remoto.

3Instale la tapa trasera en el control remoto.

ii!i! ! !il i ii!ii!ii!ii!i!!ii!iiiii!ii!iiiiiiiiiiii iiiiiiiiiiiiiiii!i!i!i i i'ii

:_MBRES DE LOS COMPONENTES

Vea las Figura 2 y Figura 3 en la pagina 6.

1 Bot6n POWER: Para encender (ON) o dejar

en modo de espera (STANDBY).

Indicador ON: Se ilumina cuando la ali-

mentaci6n esta encendida.

Indicador STANDBY: Se ilumina cuando la

pantalla se encuentra en modo de espera.

Se apaga cuando se enciende la ali-

mentacion.

Botbn INPUT SELECT: Para seleccionar

los terminales de entrada.

Botbn VOLUME A(aumento) /-(disminu-

cibn): Para aumentar o disminuir el nivel de

volumen.

O AUDIO OUT: Terminal de salida para audio.

7AUDIO/VIDEO/S-VIDEO: Terminal de entra-

da para seSales de audio y video. Se puede

seleccionar VIDEO o S-VIDEO.

COMPONENT: Terminal de entrada para

seSales de componente. Es posible realizar

una conexion Y-Pb-Pr progresivo o entre-

lazada.

Terminal AC IN: Conecte el cable de ali-

mentaci6n suministrado entre este terminal

y una toma de corriente de CA est&ndar.

Vea la Figura 4 en la pagina 7.

/Botbn POWER: Para encender (ON) o dejar

en modo de espera (STANDBY).

2 Botbn VOL A(aumento)/v(disminucibn):

Para aumentar o disminuir el nivel de volu-

men.

Bot6n MUTE: Para activar o desactivar la

funci6n de silenciamiento de audio.

Botbn SCREEN MODE: Se utiliza para

seleccionar uno de los formatos disponibles

para la pantaila.

Bot6n STILL: Para congelar la imagen

mostrada en la pantaila.

Bot6n INPUT SELECT: Para seleccionar

los terminales de entrada.

Bot6n DISPLAY: Muestra el nombre del ter-

minal de entrada seleccionado en la pan-

talla.

Botbn SLEEP: Para programar el tempo-

rizador de apagado autom_.tico.

Bot6n MENU: Para acceder al menu de

configuraci6n, donde se pueden hacer diver-

sos ajustes.

Bot6n PREVIOUS: Para subir un nivel en el

ment_ de configuraci6n.

Bot6n A(arriba) /_'(abajo): Para selec-

cionar diversos modos en el ment_ de con-

figuracion.

Bot6n <(izquierda) /I_(derecha): Para

seleccionar y ajustar niveles para las diver-

sas opciones de ajuste.

Bot6n I_(introduccibn): Tambien se utiliza

como bot6n de introducci6n.

,,=,

-o

,,'-h

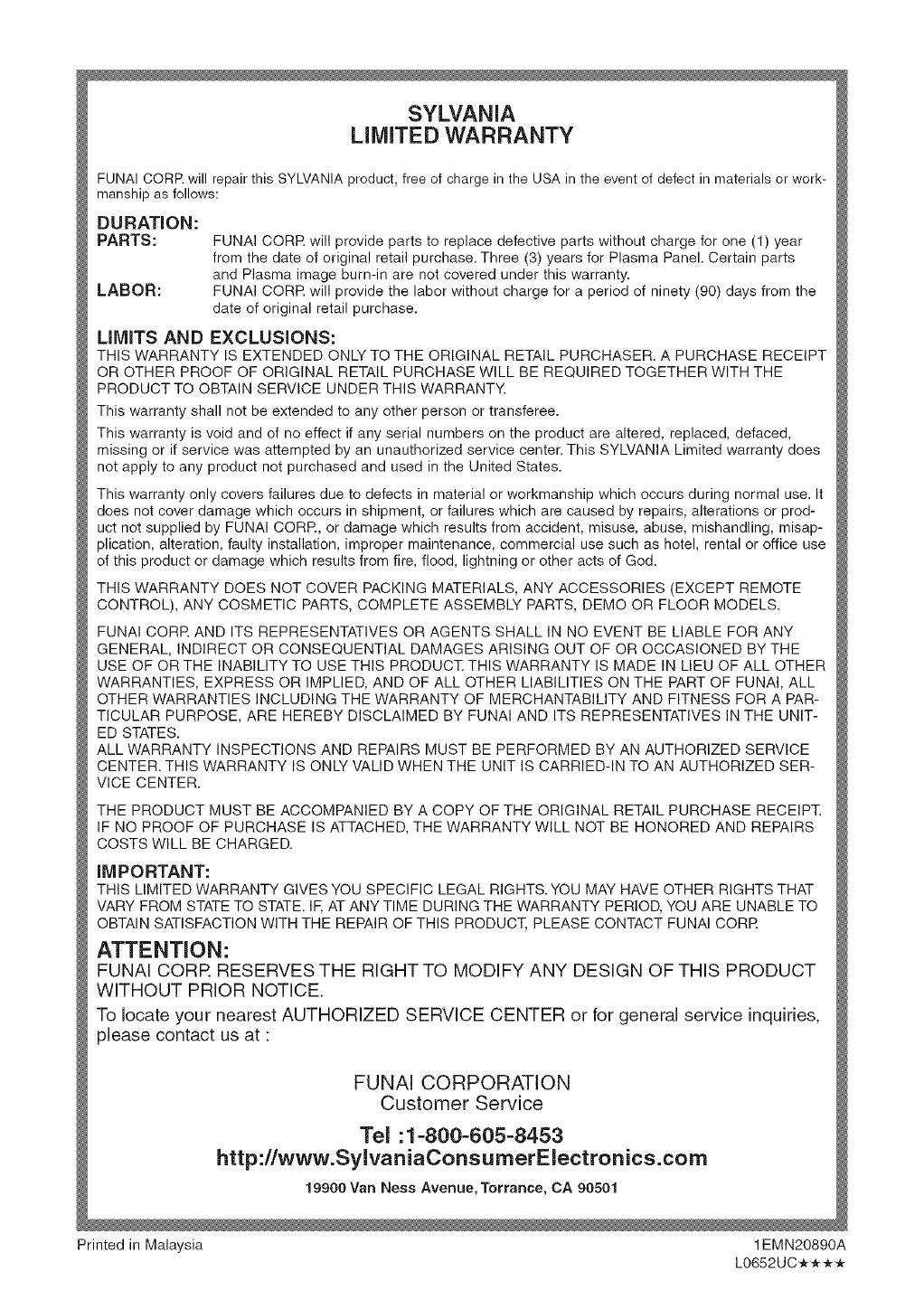

SYLVANIA

LiMiTED WARRANTY

FUNAI CORR will repair this SYLVANIA product, free of charge in the USA in the event of defect in materials or work-

manship as follows:

DURATION:

PARTS: FUNAI CORR will provide parts to replace defective parts without charge for one (1) year

from the date of original retail purchase. Three (3) years for Plasma Panel. Certain parts

and Plasma image burn-in are not covered under this warranty.

LABOR: FUNAI CORR will provide the labor without charge for a period of ninety (90) days from the

date of original retail purchase.

LIMITS AND EXCLUSIONS:

THIS WARRANTY IS EXTENDED ONLY TO THE ORIGINAL RETAIL PURCHASER. A PURCHASE RECEIPT

OR OTHER PROOF OF ORIGINAL RETAIL PURCHASE WILL BE REQUIRED TOGETHER WITH THE

PRODUCT TO OBTAIN SERVICE UNDER THIS WARRANTY.

This warranty shall not be extended to any other person or transferee.

This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced,

missing or if service was attempted by an unauthorized service center. This SYLVANIA Limited warranty does

not apply to any product not purchased and used in the United States.

This warranty only covers failures due to defects in material or workmanship which occurs during normal use. It

does not cover damage which occurs in shipment, or failures which are caused by repairs, alterations or prod-

uct not supplied by FUNAI CORR, or damage which results from accident, misuse, abuse, mishandling, misap-

plication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use

of this product or damage which results from fire, flood, lightning or other acts of God.

THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE

CONTROL), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.

FUNAI CORR AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY

GENERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE

USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF FUNAI, ALL

OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PAR-

TICULAR PURPOSE, ARE HEREBY DISCLAIMED BY FUNAI AND ITS REPRESENTATIVES IN THE UNIT-

ED STATES.

ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY AN AUTHORIZED SERVICE

CENTER. THIS WARRANTY IS ONLY VALID WHEN THE UNIT IS CARRIED-IN TO AN AUTHORIZED SER-

VICE CENTER.

THE PRODUCT MUST BE ACCOMPANIED BY A COPY OF THE ORIGINAL RETAIL PURCHASE RECEIPT.

IF NO PROOF OF PURCHASE IS ATTACHED, THE WARRANTY WILL NOT BE HONORED AND REPAIRS

COSTS WILL BE CHARGED.

iMPORTANT:

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS THAT

VARY FROM STATE TO STATE. IF, AT ANY TIME DURING THE WARRANTY PERIOD, YOU ARE UNABLE TO

OBTAIN SATISFACTION WITH THE REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNAI CORR

ATTENTION:

FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THiS PRODUCT

WITHOUT PRIOR NOTICE.

To locate your nearest AUTHORIZED SERVICE CENTER or for general service inquiries,

please contact us at "

FUNAI CORPORATION

Customer Service

Tel :1-800-605-8453

http://www.SylvaniaConsumerElectronics.corn

19900 Van Ness Avenue, Torrance, CA 90501

Printed in Malaysia 1EMN20890A

L0652UC_-_

Sylvania 6842PF (M) User Manual TV PLASMA Manuals And Guides L0603371

SYLVANIA Plasma Television Manual L0603371 SYLVANIA Plasma Television Owner's Manual, SYLVANIA Plasma Television installation guides

6842PF M L0603371

Navigation menu

Versions of this User Manual:

Views

Navigation
