Owner's nuaJ

Please read before gsingthis unit.

DVD/CD Player with Video Cassette Recorder

DVC841G iESPA/"O/, _C.,!,; _,,,*,,_,,

if you need additional operating assistance

after reading this owner's manual, please call

TOLL FREE :1=800=968=3429

or visit our web site at

http://www.SylvaniaConsumerElectronics.com

Remote control (NB177UD)

with two AA batteries

Audio/Video cables

(WPZ0102TM015 /

WPZ0102LTE01)

RF cable

(WPZ0901TM002)

Owner's Manual

(1VMN22700)

Precautions

Laser Safety ................................................................................. 2

[] Important Safeguards ................................................................ 3

Location and Handling ................................................................. 4

Avoid the Hazards of Electrical Shock and Fire .......................... 4

Moisture Condensation Warning .................................................. 4

About Copyright ........................................................................... 4

Notice for Progressive Scan Outputs ........................................... 4

Symbols Used in This Manual ..................................................... 4

Maintenance ................................................................................. 4

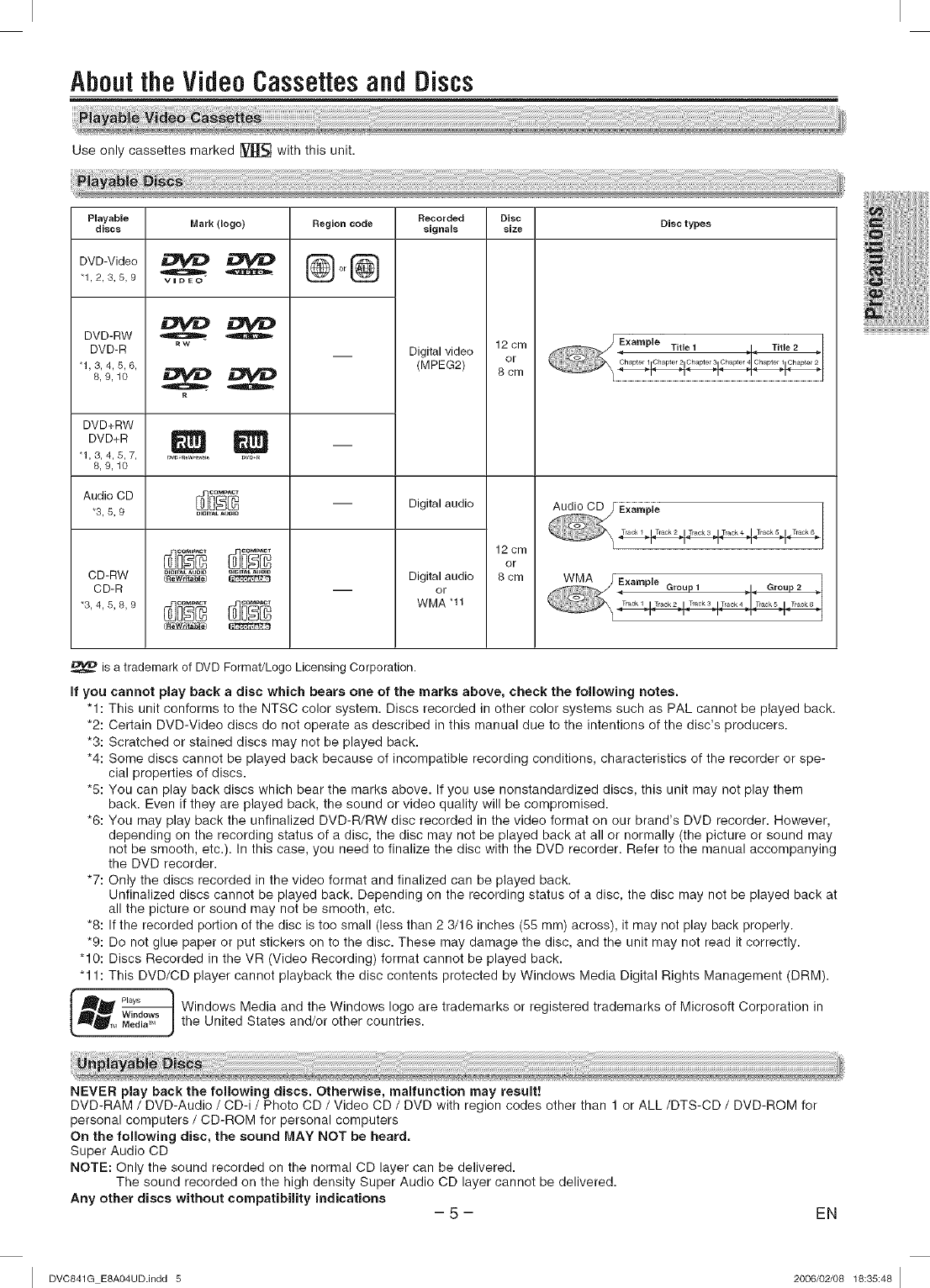

[] About the Video Cassettes and Discs ...................................... 5

Playable Video Cassettes ............................................................ 5

Playable Discs ............................................................................. 5

Unplayable Discs ......................................................................... 5

[] Connections ................................................................................ 6

RF Output Channel ...................................................................... 6

Hint for Cable Box or Satellite Box .............................................. 6

Connection to an Audio System .................................................. 6

Connection to a TV ...................................................................... 7

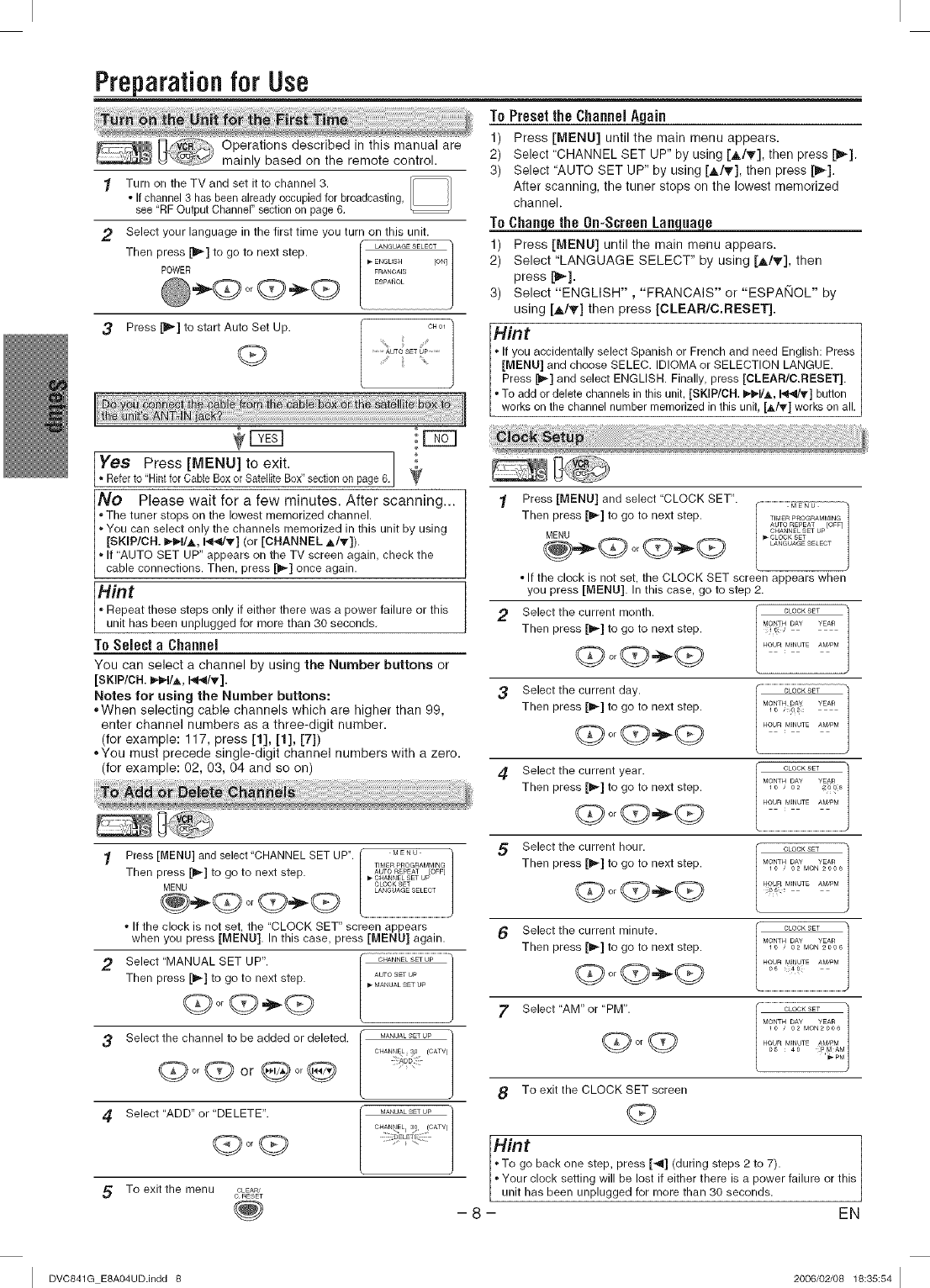

[] Preparation for Use .................................................................... 8

Turn on the Unit for the First Time ............................................... 8

To Add or Delete Channels ......................................................... 8

Clock Setup .................................................................................. 8

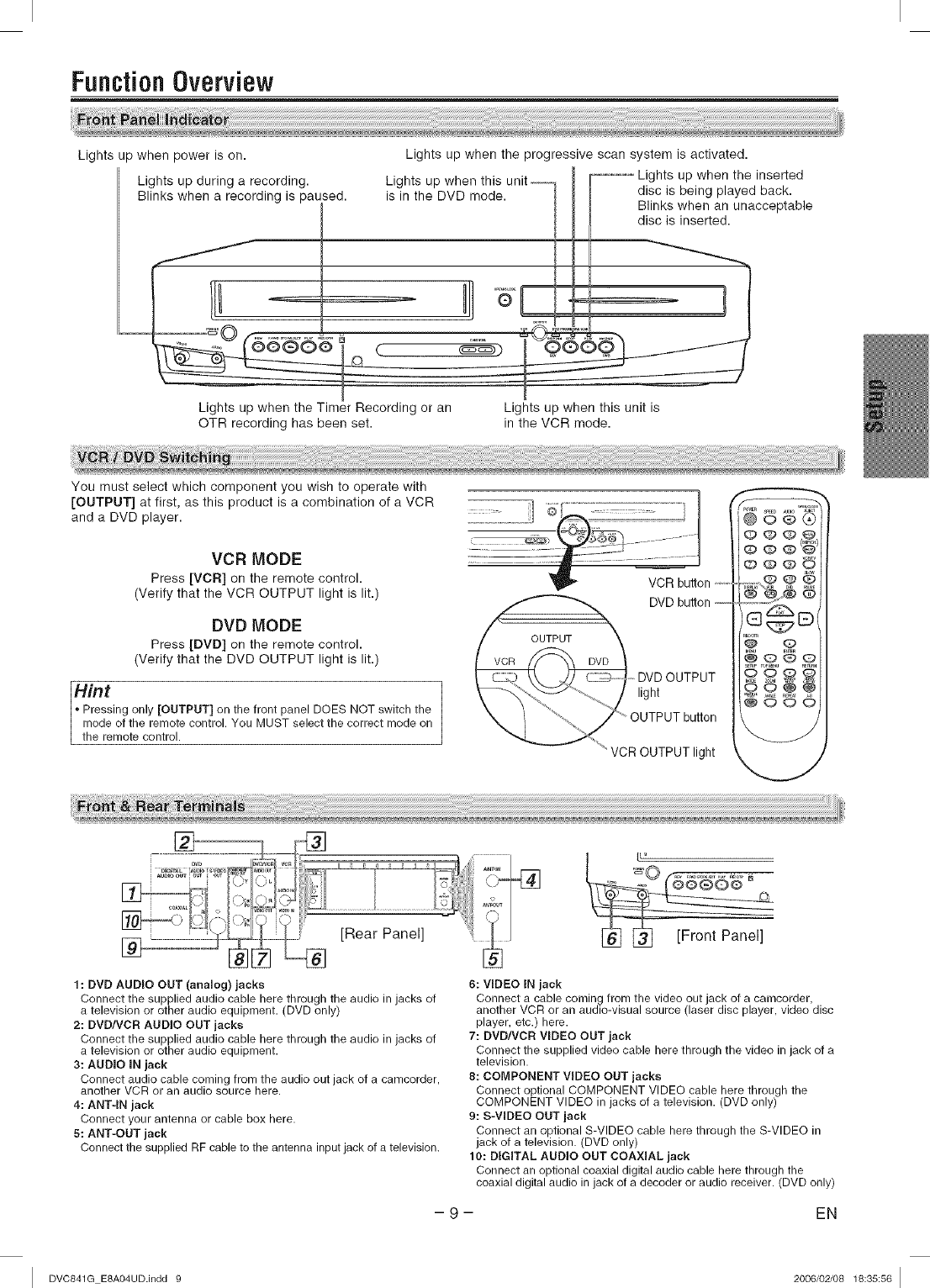

[] Function Overview ..................................................................... 9

Front Panel Indicator .................................................................... 9

VCR /DVD Switching .................................................................. 9

Front & Rear Terminals ................................................................ 9

Remote Control ........................................................................... 10

Installing the Batteries for the Remote Control ........................... 10

VCR Functions

[] Playback ..................................................................................... 11

[] Other Operations ....................................................................... 11

Index Search ............................................................................... 11

Time Search ................................................................................ 11

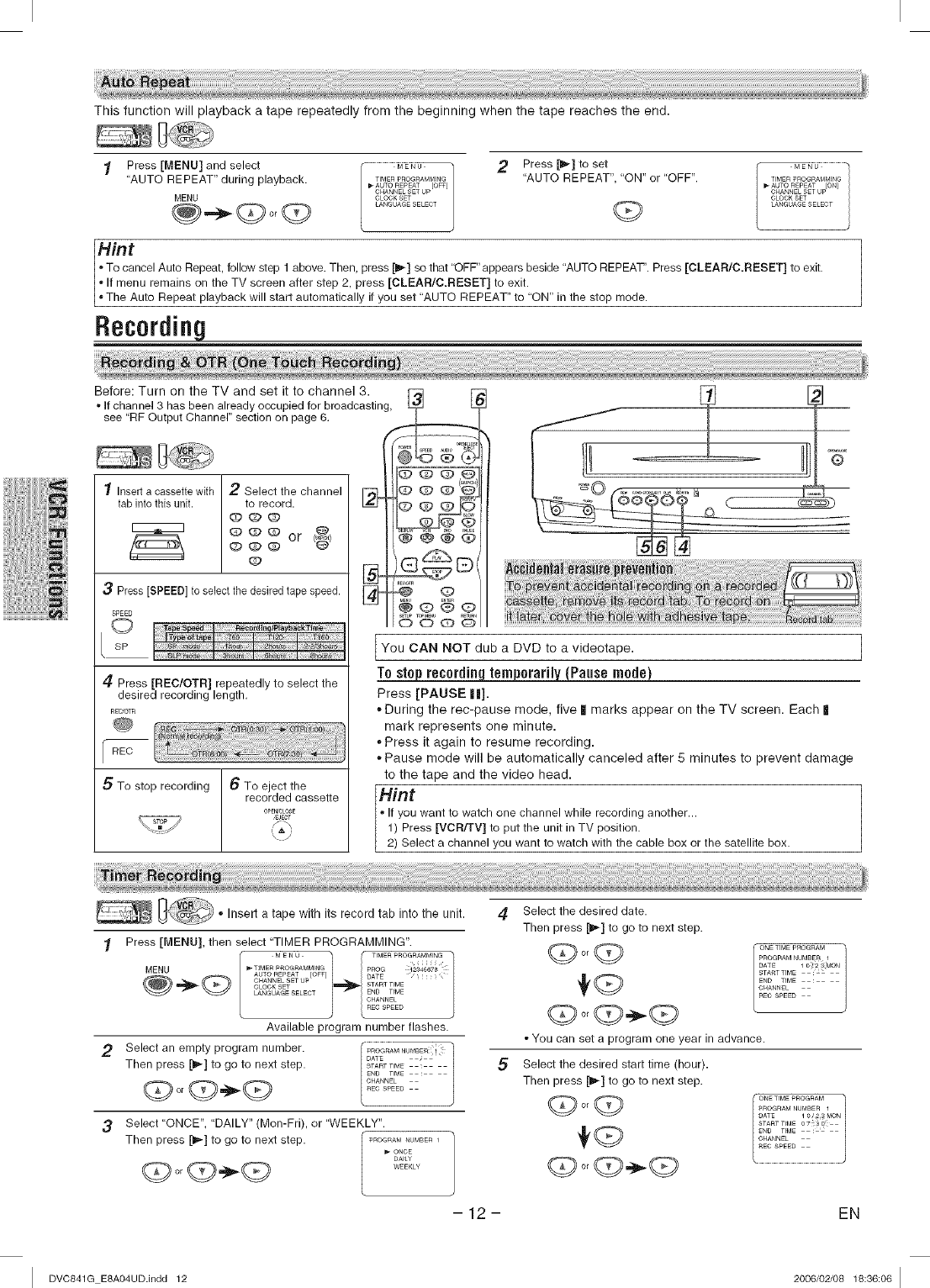

Auto Repeat ................................................................................ 12

[] Recording ................................................................................... 12

Recording & OTR (One Touch Recording) ................................. 12

Timer Recording ......................................................................... 12

Hints for OTR and Timer Recording ........................................... 13

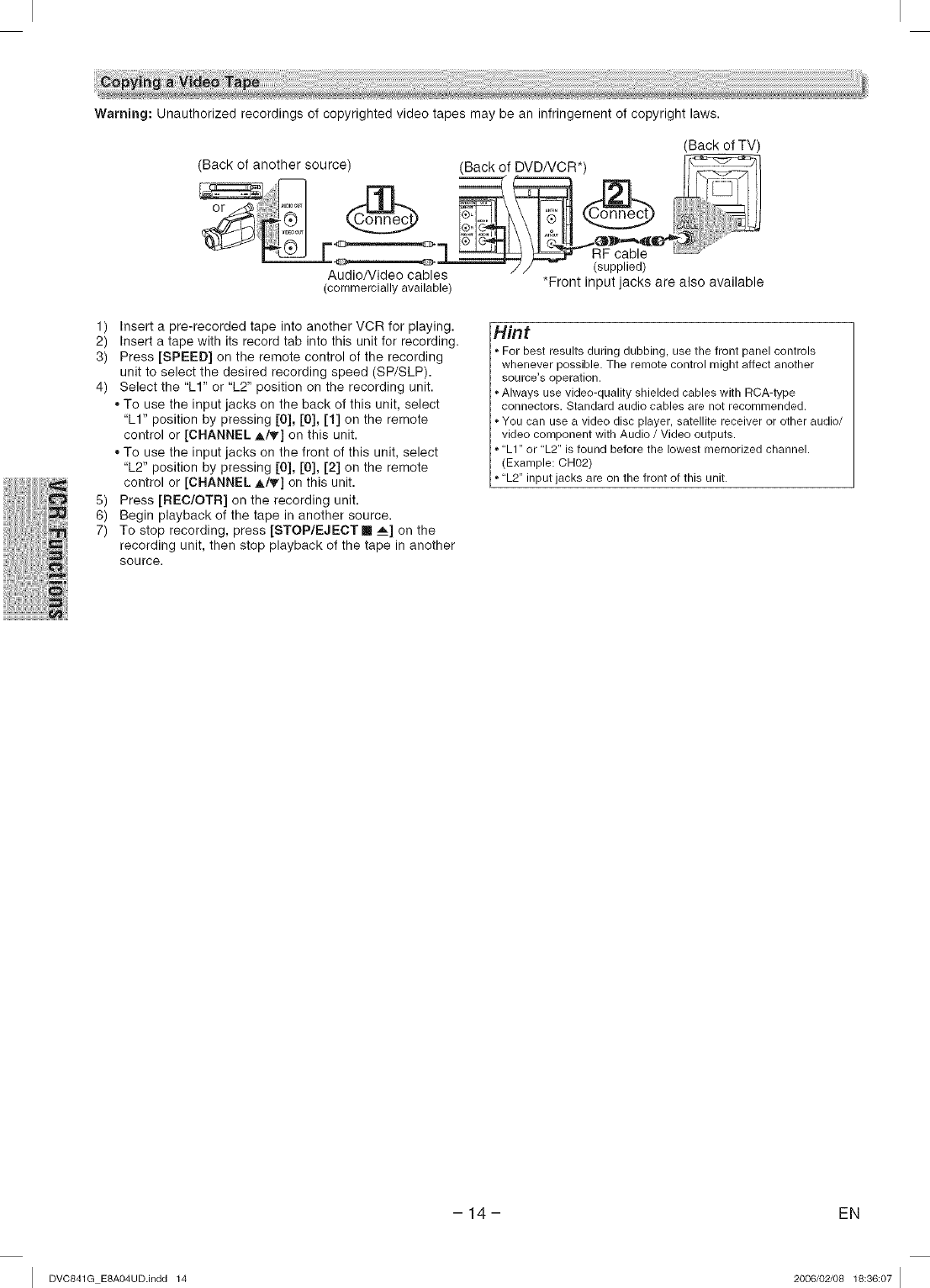

Copying a Video Tape ................................................................ 14

DVD Functiens

[] Playback ..................................................................................... 15

[] WMA Playback ........................................................................... 16

[] On-Screen Display ..................................................................... 16

[] Search Functions ...................................................................... 17

Using Track Search .................................................................... 17

Using Title /Chapter Search ....................................................... 17

Using Time Search ..................................................................... 17

Marker Setup .............................................................................. 17

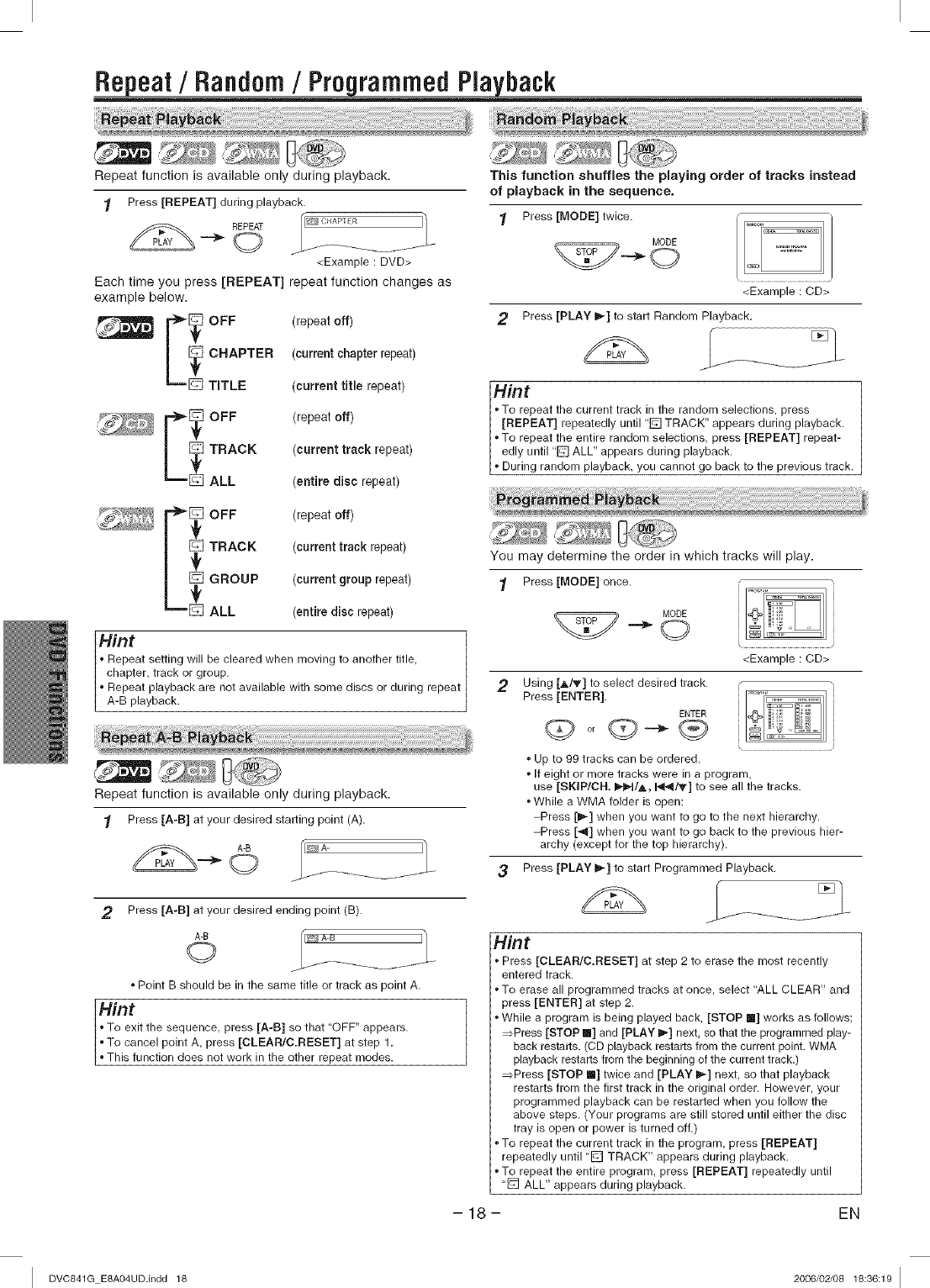

[] Repeat /Random /Programmed Playback ............................. 18

Repeat Playback /Repeat A-B Playback

Random Playback/Programmed Playback ............................... 18

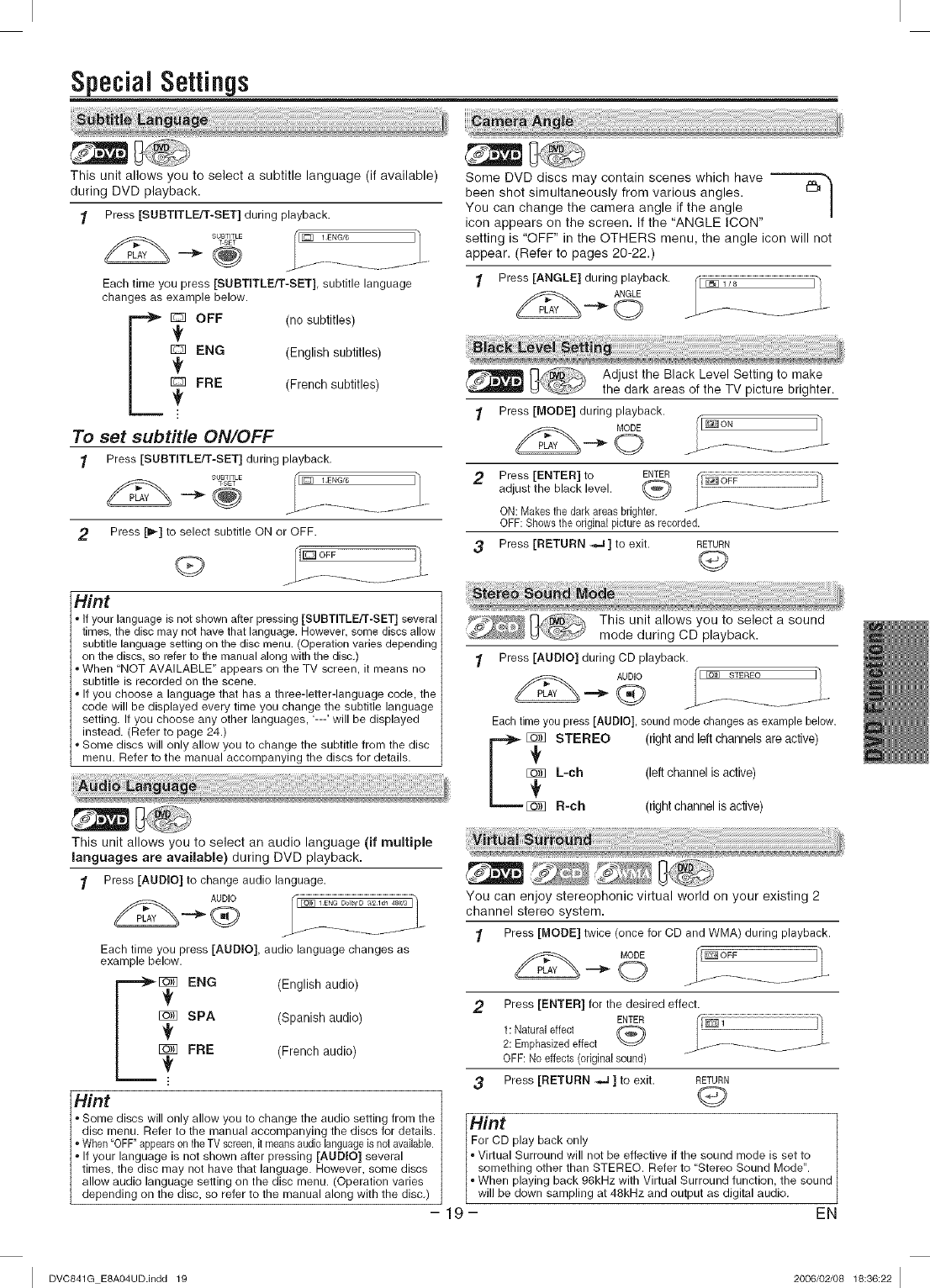

[] Special Settings ......................................................................... 19

Subtitle Language /Audio Language /Camera Angle

Black Level Setting /Stereo Sound Mode /Virtual Surround 19

[] DVD Setup .................................................................................. 20

LANGUAGE Setting .................................................................... 20

DISPLAY Setting ......................................................................... 21

AUDIO Setting ............................................................................ 21

PARENTAL Setting ..................................................................... 22

OTHERS Setting ......................................................................... 22

Reset to the Default Setting (Except for PARENTAL Setting) 23

Information

[] Troubleshooting Guide ............................................................. 23

[] Specifications ............................................................................ 24

[] Language Code List .................................................................. 24

[] Limited Warranty ....................................................................... 24

[] Espa_ol ....................................................................................... 25

[] Quick Use Guide ........................................................................ 27

;i_ ggiiii!iggili!iiiigii_iiigiiiiii!ii!iigili!iiiigii_iiigiiiiii!ii!ilii!i............................................................................................ i!!!!! _

Cable

. ,g0

5,!!, ,.,?

[] (Back of TV)

Antenna Sabb%

signal

L_ Phase rder to "Connectiond' on page 6.

DVC841G E8A04UD.indd 1 2006/02/08 18:35:43

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

A a,

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL. ,&

The

The lightning flash with arrowhead symbol, within

an equilateral triangle, is intended to alert the user

to the presence of uninsulated "dangerous

voltage" within the product's enclosure that may

be of sufficient magnitude to constitute a risk of

electric shock to persons.

The exclamation point within an equilateral triangle

is intended to alert the user to the presence of

important operating and maintenance (servicing)

instructions in the literature accompanying the

appliance.

caution marking is located on the rear of the cabinet.

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible

eye injury.

CAUTION:

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED

HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO

BEAM.

INSIDE, NEAR THE DECK MECHANISM.

LOCATION:

FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications

to this equipment may cause harmful interference unless the modifications are expressly approved in the

manual. The user could lose the authority to operate this equipment if an unauthorized change or modifica-

tion is made,

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareH numerique de ia classe Best conforme a la norme NMB-003 du Canada.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR CVITER LES CHOC ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHEDANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.

A NOTE ABOUT RECYCUNG

This product's packaging materials are recyclableand can be reused. Please dispose of any materials in accordancewith your

local recycling regulations,

Batteries should never be thrown away or incineratedbut disposed of in accordancewith your local regulationsconcerning

chemical wastes.

Make your contribution to the environment!!!

•Used up batteries do not belong in the dust bin.

•You can dispose of them at a collection point for used up batteries or special wastes.

Contact your council for details.

For Customer Use:

Read carefully the information located at the back of this unit and enter below the Model No. and the Serial No. Retain this

information for future reference.

Model No.

Serial No.

2 EN

IDVC841G E8A04UD.indd 2 2006/02/08 18:35:43 I

RTANT

Read Instructions - All the safety and operating instruc-

tions should be read before the appliance is operated.

Retain Instructions- The safety and operating instructions

should be retained for future reference.

Heed Warnings - All warnings on the appliance and in the

operating instructions should be adhered to.

Follow Instructions - All operating and use instructions

should be followed.

Cleaning - Unplug this video product from the wall outlet

before cleaning. Do not use liquid cleaners or aerosol

cleaners. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted

service and, that for some specific reason, such as the

possibility of the loss of an authorization code for a CATV

converter, is not intended to be unplugged by the user for

cleaning or any other purpose, may exclude the reference

to unplugging the appliance in the cleaning description

otherwise required in item 5.

6. Attachments - Do not use attachments not recommended

by the video product manufacturer as they may cause

hazards.

7. Water and Moisture- Do not use this video product near

water, for example, near a bath tub, wash bowl, kitchen

sink, or laundry tub, in a wet basement, or near a

swimming pool, and the like.

8. Accessories - Do not place this video product on an

unstable cart, stand, tripod, bracket, or table. The video

product may fall, causing serious injury to a child or adult,

and serious damage to the appliance. Use only with a

cart, stand, tripod, bracket, or table recommended by the

manufacturer, or sold with the video product. Any mount-

ing of the appliance should follow the _0RTABLE CART WARNIt';G

manufacturer's instructions and should (Symbolpf /RETAC)

use a mounting accessory recommended

by the manufacturer. An appliance and

cart combination should be moved with

care. Quick stops, excessive force, and

uneven surfaces may cause the appli-

ance and cart combination to overturn, s3_2_A

9. Ventilation - Slots and openings in the cabinet are pro-

vided for ventilation and to ensure reliable operation of

the video product and to protect it from overheating, and

these openings must not be blocked or covered. The

openings should never be blocked by placing the video

product on a bed, sofa, rug, or other similar surface. This

video product should not be placed in a built-in installa-

tion such as a bookcase or rack unless proper ventilation

is provided or the manufacturer's instructions have been

adhered to.

10. Power Sources - This video product should be operated

only from the type of power source indicated on the

marking label. If you are not sure of the type of power

supply to your home, consult your appliance dealer or

local power company. For products intended to operate

from battery power, or other sources, refer to the

operating instructions.

11. Grounding or Polarization - This video product is

equipped with a polarized alternating-current line plug (a

plug having one blade wider than the other). This plug

will fit into the power outlet only one way. This is a safety

feature. If you are unable to insert the plug fully into the

outlet, try reversing the plug. If the plug should still fail to

fit, contact your electrician to replace your obsolete outlet.

Do not defeat the safety purpose of the polarized plug.

12. Power Cord Protection - Power supply cords should

be routed so that they are not likely to be walked on or

pinched by items placed upon or against them, paying

particular attention to cords at plugs, convenience recep-

tacles, and the point where they exit from the appliance.

13. Outdoor Antenna Grounding - If an outside antenna or

cable system is connected to the video product, be sure

the antenna or cable system is grounded so as to provide

some protection against voltage surges and built-up static

charges. Article 810 of the National Electrical Code, ANSI/

NFPA No. 70, provides information with regard to proper

grounding of the mast and supporting structure, grounding

of the leadqn wire to an antenna discharge unit, size of

grounding conductors, location of antenna-discharge unit,

connection to grounding electrodes, and requirements for

the grounding electrode. (Fig. A)

:ii[i:

EXAMPLEOFARTERR_GROURO,RGI_ _;.,A

GROUNDING CONDUCTORS

(NEC SEC

CLAMP

S2898A ELECTRODE SYSTEM

(NEC ART 250 PART R)

14. Lightning - For added protection for this video product

during a lightning storm, or when it is left unattended and

unused for long periods of time, unplug it from the wall

outlet and disconnect the antenna or cable system. This

will prevent damage to the video product due to lightning

and power-line surges.

15. Power Lines - An outside antenna system should not be

located in the vicinity of overhead power lines or other

electric light or power circuits, or where it can fall into

such power lines or circuits. When installing an outside

antenna system, extreme care should be taken to keep

from touching such power lines or circuits as contact with

them might be fatal.

16. Overloading - Do not overload wall outlets and extension

cords as this can result in a risk of fire or electric shock.

17. Object and Liquid Entry - Never push objects of any kind

into this video product through any openings as they may

touch dangerous voltage points or short-out parts that

could result in a fire or electric shock. Never spill liquid of

any kind oil the video product.

18. Servicing - Do not attempt to service this video product

yourself as opening or removing covers may expose you

to dangerous voltage or other hazards. Refer all servicing

to qualified service personnel.

19. Damage Requiring Service - Unplug this video product

from the wall outlet and refer servicing to qualified service

personnel under the following conditions:

a. When the power-supply cord or plug is damaged.

b. If liquid has been spilled, or objects have fallen into the

video product.

c. If the video product has been exposed to rain or water.

d. If the video product does not operate normally by

following the operating instructions. Adjust only those

controls that are covered by the operating instructions

as an improper adjustment of other controls may result

in damage and will often require extensive work by a

qualified technician to restore the video product to its

normal operation.

e. If the video product has been dropped or damaged in

any way.

f. When the video product exhibits a distinct change in

performance this indicates a need for service.

20. Replacement Parts - When replacement parts are

required, be sure the service technician has used

replacement parts specified by the manufacturer or have

the same characteristics as the original part. Unauthorized

substitutions may result in fire, electric shock or other

hazards.

21. Safety Check - Upon completion of any service or repairs

to this video product, ask the service technician to per-

form safety checks to determine that the video product is

in proper operating condition.

22. Heat - This video product should be situated away from

heat sources such as radiators, heat registers, stoves, or

other products (including amplifiers) that produce heat.

I DVC841G E8A04UD.indd 3 2006/02/08 18:35:44 I

• Do not stand this unit up vortically. Install this unit in a hori-

zontal and stable position. Do not place anything directly on

top of this unit. Do not place this unit directly oil top of the TV.

• Depending on the TV, noise or disturbance of the picture

and/or sound may be generated if this unit is placed too

close to your TV. In this case, please ensure enough space

between your TV and this unit.

• Do not cover or place this unit in enclosed spaces to prevent

excessive temperature build up.

• Do not place this unit in direct sunlight, or near heat sources.

• Depending on the environment, the temperature of this unit

may increase slightly. This is not a malfunction.

• Keep this unit away from strong magnetic objects.

• Do not place any object containing water or other liquids on

this unit. In the event that liquid should enter the cabinet,

unplug this unit immediately and contact the retailer or an

Authorized Service Center immediately.

• Do not remove this unit cabinet. Touching parts inside the

cabinet could result in electric shock and/or damage to this

unit. For service and adjustment inside the cabinet, call a

qualified dealer or an Authorized Service Center.

• Be sure to remove disc and video tape and unplug the AC

power cord from the output before carrying this unit.

• Do not handle the power cord with wet hands.

• Do not pull on the power cord when disconnecting it from

AC wall outlet. Grasp it by the plug.

• If, by accident, water is spilled on this unit, unplug the power

cord immediately and take the unit to our Authorized Service

Center for servicing.

• Do not put your fingers or objects into the unit cassette holder.

Moisture may form inside this unit under the following conditions:

• immediately after a heater is turned on.

• In a steamy or humid room.

• When this unit is suddenly moved from a cold to warm envi-

ronment.

If moisture forms inside this unit, it may not operate

properly or damage the video tape. In such case, turn on

the power and wait for more than 2 hours for the moisture to

evaporate.

Unauthorized copying, broadcasting, public performance and

lending of discs are prohibited.

This product incorporates copyright protection technology that

is protected by U.S. patents and other intellectual property

rights. Use of this copyright protection technology must be

authorized by Macrovision, and is intended for home and

other limited viewing uses only unless otherwise authorized by

Macrovision. Reverse engineering or disassembly is

prohibited.

Consumers should note that not all high definition television

sets are fully compatible with this product and may cause

artifacts to be displayed in the picture. In case of picture prob-

lems with 525 progressive scan output, it is recommended

that the user switch the connection to the 'standard definition'

output. If there are questions regarding your TV set compat-

ibility with this 525p DVD player, please contact our customer

service center.

Note to CATV system installer

This reminder is provided to call the CATV system

installer's attention to Article 820-40 of the NEC that

provides guidelines for proper grounding and, in

particular, specifies that the cable ground should be

connected to the grounding system of the building,

as close to the point of cable entry as practical.

The following symbols appear in some headings in this manual.

_: Description refers to playback or recording of

video cassette tapes.

_: Description refers to playback of DVD-Video discs.

: Description refers to playback of Audio CDs.

: : Description refers to playback of WMA files.

SERVICING

• Please refer to relevant topics on the "Troubleshooting

Guide" on page 23 before returning the product.

• If this unit becomes inoperative, do not try to correct the

problem by yourself. There are no user-serviceable parts

inside. Turn off, unplug the power plug, and please call

our help line mentioned on the front page to locate an

Authorized Service Center.

CLEANING THE CABINET

• Use a soft cloth slightly moistened with a mild detergent

solution. Do not use a solution containing alcohol, spirits,

ammonia or abrasive.

CLEANINGDISCS

• When a disc becomes dirty, clean it with a cleaning cloth.

Wipe the disc from the center to out. Do not wipe in a

circular motion.

o Do not use solvents such as benzine, thinner, commercially

available cleaners, detergent, abrasive cleaning agents or

antistatic spray intended for analog records.

CLEANING THE DISC LENS

•If this unit still does not perform properly although you refer

to the relevant sections and to "Troubleshooting Guide" in

this Owner's Manual, the laser optical pickup unit may be

dirty. Consult your dealer or an Authorized Service Center

for inspection and cleaning of the laser optical pickup unit.

DISCHANDLING

.When you handle a disc, hold it by its edge and try not to

touch the surface of the disc.

• Always store the disc in its protective case when it is not

used.

AUTO HEAD CLEANING

• Automatically cleans video heads as you insert or remove a

cassette, so you can see a clear picture.

• Playback picture may become blurred or interrupted while

the TV program reception is clear. Dirt accumulated on the

video heads after a long period of use, or the usage of rental

or worn tapes can cause this problem. If a streaky or snowy

picture appears during playback, the video heads in your

unit may need to be cleaned.

1. Please visit your local Audio/Video store and purchase a

good quality VHS Video Head Cleaner.

2. If a Video Head Cleaner does not solve the problem,

please call our help line mentioned on the front page to

locate an Authorized Service Center.

Him

Remember to read the instructions along with the video head

cleaner before use.

[. Clean video heads only when problems occur.

-4- EN

I DVC841G E8A04UD.indd 4 2006/02/08 18:35:45 I

Aboutthe VideoCassettesand Discs

Use only cassettes marked _ with this unit.

Playable

discs

DVD-Video

"1,2,3,5,9

DVD-RW

DVD-R

"1,3,4,5,6,

8,9,1o

DVD+RW

DVD+R

"1,3,4,5,7,

8,9,1o

Audio CD

*3,5,9

CD-RW

CD-R

*3,4,5,8,9

Mark (logo)

VIDEO

D D

DmlTALAU_Ie mGITA_AUDm

Region code

@o@

Recorded Disc

signals size Disc types

12 cm

Digital video or

(MPEG2) 8 cm

Digital audio

WMA "11

12 cm

8 cm

is a trademark of DVD Format/Logo Licensing Corporation.

If you cannot play back a disc which bears one of the marks above, check the following notes.

"1: This unit conforms to the NTSC color system. Discs recorded in other color systems such as PAL cannot be played back.

*2: Certain DVD-Video discs do not operate as described in this manual due to the intentions of the disc's producers.

*3: Scratched or stained discs may not be played back.

*4: Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or spe-

cial properties o1 discs.

*5: You can play back discs which bear the marks above. If you use nonstandardized discs, this unit may not play them

back. Even if they are played back, the sound or video quality will be compromised.

*6: You may play back the unfinalized DVD-R/RW disc recorded in the video format on our brand's DVD recorder. However,

depending on the recording status of a disc, the disc may not be played back at all or normally (the picture or sound may

not be smooth, etc.). In this case, you need to finalize the disc with the DVD recorder. Refer to the manual accompanying

the DVD recorder.

*7: Only the discs recorded in the video format and finalized can be played back.

Unfinalized discs cannot be played back. Depending on the recording status of a disc, the disc may not be played back at

all the picture or sound may not be smooth, etc.

*8: If the recorded portion of the disc is too small (less than 2 3/16 inches (55 mm) across), it may not play back properly.

*9: Do not glue paper or put stickers on to the disc. These may damage the disc, and the unit may not read it correctly.

"10: Discs Recorded in the VR (Video Recording) format cannot be played back.

"11: This DVD/CD player cannot playback the disc contents protected by Windows Media Digital Rights Management (DRM).

}

_ay._ Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in

Windows

MediaM the United States and/or other countries.

NEVER play back the following discs. Otherwise, malfunction may result!

DVD-RAM /DVD-Audio /CD-i /Photo CD /Video CD /DVD with region codes other than 1 or ALL/DTS-CD /DVD-ROM for

personal computers /CD-ROM for personal computers

On the following disc, the sound MAY NOT be heard.

Super Audio CD

NOTE: Only the sound recorded on the normal CD layer can be delivered.

The sound recorded on the high density Super Audio CD layer cannot be delivered.

Any other discs without compatibility indications 5 EN

I DVC841G E8A04UD.indd 5 2006/02/08 18:35:48 I

Connections

Please refer to "Basic TV Connection" on the front page before you use this unit.

if channel 3 has been already occupied

for broadcasting,

1) Set your TV to channel 4.

2) Insert a pre-recorded tape into this unit.

3) Press [OUTPUT] on the unit so that the

VCR OUTPUT light is lit.

,, If noise appears on the TV screen, press

[VCR/TV] on the remote control.

4) Press [PLAY I_] once.

5) After a few seconds, press and hold

[PLAY I_] on the unit for 3 seconds.

,, The RF output channel will change to

channel 4 from channel 3 and you will

see a playback picture.

,, When a picture does not appear on the

TV screen, repeat step 4.

6) Press [STOP Im] to stop playback.

Hint

*The RF output channel does

not changewhen you adjust

tracking during playback. In case

RF output channel changes you

can easily switch it back just

start the playback again then

press and hold [PLAY _] on the

unit for 3 seconds.

(Cableboxor ;;;_(Back of DVDNCR) [_

Satellitebox) I_.111 l!l_==_lll

_atelliteor._ I _ _i.H

CableTV I[ - II.,1_2___V_:_s1i5I11RF cable

Select this connection when you want to view or record a

scrambled channel. With this connection, channels cannot be

changed on the unit. You can view or record ONLY

the channels you have selected oil the cable box or the

satellite box.

While you are recording, only the recorded channel can be viewed.

To select channels of the cable box or satellite box

1)Turn on the unit by pressing [POWER], then press

[VCR/TV]. The POWER indicator on the front panel will

light, then press [SKIP/CH. _-I/A, NIT] to select

channel 3 or 4 (the same channel as the output channel o1

the cable box or satellite box).

• If you use the channel 4, you need to change the unit's

RF output to channel 4. Refer to "RF Output Channel".

2) At the TV, select channel 3 or 4 (the same channel as you

have selected at step 1).

3) On the cable box or satellite box, select the channel you

want to view or record.

Stereo system

.&. A,

Audio cable

(supplied)

AUDIO OUT

(Analog)

Analog audio

input jacks

Dolby Digital decoder,

MD deck or DAT deck

Digital audio

O i

iinput jack

Audio Coaxial "_Digital cable

(commercially

available)

DIGITAL I _°_,_q I I

AUDIOOUTI I I I

(DVD mode only)

Hint

Playing a DVD using incorrect settings may generate noise

d stort on and may a so damage the speaker.

Connecting to a Dolby Digital decoder

for Dolby Digital audio output.

Connecting to the other equipment

(an MD deck or DAT deck etc.)

without Dolby Digital decoder.

* To complete these settings, refer to pages 20-21.

Hint

*The audio source on a disc in a Dolby Digital Multi channel surround

format cannot be recorded as digital sound by an MD or DATdeck.

*By hooking this unit up to a Multi channel Dolby Digital decoder,

you can enjoy high-quality Dolby Digital Multi channel surround

sound as heard in the movie theaters.

.Playing a DVD using incorrect settings may generate noise

distortion and may also damage the speakers.

-6- EN

I DVC841G E8A04UD.indd 6 2006/02/08 18:35:49 I

Good picture Better picture

Audio cable(supplied)

DVD

DIGITAL AUtO _WDE_

AUDIOOUT OUT 0UT

AUDIO OUT

(Analog) (°)

Video cable

(supplied)

VIDEO OUT

S-Video cable _"

(commercially

available) _,

°v°1

S-ViDEO OUT

Best picture

Component Video cable

(commercially available)

COMPONENT VIDEO OUT

Hint

Connect this unit directly to the TV. If the Audio/Video cables are connected to aVCR, pictures may be distorted due to the copy

protection system.

*The COAXIAL, DVD AUDIO OUT, S-VIDEO OUT and COMPONENT VIDEO OUT jacks are only useful in DVD mode,

If your TV is compatible with 525 progressive scanning and you want to enjoy that high quality picture;

You must select tile connection Method 3 above and progressive scanning mode. To set the mode, set "PROGRESSIVE" to

"ON" in the SETUP menu, so that the PROGRESSIVE SCAN indicator on the front panel lights oil. See pages 20 to 21 for

more details.

When "PROGRESSIVE" is "ON", video signals from the unit's VIDEO OUT and S-VIDEO OUT jacks will be distorted or not

be output at all.

If your TV is not compatible with progressive scanning;

Use this unit in interlace mode and set "PROGRESSIVE" to "OFF" either in the SETUP menu or by pressing and holding

[PLAY I_] on the front of the unit for more than 5 seconds, so that the PROGRESSIVE SCAN indicator on the front panel

lights off.

After you have completed connections

Press the input selector button (usually TVNIDEO, INPUT or AUX) on your TV to switch an appropriate external input channel

(usually near channel 0) for viewing the picture from this unit. If the picture does not appear, also refer to the manual

accompanying your TV.

iNPUT MODES FOR COMMON TV BRANDS

Listed below are inputs for common brand name TV's.

Admiral: AUX Panasonic: TVNIDEO

Curtis Mathis: LINE1, LINE2, 00, 90, 91, 92, 93 RCA: INPUT, TV/VCR, 00, 90, 91, 92, 93

GE: INPUT, TVNCR, 00, 90, 91,92, 93 Samsung: TV/VlDEO

Hitachi: INPUT, AUX Sanyo: VIDEO

JVC: VIDEO, VIDEO1, VIDEO2, VIDEO3 Sharp: 00

Kenwood: AUX Sony: VIDEO1, VIDEO2, VIDEO3

LXI-Series: 00 Toshiba: TV/GAME

Magnavox: AUX CHANNEL Zen th: 00

-7- EN

J DVC841G E8A04UD.indd 7 2006/02/08 18:35:51 J

Preparationfor Use

Operations described in this manual are

mainly based on the remote control.

1Turn on the TV and set it to channel 3.

If channel 3 has been already occupied for broadcasting,

see "RF Output Channel" section on page 6.

2Select your language in the first time you turn on this unit.

Then press []_] to go to next step.

POWER

3Press []1_] to start Auto Set Up. CH 01

...........AUTO SET UP .........

_;_ il "%

Yes Press [MENU] to exit. ]

•Refer to "Hint for Cable Boxor Satellite Box"section on page 6.

No Please wait for a few minutes. After scanning...

The tuner stops on the lowest memorized channel.

• You can select only the channels memorized in this unit by using

[SKIP/CH. I_€,.I/A, I_._I/T] (or [CHANNEL A/T]).

.If "AUTO SET UP" appears on the TV screen again, check the

cable connections. Then. press [_] once again.

Hint

Repeat these steps only if either there was a power failure or this

unit has been unplugged for more than 30 seconds.

ToSelect a Channel

You can select a channel by using the Number buttons or

[SKIP/CH. I_-I/A, I_/T].

Notes for using the Number buttons:

•When selecting cable channels which are higher than 99,

enter channel numbers as a three-digit number.

(for example: 117, press [1], [1], [7])

• You must precede single-digit channel numbers with a zero.

(for example: 02, 03, 04 and so on)

1Press [MENU] and select"CHANNEL SET UP". [ MENU

press [1_-] to go to next step.. T_,_o_._, __ _._'_o'_'_[_r'i

Then

MENU _ l LCALOCK2gET ......

. If the clock is not set, the "CLOCK SET" screen appears

when you press [MENU]. In this case, press [MENU] again.

2Select"MANUAL SET UP".

Then press [_-] to go to next step.

Select the channel to be added or deleted.

@o,@er @o,@

Select "ADD" or "DELETE".

To exit the menu CLEAR,'

C RESET

ToPresetthe ChannelAqain

1) Press [MENU] until the main menu appears.

2) Select "CHANNEL SET UP" by using [_.hr], then press [_].

3) Select "AUTO SET UP" by using [A/T], then press [1_].

After scanning, the tuner stops on the lowest memorized

channel.

ToChange the On-Screen Lan_

1) Press [MENU] until the main menu appears.

2) Select "LANGUAGE SELECT" by using [At_F], then

press [1_-].

3) Select "ENGLISH", "FRANCAIS" or "ESPAIqOL" by

using [AJT] then press [CLEAR/C.RESET].

Hint

* If you accidentally select Spanish or French and need English: Press

[MENU] and choose SELEC. IDIOMA or SELECTION LANGUE.

Press [11_-]and select ENGLISH. Finally, press [CLEAR/C.RESET].

To add or delete channels in this unit, [SKIP/CH. _€_l/,&, I_'_/V] button

works on the channel number memorized in this unit, [ARt] works on all.

1Press [MENU] and select"CLOCK SET".

Then press [ID,-]to go to next step.

•If the clock is not set, the CLOCK SET screen appears when

you press [MENU]. In this case, go to step 2.

Select the current month. CLOCKSET

MONTH DAY YEAR

Then press [_] to go to next step. ,,

HOUR MINUTE AM'PM

Select the current day.

Then press [1_] to go to next step.

CLOCKSET

MONTH D_V YEAf_

HOUR M_NUTE _M!PM

4Select the current year.

Then press [1_] to go to next step.

5, Select the current hour.

Then press [_] to go to next step.

CLOOKSET

MONTH DAY YEAR

10 , 02 MON 2006

HOUR M_NUTE AM,gM

Select the current minute.

Then press [1_] to go to next step.

7Select"AM" or"PM".

CLOCKSET

MONTH DAY YEA_

10 , 02 MON 2006

HOUR M_UUTE _M!PM

_or_

8To exit the CLOCK SET screen

Hint

/" To go back one step. press [-,_] (during steps 2 to 7).

*Your clock setting will be lost if either there is a power failure or this

un t has been unp ugged for more than 30 seconds. EN

I DVC841G E8AO4UD.indd 8 2006/02/08 18:35:54 I

FunctionOverview

Lights up when power is on.

Lights up during a recording.

Blinks when a recording is paused.

....

Lights up when the Timer Recording or an

OTR recording has been set.

Lights up when the progressive scan system is activated.

Lights up when this unit-- - ....... Lights up when the inserted

is in the DVD mode. disc is being played back.

Blinks when an unacceptable

disc is inserted.

Lights up when this unit is

in the VCR mode.

You must select which component you wish to operate with

[OUTPUT] at first, as this product is a combination of a VCR

and a DVD player.

VCR MODE

Press [VCR] on the remote control.

(Verify that the VCR OUTPUT light is lit.)

DVD MODE

Press [DVD] on the remote control.

(Verify that the DVD OUTPUT light is lit.)

Hint

* Pressing only [OUTPUT] on the front panel DOES NOT switch the

mode of the remote control. You MUST select the correct mode on

the remote contro.

DVD button ---------

DVD OUTPUT

light

\ 'OUT UT utton

V_"_ VCR OUTPUT light

1: DVD AUDIO OUT (analog) jacks

Connect the supplied audio cable here through the audio in jacks of

a television or other audio equipment. (DVD only)

2: DVD/VCR AUDIO OUT jacks

Connect the supplied audio cable here through the audio in jacks of

a television or other audio equipment.

3: AUDIO IN jack

Connect audio cable coming from the audio out jack of a camcorder,

another VCR or an audio source here.

4: ANT-IN jack

Connect your antenna or cable box here.

5: ANT-OUT jack

Connect the supplied RF cable to the antenna input jack of a television.

6: VIDEO IN jack

Connect a cable coming from the video out jack of a camcorder,

another VCR or an audio-visual source (laser disc player, video disc

player, etc.) here.

7: DVD/VCR VIDEO OUT jack

Connect the supplied video cable here through the video in jack of a

television.

8: COMPONENT VIDEO OUT jacks

Connect optional COMPONENT VIDEO cable here through the

COMPONENT VIDEO in jacks of a television. (DVD only)

9: S-VIDEO OUT jack

Connect an optional S-VIDEO cable here through the S-VIDEO in

jack of a television. (DVD only)

10: DIGITAL AUDIO OUT COAXIAL jack

Connect an optional coaxial digital audio cable here through the

coaxial digital audio in jack of a decoder or audio receiver. (DVD only)

-9- EN

I DVC841G E8A04UD.indd 9 2006/02/08 18:35:56 I

Install two AA batteries (supplied)

matching the polarity indicated inside

battery compartment of the remote

control.

e%%

Keep in mind the following when using

the remote control:

* Make sure that there is no obstacle

between the remote control and the

remote sensor on the unit.

*The maximum operable ranges from

the unit are as follows.

- Line of sight: approx. 23 feet (7m)

-Either side of center:

approx. 16 feet (5m) within 30 °

- Above: approx. 16 feet (5m) within 15 °

-Below: approx. 10 feet (3m) within 30 °

Hint

• Do not mix alkaline and manganese

batteries.

• Do not m x old and new batteries.

3utton Disc/Tape

0@@

@@@

0@@

A-B

ANGLE

AUDIO

c RESET

DISPLAY

DVD

E_rER

000

MODE

OPEN,LOSE

t_ECT

PAUSE

POWER

RE@OTR

REPEAT

RETURN

SETUP

SKIP/OH SKIP/CH

SLOW

SPEED

• To select chapter or title

directly.

• To search forward/back-

ward through a disc.

• To begin slow forward/reverse

playback in the pause mode.

• To repeat between your

chosen point A and B.

• To select carnera angles

on a disc.

• To select audio languages

on a disc.

• To clear the markers.

• To clear the numbers

entered incorrectly.

• To cancel the point for A-B

repeat.

• To display the current disc

mode.

• To select the DVD output mode.

• To activate the remote

control in DVD mode.

• To move the cursor and

determine its position.

• To call up the Menu on a

disc.

• To set black level on/off.

• To set virLual surround

on/off.

• To open or close the disc

tray.

• To pause disc playback.

• To advance playback one

frar'_le at a time.

• To begin disc playback.

• To turn the unit on/off.

• To play a chapter or title

repeatedly.

• To return to the previous

operation in menu.

• To search chapter, title or

time.

• To set or search gle markers.

• To call up the DVD setup

menu.

• To select track directly.

• To search forward/backward

through a disc.

• To repeat between your chosen

point A and B. (CD)

• To select STEREO, L-ch or R-ch.

(CD)

• To clear the markers. (CD)

• To remove status number in

program input.

• To clear the numbers entered

incorrectly.

• To cancel the point for A-B

repeat. (CD)

• To display the current disc mode.

• To select the DVD output mode.

• To activate the remote control in

DVD mode.

• To move the cursor and

determine its posgion.

• To call up the fib list. (WMA)

• To arrange the playing order or

play randomly.

• To set virtual surround on/off.

• To open or close the disc tray.

• To pause disc playback.

• To begin disc playback.

• To turn the unit on/off.

*To select channel.

,The +10 button has no

effect in VCR mode.

• To forward/backward a

tape.

• To exit the VCR Menu.

• To reset the tape counter.

• To display the current

tk'_le, tape counter, and

channel.

• To select an item

_ _'_ the VOR Menu.

• To advance to the

_} next VCR Menu.

_% _ .To go back one

\q_ step during dock

and timer setting.

• To call up the VCR Menu.

• To eject the video

cassette flora the VCR.

• To pause tape playback or

recording.

• To advance playback one

frame at a tirne.

• To begin tape playback.

• To play a track or disc repeat-

edly. (CD)

• To play a track, group or disc

repeatedly. (WMA)

• To return to 81e previous opera-

tion in menu.

• To search track.

• To search tirne. (CD)

• To set or search the markers. (CD)

• To turn the unit on/off.

• To start a recording or

One Touch Recording.

• To call up the index or

time search menu.

• To call up the DVD setup menu.

• To change channels.

• To skip chapters or titles. ,To skip tracks. .To adjust the tracking

manually during playback.

• To view the tape in slow

motion.

-- -- .To select the recording

speed.

• To stop playback. ,To stop playback. .To stop playback or

recording.

SU_T4TLE

_SE7 "To select subtitles on a ,To put the VCR into standby

disc. rnode for a Timer Recording.

TOPMENU "To call up the Top Menu "To return to the top file of the

highest hierarchy in the program

and file list. (WMA)

on adisc.

VCR "To seled the VCR output mode.

-- -- "To activate the remote

control in VCR rnode.

vcR,w "To select DVD position or "To select CD/WMA position or .To select VCR position or

O TV position. TV position. TV position.

ZOOM ,To magnify part of a

picture. (x2/x4)

- 10- EN

I DVC841G ESA04UD.indd 10 2006/02/08 18:36:02 I

Playback

Before:

Turn on the TV and set it to channel 3.

•If channel 3 has been already occupied for broadcasting, see "RF Output Channel" section on page 6.

1Insert a video 2To start playback

cassette into this unit.

3To stop playback 4To eject the cassette

OpBN _LO$_

,_JECT

Other Operations

Hint

_When a tape

without record tab

is inserted, the unit

will start playback

automatically.

Tracking will be

automatically

adjusted upon play-

back. To adjust the

tracking manually,

press [SKIP/CH.

_I/A, H_I/_'] (or

[CHANNEL A/T]).

Tocueorreviewpicturedurin_Picture Search[

Use [lI_,-] or [_r'q]([F.FWD IIl_] or [REW _1.,_]).

• Press it again and the unit will search in super high speed.

(in the SLP mode only)

Tofreez_in la back Still mode_

Press [PAUSE |1]. Each time you press the button, the

picture will be forwarded by one frame.

,, If the picture begins to vibrate vertically in the still mode,

stabilize the picture by using [SKIP/CH. _/A, I_q_l,_] (or

[CHANNEL A,_]).

• If the picture is distorted or rolling vertically, adjust the

vertical hold control on your TV if equipped.

Hint

I * Still/Slow mode will be automatically canceled after 5 minutes to prevent damage to the tape and the video head.

[. To return to playback from the Picture Search/Still/Slow mode press [PLAY I_].

CounterReset

Press [CLEAR/C.RESET].

back in slow motion _Slow mode_

Press [SLOW] during playback or the still mode.

• If the noise bars appear on the TV screen, you can reduce it

by using [SKIP/OH. _/_,, _/'T] (or [CHANNEL A/T]).

Aeto Rewind

When a tape reaches its end during playback, fast-forward

or recording (except Timer Recording and One Touch

Recording), the tape will automatically rewind to the beginning.

After rewinding finishes, the unit will eject the tape.

You can skip the program backward and forward by the Index

Mark.

• Insert a tape into this unit.

1Press [SEARCH MODE] once.

...... [ 1

MODE INDEX SEARCH

You can search backward and forward a specific length of

time on a tape.

• Insert a tape into this unit.

1Press [SEARCH MODE] twice.

...... I 1

MODE TIME S_ARCH

_/-;r2

To select Index Mark I INDE_E_RCH1:::0'3::::_ 2

_or_ 01-20

CURRENT PROGRAM

IP_o.rle_,l P_o._IP_o._IP_o._I

02 03

o_ or or ........'Z'q 3

3Torewind

Tofastfo ard

4AfterstartsSearching,playback.it automatically _r PLAY_ 1

Hint

I°The Index Mark will be made automatically at the beginning of each recording. I

The time gap between Index Marks should be greater then 1 minute

for SP mode, 2 m nutes for LP mode and 3 m nutes for SLP mode. -11 -

Select the desired length of time for fast forwarding or

rewinding.

or _ O:01- 9:59-

(1 minute_9 hours and 59 minutes)

To rewind ,

To fast forward I

4After searching, it automatically starts playback.

I PLAYi_ 1

Hint for Index Search & Time Search

} • These functions are not available during recording.

I" Press [STOP ==] to stop the search.

If a tape ends during a search, your search will be canceled and

the tape will rewind to the beginning. EN

I DVC841G E8A04UD.indd 11 2006/02/08 18:36:04 I

This function will playback a tape repeatedly from the beginning when the tape reaches the end.

Press [MENU] and select

"AUTO REPEAT" during playback.

MENU Q

2Press [1_] to set

"AUTO REPEAT", "ON" or "OFF".

TIMERPROGRAM_,IING

_AUTO REPEAT [ON]

CHANNELSETUP

CLOC_SET

LANGUAGESELECT

Hint

To cancel Auto Repeat, follow step 1above. Then, press [11_]so that "OFF" appears beside "AUTO REPEAT'. Press [CLEAR/C.RESET] to exit.

*If menu remains on the TV screen after step 2, press [CLEAR/C.RESET] to exit.

*The Auto Repeat playback will start automatically if you set "AUTO REPEAT" to "ON" in the stop mode.

Recording

Before: Turn on the TV and set it to channel 3.

* If channel 3 has been already occupied for broadcasting,

see '_RF Output Channel" section on page 6.

1Insert a cassette with

tab into this unit. 2Select the channel

to record.

@O@

@ @ ® or (_)

OO0

3Press [SPEED] to select the desired tape speed.

SPEED

4Press [REC/OTR] repeatedly to select the

desired recording length.

REOIOTR

5, To stop recording 6 To eject the

recorded cassette

OPEN,CLOSE

,EJECT

SA _,

[]

®@®_i

I You CAN NOT dub a DVD to a videotape.

To sto recordin tern oraril Pause mode)

Press [PAUSE I|].

During the rec-pause mode, five | marks appear on the TV screen. Each |

mark represents one minute.

* Press it again to resume recording.

Pause mode will be automatically canceled after 5 minutes to prevent damage

to the tape and the video head.

Hint

If you want to watch one channel while recording another...

I 1) Press [VCR/TV] to put the unit in TV position.

h 2) Select a channel you want to watch with the cable box or the satellite box.

* Insert a tape with its record tab into the unit.

1Press [MENU], then select "TIMER PROGRAMMING".

Available program number flashes.

Select an empty program number.

Then press [_-] to go to next step.

Select "ONCE", "DALLY" (Mon-Fri), or "WEEKLY".

Then press [t_.-] to go to next step. pROGRAMNUMBER1

_- ONCE

DAILY

WEEKLY

4Select the desired date.

Then press ['1_] to go to next step.

You can set a program one year in advance.

5Select the desired start time (hour).

Then press [1_] to go to next step.

Oo,Q

ONETIME PROGRAM "

-12- EN

I DVC841G E8AO4UD.indd 12 2006/02/08 18:36:06 I

Select "AM" or "PM".

Then press [_-] to go to next step.

7Repeat the procedure in steps 5 and 6 to set the end time.

8Select the desired channel.

Then press [1_] to go to next step.

*if you have connected the unit to a cable box or satellite

box as the connection on page 6, select the VCR to

channel 3 or 4 (the RF output channel of the VCR). Then,

select the desired channel at the cable box or satellite box.

Leave the cable box or satellite box on for Timer Recording.

9Select the desired recording speed, then press

[CLEAR/C.RESET].

CLEAR'

CRESET

QorO ,-

To set another program after step 9, press [1_].

Then, continue with step 2.

10 Press [SUBTETLE/T-SET]to set timer standby mode.

_UBTITLE

TSET

• _] indicator on the front panel lights up. The unit will

change to the DVDmode.

Hint

• To go back one step, press [_1] during steps 3 to 9.

ToCheck:CorrectorCancela TimerProqram

1) Press [SUBTITLE/T-SET] then, [VCR] ell the remote

control.

2) Select main menu by pressing [MENU].

3) Select "TIMER PROGRAMMING" by using [_.,_], then

press [I_].

4) Select the program number which you want to check by

using [A.t_]. The details of the program you selected will

appear on the TV screen.

,,Go to the digit you want to change by using [_/1_].

Then, enter correct numbers by using [_./_r].

,,You may cancel the entire program by pressing [_l]

while the program number blinks.

5) Press [CLEAR/C.RESET] to exit.

6) Press [SUBTITLE/T-SET] to return to timer standby

mode.

To cancel a Timer Recordin inqjnj_Eqgress

Press [STOPfEJECT [] ,A] on the unit.

• Press [VCR] on the remote control before you set Timer Recording. Make sure the remote control is in the VCR

mode, then press [SUBTITLE/T-SET].

• If a tape is not in the unit or does not have the record tab, [] indicator on the front panel blinks and Timer Recording

cannot be performed. Please insert a recordable tape.

• When Timer Recordings are set, [] indicator on the front panel lights up. To use the VCR as usual until the time for the

recording, press [SUBTITLE/T-SET] so that [] indicator lights off. Press [VCR/TV] to choose the VCR position. Select either

VCR or DVD mode, then continue with the other features as described in this manual.

Alter an OTR or aTimer Recordinqbas been _erates as lollows:

• If a tape runs out before an OTR or a Timer Recording is finished, the unit ejects the tape. Press [SUBTITLE/T-SET] on the

remote control or [STOP/EJECT [] ,A] on the unit, then press [VCR] to activate the VCR function again.

• Once the unit turns to the timer standby mode, no VCR functions are available until [SUBTITLE/T-SET] is pressed.

• To cancel the timer standby mode, press [SUBTITLE/T-SET] ell the remote control or [STOP/EJECT [] ,A] on the unit, then

press [VCR] to activate the VCR function again.

• The mode of the unit and the remote control may differ (VCR mode or DVD mode) when you set Timer Recording or after

you canceled Timer Recording. Press [VOR] or [DVB] on the remote control to select your desired mode before you

operate.

When an OTR or aTimer Recordin_leted...

• If Auto Power Off for DVD has been activated and there are Timer Recordings on standby, the unit turns off automatically,

and [] indicator on the front panel lights to indicate the unit is in the timer standby mode.

• [] indicator on the front panel flashes if there are no more Timer Recordings on standby.

• If Auto Power Off for DVD has NOT been activated, the unit switches to the DVD mode and all the VCR functions will be

unavailable. All the DVD functions are available during OTR, timer standby mode and Timer Recording.

• Press [STOP/EJECT [] ,A] ell the front panel or [SUBTITLE/T-SET] ell the remote control to use the VCR when the unit is

off.

• Press [OUTPUT] on the front panel or [VCR] on the remote control to use the VCR when the unit is on. In case Timer

Recording is in standby mode, press [STOP/EJECT [] ,A] on the front panel or [SUBTITLE/T-SET] on the remote control,

and then press [OUTPUT] on the front panel or [VCR] on the remote control.

IfJLOUwant to rise the DVD _ a Timer Recerdinqor while [] indicator on the front panel is an or blinkinL

• Press [POWER] to turn on the unit. Press [DVD] on the remote control to choose DVD mode, then continue with the other

DVD features as described in this manual.

NOTE(for Timer Recording) :

• If there is a power failure or the unit is unplugged for more than 30 seconds, clock and all timer settings will be lost.

- 13- EN

I DVC841G E8A04UD.indd 13 2006/02/08 18:36:07 I

Warning: Unauthorized recordings of copyrighted video tapes may be an infringement of copyright laws.

(Back of another source)

Audio/Video cables

(commemially available)

(Back of TV)

*Front input jacks are also available

1) Insert a pre-recorded tape into another VCR for playing.

2) Insert a tape with its record tab into this unit for recording.

3) Press [SPEED] on the remote control of the recording

unit to select the desired recording speed (SP/SLP).

4) Select the "LI" or "L2" position on the recording unit.

,, To use the input jacks on the back of this unit, select

"LI" position by pressing [0], [0], [1] on the remote

control or [CHANNEL AhV] on this unit.

,, To use the input jacks on the front of this unit, select

"L2" position by pressing [0], [0], [2] on the remote

control or [CHANNEL _.f_'] on this unit.

5) Press [REO/OTR] on the recording unit.

6) Begin playback of the tape in another source.

7) To stop recording, press [STOP/EJECT [] __] on the

recording unit, then stop playback of the tape in another

SOUrCe.

Hint

*For best results during dubbing, usethe front panel controls

whenever possible. The remote control might affect another

source's operation.

*Always use video-quality shielded cables with RCA-type

connectors. Standard audio cables are not recommended.

* You can use a video disc player, satellite receiver or other audio/

video component with Audio /Video outputs.

* "LI" or "L2" is found before the lowest memorized channel.

(Example: CH02)

*"L2" input jacks are on the front of this unit.

-14- EN

I DVC841G E8A04UD.indd 14 2006/02/08 18:36:07 I

Playback

Before: Turn on the TV, amplifier and any other components which are connected to this unit. Make sure the TV and audio

receiver (commercially available) are set to the correct channel.

_Page 16 )

O_EN_LOSE

POWER _JECT

3To start

playback

2Insert a disc with

label facing up.

4To stop

playback

QO@O

DVDmenu

Some discs contain menus which allow you to customize

DVD playback. Press [_. /T/_/_] to select an item, then

press [ENTER] (or [PLAY _]).

Callin u a IVlenuScreen durinq Pla back

• Press [MENU] to call up the DVD menu.

• Press [TOP MENU] to call up the title menu.

Hint

Menu operations may vary depending on the disc. Refer to the

manua accompany ng the d sc for deta s.

Resume

Press [STOP !] during playback. _,

Resume message will appear on

the TV screen.

Press [PLAY _], playback will

resume from the point at which

playback was stopped. <Example : DVD>

Hint

I To cancel resume, press [STOP Ill] one more time in the stop mode. I

* For WMA, playback will resume from the beginning of the track at

I which playback was stopped. I

I * The resume information stays on even when the power is turned off. I

Paused and _back

Press [PAUSE ||] during playback.

To continue playback, press [PLAY I_-]. ILEJ}

The disc goes forward by one frame each time [PAUSE ||] is

pressed in the pause mode.

To continue playback, press [PLAY _].

Hint

On DVDs, set "STILL MODE" to "FIELD" in the DISPLAY menu if

pictures in the pause mode are blurred. (Refer to pages 20-21 .)

Hint

• When you play a WMA file, details on page 16.

A "prohibited icon" may appear at the top-right on the TV screen when the operation

is prohibited by the disc or this unit.

Some DVDs may be played from title 2 or 3 due to specific programs.

During the playback of a two-layered disc, pictures may step for a moment. This

happens while the 1st layer is being switched to the 2rid layer. This is not a malfunction.

TiP:

You can change the on-screen language for DVD function in 'PLAYER MENU" setting. (Refer to page 20.)

Fast Forward/Reverse Search

Press [-_1] or [_] repeatedly during playback [_ )

to select the required forward or reverse speed. |

To continue playback, press [PLAY _].

To use [SKIP 1_,9/REV], [_1_,4 SKIP/FWD] on this unit

Press and hold to change forward or reverse playback speed.

To continue playback, press [PLAY I_].

Hint

For DVDs, fast forward or reverse search speed is different depending

on the disc. Approximate speed is 1(x2), 2(x8), 3(x20), 4(x50), 5(xl 00).

For Aud e CDs and WMA, apprex mate speed s 1 x2,2 x8,3 x30.

SlowForward/Reverse

Press [_,q] or [_,,d_] repeatedly in the pause

mode to select the required forward or reverse speed. /

To continue playback, press [PLAY _].

To use [SKIP bq_/REV], Iliad SKiP/FWD] on this unit

Press and hold in the pause mode to change forward or

reverse playback speed.

To continue playback, press [PLAY _].

Hint

Slow forward or reverse speed is different depending on the disc.

Approximate speed is 1(1/16), 2(1/8), 3(1/2).

Set "STILL MODE" to "FIELD" in the DISPLAY menu if pictures in

the sow p ayback mode are burred. Refer to pages 20-21.

Zoom

1) Press [ZOOM] during playback.

2) Press [ZOOM] repeatedly to select the required zoom

factor: x2, x4 or OFF.

To use [SKIPI_,_/REV], [_1=,4SKIP/FWD] onlhis unil

Press once to skip a chapter or track to a desired point.

3) Press [A, /V" /_/I_] to slide the zoomed picture across

the screen.

4) To exit zoom mode, press [ZOOM] to select OFF.

Hint

I "Zooming function does not work while the disc menu is showing up. I

x4 zoom is not available on some discs,

t may take severa seconds to s de the zoomed p cture.

- 15- EN

I DVC841G E8A04UD.indd 15 2006/02/08 18:36:10 I

WMA Playback

WMA is a method of compressing files. You can copy WMA files on CD-R/RWs from the computer and play the files on this unit.

Insert a WMA-format disc, then the file list will automatically appear

on the TV screen. Press [MENU] when you want to call up the file

list again while WMA-format disc is already inserted.

1When selecting the folder: '

t-O

Press [1_-] when you want to go to the next hierarchy.

Press [_1] when you want to go back to the previous hierarchy

(except for the top hierarchy).

2To cancel WMA playback, press [STOP m].

Refer to "Resume" on page 15.

On-ScreenDisplay

Hint

• Some selections may take a while to be recognized.

Press [TOP MENU] to return to the first item.

Folders are known as Groups; files are known as Tracks.

Folders and WMA are displayed respectively as _ and E].

• A maximum of 255 folders or 999 files may be recognized in one

disc.

• Up to 8 hierarchies can be recognized in one folder. File in the 9th

or deeper hierarchies cannot be played back.

This player recommends the files recorded under the following

circumstances:

• Sampling frequency: 44.1kHz or 48kHz(WMA)

• Constant bit rate: 48kbps -192kbps(WMA).

• For WMA file recorded in Variable Bit Rate(VBR), the unit may not

display the actual elapsed time.

• Copyright protected WMA files will not play on this unit.

You can check the information about the current disc by pressing [DISPLAY] on the remote control.

_¥ Ir_Angle icon, appears only in a case

_ |multi-angel is available on the DVD

r%q r h_=t_==Current playback status

__Remalnlng time of the current chapter

_. _ Elapsed time of the current chapter

,OH(Chapter):

_!_ DISPLAY Current chapter number /Total chapters

i"'T-"_"" _'=========_ Remaining time of the current title

J_1 _Elapsed time of the current title

_TT(Title):

_!_ n_sP_Y Current title number /Total titles

___J_ r_Layer numbers, appears only when

r_q _playing a two-layered disc.

I_1 _ ,_ LI _ _ I L0: Layer 0 is playing

I I I I LI: Layer 1 is playing

I _-__Ourrent repeat setting, appears only

_ -- when the repeat setting is active.

__- C: Chapter repeat

__- T: Title repeat

A _ B: A-B repeat

'BIT RATE: The amount of audio

!_ _' and video data currently being read

oa2_oo2_s _/Current playback status

_'_T"_=_ _ Remaining time ofthe currenttrack

_ Elapsed time of the current track

_TR(Track):

DISPLAY

_ Current track number /Total tracks

_, ALL:

12] _O:_3:45.-_:45:40._T. _1_ Current track number /Total tracks

I _=='=T_ current repeat setting if active

_ I_ _- T: Track repeat

I _ _ A: All Tracks repeat

m I I A _- B: A-B repeat

| I B Remaining time of the entire disc

_( _ Elapsed time of the entire disc

[.int

When you are playing a disc in PROGRAM or RANDOM mode,

_PROGRAM (or RANDOM) will be displayed instead of [_. -16-

(

Current playback status

[ _ 1 The name of the file currentl in

play will be displayed.

I _ _- Title name based on tag

_- ,_. nlsP_ it/formation currently in play will be

_ d,splayed.

[__ Artist name based on tag

>/ | nlsP_ ir_formation currently in play will be

_!_ _ d,splayed.

_ TR(Track):

[] _ o:o_:_s _ T _'_ Current track number /Total tracks

_Current repeat setting, if active

-- _ T: Track repeat

__ G: Group (folder) repeat

_- A: Disc repeat

Elapsed playing time of the current

DISPLAY track

] or

(Only when you are playing a disc in PROGRAM or RANDOM mode.)

DISPLAY

I DVC841G E8A04UD.indd 16 2006/02/08 18:36:13 I

Search Functions

SEARCH MODE does not work during Programmed or Random Playback.

!i!! ii .....

1Press [SEARCH MODE I.

NODE

SelecttracknumberbyusingtheNumberbuttons within30 seconds.

OO@

QQ@

*For the disc with less than 10 tracks, press the track number directly•

*For discs with more than 10 but less than 99 tracks, to play single-

digit track, press [01 first, then the track number (e.g. for track 3,

press [0], [31). To play a double-digit track, press the track number•

*For discs with more than 100 tracks, to play a single or a double-digit track,

press [0[ first, then the track number (e.g. for track 3, press [0[, [0[, [3[, andfor

track 26, press [0[, [2], [6D. To play a triple-digit track, press the track number.

(

1Press [SEARCH MODE] repeatedly until the Time Search

display appears.

2Select a desired disc time by using the Number buttons within 30

seconds. o@@

o@@

o0@

Hint

When there is no need to enter a number, "0" appears automatically.

For example, "0:0 : " appears in the Time Search display if the

I total time of the title or track is less than 10 minutes.

I * Press [CLEAR/C.RESET] to erase the incorrect input at step 2.

Using [SKIP/CH. HH/A, P4_/_ ]

1Press [SKIP/CH. _¢,-I/A, I_,11/'_'] during playback.

(_) Current Track

_, (TR)

SKIP I_ SKIP I_'1

Hint

[+101 can also bring the Track search display, except for the disc

with less than 10 tracks• For such a disc, track search can be done

by ust press ng the track number•

1Press [SEARCH MODE l once for the Chapter Search.

Press [SEARCH MODE l twice for the Title Search.

2Select title/chapter number by using the Number buttons

within 30 seconds.

@@@

Using [SKIPICH. _V_, Pq_/_ ]

1Press [SKIP/CH. _-I/A, I.,_,q/'v] during playback.

(_) Current_Chapter(cH)

_..._ IOH1! _2JCN31CH4J

SKIP14_ SKIPi_'m

Current Title

_, (TT)

Imltr21_3ITT41

SKIP[_'_ SKIP1_[

(If the disc has no chapters)

Hint

Depending on the disc being played, this function can also be

performed by directly entering the desired chapter number with

the Number buttons. Refer to the manua accompany ng the dsc. -17-

This feature allows you to assign a specific point on a disc to

be called back later.

To set a marker

1Press [SEARCH MODE] repeatedly until the marker display

appears.

...... s_sssssD_ _

@ _ :2=221_.........

2Select a marker• !_

3Press [ENTER].

ENTER

To return to the marker later

1Press [SEARCH MODE] repeatedly until the marker display

appears. SEARCH

NODE

2Select the marker. _[_00°°01_°00[_ _/

3Press [ENTER] at the desired marker.

ENTER

To exit the marker screen

1Press [RETURN_MJ. RETURN

Hint

•The Marker display will disappear in about 30 seconds when there is no output.

•To clear a marker, select the marker to be cleared at step 2 in the

section "To set a marker" or "To return to the marker later" and

then press [CLEAR/C.RESET].

• Opening the disc tray or turning off the power will erase all markers•

Selecting "AC" at step 2 in the section "To set a marker" or "To

return to the marker later" will also erase all markers•

I DVC841G E8A04UD.indd 17 2006/02/08 18:36:16 I

Repeat/Random/ProgrammedPlayback

"_i!iiiiiiiilliiiiiliiiill'kiiill _!! _

Repeat function is available only during playback.

1Press [REPEAT] during playback.

REPEAT IL}@2tCHAPTER

Each time you press [REPEAT] repeat function changes as

example below.

r_ OFF (repeat off)

_ /_] CHAPTER (current chapter repeat)

L_D TITLE (current title repeat)

r,)_[_ OFF (repeat off)

LiTRACK (current track repeat)

ALL (entire disc repeat)

This function shuffles the playing order of tracks instead

of playback in the sequence.

1Press [MODE] twice.

2Press [PLAY _] to start Random Playback.

Hint

To repeat the current track in the random selections, press

• [REPEAT] repeatedly until "E] TRACK" appears during playback.

To repeat the entire random selections, press [REPEAT] repeat-

/ edly until "_ ALL" appears during playback.

[. During random playback, you cannot go back to the previous track.

Ii OFF (repeat off)

TRACK (current track repeat)

GROUP (current group repeat)

ALL (entire disc repeat)

Hint

Repeat setting will be cleared when moving to another title,

} chapter, track or group.

Repeat playback are not available with some discs or during repeat

A-B p ayback.

7:_Ss<85

(

Repeat function is available only during playback.

1Press [A-B] at your desired starting point (A).

2Press [A-B] at your desired ending point (B).

A-B

• Point B should be in the same title or track as point A.

Hint

} To exit the sequence, press [A-B] so that "OFF" appears.

[To cancel point A, press [CLEAR/C.RESET] at step 1.

Th s funct on does not work n the other repeat modes.

( (

You may determine the order in which tracks will play.

1Press [MODE] once.

MODE

Using [,_/_] to select desired track.

Press [ENTER].

ENTER

Up to 99 tracks can be ordered.

If eight or more tracks were in a program,

use [SKIP/CH. _,'_I/A, I_-_/_] to see all the tracks.

While a WMA folder is open:

-Press [1_-] when you want to go to the next hierarchy.

-Press [_1] when you want to go back to the previous hier-

archy (except for the top hierarchy).

Press [PLAY _,-] to start Programmed Playback.

Hint

Press [CLEAR/C.RESET] at step 2 to erase the most recently

entered track.

To erase all programmed tracks at once, select "ALL CLEAR" and

press [ENTER] at step 2.

While a program is being played back, [STOP m] works as follows;

_Press [STOP m] and [PLAY !_] next, so that the programmed play-

back restarts. (CD playback restarts from the current point. WMA

playback restarts from the beginning of the current track.)

_Press [STOP m] twice and [PLAY _] next, so that playback

restarts from the first track in the original order. However, your

programmed playback can be restarted when you follow the

above steps. (Your programs are still stored until either the disc

tray is open or power is turned off.)

To repeat the current track in the program, press [REPEAT]

repeatedly until "_ TRACK" appears during playback.

To repeat the entire program, press [REPEAT] repeatedly until

"[_] ALL" appears during playback.

-18- EN

I DVC841G E8A04UD.indd 18 2006/02/08 18:36:19 I

Special Settings

This unit allows you to select a subtitle language (if available)

during DVD playback.

1Press [SUBTITLE/T-SET] during playback.

sNTBT'TTLE I[_ 1ENG/G

Each time you press [SUBTITLE/T-SET] subtitle language

changes as example below•

iiiiiii¸¸:!!tiii¸!!i!iiiiii!t!iiii!iltiliiiiii!itii¸tiii!iiii!iiiiif_iiiitiitiiiiiiiiiiiii_;;_ _ _ _ _ _ _ _ _

!_,!,!il; iiI

Some DVD discs may contain scenes which have _'_

been shot simultaneously from various angles. !You can change the camera angle if the angle

icon appears on the screen. If the "ANGLE ICON"

setting is "OFF" in the OTHERS menu, the angle icon will not

appear. (Refer to pages 20-22.)

1Press [ANGLE] during playback._"-_ _ / __-

_i OFF (no subtitles)

ENG (English subtitles)

FRE (French subtitles)

To set subtitle ON/OFF

1Press [SUBTITLE/T-SET] during playback.

Press [_] to select subtitle ON or OFF.

(2)

Adjust the Black Level Setting to make

the dark areas of the TV picture brighter.

1Press [MODE] during playback.

2Press [ENTER] to ENTER ..................

adjust the black level•

ON: Makes the dark areas brighter. /

OFF: Shows the original picture as recorded.

3Press [RETURN _,.J] to exit. RETURN

Hint

• It your language is not shown after pressing [SUBTITLE/T-SET] several

times, the disc may not have that language. However, some discs allow

subtitle language setting on the disc menu. (Operation varies depending

on the discs, so refer to the manual along with the disc.)

• When "NOT AVAILABLE" appears on the TV screen, it means no

subtitle is recorded on the scene.

• If you choose a language that has a three-letter-language code, the

code will be displayed every time you change the subtitle language

setting. If you choose any other languages, '---' will be displayed

instead. (Refer to page 24.)

• Some discs will only allow you to change the subtitle from the disc

menu. Refer to the manual accompanying the discs for details.

This unit allows you to select an audio language (if multiple

languages are available) during DVD playback.

1Press [AUDIO] to change audio language.

AUDIO

Each time you press [AUDIO], audio language changes as

example below.

_i ENG (English audio)

SPA (Spanish audio) 2

FRE (French audio)

Hint

* Some discs will only allow you to change the audio setting from the

disc menu. Refer to the manual accompanying the discs for details.

oWhen "OFF"appears on the TV screen, it meansaudio language is notavailable.

- If your language is not shown after pressing [AUDIO] several

times, the disc may not have that language. However, some discs

allow audio language setting on the disc menu. (Operation varies

depending on the disc, so refer to the manual along with the disc.) -19-

S_ This unit allows you to select a sound

mode during CD playback.

1Press [AUDIO] during CD playback.

AUDIO

Each time you press [AUDIO], sound mode changes as example below.

F_ STEREO (right and left channels are active)

L-ch (left channel is active)

E_ R-ch (right channel is active)

_l f. _" _i_ it!!¸¸ i¸

You can enjoy stereophonic virtual world on your existing 2

channel stereo system.

1Press [MODE] twice (once for CD and WMA) during playback.

MODE

Press [ENTER] for the desired effect.

ENTER

1: Natural effect

2: Emphasized effect

OFF: No effects (original sound)

Press [RETURN _ ] to exit. RETURN

Hint

For CD play back only

• Virtual Surround will not be effective if the sound mode is set to

something other than STEREO. Refer to "Stereo Sound Mode".

• When playing back 96kHz with Virtual Surround function, the sound

will be down sampling at 48kHz and output as digital audio. EN

I DVC841G E8A04UD.indd 19 2006/02/08 18:36:22 I

DVDSetup

QUICK SETUP Menu

You can select the "PLAYER MENU" "TV ASPECT'

1Press [SETUP] in the stop mode.

Confirm that "QUICK" is selected. ENTER

"PROGRESSIVE" or "DOLBY DIGITAL" from the QUICK SETUP menu quickly.

2Select the desired item.

I_ r_ _i_.,L_P2o[] StepS

I _,/J_ ....... "[_ I

_'_ !_o_!,_t _o_!_,_°x P21 [] Step 5

P21 [] Step 5

, Refer to the sections "PLAYER MENU", "TV ASPECT",

"PROGRESSIVE" or "DOLBY DIGITAL" on page 20 or 21.

dCUSTOM Menu t

You can change the settings of the unit.

on pages 20-21 indicates DVD Setup menus also accessible from the QUICK SETUP menu.

1Press [SETUP] in the stop

mode.

SETUP

3Select the desired item.

ENTER

LANGUAGE menu DISPLAY menu AUDIO menu PARENTAL menu OTHERS menu

....... .... ISlV \I_ 1:

page 20 [] page 21 [] page 21 [] page 22 [] page 22 []

Follow steps 1 to 3 in the "CUSTOM Menu" section above.

4Select the desired item. ENTER 5Select the desired language.

LANGUAGE menu

AUDIO: ,,1 ,,2

Default: ORIGINAL)

Sets the audio language.

SUBTITLE: .1 *2

Default: OFF)

Sets the subtitlelanguage.

DiSC MENU: ,1

Default: ENGLISH)

Sets the language in

DVD menu.

PLAYER MENU:

Default: ENGLISH)

Sets the language for the

On-Screen Display.

EAUD_O

ENGUSH

FRENCH

/...............

I SUBTITLE

ENGLISH

FRENCH

EDISC MENU

FRENCH

SPAMSH

/............

FP[AY ER MENU

FRAN_AIS

ESPANOL

ENTER

6 o exit the menu

SETUP

Hint

Language options are not available

with some discs.

If OTHER is selected in the AUDIO,

SUBTITLE or DISC MENU screen,

press four-digit number to enter

the code for the desired language.

(Refer to the language code list on

page 24.)

Only the languages supported by the

disc can be selected.

Language setting for Audio and

Subtitle are not available with some

discs. Then press [AUDIO] and

[SUBTITLE/T-SET]. Details are on

page 19.

- 20 - EN

I DVC841G E8A04UD.indd 20 2006/02/08 18:36:25 I

Hint

TV ASPECT:

• Select "4:3 LETTER BOX", so

that black bars may appear on

the top and bottom of the screen.

• Select "4:3 PAN & SCAN" for

a full height picture with both

sides adjusted.

•Seiect "16:9 WIDE" if a wide

screen TV is connected to this unit.

PROGRESSIVE:

•You can set "PROGRESSIVE"to

"OFF"in the DISPLAY menu or

pressand hold [PLAY _-] on the

front of the unit for more than 5

secondsduring playback,so that

the PROGRESSIVESCAN indicator

on the front panel lights off.

•When "PROGRESSIVE"

is "ON", video signals from

the unit's VIDEO OUT and

S-VIDEO OUT jacks will be

distorted or not be output at all.

You can change the display functions. Follow steps 1 to 3 in the "CUSTOM Menu" section on page 20.

4Select the desired item. 56 To exit

_TV ASPECT: _ (Default: 4:3 LETTER BOX the TV ASPECT

See Hint on the left. Select the or STILL MODE

------ _ , .desired ENTER screen

]_ 4:3L£TTERBOX__ T setting. _-((_)) SETUP

4 STILLMOD£ AUTO __ I< p-.,

] PROGRESSIVE OFF ENTER ___i:gW_DE _f _ O

.................. _ ............ o,

C_:'" To complete the

" STILL MODE: (Default: AUTO) _ PROGRESSIVE

See Hint on the right. Select the setting

des!red ENTER ENTER

d7_

PROGRESSIVE: _ (Default: OFF)

See Hint on the left.

_ _ SETUP

4:3 LETTER BOX ___________ @

If there is no picture or [Select "Yes".

you do not press any { _-°'b

buttons for 15 seconds, _ X;r

Progressive scan will

switch to "OFF" and it "[ (;_

will exit the setup menu.

.........................IS0,0et,, 0s,,.

Hint

STILL MODE:

* Select "AUTO" usually.

* If you select "AUTO",

automatically select the

best resolution setting

(FRAME or FIELD)

based on the data

characteristics of the

pictures. (default).

* If you select "FIELD",

the picture in the still

mode will be stabilized.

* If you select "FRAME", the

picture in the still mode

will be highly defined,

* An individual picture on

TV screen is called a

"frame", which consists

of two separate images

called a "field".

Some pictures may be

blurred if you select "AUTO"

inthe still mode due to their

data characteristics.

Choose the appropriate audio settings for your equipment. It only affects during the playback of DVD discs. Follow steps 1 to 3

To exit the menu

,_ SETUP

Hint

DRC:

This function is

available only on

the discs which are

recorded in the Dolby

Digital format.

DOWN SAMPLING:

When playing disc with

the sound will be down

sampled at 48kHz,

even if you set to

"OFF".

This function is

available only on digital

outputting of a disc

recorded in 96kHz.

in the "CUSTOM Menu" section on page 20.

4Select the desired item. 5

,_DRC (Dynamic Range ControJ): (DefauJt: ON)

Set to "ON" to compress the range between soft and loud sounds.

°FFloNBITSTR£

AUDIOmenu

_DOWN SAMPLING: (Default: ON)

Set to "ON" when outputting in 48kHz.

Set to "OFF" when outputting the original sound.

-DOLBY DIGITAL: _ (DefauJt: BITSTREAM)

Set to "BITSTREAM" when the unit is connected to a Dolby Digital decoder.

• BITSTREAM: Outputs a Dolby Digital Signals.

• PCM: Convert the Dolby Digital into PCM (2 channel).

-21 - EN

I DVC841G E8A04UD.indd 21 2006/02/08 18:36:27 I

4Enter your desired

four-digit password.

Q@@

<D@@

Q@@

PARENTALmenu

............... or .................

If you have set a password

already, enter the current

four-digit password.

ENTER

Select

"PARENTALLEVEL".

ENTER

6 Select the

desired level.

7 To exit

the menu

SETUP

CONTROL LEVELS

ALL: All parental locks are canceled.

Level 8: DVD softwares of any grades (adult/general/children) can be played back.

,,_ * Levels 7 to 2: Only DVD softwares intended for general use and children can be played back.

Level 1: Only DVD softwares intended for children can be played back, with those

intended for adult and general use prohibited.

TIPS FOR LEVELS

8 [ADULT]: DVD software of any grades (adult/general/children) can be played back.

7 [NC-17]: No one under 17 admitted

6 [R]: Restricted; under 17 requires accompanying parent or adult guardian

5 [PGR]: Parental Guidance Recommended

4 [PG13]: Unsuitable for children under 13

3 [PG]: Parental Guidance suggested

2 [G]: General Audience

1 [KID SAFE]: Suitable for children

Hint

• DVD-V deed scs may not respond to the parental lock settings. Make sure this functionworks with your DVD-Video discs.

To Change the Password for Parental Controls

You can change your password for parental controls. Follow ste _s 1 to

4Enter current four-digit 5Select"PASSWORD

password. _ CHANGE".

OO@

o@@

PARENTAL menu

NN]

ENTER

Enter your new

four-digit password

(except for 4737).

O@@

OO@

O@@

in the "CUSTOM Menu" section on page 20.

Z To exit

the menu

SETUP

Hint

Record the password

in case you forget it.

If you forget the

password, press [4],

[7], [3], [7] at step 4,

then enter your new

password. Password

will be cleared and

parental levels will be

set to "ALL".

You can change the other functions. Follow steps 1 to 3 in the "CUSTOM Menu" section on page 20.

4Select the desired item.

OTHERSmenu

5ANGLE ICON: (Default: ON)

Set to "ON" to show the angle icon when multiple

camera angles are available during DVD playback.

AUTOPOWEROFFON "_ENTER" _-_ON........_k

AUTO POWER OFF: (Default: ON)

Set to "ON" to turn this unit off automatically after 30 minutes of no use,

To exit the menu

SETUP

- 22 - EN

I DVC841G E8A04UD.indd 22 2006/02/08 18:36:30 I

1Press [SETUP] in the

stop mode.

2Select"INITIALIZE".

ENTER EN 4To exit the menu

SETUP

Press

twice. H[_t

When you cancel

to initialize at step

3, select NO".

TroubleshootingGuide

If this unit does not perform properly when operated as instructed in this Owner's Manual, check this unit consulting the following checklist.

PROBLEM

No power.

This ung does not respond to

the remote control

Poor picture or noise.

Timer recording is impossible.

Cannot go into record mode.

Playback picture is partially noisy.

Cannot view a tape but the

audio is OK.

CORRECTIVE ACTION

,Make sure the power plug is connected to an AC outlet.

, Make sure the power is turned on.

, Check if the power plug is connected to an AC outleh

, Check the batteries in the remote control.

, Aim the remote control directly at the remote sensor, if necessary, remove all the obstacles between the sensor and the remote control.

, You have to be within 23 feet (7m) of this unit.

, Check if the right mode is selected, if it's not in the right mode. press [DVD] or [VCR], whichever you need. on the remote control.

, Check if a cassette tape is in this unit.

• Tune your radio to an empty AM station so that you hear a lot of noises. Turn the volume up, then if you hear some signal sound from the

radio in response to your pressing buttons on the remote control, the remote control is working.

, Press and hold any button on remote control toward a digital camera. The remote control is working if you confirm infrared light through the

digital camera.

,interference signal may be received. Change the position and orientation of the unit.

, Make sure the Timer Recording is set correctly.

, Make sure [] indicator on the front panel lights up. If not. press [SUBTITLE/T-SET].

, Make sure the VCR clock is set correctly.

, Make sure the tape has a record tab. if needed, cover the hole with adhesive tape.

, ActNate this unit in VCR mode. Press [VCR] on the remote control so that the VCR OUTPUT light is lit.

, Adiust tracking control for a better picture by pressing [C HANNELV/,6.] on the unit or [SKIP/OH. _.b.I/,6.,I_/v] on the remote control.

, Head cleaning may be necessary. Refer to "AUTO HEAD CLEANING".

, Make sure the VCR is not in the Menu mode.

No or poor, playback picture. , Change the RF output channel to CH4. Then select the same channel on the TV.

_1 ° Pine tune your TV.

TV programs cannot be seen , Re-check the ANT-IN and ANT-OUT connections. See the front page and page 6.

normally. , Press [VCR].

, Press [VCR] on the remote control to aclivate it in the VCR mode. Check if the VCR OUTPUT light is lit. then set it to the TV position by

pressing [VCR].

Video or color fades in and , You cannot copy a copyrighted video tape. You are experiencing copy guard protection.

out when making a copy o1a

video tape.

Cannot remove the tape. ° Check d this unit is in the VCR mode. if not, press [VCR] on the remote control to switch the mode.

No picture. ° Connect the video cable firmly.

° Insed a correct video disc that plays on this unit.

° Press [DVD] on the remote control. Check if the DVD OUTPUT light is lit. Then try other DVD features.

° Set PROGRESSIVE correctly. Turn it on only if your TV has progressive scan and you are using the Component Video connections

between the unit and the TV. Disable progressive scan for all other connections. (See page 7.)

Disc cannot be played. ° Insed the disc.

° Clean the disc.

° Place the disc correctly with the label side up.

° Cancel the parental lock or change the control levels.

° Handle a disc with special care so that it does not have fingerprints, scratches, or dusts on its surface.

No sound. ° Connect the audio cable firmly.

° Turn the power of the audio component on.

° Correct the audio output settings.

°Correct the input settings on the audio component.

Distorted picture. , Connect this unit directly to the TV.

, There are some cases where pictures may be slightly distorted, and those are not a sign of a malfunction.

, Although pictures may stop for a moment, this is not a malfunction.

, Check d the INTERLACEiPROGRESSWE mode is set correctly according to your TV. See pages 20-21.

Audio or subtitle language , The selected language is not available for audio or subtitles on the DVD.

does not match the setup. -This is not a malfunction.

The camera angle cannot be , The DVD does not contain sequences recorded from different camera angles.

changed. -This is not a malfunction.

Audio or subtitle language , The DVD does not contain audio source or subtitles in the selected language.

cannot be changed. -This is not a malfunction.

"Prohibited icon" appears on , That operation is prohibited by this unit or the disc.

the screen, prohibiting an -This is not a malfunction.

operation.

,Some functions are net available in specific modes, but this is not a malfunction. Read the description in this Owner's Manual for details on correct operations.

•Playback from a desired track and random playback are not available during program playback.

•Some functions are prohibited on some discs. - 23 - EN

I DVC841G E8A04UD.indd 23 2006/02/08 18:36:31 I

Specifications

Video Heads : Operating temperature :

Four Heads 41 °F (5°C) to 104°F (40°C)

Output signal format : Dimensions :

NTSC color W : 17 3/16" (435mm)

Power source : H : 3 3/4" (94ram)

120 V AC +/- 10%, 60 Hz +/- 0.5% D : 9 3/16" (233mm)

Power consumption : Weight :

21 W (standby: 3.8W) Approx 6.01bs (2.Tkg)

LanguageCodeList

• Designs and specifications are subject

to change without notice.

. If there is a discrepancy between lan-

guages, the default language will be

English.

_e Code Lan uguage Code Lan ugu_le Code Lance Code

A-B French [FRE] 5264 Macedonian 5957 Siswat 8585

Abkhazian 4748 Frisian 5271 Malagasy 5953 Slovak 8557

Afar 4747 Galioian 5358 Malay 5985 Slovenian 8558

Afrikaans 4752 Georgian 5747 Malayalan/ 5958 Somali 8581

Albanian 8563 German [GER] 5051 Maltese 5986 Spanish [SPA] 5165

An/haric 4759 Greek [GRE] 5158 Maori 5955 Sundanese 8587

Arabic 4784 Greenlandic 5758 Marathi 5964 Swahili 8589

Am/enian 5471 Guarani 5380 Moldavian 5981 Swedish [SWE] 8588

Assamese 4785 Gujarati 5387 Mongolian 5980 T

Ayn/ara 4771 Hausa 5447 Nauru 8047 Tagalog 8658

Azerbaijani 4772 Hebrew 5569 Nepali 8051 Tajik 8653

Bashkir 4847 Hindi 5455 Norwegian [NOR] 8081 Tamil 8647

Basque 5187 Hungarian [HUN] 5467 O-R Tatar 8666

Bengali;Bangla 4860 GK Oooitan 8149 Telugu 6651

Bhutani 5072 Icelandic [ICE] 5565 Oriya 8184 Thai 8654

Bihari 4854 Indonesian 5560 Oromo(Afan) 8159 Tibetan 4861

Bislanla 4855 Interlingua 5547 Panjabi 6247 Tigrinya 6655

Breton 4864 Interlingue 5551 Pashto Pushto 6265 Tonga 6661

Bulgarian 4853 Inupiak 5557 Persian 5247 Tsonga 8665

Burmese 5971 Irish [IRI] 5347 Polish [POL] 8258 Turkish [TUR] 8664

Byelorussian 4851 Italian [ITA] 5566 Poriuguese [POR] 8266 Turkmen 8657

C-E Japanese [JPN] 5647 Queohua 8387 Twi 8689

Can/bodian 5759 Javanese 5669 Rhaeto-Romance 8459 U-Z

Catalan 4947 Kannada 5760 Ron/anian [RUM] 8461 Ukrainian 8757

Chinese [GIll] 7254 Kashn/iri 5785 Russian [RUS] 8467 Urdu 8784

Corsican 4981 Kazakh 5757 S Uzbek 8772

Croatian 5464 Kinyarwanda 8469 Sanloan 8559 Vietnan/ese 8855

Czech [OZE] 4965 Kirghiz 5771 Sangho 8553 Volapuk 8881

Danish [DAN] 5047 Kirundi 8460 Sanskrit 8547 Welsh 4971

Dutch [DUT] 8058 Korean [KOR] 5781 Scots Gaelic 5350 Wolof 8981

English [ENG] 5180 Kurdish 5767 Serbian 8584 Xhosa 7054

Esperanto 5181 L-N Serbo-Oroatian 8554 Yiddish 5655

Estonian 5186 Laothian 5881 Sesotho 8586 Yoruba 7181

F-H Latin 5847 Setswana 6660 Zulu 7267

Faroese 5261 Latvian;Lettish 5868 Shona 8580

Fiji 5256 Lingala 5880 Sindhi 8550

Finnish [FIN] 5255 Lithuanian 5886 Singhalese 8555

If you choose a Language that has a 3 letter language code, the code will be displayed every time you change the Audio or Subtitle language

setting on page 19. If you choose any other languages, '---' will be displayed instead. (3 letter language code is written in bracket.)

SY£VAN#A LiiVIITEDWARRANTY

- 24 - EN

I DVC841G EBA04UD.indd 24 2006/02/08 18:36:31 I

Espafiol

Consulte la "Basic TV Connection" en la pagina delantera

antes de utilizar esta unidad.

3Pulse []I_] para AJUSTE AUTO.

Canalde salidaRF

Si el canal 3 se est& utilizando para una transmisi6n,

1) Programe su televisor al canal 4.

2) Inserte una cinta pregrabada en esta unidad.

3) Pulse [OUTPUT] en la unidad para que se encienda la

luz VCR OUTPUT.

,, Si aparece ruido en la pantalla de TV, presione [VCR/TV]

en el mando a distancia.

4) Pulse una vez [PLAY _-].

5) Despu_s de unos segundos, pulse [PLAY _] en la

unidad durante 3 segundos.

,, El canal de salida RF cambiar_t del canal 3 al canal 4 y

podra ver una imagen reproducida.

*Cuando no aparezca una imagen en la pantalla del

televisor, repita el paso 4.

6) Pulse [STOP m] para parar la reproducci6n.

C _o

OUTPUT

VCR DVD _ _

LUZ _ _f#

DVD OUTPUT _ 5_3@

Bot6n OUTPUT

.......Luz

VCR OUTPUT

MODO VCR

Pulse [VCR] en el control remoto. (Compruebe que esta encendida

la luz VCR OUTPUT.)

MODO DVD

Pulse [DVD] en el control remoto. (Compruebe que estA encendida

la luz DVD OUTPUT.)

Consejo

Si pulsa s61o[OUTPUT] en el panel frontal NO cambia el modo del

control remoto. DEBE seleccionar tambi6n el modo correcto en el

control reR/oto.

Si Pulse [MENU] para salir. ]

No Espere unos minutos.

Despues del escaneo

•El sintonizador se detiene en el canal memorizado m;]s bajo.

•Puede seleccionar s61olos canales memorizados en esta unidad

con [SKIP/CH. _.I/A, I_,q/T] (o [CHANNEL A/T]).

• Si aparece nuevamente "AJUSTE AUTO" en la pantalla de TV,

verifique las conexiones de cable. Presione nuevamente [_].

,Sino sehaajustadoelreioj,aparecela

pantaliaAJUSTEDERELOJcuandopulse

[MENU]. Enestecass,vayaalpaso2.

Seleccione el mes actual.

Seleccione el dia actual.

Seleceione el a_o actual.

AJU_TF r_F_1 oJ

MES DIA A_O

I 0 /

HORAM]NUTO AM/PM

Seleccione la hora actual.

Seleccionelos minutosactuales.

MES DIA A_]O

10 /O2 LUN 2006

HORA M]N!JTO AM/PM

1Encienda el televisor y sintonice al canal 3.

Si el canal 3 se est,. utilizando para una transmisi6n,

vea la secci6n "RF Output Channel".

POWER

7Seleccione "AM" o "PM".

MES DIA A_O

10 , O2 LUN2006

HORA M]NUTO AM_pM

O5 : 4O pF_Af,I

_PM

8Para salir de la pantalla AJUSTE DE RELOJ

-25- ES

DVC841G ESA04UD.indd 25 2006/02/08 18:36:33 I

Antes: Encienda el televisor

y cambie al canal 3.

,Si el canal 3 se esta utilizando

para una transmisi6n, vea la

secci6n "RF Output Channel"•

1 2 Para empezar la

reproduccion

3Para parar la 4Para expulsar

reproducci6n OPEN£LOSE

,EJECT

[]

Antes: Encienda el televisor,

amplificader y otros equipos que

puedan estar conectados a esta

unidad. AsegOrese que el televisor

y el sintoamplificader de audio (de

venta en los comercios) est4n en el

canal correcto.

_( •

(

pOZ_ER OPEmCLOSE

_EJECT

3Para empezar

la reproducci6n

2/dlJ

Ponga un disco con la

efiqueta hacia arriba.

Para pararla

reproducci6n

O@@@

{ { {

_Bot6n eisco/cinla _

@ q:;, @

@ @ @ opara seleccionar *ParaseleccionarelcanaL

direotamente el capftulo o , Para seleccionar directamente la * El boton +10 no tiene efecto

@ @ el titulo, canci6n, en el modo de grabadora de

@ video.

• Para buscar en avarice/

_ retroceso en un disco.

opara empezar la reproducci6n ' Para buscar en avanceiretroceso en * Para el avanceiretroceso de

en avance/retroceso lento un disco, una cinta.

durante el m_o de pausa.

A-B opara repetir entre los puntos ,Para repetir entre los puntos A y B

O A y B elegidos, elegidos. (CD)

ANGLE • Para seleccionar los angulos I I

de la camara en un disco.

AUDIO • Para selecoionar el idioma , Para seleccionar ESTEREO, Uch o

de audio en un disco. R-ch. (CD)

• Para borrar los marcadores. , Para borrar los marcadores. (CD)

CLE_, ° Para borrar los n0meros , Para retirar el N ° de estado en la *Para salir del men0 de la

c _s_T entrados incorrectamente, entrada de programa, grabadora de video.

, Para borrar los n_meros entrados * Para el contador derepon@r

Para borrar el punto para la incorrectamente, cinta.

repetici6n A-B. , Para borrar el punto pan la repetici6n A-B (CD)

DISP_Y • Para indicar el modo de , Para indicar el modo de disco actual. * Para indicar la hora actual,

disco actual, contador de cinta y canal.

• Para seleccionar el modo de , Para seleccionar el modo de salida

DVD salida de DVD. de DVD.

• Para activar el mando a , Para activar e[ mando a distancia en

distancia en el modo DVD. e[ modo DVD.

• Para seleccionar un

J, _ # -;Y--_ item en el menO de la

-_'_ k_ grabadora de video

ENTER

@ @ @ oparamoverelcursory ,Paramoverelcursorydeterminarsu _3 oparaavanzaral

determinar su posici6n, posici6n. \_ siguiente menu de la

grabadora de vid@.

@ _ • Para volver un paso

durante el ajuste del

reloj y temporizador.

MENU • Para Ilamar el menu en un , Para Ilamar la lista de archivo. • Para Ilamar el menu de la

disco. (WMA) grabadora de video.

• Para activaridesactiva r el , Para disponer el orden de reproducci6n o

MODE nivel del negro, la reproducci6n aleatoria. --

• Para activaddesactivar el , Para activar/desactivar el envolvente

envolvente virtual, vJduaL

0PEN,_LCtgE

E_ECT ° Para abrir o cerrar la , Para abrir o cerrar la bandeja del * Para expulsar el videocasete

del disco, disco, de la de video.

bandeja grabadora

PAUSE • Para hacer una pausa de * Para hater una pausa de la

reproducci6n del disco. , Para hacer una pausa en la repr0ducci6n 0 grabaci6n de la cinta

opara avanzar la reproducci6n reproducci6n del disco. * Pala avanzar la repr_ucci6n

un cuadro a la vez. un cuadro a la vez.

• Para empezar la reproducci6n , Para empezar la reproducci6n del * Para empezar la reproducci6n

del disco, disco, de la cinta.

POWER

• Para encender o apagar la , Para encender o apagar la unidad. *Para encender o apagar la

unidad, unidad.

REC/OTR -- -- *Para empezar una grabacibn

o una grabaci6n de un toque.

REPEAT • Para reproducir , Para reproducir repetidamente una

canci6n o disco• (CD) J

repetidamente un capftulo , Para reproducir repetidamente una

o titulo, canci6n, grupo o disco. (WMA)

RETURN • Para volver a la operaci6n , Para volver a la operaci6n previa en

previa en el men0. el men0.

s_c_ • Para buscar un capitulo, , Para buscar una canci6n.

M®E tflulo U hora. , Para buscar la hora. (CD) * Para Ilamar el menu de

opara colocar buscar los ,Para colocar buscar los de indice hora.

o o busqueda u

marcadores, marcadores.(OD)

SETUP • Para Ilamar el menu de , Para Ilamar el men_ de programaci6n --

programacion de DVD. de DVD.

SK_PiCI4 SKIP/CH ,Para cambiar de canal.

_ _ • Para saltar capitulos o titulo. , Para saltar canciones. *Pala ajustar manualmente elseguirnient0

duranteh repr0ducd6n

SLOW *Para vet [a cinta en camara

lenta.

SPEED • Para seleccionar la

velocidad de grabaci6n.

•Para parar la reproducci6n o

• Para parar la reproduccJ6n. , Para parar la reproducci6n, grabaci6n.

• Para poner la grabadora de

S_LE "Para seleccionar subtitulos -- video en el modo de espera

en un para una grabaci6n con

disco.

temporizador.

TOP MENU , Para volver al archivo superior de la

• Para Ilamar el men0 ierarquia mas alta en el programa y --

O superior en un disco, en la lista de archivo. (WMA)

VOR *Para selecdonar el modo de

salida de la gra_dora de video.

•Rata activar el mando a distancia en

el m0d0 de la gmbad01a de vid_

VO_TV • Para seleccionar la posici6n

• Para seleccionar la posici6n de , Para seleccionar la posici6n de

O DVD o posici6n del elevisor. CD/WMA o la posici6n del televisor. de la grabadora de video o

posici6n del televisor.

ZOOM • Para ampliar parte de la -- --

imagen. (x2/x4)

- 26 - ES

I DVC841G E8A04UD.indd 26 2006/02/08 18:36:34 I

QuickUseGuide

Please refer to "Basic TV Connection" on the front page

before you use this unit.

RF_ut Channel

if channel 3 has been already occupied for broadcasting,

1) Set your TV to channel 4.

2) Insert a pre-recorded tape into this unit•

3) Press [OUTPUT] on the unit so that the VCR OUTPUT

light is lit.

-If noise appears on the TV screen, press [VCRfrv] on the

remote control•

4) Press [PLAY _] once•

5) After a few seconds, press and hold [PLAY _,_] on the

unit for 3 seconds.

,, The RF output channel will change to channel 4 from

channel 3 and you will see a playback picture•

-When a picture does not appear on the TV screen,

repeat step 4.

6) Press [STOP m] to stop playback•

on _ Q

DVD OUTPUT N

............... light _ _

OUTPUT button

......VCR OUTPUT light

VCR MODE

Press [VCR] on the remote control. (Verify that the VCR OUTPUT

light is lit.) DVD MODE

Press [DVD] on the remote control. (Verify that the DVD OUTPUT

light is lit.)

Hint

*Pressing only [OUTPUT] on the front panel DOES NOT switch the

mode of the remote control. You MUST select the correct mode on

the remote contro.

1 Turn on the TV and set it to channel 3.

*Ifchannel 3 has been already occupied for broadcasting,

see 'RF Output Charmer' section.

Select your language in the first time you turn on this unit.

Then press [_] to go to next step.

POWER

3Press [l_] to start Auto Set Up.

Yes Press [MENU] to exit. ]

No Please wait for a few minutes.

After scanning...

The tuner stops on the lowest memorized channel.

You can select only the channels memorized in this unit by using

[SKIP/CH. I_¢,'I/A, I_'_/'v] (or [CHANNEL A/'_]).

It "AUTO SET UP" appears on the TV screen again, check the

cable connections. Then, press [_] once again.

1Press [MENU] and select "CLOCK SET".

Then press [_] to go to next step.

If the clock is not set, the CLOCK SET screen appears when

you press [MENU]. In this case, go to step 2.

Select the current month.

Then press [_] to go to next step.

3Select the current day.

Then press [_] to go to next step.

4Select the current year.

Then press [_] to go to next step.

5Select the current hour.

Then press [_] to go to next step.

Select the current minute.

Then press [_] to go to next step.

7Select"AM" or"PM".

8To exit the CLOCK SET screen

- 27 - EN

IDVC841G E8A04UD.indd 27 2006/02/08 18:36:35 I

QuickUseGuide

Before: Turn on the TV and

set it to channel g.

. If channel 3 has been already

occupied for broadcasting, see

"RF Output Channel" section.

1 Insert a video

cassette into this unit

3To stop

playback

2Tostart

playback

4To eject the

cassette

OPENCLOSE

¸¸EJECT

/* \

L -'S

[]

Before: Turn on the TV, amplifier and

any other components which are

connected to this unit. Make sure the

TV and audio receiver (commercially

available) are set to the correct channel.

_'OWEH OPEk_LOSE

,EJECT

L'_J

3To start

playback

Insert a disc with

label facing up.

4To stop

playback

iiii

0_0

GPOQ

GPGPO

G@D(

45÷

Printed in China

3utt0n Disc/Tape

000

OO0

OQO

F27

A-8

ANGLE

AUDIO

CLEAn¸¸

CRESET

DIS£LA¥

....ilil¸ii`i_i_i`i_i_i`i_i_i`i_i_i`i_i_i`i_i_i`i_i_i`i_i_i`i_i_i`i_i_i`i_i_i`i_i_i`i_i_i`i_i_i`i_i_i`iiii_i1i_i_i1i_i_i1i_i_i1i_

• To select chapter or title

direcgy.

*To search forward/back-

ward through a disc.

,To begin slow forward/reverse

playback in the pause mode.

*To repeat between your

chosen point A and B.

,To select camera angles

on a disc.

,To select audio

languages on a disc.

*To clear the markers.

*To clear the numbers

entered incorrectly.

,To cancel the point for

A=B repeat.

*To display the current

disc mode.

• To select track directly.

• To search forward/backward

through a disc.

• To repeat between your chosen

point A and B. (CD)

• To select STEREO, L=ch or R=ch.

(CD)

• To clear the markers. (OD)

• To remove status number in

program input.

• To clear the numbers entered

incorrectly.

• To cancel the point for A=B

repeat.(OD)

*To select channel.

*The +10 button has no

effect in VCR mode.

*To forward/backward a

tape.

•To exit the VCR Menu.

•To reset the tape counter.

•To display the current

tk'_le, tape counter, and

channel.

• To display the current disc ['_lode.

• To select the DVD output • To select the DVD output mode.

DW mode. • To activate the remote control in

_To activate the remote DVD mode.

control in DVD rhode.

•To select an item

qP ¢_ C_'_or,_heVC_M.....

•To advance to theENTER

_ _ _ "T ....... th .......... d "T ...... th .......... d determine '_2--"\_' next VCR M

determine its position, its position.

_/_.., • To go back one

\_/J step during clock

and timer setting.

MENU ,To call up the Menu on a ,To call up the file list. (WMA) ,To call up the VCR Menu.

disc.

MODE *To set black levelon/off. _To arrange the playing order or

_To set virtual surround play randomly.

on/uS. ,To set virtual surround on/off.

OPENCLO3E

E_CT _] 0 open or Close the disc ,To open or close the disc tray. • ] o eject the video

(_ tray. cassette from the VCR.

PAUSE ,To pause disc playback. ,To pause tape playback

,_, _To advance playback one _To pause disc playback, or recording.

frame at a time. ,To advance playback one

frame at a tir'_le.

•To begin disc playback. ,To begin disc playback. ,To begin tape playback.

POWER

•To turn the unit on/off. ,To turn the unit on/uS. ,To turn the unit on/off.

REC/OTR *To star a recording or

One Touch Recording.

• To play a track or disc repeatedly. (CD)

REPEAT *To play a chapter or title _To play a track, group or disc

repeatedly, repeatedly. (WMA)

_ETU_N _To return to the previous _To return to the previous operation --

operation in menu. in menu.

s_c, _To search chapter, title or _To search track.

MOO_ time. _To search time. (CD) ,Totk._leCallsearchUPthe index or

• To set or search the markers. • To set or search the markers. (CD) menu.

SETUP ,To call up the DVD setup ,To call up the DVD setup menu.

_"qenu.

SKiP/OHSKIPiCH _To change channels.

_ .To skip chapters or titles. ,To skip tracks. .To adjust the tracking

manually during playback.

SLOW • To view the tape in slow

__ -- motion.

SP_ED .To select the recording

speed.

_ _To stop playback. ,To stop playback.

_To stop playback or

recording.

T%ET *To select subtitles on a -- *To put the VCR into standby

disc. mode for a Timer Recording.

TOPMENU "To call up the Top Menu _To return to the top file of the

highest hierarchy in the program

on a and file list. (WMA)

disc.

VOR _To select the VCR OLdputmode.

-- -- _To activate the remote

control in VCR rhode.

VORfP,/ •To select DVD position or ,To select CD/WMA position or TV ,To select VCR position or

TV position, position. TV position.

ZOOM ,To magnify par of a

picture. (x2/x4)

1VMN22700 /E8A04UD*_*_

I DVC841G E8A04UD.indd 28 2006/02/08 18:36:37 I

Sylvania DVC841G User Manual DVD/VCR Manuals And Guides L0610599

SYLVANIA DVD/VCR Combo Manual L0610599 SYLVANIA DVD/VCR Combo Owner's Manual, SYLVANIA DVD/VCR Combo installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
