15" Digital /Analog

LCD TV

Owner's Manual

LC155SC8

...._!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!_

DOIDoLeYI

DiGiTAL, .........

ITO RECEIVE DIGITAL/ANALOG SIGNAL, IYOU MUST CONNECT ANTENNA.

"J_i_y_,,........ _iiiiiiiiii__

WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION

CAUTION: TO REDUCETHE RISKOF ELECTRICSHOCK,

DO NOT REMOVECOVER (OR BACK).NO USERSERVICEABLE

PARTSINSIDE.REFERSERVICINGTO QUALIFIED SERVICE

PERSONNEL.

Theimportantnoteislocatedonthe rearofthe cabinet.

Important Safeguards

1o READ INSTRUCTIONS -All the safety and operating instructions

should be read before the appliance is operated.

2o RETAIN INSTRUCTIONS - The safety and operating instructions

should be retained for future reference.

3o HEED WARNINGS - All warnings on the appliance and in the

operating instructions should be adhered to.

4o FOLLOW INSTRUCTIONS - All operating and use instructions

should be followed.

5o CLEANING - UnplugTV from the wall outlet before cleaning. Do

not use liquid cleaners or aerosol cleaners. Use a damp cloth for

cleaning.

EXCEPTION: A product that is meant for uninterrupted service and,

that for some specific reason, such as the possibility of the loss

of an authorization code for a CATV converter, is not intended to

be unplugged by the user for cleaning or any other purpose, may

exclude the reference to unplugging the appliance in the cleaning

description otherwise required in item S.

6o ATTACHMENTS - Do not use attachments not recommended by

the TV manufacturer as they may cause hazards.

7o WATER AND MOISTURE - Do not use this TV near water, for

example, near a bath tub, wash bowl, kitchen sink, or laundry tub,

in a wet basement, or near a swimming pool, and the like.

So ACCESSORIES - Do not place this TV on

an unstable cart, stand, tripod, bracket,

or table. The TV may fall, causing serious

injury to someone, and serious damage to

the appliance. Use only with a cart, stand,

tripod, bracket, or table recommended by the

manufacturer, or sold with the TV.

Any mounting of the appliance should follow

the manufacturer's instructions and should

use a mounting accessory recommended by the manufacturer.

An appliance and cart combination should be moved with care.

Quick stops, excessive force, and uneven surfaces may cause the

appliance and cart combination to overturn.

AMEUBLES - Cet appareil ne dolt _tre plac_

que sur un meuble (avec ou sans roulettes)

recommand_ par le fabricant. Sivous I'

installez sur un meuble _ roulettes, d_placez

les deux ensembles avec precaution. Un arr_t

brusque, l'utilisation d'une force excessive

et des surfaces irr_gulieres risquent de

d_stabiliser l'ensemble et de le renverser.

9o VENTILATION - Slots and openings in the cabinet and the back

or bottom are provided for ventilation and to ensure reliable

operation of the TV and to protect it from overheating, these

openings must not be blocked or covered. The openings should

never be blocked by placing the TV on a bed, sofa, rug, or other

similar surface. This TV should never be placed near or over a

radiator or heat register. This TV should not be placed in a built-in

installation such as a bookcase or rack unless proper ventilation is

provided or the manufacturer's instructions have been adhered to.

leo POWER SOURCES - Th is TV shou Id be operated on ly from the type

of power source indicated on the marking label. If you are not sure

of the type of power supply to your home, consult your appliance

dealer or local power company. For TVs intended to operate from

battery power, or other sources, refer to the operating instructions.

THIS SYMBOL INDICATES THAT DANGEROUS

VOLTAGE CONSTITUTING A RISK OF ELECTRIC

SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THATTHERE ARE

IMPORTANT OPERATING AND MAINTENANCE

INSTRUCTIONS IN THE LITERATURE

ACCOMPANYING THE APPLIANCE.

11 °GROUNDING OR POLARIZATION -This TV is equipped with a

polarized alternating-current line plug (a plug having one blade

wider than the other). This plug will fit into the power outlet only

one way. This is a safety feature. If you are unable to insert the plug

fully into the outlet, try reversing the plug. If the plug should still

fail to fit, contact your electrician to replace your obsolete outlet.

Do not defeat the safety purpose of the polarized plug.

12_ POWER-CORD PROTECTION - Power-supply cords should be

routed so that they are not likely to be walked on or pinched by

items placed upon or against them, paying particular attention to

cords at plugs, convenience receptacles, and the point where they

exit from the appliance.

13_OUTDOOR ANTENNA GROUNDING - If an outside antenna or

cable system is connected to the TV, be sure the antenna or cable

system is grounded so as to provide some protection against

voltage surges and built-up static charges. Article 810 of the

National Electrical Code, ANSI/NFPA No. 70, provides information

with respect to proper grounding of the mast and supporting

structure, grounding of the lead-in wire to an antenna discharge

unit, size of grounding conductors, location of antenna-discharge

unit, connection to grounding electrodes, and requirements for

the grounding electrode. (Fig. A)

RGUREA

EXAMPLE OF ANTENNA GROUNDING ASPER

NATIONAL ELECTRICAL CODE

GROUND

CLAMP

ELECTRIC

SERVICE

EQUIPMENT

ELECTRODESYSTEM

(NEC ART 2s0, PART H)

14o LIGHTNING - For added protection for thisTV receiver during a

lightning storm, or when it is left unattended and unused for long

periods of time, unplug it from the wall outlet and disconnect the

antenna or cable system. This will prevent damage to theTV due

to lightning and power-line surges.

15_ POWER LINES - An outside antenna system should not be located

in the vicinity of overhead power lines or other electric light of

power circuits, or where it can fall into such power lines or circuits.

When installing an outside antenna system, extreme care should

be taken to keep from touching such power lines or circuits as

contact with them might be fatal.

I & OVERLOADING - Do not overload wall outlets and extension

cords as this can result in a risk of fire or electric shock.

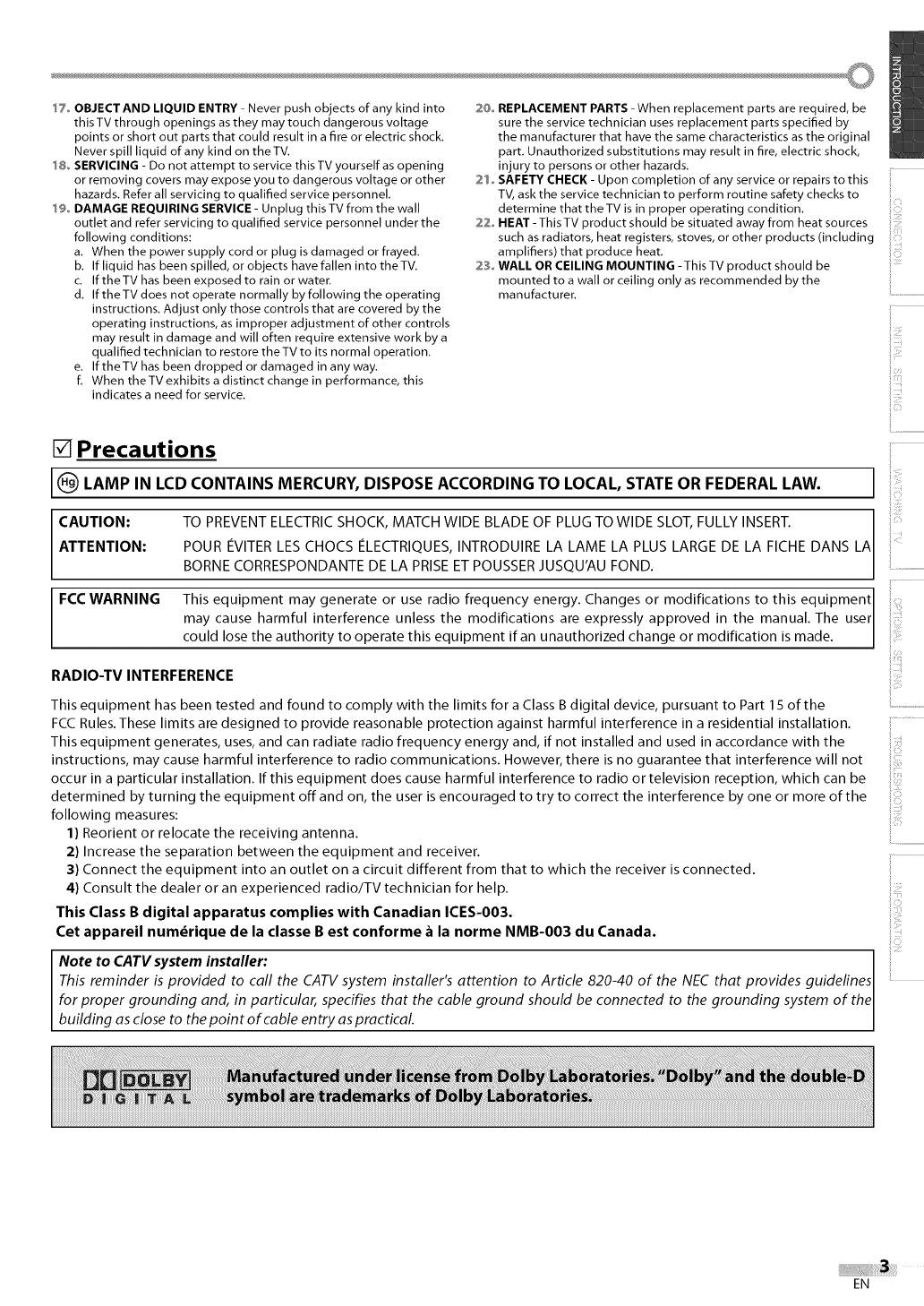

'_7oOBJECT AND LIQUID ENTRY - Never push objects of any kind into

this TV through openings as they may touch dangerous voltage

points or short out parts that could result in a fire or electric shock.

Never spill liquid of any kind on theTV.

'_8_SERVICING - Do not attempt to service this TV yourself as opening

or removing covers may expose you to dangerous voltage or other

hazards. Refer all servicing to qualified service personnel.

'_9oDAMAGE REQUIRING SERVICE - Unplug this TV from the wall

outlet and refer servicing to qualified service personnel under the

following conditions:

a. When the power supply cord or plug is damaged or frayed.

b. If liquid has been spilled, or objects have fallen into the TV.

c. If the TV has been exposed to rain or water.

d. If theTV does not operate normally by following the operating

instructions. Adjust only those controls that are covered by the

operating instructions, as improper adjustment of other controls

may result in damage and will often require extensive work by a

qualified technician to restore the TV to its normal operation.

e. If the TV has been dropped or damaged in any way.

f. When theTVexhibits a distinct change in performance, this

indicates a need for service.

20° REPLACEMENT PARTS - When replacement parts are required, be

sure the service technician uses replacement parts specified by

the manufacturer that have the same characteristics as the original

part. Unauthorized substitutions may result in fire, electric shock,

injury to persons or other hazards.

21o SAFETY CHECK - Upon completion of any service or repairs to this

TV, ask the service technician to perform routine safety checks to

determine that the TV is in proper operating condition.

22° HEAT-This TV product should be situated away from heat sources

such as radiators, heat registers, stoves, or other products (including

amplifiers) that produce heat.

23° WALL OR CEILING MOUNTING - This TV product should be

mounted to a wall or ceiling only as recommended by the

manufacturer.

[] Precautions

(_) LAMP IN LCD CONTAINS MERCURY, DISPOSE ACCORDING TO LOCAL, STATE OR FEDERAL LAW.

CAUTION:

ATTENTION:

FCC WARNING

TO PREVENT,ELECTRIC SHOCK,, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. LA

POUR EVlTER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS

BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment I

may cause harmful interference unless the modifications are expressly approved in the manual. The user

cou dose the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCCRules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-O03.

Cet appareil num_rique de la classe B est conforme _la norme NMB-O03 du Canada.

Note to CATV system installer: I

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines I

for proper grounding and, in particular, specifies that the cable ground should be connected to the grounding system of the

building as close to the point of cable entry as practical.

_i!i:!i

............................

LOCATION

For safeoperation and satisfactory performance of the unit, keep the following in mind when selecting a place for its installation:

• Shield it from direct sunlight and keep it away from sources of intense heat.

• Avoid dusty or humid places.

• Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes at the top and bottom of the

unit. Do not place the unit on a carpet because this will block the ventilation holes.

• Install the unit in a horizontal position.

• Avoid locations subject to strong vibration.

• Do not place the unit near strong magnetic fields.

• Avoid moving the unit to locations where temperature differences are extreme.

• Be sure to unplug the AC power cord from the outlet before carrying the unit.

TO AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

• Do not handle the power cord with wet hands.

• Do not pull on the power cord when disconnecting it from an AC outlet. Grasp it by the plug.

• If, by accident, water is spilled on the unit, unplug the power cord immediately and take the unit to our authorized service center for

servicing.

• Do not place anything directly on top of the unit.

The serial number of this product may be found on the back of the unit. No others have the same serial number as yours. You

should record the number and other vital information here and retain this book as a permanent record of your purchase to aid

identification in case of theft.

date Of purchase dealer phone No. serial No]

dealerpurchasefrom model No. dealer address

Note about recycling: I

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your

local recycling regulations. I

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning

chemical wastes.

[] Supplied Accessories

owner's manual remote control batteries

(1EMN22185) (NF601UD) (AA x 2)

•If you need to replace these accessories, please refer to the part No. with the illustrations and call our toll free

customer support line found on the cover of this manual.

• Depending on your antenna system, you may need different types of combiners (mixers) or separators (splitters).

Contact your local electronics store for these items.

[] Symbols Used in this Manual

The following is the description for the symbols used

in this manual.

Description refers to:

: Digital TV operation

Analog TV operation

• If neither symbol appears under the function

heading, operation is applicable to both.

[]Tilt Stand

You can adjust the stand to change the angle

of the TV (-2.5 ° to 10°).

/iii

iii

10°

[] Features [] Contents

•DTV/TVICATV

- You can use your remote control to select channels which

are broadcast in digital, conventional analog, standard

definition, and high definition formats. Also, cable

subscribers can access their cable TV channels.

• Program Information Display (DTV only)

-You can display the title, contents and other information

of the current DTV program on theTV screen.

•Auto Channel Scan

-This unit automatically scans and memorizes channels

available in your area, eliminating difficult setup

procedures.

• V-chip

-This feature allows you to block child ren's access to

inappropriate programs.

•Closed Caption Decoder

- Built-in closed caption decoder displays text for closed

caption supported programming.

•MTS/SAP Tuner

- Audio language can be selected from the remote control.

•Auto Shut Off Function

- If there is no signal input from the antenna terminal and

no operation for 15 minutes, the unit will turn itself off

automatically.

•Sleep Timer

-This feature will automatically turned off the power of the

unit at a specific time.

•Choices for On-screen Language

- Select your on-screen language:

English, Spanish or French.

•Stereo Sound Function

•PLL Frequency Synthesized Tuning

- Provides free and easy channel selection and lets you tune

directly to any channel using the channel number buttons

on the remote control.

•Component Video Input

•S-video Input

•AV Input

•Digital Audio Coaxial Output

NTRODUCTION

ImportantSafeguards................................................. 2

Precautions.......................................................... 3

SuppliedAccessories.................................................. 4

SymbolsUsedinthisManual....................................... 4

TiltStand............................................................ 4

Features............................................................. 5

RemoteControlFunction.............................................. 6

Installingthe Batteries................................................ 6 '...................................

ControlPanel........................................................ 7

RearPanel........................................................... 7 ',

Attachinga WallMountBracket(soldseparately)........................ 8

CONNECTION

BasicConnection..................................................... 9

ExternalDeviceConnection........................................... 10

NITAL SETTING

InitialSetup......................................................... 12

MainMenu......................................................... 13

AutoChannelScan................................................... 13

LanguageSelection.................................................. 14

WATCHING TV

ChannelSelection................................................... 15

VolumeAdjustment................................................. 15

SwitchingEachMode................................................ 16

SwitchingAudioMode............................................... 16

ScreenInformation.................................................. 17

TVScreenDisplayMode.............................................. 18

SleepTimer......................................................... 18

OPT ONAL SETTING

ChannelAdd/Delete................................................. 19

PictureAdjustment.................................................. 20

ClosedCaption...................................................... 20

DTVClosedCaption.................................................. 21

DTVCCStyle......................................................... 22

BackLightSetting................................................... 23

ColorTemperature................................................... 23

V-chip.............................................................. 24

TROUBLESHOOT NG

TroubleshootingGuide............................................... 27

Maintenance........................................................ 28

NFORMAT ON

Glossary............................................................ 29

CableChannelDesignations.......................................... 29

GeneralSpecifications................................................ 29

ElectricalSpecification............................................... 29

OtherSpecifications............................................. 29

i <:

i ..............................

i(5

i!3

i..............................

i.............

iiii!!i¸ii

LimitedWarranty............................................. Backcover

or stored in any storage medium, in any form or for any purpose without the express prior written consent of Funai.

Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content herein without

the obligation to notify any person or organization of such changes.

F'UNAIwith the _'_ design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way without the express

written consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing

contained in this manual should be construed as granting, by implication or otherwise, any license or right to use any of the

trademarks displayed herein. Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall

aggressively enforce its intellectual property rights to the fullest extent of the law.

[] Remote Control Function

I. POWER button (p12)

Press to turn the unit on and off.

2. MUTE button (p15)

Press to turn the sound on and off.

3. SLEEP button (p18)

Press to activate the sleep timer.

4. Number buttons(p15)

•Press to select channels.

-/ENT. button

• Press to shift the minor channel

from the major channel.

+100 button

• Press to select 100 or higher

channels. (CAW)

• Press to search if there are minor

channels on the currently selected

major channel. (DW)

5. CH.Aiv buttons (p15)

Press to select channels and the

external input mode.

6. VOL._/_ buttons (p15)

Press to adjust the volume.

7. ENTER button (p12)

Press to decide the command of

setting when the main menu is

displayed.

8. SETUP button (p13)

Press to display the main menu.

9. _/1_/A/V buttons (p12)

Press to move left/right/up/

down through the items.

10. RETURN button

Press to return to previous menu

operation.

11. INPUT button (p16)

• Press to access connected an

external device like a DVD player

orVCR.

• Press to switch between the

digital mode (DTV) and analog

mode.

12. DISPLAY button (p17)

Digital Mode (DTV)

• Press to display the channel

information, signal type and TV

setting.

Analog Mode (TV)

• Press to display the channel

number, signal type and TV

setting.

External Input Mode

• Press to display the external

input mode, signal type and TV

setting.

13. AUDIO button (p16)

Digital Mode (DTV)

Press to select the audio

language.

Analog Mode (TV)

Press to select the audio mode.

14. SCREEN MODE button (p18)

Press to select aspect ratio

available for the TV screen.

15. CH. RETURN button (pl 5)

Press to return to previous channel.

[] Installing the Batteries

Install the batteries (AA x 2) matching the polarity indicated inside battery compartment of the remote control.

Battery Precautions:

• Besure to follow the correct polarity as indicated in the battery compartment. Reversedbatteries may cause damage to the device.

• Do not mix different types of batteries together (e.g.,Alkaline and Carbon-Zinc) or old batteries with fresh ones.

• If the device isnot to be usedfor a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

• Do not try to recharge batteries; they can overheat and rupture.

[] Control Panel

top of the unit

[] Rear Panel

side of the unit

1. SETUP button (p13)

Press to display the main menu.

2. VOLUME _/_ buttons (p15)

Press to adjust the volume or move right(_)/left(_)

through the main menu items.

3. CHANNEL A/• buttons (p15)

Press to select channels or move up/down through the

main menu items.

4. INPUT button (p16)

•Press to access connected an external device like a

DVD player or VCR.

• Press to switch between the digital mode (DTV) and

analog mode.

5. POWER button (p12)

Press to turn the unit on and off.

6. Infrared Sensor Window

Receives infrared rays transmitted from the remote

control.

1. ANT jack (pg)

RF coaxial cable connection for your antenna or cable

box.

2. HEADPHONE jack

Headphone connection for personal listening.

3. COMPONENT and AUDIO input jacks (plO)

Component video cable connection for an external

device.

Use component video and audio output jacks of an

external device.

4. AUDIO input jacks (plO)

RCA audio cable connection for an external device.

5. VIDEO input jack (pl 1)

RCA video cable connection for an external device.

6. S-VIDEO input jack (plO)

S-video cable connection for an external device.

7. COAXIAL (digital audio) output jack (pl 1)

Digital audio coaxial cable connection for a decoder or

an audio receiver.

Use digital audio input jack of an external device.

8. AC power cord

Connect to a standard AC outlet to supply power to

this unit.

if"

iii_i'!:i

............................

i.............

ii_i::ii

iiI,L

rear of the unit 4

I\ "t ' i

[ Attaching a Wall Mount Bracket (sold separately)

Thefollowingisa descriptionofthe methodforattachinga wallmountto thisunit.

Whenperformingthisoperation,refertothe instructionmanualincludedwiththewall mountkit.

You need the following wall mount kit for this unit.

Vision Mount LCD Mounts

Model number: VMFb

For more information, please visit CSAV website at www.csavinc.com

* _1_and _2_indicate the

position of the screw holes

on this unit.

rear of this unit

stand

1 Turn this unit over and place it screen-first onto a table

which has a soft cloth draped over it.

Place this unit in a way so that the stand hangs over

the edge of the table.

Note:

•Make sure to usea table which can support the weight of this

unit and islarger than this unit.

• Make sure the table is in a stable location.

2 Remove the stand from this unit.

Unscrew the M4 screws indicated by O)and remove the

stand. Please be careful with the unit after you remove

the stand.

Note:

• The M4 screws and stand you have removed are necessaryI

for reattachment at a later date. Make sure to keep them in a

safe place.

3 Attach the monitor plate to this unit using the 4 bolts

included with the wall mount kit.

You do not need to use the lock washers for mounting

this unit.

Note:

• Only use the screw holes indicated by _for mounting this I

unit. I

• For instructions on how to attach the monitor plate, refer to

the instruction manual included with the wall mount kit.

Attach this unit to the wall.

Note: mount

• Referto the instruction manual included with the wall

kit when securing this unit to the wall.

If you want to attach the stand of this unit again,

insert the stand slowly as illustrated below and drive

M4 screws in the 4 threaded holes (_i)).

[] Basic Connection

Thissectiondescribeshowto connecttheunit toanantenna,cable/satellitebox,etc.

Note:

•Besure yourantenna or other device is connected properly before plugging in the power cord.

[Antenna Cable Connection]

When connecting the unit to an antenna or cable TV company (without cable/satellite box)

Connect the RF coaxial cable on your home outlet to the antenna input jack of this unit.

e.g.)

VHF/UH_I_

antenna II rearofthis unit

RF coaxial cable

ca ble TV

company

_Once connections are completed, turn on the unit and begin initial setup.

Channel scanning is necessary for the unit to memorize all available channels in your area.

(Refer to "Initial Setup" on page 12.)

Note:

•Foryour safety and to avoid damage to device,please unplug the RFcoaxial cable from the antenna input jack before moving the unit.

• If you use an antenna to receiveanalog TV,it should also work for DTV reception. Outdoor or attic antennas will be more effective than set-

top versions.

• Toeasilyswitch your reception source between antenna and cable, install an antenna selector.

• If you connect to the cable system directly, contact the CATVinstaller.

i::!

ii,i:i?_

iii_i'!:i

[Connection to Cable Box or Satellite Box]

Connect the RF coaxial cable on your home outlet to the input jack of the cable/satellite box.

Use another RF coaxial cable to connect the antenna input jack of the unit to the output jack of the cable/satellite box. .....

e.g.}

satellite rear of this unit

d ish cable/satellite box ::

cable TV RF coaxial cable RF coaxial cable

company

_Required cables and connecting methods differ depending on the cable/satellite box.

For more information, please contact your cable/satellite provider.

[] External Device Connection

[Component Video Cable Connection]

Component video connection offers better picture quality for video devices connected to the unit.

Use a component video cable to connect the unit to external video devices equipped with component video output

jacks.

If you connect to the unit's component video input jack, connect RCA audio cables to the audio L/R jacks of VIDE02.

e.g.)

DVD player with the component

video output jacks

component

video cable

rear of this unit

RCA audio cable

Note:

•This unit accepts480i/480p/simplified 1080ivideo signals.

• Simplified 1080ivideo signal differs to the original 1080ivideo signal becauseit is displayed after converted into 480p signal.

iS-video Cable Connection]

S-video connection offers good picture quality for video devices connected to the unit.

Use an S-video cable to connect the unit to external video devices equipped with S-video output jack.

If you connect to the unit's S-video input jack, connect RCA audio cables to the audio L/R jacks of VIDE01.

e.g.)

DVD player with the S-video

output jack

rear of this unit

AUDIO OUT S-VIDEO

FL R ] OUT

RCAaudio cable

Note:

•If you connect to the S-videojack and the videojack at the same time, the S-video connection will have priority.

[Video Connection]

Video connection offers standard picture quality for video devices connected to the unit.

If you connect to the unit's video input jack, connect RCA audio cables to the audio L/R jacks of VIDE01.

When the audio jack of the video device is monaural, connect the RCA audio cable to the audio L input jack.

rear of this unit

e.g.)

camcorder

VCR

FAUD'OOUTIV'D_O1

I L R OUT l

Note:

•If you connect to the S-videojack and the videojack at the same time, the S-video connection will have priority.

[Digital Audio Output Connection]

If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1 ch digital

broadcasting sound.

rear of this unit

ii,D_

if"

iii_i'!:i

_i!:!i

iiii!!:i

Dolby Digital decoder

DIGITAL AUDIO

COAXIAL IN

digital audio coaxial cable

ii_{::ii

iiI,L

[] Initial Setup

This section will guide you through the unit's initial setting which includes

selecting a language for your on-screen menu and "AUTOPRESETCH" which

automatically scansand memorizes viewable channels.

Beforeyoubegin:

Makesureiftheunitisconnectedtoantennaorcable.

1 After making all the necessary connections, press

[POWER] to turn on the unit.

•This operation may take a few moments.

2 Use [Cursor A/V] to select the on-screen language

from the choices on the right side of the TV screen.

(ENGLISH /ESPAiqlOL /FRAN(_AIS)

or SELECT LANGUAGE ENGLISH

SELECCIONE EL IDIOMA ESPANOL

CHOISIR LA LANGUE FRANOAIS

SELECT:_,_ SET:ENTER

SELECCIONE:_,T AJUSTE:ENTER

CHOIX:A,T VALIDER:ENTER

Note:

•If you connect the cable system directly, contact the CATV

installer.

• If you press [POWER] or [SETUP] during "AUTO PRESET CH"

this setting will be canceled.

• The initial auto channelscan function can be executed for

either TV/DTV or CATV only once. If you want to scan both

TV/DTV and CATV, you need to select "CHANNEL SETUP" in

the main menu to scan and memorize other channels after

initial presetting is completed. (Refer to page 13.)

• You can cancel or exit the initial "AUTO PRESET CH" menu by

pressing [SETUP].

• When no channel can be received by "AUTO PRESET CH"

"NO TV SIGNALS" is displayed on the TV screen.

• If there is no signal input from the antenna terminal and

no operation for several seconds after you turn on the unit,

"HELPFUL HINTS" appears. Follow the instructions listed on

the TV screen.

- HELPFULHINTS-

1. PLEASE CHECKTO SEE IF THE

ANTENNA/CABLE /SATELLITEIS

PROPERLYCONNECTED.

2. DIDYOU PERFORM"AUTO PRESETOH"?

3. PLEASE REFERTO FRONTPAGEOFTHE

OWNER'SMANUALOR REAR PANEL FOR

SUPPORT LINEINFORMATION.

• "INITIAL SETUP" menu on step 3 will be displayed in

the selected language after you press [ENTER].

3 Use [Cursor A/V] to select"AUTO PRESET CH(TV/DTV)"

for TV channels or"AUTO PRESET CH(CATV)" for CATV

channels, then press [ENTER].

or - INITIALSETUP-

PLEASECONNECTANTENNA OR CABLE

OR SATELLITETOTHIS UNIT

AUTO PRESETCH (TV/DTV)

AUTO PRESETCH (CAW)

• Scanning and memorizing the channels automatically

start.

AUTO PRESETCH(TV/DTV)

I :

• When the scanning and memorizing are completed,

the lowest memorized channel in the broadcasting

will be displayed.

[] Main Menu

Thissectiondescribestheoverviewofthe mainmenudisplayedwhenyou

press[SETUP].Formoredetails,seethe referencepageforeachitem.

Themainmenuconsistsof thefunctionsettingitemsbelow.

Press [SETUP].

e.g.) digital TV mode

- TVSETUP -


CHANNEL SETUP

V-CHIP SETUP

LANGUAGE [ENGLISH]

CAPTION [OFF]

BACK LIGHT [BRIGHT]

COLOR TEMR [NORMAL]

DTVCS

•PICTURE

You can adjust the picture quality.

(Refer to "Picture Adjustment" on page 20.)

•CHANNEL SETUP

You can automatically scan the viewable channels and

remove those that are undesired.

(Refer to"Auto Channel Scan" on page 13.)

•V-CHIP SETUP

You can set the viewing limitations.

(Refer to"V-chip"on page 24.)

•LANGUAGE

You can change the language (English, Spanish,

French) displayed on the main menu.

(Refer to"Language Selection" on page 14.)

•CAPTION

You can change the display format for closed caption,

which displays the dialogue of a TV program or other

information across the TV screen.

(Refer to "Closed Caption" on page 20.)

•BACK LIGHT

You can set the desired brightness mode.

(Refer to "Back Light Setting" on page 23.)

•COLOR TEMP.

You can adjust color temperature ("NORMAL", "WARM",

"COOL").

(Refer to "Color Temperature" on page 23.)

•DTVCC

In addition to the basic closed caption described

on page 20, DTV has its own closed caption called

DTVCC.

(Refer to "DTV Closed Caption" on page 21 .)

[]Auto Channel Scan

If you switchwires (e.g., betweenantennaandCATV)orif youmovetheTV

toa differentareaafterthe initialsetting,orifyourestorethe DTVchannel

youdeleted,youwill needto performautochannelscan.

Beforeyoubegin:

Makesureiftheunitisconnectedtoantennaorcable.

1 Press [SETUP] to display the main menu.

2Use [Cursor A/V] to select"CHANNEL SETUP': then

press ]ENTER].

e.g.) digital TV mode

- TVSETUP -


CHANNEL SETUP

V-CHIP SETUP

LANGUAGE [ENGLISH]

CAPTION [OFF]

BACK LIGHT [BRIGHT]

COLOR TEMR [NORMAL]

DTVCC

3Use [Cursor A/V] to select your desired preset type,

then press ]ENTER].

e.g.) digital TV mode

- CHANNEL SETUP-

ADD/DELETE(DTV)

AUTO PRESETCH(DTV)

AUTO PRESETCH(TV/DTV)

AUTO PRESETGH(CATV)

! CATV takesapprox. 50rob.

iii_iiii_i

ii(:/_

:]i!

iii_i'!:i

............................

i.............

•When aerial antenna is connected, select"AUTO

PRESETCH(TV)","AUTO PRESET CH(DTV)" or"AUTO

PRESET CH(TV/DTV)" :i

• When connected to CATV, select"AUTO PRESET CH ......

(CATV)".

• Scanning and memorizing the channels automatically

start. ',

e.g.) digital TV mode i

D25

AUTO PRESETCH(DTV)

I :; :;

• When the scanning and memorizing are completed,

the lowest memorized channel will be displayed.

• When you selected "AUTO PRESET CH(TV/DTV)': the

lowest memorized analog channel will be displayed

when the scanning and memorizing are completed.

If there is no analog channel, the lowest memorized

digital channel will be displayed.

Note:

•If you connect the cable system directly, contact the CATV

installer.

• If you press [POWER] or [SETUP] during auto channel scan,

the setting will be canceled.

• When no channel can be received by auto channel scan,

"NO TV SIGNALS" will be displayed on the TV screen.

•Channel settings will be saved even if the power fails.

• If you have Spanish or French menus and need English,

press [SETUP]. Use [Cursor Air] to select "IDIOMA"

or "LANGAGE'[ Press [ENTER] to select "ENGLISH" Press

[SETUP] to remove the main menu.

• With regard only to the digital channel, even after the

scanning is complete if you unplug the AC power cord

before turning off the unit by pressing [POWER], the

channel setting may be lost.

[] Language Selection

Youcan choose English, Spanish, or French asyour on-screen language.

1 Press [SETUP] to display the main menu.

2 Use [Cursor AIr] to select"LANGUAGE", then press

[ENTER] repeatedly to change the setting.

e.g.) digital TV mode

- TVSETUP -


CHANNEL SETUP

V-CHIP SETUP

LANGUAGE [ENGLISH]

CAPTION [OFF]

BACK LIGHT [BRIGHT]

COLOR TEMR [NORMAL]

DTVCC

NGLISH]

SPAI_OL]

RAN(_AIS]

3 Press [SETUP] to exit.

[] Channel Selection

Selectchannelsbypressing[CH.A/V] or[the Numberbuttons].

[] Volume Adjustment

Thissectiondescribeshowto adjustthe volume.Themutefunction,which

turnsthe soundoff andon,isalsodescribed. ..............................

•To select the memorized channels, use [CH. A/V] or

[the Number buttons].

• To select the non-memorized channels use

[the Number buttons].

To Use [the Number buttons]

-When selecting analog channel 12

-When selecting digital channel 12-1

Be sure to press [-lENT.] before entering the minor

channel number.

ENT

• Press [CH. RETURN] to return to the previously

viewed channel.

• When you select a channel larger than 100, press

[+100] first. Then use [the Humber buttons] to press

the lower 2-digit numbers.

Use [VO/. &_] to adjust the audio volume.

VOLUME 20

IIIIII ..........

• The volume bar will be displayed at the bottom of the

TV screen when adjusting the volume.

• The volume bar display will automatically disappear in

a few seconds.

Press [MUTE] to turn offand on the sound.

MUTE

MUTE 20

IIIIII ..........

• "MUTE" is displayed on the TV screen for a few

seconds.

ili:i_!

il.................

A bout digital TV broadcasting:

With its high definition broadcast, digital broadcasting

far surpasses analog broadcasting in both its picture

and sound quality.

What is the minor channel?

By using high compression technology, digital

broadcasting offers a service that enables multiple

signals to send simultaneously.

Therefore, you can select more than one program per

major channel since digital broadcasting technology

distinguishes between multiple channels broadcast by

a single network.

NTSC(analog mode) [Air Time: ATSC(digital mode)

18:00

18:30

19:00

19:30

20:00

20:30 /c-H L i

major channel minor channel

,,_ : change automatically

_> :change manually by using [CH. A/V]

Note:

•"NOSIGNAL"will appear on the TVscreenafter the minor

channel broadcast is over,

Press [MUTE] again or [VOI.. &_] to recover the

original volume. .....!!!!i!!........................

i.............

iiii!!:i

ii_i::ii

iiIL

[] Switching Each Mode

Youcaneasilyswitchwith the remotecontroltothe DTV(ATSC)andTV

(NTSC)orto accessanexternaldevicewhentheyareconnectedtothe unit.

[] Switching Audio Mode

Thissectiondescribeshowto switchthe audiointheanalogmodeandhow

toswitchthe audiolanguageinthe digitalmode.

Press [INPUT] repeatedly to cycle through analog TV,

digital TV, VIDEO1 and VIDEO2.

[ANALOG MODE]

iNPUT [DIGITAL MODE]

[VIDEO1]

[VIDEO2]

•To use the video or S-video input jack on the unit,

select'VIDEO1".

•To use the component video input jack on the unit,

select'VIDEO2".

While receiving an MTS broadcast, press [AUDIO]

repeatedly to cycle through the available audio

channel.

AUDIO _MAIN]

L_ oNol

MAIN : Outputs main-audio

SAP : Outputs second audio program

MONO : Outputs mono-audio

• The current mode will automatically disappear in 10

seconds.

Note:

•Whenyou switch the analog mode to the digital mode,

it may take a while until the digital channel selection is

completed. Thefollowing TVscreenis displayed while

switching the mode.

NOWSCANNING

Press [AUDIO] to display the currently selected

language and the number of available languages.

AUDIO

2 Press [AUDIO] repeatedly to cycle through the available

audio languages.

[ENGLISH]

AUDIO

[SPANISH]

[FRENCH]

• Available languages differ depending on the

broadcast. "OTHER" is displayed when the audio

language cannot be acquired, or the acquired

languages are other than English, Spanish or French.

• The current mode will automatically disappear in 10

seconds.

Note:

• Pressing[AUD O] does not control external audio device.

[] Screen Information

Yoncandisplaythe currentlyselectedchannelor otherinformationsuchas

the audiomodeontheTVscreen.

iii_iiii_i

In theanalogmode,the currentchannelnumberisdisplayed.

Press [DISPLAY].

DISPLAY

CH 25

•The current channel number is displayed at the top-

right corner of the TV screen.

•To clear the display, press [DISPLAY[ again.

In the digitalmode,thedetailedbroadcastinginformationforthe current

channelsuchasprogramtitle, programguidesaredisplayed.

Press [DISPLAY[ repeatedly to cycle through the

available display modes.

[OFF]

DISPLAY I

[BROADCASTING INFORMATION]

[PROGRAM GUIDE]

..I

[Broadcasting Information]

•The following information is displayed.

1 channel number

2 broadcast station

3program title

4audio language

(Refer to "Switching Audio Mode" on page 16.)

[Program Guide]

•The program guide added to broadcasting

information is displayed.

guide

il.................

.....!!!!i!!........................

i.............

Note:

•When the program guide consists of more than 6 lines, use

[Cursor A/V] to scroll

•"No description provided"is displayed when the program

guide isnot provided.

• While the program guide is displayed, the closed caption

function is interrupted.

• In external input mode, the following screenis displayed;

e.g.)When an external device is connected to VIDEO1 input

jack.

VIDEO1 i

•Available languages differ depending on the broadcast.

• The information display will automatically disappear in 1

minute.

• Pressing[AUDIO] doesnot control external audio device.

[] TV Screen Display Mode

2typesofdisplaymodescanbeselectedin thedigitalmodewhenthe

broadcastingstationissending16:9videosignal.

Press [SCREEN MODE] repeatedly to switch the TV

aspect ratio.

SCREEN

MODE

LETTERBOX ZOOM

[LETTERBOX]

Display the digital-supported program in full-screen.

Black borders will spread in the upper and lower

screen.

[ZOOM]

Enlarge and display the center area of the digital-

supported program.

The right and left side of image will be cut off.

Note:

•Youmay not switch the display mode depending on the

program.

[] Sleep Timer

Thesleeptimercanbesettoautomaticallyturnoffthe unit afteran

incrementalperiodoftime.

Press [SLEEP] to set the sleep timer.

SLEEP

SLEEP OFF

•Sleep timer display appears on the TV screen.

2 Press [SLEEP] repeatedly to change the amount of

time until shut off.

SLEEP

SLEEP 120MIN.

• You can set your unit to turn off after a set period of

time (from 30 to 120 minutes).

• Each press of [SLEEP] will increase the time by 30

minutes.

• After set up, the sleep timer display can be called up

for checking by pressing [SLEEP].

To Cancel the Sleep Timer

Press [SLEEP] repeatedly until "SLEEP OFF" is displayed

on the TV screen.

Note:

•Thesleep timer setting display will automatically disappear

in 10seconds.

• Whenyou disconnect the unit from theAC outlet or when a

power failure occurs, the sleep timer setting will be canceled.

[] Channel Add/Delete

Thechanneladd/deletefunctionletsyouaddthechannelthat wasnot

addedbytheautochannelscandueto the receptionstatusat theinitial

setting.Youcanalsodeletetheunnecessarychannels.

Press [SETUP] to display the main menu. 6 Press [SETUP] to exit.

iii_iiii_i

2 Use [Cursor A/V] to select"CHANNEL SETUP", then

press [ENTER].

e.g.) digital TV mode

- TVSETUP -


CHANNEL SETUP

V-CHIP SETUP

LANGUAGE [ENGLISH]

CAPTION [OFF]

BACK LIGHT [BRIGHT]

COLOR TEMR [NORMAL]

DTVCC

Use [Cursor A/V] to select"ADD/DELETE(DTV)" or

"ADD/DELETE", then press [ENTER[.

e.g.) digital TV mode

ICHANNEL SETUP-

ADD/DELETE(DTV)

AUTO PRESETCH(DTV)

AUTO PRESETCH(TV/DTV)

AUTOPRESETCH(CATV)

] CATV takes approx. 50rain.

Select the channel you want to add or delete. (Refer to

"Channel Selection" on page 1S.)

e.g.) digital TV mode

D25

ADD/DELETE:DTV

5 Use [Cursor _1/I_] to select"ADD" or"DELETE".

Note:

• "ADD/DELETE(DTV)"or "ADD/DELETE"menu will disappear

automatically in about 10seconds.

• In the digital mode (DTV),you can add or delete channels

only for major channel

• Once you delete a DTV channel, you cannot recover the

channel without performing auto channel scan again.

(Referto "Auto Channel Scan" on page 13.)

ii,i:i/_

il............

ili_i!ill

iiii!!:i

ii_i::ii

iiIL

•To add or delete another channels, repeat steps 4-5.

• Color of channel number displayed at the right top of

the TV screen indicates;

- Blue: The selected channel will be added.

- Red: The selected channel will be deleted.

[] Picture Adjustment

Youcanadjustbrightness,contrast,color,tint andsharpness.

1 Press [SETUP] to display the main menu.

[] Closed Caption

Youcanviewclosedcaptioning (cc)forTVprograms,moviesandnews.

Closedcaptionrefertotext ofdialogueordescriptionsdisplayedon-screen

forthehearingimpaired.

1 Press [SETUP] to display the main menu.

2 Use [Cursor A/V] to select"PICTURE", then press

[ENTER].

e.g.) digital TV mode

- TVSETUP -

_-PICTURE

CHANNEL SETUP

V-CHIP SETUP

LANGUAGE [ENGLISH]

CAPTION [OFF]

BACK LIGHT [BRIGHTj

COLOR TEMR [NORMAL]

DTVCC

3 Use [Cursor A/V] to select the picture quality type you

want to adjust.

[BRIGHTNESS]

[CONTRAST]

or [COLOR]

[TINT]

[SHARPNESS]

Within 5 seconds, use [Cursor _1/1_] to adjust the

quality.

Cursor _1 Cursor I_

BRIGHTNESS to decreasebrightness to increase brightness

CONTRAST to decrease contract to increasecontract

COLOR to decreasecolor to brighten color

TINT to add purple to add green

SHARPNESS to make soft to make clear

5 Press [SETUP] to exit.

Note:

•Thepicture adjustment setting display will automatically

disappear in 10seconds.

Use [Cursor A/V] to select"CAPTION", then press

[ENTER] repeatedly to change the setting.

e.g.) digital TV mode

- TVSETUP -


CHANNEL SETUP

V-CHIP SETUP

LANGUAGE [ENGLISH]

CAPTION [OFF]

BACK LIGHT [BRIGHT]

COLOR TEMR [NORMAL]

DTVCC

[OFF]

[CAPTIONI]

[CAPTION2]

[TEXTI]

[TEXT2]

.El

[Caption Mode]

CAPTION1 and TEXT1;

are the primary caption and text services.

The captioning or text is displayed in the same

language as the program's dialogue

(up to 4 lines of script on the TV screen, where it does

not obstruct relevant parts of the picture).

CAPTION2 and TEXT2;

are rarely available and broadcasters use them

only in special conditions, such as when "CAPTION1"

or'TEXT1" is not available.

•There are 3 display modes according to programs:

Paint-on mode: Displays input characters on the TV

screen immediately.

Pop-on mode: Once characters are stored in

memory, they are displayed all at

once.

Roll-up mode: Displays the characters continuously

by scrolling (max. 4 lines).

3 Press[SETUP] to exit.

Note:

•To show the closed caption on your TVscreen, broadcast

signal must contain the closed caption data.

• Not all TVprograms and commercials have the closed

caption or all types of the closed caption.

•Captions and texts maynot match the TVvoice exactly.

•Changing channels may delay the closed caption for afew

seconds.

• Adjusting or muting the volume may delay the closed

caption for afew seconds.

• Abbreviations, symbols and other grammatical shortcuts

may be used in order to keep pace with the on-screen

action. This is not aproblem with the unit.

• The caption or text characters will not be displayed while

the main menu or functions display is shown.

• Ifa black box appears on the TVscreen, this means that the

closed caption is set to TEXT mode. To clear the box, select

"CAPTION 1'; "CAPTION 2" or "OFF':

• If the unit receives poor quality television signals, the

captions may contain errors, or there might be no captions

at alL Some possible causes of poor quality signals are:

-Automobile ignition noise

-Electric motor noise

-Weak signal reception

-Multiplex signal reception (ghosts or screen flutter)

• The unit retains the closed caption setting if the power fails.

[] DTV Closed Caption

Inadditiontothe basicclosedcaption describedonpage20, DTVhasits

ownclosedcaptioncalledDTVCC.Usethismenutochangethe settingsfor

DTVCC

1 Press [SETUP] to display the main menu.

2 Use [Cursor A/V] to select"DTVCC", then press

[ENTER].

e.g.) digital TV mode

- TVSETUP -


CHANNEL SETUP

V-CHIP SETUP

LANGUAGE [ENGLISH]

CAPTION [OFF]

BACK LIGHT [BRIGHT]

COLOR TEMR [NORMAL]

DTVCC

Use [Cursor A/V] to select"CAPTlON SERVICE", then

press [ENTER] repeatedly to change the setting.

-DTVCC -

CAPTIONSERVICE [SERVICE1/6]

USER SETTING [ON]

CAPTION SIZE [MIDDLE]

FONT STYLE [STYLE1/8]

CHARACTEREDGE [NONE]

FORE OPACITY [SOLID]

FORE COLOR [WHITE]

BACK OPACITY [SOLID]

BACK COLOR BLACK

CAPTION SERVICE

OFF

SERVICE1 N6

Select if you do not want

DTVCC. This is the default.

Select one of these before

changing any other item in

"CAPTION" menu. Choose

"SERVICE1/6" under normal

circumstances.

iii_iiii_i

i::!

ii,i:i/_

Press [SETUP] to exit.

Note:

•"CAPTIONSERVICE"that you can switch differs depending

on the broadcast description.

[] DTVCC Style

Youcanchangethestyleof DTVCCsuchasfont,colororsize,etc.

Press [SETUP] to display the main menu.

2 Use [Cursor A/V] to select"DTVCC", then press

[ENTER].

e.g.) digital TV mode

- TVSETUP -


CHANNEL SETUP

V-CHIP SETUP

LANGUAGE [ENGLISH]

CAPTION [OFF]

BACK LIGHT [BRIGHT]

COLOR TEMF_ [NORMAL]

DTVCC

3 Use [Cursor A/V] to select"USER SETTING", then press

[ENTER] repeatedly to set to "ON".

•Items in the dotted box are available only when "USER

SETTING" is"ON".

- DTVCC-

CAPTION SERVICE [SERVICE1/6]

FONT STYLE [STYLE1/8]

CHARACTER EDGE [NONE]

FORE OPACITY [SOLID]

FORE COLOR [WHITE]

BACK OPACITY [SOLID]

BACK COLOR BLACK

Use [Cursor A/V] to select an item, then press

[ENTER] repeatedly to change the setting for the item.

or - DTVCC-

CAPTION SERVICE [SERVICE1/6]

USER SETTING [ON]

CAPTION SIZE [MIDDLE]

FONT STYLE [STYLE1/8]

CHARACTER EDGE [NONE]

FORE OPACITY [SOLID]

FORE COLOR [WHITE]

BACK OPACITY [SOLID]

BACK COLOR BLACK

CAPTION SIZE

FONT STYLE

CHARACTER EDGE

FORE OPACITY

FORE COLOR

BACK OPACITY

BACK COLOR

• CAPTION SIZE

Closed captioning font size can be changed as below.

•FONT STYLE

Font style of the displayed caption can be switched as

below.

•CHARACTER EDGE

Edge type of the displayed caption can be switched

as below.

•FORE COLOR, BACK COLOR

Font and background color of the displayed caption

can be switched as below.

•FORE OPACITY, BACK OPACITY

Text and background opacity of the displayed caption

can be switched as below.

MIDDLE, LARGE,SMALL

STYLE1/8 Proportional font used in the

menu screen

STYLE2/8 Monospaced with serifs

STYLE3/8 Proportionally spaced with

serifs

STYLE4/8 Monospaced with serifs

STYLES/8 Proportionally spaced

without serifs

STYLE6/8 Casual font type

STYLE7/8 Cursive font type

STYLE8/8 Small capitals

NONE,RAISED,DEPRESSED,UNIFORM,

SHADOW LEFT,SHADOW RIGHT

SOLID,TRANSLUCENT,FLASH

WHITE,BLACK, RED,GREEN,YELLOW,

BLUE,MAGENTA,CYAN,TRANSPARENT

SOLID,TRANSLUCENT,FLASH

BLACK,RED,GREEN,BLUE,YELLOW,

MAGENTA,CYAN,TRANSPARENT,WHITE

5 Press [SETUP] to exit.

[] Back Light Setting

Youcansetthe desiredbrightnessmode.

Press [SETUP] to display the main menu.

[] Color Temperature

YoucanadjustcolortemperatureoftheTVscreen.

Press [SETUP] to display the main menu.

iii_iiii_i

2 Use [Cursor A/V] to select"BACK LIGHT", then press

[ENTER] repeatedly to change the setting.

e.g.) digital TV mode

- TVSETUP -


CHANNEL SETUP

V-CHIP SETUP

LANGUAGE [ENGLISH]

CAPTION [OFF]

• - BACK LIGHT [BRIGHT]

COLOR TEMR [NORMAL]

DTVCC

3 Press [SETUP] to exit.

[BRIGHT]

[NORMAL]

[DARK]

Use [Cursor A/V] to select"COLOR TEMP", then press

[ENTER] repeatedly to change the setting.

e.g.) digital TV mode

- TVSETUP -


CHANNEL SETUP

V-CHIP SETUP

LANGUAGE [ENGLISH]

CAPTION [OFF]

BACK LIGHT [BRIGHT]

I_ COLOR TEMR [NORMAL]

DTVCC

-I

[NORMAL]

[WARM]

[COOL]

Press [SETUP] to exit.

ii,iiii_'_

il............

ili5

iiIL

[]V-chip

V-chipreadstheratingsforprograms,thendeniesaccesstotheprograms

whichexceedtheratinglevelyouset.Withthisfunction,youcanblock

certainprogramminginappropriateforchildren.

1 Press [SETUP] to display the main menu.

2 Use [Cursor i/V] to select"V-CHIP SETUP", then press

[ENTER].

e.g.) digital TV mode

- TVSETUP -


CHANNEL SETUP

V-CHIP SETUP

LANGUAGE [ENGLISH]

CAPTION [OFF]

BACK LIGHT [BRIGHT]

COLOR TEMF_ [NORMAL]

DTV CC

_,,.....

4 Use [Cursor liT] to select"TV RATING", then press

[ENTER].

e.g.) digital TV mode

- V- CHIP SETUP-

'> TV RATING

MPAARATING

DOWNLOADABLERATING

CHANGE PASSWORD

5 Use [Cursor A/V] to select the desired rating, then

press [ENTER[ repeatedly to switch between "VIEW"

and "BLOCK".

3 Use [the Number buttons] to enter the 4-digit

numbers for your password.

PASSWORD

• When you have not set up your password, enter 0000.

• When the password is correct, the following "V-CHIP

SETUP" menu is displayed.

See the following description for setting each item.

A..."A.TV Rating" _> page 24

B..."B. MPAA Rating"_ >page 25

C'""C. Change Password"

_> page 26

e.g.) digital TV mode

- V- CHIPSETUP- I

TV RATING A

MPAARATING I B

DOWNLOADABLERATING i

CHANGEPASSWORD-- C

Note:

•"DOWNLOADABLE RATING" will be available when the unit

receives a digital broadcast using the new rating system.

• When you select a rating and set it to "BLOCK'; the higher

ratings will be blocked automatically. The lower ratings will

be available for viewing.

• When you set the highest rating to "VIEW" all ratings turn

to "VIEW" automatically.

• If the "PROTECTED PROGRAM" message appears during

your TV viewing, change to a channel that is not blocked.

Then, you can access "V-CHIP SETUP" menu and change the

setting to allow all TV viewing.

• To block any inappropriate programming, set your limits in

both "TV RATING" and "MPAA RATING';

• The V-chip setting will be retained after a power failure

(except the access code reverts to 0000).

or TV-Y [VIEW]

TV-Y7 ( ) [VIEW]

TV-G [VIEW]

TV-PG ( ) [VIEW]

TV-14 ( ) [VIEW]

TV-MA( ) FLEW]

Rating Category

TV-Y Appropriate for all children lower

TV-Y7 Appropriate for all children 7 and 4

older

TV-G General audience

TV-PG Parental guidance suggested

TV-14 Unsuitable for children under 14 _ p

TV-MA Mature audience only higher

[ToSet the Sub Ratings]

As for TV-Y7,TV-PG, TV-14 or TV-MA, you can further

set the sub ratings to block specific elements of

programming. To set the sub ratings, follow the steps

below.

1 Use [Cursor A/T] to select the desired main rating,

then press [ENTER] twice to show its sub ratings.

or _-TV-Y [VIEW]

TV-Y7 ( ) [VIEW]

TV-G [VIEW]

TV-PG (DLSV)[BLOCK]

TV-14 (DLSV) [BLOCK]

TV-MA(LSV) [BLOCK]

2 Use [Cursor A/V], then press [ENTER] repeatedly

to change the setting.

e.g.) TV-PG

TV-PG [BLOCK]

D [BLOCK]

L [BLOCK]

S [BLOCK]

V [BLOCK]

Sub Rating

Category

Fantasy Violence

Violence

Sexual Situation

Coarse Language

Suggestive Dialogue

Rating

TV-Y7

TV-PG

TV-14

TV-MA

TV-PG,TV-14

6 Press [SETUP] to exit.

MPAARatingisthe ratingsystemcreatedbyMPAA(Motion Picture

AssociationofAmerica).

Use [Cursor A/V] to select"MPAA RATING", then press

[ENTER].

e.g.) digital TV mode

-V- CHIP SETUP-

TV HATING

MPAAHATING

DOWNLOADABLEHATING

CHANGE PASSWORD

5 Use[Cursor A/V], then press [ENTER] repeatedly to

change the setting.

or G [VIEW]

PG [VIEW]

PG-13 [VIEW]

_-R [BLOCK]

NC-17 [BLOCK]

X [BLOCK]

Rating Category

GGeneral audience

PG Parental guidance suggested

PG-13 Unsuitable for children under 13

Restricted; under 17 requires accompanying

Rparent or adult guardian

NC-17 No one under 17 admitted

X Mature audience only

Press [SETUP] to exit.

ii :iI

i::::i¸¸

ii_ii_i!:

_iii_ii:ii

i C:¸

i E;:

Note: I

• Blocked sub ratings will appear beside the main rating I

category in "TV RATING" menu. I

•You cannot block a sub rating (D, L, S or V) if the main rating I

is set to "VIEW" I

•Changing the category to "BLOCK" or "VIEW" automatically

changes all its sub ratings to the same ("BLOCK" or "VIEW").

.- • _ 4 _•_i_ • V _ _ _ _il

.................. _ _,,_. _ _i _

Althoughthe defaultcode"0000" issupplied with the unit,youcanset

yourownpassword.

Use [Cursor A/V] to select"CHANGE PASSWORD", then

press [ENTER[.

e.g.) digital TV mode

- V- CHIP SETUP-

TV RATING

MPAA RATING

DOWNLOADABLERATING

_-CHANGE PASSWORD

5 Press [the Number buttons] on the remote control to

enter the new 4-digit password.

•Enter password again in"CONFIRM PASSWORD"

space.

NEW PASSWORD

CONFIRM PASSWORD

V----1

Press [SETUP] to exit.

Note:

•Make sure new password and confirm password must be

exactly the same. If they are different, the space is cleared

for reentering.

• Yourpassword will be erased and return to the default

(0000) when apower failure occurs. If you forget the

password, unplug the power cord for 10seconds to restore

the password to 0000.

[] Troubleshooting Guide

If the unit does not perform properly when operated as instructed in this owner's manual, check the following chart

once before calling for service.

iiiiiii_i

No power

No picture or sound

• Be sure the power cord is plugged in.

• If a power failure occurs, unplug the power cord for 30 minutes to allow the unit to

reset itself.

• Check if the power is on.

• Check the outlet connection.

• Check the antenna or cable connection to the main unit.

• When the outside antenna is used, check the wire condition and connection.
