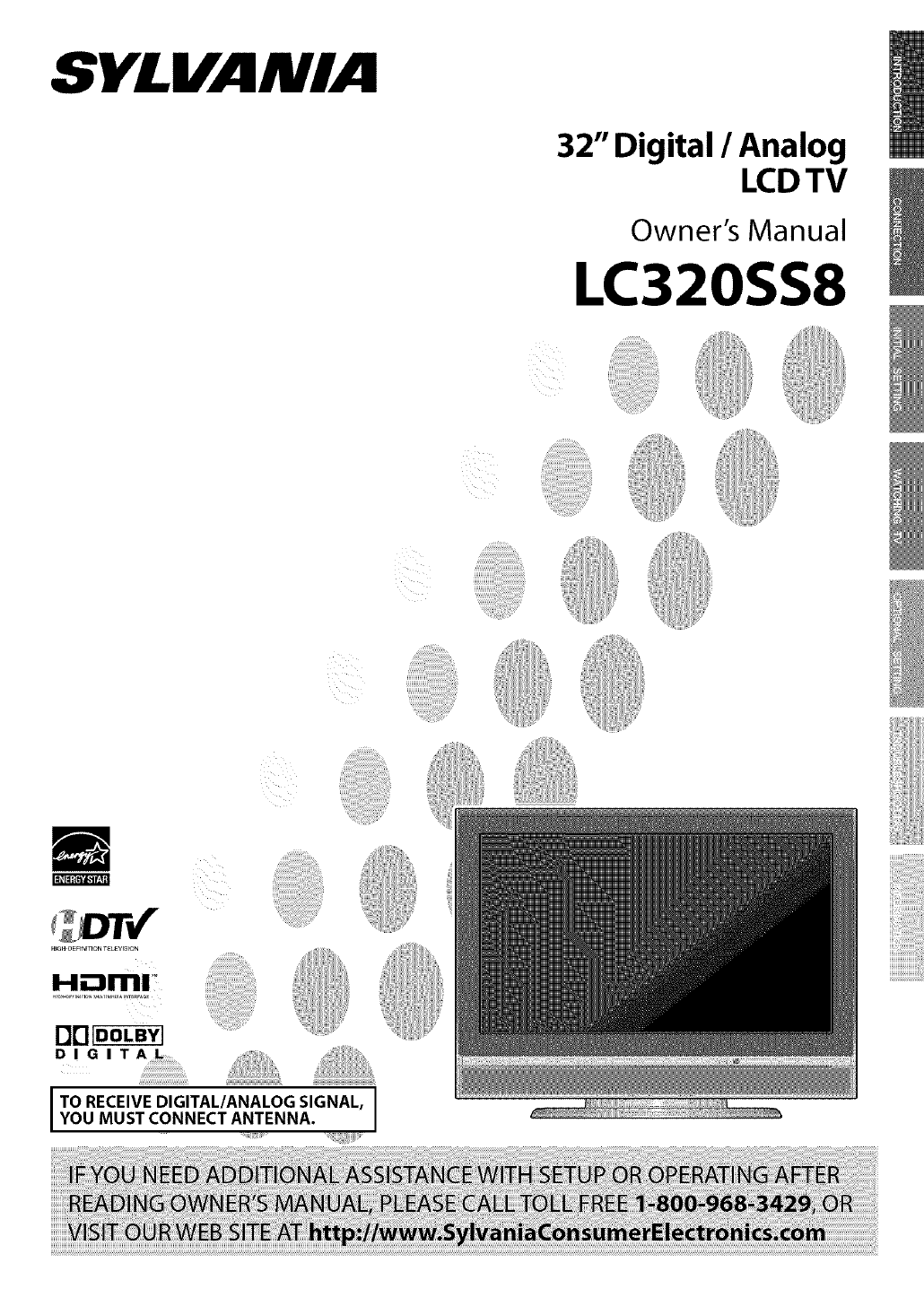

SYLIIAIIIIA

32" Digital /Analog

LCDTV

Owner's Manual

LC320SS8

D I G I T A L;;;;

I TO RECE,VE D,G,TALIANALOG S,GNALI 1YOU MUST CONNECT ANTENNA.

WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCETO RAIN OR MOISTURE.

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

Theimportant note is locatedonthe rearof tile cabinet.

Important Safeguards

o READ INSTRUCTIONS - All the safety and operating instructions

should be read before the appliance is operated.

2 RETAIN INSTRUCTIONS - The safety and operating instructions

should be retained for future reference.

3HEED WARNINGS - All warnings on the appliance and in the

operating instructions should be adhered to.

4 FOLLOW INSTRUCTIONS- All operating and use instructions

should be followed.

5o CLEANING - Unplug TV from the wall outlet before cleaning. Do not

use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted service and,

that for some specific reason, such as the possibility of the loss

of an authorization code for a CATV converter, is not intended to

be unplugged by the user for cleaning or any other purpose, may

exclude the reference to unplugging the appliance in the cleaning

description otherwise required in item 5.

_} ATTACHMENTS - Do not use attachments not recommended by

the TV manufacturer as they may cause hazards.

7o WATER AND MOISTURE - Do not use this TV near water, for

example, near a bath tub, wash bowl, kitchen sink, or laundry tub,

in a wet basement, or near a swimming pool, and the like.

So ACCESSORIES- Do not place this TV on an

unstable cart, stand, tripod, bracket, or table.The _'_k.

TV may fall, causing serious injury to someone, and

serious damage to the appliance. Use only with a

cart stand tripod bracket or table recommended

bythe manufacturer, or sold with the TV.

Any mounting of the appliance should follow

the manufacturer's instructions and should

use a mounting accessory recommended by

the manufacturer. An appliance and cart combination should be

moved with care. Quick stops, excessive force, and uneven surfaces

may cause the appliance and cart combination to overturn.

AMEUBLES - Cet appareil ne doit _tre plac_

que sur un meuble (avec ou sans roulettes) _'1_,

recommand_ par le fabricant. Si vous I'

installez sur un meuble a roulettes, d_placez

les deux ensembles avec precaution. Un arr_t

brusque, I'utilisation d'une force excessive

et des surfaces irr_guli_res risquent de

d_stabiliser I'ensemble et de le renverser.

9VENTILATION - Slots and openings in the

cabinet and the back or bottom are provided for ventilation

and to ensure reliable operation of the TV and to protect it from

overheating, these openings must not be blocked or covered. The

openings should never be blocked by placing the TV on a bed,

sofa, rug, or other similar surface. This TV should never be placed

near or over a radiator or heat register. This TV should not be

placed in a built-in installation such as a bookcase or rack unless

proper ventilation is provided or the manufacturer's instructions

have been adhered to.

O POWER SOURCES - This TV should be operated only from the type

of power source indicated on the marking label. If you are not sure

of the type of power supply to your home, consult your appliance

dealer or local power company. For TVR intended to operate from

battery power, or other sources, refer to the operating instructions.

II _ GROUNDING OR POLARIZATION - This TV is equipped with a

THIS SYMBOL INDICATES THAT DANGEROUS

VOLTAGE CONSTITUTING A RISK OF ELECTRIC

SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE

IMPORTANT OPERATING AND MAINTENANCE

INSTRUCTIONS IN THE LITERATURE

ACCOMPANYING THE APPLIANCE.

polarized alternating<urrent line plug (a plug having one blade

wider than the other). This plug will fit into the power outlet only

one way. This is a safety feature. If you are unable to insert the plug

fully into the outlet, try reversing the plug. If the plug should still

fail to fit, contact your electrician to replace your obsolete outlet.

Do not defeat the safety purpose of the polarized plug.

2 POWER-CORD PROTECTION - Power-supply cords should be

routed so that they are not likely to be walked on or pinched by

items placed upon or against them, paying particular attention to

cords at plugs, convenience receptacles, and the point where they

exit from the appliance.

3o OUTDOOR ANTENNA GROUNDING - If an outside antenna or

cable system is connected to the TV, be sure the antenna or cable

system is grounded so as to provide some protection against

voltage surges and built-up static charges. Article 810 of the

National Electrical Code, ANSI/NFPA No. 70, provides information

with respect to proper grounding of the mast and supporting

structure, grounding of the lead-in wire to an antenna discharge

unit, size of grounding conductors, location of antenna-discharge

unit, connection to grounding electrodes, and requirements for

the grounding electrode. (Fig. A)

FIGURE A

EXAMPLE OFANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

NEC NATIONALE_ECTRICALCODE

ELECTRODESYSTEM

_NECART25O,PARTH_

$4 LIGHTNING - For added protection for this TV receiver during a

lightning storm, or when it is left unattended and unused for long

periods of time, unplug it from the wall outlet and disconnect the

antenna or cable system. This will prevent damage to the TV due

to lightning and power-line surges.

5° POWER LINES - An outside antenna system should not be located

in the vicinity of overhead power lines or other electric light of

power circuits, or where it can fall into such power lines or circuits.

When installing an outside antenna system, extreme care should

be taken to keep from touching such power lines or circuits as

contact with them might be fatal.

6 OVERLOADING - Do not overload wall outlets and extension

cords as this can result in a risk of fire or electric shock.

$7oOBJECTAND LIQUID ENTRY - Never push objects of any kind into

this TV through openings as they may touch dangerous voltage

points or short out parts that could result in a fire or electric shock.

Never spill liquid of any kind on the TV.

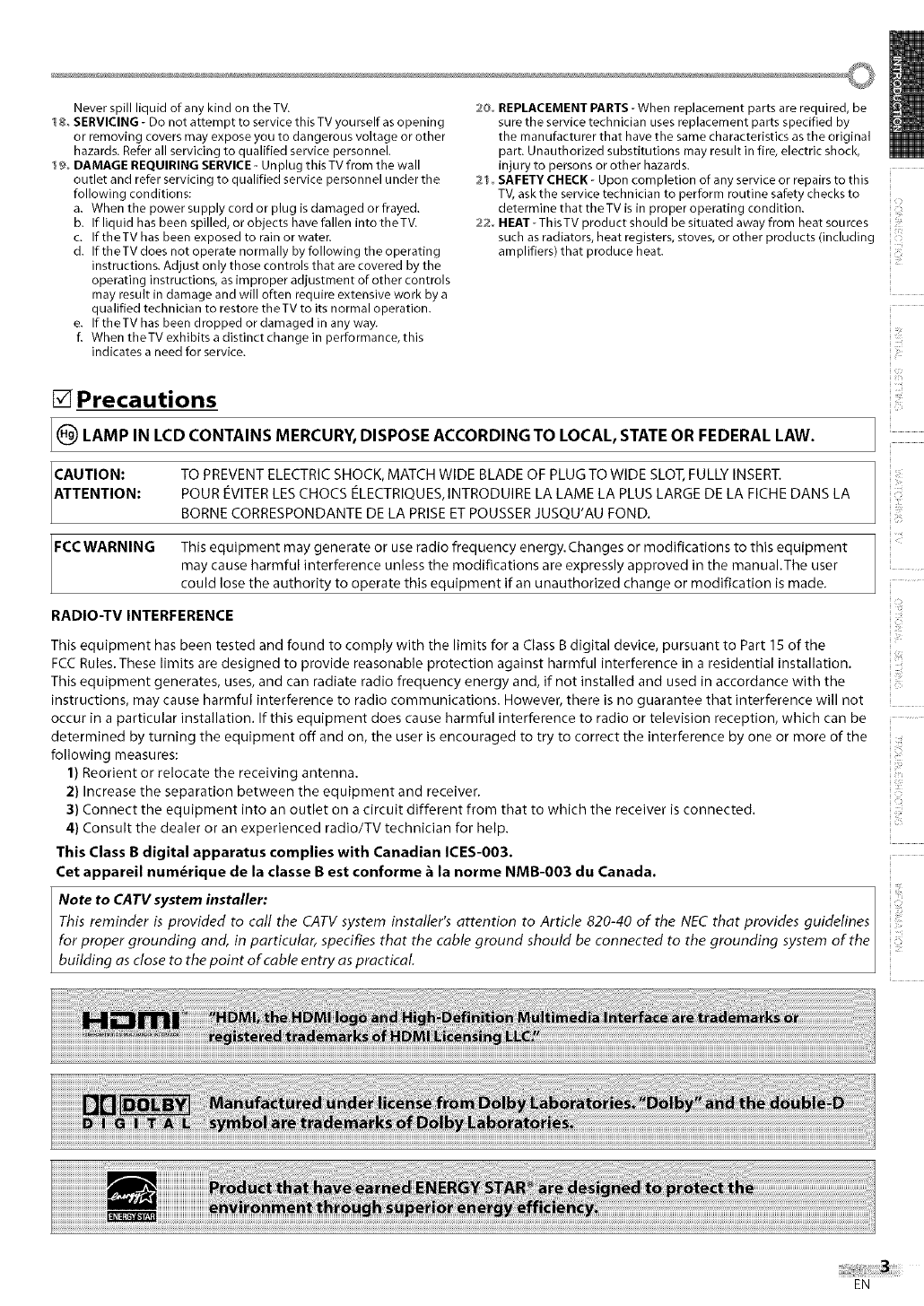

1$o SERVICING - Do not attempt to service this TV yourself as opening

or removing covers may expose you to dangerous voltage or other

hazards. Refer all servicing to qualified service personnel.

1_o DAMAGE REQUIRING SERVICE - Unplug this TV from the wall

outlet and refer servicing to qualified service personnel under the

following conditions:

a. When the power supply cord or plug is damaged or frayed.

b. If liquid has been spilled, or objects have fallen into theTV.

c. If the TV has been exposed to rain or water.

d. If theTV does not operate normally by following the operating

instructions. Adjust only those controls that are covered by the

operating instructions, as improper adjustment of other controls

may result in damage and will often require extensive work by a

qualified technician to restore theTV to its normal operation.

e. If the TV has been dropped or damaged in any way.

f. When theTV exhibits a distinct change in performance, this

indicates a need for service.

2_o REPLACEMENT PARTS - When replacement parts are required, be

sure the service technician uses replacement parts specified by

the manufacturer that have the same characteristics as the original

part. Unauthorized substitutions may result in fire, electric shock,

injury to persons or other hazards.

2'1oSAFETY CHECK - Upon completion of any service or repairs to this

TV, ask the service technician to perform routine safety checks to

determine that the TV is in proper operating condition.

22 HEAT- This TV product should be situated away from heat sources

such as radiators, heat registers, stoves, or other products (including

amplifiers) that produce heat.

[] Precautions

(_) LAMP IN LCDCONTAINSMERCURY,DISPOSEACCORDINGTO LOCAL,STATEOR FEDERALLAW.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT,FULLY INSERT.

ATTENTION: POUR t_VITER LESCHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA

BORNE CORRESPONDANTE DE LA PRISEET POUSSER JUSQU'AU FOND.

FCC WARNING This equipment may generate or use radio frequency energy. Changes or modifications to this equipment

may cause harmful interference unless the modifications are expressly approved in the manual.The user

could lose the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

i i_c

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCCRules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more ofthe

following measures:

1) Reorient or relocate the receiving antenna. i

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil num_rique de la classe B est conforme _la norme NMB-003 du Canada.

Note to CATV system installer: I

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines[

for proper grounding and, in particular, specifies that the cable ground should be connected to the grounding system of the[

building as close to the point of cable entry as practical. ]

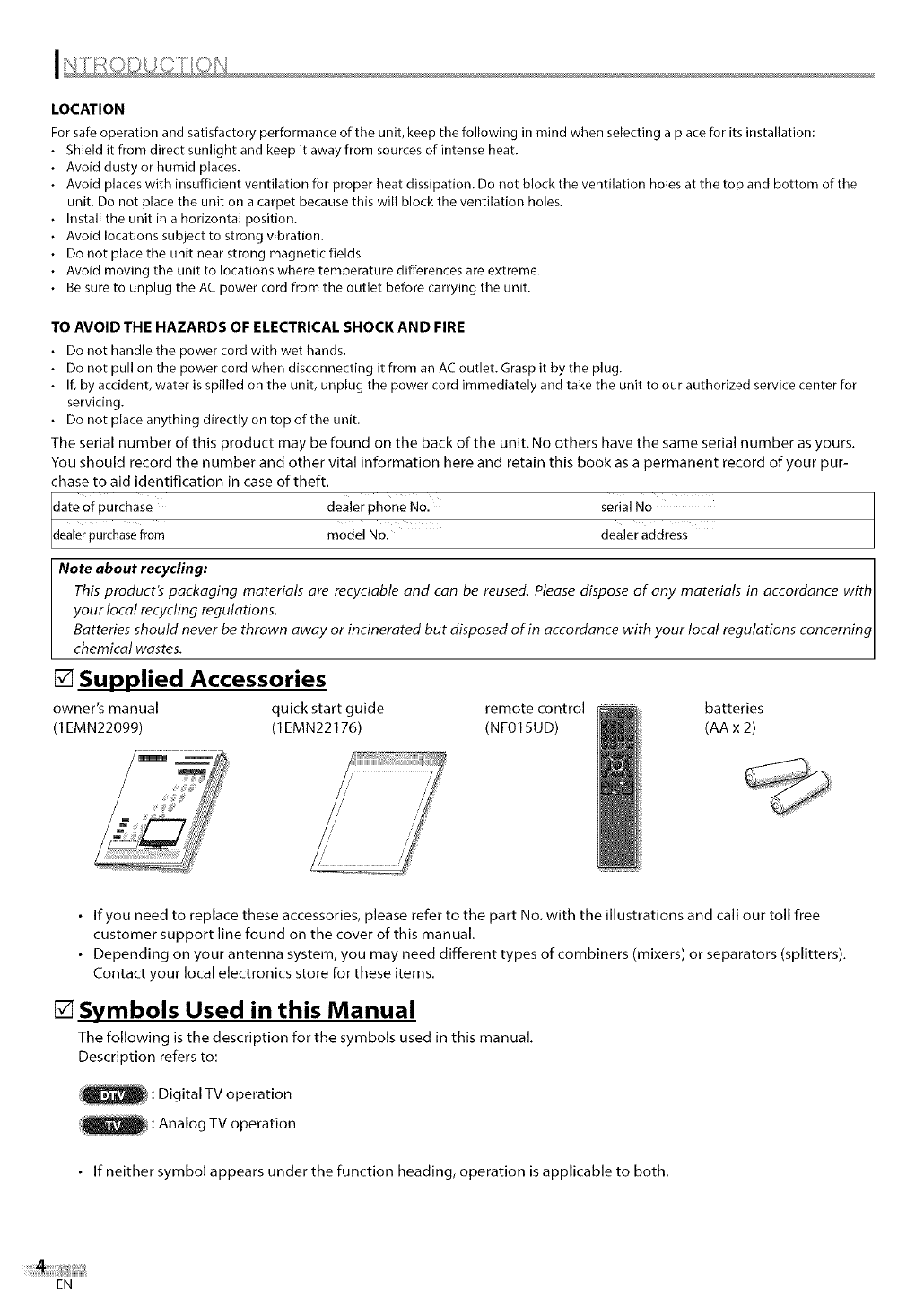

LOCATION

For safe operation and satisfactory performance of the unit, keep the following in mind when selecting a place for its installation:

•Shield it from direct sunlight and keep it away from sources of intense heat.

• Avoid dusty or humid places.

• Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes at the top and bottom of the

unit. Do not place the unit on a carpet because this will block the ventilation holes.

• Install the unit in a horizontal position.

• Avoid locations subject to strong vibration.

• Do not place the unit near strong magnetic fields.

• Avoid moving the unit to locations where temperature differences are extreme.

• Be sure to unplug the AC power cord from the outlet before carrying the unit.

TO AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

•Do not handle the power cord with wet hands.

• Do not pull on the power cord when disconnecting it from an AC outlet. Grasp it by the plug.

• If, by accident, water is spilled on the unit, unplug the power cord immediately and take the unit to our authorized service center for

servicing.

• Do not place anything directly on top of the unit.

The serial number of this product may be found on the back of the unit. No others have the same serial number as yours.

You should record the number and other vital information here and retain this book as a permanent record of your pur-

chase to aid identification in case of theft.

date of purchase dealer phone No. serial No

Ldeaerpurchasefrom model No. dealer address

Note about recycling: 1

This product's packaging materials are recyclable and can be reused, Please dispose of any materials in accordance withI

your local recycling regulations. I

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning

chemical wastes.

[] Supplied Accessories

owner's manual quick start guide remote control batteries

(1EMN22099) (1EMN22176) (NF015UD) (AA x 2)

•If you need to replace these accessories, please refer to the part No. with the illustrations and call our toll free

customer support line found on the cover of this manual.

• Depending on your antenna system, you may need different types of combiners (mixers) or separators (splitters).

Contact your local electronics store for these items.

[] Symbols Used in this Manual

The following is the description for the symbols used in this manual.

Description refers to:

:Digital TV operation

:Analog TV operation

• If neither symbol appears under the function heading, operation is applicable to both.

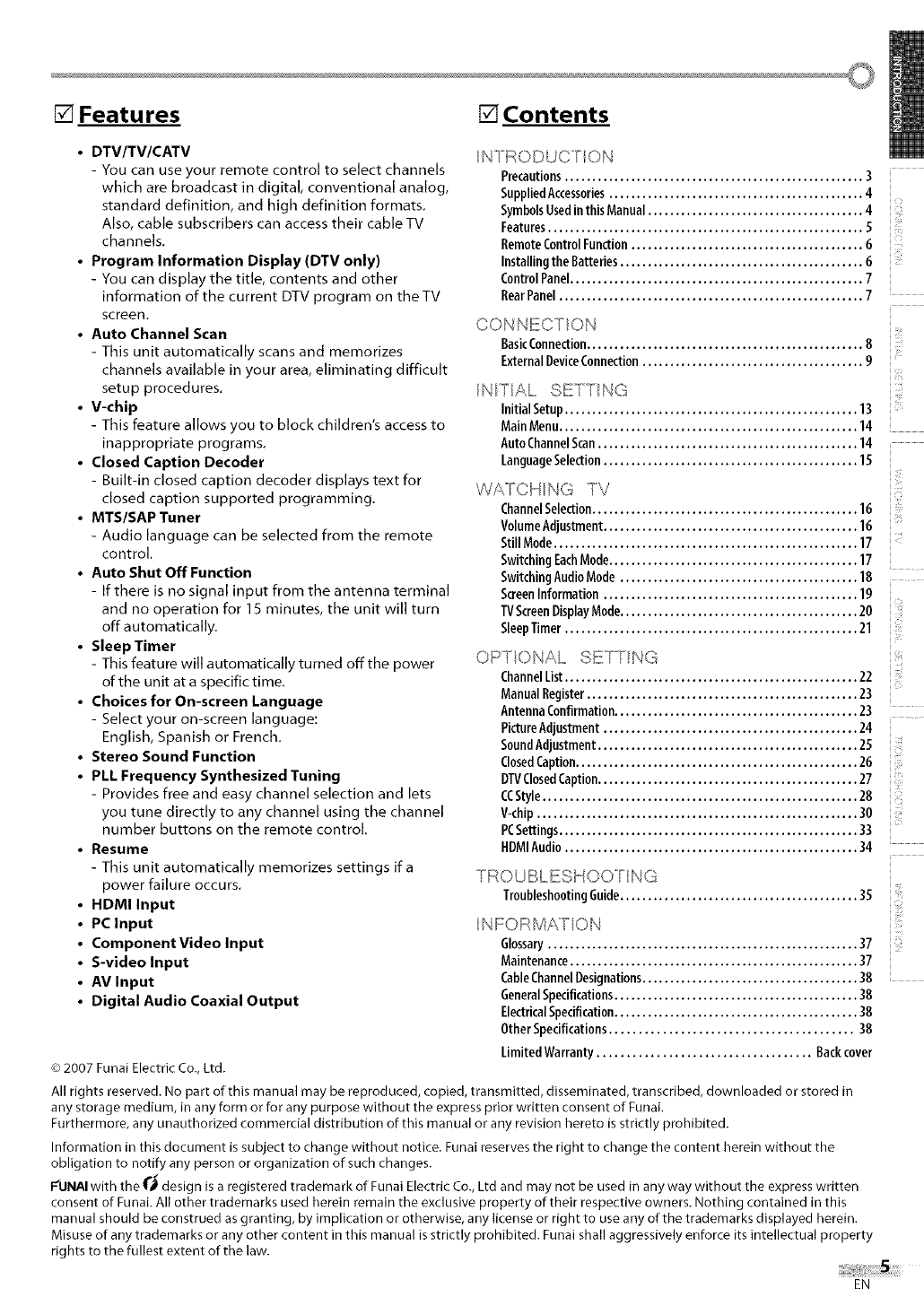

[] Features [] Contents

•DTV/TV/CATV

-You can use your remote control to select channels

which are broadcast in digital, conventional analog,

standard definition, and high definition formats.

Also, cable subscribers can access their cable TV

channels.

• Program Information Display (DTV only)

- You can display the title, contents and other

information of the current DTV program on theTV

screen.

•Auto Channel Scan

- This unit automatically scans and memorizes

channels available in your area, eliminating difficult

setup procedures.

•Vichlp

- This feature allows you to block cMdren's access to

inappropriate programs.

•Closed Caption Decoder

- Built-in closed caption decoder displays text for

closed caption supported programming.

•MTS/SAP Tuner

- Audio language can be selected from the remote

control.

•Auto Shut Off Function

- If there is no signal input from the antenna terminal

and no operation for 1S minutes, the unit will turn

off automatically.

•Sleep Timer

- This feature will automatically turned off the power

of the unit at a specific time.

•Choices for On-screen Language

- Select your on-screen language:

English, Spanish or French.

•Stereo Sound Function

•PLL Frequency Synthesized Tuning

- Provides free and easy channel selection and lets

you tune directly to any channel using the channel

number buttons on the remote control.

•Resume

- This unit automatically memorizes settings if a

power failure occurs.

HDMI Input

PC Input

Component Video Input

S-video Input

AV Input

Digital Audio Coaxial Output

/N rRODUC T/ON

Precautions...................................................... 3

SuppliedAccessories.............................................. 4

SymbolsUsedinthis Manual....................................... 4

Features......................................................... 5

RemoteControlFunction.......................................... 6

InstallingtheBatteries............................................ 6

ControlPanel..................................................... 7

RearPanel....................................................... 7

CONNECT ON

BasicConnection.................................................. 8

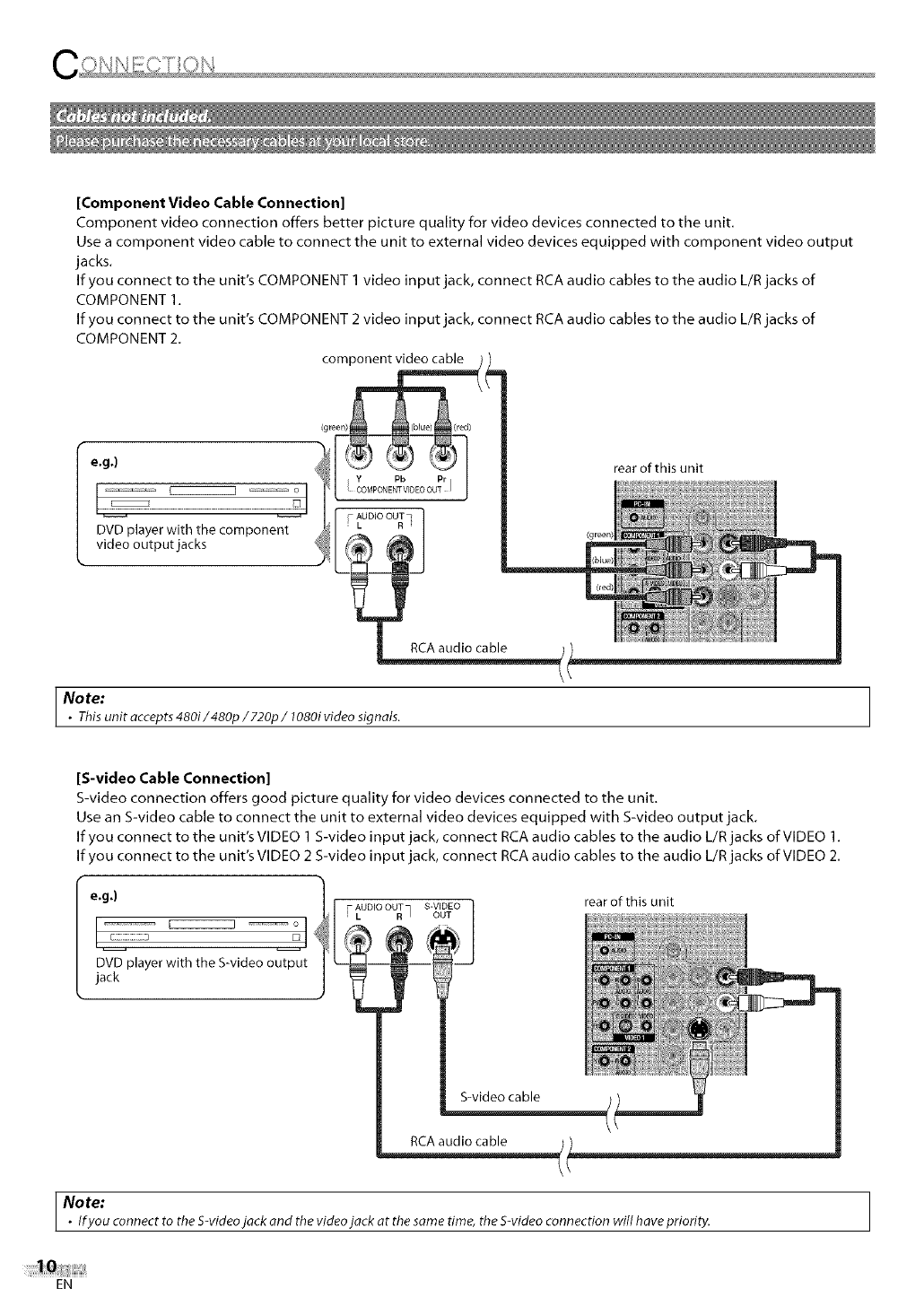

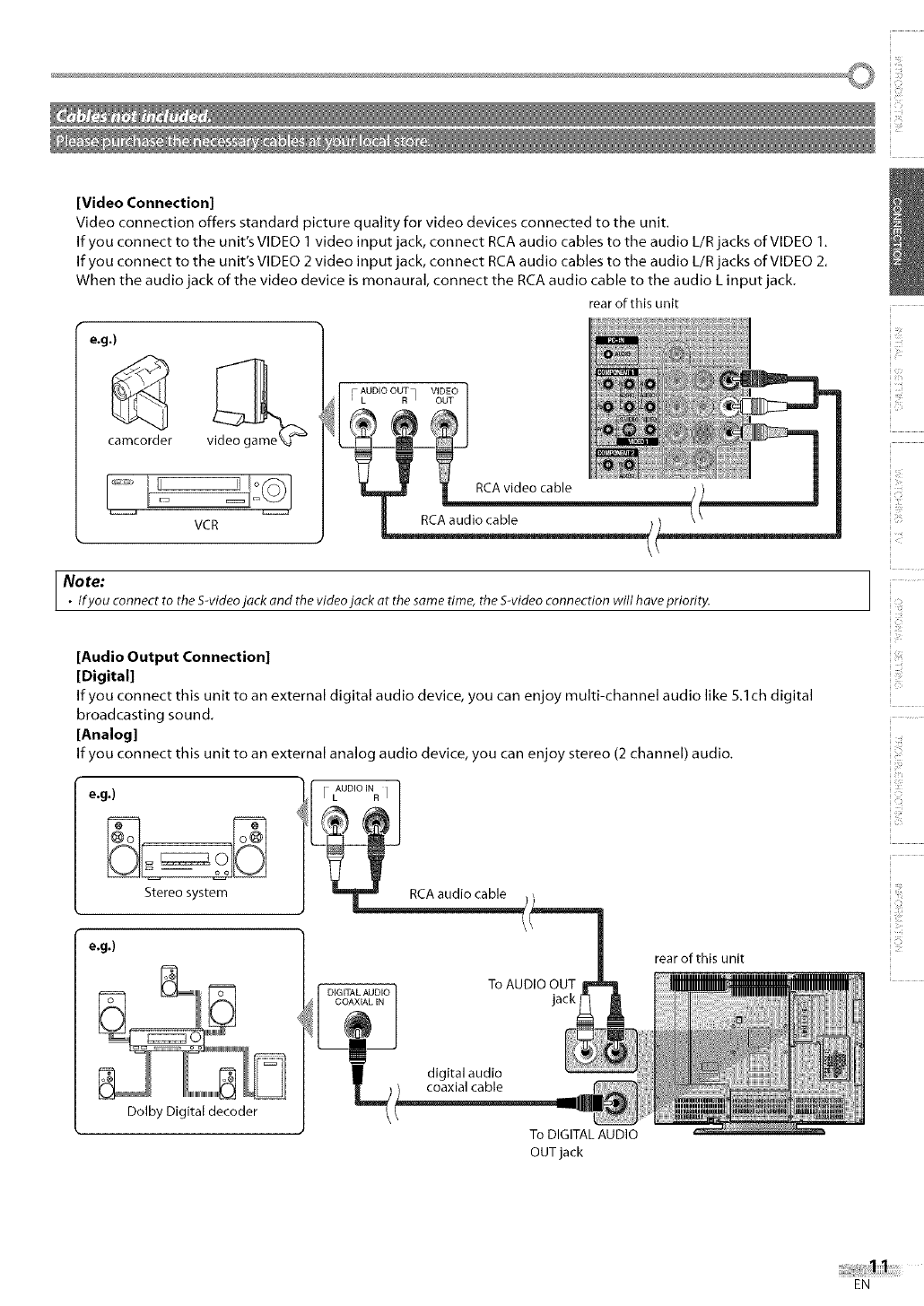

ExternalDeviceConnection........................................ 9

/N F/AL SETTNG

InitialSetup..................................................... 13

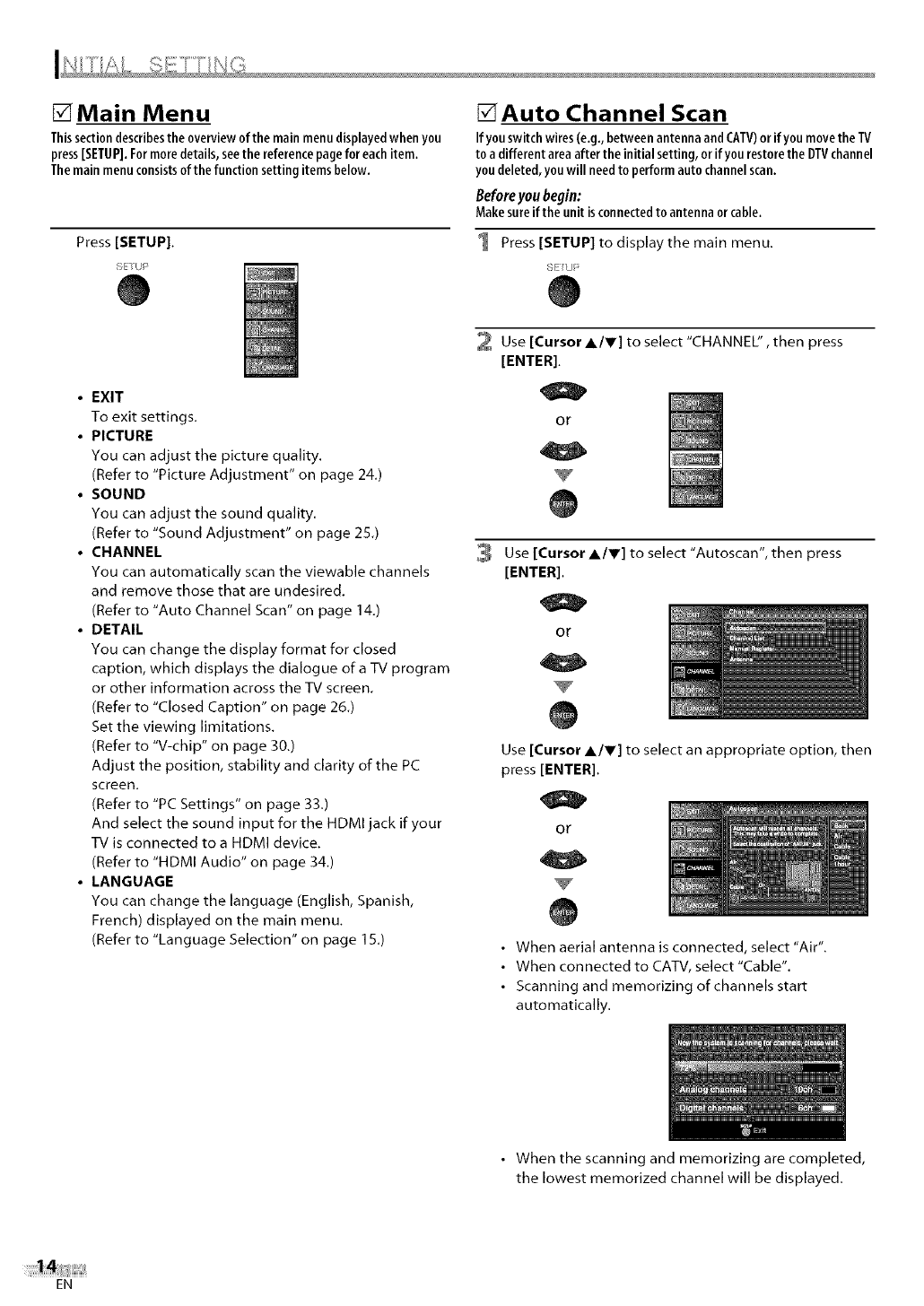

MainMenu...................................................... 14

AutoChannelScan............................................... 14

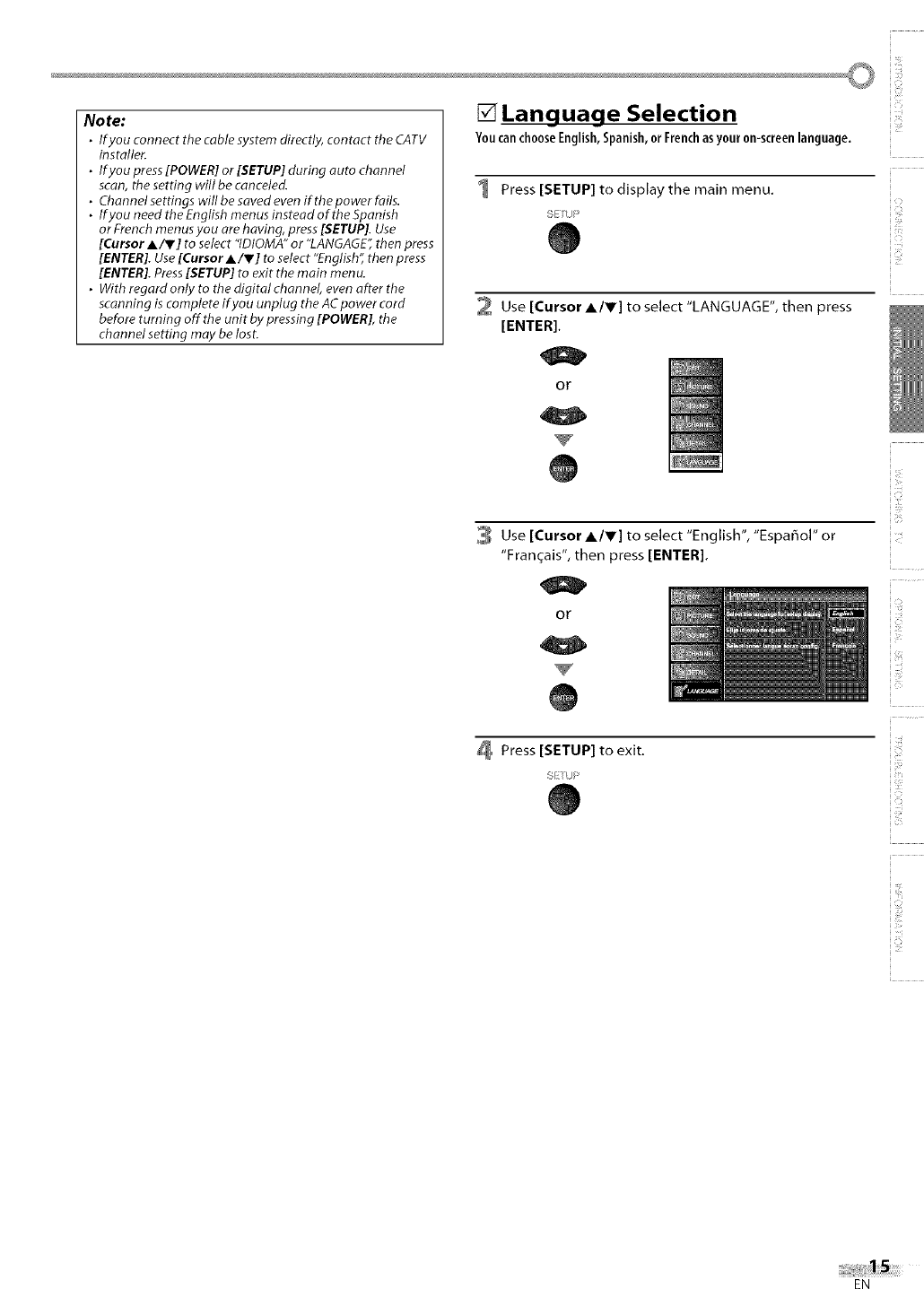

LanguageSelection.............................................. 15

WAFCH NG TV

ChannelSelection................................................ 16

V01umeAdjustment.............................................. 16

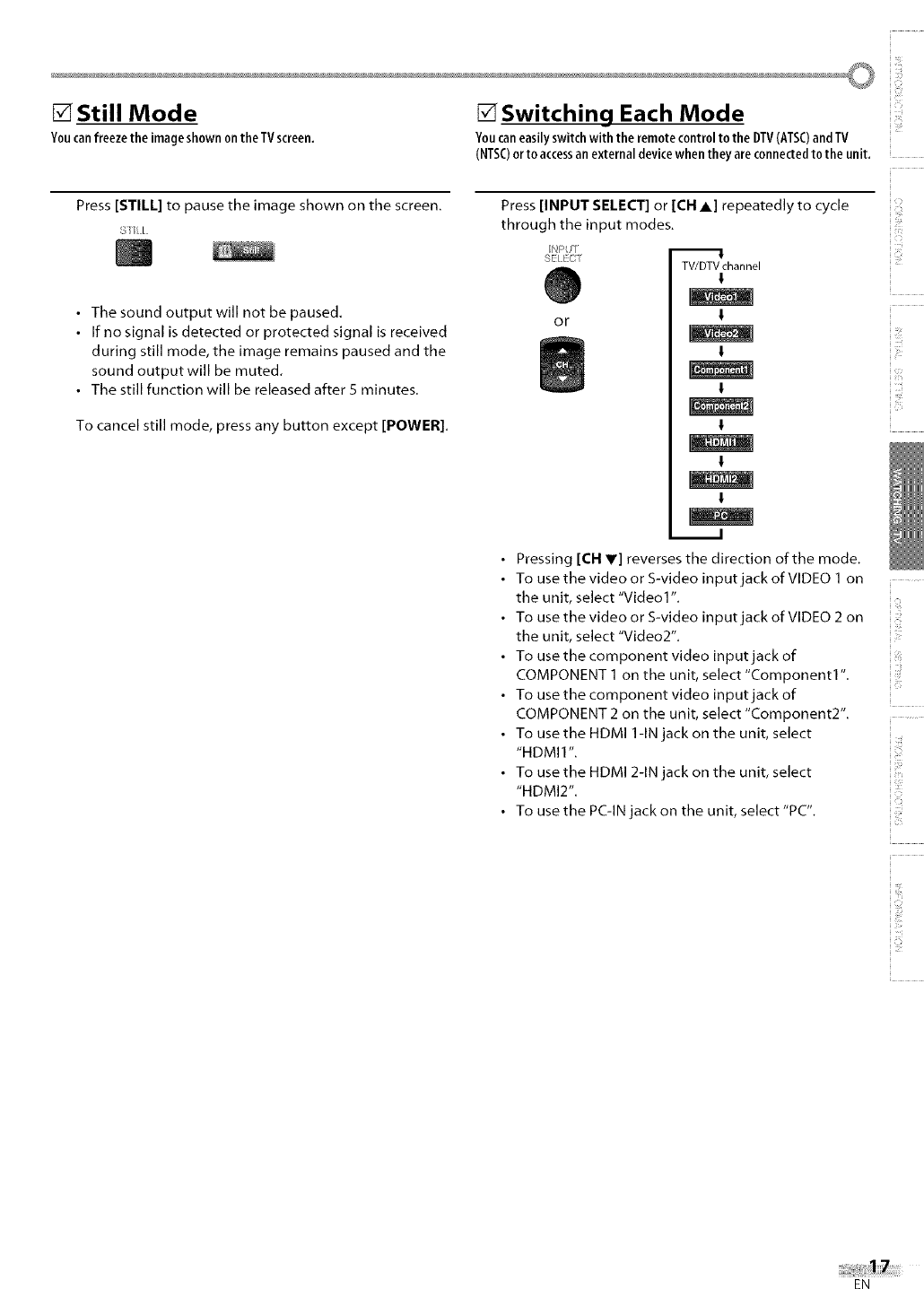

StillMode....................................................... 17

SwitchingEachMode............................................. 17

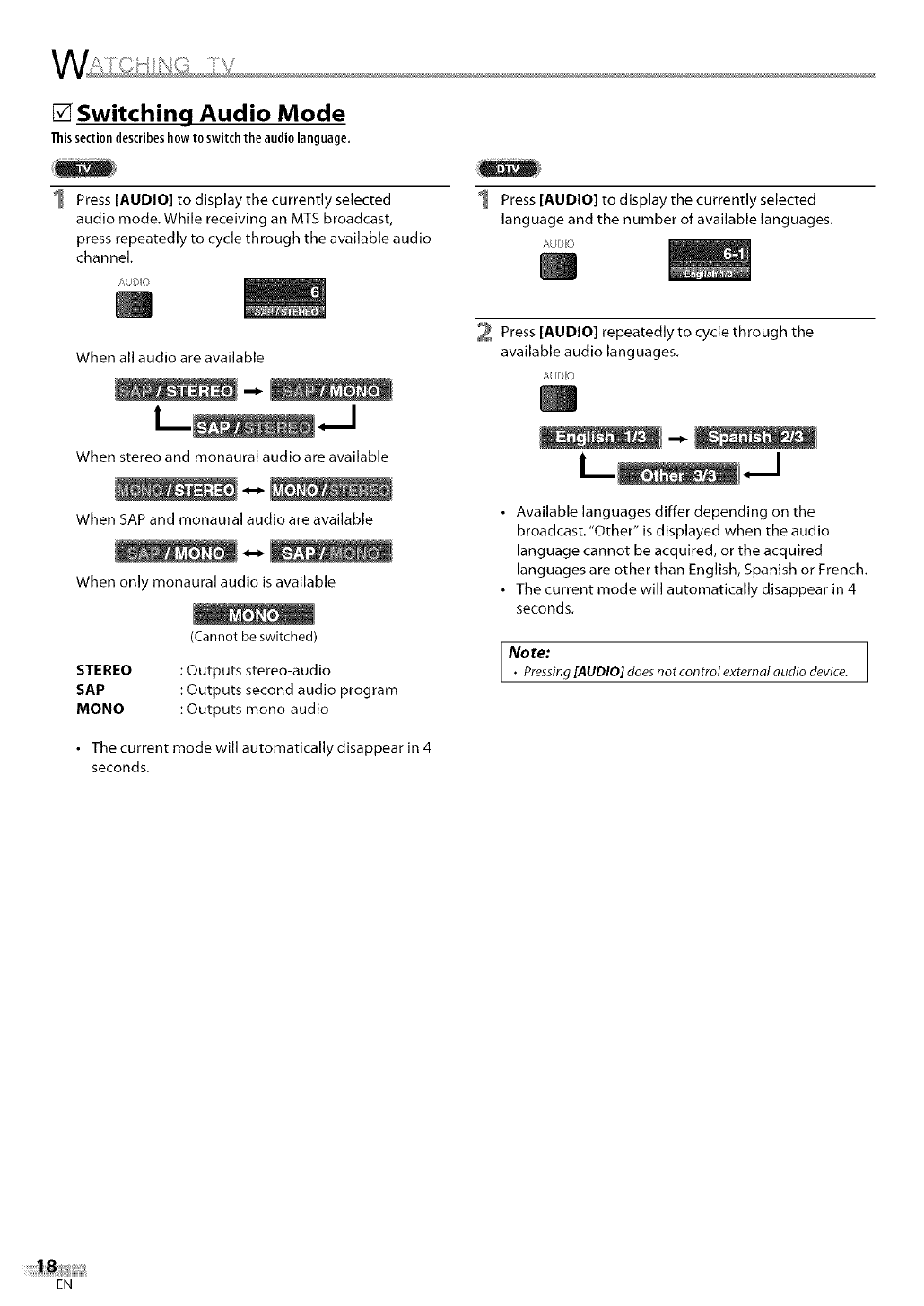

SwitchingAudioMode ........................................... 18

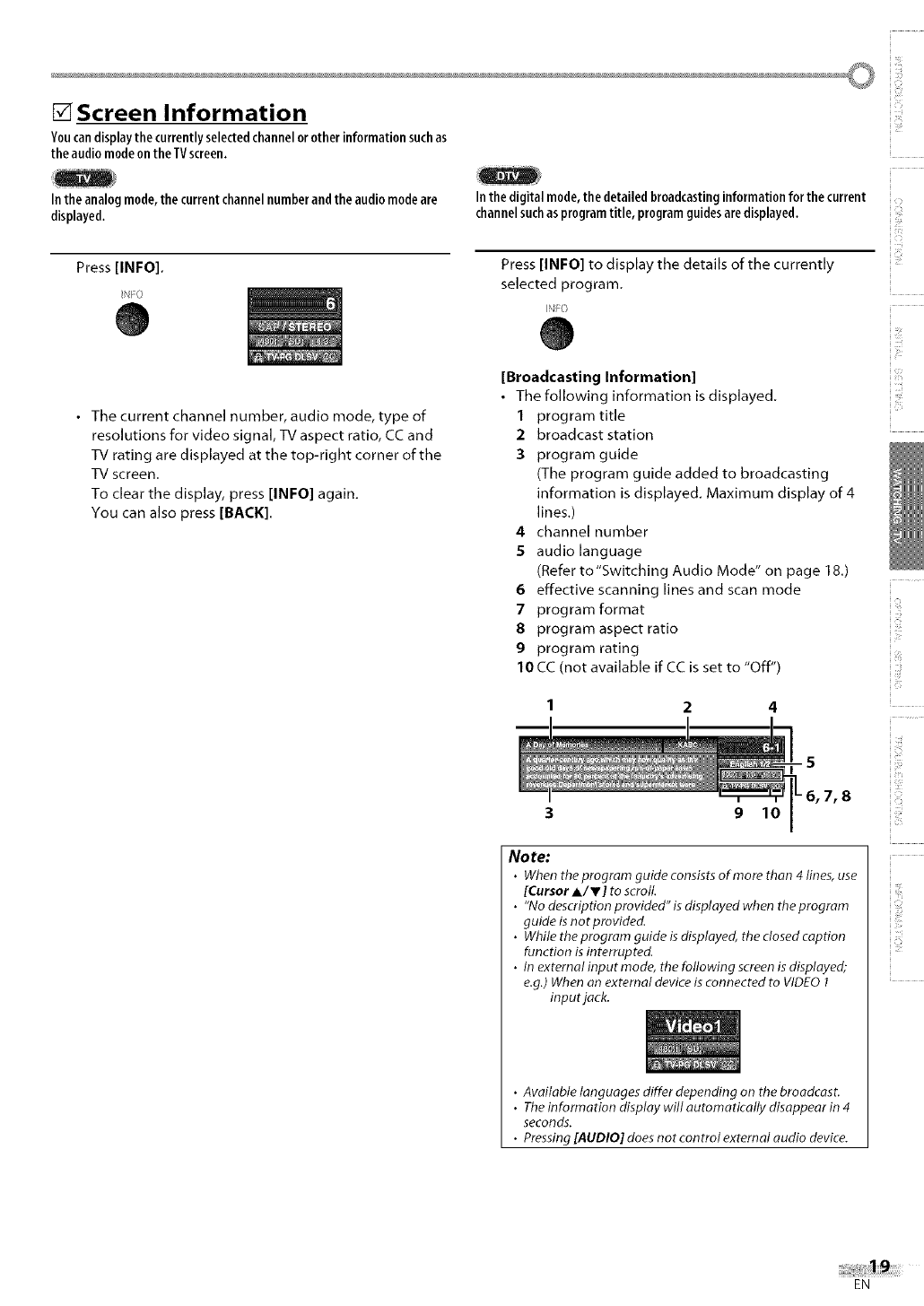

ScreenInformation .............................................. 19

TVScreenDisplayMode........................................... 20

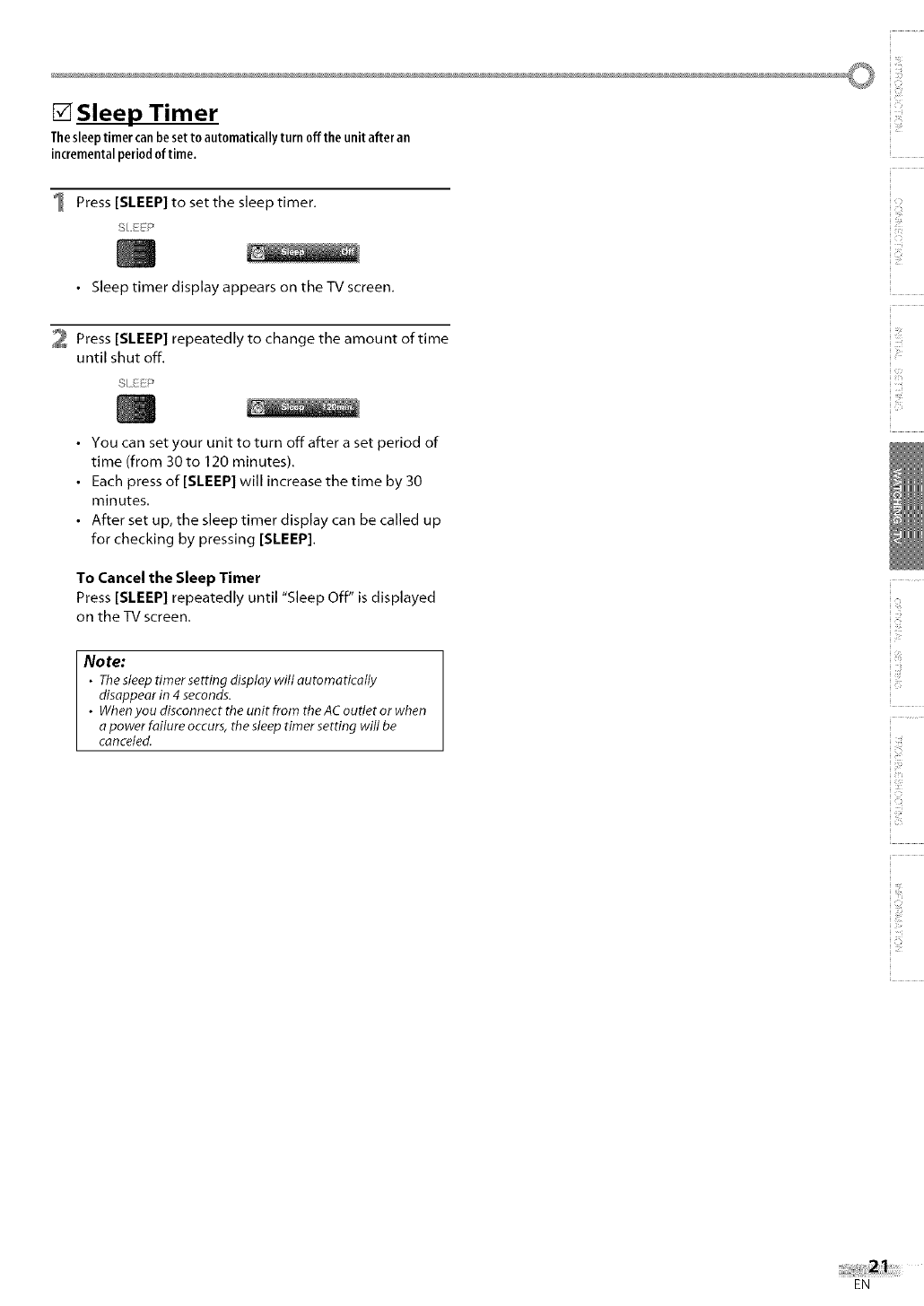

SleepTimer..................................................... 21

OPTIONAL SETT NG

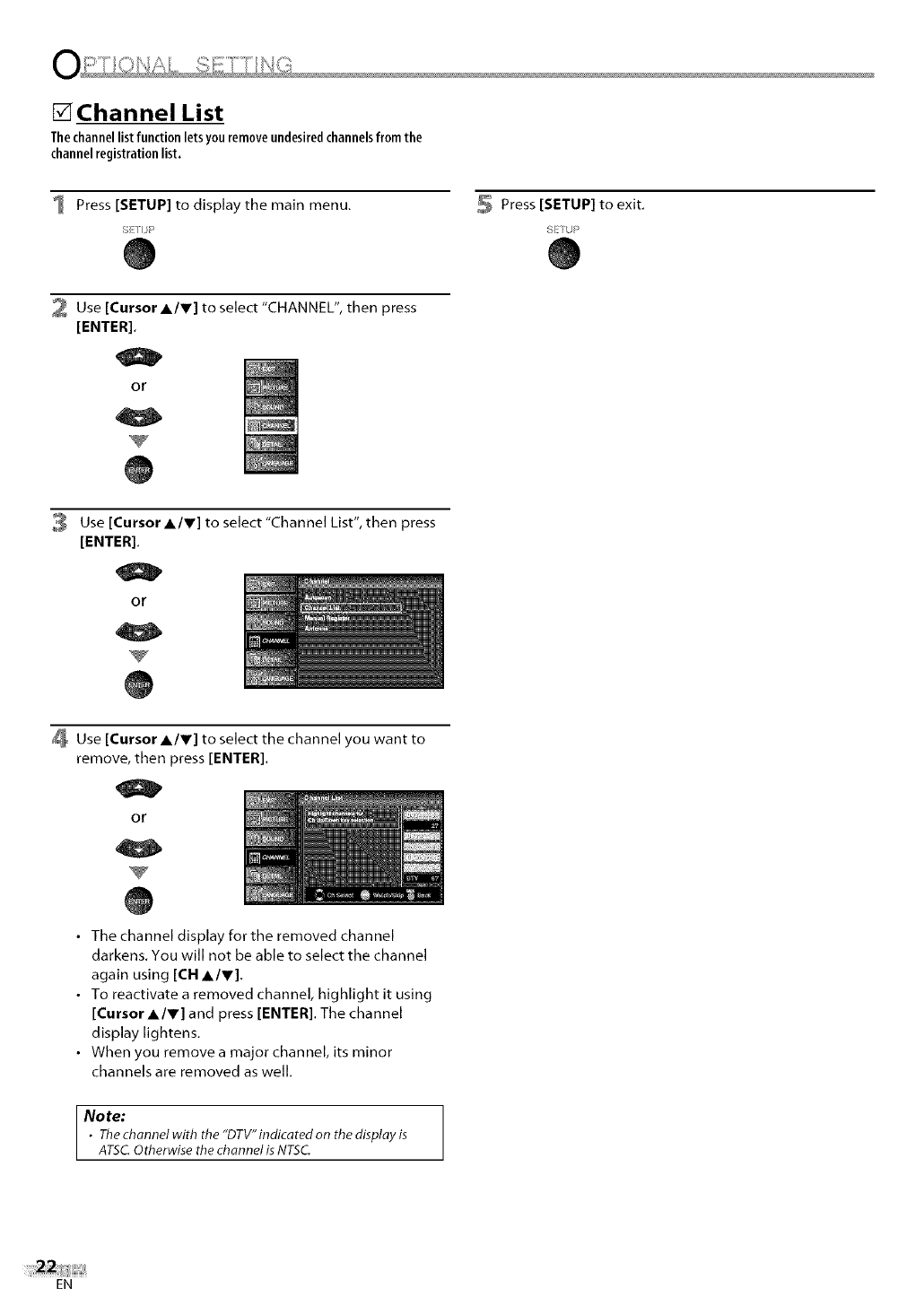

ChannelList..................................................... 22

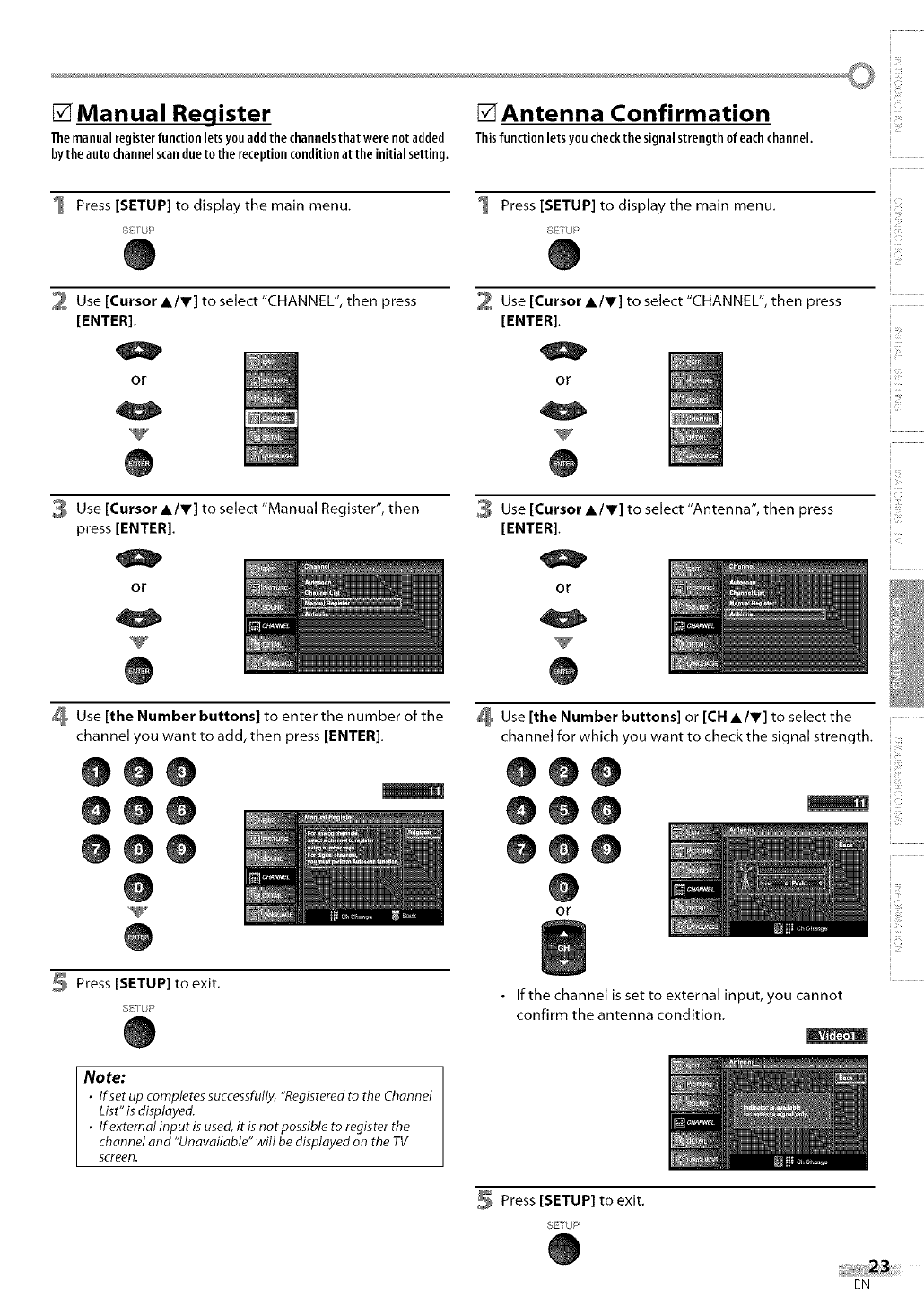

ManualRegister................................................. 23

AntennaConfirmation............................................ 23

PictureAdjustment.............................................. 24

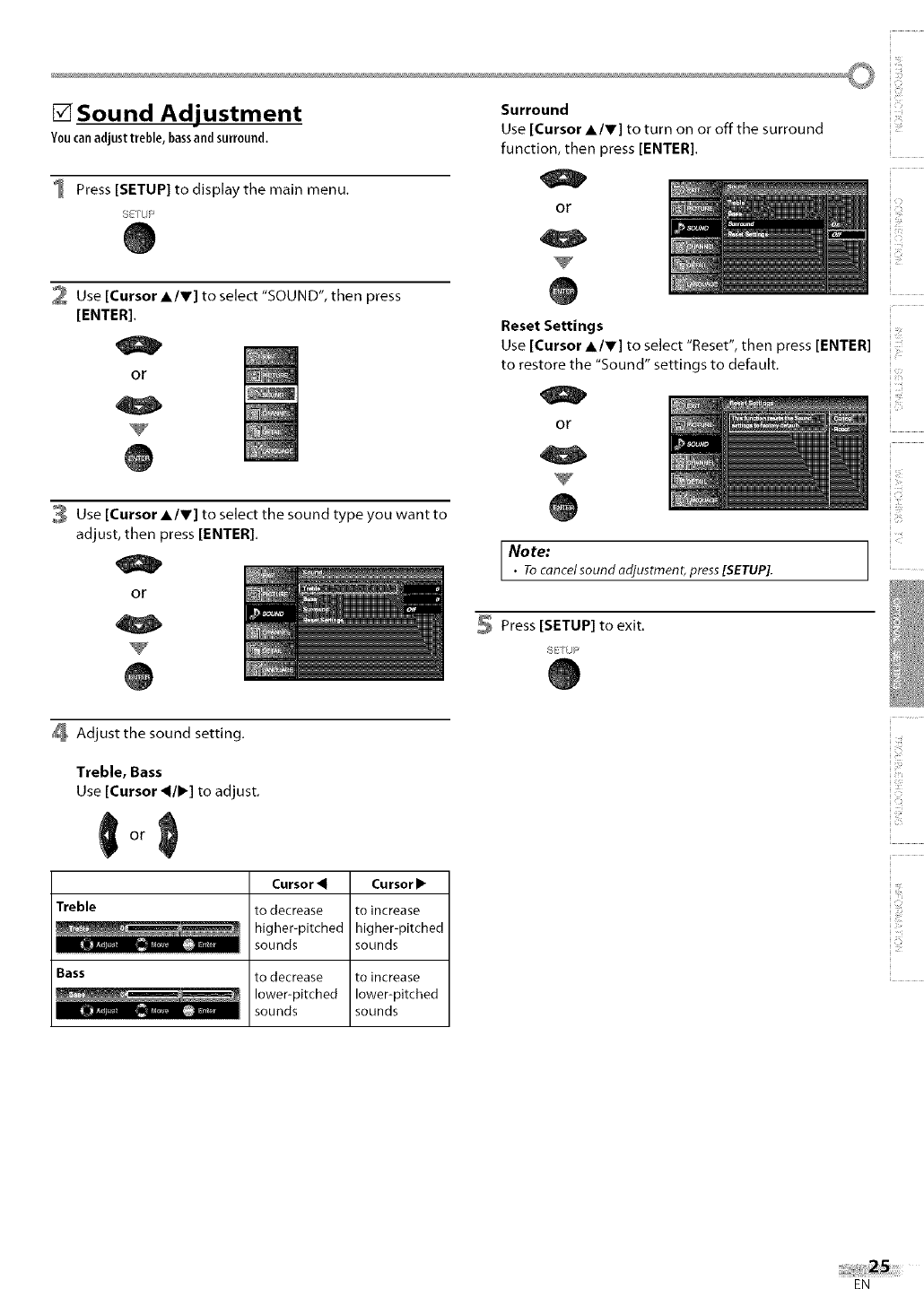

SoundAdjustment............................................... 25

ClosedCaption................................................... 26

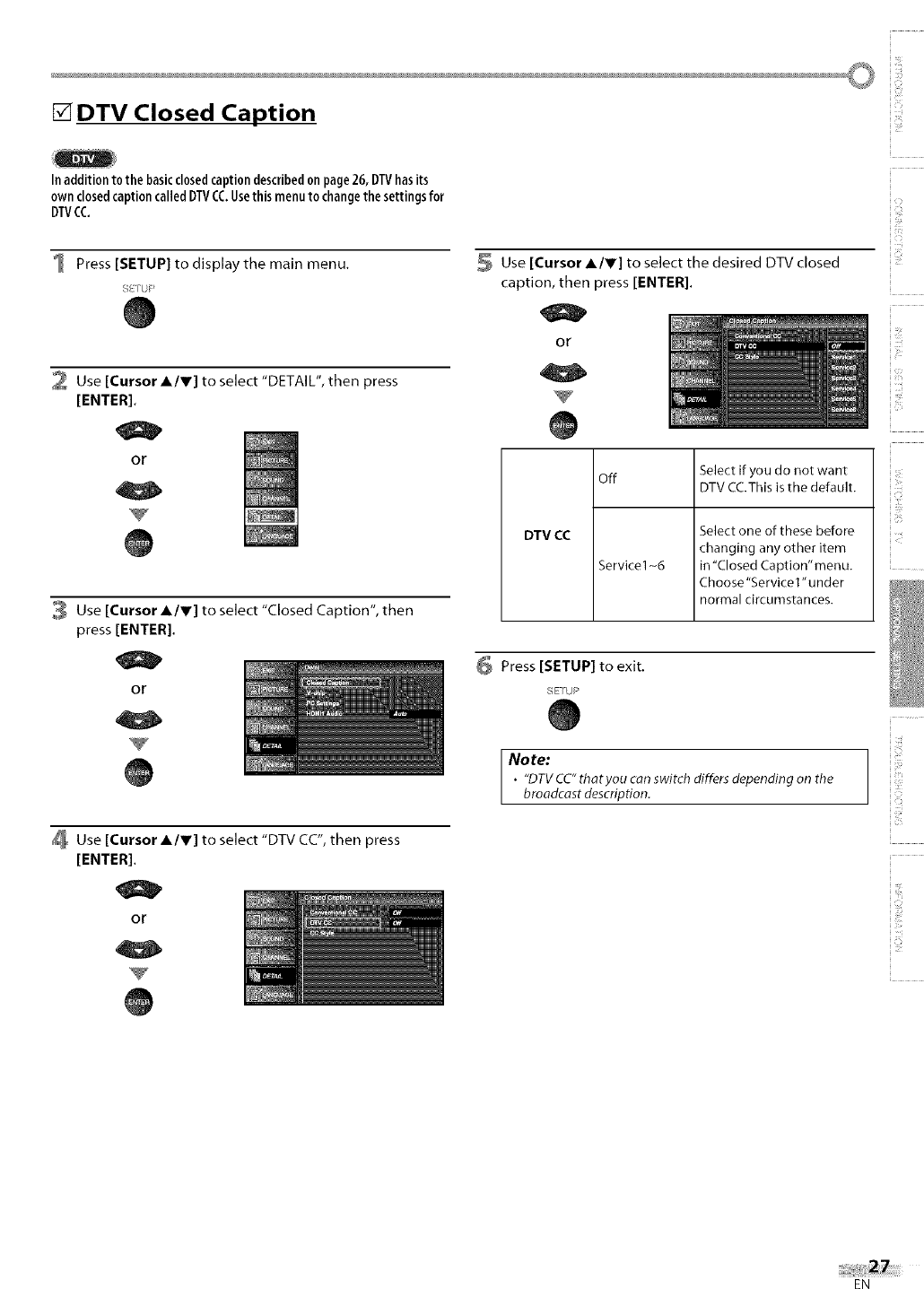

DTVClosedCaption............................................... 27

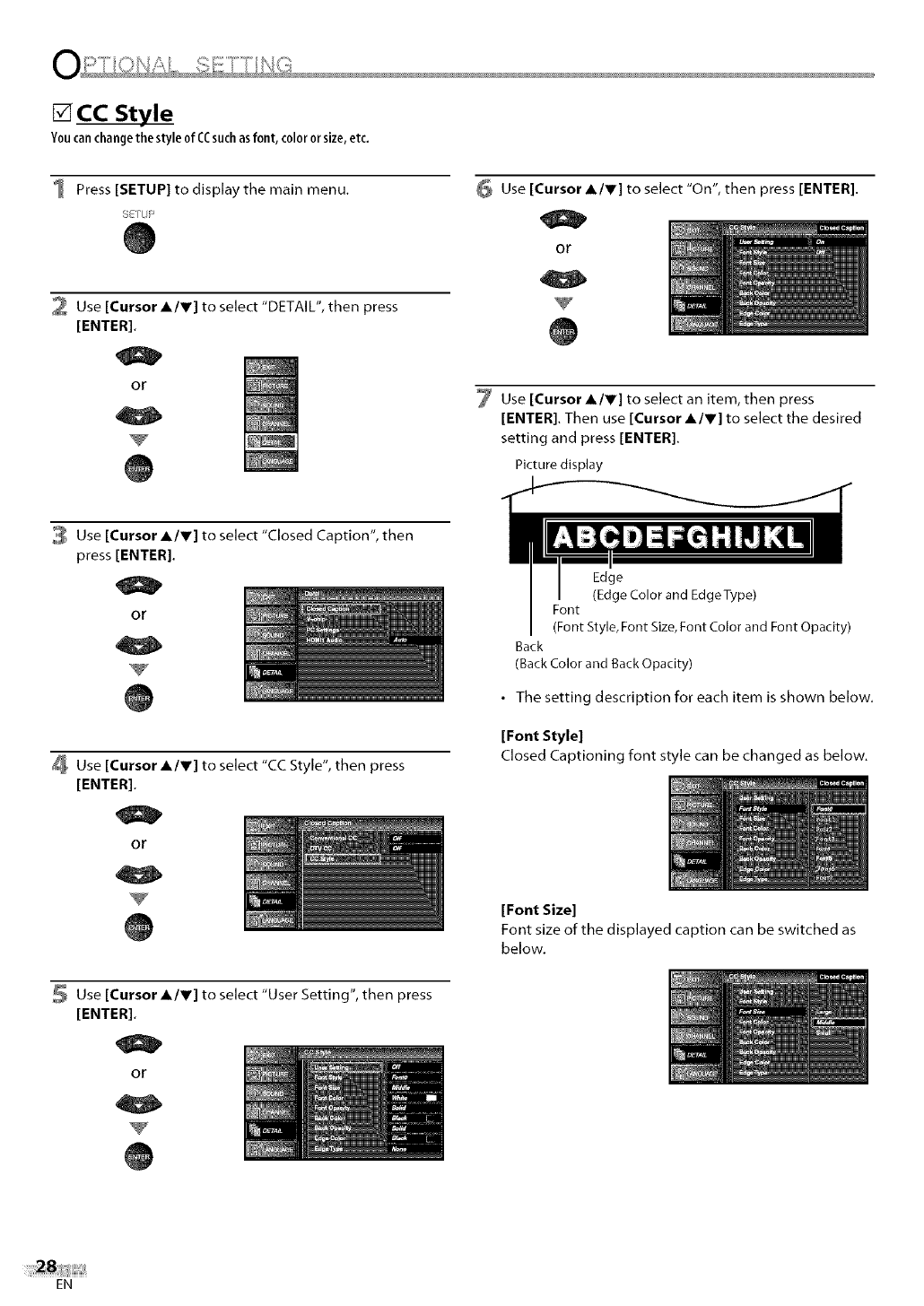

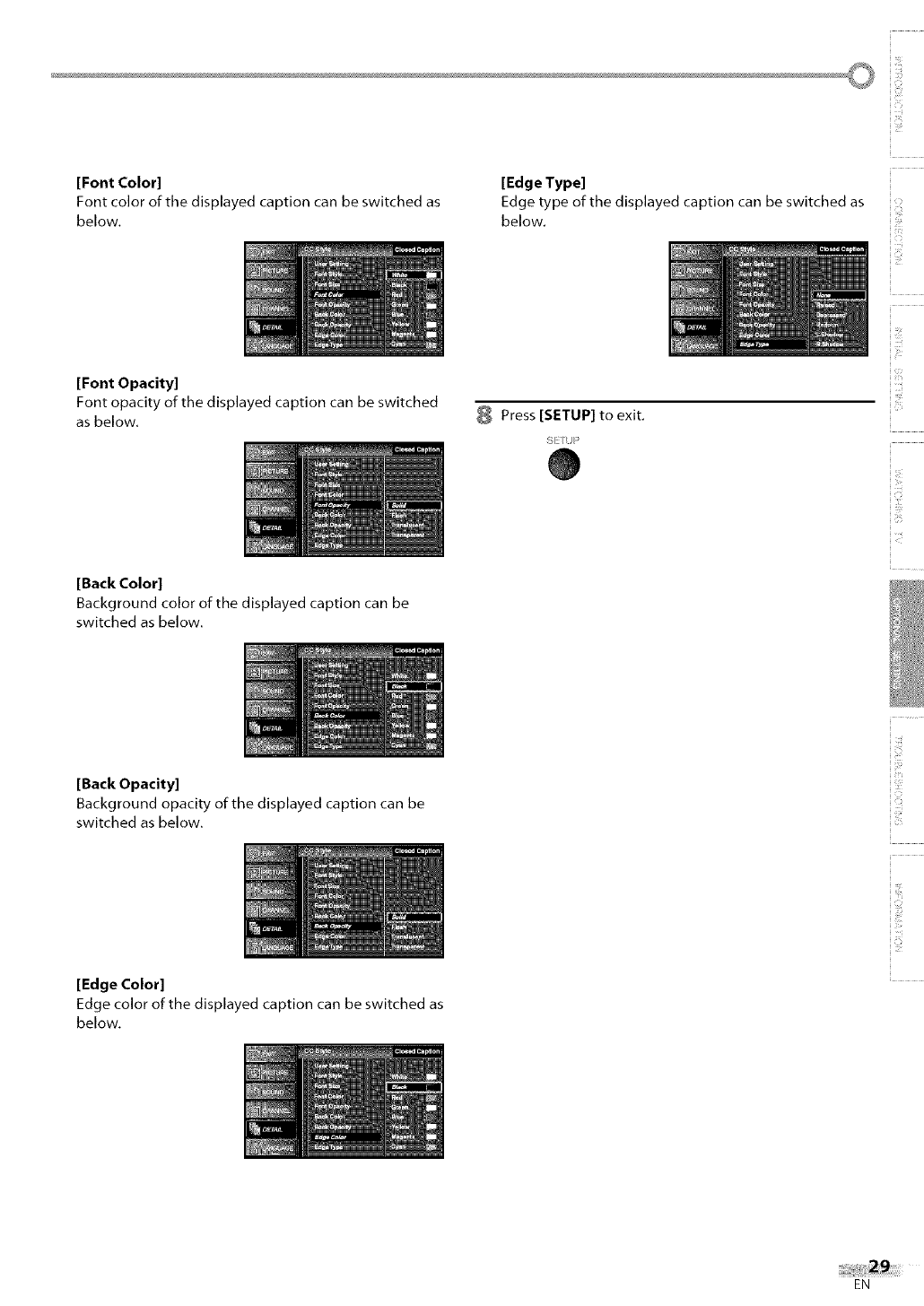

CCStyle......................................................... 28

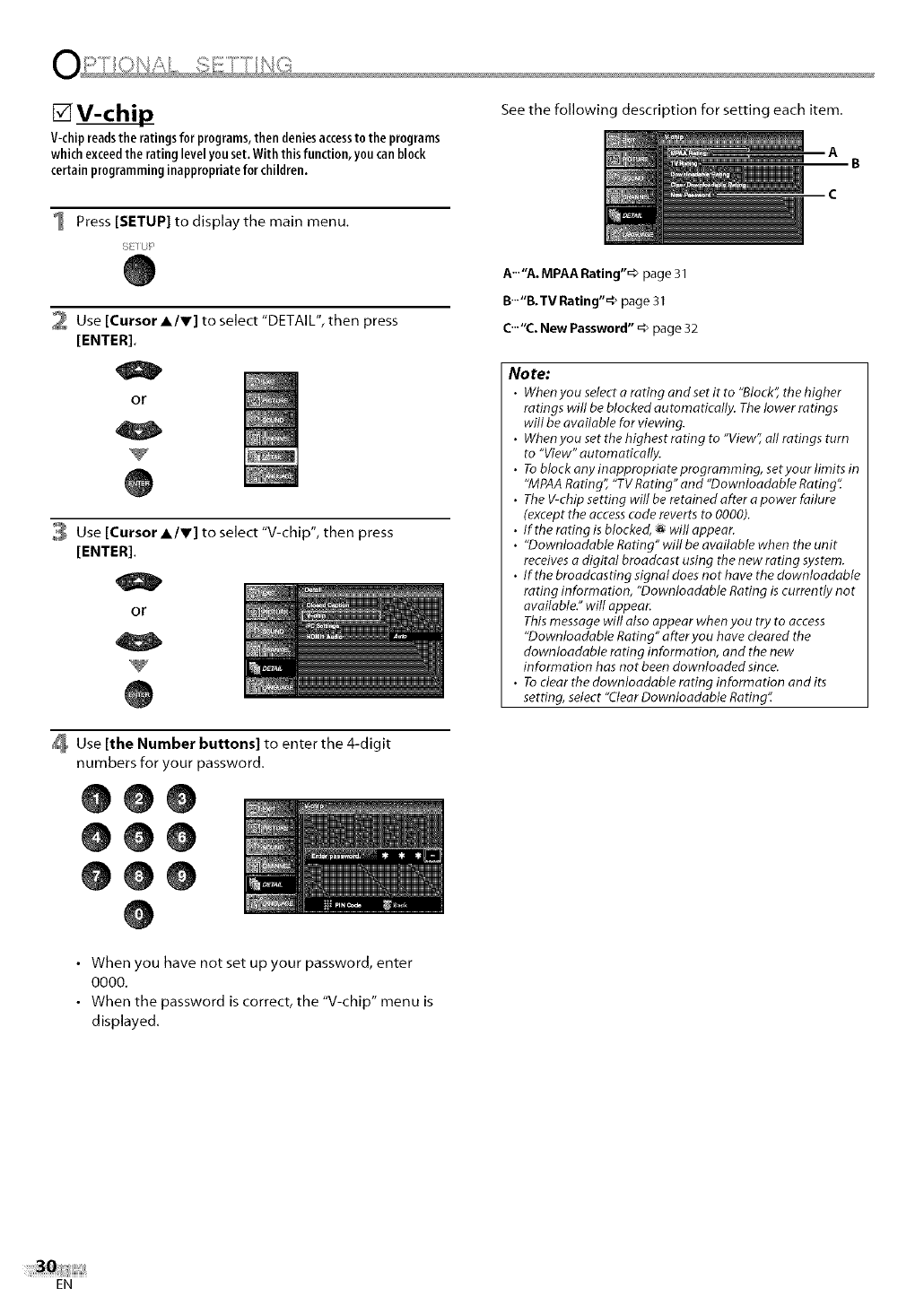

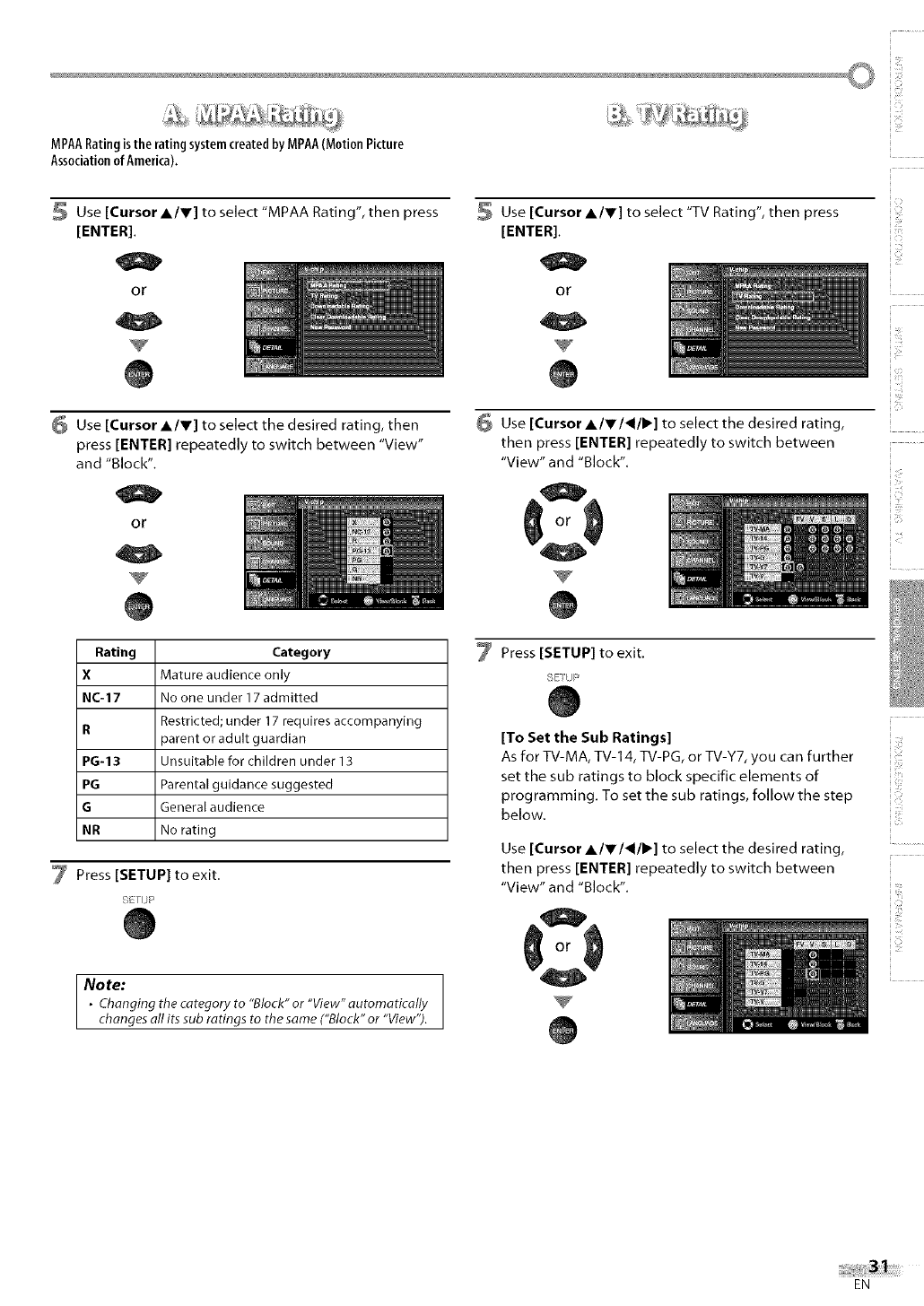

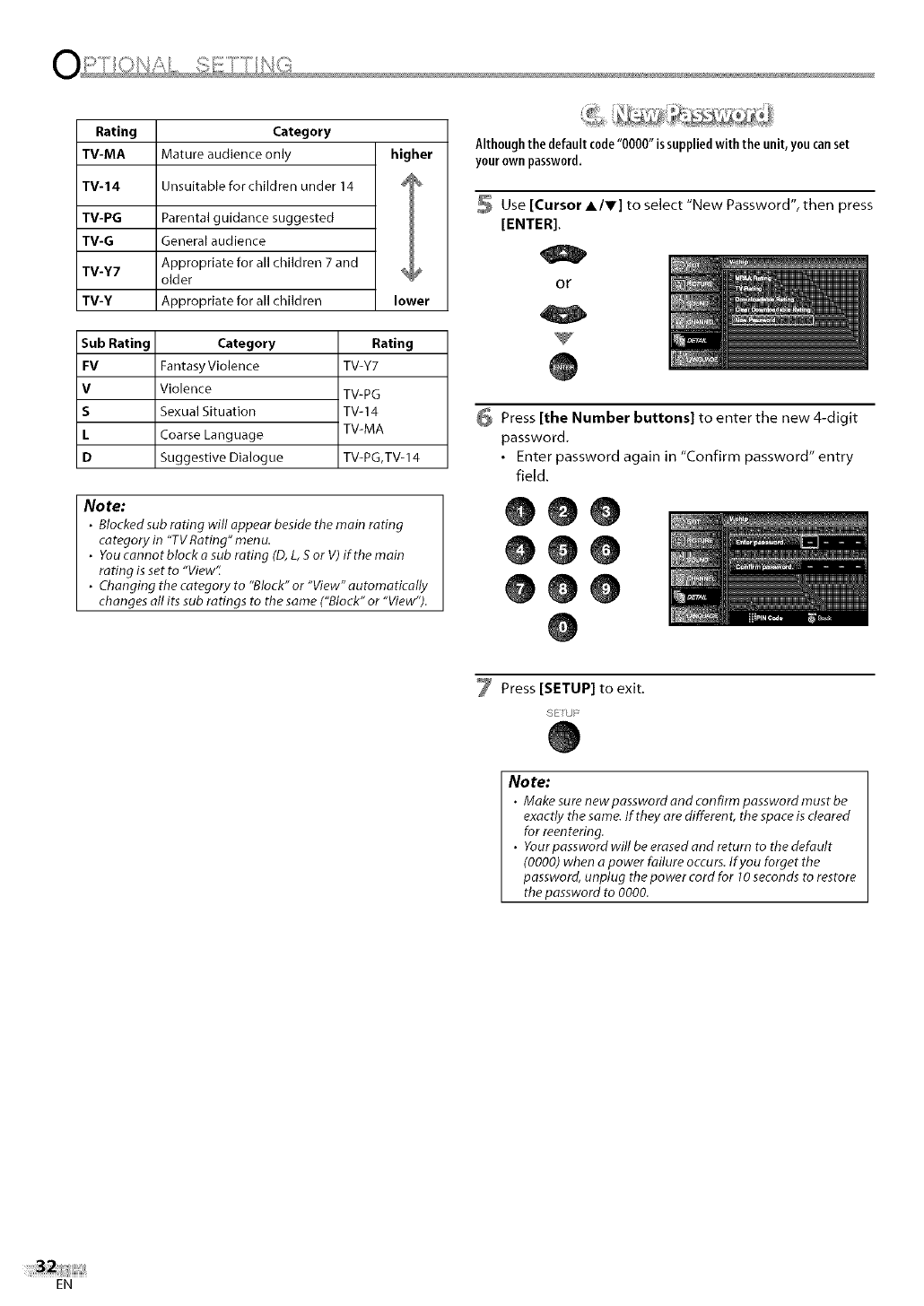

V-chip.......................................................... 30

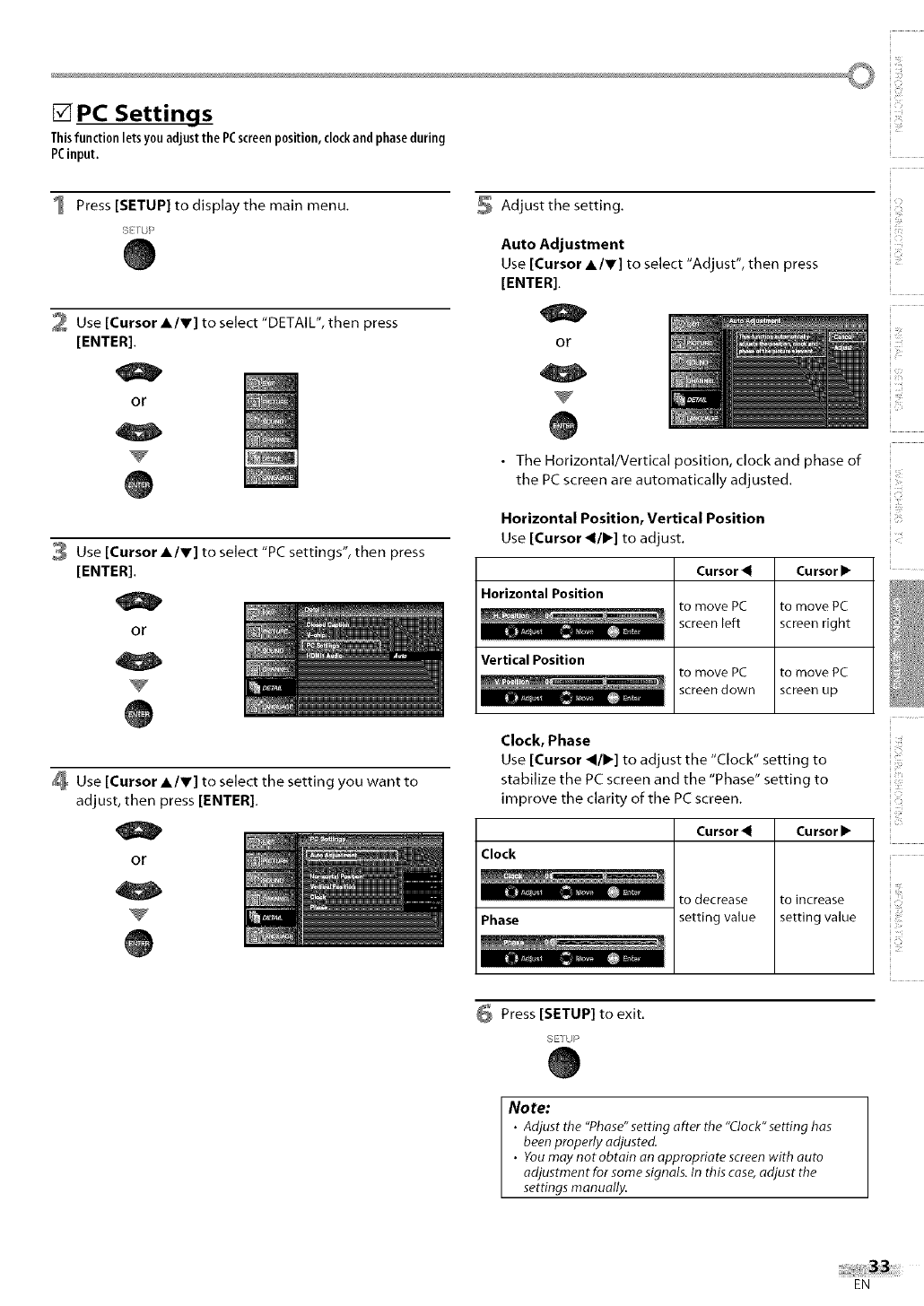

PCSettings...................................................... 33

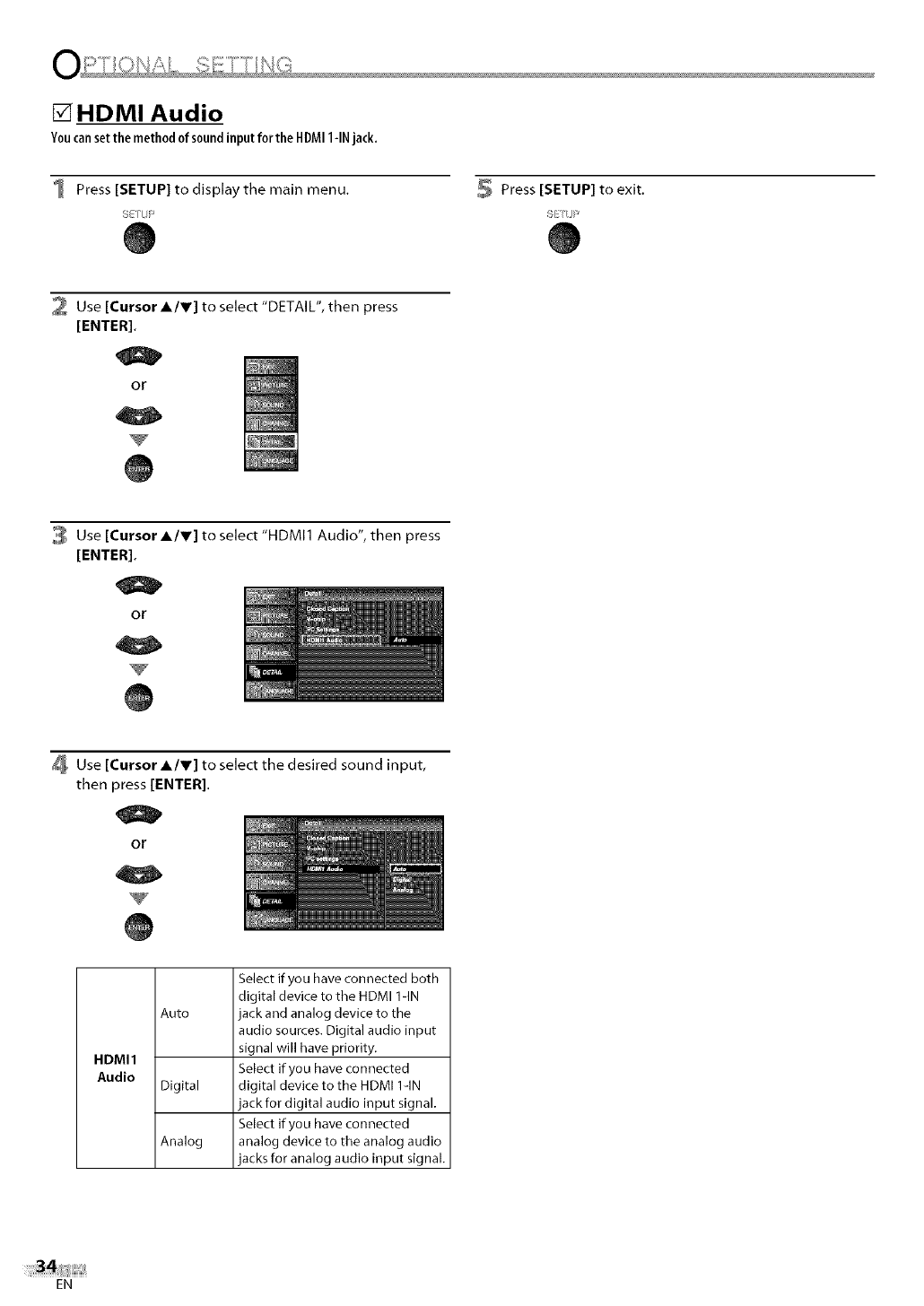

HDMIAudio..................................................... 34

TROUBLESHOO YNG

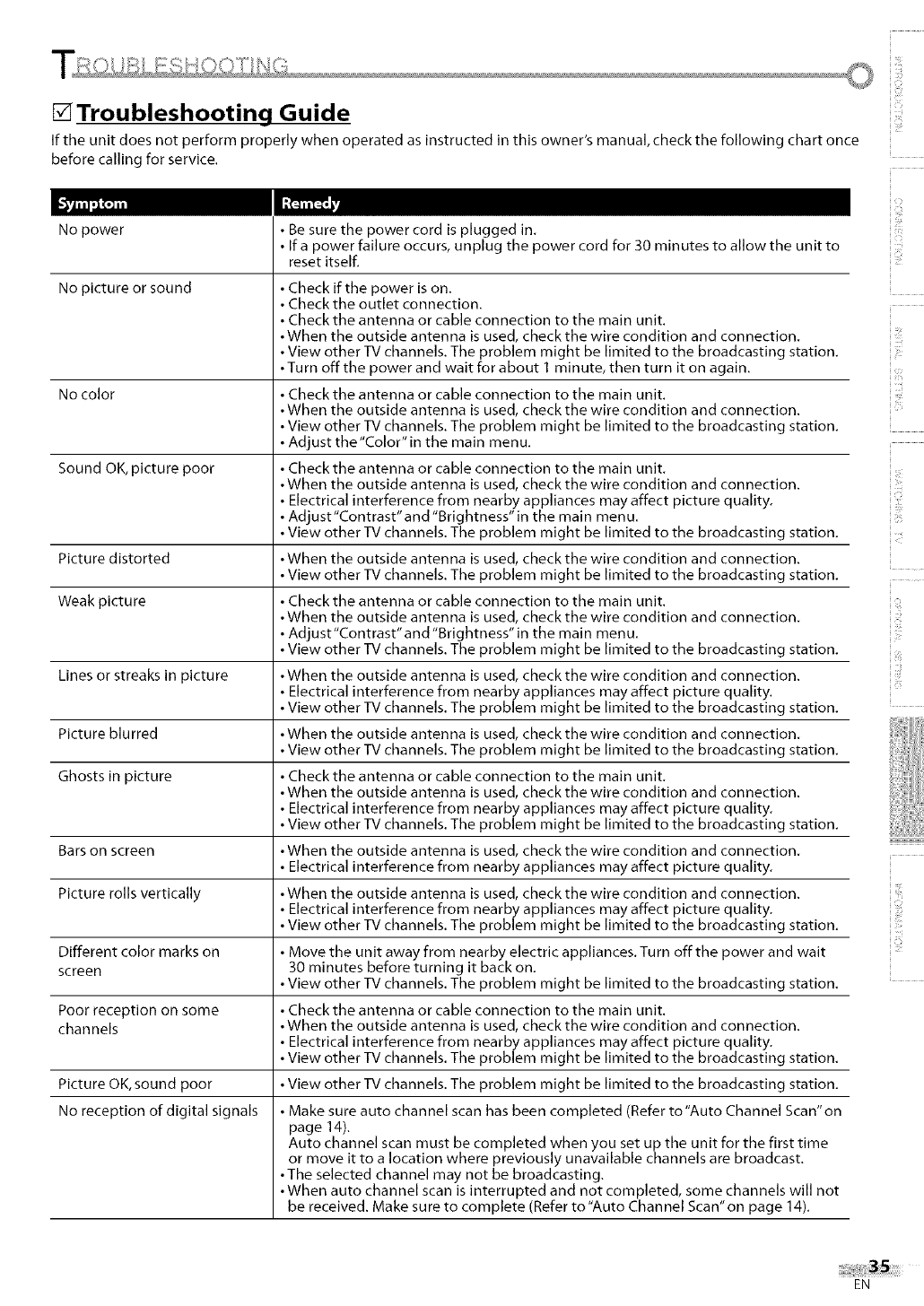

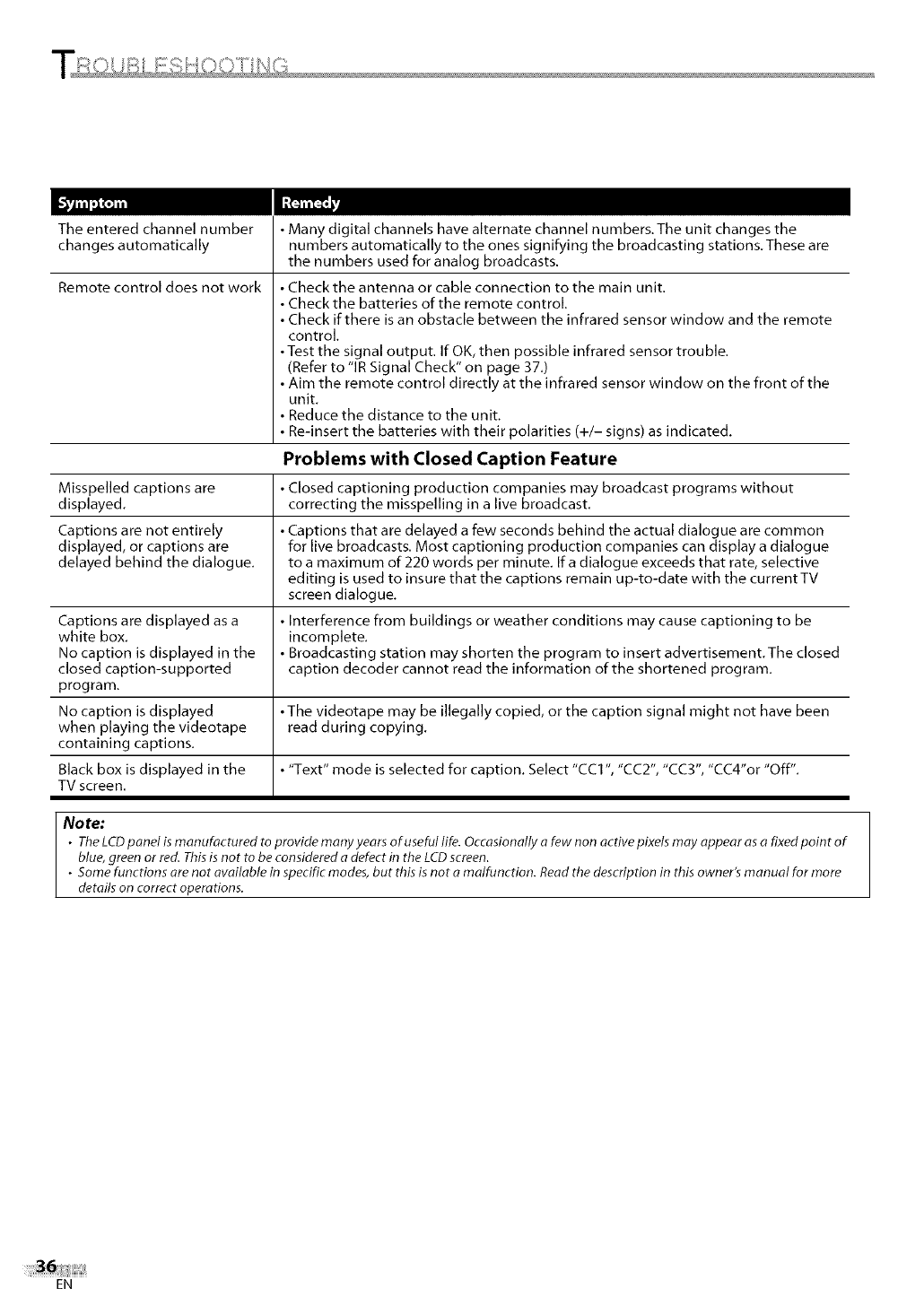

TroubleshootingGuide........................................... S5

/NFORMAr ON

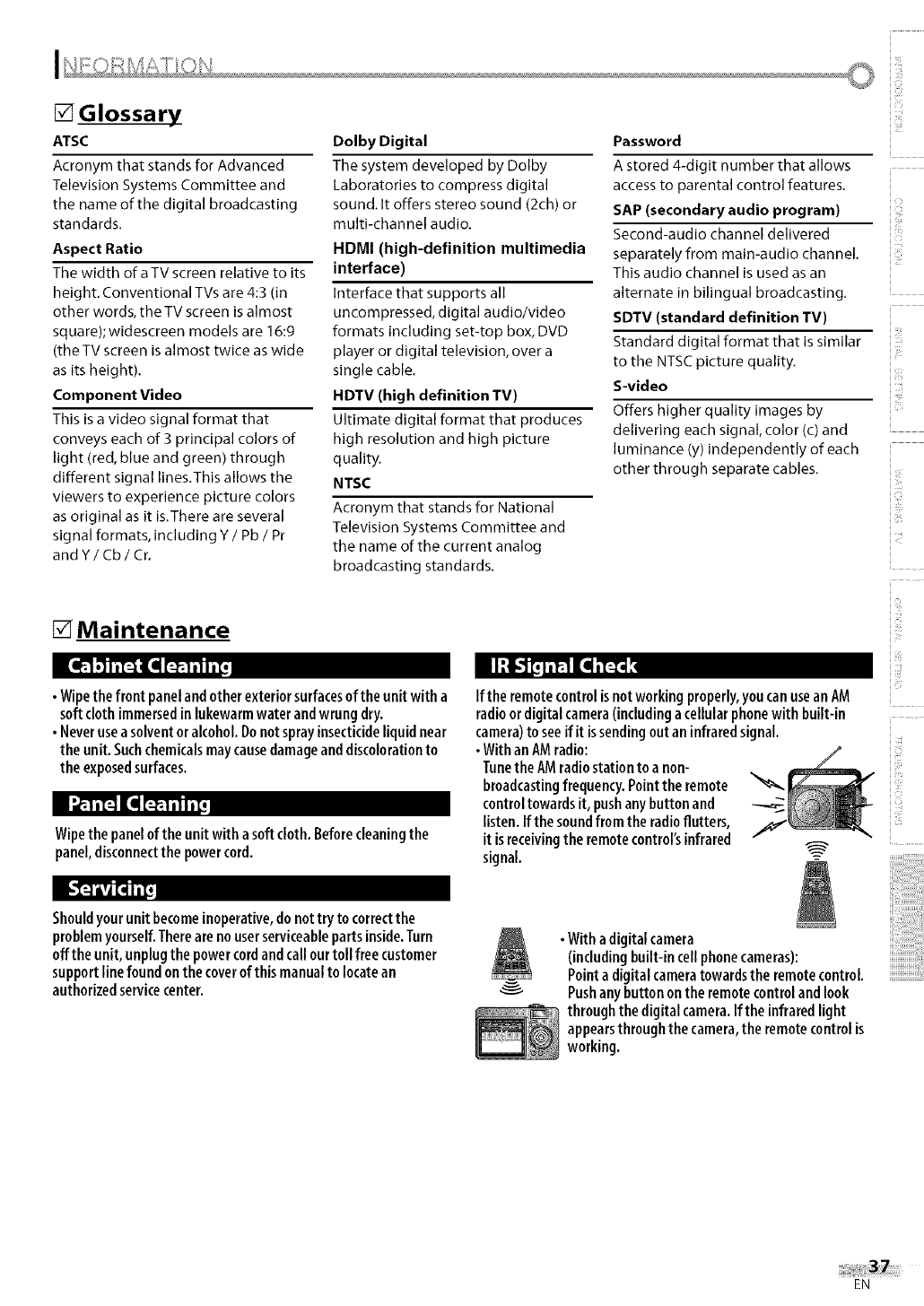

Glossary........................................................ 37

Maintenance.................................................... 37

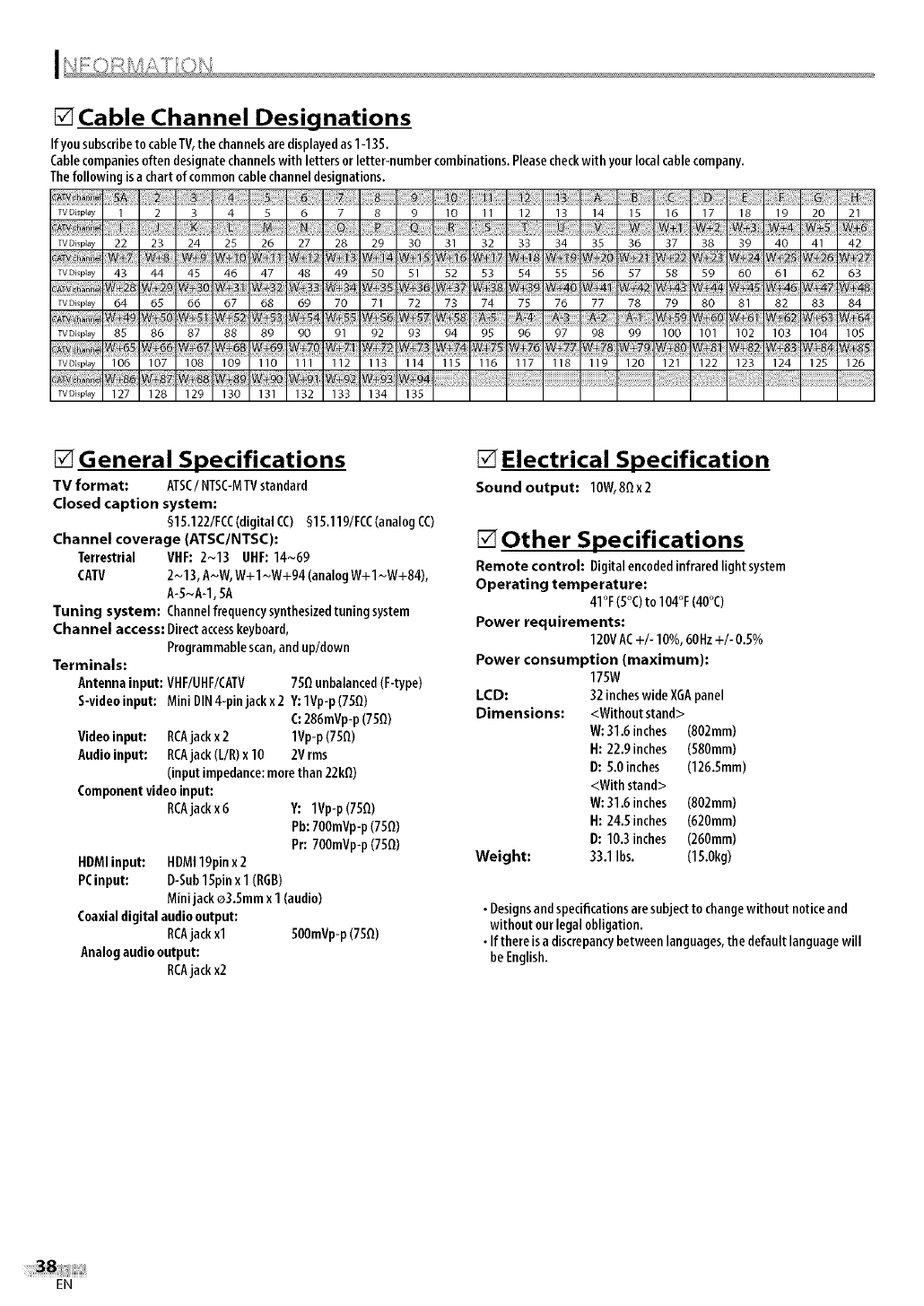

(able ChannelDesignations....................................... S8

GeneralSpecifications............................................ 38

ElectricalSpecification............................................ 38

0ther Specifications......................................... 38

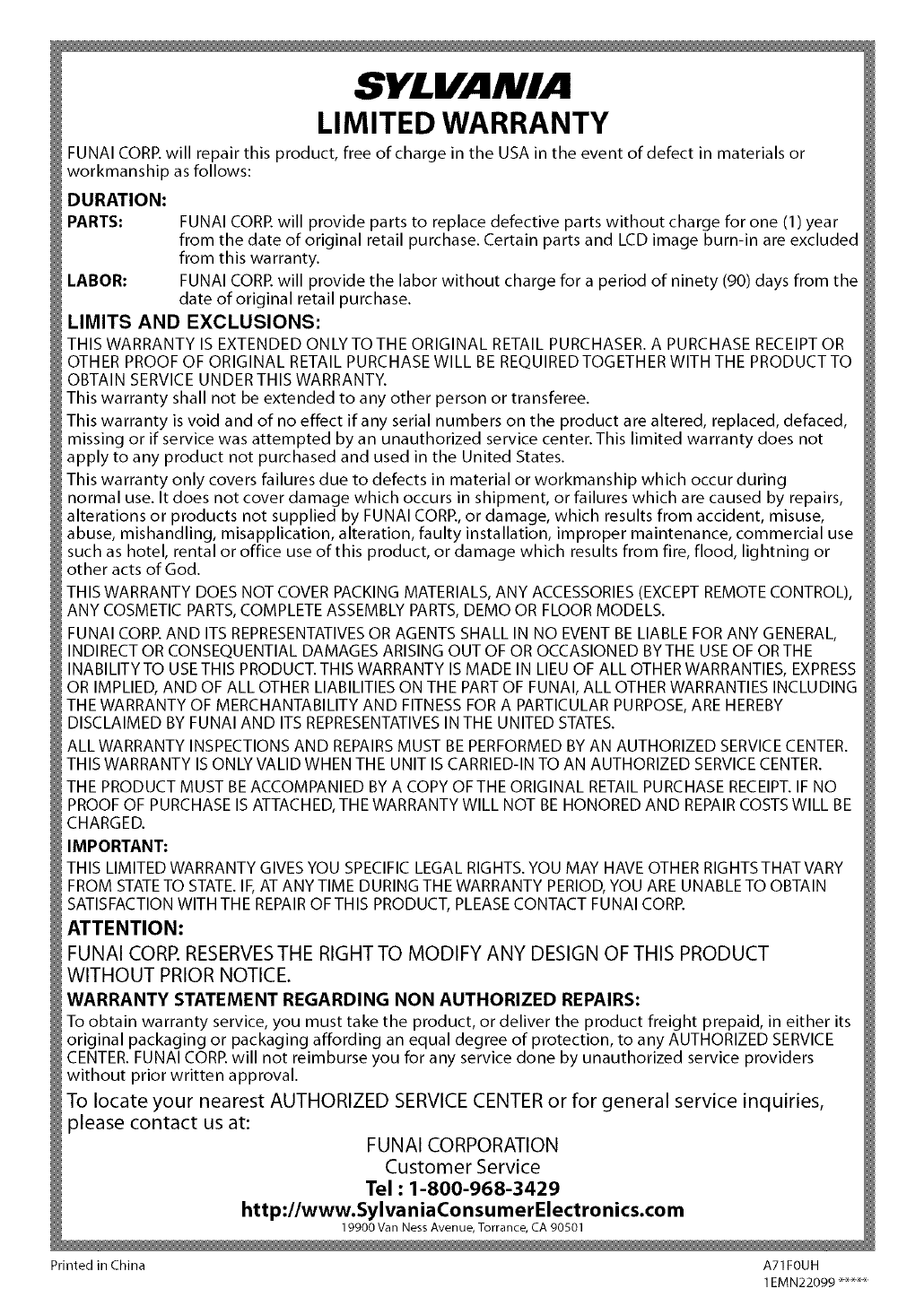

Limited Warranty.................................... Rackcover

any storage medium, in any form or for any purpose without the express prior written consent of Funai.

Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the

obligation to notify any person or organization of such changes.

I_UNAI with the I_ design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way without the express written

consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this

manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein.

Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property

rights to the fullest extent of the law.

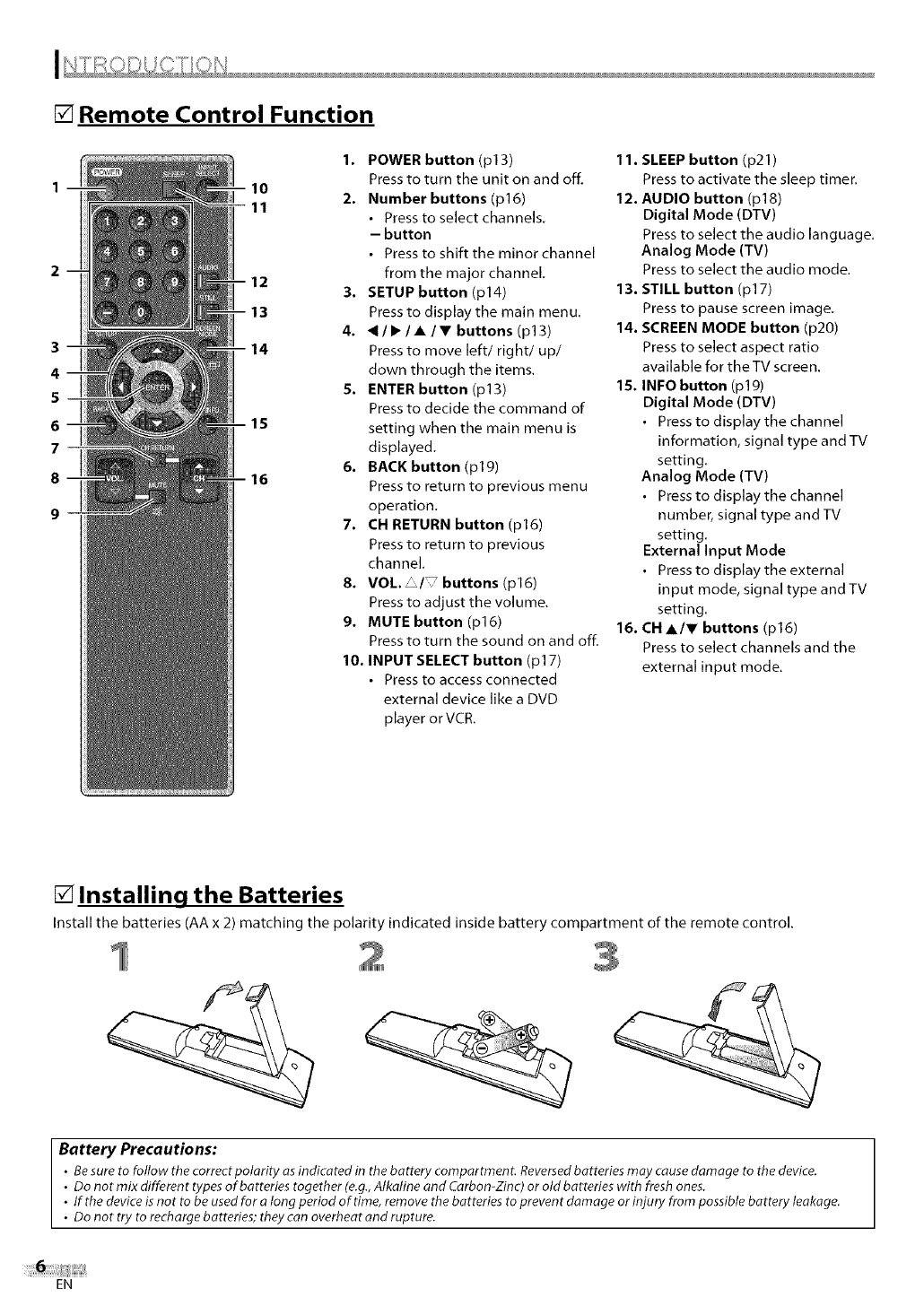

[] Remote Control Function

7--

1. POWER button (pl 3)

Press to turn the unit on and off.

2. Number buttons (p16)

•Press to select channels.

-button

• Press to shift the minor channel

from the major channel.

3. SETUP button (p14)

Press to display the main menu.

4. "< /•/•/• buttons (pl 3)

Press to move left/right/up/

down through the items.

5. ENTER button (p13)

Press to decide the command of

setting when the main menu is

displayed.

6. BACK button (plg)

Press to return to previous rnenu

operation.

7. CH RETURN button (p16)

Press to return to previous

channel.

8. VOL. _/ buttons(p16)

Press to adjust the volume.

9. MUTE button (p16)

Press to turn the sound on and off.

10. INPUT SELECT button (pl 7)

• Press to access connected

external device like a DVD

player or VCR.

11. SLEEP button (p21)

Press to activate the sleep timer,

12. AUDIO button (p18)

Digital Mode (DTV)

Press to select the audio language.

Analog Mode (TV)

Press to select the audio mode.

13. STILL button (pl 7)

Press to pause screen image.

14. SCREEN MODE button (p20)

Press to select aspect ratio

available for the TV screen.

15. INFO button (pl 9)

Digital Mode (DTV)

• Press to display the channel

information, signal type and TV

setting.

Analog Mode (TV)

• Press to display the channel

number, signal type and TV

setting.

External Input Mode

• Press to display the external

input mode, signal type and TV

setting.

16. CH •/• buttons (p16)

Press to select channels and the

external input mode.

[] Installing the Batteries

Install the batteries (AA x 2) matching the polarity indicated inside battery compartment of the remote control.

Battery Precautions:

•Be sure to follow the correct polarity as indicated in the battery compartment. Reversed batteries may cause damage to the device.

•Do not mix different types of batteries together (e.g., Alkaline and Carbon-Zinc) or old batteries with fresh ones.

•If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

•Do not try to recharge batteries; they can overheat and rupture.

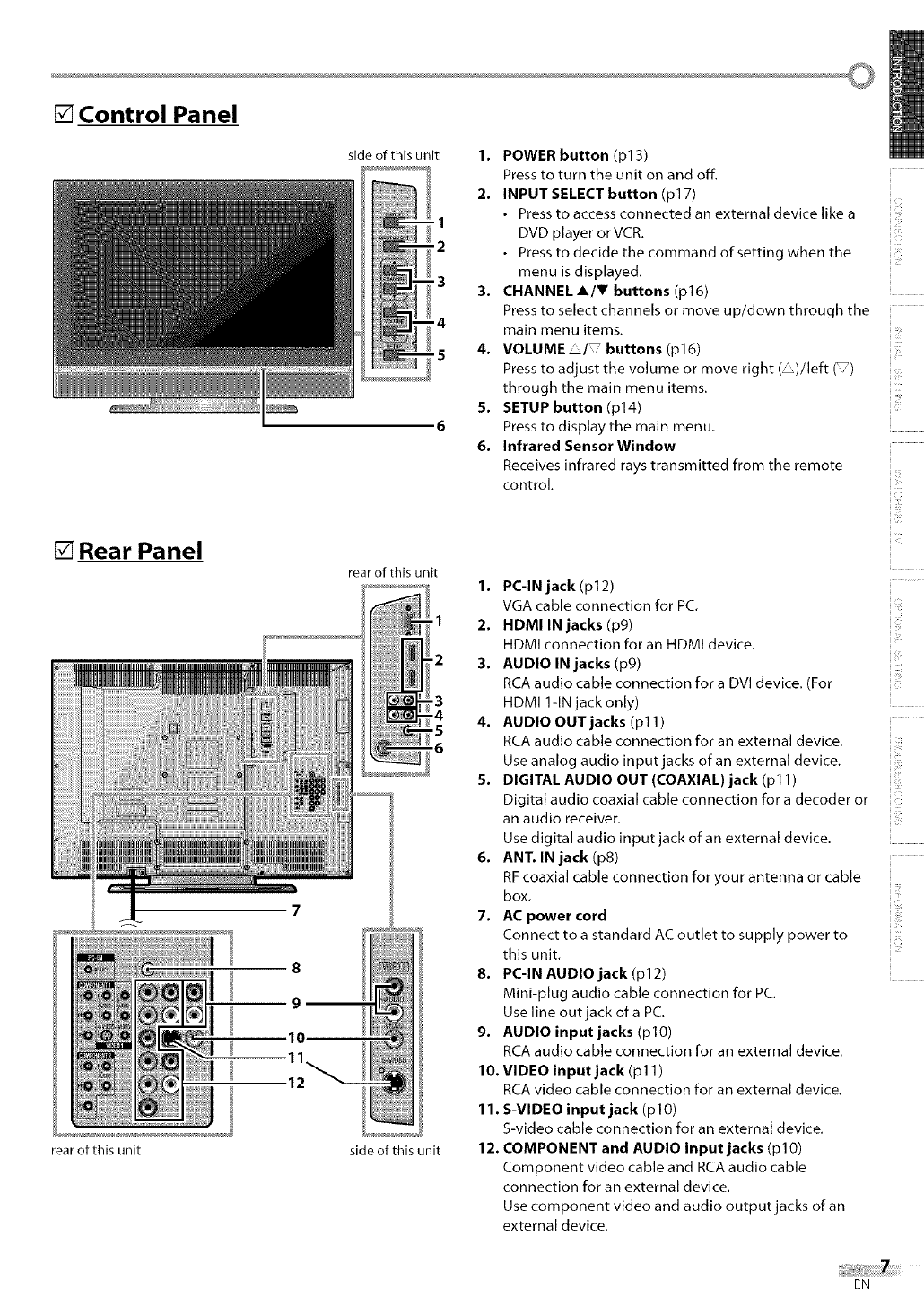

[] Control Panel

[] Rear Panel

rear of this unit

side of this unit

rear of this unit

side of this unit

1. POWER button (p13)

Press to turn the unit on and off.

2. INPUT SELECT button (p17)

•Press to access connected an external device like a

1DVD player or VCR.

2 • Press to decide the command of setting when the

menu is displayed.

33. CHANNELA/V buttons (p16)

Press to select channels or move up/down through the

4main menu items,

5 4. VOLUME _/buttons (p16)

Press to adjust the volume or move right ( " )/left _)

through the main menu items.

5. SETUP button (p14)

6Press to display the main menu.

6. Infrared Sensor Window

Receives infrared rays transmitted from the remote

control.

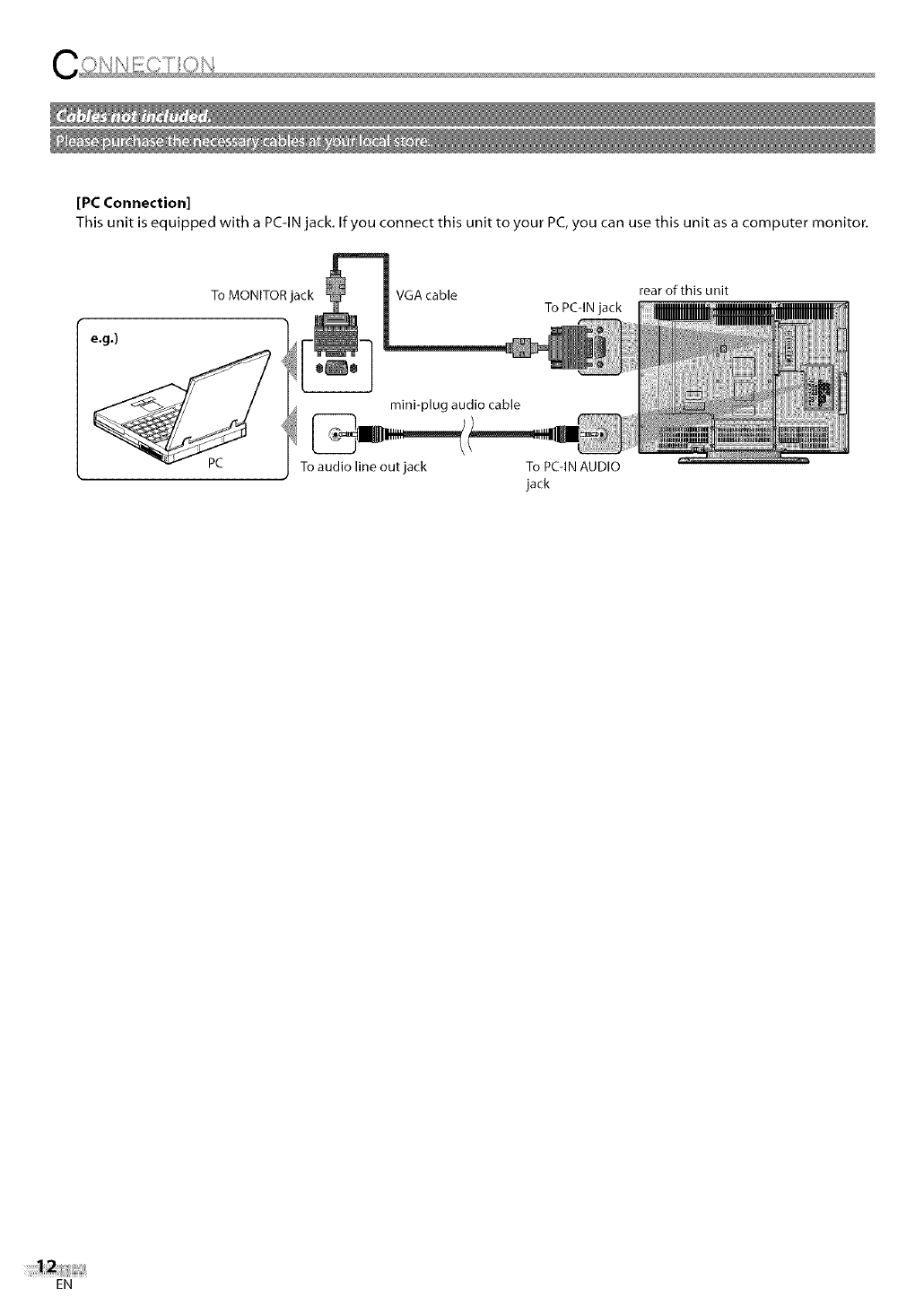

1. PC-IN jack (p12)

VGA cable connection for PC.

2. HDMI IN jacks (pg)

HDMI connection for an HDMI device.

3. AUDIO IN jacks (p9)

RCA audio cable connection for a DVl device, (For

HDMI l-IN jack only)

4. AUDIO OUT jacks (p11)

RCA audio cable connection for an external device.

Use analog audio input jacks of an external device,

5. DIGITAL AUDIO OUT (COAXIAL) jack (pl 1)

Digital audio coaxial cable connection for a decoder or

an audio receiver.

Use digital audio input jack of an external device.

6. ANT. IN jack (p8)

RF coaxial cable connection for your antenna or cable

box,

7. AC power cord

Connect to a standard AC outlet to supply power to

this unit.

8. PC-IN AUDIO jack (p12)

Mini-plug audio cable connection for PC.

Use line out jack of a PC,

9. AUDIO input jacks (pl0)

RCA audio cable connection for an external device.

10. VIDEO input jack (pl 1)

RCA video cable connection for an external device,

11. S-VIDEO input jack (pl0)

S-video cable connection for an external device,

12. COMPONENT and AUDIO input jacks (pl 0)

Component video cable and RCA audio cable

connection for an external device.

Use component video and audio output jacks of an

external device.

ii ii:i_

ii Ciil

i: !

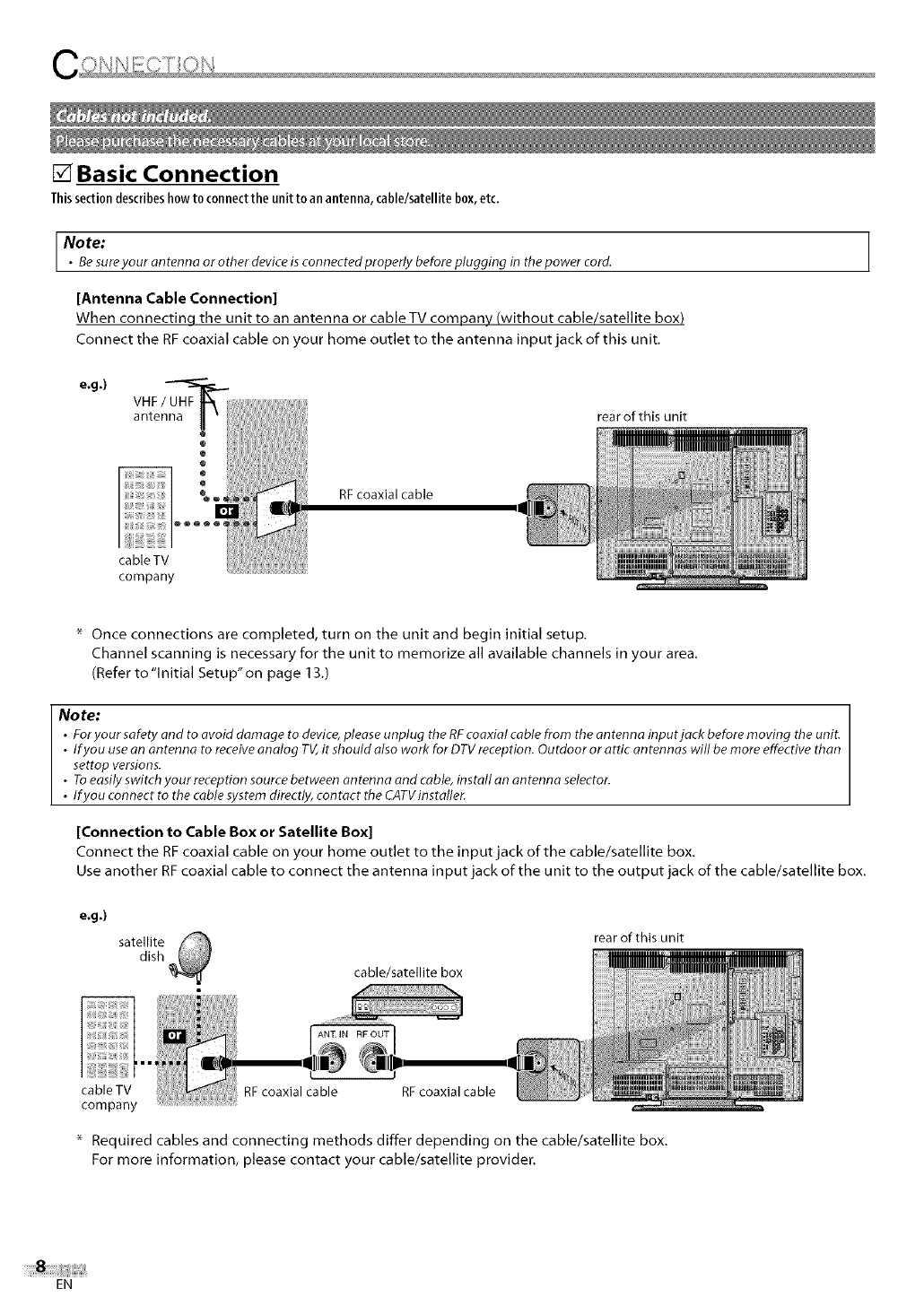

[] Basic Connection

Thissectiondescribeshowto connectthe unitto anantenna,cable/satellitebox,etc.

Note:

•Besureyour an tenna or other device is connected properly before plugging in the power cord.

[Antenna Cable Connection]

When connectinq the unit to an antenna or cable TV company (without cable/satellite box)

Connect the RFcoaxial cable on your home outlet to the antenna input jack of this unit,

rear of this unit

RF coaxial cable

cableTV

company

Once connections are completed, turn on the unit and begin initial setup.

Channel scanning is necessary for the unit to memorize all available channels in your area,

(Refer to"Initial Setup"on page 13.)

No te:

• For your safety and to avoid damage to device,please unplug the RFcoaxial cable from the antenna input jack before moving the unit.

• Ifyou usean antenna to receiveanalog TV,it should also work for DTVreception. Outdoor or attic antennas will be more effective than

settop versions.

• Toeasily switch your reception source between antenna and cable, install an antenna selector.

• Ifyou connect to the cable system directly, contact the CATVinstaller.

[Connection to Cable Box or Satellite Box]

Connect the RFcoaxial cable on your home outlet to the input jack of the cable/satellite box,

Use another RF coaxial cable to connect the antenna input jack of the unit to the output jack of the cable/satellite box.

e.g.)

satellite

dish

cable/satellite box

rear of this unit

ANTIN RFOUT

cable TV RF coaxial cable RF coaxial cable

company

Required cables and connecting methods differ depending on the cable/satellite box.

For more information, please contact your cable/satellite provider.

[] External Device Connection

[HDMI Connection]

HDMI (High Definition Multimedia Interface) transports high definition video and multi-channel digital audio through a

single cable, It ensures that the content sent from the source to TV is of the highest possible resolution,

rear of this unit

e.g.)

DVD player with the HDMI output jack

HDMI cable

To HDMI lqN or

HDMI 2qN jack

No te:

•This unit accepts 480i/4801:) /720p / 1080i video signals, and 32kHz/44. I kHz/48kHz audio signals.

• This unit accepts only 2 channel audio signal (LPCM).

• You need to select "PCM" for the digital audio output of the device connected or the HDMI audio setting. There may be no audio output if

you select "Bitstream", etc.

• This TVonly accepts signals compliant with EIA861.

[HDMI-DVI Connection]

If your video device has a DVI output jack, connect using a HDMI-DVI conversion cable.

rear of this unit

i i_

pg_,

e.g.)

.....................................................

Cable box or satellite box

with the DVl output jack

HDMI-DVI To HDMI l-IN jack

conversion cable

To AUDIO INjacks

Nore:

• Thisunitaccepts480i/480p/720p/lOSOivideosignals.

• An HDMI-DVI conversion cable requires a separate audio cable connection as well As such, only the HDMI 1-INjack can be used.

• Audio signals are converted from digital to analog for this connection.

• DVI does not display 480i image that is not compliant with EIA/CEA-861/861B.

[Component Video Cable Connection]

Component video connection offers better picture quality for video devices connected to the unit.

Use a component video cable to connect the unit to external video devices equipped with component video output

jacks.

If you connect to the unit's COMPONENT 1 video input jack, connect RCA audio cables to the audio L/R jacks of

COMPONENT 1.

If you connect to the unit's COMPONENT 2 video input jack, connect RCA audio cables to the audio L/R jacks of

COMPONENT 2.

component_q

e.g.)

video output jacks

Note:

•This unit accepts 480i/480p /720p / 1080i video signals.

rear of this unit

[S-video Cable Connection]

S-video connection offers good picture quality for video devices connected to the unit.

Use an S-video cable to connect the unit to external video devices equipped with S-video output jack.

If you connect to the unit's VIDEO 1 S-video input jack, connect RCA audio cables to the audio L/R jacks of VIDEO 1.

If you connect to the unit's VIDEO 2 S-video input jack, connect RCA audio cables to the audio L/R jacks of VIDEO 2.

DVD player with the S-video output

jack

r AUD 0 OUT S-VIDEO

I L R q OUT

rear of this unit

S-video cable

RCA audio cable

Note:• Ifyou connect to the S-videojack and the video jack at the same time, the S-video connection will have priority. ]

[Video Connection]

Video connection offers standard picture quality for video devices connected to the unit.

If you connect to the unit's VIDEO 1 video input jack, connect RCA audio cables to the audio L/R jacks of VIDEO 1.

If you connect to the unit's VIDEO 2 video input jack, connect RCA audio cables to the audio L/R jacks of VIDEO 2.

When the audio jack of the video device is monaural, connect the RCA audio cable to the audio L input jack.

rear of this unit

e.g.)

camcorder

VCR

• AUDIO OUT VIDEO

I L R q OUT

RCA video cable

Note:

•Ifyou connect to the S-videojack and the video jack at the same time, the S-video connection will have priority.

[Audio Output Connection]

[Digital]

If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital

broadcasting sound.

[Analog]

If you connect this unit to an external analog audio device, you can enjoy stereo (2 channel) audio.

e.g.)

Stereo system

e.g.)

Dolby Digital decoder

RCA audio cable

DIGITAL AUDIO

COAXIAL IN

ToAUDIO OUT

jack

rear of this unit

digital audio

coaxial cable

To DIGITALAUDIO

OUT jack

ii if:!

i iiiill

_ii,i!!!

i T!

[PCConnection]

ThisunitisequippedwithaPC-INjack.IfyouconnectthisunittoyourPC,youcanusethisunitasacomputermonitor.

e.g.)

To MONITOR jack VGA cable rear of this unit

To PCqN jack

PC To audio line out jack To PCqN AUDIO

jack

[]Initial Setup

Thissectionwillguideyouthroughthe unit'sinitialsettingwhichincludes

selectingalanguageforyouron-screenmenuandautochannelscan,

whichautomaticallyscansandmemorizesviewablechannels,

Beforeyou begin:

Makesureifthe unit isconnectedto antenna orcable.

1 After making all the necessary connections, press

[POWER] to turn on the unit.

POWER

• This operation may take a few moments.

2 Use [Cursor A/Y] to select the on-screen language

from the choices on the right side of the TV screen.

(English /Espaffol /Fran(;ais)

• "Initial Setup" menu on step 3 will be displayed in the

selected language after you press [ENTER].

3 Use [Cursor A/V] to select "Air" for TV channels or

"Cable" for CATV channels, then press [ENTER].

• Scanning and memorizing of channels start

automatically.

No te:

•Ifyou connect the cable system directly, contact the CATV

installer.

•Ifyou press[POWER] or [SETUP] during auto channel

scan, this setting will be canceled.

•Theinitial auto channel scan function can be executed

for either "Air" or "Cable"only once. Whenyou change the

connection (Air/Cable), set auto channel scan again. (Refer

to page 14.)

•Youcan cancel or exit the initial auto channel scan men u

bypressing [SETUP].

•If there is no signal input from the antenna terminal and

no operation for several secondsafter you turn on the unit,

"Helpful Hints" appears. Follow the instructions listed on

the TVscreen.

i i_

i T!

• When the scanning and memorizing are completed,

the lowest memorized channel in the broadcasting

will be displayed.

[] Main Menu

Thissectiondescribestheoverviewofthe mainmenudisplayedwhenyou

press[SETUP],Formoredetails,seethe referencepageforeachitem,

Themainmenuconsistsofthe function settingitemsbelow,

Press [SETUP].

'_I:IL _

• EXIT

To exit settings,

•PICTURE

You can adjust the picture quality.

(Refer to "Picture Adjustment" on page 24.)

•SOUND

You can adjust the sound quality.

(Refer to "Sound Adjustment" on page 25.)

•CHANNEL

You can automatically scan the viewable channels

and remove those that are undesired.

(Refer to "Auto Channel Scan" on page 14.)

•DETAIL

You can change the display format for closed

caption, which displays the dialogue ofa TV program

or other information across the TV screen.

(Refer to "Closed Caption" on page 26.)

Set the viewing limitations.

(Refer to "V-chip" on page 30.)

Adjust the position, stability and clarity of the PC

screen.

(Refer to "PC Settings" on page 33.)

And select the sound input for the HDMI jack if your

TV is connected to a HDMI device.

(Refer to "HDMI Audio" on page 34.)

•LANGUAGE

You can change the language (English, Spanish,

French) displayed on the main menu.

(Refer to "Language Selection" on page 1S.)

[]Auto Channel Scan

Ifyouswitchwires(e,g,,betweenantennaandCAW)or ifyoumovethe TV

to adifferentareaafterthe initialsetting,or ifyourestorethe DTVchannel

youdeleted,youwill needto performauto channelscan,

Before you begin:

Makesureif the unit isconnectedto antennaor cable.

Press [SETUP] to display the main menu.

SEIUP

2 Use [Cursor A/V] to select "CHANNEU', then press

[ENTER],

3 Use [Cursor A/V] to select "Autoscan", then press

[ENTER],

Use [Cursor A/V] to select an appropriate option, then

press [ENTER].

•When aerial antenna is connected, select "Air".

• When connected to CATV, select "Cable".

• Scanning and memorizing of channels start

automatically.

• When the scanning and memorizing are completed,

the lowest memorized channel will be displayed.

No te:

•Ifyou connect the cable systern directly, contact the CATV

installer.

• Ifyou press [POWER] or [SETUP] during auto channel

scan, the setting will be canceled.

•Channel settings will be saved even if the power fails.

• Ifyou need the English menus instead oftbe Spanish

or French menus you are having, press [SETUP]. Use

[Cursor A/T] to select "IDIOMA" or "LANGAGE', then press

[ENTER]. Use [Cursor A/V] to select "English" then press

]ENTER]. Press [SETUP] to exit the main menu.

• With regard only to the digital channel even after the

scanning is complete if you unplug the AC power cord

before turning off the unit by pressing ]POWER], the

channelsetting may be lost.

[] Language Selection

You can choose English, Spanish, or French as your on-screen language.

Press [SETUP] to display the main menu,

SE_U/_

2 Use [Cursor A/Y] to select "LANGUAGE", then press

[ENTER].

Use [Cursor A/V] to select "English", "Espa_ol" or

"Franc;ais", then press [ENTER].

Press [SETUP] to exit.

iiikl_

iTi!

ii Ciil

[] Channel Selection

Selectchannelsbypressing[CH•/V] or [the Numberbuttons].

[]Volume Adjustment

Thissectiondescribeshowtoadjustthe volume.Themutefunction,which

turnsthe soundoffandon,isalsodescribed.

• To select the memorized channels, use [CH •Iv] or

[the Number buttons].

• To select the non-memorized channels use

[the Number buttons].

To Use [the Number buttons]

When selecting analog channel 12

e+e+@

- When selecting digital channel 12-1

Be sure to press [-] before entering the minor

channel number.

e-+e-+e-+e-+@

• Press [CH RETURN] to return to the previously

viewed channel

About digital TV broadcostin9:

With its high definition broadcast, digital broadcasting

far surpasses analog broadcasting in both its picture

and sound quality.

What is the minor channel?

By using high compression technology, digital

broadcasting offers a service that enables multiple

signals to send simultaneously.

Therefore, you can select more than one program per

major channel since digital broadcasting technology

distinguishes between multiple channels broadcast by

a single network.

NTSC (analog mode) [Air Time] ATSC (digital mode)

18:00

18:30

19:00

19:30

20:00

20:30

II'

major ch minor channel

_1_ :change automatically

=:> :change manually by using [CH •/V]

Note:

• "No Signal" will appear on the TVscreen after the minor

channel broadcast isover.

Use[VOL. /]to adjust the audio volume.

• The volume bar will be displayed at the bottom of

the TV screen when adjusting the volume.

• The volume bar display will automatically disappear

in a few seconds.

Press [MUTE] to turn offand on the sound.

ML/FE

[]

"Mute" is displayed on the TV screen for a few

seconds.

Press [MUTE] again or[VOL. _/ ] to recover the

original volume.

[] Still Mode

Youcanfreezethe imageshownonthe TVscreen,

Press [STILL] to pause the image shown on the screen.

:1 I....

•The sound output will not be paused.

• If no signal is detected or protected signal is received

during still mode, the image remains paused and the

sound output will be muted.

• The still function will be released after S minutes.

To cancel still mode, press any button except [POWER].

[] Switching Each Mode

Youcaneasilyswitchwiththe remotecontrolto the DTV(ATSC)andTV

(NTSC)ortoaccessan external devicewhentheyareconnectedtothe unit,

Press [INPUT SELECT] or [CH A] repeatedly to cycle

through the input modes.

•i t

TV/DTV channel

or I

• Pressing [CH Y] reverses the direction of the mode.

• To use the video or S-video input jack of VIDEO 1 on

the unit, select "Video1 ".

To use the video or S-video input jack of VIDEO 2 on

the unit, select "Video2".

To use the component video input jack of

COMPONENT 1 on the unit, select "Component1".

To use the component video input jack of

COMPONENT 2 on the unit, select "Component2".

To use the HDMI l-IN jack on the unit, select

"HDMII".

To use the HDMI 2-IN jack on the unit, select

"HDMI2".

To use the PC-IN jack on the unit, select "PC".

k,iii_i

ii Ciil

[] Switching Audio Mode

Thissectiondescribeshowto switchthe audiolanguage,

1 Press [AUDIO] to display the currently selected

audio mode.While receiving an MTS broadcast,

press repeatedly to cycle through the available audio

channel.

AUDIO

When all audio are available

When stereo and monaural audio are available

When SAP and monaural audio are available

When only monaural audio is available

(Cannot be switched)

STEREO

SAP

MONO

: Outputs stereo-audio

:Outputs second audio program

: Outputs mono-audio

• The current mode will automatically disappear in 4

seconds.

1 Press [AUDIO] to display the currently selected

language and the number of available languages.

I,,LJ_O

2 Press [AUDIO] repeatedly to cycle through the

available audio languages.

AUI_CL

• Available languages differ depending on the

broadcast. "Other" is displayed when the audio

language cannot be acquired, or the acquired

languages are other than English, Spanish or French.

• The current mode will automatically disappear in 4

seconds.

Note:•Pressing[AUDIO] does not control external audio device. J

[] Screen Information

Youcandisplaythe currentlyselectedchannelorotherinformationsuchas

theaudiomodeontheTVscreen,

Inthe analogmode,the currentchannelnumberandtheaudiomodeare

displayed,

Press [INFO],

•The current channel number, audio mode, type of

resolutions for video signal, TV aspect ratio, CC and

TV rating are displayed at the top-right corner of the

TV screen.

To clear the display, press [INFO] again,

You can also press [BACK].

In the digital mode,the detailed broadcastinginformation for the current

channelsuchasprogramtitle, programguidesaredisplayed.

Press [INFO] to display the details of the currently

selected program.

INFO

[Broadcasting Information]

• The following information is displayed.

1 program title

2broadcast station

3 program guide

(The program guide added to broadcasting

information is displayed. Maximum display of 4

lines,)

4 channel number

5 audio language

(Refer to"Switching Audio Mode" on page 18.)

6 effective scanning lines and scan mode

7 program format

8 program aspect ratio

9 program rating

10 CC (not available if CC is set to "Off")

6, 7, 8

910

No te:

•When the program guide consists of more than 4 lines, use

[Cursor A/V] to scroll.

• "No description provided" is displayed when the program

guide isnot provided.

•While the program guide isdisplayed, the dosed caption

function isinterrupted.

•In external input mode, the following screen isdisplayed;

e.g.)When an external deviceis connected to VIDEO 1

input jack.

iiii_!!i

ii Ciil

•Available languages differ depending on the broadcast.

•The information display will automatically disappear in 4

seconds.

•Pressing [AUDIO] does not control external audio device.

[]TV Screen Display Mode

4 types ofdisplaymodescanbeselectedwhenthe broadcastingstation

issending4:3 or16:9videosignal.And3typesofdisplaymodescanbe

selectedfor PCinputsignal.

Press [SCREEN MODE] repeatedly to switch the TV

aspect ratio,

SCREEN

MODE

For 4:3 video signal

Sidebar Full

(normal)

Wide Cinema

[Sidebar]

Display a 4:3 picture at its original size. Sidebars appear

on both edges of the screen.

[Full]

Display a 4:3 picture at a 16:9 size; the picture is

stretched horizontally to fill the screen.

[Cinema]

Display a 4:3 picture at a 16:9 size; the picture is

stretched horizontally and vertically to fill the screen.

This crops out the top and bottom of the picture.

[Wide]

Display the picture with its center at the original size

and the edges stretched horizontally.

[Cinema]

Display a vertically stretched picture.

[Expand]

Display a horizontally stretched picture.

For 16:9 video signal

Zoom

Full

(normal)

÷ !,

Expand Cinema

[Full]

Display a 16:9 picture at its original size.

[Zoom]

Display a 16:9 picture at its maximum size without

changing its horizontal and vertical ratio.

For PC input signal • %1

Sidebar Full

IDot By Dot

(normal)

[Sidebar]

Display a proportionately stretched picture. Sidebars

appear on both edges of the screen.

[Full]

Display a picture that is stretched out of proportion to

fill the screen.

[Dot By Dot]

Display a picture in its original size.

Note:

•Youmay not switch the display mode depending on the

program.

• For PCinput signal, "5idebar" may not be setectable

depending on the aspect ratio of the input signal.

[] Sleep Timer

Thesleeptimercanbesetto automatically turnoff the unitafter an

incrementalperiodof time.

1 Press [SLEEP] to set the sleep timer.

SLEEP

•Sleep timer display appears on the TV screen.

2 Press [SLEEP] repeatedly to change the amount of time

until shut off.

• You can set your unit to turn off after a set period of

time (from 30 to 120 minutes).

• Each press of [SLEEP] will increase the time by 30

minutes.

• After set up, the sleep timer display can be called up

for checking by pressing [SLEEP].

To Cancel the Sleep Timer

Press [SLEEP] repeatedly until "Sleep Off" is displayed

on the TV screen.

No te:

•Thesleep timer setting display will automatically

disappear in 4 seconds.

•When you disconnect the unit from the ACoutlet or when

apower failure occurs, the sleep timer setting will be

canceled.

iii;_!!i

ii CI;

[]Channel List

Thechannellistfunctionletsyouremoveundesiredchannelsfromthe

channelregistrationlist,

Press [SETUP] to display the main menu. Press [SETUP] to exit.

2 Use [Cursor A/r] to select "CHANNEL", then press

[ENTER].

3 Use [Cursor A/r] to select "Channel List", then press

[ENTER],

Use [Cursor A/r] to select the channel you want to

remove, then press [ENTER].

•The channel display for the removed channel

darkens. You will not be able to select the channel

again using [CH A/r].

• To reactivate a removed channel, highlight it using

[Cursor A/V] and press [ENTER]. The channel

display lightens.

• When you remove a major channel, its minor

channels are removed as well,

Note:

•Thechannelwith the "DTV"indicatedon thedisplayis

ATSC.Otherwise the channel is NTSC.

[] Manual Register

Themanualregisterfunctionletsyouaddthechannelsthat werenotadded

bythe autochannelscandueto the receptionconditionatthe initialsetting,

Press [SETUP] to display the main menu.

S1_1UP

2 Use [Cursor A/V] to select "CHANNEL", then press

[ENTER].

Use [Cursor A/Y] to select "Manual Register", then

press [ENTER].

[]Antenna Confirmation

Thisfunctionletsyoucheckthesignalstrengthofeachchannel,

Press [SETUP] to display the main menu.

_TJ: _

Use [Cursor •Iv] to select "CHANNEL", then press

[ENTER],

Use [Cursor •/V] to select "Antenna", then press

[ENTER],

ii ii:i_

Use [the Number buttons] to enter the number of the

channel you want to add, then press [ENTER].

0O0

000

OOO

Press [SETUP] to exit.

Note:

•If set up completes successfully, "Registeredto the Channel

List" is displayed.

• If external input is used,it is not possible to register the

channel and "Unawilable" will be displayed on the TV

screen.

Use [the Number buttons] or [CH •IV] to select the

channel for which you want to check the signal strength.

OOO

If the channel is set to external input, you cannot

confirm the antenna condition.

Press [SETUP] to exit.

!_E FUP

[] Picture Adjustment

Youcanadjustbrightness,contrast,color,tint andsharpness.

Press [SETUP] to display the main menu.

S 1UP

2 Use [Cursor A/r] to select "PICTURE", then press

[ENTER].

3 Use [Cursor A/r] to select the item you want to adjust,

then press [ENTER].

Adjust the picture quality.

Picture Mode

Use [Cursor A/r] to select the desired setting, then

press [ENTER]. (Standard, Dynamic, Movie and News)

Brightness, Contrast, Color, Tint, Sharpness

Use [Cursor <111_]to adjust.

Brightness

Contrast

Color

Tint

Sharpness

Cursor< Cursorl_

to decrease to increase

brightness brightness

to decrease to increase

contrast contrast

to decrease to brighten

color color

to add red to add green

to make soft to make clear

Reset Settings

Use [Cursor A/r] to select "Reset", then press [ENTER]

to restore the "Picture Mode" setting to default.

Color Temp.

Use [Cursor A/r] to select the desired setting, then

press [ENTER]. (Cool, Neutral and Warm)

Energy Saving

Use [Cursor </IP'] to adjust the brightness of the backlight.

:To brighten

:To darken

No te:

•Tocancelpicture adjustment, press[.SETUP].

Press [SETUP] to exit.

sEr//P

[] Sound Adjustment

Youcanadjust treble,bassandsurround,

Press [SETUP] to display the main menu.

S 1UP

2 Use [Cursor A/r] to select "SOUND", then press

[ENTER].

3 Use [Cursor A/r] to select the sound type you want to

adjust, then press [ENTER].

Adjust the sound setting.

Treble, Bass

Use [Cursor </P'] to adjust.

Treble

Cursor< Cursorl_

to decrease to increase

higher-pitched higher-pitched

sounds sounds

Bass to decrease to increase

lower-pitched lower-pitched

sounds sounds

Surround

Use [Cursor A/V] to turn on or off the surround

function, then press [ENTER].

Reset Settings

Use [Cursor A/r] to select "Reset", then press [ENTER]

to restore the "Sound" settings to default.

Note:

•Tocancelsound adjustmen t, press[SETUP].

Press [SETUP] to exit.

_ErUP

i,q

i i

i Ti!

ii Ciil

[] Closed Caption

Youcanview closedcaptioning(co)for TV programs,moviesand news,

Closedcaptionrefertotext of dialogueordescriptionsdisplayedon-screen

forthe hearingimpaired,

1 Press [SETUP] to display the main menu.

',:_ YUP

2 Use [Cursor A/Y] to select "DETAIL", then press

[ENTER].

3 Use [Cursor A/V] to select "Closed Caption", then

press [ENTER].

Use [Cursor A/V] to select "Conventional CC", then

press [ENTER].

Use [Cursor A/V] to select the desired closed caption,

then press [ENTER].

[Caption Mode]

CC1 and Text1;

are the primary caption and text services.

The captioning or text is displayed in the same

language as the program's dialogue

(up to 4 lines of script on the TV screen, where it

does not obstruct relevant parts of the picture).

CC3 and Text3;

serve as tile preferred data channels.

The captioning or text is often a secondary language.

CC2, CC4, Text2 and Text4;

are rarely available and broadcasters use them only

in special conditions, such as when "CC1" and "CC3"

or "Text1" and "Text3" are not available.

• There are 3 display modes according to programs:

Paint-on mode:

Displays input characters on the TV screen

immediately.

Pop-on mode:

Once characters are stored in memory, they are

displayed all at once.

Roll-up mode:

Displays tile characters continuously by scrolling

(max. 4 lines).

6 Press [SETUP] to exit.

SE[UP

Nore:

•Toshow the dosed caption on your TVscreen, broadcast

signal must contain the dosed caption data.

•Not all TVprograms and commercials have the dosed

caption or all types of the dosed caption.

•Captions and texts may not match the TVvoice exactly.

• Changing channels may delay the closed caption for afew

seconds.

•Adjusting or muting the volume may delay the dosed

caption for afew seconds.

•Abbreviations, symbols andothergrammaticalshortcuts

may be used in order to keep pace with the on-screen

action. This is not aproblem with the unit.

•Thecaption or text characters will not be displayed while

the main menu or functions display isshown.

•Ifa black box appears on the TVscreen, this means that

the dosed caption is set to TEXTmode. Toclear the box,

select "CC1'_"CC2'_"CC3","CC4"or "Off".

•If the unit receivespoor quality television signals, the

captions may contain errors, or there might be no captions

at all. Somepossible causes of poor quality signals are:

-Automobile ignition noise

-Electdcmotor noise

-Weak signal reception

-Multiplex signal reception (ghostsor screen flutter)

•Theunit retains the closedcaption setting if the power

fails.

• Closedcaption will not be displayed when you are using

an HDMI connection.

•When the unit receivesaspecial effectsplayback signal

(i.e.,Search,Slow and Still) from aVCR'svideo output

channel (CH3or CH4),the unit may not display the correct

caption or text.

[] DTV Closed Caption

Inaddition tothe basicclosedcaptiondescribedon page26, DTVhasits

ownclosedcaptioncalledDTVCO.Usethismenuto changethesettings for

DTVCC.

Press [SETUP] to display the main menu.

2 Use [Cursor A/Y] to select "DETAIL", then press

[ENTER],

3 Use [Cursor A/V] to select "Closed Caption", then

press [ENTER].

Use [Cursor A/V] to select "DTV CC", then press

[ENTER].

Use [Cursor A/V] to select the desired DTV closed

caption, then press [ENTER].

DTV CC

Off¸

Service1-6

Select if you do not want

DTVCC.This isthe default.

Select one of these before

changing any other item

in "Closed Caption"menu.

Choose"Servicel"under

normal circumstances.

Press [SETUP] to exit.

_ UP

Note:

•"DTVCC"that you can switch differs depending on the

broadcast description.

iTi!

!= :¸i27111!J

[] CC Style

Youcanchangethe style of CCsuchasfont,color orsize,etc.

Press [SETUP] to display the main menu.

_ 1UP

2 Use [Cursor A/Y] to select "DETAIL", then press

[ENTER].

6 Use [Cursor A/V] to select "On", then press [ENTER].

7 Use [Cursor A/V] to select an item, then press

[ENTER], Then use [Cursor A/V] to select the desired

setting and press [ENTER].

Picture display

Use [Cursor A/V] to select "Closed Caption", then

press [ENTER].

Use [Cursor A/V] to select "CCStyle", then press

[ENTER].

Edge

(Edge Color and EdgeType)

Font

(Font Style, Font Size, Font Color and Font Opacity)

Back

(Back Color and Back Opacity)

• The setting description for each item is shown below.

[Font Style]

Closed Captioning font style can be changed as below.

Use [Cursor A/V] to select "User Setting", then press

[ENTER].

[Font Size]

Font size of the displayed caption can be switched as

below.

[Font Color]

Font color of the displayed caption can be switched as

below.

[Edge Type]

Edge type of the displayed caption can be switched as

below.

[Font Opacity]

Font opacity of the displayed caption can be switched

as below. 8 Press [SETUP] to exit.

SER_P

i o

[Back Color]

Background color of the displayed caption can be

switched as below.

ii ii:i_

[Back Opacity]

Background opacity of the displayed caption can be

switched as below.

[Edge Color]

Edge color of the displayed caption can be switched as

below.

iTi!

ii Ciil

[] V-chip_

V-chip reads the ratings for programs, then denies access to the programs

which exceed the rating level you set. With this function, you can block

certain programming inappropriate for children.

1 Press [SETUP] to display the main menu.

,a -rUp

2 Use [Cursor A/Y] to select "DETAIL", then press

[ENTER].

3 Use [Cursor A/V] to select "V-chip", then press

[ENTER].

Use [the Number buttons] to enter the 4-digit

numbers for your password,

0@O

@@@

@O@

•When you have not set up your password, enter

0000.

• When the password is correct, the "V-chip" menu is

displayed,

See the following description for setting each item.

A-'"A. MPAA Rating"@ page 31

B-"B. TV Rating"@ page 31

C-'"C. New Password" @ page 32

Nore:

•When you select arating and set it to "Block", the higher

ratings will be blocked automatically. The lower ratings

will be available for viewing.

•When you set the highest rating to "View", all ratings turn

to "View" automatically.

•To block any inappropriate programming, setyour limits in

"MPAA Rating", "TV Rating" and "Downloadable Rating'f

•The V-chip setting will be retained after apower failure

(except the access code reverts to 0000).

•If the rating is blocked, _will appear.

• "Downloadable Rating" will be available when the unit

receives o digital broadcast using the new rating system.

•If the broadcasting signal does not have the downloadable

rating information, "Downloadable Rating is currently not

available." will appear.

This message will also appear when you try to access

"Downloadable Rating" after you have cleared the

downloadable rating information, and the new

information has not been downloaded since.

•To clear the downloadable rating information and its

setting, select "Clear Downloadable Rating'_

MPAARatingisthe rating systemcreatedby MPAA(MotionPicture

Associationof America).

Use [Cursor A/r] to select "MPAA Rating", then press

[ENTER].

Use [Cursor A/r] to select "TV Rating", then press

[ENTER].

Use [Cursor A/r] to select the desired rating, then

press [ENTER] repeatedly to switch between "View"

and "Block".

Rating Category

XMature audience only

NC-17 No one under 17 admitted

RRestricted; under 17 requires accompanying

parent or adult guardian

PG-13 Unsuitable for children under 13

PG Parental guidance suggested

GGeneral audience

NR No rating

7 Press [SETUP] to exit.

S 1UP

Note:

•Changing the category to "Block" or "View" automatically

changes all itssub ratings to the same ("Block" or "View").

Use [Cursor AIvI<II_] to select the desired rating,

then press [ENTER] repeatedly to switch between

"View" and "Block".

7 Press [SETUP] to exit.

SEUI

i '!_ii

ii'iiii_i_i

i,i_!:

[To Set the Sub Ratings]

As for TV-MA, TV-14, TV-PG, or TV-Y7, you can further

set the sub ratings to block specific elements of

programming. To set the sub ratings, follow the step i

below.

Use [Cursor AIvI<II_] to select the desired rating,

then press [ENTER] repeatedly to switch between

"View" and "Block".

i ii_!_i_

Rating Category

TV-MA Mature audience only higher

TV-14 Unsuitable for children under 14 _

TV-PG Parental guidance suggested

TV-G General audience

Appropriate for all children 7 and

TV-Y7 older _ _

TV-Y Appropriate for all children lower

Sub Rating

Category

FantasyViolence

Violence

Sexual Situation

Coarse Language

Suggestive Dialogue

Rating

TV-Y7

TV-PG

TV-14

TV-MA

TV-PG,TV-14

No re:

•Blocked sub rating wifl appear beside the main rating

category in "TV Bating" men u.

• You cannot block a sub rating (D, L, S or V) if the main

rating is set to "View'_

•Changing the category to "Block" or "View" automatically

changes all its sub ratings to the same ("Block" or "View").

Althoughthe default code"0000" issupplied with the unit, you canset

your own password.

Use [Cursor A/Y] to select "New Password", then press

[ENTER].

Press [the Number buttons] to enter the new 4-digit

password.

• Enter password again in "Confirm password" entry

field.

000

00@

7 Press [SETUP] to exit.

SEIUP

No te:

• Make sure newpassword and confirm password must be

exactly the same. If they are different, the space is cleared

for reentering.

• Yourpasswordwillbeerasedandreturn to thedefault

(0000) when apower failure occurs. Ifyou forget the

password, unplug the power cord for 10 seconds to restore

the password to 0000.

[] PC Settings

Thisfunctionletsyouadjustthe PCscreenposition,clockandphaseduring

PCinput,

I Press [SETUP] to display the main menu.

SIEIUP

2 Use [Cursor A/V] to select "DETAIL", then press

[ENTER].

3 Use [Cursor AIY] to select "PC settings", then press

[ENTER].

Use [Cursor A/V] to select the setting you want to

adjust, then press [ENTER],

Adjust the setting.

Auto Adjustment

Use [Cursor A/V] to select "Adjust", then press

[ENTER],

• The Horizontal/Vertical position, clock and phase of

the PC screen are automatically adjusted.

Horizontal Position, Vertical Position

Use [Cursor </1_] to adjust,

Cursor< Cursorl_

Horizontal Position to move PC to move PC

...... __ screen left screen right

Vertical Position to move PC to move PC

screen down screen up

Clock, Phase

Use [Cursor <Ib'] to adjust the "Clock" setting to

stabilize the PC screen and the "Phase" setting to

improve the clarity of the PC screen.

Cursor< Cursorl_

Clock

Phase

to decrease

setting value

to increase

setting value

Press [SETUP] to exit.

SEFUP

Note:

•Adjust the "Phase"setting after the "Clock"setting has

been properly adjusted.

•Youmay not obtain an appropriate screen with auto

adjustment for some signals. In this case,adjust the

settings manually.

ii ii:i_

iTi!

ii CI;

i©

[] HDMI Audio

Youcansetthe methodofsoundinputforthe HDMIl-IN jack,

Press [SETUP] to display the main menu.

S 1UP

Press [SETUP] to exit.

2 Use [Cursor A/V] to select "DETAIL", then press

[ENTER].

Use [Cursor A/r] to select "HDMI1 Audio", then press

[ENTER].

Use [Cursor A/r] to select the desired sound input,

then press [ENTER].

Select if you have connected both

digital device to the HDMI l-IN

Auto jack and analog device to the

audio sources. Digital audio input

signal will have priority.

HDMI1

Audio Select if you have connected

Digital digital device to the HDMI l-IN

jack for digital audio input signal.

Select if you have connected

Analog analog device to the analog audio

jacks for analog audio input signal.

[] Troubleshooting Guide

If the unit does not perform properly when operated as instructed in this owner's manual, check the following chart once

before calling for service.

No power

No picture or sound

No color

Sound OK, picture poor

Picture distorted

Weak picture

Lines or streaks in picture

Picture blurred

Ghosts in picture

Bars on screen

Picture rolls vertically

• Be sure the power cord is plugged in.

• If a power failure occurs, unplug the power cord for 30 minutes to allow the unit to

reset itself.

• Check if the power is on.

• Check the outlet connection.

• Check the antenna or cable connection to the main unit.

• When the outside antenna is used, check the wire condition and connection.
