SYLVANIA

32" Digital /Analog LCDTV

built-in DVD Player

Owner's Manual

LD320SS8

Disc ONLY

@2007 Funai Electric Co., Ltd.

WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION/ A

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

Theimportant noteis locatedon the rear 0ftfle cabinet.

THIS SYMBOL INDICATES THAT DANGEROUS

VOLTAGE CONSTITUTING A RISK OF ELECTRIC

SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE

IMPORTANT OPERATING AND MAINTENANCE

INSTRUCTIONS IN THE LITERATURE

ACCOMPANYING THE APPLIANCE.

Important Safeguards

'/ READ INSTRUCTIONS -All the safety and operating instructions should be

read before the appliance is operated.

2, RETAIN INSTRUCTIONS- The safety and operating instructions should be

retained for future reference.

3HEED WARNINGS - All warnings on the appliance and in the operating

instructions should be adhered to.

4FOLLOW INSTRUCTIONS - All operating and use instructions should be

followed.

5 CLEANING -Unplug TV from the wall outlet before cleaning. Do not use liquid

cleaners or aerosol cleaners. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterru pted service and, that for

some specific reason, such as the possibility of the loss of an authorization

code for a CATV converter, is not intended to be unplugged by the user for

cleaning or any other purpose, may exclude the reference to unplugging the

appliance in the cleaning description otherwise required in item 5.

6ATTACHMENTS - Do not use attachments not recommended by theTV

manufacturer as they may cause hazards.

7 WATER AND MOISTURE- Do not use this TV near water, for example, near a

bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basemenb or near

a swimming pool, and the like.

8ACCESSORIES- Do not place thisTV on an unstable cart,

stand, tripod, bracket, or table.The TV may fall, causing

serious injury to someone, and serious damage to tl_e

appliance. Use only with a cart, stand, tripod, blacker, ol table

recommended by the manufactuler, or sold with the TV,

Any mounting of the appliance should follow the

manufacturer's instructions and should use a mounting

accessory recommended by the manufacturen An

appliance and cart combination should be moved with care. Quick stops,

excessive force, and uneven surfaces may cause the appliance and cart

combination to overturn.

AMEUBLES - Cet appareil ne doit _tre plac_ que sur un

meuble (avec ou sans roulettes) recommand_ par le

fabricant. Si vous I'installez sur un meuble a roulettes,

d_placez les deux ensembles avec prc_caution. Un arr_t

brusque, I'utilisation d'une force excessive et des surfaces

irr_guli_res risquent de dc_stabiliser I'ensemble et de le

renverser.

9VENTILATION - Slots and openings in the cabinet and

the back or bottom are provided for ventilation and to ensure reliable

operation of the TV a nd to protect it from overheating, these openings must

not be blocked or covered. The openings should never be blocked by placing

the TV on a bed, sofa, rug, or other similar surface. This TV should never be

placed near or over a radiator or heat register.This TV should not be placed in

a built-in installation such as a bookcase or rack unless proper ventilation is

provided or the manufacturer's instructions have been adhered to.

"10 POWER SOURCES - This TV should be operated only from the type of power

source indicated on the marking label. If you are not su re of the type of

power supply to your home, consult your appliance dealer or local power

company. For TVs intended to operate from battery power_ or other sources,

refer to the operating instructions.

"1"1 GROUNDING OR POLARIZATION -This TV is equipped with a polarized

alternating-current line plug (a plug having one blade wider than the other).

This plug will fit into the power outlet only one way.This is a safety feature.

If you are u nable to insert the plug fully into the outleb try reversing the

plug. If the plug should still fail to fit, contact your electrician to replace your

obsolete outlet. Do not defeat the safety pu rpose of the pola dzed plug.

"12+ POWER-CORD PROTECTION - Power-supply cords should be routed so

that they are not likely to be walked on or pinched by items placed upon

or against them, paying particular attention to cords at plugs, convenience

receptacles, and the point where they exit from the applia nee.

"l _ OUTDOOR ANTENNA GROUNDING - If an outside antenna or cable system

is connected to the TV, be sure the antenna or cable system is grounded so

as to provide some protection against voltage surges and built-up static

charges. Article 81g of the National Electrical Code, ANSI/NFPA No. 70,

provides information with respect to proper g rounding of the mast and

supporting structure, grounding of the lead-in wire to an antenna discharge

unit, size of grounding conductors, location of antenna-discharge unib

connection to grounding electrodes, and requirements for the grounding

electrode. (Fig. A)

_NECART2S0PARTH_

"14, LIGHTNING - For added protection for thisTV receiver during a lightning

storm, or when it is left unattended and unused for long periods of time,

unplug it from the wall outlet and disconnect the anten na or cable system.

This will prevent damage to theTV due to lightning and power-line surges.

"1!_, POWER LINES - An outside antenna system should not be located in the

vicinity of overhead power lines or other electric light of power circuits, or

where it can fall into such power lines or circuits. When installing an outside

antenna system, extreme care should be taken to keep from touching such

power lines or circuits as contact with them might be fatal.

"16, OVERLOADING - Do not overload wall outlets and extension cords as this

can result in a risk of fire or electric shock.

"17, OBJECT AND LIQUID ENTRY - Never push objects of any kind into this TV

through openings as they may touch dangerous voltage points or short out

parts that could result in a fire or electric shock. Never spill liquid of any kind

on the TV.

"18, SERVICING - Do not attempt to service this TV yourself as opening or

removing covers may expose you to dangerous voltage or other hazards.

Refer all servicing to qualified service personnel.

"19, DAMAGE REQUIRING SERVICE - Unplug thisTV from the wall outlet and

refer servicing to qualified service personnel under the following conditions:

a. When the power supply cord or plug is damaged or frayed.

b. If liquid has been spilled, or objects have fallen into theTV.

c. If the TV has been exposed to rain or water.

d. If the TV does not operate normally by following the operating

instructions. Adjust only those controls that are covered by the operating

instructions, as improper adjustment of other controls may result in

damage and will often require extensive work by a qualified technician

to restore the TV to its normal operation.

e. If the TV has been dropped or damaged in any way.

f. When the TV exhibits a distinct change in performance, this indicates a

need for service.

20, REPLACEMENT PARTS - When replacement parts are required, be sure the

service technician uses replacement parts specified by the manufacturer that

have the same characteristics as the original part. Unauthorized substitutions

may result in fire, electric shock, injury to persons or other hazards.

2 _, SAFETY CHECK- Upon completion of any service or repairs to this TV, ask

the service technician to perform routine safety checks to determine that the

TV is in proper operating condition.

22, NEAT- This TV prod uct should be situated away from heat sou rces such as

radiators, heat registers, stoves, or other products (including amplifiers) that

produce heat.

[] Precautions

_) LAMP IN LCD CONTAINS MERCURY, DISPOSE ACCORDING TO LOCAL, STATE OR FEDERAL LAW.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR t_VITER LES CHOCS CLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA

BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.

FCC WARNING This equipment may generate or use radio frequency energy. Changes or modifications to this equipment

may cause harmful interference unless the modifications are expressly approved in the manual.The user

could lose the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCCRules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

1} Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3} Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-O03.

Cat appareil num_rique de la classe B est conforme _ la norme NMB-O03 du Canada.

Note to CATV system installer: ]

This reminder is provided to call the CATV system instMler's attention to Article 820-40 of the NEC that provides guidelines I

for proper grounding and, in particular, specifies that the cable ground should be connected to the grounding system of the I

building as close to the point of cable entry as practical. 1

LASER SAFETY

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to

possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED

HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM.

LOCATION =INSIDE, NEARTHE DECK MECHANISM.

IMPORTANT COPYRIGHT INFORMATION

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This product incorporates

uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

LOCATION

For safe operation and satisfactory performance of the unit, keep the following in rnind when selecting a place for its installation:

•Shield it from direct sunlight and keep it away from sources of intense heat.

• Avoid dusty or humid places.

• Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes at the top and bottom of the

unit. Do not place the unit on a carpet because this will block the ventilation holes.

• Install the unit in a horizontal position.

• Avoid locations subject to strong vibration.

• Do not place the unit near strong magnetic fields.

• Avoid moving the unit to locations where temperature differences are extreme.

• Be sure to unplug the AC power cord from the outlet before carrying the unit.

TO AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

• Do not handle the power cord with wet [lands.

• Do not pull on the power cord when disconnecting it from an AC outlet. Grasp it by the plug.

• If, by accident, water isspilled on the unit, unplug the power cord immediately and take the unit to our authorized service center for servicing.

• Do not place anything directly on top of the unit.

MOISTURE WARNING

• Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or

under conditions of high humidity.

When the condensation occurs inside the unit, turn the unit on and leave it at least 2 hours to dry out.

The serial number of this product may be found on the back of the unit. No others have the same serial number as yours,

You should record the number and other vital information here and retain this book as a permanent record of your

purchase to aid identification in case of theft,

dealer phone No. serial No

dealer from model Nol dealer address

purchase

Note about recycling: 1

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance withI

your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

[] Supplied Accessories

owner's manual quick start guide remote control batteries

(1EMN22184) (1EMN22188) (NFO18UD) (AA x 2)

•If you need to replace these accessories, please refer to the part No. with the illustrations and call our toll free

customer support line found on the cover of this manual.

•Depending on your antenna system, you may need different types of combiners (mixers) or separators (splitters).

Contact your local electronics store for these items.

[] Symbols Used in this Manual

The following is the description for the symbols used in this manual.

Description refers to:

bilvll ;LIJ_Cii dEll _I.t II1U I]I ;LIJ_Ci/d Ell _l.'l

: Analog TV operation

: Digital TV operation

• If neither symbol appears under the function heading,

operation is applicable to both.

: Playback of video CD

: Playback of video CD without PBC function

w/o PBC

: Playback of CD-RW/-R with MP3 files

: Playback of CD-RW/-R with JPEG files

• If none of symbol appears under the function heading,

operation is applicable to all.

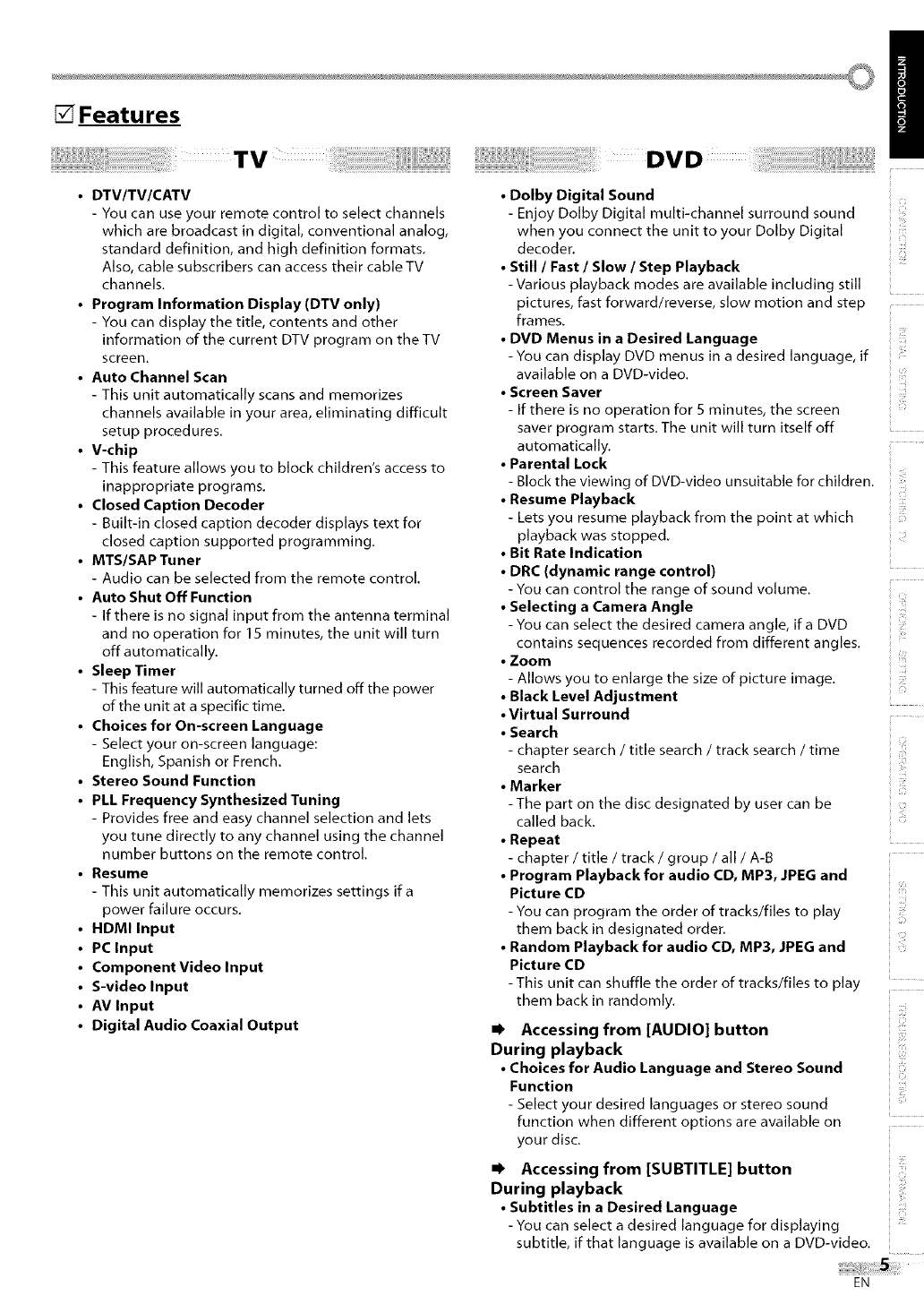

[]Features

• DTV/TV/CATV

- You can use your remote control to select channels

which are broadcast in digital, conventional analog,

standard definition, and high definition formats.

Also, cable subscribers can access their cable TV

channels.

• Program Information Display (DTV only)

- You can display the title, contents and other

information of the current DTV program on theTV

screen,

•Auto Channel Scan

- This unit autornatically scans and memorizes

channels available in your area, eliminating difficult

setup procedures.

• V-chip

- This feature allows you to block children's access to

inappropriate programs,

•Closed Caption Decoder

- Built-in closed caption decoder displays text for

closed caption supported programming,

•MTS/SAP Tuner

- Audio can be selected from the remote control.

•Auto Shut Off Function

- If there is no signal input from the antenna terminal

and no operation for I 5 minutes, the unit will turn

off automatically.

•Sleep Timer

- This feature will automatically turned off the power

of the unit at a specific time.

•Choices for On-screen Language

- Select your on-screen language:

English, Spanish or French.

•Stereo Sound Function

•PLL Frequency Synthesized Tuning

- Provides free and easy channel selection and lets

you tune directly to any channel using the channel

number buttons on the remote control,

•Resume

- This unit automatically rnemorizes settings ifa

power failure occurs,

HDMI Input

PC Input

Component Video Input

S-video Input

AV Input

Digital Audio Coaxial Output

•Dolby Digital Sound

- Enjoy Dolby Digital multi-channel surround sound

when you connect the unit to your Dolby Digital

decoder.

• Still /Fast ISlow I Step Playback

-Various playback modes are available including still

pictures, fast forward/reverse, slow motion and step

frames.

•DVD Menus in a Desired Language

-You can display DVD menus in a desired language, if

available on a DVD-video.

•Screen Saver

- If there is no operation for 5 minutes, the screen

saver program starts, The unit will turn itself off

automatically,

• Parental Lock

- Block the viewing of DVD-video unsuitable for children.

•Resume Playback

- Lets you resume playback from the point at which

playback was stopped.

•Bit Rate Indication

•DRC (dynamic range control)

-You can control the range of sound volume,

•Selecting a Camera Angle

- You can select the desired camera angle, if a DVD

contains sequences recorded from different angles.

•Zoom

- Allows you to enlarge the size of picture image,

•Black Level Adjustment

•Virtual Surround

•Search

- chapter search /title search /track search /time

•Marker

-The part on the disc designated by user can be

called back.

•Repeat

- chapter /title /track /group /all /A-B

•Program Playback for audio CD, MP3, JPEG and

Picture CD

- You can program the order of tracks/files to play

them back in designated order.

•Random Playback for audio CD, MP3, JPEG and

Picture CD

-This unit can shuffle the order of tracks/files to play

them back in randomly.

ilii¸

•_Accessing from [SUBTITLE] button

During playback

•Subtitles in a Desired Language

- You can select a desired language for displaying

subtitle, if that language is available on a DVD-video,

!i!i

•_Accessing from [AUDIO] button

During playback

•Choices for Audio Language and Stereo Sound

Function

- Select your desired languages or stereo sound

function when different options are available on

your disc.

[] Contents

/N TROD JCT/ON

Precautions...................................................... 3

SuppliedAccessories.............................................. 4

SymbolsUsedinthisManual....................................... 4

Features......................................................... 5

RemoteControlFunction.......................................... 7

Installingthe Batteries............................................ 7

ControlPanel..................................................... 8

RearPanel....................................................... 8

CONNECt ON

BasicConnection.................................................. 9

ExternalDeviceConnection....................................... 10

TV Functions

/N T/AL SETT NG

InitialSetup..................................................... 13

MainMenu...................................................... 13

AutoChannelScan............................................... 14

LanguageSelection.............................................. 14

WATCH NG TV

ChannelSelection................................................ 15

VolumeAdjustment.............................................. 15

Still Mode....................................................... 15

SleepTimer..................................................... 15

SwitchingEachMode............................................. 16

SwitchingAudioMode ........................................... 16

ScreenInformation .............................................. 17

13/ScreenDisplayMode........................................... 18

OPTIONAL SETT NG

ChannelList..................................................... 19

ManualRegister................................................. 19

AntennaConfirmation............................................ 20

PictureAdjustment .............................................. 20

SoundAdjustment............................................... 21

ClosedCaption................................................... 22

DTVClosedCaption............................................... 23

CCStyle......................................................... 23

V-chip .......................................................... 24

PCSettings...................................................... 26

HDMIAudio ..................................................... 27

BlueLED................................................... 27

OPERAT NG DVD

PlayableMedia.................................................. 28

Aboutthe PBCFunctionof VideoCD................................ 28

UnplayableMedia............................................... 28

Playback........................................................29

DiscMenu....................................................... 29

ResumePlayback................................................ 29

PausedandStep-by-stepPlayback................................. 29

FastForward/FastReverse....................................... 30

SlowForward/SlowReverse...................................... 30

Zoom........................................................... 3U

MP3,JPEGPlayback.............................................. 30

KodakPictureCD................................................. 31

DualPlayback................................................... 32

FolderPlayback.................................................. 32

TransitionMode................................................. 32

AdjustmentofPictureSize........................................ 32

SearchFunctions................................................. 33

RepeatPlayback................................................. 34

RepeatA-BPlayback............................................. 35

RandomPlayback................................................ 35

ProgrammedPlayback........................................... 35

On-screenDisplay................................................ 36

SpecialSettings.................................................. 37

SETTING DVD

DVDLanguageSetting ........................................... 39

DVDAudioSetting ............................................... 40

ParentalSetting................................................. 41

Others.......................................................... 42

Resetto the DefaultSetting....................................... 43

LanguageCodeList.............................................. 43

7 ROUBLESHOOT NG

Troubleshooting6uide........................................... 44

/NFORMAT ON

Maintenance.................................................... 46

61ossary........................................................ 46

CableChannelDesignations....................................... 47

6eneralSpecifications............................................ 47

ElectricalSpecification............................................ 47

OtherSpecifications.............................................. 47

LimitedWarranty........................................ BackCover

any storage medium, in any form or for any purpose without the express prior written consent of Funai.

Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the

obligation to notify any person or organization of such changes.

F'UNAI with the _"_ design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way without the express written

consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this

manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein.

Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property

rights to the fullest extent of the law.

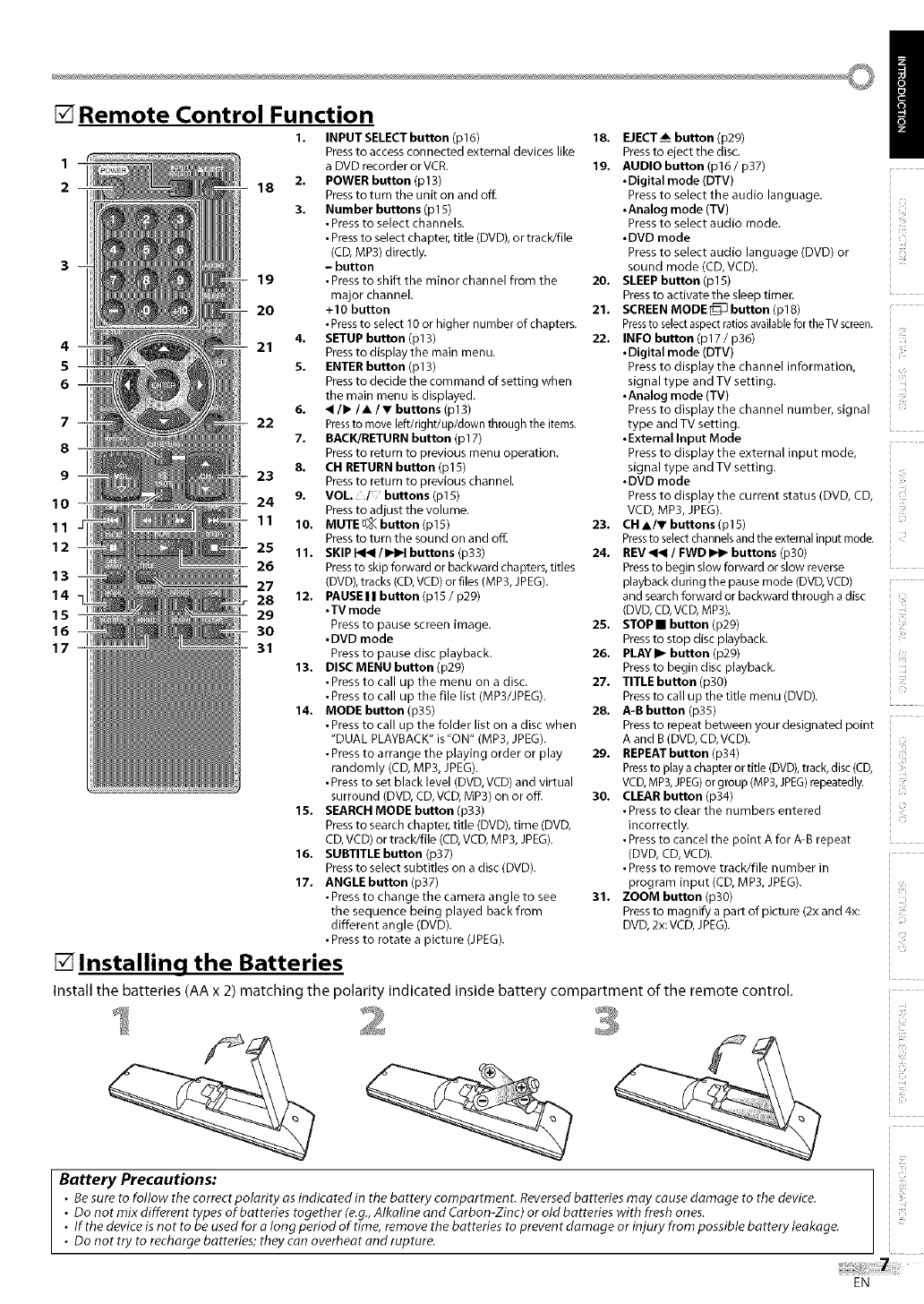

[] Remote Control Function

1. INPUT SELECT button (p16)

Pressto access connected external devices like

1 a DVD recorder or VCR.

2 18 2. POWER button (pl 3)

Pressto turn the unit on and off.

3. Number buttons (pl 5)

• Press to select channels.

• Pressto select chapter, title (DVD), or track/file

(CD, MP3) directly.

3 - button

19 • Press to shift the minor channel from the

major channel.

20 +10 button

•Pressto select 10 or higher number of chapters.

4 21 4. SETUP button (pl 3)

Pressto display the main menu.

5 S. ENTER button (pl 3)

6Pressto decide the command of setting when

the main menu is displayed.

6. <lP" lAIVbuttons(p13)

722 Pressto move left/right/up/down through the items.

7• BACK/RETURN button (pl 7)

8Pressto return to previous rnenu operation.

8. CH RETURN button (p15)

923 Pressto return to previous channel.

10 24 9. VOL buttons (pl 5)

Pressto adjust the volume.

11 11 10. MUTE n_< button (p15)

Pressto turn the sound on and off.

12 25 11. SKIP I<HI /I_IIH buttons (p33)

26 Pressto skip forward or backward chapters, titles

13 27 (DVD),tracks (CD,VCD) or files (MP3, JPEG).

14 28 12. PAUSEIIbutton (p15 /p29)

15 29 •TV mode

16 30 Press to pause screen image.

•DVD mode

17 31 Press to pause disc playback.

13. DISC MENU button (p29)

• Press to call up the menu on a disc.

• Press to call up the file list (MP3/JPEG).

14. MODE button (p35)

• Press to call up the folder list on a disc when

"DUAL PLAYBACK" is "ON" (MP3, JPEG).

• Press to arrange the playing order or play

randomly (CD, MP3, JPEG).

•Press to set black level (DVD, VCD) and virtual

surround (DVD, CD,VCD, MP3) on or off.

15• SEARCH MODE button (p33)

Pressto search chapter, title (DVD), time (DVD,

CD,VCD) or track/file (CD,VCD, M P3, JPEG).

16• SUBTITLE button (p37)

Pressto select subtitles on a disc (DVD).

17• ANGLE button (p37)

• Press to change the camera angle to see

the sequence being played back from

different angle (DVD).

• Press to rotate a picture (JPEG).

[] Installing the Batteries

18. EJECT_ button (p29)

Press to eject the disc.

19. AUDIO button (p16 /p37)

•Digital mode (DTV)

Press to select the audio language.

•Analog mode (TV)

Press to select audio mode.

•DVD mode

Press to select audio language (DVD) or

sound mode (CD, VCD).

20. SLEEP button(p15)

Press to activate the sleep timer.

21. SCREEN MODE[_gbutton(p18)

Pressto select aspectratiosavailablefor theTV screen.

22. INFO button (p17 /p36)

•Digital mode (DTV)

Press to display the channel information,

signal type and TV setting.

•Analog mode (TV}

Press to display the channel number, signal

type and TV setting.

•External Input Mode

Press to display the external input mode,

signal type and TV setting.

•DVD mode

Press to display the current status (DVD, CD,

VCD, MP3, JPEG).

23. CH A/V buttons (p15)

Pressto selectchannels and the external input mode.

24. REV_I_ /FWD _buttons (p30)

Pressto begin slow forward or slow reverse

playback during the pause mode (DVD,VCD)

and search forward or backward through a disc

(DVD, CD,VCD,MP3).

25. STOPII button(p29)

Press to stop disc playback.

26. PLAY I_ button (p29)

Press to begin disc playback.

27. TITLE button (p30)

Press to call up the title menu (DVD).

28. A-Bbutton (p35)

Press to repeat between your designated point

A and B (DVD, CD, VCD).

29. REPEATbutton(p34)

Pressto play a chapter or title (DVD),track, disc (CD,

VCD,MP3,JPEG)or group (MP3, JPEG)repeatedly.

30. CLEAR button(p34)

• Press to clear the numbers entered

incorrectly.

• Pressto cancel the point A for A-B repeat

(DVD, CD, VCD).

• Press to remove track/file number in

program input (CD, MP3, JPEG).

31• ZOOM button(p30)

Press to magnify a part of picture (2x and 4x:

DVD, 2x: VCD, JPEG).

Install the batteries (AA x 2) matching the polarity indicated inside battery compartment of the remote control.

Battery Precautions:

•Besure to follow the correct polarity as indicated in the battery compartment. Reversedbatteries may cause damage to the device.

• Do not mix different types of batteries together (e.g.,Alkaline and Carbon-Zinc) or old batteries with fresh ones.

• If the deviceis not to be usedfor olong period of time, remove the batteries to prevent damage or injury from possible battery leakage.

• Do not try to recharge batteries; they can overheat and rupture.

iii_!!

[] Control Panel

[] Rear Panel

rear of this unit

side of this unit

rear of this unit

1. POWER button (p13)

Press to turn the unit on and off.

2, INPUT SELECT button (p16)

•Press to access connected an external devices like a

DVD recorder or VCR.

• 1 •Press to decide the command of setting when the

menu is displayed.

• 2 3. CHANNELA/V buttons (p15)

Press to select channels or move up/clown through the

• 3 main menu items.

4. VOLUME_/buttons (p15)

•4 Press to adjust the volume or move right ( " )/left (_)

through the main menu items.

• 5 5. SETUP button (pl 3)

Press to display the main menu.

6. PLAY I_ button (p2g)

.6 Press to begin disc playback.

•77. STOPII button (p2g)

•8 Press to stop disc playback.

8. SKIP I<1</bCH buttons (p33)

Press to skip forward or backward chapters, titles (DVD)

or tracks/files (CD, VCD, MP3, JPEG).

9. Infrared Sensor Window

9Receives infrared rays transmitted from the remote control.

I0 10. Blue LED (p27)

11 Lights up when the unit is turned on or a disc is inserted.

11. Disc Loading Slot (p2g)

Insert the disc with label facing up.

-12

-13

side of this unit

-14

-15

-16

-17

12. PC-IN jack (p12)

VGA cable connection for PC,

13. HDMI IN jacks (pl0)

HDMI connection foran HDMI device,

14. AUDIO IN jacks (pl0)

RCA audio cable connection fora DVI device. (For

HDMI l-IN jack only)

15. AUDIO OUT jacks (pl 2)

RCA audio cable connection for an external device,

Use analog audio input jacks of an external device.

16. DIGITAL AUDIO OUT (COAXIAL) jack (pl 2)

Digital audio coaxial cable connection for a decoder or

an audio receiver.

Use digital audio input jack of an external device,

17. ANT. IN jack (p9)

RF coaxial cable connection for your antenna or cable box.

18. AC Power Cord

Connect to a standard AC outlet to supply power to

this unit.

19. PC-IN AUDIO jack (p12)

Mini-plug audio cable connection for PC,

Use line out jack of a PC,

20. AUDIO input jacks (pl 1)

RCA audio cable connection for an external device.

21. VIDEO input jack (pl 1)

RCA video cable connection for an external device,

22. S-VIDEO input jack (pl 1)

S-video cable connection for an external device,

23. COMPONENT and AUDIO input jacks (pl0)

Component video cable and RCA audio cable

connection for an external device.

Use component video and audio output jacks of an

external device.

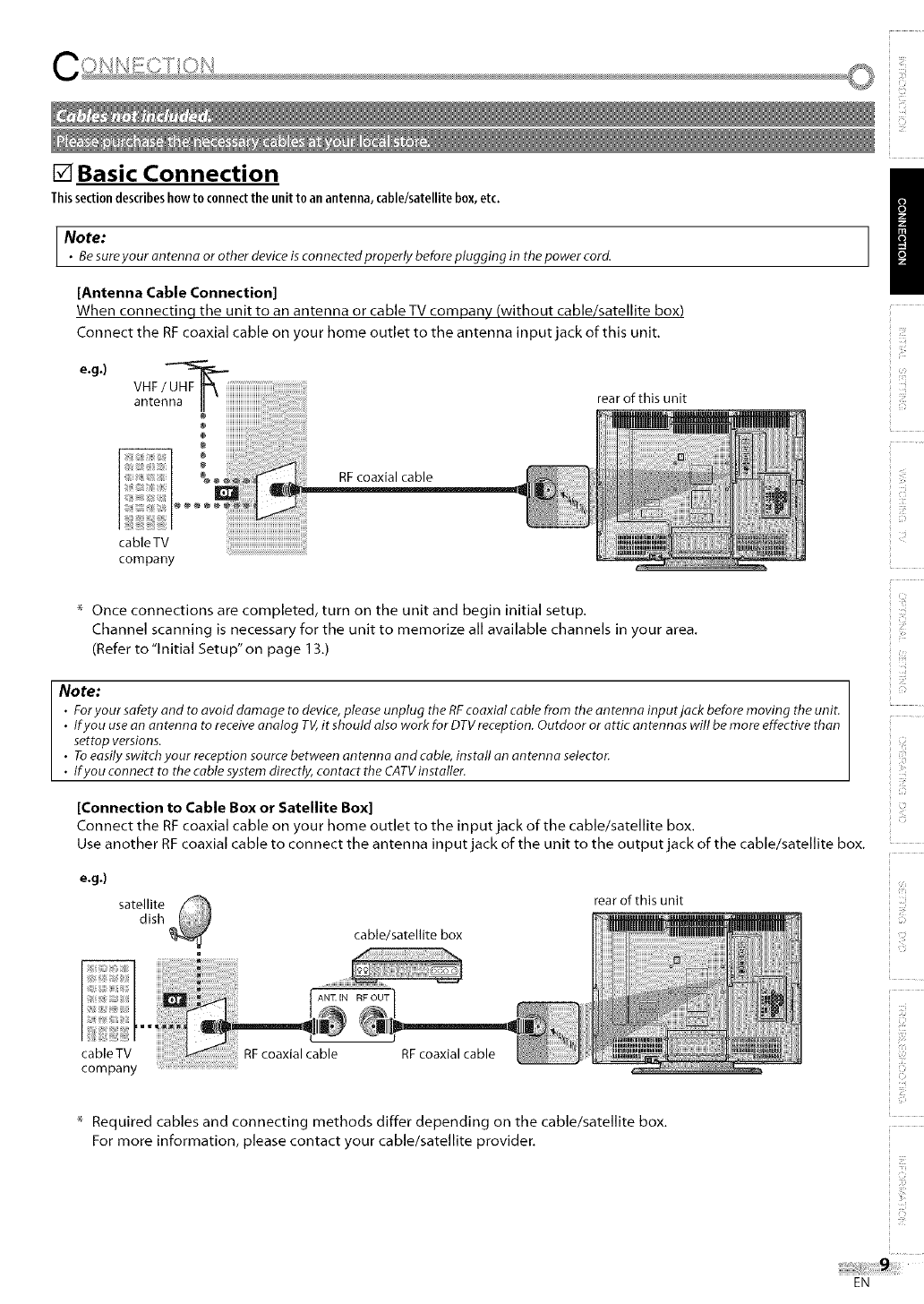

[] Basic Connection

Thissectiondescribeshowto connectthe unit toan antenna,cable/satellitebox,etc.

INote:

•Besureyour antenna or other device is connected properly before plugging in the power cord.

[Antenna Cable Connection]

When connectinq the unit to an antenna or cable TV company (without cable/satellite box)

Connect the RFcoaxial cable on your home outlet to the antenna input jack of this unit.

e.g.) VHF/UHF'_

antenna II

rear of this unit

RF coaxial cable

cableTV

company

Once connections are completed, turn on the unit and begin initial setup.

Channel scanning is necessary for the unit to memorize all available channels in your area,

(Refer to "Initial Setup" on page 13,)

Note:

• Foryour safety and to avoid damage to device,please unplug the RFcoaxial cable from the antenna inputjack before moving the unit.

• Ifyou usean an tenna to receive analog TV,it should also work for DTVreception. Outdoor or attic an tennas will be more effective than

settop versions.

• Toeasily switch your reception source between antenna and cable, install an antenna selector.

• Ifyou connect to the cable system directly, contact the CATVinstaller.

[Connection to Cable Box or Satellite Box]

Connect the RFcoaxial cable on your home outlet to the input jack of the cable/satellite box.

Use another RF coaxial cable to connect the antenna input jack of the unit to the output jack of the cable/satellite box,

e.g.)

satellite

dish

cable/satellite box

rear of this unit

ANq_ IN RF OUT

RFcoaxial cable RFcoaxial cable

* Required cables and connecting methods differ depending on the cable/satellite box,

For more information, please contact your cable/satellite provider,

[] External Device Connection

[HDMI Connection]

HDMI (High Definition Multimedia Interface) transports high definition video and multi-channel digital audio through a

single cable. It ensures that the content sent from the source to this unit is of the highest possible resolution.

e.g.)

................_ I 3 _I

U_=_

DVD recorder with the HDMI output jack

HDMI cable

To HDMI l-IN or

HDMI 2-IN jack

rear of this unit

Note:

•This unitaccepts 480i/480p/720p/1080ivideo signals, and32kHz/44.1kHz/48kHzaudio signals compliant with EIA-861.

• This unit accepts only 2channel audio signal (LPCM).

• Youneed to select "PCM" for the digital audio output of the device connected or the HDMI audio setting. Theremay be no audio output if

you select "Bitstream",etc.

[HDMI-DVl Connection]

If your video device has a DVl output jack, connect using an HDMI-DVl conversion cable. An HDMI-DVl conversion cable

requires a separate audio cable connection as well. As such, only the HDMI l-IN jack can be used.

HDMI-DVl To HDMI 1-INjack rearofthis unit

e.g.) _ conversion cable

EZZZZZZ3

Cable box or satellite box

with the DVl output jack

To AUDIO IN jacks

Note:

•Thisunit accepts 480i/480p /720p / 1080ivideo signals. DVI does not display 480i image that isnot compliant with EIA/CEA-861/861B.

• Audio signals are converted from digital to analog for this connection.

[Component Video Cable Connection]

Component video connection offers better picture quality for video devices connected to the unit. Use a component

video cable to connect the unit to external video devices equipped with component video output jacks.

If you connect to the unit's COMPONENT I or COMPONENT 2 video input jack, connect RCA audio cables to the audio

L/R jacks of COMPONENT I or COMPONENT 2 accordingly.

(green)

e.g.) IDVD recorder with the component

video output jacks

component video cable

rear of this unit

Note: l

• Thisunit accepts480i/480p / 720p / 1080ivideo signals.

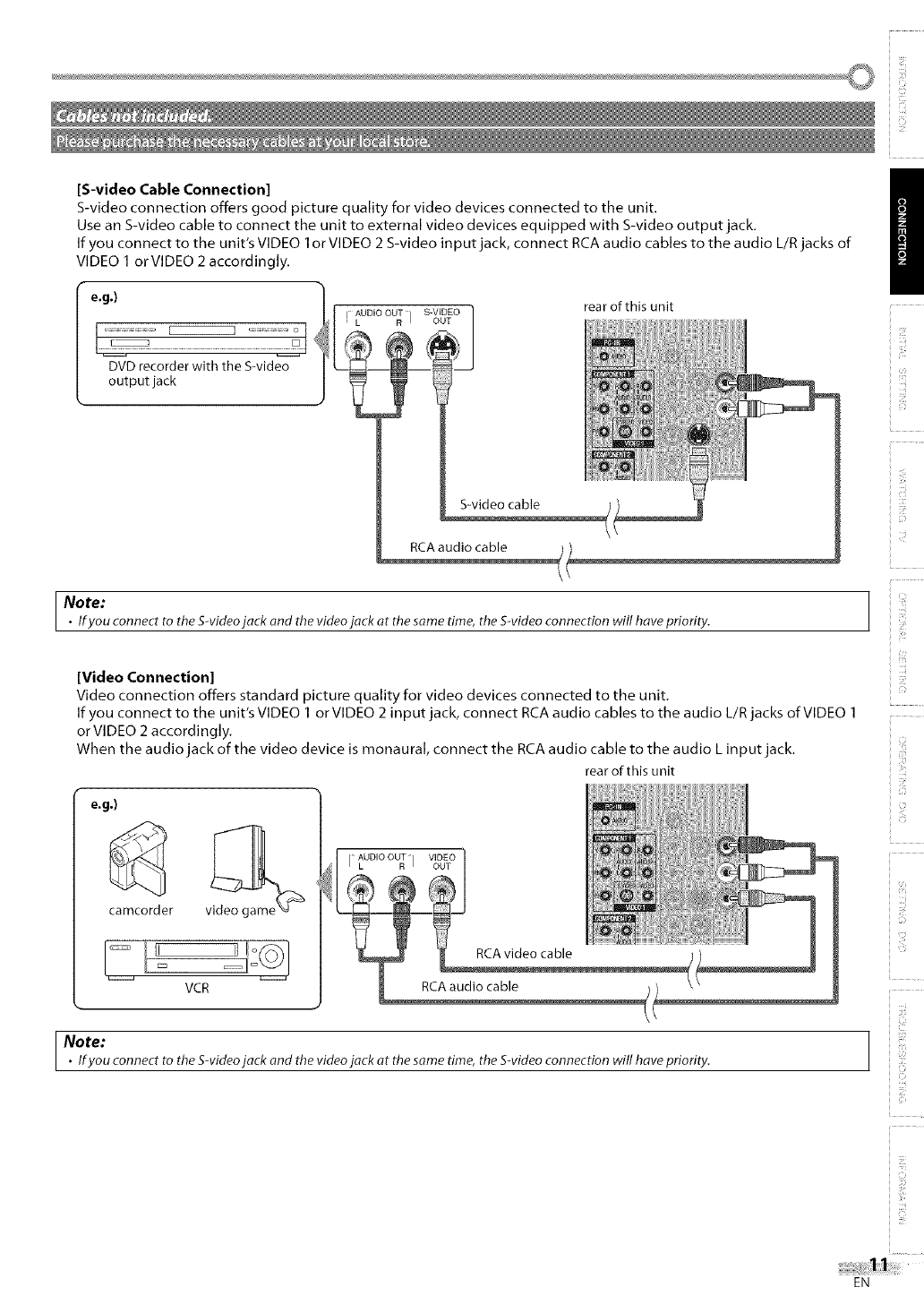

[S-video Cable Connection]

S-video connection offers good picture quality for video devices connected to the unit.

Use an S-video cable to connect the unit to external video devices equipped with S-video output jack.

If you connect to the unit's VIDEO Ior VIDEO 2 S-video input jack, connect RCA audio cables to the audio L/R jacks of

VIDEO I or VIDEO 2 accordingly.

DVD recorder with the S-video

output jack

AUDIOL OUTR ] S-VIDEOouT

rear of this unit

S-video cable

RCA audio cable

Note:

•Ifyou connect to the S-videojack and the video jack at the same time, the S-video connection will have priority. ]

[Video Connection]

Video connection offers standard picture quality for video devices connected to the unit.

If you connect to the unit's VIDEO I or VIDEO 2 input jack, connect RCA audio cables to the audio L/R jacks of VIDEO I

or VIDEO 2 accordingly.

When the audio jack of the video device is monaural, connect the RCA audio cable to the audio L input jack.

rear of this unit

e.g.)

camcorder

AUDIO OUT VIDEO

I L R I OUT

RCA video cable

VCR

Note:

• Ifyou connect to the S-videojack and the video jack at the same time, the S-video connection will have priority.

!iili;

[Audio Output Connection]

[Digital]

If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital

broadcasting sound.

[Analog]

If you connect this unit to an external analog audio device, you can enjoy stereo (2 channel) audio.

e.g.)

Stereo system RCAaudio cable

e.g.)

DIGITAL AUDIO

COAXIAL IN

To AUDIO OUT

jack

rear of this unit

Dolby Digital decoder

digital audio

coaxial cable

To DIGITAL AUDIO OUTjack

[PC Connection]

This unit is equipped with a PC-IN jack, If you connect this unit to your PC, you can use this unit as a computer monitor.

e.g.)

To monitor jack rear of this unit

To PC-INjack

VGA cable

mini-plug audio cable

To audio line out jack To PCqN AUDIO jack

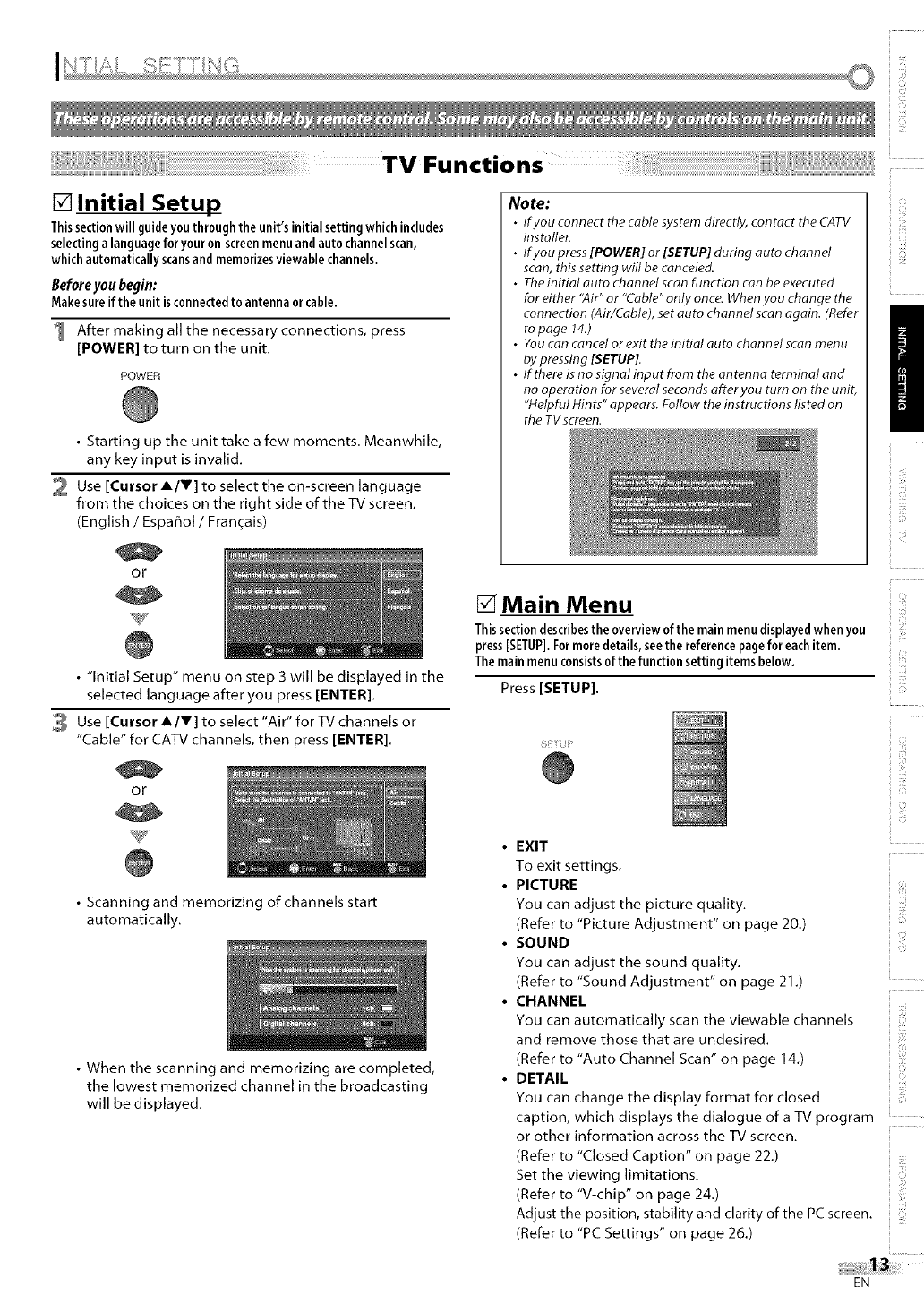

[] Initial Setup

Thissectionwill guideyouthroughtheunit'sinitialsettingwhichincludes

selectingalanguageforyouronscreenmenuand autochannelscan,

whichautomaticallyscansandmemorizesviewablechannels

Before you begin:

Makesureifthe unit isconnectedto antenna orcable.

After making all the necessary connections, press

[POWER] to turn on the unit.

POWER

• Starting up the unit take a few moments. Meanwhile,

any key input is invalid.

2 Use [Cursor A/V] to select the on-screen language

from the choices on the right side of the TV screen.

(English /EspaSol /Fran_ais)

• "Initial Setup" menu on step 3 will be displayed in the

selected language after you press [ENTER].

3 Use [Cursor A/V] to select "Air" for TV channels or

"Cable" for CATV channels, then press [ENTER].

• Scanning and memorizing of channels start

automatically.

• When the scanning and memorizing are completed,

the lowest memorized channel in the broadcasting

will be displayed.

Note:

•Ifyou connect the cable system directly, contact the CATV

installer.

•lfyou press[POWER] or [SETUP]during auto channel

scan, this setting will be canceled.

•Theinitial auto channel scan function can be executed

for either "Air" or "Cable"only once. Whenyou change the

connection (Air/Cable), set auto channel scan again. (Refer

to page 14.)

•Youcan cancel or exit the initial auto channel scan menu

bypressing [SETUP].

•If there is no signal input from the antenna terminal and

no operation for several seconds after you turn on the unit,

"Helpful Hints" appears. Follow the instructions listed on

the TVscreen.

[] Main Menu

Thissectiondescribesthe overviewofthe mainmenudisplayedwhen you

press[SETUP]Formoredetails,seethe referencepagefor eachitem

Themainmenuconsistsofthefunctionsettingitemsbelow

Press [SETUP].

•EXIT

To exit settings.

•PICTURE

You can adjust the picture quality.

(Refer to "Picture Adjustment" on page 20.)

•SOUND

You can adjust the sound quality.

(Refer to "Sound Adjustment" on page 21.)

•CHANNEL

You can automatically scan the viewable channels

and remove those that are undesired.

(Refer to "Auto Channel Scan" on page 14.)

•DETAIL

You can change the display format for closed

caption, which displays the dialogue ofa TV program

or other information across the TV screen.

(Refer to "Closed Caption" on page 22.)

Set the viewing limitations.

(Refer to "V-chip" on page 24.)

Adjust the position, stability and clarity of the PCscreen.

(Refer to "PC Settings" on page 26.)

, ,]#

AndselectthesoundinputfortheHDMIjackifyour

TVisconnectedtoaHDMIdevice.

(Referto"HDMIAudio"onpage27.)

• LANGUAGE

You can change the language (English, Spanish,

French) displayed on the main menu.

(Refer to "Lang uage Selection" on page 14.)

•DVD

You can customize some functions for the disc

playback. Make sure the player is in stop mode.

(Refer to"SETTING DVD" section on page 39.)

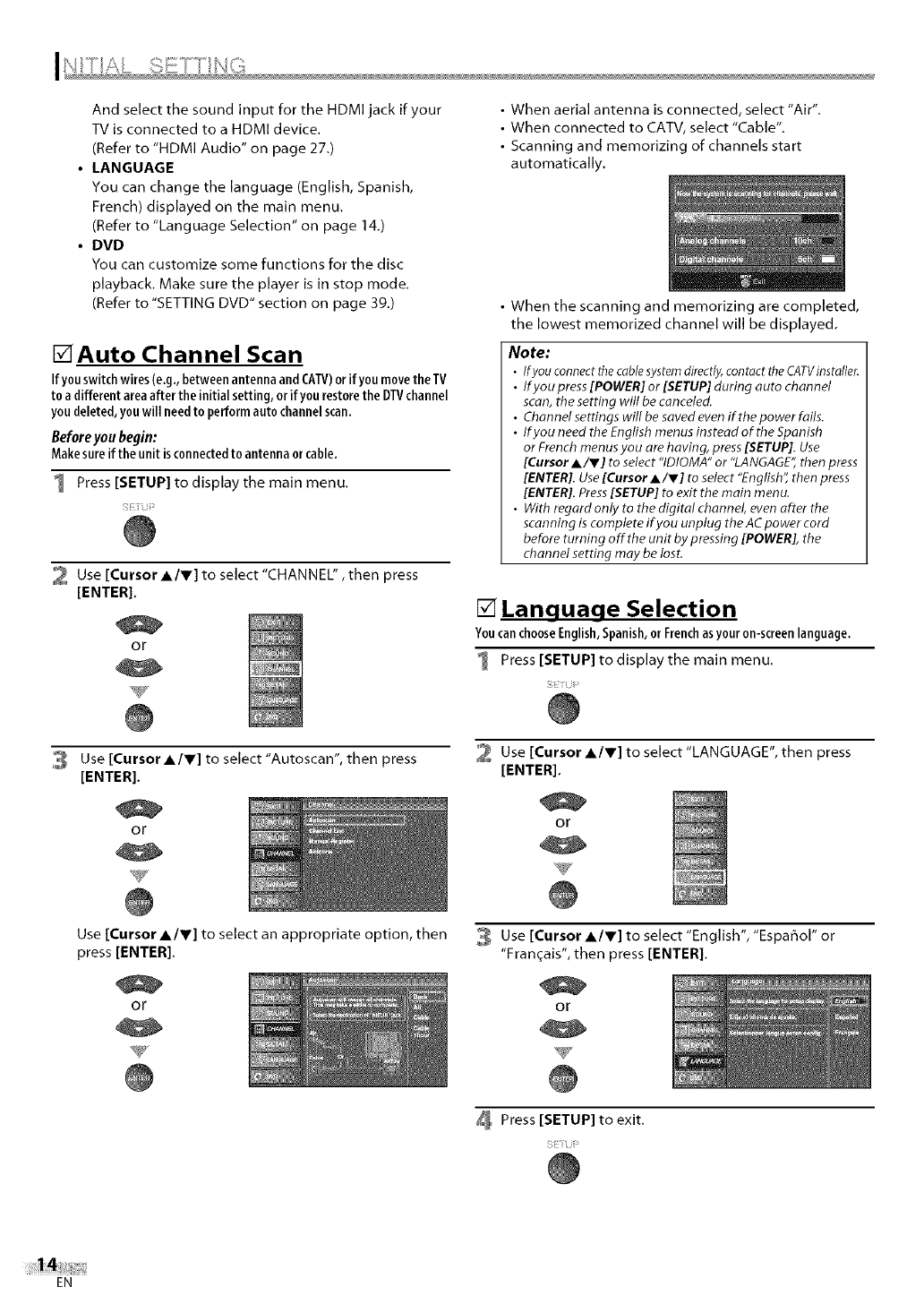

[]Auto Channel Scan

Ifyouswitchwires(e.g.,betweenantennaand CATV)orif youmovetheTV

to adifferentareaafterthe initialsetting,orif yourestoretheDTVchannel

youdeleted,youwillneedto performautochannelscan.

Before you begin:

Makesureifthe unit isconnectedto antenna orcable.

1 Press [SETUP] to display the main menu.

2 Use [Cursor A/r] to select "CHANNEL", then press

[ENTER].

•When aerial antenna is connected, select "Air".

• When connected to CATV, select "Cable".

• Scanning and memorizing of channels start

automatically.

• When the scanning and memorizing are completed,

the lowest memorized channel will be displayed.

Note:

•Ifyou connectthe cablesystemdirectly,contactthe CATVinstafler

•lfyou press[POWER] or [SETUP] during auto channel

scan, the setting will be canceled.

• Channel settings will be saved even if the power fails.

•lfyou need the English menus instead of the Spanish

or French menus you are having, press[SETUP].Use

[CursorA/V] to select "IDIOMA" or "LANGAGE"then press

[ENTER].Use[Cursor A/V] to select "English", then press

[ENTER]. Press[SETUP] to exit the main menu.

•With regardonlyto thedigitalchannel, even afterthe

scanning is complete if you unplug the AC power cord

before turning off the unit by pressing [POWER], the

channel setting may be lost.

[] Language Selection

YoucanchooseEnglish,Spanish,orFrenchasyouron-screenlanguage.

1 Press [SETUP] to display the main menu.

3 Use [CursorA/V] to select "Autoscan"

[ENTER].

then press Use [Cursor A/r] to select "LANGUAGE", then press

[ENTER].

Use [Cursor A/r] to select an appropriate option, then

press [ENTER].

Use [Cursor A/V] to select "English", "EspaSol" or

"Fran_ais", then press [ENTER].

Press [SETUP] to exit,

[] Channel Selection

Selectchannelsbypressing[CH•/V] or[the Numberbuttons],

• To select the memorized channels, use [CH •Iv] or

[the Number buttons],

• To select the non-memorized channels use

[the Number buttons].

To Use [the Number buttons]

- When selecting analog channel 12

[] Volume Adjustment

Thissectiondescribeshowto adjustthevolume,Themutefunction,which

turnsthesound offandon,isalsodescribed,

Use[VOL. /]toadjusttheaudiovolume,

• The volume bar will be displayed at the bottom of the

TV screen when adjusting the volume.

• The volume bar display will automatically disappear

in a few seconds.

Press [MUTE D_(]to turn offand on the sound.

M U F_

- When selecting digital channel 12-1

Be sure to press [-] before entering the minor

channel number.

• "Mute" is displayed on the TV screen for a few

seconds.

Press [MUTE 0_] again or [VOL. _/ ] to recover the

original volume.

• Press [CH RETURN] to return to the previously viewed

channel.

About digital TV broadcasting:

With its high definition broadcast, digital broadcasting

far surpasses analog broadcasting in both its picture

and sound quality.

What is the minor channel?

By using high compression technology, digital

broadcasting offers a service that enables multiple

signals to send simultaneously.

Therefore, you can select more than one program per

major channel since digital broadcasting technology

distinguishes between multiple channels broadcast by

a single network.

NTSC (analog mode) lAir Time]

18:00

18:30

19:00

19:30

20:00

20:30

major ch_

:change automatically

_:> :change manually by using [CI-I •/V]

ATSC (digital mode)

minor channel

Note:

• "No Signal" will appear on the TVscreenafter the minor

channel broadcast is over.

[] Still Mode

Youcanfreezethe imageshown onthe TVscreen,

Press [PAUSEII] to pause the image shown on the

screen.

• The sound output will not be paused.

• If no signal is detected or protected signal is received

during still mode, the image remains paused and the

sound output will be muted.

• The still function will be released after 5 minutes.

To cancel still mode, press any button except [POWER].

[] Sleep Timer

Thesleeptimer canbeset toautomatically turnoffthe unit after an

incrementalperiodof time.

Press [SLEEP] to set the sleep timer.

• Sleep timer display appears on the TV screen.

2 Press [SLEEP] repeatedly to change the amount of time

until shut off.

%1!

•You can set your unit to turn off after a set period of

time (from 30 to 120 minutes).

• Each press of [SLEEP] will increase the time by 30

minutes.

• After set up, the sleep timer display can be called up

for checking by pressing [SLEEP].

if!if!

To Cancel the Sleep Timer

Press [SLEEP] repeatedly until "Sleep Off" is displayed

on the TV screen.

Note:

• The sleep timer setting display will automatically

disappear in 4 seconds.

• When you disconnect the unit from the AC outlet or when

a power failure occurs, the sleep timer setting will be

canceled.

[] Switching Each Mode

Youcaneasilyswitchwith the remotecontrolto the DTV(ATS()andTV

(NTS()orto accessan external devicewhen they are connectedto the unit,

Press [INPUT SELECT] or [CH A] repeatedly to cycle

through the input modes.

TV/DTV channel

.____.J

•Pressing [CH V] reverses the direction of the mode.

• To use the video or S-video input jack of VIDEO 1 on

the unit, select "Video1 ".

• To use the video or S-video input jack of VIDEO 2 on

the unit, select"Video2".

• To use the component video input jack of

COMPONENT 1 on the unit, select "Component1".

• To use the component video input jack of

COMPONENT 2 on the unit, select'Component2".

• To use the HDMI l-IN jack on the unit, select "HDMII".

• To use the HDMI 2-IN jack on the unit, select "HDMI2".

• To use the PC-IN jack on the unit, select "PC".

[] Switching Audio Mode

Thissectiondescribeshowto switchthe audiolanguage.

Press [AUDIO] to display the currently selected

audio mode.While receiving an MTS broadcast,

press repeatedly to cycle through the available audio

channel.

At_D_O

When all audio are available

When stereo and monaural audio are available

When SAP and monaural audio are available

When only monaural audio is available

(Cannot be switched)

STEREO: Outputs stereo-audio

SAP : Outputs second audio program

MONO : Outputs mono-audio

• The current mode will automatically disappear in 4

seconds.

Press [AUDIO] to display the currently selected

language and the number of available languages.

i\i.iil}_{}

2 Press [AUDIO] repeatedly to cycle through the

available audio languages.

• Available languages differ depending on the

broadcast. "Other" is displayed when the audio

language cannot be acquired, or the acquired

languages are other than English, Spanish or French.

• The current mode will automatically disappear in 4

seconds.

Note:

•Pressing[AUDIO] does not control external audio device.

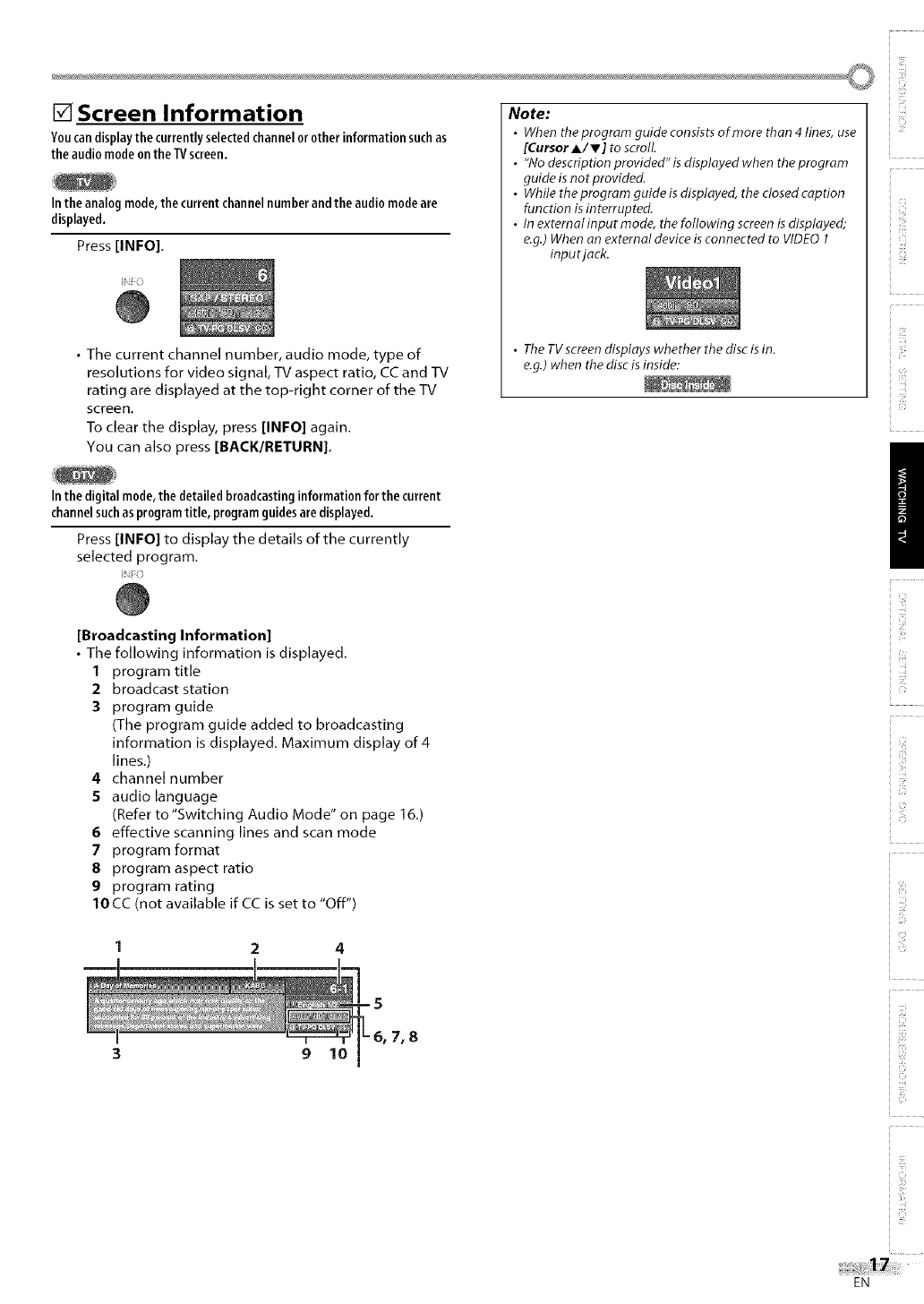

[] Screen Information

Youcandisplaythecurrentlyselectedchannelorotherinformationsuchas

the audiomodeonthe TVscreen.

Inthe analogmode,the current channelnumberand the audiomodeare

displayed.

Press [INFO].

•The current channel number, audio mode, type of

resolutions for video signal, TV aspect ratio, CC and TV

rating are displayed at the top-right corner of the TV

screen.

To clear the display, press [INFO] again.

You can also press [BACK/RETURN].

Note:

•When the program guide consistsof more than 4 lines, use

[CursorA/,] to scroll

• "No description provided" is displayed when the program

guide is not provided.

•While theprogram guideis displayed, the dosedcaption

function isinterrupted.

•In externalinput mode, the following screenis displayed;

e.g.)When an external device is connected to VIDEO1

inputjack.

•The TVscreen displays whether the disc is in.

e.g.) when the disc is inside:

Inthe digital mode,the detailed broadcastinginformation forthe current

channelsuchasprogram title, program guidesare displayed.

Press [INFO] to display the details of the currently

selected program.

[Broadcasting Information]

• The following information is displayed,

I program title

2 broadcast station

3 program guide

(The program guide added to broadcasting

information is displayed, Maximum display of 4

lines.)

4 channel number

5 audio language

(Refer to"Switching Audio Mode" on page 16.)

6 effective scanning lines and scan mode

7 program format

8 program aspect ratio

9 program rating

10 CC (not available if CC is set to "Off")

!iiii:,_

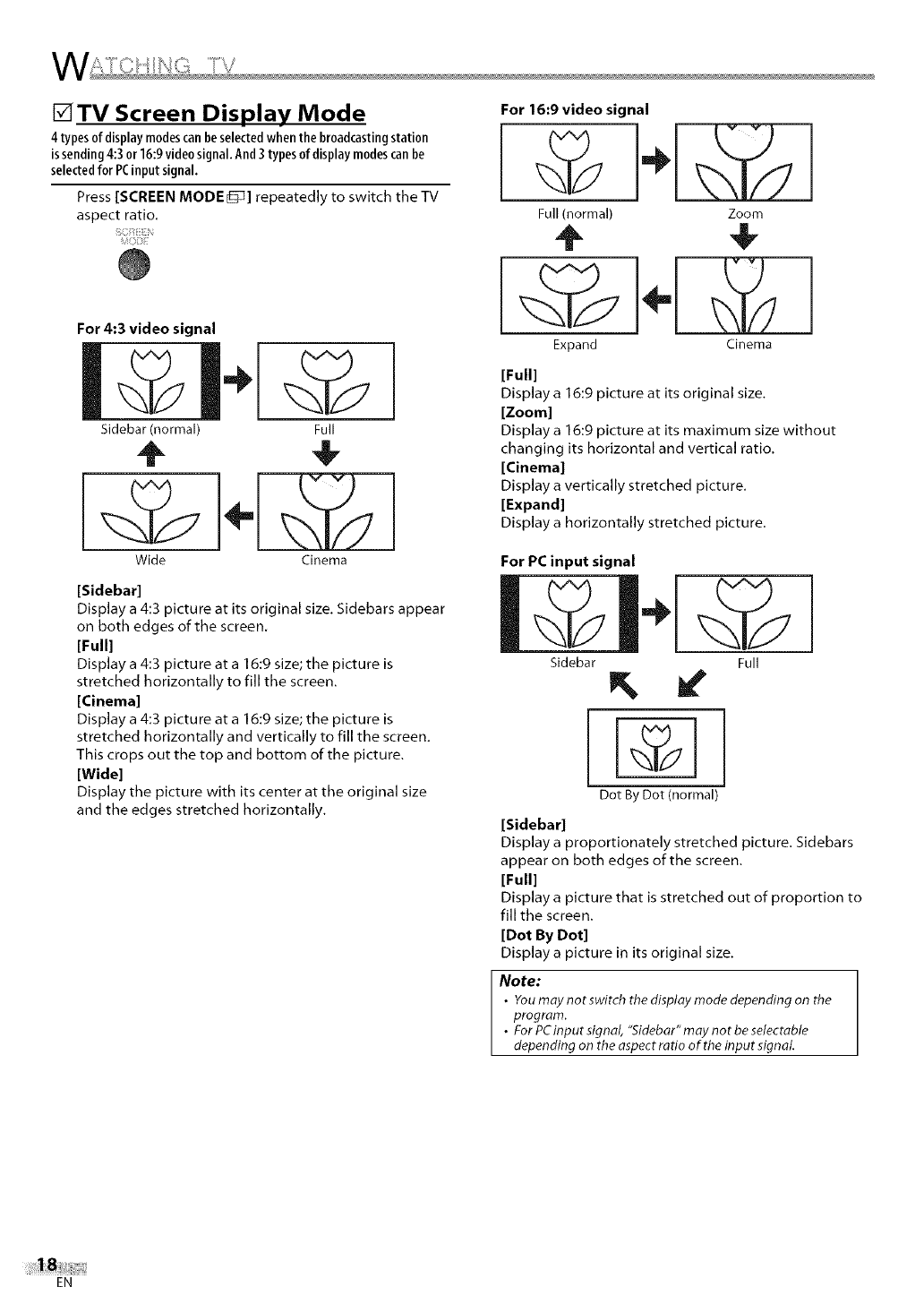

[]TV Screen Display Mode

4typesofdisplaymodescanbeselectedwhenthe broadcastingstation

issending4:3 or16:9videosignal,And3 typesofdisplaymodescanbe

selectedforPCinputsignal,

Press [SCREEN MODE _] repeatedly to switch the TV

aspect ratio.

For 4:3 video signal

Sidebar (normal)

Wide

Full

Cinema

[Sidebar]

Display a 4:3 picture at its original size. Sidebars appear

on both edges of the screen.

[Full]

Display a 4:3 picture at a 16:9 size; the picture is

stretched horizontally to fill the screen.

[Cinema]

Display a 4:3 picture at a 16:9 size; the picture is

stretched horizontally and vertically to fill the screen.

This crops out the top and bottom of the picture.

[Wide]

Display the picture with its center at the original size

and the edges stretched horizontally.

For 16:9 video signal

Full (normal) Zoom

Expand Cinema

[Full]

Display a 16:9 picture at its original size.

[Zoom]

Display a 16:9 picture at its maximum size without

changing its horizontal and vertical ratio.

[Cinema]

Display a vertically stretched picture.

[Expand]

Display a horizontally stretched picture.

For PC input signal

Sidebar Full

Dot ByDot (normal)

[Sidebar]

Display a proportionately stretched picture. Sidebars

appear on both edges of the screen.

[Full]

Display a picture that is stretched out of proportion to

fill the screen.

[Dot By Dot]

Display a picture in its original size.

Note:

• Youmay not switch the display mode depending on the

program.

• For PCinput signal "Sidebar" may not be selectable

depending on the aspect ratio of the input signal.

' U

[]Channel List [] Manual Register

Thechannellistfunctionletsyouremoveundesiredchannelsfromthe Themanualregisterfunctionletsyouaddthechannelsthat werenot added

channelregistrationlist, bytheautochannelscandueto thereceptionconditionatthe initialsetting,

Press [SETUP] to display the main menu. _ Press [SETUP] to display the main menu.

Use [Cursor AIr] to select "CHANNEL", then press

[ENTER].

Use [Cursor AIr] to select "CHANNEL", then press

[ENTER].

Use [Cursor AIr] to select "Channel List", then press

[ENTER].

Use [Cursor A/r] to select "Manual Register", then

press [ENTER].

Use [Cursor A/r] to select the channel you want to

remove, then press [ENTER].

Use [the Number buttons] to enter the number of the

channel you want to add, then press [ENTER].

@@@

•The channel display for the removed channel darkens.

You will not be able to select the channel again using

[CHAIr].

• To reactivate a removed channel, highlight it using

[Cursor A/V] and press [ENTER]. The channel display

lightens.

• When you remove a major channel, its minor

channels are removed as well.

Note:

•Thechannel with the "DTV"indicated on the display is

ATSC.Otherwise the channel isNTSC.

Press [SETUP] to exit.

Note:

•Ifset up completes successfully, "Registeredto the Channel

List" isdisplayed.

•If external input isused,it is not possible to register the

channel and "Unavailable" will be displayed on the TV

screen.

iiii_i!

iiii_ii:i_ii:i_ii:!;19_;ii¸¸¸¸

[] Antenna Confirmation

Thisfunctionletsyoucheckthe signalstrengthofeachchannel.

1 Press [SETUP] to display the main menu.

[] Picture Adjustment

Youcanadjustbrightness,contrast,color,tint andsharpness.

1 Press [SETUP] to display the main menu.

2 Use [Cursor A/Y] to select "CHANNEL", then press

[ENTER].

Use [Cursor A/V] to select "PICTURE", then press

[ENTER].

3 Use [Cursor A/V] to select "Antenna", then press

[ENTER].

Use [Cursor A/V] to select the item you want to adjust,

then press [ENTER].

Use [the Number buttons] or [CH A/V] to select the

channel for which you want to check the signal strength.

@@@

Adjust the picture quality.

Picture Mode

Use ]Cursor A/V] to select the desired setting, then

press [ENTER]. (Standard, Dynamic, Movie and News)

• If the channel is setto external input, you cannot

confirm the antenna condition.

Brightness, Contrast, Color, Tint, Sharpness

Use [Cursor _/1_] to adjust.

Press [SETUP] to exit.

Brightness

Contrast

Cursor_

to decrease

brightness

to decrease

contrast

Cursor D_

to increase

brightness

to increase

contrast

Color

to decrease to brighten

color color

Tint

to add red to add green

Sharpness

to make soft to make clear

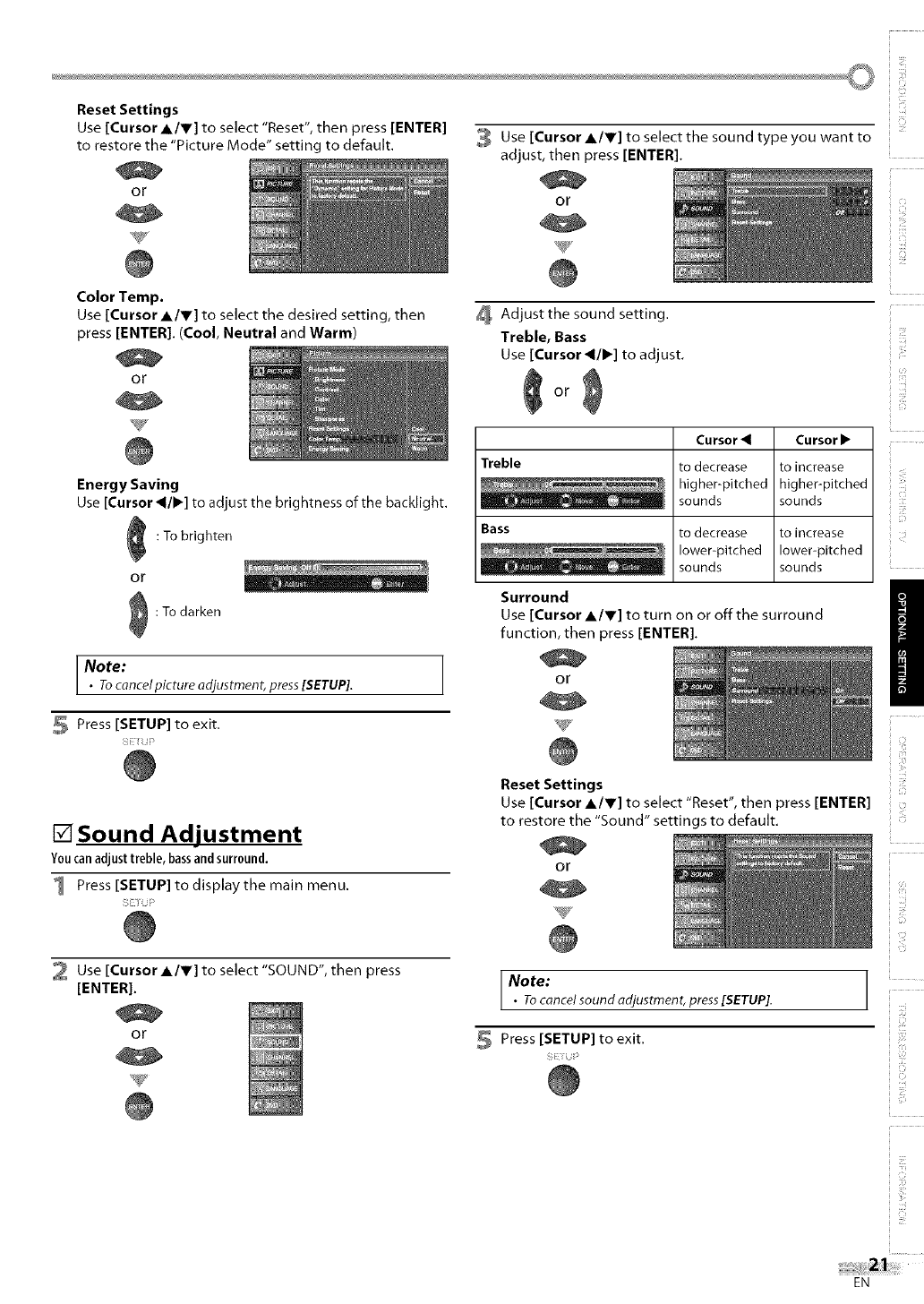

Reset Settings

Use [Cursor A/V] to select "Reset", then press [ENTER]

to restore the "Picture Mode" setting to default.

3 Use [Cursor A/V] to select the sound type you want to

adjust, then press [ENTER].

Color Temp.

Use [Cursor A/Y] to select the desired setting, then

press [ENTER]. (Cool, Neutral and Warm)

Adjust the sound setting.

Treble, Bass

Use [Cursor<l•] to adjust.

Treble

Cursor 'd Cursor •

to decrease toincrease

Energy Saving

Use [Cursor _/•] to adjust the brightness of the backlight. _, I

: To brighten Bass

_ :To darken

Note:

•Tocancelpicture adjustment, press[SETUP].

Press [SETUP] to exit.

S[il iiU

higher-pitched higher-pitched

sounds sounds

to decrease to increase

lower-pitched lower-pitched

sounds sounds

Surround

Use [Cursor A/V] to turn on or off the surround

function, then press [ENTER].

[] Sound Adjustment

Youcanadjusttreble, bassandsurround,

1 Press [SETUP] to display the main menu.

Reset Settings

Use [Cursor A/V] to select "Reset", then press [ENTER]

to restore the "Sound" settings to default.

Use [Cursor A/V] to select "SOUND", then press

[ENTER].

Note:

•Tocancel sound adjustment, press[SETUP].

Press [SETUP] to exit.

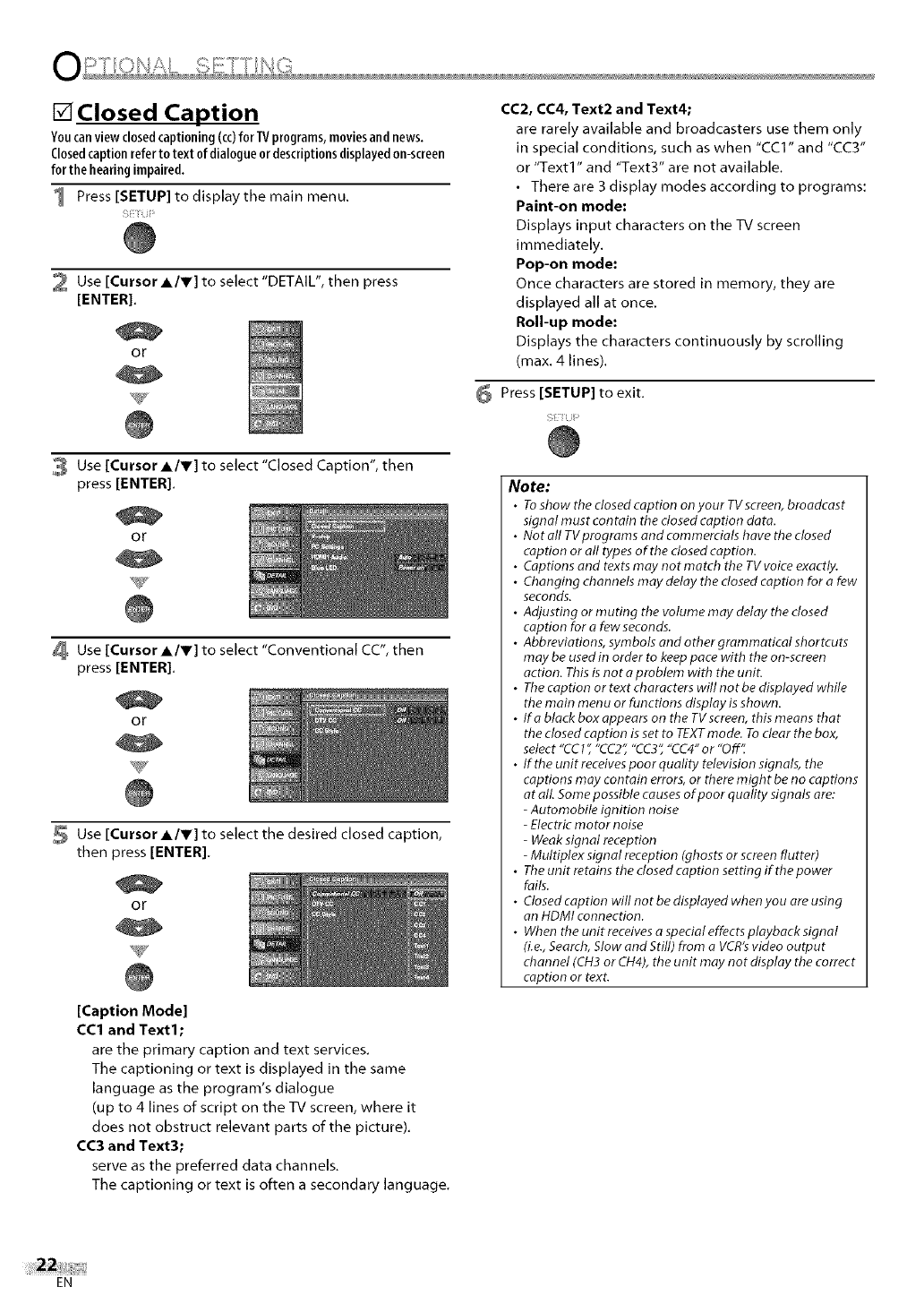

[] Closed Caption

You canview closed captioning (co) for TV programs, movies and news.

Closed caption refer to text of dialogue or descriptions displayed on-screen

f0r the hearing impaired.

Press [SETUP] to display the main menu.

2 Use [Cursor A/V] to select "DETAIL", then press

[ENTER].

CC2, CC4, Text2 and Text4;

are rarely available and broadcasters use them only

in special conditions, such as when "CC1" and "CC3"

or "Text1" and "Text3" are not available.

• There are 3 display modes according to programs:

Paint-on mode:

Displays input characters on the 15/screen

immediately.

Pop-on mode:

Once characters are stored in memory, they are

displayed all at once.

Roll-up mode:

Displays the characters continuously by scrolling

(max. 4 lines).

Press [SETUP] to exit.

3 Use [Cursor A/V] to select "Closed Caption", then

press [ENTER].

Use [Cursor A/Y] to select "Conventional CC", then

press [ENTER].

Use [Cursor A/V] to select the desired closed caption,

then press [ENTER].

[Caption Mode]

CC1 and Text1;

are the primary caption and text services.

The captioning or text is displayed in the same

language as the program's dialogue

(up to 4 lines of script on the TV screen, where it

does not obstruct relevant parts of the picture).

CC3 and Text3;

serve as the preferred data channels.

The captioning or text is often a secondary language.

Note:

•To show the dosed caption on your TVscreen, broadcast

signal must contain the dosed caption data.

•Not all TVprograms and commercials have the closed

caption or all types of the dosed caption.

• Captions and texts may not match the TV voice exactly.

• Changing channels may delay the dosed caption for a few

seconds.

•Adjusting or muting the volume may delay the dosed

caption for a few seconds.

•Abbreviations, symbols and other grammatical shortcuts

may be used in order to keep pace with the on-screen

action. This is not a problem with the unit.

•The caption or text characters will not be displayed while

the main menu or functions display is shown.

•Ifa black boxappears on the TVscreen, this means that

the closed caption is set to TEXT mode. To dear the box,

select "CC I", "CC2" "CC3", "CC4" or "Off".

•If the unit receives poor quality television signals, the

captions may contain errors, or there might be no captions

at alL Some possible causes of poor quality signals are:

-Automobile ignition noise

-Electric motor noise

-Weak signal reception

-Multiplex signal reception (ghosts or screen flutter)

•Theunitretains thedosedcaptionsettingifthepower

fails.

• Closed caption will not be displayed when you are using

an HDMI connection.

•When the unit receives aspecial effects playback signal

(i.e., Search, Slow and Still) from aVCR's video output

channel (CH3 or CH4), the unit may not display the correct

caption or text.

[] DTV Closed Caption

Inaddition to the basicclosedcaption describedon page22, DTVhasits

own closedcaptioncalledDI"VCO.Usethis menuto changethe settings for

DTVCC.

Repeat steps 1 and 2 in "Closed Caption"on page 22.

2 Use [Cursor A/V] to select "Closed Caption", then

press [ENTER].

Use [Cursor AIr] to select "Closed Caption", then

press [ENTER].

3 Use [Cursor A/V] to select "CC Style", then press

[ENTER].

Use [Cursor A/r] to select "DTV CC", then press

[ENTER].

Use [Cursor A/V] to select "User Setting", then press

[ENTER].

Use [Cursor A/r] to select the desired DTV closed

caption, then press [ENTER].

Use [Cursor A/V] to select "On", then press [ENTER].

DTVCC

Off

Service1-6

Select if you do not want

DTV CC.This is the default.

Select one of these before

changing any other item

in "Closed Caption"menu.

Choose"Servicel "under

normal circumstances.

Use [Cursor A/r] to select an item, then press

[ENTER]. Then use [Cursor A/r] to select the desired

setting and press [ENTER].

Picture display

Press [SETUP] to exit.

Note:

•"DTV CC"thatyou can switch differs depending on the

broadcast description.

[] CC Style

Youcanchangethe styleofCCsuchasfont,colororsize,etc.

Repeat steps 1 and 2 in "Closed Caption"on page 22.

Edge

t (Edge Color and EdgeType)

(Font Style, Font Size, Font Color and Font Opacity)

B_:k

(Back Color and Back Opacity)

• The setting description for each item is shown below.

[Font Style]

Closed Captioning font style can be changed as below.

ii!i

i::!ii!

_iiiii!

[Font Size]

Font size of the displayed caption can be switched as

below.

[Edge Type]

Edge type of the displayed caption can be switched as

below.

[Font Color]

Font color of the displayed caption can be switched as

below.

7 Press [SETUP] to exit.

[Font Opacity]

Font opacity of the displayed caption can be switched

as below.

[Back Color]

Background color of the displayed caption can be

switched as below.

[Back Opacity]

Background opacity of the displayed caption can be

switched as below.

[Edge Color]

Edge color of the displayed caption can be switched as

below.

[]V-chil

V-chipreadsthe ratings for programs,thendeniesaccessto theprograms

which exceedthe rating levelyouset.Withthisfunction,youcanblock

certainprogramminginappropriateforchildren.

Repeat steps 1 and 2 in "Closed Caption"on page 22.

2 Use [Cursor A/V] to select "V-chip", then press

[ENTER].

3 Use [the Number buttons] to enter the 4-digit

numbers for your password.

@@@

O0O

•When you have not set up your password, enter 0000.

• When the password is correct, the "V-chip" menu is

displayed.

See the following description for setting each item.

A..."A. MPAA Rating"=_ page 25

B..."B. TV Rating"=> page 25

C-"C. New Password" => page 26

o ©

Note;

•When you select arating and set it to "Block", the higher

ratings will be blocked automatically. The lower ratings

will be available for viewing.

• When you set the highest rating to "View", all ratings turn

to "View" automatically.

• To block any inappropriate programming, setyour limits in

"MPAA Rating", "TV Rating" and "Downloadable Rating".

• The V<hip setting will be retained after apower failure

(except the access code reverts to 0000).

• If the rating is blocked, @will appear.

•"Downloadable Rating" will be available when the unit

receives adigital broadcast using the new rating system.

• If the broadcasting signal does not have the downloadable

rating inforrnation, "Downloadable Rating is currently not

available." will appear.

This message will also appear when you try to access

"Downloadable Rating" after you have cleared the

downloadable rating information, and the new

information has not been downloaded since.

• To clear the downloadable rating information and its

setting, select "Clear Downloadable Rating"

Note;

• Changing the category to "Block" or "View" automatically

changes all its sub ratings to the same ("Block" or "View").

[_ _ g_......... .....

Use [Cursor A/V] to select "TV Rating", then press

[ENTER].

Use [Cursor A/V/_/I_] to select the desired rating,

then press [ENTER] repeatedly to switch between

"View" and "Block".

MPAA Rating is the rating system created by MPAA (Motion Picture

Association 0f America).

Use [Cursor A/V] to select "MPAA Bating", then press

[ENTER].

Press [SETUP] to exit.

Use [Cursor A/V] to select the desired rating, then

press [ENTER] repeatedly to switch between "View"

and "Block".

[To Set the Sub Ratings]

As for TV-MA, TV-14, TV-PG, or TV-Y7, you can further

set the sub ratings to block specific elements of

programming. To set the sub ratings, follow the step

below.

Use [Cursor AIvI_II_] to select the desired rating,

then press [ENTER] repeatedly to switch between

"View" and "Block".

!iiii!_

i!!i:_iil

_!i!!!,

Rating Category

XMature audience only

NC-17 No one under 17 admitted

RRestricted; under 17 requires accompanying

parent or adult guardian

PG-13 Unsuitable for children under 13

PG Parental guidance suggested

GGeneral audience

NR No rating

Press [SETUP] to exit.

Rating Category

TV-MA Mature audience only higher

TV-14 Unsuitable for children under 14 4 %

TV-PG Parental guidance suggested

TV-G General audience

TV-Y7 Appropriate for all children 7 and

older _ _

TV-Y Appropriate for all children lower

........._ i: 2:5,11;;_,_'_

Sub Rating

Category

FantasyViolence

Violence

Sexual Situation

Coarse Language

Suggestive Dialogue

Rating

TV-Y7

TV-PG

TV-14

TV-MA

TV=PG,TV-14

Note.

•Blockedsub rating willappearbeside themain rating

category in "TV Rating" menu.

• You cannot block o sub rating (D, L, S or V) if the main

rating is set to "View".

•Changing the category to "Block" or "View" automatically

changes all its sub ratings to the same ("Block" or "View").

Although the default code"0000" issuppliedwiththeunit, youcanset

your own password.

Use [Cursor A/r] to select "New Password", then press

[ENTER].

Press [the Number buttons] to enter the new 4-digit

password.

•Enter password again in "Confirm password:' entry

field.

@@@

Press [SETUP] to exit.

Note.

• Make sure newpassword and confirm password must be

exactly the some. If they are different, the space iscleared

for reentering.

• Yourpasswordwillbeerasedandreturn to thedefault

(0000) when apower failure occurs. Ifyou forget the

password, unplug the power cord for 10seconds to restore

the password to 0000.

[] PC Settings

Thisfunctionletsyouadjustthe PCscreenposition,clockand phaseduring

PCinput,

Repeat steps 1 and 2 in "Closed Caption"on page 22.

Use [Cursor A/r] to select "PC Settings", then press

[ENTER].

Use [Cursor A/r] to select the setting you want to

adjust, then press [ENTER].

Adjust the setting.

Auto Adjustment

Use [Cursor A/V] to select "Adjust", then press

[ENTER].

• The Horizontal/Vertical position, clock and phase of

the PC screen are automatically adjusted.

Horizontal Position, Vertical Position

Use [Cursor _/•] to adjust.

Cursor _Cursor•

Horizontal Position to move PC to move PC

screen left screen right

Vertical Position to move PC to move PC

screen down screen up

Clock, Phase

Use [Cursor _/•] to adjust the "Clock" setting to

stabilize the PC screen and the "Phase" setting to

improve the clarity of the PC screen.

Cursor _Cursor•

Clock

Phase

to decrease

setting value

to increase

setting value

[] Blue LED

Press [SETUP] to exit. Youcansetthe blueLEDonthefront panelto light upwhenthe unitis

turnedonorwhenadiscisinserted.

1 Repeat steps 1 and 2 in "Closed Caption"on page 22.

Note:

•Adjust the "Phase" setting after the "Clock" setting has

been properly adjusted.

• Youmay not obtain an appropriate screen with auto

adjustment for somesignals. In this case,adjust the

settings manually.

[] HDMI Audio

Youcansetthemethod0fsoundinputfor the HDMIl-IN jack.

1 Repeat steps 1 and 2 in "Closed Caption"on page 22.

2 Use [Cursor A/V] to select "HDMI1 Audio", then press

[ENTER].

Use [Cursor A/r] to select the desired sound input,

then press [ENTER].

Use [Cursor A/r] to select "Blue LED", then press

[ENTER].

Use [Cursor A/r] to select the desired setting, then

press [ENTER].

Power on Lights up while the unit is turned

on.

Blue LED Disc in Lights up when a disc is inserted.

Lights off when there is no disc.

Off Turns offthe Blue LED.

Press [SETUP] to exit.

Select if you have connected both

digital device to the HDMI l-IN

Auto jack and analog device to the

audio sources. Digital audio input

signal will have priority.

HDMI1

Audio Select if you have connected

Digital digital device to the HDMI l-IN

jack for digital audio input signal.

Select if you have connected

Analog analog device to the analog audio

jacks for analog audio input signal.

Press [SETUP] to exit.

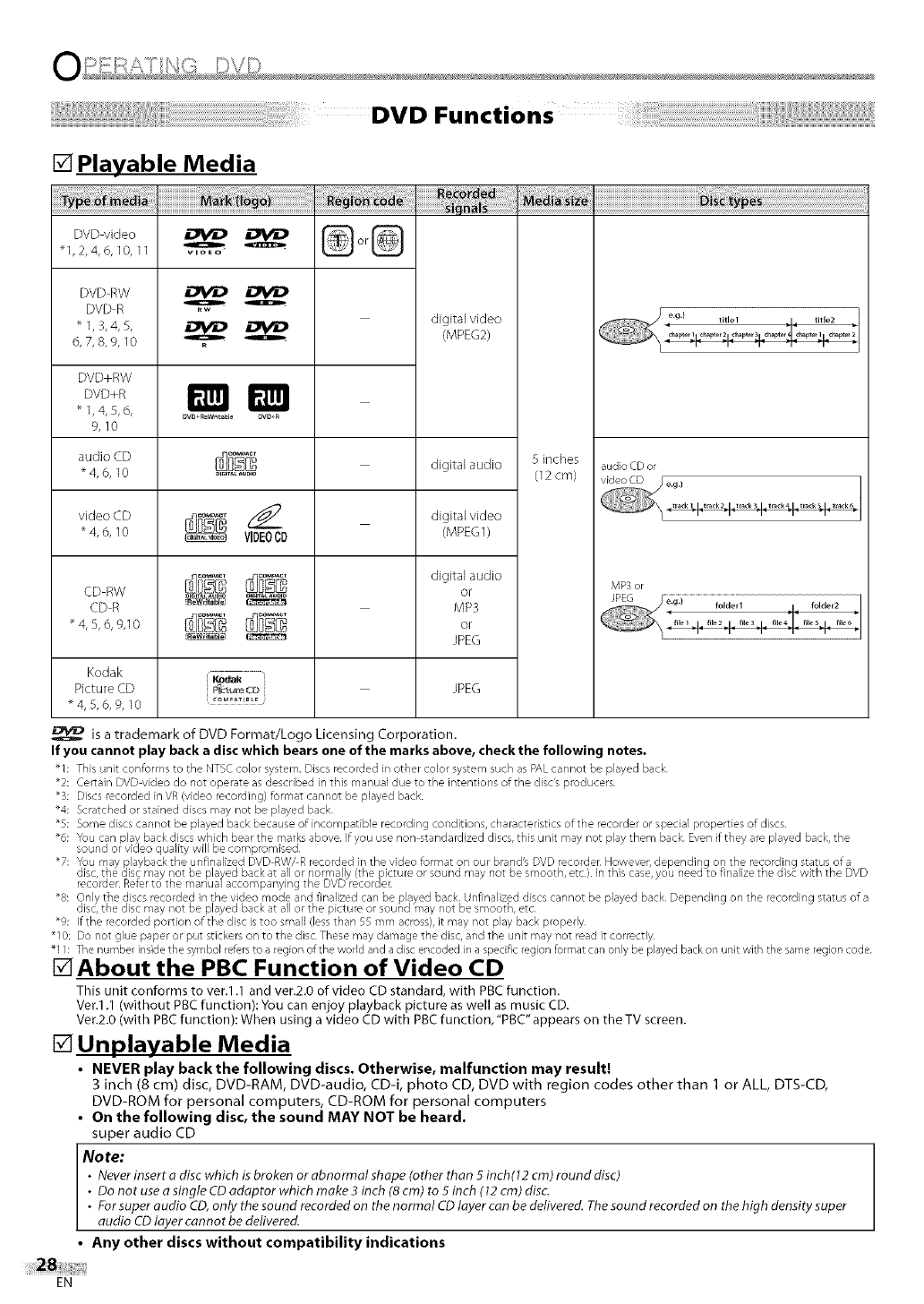

[] Playable Media

video

"1,2,4,6,10,11 ,_,_,_o

DVDRW

DVDR

"1,3,4,5,

6,7,8,9,10

DVD+RW

DVD+R

"1,4,5,6,

9,10

audio CD

"4,6,10

video CD _[}_,_

"4,6,10

CD RW

CD R

"4,5,6,9,10

Kodak

Rcture CD

"4,5,6,9,10

VIDEOCD

!_,_¢_ _............

iKodak

digital video

(MPEG2)

digital audio

digital video

(MPEG1)

digital audio

MP3

JPEG

e'g') title1 _ 4 title2

5 inches audio CD or

(12 cm)

MP3 or

is a trademark of DVD Format/Logo Licensing Corporation.

If you cannot play back a disc which bears one of the marks above, check the following notes.

_1: This unit conforms to the NTSCcolor system. Discs recorded in other color system such as PALcannot be played back

_2: Certain DVD video do not operate as described in this manual due to the intentions of the disc's producers

%: Discs recorded in VR(video recording) format cannot be played back

_4: Scratched or stained discs may not be played back

_S: Some discs cannot be played back because of incompatible recording conditions, characteristics ofthe recorder or special properties of discs

%: You can play back discs which bear the marks above If you use non standardized discs,this unit may not play them back Even if they are played back, the

sound or video quality will be compromised

_7: You may playback the unfinalized DVD RW/R recorded in the video format on our brand's DVD recorder However, depending on the recording status of a

disc, the disc may not be played back at all or normally (thepicture or sound may not be smooth, etc) In this case,you need to finalize the disc with the DVD

recorder Referto the manualaccompanying the DVD recorder

_8: Only the discs recorded in the video mode and finalized can be played back Unfinalized discs cannot be played back Depending on the recording status of a

disc, the disc may not be played back at all or the picture or sound may not be smooth, etc

_9: Ifthe recorded portion of the disc istoo small (less than SS mm across),it may not play back properly

_10: Do not glue paper or put stickers on to the disc These may damage the disc, and the unit may not read it correctly

"11: The nutuber insidethe symbol refersto aregion of the world and a disc encoded in a specific region format can only be played backon unit with the sameregion code

[]About the PBC Function of Video CD

This unit conforms to ver.1.1 and ver.2.0 of video CD standard, with PBC function.

Ver.1.1 (without PBC function): You can enjoy playback picture as well as music CD.

Ver.2.0 (with PBC function): When using a video CD with PBC function,"PBC" appears on the TV screen.

[] Unplayable Media

•NEVER play back the following discs. Otherwise, malfunction may result!

3 inch (8 cm) disc, DVD-RAM, DVD-audio, CD-i, photo CD, DVD with region codes other than 1 or ALL, DTS-CD,

DVD-ROM for personal computers, CD-ROM for personal computers

•On the following disc, the sound MAY NOT be heard.

super audio CD

INote:

•Never insert a disc which is broken or abnormal shape (other than 5 inch(12 cm) round disc)

• Do not use a single CD adaptor which make 3 inch (8 crn) to 5 inch (12 cm) disc.

• For super audio CD, only the sound recorded on the normal CD layer can be delivered. The sound recorded on the high density super

audio CD layer cannot be delivered.

•Any other discs without compatibility indications

[] Playback

Beforeyoubegin:

Turnontheamplifierandanyotherequipmentwhichisconnectedto thisunit.

Makesuretheexternalaudioreceiver(notincluded)aresettothecorrectchannel.

1 Press [POWER] to turn on the unit.

POWER

2 Insert a disc with label facing up.

• In case the DVD was recorded on both sides, make

sure the label of the side you want to play back is

facing up.

3 The unit switches to the DVD mode when the unit was

in TV mode and detects the type of disc.

e.g.) DVD

i ....i

• Press [PLAY _l if the unit does not go to the DVD mode.

_ The disc starts playback.

• If playback does not start automatically, press [PLAY _l

again.

_ Press [STOP ml to stop playback temporarily,

:/op

• If playback remains stopped for 5 minutes, the screen

saver program will activate automatically.

Press [EJECT _i] to eject the disc.

EJECT

No to:

•Whenyou play back CD-RW/-Rwith MP3 or JPEGfiles,

details on page 30.

•A"Q "may appear at the top-righ t on the TV

screenwhen the operation isprohibited by the

disc or this uniL

•SomeDVD may start playback from title 2 or 3 due to

spedfic programs.

•During the playback of a 2-layered disc,pictures may stop

for o moment. Thishappens while the 1stlayer is being

switched to the 2rid layer. Thisis not amalfunction.

[] Disc Menu

Somediscscontaindiscmenuswhich describethe contentsof the discor

allow you to customizediscplayback,or title menu which liststhe titles

availableon the DVD.

Press [DISC MENU] and, use [Cursor •/•/_1 /I1_] to

select an item, then press [ENTER] (or [PLAY I1_]).

Note:

•Menu operations may vary depending on the disc.

Referto the manual accompanying the disc for more details.

Cancelling the PBC

(for playback of a video CD)

1 Insert a video CD. (Playback will start automatically.)

2Press [STOPm].

3Enter track number of your choice with

[the Number buttons].

4 PBC is now cancelled and the playback of the

video CD will start.

To call back PBC function, press [STOP m] twice, and

then press [PLAY I_].

• The title menu will appear.

[] Resume Playback

iiiii_

w/o PBC

Press [STOPIII] during playback, e.g.) DVD

Resume message will appear on

the TV screen.

Press [PLAY I_]. Playback will

resume from the point at which

playback was stopped.

INote:

•Tocancelresumeinformation,press[$TOPII] againin thestopmode.

•Theresume information willbe kepteven when unitis in

standby mode. For MP3 and JPEG,playback will resume from

the beginning of the file at which playback was stopped.

[] Paused and Step-by-step Playback

Press [PAUSE I I] during playback.

• Playbackwill be paused and sound will be muted.

• Press [PAUSE I I] once during dual/folder

playback to pause a JPEGfile only.

Press [PAUSE IIIIII]one more time to pause

an MP3 file.

To continue playback, press [PLAY I_]. ;_

Each time you press [PAUSE I I] in the pause mode, the

disc goes forward one frame at a time.

To continue playback, press [PLAY I1_].

Note:

•Set "STILLMODE" to "FIELD"in the "OTHERS"menu if

pictures in the pause mode are blurred. (Referto page 42.)

........._i:,29 _I_,_<

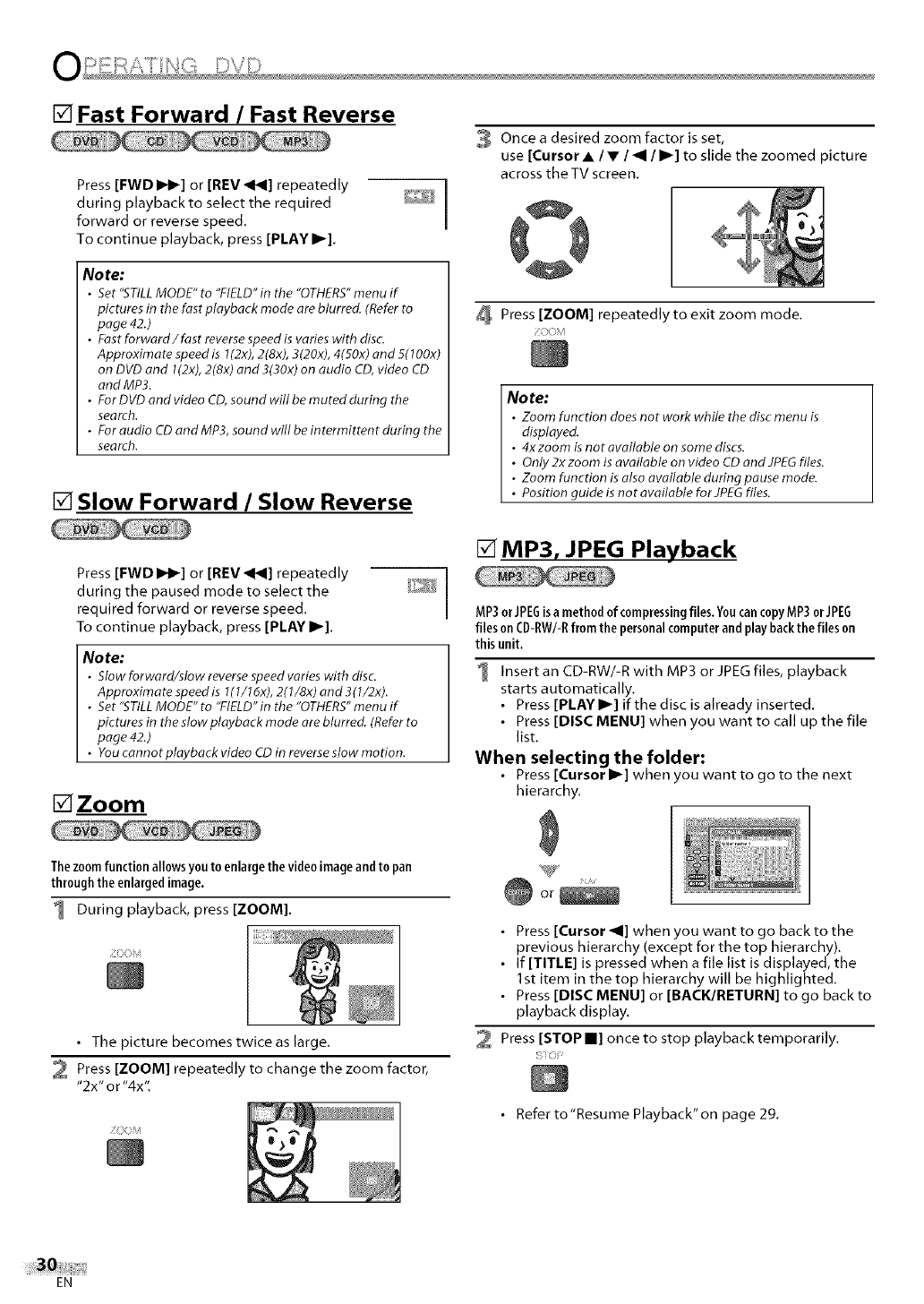

[] Fast Forward /Fast Reverse

Press [FWDIH_] or [REV_I_I] repeatedly _,,, [

during playback to select the required _ Iforward or reverse speed.

To continue playback, press [PLAY I1_].

Nore:

•Set "STILLMODE" to "FIELD"in the "OTHERS"menu if

pictures in the fast playback mode are blurred. (Refer to

page 42.)

• Fast forward/fast reversespeed is varies with disc.

Approximate speed is 1(2x),2(8x), 3(20x), 4(50x) and 5(100x)

on DVD and 1(2x),2(8x) and 3(30x) on audio CD,video CD

and MP3.

• For DVD and video CD,sound will be muted during the

search.

• For audio CD and MP3, sound will be intermitten t during the

search.

[] Slow Forward /Slow Reverse

Press [FWD IIH_] or [REV <1_1]repeatedly ]

during the paused mode to select the _ /required forward or reverse speed,

To continue playback, press [PLAY I1_].

Nore:

• Slow forward/slow reversespeed varies with disc.

Approximate speed is 1(1/16x), 2(1/8x) and 3(1/2x).

• Set "STILLMODE" to "FIELD"in the "OTHERS"menu if

pictures in the slow playback mode are blurred. (Referto

page 42.)

• Youcannot playback video CDin reverseslow motion.

[]Zoom

3 Once a desired zoom factor is set,

use [Cursor A/V/_1/1_] to slide the zoomed picture

across the TV screen.

Press [ZOOM] repeatedly to exit zoom mode.

ZOOM

Note:

• Zoom function does not work while the discmenu is

displayed.

• 4xzoorn isnot available on some discs.

• Only 2x zoom is available on video CDand JPEGfiles.

• Zoom function is also available during pause mode.

• Position guide isnot available forJPEG files.

[] MP3, JPEG Playback

MP3or JPEGisa method of compressingfiles.YoucancopyMP3or JPEG

files on CD-RW/-Rfrom the personalcomputerand play backthe files on

this unit.

1 Insert an CD-RW/-R with MP3 or JPEG files, playback

starts automatically,

• Press [PLAY I1_] if the disc is already inserted,

• Press [DISC MENU] when you want to call up the file

list,

When selecting the folder:

• Press [Cursor I_] when you want to go to the next

hierarchy.

Thezoomfunction allows youto enlargethe video image and to pan

through the enlargedimage.

During playback, press [ZOOM].

ZO0_

• The picture becomes twice as large,

2 Press [ZOOM] repeatedly to change the zoom factor,

"2x" o r "4x",

i__L_

• Press [Cursor _1] when you want to go back to the

previous hierarchy (except for the top hierarchy).

• If [TITLE] is pressed when a file list is displayed, the

1st item in the top hierarchy will be highlighted.

• Press [DISC MENU] or [BACK/RETURN] to go back to

playback display,

Press [STOP m] once to stop playback temporarily,

• Refer to"Resume Playback"on page 29.

Note:

•A file with an extension of':rnp3 (MP3)"is calledan "MP3

file".

• A file with an extension of'fjpg (JPG)'or ':jpeg (JPEG)'is

called a UPEGfile".

• Some selections may take a while to be recognized.

• Folders are known as Groups; files are known as Tracks.

• Folders,MP3 files andJPEG files are displayed respectively as

_!,[] andS.

• A maximum of 255 folders or 999 files may be recognized in

one disc.

• Up to 8 hierarchies can be recognized in one folder. Filesin

the 9th or deeper hierarchies cannot be played back.

• Thisunit can play back images and sounds from data

recorded in MP3and JPEGfiles on CD-RW/-R.

• Theunit con run an image file conforming to the Exif

specification. Exif is afile format, Exchangeable Image

File format established by Japanese Electronic Industry

Development Association (JEIDA).

• Files whose extension is other than '[mp3 (MP3)', ".jpg (JPG)"

and ".jpeg(JPEG)"will not be listed in the file list.

• If the file is not recorded in MP3 orJPEGformat, noise may

be produced evenff the file extension iseither ".mp3 (MP3)",

".jpgUPG)" or ':jpeg (JPEG)".

• Thename of folder and file can be displayed in up to 25

characters. Unrecognizable characters will be replaced with

asterisks.

• Unplayable folders or files may be displayeddepending on

the recording conditions.

• ProgressiveJPEGs(JPEGfiles saved in the progressive

format) will not be played back on this unit.

• Ifa folder isselected,press[Cursor A/V] to select a desired

folder, then press[Cursor I_], [PLAY I_] or [ENTER]to select

afile.

This unit recommends the files recorded under the

following circumstances:

Applicable MP3 file ' Remarks

Sampling frequency:

44.1 kHz or48 kHz For MP3 file recorded in variable bit

rate (VBR),tfle unit may not display

Constant bit rate: the actual elapsed time.

32 kbps ~ 320 kbps

Applicable JPEG file ' Remarks

Normal playback

Upper limit: 6,300 x 5,100 dots

Lower limit: 32 x 32 dots A JPEG image that extends beyond

File size: Max.7 MB the TV screen is reduced so that

Dual playback it will be displayed within the TV

Upper limit: 5,000 x 5,000 dots screen.

Lower limit: 32 x 32 dots

File size: Max. 5 MB

[] Kodak Picture CD

Theunit canalso runJPEGfilesstored on KodakPictureCD.ThePictureCDis

a serviceto convert photographstaken bya conventional film camerainto

digital dataand write the data on a CD.Theuser canenjoy pictureimages

on the television setby playingbackthe PictureCD.

Fordetailsof KodakPictureCD,contact a shopthat dealwith developing

serviceof KodakInc.

Press [DISC MENU], when you want to call up the file.

i :

Current file number /

the number of totaJ files

• If all menu items cannot be displayed in the screen

scope,"IHH"appears at the right bottom of the

screen, indicating that the user can view remaining

items on the next page. "l_l_l"appears, it indicates

that the user can view other items on the previous

page. The file number of the currently highlighted

item and the total files are shown at the center

bottom of the screen.

• If"l_lH"is shown at the right bottom, press [SKIP IHH]

to view the next page. If"t_l_l" is shown at the left

bottom, press [SKIP I_1_] to view the previous page.

• It may take some time until all menu items are

displayed on the menu screen.

2 Use [Cursor • /• /_1 /I_] to select a desired file, then

press [ENTER] (or [PLAY I1_]).

• Ifa Kodak Picture CD file is selected, an image will be

played back from the selected file and go to the next

one in turn.

Nore:

• A file is displayed for 5secondsand then the next file is

displayed.

• Everypress on [ANGLE] will turn the image clockwise by 90

degreeswhen an image is displayed.

i:!i

i£!

2_1

[] Dual Playback

Thisfunctionlets you playbackMP3andJPEGfiles simultaneously.

Availableonly when "DUALPLAYBACK"is"ON" Seepage42 on how to set

"DUALPLAYBACK'"ON"or"OFF"

Press [PLAY I1_], then press [DISC MENU],

2 When playing back an MP3 file, use [Cursor •IY] to

select a desired JPEG file from the file list, then press

[ENTER] (or [PLAY II_]).

or @or@

• When playing back a JPEG file, select an MP3 file.

No te:

•Tocancetduolplayback, press[DISCMENU]againatstep 1.

•Ifyou press[PLAY I_] directly after you inserted a disc which

conrains both MP3 and JPEGfiles and if "DUALPLAYBACK"is

set to "ON",dual playback will start automatically.

•Ifyou press[FWD I_t_] or [REVI1<] during dual playback, a

JPEGfile will be paused.

•Zooming or rotating a JPEGfile during dual playback may

cause an intermittent sound.

•Depending on the data size of each file, dual playback may

not function properly. (Referto "Applicable JPEGfile"on

page 31.)

[] Folder Playback

Thisfunction lets you playbackall the filesand trackscontainedin one

selectedfolder automatically. Availableonly when "DUALPLAYBACK"is

"ON"

Ifthe folder containsboth MP3andJPEGfiles, dual playbackwillbegin

automatically within that folder. Seepage42 on howto set"DUAL

PLAYBACK'"ON"or"OFF"

Press [STOP II], then press [MODE],

MC_i3i!i

Use [Cursor •/V] to select a desired folder from the

folder list, then press [ENTER] (or [PLAY II_]).

or @or

No te:

•Tocancel folder playback, press [MODE] again at step 1.

•Ifyou press[FWD I_t_] or [REVII<] during folderplayback,

aJPEGfile will be paused.

• Zooming or rotating aJPEGfile during folder playback may

cause an intermittent sound.

•Depending on the data size of each file, folder playback

may not function properly. (Referto "Applicable JPEGfile" on

page 31.)

[] Transition Mode

Youcanswitchto the transition modefor JPEGfiles during playback.

Press [PLAY I1_],then press [MODE] repeatedly until

" "a ppea rs.

Use [ENTER] or [Cursor <I/I_] to select a desired setting.

or or 1

CUT IN/OUT : The entire image appears in one time.

FADE IN/OUT : The image appears gradually and then

disappears.

Press [BACK/RETURN] to exit.

Note:

•Thetransition mode cannot be switched when it isstopped,

or from the file list.

•Thedefault setting is "CUTIN/OUT'_

[] Adjustment of Picture Size

Whenthe overall picturecannotbe displayedandthe edgeof the pictureis

cut off, youcanadjust the size0fthe JPEGplaybackimage onTVscreen.

Press [PLAY II_], then press [MODE] repeatedly until

" "a ppea rs.

Use [ENTER] or [Cursor <I III_] to select a desired setting.

or or

NORMAL : To display the image at 100% of the picture

size.

SMALL : To display the image at 95% of the picture

size.

Using [SKIP I_HI, I_IH]

3 Press [BACK/RETURN] to exit. 1 During playback, press [SKIP t<1"11,I_IH] repeatedly until

adesired chapter or title will be selected.

current chapter

(CH)

No re:

•Picture adjustment menu will not be displayed while in the

stop mode or from the file list.

• Thisfeature may have no effect on some files (e.g.Files with

asmall picture size).

• Thedefaultsettingis "NORMAL'_

[] Search Functions

Using [SEARCH MODE]

1 Press [SEARCH MODE] repeatedly until" "appears.

• If you want to perform the title search, press

[SEARCH MODE] repeatedly until" "appears.

S_AiiCii

2 Press [the Number buttons] to select your desired

chapter or title within 30 seconds.

@@@

To play back a single-digit chapter or title when there

are more than 10 chapters or titles, press [ENTER] after

entering the chapter or title number.

Playback will start automatically from the chapter or

title you selected.

No te:

• Thetotal number ofcbapters/tifies in your disc; with less

than 10chapters/titles, press the chapter/title number

directly. With I0 or more chapters/titles, to play asingle digit

chapter/title, press[0] first, then the chapter/title number.

(e.g.,for chapter 3, press [0] and [3].) Toplay a double-digit

chapter/title, pressthe chapter/tifie number.

[SKIPI_] [SKIPb_4]

current title

(TT)

[SKIP I_r_] [SKIP I_q]

(If the disc has no chapter.)

Playback will start automatically from the chapter or

title you selected.

INote:

•[SKIP_/I_H] are not available when playback is stopped.

•Chapter or title search can only be performed during

playback or when the unit has kept the resume information.

It cannot be performed in the stop mode.

w/o PSC

Using [SEARCH MODE]

1 Press [SEARCH MODE] repeatedly until" "appears.

2Press [the Number buttons] to select your desired

track/file within 30 seconds.

@@@

To play back a single-digit track/file when there are

more than 10 tracks/files, press [ENTER] after entering

the track/file number.

Playback will start automatically from the track/file you

selected.

Nore:

• Thetotal number of tracks/files in your disc;

With lessthan 10 tracks/files, press the track/file number

directly.

With 10or more tracks/files, to play asingle digit track/file,

press[0] first, then the track/file number. (e.g.,for track 3,

press[0] and [3].) Toplay adouble-digit track/file, press the

track/file number.

With 100or more files, to play asingle or double digit file,

press[0] first, then the file number directly. (e.g.,for file 3,

press[0], [0] and [3]. For file 25, press[0], [2] and [61.).

Toplay atriple digit file, pressthe file number.

• Tracksearch isnot available for programmed or random

playback.

!iiii!_

i !ii_i_iiii

!iii!!!_

!ii!_!!

Using [SKIP I<1<1,IHIH]

1 During playback, press [SKIP I<<1, IHH] repeatedly until

a desired track/file will be selected.

current track/file

'(TR)

[SKIPI_] [SKiPI_H]

2 Playback will start automatically from the track/file you

selected.

No te:

•[SKIP _/IHIH] are not available when playback is stopped.

•Track search can only be performed during playback or

when the unit has kept the resume information. It cannot be

performed in the stop mode.

w/o PBC

During playback, press [SEARCH MODE] repeatedly

until" "appears.

Press [the Number buttons] to select your desired

time lapse within 30 seconds.

@@@

3 Playback will start automatically from the time you

selected.

Nore:

• When there is no need to enter anumber, "0" appears

automatieally. For example, "0: 0 : " appears in the time

search menu if the total time of the title or track is tess than

10 minutes.

• Press [CLEAR] to erase the incorrect input at step 2.

• Time searcb can only be performed during playback or

when the unit has kept the resume information. It cannot be

performed in the stop mode.

w/o PBC

Press [the Number buttons] to select your desired

chapter, title, track/file.

@@@

No te:

• Tosetectasingle-digitchapter, title, track/filenumber, press

the number directly.

• To select double digit chapter, title, track/file nurnber:

-Ifthedisccontains more than 9andless than lOOchapter, title,

tracks/files, press [+ I O] first, then enter the double digit chapter,

title, track/file number.

(e.g., for track 26, press [+ I 0], [2] and [5].)

[] Repeat Playback

w/o PBC

Repeat function is available only during playback.

1 During playback, press [REPEAT] repeatedly until""

appears.

fiiiii:_ii#i[

Press [REPEAT] to change the repeat mode,

OFF (repeat off)

CHAPTER (current chapter repeat)

_7-] TITLE (current title repeat)

w/o PBC

OFF (repeat off)

TRACK (current track repeat)

ALL (entire disc repeat)

:;/ OFF

_ TRACK

_?/ GROUP

_ALL

(repeat off)

(current file repeat)

(current folder repeat)

(entire disc repeat)

Press [BACK/RETURN] to exit.

[] Repeat A-B Playback [] Programmed Playback !ill

Youcan repeat playback between Aand B on adisc.

1 During playback, press [A-B] at your desired starting point (A).

AiD

2 Press [A-B] at your desired ending point (B).

•Point B should be in the same title or track as point A.

• Within a few seconds, the section A-B will begin to

play back repeatedly.

3 To cancel repeat A-B playback, press [A-B] repeatedly

until "_i OFF" appears.

No re:

•Repeat setting (except "ALL") will be deared when moving to

another title, chapter, track/file or folder.

• During programmedplayback, repeat setting will be

effective for the tracks/files in the program.

• Repeat playback or repeat A-B playback may not available

with some discs.

• Repeat A-B playback does not function during other repeat mode.

• To cancetpointA, press [CLEAR] atstep 1in "RepeatA-B

Playbock'_

• Stopping playback will cancel repeat A-B playback.

[] Random Playback

Thisfunctionshufflestheplayingorderof tracksinsteadofplaybackinthesequence.

1 In stop mode, press [MODE] repeatedly untiI"RANDOM"

menu appears.

e.g,) audio CD

!'(}i}[{

Press [PLAY I1_] to start random playback.

....

No re:

• To repeat the current track/file in the random mode, follow

the steps 1 and 2 in "Repeat Playback" on page 34 and select

"TRACK':

• To repeat the entire random selections, follow the st_s 1

and 2 in "Repeat Playback" on page 34 and select" ALL':

• Random playback of MP3 or JPEG is not available while

"DUAL PLAYBACK" is "ON':

•Randomplaybackwi!lbekeptuntilyoupress[STOPII].

Youmaydetermine the orderin whichtracks will play back.

1 In stop mode, press [MODE] repeatedly until

"PROGRAM" menu appears.

e.g.) audio CD

M(}Uil

Use [Cursor • /Y] to select a desired track/file, then

press [ENTER] to store.

• Additional tracks/files may be on other screens. Use

[Cursor _1/I_] to go on to the next /previous pages.

• Repeat this step until you have selected all the tracks/

files you wish to play back in the program.

• Up to 99 tracks/files can be ordered.

• If 8 or more tracks/files were in a program, use iiii_

[SKIP _ /I_1_1] to see all the tracks/files.

While an MP3 or a JPEG folder is open:

- Press [Cursor I_] when you want to go to the next

hierarchy.

- Press [Cursor _1] when you want to go back to the

previous hierarchy (except for the top hierarchy).

- Press [TITLE] when you want to go back to the item in

the top hierarchy.

Press [PLAY I1_] to start programmed playback.

Note:

•Press[CLEAR]to erasethelasttrack/file in theprogram if youmake an error.

•Toeraseallprogrammed tracks/filesatonce, select"ALLCLEAR"andpress

[ENTER[at step 2,

•Whlleaprogramisbeingplayedback,[STOPm]worksasfollows:

-Pressing[STOPII[ once:Thetrack/file will bein theresumestandby mode.

Nexttimeyoupress[PLAYI_], theplayback will resumefrom thepoint

whereit is stoppedin theprogrammed playback. (ForMP3 file,playbackwill

resumefrom thebeginning of thecurrent file.)

- Pressing[STOPII] twice: Resumemode will becanceled.Next timeyou

press[PLAYI_], playback will restart from thefirst track/file in the original

order,However,your programmed playbackcan berestarted whenyou

follow the abovesteps.(Yourprogramsare still storeduntil either the discis

ejectedor the unit is turned off)

On somediscs,[STOPII] wlll not work while the resumemessageappears,

Pleasewalt until themessagedisappears.

•Torepeat thecurrent track/file in the program,follow the stepsIand 2in

"RepeatP/ayback"on page34 and select"TR'ACK'f

•Torepeattheentireprogram, followthesteps I and2in "RepeatHayback"

on page34and select"ALL'_

•Turningofftheunitorejectingthediscwifierasetheprogram.

•Youcannotuse[theNumberbuttons]toselectanothertrack/fi/eduring

programmed playback.Use[SKIP_/1_ to selectother tracks/filesin

theprogram.

•Youcannotcombinerandomplaybackwithprogrammedplayback.

•Youcannotalteraprogrammedorderdufingplayback.

•Youcanstartprogrammedplaybackonlywhllein "PROGRAM"menu.

[] On-screen Display

Youcan check the information about the current disc by pressing [INFO]

on the remote control.

appears only when multi-

[ angle is available on the DVD

[] %_ ...._ IJl I_ current playback status

__ remaining time of the current

Y I [ -- chapter

I I elapsed time of the current

_ chapter

CH (Chapter):

current chapter number /

total chapters

remaining time of the current title

elapsed time of the current title

TT (Title):

current title number /total titles

layer number, appears only when

playing a 2-layered disc

L0 : Layer 0 is playing

L1 : Layer I is playing

current repeat setting appears

only when the repeat setting is

active

_-C : Chapter repeat

_'T: Title repeat

A_-B : A-B repeat

bit rate indication for the amount

of audio and video data currently

being read

w/o PBC

F:C*

playback status

- remaining time of the current

track

elapsed time of the current track

TR (Track):

current track number /

total tracks

ALL:

current track number /

total tracks

_ current repeat setting appears only

when the repeat setting is active

_-T: Track repeat

_- A : All tracks repeat

_A_-B : A-B repeat

remaining time of the entire disc

elapsed time of the entire disc

]_IJ ............................

Note:

•When you are playing back an audio CD in program or

random mode, "[_ PROGRAM" (or" RANDOM") will be

displayed instead all21.

_ii::}

current playback status

the name of the file currently in

playback will be displayed

TR (Track):

current file number/

total files

current repeat setting, if active

_-T: Track repeat

_-G : Group (folder) repeat

_- A : All files repeat

elapsed playing time of the

current file

Note:

• When "DUAL PLAYBACK" is "ON" MP3 andJPEG file name

will be displayed.

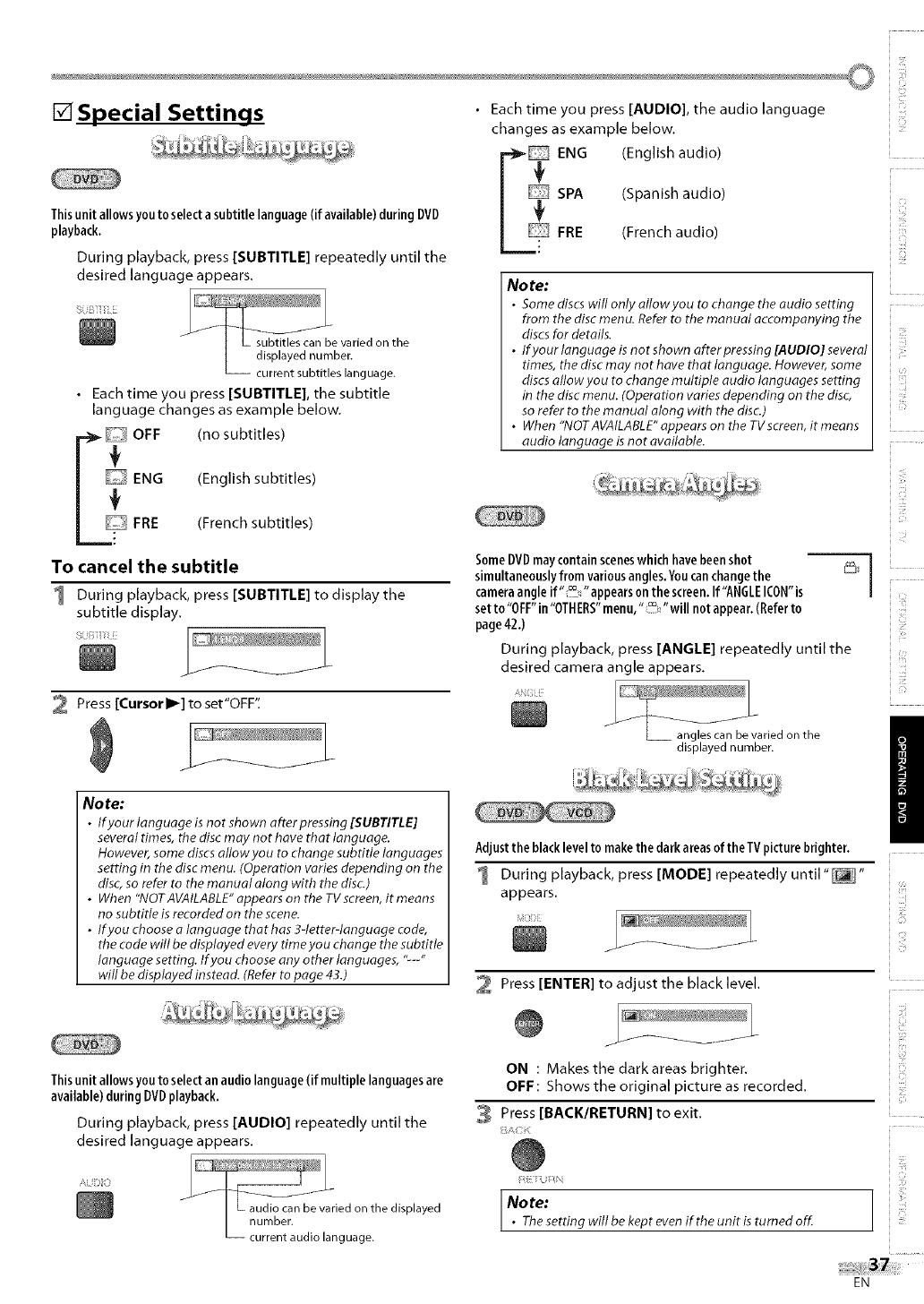

[] Special Settings

Thisunit allowsyouto selecta subtitle language(if available)duringDVD

playback.

During playback, press [SUBTITLE] repeatedly until the

desired language appears.

[

• Each time you press [SUBTITLE], the subtitle

language changes as example below.

OFF (no subtitles)

_ENG

FRE

(English subtitles)

(French subtitles)

To cancel the subtitle

1 During playback, press [SUBTITLE] to display the

subtitle display.

SUSiii i ii

Each time you press [AUDIO], the audio language

changes as example below.

ENG (English audio)

SPA

FRE

(Spanish audio)

(French audio)

No te:

•Some discswill only allowyou to change the audio setting

from the disc menu. Referto the manual accompanying the

discsfor details.

•Ifyour language isnot shown after pressing [AUDIO] several

times, the discmay not have that language. However, some

discsaflow you to change multiple audio languages setting

in the disc menu. (Operation varies depending on the disc,

so refer to the manual along with the disc)

•When "NOTAVAILABLE"eppears on the TVscreen, itmeans

audio language is not available.

SomeDVDmaycontainsceneswhich havebeenshot _4

simultaneouslyfrom variousangles.Youcanchangethe

cameraangle if" o_, appearson the screen.If"ANGLEICON"is

setto"OFF"in"OTHERS"menu," :%" will not appear.(Referto

page42.)

During playback, press [ANGLE] repeatedly until the

desired camera angle appears.

Press [Cursorl_ ] to set'OFF". A}

displayed number.

No te:

•Ifyourlanguageis notshown afterpmssing[SUBTITLE]

several times, the discmay not have that language.

However, some discs allow you to change subtitle languages

setting in the disc menu. (Operation varies depending on the

disc, so refer to the rnanual atong with the disc.)

•When "NOTAVAILABLE"appears on the TVscreen,it means

no subtitle is recorded on the scene.

•Ifyou choose alanguage that has 3-letter-language code,

the code will be displayed every tirne you change the subtitle

language setting. If you choose any other languages, "--"

will bedisplayed instead. (Refer to page 43.)

Adjustthe blacklevelto makethe dark areasof theTVpicture brighter.

1 During playback, press [MODE] repeatedly until"_"

appears.

}

Press [ENTER] to adjust the black level.

Thisunit all0wsyouto selectan audiolanguage(if multiplelanguagesare

available)during DVDplayback.

During playback, press [AUDIO] repeatedly until the

desired language appears.

A [i)

ON :Makes the dark areas brighter.

OFF: Shows the original picture as recorded.

Press [BACK/RETURN] to exit.

Note:

•Thesetting will be kept evenif the unit is turned off.

!ii!_!!

[

i!!!!i_ii

Thisunit allowsyou toselect a soundmodeduringCDplayback.

During playback, press [AUDIO] repeatedly until the

desired sound mode appears.

Aii[_iC)

• Each time you press [AUDIO], the sound mode

changes as example below.

STEREO (stereo sound with left and

right channels)

L-ch (left channel sound only)

R-ch (right channel sound only)

Note:

•Virtual surround cannot be changed when the sound mode

isset to either "L-oh"or "R-ch'[

Youcanenjoyvirtual surroundon your existing 2 channelstereosystem.

During playback, press [MODE] repeatedly until""

appears.

i0)ii

2 Press [ENTER] to select the sound level.

1 : Natural effect.

2 : Emphasized effect.

OFF: No effects (original sound).

3 Press [BACK/RETURN] to exit.

No te:

•Thesetting will be kept evenif the unit is turned off.

•For audio CDand video CD, virtual surround will not be

effective if the sound mode isset to something other than

"STEREO"

Referto "StereoSound Mode".

•Turndown the level or select "OFF"if the sound is distorted.

w/o PBC

Thisfeatureallowsyoutoassignaspecificpointon a discto becalledbacklater,

To set a marker

During playback, press [SEARCH MODE] repeatedly

until" "appears.

e.g.) DVD

Use [Cursor _1 /I1_] to select an available marker within

30 seconds.

When the playback reaches the point at which you

want to set a marker, press [ENTER].

• Marker is now set.

Press [BACK/RETURN] to exit.

To return to the marker later

To select a desired marker, repeat steps 1-2 in "To set a

marker".

e.g.) DVD

Press [ENTER] at the desired marker to restart playback

from the specific point which you set.

No re:

•Marker search menu will disappear in about 30 seconds

when thereis no input.

•Youcan mark up to 10points.

•Toclear amarker, select the marker to be cleared at step2

in the section "Toset amarker" or "Toreturn to the marker

later" and then press[CLEAR].

•Ejecting the disc or turning off the power will erase all

markers.

•Selecting "__ "at step 2 in the section "To set amarker" or

"Toretum to the marker later" will also eraseall markers.

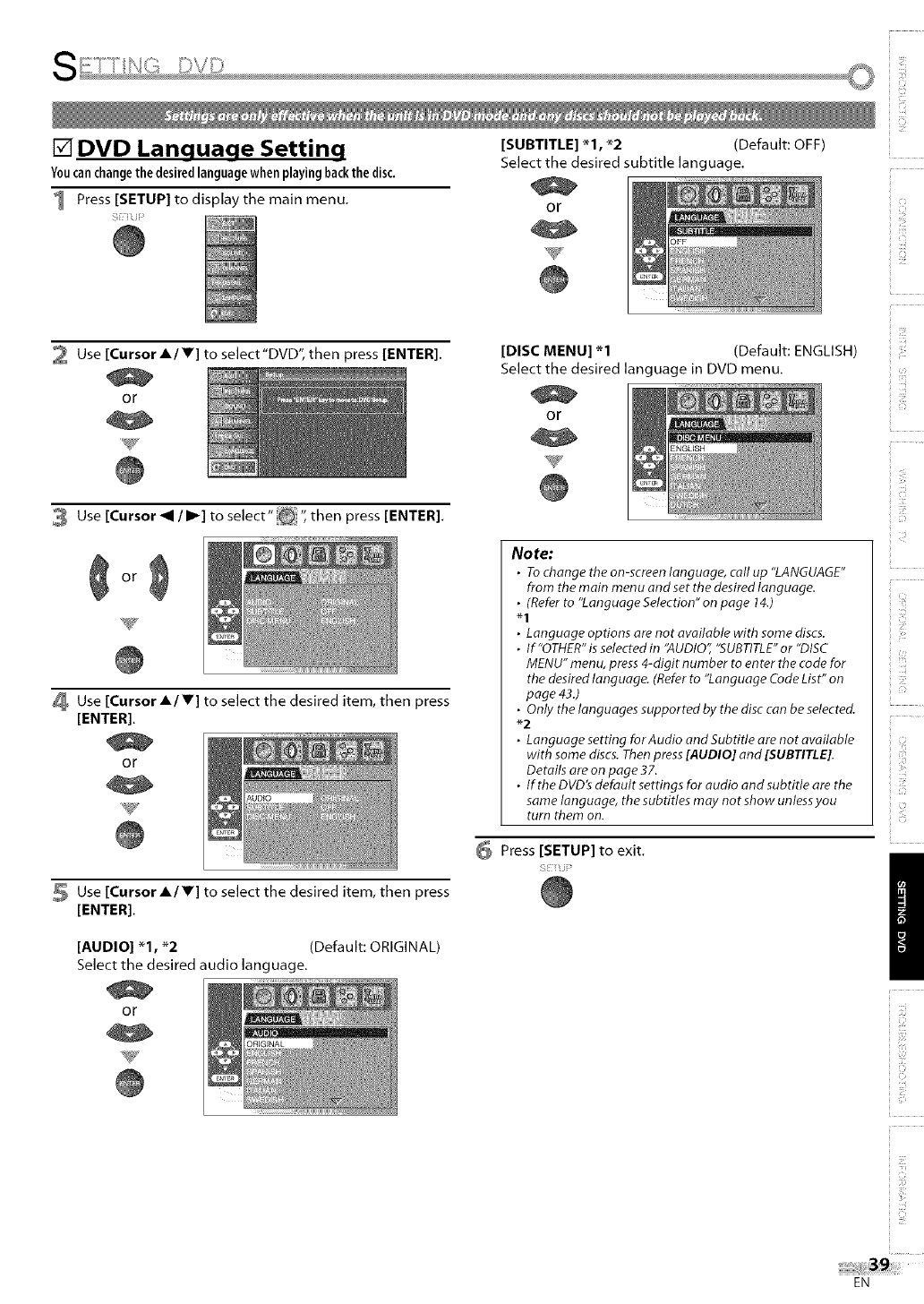

[] DVD Language Setting

Youcan change the desired language when playing back the disc,

1 Press [SETUP] to display the main menu.

Use [Cursor A/V] to select"DVD", then press [ENTER].

Use [Cursor _1 /I_] to select" _ ", then press [ENTER].

Use [Cursor A/V] to select the desired item, then press

[ENTER],

Use [Cursor A/V] to select the desired item, then press

[ENTER],

[AUDIO] "1, *2 (Default: ORIGINAL)

Select the desired audio language.

[SUBTITLE] "1, *2 (Default: OFF)

Select the desired subtitle language.

[DISC MENU] "1 (Default: ENGLISH)

Select the desired language in DVD menu.

No te_

•To change the on-screen language, call up "LANGUAGE"

from the main men uand set the desired language.

• (Refer to "Language Selection" on page 14.)

• Language options are not available with some discs.

• If"OTHER" is selected in "AUDIO" "SUBTITLE" or "DISC

MENU" menu, press &digit number to enter the code for

the desired language. (Refer to "Language Code Lis t" on

page 43.)

• Only the languages supported by the disc can be selected.

• Language setting forAudio and Subtitle are not available

with some discs. Then press [AUDIO] and [SUBTITLE].

Details are on page 37.

• If the DVD's default settings for audio and subtitle are the

same language, the subtitles may not show unless you

turn them on.

Press [SETUP] to exit.

[] DVD Audio Setting

Choosethe appropriateaudiosettingsforyourequipment, It onlyaffects

duringthe playbackof DVD.

Press [SETUP] to display the main menu.

[DOWN SAMPLING] (Default: ON)

Set"DOWN SAMPLING".

This function is available only on digital outputting of a

disc recorded in 96kHz.

2 Use [Cursor A/V] to select"DVD", then press [ENTER].

3 Use [Cursor _1 /I_] to select" _ ",then press [ENTER].

ON : When outputting in 48kHz.

OFF :When outputting the original sound.

No te_

•Whenplaying back a96 kHz disc with the copyright

protection or when virtual surround isset to "1" or "2",the

sound will be down sampled at 48 kHz even if the "DOWN

SAMPLING"isset to "OFF".

[DOLBY DIGITAL] (Default: BITSTREAM)

Set to"BITSTREAM" when this unit is connected to a

Dolby Digital decoder. Available on DVD only.

Use [Cursor A/V] to select the desired item, then press

[ENTER].

BITSTREAM ; Outputs Dolby Digital signals.

PCM : Converts the Dolby Digital into PCM.

(2 channel)

Press [SETUP] to exit.

Use [Cursor A/V] to select the desired item, then press

[ENTER].

[DRC] (dynamic range control) (Default: ON)

Set "D RC".

This function is available only on the discs which are

recorded in the Dolby Digital format.

ON : Compress the range between soft and loud

sounds.

OFF: No effects (original sound).

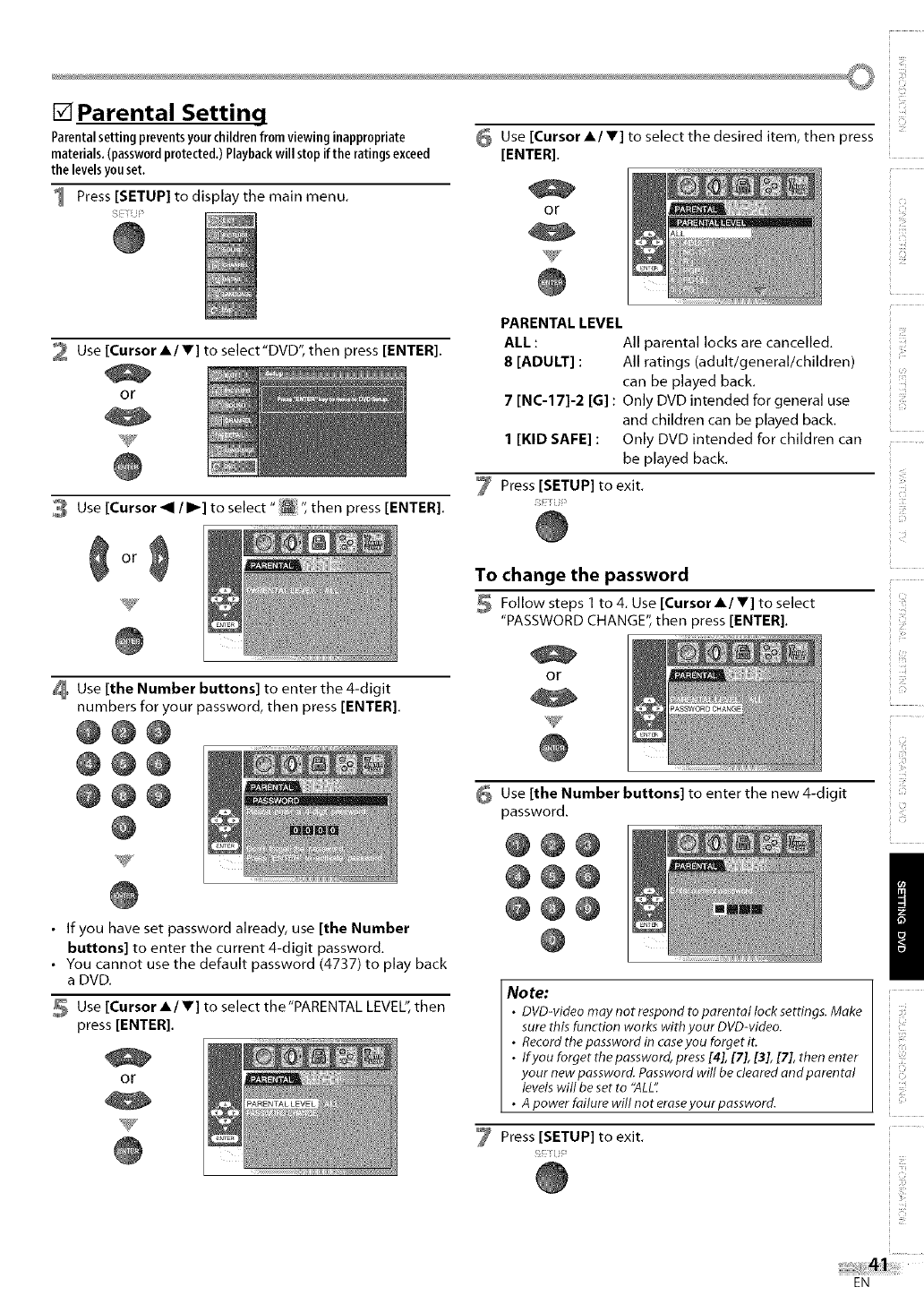

[] Parental Setting

Parentalsettingpreventsyourchildrenfrom viewinginappropriate

materials,(passwordprotected,)Playbackwillstopifthe ratingsexceed

the levelsyouset,

Press [SETUP] to display tile main menu.

Use [Cursor •/V] to select the desired item, then press

[ENTER].

2 Use [Cursor •/V] to select"DVD", then press [ENTER].

3 Use [Cursor _1/1_] to select" i_ ",then press [ENTER].

Use [the Number buttons] to enter the 4-digit

numbers for your password, then press [ENTER].

@@@

• If you have set password already, use [the Number

buttons] to enter the current 4-digit password.

• You cannot use the default password (4737) to play back

a DVD.

Use [Cursor •/V] to select the"PARENTAL LEVEL",then

press [ENTER].

PARENTAL LEVEL

ALL : All parental locks are cancelled.

8 [ADULT] : All ratings (adult/general/children)

can be played back.

7[NC-17]-2 [G] : Only DVD intended for general use

and children can be played back.

1 [KID SAFE] : Only DVD intended for children can

be played back.

7 Press [SETUP] to exit.

To change the password

Follow steps 1 to 4. Use [Cursor •IV] to select

"PASSWORD CHANGE", then press [ENTER].

Use [the Number buttons] to enter the new 4-digit

password.

@@@

No re:

•DVD-video may not respond to parental lock settings. Make

sure this function works with your DVD-video.

•Record the password in caseyou forget it.

•Ifyou forget thepassword, press [4], [7], [3], [7], then enter

your new password. Password will be cleared and parental

levels will be set to "ALL".

•A power failure will not eraseyour password.

Press [SETUP] to exit.

ill!i!

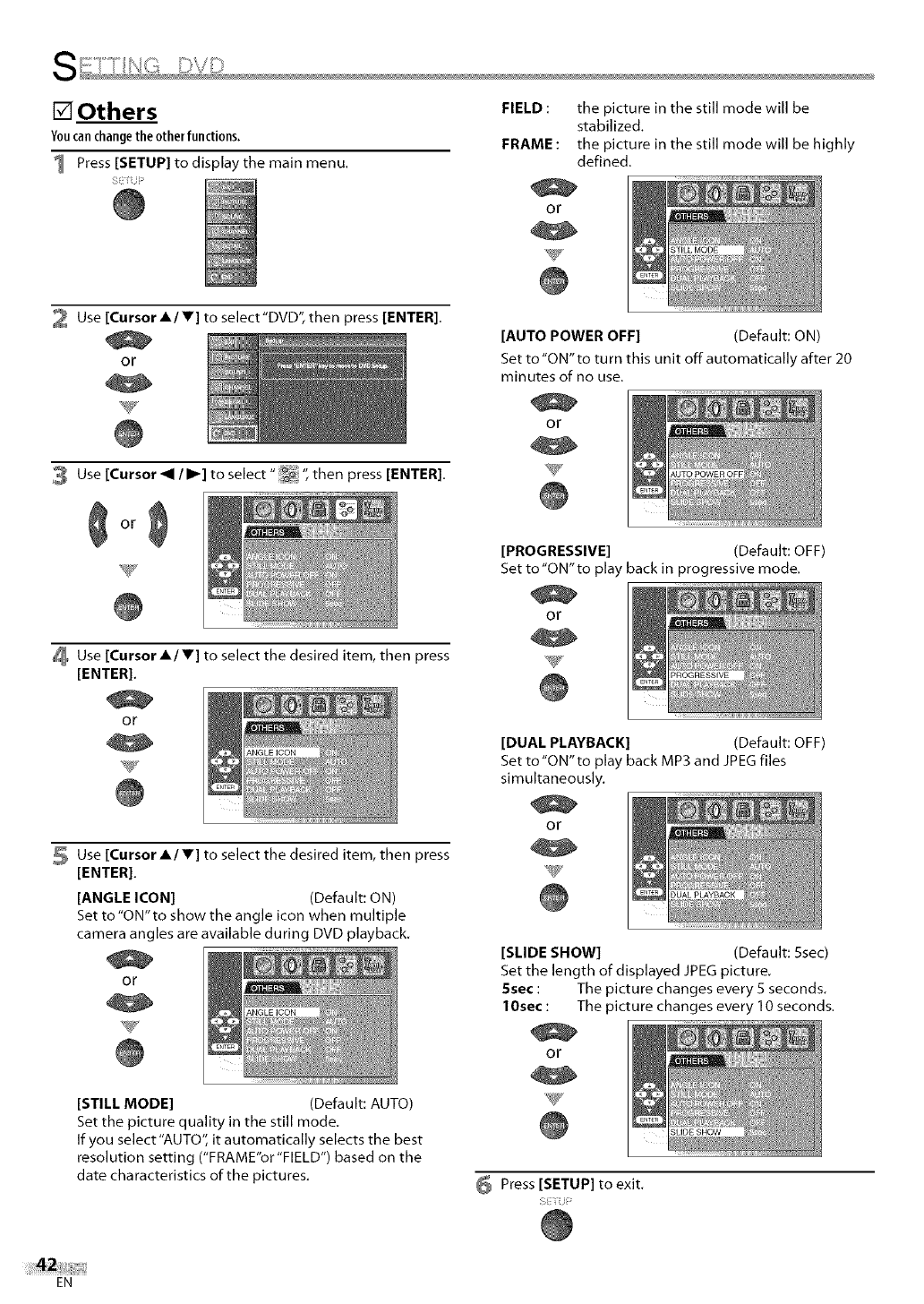

[] Others

Youcanchangetheotherfunctions.

Press [SETUP] to display the main menu.

FIELD : the picture in the still mode will be

stabilized.

FRAME : the picture in the still mode will be highly

defined.

2 Use [Cursor A/V] to select"DVD", then press [ENTER].

3 Use [Cursor _1 /I1_] to select" ",then press [ENTER].

[AUTO POWER OFF] (Default: ON)

Set to"ON'to turn this unit off automatically after 20

minutes of no use.

Use [Cursor A/V] to select the desired item, then press

[ENTER].

Use [Cursor A/V] to select the desired item, then press

[ENTER].

[ANGLE ICON] (Default: ON)

Set to "ON" to show the angle icon when multiple

camera angles are available during DVD playback.

[STILL MODE] (Default: AUTO)

Set the picture quality in the still mode.

If you select "AUTO", it automatically selects the best

resolution setting ("FRAME"or"FIELD") based on the

date characteristics of the pictures.

[PROGRESSIVE] (Default: OFF)

Set to"ON'to play back in progressive mode.

[DUAL PLAYBACK] (Default: OFF)

Set to"ON'to play back MP3 and JPEG files

simultaneously.

[SLIDE SHOW] (Default: 5sec)

Set the length of displayed JPEG picture.

5sec : The picture changes every 5 seconds.

10sec : The picture changes every 10 seconds.

Press [SETUP] to exit.

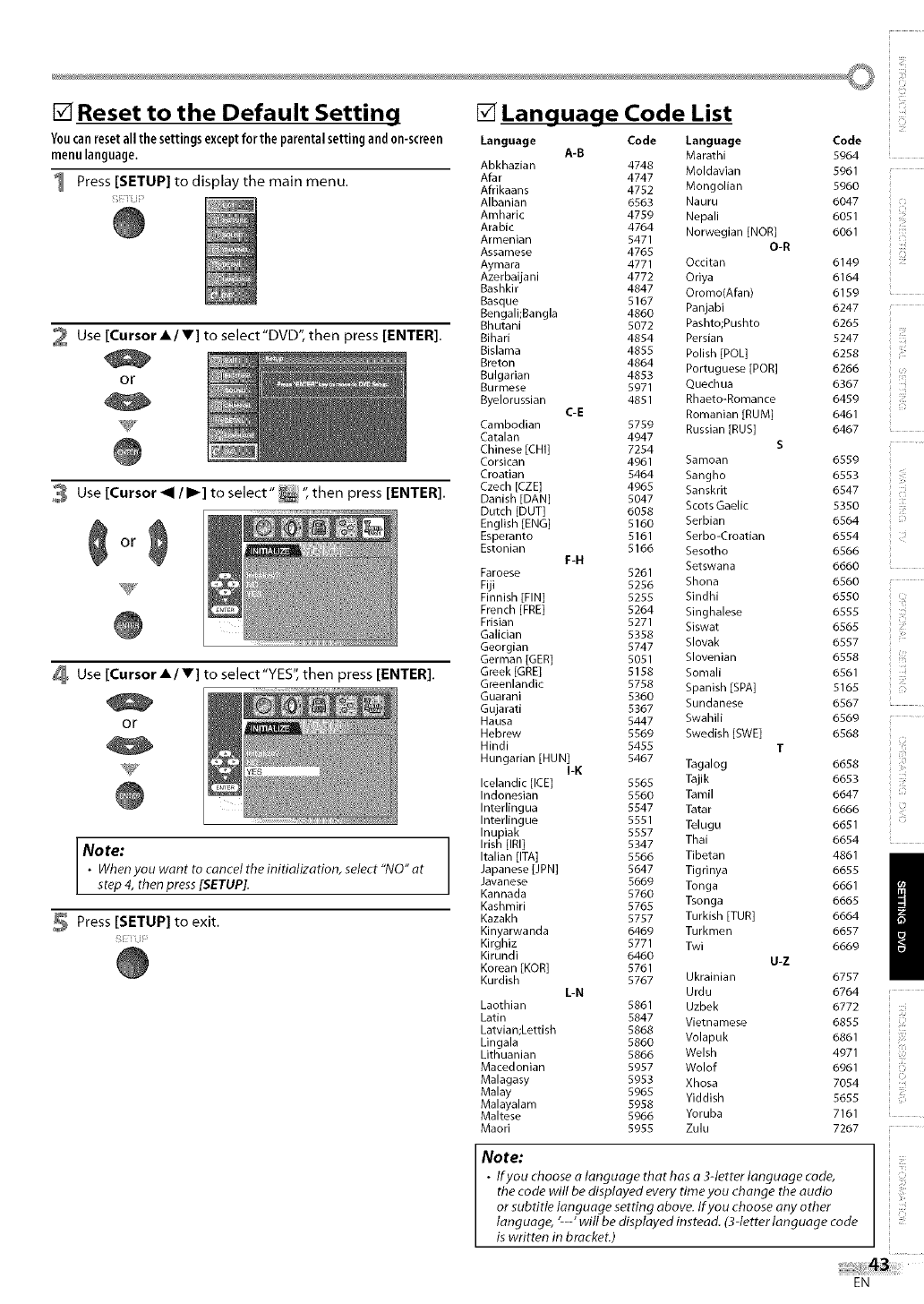

[] Reset to the Default Setting

Youcanresetall thesettingsexceptforthe parentalsettingand0n-screen

menulanguage,

Press [SETUP] to display the main menu.

2 Use [Cursor A/V] to select'DVD", then press [ENTER].

3 Use [Cursor _1/1_] to select" i_ '; then press [ENTER].

Use [Cursor A/Y] to select"YES", then press [ENTER].

No te:

•Whenyou want to cancel the initialization, select "NO" at

step 4, then press[SETUP].

Press [SETUP] to exit.

[] Language Code List

Language Code Language

A-B Marathi

Abkhazian 4748 Moldavian

Afar 4747

Afrikaans 4752 Mongolian

Albanian 6563 Nauru

Amharic 4759 Nepali

Arabic 4764 Norwegian [NOR]

Armenian 5471

Assamese 4765 O-R

Aymara 4771 Occitan

Azerbaijani 4772 Oriya

Bashkir 4847 Oromo(Afan)

Basque 5167 Panjabi

Bengali;Bangla 4860

Bhutani 5072 Pashto;Pushto

Bihari 4854 Persian

Bislama 4855 Polish [POL]

Breton 4864 Portuguese [POR]

Bulgarian 4853

Burmese 5971 Quechua

Byelorussian 4851 Rhaeto-Romance

C-E Romanian [RUM]

Cambodian 5759 Russian [RUS]

Catalan 4947

Chinese [CHI] 7254 S

Corsican 4961 Samoan

Croatian 5464 Sangho

Czech [CZE] 4965 Sanskrit

Danish [DAN] 5047 Scots Gaelic

Dutch [DUT] 6058

English [ENG] 5160 Serbian

Esperanto 5161 Serbo-Croatian

Estonian 5166 Sesotho

F-H Setswana

Faroese 5261

Fiji 5256 Shona

Finnish [FIN] 5255 Sindhi

French [FRE] 5264 Singhalese

Frisian 5271 Siswat

Galician 5358

Georgian 5747 Slovak

German [GER] 5051 Slovenian

Greek [GRE] 5158 Somali

Greenlandic 5758 Spanish [SPA]

Guarani 5360 Sundanese

Gujarati 5367

Hausa 5447 Swahili

Hebrew 5569 Swedish [SWE]

Hindi 5455 T

Hungarian [HUN] 5467

I-K Tagalog

Icelandic [ICE] 5565 Tajik

Indonesian 5560 Tamil

Interlingua 5547 Tatar

Interlingue 5551 Telugu

Inupiak 5557

Irish [IRI] 5347 Thai

Italian [ITA] 5566 Tibetan

Japanese [JPN] 5647 Tigrinya

Javanese 5669 Tonga

Kannada 5760

Kashmiri 5765 Tsonga

Kazakh 5757 Turkish [TUR]

Kinyarwanda 6469 Turkmen

Kirghiz 5771 Twi

Kirundi 6460 U-Z

Korean [KOR] 5761

Kurdish 5767 Ukrainian

L-N Urdu

Laothian 5861 Uzbek

Latin 5847 Vietnamese

Latvian;Lettish 5868

Lingala 5860 Volapuk

Lithuanian 5866 Welsh

Macedonian 5957 Wolof

Malagasy 5953 Xhosa

Malay 5965 Yiddish

Malayalam 5958

Maltese 5966 Yoruba

Maori 5955 Zulu

Code

5964

5961

5960

6047 c_

6051

6061 !_

6149

6164

6159 i

6247

6265

5247

6258 i_

6266

6367

6459

6461

6467 i

6559

6553

6547 i_

5350

6564 _;i

6554 _!

6566

6660 i

6560 i

6550 !_

6555 i _!

6565

6557

6558

6561 _!

5165 _

6567 i

6569

6568

6658

6653

6647

6666

6651

6654 J

4861

6655

6661

6665

6664

6657

6669

6757

6764

6772

6855

6861

4971

6961

7o54

5655

7161 [

7267

Note:

• lfyou choose a language that has a3-letter language code,

the code will be displayed every time you change the audio

or subtitle language setting above. If you choose any other

language, "--' will be displayed instead. (3-letter language code

is written in bracket.)

iiiiiii_iii_ii:!

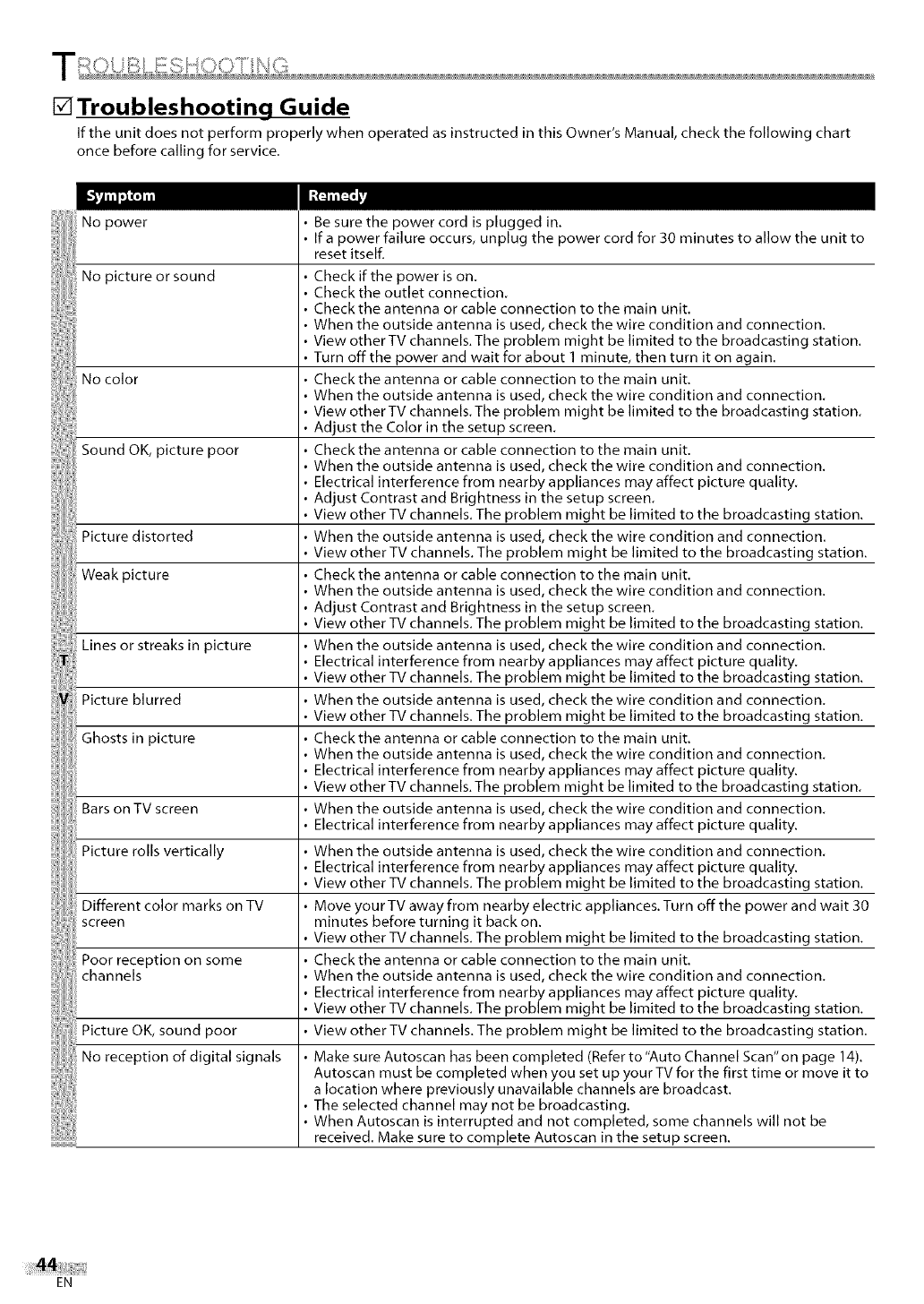

[]Troubleshooting Guide

If the unit does not perform properly when operated as instructed in this Owner's Manual, check the following chart

once before calling for service.

@a_taTn

No power

No picture or sound

No color

Sound OK, picture poor

Picture distorted

Weak picture

Lines or streaks in picture

Picture blurred

Ghosts in picture

Bars on TV screen

Picture rolls vertically

Different color marks on TV

screen

Poor reception on some

channels

Picture OK, sound poor

No reception of digital signals

• Be sure the power cord is plugged in.

• If a power failure occurs, unplug the power cord for 30 minutes to allow the unit to

reset itself.

Check if the power is on.

Check the outlet connection.

Check the antenna or cable connection to the main unit.

When the outside antenna is used, check the wire condition and connection.

View other TV channels. The problem might be limited to the broadcasting station.

Turn off the power and wait for about 1 minute, then turn it on again.

• Check the antenna or cable connection to the main unit.

• When the outside antenna is used, check the wire condition and connection.
