EN Owner's Manual

FR Manuel du Propriétaire

ES Manual del Propietario

© 2011 Funai Electric Co., Ltd.

MODEL NUMBER SERIAL NUMBER





1-866-

www.

32” LCD TV / DVD

LD 320SS2

2

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPARATUS TO RAIN OR MOISTURE.

APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS

FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within

an equilateral triangle, is intended to alert the

user to the presence of uninsulated “dangerous

voltage” within the apparatus’s enclosure that may

be of sufficient magnitude to constitute a risk of

electric shock to persons.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in

the literature accompanying the apparatus.

The caution marking is located on the rear or bottom of the cabinet.

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including

amplifi ers) that produce heat.

9. Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has two

blades with one wider than the other. A grounding

type plug has two blades and a third grounding

prong. The wide blade or the third prong are

provided for your safety. If the provided plug does

not fi t into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on

or pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus.

11. Only use attachments / accessories specifi ed by

the manufacturer.

12. Use only with the cart, stand,

tripod, bracket, or table specifi ed

by the manufacturer, or sold with

the apparatus. When a cart is used,

use caution when moving the

cart / apparatus combination to avoid injury from

tip-over.

13. Unplug this apparatus during lightning storms or

when unused for long periods of time.

14. Refer all servicing to qualifi ed service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has

been exposed to rain or moisture, does not

operate normally, or has been dropped.

Wall Mount Bracket Kit

Recommended Wall Mount Bracket Kit:

Brand: SANUS Model #: San 25b

Recommended Screw dimension: M4 x 0.709” ( 18mm)

• The recommended Wall Mount Bracket Kit (sold separately)

allows the mounting of the TV on the wall.

• For detailed information on installing the wall mount, refer to

the Wall Mount Instruction Book.

• Funai is not responsible for any damage to the product or injury

to yourself or others if you elect to install the TV Wall Mount

Bracket or mount the TV onto the Bracket on your own.

• Wall Mount Bracket Kit is sold separately and is not supplied.

• The Wall Mount Bracket must be installed by experts.

Funai not liable for these types of accidents or

injury noted below.

• Install the Wall Mount Bracket on a sturdy vertical wall.

• If installed onto a ceiling or slanted wall, the TV and Wall

Mount Bracket may fall which could result in a severe injury.

• Do not use screws that are longer or shorter than their

specifi ed length. If screws too long are used this may cause

mechanical or electrical damage inside the TV set. If screws

too short are used this may cause the TV set to fall.

• Do not fasten the screws by excessive force; this may damage

the product or cause the product to fall, leading to an injury.

• For safety reasons use 2 people to mount the TV onto a Wall

Mounting Bracket.

• Do not mount the TV onto the Wall Mounting Bracket

while your TV is plugged in or turned on. It may result in an

electrical shock injury.

When installing the unit on the wall, allow this much space.

Top: 11.8 inches (30cm)

Left and right side: 5.9 inches (15cm)

Bottom: 3.9 inches (10cm)

3

English

FCC WARNING

This apparatus may generate or use radio frequency energy. Changes or modifications to this apparatus may cause harmful interference

unless the modifications are expressly approved in the manual. The user could lose the authority to operate this apparatus if an

unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This apparatus has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This apparatus

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this apparatus does cause harmful interference to radio or television reception, which can be determined by turning the apparatus off

and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the apparatus and receiver.

3) Connect the apparatus into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

DECLARATION OF CONFORMITY

Trade Name: SYLVANIA Responsible Party: FUNAI CORPORATION, Inc.

Model: LD 320SS2 Address: 19900 Van Ness Avenue, Torrance, CA 90501 U.S.A.

Telephone Number:

1-866-321-3927

This Class B digital apparatus complies with Canadian ICES-003. Standard Television Receiving Apparatus, Canada BETS-7 / NTMR-7

CAUTION :

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

WARNING :

Batteries (battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Disconnect the mains plug to shut off when find trouble or not in use. The mains plug shall remain readily operable.

This apparatus should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided.

Make sure to leave a space of 4 inches (10cm) or more around this apparatus.

WARNING:

To prevent injury, this apparatus must be securely attached to the wall in accordance with the instructions.

Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or

climbing on it. A falling unit can cause serious injury or even death.

LASER SAFETY

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due

to possible eye injury.

CAUTION:

Use of controls or adjustments or performance of procedures other than those specified herein may result

in hazardous radiation exposure.

CAUTION:

Visible and invisible laser radiation when open and interlock defeated. Do not stare into beam.

LOCATION:

Inside, near the deck mechanism.

IMPORTANT COPYRIGHT INFORMATION

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This item incorporates copy

protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation.

Reverse engineering and disassembly are prohibited.

LAMP IN LCD CONTAINS MERCURY, DISPOSE ACCORDING TO LOCAL, STATE OR FEDERAL LAW.

4

NOTE ABOUT RECYCLING

• This unit’s packaging materials are recyclable and

can be reused. Please dispose of any materials in

accordance with your local recycling regulations.

• Batteries should never be thrown away or

incinerated but disposed of in accordance with

your local regulations concerning chemical wastes.

WHEN CARRYING THIS UNIT

• At least 2 people are required when

carrying this unit.

• Make sure to hold the upper and bottom

frames of the unit fi rmly as illustrated.

TO AVOID THE HAZARDS OF

ELECTRICAL SHOCK AND FIRE

• Do not handle the AC power cord with wet hands.

• Do not pull on the AC power cord when disconnecting it

from an AC outlet. Grasp it by the plug.

• Do not put your fi ngers or objects into the unit.

LOCATION AND HANDLING

• Do not install the unit in direct sunlight or in a place subject

to dust or strong vibration.

• Avoid a place with drastic temperature changes.

• Install the unit in a horizontal and stable position. Do not place

anything directly on top or bottom of the unit. Depending

on your external devices, noise or disturbance of the picture

and / or sound may be generated if the unit is placed too close

to them. In this case, please ensure enough space between the

external devices and the unit.

• Depending on the environment, the temperature of this unit

may increase slightly. This is not a malfunction.

• Be sure to unplug the AC power cord from the AC outlet

before moving or carrying the unit.

DEW CONDENSATION WARNING

• Dew condensation may form inside the unit in the following

conditions. If so, do not use this unit at least for a few hours

until its inside gets dry.

- The unit is moved from a cold place to a warm place.

- Under conditions of high humidity.

- After heating a cold room.

Trademark Information

• HDMI, the HDMI Logo, and High-Defi nition Multimedia

Interface are trademarks or registered trademarks of HDMI

Licensing LLC in the United States and other countries.

• Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby

Laboratories.

• ENERGY STAR® is a joint program of the U.S. Environmental

Protection Agency and the U.S. Department of Energy helping

us all save money and protect the environment through

energy effi cient products and practices.

Consumer Notice:

This TV has been set to maximize energy effi ciency while

delivering the best possible picture using the factory installed

home mode settings.

Changing or enabling other features in this TV (e.g. brightened

backlighting) will possibly increase energy consumption

beyond the original ENERGY STAR® qualifi ed limits.

• is a trademark of DVD Format/Logo Licensing

Corporation.

• The American Academy of Pediatrics discourages television

viewing for children younger than two years of age.

5

English

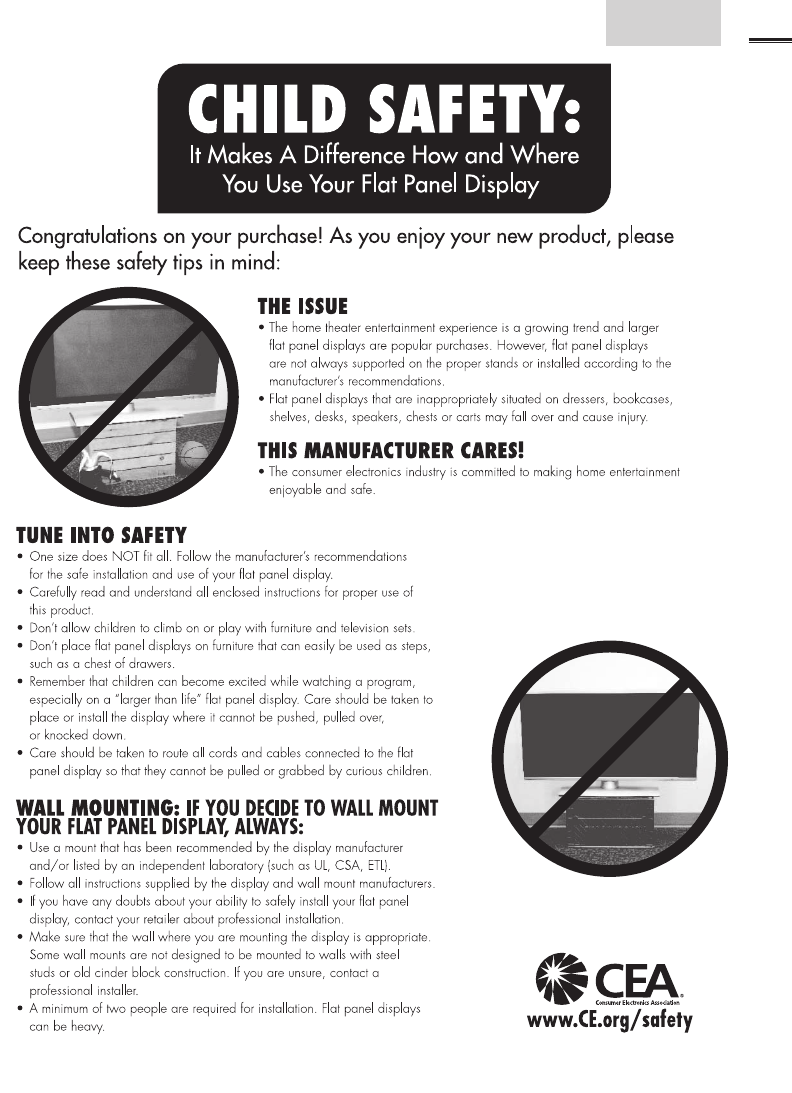

Child Safety

6

Contents

Important Safety Instructions 2

Trademark Information 4

Child Safety 5

INTRODUCTION

Features 7

Symbols Used in this Manual 7

Supplied Accessories 8

Mounting the Unit on Your Furniture 8

Attaching the Base 8

Installing the Batteries 8

Remote Control Function 9

Control Panel 10

Terminals 11

Cable Management 11

PREPARATION

Antenna Connection 12

Connection to Cable Receiver or Satellite Box 12

Plug In the AC Power Cord 12

Initial Setup 13

WATCHING TV

Sleep Timer 14

Switching Each Input Mode 14

Channel Selection 14

Still Mode 14

TV Screen Display Mode 15

Sound Functions 15

TV Screen Information 16

USING FUNCTIONS

Picture 18

Sound 18

Channel 19

Features 20

Language 24

DVD 25

Language Code List 27

OPERATING DVD

Playable Media 28

Unplayable Media 28

Playback 29

Disc Menu 29

Resume Playback 29

Paused and Step-by-step Playback 29

Fast Forward / Fast Reverse 29

Slow Forward / Slow Reverse 30

Zoom 30

Search Functions 30

Repeat Playback 31

Repeat A-B Playback 31

Random Playback 31

Programmed Playback 31

On-screen Display 32

Special Settings 32

CONNECTING DEVICES

External Device Connection 34

USEFUL TIPS

Troubleshooting Guide 36

FAQ 38

INFORMATION

Glossary 39

Maintenance 39

General Specifi cations 40

Electrical Specifi cation 40

Other Specifi cations 40

Limited Warranty 41

© 2011 Funai Electric Co., Ltd.

All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed, downloaded or stored in any

storage medium, in any form or for any purpose without the express prior written consent of Funai. Furthermore, any unauthorized commercial

distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation

to notify any person or organization of such changes.

with the design is a registered trademark of Funai Electric Co., Ltd. and may not be used in any way without the express written

consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this

manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein. Misuse

of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to

the fullest extent of the law.

SYLVANIA is a registered trademark of OSRAM SYLVANIA Inc., used under license.

INTRODUCTION

7

INTRODUCTION PREPARATION WATCHING TV

USING FUNCTIONS OPERATING DVD

CONNECTING DEVICES

INFORMATION USEFUL TIPS

English

Features

TV

• DTV / TV / CATV

You can use your remote control to select channels which are

broadcast in digital format and conventional analog format. Also,

cable subscribers can access their cable TV channels.

• Information Display (ATSC only)

You can display the title, contents and other information of the

current DTV program on the TV screen.

• Autoprogram

This unit automatically scans and memorizes channels available in

your area, eliminating diffi cult setup procedures.

• Child Lock

This feature allows you to block children’s access to inappropriate

programs.

• Closed Caption Decoder

Built-in closed caption decoder displays text for closed caption

supported programs.

• MTS / SAP Tuner

Audio can be selected from the remote control.

• Auto Standby

If there is no input signal and no operation for 15 minutes, the

unit will go into standby mode automatically.

• Sleep Timer

You can set the unit to go into standby mode after a specifi c

amount of time.

• Choices for On-screen Language

Select your on-screen language:

English, Spanish or French.

• Stereo Sound Function

• PLL Frequency Synthesized Tuning

Provides free and easy channel selection and lets you tune

directly to any channel using the number and decimal point “•”

buttons on the remote control.

• Various Adjustment for Picture and Sound

Customizes image quality suitable for your room and sets your

sound preference.

• fun-Link via HDMI Link (HDMI Cable not Included)

fun-Link allows your other HDMI link devices to be controlled by

the HDMI cable connected to your TV.

• HDMI Input

When using HDMI1 Input, you can enjoy this unit as a PC

monitor if your PC has a DVI output terminal.

• Component Video Input

• S-Video Input

• AV Input

• Digital Audio Output

• Analog Audio output

DVD

• Dolby Digital Sound

Enjoy Dolby Digital multi-channel surround sound when you

connect the unit to your Dolby Digital decoder.

• Still / Fast / Slow / Step Playback

Various playback modes are available including still pictures, fast

forward/reverse, slow motion and step frames.

• DVD Menus in a Desired Language

You can display DVD menus in a desired language, if available on

a DVD-video.

• Auto standby

If there is no operation for 20 minutes, the unit will go into

standby mode automatically.

• Parental Lock

Block the viewing of a DVD-video unsuitable for children.

• Resume Playback

Lets you resume playback from the point at which playback was

stopped.

• Bit Rate Indication

• DRC (dynamic range control)

You can control the range of sound volume.

Accessing from MODE button

During playback

• Subtitles in a Desired Language

You can select a desired language for displaying subtitle, if that

language is available on a DVD-video.

• Selecting a Camera Angle

You can select the desired camera angle, if a DVD contains

sequences recorded from different angles.

• Zoom

Allows you to enlarge the size of picture image.

• Black Level Adjustment

• Virtual Surround

• Search

chapter search / title search / track search / time search

• Marker

The part on the disc designated by user can be called back.

• Repeat

chapter / title / track / all / A-B

Accessing from MODE button

In stop mode

• Program Playback for audio CD

You can program the order of tracks to play them back in

designated order.

• Random Playback for audio CD

This unit can shuffl e the order of tracks to play them back in

randomly.

Accessing from AUDIO button

During playback

• Choices for Audio Language and Stereo Sound Function

Select your desired languages or stereo sound function when

different options are available on your disc.

Symbols Used in this Manual

The following is the description for the symbols used in this

manual. Description refers to:

TV FUNCTIONS

AT S C : Digital TV operation

NTSC : Analog / Cable TV operation

• If neither symbol appears, the operation is applicable to

both.

DVD FUNCTIONS

DVD : Playback of DVD-video

CD : Playback of audio CD

• If neither symbol appears under the function heading,

operation is applicable to both.

8

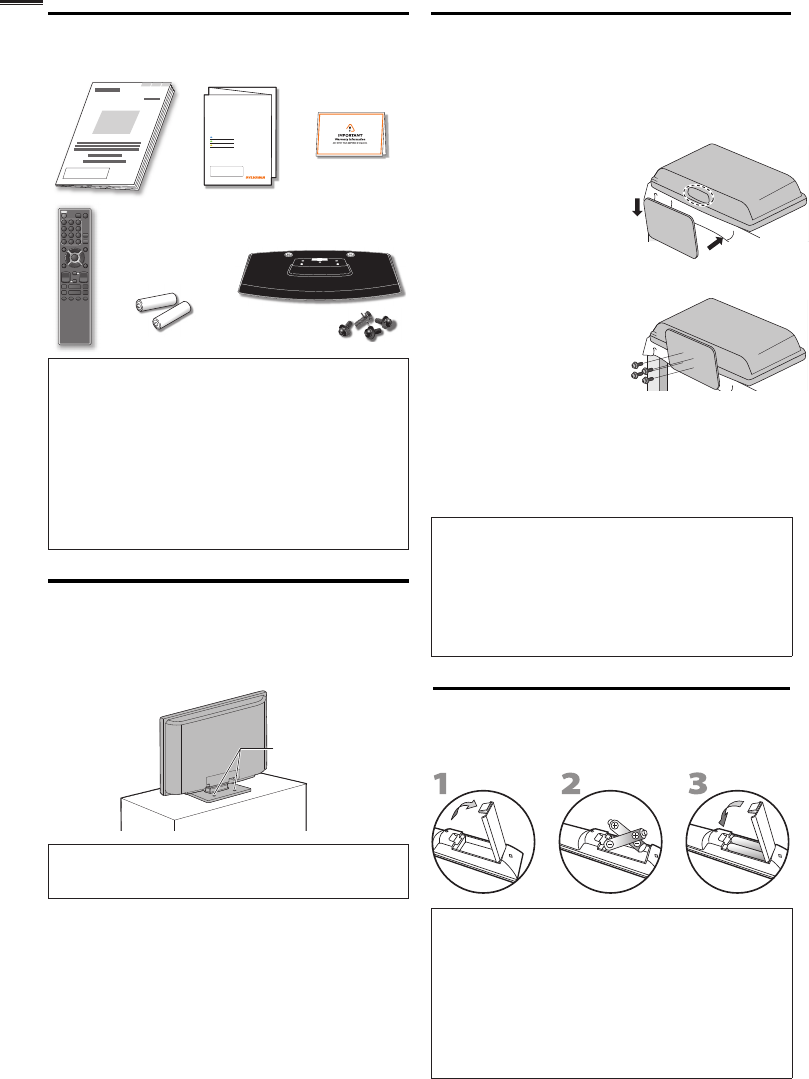

Supplied Accessories

Owner’s Manual Quick Start Guide

Installation

EN

Installation

FR

Instalación

ES

If you have any questions, please visit our website at

www.sylvaniaconsumerelectronics .com

Quick

Start

Registration card

Remote Control

(NF033UD)

Batteries

(AA, 1.5V x 2)

AA

AA

TV base and 4 screws

(M4 x 20)

Note

• If you lose the screws, please purchase M4× 20 Phillips head screws

at your local store.

• If you need to replace these accessories, please refer to the part

No. with the illustrations and call our toll free customer support

line found on the cover of this manual.

When using a universal remote control to operate this unit.

• Make sure the component code on your universal remote control

is set to our brand. Refer to the manual accompanying your

remote control for more details.

• We do not guarantee 100% interoperability with all universal

remote controls.

Mounting the Unit on Your Furniture

Screw this unit on your furniture tightly using wood screws

(not supplied) in the 2 holes at the back of the base as shown.

• Recommended screw dimension : 0.201 x 0.788 inches (5.1 x 20 mm)

screw holesscrew holes

rear of this unitrear of this unit

Note

• When you remove this unit make sure to unscrew the wood

screws from your Wood Stand, Furniture and other wood item.

Attaching the Base

You must attach the base to the unit to have it as a table top

unit. Be sure the front and rear of the base match the proper

direction. At least 2 people are required for these steps.

1 Spread a thick and soft cloth over a table as shown at step 2.

Place the main unit face down onto it. Make sure not to

damage the screen.

2 Insert 2 hooks under the

bottom of the main unit into

base holes. (shown by arrow

➀), then move the base in

the direction as shown by

arrow ➁ until it stops and the screw holes are aligned.

Make sure not to put the AC power cord between the

base and the unit.

3 Drive Phillips head screws

into the 4 threaded holes at

the bottom of the base until

they are tight.

To remove the base from this unit

• Unscrew the Phillips head screws in step 3.

After the screws are removed, move the base in the opposite

direction as shown by arrow in step 2, then pull the base up toward

the rear of the unit. Be careful not to drop the base when you

remove it.

Note

• When attaching the base, ensure that all screws are tightly fastened.

If the base is not properly attached, it could cause the unit to fall,

resulting in injuries as well as damage to the unit.

• Make sure to use a table which can support the weight of this unit

and is larger than this unit.

• Make sure the table is in a stable location.

• When attaching the base, ensure that FRONT

↑

written on the

base is upward. If it’s not upward, the 2 hooks don’t fi t in the base.

Installing the Batteries

Install the batteries (AA, 1.5V x 2) matching the polarity

indicated inside battery compartment of the remote control.

Battery Precautions:

• Be sure to follow the correct polarity as indicated in the battery

compartment. Reversed batteries may cause damage to the

device.

• Do not mix different types of batteries together (e.g. Alkaline and

Carbon-Zinc, or rechargeable batteries like ni-cad, ni-mh, etc) or

old batteries with fresh ones.

• If the device is not to be used for a long period of time, remove

the batteries to prevent damage or injury from possible battery

leakage.

• Do not try to recharge batteries; they can overheat and rupture.

➁

➀

9

INTRODUCTION PREPARATION WATCHING TV

USING FUNCTIONS OPERATING DVD

CONNECTING DEVICES

INFORMATION USEFUL TIPS

English

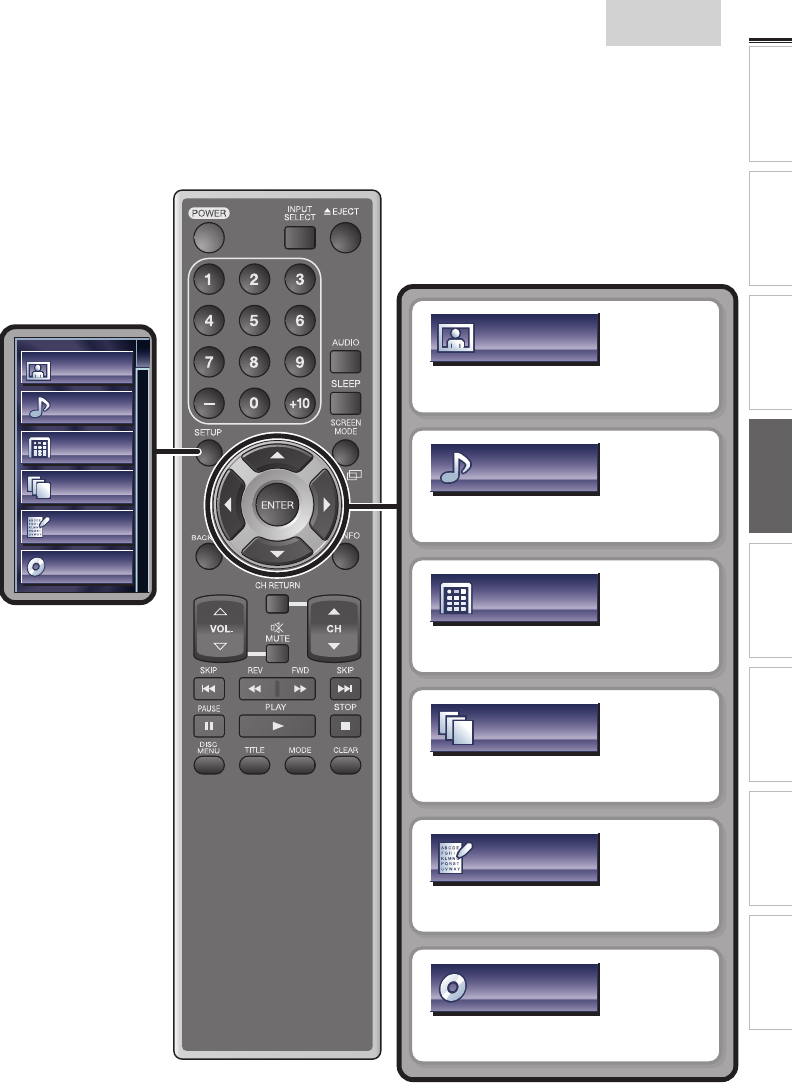

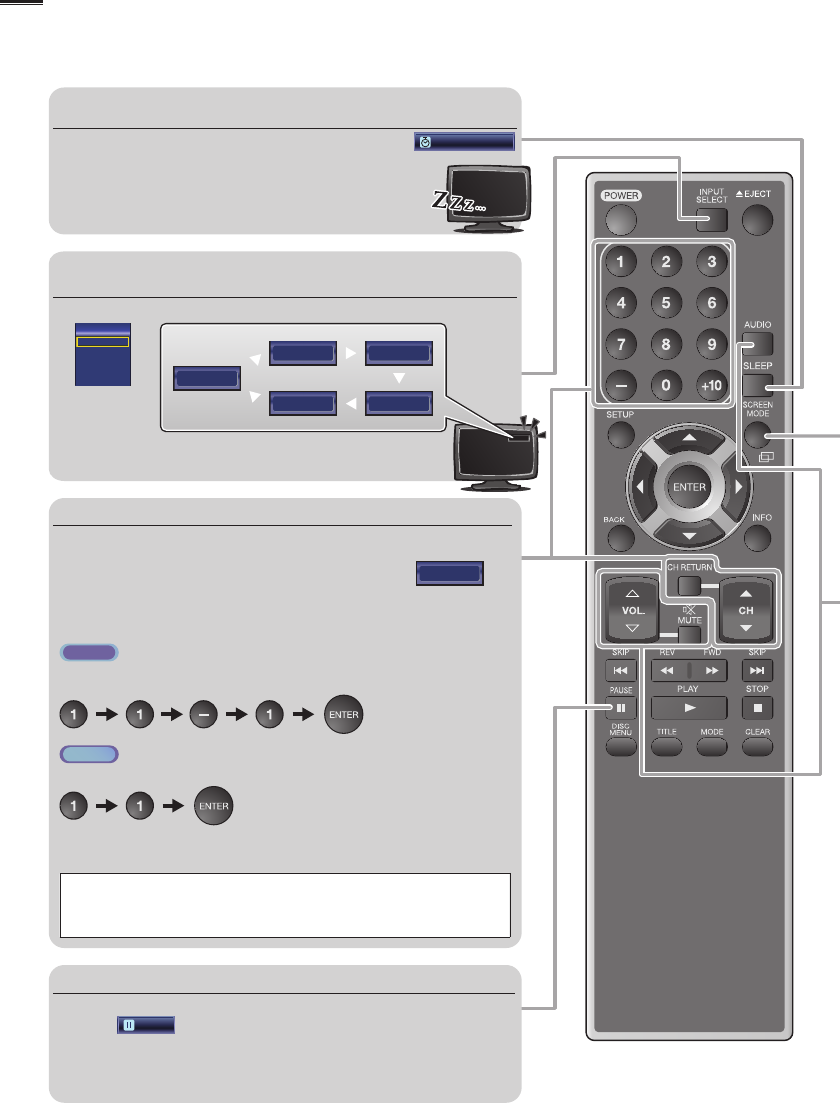

Remote Control Function

15

16

17

18

19

20

22

23

11

25

21

12

13

11

14

10

24

2

4

6

5

3

1

7

8

9

1 INPUT SELECT ➠ p. 14

2 POWER ➠

p. 13

Press to turn the unit on and go into standby mode. To

completely turn off the unit, you must unplug the AC

power cord.

3 Number buttons ➠

p. 14

- (hyphen)

• Press to shift the subchannel from the main channel.

+10 button

• Press to select 10 or higher number of chapters.

4 SETUP ➠ p. 17

5 ENTER ➠ p. 13

6 ▲/▼/◄/►(cursor) ➠

p. 13

7 BACK ➠

p. 16

8 CH RETURN ➠

p. 14

Press to return to previously viewed channel.

9 VOL. ▲/▼ ➠ p. 15

10 MUTE ➠ p. 15

11 SKIP H / G

➠ p. 30

Press to skip forward or backward chapters, titles (DVD)

or tracks (CD).

12 PAUSE F

➠ p. 14, 29

TV mode

• Press to pause screen image.

DVD mode

• Press to pause the disc playback.

13 DISC MENU ➠ p. 29

14 TITLE ➠ p. 29

15 A EJECT ➠ p. 29

16 AUDIO ➠ p. 7, 15, 32

Digital mode (DTV)

• Press to select the audio language.

Analog mode (TV)

• Press to select the audio mode.

DVD mode

• Press to select the audio language (DVD), or sound

mode (CD).

17 SLEEP ➠ p. 14

Press to activate the sleep timer.

18 SCREEN MODE ➠ p. 15

Press to select aspect ratio available for the TV screen.

19 INFO ➠ p. 16, 32

Digital mode (DTV)

• Press to display the channel information, signal type and

TV setting.

Analog mode (TV)

• Press to display the channel number, signal type and TV

setting.

External input mode

• Press to display the external input mode, signal type

and TV setting.

DVD mode

• Press to display the current status.

20 CH ▲/▼

➠ p. 14

21 REV E / FWD D

➠ p. 29, 30

22 STOP C

➠ p. 29

23 PLAY B

➠ p. 29

24 CLEAR ➠ p. 30, 31

• Press to clear the numbers entered incorrectly.

• Press to cancel the point A for A-B repeat.

• Press to remove the track number in program input

(CD).

25 MODE ➠ p. 7

• Press to arrange the playing order or playback

randomly (CD).

• Press to set the black level (DVD) and the virtual

surround on or off.

• Press to change the camera angle to see the sequence

being played back from different angle (DVD).

• Press to search chapter, title (DVD), track (CD) or time.

• Press to set the marker.

• Press to repeat playback chapter, title (DVD), track, disc

(CD) repeatedly or between designated point A and B.

• Press to magnify the part of picture (2x and 4x : DVD).

• Press to select the subtitles on the disc (DVD).

10

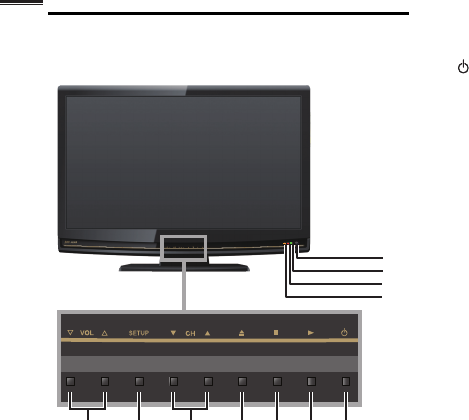

Control Panel

75 16 4 3 2

8

9

11

10

1 (power) ➠ p. 13

Press to turn the unit on and go into standby mode.

To completely turn off the unit, you must unplug the AC

power cord.

2 B (play) ➠ p. 29

3 C (stop) ➠ p. 29

4 A (eject) ➠ p. 29

5 CH ▲/▼ ➠ p. 14

Press to select channels or move up (▲) / down (▼)

through the main menu items.

6 SETUP ➠ p. 17

7 VOL ▲/▼ ➠ p. 15

Press to adjust the volume or move right (▲) / left (▼)

through the main menu items.

8 Infrared sensor window

Receives infrared rays transmitted from the remote

control.

9 POWER ON indicator

Lights up green when power is on.

10 STAND BY indicator

Lights up red when the unit goes into standby mode.

11 DVD indicator

Lights up orange when a disc is inserted.

11

INTRODUCTION PREPARATION WATCHING TV

USING FUNCTIONS OPERATING DVD

CONNECTING DEVICES

INFORMATION USEFUL TIPS

English

Terminals

DVI

ANALOG

AUDIO

13

14

*

22

18

19

20

21

16

15

17

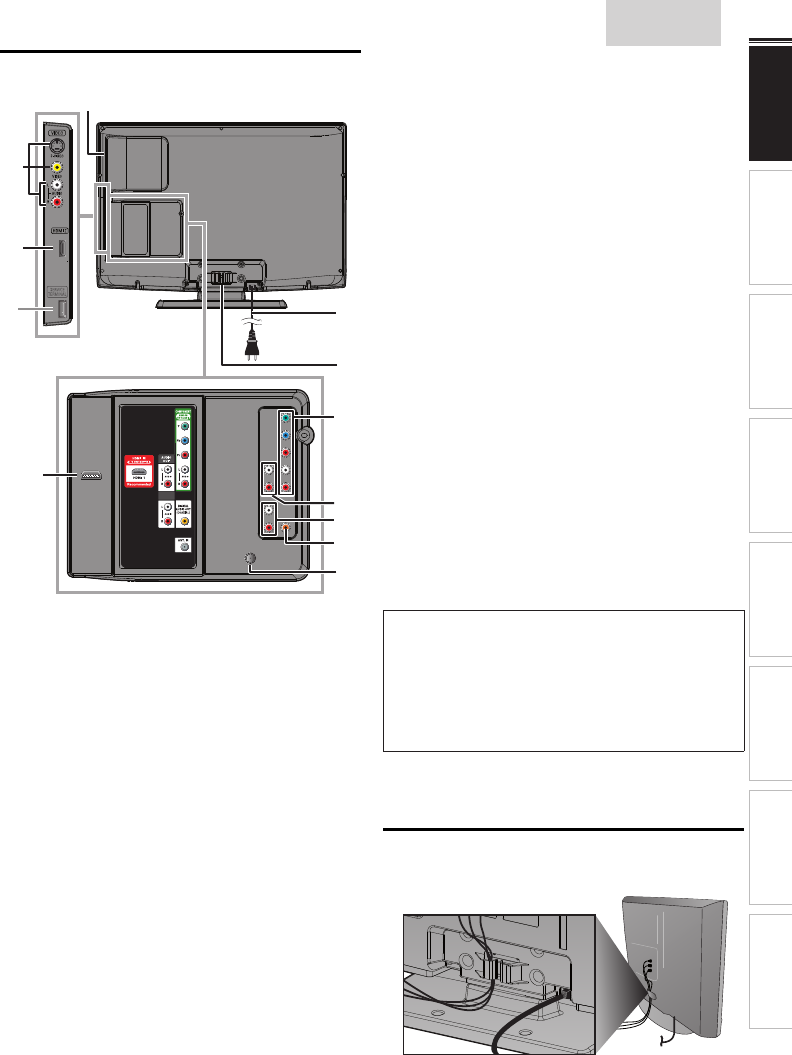

12 Side Panel

12 Disc loading slot ➠ p. 29

13 S-Video / Composite Video / Audio (L/R) Input jacks

for VIDEO ➠ p. 34, 35

14 HDMI 2 Input jack ➠ p. 12, 34

Rear Panel

15 AC power cord ➠ p. 12

16 Cable management ➠ p. 11

17 Component Video and Audio (L/R) Input jacks

➠ p. 12, 34

18 Analog Audio (L/R) Output jacks

➠ p. 35

19 Analog Audio (L/R) Input jacks for HDMI 1

➠ p. 34, 35

Audio cable connection from a DVI device.

When you connect your PC that has a DVI terminal,

use a stereo mini plug conversion cable as well.

(For HDMI 1 Input jack only)

20 Digital Audio Output jack ➠ p. 35

21 Antenna Input jack ➠ p. 12

22 HDMI 1 Input jack ➠ p. 12, 34, 35

HDMI connection for HDMI or DVI device.

When you connect your PC that has a DVI terminal,

you can enjoy this unit as a PC monitor.

Note for service terminal

* service terminal (service use only)

• Use this terminal only when a software update is necessary.

• User should not connect any devices to the service terminal such

as digital camera, keyboard, mouse, etc. (because these will not

work).

• The software update is, in most cases, handled by an authorized

service person or in some circumstances the user may be asked

to do the software update themselves.

Cable Management

Keep the cables through this holder to avoid tangling them.

12

PREPARATION

No supplied cables are used with these connections:

• Please purchase the necessary cables at your local store.

Before you connect:

Be sure your antenna or other device is connected properly

before plugging in the AC power cord.

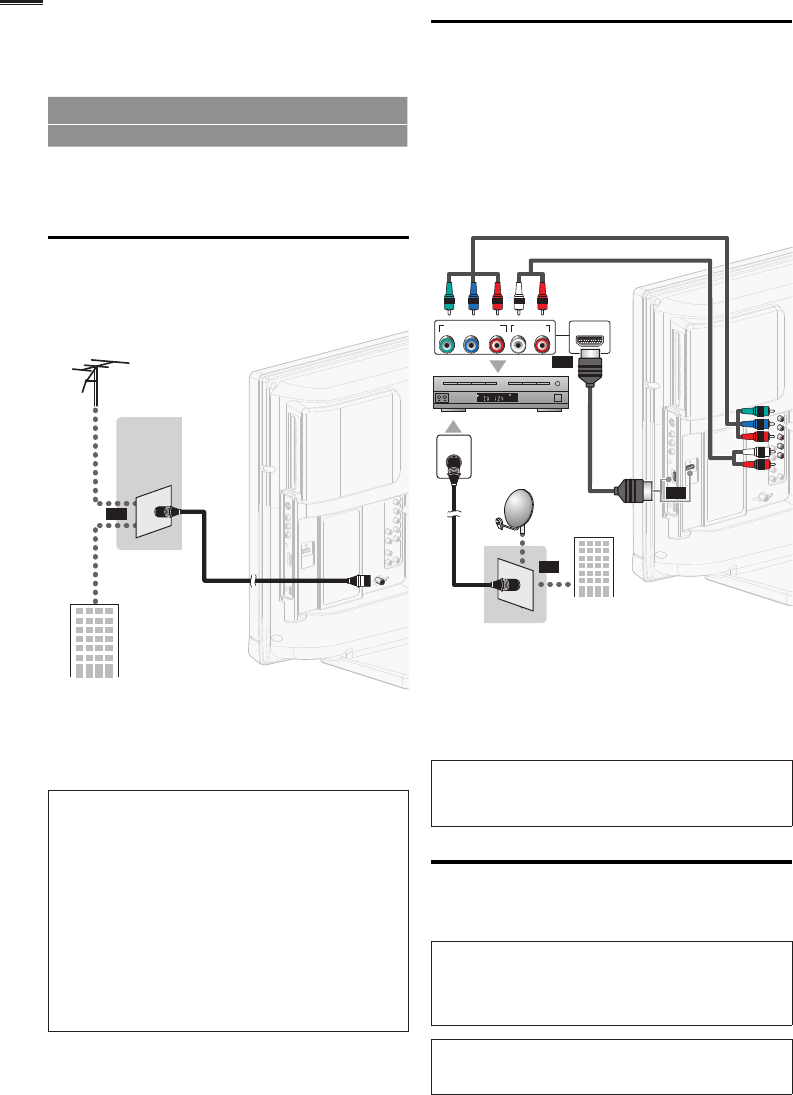

Antenna Connection

Connect the RF coaxial cable on your home outlet to the

antenna input jack of this unit.

VHF / UHF VHF / UHF

analog analog

or or

DTV antennaDTV antenna

cable TV signalcable TV signal

or

RF coaxial cableRF coaxial cable

Once connections are completed, turn on the unit and begin

initial setup. Channel scanning is necessary for the unit to

memorize all available channels in your area. [Initial Setup]

➠ p. 13

Note

• If you have any question about the DTV’s antenna, visit

www.antennaweb.org for further information.

• Depending on your antenna system, you may need different types

of combiners (mixers) or separators (splitters). Contact your local

electronics store for these items.

• For your safety and to avoid damage to this unit, please unplug the

RF coaxial cable from the antenna input jack before moving the

unit.

• If you did use an antenna to receive analog TV, it should also

work for DTV reception. Outdoor or attic antennas will be more

effective than a set top or inside antenna.

• To switch your reception source easily between antenna and cable,

install an antenna selector.

• If you are not receiving a signal from your cable service, contact the

Cable provider.

Connection to Cable Receiver or

Satellite Box

Use an HDMI or component video cables to connect the

HDMI or the Component Video Input jacks of the unit to

the HDMI or the component video output jacks of the cable

receiver / satellite box.

If you connect to the unit’s Component Video Input jacks,

connect audio cables to the Audio L/R Input jacks right beside

the Component Video connector.

STEREO

PCM

COMPONENT VIDEO OUT

Pr/CrPb/CbY

AUDIO OUT

RL

ANT IN

HDMI OUT

(red)(red)(blue)(blue)(green)(green)

cable receiver /cable receiver /

satellite boxsatellite box

cable TV signal cable TV signal

including PPVincluding PPV

component video cables component video cables

(red / blue / green) and audio cables(red / blue / green) and audio cables

RF coaxial cableRF coaxial cable

or

or

or

HDMI cableHDMI cable

satellite dishsatellite dish

You can also connect this unit to the cable receiver or satellite

box other than the HDMI or the component video output jacks

because they might have different output jacks.

Required cables and connecting methods of the cable receiver /

satellite box, or the availability channel for the clear QAM may

differ depending on the cable / satellite provider.

For more information, please contact your cable / satellite provider.

Note

• Use an HDMI cable with the HDMI logo (a certifi ed HDMI cable).

High Speed HDMI cable is recommended for the better

compatibility.

Plug In the AC Power Cord

Make sure that the AC power cord must be plugged to an AC

outlet after all the necessary connections are made.

Caution:

• Do not connect the AC power cord to a power supply outside

the indicated voltage of this unit (AC 120V).

Connecting the AC power cord to a power supply outside of this

range may result in fi re or electrical shocks.

Note

• Each time you plug in the AC power cord, no operations will be

performed for a few seconds. This is not a malfunction.

13

English

INTRODUCTION PREPARATION WATCHING TV

USING FUNCTIONS OPERATING DVD

CONNECTING DEVICES

INFORMATION USEFUL TIPS

These operations are accessible by remote control.

Some may also be accessible by controls on the main unit.

Initial Setup

This section will guide you through the unit’s initial setting

which includes selecting a language for your on-screen menu

and autoprogram, which automatically scans and memorizes

viewable channels.

Before you begin:

Make sure the unit is connected to antenna or cable.

1 After making all the necessary connections,

press POWER to turn on the unit.

• It may take a few moments to turn on the unit for the

first time.

• [Initial Setup] menu appears automatically after the

unit is turned on.

2 Use ▲/▼ to select the on-screen language from the

choices (English / Español / Français) on the right side of the

TV screen, then press ENTER.

3 Use ▲/▼ to select [Antenna] for TV channels or [Cable]

for CATV channels, then press ENTER.

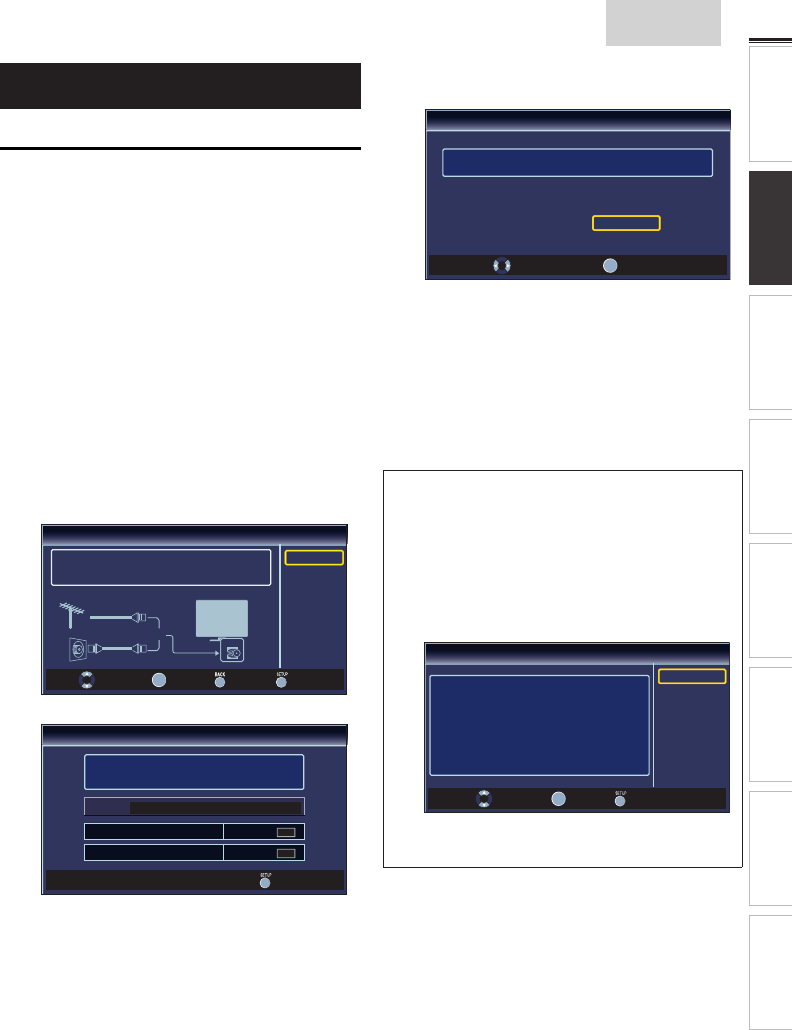

Initial Setup

Make sure the antenna is connected to ''ANT. IN'' jack.

Select your signal source.

ANT.IN

Antenna

Cable Or

Antenna

Cable

Skip

Select

ENTER

Enter Back Skip

• [Autoprogram] will begin.

Initial Setup

Please wait while the system is scanning for channels.

Auto programming may take more than 20 minutes to

complete.

0%

Digital channels 0 ch

Analog channels 0 ch

Skip

4 Use ◄/► to select the desired location setting, then press

ENTER.

Initial Setup

Select “Retail” or “Home” for your location.

Retail Home

Select

ENTER

Enter

• Select [Retail] store, the unit will be set up with

predefined setting for retail displays. In this setting, the

power consumption may possibly exceed the limited

requirement of the ENERGY STAR® qualification.

• Select [Home], the unit is set to maximize the energy

efficiency for home setting and it can be adjusted

through a choice of picture and sound quality according

to your preference.

• When the initial setup is completed, the lowest

memorized channel with the confirmation message of

the location setting will be displayed on the TV screen.

Note

• If you are not receiving a signal from your cable service, contact

the Cable provider.

• If you press POWER or SETUP during autoprogram, this setting

will be canceled.

• The initial autoprogram function can be executed for either

[Antenna] or [Cable] only once. When you change the

connection (Antenna / Cable), set [Autoprogram] again. ➠ p. 19

• If there is no signal input from the antenna terminal and no

operation for several seconds after you turn on the unit, helpful

hints appears. Follow the instructions listed on the TV screen.

Initial Setup

No channel is registered.

Try Autoprogram again?

Verify that you have a cable connected to the “ANT. IN” jack

on the back of the TV, the channel installation process

searches this connection. If you are using a cable or satellite

box, please confirm the input which you have connected to the

box and press “INPUT SELECT” key on the remote control to

select the appropriate source input.

Retry

Later

Select

ENTER

Enter Skip

• You must set [Home] in step 4. Otherwise, [Picture] and [Sound]

settings you adjusted will not be memorized after the unit goes

into standby mode.

After an initial setup is completed...

• If you want to scan the channels automatically again.

[Autoprogram] ➠ p. 19

• You can add the desired cable and analog channels

unmemorized by autoprogram.

[Add Channels] ➠ p. 20

• If you want to change to another language.

[Language] ➠ p. 24

• If you want to change the location setting.

[Location] ➠ p. 24

14

WATCHING TV

Sleep Timer

can set the unit to go into standby mode after an incremental period of time.

Press SLEEP repeatedly to change the amount of time (increases

the time by 30 minutes up to 120 minutes). Sleep 120min.

Press SLEEP once to call up the display for checking the remaining time.

• To cancel sleep timer, press SLEEP repeatedly until [Sleep Off] is

displayed.

Switching Each Input Mode can easily switch with the remote control

between TV (ATSC or NTSC) and external devices when they are connected to the unit.

Press INPUT SELECT or CH ▲ repeatedly to cycle through the input modes.

TV

HDMI1

HDMI2

Component

Video

TV

Video

Component

HDMI1

HDMI2

Input Select e.g.)

Video Component

11-1

DTV / TV channel HDMI2 HDMI1

(or PC input)

• Pressing CH ▼ reverses the direction of the input modes.

Channel Selection

Select channels by using CH ▲/▼ or the Number buttons.

• To select the memorized channels,

use CH ▲/▼ or the Number buttons.

• To select the non-memorized channels,

use the Number buttons.

11-1

To use the Number buttons

AT S C

-When selecting digital channel 11−1

Be sure to press − before entering the subchannel number.

NTSC

-When selecting cable or analog channel 11

Press CH RETURN to return to the previously viewed channel.

Note • [No Signal] will appear on the TV screen after the subchannel

broadcast is over.

• [Audio only program] message will appear on the TV screen, when you

receive only sound signal.

Still Mode can freeze the image shown on the TV screen for 5 minutes.

Press PAUSE F to freeze the image.

Still

• The sound output will not be paused.

• To cancel freeze mode, press any buttons except POWER.

15

English

INTRODUCTION PREPARATION WATCHING TV

USING FUNCTIONS OPERATING DVD

CONNECTING DEVICES

INFORMATION USEFUL TIPS

salut!

hola!

hi!

TV Screen Display Mode

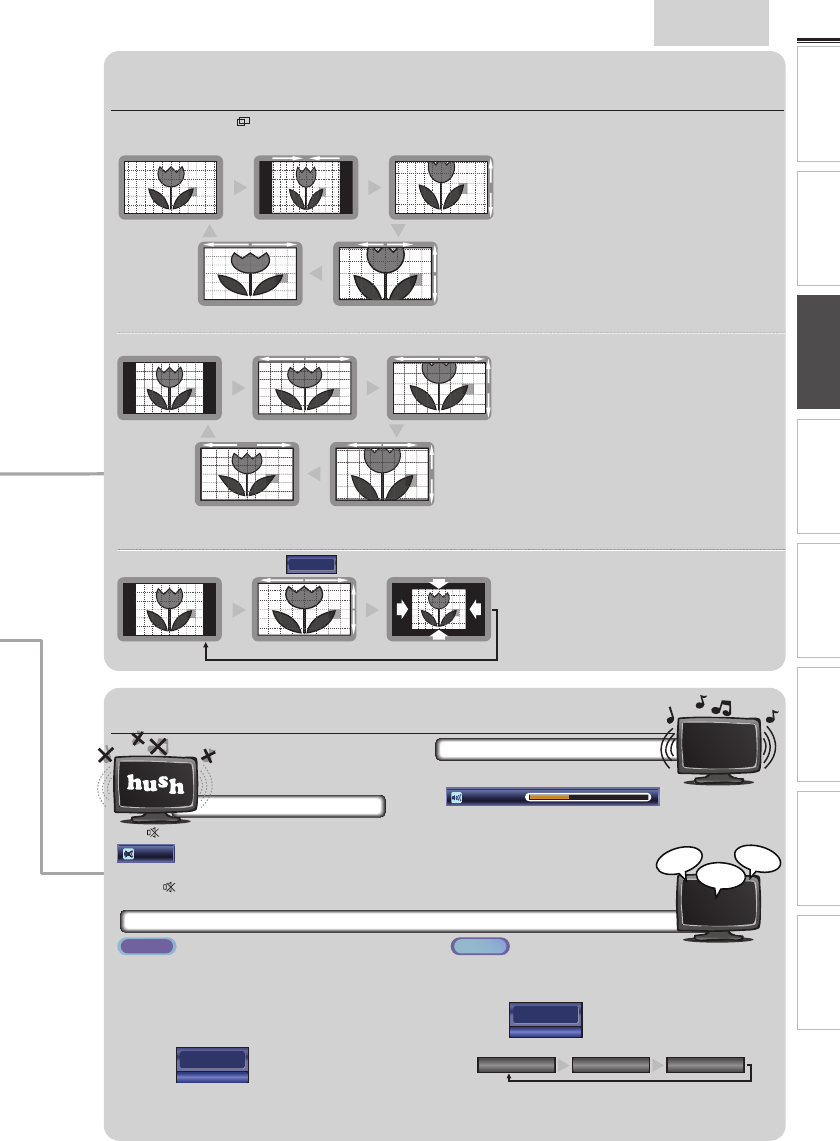

5 types of display modes can be selected when the broadcasting station is sending 16:9 or 4:3 video signal. And 3 types of display

modes can be selected for PC input signal.

Press SCREEN MODE repeatedly to switch the TV aspect ratio.

For 16:9 video signal Normal displays a 16:9 picture at its original size.

4:3 displays a 16:9 picture at a 4:3 size; the picture is

shortened horizontally. Sidebars appear on both edges

of the screen.

Movie expand displays a 16:9 picture that is

vertically stretched to fi ll the screen. This only crops

out the top of the picture.

Zoom displays a 16:9 picture at its maximum size

without changing its horizontal and vertical ratio.

Wide displays a horizontally stretched picture. This

crops out the left and right sides of the picture.

Normal

Wide

4:3 Movie expand

Zoom

For 4:3 video signal Normal displays a 4:3 picture at its original size.

Sidebars appear on both edges of the screen.

16:9 displays a 4:3 picture at a 16:9 size; the picture is

stretched horizontally to fi ll the screen.

Movie expand displays a 4:3 picture at a 16:9 size;

the picture is stretched more vertically at the top of

the screen. This crops out the top of the picture.

Zoom displays a 4:3 picture at a 16:9 size; at its

maximum size that is more vertically stretched to fi ll

the screen. This crops out the top and bottom of the

picture.

Wide displays the picture with its center at the

original size and the edges stretched horizontally to fi ll

the screen.

Normal

Wide

16:9 Movie expand

Zoom

For PC input signal through HDMI1 Input mode Normal displays a proportionately stretched picture.

Sidebars appear on both edges of the screen.

Full displays a picture that is stretched out of

proportion horizontally to fi ll the screen.

Dot By Dot displays a picture in its original size.

Normal Dot By DotFull

Sound Functions

describe how to change the audio or the audio language as well as the volume.

Volume Adjustment

Silence Mode

Press MUTE to turn off the sound temporarily.

Mute

will be is displayed for a few seconds.

• Press MUTE again or VOL. ▲/▼ to recover the original

volume.

Use VOL.

▲/▼ to adjust the volume.

Volume 30

will be displayed for a few seconds when adjusting the volume.

Switching Audio Mode

AT S C

Press AUDIO repeatedly to cycle through the available audio

languages.

• Available languages differ depending on the broadcast.

• [Other] is displayed when the audio language cannot be

acquired, or the acquired languages are other than English,

Spanish or French.

English 1/3

11−1

NTSC

Press AUDIO to display the currently selected audio mode.

While receiving an MTS broadcast, press repeatedly to cycle

through the available audio channel.

SAP / STEREO

11

e.g.) When all audio are available

SAP / STEREO SAP / MONO SAP / STEREO

STEREO : Outputs stereo-audio

SAP : Outputs second audio program

MONO : Outputs mono-audio

16

TV Screen Information

You can display the currently selected channel or other

information such as the audio mode on the TV screen.

In the digital mode, the detailed broadcasting information for

the current channel such as program title, program guides are

displayed.

1 Press INFO.

AT S C

11-1

TV: TV-14

1080i

1080i 16:9

16:9

HD

HD

CC

CC

KABC

KABC

123 4

5

6, 7, 8

9

10

A Day of Memories

A Day of Memories

A quarter-century ago,which may now qualify as the

good old days of newspapering,run-of-paper sales

accounted for 80 percent of the industry's advertising

revenues.Department stores and supermarket were

English 1/2

Rating

NTSC

11

TV-PG DLSV

480i

480i 4:3

4:3

SD

SD

CC

CC

4

5

6, 7, 8

9

10

SAP / STEREO

1 program title

2 program guide

( The program guide added to broadcasting

information is displayed to a maximum of 4 lines.)

3 broadcast station

4 channel number

5 audio language (ATSC) / audio mode (NTSC)

[Switching Audio Mode] ➠ p. 15

6 effective scanning lines and scan mode

7 TV format

8 program’s image aspect ratio

9 CC (not available if closed caption is set to [Off])

10 child lock rating

2 Press INFO or BACK to hide the information.

Note

• When the program guide consists of more than 4 lines, use ▲/▼

to scroll to the next / previous lines.

• [No description provided.] is displayed when the program guide

is not provided.

• While the program guide is displayed, the closed caption function

is interrupted.

• In external input mode, the following screen is displayed;

e.g.) When an external device is connected to Video Input jack.

TV-PG DLSV

480i

480i SD

SD

CC

CC

Video

• The information display will automatically disappear in 1 minute.

17

English

INTRODUCTION PREPARATION WATCHING TV

USING FUNCTIONS OPERATING DVD

CONNECTING DEVICES

INFORMATION USEFUL TIPS

USING FUNCTIONS

This section describes the overview of the main menu

displayed when you press SETUP.

The main menu consists of the function setting items below.

1 Press SETUP to display

the main menu.


Sound

Channel

Features

Language

DVD

2 Use ▲/▼ to select a desired menu and an item,

then press ENTER to determine the setting.

Picture Page 18

Adjusting the picture mode, or customize the

picture quality as your preference.

Sound Page 18

Adjusting the sound mode, equalizer and some

other sound functions.

Channel Page 19

Scanning the channels available in your area and

see what the antenna levels are.

Features Page 20

Adjusting the Closed Caption, parental guide and

some other useful functions.

Language Page 24

You can choose English, Spanish, or French

as your on-screen language.

DVD Page 25

You can choose the desired DVD settings.

3 When the setting is completed, press SETUP to exit.

18


Before you begin:

You must set [Home] in [Location]. ➠ p. 24

Otherwise, the settings you adjusted will not be memorized

after the unit goes into standby mode.

1 Use ▲/▼ to select the item you want to adjust, then press

ENTER.


Sound

Channel

Features

Language

DVD


Picture Mode

Brightness

Contrast

Color

Tint

Sharpness

Color Temperature

Personal

30

60

36

0

0

Normal

2 Adjust the following items.

Picture Mode

Use ▲/▼ to select the desired setting, then press ENTER.

([Personal], [Standard], [Sports], [Movie], and [Game])

Brightness, Contrast, Color, Tint, Sharpness,

Color Temperature

You can only adjust the following options when you set to

[Personal] in [Picture Mode].

Use ▲/▼ to select the desired setting, then press ENTER.

Then use ◄/► to adjust the setting.

Cursor ◄Cursor ►

Brightness to decrease brightness to increase brightness

Contrast to decrease contrast to increase contrast

Color to decrease color

intensity

to increase color

intensity

Tint to add red to add green

Sharpness to soften to sharpen

Color

Temperature to add warm colors to add cool colors

Sound

Before you begin:

You must set [Home] in [Location]. ➠ p. 24

Otherwise, the settings you adjusted will not be memorized

after the unit goes into standby mode.

1 Use ▲/▼ to select the item you want to adjust, then press

ENTER.


Sound

Channel

Features

Language

DVD

Sound

Sound Mode

Equalizer

Auto Volume Leveling

TV Speakers

Primary MTS

Standard

Off

Ext. Amp

Stereo

2 Adjust the following items.

Sound Mode

Use ▲/▼ to select the desired setting, then press ENTER.

([Personal], [Standard], [Movie], [Music], and [News])

Equalizer

Adjust tonal quality for each frequencies.

Use ◄/► to select the specifi c frequency and use ▲/▼ to

adjust the level, then press ENTER.

Auto Volume Leveling

This function keeps a constant loudness differential between

the TV commercials and the programs.

Use ▲/▼ to select the desired option, then press ENTER.

On Reduces volume differences between the

TV commercials and the programs.

Off Removes the auto volume leveling.

TV Speakers

Select the audio output from the unit’s speakers, or not. If your

amplifi er is HDMI link function compatible and connected by

an HDMI cable to this unit, some sound operations such as

volume up can be changed by using this unit’s remote control.

Make sure [fun-Link Control] is set to [On]. ➠ p. 23

Use ▲/▼ to select the desired option, then press ENTER.

On The sound will be output from the unit’s speakers.

Off The sound will not be output from the unit’s

speakers.

Ext. Amp

You can control audio output from your

connected HDMI link devices by using this unit's

remote control.

Note

• We do not guarantee 100% interoperability with other brands of

HDMI link compliant devices.

Primary MTS

You can set the output mode as a default for the sound mode

(NTSC only).

This setting is not interlocked when you change the output

mode by pressing AUDIO. [Sound Functions] ➠ p. 15

Use ▲/▼ to select the desired option, then press ENTER.

Stereo Outputs stereo-audio.

Mono Outputs mono-audio.

SAP Outputs second audio program.

19

English

INTRODUCTION PREPARATION WATCHING TV

USING FUNCTIONS OPERATING DVD

CONNECTING DEVICES

INFORMATION USEFUL TIPS

Channel

Before you begin:

Make sure the unit is connected to antenna or cable.

1 Use ▲/▼ to select the item you want to adjust, then press

ENTER.


Sound

Channel

Features

Language

DVD

Channel

Autoprogram

Channel List

Add Channels

Antenna

2 Adjust the following items.

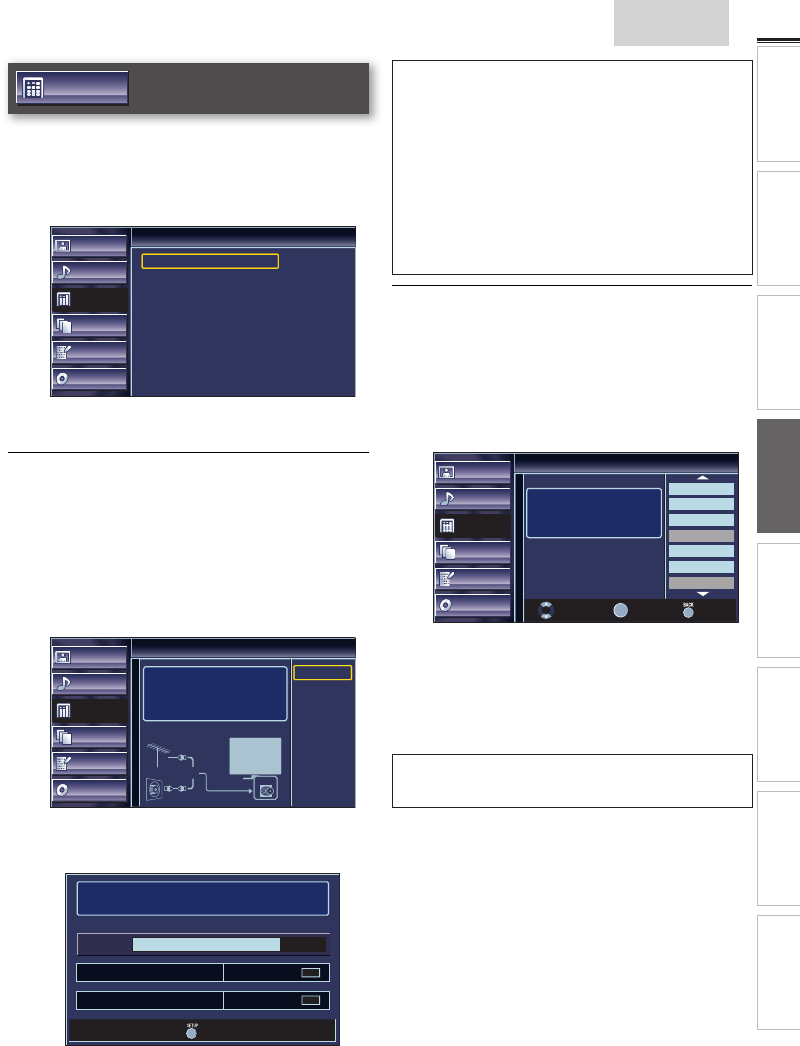

Autoprogram

If you switch wires (e.g. between antenna and CATV) or if you

move the unit to a different area after the initial setting, or if

you restore the DTV channels you deleted, it is recommended

to use Autoprogram to perform a new channel search.

1 Use ▲/▼ to select [Autoprogram], then press ENTER.

2 Use ▲/▼ to select an appropriate option, then press

ENTER.


Sound

Channel

Features

Language

DVD

Autoprogram

Auto program will rescan all channels.

Auto programming may take more than 20

minutes to complete.

Select your signal source.

ANT.IN

Antenna

Cable Or

Back

Antenna

Cable

• When connected to VHF / UHF antenna, select [Antenna].

• When connected to CATV, select [Cable].

• [Autoprogram] will begin.

Please wait while the system is scanning for channels.

Auto programming may take more than 20 minutes to

complete.

75%

Digital channels 10 ch

Analog channels 6 ch

Exit

• When the scanning and memorizing are completed, the

lowest memorized channel will be displayed.

Note

• After setting [Autoprogram], using CH ▲/▼ on the remote

control skips unavailable programs automatically.

• If you are not receiving a signal from your cable service, contact

the Cable provider.

• If you press POWER or SETUP during autoprogram, the setting

will be canceled.

• Even if [Autoprogram] is completed, the channel setting will be

lost if the AC power cord is unplugged before the unit goes into

standby mode by pressing POWER.

• The PIN code will be required once you set a PIN code in the

[Child Lock]. ➠ p. 21

• If you want to change your PIN code, follow the instruction of

[Change PIN]. ➠ p. 23

Channel List

The channels selected here can be skipped when selecting the

channels using CH ▲/▼.

Those channels can still be selected with the Number buttons.

1 Use ▲/▼ to select [Channel List], then press ENTER.

2 Use ▲/▼ to select the channel you want to remove, then

press ENTER.


Sound

Channel

Features

Language

DVD

Channel List

Highlight channels for

Ch Up / Down key selection.

DTV 6-1

DTV 8-1

9

27

DTV 48-1

58

DTV 67-1

Ch Select

ENTER

Watch / Skip Back

• The channel display for the removed channel darkens.

You will not be able to select the channel again using

CH ▲/▼.

• To reactivate a removed channel, use ▲/▼ and press

ENTER. The registered channels are highlighted.

• When you remove a main channel, its subchannels are

removed as well.

Note

• The channel with the [DTV] indicated on the display is ATSC.

Otherwise the channel is NTSC.

20

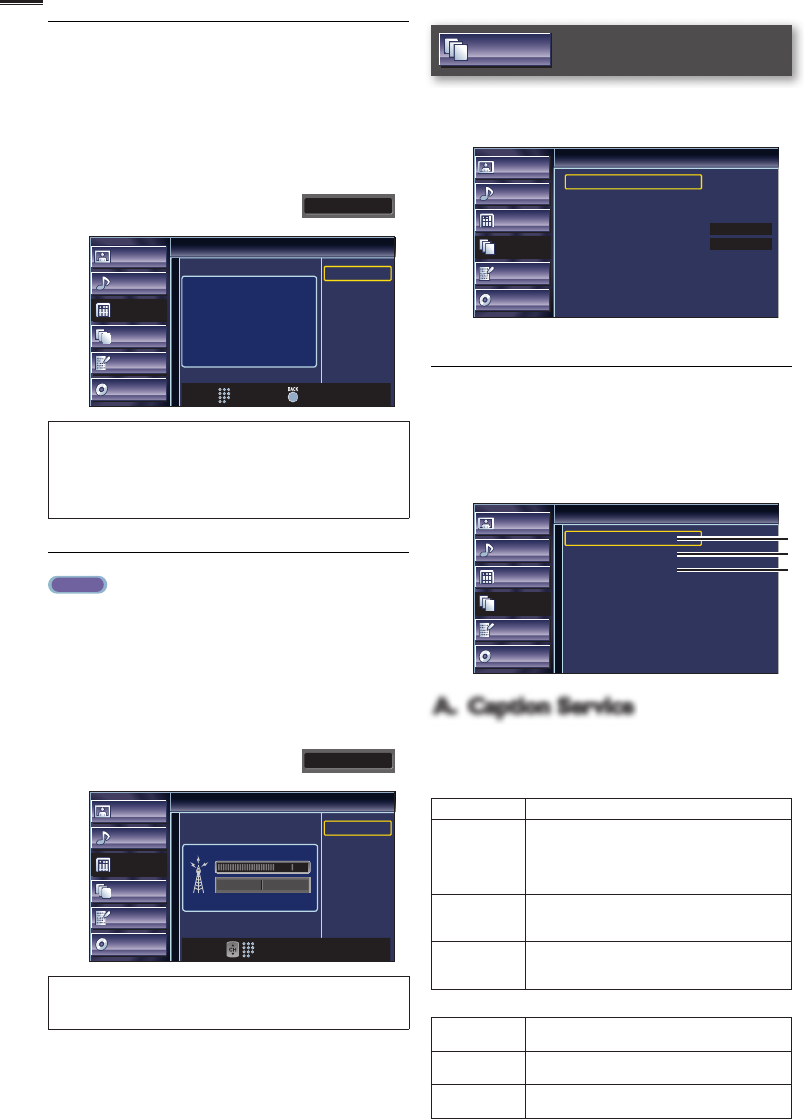

Add Channels

This function lets you add the channels that were not added

by the autoprogram due to reception conditions at the initial

setting.

1 Use ▲/▼ to select [Add Channels], then press ENTER.

2 Use the Number buttons to enter the number of the

channel you want to add, then press ENTER.

11


Sound

Channel

Features

Language

DVD

Add Channels

For analog channels, select a

channel to be added using number

keys.

For digital channels, you must

perform Autoprogram function.

Add Channels

Ch Change Back

Note

• If setup completes successfully, [Added to the channel list.] is

displayed.

• If external input is used, it is not possible to register the channel

and [Unavailable] will be displayed on the TV screen.

• By using CH ▲/▼, you can select the memorized channels only.

Antenna Confi rmation

AT S C

This function lets you check the digital signal strength of each

channel.

1 Use ▲/▼ to select [Antenna], then press ENTER.

2 Use the Number buttons or CH ▲/▼ to select the

channel for which you want to check the digital signal

strength.


Sound

Channel

Features

Language

DVD

Antenna

Current 50 Max 50

Back

Ch Change

11-1

Note

• If the channel is set to analog (cable) channel or external input,

you cannot confi rm the antenna condition.

Features

1 Use ▲/▼ to select the item you want to adjust, then press

ENTER.


Sound

Channel

Features

Language

DVD

Features

Closed Caption

Child Lock

fun-Link (HDMI CEC)

Energy Saving Mode

Location

Current Software Info

On

Home

2 Adjust the following items.

Closed Caption

You can view closed captioning (CC) for TV programs,

movies and news. Closed caption refers to text of dialog or

descriptions displayed on-screen.

Use ▲/▼ to select [Closed Caption], then press ENTER.

See the following description for setting each item.


Sound

Channel

Features

Language

DVD

Closed Caption

Caption Service

Digital Caption Service

Caption Style

Off

Off

A

B

C

A. Caption ServiceA. Caption Service

1 Use ▲/▼ to select [Caption Service], then press ENTER.

2 Use ▲/▼ to select the desired closed caption, then press

ENTER.

Off Select if you do not want caption service.

CC-1 and T-1

The primary caption and text services. The

captioning or text is displayed in the same language

as the program’s dialog (up to 4 lines of script on the

TV screen, where it does not obstruct relevant parts

of the picture).

CC-3 and T-3

Serve as the preferred data channels.

The captioning or text is often a secondary

language.

CC-2, CC-4,

T-2 and T-4

Rarely available and broadcasters use them only in

special conditions, such as when [CC-1] and [CC-3]

or [T-1] and [T-3] are not available.

• There are 3 display modes according to programs:

Paint-on

mode

Displays input characters on the TV screen

immediately.

Pop-on mode Once characters are stored in memory, they are

displayed all at once.

Roll-up mode Displays the characters continuously by scrolling

(max. 4 lines).

21

English

INTRODUCTION PREPARATION WATCHING TV

USING FUNCTIONS OPERATING DVD

CONNECTING DEVICES

INFORMATION USEFUL TIPS

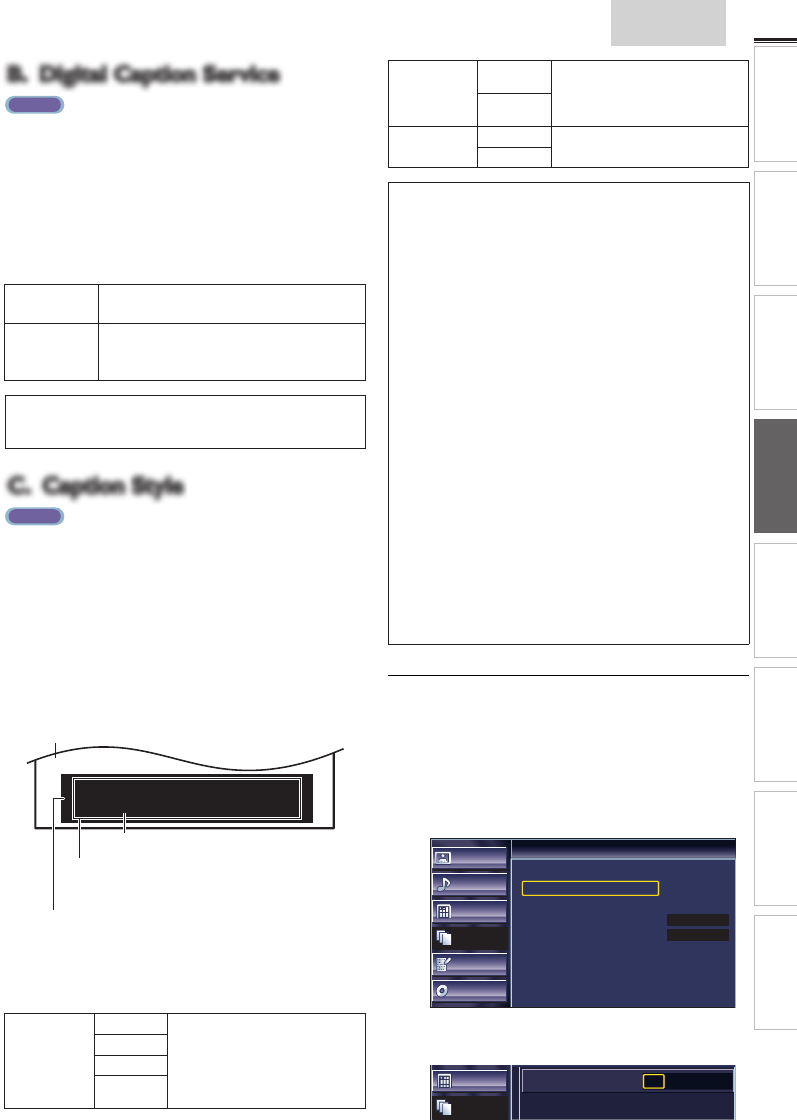

B. Digital Caption ServiceB. Digital Caption Service

AT S C

In addition to the basic closed caption, DTV has its own closed

caption called digital caption service. Use this menu to change

the settings for digital caption service.

1 Use ▲/▼ to select [Digital Caption Service], then press

ENTER.

2 Use ▲/▼ to select the desired digital caption service, then

press ENTER.

Off Select if you do not want digital caption

service.

CS-1 to CS-6

Select one of these before changing any

other item in [Closed Caption] menu.

Choose [CS-1] under normal circumstances.

Note

• [Digital Caption Service] that you can switch differs depending on

the broadcast description.

C. Caption StyleC. Caption Style

AT S C

You can change the caption style such as font, color or size,

etc.

1 Use ▲/▼ to select [Caption Style], then press ENTER.

2 Use ▲/▼ to select [User Setting], then press ENTER.

3 Use ▲/▼ to select [On], then press ENTER.

4 Use ▲/▼ to select an item, then press ENTER. Then use

▲/▼ to select the desired setting and press ENTER.

So, you must be Philip. Hi!

So, you must be Philip. Hi!

I’m pleased to meet you.

I’m pleased to meet you.

So, you must be Philip. Hi!

I’m pleased to meet you.

BackgroundBackground

( Background Color and Background Opacity or ( Background Color and Background Opacity or

Transparency) Transparency)

Picture display Picture display

EdgeEdge

(Edge Color and Edge Type) (Edge Color and Edge Type)

FontFont

( Font Style, Font Size, Font Color and Font Opacity or ( Font Style, Font Size, Font Color and Font Opacity or

Transparency) Transparency)

• Review your setting choice made below by looking in

the upper right corner of the displayed setting box (not

all selections show the differences selected).

Font

Font Style

Closed captioning font style, size,

color and opacity can be changed.

Font Size

Font Color

Font

Opacity

Background

Background

Color Background color and opacity of the

displayed caption can be switched.

Background

Opacity

Edge Edge Color Edge color and type of the displayed

caption can be switched.

Edge Type

Note

• Closed caption will not be displayed when you are using an HDMI

connection.

• To show the closed caption on your TV screen, broadcast signal

must contain the closed caption data.

• Not all TV programs and commercials have the closed caption or

all types of the closed caption.

• Captions and texts may not exactly match the TV voice.

• Changing channels may delay the closed caption for a few seconds.

• Adjusting or muting the volume may delay the closed caption for

a few seconds.

• Abbreviations, symbols and other grammatical shortcuts may be

used in order to keep pace with the on-screen action. This is not

a malfunction.

• The caption or text characters will not be displayed while the

main menu or functions display is shown.

• If a black box appears on the TV screen, this means that the closed

caption is set to the text mode. To clear the box, select [CC-1],

[CC-2], [CC-3], [CC-4] or [Off].

• If the unit receives poor quality television signals, the captions may

contain errors, or there might be no captions at all. Some possible

causes of poor quality signals are:

- Automobile ignition noise

- Electric motor noise

- Weak signal reception

- Multiplex signal reception (ghosts or screen fl utter)

- Data dropout and Pixelation (for DTV only)

• The unit retains the closed caption setting if the power fails.

• When the unit receives special effects playback signal (e.g. Search,

Slow and Still) from a VCR’s video output channel (ch3 or ch4),

the unit may not display the correct caption or text.

Child Lock

Child lock reads the ratings for programs, then denies access

to the programs which exceed the rating level you set. With

this function, you can block certain programs inappropriate

for children and any channels or external input modes can be

invisible.

1 Use ▲/▼ to select [Child Lock], then press ENTER.


Sound

Channel

Features

Language

DVD

Features

Closed Caption

Child Lock

fun-Link (HDMI CEC)

Energy Saving Mode

Location

Current Software Info

On

Home

2 Use the Number buttons to enter the 4-digit number for

your PIN code.

Channel

Features

Enter PIN.

----

22

• When you have not set up your PIN code,

enter 0, 0, 0, 0.

• When the PIN code is correct, [Child Lock] menu is

displayed.

See the following description for setting each item.


Sound

Channel

Features

Language

DVD

Child Lock

Channel Lock

US Movie Ratings Lock

US TV Ratings Lock

Canadian English Rating

Canadian French Rating

Region Ratings Lock

Clear Region Ratings Lock

Change PIN

A

B

C

D

Note

• When you select a rating and set it to [Block], the higher ratings

will be blocked automatically. The lower ratings will be available for

viewing.

• When you set the highest rating to [View], all ratings turn to

[View] automatically.

• To block any inappropriate programs, set your limits in [US Movie

Ratings Lock], [US TV Ratings Lock] and [Region Ratings Lock].

• The child lock setting will be retained after a power failure or after

the power is removed for longer than 10 seconds (except the PIN

code reverts to 0000). [Child Lock] ➠ p.21

• If the rating is blocked, will appear.

• [Region Ratings Lock] will be available when the unit receives a

digital broadcast using the new rating system.

• For the United States, the unit may download the Region Ratings

Lock Table, if required.

• The Canadian rating systems on this unit are based on CEA-766-A

and CRTC policy.

A. Channel LockA. Channel Lock

Particular channels or external input modes can be invisible in

this function.

1 Use ▲/▼ to select [Channel Lock], then press ENTER.

2 Use ▲/▼ to select the desired rating, then press ENTER

repeatedly to switch between [View] and [Block].


Sound

Channel

Features

Language

DVD

Channel Lock

Video

Component

HDMI 1

HDMI 2

DVD

40-1 DTV

40-2 DTV

Select

ENTER

View / Block Back

B. Setting US Movie ratingsB. Setting US Movie ratings

US Movie ratings lock is the rating system created by MPAA.

1 Use ▲/▼ to select [US Movie Ratings Lock], then press

ENTER.

2 Use ▲/▼ to select the desired rating, then press ENTER

repeatedly to switch between [View] and [Block].


Sound

Channel

Features

Language

DVD

US Movie Ratings Lock

X

NC-17

R

PG-13

PG

G

NR

Select

ENTER

View / Block Back

Rating Category

XMature audience only

NC-17 No one under 17 admitted

RRestricted; under 17 requires accompanying

parent or adult guardian

PG-13 Unsuitable for children under 13

PG Parental guidance suggested

GGeneral audience

NR No rating

C. Setting TV ratingsC. Setting TV ratings

1 Use ▲/▼ to select [US TV Ratings Lock], then press

ENTER.

2 Use ▲/▼ / ◄/► to select the desired rating, then press

ENTER repeatedly to switch between [View] and [Block].


Sound

Channel

Features

Language

DVD

US TV Ratings Lock

FV V S L D

TV-MA

TV-14

TV-PG

TV-G

TV-Y7

TV-Y

Select

ENTER

View / Block Back

Rating Category

TV-MA Mature audience only higher

TV-14 Unsuitable for children under 14

TV-PG Parental guidance suggested

TV-G General audience

TV-Y7 Appropriate for all children 7 and

older

TV-Y Appropriate for all children lower

To set the sub ratings

As for TV-MA, TV-14, TV-PG, or TV-Y7, you can further set the

sub ratings to block specifi c elements of programming. To set

the sub ratings, follow the step below.

Use ▲/▼ / ◄/► to select the desired rating, then press

ENTER repeatedly to switch between [View] and [Block].

23

English

INTRODUCTION PREPARATION WATCHING TV

USING FUNCTIONS OPERATING DVD

CONNECTING DEVICES

INFORMATION USEFUL TIPS


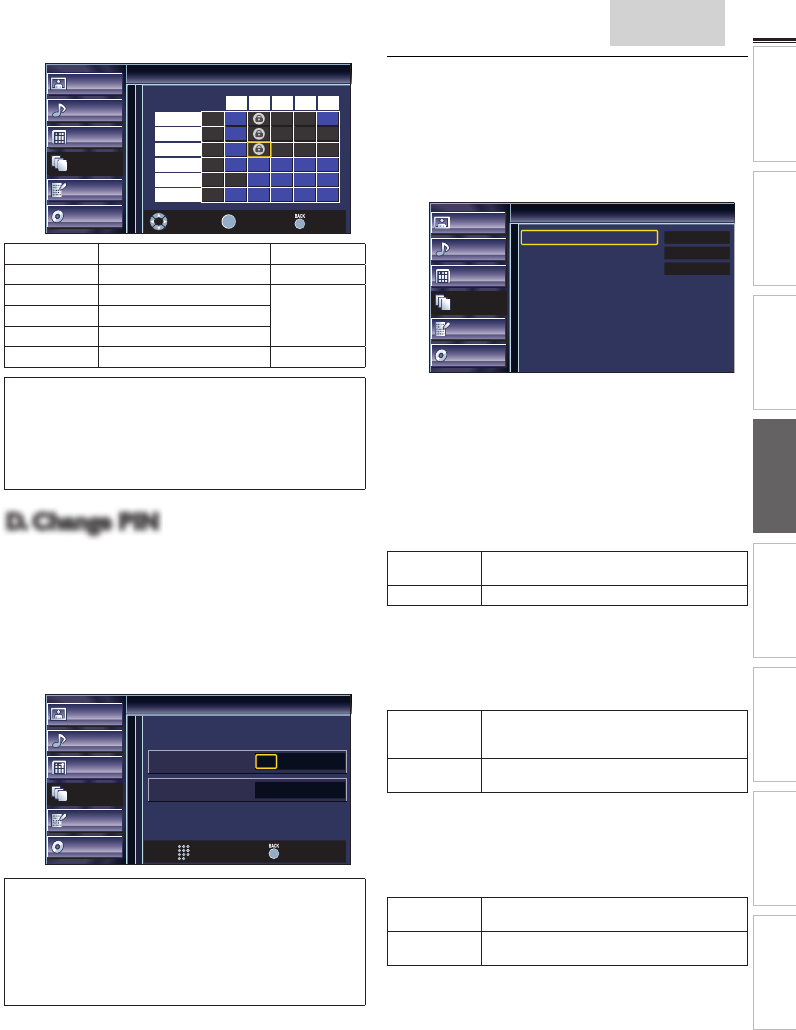

Sound

Channel

Features

Language

DVD

US TV Ratings Lock

FV V S L D

TV-MA

TV-14

TV-PG

TV-G

TV-Y7

TV-Y

Select

ENTER

View / Block Back

Sub Rating Category Rating

FV Fantasy Violence TV-Y7

VViolence TV-MA

TV-14

TV-PG

SSexual Situation

LCoarse Language

DSuggestive Dialog TV-14, TV-PG

Note

• Blocked sub rating will appear beside the main rating category in

[US TV Ratings Lock] menu.

• You cannot block a sub rating (D, L, S or V) if the main rating is set

to [View].

• Changing the category to [Block] or [View] automatically changes

all its sub ratings to the same ([Block] or [View]).

D. Change PIND. Change PIN

Although the default PIN code (0000) is supplied with the unit,

you can set your own PIN code.

1 Use ▲/▼ to select [Change PIN], then press ENTER.

2 Press the Number buttons to enter the new 4-digit PIN

code.

• Enter PIN code again in [Confirm PIN.] entry field.


Sound

Channel

Features

Language

DVD

Change PIN

Enter PIN.

----

Confirm PIN.

----

PIN Code Back

Note

• Make sure new PIN code and confi rm PIN code must be exactly

the same. If they are different, the space is cleared for reentering.

• Your PIN code will be erased and returns to the default PIN code

(0000) when a power failure occurs.

• If you forget the PIN code, unplug the AC power cord then wait

for 10 seconds to plug the AC power cord in again.

The unit will restore the PIN code to 0000 as the factory default.

fun-Link (HDMI CEC)

This function allows you to operate the linked functions

between our brand devices with a fun-Link feature and this

unit connecting through an HDMI cable.

1 Use ▲/▼ to select [fun-Link (HDMI CEC)], then press

ENTER.


Sound

Channel

Features

Language

DVD

fun-Link (HDMI CEC)

fun-Link Control

Auto Device Off

Auto TV On

Device List

On

On

On

2 Use ▲/▼ to select the desired setting, then press ENTER.

3 Adjust the following items.

fun-Link Control

Set the fun-Link [On] or [Off].

The following additional settings will be grayed out when you

set to [Off].

Use ▲/▼ to select the desired setting, then press ENTER.

On Selects if you have connected an external device

that is compatible with the fun-Link function.

Off Disables all fun-Link.

Auto Device Off

You can set your device to turn off by interlocking from this

unit’s power.

Use ▲/▼ to select the desired setting, then press ENTER.

On

Your connected fun-Link device turns off

automatically when the unit goes into standby

mode.

Off Your connected fun-Link device stays on even if

the unit goes into standby mode.

Auto TV On

This unit will turn on detected when the power on signal is

sent from your connected fun-Link device.

Use ▲/▼ to select the desired setting, then press ENTER.

On This unit turns on automatically when you turn on

your connected fun-Link device.

Off This unit stays the standby mode even if you turn

on your connected fun-Link device.

24

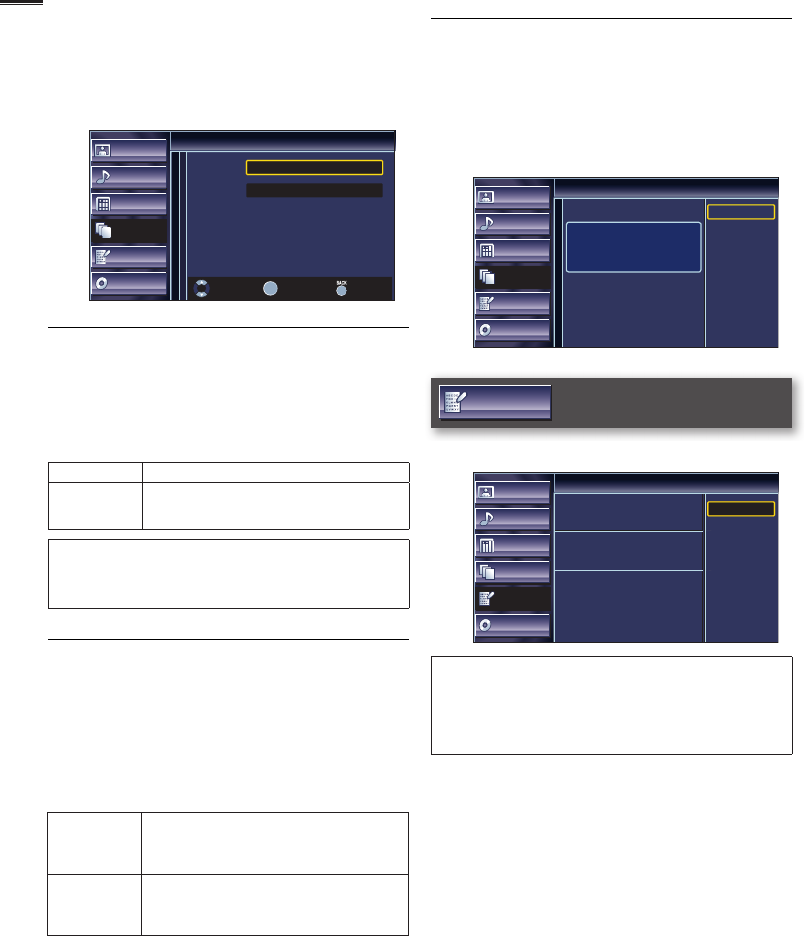

Device List

This function lets you see the product model number or name

of connected devices.

Use ▲/▼ to select the desired HDMI device listed on the TV

screen, then press ENTER.


Sound

Channel

Features

Language

DVD

Device List

HDMI1 NB530MGX

HDMI2 MBP1100 / F7

Select

ENTER

Input Change Back

Energy Saving Mode

You can set whether the power consumption is saved or not.

1 Use ▲/▼ to select [Energy Saving Mode], then press

ENTER.

2 Use ▲/▼ to select the desired mode, then press ENTER.

On Reduces the power consumption.

Off

The power consumption may possibly exceed

the limited requirement of the ENERGY STAR®

qualification.

Note

• You must set [Home] in [Location]. ➠ p. 24

Otherwise, the settings you adjusted will not be memorized after

the unit goes into standby mode.

Location

When you select [Retail] store, the power consumption may

possibly exceed the limited requirement of the

ENERGY STAR® qualifi cation.

1 Use ▲/▼ to select [Location], then press ENTER.

2 Use ▲/▼ to select the desired location, then press

ENTER.

Retail

The unit will be set up with predefined setting

for retail displays. In this setting, the power

consumption may possibly exceed the limited

requirement of the ENERGY STAR® qualification.

Home

The unit is set to maximize the energy efficiency

for home setting and it can be adjusted through a

choice of picture and sound quality according to

your preference.

Current Software Info

This function shows what version of the software currently

used.

1 Use ▲/▼ to select [Current Software Info], then press

ENTER.

2 Confi rm the version of the software currently used.


Sound

Channel

Features

Language

DVD

Current Software Info

Release Version:

XXXXXXX_XXX_X_XXXX

Back

Language

Use ▲/▼ to select [English], [Español] or [Français], then

press ENTER.


Sound

Channel

Features

Language

DVD

Language

Select the language for setup display.

Elija el idioma de ajuste.

Sélectionner langue écran config.

English

Español

Français

Note

• If you need the English menus instead of the Spanish or French

menus, press SETUP. Use ▲/▼ to select [Idioma] or [Langue],

then press ENTER.

Use ▲/▼ to select [English], then press ENTER.

Press SETUP to exit the main menu.

25

English

INTRODUCTION PREPARATION WATCHING TV

USING FUNCTIONS OPERATING DVD

CONNECTING DEVICES

INFORMATION USEFUL TIPS

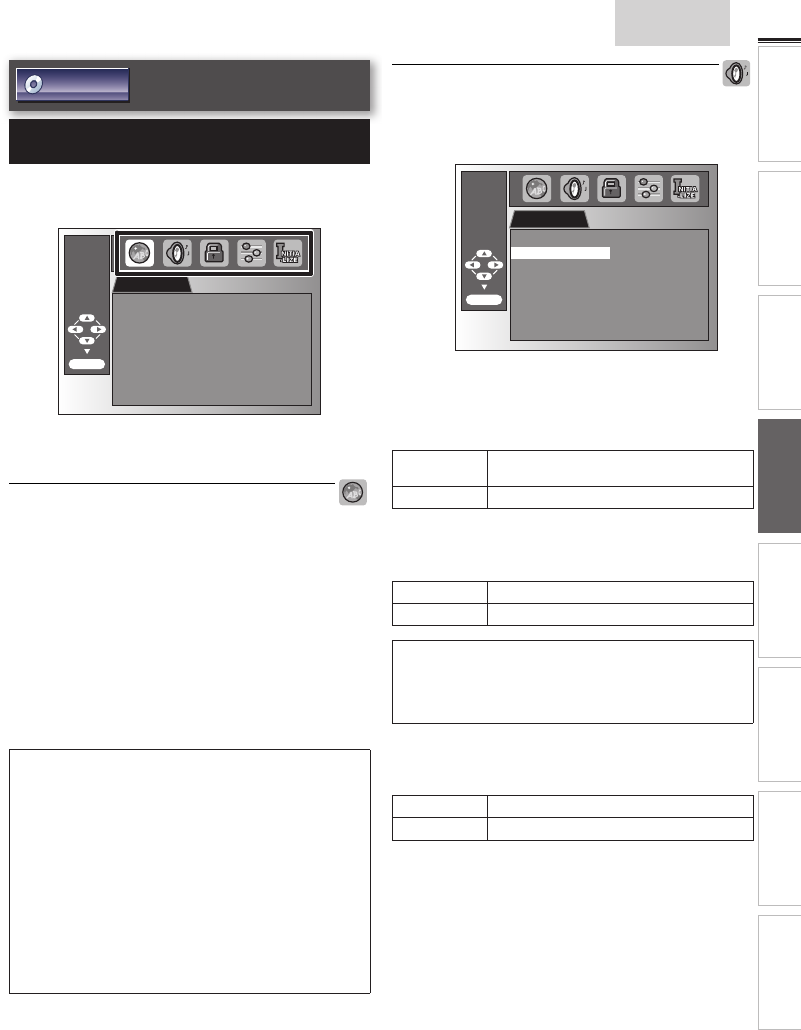

DVD

Settings are only effective when the unit is in DVD mode

and any discs should not be played back.

1 Use ◄/►to select a desired setting and an item, then press

ENTER to determine the setting.

LANGUAGE

AUDIO ORIGINAL

SUBTITLE OFF

DISC MENU ENGLISH

ENTER/OK

2 When the setting is completed, press SETUP to exit.

DVD Language Setting

You can change the desired language when playing back the disc.

1 Use ▲/▼ to select the item you want to adjust, then press

ENTER.

2 Adjust the following items.

AUDIO *1, *2 (Default: ORIGINAL)

Select the desired audio language.

SUBTITLE *1, *2 (Default: OFF)

Select the desired subtitle language.

DISC MENU *1 (Default: ENGLISH)

Select the desired language in DVD menu.

Note

• To change the on-screen language, call up [Language] from the

main menu and set the desired language. [Language] ➠ p. 24

*1

• Language options are not available with some discs.

• If [OTHER] is selected in [AUDIO], [SUBTITLE] or

[DISC MENU] menu, press 4-digit number to enter the code for

the desired language. [Language Code List]. ➠ p. 27

• Only the languages supported by the disc can be selected.

*2

• Language setting for Audio and Subtitle are not available with

some discs.

-

Use MODE to select subtitles available on the DVD.

-

Use AUDIO to select audio available on the DVD.

• If the DVD’s default settings for audio and subtitle are the same

language, the subtitles may not show unless you turn them on.

DVD Audio Setting

Choose the appropriate audio settings for your equipment. It only

affects during the playback of DVD.

1 Use ▲/▼ to select the desired item, then press ENTER.

AUDIO

ENTER/OK

DRC ON

DOWN SAMPLING ON

DOLBY DIGITAL BITSTREAM

2 Adjust the following items.

DRC (dynamic range control) (Default: ON)

This function is available only on the discs which are recorded

in the Dolby Digital format.

ON Compress the range between soft and loud

sounds.

OFF No effects (original sound).

DOWN SAMPLING (Default: ON)

This function is available only on digital outputting of a disc

recorded in 96kHz.

ON When outputting in 48kHz.

OFF When outputting the original sound.

Note

• When playing back a 96 kHz disc with the copyright protection

or when [Virtual Surround] is set to [1] or [2], the sound will be

down sampled at 48 kHz even if the [DOWN SAMPLING] is set

to [OFF]. [Virtual Surround]. ➠ p. 33

DOLBY DIGITAL (Default: BITSTREAM)

Set to [BITSTREAM] when this unit is connected to a Dolby

Digital decoder.

BITSTREAM Outputs Dolby Digital signals.

PCM Converts the Dolby Digital into PCM. (2 channel)

26

Parental Setting

Parental setting prevents your children from viewing inappropriate

materials. (password protected.) Playback will stop if the ratings

exceed the levels you set.

1 Use the Number buttons to enter the 4-digit password for

your password, then press ENTER.

PARENTAL

ENTER/OK

Please enter a 4-digit password.

PASSWORD

• If you have set password already, use

the Number buttons to enter the current 4-digit

password.

• You cannot use the default password (4737) to play

back a DVD.

2 Use ▲/▼ to select the [PARENTAL LEVEL], then press

ENTER.

3 Use ▲/▼ to select the desired item, then press ENTER.

PARENTAL LEVEL

ALL All parental locks are cancelled.

8 [ADULT] All ratings (adult / general / children) can be

played back.

7 [NC-17]-2 [G] Only DVD intended for general use and

children can be played back.

1 [KID SAFE] Only DVD intended for children can be played

back.

To change the password

4 At step 2, use ▲/▼ to select [PASSWORD CHANGE]

then press ENTER.

5 Use the Number buttons to enter the new 4-digit

password.

Note

• DVD-video may not respond to parental lock settings. Make sure

this function works with your DVD-video.

• Record the password in case you forget it.

• If you forget the password, press 4, 7, 3, 7, then enter your new

password. Password will be cleared and parental levels will be set

to [ALL].

• A power failure will not erase your password.

Others

You can change the other functions.

1 Use ▲/▼ to select the desired item, then press ENTER.

OTHERS

ENTER/OK

ANGLE ICON ON

STILL MODE AUTO

AUTO POWER OFF ON

2 Adjust the following items.

ANGLE ICON (Default: ON)

Set to [ON] to show the angle icon when multiple camera

angles are available during DVD playback.

STILL MODE (Default: AUTO)

Set the picture quality in the still mode.

If you select [AUTO], it automatically selects the best

resolution setting ([FRAME] or [FIELD]) based on the date

characteristics of the pictures.

FIELD The picture in the still mode will be stabilized.

FRAME The picture in the still mode will be highly defined.

AUTO POWER OFF (Default: ON)

Set to [ON] if there is no operation for 20 minutes, the unit

goes into standby mode.

Reset to the Default Setting

You can reset all the settings except for the parental setting and

on-screen menu language.

1 Use ▲/▼ to select [YES], then press ENTER.

INITIALIZE

ENTER/OK

Initialize?

NO

YES

Note

• When you want to cancel the initialization, select [NO], then press

ENTER.

27

English

INTRODUCTION PREPARATION WATCHING TV

USING FUNCTIONS OPERATING DVD

CONNECTING DEVICES

INFORMATION USEFUL TIPS

Language Code List

Language Code Language Code

A-B

Abkhazian 4748

Afar 4747

Afrikaans 4752

Albanian 6563

Amharic 4759

Arabic 4764

Armenian 5471

Assamese 4765

Aymara 4771

Azerbaijani 4772

Bashkir 4847

Basque 5167

Bengali;Bangla 4860

Bhutani 5072

Bihari 4854

Bislama 4855

Breton 4864

Bulgarian 4853

Burmese 5971

Byelorussian 4851

C-E

Cambodian 5759

Catalan 4947

Chinese [CHI] 7254

Corsican 4961

Croatian 5464

Czech [CZE] 4965

Danish [DAN] 5047

Dutch [DUT] 6058

English [ENG] 5160

Esperanto 5161

Estonian 5166

F-H

Faroese 5261

Fiji 5256

Finnish [FIN] 5255

French [FRE] 5264

Frisian 5271

Galician 5358

Georgian 5747

German [GER] 5051

Greek [GRE] 5158

Greenlandic 5758

Guarani 5360

Gujarati 5367

Hausa 5447

Hebrew 5569

Hindi 5455

Hungarian [HUN] 5467

I-K

Icelandic [ICE] 5565

Indonesian 5560

Interlingua 5547

Interlingue 5551

Inupiak 5557

Irish [IRI] 5347

Italian [ITA] 5566

Japanese [JPN] 5647

Javanese 5669

Kannada 5760

Kashmiri 5765

Kazakh 5757

Kinyarwanda 6469

Kirghiz 5771

Kirundi 6460

Korean [KOR] 5761

Kurdish 5767

L-N

Laothian 5861

Latin 5847

Latvian;Lettish 5868

Lingala 5860

Lithuanian 5866

Macedonian 5957

Malagasy 5953

Malay 5965

Malayalam 5958

Maltese 5966

Maori 5955

Marathi 5964

Moldavian 5961

Mongolian 5960

Nauru 6047

Nepali 6051

Norwegian [NOR] 6061

O-R

Occitan 6149

Oriya 6164

Oromo(Afan) 6159

Panjabi 6247

Pashto;Pushto 6265

Persian 5247

Polish [POL] 6258

Portuguese [POR] 6266

Quechua 6367

Rhaeto-Romance 6459

Romanian [RUM] 6461

Russian [RUS] 6467

S

Samoan 6559

Sangho 6553

Sanskrit 6547

Scots Gaelic 5350

Serbian 6564

Serbo-Croatian 6554

Sesotho 6566

Setswana 6660

Shona 6560

Sindhi 6550

Singhalese 6555

Siswat 6565

Slovak 6557

Slovenian 6558

Somali 6561

Spanish [SPA] 5165

Sundanese 6567

Swahili 6569

Swedish [SWE] 6568

T

Tagalog 6658

Tajik 6653

Tamil 6647

Tatar 6666

Telugu 6651

Thai 6654

Tibetan 4861

Tigrinya 6655

Tonga 6661

Tsonga 6665

Turkish [TUR] 6664

Turkmen 6657

Twi 6669

U-Z

Ukrainian 6757

Urdu 6764

Uzbek 6772

Vietnamese 6855

Volapuk 6861

Welsh 4971

Wolof 6961

Xhosa 7054

Yiddish 5655

Yoruba 7161

Zulu 7267

Note

• If you choose a language that has a 3-letter abbreviation, the code

will be displayed every time you change the audio or subtitle

language setting above. If you choose any other language, [---] will

be displayed instead. (3-letter abbreviation is written in bracket.)

28

OPERATING DVD

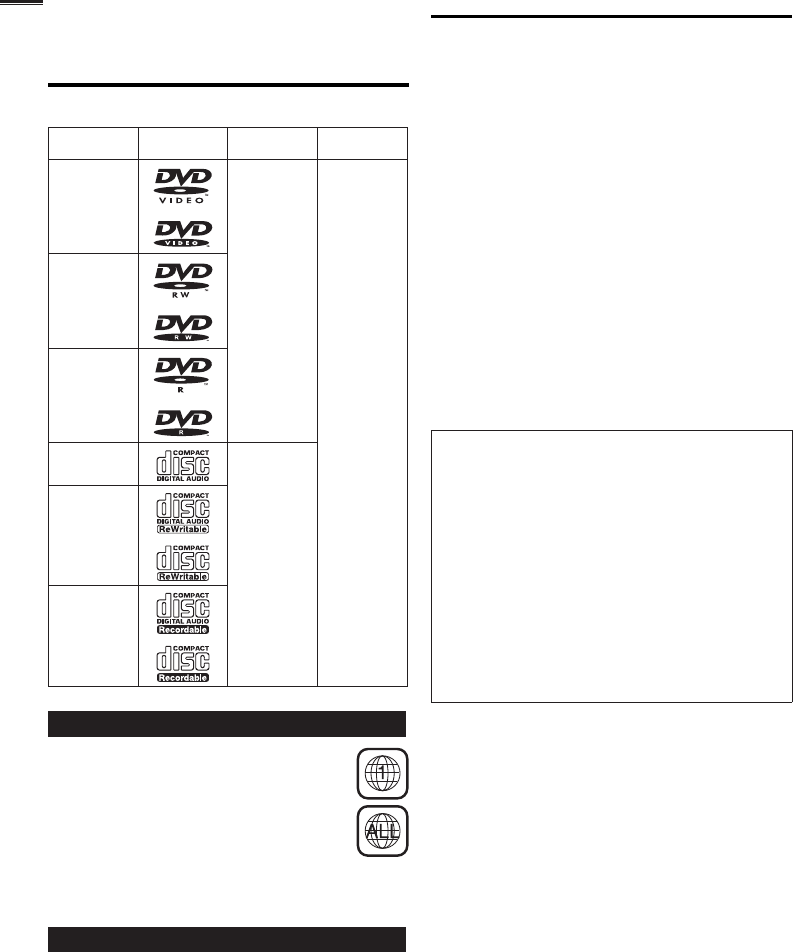

Playable Media

Media Type Logo Recorded

Signal Media Size

DVD-VIDEO

digital video

(MPEG2)

5 inches

(12 cm)

DVD-RW

DVD-R

CD-DA

digital audio

CD-RW

CD-R

Region Codes

This unit has been designed to play back DVD with

region 1. DVD must be labeled for ALL regions or

for region 1 in order to play back on the unit. You

cannot play back DVD that are labeled for other

regions. Look for the symbols on your DVD. If these

region symbols are not on your DVD, you cannot

play back the DVD in this unit.

The number inside the globe refers to region of the world.

A DVD labeled for a specifi c region can only be played back

on the unit with the same region code.

Color Systems

DVD is recorded in different color systems throughout the

world. The most common color system is NTSC (which is used

primarily in the United States and Canada).

This unit uses NTSC, so DVD you play back must be recorded

in the NTSC system. You cannot play back DVD recorded in

PAL color systems.

Unplayable Media

NEVER play back the following discs. Otherwise, malfunction

may result!

• 3 inches (8 cm) disc

• DVD-RAM

• DVD-audio

• CD-i

• Photo CD

• Video CD

• DVD with region codes other than 1 or ALL

• DTS-CD

• DVD-ROM for personal computers

• CD-ROM for personal computers

• The discs with labels, scratches, stains, blemishes, etc.

• HD DVD

• Blu-ray Disc

• DVD or CD contains MP3 / JPEG fi les

• KODAK Picture CD

On the following disc, the sound MAY NOT be heard.

• Super audio CD

Any other discs without compatibility indications

Note

•Unfi nalized discs cannot be played back.

• For DVD-RW/-R, discs recorded in the VR (video recording)

format cannot be played back. Only the fi nalized video format

discs can be played back.

• Some discs cannot be played back because of incompatible

recording conditions, characteristics of the recorder or special

properties of discs.

• Only the sound recorded on the normal CD layer can be

delivered. The sound recorded on the high density super audio

CD layer cannot be delivered.

• Do not use a single CD adaptor which makes 3 inches (8 cm) to

5 inches (12 cm) disc.

• You can play back discs with the marks listed in [Playable Media].

If you use non-standardized discs, this unit may not play them back

or the sound and video quality will be compromised.

• If the recorded portion of the disc is too small (less than 2.17

inches (55 mm) across), it may not play back properly.

29

English

INTRODUCTION PREPARATION WATCHING TV

USING FUNCTIONS OPERATING DVD

CONNECTING DEVICES

INFORMATION USEFUL TIPS

These operations are accessible by remote control. Some

may also be accessible by controls on the main unit.

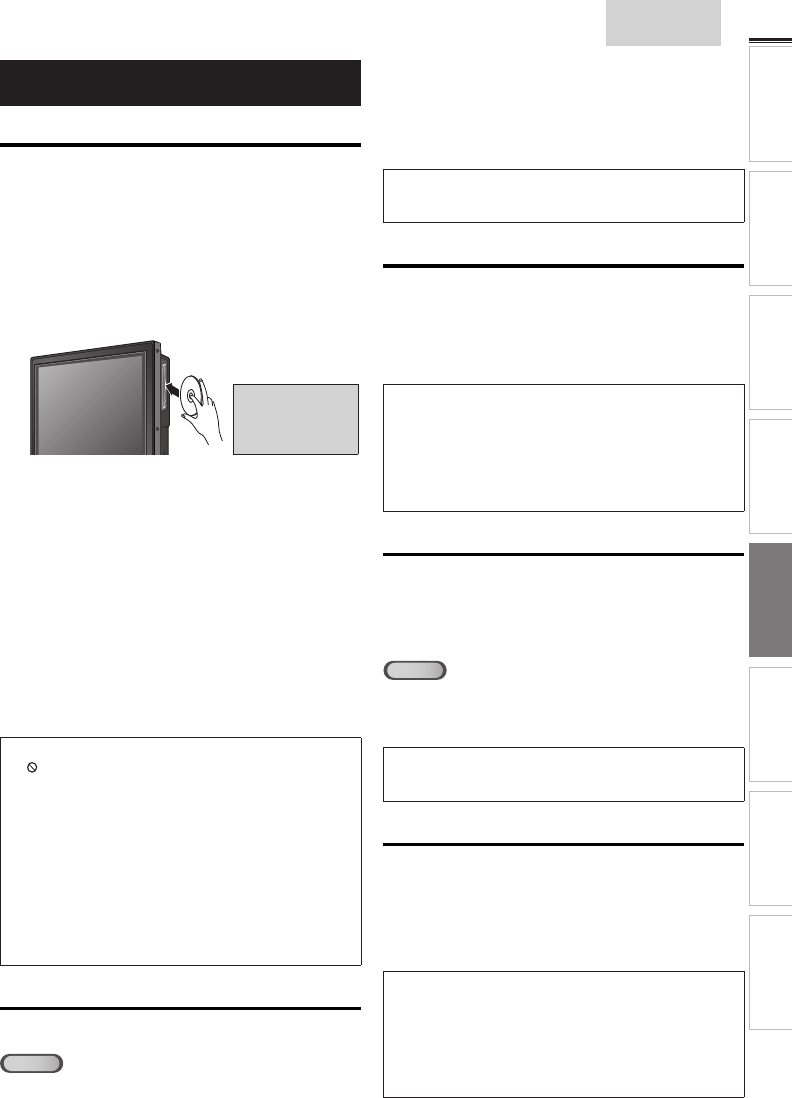

Playback

Before you begin:

Turn on the amplifi er and any other equipment which is

connected to this unit.

Make sure the external audio receiver (not

included) are set to the correct channel.

1 Press POWER to turn on the unit.

2 Insert a disc with label facing forward.

label

#

CAUTION

• Do not put coins or

foreign objects into

the disc loading slot.

• In case the DVD was recorded on both sides, make

sure the label of the side you want to play back is facing

forward.

3 The unit switches to the DVD mode when the unit was in

TV mode and detects the type of disc.

• Press PLAY B if the unit does not go to the DVD mode.

4 The unit starts playback.

• If playback does not start automatically, press PLAY B

again.

5 Press STOP C to stop playback temporarily.

• If playback remains stopped for 20 minutes, the unit will

go into standby mode automatically when

[AUTO POWER OFF] is set to [ON].

6 Press A EJECT to eject the disc.

Note

• [ ] may appear at the top-right on the TV screen when the

operation is prohibited by the disc or this unit.

• Some DVD may start playback from title 2 or 3 due to specifi c

programs.

• During the playback of a 2-layered disc, pictures may stop for a

moment. This happens while the 1st layer is being switched to the

2nd layer. This is not a malfunction.

• When you cannot remove the disc, you may try either following

operations.

- Press and hold A EJECT on the unit for more than 5 seconds.

- Unplug the AC power cord and plug it in again, then press

A EJECT.

It will take about 10 seconds to eject the disc, while that the unit

will not respond to any key commands.

Disc Menu

DVD

Some discs contain disc menus which describe the contents of

the disc or allow you to customize disc playback, or title menu

which lists the titles available on the DVD.

To display the DVD menu, press DISC MENU and use

▲/▼/◄/► to select an item, then press ENTER (or

PLAY B).

To display the top menu, press TITLE and use

▲/▼/◄/► to select an item, then press ENTER (or

PLAY B).

Note

• Menu operations may vary depending on the disc.

Refer to the manual accompanying the disc for more details.

Resume Playback

Press STOP C during playback. Resume message will appear

on the TV screen.

Press PLAY B. Playback will resume from the point at which

playback was stopped.

Note

• To cancel resume, press STOP C one more time in the stop mode.

On some discs, STOP C will not work while the resume message

appears. Please wait until the message disappears.

• The resume information will be kept even when the unit goes

into standby mode. However, ejecting the disc will cancel the

resume feature. Playback will start at the beginning the next time

you insert the disc.

Paused and Step-by-step Playback

Press PAUSE F during playback.

• Playback will be paused and sound will be muted.

DVD

Each time you press PAUSE F in the pause mode, the disc

goes forward one frame at a time.

To continue playback, press PLAY B.

Note

• Set [STILL MODE] to [FIELD] in the [OTHERS] menu if pictures

in the pause mode are blurred. ➠ p. 26

Fast Forward / Fast Reverse

Press FWD D or REV E repeatedly during playback to

select the desired forward or reverse speed.

To continue playback, press PLAY B.

Note

• Set [STILL MODE] to [FIELD] in the [OTHERS] menu if pictures

in the fast playback mode are blurred. ➠ p. 26

• Fast forward / fast reverse speed varies with disc. Approximate

speed is 1(2x), 2(8x), 3(20x), 4(50x) and 5(100x) on DVD and

1(2x), 2(8x) and 3(30x) on audio CD.

• For DVD, sound will be muted during this function.

• For audio CD, sound will be intermittent during the search.

30

Slow Forward / Slow Reverse

DVD

Press FWD D or REV E repeatedly during the paused

mode to select the desired forward or reverse speed.

To continue playback, press PLAY B.

Note

• Set [STILL MODE] to [FIELD] in the [OTHERS] menu if pictures

in the slow playback mode are blurred. ➠ p. 26

• Slow forward / slow reverse speed varies with disc. Approximate

speed is 1(1/16x), 2(1/8x) and 3(1/2x).

• The sound will be muted during this function.

Zoom

DVD

The zoom function allows you to enlarge the video image and

to pan through the enlarged image.

1 During playback, press MODE repeatedly until

[ ] appears.

• The picture becomes twice as large.

2 Press ENTER repeatedly to change the zoom factor, [2x]

or [4x].

3 Once a desired zoom factor is set, use ▲/▼/◄/► to slide

the zoomed picture across the TV screen.

4 To exit zoom, repeat steps 1 to 2 above and press ENTER

repeatedly until [OFF] appears.

Note

• The gray box with an inner blue box that shows during zoomed

playback is the position guide indicates the position of the zoomed

image within the overall image.

Position guide stays on the TV screen until you press ENTER.

Press ENTER one more time to recall the position guide when

disappears.

• Zoom function does not work while the disc menu is displayed.

• 4x zoom is not available on some discs.

• Zoom function is also available during pause mode.

Search Functions

Chapter / Title / Track SearchChapter / Title / Track Search

You can select chapters, titles or tracks on the disc.

1 During playback, press MODE repeatedly until

[ ] / [ ] appears.

• If you want to perform the title search, use

▲/▼ repeatedly until [ ] appears.

2 Press the Number buttons to select your desired chapter,

title or track within 60 seconds.

To play back a single-digit chapter, title or track when

there are more than 10 chapters, titles or tracks, press

ENTER after entering the chapter, title or track number.

3 Playback will start automatically from the chapter, title or

track you selected.

Note

• Chapter, title or track search can only be performed during

playback or when the unit has kept the resume information. It

cannot be performed in the stop mode.

• The total number of chapters / titles / tracks in your disc; with

less than 10 chapters / titles / tracks, press the chapter / title / track

number directly. To play a double-digit chapter / title / track, press

the chapter / title / track number.

• Track search is not available for programmed or random playback.

Using SKIP H / G

1 During playback, press SKIP H / G repeatedly until a

desired chapter, title or track will be selected.

CH/TR 1 CH/TR 2 CH/TR 3 CH/TR 4

[SKIP H] [SKIP G]

TT 1 TT 2 TT 3 TT 4

[SKIP H] [SKIP G]

current chapter/track

(CH) (TR)

or

current title

(TT)

2 Playback will start automatically from the chapter, title or

track you selected.

Note

• SKIP H / G are not available when playback is stopped.

Time SearchTime Search

You can select the desired time which the disc is played back

from.

1 During playback, press MODE repeatedly until

[ ] / [ ] appears.

2 Use ▲/▼ repeatedly until [ ] appears.

3 Press the Number buttons to select your desired time

lapse within 60 seconds.

4 Playback will start automatically from the time you selected.

Note

• When there is no need to enter a number, [0] appears

automatically. For example, [0: 0_: _ _] appears in the time search

menu if the total time of the title or track is less than 10 minutes.

• Press CLEAR to erase the incorrect input at step 3.

• Time search can only be performed during playback or when the

unit has kept the resume information.

It cannot be performed in the stop mode.

Direct SearchDirect Search

Press the Number buttons to select your desired chapter, title

or track.

Note

• To select a single-digit chapter, title or track number, press the

number directly.

• To select double digit chapter, title or track number:

- If the disc contains more than 9 and less than 100 chapter, title

or track, press +10 fi rst, then enter the double digit chapter, title

or track number.

(e.g., for track 26, press +10, 2 and 6)

31

English

INTRODUCTION PREPARATION WATCHING TV

USING FUNCTIONS OPERATING DVD

CONNECTING DEVICES

INFORMATION USEFUL TIPS

Repeat Playback

Repeat function is available only during playback.

1

During playback, press

MODE

repeatedly until [ ]

appears.

2 Press ▲/▼ to change the repeat mode.

DVD

OFF repeat off

CHAPTER current chapter repeat

TITLE current title repeat

CD

OFF repeat off

TRACK current track repeat

ALL entire disc repeat

3 Press BACK to exit.

Repeat A-B Playback

You can repeat playback between A and B on a disc.

1 During playback, press MODE repeatedly until

[

AB

AB

] appears.

2 Press ENTER at your desired starting point (A).

3 Press ENTER at your desired ending point (B).

• Point B should be in the same title or track as point A.

• Within a few seconds, the section A-B will begin to play

back repeatedly.

4 To cancel repeat A-B playback, press MODE repeatedly

until [

AB

AB

] appears.

Press ENTER so [OFF] appears.

Note

• Repeat setting (except [ALL]) will be cleared when moving to

another title or chapter, track.

• During programmed playback, repeat setting will be effective for

the tracks in the program.

• Repeat playback or repeat A-B playback may not available with

some discs.

• Repeat A-B playback does not function during other repeat mode.

• To cancel point A, press CLEAR at step 2 in

[Repeat A-B Playback].

• Stopping playback will cancel repeat A-B playback.

Random Playback

CD

This function shuffl es the playing order of tracks instead of

playback in the sequence.

1 In stop mode, press MODE repeatedly until [RANDOM]

menu appears.

2 Press PLAY B to start random playback.

Note

• To repeat the current track in the random mode, follow the steps

1 and 2 in [Repeat Playback] and select [ TRACK]. ➠ p. 31

• To repeat the entire random selections, follow the steps 1 and 2 in

[Repeat Playback] and select [ ALL]. ➠ p. 31

Programmed Playback

CD

You may determine the order in which tracks will play back.

1 In stop mode, press MODE repeatedly until [PROGRAM]

menu appears.

2 Use ▲/▼ to select a desired track, then press ENTER to

store.

• Additional tracks may be on other screens. Use ▲/▼

to go on to the next / previous pages.

• Repeat this step until you have selected all the tracks

you wish to play back in the program.

• Up to 99 tracks can be ordered.

• If 8 or more tracks were in a program, use

SKIP H / G to see all the tracks.

3 Press PLAY B to start programmed playback.

Note

• Press CLEAR to erase the last track in the program if you make

an error.

• To erase all programmed tracks at once, select [ALL CLEAR] and

press ENTER at step 2.

• While a program is being played back, STOP C works as follows:

- Pressing STOP C once: The track will be in the resume standby

mode. Next time you press PLAY B, the playback will resume

from the point where it is stopped in the programmed playback.

- Pressing STOP C twice: Resume mode will be canceled. Next

time you press PLAY B, playback will restart from the fi rst track

in the original order. However, your programmed playback can

be restarted when you follow the above steps. (Your programs

are still stored until either the disc is ejected or the unit goes into

standby mode.)

- On some discs, STOP C will not work while the resume message

appears. Please wait until the message disappears.

• To repeat the current track in the program, follow the steps 1 and

2 in [Repeat Playback] and select [TRACK]. ➠ p. 31

• To repeat the entire program, follow the steps 1 and 2 in [Repeat

Playback] and select [ALL]. ➠ p. 31

• Ejecting the disc or the unit goes into standby mode will erase the

program.

• You cannot use the Number buttons to select another track

during programmed playback. Use SKIP H / G to select other

tracks in the program.

• You cannot combine random playback with programmed playback.

• You cannot alter a programmed order during playback.

• You can start programmed playback only while in [PROGRAM]

menu.

32

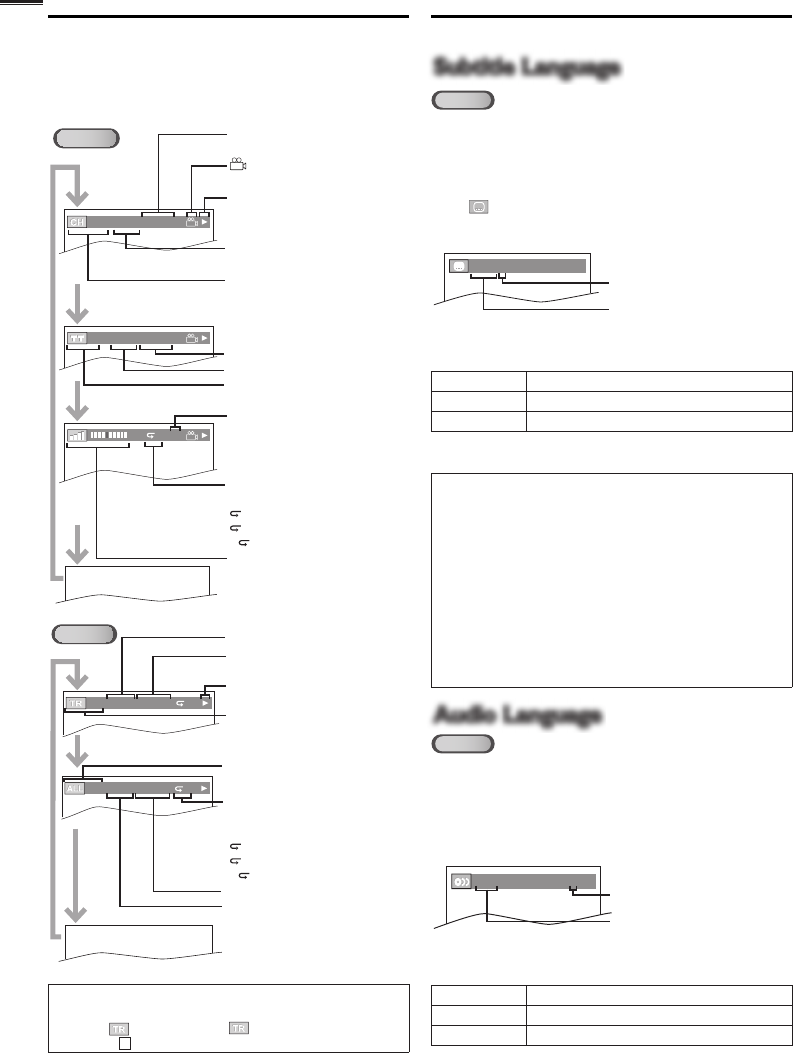

On-screen Display

You can check the information about the current disc by

pressing INFO on the remote control.

DVD

TL1

11/16 0:00:00 - 0:03:30

1/3 0:00:00 - 1:23:45

remaining time of the current

chapter

appears only when multi-

angle is available on the DVD

current playback status

elapsed time of the current

chapter

CH (Chapter):

current chapter number /

total chapters

remaining time of the current title

elapsed time of the current title

TT (Title):

current title number / total titles

layer number, appears only when

playing a 2-layered disc

L0 : Layer 0 is playing

L1 : Layer 1 is playing

current repeat setting appears only

when the repeat setting is active

C : Chapter repeat

T : Title repeat

A B : A-B repeat

bit rate indication for the amount

of audio and video data currently

being read

CD

4/12 0:03:21 - 0:02:15 T

4/12 0:13:45 - 0:45:40 T

elapsed time of the current track

remaining time of the current

track

current playback status

TR (Track):

current track number / total tracks

ALL:

current track number / total tracks

current repeat setting appears

only when the repeat setting is

active

T : Track repeat

A : All tracks repeat

A B : A-B repeat

remaining time of the entire disc

elapsed time of the entire disc

Note

• When you are playing back an audio CD in program or random

mode, [ PROGRAM] (or [ RANDOM]) will be displayed

instead of 2.

Special Settings

Subtitle LanguageSubtitle Language

DVD

This unit allows you to select a subtitle language (if available)

during DVD playback.

1 During playback, press MODE repeatedly until

[ ] appears.

2 Use ▲/▼ repeatedly until your desired language appears.

1.ENG / 6

(SUBTITLE)

subtitles can be varied on the

displayed number

current subtitles language

3 Each time you press ▲/▼, the subtitle language changes

as follows.

OFF no subtitles

ENG English audio

SPA Spanish audio

4 Press BACK to exit.

Note

• To cancel the subtitle, select [OFF] at step 2.

• If your language is not shown after pressing

▲/▼ several times, the disc may not have that language. However,

some discs allow you to change subtitle languages setting in the

disc menu. (Operation varies depending on the disc, so refer to

the manual along with the disc.)

• When [NOT AVAILABLE] appears on the TV screen, it means no

subtitle is recorded on the scene.

• If you choose a language that has 3-letter-language code, the code

will be displayed every time you change the subtitle language

setting. If you choose any other languages, [---] will be displayed

instead. ➠ p.27

• Ejecting the disc will cancel your subtitle setting.

Audio LanguageAudio Language

DVD

This unit allows you to select an audio language (if multiple

languages are available) during DVD playback.

1 During playback, press AUDIO repeatedly until the

desired language appears.

1.ENG

Dolby D

3/2.1ch 48k/3

audio can be varied on the

displayed number

current audio language

2 Each time you press AUDIO, the audio language changes

as follows.

ENG English audio

SPA Spanish audio

FRE French audio

33

English

INTRODUCTION PREPARATION WATCHING TV

USING FUNCTIONS OPERATING DVD

CONNECTING DEVICES

INFORMATION USEFUL TIPS

Note

• Some discs will only allow you to change the audio setting from

the disc menu. Refer to the manual accompanying the discs for

details.

• If your language is not shown after pressing AUDIO several times,

the disc may not have that language.

However, some discs allow you to change multiple audio languages

setting in the disc menu. (Operation varies depending on the disc,

so refer to the manual along with the disc.)

• When [NOT AVAILABLE] appears on the TV screen, it means

audio language is not available.

Camera AnglesCamera Angles

DVD

Some DVD may contain scenes which have been shot

simultaneously from various angles. You can change the camera

angle if [ ] appears on the screen. If [ANGLE ICON] is set

to [OFF] in [OTHERS] menu, [ ] will not appear. ➠ p. 26.

1 During playback, press MODE repeatedly until [ ]

appears.

2 Use ▲/▼ repeatedly until your desired camera angle

appears.

1 / 8

(ANGLE)

angles can be varied on the

displayed number

3 Press BACK to exit.

Black Level Setting Black Level Setting

DVD

Adjust the black level to make the dark areas of the TV picture

brighter.

1 During playback, press MODE repeatedly until [ ]

appears.

2 Press ▲/▼ to adjust the black level.

ON Makes the dark areas brighter.

OFF Shows the original picture as recorded.

3 Press BACK to exit.

Note

• The setting will be kept even if the unit goes into standby mode.

Stereo Sound ModeStereo Sound Mode

CD

This unit allows you to select a sound mode during CD

playback.

1 During playback, press AUDIO repeatedly until the

desired sound mode appears.

2 Each time you press AUDIO, the sound mode changes as

follows.

STEREO Stereo sound with left and right channels.

L-ch Left channel sound only.

R-ch Right channel sound only.

Note

• Virtual surround cannot be changed when the sound mode is set

to either [L-ch] or [R-ch].

Virtual Surround Virtual Surround

You can enjoy virtual surround on your 2 channel stereo

system.

1 During playback, press MODE repeatedly until [ ]

appears.

2 Press ▲/▼ to select the sound level.

1Natural effect.

2Emphasized effect.

OFF No effects (original sound).

3 Press BACK to exit.

Note

• The setting will be kept even if the unit is turned off.

• For audio CD, virtual surround will not be effective if the sound

mode is set to something other than [STEREO].

[Stereo Sound Mode]. ➠ p. 33

• Turn down the level or select [OFF] if the sound is distorted.

Marker SetupMarker Setup

This feature allows you to assign a specifi c point on a disc to

be called back later.

To set a marker

1 During playback, press MODE repeatedly until

[ ] / [ ] appears.

2 Use ▲/▼ repeatedly until marker search menu appears.

3 Use ◄/► to select an available marker within 60 seconds.

4 When the playback reaches the point at which you want to

set a marker, press ENTER.

• Marker is now set.

5

Press BACK to exit.

To return to the marker later

1 Repeat steps 1-2 in [To set a marker]. Use ◄/► to select

the desired marker.

2 Press ENTER at the desired marker to restart playback

from the specifi c point which you set.

Note

• Marker search menu will disappear in about 60 seconds when

there is no input.

• You can mark up to 10 points.

• To clear a marker, select the marker to be cleared, and then press

CLEAR.

• Ejecting the disc or turning off the power will erase all markers.

• Selecting [ ] at step 3 in the section [To set a marker] will

also erase all markers.

34

CONNECTING DEVICES

No supplied cables are used with these connections:

• Please purchase the necessary cables at your local store.

Before you connect:

Be sure other device is connected properly before plugging in

the AC power cord.

External Device Connection

HDMI Connection

HDMI connection offers the highest picture quality.

HDMI (High-Defi nition Multimedia Interface) transports high defi nition

digital video and multi-channel digital audio through a single cable.

HDMI OUT

CHAPTER 15

REPEAT A-B

TITLE 5

BD/DVD recorderBD/DVD recorder

with the HDMI output jackwith the HDMI output jack

HDMI cable HDMI cable or

HDMI-DVI Connection

Use an HDMI-DVI conversion cable to connect the unit to

external video devices equipped with DVI output jack.

(Use HDMI 1 Input jack only and Audio L/R below HDMI 1

Input jack on rear of TV.)

STEREO

PCM

AUDIO OUT

RL

DVI OUT

HDMI-DVI conversion cableHDMI-DVI conversion cable

cable receiver or satellite box cable receiver or satellite box

with the DVI output jackwith the DVI output jack

audio cables audio cables

To HDMI 1 Input

jack only

Note

• Use an HDMI cable with the HDMI logo (a certifi ed HDMI cable).

High Speed HDMI cable is recommended for the better

compatibility.

For HDMI connection (use HDMI 1 or 2 jack)

• The unit accepts 480i, 480p, 720p, 1080i and 1080p 24/60 Hz of

video signals, and 32kHz, 44.1kHz and 48kHz of audio signals.

• This unit accepts only 2 channel audio signal (LPCM).

• You need to select "PCM" for the digital audio of the device you

connected or check the HDMI audio setting. There may be no

audio output if you select "Bitstream", etc.

• This unit accepts only signals in compliance with EIA861.

For HDMI-DVI connection

• The unit accepts 480i, 480p, 720p, 1080i and 1080p video signals.

• HDMI-DVI connection requires separate audio connections as well

and the audio signals are converted from digital to analog.

• DVI does not display 480i image which is not in compliance with

EIA/CEA-861/861B.

Component Video Connection

Component Video connection offers better picture quality for

video devices connected to the unit.

If you connect to the unit’s Component Video Input jacks,

connect audio cables to the Audio L/R Input jacks right beside

the Component Video connector.

CHAPTER 15

REPEAT A-B

TITLE 5

COMPONENT VIDEO OUT

Pr/CrPb/CbY

AUDIO OUT

RL

(red)(red)(blue)(blue)(green)(green)

BD/DVD recorder with BD/DVD recorder with

the component video output jacksthe component video output jacks

audio cables audio cables

component video cables (redcomponent video cables (red

/ /

blueblue

/ /

green)green)

Note

• The unit accepts 480i / 480p / 720p and 1080i of video signals for

this connection.

S-Video Connection

S-Video connection offers good picture quality for video

devices connected to the unit.

If you connect to the unit’s S-Video Input jack, connect audio

cables to the Audio L/R jacks below the Video connector.

CHAPTER 15

REPEAT A-B

TITLE 5

AUDIO OUT

RL

S-VIDEO

OUT

S-Video cable S-Video cable

BD/DVD recorder, camcorder and BD/DVD recorder, camcorder and

VCR with the S-Video output jack VCR with the S-Video output jack

audio cables audio cables

35

English

INTRODUCTION PREPARATION WATCHING TV

USING FUNCTIONS OPERATING DVD

CONNECTING DEVICES

INFORMATION USEFUL TIPS

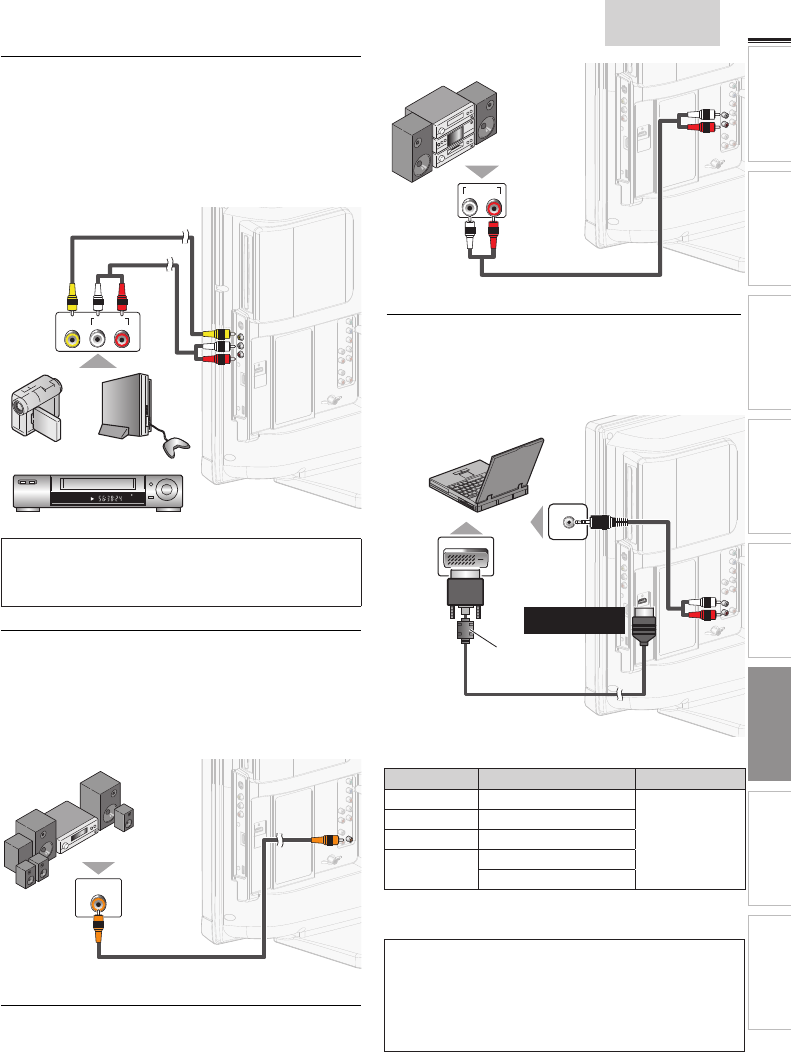

Composite Video Connection

Composite Video connection offers standard picture quality

for video devices connected to the unit. If you connect to the

unit’s Composite Video Input jack, connect audio cables to

the Audio L/R Input jacks right beside the Composite Video

connector.

When the audio jack of the video device is monaural, connect

an audio cable to the Audio L Input jack.

STEREO STAND-BY

AUDIO OUT

RL

VIDEO

OUT

audio cables audio cables

video cable video cable

camcorder camcorder video game video game

VCRVCR

Note

• If you connect to the S-Video Input jack and the Composite Video

Input jack at the same time, the S-Video connection will have

priority.

Digital Audio Output Connection

(for digital broadcasting and DVD functions only)

If you connect this unit to an external digital audio device, you

can enjoy multi-channel audio like 5.1ch digital broadcasting

sound.

Use a digital audio coaxial cable to connect the unit to

external digital audio devices.

DIGITAL AUDIO

COAXIAL IN

Dolby Digital Dolby Digital

decoderdecoder

digital audio coaxial cabledigital audio coaxial cable

Analog Audio Output Connection

(for both analog and digital broadcasting)

If you connect this unit to an external analog audio device, you

can enjoy stereo (2-channel) audio.

Use an audio cable to connect the unit to external analog

audio devices.

AUDIO IN

RL

stereo system stereo system

audio cables audio cables

PC Connection

This unit can be connected to your PC that has a DVI terminal.

Use an HDMI-DVI conversion cable for this connection and it

requires stereo mini plug conversion cable as well. If you connect

this unit to your PC, you can use this unit as a PC monitor.

DVI OUT stereo mini plugstereo mini plug

conversion cablesconversion cables

HDMI-DVIHDMI-DVI

conversion cableconversion cable

HDMI-DVI conversion HDMI-DVI conversion

cable should be with cable should be with

ferrite core.ferrite core.

personal computerpersonal computer

To HDMI 1 Input

jack only

The following video signals can be displayed:

Format Resolution Refresh rate

VGA 640 x 480

60Hz

SVGA 800 x 600

XGA 1,024 x 768

WXGA 1,280 x 768

1,360 x 768

Other formats or non-standard signals will not be displayed

correctly.

Note

• Please purchase the HDMI-DVI conversion cable that has a ferrite

core.

• The following operations may reduce noise.

- Attach a ferrite core to the AC power cord of your PC.

- Unplug the AC power cord and use the built-in battery of your

PC.

36

USEFUL TIPS

Troubleshooting Guide

If the unit does not perform properly when operated as instructed in this manual,

check the following chart and all connections once before calling for service.

Symptom Remedy

T

V

No power

• Make sure the AC power cord is plugged in.

• Make sure that the AC outlet supplies the proper voltage, plug another electrical appliance into

the AC outlet to ensure that AC outlet operates normally.

• If a power failure occurs, unplug the AC power cord for 1 minute to allow the unit to reset itself.

Control button's do not work. • Press only one button at a time. Do NOT press more than one button at the same time.

• Ensure that no buttons on the remote are depressed and move freely.

Power is ON but no screen image.

• Check whether the connection of the antenna, cable receiver or satellite box is connected

correctly.

• Check whether all the cables to the unit are connected to the correct output jack of your device

like BD / DVD recorder.

• Make sure that the selected input mode is connected to the working input jack.

• Check if your computer is NOT in sleep mode when the input mode of this unit is in PC mode.

Tap any key on the keyboard to wake up your computer.

No picture or sound

• Check if the power is on.

• Check if the correct input mode is selected.

• Check whether all the cables to the unit are connected to the correct output jack of your device

like BD / DVD recorder.

• View other TV channels. The problem might be limited to the broadcasting station or weak signal

strength.

• Unplug the AC power cord and wait for about 1 minute, then plug the AC power cord and turn

on the unit again.

• Check whether the connection of the antenna, cable receiver or satellite box is connected

correctly.

• Make sure that the selected input mode is connected to the working input jack.

• Check if your computer is NOT in sleep mode when the input mode of this unit is in PC mode.

Tap any key on the keyboard to wake up your computer.

• Make sure that the sound is not muted. Press MUTE so that the volume bar and current

volume level will appear on the TV screen.

• Make sure that the volume is NOT set to [0] or [Mute]. If so, use VOL. ▲/▼ to adjust the desired

volume.

No color • View other TV channels. The problem might be limited to the broadcasting station.

• Adjust [Color] in the main menu.

Adjusted [Picture] or [Sound]

settings are not effective every time

the unit is turned on.

• You must set [Home] in [Location]. ➠ p. 24

Otherwise, the settings you adjusted will not be memorized after the unit goes into standby mode.

Sound okay, picture poor

• Electrical interference from nearby appliances may affect picture quality.

• Adjust [Contrast] and [Brightness] in the main menu.

• View other TV channels. The problem might be limited to the broadcasting station or weak signal

strength.

• For the best picture quality, watch "High Definition" wide screen programs.

If the HD content is not available, watch "Standard Definition" programs instead.

Picture okay, sound poor

• View other TV channels. The problem might be limited to the broadcasting station or weak signal

strength.

• Check if the audio cable is connected in correctly.

You see a distorted picture or hear

an unusual sound.

• You may be getting interference from electrical appliances, automobiles, motorcycles or fl uorescent

lights.

• Try moving the unit to another location to see if this is the cause of the problem.

Ghosts, lines or streaks in picture • Electrical interference from nearby appliances may affect picture quality.

• View other TV channels. The problem might be limited to the broadcasting station.

You see "noise" or "trash" on the

screen.

• When the capabilities of the unit exceed the capabilities of the digital broadcasting, the signal will

be increased to match the capabilities of the display of the unit. This may cause noise or trash.

Different color marks on the TV

screen

• View other TV channels. The problem might be limited to the broadcasting station, missing data or

pixelation.

You switch to a different input and

the volume changes.

• This unit will memorize the volume level froam the last time you adjusted it.

• If the volume of the sound from another device is higher or lower, then the loudness will change.

You switch to a different input and

the screen size changes. • This unit will memorize the viewing mode from the last time you used the particular input modes.

37

English

INTRODUCTION PREPARATION WATCHING TV

USING FUNCTIONS OPERATING DVD

CONNECTING DEVICES

INFORMATION

USEFUL TIPS

Symptom Remedy

T

V

The display image does not cover

the entire screen. • If you are watching TV or using the Composite Video, Component Video or HDMI with 480i Input,

press SCREEN MODE repeatedly to switch various screen modes.

Captions are displayed as a white

box. No caption is displayed in

the Closed Caption-supported

program.

• Interference from buildings or weather conditions may cause captioning to be incomplete.

• Broadcasting station may shorten the program to insert advertisement.

The closed caption decoder cannot read the information of the shortened program.

No caption is displayed when

playing back a disc or a cassette

tape containing captions.

• The disc or cassette tape may be illegally copied, or the caption signal might not have been read

during copying.

Black box is displayed on the TV

screen. • The text mode is selected for caption. Select [CC-1], [CC-2], [CC-3], [CC-4] or [Off].

D

V

D

Completely distorted picture or

black/white picture with DVD. • Make sure the disc is compatible with the unit.

Picture freezes momentarily during

playback. • Check the disc for fi nger prints/scratches and clean with a soft cloth wiping from center to edge.

Disc cannot be played.

• Clean the disc.

• Ensure the disc is correctly inserted.

• Check if the disc is defective by trying another disc.

• Cancel the parental lock or change the control level.

• Insert a correct disc that plays on this unit.

• Handle a disc with special care so that it does not have fi ngerprints, scratches, or dusts on its

surface.

Buttons do not work or the unit

stops responding. • To completely reset the unit, unplug the AC power cord from the power outlet for 5-10 seconds.

The unit does not respond to

some operating commands during

playback.

• Operations may not be permitted by the disc. Refer to the instructions of the disc.

Angle does not switch. • The angle cannot be switched for DVD which do not contain multiple angles. In some cases

multiple angles are only recorded for specifi c scenes.

Playback does not start when the

title is selected. • Check the [PARENTAL] setting.

The password for rating level has

been forgotten. • Enter the default password (4737), then your forgotten password will be cleared.

Note

• The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a fi xed point of blue,

green or red.

This is not to be considered a defect in the LCD screen.

• Some functions are not available in specifi c modes, but this is not a malfunction. Read the description in this manual for more details on

correct operations.

• Some functions are prohibited on some discs.

38

FAQ

Question Answer

My remote control does not work.

What should I do?

• Check the antenna or cable connection to the main unit.

• Check the batteries of the remote control.

• Check if there is an obstacle between the infrared sensor window and the remote control.

• Test the signal output. If okay, then possible infrared sensor trouble. [IR Signal Check] ➠ p. 39

• Aim the remote control directly at the infrared sensor window on the front of the unit.

• Reduce the distance to the unit.

• Re-insert the batteries with their polarities (+/− signs) as indicated.

• When there is an infrared-equipped device such as PC near this unit, it may interrupt the remote

control signal of this unit.

• Move the infrared-equipped device away from this unit, change the angle of the infrared sensor or

turn off the infrared communication function.

How come the Initial setup

appears every time I turn on this

unit?

• Connect the RF coaxial cable to the unit directly and run the initial setup.

• Make sure to complete the channel scan before the unit goes into standby mode.

Why can I not watch some RF

signal TV programs.

• Make sure [Autoprogram] has been completed. ➠ p. 19

• Autoprogram must be completed when you set up the unit for the fi rst time or move it to a location

where previously unavailable channels are broadcast.

• The selected channel may not be broadcasting.

• When [Autoprogram] is interrupted and not completed, some channels will not be received. Make

sure to complete the Autoprogram. ➠ p. 19

• The selected channel cannot be viewed by the [Child Lock] setting. ➠ p. 21

• The unit requires some kind of antenna input. An indoor antenna (VHF / UHF), an external antenna

(VHF / UHF) or an RF coaxial cable from your wall cable/satellite box needs to be plugged into the

unit.

How come there is no image from

the connected external devices?

• Check if the correct input mode is selected by pressing INPUT SELECT or using CH ▲/▼.

[Switching Each Input Mode] ➠ p. 14

• Check the antenna or cable connection to the unit.

• When using the Component Video Connection check that the Green (Y), Blue (Pb/Cb) and Red (Pr/

Cr) connectors are connected to their corresponding colored jacks on the unit.

When I enter a channel number, it

changes automatically.

• Many digital channels have alternate channel numbers. The unit changes the numbers automatically to

the ones signifying the broadcasting station channel number. These basic numbers used for previous

analog broadcasts. (e.g., input ch#30 auto changes to ch#6.1)

My disc cannot be played back.

Is there any way I can play my disc?

• Clean the disc.

• Ensure the disc is correctly inserted.

• Check if the disc is defective by trying another disc.

• Cancel the parental lock or change the control level.

• Insert a correct disc that plays back on this unit.

• Handle a disc with special care so that it does not have fi ngerprints, scratches or dusts on its surface.

Why are captions not displayed

entirely? Or, captions are delayed

behind the dialog.

• Captions that are delayed a few seconds behind the actual dialog are common for live broadcasts.

Most captioning production companies can display a dialog to maximum of 220 words per minute. If

a dialog exceeds that rate, selective editing is used to insure that the captions remain up-to date with

the current TV screen dialog.

How can I set the clock ? • There is no clock function on this unit.

I cannot change the [Child Lock]

setting because my PIN code no

longer works.

• If a Power failure occurs for longer than 10 seconds the child lock setting is retained, but the PIN code

is set to the default code “0000”. [Child Lock] ➠ p. 21

39

English

INTRODUCTION PREPARATION WATCHING TV

USING FUNCTIONS OPERATING DVD

CONNECTING DEVICES

INFORMATION

USEFUL TIPS

INFORMATION

Glossary

ATSC

Acronym that stands for Advanced Television Systems Committee and

the name of the digital broadcasting standards.

Aspect Ratio

The width of a TV screen relative to its height. Conventional TVs are 4:3

(in other words, the TV screen is almost square); widescreen models

are 16:9 (the TV screen is almost twice as wide as its height).

CEC (Consumer Electronics Control)

This allows you to operate the linked functions between our brand

devices with CEC feature and this unit. We do not guarantee 100%

interoperability with other brands of CEC compliant devices.

Component Video

This is a video signal format that conveys each of 3 principal colors

of light (red, blue and green) through different signal lines. This allows

the viewers to experience picture colors as original as it is. There are

several signal formats, including Y / Pb / Pr and Y / Cb / Cr.

Dolby Digital

The system developed by Dolby Laboratories to compress digital

sound. It offers stereo sound (2ch) or multi-channel audio.

HDMI (High-Definition Multimedia Interface)

Interface that supports all uncompressed, digital audio / video formats

including set-top box, BD / DVD recorder or digital television, over a

single cable.

HDTV (High Definition TV)

Ultimate digital format that produces high resolution and high picture

quality.

NTSC

Acronym that stands for National Television Systems Committee and

the name of analog broadcasting standards.

Off the air NTSC signals are no longer being sent by major

broadcasting stations in the USA.

PIN code

A stored 4-digit number that allows access to parental control features.

Region Code

Regions associate discs and players with particular areas of the world.

This unit will only play back discs that have compatible region codes.

You can find the region code of your unit by looking on the rear panel.

Some discs are compatible with more than one region (or all regions).

SAP (Secondary Audio Program)

Second-audio channel delivered separately from main-audio channel.

This audio channel is used as an alternate in bilingual broadcasting.

SDTV (Standard Definition TV)

Standard digital format that is similar to the NTSC picture quality.

S-Video

Offers higher quality images by delivering each signal, color (c) and

luminance (y) independently of each other through a single cable.

Maintenance

Cabinet Cleaning

• Wipe the front panel and other exterior surfaces of the

unit with a soft cloth.

• Never use a solvent or alcohol. Do not spray insecticide

liquid near the unit. Such chemicals may cause damage and

discoloration to the exposed surfaces.

Panel Cleaning

Wipe the panel of the unit with a soft cloth. Before cleaning

the panel, disconnect the AC power cord.

Disc Handling

Handle the discs so that fi ngerprints and dust do not adhere

to the surfaces of the discs.

• Always store the disc in its protective case when it is not

used.

• To clean-off, use a soft cloth.

• Do not use a hard cloth since this will mar the disc.

• Wipe the disc in a straight line form center to edge.

• Never wipe with a circular motion.

• Do not use detergent or abrasive cleaning agents.

Servicing

Should your unit become inoperative, do not try to correct

the problem yourself. There are no user serviceable parts

inside. Call our toll free customer support line found on the

cover of this manual to locate an authorized service center.

If the Laser Optical Pickup Unit is Dirty

If the unit still does not perform properly when it is operated,

while referring to the relevant sections and to [Troubleshooting

Guide] in this manual, the laser optical pickup unit may be

dirty. Consult your dealer or an Authorized Service Center for

inspection and cleaning of the laser optical pickup unit.

IR Signal Check

If the remote control is not working properly, you can use a

digital camera (including a cellular phone with built-in camera)

to see if it is sending out an infrared signal.

With a digital camera

(including built-in cell phone cameras):

Point the Digital Camera towards the remote

control infrared diode at the front of the

remote control. Press any button on the

remote control and look through the camera

display. If the infrared pulsating light appears

through the camera, the remote control is

sending out an IR signal.

40

General Specifi cations

TV

TV format ATSC / NTSC-M TV standard

Closed Caption system

§15.122 / FCC (digital CC)

§15.119 / FCC (analog CC)

Channel coverage (ATSC / NTSC)

Terrestrial DTV (ATSC)

VHF 2~13

UHF 14~51 each channel has e.g.)

2.1~2.9, 3.1~3.9, etc.

Terrestrial Analog (NTSC)

VHF 2~13

UHF 14~69

CATV 2~13, A~W,

W+1~W+94 (analog W+1~W+84),

A-5~A-1, 5A

Tuning system Channel frequency synthesized tuning

system

Channel access Direct access keyboard,

Programmable scan, and up / down

DVD

Discs (playback compatibility)

DVD-video, DVD-RW/-R,

audio CD, CD-RW/-R

Frequency response

DVD (linear sound) 20 Hz to 20 kHz (sample rate: 48 kHz)

20 Hz to 44 kHz (sample rate: 96 kHz)

CD 20 Hz to 20 kHz

Signal-to-noise ratio (S/N ratio)

CD 90 dB (JEITA)

Total distortion factor

DVD 1 KHz 0.007% (JEITA)

CD 1 KHz 0.007% (JEITA)

Electrical Specifi cation

Audio Output 5W, 8 Ω x 2

• Designs and specifi cations are subject to change without

notice and without our legal obligation.

• If there is a discrepancy between languages, the default

language will be English.

Other Specifi cations

Terminals

Antenna Input VHF / UHF / CATV 75 Ω unbalanced (F-type)

Audio Input RCA jack (L/R) x 6 500mV rms

Composite Video Input

RCA jack x 1 1 V p-p (75 Ω)

S-Video Input

Mini DIN 4 pin jack x 1 Y1V p-p (75 Ω)

C286 mV p-p (75Ω)

Component Video Input

RCA jack x 3 Y1V p-p (75 Ω)

Pb/Cb 700 mV p-p (75Ω)

Pr/Cr 700 mV p-p (75Ω)

HDMI Input HDMI 19 pin x 2

Digital Audio Output (coaxial)

RCA jack x 1 500 mV p-p (75 Ω)

Analog Audio Output

RCA jack (L/R) x 2 500 mV rms

Remote control

Digital encoded infrared light system

Operating temperature

41 °F (5 °C) to 104 °F (40 °C)

Power requirements

120V~ AC +/− 10 %, 60 Hz +/− 0.5 %

Power consumption (maximum)

150W

LCD 32 inches (31.5 inches measured diagonally)

Dimensions <without base> <with base>

Width 30.0 inches (760.0 mm) 30.0 inches (760.0 mm)

Height 20.5 inches (519.3 mm) 22.2 inches (563.0 mm)

Depth 5.1 inches (127.5 mm) 9.3 inches (234.0 mm)

Weight 20.51 lbs. (9.30 kg) 21.61 lbs. (9.80 kg)

41

English

INTRODUCTION PREPARATION WATCHING TV

USING FUNCTIONS OPERATING DVD

CONNECTING DEVICES

INFORMATION

USEFUL TIPS

LIMITED WARRANTY

NINETY (90) DAY LABOR / ONE (1)YEAR PARTS

WARRANTY COVERAGE:

This warranty obligation is limited to the terms as set forth

below.

WHO IS COVERED:

This product warranty is issued to the original purchaser or the

person receiving the product as a gift against defects in materials

and workmanship as based on the date of original purchase

(“Warranty Period”) from an Authorized Dealer. The original

sales receipt showing the product name and the purchase date

from an authorized retailer is considered such proof.

WHAT IS COVERED:

This warranty covers new products if a defect in material or

workmanship occurs and a valid claim is received within the

Warranty Period. At its option, the company will either (1)

repair the product at no charge, using new or refurbished

replacement parts, or (2) exchange the product with a product

that is new or which has been manufactured from new, or ser-

viceable used parts and is at least functionally equivalent or most

comparable to the original product in current inventory, or (3)

refund the original purchase price of the product.

Replacement products or parts provided under this warranty are

covered against defects in materials and workmanship from the

date of the replacement or repair for ninety (90) days or for the

remaining portion of the original product’s warranty, whichever

provides longer coverage for you. When a product or part is

exchanged, any replacement item becomes your property and the

replaced item becomes company property. When a refund is

given, your product becomes company property.

renewed

Note: Any product sold and identified as refurbished or

carries a ninety (90) day limited warranty.

Replacement product can only be sent if all warranty

requirements are met. Failure to follow all requirements

can result in delay.

WHAT IS NOT COVERED - EXCLUSIONS AND LIMI-

TATIONS:

This Limited Warranty applies only to new company manufac-

to any hardware product or any software, even if packaged or

sold with the product, as manufacturers, suppliers, or publishers

may provide a separate warranty for their own products pack-

aged with the bundled product.

The company is not liable for any damage to or loss of any pro-

grams, data, or other information stored on any media contained

within the product, or other additional product or part not cov-

ered by this warranty. Recovery or reinstallation of programs,

data or other information is not covered under this Limited

Warranty.

This warranty does not apply (a) to damage caused by accident,

abuse, misuse, neglect, misapplication, or non-supplied product,

(b) to damage caused by service performed by anyone other than

company approved Authorized Service Location, (c) to a product

mission, or (d) if any serial number has been removed or defaced,

or (e) product, accessories or consumables sold “AS IS” without

warranty of any kind by including refurbished product sold “AS

IS” by some retailers.

This Limited Warranty does not cover:

• Shipping charges to return defective product.

• Labor charges for installation or setup of the product, adjust-

ment of customer controls on the product, and installation or

repair of antenna/signal source systems outside of the product.

• Product repair and/or part replacement because of improper

installation or maintenance, connections to improper voltage

supply, power line surge, lightning damage, retained images or

tent for extended periods, product cosmetic appearance items

due to normal wear and tear, unauthorized repair or other

cause not within the control of the company.

• Damage or claims for products not being available for use, or

for lost data or lost software.

• Damage from mishandled shipments or transit accidents when

returning product.

it to operate in any country other than the country for which

it was designed, manufactured, approved and/or authorized, or

• A product used for commercial or institutional purposes

(including but not limited to rental purposes).

can be provided.

• Failure to operate per Owner’s Manual.

TO OBTAIN ASSISTANCE…

Contact the Customer Care Center at:

1-866-

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS

WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CON-

SUMER, WITH THE ISSUING COMPANY NOT LIABLE FOR

ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR

BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON

THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY

APPLICABLE LAW, ANY IMPLIED WARRANTY OF MER-

CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE

ON THIS PRODUCT IS LIMITED IN DURATION TO THE

DURATION OF THIS WARRANTY.

Some states do not allow the exclusions or limitation of inciden-

tal or consequential damages, or allow limitations on how long an

implied warranty lasts, so the above limitations or exclusions may

not apply to you.

FUNAI CORPORATION, Inc. 19900 Van Ness Avenue, Torrance, CA 90501

321-3927

Printed in China
