Mobius
Model CCRF-5020-10-WW
IEEE 802.11b Access Port
Hardware Installation Guide
Pre-Release
72-55582-01
May 20, 2002
Copyright
Copyright © 2002 by Symbol Technologies, Inc. All rights reserved. No part of this publication may
be modified or adapted in any way, for any purposes without permission in writing from Symbol
Technologies, Inc. (Symbol). The material in this manual is subject to change without notice. Symbol
reserves the right to make changes to any product to improve reliability, function, or design. No
license is granted, either expressly or by implication, estoppels, or otherwise under any Symbol
Technologies, Inc., intellectual property rights. An implied license only exists for equipment, circuits
and subsystems contained in Symbol products. Symbol, the Symbol logo and Spectrum24 are
registered trademarks of Symbol Technologies, Inc.
Patents
This product is covered by one or more of the following U.S. and foreign Patents:
U.S. Patent No.
4,460,120; 4,496,831; 4,593,186; 4,603,262; 4,607,156; 4,652,750; 4,673,805; 4,736,095;
4,758,717; 4,816,660; 4,845,350; 4,896,026; 4,897,532; 4,923,281; 4,933,538; 4,992,717;
5,015,833; 5,017,765; 5,021,641; 5,029,183; 5,047,617; 5,103,461; 5,113,445; 5,130,520;
5,140,144; 5,142,550; 5,149,950; 5,157,687; 5,168,148; 5,168,149; 5,180,904; 5,216,232;
5,229,591; 5,230,088; 5,235,167; 5,243,655; 5,247,162; 5,250,791; 5,250,792; 5,260,553;
5,262,627; 5,262,628; 5,266,787; 5,278,398; 5,280,162; 5,280,163; 5,280,164; 5,280,498;
5,304,786; 5,304,788; 5,306,900; 5,321,246; 5,324,924; 5,337,361; 5,367,151; 5,373,148;
5,378,882; 5,396,053; 5,396,055; 5,399,846; 5,408,081; 5,410,139; 5,410,140; 5,412,198;
5,418,812; 5,420,411; 5,436,440; 5,444,231; 5,449,891; 5,449,893; 5,468,949; 5,471,042;
5,478,998; 5,479,000; 5,479,002; 5,479,441; 5,504,322; 5,519,577; 5,528,621; 5,532,469;
5,543,610; 5,545,889; 5,552,592; 5,557,093; 5,578,810; 5,581,070; 5,589,679; 5,589,680;
5,608,202; 5,612,531; 5,619,028; 5,627,359; 5,637,852; 5,664,229; 5,668,803; 5,675,139;
5,693,929; 5,698,835; 5,705,800; 5,714,746; 5,723,851; 5,734,152; 5,734,153; 5,742,043;
5,745,794; 5,754,587; 5,762,516; 5,763,863; 5,767,500; 5,789,728; 5,789,731; 5,808,287;
5,811,785; 5,811,787; 5,815,811; 5,821,519; 5,821,520; 5,823,812; 5,828,050; 5,850,078;
5,861,615; 5,874,720; 5,875,415; 5,900,617; 5,902,989; 5,907,146; 5,912,450; 5,914,478;
5,917,173; 5,920,059; 5,923,025; 5,929,420; 5,945,658; 5,945,659; 5,946,194; 5,959,285;
6,002,918; 6,021,947; 6,047,892; 6,050,491; 6,053,413; 6,056,200; 6,065,678; 6,067,297;
6,068,190; 6,082,621; 6,084,528; 6,088,482; 6,092,725; 6,101,483; 6,102,293; 6,104,620;
6,114,712; 6,115,678; 6,119,944; 6,123,265; 6,131,814; 6,138,180; 6,142,379; D305,885; D341,584;
D344,501; D359,483; D362,453; D363,700; D363,918; D370,478; D383,124; D391,250; D405,077;
D406,581; D414,171; D414,172; D418,500; D419,548; D423,468; D424,035; D430,158; D430,159;
D431,562
Invention No. 55,358; 62,539; 69,060; 69,187 (Taiwan); No. 1,601,796; 1,907,875; 1,955,269
(Japan);
European Patent 367,299; 414,281; 367,300; 367,298; UK 2,072,832; France 81/0938; Italy
1,138,713
![](/img.php?id=251366&img=bg3.png)
Symbol Technologies, Inc.
One Symbol Plaza Holtsville, N.Y. 11742-1300
Telephone: (800)SCAN234, (516) 738-2400
Telex: 6711519
http://www.symbol.com
About this Document
Audience
This guide is intended for the technician responsible for installing the Mobius
Wireless LAN Switch. It is also assumed that the technician is familiar with
Ethernet LAN-based networking concepts.
Purpose
The purpose of this document is to provide specifications, features and
guidelines for the installer to use during installation. This document does not
give site-specific installation instructions. Refer to site-specific documentation,
derived from site survey and site network analysis, for detailed installations.
Document Conventions
Before working on any equipment, be aware of the hazards associated with its
installation and use. Also, become familiar with standard practices for preventing
accidents.
Note: Indicates tips, hints and special requirements that the reader should
take note.
Caution! Indicates that care is required. Disregarding cautions can result
in data loss or equipment damage.
WARNING! Indicates a potentially dangerous condition or procedure that
only Symbol-trained personnel should attempt to correct or
perform.
Warnings
WARNING! Only trained and qualified personnel are allowed to install this
equipment.
WARNING! Read all installation instructions and site survey reports, and
verify correct equipment installation before connecting the system to
its power source.
WARNING! Remove any jewelry (rings, watches, necklaces, etc.) while
installing this equipment.
WARNING! Verify that any device connected to this unit is properly wired
and grounded.
WARNING! Verify connecting power circuits have appropriate overload
protection.
WARNING! Attached only approved cables to this device.
WARNING! Verify adequate ventilation around the device, and that
ambient temperatures meet equipment operation specifications.
WARNING! Verify uninterruptible power sources, if equipment is carrying
emergency traffic.
WARNING! Install unit in plenum-rated ceilings only.
WARNING! Do not include the surface assembly for plenum-rated ceiling
mounting.
![](/img.php?id=251366&img=bg6.png)
Mobius Model 5020 Access Port Hardware Installation Guide
Jun/19/2002
Page 6 of 13
Introduction
The Mobius Access Port provides area coverage to 802.11b wireless network
devices. The Access Port includes different installing options, allowing best
placement for the operate with its optimum range.
The standard mounting base allows the unit to get secured to most surfaces by
the use of two screws. The ceiling mounting option allows the unit to attach to
ceiling by a single screw
The Access Port receives power and transfers data through the same (CAT-5)
cable.
Technical Specifications
Operating Voltage 48 vdc (typical)
36 vdc to 57 vdc (range)
Operating Current 10 mA to 150 mA
Peak Current 250 mA
Operating Temperature -20°C to 50°C
Operating Humidity 5% to 95%
Storage Temperature -40° to 70°C
Altitude 2.4 km (operating max)
4.6 km (storage max)
![](/img.php?id=251366&img=bg7.png)
Mobius Model 5020 Access Port Hardware Installation Guide
Jun/19/2002
Page 7 of 13
Drop .8 meter (to concrete)
MTBF 27,000 hrs
Electrostatic Discharge +/-15 kV (air discharge)
+/-8 kV (contact discharge)
+/-2 kV (pin discharge)
Mobius Model 5020 Access Port Hardware Installation Guide
Jun/19/2002
Page 8 of 13
Preparing for Site Installation
Verify that the contents of the box include the following:
• Access Port Assembly
• Surface-Mount Assembly
• Mounting Anchors
• Mounting Screws
• Surface-Mount Badge
• Surface-Mount Cover
• Surface-Mount Light Pipe Screw
• Ceiling-Mount Grommet
• Ceiling-Mount Badge
• Ceiling-Mount Light Pipe Screw
• Installation Guide
Review Site survey and network analysis reports to determine the method for
Access Port installation.

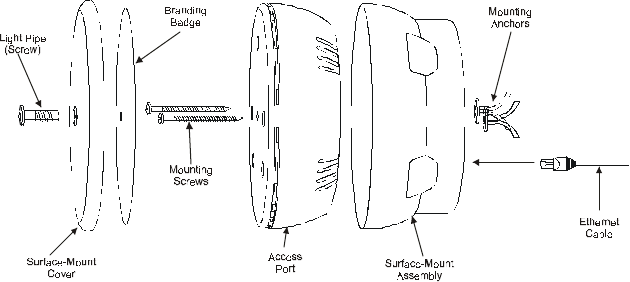

Surface Mounting
Mobius Access Ports mount to any surface, using the surface mounting screws.
Use the mounting mask to determine the proper placement for the unit and the
mounting screws.
![](/img.php?id=251366&img=bg9.png)
Mobius Model 5020 Access Port Hardware Installation Guide
Jun/19/2002
Page 9 of 13
![](/img.php?id=251366&img=bga.png)
Mobius Model 5020 Access Port Hardware Installation Guide
Jun/19/2002
Page 10 of 13

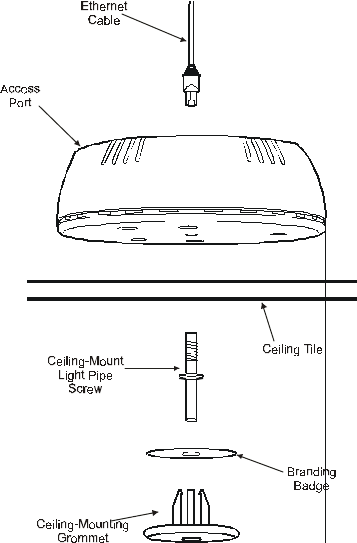

Ceiling Mounting
Some installations require Access Port mounting above the ceiling tile. The type
of installation hides the unit and cable away from visual access.
Note: Use this installation in plenum-rated ceiling configurations. Verify that
the attaching Ethernet cable is also plenum rated.
Caution! Use care when pulling cables attached to a mounted unit.
![](/img.php?id=251366&img=bgb.png)
Mobius Model 5020 Access Port Hardware Installation Guide
Jun/19/2002
Page 11 of 13

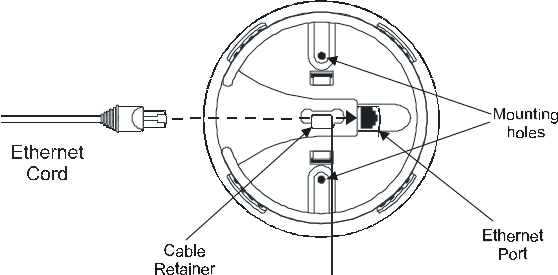

Power/Data (RJ-45) Connection
The Access Port receives power from the Ethernet cable. It supports the
following Symbol-branded Power-Over-Ethernet devices.
Mobius 1-Port Power Port (Model )
Mobius 12-Port Power Port (Model )
Note: Review installation plans to determine device placement and cable
routing.
Mobius Model 5020 Access Port Hardware Installation Guide
Jun/19/2002
Page 12 of 13
Customer Support
Symbol Technologies provides its customers with prompt and accurate
customer support. Use the Symbol Support Center as the primary contact for
any technical problem, question or support issue involving Symbol products.
If the Symbol Customer Support specialists cannot solve a problem,
access to all technical disciplines within Symbol becomes available for
further assistance and support. Symbol Customer Support responds to calls by
email, telephone or fax within the time limits set forth in individual contractual
agreements.
When contacting Symbol Customer Support, please provide the
following information:
• serial number of unit
• model number or product name
• software type and version number.
North American Contacts
Inside North America, contact Symbol by:
• Symbol Technologies, Inc.
One Symbol Plaza
Holtsville, New York 11742-1300
Telephone: 1-516-738-2400/1-800-SCAN 234
Fax: 1-516-738-5990
• Symbol Support Center
telephone: 1-800-653-5350
fax: (516) 563-5410
Email: support@symbol.com
![](/img.php?id=251366&img=bgd.png)
Mobius Model 5020 Access Port Hardware Installation Guide
Jun/19/2002
Page 13 of 13
International Contacts
Outside North America, contact Symbol by:
• Symbol Technologies, Inc.
Symbol Place
Winnersh Triangle, Berkshire, RG41 5TP
United Kingdom
0800-328-2424 (Inside UK)
+44 118 945 7529 (Outside UK)
Symbol Developer Program Web Site
http://software.symbol.com/devzone
Symbol Knowledge Base
http://kb.symbol.com/register.asp
Additional Information
Obtain additional information by contacting Symbol at:
• 1-800-722-6234, inside North America
• +1-516-738-5200, in/outside North America
• http://www.symbol.com/
