Symbol Technologies FR6074 MOBILE COMPUTER User Manual
Symbol Technologies Inc MOBILE COMPUTER Users Manual
Users Manual
F
R
U
s
R
60
7
s
er G
u
7
4 M
o
u
ide
o
bil
e
e
Co
m
m
pu
t
t
e
r
2
FR6074 Mobile Computer
User
Guide
Rev.
A
Jan.
2009
FR6074
User Guide
3
© 2008 by Motorola, Inc. All rights reserved.
No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means,
without permission in writing from Motorola. This includes electronic or mechanical means, such as
photocopying, recording, or information storage and retrieval systems. The material in this manual is subject to
change without notice.
The software is provided strictly on an “as is” basis. All software, including firmware, furnished to the user is on
a licensed basis. Motorola grants to the user a non-transferable and non-exclusive license to use each
software or firmware program delivered hereunder (licensed program). Except as noted below, such license
may not be assigned, sublicensed, or otherwise transferred by the user without prior written consent of
Motorola. No right to copy a licensed program in whole or in part is granted, except as permitted under
copyright law. The user shall not modify, merge, or incorporate any form or portion of a licensed program with
other program material, create a derivative work from a licensed program, or use a licensed program in a
network without written permission from Motorola. The user agrees to maintain Motorola’s copyright notice on
the licensed programs delivered hereunder, and to include the same on any authorized copies it makes, in
whole or in part. The user agrees not to decompile, disassemble, decode, or reverse engineer any licensed
program delivered to the user or any portion thereof.
Motorola reserves the right to make changes to any software or product to improve reliability, function, or
design.
Motorola does not assume any product liability arising out of, or in connection with, the application or use of
any product, circuit, or application described herein.
No license is granted, either expressly or by implication, estoppel, or otherwise under any Motorola, Inc.,
intellectual property rights. An implied license only exists for equipment, circuits, and subsystems contained in
Motorola products.
MOTOROLA and the Stylized M Logo and Symbol and the Symbol logo are registered in the US Patent &
Trademark Office. Bluetooth is a registered trademark of Bluetooth SIG. Microsoft, Windows and ActiveSync
are either registered trademarks or trademarks of Microsoft Corporation. All other product or service names
are the property of their respective owners.
Motorola, Inc.
One Motorola Plaza
Holtsville, New York 11742-1300
http://www.motorola.com
Patents
This product is covered by one or more of the patents listed on the website: www.symbol.com/patents.
FR6074
User Guide
4
Revision History
Changes to the original manual are listed below:
Change
Date
De
scrip
tio
n
-01 Rev. A Initial release.
FR6074
User Guide
5
ECLARATION OF CONFORMITY
CE Regulations:
Hereby, declares that this FR6074 product is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Towhichthisdeclarationrelates,isinconformitywiththefollowingstandards
EN3015119.0.2
EN300328V1.7.1
EN300440‐2V1.2.1
EN301489‐1V1.8.1
EN301489‐3V1.4.1
EN301489‐7V1.3.1
EN301489‐17V1.3.2
EN60950‐1:2001+A11:2004
EN50360:2001/EN62209‐1:2006
EN55022:2006+A1:2007
EN55024:1998+A2:2003+A1:2001
FCC Regulations:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s
authority to operate the equipment.
RF Exposure Information (SAR)
FR6074
User Guide
6
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission of the U.S. Government.
The exposure standard for wireless devices employs a unit of measurement known as the Specific Absorption Rate, or
SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using standard operating positions
accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating
can be well below the maximum value. This is because the device is designed to operate at multiple power levels so
as to use only the poser required to reach the network. In general, the closer you are to a wireless base station
antenna, the lower the power output.
The highest SAR value for the device as reported to the FCC when tested for use at the ear is 0.151 W/kg and when
worn on the body, as described in this user guide, is 0.299 W/kg. (Body-worn measurements differ among device
models, depending upon available enhancements and FCC requirements.)
For WLAN Head SAR and when worn on the body, as described in this user guide, is 0.016 W/kg for WLAN Head SAR
and 0.019 W/kg for WLAN Body SAR.
While there may be differences between the SAR levels of various devices and at various positions, they all meet the
government requirement.
The FCC has granted an Equipment Authorization for this device with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR information on this device is on file with the FCC and can be
found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID: H9PFR6074.
For body worn operation, this device has been tested and meets the FCC RF exposure guidelines for use with an
accessory that contains no metal and the positions the handset a minimum of 1.5 cm from the body. Use of other
enhancements may not ensure compliance with FCC RF exposure guidelines.
Using Your Phone With a Hearing Aid Device
FR6074 is compliant with the FCC Hearing Aid Compatibility (HAC) requirements. For additional HAC information,
including the HAC rating of this product. some wireless phones are used near some hearing devices (hearing aids and
cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune
than others to this interference noise, and phones also vary in the amount of interference they generate. The wireless
telephone industry has developed ratings for some of their mobile phones, to assist hearing-device users in finding
phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that have been
rated have a label on the box. FR6074 has been tested for hearing aid device compatibility and has an M3 and/or T3
rating.
These ratings are not guarantees. Results will vary, depending on the level of immunity of your hearing device and
the degree of your hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to
use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your
personal needs.
M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference with hearing
devices than phones that are not labeled. M4 is the better/higher of the two ratings. T-Ratings: Phones rated T3 or T4
meet FCC requirements and are likely to be more usable with a hearing device’s telecoil (“T Switch” or “Telephone
Switch”) than unrated phones. T4 is the better/higher of the two ratings. (Note that not all hearing devices contain
telecoils.) The more immune your hearing aid device is, the less likely you are to experience interference noise from
your wireless phone. Hearing aid devices should have ratings similar to those of phones. Ask your hearing health-care
professional for the rating of your hearing aid.
Hearing devices may also be measured for immunity to this type of interference. Your
hearing device manufacturer or hearing health professional may help you find results for your hearing device. The more
immune your hearing aid is, the less likely you are to experience interference noise from wireless devices.
For additional information about the FCC's actions with regard to hearing aid compatible wireless devices and other
steps the FCC has taken to ensure that individuals with disabilities have access to telecommunications services, please
go to www.fcc.gov/cgb/dro.
Turning on the HAC Setting
FR6074
User Guide
7
When the HAC setting is on, FR6074 sends the audio from your phone calls to the telecoil rather than to the
microphone of your hearing aid. You are likely to hear calls much better because volume is increased and background
noise and feedback are diminished. The HAC setting improves only the calls you listen to through the earpiece. Turn off
the [Bluetooth] function. Turn off the [WiFi] function. It does not affect calls heard on the speakerphone or with or a
headset. HAC requires extra battery power, so watch your battery consumption when it's turned on.
Table of Contents
ix
8
Table of Contents
About This Guide
Chapter1: Getting Started
Chapter2: Using the FR6074
Chapter3: Using the GPS Navigation
Chapter4: Using Bluetooth
Chapter5: Using the Phone
Chapter6: Accessories
Chapter7: Maintenance & Troubleshooting
iacs
-
is&t
主旨
：
In
reply
to:
9
About
This Guide
Introduction
This guide provides information about using the FR60 Enterprise Digital Assistant (EDA) and accessories.
NOTE
Screens and windows pictured in this guide are samples and can differ from actual screens.
Documentation Set
The documentation set for the FR60 provides information for specific user needs, and includes:
• FR6074 Quick Start Guide - describes how to get the FR6074 up and running.
• FR6074 User Guide - describes how to use the FR6074.
About This Guide
10
Configurations
This guide covers the following configurations:
Configuration Radios
Display Memory
Data
Capture
Operating
S
y
stem
Keypads
FR6074 WPAN:
Bluetooth
WWAN:
GSM
GPS:
A
-GPS
2.8”
VGA
Color
128 MB
RAM/
256 MB
Flash
1D laser
scanner Windows
Mobile 6
Professional
Alphanumeric
keypad
Software
V
e
rsi
ons
This guide covers various software configurations and references are made to operating
system or software versions for:
• Adaptation Kit Update (AKU) version
• Phone version
AKU
V
e
rsion
To determine the Adaptation Kit Update (AKU) version:
Tap Start > Settings > System tab > About icon > Version tab.
The second line lists the operating system version and the build number. The last part of the build
number represents the AKU number. For example, Build 18552.0.7.5 indicates that the device is
running AKU version 0.7.5.
Phone Software
To determine the Phone software version:
Tap Start > Phone > Menu > Options > Phone tab.
About This Guide
11
Chapter Descriptions
Topics covered in this guide are as follows:
• Chapter 1, Getting Started provides information on getting the FR6074 up and
running for the first time.
• Chapter 2, Using the FR6074 provides basic instructions for using the FR6074,
including powering on and resetting the FR6074, and entering and capturing data.
• Chapter 3, Using GPS Navigation provides information about GPS navigation with the
FR6074.
• Chapter 4, Using Bluetooth explains Bluetooth functionality on the FR6074.
• Chapter 5, Using the Phone provides basic instructions for using the FR6074 phone.
• Chapter 6, Accessories describes the available accessories and how to use them
with the FR6074.
• Chapter 7, Maintenance & Troubleshooting includes instructions on cleaning and
storing the FR6074, and provides troubleshooting solutions for potential problems
during FR6074 operation.
• Appendix A, Technical Specifications provides the technical specifications for the
FR6074.
• Appendix B, Voice Quality Manager provides inflammation on using the Voice Quality
Manager software.
Notational Conventions
The following conventions are used in this document:
• “Handy” refers to the Motorola FR6074 series of hand-held computers.
• Italics are used to highlight the following:
• Chapters and sections in this and related documents
• Icons on a screen.
• Bold text is used to highlight the following:
• Dialog box, window, and screen names
• Drop-down list and list box names
• Check box and radio button names
• Key names on a keypad
About This Guide
12
• Button names on a screen.
• bullets (•) indicate:
• Action items
• Lists of alternatives
• Lists of required steps that are not necessarily sequential
• Sequential lists (e.g., those that describe step-by-step procedures) appear as
numbered lists.
Related Documents
• FR6074 Quick Start Guide, p/n 72-103079-xx.
• FR6074 Windows Mobile 6 Regulatory Guide, p/n 72-103080-xx.
• FR6074 Integrator Guide, p/n 72E-103078-xx.
• Microsoft® Applications for Mobile 6 User Guide, p/n 72E-108299-xx
• Enterprise Mobility Application Guide, p/n 72E-68901-xx
• Enterprise Mobility Developer Kits (EMDKs), available at: http://support.symbol.com/.
• Latest ActiveSync software, available at: http://www.microsoft.com.
For the latest version of this guide and all guides, go to: http://www.symbol.com/manuals.
Service Information
If you have a problem with your equipment, contact Motorola Enterprise Mobility support for
your region. Contact information is available at: http://www.symbol.com/contactsupport.
When contacting Enterprise Mobility support, please have the following information available:
• Serial number of the unit
• Model number or product name
• Software type and version number
Motorola responds to calls by email, telephone or fax within the time limits set forth in support
agreements.
If your problem cannot be solved by Motorola Enterprise Mobility Support, you may need to
return your equipment for servicing and will be given specific directions. Motorola is not
responsible for any damages incurred during shipment if the approved shipping container is
About This Guide
13
not used. Shipping the units improperly can possibly void the warranty.
If you purchased your Enterprise Mobility business product from a Motorola business partner,
contact that business partner for support.
11
Chapter 1 Getting Started
Introduction
This chapter lists the parts and accessories for the FR6074 and explains how to install and charge the batteries,
replace the strap, and power on the FR6074 for the first time.
Figure 1-1 FR6074 Front View Figure 1-2 FR6074 Rear View
1. IrDA Window 2. Headset Jack 13. Battery Door 14. Door Latch
3. Scan Button 4. Microphone 15. Speaker 16. Scan Widnow
5. I/O Connector 6. Power button 17. CF Card Slot 18. SD Card Slot
7. Keypad 8. Touch Screen 19. Scan Button 20. Handstrap
9. Scan/Decode LED 10. Charging LED 21. Stylus
11. Radio Status LED 12. Receiver
````````````````````````````` Getting Started
12
Unpacking
Carefully remove all protective material from the FR6074 and save the shipping container for later storage
and shipping.
Verify that you received the following:
• FR6074
• 3600 mAh Lithium-ion battery
• Battery cover/strap assembly
• Tethered stylus

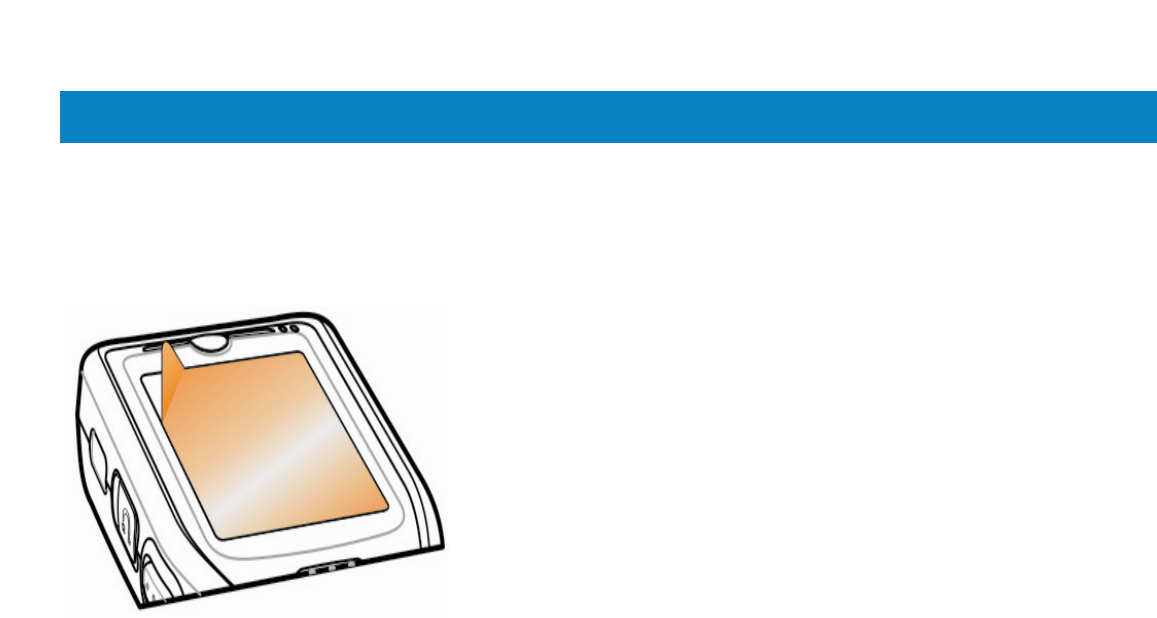

• Protective overlay, installed on display window
• Regulatory Guide
• Quick Start Guide.
Inspect the equipment for damage. If any equipment is missing or damaged, contact the Motorola Enterprise
Mobility Support center immediately. See page xvi for contact information.
````````````````````````````` Getting Started
13
Accessories
Table 1-1 lists the accessories available for the FR6074.
T
abl
e
1-1 FR6074 Accessories
Manufacturing Part Number Description
Cradle
CRD7X00-1000RR
MC70/MC75/FR68/FR6000 Series RoHS
Compliant Single Slot USB Cradle with Spare
Battery Charging: Must Order power adapter
(KT-14000-148) and US AC Line Cord
(23844-00-00R) separately.
Power Adapter
KT-14000-148R
Power adapter (HP-O2040D43) manufacture
from HIPRO with following
(1)Input 100-240V,50-60Hz,1.5A
(2)Output 12V, 3.33A.
50-14000-249R
Power adapter (EADP-16BBA)manufacture
from Delta Electronics Ltd. with following
(1)Input 100-240V,50-60Hz,0.4A
(2)Output 5.4V, 3A.
.
USB Charging Cable
25-118708-01R
FR6000 series USB Charging Cable. Requires
power adapter (P/N:50-14000-249R.)
Model:EADP-16BBA, Manufacture: Delta
Electronics Ltd.
Miscellaneous
KT-76490-01R Battery adapter (shim for 4 slot charge only;
packet of 5)
MN2800AAAPCD FR6074 Cradle Adaptor Clip – Adapts FR6074
mobile computer to the cradle. Pack of 3.
(Orders are placed directly FCA Shanghai)
MN2800BAAPCD FR6074 Cradle Adaptor Clip – Adapts FR6074
mobile computer to the cradle. Pack of 10.
(Orders are placed directly FCA Shanghai)
MN2800AAAPST FR6074 spare stylus with tether. Pack of 3.
(Orders are placed directly FCA Shanghai)
MN2800AAAPSP Screen protector for 2.8” QVGA display. Pack of
3. (Orders are placed directly FCA Shanghai)
90-17C28-001R Hands free headset (earbud). This note ONLY
````````````````````````````` Getting Started
14
applies to orders placed directly with Motorola.
FCA Manila, Minimum order: 100 (in Multiples of
100"s there after).
50-11300-050R GSM/GPRS Metal Headset (1 earpiece with
speaker boom)
Grounded Line Cords
23844-00-00R AC Line Cord, 2.3M, grounded, NEMA 5-15P
plug. Associated Countries: Brazil, United
States
50-16000-217R AC Line Cord, 1.8M, grounded, AS 3112 plug.
Associated Country: Australia, China, New
Guinea
50-16000-219R AC Line Cord, 1.8M, grounded BS1363 plug.
Associated Countries: Hong Kong, Iraq,
Malaysia, Singapore, United Kingdom
50-16000-220R
AC Line Cord, 1.8M, grounded CEE 7/7plug.
Associated Countries: Europe, Abu Dabi,
Bolivia, Dubai, Egypt, Iran, Korea, Russia,
Vietnam
50-16000-221R AC Line Cord, 1.8M, grounded, USA NEMA
5-15P. Associated Countries: Brazil, United
States
50-16000-256R AC Line Cord, 1.8M, grounded,CEE7/7 plug.
Associated Country: Korea
50-16000-257R AC Line Cord, 1.8M, grounded, IEC 60320 C13
plug. Associated Country: China
50-16000-669R AC Lind Cord, 1.8 M grounded, BS 546 Plug.
Associated Country: India
50-16000-671R AC Line Cord, 1.8M grounded, CIE 23-16 plug.
Associated Country: Italy
50-16000-672R AC Line Cord, 1.8M grounded, S132 Plug.
Associated Country: Israel
50-16000-678R AC Line Cord, 36"L grounded. Associated
Countries: Brazil, United States
50-16000-218R AC Line Cord, 1.8M, grounded, NEMA 1-15P
plug. Associated Countries: Japan
Ungrounded Line Cords
50-16000-182R AC Line Cord, 1.8M, ungrounded. Associated
Countries: Brazil, United States
50-16000-255R AC Line Cord, 1.8M ungrounded, CEE7/16.
Europe, Abu Dabi, Bolivia, Dubai, Egypt, Iran,
Korea, Russia, Vietnam
50-16000-666R
A
C Line Cord, 1.8M ungrounded, AS 3112 plug.
Associated Country: Australia
50-16000-664R AC Line Cord, 1.8M ungrounded, GB
2099-1-1996 plug. Associated Country: China
50-16000-670R
AC Lind Cord, 1.8 M ungrounded, BS 1363
Plug. Associated Countries: Bermuda, Hong
Kong, Iraq, Malaysia, Singapore, United
Kingdom
Getting Started
15
Getting Started
To start using the FR6074 for the first time:
• Install the SIM card (FR6074 and FR6074 only)
• Install the main battery.
• Charge the FR6074.
• Power on the FR6074.
• Configure the FR6074.
Installing the SIM Card
NOTE
FR6074 and FR6074 configurations only.
GSM phone service requires a Subscriber Identification Module (SIM) card, or smart card. Obtain this card
from your service provider. The card fits into the FR6074 and can contain the following information:
• Mobile phone service provider account details.
• Information regarding service access and preferences.
• Contact information, which can be moved to Contacts on the FR6074.
• Any additional services to which you have subscribed.
NOTE
For more information about SIM cards, refer to the service provider's documentation.

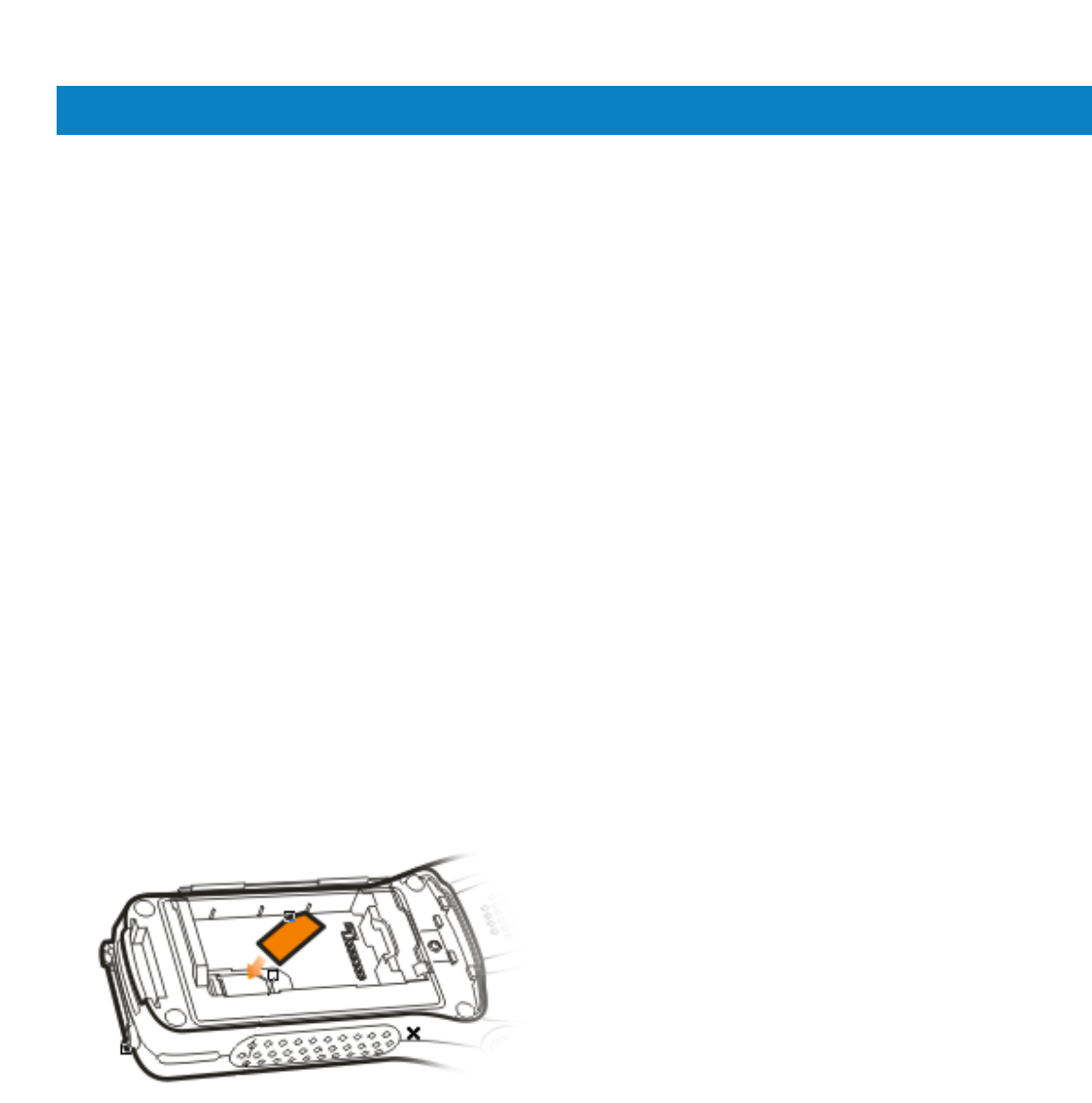

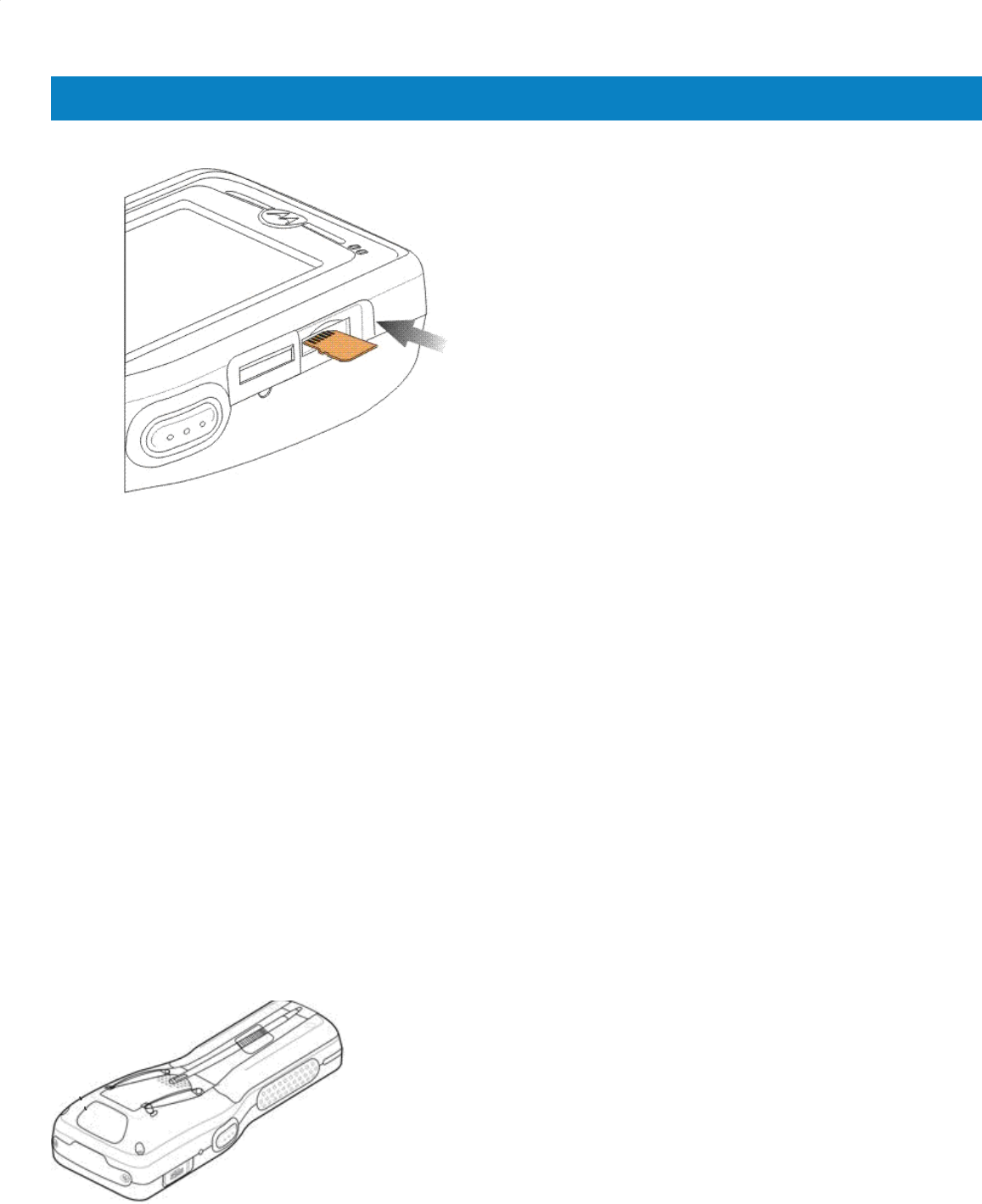

To install the SIM card(Located Under Battery):
Place SIM card with contacts facing down
Figure 1-3 Install the SIM
1. Install the battery See Installing the Main Battery on page 1-6 for more information.
2. Press the red Power button.
3. Tap Start > Phone > Menu > Options > Network tab and verify that the service provider appears in the Current
network: field.
4. Make a call to verify connection.
NOTE
For detailed information about WWAN activation and settings, refer to the FR6074 Integrator Guide.
Getting Started
16
Installing the Main Battery
NOTE
The FR6074 ships with a 3600 mAh battery.
To install the main battery:
1. Insert the battery, top first, into the battery compartment in the back of the FR6074.
NOTE
Position the battery correctly, with the battery charging contacts on top of the charging contacts in the battery
compartment.
2. Press the battery down into the battery compartment until the battery release latch snaps into place.

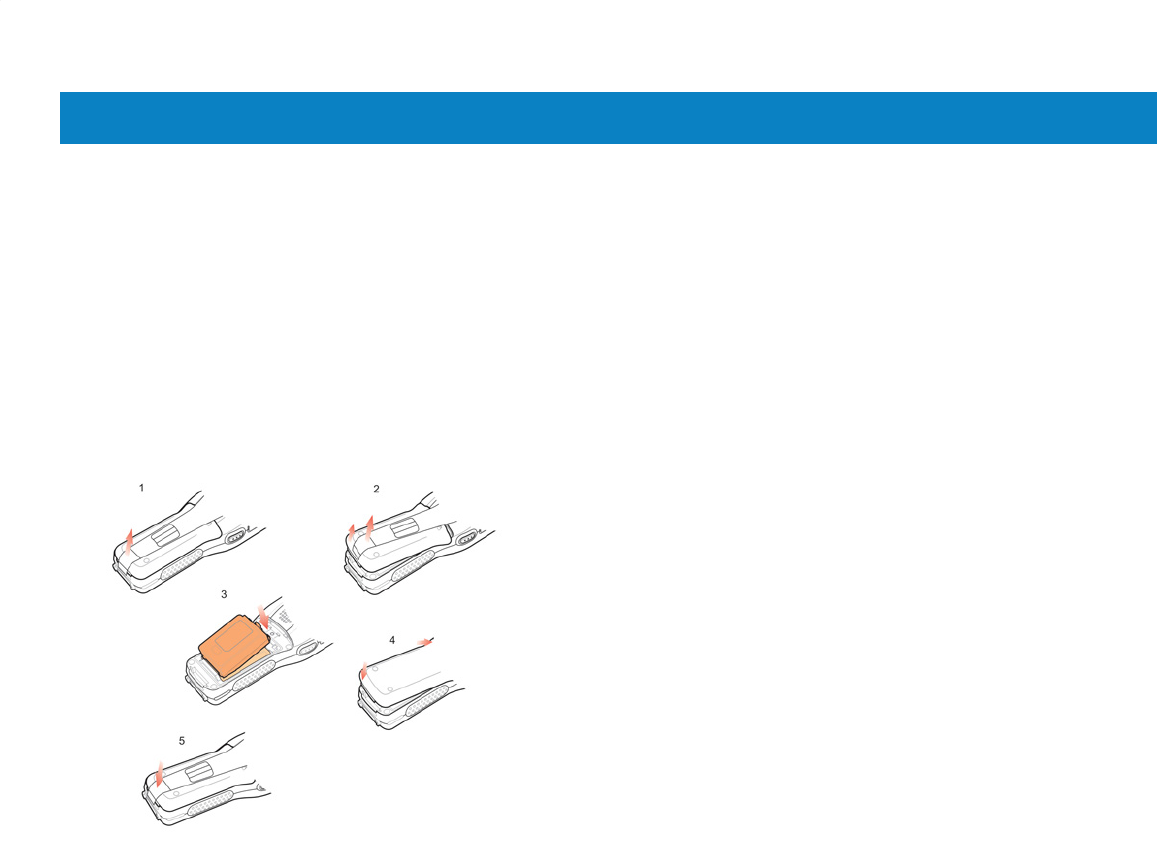

Figure 1-4 Inserting the Battery
3. With the battery cover latches open, insert the cover, bottom first, then press down on the top of the cover.
4. Close the battery cover latches on either side of the battery cover.
5. Insert the handstrap through the handstrap slot, then tighten and press down to secure.
The FR6074 powers up after inserting the battery and replacing the battery cover.
Charging the Battery
CAUTION
Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 7-2.
Charging
the Main
Battery
and
Memory
Backup Battery
Before using the FR6074 for the first time, charge the main battery until the amber Charging/Battery Status LED
remains lit (see Table 1-2 on page 1-7 for charge status indications). To charge the FR6074, use a cable or a cradle
with the appropriate power supply. For information about the accessories available for the FR6074, see Chapter 6,
Accessories.
The FR6074 is equipped with a memory backup battery which automatically charges from the fully-charged main
battery. When using the FR6074 for the first time, the backup battery requires approximately 36 hours to fully charge.
This is also true any time the backup battery is discharged, which occurs when the main battery is removed for several
hours. The backup battery retains RAM data in memory for at least 15 minutes (at room temperature) when the
FR6074's main battery is removed. When the FR6074 reaches a very low battery state, the combination of main
battery and backup battery retains RAM data in memory for at least 48 hours.

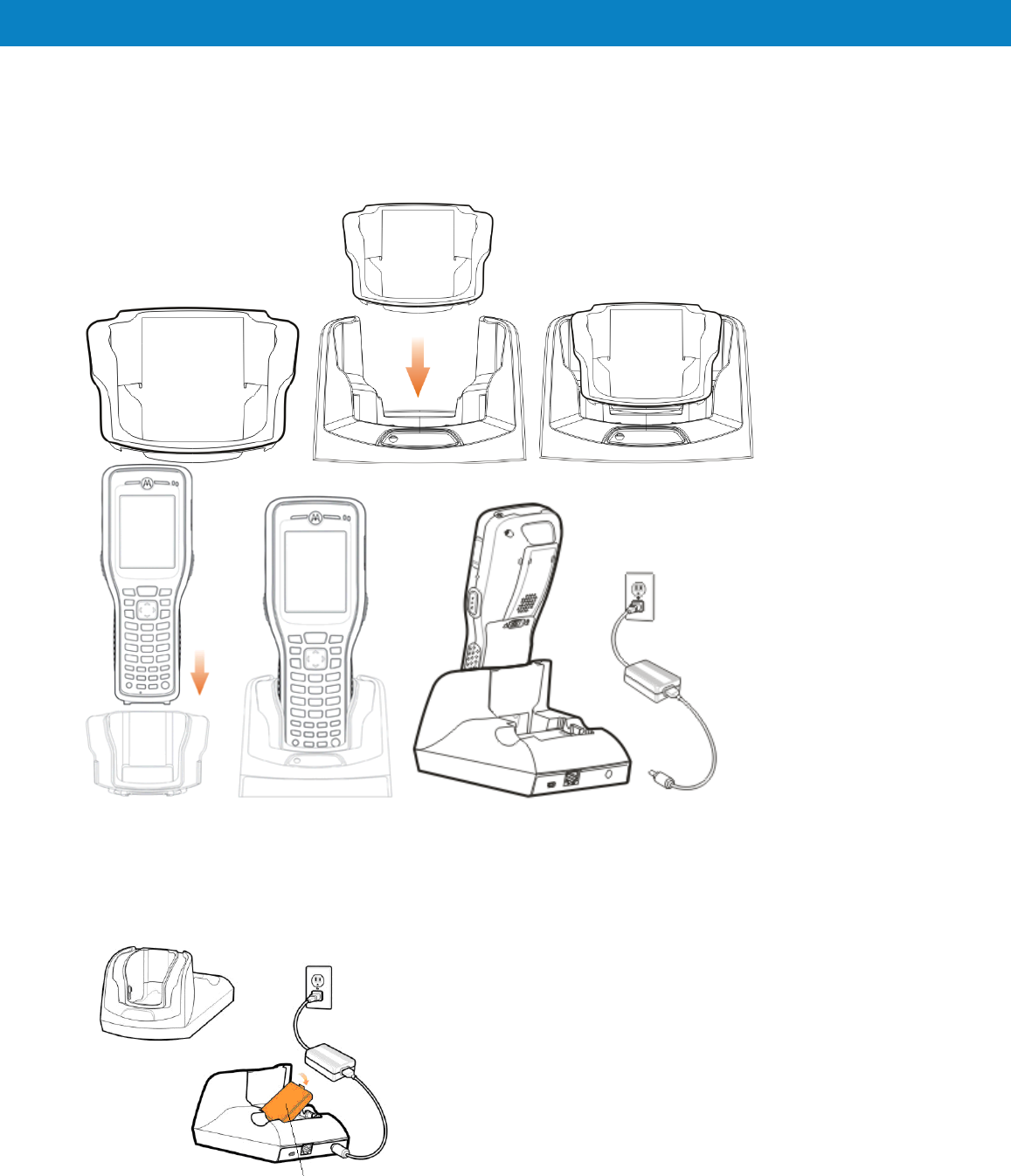

To charge the main battery, use either a charging cable or a cradle. For cable and cradle setup and charging
procedures refer to the FR6074 Integrator Guide.
Getting Started
17
• Single Slot USB/Serial Cradle
• Vehicle Cradle.
To charge the main battery:
1. Connect the charging accessory to the appropriate power source.
2. Insert the FR6074 into a cradle or attach to a cable. The FR6074 begins charging. The Charging/Battery Status
LED blinks amber while charging, then turns solid amber when fully charged. See Table 1-2 for charging
indications.
The 3600 mAh battery fully charges in approximately five hours.
T
abl
e
1-2 LED Charge Indicators
Charging/Battery
Status
LED
Indi
ca
tion
Off FR6074 is not charging.
FR6074 is not inserted correctly in the cradle or connected to a power
source. Charger/cradle is not powered.
Slow Blinking Amber
(1 blink every 2 seconds) FR6074 is charging.
Solid Green Charging complete.
Note: When the battery is initially inserted in the FR6074, the amber LED
flashes once if the battery power is low or the battery is not fully inserted.
Fast Blinking Red
(2 blinks/second) Charging error, e.g.:
• Temperature is too low or too high.
• Charging has gone on too long without completion (typically eight hours).
T
abl
e
1-2 LED Charge Indicators (Continued)
Char
g
in
g
/Batter
y
Status
LED
Indi
ca
tion
Single Blink
A
mbe
r
(when device is turned on) Battery depleted.
Blink Amber (Battery charger temperature is to
o
high.) Battery over-temperature condition.
Charging Spare Batteries
See Chapter 6, Accessories for information on using accessories to change spare batteries.
Charging Temperature
Charge batteries in temperatures from 0°C to 45°C (32°F to 113°F). Charging is intelligently controlled by the
FR6074.
To accomplish this, for small periods of time, the FR6074 or accessory alternately enables and disables battery
charging to keep the battery at acceptable temperatures. The FR6074 or accessory indicates when charging is
disabled due to abnormal temperatures via its LED. See Table 1-2.
Powering On the FR6074
Press the Power button to turn on the FR6074. If the FR6074 does not power on perform a warm boot. See Resetting
Getting Started
18
the FR6074 on page 2-14.
When turning the FR6074 on for the first time, the splash screen displays for about a minute as the FR6074 initializes
its flash file system, then the calibration window appears. Note that these windows also appear upon cold boot.
NOTE
When the FR6074 powers up after inserting a battery for the first time, the device boots and powers on
automatically.
Calibrating the Screen
To calibrate the screen so the cursor on the touch screen aligns with the tip of the stylus:
1. Remove the stylus from its holder on the back of the FR6074.
2. Carefully press and briefly hold the tip of stylus on the center of each target that appears on the screen.
3. Repeat as the target moves around the screen, then tap the screen to continue.

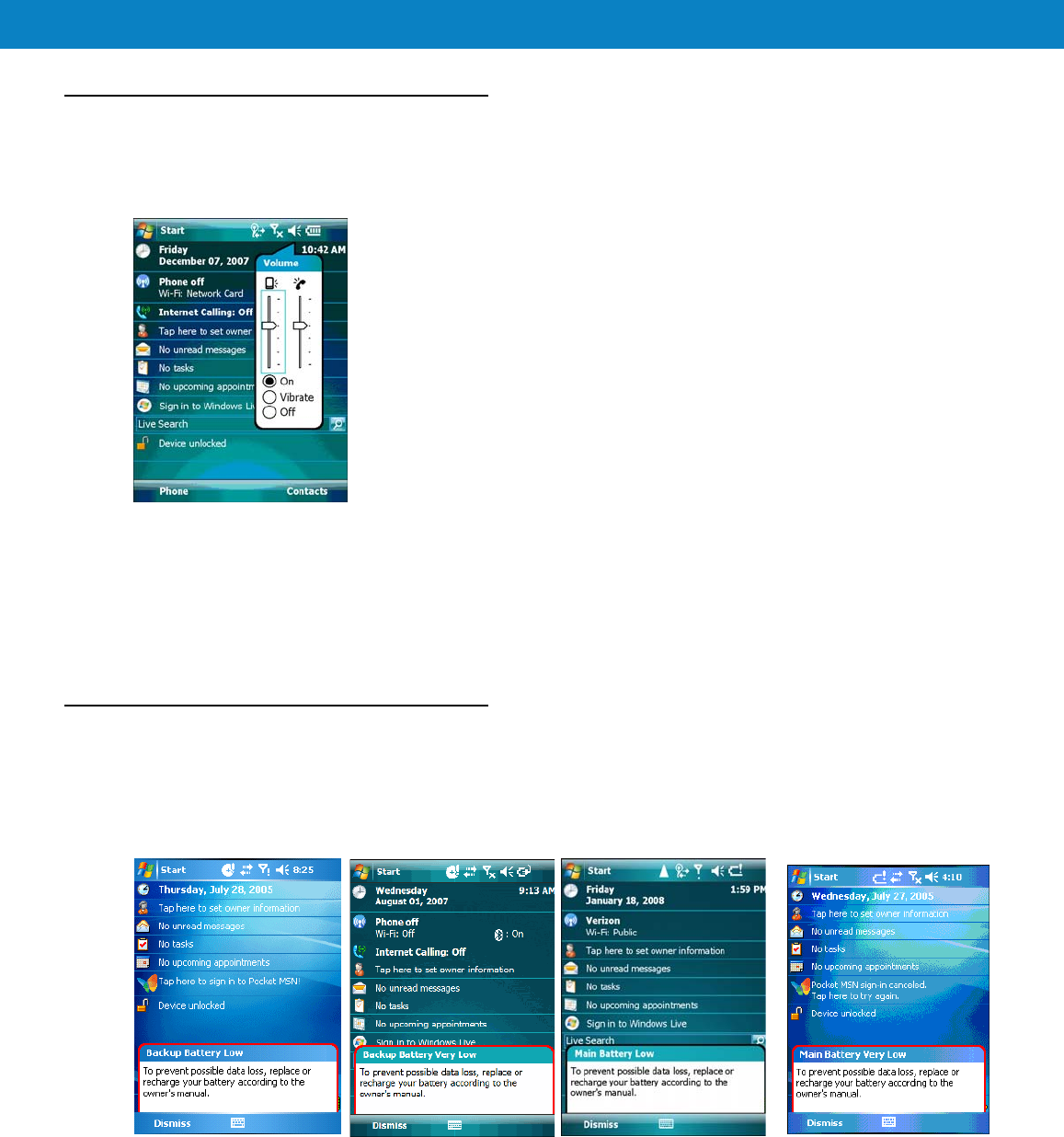

Checking Battery Status
To check the charge status of the main battery or backup battery in the FR6074, tap Start > Settings > System tab >
Power icon to display the Power window.
To save battery power, tap the Advanced tab and set the FR6074 to turn off after a specified number of minutes.

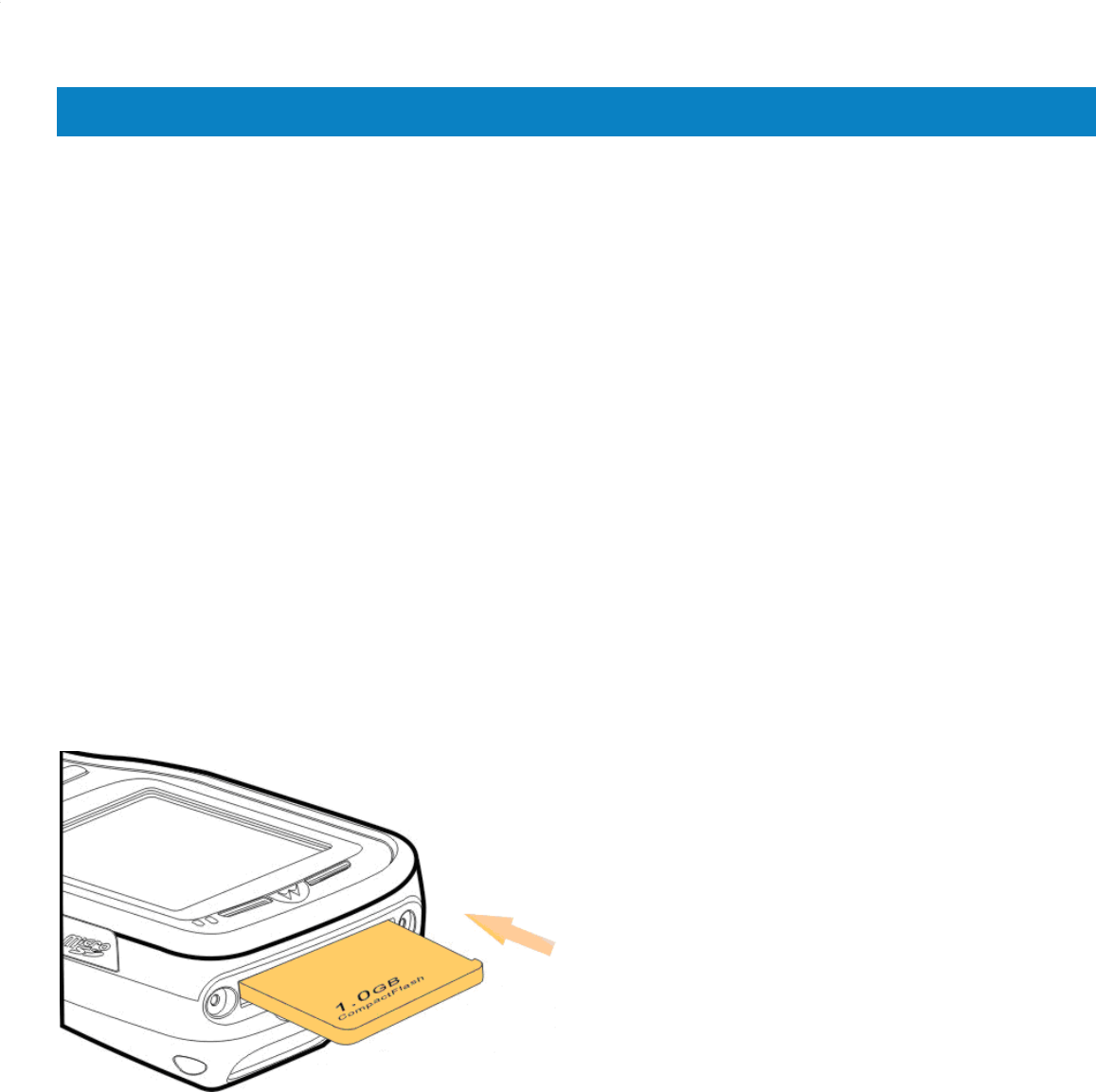

CF Card Installation
First unscrew the plastic cover, and remove it, insert CF card with the front facing up.
Micro Secure Digital (microSD) Card
The microSD card slot provides secondary non-volatile storage. The slot is located on the side of the FR6074 (see
Figure 1-7). Refer to the documentation provided with the card for more information, and follow the manufacturer’s
recommendations for use.
CAUTION
Follow proper ESD precautions to avoid damaging the microSD card. Proper ESD precautions
include, but are not limited to, working on an ESD mat and ensuring that the operator is properly
grounded.
To install the microSD card:
1. Power off the FR6074.
Getting Started
19
2. Remove the memory card cover on the side of the FR6074 .
Figure 1-6 Card Installation
3. Insert the card with the card contacts facing up and the cut corner on the left, until you feel a click.
4. Replace the memory card cover .
To remove an microSD card:
1. Power off the FR6074.
2. Remove the memory card cover.
3. Carefully press and release the card to eject it.
4. Remove the card from the card slot.11/28
5. Replace the memory card cover.
Adjusting
the Handstrap
The FR6074 handstrap is attached to the bottom of the battery cover. Adjust the handstrap to increase comfort
when holding the FR6074 for extended periods of time. To adjust the handstrap:
1. Feed the handstrap through the handstrap slot in either direction, to tighten or loosen.
2. Secure the handstrap by pressing the two sides together.
Getting Started
20
Removing the Screen Protector
A screen protector is applied to the FR6074. Motorola recommends using this to minimize wear and tear. Screen
protectors enhance the usability and durability of touch screen displays.
To remove the screen protector, lift the corner using a thin plastic card, such as a credit card, then carefully lift it off
the display.
Figure 1-7 Removing the Screen Protector
CAUTION
Do not use a sharp object to remove the protector. Doing so can damage the display.
NOTE
Not using a screen protector can affect warranty coverage. To purchase replacement protectors, contact
your local account manager or Motorola, Inc. These include screen protector installation instructions. Part
number: KT-93765-01R Screen Protector 3/pk.
Replacing the Main Battery
1. Press the red Power button to suspend the FR6074.
2. Loosen the handstrap.
3. Open the battery cover latches on either side of the battery cover.
4. Lift the top of the battery cover and remove.
5. Press the battery release latch on the bottom of the battery to unlock, and lift the battery out of the well.
6. Insert the replacement battery, top first, into the battery compartment in the back of the FR6074.
7. Press the battery down into the battery compartment until the battery release latch snaps into place.
NOTE
Position the battery correctly, with the battery charging contacts on top of the charging contacts in the battery
compartment.
8. With the battery cover latches open, insert the cover, bottom first, then press down on the top of the cover.
9. Close the battery cover latches on either side of the battery cover.
10. Insert the handstrap through the handstrap slot, then tighten and press down to secure.
The FR6074 powers up after the battery is inserted and the battery cover is replaced.
Getting Started
21
Battery Management
Observe the following battery saving tips:
NOTE
The FR6074 factory default settings for the WWAN and WLAN radios are
set to ON.
• Leave the FR6074 connected to AC power at all times when not in use.
• Set the FR6074 to turn off after a short period of non-use.
• Set the backlight to turn off after a short period of non-use.
• Turn off all wireless activities when not in use.
• Power off the FR6074 when charging to charge at a faster rate.
Changing the Power Settings
To set the FR6074 to turn off after a short period of non-use:
1. Tap Start > Settings > System tab > Power icon > Advanced tab.
2. Select the On battery power: Turn off device if not used for check
box and select a value from the drop-down list.
3. Select ok.
Changing the Backlight Settings
To change the backlight settings in order to conserve more battery power:
1. Tap Start > Settings > System tab > Backlight icon > Power tab.
2. Select the Turn off backlight if device is not used for check box and select a
value from the drop-down list.
3. Select the Brightness tab.
4. Use the slider to set a low value for the backlight.
5. Select ok.
Getting Started
22
Turning Off the Radios
Windows Mobile 6 devices include Wireless Manager, which provides a simple method of
enabling, disabling, and configuring all the device’s wireless capabilities in one place.
To open Wireless Manager, tap the Connectivity icon or tap Wireless Manager on the Today
screen.
Connectivity icon

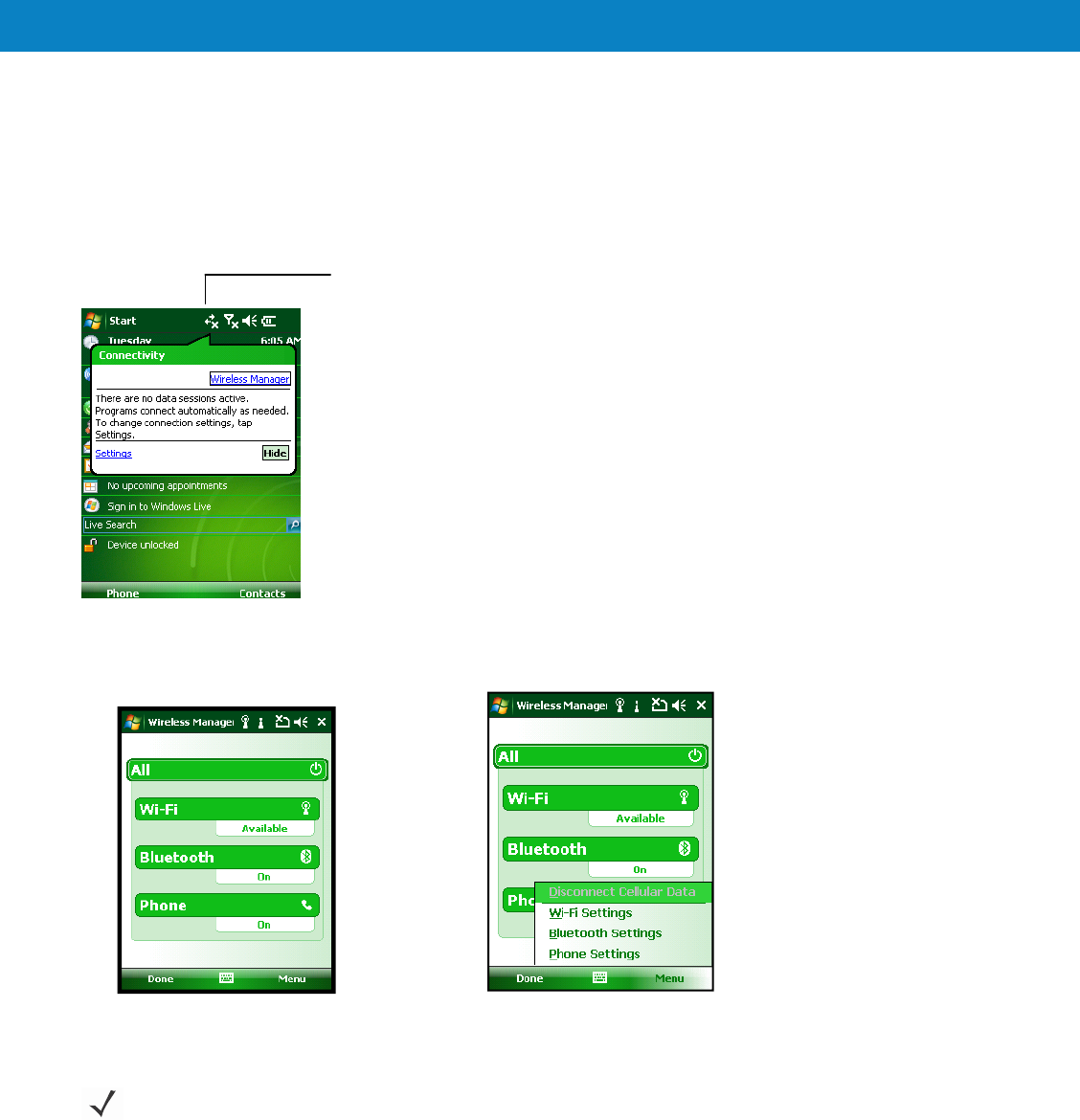

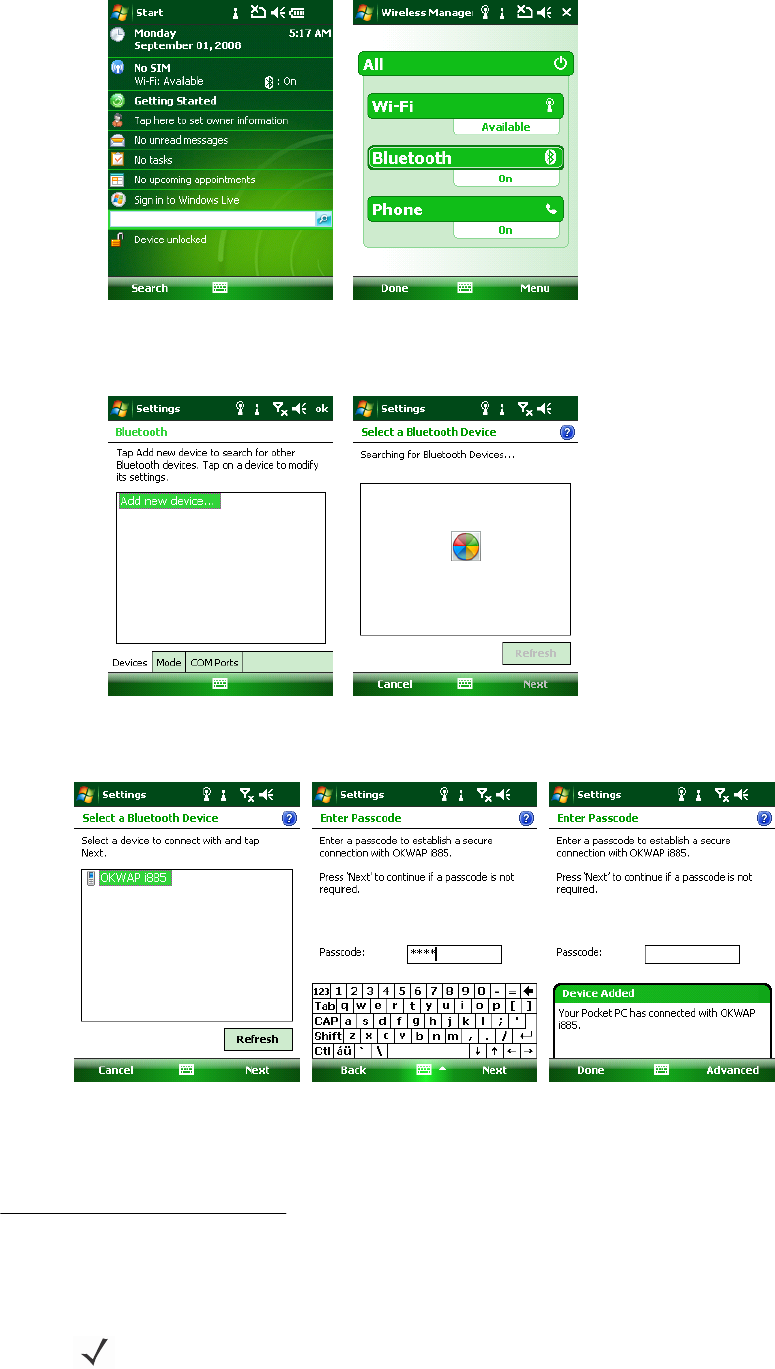

Figure 1-8 Opening Wireless Manager
Select Wireless Manager.

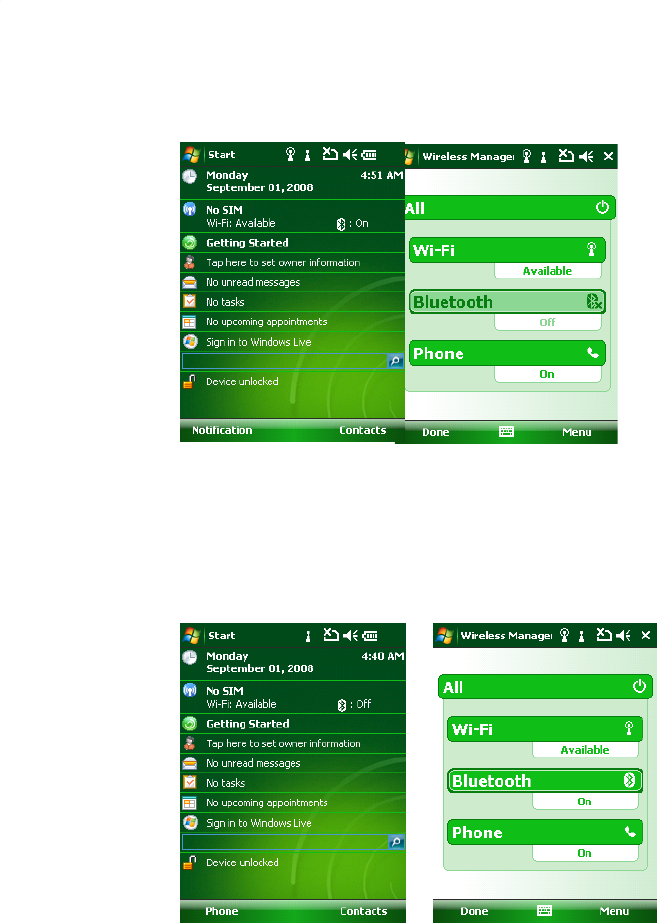

Figure 1-9 Wireless Manager Window Figure 1-10 Wireless Manager Menu
NOTE
Wireless connection options vary depending upon configurations.
To enable or disable a wireless connection, tap the specific button.
To enable or disable all wireless connections, tap the All button. To configure settings for
a connection, tap Menu.
26
Chapter 2 Using the FR6074
Introduction
This chapter explains the buttons, status icons, and controls on the FR6074, and provides basic instructions for
using the FR6074, including powering on and resetting the FR6074, and entering and capturing data.
The FR6074 factory default radio states are:
• Bluetooth - OFF
• Phone - ON
• Wireless LAN - ON.
Today Screen
The Today screen displays important information, such as upcoming appointments and status indicators. Tap a
section on the screen to open the associated program. Alternatively, tap Start > Today to display the Today
screen.
Connectivity
Notification WAN Status
Open the Start Menu Adjust volume
Battery Status
Change the date and time Change the date and time, set up the alarm, and more
Turn on or off radios
Command Bar
Soft Keys
Figure 2-1 Today Screen
Using the FR6076
27
To customize the Today screen, tap Start > Settings > Today icon. Use the Appearance tab to customize the
background and the Items tab to change the list and order of items that appear on the screen.

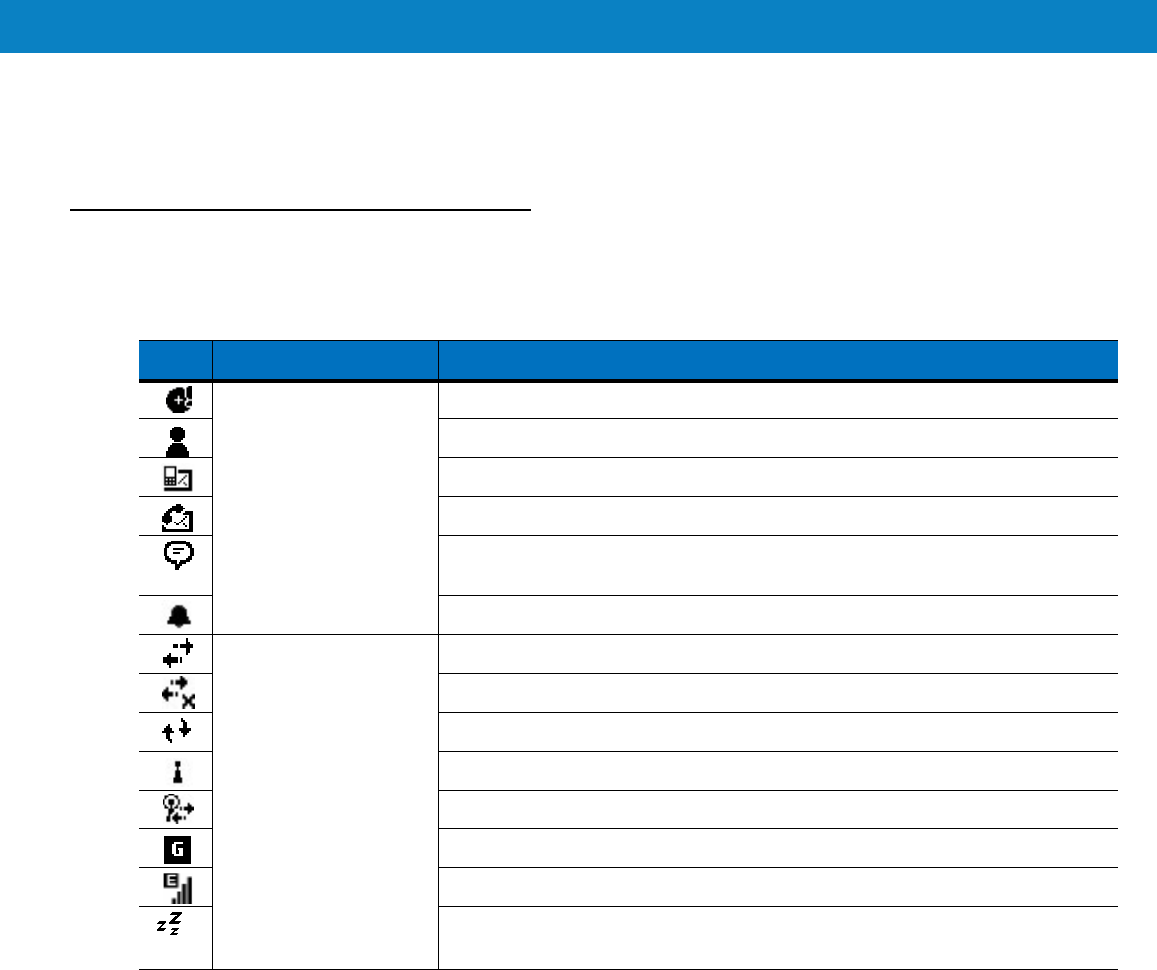

Status Icons
The Navigation bar at the top of the screen can contain the status icons listed in Table 2-1.
T
abl
e
2-1 Status Icons
Icon Function
Des
c
ription
Notification Backup Battery Low.
Notification that one or more instant messages were received.
Notification that one or more e-mail/text messages were received.
Notification that one or more voice messages were received.
There are more notification icons than can be displayed. Tap to display
remaining icons.
Indicates a reminder of an upcoming calendar event.
Connectivity Connection is active.
Connection is not active.
Synchronization is occurring.
Wi-Fi available.
Wi-Fi in use.
GPRS available. (FR6074 and FR6074)
EGPRS available. (FR6074 and FR6074)
Dormant State - no data transmission during a 1x connection. (FR6074 and
FR6074)
T
abl
e
2-
1
Icon
1
Status
I
F
WAN
Speake
r
Battery
Time an
Appoint
m
I
cons (Conti
n
F
unction
r
d Next
m
ent
n
ued)
Call mis
s
Dialing
w
Voice ca
l
Calls ar
e
Call on
h
Speaker
p
A
ntenna
/
A
ntenna
/
Antenna
/
HSDPA
c
HSDPA i
GPRS c
o
GPRS in
EGPRS
c
EGPRS
i
Roamin
g
SIM Car
d
All soun
d
All soun
d
Vibrate i
s
Main bat
Battery
p
Main bat
t
Main bat
t
Displays
2
Des
c
r
s
ed.
w
hile no SIM
l
l in progres
s
e
forwarded.
h
old.
p
hone is on.
/
signal icon:
w
/
signal icon:
w
/
signal icon:
c
onnecting.
n use.
o
nnecting.
use.
c
onnecting.
i
n use.
g
.
d
not installe
d
s are on.
d
s are off.
s
on.
tery is charg
p
ower compl
e
t
ery is low.
t
ery level.
current tim
e
2
8
r
iption
card is insta
s
.
w
i
r
eless on/
g
w
i
r
eless off.
no service
o
d.
ing.
e
tely deplet
e
e
in analog o
r
lled.
g
ood signal.
or
searching.
e
d.
r
digital form
a
U
a
t.
sing the F
R
R
6076
Using the FR6076
29
The command bar at the bottom of the screen can contain the task tray icons listed in Table 2-2.
T
abl
e
2-2 Task Tray Icons
Icon
Bluetooth Enabled Bluetooth radio is on.
Bluetooth Disabled Bluetooth radio is off.
Bluetooth Connection Bluetooth radio is connected to another Bluetooth device.
ActiveSync Active serial connection between the FR6074 and the host computer.
Programs
Table 2-3 lists the default programs in the Start menu.
T
abl
e
2-3 Programs in the Start Menu
Icon
Name
Des
c
ription
Office Mobile Use the complete suite of Microsoft® Office applications for your mobile
device.
Excel Mobile - Create new workbooks or view and edit Microsoft®
Excel® workbooks.
OneNote Mobile - Create new notes or view existing notes.
PowerPoint Mobile - View Microsoft® PowerPoint® slides and
presentations.
Word Mobile - Create, view, and edit Microsoft® Word documents.
Calendar Keep track of appointments and create meeting requests.
Contacts Keep track of friends and colleagues.
Internet Explorer Mobile Browse Web and WAP sites as well as download new programs and
files from the Internet.
Messaging Send and receive e-mail, MMS, and text messages.
Phone Make and receive calls, switch between calls, and set up conference
calling.
Help See Help topics for the current screen or program.
Using the FR6076
30

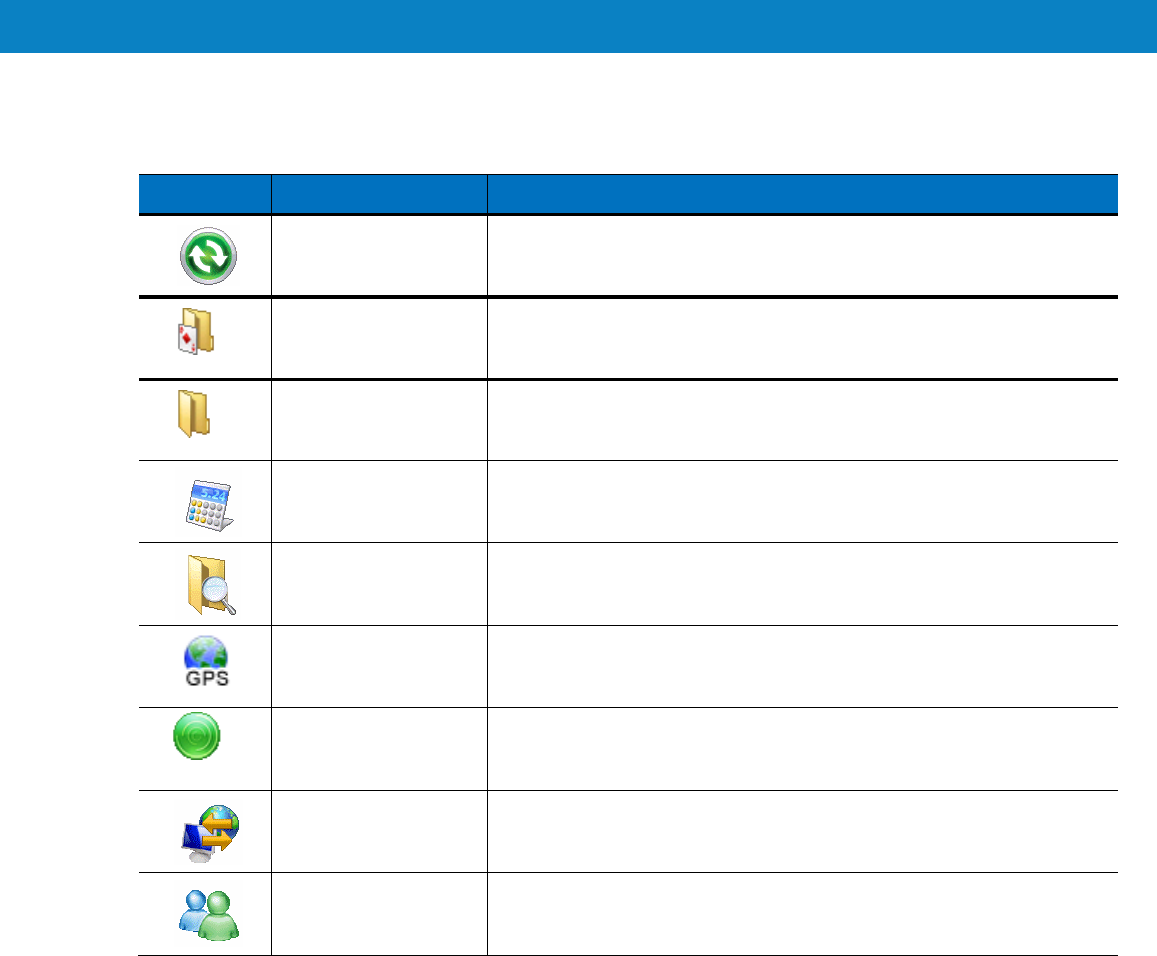

Table 2-4 lists programs that are listed in the Programs window.
T
abl
e
2-4 Programs in Program Window
Icon
Name
Des
c
ription
ActiveSync Synchronize information between the FR6074 and a host computer or
the
Exchange Server.
Games Bubble Breaker, Solitaire
Sample AP DataWedge, Notify, and Scanner
Calculator Perform basic arithmetic and calculations, such as addition,
subtraction, multiplication, and division.
File Explorer Organize and manage files on your device.
GPSXtra Allow you to download GPS data to enhance GPS performance
Getting Started Display help on how to use some functions
Internet Sharing Connect a notebook computer to the Internet using the FR6074's
data connection.
Messenger Use this mobile version of Windows Live Messenger.
Using the FR6076
31
T
abl
e
2-4 Programs in Program Window (Continued)
Icon
Name
Des
c
ription
Notes Create handwritten or typed notes, drawings, and voice recordings.
Pictures & Videos View and manage pictures, animated GIFs, and video files.
Search Search contacts, data, and other information on your FR6074.
SIM Toolkit Manage the contacts that are stored on your SIM card. Copy SIM
contents to Contacts on the FR6074.
Task Manager Show and stop all the tasks on run
Tasks Keep track of your tasks.
Windows Live Use this mobile version of Windows Live™ to find information on the
web.
Windows Media Player
Mobile Play back audio and video files.
Using the FR6076
32

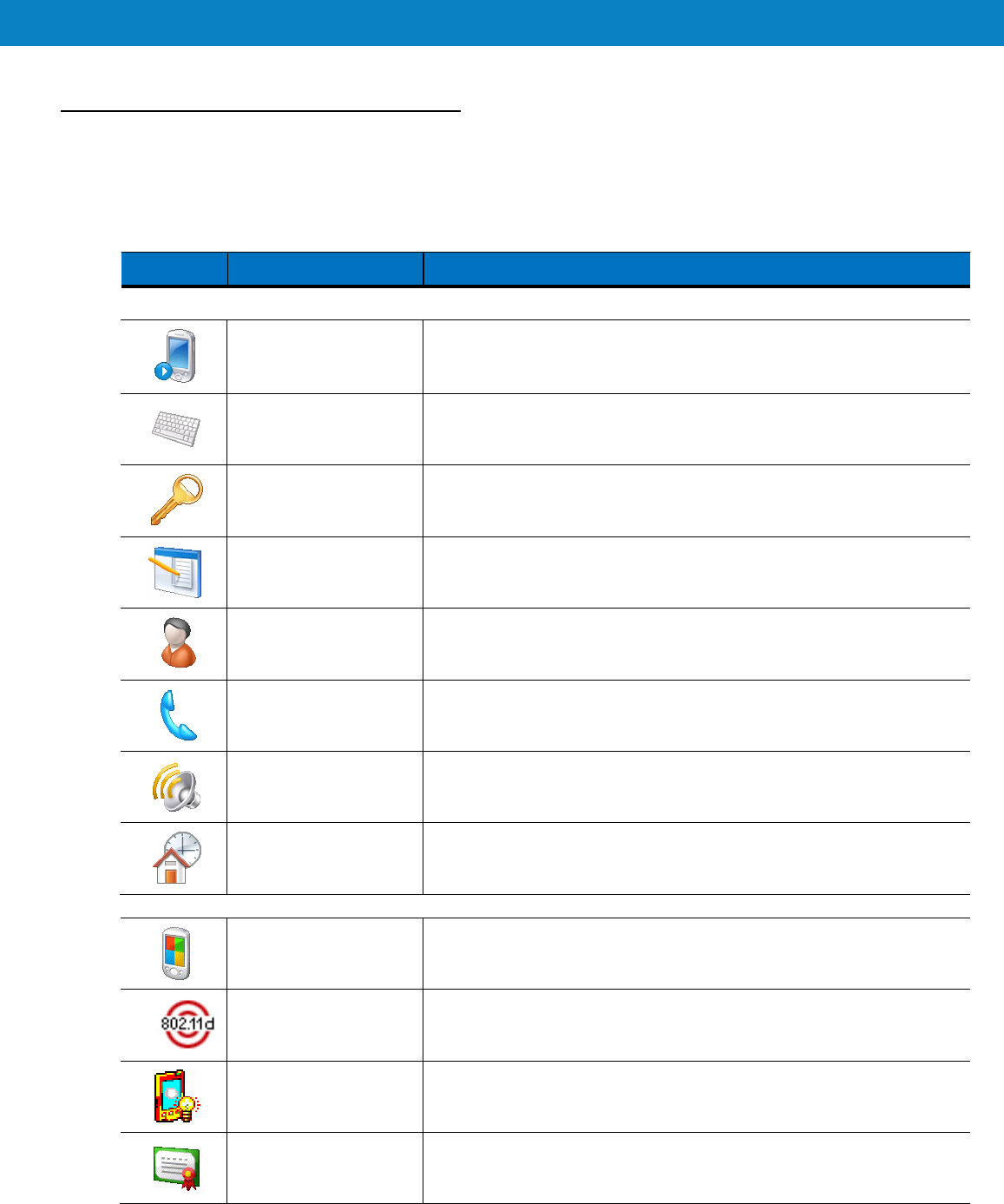

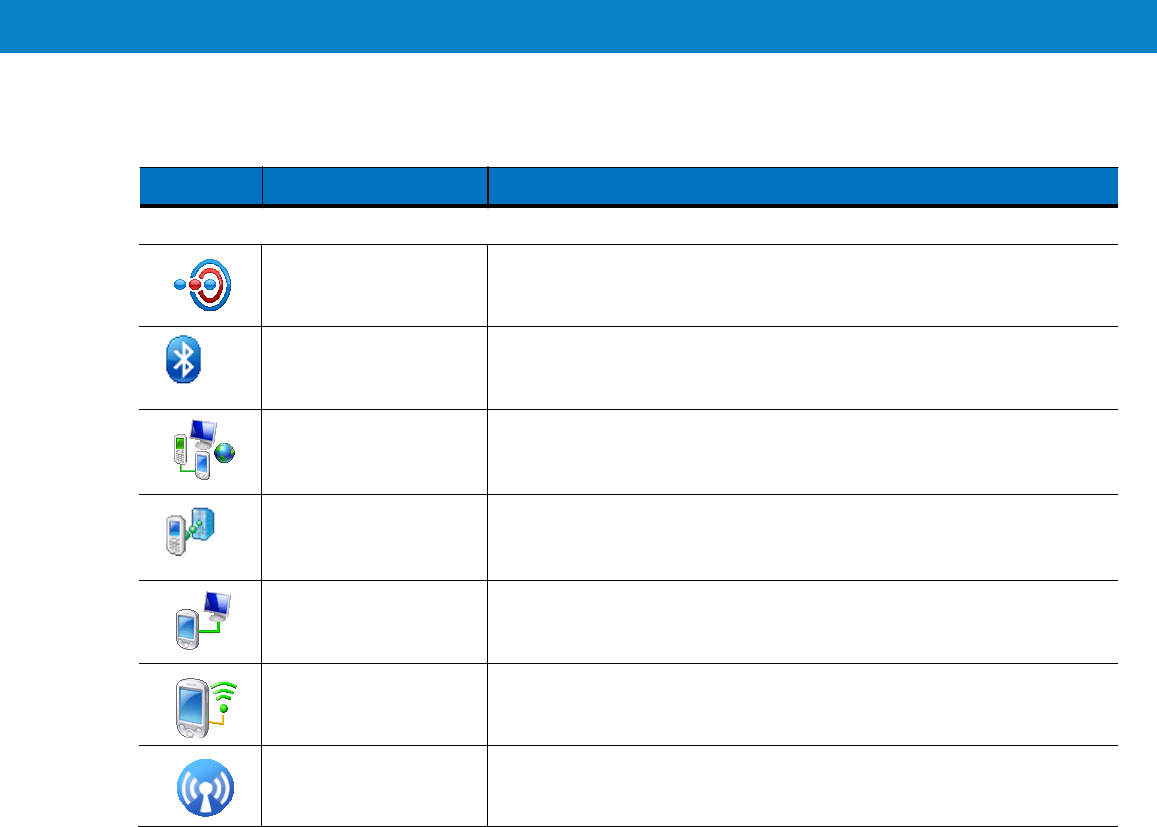

Settings
Table 2-5 lists control applications pre installed on the FR6074. Tap Start > Settings to open the Settings window.
T
abl
e
2-5 Settings in the Setting Window
Icon Name
Des
c
ription
Personal Tab
Buttons Assign a program to a button.
Input Set options for each of the input methods.
Lock Set a password for the FR6074.
Menus Set what programs appear in the Start menu.
Owner Information Enter personal information on the FR6074.
Phone Make and receive calls, switch between calls, and set up conference
calling.
Sounds & Notifications Enable sounds for events, notifications, and more, and set the type of
notification for different events.
Today Customize the appearance and the information to be displayed on the
Today screen.
System Tab
About View basic information such as the Windows Mobile® version and type
of processor used on the FR6074.
802.11d Tools Enable or disable 802.11d
Backlight Set the display backlight time-out and adjust brightness.
Certificates See information about certificates installed on the FR6074.
Using the FR6076
33
Clock & Alarms Set the device clock to the date and time of your locale or to a visiting
time zone when you’re traveling. Alarms can also be set at specified
days and times of a week.
Customer Feedback Submit feedback on the Windows Mobile 6 software.
Device information Displays the FR6074’s software and hardware information.
Encryption Allow files on a storage card to be encrypted. Encrypted files are
readable only on your device.
Enroller Allow you to get a Certificate from Certificate servers.
Error Reporting Enable or disable the device's error reporting function. When this
function is enabled and a program error occurs, technical data about
the state of the program and your computer is logged in a text file and
d
e
livered
to
Microso
f
t
'
s
technical
support
if you
choose
to
send
it
External GPS Set the appropriate GPS communication ports, if required. You may
need to do this when there are programs on your device that access
GPS data or you have connected a GPS receiver to the FR6074.
Managed Programs View installation history.
Memory Check the device memory allocation status and memory card
information and stop currently running programs.
Power Check battery power and set the time-out for turning off the display to
conserve battery power.
Regional Settings Set the regional configuration to use, including the format for displaying
numbers, currency, date, and time on the FR6074.
Remove Programs Remove programs that you installed on the FR6074.
Screen Change the screen orientation, re-calibrate the screen, and change the
screen text size.
Windows Update Link to Microsoft's web site and update Windows Mobile® on your
device with the latest security patches or fixes. Do not use. Obtain
updates from Motorola.
Using the FR6076
34
T
abl
e
2-5 Settings in the Setting Window (Continued)
Icon Name
Des
c
ription
Connections Tab
Beam Set the FR6074 to receive incoming IrDA beams and bluetooth beam.
Bluetooth Search for other Bluetooth devices.
Connections Set up one or more types of modem connections for your device, such
as phone dial-up, GPRS, Bluetooth, and more, so that your device can
connect to the Internet or a private local network.
Domain Enroll Enroll in domain.
USB to PC Enables or disables the enhanced network connectivity.
Wi-Fi Setup wireless network connection and customize settings.
Wireless Manager Enables or disables the FR6074’s wireless radios and customizes
Wi-Fi, Bluetooth and Phone settings.
Using the FR6076
35
Adjusting Volume
To adjust the system volume using the Speaker icon in the navigation bar:
1. Tap the Speaker icon. The Volume dialog box appears.
Figure 2-2 Volume Dialog Box
2. Tap and move the slide bar to adjust the volume.
3. Select the On or Off radio button to turn the volume on or off.
You can also adjust the system volume using the Sounds & Notifications window, or use the Up/Down button on
the side of the FR6074.
Battery Status Indications
Battery icons appear on the navigation bar indicating the battery power level. When the main battery or backup
battery power falls below a predetermined level, the icon indicates the status and a battery dialog box appears
indicating the status of the main or backup battery.
Figure 2-3 Battery Status Dialog Box
The Battery icon always appears in the navigation bar when the Today screen is visible. The icon indicates the
battery power level. The message displays until the Dismiss button is pressed.
Using the FR6076
36
Figure 2-4 Battery Icon on the Title Bar
Also view the battery status using the Power window.
Power Setting
1. Ta p Start > Settings > Power icon > Main tab. A power remaining capacity bar appears.
Figure 2-5 Main Tab
2. Tick the following options to save the power, and tap ok.
Figure 2-6 Advanced Tab
Using the FR6076
37
3. Select Slow charge or Fast charge, and tap ok.

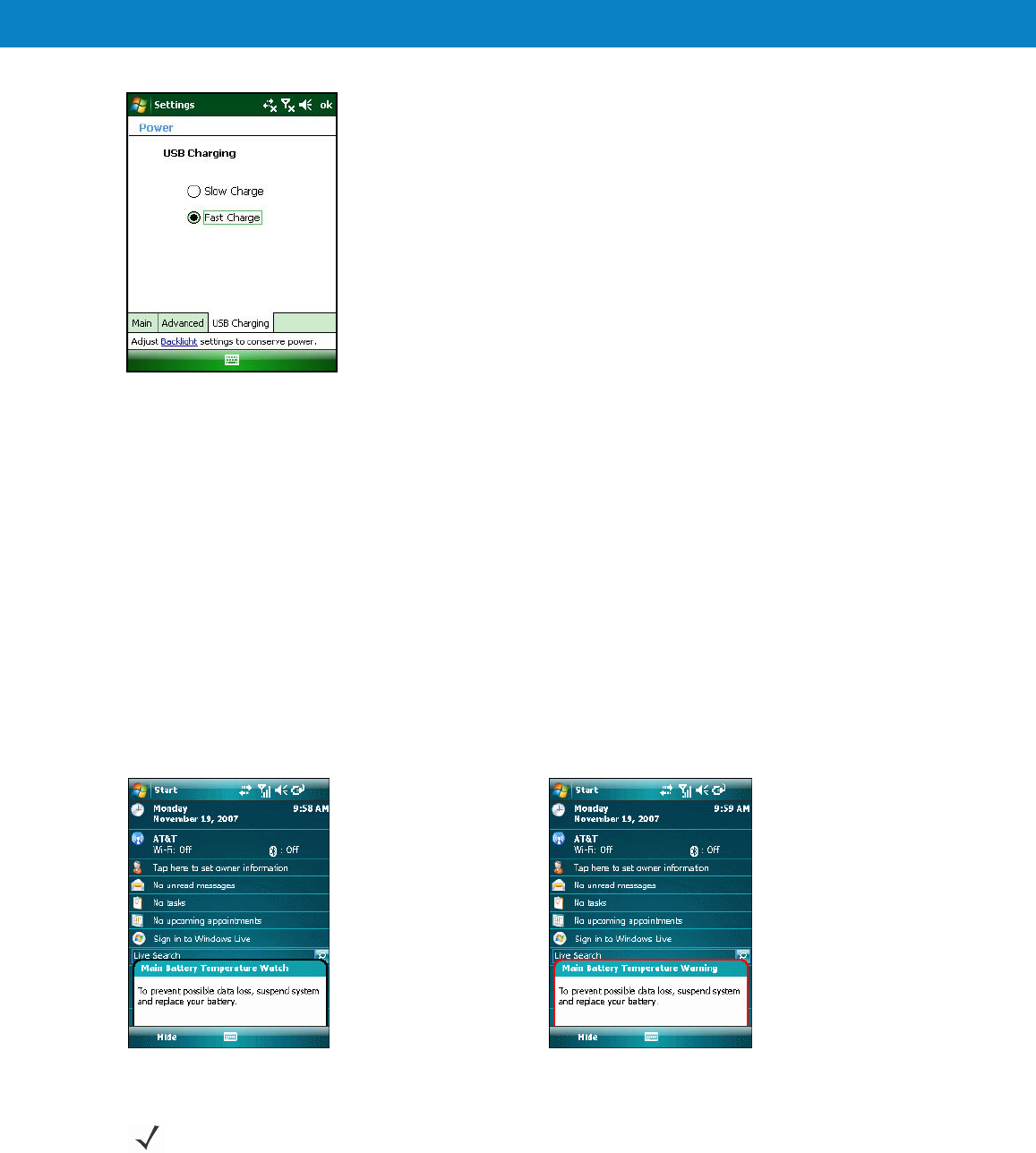

Figure 2-7 USB Charge Tab
Main Battery Temperature Notifications
The temperature notification system implements three levels of notification when the temperature within the battery
exceeds specific temperature thresholds:
• Level 1: Temperature Watch; this level is similar to main battery low warning. It indicates that the battery
temperature has reached the first threshold level. The user should move to an environment within proper
operating temperature.
• Level 2: Temperature Warning; this level is similar to main battery very low warning. It indicates the
battery temperature has reached the second threshold level. The user should stop using the FR6074.
• Level 3: Temperature Error; this level indicates the battery has reached an unusable temperature
threshold and immediately suspends the FR6074. This level does not have any graphical notification
associated with it.
Figure 2-8 Main Battery Temperature Watch Dialog Box Figure 2-9 Main Battery Temperature Warning Dialog Box
NOTE
The Temperature Warning dialog box remains visible until you tap Hide.
Using the FR6076
38
LED Indicators
The FR6074 has three LED indicators. The Scan/Decode LED indicates status for bar code scanning. The
Charging/Battery Status LED indicates battery charging and status. The Radio Status LED indicates WAN radio
status. Table 2-6 describes the LED indications.

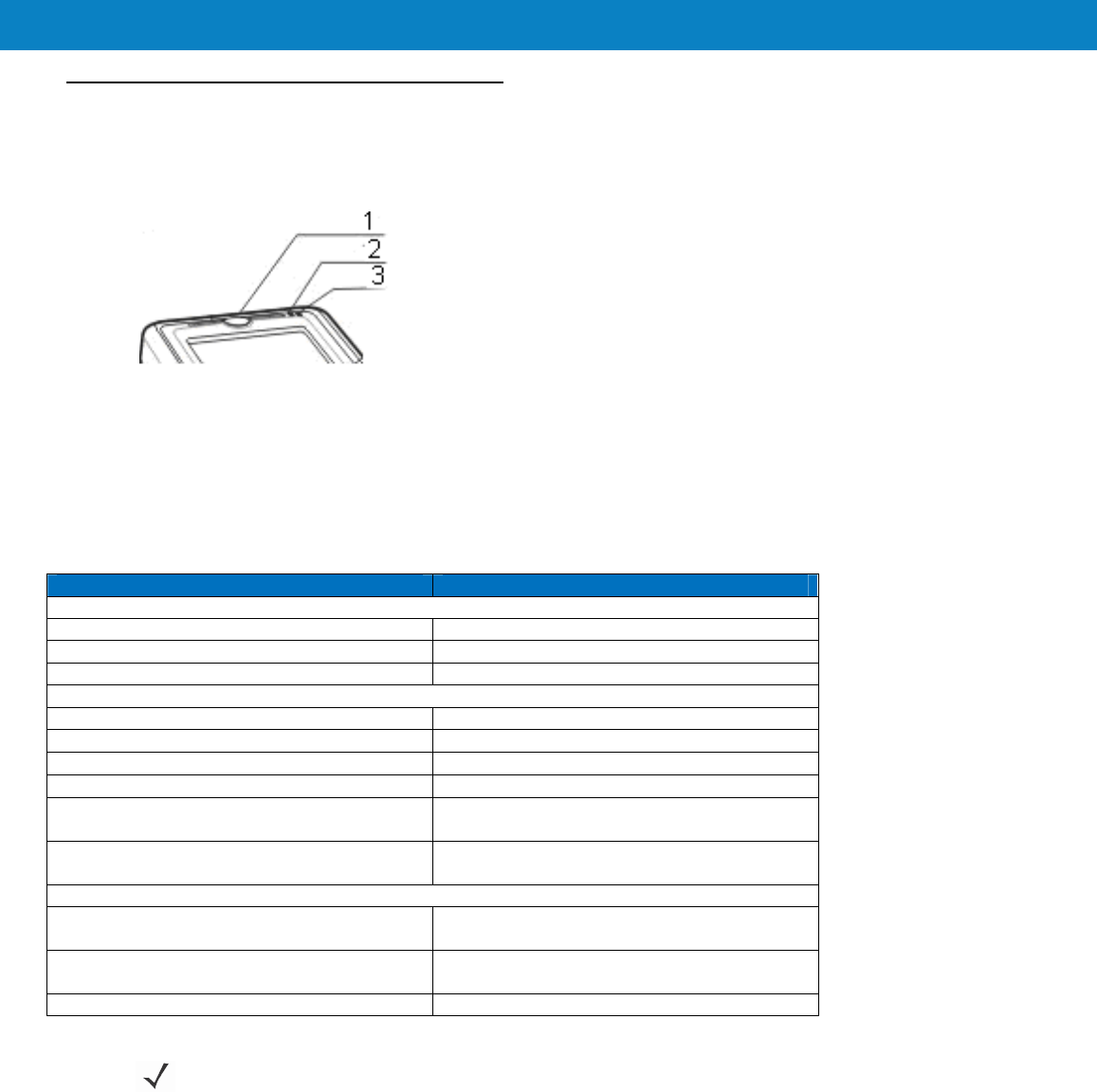

Figure 2-10 LED Indicators
1. Scan/Decode LED
2. Charging LED
3. Radio Status LED
T
abl
e
2-6 LED Indications
LED status Indication
Scan/Decode LED
Solid Green Successful decode/capture
Solid red Laser enabled, scanning in process
Off Not enabled
Charging/Battery Status LED
Slow blinking amber Main battery in FR6074 is charging.
Solid green Main battery in FR6074 is fully charged.
Fast blinking amber Charging error
Off Not charging
Single blink amber (when power button is
pressed) Battery depleted
Blinking amber (when power button is
pressed) Battery over-temperature condition
Radio Status LED
Slow blink green
The radio (BT,WIFI,GPS,RIL) can work
correctly when it is on
Slow blink red
Some radio (BT,WIFI,GPS,RIL) can not
work correctly when it is on.
Off All radio off.
NOTE
For information about scanning/decoding, see Data Capture on page 2-29. For information about WAN radio
status and settings, see Chapter 5, Using the Phone, or refer to the FR6074 Integrator Guide.
Using the FR6076
39
Resetting the FR6074
There are two reset functions, warm boot and cold boot. A warm boot restarts the FR6074 by closing all running
programs. A cold boot also restarts the FR6074, and also resets the clock. Data saved in flash memory or a
memory card is not lost.
If the FR6074 is not functioning properly, perform a warm boot first. If the FR6074 still does not respond, perform a
cold boot.
Performing a Warm Boot
Press the reset button to reboot the device.
Performing a Cold Boot
Put the battery into the device, lock the battery cover, and press the power button
Waking the FR6074
The wake-up conditions define what actions wake up the mobile computer after it has gone into suspend mode.
The mobile computer can go into suspend mode by either pressing the Power button or automatically by Control
Panel time-out settings. These settings are configurable and the factory default settings are shown in Table 2-7 are
subject to change/update.
T
abl
e
2-7 Wake-up Default Settings
Condition for
Wake-up
Power Button Automatic
Ti
me-out
AC power is applied. No Yes
Mobile computer is inserted into a cradle. No Yes
Mobile computer is removed from a cradle. No Yes
Mobile computer is connected to a USB device. No Yes
Mobile computer is disconnected from a USB device. No Yes
A key is pressed. No Yes
The scan triggered is pressed. No Yes
The screen is touched. No No
Audio Jack No No
Audio Btn No No
Bluetooth communication Yes Yes
Incoming phone call Yes Yes
Using the FR6076
40
Locking the FR6074
Use the Device Lock feature to prevent use of the device. Note that when locked, the FR6074 does not respond
to screen or keypad input.
To lock the device, tap the Device unlocked icon. The icon changes to locked.
Figure 2-11 Device Locked/Unlocked Icons
To unlock the device and free it for use, tap Unlock.
Figure 2-12 Unlock Device Window
Tap Unlock on the Unlock window.
NOTE
You can make emergency calls even when the FR6074 is locked. See Making an Emergency Call on page
5-7 for more information.
Using the FR6076
41
Keypads
The FR6074 offers one type of modular keypad configuration: alpha-numeric.
Table 2-8
Alpha-numeric Keypad Input Modes
Key
Numeric
Mode
Orange
Key
(Alpha
Lowercase Mode)
Blue+
Key SHIFT
+ Key
1st
Press
2nd
Press
3rd
Press
4th
Press
5th
Press
6th
Press
7th
Press
8th
Press
9th
Press
1 1 1 ! Space Space Space Space Space Space Space Space
2 2 2 @ a B c 2 A B C
3 3 3 # d e f 3 D E F
4 4 4 $ g h i 4 G H I
5 5 5 % j k l 5 J K L
6 6 6 ^ m n o 6 M N O
7 7 7 & p q r s 7 P Q R S
8 8 8 * t u v 8 T U V
9 9 9 ( w x y z 9 W X Y Z
0 0 0 ) + + + + + + + + +
Note: An
application
can change
the
k
e
y
functions.
The keypad may
not
function exactly
as
described.
T
abl
e
2-8 Alpha-numeric Keypad Input Modes (Continued)
Key Numeric Mode Orange
Key
(Alpha
Lowercase Mode)
Orange + Shift
Keys
(Alpha Uppercase
Mode)
Blue+
Key SHIFT
+ Key
1st
Press
2nd
Press
3rd
Press
4th
Press
1st
Press
2nd
Press
3r
d
Press
4th
Press
Up Up Up Hilight
Up Left Left
Down Down Down Hilight
Down Right Right
Enter Action Action Action Action Action
Note: An
application
can change
the
k
e
y
functions.
The keypad may
not
function exactly
as
described.
Alpha-numeric Keypad Configurations
The three types of alpha-numeric keypads produce the 26-character alphabet (A-Z, both lowercase and
uppercase), numbers (0-9), and assorted characters. The keypad is color-coded to indicate which modifier key
to press to produce a particular character or action. The keypad default is alphabetic, producing lowercase
letters. See Table 2-8 for key and button descriptions.
Using the FR6076
42

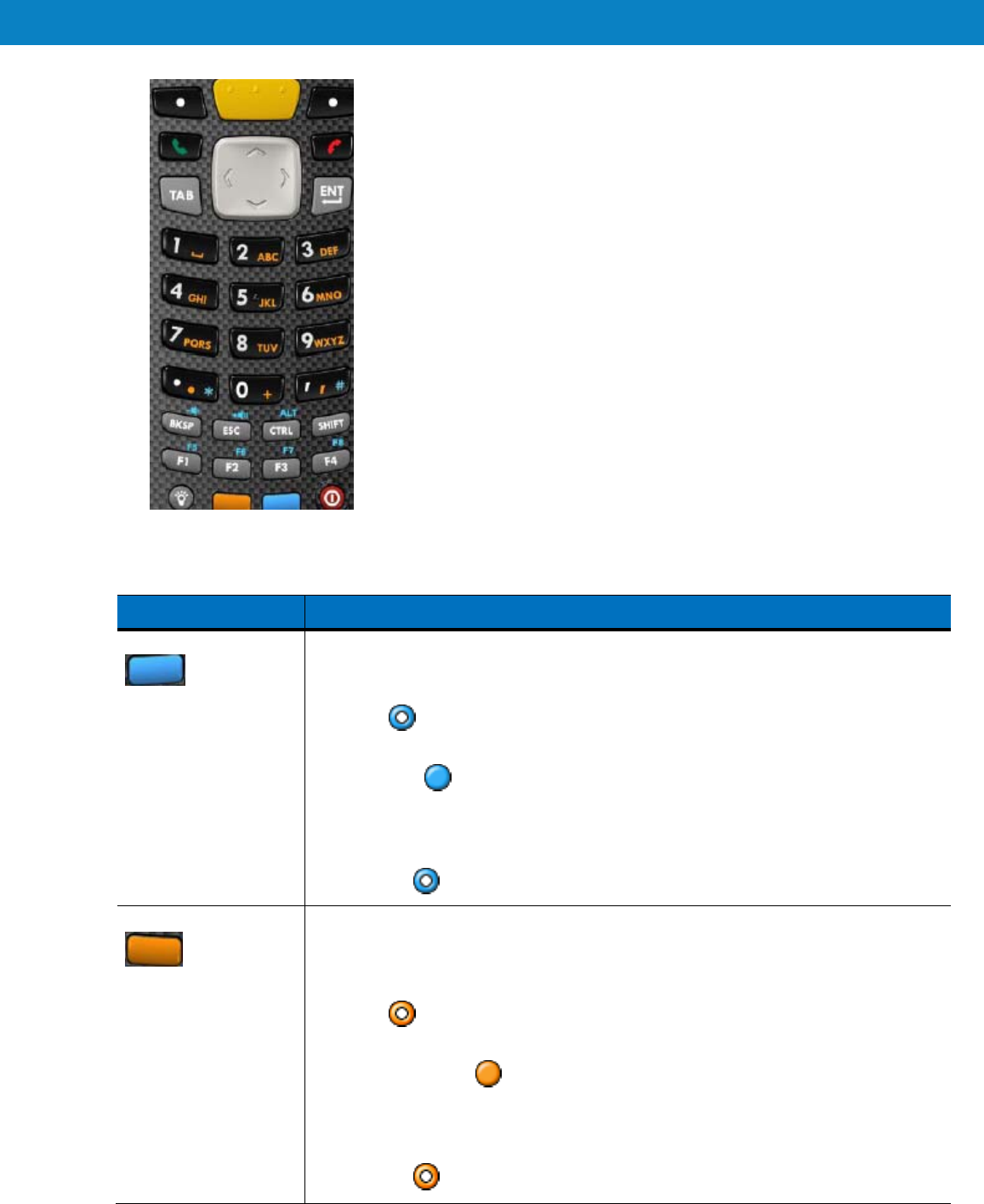

Figure 2-13 FR6074 Numeric Keypad
T
abl
e

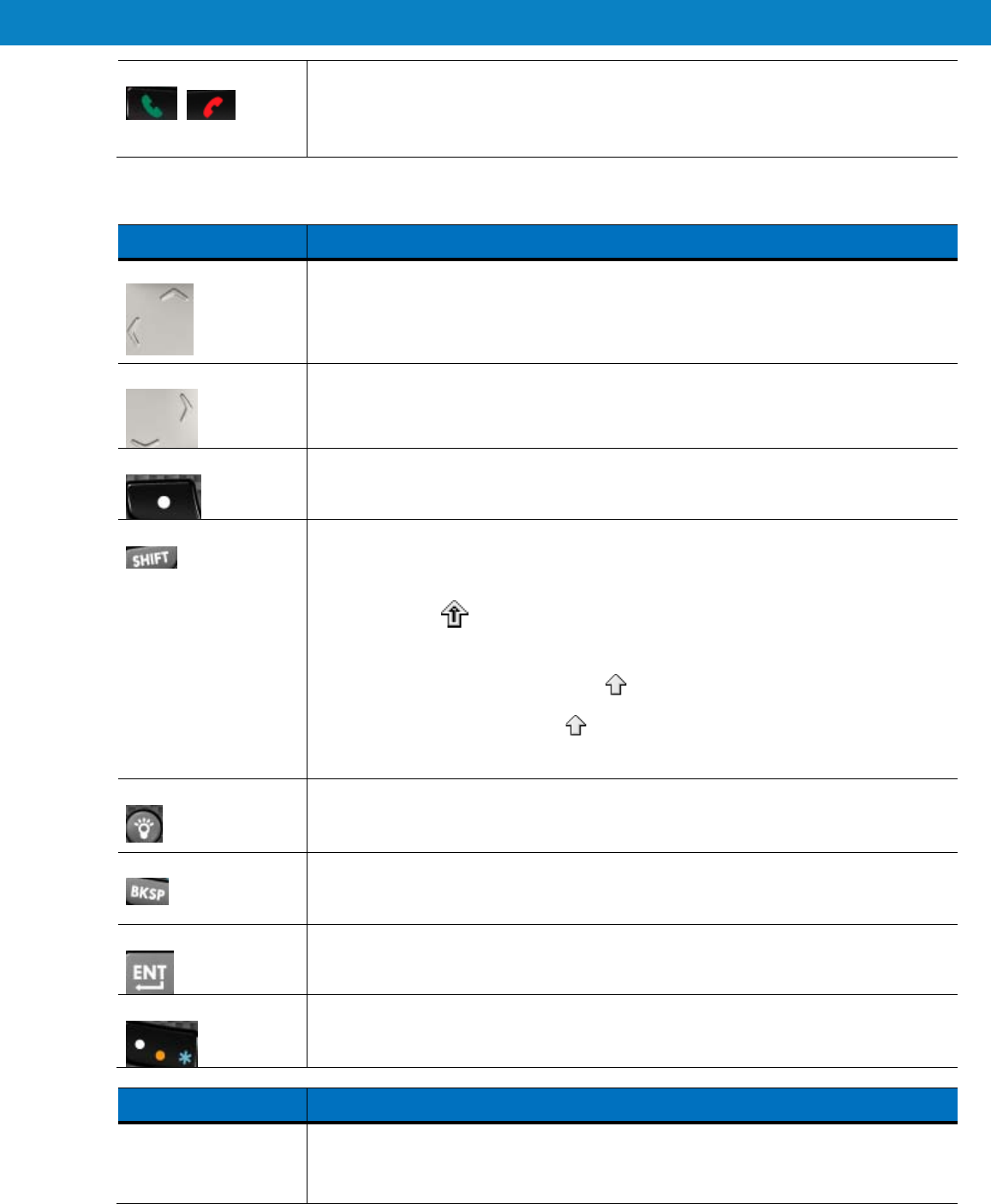

2-9 Alpha-numeric Keypad Descriptions
Key
Action
Blue Key
Launches applications (shown on the keypad in blue).
Press the Blue key once to activate this mode temporarily, followed by another key. This
displays the following icon at the bottom of the screen, until a second key is
pressed:
Press the Blue key twice to lock this mode. This displays the following icon at the bottom
of
the
screen:
Press the Blue key a third time to unlock.
Press and hold the Blue key while selecting a sequence of keys to activate this mode
temporarily. This displays the following icon at the bottom of the screen as long as the key
is
pressed:
Orange Key
Accesses the secondary layer of characters and actions (shown on the keypad in
orange).
Press the Orange key once to activate this mode temporarily, followed by another key.
This displays the following icon at the bottom of the screen, until a second key is
pressed:
Press the Orange key twice to lock this mode. This displays the following icon at the
bottom
of
the
screen:
Press the Orange key a third time to unlock.
Press and hold the Orange key while selecting a sequence of keys to activate this mode
temporarily. This displays the following icon at the bottom of the screen as long as the key
is
pressed:
Using the FR6076
43
Talk/End
Talk (Green Phone): press to display the phone keypad window or to dial a phone number
(from the phone keypad window).
End (Red Phone): press when the phone keypad window displays to stop dialing or end a
call.
T
abl
e
2-9 Alpha-numeric Keypad Descriptions(continued)
Key
Action
Scroll Up and Left
Moves up one item.
Moves left one item when pressed with the Orange key.
Scroll Down and Right Moves down one item.
Moves right one item when pressed with the Orange key.
Soft Keys Accesses the command or menu above it on the screen.
Shift
Changes the state of the alpha characters from lowercase to uppercase.
• Press the Shift key to activate this mode temporarily, followed by another key.
This displays the following icon at the bottom of the screen, until a second key is
pressed:
z Press and hold the Shift key while selecting a sequence of keys to activate this
mode temporarily. This displays the following icon at the bottom of the screen
as long as the key is pressed:
• Press the Shift key twice to lock this mode. This displays the following icon at
the bottom of the screen:
• Press the Shift key a third time to unlock.
Backlight
Turns the display backlight on and off.
Backspace
Produces a backspace.
Enter Executes a selected item or function.
Star Produces an asterisk.
Key
Action
Menu Use this key in conjunction with the Blue key to instantly display the context menu from
any application without tapping the screen. This function is user programmable.
Using the FR6076
44
Phonepad Use this key in conjunction with the Blue key to display the Phonepad application
without tapping the screen. This function is user programmable.
Function Buttons
The FR6074’s buttons perform certain functions.
Figure 2-14 Function Buttons
1. Scan button
2. Power button
• Power: Press the red Power button to turn the FR6074 screen on and off. The FR6074 is in suspend mode
when the screen is off. For more information, see Powering On the FR6074 on page 1-8. Also use the
Power button to reset the FR6074 by performing a warm or cold boot. See Resetting the FR6074 on page
2-14.
• Scan: Press to scan bar codes. See Data Capture on page 2-29.
Using theFR6076
45
Stylus
Use the FR6074 stylus to select items and enter information. The stylus functions as a mouse.
• Tap: Touch the screen once with the stylus to press option buttons and open menu items.
• Tap and Hold: Tap and hold the stylus on an item to see a list of actions available for that item. On the
pop-up menu that appears, tap the action to perform.
• Drag: Hold the stylus on the screen and drag across the screen to select text. Drag in a list to select
multiple items.
NOTE
Motorola recommends using the spring-loaded tip of the stylus to write on the screen, and the back end of the
stylus to tap the screen. Use your finger to press the Power button and keypad buttons.
CAUTION
To prevent damage to the screen, do not use any device other than the Motorola-provided stylus.
Entering Data
When entering data on the keypad, use either the single-hand method or the two-hand method as shown in Figure
2-15.
Single-hand Method Two-hand Method
Figure 2-15 Entering Data on the Keypad
Using theFR6076
46
Data Capture
The FR6074 offers linear scanning as data capture.
NOTE
To perform data capture a scanning enabled application must be installed on the FR6074. A sample
scanning application can be downloaded from the Motorola Support site at http://support.symbol.com.
Linear Scanning
FR6074 with an integrated linear scanner have the following features:
• Reading of a variety of bar code symbologies, including the most popular linear, postal, and 1-D code
types.
• Intuitive aiming for easy point-and-shoot operation.
Scanning Considerations
Typically, scanning is a simple matter of aim, scan, and decode and a few quick trial efforts master it. However,
consider the following to optimize scanning performance:
• Range
Any scanning device decodes well over a particular working range — minimum and maximum distances from
the bar code. This range varies according to bar code density and scanning device optics.
Scanning within range brings quick and constant decodes; scanning too close or too far away prevents
decodes. Move the scanner closer and further away to find the right working range for the bar codes being
scanned.
• Angle
Scanning angle is important for promoting quick decodes. When laser beams reflect directly back into the
scanner from the bar code, this special reflection can “blind” the scanner.
To avoid this, scan the bar code so that the beam does not bounce directly back. But don’t scan at too sharp
an angle; the scanner needs to collect scattered reflections from the scan to make a successful decode.
Practice quickly shows what tolerances to work within.
• Hold the FR6074 farther away for larger symbols.
• Move the FR6074 closer for symbols with bars that are close together.
NOTE
Scanning procedures depend on the application and FR6074 configuration. An application may use different
scanning procedures from the one listed above.
1. Ensure that a scan enabled application is loaded on the FR6074.
2. Aim the scan window at the bar code.
Figure 2
-
3.
Pre
s
to i
n
was
Figure 2
-
4.
Rel
e
-
16
Linea
s
s the scan
b
n
dicate that
s
decoded su
-
17
Linea
e
ase the sca
r Scanning
b
utton. Ensu
r
s
canning is i
n
ccessfully.
r Scanner
Ai
n button.
r
e the red s
c
n
process, th
e
i
m
i
ng Patter
n
47
c
an beam co
v
e
n lights gre
e
n
v
ers the enti
r
e
n and a be
e
r
e bar code.
e
p sounds, b
Usin
g
The Scan/D
y default, to
g
theFR60
ecode LED l
indicate the
76
ights red
bar code
Using theFR6076
48
Using
IrDA

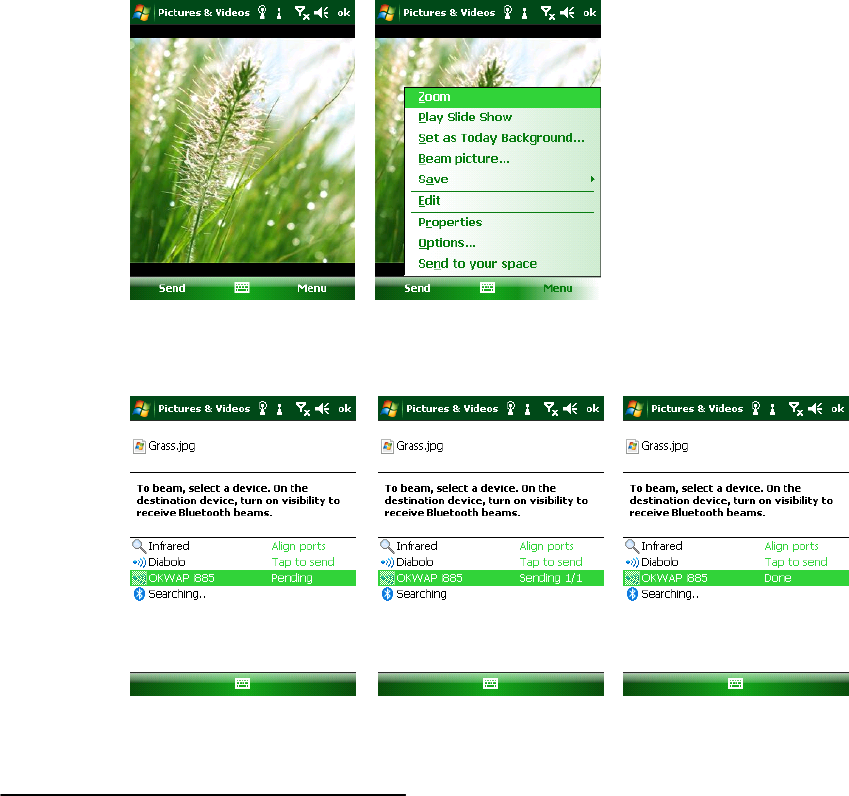

In a Microsoft Windows Mobile program (except Messaging), and Picture & Videos, you can exchange files using
either infrared or Bluetooth.
NOTE
You can also beam files (not folders) from the File Explorer window. Tap and hold
the item you want to send, then tap Beam File from the pop-up menu.
First activate the beam function before exchanging files with another IrDA device.
To activate the Beam function:
1. Tap Start > Settings > Connections tab > Beam icon.
2. Tap Receive all incoming beams check box.
Figure 2-18 Beam Window
3. Tap ok.
Infrared Connection
Using infrared, you can enable short-range file exchange between your FR6074 and another IrDA device.
Exchanging Files using IR Connection
Ensure that the IrDA function on both the FR6074 and the other device are enabled. To send files via IrDA
connection:
1. Switch to the program where you created the item you want to send and locate the item in the list.
NOTE
Do not cover or block the IrDA window.
2. Align the IrDA port of the FR6074 with that of the IrDA device so that they are unobstructed and within a
close range.
Using theFR6076
49
Figure 2-19 Align FR6074 with IrDA Device
3. Tap and hold the item, then tap Beam [type of item] on the pop-up menu.
4. Tap the device that you want to send the file to.
Figure 2-20 Beam Contact Figure 2-21 Receive File
To receive files via IrDA connection:
1. Align the IrDA port of the FR6074 with that of the other IrDA device so that they are unobstructed and within
a close range.
2. On the other device, send the file to the FR6074.
3. When the Receiving Data dialog displays, tap Yes.
51
Chapter 3 Using GPS
Introduction
The FR6074 includes Global Positioning System (GPS) technology using the Qualcomm chip. GPS technology is
based on a worldwide system of GPS satellites orbiting the earth that continuously transmit digital radio signals.
These radio signals contain data on the satellites’ locations and their exact clock time and are used to determine
your location on the earth.
WARNING
!
When using the FR6074 in a vehicle, it is the user’s responsibility to place, secure and use in a
manner that will not cause accidents, personal injury or property damage or obstruct their view. It
is the responsibility of the driver to operate the vehicle in a safe manner, maintain observation of
all driving conditions at all times, and not become distracted by the device to the exclusion of safe
driving practices. It is unsafe to operate the controls of the device while driving.
Software Installation
Third-party GPS navigation software is required. Evaluation software is available from various suppliers.
If interested in purchasing GPS navigation software check with the GPS software vendor (before purchasing,
downloading, or installing any software) to determine that the application is compatible with the FR6074. Refer to
the application’s user guide for application installation and setup information.
FR6074 GPS Setup
The GPS-enabled FR6074 uses Microsoft Windows Mobile 6, so the operating system automatically
manages access to the GPS receiver to allow multiple programs to simultaneously access GPS data.
Ensure that the following settings are set on the FR6074:
1. Ta p Start > Settings > System > External GPS icon.
2. In the Programs tab, select GPD1 from the GPS program port drop-down list.
3. In the Hardware tab, select COM6 in the GPS hardware port drop-down list.
Using GPS
52
4. Tap ok to close the Setting window.
NOTE
If an application error message appears indicating that the COM port cannot be opened, ensure
that a free COM port is selected in the GPS hardware port drop-down list.
Operation
Acquiring satellite signals may take a few minutes. It is best to be outside and have a clear,
unobstructed view of the sky. Without a clear view, acquisition takes much longer and could result
in the FR6074 being unable to compute the initial position quickly. When operating the device
indoors access to the GPS signals may be limited or unavailable.
NOTE
When using a GPS navigation application, ensure that the FR6074 does not go into suspend
mode. If the FR6074
suspends then the power to the GPS radio is removed. Upon resume the GPS receiver must
reacquire a valid GPS
signal, resulting in a delay of positional information.
GPS Maps on microSD Cards
GPS navigation software vendors may sell maps on microSD cards. If using a microSD card with
the GPS
navigation software:
1. Remove the Memory Card Cover on the side of the FR6074.
2. Insert the microSD card into the slot.
3. Replace the Memory Card Cover.
Downloading GPS Data
Use this function to download GPS data to enhance GPS performance. This may require additional
charge for data connection.
1. Tap Start > Program > GPSXtra icon.
2. Entering GPSXtra to download GPS data.
Using GPS
53
Answering a Phone Call While Using GPS
If you receive a phone call while using your GPS navigation software:
1. Answer the phone call by pressing the Answer button.
2. Once you end the phone call, press the End Call button to resume the audio on the GPS
software.
NOTE
Anytime you are using GPS on the FR6074 and you receive a phone call, the audio on the GPS
navigation software is muted until you finish the call.
Losing the GPS Signal While in a Vehicle
GPS performance on the FR6074 may be affected if the vehicle has thermal glass windows and
windshields, which can block the FR6074 from receiving a GPS signal from satellites. To improve
GPS signal strength, place the FR6074 where there is a clear view of the sky. A direct line of sight
is required between the FR6074 and the GPS satellites to access information from the satellites.
The Global Positioning System (GPS) is a system that allows the user to track their position
anywhere on the earth.
Assisted GPS
GPS can be used in stand-alone or Assisted GPS (A-GPS) modes. A Stand-alone GPS receiver
downloads data from GPS satellites. It can take several minutes to get a fix. By using GPS
Location servers, A-GPS dramatically improves the performance of the Time To First Fix (TTFF)
of GPS receivers by providing them with data that they would ordinarily have to download from
the GPS satellites. With the A-GPS data, GPS receivers can operate faster and more reliably.
A-GPS follows the Secure User Plane Location (SUPL) protocol which allows the FR6074 to
communicate with a location server. Refer to the EMDK Help file for information on setting up
SUPL on the FR6074.
54
Chapter
4 Using Bluetooth
Introduction
Bluetooth-equipped devices can communicate without wires, using frequency-hopping spread spectrum (FHSS)
radio frequency (RF) to transmit and receive data in the 2.4 GHz Industry Scientific and Medical (ISM) band
(802.15.1). Bluetooth wireless technology is specifically designed for short-range (30 feet/10 meters)
communication and low power consumption.
FR6074s with Bluetooth capabilities can exchange information (e.g., files, appointments, and tasks) with other
Bluetooth enabled devices such as phones, and other mobile computers. To use the FR6074 as a modem, create a
dial-up modem connection between a computer and FR6074.
Adaptive Frequency Hopping
Adaptive Frequency Hopping (AFH) is a method of avoiding fixed frequency interferers, and can be used with
Bluetooth voice. All devices in the piconet (Bluetooth network) must be AFH-capable in order for AFH to work.
There is no AFH when connecting and discovering devices. Avoid making Bluetooth connections and discoveries
during critical 802.11b communications. AFH for Bluetooth consists of four main sections:
• Channel Classification - A method of detecting an interference on a channel-by-channel basis, or
pre-defined channel mask.
• Link Management - Coordinates and distributes the AFH information to the rest of the Bluetooth network.
• Hop Sequence Modification - Avoids interference by selectively reducing the number of hopping channels.
• Channel Maintenance - A method for periodically re-evaluating the channels.
When AFH is enabled, the Bluetooth radio “hops around” (instead of through) the 802.11b high-rate channels. AFH
coexistence allows Motorola mobile computers to operate in any infrastructure.
55
The Bluetooth radio in this FR6074 operates as a Class 2 device power class. The maximum output power is
2.5mW
and the expected range is 32.8 feet (10 meters). A definition of ranges based on power class is difficult to
obtain due to power and device differences, and whether one measures open space or closed office space.
NOTE
It is not recommended to perform Bluetooth wireless technology inquiry when high rate 802.11b operation
is
required.
Security
The current Bluetooth specification defines security at the link level. Application-level security is not specified.
This allows application developers to define security mechanisms tailored to their specific need. Link-level
security occurs between devices, not users, while application-level security can be implemented on a per-user
basis. The Bluetooth specification defines security algorithms and procedures needed to authenticate devices,
and if needed, encrypt the data flowing on the link between the devices. Device authentication is a mandatory
feature of Bluetooth while link encryption is optional.
Pairing of Bluetooth devices is accomplished by creating an initialization key that is used to authenticate the
devices and create a link key for them. Entering a common PIN number in the devices being paired generates
the initialization key. The PIN number is never sent over the air. By default, the Bluetooth stack responds with
no key when a key is requested (it is up to user to respond to the key request event). Authentication of
Bluetooth devices is based-upon a challenge-response transaction. Bluetooth allows for a PIN number or
passkey that is used to create other 128-bit keys used for security and encryption. The encryption key is
derived from the link key used to authenticate the pairing devices. Also worthy of note is the limited range and
fast frequency hopping of the Bluetooth radios that makes long-distance eavesdropping difficult.
Recommendations are:
• Perform pairing in a secure environment
• Keep PIN codes private and don't store the PIN codes in the mobile computer
• Implement application-level security.
Turning the Bluetooth Radio Mode On and Off
Turn off the Bluetooth radio to save power or if entering an area with radio restrictions (e.g., an airplane). When
the radio is off, other Bluetooth devices cannot see or connect to the FR6074. Turn on the Bluetooth radio to
exchange information with other Bluetooth devices (within range). Communicate only with Bluetooth radios in
close proximity.
NOTE
To achieve the best battery life turn off radios not in use.
Disabling Bluetooth
To disable Bluetooth, tap Bluetooth icon to enter Wireless Manager. Tap Bluetooth icon to change on to off.
The Bluetooth icon changes to indicate that Bluetooth is disabled.
56
Figure 4-1 Disable Bluetooth
Enabling Bluetooth
To enable Bluetooth, tap Bluetooth icon to enter Wireless Manager. Tap Bluetooth icon to change off to on.
The Bluetooth icon changes to indicate that Bluetooth is enabled.
Figure 4-2 Enable Bluetooth
Bond New Device(s)
The FR6074 can exchange information with bonded devices.
To find Bluetooth devices in the area:
1. Ensure that Bluetooth is enabled on both devices.
2. Ensure that the Bluetooth device to discover is in discoverable and connectable modes.
3. Ensure that the two devices are within 30 feet (10 meters) of one another.
4. Tap the Bluetooth icon to enter Wireless Manager. Then tap Menu.
57
Figure 4-3 Enter Bluetooth Window
5. Tap Menu to enter Settings window. Then tap Add new device to search for Bluetooth Devices.
Figure 4-4 Add new device Window
6. After the device appears, tap it and enter a passcode to establish a secure connection with it. Meanwhile
enter the passcode on the target device.
Figure 4-5 Discover Devices Dialog Box
File Transfer Services
To transfer files between the FR6074 and another Bluetooth enabled device, please ensure the FR6074 is
discoverable and connectable.
NOTE
Some devices might not require a PIN. This depends upon the device’s authentication.
58
1. Choose one file as below, tap Menu > Beam picture Menu.
Figure 4-6 Select file
2. Then choose the destination device, and wait till Done is showed.
Figure 4-7 Transfer file Window

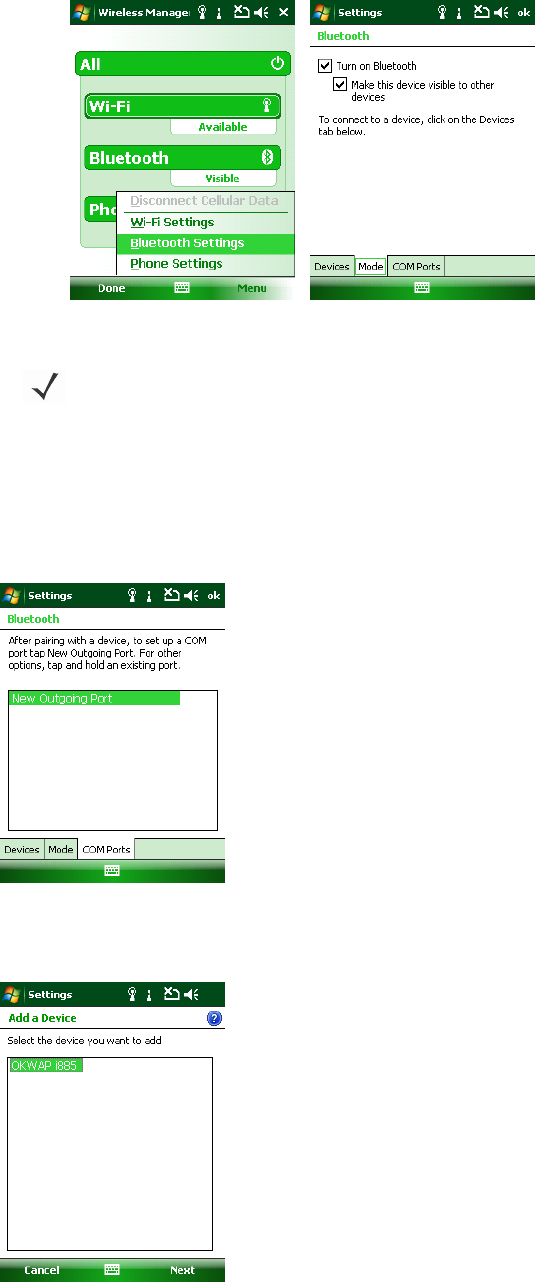

Bluetooth Settings
Use the Bluetooth Settings window to configure the operation of the application. Tap Menu >
Settings. The Bluetooth Settings window appears.
Device Info Tab
Use the Device Info tab to add and bond new devices. Please refer to Bond new device(s).
Mode Tab
Use the Mode tab to configure the FR6074’s Bluetooth connection modes.
59
Figure 4-8 BTExplorer Settings - Device Info Tab
1. Before bonding a new device, make sure to turn on Bluetooth.
2. If you want other devices to find your FR6074, please tick “Make this device visible to other devices”.
COM Ports Tab
Use the COM Ports tab set specific outgoing ports for bonded devices.
1. Tap New Outgoing Port.

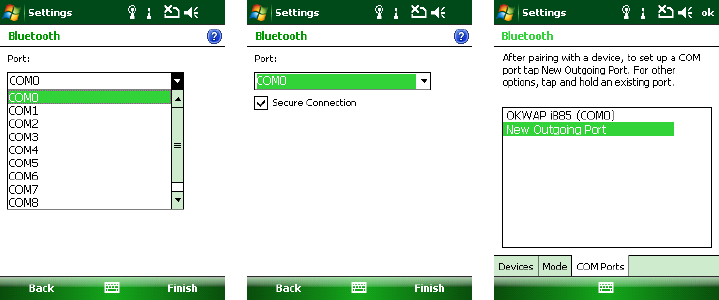

Figure 4-9 Add COM Ports
2. Select the device you want to add. Then tap Next.
Figure 4-10 Select device
3. Select a port from drop-down list. Then tap Finish.
60
Figure 4-11 Select a Port for device
62
Chapter
5 Using the Phone
Introduction
Use the FR6074 to make phone calls, set up speed dials, keep track of calls, and send text messages. Your
wireless service provider may also provide other services such as voice mail, call forwarding, and caller ID.
Also use the integrated phone to connect to an ISP or work network in order to browse the Web and read e-mail.
Connect to the Internet or work network over High-Speed Downlink Packet Access (HSDPA) (FR6074) using
Cellular Line, or using the modem specified by the mobile operator. For more information, or to customize the
FR6074 phone by changing phone settings, see the FR6074 Integrator Guide.
Accessing the Phone Keypad
NOTE
Keypads vary depending on services and the state of the phone. For example, place calls on hold and use
Swap to switch active calls on hold. (See Conference Calling on an FR6074 on page 5-20.)
Access the keypad regardless of the program in use. Applications on the FR6074 can be in use during a call.
Antenna Signal
FR6074
Figure 5-1 Phone
Keypads
T
u
Au
d
To acce
s
To recei
v
set to w
a
u
rning t
h
Windo
w
the pho
n
To open
Figure 5
-
Select
W
To toggl
e
To confi
g
d
io Mo
d
The FR
6
•
H
a
a
s
•
S
p
T
a
•
H
The FR
6
or a Blu
e
and aud
s
s the phon
e
v
e calls whe
a
ke with an
y
h
e Pho
n
w
s Mobile 6 d
e
n
e.

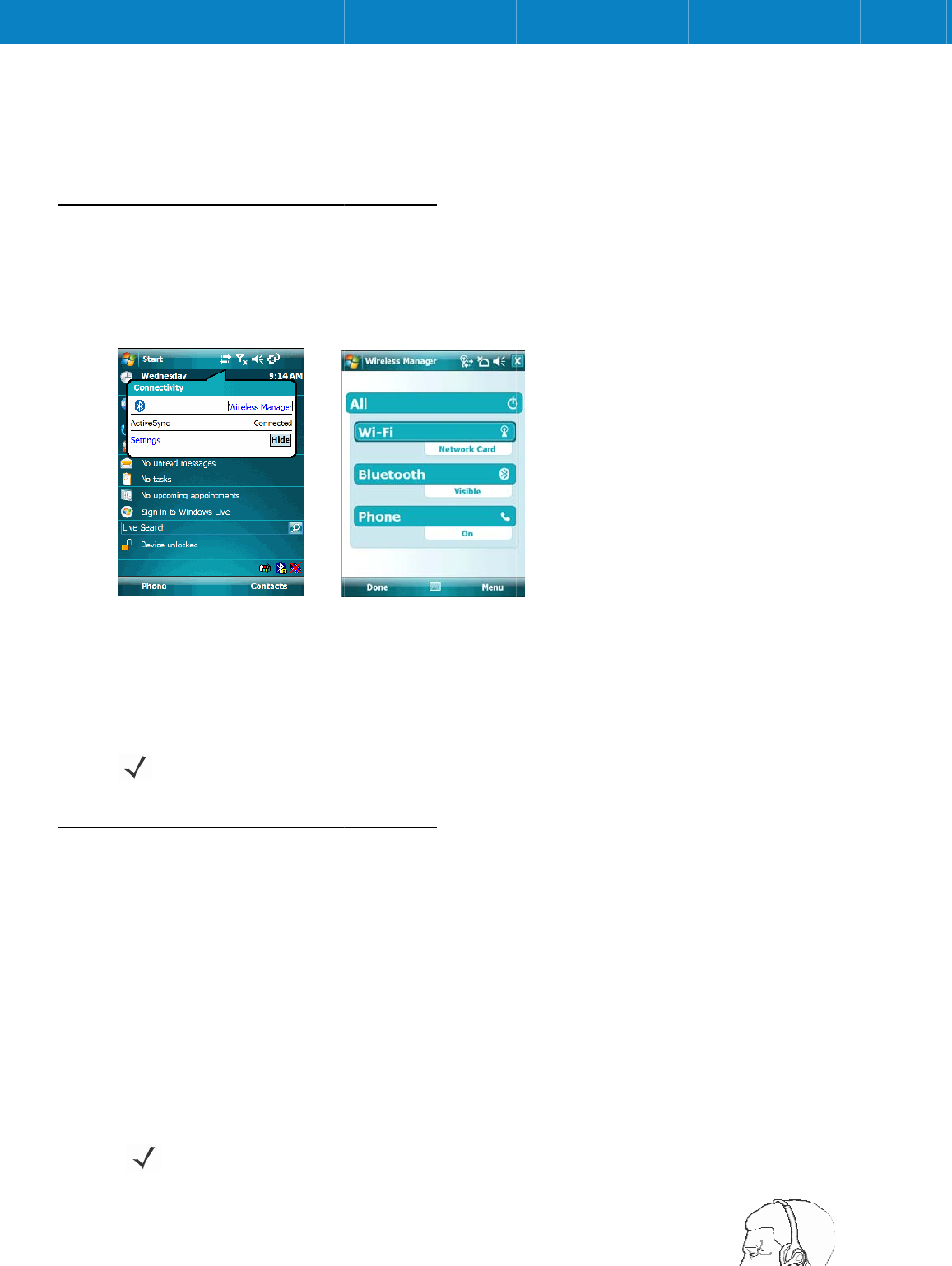

Wireless
M
-
2
Openi
n
W
ireless Ma
n
e
on or off t
h
g
ure setting
s
NOTE
To r
d
es
6
074 offers t
a
ndset Mo
d
s
a handset.
T
p
eaker Mod
a
p the
Spea
k
eadset Mo
d
6
074 default
s
e
tooth head
s
io is heard t
h
NOTE
W
h
e
keypad tap
n the FR60
7
y
key.
n
e On
a
e
vices inclu
d
M
anager
, tap
n
g Wireless
M
n
a
g
er.
The
W
h
e phone, ta
p
s
for a conn
e
eceive calls
w
hree audio
m
d
e
: Switches
T
his is the d
e
e
: Use the
F
k
er Off
butto
n
d
e
: Connect
a
s
to handset
s
et is config
u
h
rough the
h
h
ile using a Bl
u
Start
>
Ph
o
7
4 is suspen
d
a
nd Of
f
d
e
Wireless
the
Conne
c
M
anager
W
ireless M
a
p
blue Phon
e
e
ction, tap
M
e
w
hen your dev
m
odes for us
e
audio to the
e
fault mode.
F
R6074 as if
n
to switch b
a
wired or Bl
mode. Whe
u
red for use
w
h
eadset.
u
etooth head
s
63
o
ne
or press
t
d
ed, leave th
Manager
,
w
c
tivity
icon.
a
nager
wind
o
e
bar.
e
nu
>
Phon
e
ice is suspen
d
e
during ph
o
speaker at
t
on speaker
p
ack to hand
s
uetooth hea
d
n a wired he
w
ith the FR
6
s
et during a c
a
t
he green p
h
e phone rad
w
hich provid
e
o
w appears.
e
Settings
.
d
ed, leave th
e
o
ne calls:
t
he top front
p
hone. Tap t
s
et mode.
d
set to auto
m
adset is plu
g
6
074, the ea
r
a
ll, the mobile
h
one key on
t
io turned on
e
s a simple
m
e
phone turne
d
of the FR60
7
he
Speaker
m
atically swi
t
g
ged into th
e
r
piece and s
p
computer wil
l
Using
t
he FR6074
’
and ensure
m
ethod of en
a
d
on.
7
4, so you c
a
On
button t
o
t
ch audio to
t
e
FR6074 au
d
p
eakerphon
e
l
not go into s
u
the Phon
e
’
s keypad.
the FR6074
a
bling and d
i
a
n use the F
o
activate thi
s
t
he headset.
d
io connect
o
e
are muted
u
spend mode
e
is
i
sabling
R6074
s
mode.
o
r
.
Using the Phone
64
Handset Mode Speaker Mode Headset Mode
Figure 5-3 Audio Modes
Using a Wired Headset
You can use a stereo headset for audio communication when using an audio-enabled application. To use a
headset, plug the headset jack into the audio connector on the side of the FR6074. Set the FR6074’s
volume appropriately before putting the headset on. Plugging a headset into the jack mutes the speaker.
For the best audio performance, Motorola recommends a 2.5mm jack headset, see Accessories on page 1-3.

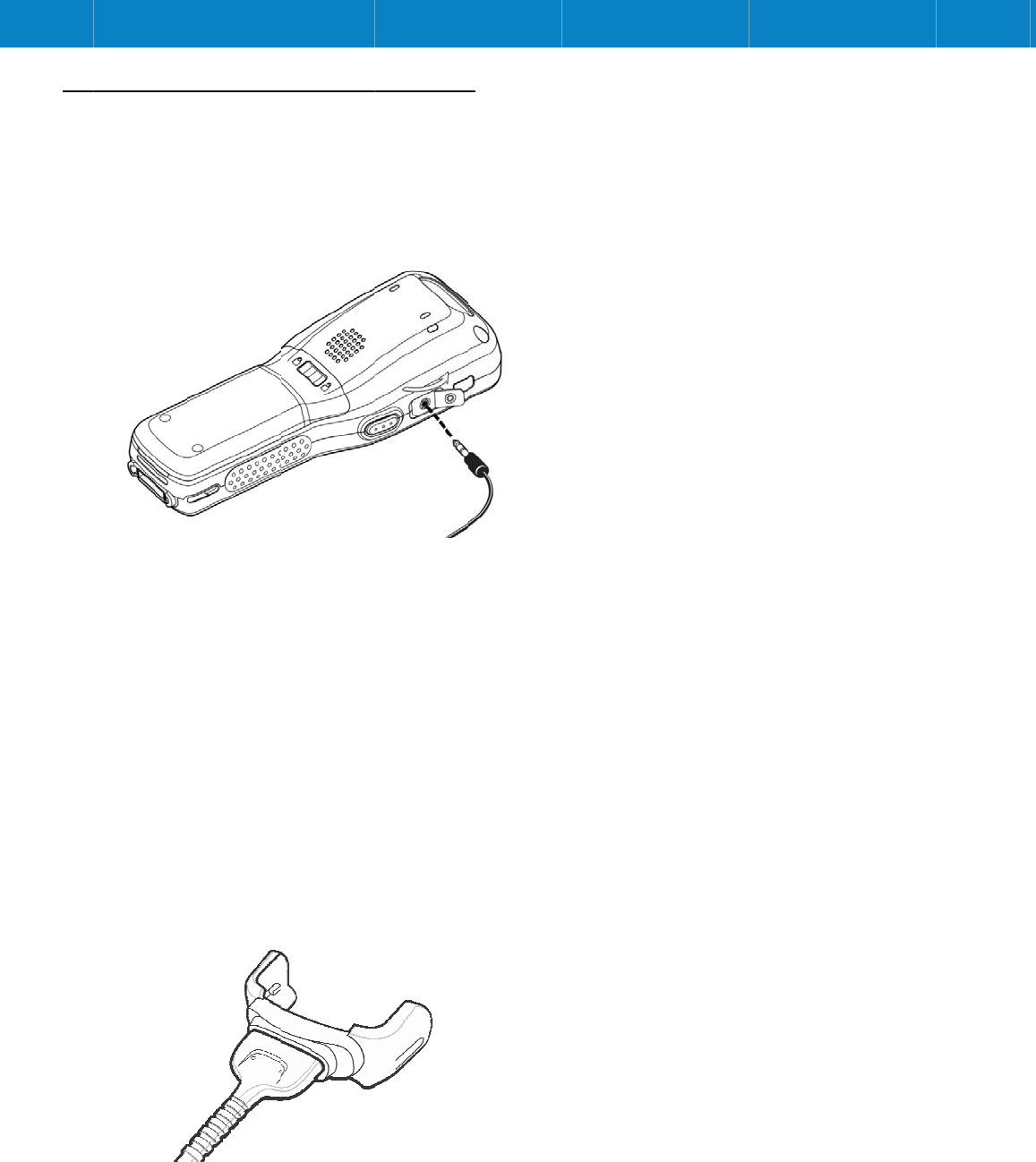

Figure 5-4 Using a Headset
Using the Phone
65
Using a Bluetooth Headset
You can use a Bluetooth headset for audio communication when using an audio-enabled application. See Chapter
4, Using Bluetooth for information on connecting a Bluetooth headset to the FR6074. Set the FR6074’s volume
appropriately before putting the headset on. When a Bluetooth headset is connected the speakerphone is muted.
It is recommended for phone conversations to use the Bluetooth Hands-free profile instead of the Headset profile. See
Chapter 4, Using Bluetooth for more information.
NOTE
When using a Bluetooth headset during a call, the FR6074 power button is disabled and the FR6074 will not go
into suspend mode. Once the call is completed, the power button functionality is enabled.
The following dialog box displays when a Bluetooth headset connection is established.

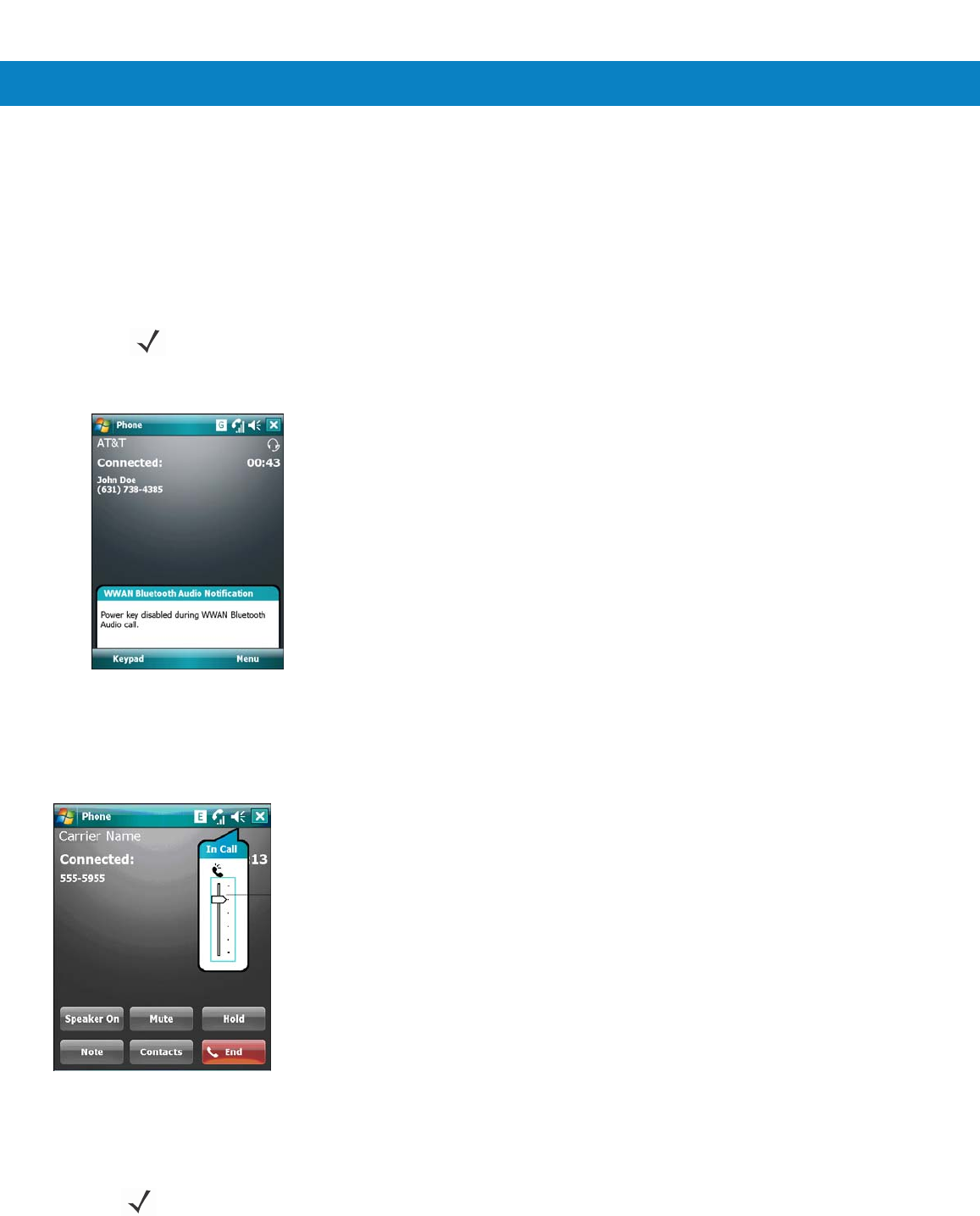

Figure 5-5 WWAN Bluetooth Audio Notification Dialog Box
Adjusting Audio Vo
lume
Use the Volume Control Slider or the keypad keys to adjust the volume of the ringer when not in a call and the
audio volume when in a call.
Figure 5-6 Phone Volume Slider
To adjust the volume tap the Speaker icon in the Title bar. Move the slider up or down to adjust the volume.
NOTE
Adjust the conversation phone volume during a call. Adjusting the volume while not in a call affects the ring
and notification sound levels.
Phonevolumeslider
Using the Phone
66
Making a Call
NOTE
You can make emergency calls even when the FR6074 is locked or when a SIM card is not installed. See
Making an Emergency Call on page 5-7 for more information.
With the FR6074, you can make a call from the phone, contacts, speed dial and call history.
Using the
Phone

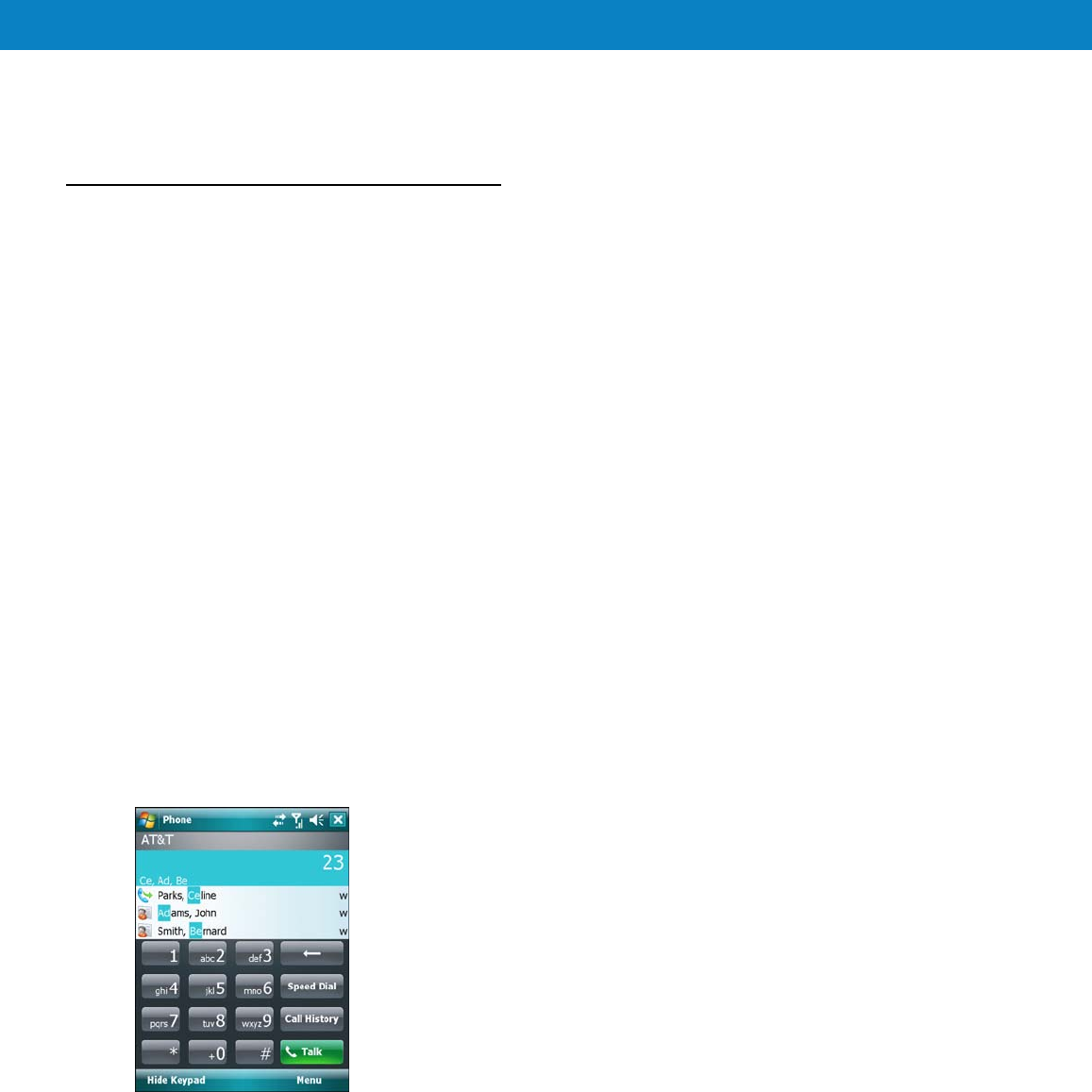

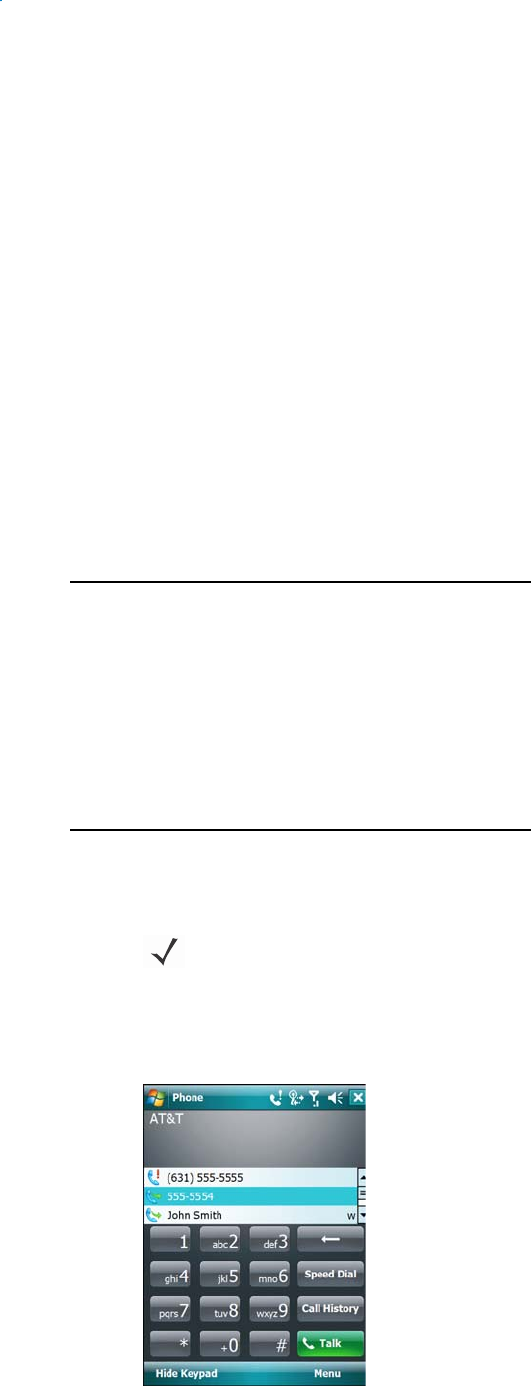

To make a call using the phone keypad:
1. Ta p Start > Phone or press the green phone key on the FR6074’s keypad.
2. From the Phone keypad, tap the number to call.
3. Ta p Talk.
4. Ta p End to stop dialing or end the call.
NOTE
Alternatively, use the green and red phone keys on the FR6074 keypad to dial (green) and end (red) calls.
If you tap a wrong number, tap Delete key to erase each subsequent digit of a number. To erase the entire
number, tap and hold the Delete key.
Using Contacts
Use Contacts to make a call without looking up or entering the phone number. To
make a call from Contacts:
1. Ta p Start > Contacts.
2. From the contact list, tap and hold the contact name.
Figure 5-7 Contacts Menu
3. Tap Call Work, Call Home or Call Mobile.
NOTE
To make a call from an open contact, tap the number to call. See On-Device Help for more information about
Contacts.
Using the Phone
67
Using Call History
To make a call using Call History:
1. Tap Start > Phone or press the green phone key on the FR6074’s keypad.
2. From the Phone keypad, tap Call History.
Phone icon

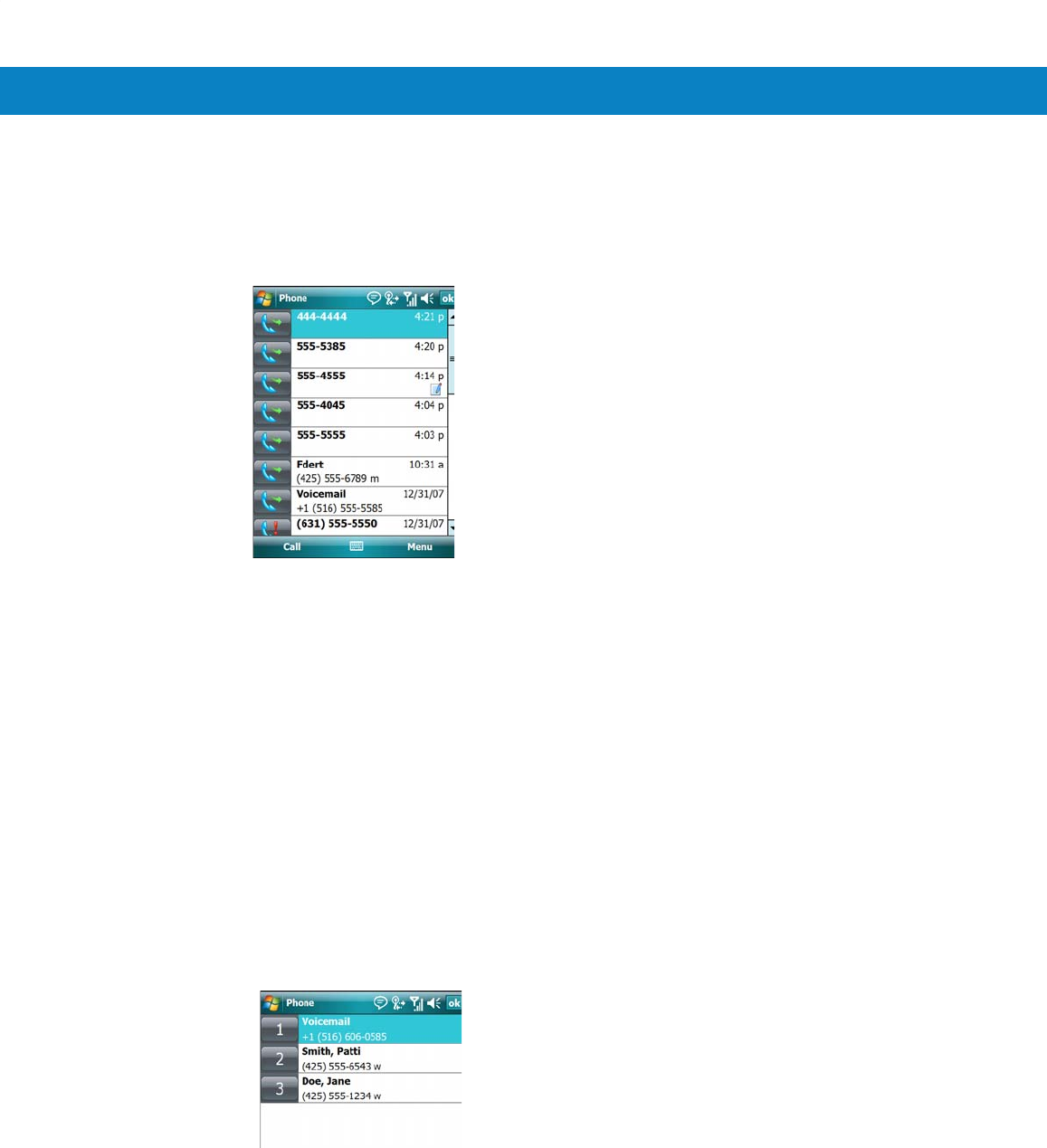

Figure 5-8 Call History
3. Tap the phone icon next to the number to begin dialing and return to the phone keypad.
4. Tap End or press the red phone key on the FR6074 keypad to stop dialing or end the call.
Making a Speed Dial Call
Use Speed Dial to call someone saved in the speed dial directory. To
make a speed dial call:
1. Tap Start > Phone or press the green phone key on the FR6074’s keypad.
2. From the Phone keypad, tap and hold the speed dial location number assigned to a contact. (To dial a one-digit
speed dial location number, tap and hold the speed dial number. To dial a two-digit speed dial location number, tap
the first digit and then tap and hold the second digit.) or from the Phone keypad, tap Speed Dial and tap the speed
dial location number of the desired contact in the list.
Speed Dial
Location Number
Figure 5-9 Speed Dial Contact List
3. To stop dialing or end the call, tap End or press the red phone key on the FR6074 keypad.
Using the Phone
68
Making an Emergency Call
Your service provider programs one or more emergency phone numbers, such as 911 or 999, that you can call
under any circumstances, even when your phone is locked or the SIM card is not inserted (on FR6074). Your
service provider can program additional emergency numbers into your SIM card. However, your SIM card must be
inserted in your phone in order to use the numbers stored on it. See your service provider for additional
information.
When the alpha-numeric keypad phone is locked, press the Orange key twice to set the keypad to numeric mode
and then enter the emergency number.
NOTE
Emergency numbers vary by country. Your phone’s pre-programmed emergency number(s) may not work in
all locations, and sometimes an emergency call cannot be placed due to network, environmental, or
interference issues.
Answering a Call
A dialog box appears on the FR6074 when it receives an incoming call. If the phone is set to ring, a ring tone
sounds. Answer or ignore the incoming call.
To answer an incoming call tap Answer on the Phone - Incoming dialog or press the green phone key on the
FR6074 keypad.

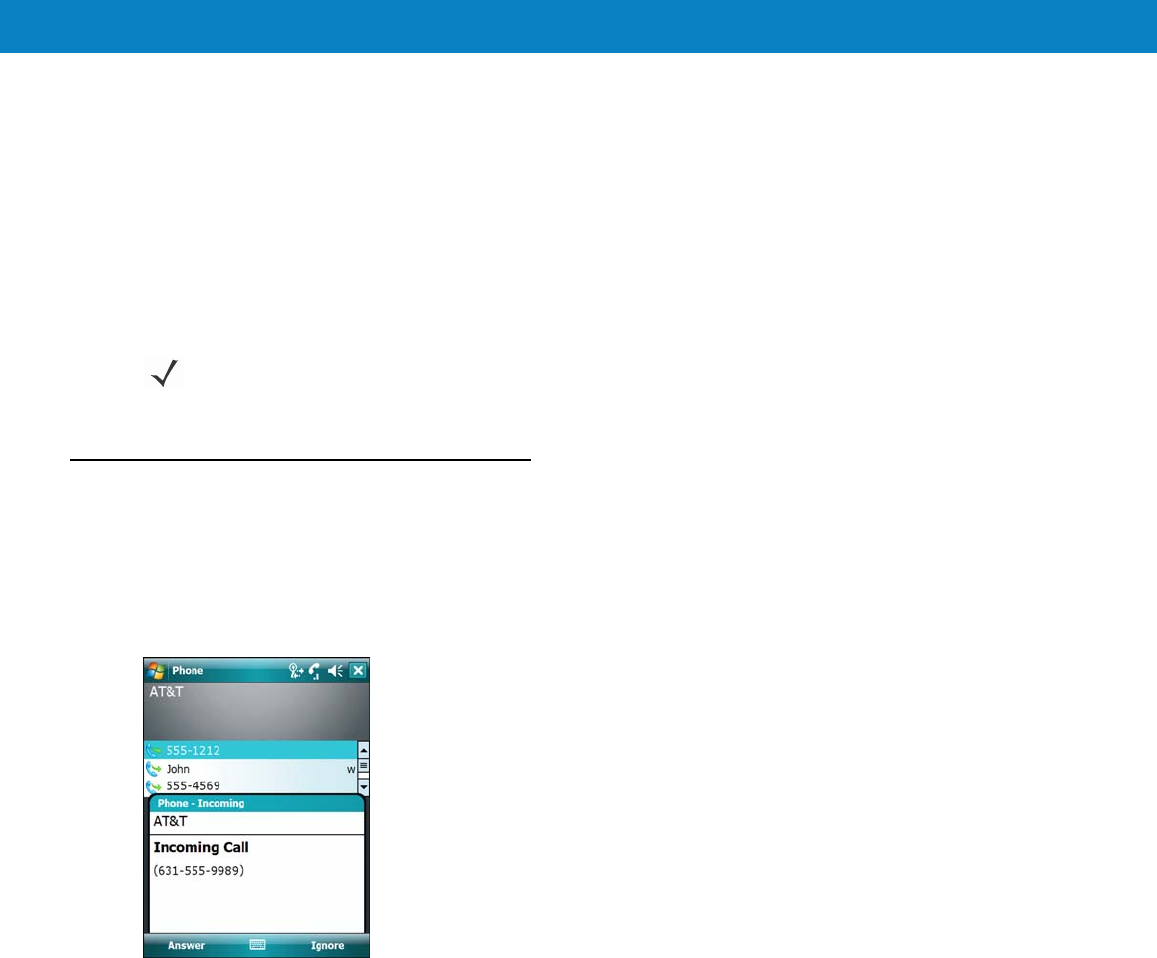

Figure 5-10 Incoming Call
To ignore the incoming call tap Ignore. This may send the caller to voice mail, depending on the service provider.
Otherwise, this presents busy signal to the calling party.
To end the call tap End or press the red phone key on the FR6074 keypad.
Incoming Call Features
• If you receive a call while in a call, tap Wait to place the call in call waiting.
• You can use other programs on the FR6074 during a call. To switch back to Phone, tap Talk or tap Start >
Phone. Tap End to end the call.
• If a caller isn't in your contact list, create a contact during the call or from Call History by tapping Menu >
Save to Contacts.
• To terminate a call when a second call comes in and answer the waiting call, tap End on the Phone keypad
to disconnect the active call, then tap Answer or press the Send key to answer the waiting call.
• To hold the current call and answer a waiting call, tap Answer or press the Send key to place the current
Using the Phone
69
call on hold and answer the incoming call.
• To put a call on hold to call another number or answer an incoming call, tap Hold on an FR6074/74. To
move from one call to another, tap Swap on an FR6074/74
Smart Dialing
Smart Dialing makes it easy to dial a phone number. When you start entering numbers or characters, Smart Dialing
automatically searches and sorts the contact entries on the SIM card, in Contacts, and the phone numbers in Call
History (including incoming, outgoing, and missed calls). You can then select the desired number or contact from
the filtered list to dial.
Open the Phone screen, then tap the keys on the Phone keypad that correspond to the phone number or contact to
call. The contact panel lists contacts that match the sequence that you entered.
Smart Dialing starts looking for numbers or contacts that match the sequence entered.
To find a phone number:
• Enter the first one or two digits to find a phone number in Call History.
• Enter the first three digits or more to find a phone number from the saved Contacts and SIM card.
To find a contact name:
• Enter the first letter of a contact’s first name or last name. Smart Dialing searches for the letter starting
from the first character of a contact name as well as from the character that appears after a space, dash,
or underscore in a contact name. For example, if you tap number “2” which is associated with [a, b, c] on
the Phone keypad, contact names such as the following will be considered matches: “Smith, Bernard”,
“Adams, John”, “Carlson, Eileen”, “Dillon, Albert”, “Childs, Larry”, “Cooper, Robert” and “Parks, Celine”.
• If the matching list is long narrow down the search further by entering another letter. Using the same
example above, tap “3” which is associated with (d, e, f), the matching list is narrowed down to the
following names: “Smith, Bernard”, “Adams, John”, and “Parks, Celine”.
Figure 5-11 Finding a Contact
To make a call or send a text message using Smart Dialing:
1. Begin entering the first few numbers or characters.
2. In the Smart Dialing panel, use the up and down arrows on the keypad to navigate to the desired contact or
phone number.
3. When the correct contact is selected, press TALK to make a voice call.

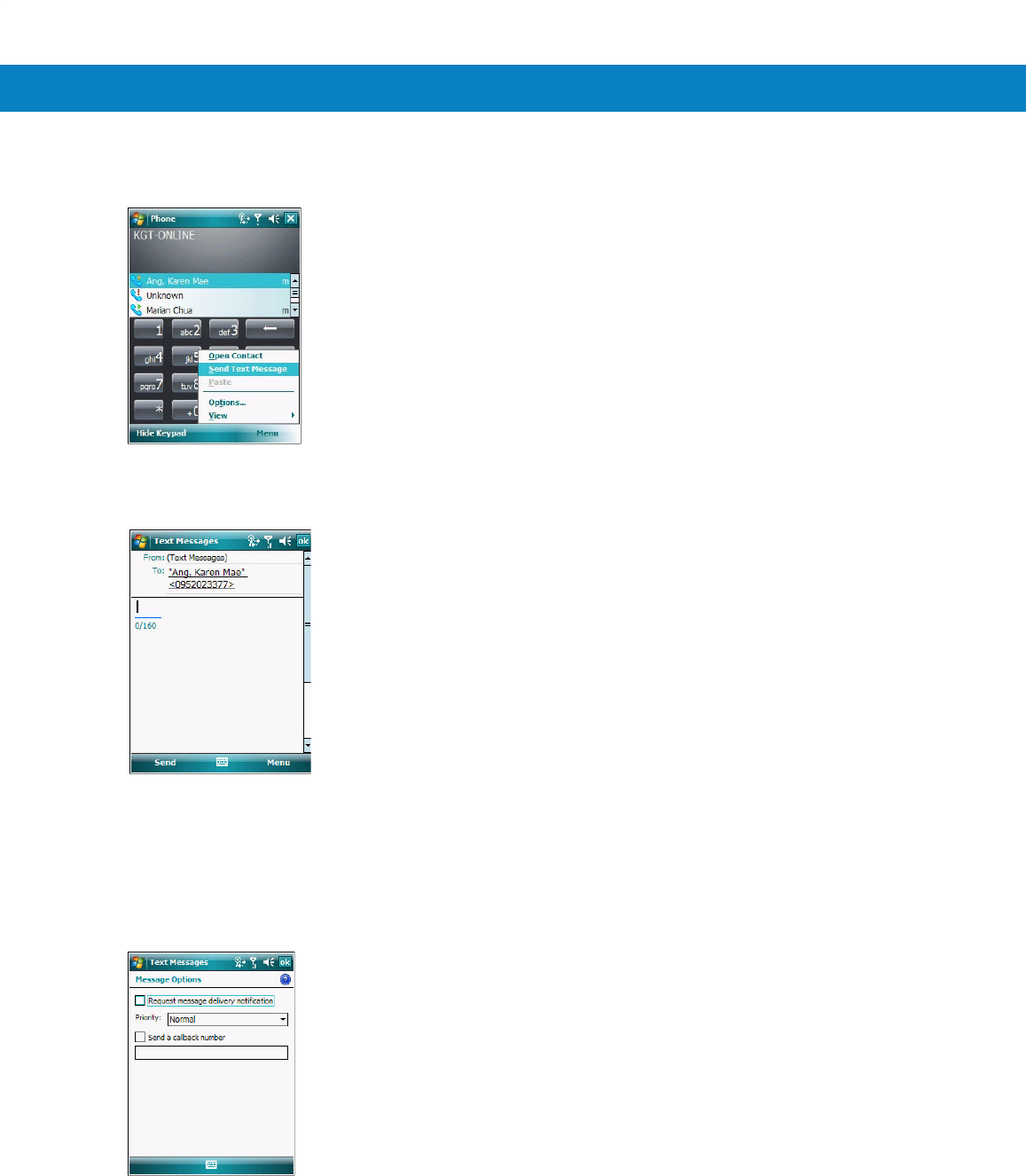

4. To send a text message to the selected contact, tap Menu > Send Text Message.
Using the Phone
70
5. To call a different phone number associated with the selected contact, tap the contact name and select the
phone number to call.
Muting a Call
During a call, you can mute the microphone so you can hear the person on the line but he or she cannot hear
conversation from the microphone. This is useful when there is conversation or background noise on your end.
To mute or unmute a call:
1. Ta p Start > Phone or press the green phone key on the FR6074’s keypad.
2. Make a call.
3. Ta p Mute on the display to mute the audio. The Mute icon appears.

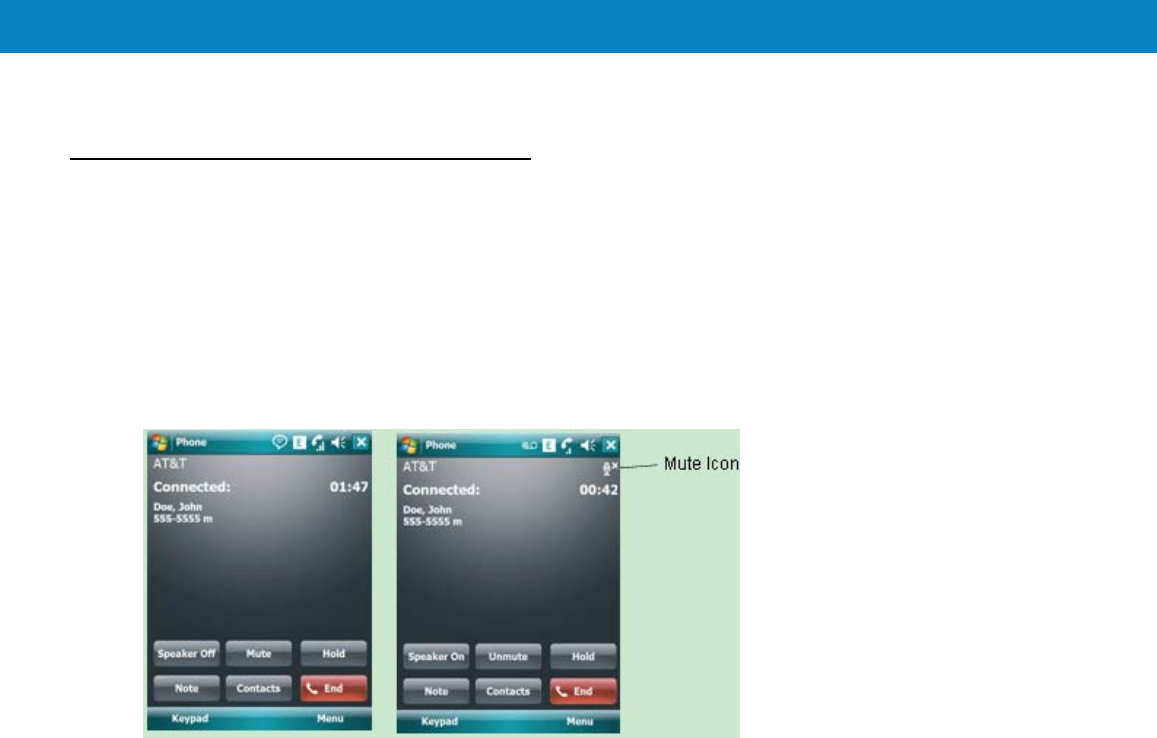

Figure 5-12 Mute Button and Icon
Using the Phone
71
Taking Notes
To create a note during a call, tap Note on the display, then enter the note. For more information about creating
notes see the Windows On-Device Help.
To access a note created during a call:
1. Ta p Start > Phone or press the green phone key on the FR6074’s keypad.
2. From the Phone keypad, tap Call History.
3. Tap and hold the number or the Note icon for the phone call entry containing the note.
Note icon

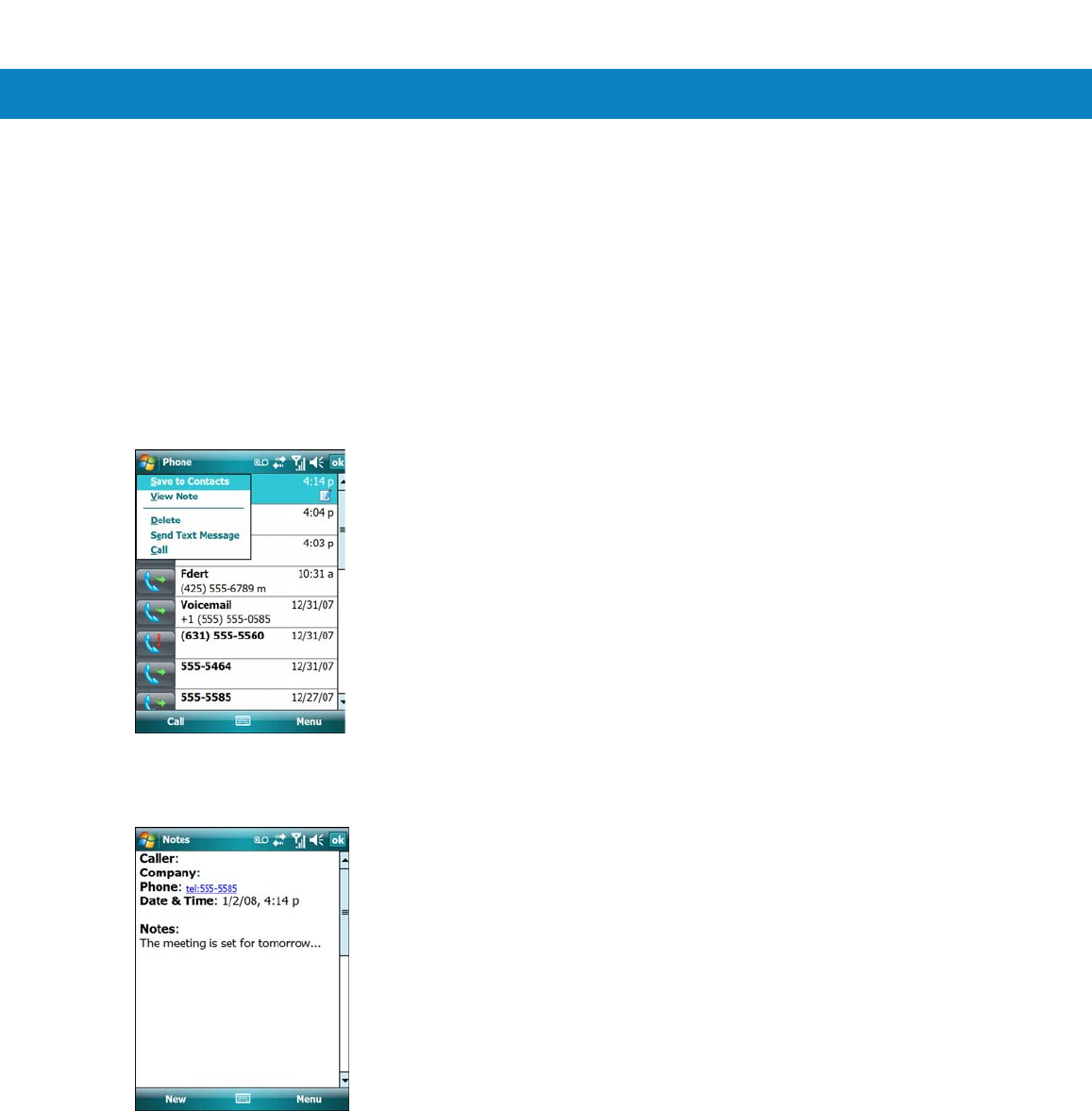

Figure 5-13 Call History - Notes Menu
4. Ta p View Note.
Figure 5-14 Call History - Notes
5. Ta p ok to exit.
NOTE
Also access notes directly from the Notes application by tapping Start > Notes.
Using the Phone
72
Using Speed Dial
Create speed dial numbers to dial frequently called numbers with a single tap. Before creating a speed dial entry,
ensure the phone number exists in Contacts.
Adding a Speed Dial Entry
To add a speed dial entry from the phone keypad:
1. Ensure the contact and phone number are in the Contacts list.
2. Ta p Start > Phone or press the green phone key on the FR6074’s keypad.
3. Ta p Menu > Speed Dial > Menu > New.

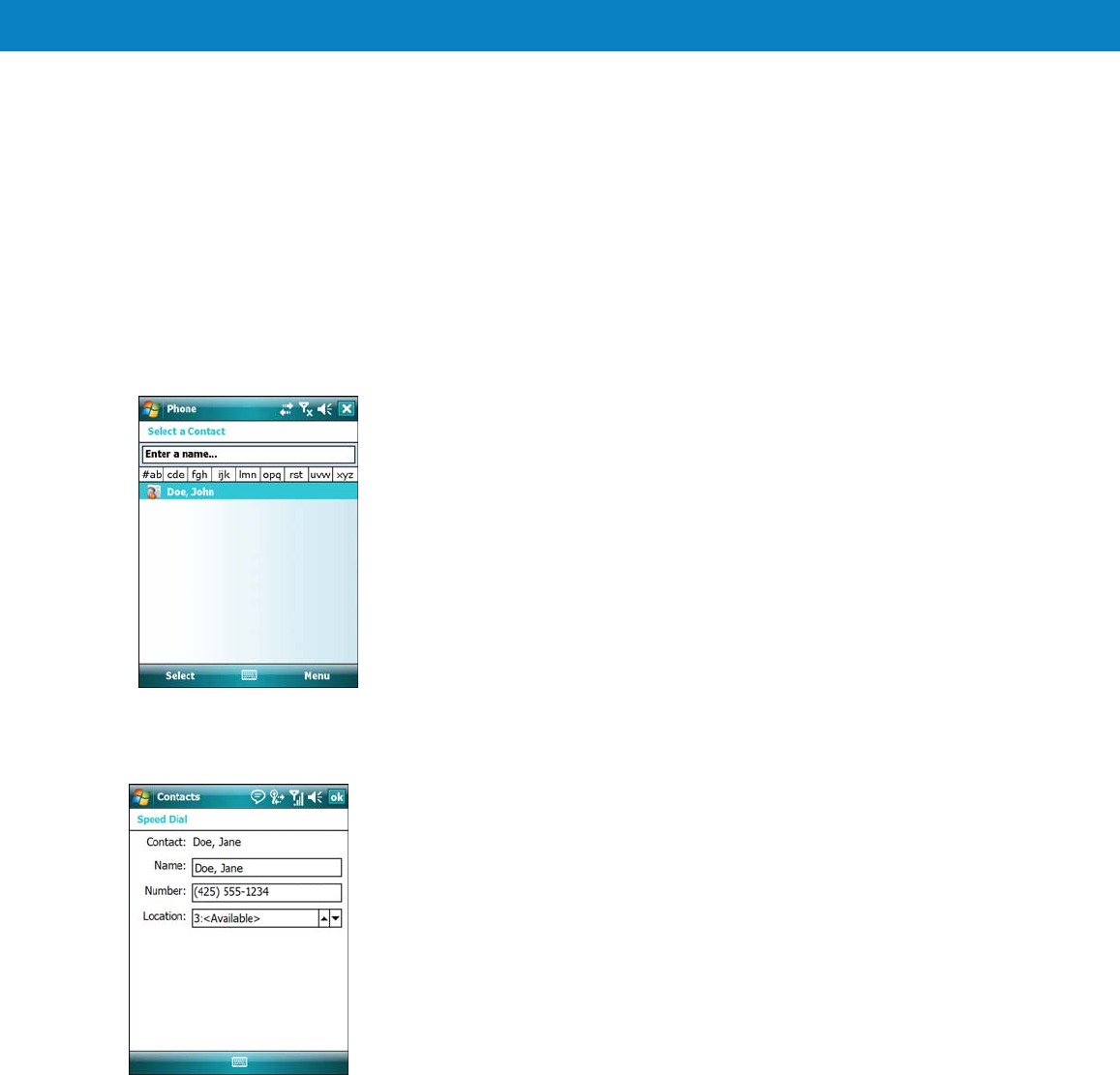

Figure 5-15 Contacts
4. Tap the desired contact name and number in the list.
Figure 5-16 Speed Dial Contact Location
5. In the Location field, tap the up/down arrows to select an available location to assign as the new speed dial entry.
The first speed dial location is reserved for voice mail.
6. Tap ok to add the contact to the speed dial list.
Using the Phone
73

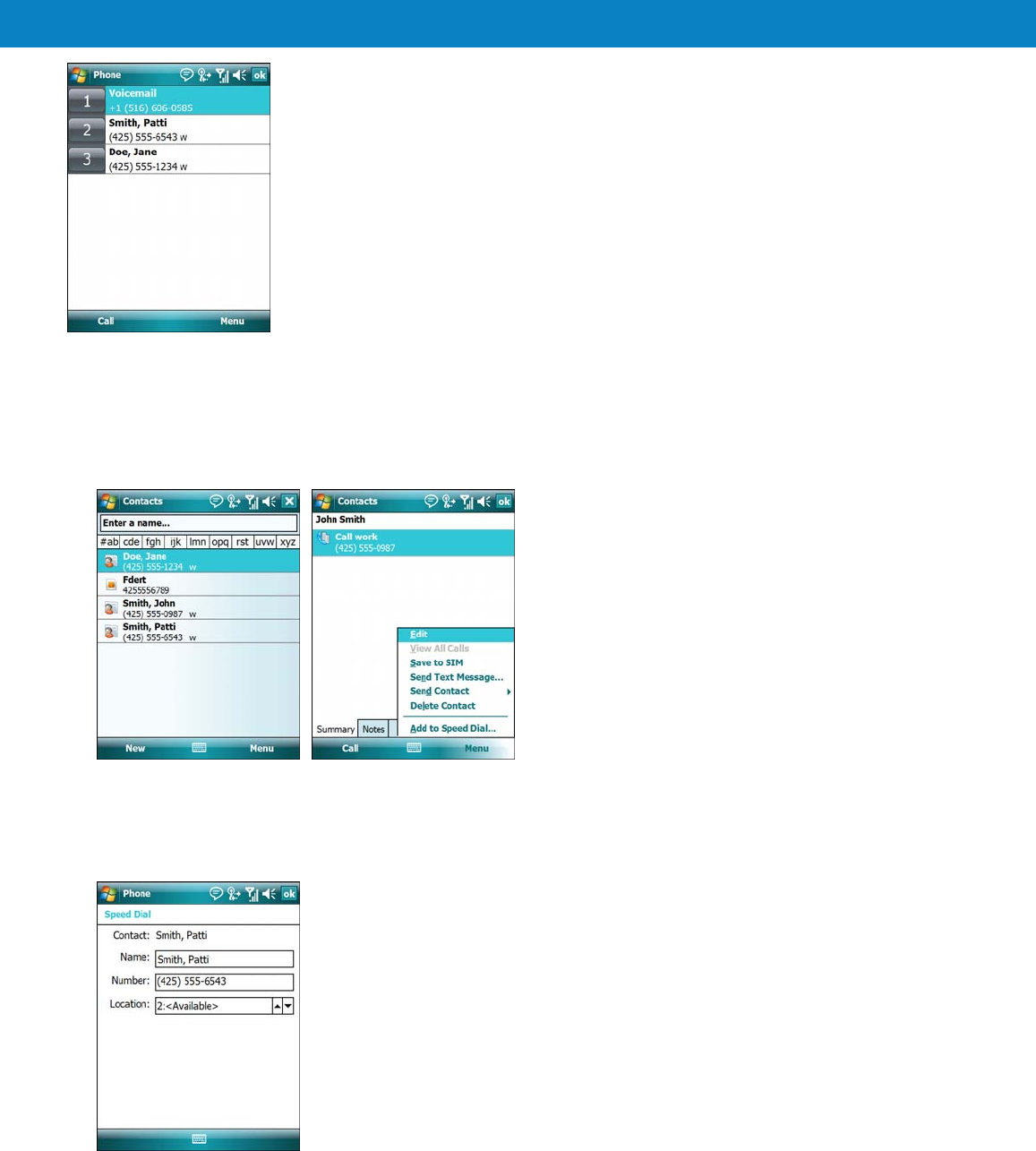

Figure 5-17 Speed Dial Contact List
7. Tap ok to exit the Speed Dial Contact List.
To add a speed dial entry from the Contacts window:
1. Tap Start > Contacts.
Figure 5-18 Contacts
2. Tap a contact name.
3. Tap Menu > Add to Speed Dial.
Figure 5-19 Speed Dial Contact Location
4. Tap the up/down arrows to select an available location to assign as the new speed dial entry. The first speed dial
location is reserved for voice mail.
5. Tap ok.
Using the Phone
74
Editing a Speed Dial Entry
1. Tap Start > Phone or press the green phone key on the FR6074’s keypad.
2. Tap Menu > Speed Dial.

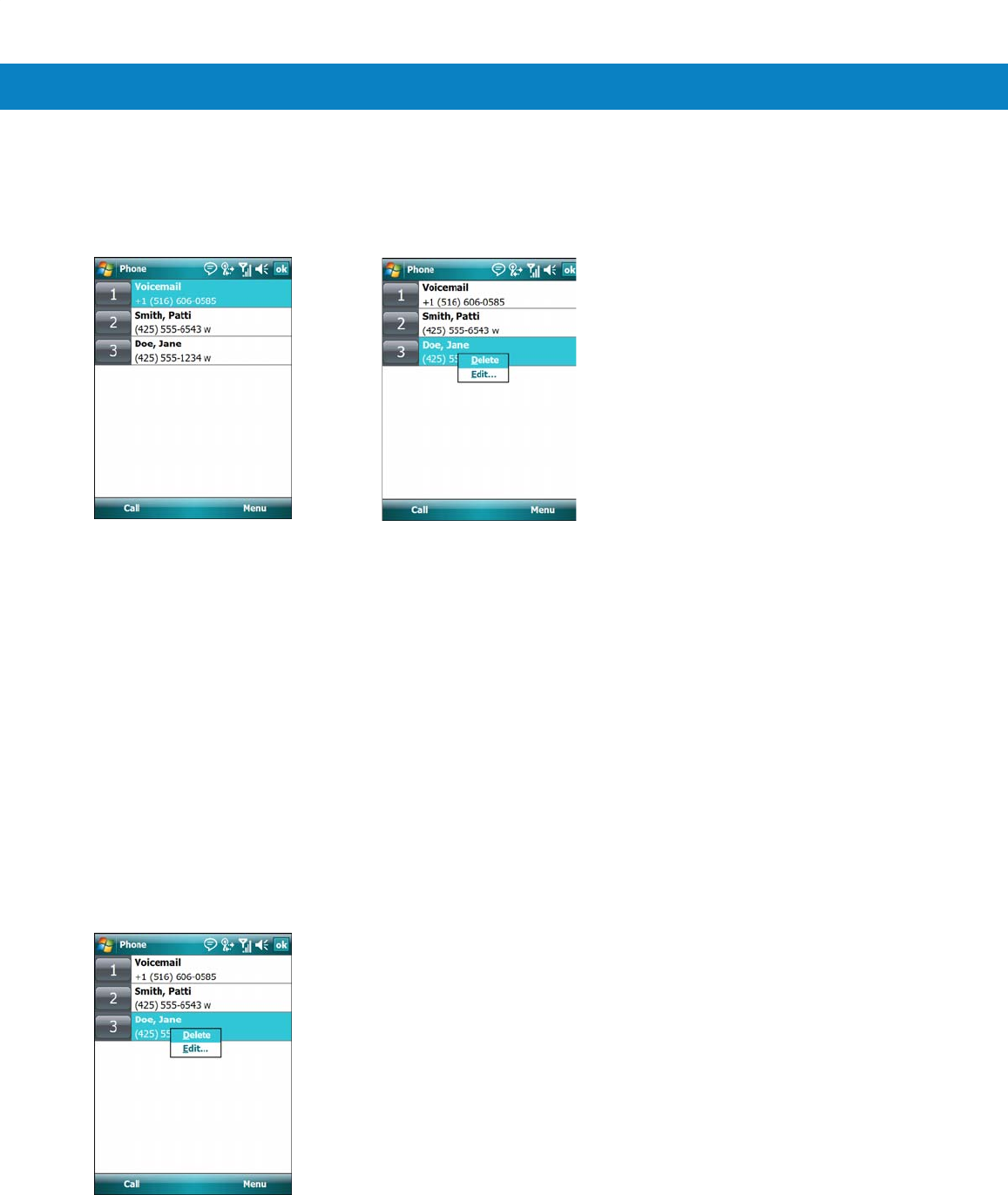

Figure 5-20 Speed Dial Contact List
3. Tap and hold the contact name.
4. Tap Edit... .
5. Change the name, phone number, or location information.
6. Tap ok.
NOTE
Editing names and phone numbers in Speed Dial does not alter contact information in Contacts (Start
> Contacts).
Deleting a Speed Dial Entry
1. Tap Start > Phone or press the green phone key on the FR6074’s keypad.
2. Tap Menu > Speed Dial.
3. Tap and hold the contact name.
Figure 5-21 Speed Dial Delete Menu
4. Tap Delete.
5. Tap Yes to confirm permanently deleting the speed dial entry.
Using the Phone
75
NOTE
Deleting names and phone numbers in Speed Dial does not delete the contact information in Contacts
(Start>Contacts).
Using Call History
Use Call History to call someone who was recently called, or recently called in. Call History provides the time and
duration of all incoming, outgoing, and missed calls. It also provides a summary of total calls and easy access to
notes taken during a call. Table 4-1 lists the call history icons that appear in the Call History window.
T
abl
e

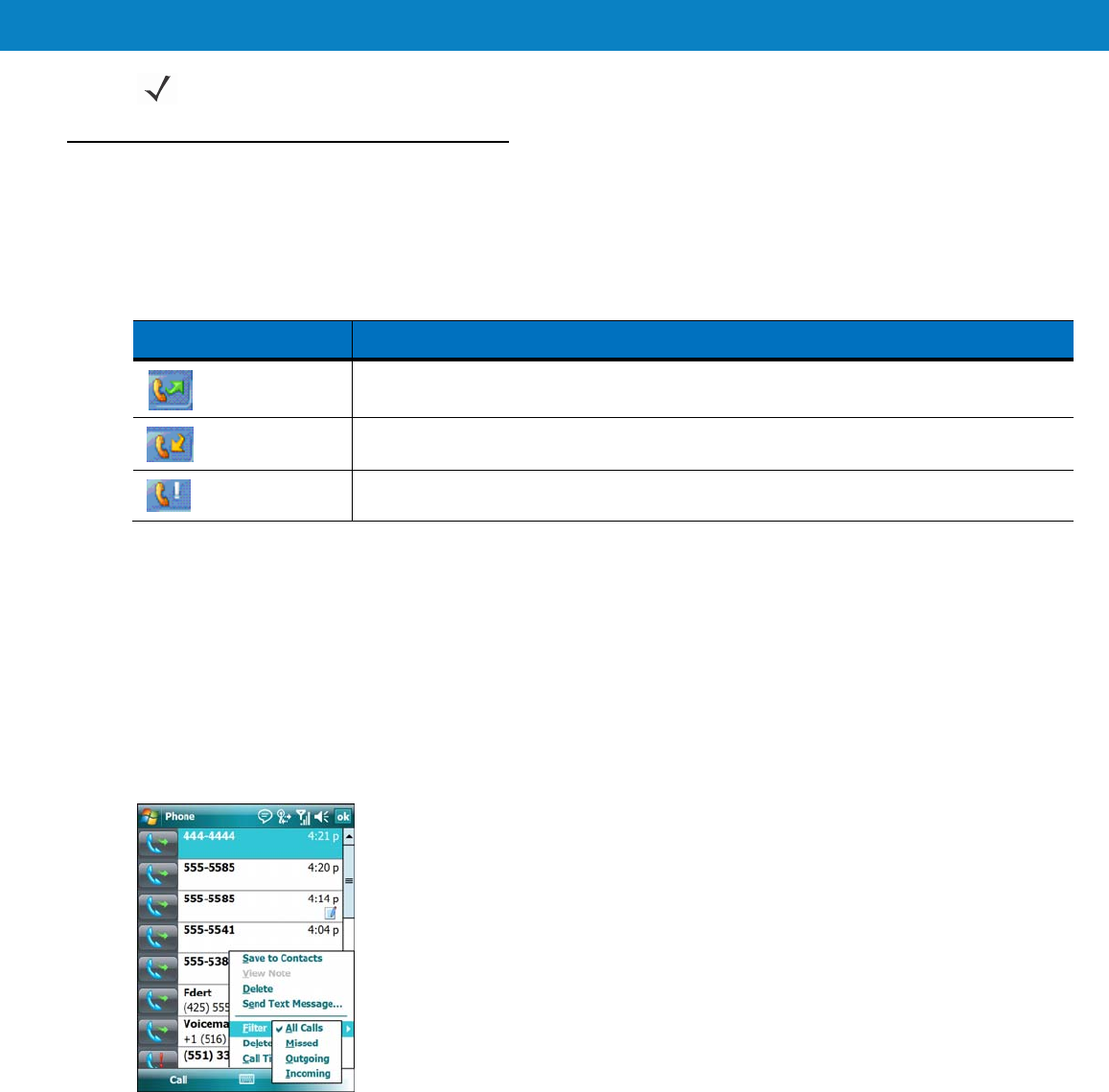

5-1 Call History Icons
Ico
n
Descriptio
n
This icon appears next to the contact information for all outgoing calls.
This icon appears next to the contact information for all incoming calls.
This icon appears next to the contact information for all missed calls.
Managing Call History
Change views, reset the call timer, and delete calls to manage the calls stored in Call History.
Changing the Call History View
1. Ta p Start > Phone or press the green phone key on the FR6074’s keypad to display the Phone keypad.
2. From the Phone keypad, tap Call History.
3. Ta p Menu > Filter to show the menu.
Figure 5-22 Call History - All Calls/Show Menu
4. Select a view type from the menu to display only missed calls, outgoing calls, incoming calls, or calls listed
alphabetically by caller name.
5. Ta p ok to exit the Call History window.
Resetting the Recent Calls Counter
1. Ta p Start > Phone or press the green phone key on the FR6074’s keypad to display the Phone keypad.
2. From the Phone keypad, tap Call History.
Using the Phone
76
3. Ta p Menu.
Figure 5-23 Call History - Tools Menu
4. Select Call Timers... .
Figure 5-24 Call History - Call Timers
5. Ta p Reset. (The All Calls: counter cannot be reset.)
6. Ta p ok to exit the Call Timers window.
Deleting Call History Items by Call Date
1. Ta p Start > Phone or press the green phone key on the FR6074’s keypad to display the Phone keypad.
2. From the Phone keypad, tap Call History.
3. Ta p Menu > Call Timers... .
Using the Phone
77
Figure 5-25 Call History - Call Timers
4. In the Delete call history items older than: drop-down list select a time period on which to base deletion of
stored items.
5. Ta p ok to exit the Call Timers window.
Deleting All Call History Items
1. Ta p Start > Phone or press the green phone key on the FR6074’s keypad to display the Phone keypad.
2. From the Phone keypad, tap Call History.
3. Ta p Menu.
Figure 5-26 Call History - Tools Menu
4. Select Delete all calls.
Figure 5-27 Call History - Delete All Dialog
5. Ta p Yes.
6. Ta p ok to exit the Call History window.
Using the Phone
78
Viewing Call Status
1. Ta p Start > Phone or press the green phone key on the FR6074’s keypad to display the Phone keypad.
2. From the Phone keypad, tap Call History.
3. Tap an entry. The Call Status window appears.

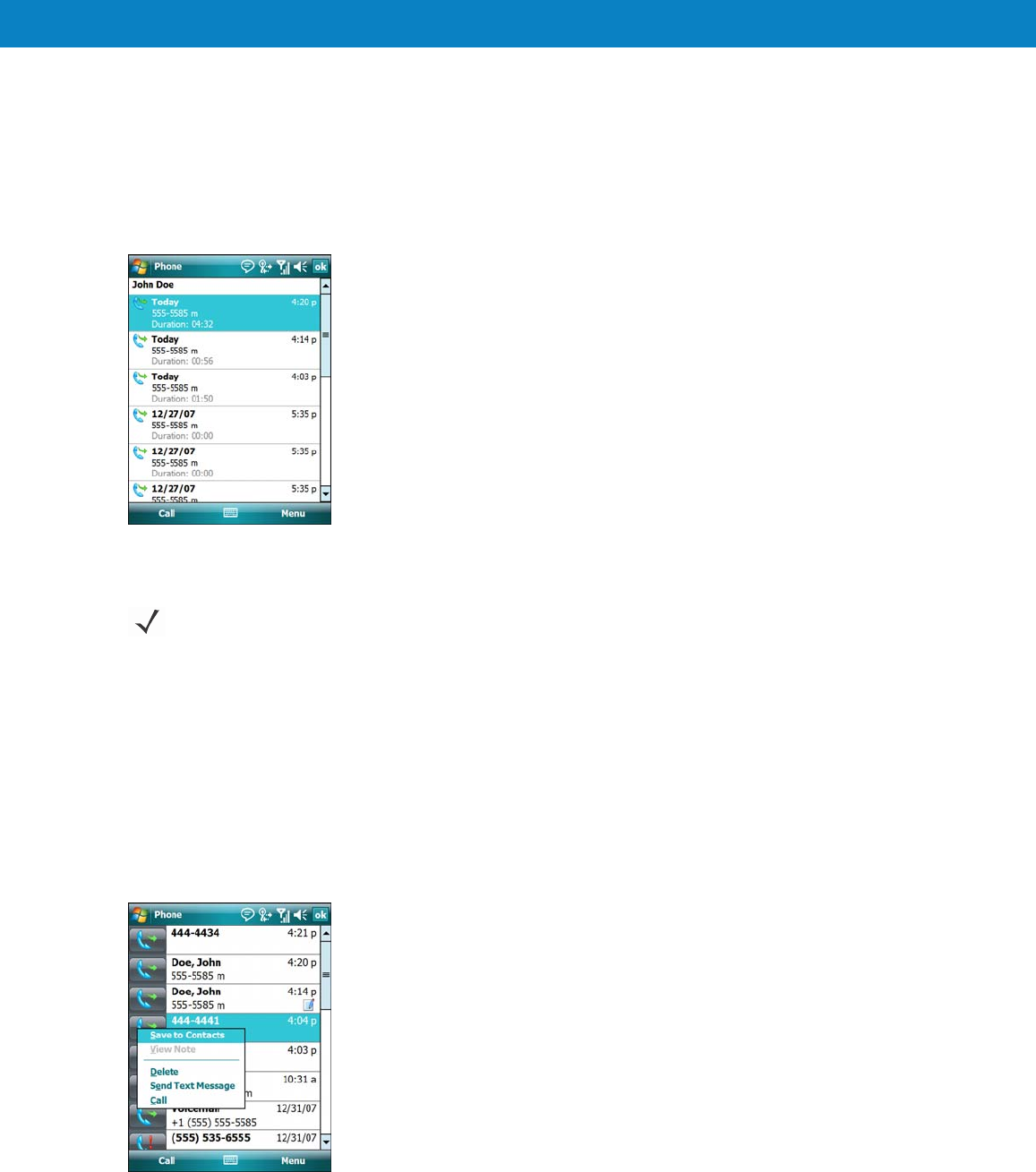

Figure 5-28 Call History - Detail
NOTE
When more than one call is on the phone line, only the duration of the first call is recorded.
4. Ta p ok and then ok to exit.
Using the Call History Menu
Use the Call History menu to dial voice mail, access the Activation Wizard, save to contacts, view a note, delete a
listing, send an SMS, and make a call.
1. Ta p Start > Phone or press the green phone key on the FR6074’s keypad to display the Phone keypad.
2. From the Phone keypad, tap Call History.
3. Tap and hold an item in the list.
Figure 5-29 Call History - Menu
4. Select an applicable item from the menu, as needed.
Using the Phone
79
5. Depending on the item selected, the appropriate window displays. For example, select Send SMS to display
the Inbox window.
6. Ta p ok to exit the Call History window.

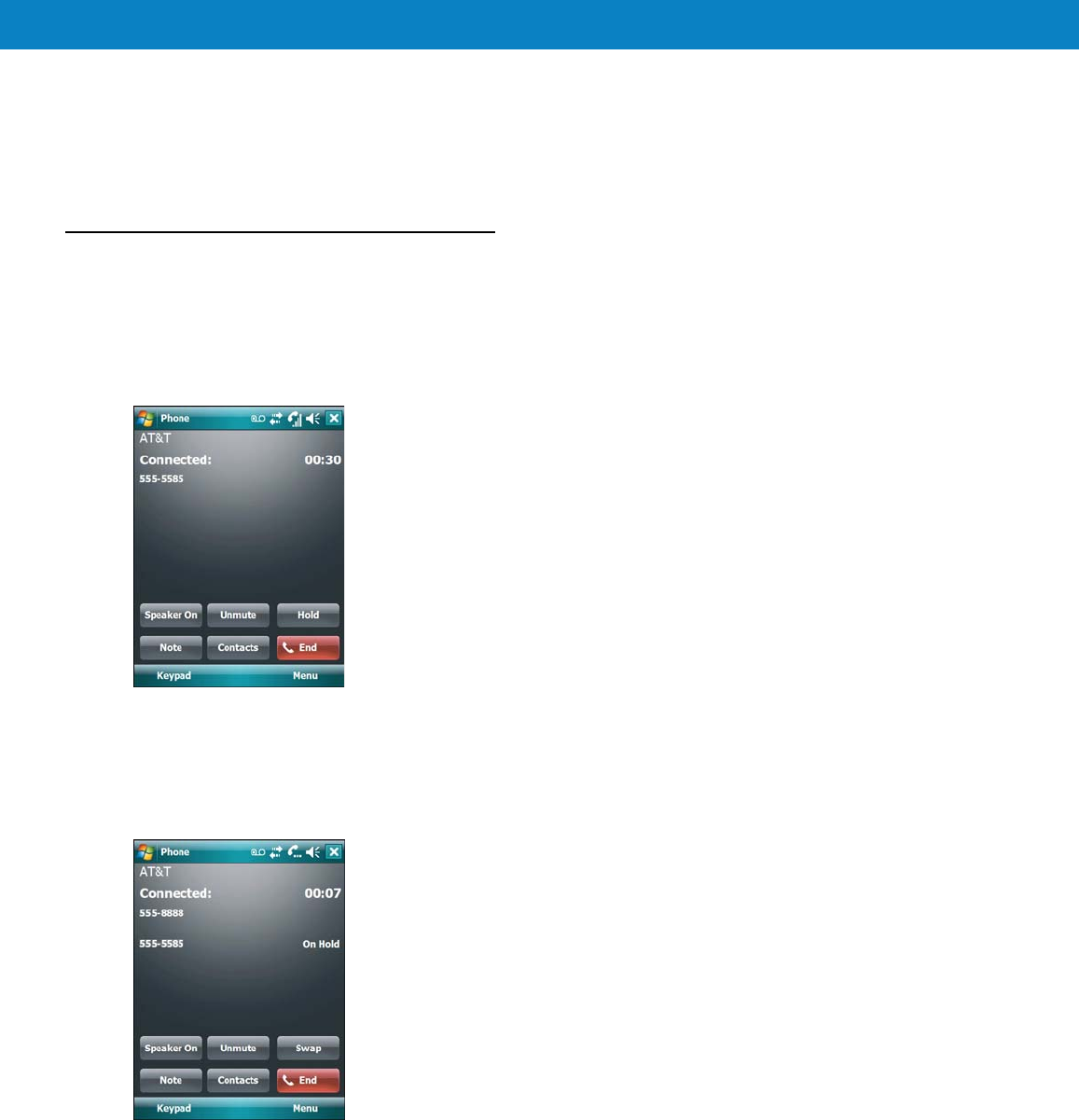

Swapping Calls on an FR6074/6076
To move between two or more phone calls:
1. Ta p Start > Phone or press the green phone key on the FR6074’s keypad to display the Phone keypad.
2. Enter the first phone number and press Talk. When the call connects, Hold appears on the keypad.
FR6074/6076

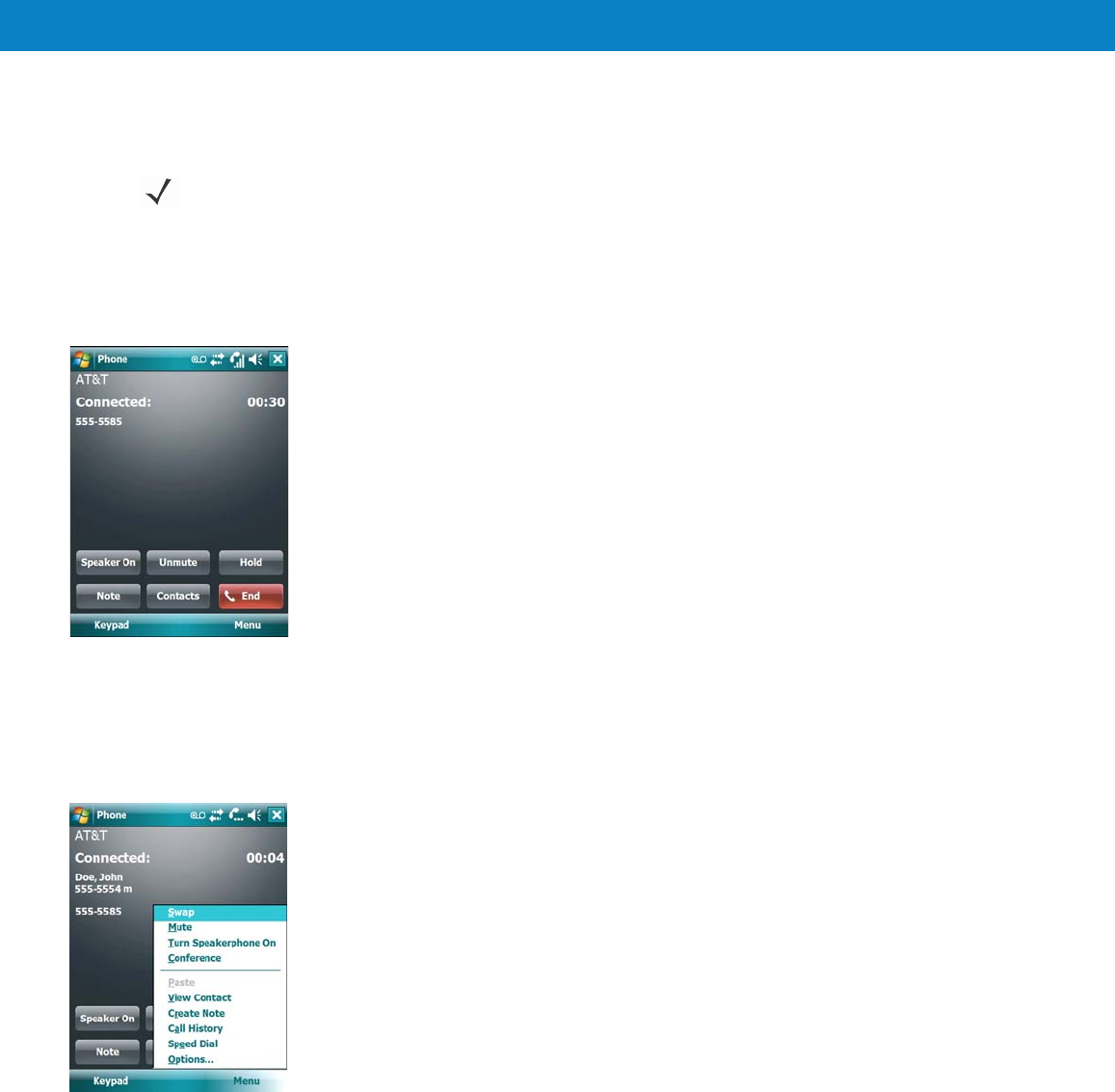

Figure 5-30 Call Swapping - Hold
3. Ta p Hold on to place the first number on hold.
4. Enter the second number and tap Talk.
Figure 5-31 Call Conferencing - Conferencing
5. Ta p Swap to move from one call to the other.
6. Ta p End or press the red phone key on the FR6074 keypad to end each call.
Using the Phone
80
Conference Calling on an FR6074
NOTE
Conference Calling and the number of conference calls allowed may not be available on all services. Please
check with your service provider for Conference Calling availability.
To create a conference phone session with multiple people:
1. Tap Start > Phone or press the green phone key on the FR6074’s keypad to display the Phone keypad.
2. Enter the first phone number and press Talk. When the call connects, Hold appears on the keypad.
Figure 5-34 Conference Call - Hold
3. Tap Hold to place the first call on hold.
4. Enter the second phone number and tap Talk.
5. After the call is answered, tap Menu > Conference to place the calls in conference mode.
Figure 5-35 Creating a Conference Call
6. Tap Hold to place the conference on hold.
7. Enter another phone number and tap Talk.
8. After the call is answered, tap Menu > Conference to place all the calls in conference mode.
9. Repeat steps 6 through 8 for up to six phone numbers.
10. Tap End or press the red phone key on the FR6074 keypad to end the conference call.
Using the Phone
81
NOTE
To speak privately with one party during a conference call, tap Menu > Private. To include all parties again,
tap Menu > Conference.

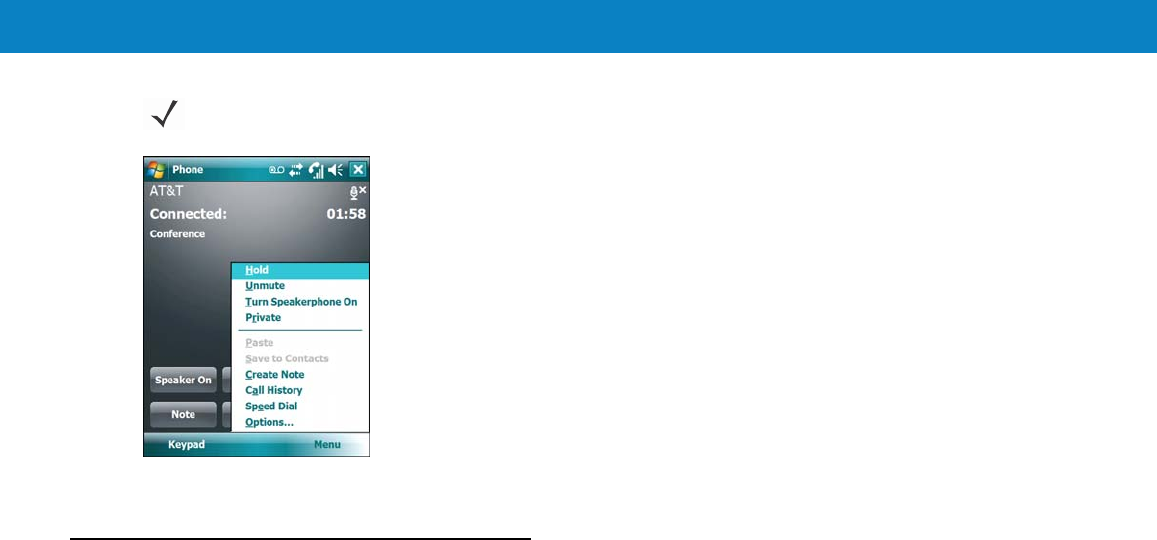

Figure 5-36 Creating a Private Call
Using the Phone
82
Text Messaging
Use the Text Messages window to send and receive text messages to and from mobile phones. The text can
contain words, numbers, or an alphanumeric combination no longer than 160 characters.
Short text messages delivered over mobile networks transmit from the sending FR6074, are stored in a central
short message center, then forwarded to the destination mobile device. If the recipient is not available, the
message is stored and can be sent later.
Viewing Text Messages
To view a text message:
You can view a text message whether the phone is on or off. When the phone is on, you can view a text message
from its notification callout. Tap the text message notification icon on the navigation bar to display the message.
Text Message Notification Icon
Figure 5-38 New Text Message Notification
The Caller Identification feature matches incoming text message numbers with those stored in Contacts so you
know who is sending you a message. Furthermore, the New Text Message dialog box gives you the option to call
the sender or save, dismiss, or delete the message.
Figure 5-39 New Text Message Options
When the phone function is off, you can still view received text message in Messaging:
1. Ta p Start > Messaging > Text Messages, or on the Today screen, tap Text Messages.
Using the Phone
83
Tap Text Messages.
Figure 5-40 Text Messaging on Today Screen
The Messaging window appears.
Figure 5-41 Messaging Window
2. In the message list, tap a Text Messages.
Tap to reply the message.
Figure 5-42 Text Messages List
NOTE
If the phone is turned off and you tried to call the sender, send a reply, or forward the message, you are
prompted to turn the phone function on.
Sending a Text Message
To create a text message:
1. On the Phone screen, select a contact name that you want to send a message to.
Using the Phone
84
2. Ta p Menu > Send Text Message.
Figure 5-43 Phone Screen Contact List
3. Compose your message.
Address Area
Message Area
Figure 5-44 Create Text Message
• The auto-correct feature automatically fixes common spelling errors as you type so your messages are
more accurate.
• The character counter lets you see and control the size of the message as you compose.
• If you want to know if your text message was received, tap Menu > Message Options, then select the
Request SMS text message delivery notification check box.
Figure 5-45 Message Options Window
4. Ta p Send when you've finished the message.
Using the Phone
85
If the phone is turned on, your text message is sent. If it’s off, you are prompted to turn on the phone. If you do
so, the message is sent; otherwise when you tap ok, the message is saved in the Drafts folder and sent when
the phone is turned on.
If you are out of coverage area, the message is saved in the Drafts folder and sent when you return to a
coverage area.
NOTE
On FR676 and FR6074 devices, the message remains in the Drafts folder and has to be manually re-sent
when you return to a coverage area.
Accessories
86
Chapter 6 Accessories
Introduction
FR6074 accessories, listed below, provide a variety of product support
capabilities.
• Single Slot USB/Serial Cradle - Charges the FR6074 main battery and a spare battery. Synchronizes the
FR6074 with a host computer through a USB connection.
• Four Slot Battery Charger - Charges spare standard and high capacity batteries.
• Auto Charge Cable - Plugs into a vehicle cigarette lighter to charge the FR6074 while on the road.
• Charge Only Cable - Provides power to the FR6074.
• USB Charging Cable - Provides power to the FR6074 and USB communication with a host computer.
• Headset - Used in noisy environments.
Single Slot USB/Serial Cradle
This section describes how to use a Single Slot USB/Serial cradle with the FR6074. For USB communication
setup procedures refer to the FR6074 Integrator Guide.
The Single Slot USB/Serial Cradle:
• Provides 5.4 VDC power for operating the FR6074.
• Synchronizes information between the FR6074 and a host computer. Refer to the FR6074 Integrator
Guide for information on setting up a partnership between the FR6074 and a host computer.
• Charges the FR6074’s battery.
• Charges a spare battery.
Charging the FR6074 Battery
Connect the cradle to power. Insert the FR6074 into the slot to begin charging.
Note : Please put the adaptor clip into the cradle before charging.
*Charging LED
Accessories
87
Slow Blinking Amber=Charging
Solid Green=Fully Charged
Fast Blinking Red=Charging Error
*It is recommended that this product be charged for 24 hours before the first use to ensure that the internal
battery is fully charged.
Figure 6-1 FR6074 Battery Charging
Charging the Spare Battery
Spare Battery
Figure 6-2 Spare Battery Charging
Accessories
88
Battery Charging Indicators
The Single Slot USB/Serial Cradle charges the FR6074’s main battery and a spare battery simultaneously.
The FR6074’s charge LED indicates the status of the battery charging in the FR6074. See Table 1-2 on page 1-7
for charging status indications.
The spare battery charging LED on the cradle indicates the status of the spare battery charging in the cradle. See
Table 6-1 for charging status indications.
The 3600 mAh battery fully charges in less than five hours.
Charging Temperature
Charge batteries in temperatures from 0°C to 45°C (32°F to 113°F). Charging is intelligently controlled by the
FR6074
.
To accomplish this, for small periods of time, the FR6074 or accessory alternately enables and disables
battery charging to keep the battery at acceptable temperatures. The FR6074 or accessory indicates when
charging is disabled due to abnormal temperatures via its LED. See Table 1-2 on page 1-7 and Table 6-1.
T
abl
e
6-1 Spare Battery LED Charging Indicators
Spare Battery LED
(on cradle)
Indication
Off Battery is not charging; battery is not inserted correctly in the cradle;
cradle is not powered
Slow Blinking Amber Spare battery is charging.
Solid Amber Charging complete.
H
C
H
eadset
Use
To
c
hea
d
For
Fig
u
C
ables
Thi
s
con
n
The
•
•
•
The
•
•
Fig
u
Co
m
•
the headse
t
c
onnect the
h
d
set connec
t
best perfor
m
u
re 6-5
H
e
s
section de
s
n
ection cap
a
following c
o
USB Cli
e
Auto char
g
Charge on
following pr
i
O’Neil P
r
Zebra P
r
u
re 6-6
C
a
m
munication
/
Provide
t
supply.
t
to commun
h
eadset, re
m
t
or. Contact
a
m
ance, Moto
r
e
adset Conn
e
s
cribes how
t
a
bilities.
o
mmunicatio
n
e
nt Charge
c
g
e cable
ly cable.
i
nter cables
a
r
inte
r
cable
r
inter cable.
a
ble
s
/
charge cabl
e
t
he FR6074
icate via Voi
c
m
ove the plu
g
a
Motorola r
e
r
ola recomm
e
ction
t
o set up an
d
n
/charge ca
b
c
able (stand
a
a
re availabl
e
e
s:
with operati
n
89
c
e-Over-IP (
V
g
from the h
e
e
presentativ
e
ends a 2.5
m
d
use the ca
b
b
les are avai
a
rd-A conne
c
e
directly fro
m
n
g and char
g
V
OIP) or for
e
adset jack a
e
for compat
m
m jack head
b
les. The ca
b
lable:
c
tor and a ba
m
Motorola:
g
ing power
w
audio playb
a
t the top of t
h
ible headset
s
set, p/n 50-
1
b
les are avai
r
rel recepta
c
w
hen used wi
a
c
k
and tele
p
h
e FR6074
a
s
.
1
1300-050R.
lable with a
v
c
le for power
i
th the Moto
r
Acce
p
hony appli
c
a
nd insert th
e
v
a
r
iety of
)
r
ola approve
d
ssories
c
ations.
e
d
power
Accessories
90
• Synchronize information between the FR6074 and a host computer. With customized or third party
software, it can also synchronize the FR6074 with corporate databases.
• Provide USB connection through the USB pass-through port for communication with a USB device,
such as a host computer. For communication setup procedures, refer to the FR6074 Integrator Guide.
Dedicated printer cables provide communication with a printer.
Battery Charging and Operating Power
The communication/charge cables can charge the FR6074 battery and supply operating
power. To charge the FR6074 battery:
1. Connect the communication/charge cable power input connector to the Motorola approved power source.
2. Slide the bottom of the FR6074 into the connector end of the communication/charge cable and gently
press in until it latches into the FR6074. The FR6074 amber Charge LED indicates the FR6074 battery
charging status. The 3600 mAh standard battery charges in less than five hours. See Table 1-2 on page
1-7 for charging status indications.
3. When charging is complete, remove the cable by gently pulling the FR6074 and the cable
apart.
LED Charge Indications
The amber Charge LED on the FR6074 indicates battery charging status. See Table 1-2 on page 1-7 for
charging status indications.
Charging Temperature
Charge batteries in temperatures from 0°C to 45°C (32°F to 113°F). Charging is intelligently controlled by the
FR600
To accomplish this, for small periods of time, the FR6074 or accessory alternately enables and disables
battery charging to keep the battery at acceptable temperatures. The FR6074 or accessory indicates when
charging is disabled due to abnormal temperatures via its LED. See Table 1-2 on page 1-7.4
91
Chapter 7 Maintenance&Troubleshooting
Introduction
This chapter includes instructions on cleaning and storing the FR6074, and provides troubleshooting solutions
for potential problems during FR6074 operation.
Maintaining the FR6074
For trouble-free service, observe the following tips when using the FR6074:
• Do not scratch the screen of the FR6074. When working with the FR6074, use the supplied stylus or
plastic-tipped pens intended for use with a touch-sensitive screen. Never use an actual pen or pencil or other
sharp object on the surface of the FR6074 screen.
Motorola recommends using a screen protector, p/n KT-67525-01R.
• The touch-sensitive screen of the FR6074 is glass. Do not to drop the FR6074 or subject it to strong impact.
• Protect the FR6074 from temperature extremes. Do not leave it on the dashboard of a car on a hot day,
and keep it away from heat sources.
• Do not store or use the FR6074 in any location that is dusty, damp, or wet.
• Use a soft lens cloth to clean the FR6074. If the surface of the FR6074 screen becomes soiled, clean it with a
soft cloth moistened with a diluted window-cleaning solution.
• Periodically replace the rechargeable battery to ensure maximum battery life and product performance.
Battery life depends on individual usage patterns.
Maintenance
&
Troubleshooting
92
• A screen protector is applied to the FR6074. Motorola recommends using this to minimize wear and tear.
Screen protectors enhance the usability and durability of touch screen displays. Benefits include:
• Protection from scratches and gouges
• Durable writing and touch surface with tactile feel
• Abrasion and chemical resistance
• Glare reduction
• Keeping the device’s screen looking new
• Quick and easy installation.
Battery Safety Guidelines
• The area in which the units are charged should be clear of debris and combustible materials or chemicals.
Particular care should be taken where the device is charged in a non commercial environment.
• Follow battery usage, storage, and charging guidelines found in the user's guide.
• Improper battery use may result in a fire, explosion, or other hazard.
• To charge the mobile device battery, the battery and charger temperatures must be between +32 ºF and
+113 ºF (0 ºC and +45 ºC)
• Do not use incompatible batteries and chargers. Use of an incompatible battery or charger may present a
risk of fire, explosion, leakage, or other hazard. If you have any questions about the compatibility of a battery
or a charger, contact Motorola Enterprise Mobility support.
• For devices that utilize a USB port as a charging source, the device shall only be connected to products that
bear the USB-IF logo or have completed the USB-IF compliance program.
• To enable authentication of an approved battery, as required by IEEE1725 clause 10.2.1, all batteries will
carry a Motorola hologram. Do not fit any battery without checking it has the Motorola authentication
hologram.
• Do not disassemble or open, crush, bend or deform, puncture, or shred.
• Severe impact from dropping any battery-operated device on a hard surface could cause the battery
to overheat.
• Do not short circuit a battery or allow metallic or conductive objects to contact the battery terminals.
• Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to
water or other liquids, or expose to fire, explosion, or other hazard.
• Do not leave or store the equipment in or near areas that might get very hot, such as in a parked vehicle or
near a radiator or other heat source. Do not place battery into a microwave oven or dryer.
• Battery usage by children should be supervised.
• Please follow local regulations to promptly dispose of used re-chargeable batteries.
• Do not dispose of batteries in fire.
• Seek medical advice immediately if a battery has been swallowed.
• In the event of a battery leak, do not allow the liquid to come in contact with the skin or eyes. If contact has
been made, wash the affected area with large amounts of water and seek medical advice.
• If you suspect damage to your equipment or battery, contact Motorola Enterprise Mobility support to
arrange for inspection.
Maintenance
&
Troubleshooting
93
Cleaning
CAUTION
Always wear eye protection.
Read warning label on compressed air and alcohol product before using.
If you have to use any other solution for medical reasons please contact Motorola for more information.
WARNING
!
Avoid exposing this product to contact with hot oil or other flammable liquids. If such exposure
occurs, unplug the device and clean the product immediately in accordance with these guidelines.
Materials Required
• Alcohol wipes
• Lens tissue
• Cotton tipped applicators
• Isopropyl alcohol
• Can of compressed air with a tube.
Cleaning the FR6074
Housing
Using the alcohol wipes, wipe the housing including keys and in-between keys.
Display
The display can be wiped down with the alcohol wipes, but care should be taken not to allow any pooling of liquid
around the edges of the display. Immediately dried the display with a soft, non-abrasive cloth to prevent streaking.
Scanner Exit Window
Wipe the scanner exit window periodically with a lens tissue or other material suitable for cleaning optical material
such as eyeglasses.
Connector
1. Remove the main battery from mobile computer. See Replacing the Main Battery on page 1-11.
2. Close battery door.
3. Dip the cotton portion of the cotton tipped applicator in isopropyl alcohol.
4. Rub the cotton portion of the cotton tipped applicator back-and-forth across the connector on the bottom of the
FR6074. Do not leave any cotton residue on the connector.
5. Repeat at least three times.
6. Use the cotton tipped applicator dipped in alcohol to remove any grease and dirt near the connector area.
7. Use a dry cotton tipped applicator and repeat steps 4 through 6.
Maintenance
&
Troubleshooting
94
8. Spray compressed air on the connector area by pointing the tube/nozzle about ½ inch away from the surface.
CAUTION: Do not point nozzle at yourself and others, ensure the nozzle or tube is away from your face.
9. Inspect the area for any grease or dirt, repeat if required.
Cleaning Cradle Connectors
To clean the connectors on a cradle:
1. Remove the DC power cable from the cradle.
2. Dip the cotton portion of the cotton tipped applicator in isopropyl alcohol.
3. Rub the cotton portion of the cotton tipped applicator along the pins of the connector. Slowly move the
applicator back-and-forth from one side of the connector to the other. Do not let any cotton residue on the
connector.
4. All sides of the connector should also be rubbed with the cotton tipped applicator.
5. Spray compressed air in the connector area by pointing the tube/nozzle about ½ inch away from the surface.
CAUTION: do not point nozzle at yourself and others, ensure the nozzle or tube is pointed away from your
face.
6. Ensure that there is no lint left by the cotton tipped applicator, remove lint if found.
7. If grease and other dirt can be found on other areas of the cradle, use lint free cloth and alcohol to remove.
8. Allow at least 10 to 30 minutes (depending on ambient temperature and humidity) for the alcohol to air dry
before applying power to cradle.
If the temperature is low and humidity is high, longer drying time is required. Warm temperature and dry
humidity requires less drying time.
Cleaning Frequency
The cleaning frequency is up to the customer’s discretion due to the varied environments in which the mobile
devices are used. They may be cleaned as frequently as required. However when used in dirty environments it
may be advisable to periodically clean the scanner exit window to ensure optimum scanning performance.
Maintenance
&
Troubleshooting
95
Troubleshooting
FR6074
T
abl
e
7-1 Troubleshooting the FR6074
Problem
Cause
Solution
FR6074 does not
turn on. Lithium-ion battery
not charged. Charge or replace the lithium-ion battery in the FR6074.
Lithium-ion battery
not installed
properly.
Install the battery properly. See Installing the Main Battery on page
1-6.
System crash. Perform a warm boot. If the FR6074 still does not turn on, perform
a cold boot. See Resetting the FR6074 on page 2-14.
Rechargeable
lithium-ion battery did
not charge.
Battery failed. Replace battery. If the FR6074 still does not operate, perform a
warm boot, then a cold boot. See Resetting the FR6074 on page
2
1
4
FR6074
removed from
cradle while
battery was
charging.
Insert FR6074 in cradle. The 3600 mAh battery fully charges in
less than six hours.
Extreme battery
temperature. Battery does not charge if ambient temperature is below 0°C (32°F)
or above 45°C (113°F).
Cannot see characters
on display. FR6074 not
powered on. Press the Power button.
During data
communication,
no
data transmitted, or
transmitted data was
incomplete.
FR6074 removed
from cradle or
disconne cted from
host computer
during
communication.
Replace the FR6074 in the cradle, or reattach the
communication
cable and re-transmit.
Incorrect cable
configuration. See the system administrator.
Communication
software was
incorrectly installed
or configured.
Perform setup. Refer to the FR6074 Integrator Guide for details.
No sound. Volume setting is
low or turned off. Adjust the volume. See Adjusting Volume on page 2-10.
Maintenance
&
Troubleshooting
96
T
abl
e
7-1 Troubleshooting the FR6074 (Continued)
Problem
Cause
Solution
FR6074 shuts off. FR6074 is inactive. The FR6074 turns off after a period of inactivity. If the FR6074 is
running on battery power, set this period from 1 to 5 minutes, in
one-minute intervals. If the FR6074 is running on external power,
set this period to 1, 2, 5, 10, 15, or 30 minutes.
Check the Power window by selecting Start > Settings > System tab
and tapping the Power icon. Select the Advanced tab and change
the setting for a longer delay before the automatic shutoff feature
activates.
Battery is depleted. Replace the battery.
Battery is not
inserted properly. Insert the battery properly. See Installing the Main Battery on page
1-6.
Tapping the window
buttons or icons does
not activate the
corresponding feature.
Screen is not
calibrated correctly. Re- calib rate the screen. See Calibrating the Screen on page 1-8.
The system is not
responding. Warm boot the system. See Resetting the FR6074 on page 2-14.
A message appears
stating that the
FR6074 memory is
full.
Too many files
stored on the
FR6074.
Delete unused memos and records. If necessary, save these
records on the host computer (or use an SD card for additional
memory).
Too many
applications
installed on the
FR6074.
Remove user-installed applications on the FR6074 to recover
memory. Select Start > Settings > System tab and tap the Remove
Programs icon. Select the unused program and tap Remove.
FR6074 keeps
powering down to
protect memory
contents.
The FR6074’s
battery is low. Recharge the battery.
The internal
Bluetooth radio is
powered on for a
long time.
Because this mode requires battery power, power it off when not
needed.
Maintenance
&
Troubleshooting
97
T
abl
e
7-1 Troubleshooting the FR6074 (Continued)
Problem
Cause
Solution
The FR6074 does
not accept scan
input.
Scanning
application is not
loaded.
Load a scanning application on the FR6074. See the
system administrator.
Unreadable bar
code. Ensure the symbol is not defaced.
Distance between
exit window and bar
code is incorrect.
Place the FR6074 within proper scanning range.
FR6074 is not
programmed for the
bar code.
Program the FR6074 to accept the type of bar code being scanned.
FR6074 is not
program med to
generate a beep.
If the FR6074 does not beep on a good decode, set the application
to generate a beep on good decode.
Battery is low. If the scanner stops emitting a laser beam upon a trigger press,
check the battery level. When the battery is low, the scanner shuts
off before the FR6074 low battery condition notification. Note: If
the scanner is still not reading symbols, contact the distributor or
Motorola.
Bluetooth Connection
T
abl
e
7-2 Troubleshooting Bluetooth Connection
Problem
Cause
Solution
FR6074 cannot find
any Bluetooth
devices nearby.
Too far from other
Bluetooth devices. Move closer to the other Bluetooth device(s), within a range of 10
meters.
The Bluetooth
device(s) nea rby are
not turned on.
Turn on the Bluetooth device(s).
The Bluetooth
device(s) are not in
discoverable mode.
Set the Bluetooth device(s) to discoverable mode. If needed, refer to
the device’s user documentation for help.
When trying to
connect a Bluetooth
phone and FR6074,
the phone thinks a
previously paired
FR6074 is used.
The phone
remembers the
name and address
of the FR6074 it
last paired with via
the Bluetooth
radio.
Manually delete the pairing device and name from the phone. Refer
to the phone’s user documentation for instructions.
Maintenance
&
Troubleshooting
98
Single Slot USB/Serial Cradle
T
abl
e
7-3 Troubleshooting the Single Slot USB/Serial Cradle
Symptom
Possible
Cause
Action
LEDs do not light
when FR6074 or
spare battery is
inserted.
Cradle is not
receiving power. Ensure the power cable is connected securely to both the cradle
and to AC power.
FR6074 is not
seated firmly in the
cradle
Remove and re-insert the FR6074 into the cradle, ensuring it is
firmly seated.
Spare battery is not
seated firmly in the
cradle.
Remove and re-insert the spare battery into the charging slot,
ensuring it is firmly seated.
Maintenance
&
Troubleshooting
99
T
abl
e
7-3 Troubleshooting the Single Slot USB/Serial Cradle (Continued)
Symptom
Possible
Cause
Action
FR6074 battery is
not charging. FR6074 was
removed from
cradle or
cradle was
unplugged from AC
power too soon.
Ensure cradle is receiving power. Ensure FR6074 is seated
correctly. Confirm main battery is charging under Start > Settings >
System > Power. The 3600 mAh battery fully charges in less than
six hours.
Battery is faulty. Verify that other batteries charge properly. If so, replace the faulty
battery.
The FR6074 is
not fully seated in
the cradle.
Remove and re-insert the FR6074 into the cradle, ensuring it is
firmly seated.
Ambient
temperature of the
cradle is too warm.
Move the cradle to an area where the ambient temperature is
between 0°C (32°F) and 35°C (95°F).
Extreme battery
temperature. Battery does not charge if ambient temperature is below 0°C (32°F)
or above 45°C (113°F).
Spare battery is not
charging. Battery not fully
seated in charging
slot.
Remove and re-insert the spare battery in the cradle, ensuring it is
firmly seated.
Battery inserted
incorrectly. Re-insert the battery so the charging contacts on the battery align
with the contacts on the cradle.
Battery is faulty. Verify that other batteries charge properly. If so, replace the faulty
battery.
Ambient
temperature of the
cradle is too warm.
Move the cradle to an area where the ambient temperature is
between 0°C (32°F) and 35°C (95°F).
During data
communication,
no
data transmits, or
transmitted data was
incomplete.
FR6074 removed
from cradle during
communications.
Replace FR6074 in cradle and retransmit.
Incorrect cable
configuration. See the system administrator.
Communication
software is not
installed or
configured properly.
Perform setup as described in the FR6074 Integrator Guide.
