Symbol Technologies LA4137SPS3046 2.4GHz Scan/LAN Sled w/ Compact Flash Internal Car User Manual attachments
Symbol Technologies Inc 2.4GHz Scan/LAN Sled w/ Compact Flash Internal Car attachments
Users Manual
© 2001 PCTEST Lab
ATTACHMENT J – USER’S MANUAL
SPS3000
SCAN/LAN
SPS 3000
SCAN/LAN
© 2001 SYMBOL TECHNOLOGIES, INC. All rights reserved.
Symbol reserves the right to make changes to any product to improve reliability,
function, or design.
Symbol does not assume any product liability arising out of, or in connection with, the
application or use of any product, circuit, or application described herein.
No license is granted, either expressly or by implication, estoppel, or otherwise under
any patent right or patent, covering or relating to any combination, system,
apparatus, machine, material, method, or process in which Symbol products might
be used. An implied license only exists for equipment, circuits, and subsystems
contained in Symbol products.
Symbol and the Symbol logo are registered trademarks of Symbol Technologies, Inc.
Other product names mentioned in this manual may be trademarks or registered
trademarks of their respective companies and are hereby acknowledged.
Symbol Technologies, Inc.
One Symbol Plaza
Holtsville, N.Y. 11742-1300
http://www.symbol.com
Patents
This product is covered by one or more of the following U.S. and foreign Patents:
U.S. Patent No. 4,496,831; 4,593,186; 4,603,262; 4,607,156; 4,652,750; 4,673,805;
4,736,095; 4,758,717; 4,760,248; 4,806,742; 4,816,660; 4,845,350; 4,896,026; 4,897,532;
4,923,281; 4,933,538; 4,992,717; 5,015,833; 5,017,765; 5,021,641; 5,029,183; 5,047,617;
5,103,461; 5,113,445; 5,130,520; 5,140,144; 5,142,550; 5,149,950; 5,157,687; 5,168,148;
5,168,149; 5,180,904; 5,216,232; 5,229,591; 5,230,088; 5,235,167; 5,243,655; 5,247,162;
5,250,791; 5,250,792; 5,260,553; 5,262,627; 5,262,628; 5,266,787; 5,278,398; 5,280,162;
5,280,163; 5,280,164; 5,280,498; 5,304,786; 5,304,788; 5,306,900; 5,321,246; 5,324,924;
5,337,361; 5,367,151; 5,373,148; 5,378,882; 5,396,053; 5,396,055; 5,399,846; 5,408,081;
5,410,139; 5,410,140; 5,412,198; 5,418,812; 5,420,411; 5,436,440; 5,444,231; 5,449,891;
5,449,893; 5,468,949; 5,471,042; 5,478,998; 5,479,000; 5,479,002; 5,479,441; 5,504,322;
5,519,577; 5,528,621; 5,532,469; 5,543,610; 5,545,889; 5,552,592; 5,557,093; 5,578,810;
5,581,070; 5,589,679; 5,589,680; 5,608,202; 5,612,531; 5,619,028; 5,627,359; 5,637,852;
5,664,229; 5,668,803; 5,675,139; 5,693,929; 5,698,835; 5,705,800; 5,714,746; 5,723,851;
5,734,152; 5,734,153; 5,742,043; 5,745,794; 5,754,587; 5,762,516; 5,763,863; 5,767,500;
5,789,728; 5,789,731; 5,808,287; 5,811,785; 5,811,787; 5,815,811; 5,821,519; 5,821,520;
5,823,812; 5,828,050; 5,850,078; 5,861,615; 5,874,720; 5,875,415; 5,900,617; 5,902,989;
5,907,146; 5,912,450; 5,914,478; 5,917,173; 5,920,059; 5,923,025; 5,929,420; 5,945,658;
5,945,659; 5,946,194; 5,959,285; 6,002,918; 6,021,947; 6,036,098; 6,047,892; 6,050,491;
6,053,413; 6,056,200; 6,065,678; 6,067,297; 6,068,190; 6,082,621; 6,084,528; 6,088,482;
6,092,725; 6,101,483; 6,102,293; 6,104,620; 6,114,712; 6,115,678; 6,119,944; 6,123,265;
6,131,814; 6,138,180; 6,142,379; 6,172,478; 6,176,428; 6,178,426; 6,186,400; 6,188,681;
6,209,788; 6,216,951; 6,220,514; 6,243,447; 6,244,513; 6,247,647; 6,250,551; D305,885;
D341,584; D344,501; D359,483; D362,453; D363,700; D363,918; D370,478; D383,124;
D391,250; D405,077; D406,581; D414,171; D414,172; D418,500; D419,548; D423,468;
D424,035; D430,158; D430,159; D431,562; D436,104.
Invention No. 55,358; 62,539; 69,060; 69,187 (Taiwan); No. 1,601,796; 1,907,875;
1,955,269 (Japan); European Patent 367,299; 414,281; 367,300; 367,298; UK 2,072,832;
France 81/03938; Italy 1,138,713.
rev. 07/01
1
Quick Reference
Introduction
The SPS 3000 series is a family of ergonomic expansion packs for
the Compaq® iPAQ® Pocket PC device that extend the capabilities
of the iPAQ by adding bar code scanning and wireless
functionality. Its features include:
• Integrated 1D Scan Engine
• Integrated Spectrum24 802.11b (11Mbps) radio and antenna
• Ergonomic, lightweight design
• 100% compatible with iPAQ cradles and chargers
•Easy to Use
Configurations
There are four configurations of the SPS 3000, each providing
specific features that extend the capabilities of the iPAQ:
• ·Scan Only - Integrated 1D bar code scanner
• ·Scan/WLAN - Integrated 1D bar code scan engine, Integrat-
ed 802.11b (11Mbps) radio and antennae, and 770mAH Lith-
ium-Ion battery
• ·WLAN -Integrated 802.11b (11Mbps) radio and antennae,
and 770mAH Lithium-Ion battery
About This Guide
This guide describes how to set up and use the SPS 3000.
Specific topics covered include:
•Parts of the SPS 3000 on page 2
•iPAQ Pocket PC Parts Used by the SPS 3000 on page 3
•Installing the SPS 3000 SDK on page 4
•Inserting the iPAQ into the SPS 3000 on page 6
•Attaching the Lanyard on page 9
•Scanning Bar Codes on page 9
2
SPS 3000
SCAN/LAN
Parts of the SPS 3000
Expansion Connector
Top View
Handstrap Connecter
Expansion Connector
Back View
Inside View
Exit Window
3
Quick Reference
iPAQ Pocket PC Parts Used by the SPS 3000
Front View
Power
Button
Q Start
(Button 4)
Q Menu
(Button 3)
Record
Button
(Button 5)
(Default
Scan Button)
Calendar
(Button 1)
Contacts
(Button 2)
Bottom View
Communications Port
Expansion Connector
Power
Jack
Reset
Button
4
SPS 3000
SCAN/LAN
Installing the SPS 3000 SDK
The Symbol SPS 3000 Windows CE SDK (Software Developers
Kit) provides the tools necessary to create and deploy bar code
scanning applications for the Compaq iPAQ Pocket PC.
Note: The SDK contains the scan drivers needed to operate
the SPS 3000.
Download the SDK from the Software Developer Zone at this web
address:
http://software.symbol.com/devzone
After the SDK is properly installed, reboot the iPAQ by pressing
the reset button with the stylus.

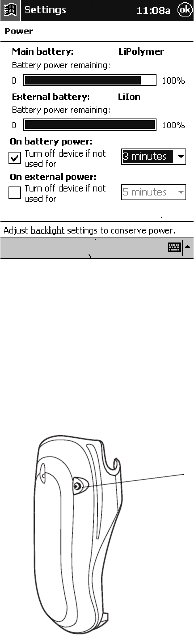

Checking the Battery Power
(For S24/LAN units only)
1. Power on the iPAQ by depressing and releasing the power
button.
2. Open the "START" screen and select "Settings."
3. From the bottom of the "Settings" screen, select "System."
4. Scroll the screen, if necessary, and select the "Power" icon.
5
Quick Reference
5. The state of the expansion pack bettery can be found under
the “External battery:” entry.
Charging the SPS 3000 Battery
(For SAN/LAN units only)
The SPS 3000 battery is internal and cannot be removed.
The battery can be charged with the expansion pack connected to
an iPAQ or unconnected to an iPAQ.
Charging Expansion Pack Alone
1. Insert the power plug from the AC adapter into the power
jack on the expansion pack.
Expansion Pack
Power Jack
S24/LAN Only
6
SPS 3000
SCAN/LAN
Note: A fully discharged battery should recharge in approxi-
mately 2.5 hours. There is no indication that the battery
is charging or is fully charged. The iPAQ must be used
to check the battery status.
2. Once battery is fully charged, the external power from the AC
adapter can be removed.
Expansion Pack Connected to an iPAQ
1. Insert the power plug from the AC adapter into the power
jack on the iPAQ or on the expansion pack, or place the two
units into a cradle that has the AC adapter power plug con-
nected.
2. The battery in the expansion pack will begin to charge only
after the battery in the iPAQ has become fully charged. The
iPAQ battery takes approximately 2.5 hrs. to charge when
fully discharged.
3. From the "Power" screen, the state of the expansion pack
battery can be found under the "External battery:" entry.
4. The expansion pack, when being charging, will have "Re-
charging state:" and "Charging" state immediately above the
bar graph on the iPAQ charging screen.
Note: Note that the bar graph will be continuously stepping
from 0 to 100% as the battery is charging.
5. Once the expansion pack battery is completely charged, the
entry above the bar graph will change to read "Battery power
remaining:" and the bar graph will be filled to 100%.
6. Once the expansion pack battery is completely charged, the
external power from the AC adapter can be removed.
Inserting the iPAQ into the SPS 3000
1. Slide the iPAQ through the SPS 3000 sleeves to connect the
iPAQ and SPS 3000.
7
Quick Reference
2. The iPAQ and SPS 3000 are joined when their expansion
connectors are fully engaged. (You will hear a slight click.)
To remove the SPS 3000, push up on the bottom of the iPAQ to
disengage the expansion connector, then slide the iPAQ off the
SPS 3000 sleeves.

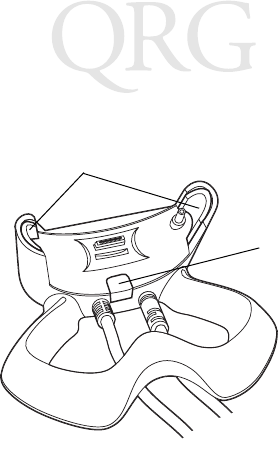

When inserting the iPAQ and SPS 3000 into the cradle, ensure
that the retractable stabilizing arms located on the inside of the
cradle are extended. These will provide a secure fit between the
units. If the arms are not extended before inserting the iPAC and
Expansion
Connectors
8
SPS 3000
SCAN/LAN
SPS 3000, press the release button located on the back of the
cradle.
Note: The battery in the expansion pack will begin to charge
only after the battery in the iPAQ has become fully
charged. The iPAQ battery and the external battery
take approximately 5 hrs. to charge altogether when
both are fully discharged.
Retractable
Release
9
Quick Reference

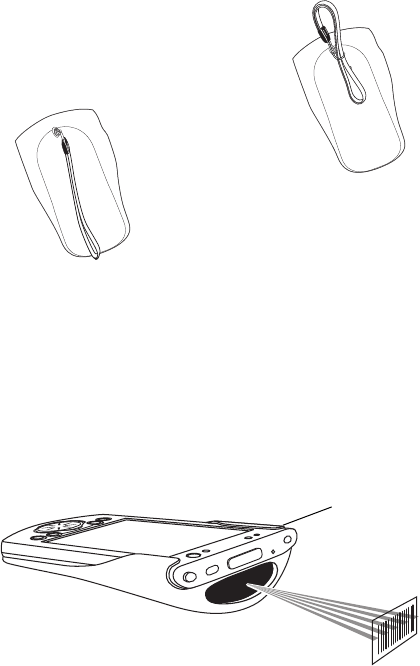

Attaching the Lanyard
Scanning Bar Codes
To scan bar codes with the SPS 3000:
1. Insert the iPAQ into the SPS 3000.
2. Press the scan trigger to launch the scanning application.
3. Press and hold the scan trigger again to turn on the laser.
4. Ensure that the red scan beam covers the entire bar code.
Upon successful decode, you will see the Power LED blink
green and hear an audible beep.
Thread the lanyard through the
handstrap connector on the back of
the scanner, leaving a loop to pull the
long end of the lanyard
Thread the long end of the lanyard
through the loop and pull.
Scan Trigger
(Default)
10
SPS 3000
SCAN/LAN
Maintaining the SPS 3000
For trouble-free service, follow these tips when using your SPS 3000:
•Do not scratch the exit window.
•The exit window of your SPS 3000 contains glass. Do not subject it
to any strong impact.
•Protect your SPS 3000 from temperature extremes, hot or cold:
- Do not leave it on the dashboard of a car on a hot day
- Keep it away from heaters and other heat sources
- Keep it away from freezers and other cold sources.
•Do not store or use your SPS 3000 in any location that is
extremely dusty, damp or wet.
•If the surface of the SPS 3000 exit window becomes soiled, clean it
with a soft lens cloth moistened with a diluted window-cleaning so-
lution.
Ergonomic Recommendations
Caution: In order to avoid or minimize the potential risk of ergonomic injury follow the recommendations below. Consult
with your local Health & Safety Manager to ensure that you are adhering to your company’s safety programs to prevent
employee injury.
•Reduce or eliminate repetitive motion
•Maintain a natural position
•Reduce or eliminate excessive force
•Keep objects that are used frequently within easy reach
•Perform tasks at correct heights
•Reduce or eliminate vibration
•Reduce or eliminate direct pressure
•Provide adjustable workstations
•Provide adequate clearance
•Provide a suitable working environment
•Improve work procedures.
Regulatory Information
Radio Frequency Interference Requirements
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the
Federal Communications Commissions Rules and Regulation. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the interference at his own
expense.
However, there is no guarantee that interference will not occur in a particular installation. If the equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
•Re-orient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
11
Quick Reference
•Connect the equipment into an outlet on a circuit different from that which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
This device complies with FCC Part 15. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Radio Frequency Interference Requirements - Canada
This device complies with RSS 210 of Industry & Science Canada. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
CE Marking and European Union Compliance
Products intended for sale within the European Union are marked with the CE Mark which indicates
compliance to applicable Directives and European Normes (EN), as follows. Amendments to these
Directives or ENs are included:
Applicable Directives
•Electromagnetic Compatibility Directive 89/336/EEC
•Low Voltage Directive 73/23/EEC
Applicable Standards
•EN 55022:1998, Limits and Methods of Measurement of Radio Disturbance Characteristics of Information Tech-
nology Equipment
•EN 55024:1998; Information Technology equipment - Immunity characteristics - Limits and methods of mea-
surement
•IEC 1000-4-2:1995; Electromagnetic compatibility (EMC); Part 4:Testing and measurement techniques; Section
4.2:Electrostatic discharge immunity test
•IEC 1000-4-3:1997; Electromagnetic Compatibility (EMC); Part 4:Testing and measurement techniques; Sec-
tion 3. Radiated, radio frequency, electromagnetic field immunity test.
•EN 60 950 + A1+A2+A3+A4+A11 - Safety of Information Technology Equipment Including Electrical Business
Equipment
•EN 60 825-1 (EN 60 825) - Safety of Devices Containing Lasers
Laser Devices
Symbol products using lasers comply with US 21CFR1040.10, and IEC825-1:1993, EN60825-1:1994+A11:1996. The
laser classification is marked on one of the labels on the product.
Class 1 Laser devices are not considered to be hazardous when used for their intended purpose. The following
statement is required to comply with US and international regulations:
Caution: Use of controls, adjustments or performance of procedures other than those specified herein may result in
hazardous laser light exposure.
Class 2 laser scanners use a low power, visible light diode. As with any very bright light source, such as the sun, the
user should avoid staring directly into the light beam. Momentary exposure to a Class 2 laser is not known to be harmful.
12
SPS 3000
SCAN/LAN

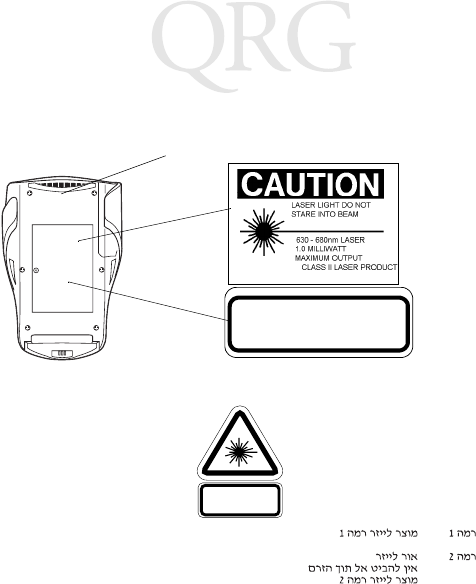

Scanner Labeling
In accordance with Clause 5, IEC 825 and EN60825, the following information is
provided to the user:
ENGLISH HEBREW
CLASS 1 CLASS 1 LASER PRODUCT
CLASS 2 LASER LIGHT
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
DANISH / DANSK ITALIAN / ITALIANO
KLASSE 1 KLASSE 1 LASERPRODUKT CLASSE 1 PRODOTTO AL LASER DI CLASSE 1
KLASSE 2 LASERLYF CLASSE 2 LUCE LASER
SE IKKE IND I STRÅLEN NON FISSARE IL RAGGIOPRODOTTO
KLASSE 2 LASERPRODUKT AL LASER DI CLASSE 2
DUTCH / NEDERLANDS NORWEGIAN / NORSK
KLASSE 1 KLASSE-1 LASERPRODUKT KLASSE 1 LASERPRODUKT, KLASSE 1
KLASSE 2 LASERLICHT KLASSE 2 LASERLYS IKKE STIRR INN I LYSSTRÅLEN
NIET IN STRAAL STAREN LASERPRODUKT, KLASSE 2
KLASSE-2 LASERPRODUKT
FINNISH / SUOMI PORTUGUESE / PORTUGUÊS
LUOKKA 1 LUOKKA 1 LASERTUOTE CLASSE 1 PRODUTO LASER DA CLASSE 1
LUOKKA 2 LASERVALO CLASSE 2 LUZ DE LASER NÃO FIXAR O RAIO LUMINOSO
ÄLÄ TUIJOTA SÄDETTÄPRODUTO LASER DA CLASSE 2
LUOKKA 2 LASERTUOTE
FRENCH / FRANÇAIS SPANISH / ESPAÑOL
CLASSE 1 PRODUIT LASER DE CLASSE 1 CLASE 1 PRODUCTO LASER DE LA CLASE 1
CLASSE 2 LUMIERE LASER CLASE 2 LUZ LASER
NE PAS REGARDER LE RAYON FIXEMENT NO MIRE FIJAMENTE EL HAZ
PRODUIT LASER DE CLASSE 2 PRODUCTO LASER DE LA CLASE 2
GERMAN / DEUTCH SWEDISH / SVENSKA
KLASSE 1 LASERPRODUKT DER KLASSE 1 KLASS 1 LASERPRODUKT KLASS 1
KLASSE 2 LASERSTRAHLEN KLASS 2 LASERLJUS STIRRA INTE MOT STRÅLEN
NICHT DIREKT IN DEN LASERSTRAHL SCHAUEN LASERPRODUKT KLASS 2
AVOID EXPOSURE – Laser light is emitted from this aperture.
ÉVITER TOUTE EXPOSITION - Lumière laser émis par cette ouverture
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL À LASER DE CLASSE 1
13
Quick Reference
LASERPRODUKT DER KLASSE 2
RF Devices
Symbol’s RF products are designed to be compliant with the rules and regulations in the locations into which they are
sold and will be labeled as required. The majority of Symbol’s RF devices are type approved and do not require the user
to obtain license or authorization before using the equipment. Any changes or modifications to Symbol Technologies
equipment not expressly approved by Symbol Technologies could void the user’s authority to operate the equipment.
The Spectrum24 equipment is intended for use throughout the European Economic Area, but its authorization for use
in France is restricted as follows:
•PAN European Frequency Range: 2.400 - 2.4835 GHz, identified by -EU suffix to the model number found on
the product label
•France - Restrict Frequency Range for use in France: 2.4465 - 2.4835 GHz, identified on [Product mmmm] by
the -FR suffix to the model number found on the product label
•Belgium - Operation in an out of doors environment in Belgium must be restricted to 2.460 - 2.4835 GHz band
•Italy - Operation in Italy requires a user license
•Mexico - Restrict Frequency Range for use in Mexico: 2.450 - 2.4835 GHz
•Chile - Restricted Power Output for use in Chile: 50 mW
14
SPS 3000
SCAN/LAN
15
Quick Reference
Warranty
Symbol Technologies, Inc. (“Symbol”) manufactures its hardware products in accordance with
industry-standard practices. Symbol warrants that for a period of twelve (12) months from date of
shipment, products will be free from defects in materials and workmanship.
This warranty is provided to the original owner only and is not transferable to any third party. It shall
not apply to any product (i) which has been repaired or altered unless done or approved by Symbol,
(ii) which has not been maintained in accordance with any operating or handling instructions
supplied by Symbol, (iii) which has been subjected to unusual physical or electrical stress, misuse,
abuse, power shortage, negligence or accident or (iv) which has been used other than in
accordance with the product operating and handling instructions. Preventive maintenance is the
responsibility of customer and is not covered under this warranty.
Wear items and accessories having a Symbol serial number will carry a 90-day limited warranty.
Non-serialized items will carry a 30-day limited warranty.
Warranty Coverage and Procedure
During the warranty period, Symbol will repair or replace defective products returned to Symbol’s
manufacturing plant in the US. For warranty service in North America, call the Symbol Support
Center at 1-800-653-5350. International customers should contact the local Symbol office or
support center. If warranty service is required, Symbol will issue a Return Material Authorization
Number. Products must be shipped in the original or comparable packaging, shipping and
insurance charges prepaid. Symbol will ship the repaired or replacement product freight and
insurance prepaid in North America. Shipments from the US or other locations will be made F.O.B.
Symbol’s manufacturing plant.
Symbol will use new or refurbished parts at its discretion and will own all parts removed from
repaired products. Customer will pay for the replacement product in case it does not return the
replaced product to Symbol within 3 days of receipt of the replacement product. The process for
return and customer’s charges will be in accordance with Symbol’s Exchange Policy in effect at the
time of the exchange.
Customer accepts full responsibility for its software and data including the appropriate backup
thereof.
Repair or replacement of a product during warranty will not extend the original warranty term.
Symbol’s Customer Service organization offers an array of service plans, such as on-site, depot, or
phone support, that can be implemented to meet customer’s special operational requirements and
are available at a substantial discount during warranty period.
General
Except for the warranties stated above, Symbol disclaims all warranties, express or implied, on
products furnished hereunder, including without limitation implied warranties of merchantability and
fitness for a particular purpose. The stated express warranties are in lieu of all obligations or
liabilities on part of Symbol for damages, including without limitation, special, indirect, or
consequential damages arising out of or in connection with the use or performance of the product.
Seller’s liability for damages to buyer or others resulting from the use of any product, shall in no way
exceed the purchase price of said product, except in instances of injury to persons or property.
Some states (or jurisdictions) do not allow the exclusion or limitation of incidental or consequential
damages, so the preceding exclusion or limitation may not apply to you.
72-52672-01
Revision A— September 2001
Symbol Technologies, Inc. One Symbol Plaza Holtsville, NY 11742-1300
Service Information
Before you use the unit, it must be configured to operate in your facility’s network and
run your applications.
If you have a problem running your unit or using your equipment, contact your
facility’s Technical or Systems Support. If there is a problem with the equipment, they
will contact the Symbol Support Center:
United States11-800-653-5350
1-631-738-2400 Canada 905-629-7226
United Kingdom 0800 328 2424 Asia/Pacific 337-6588
Australia 1-800-672-906 Austria/Österreich 1-505-5794
Denmark/Danmark 7020-1718 Finland/Suomi 9 5407 580
France 01-40-96-52-21 Germany/Deutchland 6074-49020
Italy/Italia 2-484441 Mexico/México 5-520-1835
Netherlands/Nederland 315-271700 Norway/Norge 66810600
South Africa 11-4405668 Spain/España 913244000
Sweden/Sverige 84452900
Latin America
Sales Support 1-800-347-0178 Inside US
+1-561-483-1275 Outside US
Europe/Mid-East
Distributor Operations Contact local distributor or call
+44 208 945 7360
1Customer support is available 24 hours a day, 7 days a week.
17
Quick Reference
18
SPS 3000
SCAN/LAN
