Symbol Technologies MC906RA Data Terminal with WLAN and RFID radio Modules User Manual
Symbol Technologies Inc Data Terminal with WLAN and RFID radio Modules
Contents
Users Manual
Warranty
(A) Warranty Symbol Technologies (hereafter “Seller”) hardware Products are warranted against defects in workmanship and materials for a period of
three (3) months from the date of shipment, unless otherwise provided by Seller in writing, provided the Product remains unmodified and is operated
under normal and proper conditions. Warranty provisions and durations on software, integrated installed systems, Product modified or designed to meet
specific customer specifications (“Custom Products”), remanufactured products, and reconditioned or upgraded products, shall be as provided in the
applicable Product specification in effect at the time of purchase or in the accompanying software license.
(B) Spare Parts Spare parts (i.e. parts, components, or subassemblies sold by Seller for use in the service and maintenance of Products) are warranted
against defects in workmanship and materials for a period of thirty (30) days from the date of shipment. Spare parts may be new or originate from returned
units under the conditions set forth in subsection D below.
(C) Repair of Symbol-branded hardware For repairs on Symbol-branded hardware Products under this Agreement, including repairs covered by
warranty, the repair services provided are warranted against defects in workmanship and materials on the repaired component of the Product for a period
of thirty (30) days from the shipment date of the repaired Product, or until the end of the original warranty period, whichever is longer.
(D) Product Service Products may be serviced or manufactured with parts, components, or subassemblies that originate from returned products and
that have been tested as meeting applicable specifications for equivalent new material and Products. The sole obligation of Seller for defective hardware
Products is limited to repair or replacement (at Seller’s option) on a “return to service depot” basis with prior Seller authorization. Customer is responsible
for shipment to the Seller and assumes all costs and risks associated with this transportation; return shipment to the Customer will be at Seller's expense.
Customer shall be responsible for return shipment charges for product returned where Seller determines there is no defect (“No Defect Found”), or for
product returned that Seller determines is not eligible for warranty repair. No charge will be made to Buyer for replacement parts for warranty repairs.
Seller is not responsible for any damage to or loss of any software programs, data or removable data storage media, or the restoration or reinstallation
of any software programs or data other than the software, if any, installed by Seller during manufacture of the Product.
(E) Original Warranty Period Except for the warranty applying solely to the repaired component arising from a repair service as provided in Section C
above, the aforementioned provisions do not extend the original warranty period of any Product that had either been repaired or replaced by Seller.
(F) Warranty Provisions The above warranty provisions shall not apply to any Product (i) which has been repaired, tampered with, altered or modified,
except by Seller’s authorized service personnel; (ii) in which the defects or damage to the Product result from normal wear and tear, misuse, negligence,
improper storage, water or other liquids, battery leakage, use of parts or accessories not approved or supplied by Symbol, or failure to perform operator
handling and scheduled maintenance instructions supplied by Seller; (iii) which has been subjected to unusual physical or electrical stress, abuse, or
accident, or forces or exposure beyond normal use within the specified operational and environmental parameters set forth in the applicable Product
specification; nor shall the above warranty provisions apply to any expendable or consumable items, such as batteries, supplied with the Product.
EXCEPT FOR THE WARRANTY OF TITLE AND THE EXPRESS WARRANTIES STATED ABOVE, SELLER DISCLAIMS ALL WARRANTIES ON PRODUCTS
FURNISHED HEREUNDER INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE. ANY IMPLIED
WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED IN DURATION TO THE LIMITED WARRANTY PERIOD. SOME STATES OR COUNTRIES DO
NOT ALLOW A LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES FOR CONSUMER PRODUCTS. IN SUCH STATES OR COUNTRIES, FOR SUCH PRODUCTS, SOME EXCLUSIONS OR LIMITATIONS OF THIS
LIMITED WARRANTY MAY NOT APPLY.
The stated express warranties are in lieu of all obligations or liabilities on the part of Seller for damages, including but not limited to, special, indirect or
consequential damages arising out of or in connection with the use or performance of the Product or service. Seller’s liability for damages to Buyer or
others resulting from the use of any Product or service furnished hereunder shall in no way exceed the purchase price of said Product or the fair market
value of said service, except in instances of injury to persons or property.
Service Information
If you have a problem running your unit or using your equipment, contact your facility’s
Technical or Systems Support. If there is a problem with the equipment, they will contact the
Symbol Support Center:
For the latest version of this guide go to: http://www.symbol.com/manuals.
United States 1-800-653-5350
1-631-738-2400
Canada 905-629-7226
72-69487-01
Revision A — October 2004
For MC906R-G Mobile Computers
Quick Reference Guide
Belt Holster
© 2004 SYMBOL TECHNOLOGIES, INC. All rights reserved.
Symbol reserves the right to make changes to any product to improve reliability, function, or
design.
Symbol does not assume any product liability arising out of, or in connection with, the
application or use of any product, circuit, or application described herein.
No license is granted, either expressly or by implication, estoppel, or otherwise under any
patent right or patent, covering or relating to any combination, system, apparatus, machine,
material, method, or process in which Symbol products might be used. An implied license
exists only for equipment, circuits, and subsystems contained in Symbol products.
Symbol and the Symbol logo are registered trademarks of Symbol Technologies, Inc. Other
product names mentioned in this manual may be trademarks or registered trademarks of their
respective companies and are hereby acknowledged.
Symbol Technologies, Inc.
One Symbol Plaza
Holtsville, N.Y. 11742-1300
http://www.symbol.com
Patents
This product may be covered by one or more U.S. and foreign patents. For patent information
go to:
http://www.symbol.com/patents.
Introduction
The MC906R-G holster enables the user to carry the MC906R-G RFID mobile computer
around the waist, on the holster’s belt.
About This Guide
This Quick Reference Guide describes procedures for the following:
•Parts
•Assemble the Belt Holster
•Adjust the Belt
•Wearing the Holster
•Insert the Mobile Computer into the Holster
•Attach the Safety Tether
•Warranty
•Service Information .
For detailed information about the MC906R-G RFID mobile computer, refer to the Product
Reference Guide for the mobile computer.
Parts
Belt
Buckle
Belt
Straps
Holster Grip
Holster Front
Connection
Post
Connection
Post Slot
(one on each side)
Tether Ring
Holster
Belt
Tether

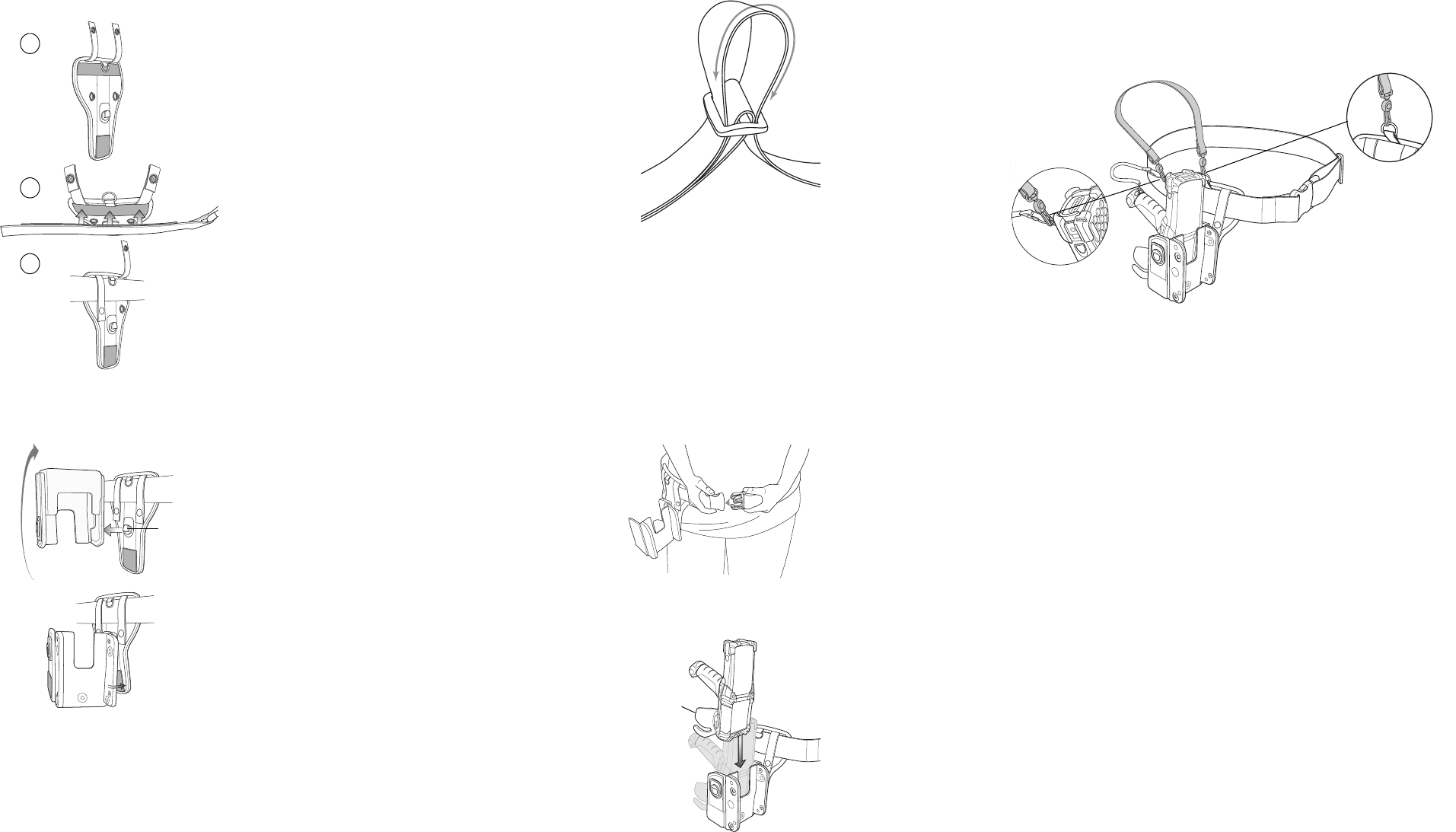

Assemble the Belt Holster
To assemble the belt holster, connect the belt to the holster grip, then connect the holster.
Connect the Belt to the Holster Grip
1
2
3
Connect the Holster to the Holster Grip
Note: The mobile computer can be placed in the holster for right or left hand
use, depending on the connection of the holster to the holster grip. The
diagram above shows a right hand connection. For a left hand
connection, reverse the holster so that the back of the holster faces
front.
Adjust the Belt
To adjust the belt size, if necessary:
1. Slide one end of the belt strap through the belt clip.
2. Pull the strap loop through, in either direction, to make the belt larger or smaller.
Wearing the Holster
Insert the Mobile Computer into the Holster
Insert the top of the mobile computer into the holster so that the RFID antenna hangs over
the front of the holster.
RFID antenna
Attach the Safety Tether
Use the safety tether to prevent the mobile computer from dropping to the floor.
To attach the tether:
1. Clip one end of the tether to the tether ring on the holster grip.
2. Clip the other end of the tether to the mobile computer’s strap. Ensure the tether is
clipped to the mobile computer’s strap loop.
1. Unsnap the two belt straps
on the holster grip and lift
the straps.
2. Align the Velcro® section
of the belt with the Velcro®
section at the top of holster
grip and press together to
attach.
3. Snap the belt straps into
place over the belt.
1. Align the flat edge of the
holster grip connection post
with the flat side of the holster
connection post slot (front of
holster pictured).
2. Insert the connection post into
the connection post slot.
3. Rotate the holster, clockwise,
180°.
4. Press together the Velcro®
sections of the holster grip and
holster to attach.
Connection
Post
