Quick Reference Guide

PDT 80XX WWAN

For Internal Use Only

PDT 80XX WWAN

Symbol reserves the right to make changes to any product to improve reliability,

function, or design.

Symbol does not assume any product liability arising out of, or in connection with, the

application or use of any product, circuit, or application described herein.

No license is granted, either expressly or by implication, estoppel, or otherwise under

any patent right or patent, covering or relating to any combination, system, apparatus,

machine, material, method, or process in which Symbol products might be used. An

implied license only exists for equipment, circuits, and subsystems contained in Symbol

products.

Symbol and the Symbol logo are registered trademarks of Symbol Technologies, Inc.

Other product names mentioned in this manual may be trademarks or registered

trademarks of their respective companies and are hereby acknowledged.

Symbol Technologies, Inc.

One Symbol Plaza

Holtsville, N.Y. 11742-1300

http://www.symbol.com

Patents

This product is covered by one or more of the following U.S. and foreign Patents:

U.S. Patent No. 4,593,186; 4,603,262; 4,607,156; 4,652,750; 4,673,805; 4,736,095;

4,758,717; 4,760,248; 4,806,742; 4,816,660; 4,845,350; 4,896,026; 4,897,532; 4,923,281;

4,933,538; 4,992,717; 5,015,833; 5,017,765; 5,021,641; 5,029,183; 5,047,617; 5,103,461;

5,113,445; 5,130,520; 5,140,144; 5,142,550; 5,149,950; 5,157,687; 5,168,148; 5,168,149;

5,180,904; 5,216,232; 5,229,591; 5,230,088; 5,235,167; 5,243,655; 5,247,162; 5,250,791;

5,250,792; 5,260,553; 5,262,627; 5,262,628; 5,266,787; 5,278,398; 5,280,162; 5,280,163;

5,280,164; 5,280,498; 5,304,786; 5,304,788; 5,306,900; 5,324,924; 5,337,361; 5,367,151;

5,373,148; 5,378,882; 5,396,053; 5,396,055; 5,399,846; 5,408,081; 5,410,139; 5,410,140;

5,412,198; 5,418,812; 5,420,411; 5,436,440; 5,444,231; 5,449,891; 5,449,893; 5,468,949;

5,471,042; 5,478,998; 5,479,000; 5,479,002; 5,479,441; 5,504,322; 5,519,577; 5,528,621;

5,532,469; 5,543,610; 5,545,889; 5,552,592; 5,557,093; 5,578,810; 5,581,070; 5,589,679;

5,589,680; 5,608,202; 5,612,531; 5,619,028; 5,627,359; 5,637,852; 5,664,229; 5,668,803;

5,675,139; 5,693,929; 5,698,835; 5,705,800; 5,714,746; 5,723,851; 5,734,152; 5,734,153;

5,742,043; 5,745,794; 5,754,587; 5,762,516; 5,763,863; 5,767,500; 5,789,728; 5,789,731;

5,808,287; 5,811,785; 5,811,787; 5,815,811; 5,821,519; 5,821,520; 5,823,812; 5,828,050;

5,848,064; 5,850,078; 5,861,615; 5,874,720; 5,875,415; 5,900,617; 5,902,989; 5,907,146;

5,912,450; 5,914,478; 5,917,173; 5,920,059; 5,923,025; 5,929,420; 5,945,658; 5,945,659;

5,946,194; 5,959,285; 6,002,918; 6,021,947; 6,029,894; 6,031,830; 6,036,098; 6,047,892;

6,050,491; 6,053,413; 6,056,200; 6,065,678; 6,067,297; 6,082,621; 6,084,528; 6,088,482;

6,092,725; 6,101,483; 6,102,293; 6,104,620; 6,114,712; 6,115,678; 6,119,944; 6,123,265;

6,131,814; 6,138,180; 6,142,379; 6,172,478; 6,176,428; 6,178,426; 6,186,400; 6,188,681;

6,209,788; 6,209,789; 6,216,951; 6,220,514; 6,243,447; 6,244,513; 6,247,647; 6,308,061;

6,250,551; 6,295,031; 6,308,061; 6,308,892; 6,321,990; 6,328,213; 6,330,244; 6,336,587;

6,340,114; 6,340,115; 6,340,119; 6,348,773; 6,380,949; 6,394,355; D305,885; D341,584;

D344,501; D359,483; D362,453; D363,700; D363,918; D370,478; D383,124; D391,250;

D405,077; D406,581; D414,171; D414,172; D418,500; D419,548; D423,468; D424,035;

D430,158; D430,159; D431,562; D436,104.

Invention No. 55,358; 62,539; 69,060; 69,187, NI-068564 (Taiwan); No. 1,601,796;

1,907,875; 1,955,269 (Japan); European Patent 367,299; 414,281; 367,300; 367,298; UK

2,072,832; France 81/03938; Italy 1,138,713

rev. 06/02

For Internal Use Only

Quick Reference

Introduction

Congratulations on your purchase of Symbol Technologies’ PDT

8000 WAN Terminal! Its unique combination of features make this

product superior for use in a wide range of applications. These

features include:

•Microsoft

® Windows® Pocket PC 2002 operating system

• RF communication via a wide area network (PDT 8037/

8056) or Symbol’s Spectrum24® wireless

network (PDT 8056)

• USB Client

• 1-Dimensional barcode scanning capability

• 3.9 inch 1/4 VGA Color LCD

• Touch screen

• Printing support

• IrDA-compliant interface for printing and communications.

About This Guide

This guide describes how to set up and use the terminal. Within

this guide, the term PDT 8000 refers to the Spectrum24/WAN and

WAN only versions of the terminal.

Specific topics covered include:

•Accessories on page 3

•Parts of the Terminal on page 4

•Installing the SIM Card on page 6

•Inserting a Compact Flash Storage Card (PDT 8037 only) on

page 7

•Removing a Compact Flash Storage Card on page 7

•Inserting an MMC/SD Storage Card on page 8

•Removing an MMC/SD Storage Card on page 8

•Installing Batteries on page 9

•Charging the Battery on page 10

•Starting the Terminal on page 12

•Adjusting the Backlight on page 14

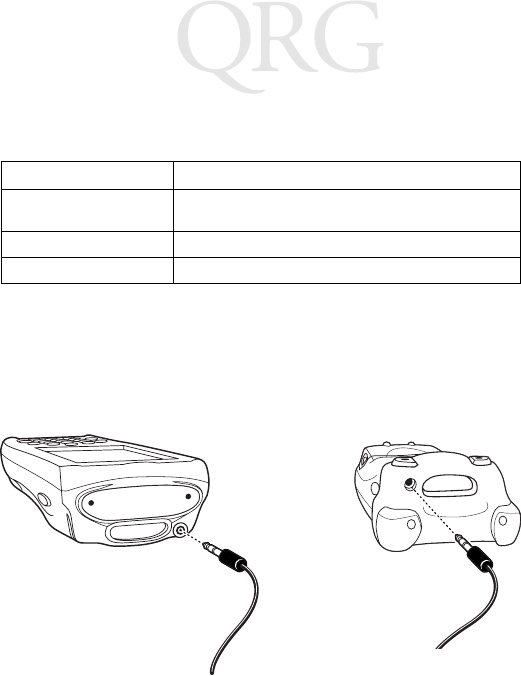

•Using a Headset on page 14

For Internal Use Only

PDT 80XX WWAN

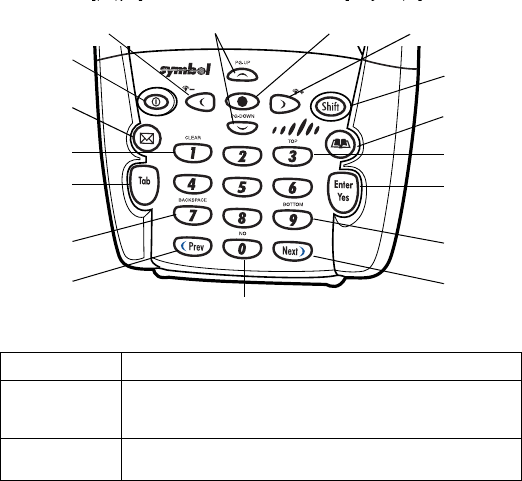

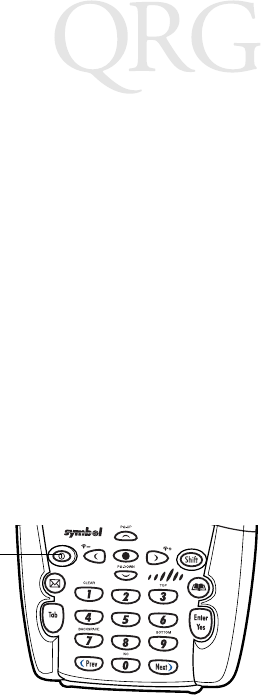

•Using the Keyboard on page 15

•Using the Stylus on page 16

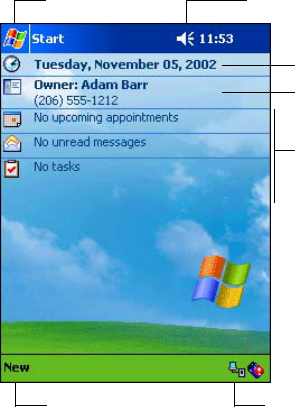

•Today Screen on page 17

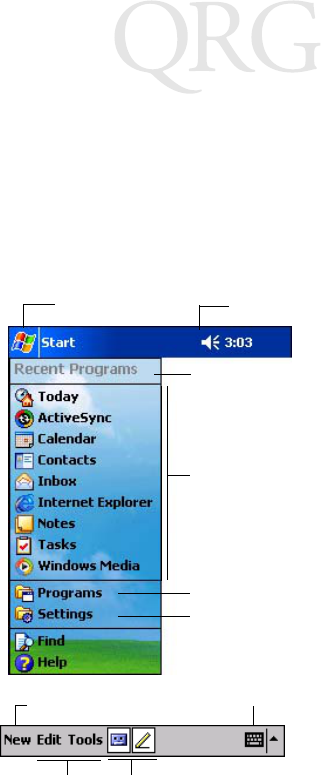

•Navigation Bar and Command Bar on page 18

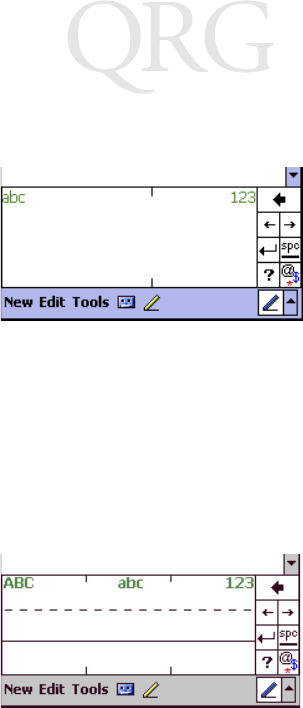

•Input Methods on page 19

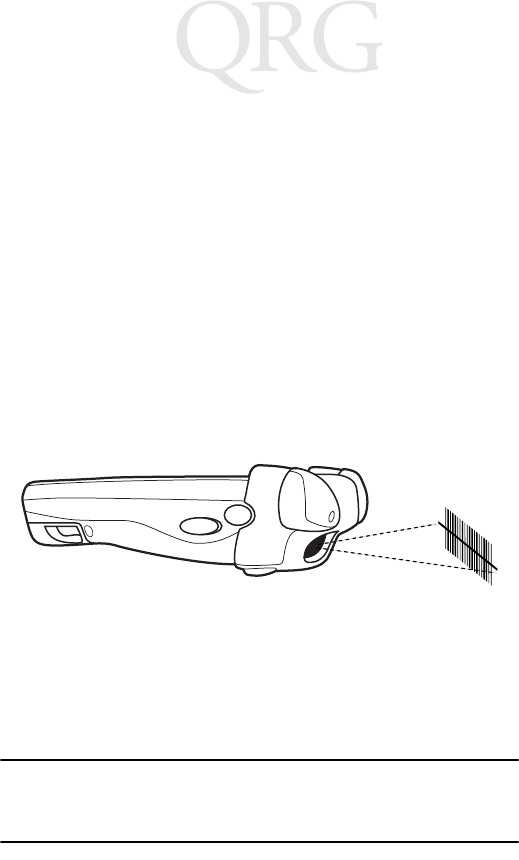

•Scanning with the Terminal on page 22

•Resetting Your Terminal on page 22

•Host Communications on page 23

•LED Indicators on page 24

•Maintaining the Terminal on page 25

•Troubleshooting on page 26

•Regulatory Information on page 33

•Service Information on backcover.

The PDT 8000 Series Product Reference Guide (p/n 72-58169-xx)

details the applications available for the terminal. For the latest

version of this guide go to: http://www.symbol.com/manuals.

For Internal Use Only

Quick Reference

Accessories

Each terminal requires one 7.4 volt 1130 mAh prismatic lithium-ion

battery. The following optional accessories are available from

Symbol Technologies:

• Additional lithium-ion battery (p/n 21-54882-01)

• Stylus for performing pen functions (11-55475-05)

•Cables:

- Snap-On DEX cable (p/n CBL-8000-100-DEX)

- Snap-On Autocharger (p/n VCA8000-01)

- Snap-On Printer cable (p/n CBL-8000-100-INT1, CBL-

8000-100-CTC, CBL-8000-100-PAX, CBL-8000-100-

ON1)

- Serial Charging Cable (p/n 25-55853-01)

- USB Charging Cable (p/n 25-59272-01)

- Power Supply with cables (p/n CBL-8000-100U)

• Snap-On Modem Module (p/n MDM8000-xxx)

• Magnetic Stripe Reader (p/n MSR 8000)

• Single-Slot Serial Cradle (p/n CRD8000-1000S)

• Single-Slot Modem Cradle (p/n CRD8000-1000M)

• Four-Slot Charging Cradle (p/n CHS8000-4000C,

CHS8000-4000B)

• Four-Slot USB-to-Ethernet Cradle (p/n CRD8000-4000E)

• Vehicle Cradle (p/n VCD 8000-R000)

• Holster (p/n 11-57530-02).

For Internal Use Only

PDT 80XX WWAN

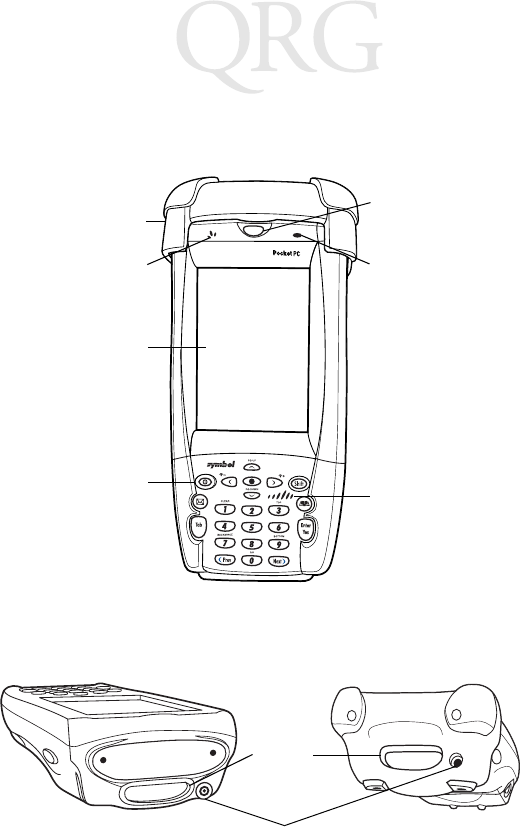

Parts of the Terminal

Front View

Top View

Power

Button

TFT LCD

(color)

Speaker

1-D Exit

Window

Microphone Charge

LED

Scan

LED

Audio Jack

PDT 8056PDT 8037

Ruggedized End Cap

(PDT 8056 only)

For Internal Use Only

Quick Reference

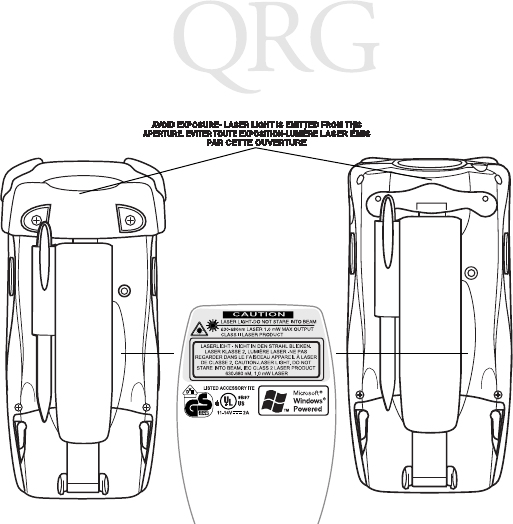

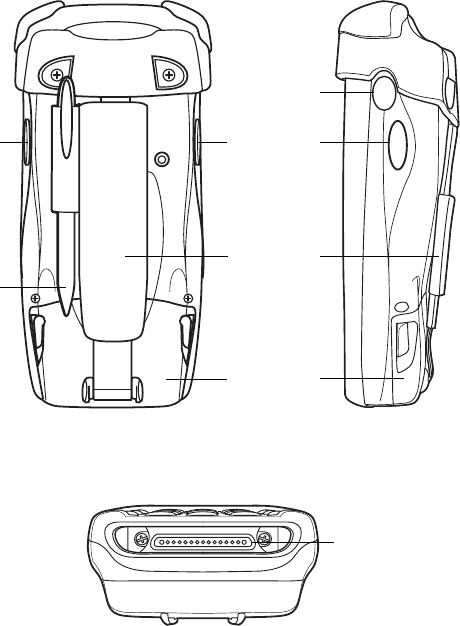

Parts of the Terminal (continued)

Back View

Bottom View

Serial & USB

Charge Port

Stylus

Handstrap

Battery

Door

Scan

Button

Scan

Button

IrDA Port

Side View

For Internal Use Only

PDT 80XX WWAN

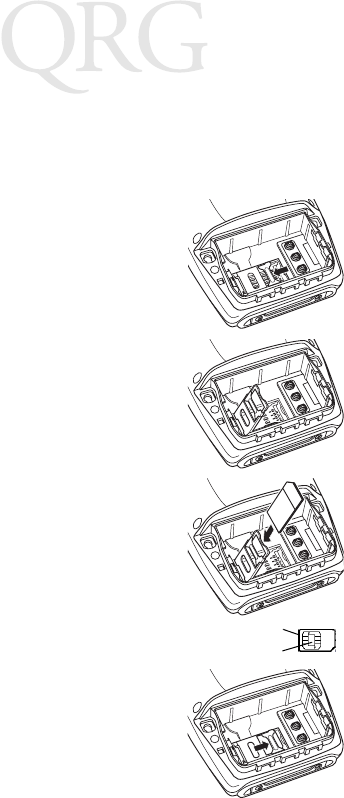

Installing the SIM Card

1. Slide the latches on the battery door up and lift the battery

door away from the terminal. If the battery is installed, re-

move it (see Installing Batteries on page 9).

2. Slide the metal clip on the SIM card-

holder door to the left to release the

SIM cardholder.

3. Lift the cardholder door to an upright

position

4. Insert the card between the cardholder

body and the metal clip; be sure the

beveled corner of the SIM card is on

the top left.

5. Close the cardholder door (with the

contact area of the card facing down).

6. Slide the metal clip to the right to lock it

in place.

7. Reinsert the battery and replace the

battery door (see Installing Batteries on

page 9).

SIM Card

Contact Area

For Internal Use Only

Quick Reference

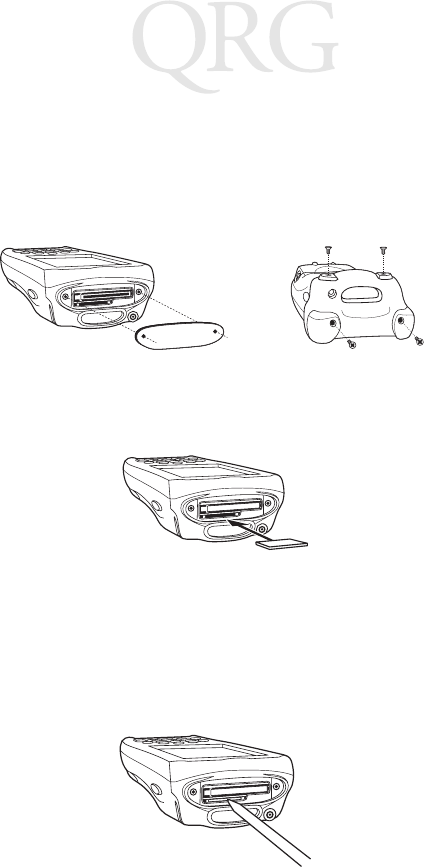

Inserting a Compact Flash Storage Card

(PDT 8037 only)

The PDT 8037 has a slot for a compact flash storage card which

includes a compartment door that prevents the card from coming

out if the terminal is dropped. To insert a compact flash card:

1. Unscrew and remove the compact flash storage card com-

partment door on the top of the terminal.

2. Insert a new compact flash storage card into the compart-

ment. Ensure it is fully inserted for proper operation.

3. Screw the compartment door back on.

Removing a Compact Flash Storage Card

1. Unscrew and remove the compact flash storage card com-

partment door on the top of the terminal.

2. Use the stylus to press the flash card release button inside

the flash card compartment. The card pops out.

For Internal Use Only

PDT 80XX WWAN

Inserting an MMC/SD Storage Card

The terminal has a slot for an MMC/SD storage card which

includes a compartment door that prevents the card from coming

out if the terminal is dropped. To insert an MMC/SD storage card:

1. Unscrew and remove the card compartment door on the top

of the terminal.

2. Insert a new MMC/SD storage card, with the card label fac-

ing down, into the compartment. Ensure it is fully inserted for

proper operation.

3. Screw the compartment door back on.

Removing an MMC/SD Storage Card

1. Unscrew and remove the card compartment door on the top

of the terminal.

2. Using the stylus, push against the MMC/SD storage card to

activate it’s spring release mechanism. The card pops out.

PDT8037 PDT8056

For Internal Use Only

Quick Reference

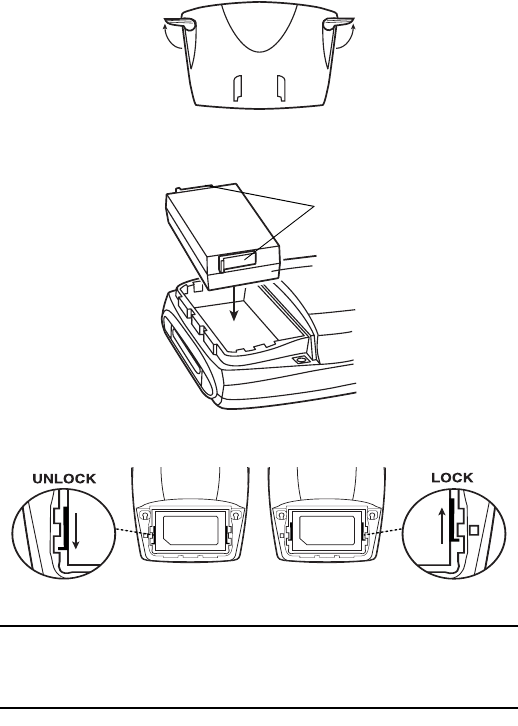

Installing Batteries

1. Remove the battery door.

2. Slide the latches on both sides of the battery down, to ensure

they are in the unlock position. Insert the battery into the

compartment.

3. Lock the battery into place by sliding the latches on the bat-

tery up.

4. Replace the battery door.

Caution: Do not expose the battery to temperatures in excess of

140°F (60°C). Do not disassemble, incinerate, or short

circuit the battery.

Battery

Latches

For Internal Use Only

PDT 80XX WWAN

Charging the Battery

Charging the Main Battery and Memory Backup Battery

Before using your terminal for the first time, charge the lithium-ion

battery in the terminal for approximately four hours, using the

Serial Charging Cable or any other appropriate accessory.

Your terminal is equipped with a memory backup battery which

automatically charges from the fully-charged lithium-ion battery.

This backup battery retains data in memory when the terminal’s

battery is removed, and can take up to 20 hours to charge when

you first use your terminal.

Note: If you remove your lithium-ion battery before the back-

up battery is fully charged, data may be lost. For this

reason, DO NOT remove the battery before the backup

battery is fully charged, which can take up to 20 hours.

Charging the Battery Using the Serial Charging Cable

Serial Charging

Cable

For Internal Use Only

Quick Reference

The terminal charge LED blinks amber to indicate that the terminal

battery is charging and turns solid amber when charging is

complete. The battery fully charges in less than four hours. See

LED Indicators on page 24 for other indications.

Charging the Battery Using the USB Charging Cable

The terminal charge LED blinks amber to indicate that the terminal

battery is charging and turns solid amber when charging is

complete. The battery fully charges in less than four hours. See

LED Indicators on page 24 for other indications.

Charging the Battery Using a Cradle

You can charge the main battery using the CRD 8000-1000S,

CRD 8000-1000M, CHS 8000-4000C/B, CRD 8000-4000E or

VCD 8000-R000. For more information, see the setup instructions

in the respective Quick Reference Guides.

USB Charging

Cable

For Internal Use Only

PDT 80XX WWAN

Note: You can also charge the battery using the MDM 8000,

VCA 8000-01 or MSR 8000. For more information, see

the setup instructions in the respective Quick Refer-

ence Guides.

Charging the Spare Battery

You can charge a spare battery using the CRD 8000-1000S, CRD

8000-1000M, CHS 8000-4000B, CRD 8000-4000E or VCD 8000-

R000. For more information, see the setup instructions in the

respective Quick Reference Guides.

Note: You can also use a UBC Adaptor (p/n 21-32665-33) to

charge spare batteries. Refer to the UBC 2000 Univer-

sal Battery Charge Product Guide for more informa-

tion.

Starting the Terminal

Press the red power button to turn the terminal on. If the terminal

does not power on see Troubleshooting on page 26.

As the terminal initializes its unique Flash File system, the Symbol

splash screen displays for about 60 seconds. When the Welcome

screen appears, tap anywhere on the screen to continue to the

Align screen. Note that these screens also appear every time you

perform a hard reset.

Power

Button

For Internal Use Only

Quick Reference

Aligning the Screen

To align your terminal so the cursor on the touch screen aligns with

the tip of your stylus:

1. If necessary, adjust the contrast on the terminal so the

screen is readable (see Adjusting the Backlight on page 14).

2. Remove the stylus from the handstrap of the terminal.

3. Tap the center of each target that appears on the Calibration

screen with the tip of the stylus.

4. Follow the directions on the screen which explains how to

use the stylus and pop-up menus, and allows you to set your

city and time zone.

Note: To align your screen at anytime, press Shift + 2 to

launch the calibration screen.

Initiating a Network Connection

Before using the terminal, set up the Spectrum24, GPRS (General

Packet Radio Service) or GSM (Global System for Mobile

Communication) network connection. Refer to the PDT 8000

Series Product Reference Guide for setup instructions.

For Internal Use Only

PDT 80XX WWAN

Adjusting the Backlight

Use the key combinations below to adjust the backlight.

Using a Headset

Your terminal is equipped with an audio connector which can be

connected to a headset. To use the headset, plug the headset jack

into the audio connector on the top of the terminal.

Symbol recommends a 2.5mm jack headset, p/n 50-11300-050.

Note: GSM audio is only available through the headset. For

GSM information, refer to the PDT 8000 Series Prod-

uct Reference Guide.

For more detailed headset information, refer to the PDT 8000

Series Product Reference Guide.

Keys Description

Shift + App Key 2 or

Shift + App Key 3 Turn backlight on or off.

Shift + Left Arrow Decrease backlight (decrease brightness)

Shift + Right Arrow Increase backlight (increase brightness)

PDT8037 PDT8056

For Internal Use Only

Quick Reference

Using the Keyboard

Note: Key functions can be changed by an application. Your

keyboard may not function exactly as described. For

more detailed keyboard information, refer to the PDT

8000 Series Product Reference Guide.

The keyboard uses a numeric keypad that produces the numbers

(0-9) and assorted functions. The keyboard is color-coded to

indicate particular actions that are produced when the modifier

(Shift) key is pressed. The keyboard default is numeric, producing

numbers.

Key Action

App Key 1 Launches application assigned to Button 1. Refer to the PDT

8000 Series Product Reference Guide for more information on

assigning applications to button.

App Key 2 Press the App Key 2 key to launch the Inbox application.

Also see Adjusting the Backlight on page 14.

Key

Backspace

Key

Tab Key

Clear Key

App

Key 2

Power Key

Left Arrow

Key Right

Arrow Key

Page-up &

Down Keys

Shift Key

App

Key 1

Top Key

Enter/Yes

Key

Bottom Key

Next Key

No Key

App

Key 3

For Internal Use Only

PDT 80XX WWAN

Using the Stylus

The stylus selects items and enters information. The stylus

functions as a mouse.

•Tap: Touch the screen once with the stylus to open items and

select options.

•Drag: Hold the stylus on the screen and drag across the

screen to select text and images. Drag in a list to select mul-

tiple items.

•Tap-and-hold: Tap and hold the stylus on an item to see a

App Key 3 Launches application assigned to Button 3. Refer to the PDT

8000 Series Product Reference Guide for more information on

assigning applications to button.

Also see Adjusting the Backlight on page 14.

Backspace Press Shift + 7 to erase information entered on the display, one

character at a time.

Bottom Press Shift + 9. Action is application dependent.

Clear Press Shift + 1. Action is application dependent.

Enter/Yes Press Enter after entering data or a command.

Left Arrow See Adjusting the Backlight on page 14.

Next Action is application dependent.

No Press Shift + 0. Action is application dependent.

Page-up and

Down Press Shift + Up Arrow. Action is application dependent.

Press Shift + Down Arrow. Action is application dependent.

Power Press Power to suspend/resume the terminal.

See Starting the Terminal on page 12.

Previous Action is application dependent.

Right Arrow See Adjusting the Backlight on page 14.

Shift Press Shift, then another key to produce the function above

that key (shown in blue). See individual key descriptions in this

table for additional Shift key usage.

Tab Press Tab to move from field to field.

Top Press Shift + 3. Action is application dependent.

Key Action

For Internal Use Only

Quick Reference

list of actions available for that item. On the pop-up menu

that appears, tap the action you want to perform.

Today Screen

When you turn on your terminal for the first time each day (or after

4 hours of inactivity), the Today screen appears. You can also

display it by tapping Start - Today. On the Today screen, you can

see important information for the day.

Note: Today screen may vary depending on your terminal

configuration.

The Today Screen is customizable. Tap Start - Settings - Today.

Use the Appearance tab to customize the background and the

Tap to switch

to a program. Tap to change volume

or mute all sounds.

Tap to change date and time.

Tap to open an item.

Your day at a glance.

Tap to create

a new item. Tap to view connection status.

For Internal Use Only

PDT 80XX WWAN

Items tab to change the list and order of items that appear on the

screen.

Navigation Bar and Command Bar

The navigation bar at the top of the screen displays the active

program and current time, and allows you to switch to programs

and close screens. The command bar at the bottom of the screen

contains menus and buttons to perform tasks in programs.

The Start Menu is customizable. Tap Start - Settings - Menus. Use

the Start Menu tab to check what items should appear on the

menu.

Tap to change the volume

or mute the device.

Tap to quickly select a program

you have recently used.

Tap to select a program.

Tap to see additional programs.

Tap to customize the device.

New button.

names. Buttons.

Input panel button.

Tap to switch

to a program.

For Internal Use Only

Quick Reference

Input Methods

Enter information in any program by typing with the keyboard, or

use the input panel to type with the soft keyboard, write using

Block Recognizer, Letter Recognizer or Transcriber. In any case,

the characters appear as typed text on the screen.

To show or hide the input panel, tap the Input Panel button. Tap the

arrow next to this button to view input methods.

When you use the input panel, your terminal anticipates the word

you are typing or writing and displays it above the input panel.

When you tap the displayed word, it is inserted into your text at the

insertion point. The more you use your terminal, the more words it

learns to anticipate.

Using the Soft Keyboard

1. Tap the arrow next to the Input Panel button, then Keyboard.

2. On the soft keyboard, tap the keys with your stylus.

Select an input method.

Tap to see your choices.

Select input method settings.

Input Panel button.

Tap here if this is

the right word.

For Internal Use Only

PDT 80XX WWAN

Using the Block Recognizer

1. Tap the arrow next to the Input Panel button, then Block Rec-

ognizer.

2. Write a letter in the left side of the box, or a number in the

right side, using special character strokes.

When you write a letter, it is converted to typed text on the screen.

For instructions on entering Block Recognizer characters, with

Block Recognizer open, tap the question mark next to the writing

area, or see Block Recognizer Characters on page 21.

Using the Letter Recognizer

1. Tap the arrow next to the Input Panel button, then Letter Rec-

ognizer.

2. Write letters or numbers in the writing area, just as you would

on paper. Write capital letters in the left side of the box, num-

bers in the right side, and lower case letters in the center.

When you write a letter, it is converted to typed text on the screen.

For instructions on using Letter Recognizer, with Letter

Recognizer open, tap the question mark next to the writing area.

For Internal Use Only

Quick Reference

Using the Transcriber

1. Tap the arrow next to the Input Panel button, then

Transcriber.

2. Write anywhere on the screen. What you write on the screen

will be converted to text.

Block Recognizer Characters

The following chart is a partial display of the characters you can

write while using the Block Recognizer (the dot on each character

is the starting point for writing).

For Internal Use Only

PDT 80XX WWAN

Scanning with the Terminal

The terminal has an integrated scanner which collects data by

scanning bar codes. Refer to the PDT 8000 Series Product

Reference Guide for information on configuring your terminal for

scanning.

To scan bar codes with the terminal:

1. Launch the terminal’s scanning application.

The scanning application is part of the Windows CE Software

Developer’s Kit for Symbol Terminals, available at

http://devzone.symbol.com.

2. Aim the scanner at the bar code, as shown below (PDT 8056

shown).

3. Press the scan trigger. Ensure the red scan beam covers the

entire bar code. The green scan LED lights and a beep

sounds to indicate a successful decode.

Resetting Your Terminal

If your terminal stops responding to input, reset it.

Performing a Soft Reset

A soft reset restarts the terminal and retains all stored records and

entries.

Caution: Files open during a soft reset may not be retained.

DO NOT perform a soft reset if the terminal is suspend-

ed. Press the Power button to wake the terminal.

For Internal Use Only

Quick Reference

To perform a soft reset press and hold the power key (for

approximately ten seconds) and release it as soon as the screen

changes and the terminal begins to reboot.

Performing a Hard Reset

A hard reset also restarts your terminal, but erases all stored

records and entries in RAM. Therefore, never perform a hard reset

unless a soft reset does not solve your problem.

Note: With a hard reset, formats, preferences, date and time,

and other settings are restored to their factory default

settings.

You can restore any data previously synchronized with

your computer during the next ActiveSync operation.

Refer to the PDT 8000 Series Product Reference

Guide.

1. Remove the battery door.

2. Press and release Power Key + Scan Button.

3. Replace the battery door.

4. As the terminal reboots, the Symbol splash screen displays

for about 60 seconds.

5. Realign the screen as described on page 13.

Host Communications

The terminal can communicate with a host computer either directly

through its serial port, USB port, IrDA port, or wirelessly via the

wide area network or the Spectrum24® wireless LAN. For more

information on setting up and performing communications with

your terminal, refer to the PDT 8000 Series Product Reference

Guide.

Using the Accessories

The terminal can communicate with a host computer using the

Serial Charging Cable, the USB Charging Cable, the Single-Slot

Serial Cradle, the Single-Slot Modem Cradle, the Four-Slot USB-

For Internal Use Only

PDT 80XX WWAN

to-Ethernet Cradle, the Vehicle Cradle or the Snap-On-Modem.

For more information, see the communication instructions in the

PDT 8000 Series Product Reference Guide.

Communicating with Printers

To print from a standard printer:

1. Attach the appropriate snap-on-printer cable to the serial

port in the bottom of the terminal.

2. Attach the other end of the cable to the Data Communica-

tions Connector on the printer.

3. Run the application’s print function.

To print from an IrDA-compliant printer:

1. Point the IrDA port on the side of the terminal at the IrDA port

on the printer, at a maximum distance of 39 inches.

2. Run the application’s print function.

Note: The terminal must have software configured to com-

municate with the printer you are using.

LED Indicators

LED Indicator

Charge LED - Amber

Off Not connected to charger.

Slow blinking amber Terminal is charging.

Fast blinking amber Error in charging.

Solid amber Charging is complete.

Scan LED

Off Not scanning.

Solid red Laser enabled. Scanning in process.

Solid green Successful decode.

For Internal Use Only

Quick Reference

Maintaining the Terminal

• Do not scratch the screen. Use the supplied stylus or plastic-

tipped pens intended for use with a touch-sensitive screen.

Never use a pen or pencil or other sharp object on the

screen.

• Although your terminal is water and dust resistant, do not ex-

pose it to rain or moisture for an extended period of time.

• The touch-sensitive screen of your terminal contains glass.

Do not drop your terminal or subject it to strong impact.

• Protect your terminal from temperature extremes. Do not

leave it on the dashboard of a car on a hot day, and keep it

away from heat sources.

• Do not store or use your terminal in any location that is ex-

tremely dusty, damp or wet.

• If the surface of the terminal screen becomes soiled, clean it

with a soft cloth moistened with a diluted window-cleaning

solution.

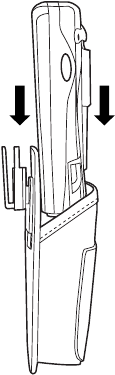

Using the holster

An optional holster, to store the terminal when

not in use, is available through Symbol. Hook

the holster on to your belt and insert the

terminal, with the display facing you, as shown.

For Internal Use Only

PDT 80XX WWAN

Troubleshooting

Problem Cause Solution

Terminal does not

turn on. Lithium-ion battery

not charged. Charge or replace the lithium-ion

battery in the terminal.

Battery not installed

properly. Ensure battery is installed properly.

See Installing Batteries on page 9.

System crash. Perform a hard reset. See Resetting

Your Terminal on page 22.

Rechargeable

lithium-ion battery

did not charge.

Battery failed. Replace battery. If your terminal still

does not operate, try a soft reset, then

a hard reset; see Resetting Your

Terminal on page 22.

Terminal removed

from cradle while

battery was

charging.

Insert terminal in cradle and begin

charging. The lithium-ion battery

requires up to four hours to recharge

fully.

Cannot see

characters on

display.

Terminal not

powered on. Press the Power key.

During data

communication,

no data was

transmitted, or

transmitted data

was incomplete.

Terminal removed

from cradle during

communications.

Replace the terminal in the cradle and

re-transmit.

Incorrect cable

configuration. See your System Administrator.

Communication

software was

incorrectly installed

or configured.

Perform setup as described in the

PDT 8000 Series Product Reference

Guide.

No sound is

audible. Volume setting is

low or turned off. Check the System Volume slider in the

Sounds & Notifications properties

dialog box (under Start - Settings) to

ensure the volume is set to an

adequate level.

For Internal Use Only

Quick Reference

Terminal turns

itself off. Terminal is inactive. Your terminal turns off after a period of

inactivity. This period can be set from

one to five minutes, in one-minute

intervals. Check the Power dialog box

(in the System tab under Start/

Settings), and change the setting if

you need a longer delay before the

automatic shutoff feature activates.

Terminal doesn’t

recognize my

handwriting.

Character strokes

written incorrectly

with the stylus.

For your terminal to recognize

handwriting input with the stylus,

characters must be written a certain

way. See the PDT 8000 Series

Product Reference Guide for

information about how to write

character strokes.

Character strokes

written on the wrong

part of the LCD

screen.

Make the character strokes in the

lower character entry area on the

screen — not on the display part of the

screen.

Lower-case and

upper-case letters,

and numbers written

on the wrong parts

of the LCD screen.

Ensure you are writing letters and

numbers in the correct part of the LCD

screen. See Using the Block

Recognizer on page 20 or Using the

Letter Recognizer on page 20

depending on what input method you

are using.

Terminal does not

respond to a hard

reset.

Battery door is

attached. You must remove the battery door

before performing a hard reset.

Battery is not

charged. Charge the terminal. See Charging

the Battery on page 10.

Tapping the

screen buttons or

icons does not

activate the

corresponding

feature.

LCD screen not

aligned correctly. Align the screen. See Aligning the

Screen on page 13.

Problem Cause Solution

For Internal Use Only

PDT 80XX WWAN

A message

appears stating

that your

terminal’s

memory is full.

Too many files

stored on the

terminal.

Delete unused memos and records.

You can save these records on your

computer.

Memory allocation

too low. Adjust the memory allocation. Select

Start, then Settings, and select the

System tab. Tap Memory and adjust

the slider.

Too many

applications

installed on the

terminal.

If you have installed additional

applications on your terminal, remove

them to recover memory. Select Start,

then Settings, and select the System

tab. Tap Remove Programs, select

the unused program and tap Remove.

Fail to

communicate with

IrDA printer.

Distance from

printer is between 5

inches and 39

inches.

Bring the terminal closer to the printer

or move it further away and attempt

communications again.

Obstruction

interfered with

communication.

Check the path to ensure no objects

were in the way.

Application is not

enabled to run IrDA

printing.

Printer support must be included with

the application to run IrDA printing on

the terminal. See your System

Administrator.

When receiving

beamed data an

out of memory

message

appears.

Not enough free

memory available

for receiving data.

Your terminal requires at least twice

the amount of memory available as

the data you are receiving. For

example, if you are receiving a 30K

application, you must have at least

60K free.

Beamed data

does not transmit. Terminals too close

together or too far

apart.

Confirm that the terminals are at least

5 inches and at most 39 inches apart.

Also ensure that there is a clear path

between the two devices.

Insufficient room

lighting. Adjust the room lighting or move to a

different location.

Problem Cause Solution

For Internal Use Only

Quick Reference

Your terminal

does not accept

scan input.

Scanning

application is not

loaded.

Verify that the unit is loaded with a

scanning application. See your

System Administrator.

Unreadable bar

code. Ensure the symbol is not defaced.

Distance between

exit window and bar

code is incorrect.

Ensure you are within proper scanning

range.

Terminal is not

programmed for the

bar code.

Ensure the terminal is programmed to

accept the type of bar code you are

scanning.

Terminal is not

programmed to

generate a beep.

If you are expecting a beep on a good

decode and don’t hear one, check that

the application is set to generate a

beep on good decode.

Battery is low. If the scanner stops emitting a laser

beam when you press the trigger,

check your battery level.

Note: If the scanner is still not reading

symbols, contact your distributor or

Symbol Technologies.

Problem Cause Solution

For Internal Use Only

PDT 80XX WWAN

END-USER LICENSE AGREEMENT

MICROSOFT WINDOWS FOR POCKET PC

DATA EXCHANGE COMPONENT: MICROSOFT ACTIVESYNC, VERSION 3.1

IMPORTANT-READ CAREFULLY: This End-User License Agreement (“EULA”) is a

legal agreement between you (either an individual or a single entity) and the

manufacturer (“Manufacturer”) of the special purpose computing device (“SYSTEM”)

with which you acquired the Microsoft software product(s) identified above

(“SOFTWARE”). The SOFTWARE includes computer software, the associated

media, any printed materials, and any “online” or electronic documentation. Any

software provided along with the SOFTWARE that is associated with a separate end-

user license agreement is licensed to you under the terms of that license agreement.

By installing, copying, downloading, accessing, or otherwise using the SOFTWARE,

you agree to be bound by the terms of this EULA. If you do not agree to the terms of

this EULA, Manufacturer and Microsoft Licensing, Inc. (“MS”) are unwilling to license

the SOFTWARE to you. In such event, you may not use or copy the SOFTWARE, and

you should promptly contact Manufacturer for instructions on return of the unused

product(s) in accordance with Manufacturer's return policies.

SOFTWARE LICENSE

The SOFTWARE is protected by copyright laws and international copyright treaties,

as well as other intellectual property laws and treaties. The SOFTWARE is licensed,

not sold.

1. GRANT OF LICENSE. SOFTWARE includes software already installed on the

SYSTEM (“SYSTEM Software”) and, if included in the SYSTEM package, soft-

ware contained on the CD-ROM disc labeled “Desktop Software for Microsoft

Windows CE Microsoft ActiveSync 3.1” (“Desktop Software”). This EULA grants

you the following rights to the SOFTWARE:

•SYSTEM Software. You may use the SYSTEM Software as installed on the

SYSTEM.

•Desktop Software. If Desktop Software is included with your SYSTEM, you

may install and use the Data Exchange component identified above on one (1)

or more computers to exchange information with one (1) or more computing

devices that contain a compatible version of the Microsoft Windows CE operat-

ing system. For other software component(s) contained in the Desktop Soft-

ware, you may install and use such components only in accordance with the

terms of the printed or online end-user license agreement(s) provided with such

component(s). In the absence of an end user license agreement for particular

component(s) of the Desktop Software, you may install and use only one (1)

copy of such component(s) on the SYSTEM or a single computer with which

you use the SYSTEM.

•Backup Copy. If Manufacturer has not included a backup copy of the SYSTEM

Software with the SYSTEM, you may make a single backup copy of the SYS-

TEM Software. You may use the backup copy solely for archival purposes.

•Microsoft Outlook 2000. The following terms apply to your use of Microsoft

Outlook 2000 (i) regardless of the information contained in the “Software Instal-

lation and Use” section of the online EULA you may install one (1) copy of

Microsoft Outlook 2000 on one (1) computer to use, exchange data, share data,

For Internal Use Only

Quick Reference

access, and interact with the SYSTEM, and (ii) the EULA is between Manufac-

turer (as defined above) and the end user-not between the PC Manufacturer

and end user.

2. DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS.

•Speech/Handwriting Recognition. If the SOFTWARE includes speech and/or

handwriting recognition component(s), you should understand that speech and

handwriting recognition are inherently statistical processes; that recognition

errors are inherent in the processes; that it is your responsibility to provide for

handling such errors and to monitor the recognition processes and correct any

errors. Neither Manufacturer nor its suppliers shall be liable for any damages

arising out of errors in the speech and handwriting recognition processes.

•Limitations on Reverse Engineering, Decompilation, and Disassembly.

You may not reverse engineer, decompile, or disassemble the SOFTWARE,

except and only to the extent that such activity is expressly permitted by appli-

cable law notwithstanding this limitation.

•Single SYSTEM. The SYSTEM Software is licensed with the SYSTEM as a

single integrated product. The SYSTEM Software installed in read-only memory

(“ROM”) of the SYSTEM may only be used as part of the SYSTEM.

•Single EULA. The package for the SYSTEM may contain multiple versions of

this EULA, such as multiple translations and/or multiple media versions (e.g., in

the user documentation and in the software). Even if you receive multiple ver-

sions of the EULA, you are licensed to use only one (1) copy of the SYSTEM

Software.

•Rental. You may not rent or lease the SOFTWARE.

•Software Transfer. You may permanently transfer all of your rights under this

EULA only as part of a sale or transfer of the SYSTEM, provided you retain no

copies, you transfer all of the SOFTWARE (including all component parts, the

media and printed materials, any upgrades or backup copies, this EULA and, if

applicable, the Certificate(s) of Authenticity), and the recipient agrees to the

terms of this EULA. If the SOFTWARE is an upgrade, any transfer must include

all prior versions of the SOFTWARE.

•Termination. Without prejudice to any other rights, Manufacturer or MS may

terminate this EULA if you fail to comply with the terms and conditions of this

EULA. In such event, you must destroy all copies of the SOFTWARE and all of

its component parts.

3. UPGRADES AND RECOVERY MEDIA.

•SYSTEM Software. If the SYSTEM Software is provided by Manufacturer sep-

arate from the SYSTEM on media such as a ROM chip, CD-ROM disc(s) or via

Web download or other, means, and is labeled “For Upgrade Purposes Only” or

“For Recovery Purposes Only,” you may install one copy of such SYSTEM Soft-

ware onto the SYSTEM as a replacement copy for the existing SYSTEM Soft-

ware and use it in accordance with Section 1 of this EULA.

•Desktop Software. If any Desktop Software component(s) is provided by Man-

ufacturer separate from the SYSTEM on CD-ROM disc(s) or via Web download

For Internal Use Only

PDT 80XX WWAN

or other means, and labeled “For Upgrade Purposes Only” or “For Recovery

Purposes Only”, you may (i) install and use one copy of such component(s) on

the computer(s) you use to exchange data with the SYSTEM as a replacement

copy for the existing Desktop Software component(s).

4. COPYRIGHT. All title and intellectual property rights in and to the SOFTWARE (in-

cluding, but not limited to, any images, photographs, animations, video, audio,

music, text, and “applets” incorporated into the SOFTWARE), the accompanying

printed materials, and any copies of the SOFTWARE, are owned by MS or its sup-

pliers (including Microsoft Corporation). You may not copy the printed materials

accompanying the SOFTWARE. All title and intellectual property rights in and to

the content which may be accessed through use of the SOFTWARE is the prop-

erty of the respective content owner and may be protected by applicable copyright

or other intellectual property laws and treaties. This EULA grants you no rights to

use such content. All rights not specifically granted under this EULA are reserved

by MS and its suppliers (including, Microsoft Corporation).

5. EXPORT RESTRICTIONS. You agree that you will not export or re-export the

SOFTWARE to any country, person, or entity subject to U.S. export restrictions.

You specifically agree not to export or re export the SOFTWARE: (i) to any country

to which the U.S. has embargoed or restricted the export of goods or services,

which as of May 1999 include, but are not necessarily limited to, Cuba, Iran, Iraq,

Libya, North Korea, Sudan, Syria, and the Federal Republic of Yugoslavia (includ-

ing Serbia, but not Montenegro), or to any national of any such country, wherever

located, who intends to transmit or transport the products back to such country;

(ii) to any person or entity who you know or have reason to know will utilize the

SOFTWARE or portion thereof in the design, development, or production of nu-

clear, chemical, or biological weapons; or (iii) to any person or entity who has been

prohibited from participating in U.S. export transactions by any federal agency of

the U.S. government.

6. NOTE ON JAVA SUPPORT. The SOFTWARE may contain support for programs

written in Java. Java technology is not fault tolerant and is not designed, manu-

factured, or intended for use or resale as online control equipment in hazardous

environments requiring fail-safe performance, such as in the operation of nuclear

facilities, aircraft navigation or communication systems, air traffic control, direct

life support machines, or weapons systems, in which the failure of Java technol-

ogy could lead directly to death, personal injury, or severe physical or environ-

mental damage. Sun Microsystems, Inc. has contractually obligated Microsoft

Corporation to make this disclaimer.

7. PRODUCT SUPPORT. Product support for the SOFTWARE is not provided by

MS, its parent corporation, Microsoft Corporation, or their affiliates or subsidiaries.

For product support, please refer to Manufacturer's support number provided in

the documentation for the SYSTEM. Should you have any questions concerning

this EULA, or if you desire to contact Manufacturer for any other reason, please

refer to the address provided in the documentation for the SYSTEM.

FOR THE LIMITED WARRANTIES AND SPECIAL PROVISIONS PERTAINING TO

YOUR PARTICULAR JURISDICTION, PLEASE REFERTO YOUR WARRANTY

BOOKLET INCLUDED WITH THIS PACKAGE OR PROVIDED WITH THE

SOFTWARE PRINTED MATERIALS.

For Internal Use Only

Quick Reference

Regulatory Information

All Symbol devices are designed to be compliant with rules and regulations in

locations they are sold and will be labeled as required.

Any changes or modifications to Symbol Technologies equipment, not expressly

approved by Symbol Technologies, could void the user’s authority to operate the

equipment.

Ergonomic Recommendations

Caution: In order to avoid or minimize the potential risk of ergonomic injury follow the

recommendations below. Consult with your local Health & Safety Manager to ensure

that you are adhering to your company’s safety programs to prevent employee injury.

• Reduce or eliminate repetitive motion

• Maintain a natural position

• Reduce or eliminate excessive force

• Keep objects that are used frequently within easy reach

• Perform tasks at correct heights

• Reduce or eliminate vibration

• Reduce or eliminate direct pressure

• Provide adjustable workstations

• Provide adequate clearance

• Provide a suitable working environment

• Improve work procedures.

Laser Devices

Symbol devices using lasers comply with US 21CFR1040.10, and IEC825-

1:1993, EN60825-1:1994+A11:1996. The laser classification is marked on

one of the labels on the device.

Class 1 Laser devices are not considered to be hazardous when used for their

intended purpose. The following statement is required to comply with US and

international regulations:

Caution: Use of controls, adjustments or performance of procedures other than those

specified herein may result in hazardous laser light exposure.

Class 2 laser scanners use a low power, visible light diode. As with any very bright

light source, such as the sun, the user should avoid staring directly into the light

beam. Momentary exposure to a Class 2 laser is not known to be harmful.

For Internal Use Only

PDT 80XX WWAN

Scanner Labeling

PDT 8056 PDT 8037

For Internal Use Only

Quick Reference

In accordance with Clause 5, IEC 825 and EN60825, the following information is

provided to the user:

ENGLISH HEBREW

CLASS 1 CLASS 1 LASER PRODUCT

CLASS 2 LASER LIGHT

DO NOT STARE INTO BEAM

CLASS 2 LASER PRODUCT

DANISH / DANSK ITALIAN / ITALIANO

KLASSE 1 KLASSE 1 LASERPRODUKT CLASSE 1 PRODOTTO AL LASER DI CLASSE 1

KLASSE 2 LASERLYF CLASSE 2 LUCE LASER

SE IKKE IND I STRÅLEN NON FISSARE IL RAGGIOPRODOTTO

KLASSE 2 LASERPRODUKT AL LASER DI CLASSE 2

DUTCH / NEDERLANDS NORWEGIAN / NORSK

KLASSE 1 KLASSE-1 LASERPRODUKT KLASSE 1 LASERPRODUKT, KLASSE 1

KLASSE 2 LASERLICHT KLASSE 2 LASERLYS IKKE STIRR INN I LYSSTRÅLEN

NIET IN STRAAL STAREN LASERPRODUKT, KLASSE 2

KLASSE-2 LASERPRODUKT

FINNISH / SUOMI PORTUGUESE / PORTUGUÊS

LUOKKA 1 LUOKKA 1 LASERTUOTE CLASSE 1 PRODUTO LASER DA CLASSE 1

LUOKKA 2 LASERVALO CLASSE 2 LUZ DE LASER NÃO FIXAR O RAIO LUMINOSO

ÄLÄ TUIJOTA SÄDETTÄ PRODUTO LASER DA CLASSE 2

LUOKKA 2 LASERTUOTE

FRENCH / FRANÇAIS SPANISH / ESPAÑOL

CLASSE 1 PRODUIT LASER DE CLASSE 1 CLASE 1 PRODUCTO LASER DE LA CLASE 1

CLASSE 2 LUMIERE LASER CLASE 2 LUZ LASER

NE PAS REGARDER LE RAYON FIXEMENT NO MIRE FIJAMENTE EL HAZ

PRODUIT LASER DE CLASSE 2 PRODUCTO LASER DE LA CLASE 2

GERMAN / DEUTCH SWEDISH / SVENSKA

KLASSE 1 LASERPRODUKT DER KLASSE 1 KLASS 1 LASERPRODUKT KLASS 1

KLASSE 2 LASERSTRAHLEN KLASS 2 LASERLJUS STIRRA INTE MOT STRÅLEN

NICHT DIREKT IN DEN LASERSTRAHL SCHAUEN LASERPRODUKT KLASS 2

LASERPRODUKT DER KLASSE 2

For Internal Use Only

PDT 80XX WWAN

Power Supply

Note: Use only a Symbol-approved power supply 50-14001-005 output rated

15VDC and minimum 2.5A. The power supply is certified to EN60950

with SELV outputs.

Hinweis: Benutzen Sie nur eine Symbol Technologies genehmigt

Stromversorgung 50-14001-005 in den Ausgabe: 15VDC und

minimum 2.5A. Die Stromversorgung ist bescheinigt nach EN60950

mit SELV Ausgaben

FCC RF Exposure Guidelines

This device was tested for typical body-worn operations. The use of third-

party belt-clips, holsters, and similar accessories should not contain metallic

components in its assembly. The use of these accessories that do not satisfy these

requirements may not comply with FCC RF exposure compliance requirements, and

should be avoided.

GSM Regulatory Warnings

Emergency Calls

The Worldwide GSM standard provides a single uniform number, 112, to dial in cases

of emergency. Provided that your phone has found a network you will be able to make

an emergency call. The call can be made regardless of any security codes and

depending on a network, with or without a SIM card inserted.

Safety Information

The device complies with Internationally recognized standards covering Specific

Absorption Rate (SAR) related to human exposure to electromagnetic fields from

mobile phones.

It is advisable to use the device only in the normal operating position.

Safety on the Road

Drivers are advised not to use the handset while their vehicle is in motion, except in

emergencies. Use the hands-free facility to speak only if it does not divert your

attention from the traffic.

Safety on Aircraft

You are required to switch off mobile phones when on board an aircraft or at any other

time when instructed to do so by a member of the crew.

Pacemakers

It is recommended by pacemaker manufacturers that a minimum of 15cm (6 inches)

be maintained between a handheld wireless phone and a pacemaker to avoid any

possible interference with the pacemaker. These recommendations are consistent

with independent research and recommendations by Wireless Technology Research.

Persons with Pacemakers:

• Should always keep the device more than 15cm (6 inches) from their pace-

maker when turned on

For Internal Use Only

Quick Reference

• Should not carry the device in a breast pocket

• Should use the ear furthest from the pacemaker to minimize the potential for

interference.

• If you have any reason to suspect that interference is taking place, turn off your

device immediately.

Hearing Aids

The device may interfere with some hearing aids. In the event of interference you may

want to consult your hearing aid supplier to discuss solutions.

Other Medical Devices

The device transmits radio frequency energy and has the potential to interfere with

inadequately protected medical devices. Consult your physician or the manufacturer

of the device to see if the particular device has sufficient protection.

It is good practice to turn off the device within a hospital or other medical facility where

sensitive medical equipment is in use. In some countries, this is a legal requirement

applying to all mobile phones and related equipment.

Effect on Vehicles

RF signals may affect improperly installed or inadequately shielded electronic

systems in motor vehicles (including safety systems). Check with the manufacturer

or its representative regarding your vehicle. You should also consult the manufacturer

of any equipment that has been added to your vehicle.

Warning Notices

Please observe all warning notices with regard to the usage of mobile phones.

Potentially Hazardous Atmospheres

You are advised not to use this device at a refuelling point. You are reminded of the

need to observe restrictions on the use of radio devices in fuel depots, chemical

plants etc.

Radio Frequency Interference Requirements

Note: This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15 of the

FCC rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected

• Consult the dealer or an experienced radio/TV technician for help.

Tested to comply

with FCC Standards

FOR HOME OR OFFICE USE

For Internal Use Only

PDT 80XX WWAN

Radio Frequency Interference Requirements - FCC

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

Radio Frequency Interference Requirements - Canada

Devices with integrated radios

This device complies with RSS 210 of Industry & Science Canada. Operation is

subject to the following two conditions: (1) this device may not cause harmful

interference and (2) this device must accept any interference received, including

interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Label Marking: The Term "IC:" before the radio certification only signifies that Industry

Canada technical specifications were met.

Marking and European Economic Area (EEA)

RLAN's (2.4GHz) for use through the EEA have the following restrictions:

• Maximum radiated transmit power of 100 mW EIRP in the frequency range

2.400 -2.4835 GHz

• France, equipment is restricted to 2.4465 -2.4835 GHz frequency range

• Belgium outside usage, the equipment is restricted to 2.460 -2.4835 GHz fre-

quency range

• Italy requires a user license for outside usage.

Other Countries

All 2.4GHz Radio Devices:

• Mexico - Restrict Frequency Range to: 2.450 - 2.4835 GHz.

• Israel - Restrict Frequency Range to: 2.418 - 2.457 GHz.

• Sri Lanka - Restrict Frequency Range to: 2.400 - 2.430 GHz.

For Internal Use Only

Quick Reference

Radio Modules

The PDT8000 WAN terminals contain approved radio modules. These modules are

identified below:

• PDT8057

Symbol Compact Flash RLAN (11Mbps DSSS) radio card, Type: LA-4137

Motorola Triband GSM GPRS module (G18), Type: MT3-411A21

• PDT8037

Motorola Triband GSM GPRS module (G18), Type: MT3-411A21

Statement of Compliance

Symbol Technologies, Inc., hereby, declares that this device is in compliance with the

essential requirements and other relevant provisions of Directives 1999/5/EC.

Declaration of Conformities may be obtained from http://www2.symbol.com/doc/

For Internal Use Only

PDT 80XX WWAN

For Internal Use Only

Quick Reference

Warranty

(A) Warranty Symbol Technologies (hereafter “Seller”) hardware Products are warranted against defects in

workmanship and materials for a period of twelve (12) months from the date of shipment, unless otherwise

provided by Seller in writing, provided the Product remains unmodified and is operated under normal and

proper conditions. Warranty provisions and durations on software, integrated installed systems, Product

modified or designed to meet specific customer specifications (“Custom Products”), remanufactured

products, and reconditioned or upgraded products, shall be as provided in the applicable Product

specification in effect at the time of purchase or in the accompanying software license.

(B) Spare Parts Spare parts (i.e. parts, components, or subassemblies sold by Seller for use in the service

and maintenance of Products) are warranted against defects in workmanship and materials for a period of

thirty (30) days from the date of shipment. Spare parts may be new or originate from returned units under the

conditions set forth in subsection D below.

Agreement, including repairs covered by warranty, the repair services provided are warranted against

defects in workmanship and materials on the repaired component of the Product for a period of thirty (30)

days from the shipment date of the repaired Product, or until the end of the original warranty period,

whichever is longer.

(D) Product Service Products may be serviced or manufactured with parts, components, or subassemblies

that originate from returned products and that have been tested as meeting applicable specifications for

equivalent new material and Products. The sole obligation of Seller for defective hardware Products is limited

to repair or replacement (at Seller’s option) on a “return to service depot” basis with prior Seller authorization.

Customer is responsible for shipment to the Seller and assumes all costs and risks associated with this

transportation; return shipment to the Customer will be at Seller's expense. Customer shall be responsible

for return shipment charges for product returned where Seller determines there is no defect (“No Defect

Found”), or for product returned that Seller determines is not eligible for warranty repair. No charge will be

made to Buyer for replacement parts for warranty repairs. Seller is not responsible for any damage to or loss

of any software programs, data or removable data storage media, or the restoration or reinstallation of any

software programs or data other than the software, if any, installed by Seller during manufacture of the

Product.

(E) Original Warranty Period Except for the warranty applying solely to the repaired component arising from

a repair service as provided in Section C above, the aforementioned provisions do not extend the original

warranty period of any Product that had either been repaired or replaced by Seller.

(F) Warranty Provisions The above warranty provisions shall not apply to any Product (i) which has been

repaired, tampered with, altered or modified, except by Seller’s authorized service personnel; (ii) in which the

defects or damage to the Product result from normal wear and tear, misuse, negligence, improper storage,

water or other liquids, battery leakage, use of parts or accessories not approved or supplied by Symbol, or

failure to perform operator handling and scheduled maintenance instructions supplied by Seller; (iii) which

has been subjected to unusual physical or electrical stress, abuse, or accident, or forces or exposure beyond

normal use within the specified operational and environmental parameters set forth in the applicable Product

specification; nor shall the above warranty provisions apply to any expendable or consumable items, such

as batteries, supplied with the Product.

EXCEPT FOR THE WARRANTY OF TITLE AND THE EXPRESS WARRANTIES STATED ABOVE,

SELLER DISCLAIMS ALL WARRANTIES ON PRODUCTS FURNISHED HEREUNDER INCLUDING ALL

IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE. ANY

IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED IN DURATION TO THE LIMITED

WARRANTY PERIOD. SOME STATES OR COUNTRIES DO NOT ALLOW A LIMITATION ON HOW LONG

AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS. IN SUCH STATES OR COUNTRIES, FOR

SUCH PRODUCTS, SOME EXCLUSIONS OR LIMITATIONS OF THIS LIMITED WARRANTY MAY NOT

APPLY.

The stated express warranties are in lieu of all obligations or liabilities on the part of Seller for damages,

including but not limited to, special, indirect or consequential damages arising out of or in connection with

the use or performance of the Product or service. Seller’s liability for damages to Buyer or others resulting

from the use of any Product or service furnished hereunder shall in no way exceed the purchase price of said

Product or the fair market value of said service, except in instances of injury to persons or property.

For Internal Use Only

72-61492-01

Revision A — March 2003

Symbol Technologies, Inc. One Symbol Plaza, Holtsville, N.Y. 11742-1300

Service Information

Before you use the unit, it must be configured to operate in your facility’s network and

run your applications.

If you have a problem running your unit or using your equipment, contact your facility’s

Technical or Systems Support. If there is a problem with the equipment, they will

contact the Symbol Support Center:

For the latest version of this guide go to: http://www.symbol.com/manuals.

United States11-800-653-5350

1-631-738-2400 Canada 905-629-7226

United Kingdom 0800 328 2424 Asia/Pacific +65-6796-9600

Australia 1-800-672-906 Austria/Österreich 1-505-5794-0

Denmark/Danmark 7020-1718 Finland/Suomi 9 5407 580

France 01-40-96-52-21 Germany/Deutchland 6074-49020

Italy/Italia 2-484441 Mexico/México 5-520-1835

Netherlands/Nederland 315-271700 Norway/Norge +47 2232 4375

South Africa 11-8095311 Spain/España 91 324 40 00

Inside Spain

Sweden/Sverige 84452900 +34 91 324 40 00

Outside Spain

Latin America

Sales Support 1-800-347-0178 Inside US

+1-954-255-2610 Outside US

Europe/Mid-East

Distributor Operations Contact local distributor or call

+44 118 945 7360

1Customer support is available 24 hours a day, 7 days a week.

For Internal Use Only

Symbol Technologies PDT8037 Body Worn PC with Radio Lan User Manual

Symbol Technologies Inc Body Worn PC with Radio Lan

Quick Reference Guide

Navigation menu

Namespaces

Views

Navigation
