For more information about RF exposure, please visit the FCC website at www.fcc.gov

FCC RF EXPOSURE INFORMATION

In August 1996 the Federal Communications Commission (FCC) of the United

States with its action in Report and Order FCC 96-326 adopted an updated

safety standard for human exposure to radio frequency electromagnetic energy

emitted by FCC regulated transmitters. Those guidelines are consistent with the

safety standard previously set by both U.S. and international standards bodies.

The design of this phone complies with the FCC guidelines and these

international standards.

Use only the supplied or an approved antenna. Unauthorized antennas,

modifications, or attachments could impair call quality, damage the phone, or

result in violation of FCC regulations.

Do not use the phone with a damaged antenna. If a damaged antenna comes

into contact with the skin, a minor burn may result. Please contact your local

dealer for replacement antenna.

Body-worn Operation

This device was tested for typical body-worn operations with the Holster

providing a minimal spacing of 2.5 cm. from the body to the back of the

terminal/antenna. To maintain compliance with FCC RF exposure

compliance requirements, use only belt-clips, holsters or similar

accessories that maintain a 2.5 cm. separation distance between the

user’s body and the back of the terminal, including the antenna. The use

of third-party belt-clips, holsters and similar accessories should not

contain metallic components in its assembly. The use of accessories that

do not satisfy these requirements may not comply with FCC RF exposure

compliance requirements, and should be avoided.

WARNING! Read this information before using your phone

PPT 2800 Series

Symbol reserves the right to make changes to any product to improve reliability,

function, or design.

Symbol does not assume any product liability arising out of, or in connection with, the

application or use of any product, circuit, or application described herein.

No license is granted, either expressly or by implication, estoppel, or otherwise under

any patent right or patent, covering or relating to any combination, system,

apparatus, machine, material, method, or process in which Symbol products might

be used. An implied license only exists for equipment, circuits, and subsystems

contained in Symbol products.

Symbol is a registered trademark of Symbol Technologies, Inc. Other product names

mentioned in this manual may be trademarks or registered trademarks of their

respective companies and are hereby acknowledged.

Symbol Technologies, Inc.

One Symbol Plaza

Holtsville, N.Y. 11742-1300

http://www.symbol.com

Patents

This product is covered by one or more of the following U.S. and foreign Patents:

U.S. Patent No. 4,460,120; 4,496,831; 4,593,186; 4,603,262; 4,607,156; 4,652,750;

4,673,805; 4,736,095; 4,758,717; 4,816,660; 4,845,350; 4,896,026; 4,897,532; 4,923,281;

4,933,538; 4,992,717; 5,015,833; 5,017,765; 5,021,641; 5,029,183; 5,047,617; 5,103,461;

5,113,445; 5,130,520; 5,140,144; 5,142,550; 5,149,950; 5,157,687; 5,168,148; 5,168,149;

5,180,904; 5,216,232; 5,229,591; 5,230,088; 5,235,167; 5,243,655; 5,247,162; 5,250,791;

5,250,792; 5,260,553; 5,262,627; 5,262,628; 5,266,787; 5,278,398; 5,280,162; 5,280,163;

5,280,164; 5,280,498; 5,304,786; 5,304,788; 5,306,900; 5,321,246; 5,324,924; 5,337,361;

5,367,151; 5,373,148; 5,378,882; 5,396,053; 5,396,055; 5,399,846; 5,408,081; 5,410,139;

5,410,140; 5,412,198; 5,418,812; 5,420,411; 5,436,440; 5,444,231; 5,449,891; 5,449,893;

5,468,949; 5,471,042; 5,478,998; 5,479,000; 5,479,002; 5,479,441; 5,504,322; 5,519,577;

5,528,621; 5,532,469; 5,543,610; 5,545,889; 5,552,592; 5,557,093; 5,578,810; 5,581,070;

5,589,679; 5,589,680; 5,608,202; 5,612,531; 5,619,028; 5,627,359; 5,637,852; 5,664,229;

5,668,803; 5,675,139; 5,693,929; 5,698,835; 5,705,800; 5,714,746; 5,723,851; 5,734,152;

5,734,153; 5,742,043; 5,745,794; 5,754,587; 5,762,516; 5,763,863; 5,767,500; 5,789,728;

5,789,731; 5,808,287; 5,811,785; 5,811,787; 5,815,811; 5,821,519; 5,821,520; 5,823,812;

5,828,050; 5,850,078; 5,861,615; 5,874,720; 5,875,415; 5,900,617; 5,902,989; 5,907,146;

5,912,450; 5,914,478; 5,917,173; 5,920,059; 5,923,025; 5,929,420; 5,945,658; 5,945,659;

5,946,194; 5,959,285; 6,002,918; 6,021,947; 6,036,098; 6,047,892; 6,050,491; 6,053,413;

6,056,200; 6,065,678; 6,067,297; 6,068,190; 6,082,621; 6,084,528; 6,088,482; 6,092,725;

6,101,483; 6,102,293; 6,104,620; 6,114,712; 6,115,678; 6,119,944; 6,123,265; 6,131,814;

6,138,180; 6,142,379; 6,172,478; 6,176,428; 6,178,426; 6,186,400; 6,188,681; D305,885;

D341,584; D344,501; D359,483; D362,453; D363,700; D363,918; D370,478; D383,124;

D391,250; D405,077; D406,581; D414,171; D414,172; D418,500; D419,548; D423,468;

D424,035; D430,158; D430,159; D431,562; D436,104.

Invention No. 55,358; 62,539; 69,060; 69,187 (Taiwan); No. 1,601,796; 1,907,875;

1,955,269 (Japan).

European Patent 367,299; 414,281; 367,300; 367,298; UK 2,072,832; France 81/03938;

Italy 1,138,713.

rev. 04/01

Quick Reference

Introduction

Congratulations on your purchase of Symbol Technologies’ PPT

2800 Terminal! Its unique combination of features make this

product superior for use in a wide range of applications. These

features include:

• Pocket size

• Personal Information Management software

•Microsoft

® Windows® Pocket PC operating system

• RF communication via Symbol’s Spectrum24 wireless

network or a wide area network (WAN)

• Printing support

• 1-dimensional scanning capability.

About This Guide

This guide describes how to set up and use the terminal. The term

PPT 2800 refers to the batch terminal and the Spectrum24

terminal. Specific topics covered include:

•Parts of the PPT 2800 on page 2

•Installing Batteries on page 4

•Charging the Battery on page 5

•Starting the PPT 2800 on page 8

•Aligning the Screen on page 8

•Using the PPT 2800 on page 9

•Using the Stylus on page 10

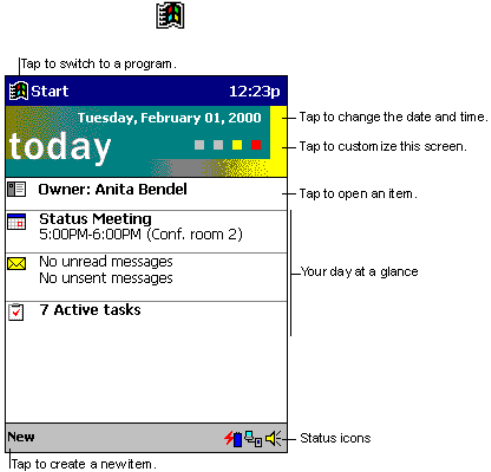

•Today Screen on page 11

•Navigation Bar and Command Bar on page 12

•Input Methods on page 13

•Scanning with the PPT 2800 on page 15

•Resetting Your PPT 2800 Terminal on page 16

•Maintaining the PPT 2800 on page 18

•Troubleshooting on page 18.

The PPT 2800 Product Reference Guide (p/n 72-50931-xx),

available from your Reseller or from Symbol Technologies, details

the applications available for the PPT 2800.

PPT 2800 Series

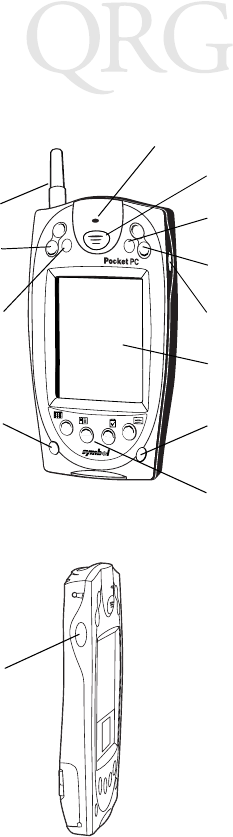

Parts of the PPT 2800

Power Button

Scroll Button

Function Button

Right Scan Trigger

Left Scan Trigger

Scan Trigger

Scan LED

LCD (Screen)

Application Buttons

1 through 4

Action Button

APP5 Button

(Start Menu)

Scroll Button

Front View

Left View

WAN Antenna

Quick Reference

Parts of the PPT 2800 (continued)

Scan Window

Lithium Ion

Battery

Door

Battery

Compartment

Stylus

Serial Port

Battery

Door Latch

Reset Button

Stylus Silo

Battery

Door Latch

IR Port

Back View

Bottom View

Top View

Handstrap Connector

Speaker Microphone

Battery Cover

Switch

PPT 2800 Series

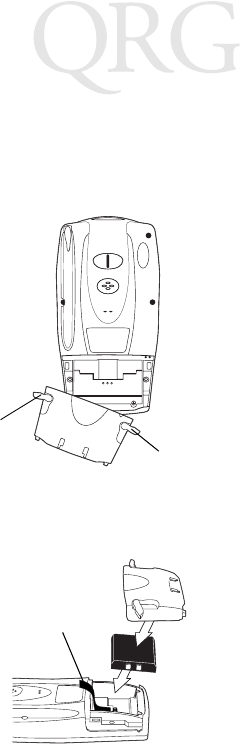

Installing Batteries

Before using your PPT 2800, install a lithium-ion battery:

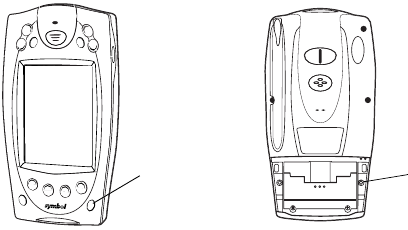

1. Open the latches on the battery door and lift the battery door

away from the PPT 2800.

2. Insert the lithium-ion battery in the battery compartment with

the battery tether positioned properly (as shown below),

making sure the battery snaps into place.

3. Replace the battery cover, pressing down firmly while secur-

ing the latches.

Latch

Tether

Quick Reference

Charging the Battery

Before using your PPT 2800 for the first time, charge the lithium-

ion battery in the terminal for about 2 1/2 hours, using the cradle

or the synchronization cable. Follow these same procedures to

recharge the battery.

Your terminal is equipped with a memory backup battery which

automatically charges from the fully-charged lithium-ion battery.

This backup battery retains data in memory when the terminal’s

battery is removed, and takes several hours to charge when you

first use your terminal.

Note: If you remove your lithium-ion battery before the back-

up battery is fully charged, data may be lost. For this

reason, DO NOT remove the battery within the first ten

hours of use.

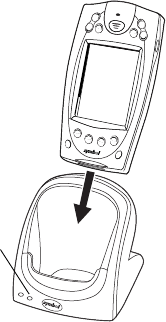

Charging the Battery Using the Cradle

1. Plug the cradle into a wall outlet.

2. Insert the PPT 2800 terminal in the cradle.

Terminal Charge LED

PPT 2800 Series

3. The Terminal Charge LED turns red (may take up to one

minute) to indicate charging, then green when the battery is

fully charged. The terminal’s battery is fully charged after

approximately 2 1/2 hours.

Charging a Spare Battery

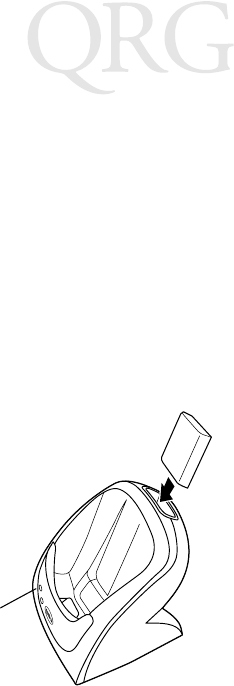

To recharge a terminal’s spare battery, insert it in the spare battery

charging slot in the back of the cradle, oriented so the contacts are

facing down and toward the back of the cradle. Press the battery

down into the slot until firmly seated.

The Spare Battery Charge LED turns red to indicate charging,

then green when the battery is fully charged. The battery is fully

charged after approximately 2 1/2 hours. See the cradle’s Quick

Reference Guide for more information.

Spare Battery

Charge LED

Quick Reference

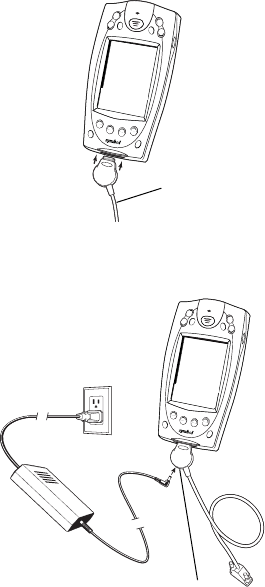

Charging the Battery Using the Synchronization Cable

1. Insert the cable into the bottom of the terminal.

2. Plug the power cable into a wall outlet and plug the other end

into the battery charging receptacle on the side of the syn-

chronization cable.

Synchronization Cable

Battery Charging

Receptacle

PPT 2800 Series

Starting the PPT 2800

Press the red power button to start the terminal. If the terminal

does not power on, perform a hard reset. See Performing a Hard

Reset on page 17.

As the terminal initializes its unique Flash File system, the Symbol

splash screen displays for about a minute.

When the Welcome screen appears, tap anywhere on the screen

to continue to the Align screen. Note that these screens also

appear every time you perform a hard reset.

Aligning the Screen

To align your PPT 2800 so the cursor on the touch screen aligns

with the tip of your stylus:

1. If necessary, adjust the contrast on the PPT 2800 so the

screen is readable. See Controlling the Contrast/Backlight

on page 9.

2. Remove the stylus from its storage silo on the back of the

PPT 2800.

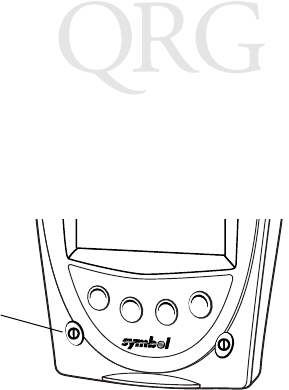

Power

Button

Quick Reference

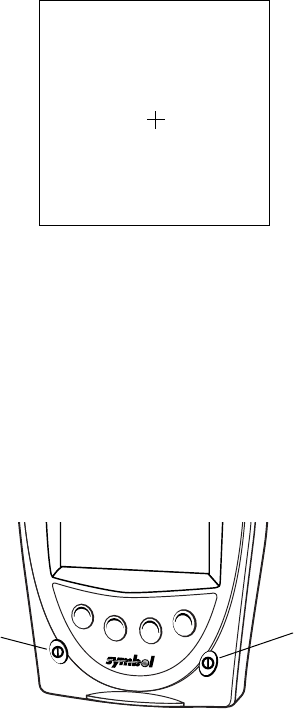

3. Tap the center of each target that appears on the screen with

the tip of the stylus.

4. Follow the directions on the screen which explain how to use

the stylus and pop-up menus, and allow you to set your city

and time zone.

Using the PPT 2800

Using the Power Button

Press the power button on the lower left-hand side of the terminal

to turn the PPT 2800 on and off.

Controlling the Contrast/Backlight

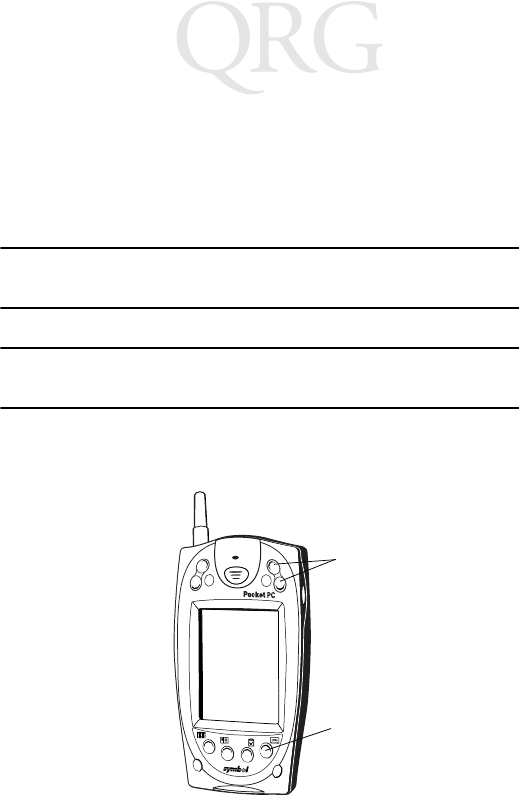

The Function button, shown below, allows you to adjust the

contrast of the screen and control the backlight.

Tap the target firmly and accurately

at each location on the screen. The

target will continue to move until

the screen is aligned.

Function Button

Power Button

PPT 2800 Series

To adjust the contrast:

1. Press and hold the Function button.

2. Press the “up” scroll button at the top of the terminal to dark-

en the screen, or the “down” scroll button to lighten the

screen.

To turn the backlight on or off:

1. Press and hold the Function button.

2. Press any application button.

Using the Stylus

The stylus selects items and enters information. The stylus

functions as a mouse.

•Tap: Touch the screen once with the stylus to open items and

select options.

•Drag: Hold the stylus on the screen and drag across the

screen to select text and images. Drag in a list to select mul-

tiple items.

•Tap-and-hold: Tap and hold the stylus on an item to see a

list of actions available for that item. On the pop-up menu

that appears, tap the action you want to perform.

Quick Reference

Today Screen

When you turn on your terminal for the first time each day (or after

4 hours of inactivity), the Today screen appears. You can also

display it by tapping , then Today. On the Today screen, you

can see important information for the day.

PPT 2800 Series

Navigation Bar and Command Bar

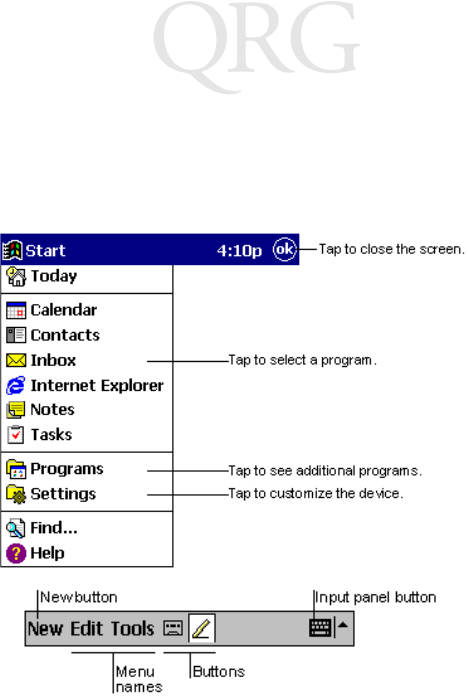

The navigation bar at the top of the screen displays the active

program and current time, and allows you to switch to programs

and close screens. The command bar at the bottom of the screen

contains menus and buttons to perform tasks in programs.

Quick Reference

Input Methods

Enter information in any program by typing with the soft keyboard

or writing using Character Recognizer.

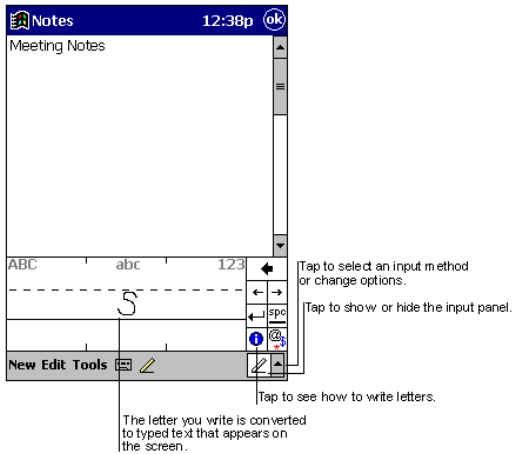

The Character Recognizer input panel is divided into three writing

areas. Letters written in the left area (labeled ABC) create

uppercase letters and letters written in the middle area (labeled

abc) create lowercase letters. The right area (labeled 123) is for

writing numbers, symbols, special characters, and punctuation.

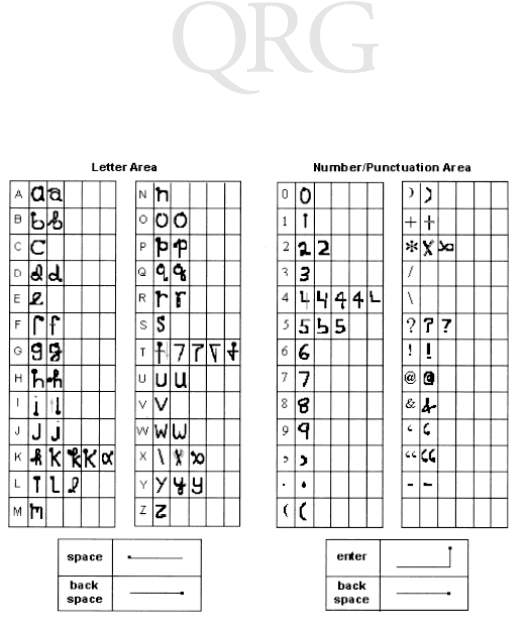

The following chart is a partial display of the characters you can

write while in lowercase mode (the dot on each character is the

starting point for writing). For more information on using Character

PPT 2800 Series

Recognizer and for demos of all characters, tap on the Character

Recognizer input panel.

Quick Reference

Scanning with the PPT 2800

The PPT 2800 has an integrated scanner which collects data by

scanning bar codes. See the PPT 2800 Product Reference Guide

for information on configuring your terminal for scanning.

To scan bar codes with the PPT 2800:

1. Aim the scanner at the bar code.

2. Press either the right, left, or center scan trigger. Make sure

the red scan beam covers the entire bar code. The green

scan LED lights and a beep sounds to indicate a successful

decode.

PPT 2800 Series

Resetting Your PPT 2800 Terminal

If your PPT 2800 terminal stops responding to input, reset it.

Performing a Soft Reset

A soft reset restarts the terminal and saves all stored records and

entries.

Caution: Files that remain open during a soft reset may not be

retained.

Caution: DO NOT perform a soft reset if the terminal is suspend-

ed. Press the Power button to wake the terminal.

To perform a soft reset, hold down both the up and down scroll

buttons, then press the App 4 button.

Up & Down

Scroll Buttons

App 4 Button

Quick Reference

Performing a Hard Reset

A hard reset also restarts your PPT 2800 terminal, but erases all

stored records and entries. Therefore, never perform a hard reset

unless a soft reset does not solve your problem.

Note: You can restore any data previously synchronized with

your computer during the next ActiveSync operation.

See the PPT 2800 Cradle Quick Reference Guide or

the PPT 2800 Product Reference Guide.

To perform a hard reset:

1. Remove the battery cover.

2. While holding down the Function button, use the stylus (or

similar object without a sharp tip) to gently press the reset

button.

3. Replace the battery cover and press the Power button.

4. As the terminal initializes its unique Flash File system, the

Symbol splash screen displays for about a minute.

5. See Aligning the Screen on page 8 to perform an initial setup

of the terminal.

Note: With a hard reset, Formats, Preferences, and other

settings are restored to their factory default settings.

Reset

Button

Function

Button

PPT 2800 Series

Maintaining the PPT 2800

For trouble-free service, observe the following tips when using

your PPT 2800:

• Do not scratch the screen. Use the supplied stylus or plastic-

tipped pens intended for use with a touch-sensitive screen.

Never use a pen or pencil or other sharp object on the

screen.

• Although your PPT 2800 is water and dust resistant, do not

expose it to rain or moisture for an extended period of time.

Treat your PPT 2800 as you would a pocket calculator or oth-

er small electronic instrument.

• The touch-sensitive screen of your PPT 2800 contains glass.

Do not drop your PPT 2800 or subject it to strong impact.

• Protect your PPT 2800 from temperature extremes. Do not

leave it on the dashboard of a car on a hot day, and keep it

away from heat sources.

• Do not store or use your PPT 2800 in any location that is ex-

tremely dusty, damp or wet.

• If the surface of the PPT 2800 screen becomes soiled, clean

it with a soft cloth moistened with a diluted window-cleaning

solution.

Troubleshooting

PPT 2800 terminal does not turn on:

• Adjust the contrast control.

• Make sure batteries are installed properly.

• Replace the batteries. If your PPT 2800 terminal still does

not operate, try a soft reset, then a hard reset; see Resetting

Your PPT 2800 Terminal on page 16.

No sound:

• Check the System Volume slider in the Sounds & Remind-

ers properties dialog box (under Start/Settings) to make

Quick Reference

sure the volume is not turned down.

PPT 2800 terminal turns itself off:

• Your PPT 2800 terminal turns off after a period of inactivity.

This period can be set from one to five minutes, in one-

minute intervals. Check the Power dialog box (in the Sys-

tem tab under Start/Settings), and change the setting if you

need a longer delay before the automatic shutoff feature ac-

tivates.

PPT 2800 terminal doesn’t recognize my handwriting:

• For your PPT 2800 to recognize handwriting input with the

stylus, characters must be written a certain way. See the

PPT 2800 Product Reference Guide for information about

how to write character strokes.

• Make the character strokes in the lower character entry area

on the screen — not on the display part of the screen.

• Make sure you are writing upper-case letters in the left-hand

side, numbers in the right-hand side, and lower-case letters

in the center of the writing area.

Tapping the screen buttons or icons does not activate the

corresponding feature:

• Align the screen. Choose Align Screen from the System tab

under Start/Settings, or hold down the Function button and

press the Action button.

A message appears stating that your PPT 2800 terminal

memory is full:

• Delete unused memos and records. You can save these

records on your computer.

• Adjust the memory allocation. Select Start, then Settings,

and select the System tab. Tap Memory and adjust the slid-

er.

PPT 2800 Series

• If you have installed additional applications on your PPT

2800 terminal, remove them to recover memory. Select

Start, then Settings, and select the System tab. Tap Re-

move Programs, select the unused program and tap Re-

move.

Beamed data does not transmit:

• Confirm that the PPT 2800 terminals are 5” apart, and there

is a clear path between the two devices.

• Adjust the room lighting or move to a different location.

When receiving beamed data an out of memory message

appears:

• Your PPT 2800 terminal requires at least twice the amount of

memory available as the data you are receiving. For exam-

ple, if you are receiving a 30K application, you must have at

least 60K free.

Your PPT 2800 unit does not accept scan input:

• Verify that the unit is loaded with a scanning application. See

your System Administrator.

• Be sure the symbol is not defaced.

• Be sure you are within proper scanning range.

• Be sure the terminal is programmed to accept the type of bar

code you are scanning.

• If you are expecting a beep on a good decode and don’t hear

one, check that the application is set to generate a beep on

good decode.

• If the scanner stops emitting a laser beam when you press

the trigger, check your battery level. When the battery is low,

the scanner shuts off before the terminal notifies you of the

low battery condition.

Note: If the scanner is still not reading symbols, contact your

distributor or Symbol Technologies.

Quick Reference

(1'86(5/,&(16($*5((0(17

MICROSOFT WINDOWS FOR POCKET PC

DATA EXCHANGE COMPONENT: MICROSOFT ACTIVESYNC, VERSION 3.1

IMPORTANT-READ CAREFULLY: This End-User License Agreement (“EULA”) is a

legal agreement between you (either an individual or a single entity) and the

manufacturer (“Manufacturer”) of the special purpose computing device (“SYSTEM”)

with which you acquired the Microsoft software product(s) identified above

(“SOFTWARE”). The SOFTWARE includes computer software, the associated

media, any printed materials, and any “online” or electronic documentation. Any

software provided along with the SOFTWARE that is associated with a separate end-

user license agreement is licensed to you under the terms of that license agreement.

By installing, copying, downloading, accessing, or otherwise using the SOFTWARE,

you agree to be bound by the terms of this EULA. If you do not agree to the terms of

this EULA, Manufacturer and Microsoft Licensing, Inc. (“MS”) are unwilling to license

the SOFTWARE to you. In such event, you may not use or copy the SOFTWARE, and

you should promptly contact Manufacturer for instructions on return of the unused

product(s) in accordance with Manufacturer's return policies.

62)7:$5(/,&(16(

The SOFTWARE is protected by copyright laws and international copyright treaties,

as well as other intellectual property laws and treaties. The SOFTWARE is licensed,

not sold.

1. GRANT OF LICENSE. SOFTWARE includes software already installed on the

SYSTEM (“SYSTEM Software”) and, if included in the SYSTEM package, soft-

ware contained on the CD-ROM disc labeled “Desktop Software for Microsoft

Windows CE Microsoft ActiveSync 3.1” (“Desktop Software”). This EULA grants

you the following rights to the SOFTWARE:

•SYSTEM Software. You may use the SYSTEM Software as installed on the

SYSTEM.

•Desktop Software. If Desktop Software is included with your SYSTEM, you

may install and use the Data Exchange component identified above on one (1)

or more computers to exchange information with one (1) or more computing

devices that contain a compatible version of the Microsoft Windows CE operat-

ing system. For other software component(s) contained in the Desktop Soft-

ware, you may install and use such components only in accordance with the

terms of the printed or online end-user license agreement(s) provided with such

component(s). In the absence of an end user license agreement for particular

component(s) of the Desktop Software, you may install and use only one (1)

copy of such component(s) on the SYSTEM or a single computer with which

you use the SYSTEM.

•Backup Copy. If Manufacturer has not included a backup copy of the SYSTEM

Software with the SYSTEM, you may make a single backup copy of the SYS-

TEM Software. You may use the backup copy solely for archival purposes.

•Microsoft Outlook 2000. The following terms apply to your use of Microsoft

Outlook 2000 (i) regardless of the information contained in the “Software Instal-

lation and Use” section of the online EULA you may install one (1) copy of

PPT 2800 Series

Microsoft Outlook 2000 on one (1) computer to use, exchange data, share data,

access, and interact with the SYSTEM, and (ii) the EULA is between Manufac-

turer (as defined above) and the end user-not between the PC Manufacturer

and end user.

2. DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS.

•Speech/Handwriting Recognition. If the SOFTWARE includes speech and/or

handwriting recognition component(s), you should understand that speech and

handwriting recognition are inherently statistical processes; that recognition

errors are inherent in the processes; that it is your responsibility to provide for

handling such errors and to monitor the recognition processes and correct any

errors. Neither Manufacturer nor its suppliers shall be liable for any damages

arising out of errors in the speech and handwriting recognition processes.

•Limitations on Reverse Engineering, Decompilation, and Disassembly.

You may not reverse engineer, decompile, or disassemble the SOFTWARE,

except and only to the extent that such activity is expressly permitted by appli-

cable law notwithstanding this limitation.

•Single SYSTEM. The SYSTEM Software is licensed with the SYSTEM as a

single integrated product. The SYSTEM Software installed in read-only memory

(“ROM”) of the SYSTEM may only be used as part of the SYSTEM.

•Single EULA. The package for the SYSTEM may contain multiple versions of

this EULA, such as multiple translations and/or multiple media versions (e.g., in

the user documentation and in the software). Even if you receive multiple ver-

sions of the EULA, you are licensed to use only one (1) copy of the SYSTEM

Software.

•Rental. You may not rent or lease the SOFTWARE.

•Software Transfer. You may permanently transfer all of your rights under this

EULA only as part of a sale or transfer of the SYSTEM, provided you retain no

copies, you transfer all of the SOFTWARE (including all component parts, the

media and printed materials, any upgrades or backup copies, this EULA and, if

applicable, the Certificate(s) of Authenticity), and the recipient agrees to the

terms of this EULA. If the SOFTWARE is an upgrade, any transfer must include

all prior versions of the SOFTWARE.

•Termination. Without prejudice to any other rights, Manufacturer or MS may

terminate this EULA if you fail to comply with the terms and conditions of this

EULA. In such event, you must destroy all copies of the SOFTWARE and all of

its component parts.

3. UPGRADES AND RECOVERY MEDIA.

•SYSTEM Software. If the SYSTEM Software is provided by Manufacturer sep-

arate from the SYSTEM on media such as a ROM chip, CD-ROM disc(s) or via

Web download or other, means, and is labeled “For Upgrade Purposes Only” or

“For Recovery Purposes Only,” you may install one copy of such SYSTEM Soft-

Quick Reference

ware onto the SYSTEM as a replacement copy for the existing SYSTEM Soft-

ware and use it in accordance with Section 1 of this EULA.

•Desktop Software. If any Desktop Software component(s) is provided by Man-

ufacturer separate from the SYSTEM on CD-ROM disc(s) or via Web download

or other means, and labeled “For Upgrade Purposes Only” or “For Recovery

Purposes Only”, you may (i) install and use one copy of such component(s) on

the computer(s) you use to exchange data with the SYSTEM as a replacement

copy for the existing Desktop Software component(s).

4. COPYRIGHT. All title and intellectual property rights in and to the SOFTWARE (in-

cluding, but not limited to, any images, photographs, animations, video, audio,

music, text, and “applets” incorporated into the SOFTWARE), the accompanying

printed materials, and any copies of the SOFTWARE, are owned by MS or its sup-

pliers (including Microsoft Corporation). You may not copy the printed materials

accompanying the SOFTWARE. All title and intellectual property rights in and to

the content which may be accessed through use of the SOFTWARE is the prop-

erty of the respective content owner and may be protected by applicable copyright

or other intellectual property laws and treaties. This EULA grants you no rights to

use such content. All rights not specifically granted under this EULA are reserved

by MS and its suppliers (including, Microsoft Corporation).

5. EXPORT RESTRICTIONS. You agree that you will not export or re-export the

SOFTWARE to any country, person, or entity subject to U.S. export restrictions.

You specifically agree not to export or re export the SOFTWARE: (i) to any country

to which the U.S. has embargoed or restricted the export of goods or services,

which as of May 1999 include, but are not necessarily limited to, Cuba, Iran, Iraq,

Libya, North Korea, Sudan, Syria, and the Federal Republic of Yugoslavia (includ-

ing Serbia, but not Montenegro), or to any national of any such country, wherever

located, who intends to transmit or transport the products back to such country;

(ii) to any person or entity who you know or have reason to know will utilize the

SOFTWARE or portion thereof in the design, development, or production of nu-

clear, chemical, or biological weapons; or (iii) to any person or entity who has been

prohibited from participating in U.S. export transactions by any federal agency of

the U.S. government.

6. NOTE ON JAVA SUPPORT. The SOFTWARE may contain support for programs

written in Java. Java technology is not fault tolerant and is not designed, manu-

factured, or intended for use or resale as online control equipment in hazardous

environments requiring fail-safe performance, such as in the operation of nuclear

facilities, aircraft navigation or communication systems, air traffic control, direct

life support machines, or weapons systems, in which the failure of Java technol-

ogy could lead directly to death, personal injury, or severe physical or environ-

mental damage. Sun Microsystems, Inc. has contractually obligated Microsoft

Corporation to make this disclaimer.

7. PRODUCT SUPPORT. Product support for the SOFTWARE is not provided by

MS, its parent corporation, Microsoft Corporation, or their affiliates or subsidiaries.

For product support, please refer to Manufacturer's support number provided in

the documentation for the SYSTEM. Should you have any questions concerning

this EULA, or if you desire to contact Manufacturer for any other reason, please

PPT 2800 Series

refer to the address provided in the documentation for the SYSTEM.

FOR THE LIMITED WARRANTIES AND SPECIAL PROVISIONS PERTAINING TO

YOUR PARTICULAR JURISDICTION, PLEASE REFERTO YOUR WARRANTY

BOOKLET INCLUDED WITH THIS PACKAGE OR PROVIDED WITH THE

SOFTWARE PRINTED MATERIALS.

Regulatory Information

Radio Frequency Interference Requirements

This device has been tested and found to comply with the limits for a Class B digital

device pursuant to Part 15 of the Federal Communications Commissions Rules and

Regulation. These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the user will be required to

correct the interference at his own expense.

However, there is no guarantee that interference will not occur in a particular

installation. If the equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

• Re-orient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device complies with FCC Part 15. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference and (2) this device

must accept any interference received, including interference that may cause

undesired operation.

Radio Frequency Interference Requirements - Canada

This device complies with RSS 210 of Industry & Science Canada. Operation is

subject to the following two conditions: (1) this device may not cause harmful

interference and (2) this device must accept any interference received, including

interference that may cause undesired operation.

This Class B digital apparatus complies with Industry Canada Standard ICES-003.

Cet appareil numérique de la classe B est conform à la norme NMB-003 d’Industrie

Canada.

Quick Reference

CE Marking and European Union Compliance

Products intended for sale within the European Union are marked with

the CE Mark which indicates compliance to applicable Directives and

European Normes (EN), as follows. Amendments to these Directives or

ENs are included:

Applicable Directives

• Electromagnetic Compatibility Directive 89/336/EEC

• Low Voltage Directive 73/23/EEC

Applicable Standards

• EN 55 022 - Limits and Methods of Measurement of Radio Interference Charac-

teristics of Information technology Equipment

• EN55024:1998: Information technology equipment- Immunity characteristics-

Limits and methods of measurement.

• ETS 300-826:1997: Electromagnetic compatibility and radio spectrum matters

(ERM);Electromagnetic compatibility (EMC) standard for 2.4Ghz wideband

transmission systems and high performance radio local area network (Hiperlan)

equipment.

• IEC 1000-4-2:1995/EN 61000-4-2:1995;Electromagnetic Compatibility (EMC)

Part 4:Testing and Measurement techniques;Section 4.2:Electrostatic discharge

immunity test.

• IEC 1000-4-3:1995/EN61000-4-3:1997, Electromagnetic Compatibility (EMC);

Part 4 Testing and measurement techniques;Section 3.Radiated,radio fre-

quency.electromagnetic field immunity test.

• IEC 1000-4-4:1995/EN61000-4-4:1995;Electromagnetic compatibility (EMC)

Part 4;Testing and Measurement techniques;Section 4:Testing electrical fast

transient,/Burst Immunity.

• IEC 1000-4-5:1995/EN61000-4-5;1995,Electromagnetic compatibility (EMC),

Part 4:Testing and Measurement techniques;Section 5:Surge Immunity

• IEC 1000-4-6:1996/EN61000-4-6:1996:Electromagnetic compatibility (EMC),

Part 4:Testing and Measurement techniques;Section 6: Immunity to conducted

disturbances, induced by radio frequency fields.

• IEC 1000-4-11:1994/EN61000-4-11:1994: Electromagnetic compatibility (EMC),

Part 4:Testing and Measurement techniques;Section 11:Voltage Dips, Short

Interruptions, and Voltage Variations.

• EN 60 950 + Amd 1 + Amd 2 - Safety of Information Technology Equipment

Including Electrical Business Equipment

• EN 60 825-1 (EN 60 825) - Safety of Devices Containing Lasers.

RF Devices

Symbol’s RF products are designed to be compliant with the rules and regulations in

the locations into which they are sold and will be labeled as required. The majority of

Symbol’s RF devices are type approved and do not require the user to obtain license

or authorization before using the equipment. Any changes or modifications to Symbol

Quick Reference

Laser Devices

Symbol products using lasers comply with US 21CFR1040.10, and IEC825-1:1993,

EN60825-1:1994+A11:1996. The laser classification is marked on one of the labels

on the product.

Class 1 Laser devices are not considered to be hazardous when used for their

intended purpose. The following statement is required to comply with US and

international regulations:

Caution: Use of controls, adjustments or performance of procedures other than those

specified herein may result in hazardous laser light exposure.

Class 2 laser scanners use a low power, visible light diode. As with any very bright

light source, such as the sun, the user should avoid staring directly into the light

beam. Momentary exposure to a Class 2 laser is not known to be harmful.

Scanner Labeling

PPT 2800 Series

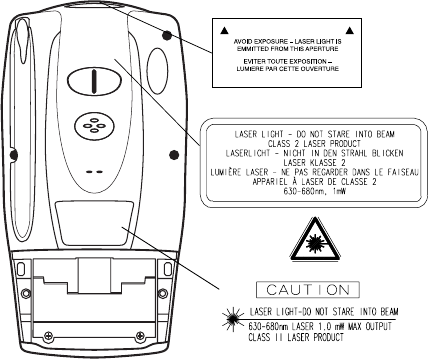

In accordance with Clause 5, IEC 0825 and EN60825, the following information is

provided to the user:

ENGLISH HEBREW

CLASS 1 CLASS 1 LASER PRODUCT

CLASS 2 LASER LIGHT

DO NOT STARE INTO BEAM

CLASS 2 LASER PRODUCT

DANISH

KLASSE 1 KLASSE 1 LASERPRODUKT ITALIAN

KLASSE 2 LASERLYF CLASSE 1 PRODOTTO AL LASER DI CLASSE 1

SE IKKE IND I STRÅLEN CLASSE 2 LUCE LASER

KLASSE 2 LASERPRODUKT NON FISSARE IL RAGGIOPRODOTTO

AL LASER DI CLASSE 2

DUTCH

KLASSE 1 KLASSE-1 LASERPRODUKT NORWEGIAN

KLASSE 2 LASERLICHT KLASSE 1 LASERPRODUKT, KLASSE 1

NIET IN STRAAL STAREN KLASSE 2 LASERLYS IKKE STIRR INN I LYSSTRÅLEN

KLASSE-2 LASERPRODUKT LASERPRODUKT, KLASSE 2

FINNISH PORTUGUESE

LUOKKA 1 LUOKKA 1 LASERTUOTE CLASSE 1 PRODUTO LASER DA CLASSE 1

LUOKKA 2 LASERVALO

ÄLÄ TUIJOTA SÄDETTÄ CLASSE 2 LUZ DE LASER NÃO FIXAR O RAIO LUMINOSO

LUOKKA 2 LASERTUOTE PRODUTO LASER DA CLASSE 2

FRENCH SPANISH

CLASSE 1 PRODUIT LASER DE CLASSE 1 CLASE 1 PRODUCTO LASER DE LA CLASE 1

CLASSE 2 LUMIERE LASER CLASE 2 LUZ LASER

NE PAS REGARDER LE RAYON FIXEMENT NO MIRE FIJAMENTE EL HAZ

PRODUIT LASER DE CLASSE 2 PRODUCTO LASER DE LA CLASE 2

GERMAN SWEDISH

KLASSE 1 LASERPRODUKT DER KLASSE 1 KLASS 1 LASERPRODUKT KLASS 1

KLASSE 2 LASERSTRAHLEN KLASS 2 LASERLJUS STIRRA INTE MOT STRÅLEN

NICHT DIREKT IN DEN LASERSTRAHL SCHAUEN LASERPRODUKT KLASS 2

LASERPRODUKT DER KLASSE 2

Quick Reference

Battery Caution

Caution: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recom-

mended by the manufacturer. Dispose of used batter-

ies according to the manufacturer's instructions.

PPT 2800 Series

DECLARATION OF CONFORMITY

We, Symbol Technologies, Inc.

of One Symbol Plaza, Holtsville, NY 11742-1300, USA

declare under our sole responsibility that the product

Spectrum24, LA3021, Type II Radio Card

Spectrum24, LA302C, Type II Radio Card

Spectrum24, LA302T, Type II Radio Card

to which this declaration relates, is in conformity with the following standards and/or

Symbol Technologies PPT2833 Single-Mode Cellular PDA WAN Terminal User Manual 5277301a

Symbol Technologies Inc Single-Mode Cellular PDA WAN Terminal 5277301a

Users Manual

Navigation menu

Namespaces

Views

Navigation
