WARNING! Read this information before using your phone

Quick Reference

Introduction

Congratulations on your purchase of Symbol Technologies’ SPT

1800 Series Terminal! The unique combination of capabilities

offered by this product makes it superior for use in a wide range of

applications:

• Personal Information Management software

• RF communication via Symbol’s Spectrum24® wireless net-

work (SPT 184X) or wide area network (SPT 183X)

• pocket size

• printing support

• 1-D and 2-D scanning capability.

About This Guide

This guide covers the procedures for the setup and use of the

terminal. Specific topics covered include:

•

Parts of the SPT 1800

on page 2

•

Installing the SIM Card (SPT 1834 Only)

on page 5

•

Installing the Battery

on page 6

•

Starting the SPT 1800

on page 8

•

Using the SPT 1800

on page 9

•

Writing with the Stylus

on page 10

•

Resetting the SPT 1800

on page 12

•

Attaching the Handstrap

on page 13

•

Scanning 1-D Bar Codes

on page 14

•

Scanning PDF417 (2-D) Bar Codes

on page 14

•

Initiating a Network Connection

on page 15

•

Maintaining the SPT 1800

on page 16

•

Troubleshooting

on page 17.

The

SPT 1800 Product Reference Guide

(p/n 72-51337-xx),

available from Symbol or your Reseller, details the applications

available on the SPT 1800.

SPT 1800 Series

Parts of the SPT 1800

The following illustration indicates each part of the SPT 1800.

Menu Icon

Front View

Application Buttons

Scroll Button

(Up and Down)

Center Scan Button

Right Scan

Trigger

LCD (Screen)

Find Icon

Contrast Button

Laser Decode LED

Scroll Button

(Up and Down)

Applications Icon

Power Button

Graffiti Input Area

WAN Antenna

(SPT 1833/34 only)

Calculator Icon

Quick Reference

Parts of the SPT 1800 (continued)

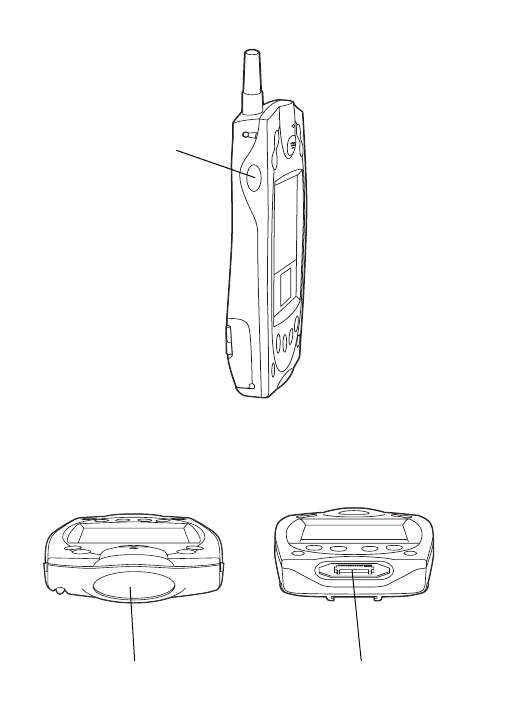

Bottom View

Top View

Serial Port

Scanner Exit Window

Left Scan

Trigger

Left View

SPT 1800 Series

Parts of the SPT 1800 (continued)

Speaker

Handstrap

Connector

Handstrap

Connector

WAN Antenna

Back View

Stylus Stylus Silo

Handstrap Connectors

Battery Latches

Lithium-Ion Battery

Reset Button

Infrared Port

SIM Socket

Battery

Compartment

WAN Antenna

Headset Connector

Battery Cover

Quick Reference

Getting Started

Before you can use your SPT 1800, perform the basic setup

procedures:

•Install the SIM card (SPT 1834 only)

•Install and charge the battery

•Start the SPT 1800

•Initiate the network connection (SPT 183X/184X only).

Installing the SIM Card (SPT 1834 Only)

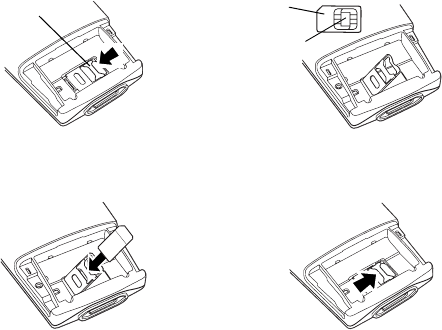

Open the latches on the battery cover and lift it away from the

SPT1834.

Metal Clip

SIM Card

Contact Area

1. Slide the metal clip to the left

to release the SIM cardholder.

2. Lift the cardholder to an

upright position.

3. Insert the card between the

cardholder body and the metal

clip; be sure the beveled

corner of the SIM card is on

the top.

4. Close the cardholder (with the

contact area of the card facing

down.

5. Slide the metal clip to the

right to lock it in place.

SPT 1800 Series

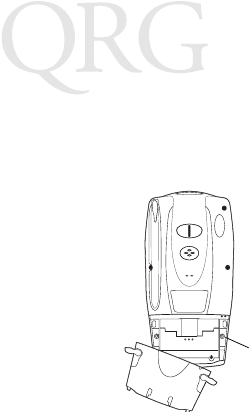

Installing the Battery

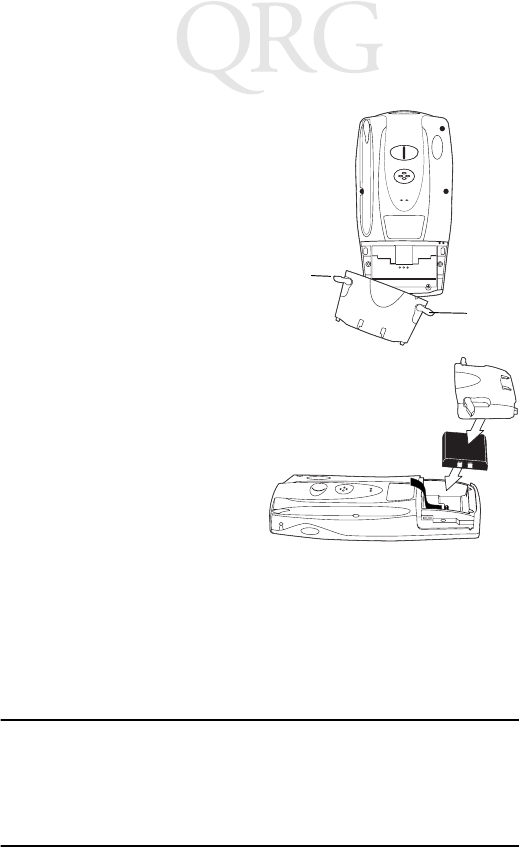

1. Open the latches on the

battery cover and lift it

away from the SPT 1800.

2. Insert the lithium-ion (Li-

ion) battery into the battery

compartment, ensuring

that it snaps into place.

3. Replace the battery cover

and close the latches.

Note: Keep the battery

latches completely

open while securing

the battery cover.

Charging the Battery

Note: The SPT 1800 battery (p/n 20-36098-01) must be used

only with the SPT 1800.

Before using your SPT 1800 for the first time, charge the battery

using the cradle, the Synchronization/Charging Cable or the

Universal Battery Charger (UBC). For instructions on using the

UBC, see the

UBC Quick Reference Guide

Caution: The main battery charges the backup battery in the

SPT 1800. Once the battery is fully charged, do not re-

move it from the SPT 1800 for 24 hours. During this pe-

riod, the SPT 1800 cannot maintain any user data if the

battery is removed from the terminal.

Latch

Quick Reference

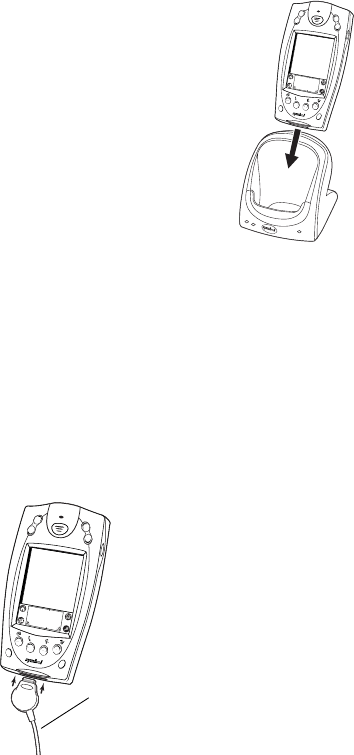

Using the Cradle to Charge the Battery

1. Ensure the battery is installed in the

terminal.

2. Plug the cradle into a wall outlet.

3. Insert the SPT 1800 into the cradle.

The terminal’s battery is fully charged after

approximately two hours. You can also charge a

spare battery by inserting it into the spare

battery charging slot on the back of the single

slot cradle. The spare battery fully charges in

approximately two hours. See the

CRD 1700

Cradle Quick Reference Guide

for more information.

Note: When the battery is fully charged, the cradle’s charging

LED lights green. On older CRD 1700 single slot and

modem cradles, the charging LED may not illuminate

green when the terminal’s battery is fully charged.

Using the Synchronization/Charging Cable to Charge the

Battery

1. Ensure the battery is installed in the terminal.

2. Insert the cable into the bottom of the terminal.

Synchronization/

Charging Cable

SPT 1800 Series

3. Plug the power cable into a wall outlet and plug the other end

into the battery charging receptacle on the side of the Syn-

chronization/Charging Cable.

The battery is fully charged after approximately two hours.

Starting the SPT 1800

Press the red power button to power on the terminal. If the terminal

does not power on, perform a hard reset. See

Performing a Hard

Reset

on page 12.

Calibrating the Screen

The first time you start your SPT 1800, the Welcome utility

appears. Follow the steps to align the internal circuitry of your SPT

1800 with its touch-sensitive screen, and to set the current time

and date.

Note: If your SPT 1800 unit came pre-loaded with a custom

software application, you may not need to calibrate

your screen, in which case you will not see the Wel-

come utility.

Battery

Charging

Receptacle

Power

Supply

Serial Cable

Quick Reference

1. Press the power button on the front panel of your SPT 1800

to display the Welcome utility. (This also displays following a

hard reset).

Note: If necessary, adjust the contrast control on the SPT

1800 so the screen is clear and readable. See

Contrast

Control

on page 10 for instructions.

2. Follow the instructions on the screen.

3. Tap the exact center of each target

that appears on the screen with the

tip of the stylus.

If, at any time, you need to recalibrate the

screen, open the

Preferences

application, tap

General

on the top right

corner of the screen, and select the

digitizer

option from the pull down menu.

Using the SPT 1800

Power Button/Backlight Control

The power button turns the SPT 1800 on and off. This button also

serves as your backlight control for low-light conditions. When the

SPT 1800 is on, press and hold the power button for

approximately two seconds to turn the backlight on and off.

Power

Button

SPT 1800 Series

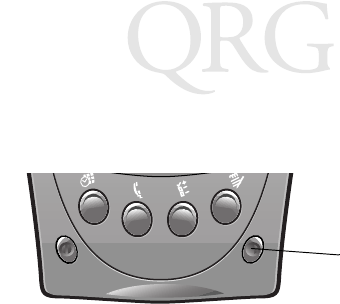

Contrast Control

The contrast control button is located on the lower right-hand side

of the SPT 1800.

1. Press the contrast control button to display the contrast ad-

justing bar on the screen.

2. Using your stylus, adjust the contrast by scrolling the con-

trast bar until the contrast is set to the desired level, or use

either of the scroll buttons on the top of the terminal to adjust

the contrast level.

3. Press the contrast control button or tap Done on the screen

to turn off the contrast control.

Writing with the Stylus

Your SPT 1800 includes Graffiti® handwriting software for entering

text and numbers. Graffiti translates stylus strokes into letters or

numbers. See the

SPT 1800 Product Reference Guide,

p/n 72-

51337-xx for more information.

On-screen Keyboard

You can activate the on-screen keyboard any time you need to

enter text or numbers on your SPT 1800. Note that you cannot

enter Graffiti characters while using the on-screen keyboard.

1. Open any application.

2. Tap any record name, or tap the

New

button with the tip of

the stylus.

Contrast

Control

Quick Reference

3. Tap the left target to open the Alpha keyboard, or tap the right

target to open the Numeric keyboard.

Icon Descriptions

Using a Headset (SPT 1834 Only)

To use a headset with the SPT 1834, plug

the headset jack into the audio connector

on the top of the terminal

Applications Icon Exits the current application and lists

available applications for selection.

Calculator Icon Displays the calculator application.

Menu Icon Tap from within an application to display

the options menu for the application.

Find Icon Tap from within an application to enter

search criteria to find an entry.

Tap here for letters

keyboard

Tap here for numbers

keyboard

SPT 1800 Series

Resetting the SPT 1800

If your SPT 1800 stops responding to input, you may need to

perform a reset.

Performing a Soft Reset

A soft reset restarts the SPT 1800

and saves all records and entries

stored in your SPT 1800 terminal.

After a soft reset, the Palm

Computing Platform® Logo screen

appears followed by the General

Preferences screen.

To perform a soft reset, remove the

battery cover and gently press the

reset button located under the battery cover.

Performing a Hard Reset

A hard reset also restarts your terminal, but erases all records and

entries stored in your SPT 1800.

Therefore, never perform a hard

reset unless a soft reset does not solve your problem.

Note: You can restore any data previously synchronized with

your computer during the next HotSync operation.

1. Remove the battery cover.

2. Hold down the power button on the front of the SPT 1800,

and gently press the reset button.

3. Release the reset button, then release the power button

when the Palm logo appears.

4. When a message appears on the screen warning that you

are about to erase all data, do one of the following:

a. Press the upper half of a scroll button to complete the

hard reset.

b. Press any other button to perform a soft reset.

Reset button

Quick Reference

Note: With a hard reset, the current date and time are re-

tained. Formats, preferences and other settings are re-

stored to their factory default settings.

Attaching the Handstrap

The SPT 1800 has a handstrap which increases comfort when

holding it for extended periods of time.

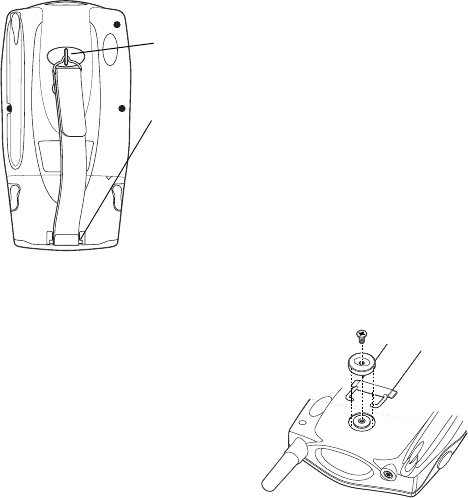

To attach the handstrap for the SPT 1834:

1. Put the side slots of the thread-

ed button over the wire clips on

the handstrap.

2. Screw the button into the

threaded slot on the back of the

terminal.

3. Slide the flat metal piece into

the handstrap connection on

the bottom of the terminal.

1. Thread round metal piece

through this connector.

3. Adjust the velcro strap to fit your

hand.

2. Slide flat metal piece up and into

this connector.

SPT 1800 Series

Scanning 1-D Bar Codes

The SPT 1800 has an integrated laser bar code scanner which

allows you to collect data by scanning bar codes if your unit is

configured with a scanning application. To scan bar codes:

1. Start your scanning application.

2. Aim the scanner at a bar code.

3. Press either the right, left or center scan trigger. Make sure

the red scan beam covers the entire bar code. The green

scan LED lights and a beep sounds to indicate a successful

decode.

Scanning PDF417 (2-D) Bar Codes

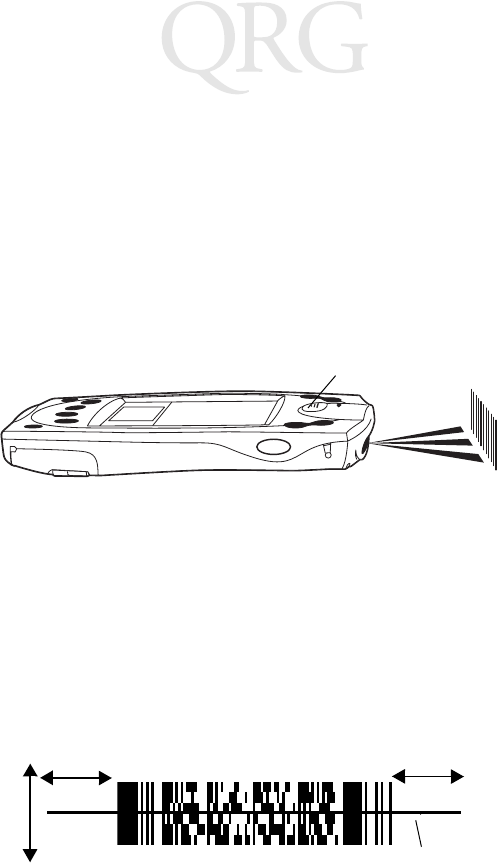

To scan a PDF417 bar code (with a 2-D configured terminal):

1. Aim the scanner at the PDF bar code and press either the

right, left, or center scan trigger.

2. Hold the trigger down and keep the scan line parallel to the

rows of the symbol.

3. Manually raster the scan line by slowly moving the scanner

up and down so it scans the entire bar code at a rate of one

inch per second.

Center Scan Button

1/2” 1/2”

Scan Line

Quick Reference

A clicking noise lets you know the 2-D bar code is being decoded.

If there is no clicking noise when you are scanning, the bar code

is not being scanned properly.

When decoding a very long 2-D bar code, you may notice a slight

delay between the time when the terminal completes the decode

and the time when the data is displayed on the screen. The first

beep you hear indicates a successful decode. The second beep

you hear indicates the data has been received by the host. Do not

attempt to decode another bar code until you hear the second

beep and see the green LED indicating a successful decode.

To improve PDF decoding:

•Check that PDF417 scanning is enabled.

•Make sure the scan line extends at least 1/2” past the left and

right edges of the bar code.

•Hold the scanner closer for denser symbols, farther away for

larger symbols.

•Make sure you scan the top and bottom rows of the symbol.

•Be patient - it may take a few swipes to decode the symbol.

The bar code is completely decoded when you hear a tone,

followed by a short, high tone beep. The green LED stays lit for

three seconds or until the next trigger pull.

Initiating a Network Connection

Before using the terminal, set up the Spectrum24, CDPD (Cellular

Digital Packet Data) or GSM (Global System for Mobile

Communication) network connection. Refer to the

SPT 1800

Series Product Reference Guide

, p/n 72-51337-xx for setup

instructions.

A small cursor blinks at the top right-hand corner of the screen

when the terminal activates a radio connection (Spectrum24 or

CDPD). A blinking cursor does not appear for a GSM radio

SPT 1800 Series

connection. A cursor does not appear if you are not connected to

the radio.

Maintaining the SPT 1800

For trouble-free service, observe the following tips when using

your SPT 1800:

•Do not scratch the screen. Use the supplied stylus or a plas-

tic-tipped pen intended for use with a touch-sensitive screen.

Never use a pen or pencil or other sharp object on the

screen.

•Although your SPT 1800 is water and dust resistant, do not

expose it to rain or moisture for an extended period. Treat

your SPT 1800 as you would a pocket calculator or other

small electronic instrument.

•The touch-sensitive screen of your SPT 1800 contains glass.

Do not subject your SPT 1800 to any strong impact.

•Protect your SPT 1800 from temperature extremes. Do not

leave it on the dashboard of a car on a hot day, and keep it

away from heaters and other heat sources.

•Do not store or use your SPT 1800 in any location that is ex-

tremely dusty, damp or wet.

•If the surface of the SPT 1800 screen becomes soiled, clean

it with a soft lens cloth moistened with a diluted window-

cleaning solution.

Quick Reference

Troubleshooting

Problem Cause Solution

SPT 1800 terminal

does not turn on. Contrast is set

too light. Adjust the contrast control.

Battery is not ful-

ly charged. Make sure the battery is fully charged

and installed properly.

Battery is defec-

tive. Replace the battery. If your SPT 1800

terminal still does not operate, try a

soft reset; see

Resetting the SPT 1800

on page 12.

Low battery warning

after replacing the

battery.

A normal condi-

tion. The battery warning message may ap-

pear immediately after replacing the

battery. In addition, if you check the

battery gauge in the Applications

Launcher

immediately

after replacing

the battery, the gauge may start at

“empty” and slowly rise to “full.” This is

normal. It takes a minute for the battery

gauge to accurately show the condition

of the battery.

No sound. Sound setting is

set to off in the

Preferences

sec-

tion.

Check the Sound options in the Gener-

al Preferences screen. If an option is

set to off, there will be no sound. Tap

the “off” setting to display a menu of

options and tap the option you want.

SPT 1800 terminal

turns itself off. Terminal auto-

matically turns it-

self off after a

period of inactivi-

ty.

Your SPT 1800 is designed to turn it-

self off after a period of inactivity. This

period can be set at thirty seconds,

one minute, two minutes or three min-

utes. Check the “Auto-off after” setting

in the General Preferences screen,

and change the setting if you need a

longer delay before the automatic

shutoff feature activates. See the

SPT

1800 Product Reference Guide

for

more information.

Note: The terminal also turns itself off

when the battery power is extremely

low.

SPT 1800 Series

SPT 1800 doesn’t

recognize my hand-

writing.

You are not using

Graffiti character

strokes.

For your SPT 1800 to recognize hand-

writing input with the stylus, you need

to use the Graffiti® character strokes.

See the

SPT 1800 Product Reference

Guide

for information about how to

write Graffiti character strokes.

You are not writ-

ing character

strokes in the

correct area.

Make the Graffiti character strokes in

the Graffiti writing area — not on the

display part of the screen.

Make sure you are writing the strokes

for letters in the left-hand side, and the

strokes for numbers in the right-hand

side of the Graffiti writing area.

Graffiti is shifted

into extended or

punctuation

modes.

See the

SPT 1800 Product Reference

Guide

for information about shifting

into and out of punctuation modes.

Tapping the screen

buttons or icons

does not activate the

corresponding fea-

ture.

Screen is out of

calibration. Recalibrate the digitizer. Choose Digi-

tizer from the Preferences application

pick list and follow the directions on the

screen.

When I tap the Menu

icon, nothing hap-

pens.

Application does

not have menu

item.

Not all applications or screens have

menus. Try changing to a different ap-

plication.

Beamed data does

not transmit. Terminals are too

far apart or ob-

structed. File is

locked.

Confirm that the SPT 1800 terminals

are 5” apart, the receiver has its IrDA

capability enabled, and that the path

between the two devices is clear of ob-

stacles.

Note: You cannot overwrite a .prc file

via IrDA if it is locked.

When receiving

beamed data an out

of memory message

appears.

Memory full. Your SPT 1800 terminal requires at

least twice the amount of memory

available as the data you are receiving.

For example, if you are receiving a 30K

application, you must have at least

60K free.

Problem Cause Solution

Quick Reference

Ergonomic Recommendations

Caution: In order to avoid or minimize the potential risk of ergonomic injury follow the

recommendations below. Consult with your local Health & Safety Manager to ensure

that you are adhering to your company’s safety programs to prevent employee injury.

•Reduce or eliminate repetitive motion

•Maintain a natural position

•Reduce or eliminate excessive force

•Keep objects that are used frequently within easy reach

•Perform tasks at correct heights

•Reduce or eliminate vibration

•Reduce or eliminate direct pressure

•Provide adjustable workstations

•Provide adequate clearance

•Provide a suitable working environment

•Improve work procedures.

SPT 1800 does not

accept scan input. Scan application

not present. Verify that the SPT 1800 is loaded with

a scanning application. See your Sys-

tem Administrator.

Bad bar code. Check to be sure the bar code symbol

is not defaced.

Too far away

from bar code. Be sure you are within proper scanning

range.

Bar code type is

not enabled. Be sure the SPT 1800 is programmed

to accept the type of bar code you are

scanning.

Beep is not en-

abled. If you are expecting a beep on a good

decode and don’t hear one, check that

the application is set to generate a

beep on good decode.

Battery is low. If the scanner stops emitting a laser

beam when you press the trigger,

check your battery level. When the bat-

tery is low, the scanner shuts off before

the terminal notifies you of the low bat-

tery condition.

Note: If, after performing these checks,

the scanner is still not reading sym-

bols, contact your distributor or Symbol

Technologies.

Problem Cause Solution

SPT 1800 Series

Regulatory Information

Radio Frequency Interference Requirements

This device has been tested and found to comply with the limits for a Class B digital

device pursuant to Part 15 of the Federal Communications Commissions Rules and

Regulations. These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the user will be required to

correct the interference at his own expense.

However, there is no guarantee that interference will not occur in a particular

installation. If the equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

•Re-orient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that on which

the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

This device complies with FCC Part 15. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference and (2) this device

must accept any interference received, including interference that may cause

undesired operation.

Important Note: To comply with FCC and Industry Canada RF exposure

requirements, this hand-held device is approved for operation in a user's hand when

there is 20 cm or more between the antenna and the user's body.

Radio Frequency Interference Requirements - Canada

This device complies with RSS 210 of Industry & Science Canada. Operation is

subject to the following two conditions: (1) this device may not cause harmful

interference and (2) this device must accept any interference received, including

interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Quick Reference

CE Marking and European Union Compliance

Products intended for sale within the European Union are marked with

the CE Mark which indicates compliance to applicable Directives and

European Normes (EN), as follows. Amendments to these Directives or

ENs are included:

Applicable Directives

•Electromagnetic Compatibility Directive 89/336/EEC

•Low Voltage Directive 73/23/EEC

Applicable Standards

•EN 55022:1998, Limits and Methods of Measurement of Radio Disturbance

Characteristics of Information Technology Equipment

•EN 55024:1998; Information Technology equipment - Immunity characteristics -

Limits and methods of measurement

•IEC 1000-4-2:1995; Electromagnetic compatibility (EMC); Part 4:Testing and

measurement techniques; Section 4.2:Electrostatic discharge immunity test

•IEC 1000-4-3:1997; Electromagnetic Compatibility (EMC); Part 4:Testing and

measurement techniques; Section 3. Radiated, radio frequency, electromag-

netic field immunity test.

•IEC 1000-4-4:1995; Electromagnetic compatibility (EMC); Part 4: Testing and

measurement techniques; Section 4:Testing electrical fast transient,/Burst

immunity.

•IEC1000-4-5:1995; Electromagnetic compatibility (EMC), Part 4: Testing and

measurement techniques; Section 5: Surge Immunity

•IEC 1000-4-6:1996; Electromagnetic compatibility (EMC), Part 4:Testing and

measurement techniques; Section 6: Immunity to conducted disturbances,

induced by radio frequency fields.

•IEC 1000-4-11:1994; Electromagnetic compatibility (EMC), Part 4: Testing and

measurement techniques; Section 11: Voltage Dips, Short Interruptions, and

Voltage Variations.

•EN 60 950 + A1+A2+A3+A4+A11 - Safety of Information Technology Equip-

ment Including Electrical Business Equipment

•EN 60 825-1 (EN 60 825) - Safety of Devices Containing Lasers

RF Devices

Symbol’s RF products are designed to be compliant with the rules and regulations in

the locations into which they are sold and will be labeled as required. The majority of

Symbol’s RF devices are type approved and do not require the user to obtain license

or authorization before using the equipment. Any changes or modifications to Symbol

Technologies equipment not expressly approved by Symbol Technologies could void

the user’s authority to operate the equipment.

The Spectrum24 equipment is intended for use throughout the European Economic

Area, but its authorization for use in France is restricted as follows:

SPT 1800 Series

•PAN European Frequency Range: 2.400 - 2.4835 GHz, identified by -EU suffix

to the model number found on the product label.

•France - Restrict Frequency Range for use in France: 2.4465 - 2.4835 GHz,

identified on SPT 1842 by the -FR suffix to the model number found on the

product label.

•Belgium - Operation in an out-of-doors environment in Belgium must be

restricted to 2.460 - 2.4835 GHz band.

•Italy - Operation in Italy requires a user license.

WARNING: FCC RF EXPOSURE GUIDELINES

To satisfy FCC RF exposure compliance requirements for a portable transmit-

ting device, this device should be used in hand-held, hand-operated configu-

rations only. The device and its antenna should generally maintain a

separation distance of 20cm or more from a person’s body; except for the

hands and wrists because of higher exposure limit for extremities. This device

is designed to be used in a person’s hands and its operating configurations

generally do not support normal transmissions while it is carried in pockets or

holsters next to a person’s body.

GSM Regulatory Warnings

Emergency Calls

Please contact your service provider for information about the availability of

Emergency Calls.

The GSM version supports Emergency Calls with or without a SIM card fitted.

However, as for any other voice call, you must be registered on a GSM network. If

you are outside the coverage of a GSM network, or another factor such as insufficient

power occurs, then Emergency Call will not work.

The procedure for generating an Emergency Call will depend on the application/

service currently in use and the network you are connected to. It is recommended that

you familiarize yourself with the appropriate procedures required to generate an

Emergency Call.

When connected to the Emergency Operator you should have details of your

telephone number and location on hand.

Safety Information

The GSM version emits radio frequency signals in the 900 MHz, 1800 MHz and 1900

MHz frequency bands. The following recommendations are in line with guidelines

concerning public exposure to radio frequency electromagnetic energy, issued by

various European and International agencies.

Unlike a mobile phone, the transmitter antenna on the GSM version would not (under

normal circumstances) be close to the head, and therefore high field strength is not

usually encountered. The use of the GSM version is similar to using a mobile phone

with a handsfree unit. However, take care to avoid placing any part of your body in

proximity to the GSM version antenna when the GSM radio is switched on. In

Quick Reference

particular, it is recommended that you do not grasp the antenna while the GSM

version is operating as this will not only significantly degrade its performance, but also

expose your hand to the maximum radio frequency power emitted by the GSM

version.

Safety on the Road

The GSM version should not be used by the driver of a vehicle when in motion.

Always safely park your vehicle before turning your attention to your device. Always

adequately secure your device in a moving vehicle, and do not leave it loose on a

passenger seat. Remember that in the event of a sudden stop an unsecured device

could cause injury to any occupants as well as damage to the vehicle. If your vehicle

has an airbag, do not place any objects, including your device, in the area around the

airbag or where the airbag deploys. Any item propelled by an activated airbag could

cause serious injury and damage.

When receiving calls on a public highway, mobile units are not permitted to use

“warning” devices, which permit the vehicles' horn to sound or the light to flash.

Safety on Aircraft

You are required by law to switch off all electrical apparatus when boarding and

leaving an aircraft and at any other time when instructed to do so by a member of the

crew. You are not allowed to use any mobile phone, as well as the GSM version, at

any time when on board an aircraft, as such use may constitute a danger. In such

circumstances please ensure that your GSM version is switched off, disabling

attempts to log onto networks.

Pacemakers

It is recommended by pacemaker manufacturers that a minimum of 20cm (8 inches)

be maintained between a handheld wireless phone and a pacemaker to avoid any

possible interference with the pacemaker. These recommendations are consistent

with the independent research by and recommendations of Wireless Technology

Research.

Hearing Aids

Some digital wireless phones may interfere with some hearing aids. In the event of

such interference you may want to consult your hearing aid supplier to discuss

solutions.

Persons with pacemakers:

•Should always keep the phone more than 20cm (8 inches) from their pace-

maker when the phone is turned on.

•Should not carry the phone in a breast pocket.

•Should use the ear opposite the pacemaker to minimize the potential for inter-

ference.

SPT 1800 Series

If you have any reason to suspect that interference is taking place, turn off the GSM

version immediately. This may be achieved most rapidly by switching off the device

using its on/off button.

Other Medical Devices

The GSM version transmits radio frequency energy and as such has the potential to

interfere with inadequately protected medical devices. Consult your physician or the

manufacturer of the device to see if any particular device has sufficient protection.

It is good practice to completely turn off the GSM version within a hospital or other

medical facility where sensitive medical equipment is in use. In some countries, this

is a legal requirement applying to all mobile phones and related equipment.

Effect on Vehicles

RF signals may affect improperly installed or inadequately shielded electronic

systems in motor vehicles (including safety systems). Check with the manufacturer

or its representative regarding your vehicle. You should also consult the manufacturer

of any equipment that has been added to your vehicle.

Posted Facilities

Switch off the GSM version in any facility where posted notices require mobile phones

to be switched off.

Potentially Hazardous Atmospheres

Do not take a GSM version into any area with a potentially hazardous atmosphere.

The GSM version is not rated for use in such environments and therefore such use

may pose a threat of explosion.

Such areas are often, but not always, clearly marked. They may include below decks

on boats; chemical transfer or storage facilities; fuel filling stations; areas where fuel

odors are present such as in a tent or caravan where cooking or heating by bottled

gas is taking place; fuel transfer or storage facilities; vehicles using liquid petroleum

gas (lpg); areas where the air contains concentrations of grain, dust or metal

powders; and any area where you would normally be advised to turn off your vehicle

engine.

Blasting Areas

To avoid interference with any blasting operations, turn off your GSM version when in

a blasting area and other areas where the use of radio equipment is prohibited. Obey

all signs and instructions.

Laser Devices

Symbol products using lasers comply with US 21CFR1040.10, and IEC825-1:1993,

EN60825-1:1994+A11:1996. The laser classification is marked on one of the labels

on the product.

Quick Reference

Class 1 Laser devices are not considered to be hazardous when used for their

intended purpose. The following statement is required to comply with US and

international regulations:

Caution: Use of controls, adjustments or performance of procedures other than those

specified herein may result in hazardous laser light exposure.

Class 2 laser scanners use a low power, visible light diode. As with any very bright

light source, such as the sun, the user should avoid staring directly into the light

beam. Momentary exposure to a Class 2 laser is not known to be harmful.

Battery Caution

Caution: Danger of explosion if battery is incorrectly replaced. Replace only with

the same or equivalent type recommended by the manufacturer. Dis-

pose of used batteries according to the manufacturer's instructions.

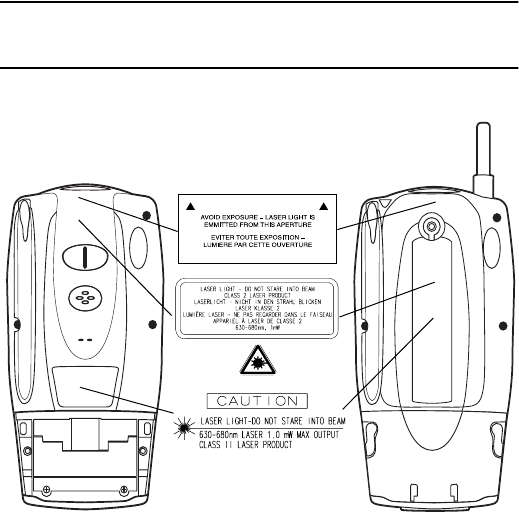

Scanner Labeling

SPT 1800 SPT 1834

SPT 1800 Series

In accordance with Clause 5, IEC 0825 and EN60825, the following information is

provided to the user:

ENGLISH HEBREW

CLASS 1 CLASS 1 LASER PRODUCT

CLASS 2 LASER LIGHT

DO NOT STARE INTO BEAM

CLASS 2 LASER PRODUCT

DANISH ITALIAN

KLASSE 1 KLASSE 1 LASERPRODUKT CLASSE 1 PRODOTTO AL LASER DI CLASSE 1

KLASSE 2 LASERLYF CLASSE 2 LUCE LASER

SE IKKE IND I STRÅLEN NON FISSARE IL RAGGIOPRODOTTO

KLASSE 2 LASERPRODUKT AL LASER DI CLASSE 2

DUTCH NORWEGIAN

KLASSE 1 KLASSE-1 LASERPRODUKT KLASSE 1 LASERPRODUKT, KLASSE 1

KLASSE 2 LASERLICHT KLASSE 2 LASERLYS IKKE STIRR INN I LYSSTRÅLEN

NIET IN STRAAL STAREN LASERPRODUKT, KLASSE 2

KLASSE-2 LASERPRODUKT

FINNISH PORTUGUESE

LUOKKA 1 LUOKKA 1 LASERTUOTE CLASSE 1 PRODUTO LASER DA CLASSE 1

LUOKKA 2 LASERVALO CLASSE 2 LUZ DE LASER NÃO FIXAR O RAIO LUMINOSO

ÄLÄ TUIJOTA SÄDETTÄPRODUTO LASER DA CLASSE 2

LUOKKA 2 LASERTUOTE

FRENCH SPANISH

CLASSE 1 PRODUIT LASER DE CLASSE 1 CLASE 1 PRODUCTO LASER DE LA CLASE 1

CLASSE 2 LUMIERE LASER CLASE 2 LUZ LASER

NE PAS REGARDER LE RAYON FIXEMENT NO MIRE FIJAMENTE EL HAZ

PRODUIT LASER DE CLASSE 2 PRODUCTO LASER DE LA CLASE 2

GERMAN SWEDISH

KLASSE 1 LASERPRODUKT DER KLASSE 1 KLASS 1 LASERPRODUKT KLASS 1

KLASSE 2 LASERSTRAHLEN KLASS 2 LASERLJUS STIRRA INTE MOT STRÅLEN

NICHT DIREKT IN DEN LASERSTRAHL SCHAUEN LASERPRODUKT KLASS 2

LASERPRODUKT DER KLASSE 2

Quick Reference

DECLARATION OF CONFORMITY

We, Symbol Technologies, Inc.

of One Symbol Plaza, Holtsville, NY 11742-1300, USA

declare under our sole responsibility that the product(s)

Spectrum24, LA302T, Type II Radio Card

Spectrum24HR, LA411T, Type II Radio Card

Spectrum24HR, LA412T, Type II Radio Card

to which this declaration relates, are in conformity with the following standards and/or other normative documents.

ETS 300 328 (November 1996)

ETS 300 826 (November 1997)

EN 60950: 1992 Incl Amdt 1-4, 11

We hereby declare that all essential radio test suites have been carried out and that the above named products are in

conformity with all the essential requirements of Directive 1999/5/EC.

The conformity assessment procedure referred to in Article 10(5) and detailed in Annex IV of

Directive 1999/5/EC has been followed with the involvement of the following Notified Body(ies):

BABT, Claremont House, 34 Molesey Road, Walton-on-Thames, KT12 4RQ

Identification mark: 0168 The equipment will also carry the Class

2 equipment identifier

The technical documentation relevant to the above equipment can be made available for

inspection on application to:

Symbol Technologies EMEA, Symbol Place, Winnersh Triangle, Berkshire, RG 41 5TP, UK

Dornu Narnor

(name)

Director, Regulatory and Technical Sales

(title)

3, May 2000

(signature of authorised person) (date)

SPT 1800 Series

Quick Reference

Warranty

Symbol Technologies, Inc. (“Symbol”) manufactures its hardware products in accordance with

industry-standard practices. Symbol warrants that for a period of twelve (12) months from date of

shipment, products will be free from defects in materials and workmanship.

This warranty is provided to the original owner only and is not transferable to any third party. It shall

not apply to any product (i) which has been repaired or altered unless done or approved by Symbol,

(ii) which has not been maintained in accordance with any operating or handling instructions

supplied by Symbol, (iii) which has been subjected to unusual physical or electrical stress, misuse,

abuse, power shortage, negligence or accident or (iv) which has been used other than in

accordance with the product operating and handling instructions. Preventive maintenance is the

responsibility of customer and is not covered under this warranty.

Wear items and accessories having a Symbol serial number, will carry a 90-day limited warranty.

Non-serialized items will carry a 30-day limited warranty.

Warranty Coverage and Procedure

During the warranty period, Symbol will repair or replace defective products returned to Symbol’s

manufacturing plant in the US. For warranty service in North America, call the Symbol Support

Center at 1-800-653-5350. International customers should contact the local Symbol office or

support center. If warranty service is required, Symbol will issue a Return Material Authorization

Number. Products must be shipped in the original or comparable packaging, shipping and

insurance charges prepaid. Symbol will ship the repaired or replacement product freight and

insurance prepaid in North America. Shipments from the US or other locations will be made F.O.B.

Symbol’s manufacturing plant.

Symbol will use new or refurbished parts at its discretion and will own all parts removed from

repaired products. Customer will pay for the replacement product in case it does not return the

replaced product to Symbol within 3 days of receipt of the replacement product. The process for

return and customer’s charges will be in accordance with Symbol’s Exchange Policy in effect at the

time of the exchange.

Customer accepts full responsibility for its software and data including the appropriate backup

thereof.

Repair or replacement of a product during warranty will not extend the original warranty term.

Symbol’s Customer Service organization offers an array of service plans, such as on-site, depot, or

phone support, that can be implemented to meet customer’s special operational requirements and

are available at a substantial discount during warranty period.

General

Except for the warranties stated above, Symbol disclaims all warranties, express or implied, on

products furnished hereunder, including without limitation implied warranties of merchantability and

fitness for a particular purpose. The stated express warranties are in lieu of all obligations or

liabilities on part of Symbol for damages, including without limitation, special, indirect, or

consequential damages arising out of or in connection with the use or performance of the product.

Seller’s liability for damages to buyer or others resulting from the use of any product, shall in no way

exceed the purchase price of said product, except in instances of injury to persons or property.

Some states (or jurisdictions) do not allow the exclusion or limitation of incidental or consequential

damages, so the preceding exclusion or limitation may not apply to you.

72-51336-01

Revision A — May 2001

Symbol Technologies, Inc. One Symbol Plaza Holtsville, NY 11742-1300

Service Information

Before you use the unit, it must be configured to operate in your facility’s network and

run your applications.

If you have a problem running your unit or using your equipment, contact your

facility’s Technical or Systems Support. If there is a problem with the equipment, they

will contact the Symbol Support Center:

Visit

http://www.symbol.com/manuals for all product manuals

United States 1-800-653-5350 Canada 905-629-7226

United Kingdom 0800 328 2424 Asia/Pacific 337-6588

Australia 1-800-672-906 Austria 1-505-5794

Denmark 7020-1718 Finland 9 5407 580

France 01-40-96-52-21 Germany 6074-49020

Italy 2-484441 Mexico 5-520-1835

Netherlands 315-271700 Norway 66810600

South Africa 11-4405668 Spain 9-1-320-39-09

Sweden 84452900

Latin America Sales Support 1-800-347-0178 Inside US

+1-561-483-1275 Outside US

Europe/Mid-East Distributor Operations Contact local distributor or call

+44 208 945 7360

Symbol Technologies SPT1833 Single-Mode Cellular PDA WAN Terminal User Manual 5133601 2

Symbol Technologies Inc Single-Mode Cellular PDA WAN Terminal 5133601 2

Users Manual

Navigation menu

Namespaces

Views

Navigation
