USERS MANUAL
![](/img.php?id=727735&img=bg1.png)
WT4070/90
REGULATORY INFORMATION
Microsoft® CE 5.0
© 2006 SYMBOL TECHNOLOGIES, INC. All rights reserved.
Symbol reserves the right to make changes to any product to improve reliability,
function, or design. Symbol does not assume any product liability arising out of, or
in connection with, the application or use of any product, circuit, or application
described herein. No license is granted, either expressly or by implication,
estoppel, or otherwise under any patent right or patent, covering or relating to any
combination, system, apparatus, machine, material, method, or process in which
Symbol products might be used. An implied license exists only for equipment,
circuits, and subsystems contained in Symbol products.
Symbol and the Symbol logo are registered trademarks of Symbol Technologies,
Inc. Other product names mentioned in this manual may be trademarks or
registered trademarks of their respective companies and are hereby
acknowledged.
Symbol Technologies, Inc.
One Symbol Plaza
Holtsville, N.Y. 11742-1300
http://www.symbol.com
Patents
This product is covered by one or more of the patents listed on the website:
http://www.symbol.com/patents.
Warranty
Subject to the terms of Symbol’s hardware warranty statement, the WT4070/90
wearable terminal is warranted against defect in workmanship and materials for a
period of twelve months from the date of shipment. For the complete Symbol
hardware product warranty statement, go to: http://www.symbol.com/warranty.
72-86718-01
Revision A — August 2006 1 2 3

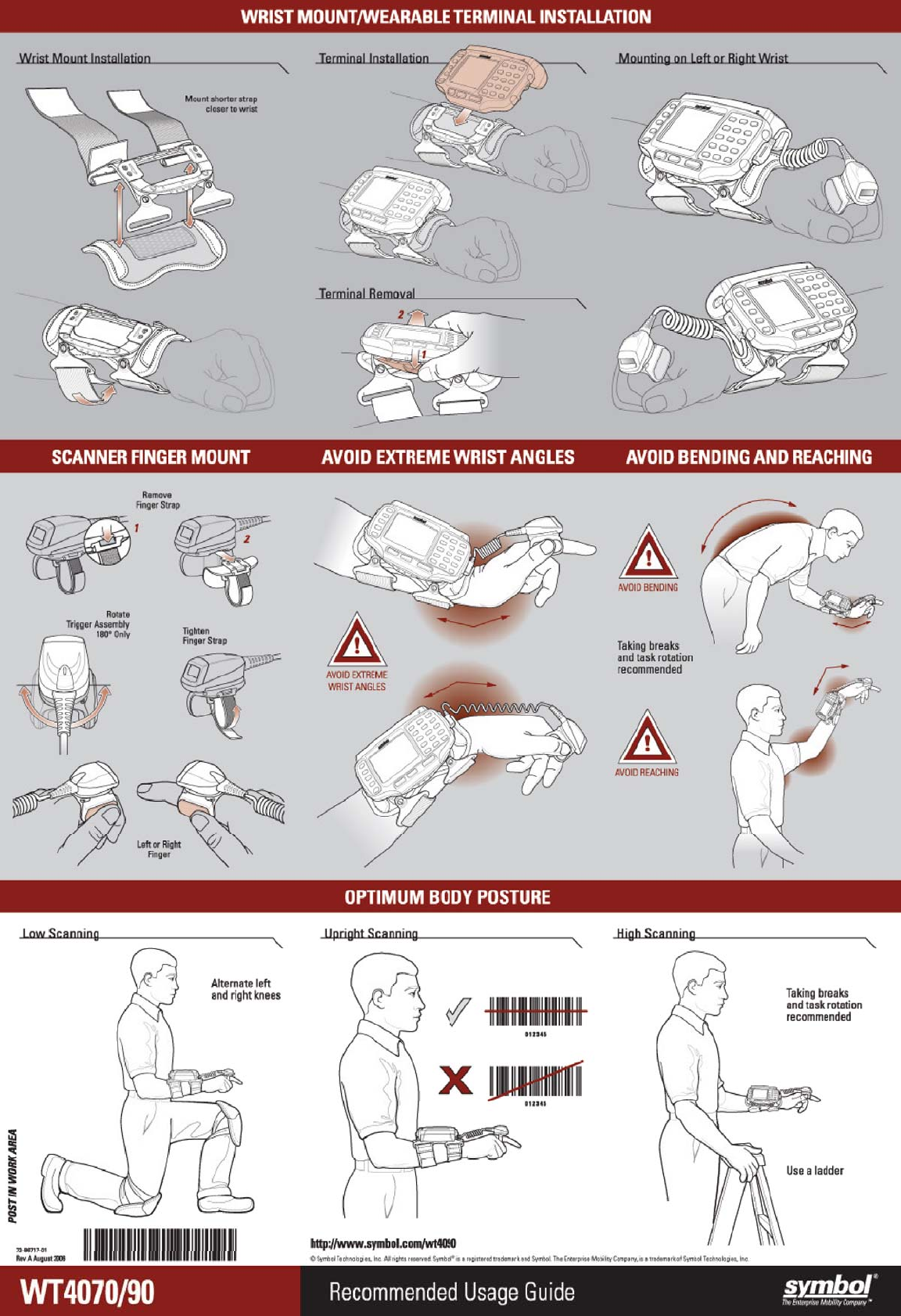

Ergonomic Recommendations
•
Reduce or eliminate repetitive motion
•
Maintain a neutral postures
•
Reduce or eliminate excessive force
•
Keep objects that are used frequently within easy reach
•
Perform tasks at correct heights
•
Reduce or eliminate vibration
•
Reduce or eliminate direct pressure
•
Provide adjustable workstations
•
Provide adequate clearance
•
Provide a suitable working environment
•
Improve work procedures
•
Alternate hands whenever possible when performing a repetitive
task.
Regulatory Information
All Symbol devices are designed to be compliant with rules and
regulations in locations they are sold and will be labeled as required.
Regulatory Information is available in French, Italian, German,
Spanish (Spain), Portuguese, Japanese, Korean, Russian and
Simplified Chinese. Please see following website:
CAUTION In order to avoid or minimize the potential risk of ergonomic
injury follow the recommendations below. Consult with your
local Health & Safety Manager to ensure that you are
adhering to your company’s safety programs to prevent
employee injury.
http://www.symbol.com/services/manuals/ and look for your specific
product.
Any changes or modifications to Symbol Technologies equipment,
not expressly approved by Symbol Technologies, could void the
user's authority to operate the equipment.
This product contains Bluetooth® Complimentary Subsystems:
•
BT ID: B02413
•
BT ID: B01825
Country Approvals
Regulatory markings are applied to the device signifying the radio(s)
are approved for use in the following countries: United States,
Canada, Australia, New Zealand and Europe 1,2.
Please refer to the Symbol Declaration of Conformity (DoC) for
details of other country markings. This is available at http://
www2.symbol.com/doc/.
Note1: For 2.4GHz Products: Europe includes, Austria, Belgium,
Czech Republic, Croatia, Cyprus, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway,
CAUTION Only use Symbol approved and UL Listed accessories,
battery packs and battery chargers.
Do NOT attempt to charge damp/wet mobile computers or
batteries. All components must be dry before connecting to
an external power source.
Poland, Portugal, Slovak Republic, Slovenia, Spain, Sweden,
Switzerland and the United Kingdom.
Note2: The use of 5 GHz RLAN's has varying restrictions of use;
please refer to the Symbol Declaration of Conformity (DoC) for
details.
Please observe all warning notices with regard to the usage of
wireless devices.
Potentially Hazardous Atmospheres
You are reminded of the need to observe restrictions on the use of
radio devices in fuel depots, chemical plants etc. and areas where
the air contains chemicals or particles (such as grain, dust, or metal
powders) and any other area where you would normally be advised
to turn off your vehicle engine.
Safety in Aircraft
Switch off your wireless device whenever you are instructed to do so
by airport or airline staff. If your device offers a 'flight mode' or similar
feature, consult airline staff as to its use in flight.
Wireless devices transmit radio frequency energy and may affect
medical electrical equipment.
Operation of the device without regulatory approval is illegal.
Warnings for Use of Wireless Devices
Safety in Hospitals
Wireless devices should be switched off wherever you are
requested to do so in hospitals, clinics or healthcare facilities. These
requests are designed to prevent possible interference with
sensitive medical equipment.
Pacemakers
Pacemaker manufacturers recommended that a minimum of 15 cm
(6 inches) be maintained between a handheld wireless device and a
pacemaker to avoid potential interference with the pacemaker.
These recommendations are consistent with independent research
and recommendations by Wireless Technology Research.
Persons with Pacemakers
•
Should ALWAYS keep the device more than 15cm (6 inches) from
their pacemaker when turned ON.
•
Should not carry the device in a breast pocket.
•
Should use the ear furthest from the pacemaker to minimize the
potential for interference.
•
If you have any reason to suspect that interference is taking
place, turn OFF your device.
Hearing Aids
The wireless device may interfere with some hearing aids. In the
event of interference you may want to consult your hearing aid
supplier to discuss solutions.
Other Medical Devices
Please consult your physician or the manufacturer of the medical
device, to determine if the operation of your wireless product may
interfere with the medical device.
Safety Information
The device complies with Internationally recognized standards
covering Specific Absorption Rate (SAR) related to human exposure
to electromagnetic fields from radio devices.
Reducing RF Exposure - Use Properly
It is advisable to use the device only in the normal operating
position.
Wearable Devices
This device was tested for typical body-worn operation. Use only
Symbol tested and approved belt-clips, holsters, and similar
accessories to ensure FCC Compliance. The use of third-party belt-
clips, holsters, and similar accessories may not comply with FCC RF
exposure compliance requirements, and should be avoided.
Complies with 21CFR1040.10 and 1040.11 except for deviations
pursuant to Laser Notice No. 50, dated July 26, 2001, and with
EN60825-1:1994+A1:2002+A2:2001 and IEC60825-
1:1993+A1:1997+A2:2001.
FCC / EU RF Exposure Guidelines
Laser Devices
The laser classification is marked on one of the labels on the device.
Class 1 Laser devices are not considered to be hazardous when
used for their intended purpose. The following statement is required
to comply with US and international regulations:
Caution: Use of controls, adjustments or performance of procedures
other than those specified herein may result in hazardous laser light
exposure.
Class 2 laser scanners use a low power, visible light diode. As with
any very bright light source, such as the sun, the user should avoid
staring directly into the light beam. Momentary exposure to a Class
2 laser is not known to be harmful.
COMPLIES WITH 21CFR1040.10AND 1040.11 EXCEPT FOR
DEVIATIONS PURSUANT TO LASER NOTICE No. 50, DATED
JULY 26, 2001, AND WITH EN60825-1:1994+A1:2002+A2:2001 and IEC60825-1:
1993+A1:1997+A2:2001. THIS CLASS B DIGITAL APPARATUS COMPLIES
WITH CANADIAN ICES-103. CET APPAREIL NUMÉRIQUE DE LA
CLASSE B EST CONFORME À LA NORME NMB-003 DU CANADA.
11 x 17 single sheet_072506.fm Page 1 Tuesday, July 25, 2006 11:52 PM
![](/img.php?id=727735&img=bg2.png)
5 6 74
Batteries
Please follow the local regulations when disposing of re-chargeable
batteries.
Taiwan - Recycling
EPA (Environmental Protection Administration)
requires dry battery producing or importing firms in
accordance with Article 15 of the Waste Disposal
Act are required to indicate the recycling marks on
the batteries used in sales, giveaway or promotion. Contact a
qualified Taiwanese recycler for proper battery disposal.
Wireless Devices - Countries
Country Roaming
This device incorporates the International Roaming feature
(IEEE802.11d) which will ensure the product operates on the correct
channels for the particular country of use.
Ad-Hoc Operation
Ad-Hoc operation is limited to Channels 36-48 (5150-5250 MHz).
Use of this band is restricted to Indoor Use Only, any other use will
make the operation of this device illegal.
Radio Frequency Interference Requirements-FCC
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for
help.
Radio Transmitters (Part 15)
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Radio Frequency Interference Requirements - Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
Radio Transmitters
This device complies with RSS 210 of Industry & Science Canada.
Operation is subject to the following two conditions: (1) this device
may not cause harmful interference and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
Label Marking: The Term “IC:” before the radio certification only
signifies that Industry Canada technical specifications were met.
The use of 2.4 GHz RLAN's, for use through the EEA, have the
following restrictions:
•
Maximum radiated transmit power of 100 mW EIRP in the
frequency range 2.400 -2.4835 GHz
•
France, outside usage is restricted to 2.4 - 2.454 GHz.
•
Italy requires a user license for outside usage.
The use of 5 GHz RLAN's has varying restrictions for use within the
EEA; please refer to the Symbol Declaration of Conformity (DoC) for
details at http://www2.symbol.com/doc/
Bluetooth® Wireless Technology for use through the EEA has the
following restrictions:
• Maximum radiated transmit power of 100mW EIRP in the
frequency range 2.400 -2.4835 GHz
• France, outside usage is restricted to 10mW EIRP
• Italy requires a user license for outside usage.
Marking and European Economic Area (EEA)
Statement of Compliance
Symbol Technologies, Inc., hereby, declares that this device is in
compliance with the essential requirements and other relevant
provisions of Directives 1999/5/EC, 89/336/EEC and 73/23/EEC.
Declaration of Conformities may be obtained from http://
www2.symbol.com/doc/.
Battery Information
Symbol rechargeable battery packs are designed and constructed to
the highest standards within the industry.
However, there are limitations to how long a battery can operate or
be stored before needing replacement. Many factors affect the
actual life cycle of a battery pack, such as heat, cold, harsh
environmental conditions and severe drops.
When batteries are stored over six (6) months, some irreversible
deterioration in overall battery quality may occur. Store batteries
discharged in a dry, cool place, removed from the equipment to
prevent loss of capacity, rusting of metallic parts and electrolyte
leakage. When storing batteries for one year or longer, they should
be charged and discharged at least once a year. If an electrolyte
leakage is observed, avoid any contact with affected area and
properly dispose of the battery. Batteries must be charged within the
32° to 104° F (0° to +40° C) ambient temperature range.
Replace the battery when a significant loss of run time is detected.
Standard warranty period for all Symbol batteries is 30 days,
regardless if the battery was purchased separately or included as
part of the mobile computer or bar code scanner. For more
information on Symbol batteries, please visit: http:/
mysymbolcare.symbol.com/battery/batbasics1.html
English: For EU Customers: All products at the end of their life must be returned to
Symbol for recycling. For information on how to return product, please go to:
http://www.symbol.com/environmental_compliance.
Dansk: Til kunder i EU: Alle produkter skal returneres til Symbol til recirkulering, når de
er udtjent. Læs oplysningerne om returnering af produkter på: http://www.symbol.com/
environmental_compliance.
Deutsch: Für Kunden innerhalb der EU: Alle Produkte müssen am Ende ihrer
Lebensdauer zum Recycling an Symbol zurückgesandt werden. Informationen zur
Rücksendung von Produkten finden Sie unter http://www.symbol.com/
environmental_compliance.
Eesti: EL klientidele: kõik tooted tuleb nende eluea lõppedes tagastada taaskasutamise
eesmärgil Symbol'ile. Lisainformatsiooni saamiseks toote tagastamise kohta külastage
palun aadressi: http://www.symbol.com/environmental_compliance.
Español: Para clientes en la Unión Europea: todos los productos deberán entregarse a
Symbol al final de su ciclo de vida para que sean reciclados. Si desea más información
sobre cómo devolver un producto, visite: http://www.symbol.com/
environmental_compliance.
Français : Clients de l'Union Européenne : Tous les produits en fin de cycle de vie
doivent être retournés à Symbol pour recyclage. Pour de plus amples informations sur
le retour de produits, consultez : http://www.symbol.com/environmental_compliance.
Italiano: per i clienti dell'UE: tutti i prodotti che sono giunti al termine del rispettivo ciclo
di vita devono essere restituiti a Symbol al fine di consentirne il riciclaggio. Per
informazioni sulle modalità di restituzione, visitare il seguente sito Web: http://
www.symbol.com/environmental_compliance.
Waste Electrical and Electronic Equipment
(WEEE)
Magyar: Az EU-ban vásárlóknak: Minden tönkrement terméket a Symbol vállalathoz
kell eljuttatni újrahasznosítás céljából. A termék visszajuttatásának módjával
kapcsolatos tudnivalókért látogasson el a http://www.symbol.com/
environmental_compliance weboldalra.
Nederlands: Voor klanten in de EU: alle producten dienen aan het einde van hun
levensduur naar Symbol te worden teruggezonden voor recycling. Raadpleeg http://
www.symbol.com/environmental_compliance voor meer informatie over het
terugzenden van producten.
Português: Para clientes da UE: todos os produtos no fim de vida devem ser
devolvidos à Symbol para reciclagem. Para obter informações sobre como devolver o
produto, visite: http://www.symbol.com/environmental_compliance.
Slovenski: Za kupce v EU: vsi izdelki se morajo po poteku življenjske dobe vrniti
podjetju Symbol za reciklažo. Za informacije o vraèilu izdelka obišèite: http://
www.symbol.com/environmental_compliance.
Suomi: Asiakkaat Euroopan unionin alueella: Kaikki tuotteet on palautettava
kierrätettäväksi Symbol-yhtiöön, kun tuotetta ei enää käytetä. Lisätietoja tuotteen
palauttamisesta on osoitteessa http://www.symbol.com/environmental_compliance.
Svenska: För kunder inom EU: Alla produkter som uppnått sin livslängd måste returneras
till Symbol för återvinning. Information om hur du returnerar produkten finns på http://
www.symbol.com/environmental_compliance.
11 x 17 single sheet_072506.fm Page 2 Tuesday, July 25, 2006 11:52 PM
RF Exposure Statement :
This EUT is compliance with SAR for general population /
uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had
been tested in accordance with the measurement methods and
procedures specified in OET Bulletin 65 Supplement C
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could
void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment.
Country Code selection feature to be disabled for products marketed
to the US/CANADA
The use on UNII band 1 5.15 ~ 5.25GHz is restricted to indoor use
only.
![](/img.php?id=727735&img=bg3.png)
![](/img.php?id=727735&img=bg4.png)
