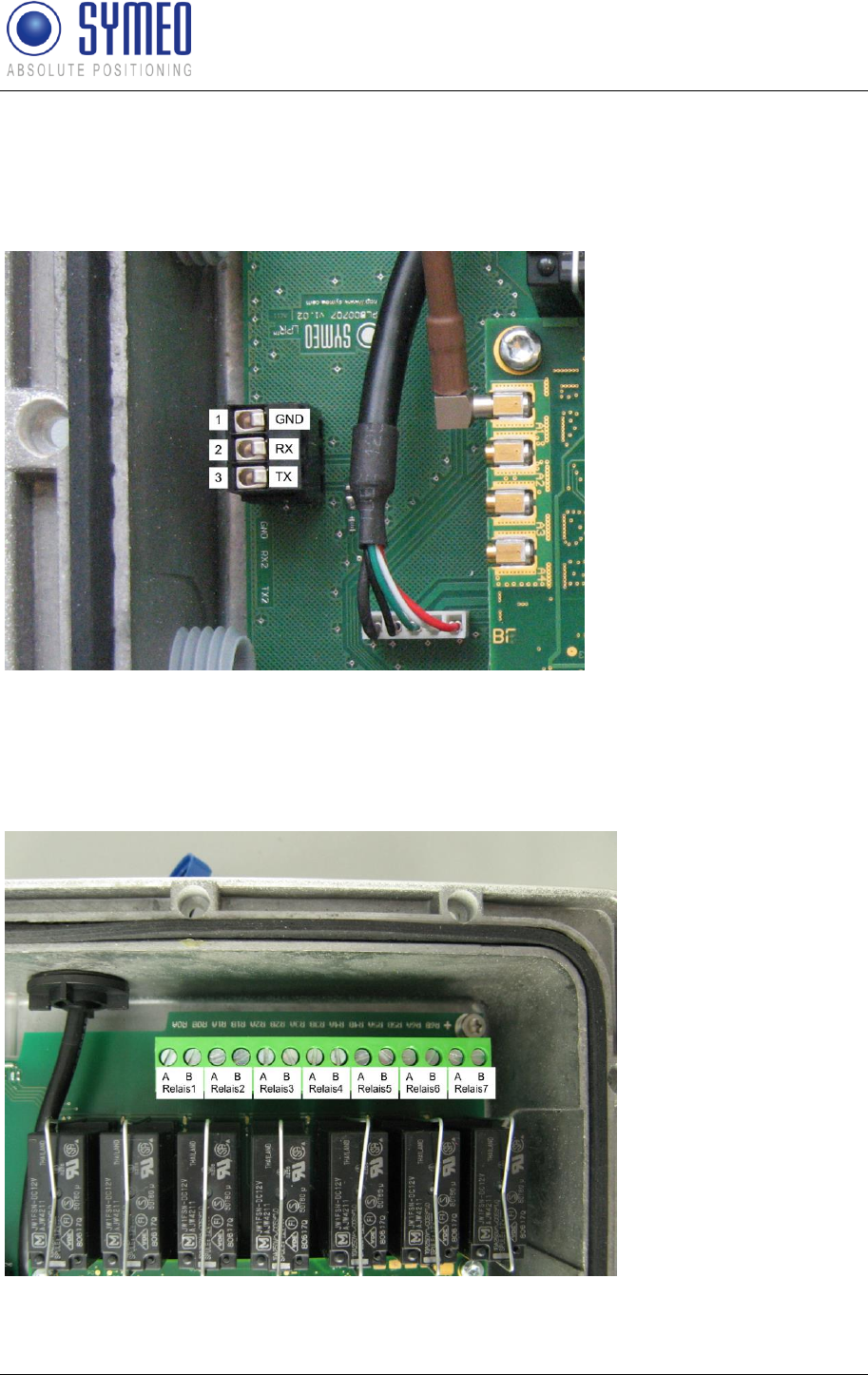

4.3 RS 232 Connection ................................................................................................. 15
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Overview
Copyright © Symeo GmbH 2014
Page 3 of 38
4.4 Relay Connection .................................................................................................... 15
4.5 Mounting .................................................................................................................. 16
4.6 Installation Notes for Antennas ............................................................................. 17

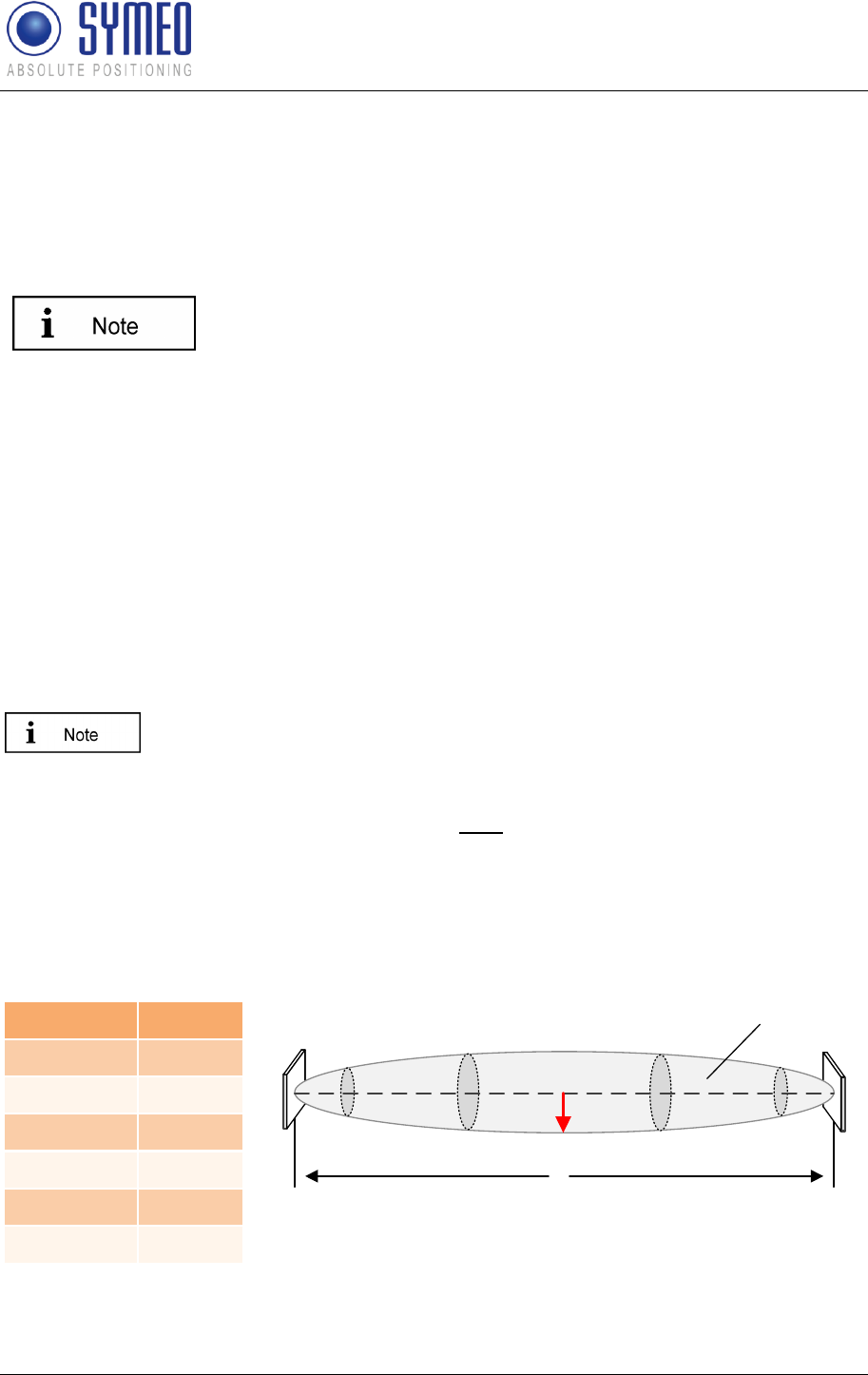

4.6.1 Fresnel Zone ............................................................................................................. 17
4.6.2 Alignment of LPR®-1DXi Units................................................................................... 18
5 COMMISSIONING .................................................................................................... 18
5.1 Requirements .......................................................................................................... 18
5.2 Commissioning Tool – LPR®-1DXi Wizard ............................................................ 19
5.2.1 Installation of USB driver ........................................................................................... 19
5.2.2 Installation of the Symeo Wizard ............................................................................... 19

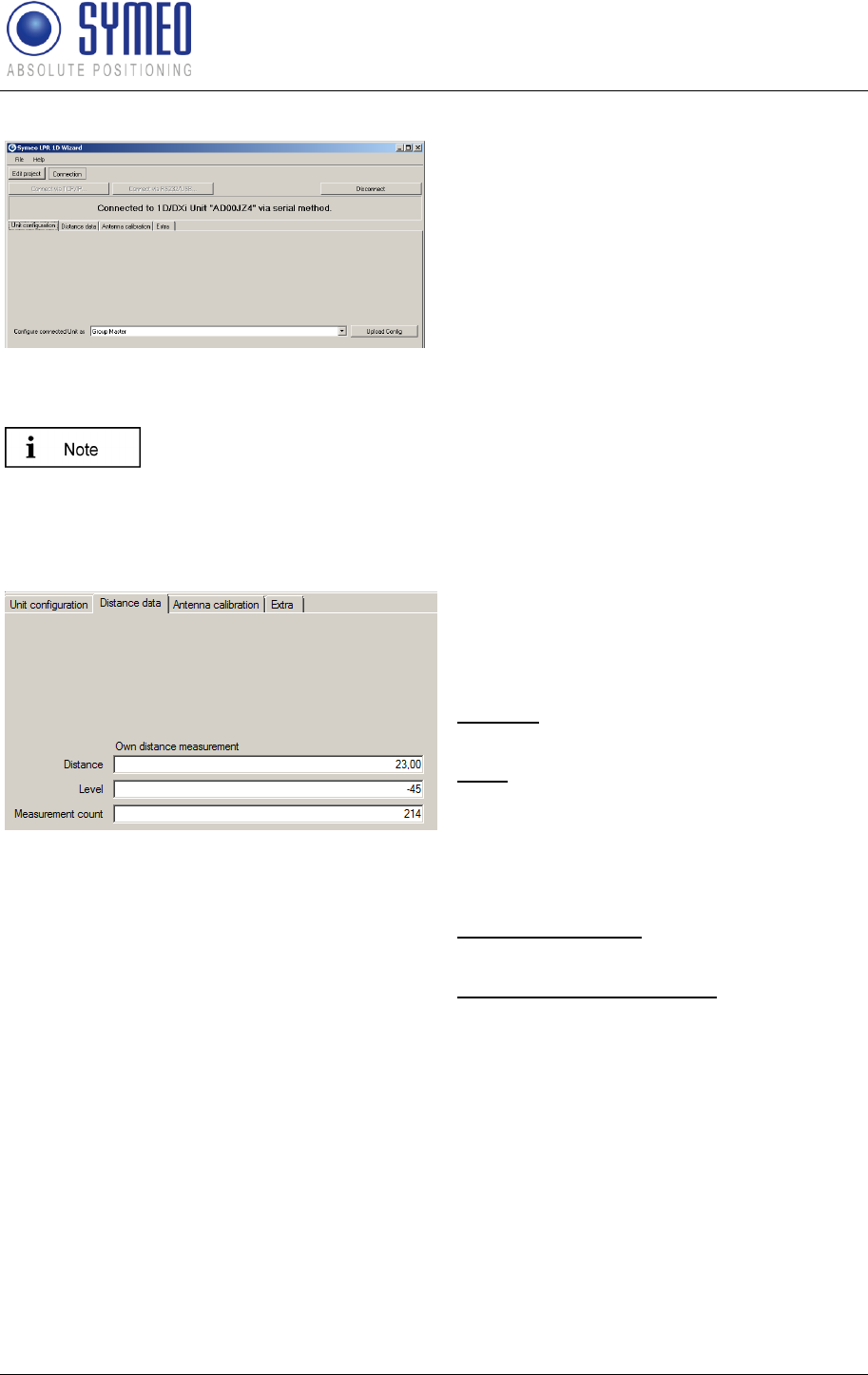

5.2.3 Utilization of LPR® 1DXi Wizard ................................................................................ 20
6 PROTOCOL DESCRIPTION .................................................................................... 32
6.1 General Description ................................................................................................ 32
6.1.1 Structure of Data Packet ........................................................................................... 32
6.1.2 Byte Stuffing ............................................................................................................. 32
6.1.3 CRC .......................................................................................................................... 33
6.2 Data Types ............................................................................................................... 33
6.2.1 Type 0x00 – Distance Data ....................................................................................... 33
6.2.2 Example of Distance Data ......................................................................................... 33
6.3 Remarks ................................................................................................................... 34
6.3.1 LPR®-1DXi Address .................................................................................................. 34
6.3.2 Status Field ............................................................................................................... 34
6.3.3 Error Messages ......................................................................................................... 35
7 APPENDIX A: AGENCY CERTIFICATIONS ............................................................ 36
United States (FCC) and Canada (Industry Canada) ........................................................ 36
United States (FCC) ............................................................................................................ 37
Canada (Industry Canada) ................................................................................................. 37
8 APPENDIX B: TABLE OF COUNTRIES AND REGULATIONSFEHLER! TEXTMARKE NICHT DEFINIERT.
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Overview
Copyright © Symeo GmbH 2014
Page 4 of 38
The documentation for the LPR®-1DXi Local Positioning Radar System is published by:
SYMEO GmbH
Prof.-Messerschmitt-Str. 3
D-85579 Neubiberg
www.symeo.de
If you have any questions or suggestions, please contact:
Email: info@symeo.com
Phone: +49 89 660 7796 0
Copyright
Symeo GmbH 2014
All Rights Reserved
HISTORY
Version
Date
Description
1.02
17.06.2010
USB driver installation changed
1.03
06.08.2010
Added notes for FCC/IC
1.04
18.05.2011
New Product ID with Production Codes
1.05
15.03.2012
New Wizard v4.x
1.06
29.07.2014
Updated FCC/IC notes
SYMBOLS USED
The following symbols are used throughout the documentation:
This symbol appears before instructions that must be followed at all times.
Failure to comply with these instructions will result in personal injury.
This symbol appears before instructions that must be followed at all times.
Failure to comply with these instructions will result in damage to
equipment.
This symbol appears before information of particular importance.
All rights reserved, particularly those relating to the translation, reprinting, and reproduction
by photocopying or similar processes of all or part of the documentation.
All rights reserved, particularly for purposes of the award of patents or submission of utility
models.
Delivery options and technical changes reserved.
Published by SYMEO GmbH
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Overview
Copyright © Symeo GmbH 2014
Page 5 of 38
1 Overview
SYMEO Industrial Local Positioning Radar (LPR®) is a system for contactless, real-time
determination of distances between two devices by means of radio signals.
All components are integrated in one casing. The compact unit can therefore be mounted
very easily and operate maintenance-free, even under harsh conditions. Dust, fog, or similar
impacts do not influence the system.
The Local Positioning Radar System LPR®-1DXi consists of equal units, which are
configured with the software Symeo-Wizard (via Windows PC with USB connection):

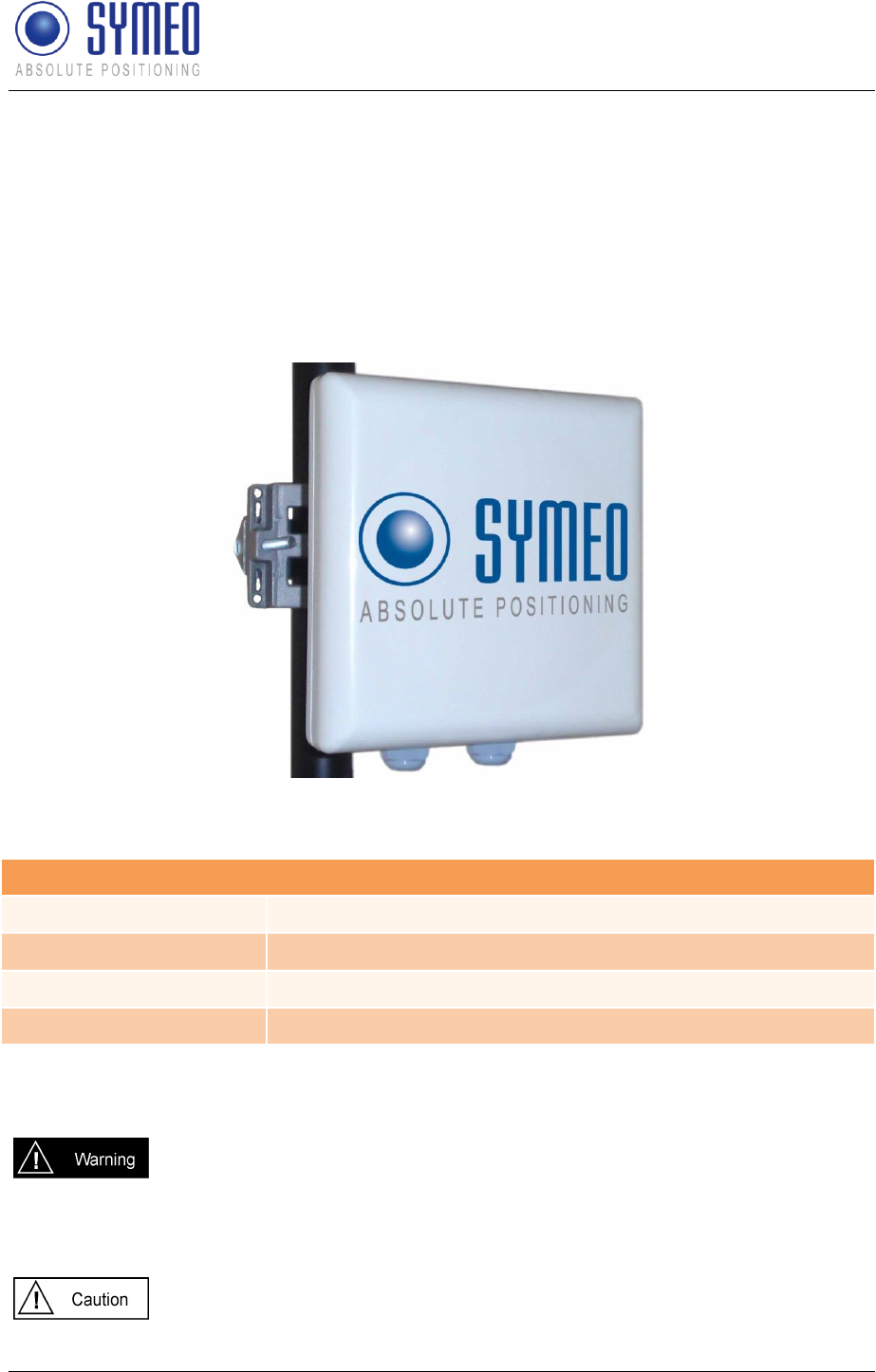

Figure 1 – LPR®-1DXi unit
The LPR®-1DXi unit has different interfaces. The unit has IP65 protection class.
Overview of Interfaces
Power Supply
10-36 Volt via terminal block inside casing
USB
Parameter setting with Symeo Wizard (for Windows PC)
Relays
7 dry contact relays via terminal block inside casing
RS232
Distance reading via terminal block inside casing
1.1 Safety Instructions
LPR® systems are purely tracking and assistance systems. They therefore
do not satisfy special requirements for personal safety, e.g. performance
level c.
Follow the safety instructions in this documentation!
Keep these safety instructions and other documents together with the device.
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Overview
Copyright © Symeo GmbH 2014
Page 6 of 38
1.2 Installation
All installation, repair and servicing work must be carried out by qualified
and trained technicians!
1.3 Repairs
Repairs to the device must be carried out by authorized technicians.
Unauthorized opening and incorrect repairs could result in severe danger to
the user (danger of electric shock, radiated energy, fire hazard).
1.4 Transport and Storage
Use the original packaging or other suitable packaging for returns and
whenever the system is to be transported. This ensures protection from
crushing, impacts, moisture and electrostatic discharge.
During setup and before operation, refer to the instructions for
environmental conditions included in the operating instructions for the
device.
Route the wires in such a way that they do not cause a hazard and are not
damaged. When connecting the wires, refer to the corresponding
instructions in the operating instructions for the device. Do not drop the
device.
1.5 Power Supply
A safety-inspected power cable that satisfies the regulations of the country
of use is required for the device.
The device must not be operated unless the nominal voltage of the device
matches the values in the data sheet, described below. Check the supply
voltage of the device in stationary devices.
When connecting and disconnecting wires, refer to the instructions in the
operating instructions for the device.
Do not use any damaged wires (damaged insulation, exposed wires). A
faulty wire poses a risk of electric shock or fire hazard.
1.6 Setup and Operation
During installation, make sure that no objects or fluids get inside the device
In emergencies (e. g. if there is damage to the housing, control elements or
the mains cable, if fluids or foreign bodies have infiltrated the equipment),
switch off the power supply to the device immediately and notify your
SYMEO Service.
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Overview
Copyright © Symeo GmbH 2014
Page 7 of 38
Protect the contacts of all of the device's sockets and plugs from static
electricity. Do not touch the contacts. If it is ever necessary to touch the
contacts, take the following precautionary measures: Touch a grounded
object or carry a ground strap before touching the contacts. This will divert
static charges.
Proper operation (in accordance with IEC60950/EN60950) of the device is
only assured if the housing is fully installed (electric shock, cooling, fire
protection). If necessary, refer to the corresponding instructions in the
operating instructions for the device.
In the case of high outside temperatures and intense, direct solar radiation
or other radiant heat, it may be necessary to provide a sun or heat shield.
1.7 System Extensions and Accessories
Data links to peripheral devices must be provided with adequate shielding.
The warranty shall be voided if you cause defects to the device by installing
or exchanging system extensions.
1.8 Additional Instructions
The LPR®-1DXi unit must not be opened except for installation. The LPR®-
1DXi unit contains no serviceable components.
When opening, ensure that no fluid gets into the housing. When sealing the
unit, ensure that the seal is included in the cover and that the LPR®-1DXi
unit is completely closed. Otherwise, moisture can penetrate the unit and
damage it.
Please take note of the safety and operating instructions in the operating
instructions for the system in which you want to install the component.
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
System Description
Copyright © Symeo GmbH 2014
Page 8 of 38
2 System Description
2.1 Mode of Operation

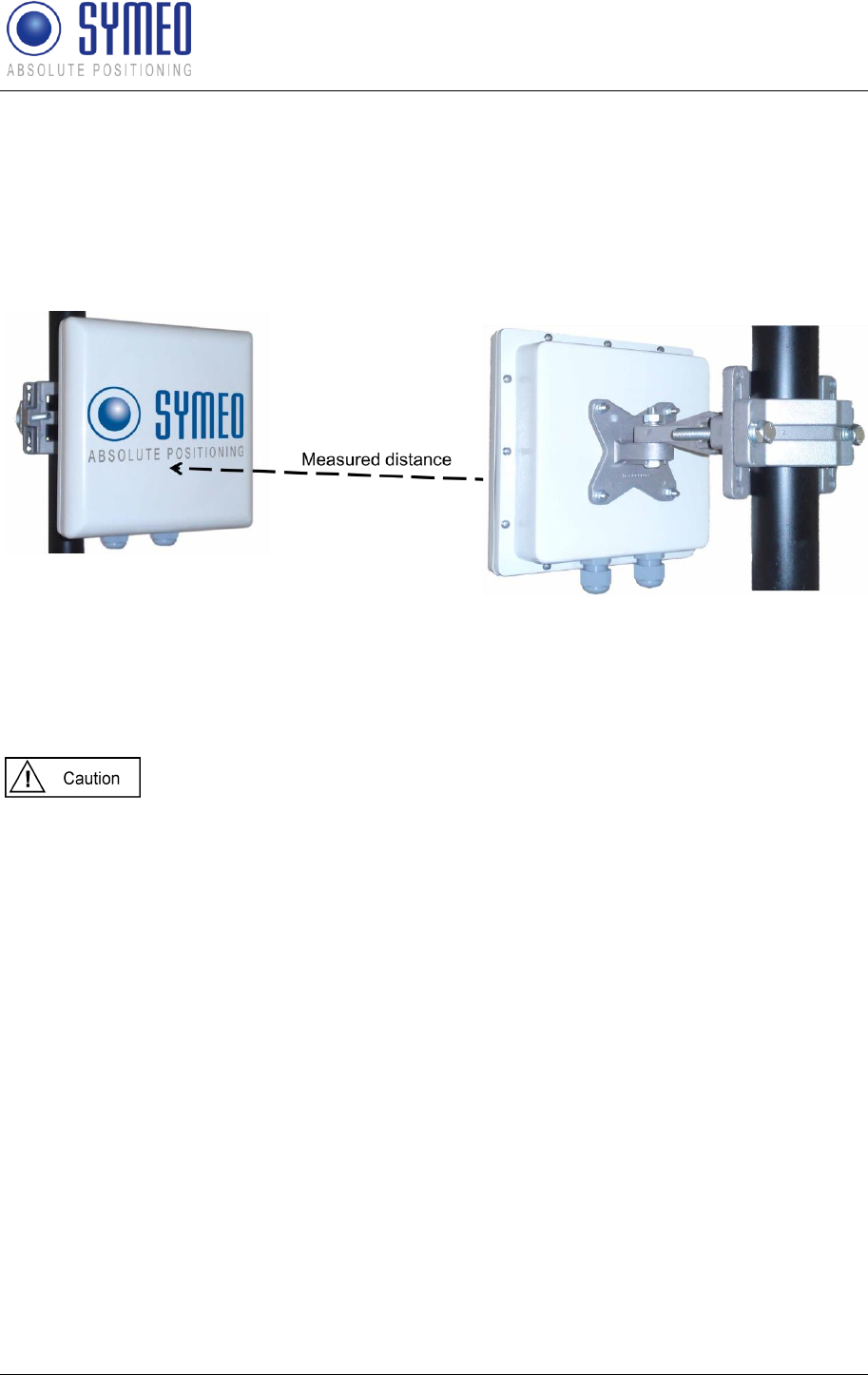

The distance is determined by measuring the transit time of radio signals. One unit initiates
the measurement and the second unit replies.
With the software Symeo-Wizard (via Windows PC) the distances for adjustable switching
points are determined and transferred to the LPR®-1DXi device. Upon reaching a switching
threshold, on-board relays open dry contacts. Relays are available on both units. Remote
units can be configured via the built-in radio interface. Optional the distance reading is also
available on both of the units.
LPR®-1DXi units use the same frequency band and the same hardware for communicating
as for measuring distance. This means that no external WLAN or cable networks are needed
for transmitting measurement values and setting switching relays.
2.2 Technical Data
Overview: Technical Data
Frequency range
5.725-5.875 GHz, ISM band
Transmitting power
Max. 0.025 W / 14 dBm
Positive signal control to
opposite unit
up to 1800 m
Switch thresholds
/distance reading
0 to 120 m (option – extended distance reading 0 to 500 m)
Distance output
0,5 m increments (option – higher resolution: up to ± 5 cm *1)
Repeat rate
Up to 30 Hz
Power supply
10-36 V DC
Power consumption
6 W
Ambient temperature
-40°C to +75°C
Protection class
IP 65
Casing dimensions
190 x 190 x 80 mm (without supplied mounting bracket)
Weight LPR 1DXi
1,5 kg
Weight mounting bracket
1 kg
Interfaces
USB for parameter setting with Symeo Wizard (for Win PC);
Serial RS 232 with binary protocol (terminal block inside
casing);
7x dry contact relays (terminal block inside casing), each
max. 60 VDC, max. 2 A
Compliance
CE mark, part 15 FCC*2, RSS-210*2
*1 Depending on distance and application parameters
*2 Only valid for FCC labeled units
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
System Description
Copyright © Symeo GmbH 2014
Page 9 of 38
2.3 System Configuration
The LPR®-1DXi system consists of two LPR®-1DXi units. For distance measurement and
collision-avoidance, the two units are arranged as shown in Figure 2. The distance readings
and relays are available at both of the paired units.
Figure 2: LPR®-1DXi system
2.4 System Design
Each LPR® 1DXi unit has parameters to provide an explicit allocation to a system and also to
ensure the functionality of a system. These parameters are explained in the following:
Parameters may only be set with the commissioning tool Symeo Wizard as
described in chapter 5.4. Do not change parameters manually in the
configuration files.
2.4.1 Station-ID (SID)
Each unit has an explicit identification Number in one system. A system consists of 2 units.
The first unit has the station number 1 (SID 1), the second unit has the station number 2 (SID
2).
2.4.2 Group-ID (GID)
A pair of LPR®-1DXi units is identified clearly by its group number. The two units in one
system have the same group number. If there is used a second, a third or more system in
your environment, all additional systems must have a different group number.
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
System Description
Copyright © Symeo GmbH 2014
Page 10 of 38
2.4.3 Frequency Channel
The measurement takes place in a frequency band width of 5,725 to 5,875 GHz. In this band
width a frequency channel is assigned to the LPR®-1DXi system. 30 different frequency
channels are available. Two units in one LPR®-1DXi system need the same frequency
channel.
If there are more LPR®-1DXi systems in your environment each further
LPR®-1DXi system needs different frequency channels. The frequency
channel is linked to the group ID. Therefore it is required to use different
group IDs for different LPR®-1DXi systems in the same environment. You
can set the group IDs with the commissioning tool LPR®-1DXi Symeo
Wizard (see chapter 5).
2.5 Versions of LPR®-1DXi Units
For the LPR®-1DXi units several different versions are available:
Overview: Options
ID
Production
Code
Measurement
distance
Distance output
resolution
Basic device
BSB000900
src
0 to 120 m
0,5m increments
Option 1
BSB000900
srl
0 to 500 m
0,5m increments
Option 2
BSB000900
scp
0 to 120 m
Resolution up to ±5 cm
Option 3
BSB000900
slp
0 to 500 m
Resolution up to ±5 cm
Basic device *1
BSB000900
srcf
0 to 120 m
0,5m increments
Option 1 *1
BSB000900
srlf
0 to 500 m
0,5m increments
Option 2 *1
BSB000900
scpf
0 to 120 m
Resolution up to ±5 cm
Option 3 *1
BSB000900
slpf
0 to 500 m
Resolution up to ±5 cm
*1 in compliance with part 15 off FCC rules and with RSS-210 of Industry Canada
Please take care that the distances for the switching points in your
application are within the maximum possible distance range of your version
of LPR®-1DXi.
The distance for positive signal control, monitoring the functionality of two
units, is possible up to 1800m.
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Hardware
Copyright © Symeo GmbH 2014
Page 11 of 38
3 Hardware
All corresponding installation, repair and servicing work must be carried out
by qualified and trained technicians.

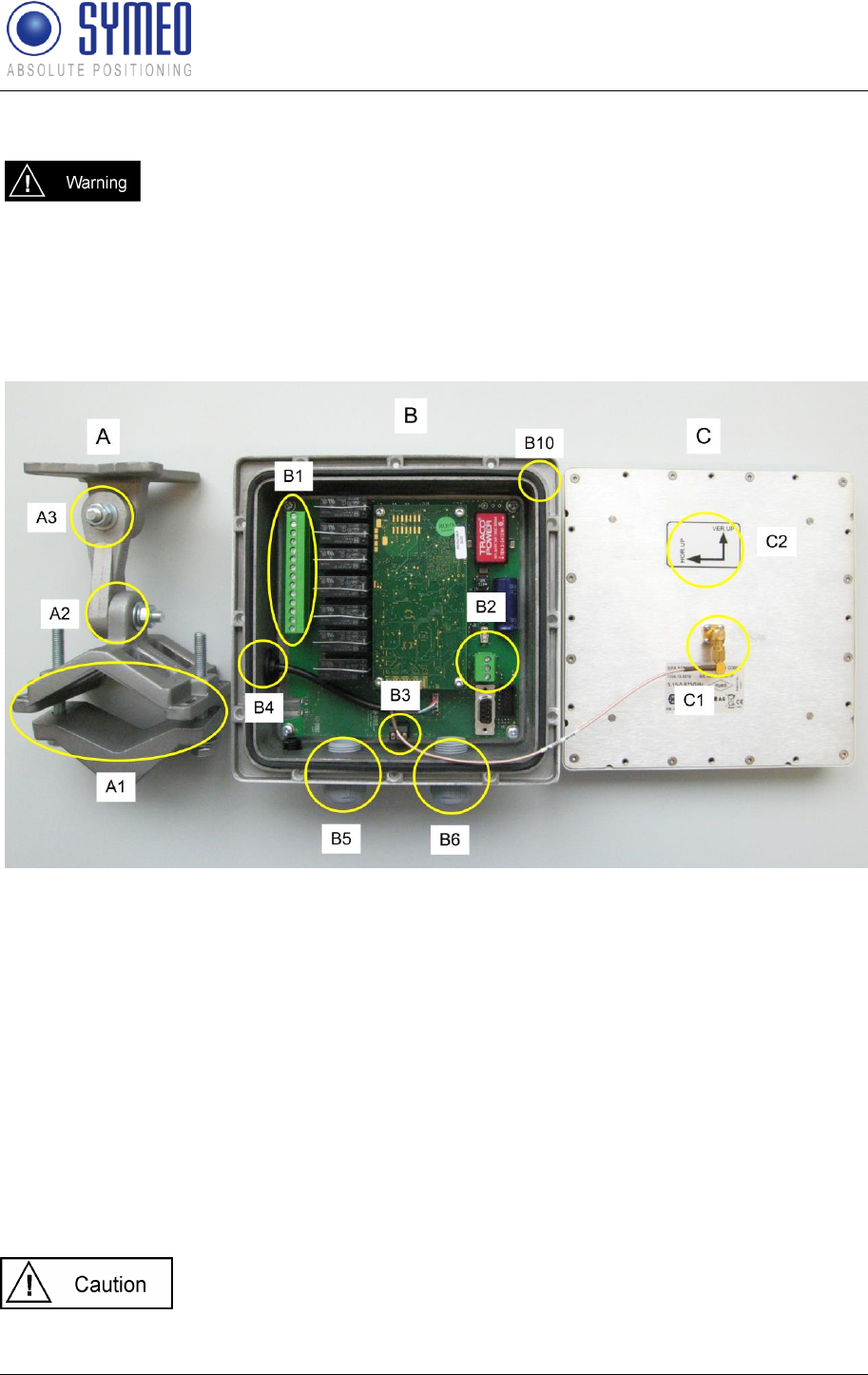

3.1 Component Setup of the LPR®-1DXi Unit
The LPR®-1DXi unit consists of mounting bracket A, casing with electronic devices B and
antenna C as shown in Figure 3.
Figure 3 Components of the LPR®-1DXi: mounting bracket A, casing with electronic devices B
and antenna C
A: mounting bracket
A1 mounting kit for pole and wall mounting
A2 adjustment of elevation angle
A3 adjustment of azimuth angle
B: casing with electronic device
B1 terminal block for relays
B2 terminal block for power connection
B3 terminal block for serial RS232 (distance output, binary protocol)
B4 USB port for parameter setting
B5 cable gland for relay cable to relay connector
B6 cable gland for power supply cable and optional serial RS232 cable
B10 seal
C: Antenna
C1 connector for antenna cable
C2 orientation of antenna polarization
The seal (B10) seals front and rear element when it is mounted
correctly. Otherwise the housing will not be sealed in a water-proof
manner.
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Hardware
Copyright © Symeo GmbH 2014
Page 12 of 38
The antenna C has to be mounted in correct polarization (C2) as
shown in Figure 3
3.2 Cable Glands, Interfaces and LED Display of the LPR®-1DXi
Unit
The casing B has two cable glands for power cable (B6) and cable for the connection to the
on-board relays (B5). Additionally the pressure equalization membrane (B7) is shown.

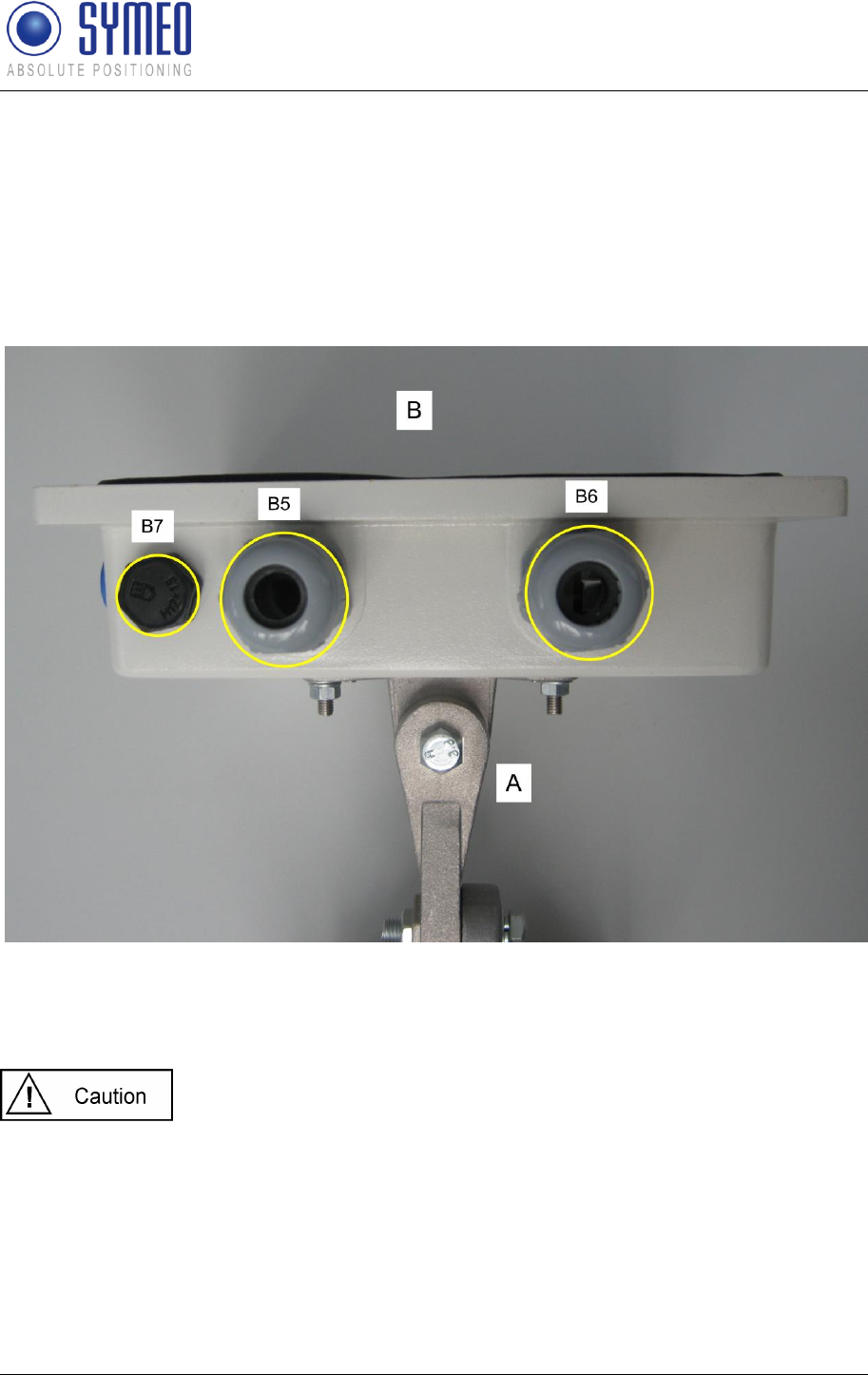

Figure 4: Casing B side view with cable glands and mounting bracket A
B5 Cable gland for cable to relays
B6 Cable gland for power cable with optional wires for serial RS232
B7 pressure equalization membrane
Pressure equalization membrane (B7) must not be removed or
loosened. Otherwise the housing will not be sealed in a water-proof
manner.
Power supply cable must be within 5 to 9 mm diameter, and relay
cable must be within 7 to 13 mm diameter, both with a round cross-
section.
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Hardware
Copyright © Symeo GmbH 2014
Page 13 of 38

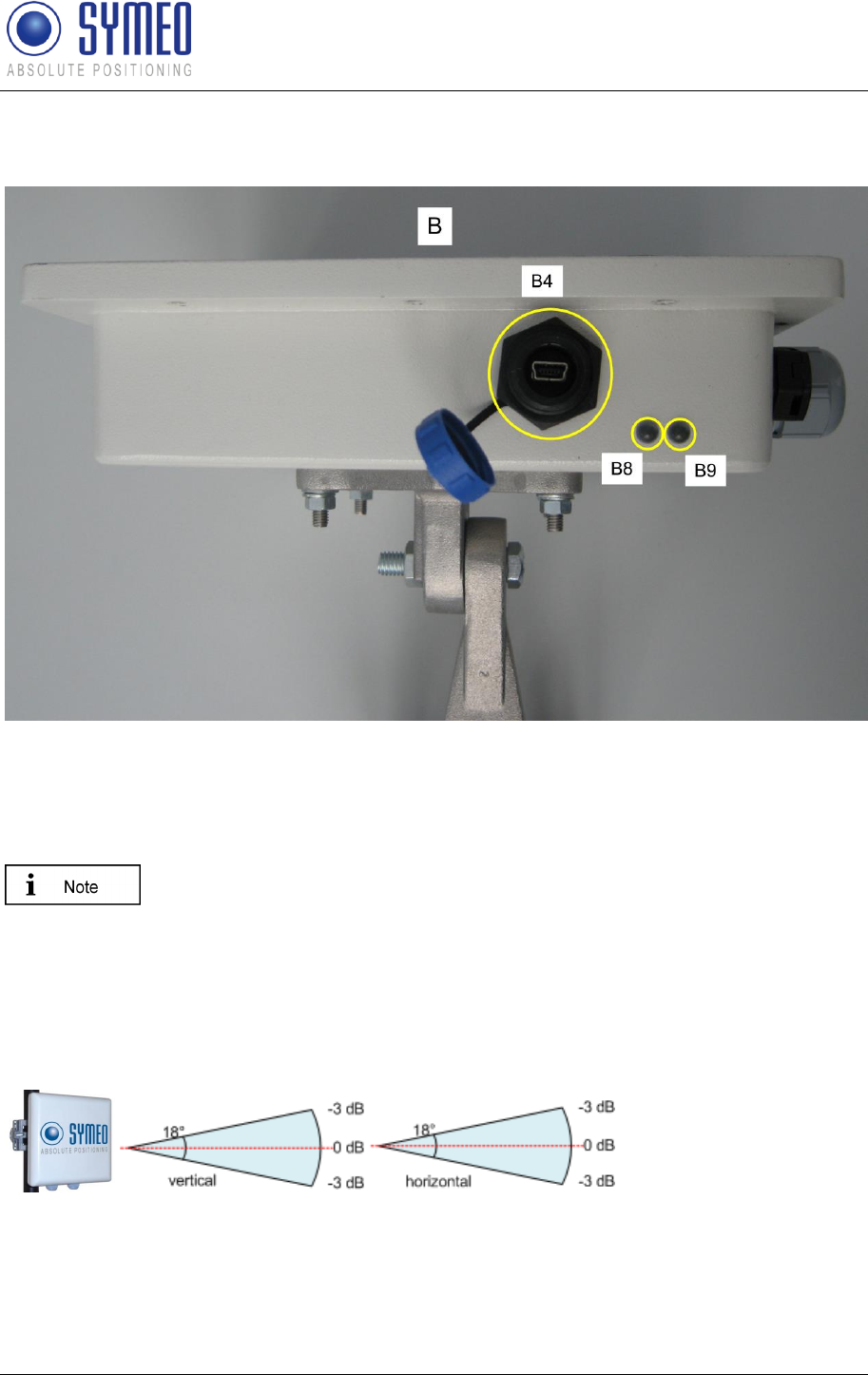

On the side of the casing the USB port (B4) for parameter setting with the software Symeo-
Wizard and two two-colored LED (B8, B9) are located, displaying different statuses of the
device.
Figure 5 Casing B side view
B4 USB port for parameter setting with software Symeo Wizard
B8 two-colored LED, green=switching status of relay 1 / blue=switching status of relay 2
B9 two-colored LED, red=power / green=measurement activity
If both colors of one LED (B8 or B9) are on, you will see the additive color.
3.3 Opening Angle of the integrated Antenna
The LPR®-1DXi unit has an integrated antenna with 18° opening angle
Figure 6: Opening angle LPR®-1DXi unit
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Installation
Copyright © Symeo GmbH 2014
Page 14 of 38
4 Installation
4.1 Important Instructions for Installation
Avoid entry of foreign objects or liquids into the system unit,
especially on the PCB stack in casing B.
The seal (B10) seals front and rear element when it is mounted
correctly. Otherwise the housing will not be sealed in a water-proof
manner.
The antenna C has to be mounted in correct polarization (C2) as
shown in Figure 3
To achieve operation and range as specified both system units must
have the same orientation, e.g. same orientation of the writing
“SYMEO” on the integrated antenna.
Take precautionary measures against static discharges during the
installation process
4.2 Power Connection
Power supply is connected using the power supply terminal block B2. Figure 7 shows the pin
assignment. Positve voltage can be connected either at pin 1 or 3, the negative or ground
voltage is connected to pin 2.
Polarity reversal or otherwise faulty connection can damage the
LPR®-1DXi unit. In that case the unit must be send to the SYMEO
service.

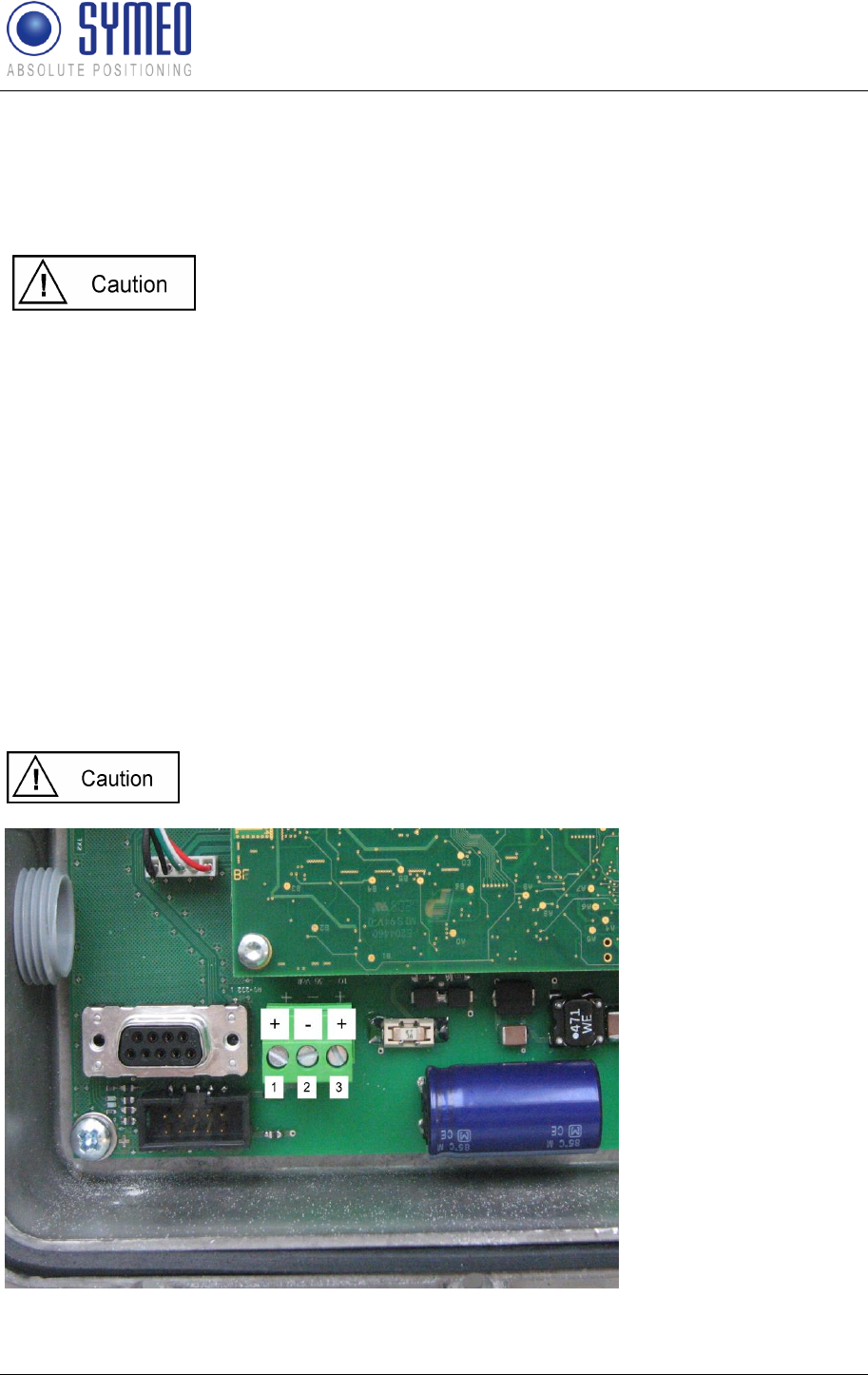

Figure 7: Power supply terminal block B2
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Installation
Copyright © Symeo GmbH 2014
Page 15 of 38
4.3 RS 232 Connection
For optional distance reading RS 232 is connected using the RS232 terminal block B3.
Figure 8 shows the pin assignment.
Please use the same cable as for the power supply with additional three wires.
Figure 8: RS232 terminal block B3
4.4 Relay Connection
Relays are connected using the relay terminal block B1. Figure 9 shows the pin assignment
for the seven switch relays with dry contacts.
Figure 9: Relay terminal block B1
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Installation
Copyright © Symeo GmbH 2014
Page 16 of 38
4.5 Mounting
All installation, repair and servicing work must be carried out by
qualified and trained technicians!
When the system is mounted on fixed tubes the necessary
measures to prevent slippage of the system must be taken

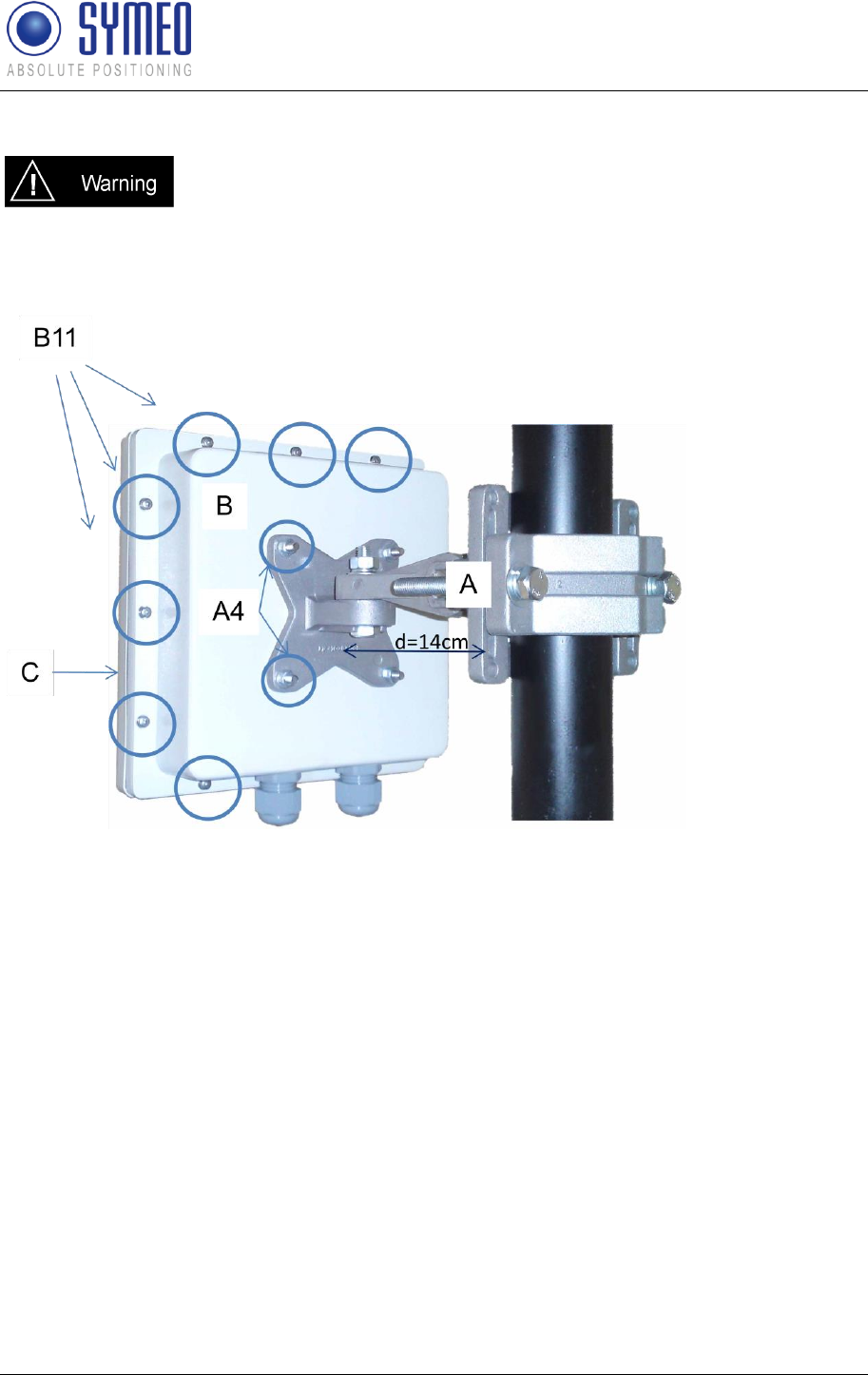

Figure 10: LPR®-1DXi unit rear view
The LPR®-1DXi unit is delivered pre-mounted (casing B and antenna C), and with a
separate mounting bracket A. Figure 10 shows the complete system including mounting
bracket. The mounting bracket A is applicable for wall and pole mounting with a diameter of
25mm to 76mm. For mounting the system please proceed as follows:
Please use Phillips screwdriver to remove the antenna C from the casing B by
unscrewing and removing the twelve mounting screws B11
Insert the power supply cable in the cable gland B6 and connect it to the power supply
terminal block B2.
If you need distance reading please use additional 3 wires within your power supply cable
and connect these wires to the RS232 terminal block B3
Insert the cable for relay connection in the cable gland B5 and connect it to the relay
terminal block B1.
Fix the antenna C on the casing B with the twelve housing screws B11 using a Phillips
screwdriver. Take care that the seal B10 is carefully mounted.
Carefully tighten the cable glands with flat wrench SW24.
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Installation
Copyright © Symeo GmbH 2014
Page 17 of 38
Mount the mounting bracket A on a pole or wall at a suitable place. Do not tighten the
screws of the adjustment yet, the system must be aligned first.
Mount the LPR®-1DXi casing on the mounting bracket A with 4 hex nuts A4 using flat
wrench SW8.
Carefully align both units (refer to chapter 4.6).
When the system is powered, the red LED B9 of the display element
is turned on.
When both units are connected to the supply power and valid
measurements are made additionally to the red LED for power the
green LED B9 (two-colored LED) is blinking at high frequency.
Provided that both units are configured properly with the
configuration tool Symeo-Wizard delivered with your LPR®-1DXi unit
(described in chapter 5)
4.6 Installation Notes for Antennas
4.6.1 Fresnel Zone
The area for radio transmission between two antennas is called Fresnel zone. The main part
of energy is concentrated in the first Fresnel zone.
This area has to be free of any obstacles otherwise the signal is interrupted
or attenuated.
The first Fresnel zone can be calculated as follows:
is the wave length and the distance between the two antennas. For a frequency of 5.8
GHz a wave length of approx. 0.05 m is calculated. The maximum radius between the two
antennas is indicated with . For different distances the maximum radius is given in Figure
11.
distance d
radius b
10 m
0.36 m
50 m
0.80 m
100 m
1.14 m
250 m
1. 80 m
500 m
2.54 m
1000 m
3.60 m
d
b
Antenna 1 Antenna 2
Fresnel zone
Figure 11 Calculation and figure of Fresnel zone
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Commissioning
Copyright © Symeo GmbH 2014
Page 18 of 38
4.6.2 Alignment of LPR®-1DXi Units
The LPR®-1DXi units with the integrated antennas have to be mounted without any offset (no
difference in height and no offset sideways). Make sure that the opening angle is symmetric
to the relative direction of motion (compare picture 1 vs. picture 2 in Figure 12).
If an offset is not inevitable the units have to be tilted (compare picture 3 vs. picture 4 in
Figure 12).
Notice: If the distance goes below a fixed distance it is possible that no
measurements take place any longer.
Crane Rail
Crane Rail Crane Rail
Figure 1
No Offset of Antennas
Figure 3
Unavoidable Offset of Antennas
Figure 2
No Offset of Antennas
Crane Rail
Figure 4
Unavoidable Offset of Antennas

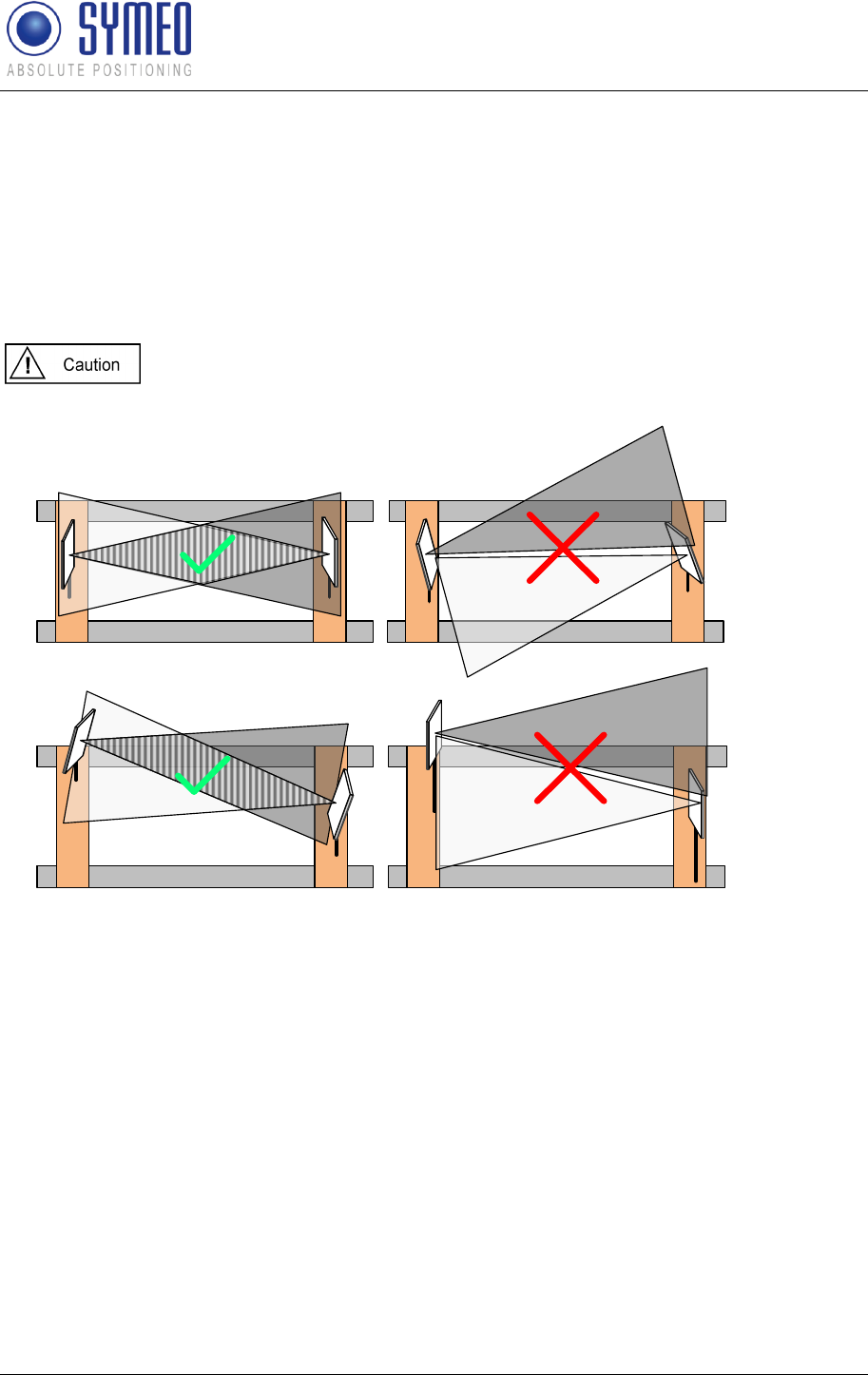

Figure 12 Antenna Position with and without Offset
5 Commissioning
5.1 Requirements
In order for a station to be successfully commissioned, the LPR®-1DXi stations must have
been installed correctly:
The station has been installed.
The station has been connected to the power supply (terminal block B2)
Relays are connected to your application (terminal block B1)
Optional: For distance reading RS232 (binary protocol see chapter 6) has been
connected to your application (terminal block B3)
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Commissioning
Copyright © Symeo GmbH 2014
Page 19 of 38
Configuration software Symeo-Wizard and USB-driver are installed on your Windows PC,
both on product documentation CD delivered with your LPR®-1DXi devices.
Data link to your PC has been established over USB (jack B4)
Once these prerequisites have been fulfilled, you can set parameters with the software
Symeo-Wizard for each station.
5.2 Commissioning Tool – LPR®-1DXi Wizard
5.2.1 Installation of USB driver
The USB driver for the LPR®-1DXi station is supplied with the product on CD.
Install the USB driver with the executable file CDM20600.exe.
5.2.2 Installation of the Symeo Wizard
All files for the installation are provided on CD or USB-stick delivered together with your
LPR® - 1DXi units. Installation can be done directly from CD or USB-stick. The files are
provided in the directory “Symeo LPR 1D Wizard V4.x”

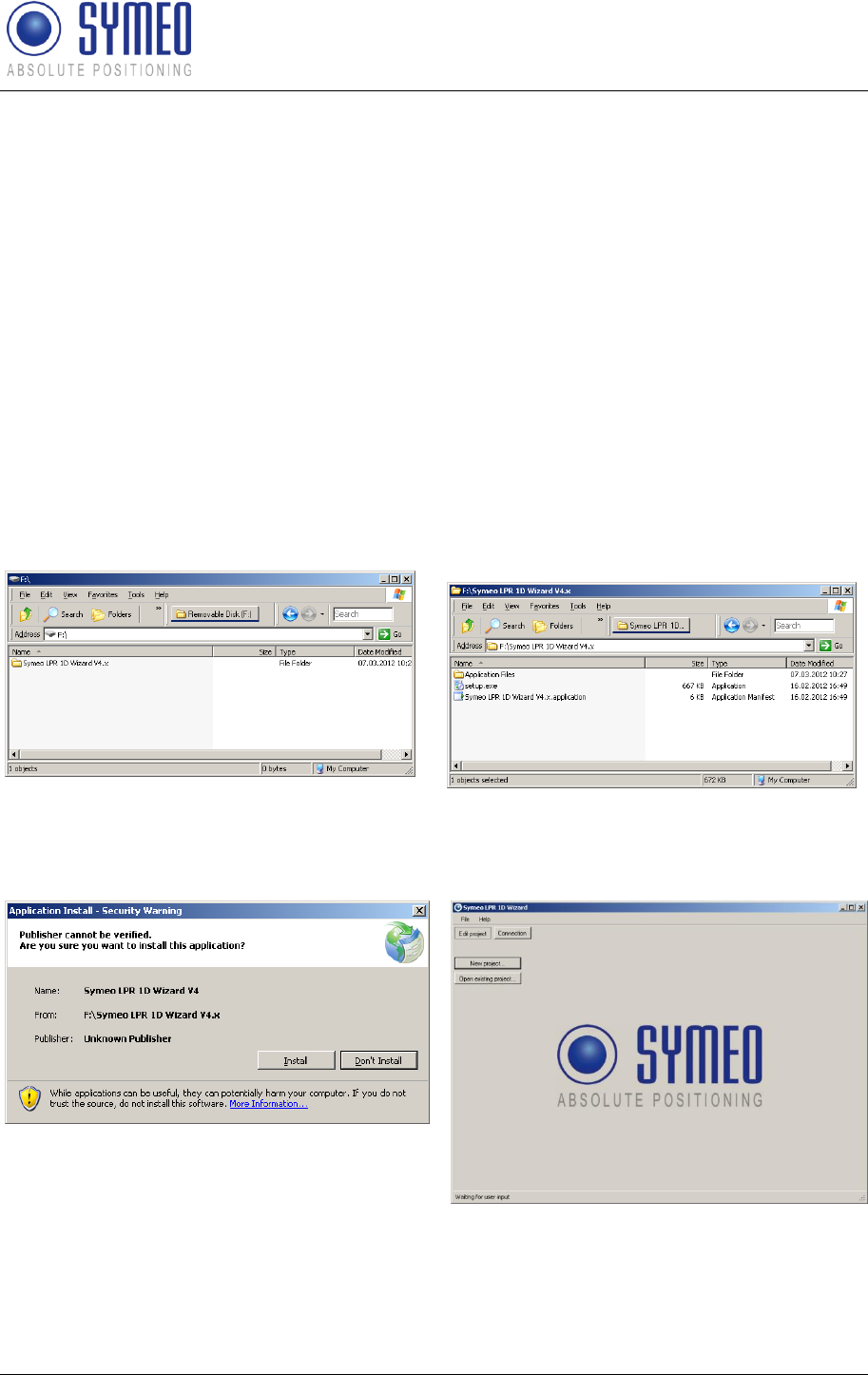

Figure 13 – Installation directory for the LPR® 1D
Wizard
Figure 14 – Start “setup.exe” for installation of the
LPR® 1D Wizard
Figure 15 – Press “Install“ for installation of the
LPR® 1D Wizard
Figure 16 – LPR® 1D Wizard starts after
installation
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Commissioning
Copyright © Symeo GmbH 2014
Page 20 of 38
After finishing the installation process the LPR®-1D Wizard starts automatically. A Shortcut
was created on your desktop and you can find the Symeo LPR®-1D Wizard in your start
menu.
5.2.3 Utilization of LPR® 1DXi Wizard
The commissioning of the LPR® 1DXi system with the LPR®-1DXi Wizard proceeds the
following:
Selection of the desired application
Settings of parameters for selected application
General setting of LPR® 1DXi System
Connection to LPR® 1DXi unit
Upload of selected application to the LPR® unit
Check distance data
Start the LPR® 1DXi Wizard. The following window appears:
Edit project
All parameters and configuration files for one LPR® 1DXi System are handled in one project
file. The format of this project file is “customers defined application name.symproj”
Figure 17 – Start LPR® 1DXi Wizard
‚New project‘
Select this button to create a new project
for a LPR® 1DXi System
‚Open existing project‘
Select this button to open an already
created project for an LPR® 1DXi System
Moving the cursor
above a button or input
field shows a tool tip.
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Commissioning
Copyright © Symeo GmbH 2014
Page 21 of 38
New project
Figure 18 – New project / Select product family
To start a new configuration
push ‚New project‘.
Select the product family of the system
LPR-1DXi.
Open existing project
Figure 19 – Open existing project
If you already saved a project file you can
open this project file for further settings.
Push ‚Open existing project ‘
Select your already created project file
and push ‚Open‘
Select application
Figure 20 – Select Application Selection of
Push ‚Edit project‘.
• The first possible application is shown.
• You can see other application with the
buttons ‚Next application‘ or ‚Previous
application‘.
Push ‚Select application‘. On the right
side of the window the first step to
configure the settings of the selected
application appears (‚Common
settings‘).
As long as no
application is selected,
no step to configure the
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Commissioning
Copyright © Symeo GmbH 2014
Page 22 of 38
application
settings can be selected.
Settings of LPR® System Parameters
After selecting the application common settings of the LPR® system has to be entered.

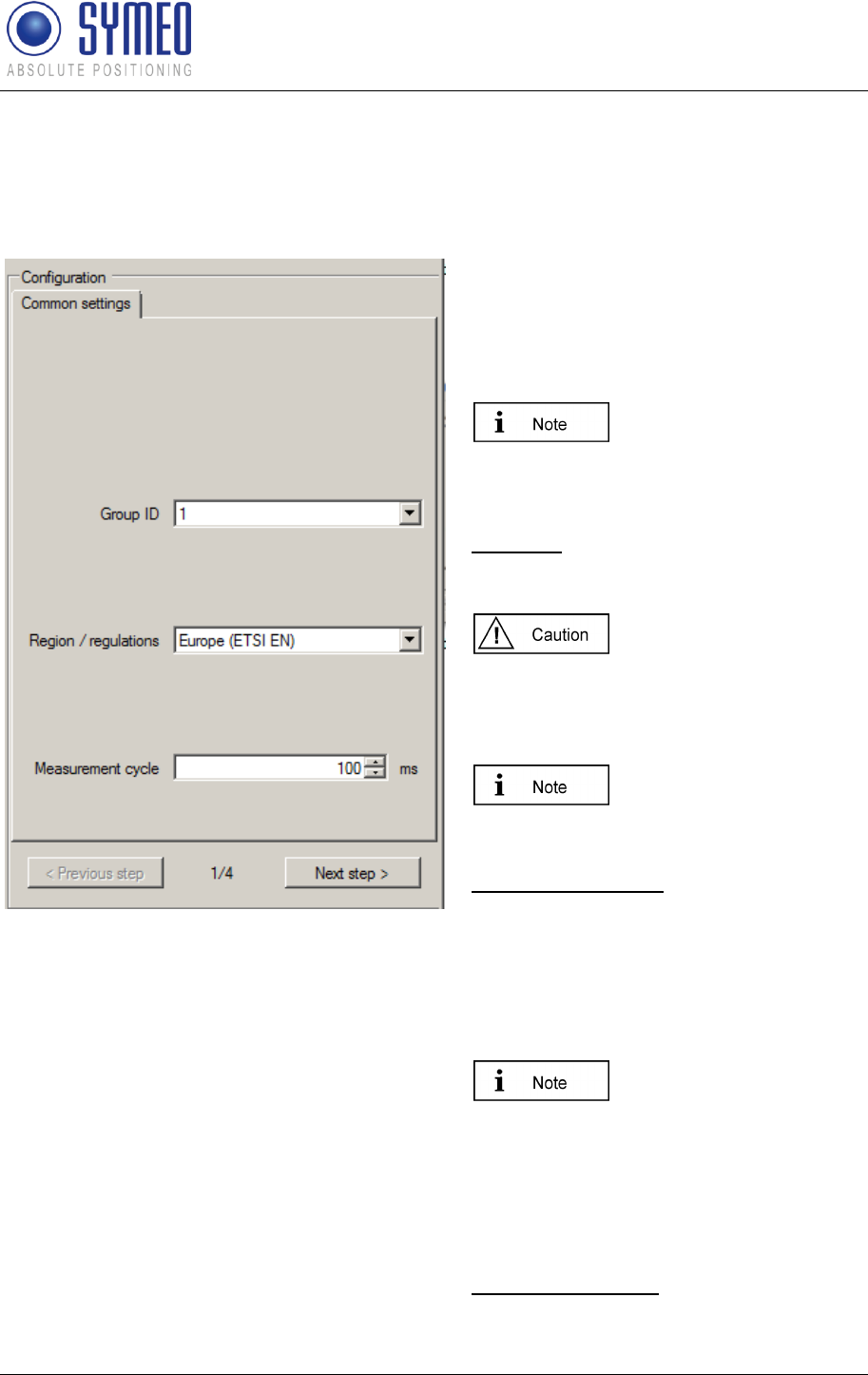

Figure 21 – Common settings Input fields of the
common settings of LPR® system
The ‚Common settings‘ include settings
for the complete LPR® System.
Fill in the input fields on the right side
of the window. The fields depend on
the selected application.
Move the cursor above
an input field to see
more information about
it.
Group ID: Unique ID of the LPR® system.
All units in one LPR® system have the
same group ID.
If more than one LPR®
system is used in your
environment you have
to use a different group
ID for each system.
The frequency channel
is linked to the group ID
of the system.
Region / regulations: Choose the
region/regulation where the system is
installed. This is important to calculate
the allowed transmission power, please
see appendix B in this documentation for
assignment of countries and regulations.
For FCC labeled units
only use the setting
“USA(FCC)”. For not
FCC labeled units only
use the setting “Europe
(ETSI EN)”.
Measurement cycle: Adjust the desired
measurement cycle of the system.
Please choose a minimum
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Commissioning
Copyright © Symeo GmbH 2014
Page 23 of 38
measurement cycle of 35 ms.
Push ‚Next step‘. The ‚Group Master
settings‘ are displayed.
Figure 22 – Group Master setting - Input fields of the
Group Master settings of LPR® system
Fill in the input fields of the ‚Group
Master settings’.
Interface: Cannot be changed.
Data Port rate: Transmission rate of the
LPR® system on the RS232 data port.
If you change the baud
rate to 9600 you should
also adjust the
measurement cycle of
the system to values
>50ms.
Antenna port 1 and Antenna port 2:
Cannot be changed.
Antenna type: Cannot be changed.
Cable type: Cannot be changed.
Push ‚Next step‘. The ‚Slave 1
settings‘ are displayed.
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Commissioning
Copyright © Symeo GmbH 2014
Page 24 of 38
Figure 23 – Slave settings - Input fields of the ‚Slave
1 settings’ of LPR® system
Fill in the input fields of the ‚Slave 1
settings’ as already described in the
‚Group Master settings’.
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Commissioning
Copyright © Symeo GmbH 2014
Page 25 of 38
Setting the X and Y dimensions for warning and stop areas
For LPR® 1DXi units you can set the distances for warning and stop areas for relay switching
in this menu .

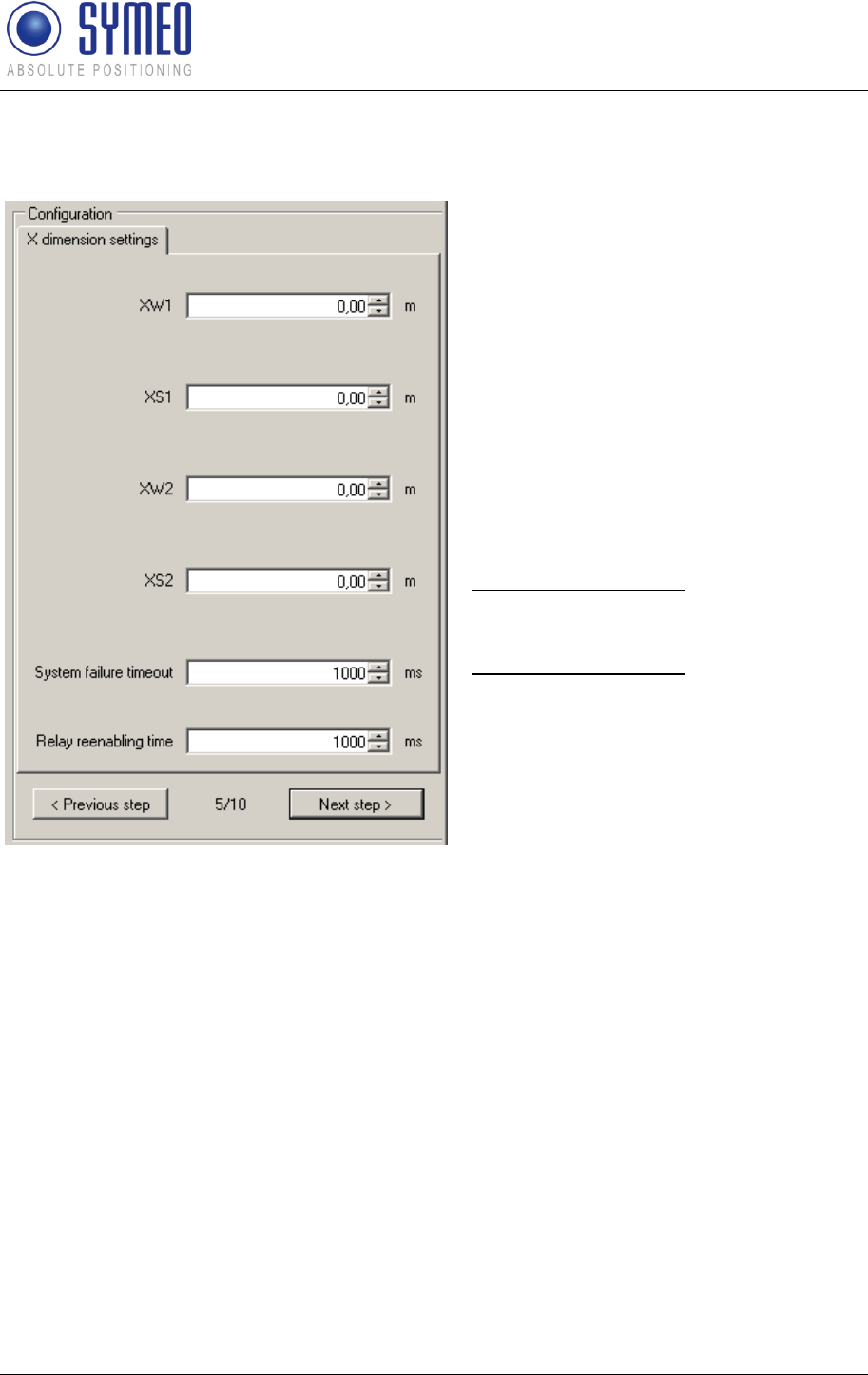

Figure 24 –Input fields of the ‚X dimension
settings’ for warn and stop areas
Fill in the values of the warning and
stop distances for your application in
meters.
System failure timeout: Length of time
without valid measurements before a
system failure is indicated.
Relay reenabling time: Use this value to
setup hysteresis. "Open relay" is always
done immediately."Close relay" can be
delayed to inhibit unwanted relay
toggling. This value sets the delay time.
The relay will only be closed if the "Close
relay" condition has been valid for this
delay time.
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Commissioning
Copyright © Symeo GmbH 2014
Page 26 of 38
Usage of Relays
Figure 25 – Allocation of relays
You can allocate functionalities to each of
the seven relays in the LPR® 1DXi unit. Each
LPR® 1DXi unit in one system can have a
different assignment of relays.
You can choose between default settings,
customer settings and no relay assignment.
The possible functionalities
of the relays depend on the
application you have
selected.
Save Project
Figure 26 – Save project
The last step of the menu ‚Configuration’ is
to save all settings in one project file.
Press ‚Save Now’ and define a file name
for your project.
All settings and parameters
of your LPR® system is
stored in this project file.
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Commissioning
Copyright © Symeo GmbH 2014
Page 27 of 38
Connection to LPR®-1DXi unit
Figure 27 – Connection to LPR® unit
Having established a connection to the
LPR®-1DXi unit via USB with your PC the
connection can be opened by pushing the
,Connection’ button, followed by pushing
,Connect via RS232/USB’.
The USB-driver from the
product CD(or USB-Stick)
has to be installed first...
Figure 28 –RS232/USB connection to LPR® unit
Connect via RS232/USB:
To open the serial connection, select the
right COM port of your computer. If you do
not know the COM port, select AUTO
You can control the COM
port number in the device
manager of your computer.
Figure 29 –Submenus if connection is established
Once the connection is established, the
following submenus appear:
Unit configuration:
Configure the connected unit as Group
Master or Slave 1.
Distance Data:
View the measured distance(s)
Antenna calibration:
Calibrate the real measured distance

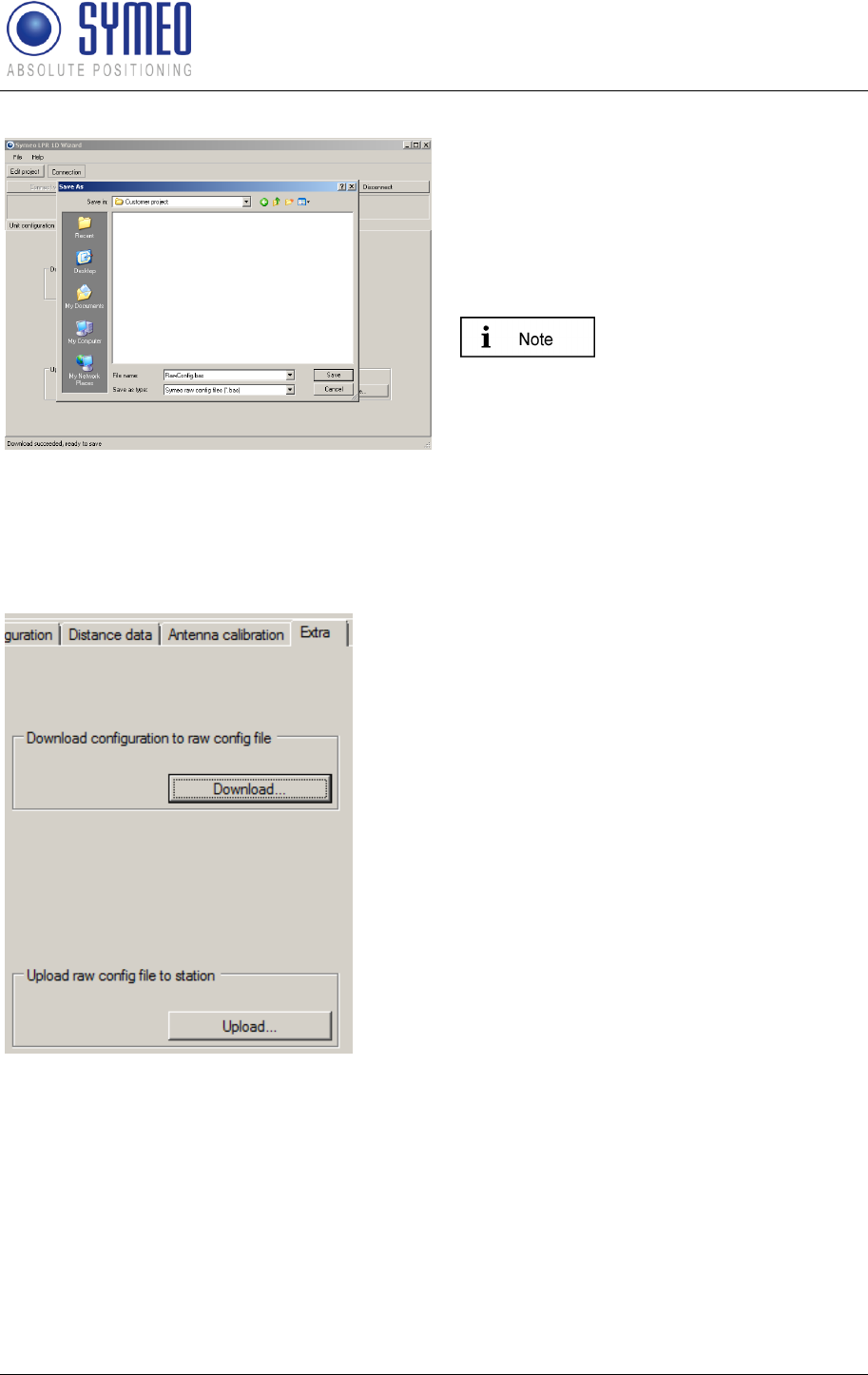

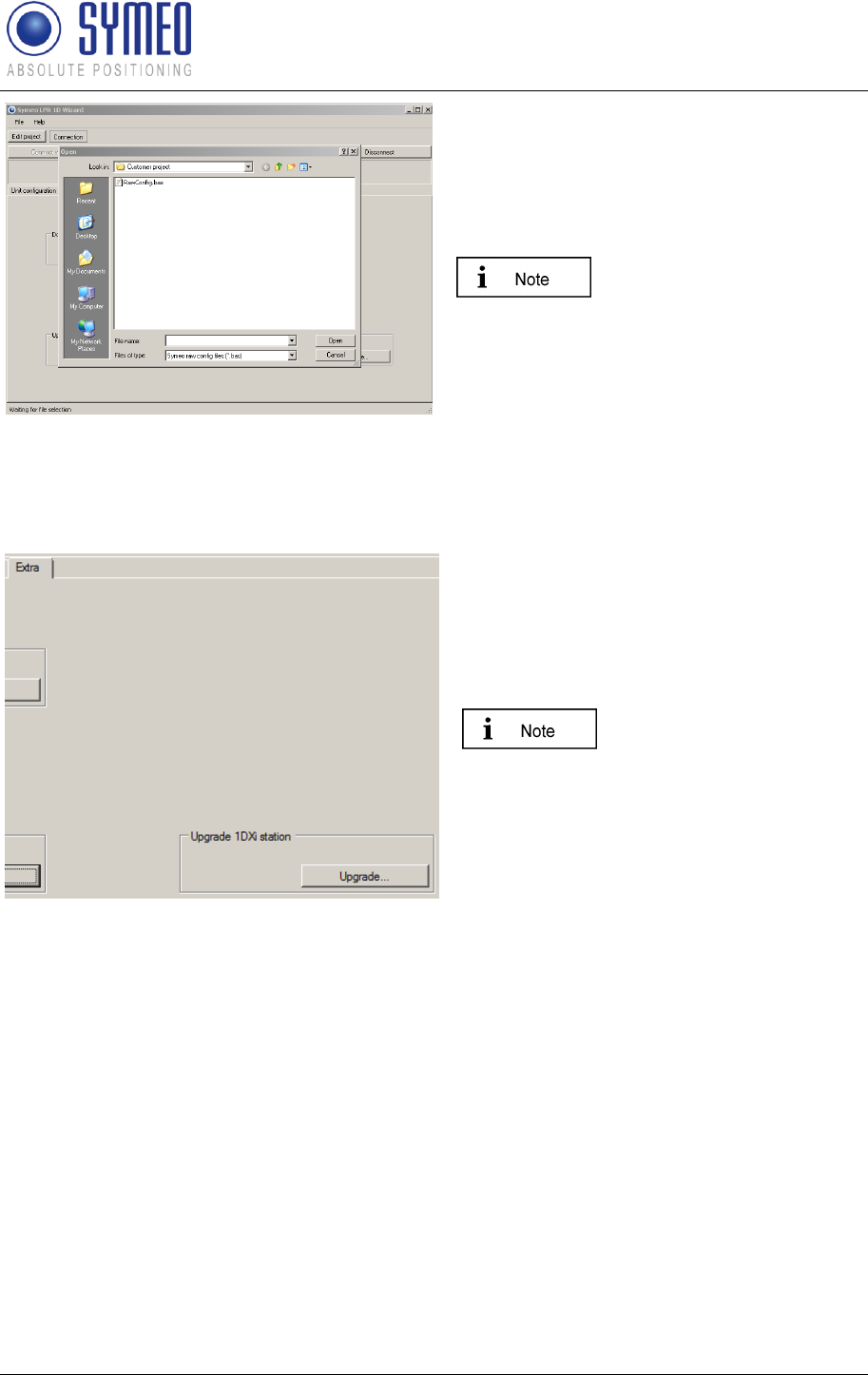

Extra:
Download the current raw configuration file,
upload an existing raw configuration file to
the unit or upgrade LPR-1DXi firmware.
The Extra menu is only
required for service issues.
Please contact Symeo
service for further
instructions.
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Commissioning
Copyright © Symeo GmbH 2014
Page 28 of 38
Unit configuration:
Figure 30 – Unit configuration
Push ,Unit configuration’.
Select an entry from the ,Configure
connected unit as’ pull-down list.
Push ,Upload Config’
If a new application is selected or settings are changed, you have to make
an upload for each LPR® unit of one system.
Display of Distance Data
Figure 31 – Display of Distance Data
Click the button ‚Distance Data‘. The
following information is shown about the
distance between Group Master and
Slave1:
Distance
The measured distance in meters.
Level
Receive Level of the radio signal in dBm.
This level depends on the distance of the
two antennas. The receive level for valid
measurements is in a range of -28dBm and
-85dm.
Measurement count
The number of performed measurements
Checkbox ,Distance filtering‘
Only the display of the distance data is
filtered for better reading. This does not
affect the measurement.
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Commissioning
Copyright © Symeo GmbH 2014
Page 29 of 38
Antenna Calibration

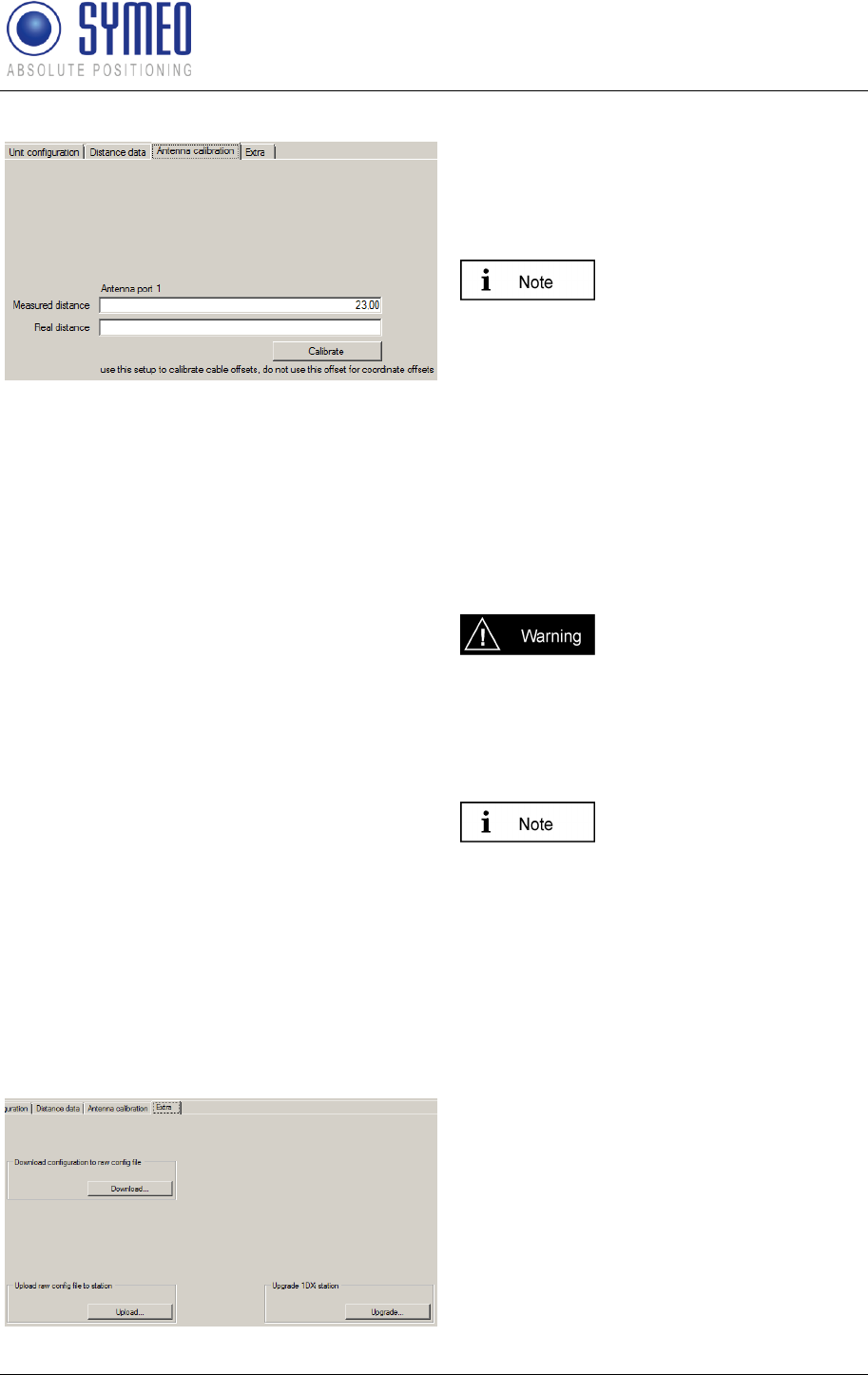

Figure 32 – Antenna calibration
After uploading all configuration files to
each LPR® unit, you have to calibrate the
measured distance.
Push ‚Antenna calibration‘.
In the field ‚Measured
Distance‘ the measured
distance is displayed in
meters, which is different
to the real distance.
Enter the real distance value between
the two antennas in the field ‚Real
distance‘.
Push ‚Calibrate‘.
The ,Antenna port 1’ area relates to the
distance between Group master and Slave
unit 1.
The crane is not allowed
to move during the
calibration process.
If the measured distance and the real
distance are not the same after the
calibration you might repeat the calibration.
During the calibration
process the antennas
should have a real
distance to each other of
5 to 20 m.
Download Configuration
Download and upload of raw configuration files is only required for service issues. All
configuration files are already saved in your project file as described above.
Figure 33 – Download configuration
Push ‚Extra‘.
Push ,Download’ in the ,Download
configuration to raw config file’ area.
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Commissioning
Copyright © Symeo GmbH 2014
Page 30 of 38
Figure 34 –Enter file name
Enter the desired file name for the raw
configuration file and save the file. The
format of this raw configuration file is
“customers defined file name.bas”
The download of raw
configuration files is only
required for service
issues. Please contact
Symeo service for further
instructions.
Upload Configuration
Figure 35 –Upload raw configuration file
Pressing the button ‚Upload‘ a raw
configuration file can be uploaded to each
LPR® unit.
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Commissioning
Copyright © Symeo GmbH 2014
Page 31 of 38
Figure 36 –Upload raw configuration file
Press the ‚Open‘-button. The selected
raw configuration file will be uploaded to
the connected LPR® unit.
The upload of raw
configuration files is only
required for service
issues. Please contact
Symeo service for further
instructions.
Upgrade 1DXi Firmware
Figure 37 –Load an upgrade file
Pressing the button ‚Upgrade‘ an upgrade
file can be loaded to each LPR®-1DXi unit.
Select the upgrade file you received
from Symeo.
For upgrading your
LPR®-1DXi unit contact
Symeo service for further
instructions.
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Protocol Description
Copyright © Symeo GmbH 2014
Page 32 of 38
6 Protocol Description
6.1 General Description
This protocol describes the interface between a LPR®-1DXi unit and the user. The binary
protocol provides information in high density. Its structure ensures a simple implementation.
The transfer is done in single data frames.
The interface for the binary protocol is a serial (RS232) interface. The data rate can be
programmed to standard values (115200, 38400, 19200, 9600 baud). If a low data rate is
chosen the measurement rate of the LPR®-1DXi system may be adapted.
6.1.1 Structure of Data Packet
To apply the protocol on a RS232 interface each data packet starts and ends with a reserved
symbol. This reserved symbol cannot appear in the data stream.
Figure 38 shows the general structure of the data packet.
TYPE DATA
START
0x7e
1 byte 1 byte 1 byte
CRC
2 byte
END
0x7f
Figure 38: Structure of the data packet
The START and the STOP-field is in each data packet the reserved symbol 0x7e and 0x7f.
TYPE indicates the type of the data packet. There can be defined up to 256 different types.
The TYPE-field is following the DATA-field. The DATA field contains the real data of the
packet of the type TYPE. The CRC-field contains a check sum. The check sum is applied to
all previous data fields except the START data field.
All multi byte integers (e.g. CRC field) are encoded in Network-Byte-Order (Big Endian).
6.1.2 Byte Stuffing
The two symbols 0x7E and 0x7F are unique for START and STOP-fields. If those symbols
occurs within any other field (TYPE, DATA or CRC), they must be replaced by the following
order:
original symbol
replaced by
0x7D
0x7D 0x5D
0x7E
0x7D 0x5E
0x7F
0x7D 0x5F
This byte stuffing scheme ensures that the receiver of the protocol can identify definitely the
START-field within a flow of data, even if the symbol of the start field occurs within the
DATA-field.
Example: If the symbol 0x7d is read, it must be cancelled. The following symbol must be
XOR combined with 0x20 to recreate the original symbol.
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Protocol Description
Copyright © Symeo GmbH 2014
Page 33 of 38
6.1.3 CRC
The CRC-16-IBM with polynomial x16+x15+x2+1 is used for the checksum. The checksum is
calculated over all data fields (TYPE and DATA), but not for the START and END field.
The checksum-calculation is only applied to the original symbols. The appropriate calculation
for coding must applied before byte stuffing. If receiving the data from the LPR®-1DXi system
the byte stuffing must be reserved to get the original symbol. Then the checksum is updated
with the original symbol.
6.2 Data Types
6.2.1 Type 0x00 – Distance Data
Direction: LPR®-1DXi → User
Content
Length
Value
Data type
START
1
0x7E
TYPE
1
0x00
Source* (LPR®
address 6.3.1)
2
0x####
see chapter 6.3.1
Destination* (LPR®
address 6.3.1)
2
0x####
see chapter 6.3.1
Antenna number
1
0x11
unsigned integer
Distance [mm]
4
0x#### ####
signed integer
Velocity [mm/s]
4
0x#### ####
signed integer
Level [dB]
1
0x##
signed integer
Error 6.3.3
1
0x##
unsigned integer
Status 6.3.2
1
0x0#
unsigned integer
CRC
2
0x####
END
1
0x7F
Total length without byte stuffing: 21 byte
*) Measurements are always executed by a LPR®-1DXi Slave unit, this means, the Slave unit
measures its distance towards a Group Master unit. The source field always contains the address of
the LPR®-1DXi Slave unit. The destination field contains the address of the measured Group Master
unit.
6.2.2 Example of Distance Data
7E 00 10 03 08 02 11 00 00 10 62 00 00 00 7A E6 00 00 AF C4 7F
Figure 39 - Protocol for a measurement of distance data
This protocol shows a simple example for 1D measurement. The Distance Data is provided
on the data port for the user (i.e. to a PLC or to a PC/software).
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Protocol Description
Copyright © Symeo GmbH 2014
Page 34 of 38
Distance data:
7E 00 10 03 08 02 11 00 00 10 62 00 00 00 7A E6 00 00 AF C4 7F
7E hex START byte
00 hex TYPE (00: Distance Data)
10 03 hex = 00010|0000000001|1 bin Source LPR address: SID: 2; GID: 1; BBt: 1 (Slave unit)
08 02 hex = 00001|0000000001|0 bin Destination LPR address: SID: 1; GID: 1; BBt: 0 (Group
Master unit)
11 hex = 0001|0001 bin Antenna port Slave unit: 1 antenna port Group
Master unit: 1
00 00 10 62 hex = 4194 dec Distance: 4194 mm
00 00 00 7A hex = 122 dec Velocity: 122 mm/s
E6 hex = 230 dec Level: 230 – 256 = -26 dB
00 hex Error status: 0 means no error; unequal 0 means
error
00 hex Status
AF C4 hex cyclic redundancy check
7F hex END byte
6.3 Remarks
6.3.1 LPR®-1DXi Address
LPR®-1DXi unit addresses are completely defined by a 16 bit value:
15 11 10 1 0
group ID BBstation ID
BB – Slave unit Bit:
Indicates, if the LPR® unit is defined as a Slave unit or as a
Group Master unit
BB: 1=Slave unit, 0=Group Master unit
group ID:
group ID of the unit (1..1022)
station ID:
station ID of the unit (0..30)
6.3.2 Status Field
The status field indicates that the measured distance is inside or outside the maximum
possible distance range of the applied version of LPR®-1DXi unit. If the real distance of the
LPR®-1DXi units is outside the maximum distance range the distance reading remains at the
maximum value. Depending on the applied version of LPR®-1DXi the distance value remains
at 120m or 500m. (see chapter 2.5)
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Protocol Description
Copyright © Symeo GmbH 2014
Page 35 of 38
Content
Description
Value
inside range
Distance inside maximum distance range
0x00
outside range
Distance outside maximum distance range
0x01
Please take care that the distances for the switching points in your
application are within the maximum possible distance range of your version
of LPR®-1DXi (see chapter 2.5)
6.3.3 Error Messages
The distance data contains an error field which indicates the status of the message. The
following errors can occur:
Content
Source
Description
Value
no error
Measurement valid
0x00
no peak detected
Slave Unit
No measurement signal
0x01
peak too low
Slave Unit
Measurement signal is imprecise
0x02
nothing received
Group Master unit
No measurement data received
0x03
implausible speed
Slave Unit
Velocity is to high
0x04
measurement botched
Slave Unit
Measurement is not feasible.
0x05
no occupying received
Group Master unit
Measurement channel is not
reserved
0x06
no results received
Group Master unit
No measurement data received
0x07
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Appendix A: Agency certifications
Copyright © Symeo GmbH 2014
Page 36 of 38
7 Appendix A: Agency certifications
For FCC labeled versions only
United States (FCC) and Canada (Industry Canada)
Radiofrequency radiation exposure Information:
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance of
20 cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules and with RSS-210 of
Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Installation:
All installation, repair and servicing work must be carried out by qualified
and trained technicians!
Repairs:
Repairs to the device must be carried out by authorized technicians.
Unauthorized opening and incorrect repairs could result in severe danger
to the user (danger of electric shock, radiated energy, fire hazard).
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Appendix A: Agency certifications
Copyright © Symeo GmbH 2014
Page 37 of 38
United States (FCC)
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help
Canada (Industry Canada)
This Class [B] digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-
003 du Canada.
SYMEO Local Positioning Radar System
LPR®-1DXi
Product Documentation
Appendix A: Agency certifications
Copyright © Symeo GmbH 2014
Page 38 of 38
