User Manual
SYMEO LOCAL POSITIONING RADAR
Product Manual
STU – Symeo Telemetric Unit
SYMEO Local Positioning Radar System
STU
Quick Start Guide
Overview
Copyright © Symeo GmbH 2011
Page 2 of 10
1 Overview
1.1 Safety Instructions
Follow the safety instructions in the operating instructions for the device
and the additional documentation!
Keep these safety instructions and other documents together with the
device.
1.2 Installation
All installation, repair and servicing work must be carried out by qualified
and trained technicians!
1.3 Repairs
Repairs to the device must be carried out by authorized technicians.
Unauthorized opening and incorrect repairs could result in severe danger to
the user (danger of electric shock, radiated energy, fire hazard).
1.4 Transport and Storage
Use the original packaging or other suitable packaging for returns and
whenever the system is to be transported. This ensures protection from
crushing, impacts, moisture and electrostatic discharge.
During setup and before operation, refer to the instructions for
environmental conditions included in the operating instructions for the
device.
Route the wires in such a way that they do not cause a hazard and are not
damaged. When connecting the wires, refer to the corresponding
instructions in the operating instructions for the device.
Do not drop the device and do not expose it to strong vibrations.
1.5 Power Supply
A safety-inspected power cable that satisfies the regulations of the country
of use is required for the device. Devices with metal housings must only be
connected to a grounded, shock proof socket.
The device must not be operated unless the nominal voltage of the device
matches the local supply voltage. Check the supply voltage of the device in
stationary devices.
SYMEO Local Positioning Radar System
STU
Quick Start Guide
Overview
Copyright © Symeo GmbH 2011
Page 3 of 10
Connecting and disconnecting wires refer to the instructions in the
operating instructions for the device.
Do not use any damaged wires (damaged insulation, exposed wires). A
faulty wire poses a risk of electric shock or fire hazard.
1.6 Setup and Operation
During installation, make sure that no objects or fluids get inside the device
(risk of electric shock, short circuit).
In emergencies (e. g. if there is damage to the housing, control elements or
the mains cable, if fluids or foreign bodies have infiltrated the equipment),
switch off the power supply to the device immediately and notify your
SYMEO Service.
Protect the contacts of all of the device's sockets and plugs from static
electricity. Do not touch the contacts. If it is ever necessary to touch the
contacts, take the following precautionary measures: Touch a grounded
object or carry a ground strap before touching the contacts. This will divert
static charges.
Proper operation (in accordance with IEC60950/EN60950) of the device is
only assured if the housing and integral covers for mounting slots are fully
installed (electric shock, cooling, fire protection, noise suppression). If
necessary, refer to the corresponding instructions in the operating
instructions for the device.
In the case of high outside temperatures and intense, direct solar radiation
or other radiant heat, it may be necessary to provide a sun or heat shield.
1.7 System Extensions and Accessories
Data links to peripheral devices must be provided with adequate shielding.
For LAN cabling, the requirements in accordance with EN 50173 and EN
50174-1/2 apply. Use of either a Category 5 shielded cable for 10/100
Ethernet or Category 5e shielded cable for gigabit Ethernet is a minimum
requirement. The specifications of standard ISO/IEC 11801 must be
complied with.
The warranty shall be voided if you cause defects to the device by installing
or exchanging system extensions.
SYMEO Local Positioning Radar System
STU
Quick Start Guide
Introduction
Copyright © Symeo GmbH 2011
Page 4 of 10
2 Introduction
Basic hardware setup:
- GPS via u-blox LEA6 chipset
- Ethernet (10BASE-T/100BASE-TX, HP Auto-MDIX, Auto-negotiation)
- 1x Micro SDHC card
- 1x USB (e.g. for USB storage devices)
Optional hardware:
- 8 Digital inputs, opto-isolated
- 8 Digital outputs, opto-isolated
- 4 ADC inputs, opto-isolated
- UMTS(HSUPA/HSDPA/HSPA) or GSM(GPRS/EDGE) Modem
- Wifi module 802.11b/g with 802.11i (WPA2) security
- 1x CAN
- 1x RS232
- 1x RS422/485
- Li-Ion/Li-Po battery pack
- Other features available via internal feature board connector.
SYMEO Local Positioning Radar System
STU
Quick Start Guide
Connections
Copyright © Symeo GmbH 2011
Page 5 of 10
3 Connections

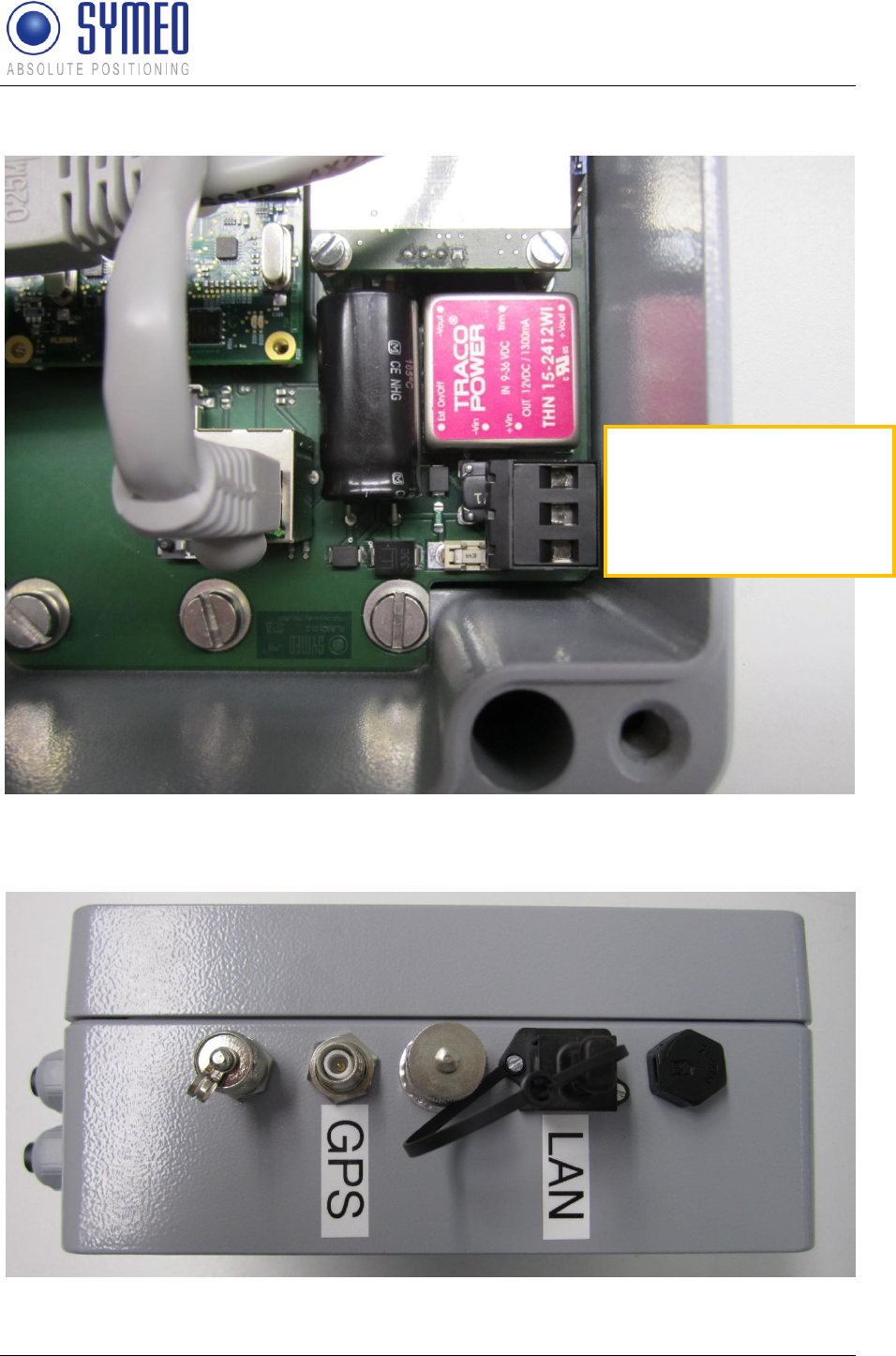

Power has to be connected to internal 3pin terminal connector. Ground has to be connected to the
terminal 2 (terminal in the middle of the connector), positive DC supply can be connected to two
outer terminals. The STU is fused, protected against overvoltage and against reverse polarity.
Attention: The STU is only rated IP65 if prober connectors (e.g. Harting Push Pull RJ45 part number
09451451100) are used and if all unused feed-through are properly sealed.
Power connector:
Positive supply e.g. 12VDC
Common Ground e.g. GND
Positive supply e.g. 12VDC
SYMEO Local Positioning Radar System
STU
Quick Start Guide
/
Copyright © Symeo GmbH 2011
Page 6 of 10
4 Network settings

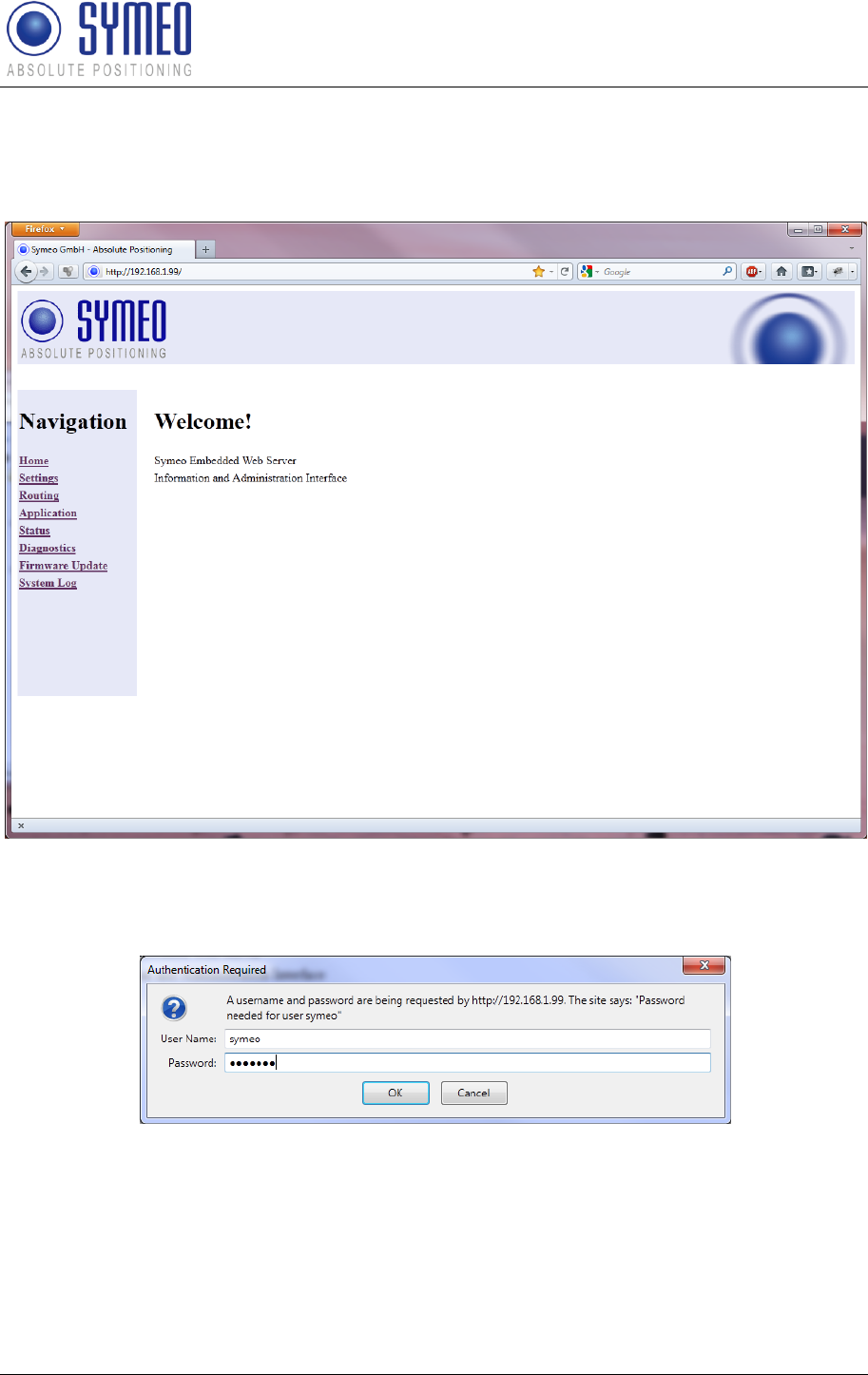

If the basic network configuration of the STU needs to be changed, connect to the STU by
any webbrowser, default address is 'http://192.168.1.99/'.
First, the main web page will show up. If you choose 'Settings' in the navigation pane (left),
you will be asked for username and password.
Default user name is 'symeo' and password is '54all2u'.
SYMEO Local Positioning Radar System
STU
Quick Start Guide
/
Copyright © Symeo GmbH 2011
Page 7 of 10
Here, you can change the basic network settings.
SYMEO Local Positioning Radar System
STU
Quick Start Guide
/
Copyright © Symeo GmbH 2011
Page 8 of 10

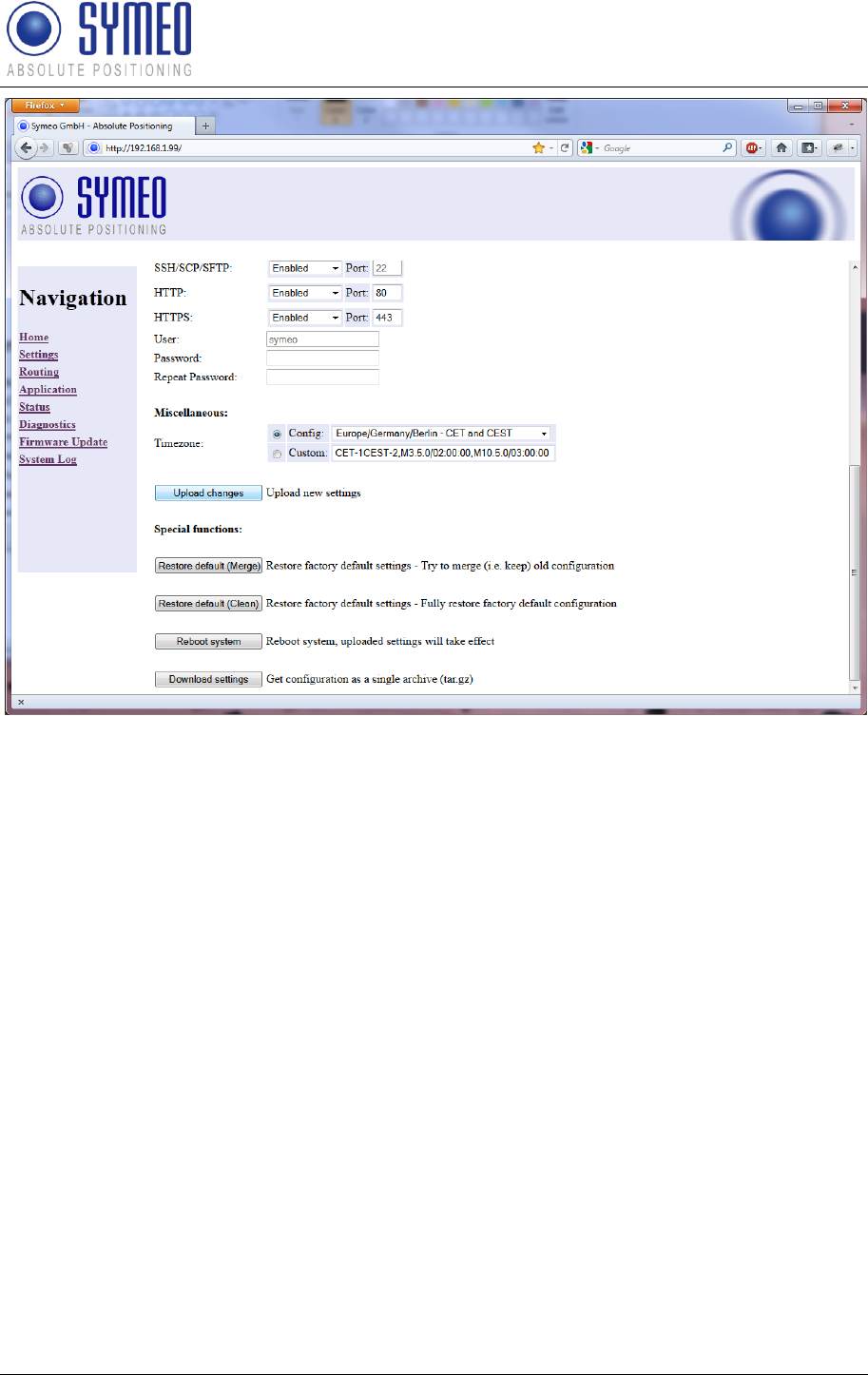

After having edited any setting, you need to execute 'Upload changes' and after that, you
need to 'reboot' the STU.
New settings will only take effect after the unit has restarted.
SYMEO Local Positioning Radar System
STU
Quick Start Guide
Appendix A: Agency certifications
Copyright © Symeo GmbH 2011
Page 9 of 10
5 Appendix A: Agency certifications
United States (FCC) and Canada (Industry Canada)
Radiofrequency radiation exposure Information:
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance of 20
cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Changes or modifications made to this equipment not expressly approved
by SYMEO GmbH may void the FCC/IC authorization to operate this
equipment.
This device complies with Part 15 of the FCC Rules and with RSS-210 of
Industry Canada.
Operation is subject to the following two conditions:
this device may not cause harmful interference, and
this device must accept any interference received, including interference
that may cause undesired operation.
Installation:
All installation, repair and servicing work must be carried out by qualified
and trained technicians!
Repairs:
Repairs to the device must be carried out by authorized technicians.
Unauthorized opening and incorrect repairs could result in severe danger to
the user (danger of electric shock, radiated energy, fire hazard).
Installation of UMTS antenna and WiFi antenna:
All Antennas must be installed in a manner that provides a minimum
separation distance of 20 cm or more between the antenna and persons
and must not be co-located or operate in conjunction with any other
antenna or transmitter to satisfy FCC RF exposure requirements for mobile
transmitting devices.
SYMEO Local Positioning Radar System
STU
Quick Start Guide
Appendix A: Agency certifications
Copyright © Symeo GmbH 2011
Page 10 of 10
United States (FCC)
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help
Canada (Industry Canada)
This Class [B] digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003
du Canada.
