Users Manual

SYNCOMM Confidential

E-Mail: sell@syncomm.com.tw

Web site: Http://www.syncomm.com.tw

Syncomm Technology Corp.

10F., No. 101, Sec. 2, Gongdao 5th Rd., East Dist., Hsinchu City, Taiwan, R.O.C.

Tel: +886-3-5169188

Fax: +886-3-5169111

http://www.syncomm.com.tw

3URGXFW name：RF 5G Wireless Module

Model 1R：,$46'(

Project Code：SMMDIM9QC58RH4

Version 0.2

Aug. 22, 2017

SYNCOMM Confidential

E-Mail: sell@syncomm.com.tw

Web site: Http://www.syncomm.com.tw

INDEX

1. Features .................................................................................................................................................... 3

2. Application .............................................................................................................................................. 3

3. RF Specification ...................................................................................................................................... 4

4. Audio Specification ................................................................................................................................. 5

5. Electrical Specification ............................................................................................................................ 6

6. Mechanical Specification ........................................................................................................................ 7

7. Block Diagram ....................................................................................................................................... 11

8. Interface ................................................................................................................................................. 12

9. Design Reference ................................................................................................................................... 13

10. Antenna Application .............................................................................................................................. 15

11. Ordering Information ............................................................................................................................. 20

12. Revision History .................................................................................................................................... 20

This document is proprietary and confidential to Syncomm Technology Corp.

SYNIC and Intelligent Wireless are trademarks of Syncomm Technology Corp.

All other trademarks and registered trademarks are the property of their respective owners.

IA9Q5 S83D-E MODULE V3 page - 3 -

SYNCOMM Confidential

E-Mail: sell@syncomm.com.tw

Web site: Http://www.syncomm.com.tw

1. Features

 5.2GHz/5.8GHz ISM Band

 GFSK modulation

 Low BOM cost

 Long distance > 30m (Line of sight)

 Support 1-1 duplex mode or 1-N broadcasting mode

 RF frequency hopping in 58 channels

 Digital I2S audio interface

 Support no audio detection function

 Audio format 24bit , 32/44.1/48KHz sampling rate

 Robust Packet error correction

 Low power consumption

 No RF induced audio noise

 Compatible with FCC/ CE regulations

2. Application

 Wireless HTiB Rear Speaker

 Wireless Outdoor Speaker

 Wireless TV theater

 Wireless Audio Sender

 Wireless Headphone

 Wireless Stereo Ear Microphone

IA9Q5 S83D-E MODULE V3 page - 4 -

SYNCOMM Confidential

E-Mail: sell@syncomm.com.tw

Web site: Http://www.syncomm.com.tw

3. RF Specification

Item Min Typ Max Unit Note

Channel Range 5165 ─ 5200 MHz

-20dB bandwidth ─ 2.5 ─ MHz

RF Output Power 12 dBm Peak power at Antenna port

Sensitivity ─ -90 -86 dBm The smaller, the better

Table 1 5.2GHz RF Specification

Item Min Typ Max Unit Note

Channel Range 5740 ─ 5840 MHz

-20dB bandwidth ─ 2.5 ─ MHz

RF Output Power 11 dBm Peak power at Antenna port

Sensitivity ─ -89 -86 dBm The smaller, the better

Table 2 5.8GHz RF Specification

IA9Q5 S83D-E MODULE V3 page - 5 -

SYNCOMM Confidential

E-Mail: sell@syncomm.com.tw

Web site: Http://www.syncomm.com.tw

4. Audio Specification

2.1 CH

Item Min Typ Max Unit Note

2.0 CH

SNR 90 94 ─ dBr @1kHz

THD + N ─ -80 -75 dB @1kHz, the smaller, the better

Frequency Response 20 ─ 20k Hz @±1dBm

Dynamic range 90 94 dB @1kHz

0.1 CH

SNR 90 94 dBr @1kHz

THD + N -84 -80 dB @1kHz, the smaller, the better

Frequency Response 20 5k Hz @±3dBm

Dynamic range 90 94 dB @1kHz

Note: Test condition is that using Card type EVB board with ADC: AK5357 at master mode and DAC: AK4386 at master mode.

Table 3 ADC to DAC

2.1 CH

Item Min Typ Max Unit Note

2.0 CH

SNR 135 140 dBr @1kHz

THD + N -100 -95 dB @1kHz, the smaller, the better

Frequency response 20 20k Hz @±1dBm

Dynamic range 95 100 dB @1kHz

0.1 CH

SNR 130 135 dBr @1kHz

THD + N -100 -95 dB @1kHz, the smaller, the better

Frequency response 20 5k Hz @±3dBm

Dynamic range 95 100 dB @1kHz

Note: Test condition is that using sample rate 48 kHz, NFsCLK factor 512 and resolution 24.

Table 4 I2S to I2S

IA9Q5 S83D-E MODULE V3 page - 6 -

SYNCOMM Confidential

E-Mail: sell@syncomm.com.tw

Web site: Http://www.syncomm.com.tw

5. Electrical Specification

Item Min Typ Max Unit Note

Power Supply Voltage 3.0 3.3 3.6 V

Consumption Current

(TX_MODE) 85 100 115 mA 12dBm, continue mode, no

GPIO driving

Consumption Current

(RX_MODE) 60 65 75 mA Receiving only, no GPIO

driving

Operating Temperature 0 25 55 ℃

Table 5

Item

Symbol

Parameter

Min

Typ

Max

Unit

Conditions

VIH Input High Threshold 2.0 ─ 3.33 V LDO_OUT=3V

VIL Input Low Threshold -0.3 ─ 0.8 V LDO_OUT=3V

VOH Output High Threshold 2.4 ─ ─ V LDO_OUT=3V

VOL Output Low Threshold ─ ─ 0.4 V LDO_OUT=3V

Table 6

 Power On Reset Characteristics

Symbol Parameter Min Typ Max

Unit Conditions

VDD_CORE

1.8V POR input 1.62 1.8 1.98 V

PORN 1.8V POR output

VR18

Rising Detection Level 1.5 V

VF18

Falling Detection Level 1.33 1.4 1.47 V

TLH18 Rising Delay 2 µS VDD_CORE slew rate = 1V/µS

THL18 Falling Delay 2 µS VDD_CORE slew rate = 1V/µS

Table 7

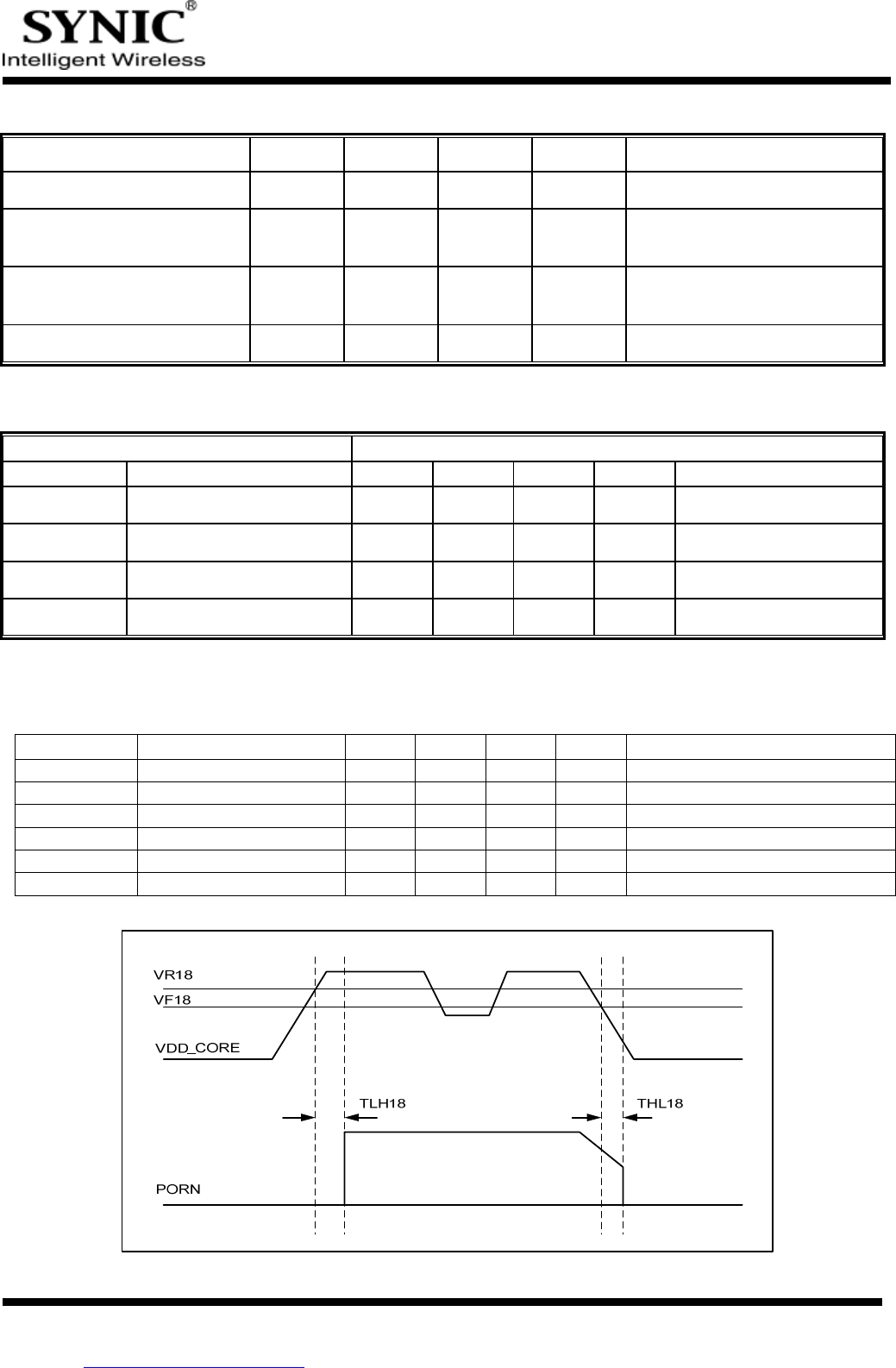

Fig 5.1 Power On Reset Timing Chart

IA9Q5 S83D-E MODULE V3 page - 7 -

SYNCOMM Confidential

E-Mail: sell@syncomm.com.tw

Web site: Http://www.syncomm.com.tw

6. Mechanical Specification

6.1 Without Shielding Case

 Dimension：20 * 40 * 6.7 mm

 PCB 4 Layers

 Mechanical Drawing：



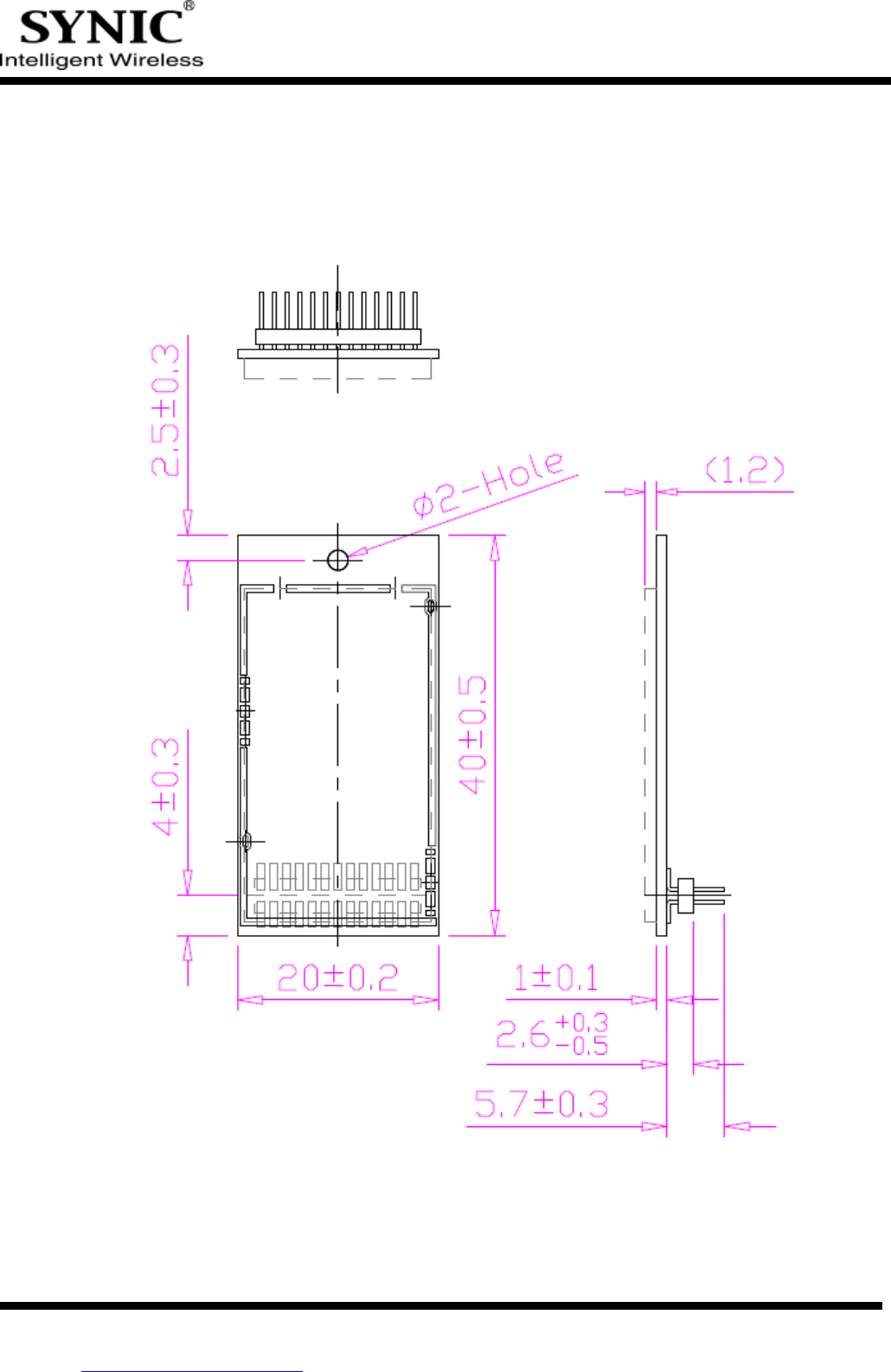

Fig 6.1 Mechanical Drawing of S83D-E Module

 Propose 1.27mm Female Header size：H:4.3±0.15mm W:3.0±0.15mm

IA9Q5 S83D-E MODULE V3 page - 8 -

SYNCOMM Confidential

E-Mail: sell@syncomm.com.tw

Web site: Http://www.syncomm.com.tw

6.2 With Shielding Case

 Dimension：20 * 40 * 8.7 mm

 PCB 4 Layers

 Mechanical Drawing：

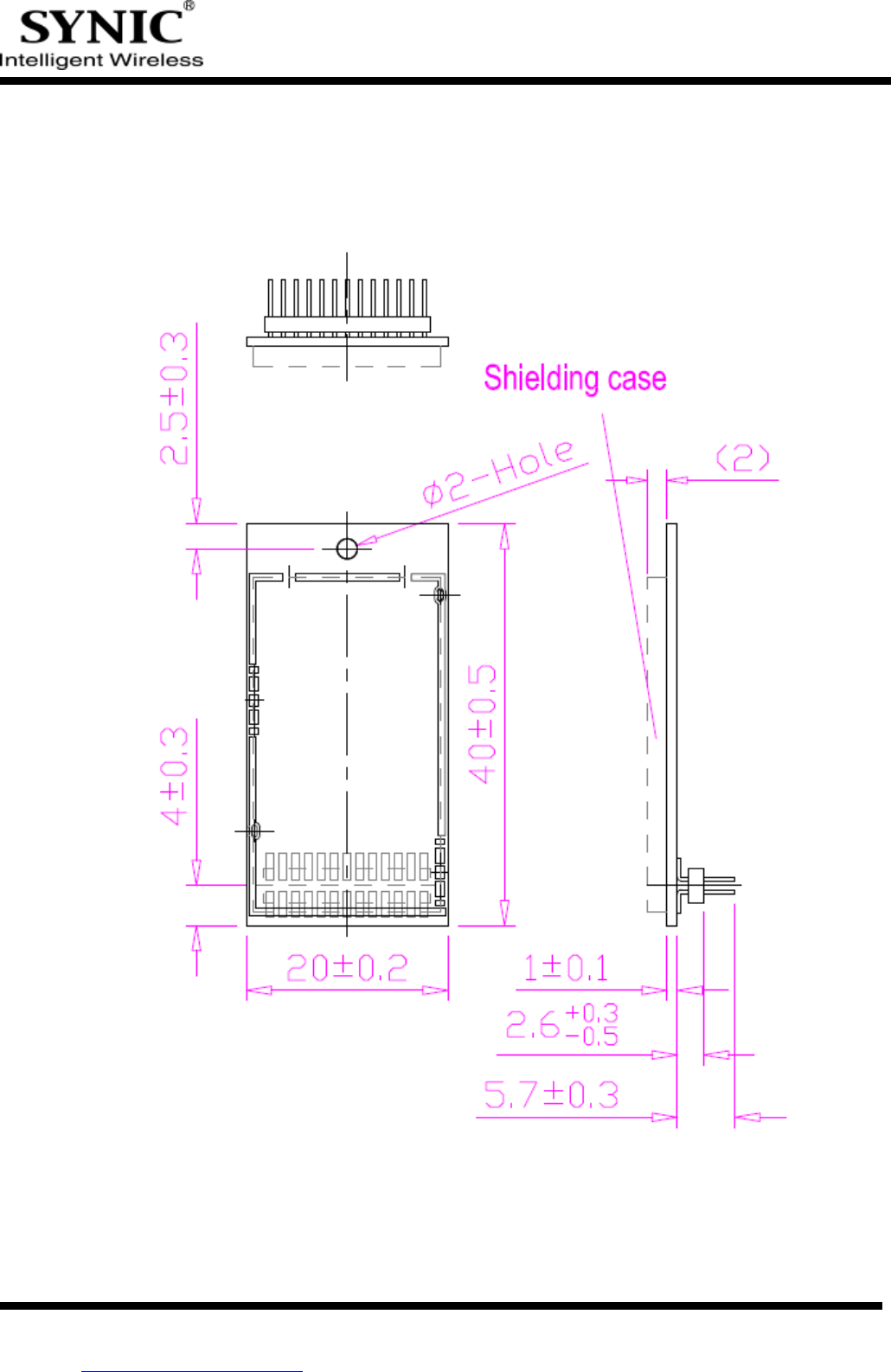

Fig 6.2 Mechanical Drawing of S83D-E Module with shielding case

 Propose 1.27mm Female Header size：H:4.3±0.15mm W:3.0±0.15mm

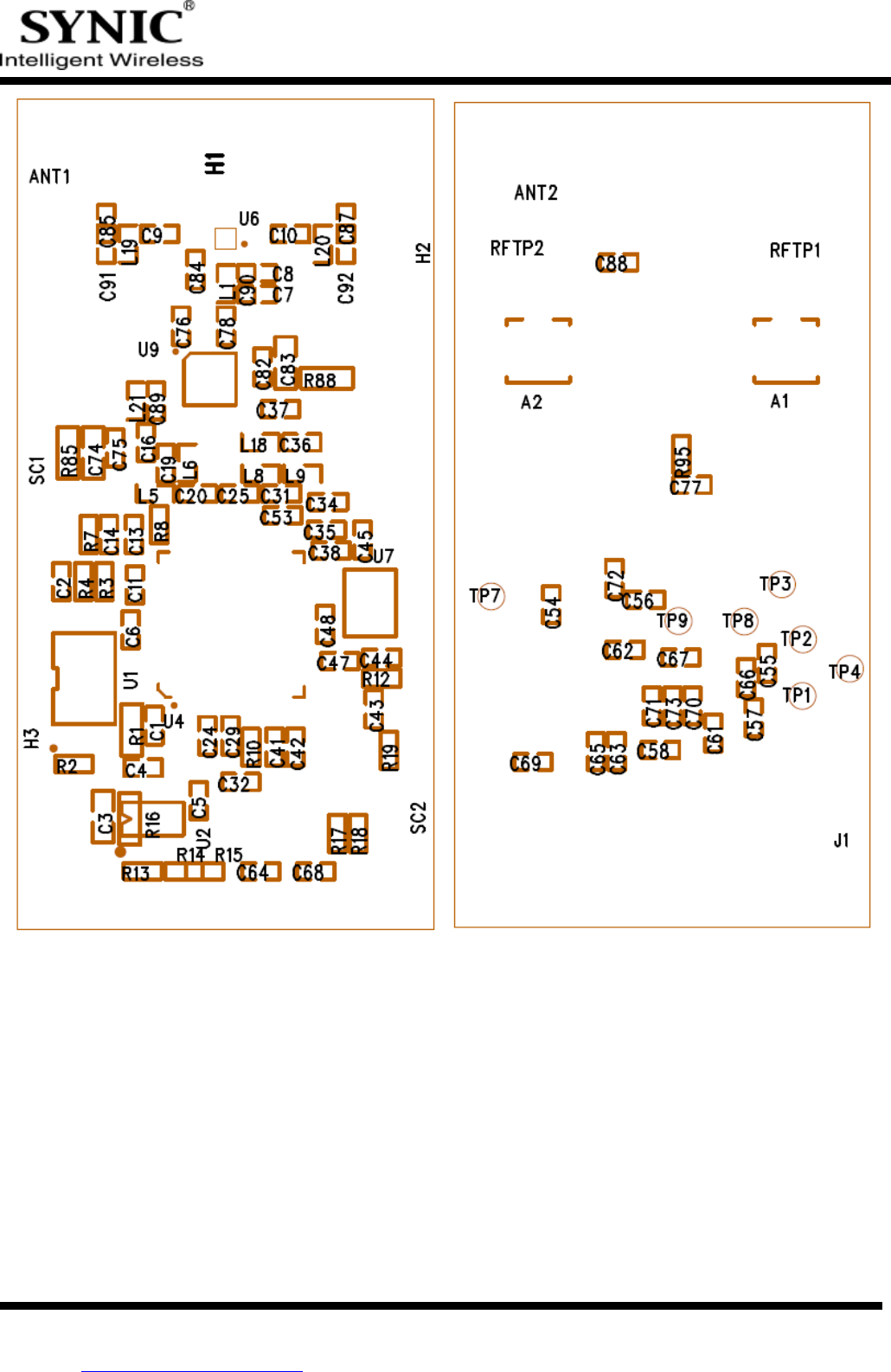

IA9Q5 S83D-E MODULE V3 page - 9 -

SYNCOMM Confidential

E-Mail: sell@syncomm.com.tw

Web site: Http://www.syncomm.com.tw

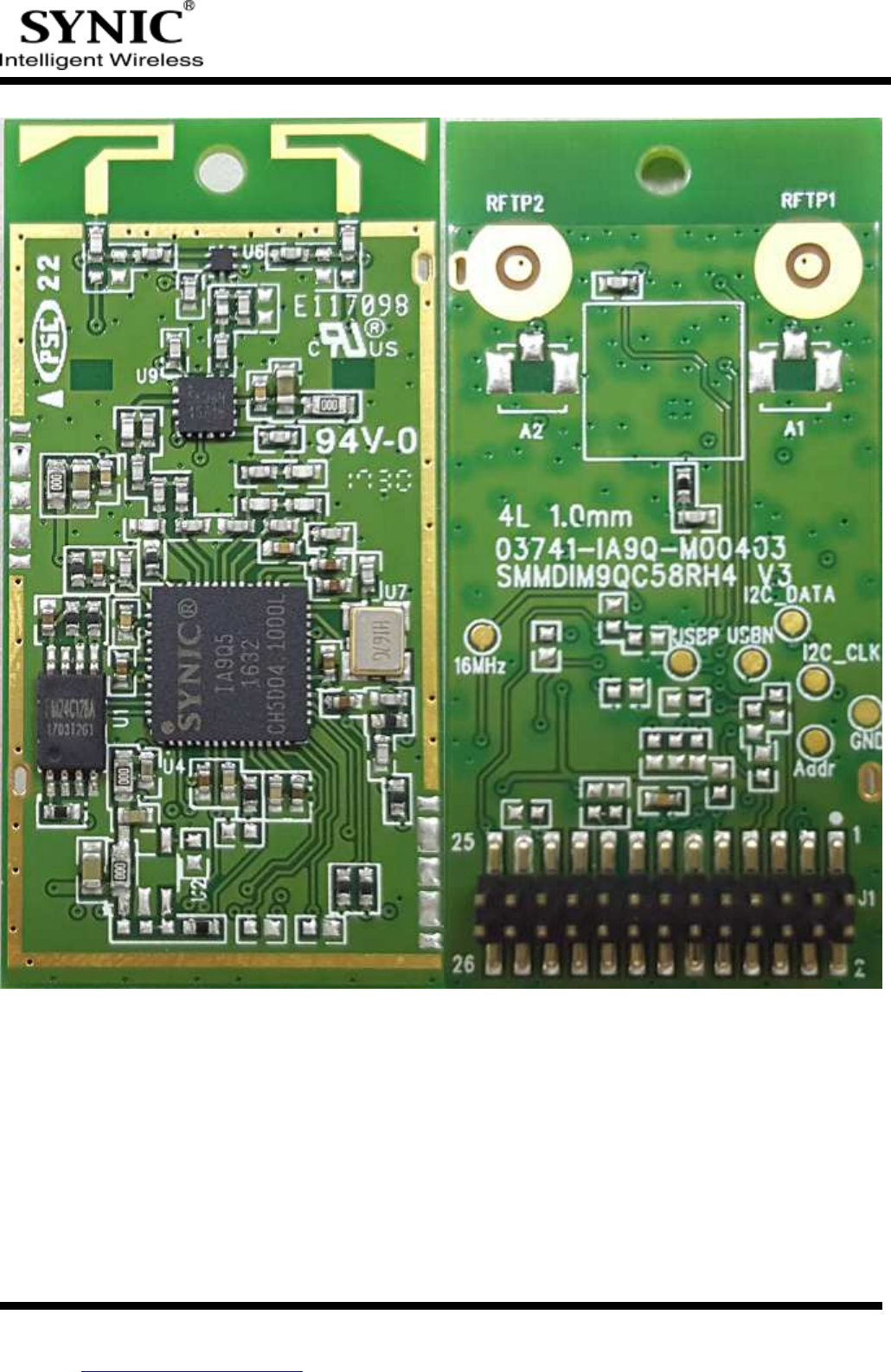

IA9Q5 S83D-E MODULE V3 page - 10 -

SYNCOMM Confidential

E-Mail: sell@syncomm.com.tw

Web site: Http://www.syncomm.com.tw

IA9Q5 S83D-E MODULE V3 page - 11 -

SYNCOMM Confidential

E-Mail: sell@syncomm.com.tw

Web site: Http://www.syncomm.com.tw

7. Block Diagram

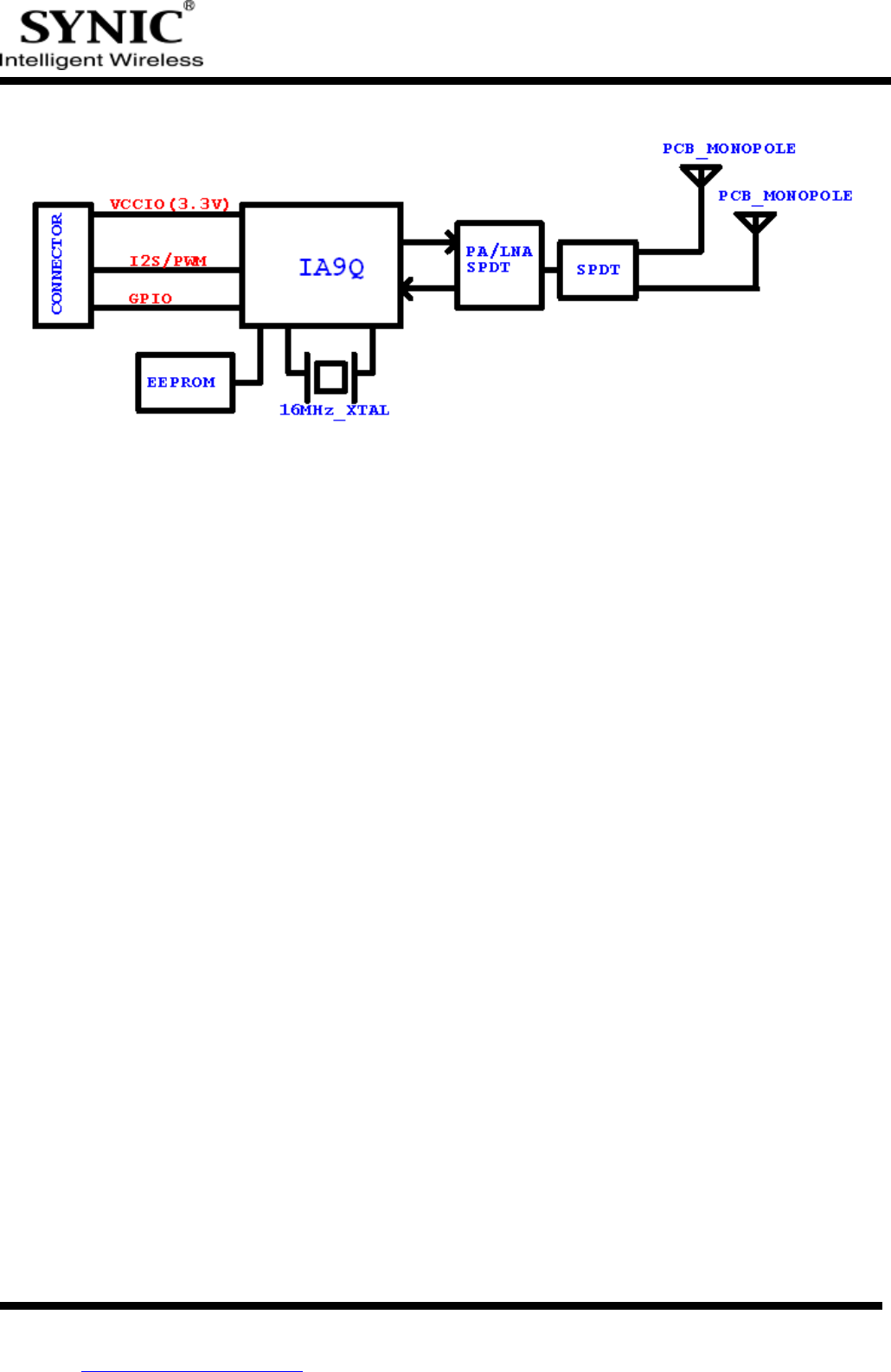

Fig 7.1 Block Diagram of IA9Q5 S83D-E Module

IA9Q5 S83D-E MODULE V3 page - 12 -

SYNCOMM Confidential

E-Mail: sell@syncomm.com.tw

Web site: Http://www.syncomm.com.tw

8. Interface

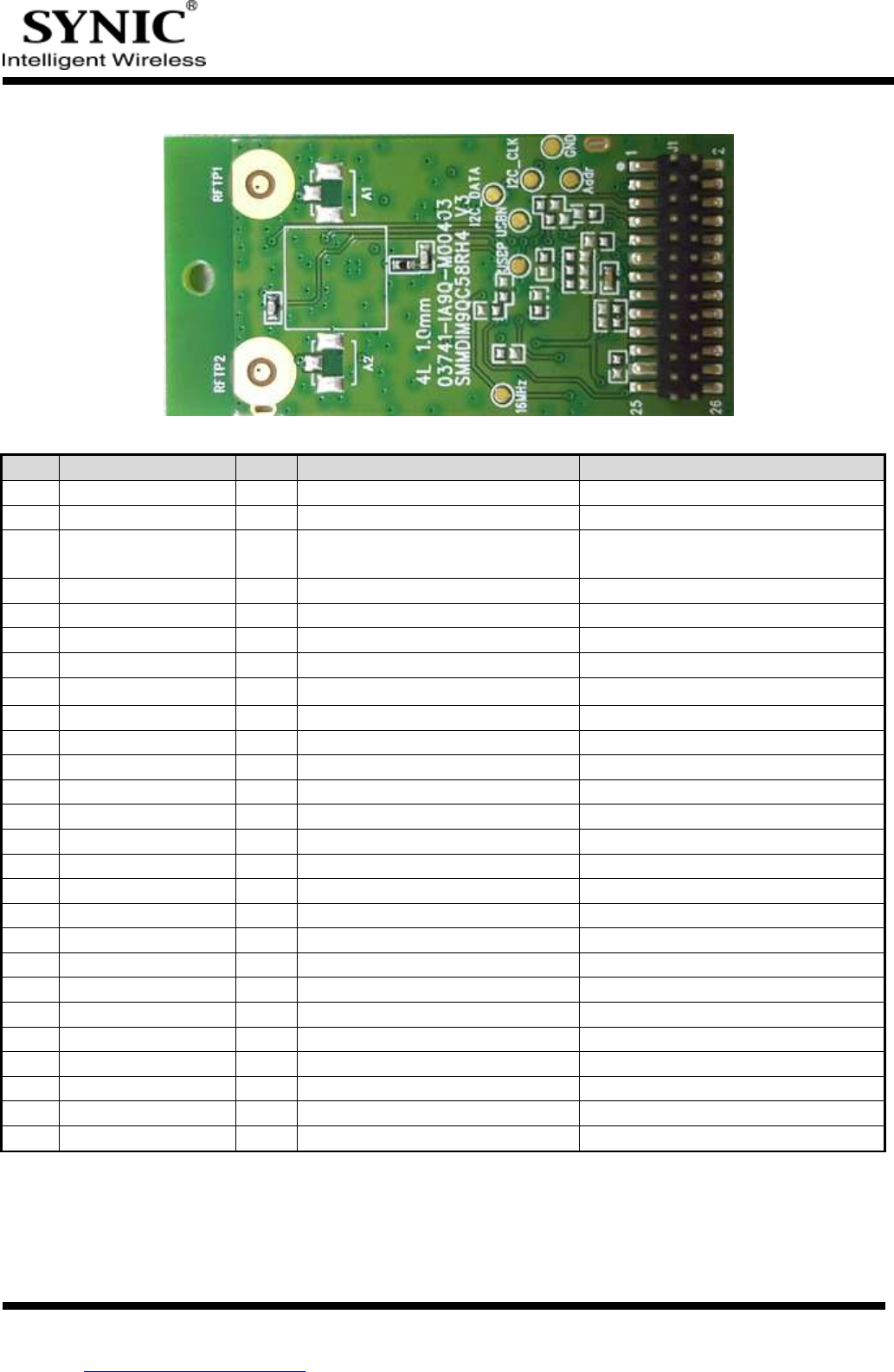

Fig 8.1 Pin sequence of S83D-E Module (Bottom View)

Name I/O TX Function Define RX Function Define

1 VCCIO P DC 3.0 ~ 3.6V IN DC 3.0 ~ 3.6V IN

2 DGND P Digital GND Digital GND

3 SPB_I2S_MCLK I/O SPB I2S audio MCLK system

clock output SPB

I2S audio MCLK system clock

output

4 GPIO 32 I/O GPIO AMP MUTE

5 GPIO 14 I/O GPIO GPIO

6 GPIO 31 I/O GPIO GPIO

7 GPIO 17 I/O GPIO GPIO

8 GPIO 36 I/O I2C_BUSY，Module Pull High

I2C_BUSY，Module Pull High

9 I2C_CLK I/O I2C Master/Slave clock signal I2C Master/Slave clock signal

10 I2C_DATA I/O I2C Master/Slave data signal I2C Master/Slave data signal

11 DGND P Digital GND Digital GND

12 DGND P Digital GND Digital GND

13 GPIO 27 I/O GPIO Pairing

14 GPIO 21 I/O GPIO GPIO

15 GPIO 16 I/O GPIO ON/OFF 12V

16 GPIO 34 I/O I2S Master/Slave Select I2S Master/Slave Select

17 M_RESET(PORN)

I/O Internal power on reset (1) Internal power on reset (1)

18 I2C_CLK I/O I2C Master/Slave clock signal I2C Master/Slave clock signal

19 I2C_DATA I/O I2C Master/Slave data signal I2C Master/Slave data signal

20 GPIO 30 I/O GPIO AMP RESET(L Act)

21 SPA_I2S_DATA I/O I2S DATA 0 SYNC LED

22 SPB_I2S_LRCK I/O SPB I2S audio LRCK SPB I2S audio LRCK

23 DGND P Digital GND Digital GND

24 SPB_I2S_BCK I/O SPB I2S audio BCK SPB I2S audio BCK

25 GPIO 15 I/O GPIO ON/OFF 3.3V

26 SPB_I2S_DATA I/O SPB I2S audio Data SPB I2S audio Data

Table 8 IO Function Define

Note : (1) *.Not need external RC circuit to do RC reset

*.Power On Reset Characteristics can reference section 5 Electrical Specification (page 6)

*.External controller can direct control M_RESET but should assign the control IO as input for normal operation

and output low to Reset S83D-E Module

IA9Q5 S83D-E MODULE V3 page - 13 -

SYNCOMM Confidential

E-Mail: sell@syncomm.com.tw

Web site: Http://www.syncomm.com.tw

9. Design Reference

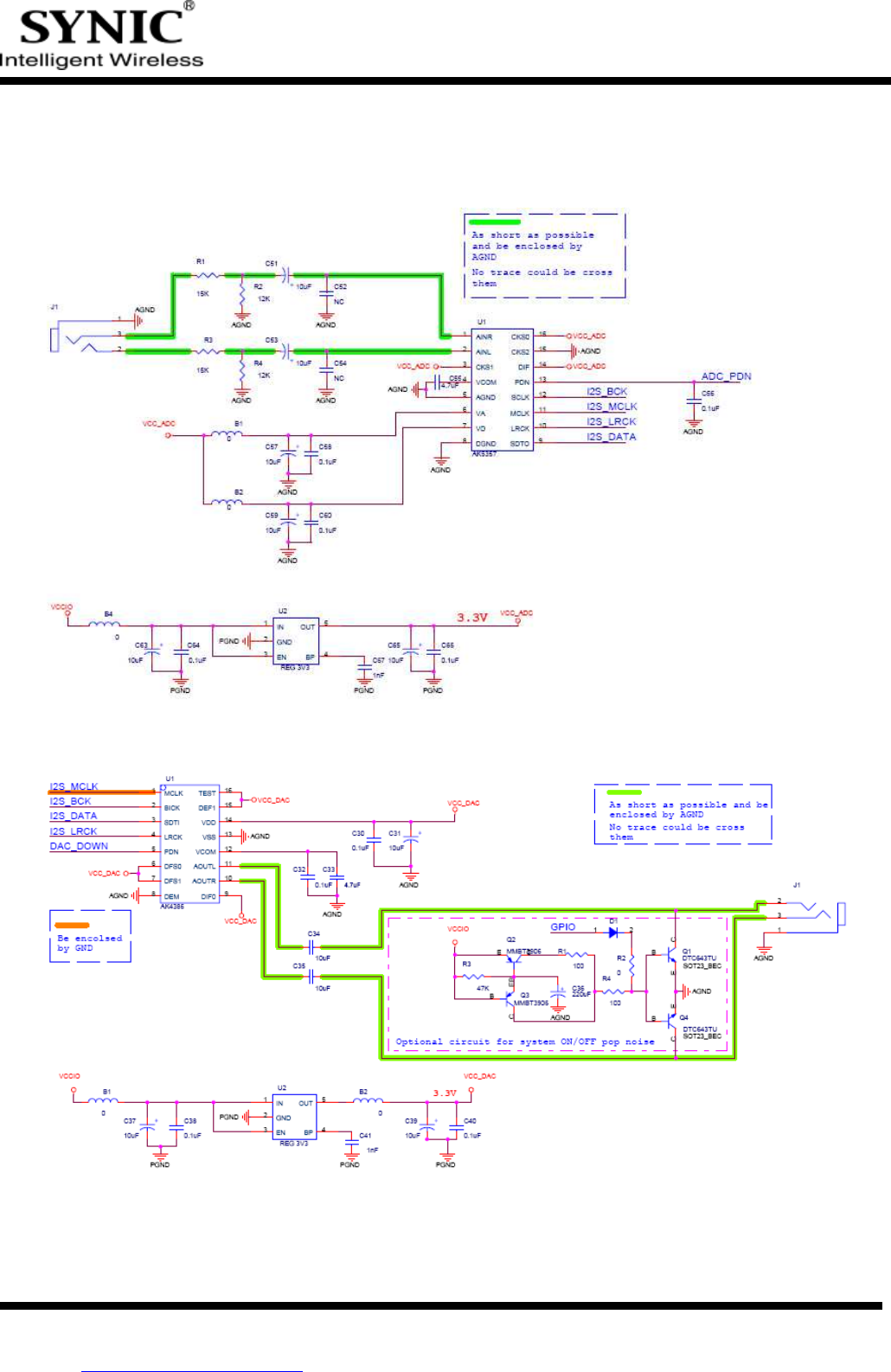

9.1 ADC/DAC Reference Design

Fig 9.1 ADC reference design circuit

Fig 9.2 DAC reference design circuit

IA9Q5 S83D-E MODULE V3 page - 14 -

SYNCOMM Confidential

E-Mail: sell@syncomm.com.tw

Web site: Http://www.syncomm.com.tw

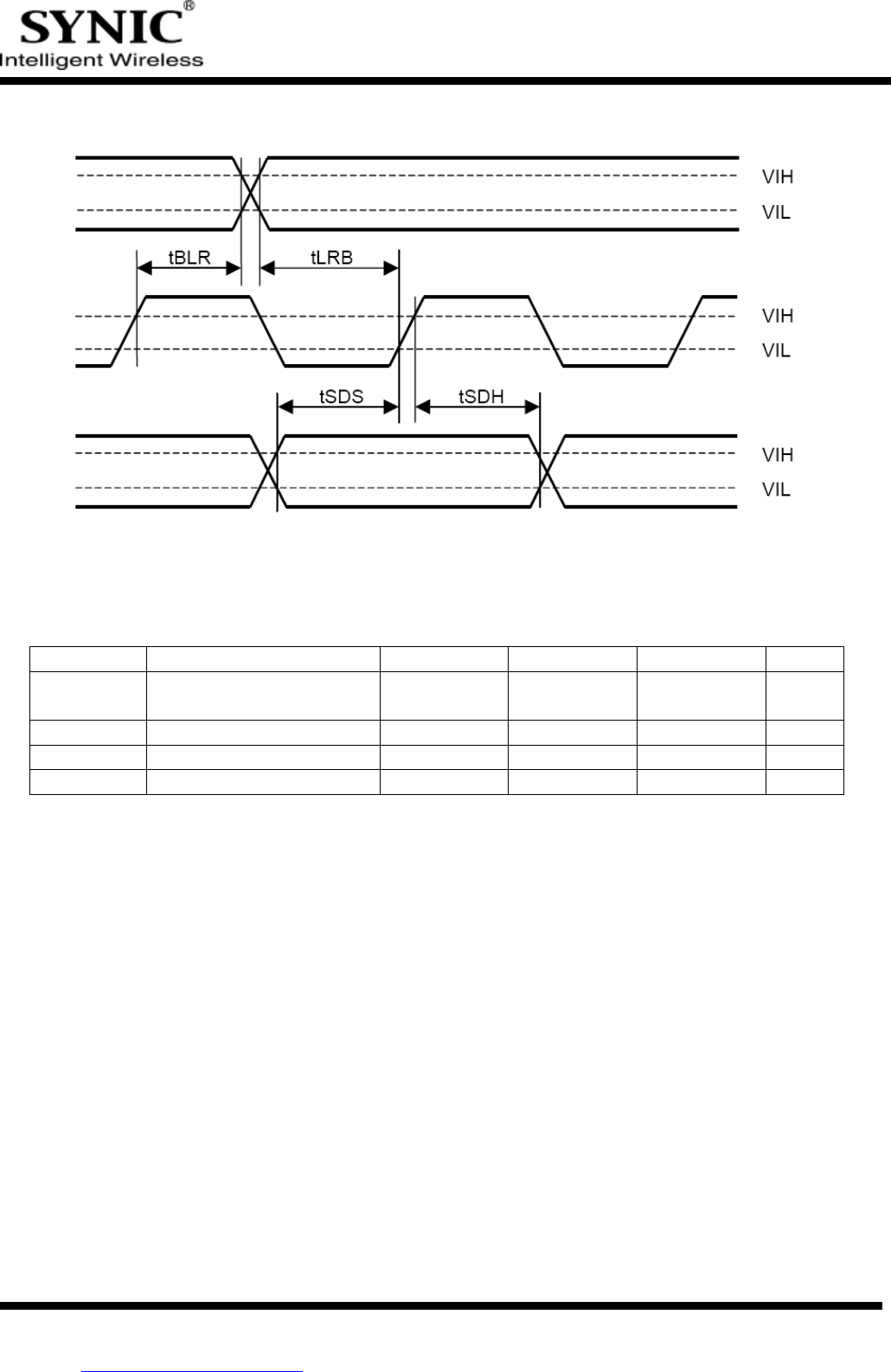

9.2 I2S Timing Chart

LRCK

BCK

SDATA

Fig 9.3 I2S timing chart

Symbol Parameter Min Typ Max Unit

tBLR

BCK rising to LRCK

edge

60 ns

tLRB LRCK edge to BCK rise

60 ns

tSDS SDATA setup time 60 ns

tSDH SDATA hold time 60 ns

Table 9

IA9Q5 S83D-E MODULE V3 page - 15 -

SYNCOMM Confidential

E-Mail: sell@syncomm.com.tw

Web site: Http://www.syncomm.com.tw

10. Antenna Application

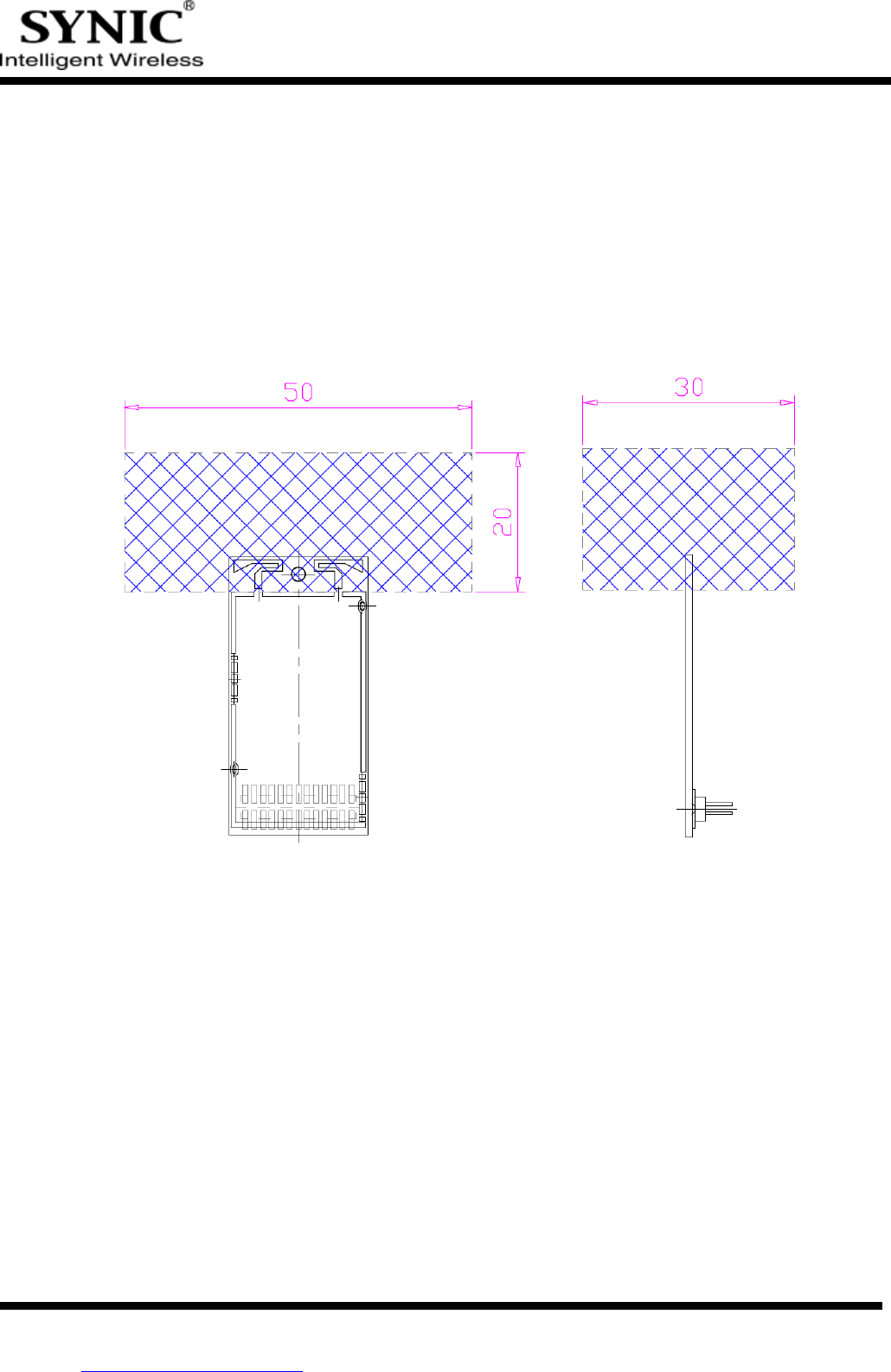

10.1 Suggested Clear Area

The recommended antenna clearance for embedded PCB antennas are shown

below. Note that this clearance should be maintained when mounting the

module on a motherboard.

Unit : mm

Do not place any copper, metal or even PCB

in the area marked with cross lines.

Fig 10.1 Antenna Clearance Recommendations from Top and Side View

IA9Q5 S83D-E MODULE V3 page - 16 -

SYNCOMM Confidential

E-Mail: sell@syncomm.com.tw

Web site: Http://www.syncomm.com.tw

10.2 Antenna Drawing

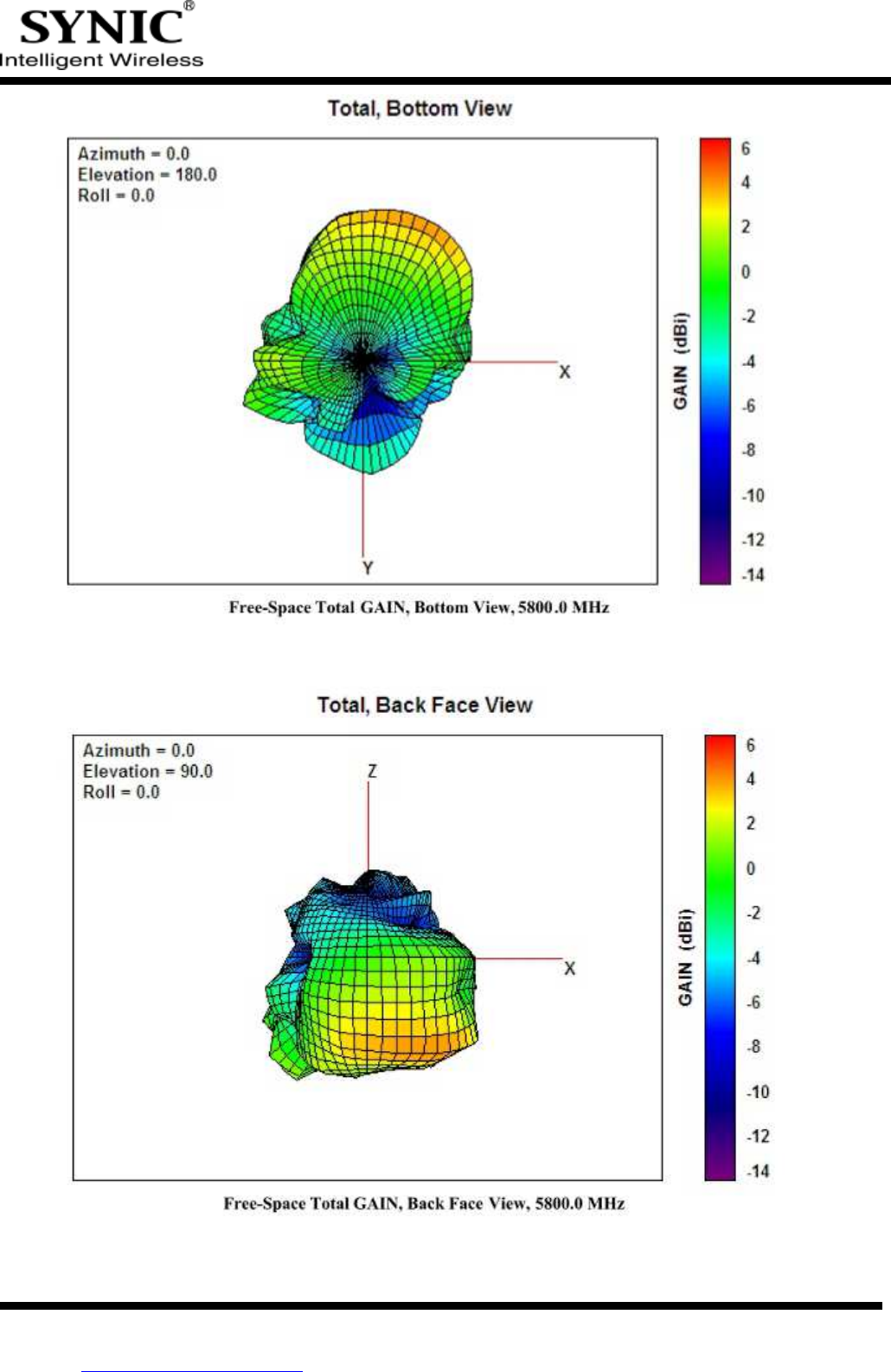

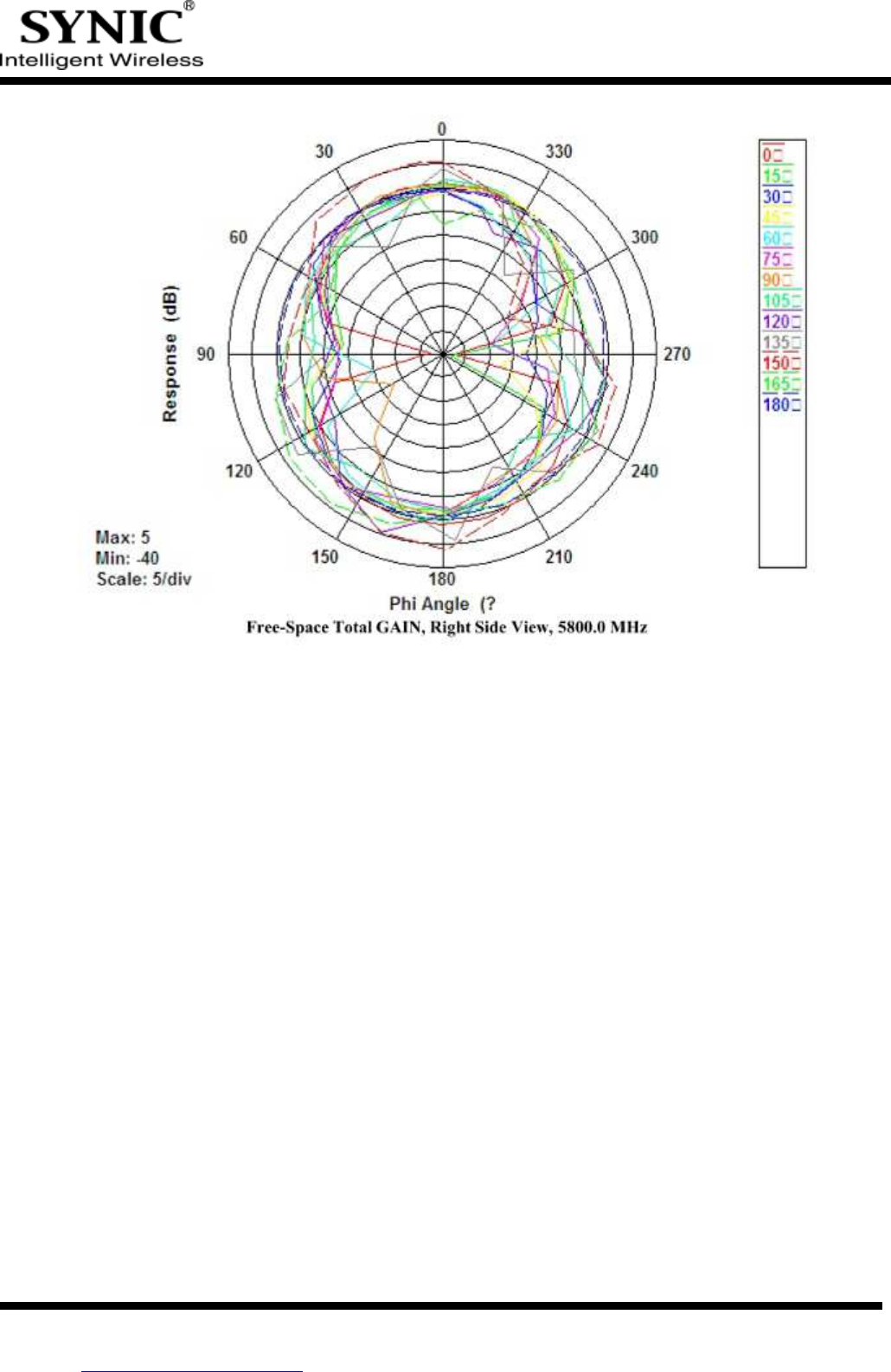

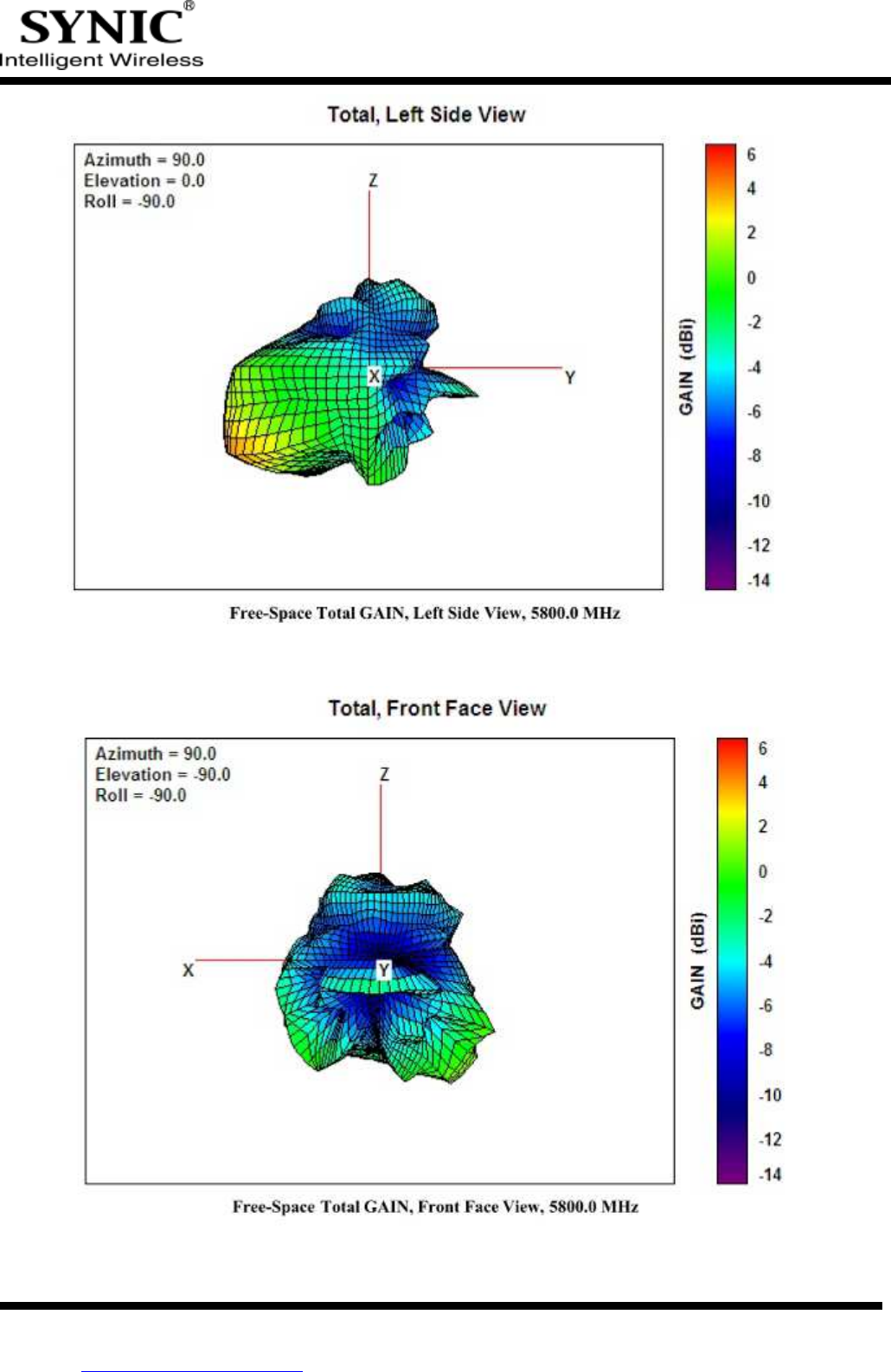

10.3 Antenna Pattern

IA9Q5 S83D-E MODULE V3 page - 17 -

SYNCOMM Confidential

E-Mail: sell@syncomm.com.tw

Web site: Http://www.syncomm.com.tw

IA9Q5 S83D-E MODULE V3 page - 18 -

SYNCOMM Confidential

E-Mail: sell@syncomm.com.tw

Web site: Http://www.syncomm.com.tw

IA9Q5 S83D-E MODULE V3 page - 19 -

SYNCOMM Confidential

E-Mail: sell@syncomm.com.tw

Web site: Http://www.syncomm.com.tw

Max Antenna Gain：2.85 dBi

IA9Q5 S83D-E MODULE V3 page - 20 -

SYNCOMM Confidential

E-Mail: sell@syncomm.com.tw

Web site: Http://www.syncomm.com.tw

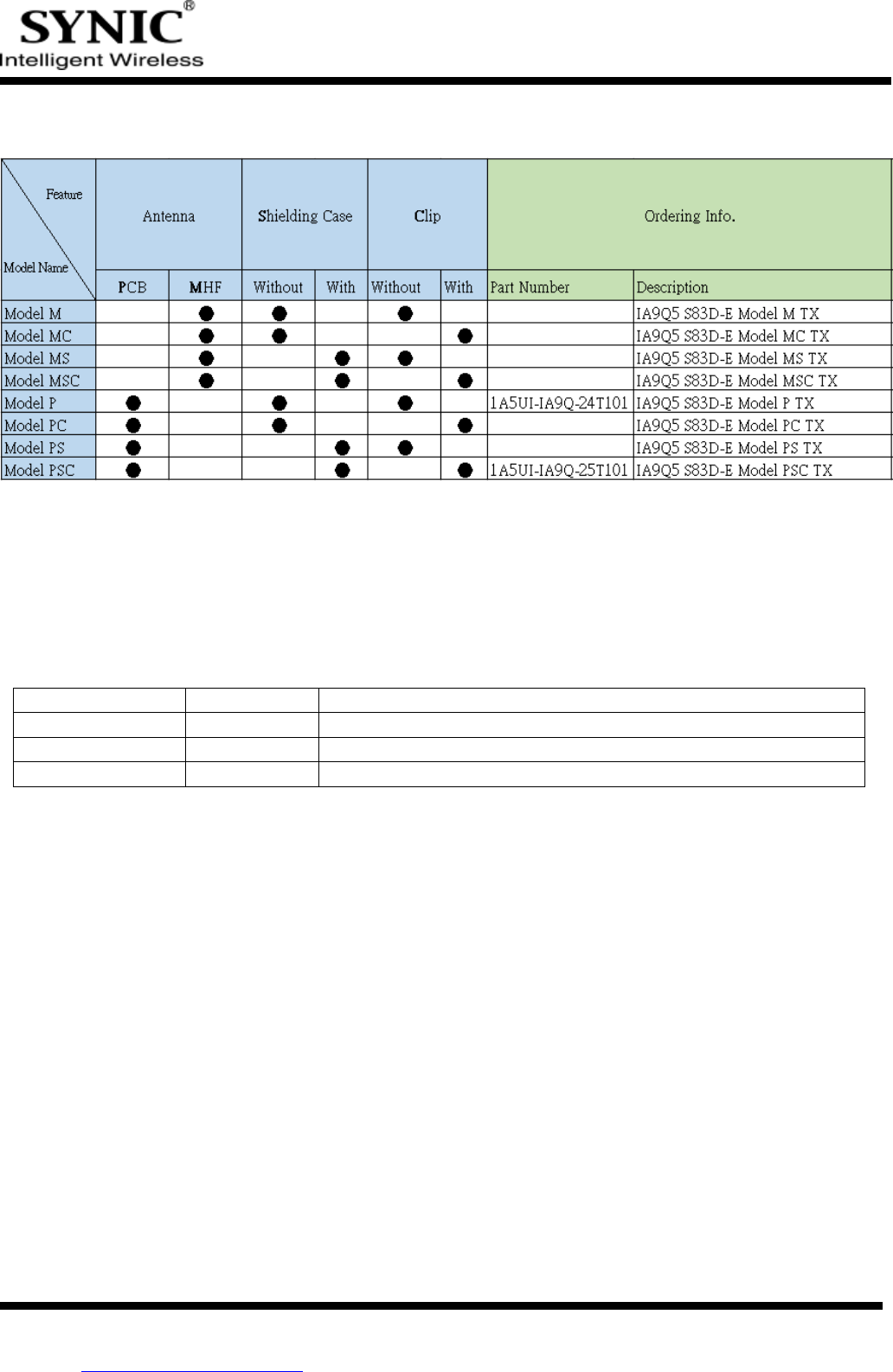

11. Ordering Information

Note: Model Name is the abbreviation of Feature column which is written in bold.

For example P is the abbreviation of PCB antenna

Table 10

12. Revision History

Date Revision Descriptions

2017/07/13 0.1 First release

2017/08/15 0.2 Add Mechanical picture

Table 11

The frequency block is 5725Mhz~5850MHz

Operating Temperature:0°~55°C

Output power: 13.5dBm

The device is restricted to indoor use when operated in the European Community using frequency

in 5725Mhz~5850MHz to reduce the potential for interference.

Restriction in BE, BG, CZ, DK, DE, EE, IE, EL, ES, FR, HR, IT, CY, LV, LT, LU, HU, MT, NL,

AT, PL, PT, RO, SI, SK, FI, SE, UK.

RF exposure statement

RF exposure information: The Maximum Permissible Exposure (MPE) level has been calculated

based on a distance of d=20cm between the device and the human body. To maintain compliance

with RF exposure requirement, use product that maintain a 20cm distance between the device

and human body.

Declaration of Conformity

Hereby, SYNCOMM TECHNOLOGY CORP declares that the radio equipment type RF 5G Wireless

Module is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

http://www.syncomm.com.tw/index.php/sc/2013-07-31-08-36-54-2

FCC Statement

15.19

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference that may cause

undesired operation.

15.21

Note: The grantee is not responsible for any changes or modifications not expressly approved by

the party responsible for compliance. Such modifications could void the user’s authority to

operate the equipment.

15.105(b)

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

-Consult the dealer or an experienced radio/TV technician for help

RF Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance of 20 cm

between the radiator and your body.

FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENTS

The RF 5G Wireless

Module complies with Part 15 of the United States of America FCC rules and regulations. The Orig

inal Equipment Manufacturer (OEM) must comply with the FCC certification requirements.

15.21 Any changes or modifications made to the module without the manufacturer’s approval

could void the user’s authority to operate the module.

ORIGINALEQUIPMENTMANUFACTURER(OEM)NOTES



 TheOEMmustcertifythefinalendproducttocomplywithunintentionalradiators(FCCSections15.107and

15.109)beforedeclaringcomplianceofthefinalproducttoPart15oftheFCCrulesandregulations.Integration

intodevicesthataredirectlyorindirectlyconnectedtoAClinesmustaddwithClassIIPermissiveChange.



 TheOEMmustcomplywiththeFCClabelingrequirements.Ifthemodule’slabelisnotvisiblewheninstalled,

thenanadditionalpermanentlabelmustbeappliedontheoutsideofthefinishedproductwhichstates:

“ContainstransmittermoduleFCCID:PJH-IA9Q5S83D-E”.Additionally, 

thefollowingstatementshouldbeincludedonthelabelandinthefinalproduct’susermanual:

“ThisdevicecomplieswithPart15oftheFCCRules.

Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterferences,and

(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesired

operation.”



This Module is full modular approval, it is limited to OEM installation ONLY.



Syncomm Technology IA9Q5S83D-E RF 5G Wireless Module User Manual

Syncomm Technology Corp. RF 5G Wireless Module Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
