Hardware Installation Guide Synology Wi-Fi Router MR2200ac

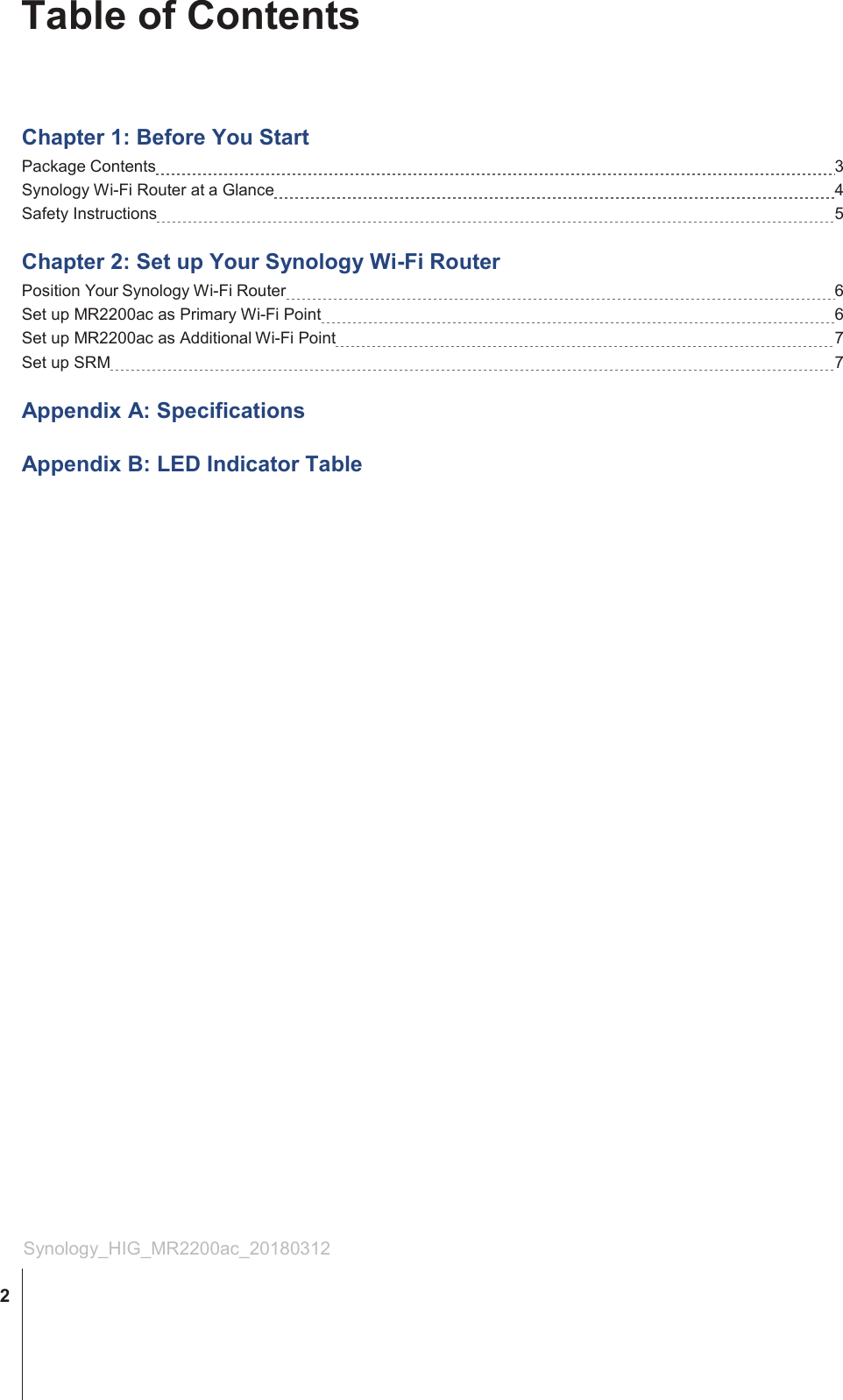

Table of Contents Chapter 1: Before You Start Package Contents 3 Synology Wi-Fi Router at a Glance 4 Safety Instructions 5 Chapter 2: Set up Your Synology Wi-Fi Router Position Your Synology Wi-Fi Router 6 Set up MR2200ac as Primary Wi-Fi Point 6 Set up MR2200ac as Additional Wi-Fi Point 7 Set up SRM 7 Appendix A: Specifications Appendix B: LED Indicator Table Synology_HIG_MR2200ac_20180312 2

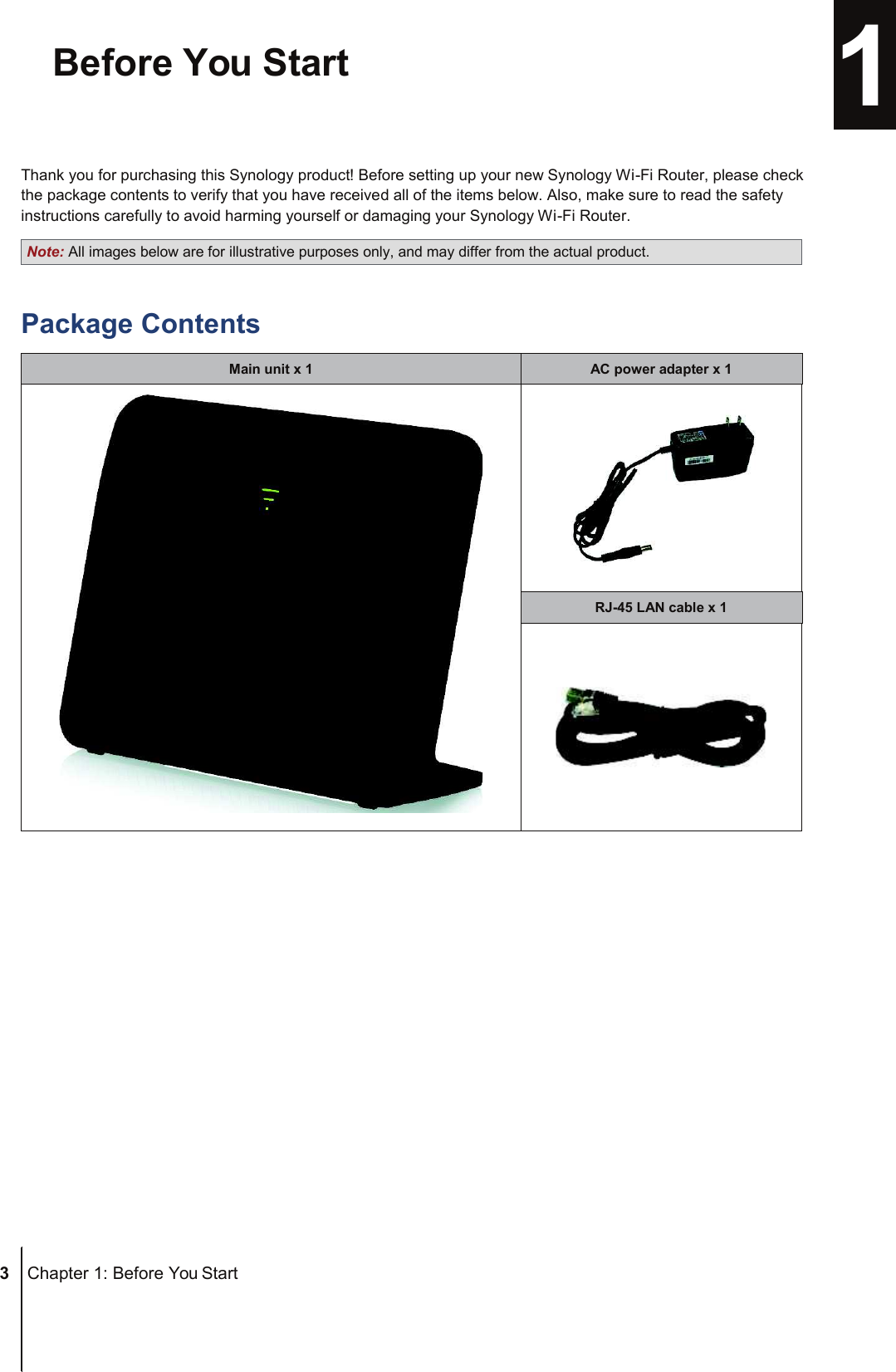

Note: All images below are for illustrative purposes only, and may differ from the actual product. RJ-45 LAN cable x 1 AC power adapter x 1 Main unit x 1 ChapterBefore You Start 1 Thank you for purchasing this Synology product! Before setting up your new Synology Wi-Fi Router, please check the package contents to verify that you have received all of the items below. Also, make sure to read the safety instructions carefully to avoid harming yourself or damaging your Synology Wi-Fi Router. Package Contents 3 Chapter 1: Before You Start
Note: For LED indicator information, please refer to "Appendix B: LED Indicator Table". Synology Wi-Fi Router at a Glance No. Article Name Location Description 1 Wi-Fi Indicator Front Panel Displays the status of Wi-Fi signals. 2 STATUS Indicator Displays the status of the system. 3 USB 3.0 Port Rear Panel Connect an external drive, USB printer here. 4 WPS Button Press to start WPS. 5 Wi-Fi Switch Switch to turn on/off the Wi-Fi network. 6 LAN Port Connect network cables into these ports to establish LAN connection. 7 WAN Port Connect a network cable from the ISP modem into this port to establish WAN connection. 8 Power Port Connect the AC power adapter here. 9 Power Button Press to power on/off the Synology Wi-Fi Router. 10 RESET Button Press and hold for 4 seconds (Soft Reset) or for 10 seconds (Hard Reset). 4 Chapter 1: Before You Start

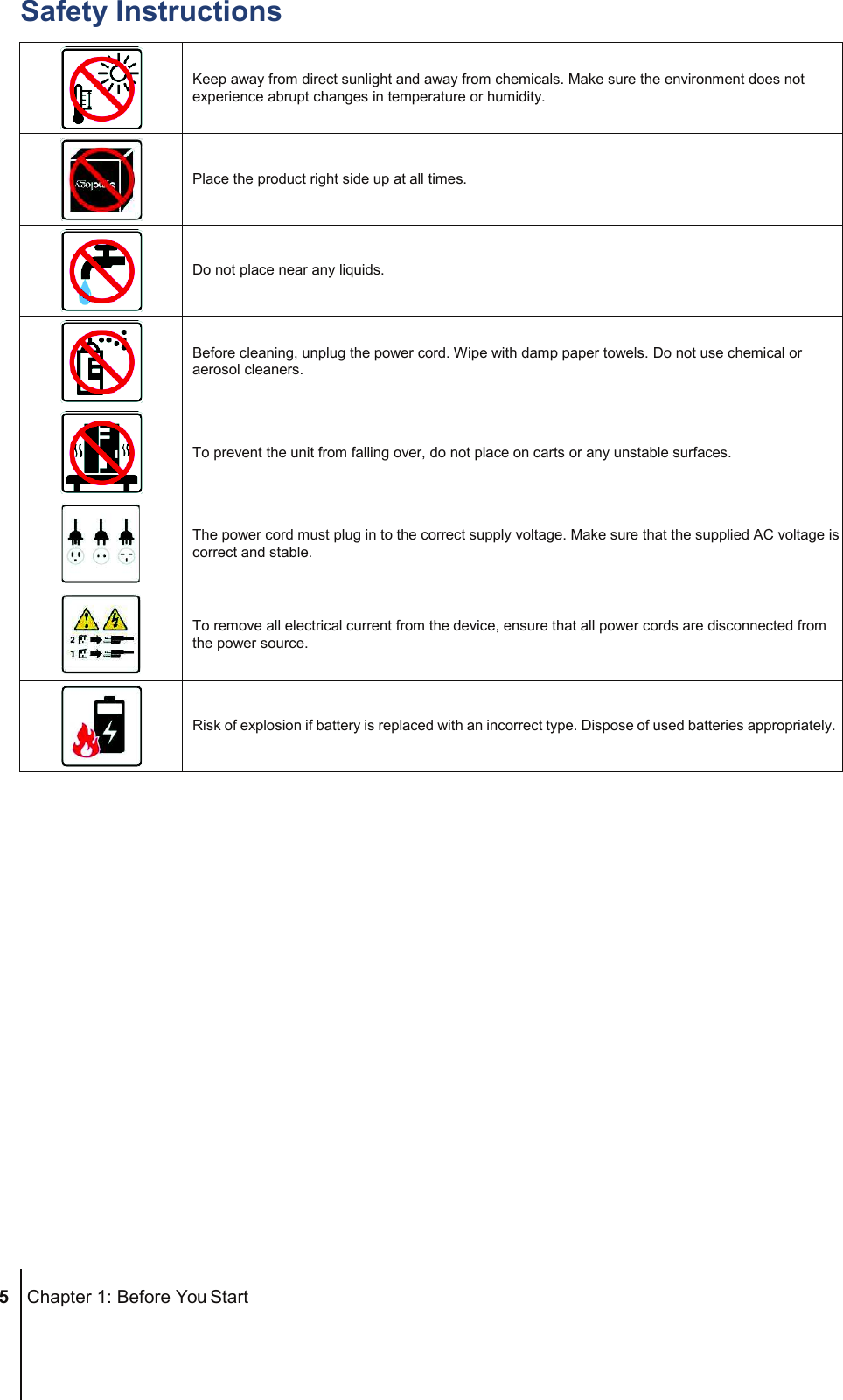

Safety Instructions Keep away from direct sunlight and away from chemicals. Make sure the environment does not experience abrupt changes in temperature or humidity. Place the product right side up at all times. Do not place near any liquids. Before cleaning, unplug the power cord. Wipe with damp paper towels. Do not use chemical or aerosol cleaners. To prevent the unit from falling over, do not place on carts or any unstable surfaces. The power cord must plug in to the correct supply voltage. Make sure that the supplied AC voltage is correct and stable. To remove all electrical current from the device, ensure that all power cords are disconnected from the power source. Risk of explosion if battery is replaced with an incorrect type. Dispose of used batteries appropriately. 5 Chapter 1: Before You Start

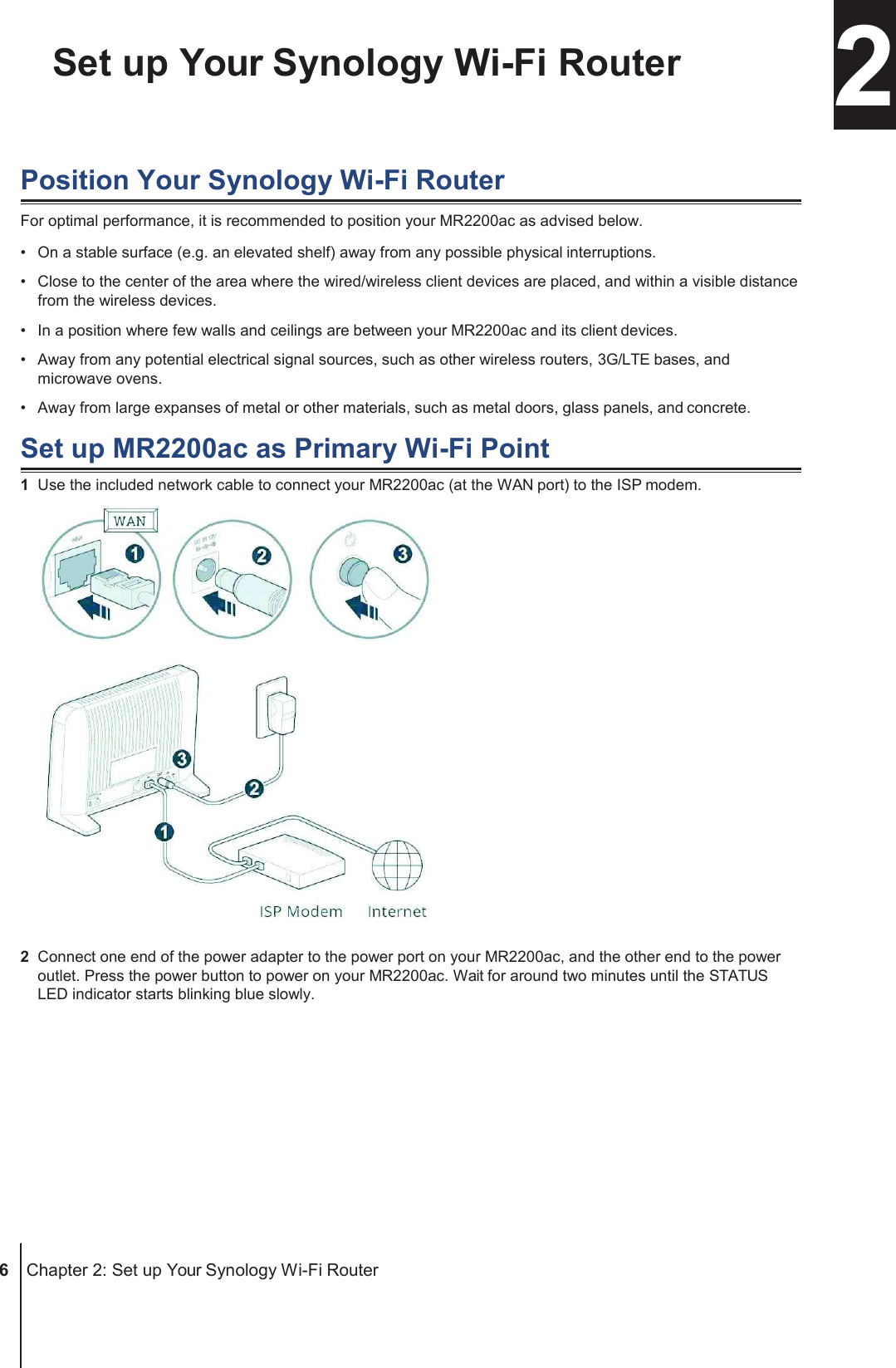

Chapter Set up Your Synology Wi-Fi Router 2 Position Your Synology Wi-Fi Router For optimal performance, it is recommended to position your MR2200ac as advised below. • On a stable surface (e.g. an elevated shelf) away from any possible physical interruptions. • Close to the center of the area where the wired/wireless client devices are placed, and within a visible distance from the wireless devices. • In a position where few walls and ceilings are between your MR2200ac and its client devices. • Away from any potential electrical signal sources, such as other wireless routers, 3G/LTE bases, and microwave ovens. • Away from large expanses of metal or other materials, such as metal doors, glass panels, and concrete. Set up MR2200ac as Primary Wi-Fi Point 1 Use the included network cable to connect your MR2200ac (at the WAN port) to the ISP modem. 2 Connect one end of the power adapter to the power port on your MR2200ac, and the other end to the power outlet. Press the power button to power on your MR2200ac. Wait for around two minutes until the STATUS LED indicator starts blinking blue slowly. 6 Chapter 2: Set up Your Synology Wi-Fi Router
Note: Below are the default credentials for the Wi-Fi network: 1. Wi-Fi SSID: Synology_serial number 2. Password: synology The default credentials can be changed during the initial SRM setup. 3 Connect wireless client devices to your MR2200ac: a When the Wi-Fi Signal LED indicator turns blinking blue, MR2200ac is ready to connect to other devices. b Use your wireless device to scan and join the Wi-Fi network created by your MR2200ac. Set up MR2200ac as Additional Wi-Fi Point 1 Connect one end of the power adapter to the power port on your MR2200ac, and the other end to the power outlet. Press the power button to power on your MR2200ac. Wait for around two minutes until the STATUS LED indicator starts blinking blue slowly. 2 Sign in to Synology Router Manager (SRM) on the primary Wi-Fi point, go to Wi-Fi Connect > Wi-Fi Point to add your MR2200ac to the Wi-Fi system. Set up SRM 1 Use a computer or wireless device connected to the MR2200ac's local network. If you use a wireless device, scan and join the Wi-Fi network (SSID: Synology_serial number; Password: synology). 2 Open a web browser, and enter either URL into the address bar: a http://router.synology.com b http://192.168.1.1:8000 7 Chapter 2: Set up Your Synology Wi-Fi Router
3 Once connected, click Start to launch the SRM Setup Wizard. 4 Fill in the information to set up the administrator account. Click Next to continue. 8 Chapter 2: Set up Your Synology Wi-Fi Router

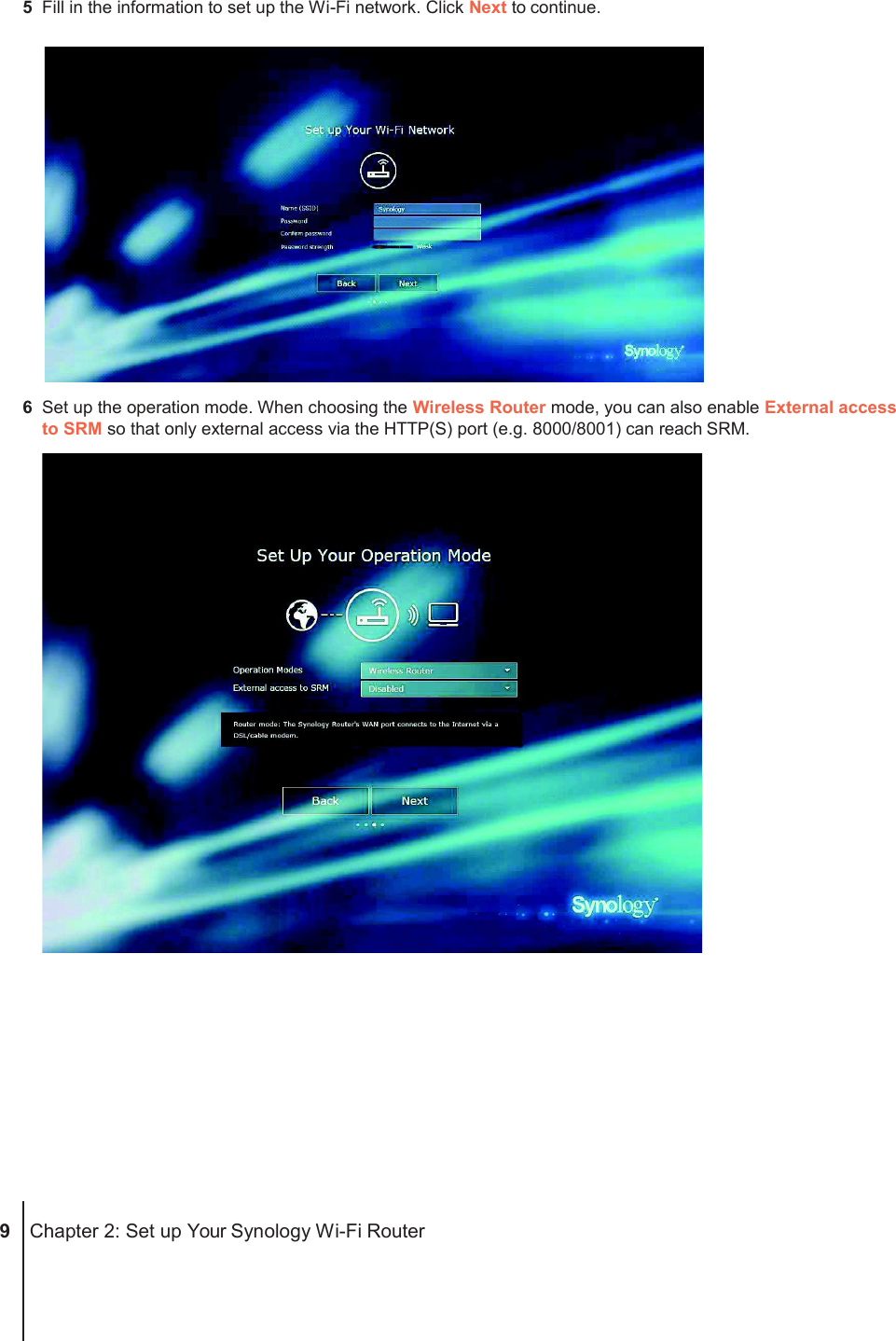

5 Fill in the information to set up the Wi-Fi network. Click Next to continue. 6 Set up the operation mode. When choosing the Wireless Router mode, you can also enable External access to SRM so that only external access via the HTTP(S) port (e.g. 8000/8001) can reach SRM. 9 Chapter 2: Set up Your Synology Wi-Fi Router
7 Choose an Internet connection type: • PPPoE: Choose this option if you have obtained PPPoE credentials from the ISP. • Manual IP: Choose this option if you have obtained an available IP address for use. • Auto IP: Choose this option if you rely on an ISP modem for automatic IP assignment. 8 The wizard will continue to set up your Synology Router, and it may take up to three minutes to complete the setup. 10 Chapter 2: Set up Your Synology Wi-Fi Router

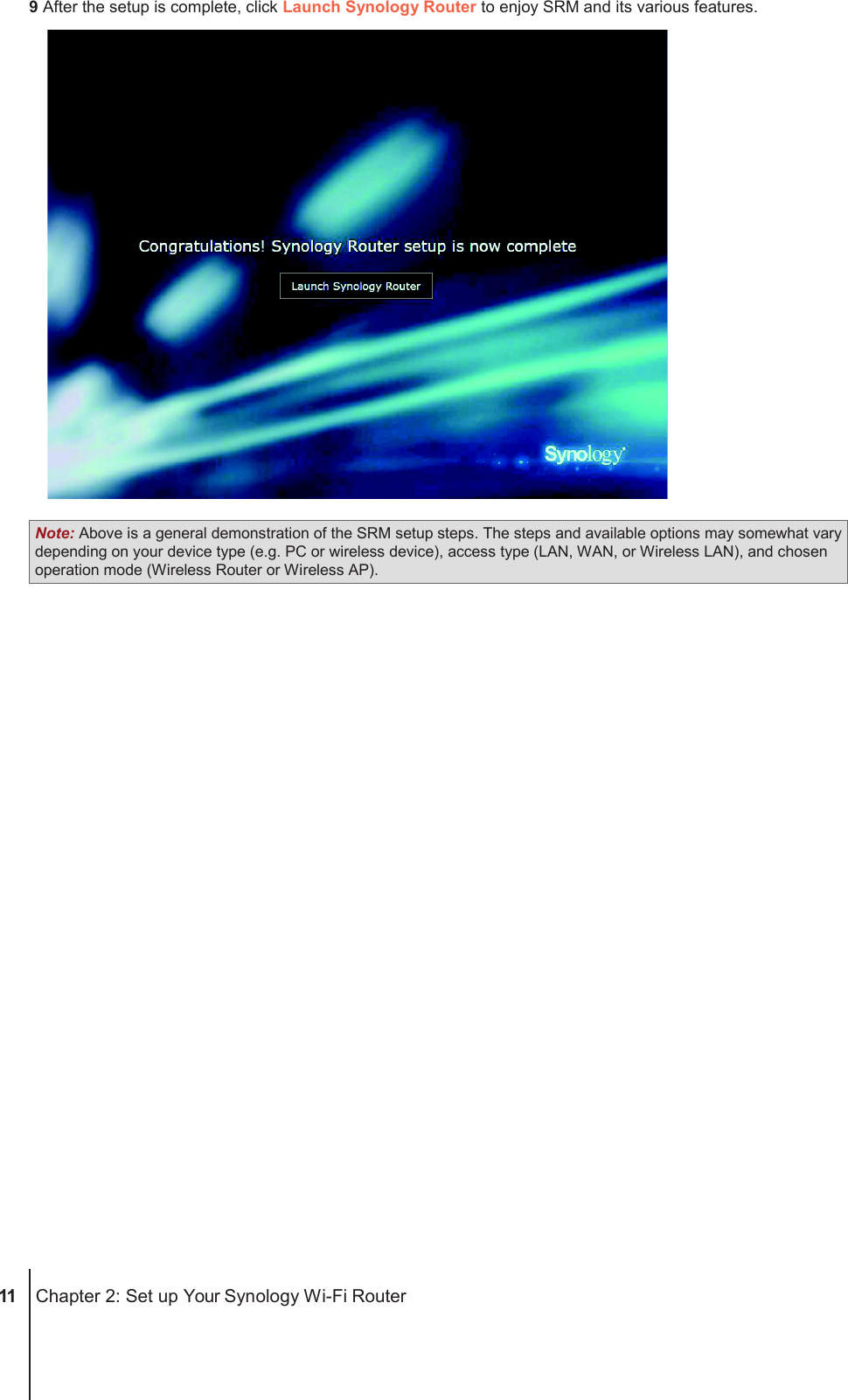

9 After the setup is complete, click Launch Synology Router to enjoy SRM and its various features. 11 Chapter 2: Set up Your Synology Wi-Fi Router Note: Above is a general demonstration of the SRM setup steps. The steps and available options may somewhat vary depending on your device type (e.g. PC or wireless device), access type (LAN, WAN, or Wireless LAN), and chosen operation mode (Wireless Router or Wireless AP).
Appendix Specifications A Item MR2200ac Model Description Synology 802.11ac Wireless Router External Ports USB 3.0 x 1 WAN Port Gigabit WAN x 1 LAN Ports Gigabit LAN x 1 Power Adapter 12V/2A Size (H x W x D) (mm) 154 x 199 x 65 Weight (kg) 0.45 kg Supported Clients (for SRM management) • Windows 7 and 10 • Mac OS X 10.10 onwards File Systems External: ext4, ext3, FAT, NTFS, HFS+ Wireless Standards • 2.4GHz: 802.11 b/g/n • 5GHz-1/5GHz-2: 802.11 a/n/ac Operating Frequency Range • 802.11n (2.4GHz): up to 400 Mbps • 802.11ac (5GHz-1/5GHz-2): up to 867 Mbps Wireless Operation Modes • Wireless Router • Wireless AP (Access Point) Wireless Security • 64/128-bit WEP • WPS support • WPA2-Personal • WPA/WPA2-Personal • WPA2-Enterprise • WPA/WPA2-Enterprise Buttons & Switches • WPS • Power • Reset • Wi-Fi On/Off Language Localization Environment Requirements • Line voltage: 100V to 240V AC • Frequency: 50/60Hz • Operating Temperature: 40 to 104!F (5 to 40!C) • Storage Temperature: -5 to 140!F (-20 to 60!C) • Relative Humidity: 5% to 95% RH Note: Model specifications are subject to change without notice. Please refer to www.synology.com for the latest information. 12 Appendix A: Specifications
Appendix LED Indicator Table B Not configured: LED Indicator Color Status Description Wi-Fi Indicators Green Static Wireless network connected Off Default STATUS Green Static Powered on Blinking Mesh WPS / Adding to system Blue Static Booting up Blinking Ready to set up Red Static System error Off Powered off When set up as primary Wi-Fi point: LED Indicator Color Status Description Wi-Fi Indicators Green Static Wireless network enabled Blinking Finding device / Syncing* Off Booting up / No wireless network STATUS Green Static Powered on Blinking AP WPS / Mesh WPS / Finding device / Syncing* Blue Static Booting up / Reseting Blinking Reseting admin passowrd Red Static System error Off Powered off When set up as additional Wi-Fi point: LED Indicator Color Status Description Wi-Fi Indicator (upper) Green Static Strong signal from previous Wi-Fi point / Wired Blinking Finding device / Syncing* Off Booting up or weak wireless signal Wi-Fi Indicator (lower) Green Static Fair signal from previous Wi-Fi point / Wired Blingking Finding device / Syncing* Off Booting up or weak wireless signal STATUS Green Static Connected Blue Static Booting up / Reseting Blinking Ready to set up Red Static Disconnected Note: Model specifications are subject to change without notice. Please refer to www.synology.com for the latest information. 13 Appendix B: LED Indicator Table *Important: 1. Finding device: All three indicators will blink simultaneously. 2. Syncing: The three indicators will blink in turn.

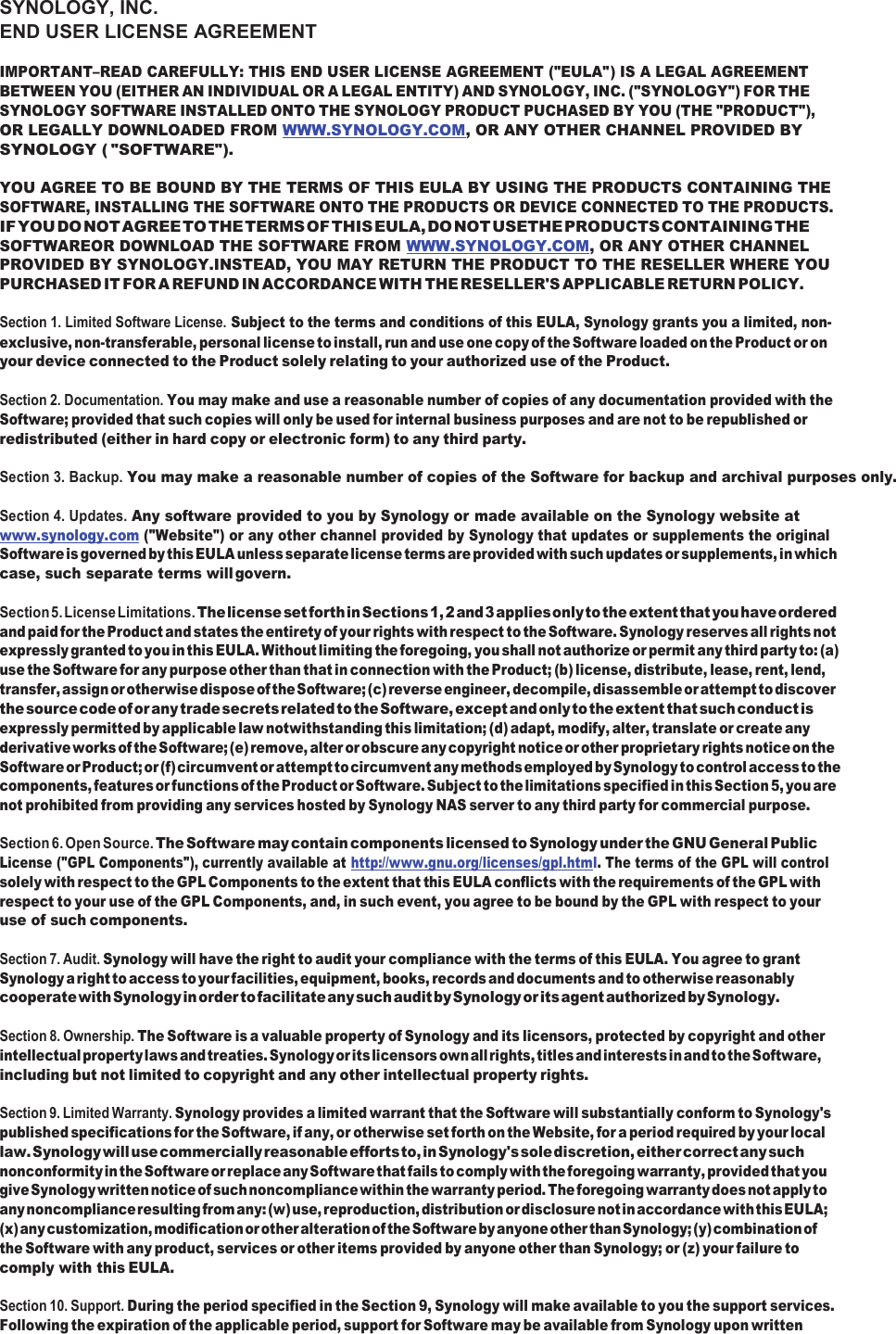

SYNOLOGY, INC. END USER LICENSE AGREEMENT IMPORTANT–READ CAREFULLY: THIS END USER LICENSE AGREEMENT ("EULA") IS A LEGAL AGREEMENT BETWEEN YOU (EITHER AN INDIVIDUAL OR A LEGAL ENTITY) AND SYNOLOGY, INC. ("SYNOLOGY") FOR THE SYNOLOGY SOFTWARE INSTALLED ONTO THE SYNOLOGY PRODUCT PUCHASED BY YOU (THE "PRODUCT"), OR LEGALLY DOWNLOADED FROM WWW.SYNOLOGY.COM, OR ANY OTHER CHANNEL PROVIDED BY SYNOLOGY ( "SOFTWARE"). YOU AGREE TO BE BOUND BY THE TERMS OF THIS EULA BY USING THE PRODUCTS CONTAINING THE SOFTWARE, INSTALLING THE SOFTWARE ONTO THE PRODUCTS OR DEVICE CONNECTED TO THE PRODUCTS. IF YOU DO NOT AGREE TO THE TERMS OF THIS EULA, DO NOT USETHE PRODUCTS CONTAINING THE SOFTWAREOR DOWNLOAD THE SOFTWARE FROM WWW.SYNOLOGY.COM, OR ANY OTHER CHANNEL PROVIDED BY SYNOLOGY.INSTEAD, YOU MAY RETURN THE PRODUCT TO THE RESELLER WHERE YOU PURCHASED IT FOR A REFUND IN ACCORDANCE WITH THE RESELLER'S APPLICABLE RETURN POLICY. Section 1. Limited Software License. Subject to the terms and conditions of this EULA, Synology grants you a limited, non- exclusive, non-transferable, personal license to install, run and use one copy of the Software loaded on the Product or on your device connected to the Product solely relating to your authorized use of the Product. Section 2. Documentation. You may make and use a reasonable number of copies of any documentation provided with the Software; provided that such copies will only be used for internal business purposes and are not to be republished or redistributed (either in hard copy or electronic form) to any third party. Section 3. Backup. You may make a reasonable number of copies of the Software for backup and archival purposes only. Section 4. Updates. Any software provided to you by Synology or made available on the Synology website at www.synology.com ("Website") or any other channel provided by Synology that updates or supplements the original Software is governed by this EULA unless separate license terms are provided with such updates or supplements, in which case, such separate terms will govern. Section 5. License Limitations. The license set forth in Sections 1, 2 and 3 applies only to the extent that you have ordered and paid for the Product and states the entirety of your rights with respect to the Software. Synology reserves all rights not expressly granted to you in this EULA. Without limiting the foregoing, you shall not authorize or permit any third party to: (a) use the Software for any purpose other than that in connection with the Product; (b) license, distribute, lease, rent, lend, transfer, assign or otherwise dispose of the Software; (c) reverse engineer, decompile, disassemble or attempt to discover the source code of or any trade secrets related to the Software, except and only to the extent that such conduct is expressly permitted by applicable law notwithstanding this limitation; (d) adapt, modify, alter, translate or create any derivative works of the Software; (e) remove, alter or obscure any copyright notice or other proprietary rights notice on the Software or Product; or (f) circumvent or attempt to circumvent any methods employed by Synology to control access to the components, features or functions of the Product or Software. Subject to the limitations specified in this Section 5, you are not prohibited from providing any services hosted by Synology NAS server to any third party for commercial purpose. Section 6. Open Source. The Software may contain components licensed to Synology under the GNU General Public License ("GPL Components"), currently available at http://www.gnu.org/licenses/gpl.html. The terms of the GPL will control solely with respect to the GPL Components to the extent that this EULA conflicts with the requirements of the GPL with respect to your use of the GPL Components, and, in such event, you agree to be bound by the GPL with respect to your use of such components. Section 7. Audit. Synology will have the right to audit your compliance with the terms of this EULA. You agree to grant Synology a right to access to your facilities, equipment, books, records and documents and to otherwise reasonably cooperate with Synology in order to facilitate any such audit by Synology or its agent authorized by Synology. Section 8. Ownership. The Software is a valuable property of Synology and its licensors, protected by copyright and other intellectual property laws and treaties. Synology or its licensors own all rights, titles and interests in and to the Software, including but not limited to copyright and any other intellectual property rights. Section 9. Limited Warranty. Synology provides a limited warrant that the Software will substantially conform to Synology's published specifications for the Software, if any, or otherwise set forth on the Website, for a period required by your local law. Synology will use commercially reasonable efforts to, in Synology's sole discretion, either correct any such nonconformity in the Software or replace any Software that fails to comply with the foregoing warranty, provided that you give Synology written notice of such noncompliance within the warranty period. The foregoing warranty does not apply to any noncompliance resulting from any: (w) use, reproduction, distribution or disclosure not in accordance with this EULA; (x) any customization, modification or other alteration of the Software by anyone other than Synology; (y) combination of the Software with any product, services or other items provided by anyone other than Synology; or (z) your failure to comply with this EULA. Section 10. Support. During the period specified in the Section 9, Synology will make available to you the support services. Following the expiration of the applicable period, support for Software may be available from Synology upon written

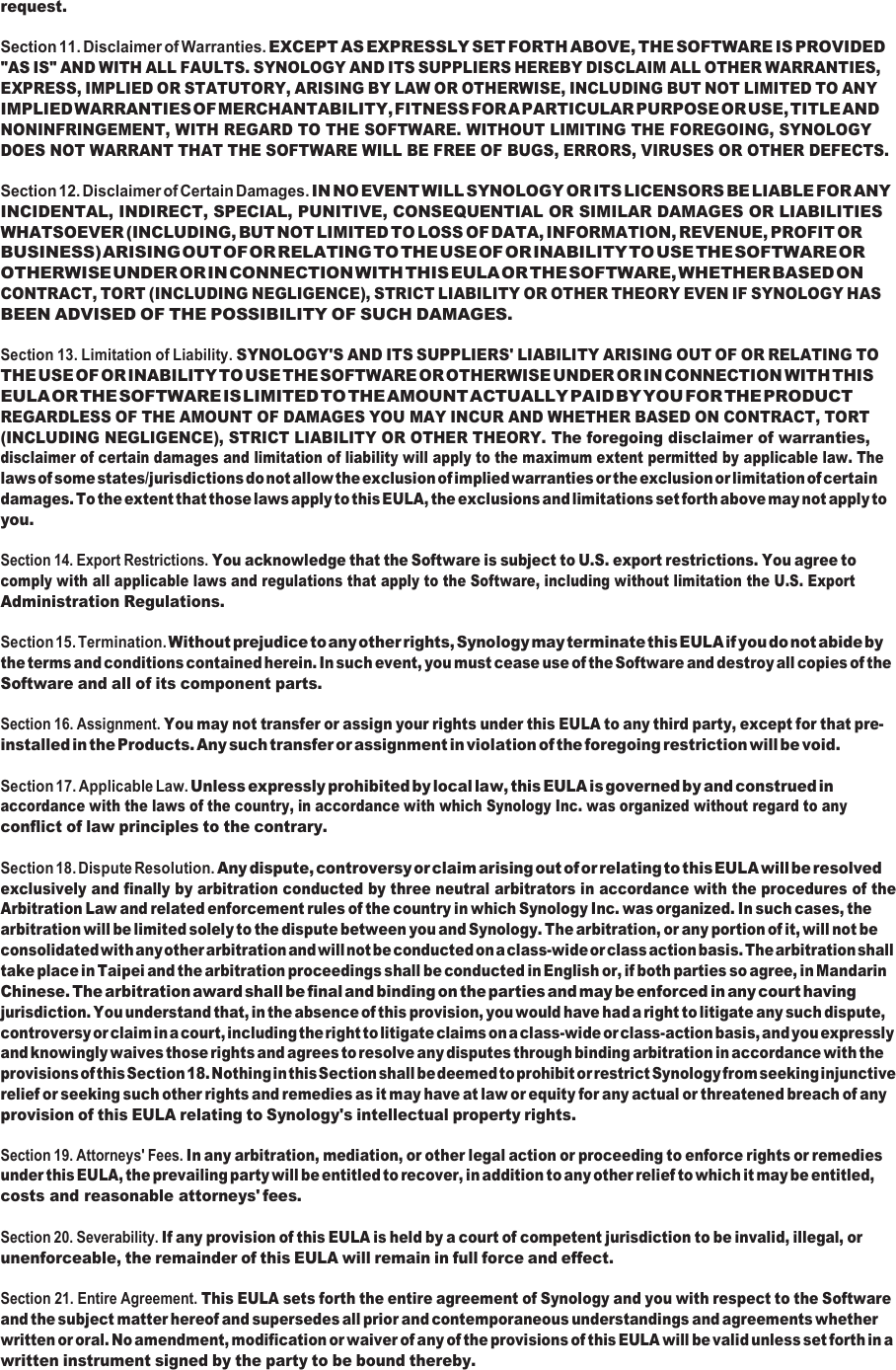

request. Section 11. Disclaimer of Warranties. EXCEPT AS EXPRESSLY SET FORTH ABOVE, THE SOFTWARE IS PROVIDED "AS IS" AND WITH ALL FAULTS. SYNOLOGY AND ITS SUPPLIERS HEREBY DISCLAIM ALL OTHER WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, ARISING BY LAW OR OTHERWISE, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR USE, TITLE AND NONINFRINGEMENT, WITH REGARD TO THE SOFTWARE. WITHOUT LIMITING THE FOREGOING, SYNOLOGY DOES NOT WARRANT THAT THE SOFTWARE WILL BE FREE OF BUGS, ERRORS, VIRUSES OR OTHER DEFECTS. Section 12. Disclaimer of Certain Damages. IN NO EVENT WILL SYNOLOGY OR ITS LICENSORS BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL, PUNITIVE, CONSEQUENTIAL OR SIMILAR DAMAGES OR LIABILITIES WHATSOEVER (INCLUDING, BUT NOT LIMITED TO LOSS OF DATA, INFORMATION, REVENUE, PROFIT OR BUSINESS) ARISING OUT OF OR RELATING TO THE USE OF OR INABILITY TO USE THE SOFTWARE OR OTHERWISE UNDER OR IN CONNECTION WITH THIS EULA OR THE SOFTWARE, WHETHER BASED ON CONTRACT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY OR OTHER THEORY EVEN IF SYNOLOGY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Section 13. Limitation of Liability. SYNOLOGY'S AND ITS SUPPLIERS' LIABILITY ARISING OUT OF OR RELATING TO THE USE OF OR INABILITY TO USE THE SOFTWARE OR OTHERWISE UNDER OR IN CONNECTION WITH THIS EULA OR THE SOFTWARE IS LIMITED TO THE AMOUNT ACTUALLY PAID BY YOU FOR THE PRODUCT REGARDLESS OF THE AMOUNT OF DAMAGES YOU MAY INCUR AND WHETHER BASED ON CONTRACT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY OR OTHER THEORY. The foregoing disclaimer of warranties, disclaimer of certain damages and limitation of liability will apply to the maximum extent permitted by applicable law. The laws of some states/jurisdictions do not allow the exclusion of implied warranties or the exclusion or limitation of certain damages. To the extent that those laws apply to this EULA, the exclusions and limitations set forth above may not apply to you. Section 14. Export Restrictions. You acknowledge that the Software is subject to U.S. export restrictions. You agree to comply with all applicable laws and regulations that apply to the Software, including without limitation the U.S. Export Administration Regulations. Section 15. Termination. Without prejudice to any other rights, Synology may terminate this EULA if you do not abide by the terms and conditions contained herein. In such event, you must cease use of the Software and destroy all copies of the Software and all of its component parts. Section 16. Assignment. You may not transfer or assign your rights under this EULA to any third party, except for that pre- installed in the Products. Any such transfer or assignment in violation of the foregoing restriction will be void. Section 17. Applicable Law. Unless expressly prohibited by local law, this EULA is governed by and construed in accordance with the laws of the country, in accordance with which Synology Inc. was organized without regard to any conflict of law principles to the contrary. Section 18. Dispute Resolution. Any dispute, controversy or claim arising out of or relating to this EULA will be resolved exclusively and finally by arbitration conducted by three neutral arbitrators in accordance with the procedures of the Arbitration Law and related enforcement rules of the country in which Synology Inc. was organized. In such cases, the arbitration will be limited solely to the dispute between you and Synology. The arbitration, or any portion of it, will not be consolidated with any other arbitration and will not be conducted on a class-wide or class action basis. The arbitration shall take place in Taipei and the arbitration proceedings shall be conducted in English or, if both parties so agree, in Mandarin Chinese. The arbitration award shall be final and binding on the parties and may be enforced in any court having jurisdiction. You understand that, in the absence of this provision, you would have had a right to litigate any such dispute, controversy or claim in a court, including the right to litigate claims on a class-wide or class-action basis, and you expressly and knowingly waives those rights and agrees to resolve any disputes through binding arbitration in accordance with the provisions of this Section 18. Nothing in this Section shall be deemed to prohibit or restrict Synology from seeking injunctive relief or seeking such other rights and remedies as it may have at law or equity for any actual or threatened breach of any provision of this EULA relating to Synology's intellectual property rights. Section 19. Attorneys' Fees. In any arbitration, mediation, or other legal action or proceeding to enforce rights or remedies under this EULA, the prevailing party will be entitled to recover, in addition to any other relief to which it may be entitled, costs and reasonable attorneys' fees. Section 20. Severability. If any provision of this EULA is held by a court of competent jurisdiction to be invalid, illegal, or unenforceable, the remainder of this EULA will remain in full force and effect. Section 21. Entire Agreement. This EULA sets forth the entire agreement of Synology and you with respect to the Software and the subject matter hereof and supersedes all prior and contemporaneous understandings and agreements whether written or oral. No amendment, modification or waiver of any of the provisions of this EULA will be valid unless set forth in a written instrument signed by the party to be bound thereby.
SYNOLOGY, INC. LIMITED PRODUCT WARRANTY THIS LIMITED WARRANTY ("WARRANTY") APPLIES TO THE PRODUCTS (AS DEFINED BELOW) OF SYNOLOGY, INC. AND ITS AFFILIATES, INCLUDING SYNOLOGY AMERICA CORP, (COLLECTIVELY, "SYNOLOGY"). YOU ACCEPT AND AGREE TO BE BOUND BY THE TERMS OF THIS WARRANTY BY OPENING THE PACKAGE CONTAINING AND/OR USING THE PRODUCT. IF YOU DO NOT AGREE TO THE TERMS OF THIS WARRANTY, DO NOT USE THE PRODUCT. INSTEAD, YOU MAY RETURN THE PRODUCT TO THE RESELLER WHERE YOU PURCHASED IT FOR A REFUND IN ACCORDANCE WITH THE RESELLER'S APPLICABLE RETURN POLICY. Section 1. Products (a) "Products" refer to New Products or Refurbished Products. (b) "New Product", includes: (1) "Category I Product" means Synology product models RS810+, RS810RP+, RX410, all FS- series models, all DS/RS NAS models with the XS+/XS suffix (except RS3413xs+) in or after 13-series, all DX/RX/RXD expansion units with 12 or more drive bays in or after 13-series, 10GbE NIC, ECC DDR4 and ECC DDR3 memory modules. (2) "Category II Product" means Synology product models RS3413xs+, RS3412xs, RS3412RPxs, RS3411xs, RS3411RPxs, RS2211+, RS2211RP+, RS411, RS409RP+, RS409+, RS409, RS408-RP, RS408, RS407, DS3612xs, DS3611xs, DS2411+, DS1511+, DS1010+, DS509+, DS508, EDS14, RX1211, RX1211RP, RX4, DX1211, DX510, DX5, NVR1218, NVR216, VS960HD, VS360HD, VS240HD, M2D17, and all other non-ECC memory modules not included in Category I. (3) "Category III Product" means Synology product models that match the following requirements: all DS NAS models without the XS+/XS suffix and with 5 and more drive bays in or after 12-series, all RS NAS models without the XS+/XS suffix in or after 12-series, and all DX/RX expansion units with 4 or 5 drive bays in or after 12-series. (4) "Category IV Product" means all other Synology product models purchased by Customer after March 1, 2008. (5) "Category V Product" means all other Synology product models purchased by Customer before February 29, 2008 and any "spare parts" purchased directly from Synology. (c) "Refurbished Product" means all Synology products which have been refurbished and sold directly by Synology through Online Store, not including those sold by an authorized Synology distributor or reseller. (d) Other definition: "Customer" means the original person or entity purchasing the Product from Synology or an authorized Synology distributor or reseller; "Online Store" means an online shop operated by Synology or Synology’s affiliate; "Software" means the Synology proprietary software that accompanies the Product when purchased by Customer, is downloaded by Customer from the Web Site, or is pre-installed on the Product by Synology, and includes any firmware, associated media, images, animations, video, audio, text and applets incorporated into the software or Product and any updates or upgrades to such software. Section 2. Warranty Period (a) "Warranty Period" : The warranty period commences on the date the Product is purchased by customer and ending (1) five years after such date for Category I Products; (2) three years after such date for Category II & lll Products; (3) two years after such date for Category IV Products; (4) one year after such date for Category V Products; or (5) 90 days after such date for Refurbished Products, except for those sold as "as is" or with "no warranty" on Online Store. (b) “Extended Warranty Period” : For Customer purchasing EW201 optional service for applicable Products specified in Section 1 (b), the Warranty Period specified in Section 2 (a) of the applicable Product registered with EW201 optional service will be extended by two years. Section 3. Limited Warranty and Remedies 3.1 Limited Warranty. Subject to Section 3.6, Synology warrants to the Customer that each Product (a) will be free of material defects in workmanship and (b) under normal use will perform substantially in accordance with Synology's published specifications for the Product during the Warranty Period. Such limited warranty does not apply to the Software which shall be subject to the accompanying end user license agreement provided with the Product, if any. Synology provides no warranty to Refurbished Product sold as "as is" or with "no warranty" on Online Store. 3.2 Exclusive Remedy. If Customer gives notice of noncompliance with any of the warranties set forth in Section 3.1 within the applicable Warranty Period in the manner set forth below, then, upon verification of the noncompliance by Synology, Synology will, at Synology's option: (a) use commercially reasonable efforts to repair the Product, or (b) replace the noncomplying Product or part thereof upon return of the complete Product in accordance with Section 3.3 The foregoing sets forth Synology's entire liability and Customer's sole and exclusive remedy for any breach of warranty under Section 3.1 or any other defect or deficiency in the Product. Customer will reasonably assist Synology to diagnose and validate any nonconformity with the Product. The warranty set forth in Section 3.1 does not include: (1) any warranty relating to the Software; (2) physical installation or removal of the Product from Customer's site; (3) visits to Customer's site; (4) labor necessary to effect repairs or replace defective parts other than during Synology's or its contracted service providers' normal local business hours, exclusive of weekends and service providers’ holidays; (5) any work with any third party equipment or software; (6) any warranty of the hard disk if installed by Customer or any other third party; or (7) any warranty of compatibility with the hard disk. 3.3 Return. Any Product returned by Customer under Section 3.2 must be assigned a Return Merchandise Authorization

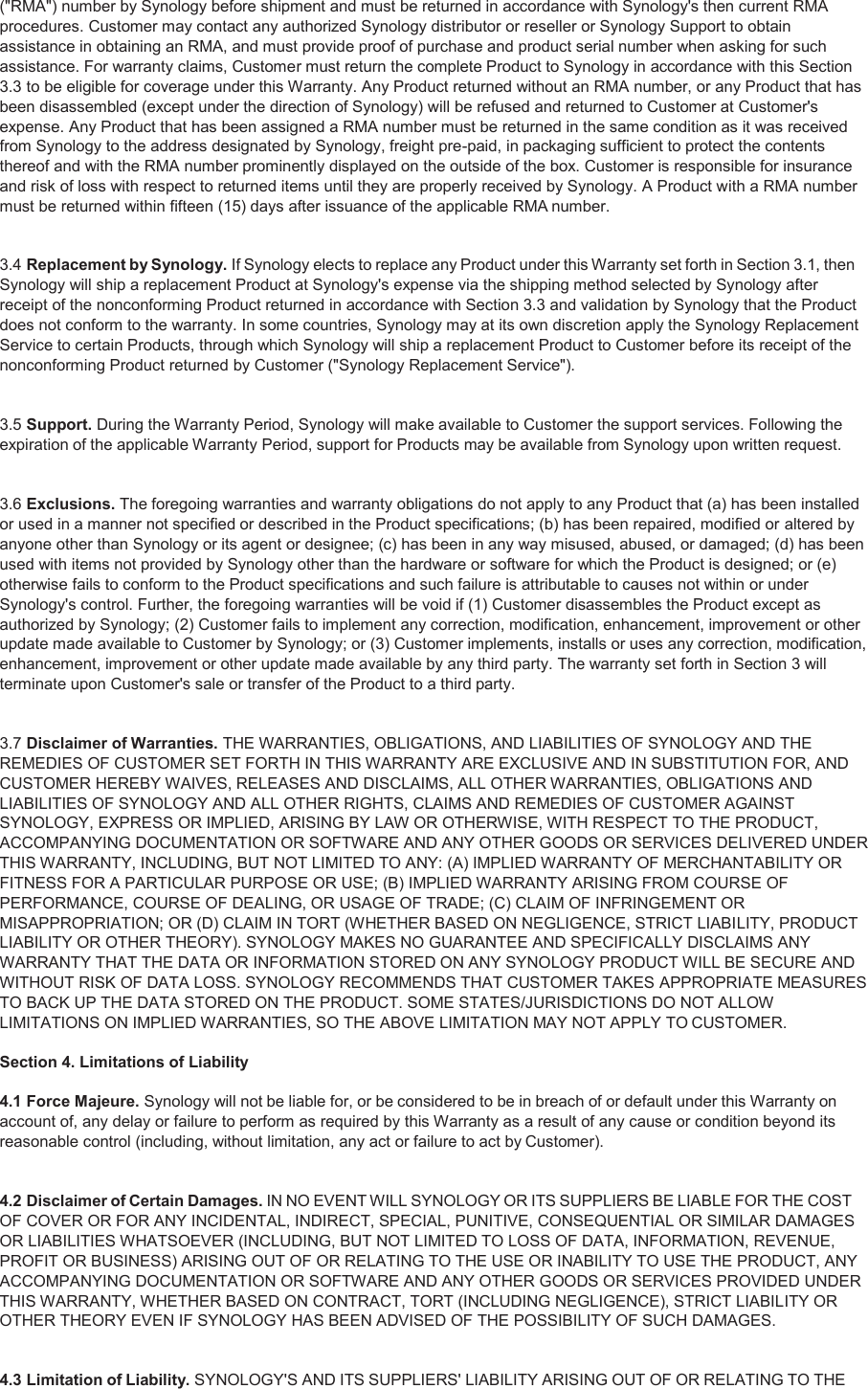

("RMA") number by Synology before shipment and must be returned in accordance with Synology's then current RMA procedures. Customer may contact any authorized Synology distributor or reseller or Synology Support to obtain assistance in obtaining an RMA, and must provide proof of purchase and product serial number when asking for such assistance. For warranty claims, Customer must return the complete Product to Synology in accordance with this Section 3.3 to be eligible for coverage under this Warranty. Any Product returned without an RMA number, or any Product that has been disassembled (except under the direction of Synology) will be refused and returned to Customer at Customer's expense. Any Product that has been assigned a RMA number must be returned in the same condition as it was received from Synology to the address designated by Synology, freight pre-paid, in packaging sufficient to protect the contents thereof and with the RMA number prominently displayed on the outside of the box. Customer is responsible for insurance and risk of loss with respect to returned items until they are properly received by Synology. A Product with a RMA number must be returned within fifteen (15) days after issuance of the applicable RMA number. 3.4 Replacement by Synology. If Synology elects to replace any Product under this Warranty set forth in Section 3.1, then Synology will ship a replacement Product at Synology's expense via the shipping method selected by Synology after receipt of the nonconforming Product returned in accordance with Section 3.3 and validation by Synology that the Product does not conform to the warranty. In some countries, Synology may at its own discretion apply the Synology Replacement Service to certain Products, through which Synology will ship a replacement Product to Customer before its receipt of the nonconforming Product returned by Customer ("Synology Replacement Service"). 3.5 Support. During the Warranty Period, Synology will make available to Customer the support services. Following the expiration of the applicable Warranty Period, support for Products may be available from Synology upon written request. 3.6 Exclusions. The foregoing warranties and warranty obligations do not apply to any Product that (a) has been installed or used in a manner not specified or described in the Product specifications; (b) has been repaired, modified or altered by anyone other than Synology or its agent or designee; (c) has been in any way misused, abused, or damaged; (d) has been used with items not provided by Synology other than the hardware or software for which the Product is designed; or (e) otherwise fails to conform to the Product specifications and such failure is attributable to causes not within or under Synology's control. Further, the foregoing warranties will be void if (1) Customer disassembles the Product except as authorized by Synology; (2) Customer fails to implement any correction, modification, enhancement, improvement or other update made available to Customer by Synology; or (3) Customer implements, installs or uses any correction, modification, enhancement, improvement or other update made available by any third party. The warranty set forth in Section 3 will terminate upon Customer's sale or transfer of the Product to a third party. 3.7 Disclaimer of Warranties. THE WARRANTIES, OBLIGATIONS, AND LIABILITIES OF SYNOLOGY AND THE REMEDIES OF CUSTOMER SET FORTH IN THIS WARRANTY ARE EXCLUSIVE AND IN SUBSTITUTION FOR, AND CUSTOMER HEREBY WAIVES, RELEASES AND DISCLAIMS, ALL OTHER WARRANTIES, OBLIGATIONS AND LIABILITIES OF SYNOLOGY AND ALL OTHER RIGHTS, CLAIMS AND REMEDIES OF CUSTOMER AGAINST SYNOLOGY, EXPRESS OR IMPLIED, ARISING BY LAW OR OTHERWISE, WITH RESPECT TO THE PRODUCT, ACCOMPANYING DOCUMENTATION OR SOFTWARE AND ANY OTHER GOODS OR SERVICES DELIVERED UNDER THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO ANY: (A) IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE; (B) IMPLIED WARRANTY ARISING FROM COURSE OF PERFORMANCE, COURSE OF DEALING, OR USAGE OF TRADE; (C) CLAIM OF INFRINGEMENT OR MISAPPROPRIATION; OR (D) CLAIM IN TORT (WHETHER BASED ON NEGLIGENCE, STRICT LIABILITY, PRODUCT LIABILITY OR OTHER THEORY). SYNOLOGY MAKES NO GUARANTEE AND SPECIFICALLY DISCLAIMS ANY WARRANTY THAT THE DATA OR INFORMATION STORED ON ANY SYNOLOGY PRODUCT WILL BE SECURE AND WITHOUT RISK OF DATA LOSS. SYNOLOGY RECOMMENDS THAT CUSTOMER TAKES APPROPRIATE MEASURES TO BACK UP THE DATA STORED ON THE PRODUCT. SOME STATES/JURISDICTIONS DO NOT ALLOW LIMITATIONS ON IMPLIED WARRANTIES, SO THE ABOVE LIMITATION MAY NOT APPLY TO CUSTOMER. Section 4. Limitations of Liability 4.1 Force Majeure. Synology will not be liable for, or be considered to be in breach of or default under this Warranty on account of, any delay or failure to perform as required by this Warranty as a result of any cause or condition beyond its reasonable control (including, without limitation, any act or failure to act by Customer). 4.2 Disclaimer of Certain Damages. IN NO EVENT WILL SYNOLOGY OR ITS SUPPLIERS BE LIABLE FOR THE COST OF COVER OR FOR ANY INCIDENTAL, INDIRECT, SPECIAL, PUNITIVE, CONSEQUENTIAL OR SIMILAR DAMAGES OR LIABILITIES WHATSOEVER (INCLUDING, BUT NOT LIMITED TO LOSS OF DATA, INFORMATION, REVENUE, PROFIT OR BUSINESS) ARISING OUT OF OR RELATING TO THE USE OR INABILITY TO USE THE PRODUCT, ANY ACCOMPANYING DOCUMENTATION OR SOFTWARE AND ANY OTHER GOODS OR SERVICES PROVIDED UNDER THIS WARRANTY, WHETHER BASED ON CONTRACT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY OR OTHER THEORY EVEN IF SYNOLOGY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. 4.3 Limitation of Liability. SYNOLOGY'S AND ITS SUPPLIERS' LIABILITY ARISING OUT OF OR RELATING TO THE

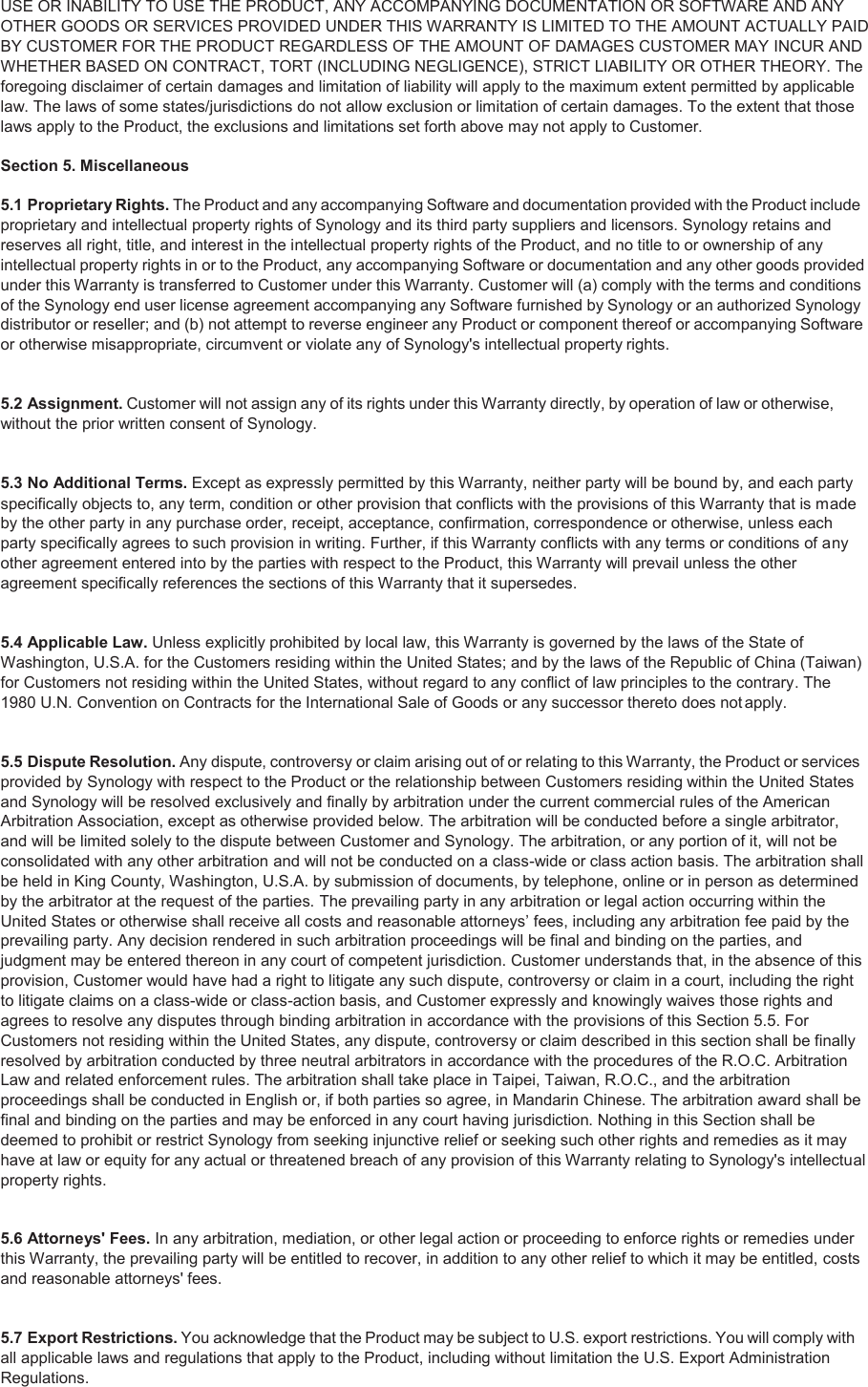

USE OR INABILITY TO USE THE PRODUCT, ANY ACCOMPANYING DOCUMENTATION OR SOFTWARE AND ANY OTHER GOODS OR SERVICES PROVIDED UNDER THIS WARRANTY IS LIMITED TO THE AMOUNT ACTUALLY PAID BY CUSTOMER FOR THE PRODUCT REGARDLESS OF THE AMOUNT OF DAMAGES CUSTOMER MAY INCUR AND WHETHER BASED ON CONTRACT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY OR OTHER THEORY. The foregoing disclaimer of certain damages and limitation of liability will apply to the maximum extent permitted by applicable law. The laws of some states/jurisdictions do not allow exclusion or limitation of certain damages. To the extent that those laws apply to the Product, the exclusions and limitations set forth above may not apply to Customer. Section 5. Miscellaneous 5.1 Proprietary Rights. The Product and any accompanying Software and documentation provided with the Product include proprietary and intellectual property rights of Synology and its third party suppliers and licensors. Synology retains and reserves all right, title, and interest in the intellectual property rights of the Product, and no title to or ownership of any intellectual property rights in or to the Product, any accompanying Software or documentation and any other goods provided under this Warranty is transferred to Customer under this Warranty. Customer will (a) comply with the terms and conditions of the Synology end user license agreement accompanying any Software furnished by Synology or an authorized Synology distributor or reseller; and (b) not attempt to reverse engineer any Product or component thereof or accompanying Software or otherwise misappropriate, circumvent or violate any of Synology's intellectual property rights. 5.2 Assignment. Customer will not assign any of its rights under this Warranty directly, by operation of law or otherwise, without the prior written consent of Synology. 5.3 No Additional Terms. Except as expressly permitted by this Warranty, neither party will be bound by, and each party specifically objects to, any term, condition or other provision that conflicts with the provisions of this Warranty that is made by the other party in any purchase order, receipt, acceptance, confirmation, correspondence or otherwise, unless each party specifically agrees to such provision in writing. Further, if this Warranty conflicts with any terms or conditions of any other agreement entered into by the parties with respect to the Product, this Warranty will prevail unless the other agreement specifically references the sections of this Warranty that it supersedes. 5.4 Applicable Law. Unless explicitly prohibited by local law, this Warranty is governed by the laws of the State of Washington, U.S.A. for the Customers residing within the United States; and by the laws of the Republic of China (Taiwan) for Customers not residing within the United States, without regard to any conflict of law principles to the contrary. The 1980 U.N. Convention on Contracts for the International Sale of Goods or any successor thereto does not apply. 5.5 Dispute Resolution. Any dispute, controversy or claim arising out of or relating to this Warranty, the Product or services provided by Synology with respect to the Product or the relationship between Customers residing within the United States and Synology will be resolved exclusively and finally by arbitration under the current commercial rules of the American Arbitration Association, except as otherwise provided below. The arbitration will be conducted before a single arbitrator, and will be limited solely to the dispute between Customer and Synology. The arbitration, or any portion of it, will not be consolidated with any other arbitration and will not be conducted on a class-wide or class action basis. The arbitration shall be held in King County, Washington, U.S.A. by submission of documents, by telephone, online or in person as determined by the arbitrator at the request of the parties. The prevailing party in any arbitration or legal action occurring within the United States or otherwise shall receive all costs and reasonable attorneys’ fees, including any arbitration fee paid by the prevailing party. Any decision rendered in such arbitration proceedings will be final and binding on the parties, and judgment may be entered thereon in any court of competent jurisdiction. Customer understands that, in the absence of this provision, Customer would have had a right to litigate any such dispute, controversy or claim in a court, including the right to litigate claims on a class-wide or class-action basis, and Customer expressly and knowingly waives those rights and agrees to resolve any disputes through binding arbitration in accordance with the provisions of this Section 5.5. For Customers not residing within the United States, any dispute, controversy or claim described in this section shall be finally resolved by arbitration conducted by three neutral arbitrators in accordance with the procedures of the R.O.C. Arbitration Law and related enforcement rules. The arbitration shall take place in Taipei, Taiwan, R.O.C., and the arbitration proceedings shall be conducted in English or, if both parties so agree, in Mandarin Chinese. The arbitration award shall be final and binding on the parties and may be enforced in any court having jurisdiction. Nothing in this Section shall be deemed to prohibit or restrict Synology from seeking injunctive relief or seeking such other rights and remedies as it may have at law or equity for any actual or threatened breach of any provision of this Warranty relating to Synology's intellectual property rights. 5.6 Attorneys' Fees. In any arbitration, mediation, or other legal action or proceeding to enforce rights or remedies under this Warranty, the prevailing party will be entitled to recover, in addition to any other relief to which it may be entitled, costs and reasonable attorneys' fees. 5.7 Export Restrictions. You acknowledge that the Product may be subject to U.S. export restrictions. You will comply with all applicable laws and regulations that apply to the Product, including without limitation the U.S. Export Administration Regulations.
5.8 Severability. If any provision of this Warranty is held by a court of competent jurisdiction to be invalid, illegal, or unenforceable, the remainder of this Warranty will remain in full force and effect. 5.9 Entire Agreement. This Warranty constitutes the entire agreement, and supersedes any and all prior agreements, between Synology and Customer related to the subject matter hereof. No amendment, modification or waiver of any of the provisions of this Warranty will be valid unless set forth in a written instrument signed by the party to be bound thereby.

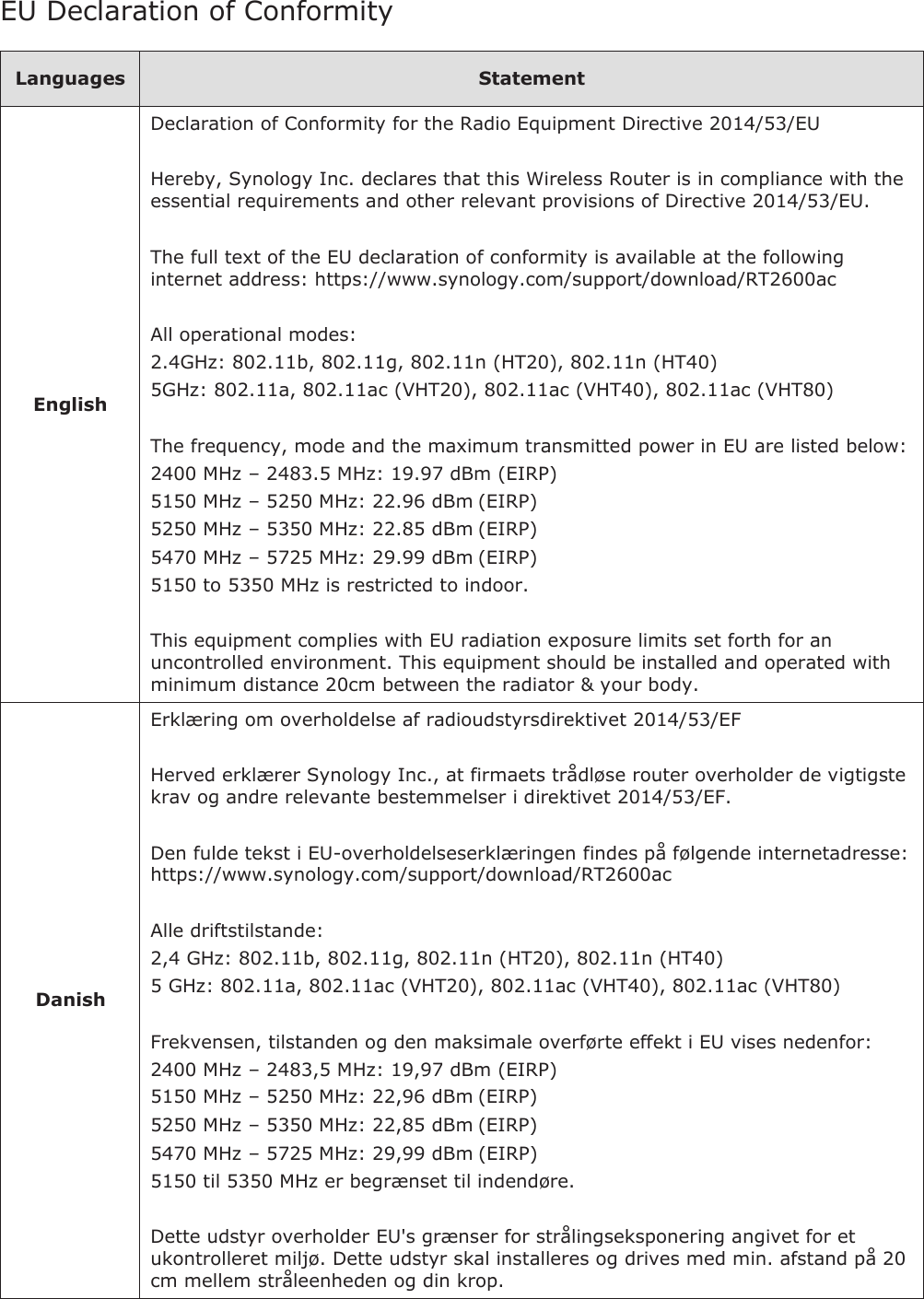

EU Declaration of Conformity Languages Statement English Declaration of Conformity for the Radio Equipment Directive 2014/53/EU Hereby, Synology Inc. declares that this Wireless Router is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.synology.com/support/download/RT2600ac All operational modes: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40) 5GHz: 802.11a, 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) The frequency, mode and the maximum transmitted power in EU are listed below: 2400 MHz – 2483.5 MHz: 19.97 dBm (EIRP) 5150 MHz – 5250 MHz: 22.96 dBm (EIRP) 5250 MHz – 5350 MHz: 22.85 dBm (EIRP) 5470 MHz – 5725 MHz: 29.99 dBm (EIRP) 5150 to 5350 MHz is restricted to indoor. This equipment complies with EU radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Danish Erklæring om overholdelse af radioudstyrsdirektivet 2014/53/EF Herved erklærer Synology Inc., at firmaets trådløse router overholder de vigtigste krav og andre relevante bestemmelser i direktivet 2014/53/EF. Den fulde tekst i EU-overholdelseserklæringen findes på følgende internetadresse: https://www.synology.com/support/download/RT2600ac Alle driftstilstande: 2,4 GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40) 5 GHz: 802.11a, 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) Frekvensen, tilstanden og den maksimale overførte effekt i EU vises nedenfor: 2400 MHz – 2483,5 MHz: 19,97 dBm (EIRP) 5150 MHz – 5250 MHz: 22,96 dBm (EIRP) 5250 MHz – 5350 MHz: 22,85 dBm (EIRP) 5470 MHz – 5725 MHz: 29,99 dBm (EIRP) 5150 til 5350 MHz er begrænset til indendøre. Dette udstyr overholder EU's grænser for strålingseksponering angivet for et ukontrolleret miljø. Dette udstyr skal installeres og drives med min. afstand på 20 cm mellem stråleenheden og din krop.
German Konformitätserklärung für die Funkausanlagen-Richtlinie 2014/53/EU Hiermit erklärt Synology Inc., dass dieser WLAN-Router den grundlegenden Anforderungen und anderen Vorschriften der Richtlinie 2014/53/EU entspricht. Der vollständige Wortlaut der EU-Konformitätserklärung steht unter der folgenden Internetadresse zur Verfügung: https://www.synology.com/support/download/RT2600ac Alle Betriebsmodi: 2,4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40) 5 GHz: 802.11a, 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) Die Frequenz, der Modus und der max. übertragene Strom in der EU sind im Folgenden aufgeführt: 2.400 MHz – 2483,5 MHz: 19,97 dBm (EIRP) 5.150 MHz – 5.250 MHz: 22,96 dBm (EIRP) 5.250 MHz – 5.350 MHz: 22,85 dBm (EIRP) 5.470 MHz – 5.725 MHz: 29,99 dBm (EIRP) 5.150 bis 5.350 MHz sind auf Innenräume beschränkt. Diese Ausrüstung entspricht den EU-Strahlenkontaktgrenzwerten, die für eine unkontrollierte Umgebung definiert wurden. Diese Ausrüstung muss mit einem Mindestabstand von 20 cm zwischen dem Strahlengerät und Ihrem Körper installiert und betrieben werden. Greek !"#$%&'())*+,#$%-&).&/%0&12%345&365&/70&85267.97:"6$)*&;<=>?@A?BB C.&/7&:5+*0&%&Synology&IncD&2%"E0.6&*/6&7&:5+E0&F$G+)5/7-& +7)7"73%/!-&$())7+,E0./56&).&/6-&7($6E2.6-&5:56/!$.6-&H56&/6-&"76:J-&$K./6HJ-&265/L9.6-&/%-&12%345-&;<=>?@A?BBD M7&:"!+.-&H.4).07&/%-&2!"#$%-&$())*+,#$%-&365&/%0&BB&.4056&265NJ$6)7&$/%0&5H*"7(N%&26.GN(0$%&InternetO&https://www.synology.com/support/download/RT2600ac P".- 76 H5/5$/L$.6- ".6/7(+345-: 2,4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40) 5GHz: 802.11a, 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) Q $(K0*/%/5, % H5/L$/5$% ".6/7(+345- H56 % )J36$/% 6$KG- )./L27$%- $/%0 BB 505,J+70/56 :5+5HL/#: 2400 MHz – 2483,5 MHz: 19,97 dBm (EIRP) 5150 MHz – 5250 MHz: 22,96 dBm (EIRP) 5250 MHz – 5350 MHz: 22,85 dBm (EIRP) 5470 MHz – 5725 MHz: 29,99 dBm (EIRP) Q RE0% 5150 J#- 5350 MHz .:6/+J:./56 )*07 $. .$#/.+6H7G- KE+7(-. 1 :5+E0 .97:"6$)*- $())7+,E0./56 ). /5 H5N7+6$)J05 *+65 JHN.$%- $. 5H/607T7"45 /%- BB 365 )% .".3K*).07 :.+6TL""70. 1 :5+E0 .97:"6$)*- :+J:.6 05 .3H5N4$/5/56 H56 05 ".6/7(+3.4 $. ."LK6$/% 5:*$/5$% 20 .H. )./59G /%- :%3!- 5H/607T7"45- H56 /7( $E)5/*- $5-.

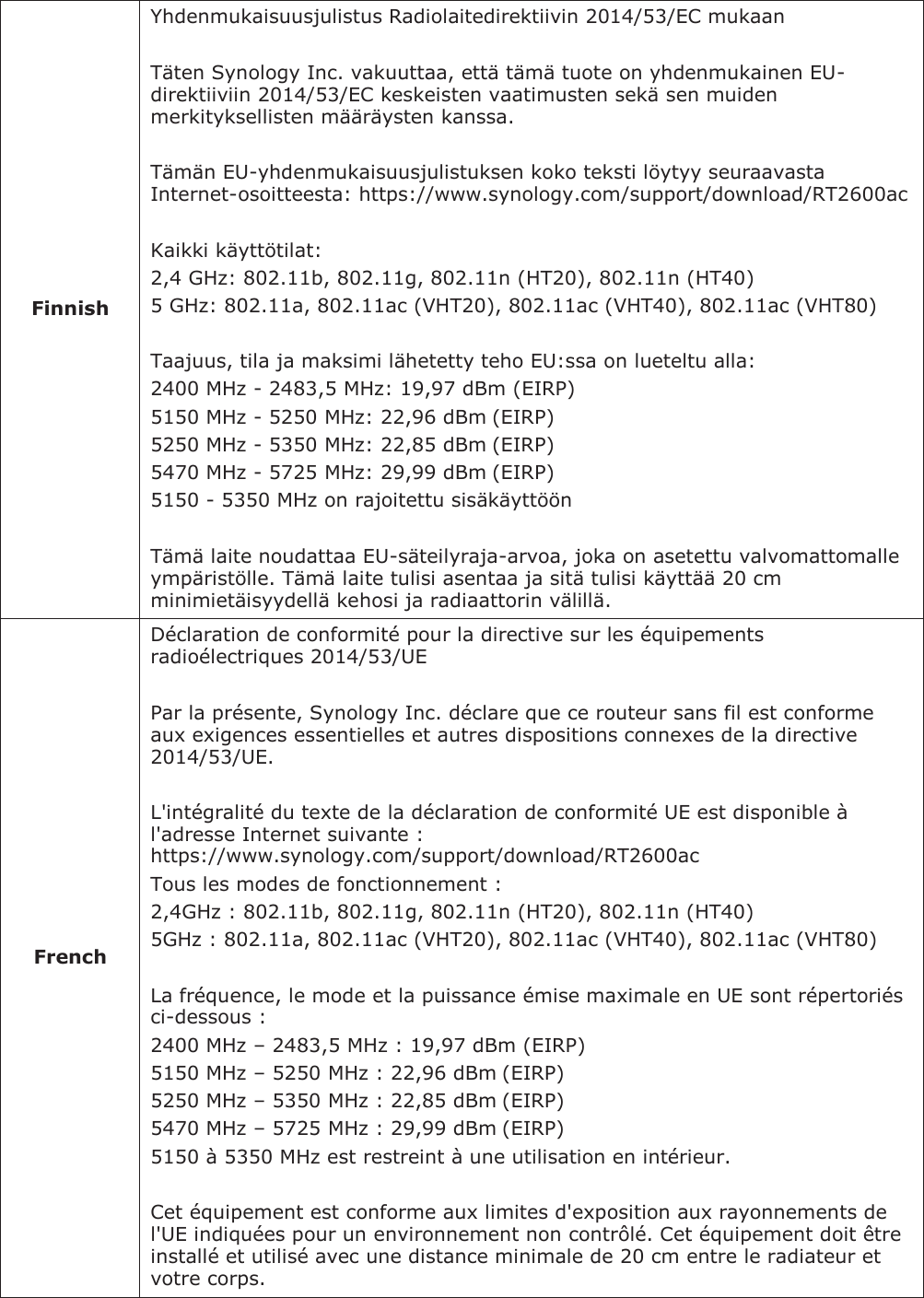

Finnish Yhdenmukaisuusjulistus Radiolaitedirektiivin 2014/53/EC mukaan Täten Synology Inc. vakuuttaa, että tämä tuote on yhdenmukainen EU- direktiiviin 2014/53/EC keskeisten vaatimusten sekä sen muiden merkityksellisten määräysten kanssa. Tämän EU-yhdenmukaisuusjulistuksen koko teksti löytyy seuraavasta Internet-osoitteesta: https://www.synology.com/support/download/RT2600ac Kaikki käyttötilat: 2,4 GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40) 5 GHz: 802.11a, 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) Taajuus, tila ja maksimi lähetetty teho EU:ssa on lueteltu alla: 2400 MHz - 2483,5 MHz: 19,97 dBm (EIRP) 5150 MHz - 5250 MHz: 22,96 dBm (EIRP) 5250 MHz - 5350 MHz: 22,85 dBm (EIRP) 5470 MHz - 5725 MHz: 29,99 dBm (EIRP) 5150 - 5350 MHz on rajoitettu sisäkäyttöön Tämä laite noudattaa EU-säteilyraja-arvoa, joka on asetettu valvomattomalle ympäristölle. Tämä laite tulisi asentaa ja sitä tulisi käyttää 20 cm minimietäisyydellä kehosi ja radiaattorin välillä. French Déclaration de conformité pour la directive sur les équipements radioélectriques 2014/53/UE Par la présente, Synology Inc. déclare que ce routeur sans fil est conforme aux exigences essentielles et autres dispositions connexes de la directive 2014/53/UE. L'intégralité du texte de la déclaration de conformité UE est disponible à l'adresse Internet suivante : https://www.synology.com/support/download/RT2600ac Tous les modes de fonctionnement : 2,4GHz : 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40) 5GHz : 802.11a, 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) La fréquence, le mode et la puissance émise maximale en UE sont répertoriés ci-dessous : 2400 MHz – 2483,5 MHz : 19,97 dBm (EIRP) 5150 MHz – 5250 MHz : 22,96 dBm (EIRP) 5250 MHz – 5350 MHz : 22,85 dBm (EIRP) 5470 MHz – 5725 MHz : 29,99 dBm (EIRP) 5150 à 5350 MHz est restreint à une utilisation en intérieur. Cet équipement est conforme aux limites d'exposition aux rayonnements de l'UE indiquées pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps.
Italian Dichiarazione di conformità alla Direttiva RED (Radio Equipment Directive) 2014/53/UE Synology Inc. dichiara che il router wireless soddisfa i requisiti essenziali e le altre disposizioni rilevanti della Direttiva 2014/53/UE. Il testo completo della dichiarazione UE di conformità è disponibile al seguente indirizzo Internet: https://www.synology.com/support/download/RT2600ac Tutte le modalità operative: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40) 5GHz: 802.11a, 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) La frequenza, la modalità e la potenza massima tasmessa in UE sono elencate di seguito: 2400 MHz – 2483.5 MHz: 19.97 dBm (EIRP) 5150 MHz – 5250 MHz: 22.96 dBm (EIRP) 5250 MHz – 5350 MHz: 22.85 dBm (EIRP) 5470 MHz – 5725 MHz: 29.99 dBm (EIRP) Da 5150 a 5350 MHz limitato ad ambienti interni. Quest'apparecchiatura è conforme ai limiti di esposizione alle radiazioni definiti dall'UE per ambienti non controllati. Quest'apparecchiatura deve essere installata e messa in funzione con una distanza minima di 20 cm tra il radiatore e l'utente. Dutch Conformiteitsverklaring voor richtlijn radioapparatuur 2014/53/EU Synology Inc. verklaart hierbij dat deze draadloze router aan de essentiële vereisten en andere relevante bepalingen van richtlijn 2014/53/EU voldoet. De volledige tekst van de EU-conformiteitsverklaring is beschikbare op het volgende internetadres: https://www.synology.com/support/download/RT2600ac Alle operationele modi: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40) 5GHz: 802.11a, 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) De frequentie, modus en maximaal verzendingsvermongen in EU is als volgt: 2400 MHz – 2483.5 MHz: 19,97 dBm (EIRP) 5150 MHz – 5250 MHz: 22,96 dBm (EIRP) 5250 MHz – 5350 MHz: 22,85 dBm (EIRP) 5470 MHz – 5725 MHz: 29,99 dBm (EIRP) 5150 tot 5350 MHz is beperkt voor binnengebruik. Dit apparaat voldoet aan de EU-limieten voor stralingsblootstelling bepaald voor ongecontroleerde omgeving. Dit apparaat moet worden geïnstalleerd en gebruikt op een minimale afstand van 20 cm tussen de zender en uw lichaam.

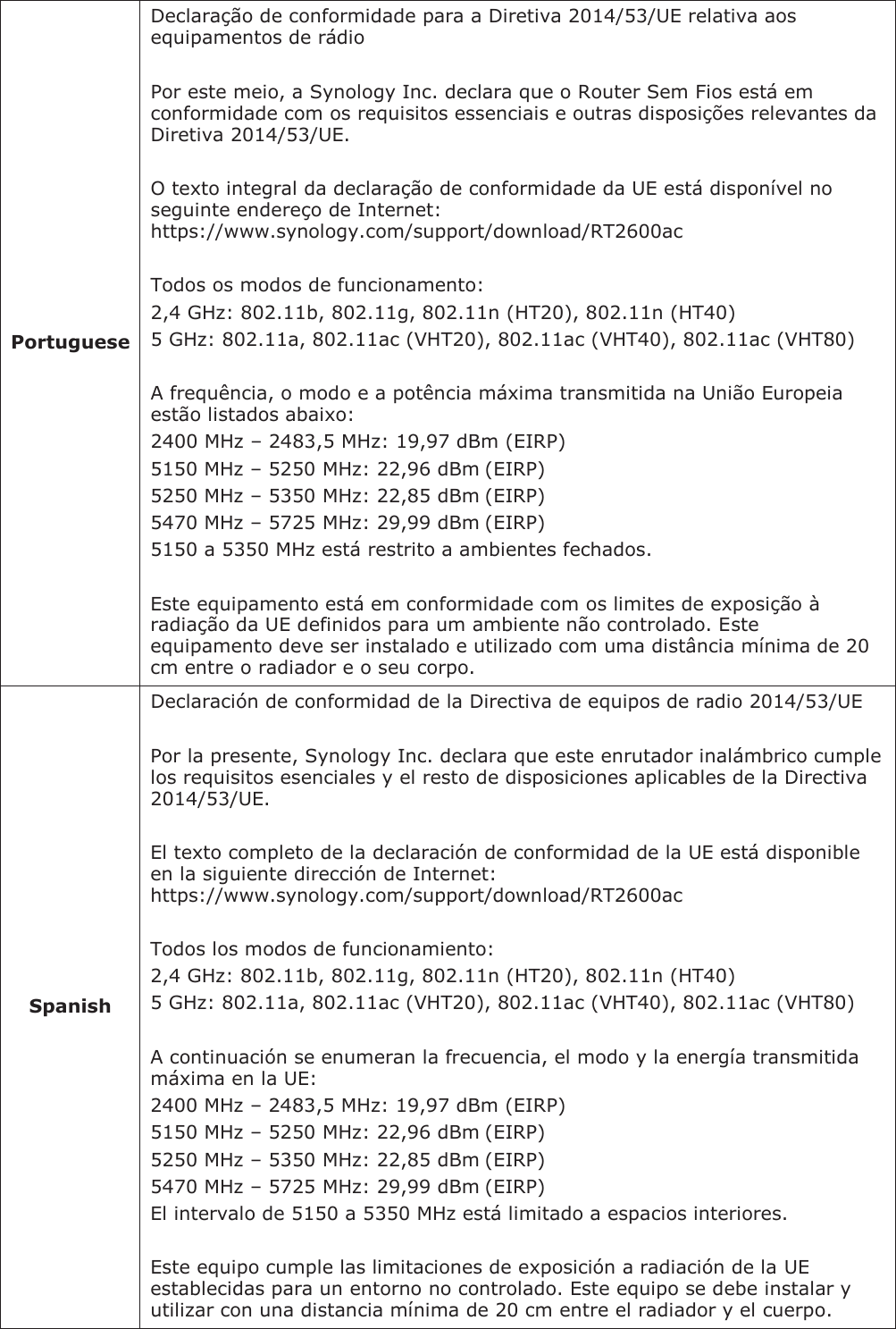

Portuguese Declaração de conformidade para a Diretiva 2014/53/UE relativa aos equipamentos de rádio Por este meio, a Synology Inc. declara que o Router Sem Fios está em conformidade com os requisitos essenciais e outras disposições relevantes da Diretiva 2014/53/UE. O texto integral da declaração de conformidade da UE está disponível no seguinte endereço de Internet: https://www.synology.com/support/download/RT2600ac Todos os modos de funcionamento: 2,4 GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40) 5 GHz: 802.11a, 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) A frequência, o modo e a potência máxima transmitida na União Europeia estão listados abaixo: 2400 MHz – 2483,5 MHz: 19,97 dBm (EIRP) 5150 MHz – 5250 MHz: 22,96 dBm (EIRP) 5250 MHz – 5350 MHz: 22,85 dBm (EIRP) 5470 MHz – 5725 MHz: 29,99 dBm (EIRP) 5150 a 5350 MHz está restrito a ambientes fechados. Este equipamento está em conformidade com os limites de exposição à radiação da UE definidos para um ambiente não controlado. Este equipamento deve ser instalado e utilizado com uma distância mínima de 20 cm entre o radiador e o seu corpo. Spanish Declaración de conformidad de la Directiva de equipos de radio 2014/53/UE Por la presente, Synology Inc. declara que este enrutador inalámbrico cumple los requisitos esenciales y el resto de disposiciones aplicables de la Directiva 2014/53/UE. El texto completo de la declaración de conformidad de la UE está disponible en la siguiente dirección de Internet: https://www.synology.com/support/download/RT2600ac Todos los modos de funcionamiento: 2,4 GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40) 5 GHz: 802.11a, 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) A continuación se enumeran la frecuencia, el modo y la energía transmitida máxima en la UE: 2400 MHz – 2483,5 MHz: 19,97 dBm (EIRP) 5150 MHz – 5250 MHz: 22,96 dBm (EIRP) 5250 MHz – 5350 MHz: 22,85 dBm (EIRP) 5470 MHz – 5725 MHz: 29,99 dBm (EIRP) El intervalo de 5150 a 5350 MHz está limitado a espacios interiores. Este equipo cumple las limitaciones de exposición a radiación de la UE establecidas para un entorno no controlado. Este equipo se debe instalar y utilizar con una distancia mínima de 20 cm entre el radiador y el cuerpo.
Swedish Försäkran om överensstämmelse med direktivet för radioutrustning 2014/53/EG Synology Inc. Försäkrar härmed att den här trådlösa routern överensstämmer med de grundläggande kraven och andra gällande bestämmelser för direktivet 2014/53/EG. Den fullständiga texten för EG-försäkran om överensstämmelse finns tillgänglig på följande internetadress: https://www.synology.com/support/download/RT2600ac Alla driftslägen: 2,4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40) 5GHz: 802.11a, 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) Frekvensen, läget och den maximalt utsända effekten i EG finns uppräknat här nedanför: 2400 MHz – 2483,5 MHz: 19,97 dBm (EIRP) 5150 MHz – 5250 MHz: 22,96 dBm (EIRP) 5250 MHz – 5350 MHz: 22,85 dBm (EIRP) 5470 MHz – 5725 MHz: 29,99 dBm (EIRP) 5150 till 5350 MHz är begränsat till inomhus. Den här utrustningen överensstämmer med EG-gränser för strålningsexponering i en okontrollerad miljö. Den här utrustningen ska installeras och användas med som minst ett avstånd på 20cm mellan kylaren och din kropp.
Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules. Operations in the 2412~2462, 5180~5240, 5260~5320, 5500~5700, 5745~5825 MHz band are restricted to indoor usage only.This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules. “this device is for indoor use only.”

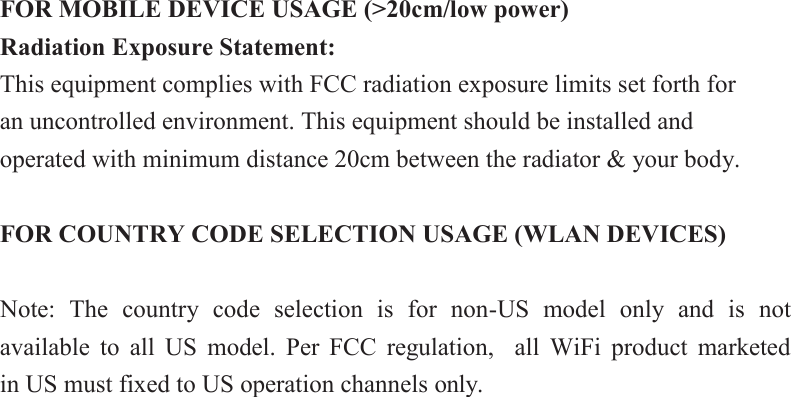

FOR MOBILE DEVICE USAGE (>20cm/low power) Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FOR COUNTRY CODE SELECTION USAGE (WLAN DEVICES) Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only.
Industry Canada statement: This device complies with ISED’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d’ ISED applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Caution : (i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; (ii) the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit; (iii) the maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits specified for point-to-point and non-point-to-point operation as appropriate; and (iv) the worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask requirement set forth in Section 6.2.2(3) shall be clearly indicated. (v) Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices. Avertissement: Le guide d’utilisation des dispositifs pour réseaux locaux doit inclure des instructions précises sur les restrictions susmentionnées, notamment : (i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux; (ii) le gain maximal d'antenne permis pour les dispositifs utilisant les bandes de 5250 à 5
350 MHz et de 5470 à 5725 MHz doit être conforme à la limite de la p.i.r.e; (iii) le gain maximal d'antenne permis (pour les dispositifs utilisant la bande de 5 725 à 5 850 MHz) doit être conforme à la limite de la p.i.r.e. spécifiée pour l'exploitation point à point et l’exploitation non point à point, selon le cas; (iv) les pires angles d’inclinaison nécessaires pour rester conforme à l’exigence de la p.i.r.e. applicable au masque d’élévation, et énoncée à la section 6.2.2 3), doivent être clairement indiqués. (v) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL. FOR MOBILE DEVICE USAGE (>23cm/low power) Radiation Exposure Statement: This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 23cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 23 cm de distance entre la source de rayonnement et votre corps.

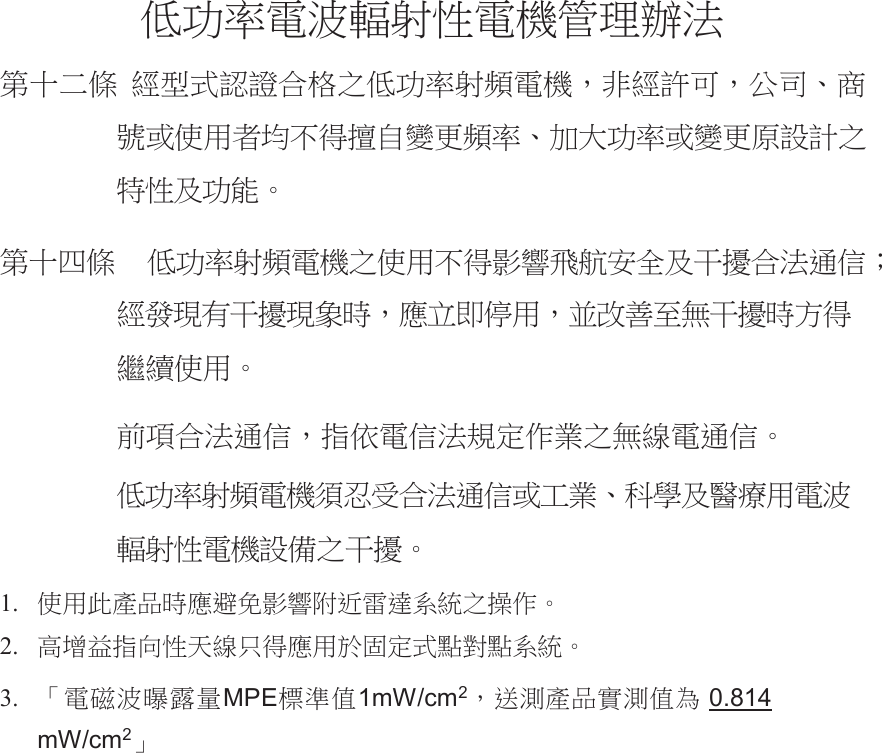

Ỷ≇䌯暣㲊廣⮬⿏暣㨇䭉䎮彎㱽 䫔⋩Ḵ㡅 䴻✳⺷娵嫱⎰㟤ᷳỶ≇䌯⮬柣暣㨇炻朆䴻姙⎗炻℔⎠ˣ⓮嘇ㆾἧ䓐侭⛯ᶵ⼿㑭冒嬲㚜柣䌯ˣ≈⣏≇䌯ㆾ嬲㚜⍇姕妰ᷳ䈡⿏⍲≇傥ˤ 䫔⋩⚃㡅 Ỷ≇䌯⮬柣暣㨇ᷳἧ䓐ᶵ⼿⼙枧梃凒⬱ℐ⍲⸚㒦⎰㱽忂ᾉ烊䴻䘤䎦㚱⸚㒦䎦尉㗪炻ㅱ䩳⌛ 䓐炻᷎㓡┬军䃉⸚㒦㗪㕡⼿两临ἧ䓐ˤ ⇵枭⎰㱽忂ᾉ炻㊯ὅ暣ᾉ㱽夷⭂ἄ㤕ᷳ䃉䶂暣忂ᾉˤ Ỷ≇䌯⮬柣暣㨇枰⽵⍿⎰㱽忂ᾉㆾⶍ㤕ˣ䥹⬠⍲慓䗪䓐暣㲊廣⮬⿏暣㨇姕⁁ᷳ⸚㒦ˤ 1. ἧ䓐㬌䓊⑩㗪ㅱ性⃵⼙枧旬役暟忼䲣䴙ᷳ㑵ἄˤ 2. 檀⡆䙲㊯⎹⿏⣑䶂⎒⼿ㅱ䓐㕤⚢⭂⺷溆⮵溆䲣䴙ˤ 3. ˬ暣䡩㲊㚅曚慷MPE㧁㸾ῤ1mW/cm2炻復㷔䓊⑩⮎㷔ῤ䁢 0.814 mW/cm2˭

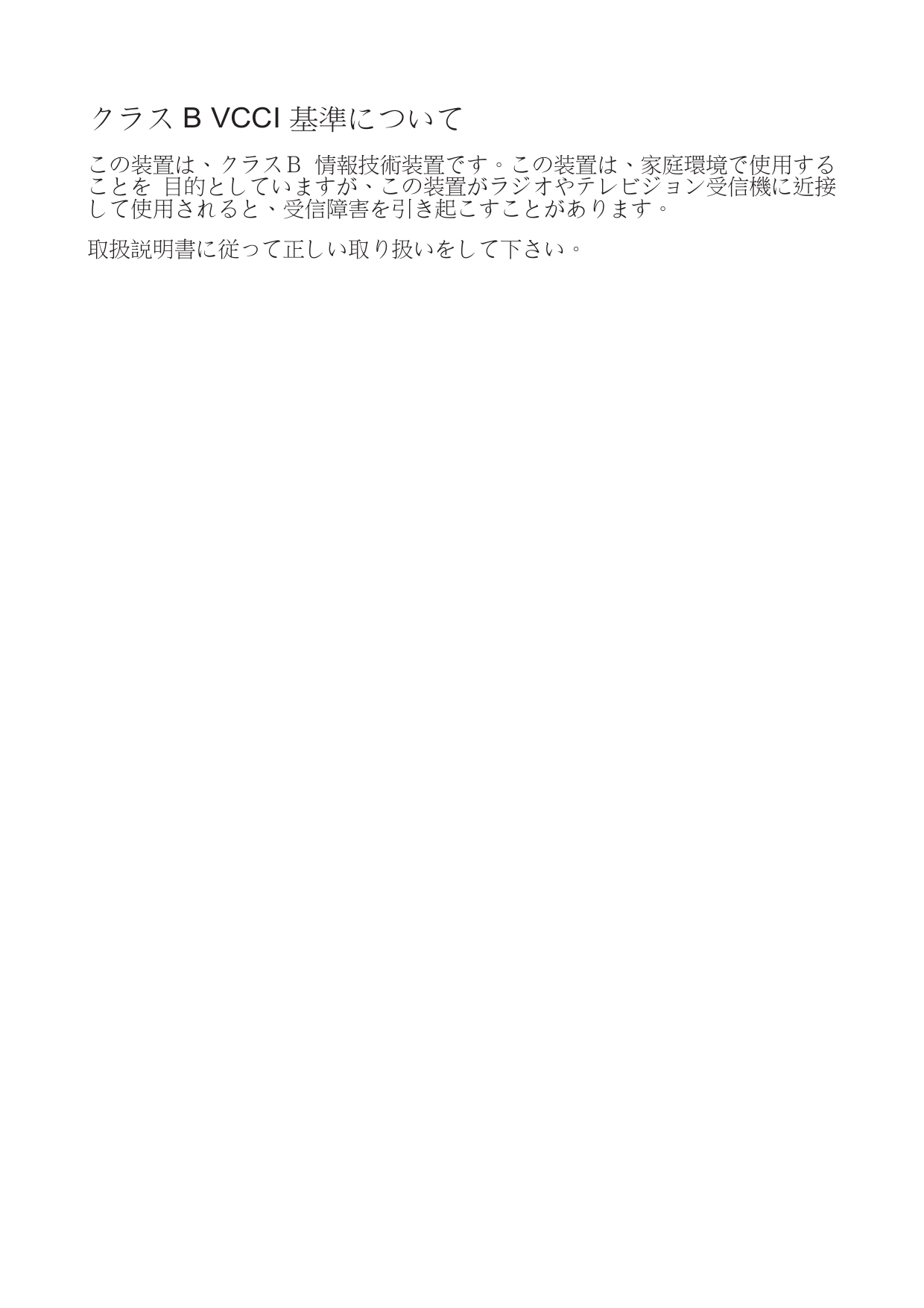

ͧΡͱ B VCCI ➢㸾̧̬̥̅ ̯̔塭伖̰ˣͧΡͱ烑 ね⟙㈨埻塭伖̨̚ˤ̯̔塭伖̰ˣ⭞⹕䑘⠫̨ἧ䓐̩͓͌̔̚ 䚖䘬̧̩̘̅̿̍̚ˣ̯̔塭伖̍ΡͰ͢ͅ;Τ΋ͰΟΫ⍿ᾉ㨇̬役㍍̧̘ἧ䓐̖͍̩͌ˣ⍿ᾉ晄⭛͓⺽̎崟̩̔̔̍̃͋̿̚̚ˤ ⍾㈙婔㖶㚠̬⼻̧̤㬋̘̅⍾͋㈙̧͓̘̅ᶳ̖̅ˤ
