User’s Manual
Rechargeable Wireless
Presenter Mouse
Page 2
Regulatory Compliance
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
FCC Certication
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful
interference when the equipment is operated in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy and,
if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
•
•
Page 3
Consult the dealer or an experienced radio/TV
technician for help.
Notice: Any changes or modications not expressly
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Extension cables are not recommended, if used, they
must be shielded in order to comply with the emission
limits.
IC Certication
The term “IC” before the certication/registration
number only signies that the Industry Canada technical
specications were met.
Declaration of conformity
Hereby, Interlink Electronics, Inc. declares that this
VersaPoint Wireless Desktop Suite is in compliance with
the essential requirements and other relevant provisions
of Directive 1999/5/EC.
All trademarks and registered trademarks mentioned
in this document are the property of their respective
owners.
Features and specications are subject to change without
notice.
© 2007 Interlink Electronics, Inc.
•
Page 4
System Requirements
Hardware: 2 available USB ports
Operating System: Windows 2000, XP or Vista
Macintosh OS X or above (Mouse Mode fully
compatible; F5 and Application Switch in Presenter Mode not
supported)
Package Contents

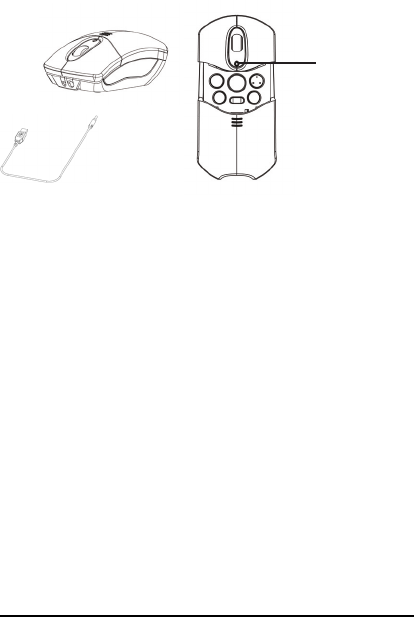

Wireless presenter mouse
Micro USB receiver dongle (stored inside
battery compartment)
USB charging cable
2 x AAA rechargeable Ni-MH batteries
User’s manual
Carrying case
Installing the Rechargeable
Batteries (Supplied)
•
•
•
•
•
•

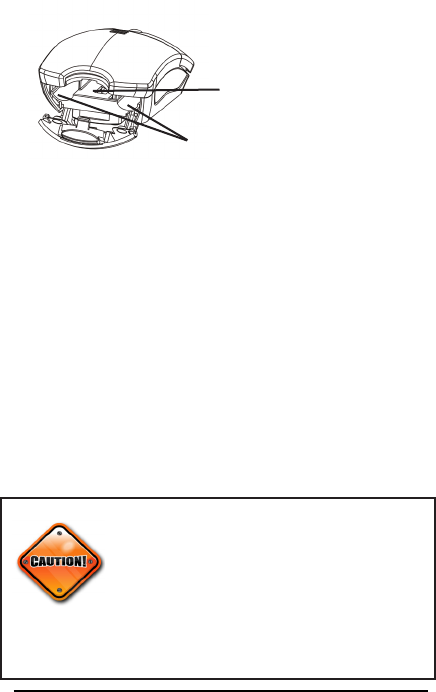

Battery Compartment Cover Latch
(Press down to open)
Page 5
Open the battery compartment by pressing
down the cover latch located at the end of
the mouse. Please note that the micro USB
receiver dongle also stores in this compartment
when traveling.
Insert the two supplied AAA rechargeable
Ni-MH batteries (included in the package)
to the battery slots. Make sure the positive
(+) and negative (-) ends of the batteries
match the polarity markings inside the battery
compartment.
Close the battery cover back into position.
•
•
•
Do not use any disposable or Alkaline
batteries in this mouse. Use only the
rechargeable Ni-MH batteries supplied
with this mouse. Shall replacing batteries
become necessary use only rechargeable
AAA batteries. Do not mix new and old
batteries in the mouse.

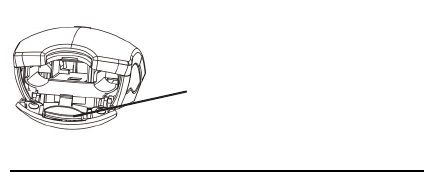

Micro USB receiver dongle
storage
2 AAA Rechargeable Ni-MH Batteries
Page 6
Charging the Batteries
It’s recommended that you fully charge the
batteries before initial use; nevertheless the
mouse is functional anytime during charging.
Plug the USB connector of the charging cable
(included in the box) into the computer’s
available USB port.
Connect the barrel-tip end of the USB
chargimg cable to the mouse’s charge port
located at the front end of the mouse.
The power-indicator LED ashes green
indicating the battery power is low and turns to
solid green when fully charged.
The initial charging process may take up to 4
hours. Subsequent recharge may require less
time depending on the level of residual power
•
•
•
•
•
Power Indicator
(Power Low: Green
LED ashing;
Fully Charged: LED
turns to solid green)
Page 7
of the batteries.
The mouse is operational during charging; you
can continue use the mouse while charging it
via the USB charge cable.
The mouse is designed with a sleep mode to
save power. When the mouse is inactive for
approximately 10 minutes it will automatically
shot off the optical sensor. To wake it up just
click on the right- or left-button.
You are now ready to connect the mouse
to your computer system. (Note: it’s not
necessary to wait for the batteries to be fully
charged before connecting the mouse to your
system.) Turn on the power by sliding the on/
off switch located at the bottom of the mouse
to the “on” position.
•
•
•
Make sure the computer’s power
management is set to disable hibernation
mode while the mouse is being charged.
(Go to Control Panel, Power Options,
select “Hibernate” from the tabs and
uncheck the box marked “Enable
Hibernation.)
Power Indicator
(Power Low: Green
LED ashing;
Fully Charged: LED
turns to solid green)
Page 8
Connecting the Mouse to the
Computer
Retrieve the micro USB receiver dongle
stored inside the battery compartment
by opening the battery door as shown
in Installing the Rechargeable Batteries
section. Close the door.
Connect the micro USB receiver dongle to
an available USB port on your computer.
Wait for the computer to go through its
default process of recognizing the new
hardware and installing the built-in native
mouse driver. You don’t need to do
anything while your computer is going
through the installation of a new device.
•
•

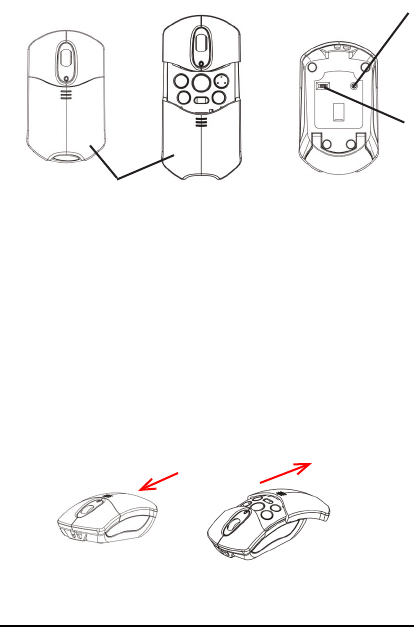

On/Off
Switch

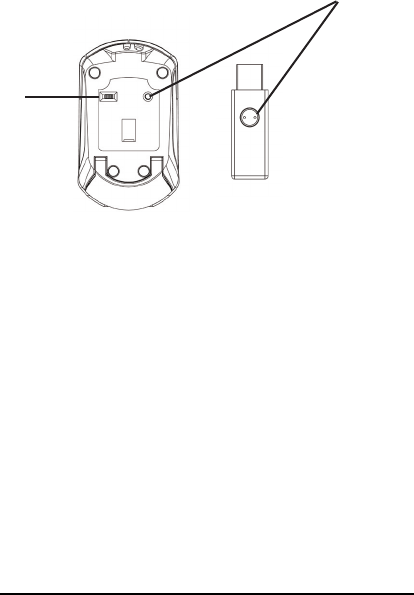

Connect Button
Page 9
The radio frequency (RF) codes are
factory preset for your convenience; the
mouse should be functional at this point.
If for any reason the mouse does
not function correctly, i.e. no cursor
movements or sluggish cursor movements,
there may be other wireless devices in
the vicinity operating in the same radio
frequency channel. The mouse can be
easily reset to another channel by pressing
on the connect button located on the top of
the micro USB receiver dongle while it’s
plugged in to the computer’s USB port,
and pressing the connect button located at
the bottom of the mouse. This will switch
the mouse and the receiver to a different
channel to avoid interference. This step
can be repeated when needed.
•
•
Page 10
Using the Presenter Mouse
Working in mouse mode – the sliding door on the
top is closed
The mouse functions as a standard 3-button
mouse: right click, left click and the scroll
wheel as the 3rd button.
The mouse goes to sleep mode to save battery
power after approximately 10 minutes of
inactivity. Wake it up by clicking on any
button.
•
•
Cover
Connect Button
On/Off
Switch
Mouse Mode
(Door Closed)
Presenter Mode
(Door Open)
Page 11
Working in presenter mode – the sliding door in
open position
Open the sliding door by pressing on the top
cover with 2 thumbs and gently glide the door
toward the back of the mouse, away from the
2 mouse buttons, until it stops and clicks. Do
not force the door open or pulling the door
beyond the open position.
The presenter automatically detects the mode
switch when the sliding door is open. The
presentation control buttons are exposed
and the device automatically converts to
a presenter with laser pointer. The optical
sensor for the mouse function is shut off. To
use the mouse cursor control you must close
the sliding door rst.
There are 5 presenter functions plus laser
pointer:
- Under Windows OS: fully compatible
- Under Macintosh OS: F5 (Slide Show) and
Application Switch not supported.
•
•
•
On/Off
Switch
Page 12
Operating Tips & Trouble Shooting
Make sure the mouse is turned on by checking the
on/off switch located at the bottom of the mouse
before using it.
Conserve the battery power by switching the
on/off switch to “off” position while traveling
or if the mouse will not be in use for awhile. If
you will not use the mouse for a long period
of time remove the batteries from the battery
compartment.
Optical mouse works best in non-reective, non-
white, surface. If cursor movements are lagging,
placing the mouse on a mousepad will help.
Darker surface requires more energy to operate
•
•
•
Next Page
Previous Page

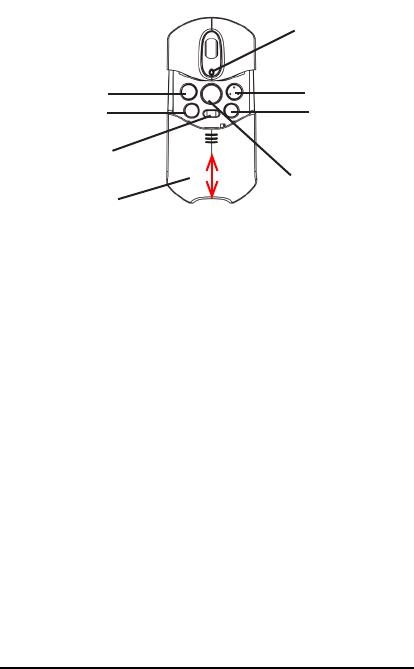

Application Switch Dark Screen/
Resume
Laser Warning
Light (Green LED)
Laser Pointer
Trigger
F5(Slide Show)/
ESC
Sliding Door (Mode
Switch)
Page 13
thus consumes more battery power.
When the mouse cursor behaves erratically
check the power-indicator LED for power
status, i.e. LED light ashing for power-low;
and follow the instructions in Charging the
Batteries section to recharge the batteries. The
mouse is functional during charging.
The mouse stays connected to your computer
even when it’s turned off. If for any reason the
connection to the system is lost or interference
is detected (erratic cursor movements), rst
check if the micro USB receiver dongle is
plugged in to the computer USB port, then
verify that the presenter mouse is within the
range (up to 33 feet) from your computer.
If the connection is lost it can be xed by
following the instructions in the Connecting
the Mouse to the Computer section to
reconnect the devices.
Make sure the sliding door is closed when
the device is not in use and when traveling in
order to avoid damaging to the door.
Remember to store the micro USB receiver
dongle in the storage compartment when
traveling.
•
•
•
•
Page 14
Warranty: INTERLINK warrants to the original
end-user purchaser of the Product (“you”) that the Product,
excluding batteries, will be free from defects in materials or
workmanship under normal use and service for one-year from
date of purchase. Dated invoice or sales receipt is necessary
to accompany the Product returned for warranty service
consideration. Any Product repaired or replaced under the terms
of the warranty is covered for the remainder of the original
warranty period or ninety (90) days from the date of service or
return shipping, whichever is longer. If the Product becomes
defective in materials or workmanship during the warranty
period, INTERLINK will, at its option, either repair or replace
it with a more current or upgraded model if the originally
purchased model is not available. This warranty does not
cover products which have been subjected to misuse, accident,
physical damage, improper installation, abnormal operation
or handling, neglect, inundation or re, or when product
regulatory label has been removed, altered or rendered illegible;
nor does it cover accessory and consumable items. In no case
shall Interlink be liable for any indirect special, incidental, or
consequential damages based upon breach of warranty, breach
of contract, negligence, strict tort or any other legal theory.
Such damages include, but are not limited to, loss of prots,
loss of savings or revenues, inability to use the product or any
associated equipment, cost of capital, cost of any substitute
equipment, facilities or services, claims by third parties other
than you, and injury to property. Interlink’s total liability for
damages for any cause related to, or arising out of, the use or
inability to use the product, shall not exceed the original price
paid for the product even if Interlink has been informed of such
possibility. If your Product requires warranty service, you must
rst contact INTERLINK Product Support to receive an RMA
Number. The contact information can be found on INTERLINK
website:
http://www.interlinkelectronics.com/support/contactsupport.
html.
This warranty does not affect our statutory right and you may
also have other rights which vary from state to state. Unless
modified in writing, signed by both you and INTERLINK,
this warranty is understood to be the complete and exclusive
agreement between the parties, superseding all prior
agreements,
oral or written, and all other communications between the
parties relating to the subject matter of this warranty.
Product Support
For technical support please contact interlink
Electronics at
http://www.interlinkelectronics.com/support
© 2007 Interlink Electronics, Inc.
P/N 94-36544
Page15
