Sysgration AXM-906L 2.4G Wireless Laser mouse User Manual
Sysgration Ltd. 2.4G Wireless Laser mouse
User manual
Wireless Laser Mouse
VM5 User’s Guide
Introduction
Congratulations on your purchase of the VM5 Mouse. The wireless feature of the mouse
is great for users on the go. This mouse supports Windows platforms.

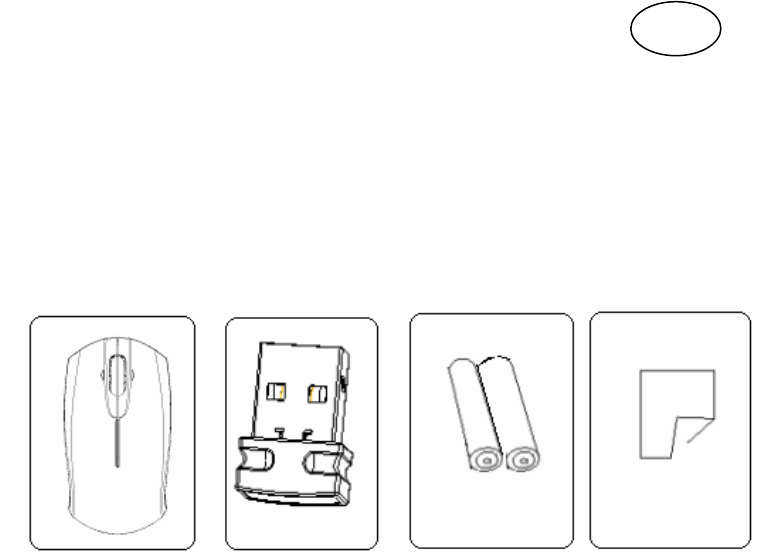

Package Content
1 x Mouse 1 x Receiver 2 x AAA Batteries 1 x Multi-language User’s
Guide
System Requirements
• Operating System - Windows® 2000 / XP and Windows Vista™
•Pentium 300MHz or above
• USB 1.1 or 2.0 port
GB

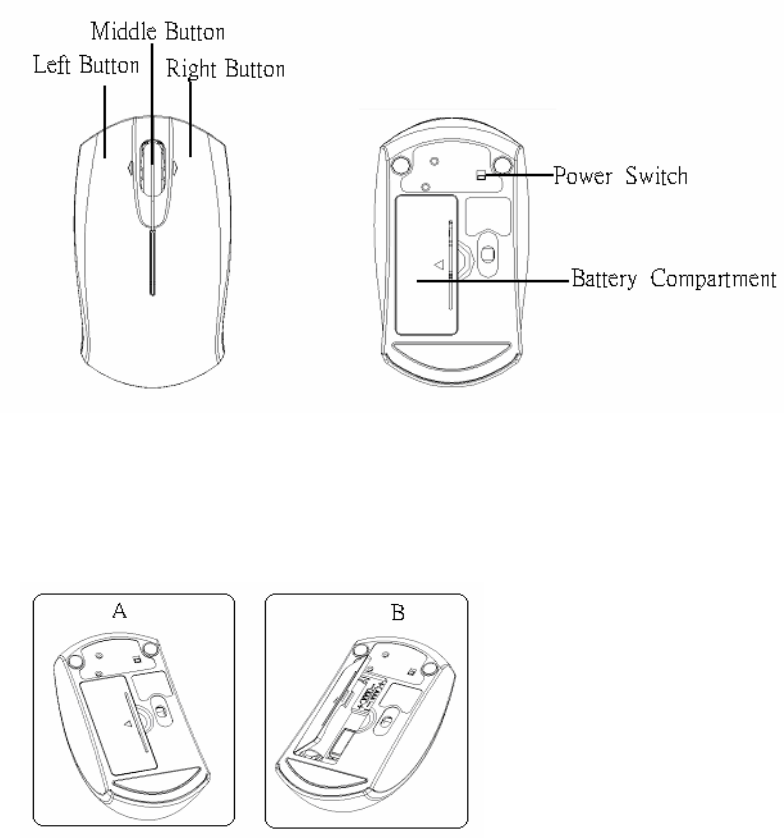

Mouse Overview
Insert the batteries.
A. Find a button at the rear bottom of the mouse and slightly press down the Battery
Cover Button.
B. The battery cover will spring open.

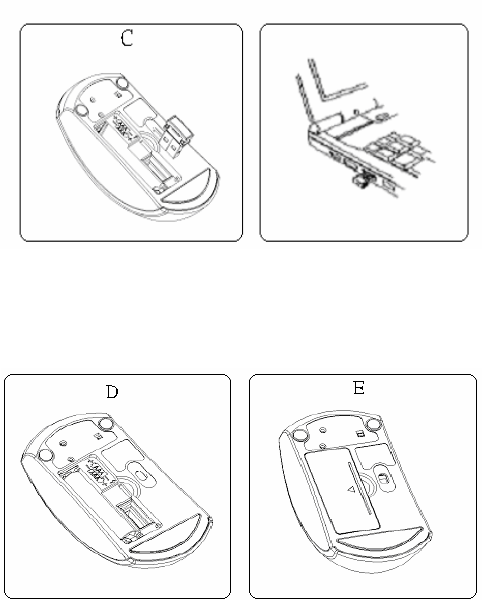

C. Take the receiver out of the battery compartment and connect it to the available
USB port of your PC..
D. Insert two AAA batteries into the battery compartment and observe the correct
polarities.
E. Slide back and close the battery cover with a click.
F. Set the Power Switch to ON position (with Green dot), and the mouse is ready for
use.
Note :
• This is a plug and play device so no additional software is required.
• If the mouse will not be used for a long period of time, please remove the batteries to
prevent battery leakage. At the same time, please place back the receiver into the battery
compartment.
Safety Measures
This is Class 1 Laser product. Prolonged exposure of naked eyes to laser beam is
harmful.
Never point the laser beam toward the face, particularly the eyes, to avoid possible injury.
LASER BEAM IS INVISIBLE. BE CAREFUL NOT TO LOOK DIRECTLY INTO THE
EMITTER HOLE WHILE THE MOUSE IS ACTIVE.
Operating Hints
For optimal performance:
• Never use the mouse on a glass or mirrored surface as these surfaces will cause the
mouse to fail temporarily.
• Avoid using the mouse on surfaces with repetitive patterns, such as printed magazine
photographs, as this type of surface may cause the mouse to respond slowly or fail
temporarily.
Troubleshooting
The mouse is not working.
• Make sure that the polarity of the batteries is correct. The positive (+) and negative (-)
ends of each battery must match the positive (+) and negative (-) connections in the
battery housing.
• Make sure the batteries are charged.
• Please press reset button if you have changed the batteries, but the mouse is still not
working.
• Verify that batteries are properly installed. Recharge / Replace if necessary.
This symbol on the product or in the instructions means that your electrical and electronic
equipment should be disposed at the end of its life separately from your household waste.
There are separate collection systems for recycling in the EU.
For more information, please contact the local authority or your retailer where you
purchased the product.
Notes for battery disposal
Your product contains batteries covered by the European Directive 2006/66/EC, which
cannot be disposed of with normal household waste. Please inform yourself about the
local rules on separate collection of batteries. The correct disposal of batteries helps
prevent potentially negative consequences on the environment and human health.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly approved
by the party responsible for compliance could void the user’s authority to operate this
equipment. (Example- use only shielded interface cables when connecting to computer
or peripheral devices).
This equipment complies with Part 15 of FCC RF Rules. Operation is subject to the
following two conditions:
1) This device may not cause interference and
2) This device must accept any interference, including interference that may cause
undesired operation of the device.
Caution!
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user
authority to operate the equipment.
Canada Statement
This Device complies with RSS-210 of the IC Rules; Operation is subject to the following
two conditions:
(1). This device may not cause interference and
(2). This device must accept any interference received,, including interference that may
cause undesired operation.
Declaration of Conformity
Hereby, Sysgration Ltd., declares that this device is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
