Sysgration FTR-2000 Wireless FM Modulation with DIP Switch User Manual FTR2000 040514
Sysgration Ltd. Wireless FM Modulation with DIP Switch FTR2000 040514
Manual
User's Manual
FTR-2000
Wireless FM Modulator with DIP Switch
All Rights Reserved
This user manual contains proprietary information,
which is protected by copyrights. All rights are reserved.
No part of this manual may be photocopied, reproduced
or translated to another language without prior written
permission of Sysgration Ltd.
Sysgration Ltd.
10FL. No. 868-3, Chung Cheng Rd., Chung Ho 235,
Taipei, Taiwan, R.O.C.
-1-
-2-
Table of Contents
Wiring and Installation-------------------------------------------------------------------------------------------------------------------------------------------3
Input/OutputPorts------------------------------------------------------------------------------------------------------------------------------------------------4
Frequency Table--------------------------------------------------------------------------------------------------------------------------------------------------5
Specifications-----------------------------------------------------------------------------------------------------------------------------------------------------6
Wiring and Installation
-3-
Red
Black
12VDC
GND
Red
White
Yellow
Input/Output Ports
-4-

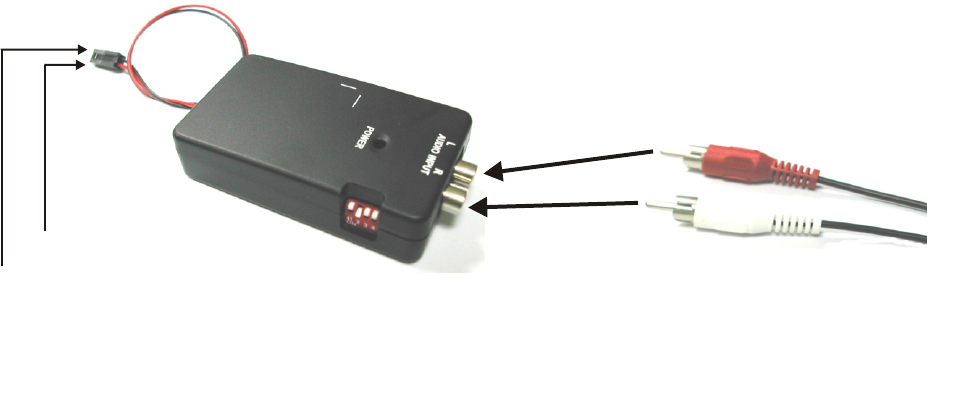

1. POWER LED
The LED turns red when power (12VDC) is provided.
2. DIP SWITCH
4 poles with number 1, 2, 3, and 4 (from bottom to top)
3. AUDIO INPUT (2 RCA Jacks)
(1) L (Red): left channel
(2) R (White): right channel

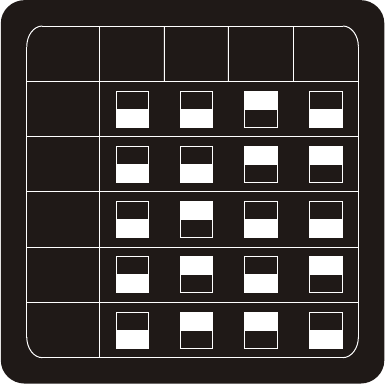

4. FREQUENCY TABLE
The table that depicts how to arrange the poles in DIP
switch for getting the specified frequency on the FM band.
There are 7 frequencies available: 88.1, 88.3,
and 88.9MHz. Please refer to section
5. POWER LINE
(1) RED: 12V DC
(2) BLACK: Ground
88.5, 88.7,
POWERPOWER
LL
RR
AUDIOAUDIO
INPUTINPUT
12
3
4
5
MHzMHz
88.188.1
88.388.3
88.588.5
88.788.7
88.988.9
11223344
LB2-404006
Frequency Table
-5-
MHzMHz
88.188.1
88.388.3
88.588.5
88.788.7
88.988.9
11223344
LB2-404006
Operation Temperature
Storage Temperature
Power Consumption
Specifications
o
0-60 C
o
-20-80 C
500mW 9-16 VDC from vehicular battery

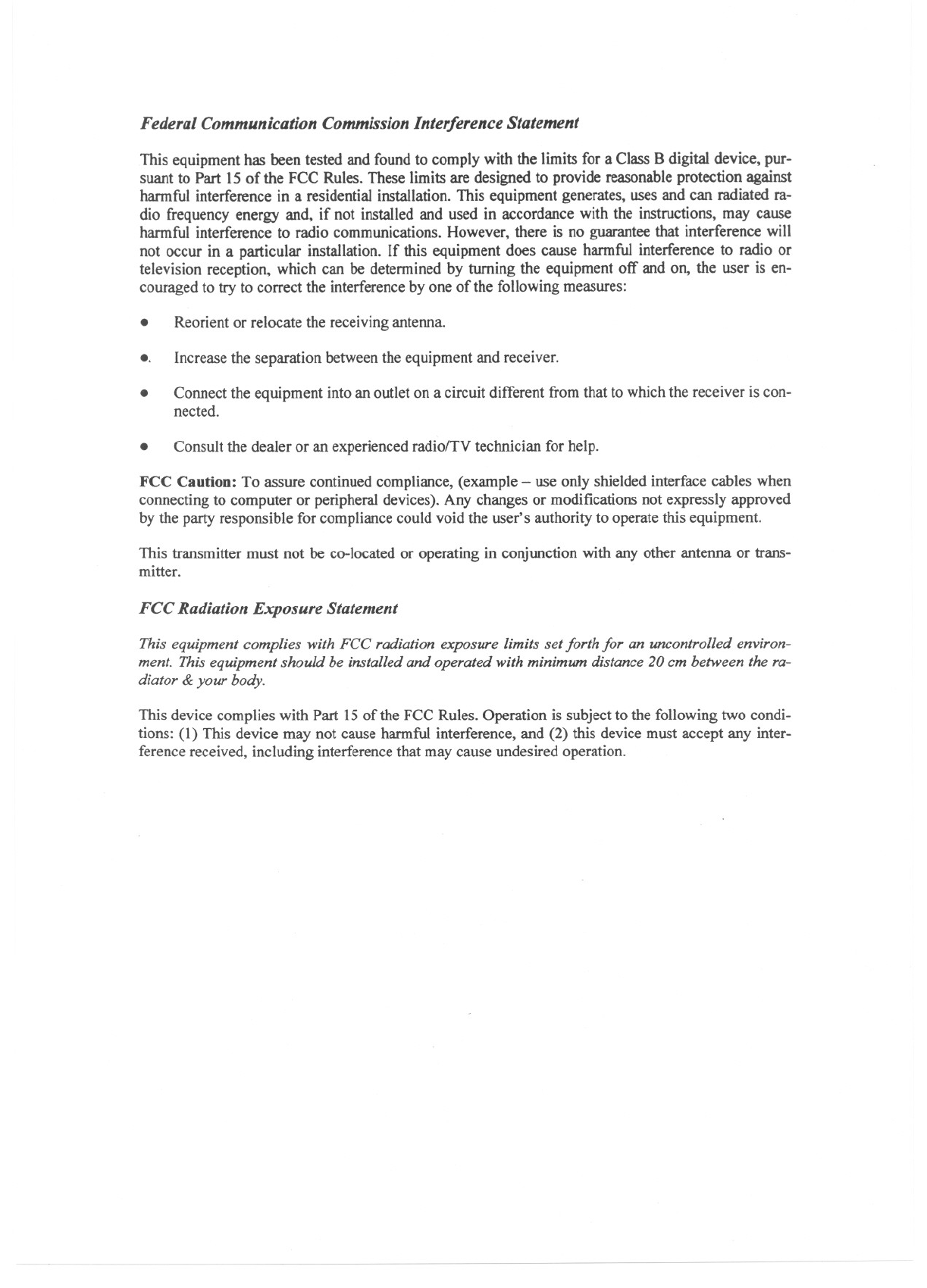

-6-
