Sysgration WVRX1 Digital Wireless Receiver Module User Manual MA2A1110001 1R DRX 2102

Sysgration Ltd. Digital Wireless Receiver Module MA2A1110001 1R DRX 2102

User Manual

WVRXCAM1
Package includes a Receiver Box, one rear color camera, stainless steel hardware,
and non-corrosive camera mounting bracket.
1. Camera and receiver must be connected to 12 Volt DC power supply.
- Check 12VDC power at camera and
receiver box.
3. Press and hold the “pair” button on the receiver for 3 seconds
and release. (Monitor will display “Please press TX pairing button)
Notice: The changes or modifications not expressly approved by the party responsible for
compliance could void the users authority to operate the equipment.
IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no
change to the antenna or the device is permitted. Any change to the
antenna or the device could result in the device exceeding the RF
exposure requirements and void users authority to operate the device.
MA2A1110001-1R

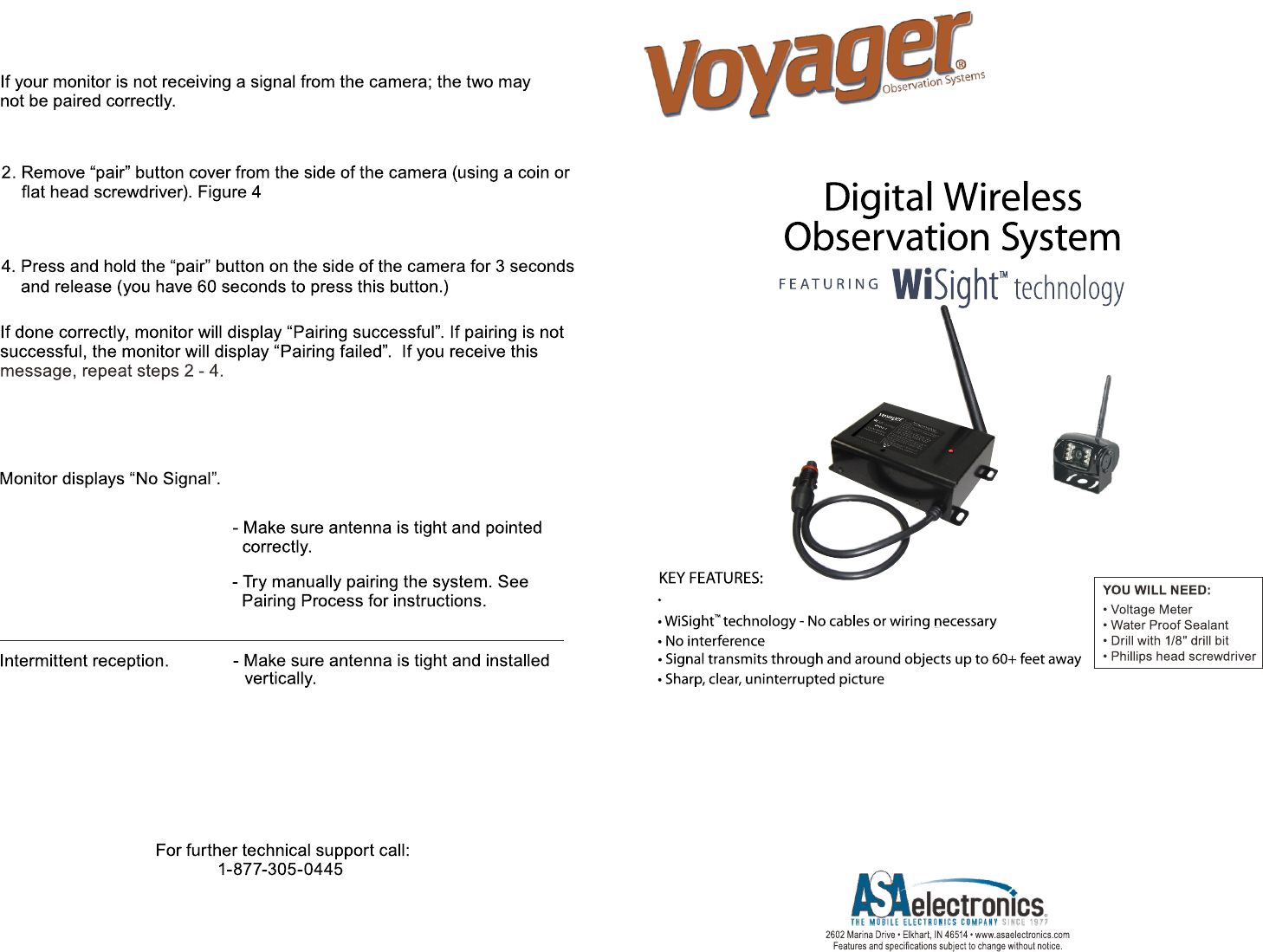

PAIRING PROCESS
TROUBLE SHOOTING
Easy installation, fits most applications
INSTALLING THE RECEIVER
INSTALLING THE CAMERA
oPERATION
1. Connect WVRX1 cable to Voyager Monitor or use adapter cable for power,
video, and audio.
1. Choose a location so you can easily splice the
power and ground connections.
2. Using a voltage meter, measure the power source
wires to determine positive/negaive polarity.
2. Align the antenna to its upright position.
1. Press the power button on the monitor and turn on power to camera.
.
.
WVRXCAM1
WVRXCAM1
LCD Monitor
RED (+12VDC)
BLACK (GROUND)
31300006
MENU
SELE CT
VOL UME
Installation Antenna Vertical
Hex Socket Head M4 x M6L Stainless screw
Flat Washers 4.5x9.5x1mm Stainless
Allen wrench
Screw For Use
IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements,the antenna(s) used for 
this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not 
be co-located or operating in conjunction with any other antenna or transmitter. No change to the antenna or the 
device is permitted. Any change to the antenna or the device could result in the device exceeding the RF 
exposure requirements and void user’s authority to operate the device.
