1. Getting Started
About this User
Guide
This user guide describes about the K2 Board package content,
hardware setup and working with the hardware. This user guide covers the
following topics:
Package Contents
Application Overview
Package
Contents
The K2 Board package contains:
1. K2 Board
2. User Guide
K2 Board
Installation
The K2 board is easy to use and install. Connect the power cable (Micro USB
power cable) to K2 board. Do not turn on switch. Plug HDMI connector on K2
board to TV. Turn on Power switch to K2 board. Android OS starts
booting. See Figure 1-1.

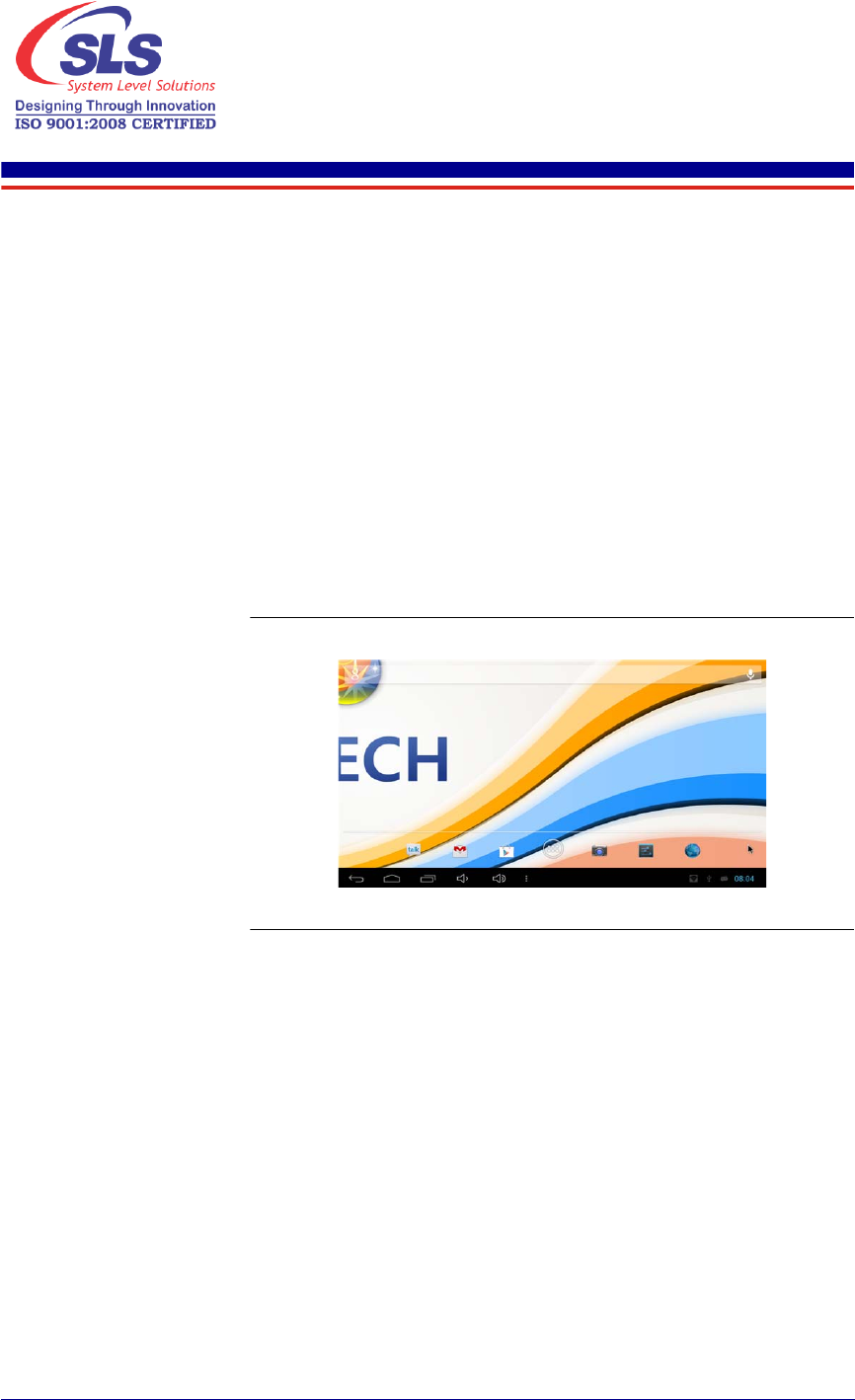

Figure 1-1. Starting K2 Board
2
K2 Board User Guide
System Level Solutions
July 2015
2. K2 Board
Graphical User Interface
This section will get you acquainted with the Android interface of the K2
Board.
Installing the
Google TV
Remote App
Google TV Remote App Pairing Setting
1. Install “Google TV Remote” application on personal Android Phone/
Tablet.
2. Connect personal Android Phone/ Tablet with “DIRECT-AW-Minimax”
(K2 board's SSID) through WiFi (Password - “12345678”).
3. Pair “Google TV Remote” application to K2 board.
4. Start “Google TV Remote” application.
5. The remote application starts search for compatible device. On
successfully search of compatible device, a dialog box will appear as
shown in Figure 2-1.

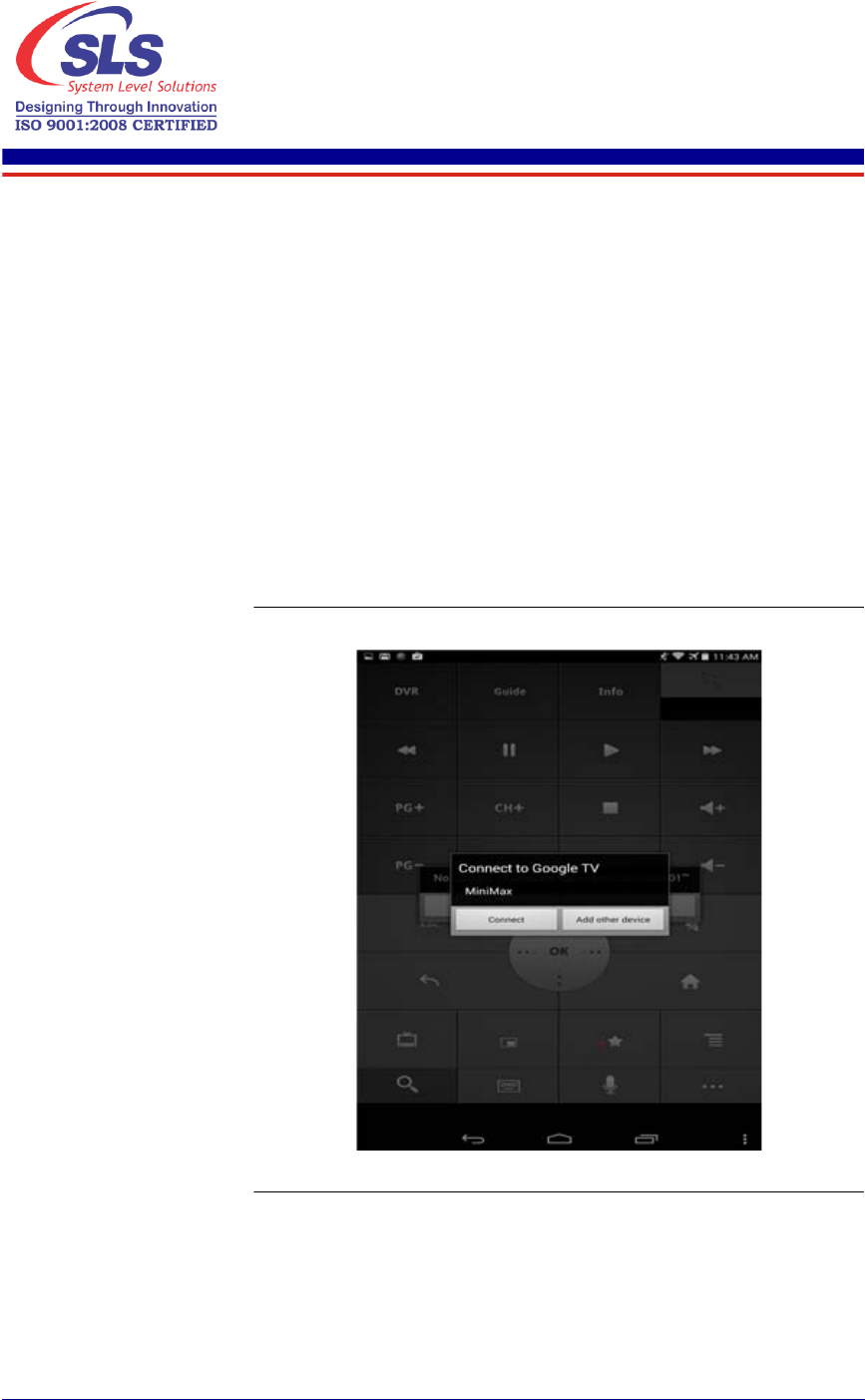

Figure 2-1. Connect to Google TV
6. On touching Connect, Two different dialogs will appear on both devices
(Personal Android Phone/ Tablet and K2 board) as shown in Figure 2-2.
3
July 2015
K2 Board User Guide
K2 Board Graphical User Interface

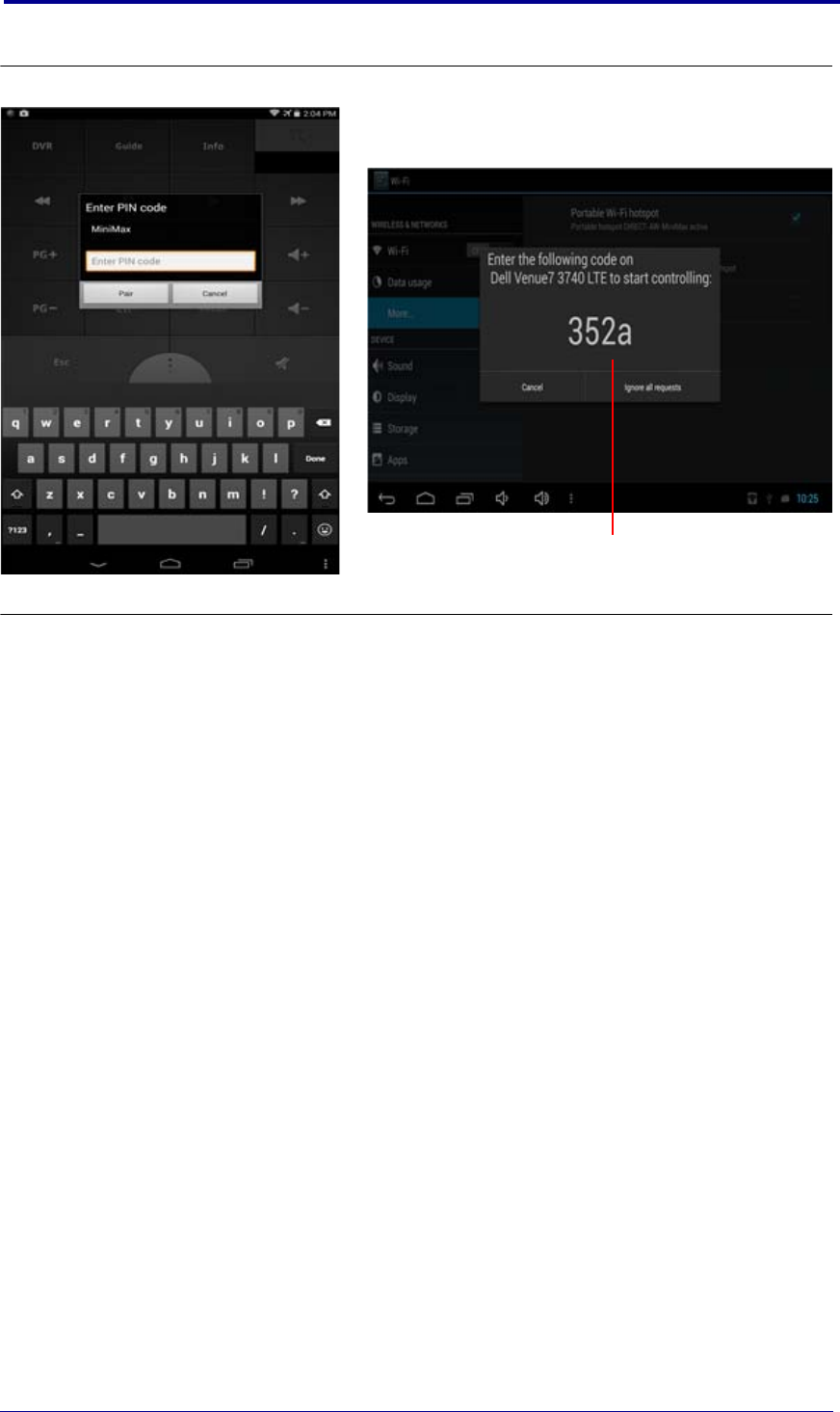

Figure 2-2.Different Devices (Personal Android Phone/ Tablet and K2 board)
7. Enter pin code and touch on Pair and use K2 Board GUI through
“Google TV Remote” application.
Pin Code
Audio Settings
4K2 Board User Guide
July 2015
Audio Settings To get the Audio on your different devices user has to do the proper audio
settings. Go to Settings > Sound > Audio output mode. See Figure 2-3.

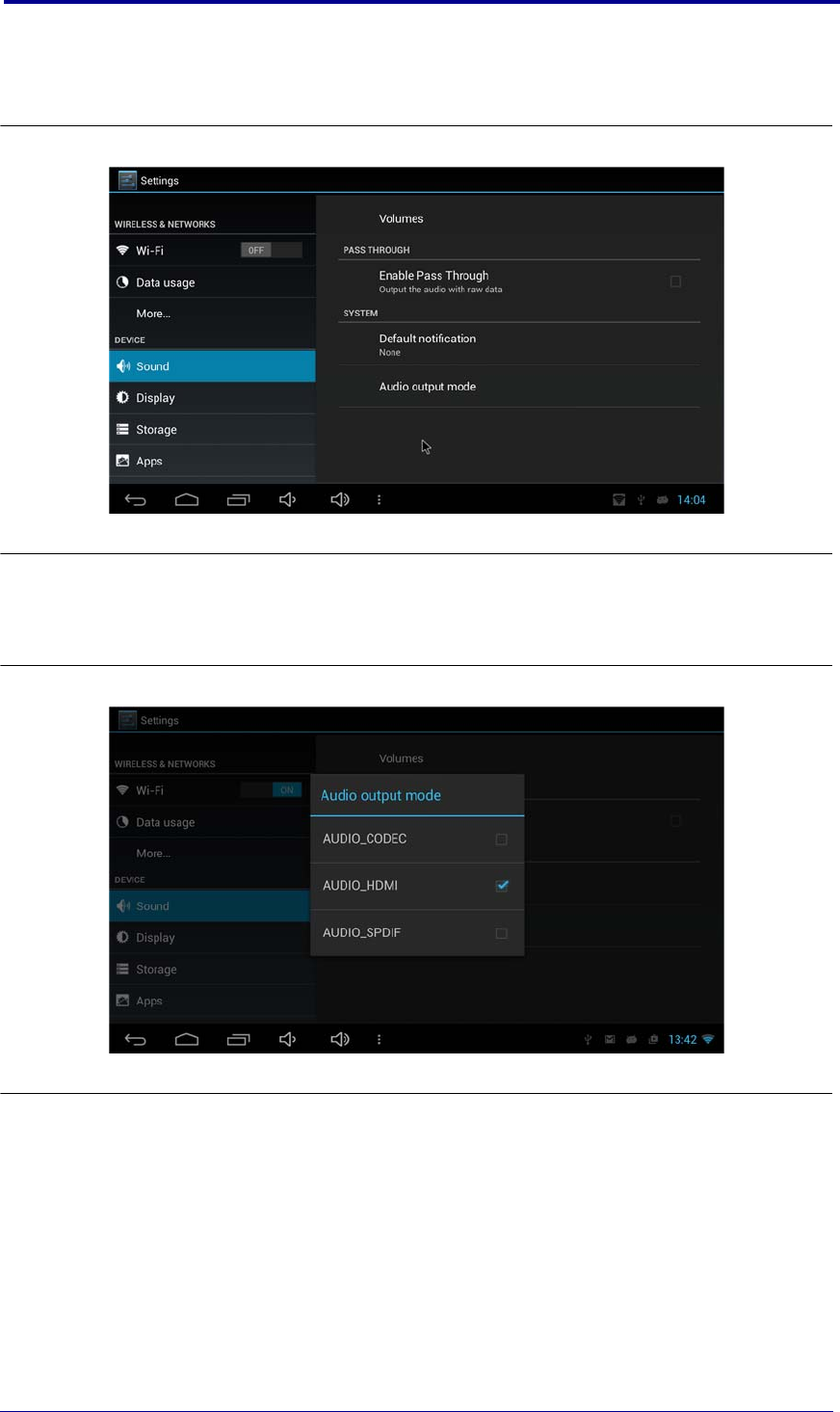

Figure 2-3.Audio Settings
Select any option for audio setting as shown in Figure 2-4.
To get audio on HDMI, select AUDIO_HDMI option.
To get audio on Head Phone, select AUDIO_CODEC option.
Figure 2-4.Audio Output Mode
5
July 2015
K2 Board User Guide
K2 Board Graphical User Interface
Ethernet
Settings
Please follow the steps below for Ethernet settings.
1. Go to Settings > More... > Ethernet.
2. By default, Ethernet option is checked. On connected of Ethernet
Cable, K2 board gets IP through DHCP mode.
3. User can do advance configuration through “Advance Configuration”
option available on same screen. See Figure 2-5.
Figure 2-5.Ethernet Settings
Display Settings
6K2 Board User Guide
July 2015
Display
Settings

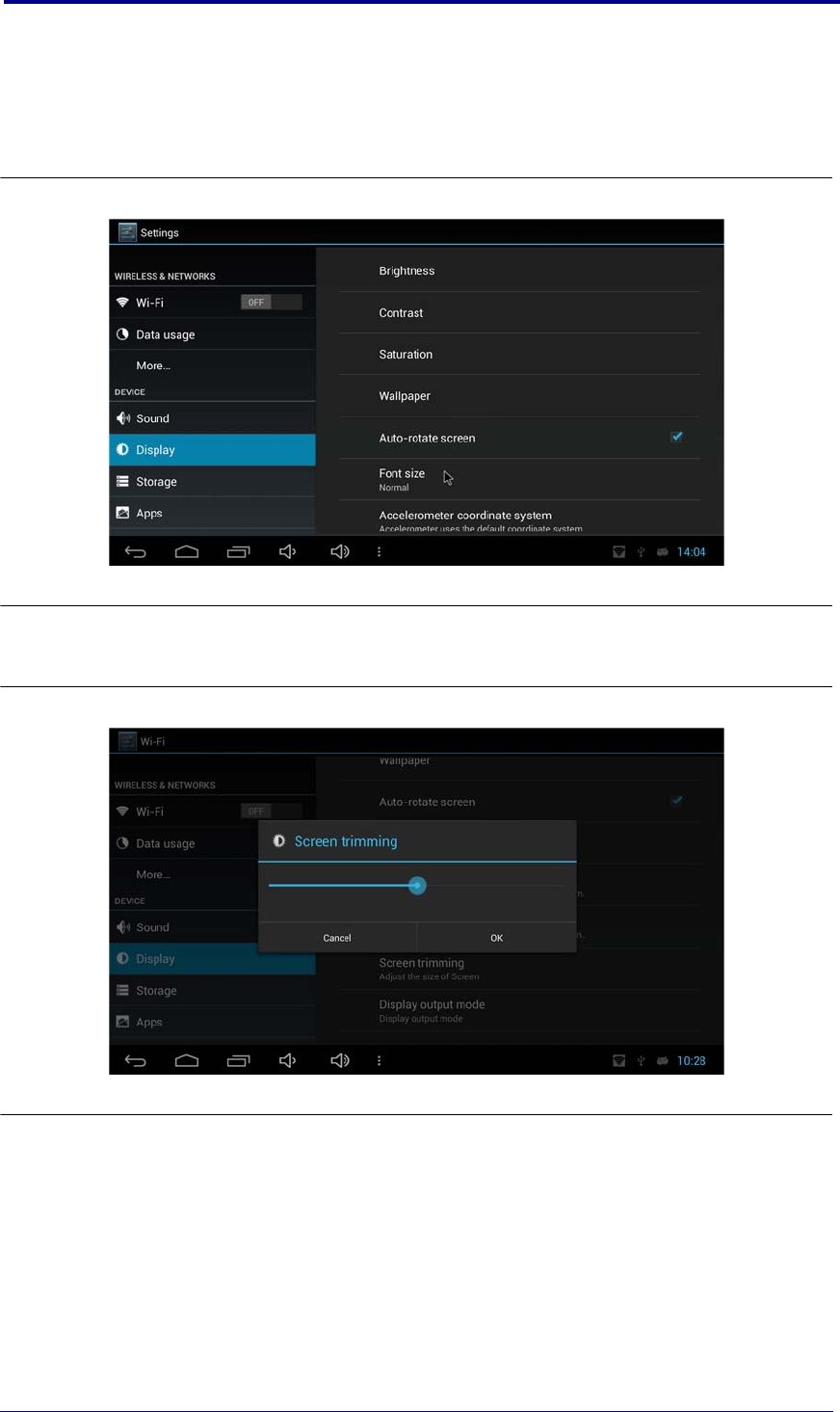

Please follow the steps below for Display settings
1. Go to Settings > Display.
There are options available to change Brightness, Contrast, Saturation
and Wallpaper. See Figure 2-6.
Figure 2-6.Display Settings
2. Using “Screen trimming” option, user can adjust the size of screen as
shown in Figure 2-7.
Figure 2-7.Adjust Screen Size
7
July 2015
K2 Board User Guide
K2 Board Graphical User Interface
Firmware
Update
Please follow the steps below for Firmware update.
1. Pair and connect Bluetooth Keyboard/Mouse to K2 board successfully.
(Bluetooth mouse recommended.)
2. Go to settings > WiFi. On WiFi and connect to Router. Check your
internet connectivity on K2 board.
3. Start “Update” application. You will see the firmware update
information as shown in Figure 2-8.

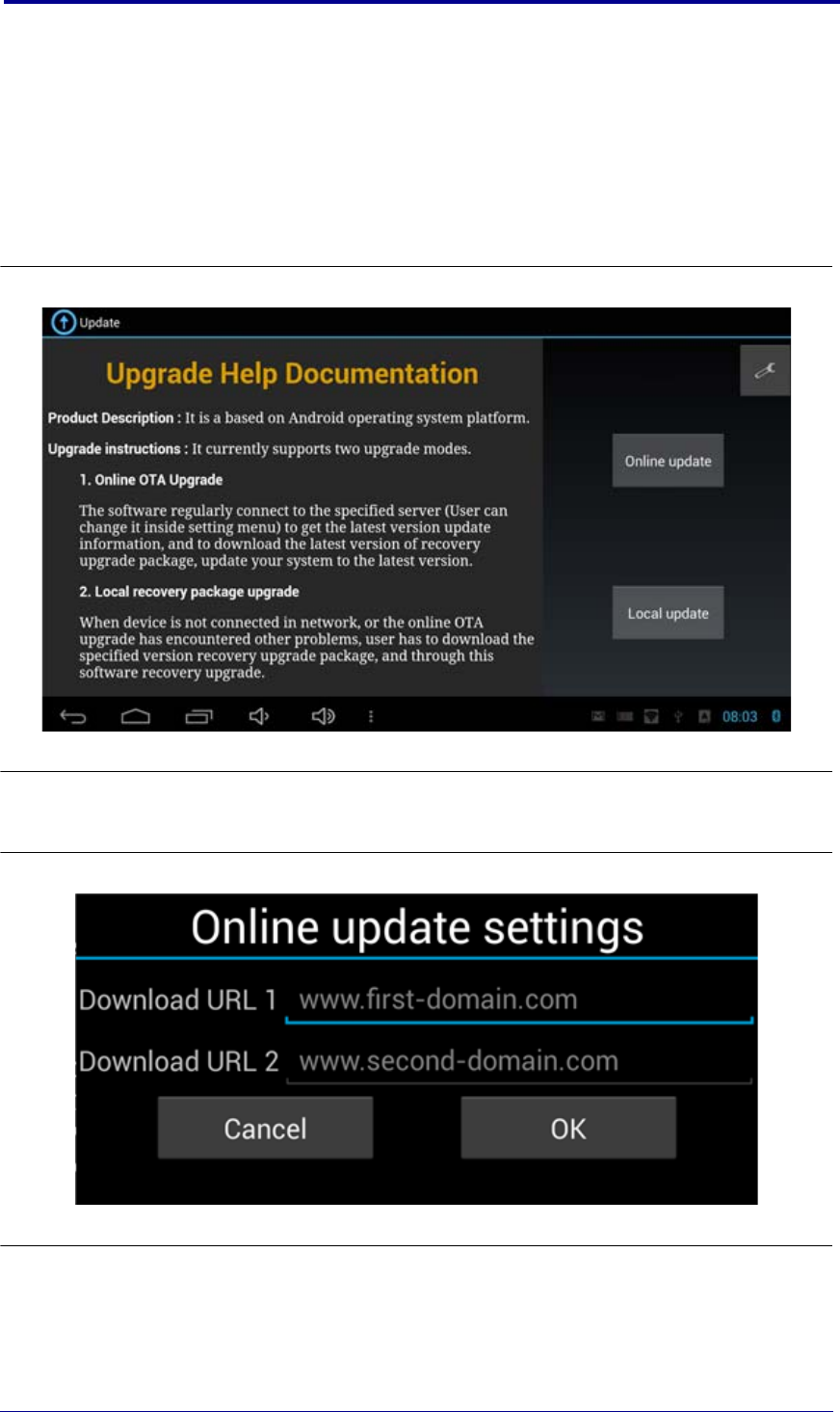

Figure 2-8.Firmware Update Information
4. Click on “Setting” icon at top right corner. Setting dialog box will
appear as shown in Figure 2-9.
Figure 2-9.Online Update Settings
5. Enter “http://www.slscorp.com/download/online/k2dcs/
ota_update.xml” in Download URL 1 and Download URL 2 text boxes
and click on “OK” button.
Firmware Update
8K2 Board User Guide
July 2015
6. Now click on “Online Update” button. It will check new version if
available, you will see the details of new update as shown in
Figure 2-10.

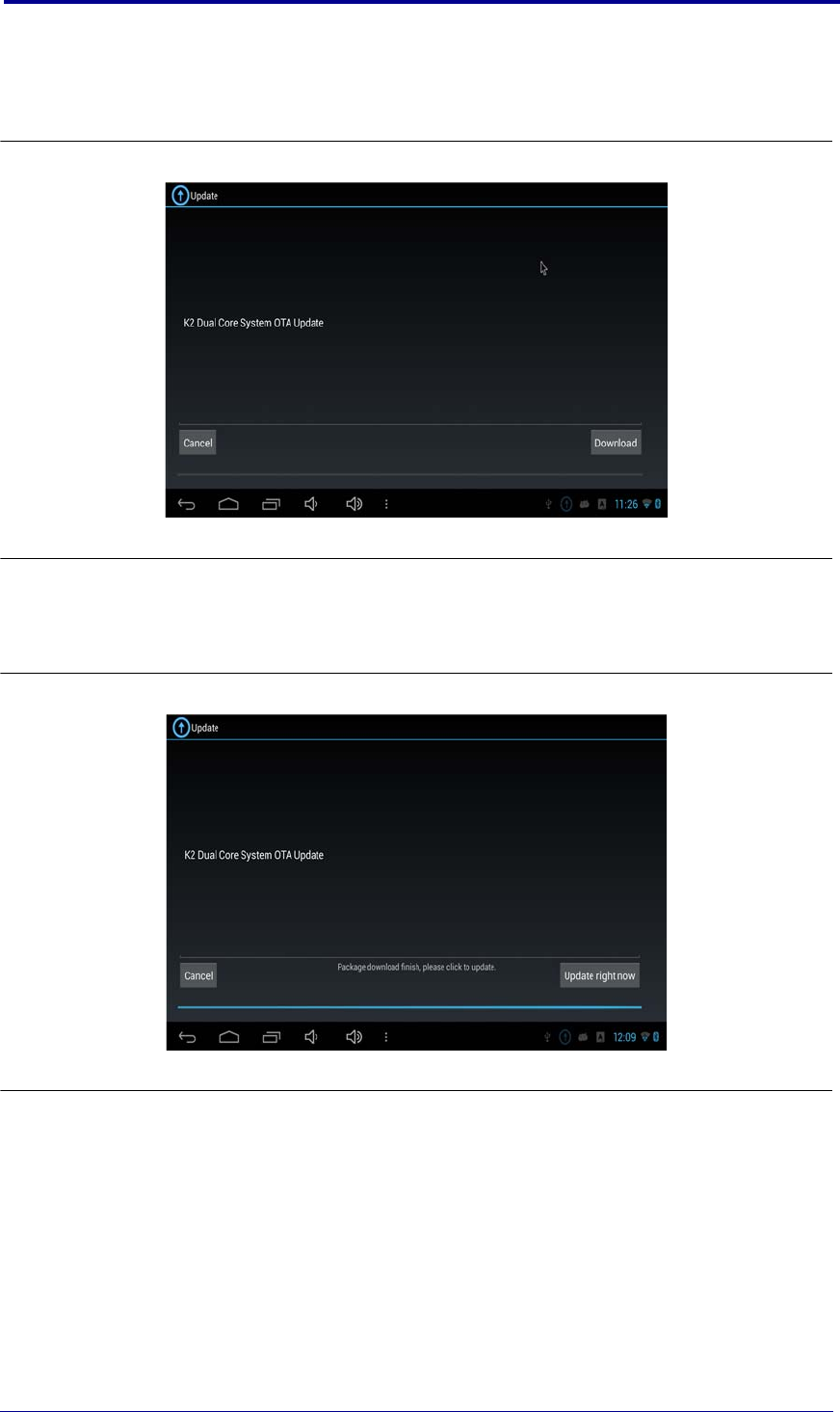

Figure 2-10.Information Box When Firmware Update Available
7. Click on “Download” button to start download process of new
firmware. You will see the progress of download.
8. After completion of download. See Figure 2-11.
Figure 2-11.Completed Download
9
July 2015
K2 Board User Guide
K2 Board Graphical User Interface

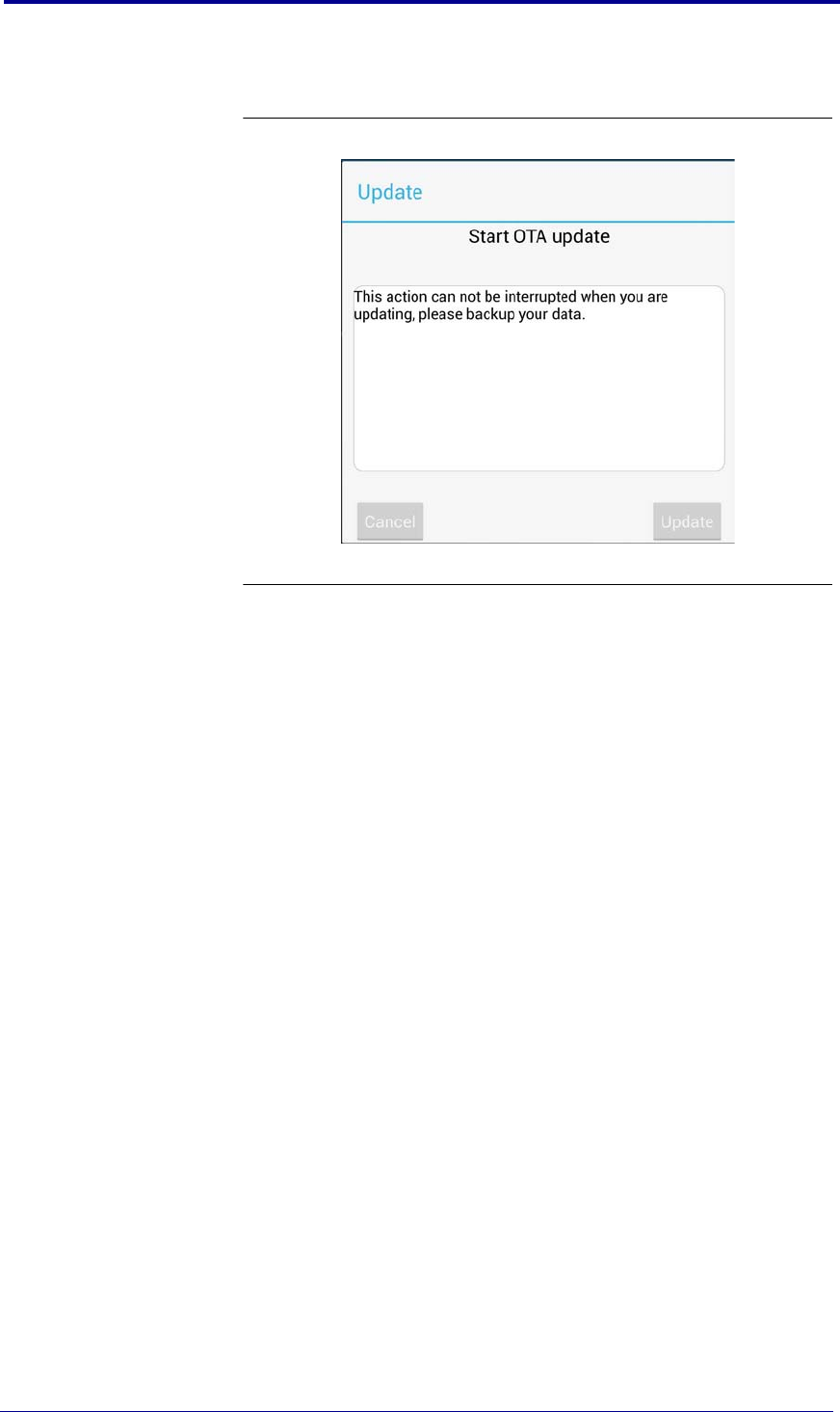

9. On clicking “Update right now”, update instruction dialog box as
shown in Figure 2-12.
Figure 2-12. Start OTA Update
10. Click on “Update” button to start update process.
11. K2 board automatically reboot and on next boot it will install new
Android update.
10
K2 Board User Guide
System Level Solutions
July 2015
3. VNC Server
This chapter describes the step to connect with the VNC server.
1. Start WiFi/Ethernet on K2 board.
2. Get the IP address of WiFi/Ethernet.
WiFi Connection
Please follow the steps below to get IP address of WiFi connection.
1. Go to Settings -> WiFi.
2. Click on connected SSID. The connection details dialog will appear
on screen as shown in Figure 3-1.

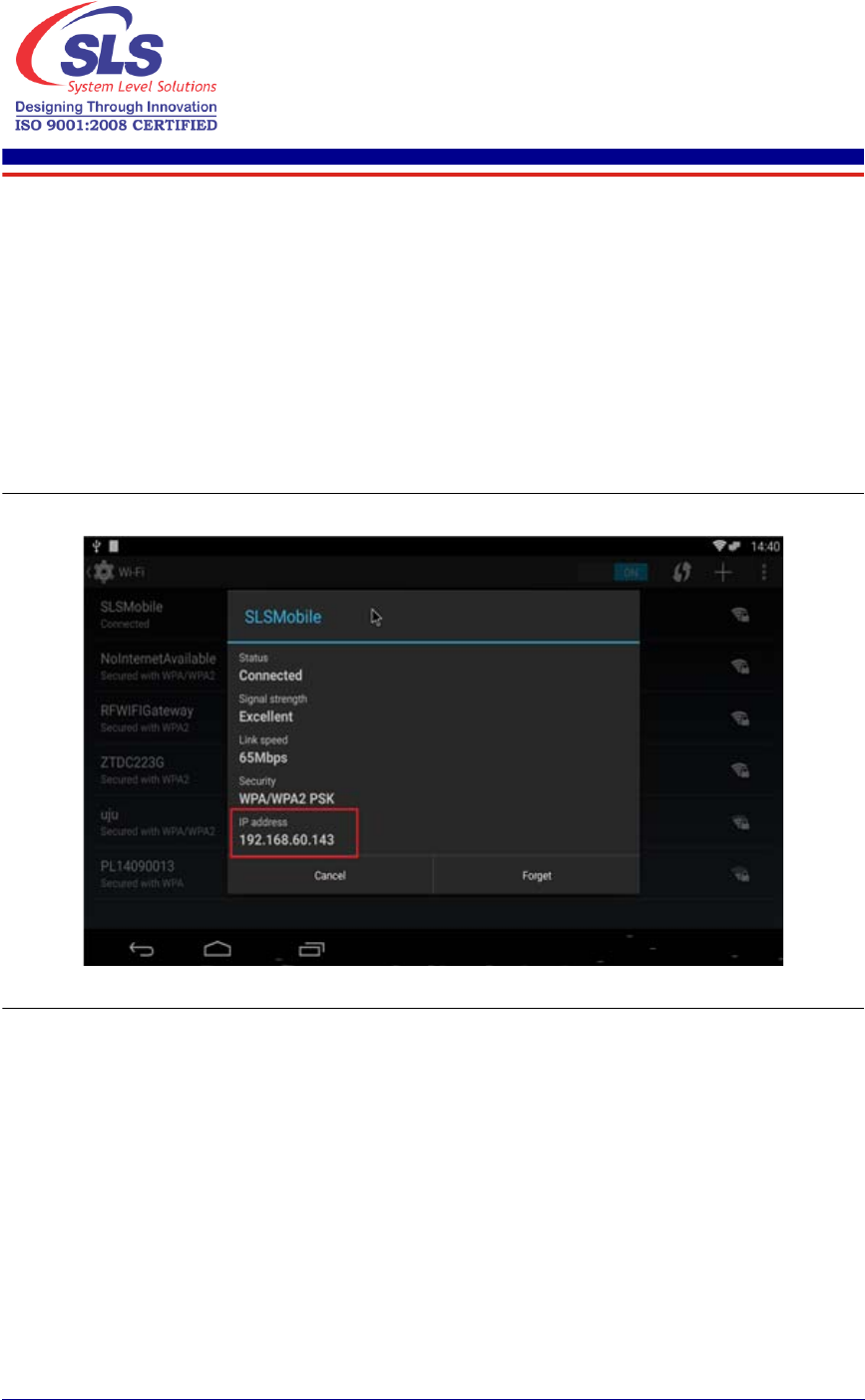

Figure 3-1.WiFi Connection Details
3. The connection details contain IP address 192.168.60.143.
Ethernet Connection
Please follow the steps below to get IP address of Ethernet connection.
1. Go to Settings -> More... -> Ethernet.

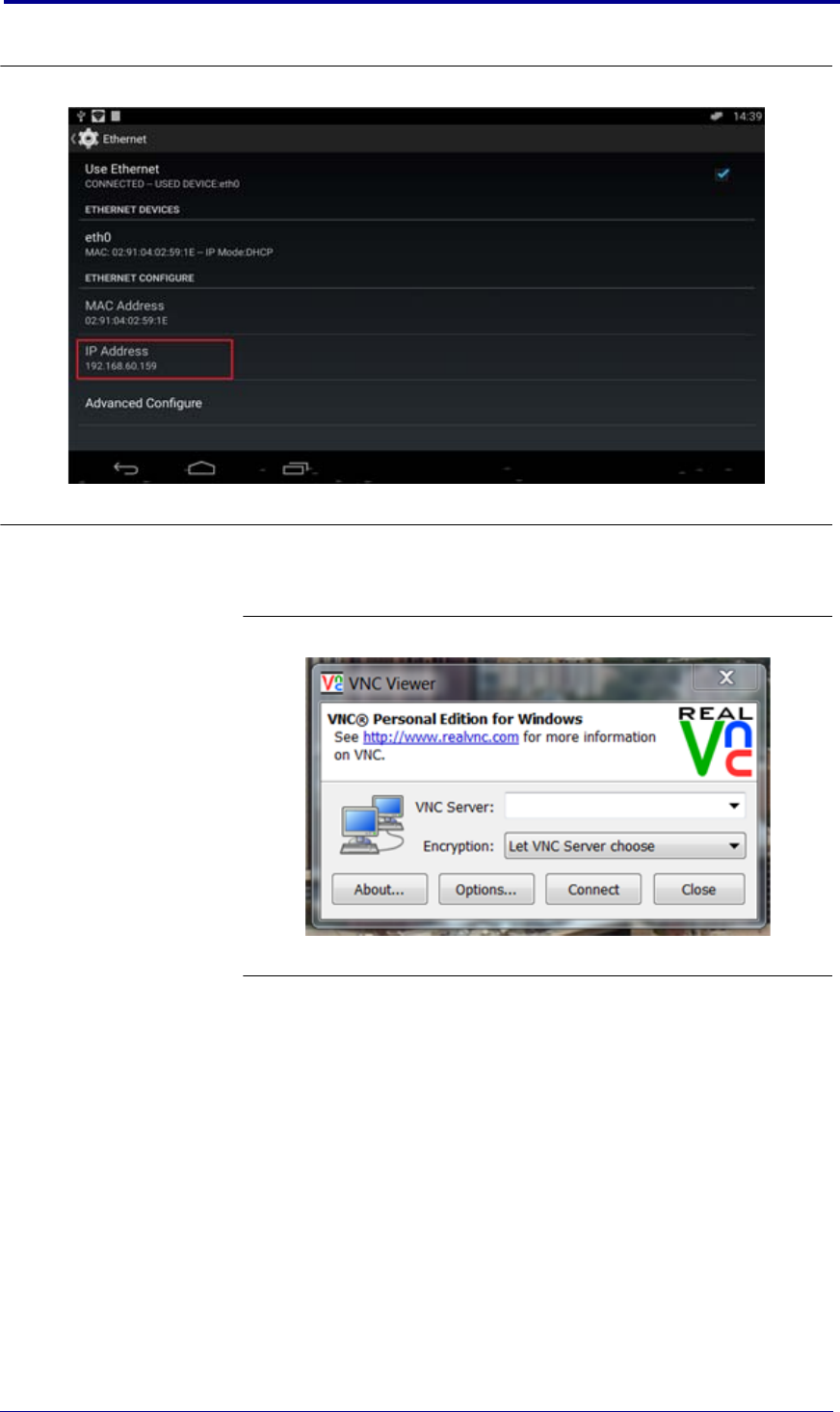

2. The Ethernet settings screen will appear as shown in Figure 3-2.
11
July 2015
K2 Board User Guide
VNC Server
Figure 3-2.Ethernet Connection Details
3. The connection details contain IP address 192.168.60.143
3. Open VNC viewer in your PC/Laptop. See Figure 3-3.
Figure 3-3. VNC Viewer

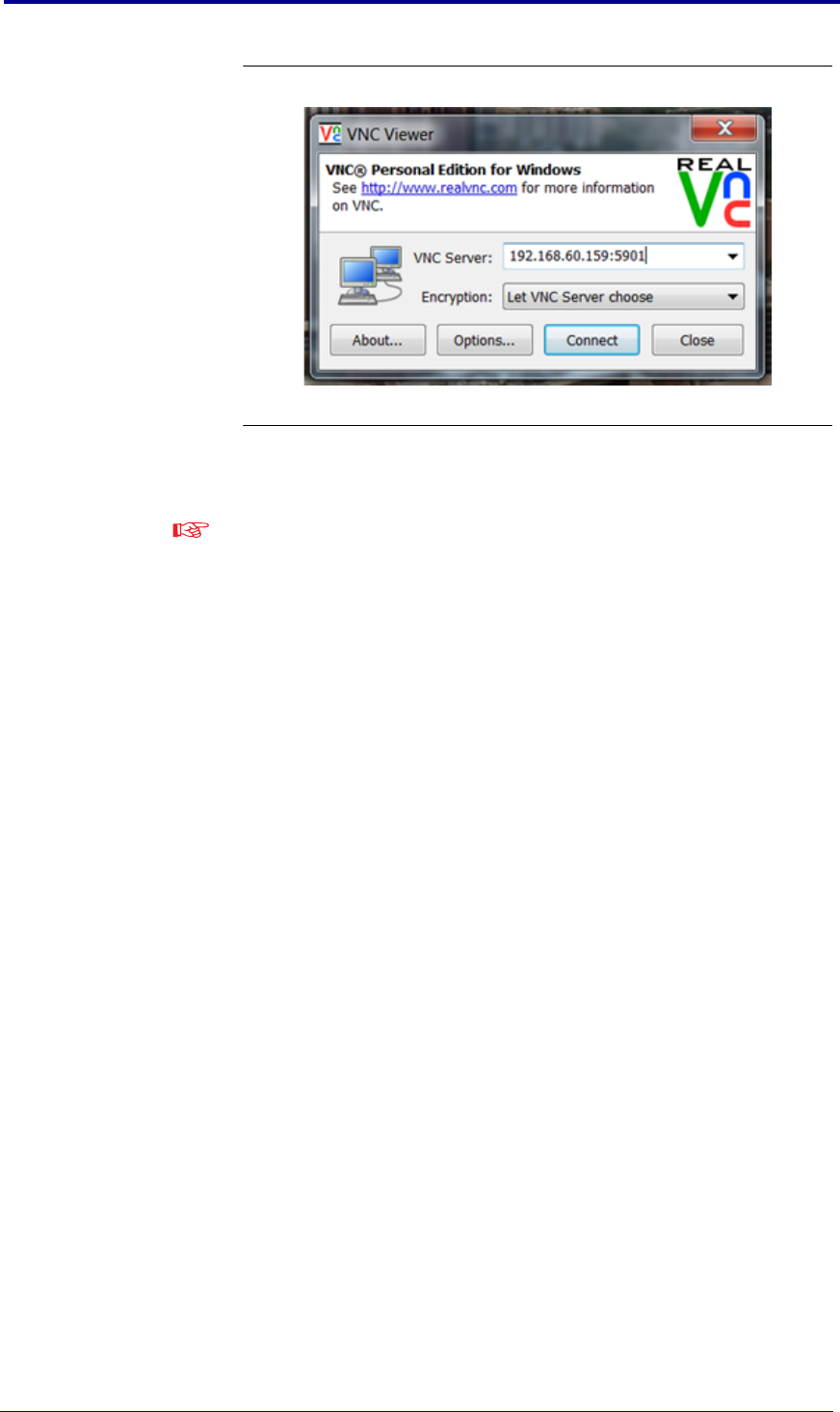

4. Enter the IP address in VNC viewer followed by colon and port number
5901 as shown in Figure 3-4. ex. <ip_address>:5901
12 K2 Board User Guide
July 2015
Figure 3-4. VNC Server Connection
5. Click on “Connect” button and K2 board's screen will appear on your
VNC viewer.
Make sure that your PC/Laptop and K2 board are connected in same LAN/
Router.

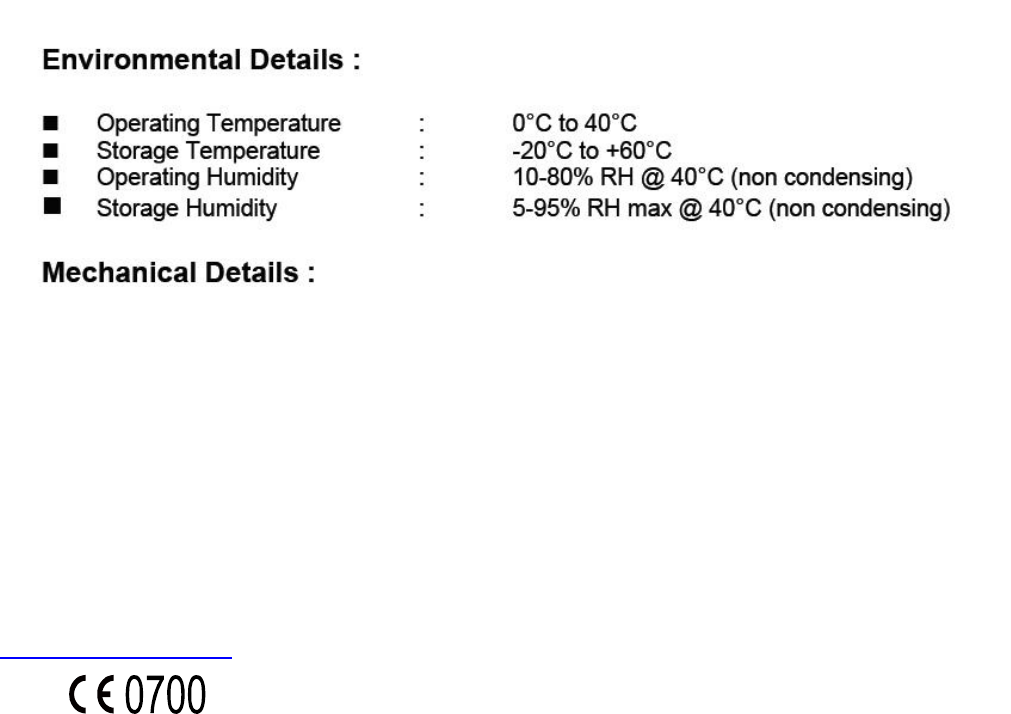

Regulatory Conformance
Hereby, System Level Solutions Inc. declares that this device is in compliance with
the essential requirements and other relevant provisions of Directive 1999/5/EC.
For the declaration of conformity, visit the Web site
http://www.slscorp.com/
Notice: Observe the national local regulations in the location where the device is to be
used. This device may be restricted for use in some or all member states of the
European Union (EU).
FCC Statement
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV interference caused
by unauthorized modifications to this equipment. Such modifications could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
- This device and its antenna(s) must not be co-located or operating in conjunction
with any other antenna or transmitter.
