TAIYO YUDEN EYSHCN Bluetooth Smart / ANT Module User Manual Short Term Confidential

Taiyo Yuden Co., Ltd. Bluetooth Smart / ANT Module Short Term Confidential

(Short-Term Confidential) User Manual

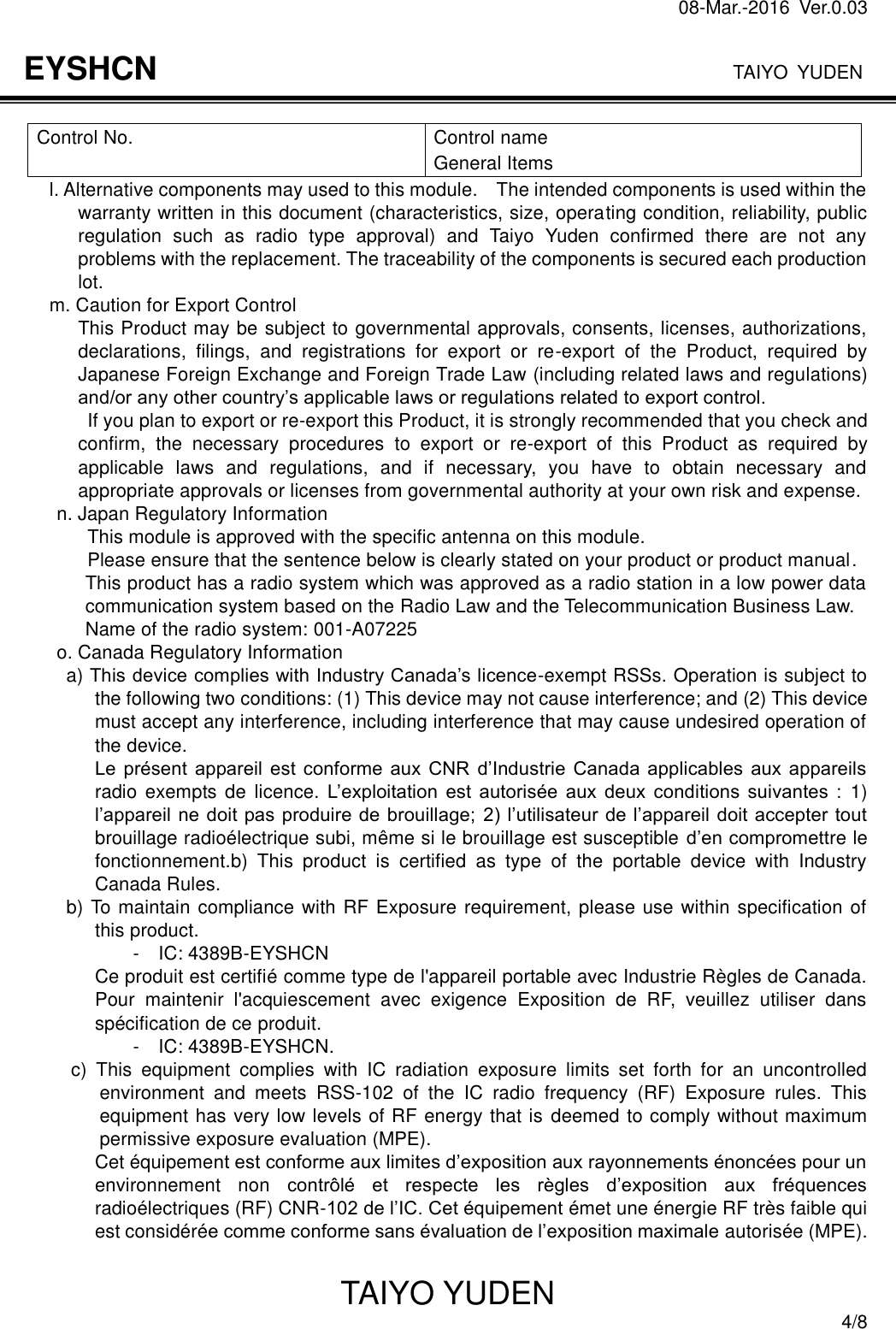

08-Mar.-2016  Ver.0.03                                                                              TAIYO YUDEN TAIYO YUDEN  4/8 EYSHCN  Control No.  Control name General Items l. Alternative components may used to this module.    The intended components is used within the warranty written in this document (characteristics, size, operating condition, reliability, public regulation  such  as  radio  type  approval)  and  Taiyo  Yuden  confirmed  there  are  not  any problems with the replacement. The traceability of the components is secured each production lot. m. Caution for Export Control This Product may be subject to governmental approvals, consents, licenses, authorizations, declarations,  filings,  and  registrations  for  export  or  re-export  of  the  Product,  required  by Japanese Foreign Exchange and Foreign Trade Law (including related laws and regulations) and/or any other country’s applicable laws or regulations related to export control.   If you plan to export or re-export this Product, it is strongly recommended that you check and confirm,  the  necessary  procedures  to  export  or  re-export  of  this  Product  as  required  by applicable  laws  and  regulations,  and  if  necessary,  you  have  to  obtain  necessary  and appropriate approvals or licenses from governmental authority at your own risk and expense. n. Japan Regulatory Information This module is approved with the specific antenna on this module.   Please ensure that the sentence below is clearly stated on your product or product manual. This product has a radio system which was approved as a radio station in a low power data communication system based on the Radio Law and the Telecommunication Business Law. Name of the radio system: 001-A07225 o. Canada Regulatory Information a) This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le  présent  appareil  est  conforme  aux  CNR  d’Industrie  Canada  applicables  aux  appareils radio exempts de  licence. L’exploitation  est  autorisée  aux  deux  conditions  suivantes  :  1) l’appareil ne doit pas produire de brouillage; 2) l’utilisateur de l’appareil doit accepter  tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.b)  This  product  is  certified  as  type  of  the  portable  device  with  Industry Canada Rules. b) To maintain compliance with RF Exposure requirement, please use within specification of this product. -  IC: 4389B-EYSHCN Ce produit est certifié comme type de l'appareil portable avec Industrie Règles de Canada. Pour  maintenir  l'acquiescement  avec  exigence  Exposition  de  RF,  veuillez  utiliser  dans spécification de ce produit. -    IC: 4389B-EYSHCN. c)  This  equipment  complies  with  IC  radiation  exposure  limits  set  forth  for  an  uncontrolled environment  and  meets  RSS-102  of  the  IC  radio  frequency  (RF)  Exposure  rules.  This equipment has very low levels of RF energy that is deemed to comply without maximum permissive exposure evaluation (MPE). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement  non  contrôlé  et  respecte  les  règles  d’exposition  aux  fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée comme conforme sans évaluation de l’exposition maximale autorisée (MPE).

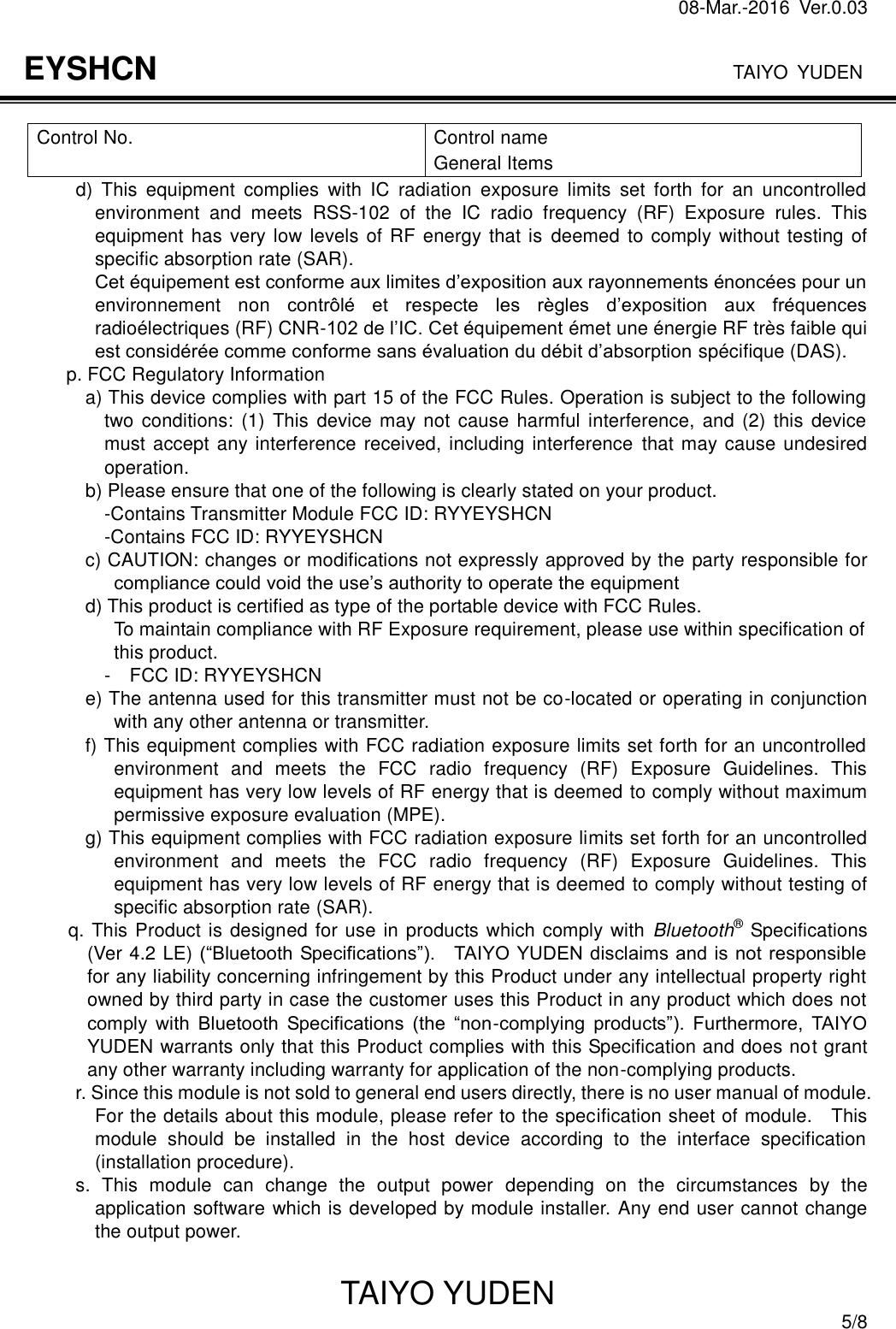

08-Mar.-2016  Ver.0.03                                                                              TAIYO YUDEN TAIYO YUDEN  5/8 EYSHCN  Control No.  Control name General Items d)  This  equipment  complies  with  IC  radiation  exposure  limits  set  forth  for  an  uncontrolled environment  and  meets  RSS-102  of  the  IC  radio  frequency  (RF)  Exposure  rules.  This equipment has very low levels of RF energy that is deemed to comply without testing of specific absorption rate (SAR). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement  non contrôlé  et  respecte  les  règles  d’exposition  aux  fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée comme conforme sans évaluation du débit d’absorption spécifique (DAS). p. FCC Regulatory Information a) This device complies with part 15 of the FCC Rules. Operation is subject to the following two  conditions:  (1) This  device may not cause harmful interference,  and (2)  this  device must accept any interference received, including interference that may cause undesired operation. b) Please ensure that one of the following is clearly stated on your product. -Contains Transmitter Module FCC ID: RYYEYSHCN -Contains FCC ID: RYYEYSHCN c) CAUTION: changes or modifications not expressly approved by the party responsible for compliance could void the use’s authority to operate the equipment d) This product is certified as type of the portable device with FCC Rules. To maintain compliance with RF Exposure requirement, please use within specification of this product. -    FCC ID: RYYEYSHCN e) The antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. f) This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment  and  meets  the  FCC  radio  frequency  (RF)  Exposure  Guidelines.  This equipment has very low levels of RF energy that is deemed to comply without maximum permissive exposure evaluation (MPE). g) This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment  and  meets  the  FCC  radio  frequency  (RF)  Exposure  Guidelines.  This equipment has very low levels of RF energy that is deemed to comply without testing of specific absorption rate (SAR). q. This Product is designed for use in products which comply with  Bluetooth® Specifications (Ver 4.2 LE) (“Bluetooth Specifications”).    TAIYO YUDEN disclaims and is not responsible for any liability concerning infringement by this Product under any intellectual property right owned by third party in case the customer uses this Product in any product which does not comply  with  Bluetooth  Specifications  (the  “non-complying  products”).  Furthermore,  TAIYO YUDEN warrants only that this Product complies with this Specification and does not grant any other warranty including warranty for application of the non-complying products.           r. Since this module is not sold to general end users directly, there is no user manual of module. For the details about this module, please refer to the specification sheet of module.    This module  should  be  installed  in  the  host  device  according  to  the  interface  specification (installation procedure).             s.  This  module  can  change  the  output  power  depending  on  the  circumstances  by  the application software which is developed by module installer. Any end user cannot change the output power.
