TAIYO YUDEN EYSHJN Bluetooth Smart / ANT Module User Manual Bluetooth 4

TAIYO YUDEN CO., LTD. Bluetooth Smart / ANT Module Bluetooth 4

(Short-Term Confidential) User Manual

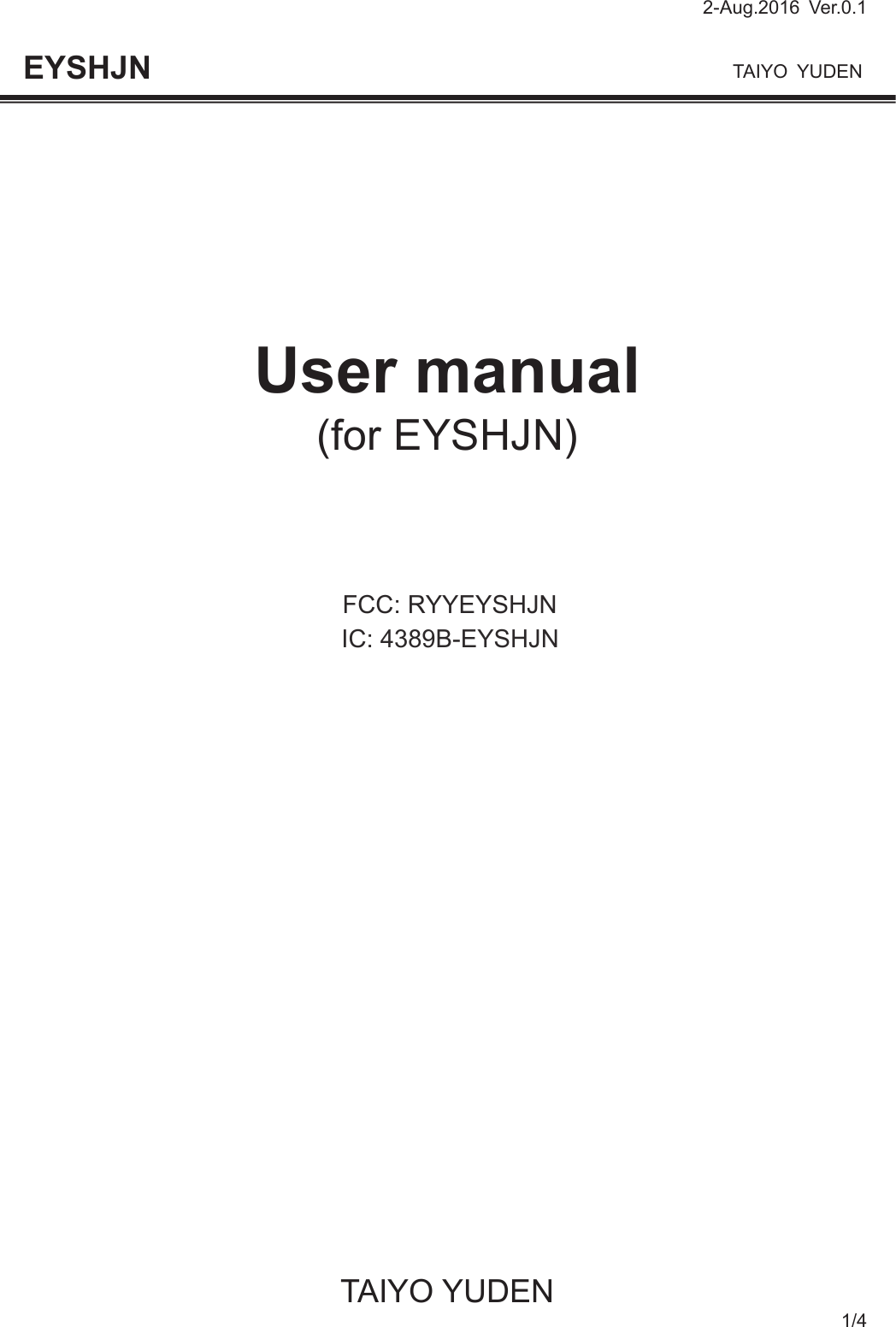

2-Aug.2016 Ver.0.1 TAIYO YUDEN TAIYO YUDEN 1/4 EYSHJN User manual (for EYSHJN) FCC: RYYEYSHJNIC: 4389B-EYSHJN

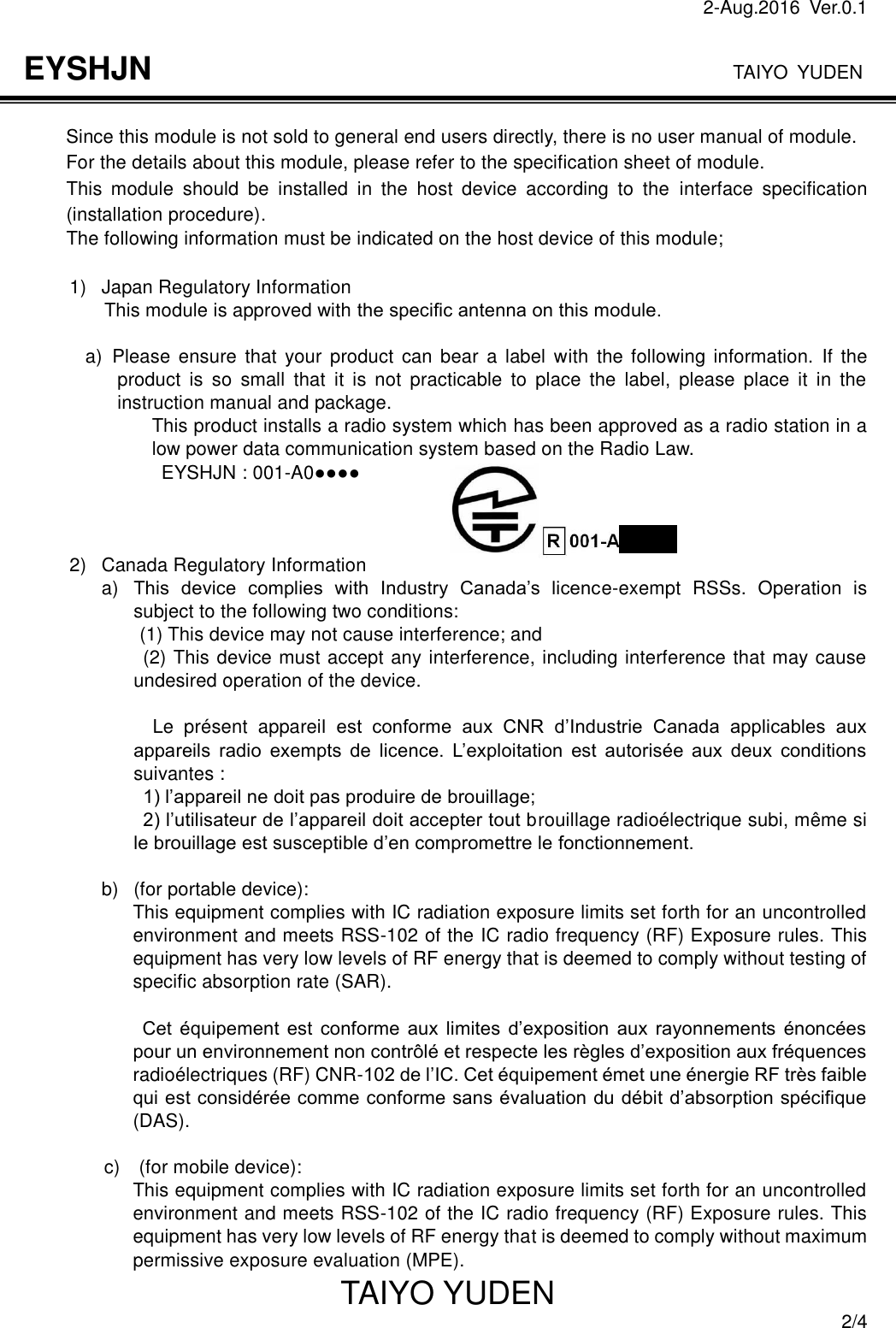

2-Aug.2016 Ver.0.1 TAIYO YUDEN TAIYO YUDEN 2/4 EYSHJN Since this module is not sold to general end users directly, there is no user manual of module. For the details about this module, please refer to the specification sheet of module. This module should be installed in the host device according to the interface specification (installation procedure). The following information must be indicated on the host device of this module; 1) Japan Regulatory Information This module is approved with the specific antenna on this module. a) Please ensure that your product can bear a label with the following information. If the product is so small that it is not practicable to place the label, please place it in the instruction manual and package. This product installs a radio system which has been approved as a radio station in a low power data communication system based on the Radio Law. EYSHJN : 001-A0●●●● 2) Canada Regulatory Information a) This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) l’appareil ne doit pas produire de brouillage; 2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. b) (for portable device): This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that is deemed to comply without testing of specific absorption rate (SAR). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée comme conforme sans évaluation du débit d’absorption spécifique (DAS). c) (for mobile device): This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that is deemed to comply without maximum permissive exposure evaluation (MPE).

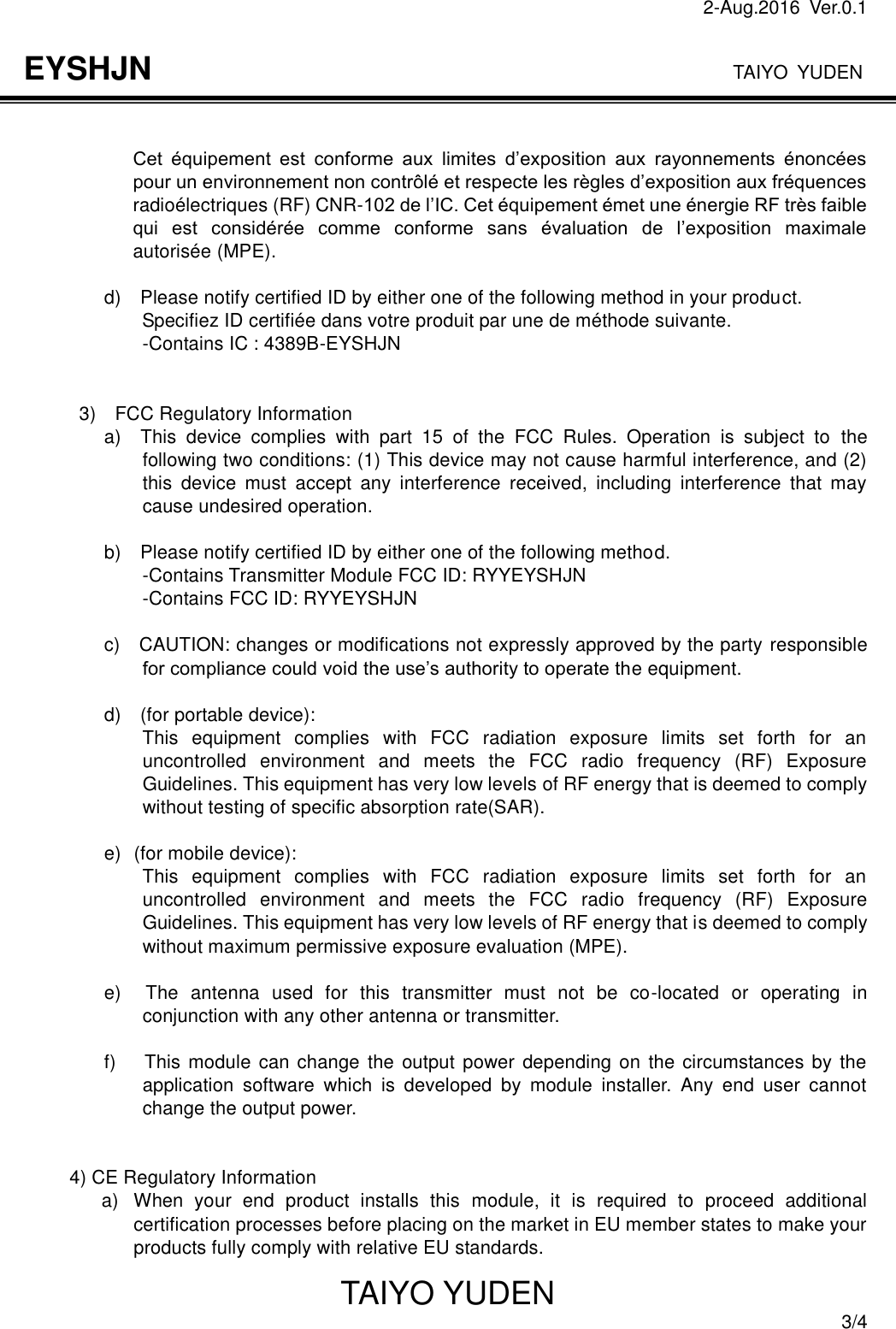

2-Aug.2016 Ver.0.1 TAIYO YUDEN TAIYO YUDEN 3/4 EYSHJN Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée comme conforme sans évaluation de l’exposition maximale autorisée (MPE). d) Please notify certified ID by either one of the following method in your product. Specifiez ID certifiée dans votre produit par une de méthode suivante. -Contains IC : 4389B-EYSHJN 3) FCC Regulatory Information a) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. b) Please notify certified ID by either one of the following method. -Contains Transmitter Module FCC ID: RYYEYSHJN -Contains FCC ID: RYYEYSHJN c) CAUTION: changes or modifications not expressly approved by the party responsible for compliance could void the use’s authority to operate the equipment. d) (for portable device): This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that is deemed to comply without testing of specific absorption rate(SAR). e) (for mobile device): This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that is deemed to comply without maximum permissive exposure evaluation (MPE). e) The antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. f) This module can change the output power depending on the circumstances by the application software which is developed by module installer. Any end user cannot change the output power. 4) CE Regulatory Information a) When your end product installs this module, it is required to proceed additional certification processes before placing on the market in EU member states to make your products fully comply with relative EU standards.

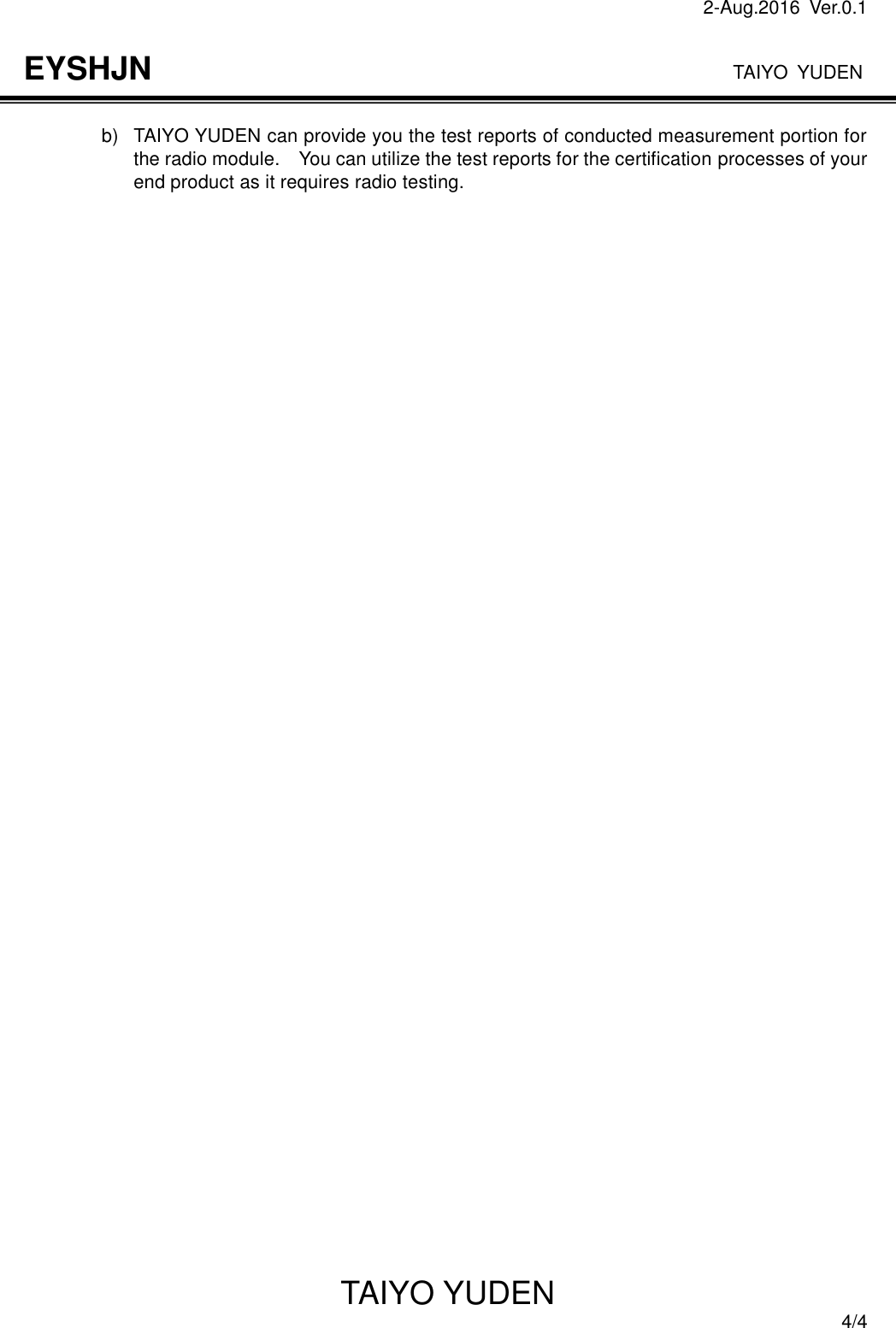

2-Aug.2016 Ver.0.1 TAIYO YUDEN TAIYO YUDEN 4/4 EYSHJN b) TAIYO YUDEN can provide you the test reports of conducted measurement portion for the radio module. You can utilize the test reports for the certification processes of your end product as it requires radio testing.
