TAIYO YUDEN EYXFDC Complete Class2 Bluetooth Module User Manual

Taiyo Yuden Co., Ltd. Complete Class2 Bluetooth Module

User Manual

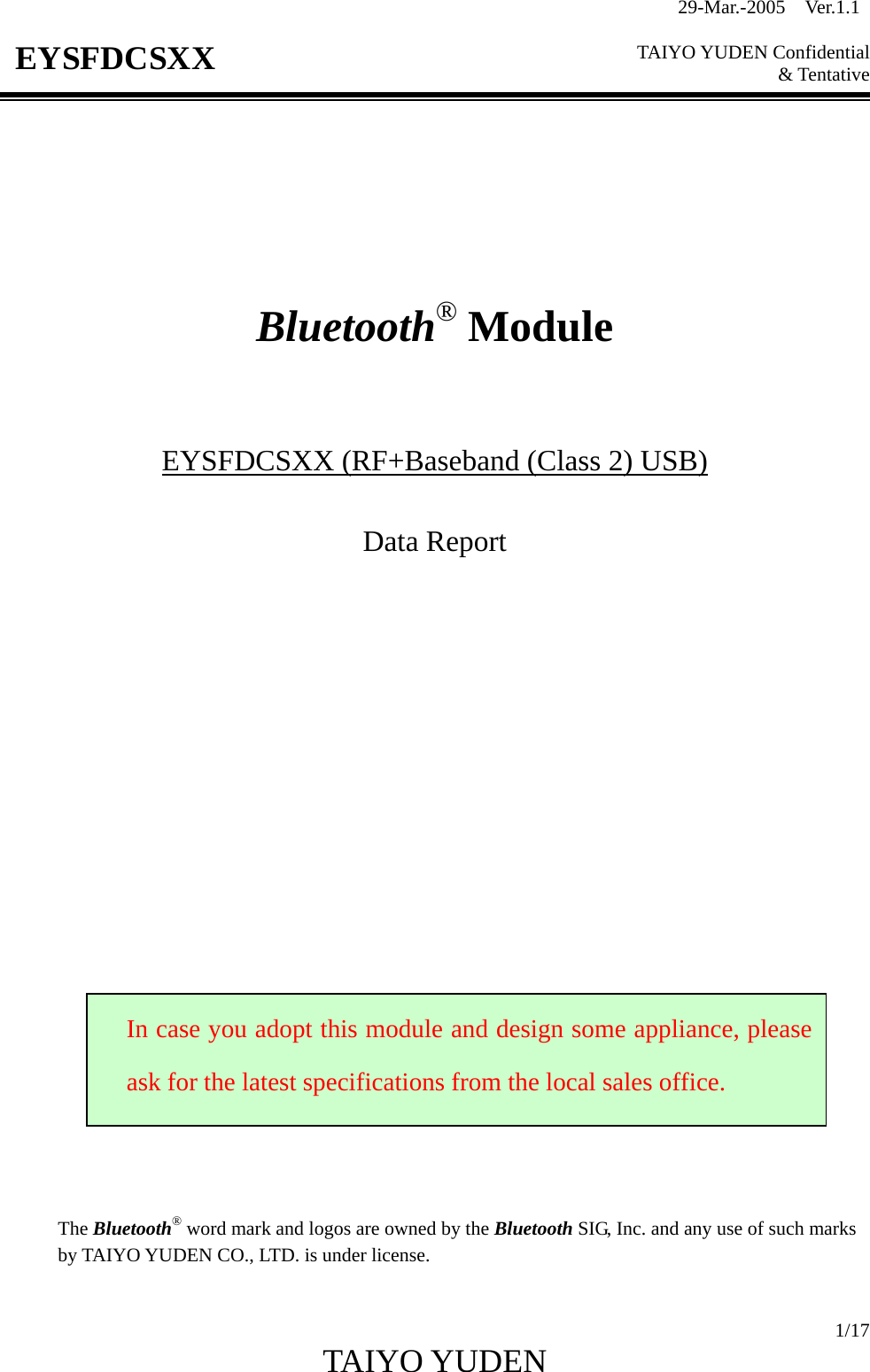

29-Mar.-2005  Ver.1.1  TAIYO YUDEN Confidential & Tentative  1/17 TAIYO YUDEN   EYSFDCSXX         Bluetooth® Module    EYSFDCSXX (RF+Baseband (Class 2) USB)  Data Report                         The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by TAIYO YUDEN CO., LTD. is under license.  In case you adopt this module and design some appliance, pleaseask for the latest specifications from the local sales office.

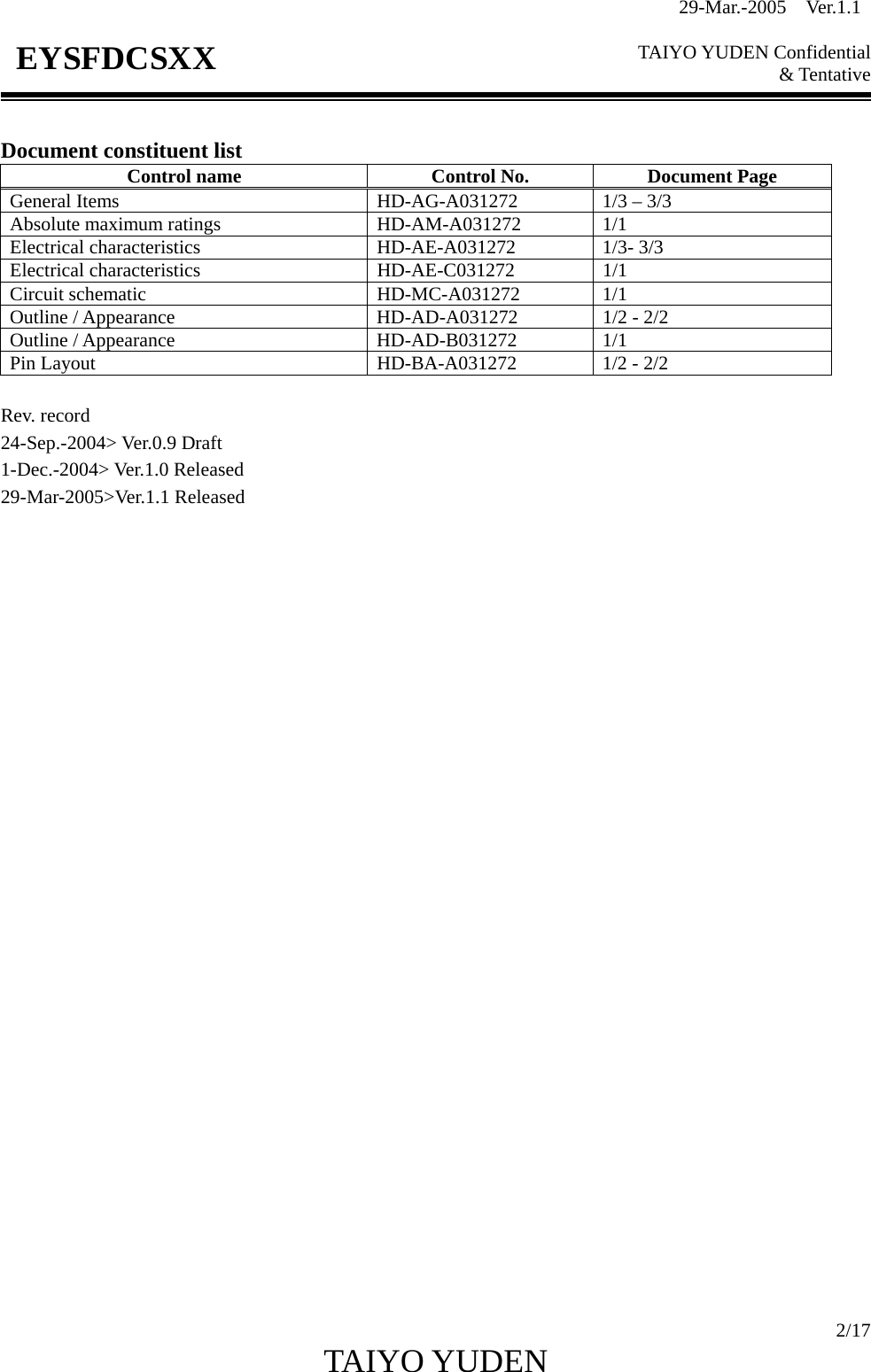

29-Mar.-2005  Ver.1.1  TAIYO YUDEN Confidential & Tentative  2/17 TAIYO YUDEN   EYSFDCSXX  Document constituent list Control name  Control No.  Document Page General Items  HD-AG-A031272  1/3 – 3/3 Absolute maximum ratings  HD-AM-A031272  1/1 Electrical characteristics  HD-AE-A031272  1/3- 3/3 Electrical characteristics  HD-AE-C031272  1/1   Circuit schematic  HD-MC-A031272  1/1 Outline / Appearance  HD-AD-A031272  1/2 - 2/2 Outline / Appearance  HD-AD-B031272  1/1 Pin Layout  HD-BA-A031272  1/2 - 2/2  Rev. record 24-Sep.-2004> Ver.0.9 Draft 1-Dec.-2004> Ver.1.0 Released 29-Mar-2005>Ver.1.1 Released

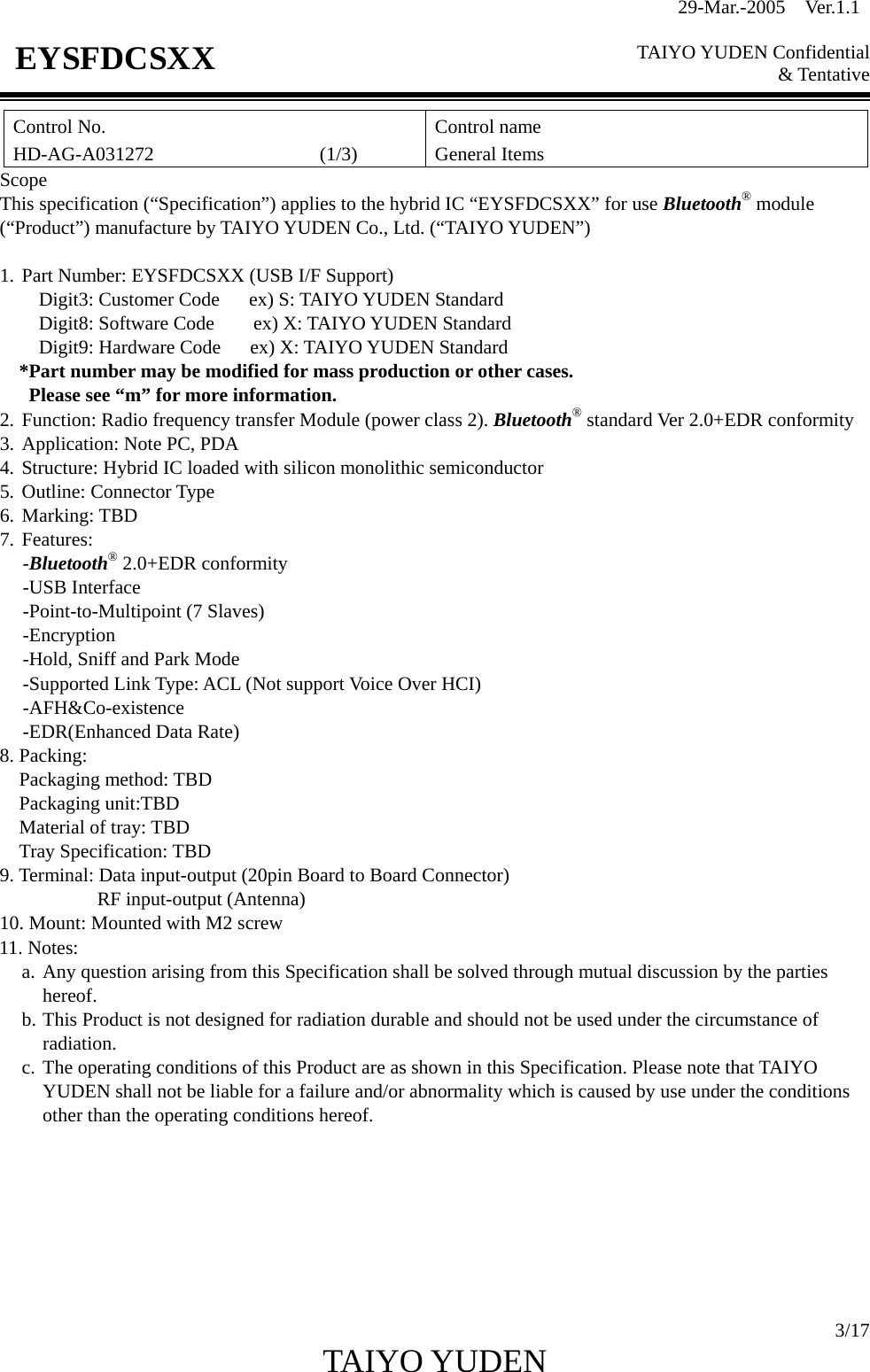

29-Mar.-2005  Ver.1.1  TAIYO YUDEN Confidential & Tentative  3/17 TAIYO YUDEN   EYSFDCSXX Control No. HD-AG-A031272                 (1/3) Control name General Items Scope This specification (“Specification”) applies to the hybrid IC “EYSFDCSXX” for use Bluetooth® module (“Product”) manufacture by TAIYO YUDEN Co., Ltd. (“TAIYO YUDEN”)  1. Part Number: EYSFDCSXX (USB I/F Support)     Digit3: Customer Code   ex) S: TAIYO YUDEN Standard     Digit8: Software Code    ex) X: TAIYO YUDEN Standard     Digit9: Hardware Code   ex) X: TAIYO YUDEN Standard *Part number may be modified for mass production or other cases.   Please see “m” for more information. 2. Function: Radio frequency transfer Module (power class 2). Bluetooth® standard Ver 2.0+EDR conformity 3. Application: Note PC, PDA 4. Structure: Hybrid IC loaded with silicon monolithic semiconductor 5. Outline: Connector Type 6. Marking: TBD 7. Features: -Bluetooth® 2.0+EDR conformity -USB Interface -Point-to-Multipoint (7 Slaves) -Encryption -Hold, Sniff and Park Mode -Supported Link Type: ACL (Not support Voice Over HCI) -AFH&Co-existence -EDR(Enhanced Data Rate) 8. Packing: Packaging method: TBD Packaging unit:TBD Material of tray: TBD Tray Specification: TBD 9. Terminal: Data input-output (20pin Board to Board Connector)           RF input-output (Antenna) 10. Mount: Mounted with M2 screw 11. Notes:   a. Any question arising from this Specification shall be solved through mutual discussion by the parties       hereof. b. This Product is not designed for radiation durable and should not be used under the circumstance of radiation. c. The operating conditions of this Product are as shown in this Specification. Please note that TAIYO YUDEN shall not be liable for a failure and/or abnormality which is caused by use under the conditions other than the operating conditions hereof.

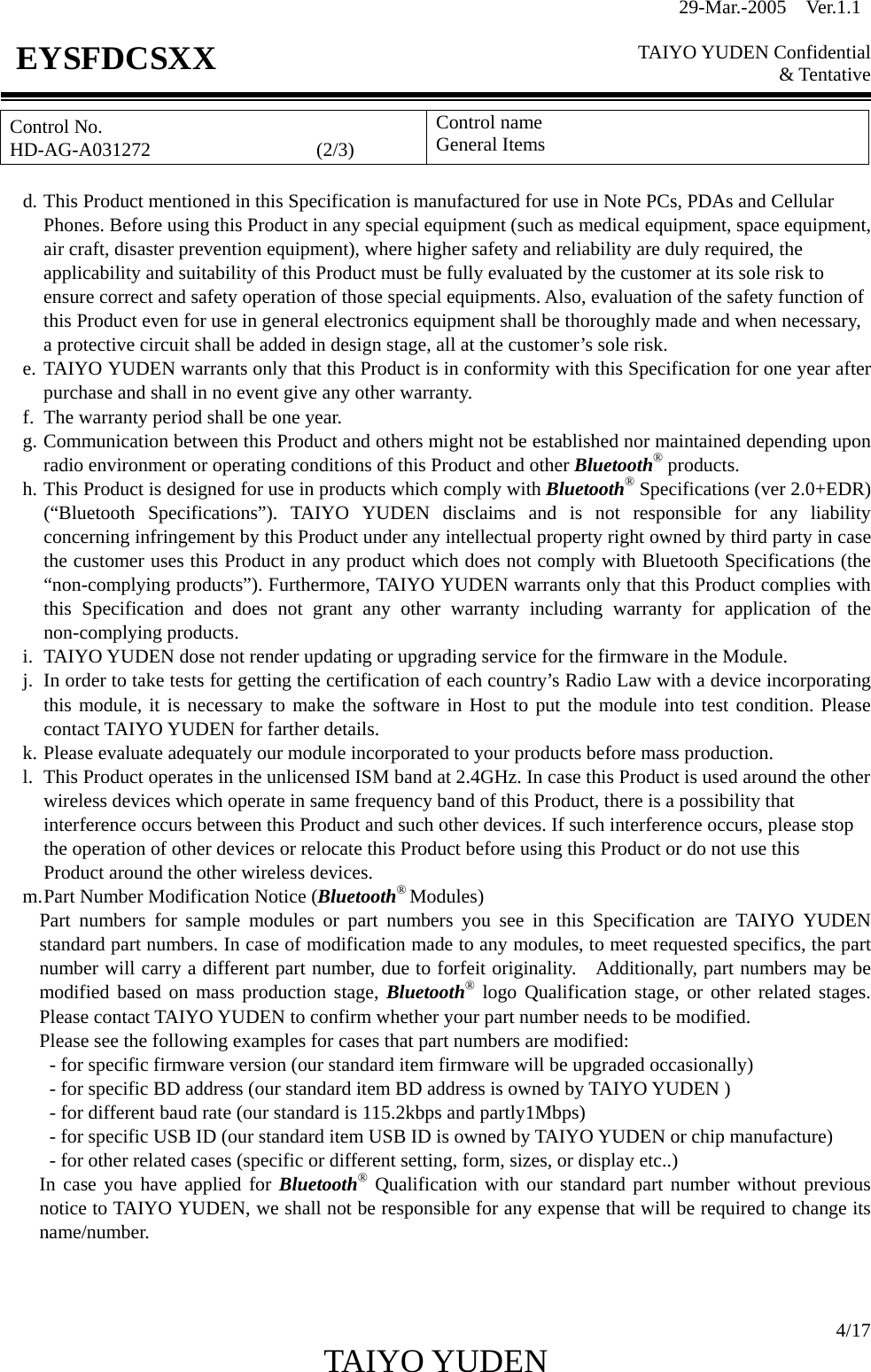

29-Mar.-2005  Ver.1.1  TAIYO YUDEN Confidential & Tentative  4/17 TAIYO YUDEN   EYSFDCSXX Control No. HD-AG-A031272                 (2/3) Control name General Items  d. This Product mentioned in this Specification is manufactured for use in Note PCs, PDAs and Cellular Phones. Before using this Product in any special equipment (such as medical equipment, space equipment, air craft, disaster prevention equipment), where higher safety and reliability are duly required, the applicability and suitability of this Product must be fully evaluated by the customer at its sole risk to ensure correct and safety operation of those special equipments. Also, evaluation of the safety function of this Product even for use in general electronics equipment shall be thoroughly made and when necessary, a protective circuit shall be added in design stage, all at the customer’s sole risk. e. TAIYO YUDEN warrants only that this Product is in conformity with this Specification for one year after purchase and shall in no event give any other warranty. f.  The warranty period shall be one year. g. Communication between this Product and others might not be established nor maintained depending upon radio environment or operating conditions of this Product and other Bluetooth® products. h. This Product is designed for use in products which comply with Bluetooth® Specifications (ver 2.0+EDR) (“Bluetooth Specifications”). TAIYO YUDEN disclaims and is not responsible for any liability concerning infringement by this Product under any intellectual property right owned by third party in case the customer uses this Product in any product which does not comply with Bluetooth Specifications (the “non-complying products”). Furthermore, TAIYO YUDEN warrants only that this Product complies with this Specification and does not grant any other warranty including warranty for application of the non-complying products. i.  TAIYO YUDEN dose not render updating or upgrading service for the firmware in the Module. j.  In order to take tests for getting the certification of each country’s Radio Law with a device incorporating this module, it is necessary to make the software in Host to put the module into test condition. Please contact TAIYO YUDEN for farther details. k. Please evaluate adequately our module incorporated to your products before mass production. l.  This Product operates in the unlicensed ISM band at 2.4GHz. In case this Product is used around the other wireless devices which operate in same frequency band of this Product, there is a possibility that   interference occurs between this Product and such other devices. If such interference occurs, please stop the operation of other devices or relocate this Product before using this Product or do not use this   Product around the other wireless devices. m. Part Number Modification Notice (Bluetooth® Modules) Part numbers for sample modules or part numbers you see in this Specification are TAIYO YUDEN standard part numbers. In case of modification made to any modules, to meet requested specifics, the part number will carry a different part number, due to forfeit originality.    Additionally, part numbers may be modified based on mass production stage, Bluetooth® logo Qualification stage, or other related stages. Please contact TAIYO YUDEN to confirm whether your part number needs to be modified. Please see the following examples for cases that part numbers are modified:           - for specific firmware version (our standard item firmware will be upgraded occasionally)           - for specific BD address (our standard item BD address is owned by TAIYO YUDEN )           - for different baud rate (our standard is 115.2kbps and partly1Mbps)           - for specific USB ID (our standard item USB ID is owned by TAIYO YUDEN or chip manufacture)           - for other related cases (specific or different setting, form, sizes, or display etc..) In case you have applied for Bluetooth® Qualification with our standard part number without previous notice to TAIYO YUDEN, we shall not be responsible for any expense that will be required to change its name/number.

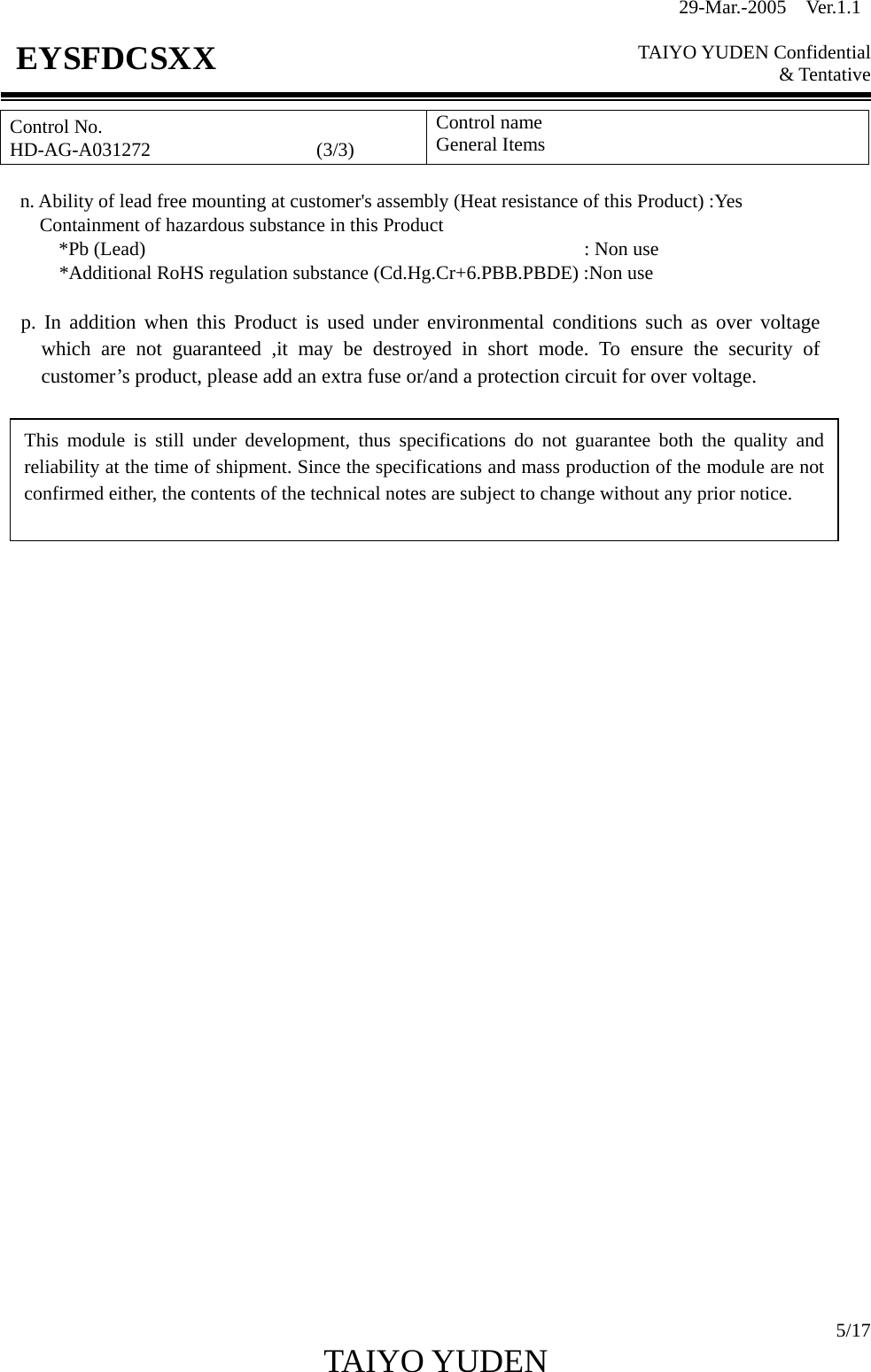

29-Mar.-2005  Ver.1.1  TAIYO YUDEN Confidential & Tentative  5/17 TAIYO YUDEN   EYSFDCSXX Control No. HD-AG-A031272                 (3/3) Control name General Items      n. Ability of lead free mounting at customer's assembly (Heat resistance of this Product) :Yes         Containment of hazardous substance in this Product *Pb (Lead)                                             : Non use       *Additional RoHS regulation substance (Cd.Hg.Cr+6.PBB.PBDE) :Non use     p. In addition when this Product is used under environmental conditions such as over voltage which are not guaranteed ,it may be destroyed in short mode. To ensure the security of customer’s product, please add an extra fuse or/and a protection circuit for over voltage.                                  This module is still under development, thus specifications do not guarantee both the quality andreliability at the time of shipment. Since the specifications and mass production of the module are notconfirmed either, the contents of the technical notes are subject to change without any prior notice.

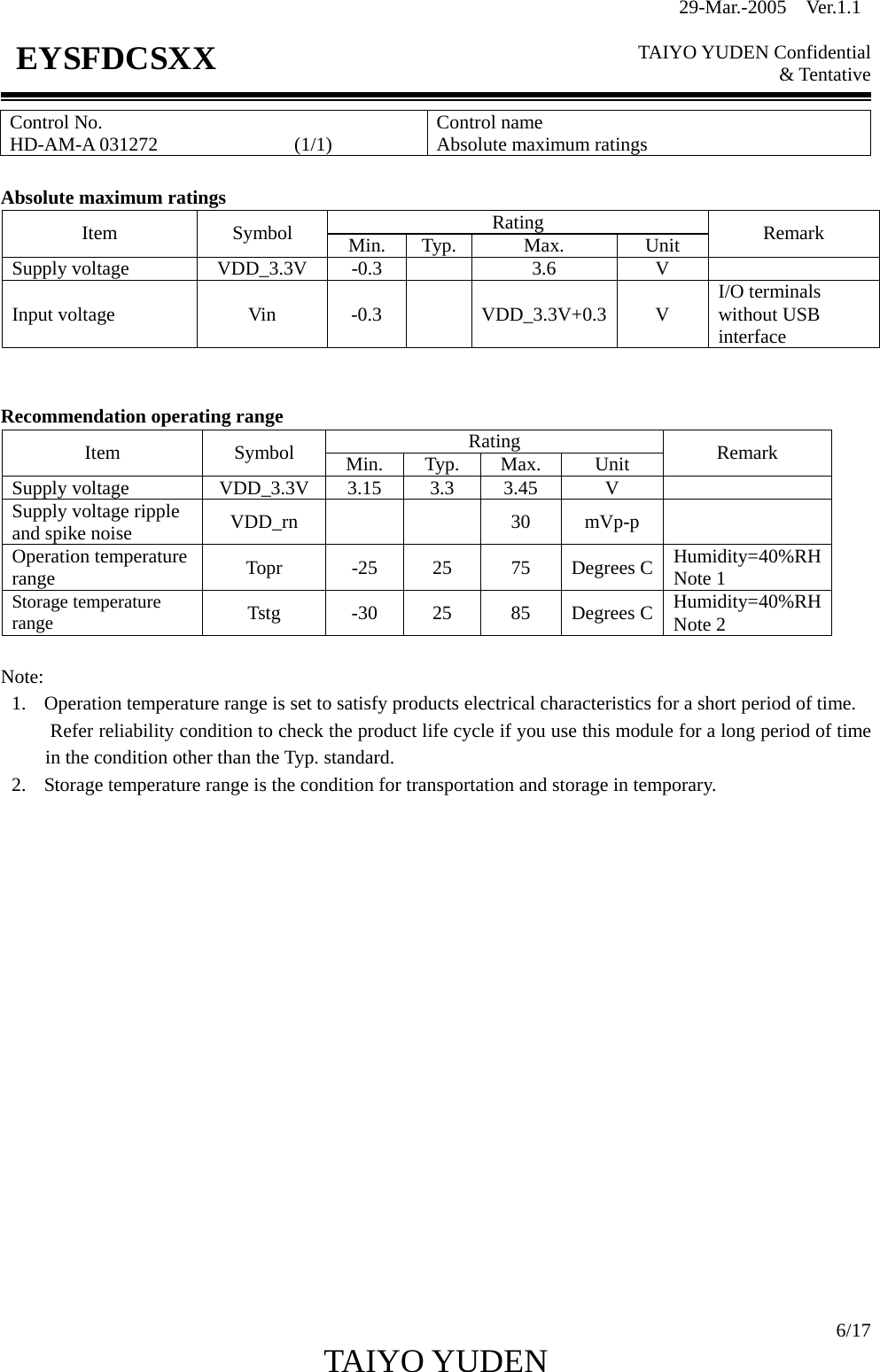

29-Mar.-2005  Ver.1.1  TAIYO YUDEN Confidential & Tentative  6/17 TAIYO YUDEN   EYSFDCSXX Control No. HD-AM-A 031272              (1/1)  Control name Absolute maximum ratings  Absolute maximum ratings Rating Item Symbol Min. Typ. Max.  Unit  Remark Supply voltage  VDD_3.3V  -0.3    3.6  V   Input voltage  Vin  -0.3    VDD_3.3V+0.3 V  I/O terminals without USB interface   Recommendation operating range Rating Item Symbol Min. Typ. Max.  Unit  Remark Supply voltage  VDD_3.3V  3.15  3.3  3.45  V   Supply voltage ripple and spike noise  VDD_rn    30 mVp-p   Operation temperature range  Topr -25 25 75 Degrees C Humidity=40%RHNote 1 Storage temperature range  Tstg -30 25 85 Degrees C Humidity=40%RHNote 2  Note: 1.  Operation temperature range is set to satisfy products electrical characteristics for a short period of time. Refer reliability condition to check the product life cycle if you use this module for a long period of time in the condition other than the Typ. standard. 2.  Storage temperature range is the condition for transportation and storage in temporary.

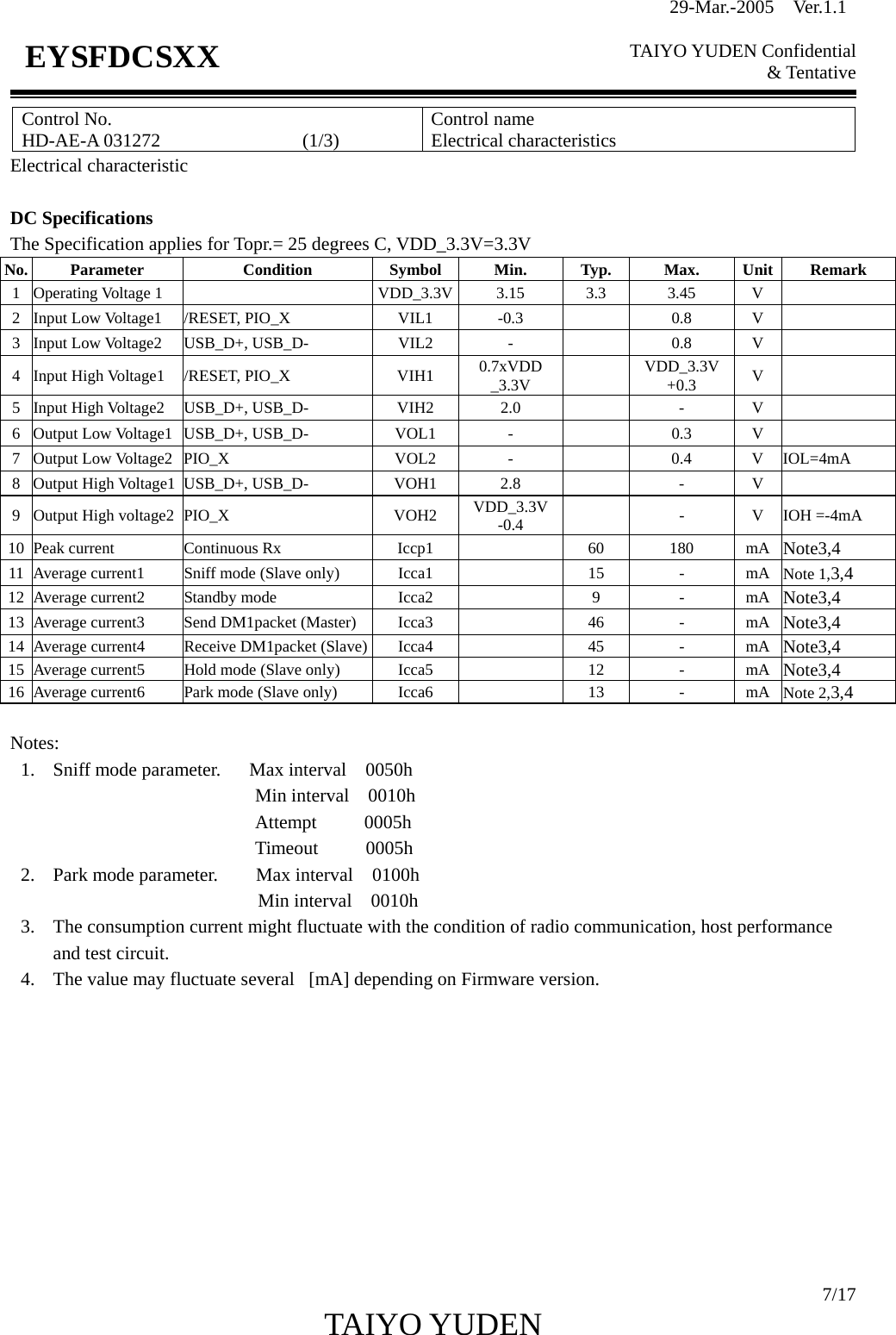

29-Mar.-2005  Ver.1.1  TAIYO YUDEN Confidential & Tentative  7/17 TAIYO YUDEN   EYSFDCSXX Control No. HD-AE-A 031272               (1/3)  Control name Electrical characteristics Electrical characteristic  DC Specifications The Specification applies for Topr.= 25 degrees C, VDD_3.3V=3.3V No. Parameter  Condition  Symbol  Min.  Typ.  Max. Unit Remark 1 Operating Voltage 1   VDD_3.3V 3.15 3.3 3.45 V  2  Input Low Voltage1  /RESET, PIO_X  VIL1  -0.3    0.8  V   3  Input Low Voltage2  USB_D+, USB_D-  VIL2  -    0.8  V   4  Input High Voltage1  /RESET, PIO_X  VIH1  0.7xVDD _3.3V   VDD_3.3V +0.3  V  5  Input High Voltage2  USB_D+, USB_D-  VIH2  2.0    -  V   6  Output Low Voltage1  USB_D+, USB_D-  VOL1  -    0.3  V   7 Output Low Voltage2 PIO_X  VOL2  -    0.4  V  IOL=4mA 8  Output High Voltage1  USB_D+, USB_D-  VOH1  2.8    -  V   9  Output High voltage2  PIO_X  VOH2  VDD_3.3V-0.4   - V IOH =-4mA 10  Peak current  Continuous Rx  Iccp1    60  180  mA Note3,4 11  Average current1  Sniff mode (Slave only)  Icca1    15 - mA Note 1,3,4 12  Average current2  Standby mode  Icca2    9 - mA Note3,4 13  Average current3  Send DM1packet (Master) Icca3    46 - mA Note3,4 14  Average current4  Receive DM1packet (Slave) Icca4    45 - mA Note3,4 15  Average current5  Hold mode (Slave only)  Icca5    12 - mA Note3,4 16  Average current6  Park mode (Slave only)  Icca6    13 - mA Note 2,3,4  Notes: 1.  Sniff mode parameter.   Max interval  0050h Min interval  0010h Attempt     0005h Timeout     0005h 2.  Park mode parameter.    Max interval  0100h                          Min interval  0010h 3.  The consumption current might fluctuate with the condition of radio communication, host performance and test circuit. 4.  The value may fluctuate several   [mA] depending on Firmware version.

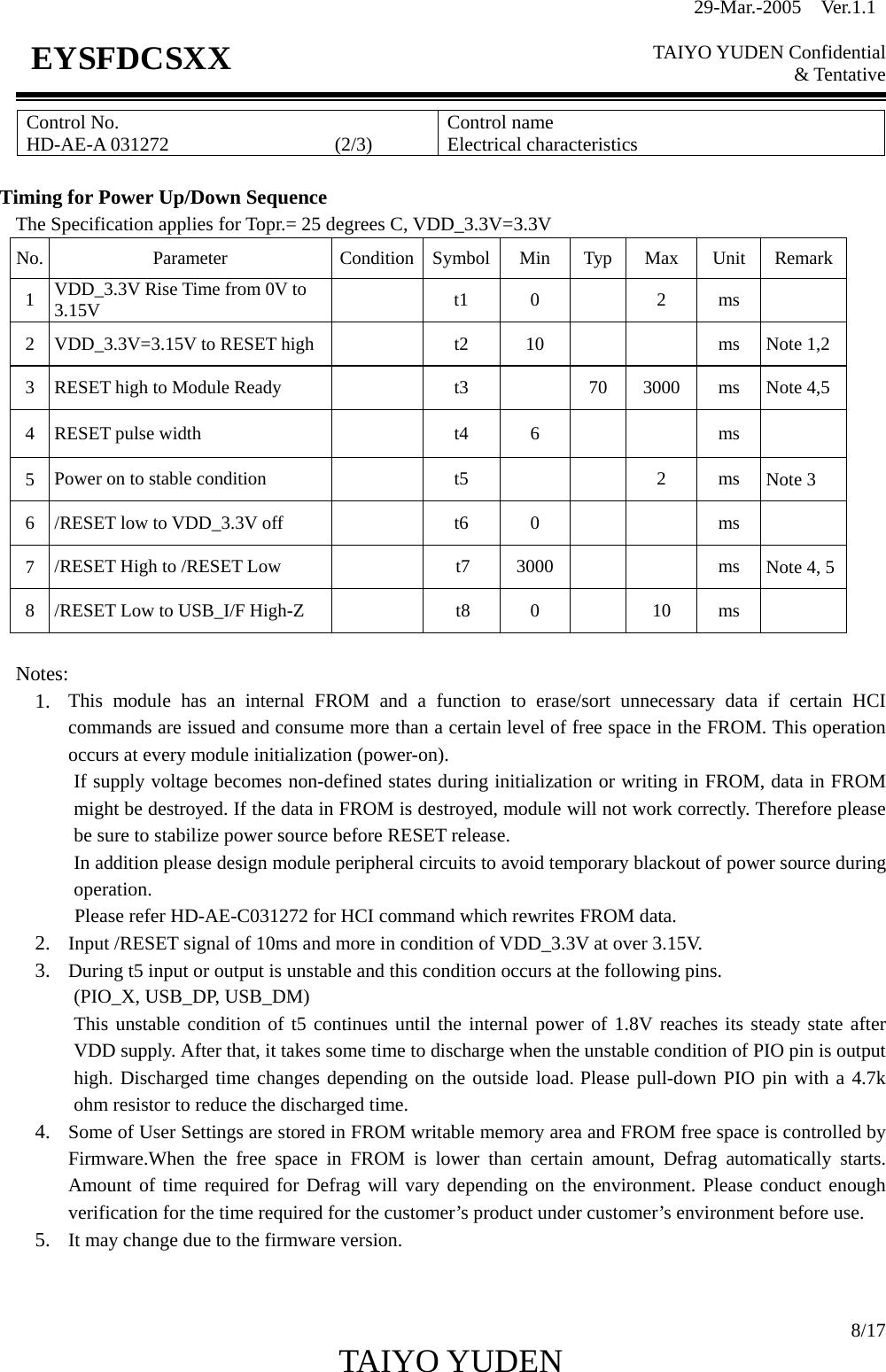

29-Mar.-2005  Ver.1.1  TAIYO YUDEN Confidential & Tentative  8/17 TAIYO YUDEN   EYSFDCSXX Control No. HD-AE-A 031272                 (2/3)  Control name Electrical characteristics  Timing for Power Up/Down Sequence The Specification applies for Topr.= 25 degrees C, VDD_3.3V=3.3V No. Parameter  Condition Symbol Min Typ Max Unit Remark1  VDD_3.3V Rise Time from 0V to 3.15V   t1 0  2 ms  2  VDD_3.3V=3.15V to RESET high    t2  10      ms  Note 1,23  RESET high to Module Ready    t3    70  3000  ms  Note 4,54  RESET pulse width    t4  6      ms   5  Power on to stable condition    t5      2  ms  Note 3 6  /RESET low to VDD_3.3V off    t6  0      ms   7  /RESET High to /RESET Low      t7  3000     ms  Note 4, 58  /RESET Low to USB_I/F High-Z    t8  0    10  ms    Notes: 1.  This module has an internal FROM and a function to erase/sort unnecessary data if certain HCI commands are issued and consume more than a certain level of free space in the FROM. This operation occurs at every module initialization (power-on). If supply voltage becomes non-defined states during initialization or writing in FROM, data in FROM might be destroyed. If the data in FROM is destroyed, module will not work correctly. Therefore please be sure to stabilize power source before RESET release. In addition please design module peripheral circuits to avoid temporary blackout of power source during operation. Please refer HD-AE-C031272 for HCI command which rewrites FROM data. 2.  Input /RESET signal of 10ms and more in condition of VDD_3.3V at over 3.15V. 3.  During t5 input or output is unstable and this condition occurs at the following pins. (PIO_X, USB_DP, USB_DM) This unstable condition of t5 continues until the internal power of 1.8V reaches its steady state after VDD supply. After that, it takes some time to discharge when the unstable condition of PIO pin is output high. Discharged time changes depending on the outside load. Please pull-down PIO pin with a 4.7k ohm resistor to reduce the discharged time. 4.  Some of User Settings are stored in FROM writable memory area and FROM free space is controlled by Firmware.When the free space in FROM is lower than certain amount, Defrag automatically starts. Amount of time required for Defrag will vary depending on the environment. Please conduct enough verification for the time required for the customer’s product under customer’s environment before use.     5.  It may change due to the firmware version.

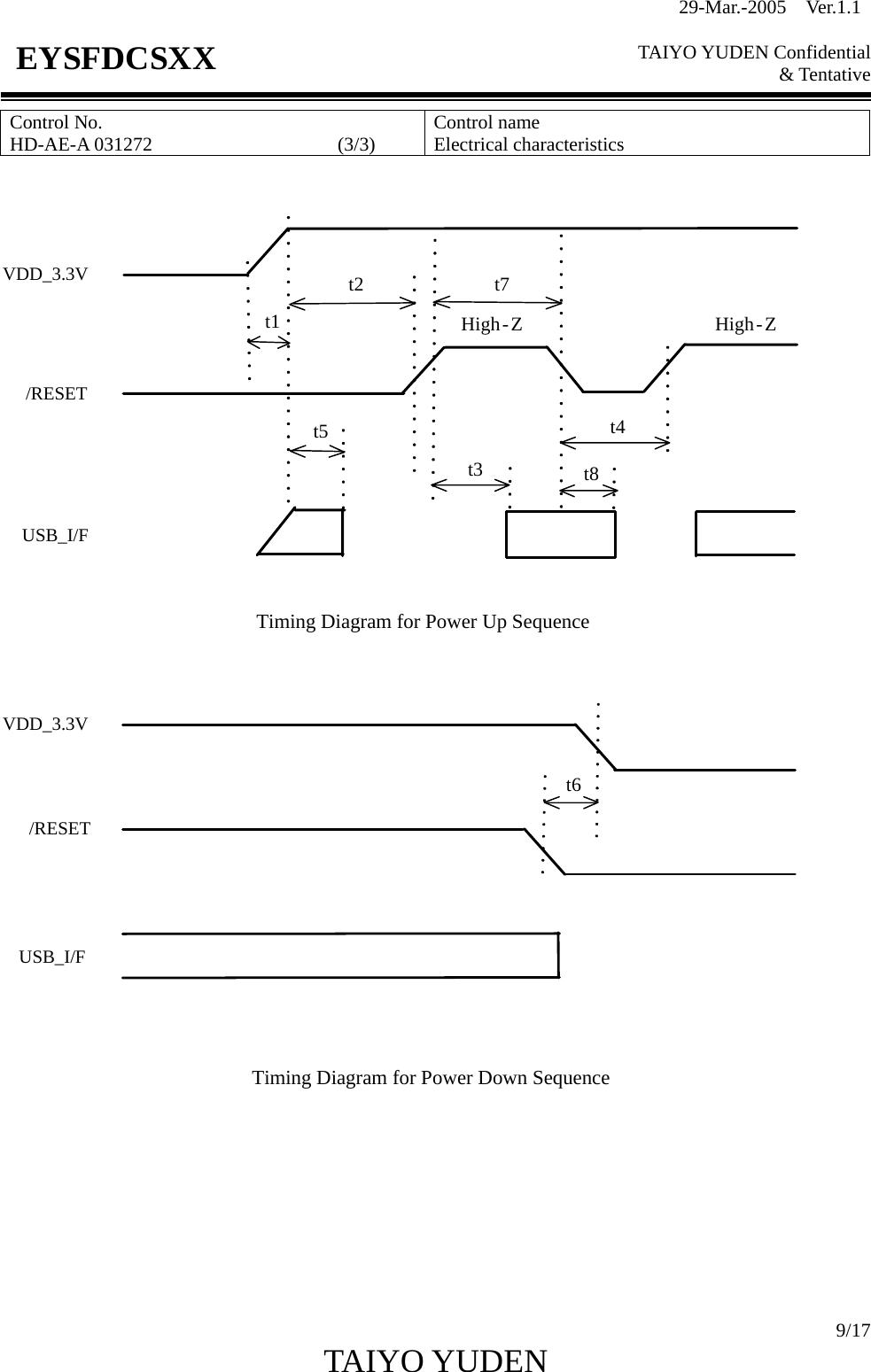

29-Mar.-2005  Ver.1.1  TAIYO YUDEN Confidential & Tentative  9/17 TAIYO YUDEN   EYSFDCSXX Control No. HD-AE-A 031272                   (3/3)  Control name Electrical characteristics   Timing Diagram for Power Up SequenceVDD_3.3V/RESETUSB_I/Ft1t2t3t4t5t7t8High-Z High-Z   Timing Diagram for Power Down SequenceVDD_3.3V/RESETUSB_I/Ft6

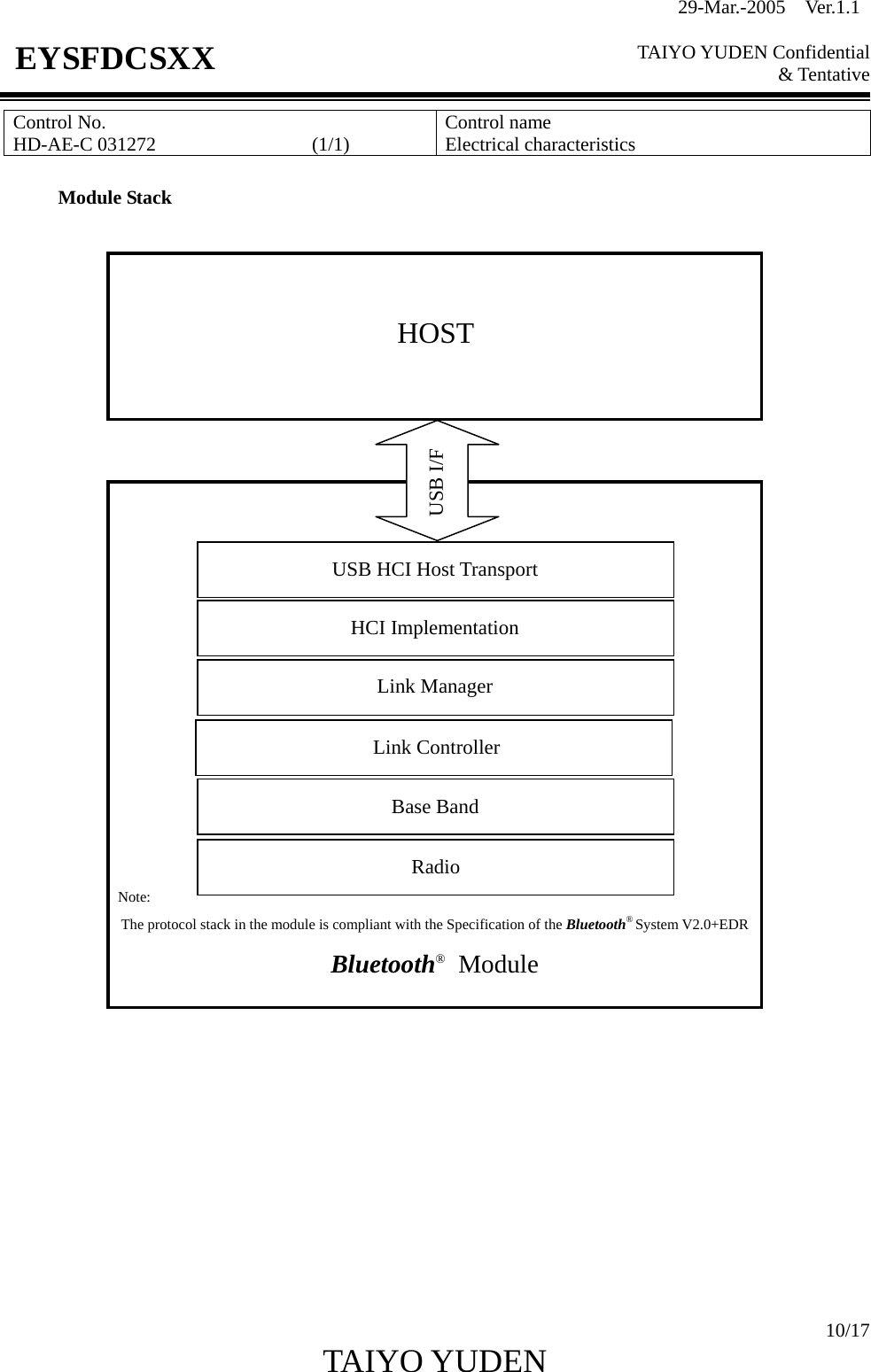

29-Mar.-2005  Ver.1.1  TAIYO YUDEN Confidential & Tentative  10/17 TAIYO YUDEN   EYSFDCSXX Control No. HD-AE-C 031272                (1/1)  Control name Electrical characteristics  Module Stack                          Note: The protocol stack in the module is compliant with the Specification of the Bluetooth® System V2.0+EDR               HOSTUSB I/F USB HCI Host TransportHCI ImplementationLink Manager Link Controller Base BandRadioBluetooth®  Module

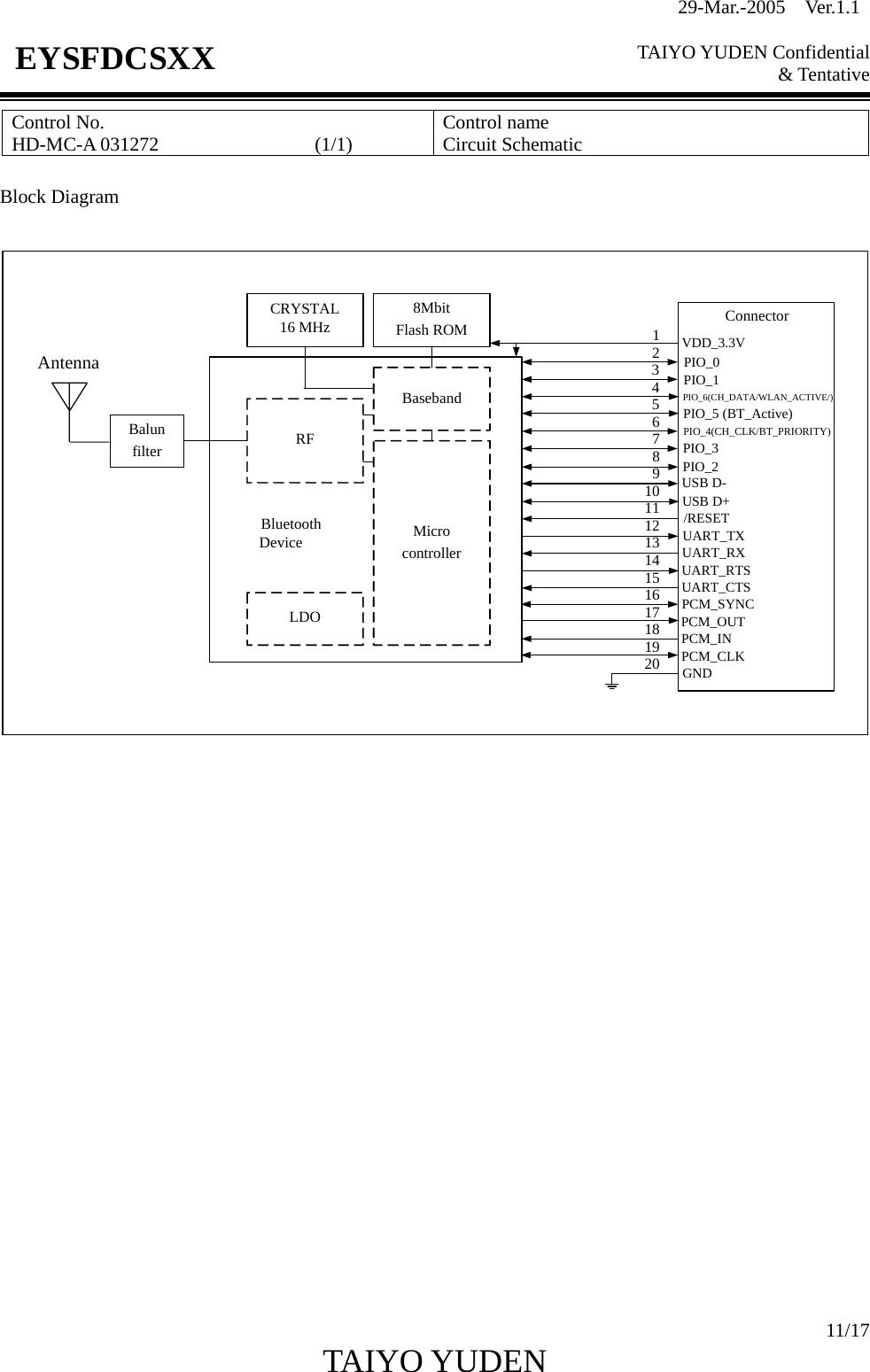

29-Mar.-2005  Ver.1.1  TAIYO YUDEN Confidential & Tentative  11/17 TAIYO YUDEN   EYSFDCSXX Control No. HD-MC-A 031272                (1/1)   Control name Circuit Schematic  Block Diagram  USB D+USB D-PIO_4(CH_CLK/BT_PRIORITY)PIO_3PIO_2/RESET11617141891320811Connector32456 PIO_5 (BT_Active)71012PCM_SYNC1519VDD_3.3VPIO_0PIO_1PIO_6(CH_DATA/WLAN_ACTIVE/)UART_TXUART_RXUART_RTSUART_CTSPCM_OUTPCM_INGNDBalunfilterBasebandMicrocontroller8MbitFlash ROMCRYSTAL16 MHzRFLDOBluetoothDevicePCM_CLKAntenna

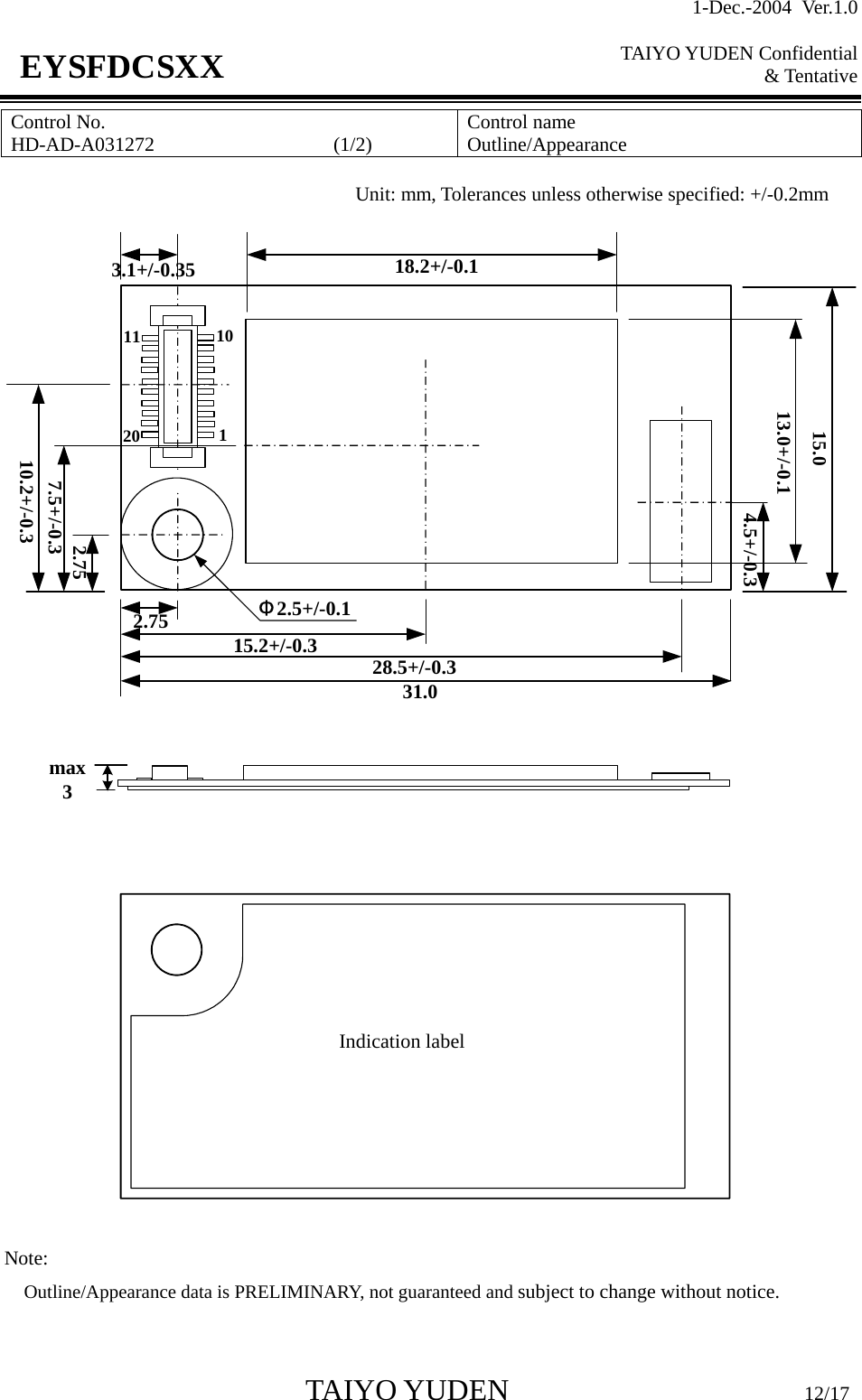

1-Dec.-2004 Ver.1.0  TAIYO YUDEN Confidential & Tentative  TAIYO YUDEN                         12/17 EYSFDCSXX Control No. HD-AD-A031272                  (1/2)   Control name Outline/Appearance   31.015.010.2+/-0.37.5+/-0.32.7513.0+/-0.128.5+/-0.32.753.1+/-0.35 18.2+/-0.115.2+/-0.3Φ2.5+/-0.11101120Indication label4.5+/-0.3max3 Note:   Outline/Appearance data is PRELIMINARY, not guaranteed and subject to change without notice.  Unit: mm, Tolerances unless otherwise specified: +/-0.2mm

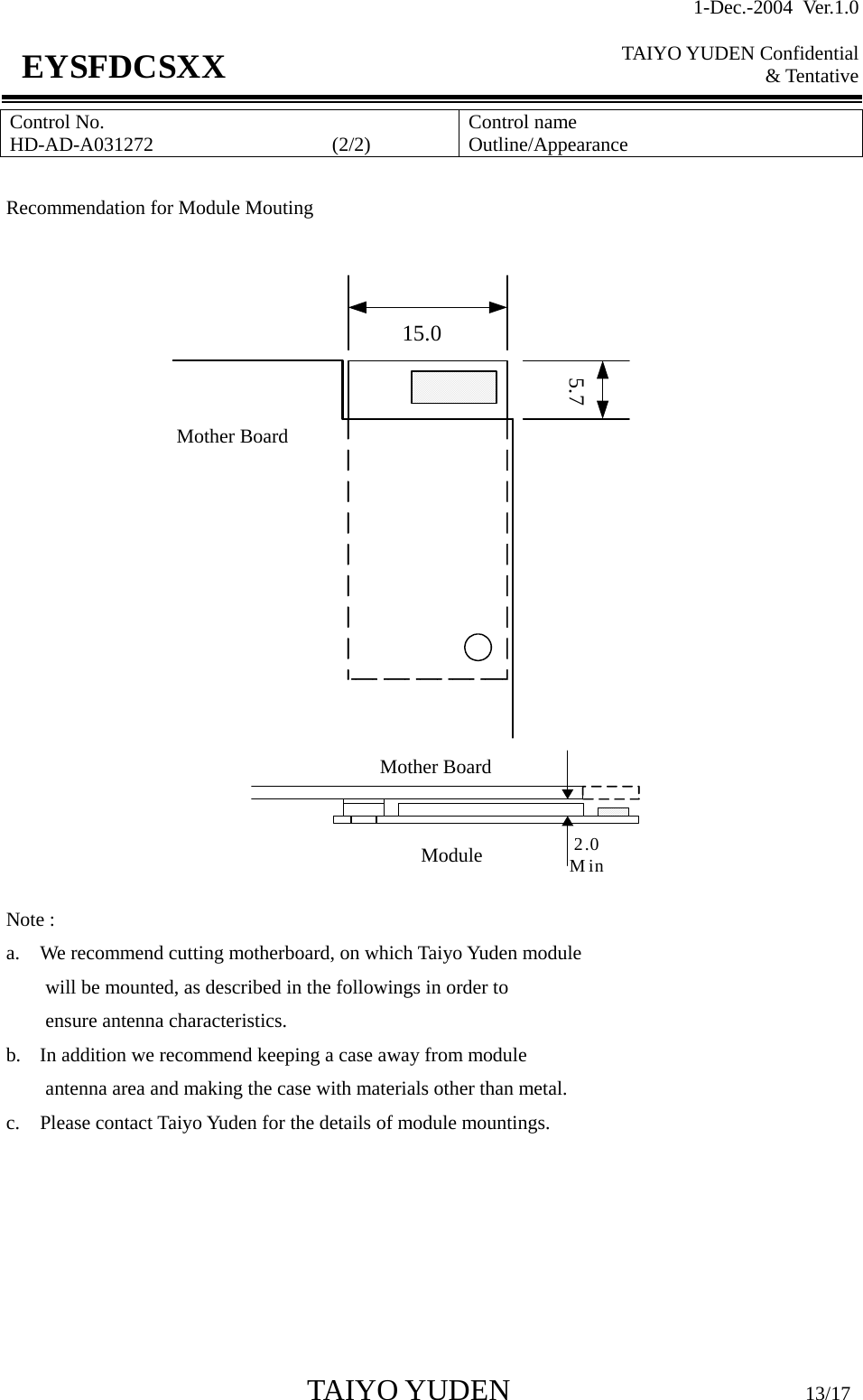

1-Dec.-2004 Ver.1.0  TAIYO YUDEN Confidential & Tentative  TAIYO YUDEN                         13/17 EYSFDCSXX Control No. HD-AD-A031272                  (2/2)   Control name Outline/Appearance  Recommendation for Module Mouting                     Note :   a.  We recommend cutting motherboard, on which Taiyo Yuden module will be mounted, as described in the followings in order to ensure antenna characteristics. b.  In addition we recommend keeping a case away from module antenna area and making the case with materials other than metal. c.  Please contact Taiyo Yuden for the details of module mountings.       5.715.0Mother Board Mother BoardModule 2.0Min

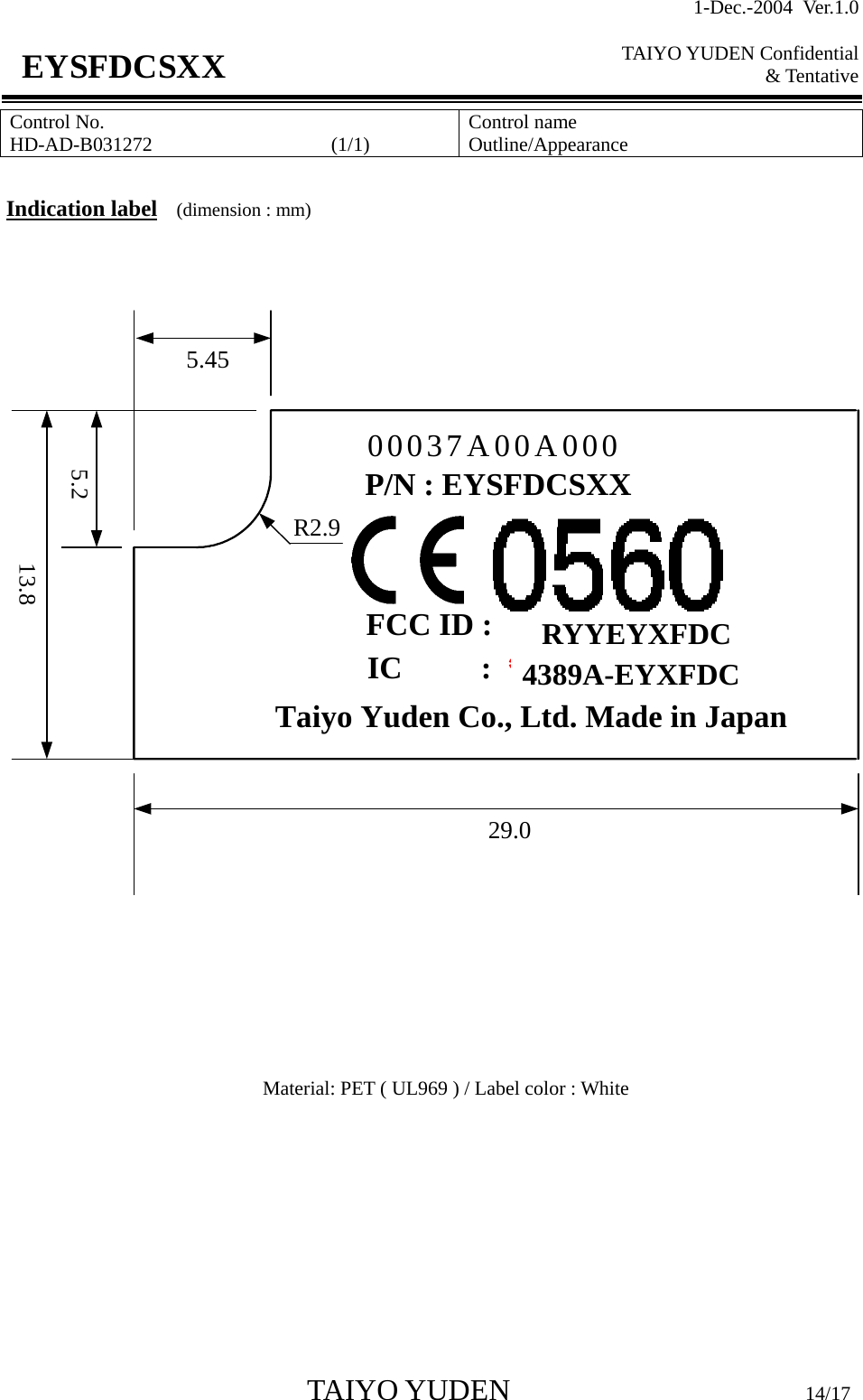

1-Dec.-2004 Ver.1.0  TAIYO YUDEN Confidential & Tentative  TAIYO YUDEN                         14/17 EYSFDCSXX Control No. HD-AD-B031272                  (1/1)   Control name Outline/Appearance  Indication label  (dimension : mm)   5.4529.05.213.8R2.900037A00A000FCC ID : ************IC          :  *************Taiyo Yuden Co., Ltd. Made in JapanP/N : EYSFDCSXX     Material: PET ( UL969 ) / Label color : White        4389A-EYXFDC RYYEYXFDC

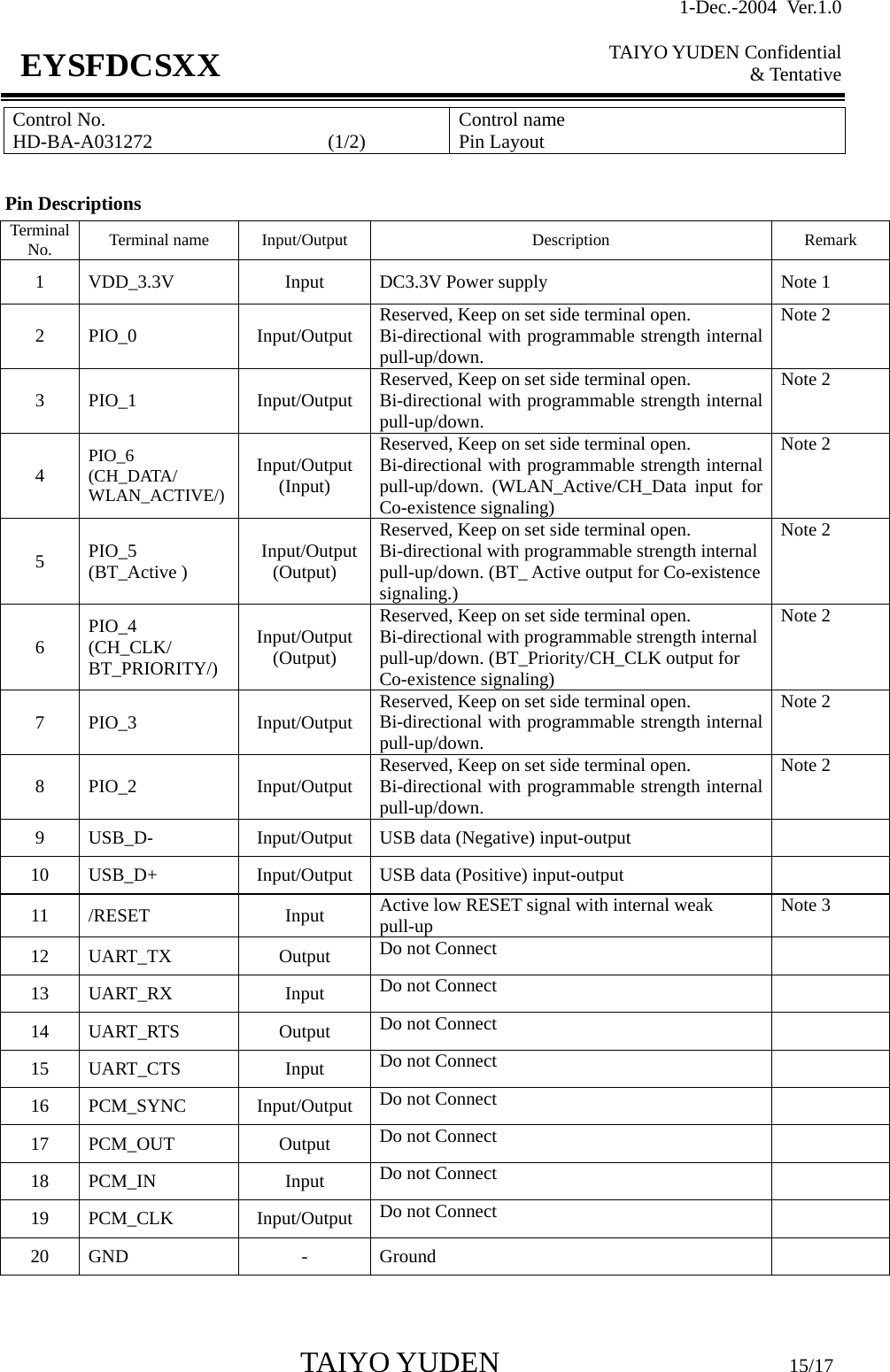

1-Dec.-2004 Ver.1.0  TAIYO YUDEN Confidential & Tentative  TAIYO YUDEN                         15/17 EYSFDCSXX Control No. HD-BA-A031272                  (1/2)   Control name Pin Layout  Pin Descriptions   Terminal No.  Terminal name  Input/Output Description  Remark 1  VDD_3.3V  Input  DC3.3V Power supply  Note 1 2 PIO_0  Input/Output Reserved, Keep on set side terminal open. Bi-directional with programmable strength internal pull-up/down. Note 2 3 PIO_1  Input/Output Reserved, Keep on set side terminal open. Bi-directional with programmable strength internal pull-up/down. Note 2 4  PIO_6 (CH_DATA/ WLAN_ACTIVE/) Input/Output (Input) Reserved, Keep on set side terminal open. Bi-directional with programmable strength internal pull-up/down. (WLAN_Active/CH_Data input for Co-existence signaling) Note 2 5  PIO_5 (BT_Active )   Input/Output(Output) Reserved, Keep on set side terminal open. Bi-directional with programmable strength internal pull-up/down. (BT_ Active output for Co-existence signaling.) Note 2 6  PIO_4 (CH_CLK/ BT_PRIORITY/) Input/Output (Output) Reserved, Keep on set side terminal open. Bi-directional with programmable strength internal pull-up/down. (BT_Priority/CH_CLK output for Co-existence signaling) Note 2 7 PIO_3  Input/Output Reserved, Keep on set side terminal open. Bi-directional with programmable strength internal pull-up/down. Note 2 8 PIO_2  Input/Output Reserved, Keep on set side terminal open. Bi-directional with programmable strength internal pull-up/down. Note 2 9  USB_D-  Input/Output  USB data (Negative) input-output   10 USB_D+  Input/Output USB data (Positive) input-output   11 /RESET  Input  Active low RESET signal with internal weak pull-up  Note 3 12 UART_TX  Output  Do not Connect  13 UART_RX  Input  Do not Connect  14 UART_RTS  Output  Do not Connect  15 UART_CTS  Input  Do not Connect  16 PCM_SYNC  Input/Output Do not Connect  17 PCM_OUT Output  Do not Connect  18 PCM_IN Input  Do not Connect  19 PCM_CLK Input/Output  Do not Connect  20 GND  -  Ground

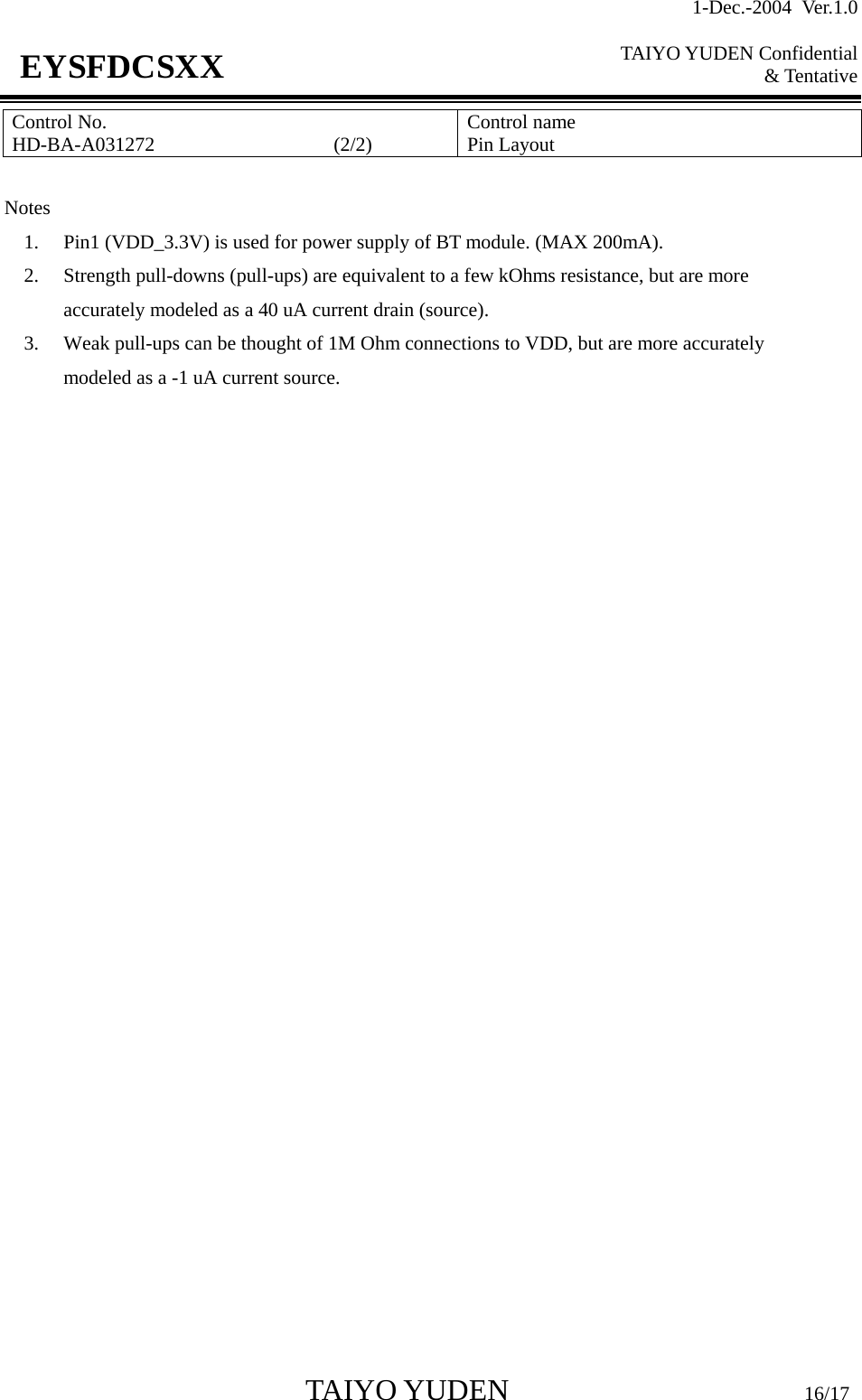

1-Dec.-2004 Ver.1.0  TAIYO YUDEN Confidential & Tentative  TAIYO YUDEN                         16/17 EYSFDCSXX Control No. HD-BA-A031272                  (2/2)   Control name Pin Layout  Notes 1.  Pin1 (VDD_3.3V) is used for power supply of BT module. (MAX 200mA). 2.  Strength pull-downs (pull-ups) are equivalent to a few kOhms resistance, but are more accurately modeled as a 40 uA current drain (source). 3.  Weak pull-ups can be thought of 1M Ohm connections to VDD, but are more accurately modeled as a -1 uA current source.

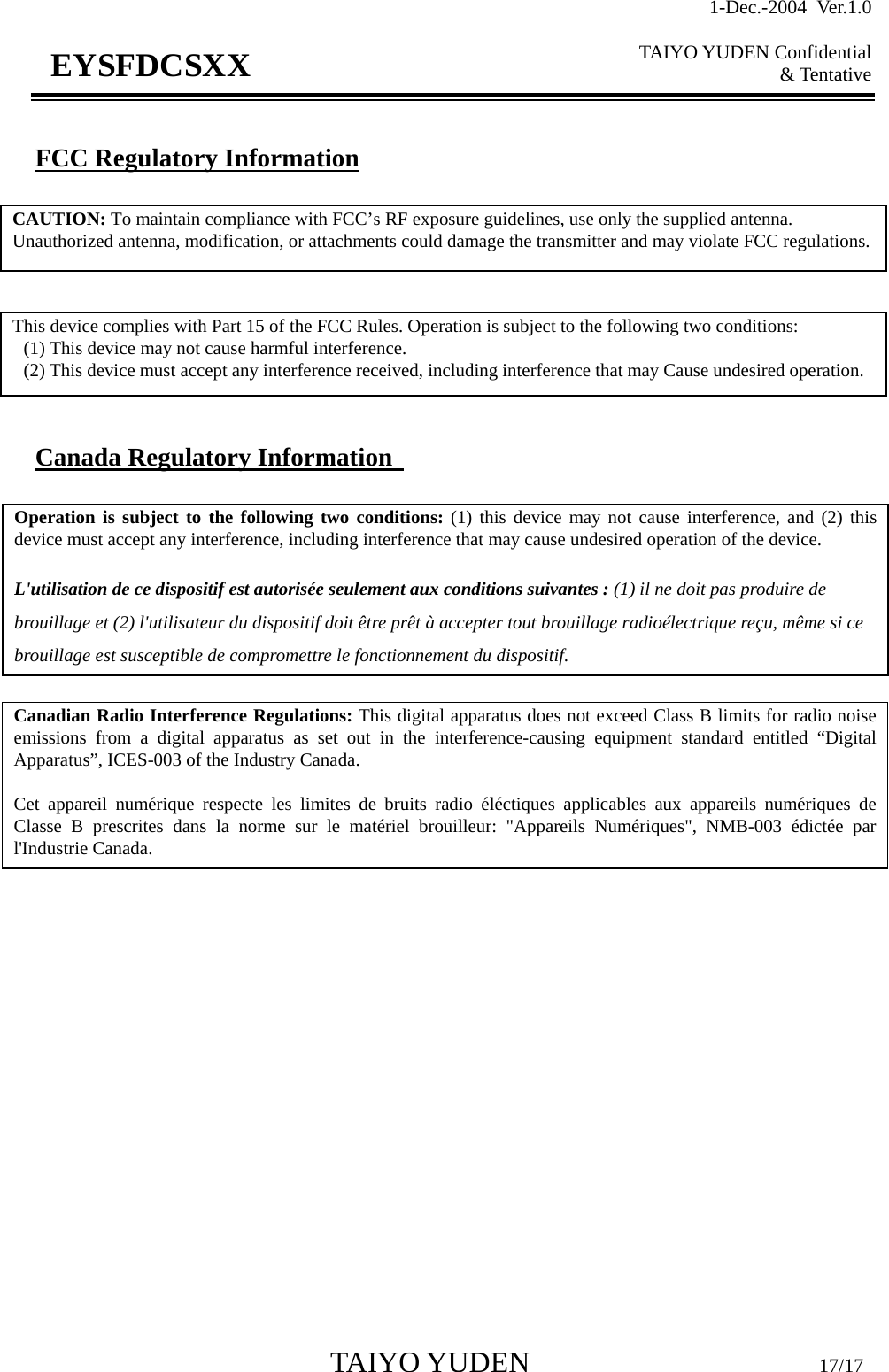

1-Dec.-2004 Ver.1.0  TAIYO YUDEN Confidential & Tentative  TAIYO YUDEN                         17/17 EYSFDCSXX  FCC Regulatory Information         Canada Regulatory Information   CAUTION: To maintain compliance with FCC’s RF exposure guidelines, use only the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:   (1) This device may not cause harmful interference.   (2) This device must accept any interference received, including interference that may Cause undesired operation. Canadian Radio Interference Regulations: This digital apparatus does not exceed Class B limits for radio noiseemissions from a digital apparatus as set out in the interference-causing equipment standard entitled “DigitalApparatus”, ICES-003 of the Industry Canada.  Cet appareil numérique respecte les limites de bruits radio éléctiques applicables aux appareils numériques deClasse B prescrites dans la norme sur le matériel brouilleur: "Appareils Numériques", NMB-003 édictée parl'Industrie Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) thisdevice must accept any interference, including interference that may cause undesired operation of the device.  L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.
