TAIYO YUDEN WYPAEBUX4 IEEE 802.11 a/b/g/n Wireless LAN Module User Manual
Taiyo Yuden Co., Ltd. IEEE 802.11 a/b/g/n Wireless LAN Module
User Manual
26-Oct-2010 Ver.0.1
Under NDA
TAIYO YUDEN Confidential
TAIYO YUDEN
WYPAEBUX4
Wireless LAN
WYPAEBUX4
IEEE 802.11a/b/g/n
Users Manual
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ−ＡＧ−
Ａ１０００３７
（１／５）
Control name
General items
一般事項書
（１）Scope
適用
This specification (“Specification”) applies to the hybrid IC “WYPAEBUX4“ for use WLAN module
(“Product”) manufactured by TAIYO YUDEN CO., LTD. (“TAIYO YUDEN”)
本仕様書は、太陽誘電株式会社により製造される WLAN 用ハイブリッド IC ” WYPAEBUX4 ”(“本製品”)
に適用する。
（２）Description
内 容
① Part Number: ＷＹＰＡＥＢＵＸ４
型 番 : ＷＹＰＡＥＢＵＸ４
② Function: Radio frequency transceiver Module.
WLAN IEEE 802.11 a/b/g/n conformity.
機 能 : 無線通信モジュール
WLAN IEEE 802.11 a/b/g/n 準拠。
③ Application: Audio-Visual Equipment
用 途 : ＡＶ機器
④ Structure: Hybrid IC loaded with silicon monolithic semiconductor and GaAs semiconductor.
構 造 : シリコン＆ GaAs モノリシック半導体を用いた混成集積回路
Containment of hazardous substance in this Product
RoHS regulation substance(Pb, Cd, Hg, Cr+6.PBB.PBDE) ：Non use
本製品内の環境物質含有
RoHS規制物質（Pb, Cd, Hg, Cr+6.PBB.PBDE） ：未使用

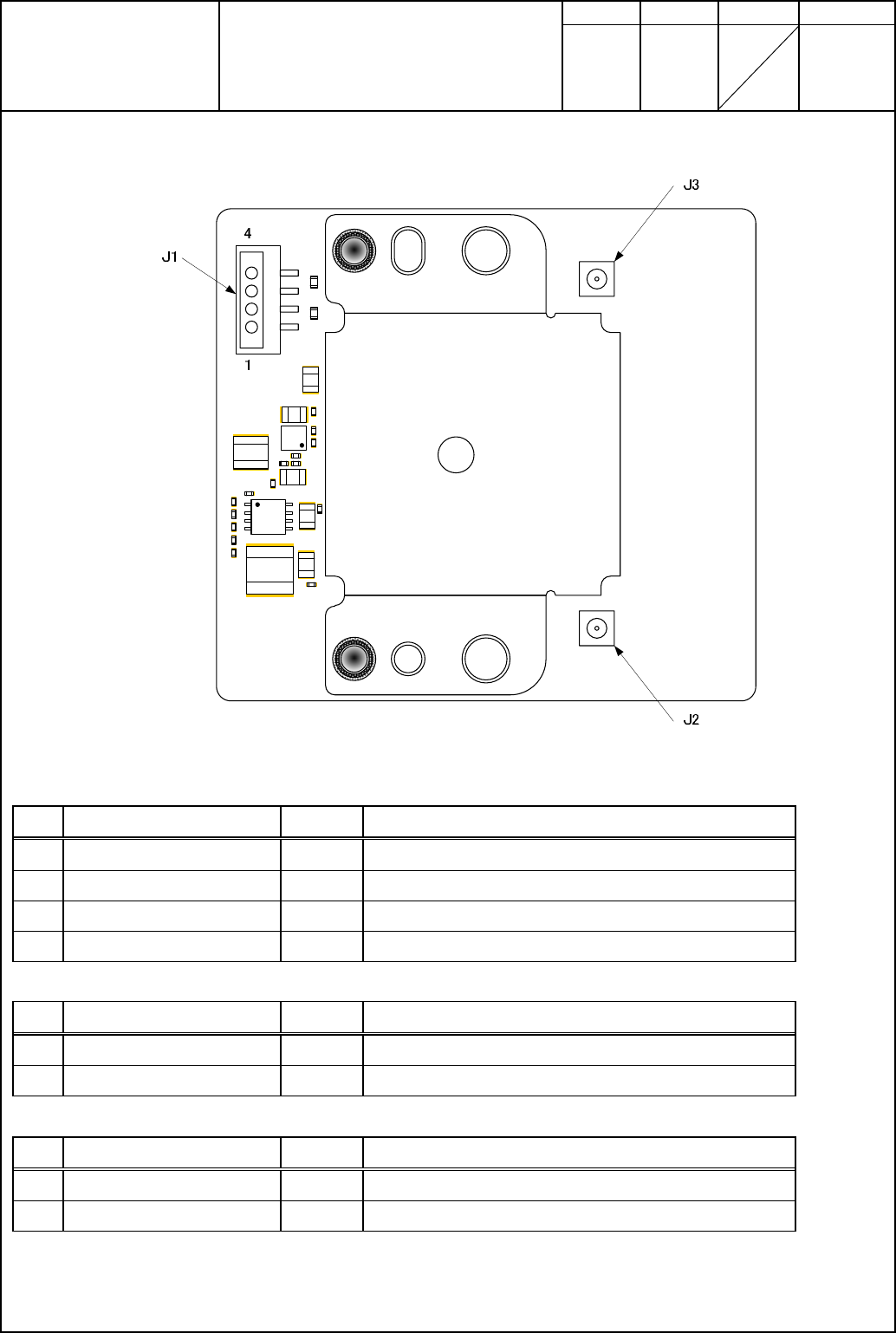

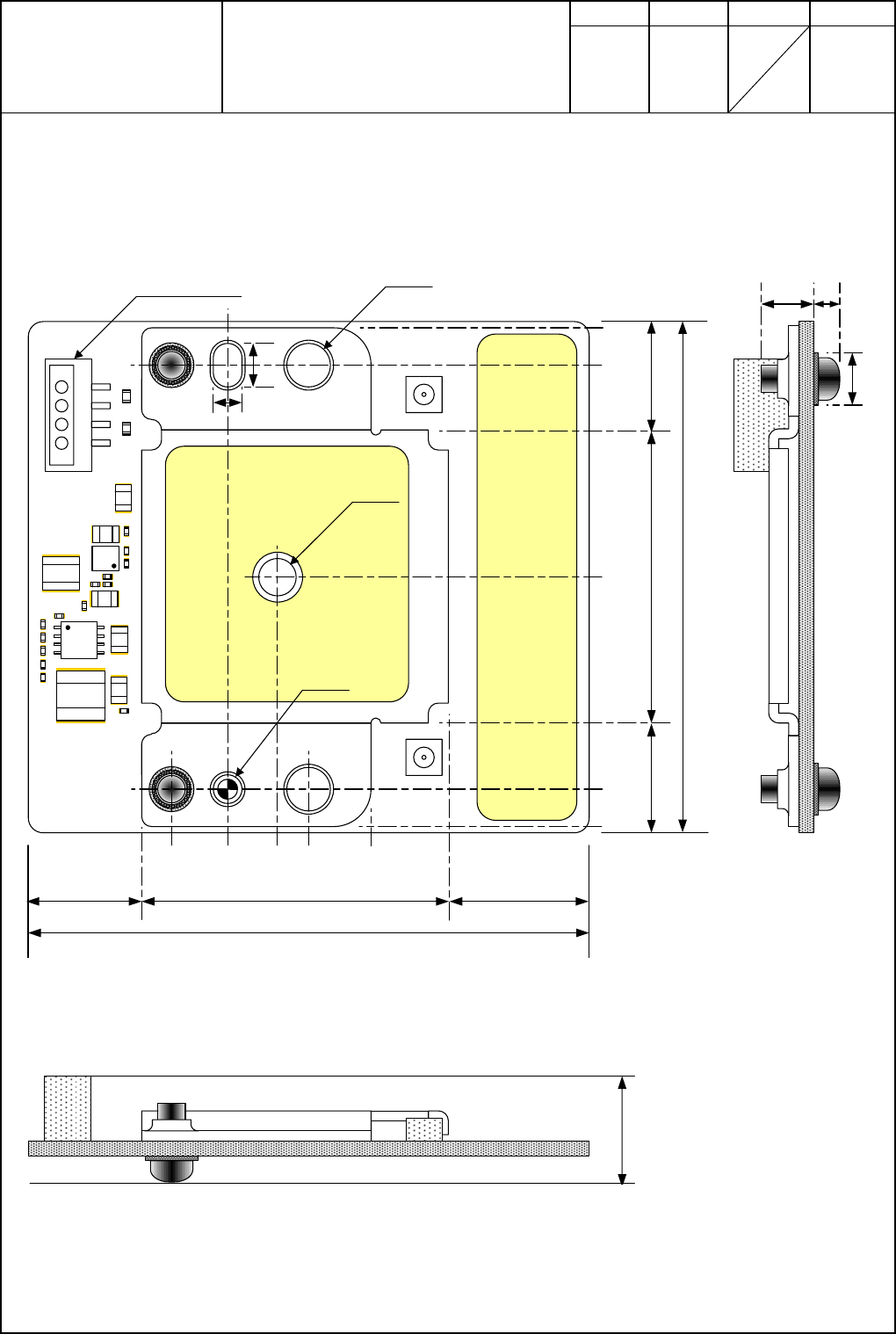

⑤ Outline : 41.0x45.0x7.8mm
4pin Connector I/F
外 形: 41.0x45.0x7.8mm
4ピンコネクタＩ／Ｆ仕様

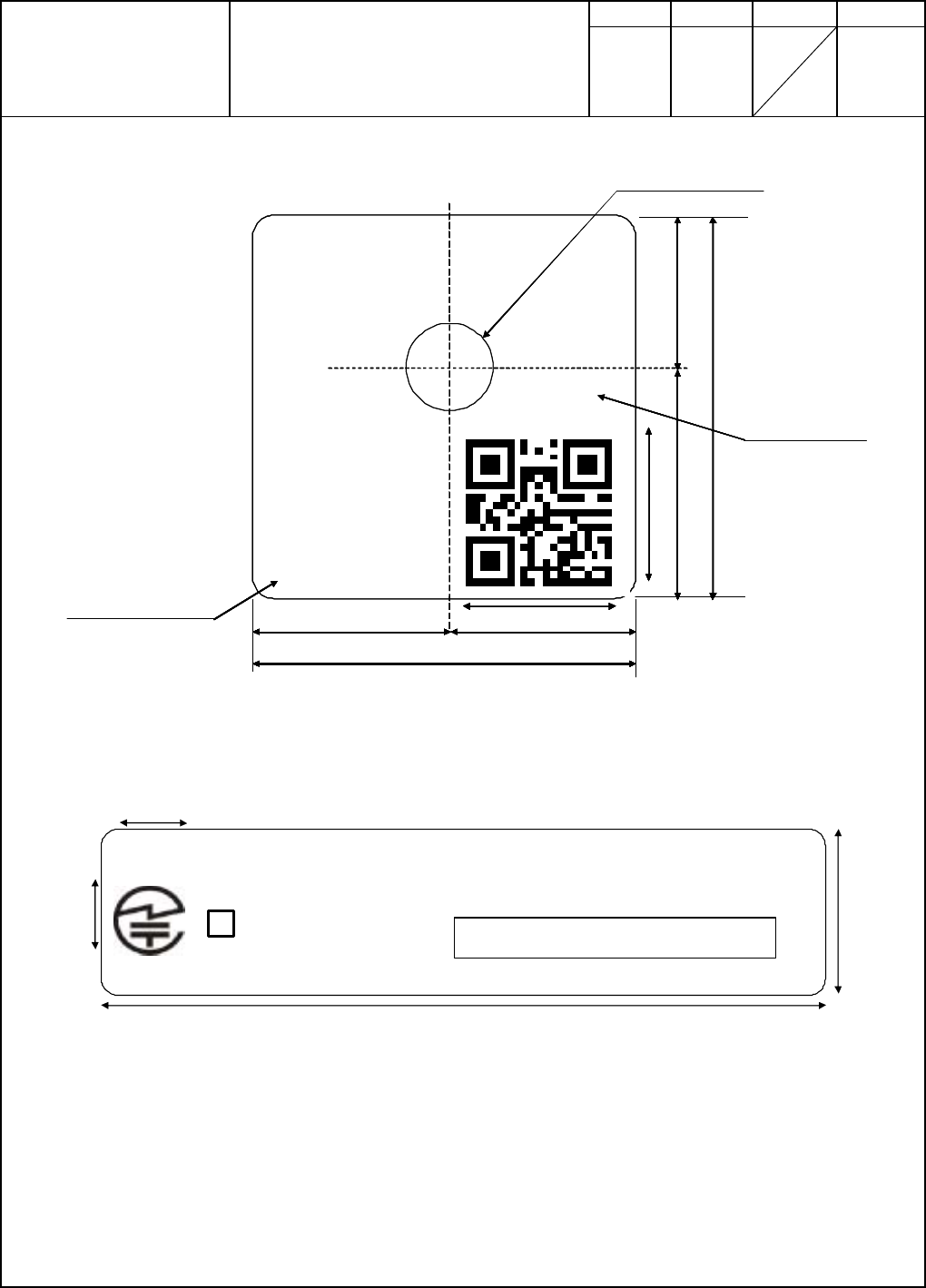

⑥ Marking: 2 Labels on shielding case and PCB.
表 示 : シールドケース上とＰＣＢ上の貼り付けラベルに印字
TAIYO YUDEN CO., LTD.
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ−ＡＧ−
Ａ１０００３７
（２／５）
Control name
General items
一般事項書
⑦ Note :
その他 :
a. Limitation of Warranty
保証
i) TAIYO YUDEN provide warranties only if the Product is operated under the condition set forth in
this Specification.
Please note that TAIYO YUDEN shall not be liable for any defect and/or malfunction arising from
use of the Product under the terms and conditions other than the operating conditions hereof.
In addition when this Product is used under environmental conditions such as over voltage which are
not guaranteed, it may be destroyed in short mode. To ensure the security of customer’s product,
please add an extra fuse or/and a protection circuit for over voltage.
本製品の保証使用条件は本仕様書の通りです。
本保証条件以外の条件で御使用になった結果発生した不良・不具合につきましては、弊社
は責任を負い兼ねますので御了承下さい。
また、過電圧等本保証条件以外の条件でご使用になった場合､ショートモードで破壊する場
合があります。安全性の確保の為にフューズや過電流保護回路等の追加をお願い致します。
ii) This Product is designed for use in products which comply with IEEE802.11abgn Specifications.
TAIYO YUDEN disclaims and is not responsible for any liability concerning infringement by this Product
under any intellectual property right owned by third party in case the customer uses this Product in any
product which does not comply with IEEE802.11abgn Specifications (the “non-complying products”).
Furthermore, TAIYO YUDEN warrants only that this Product complies with this Specification and does
not grant any other warranty including warranty for application of the non-complying products.
本製品はIEEE802.11abgnの規格に従って製造された製品であり、本製品の用途が
IEEE802.11abgn 規格以外もしくは当該規格に従わない製品への使用の場合、弊社は第三者
の知的財産権の侵害に基づくいかなる責任を負いません。また、弊社は本製品が本仕様書に
準拠することのみを保証するもので、上記IEEE802.11abgn 規格外製品への応用についての
保証等いかなる保証を行うものではありません。
ⅲ) In some cases, TAIYO YUDEN may use replacements as component parts of Products. Such
replacement shall apply only to component part of Products, which TAIYO YUDEN deems it
possible to replace or substitute according to (i) Scope of Warranty provided in this specification (e.g.
Electric Characteristics, Outline, dimension, Conditions of Use, Reliability Tests, Official Standard
(Type Approvals, etc.)) and (ii) Quality of Products. TAIYO YUDEN also ensures traceability of
such replacement on production lot basis.
本製品を構成する部材の一部について、代替品を使用する場合があります。代替使用は、
本仕様書に記載された保証範囲（特性、外形、使用条件、信頼性、公的規格（電波法等））、
および品質に照らし、弊社にて代替（完全な置換え）が可能と判断致しましたWLAN IC 以
外の部材を対象とさせて頂きます。
尚、使用した部材種についての追跡性は製造ロット毎に確保されます。
TAIYO YUDEN CO., LTD.
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ−ＡＧ−
Ａ１０００３７
（３／５）
Control name
General items
一般事項書
b. Instruction for Use (CAUTION)
使用上の注意事項
i) Because Product is not designed for radiation durability, please refrain from exposing Product to
radiation in the use.
本製品は、耐放射線設計をしておりませんので、放射線のストレスを受ける環境下での使
用は避けて下さい。
ii) Communication between this Product and other might not be established nor maintained depending
upon radio environment or operating condition of this Product and other products with WLAN
wireless technology.
本製品と本製品又は他製品の通信は、周囲の電波環境及び機器環境により確立又は維持し
難くなることがあります。
iii) This Product operates in the unlicensed ISM band at 2.4GHz and 5GHz. In case this Product is used
around the other wireless devices which operate in same frequency band of this Product, there is a
possibility that interference occurs between this Product and such other devices. If such interference
occurs, please stop the operation of other devices or relocate this Product before using this Product or
do not use this Product around the other wireless devices.
本製品は 2.4GHz 帯および 5GHz 帯の周波数を使用しています。本製品を本製品と同じ周
波数を使用した他の無線機器の周辺でご使用になりますと、本製品とかかる他の無線機器
との間で電波干渉が発生する可能性があります。電波干渉が発生した場合、他の無線機器
を停止するか、本製品の使用場所を変えるなど電波干渉の生じない環境でご使用下さい。
iv) This Product mentioned in this Specification is manufactured for Audio-Visual Equipment. Before
using this product in any special equipment (such as medical equipment, space equipment, air craft,
disaster prevention equipment), where higher safety and reliability are duly required, the applicability
suitability, or fitness for particular purpose of this Product must be fully evaluated by the customer at
its sole risk to ensure correct and safety operation of those special equipments. Also, evaluation of the
safety function of this Product even for use in general electronics equipment shall be thoroughly
made and when necessary, a protective circuit shall be added in design stage, all at the customer’s
sole risk.
本仕様書に記載されている本製品は、AV 機器向けとして製造されております。従って、高
度の安全性や信頼性が求められる医療用機器、宇宙用機器、あるいは防災機器等にお使い
になるときには、本製品の適用可能性、相応性、特定目的に対する適合性をお客様の独自
の責任で十分に評価、検討され、御判断下さい。
又、一般機器において御使用になる場合にも、お客様の独自の責任で十分な安全性評価を
実施され、必要に応じて設計時に保護回路等を追加してください。
c. Term of Support
サポート条件
i) Internal Software and various configuration parameters (ex. PA parameter, MAC
address, etc.) are written in OTP (One-Time PROM) and can not be changed or
modified. Therefore Customer is requested to fully check and verify this Software in
the evaluation phase of this Product.
内蔵ソフトウェア、PA パラメータ、MAC アドレス等の設定データは読み取り専用の OTP
（ワンタイム PROM）に書き込まれています。よって、内蔵ソフトウェアの変更はできま
せん。つきましては、本製品採用のご検討段階におかれましては、十分な評価・ご検証を
して頂けますよう、お願い申し上げます。
TAIYO YUDEN CO., LTD.
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ−ＡＧ−
Ａ１０００３７
（４／５）
Control name
General items
一般事項書
ⅱ)Do not alter Hardware and/or Software (OTP Data) of this Product.
Please note that TAIYO YUDEN shall not be liable for any problem if it is caused by customer's alteration
of Hardware or/and Software without Taiyo Yuden's prior approvals
本製品は Hardware、及び Software(OTP 格納データ)の変更は行わないで下さい。
弊社の許可なく変更した場合に、その変更によって生じたすべての問題に対して弊社は一
切責任を負いません。
ⅲ) Any failure arising out of this Product will be examined by TAIYO YUDEN regardless of before or
after mass production. Customer agrees that once such failure is turned out not to be responsible for
TAIYO YUDEN after aforesaid examination, some of the technical support shall be conducted by
TAIYO YUDEN at customer’s expense; provided however, exact cost of this technical support can
be agreed through the negotiation by the parties.
お客様にて、量産適用前後を問わず、本製品に起因する問題が生じた場合、弊社は問題解
決のために要因の検討を行います。この結果、問題の要因が弊社にないことが判明した後
のお客様へのサポートにつきましては、一部有償とさせて戴きますので、予めご了承願い
ます。なお、この際のサポート費用につきましては、その都度両社協議の上、定めさせて
頂きます。
ⅳ) In the case that customer requests TAIYO YUIDEN to customize the hardware or software of this
Product in order to meet such customer’s specific needs, TAIYO YUDEN will make commercially
reasonable effort to modify such hardware or software at customer’s expense; provide however, the
customer is kindly requested to agrees it doesn’t mean that TAIYO YUDEN has obligations to do so
even in the case it is technically difficult for TAIYO YUDEN.
お客様の都合により、ハードウェアおよびソフトウェアのカスタム対応が必要となった場
合、弊社はお客様の依頼により、有償にて本対応を行います。但し、カスタムの内容によ
りましては、対応できない場合がありますので、予めご了承ください。
TAIYO YUDEN CO., LTD.
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ−ＡＧ−
Ａ１０００３７
（５／５）
Control name
General items
一般事項書
d. Caution for Export Control
輸出注意事項
This Product may be subject to governmental approvals, consents, licenses, authorizations, declarations,
filings, and registrations for export or re-export of the Product, required by Japanese Foreign Exchange
and Foreign Trade Law(including related laws and regulations) and/or any other country’s applicable
laws or regulations related to export control.
In case you will export or re-export this Product, you are strongly recommended to check and confirm,
before exporting or re-exporting, necessary procedures for export or re-export of this Product which is
required by applicable laws and regulations, and if necessary, you have to obtain necessary and
appropriate approvals or licenses from governmental authority at your own risk and expense.
本製品は、日本国の「外国為替及び外国貿易法」（関連法令・規則を含む）及び／又は諸外
国の輸出管理関連法規に基づく輸出（再輸出を含む）申請、承認又は許可の対象となる場合
があります。本製品を輸出（再輸出）する場合には、必ず事前にこれら関連法規が定める手
続をご確認頂き、必要な場合には、お客様の責任と費用において、適切な承認・許可をお取
りください。
e. Term of Warranty
保証期間
TAIYO YUDEN warrants only that this Product is in conformity with this Specification for one year
after purchase and shall in no event give any other warranty.
弊社は納入後一年間、本製品が本仕様書を満足することを保証します。
本仕様に記載のない事項については協議の上解決するものとします。
f. Items of the Specification
仕様書の記載事項
i) Any question arising from the Specification shall be solved in good faith through mutual discussion by
the parties hereof.
本仕様書に疑義の生じた場合は、打ち合わせにより解決します。
ii) The language of this “General items” is Japanese and this “General items” shall be interpreted by
Japanese Any copies of translation is a reference purpose only and is not binding on both parties hereto.
本一般事項書は、日本語の記載を主文とし、日本語で解釈されるものとする。翻訳による服
本はあくまで参照の目的のみであり、両当事者を法的に拘束するものではない。
TAIYO YUDEN CO., LTD.
APPROVED CHECKD DRAWN DESIGNED
Control No.
ＨＤ−ＡＭ−
Ａ１０００３７
（１／１）
Control name
Absolute maximum ratings
絶対最大定格書
１. Absolute maximum ratings
絶対最大定格
Rating
Item Symbol
Min. Typ. Max. Unit Remark
Supply voltage VDD_5V -0.3 6.0 V
Input or Output pin VIMAX,VIMIN -0.5 3.6(TBD) V USB D+ D-
Storage temperature range Tstg -40 25 80 Degrees C
２. Recommendation operating range
推奨動作条件
Rating
Item Symbol
Min. Typ. Max. Unit Remark
Supply voltage VDD_5V 4.5 5.0 5.5 V
Operation temperature range Topr 0 25 55(TBD) Degrees C Humidity=40%RH
Note:
Operation temperature range is set to satisfy products electrical characteristics for a short period of time.
Refer reliability, condition to check the product life cycle if you use this module for a long period of time in the
condition other than the TYP. standard.
The standard operation for product is possible within the operation temperature range, but the electric
characteristic will fluctuate due to temperature. (The electric characteristic is stipulated as 25 degree.)
使用温度範囲は、短時間、製品電気特性を満たすように設定されています。
本モジュールを Typ.以外の状況で長時間使用する場合、製品のライフサイクルをチェックする為信頼
性条件を使用して下さい。また、使用温度範囲内では製品の基本動作は可能ですが、温度特性による
電気的特性の変動が生じます。（電気的特性は 25℃にて規定しております。）
TAIYO YUDEN Co.,Ltd.
TAIYO YUDEN CO., LTD.
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ−ＡＥ−
Ａ１０００３７
（１／２）
Control name
Electrical characteristics
電気的特性書
Electrical characteristic
DC Specifications
The Specification applies for Topr.= 25 degrees C, VDD = 5.0V
No. Parameter Condition Symbol Min. Typ. Max. Unit Remark
1 Operating Voltage VDD_5V 4.75 5.0 5.25 V
2 Input Low Voltage VIL - - 1.0 V
3 Input High Voltage
USB_DATA+
USB_DATA- VIH 4.0 - - V
4 Output Low Voltage VOL - - 1.0 V
5 Output High Voltage
USB_DATA+
USB_DATA- VOH 4.0 - - V
6 Peak current1 Continuous WLAN Tx Iccp 1 - 450 - mA Note1
Notes:
1. Please note that these electrical characteristics were measured under Taiyo Yuden evaluation environment.
Above value may vary under customer's evaluation environment or each WLAN Driver.
TAIYO YUDEN CO., LTD.
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ−ＡＥ−
Ａ１０００３７
（２／２）
Control name
Electrical characteristics
電気的特性書
AC Specifications
The Specification applies for Topr.=25 degrees C
No. Parameter Condition Symbol Min. Typ. Max. Unit
Remark
1 VDD_5V rise time
(0V to 4.75V) t1 0 2 ms
2 VDD_5V ON to USB_DATA+
pull-up t2 -
80 ms
Power ON Timing
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ−ＡＥ−
Ｂ１０００３７
（１／３）
Control name
Electrical characteristics
電気的特性書
The Specification applies for Topr.=25 degrees C, Supply voltage =5V
ANT0 and ANT1 commonness (SISO)
1, 2.4GHz Band RF Specifications
No. Parameter Condition Symbol Min Typ Max Unit
Remark
1 RF frequency range FREQ2 2402 2482 MHz
11Mbps Po2-1 6.0 8.0 10.0
Po2-2 12.5 14.5 16.5
@1ch 9.5 11.5 13.5
54Mbps
@11ch 8.5 10.5 12.5
Po2-3 10.5 12.5 14.5
@1ch 7.5 9.5 11.5
MCS=7, 20MHz BW
@11ch 9.5 11.5 13.5
2 TX Power
MCS=7, 40MHz BW Po2-4 10.0 12.0 14.0
dBm
1st Side Lobe M2-1 - -30
3 Spectrum Mask
@11Mbps 2nd Side Lobe M2-2 - -50 dBc
1st Side Lobe M2-3 - -20
2nd Side Lobe M2-4 - -28
4 Spectrum Mask
@54Mbps 3rd Side Lobe M2-5 - -40
dBc
5 Frequency tolerance Ft2 -25 25 ppm
11Mbps 100chip Peak EVM2-1 - 25.0 35.0
54Mbps RMS EVM2-2 3.0 5.6
6 EVM
MCS=7, RMS,, LGI EVM2-3 2.8 4.0
%
11Mbps SEN2-1 -88.5 -76.0
PER<8%
54Mbps SEN2-2 -74.5 -65
6Mbps SEN2-3 -87.0 -82
MCS=7, 20MHz BW,
LGI, Mixed Mode SEN2-4 -71.0 -64
MCS=0, 20MHz BW,
LGI, Mixed Mode SEN2-5 -87.0 -82
MCS=7, 40MHz BW,
LGI, Mixed Mode SEN2-6 -66.0 -61
7 Rx sensitivity
MCS=0, 40MHz BW,
LGI, Mixed Mode SEN2-7 -85.0 -79
dBm
PER<10%
11b, PER<8% MIL2-1 -10 - dBm
8 Maximum Input Level
11g,/n, PER<10% MIL2-2 -20 - dBm
Note:
The above electrical characteristics are specified based on using W-LAN Driver file.
If the W-LAN Driver file is changed to the other version, all 3 companies (Customer, IC manufacturer and Taiyo Yuden)
should confirm and agree on the module characteristics with the new W-LAN Driver file.
TAIYO YUDEN Co.,Ltd.
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ−ＡＥ−
Ｂ１０００３７
（１／３）
Control name
Electrical characteristics
電気的特性書
2, 5GHz Band RF Specifications
No. Parameter Condition Symbol Min Typ Max Unit
Remark
Mid Band FREQ5-M 5170 5330
1 RF frequency range Hi Band FREQ5-H 5490 5835 MHz
Po5-1 9.5 11.5 13.5
@36ch 7.5 9.5 11.5
54Mbps, Mid Band
@53-60ch 11.0 13.0 15.0
Po5-2 11.5 13.5 15.5
@100ch 9.0 11.0 13.0
@104-136ch 11.0 13.0 15.0
54Mbps, Hi Band
@140ch 5.5 7.5 9.5
Po5-3 9.5 11.5 13.5
@36ch 7.5 9.5 11.5
@52ch 10.5 12.5 14.5
MCS=7, Mid Band 20MHz BW
@53-60ch 10.0 12.0 14.0
Po5-4 10.0 12.0 14.0
@100ch 8.5 10.5 12.5
MCS=7, Hi Band 20MHz BW
@140ch 5.0 7.0 9.0
Po5-5 10.5 12.5 14.5
@38ch 6.5 8.5 10.5
MCS=7, Mid Band 40MHz BW
@62ch 7.5 9.5 11.5
Po5-6 11.0 13.0 15.0
@104-136ch 9.5 11.5 13.5
2 TX Power
MCS=7, Hi Band 40MHz BW
@102ch 5.5 7.5 9.5
dBm
1st Side Lobe M5-1 - -20 dBc
2nd Side Lobe M5-2 - -28 dBc
3 Spectrum
Mask@54Mbps 3rd Side Lobe M5-3 - -40 dBc
4 Frequency tolerance Ft5 -20 20 ppm
54Mbps, RMS EVM5-1 - 3.0 5.6
5 EVM
MCS=7, RMS EVM5-2 3.5 4.0
%
54Mbps SEN5-1 -73.0 -65.0
6Mbps SEN5-2 -87.0 -82.0
MCS=7, 20MHz BW,
LGI, Mixed Mode SEN5-3 -70.0 -64.0
MCS=0, 20MHz BW,
LGI, Mixed Mode SEN5-4 -87.0 -82.0
MCS=7, 40MHz BW,
LGI, Mixed Mode SEN5-5 -67.0 -61
6 Rx sensitivity
MCS=0, 40MHz BW,
LGI, Mixed Mode SEN5-6 -85.0 -79
dBm PER<10%
7 Maximum Input Level PER<10% MIL -30 - dBm
Note:
The above electrical characteristics are specified based on using W-LAN Driver file.
If the W-LAN Driver file is changed to the other version, all 3 companies (Customer, IC manufacturer and Taiyo Yuden)
should confirm and agree on the module characteristics with the new W-LAN Driver file.
TAIYO YUDEN Co.,Ltd.
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ−ＡＤ−
Ａ１０００３７
（１／２）
Control name
Outline･Appearance
外形・外観図
4.2 Max.
2.1 Max.
Φ3.5
41.0
45.0
4.5
2.3φ
2.3φ
0.0
6.9
6.5
11.5
17.7
24.69.1 11.3
16.0
29.0
8.75 8.75
23.5
0.0
3.0
3.5
5.25
28.75
34.0
37.0
37.5
3.0
17.0
3.5
2.3
4.2 Max.
Case h=2.7 Max.
Φ2.3
CN h=5.25 Max.
Φ3.0
LABEL1
On Case
LABEL2
Back side
7.8
TAIYO YUDEN CO., LTD.
Unit: mm
Tolerances unless otherwise specified: +/- 0.1mm
指示無き公差: +/- 0.1m
m
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ−ＡＤ−
Ａ１０００３７
（２／２）
Control name
Outline･Appearance
外形・外観図
LABEL1
LABEL2
TAIYO YUDEN CO., LTD.
3.5mm
39.0mm
8.5mm
007YWAUL0567 ５GHz帯は屋内使用限定
007XWAUL0566
007WWCUL0565
Module Number WYPAEBUX4 -JP
3.5mm
R
XXXX
5mm in diameter
20mm
8.6mm
11.4mm
7.25 ~ 7.8mm
10.0mm 10.0mm
20.0mm
7.25 ~ 7.8mm
MAC Address
Lot No.
C5ZZZ0000056
WYPAEBUX4 -JP
Made in CHINA
TAIYO YUDEN
XXXXXXXXXXXX
IC: 4389B-WYPAEBUX4
FCC ID: RYYWYPAEBUX4
XXXX
5mm in diameter
20mm
8.6mm
11.4mm
7.25 ~ 7.8mm
20mm
8.6mm
11.4mm
7.25 ~ 7.8mm7.25 ~ 7.8mm
10.0mm 10.0mm
20.0mm
7.25 ~ 7.8mm
10.0mm 10.0mm
20.0mm
7.25 ~ 7.8mm
10.0mm 10.0mm
20.0mm20.0mm
7.25 ~ 7.8mm
MAC Address
Lot No.
C5ZZZ0000056
WYPAEBUX4 -JP
Made in CHINA
TAIYO YUDEN
XXXXXXXXXXXX
IC: 4389B-WYPAEBUX4
FCC ID: RYYWYPAEBUX4
C5ZZZ0000056
WYPAEBUX4 -JP
Made in CHINA
TAIYO YUDEN
XXXXXXXXXXXX
C5ZZZ0000056
WYPAEBUX4 -JP
Made in CHINA
TAIYO YUDEN
XXXXXXXXXXXX
IC: 4389B-WYPAEBUX4
FCC ID: RYYWYPAEBUX4
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ−ＢＡ−
Ａ１０００３７
（１／２）
Control name
Pin layout
ピンレイアウト図
Pin Description of module
J1
No. Pin Name I/O Description
1 VDD_5V I DC5V power supply
2 USB_DATA- I/0 USB interface port DATA-
3 USB_DATA+ I/0 USB interface port DATA+
4 GND - Ground
J2
No. Pin Name I/O Description
1 RF_1 I/O RF IN/OUT port ANT1
2 GND - Ground
J3
No. Pin Name I/O Description
1 RF_0 I/O RF IN/OUT port ANT0
2 GND - Ground
TAIYO YUDEN Co.,Ltd
Top View
26-Oct-2010 Ver.0.1
Under NDA
TAIYO YUDEN Confidential
TAIYO YUDEN
WYPAEBUX4
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
26-Oct-2010 Ver.0.1
Under NDA
TAIYO YUDEN Confidential
TAIYO YUDEN
WYPAEBUX4
This device is intended only for OEM integrators under the following
conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users,
and
2) The transmitter module may not be co-located with any other transmitter or antenna,
3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11
for 2.4G band by supplied firmware programming tool. OEM shall not supply any tool or
info to the end-user regarding to Regulatory Domain change.
As long as 3 conditions above are met, further transmitter test will not be required. However,
the OEM integrator is still responsible for testing their end-product for any additional
compliance requirements required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for example
certain laptop configurations or co-location with another transmitter), then the FCC
authorization is no longer considered valid and the FCC ID can not be used on the final product.
In these circumstances, the OEM integrator will be responsible for re-evaluating the end
product (including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed
such that 20 cm may be maintained between the antenna and users. The final end product must
be labeled in a visible area with the following: “Contains FCC ID: RYYWYPAEBUX4”.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how
to install or remove this RF module in the user’s manual of the end product which integrates
this module.
The end user manual shall include all required regulatory information/warning as show in this
manual.
26-Oct-2010 Ver.0.1
Under NDA
TAIYO YUDEN Confidential
TAIYO YUDEN
WYPAEBUX4
Canadian Regulatory Wireless Notice
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the
following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired
operation of the device
Caution:
The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for
harmful interference to co-channel mobile satellite systems.
High power radars are allocated as primary users (meaning they have priority) of 5250-5350
MHz and 5650-5850 MHz and these radars could cause interference and/or damage to LE-LAN
devices.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body.
26-Oct-2010 Ver.0.1
Under NDA
TAIYO YUDEN Confidential
TAIYO YUDEN
WYPAEBUX4
This device is intended only for OEM integrators under the following
conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users,
and
2) The transmitter module may not be co-located with any other transmitter or antenna,
3) For all products market in CANADA, OEM has to limit the operation channels in CH1 to
CH11 for 2.4G band by supplied firmware programming tool. OEM shall not supply any
tool or info to the end-user regarding to Regulatory Domain change.
As long as 3 conditions above are met, further transmitter test will not be required. However,
the OEM integrator is still responsible for testing their end-product for any additional
compliance requirements required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for example
certain laptop configurations or co-location with another transmitter), then the CANADA
authorization is no longer considered valid and the CANADA ID can not be used on the final
product. In these circumstances, the OEM integrator will be responsible for re-evaluating the
end product (including the transmitter) and obtaining a separate CANADA authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed
such that 20 cm may be maintained between the antenna and users. The final end product must
be labeled in a visible area with the following: “Contains IC : 4389B-WYPAEBUX4”.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how
to install or remove this RF module in the user’s manual of the end product which integrates
this module.
The end user manual shall include all required regulatory information/warning as show in this
manual.
